Street Build Return of the King

Year:
1993
Model/Trim:
Eagle Talon TSi AWD
Please Support Morrison Fabrications
Please Support ExtremePSI
  1. Vegas Smith

    Vegas Smith Proven Member

    4,037
    1,886
    Joined Dec 2, 2002
    Houston, Texas

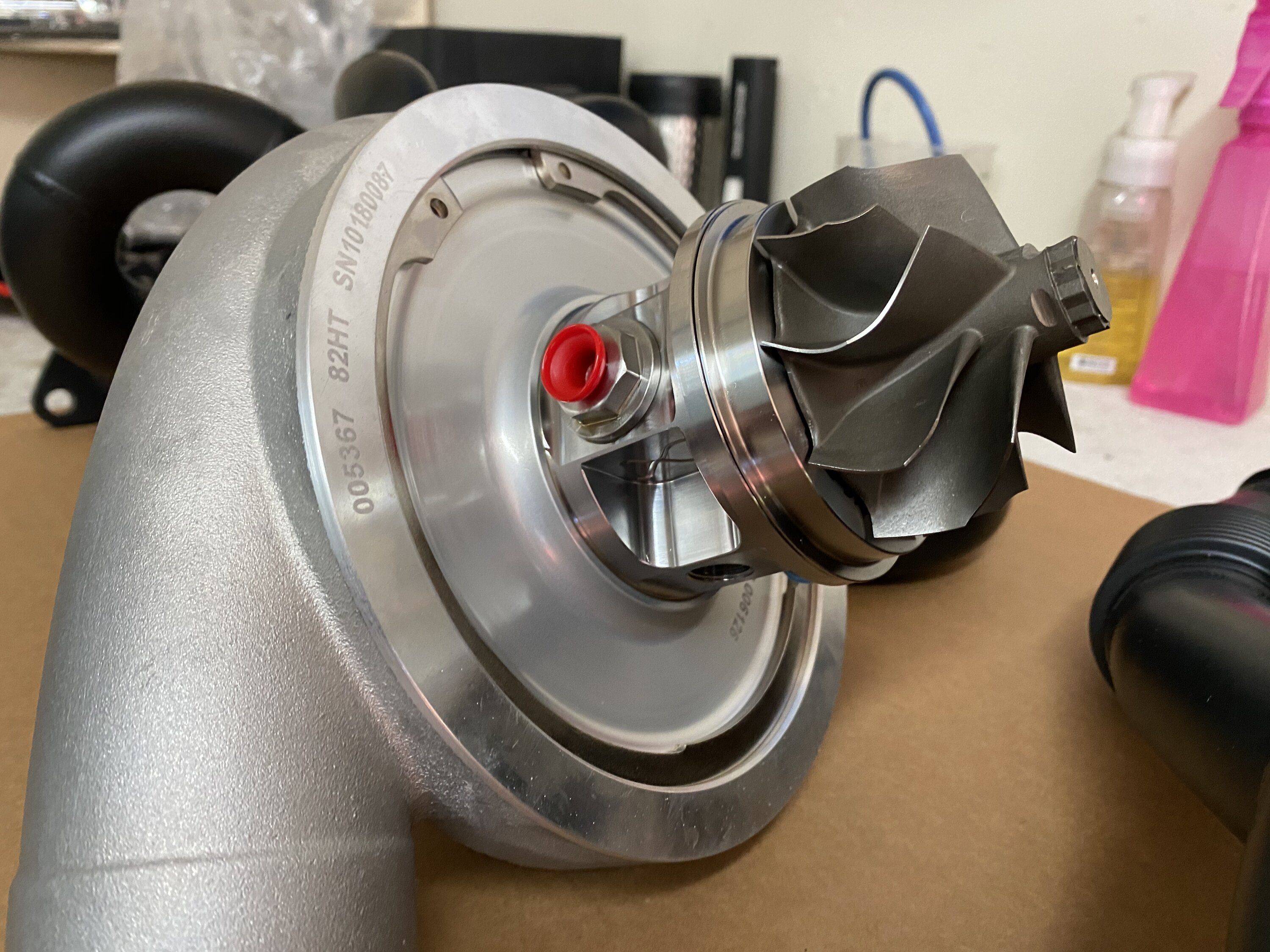

    I need to install the turbine housing and take some pics, but it's the XR71-64S with 0.64 hotside.

    Last edited: Oct 19, 2020

    Street Build 4K  4

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  2. iugrad92turbo

    iugrad92turbo Supporting Member

    12,337
    501
    Joined May 22, 2007
    Kalamazoo, Michigan
    Well were waiting on the updates, brother.


    8K  5

    1992 Eagle Talon TSi
    awd · manual · 1G DSM
    Loading...
    Vegas Smith likes this.
  3. 1cleangsx

    1cleangsx Proven Member

    388
    202
    Joined Sep 28, 2013
    Cheyenne, Wyoming
    I bet that thing will be a blast on the street:hellyeah:


    Street Build 2K  11

    1990 Mitsubishi Eclipse GSX
    13.2 @ 104.64 · 1G DSM
    Loading...
  4. Vegas Smith

    Vegas Smith Proven Member

    4,037
    1,886
    Joined Dec 2, 2002
    Houston, Texas
    Yeah, it's purely for street use. Most people would opt for the 0.82 housing but it lags about 400rpm and make more power around 8k according to Robert Young. When I dyno it I'm just going to tell them to hit 600 and stop there.


    Street Build 4K  4

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  5. We're on Boost

    We're on Boost Proven Member

    1,117
    105
    Joined Aug 25, 2007
    Seattle area, Washington
    Wow, that's what I did and for the same reasons.
    .63 A/R, on similar size turbo, and I said let's call Close Of Business at 8,000 rpm.
    I also gave ER a "stop at hp" number for their dyno tuning sessions. Which they hit pretty easy.
    I figured I didn't need the extra ~40 hp or so at the top end. But the extra ~400 rpm of bandwidth at the bottom end I sure did want.


    4K  22

    1990 Eagle Talon TSi AWD
    650 whp · 510 lb/ft · 1G DSM

    2K  0

    1990 Eagle Talon TSi AWD
    manual · 1G DSM
    Loading...
    pat white and Vegas Smith like this.
  6. Anfurnyy

    Anfurnyy Probationary Member

    9
    6
    Joined Jul 4, 2020
    Rapid City, South Dakota
    First time I've stumbled across this post and "accidentally" read the whole thing. I just bought my first DSM (93 tsi) and while it wasn't quite the wreck yours was starting out, it was still a mess. yours is definitely an inspiration! love the build!


    Street Build 281  3

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
    Vegas Smith likes this.
  7. Vegas Smith

    Vegas Smith Proven Member

    4,037
    1,886
    Joined Dec 2, 2002
    Houston, Texas
    Thanks for taking a look. Huge updates coming as the new parts arrive.


    Street Build 4K  4

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
    iugrad92turbo and Anfurnyy like this.
  8. 1cleangsx

    1cleangsx Proven Member

    388
    202
    Joined Sep 28, 2013
    Cheyenne, Wyoming
    Vegas I just gotta say man I think you’r a true dsm’er. You took a car that only a mother could love, and thru hard work and dedication turned it into truly a NICE car, I don’t know exactly what your ultimate dream or vision for your ride is, but I just wanna say I think you have a nice well rounded street car that you should be proud of, I know I would be, cheers brotha:hellyeah:


    Street Build 2K  11

    1990 Mitsubishi Eclipse GSX
    13.2 @ 104.64 · 1G DSM
    Loading...
  9. Vegas Smith

    Vegas Smith Proven Member

    4,037
    1,886
    Joined Dec 2, 2002
    Houston, Texas
    Thanks my man. I've always loved these cars so there's nothing else I'd rather build.


    Street Build 4K  4

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  10. iugrad92turbo

    iugrad92turbo Supporting Member

    12,337
    501
    Joined May 22, 2007
    Kalamazoo, Michigan
    Im with you man I love my dsm, even when things break.


    8K  5

    1992 Eagle Talon TSi
    awd · manual · 1G DSM
    Loading...
    1cleangsx and We're on Boost like this.
  11. Patrick mosher

    Patrick mosher Probationary Member

    2
    0
    Joined May 4, 2018
    Elmira, New York
    Build or have one built right

  12. Vegas Smith

    Vegas Smith Proven Member

    4,037
    1,886
    Joined Dec 2, 2002
    Houston, Texas

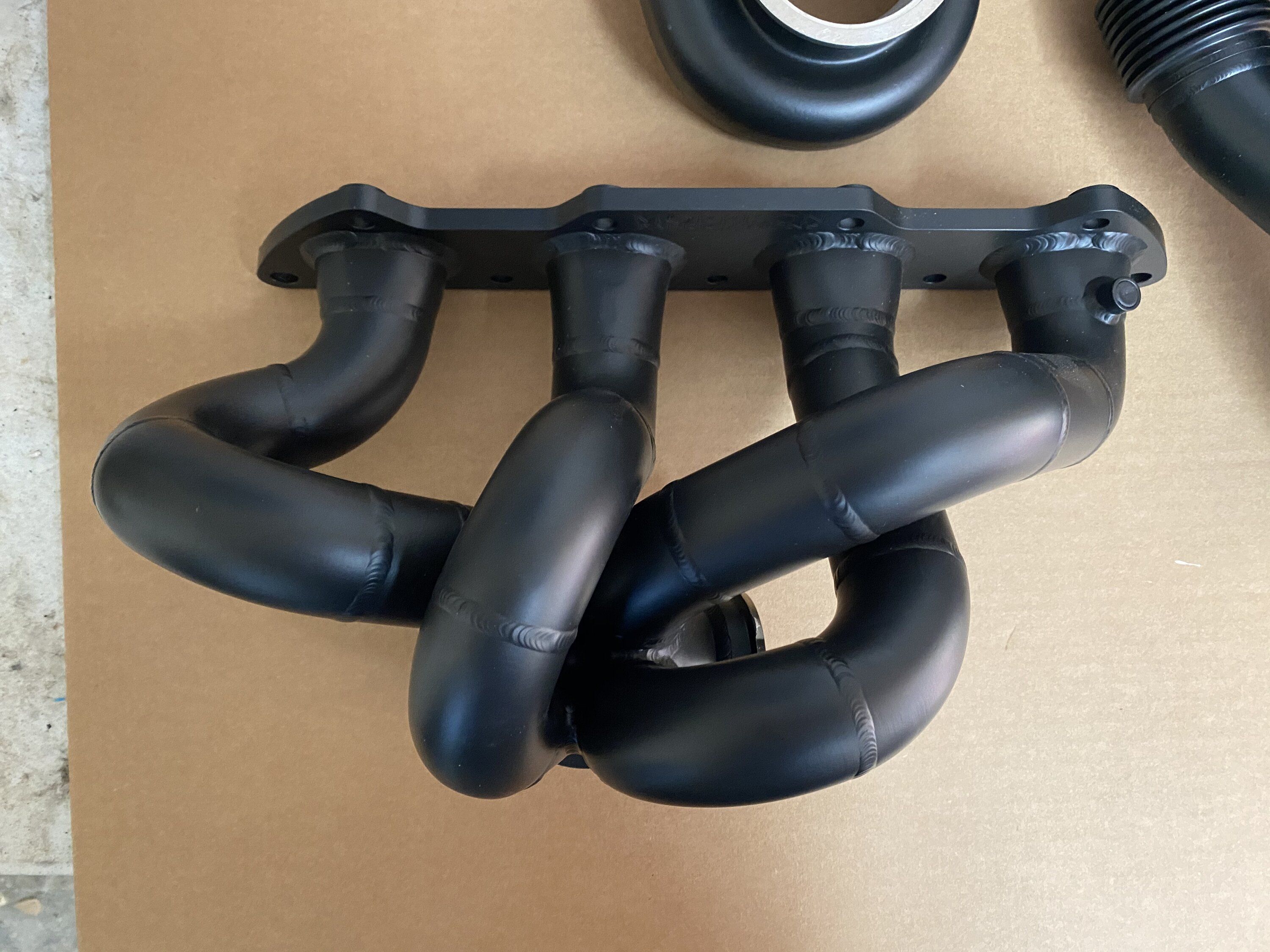

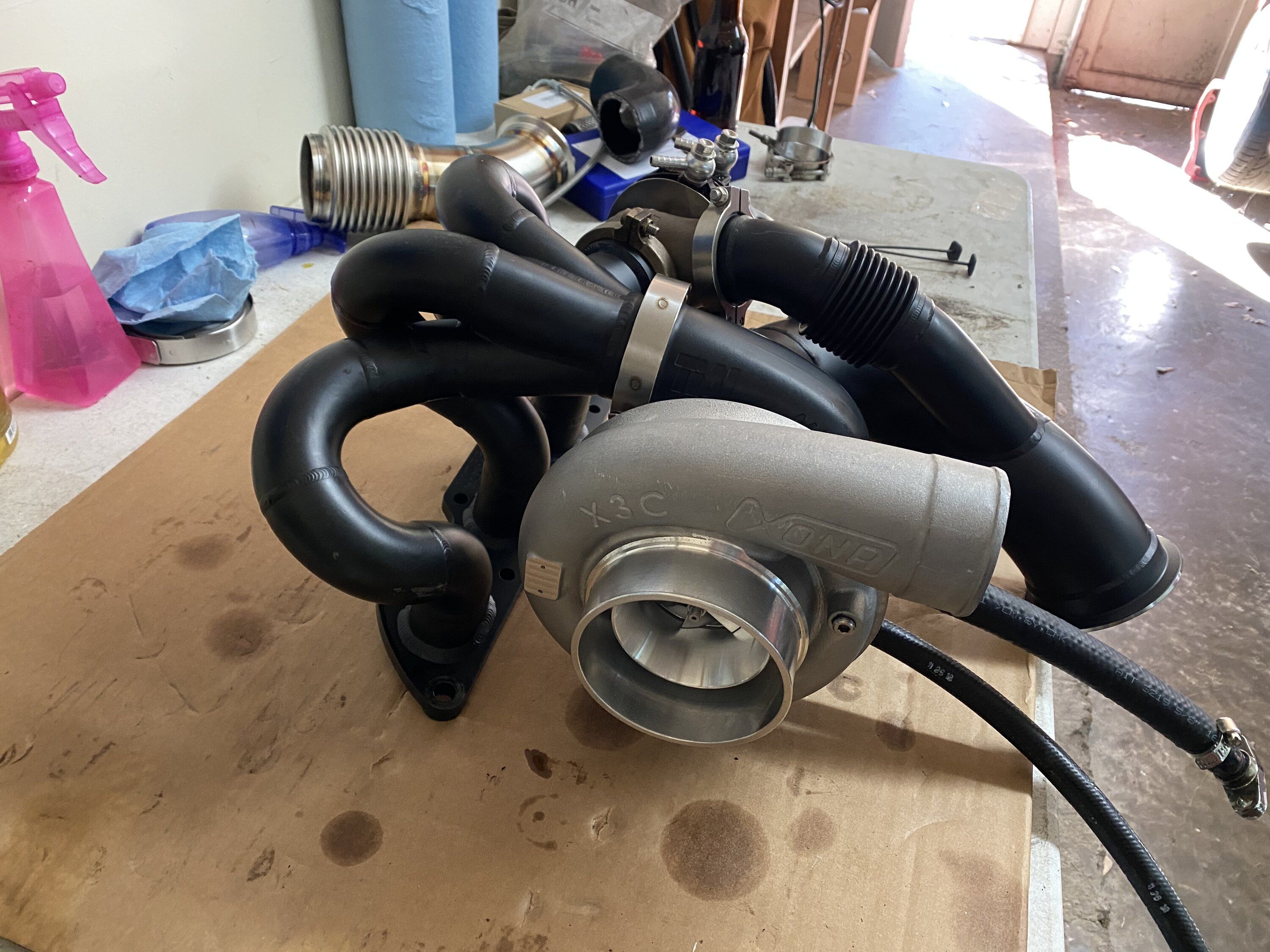

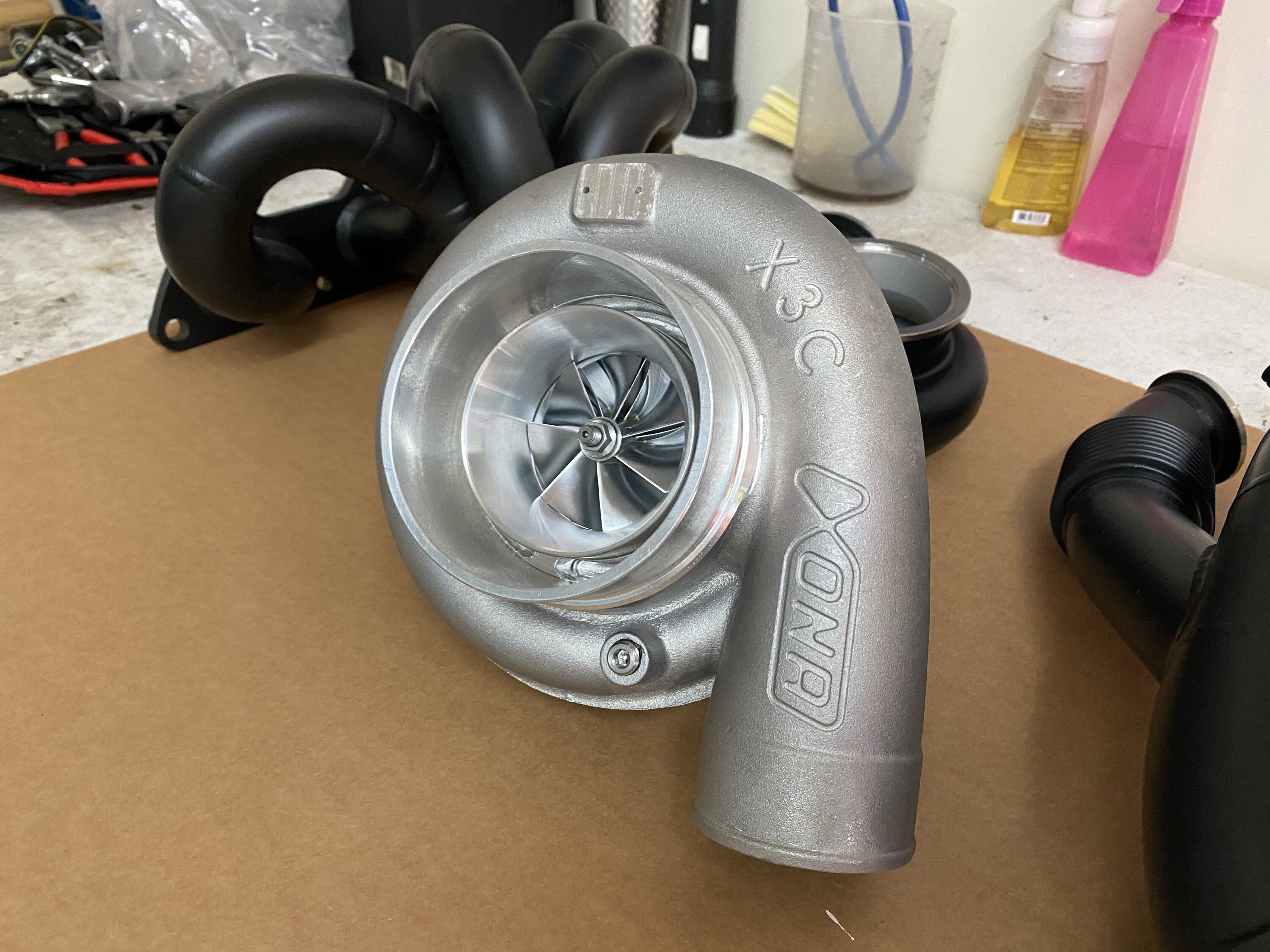

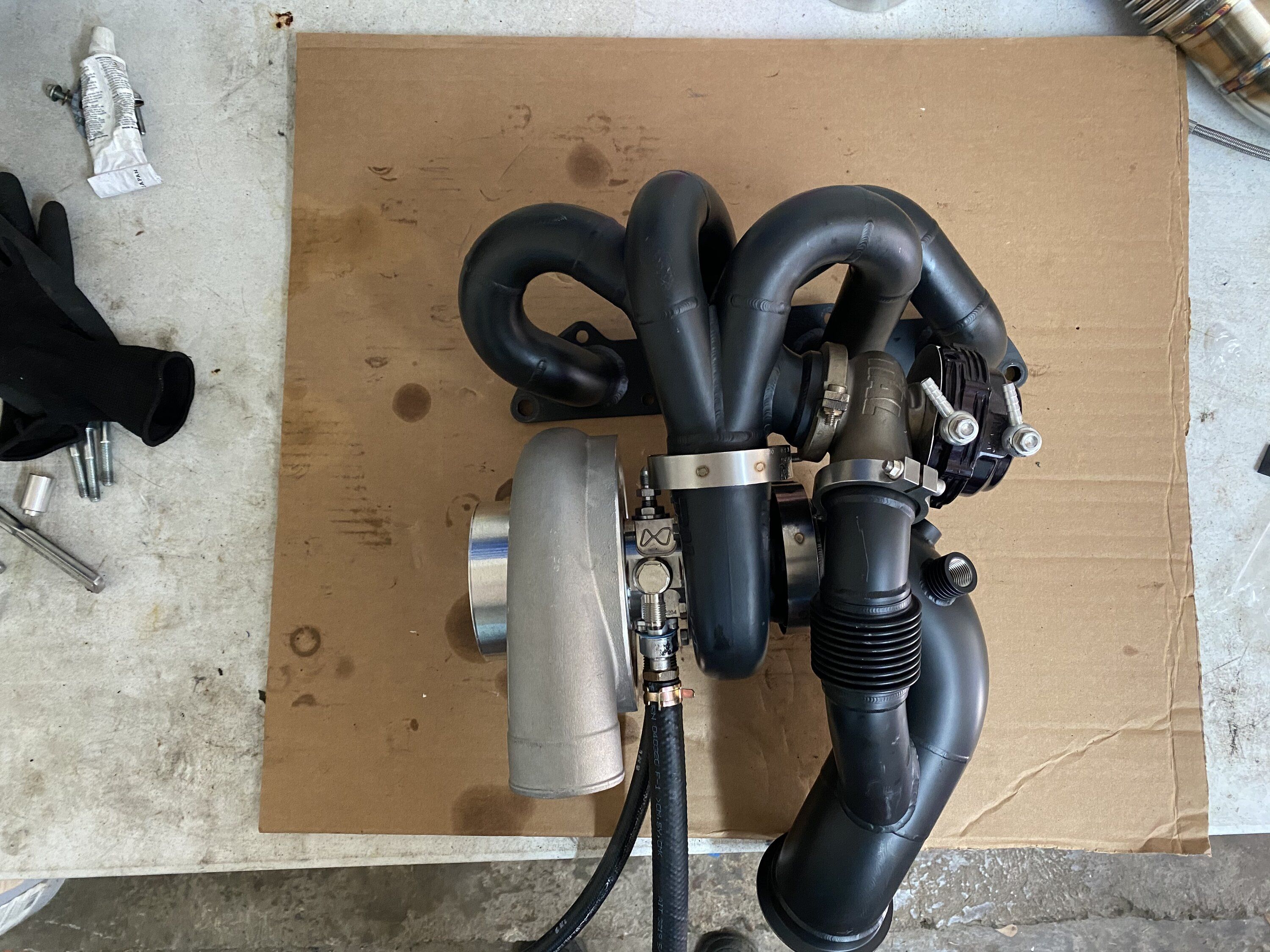

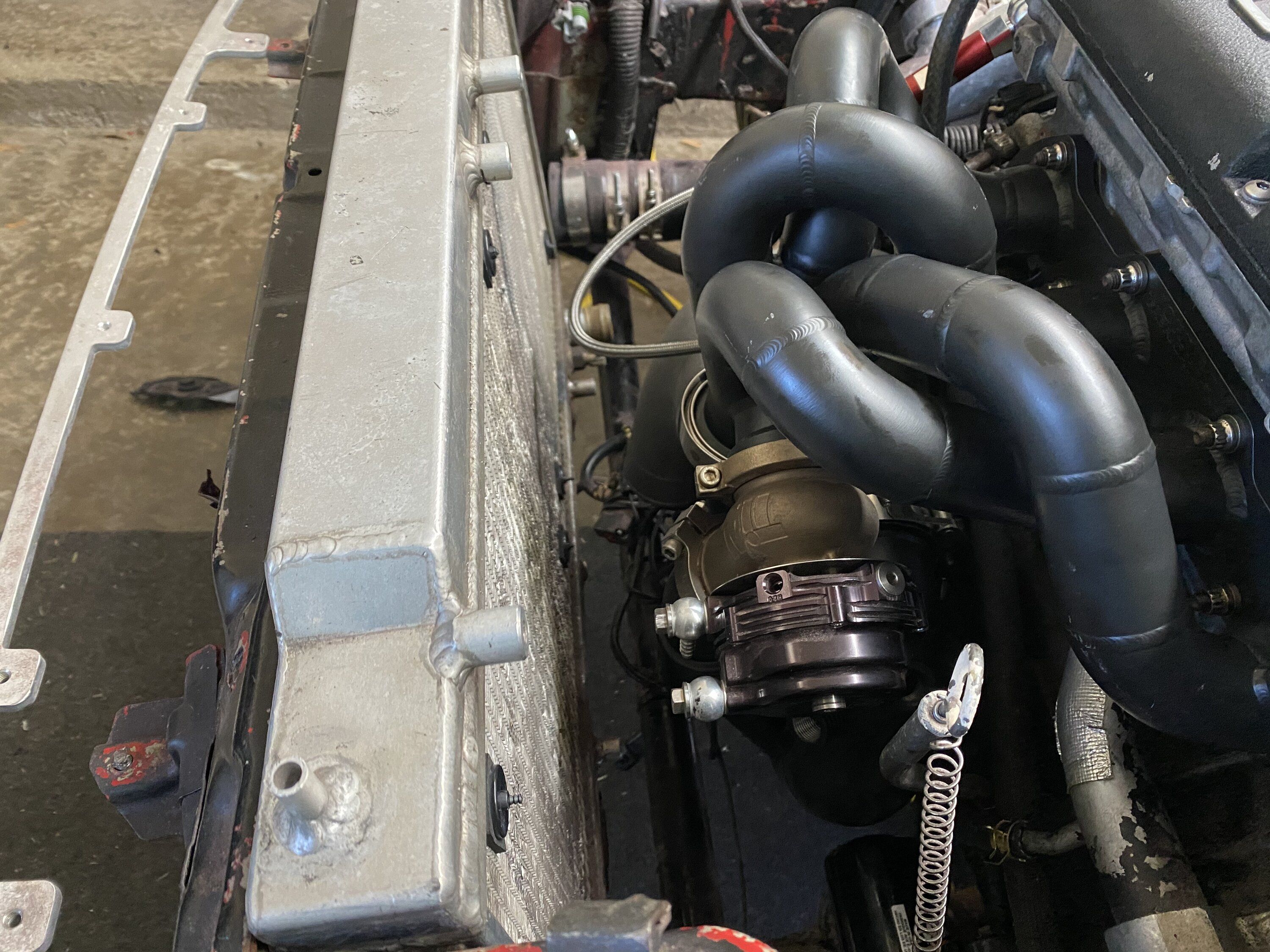

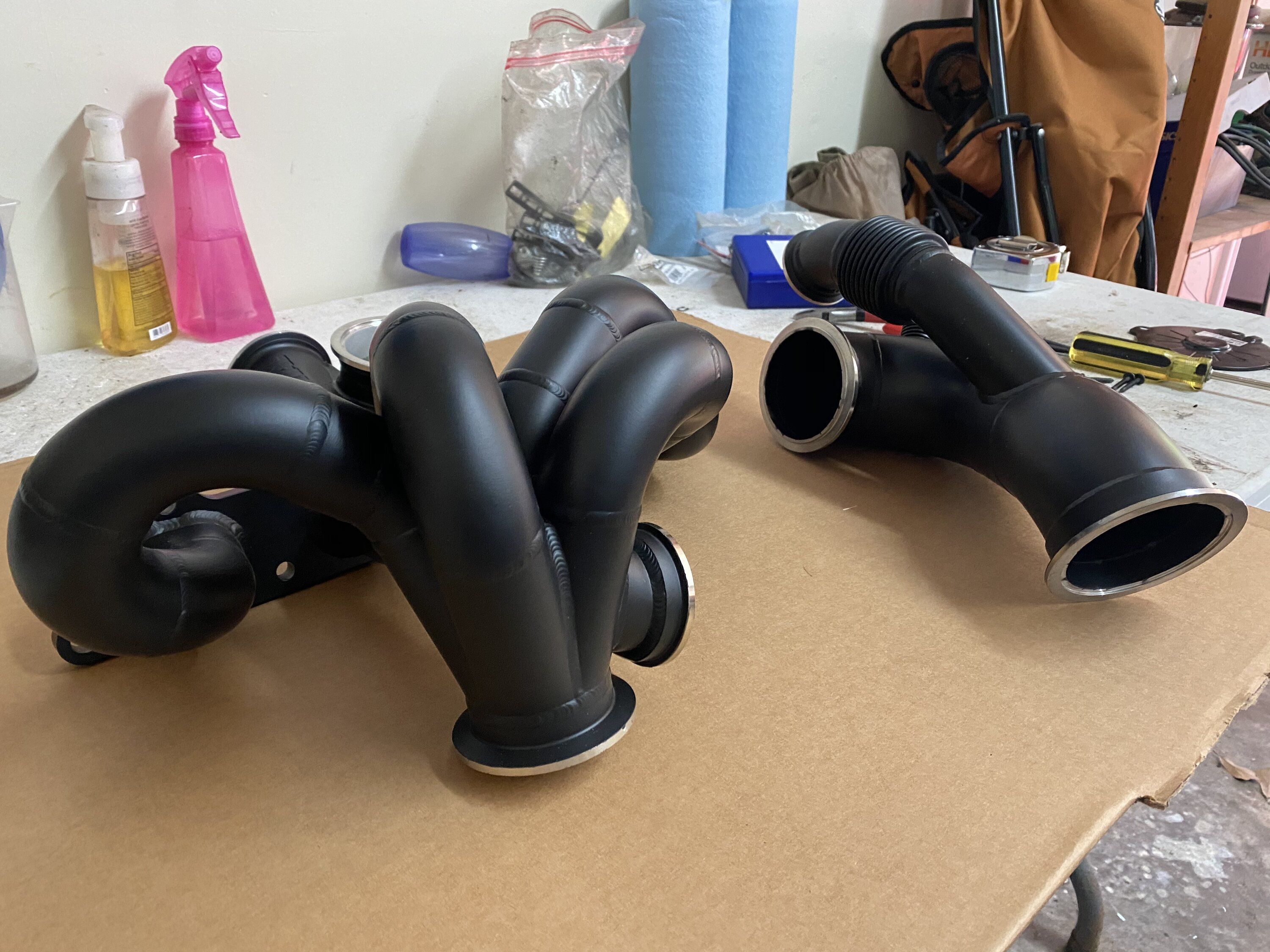

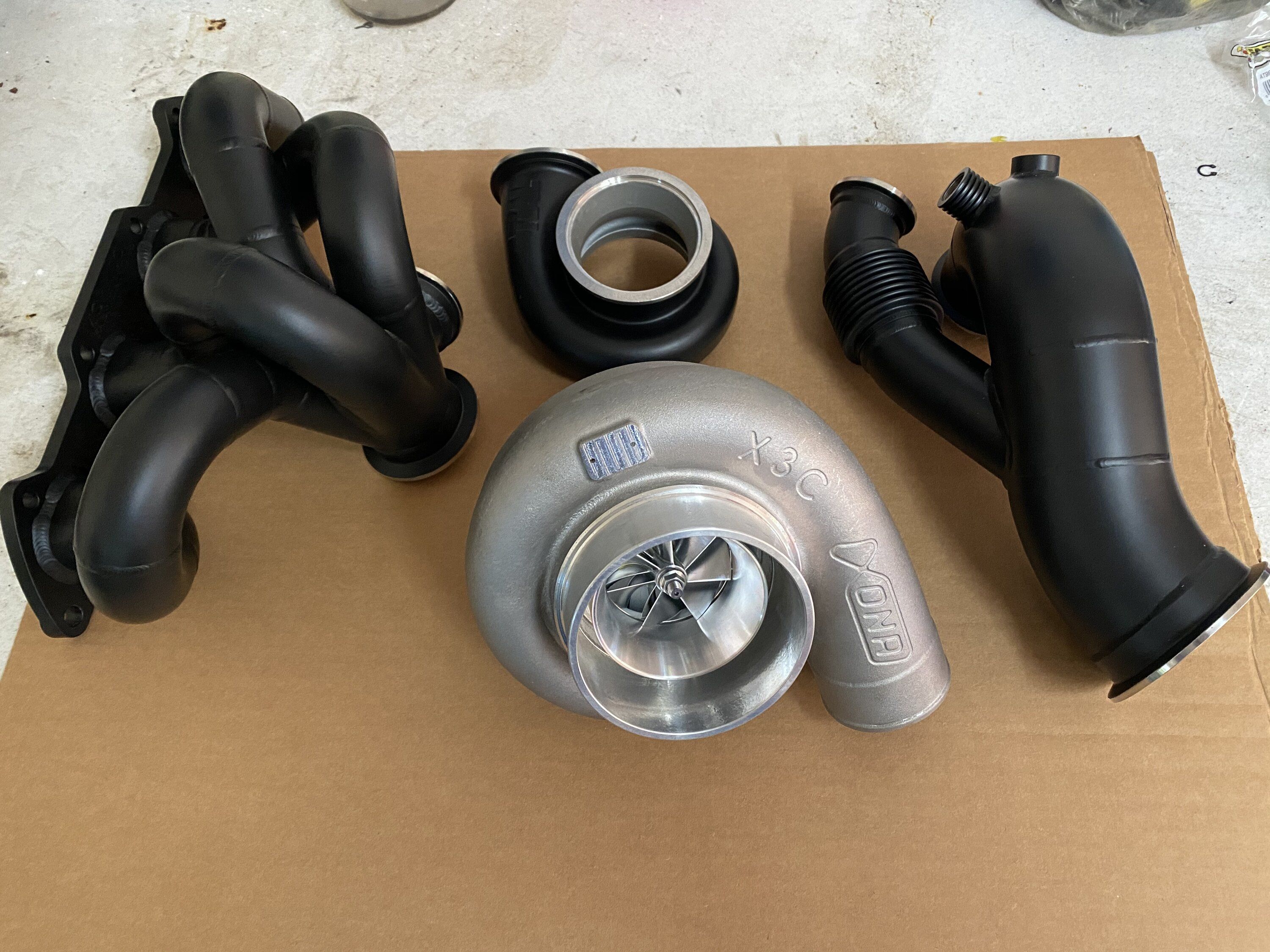

    Parts are back from Polydyne coating. It's pretty neat that Polydyne is only 13 minutes from me. Just a pleasant drive to pick them up. I'm doing some installing today to determine fan clearance to see if I need to switch anything up. Updates coming.
    IMG_0513.jpg IMG_0514 1.jpg IMG_0515 1.jpg IMG_0516.jpg IMG_0517.jpg


    Street Build 4K  4

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  13. iugrad92turbo

    iugrad92turbo Supporting Member

    12,337
    501
    Joined May 22, 2007
    Kalamazoo, Michigan
    Sweet man no t3 yet but its coming for me, curiors to see how the coating holds up, looks so good, updates when you can following.


    8K  5

    1992 Eagle Talon TSi
    awd · manual · 1G DSM
    Loading...
    Vegas Smith likes this.
  14. We're on Boost

    We're on Boost Proven Member

    1,117
    105
    Joined Aug 25, 2007
    Seattle area, Washington
    Thanks for the really good pics, wow! Are those cell phone pics, or other camera type?
    Even with a good look at the O2 housing here, I'm still guessing at what the extra fitting is for - the one that has like ribs on the outside.
    Coating looks real nice. And the way FP finishes center section, it's almost too nice to put on a car. I would just leave it on my coffee table in the living room for a while. The compressor housing flange surface and printing on it, wow too.


    4K  22

    1990 Eagle Talon TSi AWD
    650 whp · 510 lb/ft · 1G DSM

    2K  0

    1990 Eagle Talon TSi AWD
    manual · 1G DSM
    Loading...
    iugrad92turbo likes this.
  15. Vegas Smith

    Vegas Smith Proven Member

    4,037
    1,886
    Joined Dec 2, 2002
    Houston, Texas

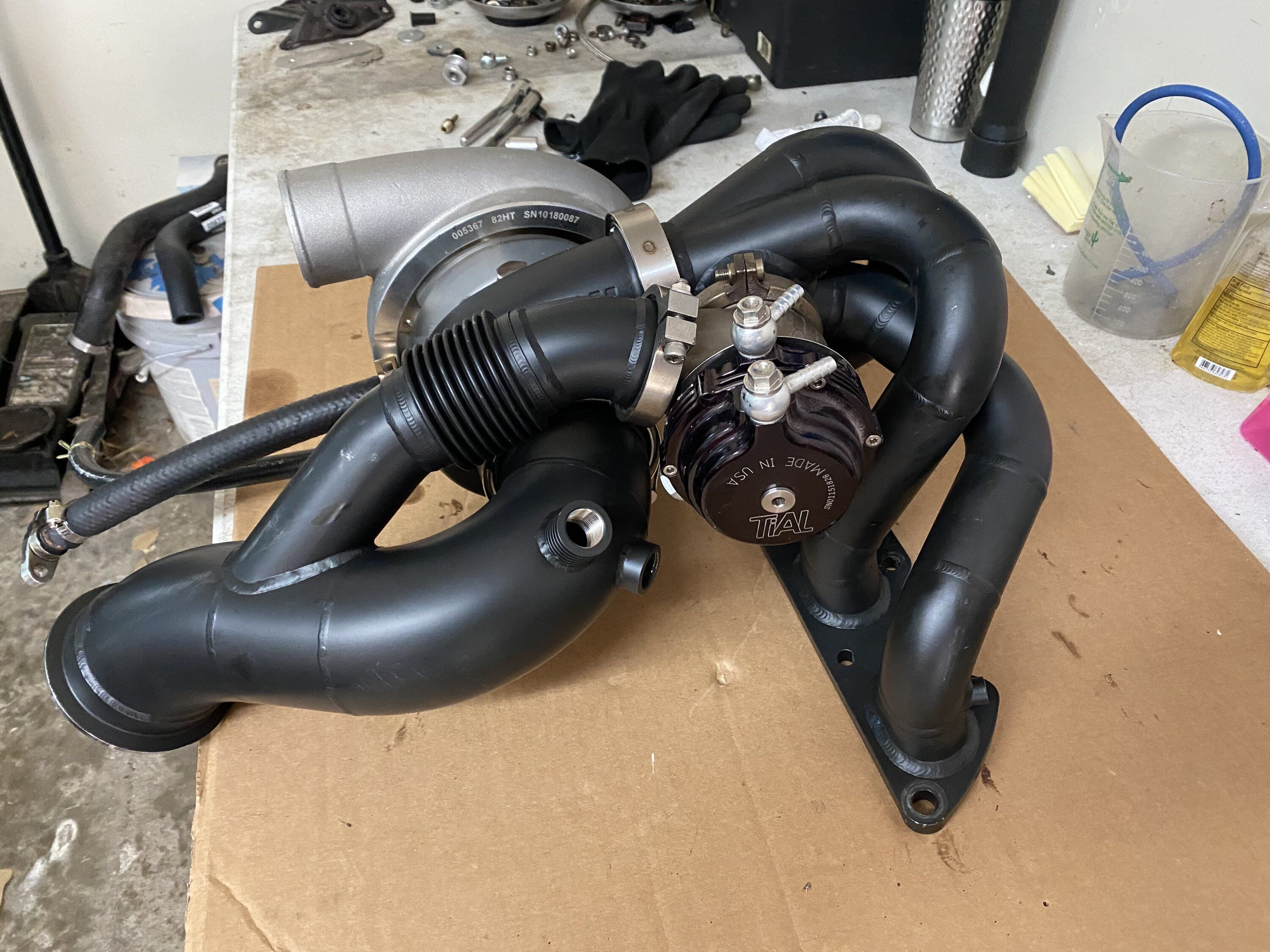

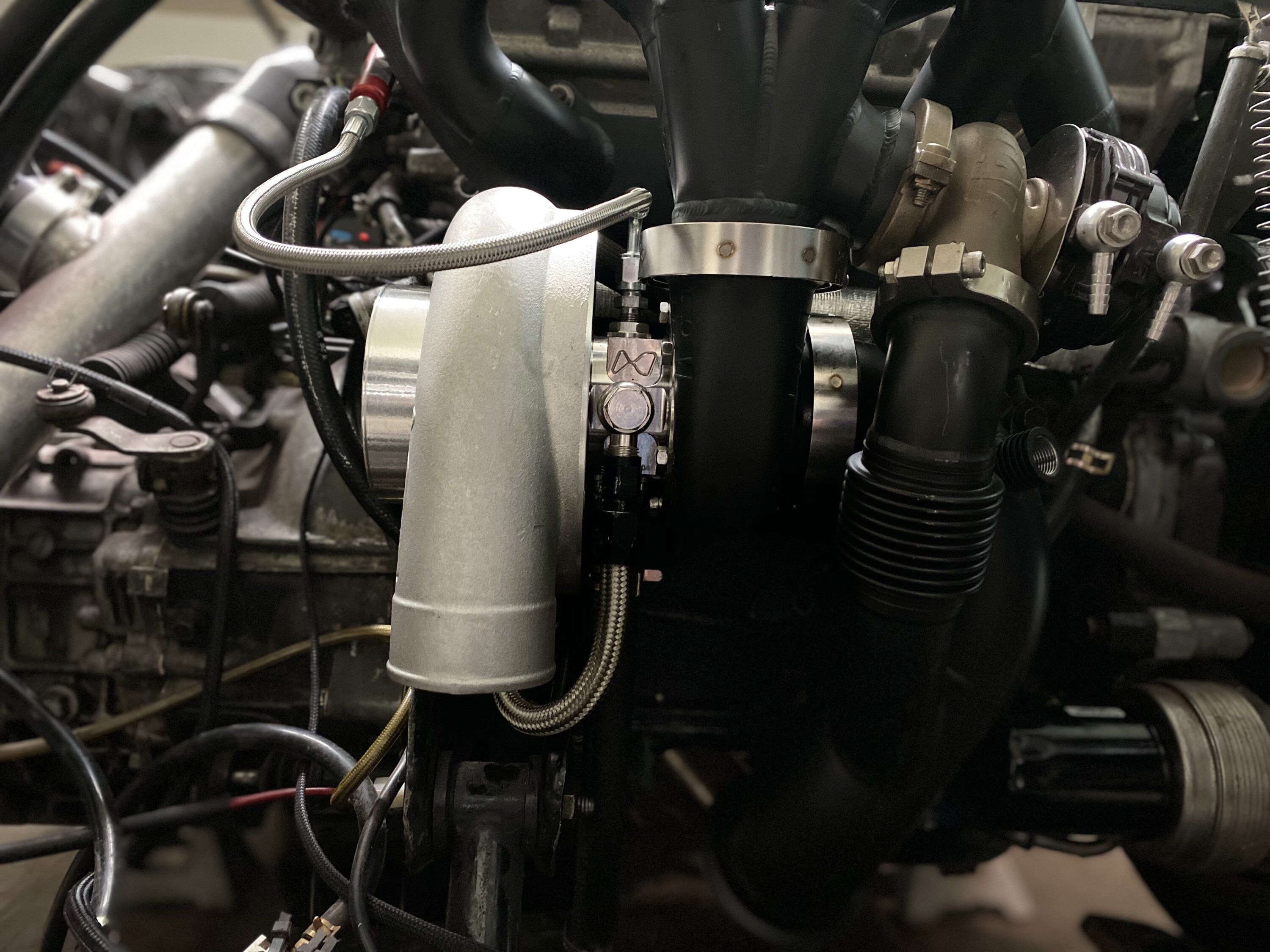

    These photos were taken with an iPhone 11. The cameras on these phones are incredible. The o2 housing has two bungs for wideband sensors and the big ribbed fitting is for the TIAL wastegate; it's a recirculated housing.


    Street Build 4K  4

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  16. We're on Boost

    We're on Boost Proven Member

    1,117
    105
    Joined Aug 25, 2007
    Seattle area, Washington
    Yeah, I've probably said it before but I wish all the pics older than about 2-3 years ago could be retaken with modern cameras.
    So the 2 sensor bungs on the O2 housing, one ribbed and one not - are the ribs for cooling? I mean, if that's what they are supposed to do, you could put a wide band in that one because wideband sensors like to run a little cooler than a regular narrow band, right? You could put the stock OEM narrow band in the one with no ribs.
    This would be handy for anybody who hasn't already added a wideband bung onto their downpipe. Which is what I did because I didn't want to do narrow band simulation with the wideband. I wanted both sensors.
    Or is it for some other reason?


    4K  22

    1990 Eagle Talon TSi AWD
    650 whp · 510 lb/ft · 1G DSM

    2K  0

    1990 Eagle Talon TSi AWD
    manual · 1G DSM
    Loading...
  17. Vegas Smith

    Vegas Smith Proven Member

    4,037
    1,886
    Joined Dec 2, 2002
    Houston, Texas
    Correct. The ribbed bung is for extra cooling with a wideband sensor.


    Street Build 4K  4

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  18. 90TSiAWD_FPGreen

    90TSiAWD_FPGreen Probationary Member

    19
    8
    Joined Feb 18, 2018
    Lafayette, Louisiana
    Amazing build thread. Awesome pictures, much humor and no bashing = the best, long, thorough thread I've come across here, and I have read many. From an 18g, to another, to another, etc turbo. Man, I wish I had the money to do that. You say you hate the job, but I love mine and am always broke, LOL. You have a great car and your work has become a value to us all.


    Street Build 817  10

    1990 Eagle Talon TSi AWD
    415 whp · 407 lb/ft · 1G DSM
    Loading...
  19. Vegas Smith

    Vegas Smith Proven Member

    4,037
    1,886
    Joined Dec 2, 2002
    Houston, Texas
    Thanks man. I moved on from that job a long time ago and am much happier.


    Street Build 4K  4

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
    90TSiAWD_FPGreen likes this.
  20. Vegas Smith

    Vegas Smith Proven Member

    4,037
    1,886
    Joined Dec 2, 2002
    Houston, Texas

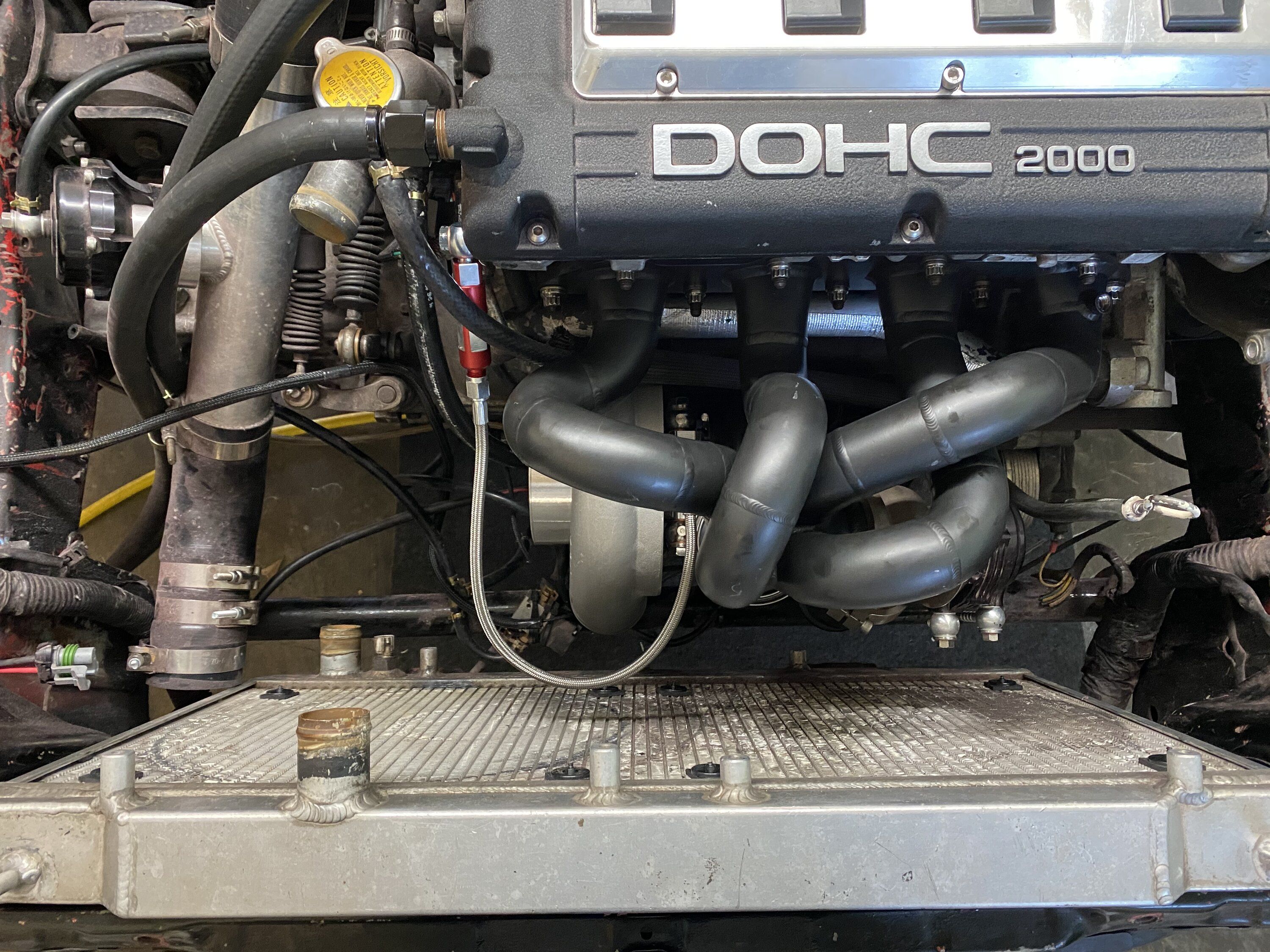

    IMG_0535.jpg IMG_0536.jpg IMG_0537.jpg IMG_0539.jpg IMG_0540.jpg IMG_0541.jpg IMG_0545.jpg


    Street Build 4K  4

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  21. We're on Boost

    We're on Boost Proven Member

    1,117
    105
    Joined Aug 25, 2007
    Seattle area, Washington

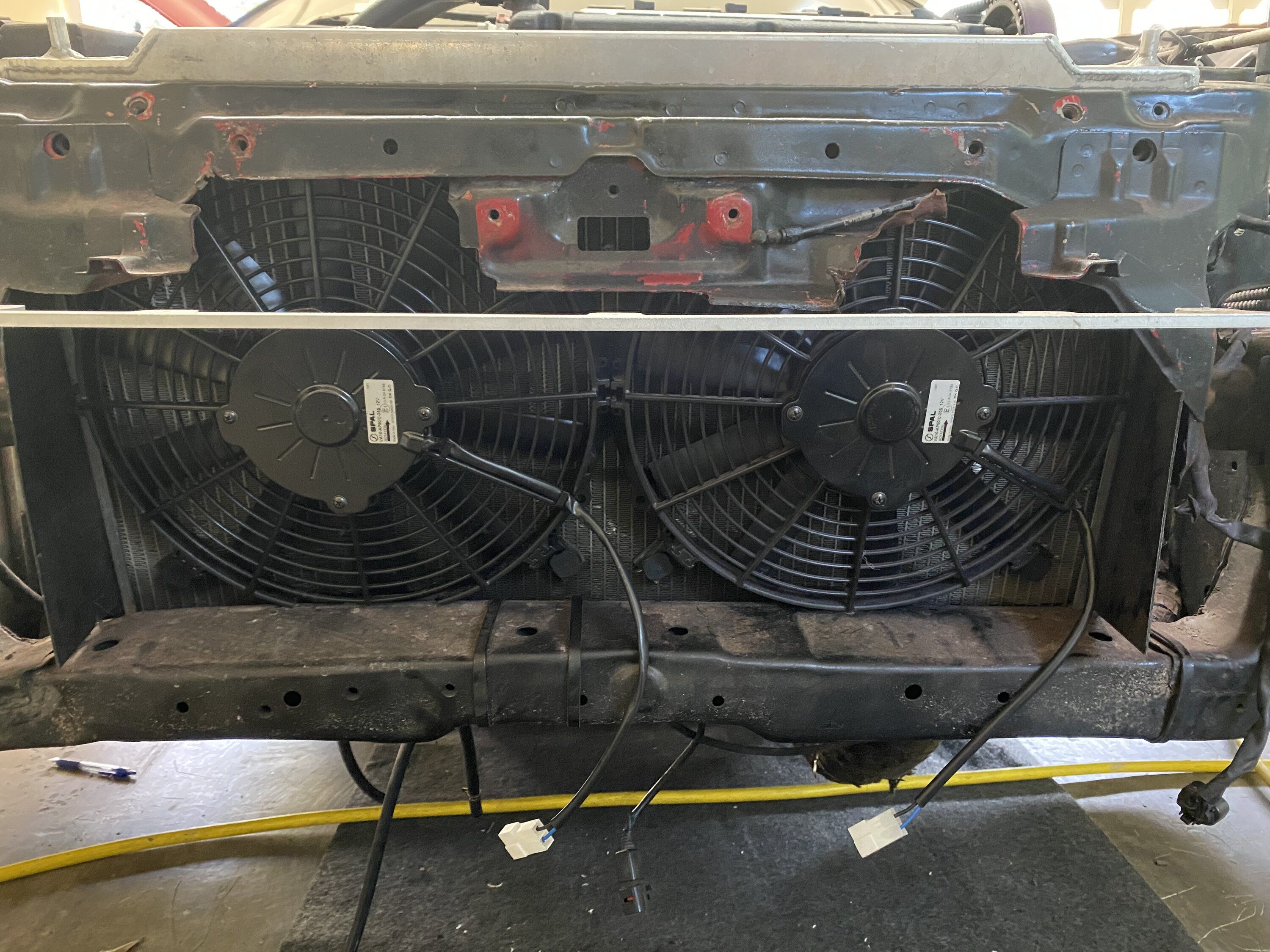

    Ok, there we go with 2 good sized fans on the front and a fair amount of space aft of the radiator.
    Spal VA10-AP50/C-25S - 12 inch pusher fans.
    I like it that Spal has nice dimensioned drawings for these fans. You can figure out the fit, go or no-go, just from their drawings pretty much.
    You could probably fit a 12 inch puller fan on the back side passenger side of the radiator? If you needed it.


    4K  22

    1990 Eagle Talon TSi AWD
    650 whp · 510 lb/ft · 1G DSM

    2K  0

    1990 Eagle Talon TSi AWD
    manual · 1G DSM
    Loading...
    1990TSIAWDTALON likes this.
  22. Vegas Smith

    Vegas Smith Proven Member

    4,037
    1,886
    Joined Dec 2, 2002
    Houston, Texas
    Yeah, SPAL fans are such high quality and you have so many options. It's a TIGHT fit, and I had to trim some of the ribs of the fans but you gotta do what you gotta do. This is all a final form project. In other words, I don't plan on changing this setup unless things don't work they way I want.


    Street Build 4K  4

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  23. iugrad92turbo

    iugrad92turbo Supporting Member

    12,337
    501
    Joined May 22, 2007
    Kalamazoo, Michigan
    Nice man im running 1 spal fan for now, it all looks amazing man, following all your posts, and thanks for the help, and cams man.


    8K  5

    1992 Eagle Talon TSi
    awd · manual · 1G DSM
    Loading...
    Vegas Smith likes this.
  24. tsiawd90

    tsiawd90 Supporting Member

    99
    21
    Joined Nov 16, 2017
    Houston, Texas
    It is looking great. Are you back to driving it yet or still buttoning up?

  25. Vegas Smith

    Vegas Smith Proven Member

    4,037
    1,886
    Joined Dec 2, 2002
    Houston, Texas
    Still putting it back together. With a 1yo it has been hard to find consistent time to work on it.


    Street Build 4K  4

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
    iugrad92turbo likes this.
