Drag Race Build my journey to a 9sec street car

OH91awd

10+ Year Contributor
1,129
625
Sep 22, 2011
chillicothe, Ohio
Looks good man i really like it.

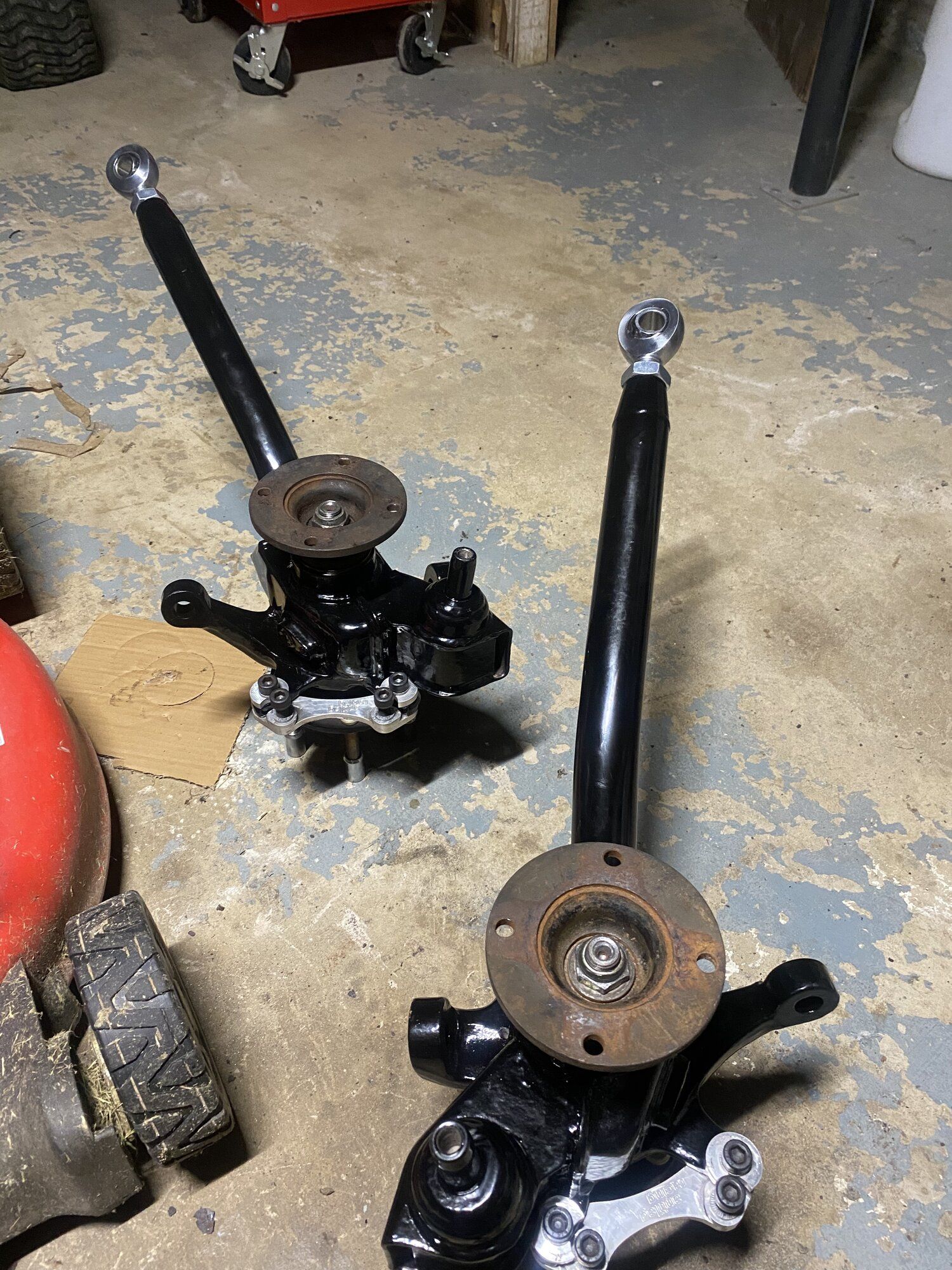

Thanks Vic! Got the hubs bolted down this morning before I left the house



Gonna try to shoot for tomorrow to toss these things back on the car.


OH91awd

10+ Year Contributor
1,129
625
Sep 22, 2011
chillicothe, Ohio
They’re on!

Ran into a couple snags though… can’t find the bolts for the axles and I need to lug nuts for the 18s so I can bolt them down. Already ordered new bolts from extremepsi. Just got to figure out lug nuts. Super easy install otherwise.







Once I get the back finalized I’ll be jacking the front up to get the front studs put in, finish wiring up the bottle heater and I still want to move my post pump filter.


OH91awd

10+ Year Contributor
1,129
625
Sep 22, 2011
chillicothe, Ohio
Small weekend update:

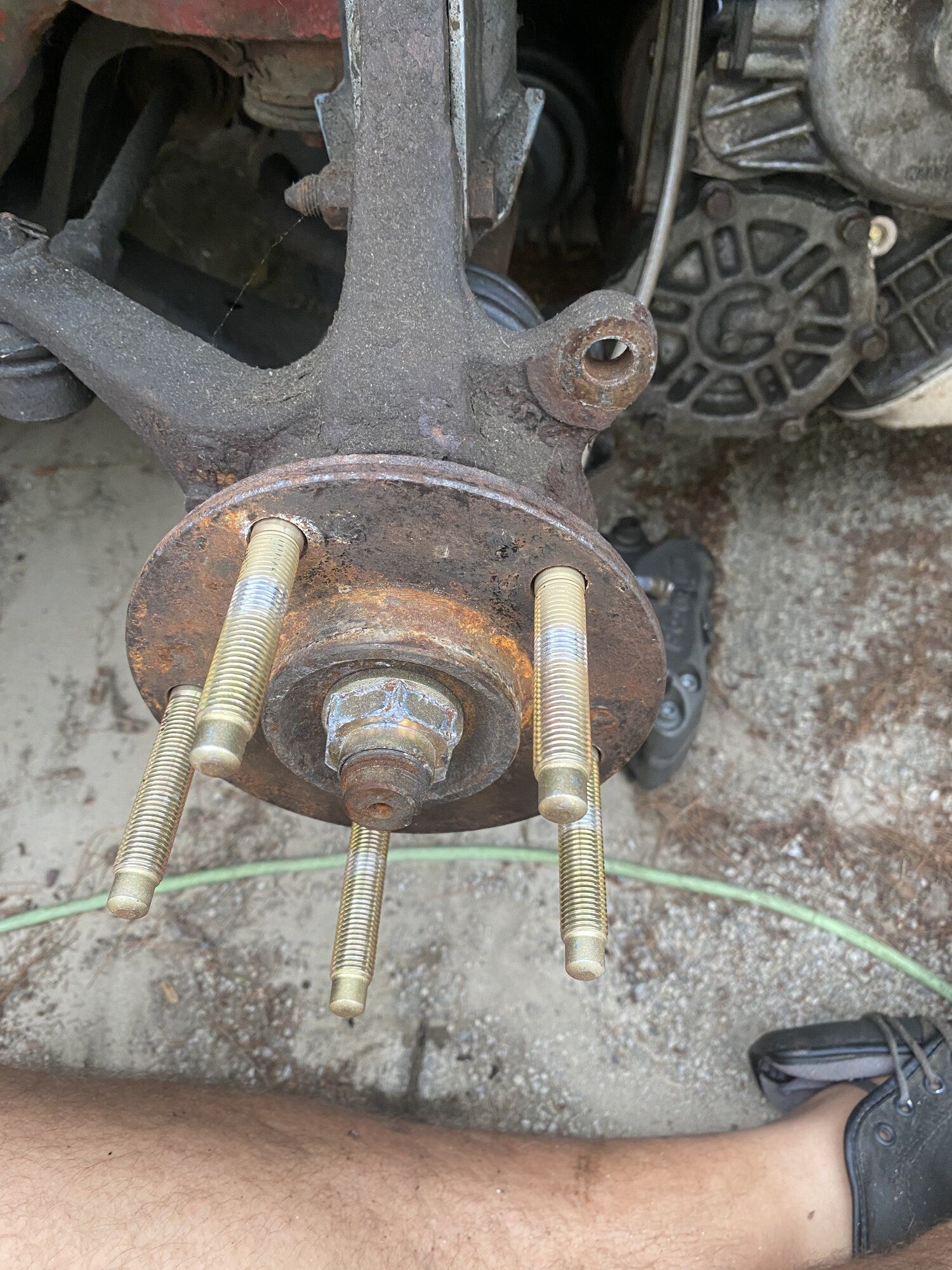

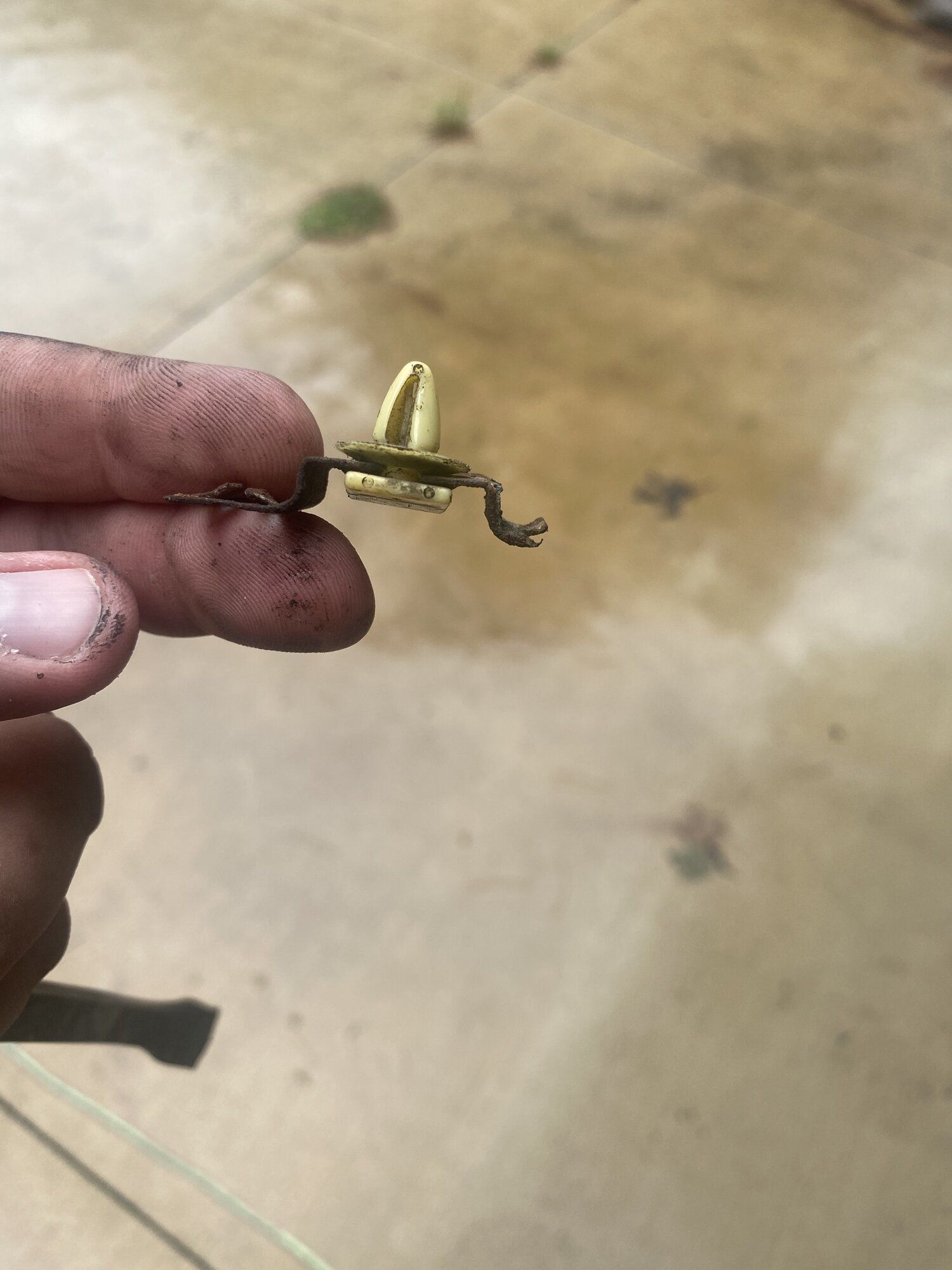

Axle bolts came in and got those installed. Also started working on getting the front wheel studs in. Ran into a little hiccup when opening the drivers door. One of the body molding clips mounts broke and let the molding catch the door on the fender pushing it in. On the hunt to find replacements for those

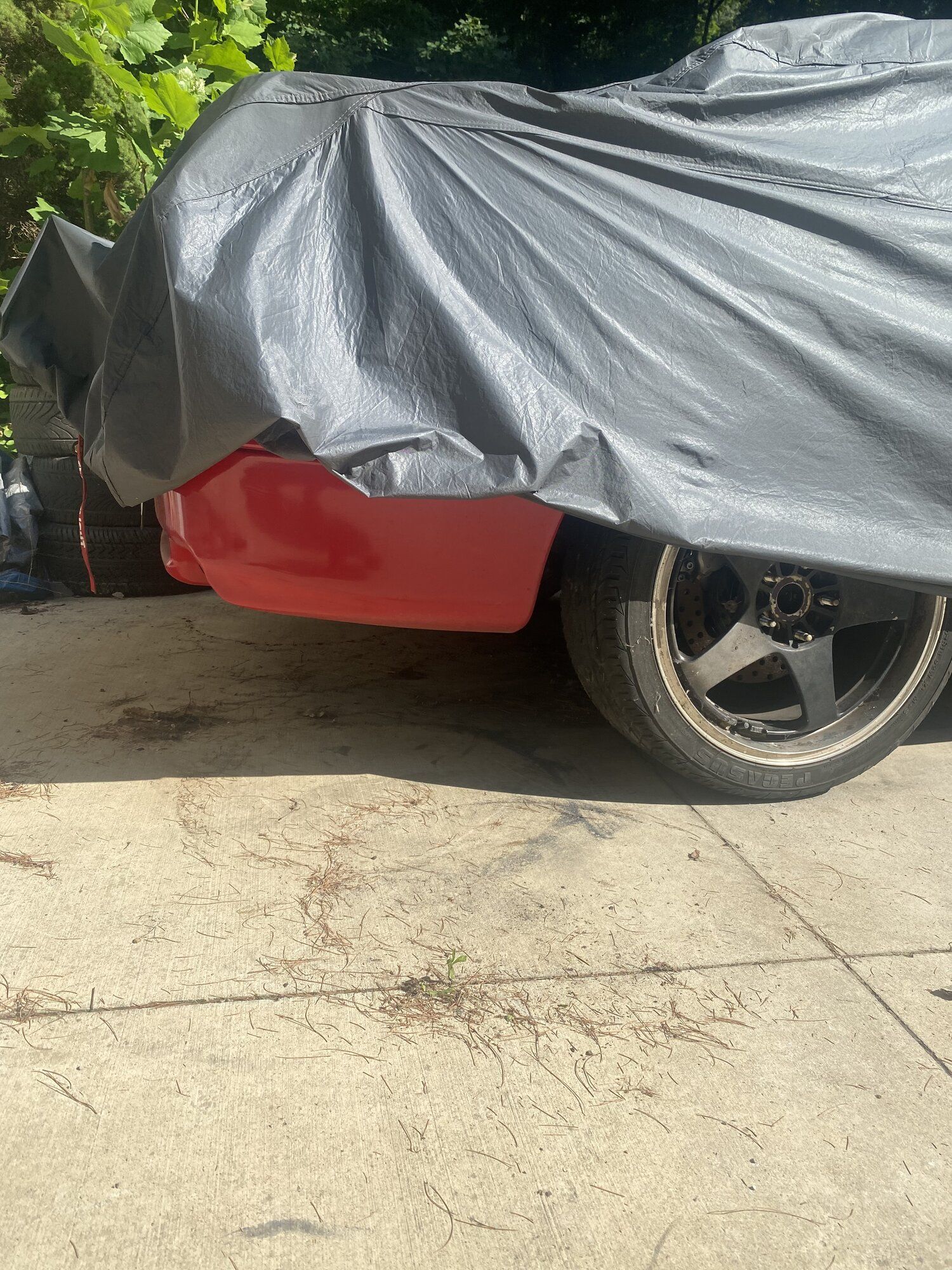

Back on her feet.

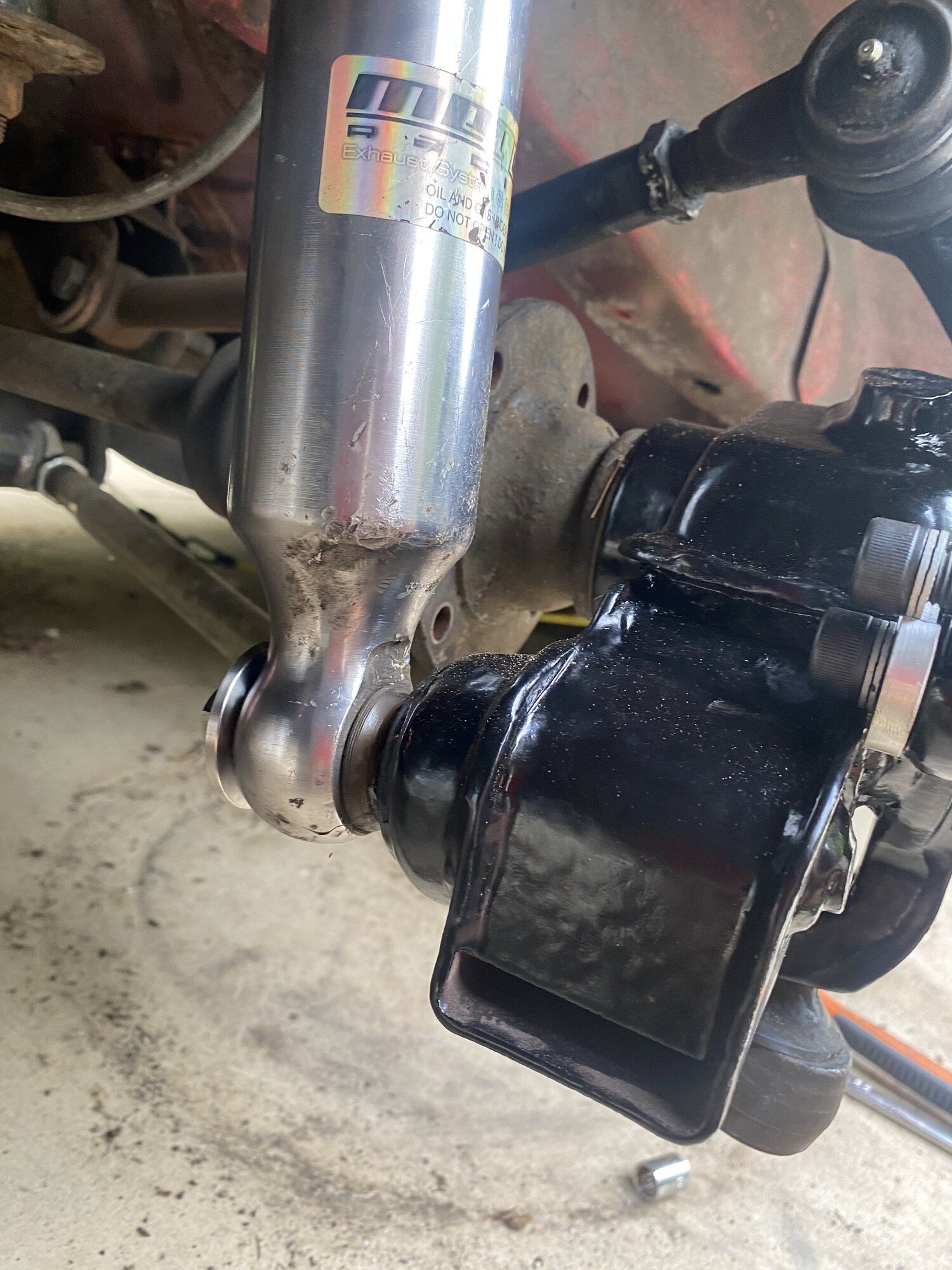

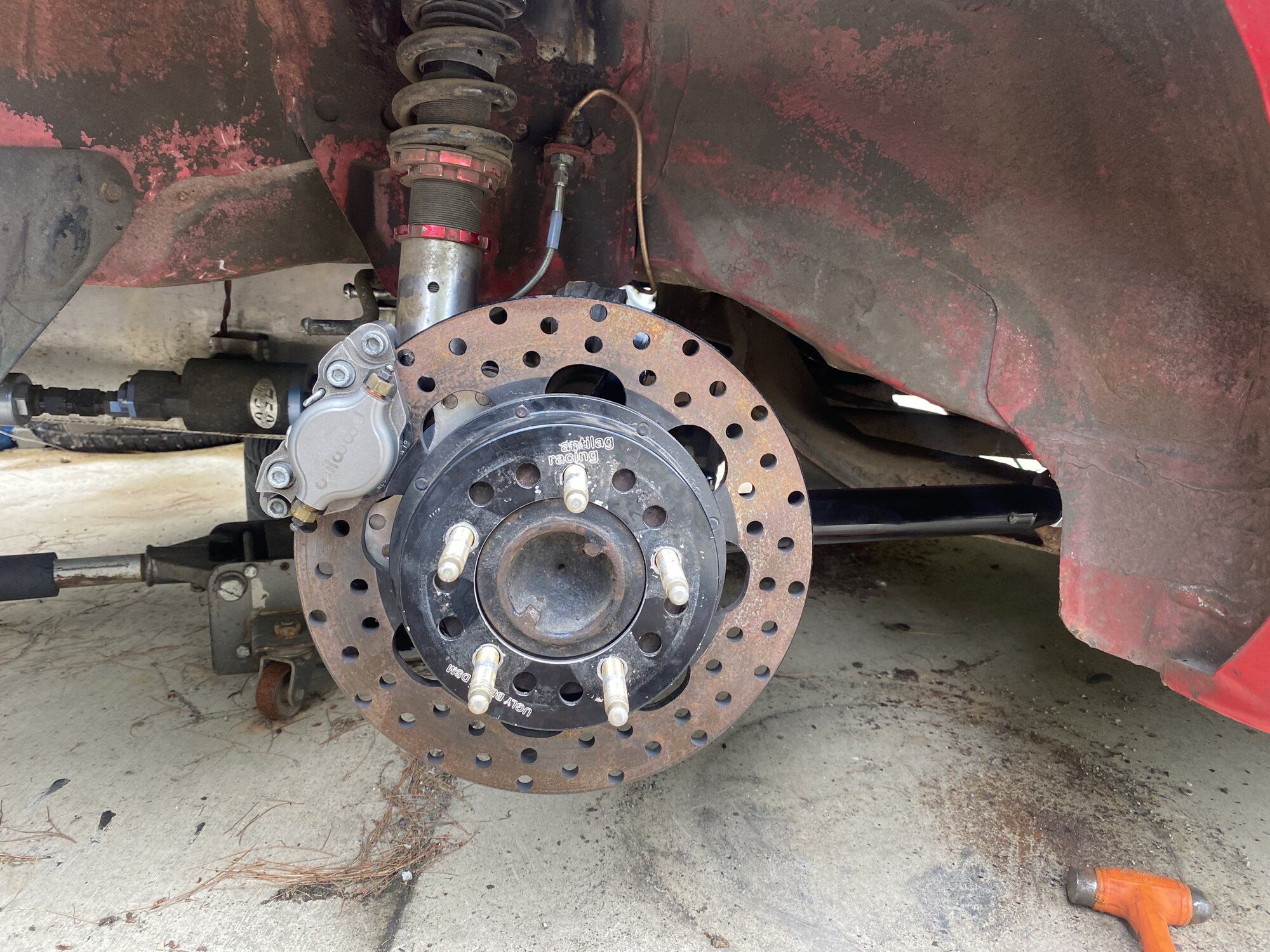

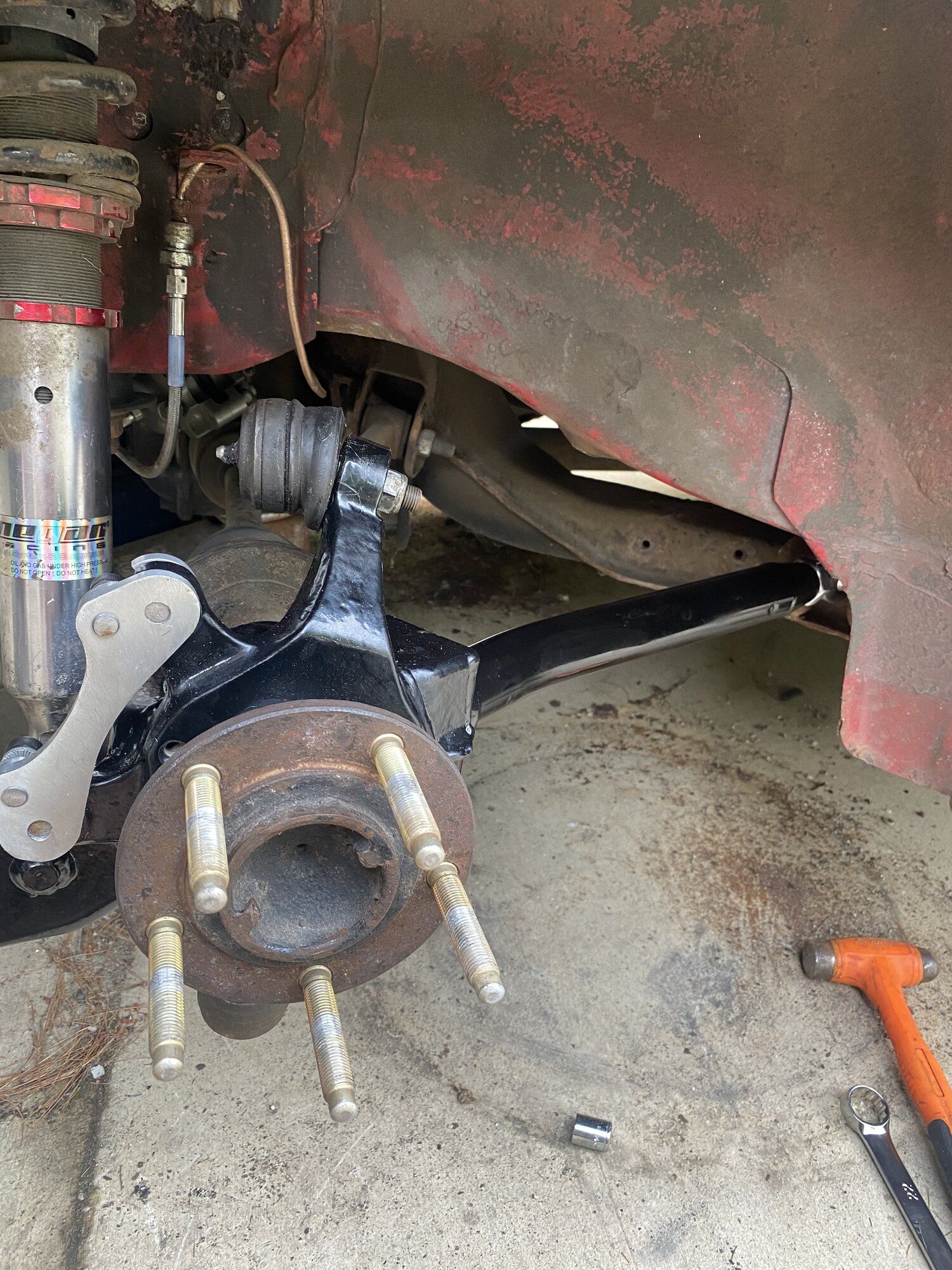

Was told the front studs would be the hardest. These were easier than the rears were.

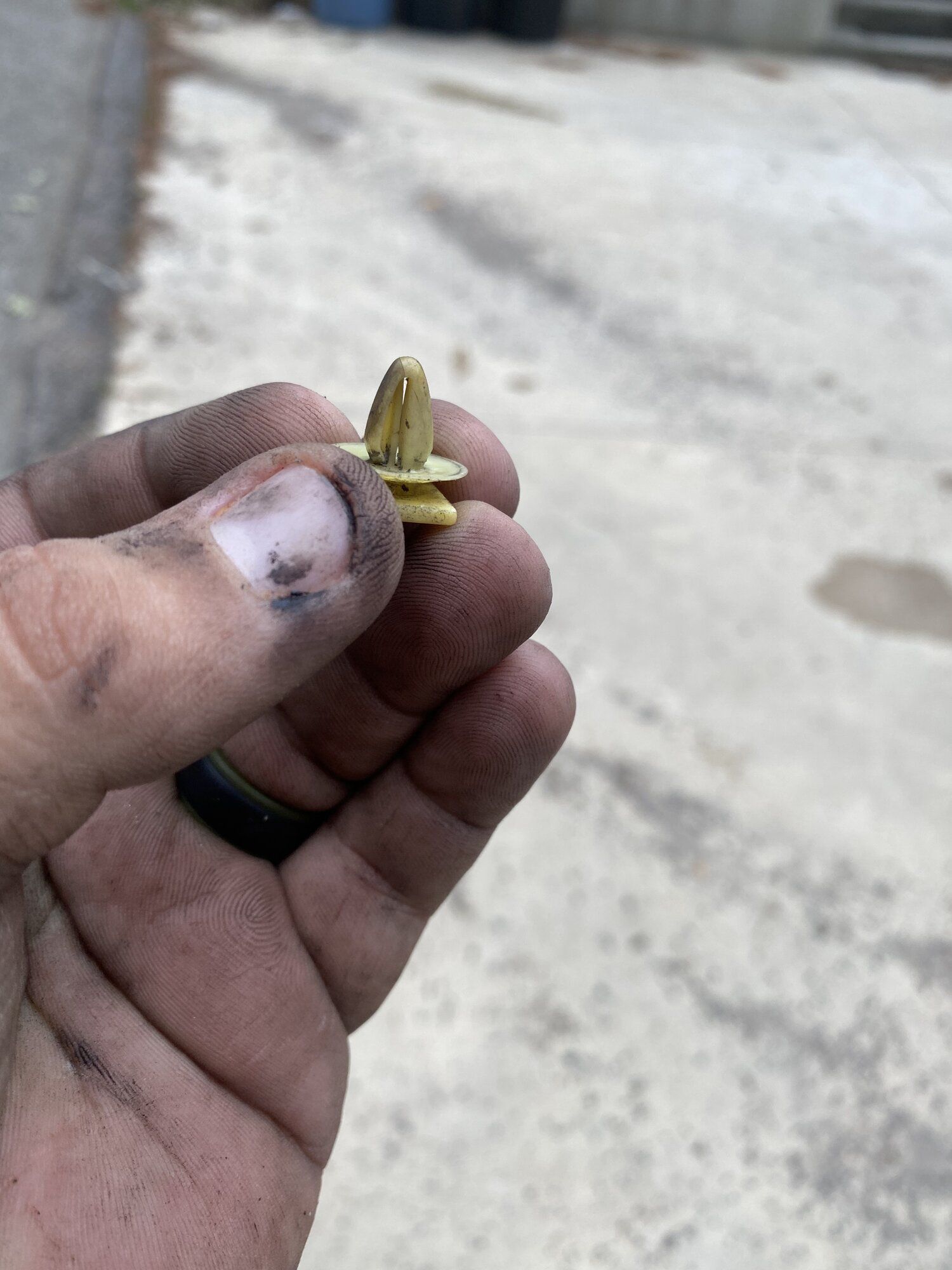

Got to find some Of these guys.

Rain kind of put a halt on working on the car more. Going to get a date setup to take the car to get an alignment then it should be ready to rip again.


Spleen8urLSX

Proven Member
268
173
Dec 26, 2017
Elyria, Ohio
Wish you would get that thing back together. There’s a ton of work that’s already been done. Still a ton to go
Soon! Real soon I get to get back to it, life’s been busy but haven’t forgotten. As soon as my Crown Vic rolls outta the garage with the intake manifold and front brakes done and I get my truck put away for the winter in southern Ohio I’m full bore on the DSM. Goal is to have an assembled engine on the stand by Christmas, and of course I have brand new non turbo pistons pressed on rods ready to go in the new block sitting here all freshly machined.


OH91awd

10+ Year Contributor
1,129
625
Sep 22, 2011
chillicothe, Ohio
Soon! Real soon I get to get back to it, life’s been busy but haven’t forgotten. As soon as my Crown Vic rolls outta the garage with the intake manifold and front brakes done and I get my truck put away for the winter in southern Ohio I’m full bore on the DSM. Goal is to have an assembled engine on the stand by Christmas, and of course I have brand new non turbo pistons pressed on rods ready to go in the new block sitting here all freshly machined.
Ready to see it back out. Hoping to have the engine harness in the car by the end of the month and starting the wiring.


OH91awd

10+ Year Contributor
1,129
625
Sep 22, 2011
chillicothe, Ohio
So I guess I’ll toss some progress pics up of what I have so far:

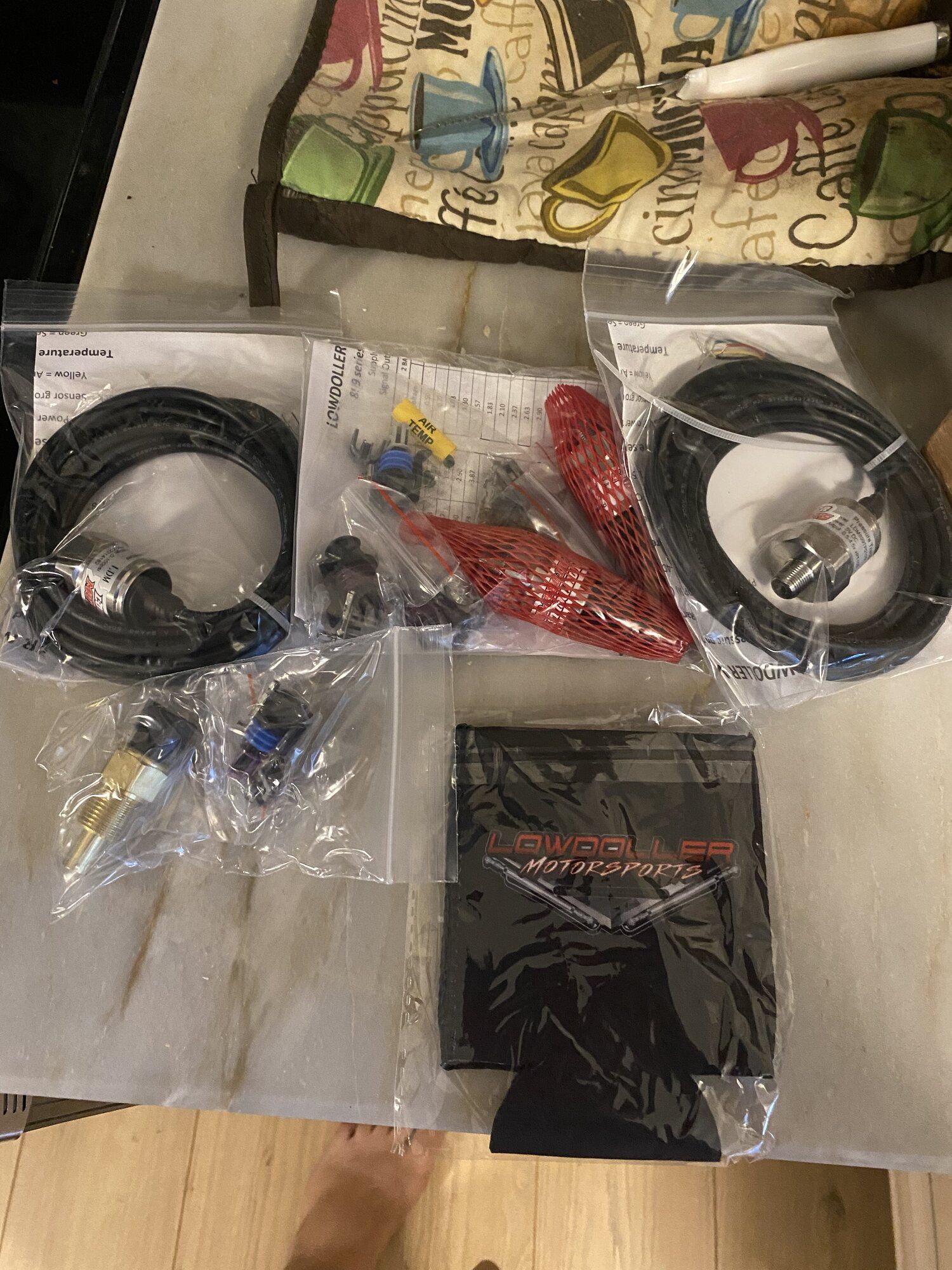

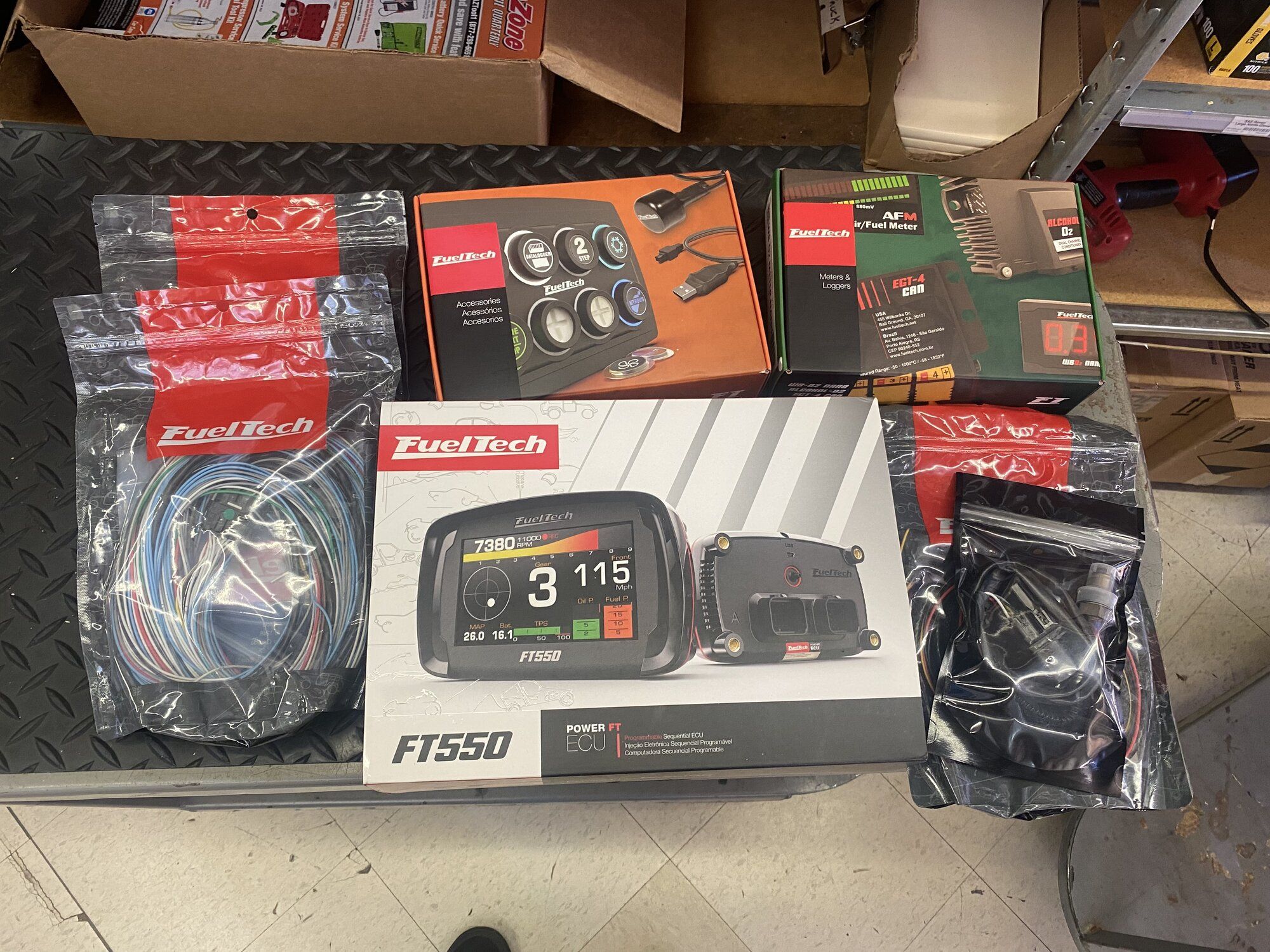

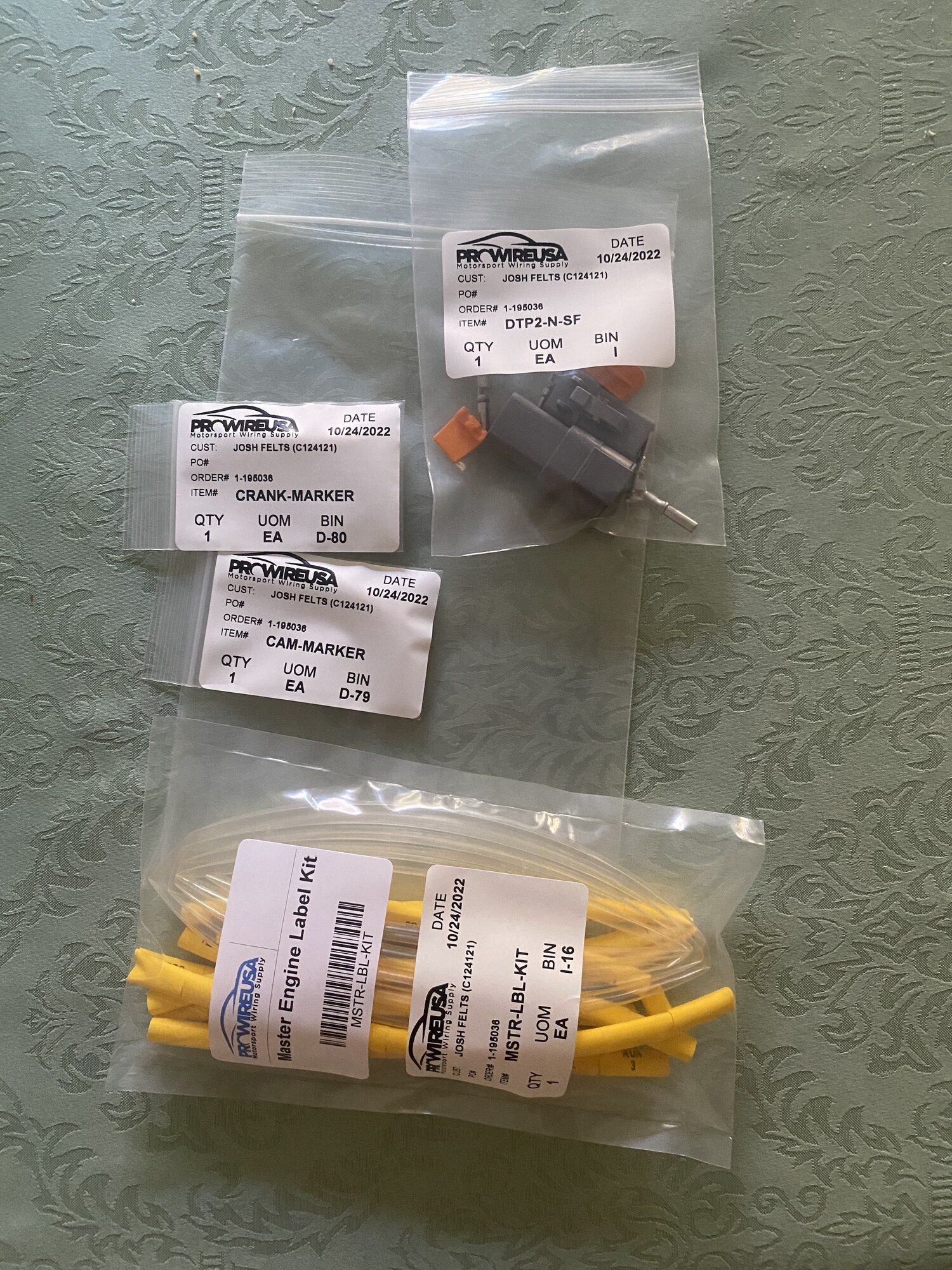

So I was having some electrical issues once I got the suspension back together. I checked everything and seemed to be ignition box related. So instead of dwelling on it I pulled the trigger on the fueltech stuff. Started by acquiring sensors and connectors to get the wiring started.

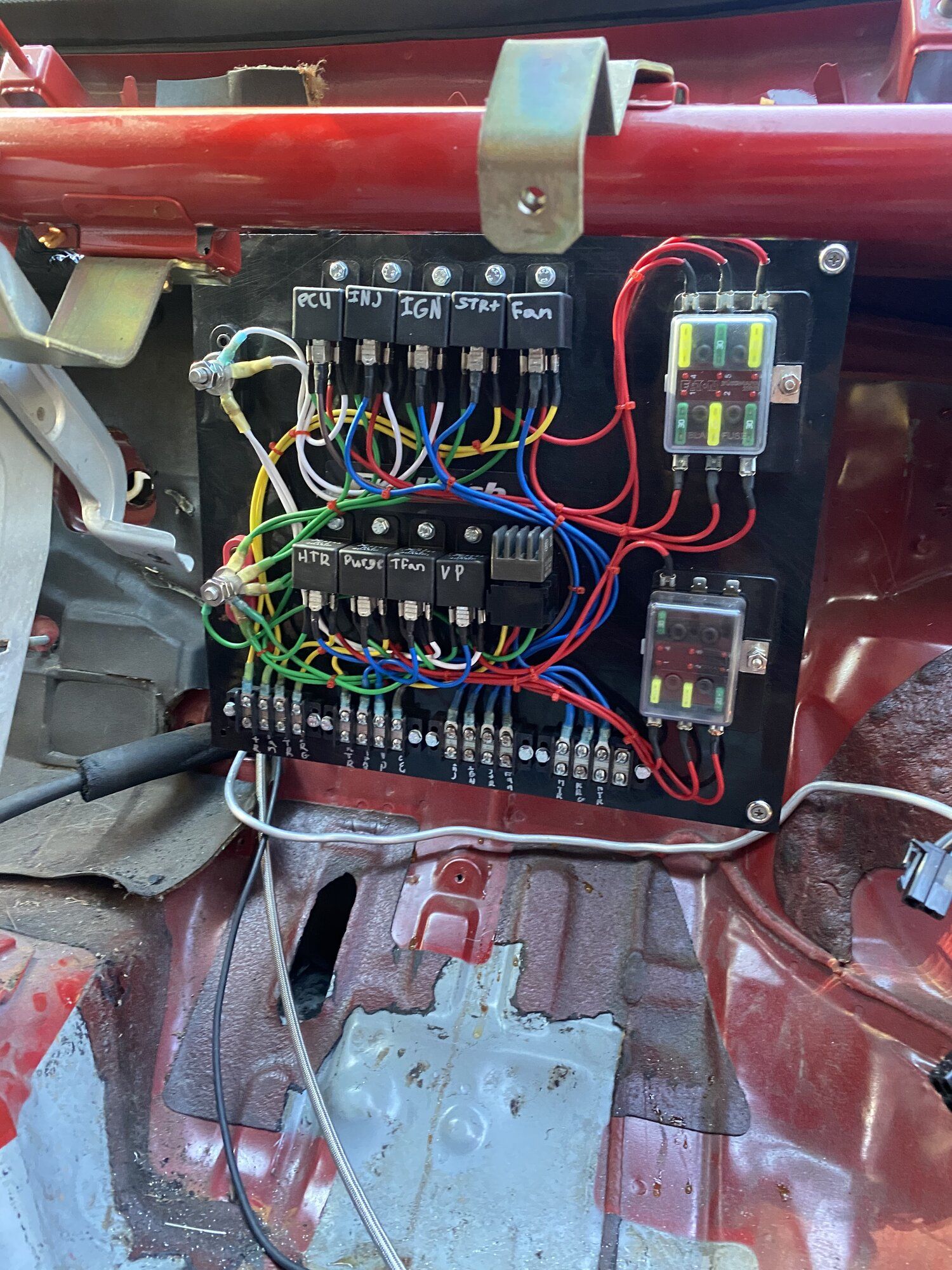

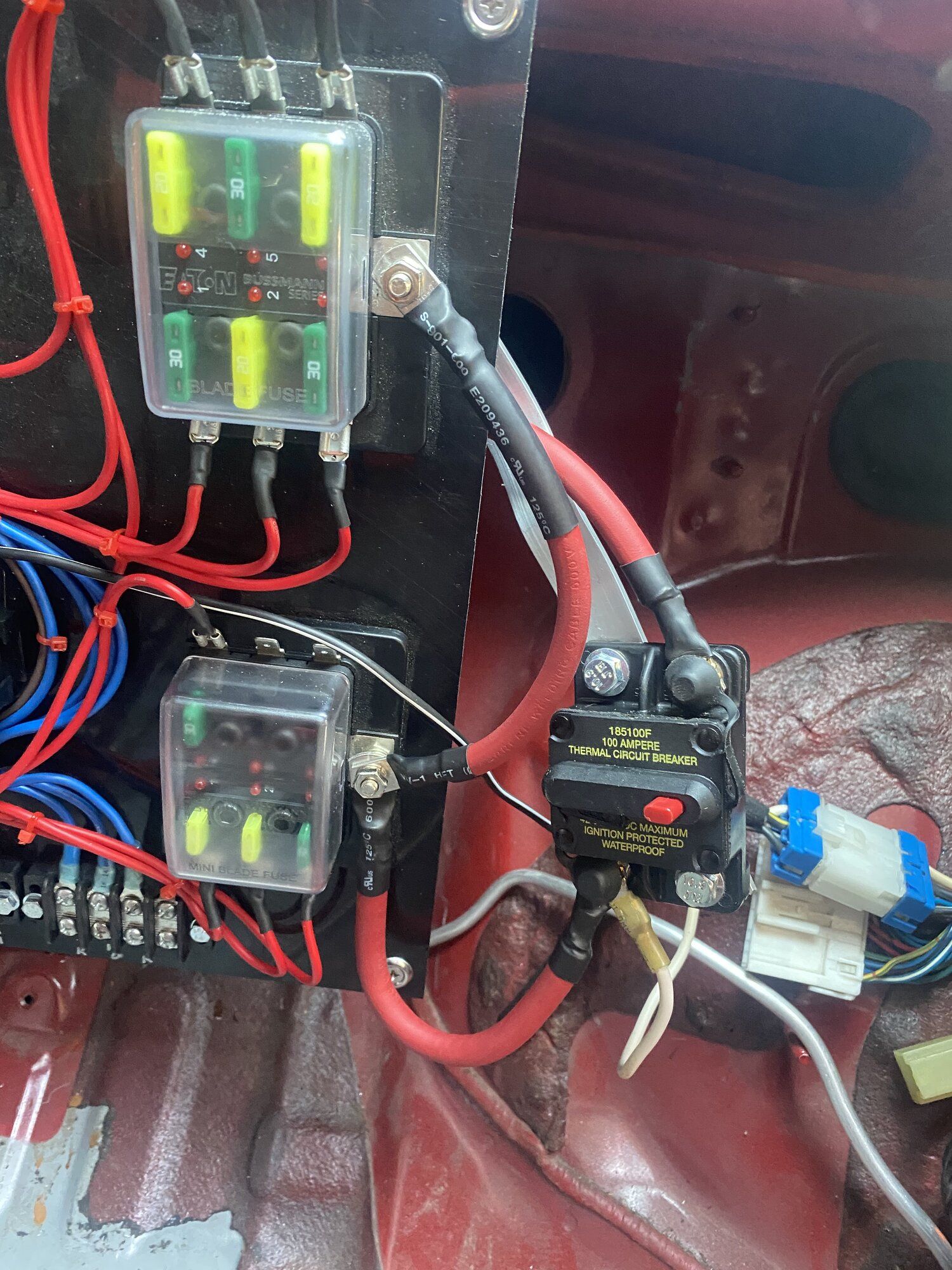

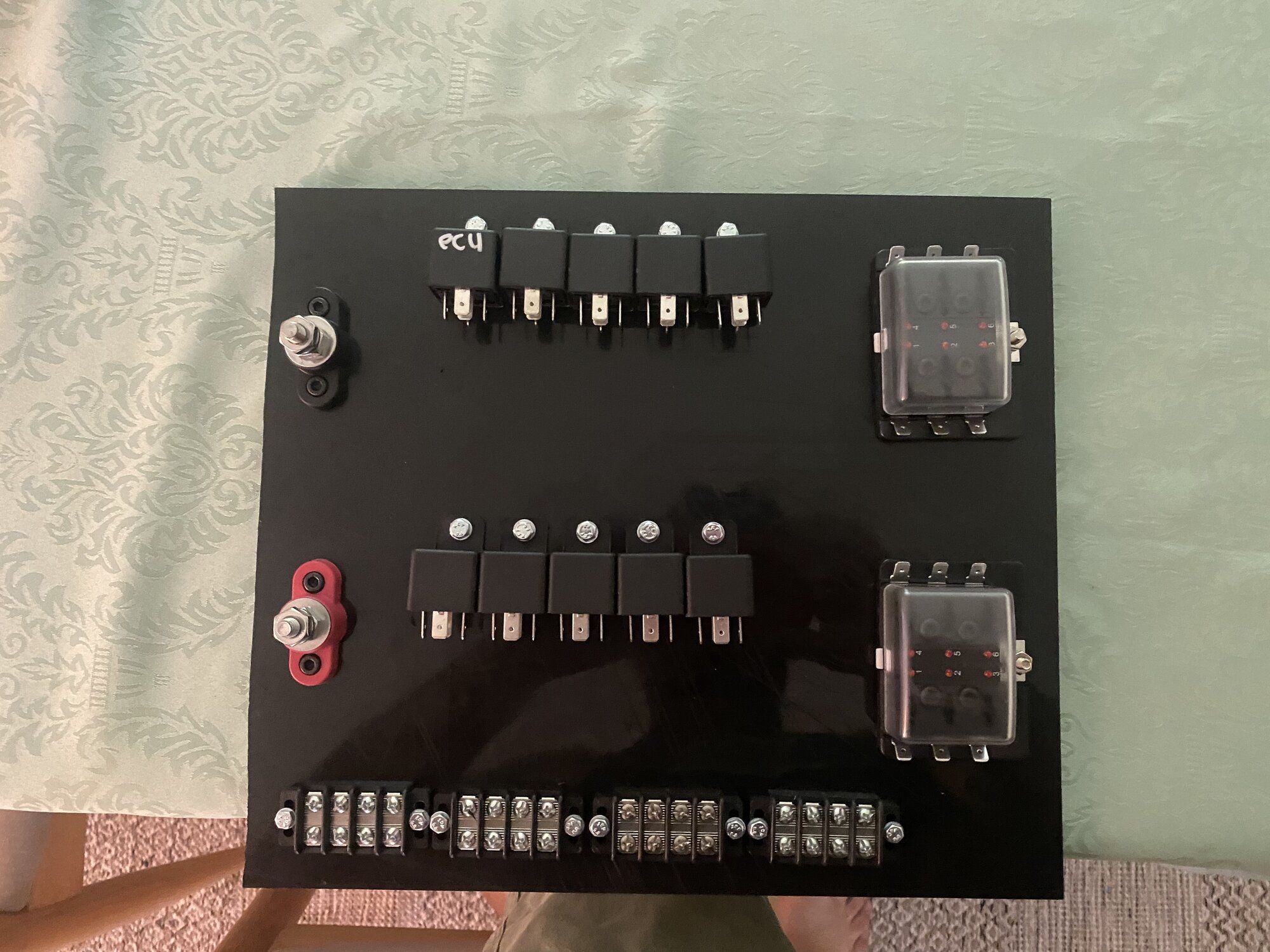

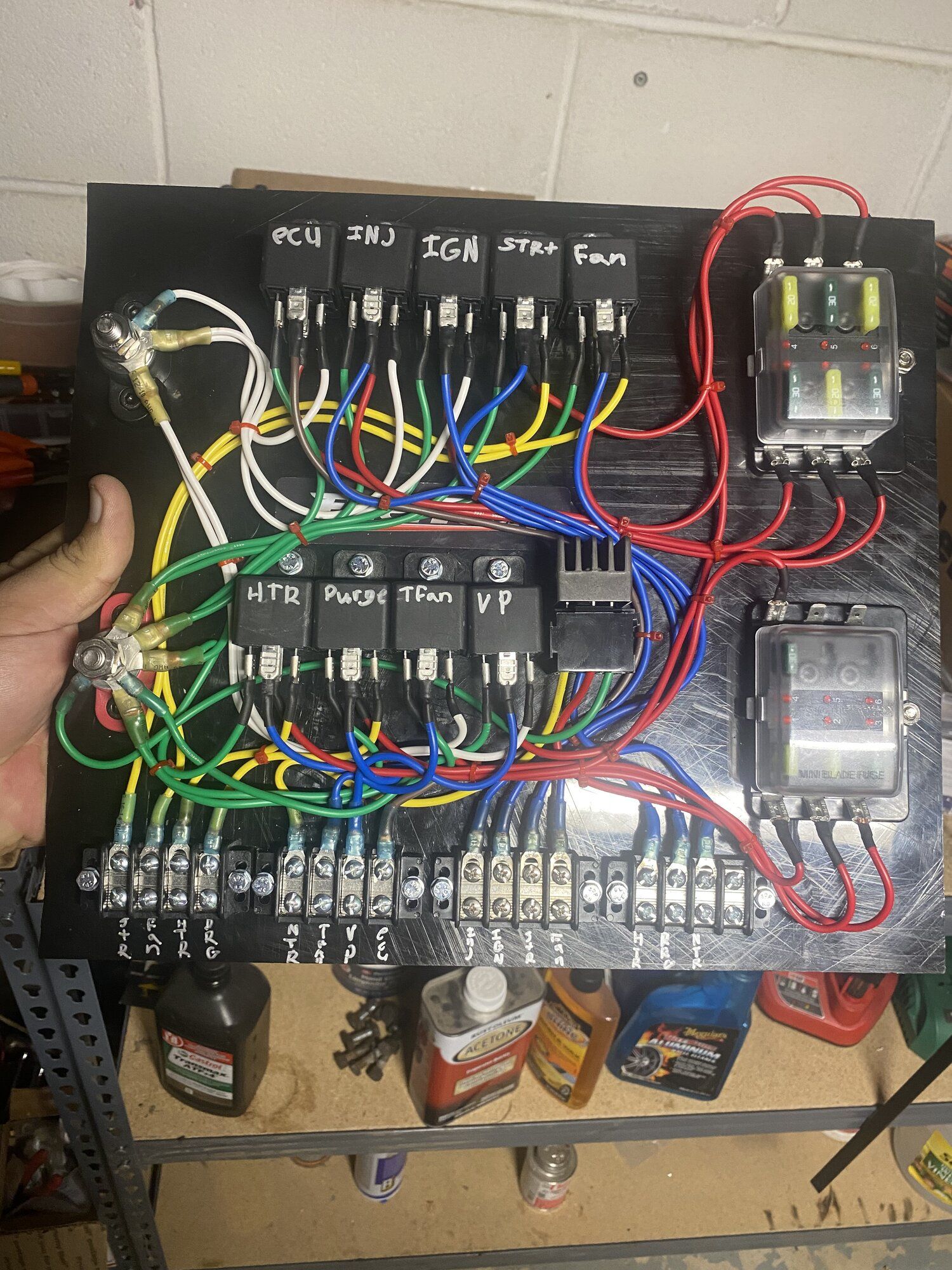

Then decided I was building a full relay board to power everything

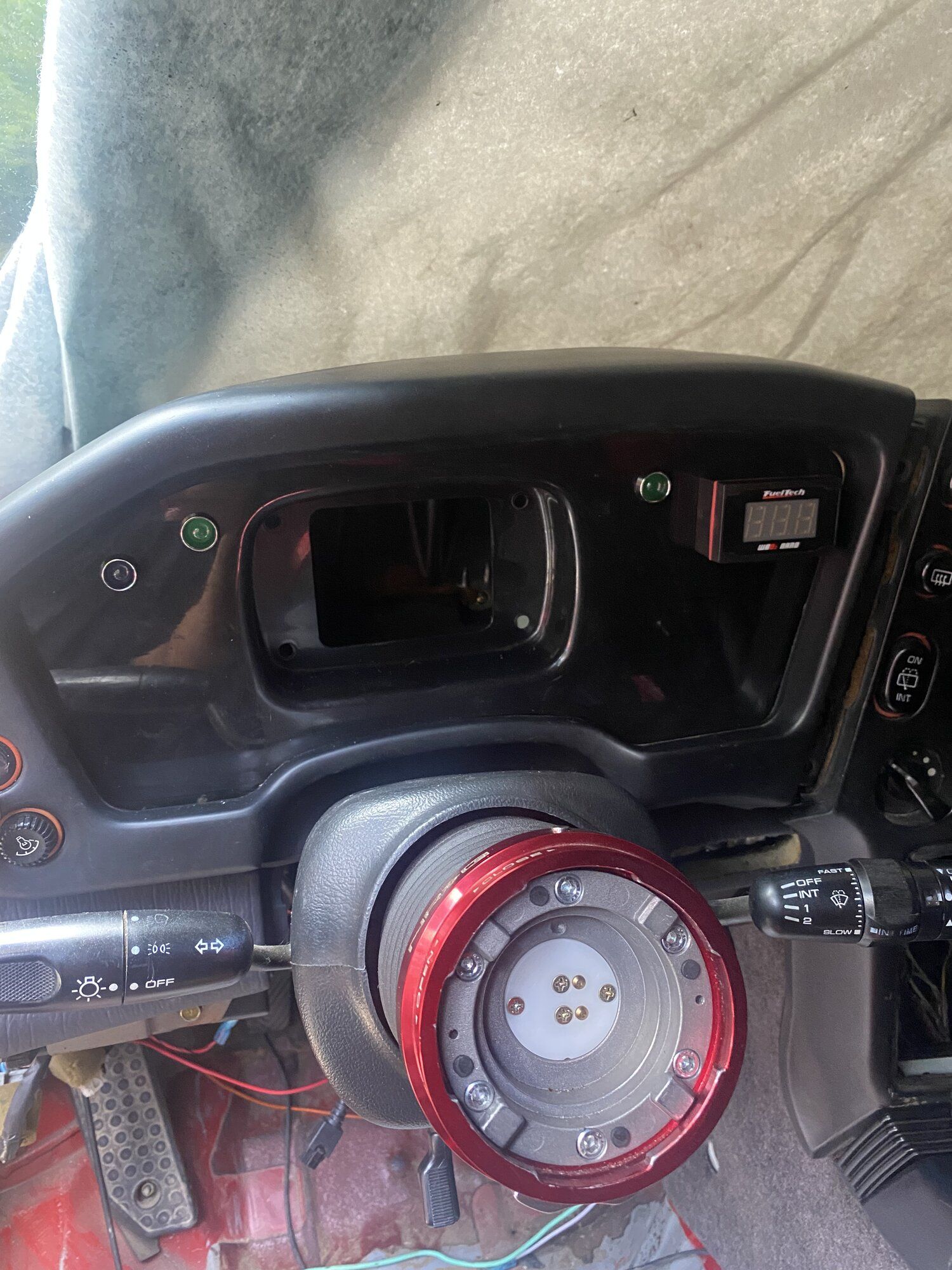

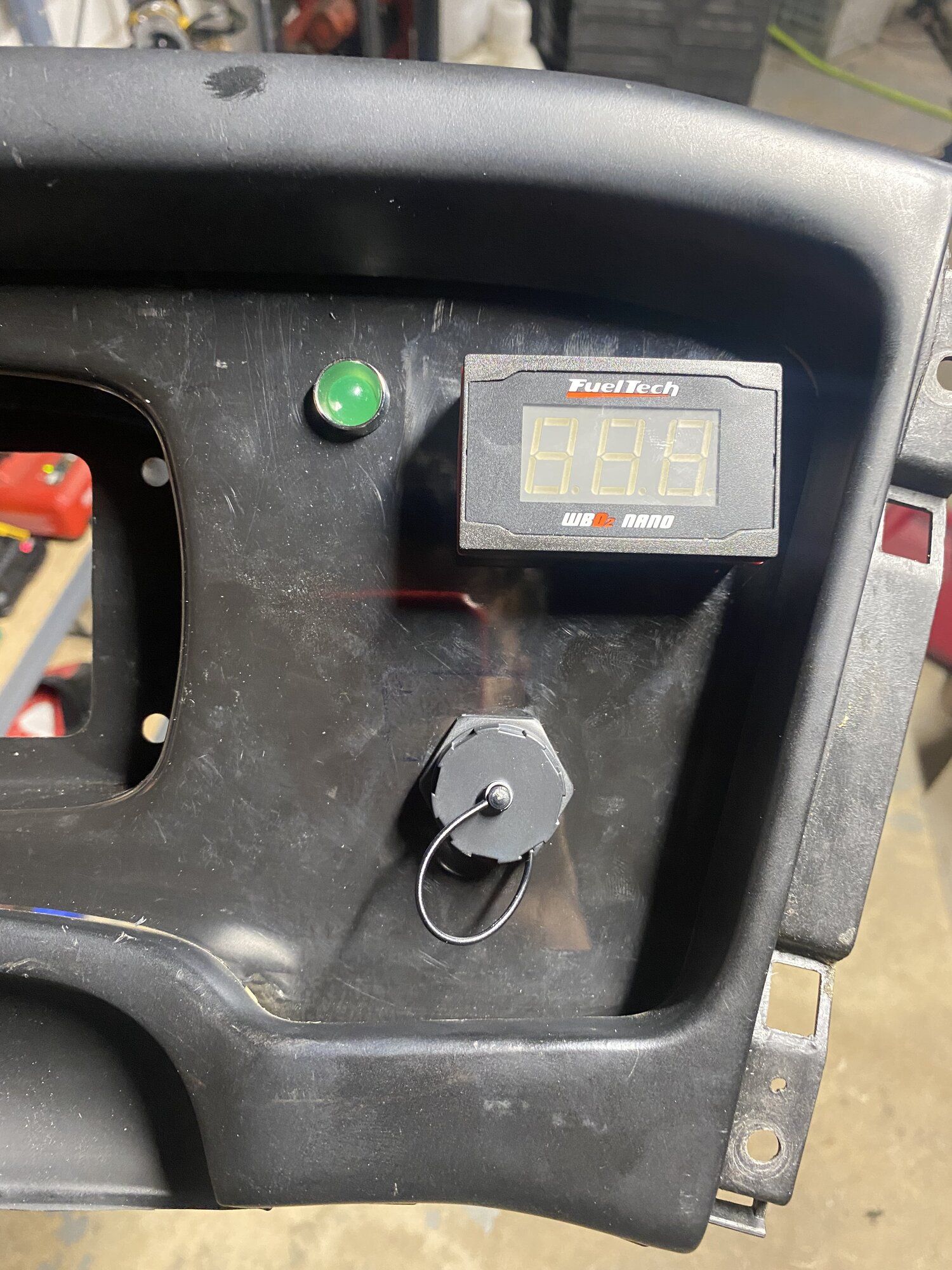

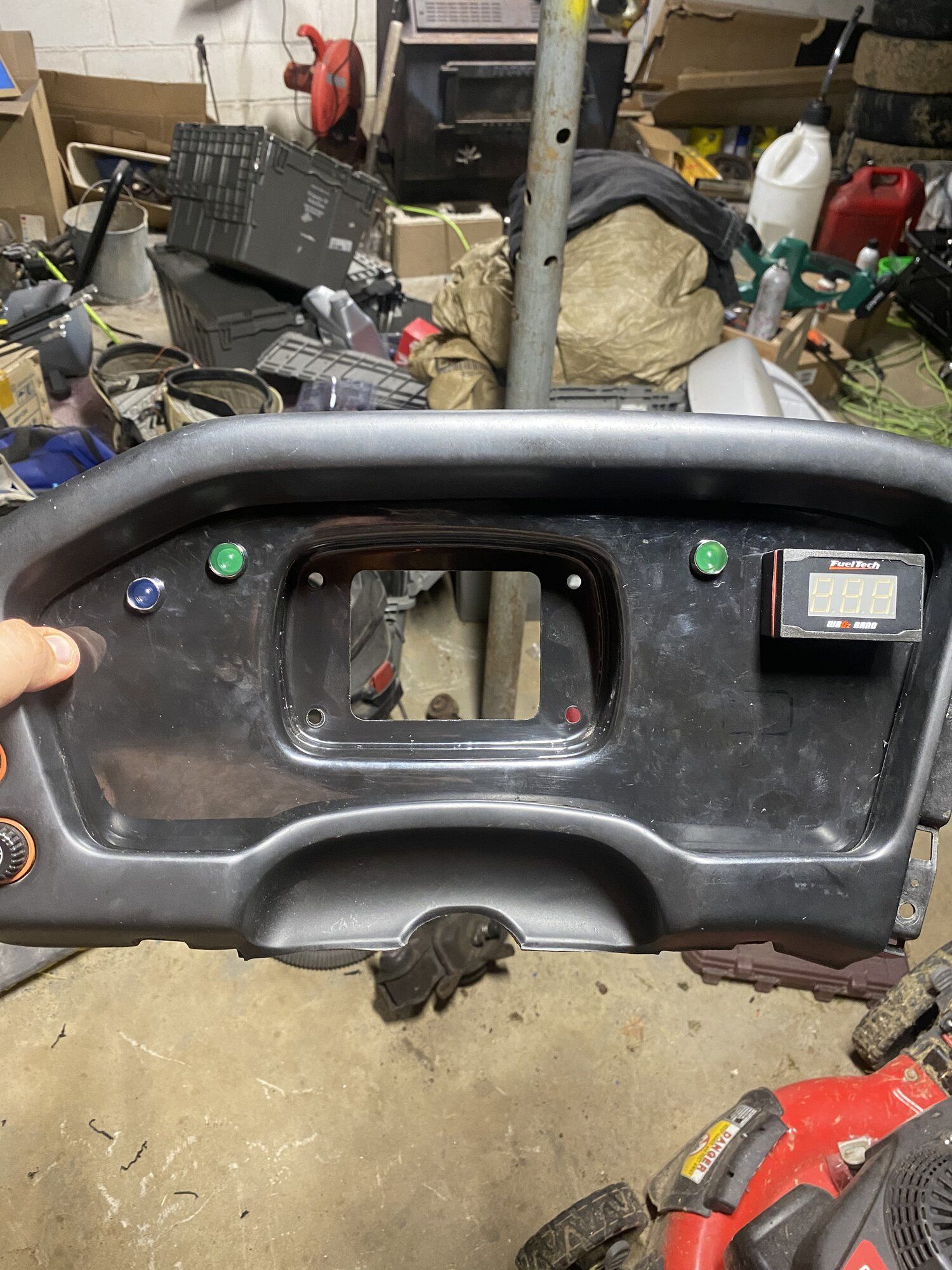

I then sourced the dash piece to mount the fueltech and wideband. Also wanted to have turn signal and high beam indicators when we were on the street with the car.






Also added this sup port to plug the laptop into

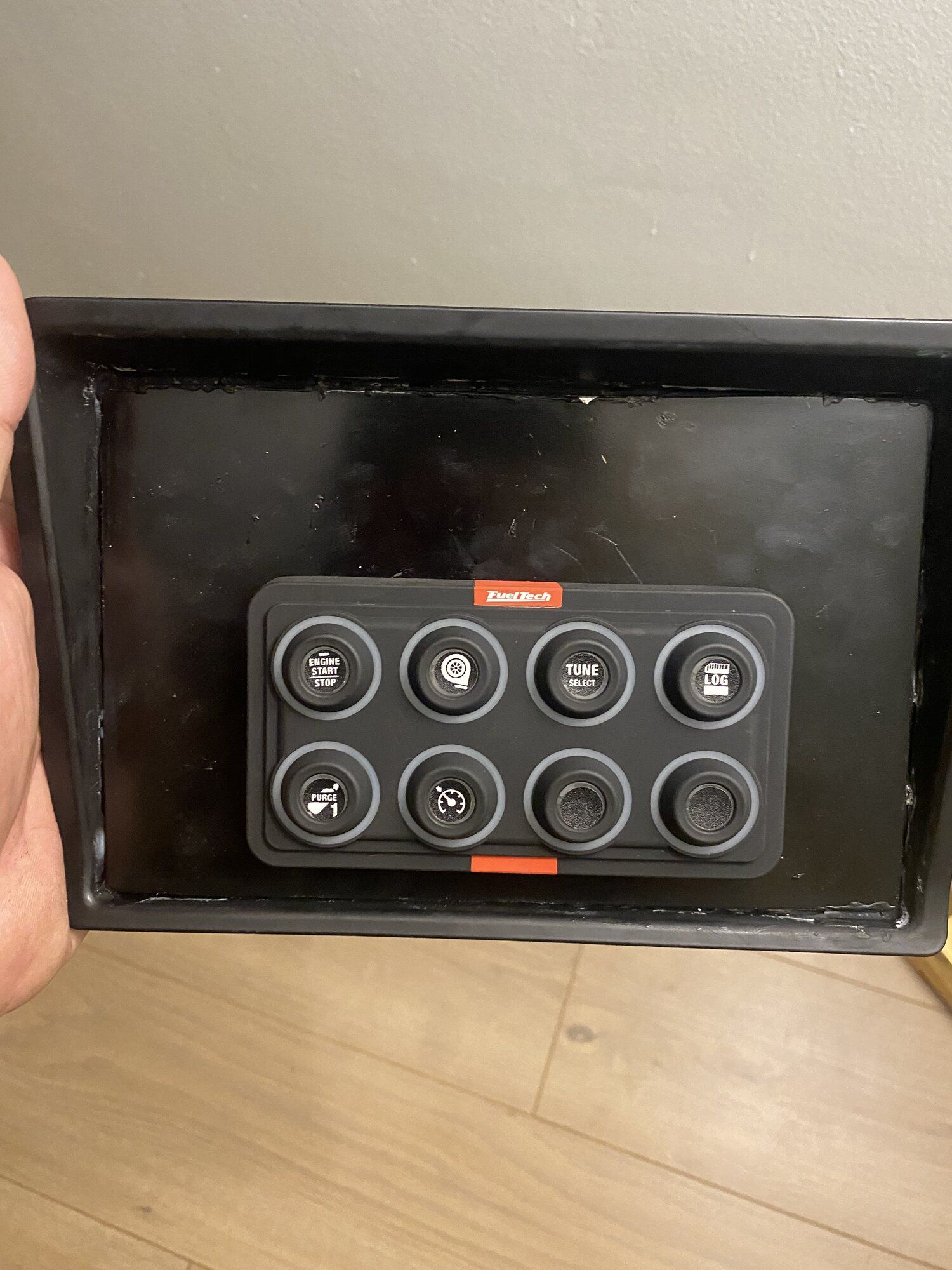

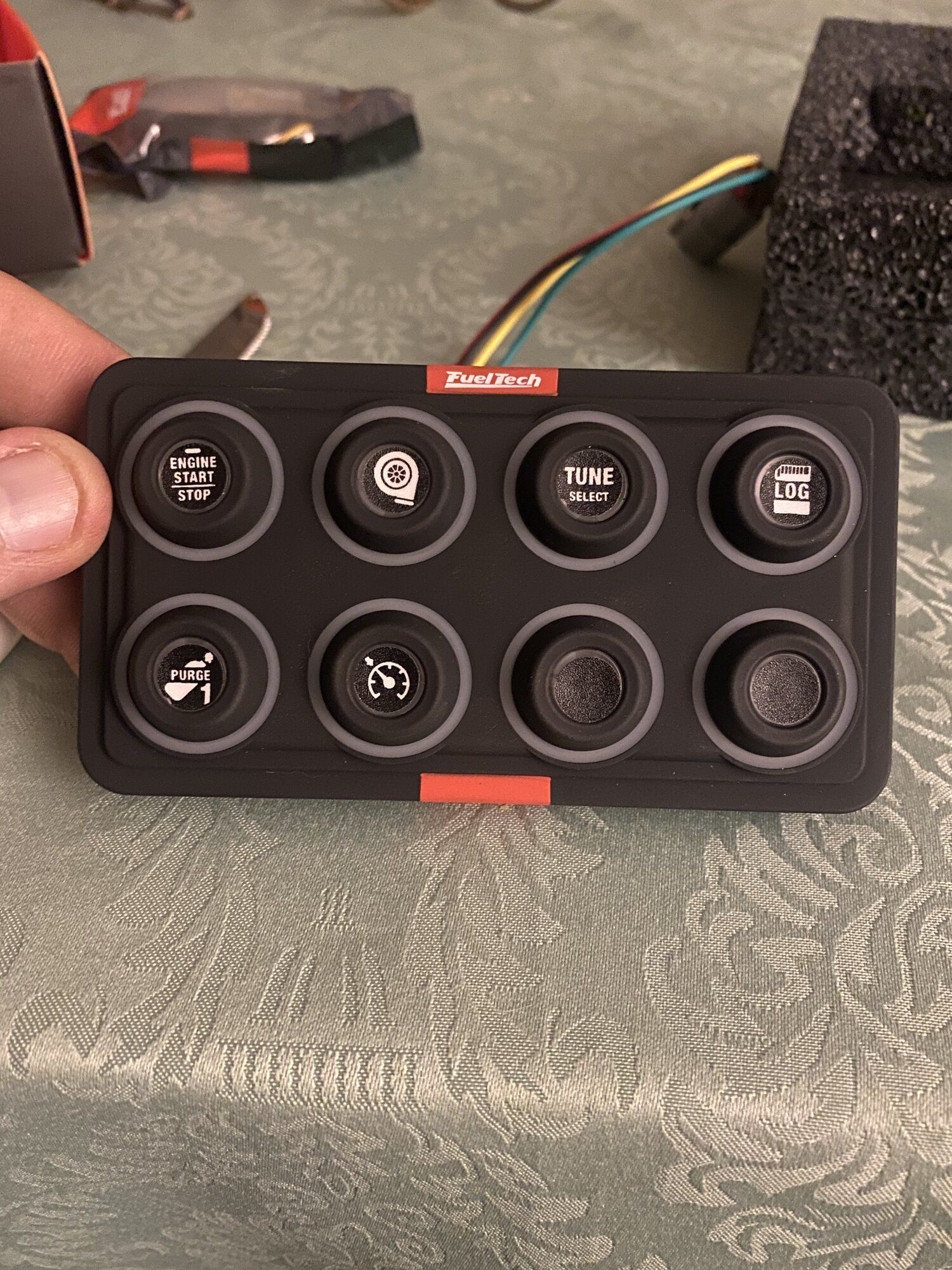

I also got setup with a 8 button switch panel to do the starter and a few other things

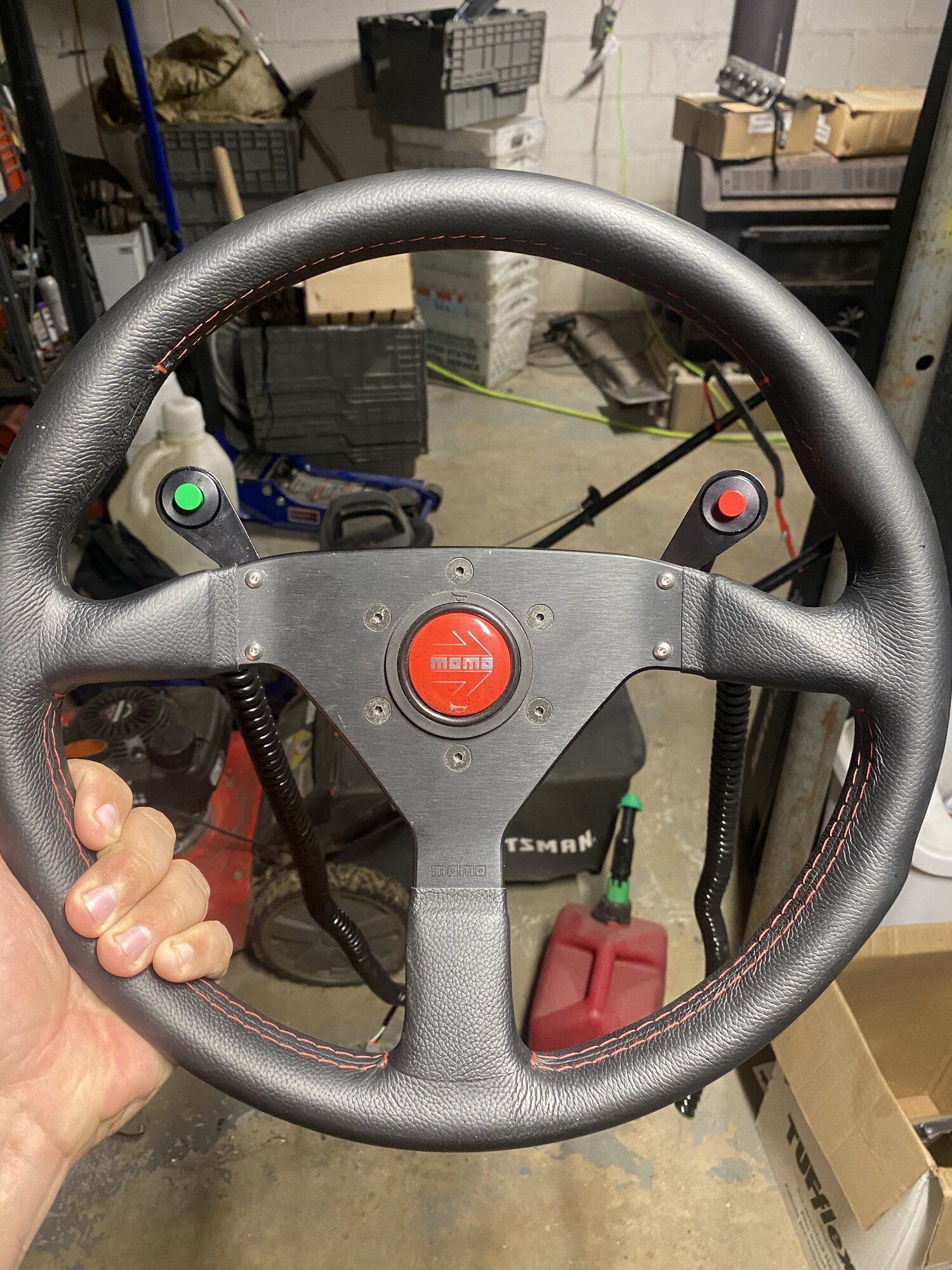

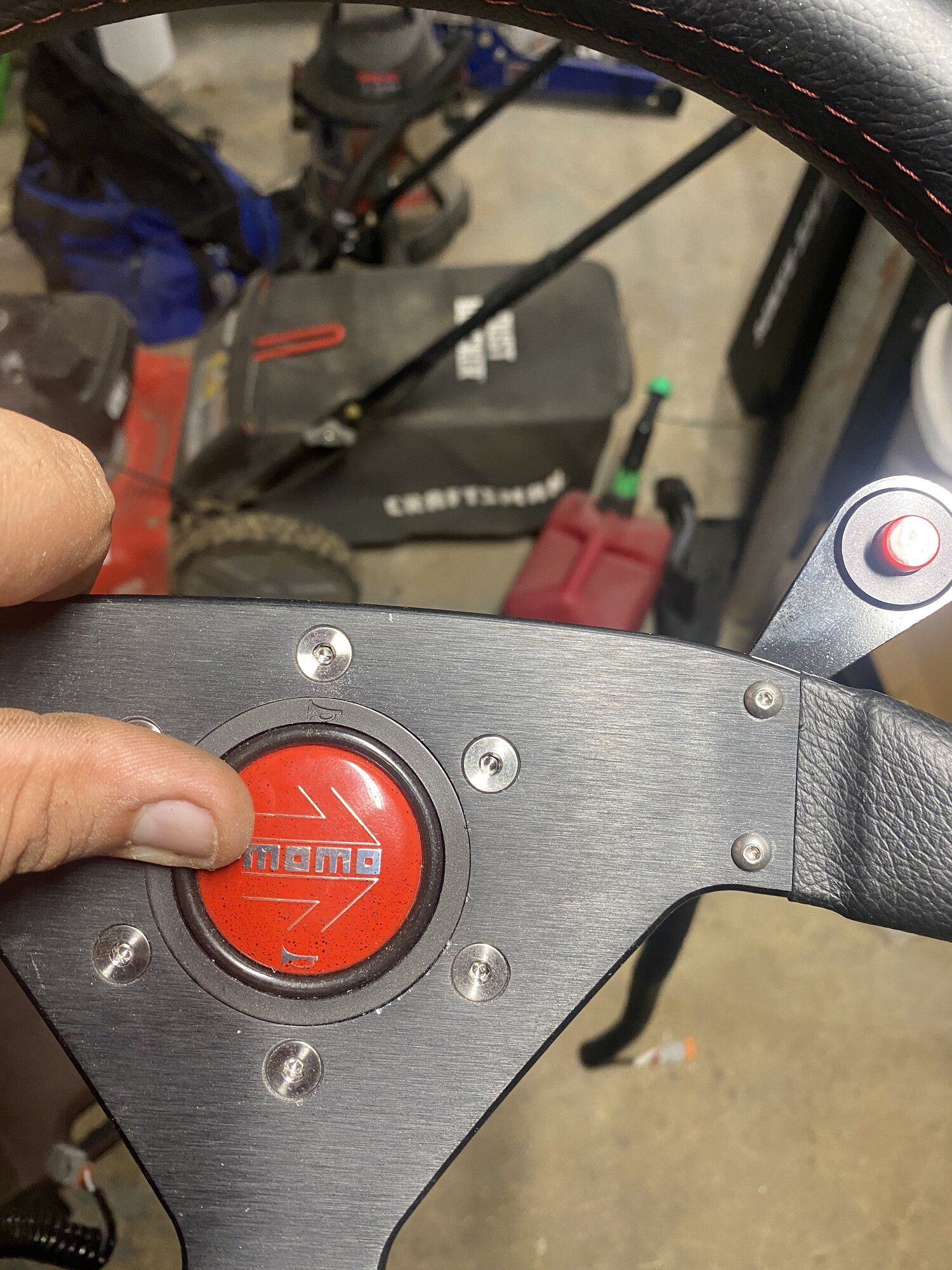

added these two buttons for nitrous and 2nd gear stall up.

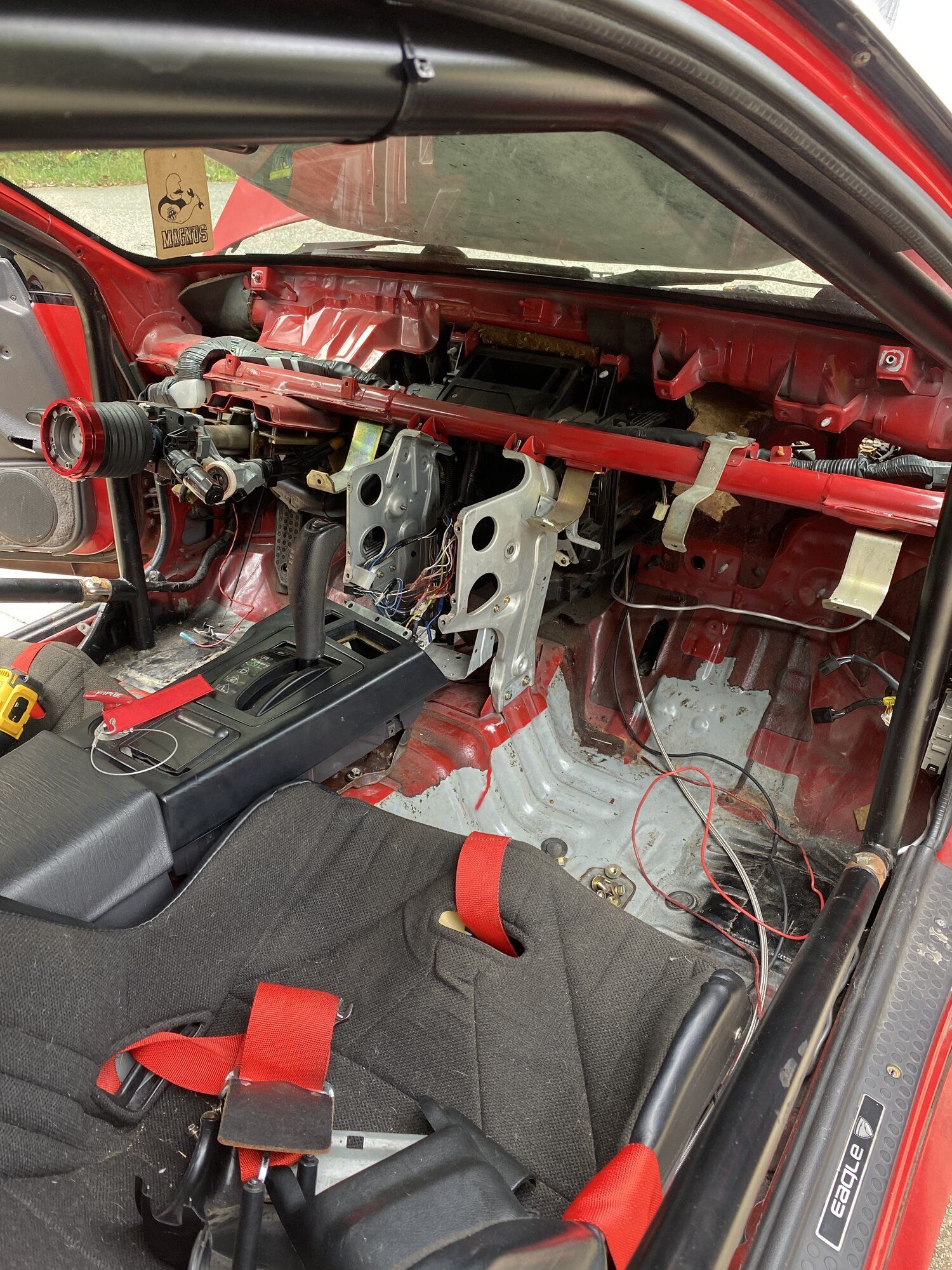

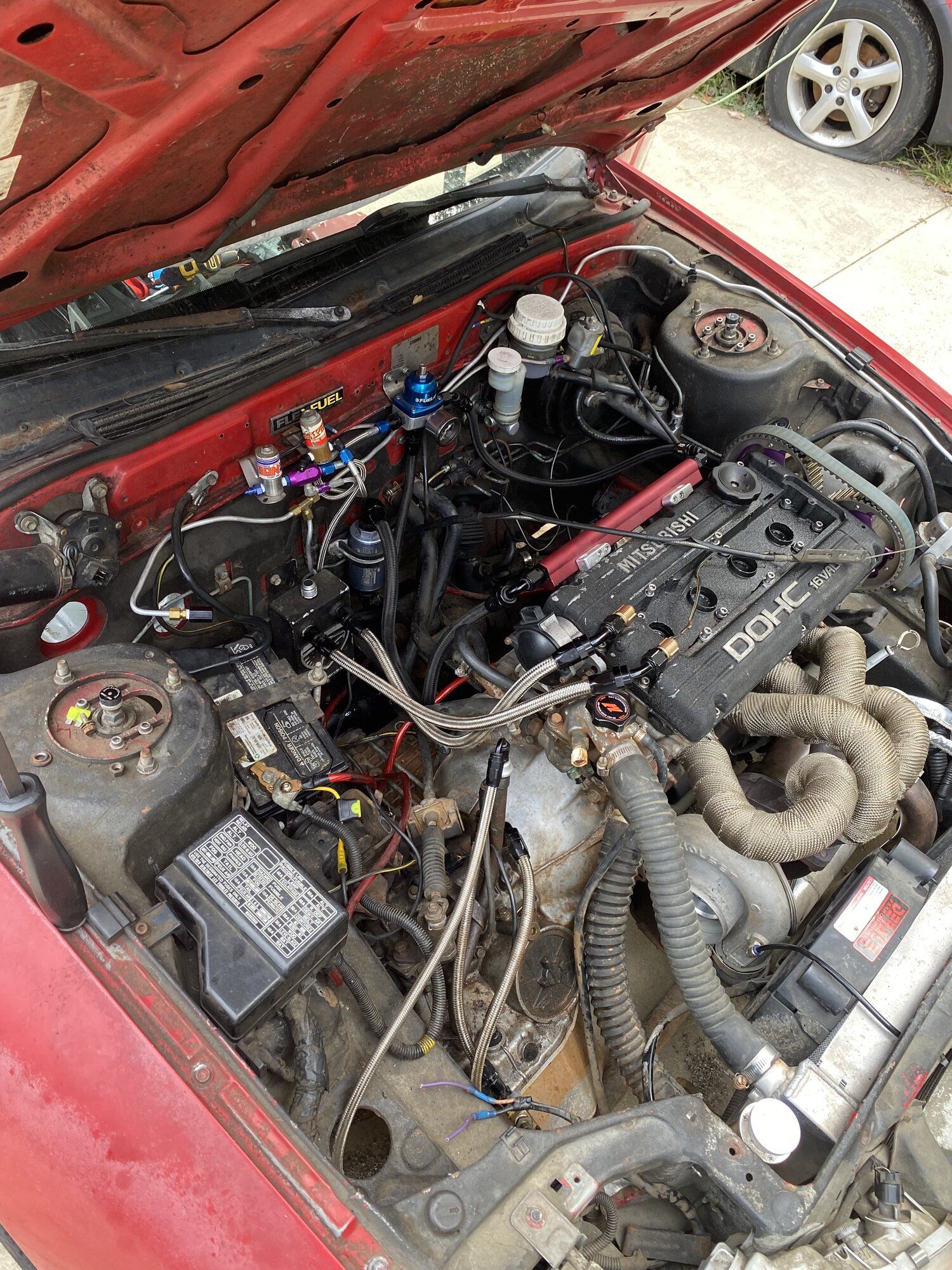

Here’s some of the install pics so far




Picked these plugs from dsm 3d creations. Very nice pieces from them.

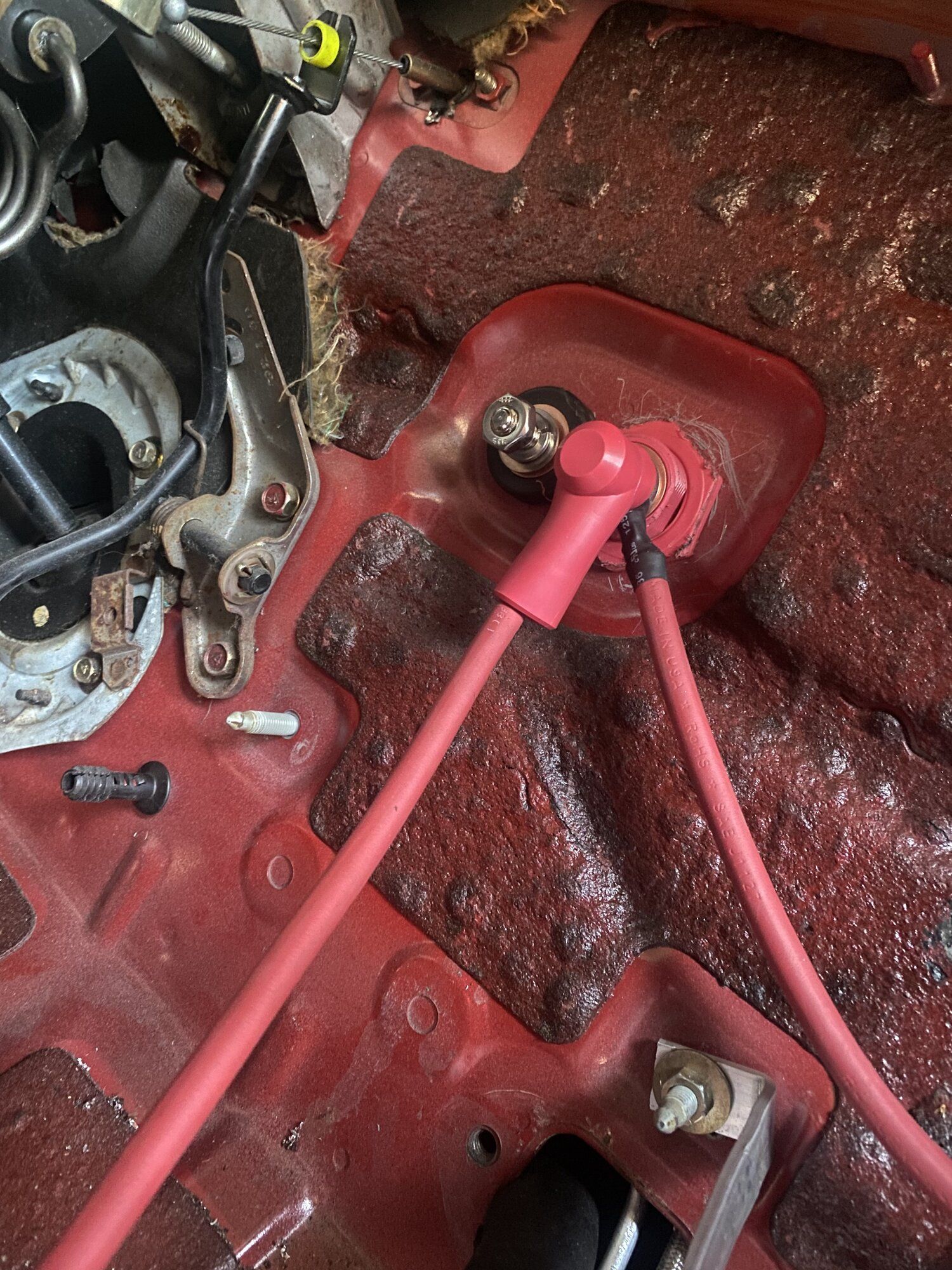

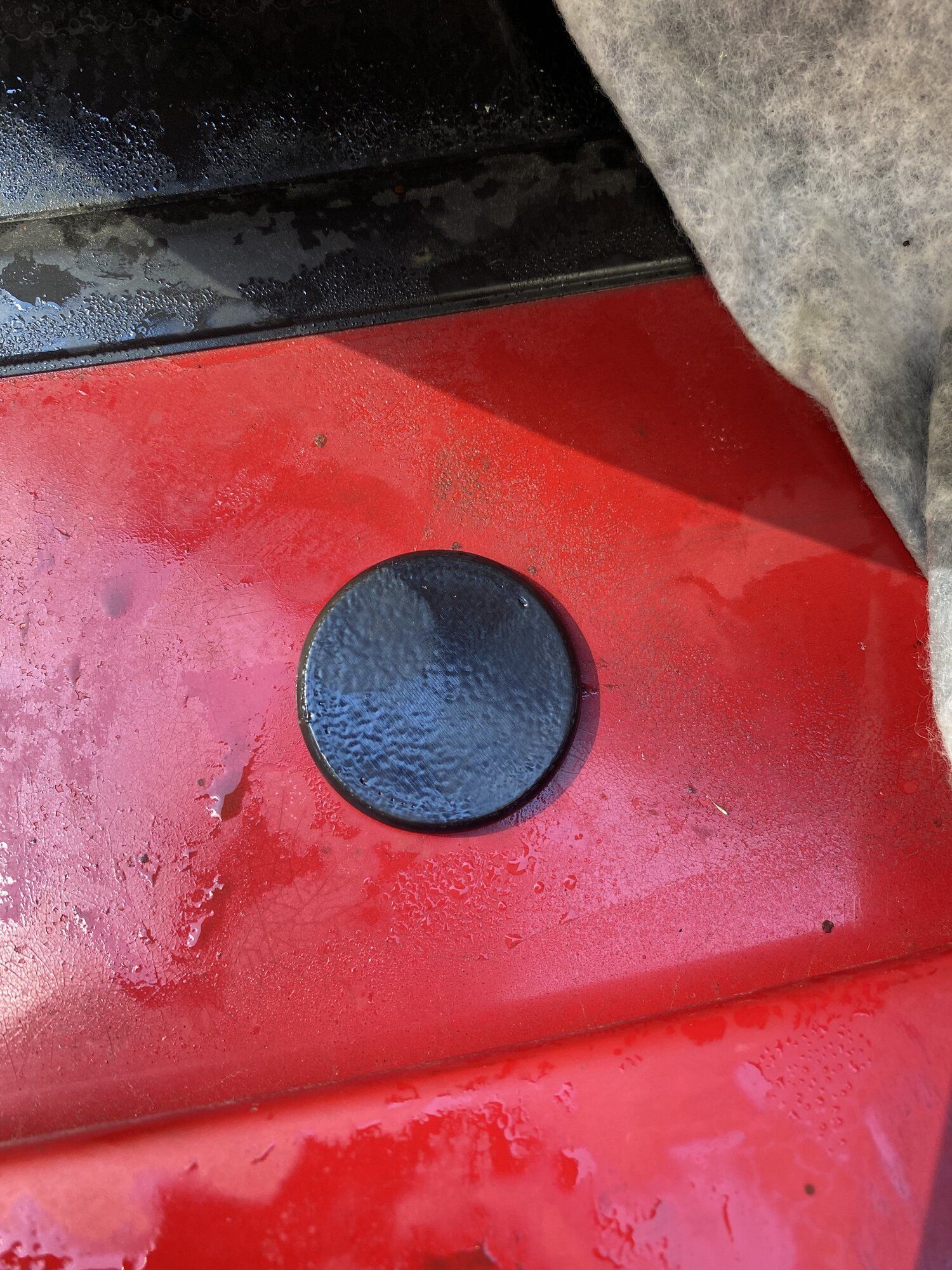

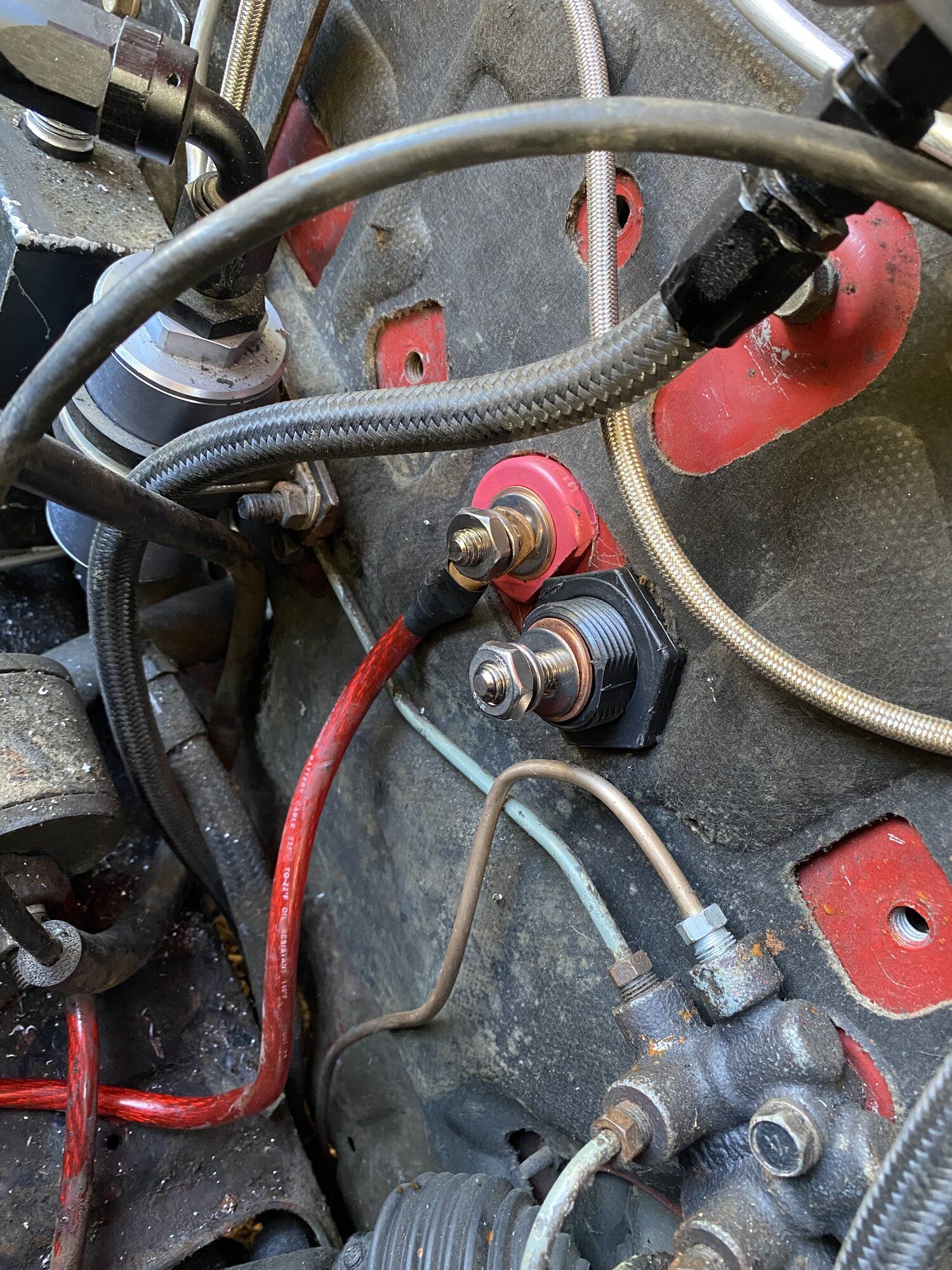

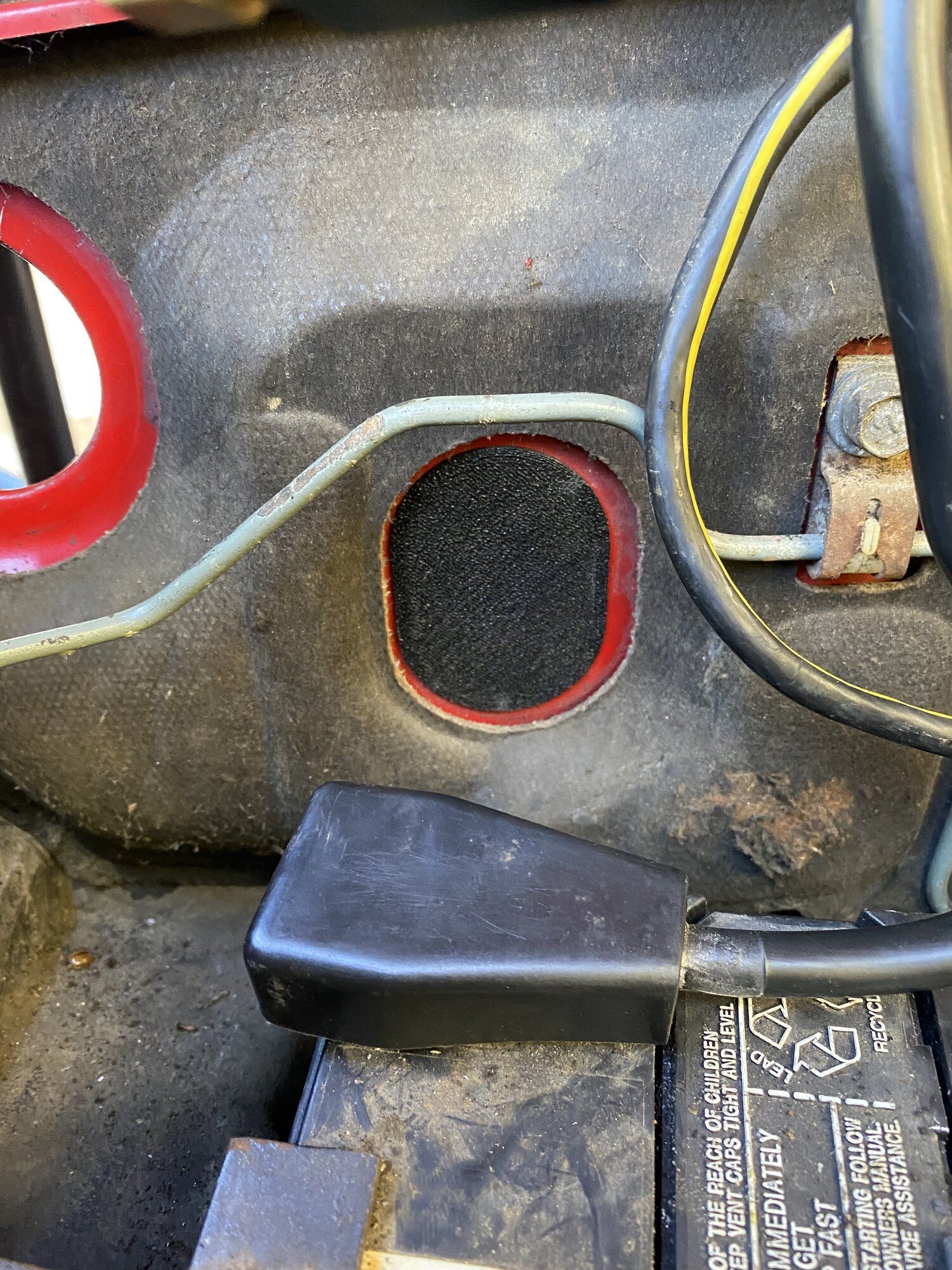

Repurposed the heater hose ports for my battery bulkheads

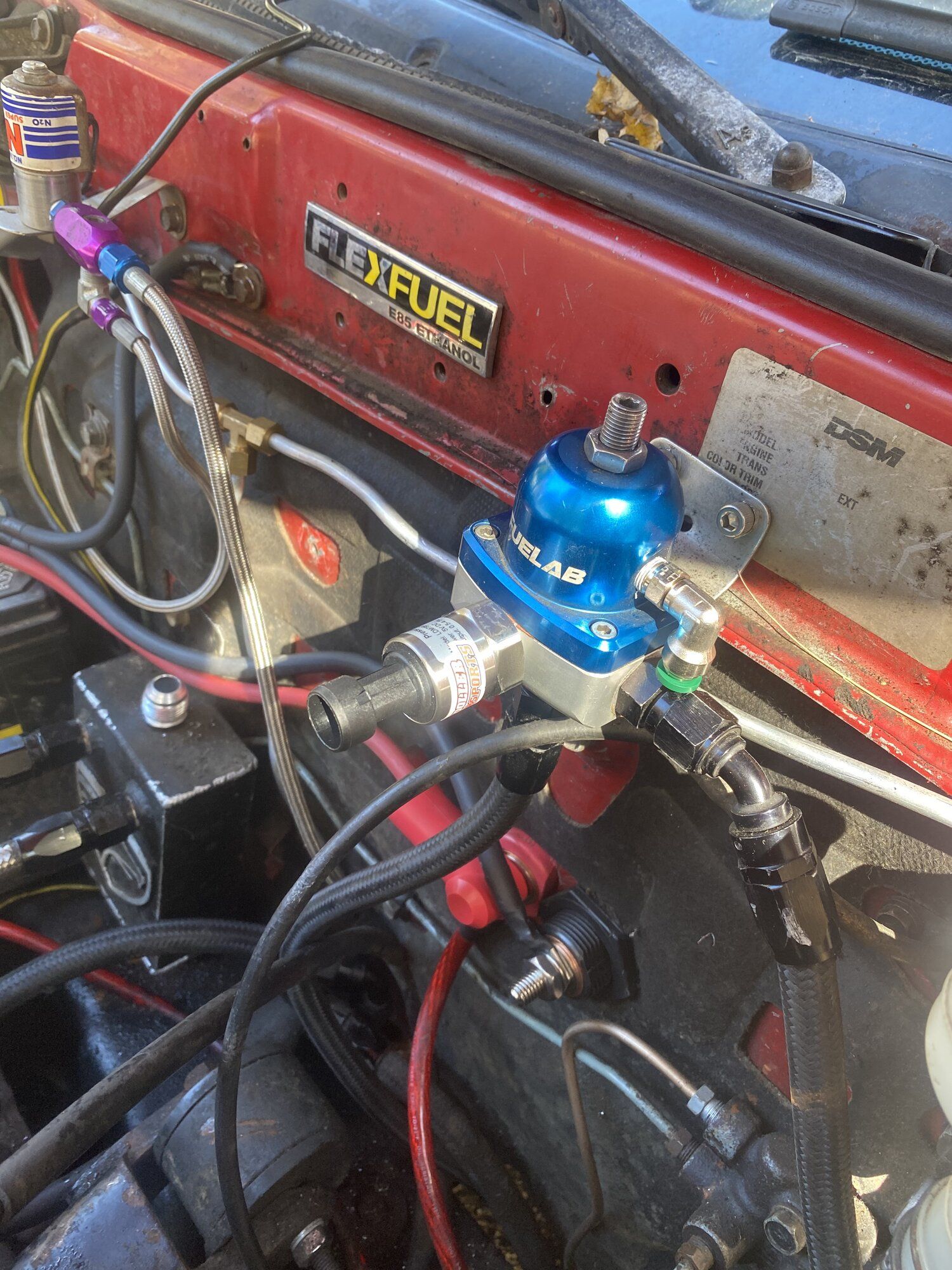

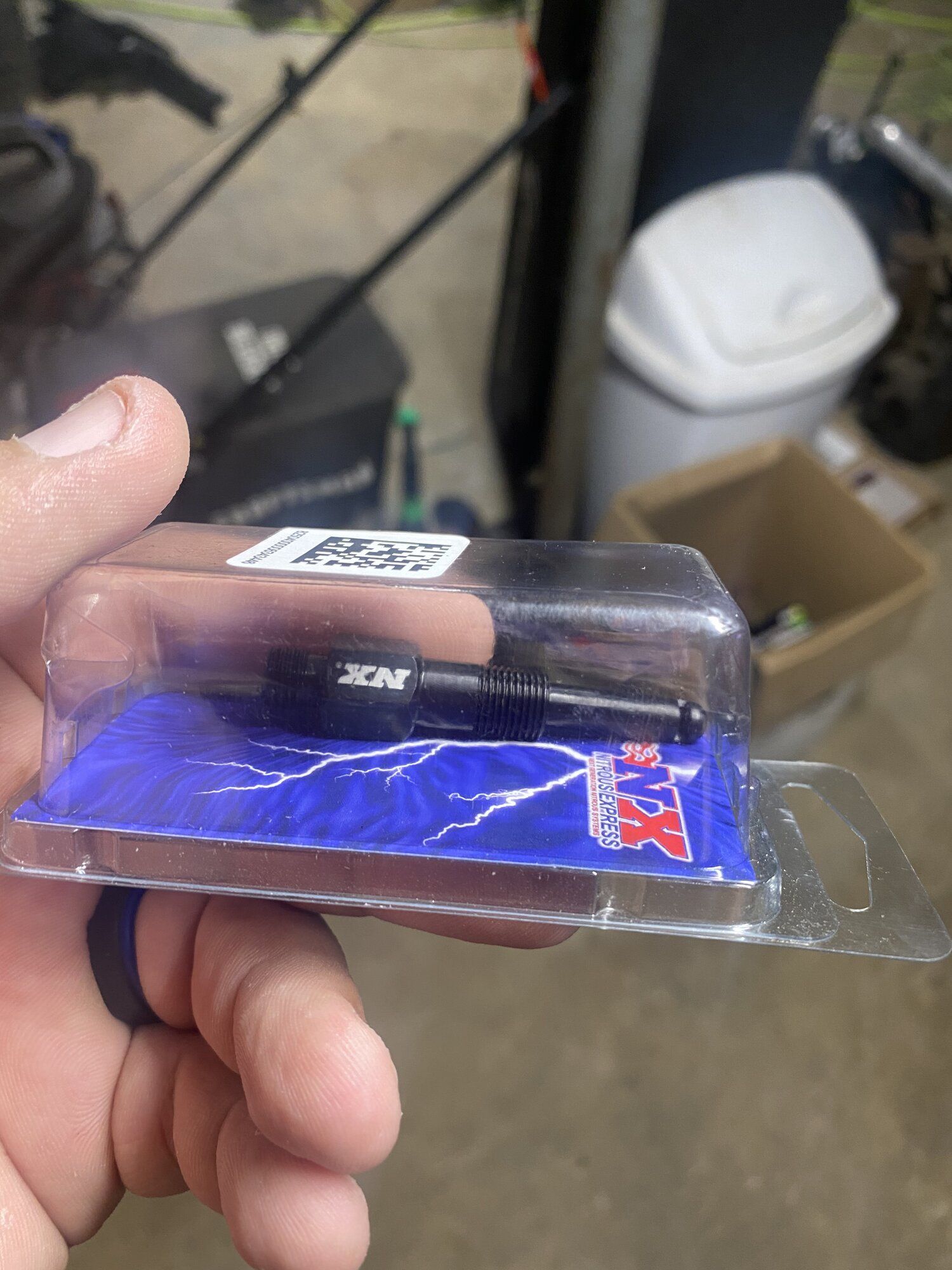

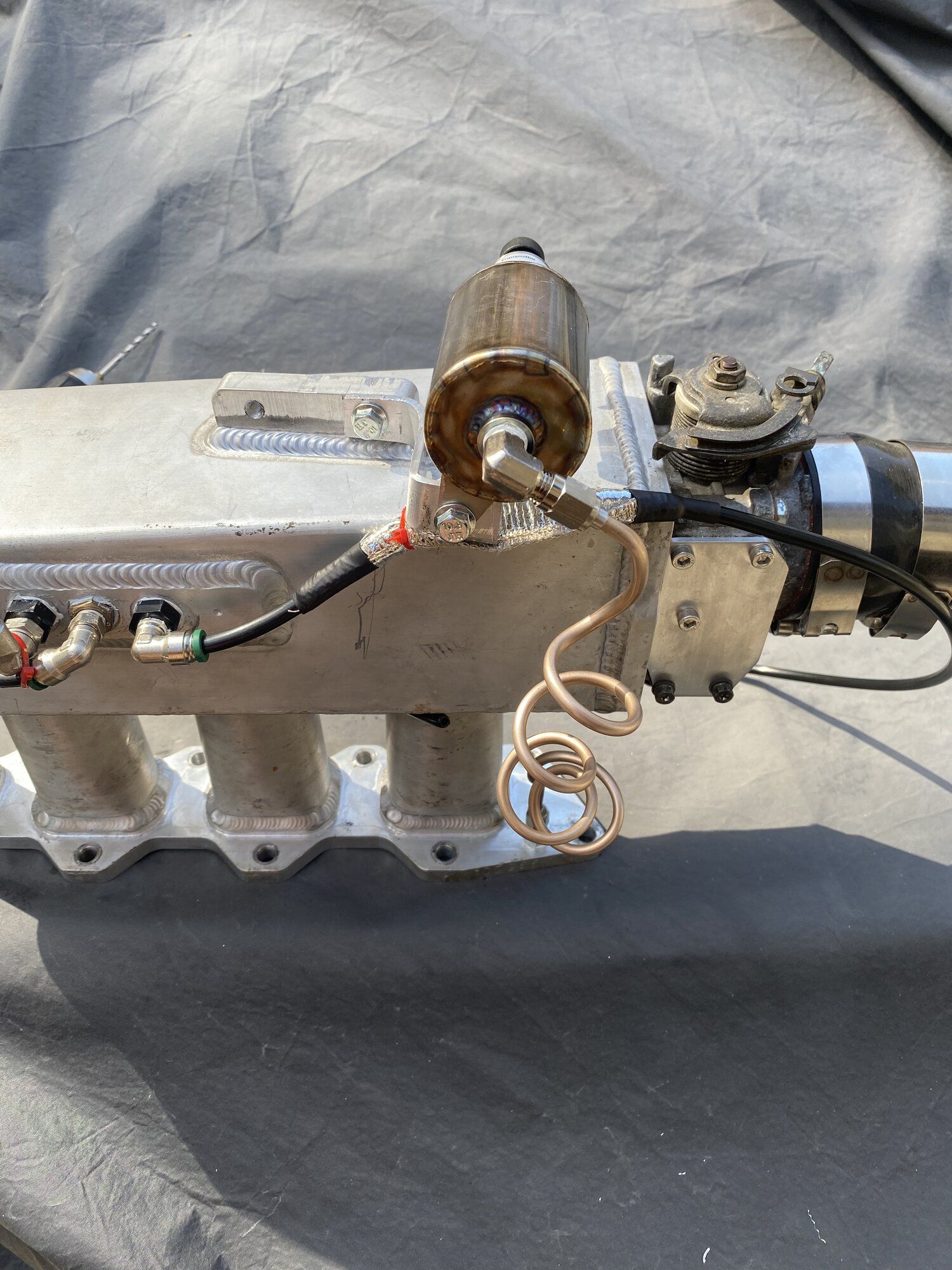

Switched the car to a dry shot to be safer when spraying the car

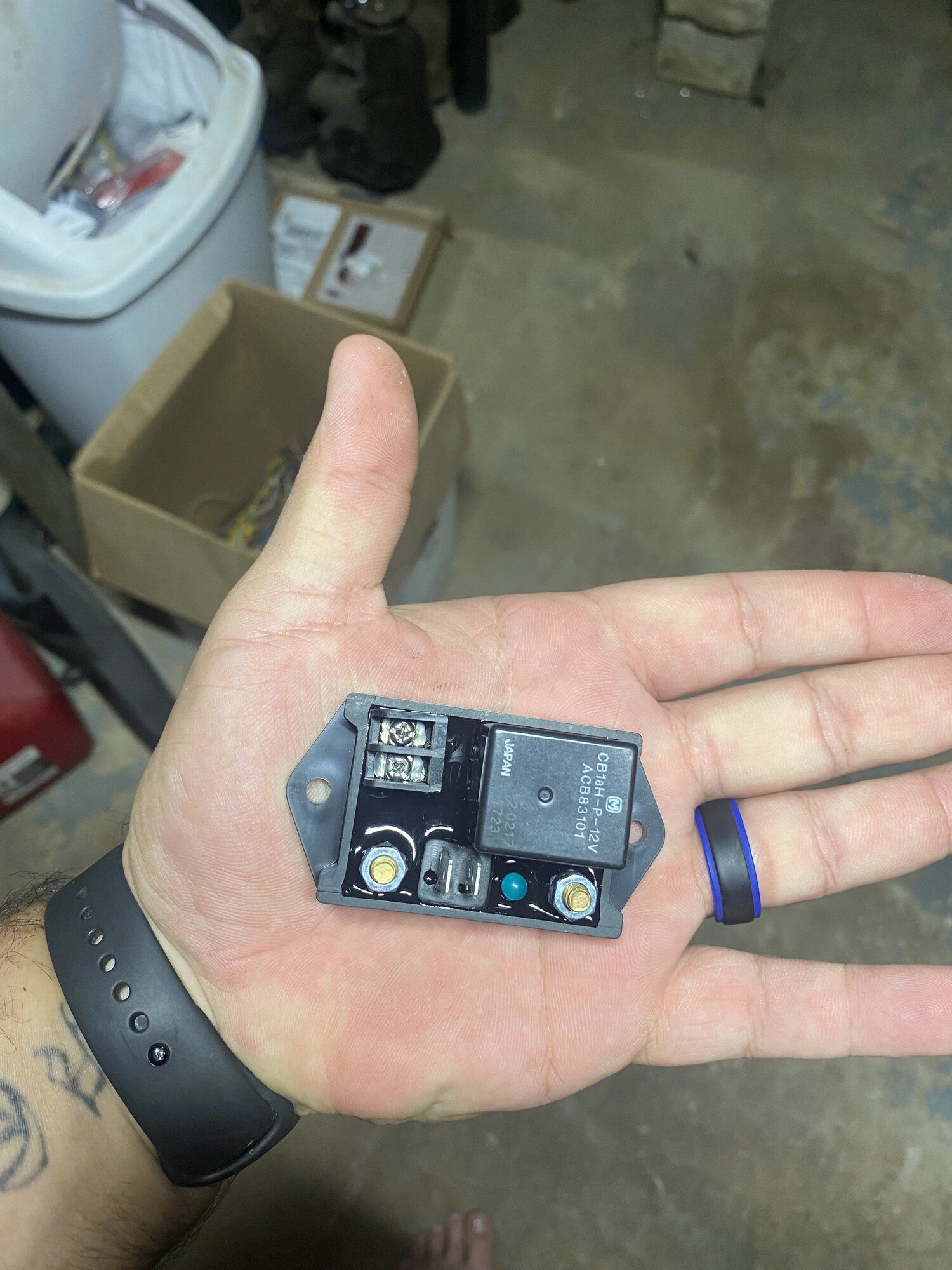

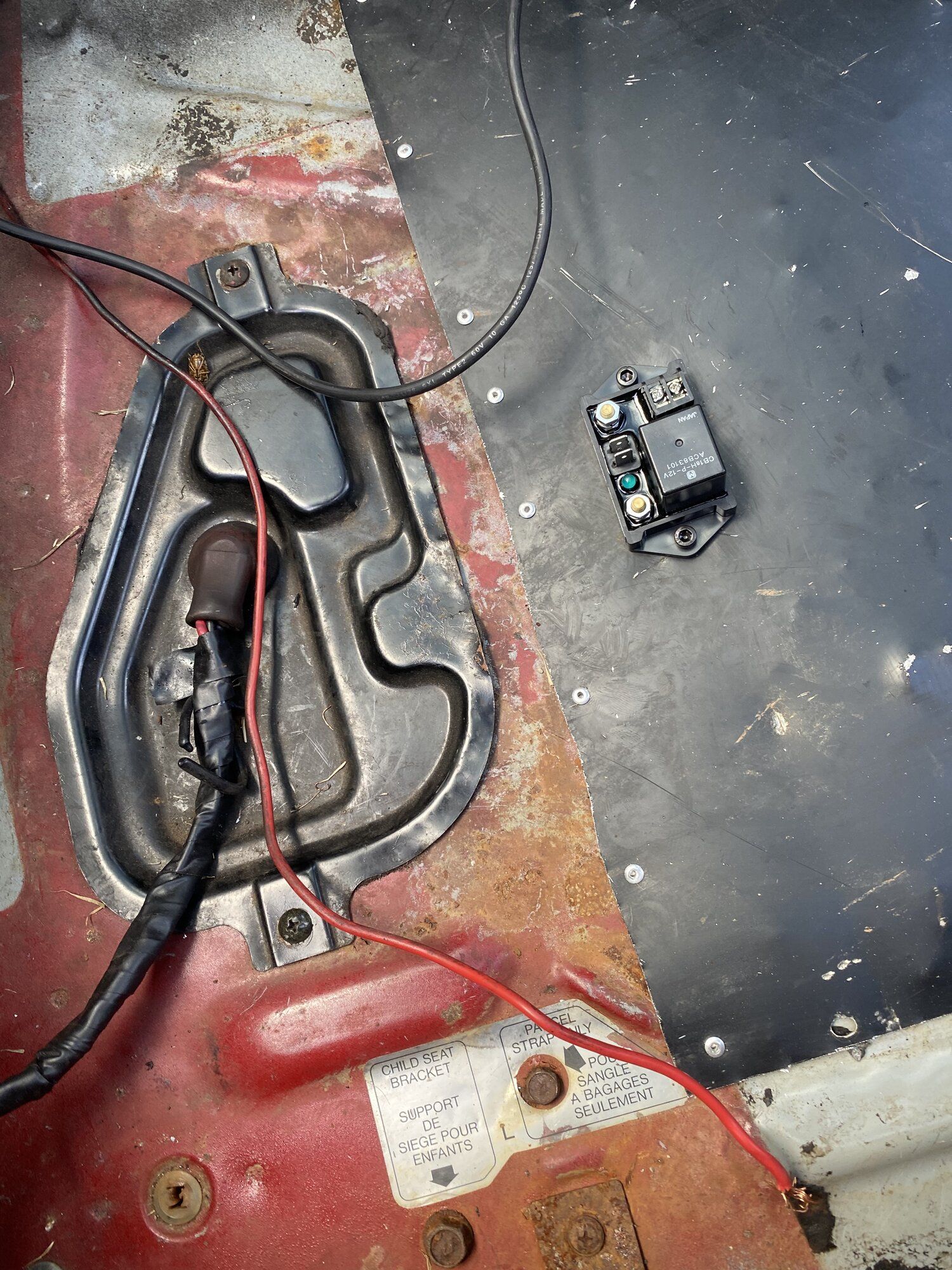

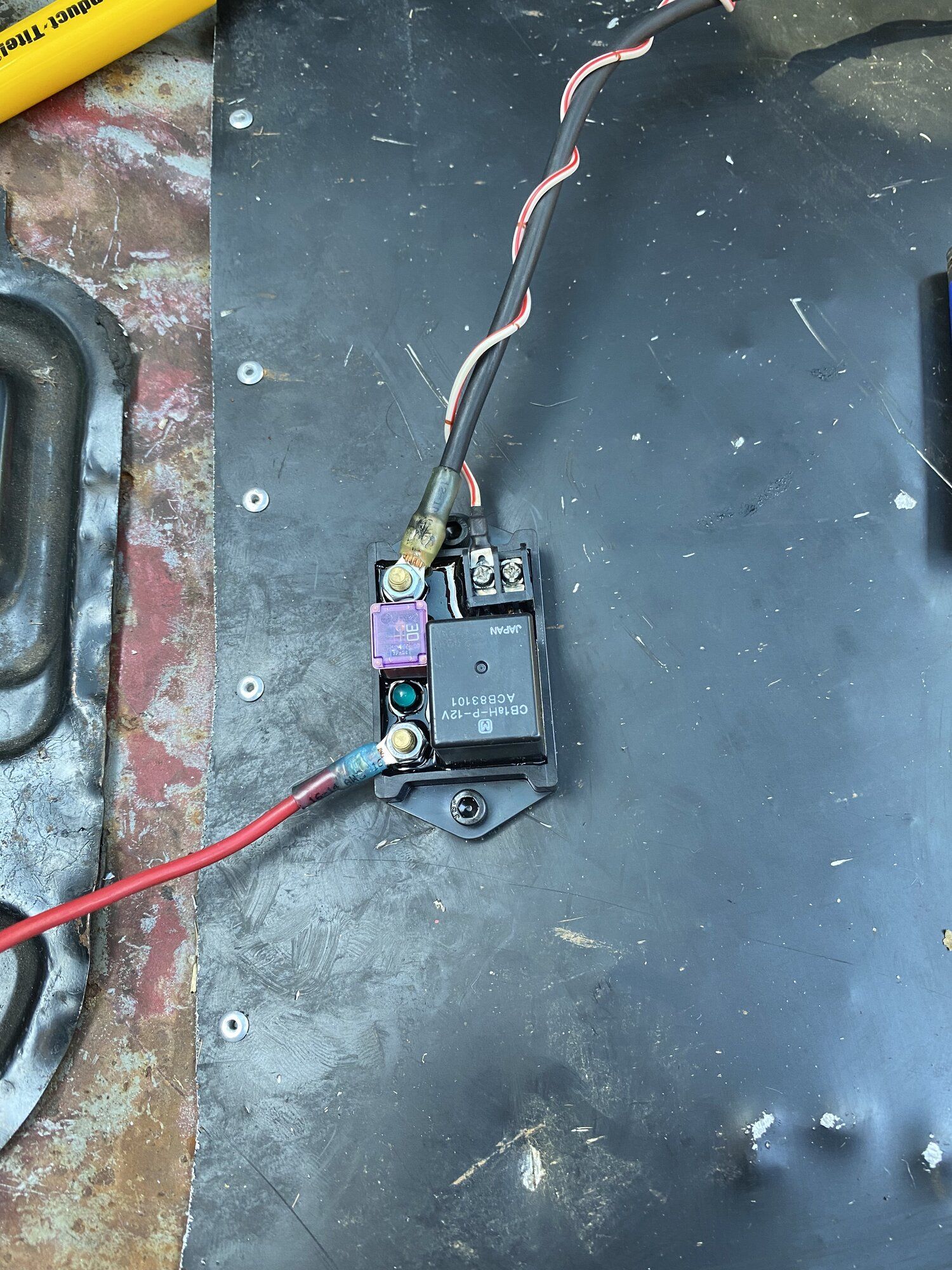

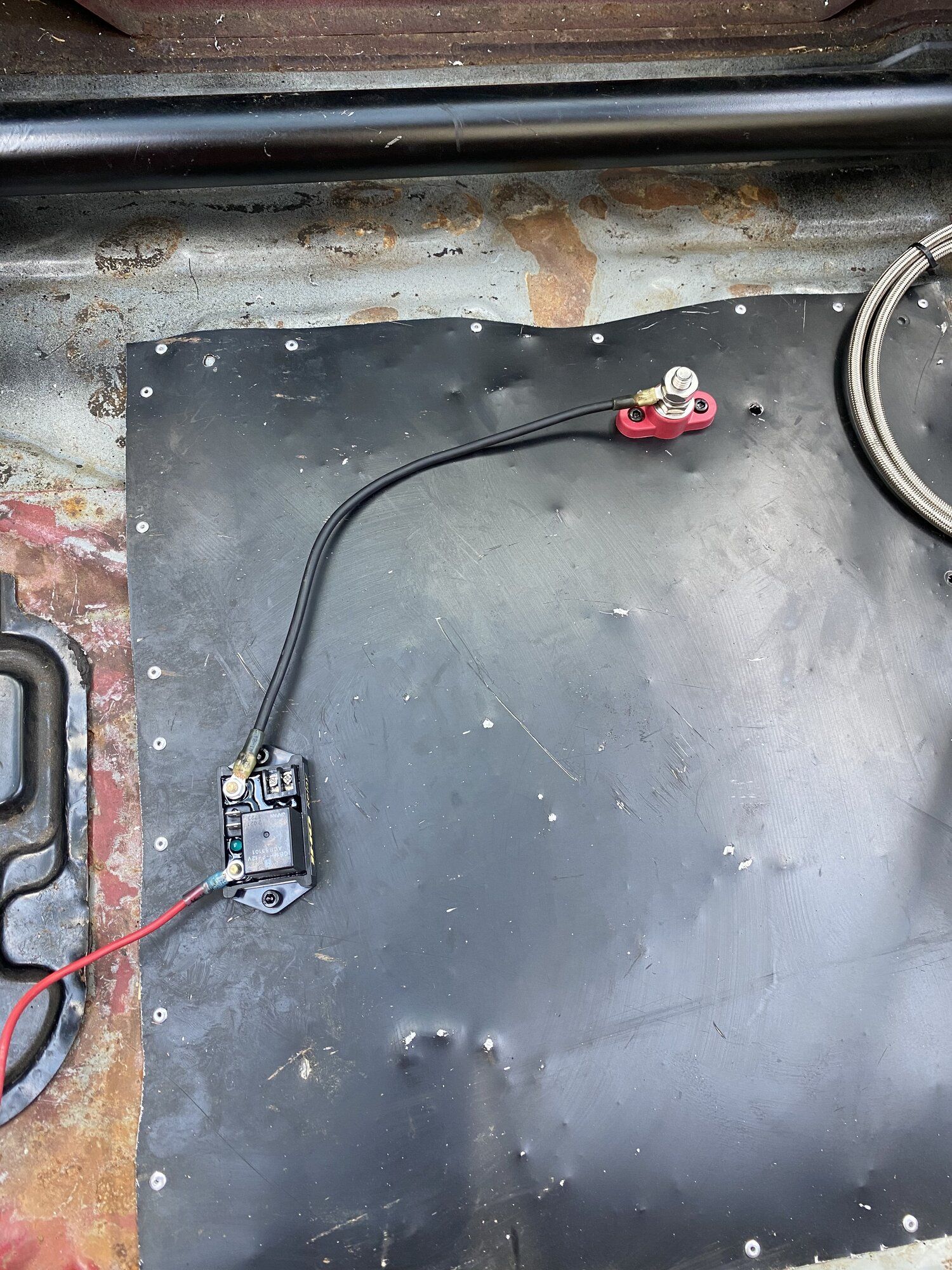

Leash electronics 70 amp relay for the fuel pump

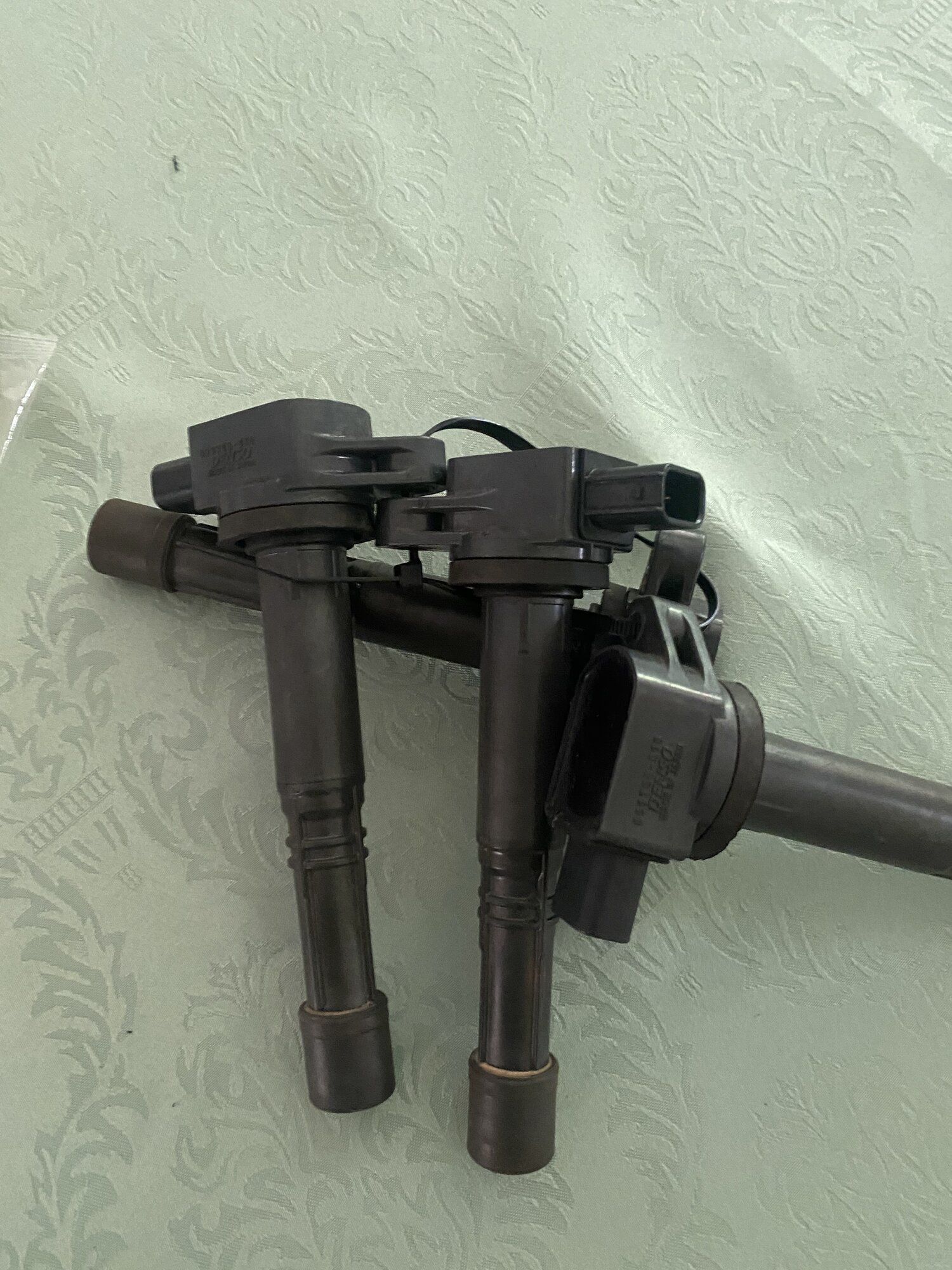

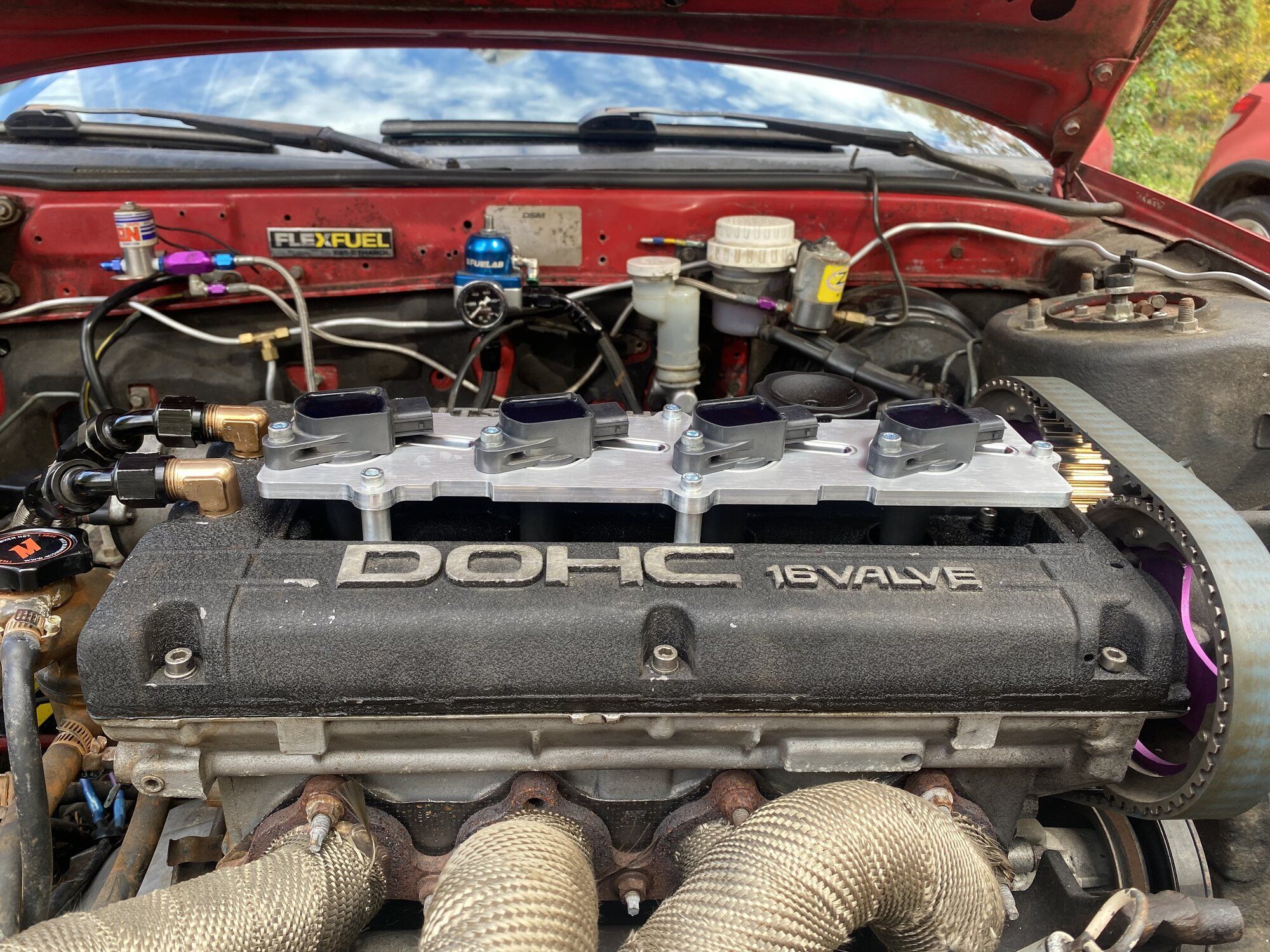

Going to be running k series coils. Should be plenty of spark for what I’m doing.

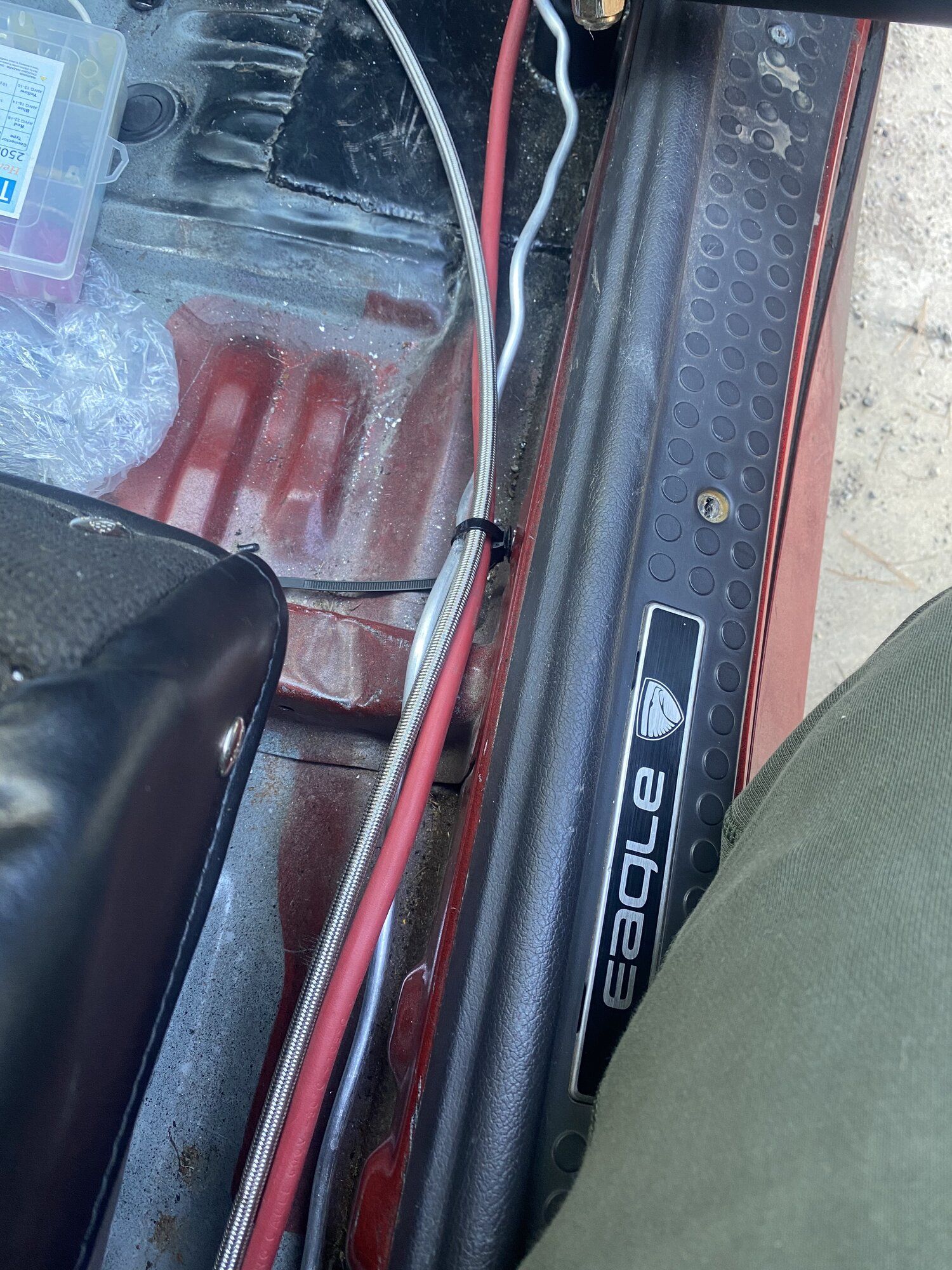

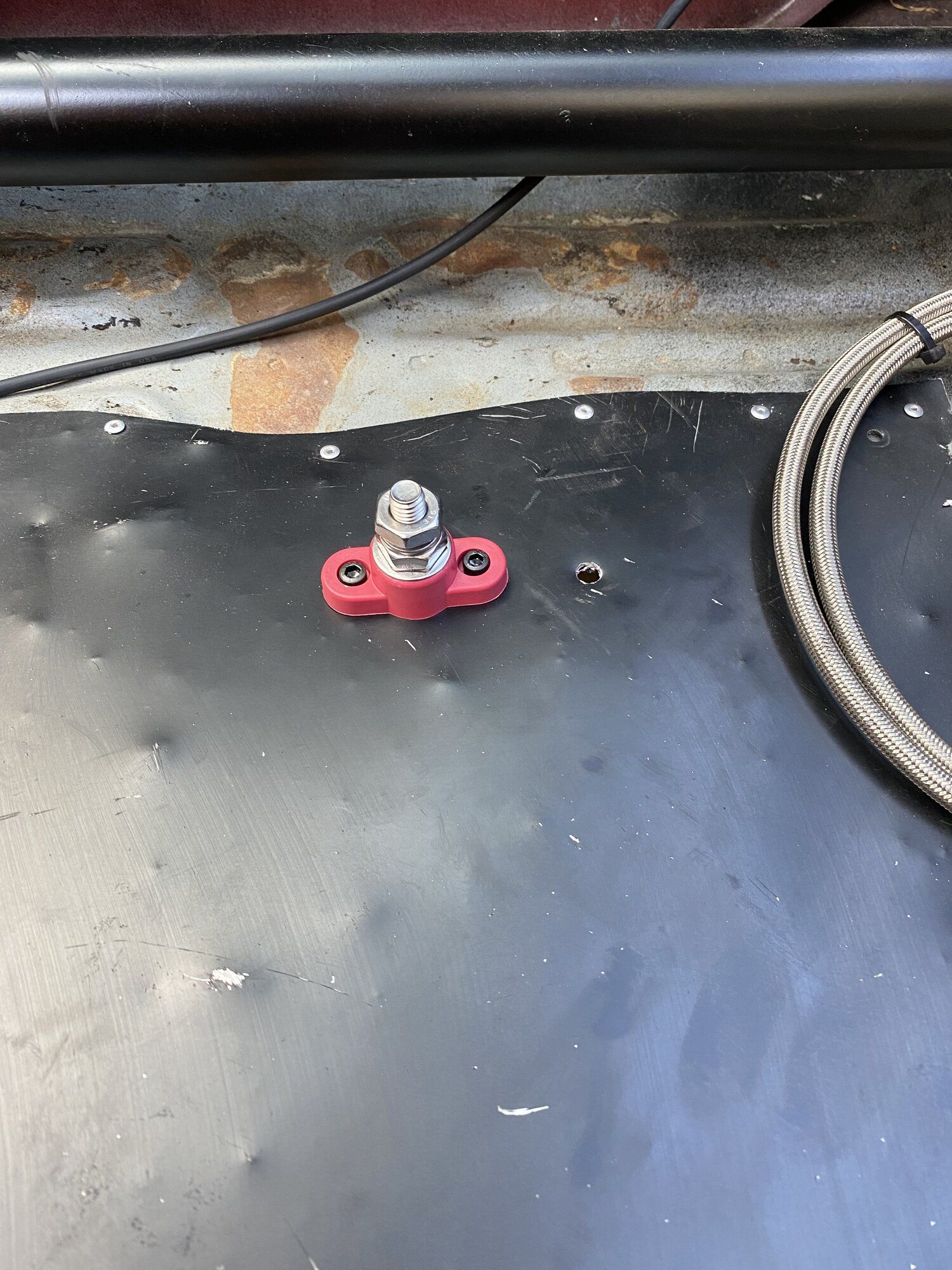

Running a big battery cable to the back to run the fuel pump power and power for the bottle heater

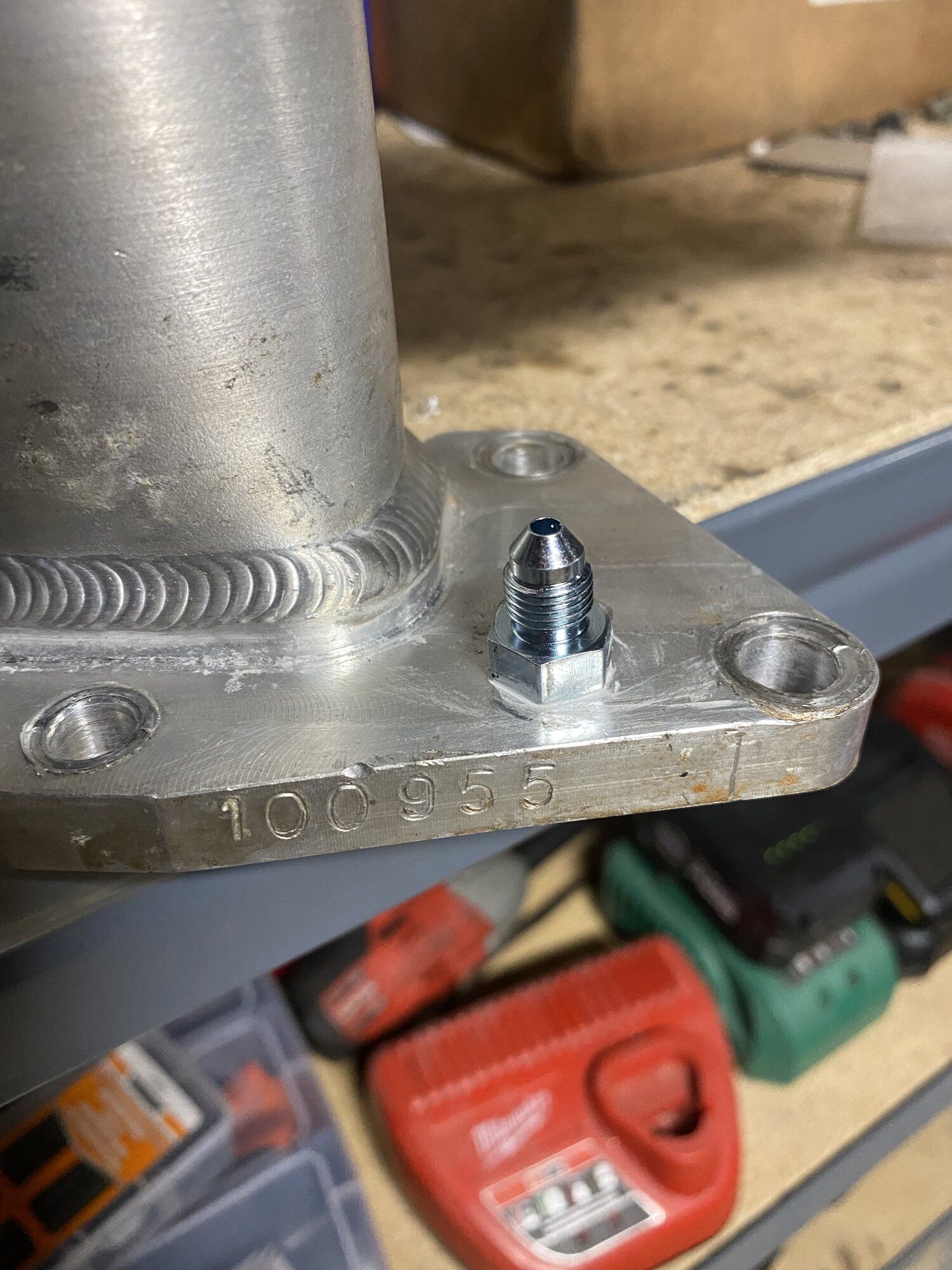

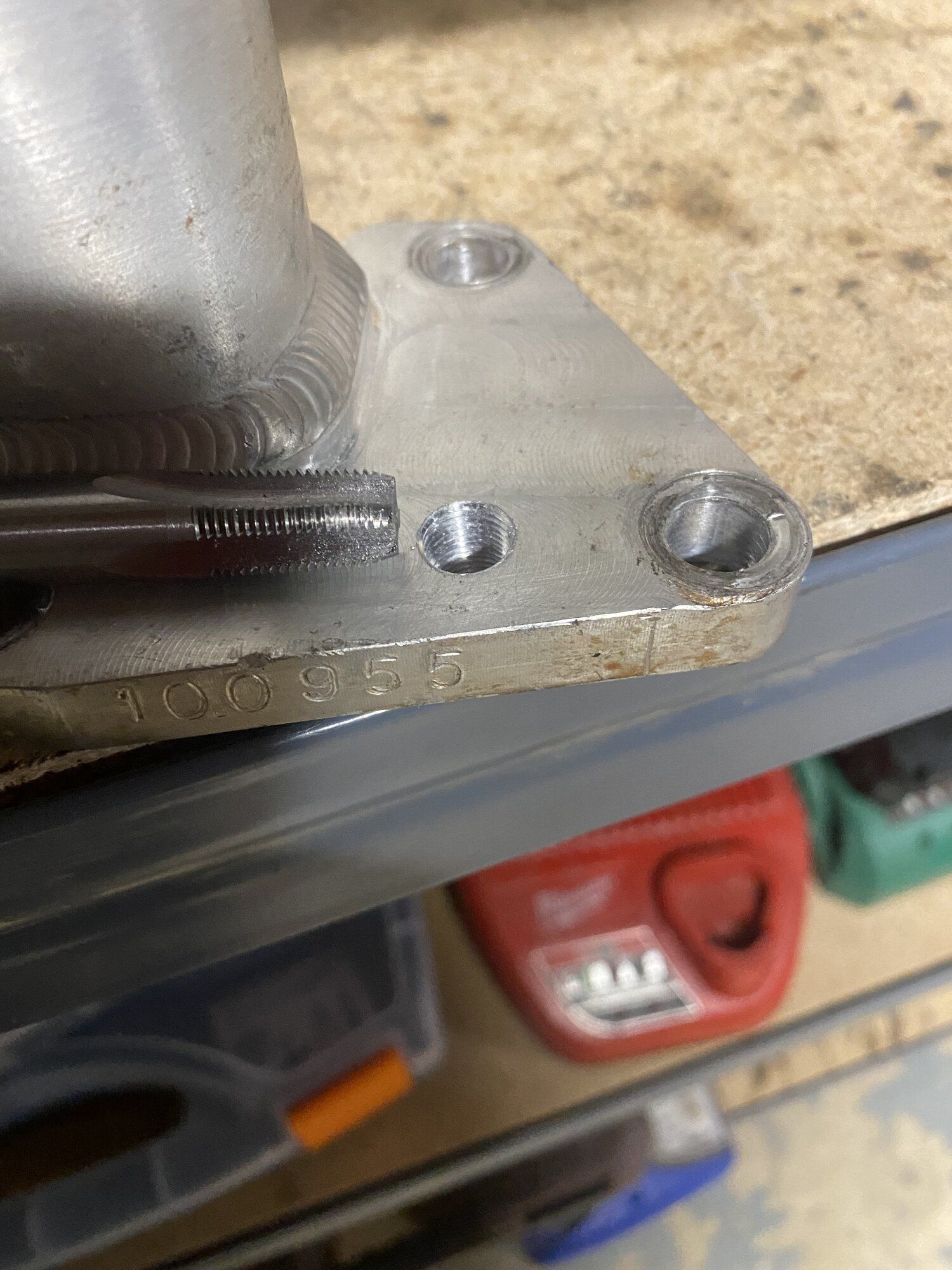

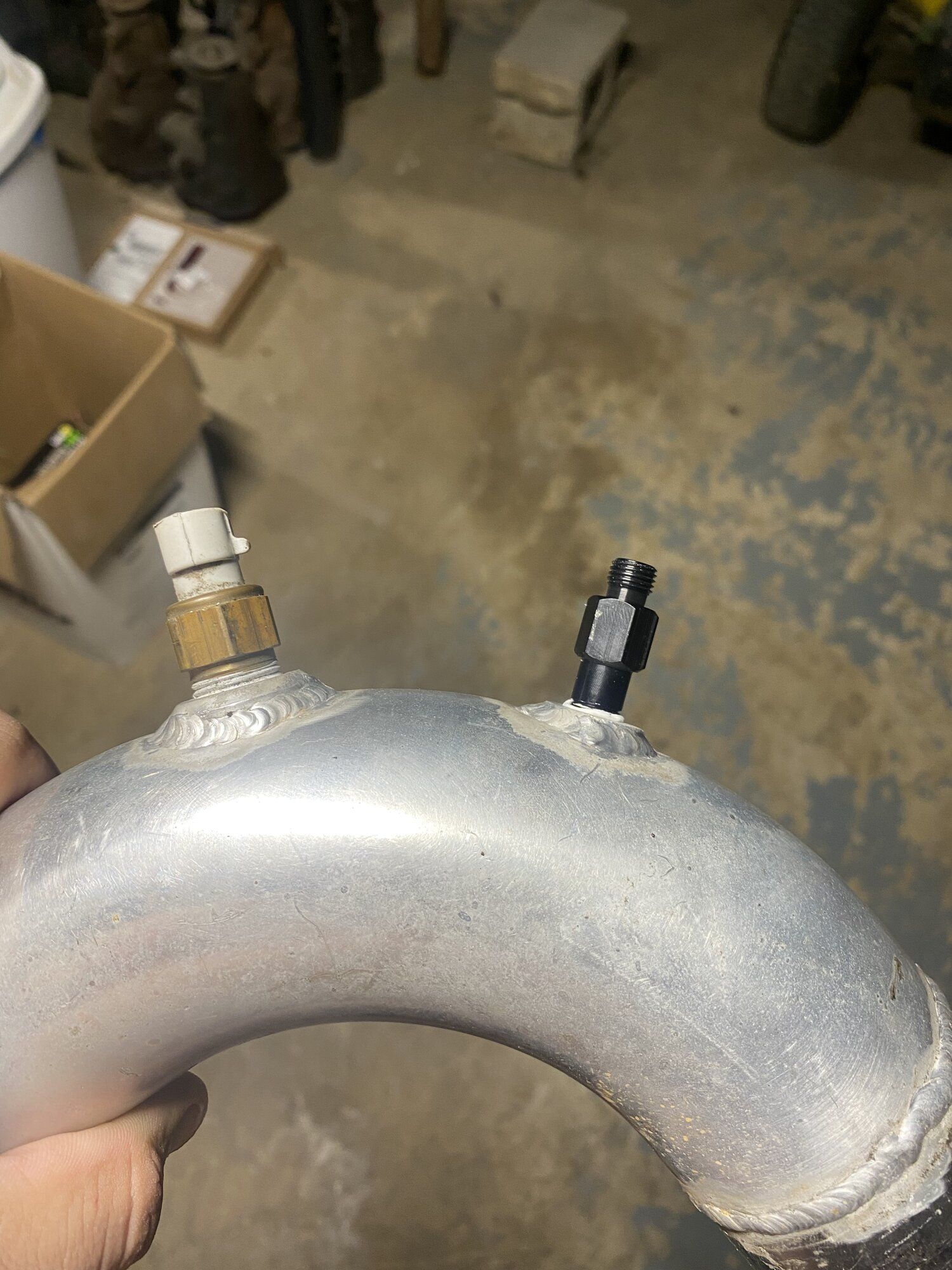

Drilled and tapped the intake for my turbo back pressure sensor

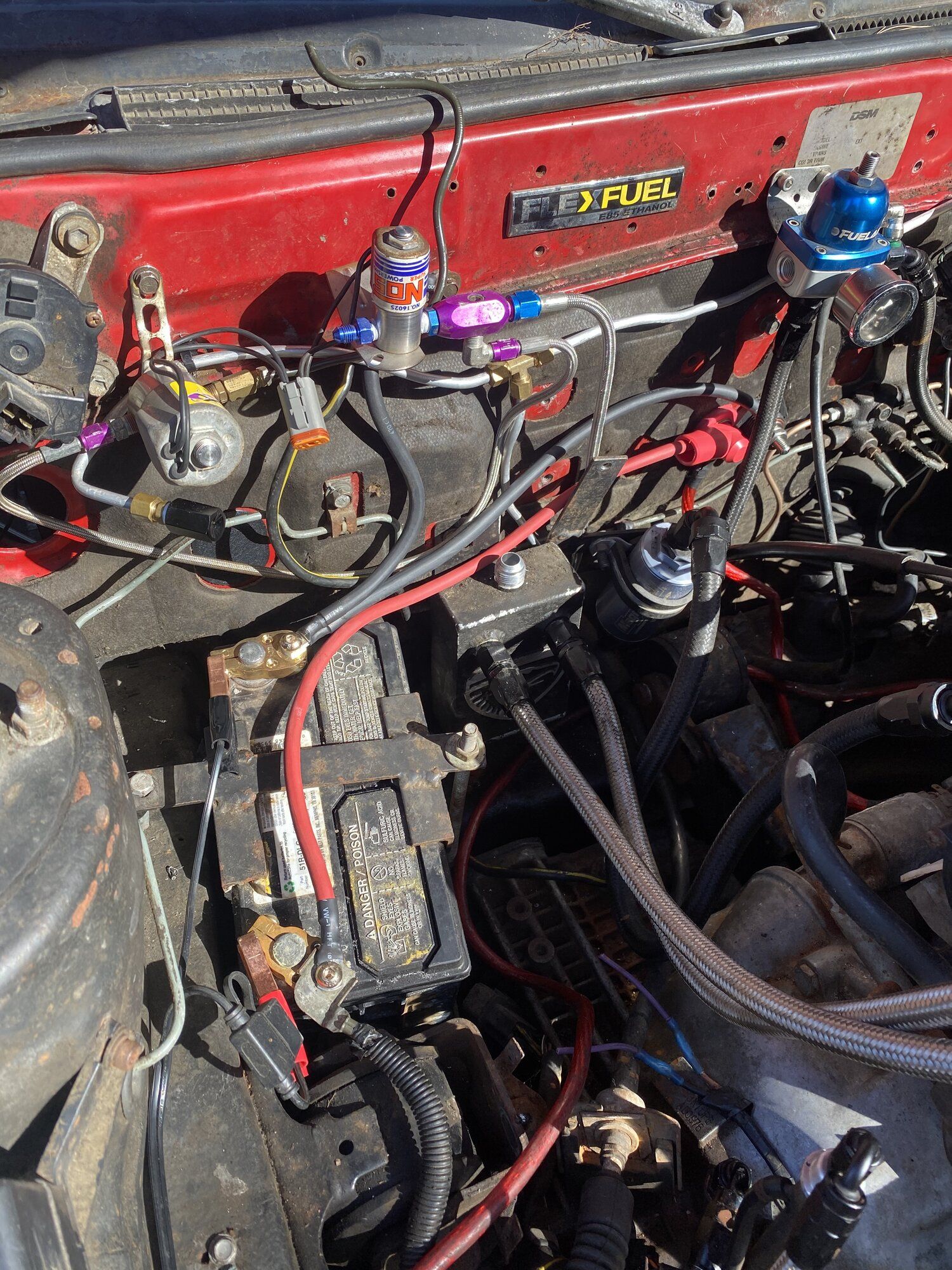

Got battery cables ran and all setup.

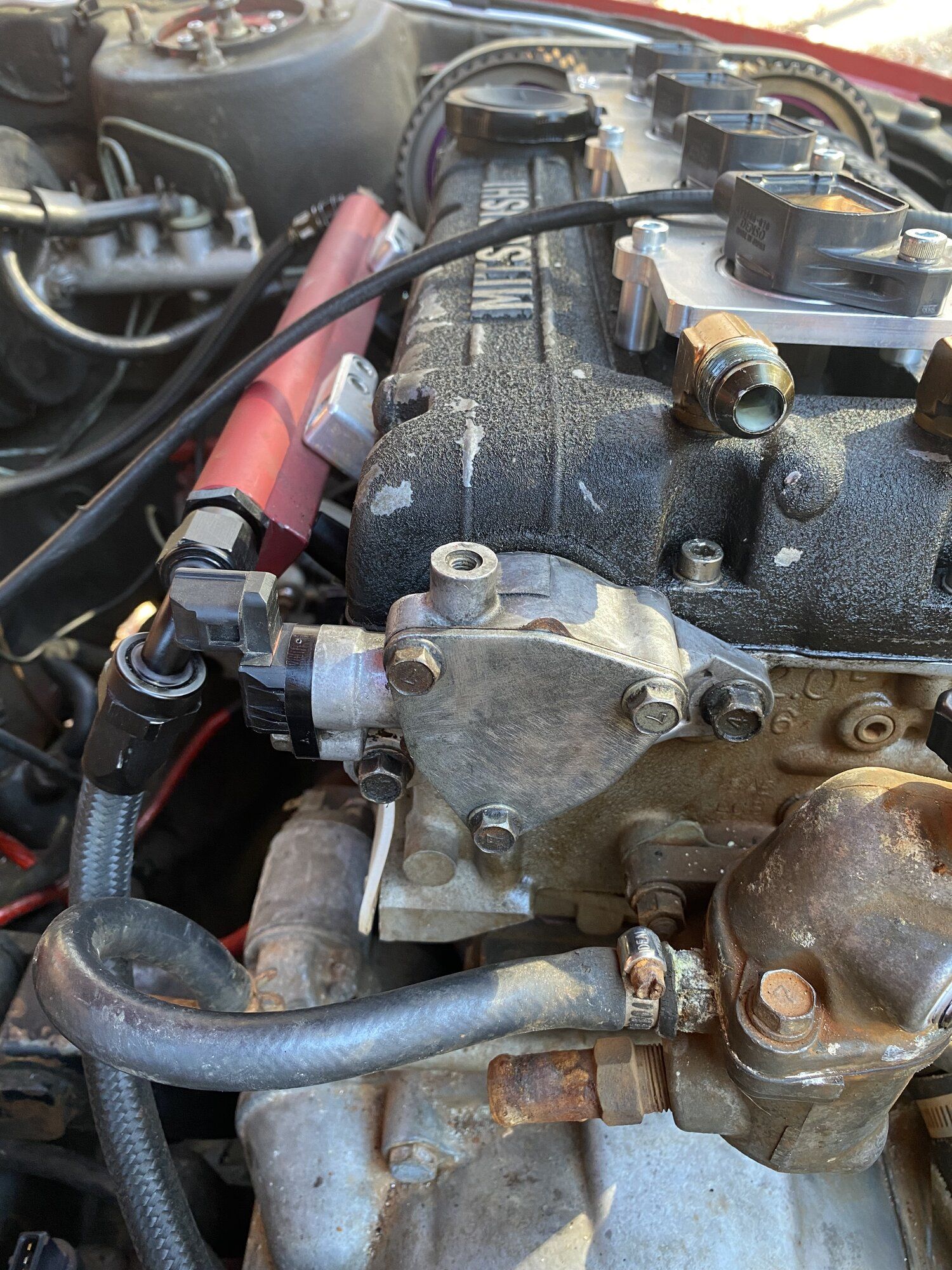

Some of the sensors going into monitoring things on the car. Still have a couple to put in.

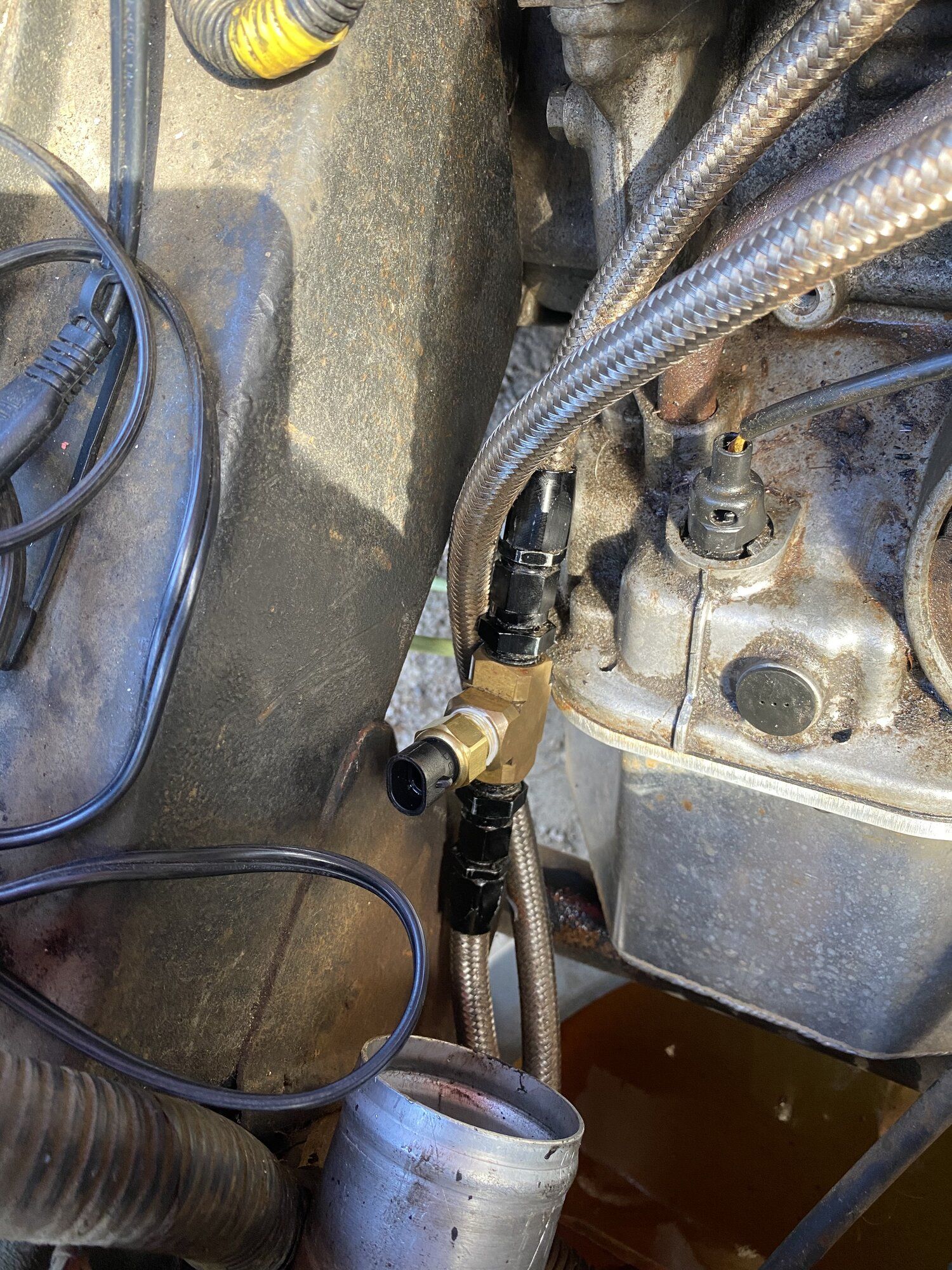

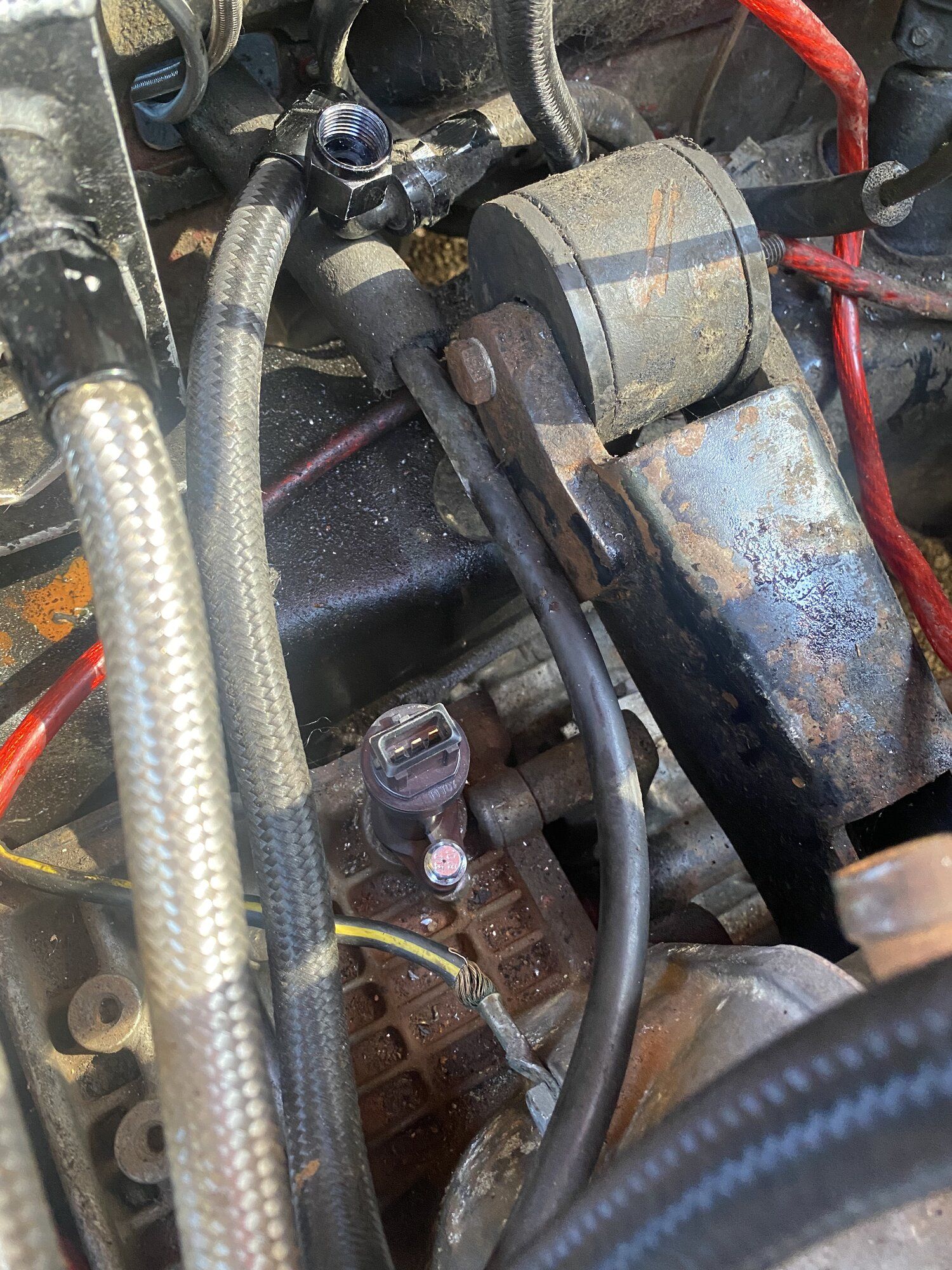

Here is how I did my back pressure sensor.

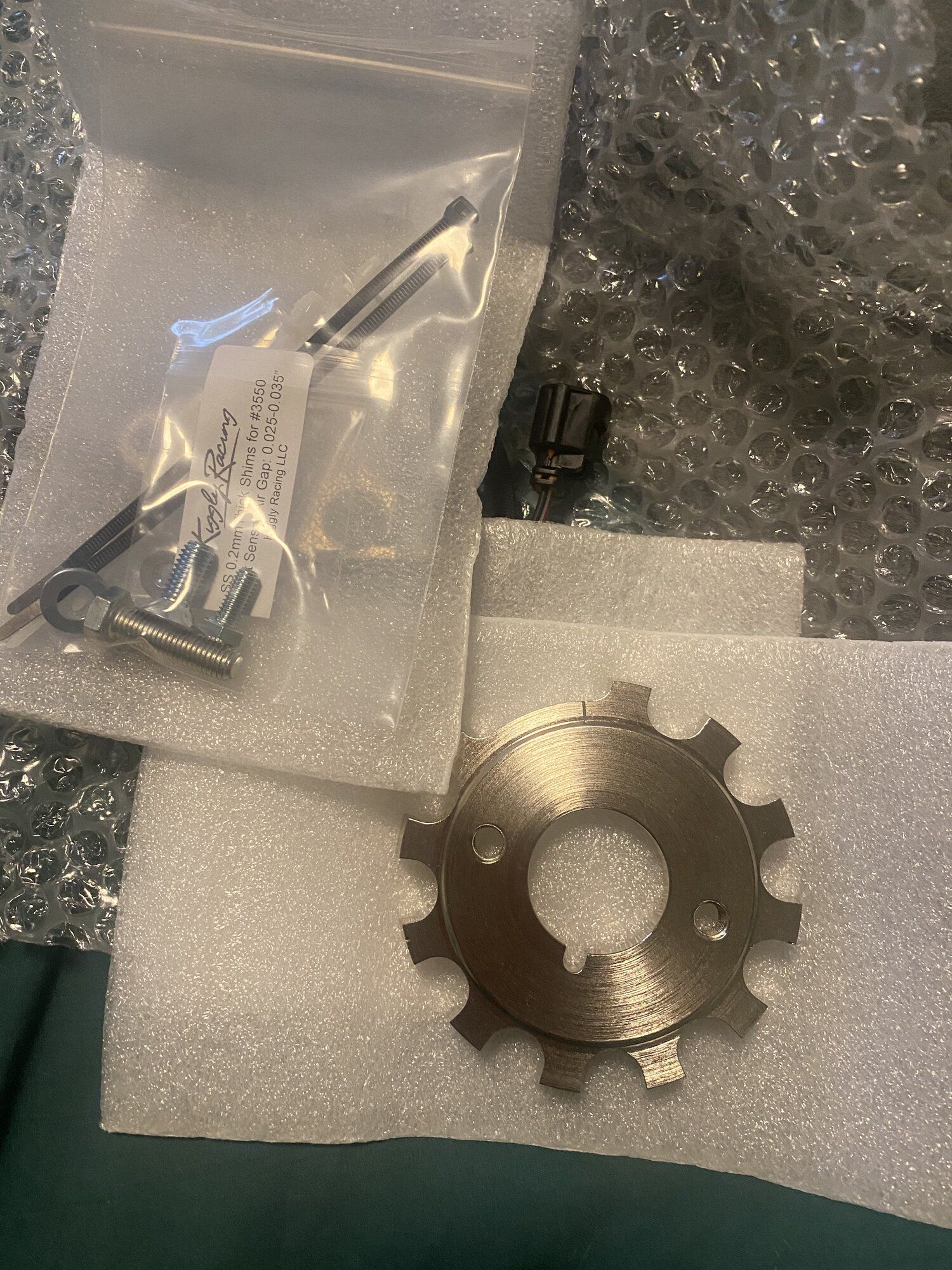

Next thing is to pull the timing stuff and get the crank trigger kit installed. Got a few more sensors and things to mount up and then it’s time to start wiring things



Spleen8urLSX

Proven Member
268
173
Dec 26, 2017
Elyria, Ohio
Ready to see it back out. Hoping to have the engine harness in the car by the end of the month and starting the wiring.
I’m curious to see how you like Fuel Tech, I keep seeing nothing but good from those who use it. Seems to be pretty involved but well worth it once together, plus I absolutely love the ECU itself is a dash display


OH91awd

10+ Year Contributor
1,129
625
Sep 22, 2011
chillicothe, Ohio
I’m curious to see how you like Fuel Tech, I keep seeing nothing but good from those who use it. Seems to be pretty involved but well worth it once together, plus I absolutely love the ECU itself is a dash display
The ecu being the dash is what sold me honestly LOL that and the trans control is pretty awesome. Going to be odd not shifting the car tho.


OH91awd

10+ Year Contributor
1,129
625
Sep 22, 2011
chillicothe, Ohio
Weekend update:

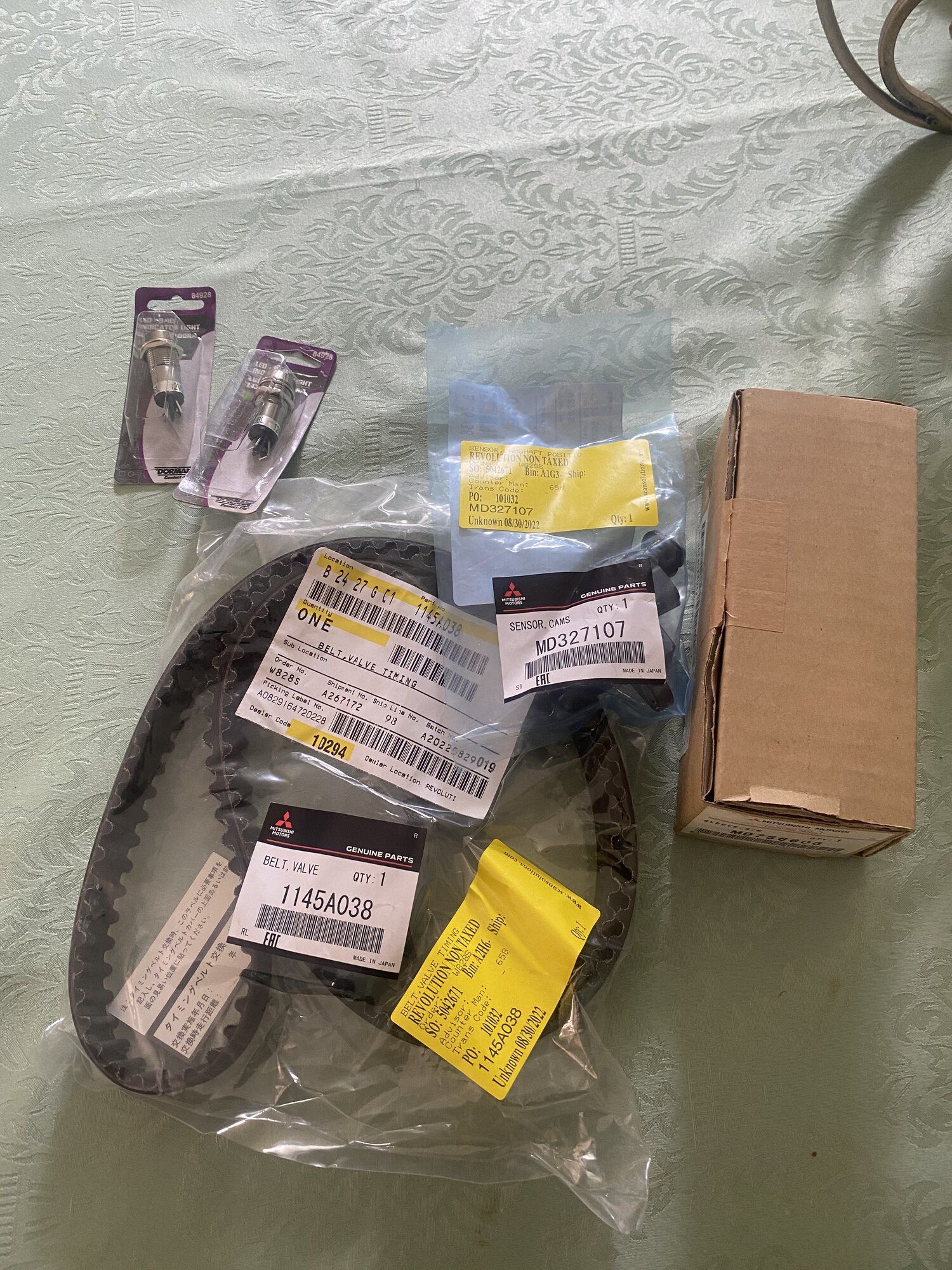

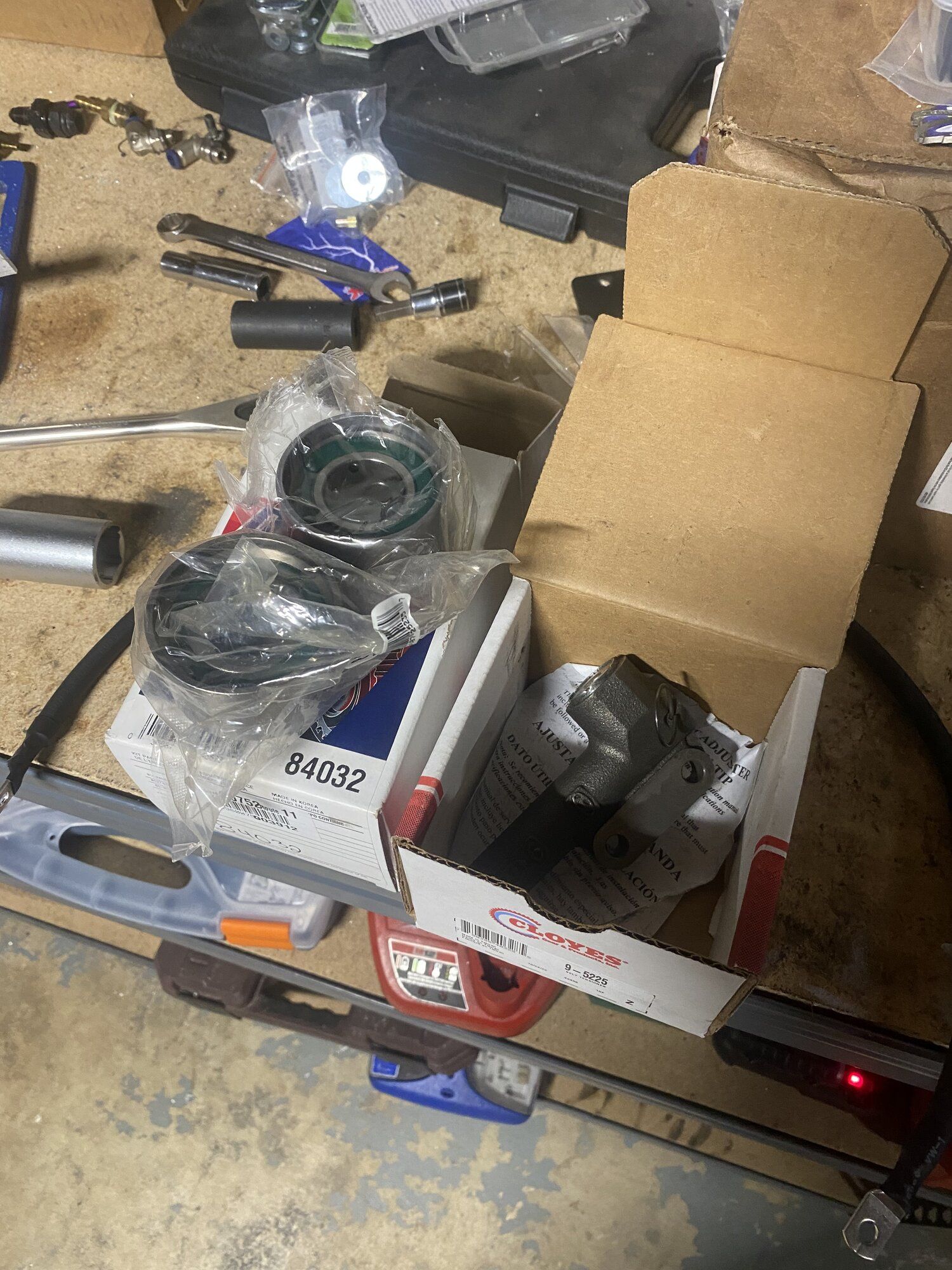

Got a few more parts in to keep things moving.

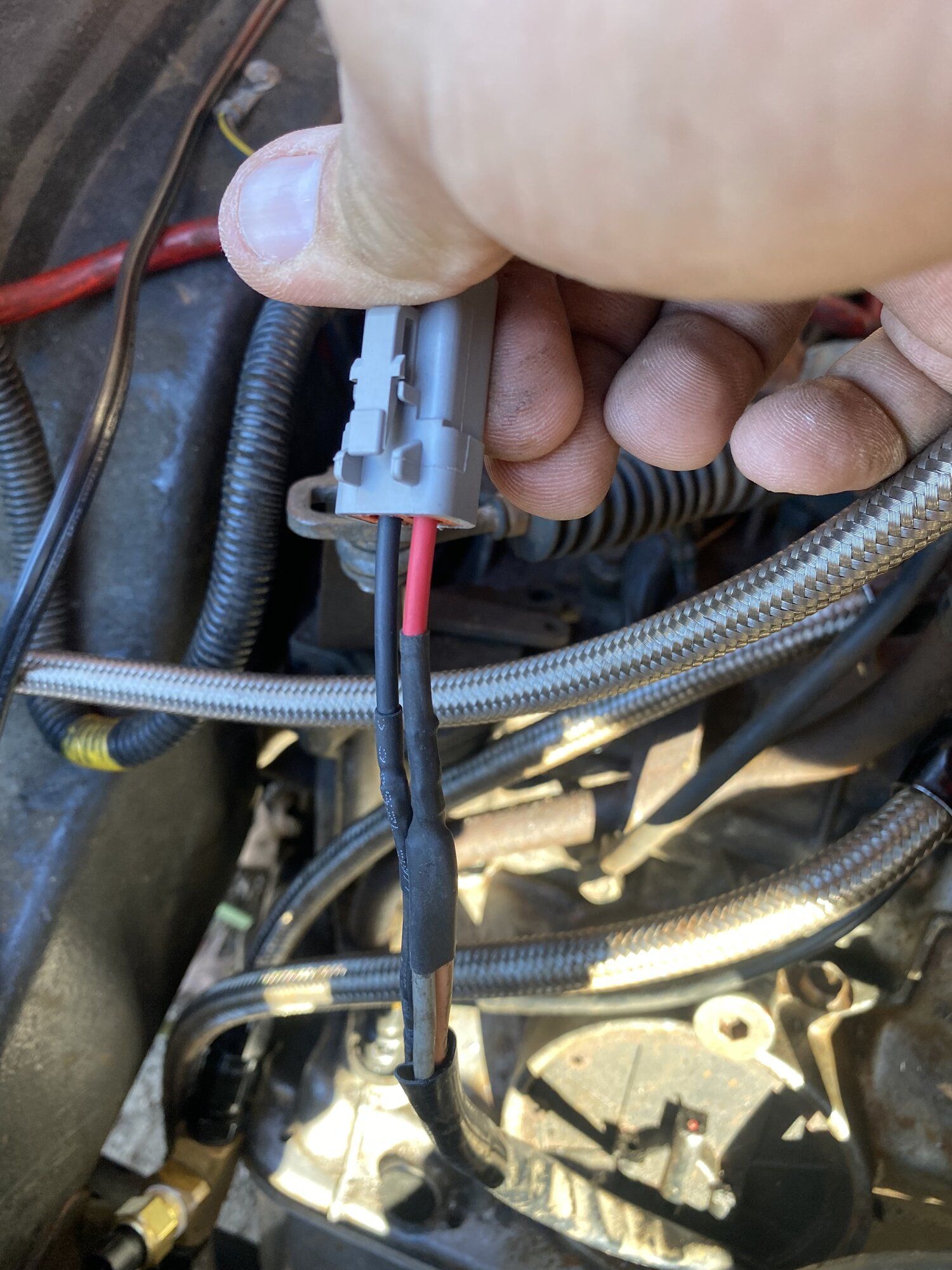

Got a couple things bolted on to get in place to start wiring also added a Deutsch connector to the fan.

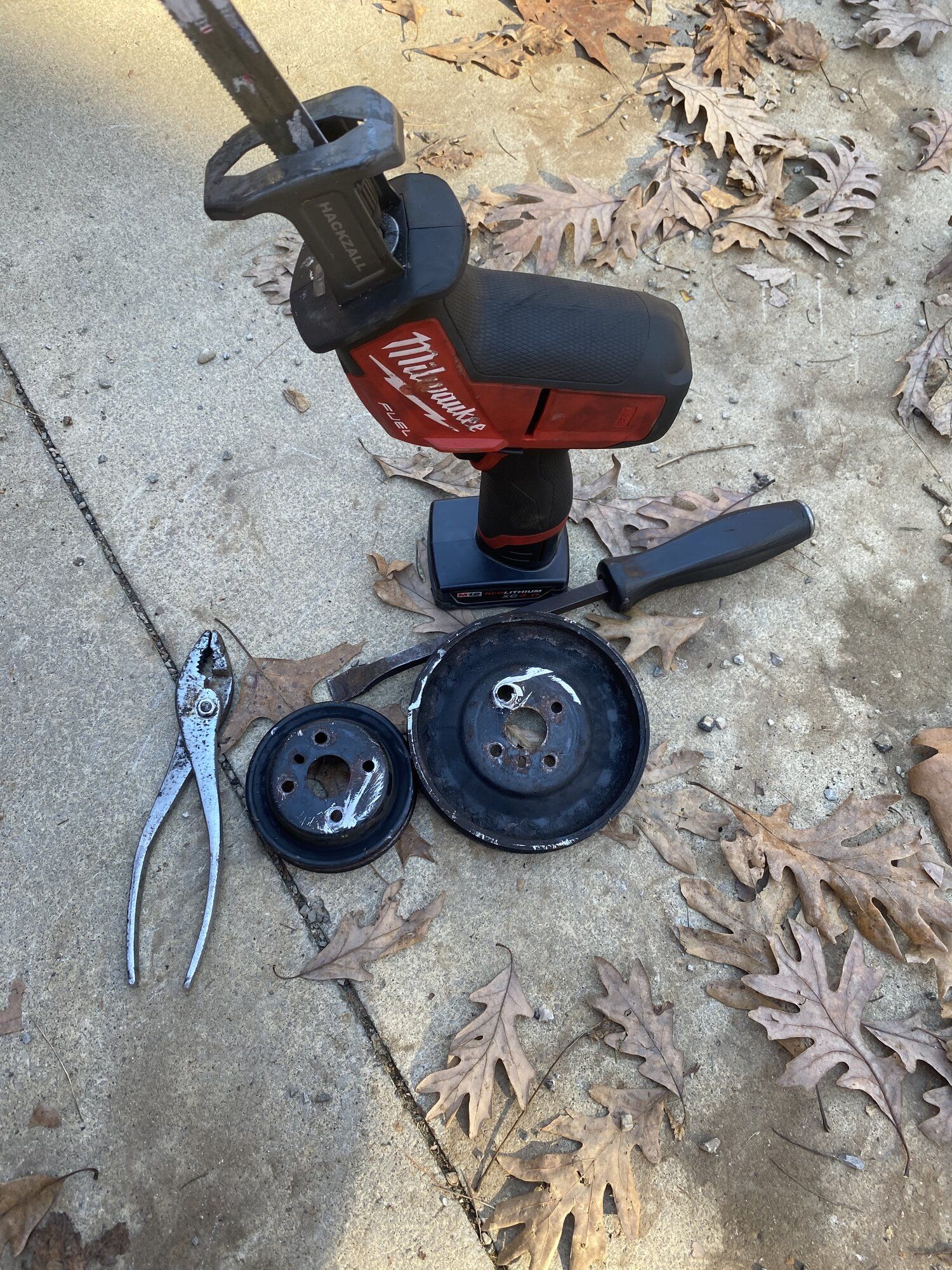

And then things took a turn. Started to pull the belt side apart to get the crank trigger installed and new timing components installed. Last bolt holding the water pump pulley rounded off….



Decided that I would

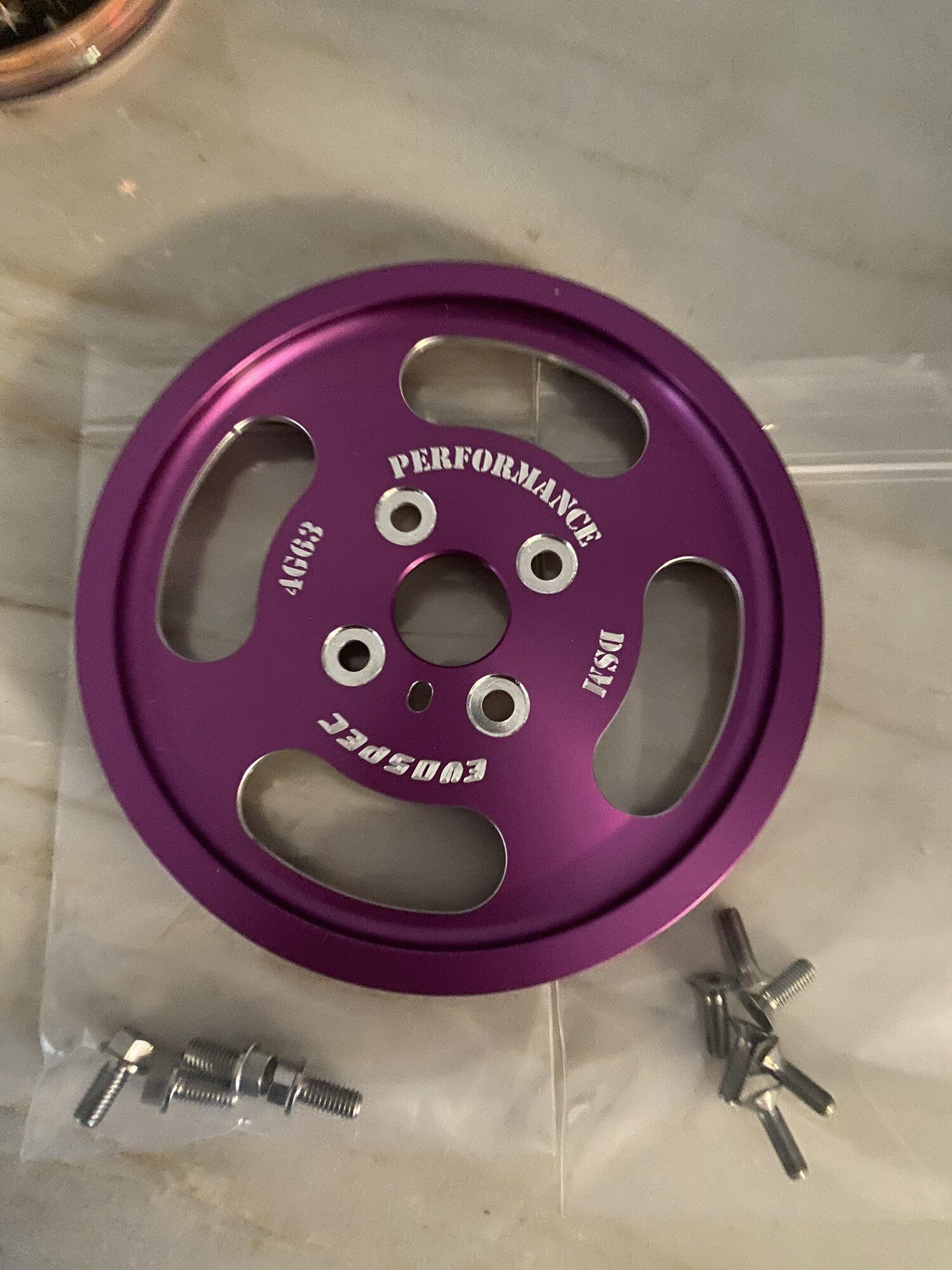

Just get an evospec water pump pulley and call it done. Also got a couple more wire colors ordered in so I can color code my 12v wires to make it easier to trace. I’ll post more once my other parts get here.


OH91awd

10+ Year Contributor
1,129
625
Sep 22, 2011
chillicothe, Ohio
Parts update:

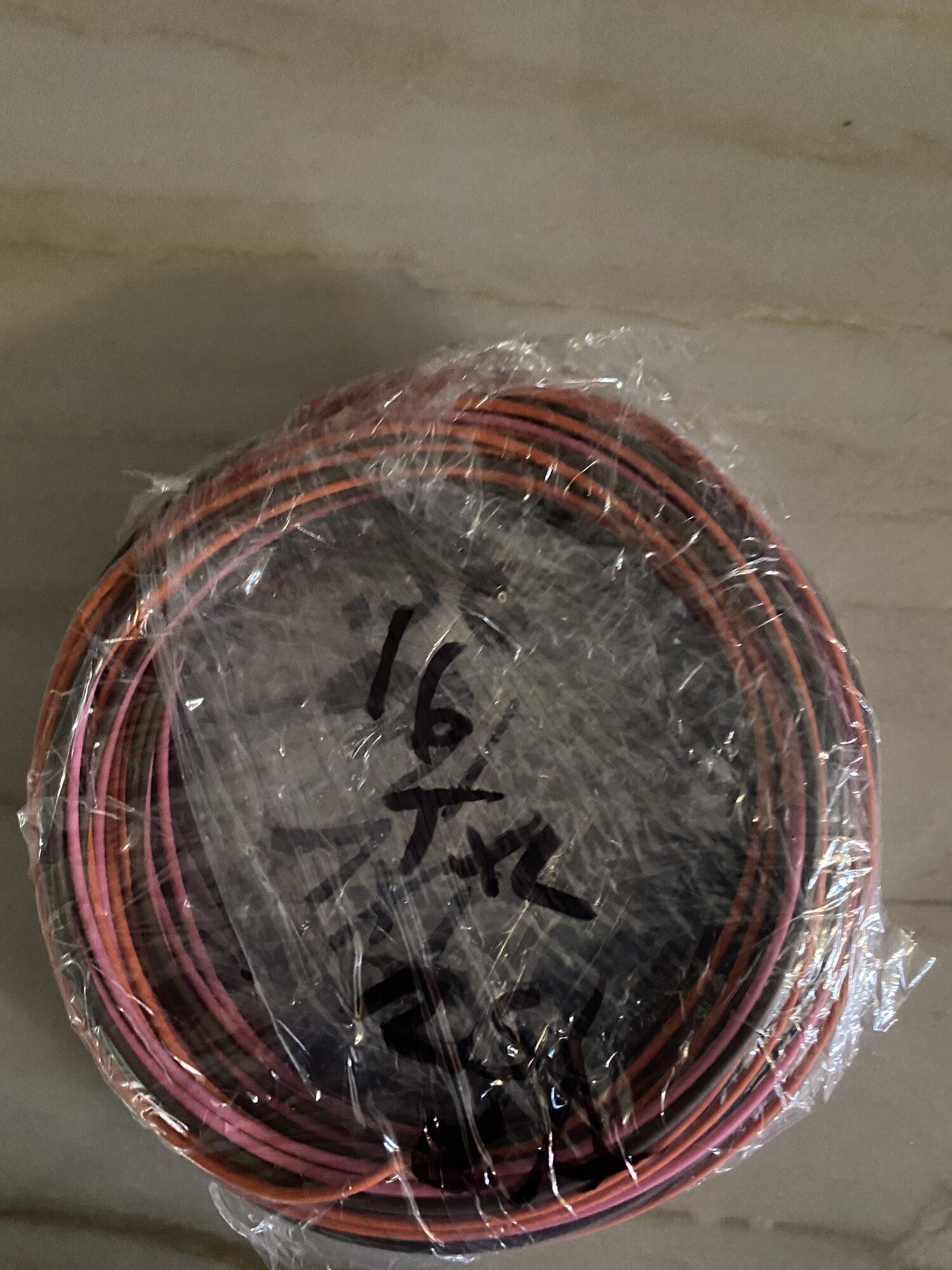

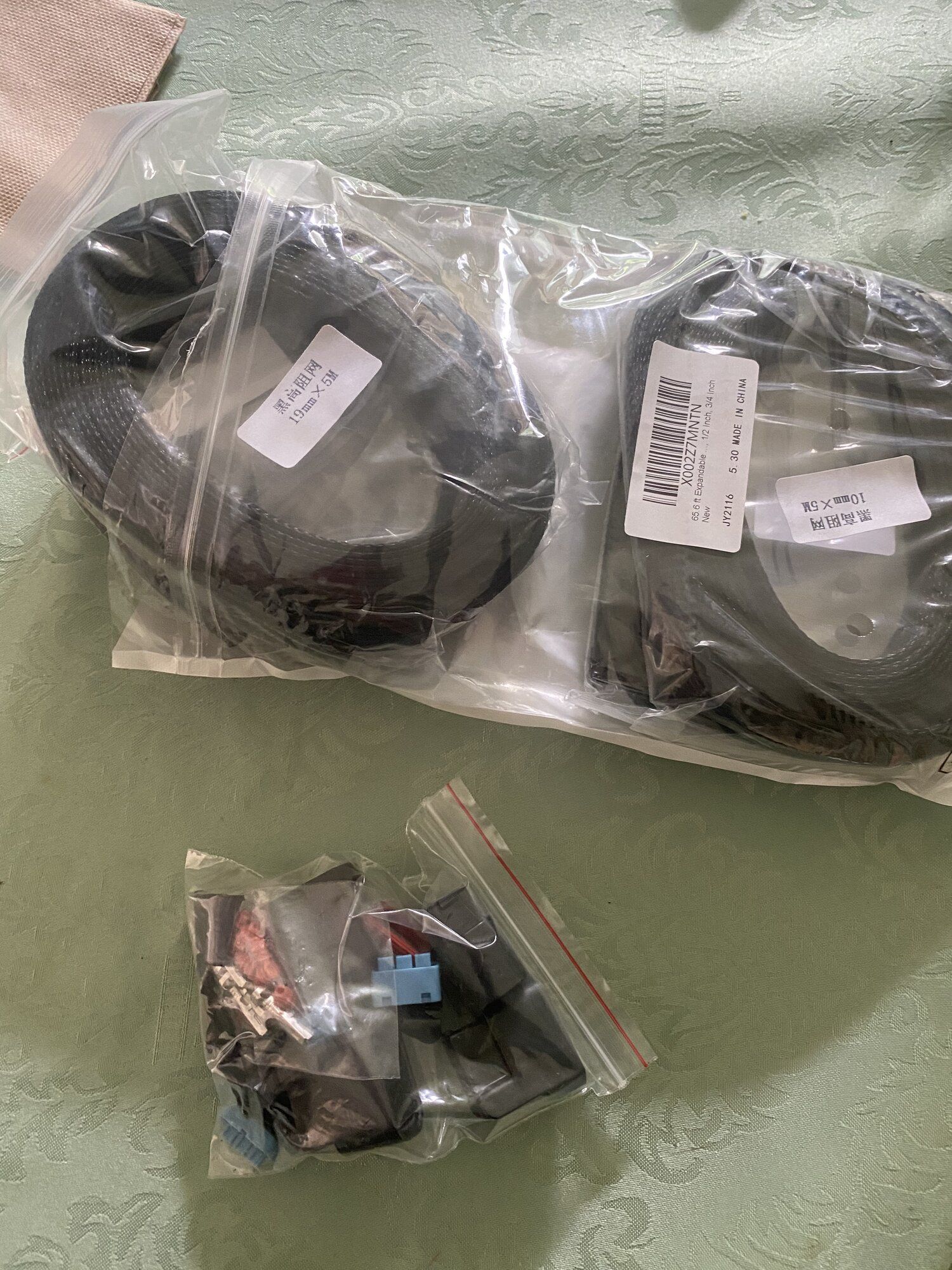

Last bit of wire I needed to get the harness started


Ti steering wheel bolts

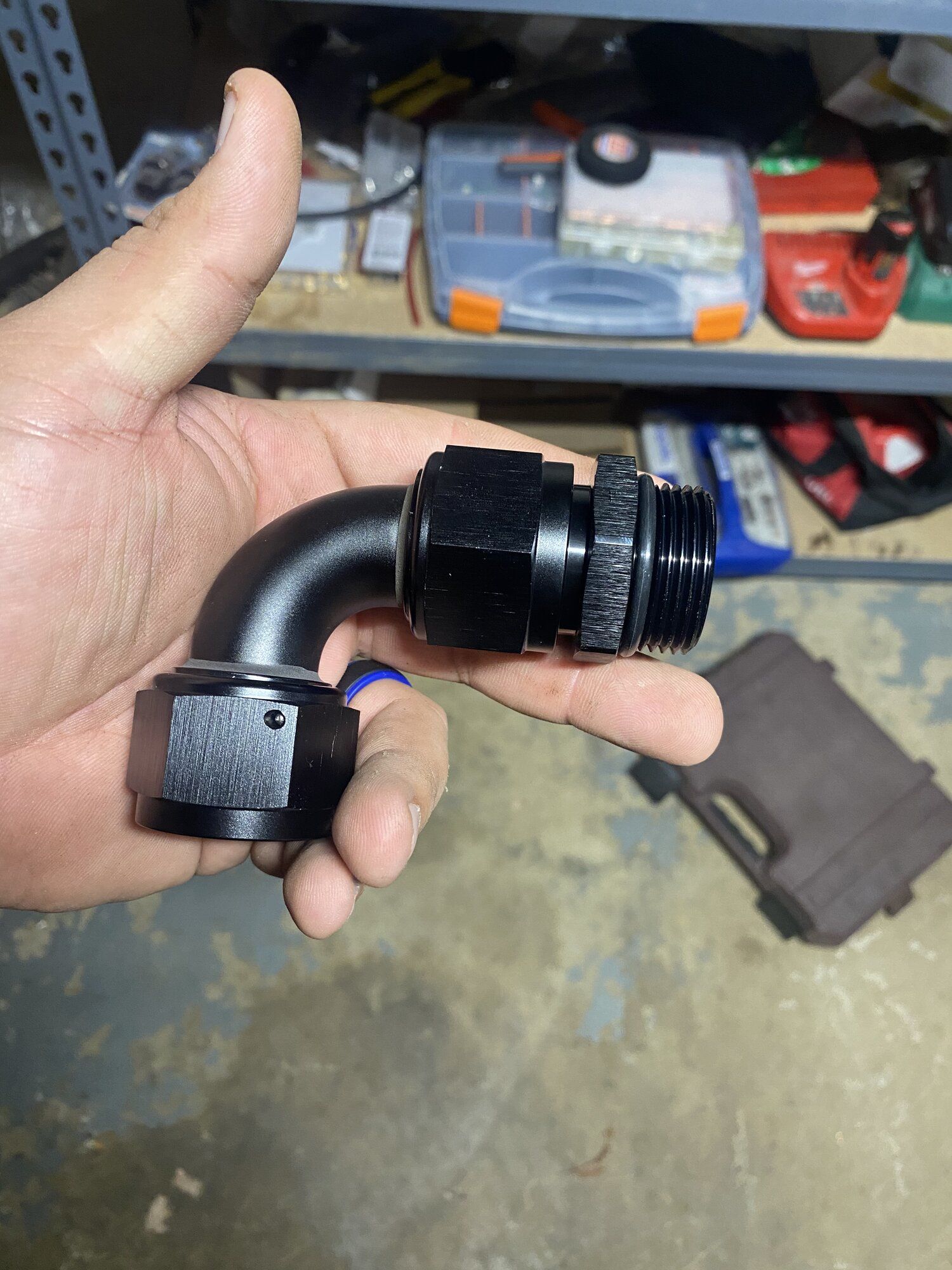

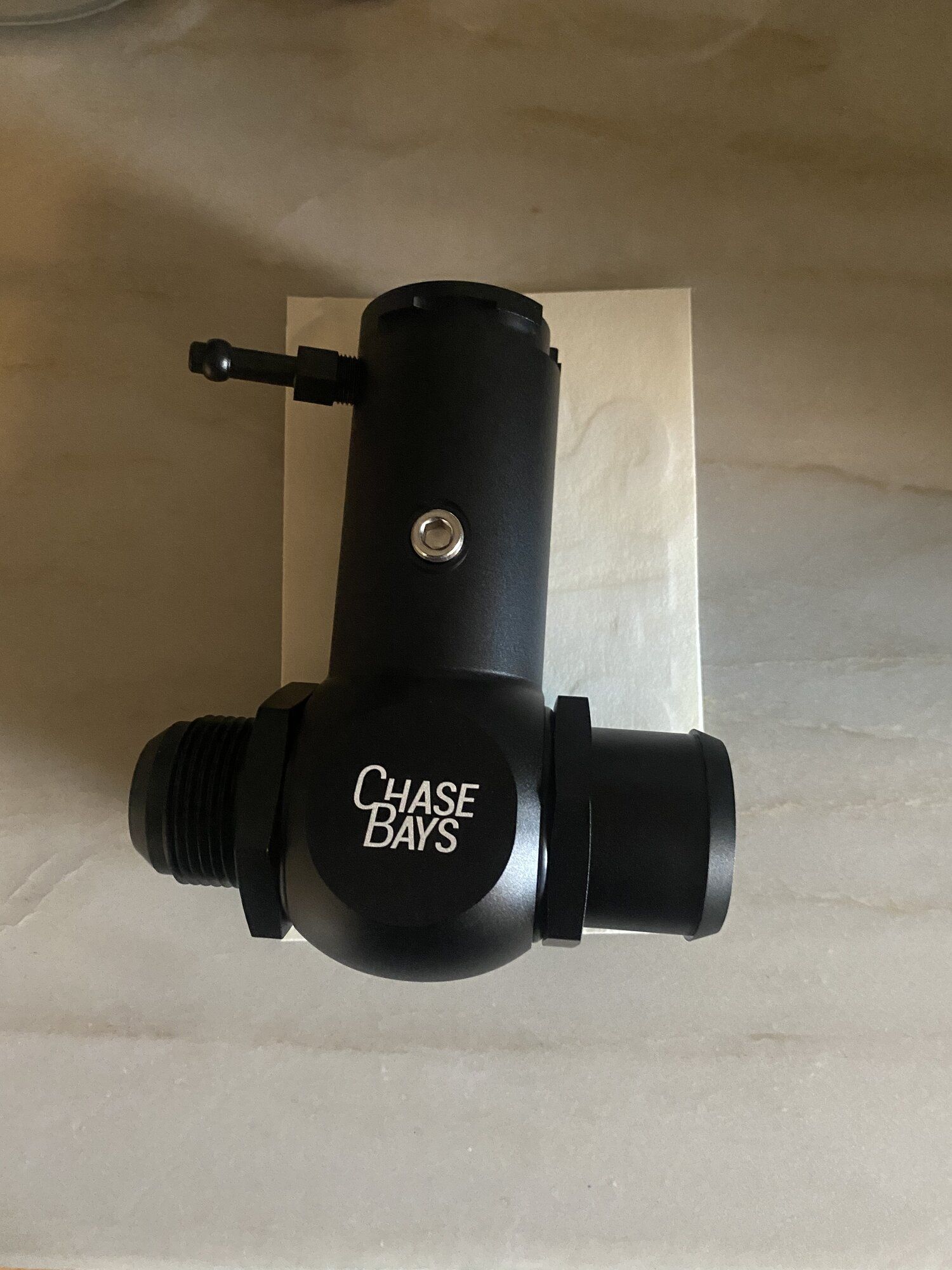

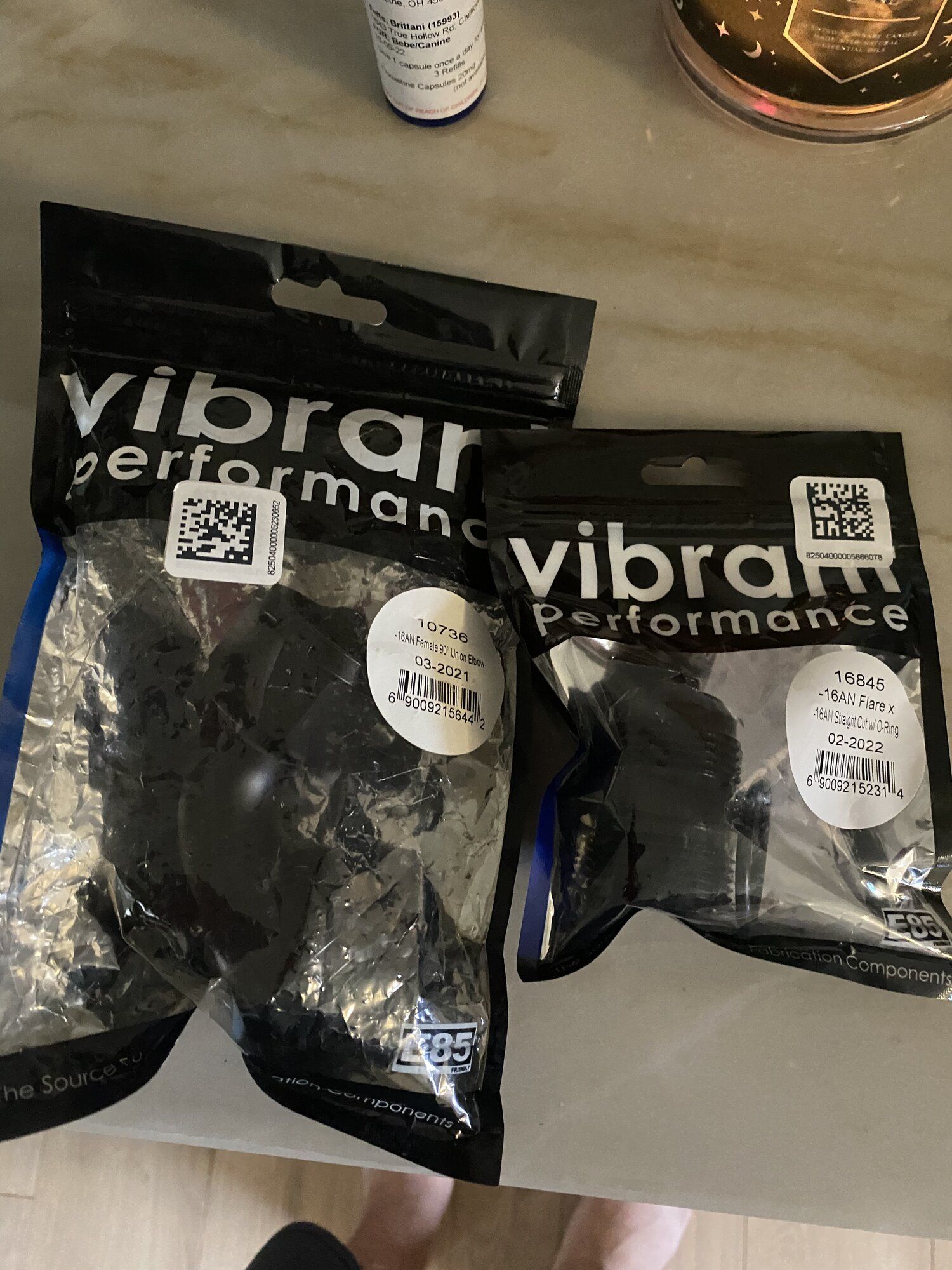

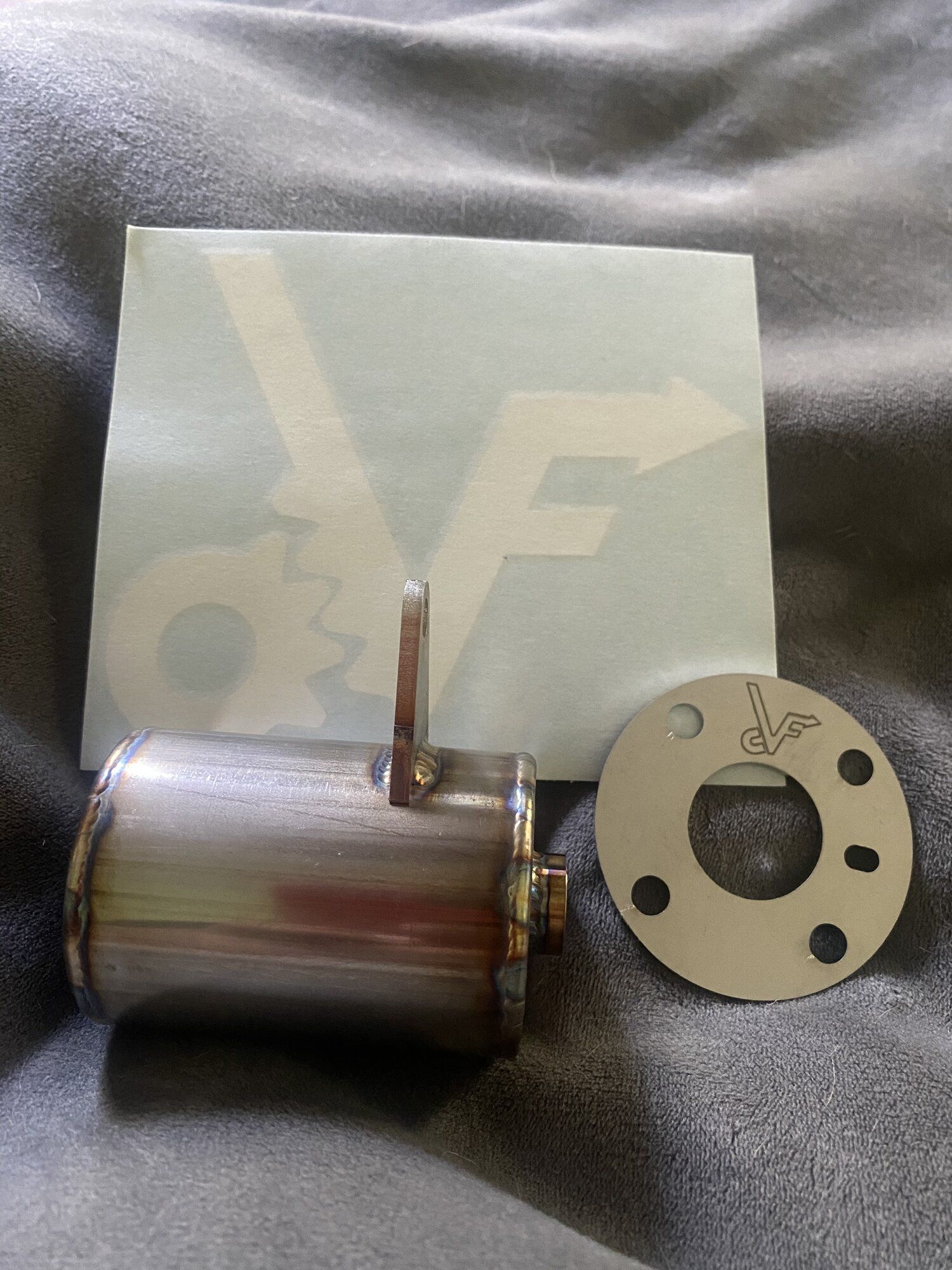

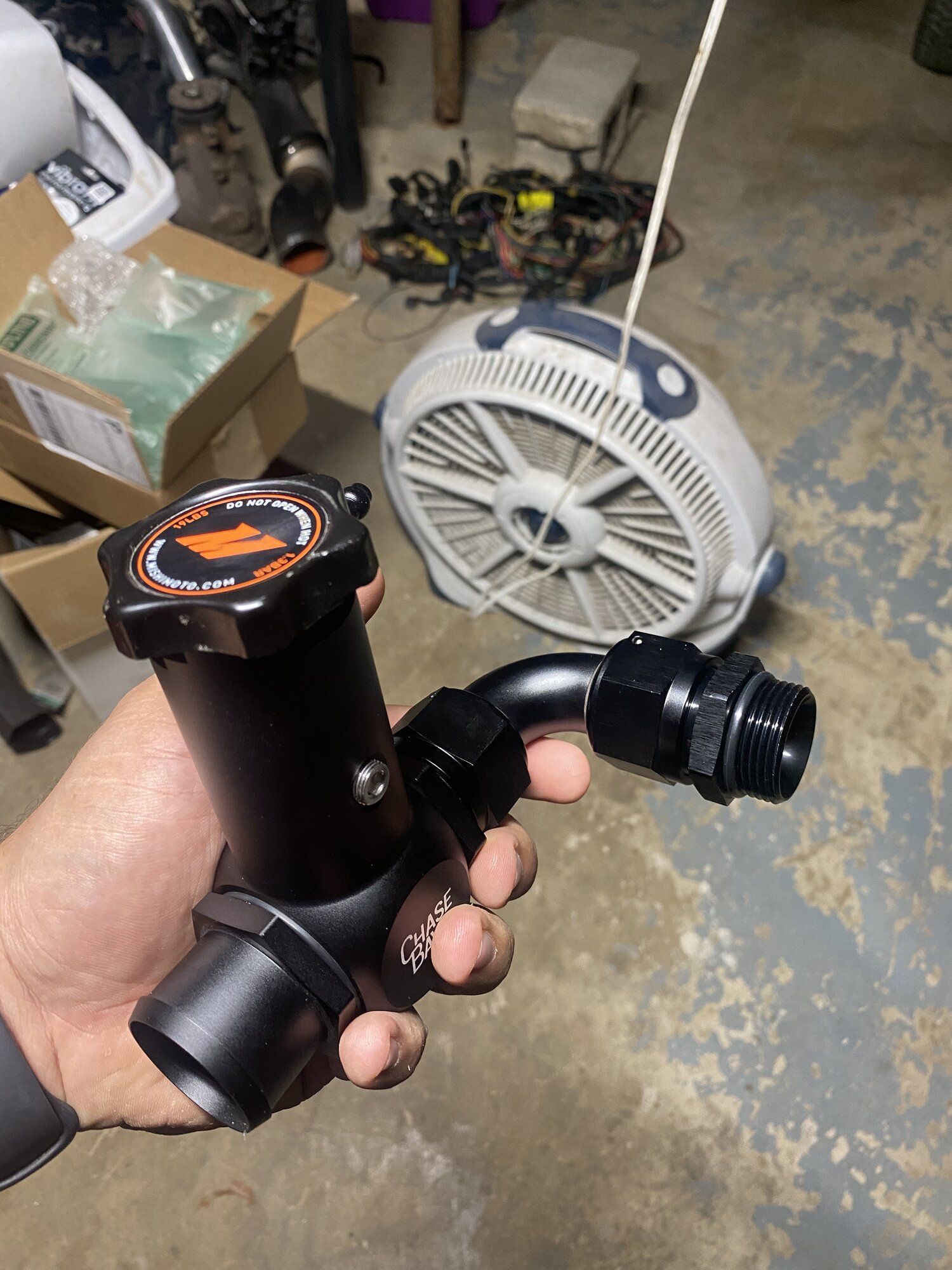

Couple of the 16an fittings I needed for my thermostat delete. Just waiting on the piece from chase bays and from frontline fab


bastarddsm

15+ Year Contributor
5,480
1,309
Aug 26, 2003
Mendota, Illinois
regardless, what is the fascination with these type things. The stock parts work excelent, are compact, and easy to remove and plug the extra ports. This looks like a nightmare of adapters on adapters adapters..
