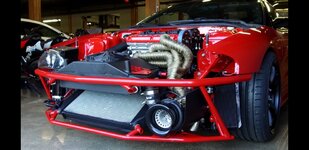

Street Build '97 GSX Forward facing turbo. V mount Intercooler/Radiator

Rating:
5/5,
Year:
1997
Model/Trim:
Mitsubishi Eclipse GSX
Please Support Feal Suspension
Please Support Fuel Injector Clinic
  1. rag1983

    rag1983 Proven Member

    12
    50
    Joined Sep 20, 2004
    Portage, Michigan

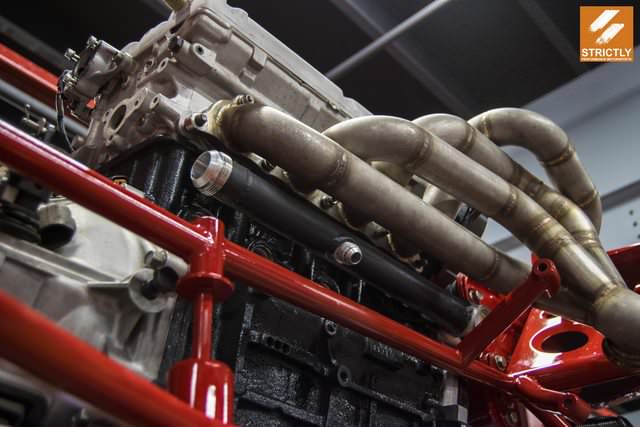

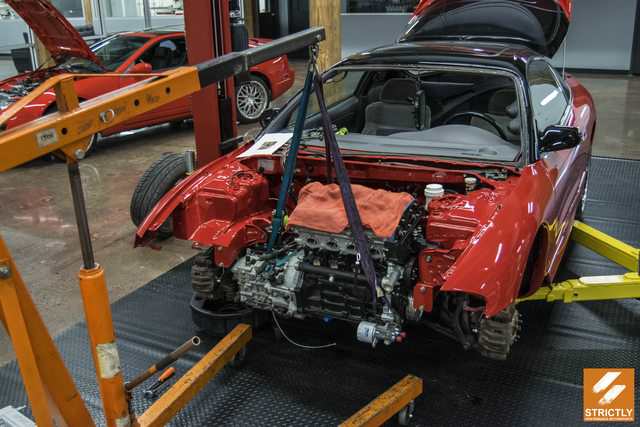

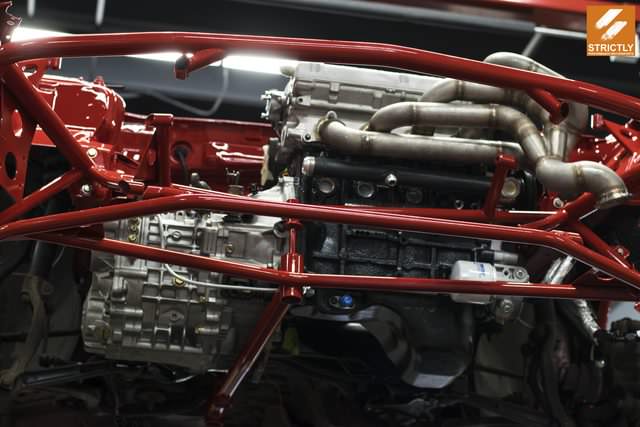

    This build took place at a shop called Strictly Performance - which has since changed ownership and no longer works on these cars. You'll notice references to the shop in this thread, as they originally posted a lot of these photos here on the site when they were a supporting vendor, along with info for the build.

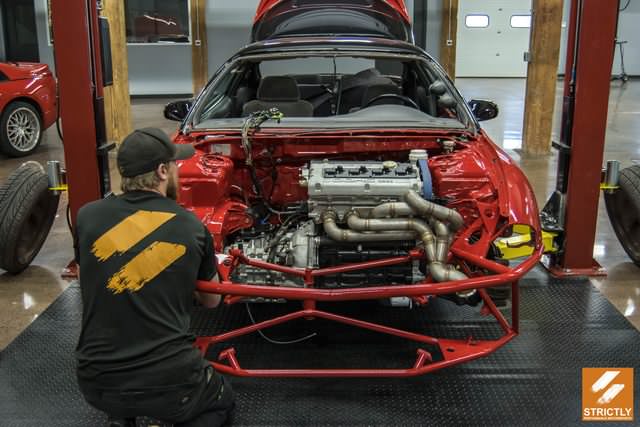

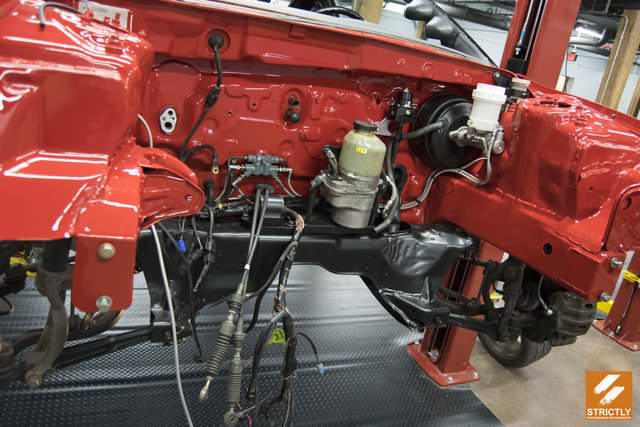

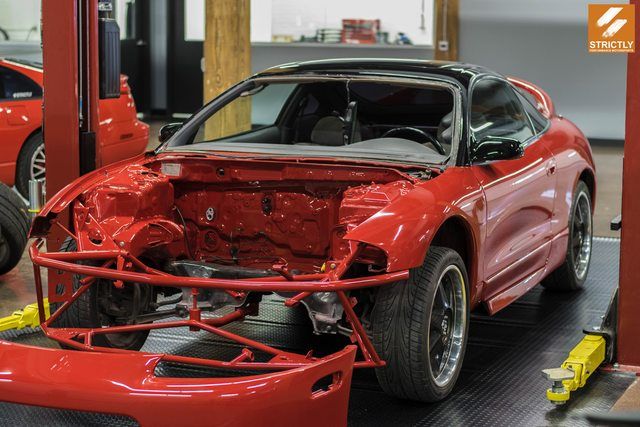

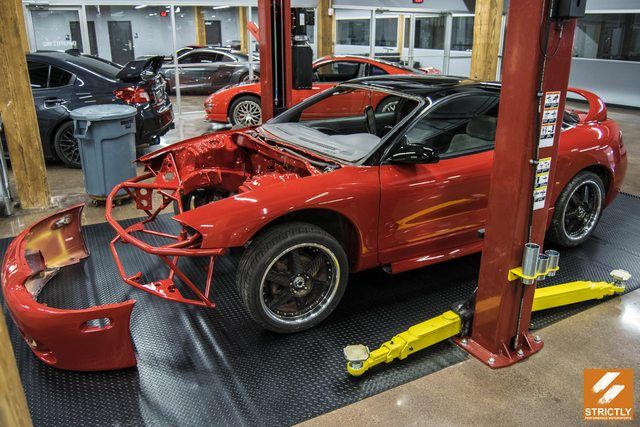

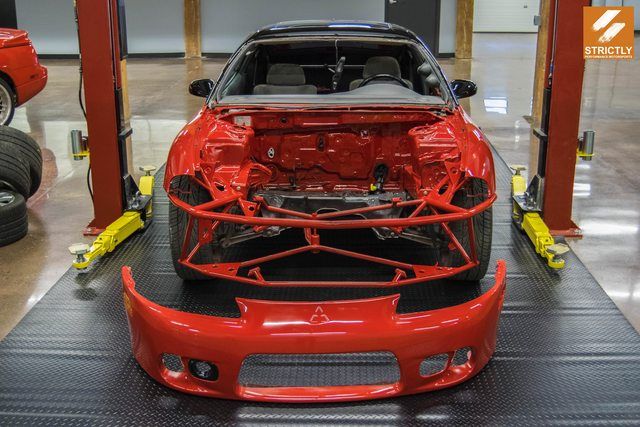

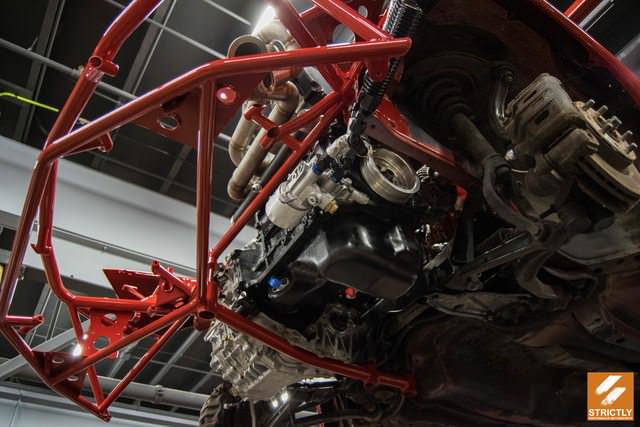

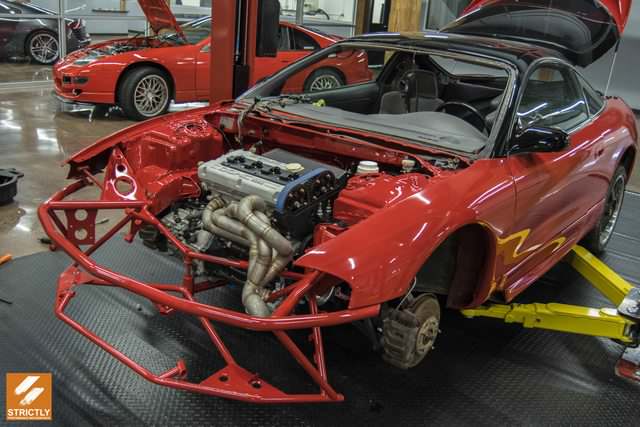

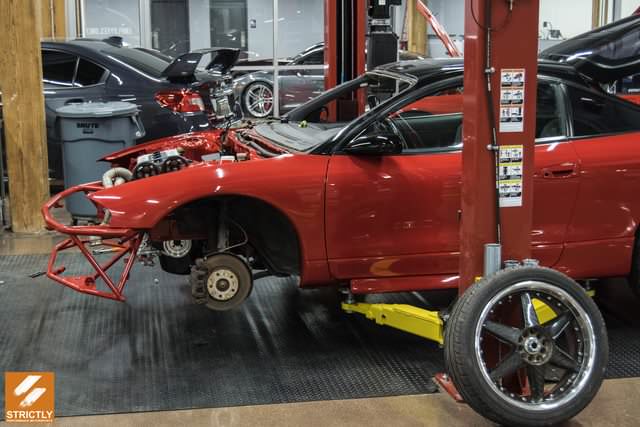

    Here's a few shots from this past fall with the final mock-up before heading off to paint...







    AND NOW...

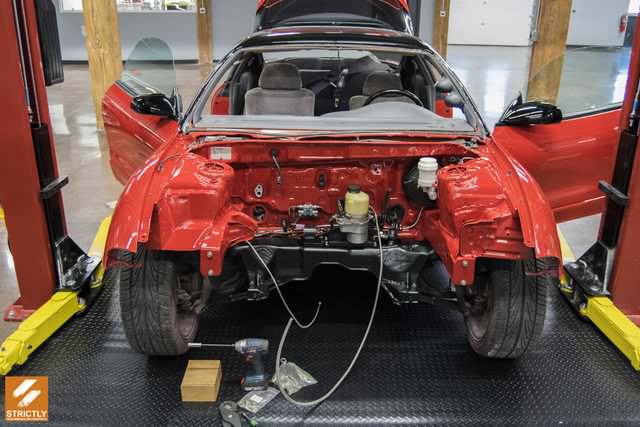

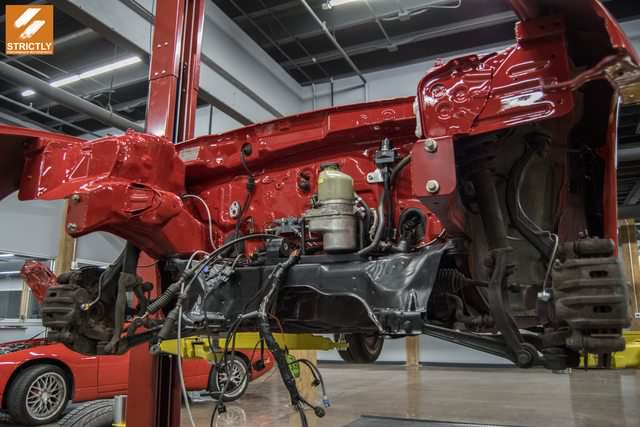

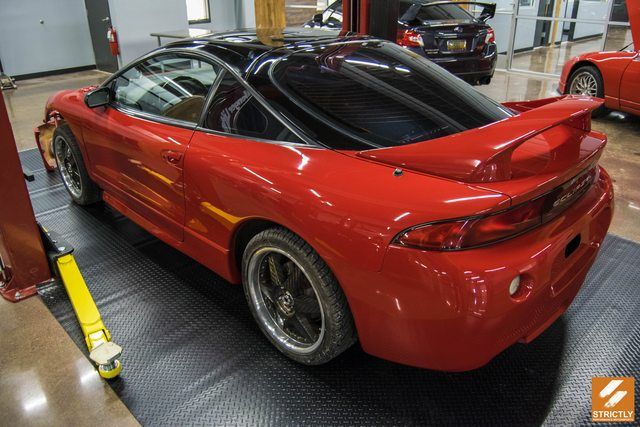

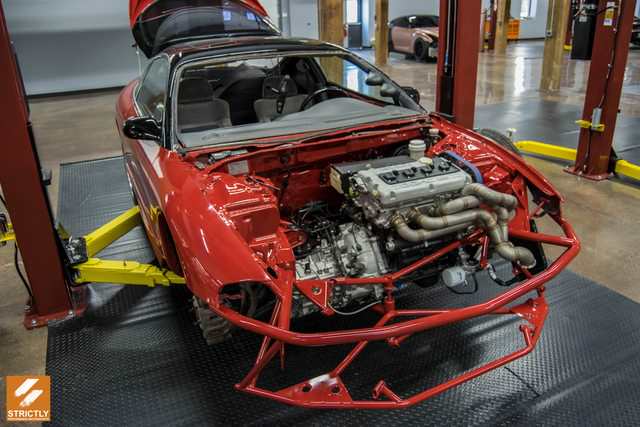

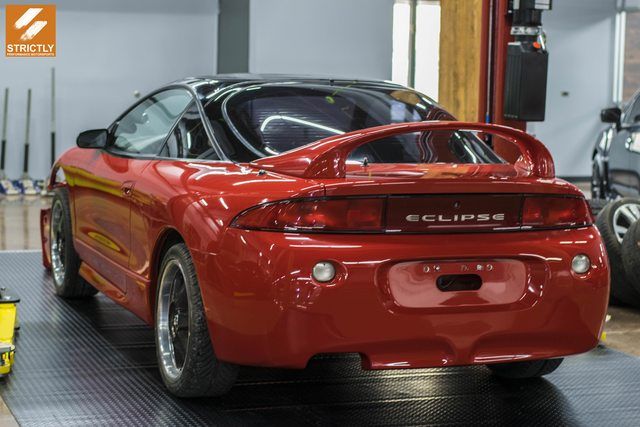

    Just got dropped off from paint, and it's looking fresh! Now it's time to get this back together!


    Here's the updated run down on this build...

    The Short Block

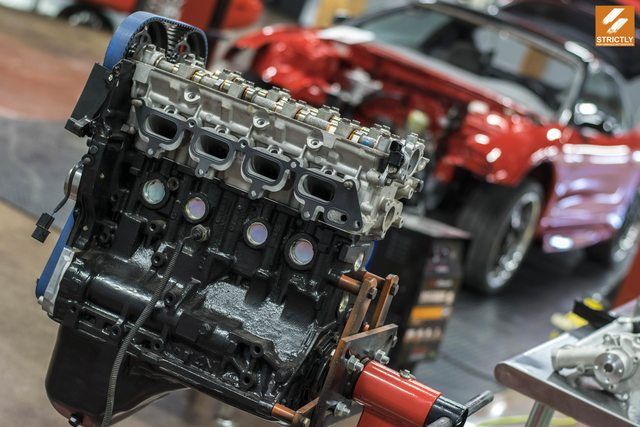

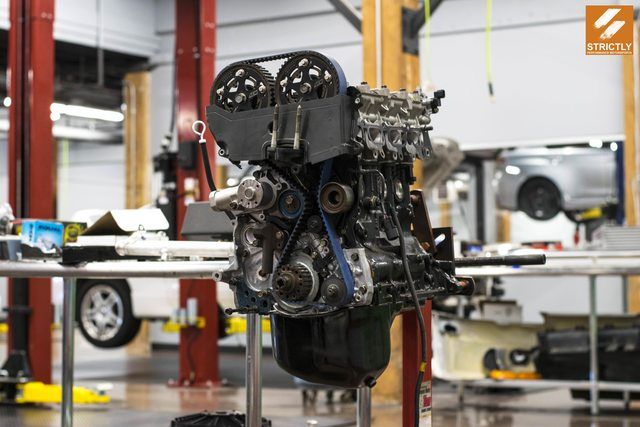

    STRICTLY BUILT 4G64 LR
    Manley I beam rods W/625 Rod Bolts
    Manley Extreme Duty Pistons with HD Wrist Pins
    Stock 4G64 Crank
    ARP Main Bolts
    ACL HX Main and Rod Bearings
    Full Balance/Blueprinted Short Block

    The Cylinder Head
    STRICTLY BUILT Stage 2 Cylinder Head
    Kiggly Race Beehive Springs
    Kiggly HLA Regulator
    STRICTLY SS Valves
    Viton VSS
    K272 Cams
    STRICTLY Stage 2 P/P
    Revised Lifters
    ARP 625 Head Studs

    The Chassis
    Feal Suspension Coilovers
    Prothane Bushings
    STRICTLY 2g CTS-V Front Big Brake Kit
    Tubed Front RAD/Intercooler/Head light Front End Setup
    Solid Engine Mounts
    Stitch Welded Front End

    The Bolt ons
    TRE Stage 3 Trans with 4 Spider

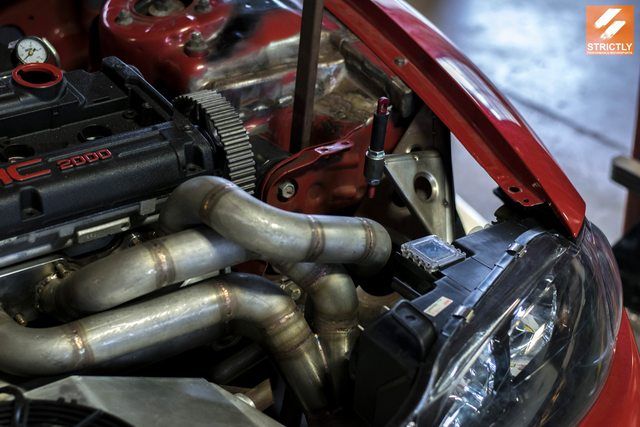

    STRICTLY Custom FF Manifold
    Treadstone TR1245 FMIC
    ECMLink V3
    1/2 Koyo Rad
    FIC 1650cc Injectors
    Walbro 450 FP
    Aeromotive FPR
    Precision 6062 DBB T3 Turbo
    JMFAB Intake Manifold
    S90 70mm TB

    Now it's time to get this thing back together!






    Last edited by a moderator: Dec 4, 2019 at 10:27 AM

    Street Build 155  1

    1997 Mitsubishi Eclipse GSX
    awd · manual · 2G DSM
    Loading...
    goonie90gsx, Ludachris, Teezy and 6 others like this.
  2. iugrad92turbo

    iugrad92turbo Proven Member

    10,455
    382
    Joined May 22, 2007
    Kalamazoo, Michigan
    So sweet.


    6K  4

    1992 Eagle Talon TSi
    awd · manual · 1G DSM
    Loading...
  3. eclipse gsx

    eclipse gsx Proven Member

    200
    28
    Joined Apr 25, 2008
    penitas, Texas
    Nice!!! Looks effing clean man. Following this built!


    Street Build 419  2

    1998 Mitsubishi Eclipse Spyder N/T
    fwd · automatic · 2G DSM

    Street Build 1K  11

    1995 Eagle Talon TSi AWD
    awd · automatic · 2G DSM

    620  0

    1998 Mitsubishi Eclipse GSX
    manual · 2G DSM
    Loading...
  4. joemamma

    joemamma Proven Member

    281
    45
    Joined Jan 26, 2017
    williston, North Dakota
    so sweeeeeet


    Drag Race Build 1K  1

    1998 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Drag Race Build 101  1

    1997 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 879  2

    1994 Eagle Talon TSi AWD
    manual · 1G DSM
    Loading...
  5. Jacolu3

    Jacolu3 Proven Member

    470
    57
    Joined Jan 31, 2015
    Lake Grove, New York
    Mint!!!


    Drag Race Build 5K  25

    1997 Mitsubishi Eclipse GSX
    11.039 @ 132.35 · 2G DSM
    Loading...
  6. Moonlight GSX

    Moonlight GSX Proven Member

    246
    23
    Joined Nov 16, 2010
    Edmond, Oklahoma

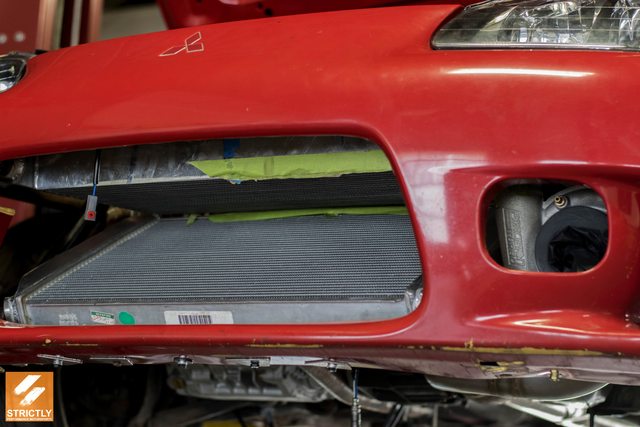

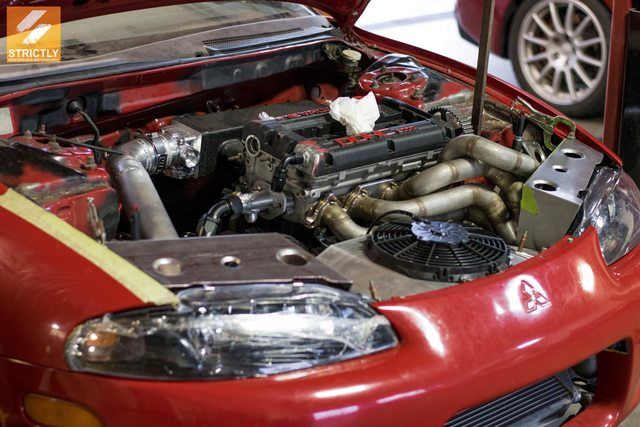

    Now I understand the radiator placement, looks awesome when all assembled.

    Forgot to ask, is there a fan on the bottom as well for the radiator, or are you creating some type of ducting for it; unless the velocity of the air will naturally flow into and under the engine?

    Last edited: Feb 2, 2018

    Street Build 2K  0

    1995 Mitsubishi Eclipse GSX
    manual · 2G DSM

    Street Build 1K  0

    1996 Mitsubishi Eclipse GSX
    manual · 2G DSM
    Loading...
  7. rag1983

    rag1983 Proven Member

    12
    50
    Joined Sep 20, 2004
    Portage, Michigan

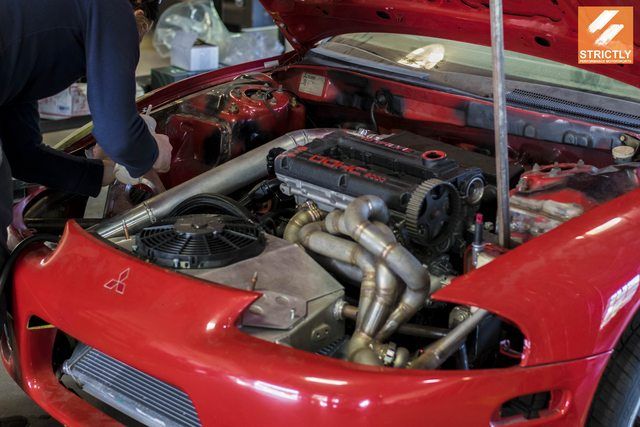

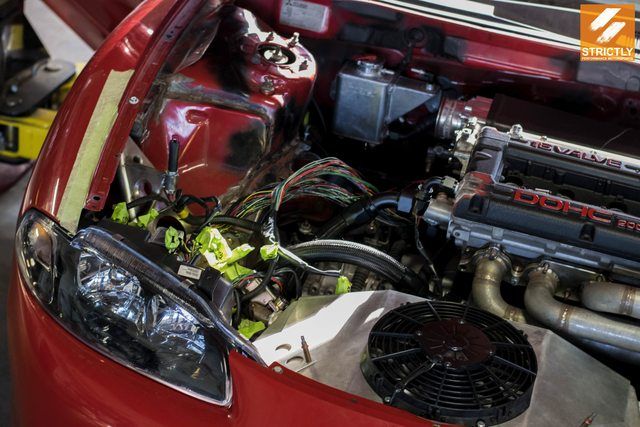

    We have 2 10" fans with a shroud mounted on the back side of the radiator. We also have custom sheet metal ducting for the whole front mouth section that seals it all up very nicely.


    Street Build 155  1

    1997 Mitsubishi Eclipse GSX
    awd · manual · 2G DSM
    Loading...
  8. iugrad92turbo

    iugrad92turbo Proven Member

    10,455
    382
    Joined May 22, 2007
    Kalamazoo, Michigan
    I' gonna come in after work next week and see it.


    6K  4

    1992 Eagle Talon TSi
    awd · manual · 1G DSM
    Loading...
    STRICTLY likes this.
  9. Moonlight GSX

    Moonlight GSX Proven Member

    246
    23
    Joined Nov 16, 2010
    Edmond, Oklahoma
    If/when you get that bolted up I'd like the see the finished product, sounds like a lot of thought went into it (love it).

    Edit:
    Another question, I'm now trying to understand your thought process on the coolant lines... I've never seen it configured that way.

    Last edited: Feb 2, 2018

    Street Build 2K  0

    1995 Mitsubishi Eclipse GSX
    manual · 2G DSM

    Street Build 1K  0

    1996 Mitsubishi Eclipse GSX
    manual · 2G DSM
    Loading...
  10. chrysler kid

    chrysler kid Proven Member

    1,631
    392
    Joined Dec 20, 2002
    Mckinney, Texas
    Stock axles? Manual trans, or auto.


    2K  15

    1998 Mitsubishi Eclipse GST
    fwd · automatic · 2G DSM

    2K  12

    1996 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM

    1K  0

    1996 Mitsubishi Eclipse GST
    14.1 @ 97 · 2G DSM
    Loading...
  11. iugrad92turbo

    iugrad92turbo Proven Member

    10,455
    382
    Joined May 22, 2007
    Kalamazoo, Michigan
    Manual trans, I'm sure it' got upgraded strictly axles.


    6K  4

    1992 Eagle Talon TSi
    awd · manual · 1G DSM
    Loading...
  12. Moonlight GSX

    Moonlight GSX Proven Member

    246
    23
    Joined Nov 16, 2010
    Edmond, Oklahoma
    Disregard my above question, the main question I do have now is what water pipe are you using for this?


    Street Build 2K  0

    1995 Mitsubishi Eclipse GSX
    manual · 2G DSM

    Street Build 1K  0

    1996 Mitsubishi Eclipse GSX
    manual · 2G DSM
    Loading...
  13. iugrad92turbo

    iugrad92turbo Proven Member

    10,455
    382
    Joined May 22, 2007
    Kalamazoo, Michigan
    9


    6K  4

    1992 Eagle Talon TSi
    awd · manual · 1G DSM
    Loading...
  14. rag1983

    rag1983 Proven Member

    12
    50
    Joined Sep 20, 2004
    Portage, Michigan

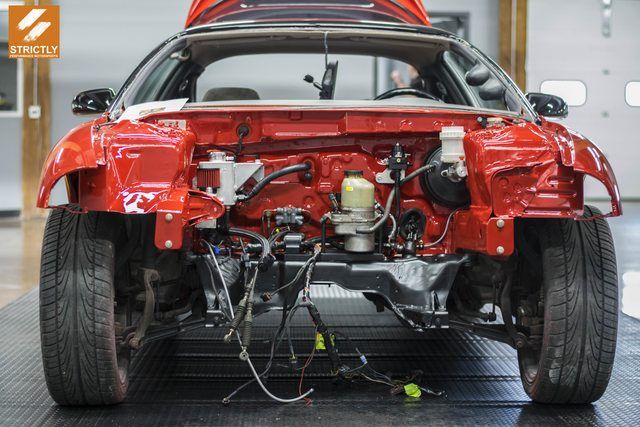

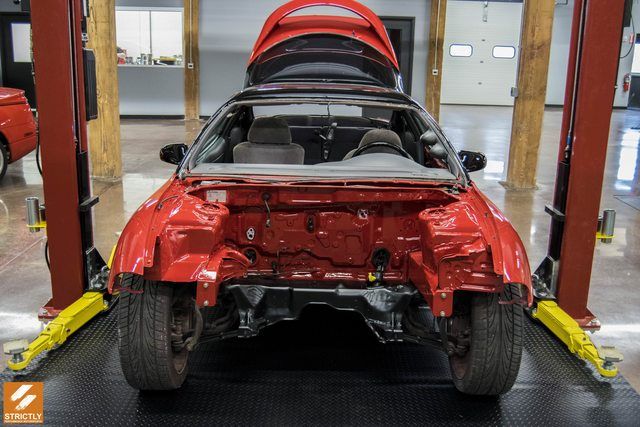

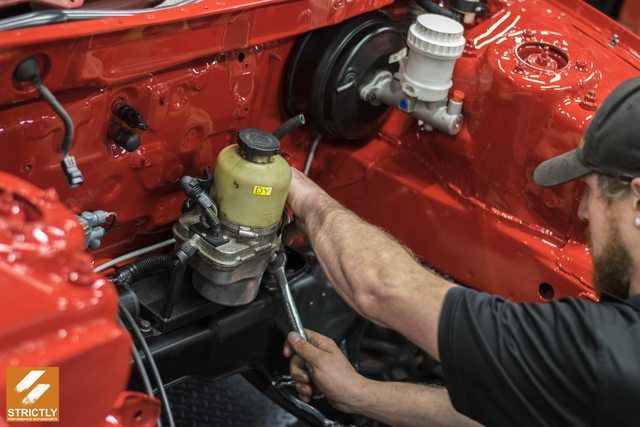

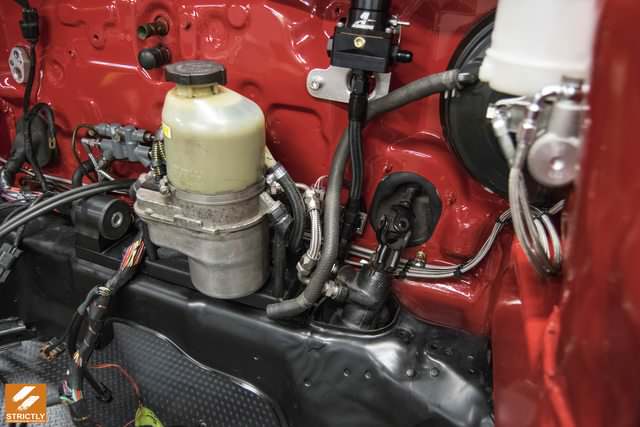

    Some updated pictures from getting the firewall all setup and engine dropped in...














    Last edited by a moderator: Dec 4, 2019 at 10:23 AM

    Street Build 155  1

    1997 Mitsubishi Eclipse GSX
    awd · manual · 2G DSM
    Loading...
    Teezy and goonie90gsx like this.
  15. rag1983

    rag1983 Proven Member

    12
    50
    Joined Sep 20, 2004
    Portage, Michigan

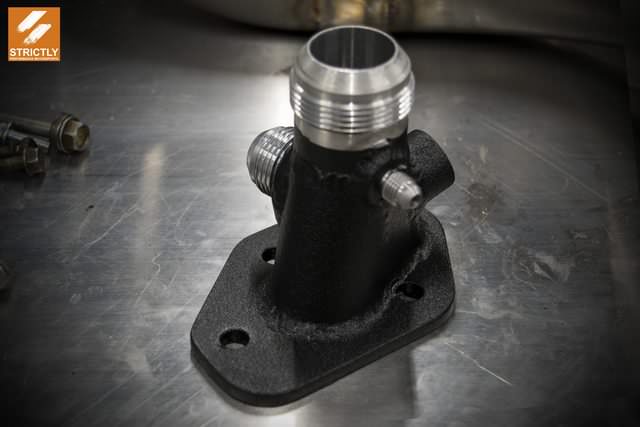

    We're running a custom built setup, featuring -20 AN lines for the coolant hook ups.
