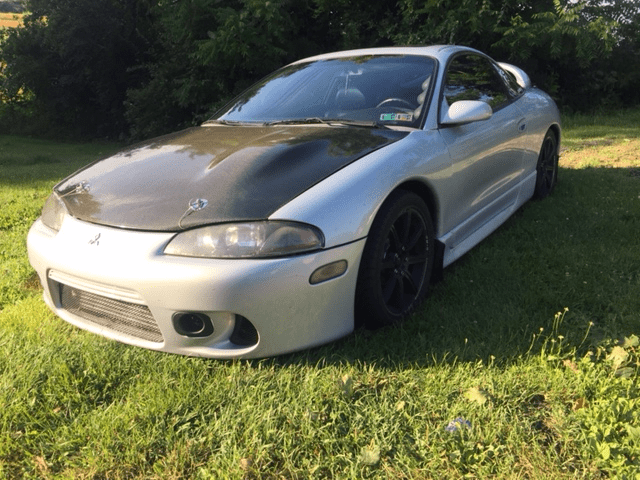

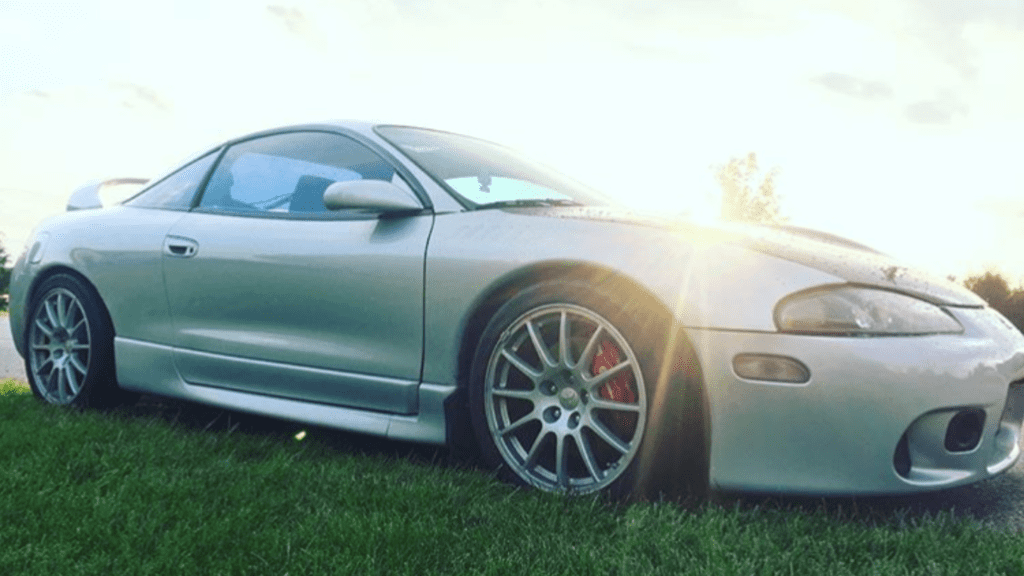

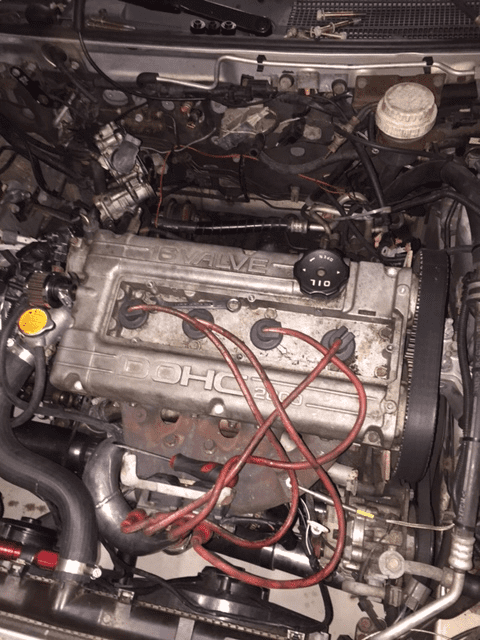

    I have been in the DSM game since I got my first car back in 2007 with a 1999 GS-T. Over the last 8 years I have had a handful of these cars ranging from GS-T, GSX and even a Galant VR-4 and never really documented the builds. After searching for what seemed like years for a clean GSX to daily drive I stumbled upon the perfect one for me.

    I made a few phone calls and went to see the car which was actually pretty local. The car has been locked away since 2007 in a garage left to be forgotten. Long story short the son moved across the country and lost interest and the father had power of attorney. Of course I was thinking in the back of my mind the car would need some work from sitting so long but the combination of the aftermarket parts and the clean rust free shell had me sold.

    It was exactly what I was looking for and the last year for the eclipse Gsx. My new project - Final X.




    Log in/Register to remove ads

    Attached Files:

    Last edited: Apr 25, 2018
    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
  2. Archer Fabrications

    Archer Fabrications Supporting Vendor

    6,020
    744
    Joined May 9, 2011
    Scottsdale, Arizona
    Clean man! You gonna make it a beast ;)

    My DSM:
    1999 Mitsubishi Eclipse GSX

    Drag Race Build

    11.128 @ 132.5 MPH
    Loading...
  3. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania
    Thanks and yes the goal is to have a reliable fun 16g awd car. Looking for around 350hp.

    One thing that I am already noticing is how much the aftermarket scene has changed with these cars. This had some old school custom long routed front mount so it was the first to go. I installed a new vrsf with ngr bov. Overall the install was pretty easy I had to cut the rad support and I also went ahead and put in a 3 piece black grill. The grill really helps to keep the fins from getting bent and fills the holes on the sides. Other than that I just did fluids and a new battery and she fired right up. I went with the heavy shockproof for the rear and transfer case and the redline mt90 for the transmission.



    Last edited: Apr 25, 2018
    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
    95eclipser likes this.
  4. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania
    Small update- I had to put different tires on today since the other ones were made in 2004! I put on 225/45/17 Yokohama's and got an alignment and while I was in there I painted the calipers. The car has tein basic coilovers and aem front rotors.



    Last edited: Nov 18, 2016
    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
  5. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania

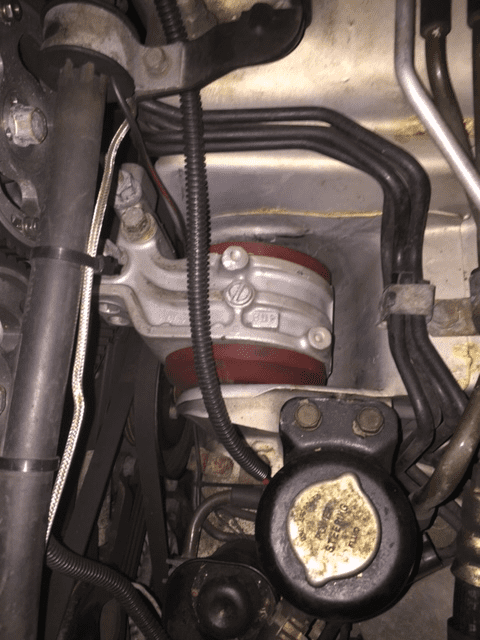

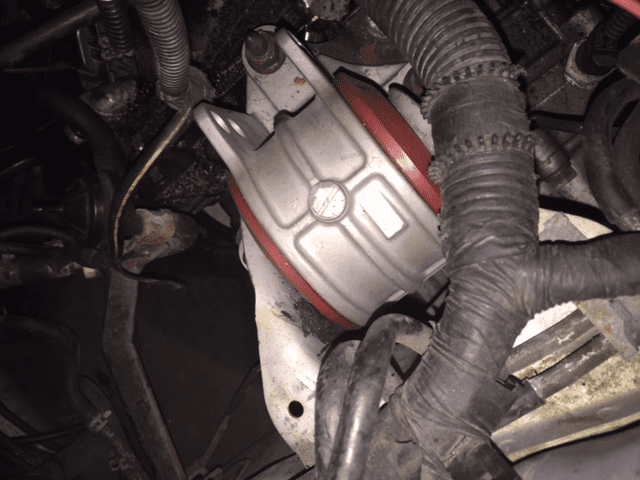

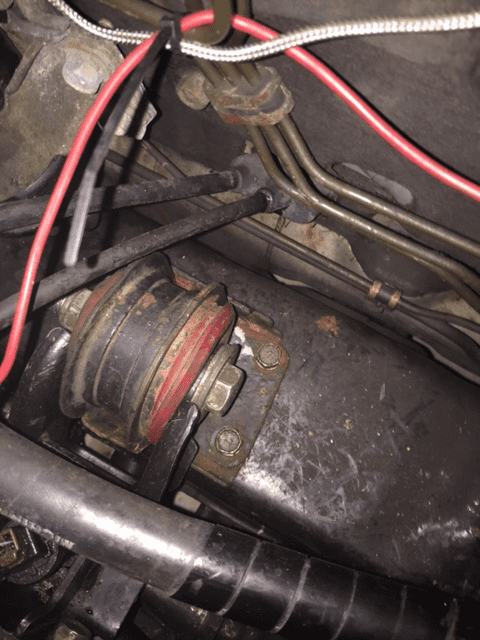

    It is never easy with these cars but I finally installed the poly motor mounts. The transmission mount ended up getting stripped so I dropped 3 mounts and lowered the motor so I could get to the trans bolt holes from under the car. I went with 3 full poly mounts (used a 1g full poly for rear rollstop) and a bulfab crossmember.


    Last edited: Nov 18, 2016
    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
  6. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania

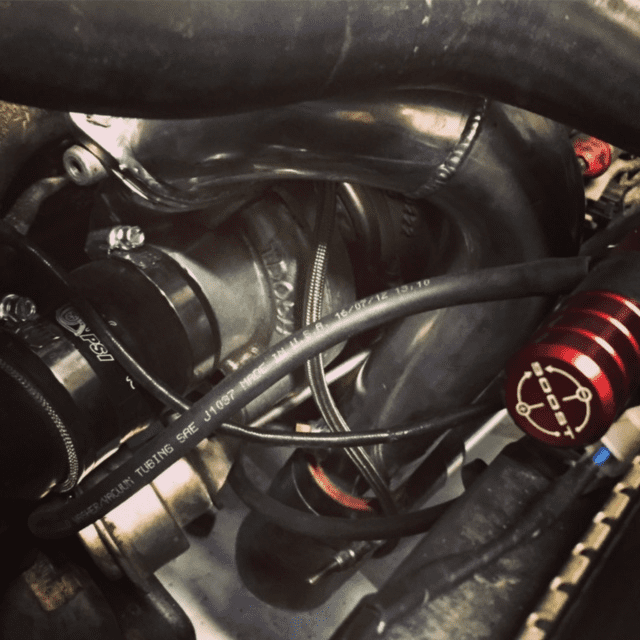

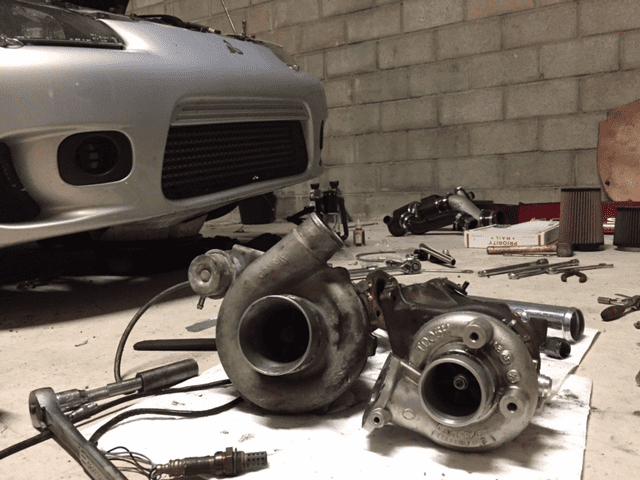

    I could not stand the lag for the car being a daily driver so I installed a Evo 3 16g with a Megan racing o2 housing. The 50 trim that was on it was fun but I barely ever spooled it up all the way. I am running 25lbs now with the 16g.


    Last edited: Nov 18, 2016
    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
    miliman13 likes this.
  7. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania

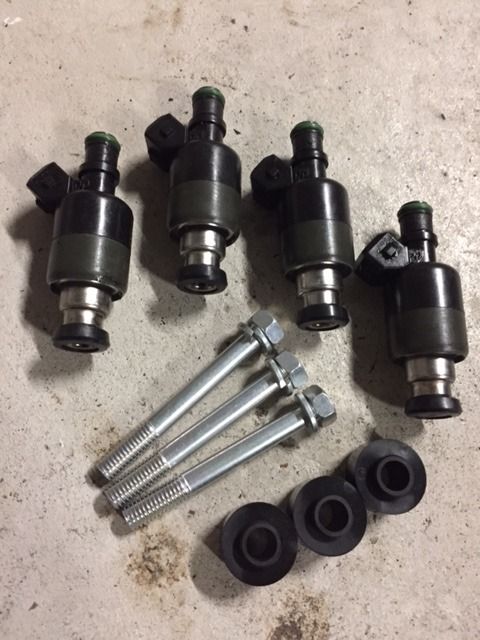

    I ordered a bunch of parts to help refresh the car a little. fuel filter, egr delete, fuel injector seals, intake manifold gasket and throttle body gaskets. I had to do a double take on the car it has a 6 bolt head, 2g CAS and a 2g block:confused: To top it all off I have a blown heater core so I need to find some time to remove the whole dash


    Last edited: Nov 18, 2016
    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
  8. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania
    Nice little update.

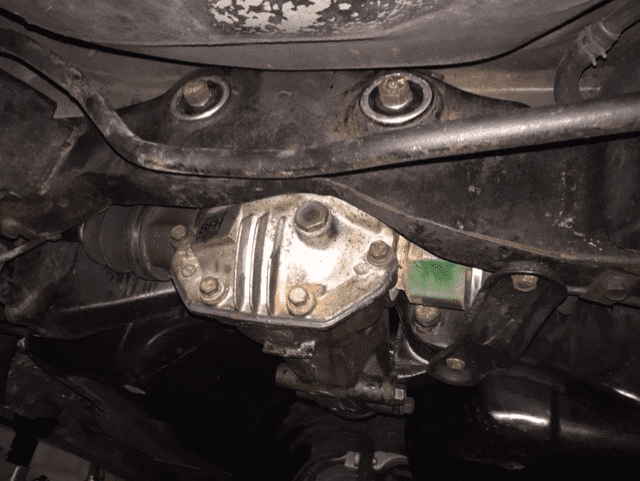

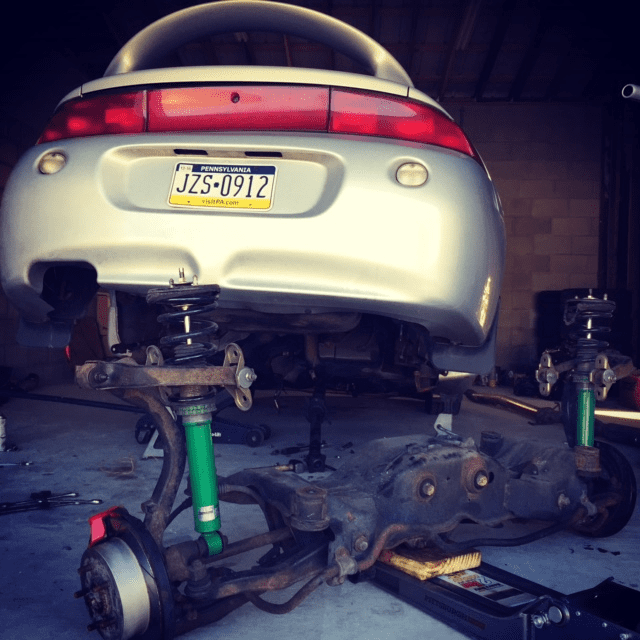

    My pinion seal was leaking on the rear diff and from what I read it will keep leaking unless you replace the bushings in the subframe and diff too. The whole rear came out pretty easy for doing it alone. I just dropped the exhaust, disconnected the driveshaft, ebrake cables, control arms and then hit the 4 nuts on the subframe.

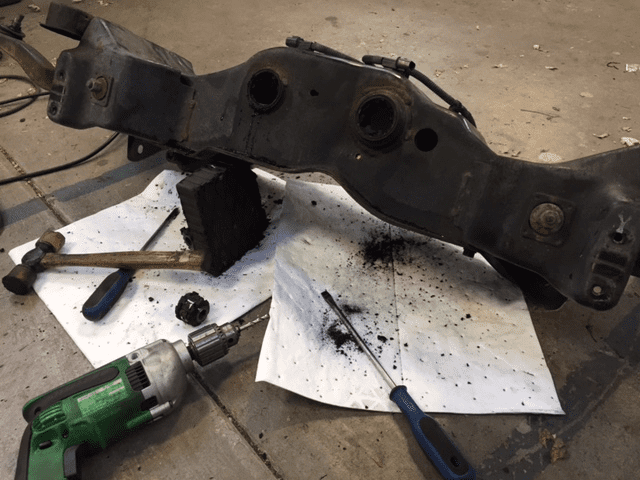

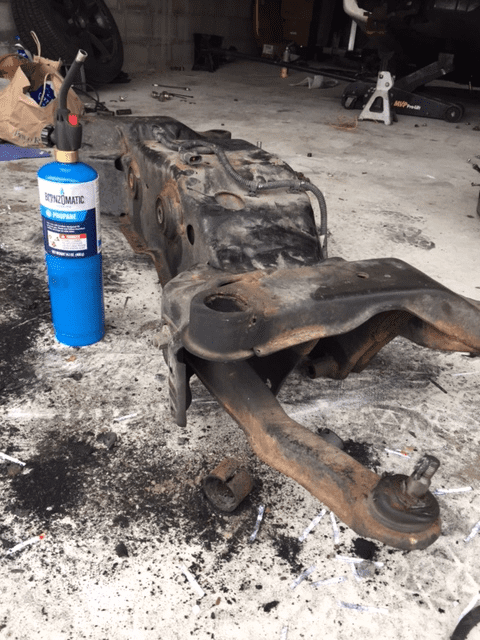

    After that came the fun of torching out the bushings on the subframe which made a huge mess.


    Then I drilled small holes in the differential bushings which made it easier to cut out the metal sleeves.

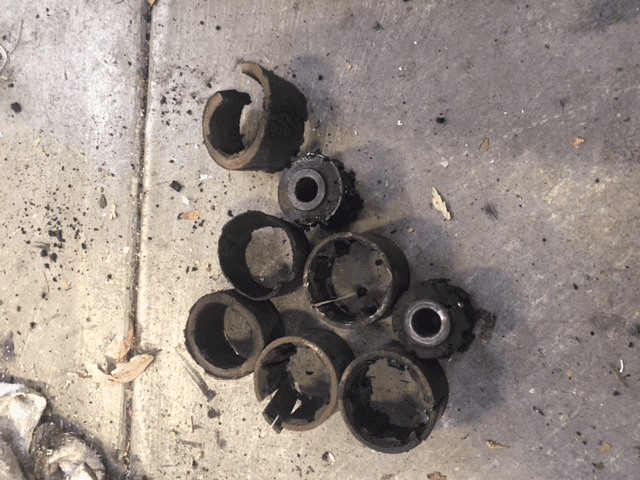

    dsm23.png dsm25.png

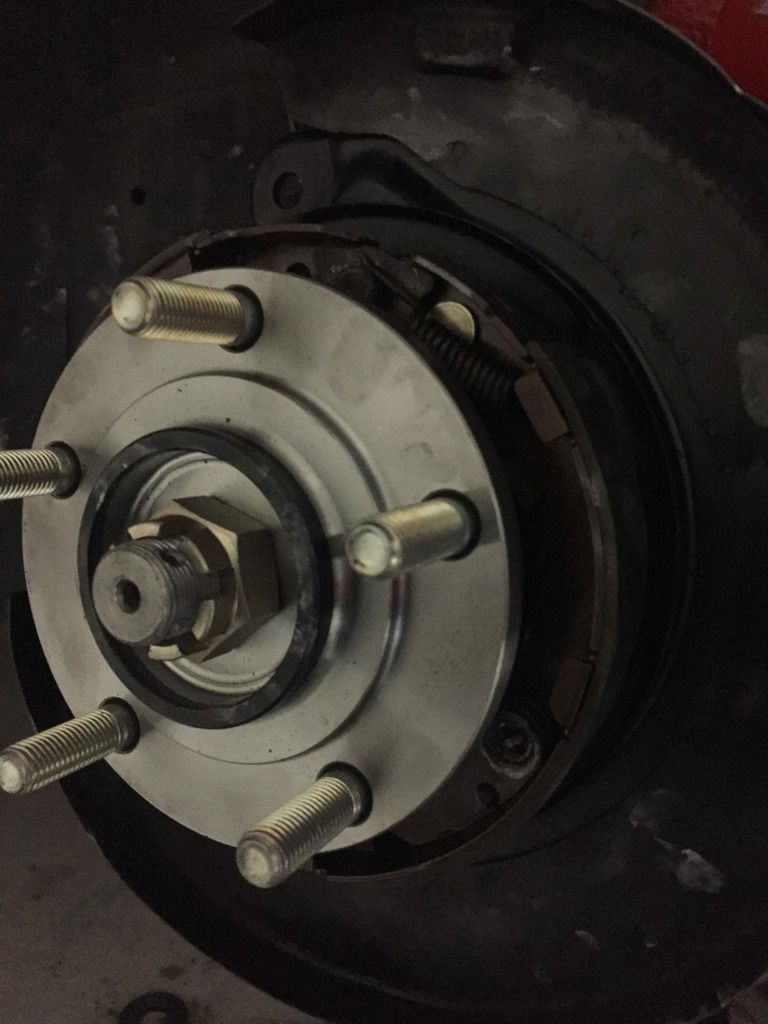

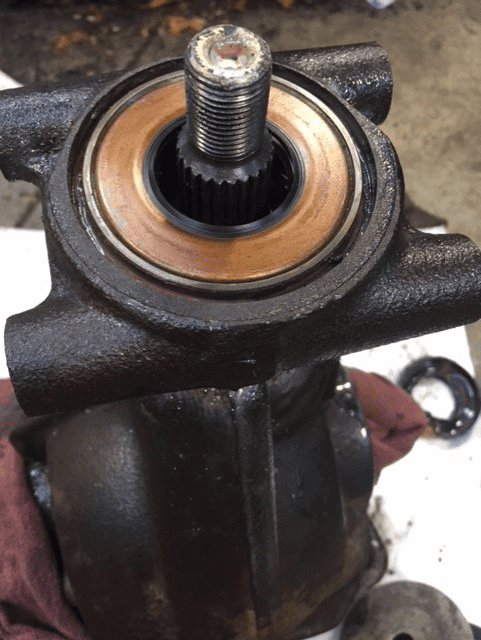

    While the rear diff was out I installed new axle seals and replaced the main pinion seal which was the one leaking.


    The new differential seals went in easy for not using a press. I cleaned all the holes well sanding them smooth. I put a big socket over the bushing and went to town with a big hammer. You need to take your time getting the bushing straight and then you can work it in more.

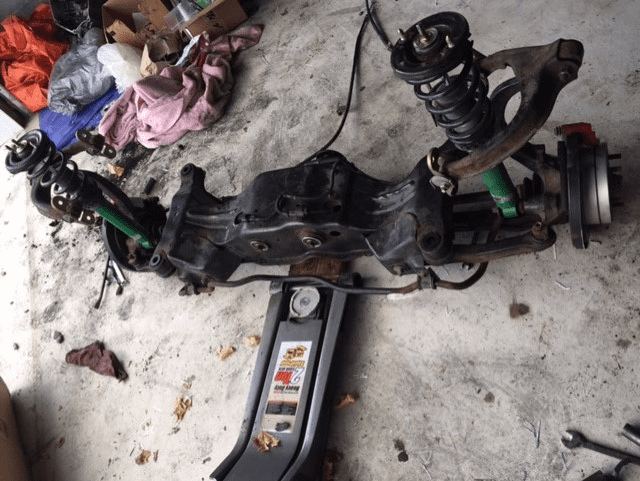

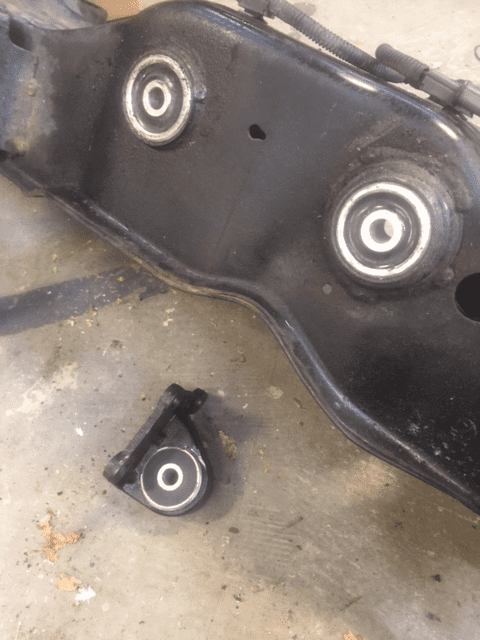

    952963c0-8f09-42fd-b657-3a14bf72809b.png c1894207-2b90-4fb2-a4d7-7639e28608ff.png

    I got everything back together for the most part and it was ready to reinstall

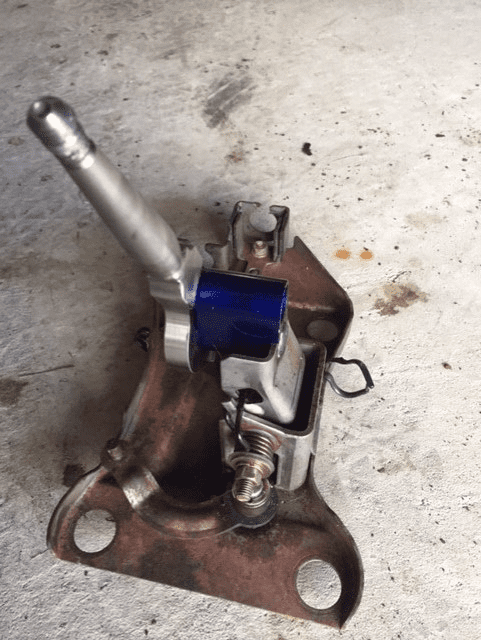

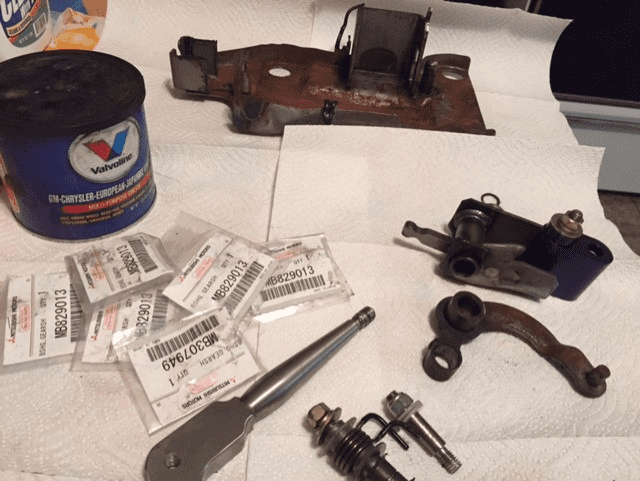

    Then I went ahead and rebuilt my shifter with the new nylon bushings and I also went with the solid shifter base bushings and solid under hood bushings for the cables.

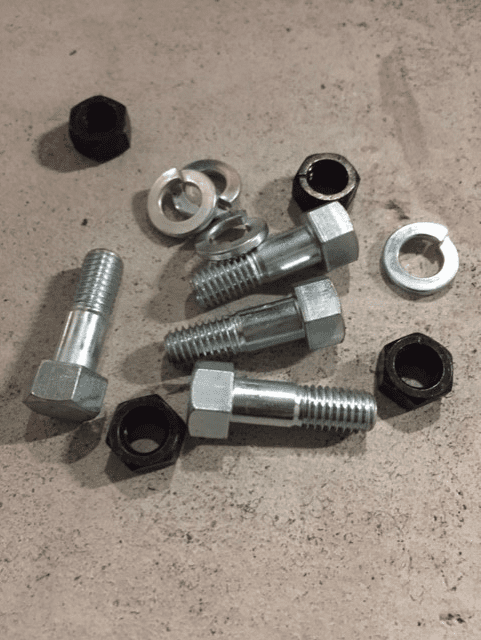

    I topped it off with some new hardware for the driveshaft.


    Last edited: Nov 30, 2016
    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
  9. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania
    UPDATE:

    I just about finished putting the in the rear and then I decided to add poly bushings in the rear arms. I had a prothane kit just sitting around that I forgot about. Install was easy but time consuming. Same deal as the subframe you have to torch the bushings and then saw the sleeve. After that you just lube and install the poly bushings and collar. During that time I ran into some issues with what seemed like everything (2 steps forward 1 step back). The new exhaust would not bolt up, the axles were seized and the ball joints were worn. First I installed the intake manifold with the new gaskets and injector orings for my FIC 750s. I also found a stock heat shield and threw that on too.

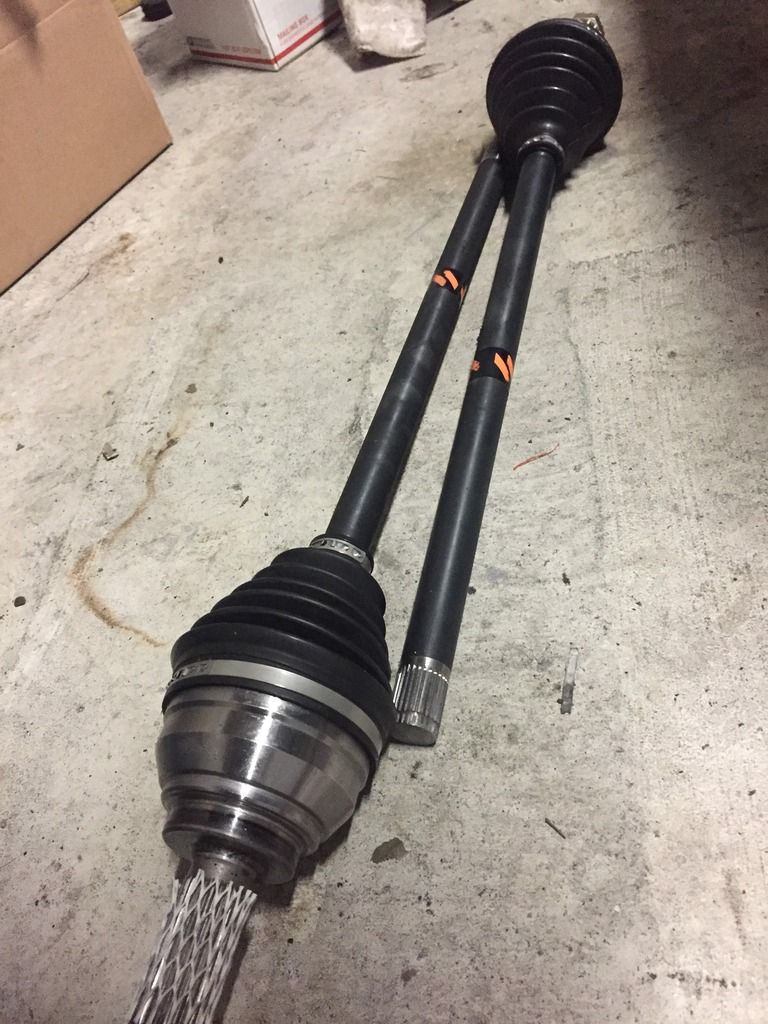

    Now back to the axles being seized in the knuckles. A 10 ton press was not working with heat and all the torch/rust penetration in the world. I ended up getting a set of strictly axles, OEM hub/wheel bearings and at the same time I got the tubular toe arms from 99gst_racer in the classifieds.

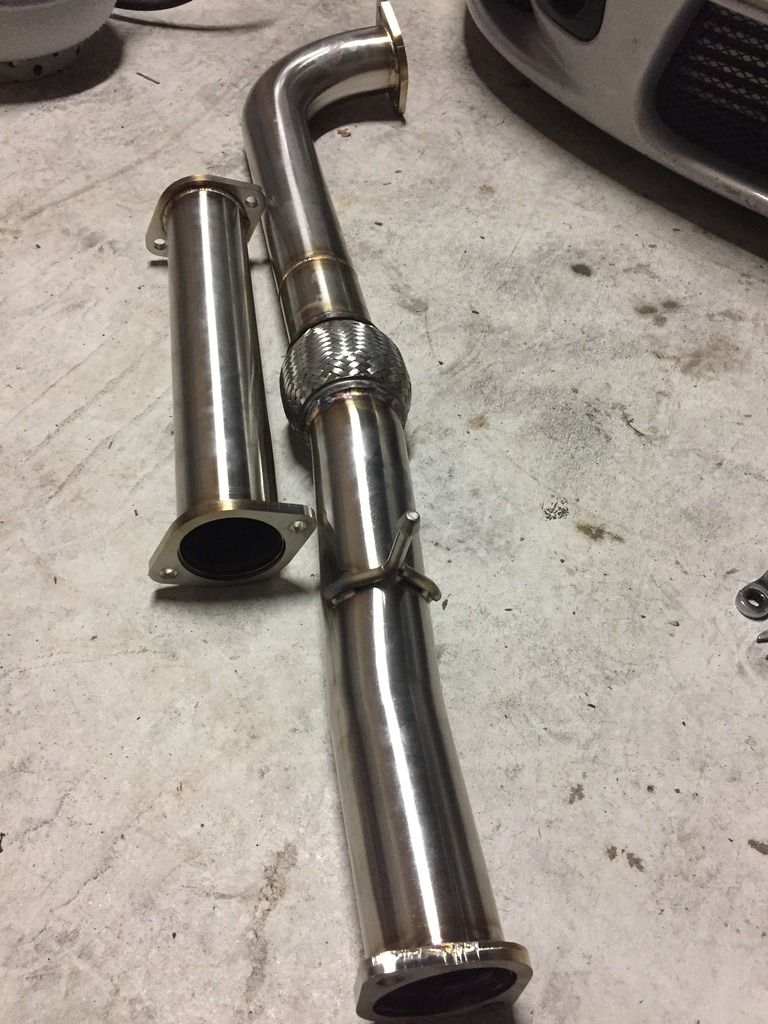

    My current exhaust was an apex down pipe with bottleneck to a RSR catback with 2 resonators and then the muffler. I did not like the bottleneck or the sound for that matter so I upgraded. I ordered a STM catback and a brand new punishment racing downpipes(cat delete).
    Now comes the problem with the fitment between the 2. Both companies claim to be bolt on meaning the downpipe should bolt to a factory catback and the STM should bolt where the cat would end. To me it looks like the punishment downpipe is the one that is off and they have not responded to my email. I ended up going back to STM for the downpipe and the test pipe.
    You would think the headache would be over but you couldn't be more wrong. The STM downpipe will NOT bolt onto a Megan racing o2 housing. I figured the whole exhaust should be the same brand so I called STM and they had a nice recirculated o2 housing so I picked that. I wanted the spool sound over the loud dump sound as this is a daily for me.

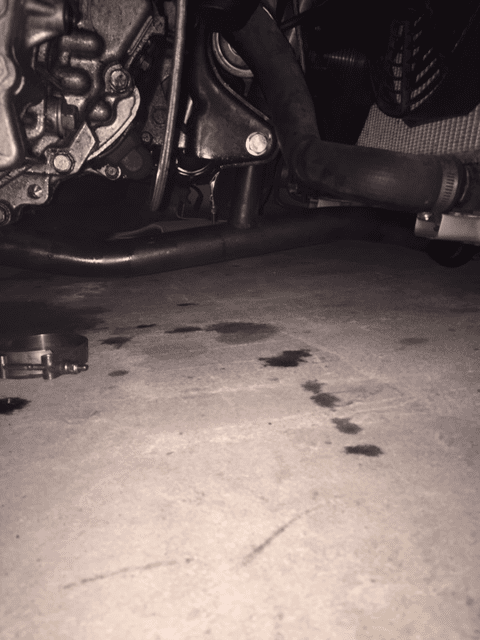

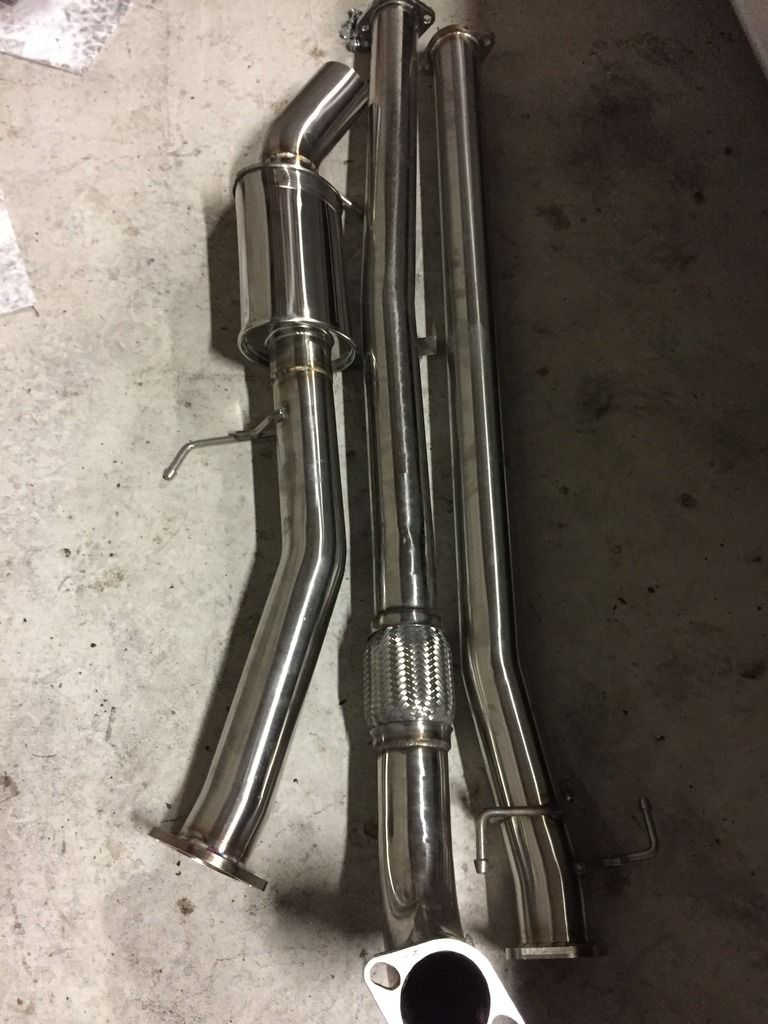

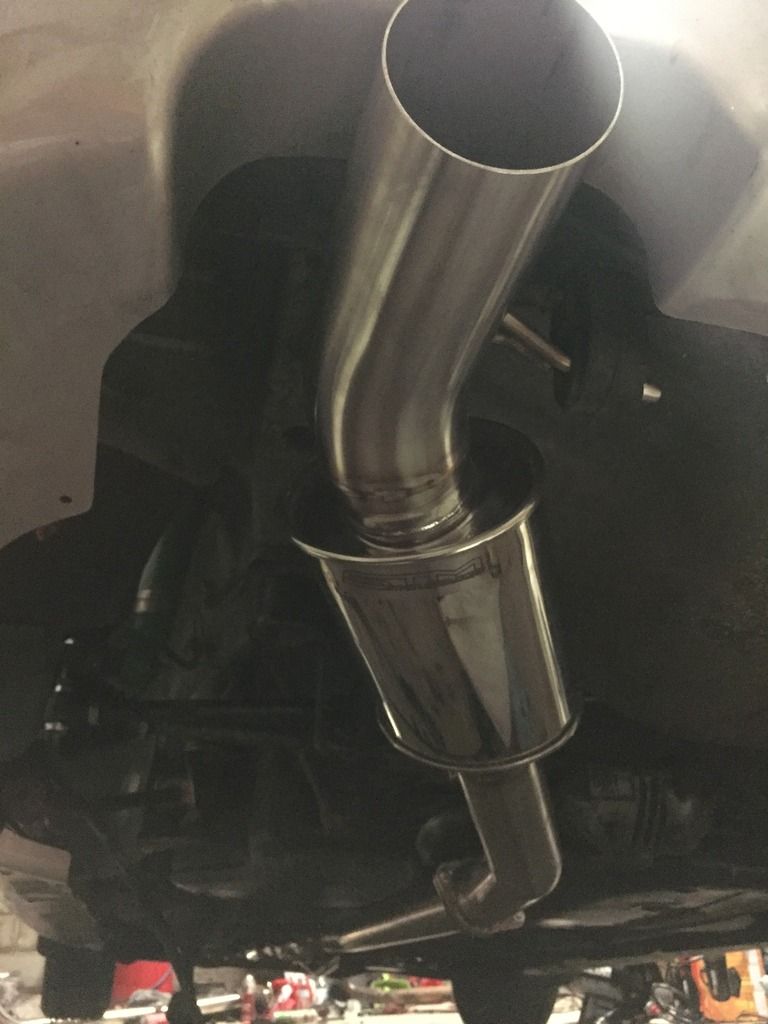

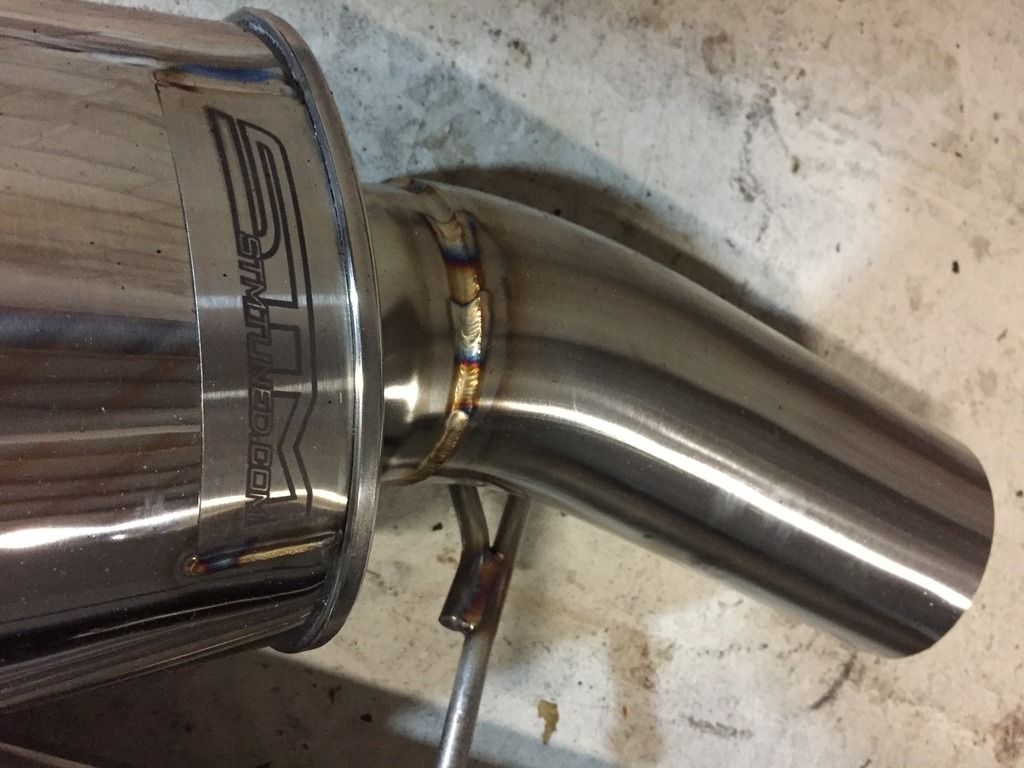

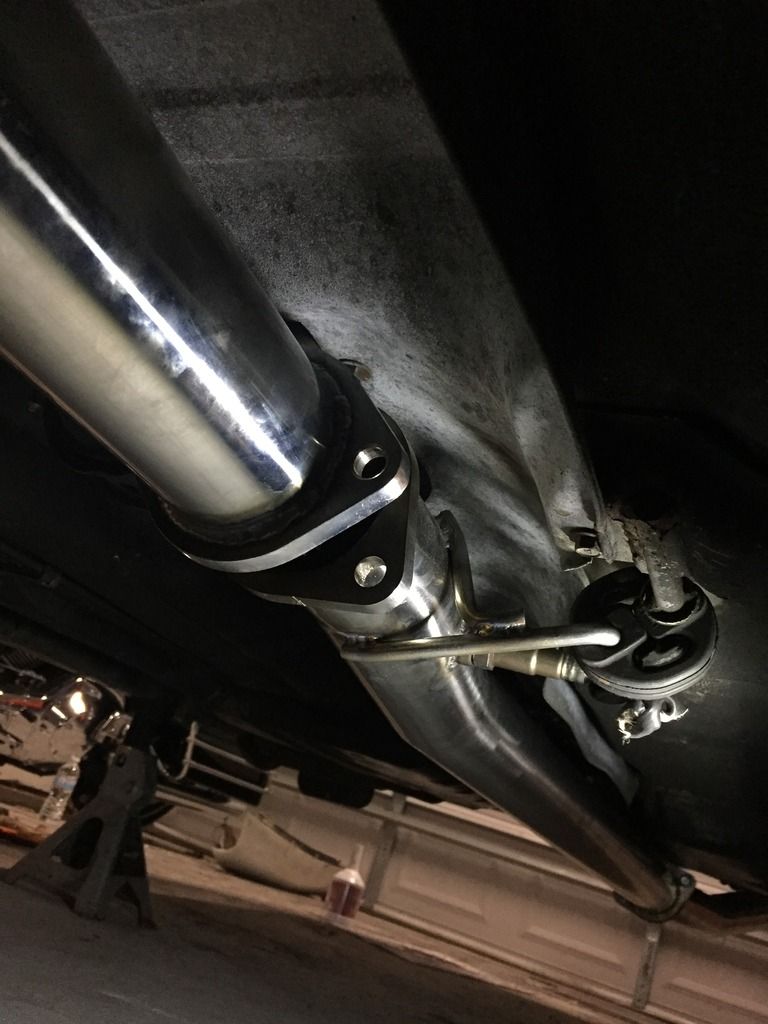

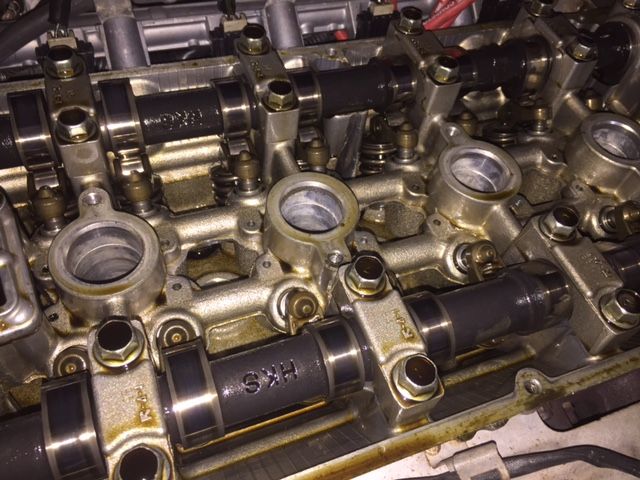

    I do not have the detailed pics of everything but here is the exhaust on and running sound clip (272 HKS)


    Last edited: Feb 5, 2017
    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
    STRICTLY likes this.
  10. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania

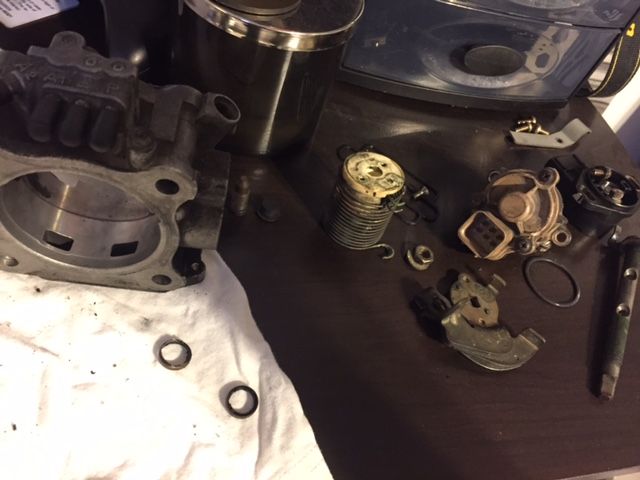

    I got the car re-aligned because the new adjustable toe arms and now it rides like its on rails. I will say these arms are made really well and its nice they are rebuildable and I won't have to order another whole arm like stock. I then ordered the Dsmlink V3 package and rebuilt the throttle body with new seals and a bypass plate. During the alignment I saw that I had an axle seal leaking which must have gotten nicked during install. I went back in there and installed another one and added more redline heavy shockproof to fill the differential yet again. Then I started one of my least favorite projects....the heater core replacement.

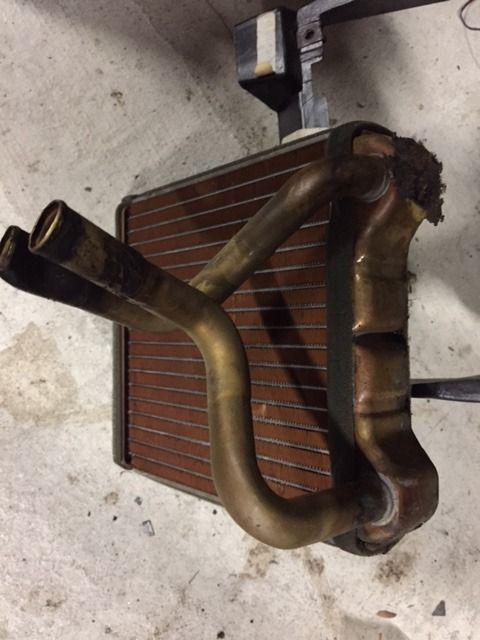

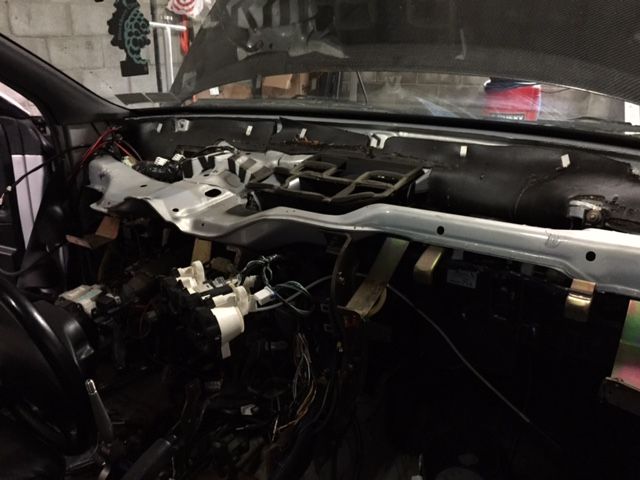

    Couple FBOMBS and shaking everything around and the heater core box comes out. This core deserves a special place in hell.

    When I finish the dash install I am going to be doing the following:
    1. boost leak test
    2. tune the car with Dsmlink
    3. grind/paint and install brembo's with EVO X wheels.
    4. install a lip on the front bumper
    5. install bumper support brackets from boostedfab

    Last edited: Mar 13, 2017
    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
  11. idkiliketurbos

    idkiliketurbos Proven Member

    551
    52
    Joined Mar 2, 2009
    Fox Valley, Wisconsin
    I love the direction you're taking with the car! I have a feeling I may end up regretting switching from the evo 3 16g to the fp hta green.

    My DSM:
    1997 Mitsubishi Eclipse GSX

    Street Build

    12.055 @ 120.44 MPH
    Loading...
  12. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania
    Update time!

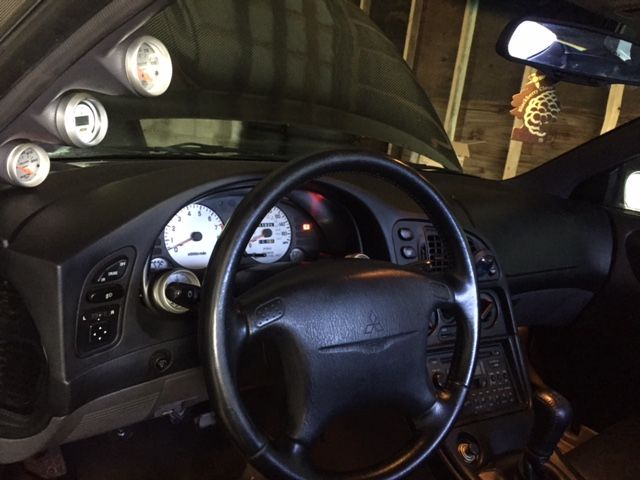

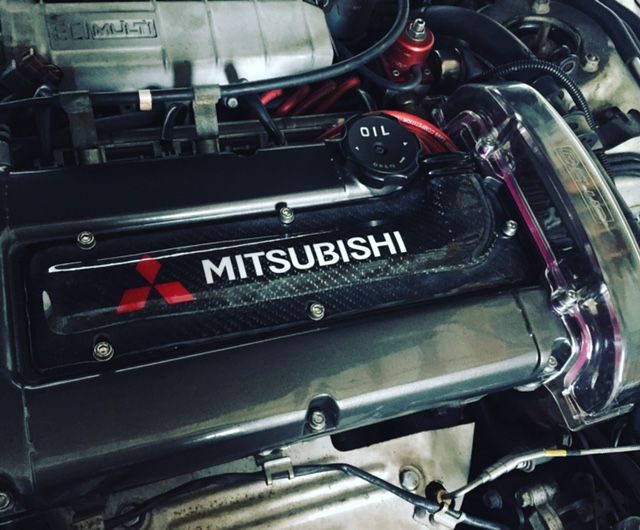

    Got the dash back in without too much trouble and went ahead and did a boost leak test. I fixed the 4 leaks I found and just need to retest after the weather clears up. I also went ahead and installed the boosted fab bumper support which makes everything line up better (no pics yet). I also got a shaved valve cover, clear timing cover, and a custom carbon fiber spark plug cover with SS hardware. I still need to tune and install the Brembo calipers.


    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
  13. tunernewb92

    tunernewb92 Proven Member

    97
    25
    Joined Sep 10, 2008
    Houston, Texas
    Where did you buy the heater core? I ordered both brands off rock auto and neither fit at all.

    My DSM:
    1999 Mitsubishi Eclipse GST

    Street Build

    16g   manual
    Loading...
  14. AZmocoLoco

    AZmocoLoco Proven Member

    112
    35
    Joined Feb 23, 2016
    Chandler, Arizona
    i just bought that spark plug cover as well LOL. off dude from fb. hey that exhaust is different, i have never heard that one before. poor deal with the fitment LOL. sounds like it was a pain in the butt. i am going to be purchasing a new heater core, care to share a link of the one you bought?

    My DSM:
    1997 Mitsubishi Eclipse GST

    Street Build

    16g   manual
    Loading...
  15. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania
    sorry for the late response I believe it was rock auto. They do not make the exact heat core I needed anymore (different revision) but I made it work.

    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
  16. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania

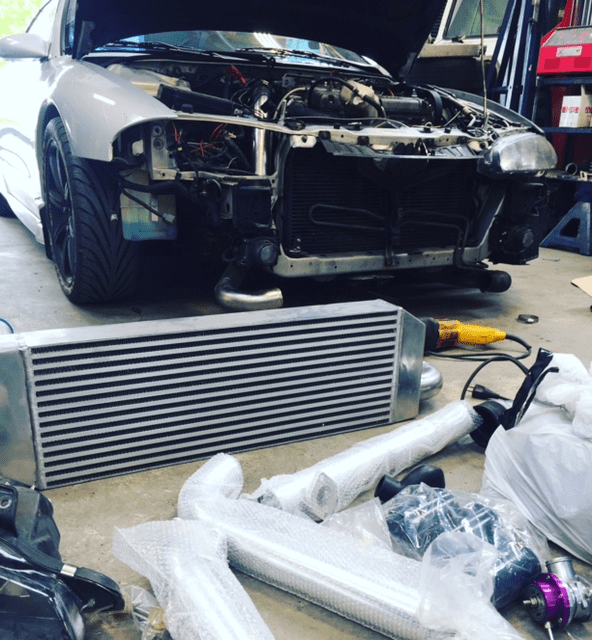

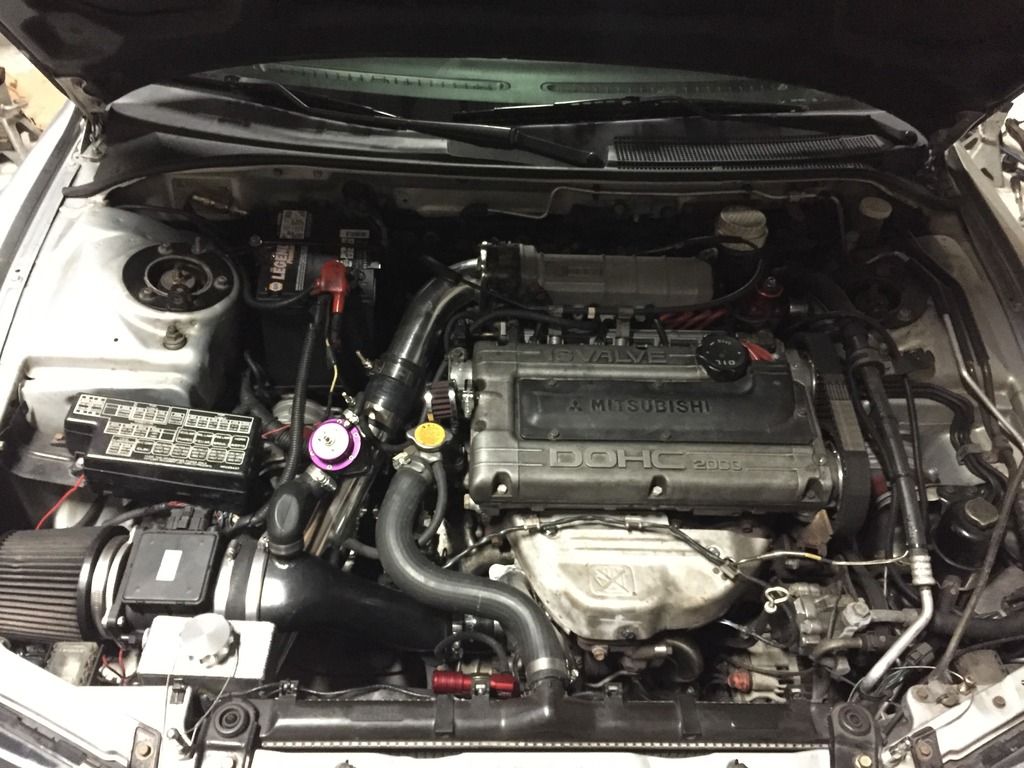

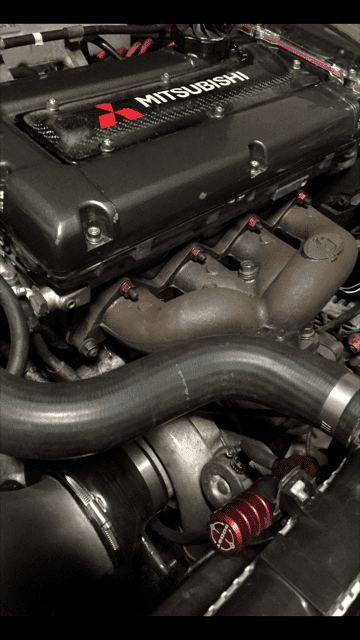

    I haven't updated in awhile but I recently got a few more things done to the car. I installed the FP manifold and took care of the snapped bolt in the head. I tapped it and then did a helicoil and installed new forced performance hardware. I decided to put the Precision turbo back on with the FP intake because I missed the power.

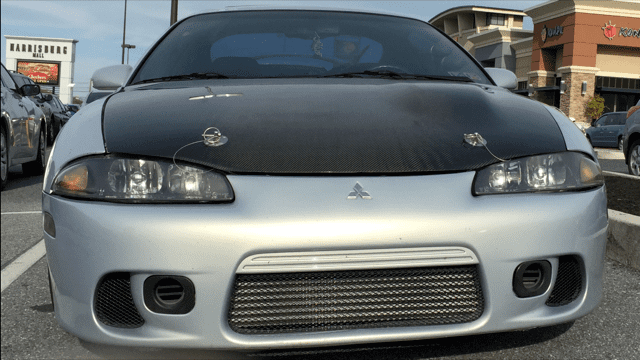

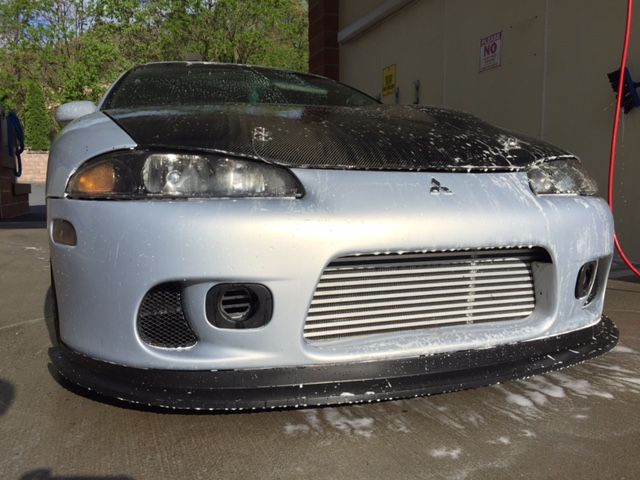

    I also went ahead and cut the front bumper out to increase flow to the front mount intercooler. It wasn't too bad I just took the bumper off and used a rotary tool with a cutting wheel on it. I installed another lip to replace my HD lip that lasted a day.

    Before and after

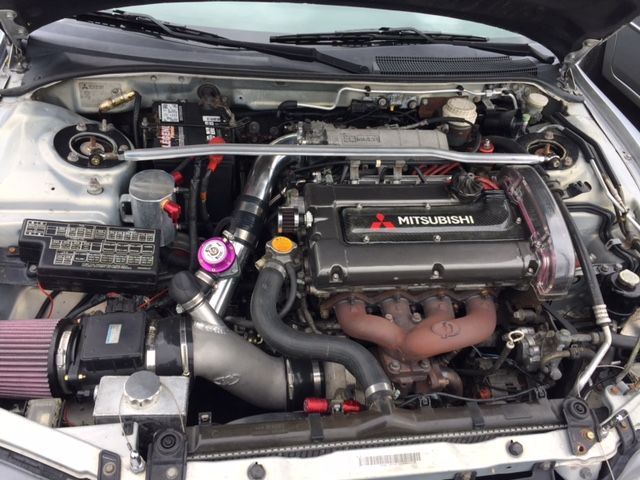

    Last I installed a strut bar and got a SS fuel line from the filter to the rail because the stock banjo line is pretty restrictive. I put on the Greddy catch can that I still need to run the lines for.

    Last edited: May 3, 2017
    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
    kmetiuk likes this.
  17. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania

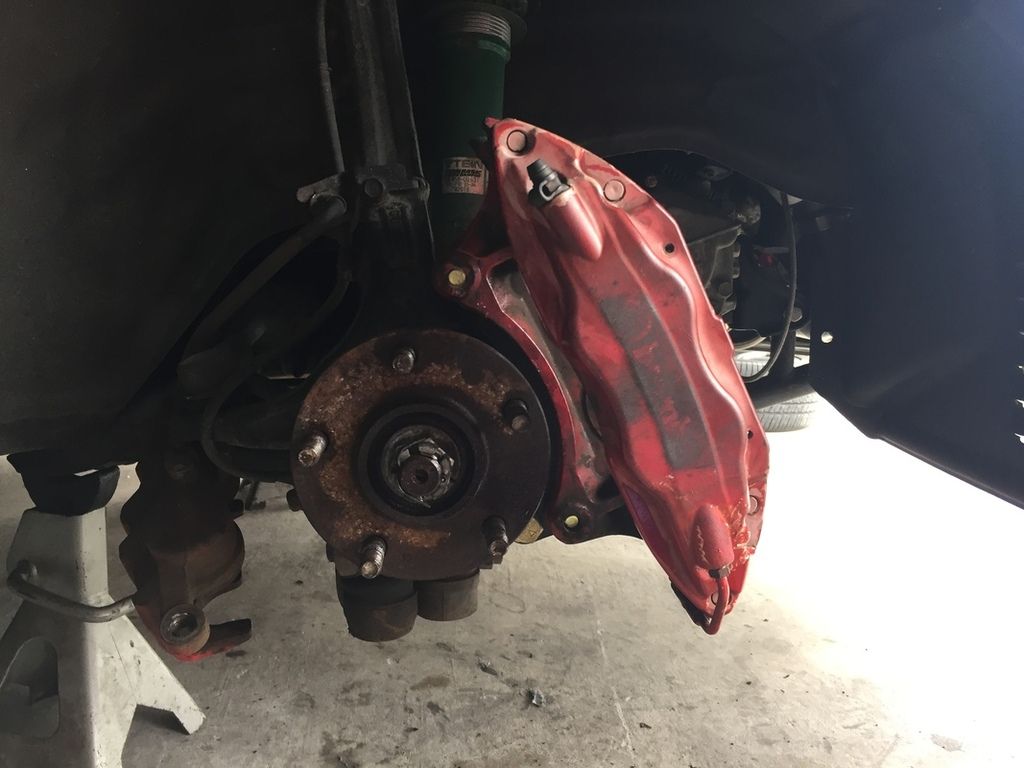

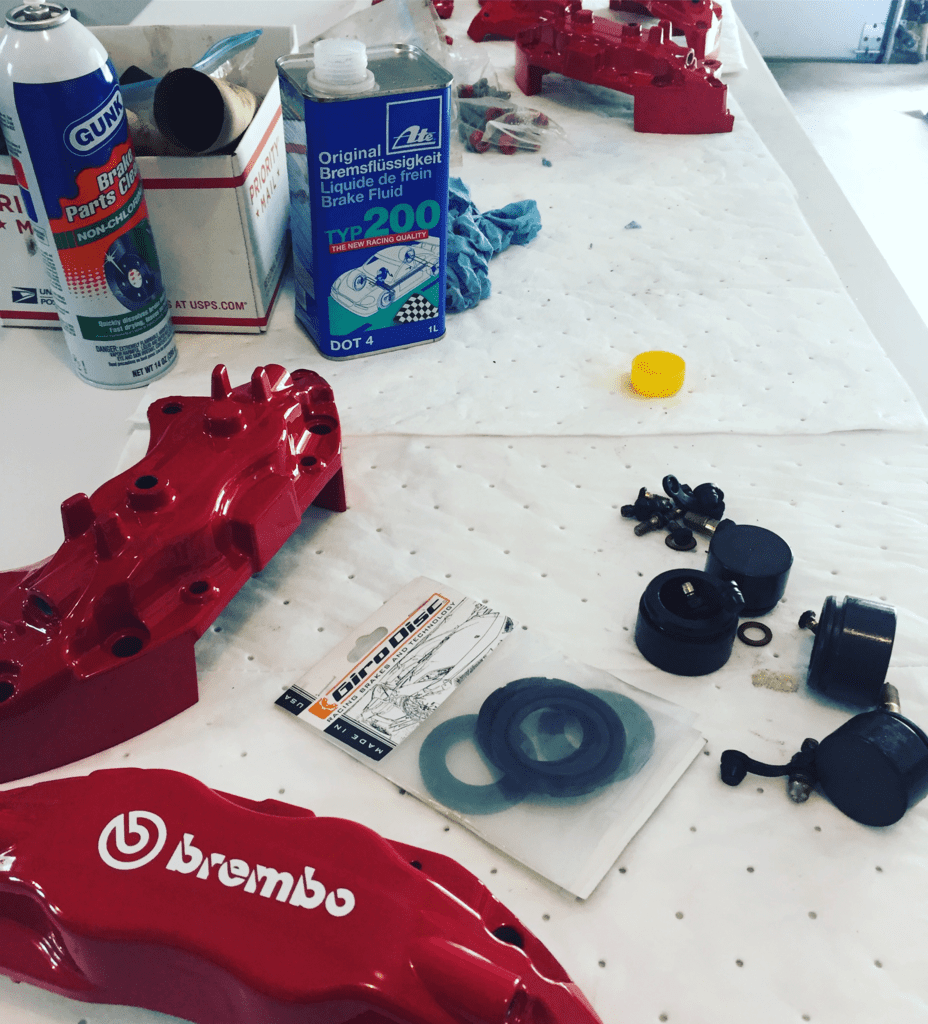

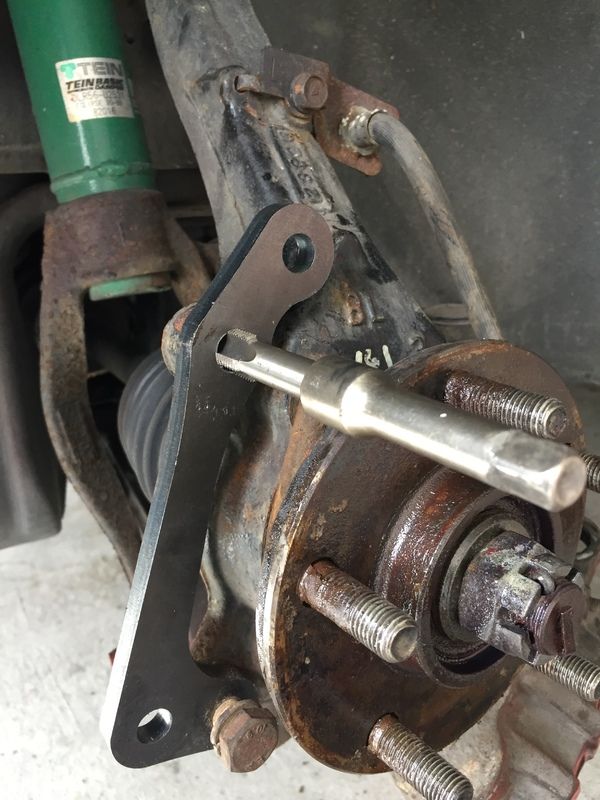

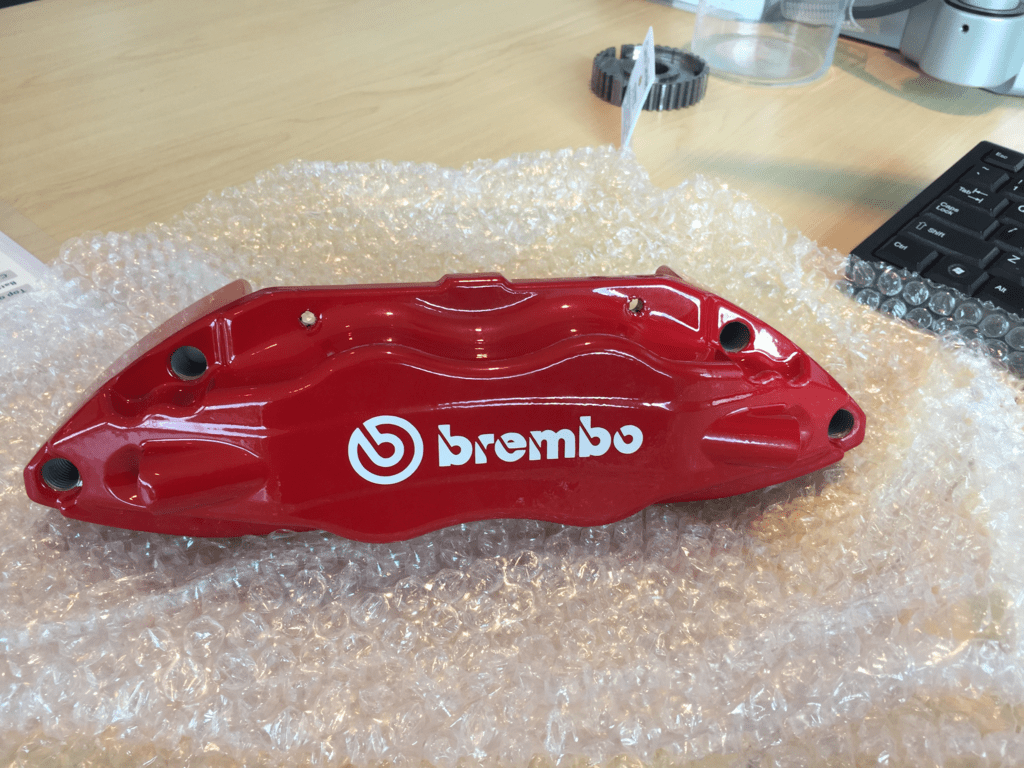

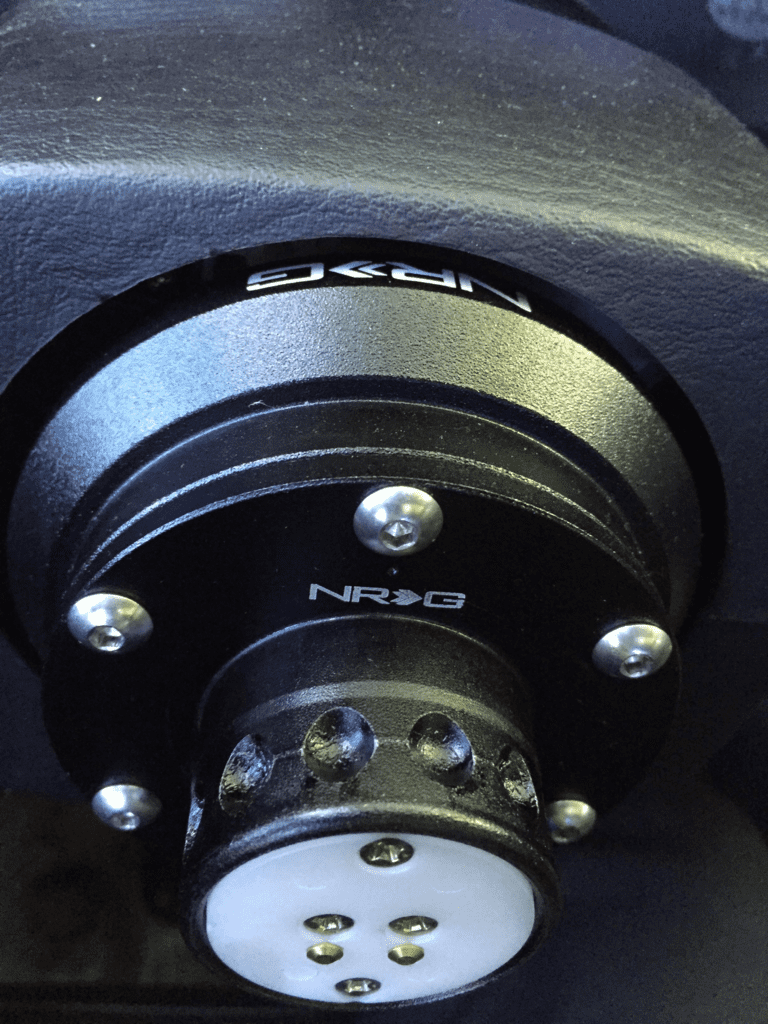

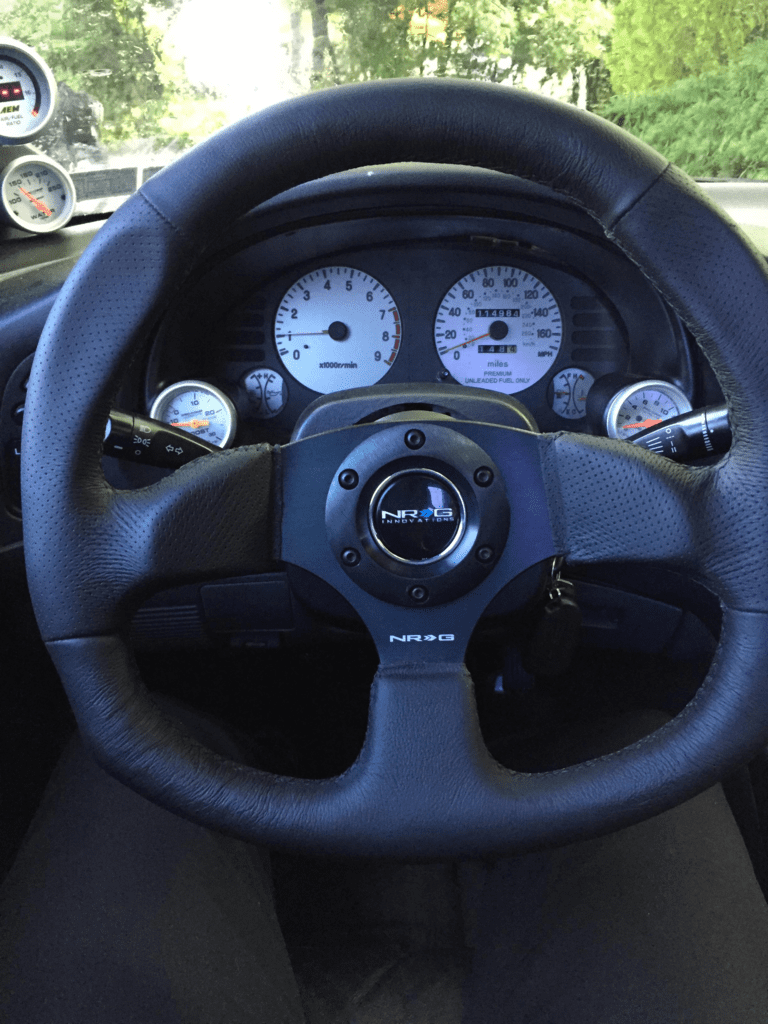

    Finally got the brembos done! I kept putting it off because I did not have the time to test fit them and tap the holes. Bonehead performance coated them for me and they came out amazing. I rebuilt them using the girodisc seals and installed pretty easy. I also went and installed a nrg hub, quick disconnect and new steering wheel.


    Last edited: Mar 22, 2018
    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
  18. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania
    Update!

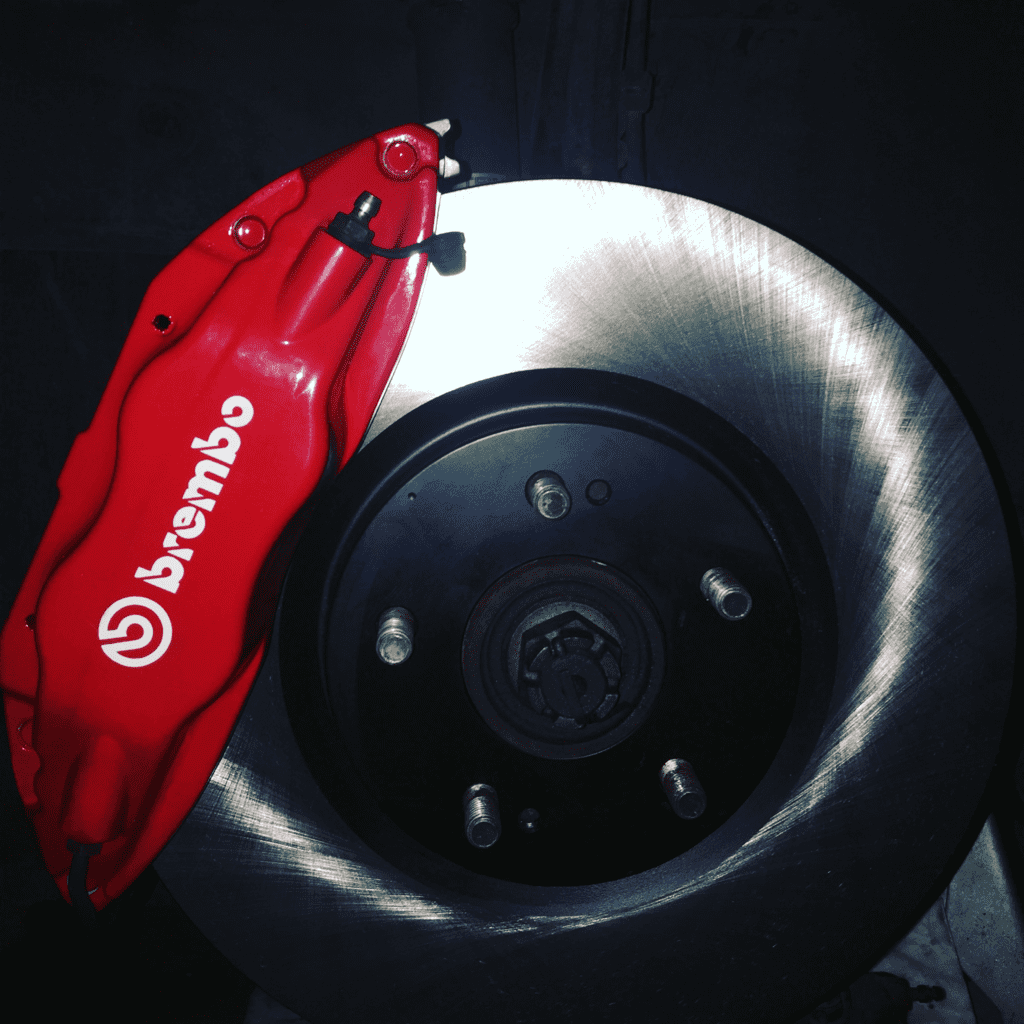

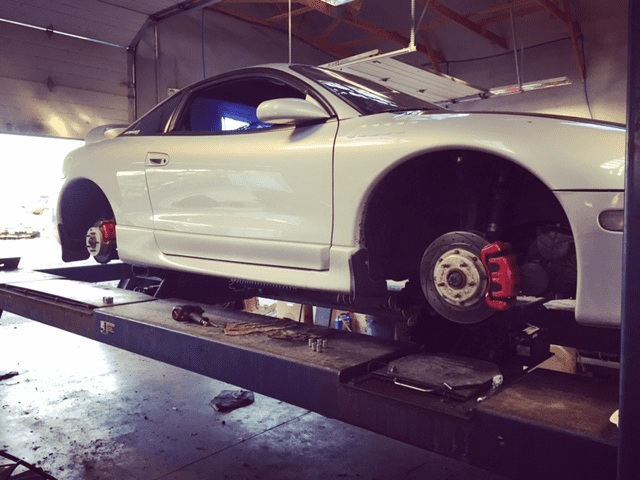

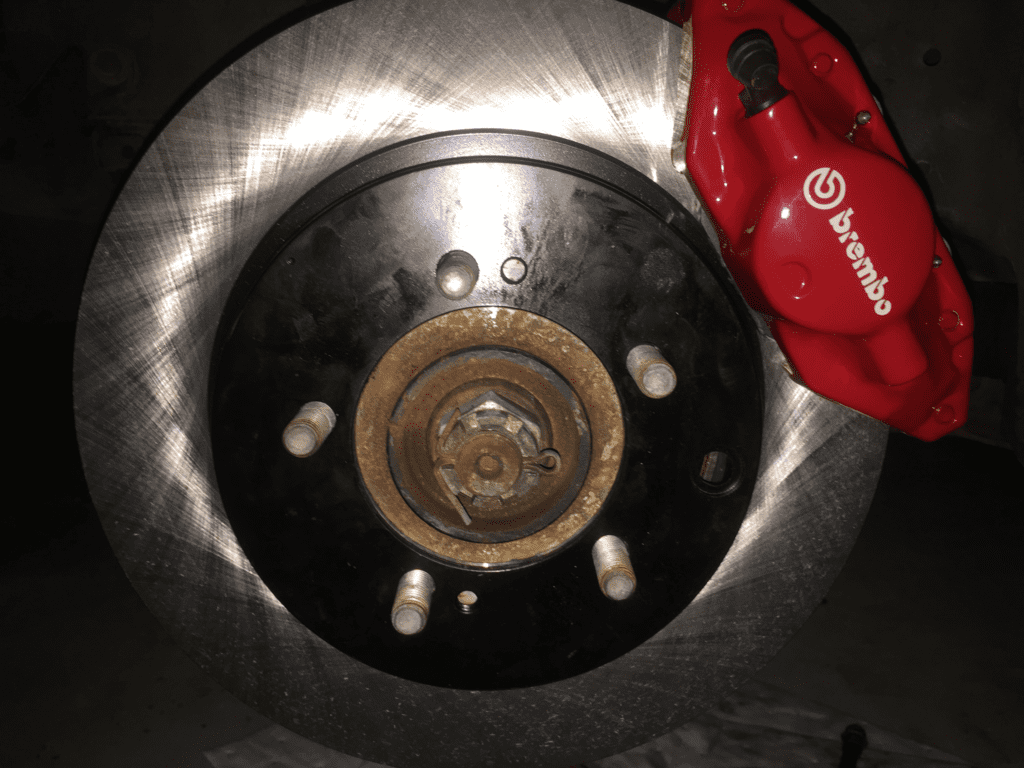

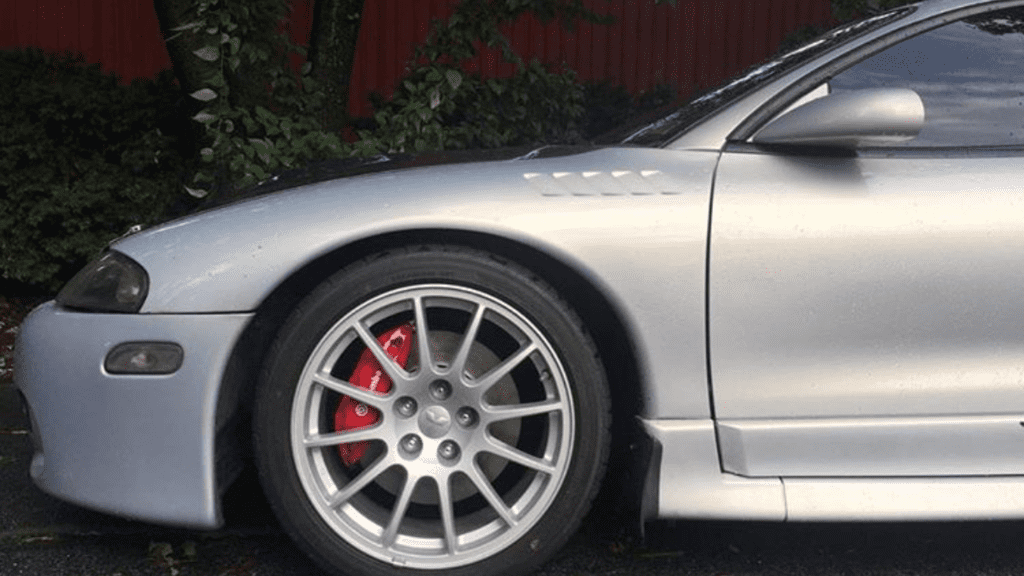

    I forgot to post the final pictures of the Brembo calipers installed with the new Evo x wheels. I did have to roll the fenders because a am lowered. Other than that these wheels fit the car perfectly.


    I ended up powdercoating them black just a couple days later to help set off the red

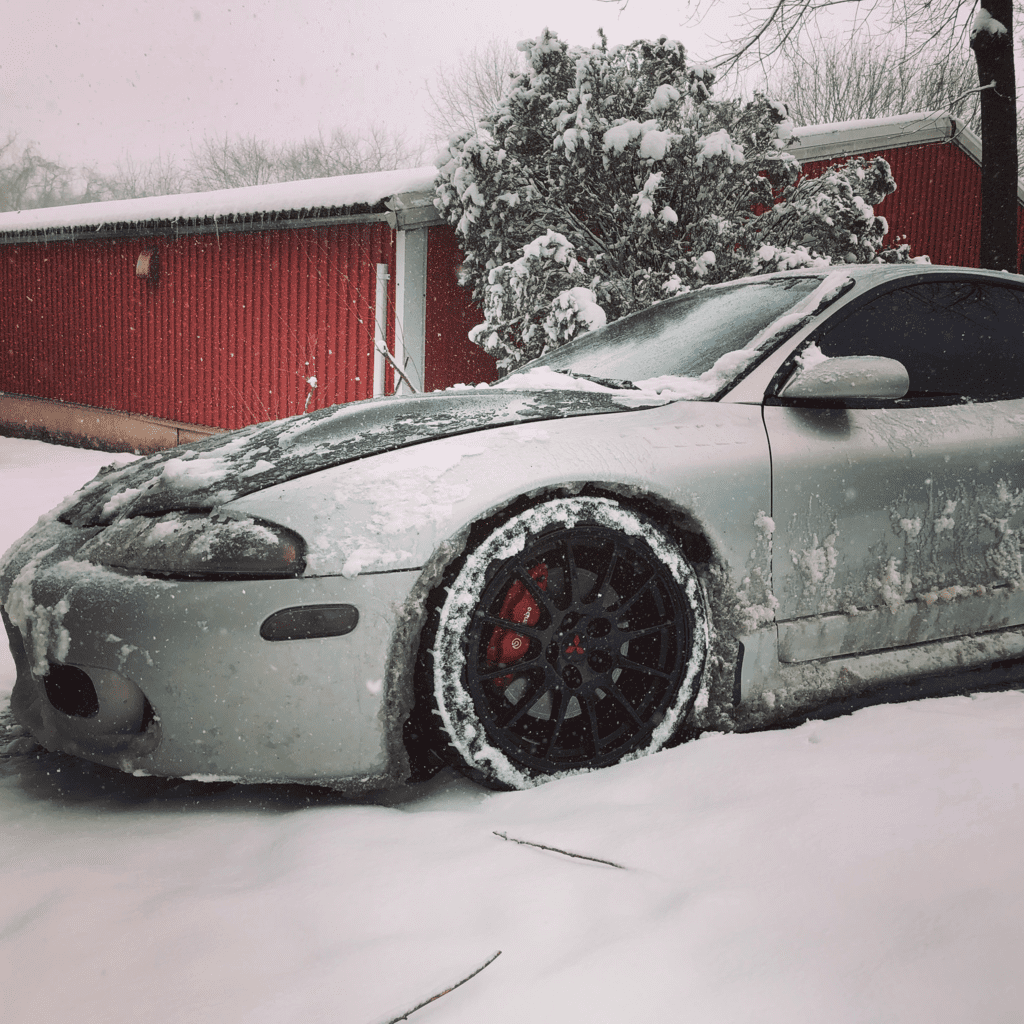

    Brembos. This photo is from yesterday and we got a pretty big snowstorm here. This car can get through anything.

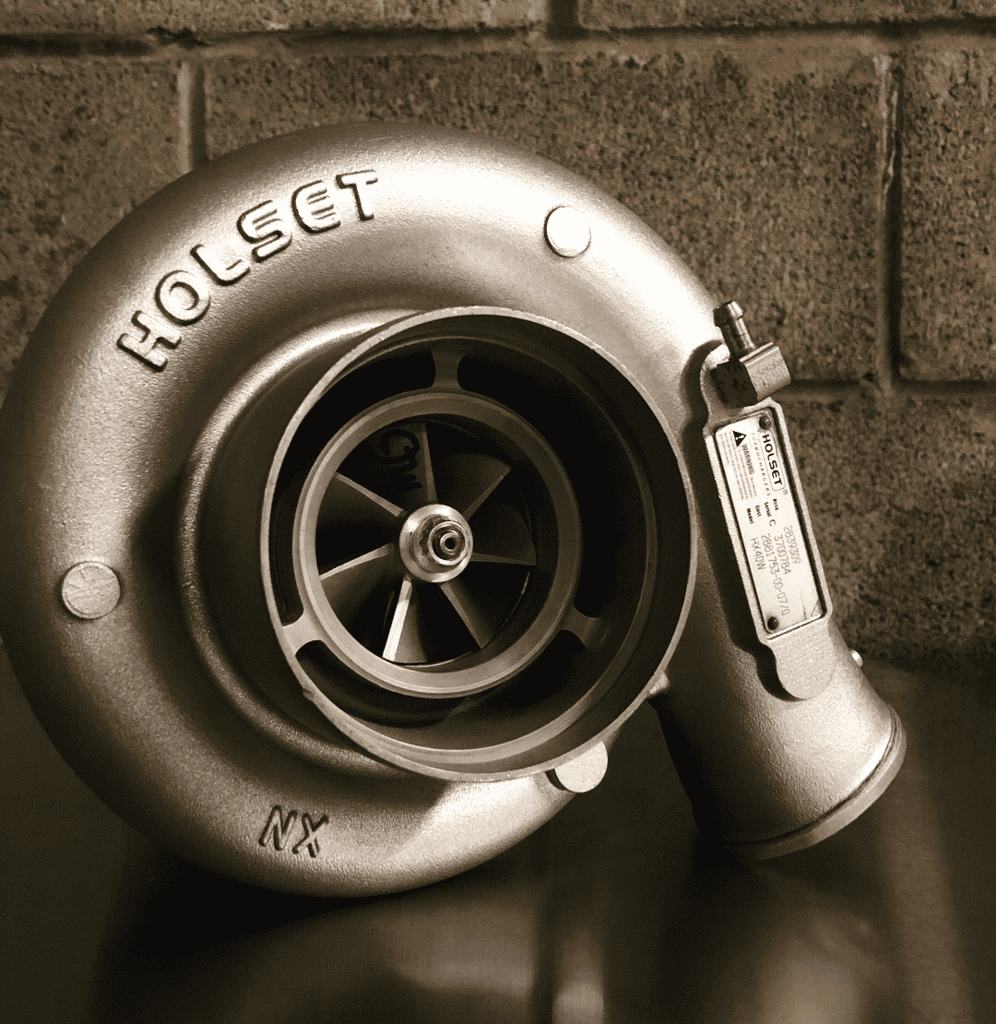

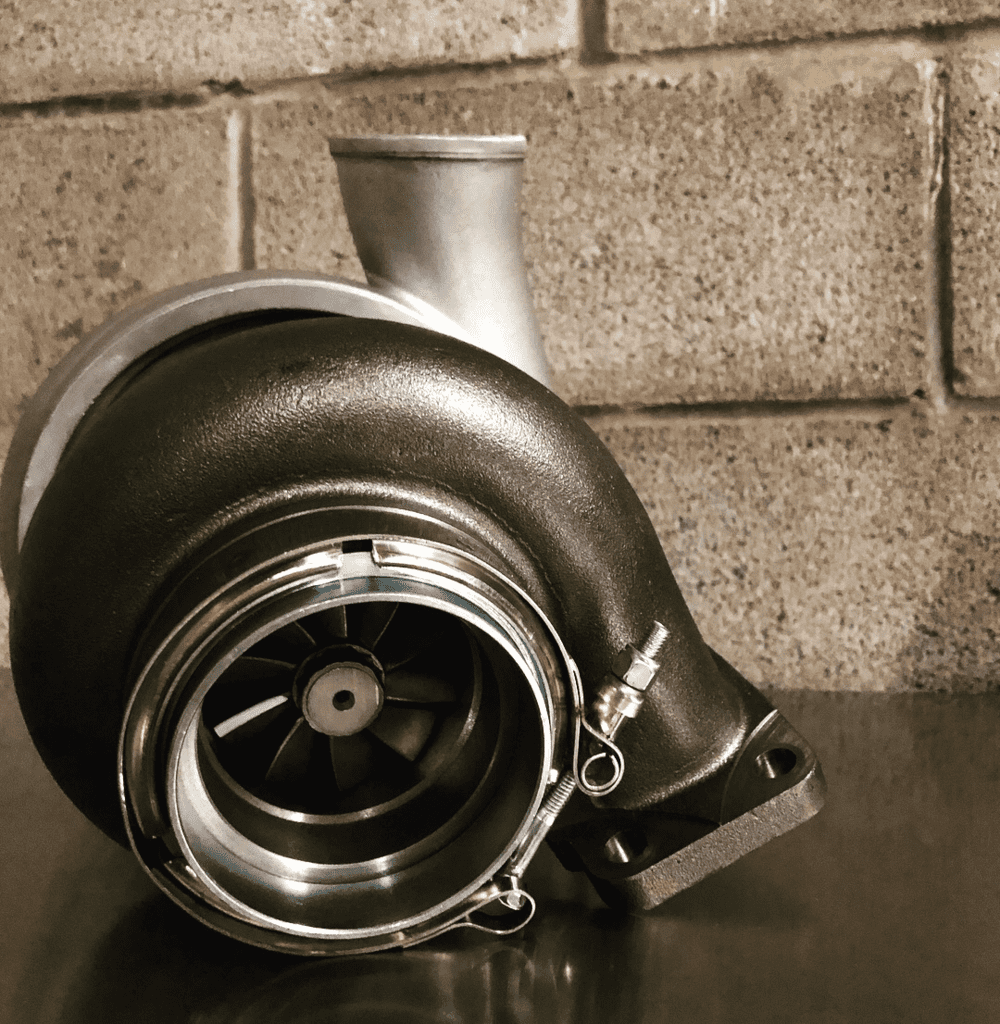

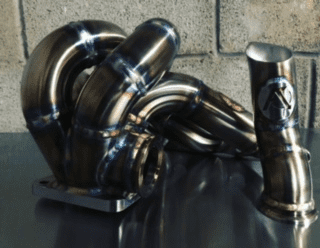

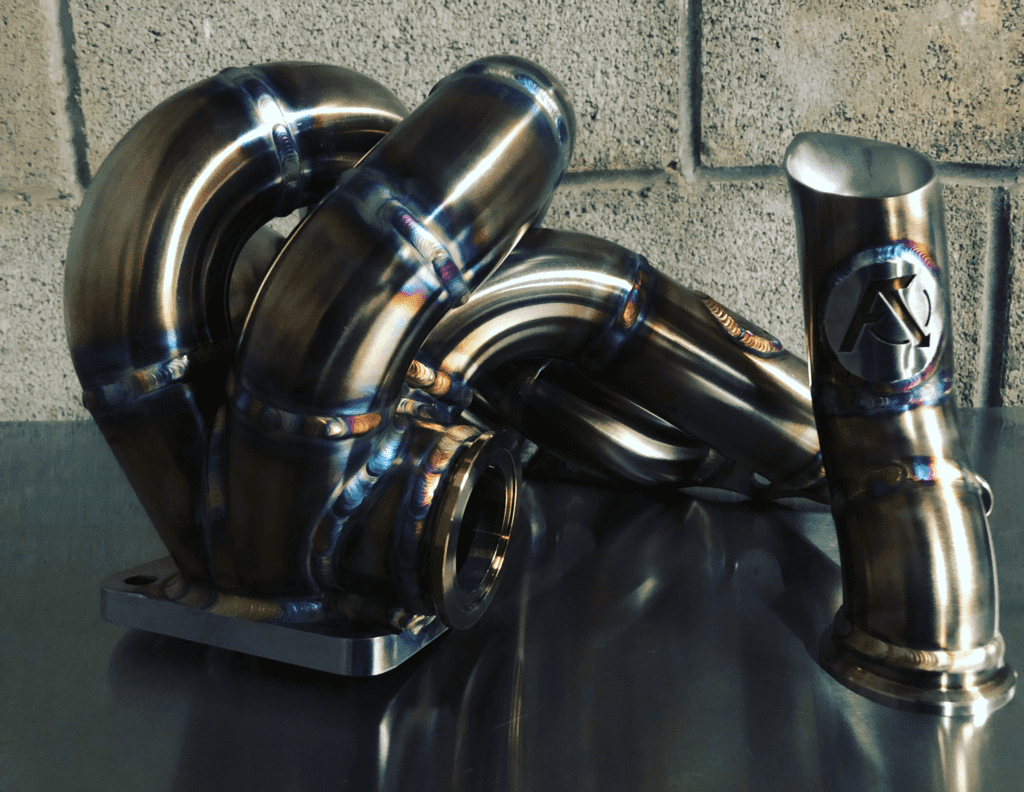

    The biggest news is that I am fully going to build this car and I bought a bigger turbo (HX40 .82 T3) and matching manifold for it. Huge shoutout to archer fab for the beautiful manifold and hood dump!



    Attached Files:

    Last edited: Mar 22, 2018
    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
  19. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania

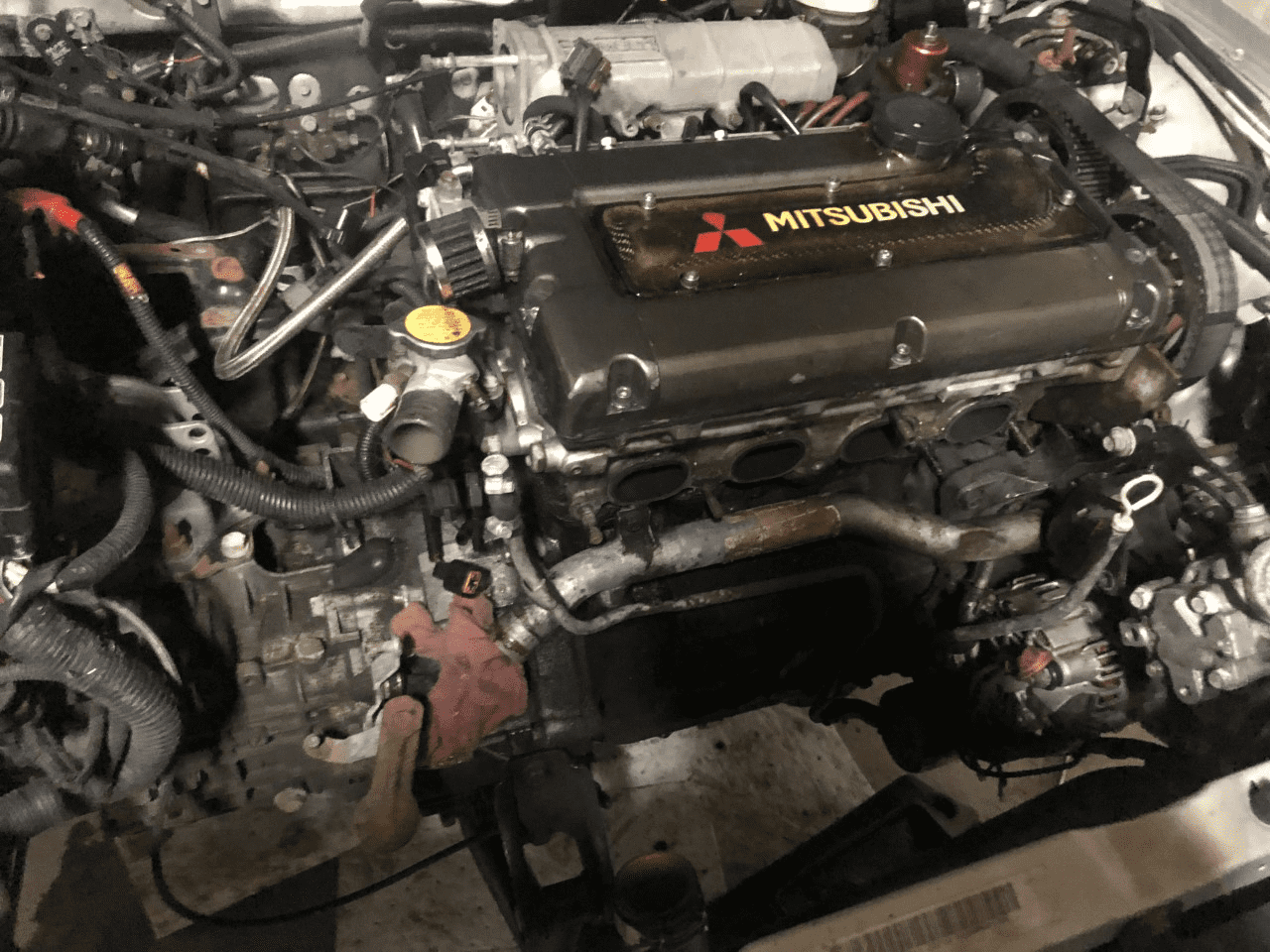

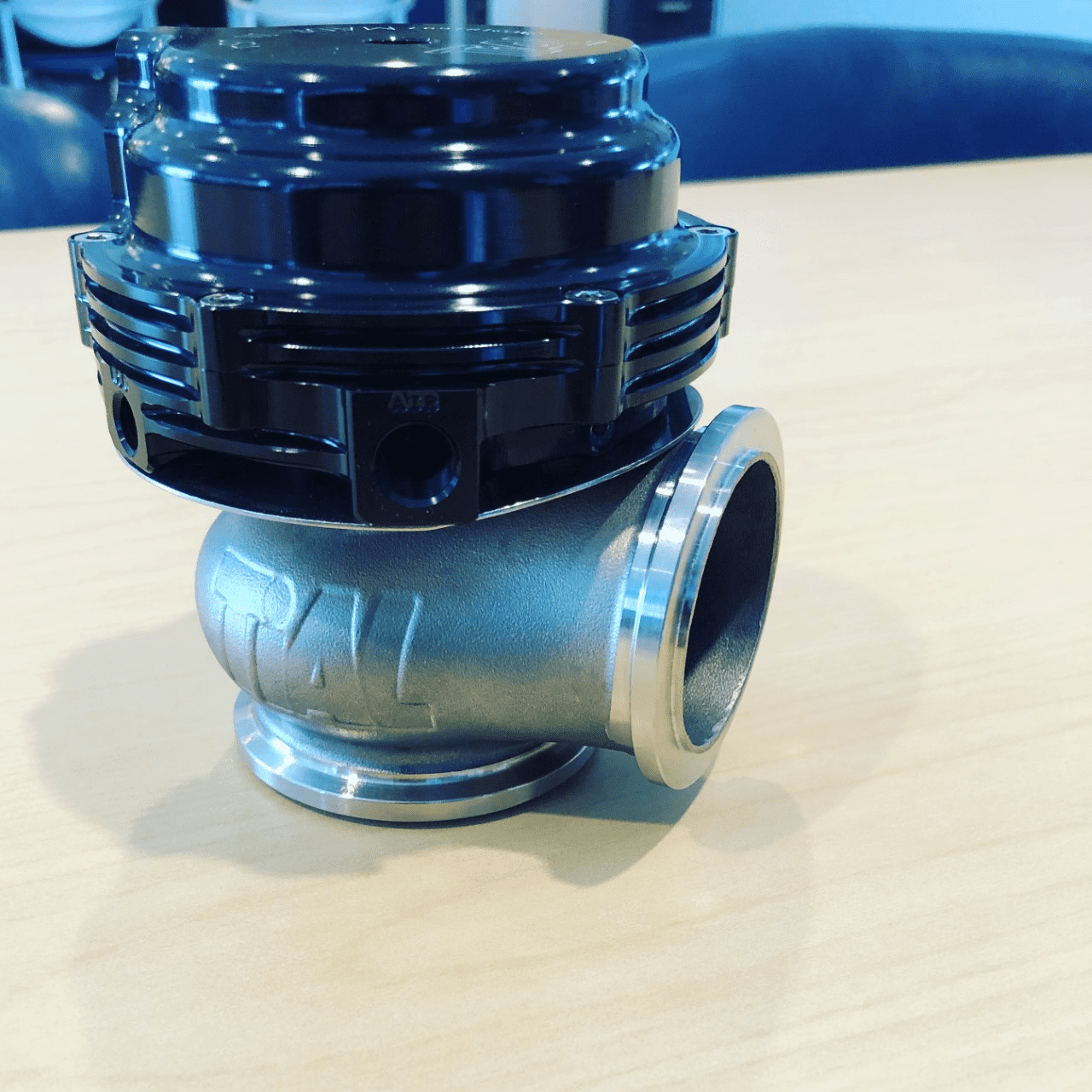

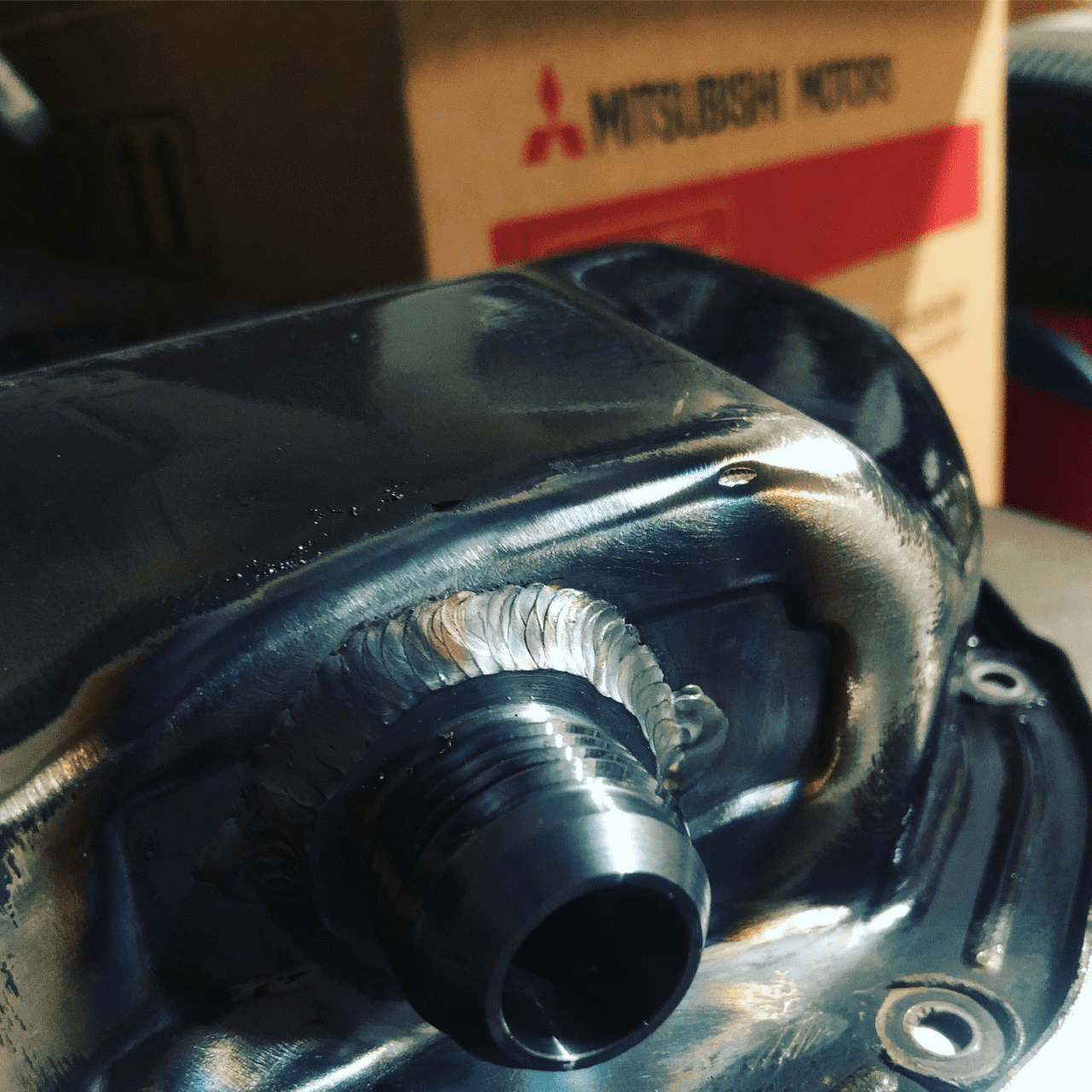

    Starting tearing into the DSM last weekend and am ready to pull it on my next day off work. Drained all the fluids, pulled the radiator, turbo and manifold, exhaust, transfer case, intercooler piping and the axles. I also had JMF weld a spare oil pan for the HX40 (-12an) I love that their shop is local they do :thumb: work. I also bit the bullet and picked up a new Tial 44 MVR wastegate for the hood dump.

    Last edited: Apr 20, 2018
    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
  20. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania

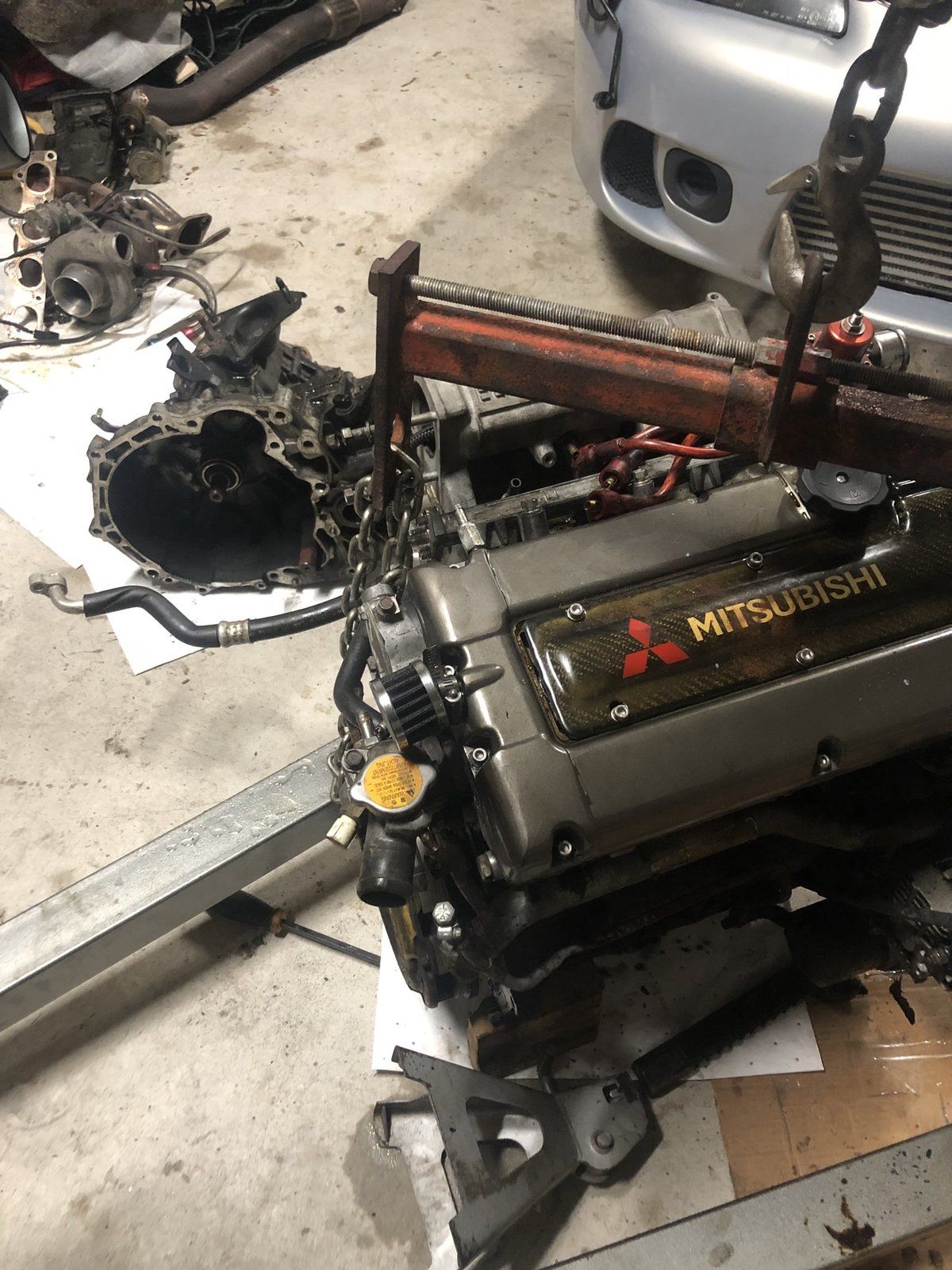

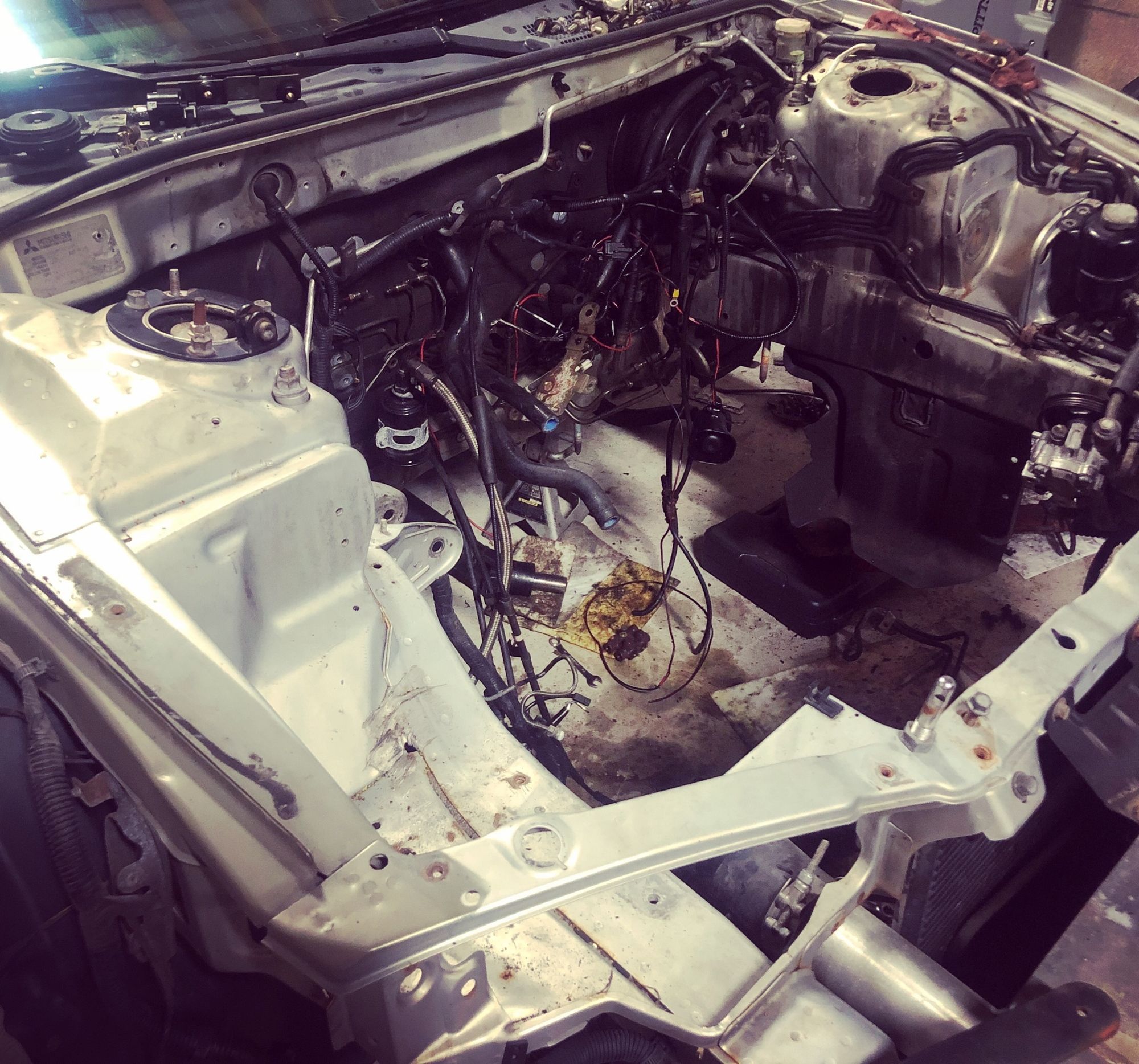

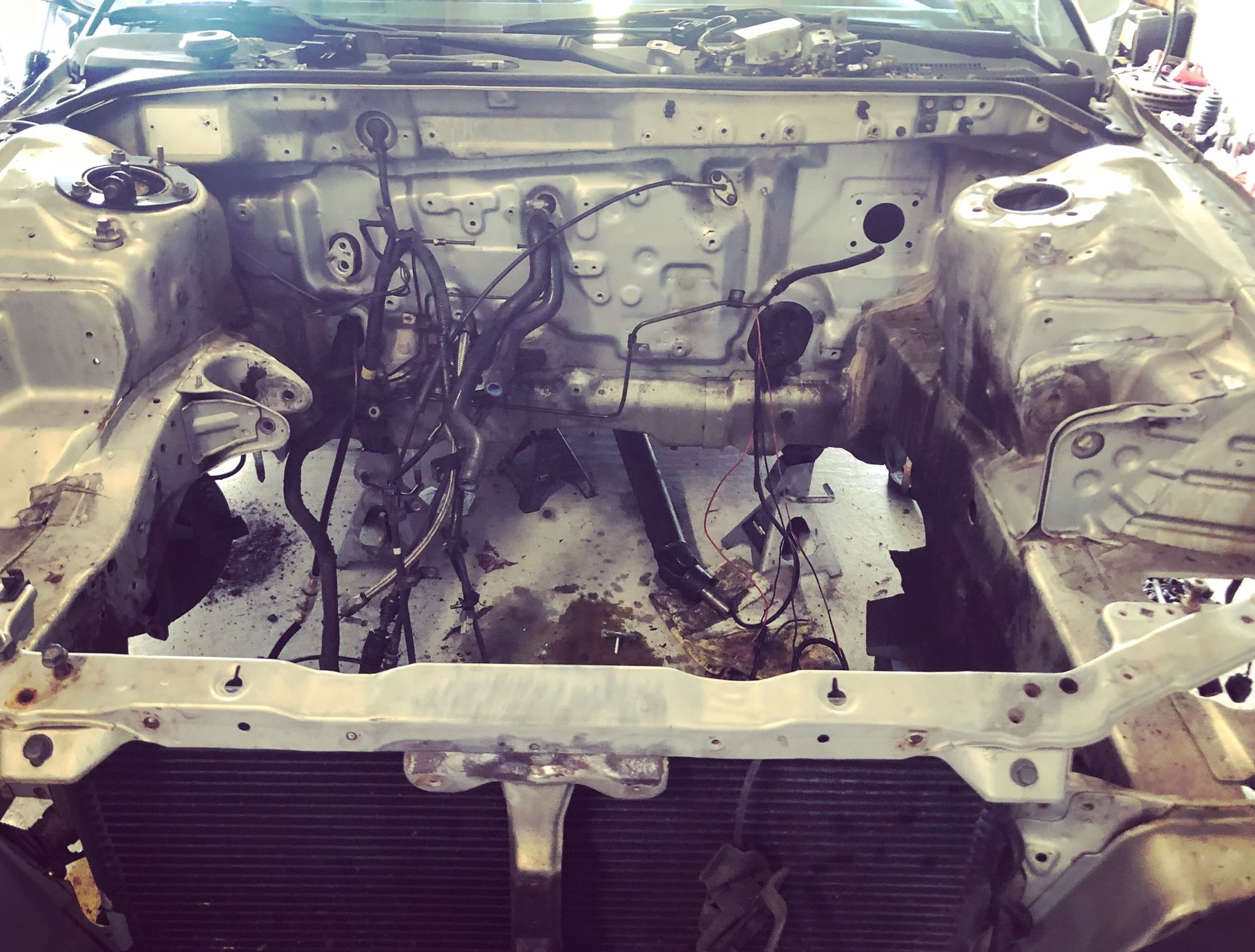

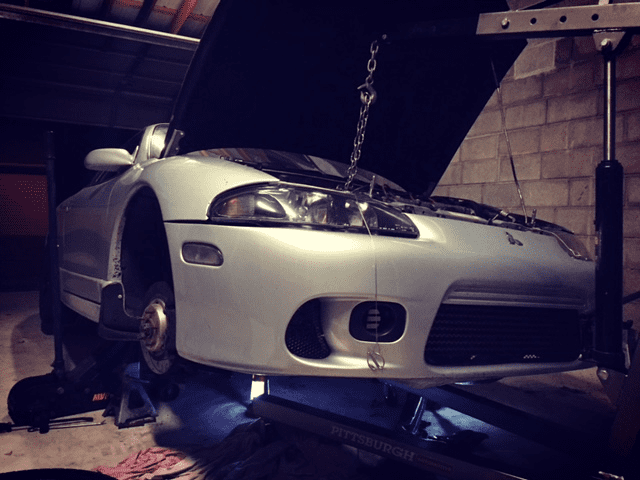

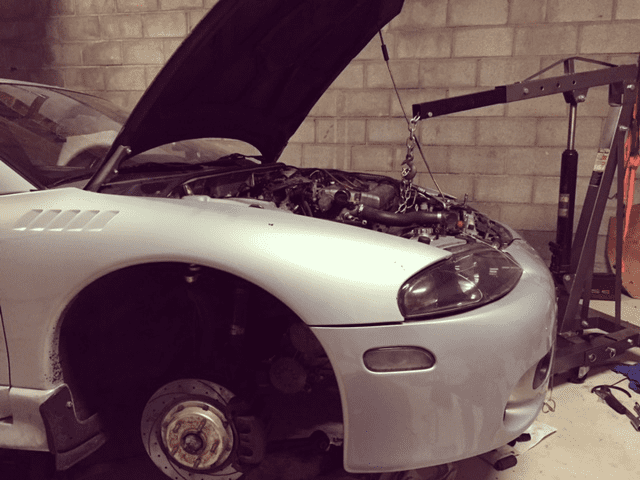

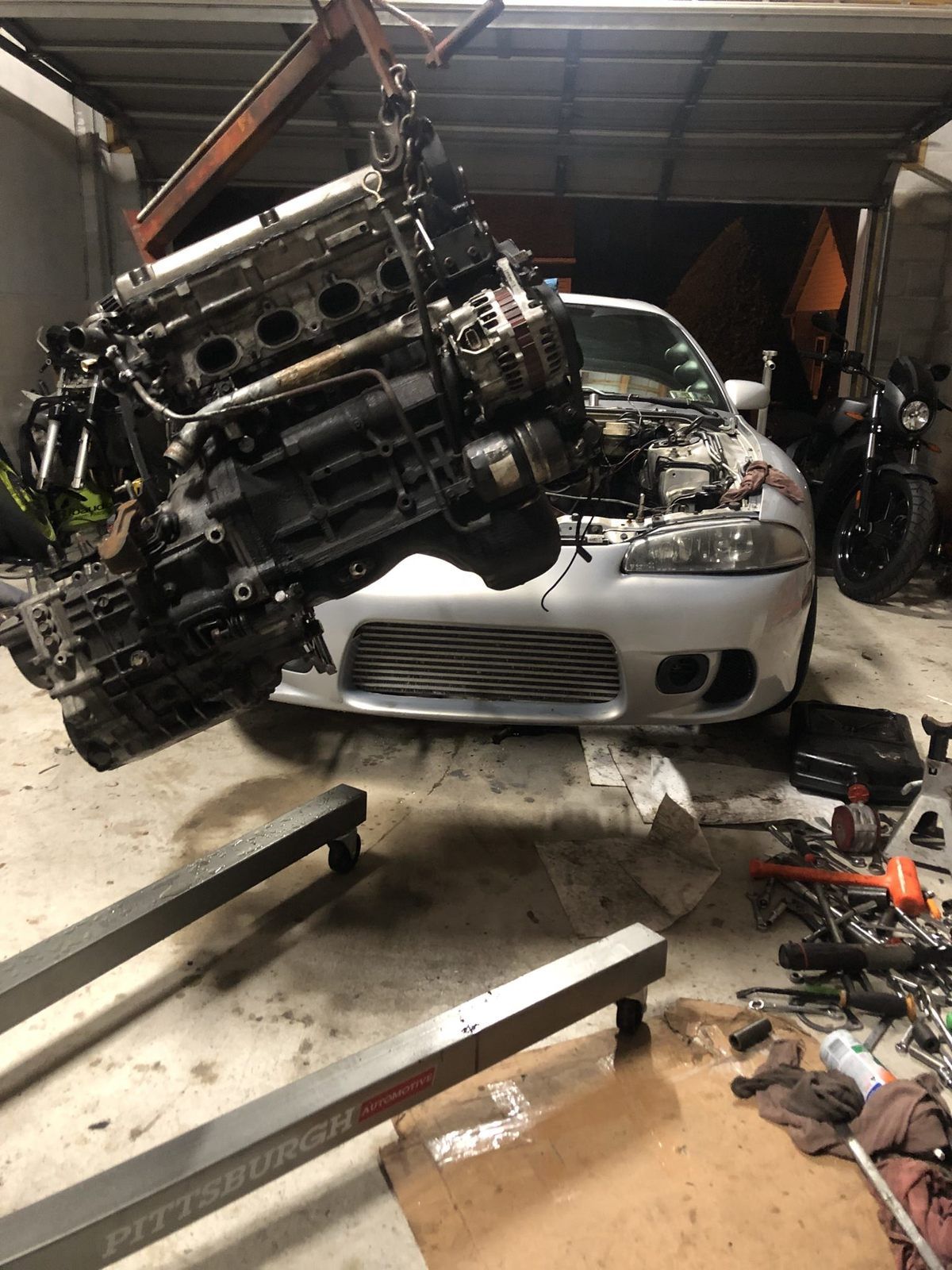

    Pulled the engine on Wednesday. My plan is to put it on a engine stand this weekend and then put the built engine I have on my other stand so I can transfer the parts easier. I am also going to be painting the engine bay, replacing the worn front suspension and installing aluminum subframe inserts. The next update will be after this weekend.


    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
    95eclipser likes this.
  21. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania

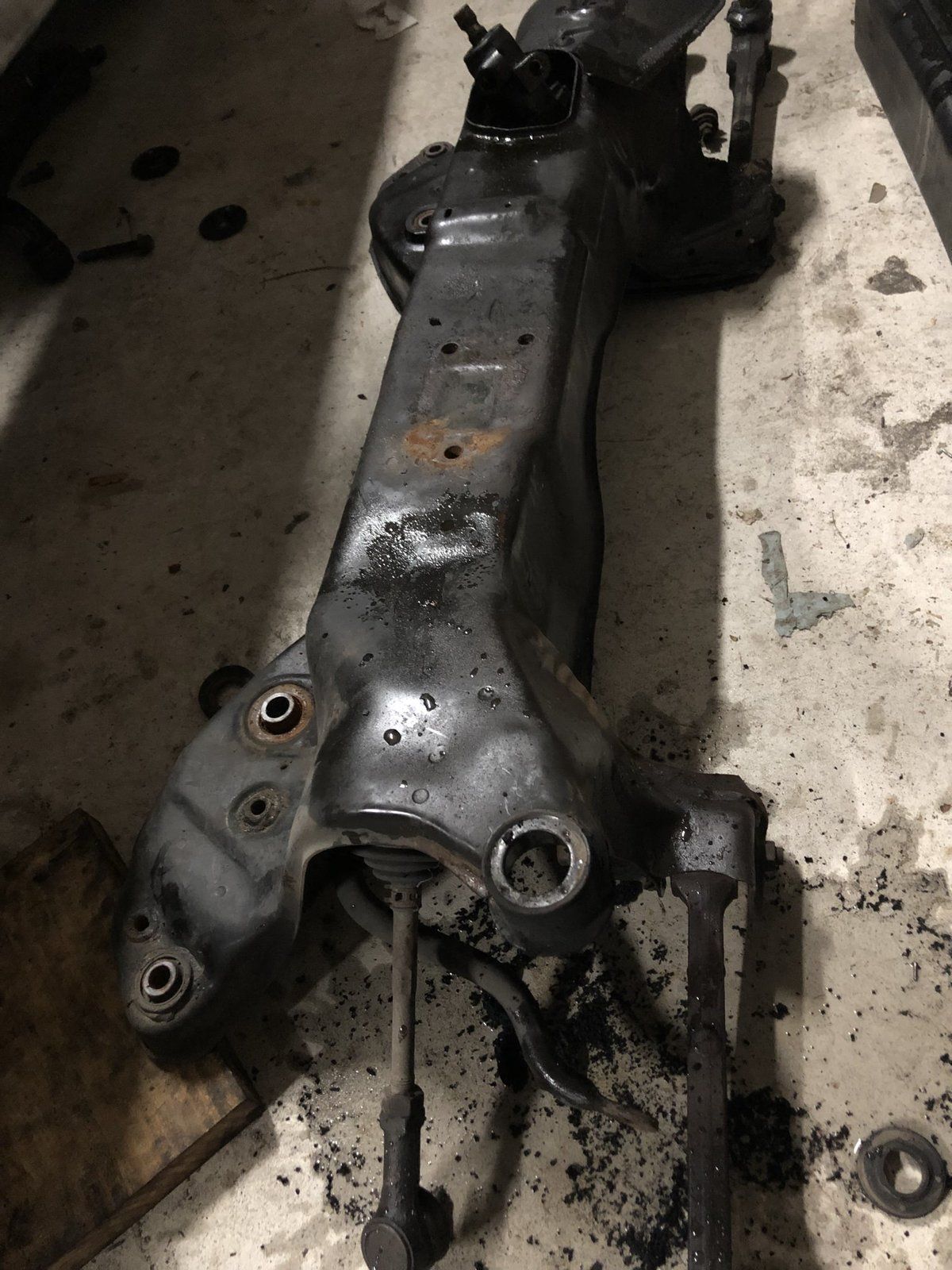

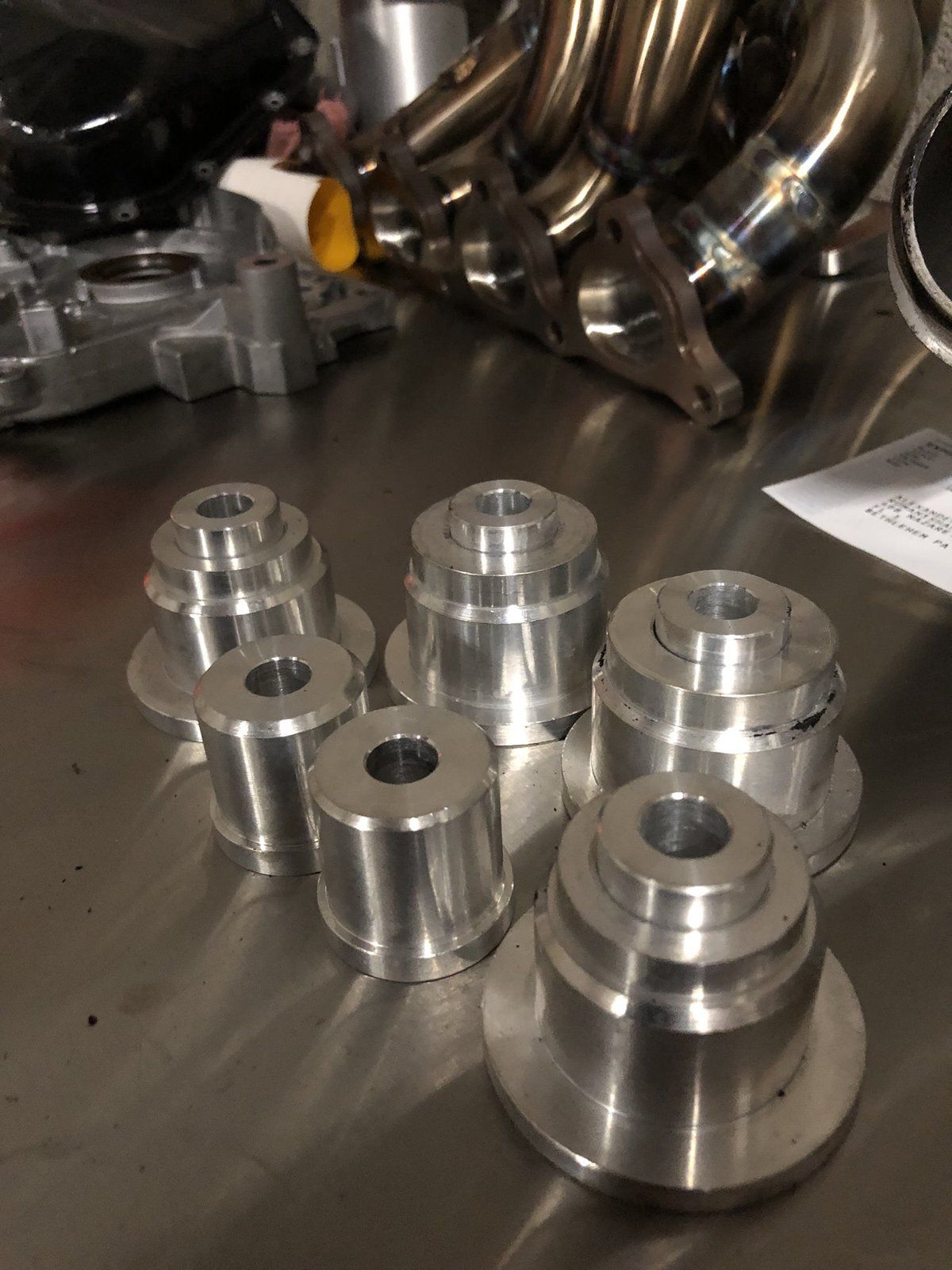

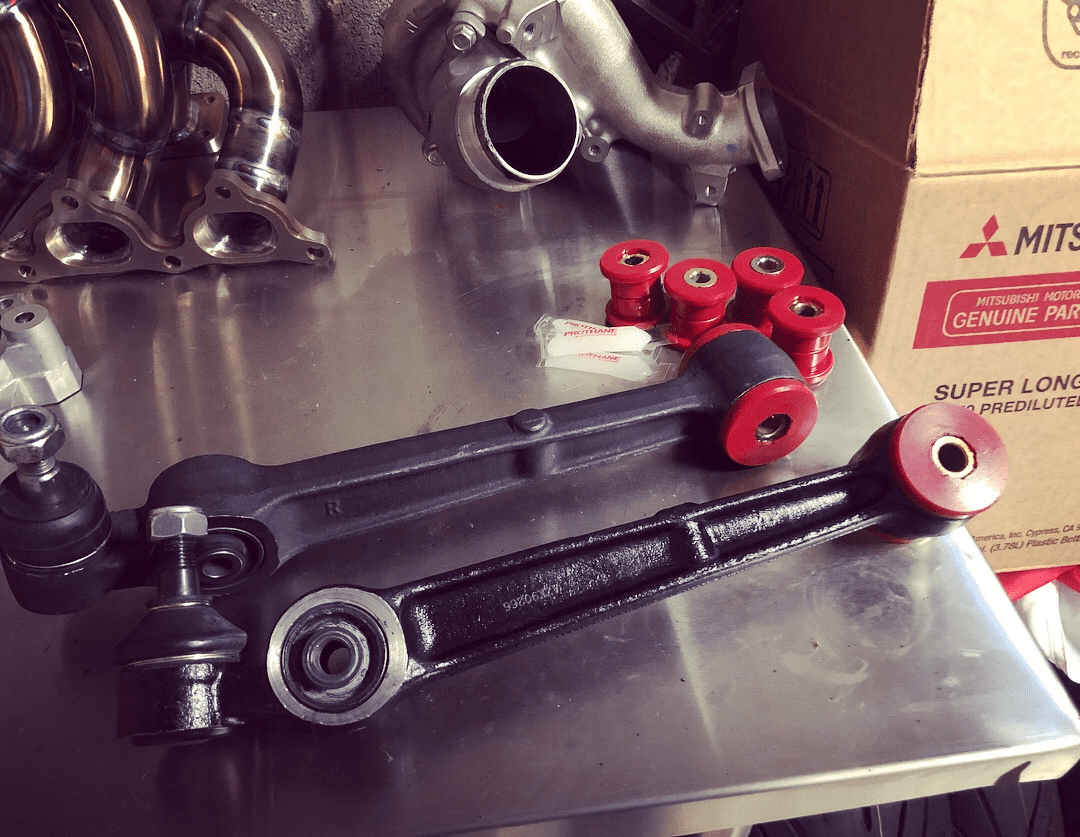

    Pulled the front subframe this weekend so I can install the aluminum bushings. I hope to get these in within the next couple days.


    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
  22. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania

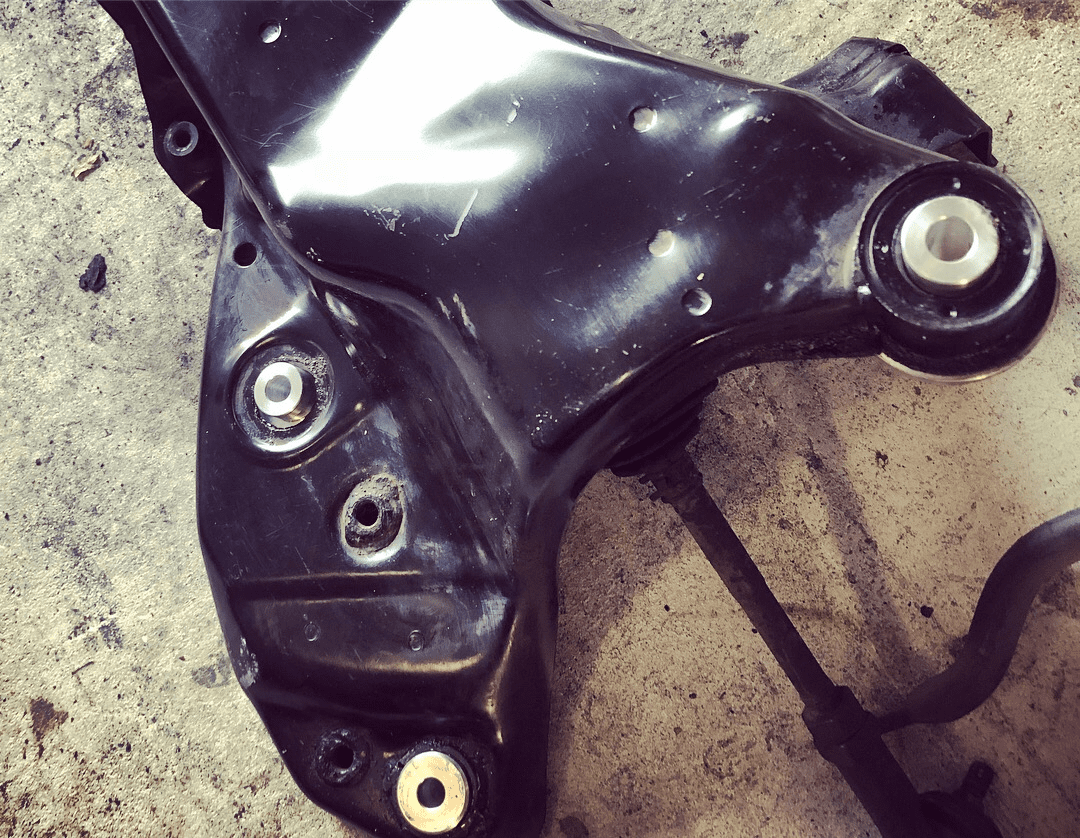

    Did not have much time yeserday but I cut the sleeves out of the subframe and installed the aluminum bushings. Then I started on installing the poly bushings in the front control arms. I ordered the RM swaybars, fuel lab filter with SS filter and abs delete lines with a 3G master. I still need to find a 3G brake booster.



    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
    AZmocoLoco likes this.
  23. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania

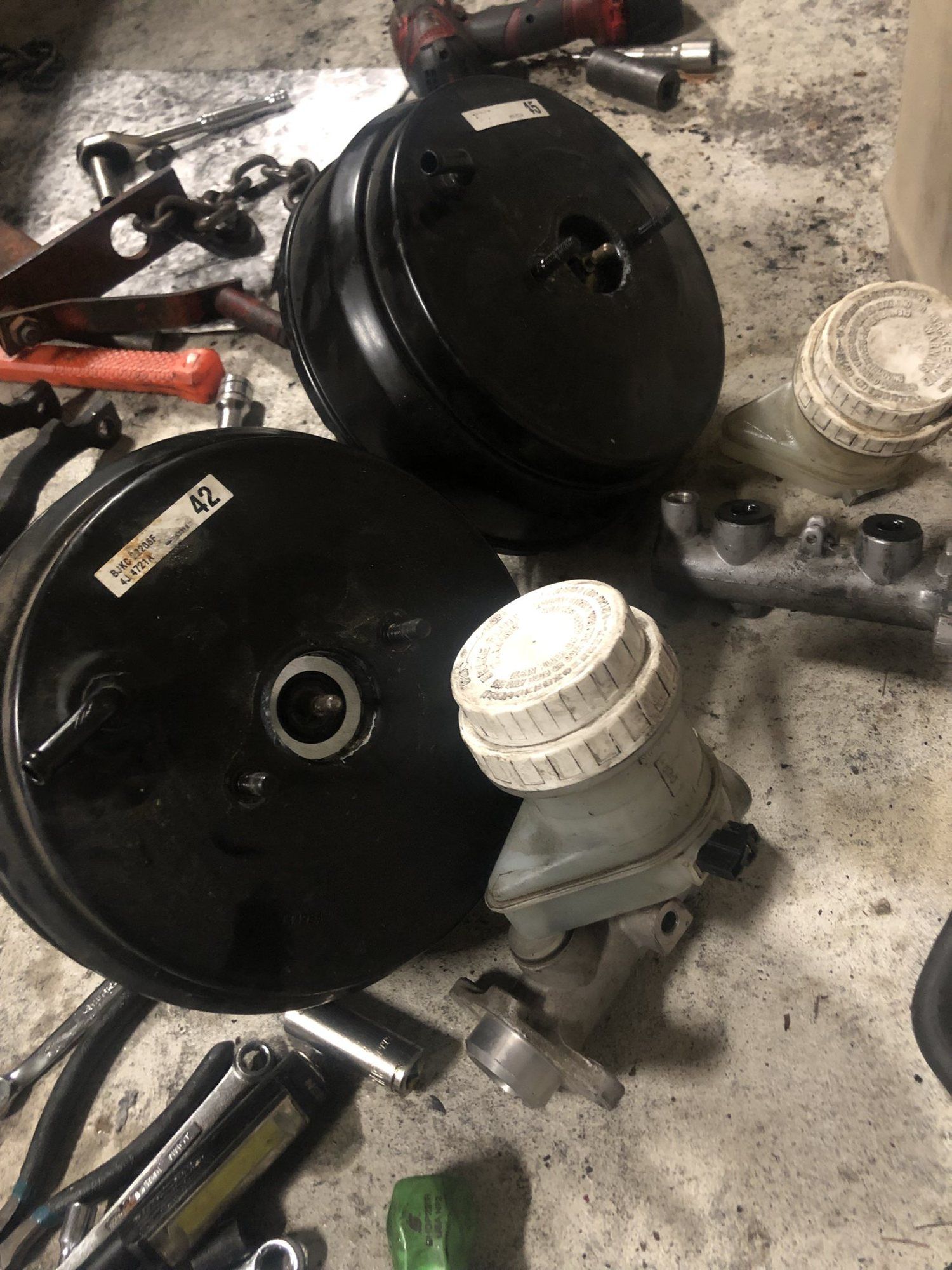

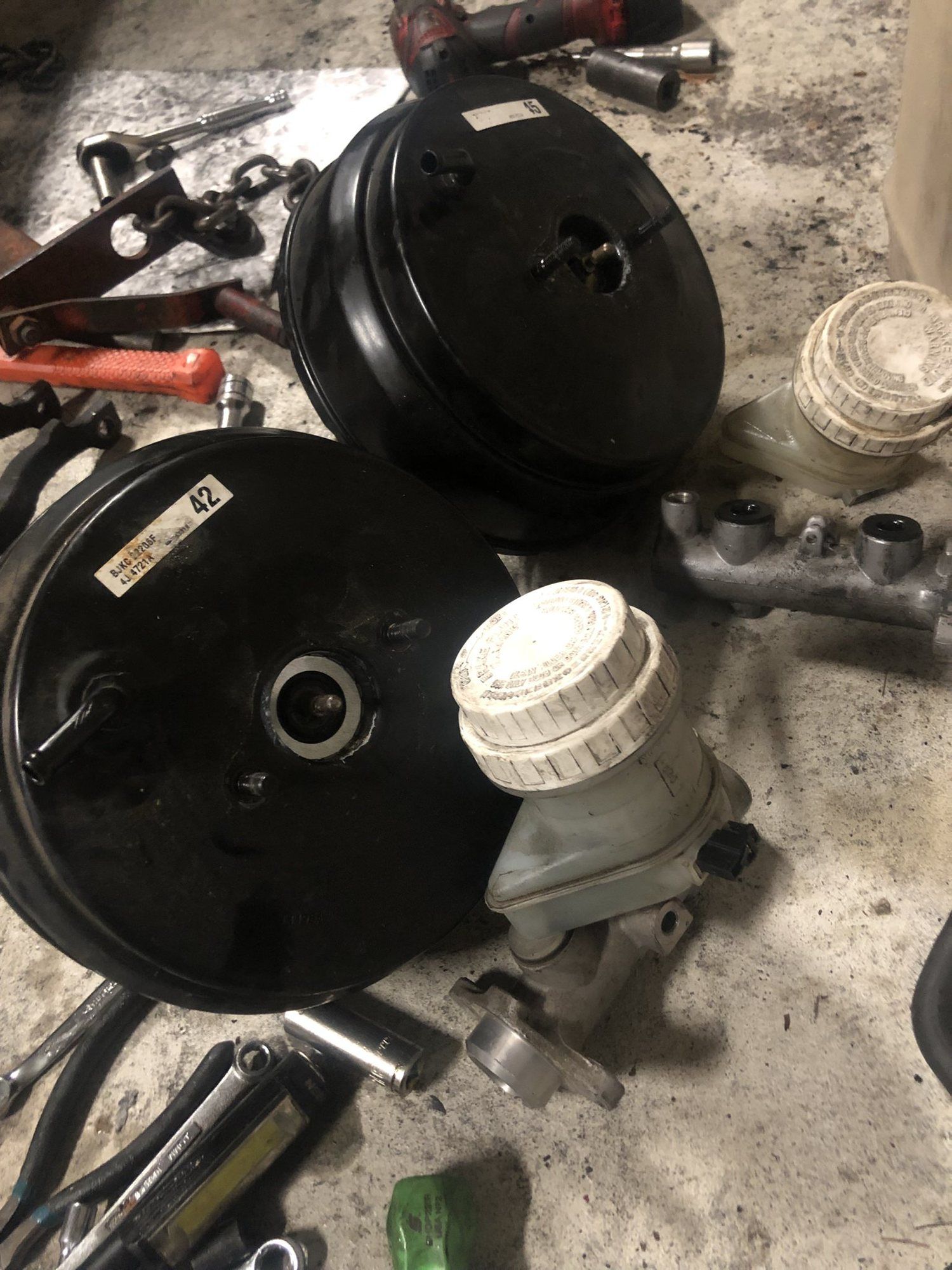

    I went to the "u pull it" yard this weekend and they had 2 3g eclipses there. I scooped both masters and brake boosters just in case there was an issue and also because they were cheap. I will be putting a set up for sale if anyone is interested.


    My DSM:
    1999 Mitsubishi Eclipse GSX

    Street Build

    50trim   manual
    1999 Mitsubishi Eclipse GST

    Street Build

    50trim   manual
    Loading...
    AZmocoLoco and SAKJR like this.
  24. AZmocoLoco

    AZmocoLoco Proven Member

    112
    35
    Joined Feb 23, 2016
    Chandler, Arizona
    FYI the galants and lancers for those years have the same booster, and the lancer has the cooler looking reservoir. i have the galant installed, and its literally the same as the eclipse, yet at the yard i went to, they were $25 vs. $45 for the 3g for some reason... same part number! oh and the connector from the 2g resi was the same as the 3g so you dont need to swap wires or anything.

    My DSM:
    1997 Mitsubishi Eclipse GST

    Street Build

    16g   manual
    Loading...
  25. Aproductions

    Aproductions Proven Member

    1,895
    26
    Joined Aug 11, 2009
    Bethlehem, Pennsylvania

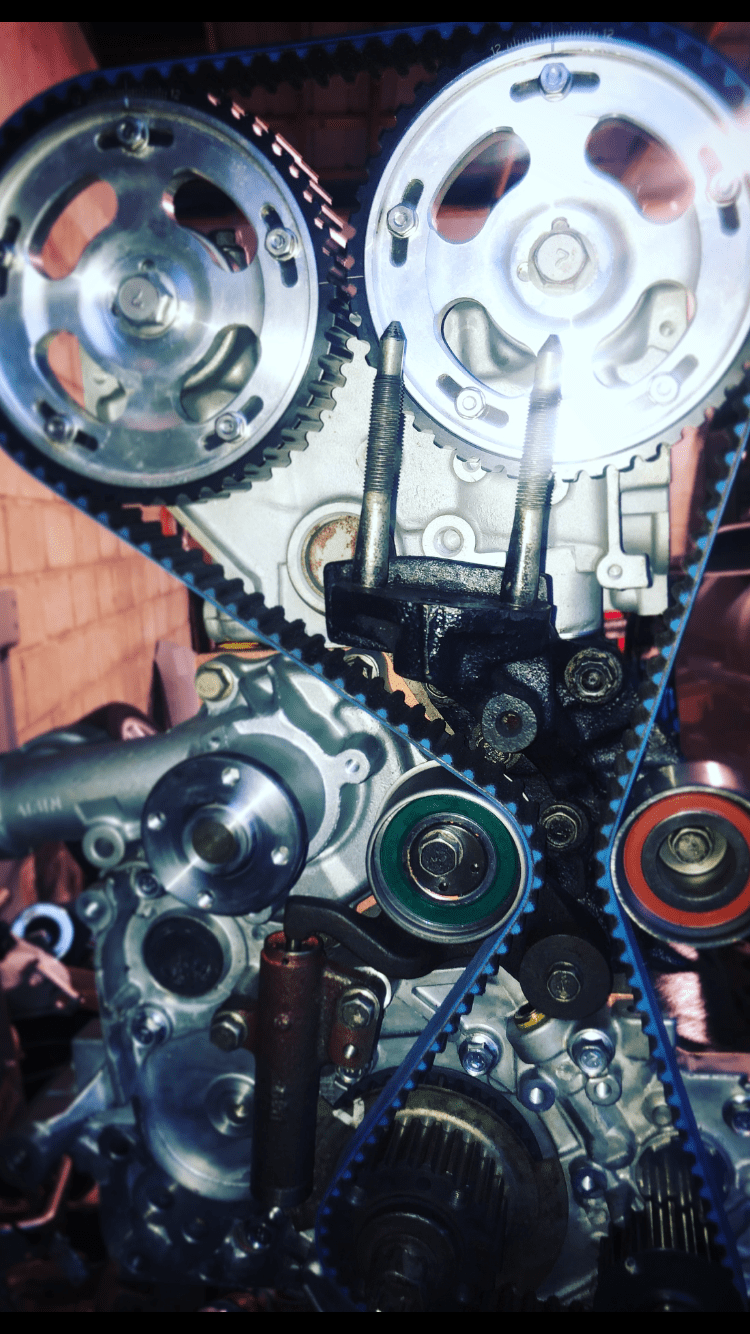

    I have the engine fully assembled/timed now.

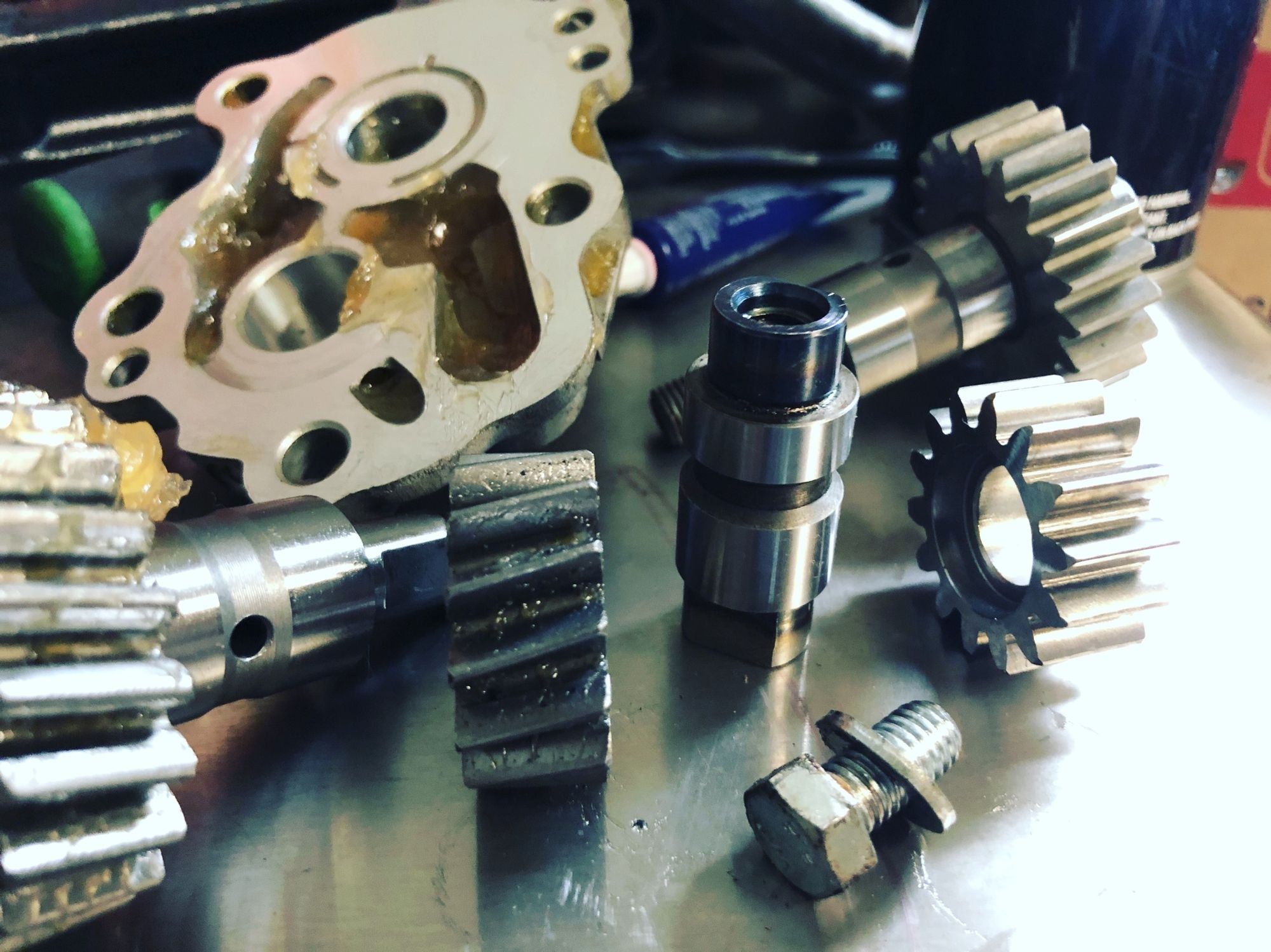

    Manley Hbeam rods, Manley platinum series pistons, ACL bearings, ARP headstuds, EVO 9 valvetrain, Delta 272 cams. I noticed last minute you are not supposed to use helical gears with a BSE so I ordered straight cut ones and quickly swapped them.

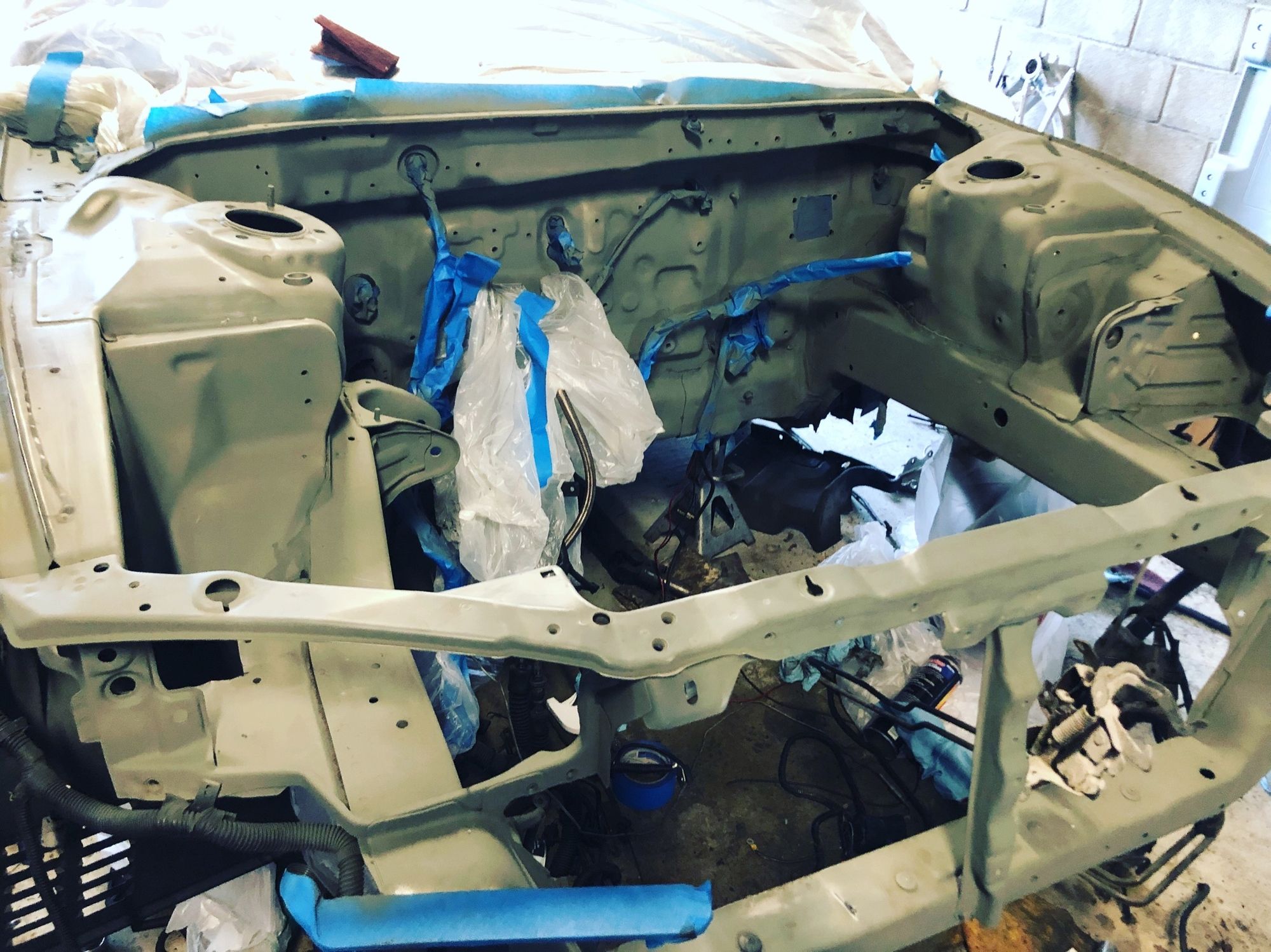

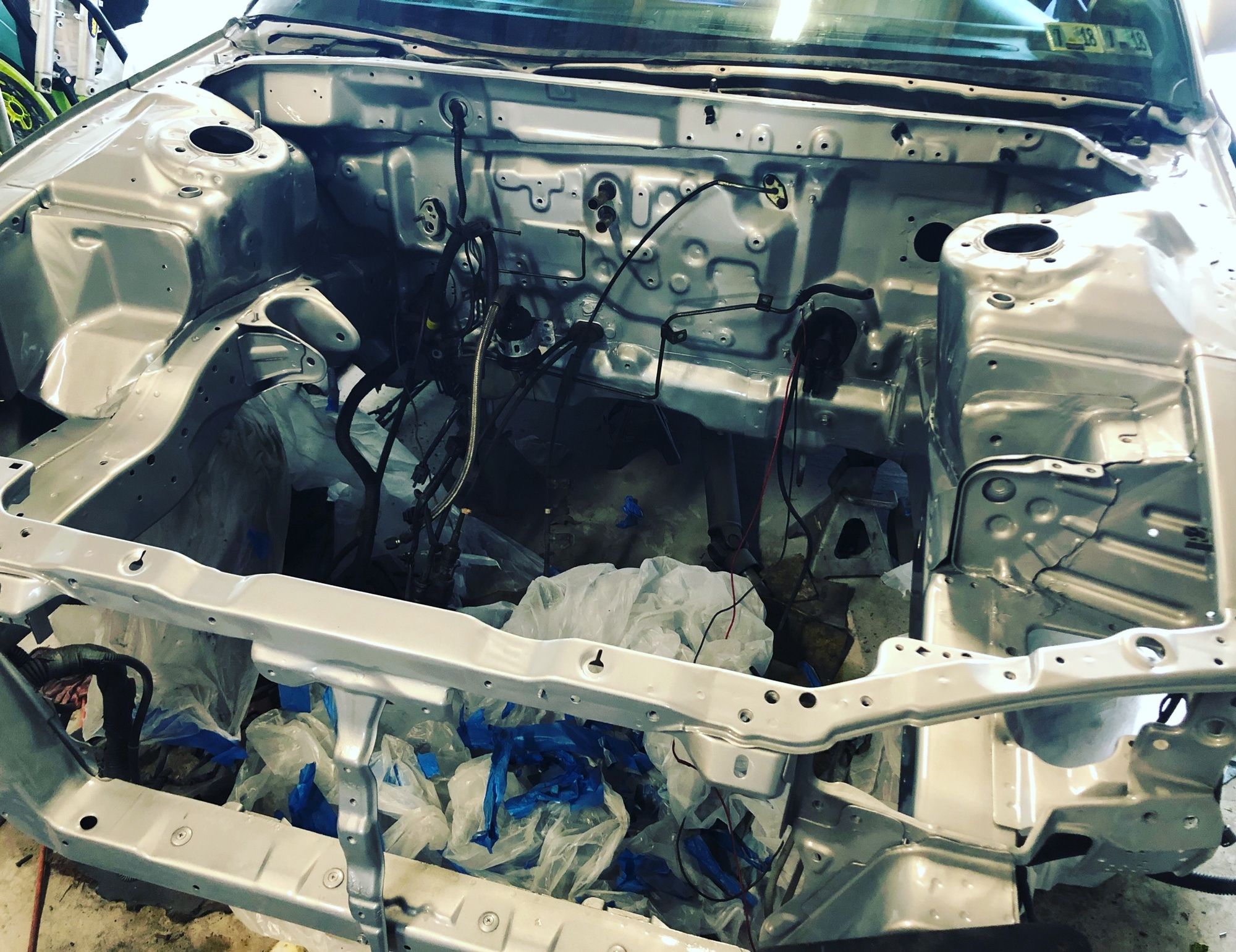

    I also got the engine bay painted using the factory silver minden pearl with a 2k clearcoat.
