Street Build Drag Week 2G DSM - 8 Second Street Car

Rating:
5/5,
Year:
1995
Model/Trim:
Mitsubishi Eclipse GSX
Please Support ExtremePSI
Please Support STM Tuned
  1. OH91awd

    OH91awd Proven Member

    691
    316
    Joined Sep 22, 2011
    chillicothe, Ohio
    not sure if it would interest you for your build but for some extra bling and better functionality i would recommend hitting up @antilag_200 for one of his billet dipsticks. amazing little piece that allows better venting for the trans and allows you to run the vent to a catch can to make it a little safer. dipstickline1.jpeg


    Drag Race Build 2K  17

    1992 Eagle Talon TSi AWD
    10.89 @ 125.67 · 1G DSM
    Loading...
  2. MorrisonFab

    MorrisonFab Supporting Vendor

    143
    449
    Joined May 28, 2017
    Johnson Creek, Wisconsin
    Yes, we got our official start as a business after taking over the DSM/Evo manifolds from Ron :) His knowledge and experience/documentation has been monumental for getting where we are today and we are continually updating/revising his and even our own designs to accommodate current turbo options, R&D, and fabrication tools/capabilities. He is more on the LS and intake/intercooler side of things now and innovating over there.

    We have been thrilled to have a small part in your build, Tony! Always meticulously thought out and executed.


    Street Build 1K  20

    1992 Eagle Talon TSi AWD
    awd · manual · 1G DSM

    Street Build 2K  18

    1993 Eagle Talon TSi AWD
    868 whp · 546 lb/ft · 1G DSM
    Loading...
    bling5tatus and OH91awd like this.
  3. RWD4G63

    RWD4G63 Proven Member

    273
    32
    Joined Dec 7, 2011
    Paw Paw, Michigan
    Wow. Just had to go through the whole thread. This is a seriously proper build you have going here. Absolutely love seeing stuff like this, especially the monster downpipe with a nice smooth flow path! Killer work dude, I'm looking forward to seeing more.


    Road Race Build 101  3

    1997 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
  4. Got Grip

    Got Grip Proven Member

    175
    143
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    Thanks guys! You were a huge help!

    Thanks for the kind words. I’m a big fan of doing things the right way. This is by no means the be all end all build on the car but I’m going all in on this mission.


    Street Build 2K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    3K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
  5. Got Grip

    Got Grip Proven Member

    175
    143
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    I think I’ll post up all the plumbing next. New post coming soon.


    Street Build 2K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    3K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
    OH91awd likes this.
  6. Got Grip

    Got Grip Proven Member

    175
    143
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    Let’s go over some of the plumbing. This post will cover just a high-level look at several different things. Post up what you want to see more detail about and I’ll do my best to cover it.


    First, I’ll start with intercooler piping. I have a 5” thick ETS intercooler with 3” lower piping and 3.5” upper. This has been on the car a while and I figured I’d reuse the whole setup for this build. That didn’t go to plan… haha. I ended up needing to weld an elbow on the end of the intercooler to clear my oil cooler (I believe I posted about that already? If not, I’ll have to make another post about my coolers). That elbow necessitated making a new lower intercooler pipe. Then when I put the automatic in, I discovered that my charge pipe that cleared the manual transmission hit the auto, so now its time for a new upper IC pipe as well. I made the upper and lower pipes myself. I’m not an expert welder but I can get by TIG welding. I purchased tubing from Extreme PSI then cut/fit and welded it all myself. Here’s the upper being made:

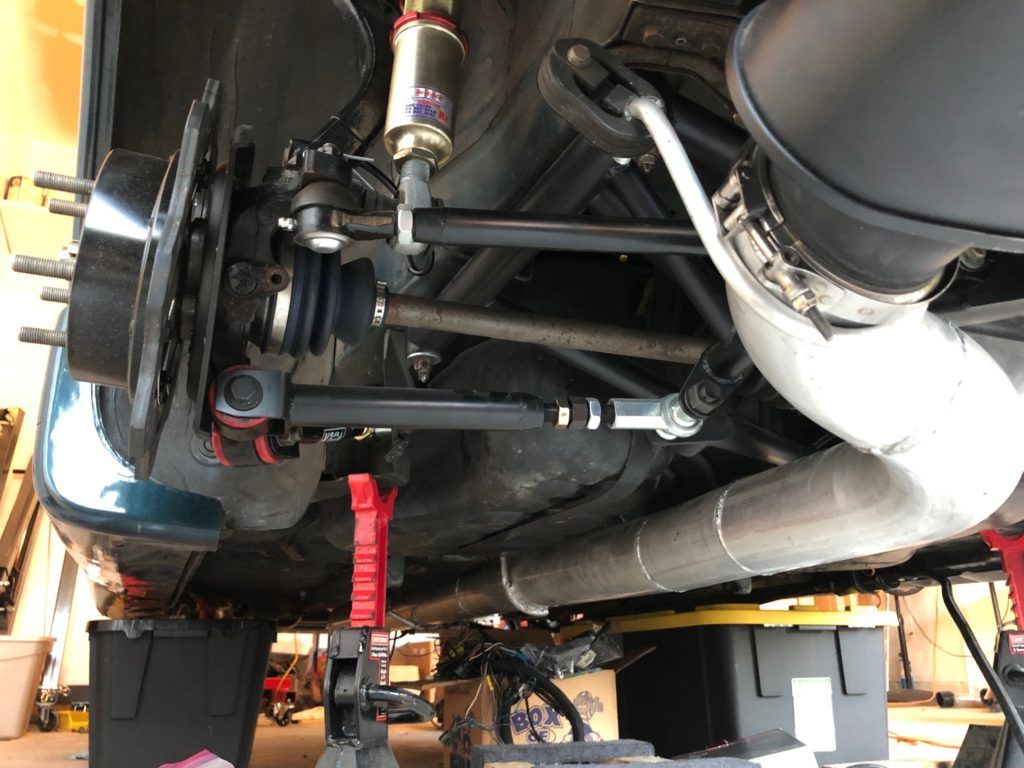

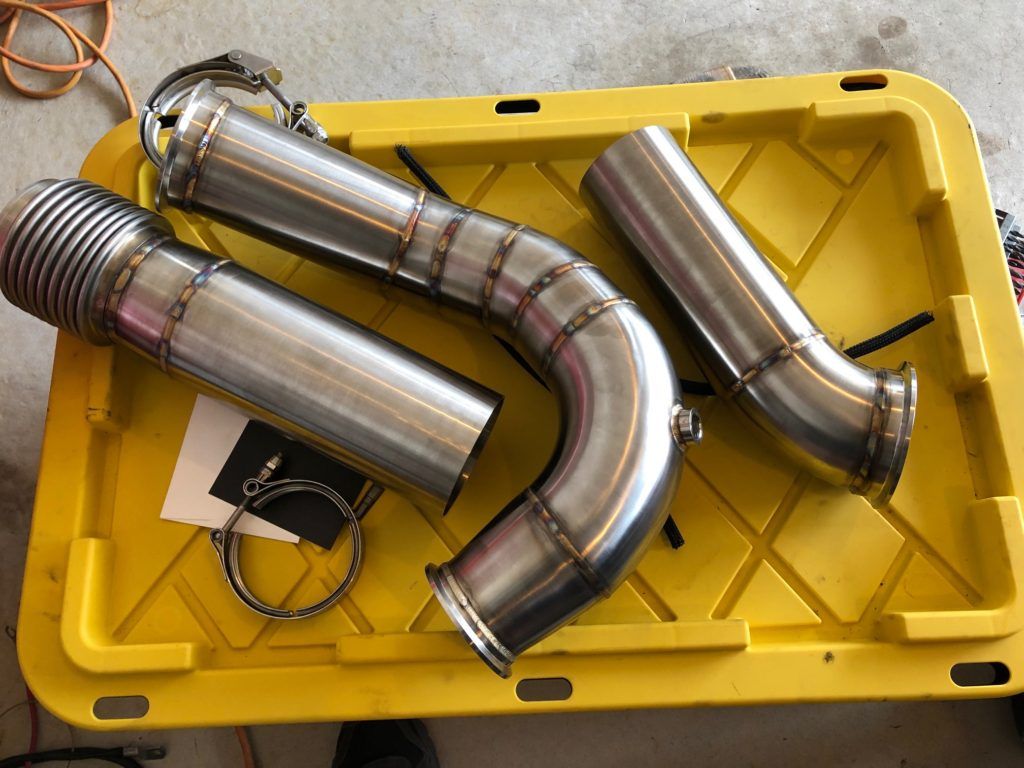

    Next up is the downpipe and exhaust. I stated before that I purchased the downpipe from Morrison Fab. It came out amazing and saved me a ton of time. I already had a 4” aluminum exhaust from the back of the transfer case back so I just had to finish the last bit of the downpipe from Morrison Fab to fit with my exhaust. Here are some pics:

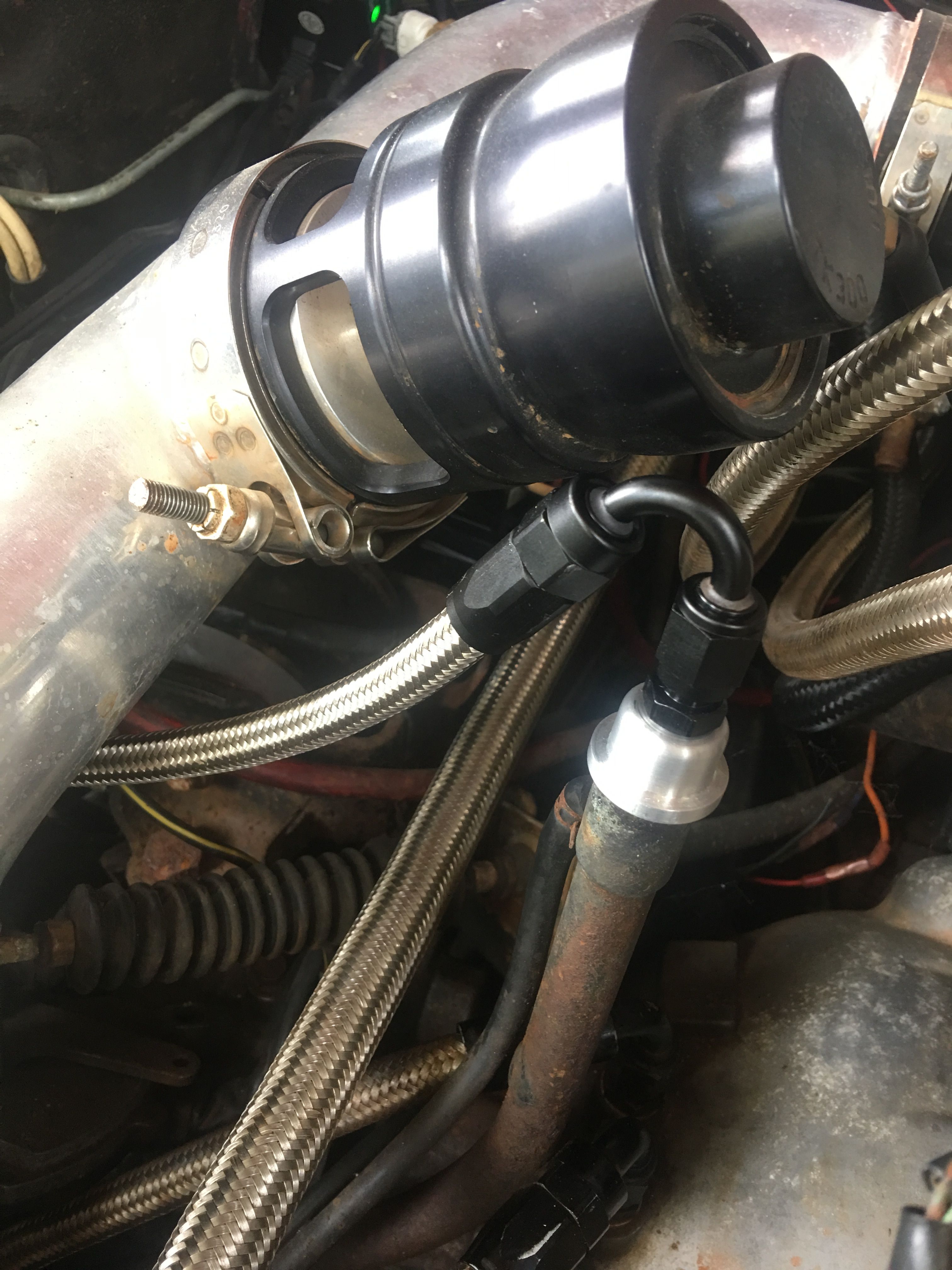

    Then there’s all the AN lines on this car. There are A LOT. I used mostly black nylon hose and black fittings all from Extreme PSI. Here’s a list of what has AN lines and what size:

    Oil Cooler -8 AN

    Transmission Cooler -8 AN

    All boost lines -4 AN

    Turbo feed -4 AN

    Turbo coolant lines -4 AN

    Turbo Drain -10 AN

    Ethanol tank to Bosch 044 pumps 2x -10 AN

    044’s to rail Y to a single -8 AN

    Secondary Rail Return -6 AN

    In tank Walbro 450 to Rail -8 AN

    Primary Rail return -6 AN

    Coolant Hoses -16 AN

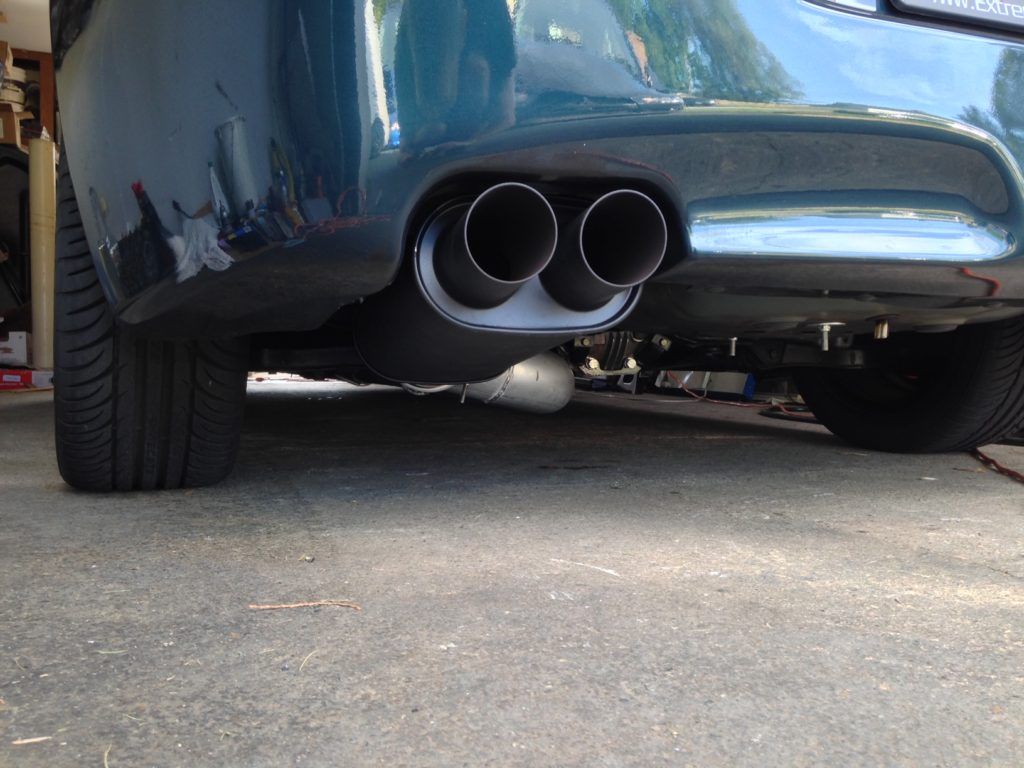

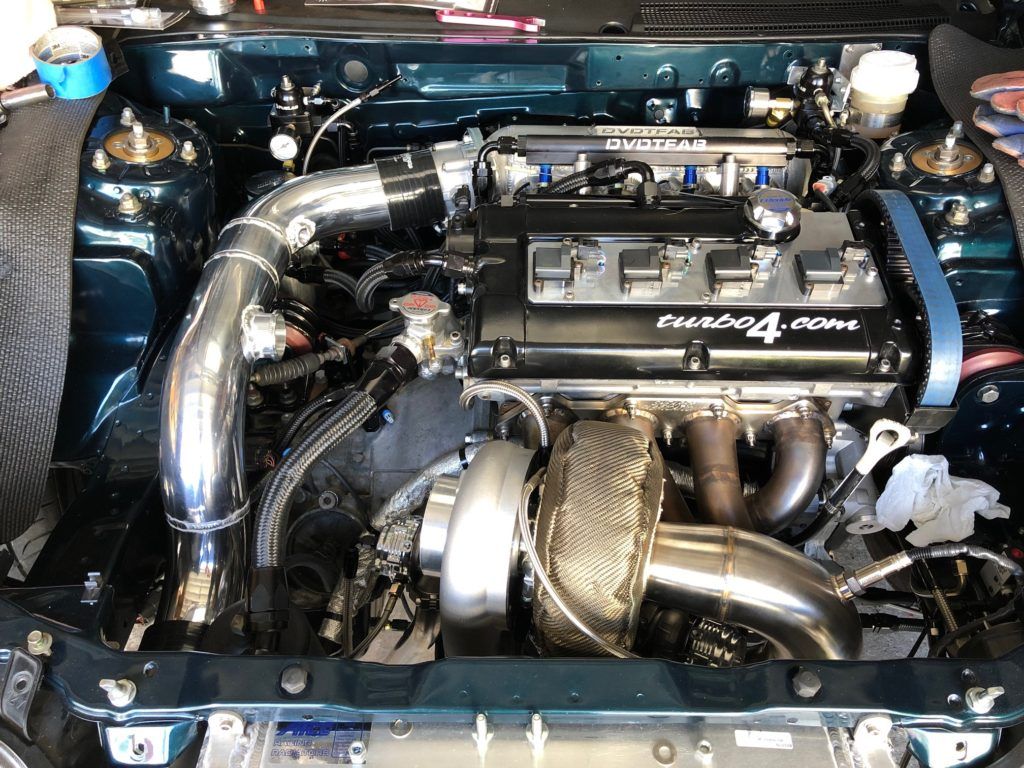

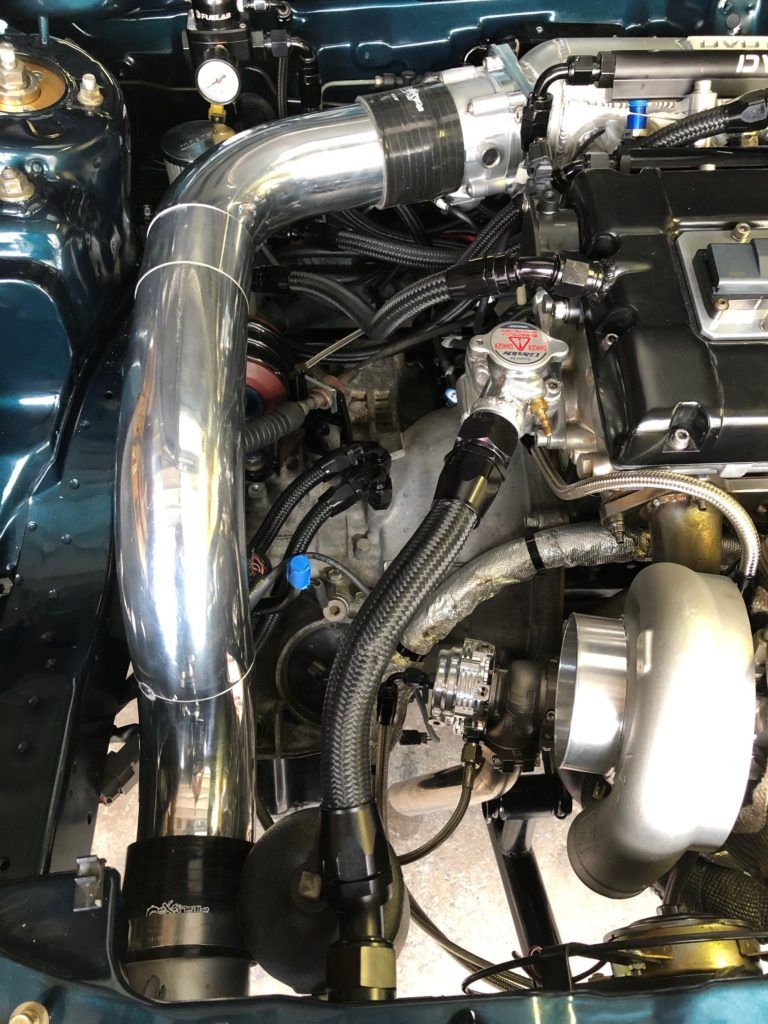

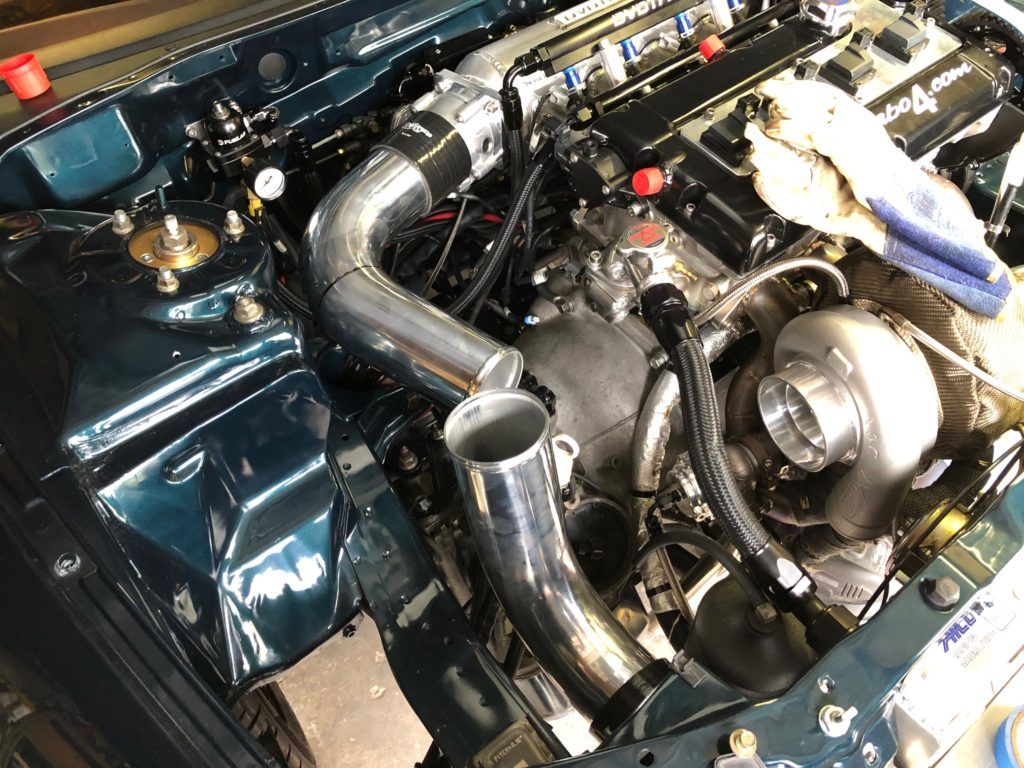

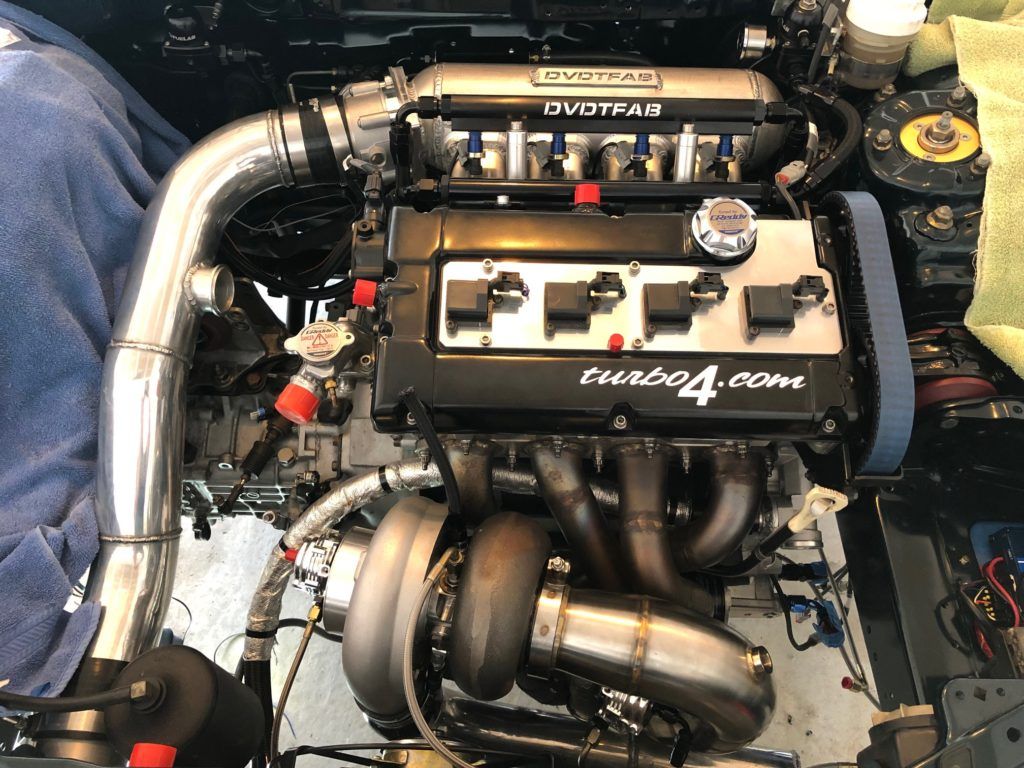

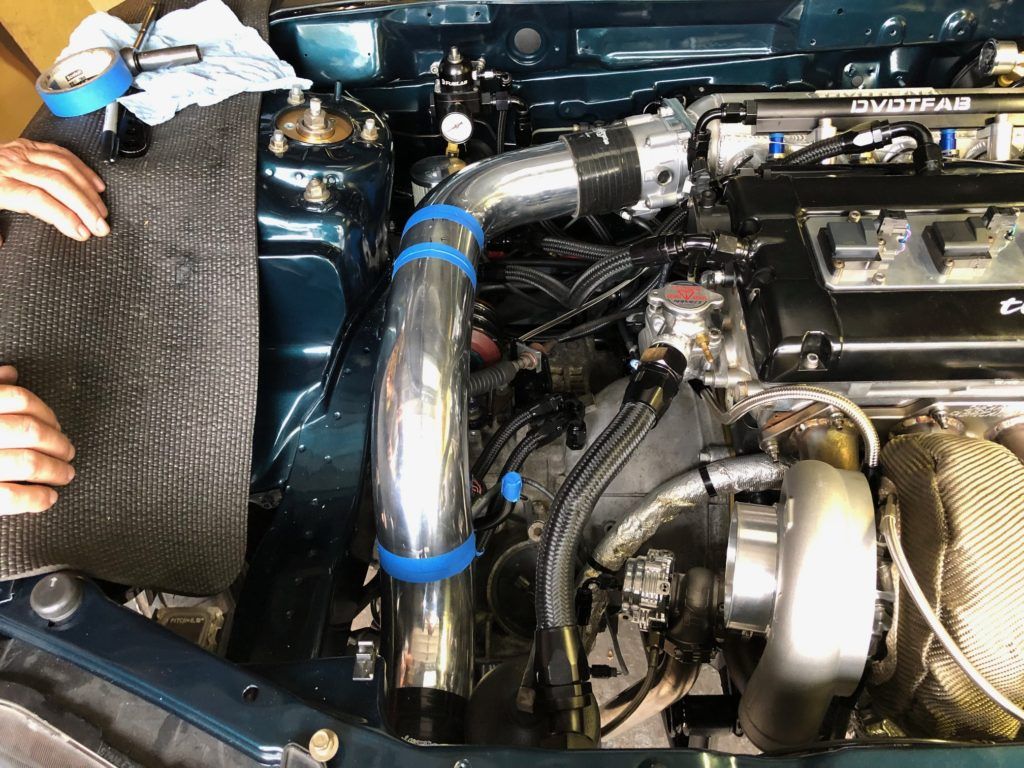

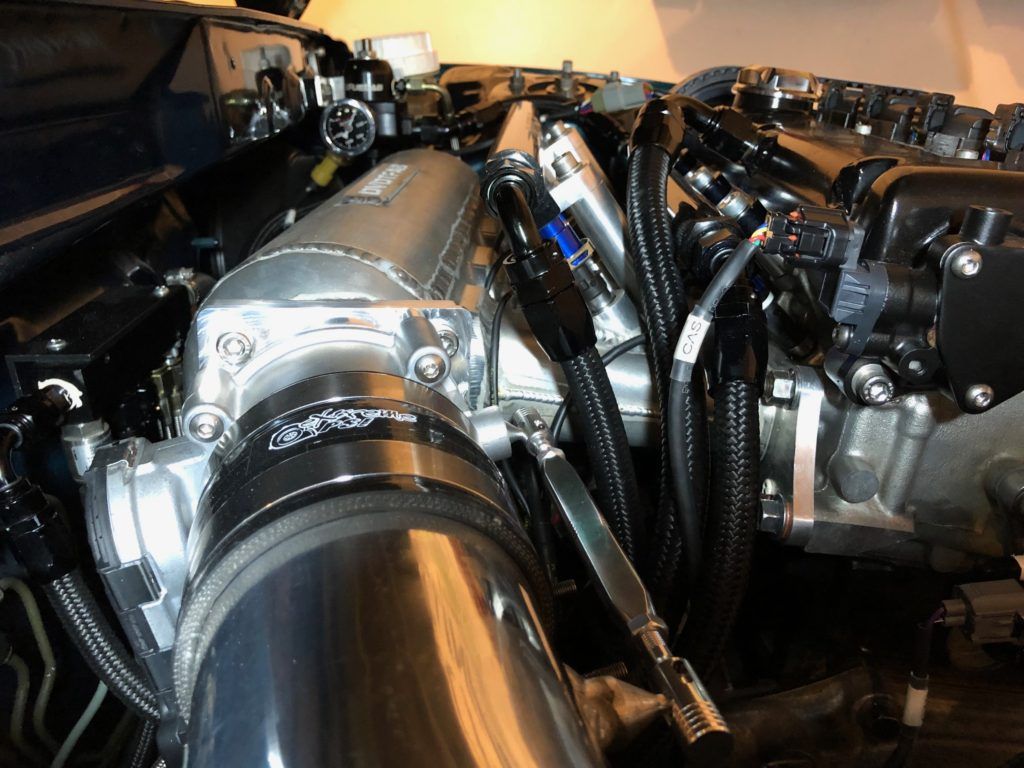

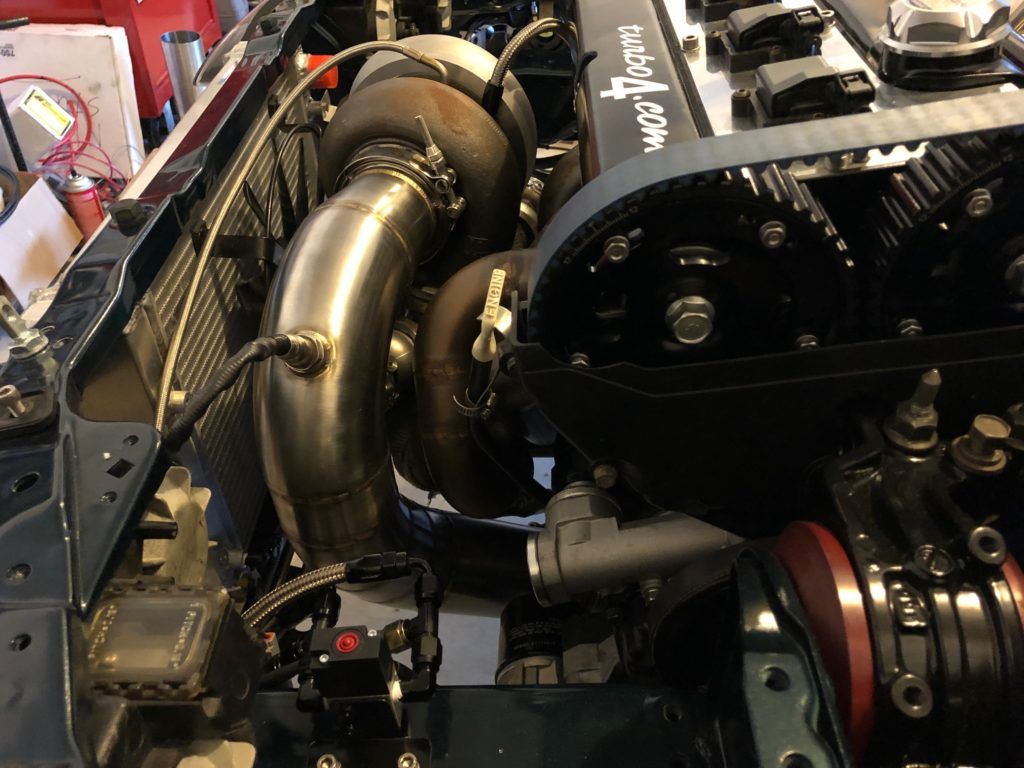

    I think that covers it all, here are some pictures:




    Street Build 2K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    3K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
  7. bling5tatus

    bling5tatus Proven Member

    1,326
    102
    Joined Sep 23, 2005
    DFW/Austin, Texas
    I really like the black nylon hoses as opposed to stainless steel braided. Much cleaner look and doesn't chew up whatever it may be touching.


    Street Build 2K  1

    1989 Dodge Colt GT
    manual · 4G63t Swapped

    Street Build 2K  1

    1991 Eagle Talon TSi
    fwd · manual · 1G DSM
    Loading...
  8. Got Grip

    Got Grip Proven Member

    175
    143
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    I like the look too but I still use stainless when it’s close to the exhaust.


    Street Build 2K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    3K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
    bling5tatus likes this.
  9. miguelmcv

    miguelmcv Proven Member

    2,128
    87
    Joined May 3, 2009
    Fresno, California
    I like the black as well, but I really hate to be using the special tool when it comes to remove them, otherwise you scrape the paint off and end up with a really nasty look.

    The ss fittings fit better my needs, which I can use regular tools and not be worried about the paint.

    I just don’t like the shiny look it gives when you open the hood, and the first thing you notes, is the ss hoses instead the engine bay/ valve cover and other details way more important then the lines.


    Street Build 278  1

    1997 Eagle Talon TSi AWD
    awd · automatic · 2G DSM

    2K  0

    1995 Mitsubishi Eclipse GST
    manual · 2G DSM
    Loading...
    bling5tatus likes this.
  10. bling5tatus

    bling5tatus Proven Member

    1,326
    102
    Joined Sep 23, 2005
    DFW/Austin, Texas
    Oh you're referring to the fittings. I was talking about the black nylon hose vs. the stainless braided hose. They both have the same kind of thing on the inside the seals the pressure/fluid/air/vacuum/whatever..... but the exterior is what is different.

    Didn't consider that stainless braided would be better by the exhaust though, that's a good tip.


    Street Build 2K  1

    1989 Dodge Colt GT
    manual · 4G63t Swapped

    Street Build 2K  1

    1991 Eagle Talon TSi
    fwd · manual · 1G DSM
    Loading...
  11. Got Grip

    Got Grip Proven Member

    175
    143
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    I was referring to the hose itself but I stick with black aluminum fittings for all the main stuff for both weight and aesthetics. I keep a set of AN wrenches close by to keep the fittings looking good. I don't think it's any harder to use the AN wrenches than finding the correct size conventional wrench personally.

    I was referring to the hose like you were but some good points on the fittings were bring up in the post above.


    Street Build 2K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    3K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
    bling5tatus likes this.
  12. b00stedtalon2

    b00stedtalon2 Proven Member

    640
    511
    Joined Dec 19, 2005
    Detroit, Michigan
    Tony, from the factory there's a 5/8" hose that goes from the lower water pipe to thermostat housing to act as a relief when the thermostat is closed. Do you think there's any rise in water pressure with having that gone or have you removed the thermostat?

    Last edited: Dec 27, 2019

    1K  1

    1994 Mitsubishi Evo
    automatic · Lancer Evolution

    Street Build 3K  1

    1993 Eagle Talon TSi AWD
    9.585 @ 143.96 · 1G DSM
    Loading...
    bling5tatus likes this.
  13. bling5tatus

    bling5tatus Proven Member

    1,326
    102
    Joined Sep 23, 2005
    DFW/Austin, Texas
    Also, in regards to the aluminum AN wrenches, I think they're color coded so they're really easy to differentiate which one goes to which size, especially if you use them often. I know a lot of people probably aren't wrenching on hose fittings every other day but if you have many cars or are working for a race team, or constantly changing setups then I would imagine that you're using these kinds of tools very often. I haven't bought a set but I should just because I hate messing up brand new fittings using the steel wrenches on them.

    As a ghetto way around it I usually wrap it with a few layers of rag and then use an adjustable. I know this is definitely not "accepted" or "right".... for that reason I don't recommend it to anyone else. It does work, but I'd buy the wrenches.


    Street Build 2K  1

    1989 Dodge Colt GT
    manual · 4G63t Swapped

    Street Build 2K  1

    1991 Eagle Talon TSi
    fwd · manual · 1G DSM
    Loading...
  14. OH91awd

    OH91awd Proven Member

    691
    316
    Joined Sep 22, 2011
    chillicothe, Ohio
    average guy would be better off to just get an adjustable an wrench or two. ive done the rag thing before i bought the jaws to do them right but i also do lines for more than just my own personal car as well.


    Drag Race Build 2K  17

    1992 Eagle Talon TSi AWD
    10.89 @ 125.67 · 1G DSM
    Loading...
    bling5tatus likes this.
  15. bling5tatus

    bling5tatus Proven Member

    1,326
    102
    Joined Sep 23, 2005
    DFW/Austin, Texas
    ^^ The jaws are for bench assembly right? I think the wrenches are good for installation of lines into the vehicle as well.... not really something you can use the jaws for, unless I'm mistaken.


    Street Build 2K  1

    1989 Dodge Colt GT
    manual · 4G63t Swapped

    Street Build 2K  1

    1991 Eagle Talon TSi
    fwd · manual · 1G DSM
    Loading...
    OH91awd likes this.
  16. OH91awd

    OH91awd Proven Member

    691
    316
    Joined Sep 22, 2011
    chillicothe, Ohio
    yea theyre for bench assembly. thats the only time i had to use rags on the fittings was during assembly. i have a compelete set of wrenches but i tend to use my adjusuable more often when working on the car


    Drag Race Build 2K  17

    1992 Eagle Talon TSi AWD
    10.89 @ 125.67 · 1G DSM
    Loading...
  17. Got Grip

    Got Grip Proven Member

    175
    143
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    I drilled several holes in my thermostat to get around this. I was worried about it also, good observation. :)

    They are color coded, which does help. You start to remember what color each size is and its quicker to grab those than anything else IMO.

    Also, I've had several of the different types of AN Adjustable wrenches and they all seem to quickly wear out. The aluminum wrench set is a worthwhile investment IMO, as well as the soft jaws for your vice when making AN lines.


    Street Build 2K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    3K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
  18. Got Grip

    Got Grip Proven Member

    175
    143
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    I'm nearing the end of the build here, I think there are only a couple things left to show. I have the exterior stuff like the rear lexan, sunroof plug installation and parachute mount to do. Then I'll spam everyone with pics of the completed car.

    Are there other things people want to see? More detail on previous posts? Just post it up and I'll share info and pics if I have them.


    Street Build 2K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    3K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
  19. motomattx

    motomattx Proven Member

    2,040
    738
    Joined Dec 9, 2010
    wampum, Pennsylvania
    +1 on buying the AN wrenches and doing things properly, my fittings were expensive enough to not want them damaged, at least four of mine were $60-$80 each.


    Drag Race Build 3K  24

    1995 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  20. b00stedtalon2

    b00stedtalon2 Proven Member

    640
    511
    Joined Dec 19, 2005
    Detroit, Michigan
    I have holes in my thermostat however I was still a little weary removing the bypass. Do you monitor water pressure? I was seeing 17PSI at 9000 rpm with the bypass hose, holes in the thermostat and a stock water pump.


    1K  1

    1994 Mitsubishi Evo
    automatic · Lancer Evolution

    Street Build 3K  1

    1993 Eagle Talon TSi AWD
    9.585 @ 143.96 · 1G DSM
    Loading...
  21. beansblacktsi

    beansblacktsi Proven Member

    239
    44
    Joined Apr 2, 2007
    Lincoln, Nebraska
    I was seeing big fluctuations and inconsistency with the hose bypassed, stock thermostat and stock waterpump. Coolant pressure was 60-80psi with thermostat during a pull. Removed the thermostat and pressure is around 26psi max now during a pull.


    1K  4

    1992 Plymouth Laser RS Turbo AWD
    9.524 @ 145.390 · 1G DSM
    Loading...
  22. Vegas smith

    Vegas smith Proven Member

    2,855
    1,413
    Joined Dec 2, 2002
    Houston, Texas
    What issue is the excess pressure causing? Parasitic loss? Coolant temps to accelerate?


    Street Build 3K  10

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  23. beansblacktsi

    beansblacktsi Proven Member

    239
    44
    Joined Apr 2, 2007
    Lincoln, Nebraska
    Never noticed any issues with the high pressure. But the whole reason I started measuring coolant pressure was to keep an eye on how the head gasket was sealing and to set up a safety if pressure went to high to pull timing out of it before it really hurt anything. Its dead consistent now with the thermostat removed so its a lot easier to keep an eye on.


    1K  4

    1992 Plymouth Laser RS Turbo AWD
    9.524 @ 145.390 · 1G DSM
    Loading...
    Vegas smith likes this.
  24. Got Grip

    Got Grip Proven Member

    175
    143
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    On my 2G I don't montior water pressure. It's something I want to add but ran out of time and sensors.

    This is really good data. This was with no holes in the thermostat? I think I'll remove the thermostat for good measure going forward based on this data. Since it's primarily a race car and won't be driven in colder temperatures much I don't anticipate problems. Thank you!


    Street Build 2K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    3K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
  25. motomattx

    motomattx Proven Member

    2,040
    738
    Joined Dec 9, 2010
    wampum, Pennsylvania
    I have not had a thermostat for years, of course the nut jobs will suggest that it will cause your car to run hotter without one by some theory of cavitation etc etc, in reality it runs much cooler, go for it.


    Drag Race Build 3K  24

    1995 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
