Street Build Drag Week 2G DSM - 8 Second Street Car

Rating:
5/5,
Year:
1995
Model/Trim:
Mitsubishi Eclipse GSX
Please Support Rix Racing
Please Support ExtremePSI
  1. Got Grip

    Got Grip Proven Member

    259
    156
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    No, with a Haltech with 8 outputs your primaries and secondaries can be whatever you want them to be. You could technically make every injector different in Haltech but I wouldn’t recommend it. Different primary vs secondary is very common though, you just need to setup your injector driver accordingly for each injector or stage.


    Street Build 3K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    4K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
    bling5tatus likes this.
  2. Got Grip

    Got Grip Proven Member

    259
    156
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    I’m going to work on some more updates this week. Stay tuned. :)


    Street Build 3K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    4K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
    bling5tatus likes this.
  3. miguelmcv

    miguelmcv Supporting Member

    2,642
    162
    Joined May 3, 2009
    Fresno, California
    I’m getting all the stuff I need to swap to haltech I just have to add the second rail to the evo lll intake manifold and weld the DBW flange to it.

    Im anxious to see the update.


    Street Build 556  1

    1997 Eagle Talon TSi AWD
    awd · automatic · 2G DSM

    2K  0

    1995 Mitsubishi Eclipse GST
    manual · 2G DSM
    Loading...
  4. bling5tatus

    bling5tatus Proven Member

    1,580
    104
    Joined Sep 23, 2005
    DFW/Austin, Texas
    I also purchased a new Bosch ECT for a Cayenne turbo. @Got Grip - do you know where to source the harness plug/pins for the Bosch ECT? I've looked around online and can't really find anyone selling them.... and it's probably because I'm not searching the right place or the right term.

    What can be done to add wheel speed sensors to a 1g that never had ABS? Thank you and I'm excited to read the updates. This thread is probably one of the best threads about cars on the internet right now that I'm following along on.

    edit: Also, I noticed that what type of throttle pedal used wasn't detailed. Which pedal did you use? I am also not able to find DVDT Fab online. I don't have facebook so I sure hope it's not another company that has moved completely over to that crap platform. Excuse my English.

    Last edited: Oct 23, 2019

    Street Build 2K  1

    1989 Dodge Colt GT
    manual · 4G63t Swapped

    Street Build 2K  1

    1991 Eagle Talon TSi
    fwd · manual · 1G DSM
    Loading...
  5. miguelmcv

    miguelmcv Supporting Member

    2,642
    162
    Joined May 3, 2009
    Fresno, California

    Street Build 556  1

    1997 Eagle Talon TSi AWD
    awd · automatic · 2G DSM

    2K  0

    1995 Mitsubishi Eclipse GST
    manual · 2G DSM
    Loading...
  6. bling5tatus

    bling5tatus Proven Member

    1,580
    104
    Joined Sep 23, 2005
    DFW/Austin, Texas
    Nice, thank you very much. I can run w/ that. @miguelmcv

    Edit: any clue on the wheel speed sensors?


    Street Build 2K  1

    1989 Dodge Colt GT
    manual · 4G63t Swapped

    Street Build 2K  1

    1991 Eagle Talon TSi
    fwd · manual · 1G DSM
    Loading...
  7. Got Grip

    Got Grip Proven Member

    259
    156
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    Nice! If you need any Haltech stuff let me know.

    Miguelmcv beat me to it. That’s where I bought the plug for my DBW Throttle Body. He also nailed it on the pedal. I just googled GM DBW throttle pedal and bought one that I knew was a genuine GM. Haltech will work with just about any DBW throttle body and throttle pedal as long as it has redundant sensors, which I believe they all have now.

    Not sure on the speed sensors for an easy installation but you could always get a trigger wheel made for your axles and a standard Hall effect speed sensor and make a bracket for it. What are you trying to accomplish with individual speed sensors? That along with DBW eats up a lot of inputs also.

    Thanks for the kind words. Questions like yours help me make this thread better. I can post what I did but I miss things so others joining in helps me get all the information out there.

    Thanks!


    Street Build 3K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    4K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
  8. bling5tatus

    bling5tatus Proven Member

    1,580
    104
    Joined Sep 23, 2005
    DFW/Austin, Texas
    I just want a driven and non driven wheel sensor. I’m fwd and would love to have traction control. My Lexus has proefi128 on it and their traction control strategy is said to be the best in the industry. I believe it too because the other big name companies are just now starting to talk about stuff like rolling anti lag and torque management. Features that my Lexus ecu has had for a very long time now.

    In any case, that’s my goal. I want to expand my tuning knowledge with other Ecus along with providing modern features on a 1991 fwd car. I don’t even race, it’s just for my enjoyment.


    Street Build 2K  1

    1989 Dodge Colt GT
    manual · 4G63t Swapped

    Street Build 2K  1

    1991 Eagle Talon TSi
    fwd · manual · 1G DSM
    Loading...
  9. Got Grip

    Got Grip Proven Member

    259
    156
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    For that, you might want to get a 2500T box to make sure you’re not limited on functionality. The T is for advanced Torque Management, or traction control.

    That’s a cool plan though for sure. Did a 1G FWD ever come with ABS? If it did, that would likely be the easiest way to add wheel speed sensors. Beyond that you’re doing some custom trigger wheels and pickups.


    Street Build 3K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    4K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
  10. bling5tatus

    bling5tatus Proven Member

    1,580
    104
    Joined Sep 23, 2005
    DFW/Austin, Texas
    ^^ I'm not quite sure if they did or not, in regards to having stock ABS. I would be willing to bet that the parts from the 1g cars that do have ABS would likely work..... although I've heard the ABS implementation on 1g's was pretty crumby in comparison to more modern systems.


    Street Build 2K  1

    1989 Dodge Colt GT
    manual · 4G63t Swapped

    Street Build 2K  1

    1991 Eagle Talon TSi
    fwd · manual · 1G DSM
    Loading...
  11. miguelmcv

    miguelmcv Supporting Member

    2,642
    162
    Joined May 3, 2009
    Fresno, California
    Any update on the project.

    Im 2 weeks away from ordering the Haltech


    Street Build 556  1

    1997 Eagle Talon TSi AWD
    awd · automatic · 2G DSM

    2K  0

    1995 Mitsubishi Eclipse GST
    manual · 2G DSM
    Loading...
  12. Got Grip

    Got Grip Proven Member

    259
    156
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania

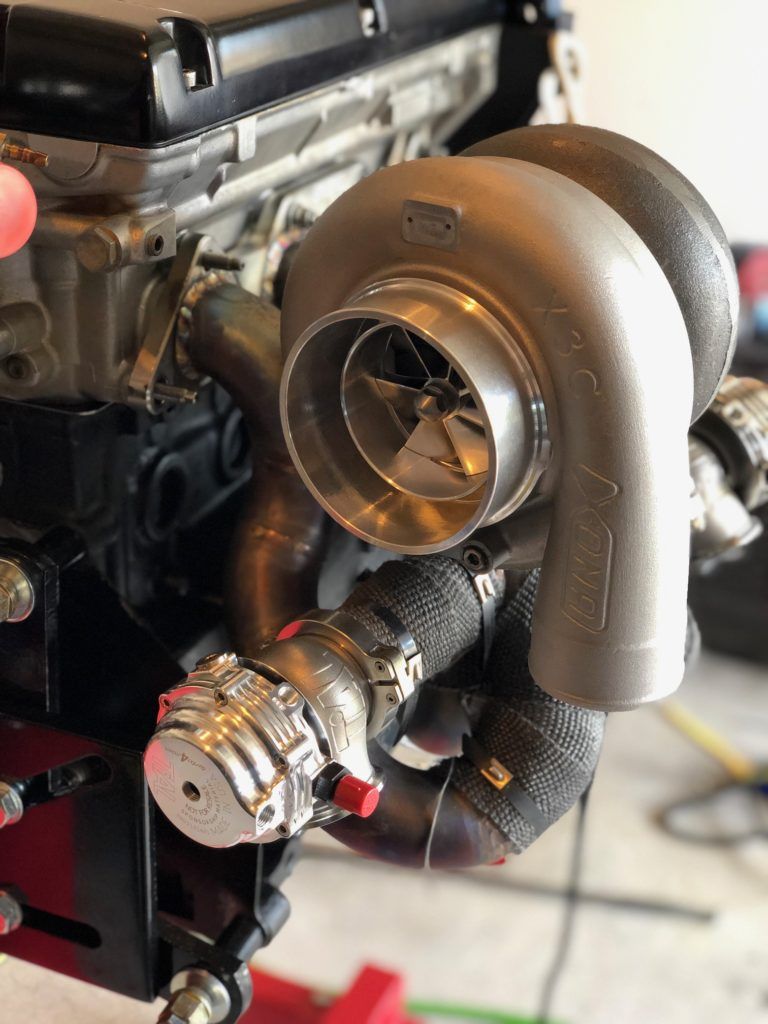

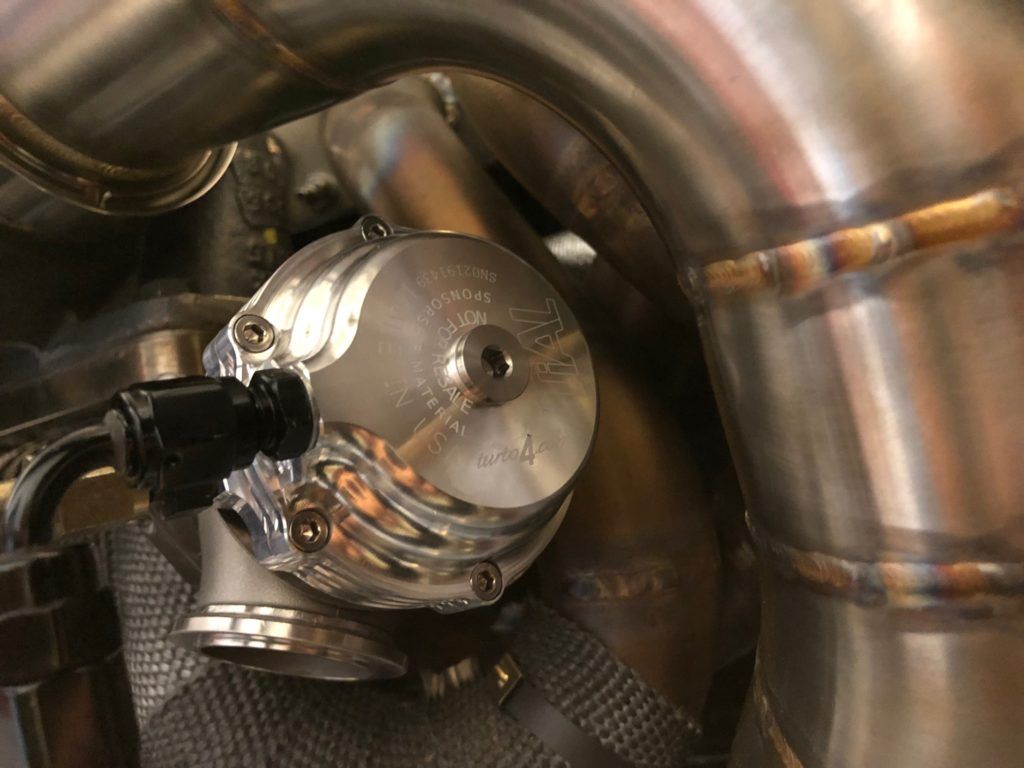

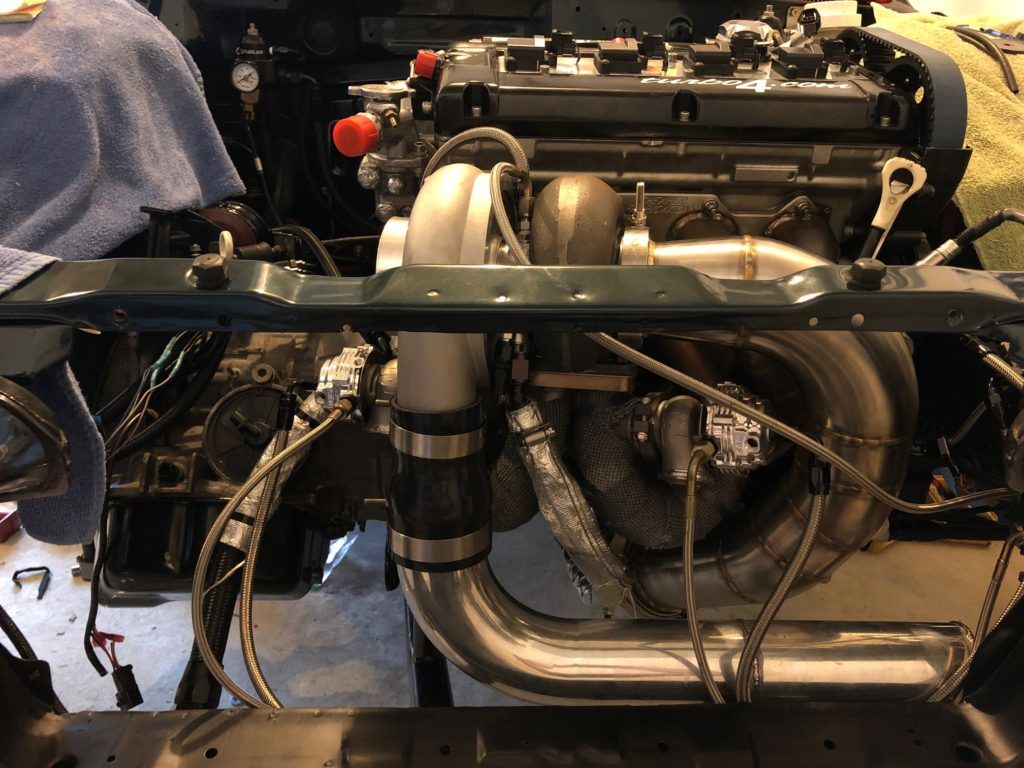

    Alright, lets go back to buttoning up the turbo. Just a reminder, I went with the Xona Rotor XR 10569S X3C turbocharger ( http://xonarotor.com/product/xr-10569s-x3c/ ). This is their ~1100 hp turbo in a really nice compact package. I’m controlling boost with a pair of TiAl MV-S waste gates also with our custom engraved logo on them. I can’t thank TiAl and Xona enough for coming on board for this build.

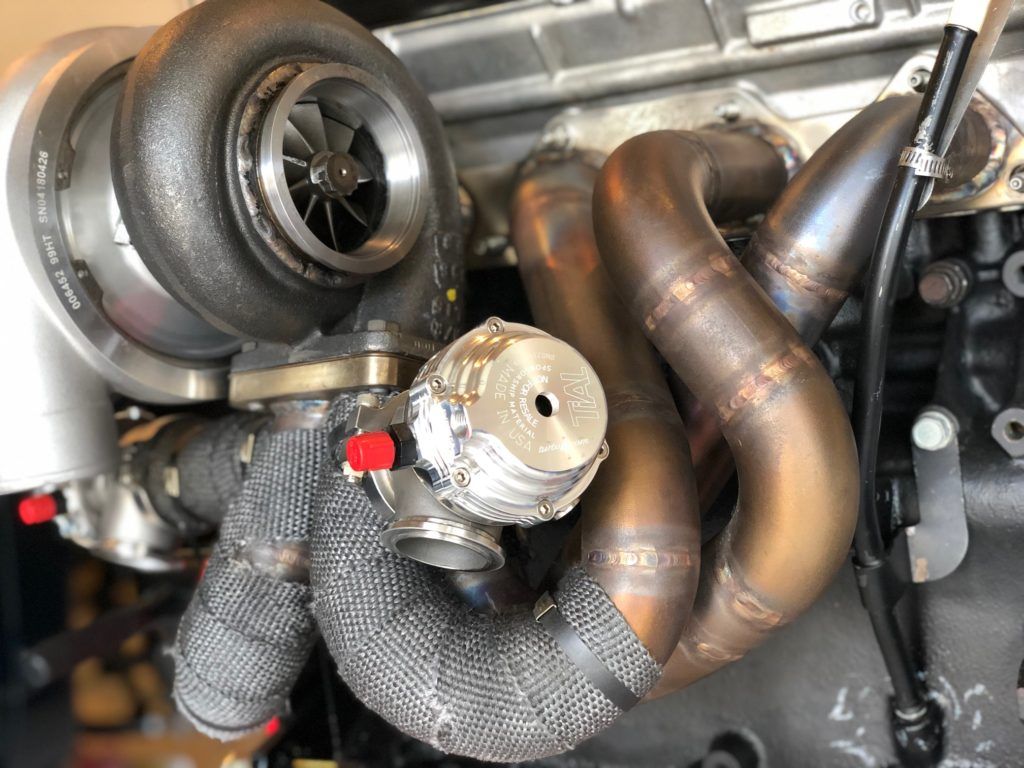

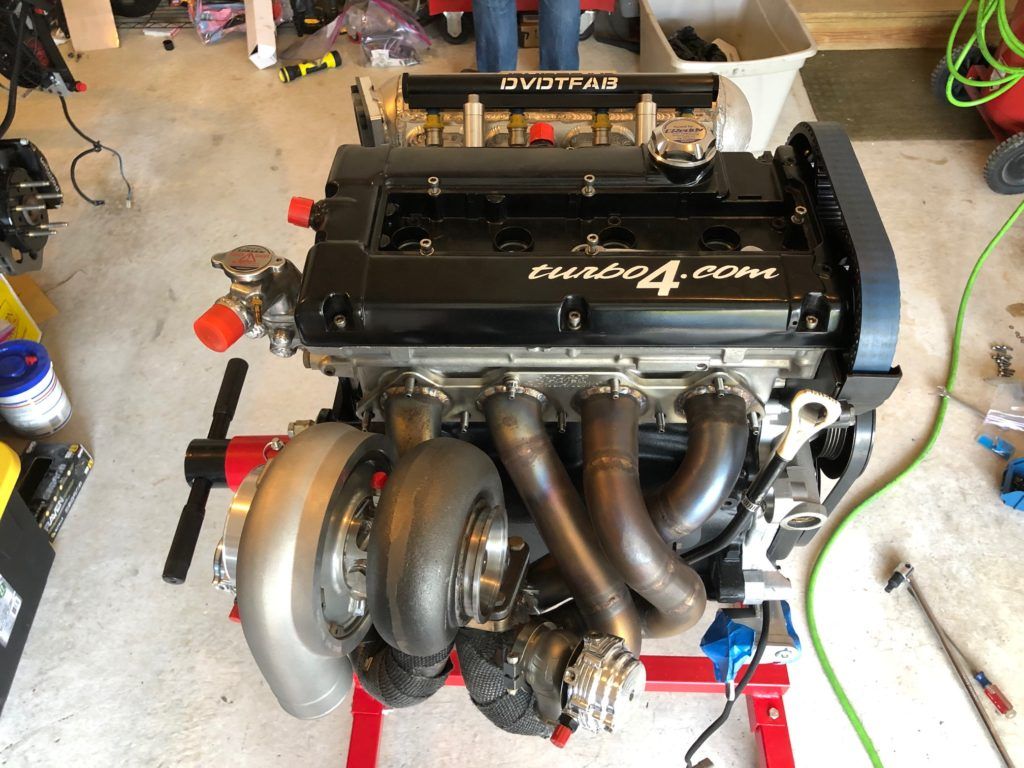

    These are all mounted to a Shearer Fab header which you can now buy from Matt and Samantha at Morrison Fab. In an effort to save time (plus they’re a lot better at this than me!) I ordered a custom Morrison Fab downpipe also. I worked closely with Matt to get it as close as possible to mounting to my exhaust and he left the last two welds for me to finish it off. This saved me a ton of time and it came out perfect.

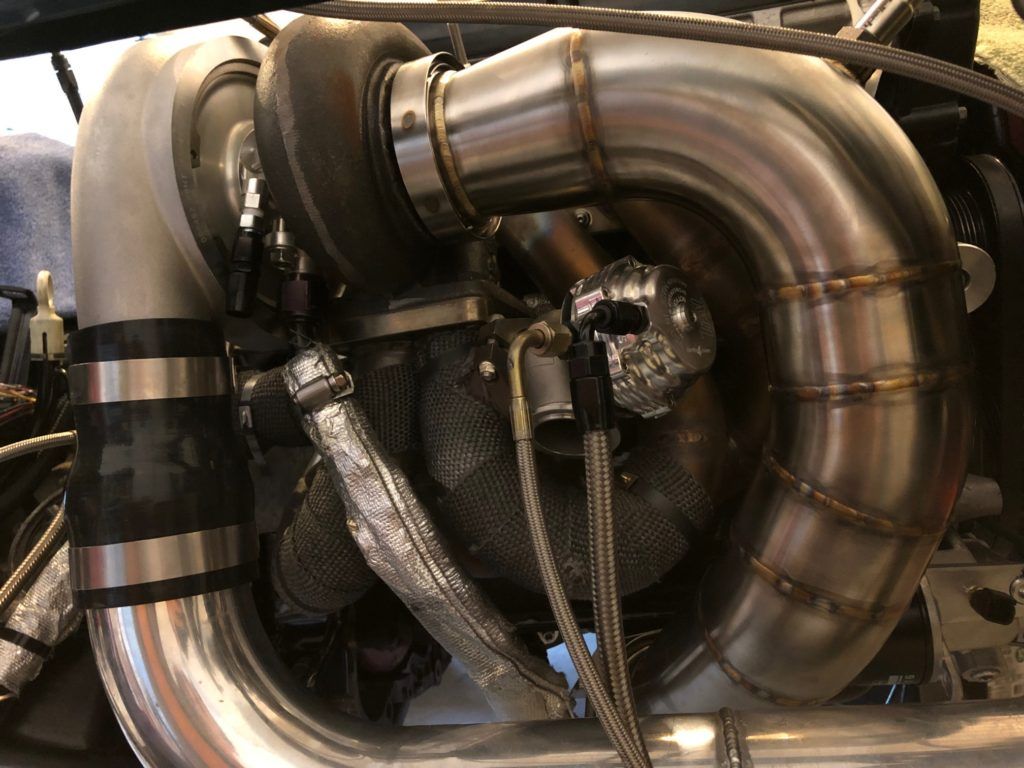

    I also plumbed up all the wastegate vacuum lines, oil lines and coolant lines using stainless AN hose.










    http://www.fuelinjectorclinic.com

    http://www.extremepsi.com

    http://www.tialsport.com

    http://www.xonarotor.com

    http://www.haltech.com

    http://www.turbo4.com

    http://www.forcedfour.com


    Street Build 3K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    4K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
  13. Ludachris

    Ludachris Founder & Zookeeper

    7,181
    1,341
    Joined Nov 12, 2001
    Roseville, California
    The engraved wastegate is a nice touch! Can't get over the downpipe sizing. The progress is looking good.


    Street Build 9K  0

    1997 Eagle Talon TSi AWD (sold)
    manual · 2G DSM

    Road Race Build 8K  10  23

    1991 Mitsubishi Eclipse GSX
    435.0 whp · 399.2 lb/ft · 1G DSM
    Loading...
  14. import solutions

    import solutions Proven Member

    100
    27
    Joined Apr 27, 2013
    colimA, Texas
    This build Is amazing tony

  15. Got Grip

    Got Grip Proven Member

    259
    156
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    Thanks Chris!


    Street Build 3K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    4K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
  16. Got Grip

    Got Grip Proven Member

    259
    156
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    Thanks!


    Street Build 3K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    4K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
  17. bling5tatus

    bling5tatus Proven Member

    1,580
    104
    Joined Sep 23, 2005
    DFW/Austin, Texas
    Neat! I have a question and a comment. Why are Shearer manifolds sold by Morrison now? What happened w/ Shearer? I've been hoping they'd fix their website for what seems like years now..... but I dunno what's going on. As for my comment.... Xona is Tial and Forced Performance. I noticed you said thank you to Xona and Tial for coming on board for the build, but I think maybe you meant to say Tial and FP?

    Looking awesome, and I can't wait to see more updates on this. That downpipe/o2 housing is pretty insane.


    Street Build 2K  1

    1989 Dodge Colt GT
    manual · 4G63t Swapped

    Street Build 2K  1

    1991 Eagle Talon TSi
    fwd · manual · 1G DSM
    Loading...
  18. Ludachris

    Ludachris Founder & Zookeeper

    7,181
    1,341
    Joined Nov 12, 2001
    Roseville, California
    I'll let @MorrisonFab give more info on this, but I believe Shearer sold Morrison the rights and jigs to his manifold designs and they are now the shop that builds them for this platform, and have since expanded upon those designs. Shearer is focusing on other platforms these days.


    Street Build 9K  0

    1997 Eagle Talon TSi AWD (sold)
    manual · 2G DSM

    Road Race Build 8K  10  23

    1991 Mitsubishi Eclipse GSX
    435.0 whp · 399.2 lb/ft · 1G DSM
    Loading...
    1990TSIAWDTALON and bling5tatus like this.
  19. bling5tatus

    bling5tatus Proven Member

    1,580
    104
    Joined Sep 23, 2005
    DFW/Austin, Texas
    Ah very nice..... good enough for me, I just wondered what happened to Shearer because I knew they made, probably the highest/best quality manifolds possible for our platform. I take it that they've moved on because there's a lot of money to be made messing with other stuff, just like we see many of the DSM shops servicing GTRs and Porsches now.

    edit: also, I already liked Morrison's stuff, but I definitely know who I'm buying my next manifold from.


    Street Build 2K  1

    1989 Dodge Colt GT
    manual · 4G63t Swapped

    Street Build 2K  1

    1991 Eagle Talon TSi
    fwd · manual · 1G DSM
    Loading...
  20. Got Grip

    Got Grip Proven Member

    259
    156
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania

    I think most of this has been answered now but I’ll reiterate. Morrison Fab bought shearers jugs to make his manifolds and they’ve since developed a lot of their own products. They have kept up and improved the quality that Shearer brought to DSM’s and they’re really easy to work with. It was a no brainer going to them for my downpipe.

    I didn’t mean TiAl and FP, I meant TiAl and Xona as stated. Yes, Xona is a collaboration between TiAl and FP, but both FP and TiAl were involved in sending me the turbocharger, which is a Xona Rotor turbo. Both TiAl and FP are amazing companies who continue to support our platform and together as Xona they are pushing the envelope even further.

    I’m not sure what all the other mess was about but it looks like it was mostly cleaned up now.


    Street Build 3K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    4K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
    bling5tatus likes this.
  21. OH91awd

    OH91awd Proven Member

    1,016
    423
    Joined Sep 22, 2011
    chillicothe, Ohio
    im just over here drooling at the xona on a twin scroll housing. we offer them through jegs but ive been hold out hoping to see a twin scroll housing offered.


    Drag Race Build 3K  17

    1992 Eagle Talon TSi AWD
    10.89 @ 125.67 · 1G DSM
    Loading...
  22. motomattx

    motomattx Proven Member

    2,945
    1,012
    Joined Dec 9, 2010
    wampum, Pennsylvania
    When Xona first existed, Robert had brought some of it to the shootout and I was asking him what exactly it was and how and when I could get my hands on it because it was just amazing in quality, its so beautiful that it would be hard to bolt it on to the car and not be able to look at it every day in my hands, its truly amazing and so is the Morrison Fab work, those two together, you cant ask for much better quality and your very lucky to have both brands on your car.


    Drag Race Build 4K  24

    1995 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    1990TSIAWDTALON likes this.
  23. Got Grip

    Got Grip Proven Member

    259
    156
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania

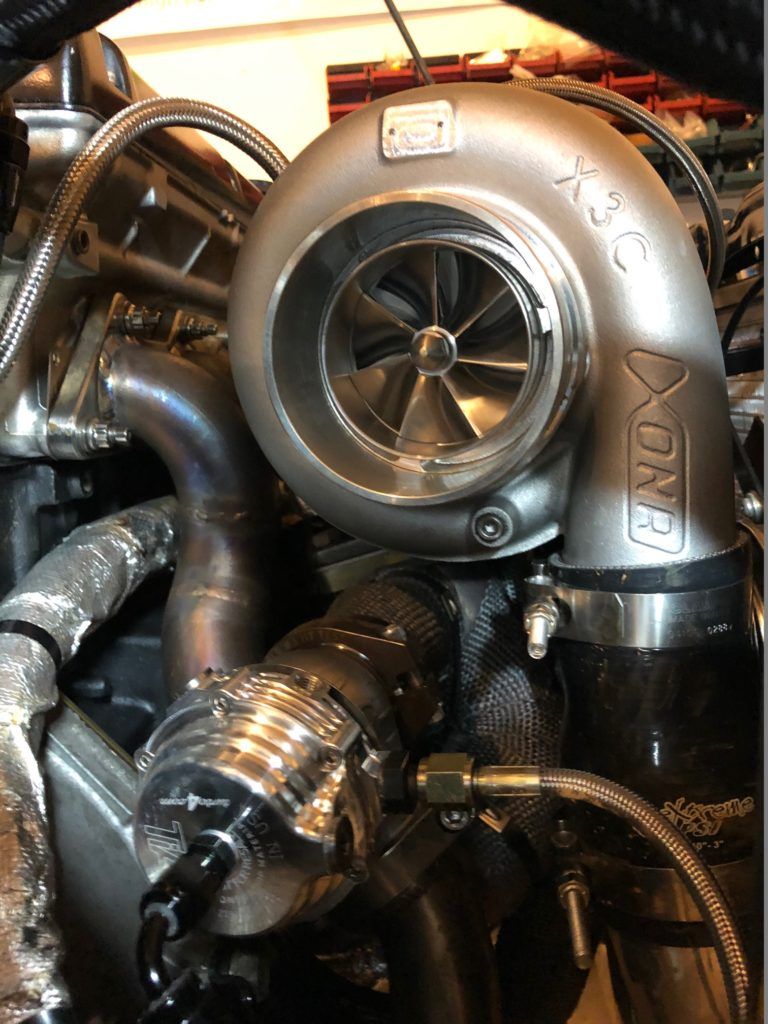

    They custom made the housing for me since I already had the header, I don’t believe they’ll be offering it as an option though. I will say that it was challenging to get it all together due to the compact nature of the Xona Rotor and the bulkiness of that housing. It would have been much simpler with one of their standard housing options. That’s likely why they don’t want to offer it.

    The turbo really is beautiful. I have tons of pictures of it just because of how photogenic it is. Haha. I try to only use the best parts everywhere I can and I was fortunate enough to get to work with Xona and TiAl on this, along with all the other companies that help me. You won’t see tagging companies who don’t have the best quality parts and the best service. That’s the reason why you won’t see me tag or even say who made my subframes as an example.


    Street Build 3K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    4K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
  24. Got Grip

    Got Grip Proven Member

    259
    156
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania

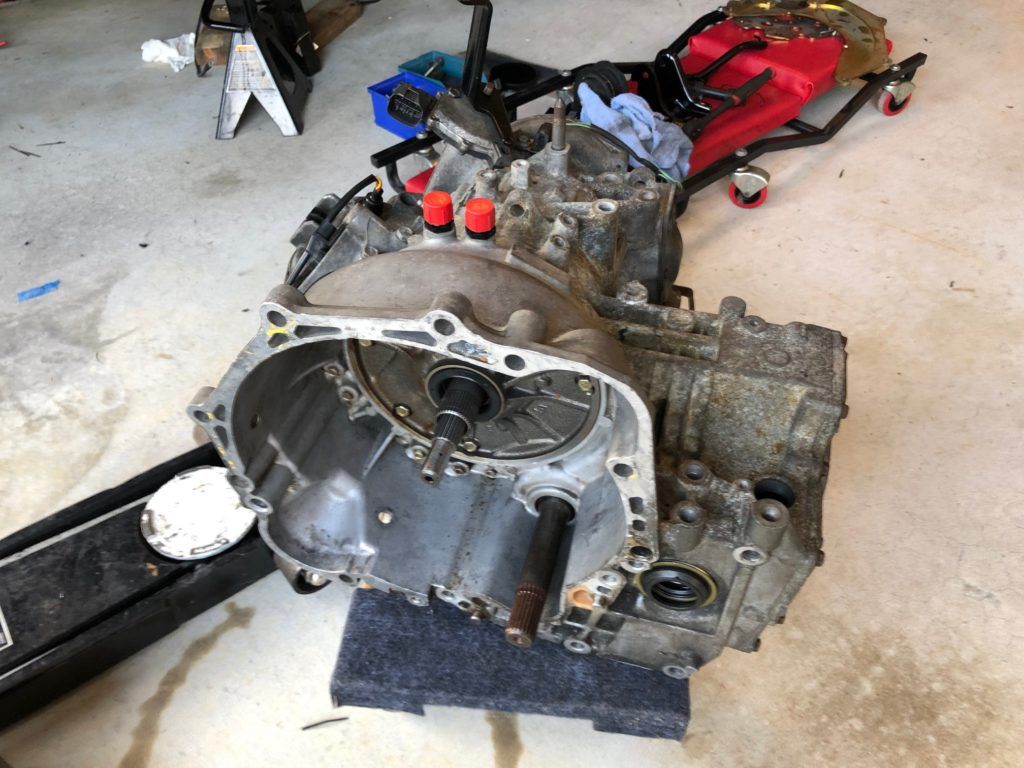

    If you were following along closely, you read where I put the engine in the car with the dogbox because I was waiting on some parts to finish up my auto trans.

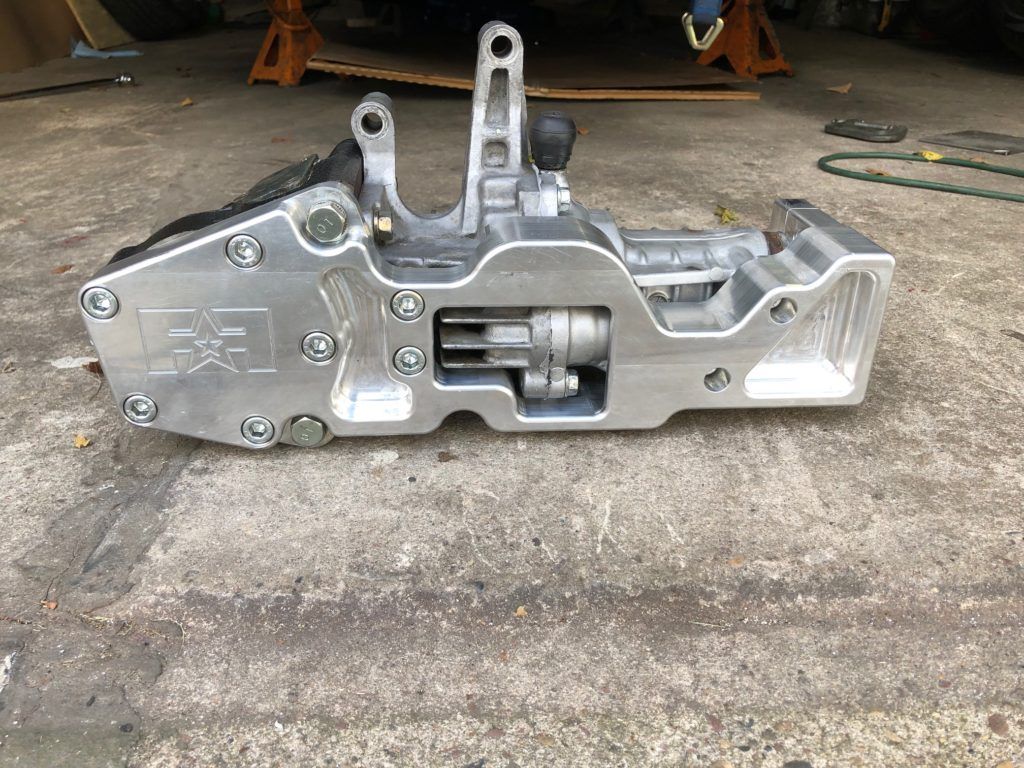

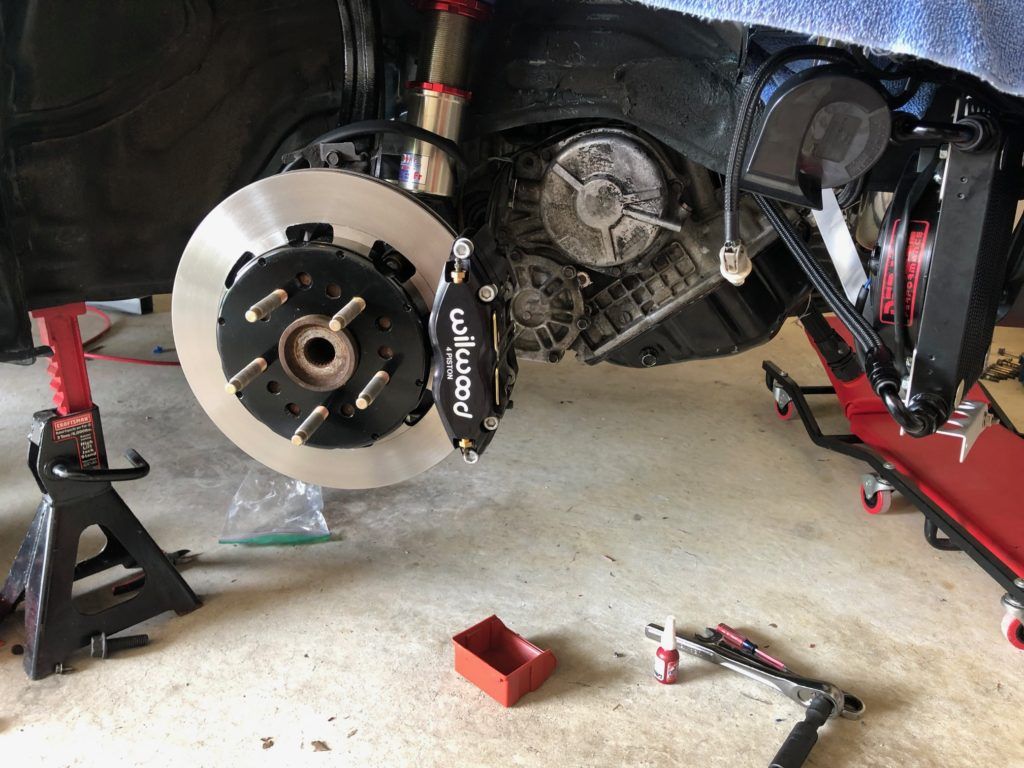

    Well now its time to put the auto in. Like everything in this build, the auto trans snowballed way beyond what I originally was going to do. I’ll try to list all the parts I went with in the trans:

    Kiggly Billet Front Clutch

    Liberty Transfer Gears

    JB Designs Rear Basket

    JB Designs Input Shaft

    Translab Shift Kit

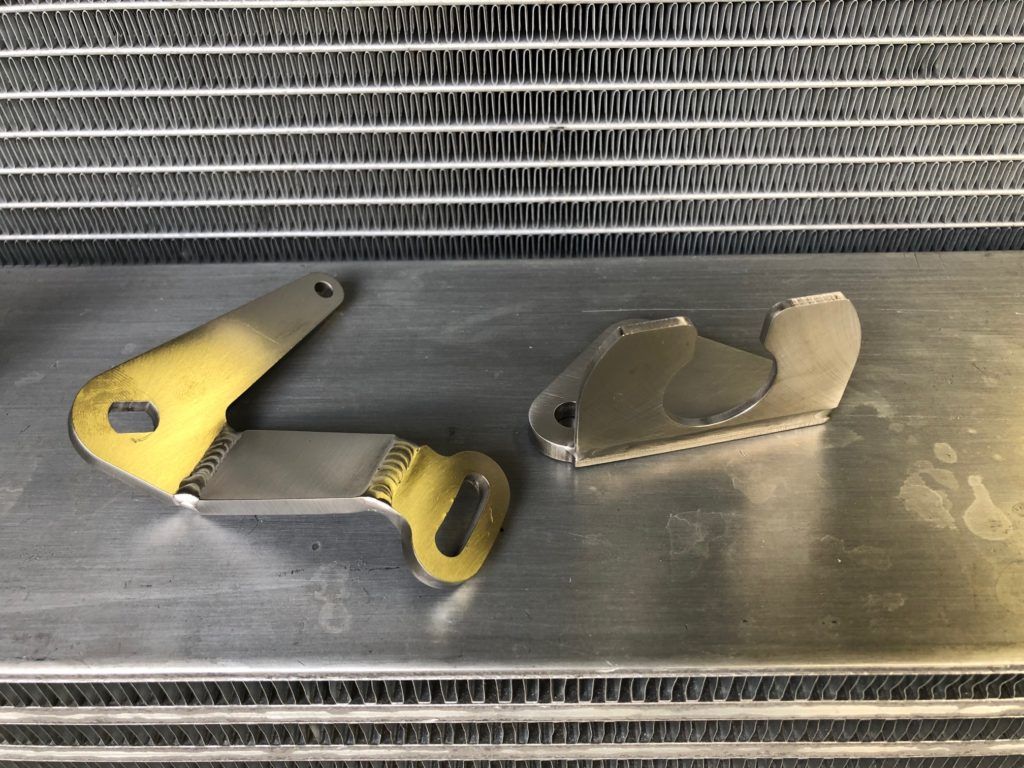

    Morrison Fab Short Shift Bracket

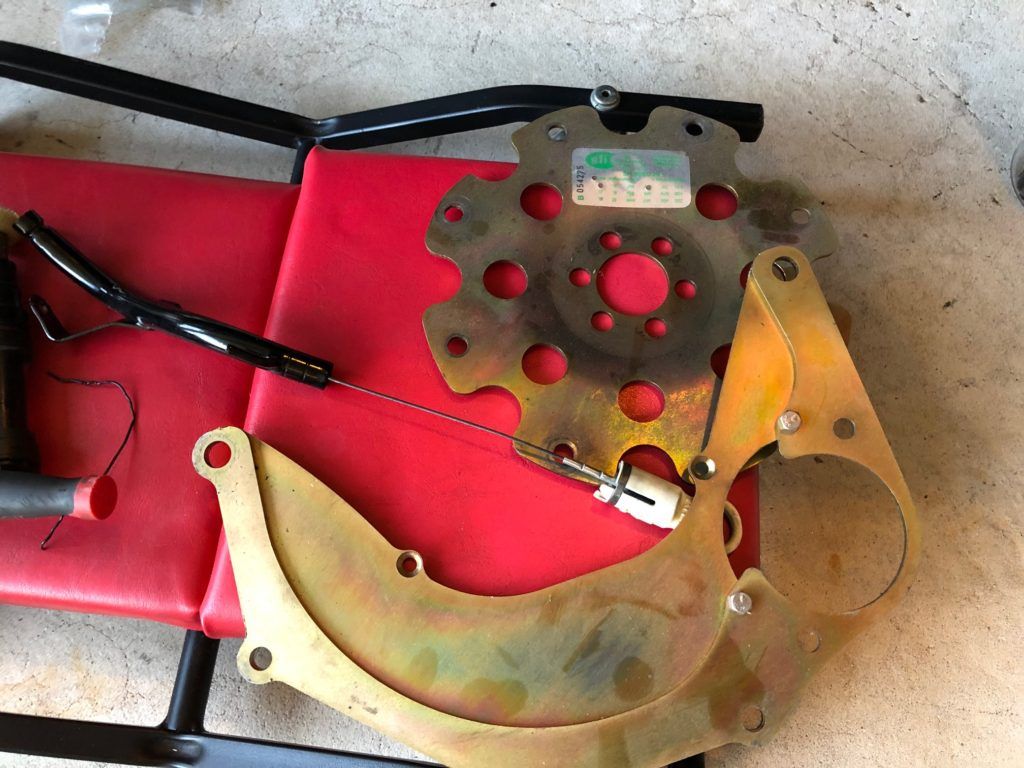

    I also went with the Kiggly Racing 2G 6 Bolt adapter plate and flex plate.

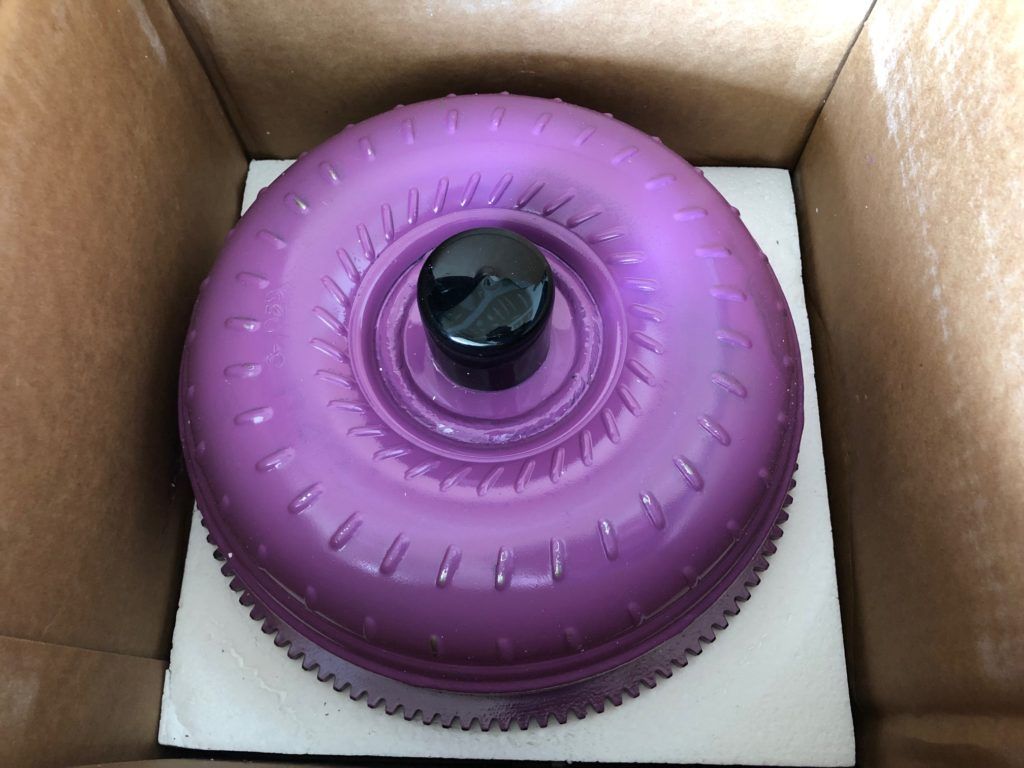

    To get the power from the engine to the transmission I went with a Precision #6 torque converter.


    Getting the power out of the transmission I made some upgrades as well. I already had a FrontLine Fab automatic transfer case brace so I decided to use that. I also had a brand new manual transmission 300M transfer case. In case anyone wasn’t aware, the output shaft and transfer case gears are the same between the auto and manual (for like years). So I took my auto housings, cross shaft and FLF tcase brace and swapped in the gear and output shaft from my manual 300M transfer case.

    I already had a DSS 3.5” driveshaft but I got the Sonnax front yoke from Tim Zimmer for it. I also had DSS stage 5 rear axles that work with an auto or manual so they went back in. I had to swap in an auto rear diff and I had a billet rear diff cover made probably about 5 years before FLF made theirs so I decided just to keep that. I had a set of DSS Stage 2 front axles for the car but I broke one with the dog box so I bought a new replacement for that.












    Here’s a summary of the driveline:

    Kiggly 6 bolt 2G adapter and flex plate

    Precision #6 Converter

    Fully Built Auto Transmission

    300M Transfer Case with FLF Brace

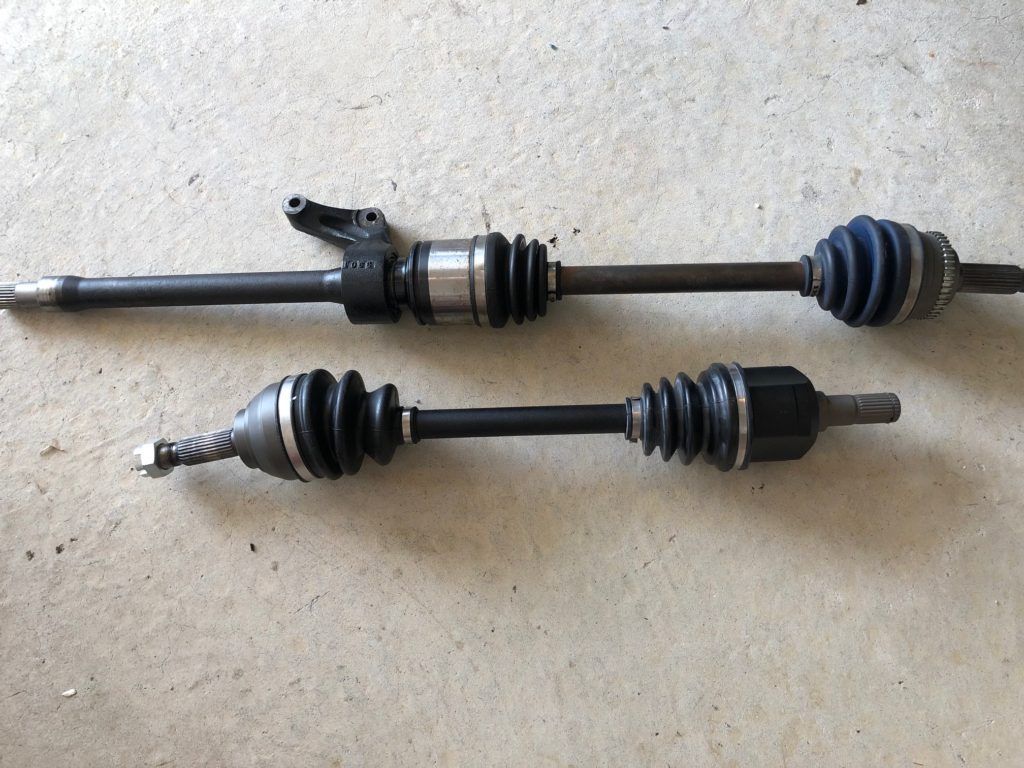

    DSS Stage 2 Front Axles

    Sonnax Front Yoke

    DSS 3.5” Aluminum Driveshaft

    Custom Billet rear diff cover

    DSS Stage 5 Rear axles


    The transmission looks like crap and I didn’t have time to paint it or anything so the next time I have a chance it’s going to get cleaned up and painted or maybe even powder coated if I feel like taking it apart.


    Once again, please help support the companies that helped me do this build! These are the companies that support our community and bring us great products. I wouldn't post a company name or a link to them if they weren't amazing to work with and provide superior products.

    http://www.fuelinjectorclinic.com

    http://www.extremepsi.com

    http://www.tialsport.com

    http://www.xonarotor.com

    http://www.haltech.com

    http://www.turbo4.com

    http://www.forcedfour.com


    Street Build 3K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    4K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
    buddahboost, MorrisonFab and OH91awd like this.
  25. Ludachris

    Ludachris Founder & Zookeeper

    7,181
    1,341
    Joined Nov 12, 2001
    Roseville, California
    Another great update. Looking great!


    Street Build 9K  0

    1997 Eagle Talon TSi AWD (sold)
    manual · 2G DSM

    Road Race Build 8K  10  23

    1991 Mitsubishi Eclipse GSX
    435.0 whp · 399.2 lb/ft · 1G DSM
    Loading...

Share This Page

Support Vendors who Support the DSM Community
ECM Tuning ExtremePSI Feal Suspension Fuel Injector Clinic Jacks Transmissions JNZ Tuning Kiggly Racing Morrison Fabrications OHM Racing RixRacing RockAuto SouthBay Fuel Injectors STM Tuned Track Decals Track Sculptures VR Speed Factory
