  1. Ben-Stian

    Ben-Stian Proven Member

    120
    28
    Joined Aug 23, 2006
    NORWAY, Europe

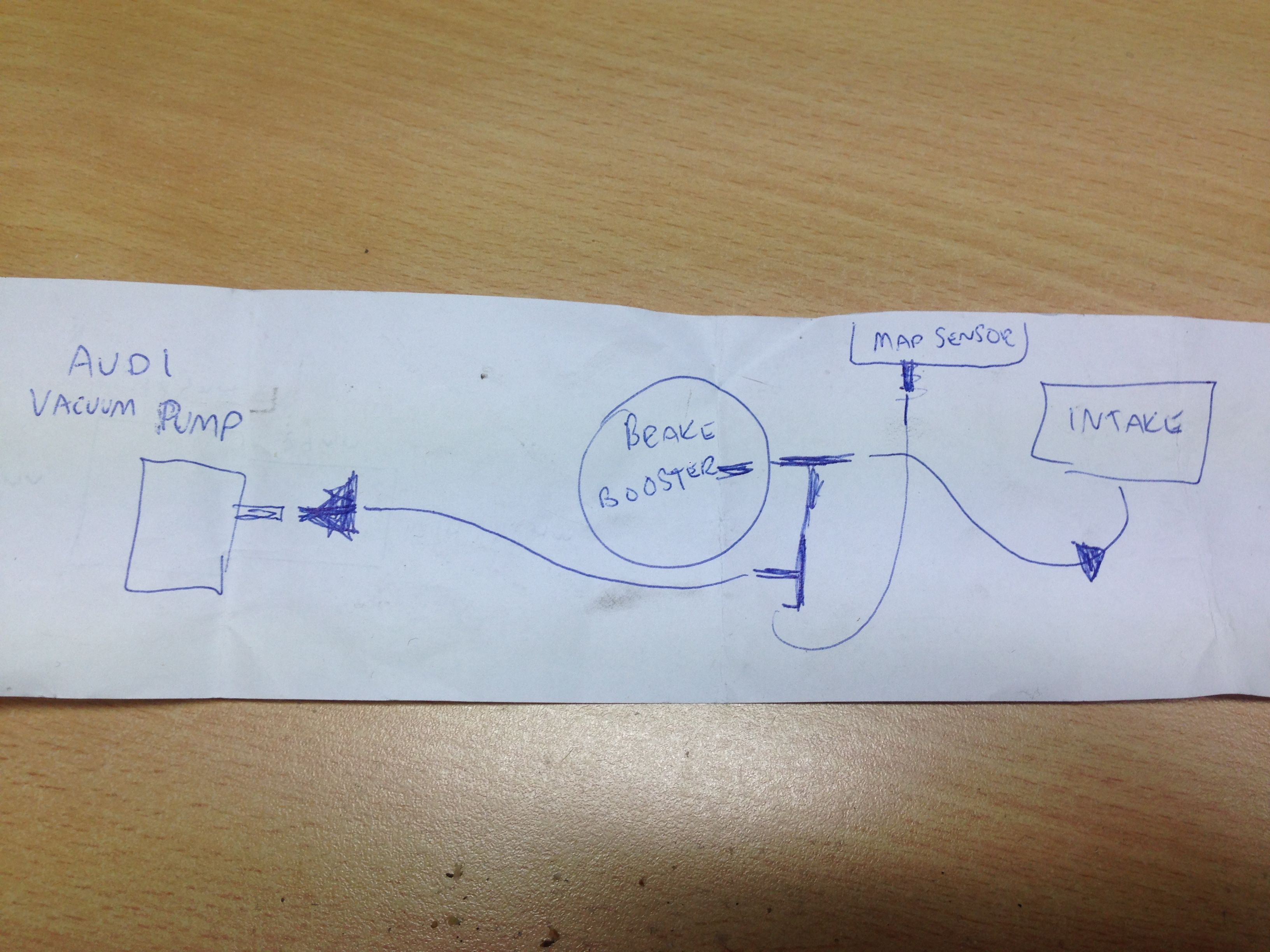

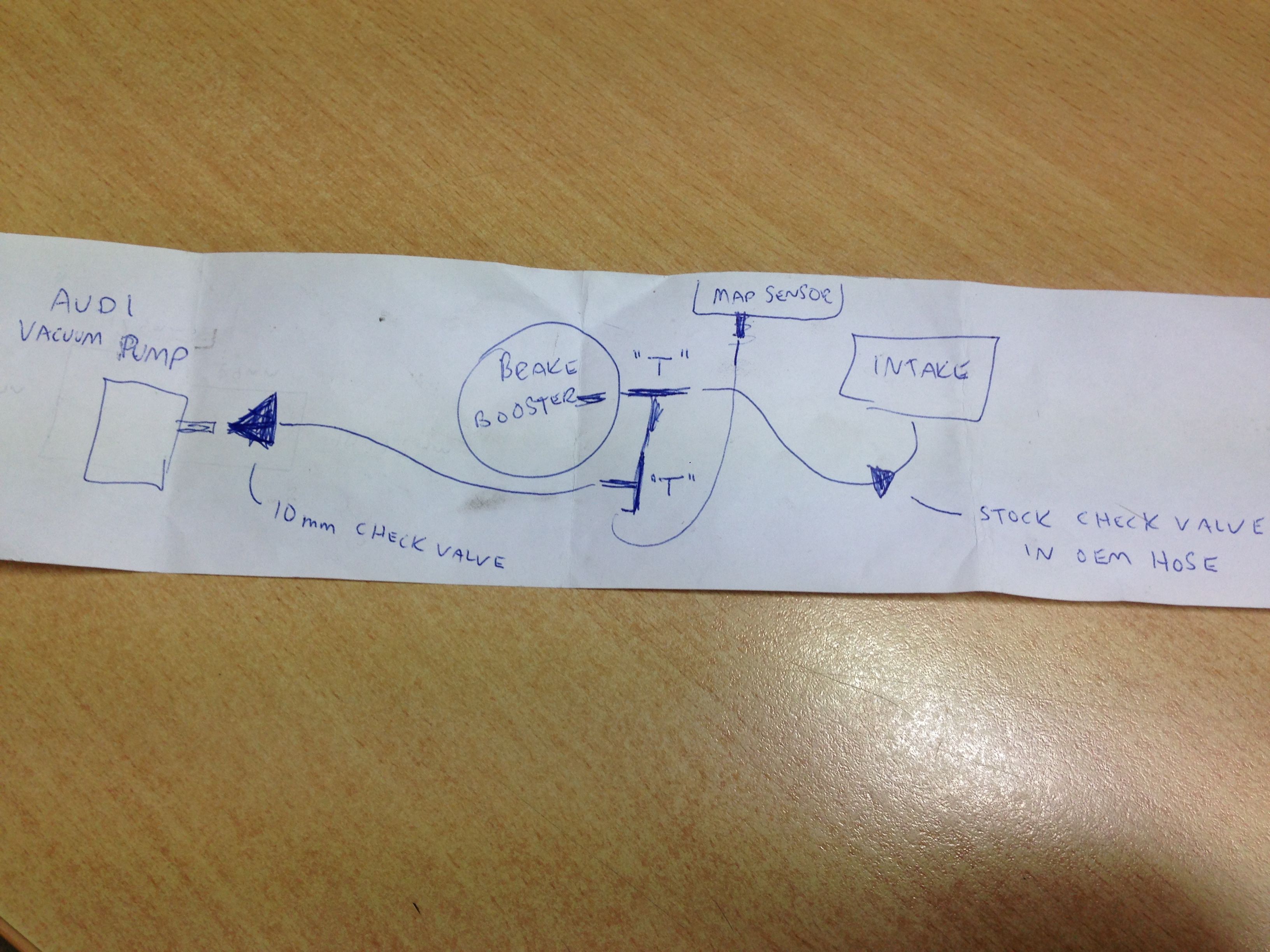

    This is how I did mine with 2 check valves. The mapsensor you see in the picture, is for the brake vacuum only. I must use 1 digital input (OD-button), 1 analog input (map sensor) and 1 aux output (vacuum pump relay). I have plenty extra I/O also in my ecu. Works fine: IMG_8530[1].JPG

    Last edited: Apr 2, 2019
    ErikTande likes this.
  2. motomattx

    motomattx Proven Member

    1,758
    557
    Joined Dec 9, 2010
    wampum, Pennsylvania
    Are you still leaving the stock hidden check valve? if you havent removed it, its still in the line which would total three check valves just like mine.


    Drag Race Build 3K  16

    1995 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  3. Ben-Stian

    Ben-Stian Proven Member

    120
    28
    Joined Aug 23, 2006
    NORWAY, Europe
    The hidden stock check valve is still in the hose and is drawn in the picture. It is in the hose from the intake to one of the T-piece you see in the picture. 2 check valves in total. See updated picture.

    Last edited: Apr 3, 2019
    buddahboost likes this.
  4. motomattx

    motomattx Proven Member

    1,758
    557
    Joined Dec 9, 2010
    wampum, Pennsylvania
    Keep in mind that I run 8 fuel injectors and an ethanol content sensor, wideband, boost control and a few other things, this ties up most of my inputs/outputs. I will have to go look at the car to figure out why it needs the other check valve, it may have to do with me running a mechanical switch and not a map sensor and/or for hysteresis reasons, I like the idea of being able to swap back to the flashable ecu at any time with a simple injector harness switch, so I keep the car able to do that in case I would get away from home and have an ecu failure since I dont carry a spare $2000 aftermarket ecu with me, but I DO carry a spare flashable and a spare eprom in the trunk for when I go to the shootout etc, this is another reason why I didnt want the ecu to have anything to do with the power brakes, I also have electric power steering, I like having brakes and steering without the engine running in case I ever needed it.


    Drag Race Build 3K  16

    1995 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    ErikTande and buddahboost like this.
  5. tstkl

    tstkl Proven Member

    2,026
    45
    Joined Feb 10, 2005
    east bay, California
    Dang it, I had a feeling that was the case. I actually have the vibrant 3 inch single in 3 inch single out on my Dsm. I was hoping yours was a 3.5 in dual 2.5 out as I think 4 is overkill for my needs. I do like the sound of my Dsm though so I agree with you there.

  6. Got Grip

    Got Grip Proven Member

    160
    117
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    Sorry for the lack of updates the last couple weeks. I’ve been traveling a bunch for work so it slowed work on the car slightly, but its still progressing.

    My dad recently buttoned up my engine. There’s one part I need to finish it up and I also need to get my intake cam tapped because I’m going to run a 2G CAS. Then I’ll degree the cams in and the engine will be ready to drop in.

    The engine is the same engine that was in the car for the past few years. It’s a turbo4.com 2.0 with Wiseco pistons and aluminum rods. Kiggly girdle, ARP mains, etc. I had a bad time with money shifts in the car with the dog box. I found that when the car got loose during acceleration, my focus would be more on steering than the shift and the dreaded 1-2-1 or 2-3-2 would happen. I think this motor saw at least 5 misshifts, all occurring above 9000 RPM which takes the engine into the 12-14k RPM range. That’s the sole reason I decided to tear the engine down and go through it. Amazingly, it all looked perfect, minus the couple rockers it threw on the last misshift.

    The head is a custom CNC ported head, Kiggly bee-hive springs and I’m switching to smaller Kelford cams now (I was on the FP5R/11’s before). I’m also using a DVDT Fab sheet metal intake with 8 Fuel Injector Clinic Injectors.

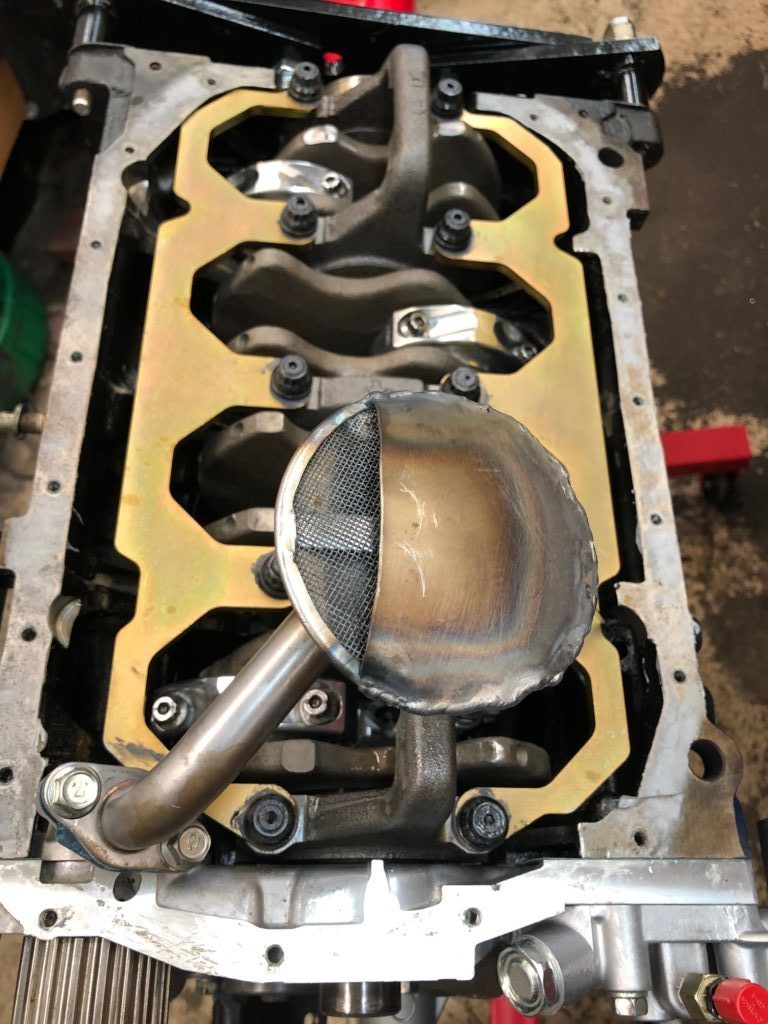

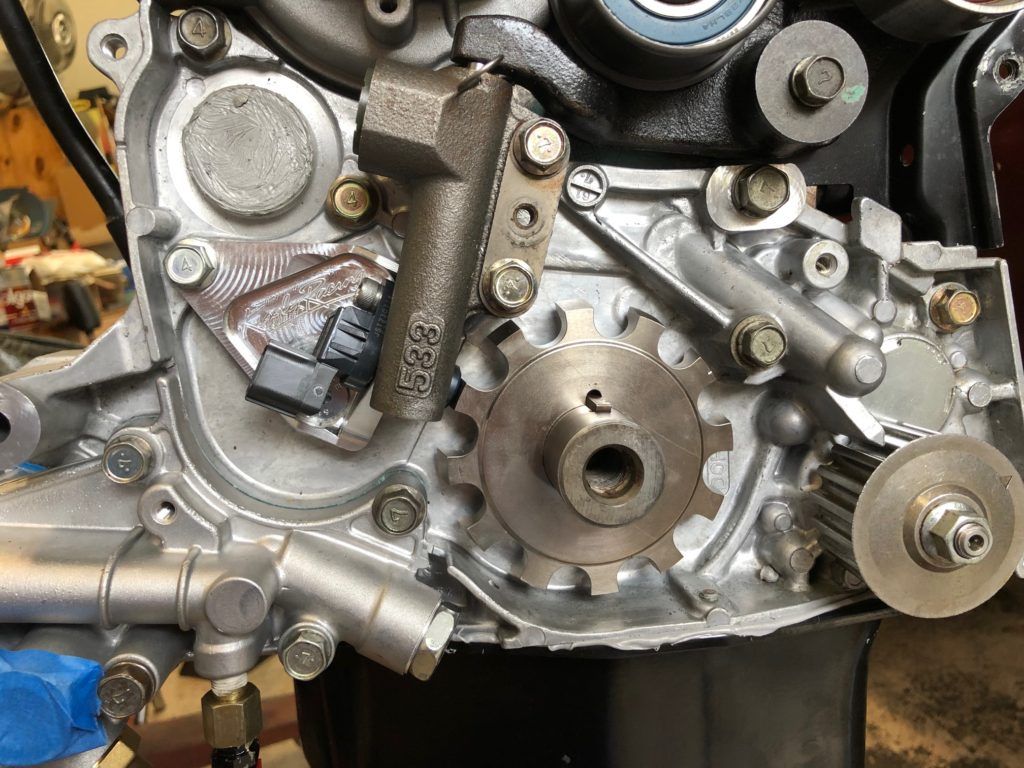

    While I had the engine apart, I decided to do the Kiggly oil pickup mod. It was such a pain to try to weld on crappy oil pickup. I spent a bunch of time cleaning it but I couldn’t get all the oil out and it made welding a nightmare. I’m definitely not a pro welder either, I’m just a self-taught welder from youtube videos. I finished off the bottom end with a new 90 oil filter housing for the external oil cooler and a brand new oil pan. I think that covers most of the engine stuff for now, feel free to ask any questions.

    Notice the Backyard Bandit in the background. :)






    As always, thank you to the companies that support this, be sure to follow their social media pages like their images and buy their products:
    http://www.fuelinjectorclinic.com
    http://www.extremepsi.com
    http://www.tialsport.com
    http://www.xonarotor.com
    http://www.haltech.com
    http://www.turbo4.com


    Street Build 2K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    3K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
    bling5tatus and turbotalon1g like this.
  7. Got Grip

    Got Grip Proven Member

    160
    117
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania

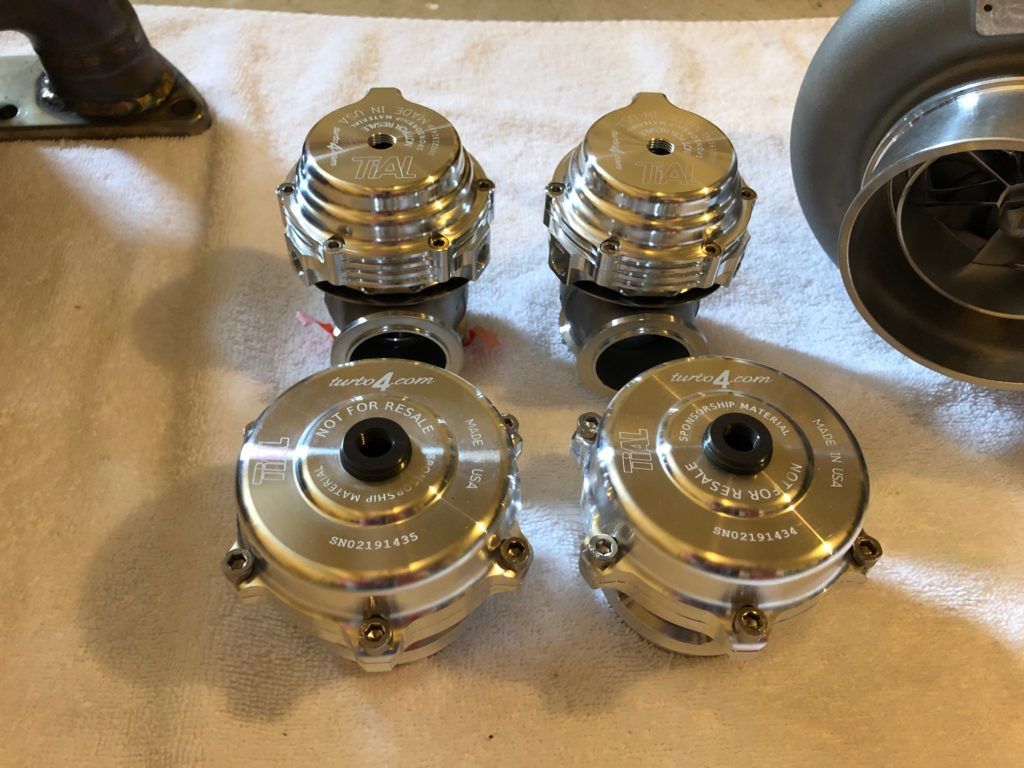

    It’s time for some new parts! I have to give a HUGE thank you to Xona Rotor for this incredibly beautiful XR 105 68 turbocharger. The turbo is a work of art and I can’t wait to run it. It goes along perfectly with the custom engraved Tial MV-S 38mm waste gates.

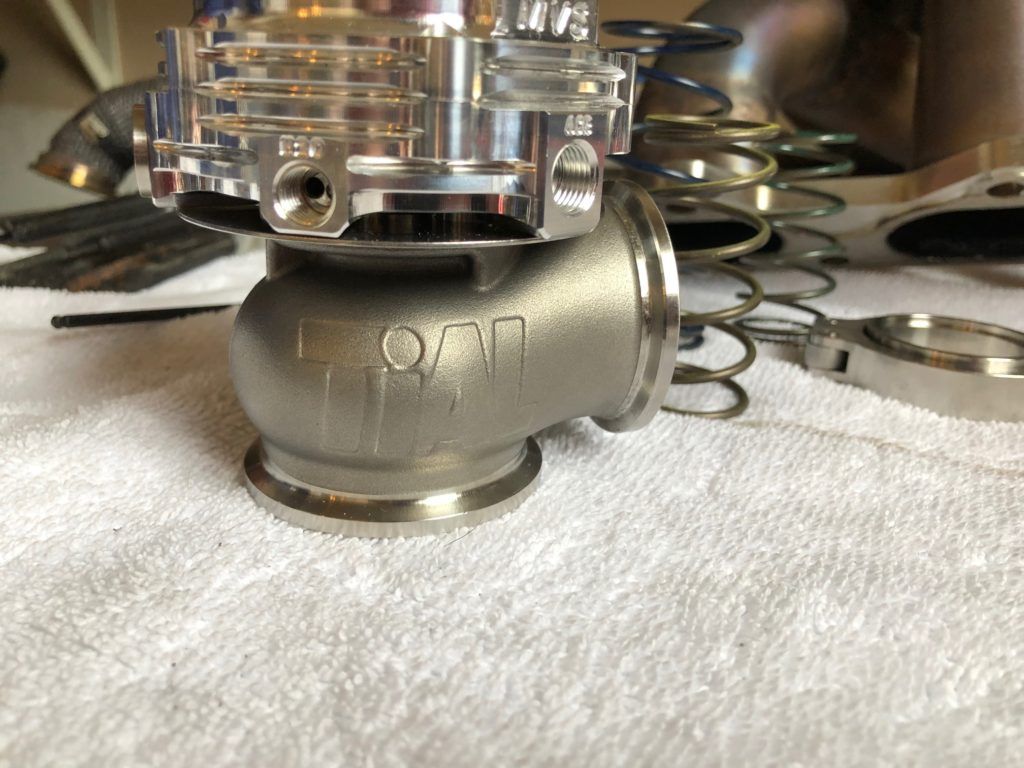

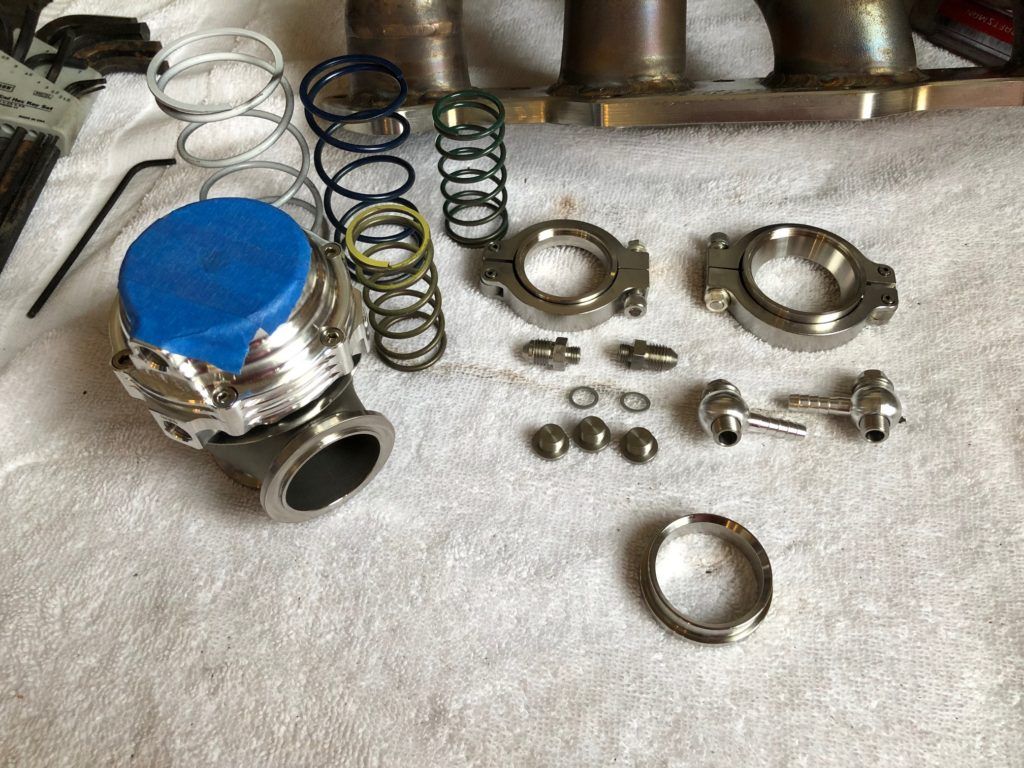

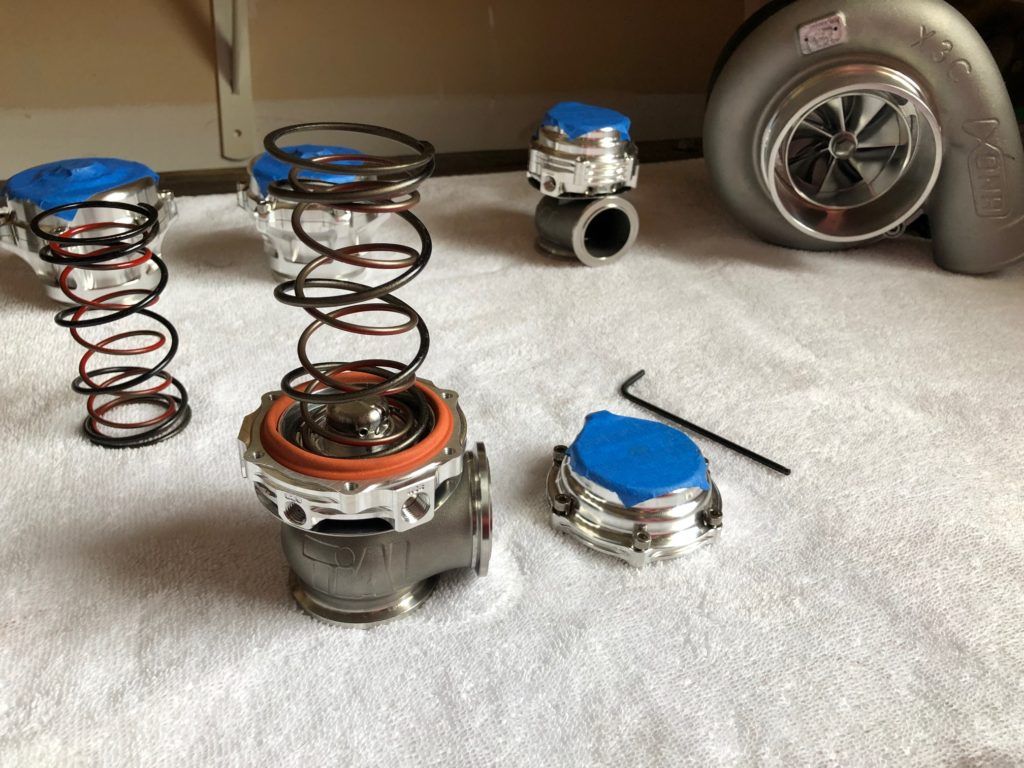

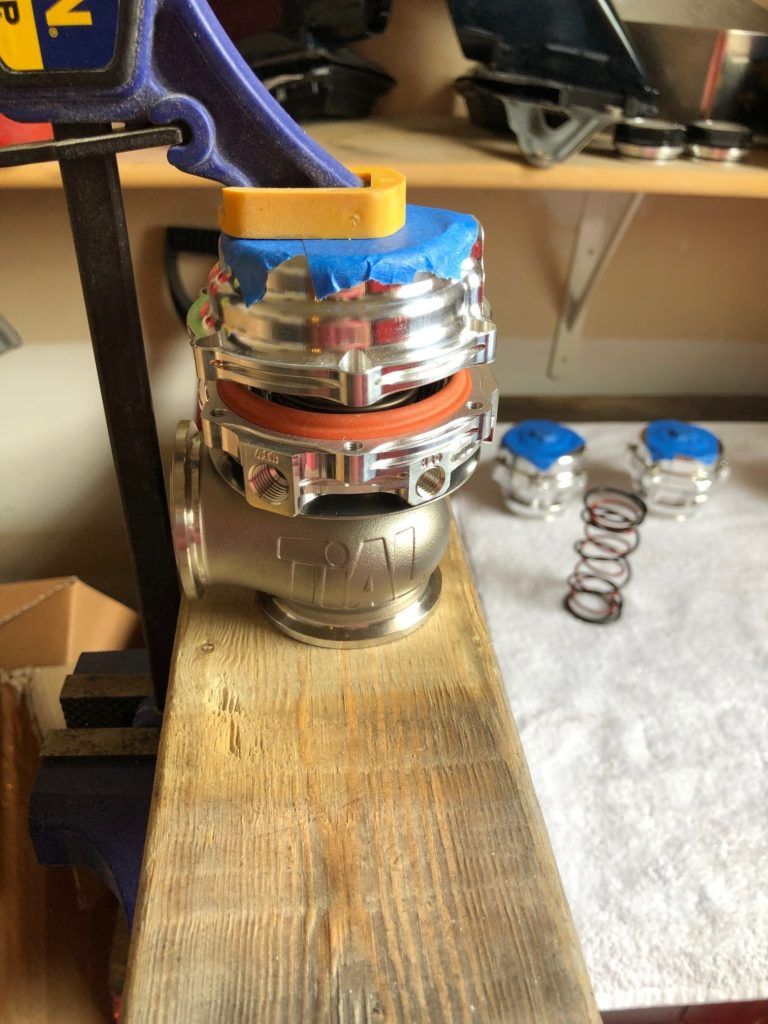

    I decided to install the springs in the waste gate today, they come with a variety of springs for everything from .3 bar to 1.7 bar of base pressure. I decided to install 1 bar worth of spring. In my experience when running a boost control solenoid and applying boost pressure to the top of the gate, you can still run a lot of boost, more than I should need. I can add more spring if I find a boost limit with this setup. On the newer MV-S gates, the red and black springs give you 1 bar.

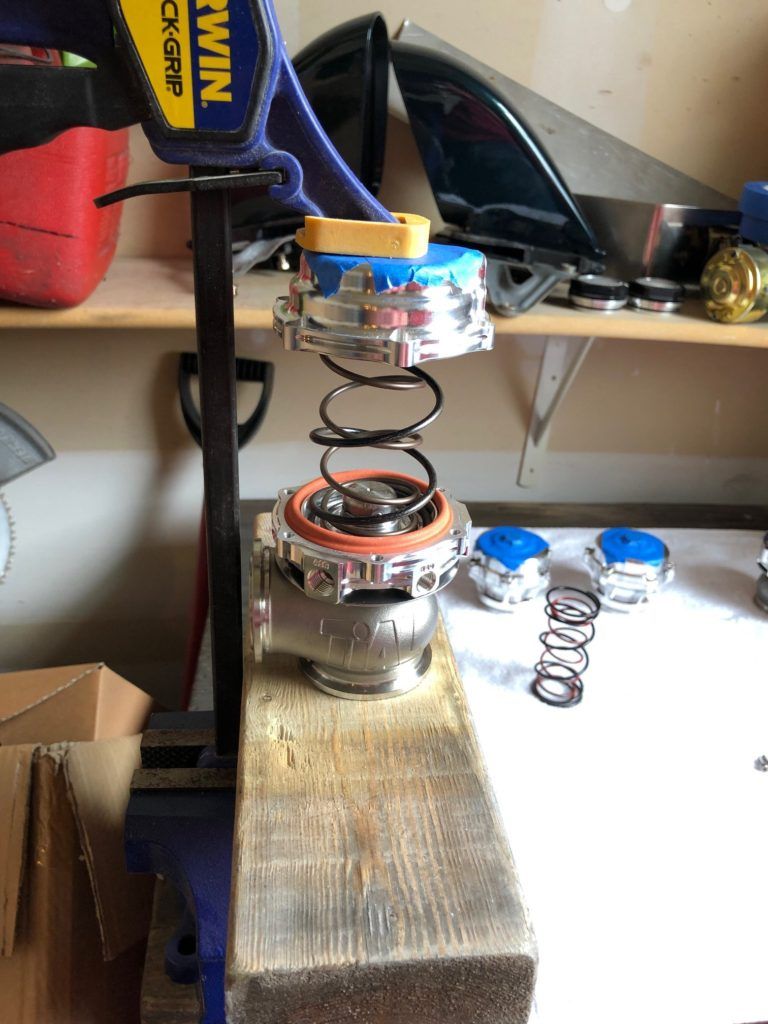

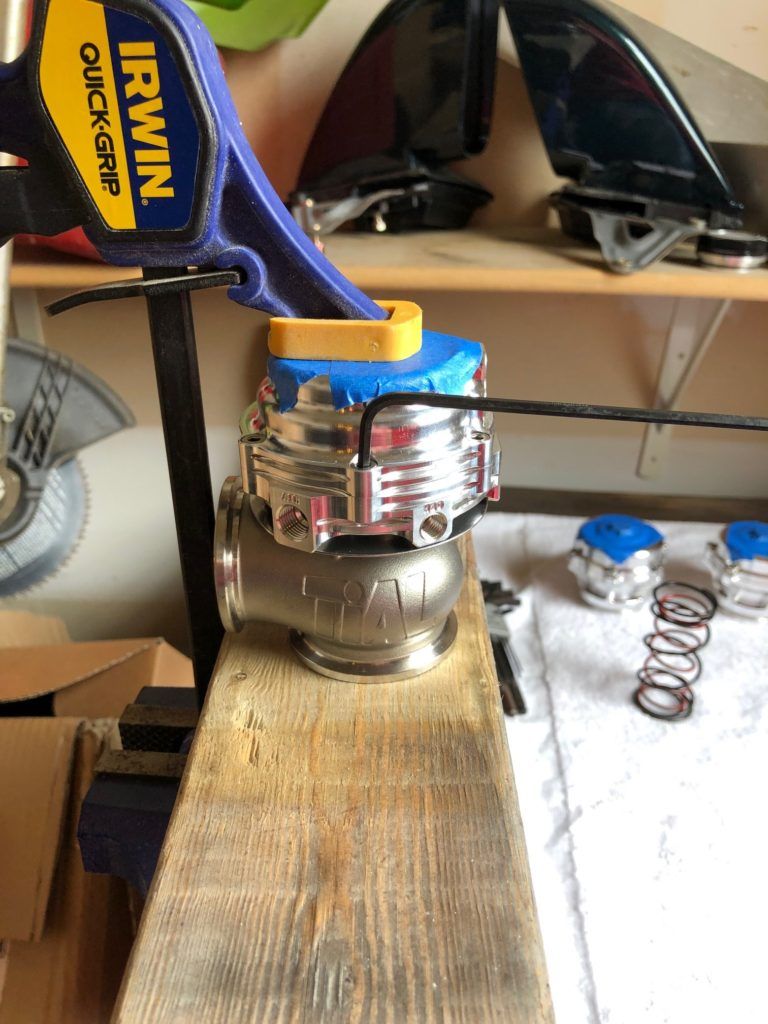

    Compressing the springs can be challenging so I setup an Irwin clamp in my vice with a block of wood to compress the gate. I taped the top to prevent any scratching. This ended up working out really well and made this an easy one-person job.


    Once that was done, I installed the gates and turbo to my old school Shearer Fab header. If you are interested in this header, hit up Morrison Fab. They took over the Shearer headers and make some cool new headers now too. I didn’t have the right size snap ring pliers so I wasn’t able to clock the compressor cover yet but I’ll do that in the next week.


    As always, thank you to the companies that support this, be sure to follow their social media pages like their images and buy their products:

    http://www.fuelinjectorclinic.com

    http://www.extremepsi.com

    http://www.tialsport.com

    http://www.xonarotor.com

    http://www.haltech.com

    http://www.turbo4.com


    Street Build 2K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    3K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
  8. erikoberdorfer

    erikoberdorfer Proven Member

    101
    23
    Joined Sep 10, 2007
    Akron, Ohio
    Looking good! Was that divided T4 turbine housing an option with the xona rotor turbo? I have an FP super99 and would like to try a divided T4 housing for it, but thought it wasn't available for this turbo? I thought the Xona 105-68 was basically the same as the super99? Please enlighten me.

  9. 1qkfwd

    1qkfwd DSM Wiseman

    1,348
    58
    Joined Sep 16, 2005
    Sun Valley, Nevada
    Love that your still rocking the OG Shearer manifold.


    2K  0

    1992 Mitsubishi Eclipse GST
    10.677 @ 128.100 · 1G DSM
    Loading...
  10. Got Grip

    Got Grip Proven Member

    160
    117
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    The turbine housing was a custom ordered item. I’m not sure if that’s a readily available option.


    Street Build 2K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    3K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
  11. b00stedtalon2

    b00stedtalon2 Proven Member

    628
    500
    Joined Dec 19, 2005
    Detroit, Michigan
    Nice progress!

    It's good to hear you can order T4 divided turbine housings for those.


    1K  1

    1994 Mitsubishi Evo
    automatic · Lancer Evolution

    Street Build 3K  1

    1993 Eagle Talon TSi AWD
    9.585 @ 143.96 · 1G DSM
    Loading...
  12. erikoberdorfer

    erikoberdorfer Proven Member

    101
    23
    Joined Sep 10, 2007
    Akron, Ohio
    I emailed FP and that divided turbine housing is not available. For my application (FP super99) I would love to find one of the old FP divided housings or something compatible to try that out. Or, if tial/Xona rotor will offer it I would go that route.

  13. Got Grip

    Got Grip Proven Member

    160
    117
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    I don’t have any big updates because I’ve been gathering parts so I’ll just take some time to talk about some of the parts I’ve been gathering.

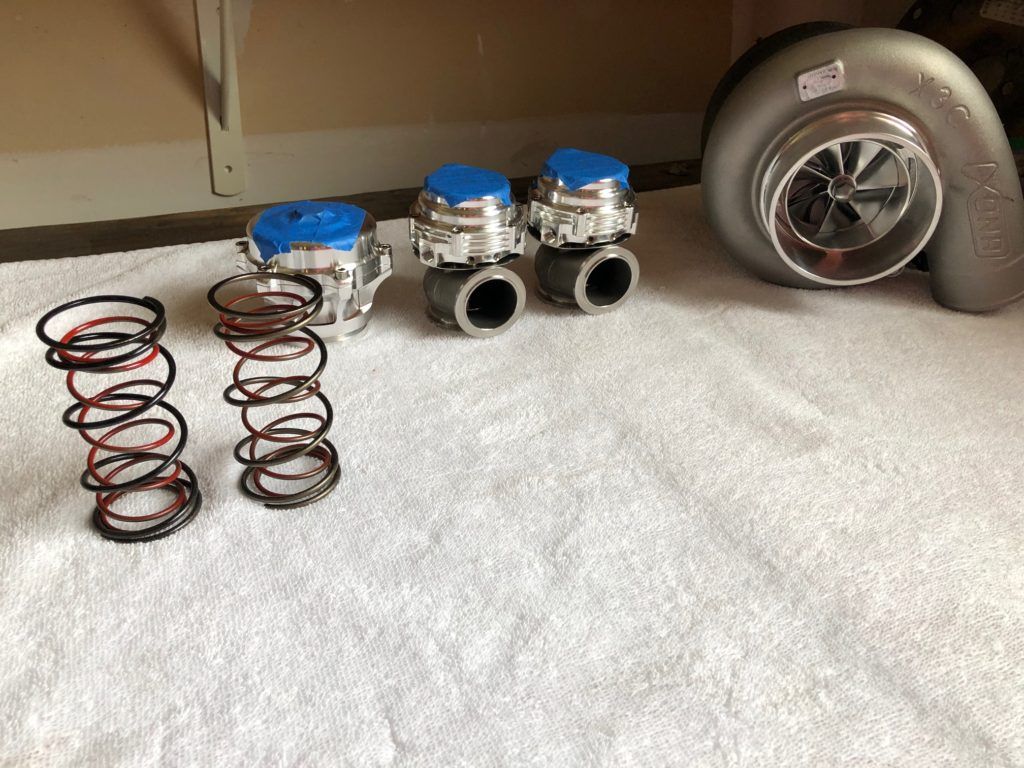

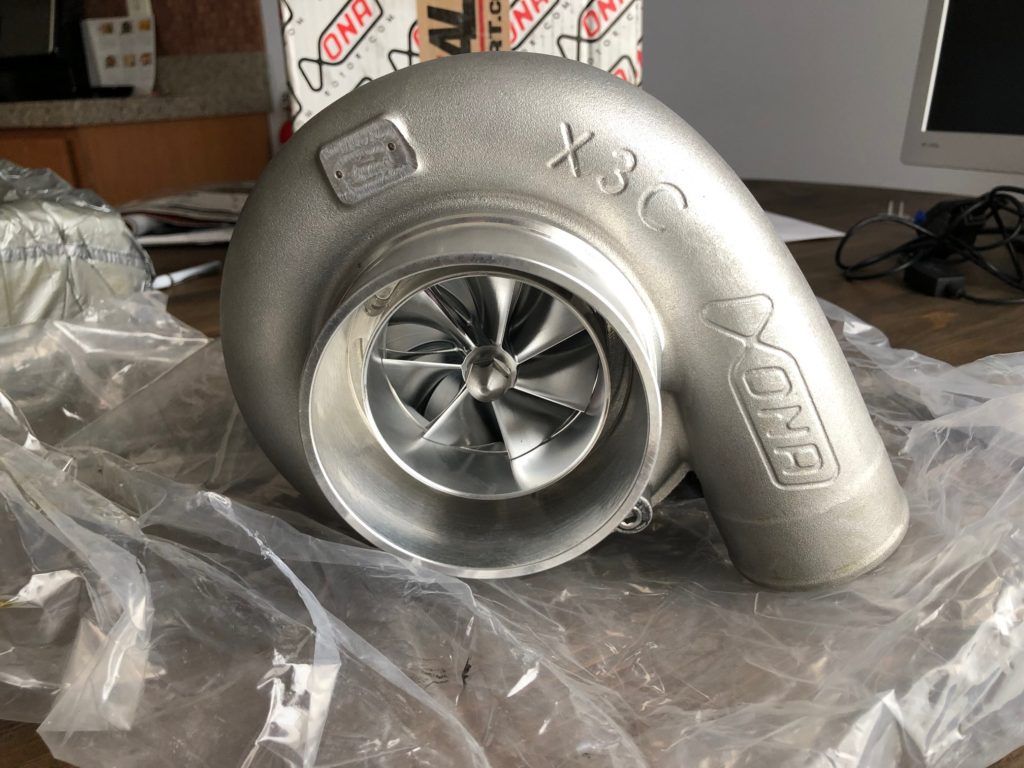

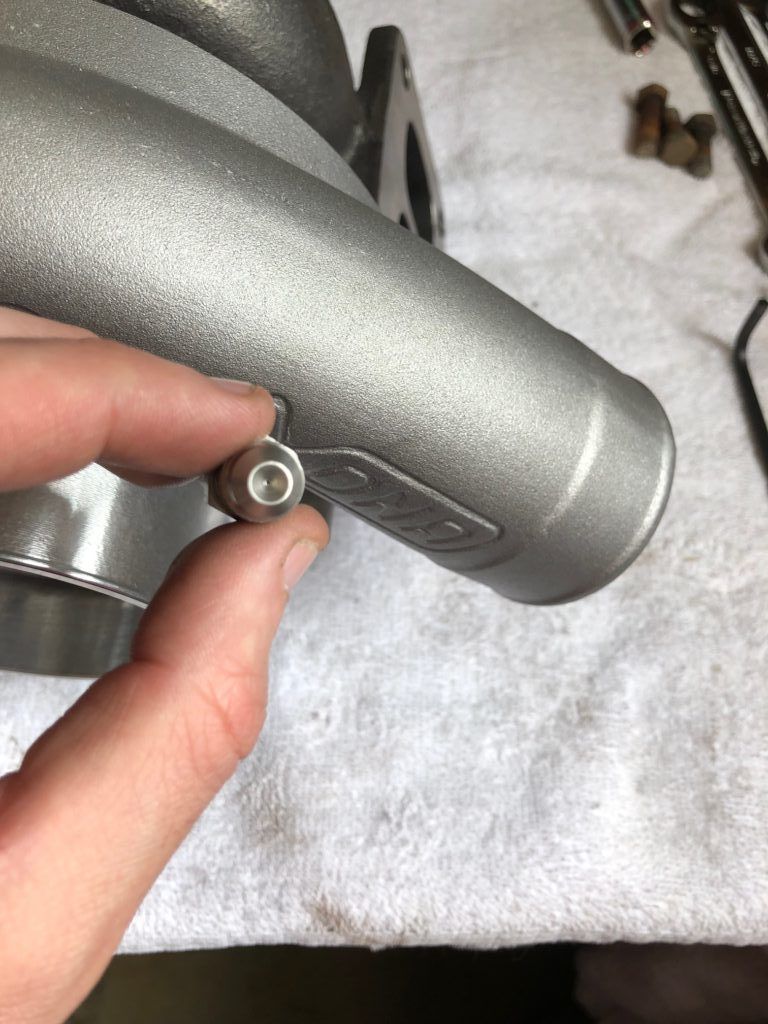

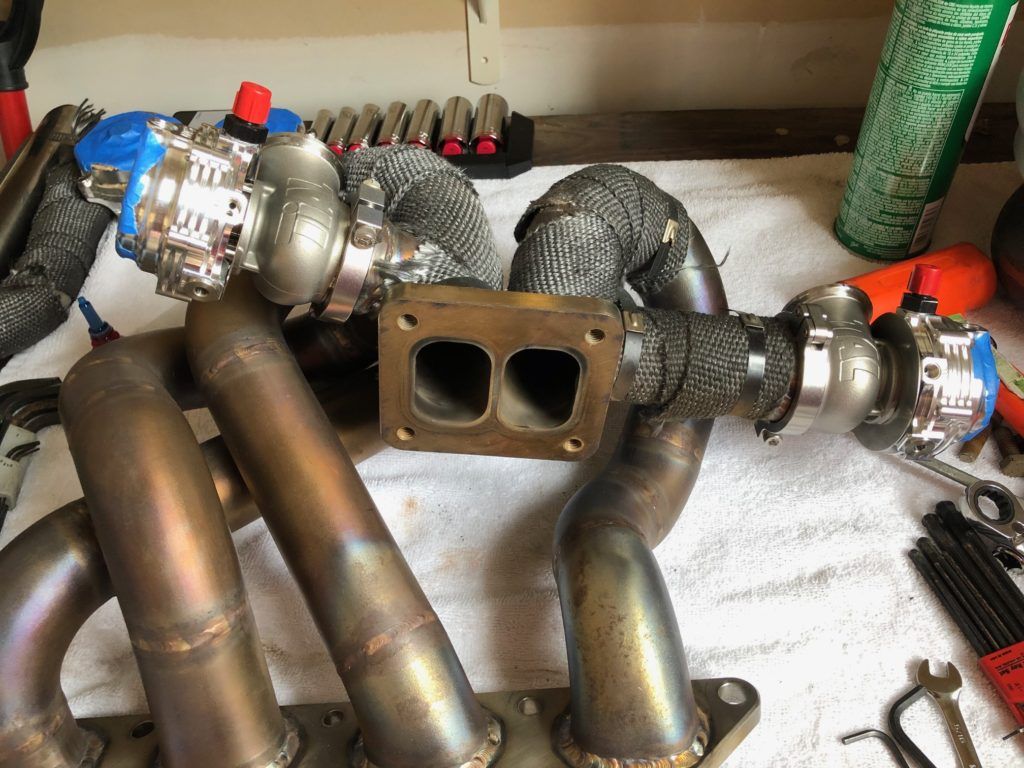

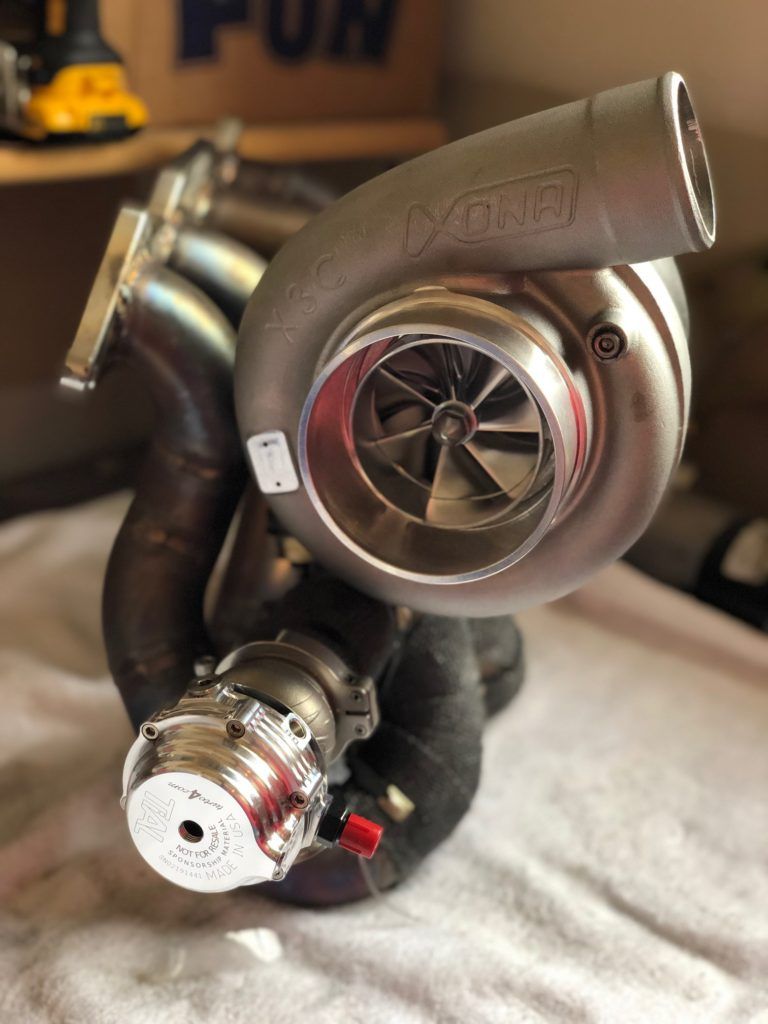

    As you saw in the previous post, I have a new Xona Rotor XR 105 68 turbocharger for the car. The thing is beautiful, I can’t wait to get the engine in the car so I can mount it. I’m so glad to have Xona Rotor on board for this project, they’ve been amazing to work with.

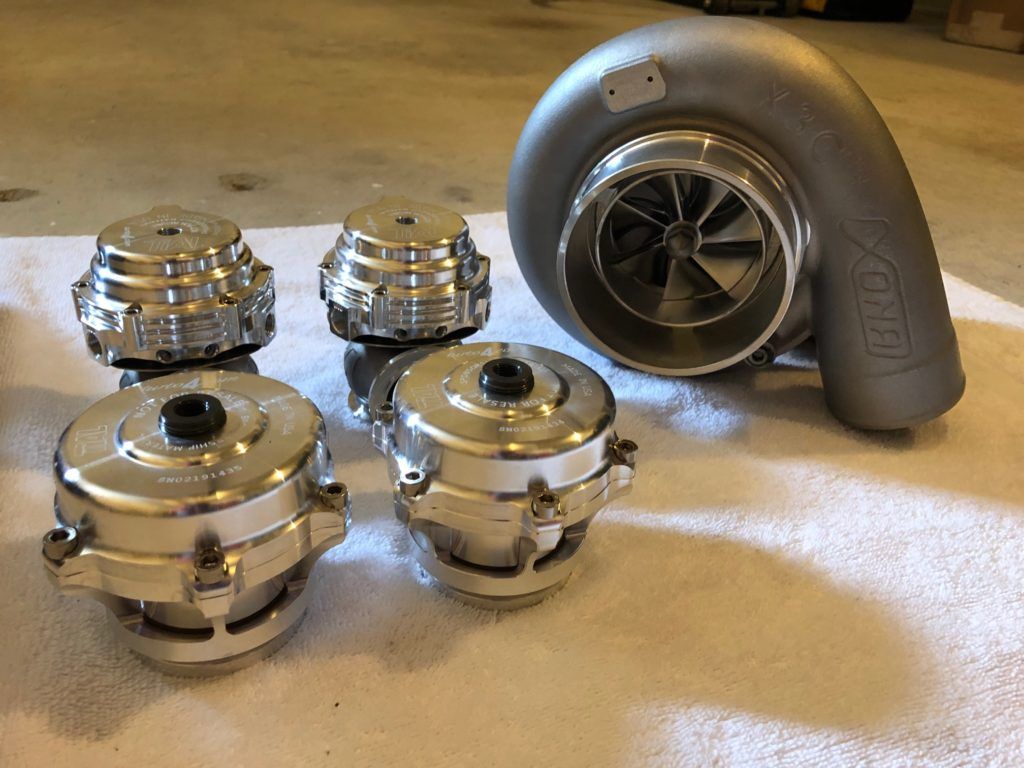

    I also got a new set of TiAl MV-S Wastegates and a pair of Tial Q BOV’s. These were custom engraved by TiAl with my turbo4.com logo on them and they look killer.

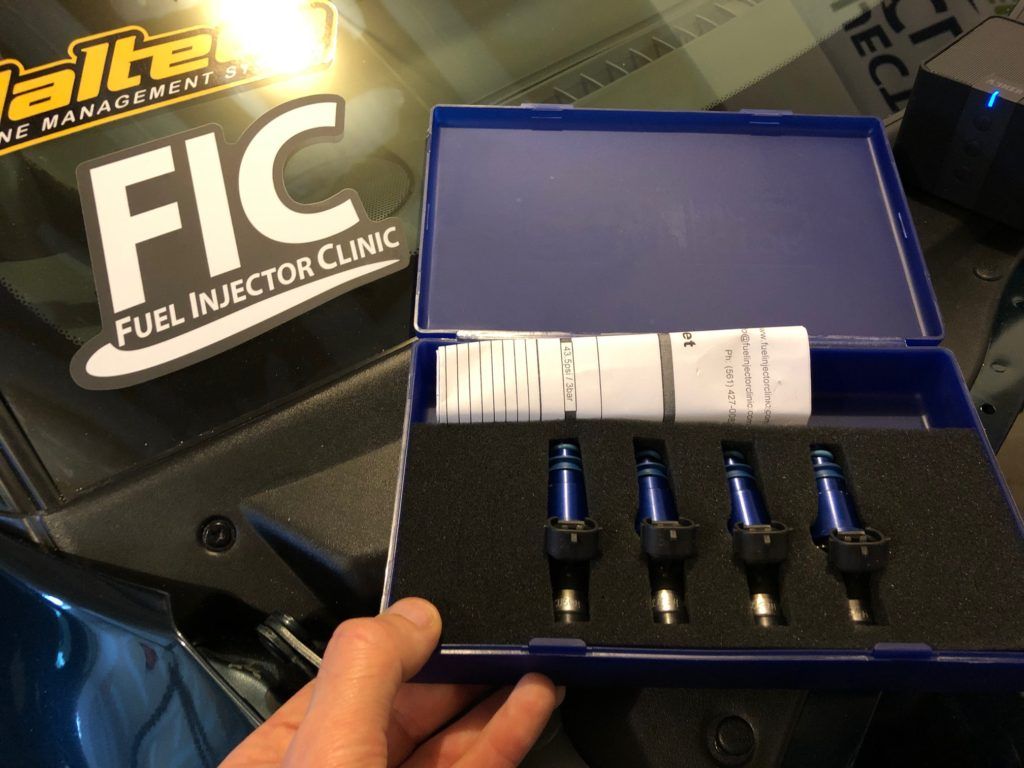

    I got my Fuel Injector Clinic 2150’s cleaned by FIC and back here. I’ve had these injectors a long time, FIC has since changed their adapter arrangement for more connector clearance but what I have works just fine for me.

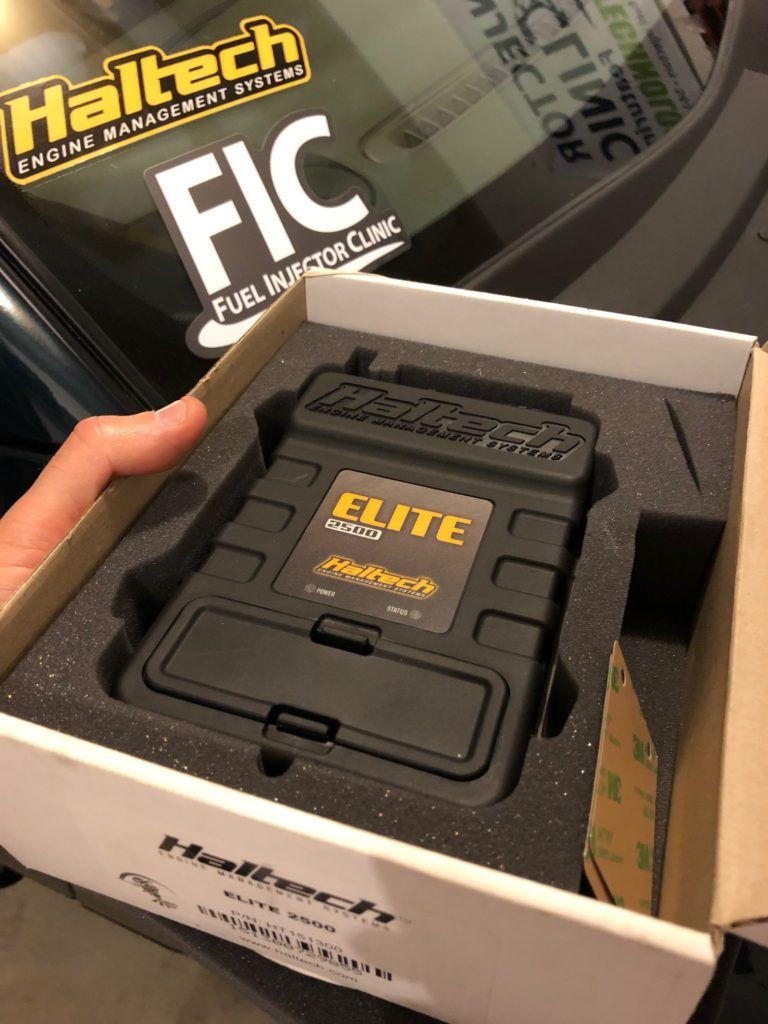

    I also got my Haltech Elite 2500 for the car and started the wiring using Haltech’s premium unterminated harness. This is the same ECU and harness I use in the dragster.


    I got a bunch of Kiggly goodies but the only one I have a picture of at the moment is the crank trigger. You can see the main girdle in the previous post I made. I also have the oil pressure modifier and Kiggly’s Front Clutch Basket.

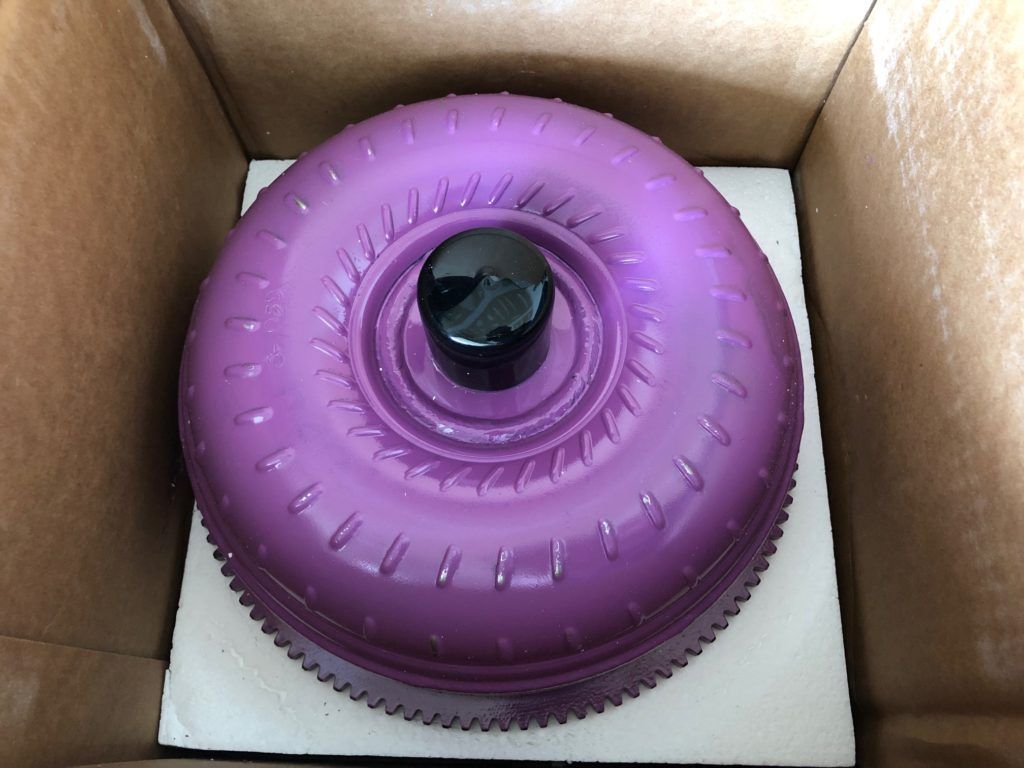

    Here’s my Precision converter that I’ll be using. This is a Precision #6 converter in their token purple color.


    Here’s what I’m using for both my engine oil cooler and transmission cooler. I purchased two of these Derale fluid coolers and I’ll be mounting them in the side openings


    And here’s my random rack of parts. You’ll notice some manual parts here too because I also have a dogbox for this car that may or may not go back in after Drag Week.



    Street Build 2K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    3K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
  14. Goldenugget

    Goldenugget Probationary Member

    17
    9
    Joined Jan 30, 2019
    Albany, New York
    Awesome build man. I plan on running a Haltech 1500 in my car with drive by wire. Just a fyi to everyone a 4g eclipse e throttle body bolts right up to a stock dsm manifold. It requires some porting because the 4g gt throttle body has a larger diameter but it has the same bolt pattern. I am going to be running a 4g eclipse pedal also. Keep up the awesome work man.


    Street Build 154  2

    1990 Mitsubishi Eclipse GSX
    awd · manual · 1G DSM
    Loading...
  15. bling5tatus

    bling5tatus Proven Member

    1,308
    96
    Joined Sep 23, 2005
    DFW/Austin, Texas
    ^^Please document that when you do it or link to it if someone else already has. Thank you.


    2K  0

    1989 Dodge Colt GT
    manual · 4G63t Swapped

    2K  1

    1991 Eagle Talon TSi
    fwd · manual · 1G DSM
    Loading...
    streetraceboi and turbotalon1g like this.
  16. LONEWOLF01

    LONEWOLF01 Proven Member

    121
    1
    Joined Feb 9, 2005
    BROOKLYN, New York
    Mines was 6 months sometimes I think I should order extra and sell at a profit..

  17. FAQGSX222

    FAQGSX222 Supporting Member

    149
    66
    Joined Jul 26, 2015
    Louisville, Tennessee
    Absolutely enjoy following your build! Your dragweekdsm site is so well done as well. It’s nice to have an outlet where everyone has an opportunity to speak directly to with questions they may have. The amount of time you’re dedicating to the build is awe inspiring.


    Street Build 1K  10

    1998 Mitsubishi Eclipse GSX
    awd · manual · 2G DSM
    Loading...
  18. Got Grip

    Got Grip Proven Member

    160
    117
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    Thanks! I'm glad to hear you're following along here and on my website! Please share with your DSM friends. I've been posting a bunch on my instagram also: @tony_turbo4

    I'm WAY behind on posting but I'm planning on catching up some this weekend. I've been working around the clock on the car because Drag Week is rapidly approaching.

    Stay tuned!


    Street Build 2K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    3K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
    Mattjaye2198 likes this.
  19. Vegas smith

    Vegas smith Proven Member

    2,688
    1,271
    Joined Dec 2, 2002
    Houston, Texas
    Honestly, I doubt you'll even hit 12's with all the cheap parts you've bought ;)


    Street Build 3K  10

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  20. OH91awd

    OH91awd Proven Member

    623
    273
    Joined Sep 22, 2011
    chillicothe, Ohio
    any updates on this? i seen where you guys got it running and seen on you instagram where you were unloading the first day of dragweek but never seen any results from it?


    Drag Race Build 2K  17

    1992 Eagle Talon TSi AWD
    10.89 @ 125.67 · 1G DSM
    Loading...
  21. bastarddsm

    bastarddsm Proven Member

    4,424
    996
    Joined Aug 26, 2003
    Mendota, Illinois
    No dsms made it back to Virginia Friday.


    Showcar Build 5K  1

    1991 Eagle Talon N/T
    9.805 @ 144.00 · 1G DSM
    Loading...
  22. motomattx

    motomattx Proven Member

    1,758
    557
    Joined Dec 9, 2010
    wampum, Pennsylvania
    It blew itself to pieces is my guess LOL.


    Drag Race Build 3K  16

    1995 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  23. v8s_are_slow

    v8s_are_slow Proven Member

    2,211
    86
    Joined Sep 30, 2002
    Panama City, Florida
    Last update was close to 5 months ago. Any news?


    1K  20

    1998 Mitsubishi Eclipse GST
    10.949 @ 129.77 · 2G DSM
    Loading...
  24. OH91awd

    OH91awd Proven Member

    623
    273
    Joined Sep 22, 2011
    chillicothe, Ohio
    i found something through digging. apparently they torched a head beginning of the trip and it got the block as well.


    Drag Race Build 2K  17

    1992 Eagle Talon TSi AWD
    10.89 @ 125.67 · 1G DSM
    Loading...
  25. Got Grip

    Got Grip Proven Member

    160
    117
    Joined Sep 17, 2002
    Philadelphia, Pennsylvania
    Sorry for the lack of updates. The build got crazy in the last couple months getting ready for the race. I'm going to make some posts now to catch everyone up.

    The cliff notes are: I worked around the clock the last couple months getting the car done and working through some issues, parts delays, etc. I got the car running about 1 week prior to Drag Week and driving the Friday before leaving for Drag Week. The car saw zero boost, only a couple miles of street driving before packing up to head to Virginia. I was trying to creep up on things slow but in the thrash of everything, I made a mistake somewhere along the way. I believe in my haste of getting the car running quickly, I did set the base timing properly. This is something I normally would have gone back and checked just to be safe but I was out of time. The car ended up torching the head gasket on only the third pass getting into boost. I had a head gasket with me but it hurt the head also when it let go, I didn't have a spare head.

    The car is home now and I'm already planning the new engine. I'll get it back together soon and start getting it ready for Drag Week 2020. I'll also finally catch up on this blog that I've neglected.

    So, time to rewind since as of my last post, there wasn't even an engine in the car!


    Street Build 2K  1

    1995 Mitsubishi Eclipse GSX
    9.99 @ 148 · 2G DSM

    3K  7

    2008 4G63 Dragster
    6.474 @ 210.18 · 4G63t Swapped

    2K  17

    1995 Mitsubishi Eclipse GSX
    10.03 @ 148 · 1G DSM
    Loading...
    ErikTande and familyMAN like this.
