1G NA Throttle body rebuild

[Turbski91]

can someone point me in the right direction of all the seals required to rebuild my 1992 non turbo throttle body? I tried searching and from the looks of it people are mostly saying the seals are no longer available, but I’m not even sure what seals i would need. I found the shaft seals on STM but not sure if there are more?



[MindBlowin03]

There are technically no seals to be purchased straight from Mitsubishi. They only sold the throttle body as complete.

Most of the DSM vendors will sell the aftermarket seals to rebuild it. Extreme PSI and is always a good choice.



[DSMPT]

You would need :

One of those seals below.

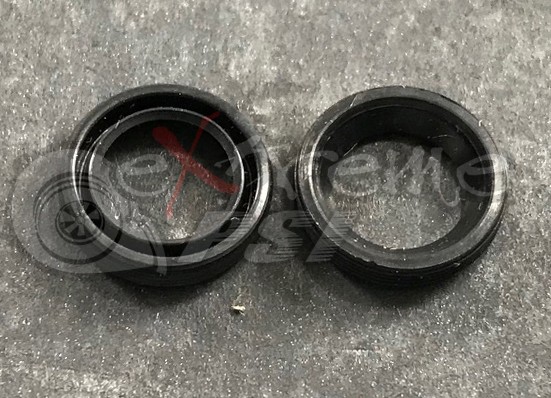

Throttle Body Shaft Seals (Heavy Duty): Mitsubishi Eclipse 91-99

Do you have a turbo DSM with a leaky or sticking throttle plate? Are you hearing a large amount of air rushing through the throttle body when you use our leak tester? You may have worn-out throttle shaft seals. The seals keep the throttle plate shaft centered and positioned in the throttle body...

www.extremepsi.com

Throttle Body Shaft Seals: Mitsubishi Eclipse 4G63T 1991-1999

Do you have a turbo DSM with a leaky or sticking throttle plate? Are you hearing a large amount of air rushing through the throttle body when you use our leak tester? You may have worn-out throttle shaft seals. The seals keep the throttle plate shaft centered and positioned in the throttle body...

www.extremepsi.com

And : (You may be able to reuse the Cap and BISS)

OEM Mitsubishi Biss Throttle Body O-ring

Brand new OEM replacement Biss throttle body O-ring. Part number: MD608806

www.extremepsi.com

OEM Mitsubishi Biss Throttle Body Screw

MIT-MD614948

www.extremepsi.com

OEM FIAV Seal: Mitsubishi Eclipse 91-99

OEM FIAV Seal: Mitusibhi Eclipse 91-99

www.extremepsi.com

https://www.extremepsi.com/store/OEM-Mitsubishi-Biss-Throttle-Body-Cap.html

Replacing only the seals is not difficult but pay extra attention when you loosen the two screws that are holding the throttle plate to the shaft. Those screws are sometimes hard to loosen and get stripped easily.



[RamenPride]

1G NT Throttle Body Shaft Seals

So I'm looking to put a 1G NT Throttle Body on my 2g and wanted to replace the throttle body shaft seals. It looks as though the regular turbo shaft seals don't quite fit (too big?), so aside from machining the TB . . . anyone know where to pick up some seals for this thing?

www.dsmtuners.com



[Turbski91]

Thanks guys! I guess I’ll be rebuilding my throttle body soon!



[IvanovBG]

Hi guys,

I recently had to take off my throttle body, and now I would like to install a new gasket for it. The one that came off, may be the factory original one, as it's made from metal.
It looks to be in a good condition, but it's very slightly warped in a couple of places and I'm not sure it's a good idea to reuse it.

The OEM number for my NT car is MD192535, but my local parts store isn't able to source it.
When doing some research, the only one that still seems to be in production is MD146399, which is for the turbocharged 1G cars.

These are the two gaskets:

You must be logged in to view this image or video.

You must be logged in to view this image or video.

My question before potentially ordering one is, can I just use MD146399? I feel like it shouldn't matter at all, unless there's a difference in the diameter.



[CrackedDSM]

There's a difference diameter. The N/T throttle body is 60mm(if I recall correctly) and the turbo throttle bodies are smaller. Can't remember how much smaller, but they are smaller.



[1990TSIAWDTALON]

1g turbo throttle body gasket from FelPro. #60879 is 60mm. They are around $6 at your local parts store.
2g throttle bodies are smaller, at 58mm, IIRC.
1G NT throttle bodies have a "snout" to attach a turbo coupler too instead of having to use a TB elbow.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.



[IvanovBG]

There's a difference diameter. The N/T throttle body is 60mm(if I recall correctly) and the turbo throttle bodies are smaller. Can't remember how much smaller, but they are smaller.

This is how my non turbo TB looks like:

You must be logged in to view this image or video.

When looking at a mirror image of the turbo gasket, those darker outlines for the holes look identical.

You must be logged in to view this image or video.

I measured my TB and it seems to be 60mm, maybe 59mm, can't be exact because I didn't have a caliper at hand. So it's actually the same diameter as the turbo throttle body?
I read different threads and it seems like there isn't a clear answer.



[IvanovBG]

1g turbo throttle body gasket from FelPro. #60879 is 60mm. They are around $6 at your local parts store.
2g throttle bodies are smaller, at 58mm, IIRC.
1G NT throttle bodies have a "snout" to attach a turbo coupler too instead of having to use a TB elbow.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

Hi Marty,

These Fel-Pro gaskets don't seem to be available here in Europe, or at least not here in Bulgaria. Online and in parts stores, there aren't any third party manufacturers for gaskets for the throttle bodies that I could find, not even AJUSA, which make a lot of gaskets for the 4G63 engine. The only options I have is to either order an OEM part or something from the US, which isn't worth it just for the gasket.

As mentioned, my TB is 59-60mm, so that turbo gasket with OEM number MD146399 should be fine, as longs as someone here locally can source it.



[1990TSIAWDTALON]

Ivan, can you buy raw rubberized gasket material (like fel pro 3157)? I have made my own several times with gasket material, a hole punch and a pair of scissors.
Reference pictures:

You must be logged in to view this image or video.

You must be logged in to view this image or video.



[IvanovBG]

Ivan, can you buy raw rubberized gasket material (like fel pro 3157)? I have made my own several times with gasket material, a hole punch and a pair of scissors.
Reference pictures:

You must be logged in to view this image or video.

You must be logged in to view this image or video.

I've decided to try out the OEM gasket for a turbo TB, as from what you've shown me, the diameter is the same as the non turbo. It's just $7 and I won't have to pay a delivery fee, so it's worth giving it a try. If for some reason it doesn't fit, I'll indeed have to resort to making a custom one with gasket material, this is the reality I'll have to face.



[1990TSIAWDTALON]

Well I don't think you need to worry. If the gasket seals all the way around on the TB and on the Intake flange, you are fine. You are only worried about vacuum leaks (which a little RTV would solve normally). The turbo guys have to worry about blowing that gasket out.
Best of luck, you will find a way as you seem to have the willpower!



[DSMPT]

There's a difference diameter. The N/T throttle body is 60mm(if I recall correctly) and the turbo throttle bodies are smaller. Can't remember how much smaller, but they are smaller.

1G NT, 1G Turbo and EVO 1-3 have the same diameter 60mm. If you are talking about the 2g turbo throttle body, yes that's smaller, 52mm.
Or some people says the 1g NT and EVO 1-3 is 63mm. But actually they are not 63mm, it's open 63mm at inlet since the 1G NT and EVO 1-3 come with the inlet pipe instead of using a separate elbow. It's 63mm but it's tapered to 60mm at the throttle plate. So they are the same as 1G turbo throttle body.



[CrackedDSM]

1G NT, 1G Turbo and EVO 1-3 have the same diameter 60mm. If you are talking about the 2g turbo throttle body, yes that's smaller, 52mm.
Or some people says the 1g NT and EVO 1-3 is 63mm. But actually they are not 63mm, it's open 63mm at inlet since the 1G NT and EVO 1-3 come with the inlet pipe instead of using a separate elbow. It's 63mm but it's tapered to 60mm at the throttle plate. So they are the same as 1G turbo throttle body.

Intriguing. For years everyone touted the 1G N/T TB as some "upgrade" because it was "bigger". Interesting to know its the same.



[FIBA M - EC17PSE]

The correct NT gasket seal is 535 as im about to do the same rebuild and use that exact part.



[DSMPT]

Intriguing. For years everyone touted the 1G N/T TB as some "upgrade" because it was "bigger". Interesting to know its the same.

At least, no need to worry about the elbow to match the port and requires one less gasket at inlet and it's larger than 2g's.
I personally like the evo 1-3 throttle body since it has less vacuum ports and the stop screw is 2g style which require no IPS to adjust the plate.



[IvanovBG]

Intriguing. For years everyone touted the 1G N/T TB as some "upgrade" because it was "bigger". Interesting to know its the same.

I also read similar threads and that's why I was unsure if the turbo TB gasket would fit. I'm glad we managed to clear everything up here.
