97 eclipse

[streetraceboi]

forgive me for being a noob, but what is that STM plate for?

It blocks the existing EGR valve.



[TheRippedNerd]

It blocks the existing EGR valve.

awe, gotcha, thanks for that



[JeffGS-T97]

forgive me for being a noob, but what is that STM plate for?

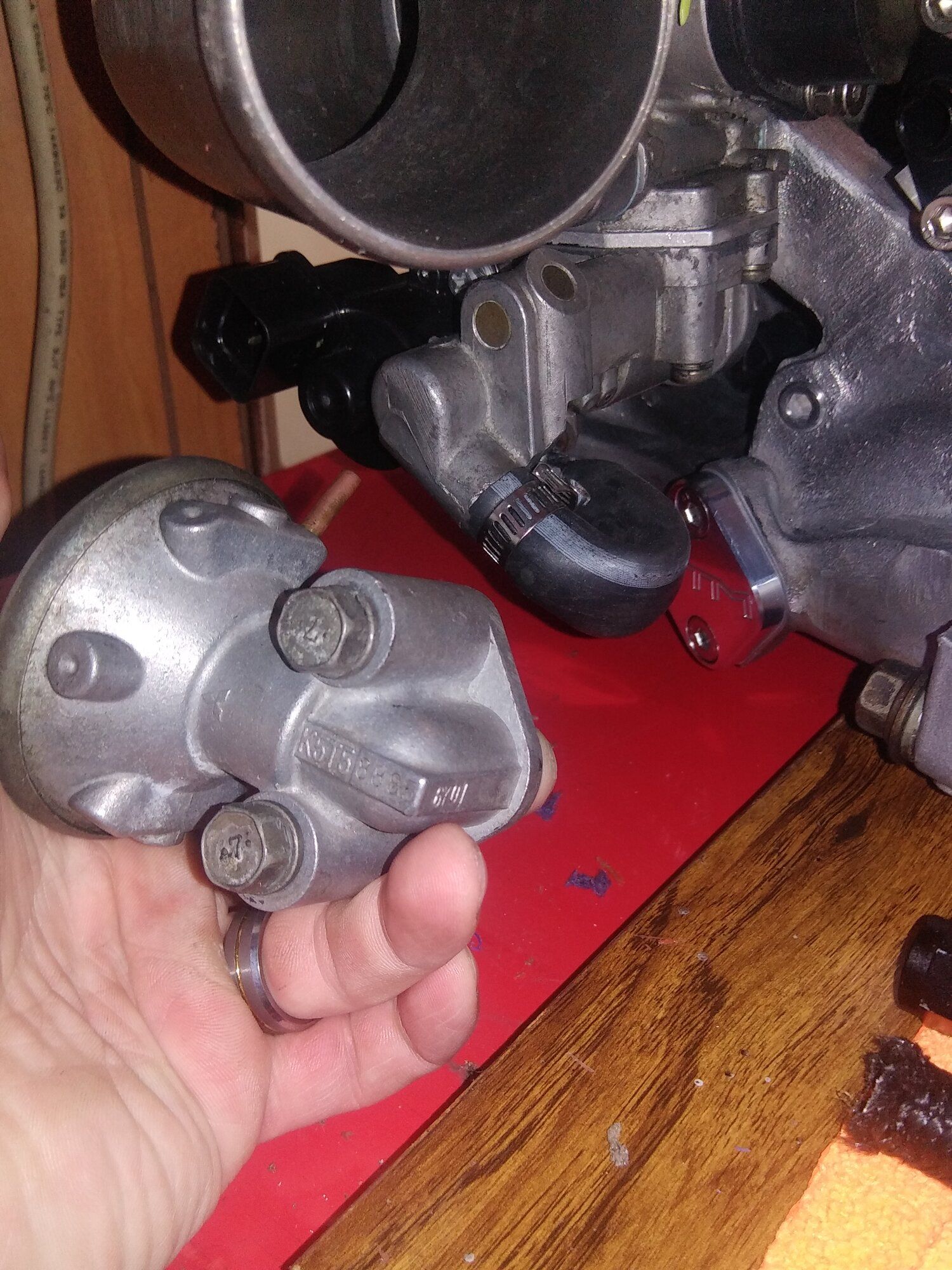

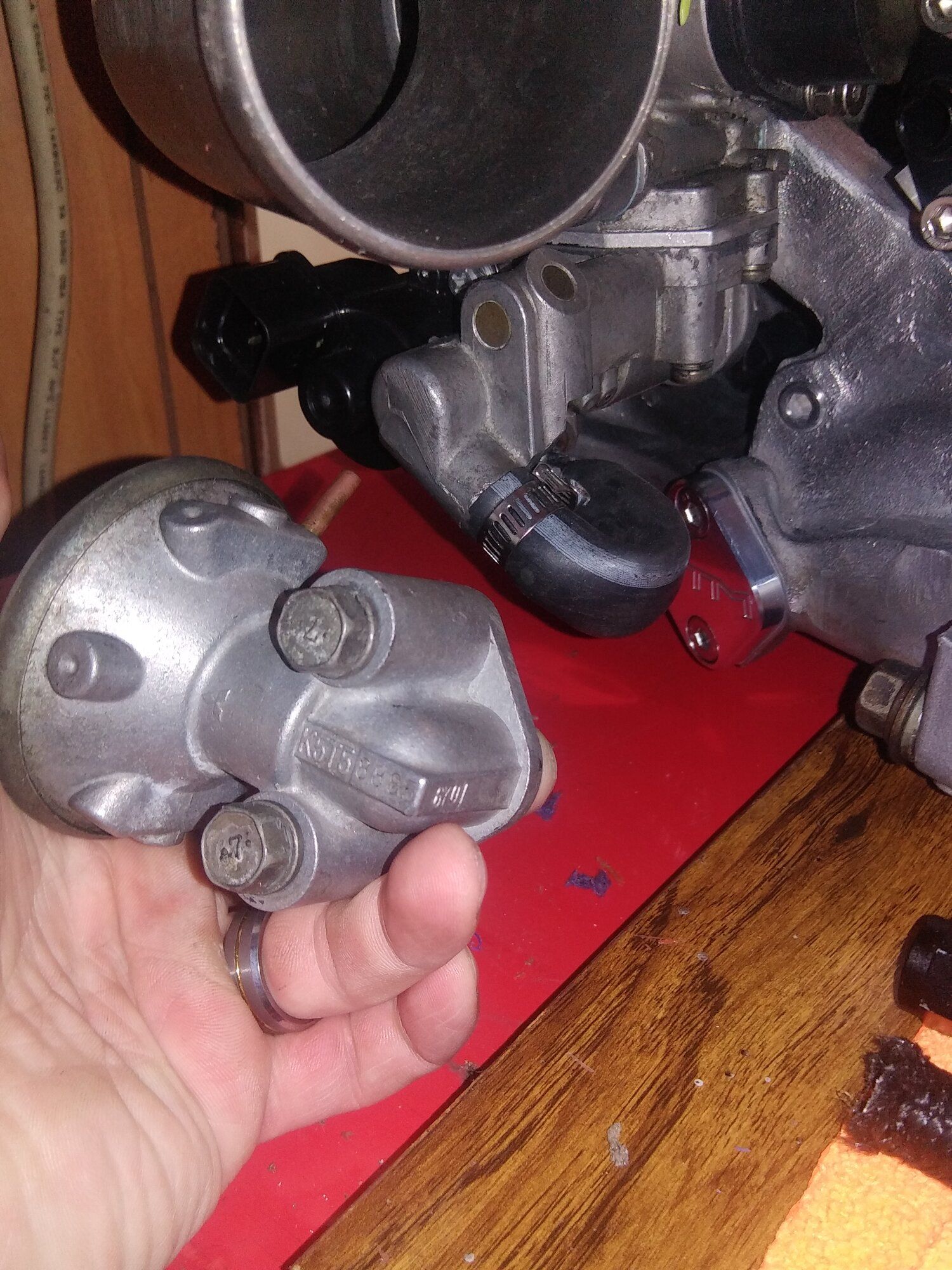

It is a block off plate for the EGR valve. This is the egr the plate replaced.



[TheRippedNerd]

It is a block off plate for the EGR valve. This is thing the plate replaced

View attachment 642419

oh wow, yeah, much more convenient! and better looking



[JeffGS-T97]

I can use all the room i can get. The 1g guys seem to have a bigger engine bay from what ive seen. The 1g intake mani I run is bigger than the 2g at the same time and it eats alot of space. The cruise control is removed, battery relocation, and emissions system deleted. Still it's a little full in there.



[JeffGS-T97]

Sorry im stoked as a motherf***** right now!!!



[JeffGS-T97]

View attachment 643072
View attachment 643074

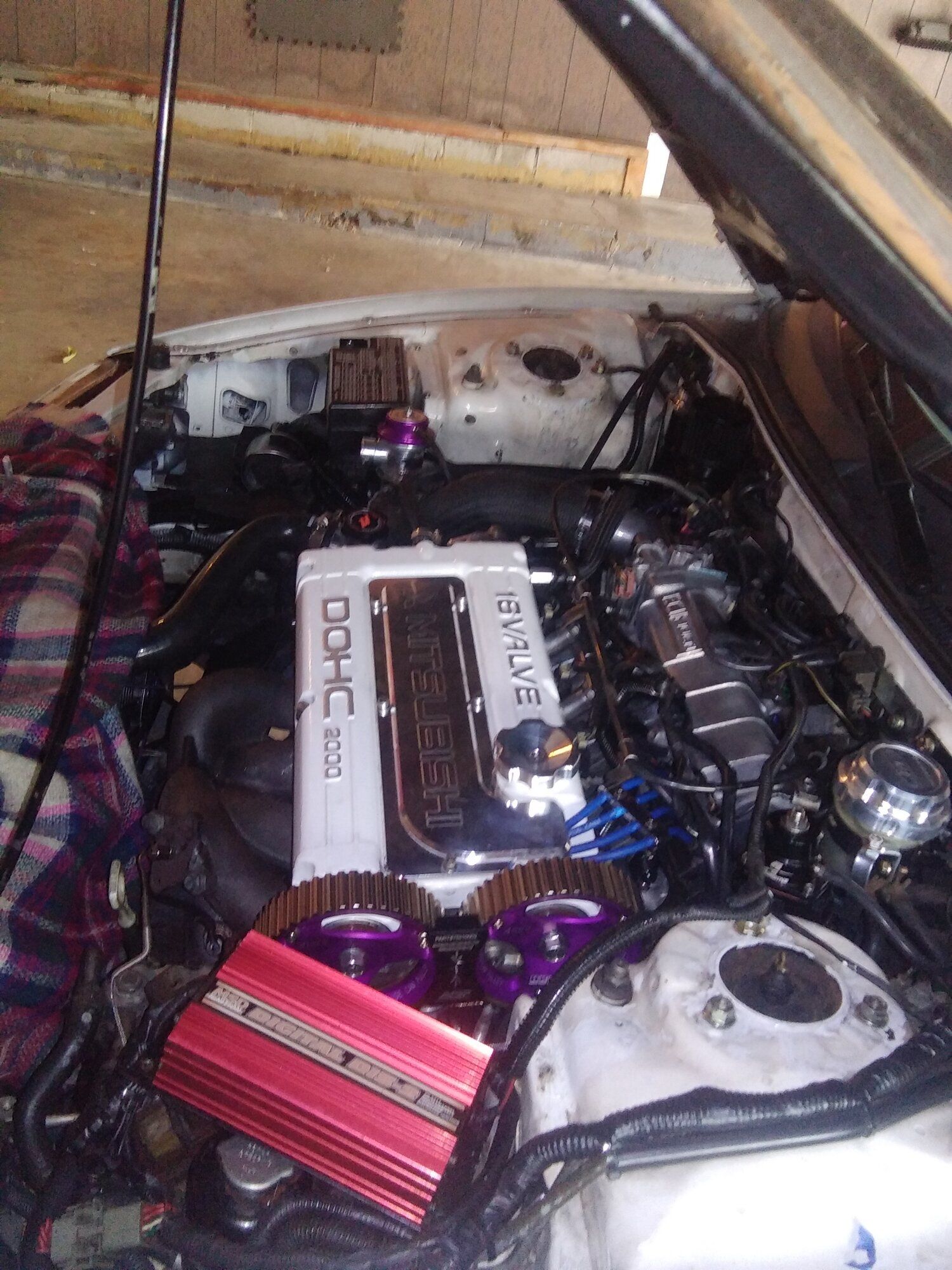

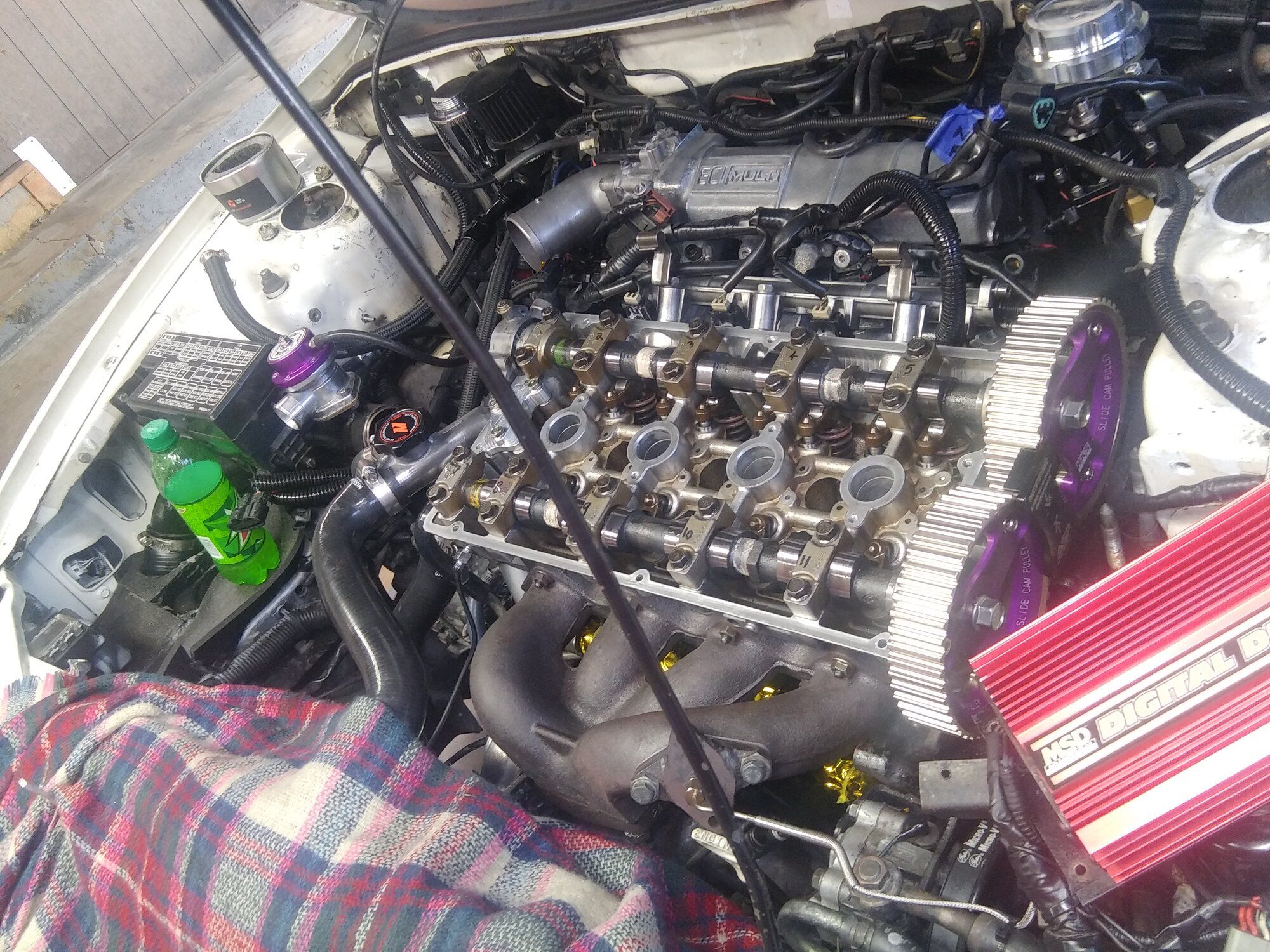

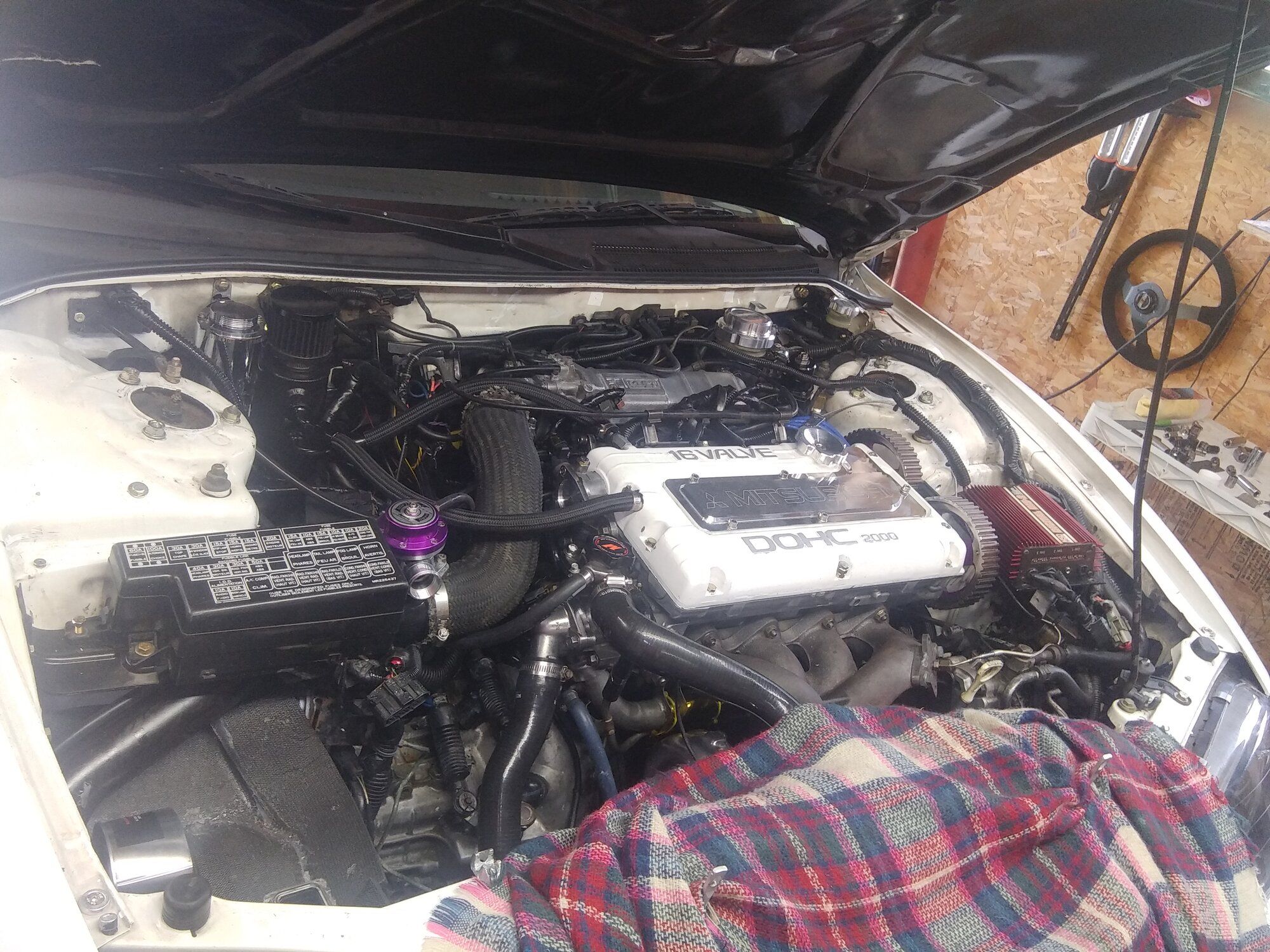

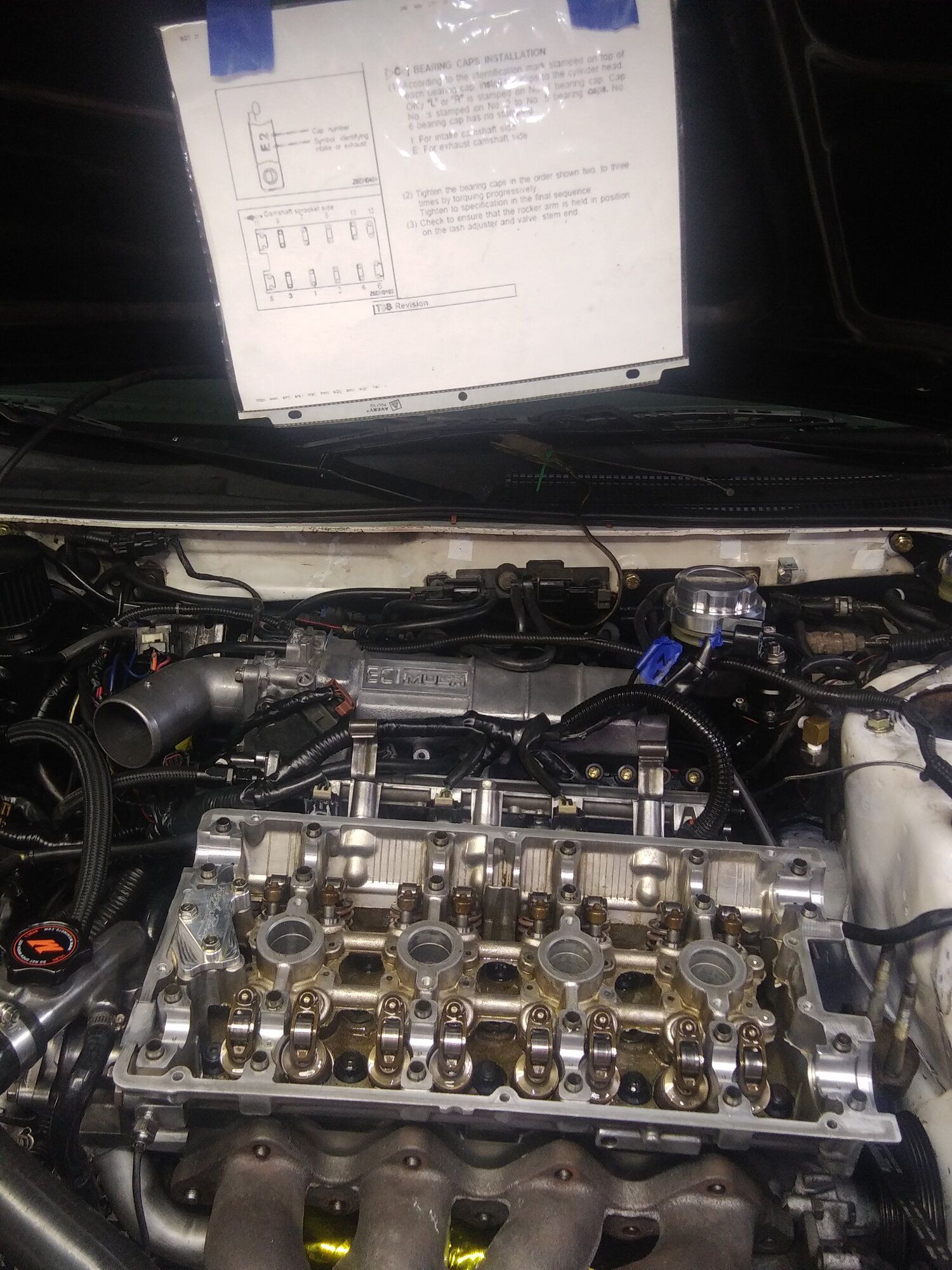

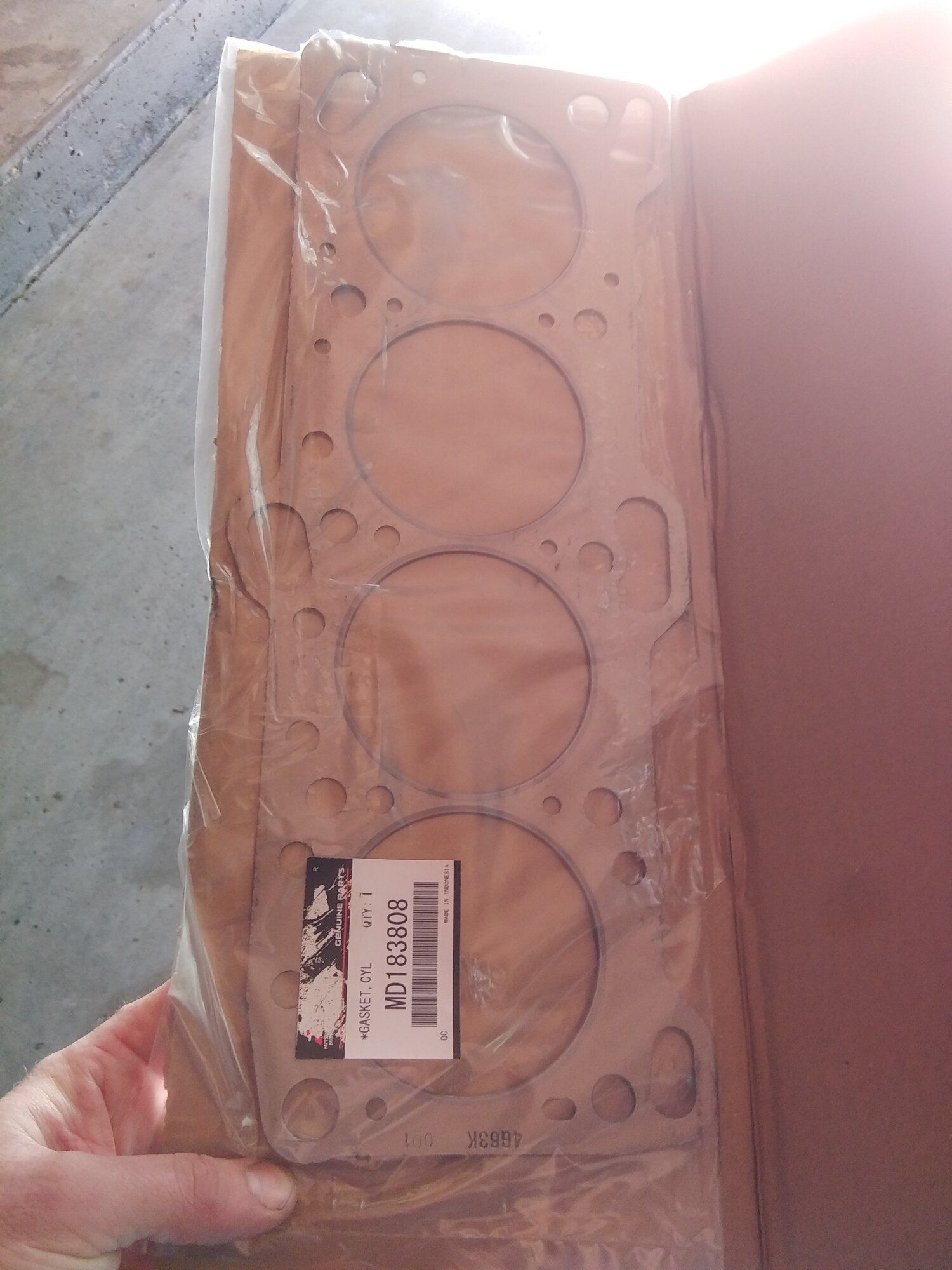

Made a little progress today. Got the head installed and plugged in a few sensors. Tomorrow i will assemble the valvetrain.



[JeffGS-T97]

Down to air intake, and setting the timing and replacing covers, can't forget that engine mount on the driver side.



[AWD-Tony]

If you ever decide to change exhaust manifold, I want first dibs on your current one.



[JeffGS-T97]

Really? How come?



[AWD-Tony]

You can’t get those anymore and I like the wastegate location on yours over it being on the O2 housing.



[streetraceboi]

You can’t get those anymore and I like the wastegate location on yours over it being on the O2 housing.

Ebay all day. Unless youre talking about a genuine Turbonetics one which are hard to find. I don't see the Turbonetics logo on this mani

REV9 DSM ECLIPSE 1G 2G TALON TSI GALANT 4G63 T3 T3T4 CAST IRON TURBO MANIFOLD | eBay



[JeffGS-T97]

You can’t get those anymore and I like the wastegate location on yours over it being on the O2 housing.

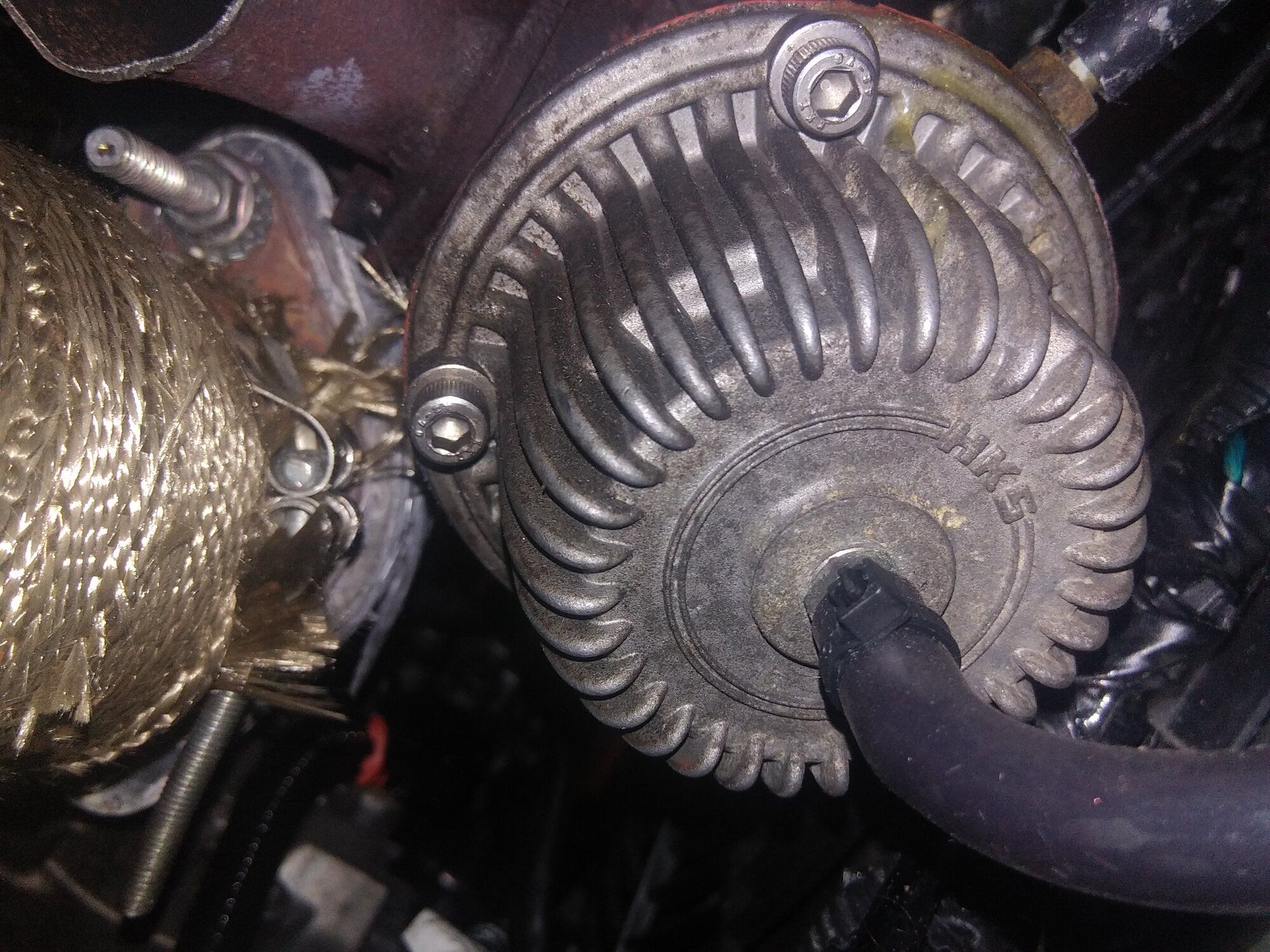

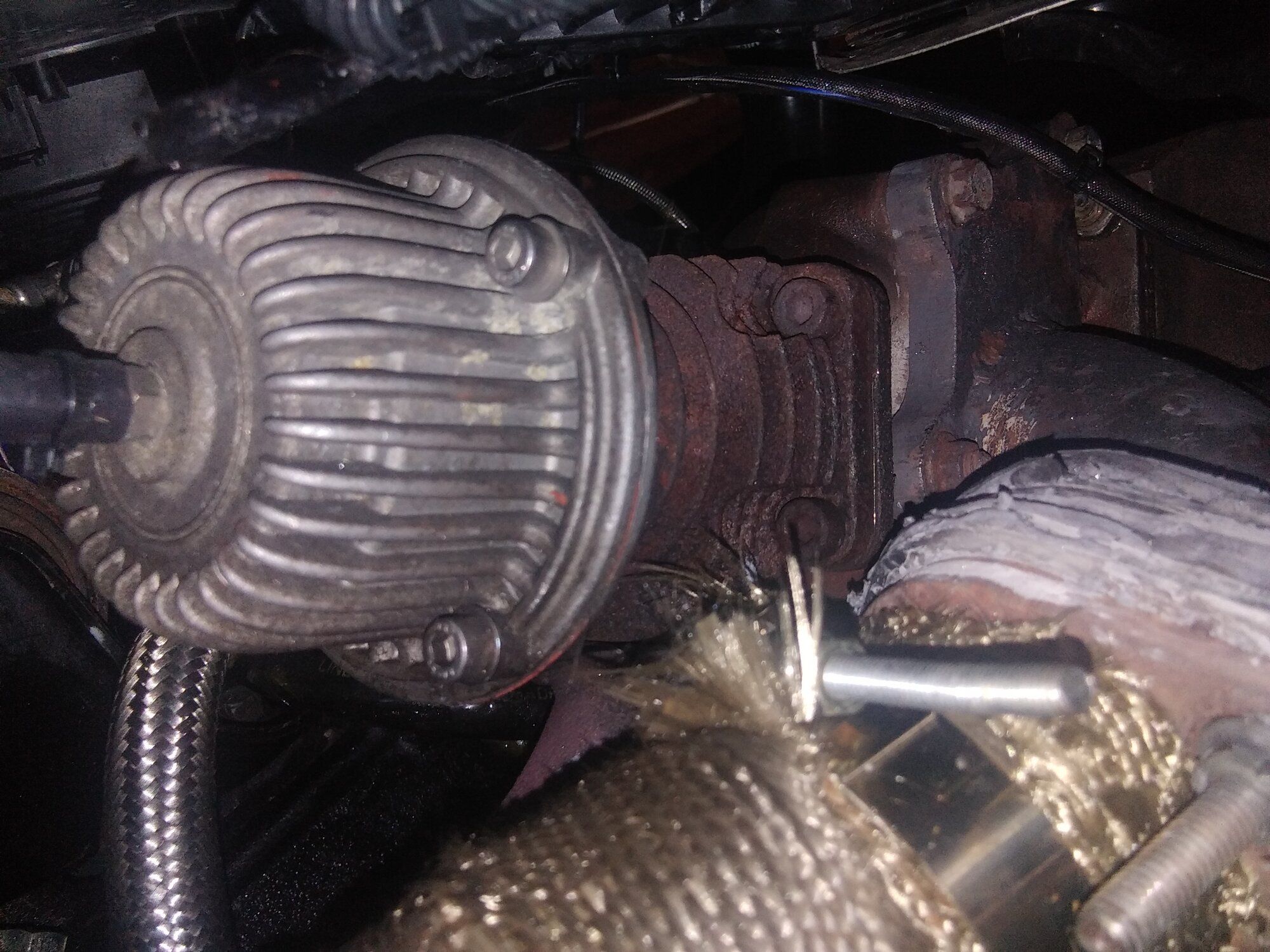

Oh ok i see. Yeah theres an HKS wastegate down there with an uncirculating dump pipe. I like the older vintage style parts too. That waste gate is like 20 years old . I took it apart to inspect it and everything looked perfect. The diaphragm was worn either which i thought if anything it would need one.



[JeffGS-T97]

The the wastgate port is directly on the turbo hot side housing.



[BLACK'98DSM]

That picture makes my hands tingle



[AWD-Tony]

Ebay all day. Unless youre talking about a genuine Turbonetics one which are hard to find. I don't see the Turbonetics logo on this mani

REV9 DSM ECLIPSE 1G 2G TALON TSI GALANT 4G63 T3 T3T4 CAST IRON TURBO MANIFOLD | eBay

Someone else made one, can’t think of the company at the moment. eBay

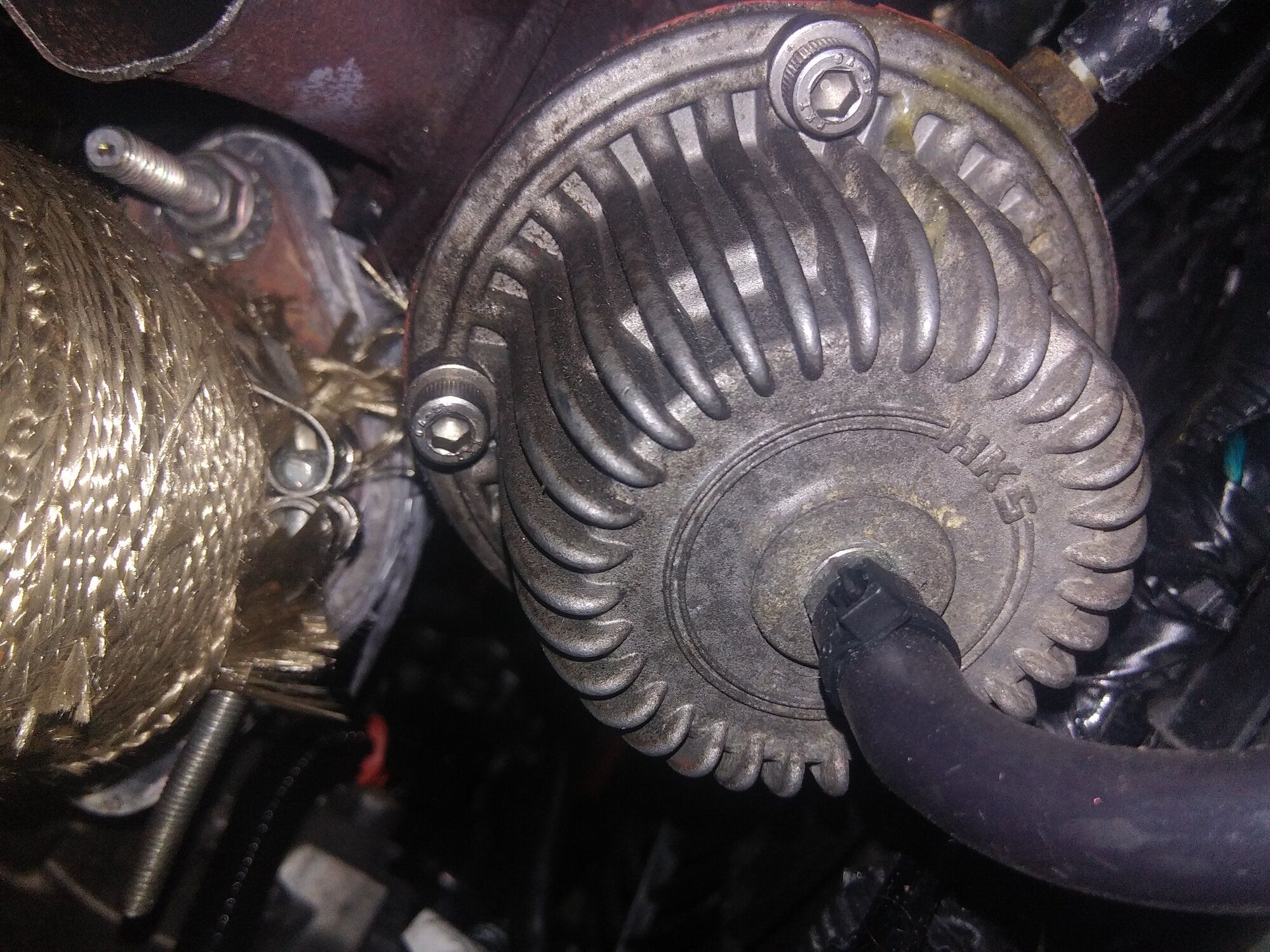

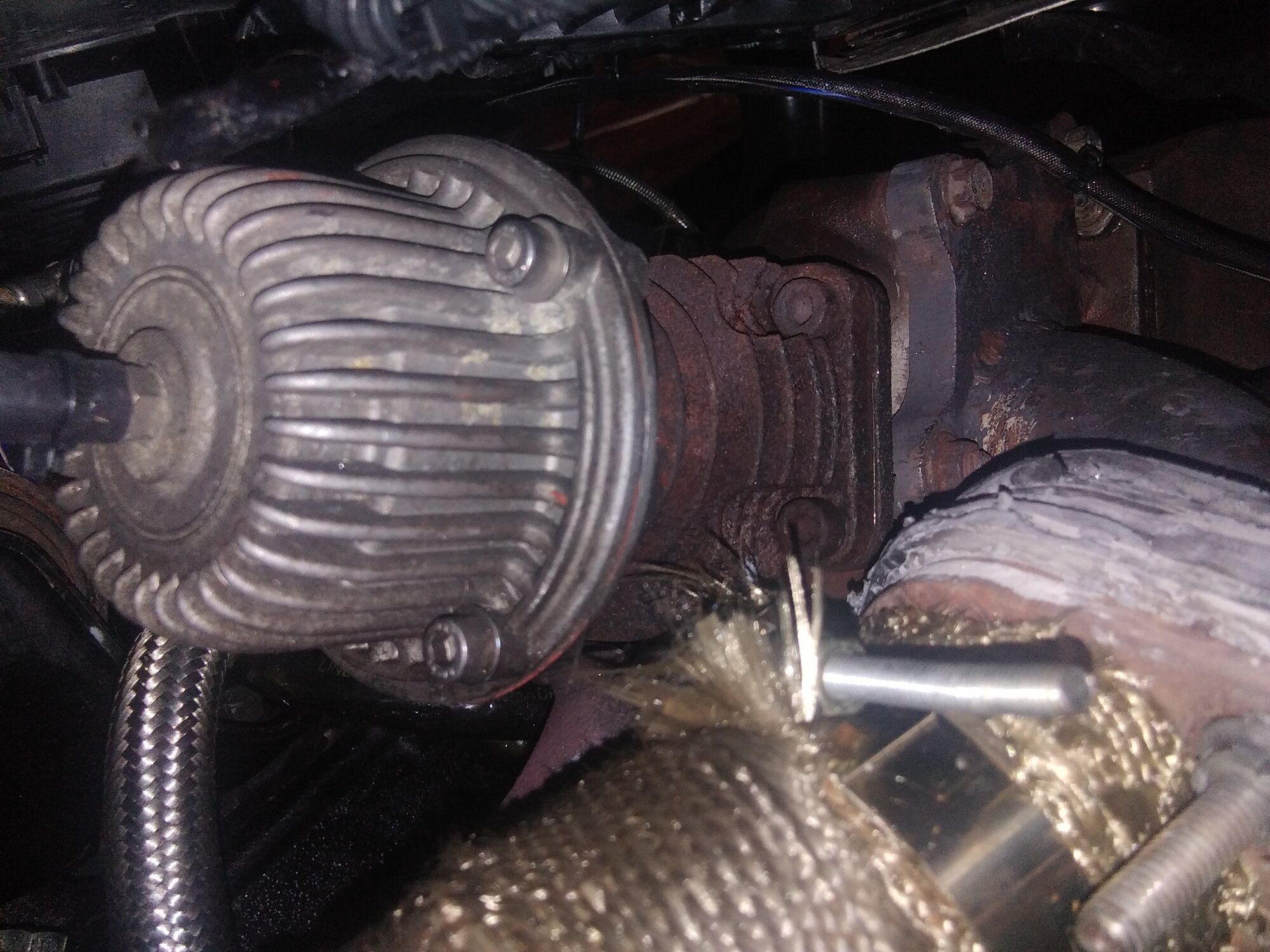

The the wastgate port is directly on the turbo hot side housing.

View attachment 643105

View attachment 643106

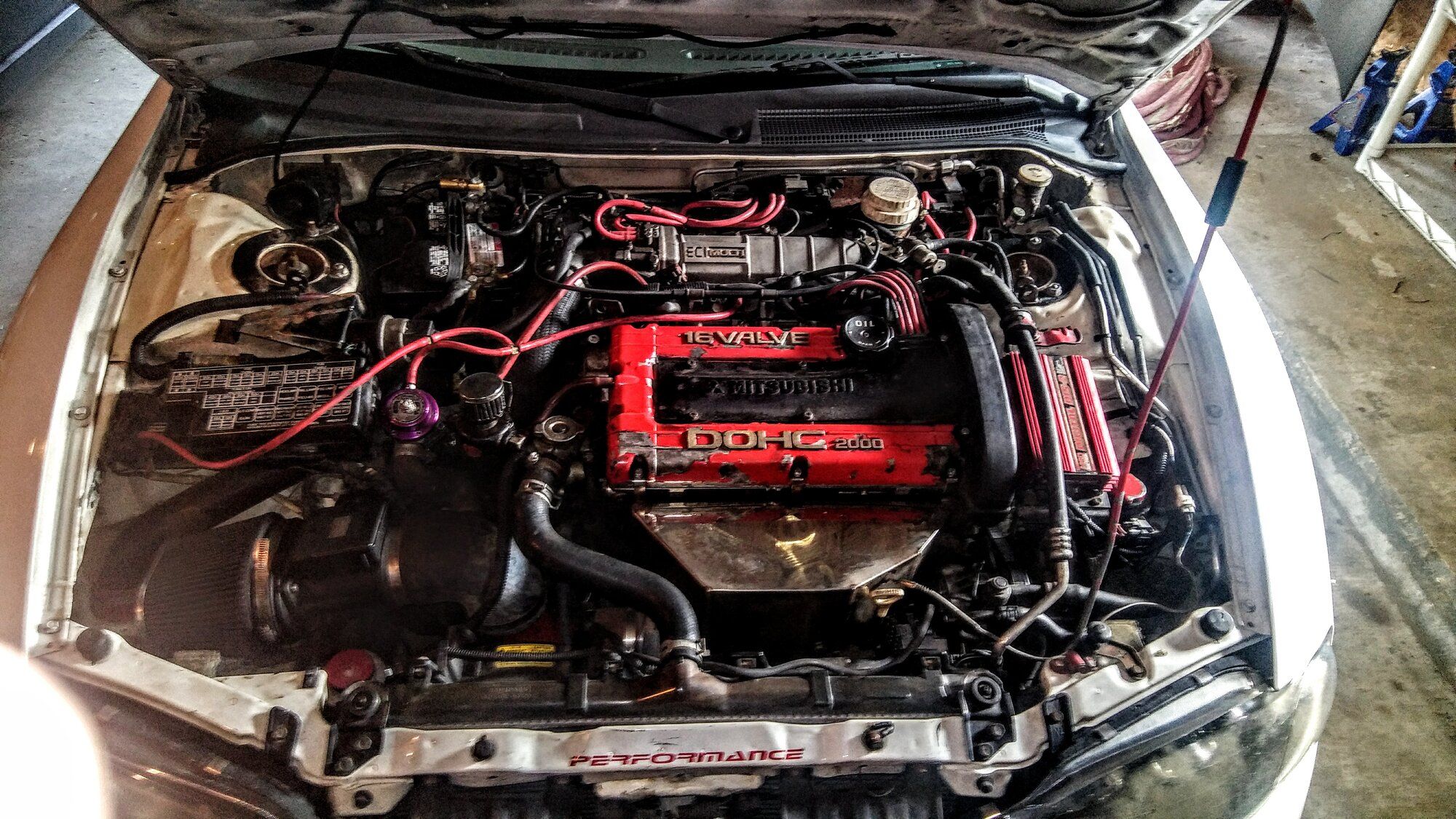

Yeah that’s vintage for sure. I hate how my dump is right next to the ic pipe so I’m sure it picks up some heat from there when I’m wot.

Funny eBay story. My buddy wanted his plugs changed. Told him to get it from the dealer. Shows up with ford plugs he got off eBay. Add said it fits his Nissan . He ran around for an hour .



[JeffGS-T97]

Ebay all day. Unless youre talking about a genuine Turbonetics one which are hard to find. I don't see the Turbonetics logo on this mani

REV9 DSM ECLIPSE 1G 2G TALON TSI GALANT 4G63 T3 T3T4 CAST IRON TURBO MANIFOLD | eBay

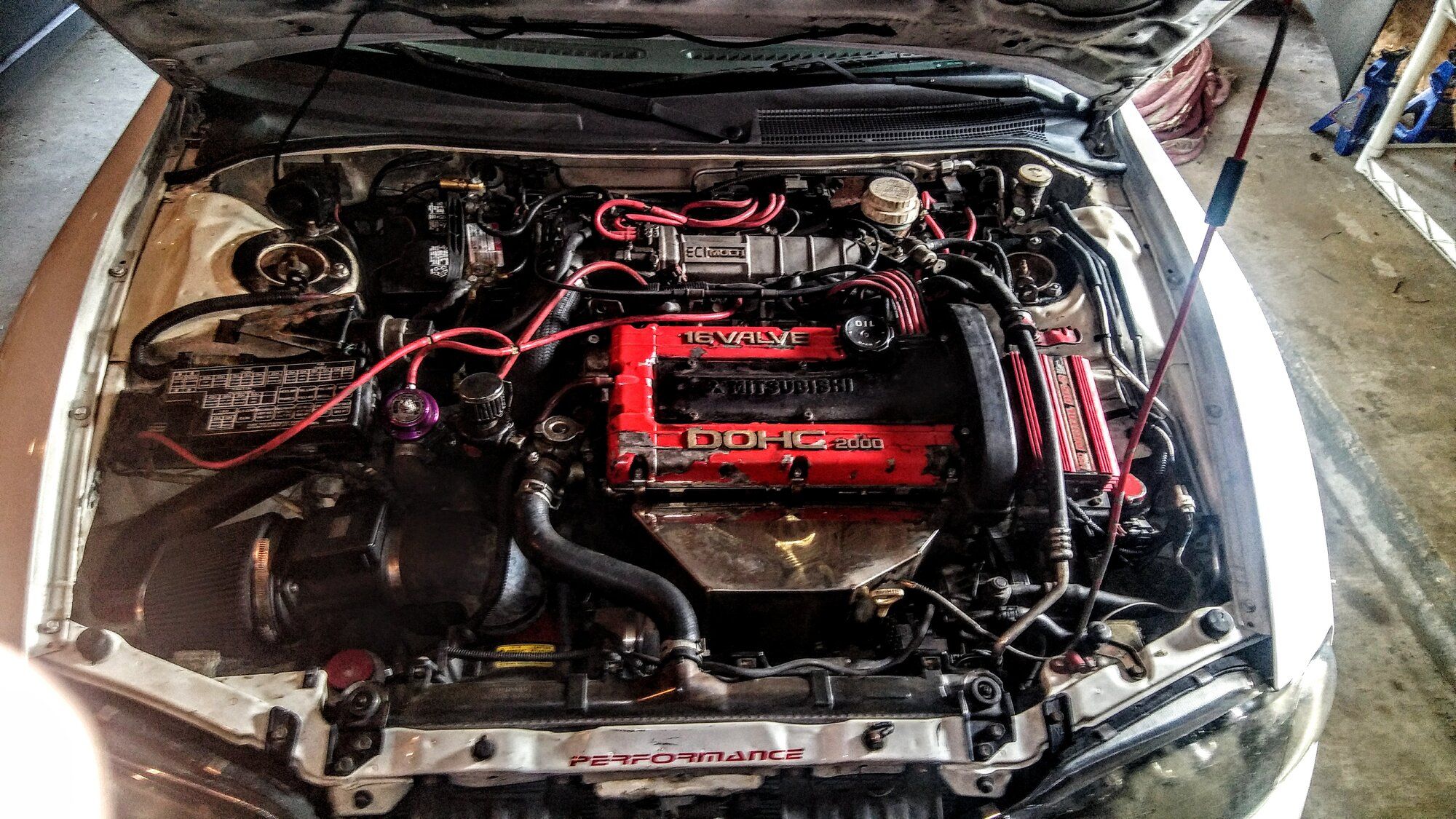

Ok so i bought this car back in 2018. As far as the exhaust goes i removed the heat shield that was on it took the turbo system out inspected it and cleaned it. The manifold, turbo, and all that were on the car at that time. I went with coating the manifold because it looked better in my opinion. So based on what you are saying this exhaust manifold is some kind of knock off? If so that is incredibly disappointing considering all the other great old school parts that were on it when i got it. Here is a pic of the condition the day i brought it home.



[DSMPT]

That waste gate is like 20 years old .

Maybe even older. It's from the mid/late 90s



[JeffGS-T97]

Wooooow!
I did not expect to hear that!



[streetraceboi]

Ok so i bought this car back in 2018. As far as the exhaust goes i removed the heat shield that was on it took the turbo system out inspected it and cleaned it. The manifold, turbo, and all that were on the car at that time. I went with coating the manifold because it looked better in my opinion. So based on what you are saying this exhaust manifold is some kind of knock off? If so that is incredibly disappointing considering all the other great old school parts that were on it when i got it. Here is a pic of the condition the day i brought it home.
View attachment 643116

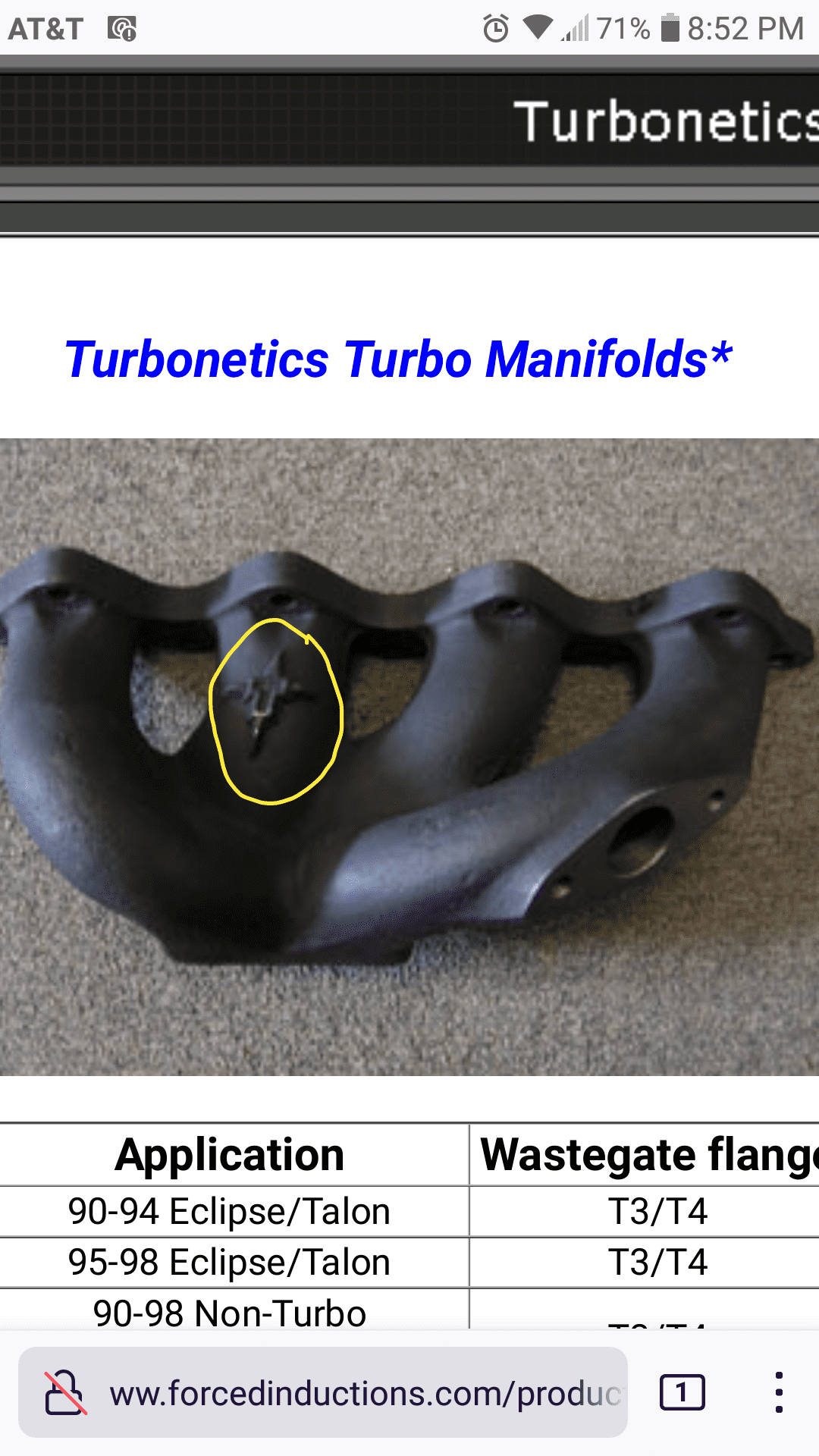

Yea it doesn't look like a Turbonetics. But it's lasted this long so it's obviously decent quality



[JeffGS-T97]

Yea it doesn't look like a Turbonetics. But it's lasted this long so it's obviously decent quality

This guy right here... Dammit. Thanks for letting me know. Guess i will hunt down a genuine one.



[DSMPT]

Back in the day there were many knockoffs Turbonetics/Treadstone T3 manifold on eBay.



[JeffGS-T97]

Back in the day there were many knockoffs Turbonetics/Treadstone T3 manifold on eBay.

I feel gross



[DSMPT]

I recently found two genuine NOS HKS cast T3/T4 exhaust manifolds in Japan, I should have bought those, I regret.



[JeffGS-T97]

Man, what a find!
