    What all parts did you have to order for the staging brake? Im wanting to get one but not sure of what all I will need to make everything work


    998  3

    1995 Eagle Talon TSi AWD
    11.55 @ 120 · 2G DSM

    1K  19

    1997 Eagle Talon TSi AWD
    12.810 @ 106.530 · 2G DSM
    Loading...
  2. Spdfreak

    Spdfreak Proven Member

    135
    10
    Joined Jul 12, 2009
    san diego, California
    1.Cnc staging brake #412SB3/4
    2.(2x) Russell endura fitting #641431 -3an to 10mm x 1.0 fitting one goes on proportion valve and the other on the secondary line on the master cylinder.
    3.Earls -3 hose assembly female #63010132erl depending on placement you will probably need a few of these. You can also use 3/16 brake line instead of the earls hose you would just have to bend and flare your own lines and add couple more fittings.


    2K  24

    1995 Mitsubishi Eclipse GSX
    14.630 @ 104.000 · 2G DSM
    Loading...
  3. dharrison

    dharrison Proven Member

    44
    0
    Joined Feb 28, 2006
    Lake Orion, Michigan
    that looks sweet


    207  0

    1997 Mitsubishi Eclipse GSX
    manual · 2G DSM
    Loading...
  4. Spdfreak

    Spdfreak Proven Member

    135
    10
    Joined Jul 12, 2009
    san diego, California

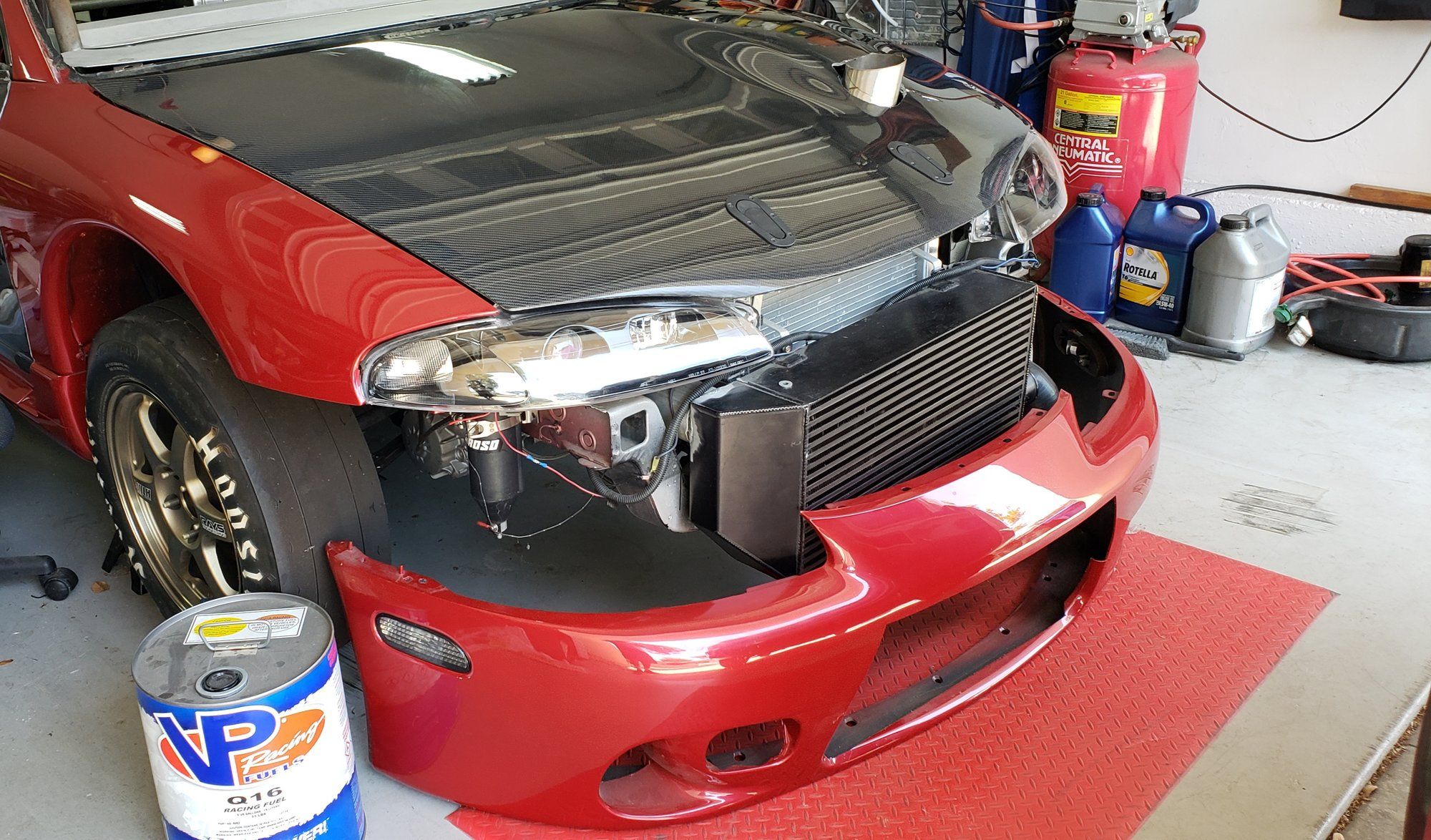

    20180712_192552.jpg still chipping away at it!


    2K  24

    1995 Mitsubishi Eclipse GSX
    14.630 @ 104.000 · 2G DSM
    Loading...
    Mitsubishiown and mikEclipse99 like this.
  5. Spdfreak

    Spdfreak Proven Member

    135
    10
    Joined Jul 12, 2009
    san diego, California

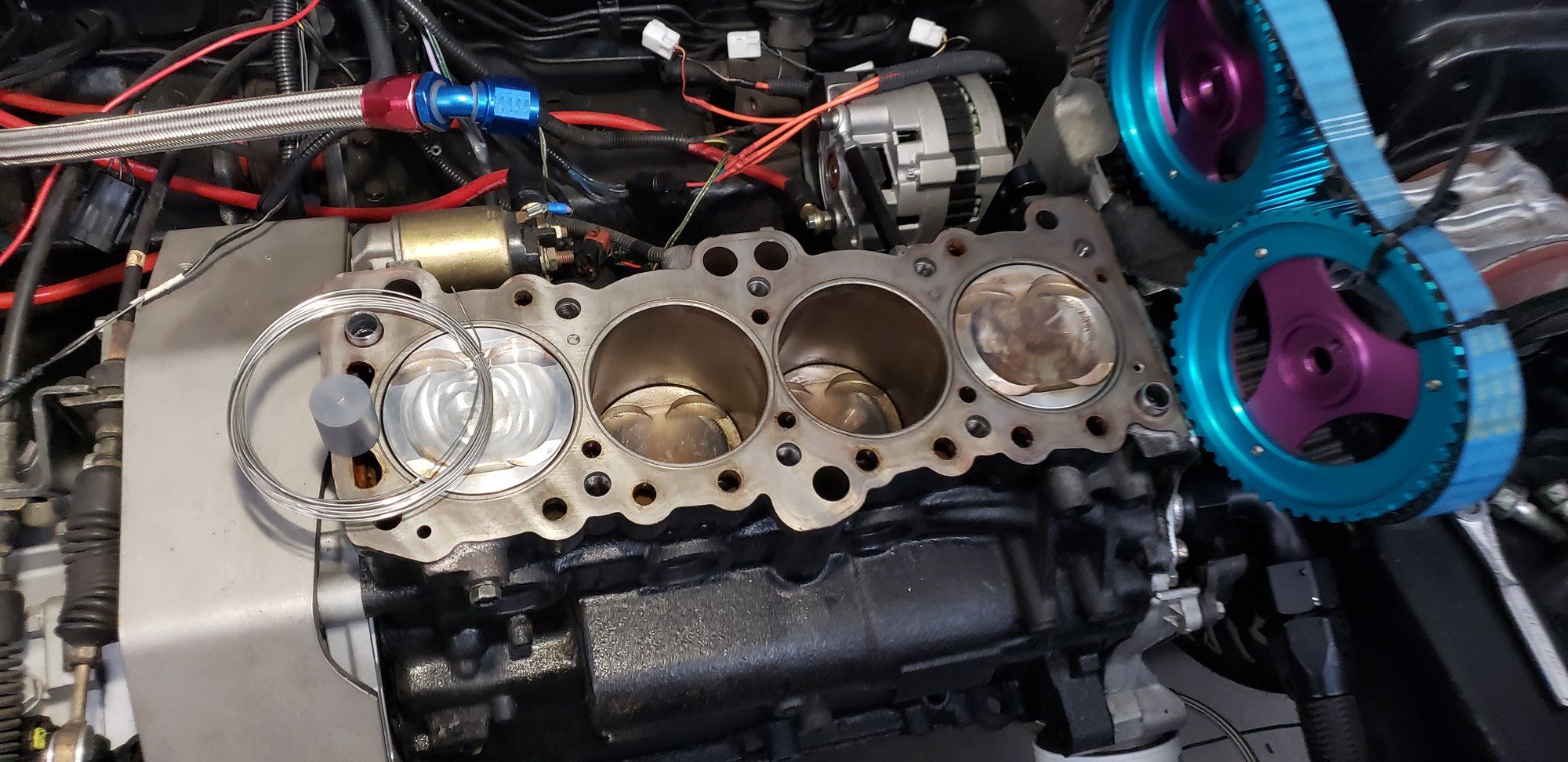

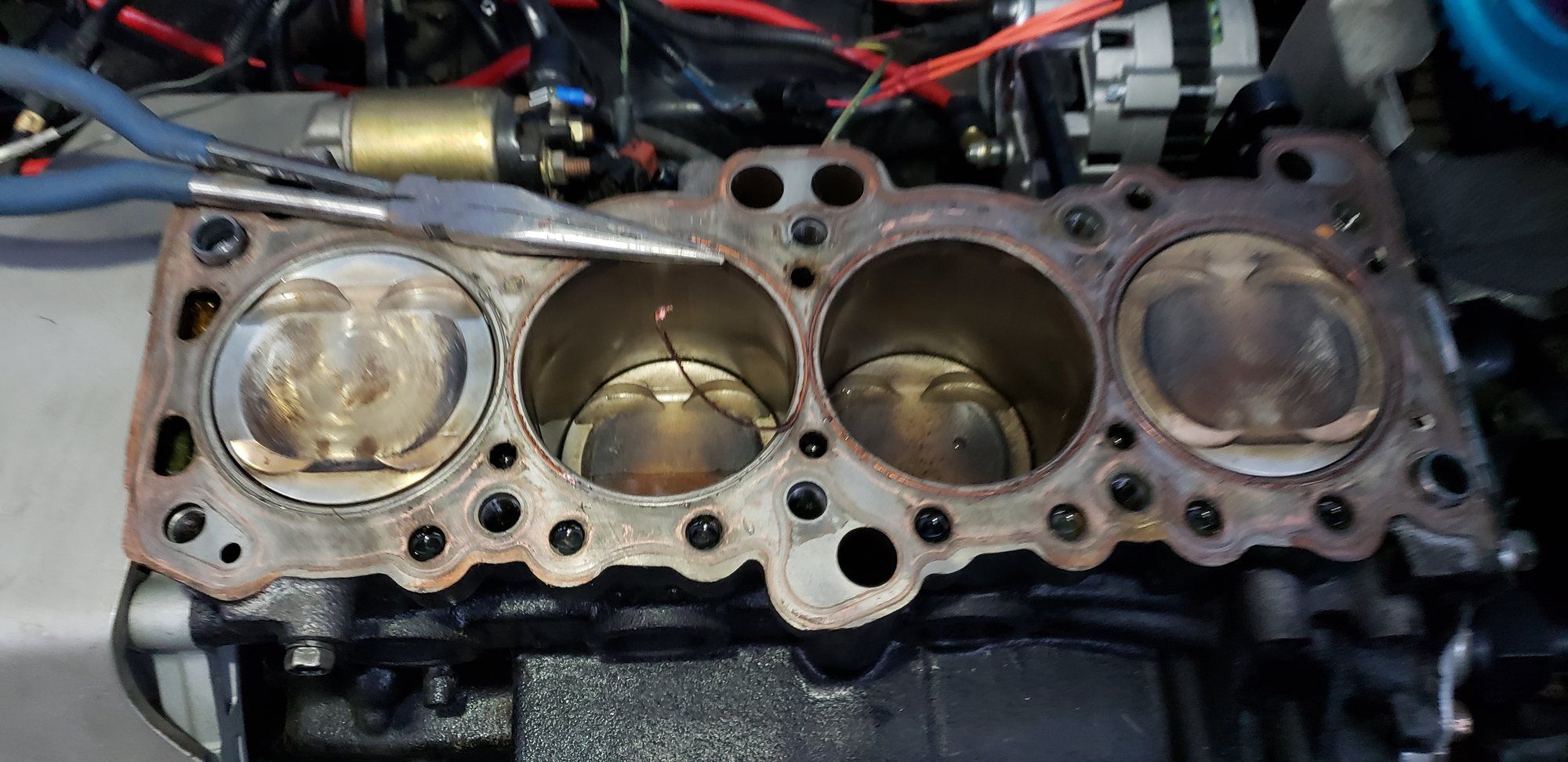

    Pulled the head today really just to switch out the copper orings in the block and MLS headgasket over to stainless steel o'rings and a copper headgasket. Last time I was adjusting the two step at around 20lbs and one of my heater hose nipples blew off and sprayed coolant everywhere and I thought it was a headgasket issue but realized I never completed the heat cycle and retorque phase, so I removed the valve cover to retorque and noticed I was able to get a 1/4 turn on a few of them so I said forget it change it all out. The MLS gasket looked fine though. Just waiting for new head gasket to come then I'll reassemble. Lastly, I straight edged the block and head and was only able to get 0.0015" to along the rear of the block towards the rear oil drains so straight enough for me. Now would probably be a good time to finish up the staging brake now that the head is removed. 20180821_174125.jpg 20180829_125103.jpg


    2K  24

    1995 Mitsubishi Eclipse GSX
    14.630 @ 104.000 · 2G DSM
    Loading...
    buddahboost likes this.
  6. Spdfreak

    Spdfreak Proven Member

    135
    10
    Joined Jul 12, 2009
    san diego, California

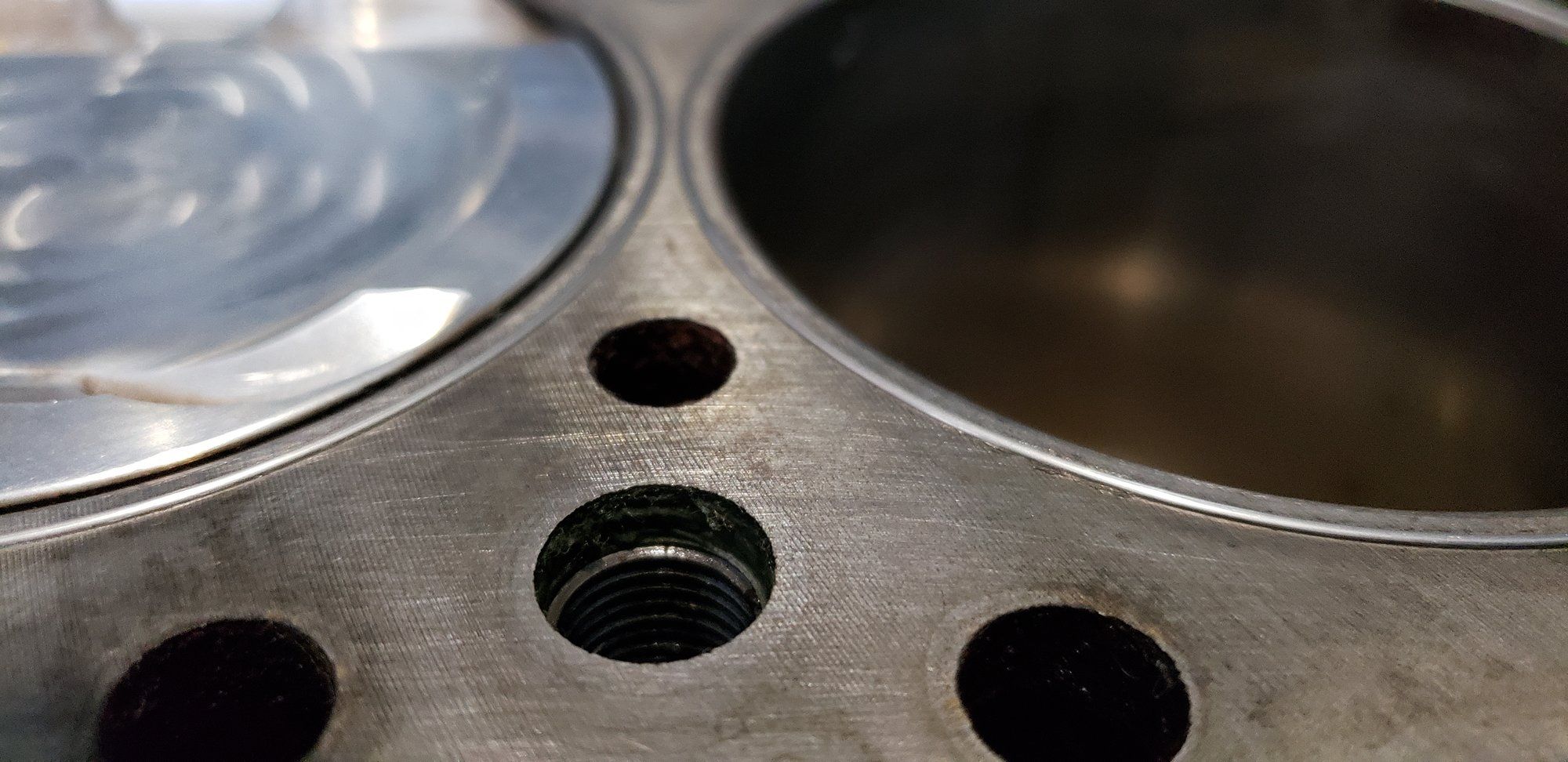

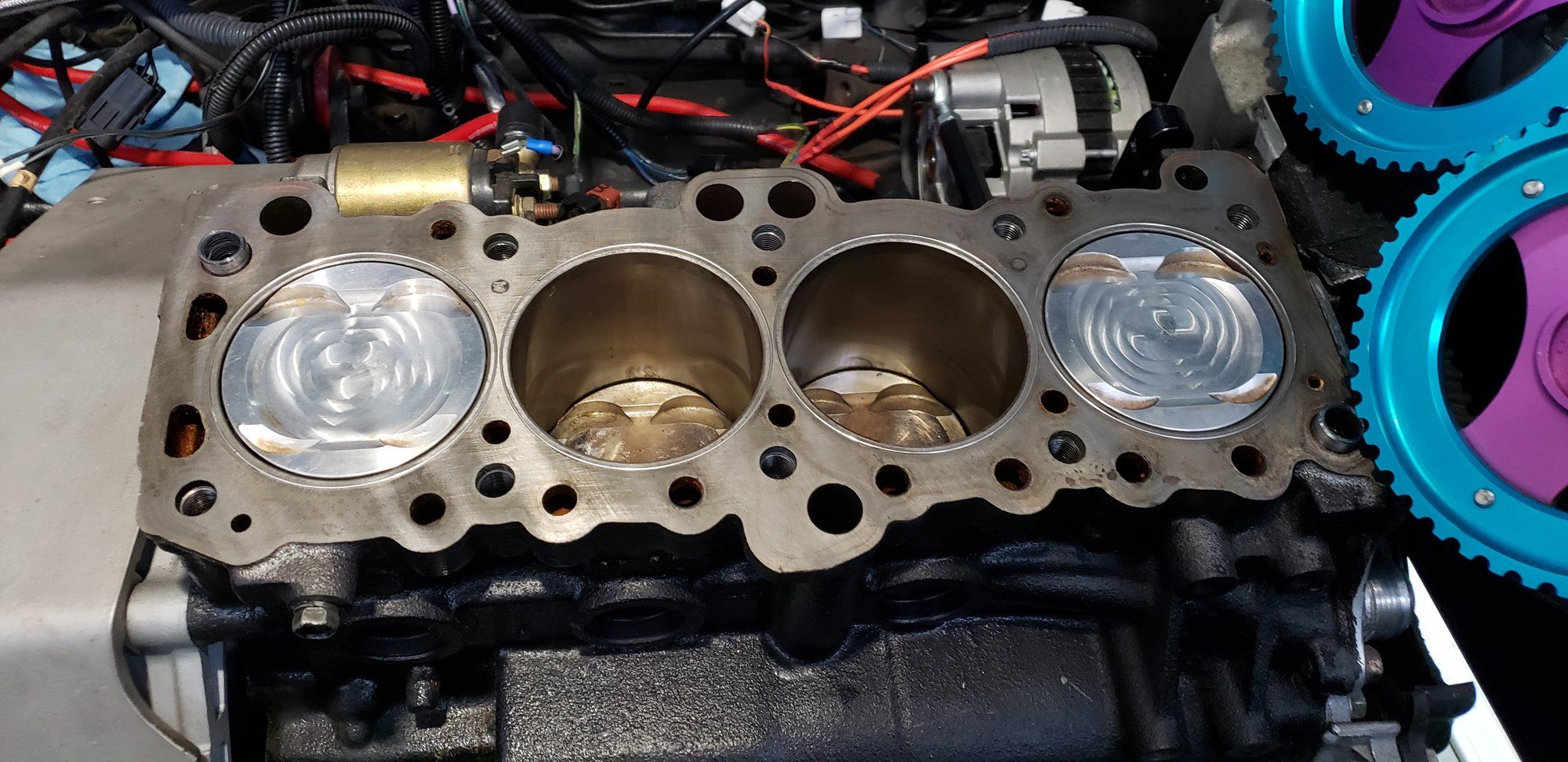

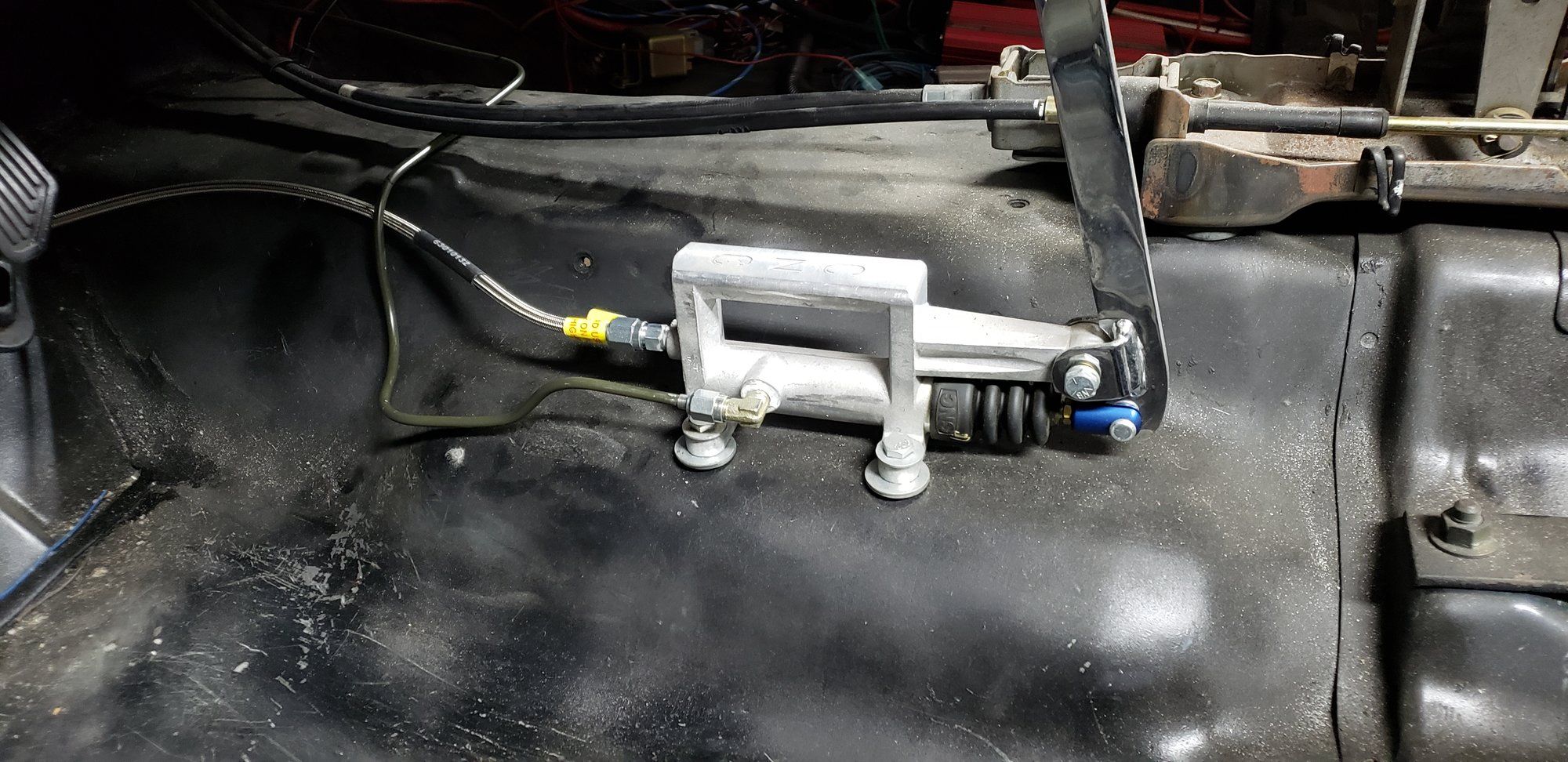

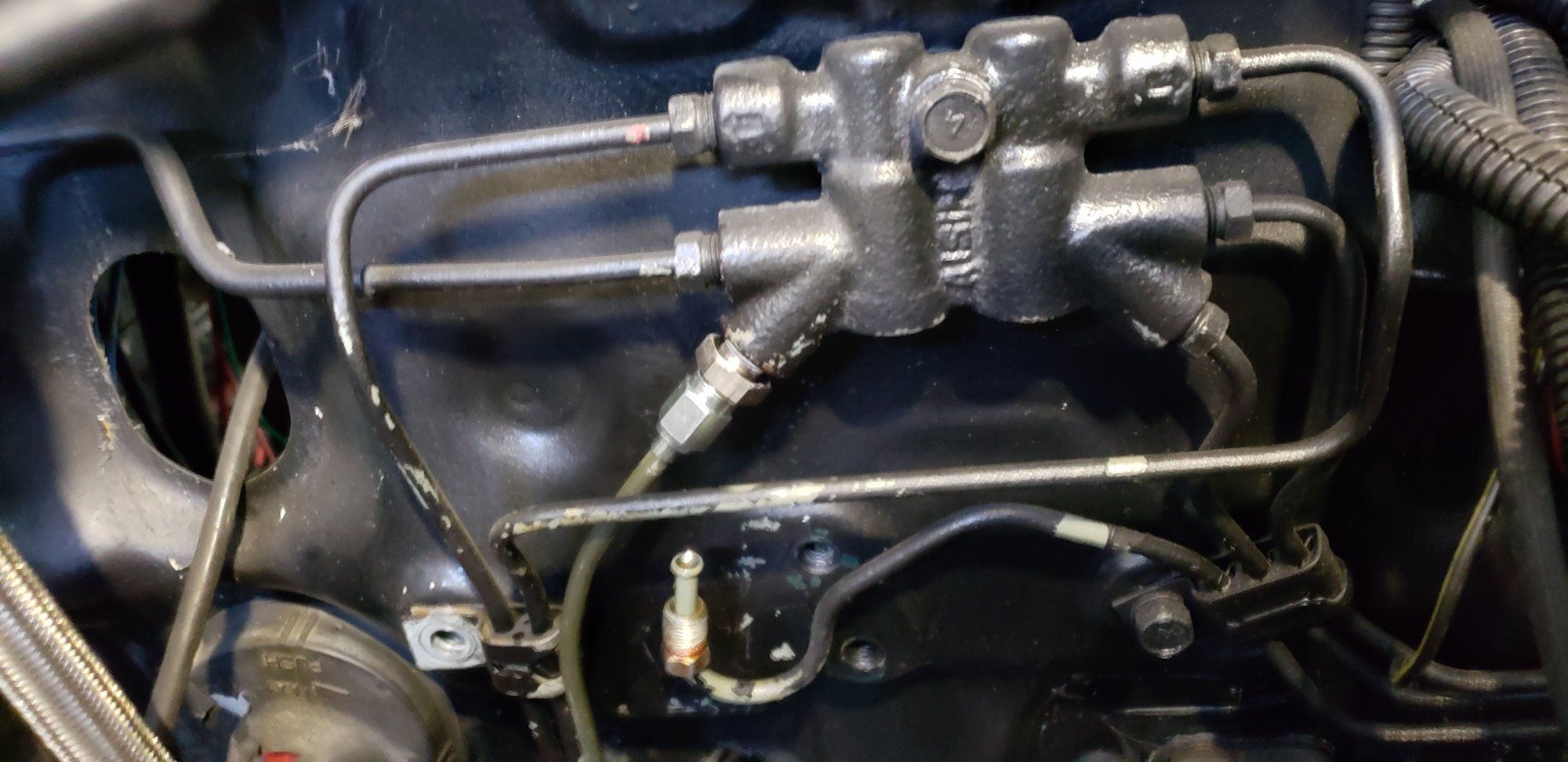

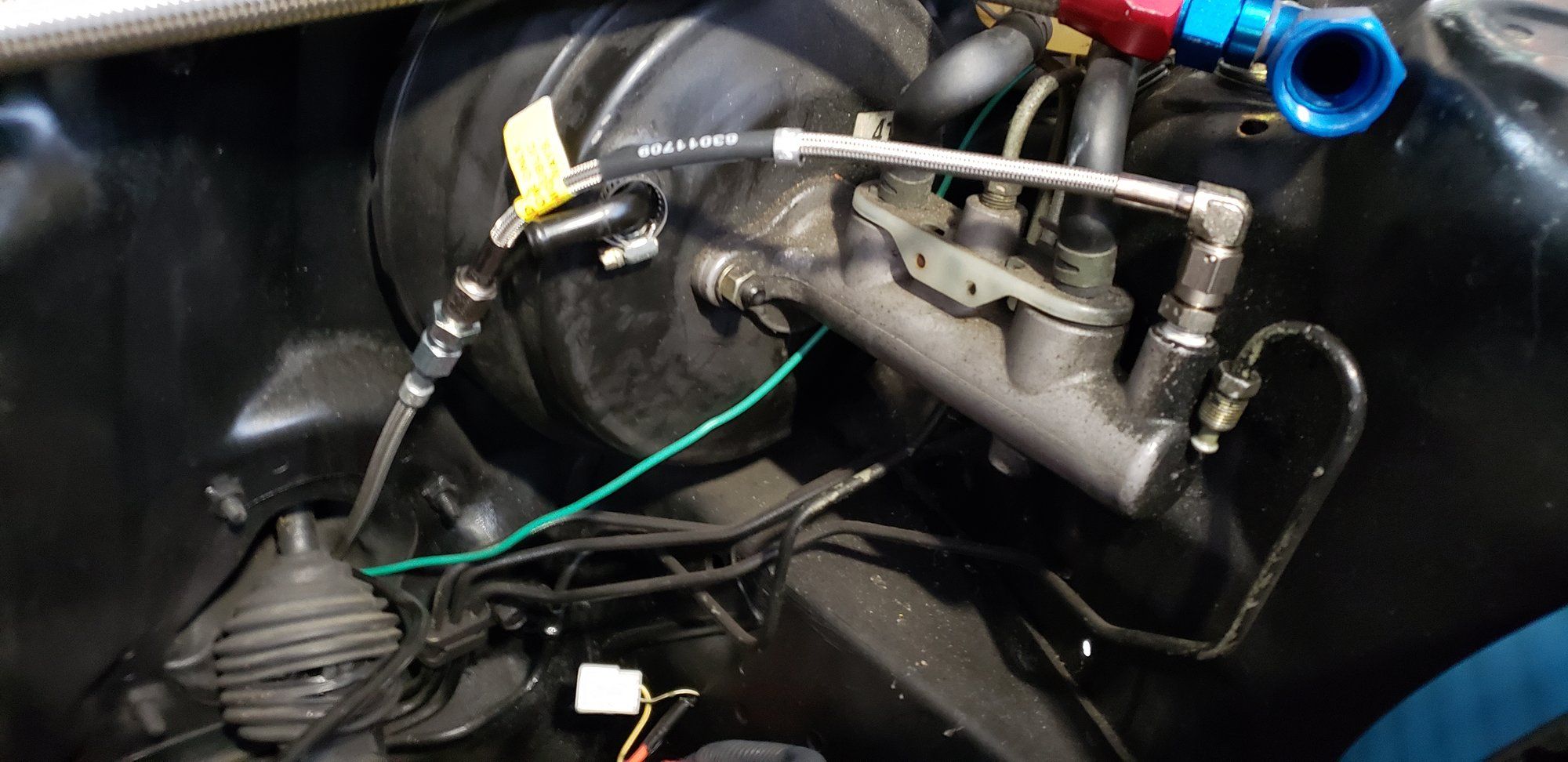

    Finished installing the new stainless steel o'rings in the block. The install was pretty straight forward,it just took a little time to file fit the ends of the rings to get the gaps as tight as I could. I also tried to make sure to have the ends of the rings terminate near a head stud just to ensure the ends are seeing the most clamping force. Also, got around to installing the staging brake. I just tapped into the proportion valve and the front line on the master cylinder. Then I vacuum bled it then just tested the wheels and the passenger side front and driver side rear lock up when the staging brake is pulled. Now I'm just waiting for my headgasket so I can put it all back together. 20180904_182012.jpg 20180904_181759.jpg 20180904_181921.jpg 20180904_181930.jpg 20180904_181949.jpg


    2K  24

    1995 Mitsubishi Eclipse GSX
    14.630 @ 104.000 · 2G DSM
    Loading...
  7. dexterholland04

    dexterholland04 Proven Member

    752
    97
    Joined Jan 1, 2007
    Rush, New York
    Looking good!

    Loading...
  8. Spdfreak

    Spdfreak Proven Member

    135
    10
    Joined Jul 12, 2009
    san diego, California
    Thanks man, I'm super excited about getting this thing up and running again.


    2K  24

    1995 Mitsubishi Eclipse GSX
    14.630 @ 104.000 · 2G DSM
    Loading...
  9. iugrad92turbo

    iugrad92turbo Supporting Member

    12,226
    442
    Joined May 22, 2007
    Kalamazoo, Michigan
    Looking good man hope you reach your goal.


    7K  5

    1992 Eagle Talon TSi
    awd · manual · 1G DSM
    Loading...
  10. Spdfreak

    Spdfreak Proven Member

    135
    10
    Joined Jul 12, 2009
    san diego, California

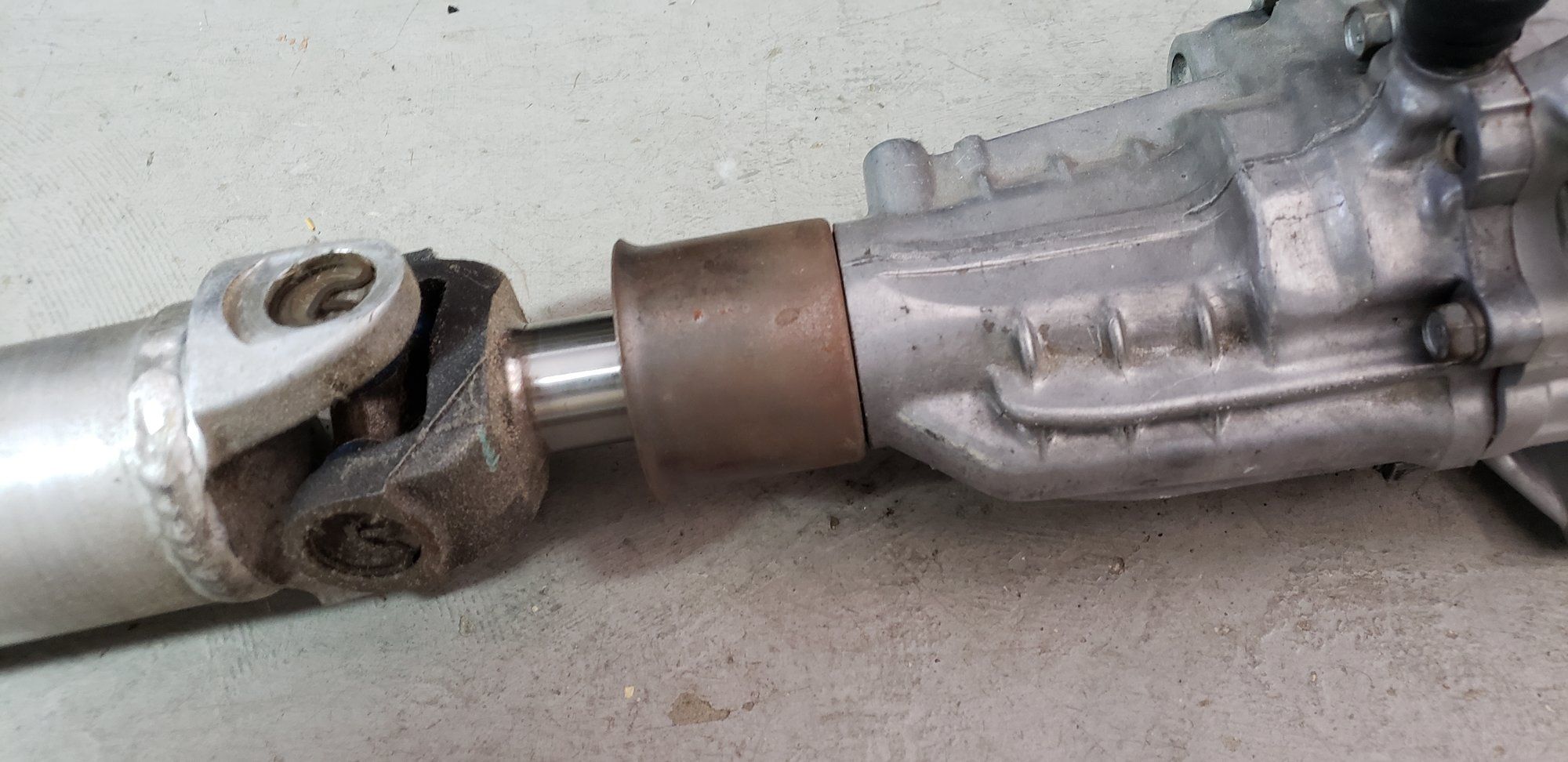

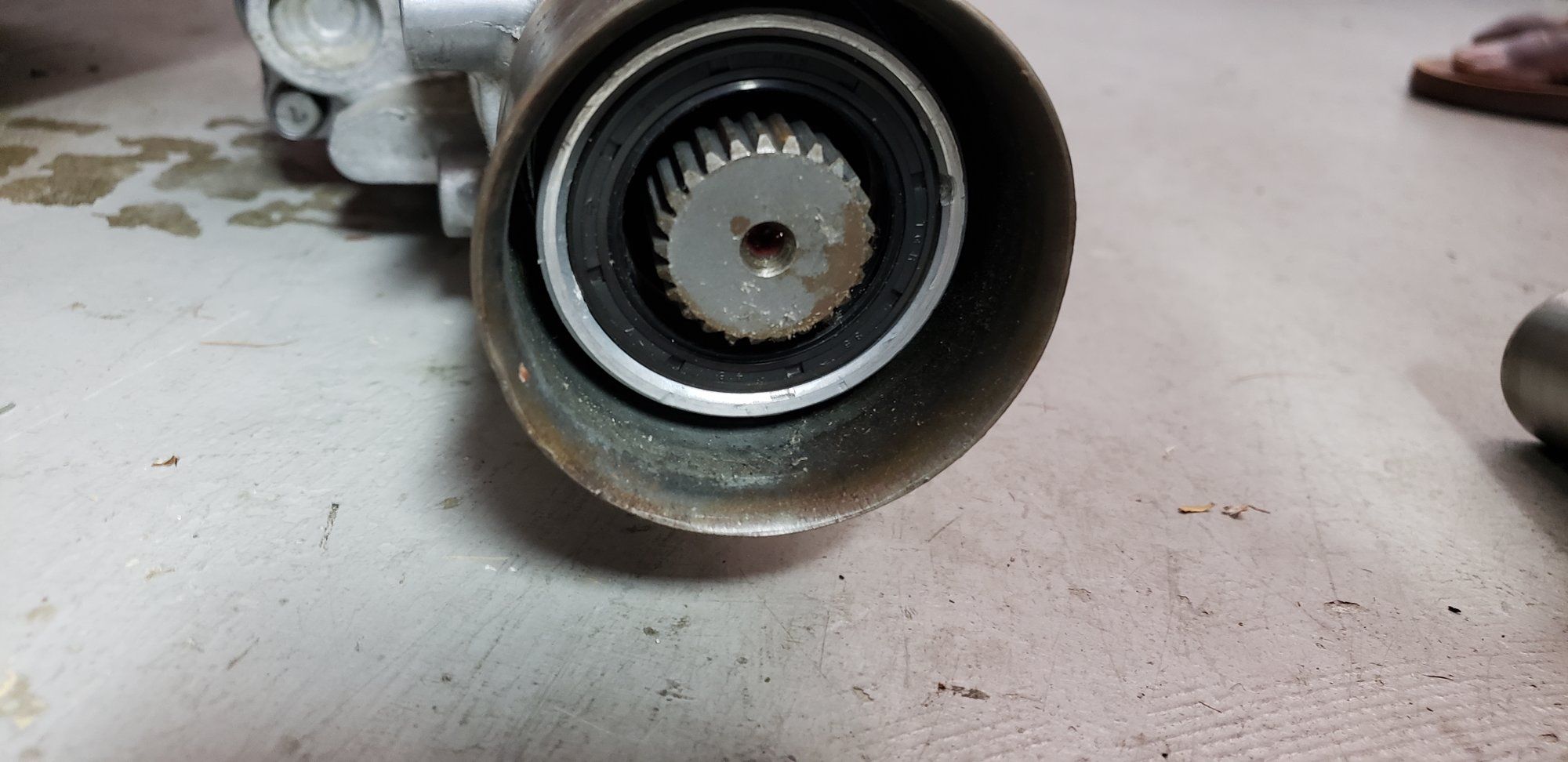

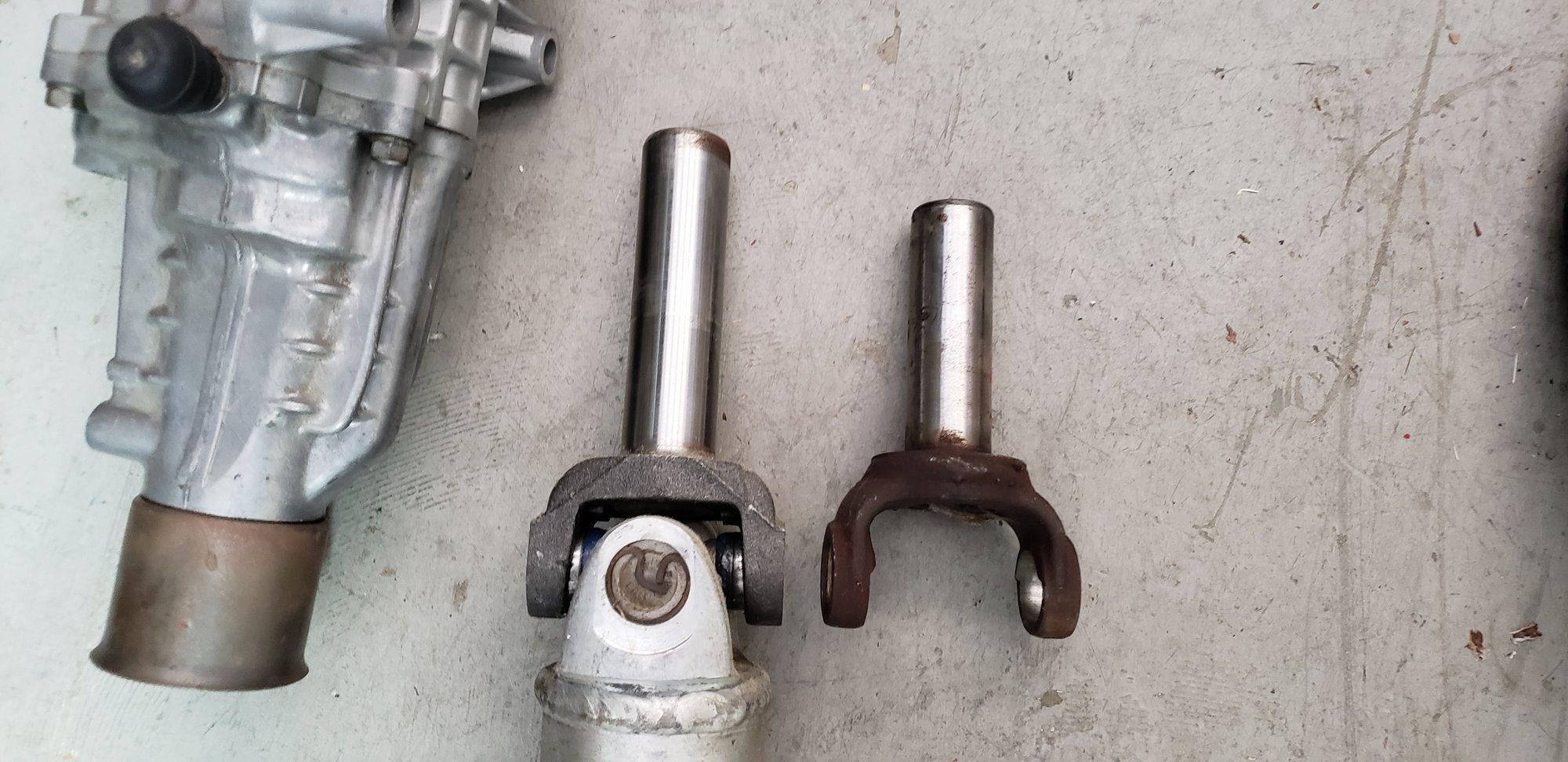

    Well I thought it would be good ideal to start putting my drivetrain back together while I wait for my head gasket but when I went to install the 300m transfer case none of the bolts would line up. It seems as if the new slip yoke is too long. I might have to find a shop to shorten it ugh what a pain. 20180910_120243.jpg 20180910_120329.jpg 20180910_120512.jpg


    2K  24

    1995 Mitsubishi Eclipse GSX
    14.630 @ 104.000 · 2G DSM
    Loading...
  11. Spdfreak

    Spdfreak Proven Member

    135
    10
    Joined Jul 12, 2009
    san diego, California

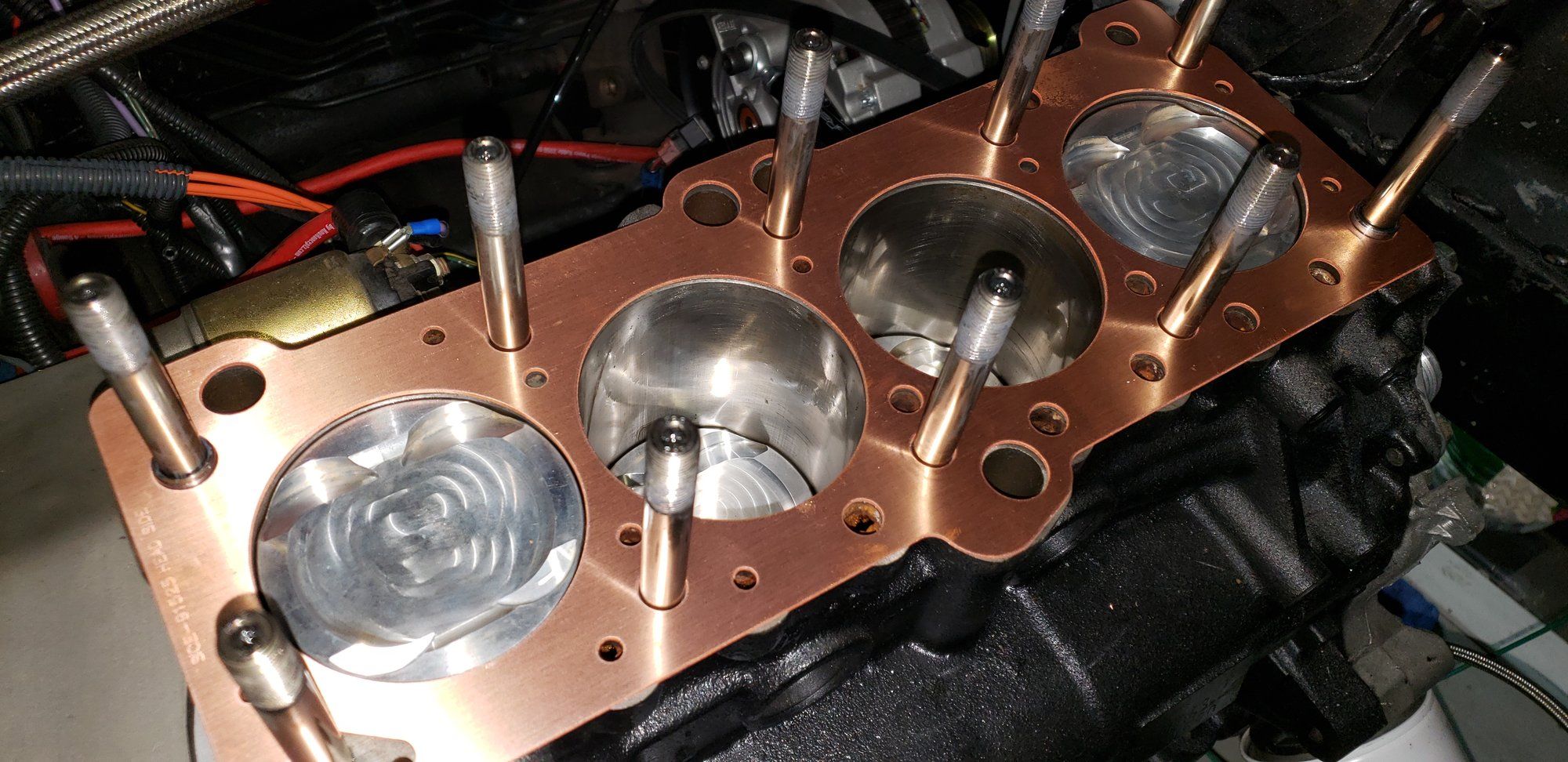

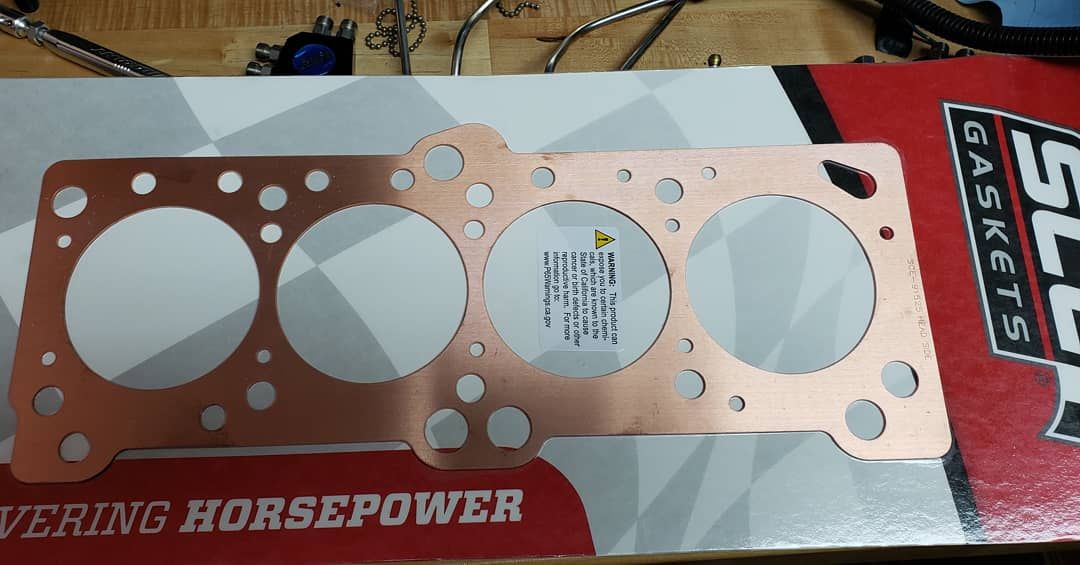

    Finally got my copper headgasket so I will begin reassembly


    Attached Files:

    2K  24

    1995 Mitsubishi Eclipse GSX
    14.630 @ 104.000 · 2G DSM
    Loading...
    buddahboost likes this.
  12. Spdfreak

    Spdfreak Proven Member

    135
    10
    Joined Jul 12, 2009
    san diego, California

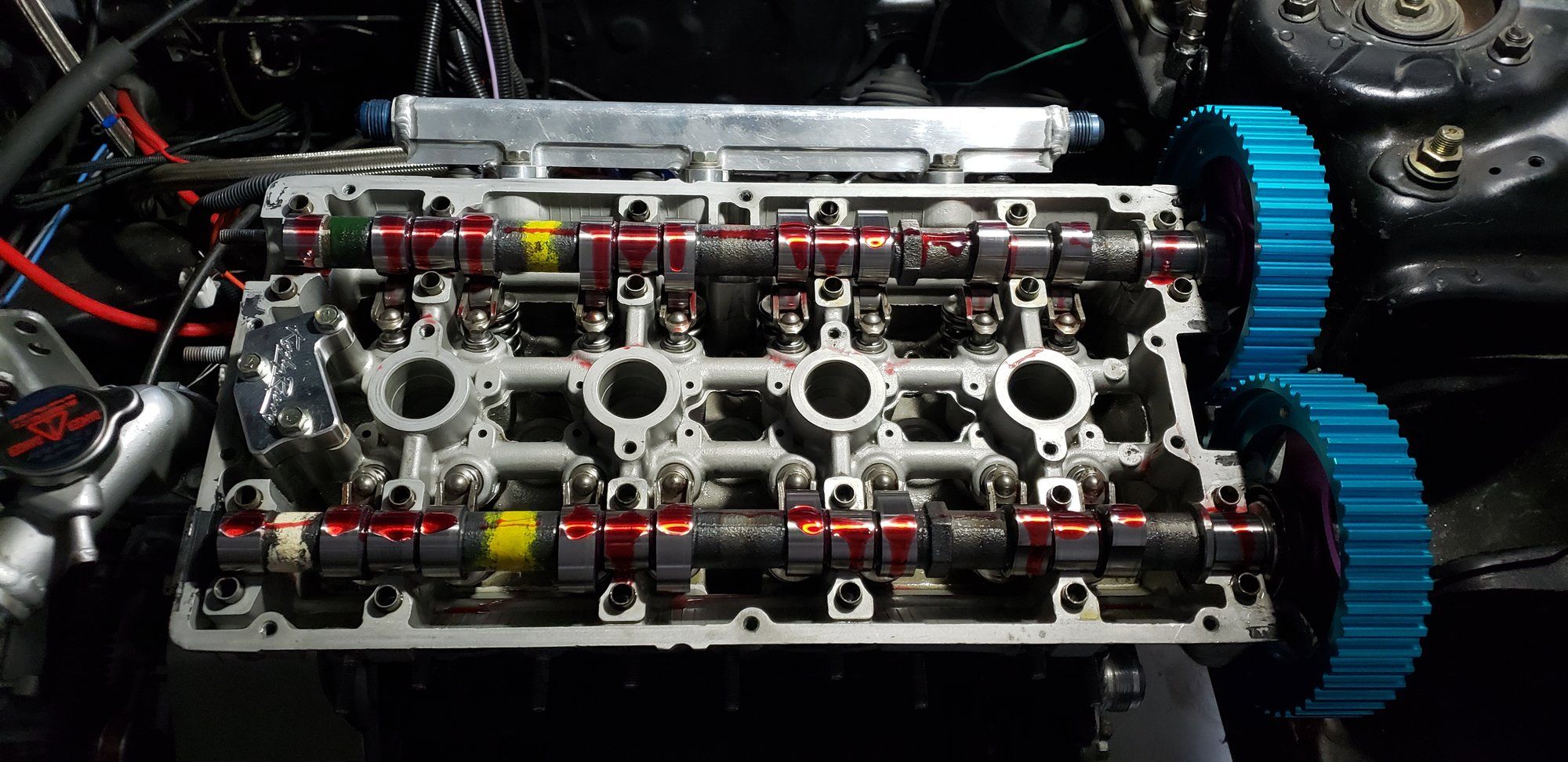

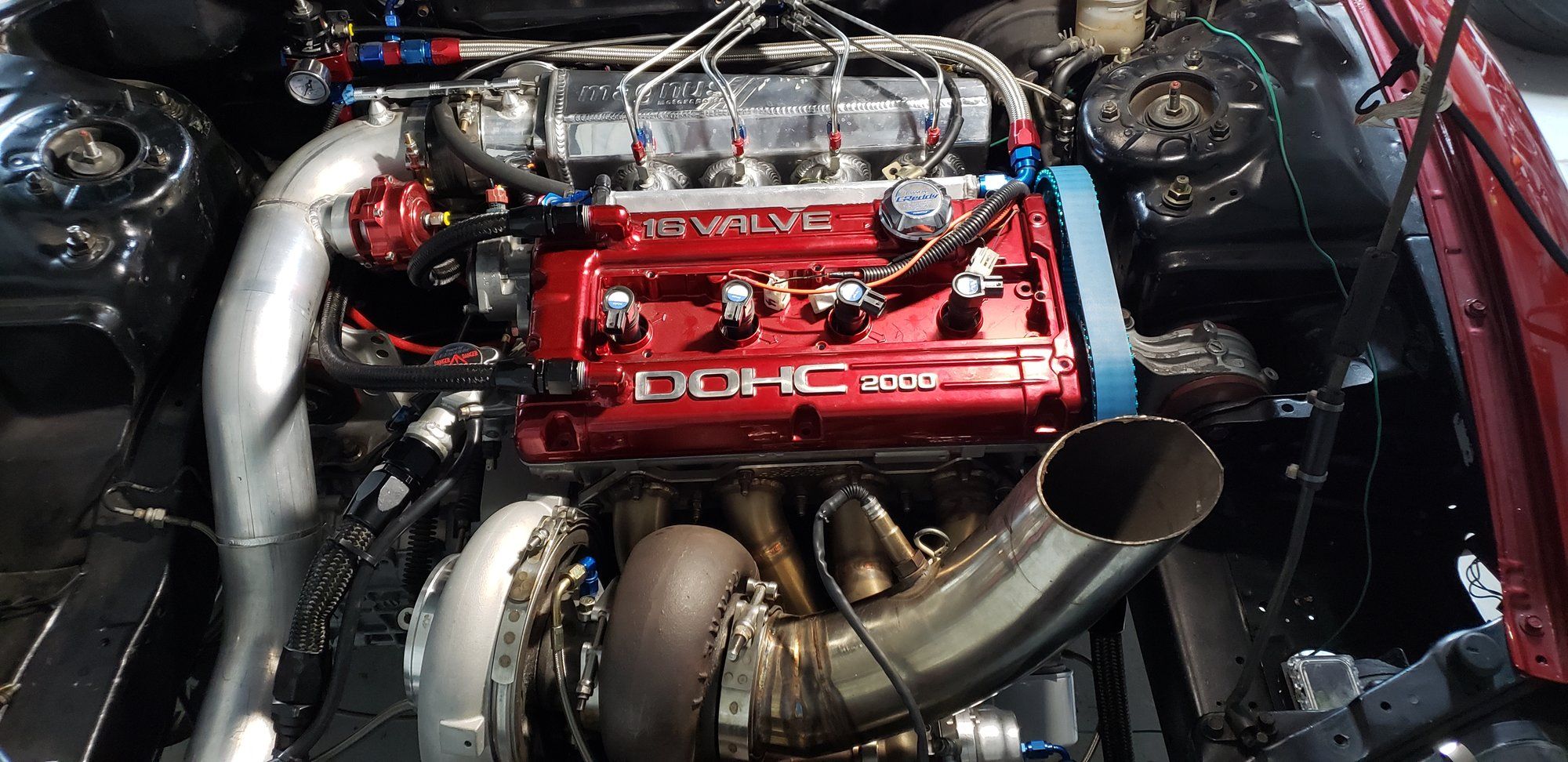

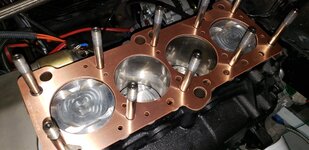

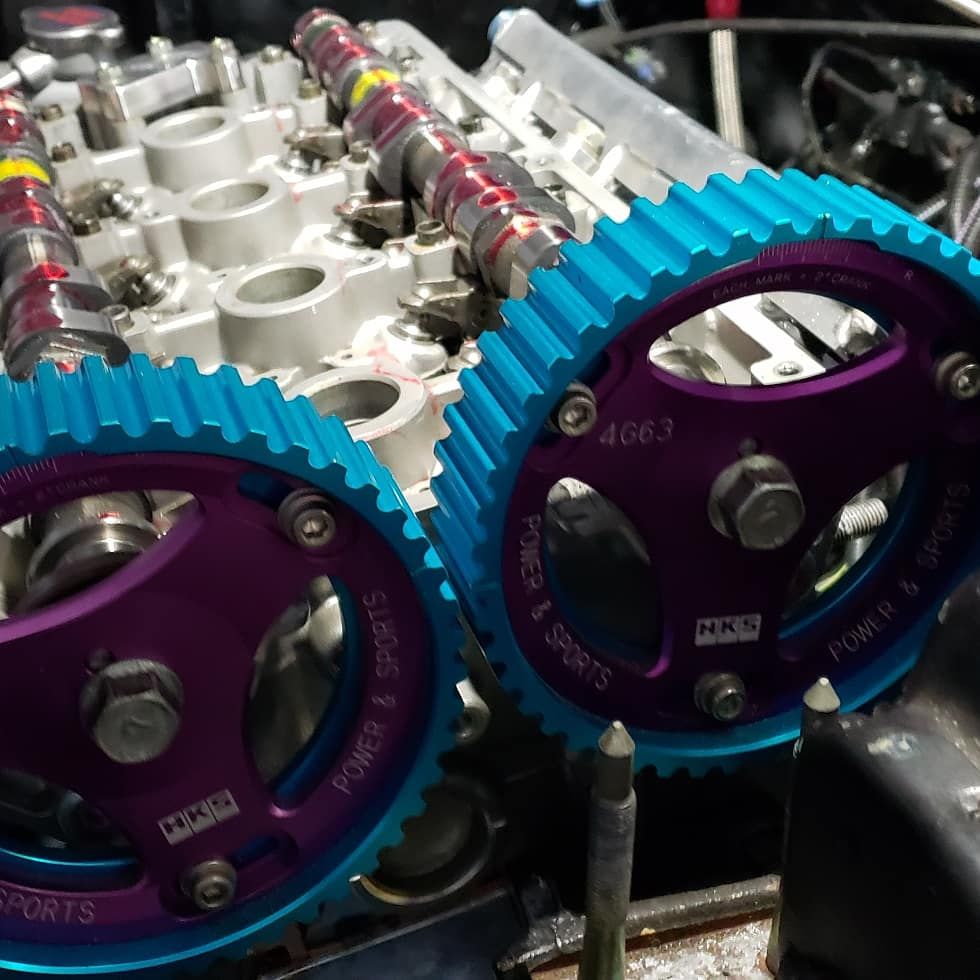

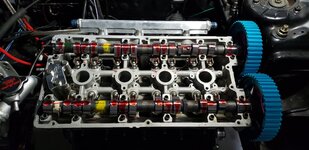

    Home stretch just need to add some fluids and then off to the dyno! 20181122_203419.jpg 20181122_200900.jpg IMG_20181122_211236_898.jpg


    Attached Files:

    2K  24

    1995 Mitsubishi Eclipse GSX
    14.630 @ 104.000 · 2G DSM
    Loading...
    buddahboost and OH91awd like this.
