    Yeah no bueno to leave it without a baffle. It’s going to push out any oil that’s in the vicinity. Wished they had threw the bigger ar on to see how much of a difference it makes.


    450  3

    2000 Jeep Cherokee Sport - Classic
    awd · automatic · Misc Vehicles

    506  4

    93 Civic 4 Door -sold-
    fwd · manual · Misc Vehicles

    Street Build 3K  6

    1992 Eagle Talon TSi AWD
    12.2 @ 120 · 1G DSM
    Loading...
    ErikTande likes this.
  2. rabenne

    rabenne Proven Member

    1,679
    652
    Joined Apr 21, 2006
    Racine, Wisconsin
    Same! I really hope I have the funding to do so. I have been secretly stashing away EVO X parts with my spare pennies and I can see that getting out of hand at some point. I want to dump ALL my money into ALL of my cars!


    701  10

    1996 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 9K  24

    1995 Eagle Talon TSi
    awd · manual · 2G DSM

    366  7

    2008 Lancer Evolution MR
    awd · automatic · Lancer Evolution
    Loading...
  3. TK's9d2TSi

    TK's9d2TSi Supporting Member

    3,796
    1,396
    Joined Sep 11, 2017
    Cincinnati, Ohio
    LOL I will officially confirm you have DSMism/DSM-5, and it's incurable. Don't feel bad though because we all have it as well.


    450  3

    2000 Jeep Cherokee Sport - Classic
    awd · automatic · Misc Vehicles

    506  4

    93 Civic 4 Door -sold-
    fwd · manual · Misc Vehicles

    Street Build 3K  6

    1992 Eagle Talon TSi AWD
    12.2 @ 120 · 1G DSM
    Loading...
    pat white and rabenne like this.
  4. rabenne

    rabenne Proven Member

    1,679
    652
    Joined Apr 21, 2006
    Racine, Wisconsin
    After 17 years of owning them, I am starting to think its incurable...


    701  10

    1996 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 9K  24

    1995 Eagle Talon TSi
    awd · manual · 2G DSM

    366  7

    2008 Lancer Evolution MR
    awd · automatic · Lancer Evolution
    Loading...
    spyderdrifter and TK's9d2TSi like this.
  5. spyderdrifter

    spyderdrifter Freelancer

    4,889
    534
    Joined Jul 11, 2009
    Fountain, Colorado
    Been about 17 years for me as well. Started in '03, and currently have 2G #8. Been a long time and a lot of frustration, but also a lot of priceless knowledge.


    2K  2

    1996 Eagle Talon TSi AWD
    awd · manual · 2G DSM

    2K  3

    1995 Mitsubishi Eclipse GSX
    awd · manual · 2G DSM

    2K  5

    1999 Mitsubishi Eclipse N/T
    automatic · 2G DSM
    Loading...
    rabenne likes this.
  6. rabenne

    rabenne Proven Member

    1,679
    652
    Joined Apr 21, 2006
    Racine, Wisconsin

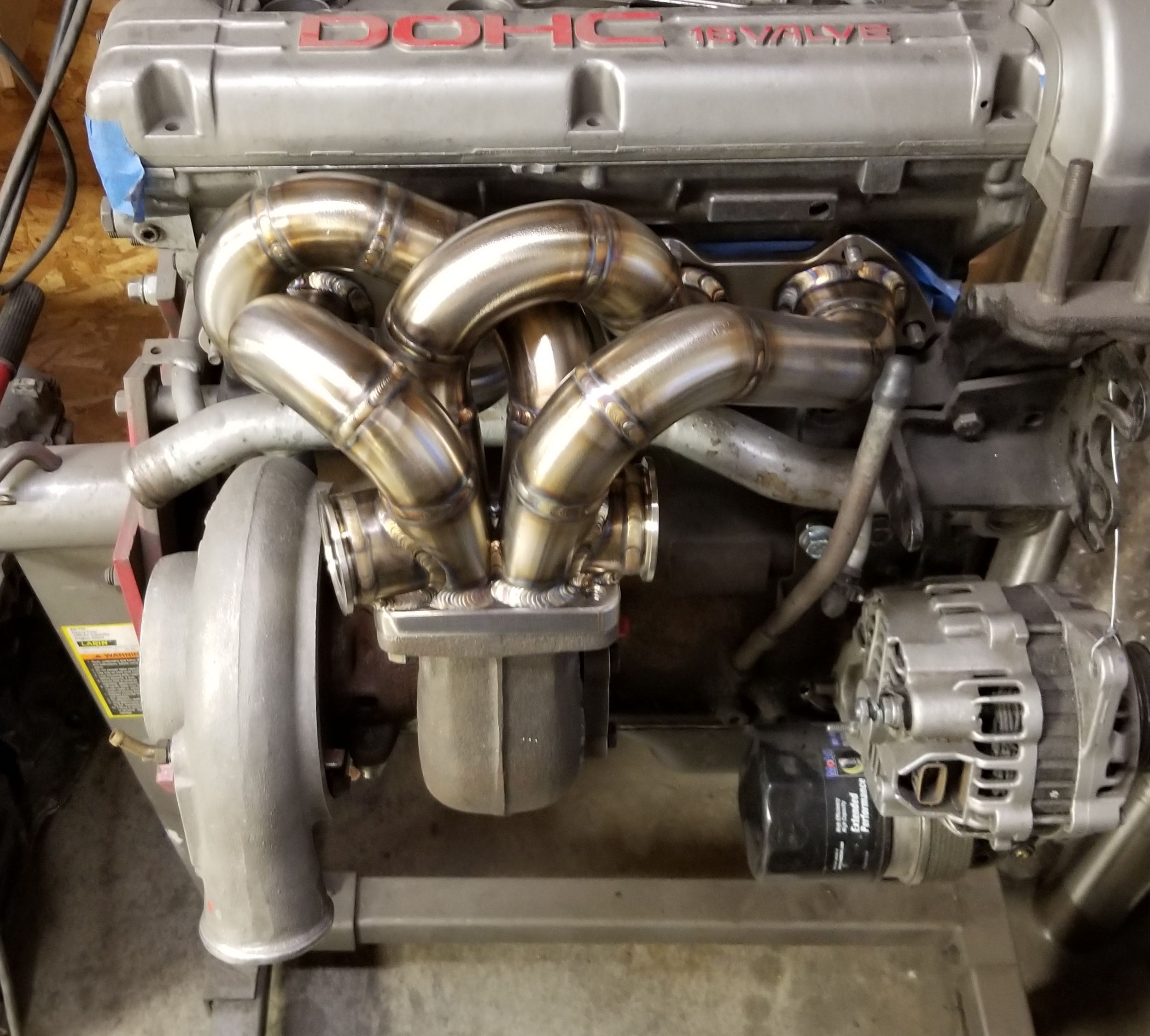

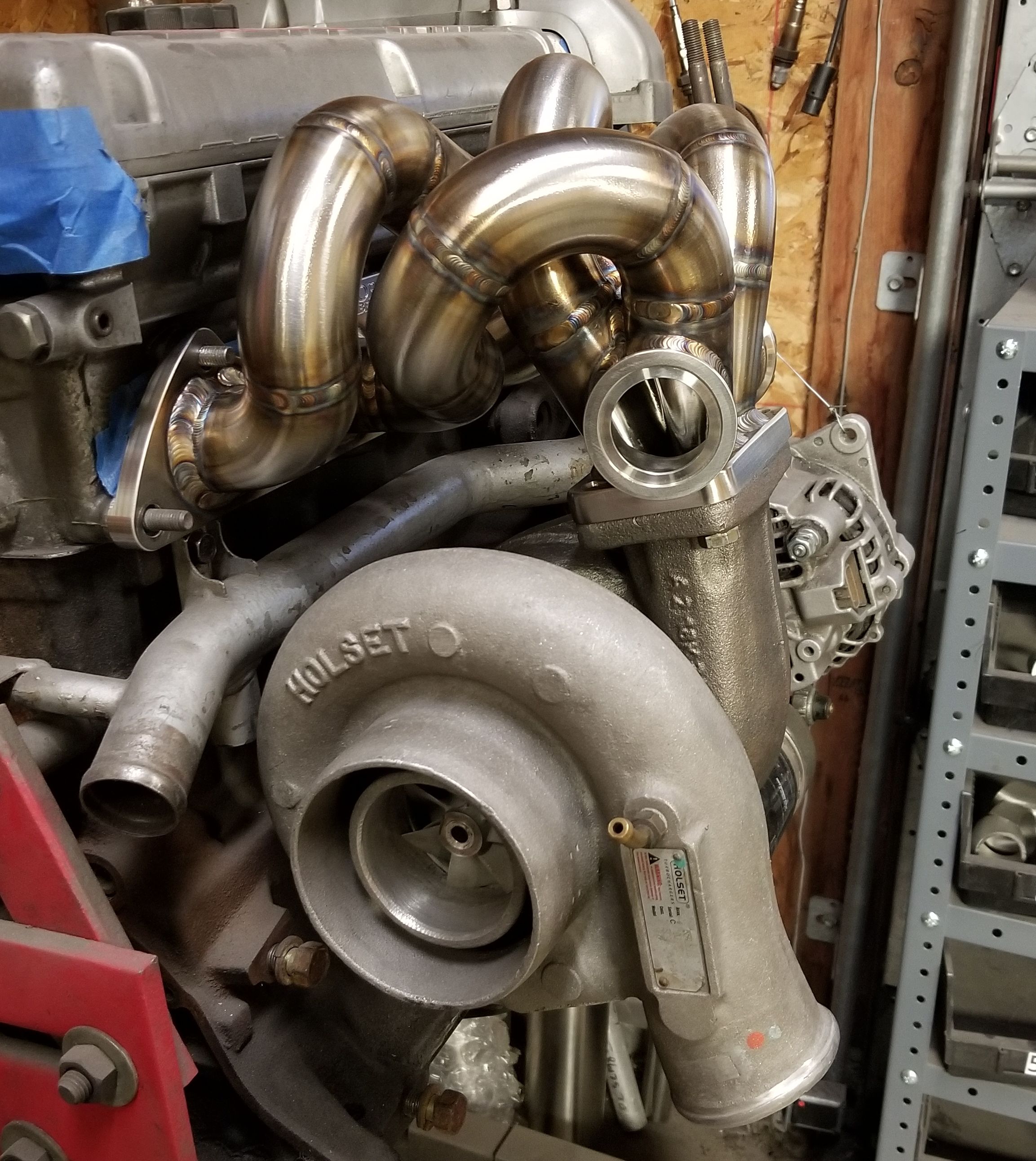

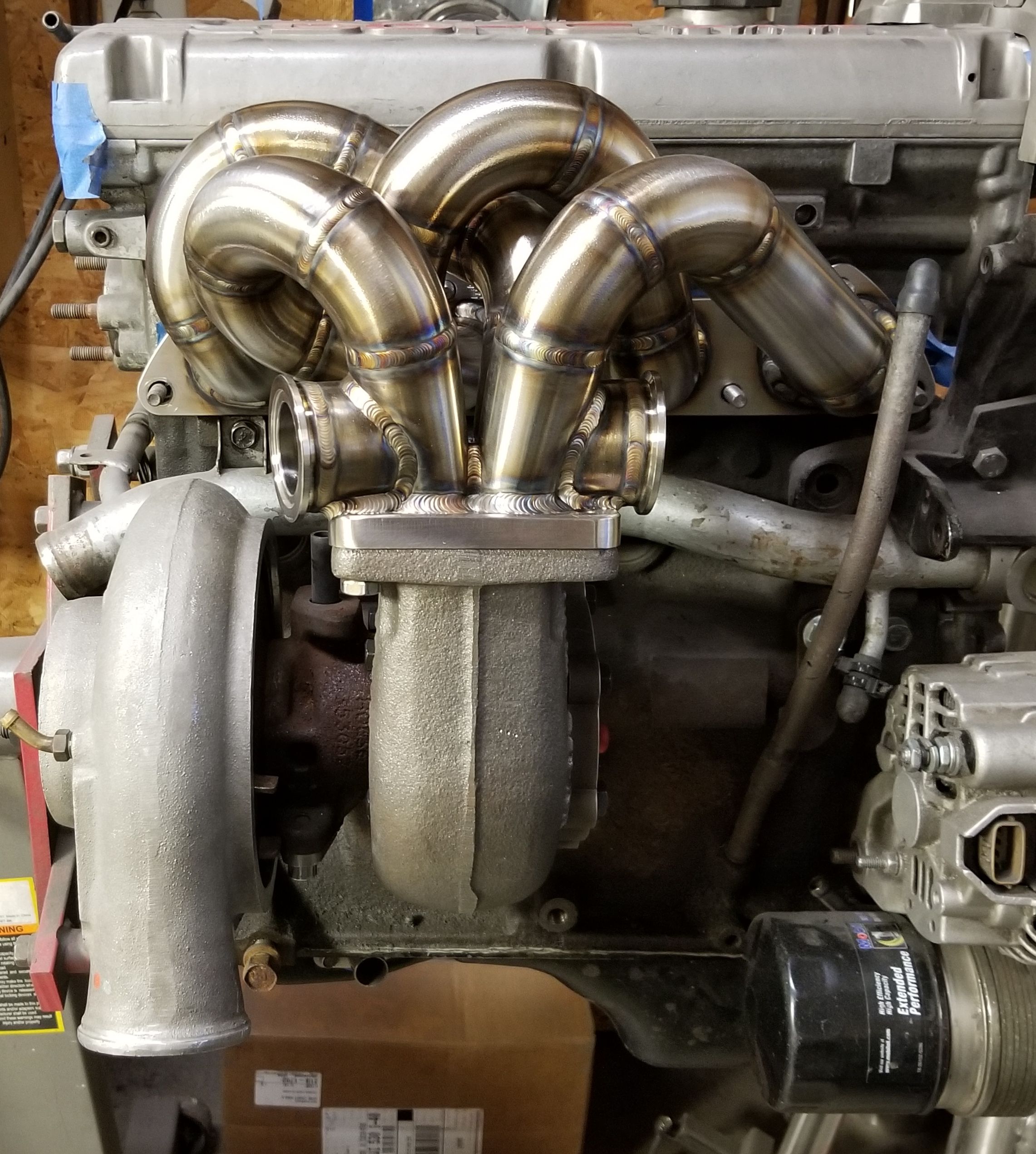

    More MFab Updates!!!

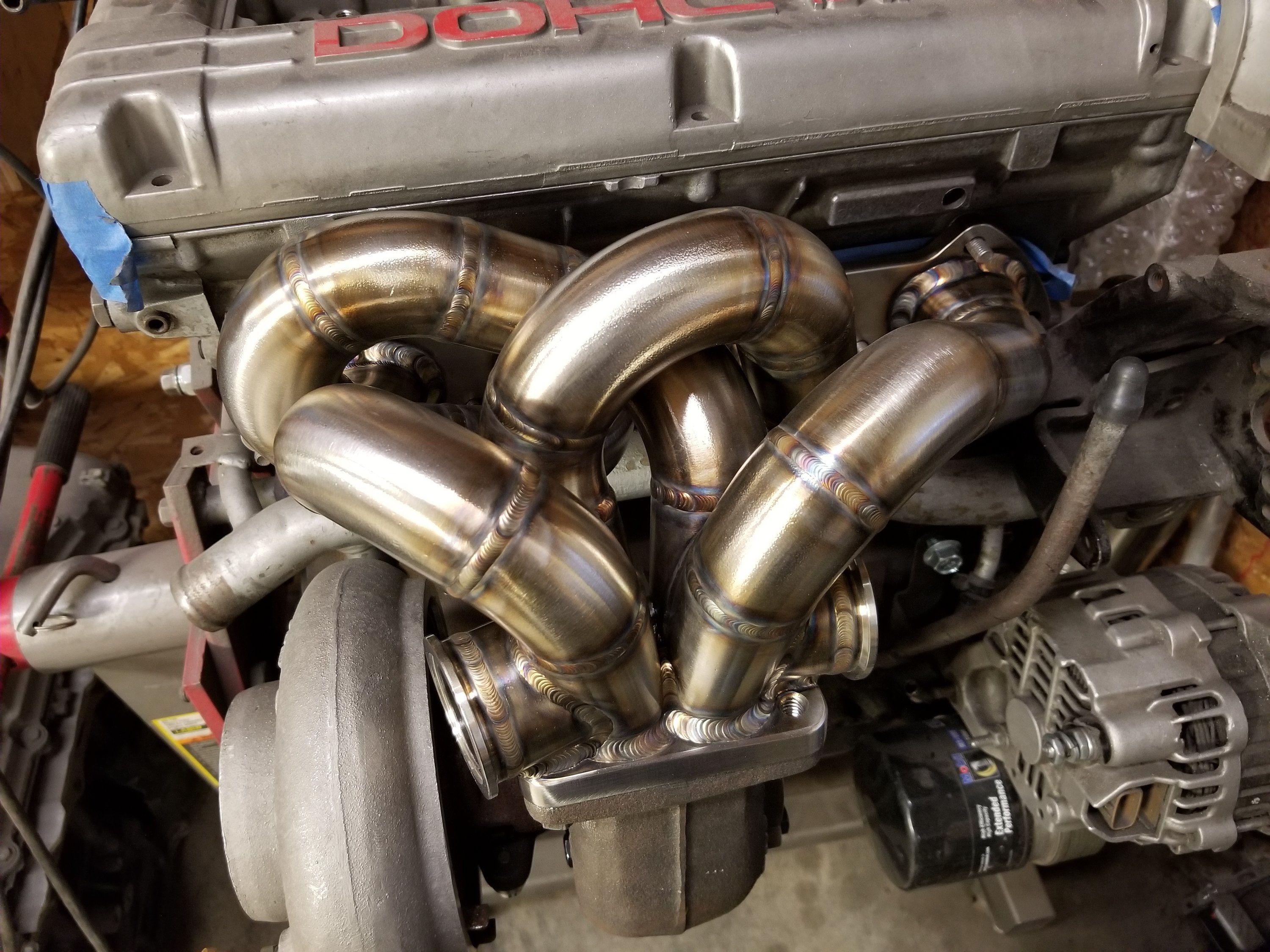

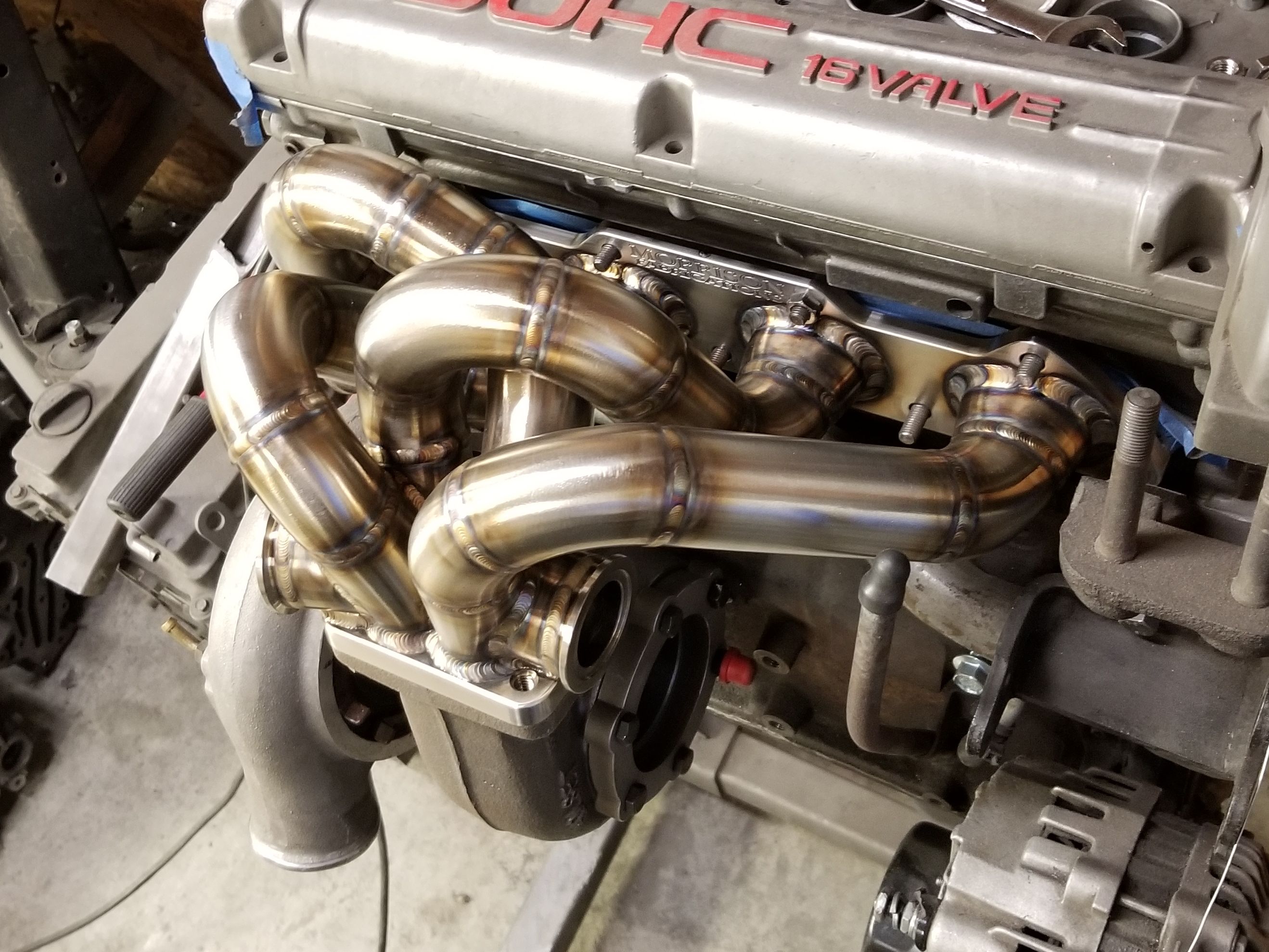

    20200526_203543.jpg 20200526_210242.jpg 20200526_210258.jpg 20200526_210449.jpg 20200526_210520.jpg


    701  10

    1996 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 9K  24

    1995 Eagle Talon TSi
    awd · manual · 2G DSM

    366  7

    2008 Lancer Evolution MR
    awd · automatic · Lancer Evolution
    Loading...
  7. pksystems

    pksystems Proven Member

    674
    130
    Joined Nov 9, 2003
    Calgary, AB, Canada
    Holes didn't line up, crank hits, main studs, wasn't flat, leaked from around flange, no hole for factory dipstick. I put pictures in my build thread. I am running a stroker, so that may introduce extra clearance issues.


    6K  25

    1997 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
    ErikTande and rabenne like this.
  8. Helaman-99

    Helaman-99 Proven Member

    71
    34
    Joined May 10, 2019
    Spokane Valley, Washington
    Oh my gosh it's so beautiful :cry: Great job on the build so far!!!


    141  5

    2019 Mazda Mazda3 Hatchback
    awd · automatic · Misc Vehicles

    570  9

    1999 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    rabenne likes this.
  9. rabenne

    rabenne Proven Member

    1,679
    652
    Joined Apr 21, 2006
    Racine, Wisconsin
    It is really gorgeous. Functional artwork! Can't wait to bring this piece home...


    701  10

    1996 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 9K  24

    1995 Eagle Talon TSi
    awd · manual · 2G DSM

    366  7

    2008 Lancer Evolution MR
    awd · automatic · Lancer Evolution
    Loading...
    Helaman-99 likes this.
  10. rabenne

    rabenne Proven Member

    1,679
    652
    Joined Apr 21, 2006
    Racine, Wisconsin
    I have checked the bolt hole alignment against a stock pan and two or three will need widened up. The flange wasnt flat on mine either, but I was able to correct a lot of it by hammering the flange flat against a reference surface. Whether it seals or not remains to be seen. Based on the posts in your build thread, I think I may end up just trying to hammer the pan out around the interfering main caps and rod bolts. I see that one is right on the edge of the sump junction, so if it just wont happen, I might try what you did.

    My other thought was maybe just buy a 1/4" thick sheet of 5052 aluminum in 12X18 and laser cut a perfect flange based on 3d laser scanned data. Then I can surface the existing flange with a fly cutter (however far it needs to go to be flat) and then weld on my new flange (with proper bolt hole locations). Then the entire pan drops 1/4" MINUS amount of material removed from original flange before welding it on. Hopefully 1/8" + 1/4" = 3/8" flange. Once thats welded on, I can fly cut the new flange to have an entirely flat pan that will not interfere with the mains/rod bolts, etc.

    It wont be real cheap, the material will probably be $70-80 and laser cutting isnt free, but it almost seems like an easier route than grinding and laying more material down until you are low enough in all the spots that interfere. Especially when I think about all the test fitting and crawling under the car to do so.

    After doing it your way, would you recommend the same fix or would you consider welding a new flange on?


    701  10

    1996 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 9K  24

    1995 Eagle Talon TSi
    awd · manual · 2G DSM

    366  7

    2008 Lancer Evolution MR
    awd · automatic · Lancer Evolution
    Loading...
  11. rabenne

    rabenne Proven Member

    1,679
    652
    Joined Apr 21, 2006
    Racine, Wisconsin

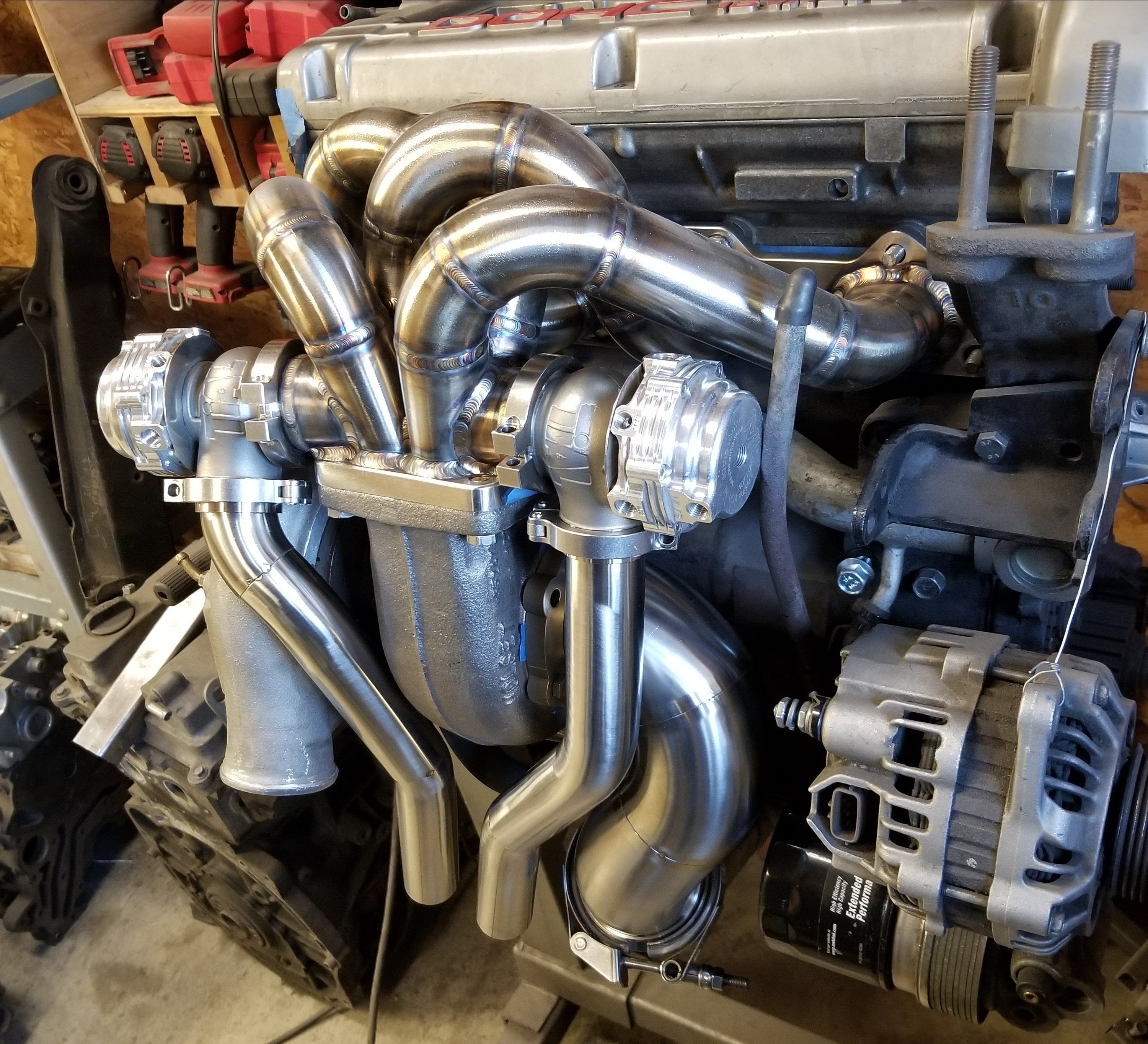

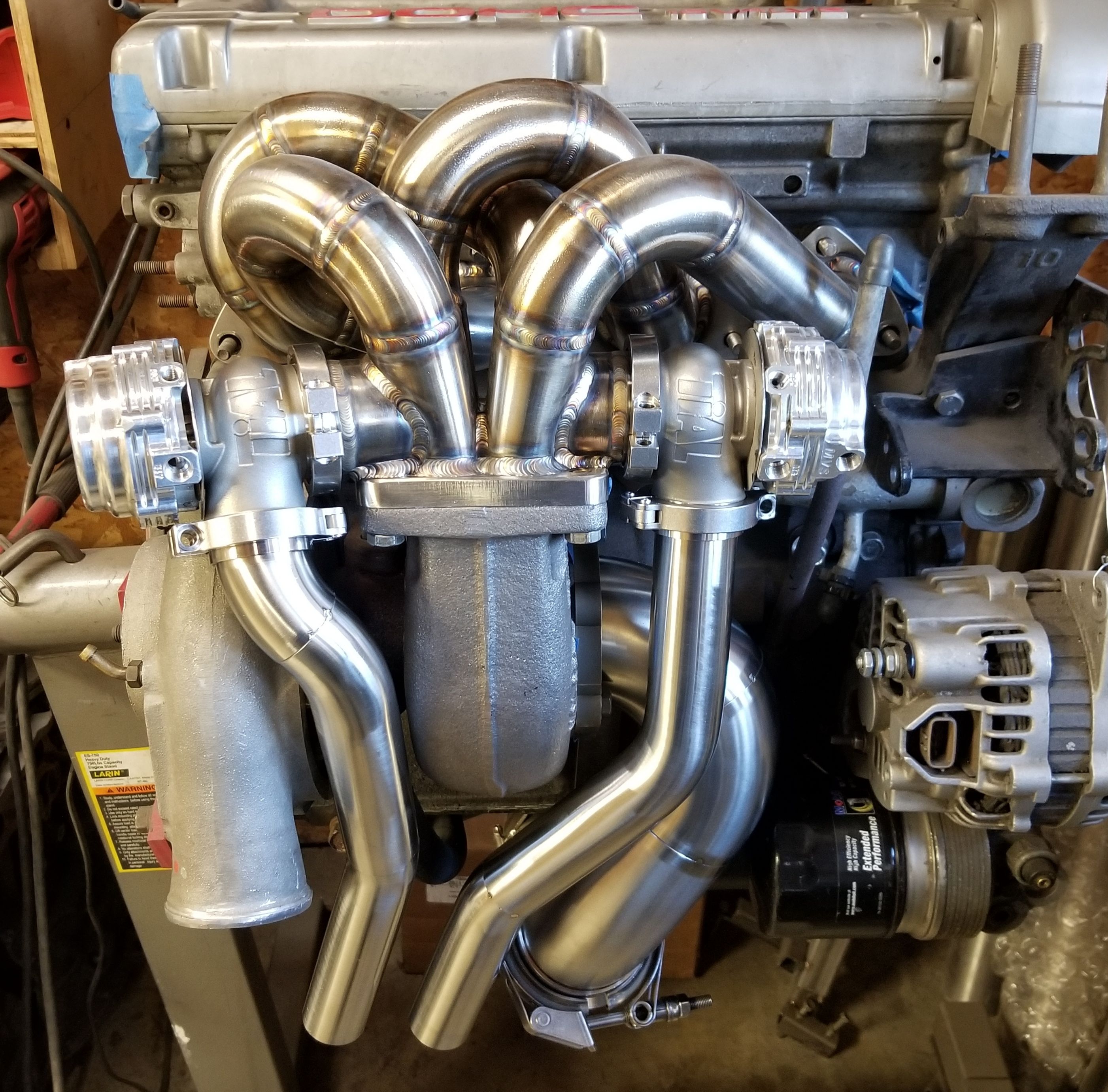

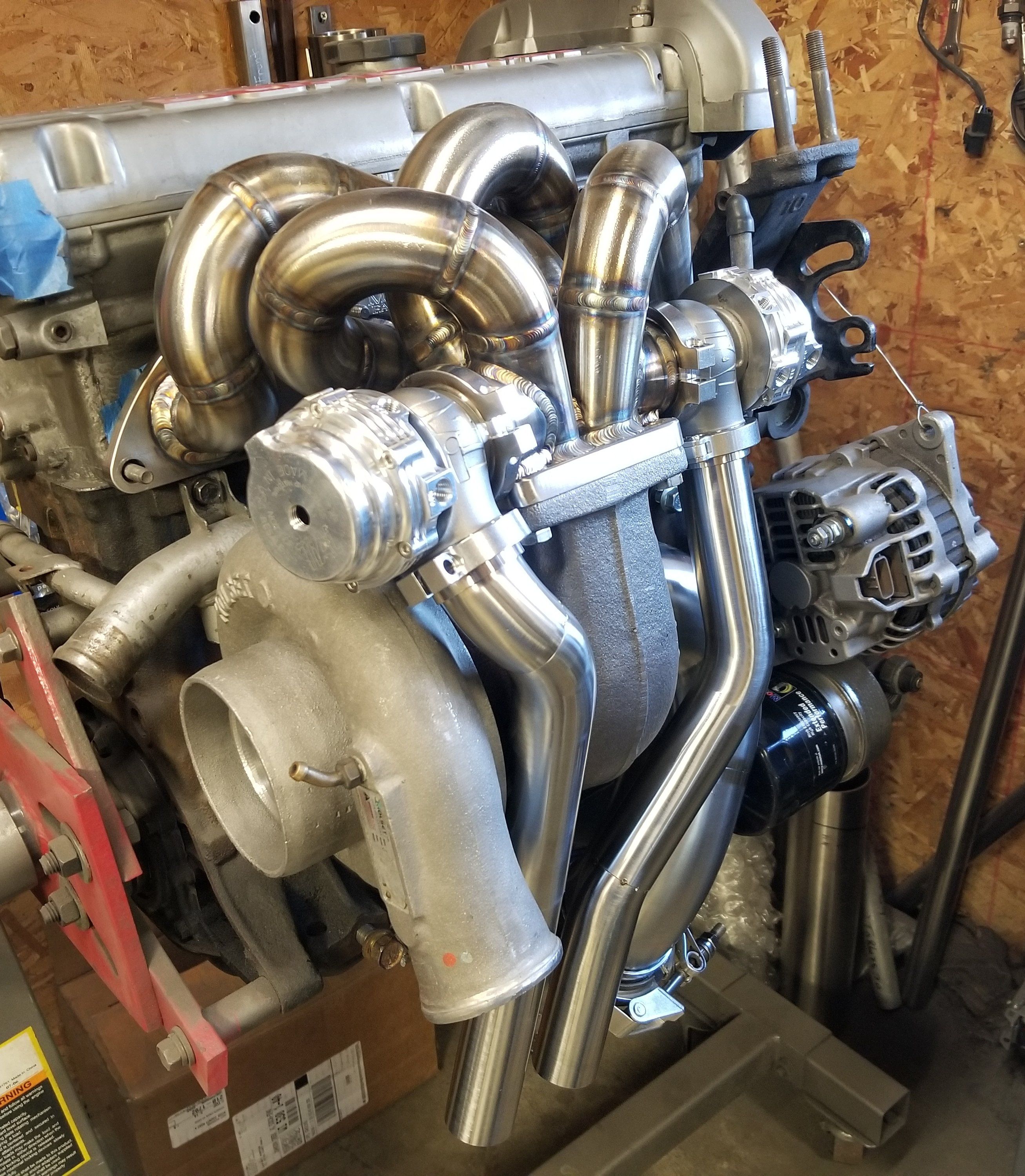

    Tac'd and fitted. Just needs some final welding! Planning to pick this thing up Sunday! ROCK AND ROLL!:hellyeah:

    20200529_190031.jpg 20200529_190119.jpg 20200529_190153.jpg


    701  10

    1996 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 9K  24

    1995 Eagle Talon TSi
    awd · manual · 2G DSM

    366  7

    2008 Lancer Evolution MR
    awd · automatic · Lancer Evolution
    Loading...
  12. TK's9d2TSi

    TK's9d2TSi Supporting Member

    3,796
    1,396
    Joined Sep 11, 2017
    Cincinnati, Ohio
    Wow. Such a nice piece. :sneaky:


    450  3

    2000 Jeep Cherokee Sport - Classic
    awd · automatic · Misc Vehicles

    506  4

    93 Civic 4 Door -sold-
    fwd · manual · Misc Vehicles

    Street Build 3K  6

    1992 Eagle Talon TSi AWD
    12.2 @ 120 · 1G DSM
    Loading...
    rabenne likes this.
  13. rabenne

    rabenne Proven Member

    1,679
    652
    Joined Apr 21, 2006
    Racine, Wisconsin

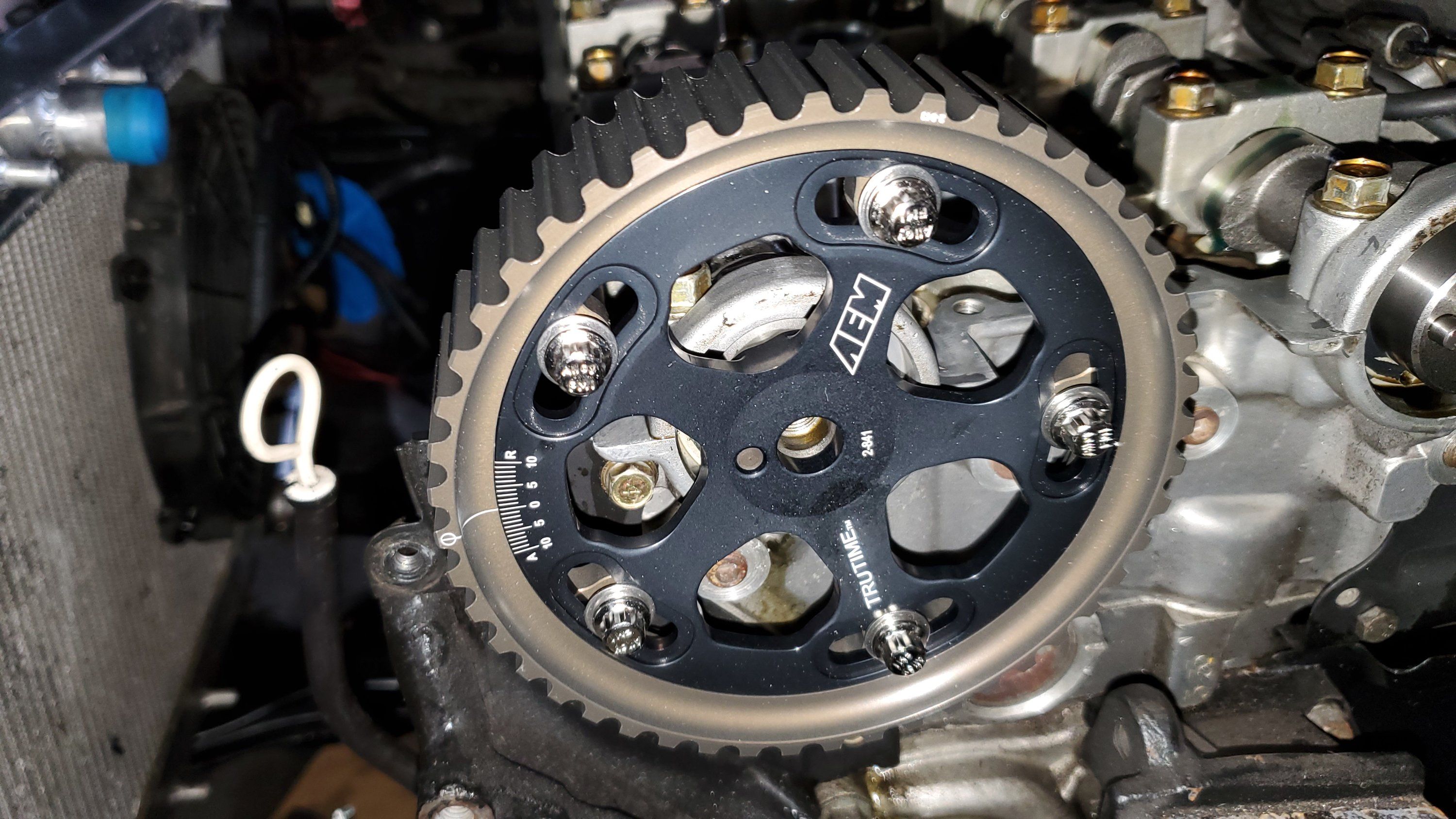

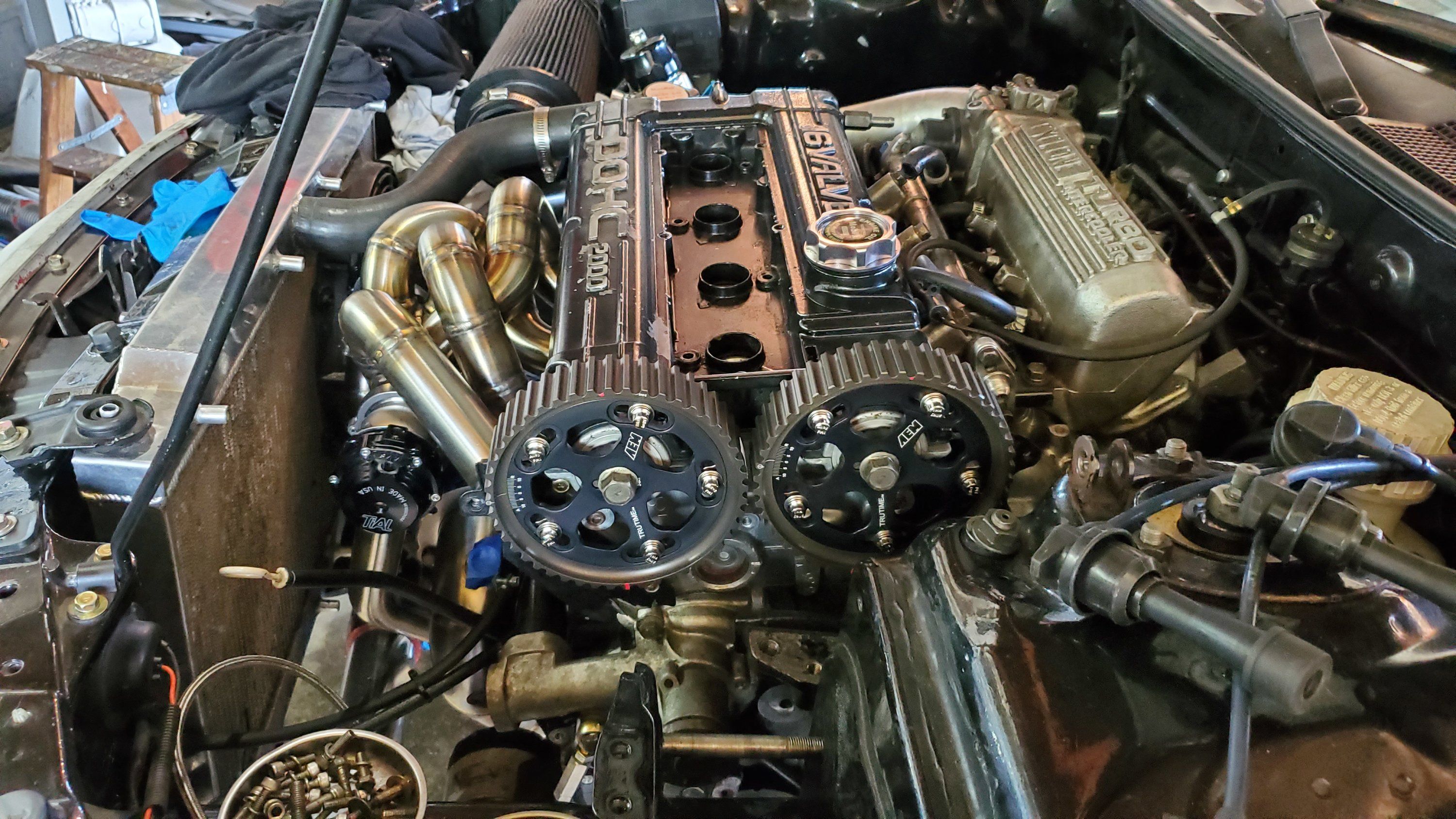

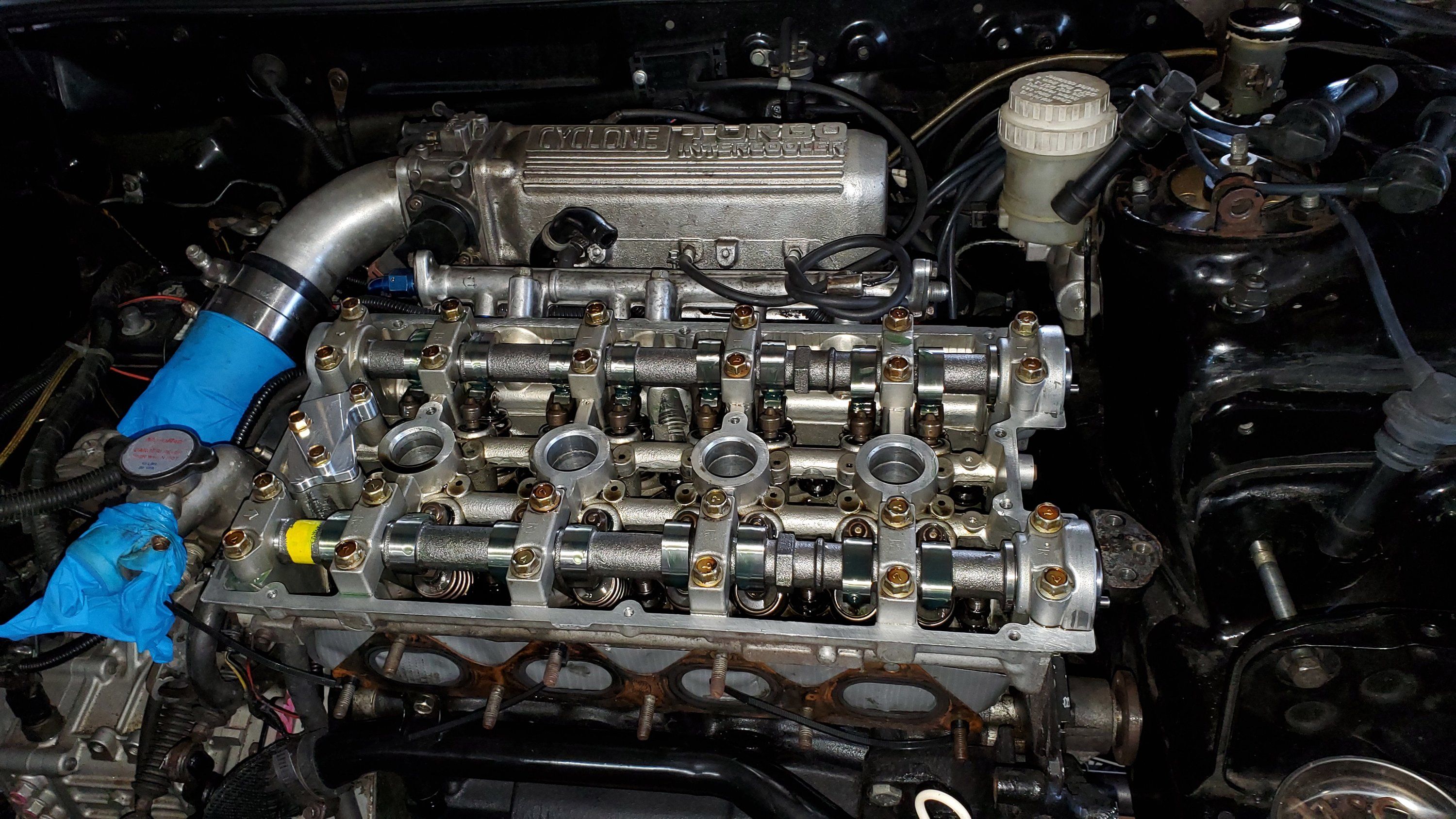

    Got some work done tonight... I installed the kiggly valve springs, kiggly hla, and kelford 264 cams (small, yes I know). I also prepped the exhaust manifold gasket surface (not shown) for the new MF parts going on.

    The oil pan still seeps from my crappy weld, so that needs attention. The valve cover is getting dropped for powder coat later this week, and hopefully will have a nice quick turnaround.

    Tomorrow I am going to see how well I am able to degree the cams with the engine in the car... I have a dial indicator setup that should work, two solid lifters, two test springs and a magnetic degree wheel. It might take a few tries to get consistent measurements, but once I figure it out I will just install the cams to kelfords spec for now.

    I chose the AEM trutime for the EVO 8/9 instead of the DSM set because I dont utilize the intake cam sensor on the gear like early 2gs, and the DSM gears have provisions for that sensor, which in my opinion look shitty. The only issue with the evo 8/9 gears is they dont have the side timing marks like DSM gears. I transferred the marks over from the stock gears with a red paint pen for now (not shown in pic, not actually installed yet.). I have to say it looks like a pretty damn clean engine for something that got assembled in 2007...

    Please ignore that I didnt clean up the silicon from the VCG last time... I just wanted to get the cams torqued and I will deal with that when I put the new VC/VCG on.

    20200604_192609.jpg 20200604_192721.jpg


    701  10

    1996 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 9K  24

    1995 Eagle Talon TSi
    awd · manual · 2G DSM

    366  7

    2008 Lancer Evolution MR
    awd · automatic · Lancer Evolution
    Loading...
    ErikTande and TK's9d2TSi like this.
  14. rabenne

    rabenne Proven Member

    1,679
    652
    Joined Apr 21, 2006
    Racine, Wisconsin

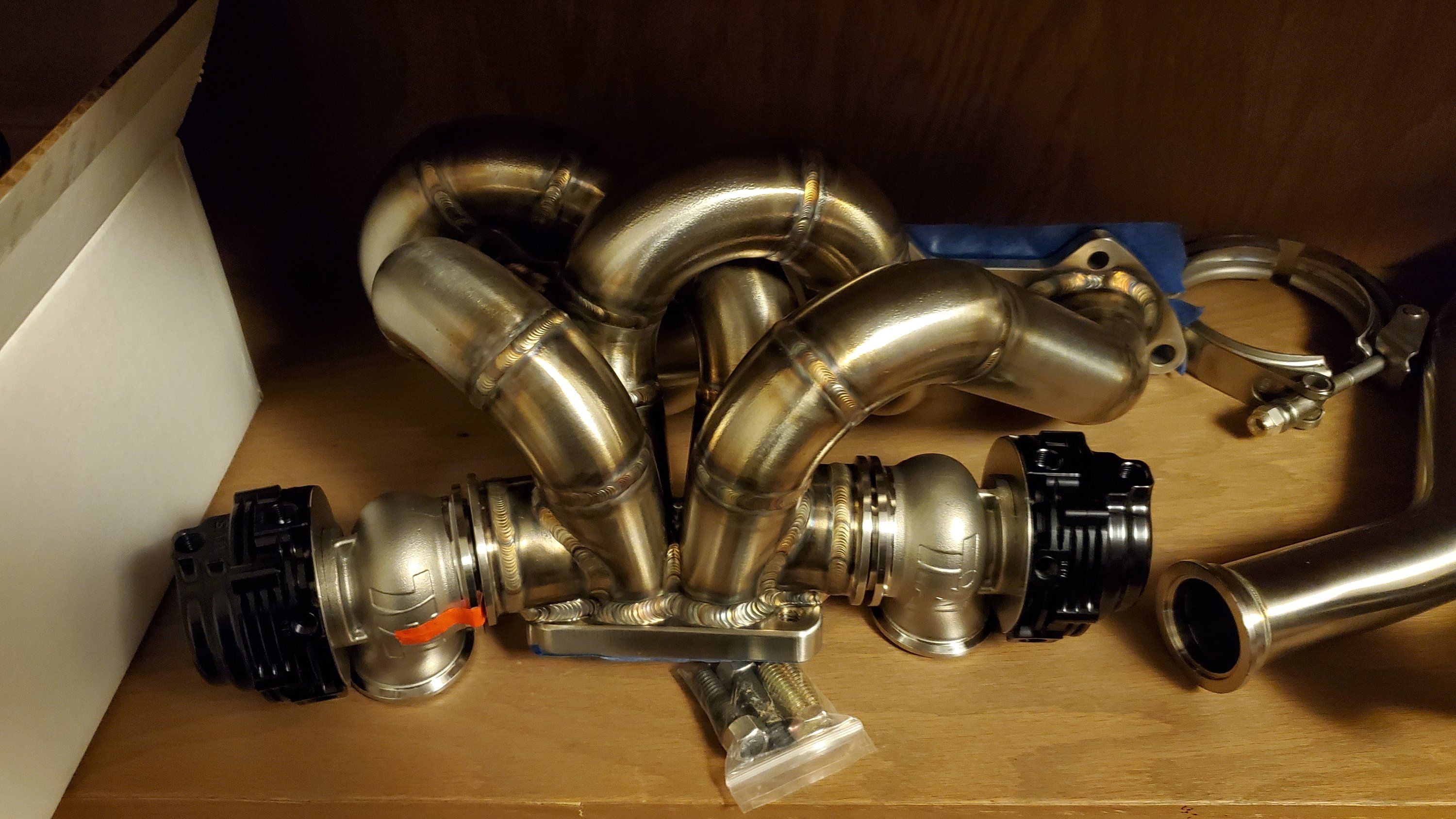

    Got my second wg finally, might have to do some test fitting today. See if the rad needs changed/modified, measure for the intake pipe, double check the oil feed and drain parts, etc.

    The cams can wait a day... I have all weekend to dial them in, and get the turbo parts on. Still havent dealt with the oil pan...



    701  10

    1996 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 9K  24

    1995 Eagle Talon TSi
    awd · manual · 2G DSM

    366  7

    2008 Lancer Evolution MR
    awd · automatic · Lancer Evolution
    Loading...
    ErikTande and TK's9d2TSi like this.
  15. rabenne

    rabenne Proven Member

    1,679
    652
    Joined Apr 21, 2006
    Racine, Wisconsin

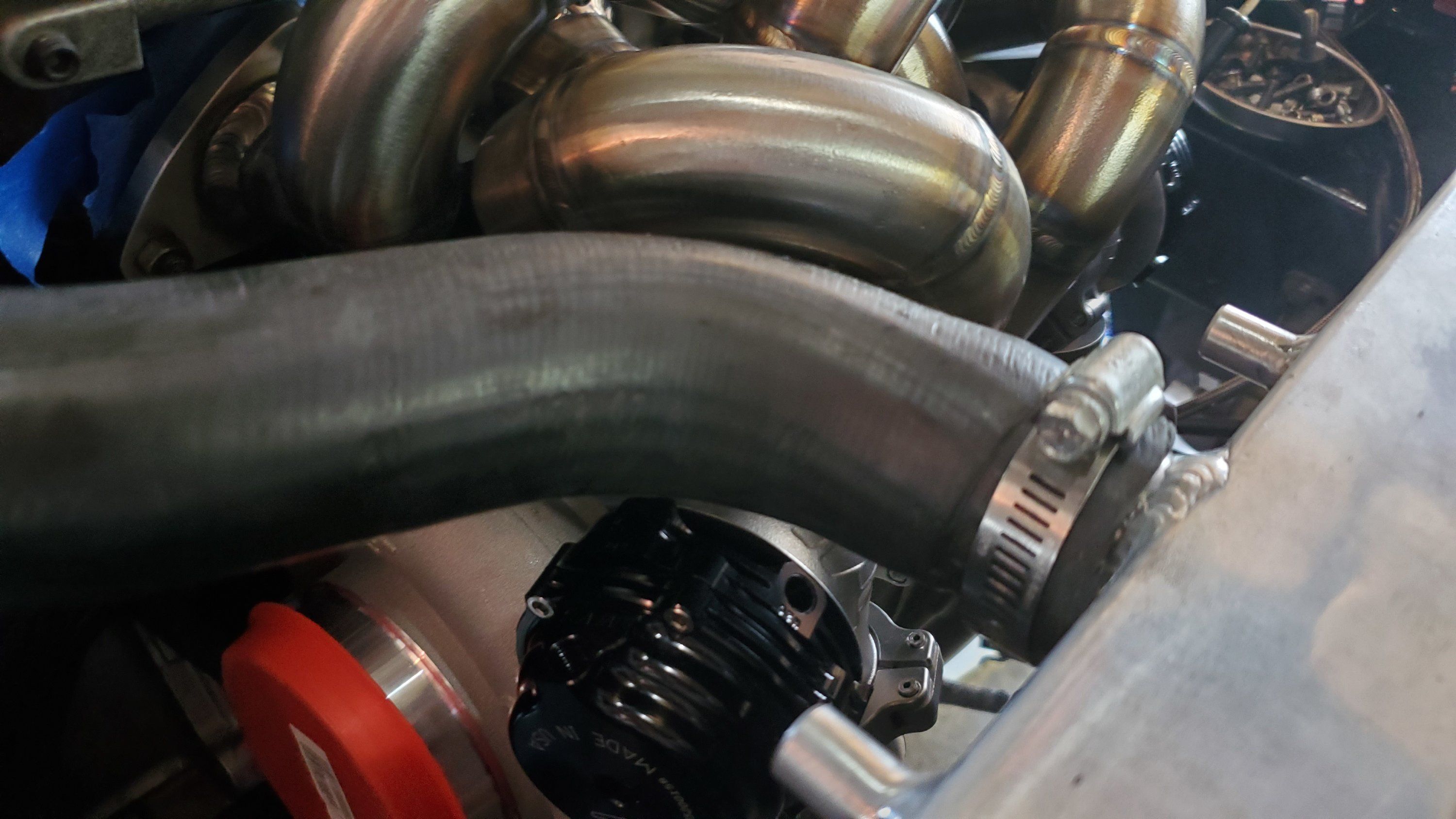

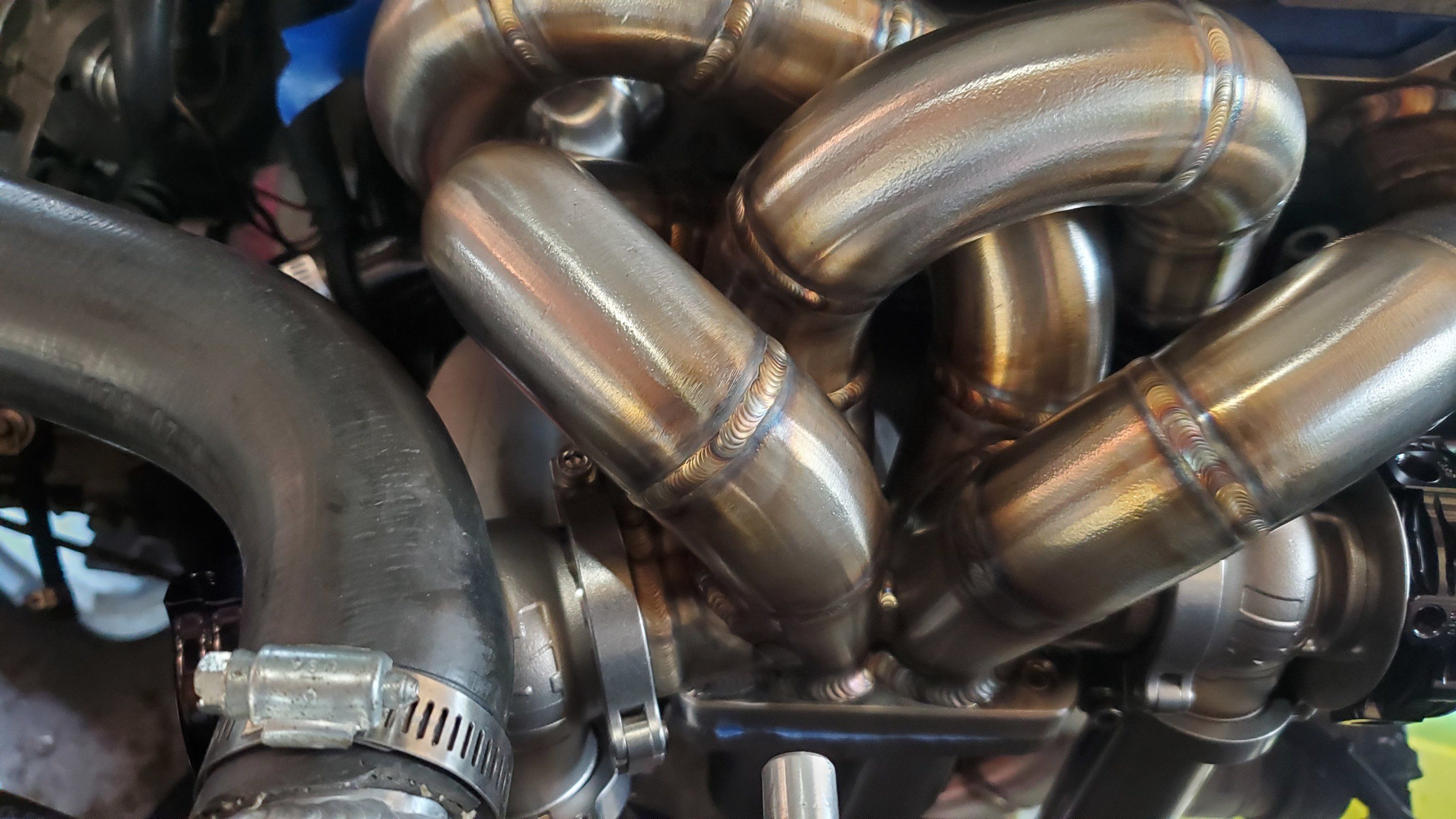

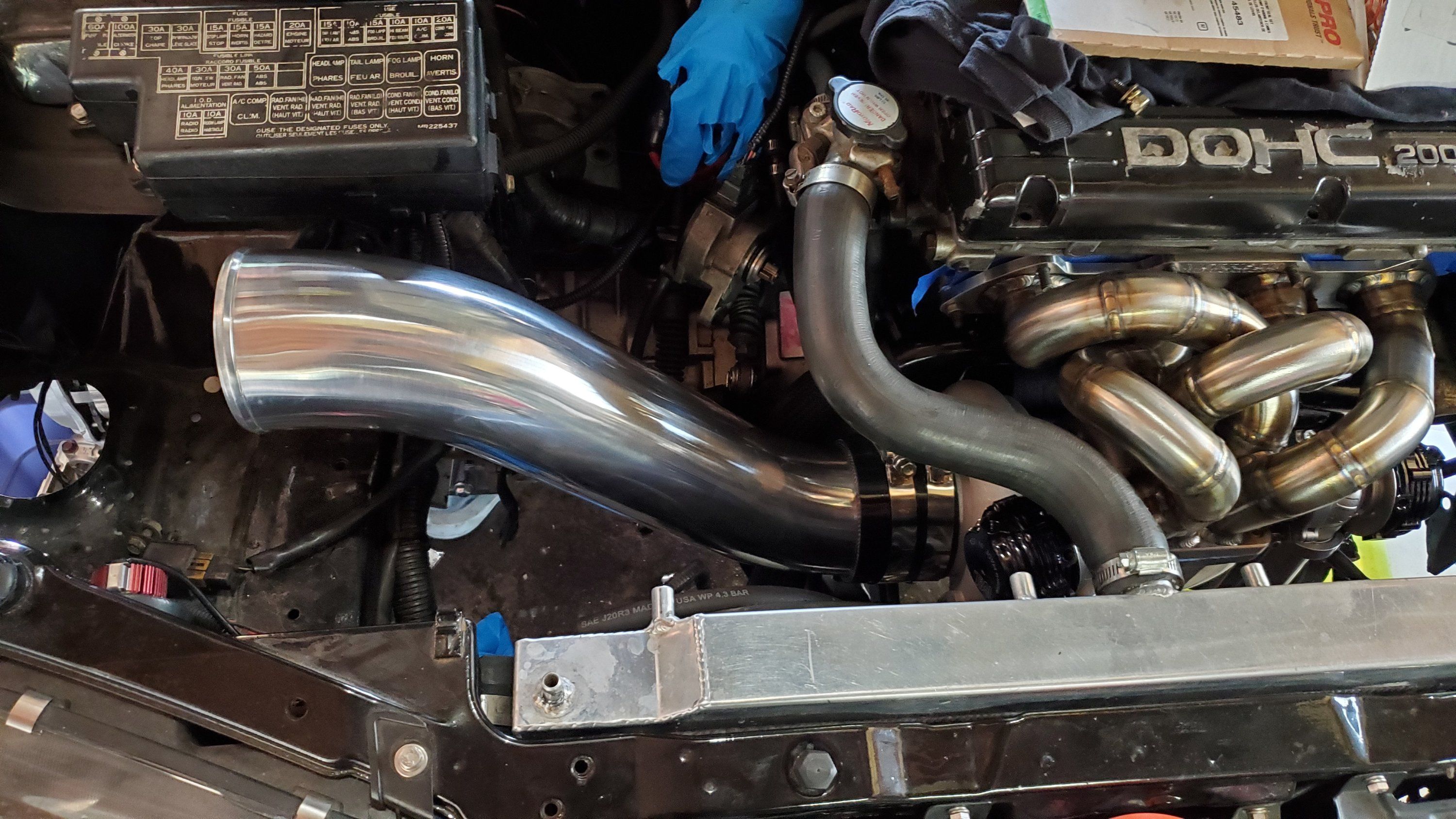

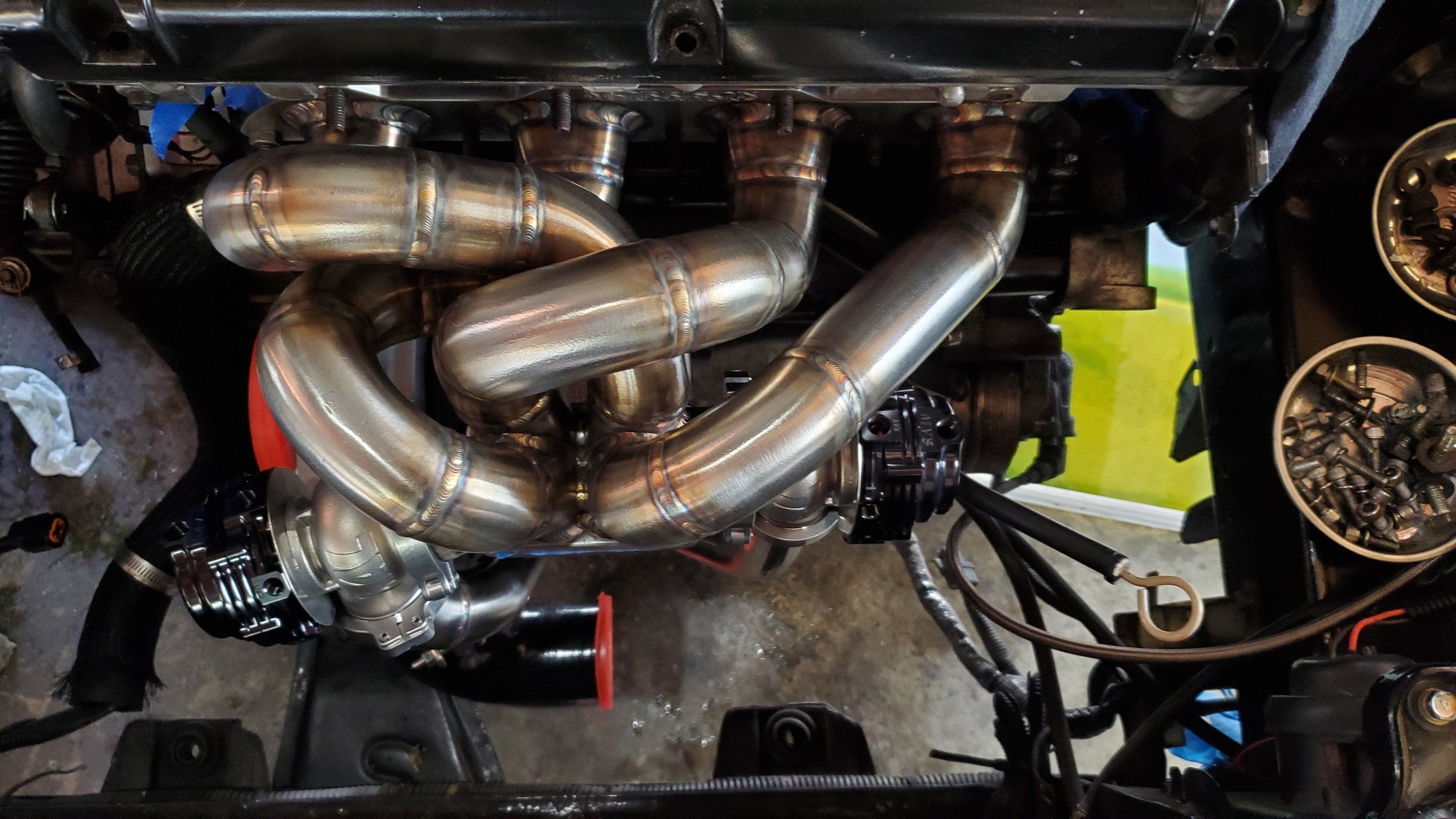

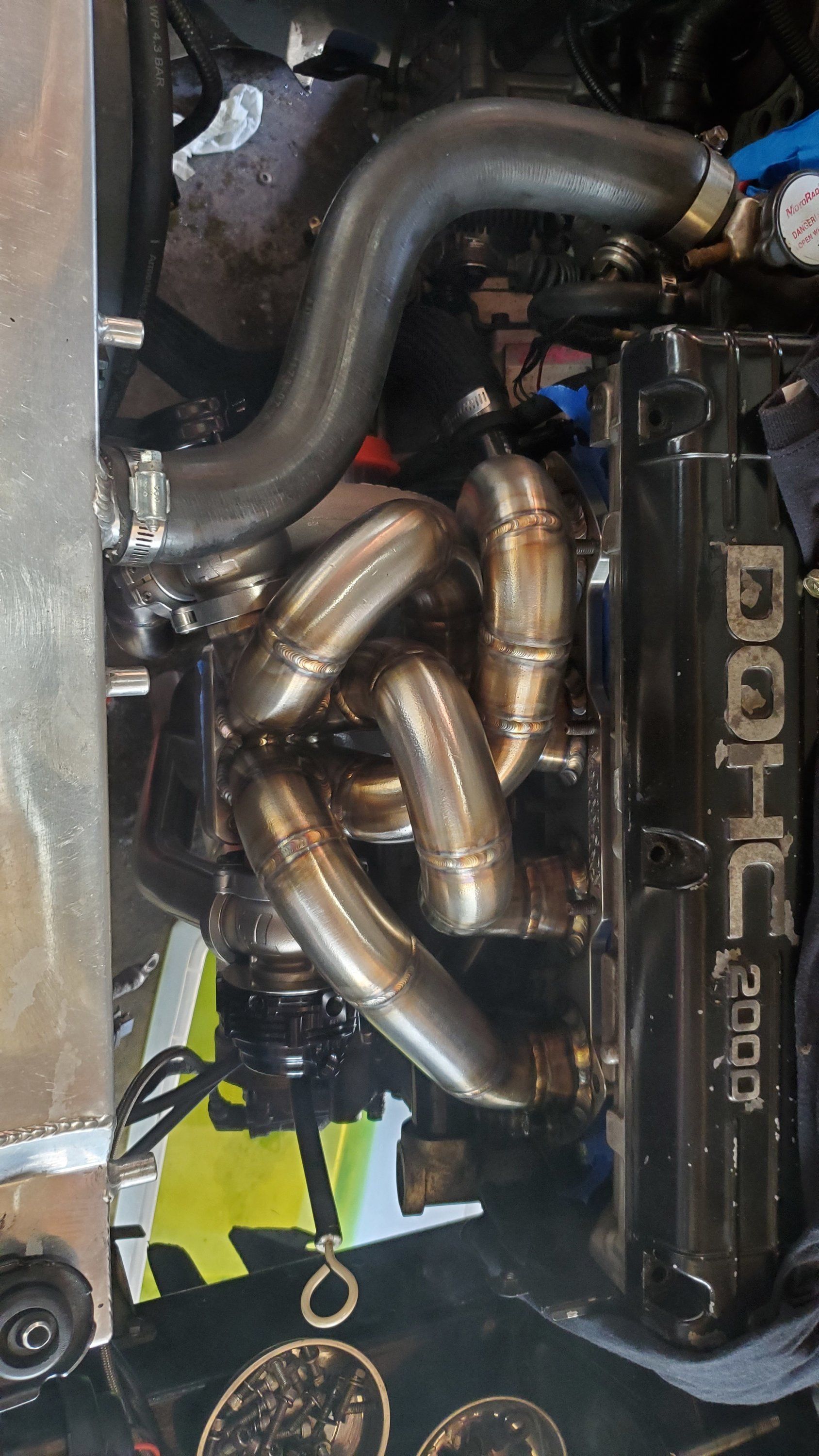

    Well, test fitting is going pretty well... The radiator hose clears the wastegate with enough room to put a heat sleeve over the rad hose.

    20200605_164914.jpg 20200605_164920.jpg

    Also found the intake pipe is a bit long/tall for the plan, so it will need hacked up and a large section cut out of the middle. Should work nicely otherwise.


    Took the oil pan back for welding another attempt to fix the leak... still didnt get it. I think there are pinholes in the fitting itself at this point, so I am going to cut it off and weld it to a plate, then weld the plate to the pan. hopefully I have better luck that way... if not, Ill have to figure out what I am going to do for the giant oil return setup.. maybe leave the stock pan on there...


    Attached Files:

    701  10

    1996 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 9K  24

    1995 Eagle Talon TSi
    awd · manual · 2G DSM

    366  7

    2008 Lancer Evolution MR
    awd · automatic · Lancer Evolution
    Loading...
  16. TK's9d2TSi

    TK's9d2TSi Supporting Member

    3,796
    1,396
    Joined Sep 11, 2017
    Cincinnati, Ohio
    Looks sweet!! Upper hose seems too close imo. Saw someone mention that the spyder radiator have the inlet shifted over the the passengers side a bit.


    450  3

    2000 Jeep Cherokee Sport - Classic
    awd · automatic · Misc Vehicles

    506  4

    93 Civic 4 Door -sold-
    fwd · manual · Misc Vehicles

    Street Build 3K  6

    1992 Eagle Talon TSi AWD
    12.2 @ 120 · 1G DSM
    Loading...
    ErikTande likes this.
  17. rabenne

    rabenne Proven Member

    1,679
    652
    Joined Apr 21, 2006
    Racine, Wisconsin
    @TK's9d2TSi It'll be fine... Remember this is a coolant hose that has an extremely high heat capacity fluid flowing thru it. Radiant heat is the issue and cheap hose sleeves are really effective at protecting against radiant heat.

    I doubt ill have issues, but if I do, I will remember I said, "it'll be fine..."

    Unfortunately the spyder radiator is no different, based on the one I just sold... dead center...
    [​IMG]

    I will probably just buy a 1g rad (if necessary) since the upper hose placement is better for my application and they are super easy to adapt for a 2g. The thought of trying to weld aluminum again makes me cry a little LOL.


    701  10

    1996 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 9K  24

    1995 Eagle Talon TSi
    awd · manual · 2G DSM

    366  7

    2008 Lancer Evolution MR
    awd · automatic · Lancer Evolution
    Loading...
    ErikTande and TK's9d2TSi like this.
  18. TK's9d2TSi

    TK's9d2TSi Supporting Member

    3,796
    1,396
    Joined Sep 11, 2017
    Cincinnati, Ohio
    Oh they are the same. I’m ok as long as you’re confident :thumb:. Have you thought about just brazing the oil pan where it’s leaking?


    450  3

    2000 Jeep Cherokee Sport - Classic
    awd · automatic · Misc Vehicles

    506  4

    93 Civic 4 Door -sold-
    fwd · manual · Misc Vehicles

    Street Build 3K  6

    1992 Eagle Talon TSi AWD
    12.2 @ 120 · 1G DSM
    Loading...
  19. rabenne

    rabenne Proven Member

    1,679
    652
    Joined Apr 21, 2006
    Racine, Wisconsin
    I probably should have started there TBH. I thought tig welding was supposed to be a better option, and I still do want to learn... but I am ready to let my buddy do it instead.


    701  10

    1996 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 9K  24

    1995 Eagle Talon TSi
    awd · manual · 2G DSM

    366  7

    2008 Lancer Evolution MR
    awd · automatic · Lancer Evolution
    Loading...
    TK's9d2TSi likes this.
  20. rabenne

    rabenne Proven Member

    1,679
    652
    Joined Apr 21, 2006
    Racine, Wisconsin

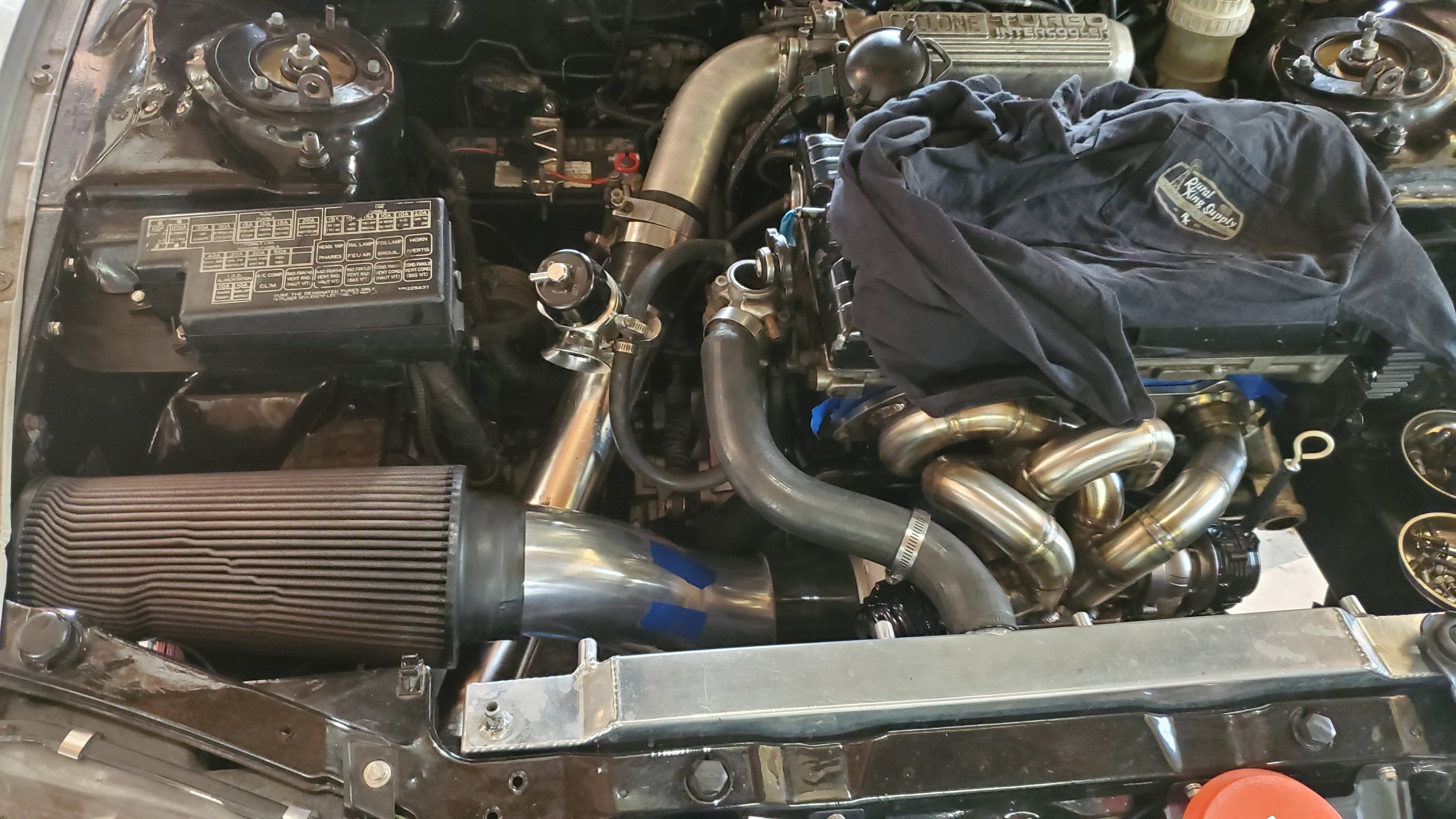

    Well I chopped down the intake pipe and it ended up just about perfect. It is a bit tight to the upper IC pipe, but it clears and puts the filter in roughly the right spot.

    Filter took some damage trying to get the bead on the 4" pipe to go into the flange. I ended up using a heat gun to soften the rubber and it slipped right in... ill have to remember that for the replacement filter...

    Excuse my messes...

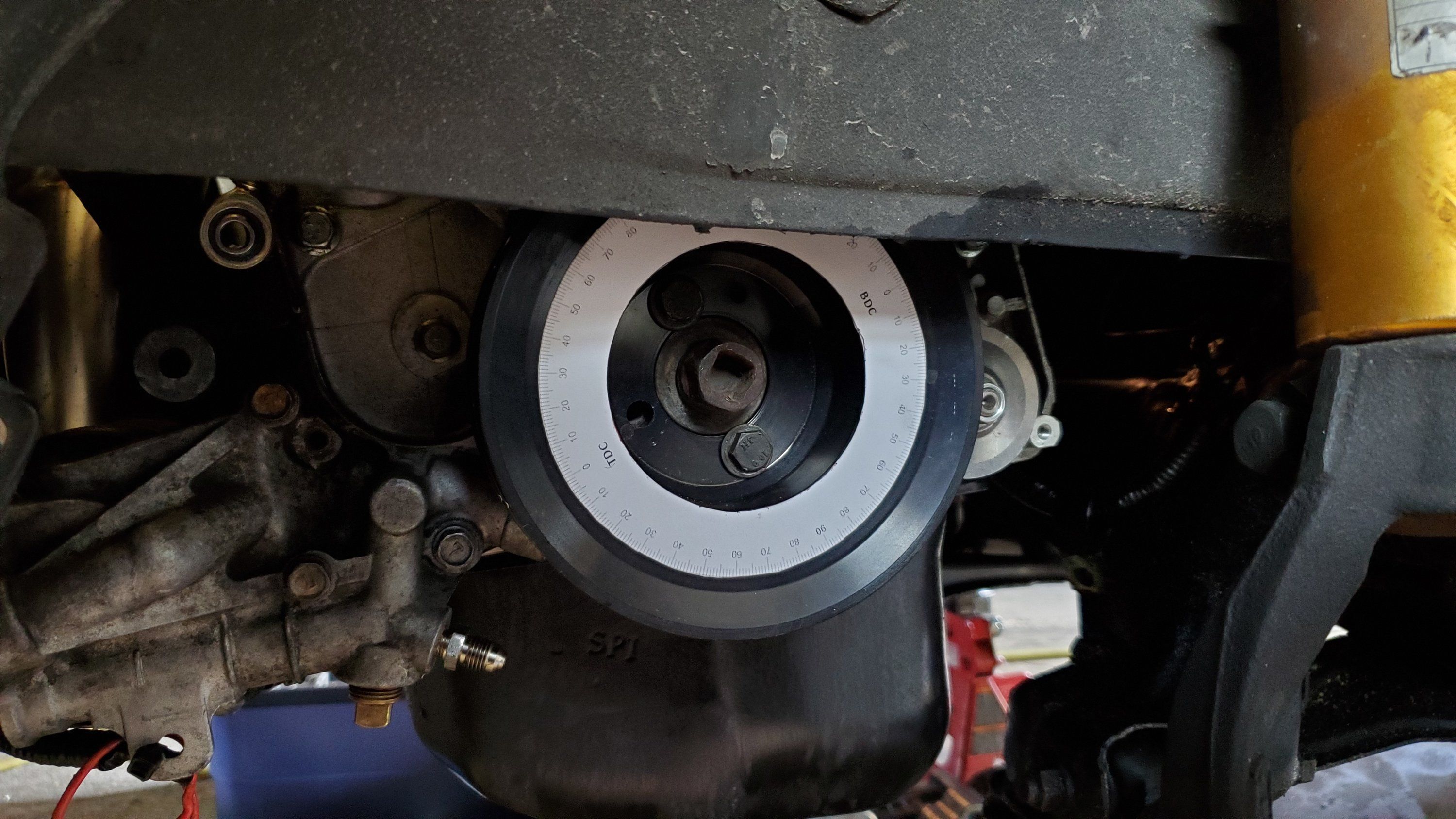

    Also stuck the magnetic degree wheel I printed to the fluidampr, and eyeballed what it would take to make a pointer for it. Should work out nicely.



    701  10

    1996 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 9K  24

    1995 Eagle Talon TSi
    awd · manual · 2G DSM

    366  7

    2008 Lancer Evolution MR
    awd · automatic · Lancer Evolution
    Loading...
    ErikTande likes this.
  21. rabenne

    rabenne Proven Member

    1,679
    652
    Joined Apr 21, 2006
    Racine, Wisconsin


    701  10

    1996 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 9K  24

    1995 Eagle Talon TSi
    awd · manual · 2G DSM

    366  7

    2008 Lancer Evolution MR
    awd · automatic · Lancer Evolution
    Loading...
  22. ec17pse

    ec17pse Freelancer

    4,788
    1,928
    Joined Nov 1, 2008
    London, UK, Europe
    Looking at the pan i do see some pin holez on the inside, it also seems like some of the weld never took to the excisting weld either. One thing with alloy welding is you have to down slope the pedal or amps as it makes holes if you just stop. I learnt this with alloy welding. If you got any oil or dirt then thats not a good weld and will also create a possible issue for you.

    Have you located the exact point of it leaking?


    Road Race Build 10K  10  57

    1997 Mitsubishi Eclipse GST
    175 whp · 180.1 lb/ft · 2G DSM
    Loading...
  23. rabenne

    rabenne Proven Member

    1,679
    652
    Joined Apr 21, 2006
    Racine, Wisconsin
    Yes, it was actually leaking thru the fitting itself... i burnt a hole in it. ill post a pic when I cut it off to start over..

    My buddy's welder ramps down the amps automatically when you let off, but I still have seen what you are talking about... He says this sheet aluminum is really trashy metal, which kinda makes sense for a bootleg moroso pan. I am toying with the idea of just welding a box to my stock pan for a sump extension... didnt you do this at one point @ec17pse ?

    I do have some friends that can weld, so I think its going to end up costing me some beer to get this done finally. I dont want to keep messing up parts and grinding everything back down... LOL


    701  10

    1996 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 9K  24

    1995 Eagle Talon TSi
    awd · manual · 2G DSM

    366  7

    2008 Lancer Evolution MR
    awd · automatic · Lancer Evolution
    Loading...
  24. ec17pse

    ec17pse Freelancer

    4,788
    1,928
    Joined Nov 1, 2008
    London, UK, Europe
    If its through it then its had it. Some are thin walled and dont work well, re looking at your fitting it dont even have a base to weld onto so all that heat will melt the thin wall. Thats a hard one to do actually as your likely going from 1.5mm to what 3mm on the pan? As for material its likely normal 1050 sheel, its easy to fold and weld but not super strong but for its job it dont need to be as if its going to get damaged it will very easily.

    I did weld an expansion on the front of my oem pan. Got just under 1 QT more oil capacity as i also raised the cover inside up so it traps more oil


    Road Race Build 10K  10  57

    1997 Mitsubishi Eclipse GST
    175 whp · 180.1 lb/ft · 2G DSM
    Loading...
  25. rabenne

    rabenne Proven Member

    1,679
    652
    Joined Apr 21, 2006
    Racine, Wisconsin
    @ec17pse I remember a video with a hose..?

    The fitting comes with a very large flange, and has to be turned down to be welded on from the inside (too large otherwise). The fitting is super thin walled, but still much thicker than the pan material. Its super thin, like .070" or 1.75mm. Going to give it another shot when the new fitting comes Saturday. Decent plan but poor execution... I just suck at tig welding really badly. Its clumsy and its one step forward and two steps back. Nice thing is my buddy is just laughing confidently that he can fix whatever I mess up.

    I test fitted the pan to a spare 6 bolt block I had in the shed, and it actually fits pretty decent. I will admit I had to clean up some of the factory welds that rubbed on the suitcase handle... and I will have to open up almost half of the bolt holes to get them to align well enough. They are all just a shade off in one direction. A die grinder can make them into ovals and im good to go there.

    The only thing I haven't been able to check is rod clearance with the stroker crank since my spare block is all stock. Might have to do what PK did...


    701  10

    1996 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM

    Street Build 9K  24

    1995 Eagle Talon TSi
    awd · manual · 2G DSM

    366  7

    2008 Lancer Evolution MR
    awd · automatic · Lancer Evolution
    Loading...

Share This Page

Support Vendors who Support the DSM Community
Boosted Fabrication ECM Tuning ExtremePSI Feal Suspension Fuel Injector Clinic Jacks Transmissions JNZ Tuning Kiggly Racing Morrison Fabrications OHM Racing Raven Fabrication RixRacing RockAuto SouthBay Fuel Injectors STM Tuned Track Decals Track Sculptures VR Speed Factory
