I know man, we have had a couple discussions about this cars bizarre wiring and i just can't figure the logic to some of the weird stuff i am continuously finding over time. Its like some crazy person put wires together for sake of doing so. I pulled over 5 pounds of audio wiring out of this thing a couple year's ago and almost ripped out my hair getting that stuff back to stock wiring. Still wish i could find a decent genuine mitsu head unit.


TK's9d2TSi

Supporting Member
5,096
2,272
Sep 11, 2017
Cincinnati, Ohio
I hear yah! It’s scary looking at wiring done by some people. My egt gauge came on the car but wasn’t working. Dug into and found it wasn’t wired correctly. Luckily it was an easy fix.


JeffGS-T97

Supporting Member
631
368
Mar 22, 2019
Muncie, Indiana
That's a seriously underrated sensor, I think because alot of people don't understand it's use. I put one in all my turbo builds. An easy fix is always awesome those sensor/gauge kits are $$$. Unfortunately my vintage apexi EGT took a crap and had to replace it with the Evo pro 60mm.


JeffGS-T97

Supporting Member
631
368
Mar 22, 2019
Muncie, Indiana

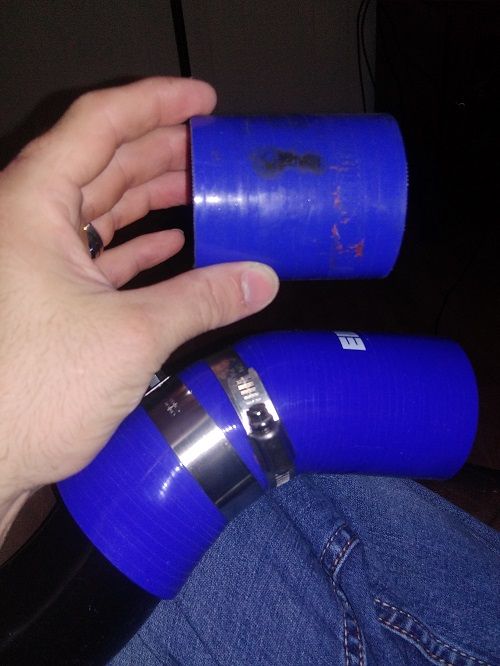

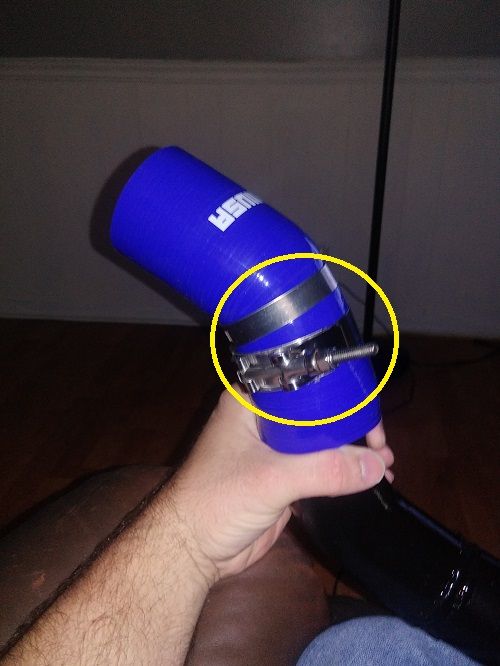

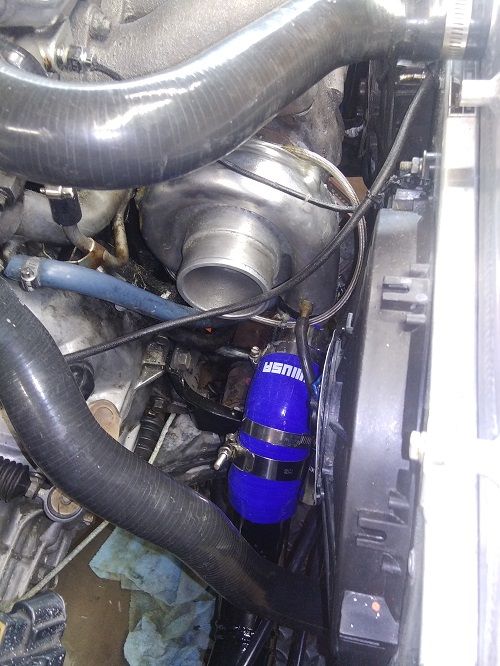

A few days back I mentioned fixing some problem areas in the IC plumbing. I cut the pipe to a better angle and welded thicker coupler cusps around the tips of the pipe and ran a long 45 instead of a straight coupler at the joint and doubled up on clamps for each end to insure no leaks will return in this area. I'm using 1 t-clamp paired with a stainless hose clamp on each end.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.

I'm trying out a new brand to see if they are any good. I'm only willing to buy couplers from them for now. They 4 layer with 3 rows of kevlar stitch. Already ran my BLT and everything sealed. Now to see if they can handle the heat and 21 psi.


JeffGS-T97

Supporting Member
631
368
Mar 22, 2019
Muncie, Indiana

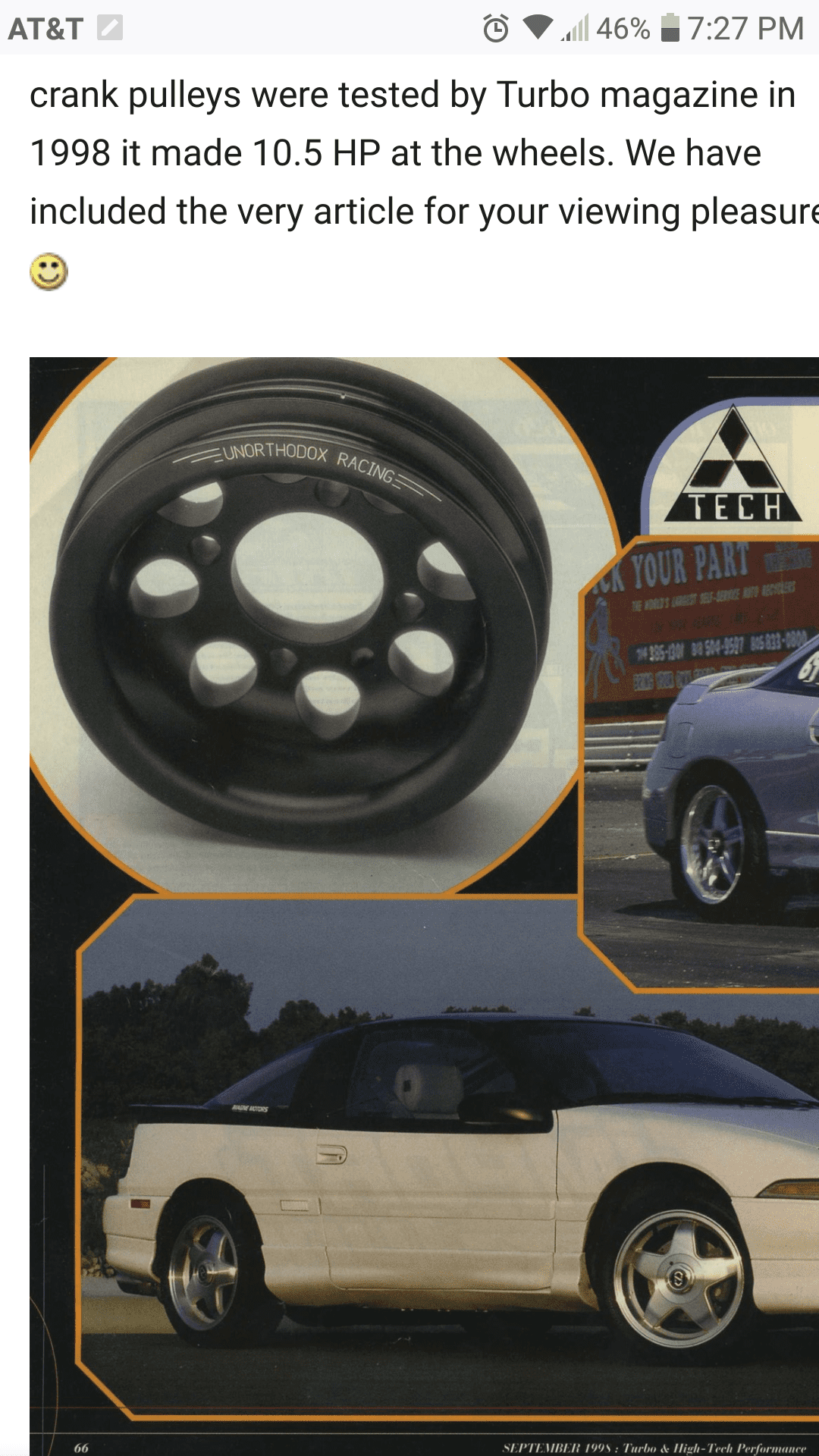

I found a bonus performance part i didn't know i have checking the timing yesterday. I noticed that the crank pulley was etched and never paid any mind and read it, turns out it is a very popular well made crank pulley by a company called Unorthodox Racing.
You must be logged in to view this image or video.

Last edited:

JeffGS-T97

Supporting Member
631
368
Mar 22, 2019
Muncie, Indiana

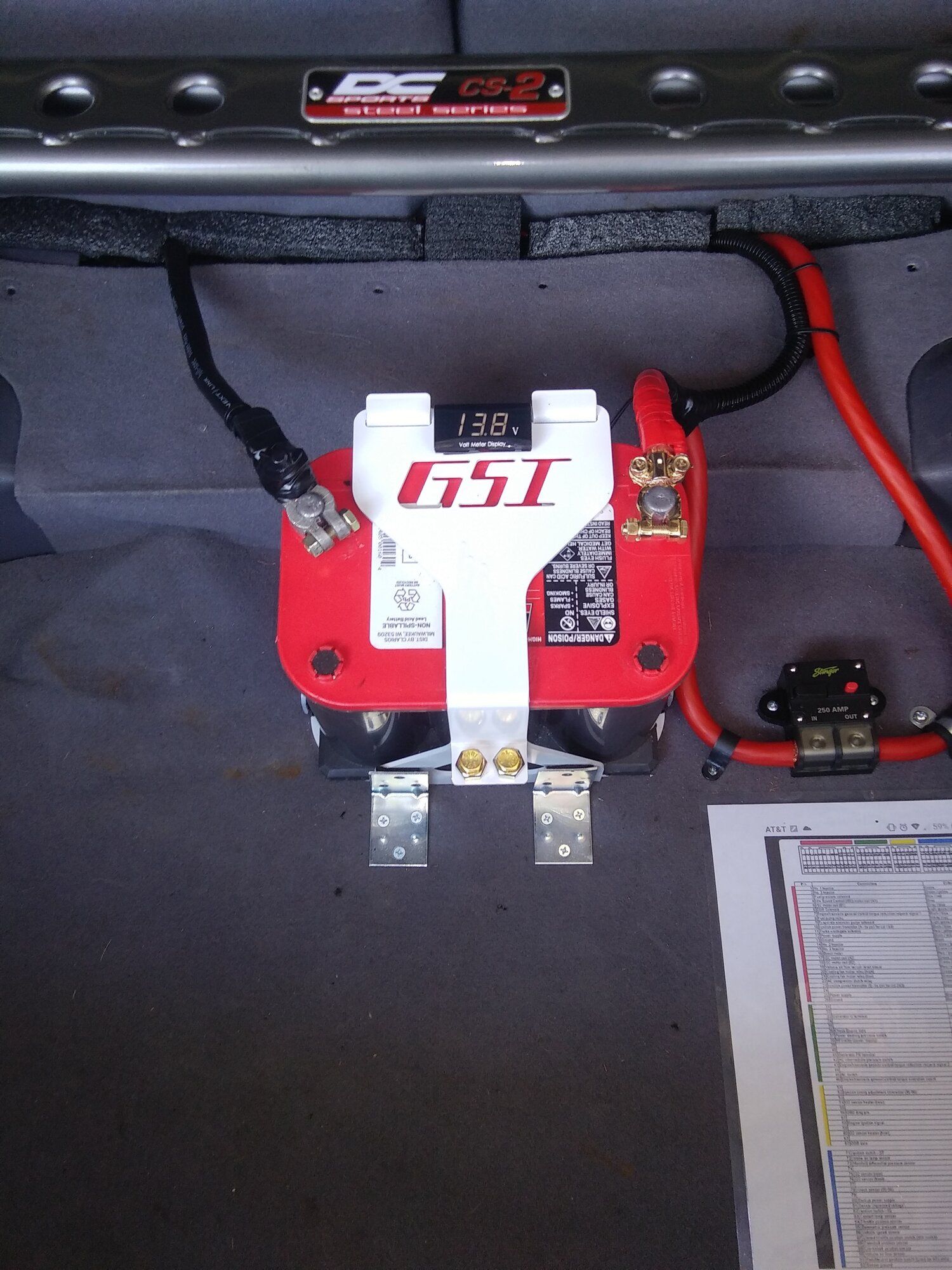

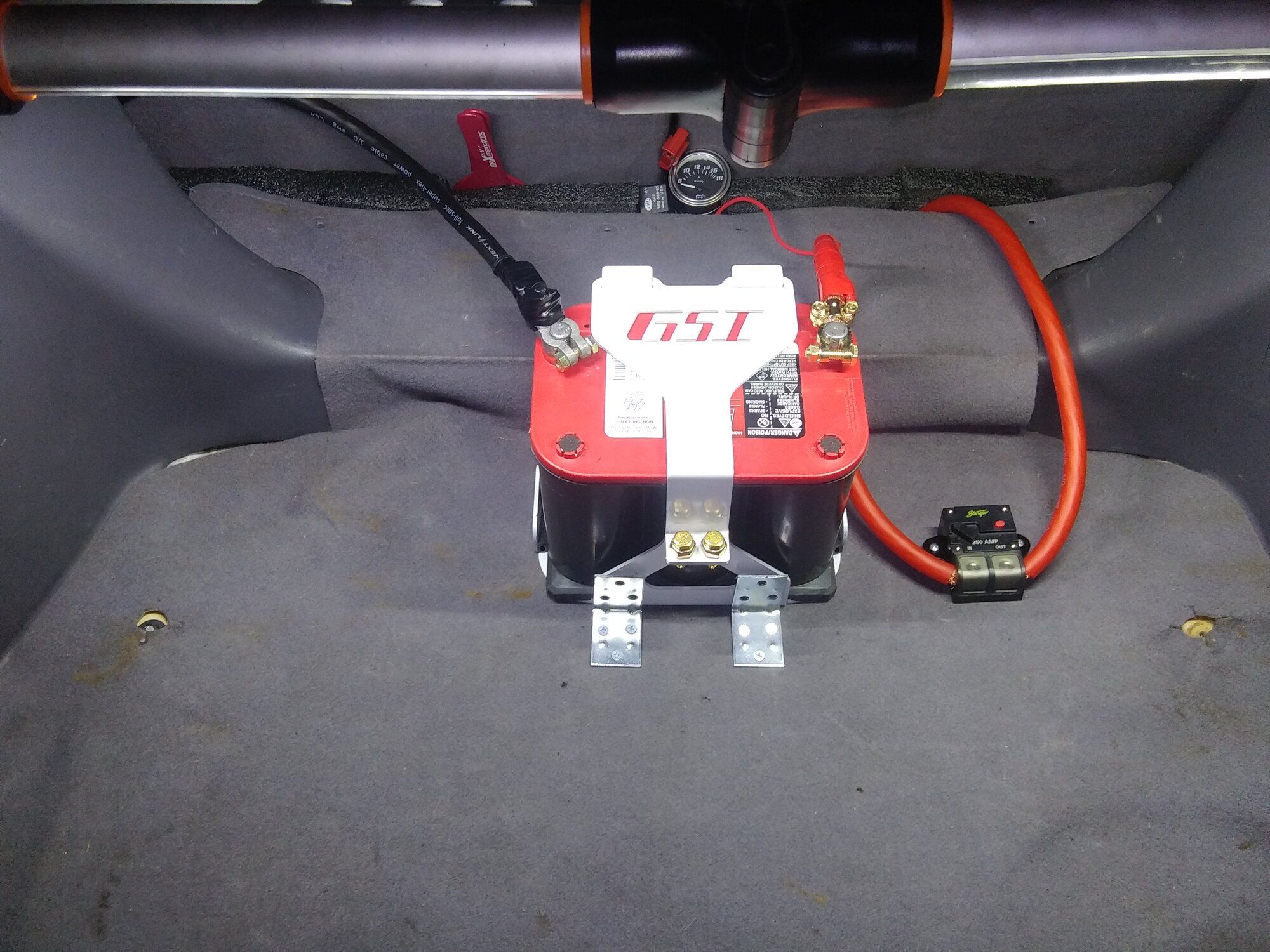

My battery tray unfortunately started to rust, i suppose i expected it due to it being cold roll material. I decided to wet sand it and put some paint on it. Seemed touch up bright white was the the appropriate choice to go with for the interior.
You must be logged in to view this image or video.

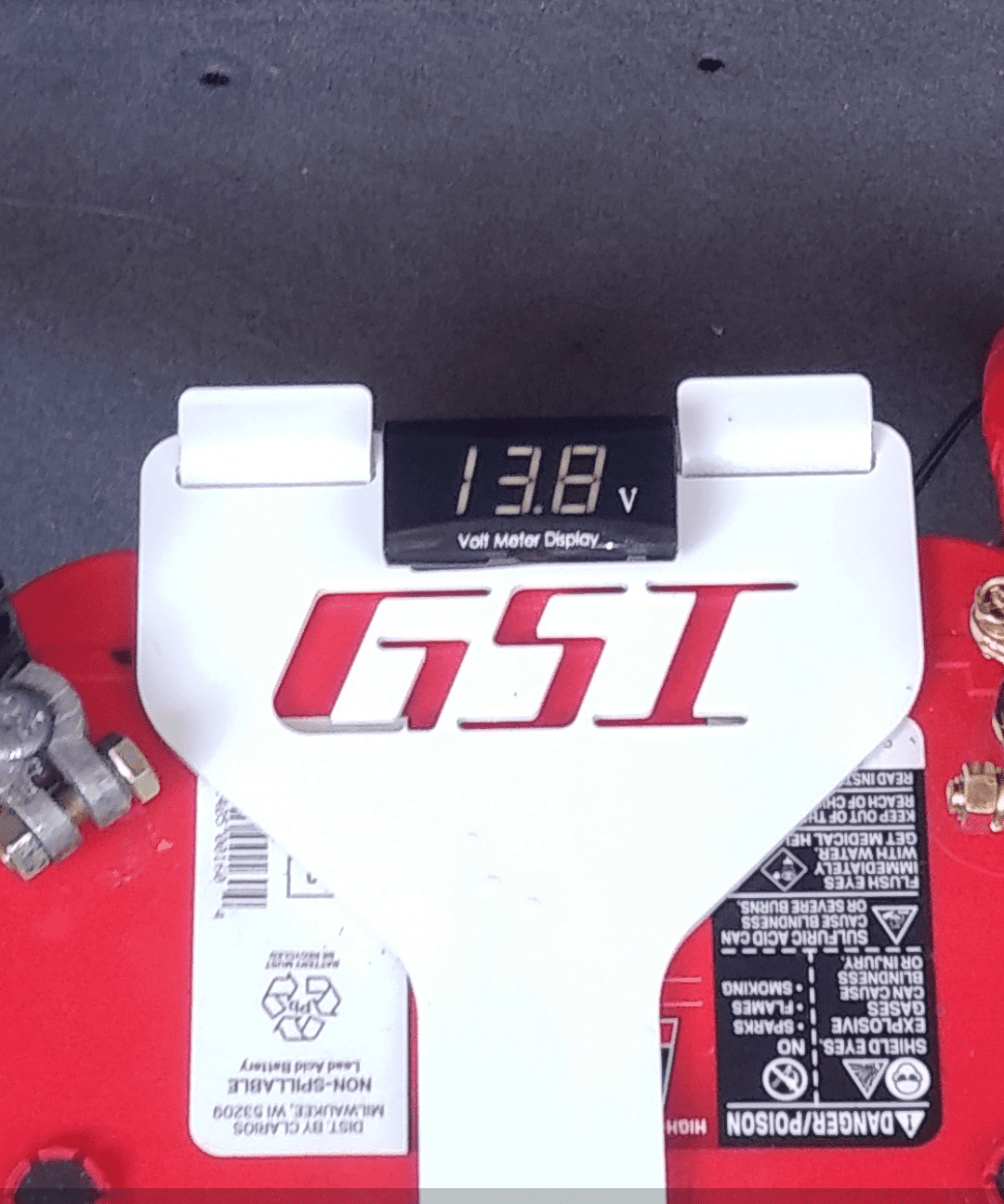

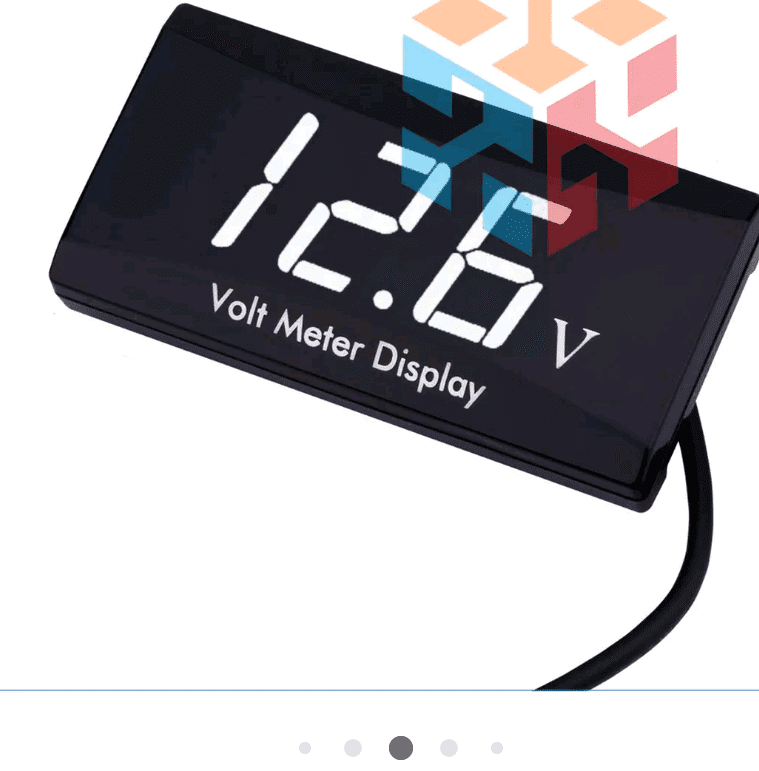

The odd guage behind the battery is direct volts going to the fuel pump. The 4 post relay for the fuel pump rewire is next to the gauge along with the inline fuse. Went with that guage because it was just laying around and seemed like a good idea to get a constant reading on the fuel pump current. Most likely will replace it with a small digital readout eventually to make it look a little more high speed LOL.


JeffGS-T97

Supporting Member
631
368
Mar 22, 2019
Muncie, Indiana

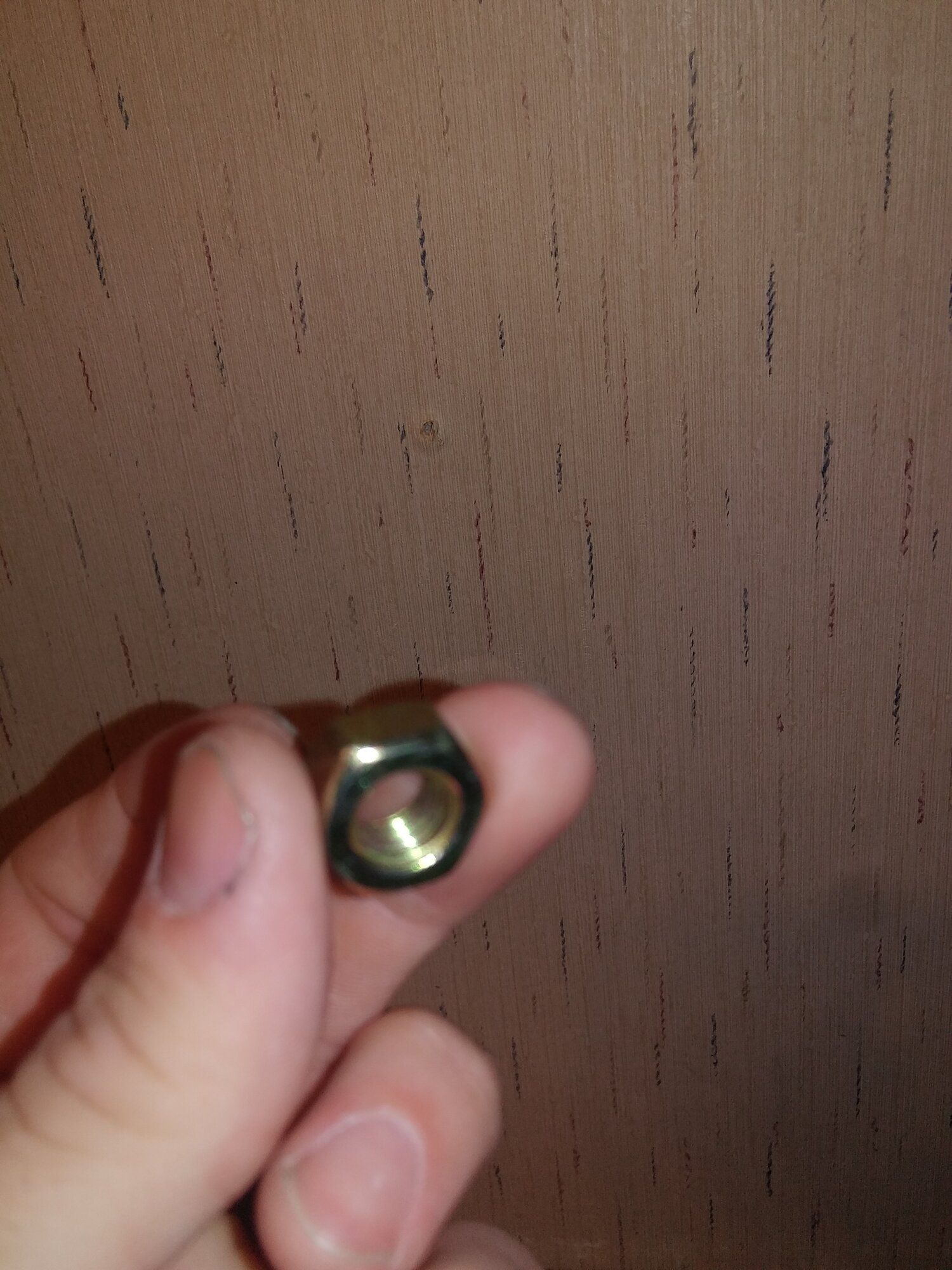

So the new update is just me making fun of myself. Been driving the car alot and started having slight grinds, and not able to get into second gear, same issue with 1st every now and then. I suspected the worst immediately. So upon checking the interior cable links i found something sort of embarrassing. When i replaced my boot and inspected the linkage a while back a nut fell into the shift assembly. Now im not scared of having to rebuild the trans again or put new cables and bushings in i got thw repair for free. I found this to be very funny and feel dumb all at once. It wasn't a small nut either.
You must be logged in to view this image or video.


JeffGS-T97

Supporting Member
631
368
Mar 22, 2019
Muncie, Indiana
Haha. Glad it was just that. You had to have been stoked to know it was just that.
Speaking of shift linkages, i think my components could use some grease do you got any particular stuff you think works well? I was just going to put some basic lithium grease on the bushings, joints, and springs.


JeffGS-T97

Supporting Member
631
368
Mar 22, 2019
Muncie, Indiana
Where did you get THOSE???

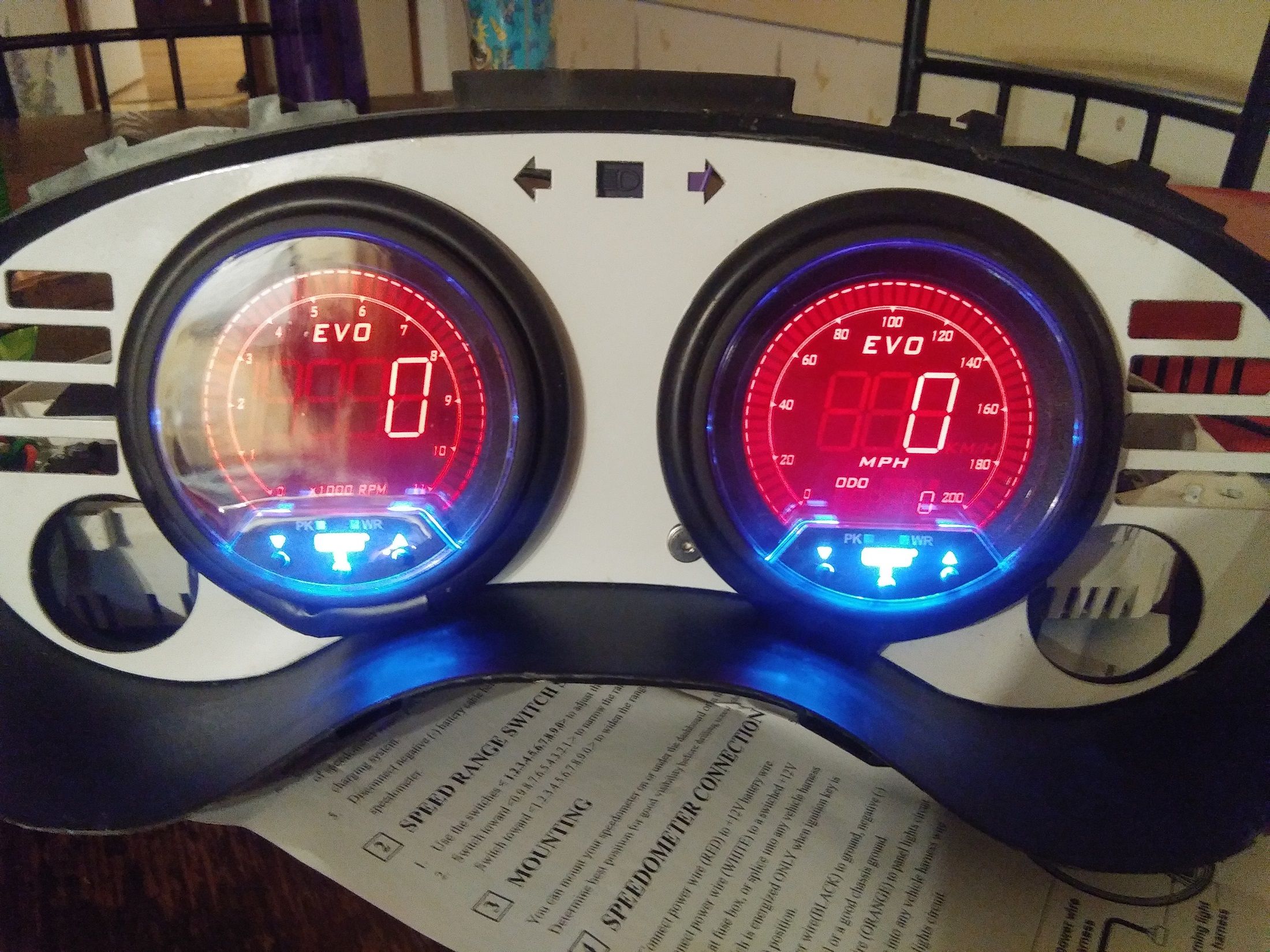

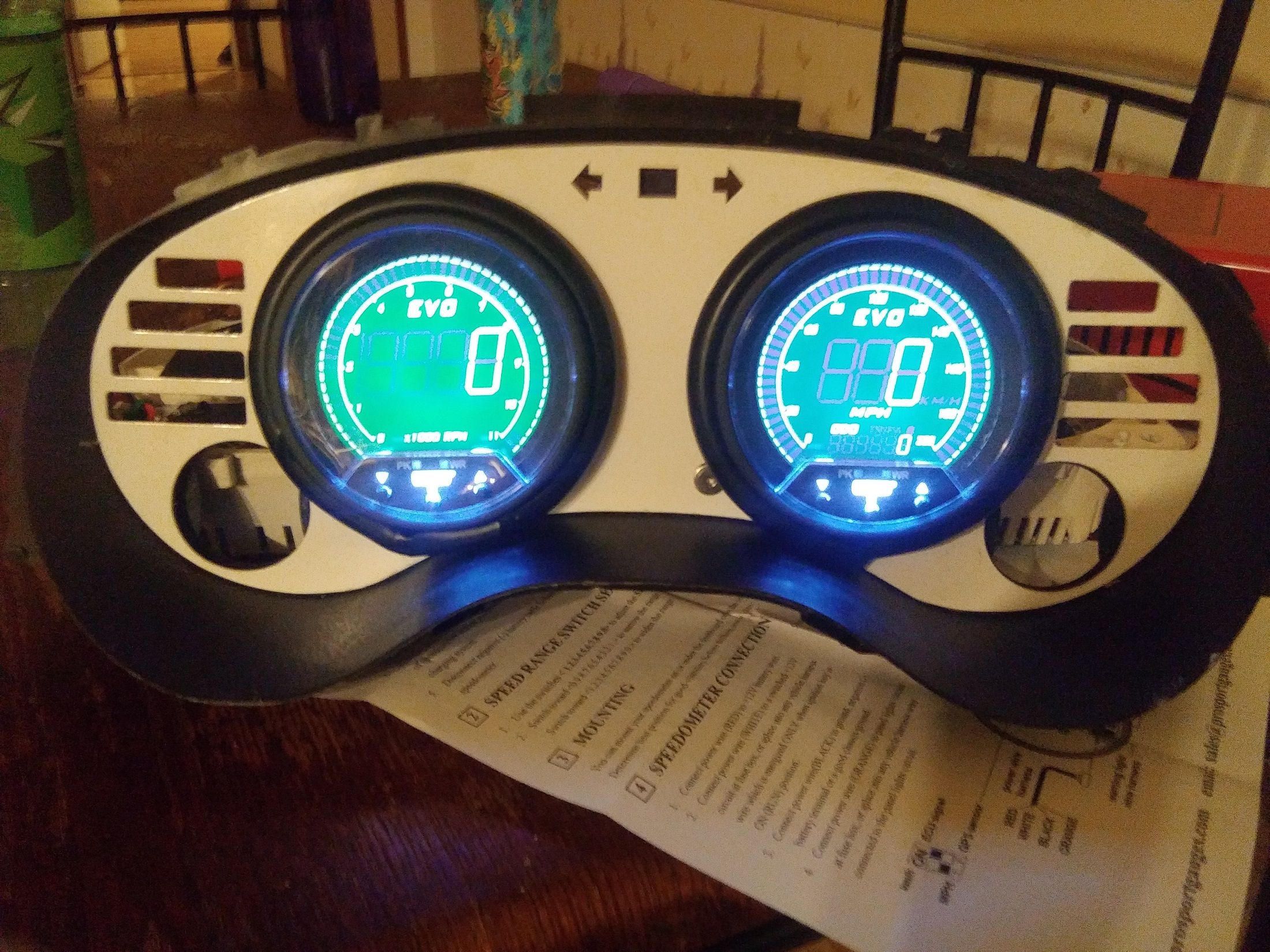

I purchased them on the STM tuners website linked here on the forum. They are called the "Prosport Evo series" the speedometer is a fast signal GPS while the tach is just hooked up like a traditional tach. I made some mods to an extra instrument panel to fit the gauges inside there. They work really well hope this helps.


JeffGS-T97

Supporting Member
631
368
Mar 22, 2019
Muncie, Indiana
Where did you get THOSE???
Here is a link to the speedometer. If you need the GPS sensor it is sold separate on the same site and the size is 85mm OD for both tach and speedometer.
