4g 71 super beetle

Posted by crash89, Aug 30, 2016

Please Support ExtremePSI
Please Support STM Tuned
  1. BLACK'98DSM

    BLACK'98DSM Proven Member

    2,298
    677
    Joined Feb 9, 2019
    Hoover, Alabama
    Maybe I missed it, but what are you doing about the exhaust pipes? I think it'd be cool if you could run it back to the stock location, 2 tips rear exit. But then again, if this will be a drag car you could do the typical side exit?


    Road Race Build 3K  10  25

    1998 Mitsubishi Eclipse N/T
    fwd · manual · 2G DSM

    44  6

    1998 Ford Mustang GT
    rwd · manual · Misc Vehicles
    Loading...
  2. crash89

    crash89 Proven Member

    3,531
    157
    Joined Mar 5, 2008
    Janesville, Wisconsin
    this can go one of the two ways ive pondered about it. I could make a complete 3” exhaust out the rear of the vehicle. It would run between the passenger side of the trans and frame. Or what i will 90% most likely be doing is just going with a sode exit out of the factory fuel fill doormon the passenger side. I actually was just thinking about this yesterday as i had the turbine housing mounted on the manifold. Turbo outlet to exhaust tip would probably put me somewhere around 18-24” exhaust length.


    5K  4

    1999 Mitsubishi Eclipse Spyder GST
    awd · manual · 2G DSM

    4K  10

    1999 Mitsubishi Eclipse Spyder GST
    11.043 @ 125.92 · 2G DSM
    Loading...
    camocorvette and BLACK'98DSM like this.
  3. crash89

    crash89 Proven Member

    3,531
    157
    Joined Mar 5, 2008
    Janesville, Wisconsin
    Since last time theres been some mall but significant progress! I got the swing out door bars done and the last two bars to connect the four link brackets to the frame. I picked up some 1 1/4” schedule 10 exhaust pipe from Mr Peepers so i could start building my manifold. Id love to have one of their pieces on the car but the amount of money for a one off manifold is just way out of my budget at the moment. I figured out a way to mount my alternator as well! 7373C14C-D635-4D3E-9445-AE7F59016B3D.jpeg 4143529B-3C45-4BC2-A84E-CD60D77865E7.jpeg 66E087BE-7A74-4BC2-98F4-0812AB7B0293.jpeg B251E112-FD94-4217-8520-1D160D42C9C6.jpeg 81DD5A7D-3209-4093-9F40-A29221B06632.jpeg 69A33AF5-AA2A-4EBA-B1FF-4677DC362E06.jpeg 010C8B38-C7E2-405C-8FF2-C601047AEF8E.jpeg


    5K  4

    1999 Mitsubishi Eclipse Spyder GST
    awd · manual · 2G DSM

    4K  10

    1999 Mitsubishi Eclipse Spyder GST
    11.043 @ 125.92 · 2G DSM
    Loading...
    camocorvette and ErikTande like this.
  4. crash89

    crash89 Proven Member

    3,531
    157
    Joined Mar 5, 2008
    Janesville, Wisconsin
    Manifold is all welded up. Still need to make some wastegate provisions, need some gates first. Got the four link braces done and started buttoning up the sheet metal! FD813FA7-B37A-4D1B-AC7A-C569B60DDCC9.jpeg 4445BE15-1356-4CDE-BA7B-AA5D07F79CE4.jpeg 2980C768-3626-486A-967B-4BF0755DEADC.jpeg A6580063-1A78-48C8-BC22-204BD3DEAD56.jpeg


    5K  4

    1999 Mitsubishi Eclipse Spyder GST
    awd · manual · 2G DSM

    4K  10

    1999 Mitsubishi Eclipse Spyder GST
    11.043 @ 125.92 · 2G DSM
    Loading...
    ErikTande and camocorvette like this.
  5. crash89

    crash89 Proven Member

    3,531
    157
    Joined Mar 5, 2008
    Janesville, Wisconsin
    Finally got around to ordering some wastegates and finished the manifold! Also got some gauges. 6F06B6D6-1C62-4824-90F7-CFFBC38038A5.jpeg E15A7940-C289-48B4-A529-1B38E472CE37.jpeg 88F33C30-0A97-4463-83CD-CB2CDB303890.jpeg 9BF52AF2-5A6B-436E-9A7D-B4F3A2368BEF.jpeg 65B8844E-7A27-4CD8-86B2-0D5C9B3E5A48.jpeg


    5K  4

    1999 Mitsubishi Eclipse Spyder GST
    awd · manual · 2G DSM

    4K  10

    1999 Mitsubishi Eclipse Spyder GST
    11.043 @ 125.92 · 2G DSM
    Loading...
  6. crash89

    crash89 Proven Member

    3,531
    157
    Joined Mar 5, 2008
    Janesville, Wisconsin
    Never again will i paint a roll cage at a different time than the interior!! Also started diving into the wiring harness. C816E8F1-560A-47DD-904E-D89BCFCDB3C4.jpeg 3DFA91C4-DE48-43AC-AAA1-C85C9379AB4D.jpeg E5BCA864-0C4C-41F2-8084-268F857C1942.jpeg


    5K  4

    1999 Mitsubishi Eclipse Spyder GST
    awd · manual · 2G DSM

    4K  10

    1999 Mitsubishi Eclipse Spyder GST
    11.043 @ 125.92 · 2G DSM
    Loading...
    camocorvette and ErikTande like this.
  7. camocorvette

    camocorvette Proven Member

    64
    21
    Joined Aug 5, 2012
    Spanaway, Washington
    Amazing! You've done most or all of this in your garage? You've got some skills man!


    Street Build 588  3

    1995 Mitsubishi Eclipse GST
    300 whp · 315 lb/ft · 2G DSM
    Loading...
    ErikTande likes this.
  8. crash89

    crash89 Proven Member

    3,531
    157
    Joined Mar 5, 2008
    Janesville, Wisconsin
    Yes everything was done by me in my garage except my rear end housing, i sent that out to be shortened. Thank you. Self taught mostly. A lot of trial And error.

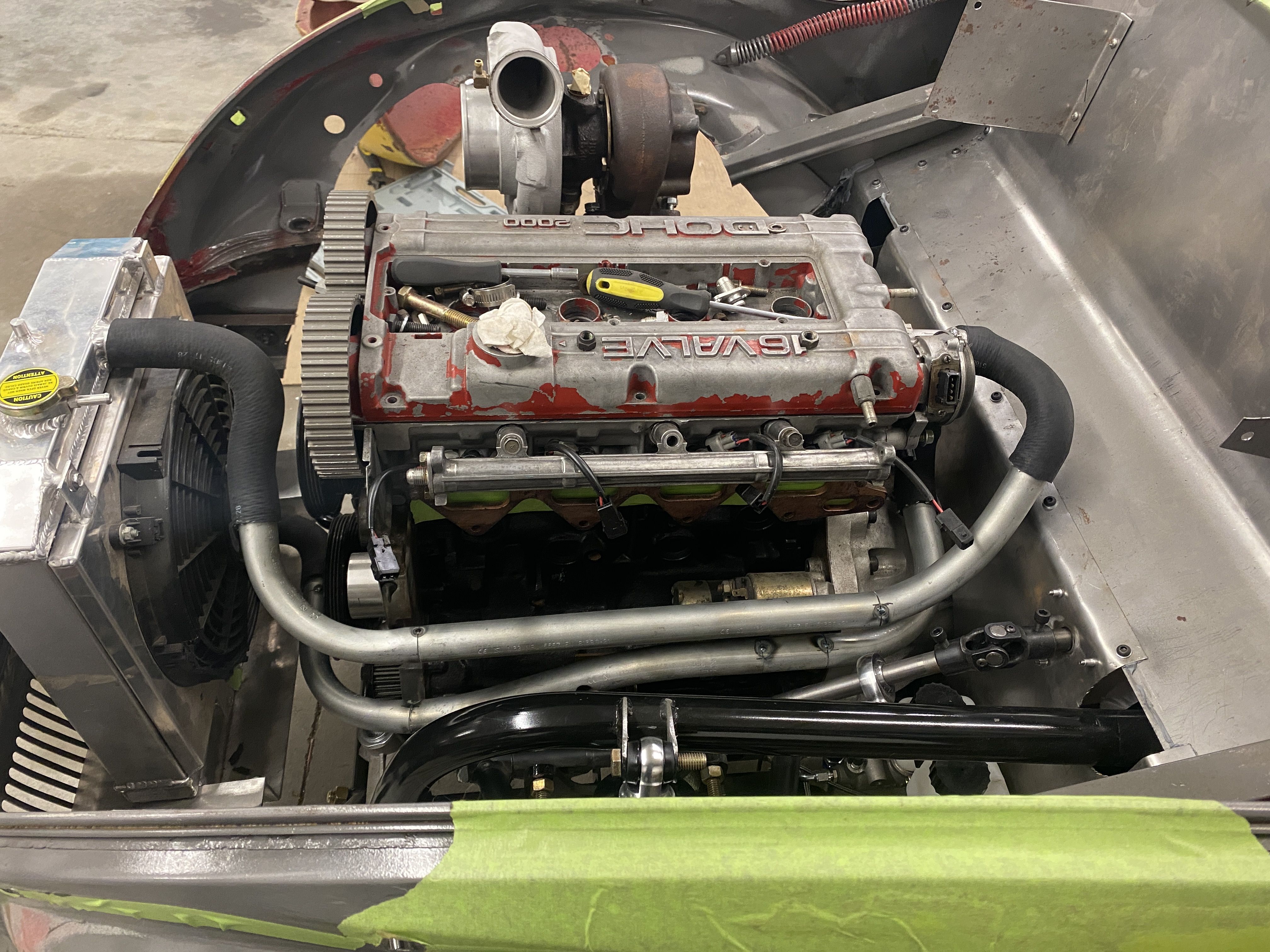

    Few thing done lately. Ive been digging into the wiring harness. I de-pinned a few things from the engine harness and the chassis harness. I ended up buying a hotrod fuse box for the chassis side to keep things simple. I modified the thermostat and upper radiator hose ports to face towards the intake side and fabbed up some cooling lines. I also modified my stock 2g intake manifold. I Mocked up the intercooler charge piping. Still have to weld that up and buy a bov and ecu. Also kind of tried a couple sets of wheels with the rear fenders. 509C21F3-A581-4ECC-AE11-043A80B95F14.jpeg 93873BD1-425B-4F37-AF42-5342787BC155.jpeg FCEBCA18-156C-4B03-B646-8F29911C5916.jpeg 3BFF8E7B-BFB1-49BD-AD3E-D74BF8AD2901.jpeg


    Attached Files:

    5K  4

    1999 Mitsubishi Eclipse Spyder GST
    awd · manual · 2G DSM

    4K  10

    1999 Mitsubishi Eclipse Spyder GST
    11.043 @ 125.92 · 2G DSM
    Loading...
  9. ThunderChild

    ThunderChild Supporting VIP

    3,744
    1,095
    Joined Jan 5, 2012
    Rathdrum, Idaho
    Any reason youre not welding an outlet onto the front of the head and the water pump outlet to shorten your cooling hose lines? It'd save space and prolly be more efficient in the long run, just an option.


    Street Build 938  3

    1990 Plymouth Laser N/T
    fwd · manual · 1G DSM

    886  8

    1987 Toyota Pickup/Hilux
    awd · manual · Misc Vehicles

    Street Build 1K  7

    1997 Mitsubishi Eclipse Spyder GST
    fwd · manual · 2G DSM

    2K  0

    1992 Eagle Talon TSi AWD
    manual · 1G DSM

    Street Build 3K  10

    1992 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  10. crash89

    crash89 Proven Member

    3,531
    157
    Joined Mar 5, 2008
    Janesville, Wisconsin
    id looked into it a few times and turned away every time. I didnt really want to modify the block or head to redirect coolant flow like you have to do, id still have to run an inline thermostat housing. I really just wanted everything to function as close to stock as possible so i knew that it was going to work. Perhaps down the road ill change the setup to something like that but for now this is how its going to work! Not to mention those outlets sold cost money and im on a budget. I spent a total of like 15$ on this cooling setup and that was for the one radiator hose i cut four or five times to use as various couplers!


    5K  4

    1999 Mitsubishi Eclipse Spyder GST
    awd · manual · 2G DSM

    4K  10

    1999 Mitsubishi Eclipse Spyder GST
    11.043 @ 125.92 · 2G DSM
    Loading...
    ThunderChild likes this.
  11. crash89

    crash89 Proven Member

    3,531
    157
    Joined Mar 5, 2008
    Janesville, Wisconsin
    So a bit of an update here. I did some body work to the front fender and got all four clear coated, ordered some rear wheels and tires, and Wired the car. As it sits right now im waiting for my map sensor to come in and i can adjust the fuel pressure and fire it up. Hopefully everything works as it should through the ecu. I incorporated an aftermarket fuse box for lights and such like that, this isnt finished yet.

    i still need to get front tires, Bleed the brakes and clutch and Make sure all the suspension is tight. I also need to have a driveshaft made then i should be able to get her out!! Were close!

    4EE8CEDD-D327-47C0-B5B9-89B2A5562144.jpeg B5577581-A9ED-4932-B3E9-30FB26E13F79.jpeg DF4709E2-7F76-4FD8-B1A8-0AFDFAE6B1CD.jpeg 00EB0B6A-57AF-49E4-A19F-6DD62974FA41.jpeg 6BC0AD9D-0EDA-4536-B588-58FA2A99A364.jpeg


    5K  4

    1999 Mitsubishi Eclipse Spyder GST
    awd · manual · 2G DSM

    4K  10

    1999 Mitsubishi Eclipse Spyder GST
    11.043 @ 125.92 · 2G DSM
    Loading...
    ThunderChild and ErikTande like this.
  12. gimmie11s

    gimmie11s Proven Member

    250
    17
    Joined Jul 11, 2003
    So Cal., California
    Holy shit what an epic build. Please please please finish it!

    Fantastic fab skills too!!


    502  1

    1992 Plymouth Laser RS Turbo AWD
    awd · manual · 1G DSM
    Loading...
  13. crash89

    crash89 Proven Member

    3,531
    157
    Joined Mar 5, 2008
    Janesville, Wisconsin
    thanks bud! I hope to be able to take it down the road in a week or two! Pretty late in the season but it is what it is! Hopefully i can make it to the track for some shakedowns before the end of the season!


    5K  4

    1999 Mitsubishi Eclipse Spyder GST
    awd · manual · 2G DSM

    4K  10

    1999 Mitsubishi Eclipse Spyder GST
    11.043 @ 125.92 · 2G DSM
    Loading...
    ErikTande likes this.
  14. crash89

    crash89 Proven Member

    3,531
    157
    Joined Mar 5, 2008
    Janesville, Wisconsin
    First start up last week!!! Been working out a couple things since then.

    edit: video isnt uploading.


    5K  4

    1999 Mitsubishi Eclipse Spyder GST
    awd · manual · 2G DSM

    4K  10

    1999 Mitsubishi Eclipse Spyder GST
    11.043 @ 125.92 · 2G DSM
    Loading...
    ErikTande likes this.
  15. gimmie11s

    gimmie11s Proven Member

    250
    17
    Joined Jul 11, 2003
    So Cal., California
    Nice.. did you host the video on youtube? Send link if so........


    502  1

    1992 Plymouth Laser RS Turbo AWD
    awd · manual · 1G DSM
    Loading...
  16. crash89

    crash89 Proven Member

    3,531
    157
    Joined Mar 5, 2008
    Janesville, Wisconsin
    No i didnt. I thought i could upload it from my phone but it didnt work. Im having some small issues with it getting up to temp. Ill grab another, better, video here soon. In the mean time heres the most recent pic!! 37F75351-4C63-410F-BA2E-ABD698C44265.jpeg


    5K  4

    1999 Mitsubishi Eclipse Spyder GST
    awd · manual · 2G DSM

    4K  10

    1999 Mitsubishi Eclipse Spyder GST
    11.043 @ 125.92 · 2G DSM
    Loading...
    ErikTande likes this.
  17. gimmie11s

    gimmie11s Proven Member

    250
    17
    Joined Jul 11, 2003
    So Cal., California
    So bad ass.


    502  1

    1992 Plymouth Laser RS Turbo AWD
    awd · manual · 1G DSM
    Loading...
