    Yeah, it's been quite a hike but I'm happy to have saved a GVR4 from the scrapyard.


    Autocross Build 3K  15

    1992 Mitsubishi Galant VR-4
    awd · manual · Galant VR-4
    Loading...
    Terrance362 and buddahboost like this.
  2. iceguru1114

    iceguru1114 Proven Member

    344
    207
    Joined Nov 24, 2014
    Denver, Colorado

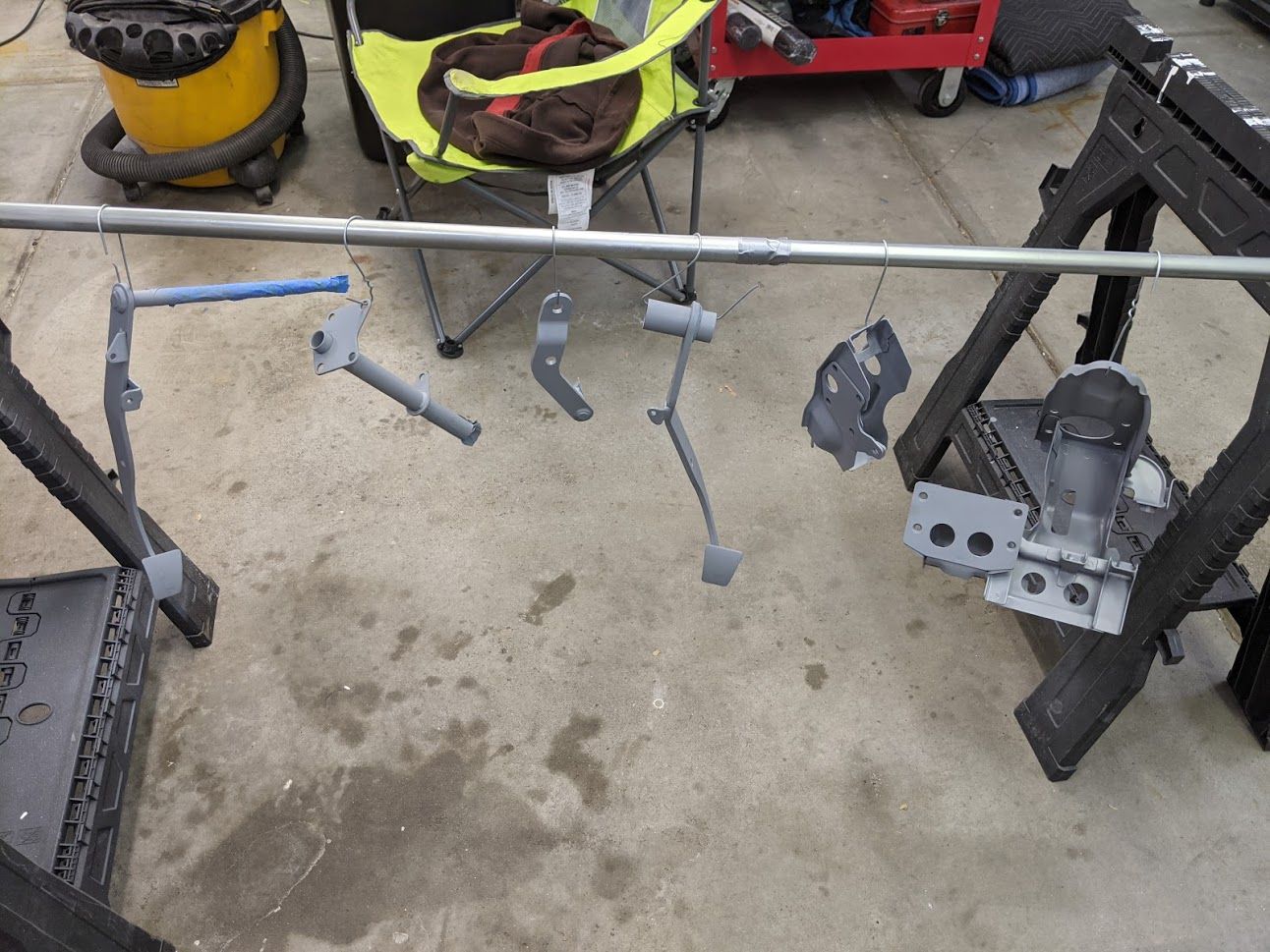

    Paint (part 1 - body panels)

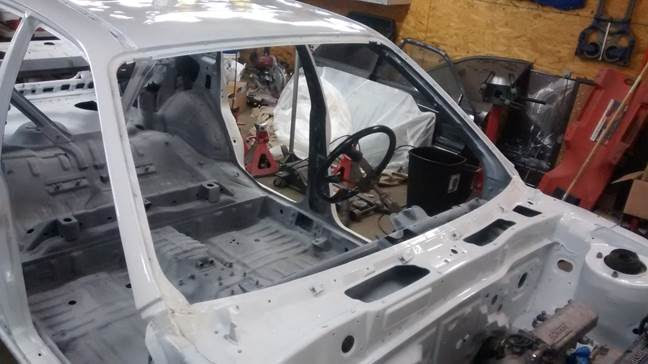

    I was really hoping to get all the body panels painted before the New Year, but this is as far as I'll get before the holiday travels. I got the hood sanded down for primer:
    FAMluXpBrDcmiRmrBYoWAe8XFzQ0pINnUkJChdxTi3XHIuI1YiXQfpdwqK4IOuChjGp9L8ep9-Gzm9yJRYU=w1000-no-tmp.jpg

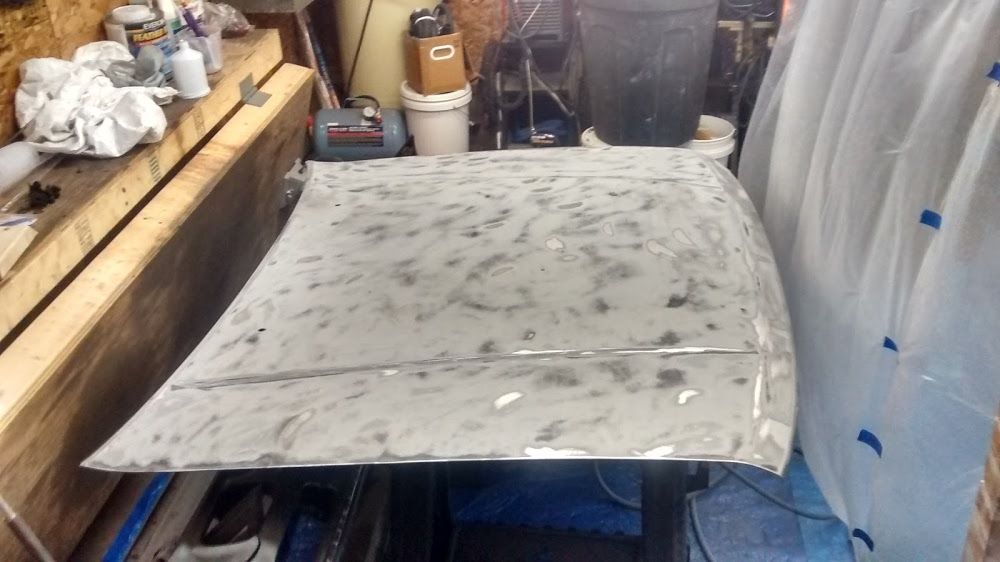

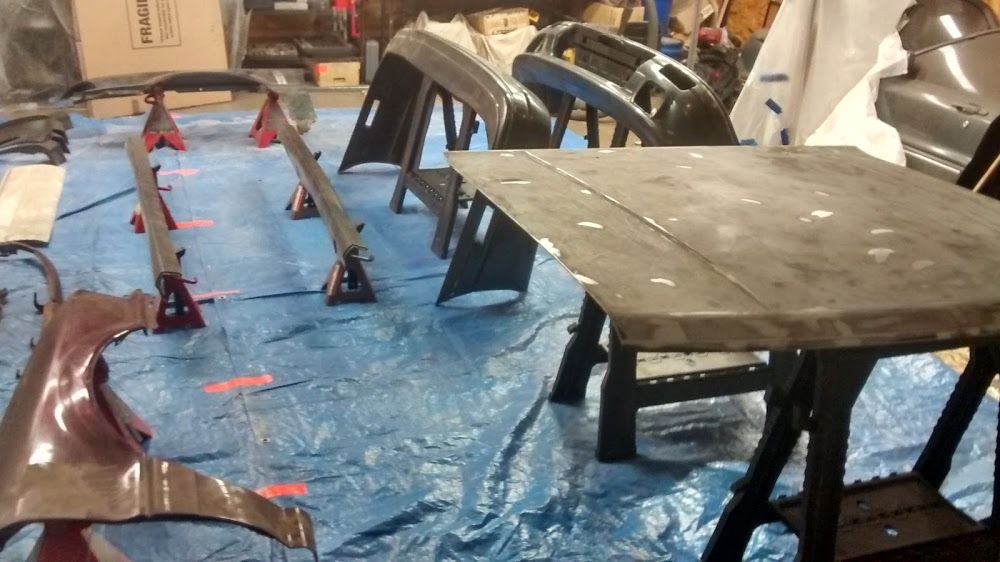

    Then I got all the body panels laid out in the temporary paint booth. Aside from the hood and one of the fenders, each one requires some special preparation attention:
    5cSDrAgsQ2Ynm0pu3SnVYE4oLwunAduuPdwg9qs0-f-fV3IeXVdeDpM05sZOBtz7hHceDCkZzNjhq-iMZtU=w1000-no-tmp.jpg

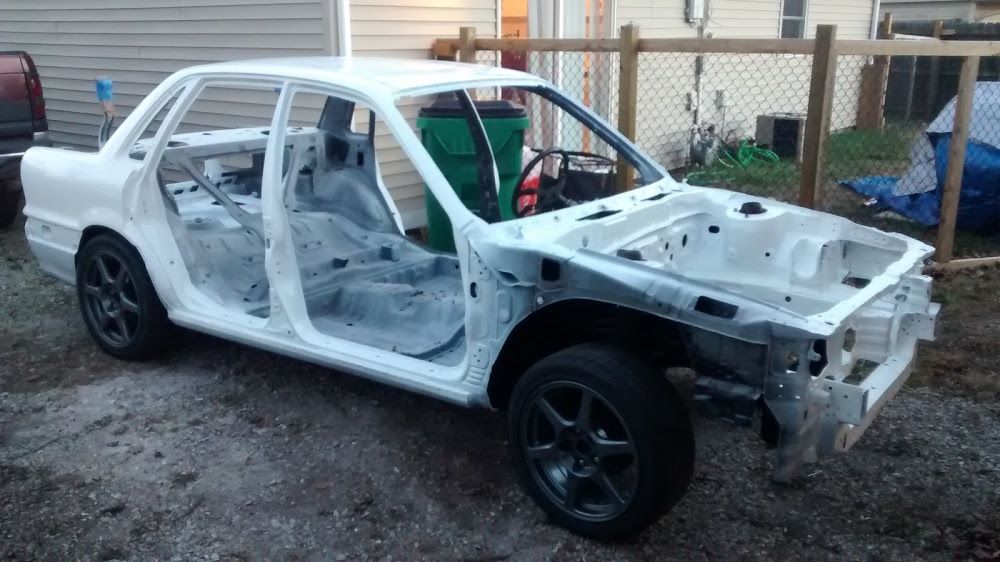

    Also, I got FUBAR back on wheels. The 4-bolt rear end is officially in, so I guess that means the 5-lug conversion is complete too:
    ZDQbF2rL8nBasHlcQIECdt2n454tpL9RWqZpcqVQu7hi6TC-xeY_i2PHKTanCTr03CaaZFSf71uJnX0tlTA=w1000-no-tmp.jpg

    I'm going to be moving across the country pretty soon and getting FUBAR and all it's parts onto one trailer is going to require some work, so expect a bunch of updates in early January that make FUBAR look like a car again.

    Last edited: Dec 21, 2017

    Autocross Build 3K  15

    1992 Mitsubishi Galant VR-4
    awd · manual · Galant VR-4
    Loading...
  3. iugrad92turbo

    iugrad92turbo Supporting Member

    12,337
    501
    Joined May 22, 2007
    Kalamazoo, Michigan
    Looking for a update on this amazing rescue.


    8K  5

    1992 Eagle Talon TSi
    awd · manual · 1G DSM
    Loading...
  4. iceguru1114

    iceguru1114 Proven Member

    344
    207
    Joined Nov 24, 2014
    Denver, Colorado
    Intermission - Cross Country Move

    I wasn't able to get everything painted before the move and, as a result, progress will suffer for a few months while a get the new garage set up with some of the big tools I sold that will require replacement. However, I got a few small things done and I suppose this exodus from Indiana is part of the FUBAR story.

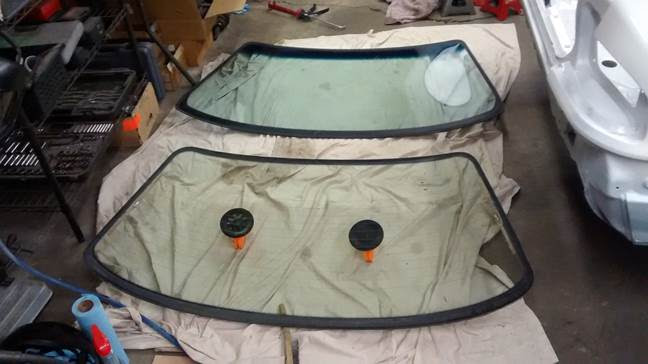

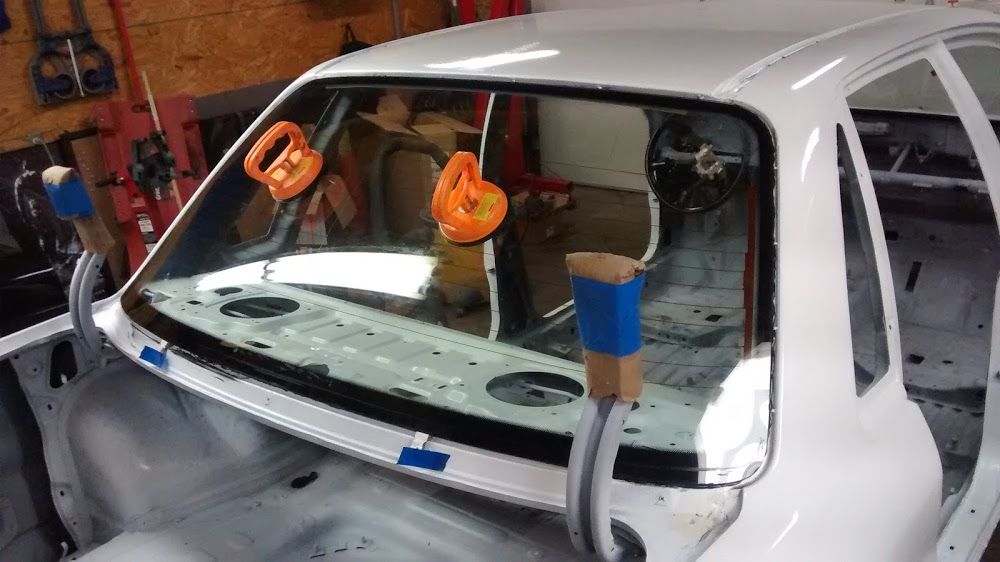

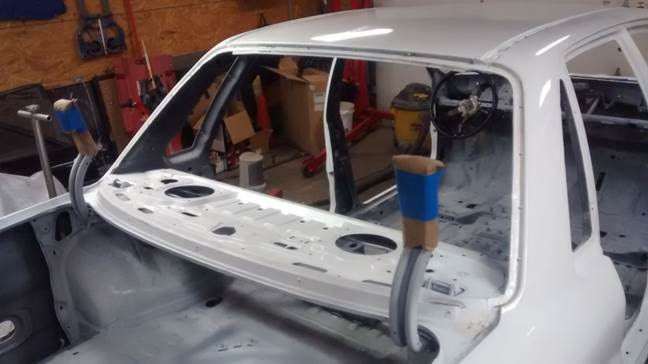

    Out of necessity, I had to install the front and rear windshields. I started by prepping the adhesion surfaces:
    3wMGFKyjcc508goGMmBsFTT-Ud1ztvVzNo-w5ksCPLfVYtfT8Mg2F4JWsCSm48n31fQ1_KvUL3Nh1a-werS=w1000-no-tmp.jpg tuUGau-ENBmbcux_174sclbHoFU-8_abi0KUAdbjMc9NiAqVuKjoYfXvsT6_O0j4nu7Hg3wz-bKbqja1EM8=w1000-no-tmp.jpg

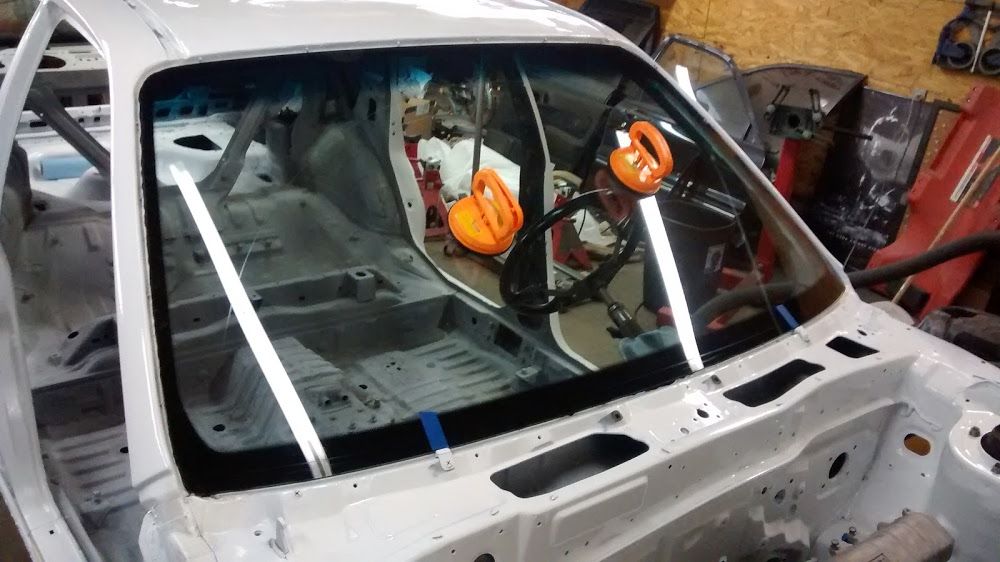

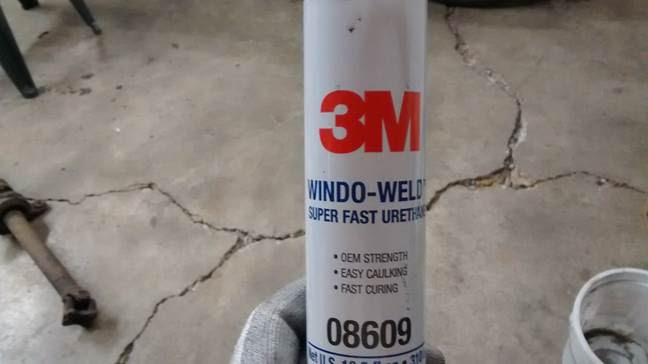

    I got some good quality 3M window adhesive and followed other prep instructions. One pointer that isn't completely obvious from the instructions is that the best shape for the nozzle is as shown. It's a shame that I had to buy a second tube to cover an additional foot of glass, but that's how it goes, I guess:

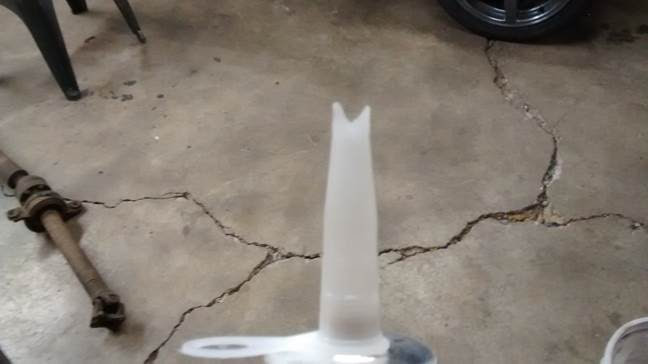

    nTcQaU-3e26HO8jzq0AwJU4QVerx83eyftrJsua1BYS-Y0PTaNUb8Bqa3qNtrPAvyjhFA9I87mcDI1iS0fq=w1000-no-tmp.jpg cFSV5ElBCxERAaiW2yWPwBAZ5_fEqUqFRuU8GYUFPPwYJSKqvaltLImzEkKEmd4sN8wWt9vMTixdP48lE7a=w1000-no-tmp.jpg

    Finally, I cleaned up the glass, did a test fit, made sure the cups were already installed prior to adhesive application, and did a sort of test run from work area to car:
    C0vZe_DhJigethUEUP5onOVVNkrNF6RlQtYhLP4sGkY4L1845sC6DLJR8a-a9UC7dAqCcHaJW30-6IsqE-X=w1000-no-tmp.jpg


    Autocross Build 3K  15

    1992 Mitsubishi Galant VR-4
    awd · manual · Galant VR-4
    Loading...
  5. iceguru1114

    iceguru1114 Proven Member

    344
    207
    Joined Nov 24, 2014
    Denver, Colorado
    After dancing around nervously with heavy glass that was covered in expensive adhesive, I finally ended up with a nice clean install on the windows:
    7Q7A0QLBo3ibKdjwI8ZSMvn3D-HK9HoLLbeYGLV4-PufHPjVIp8q6PEhcuAQw1LTN7k7apEWw23dlP0RDCX=w1000-no-tmp.jpg
    qhh41nF2m08zeANdZpfTDMvpxDWb68yxJqqGk2GRcodFl9NftoIsf1FXY--GyhiUl-9-BiwiYi2l64SOVux=w1000-no-tmp.jpg


    Autocross Build 3K  15

    1992 Mitsubishi Galant VR-4
    awd · manual · Galant VR-4
    Loading...
  6. iceguru1114

    iceguru1114 Proven Member

    344
    207
    Joined Nov 24, 2014
    Denver, Colorado
    Last, but not least, there was the matter of stuffing everything into FUBAR that was required to get it on the trailer. I started by installing the engine and transmission for safe keeping. They'll have to be pulled again, but damn if they don't look good in there:
    gbHUhhzuA2OVeyaQBNXuM8vAy8uQMjrnnnKeOc2Vxs1tDgvVfO-JLSM2DjnIopjkvfr_MZbmrp9qVz0W_PQ=w1000-no-tmp.jpg

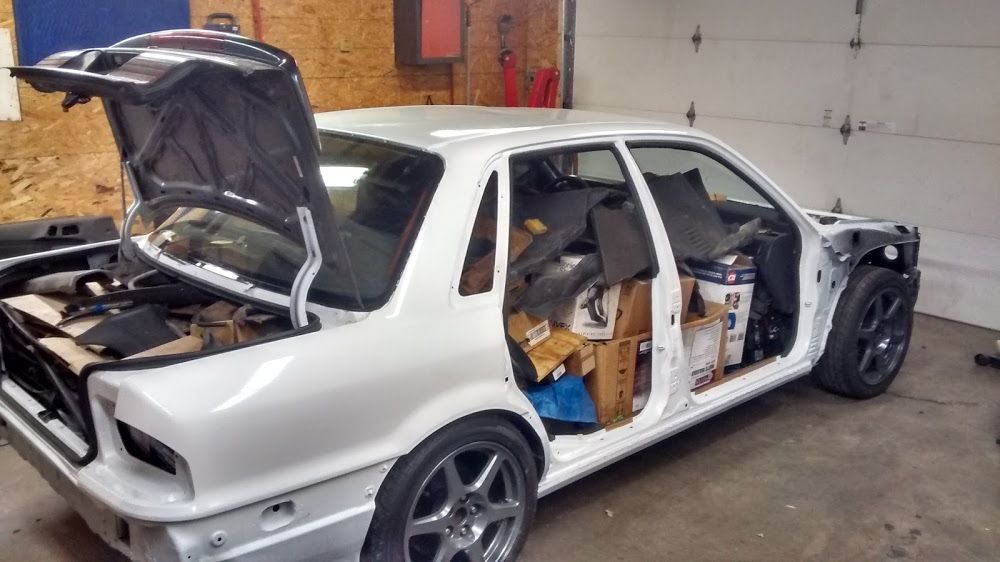

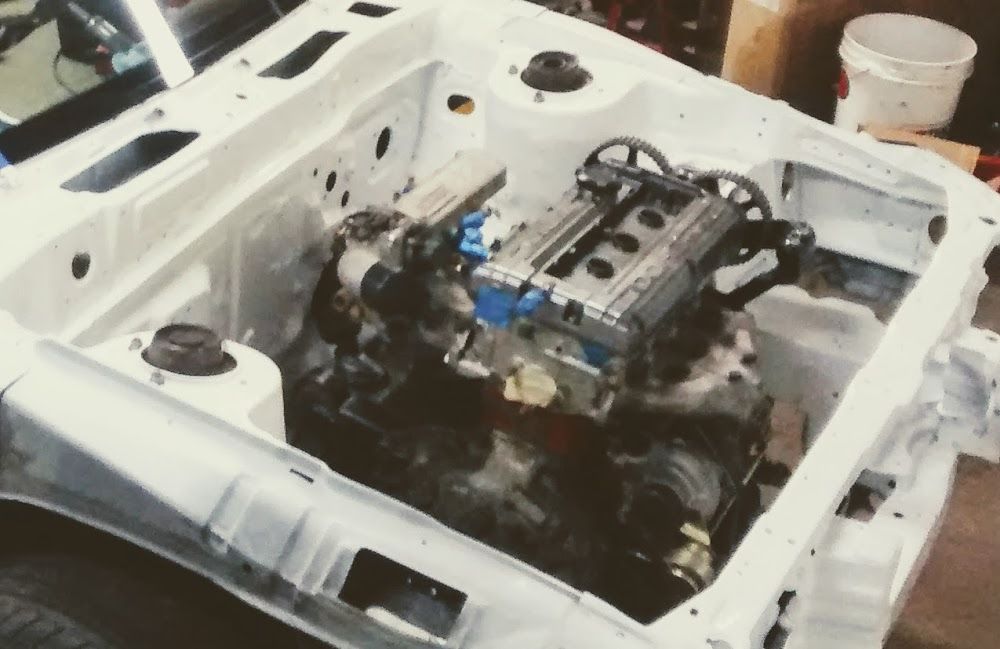

    Then I got FUBAR about as completely stuffed full of parts as one could possibly accomplish; only possible with doors removed:
    sJ9FpwcesjWTZm4MBLDDIl70iE733OQUauDUs0BW-6CdfeKdgFxFxiUJRDYtE6vCa1l0HAvJdu4xYWNK86H=w1000-no-tmp.jpg

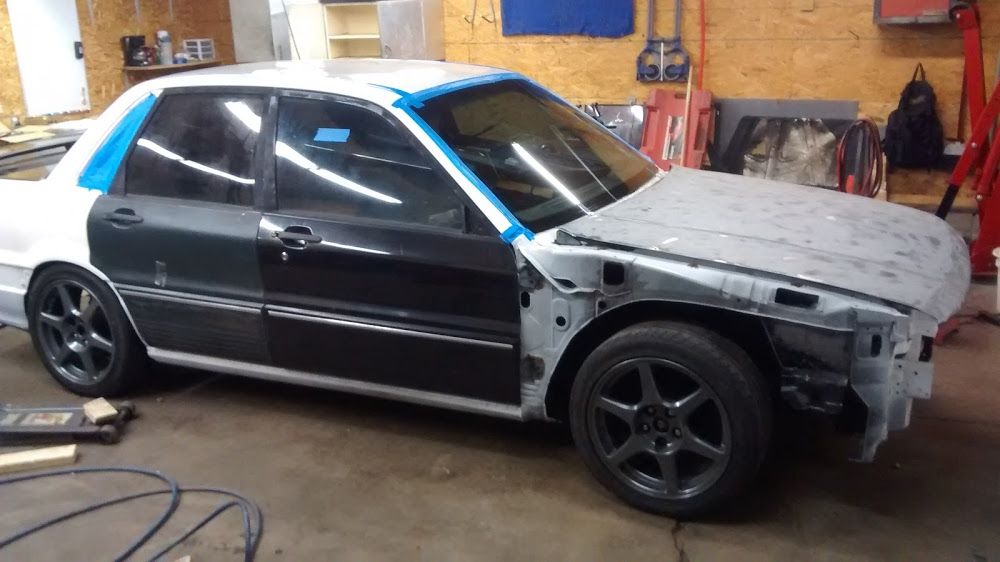

    Then everything except for the bumpers and lights were added, including weather stripping and some additional tape in anticipation of a little rain along the way:
    _N9DiUeRSn2MgBZbVmcKOngVNvIhQm2H0kQTwmerQQ95WSW_LVVgzawChHQ1iuZ3B5cxJJSzu8IfkoBVZ6c=w1000-no-tmp.jpg

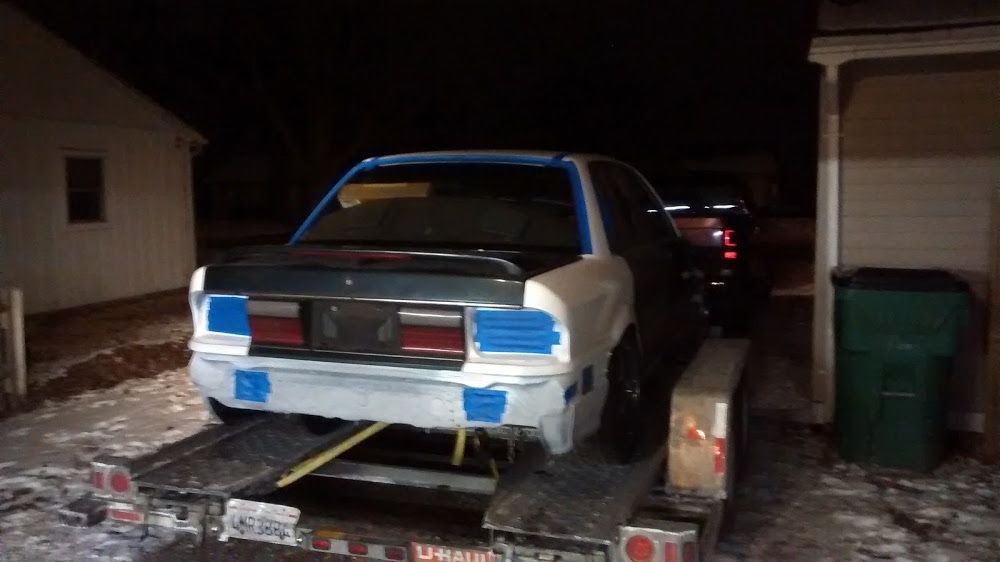

    Finally, after an hour of wrestling with a Harbor Freight puller wench, FUBAR was ready to go:
    c0M7MCj9fkwAdeBStHwYY_9ZDIi-VhDZ2lmEZxdCrlOTWwKNjl0ObKq54rb615xUzscemuiluGuoo-xPi51=w1000-no-tmp.jpg

    Next update will probably be in a few months. I'm getting married, starting a new job, getting some money back in the bank, and then I'll be able to get the garage set up and start on FUBAR again.


    Autocross Build 3K  15

    1992 Mitsubishi Galant VR-4
    awd · manual · Galant VR-4
    Loading...
    ErikTande, buddahboost and 95eclipser like this.
  7. iceguru1114

    iceguru1114 Proven Member

    344
    207
    Joined Nov 24, 2014
    Denver, Colorado

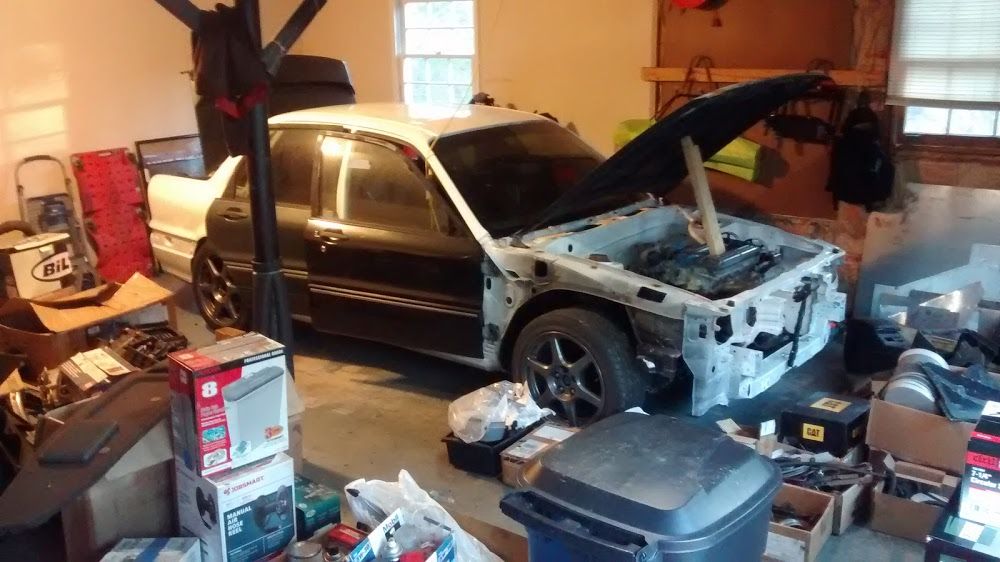

    Well, after moving across the country, getting married, starting a new job, and getting a little bit of money back in the bank, FUBAR started looking pathetic enough to get some attention. Settling right at home here in Atlanta, FUBAR's first act of territorial marking was taking a dump all over the garage floor. More coming soon :)
    BlpNtiy0eXOUndh2i5v1HhCFHiP-Flwfey7M8fXrWHKJOpHJHA7meyP56D5VeTNtavSC5ouDjKXV1KDS0pe=w1000-no-tmp.jpg


    Autocross Build 3K  15

    1992 Mitsubishi Galant VR-4
    awd · manual · Galant VR-4
    Loading...
  8. iceguru1114

    iceguru1114 Proven Member

    344
    207
    Joined Nov 24, 2014
    Denver, Colorado
    This post will wrap up the intermission section. I'm an extremely particular person, and this extends to my workspace, so I've been spending my project time over the last month or two getting the garage set up just how I want it.

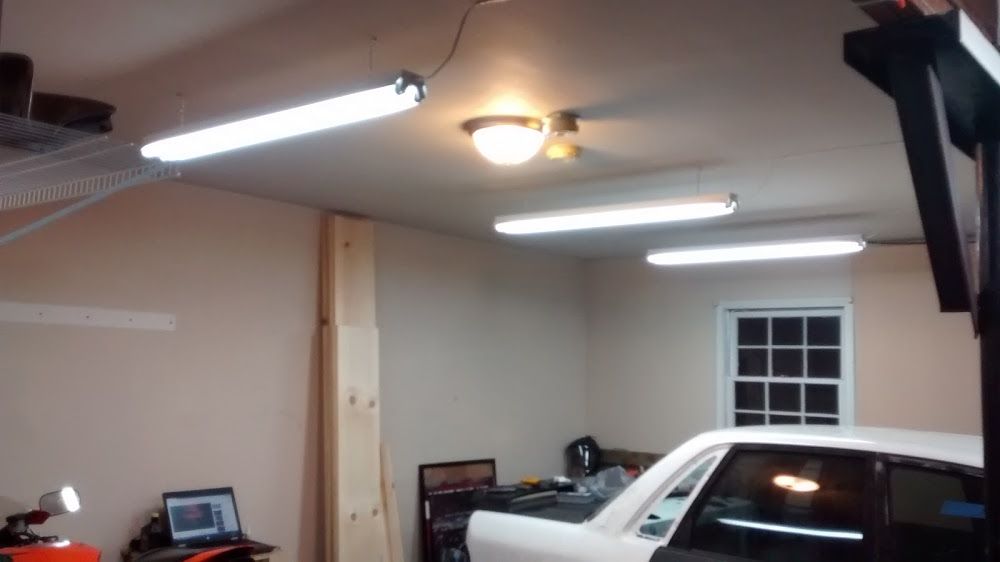

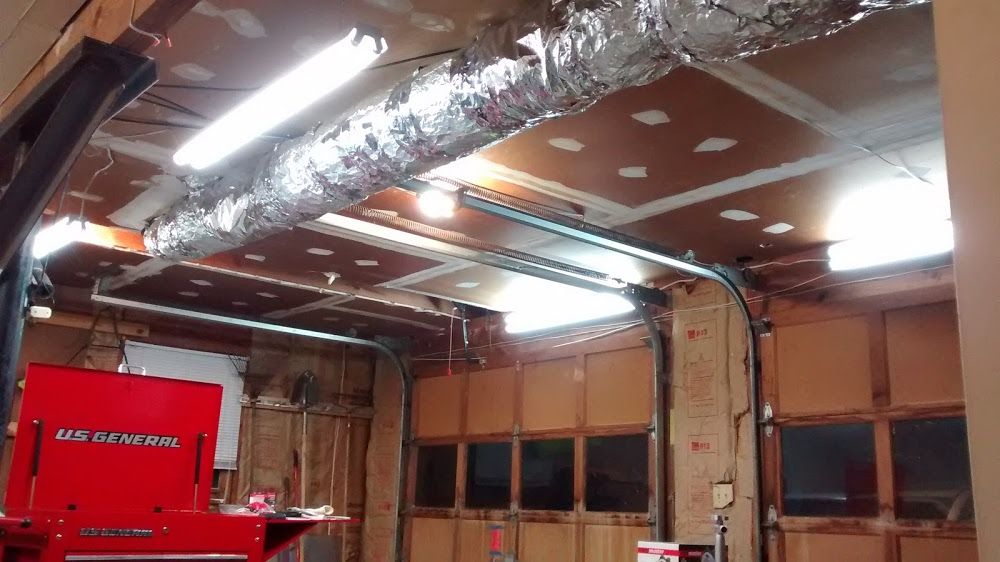

    The work started by giving myself some visibility because the lighting in the new garage was terrible. Now's it's like high noon at midnight:
    X0v_5XERNH2rxgpMZtmdQkLBns5DFwZ67pZo-G9KX8bOx66I9A81vPufCDm9bBRv0hgklm9-a2yFQSZYWRV=w1000-no-tmp.jpg
    7qOvWP4U28NuxLgVGhhc0fygXVSXTAE4la6iMhpDg8coyJxQt2HR87vqUG7wQ76zLGftrw1DzXzGEaZovQi=w1000-no-tmp.jpg

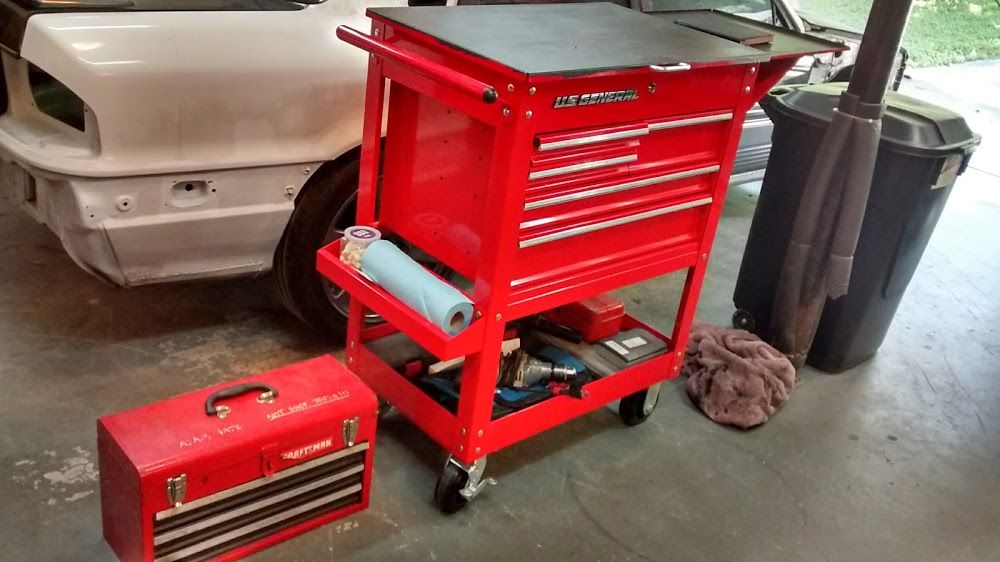

    Next was tool migration. I have no idea how I did it for so long, but somehow I used to store all the tools now in the box on the right in the tiny little guy on the left. I put a coating of truck bed liner on top so I could toss tools on it without scratching it up. Thanks Harbor Freight:
    Fy0kKlm_hM17q68uK1cWtqfeS3em_HxsKE2UouN7HwvpTNI0KtEXyhqV-UVpCEQ8u-GyV1QMvc_zee9cJns=w1000-no-tmp.jpg

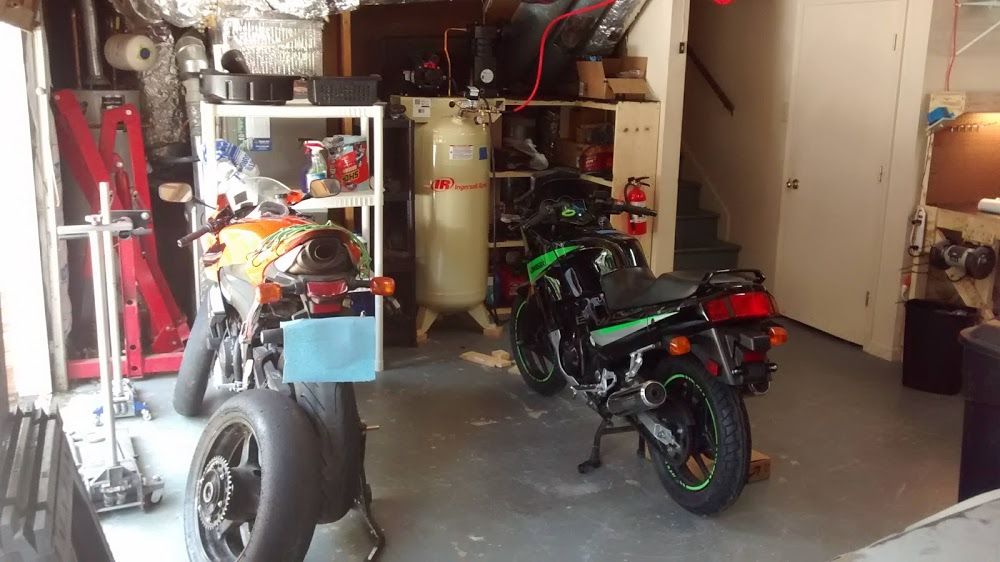

    After that I had to get everything off the floor so I built some shelves in tandem with setting up my air compressor (note the race slicks for my bike, Roadrash... trackday in August at Barber Motorsports park!!! Bike on the right belongs to my wife... I'm a lucky guy!):
    tF1kZVP789fYuymAkcdqrDoRBdsku0chCfddKFfivQ5UQa4eDklzaRxnHQhlSnLLZBHfDISGdQEkLiMQ1fv=w1000-no-tmp.jpg

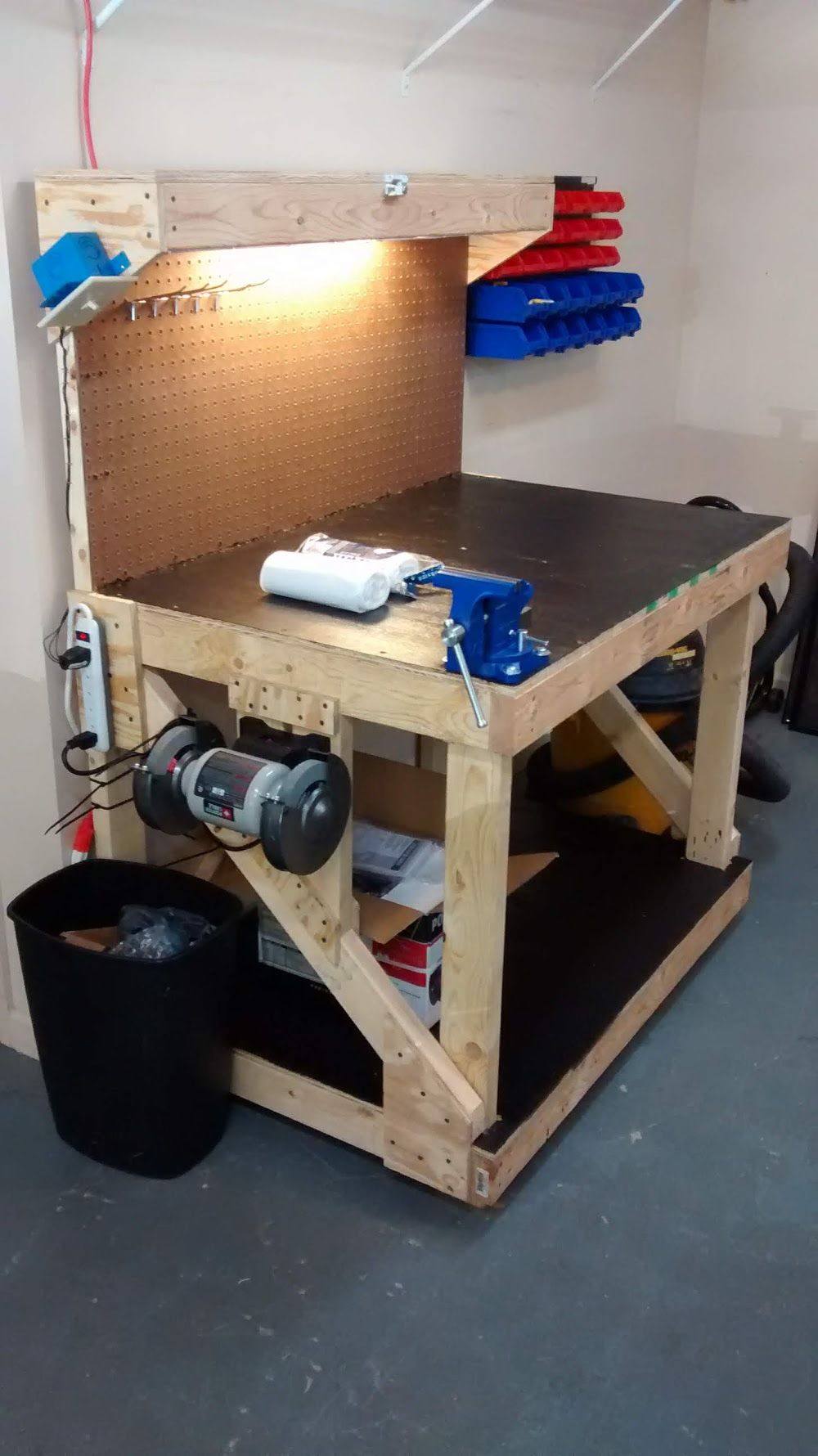

    Built a workbench because I don't like working on the floor. The decks are coated with truck bed liner:
    uAHHcYseu6OM-G7ORXqgHt40KXJqF1x01G3B8AEm4fK4Urd32nFNn21_dthQeOq9U_vnXqM8eud8fMcMdt4=w1000-no-tmp.jpg

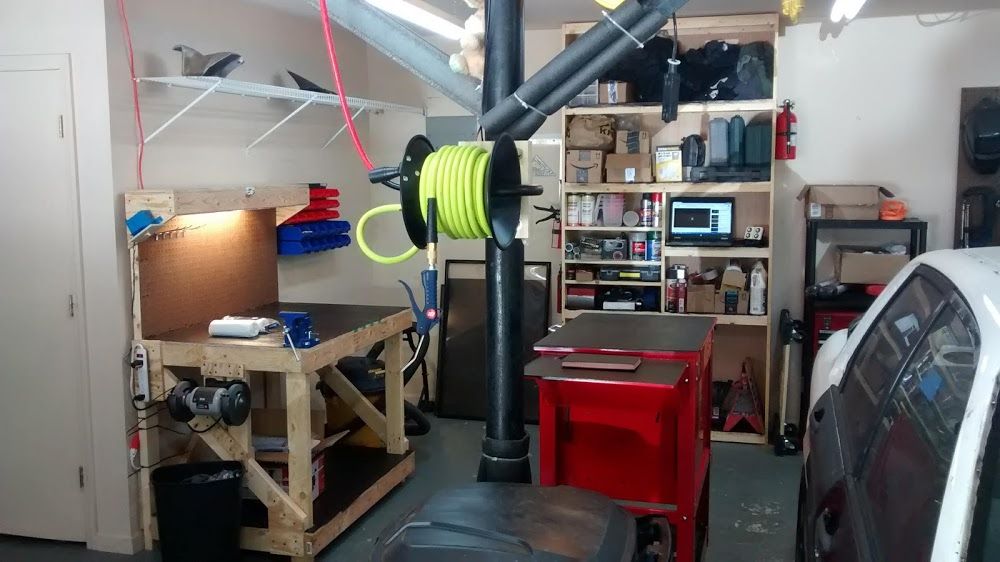

    I built some more storage shelves and got the air hose, power chord, and drop light all centrally located from the cieling(ish):
    8HieOxzTDr-kimbXE2QgH8-XbvFjwNNgcWKNiYgD_fx-vB5InnHdkyNmVMuac9plkJqy2iQhVmuKzuZjdMJ=w1000-no-tmp.jpg

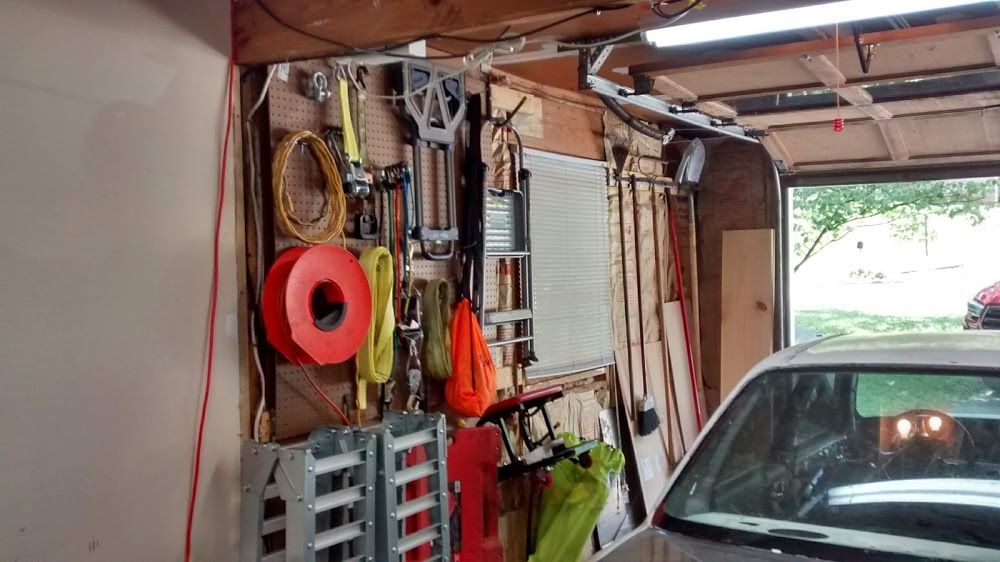

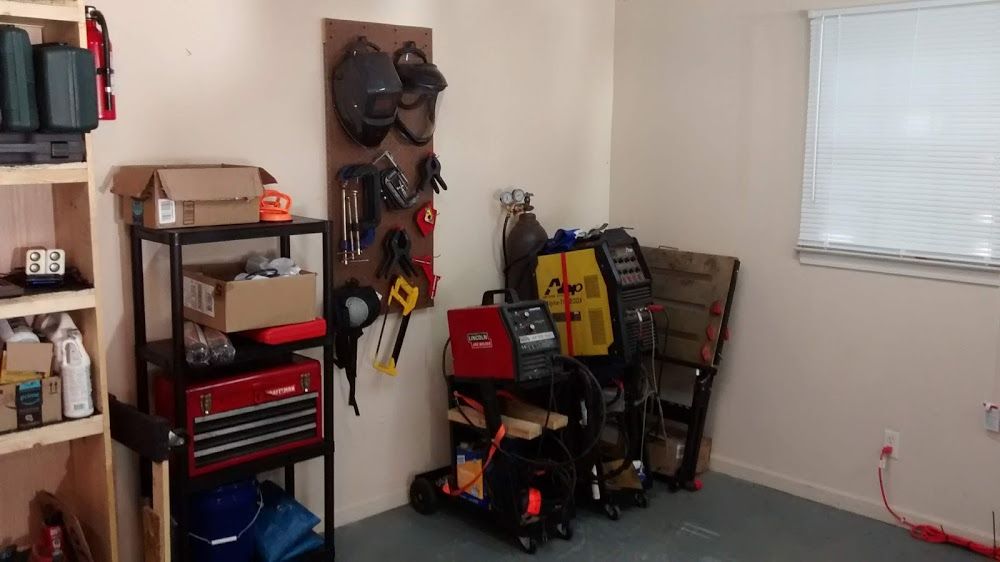

    Set up a welding corner where everything is nice and out of the way when not in use:
    Ba-9qTtdWpyoPGVpzv8M2Jc5_gqtx7kyBohJqFxN_fTZrniqfQoXrzgOOLGkjAd1QdJQ68PjPPKBsu6GPuM=w1000-no-tmp.jpg

    Finished off by getting the rest of the crap of the floor with some pegboard. Pegboard is awesome. I like pegboard:
    guIDmwnUQLj_qkF27TMsEaiuHuWJlwwAsWcznH7P5G6c3s2PzNX9ye_eeaRPpZVIa_Po3-yx7YwzQeePp9B=w1000-no-tmp.jpg

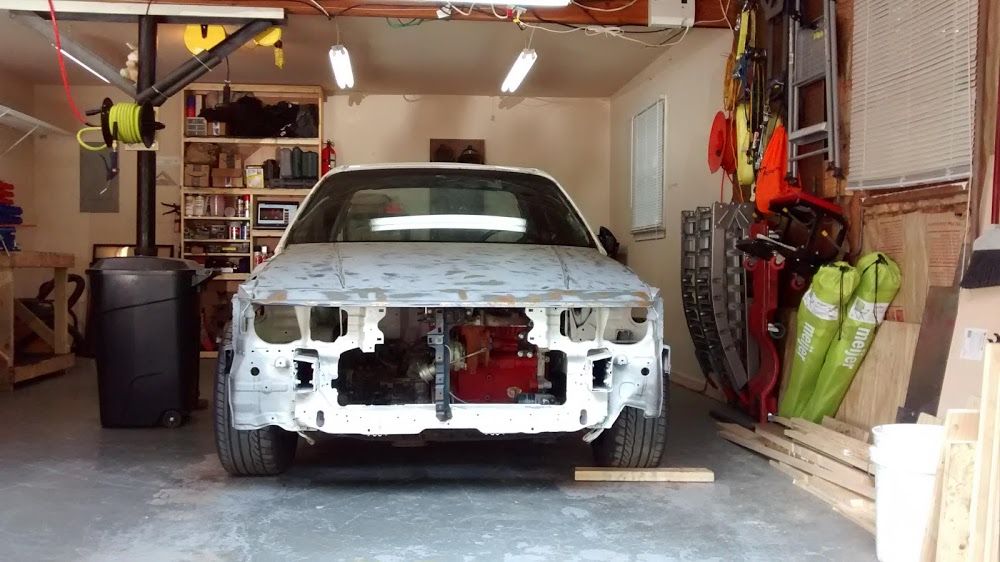

    Finally finally finally, now that I can stand to be in the garage, FUBAR awaits:
    pDhs6AXzJ8k6-tnCpc-HaRTYRke4JqItUKaHiYx72_Pry-6bSFAwkGgyH1j69n8DtGQYi7DSGVzqvAlersw=w1000-no-tmp.jpg

    Last edited: Jun 3, 2018

    Autocross Build 3K  15

    1992 Mitsubishi Galant VR-4
    awd · manual · Galant VR-4
    Loading...
  9. teamevolution2

    teamevolution2 Supporting Member

    103
    41
    Joined Apr 10, 2009
    Leesville, Louisiana
    Looking good. Can't wait to see what's in store for the build.


    173  18

    1990 Nissan Skyline
    awd · manual · Misc Vehicles

    Street Build 1K  6

    1997 Mitsubishi Eclipse GSX
    manual · 2G DSM
    Loading...
  10. tunernewb92

    tunernewb92 Proven Member

    317
    49
    Joined Sep 10, 2008
    North Canton, Ohio
    What gun(s) did you use to spray the primer and paint? Did you have any heat or ventilation in your little paint booth there?


    Street Build 562  1

    1997 Mitsubishi Eclipse Spyder GST
    fwd · automatic · 2G DSM

    Street Build 2K  0

    1999 Mitsubishi Eclipse GST
    manual · 2G DSM
    Loading...
  11. iceguru1114

    iceguru1114 Proven Member

    344
    207
    Joined Nov 24, 2014
    Denver, Colorado
    I used an HVLP gravity feed gun from Harbor Freight. The booth was ventilated with fans on either end of the booth. The entire garage is/was heated... guessing mid 70s.


    Autocross Build 3K  15

    1992 Mitsubishi Galant VR-4
    awd · manual · Galant VR-4
    Loading...
  12. iceguru1114

    iceguru1114 Proven Member

    344
    207
    Joined Nov 24, 2014
    Denver, Colorado
    Intermission 2 - Another Cross Country Move

    It's been well over a year since my last update on this build. Life happens. Career ambitions, time invested in motorcycle racing, poor personal project facilities, the list goes on... but FUBAR has not even been on the radar lately.

    Anyway, got another cross country move finished, this time to Denver, CO, and after what will probably be the last time I'll be able to convince my wife not to roll FUBAR into the street with a "FREE" sign on the windshield, I was able to bring the old Galant along one more time. As has been the case for the last couple years, this car is at the bottom of the priority list, but the project isn't dead yet. I'm very hopeful I'll be able to do something meaningful on this car in 2020.

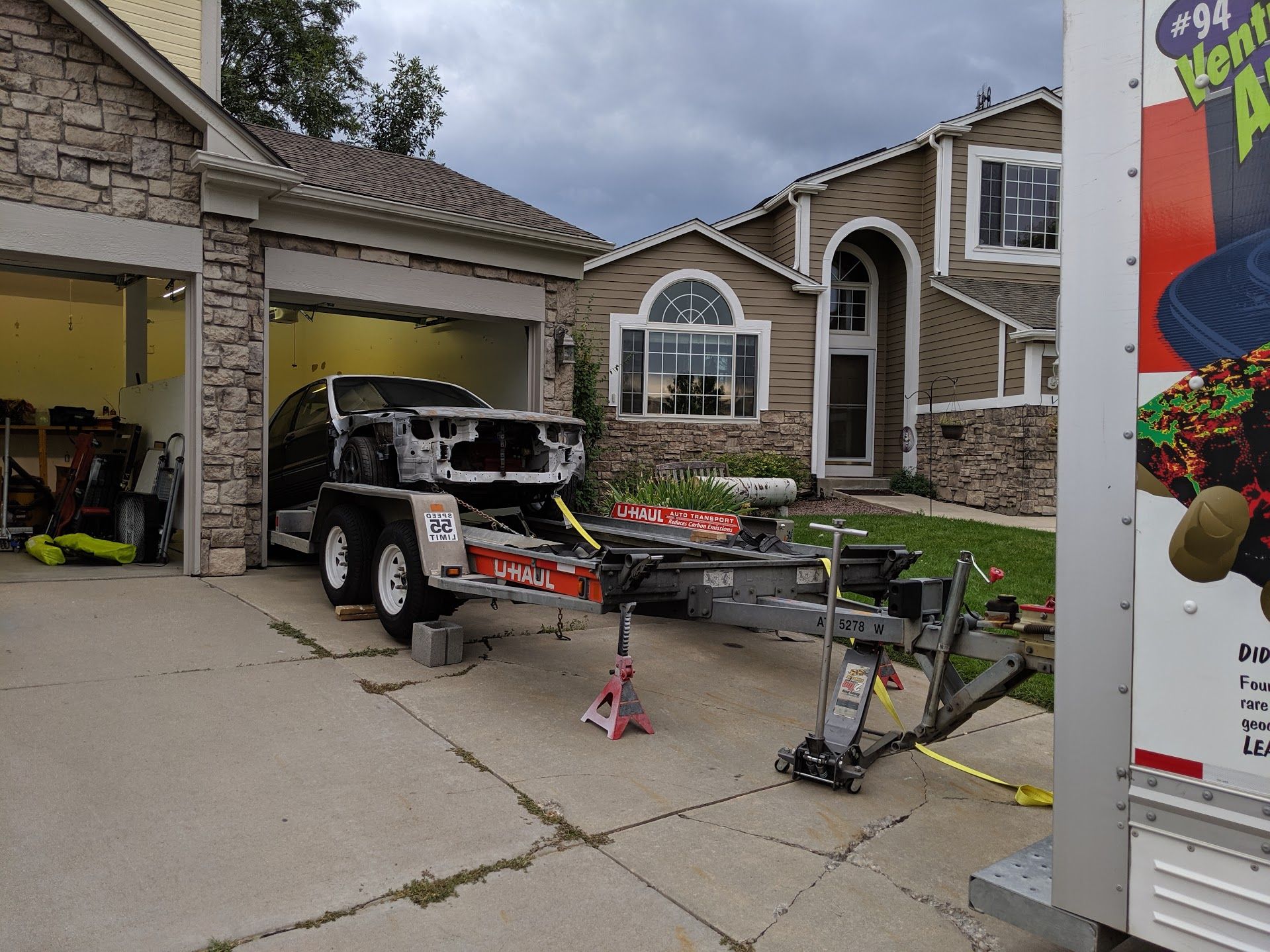

    Here's the latest relocation pic and some wishful thinking about getting back to work after the New Year:

    P3-arSbuoB9Ha1N-PwUgA1bUsL87Oohob5xhF1QHY0deUQLHN___eagAR7CRPjThf1VAA0m6ykPeeFVNk=w1919-h1440-no.jpg

    Last edited: Oct 28, 2019

    Autocross Build 3K  15

    1992 Mitsubishi Galant VR-4
    awd · manual · Galant VR-4
    Loading...
  13. iugrad92turbo

    iugrad92turbo Supporting Member

    12,337
    501
    Joined May 22, 2007
    Kalamazoo, Michigan
    Still following the build.


    8K  5

    1992 Eagle Talon TSi
    awd · manual · 1G DSM
    Loading...
  14. iceguru1114

    iceguru1114 Proven Member

    344
    207
    Joined Nov 24, 2014
    Denver, Colorado
    Haha. Appreciate the patience, sir. I'm really hopeful to get something going after the holiday festivities are over... the new garage update should be fun, kind of like what I did back in Atlanta.


    Autocross Build 3K  15

    1992 Mitsubishi Galant VR-4
    awd · manual · Galant VR-4
    Loading...
    iugrad92turbo likes this.
  15. iceguru1114

    iceguru1114 Proven Member

    344
    207
    Joined Nov 24, 2014
    Denver, Colorado

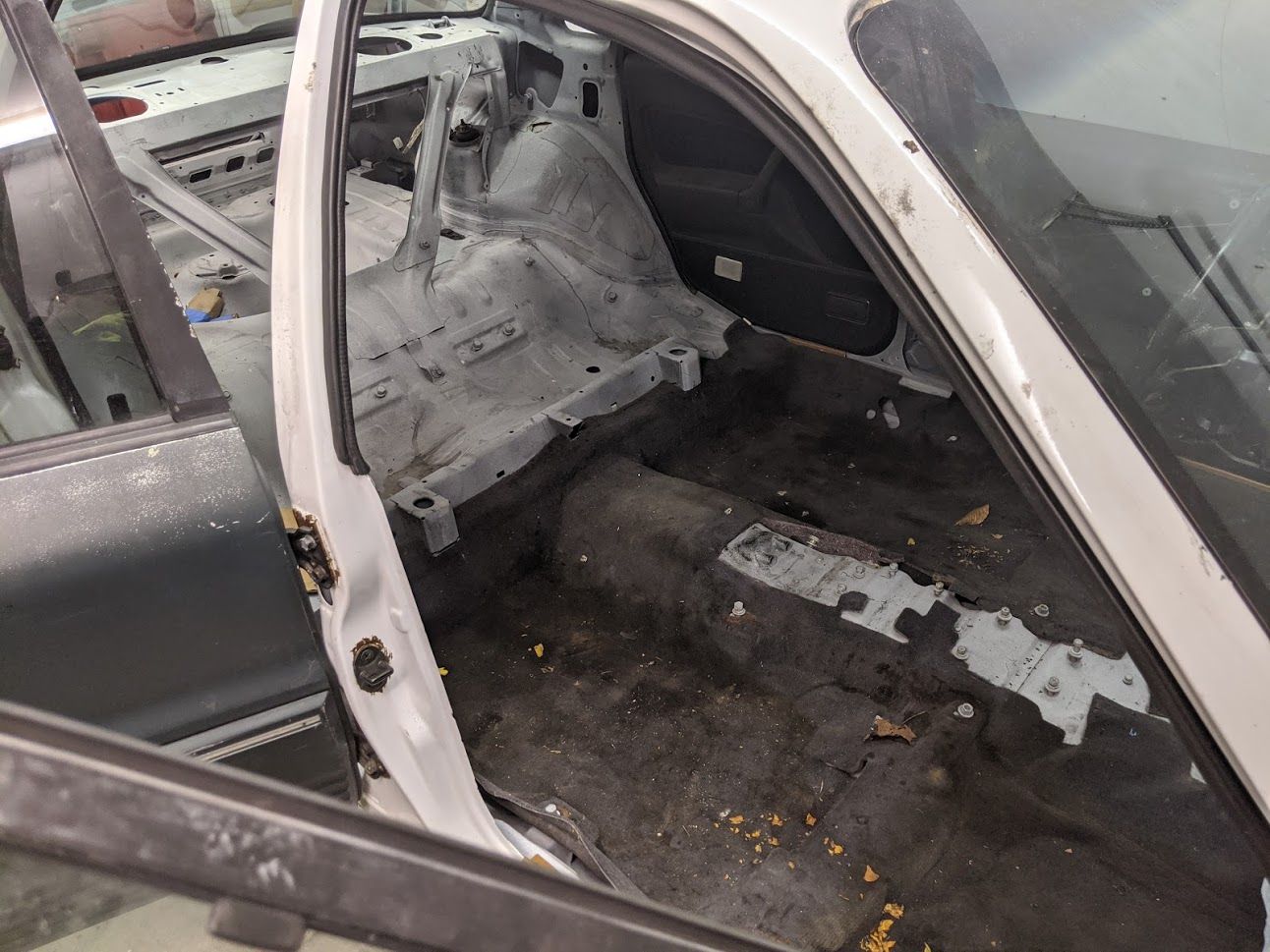

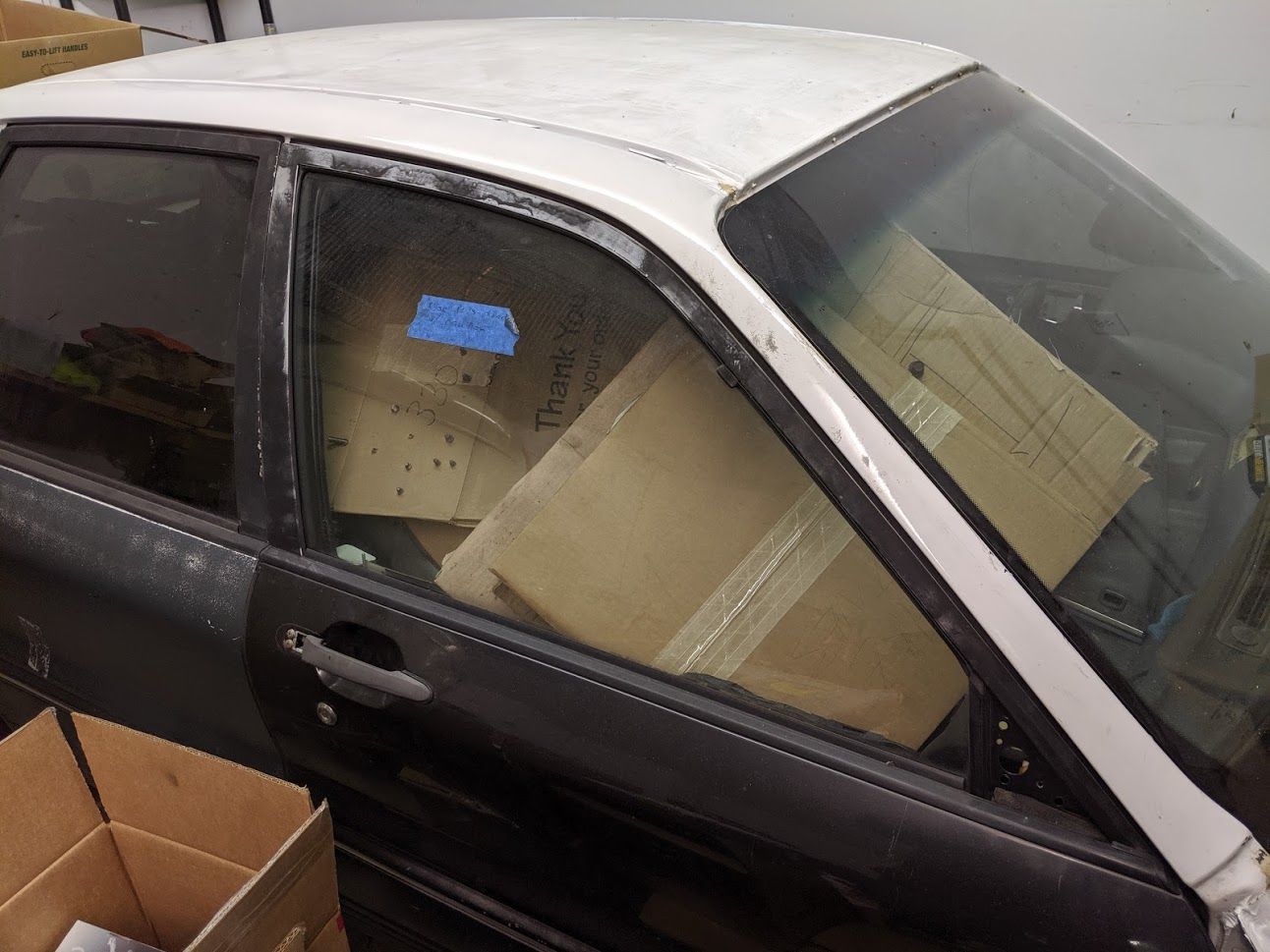

    I'm trying to build some momentum on the build again here. FUBAR has been all emptied out, which has twice now been quite a chore. Before:
    5YcKSYJKyhVYvNAfWD1C5g8Qx2RpKyonTEbhzMvrjnLMTEZ432_bvf1eO7V21tQcuInvUCOUvqX4xwPuES=w1292-h970-no.jpg

    After:
    yilH1o8vxabgt7aPJKGggGrA8lmvPg_ivL__FjX6JCFjd3j9739ShBUUPnTuvzAAwpEhpio7OxnpfaJAho=w1292-h970-no.jpg

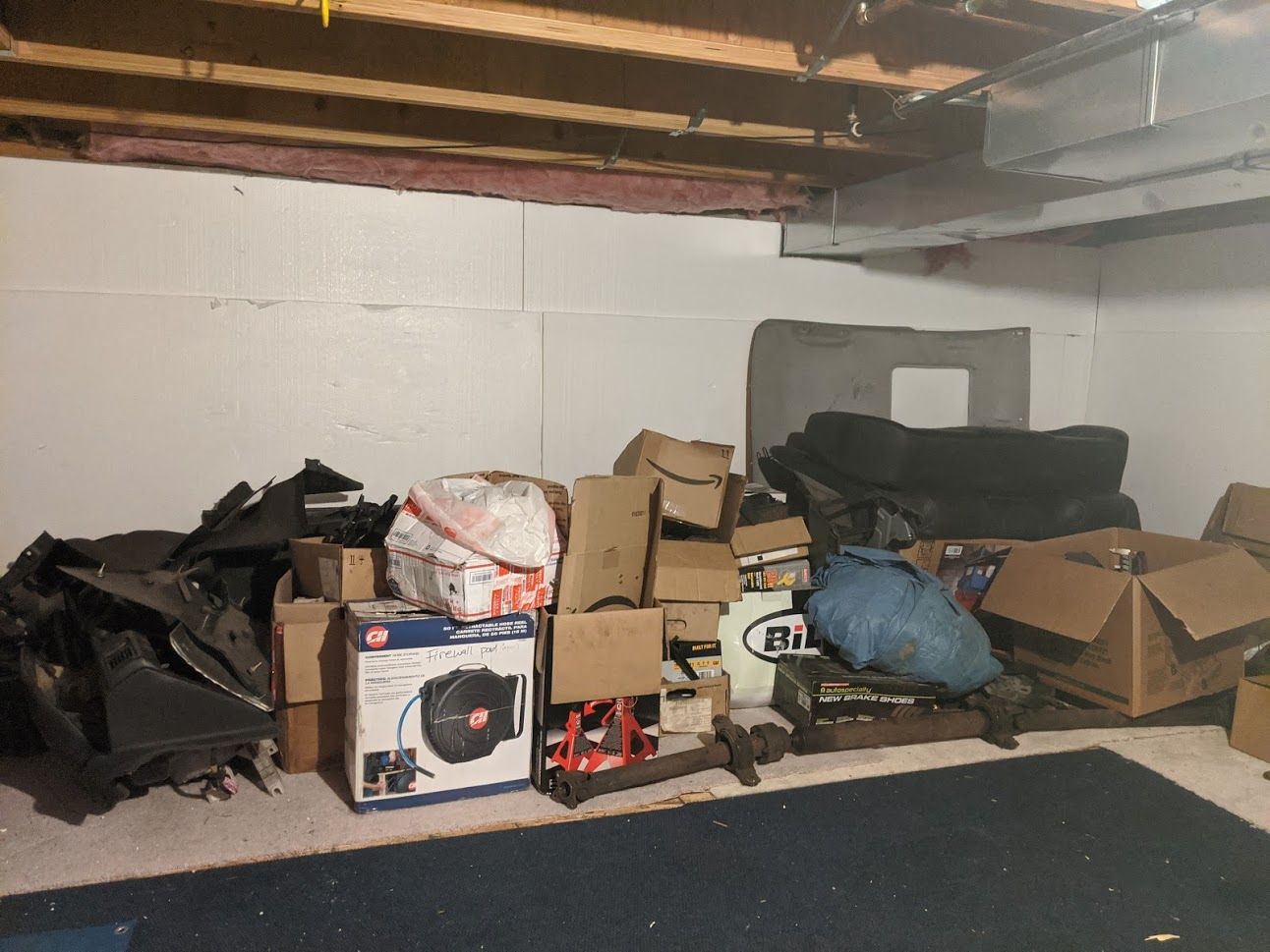

    FUBAR's contents in temporary storage:
    6n4AdNjL_6RV8TBRn_OYura8NloirAMmP2DI6GzVqNEcunWbj3VasqtP-mvwHP95qYIRw7JASCkQlNTbvN=w1292-h970-no.jpg

    I've also started shuffling things around in the garage and making the "must have" repairs to have a useable workspace. That's in process right now, so more photos to come once there's a finished product to show off.


    Autocross Build 3K  15

    1992 Mitsubishi Galant VR-4
    awd · manual · Galant VR-4
    Loading...
    iugrad92turbo likes this.
  16. 609DSM

    609DSM Proven Member

    370
    148
    Joined Aug 13, 2019
    Langhorne, Pennsylvania
    Dude please don't give up! You're so much further from when you pulled it out the snow, don't forget all the work you have already sunk into it. I would love to see this project finished!!


    Street Build 316  3

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM

    Street Build 436  1

    1998 Mitsubishi Eclipse N/T
    fwd · manual · 2G DSM
    Loading...
    buddahboost and lglracer like this.
  17. iceguru1114

    iceguru1114 Proven Member

    344
    207
    Joined Nov 24, 2014
    Denver, Colorado
    Seriously appreciate the encouragement. Support from my fellow DSMers is what's kept the project alive for this long.


    Autocross Build 3K  15

    1992 Mitsubishi Galant VR-4
    awd · manual · Galant VR-4
    Loading...
    buddahboost, lglracer and 609DSM like this.
  18. iceguru1114

    iceguru1114 Proven Member

    344
    207
    Joined Nov 24, 2014
    Denver, Colorado
    This project continues to transpire in waves. I wanted to wait to update the thread until after my first vehicle-related update but that's probably another month or so out so I'm gonna throw in some intermediate garage updates.

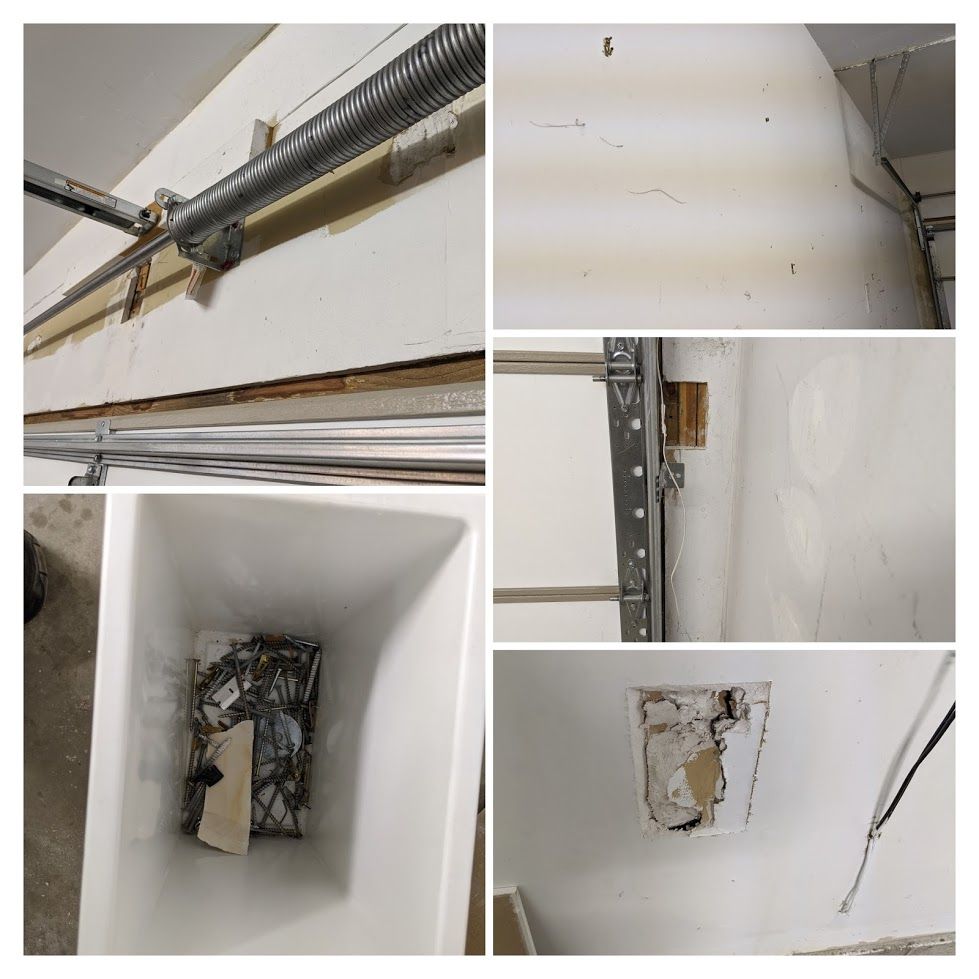

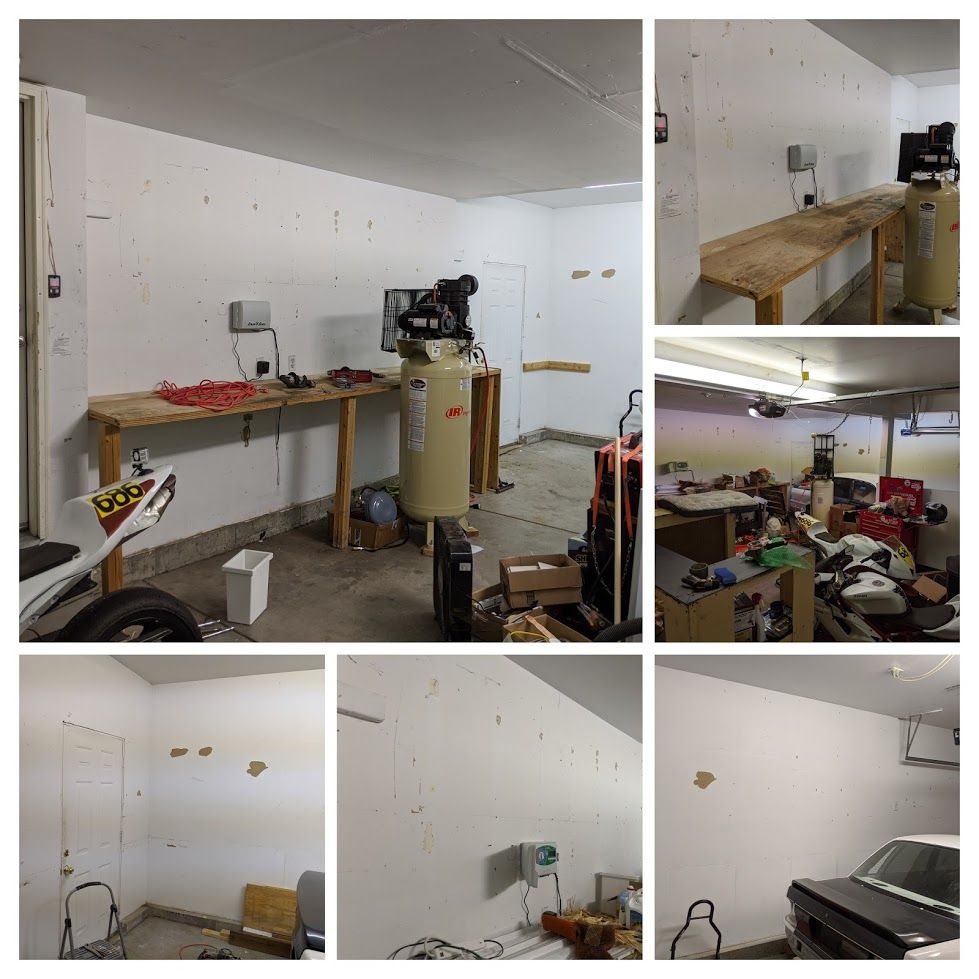

    The garage, as it sat, was a complete mess and also needed significant repair work to the walls. The pictures shown really don't do justice to the extent of the work done. I probably spent a solid 40-50 hours on this. Anyway, here's the baseline status:
    QLXNVyE-rXOSEv6DCwsE7VpxRkTjtJ00icG50KGerGUuH45LHIQA0x5VjNI1X6k3NdMKS5MAks2EX0sWOdJcKKrJ=s979-no.jpg
    FEi80whJdcG79Bfih7nWLGFr8Rd3NPbeHEkXtB0X1yA871su8gHm5rvXXXiZ7106KsMhRLLS6b4yxvGn9P2eyOu8=s979-no.jpg

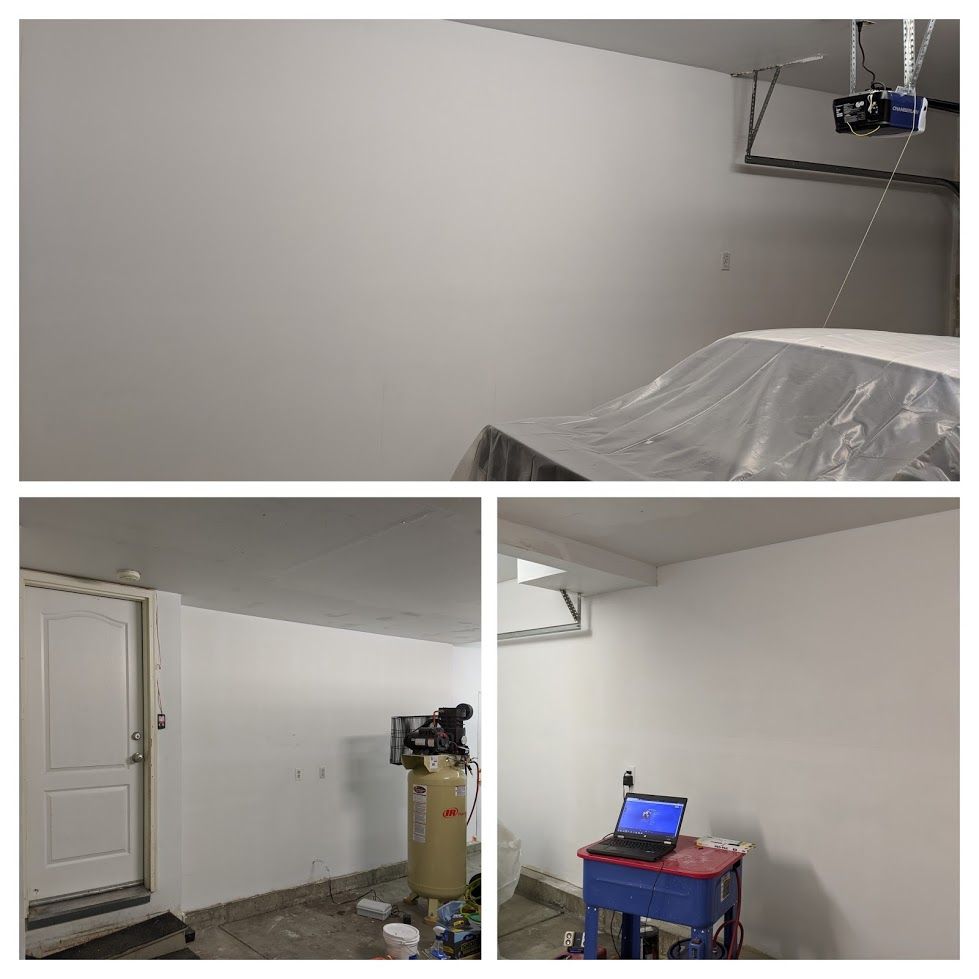

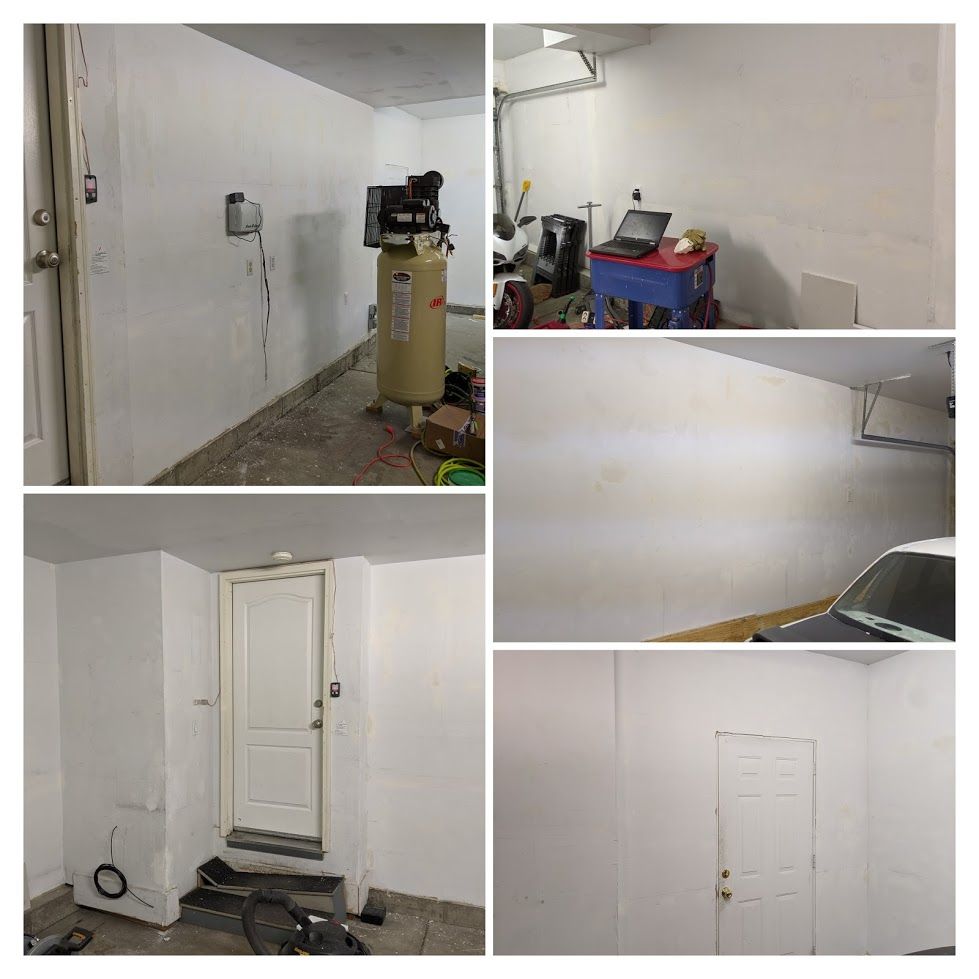

    I started with the patchwork on the walls. Lots and lots of sheetrock compound used here:
    YXt1UzovpAFIbjj_Iqch7VMTFWQttv8Bd2iI23BzC6Be3xsMmFfafS__QecrUf2thmOsKuKVOeMTQqfbCqShPrZs=s979-no.jpg
    Eventually, I plan on going with some nice paint and giving the "dream garage" treatment, but right now the priority is getting to work on FUBAR, so I sealed everything up with some primer to call it good for now:
    -Pw04FdsByvHZYnJ7DHypCFDqBT0sAOq7TMbpAWt8-p-DzK59rryZ3w1IA-XgEXXykbcrFdi9kmHJGCi0p3b1VYQ=s979-no.jpg
    Now I'm in the process of getting everything organized so that I can actually use my tools. The very first thing after that will be another paint booth for the 3rd time in 3 years.


    Autocross Build 3K  15

    1992 Mitsubishi Galant VR-4
    awd · manual · Galant VR-4
    Loading...
  19. iceguru1114

    iceguru1114 Proven Member

    344
    207
    Joined Nov 24, 2014
    Denver, Colorado

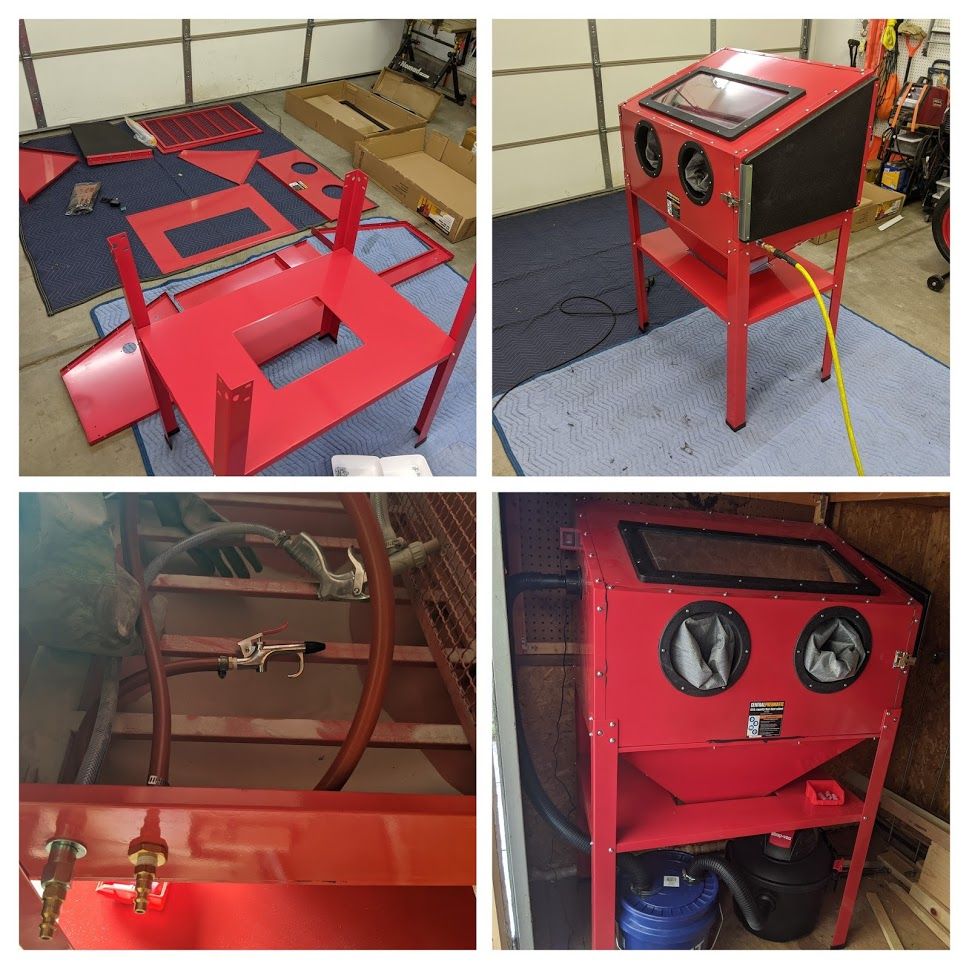

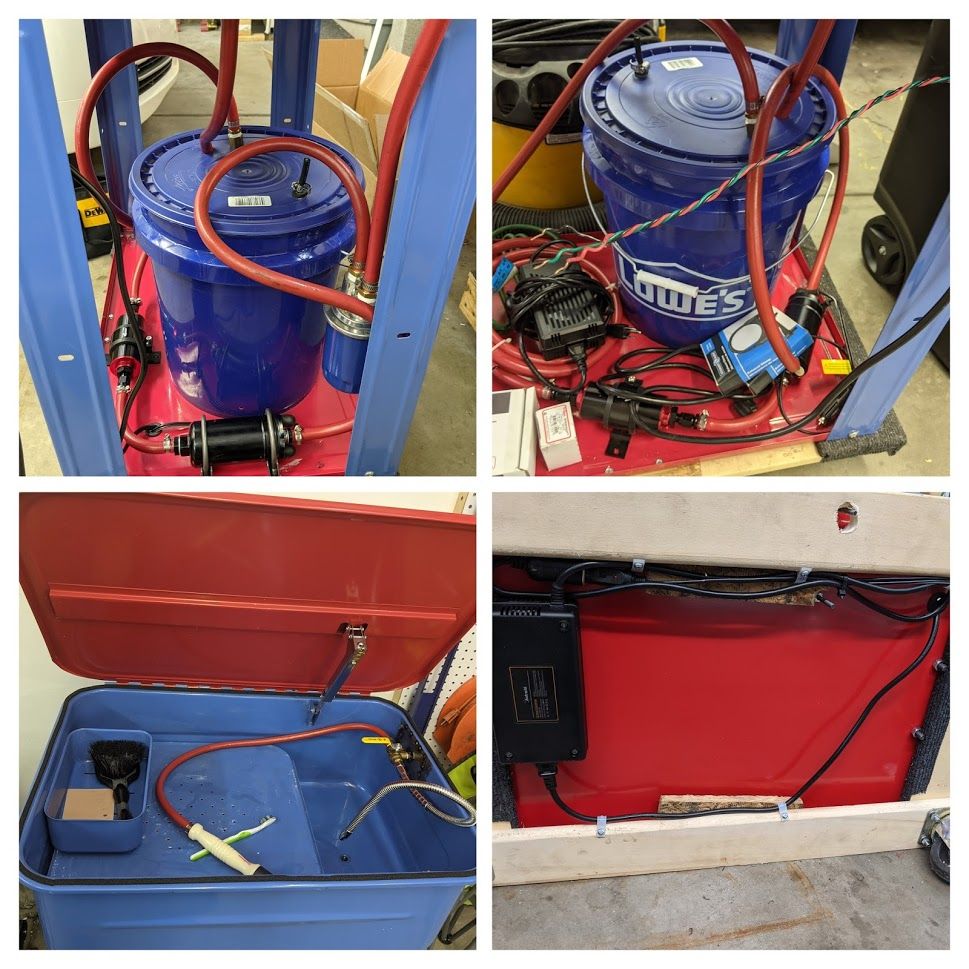

    I'm finally about to return to work on FUBAR, which is very exciting, indeed. Leading up to this point has involved quite a bit of final garage prep. Because I'm me, that work snowballed into a bunch of sub-projects.

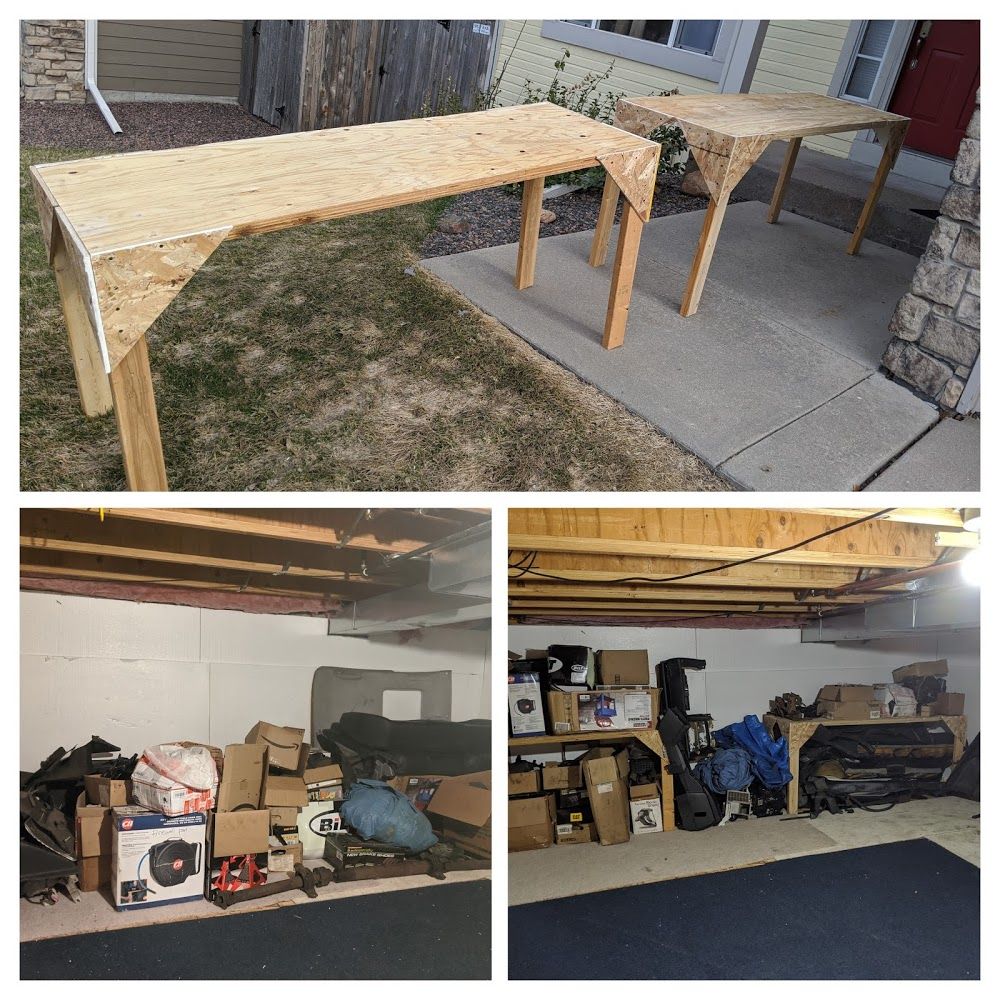

    The first step was freeing up space and organizing all of FUBAR's parts a bit better in the crawl space with some storage shelves made from re-purposed wood:
    6BBNdFVn7p5_HKmxU6SQztrG1Iboy28eCxqZ8ZMzhxZ7nWFq2nH9ErzprzAMKlcM_sr3F_iG4z5qqmyVSlL=w1000-no-tmp.jpg

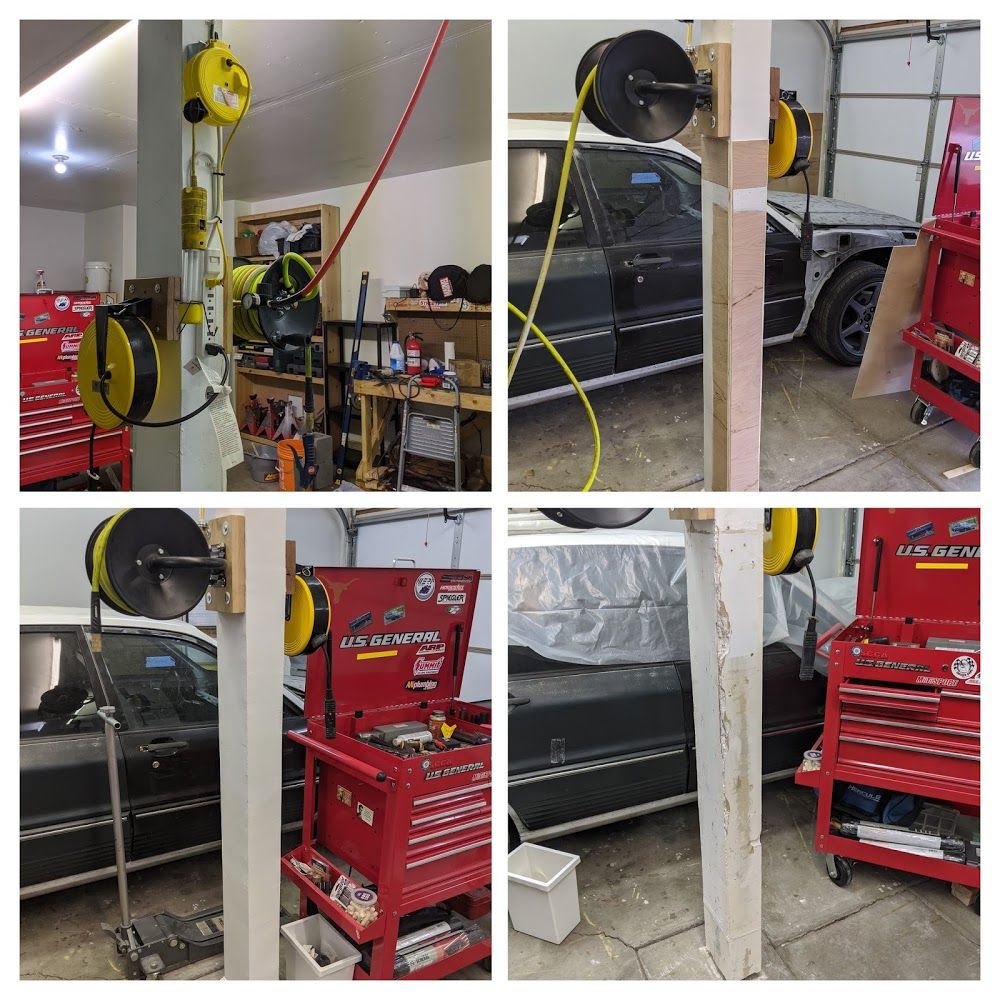

    Next I moved on to the "Power Pillar" which was iterated on a few times prior to being good enough to work with:
    Cl4xGQfy8631tItSfO8kbarQ_ayydZMyz0mxzjq6S_kxmEGYs_BhB24iLnA5z6QUUg3j_43wiRw19mD_yh3=w1000-no-tmp.jpg

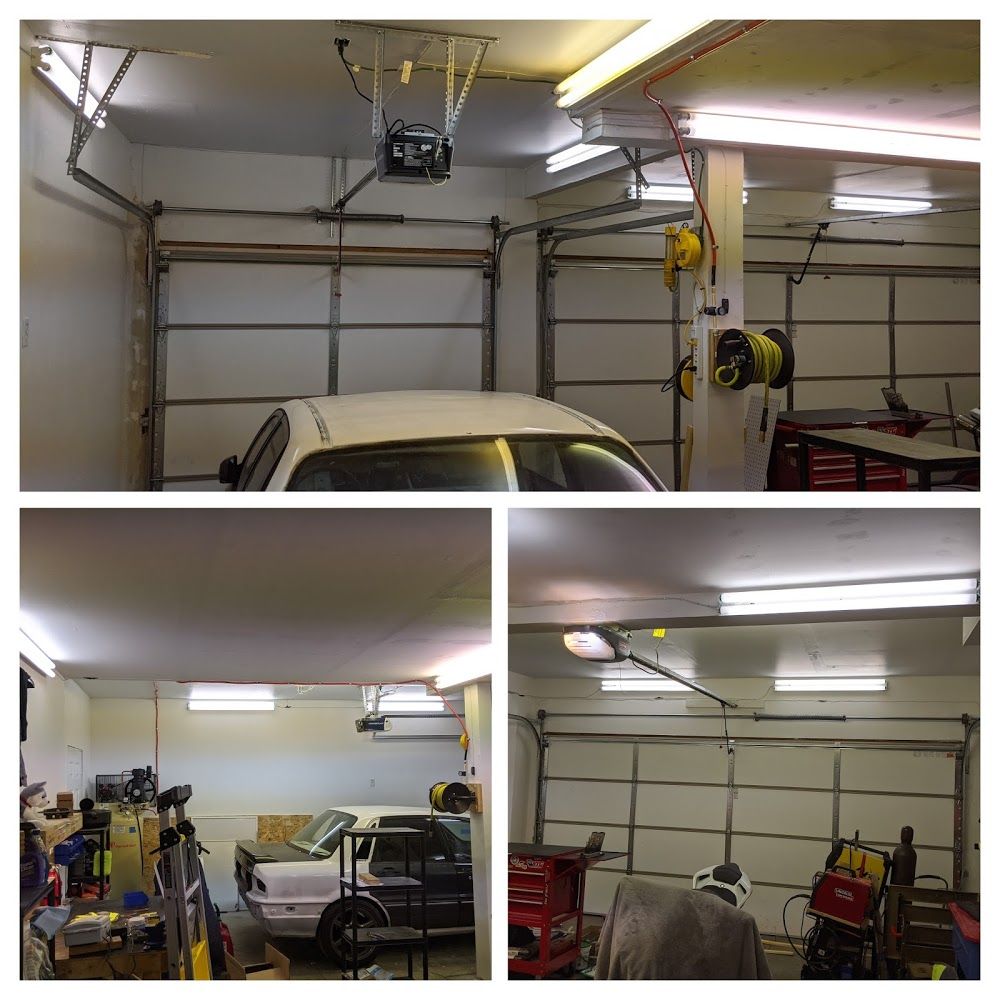

    After that, I made a big lighting upgrade because dimly lit workspaces are terrible to work in:
    TETvHxtf9TeWUo6up9EA2VQ8kFIpd9gx_0Xr9hV5qmYtw9epd7940DiPdX0YSvSR0XjjopVLHk6GQiGxduc=w1000-no-tmp.jpg

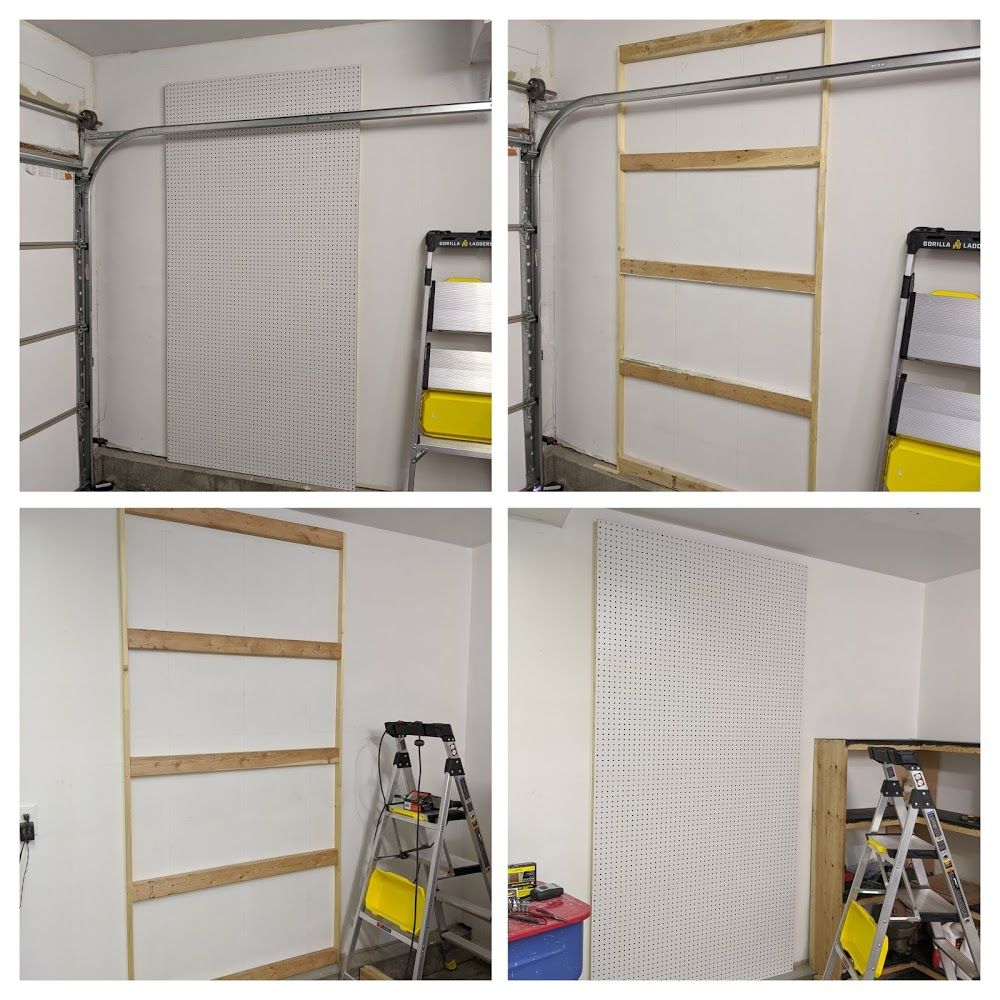

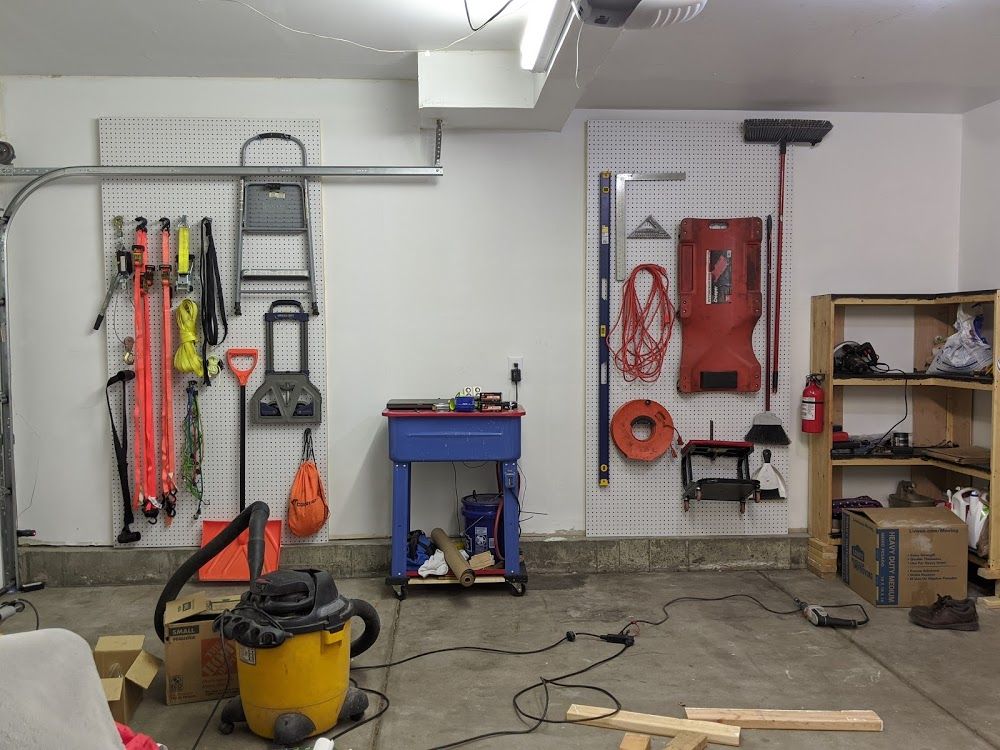

    Then I went a little nuts with pegboard because I have a thing for organization, and pegboard is great for that:
    7zpxuF5guZhPWlbHxe75uEDovtE19_D3HGLxKZmu97jpoXlitezkoPj2ztBrC2GpegBSCb7UyNyOuVvQzE1=w1000-no-tmp.jpg
    1lzsAJsE_EOI28Oa8g3UpFkwaklsrP2ja_ISjFafnDVsAnpI4e0svmJM32MWWq6MaLe26X6gfHXaIP22fjG=w1000-no-tmp.jpg
    R6qYDEkTpH2wJRUelQy8J2wFBb04rTVx31TlDXH_zkCNKn0SN2I3aTuOQv73BXjclwbVlk57vvnREbUPCI0=w1000-no-tmp.jpg

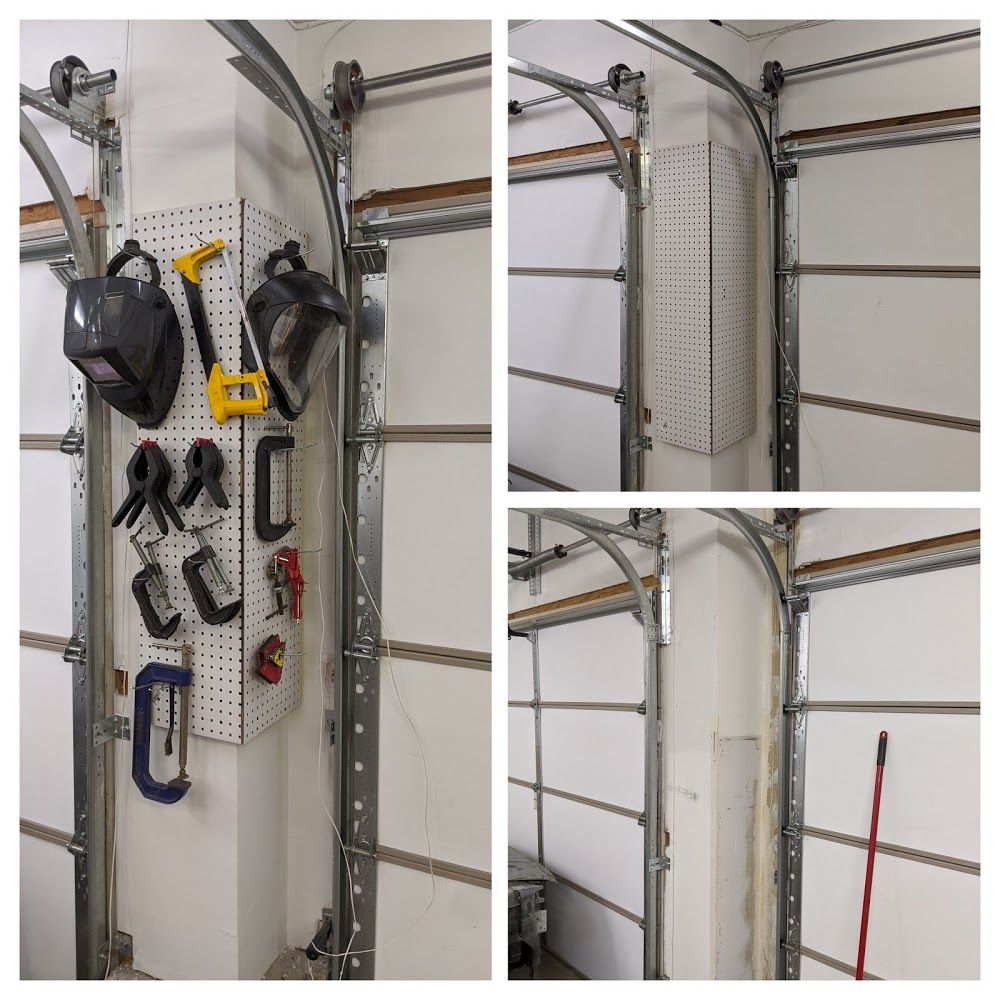

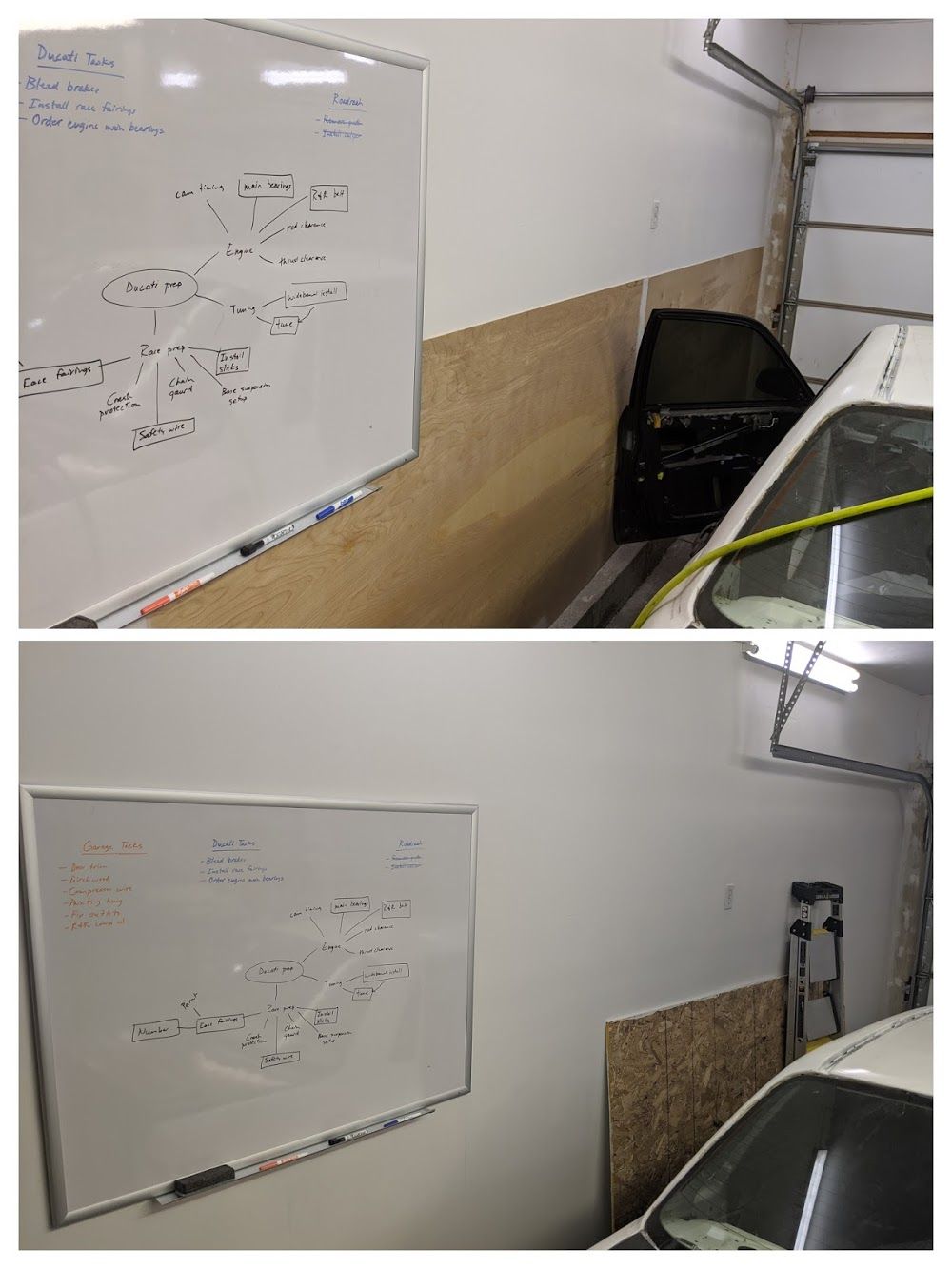

    After dinging the wall a few times with FUBAR's door, I threw up some birchwood to protect it:
    VPEsMeh4TTIjbW7mhtRCvThfWr7nEO_Hmn8l_OamM3AV-bq1sBBKFNuv0-adr2eMKzR1SqR8blnVl74b016=w1000-no-tmp.jpg

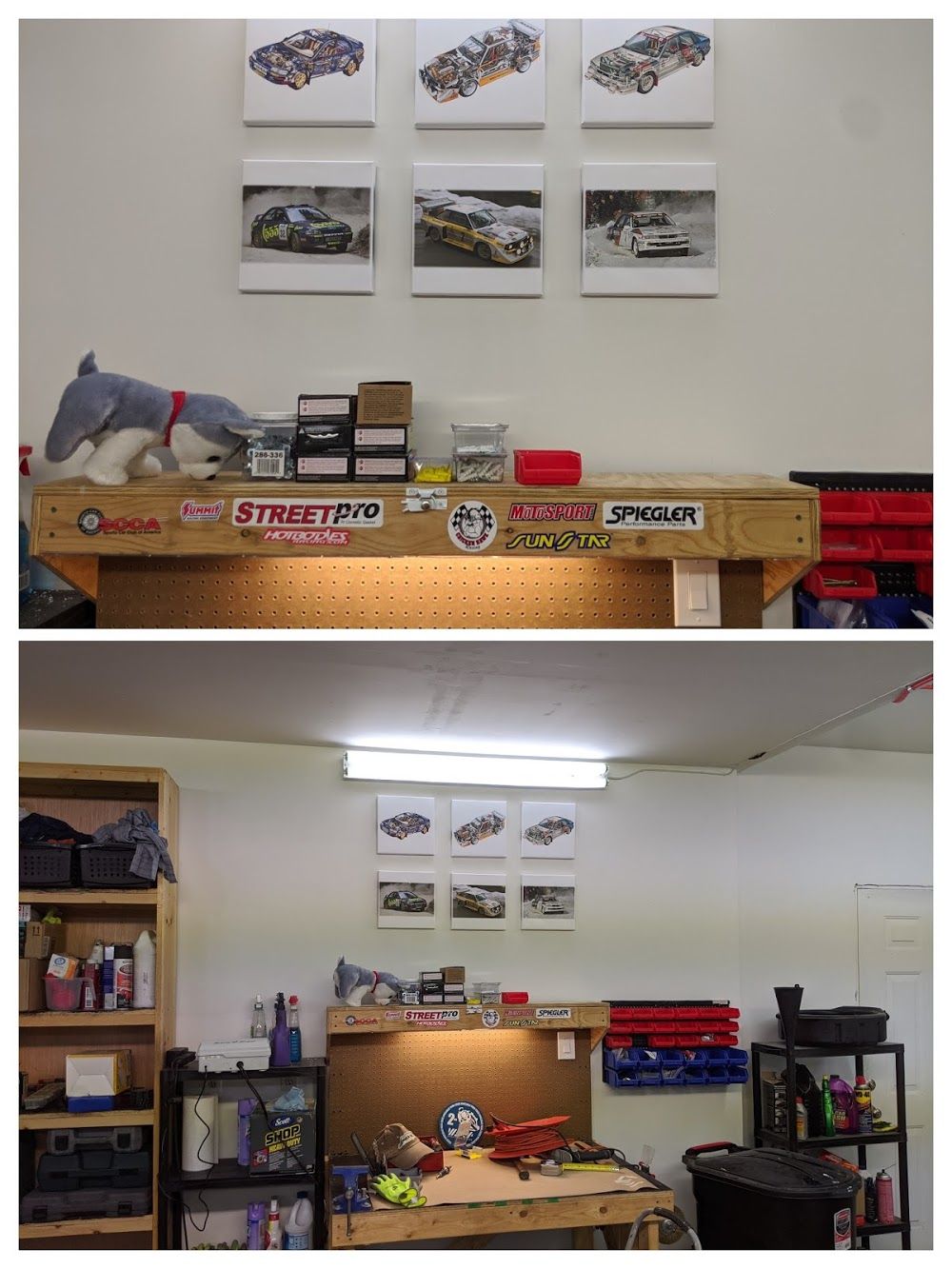

    Finally, I added some wall art with some of my favorite rally cars above the workbench:
    Yn38BxPNB6cCkj3_pjo60U0woJb7ElULnkg096Ma7_D09JIyWfCxMAQe5JNmCN326_ZuLw0uCQFmPHzZcE1=w1000-no-tmp.jpg
    The last thing to transpire before finally returning to work on FUBAR was completing race prep on the Ducati, which could have been its own build thread:
    vu3_OKcn31Jti6EOY_xe4P95ocAMyeWAPZW2rXW7WtldwGCY1_6_EXhBt9yHRd5RNV9xuuo07Wg8zYB-czQ=w1000-no-tmp.jpg
    Unfortunately, COVID has killed the motorcycle racing season but, on the bright side, I won't be waiting until winter to resume work on FUBAR.

    To date, FUBAR has now endured: 3 moves, a career change, 3 other vehicle projects, an engagement, a marriage, and now the arrival of my first child. More to come on actual FUBAR work soon.


    Autocross Build 3K  15

    1992 Mitsubishi Galant VR-4
    awd · manual · Galant VR-4
    Loading...
  20. 609DSM

    609DSM Proven Member

    370
    148
    Joined Aug 13, 2019
    Langhorne, Pennsylvania
    Glad you haven't given up on this build! Covid has really messed up my plans with my talon but it also helped financially for me so I'm able to put it on the road as quickly as the parts can come!


    Street Build 316  3

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM

    Street Build 436  1

    1998 Mitsubishi Eclipse N/T
    fwd · manual · 2G DSM
    Loading...
    iceguru1114 likes this.
  21. iceguru1114

    iceguru1114 Proven Member

    344
    207
    Joined Nov 24, 2014
    Denver, Colorado
    Brake System Engineering

    I finally did some ACTUAL work on FUBAR again, for the first time in a long time. Granted, the majority of this work is engineering and Bill of Materials work, but it still counts because it has put a $1000 worth of part on my purchase list about 10 days from now.

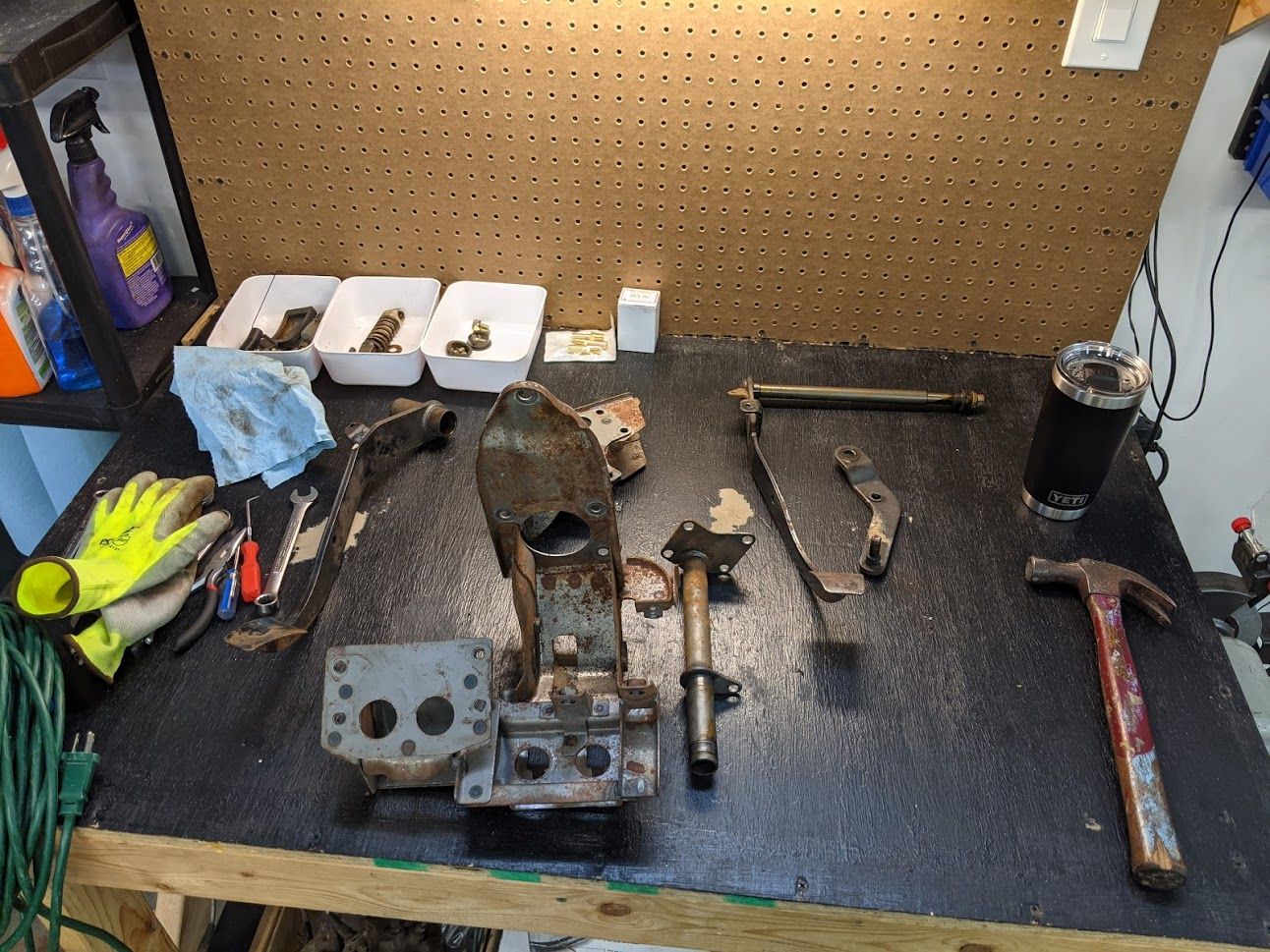

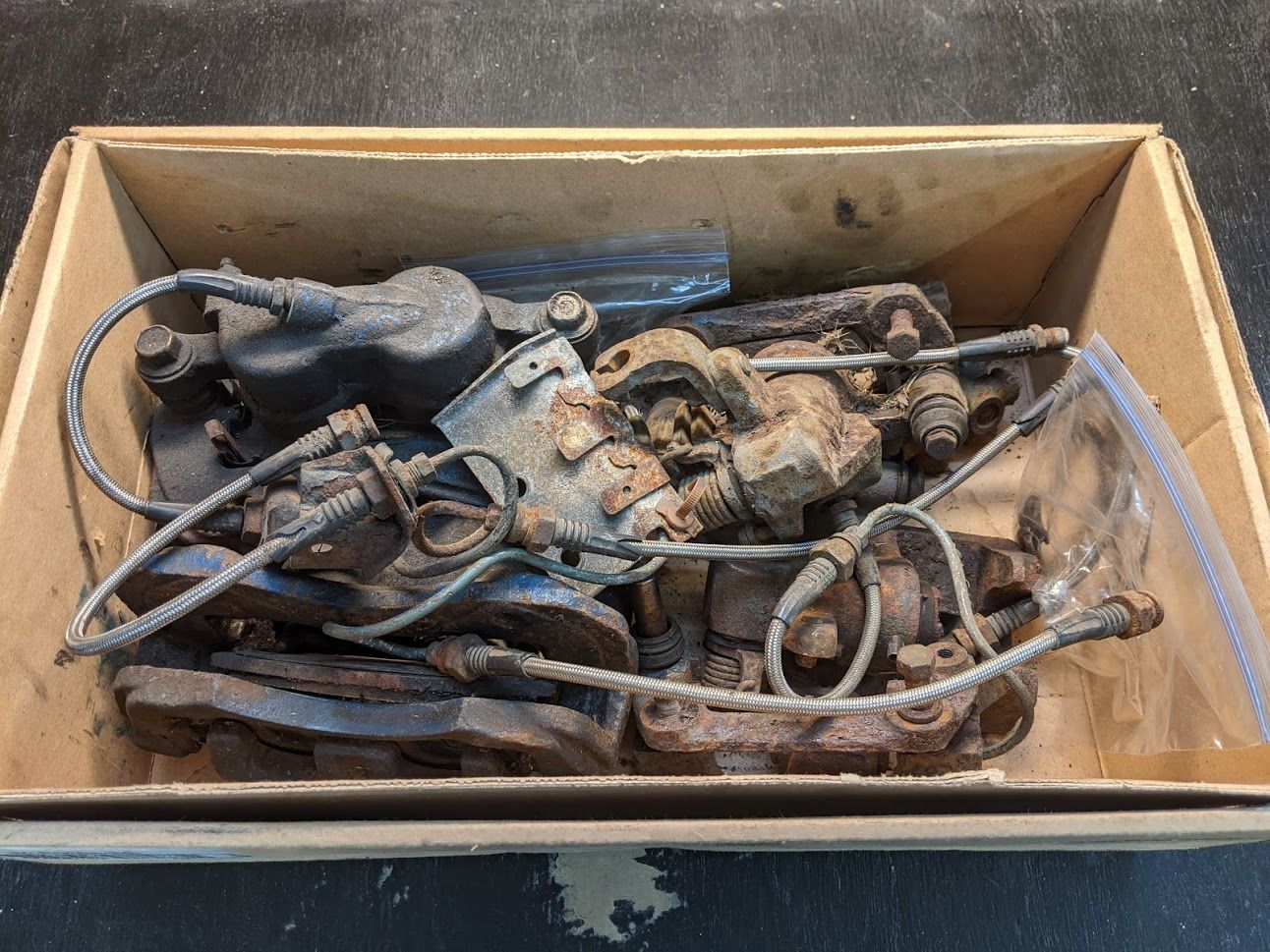

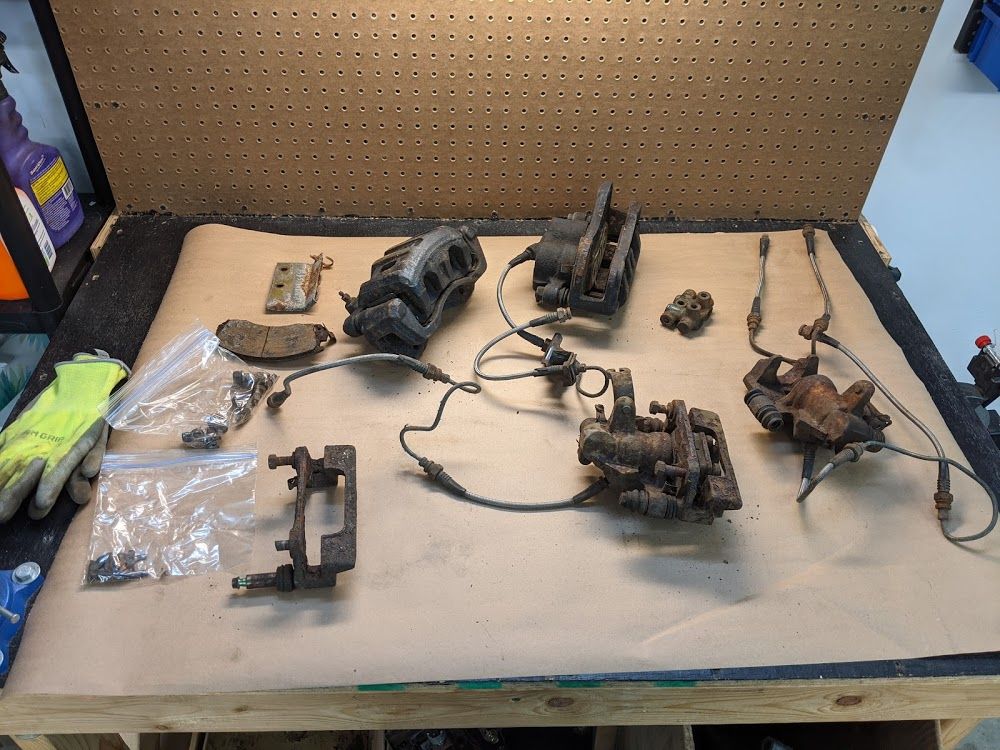

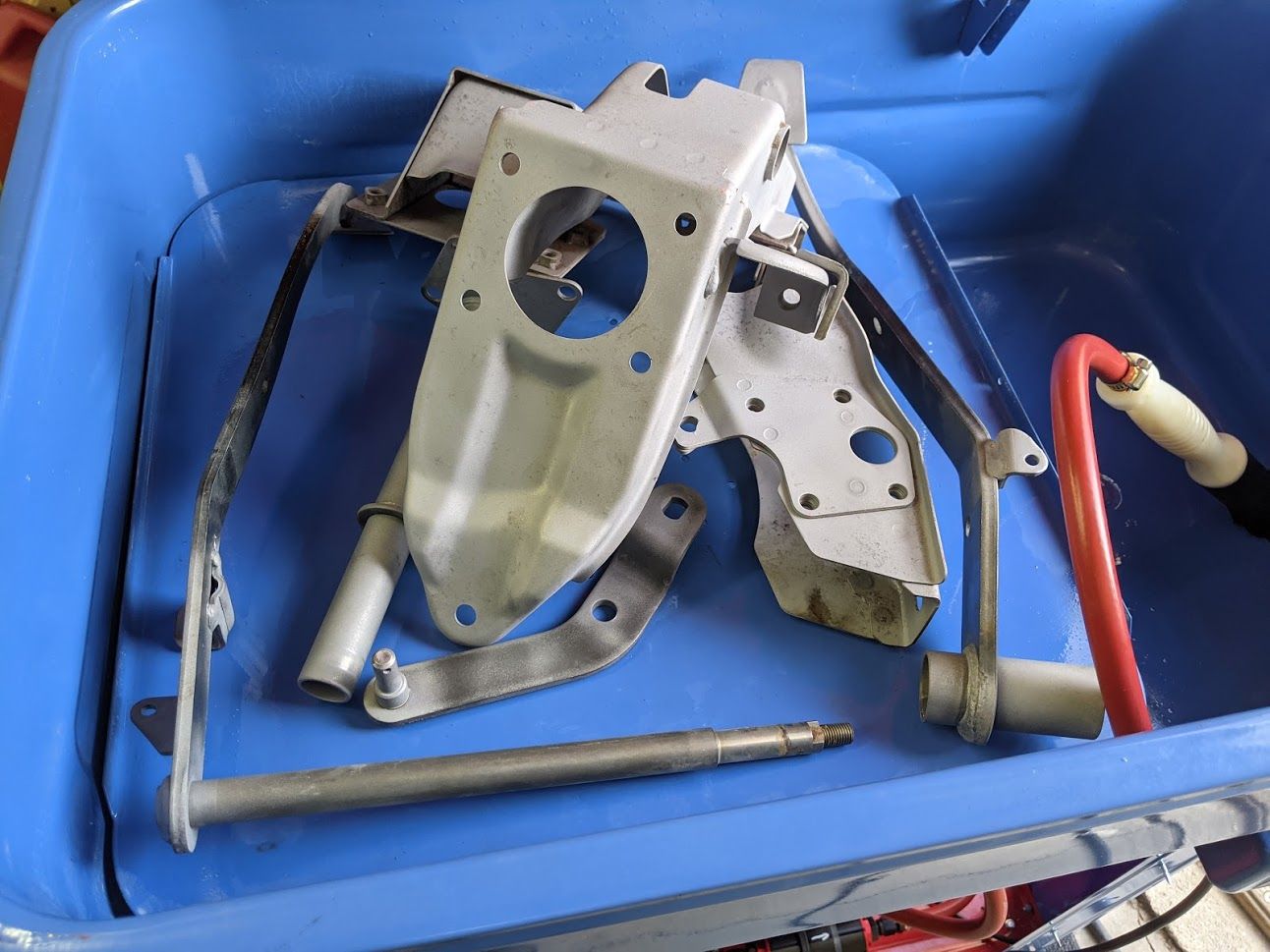

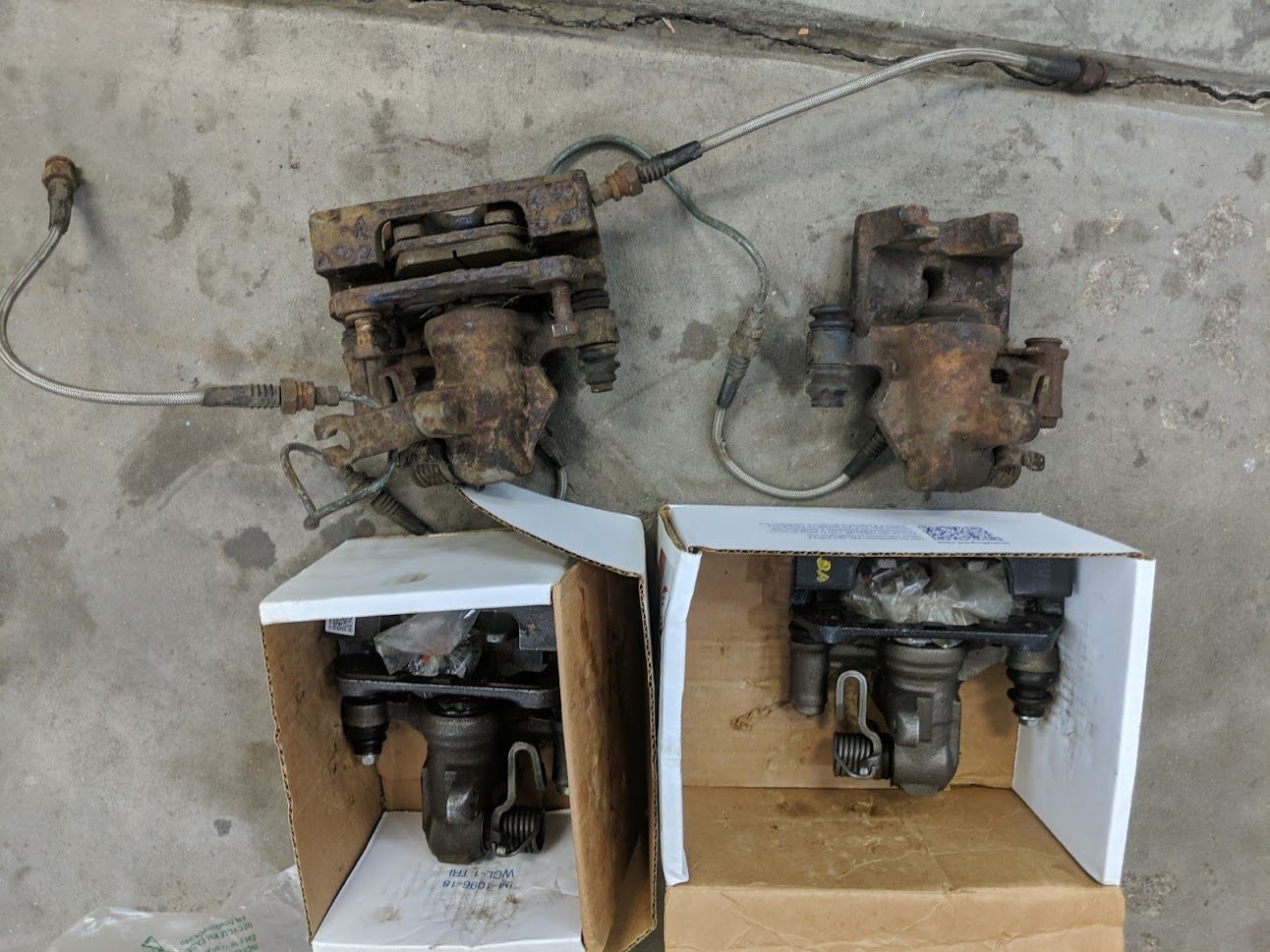

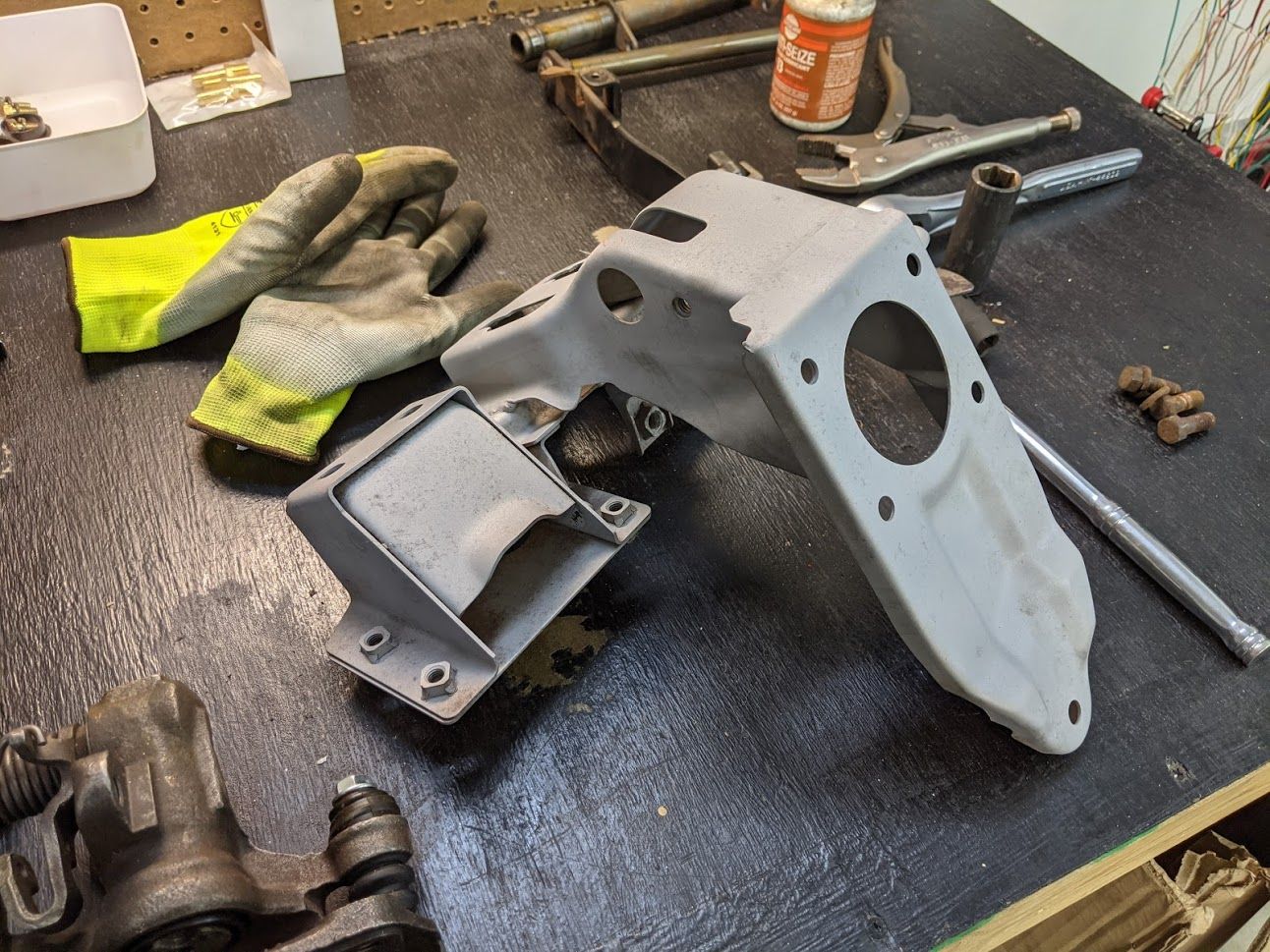

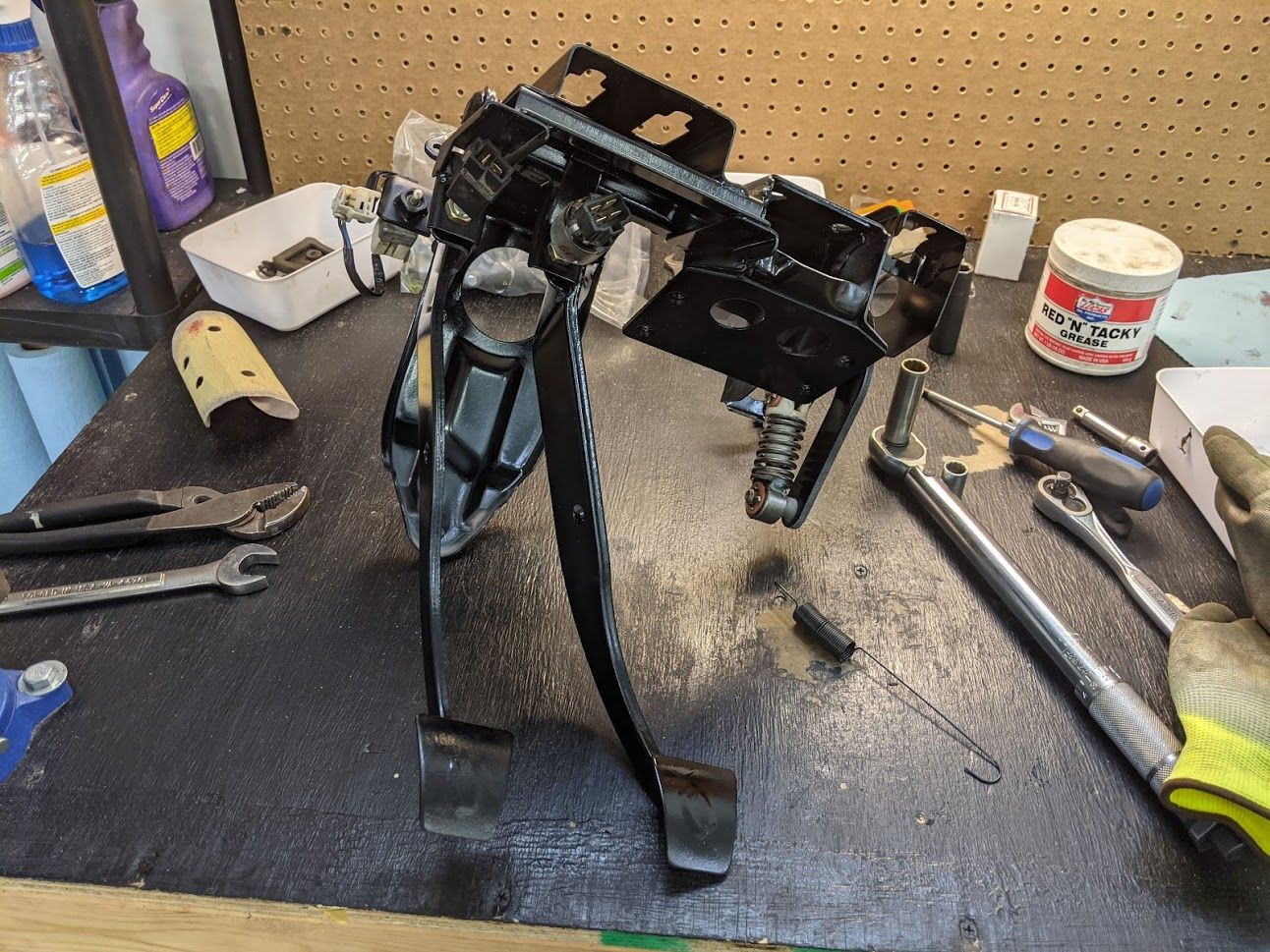

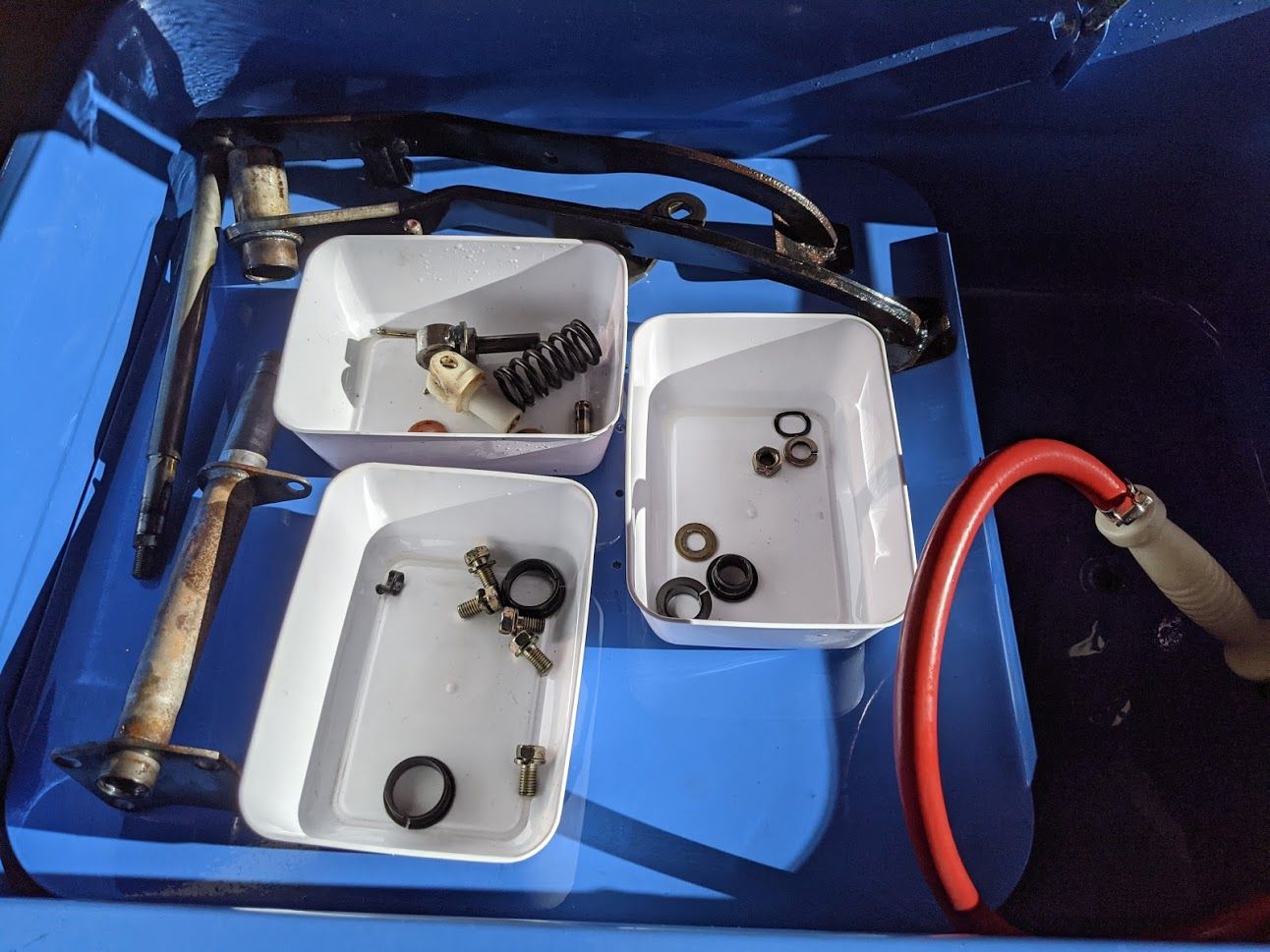

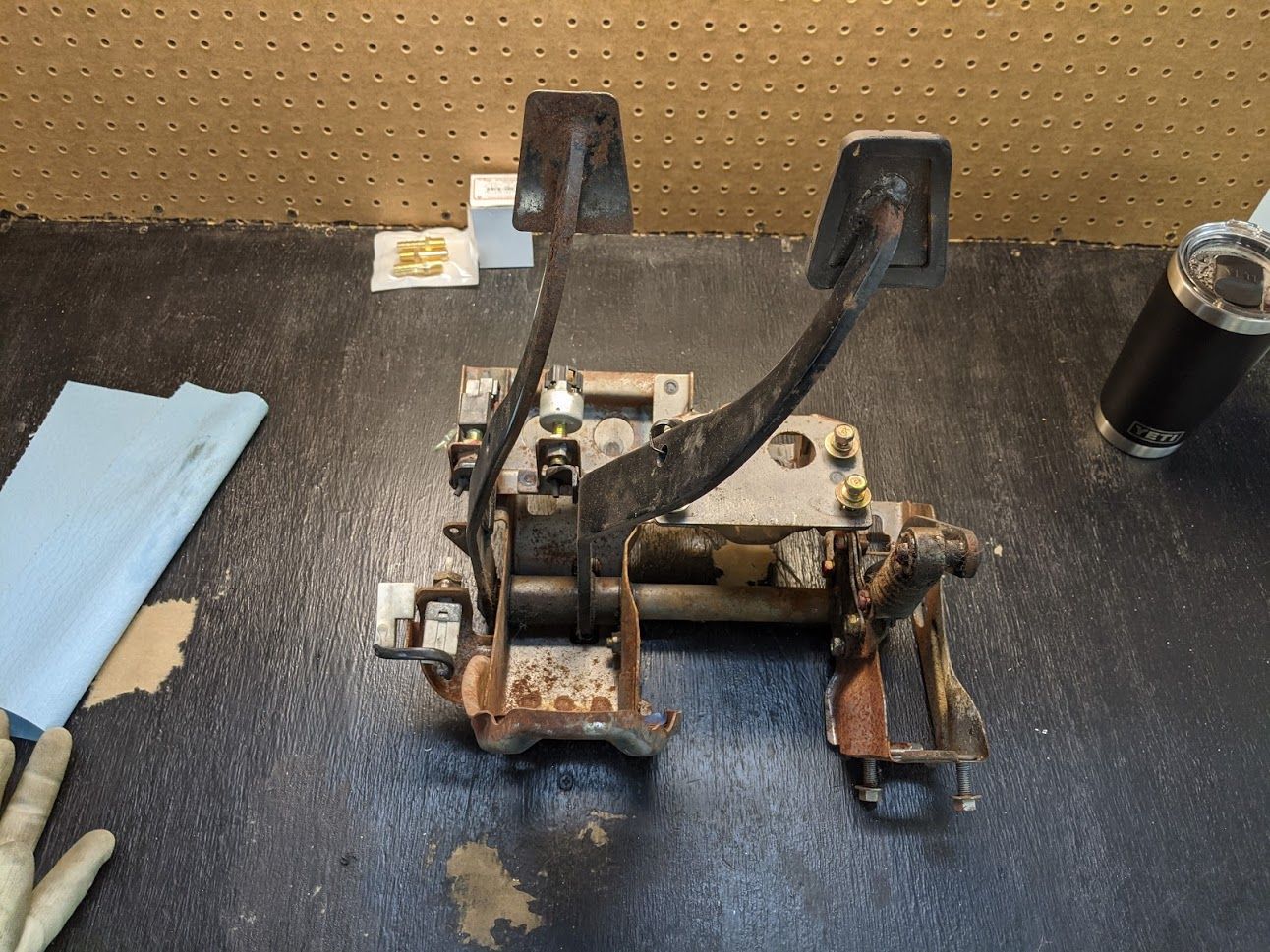

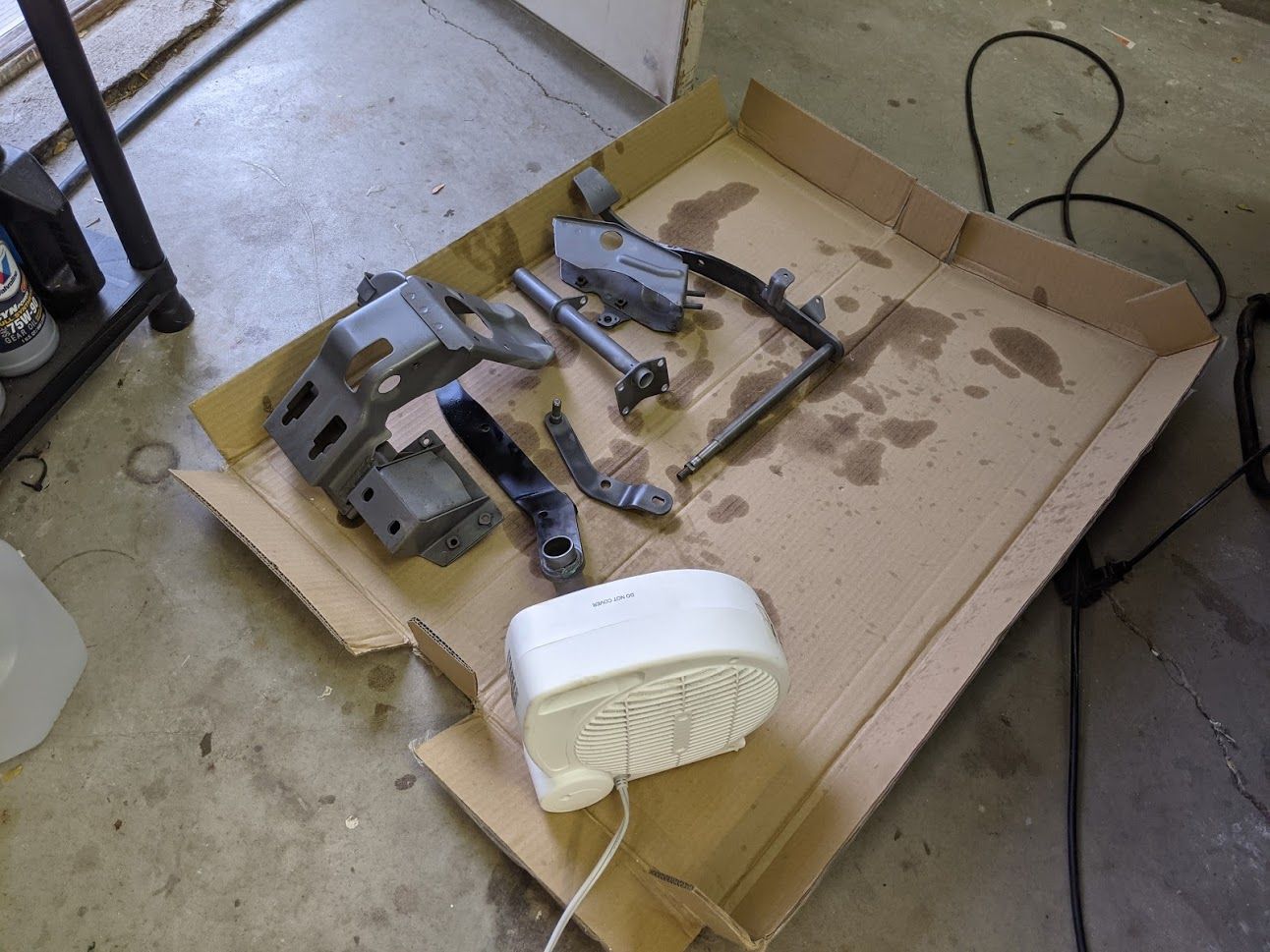

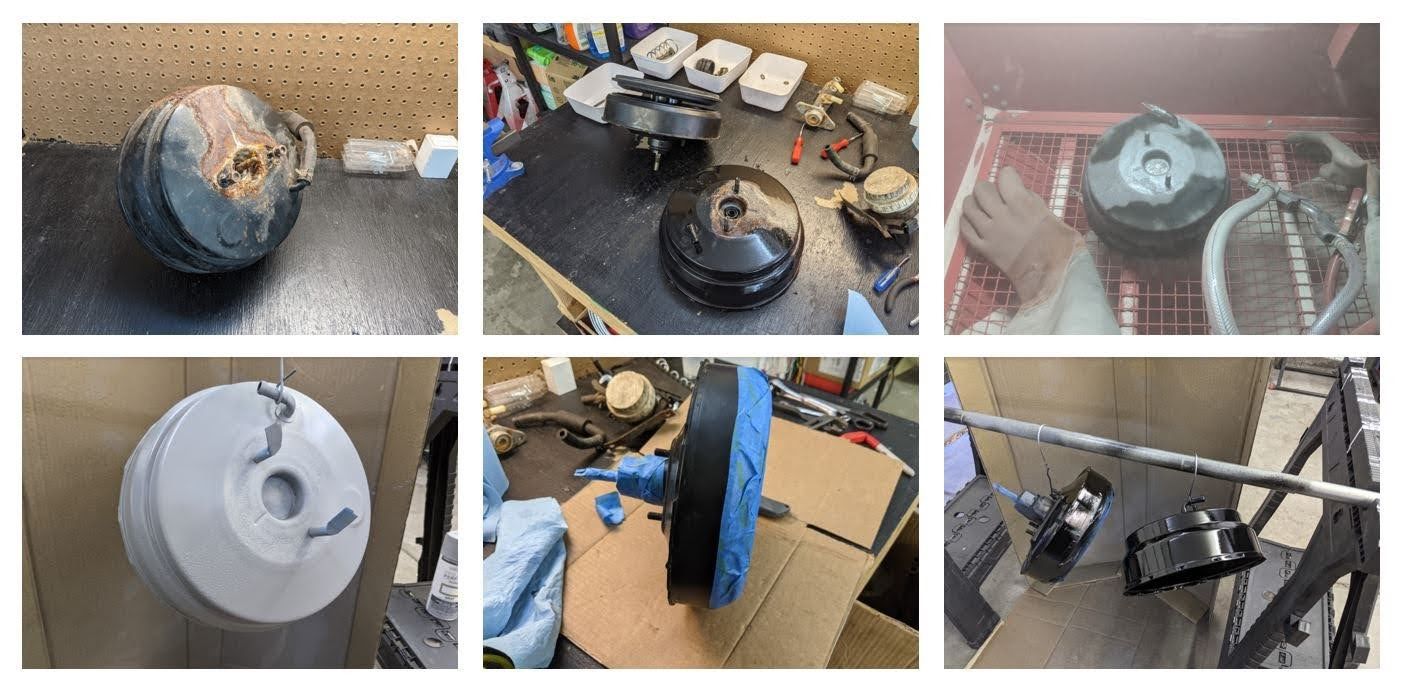

    I've had more than a few close calls rolling the car around with no brakes and decided that now's as good a time as any to do something about that. I started by pulling out all the old brake parts to take stock of what I have in hand. Junk lines, toasted and siezed calipers, corroded carriers, fried pads, a bunch of mounting brackets, and a seriously tired-looking brake booster:

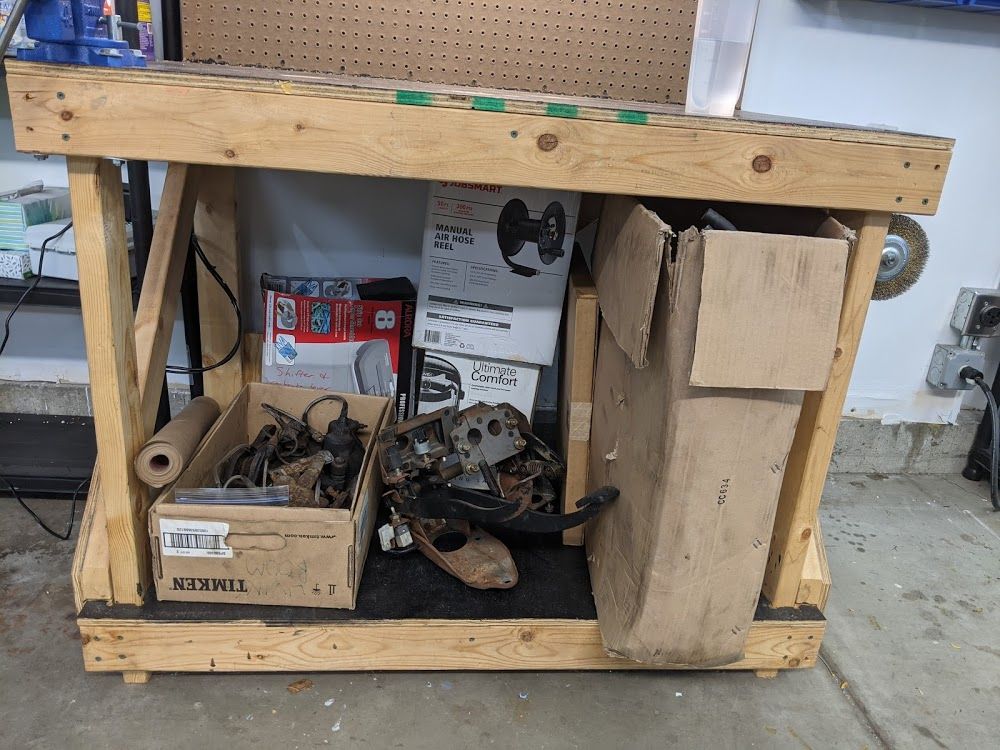

    6Z2BitvlbnzraYI8zm33Azreh4uhk2Pj_CSzdpLncAwGUoSpbKlH7SuP1CjLiSFUOBDljviVSXtaeabsExv=w1000-no-tmp.jpg

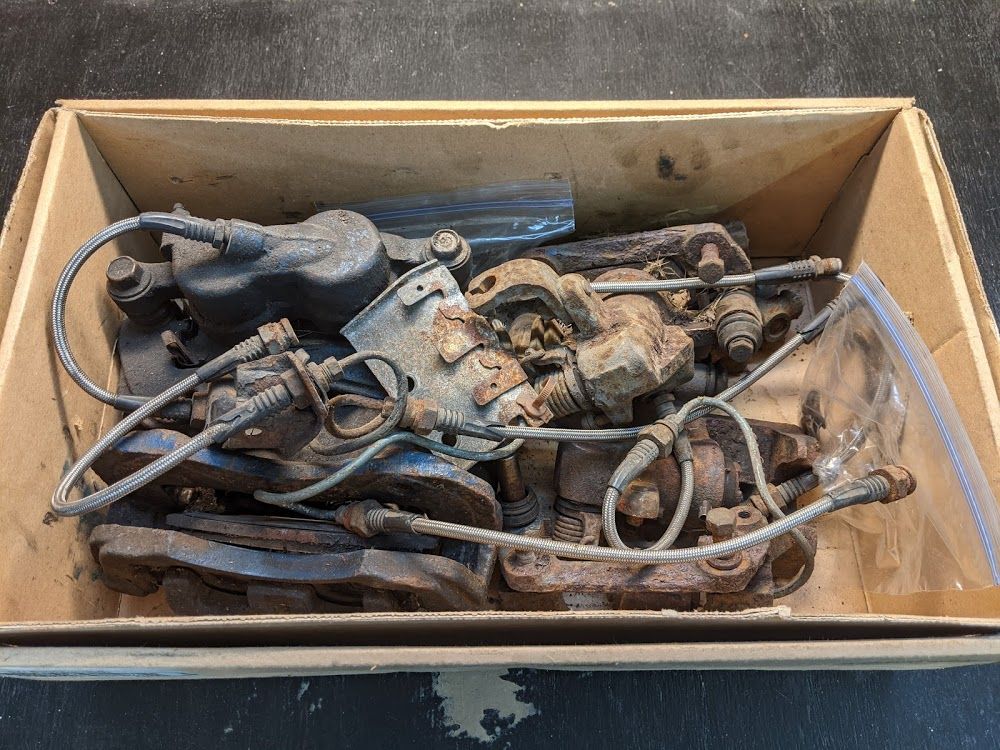

    ernmE72l5nr2AdN1n-Do6eejc9VkM5P5dMd46u8PXmdV4fA6ypVwNqDPaRFyLZcgna2fYmxonC4iLu477Ot=w1000-no-tmp.jpg
    tPxLd_pEGD_8V2a1M7r0cb-Dx01lhL4S5EGkaY9HSGxUhMrMtv4EhIjf4epG73PVzNZNEpx0Tb7Rm6yTD9q=w1000-no-tmp.jpg

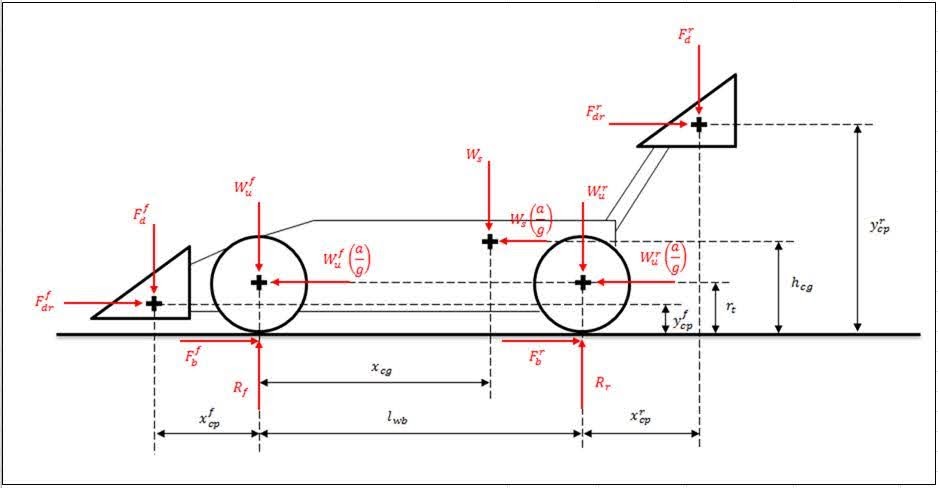

    After some very general observation, I knew the only safe route for this critically important system was NEW stuff. On the one hand, that can be quite an expense, on the other, it's liberating because I get to choose things that support my needs. At about that time, I put on my engineering hat. I have an old brake design calculator I created in my racecar engineering days that's comprehensive, and it works. Along with a bunch of inertial and effective mass calculations, here's a good visual of the forces considered:
    1--qRhh7fR-AUY4wAKQFY7v9Dv6-PjRNG37FXP3sJJqLucPsCxJWNcz4sJ4P50gVSqmbpsfkz0TzTyvh4jQ=w1000-no-tmp.jpg

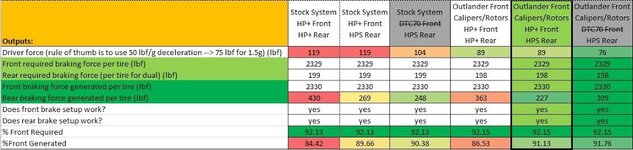

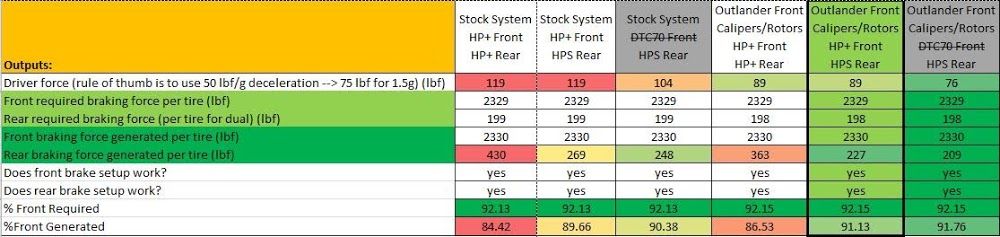

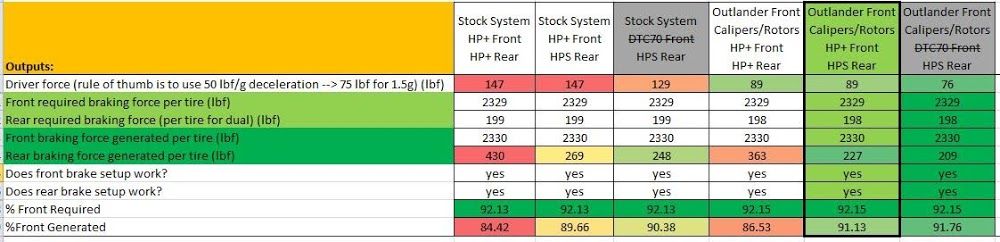

    I'll spare you the dirty details, but after some measurement of various vehicle systems, and consideration of some vehicle dynamics, I finally came up with a few viable options to meet the needs of a loaded Galant VR4 running 315 Hoosier A7 race slicks in an autox setting:
    PvKdMwAHxTaA3kDnQ3ssi2GKfTGx3auvhaIrVI6yDz0S26Y2fOhZ1SNd5XNhH-W7BJ7U97oEf7s73-sNmKe=w1000-no-tmp.jpg

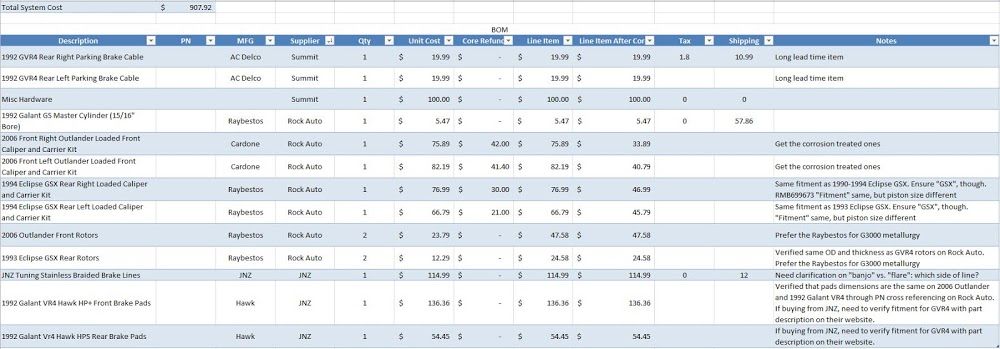

    Ultimately, I decided to go with the Outlander upgrade with a heavy bias toward the front achieved with larger rotors and higher friction pads in front than in rear. This choice should allow me to keep my required pedal forces at a reasonable level, and gets closer than any other option to achieving the front bias required to avoid locking up the rears with each heavy brake application. Also, since this is autox, I neglected brake fade consideration because I have yet to have that problem with other very fast and heavy vehicles on stock+ systems. The duty cycle just isn't really long enough to fade brakes in autox if you have decent pads/rotors/and fluid. Now, all this is good and well, but doesn't mean much if I can't find the right parts to do all this. So I finished up with some research on where and how to get what's needed to build this system and created a bill of materials here:
    lyQzup9GQ4FNwBPFsEo9KU2n9ZzMqmNh8IYjMuw6ovO05OaHEIe0J1GMSOnYydbNkK4Kh3vD7ZaFrUbeonw=w1000-no-tmp.jpg

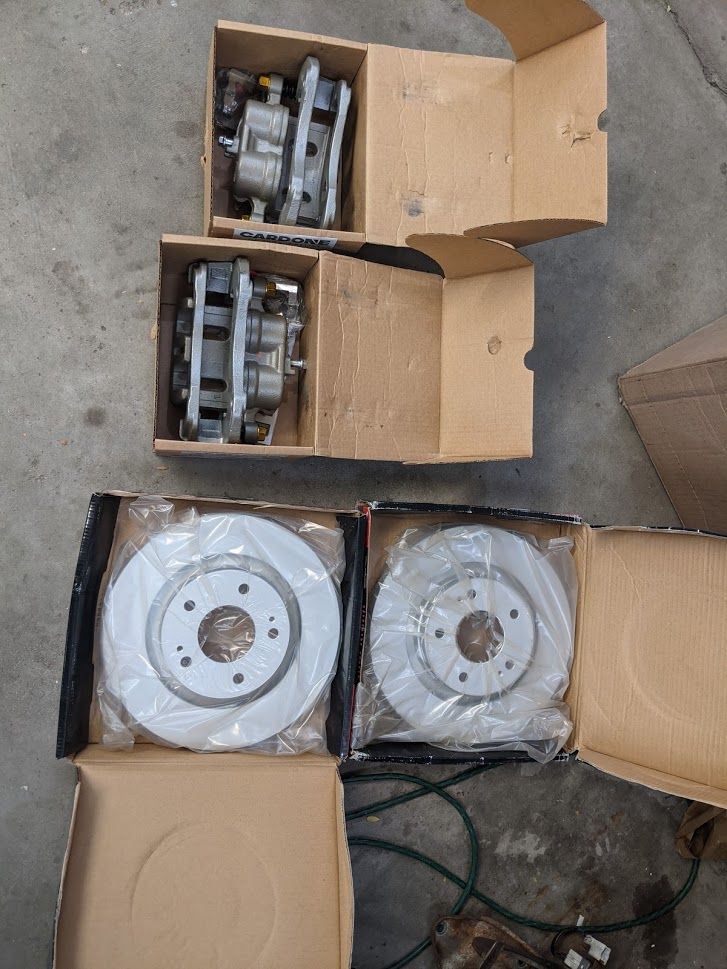

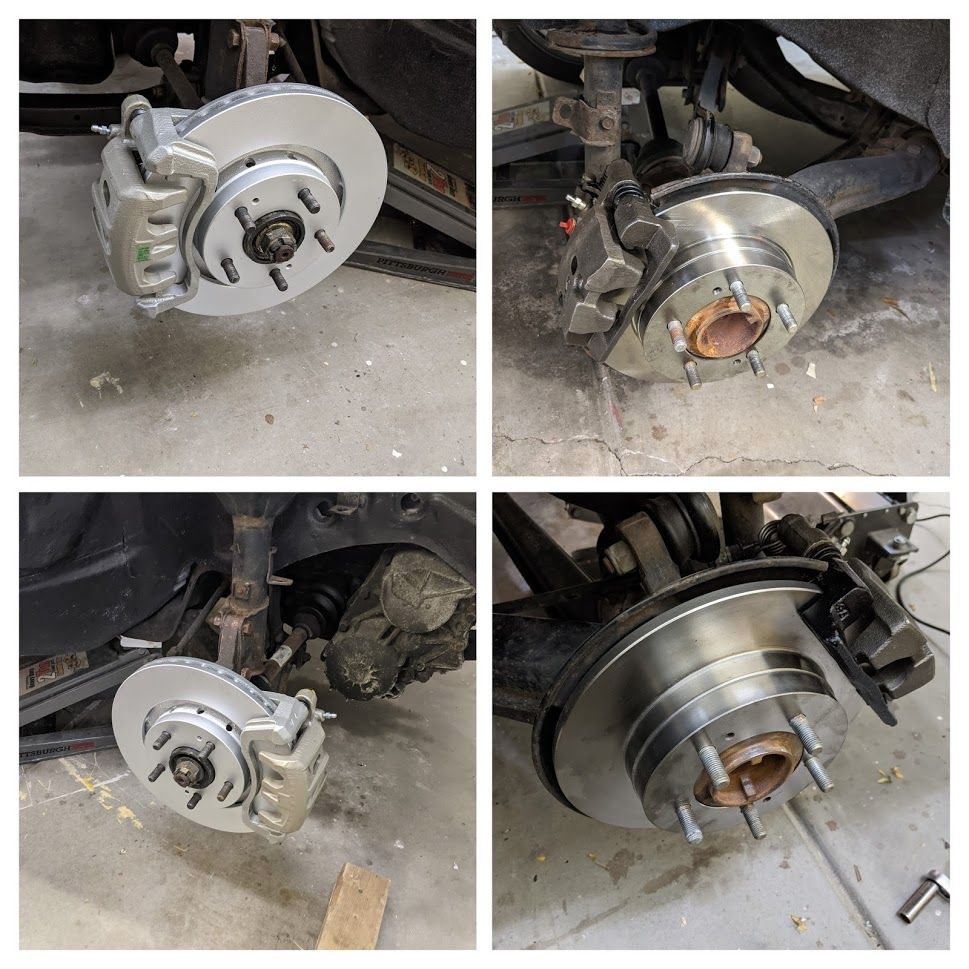

    So, I've done my homework, I know exactly what I need to buy. Holiday season is fast approaching, which involves other expenses, so I'm waiting until my next credit billing cycle to start purchasing, and will be ordering parts for FUBAR in mid November. Stay tuned to watch me start hacking into the brake system.

    Last edited: Oct 31, 2020

    Autocross Build 3K  15

    1992 Mitsubishi Galant VR-4
    awd · manual · Galant VR-4
    Loading...

Share This Page

Support Vendors who Support the DSM Community
Boosted Fabrication ECM Tuning ExtremePSI Feal Suspension Fuel Injector Clinic Jacks Transmissions JNZ Tuning Kiggly Racing Morrison Fabrications OHM Racing Raven Fabrication RixRacing RockAuto RTM Racing SouthBay Fuel Injectors STM Tuned Track Decals Track Sculptures VR Speed Factory
