NWHTanK's Eclipse GST (AWD swap)

Year:
1998
Model/Trim:
Mitsubishi Eclipse GST
Please Support Morrison Fabrications
Please Support Rix Racing
  1. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    Well I rarely buy used parts and today was one of them . Bought a 2g dsm rear diff with a kaaz center section. Crossing fingers and hope all goes well. Ugh the wait.


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  2. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri

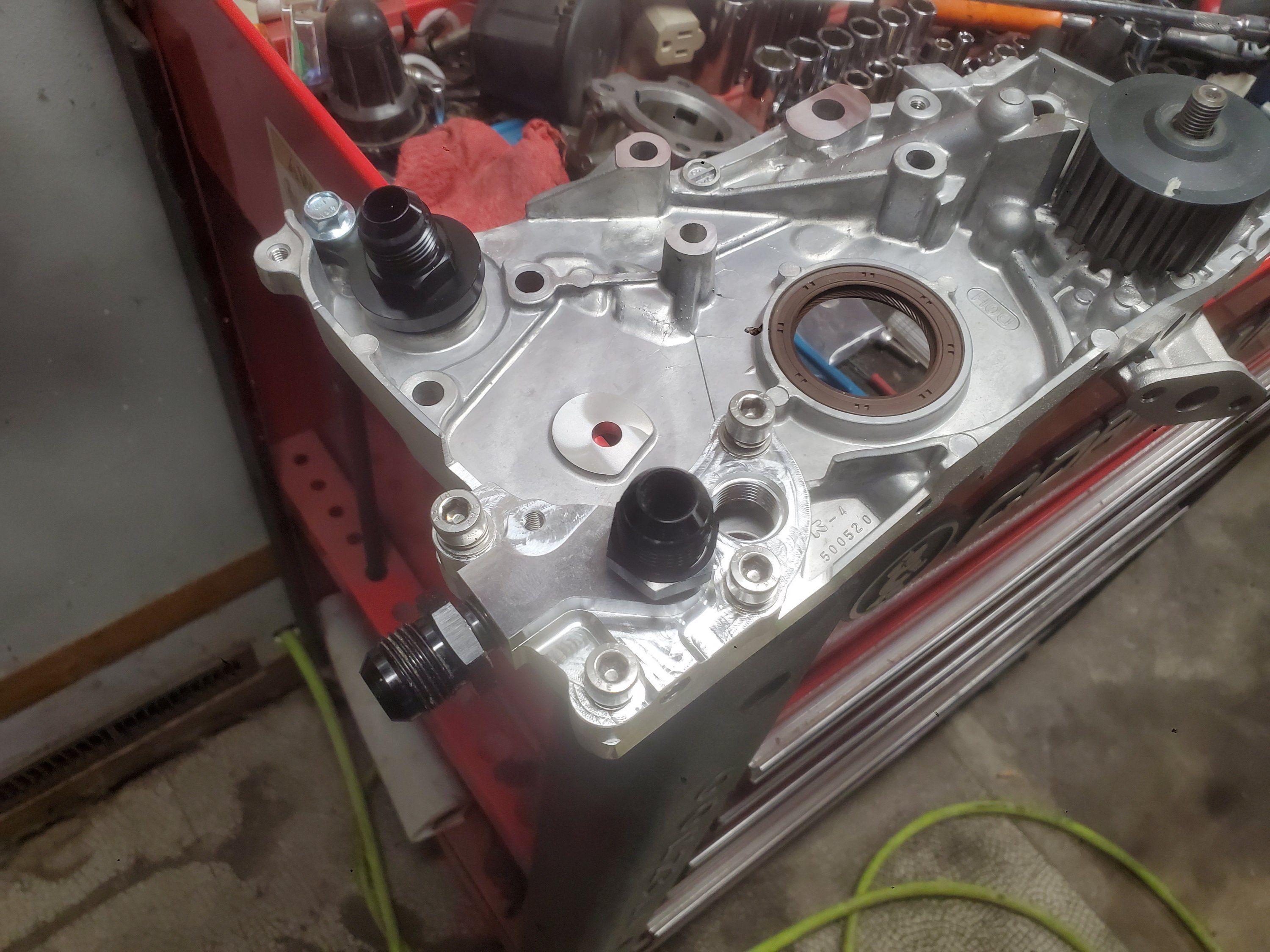

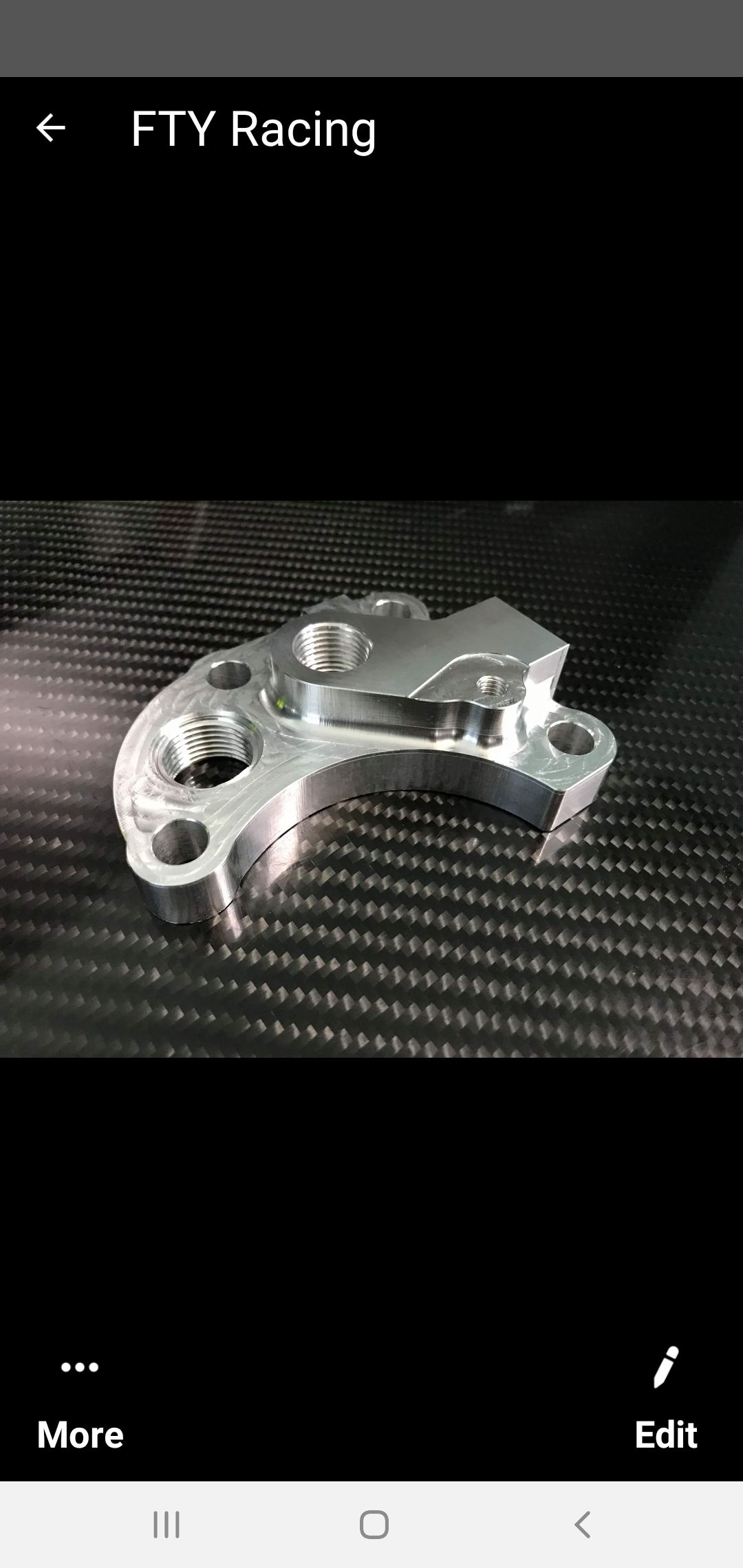

    I had some concerns with the FTY remote filter housing . And had them modify it a bit . I didn't like all 3 fittings really close to each other and sent them some ideas. They then put it thru the 3d printer for a rendering for a mock. Waiting on the test part to be shipped so I can test fit. 20200617_170537.jpg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  3. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    This is the first design which has all the 10 an line to close together for my liking. Also I didn't like the pressure relief port location. It was to close to the balncer and using a fluid damper which is just a tad bigger than stock.



    Screenshot_20200224-111005_Samsung Internet.jpg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  4. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    I also mentioned that in oder to use the timing cover a raised threaded boss will be needed . 20200617_114752.jpg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  5. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    Another product from the people at FTY. Screenshot_20200617-173126_Samsung Internet.jpg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    spyderdrifter and TK's9d2TSi like this.
  6. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    Well the owner of kaaz rear diff was supposed to ship out the diff last Friday. When I sent him a IM Sat about tracking info he replied back that he was selling locally that shipping would cost to much, When he stated a certain price and that shipping was included in the advertised price. He then said he would send half payment back yesterday and the other half today, including paypall fees. I checked today and two payments are posting. I'm glad I got my money back but I'm like what the f### is going on. May be I will just spend a bit more and just have TMZ build me a evo 8 differential and skip the bs.


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  7. TK's9d2TSi

    TK's9d2TSi Supporting Member

    3,889
    1,440
    Joined Sep 11, 2017
    Cincinnati, Ohio
    Some people are just wacked af. Good that you’re getting all your money back.


    484  3

    2000 Jeep Cherokee Sport - Classic
    awd · automatic · Misc Vehicles

    535  4

    93 Civic 4 Door -sold-
    fwd · manual · Misc Vehicles

    Street Build 3K  6

    1992 Eagle Talon TSi AWD
    12.2 @ 120 · 1G DSM
    Loading...
  8. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    Well after emails back and forth and getting a price quote. I need couple more thousand and I'm going billet wet deck block. It not a hp issue but more of a hp to wieght ratio. Considering a billet block + FFWD rotating assembly will be a few pounds less than a bare cast block.


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    TK's9d2TSi likes this.
  9. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    Well i found evo cups so I can keep the dss stage 2 axles , only 160 bucks shipped. received_287651942347108.jpeg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    ec17pse, spyderdrifter and TK's9d2TSi like this.
  10. mountain_man

    mountain_man Supporting Member

    200
    131
    Joined Apr 18, 2007
    Merritt Island, Florida
    Are those Evo 3 or 8 cups? I’m going to need some as well.


    Road Race Build 3K  11

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
  11. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    Ok so for those reading im going to post this. And can skip the buried threads.
    1. Non lsd rear . Only good for non lsd, except the housing. The housing can be converted to lsd by means of a aftermarket locker or evo non ayc locker.
    2. Non lsd and oem lsd cups will only work with the lsd or non lsd counterpart and will not work with a aftermarket or evo locker unless stated buy the manufacturer.
    3. I can only vouch for stage 2 dss rear axles. They fit oem lsd cups and evo non ayc cups.
    So on the cheap depending on the prices u pay . Dsm lsd oem axles and cups to a dsm lsd rear.
    2 . Dsm lsd axles+evo cups+evo LS (limited slip) center section, which will fit into a lsd or non lsd diff housing. Now with that said, axles can be uppgrade to dss, and the center diff can also be upgraded to a max lock thru TMZ or thru TRE.
    3. Im just going to use Kaaz as aftermarket example. Kaaz LS+ Non lsd or Lsd diff housing+ Evo cups+ lsd or dss axles.
    4. Im not going into much but involves a custom subframe and axles.

    Hopefully I did this right.


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  12. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri

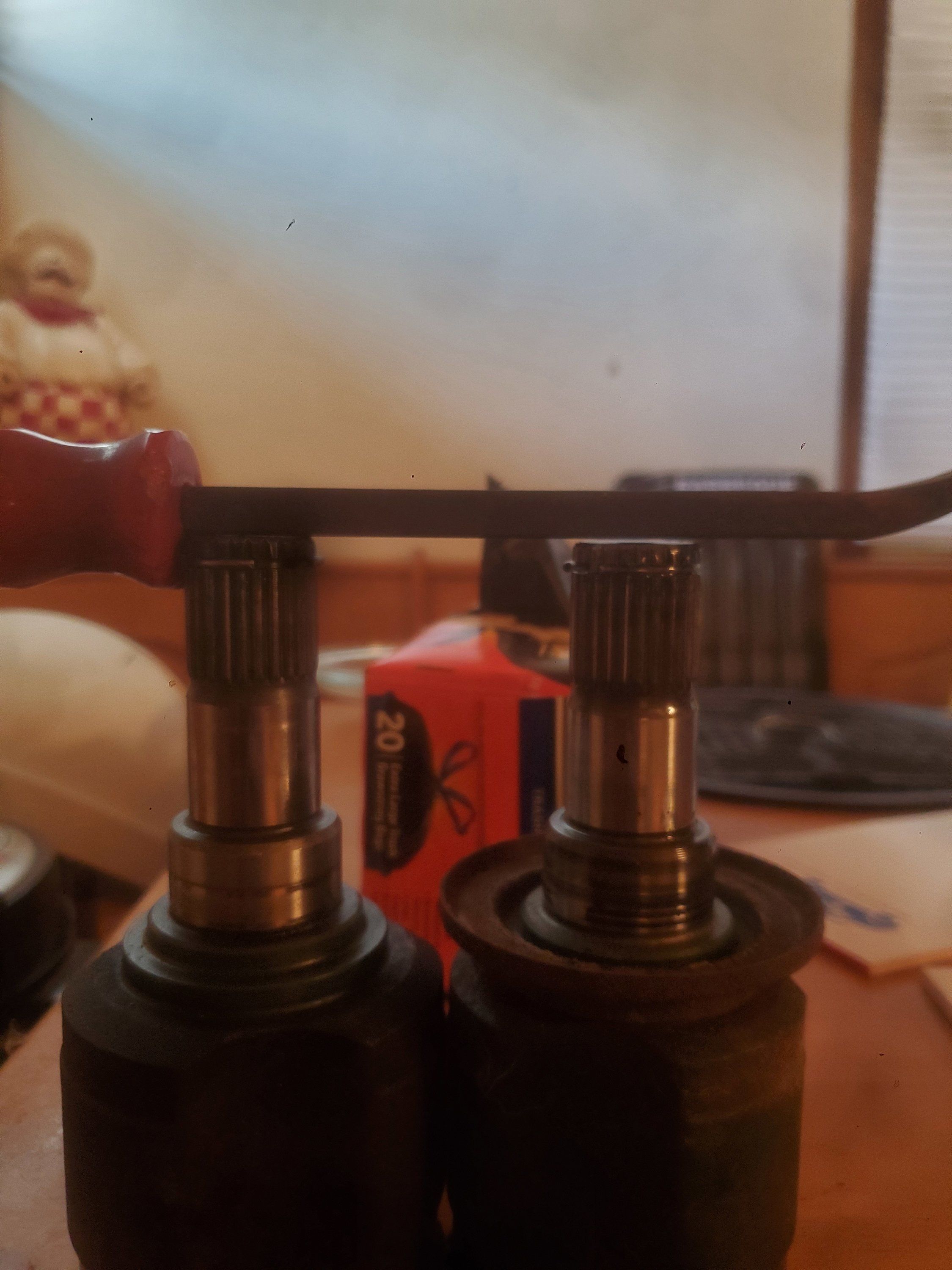

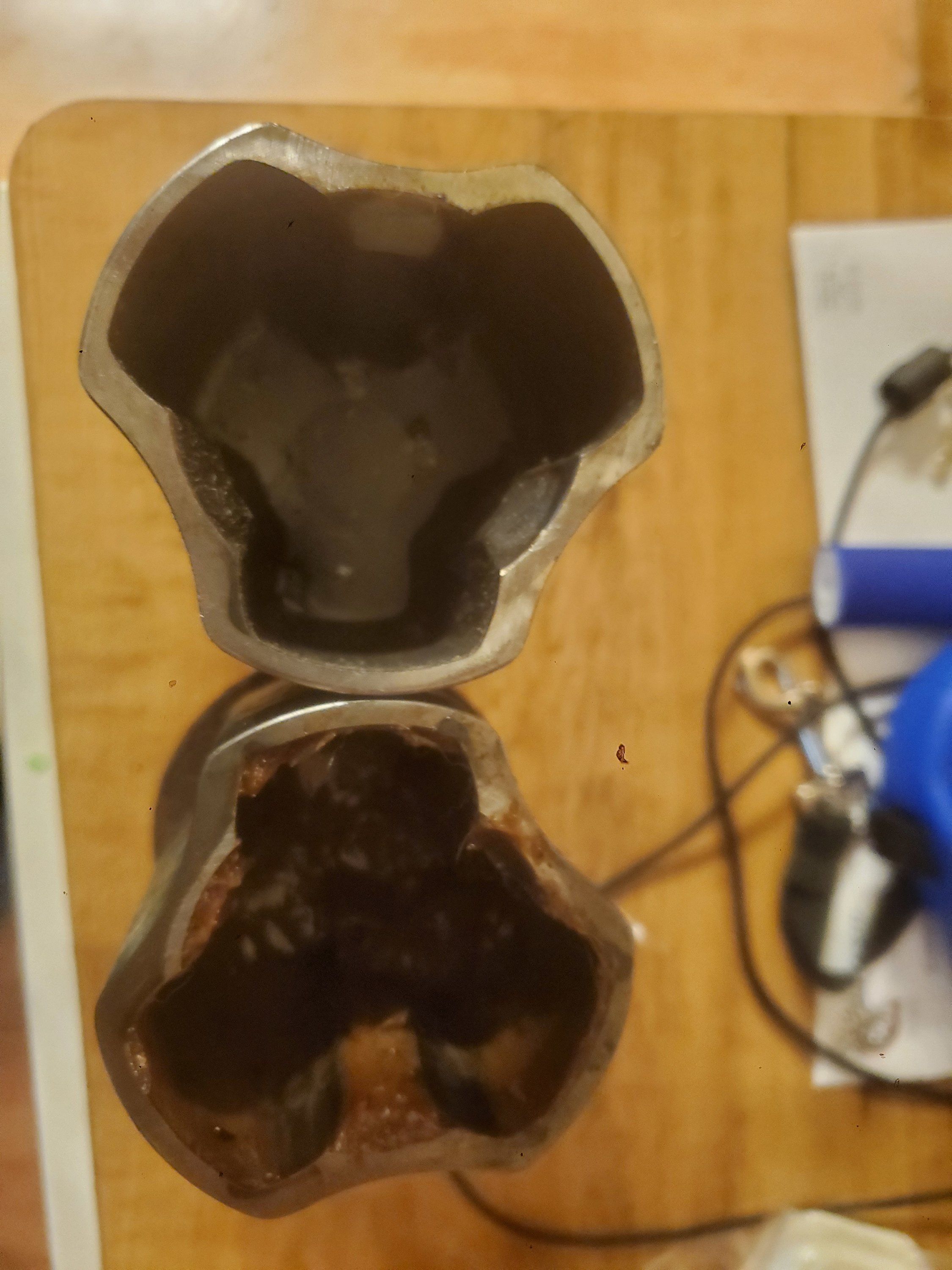

    Now for the visual diffrence .Evo cup left and top. Were the axle fits in the cup. Evo has a bigger opening for the tri pod vs the non lsd cups. So lsd axles should be used or DSS.
    Now side by side Evo left and non lsd rt. The evo cup is slightly longer to allow the retaining ring to engage in the locker. 20200705_113520.jpg 20200705_113747.jpg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  13. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    Evo Vc 1 thru 3 are like the dsm vc lsd and
    Evo 1 thru 3 non vc as a option. Evo 4 up to evo 8 non AYC Im not sure about 9 and 10.
    After evo3 they deleted the vc and went mechanical locker or AYC as a option.


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  14. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    These are evo 3 non vc.(viscous coupling)

    Last edited: Jul 5, 2020

    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    mountain_man likes this.
  15. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri

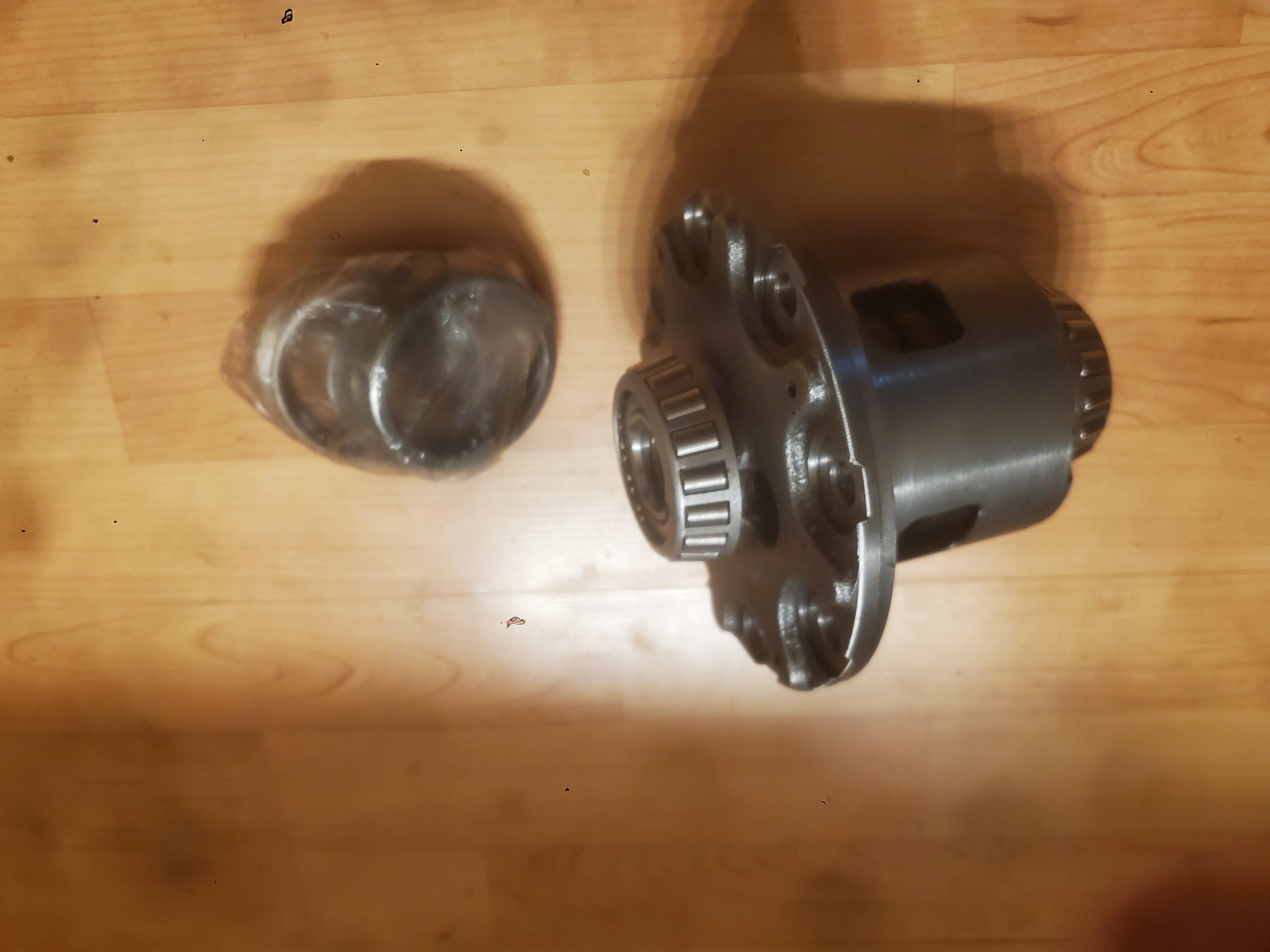

    The evo 3 rear locker showed up today... :) 20200707_171049.jpg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    TK's9d2TSi likes this.
  16. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri

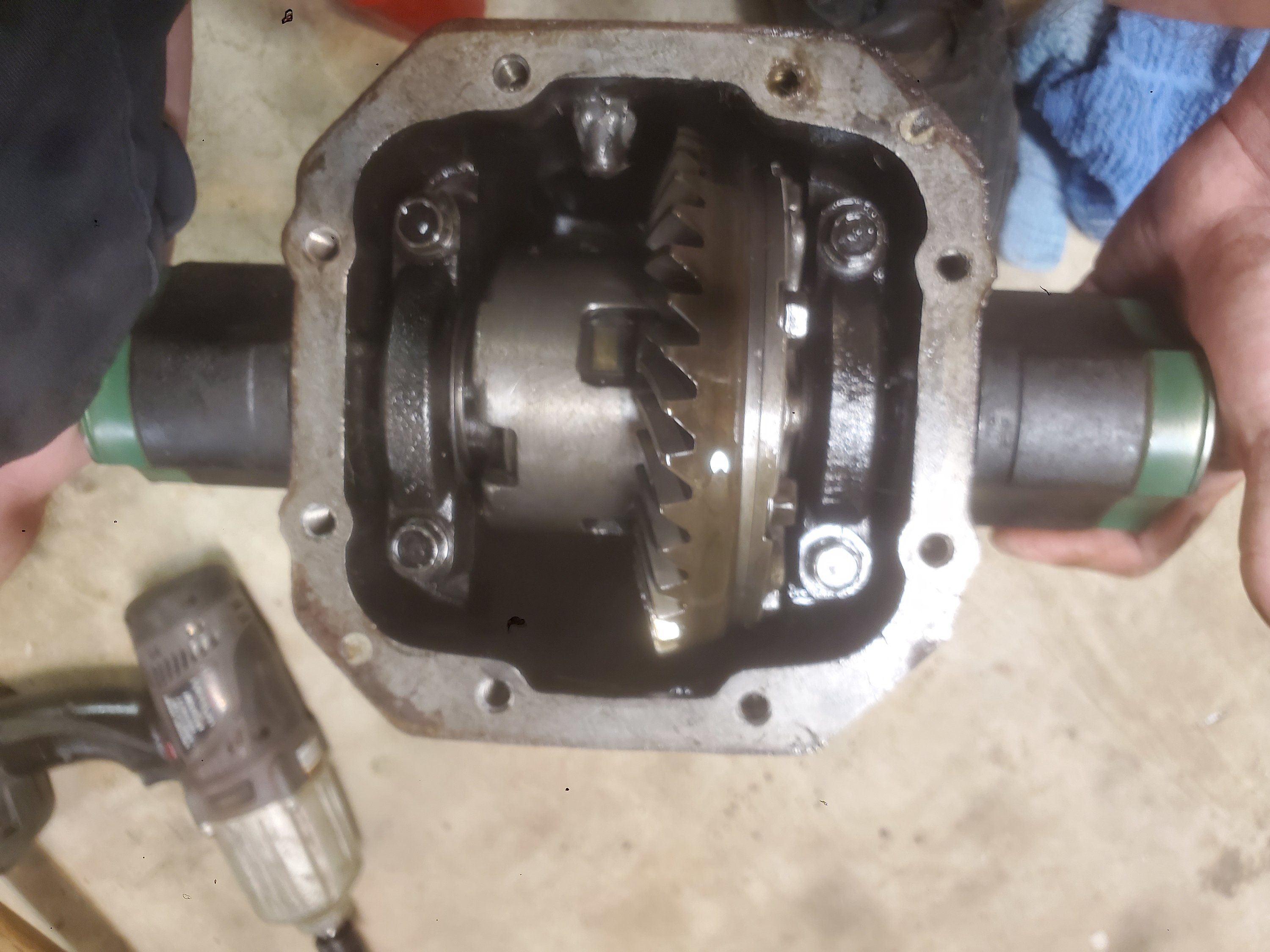

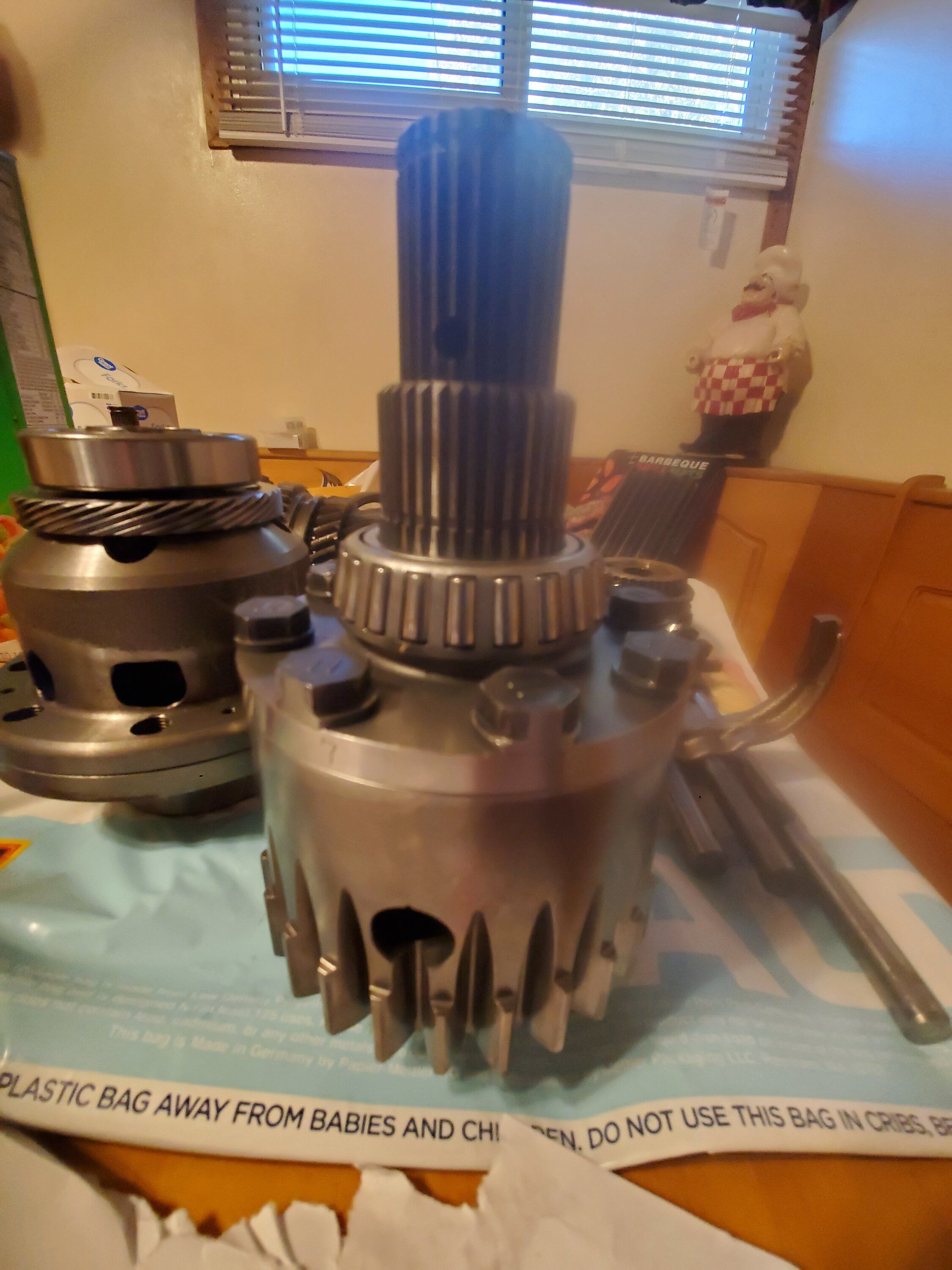

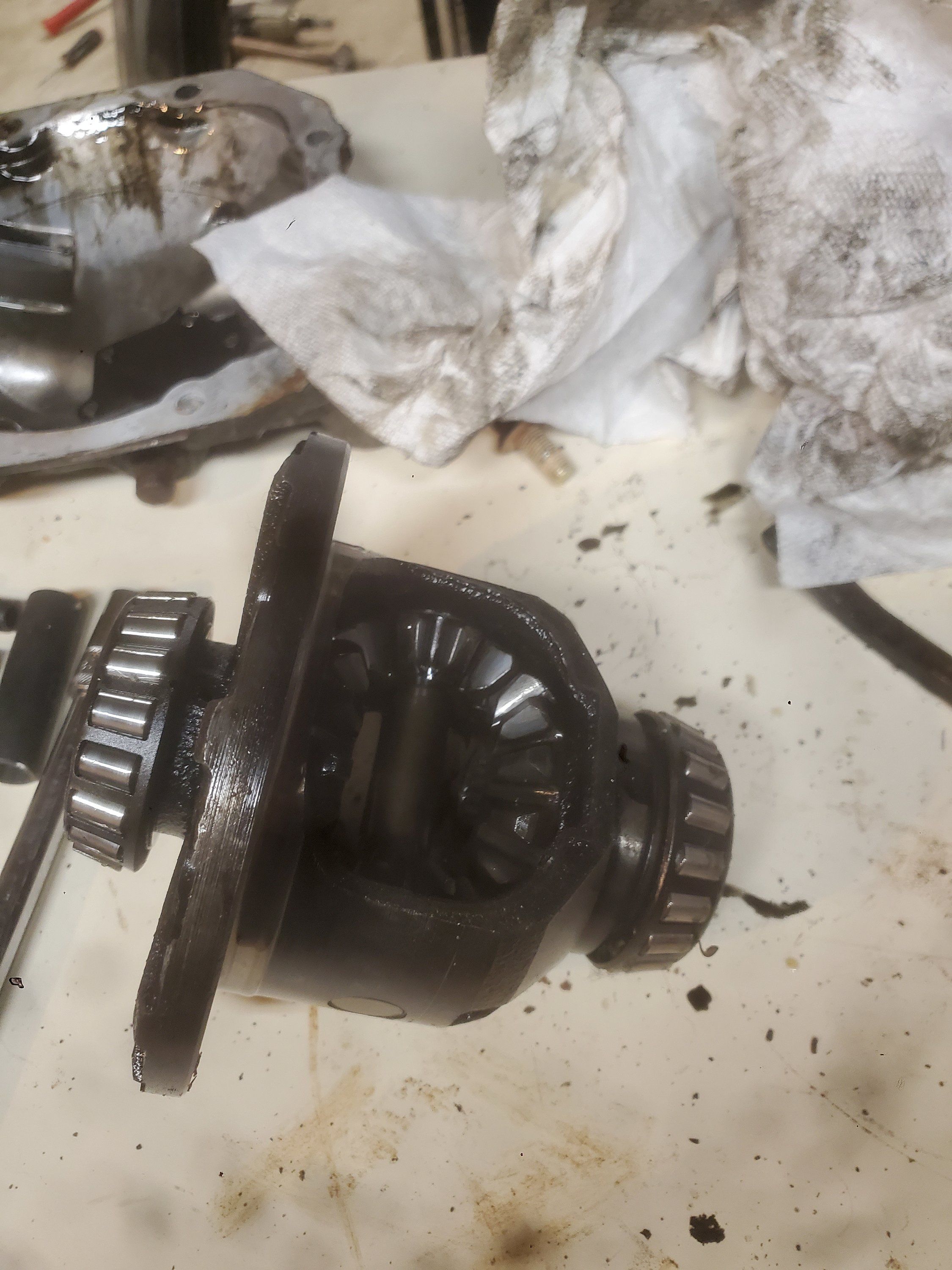

    Well i did a mock up build on the rear diff and I couldn't be more happier. The ring and pinon gears are in excellent shape. Go figure 1 wheel spin and rough checked it . Dissambled the diff making sure of the shims location on the open diff, tore it down swaped the ring gear on to the locker. Assembled, and done till i get a over haul kit or send it to tre for upgrades. 20200707_190815.jpg 20200707_190833.jpg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    mountain_man and ec17pse like this.
  17. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri

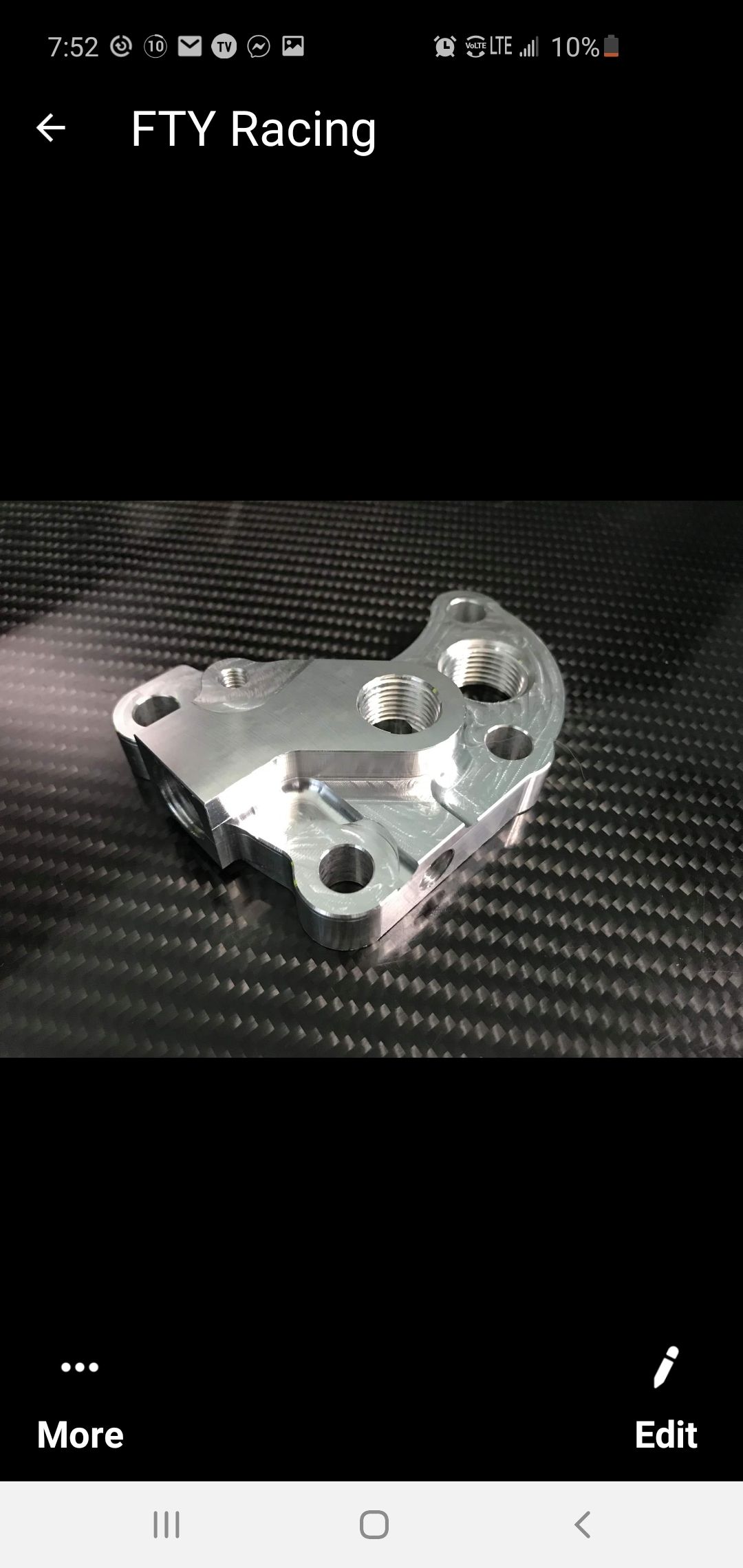

    Well i just got pictures of the finished remote OFH from FTY that they made the changes to. And here they are. This small pain in the but has taken 7 months of bouncing back and forth of modifications and delays.. Screenshot_20200716-194101_Samsung Internet.jpg Screenshot_20200716-195249_Messenger.jpg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  18. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri

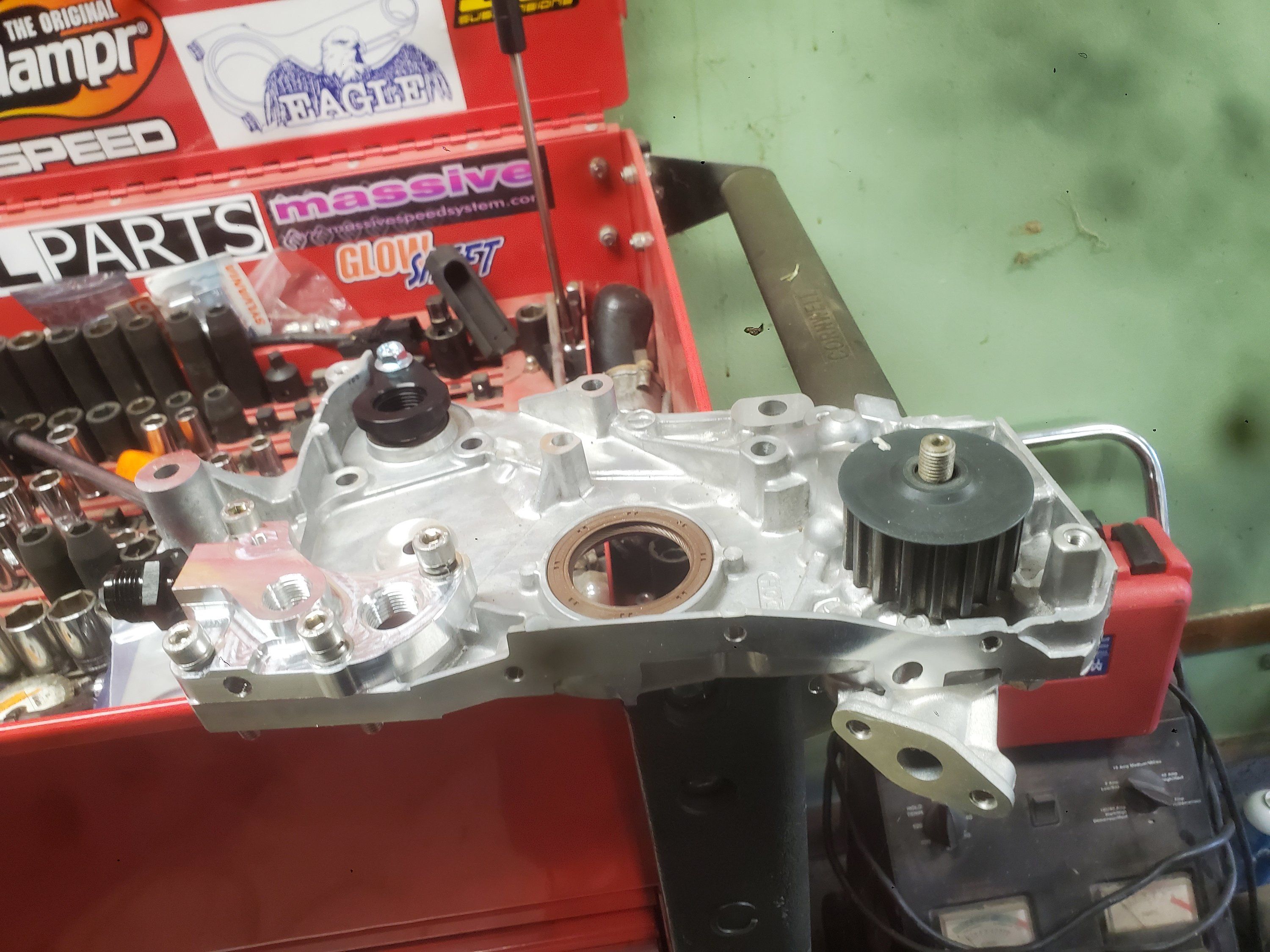

    Some FTY products showed up today! Remote oil filter housing adapter and thier bolt in AN fitting for the front balance shaft delete.... 20200727_111944.jpg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  19. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri

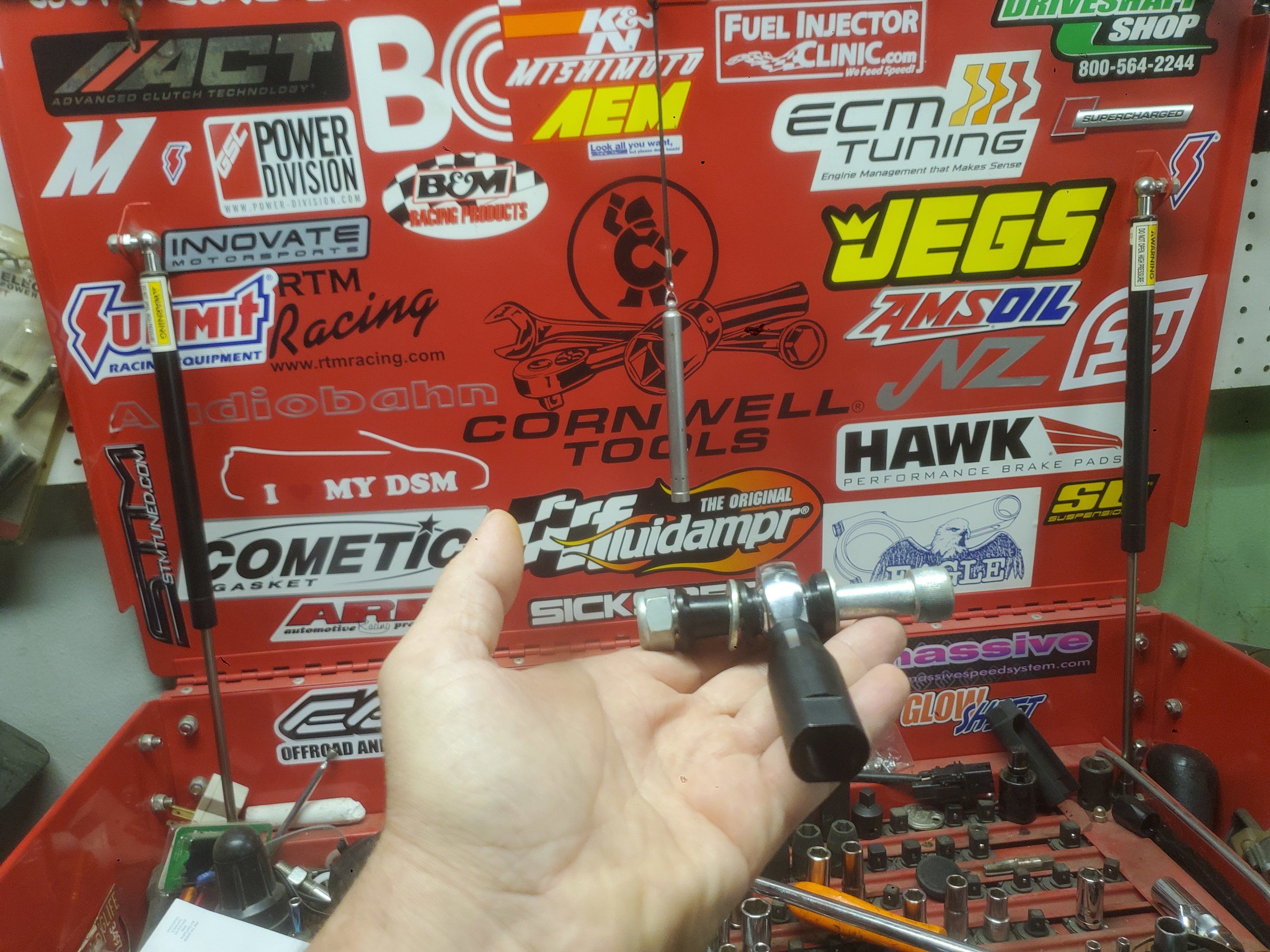

    Front bump stear kit that I managed to find. Scratch that off the list. 20200727_121749.jpg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  20. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri

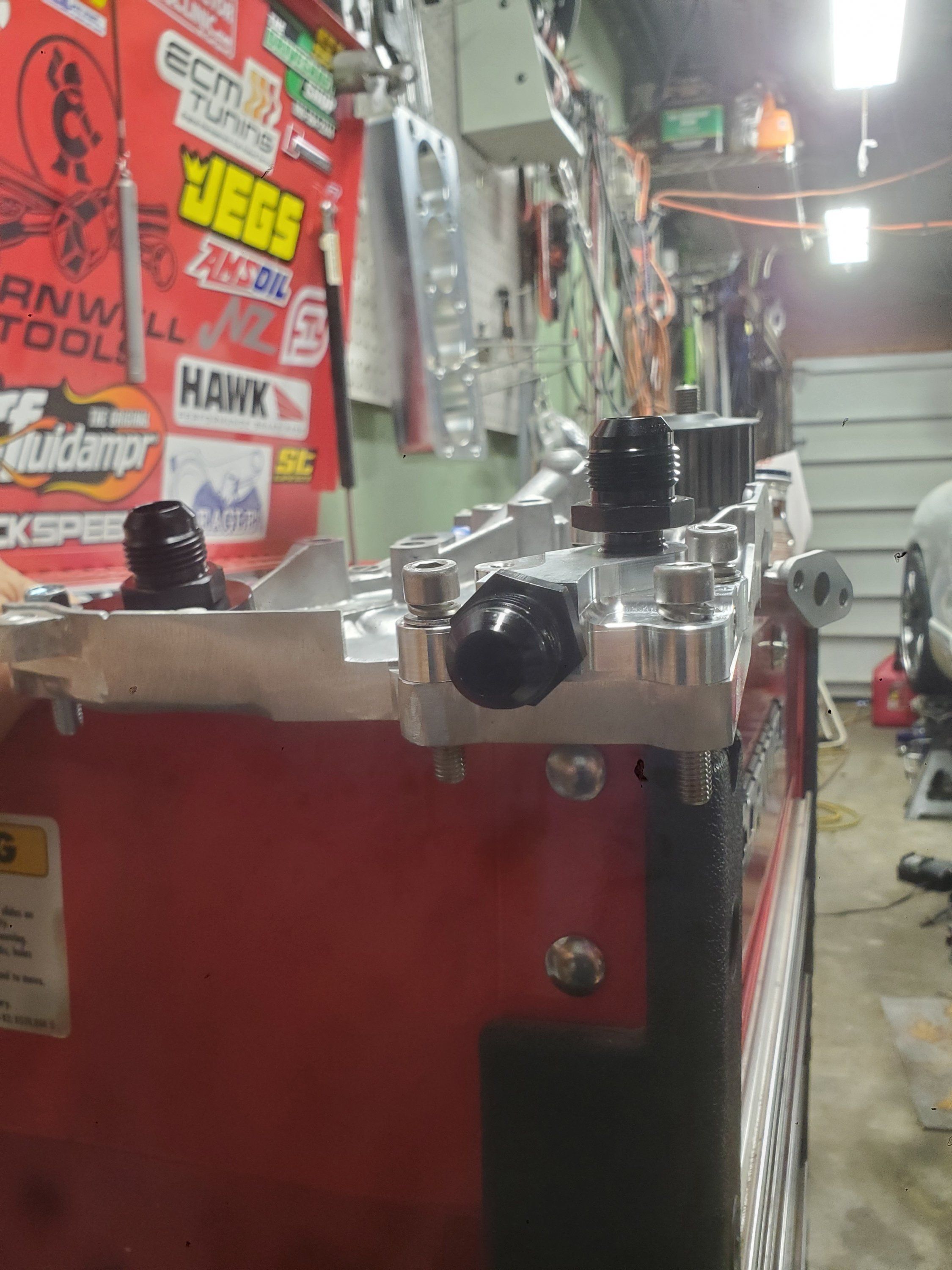

    Alternator ear delete. Much cleaner and easier to access now ;) Now to find me 6 bolt timing cover to modify for the upper crank case vent. 20200728_183121.jpg


    Attached Files:

    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  21. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri

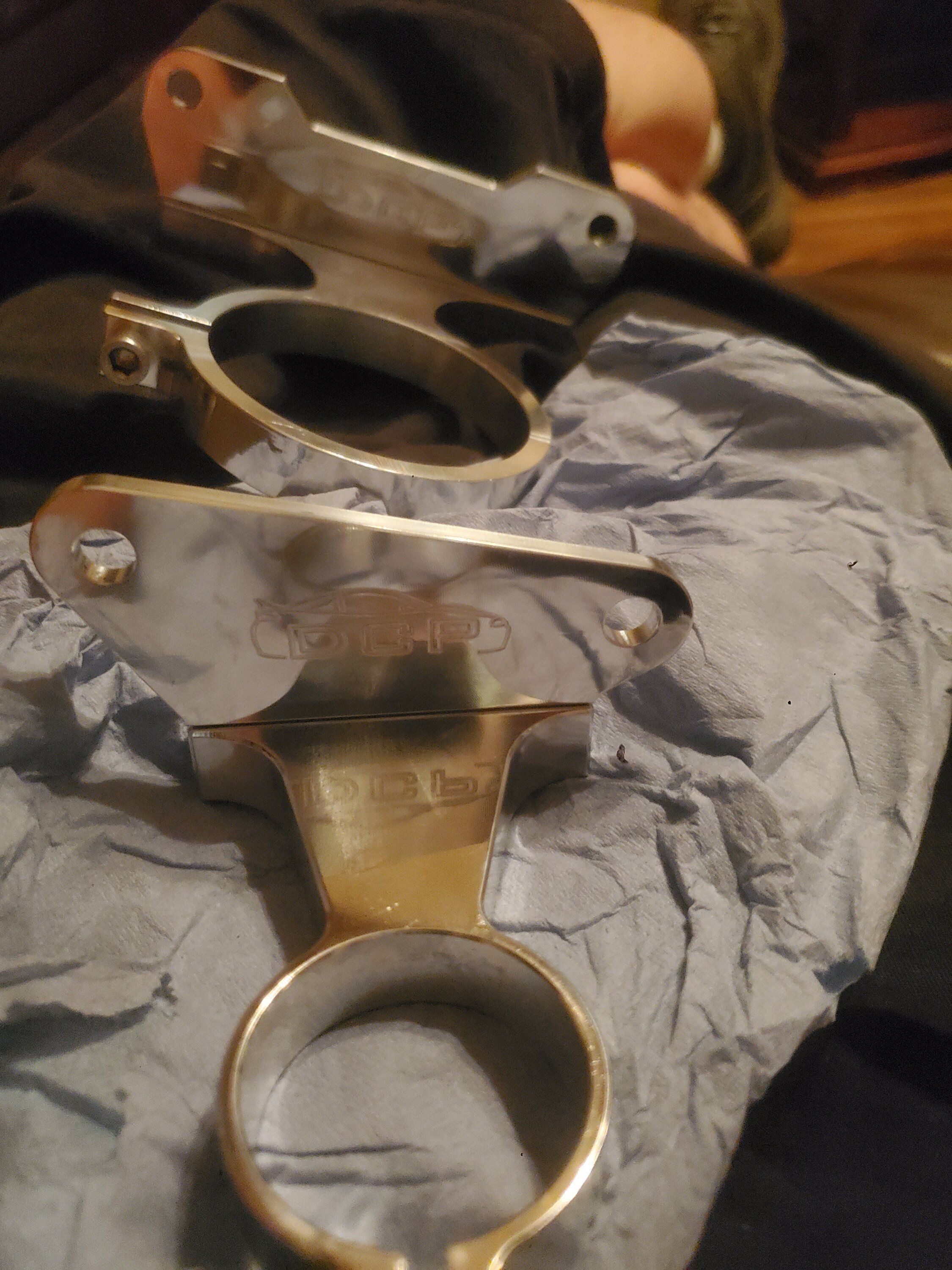

    Clutch and brake resivor brackets showed up today. Wow thier are some nice stuff out thier for the dsm. 15963063856327442336118789714460.jpg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    TK's9d2TSi and spyderdrifter like this.
  22. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    In bound.. Evo 3 1-4 gearset, with shift forks and a evo 3 mech front locker. Will probably get overhauled, face plated, and gear treatments. received_765311174219160.jpeg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    spyderdrifter and TK's9d2TSi like this.
  23. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    Well i managed to track down a evo 5th gearset. In route... ;) received_2716050241997737.jpeg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    spyderdrifter and TK's9d2TSi like this.
  24. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri

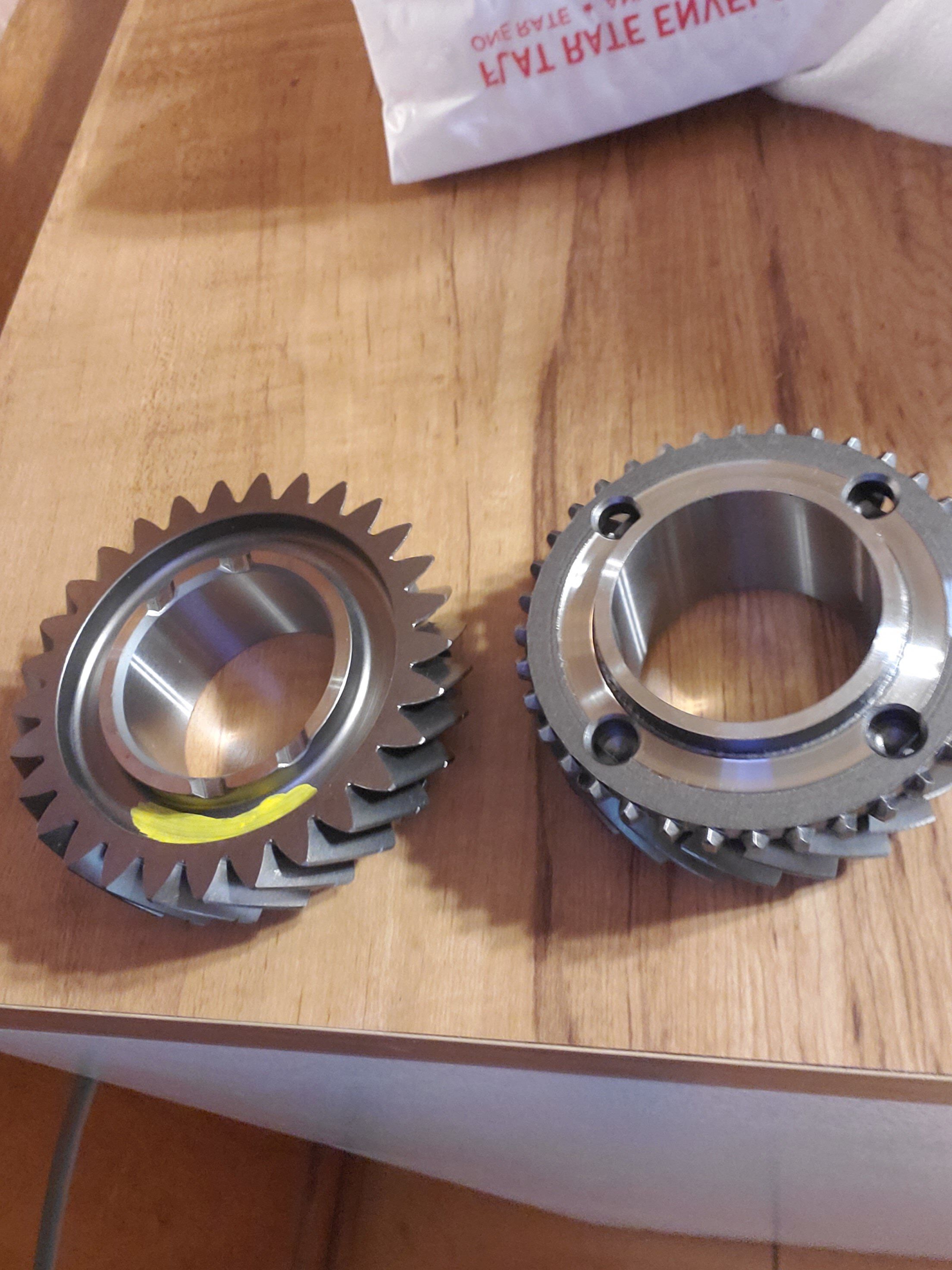

    Brand new Evo 3 3rd and 4th gear showed up today from Jacks. 220 something is a good price for both. ;) 20200917_170849.jpg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    TK's9d2TSi, mountain_man and ec17pse like this.
  25. NWHTanK

    NWHTanK Proven Member

    1,232
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    Just got a new sticker for the box. Evo 5th gear set is finally here! received_646153979427013.jpeg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
