NWHTanK's Eclipse GST (AWD swap)

Year:
1998
Model/Trim:
Mitsubishi Eclipse GST
Please Support JNZ Tuning
Please Support Feal Suspension
  1. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri

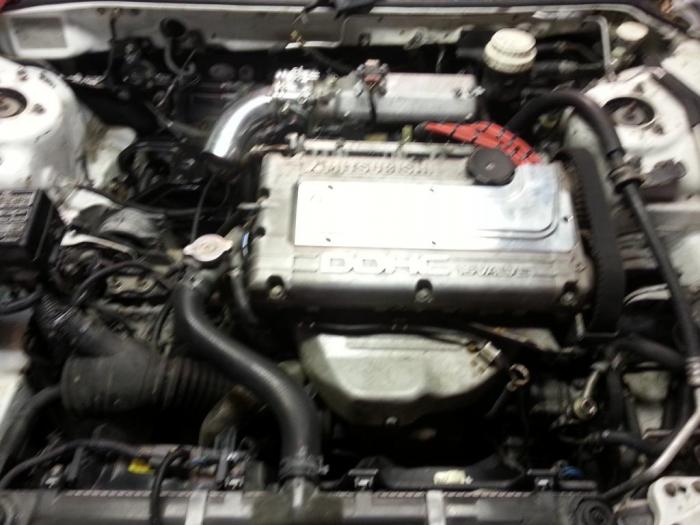

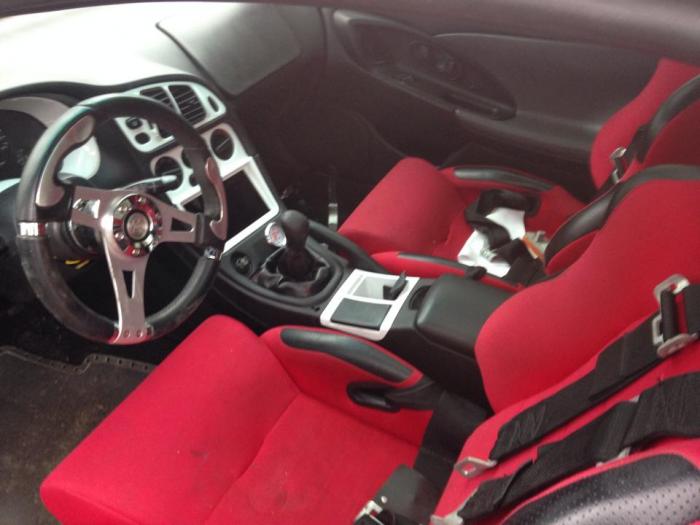

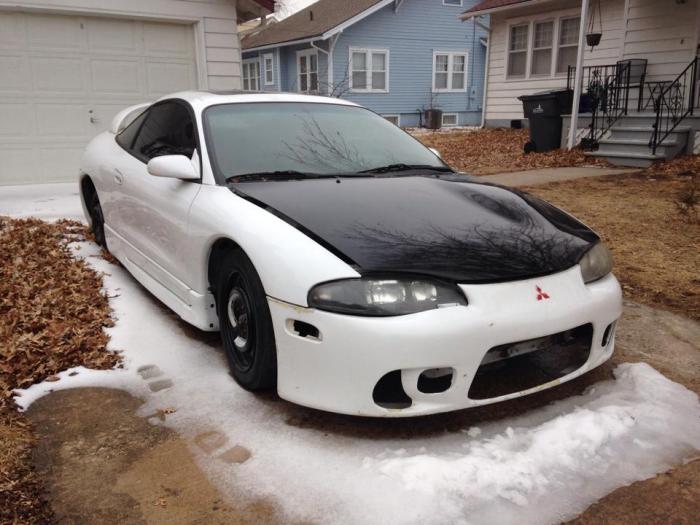

    1958102_10152247345665516_587910054_n_zps06217fbb.jpg 1382344_10152247501435516_1618793536_n_zps1cd82e07.jpg 20140416_235901_zpsa5e3bca0.jpg I bought this gst a few months ago with the goals of having a zippy dd car. This is how I got it. motor install incomplete,sitting on 4 spares and all.

    Getting things wired up for a test fire.

    Last edited: Jul 16, 2014

    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  2. luisgil

    luisgil Proven Member

    154
    1
    Joined Jan 10, 2013
    Paterson, New Jersey
    Seats look pretty cool... Looks like a clean car with lots of potential :hellyeah:


    373  1

    Evo 1 “GSR”
    awd · manual · Lancer Evolution
    luisgil

    Drag Race Build 962  0

    1991 Mitsubishi Eclipse GSX
    manual · 2G DSM
    Loading...
  3. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri

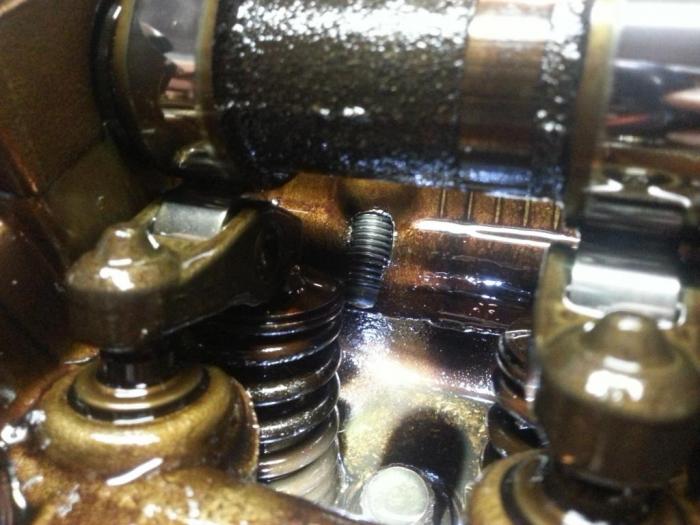

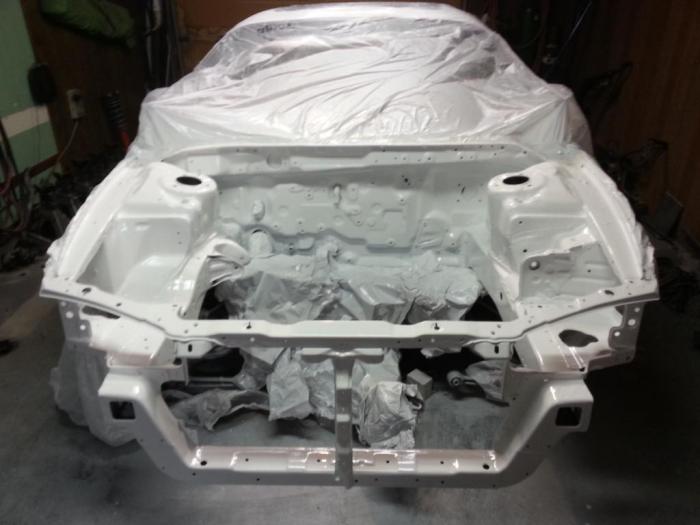

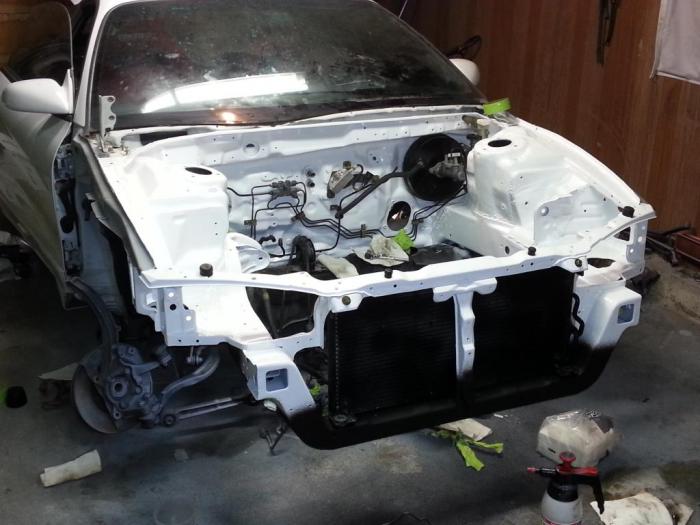

    20140420_135428_zps7806dc5c.jpg 20140429_195607_zps1ed821b4.jpg 20140503_204744_zps61a036bf.jpg 20140503_204754_zps8261929d.jpg 20140503_235227_zpse2eaf44e.jpg 20140504_222735_zps7b60ab12.jpg 20140511_133225_zps5e3f4e53.jpg After running for a few min shut her down and checked for leakes. A little history on the car. The original motor blew so they replaced it with a jdm long block. They couldn't get it to to start because of a different cas. I rewired the cas and it fired right up. Now to the problem. I spoted a leak and traced it to a weird location, one of the injector rail bolts was leaking oil! Doh

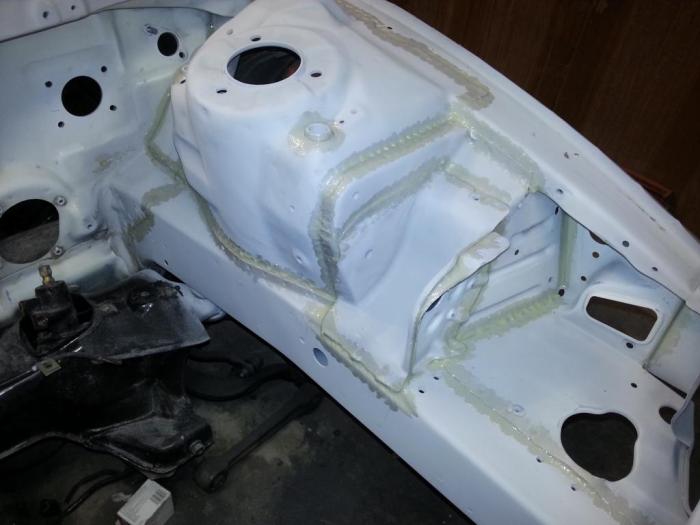

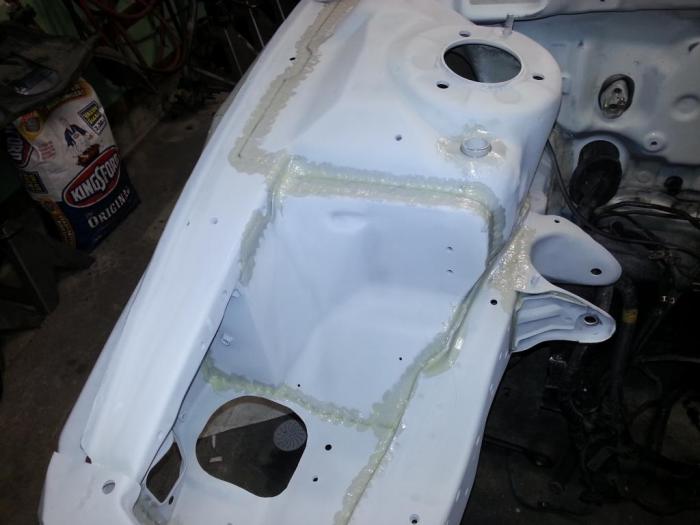

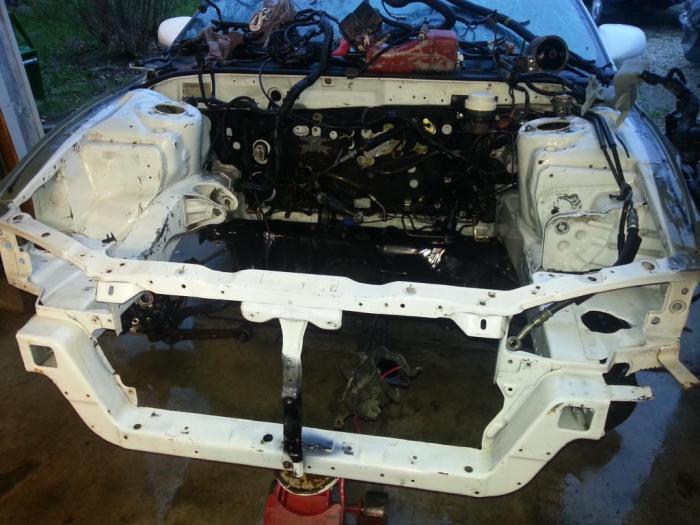

    So pulled the head off and sent it out. With the head off I then proceded to check out the rest of the engine bay. Found some missing bolts and a stock clutch. So I then decided not to risk it and pulled every thing out of the engine bay and go over it and paint the engine bay.

    Mod list
    Fic 750
    Link v3 ,sd, with boost control
    Aem wide band
    rebuilt 16g
    FP exhaust manifold
    FP hot side 080
    Hks 272
    255 wally
    4 inch short route intercooler with tial
    FUll 3 inch exuast
    Oil port mod to the head
    punishment o2 housing
    Egr ports welded front and back in the head
    Egr delete
    Galant alt
    Outliner front brakes
    Vented rear disc
    SS lines
    New sensorors ,belts and every thing maintence
    Whole lot of prep and paint.

    The interior is going back the way it originaly was ,tan.

    Last edited: Jul 21, 2014

    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  4. highpsigsx

    highpsigsx Probationary Member

    23
    0
    Joined Jan 16, 2014
    Dallas, Texas
    Looking good man.

  5. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    Thanks


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  6. Ejanes

    Ejanes Probationary Member

    127
    1
    Joined Jan 10, 2014
    Portland, Oregon
    Super clean, are you going to tuck the wiring?

  7. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    Im just going to clean it up a bit, a bit more refined than the first engine bay shot before tear down.


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  8. dsmspick

    dsmspick Supporting Member

    899
    14
    Joined Apr 7, 2011
    Overland Park, Kansas
    What's the progress on this Don? I have a running dd before you did.....


    3K  0

    1995 Mitsubishi Eclipse GSX
    manual · 2G DSM
    Loading...
  9. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    Hmm u bought yours running.


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  10. dsmspick

    dsmspick Supporting Member

    899
    14
    Joined Apr 7, 2011
    Overland Park, Kansas
    Yours was running 2 weeks ago then you tore it all apart LOL


    3K  0

    1995 Mitsubishi Eclipse GSX
    manual · 2G DSM
    Loading...
  11. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    Well if I didnt have a dsm oil ejector I wouldn't have gone this deep into the engine bay.


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  12. dsmspick

    dsmspick Supporting Member

    899
    14
    Joined Apr 7, 2011
    Overland Park, Kansas
    Updated progress pictures?


    3K  0

    1995 Mitsubishi Eclipse GSX
    manual · 2G DSM
    Loading...
  13. RLSchwabe

    RLSchwabe Proven Member

    68
    0
    Joined Mar 21, 2014
    Colorado Springs, Colorado
    Looks BA! Looking forward to seeing it! Sub'd :hellyeah:

  14. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri

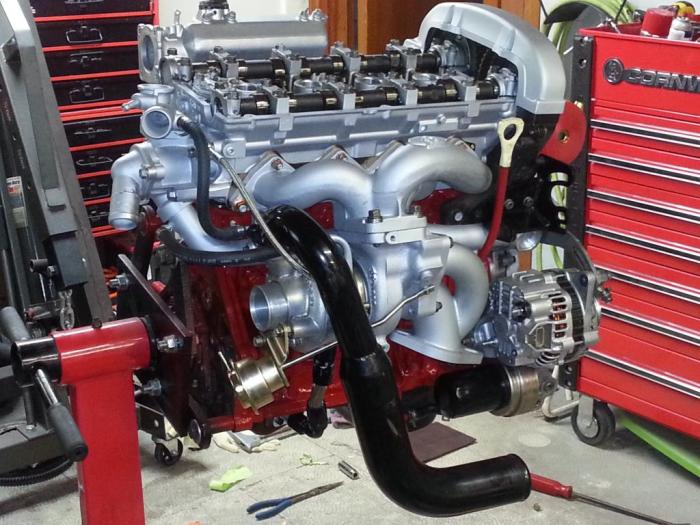

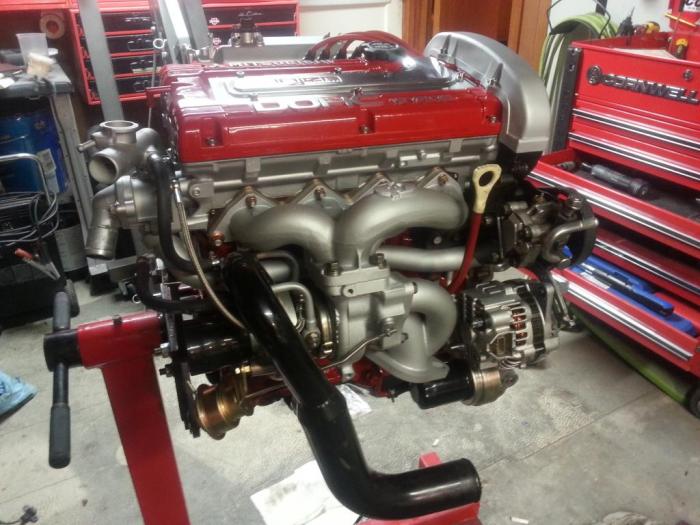

    20140516_221559_zpsd3296f81.jpg 20140321_173742_zps673b8b76.jpg 10308098_10152411559129040_7781298366572170395_n_zps331f3377.jpg Other than putting it back in and hooking it back up the motor is done , time for the trans to get some attention.

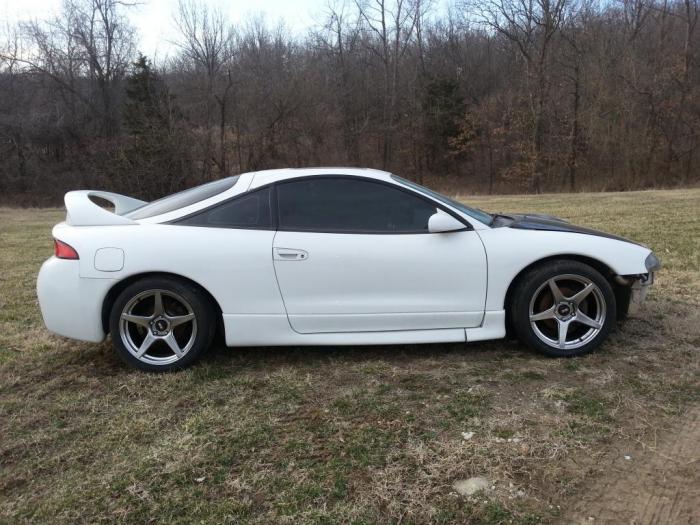

    When I got the the car it had 4 spares on it . well it made it a pain to load on the trailer because they were the wrong size. so to get it off the trailer I had to put these on for the time being till my other wheels made it in.

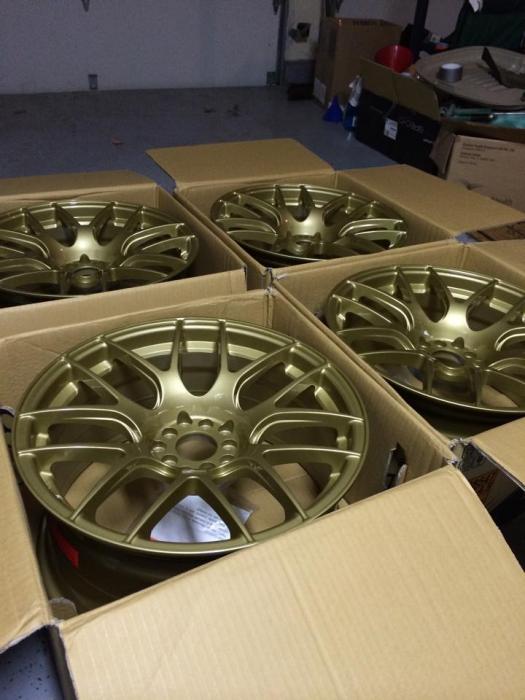

    I picked these up for the gst ,used but brand new never mounted for 400 for the set, 18x8 3/4 with a 20 offset.

    Last edited: Jul 16, 2014

    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  15. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri

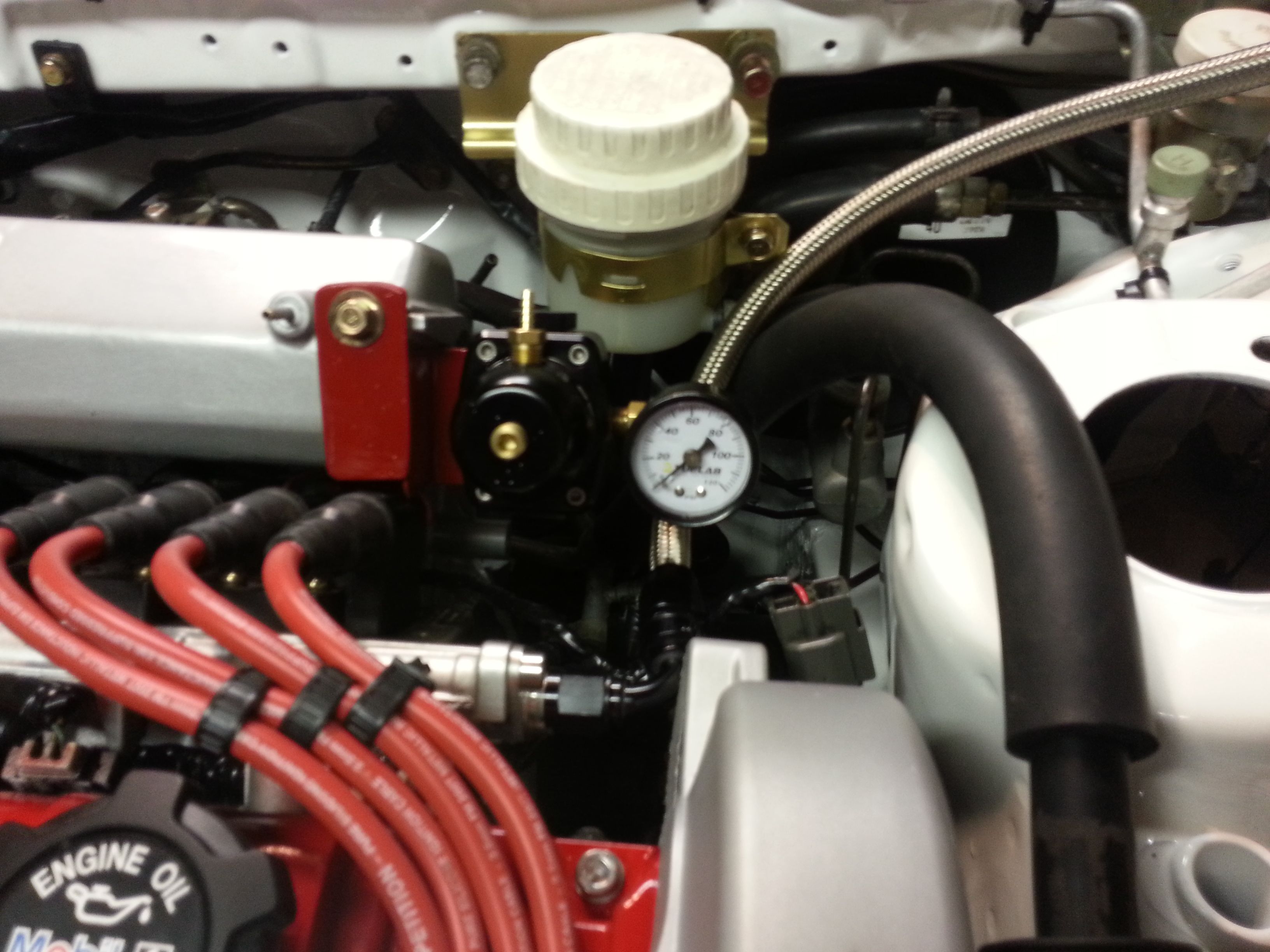

    I think a lot more updates are in order. I made a mount for the a afpr. 20140530_192605.jpg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  16. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri

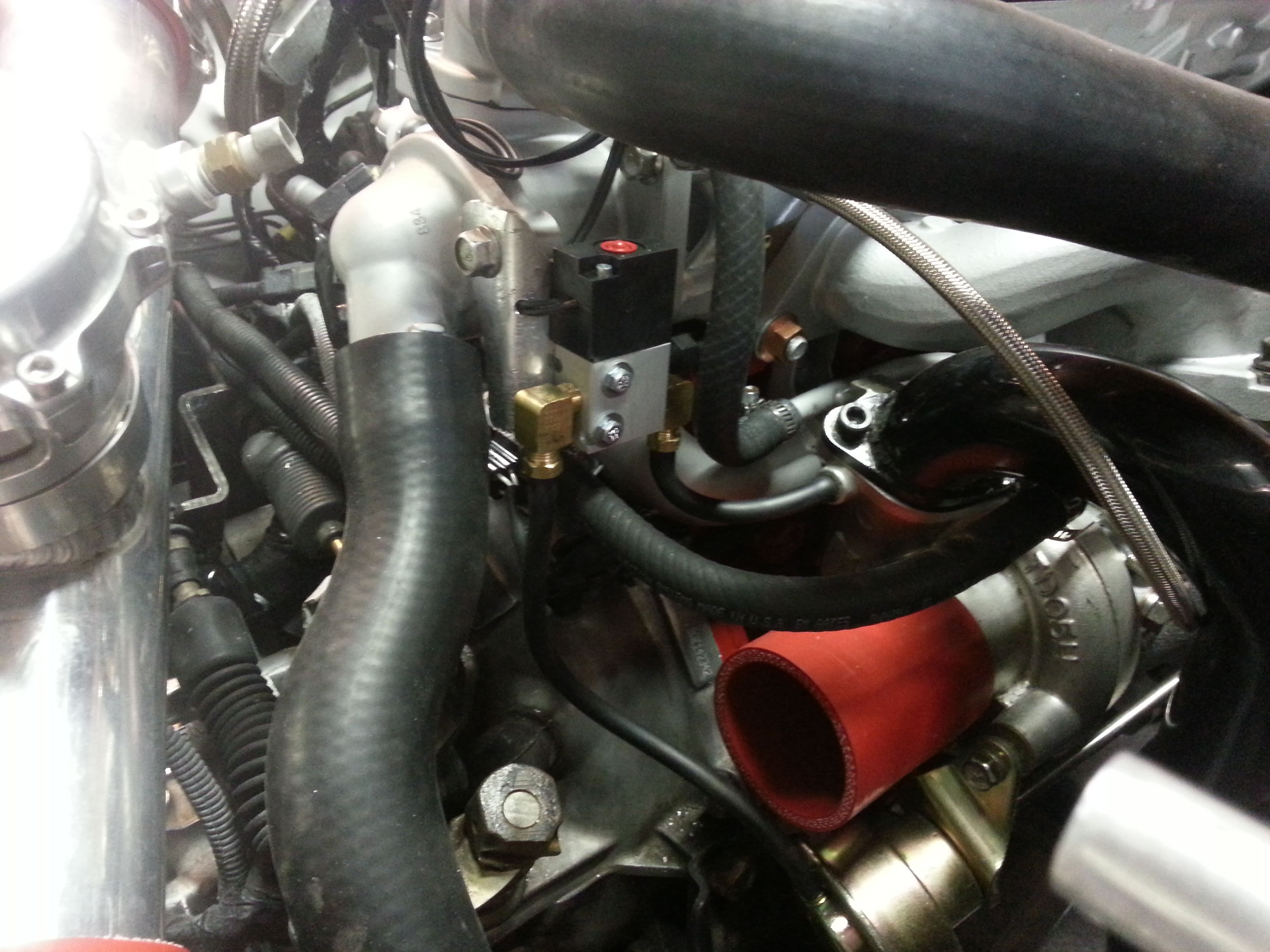

    20140602_213345.jpg Electronic boost controler.

    Last edited: Jul 16, 2014

    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  17. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri

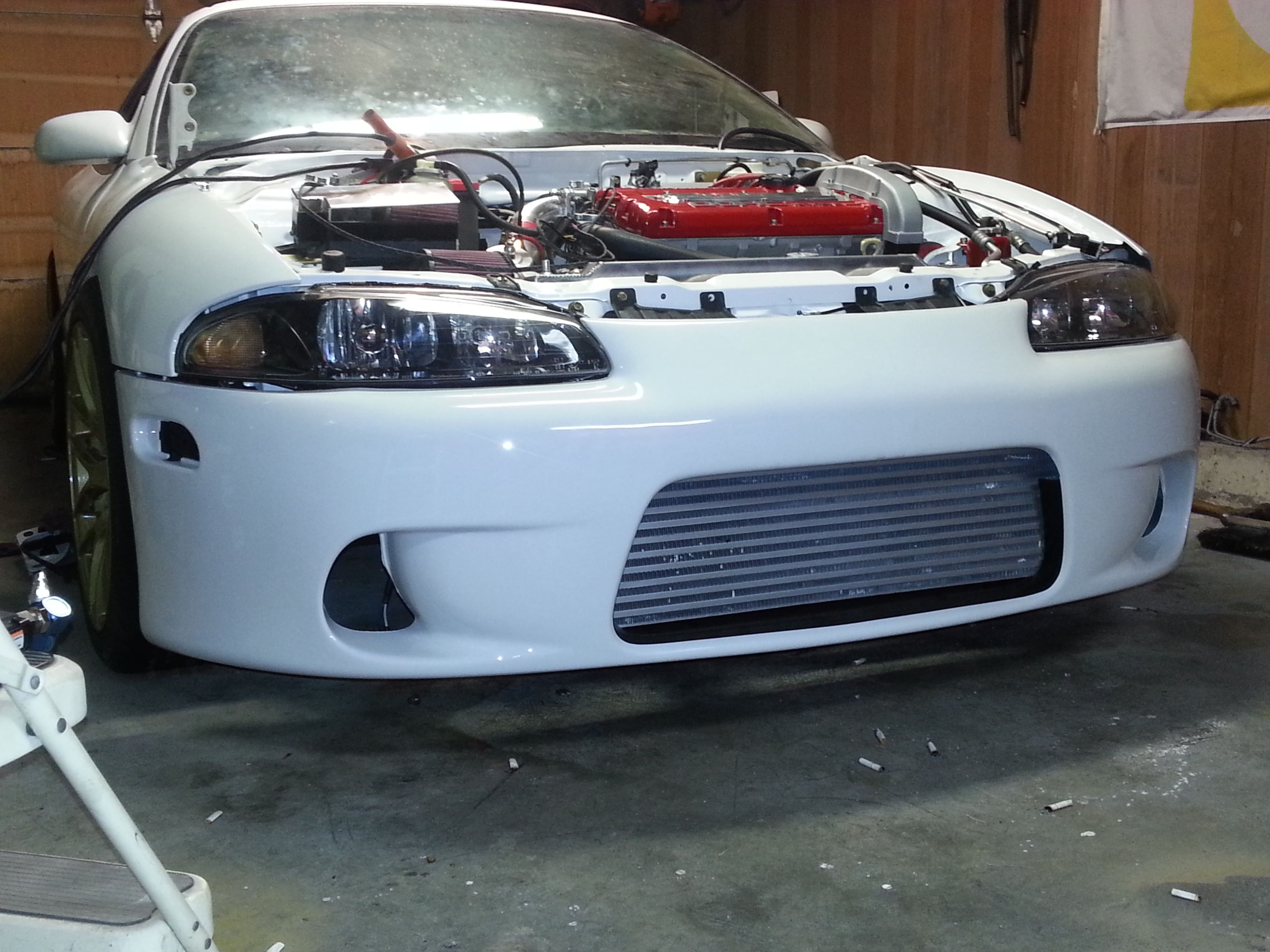

    Some paint and more custom stuff. 20140708_001107.jpg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  18. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    Ok im getting aggravated trying to load compressed pictures and its a hit or miss thing trying to load to the site.


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  19. jmitchem702

    jmitchem702 Probationary Member

    18
    3
    Joined Oct 11, 2013
    Stanley, North Carolina
    Clean car man keep the updates Rollin in


    346  0

    1995 Mitsubishi Eclipse GST
    · 2G DSM
    Loading...
  20. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri

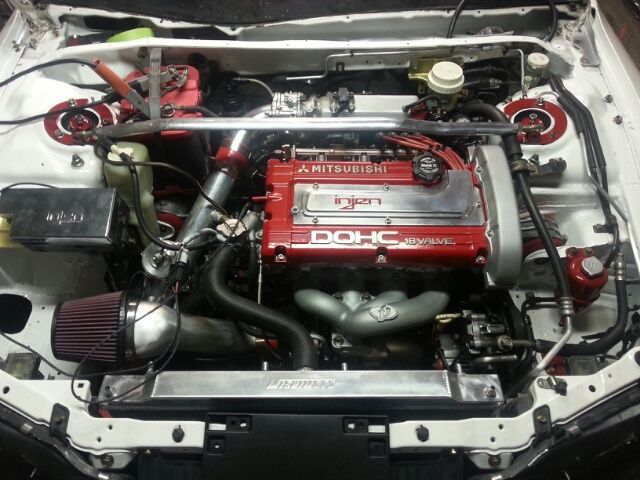

    20140716_231544.jpg Most Recent engine bay pic. Still need to finish hooking things up and a test fire hoppfully this weekend.

    Last edited: Jul 16, 2014

    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  21. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri

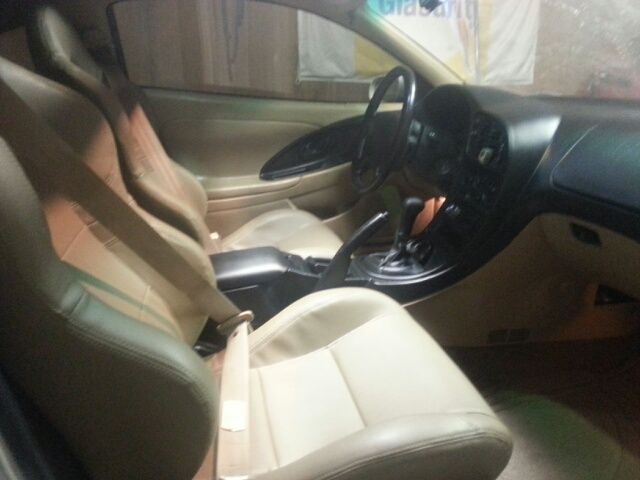

    I redid the interior back to black and tan. 20140716_232711.jpg


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    buhay6 likes this.
  22. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri

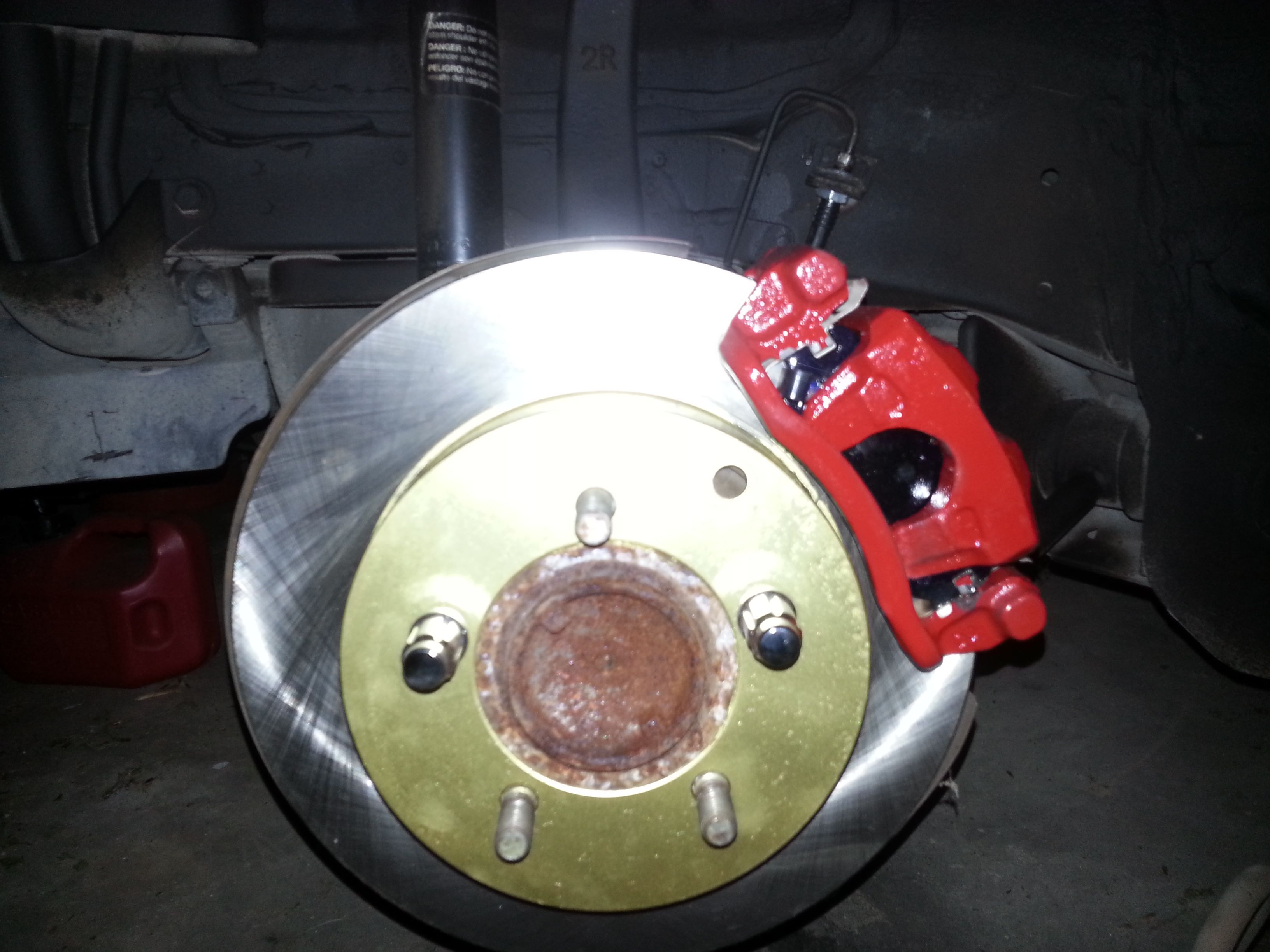

    20140714_210414.jpg Changed to rear vented disc

    Last edited: Jul 17, 2014

    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  23. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri
    Test fire went well this past weekend. Had a oil leak at the turbo drain , fixed that. Have to set biss and put the sheet metal back on and talon sides. Have to get it to the shop for inspection, alignment, and recharge the a/c. Then once tagged I can go thru the tunning processes.


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  24. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri


    2K  7

    1998 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  25. NWHTanK

    NWHTanK Proven Member

    1,235
    144
    Joined Apr 23, 2011
    Odessa, Missouri

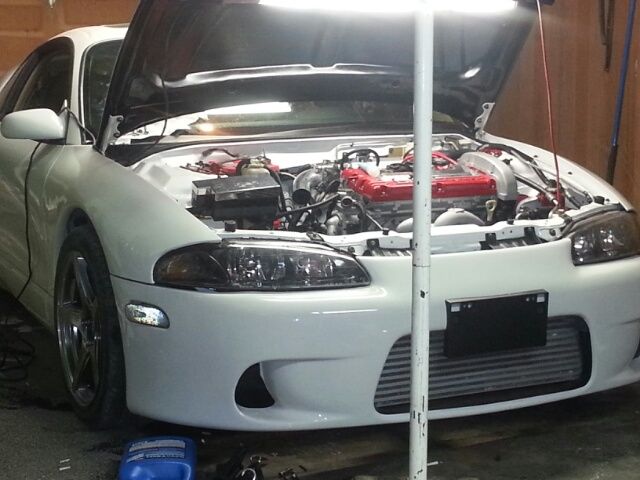

    Ugh replacing a coolant pipe o ring. 20140802_144408.jpg
