My 1g DSM story: 1990 Tsi awd clean street machine

Smilinjay

Proven Member
290
92
Jul 9, 2013
Anchorage, Alaska
When do you think you will be finished and driving?
Ahaha im terrible with questions like that.. Theres really not much work left, but the roads here are pretty crappy right now. Ideally i would like some dry roads to break it in but im not sure when thats going to happen.


ShockDSM

Proven Member
85
9
Dec 31, 2015
Dearborn, Michigan
Wow man! Just cruised through your thread and it is such an inspiration for a fellow 1990 dsm owner! These 90's can be a real pain in the ass when it comes to so many things that are different with our cars. I am struggling to make parts for 1g's fit and diagnosing issues on mine because of all these differences. Anyway, NICE build man, keep it updated for us to drool on! :p


Smilinjay

Proven Member
290
92
Jul 9, 2013
Anchorage, Alaska
Lol, agreed ^
K Tyler, you can diagnose your car's plethora of issues all by yourself LOL.
Wow man! Just cruised through your thread and it is such an inspiration for a fellow 1990 dsm owner! These 90's can be a real pain in the ass when it comes to so many things that are different with our cars. I am struggling to make parts for 1g's fit and diagnosing issues on mine because of all these differences. Anyway, NICE build man, keep it updated for us to drool on! :p
Thanks for the kind words man, im glad you got a kick out of it. I'll try my best to keep it up to date :thumb:


tridgway

Probationary Member
4
3
Sep 27, 2015
anchorage, Alaska
Hey now, let's not forget who showed you all the magic tricks when it comes to removing your transmission!


Smilinjay

Proven Member
290
92
Jul 9, 2013
Anchorage, Alaska

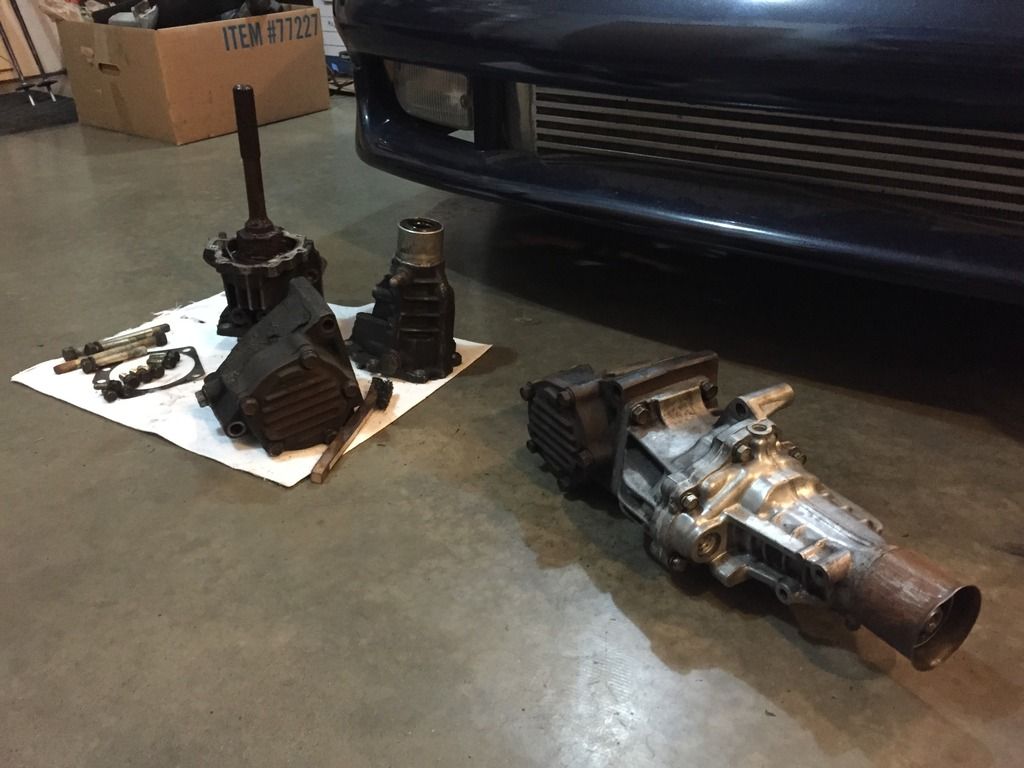

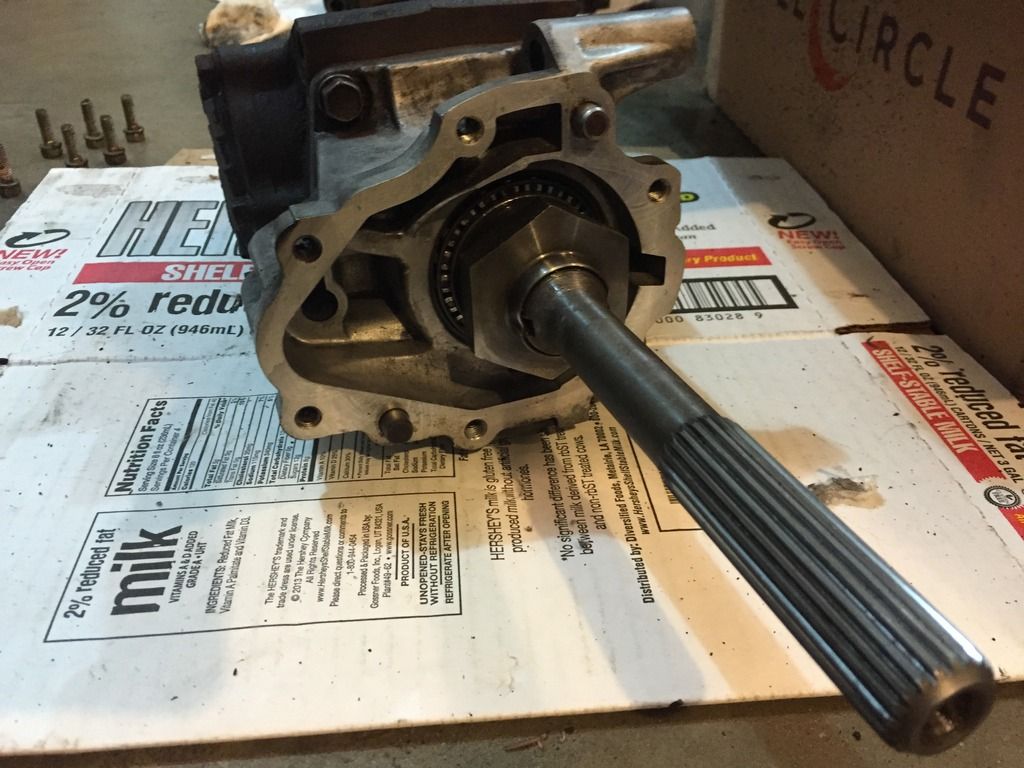

So i got this 23 spline transfer case for free with my gvr4 trans. It did not spin freely so i decided to find out why.
You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

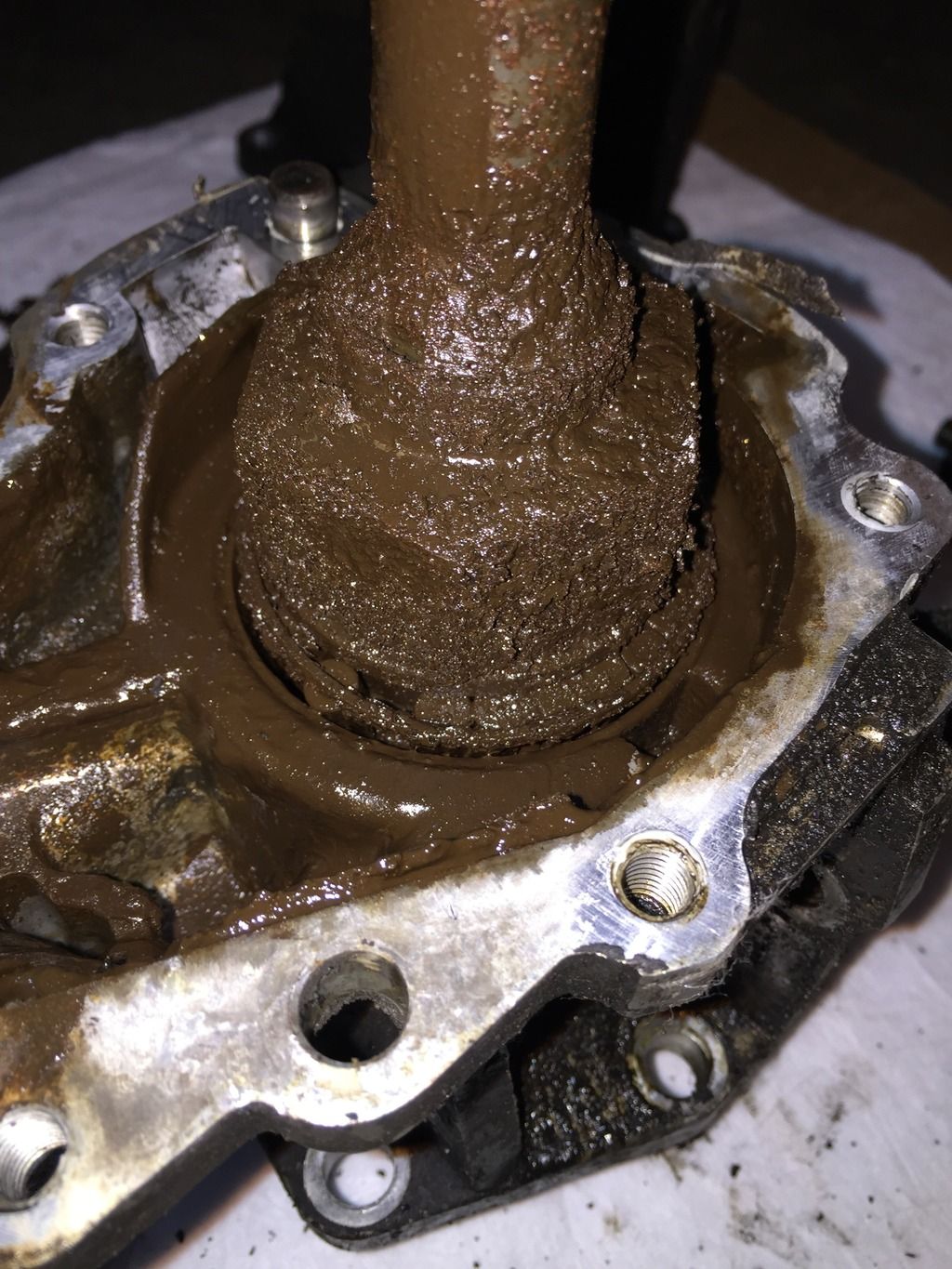

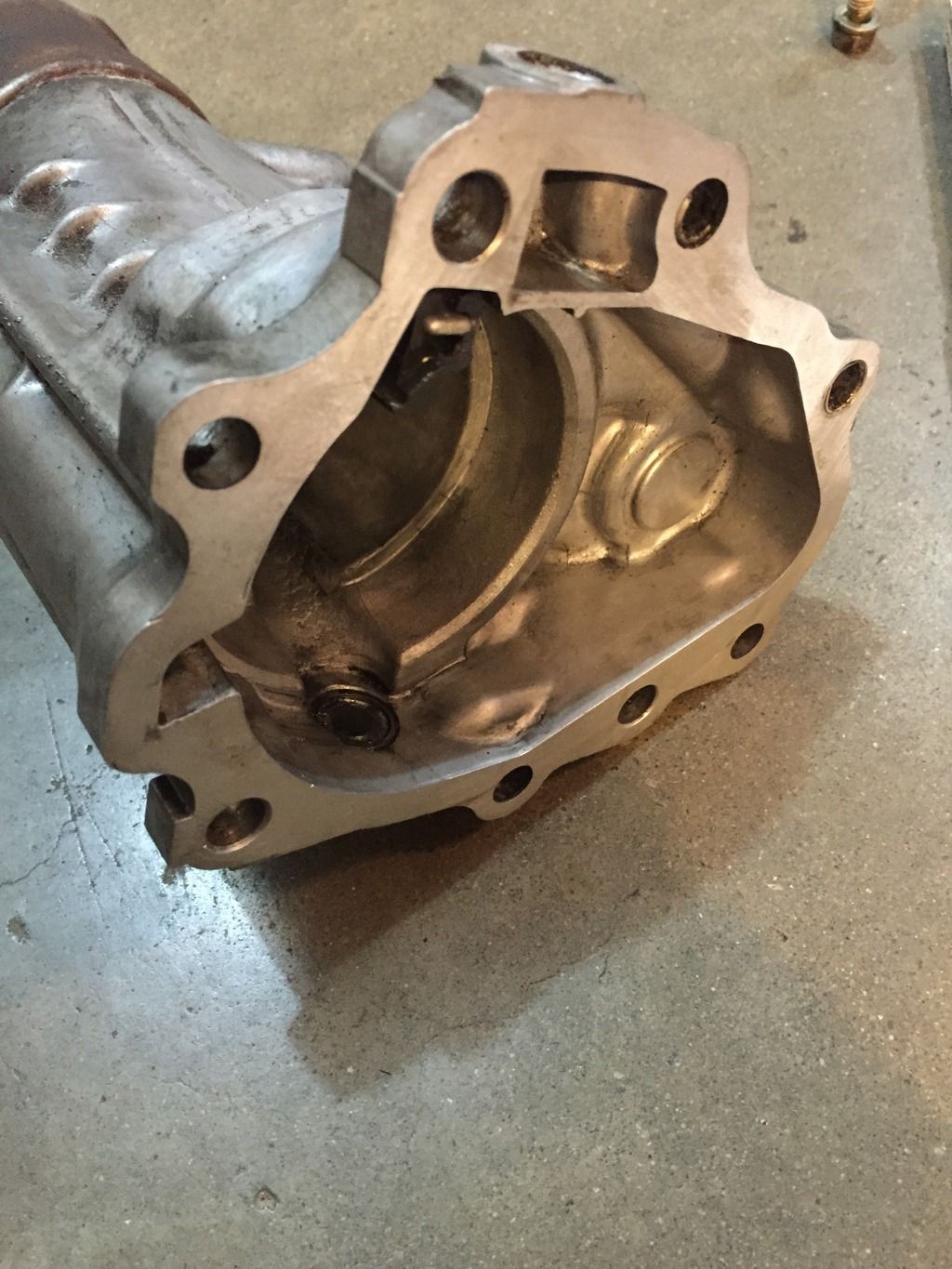

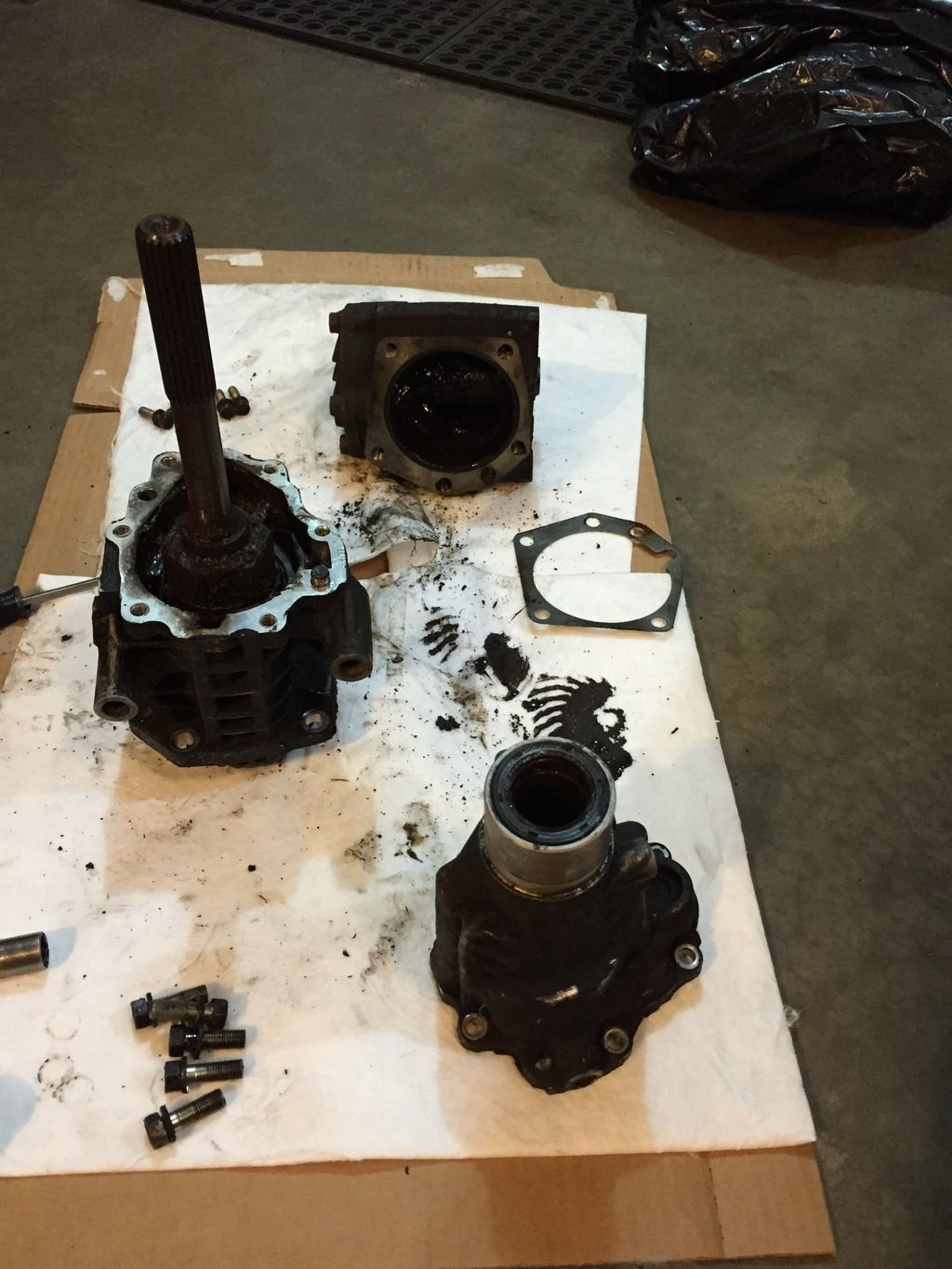

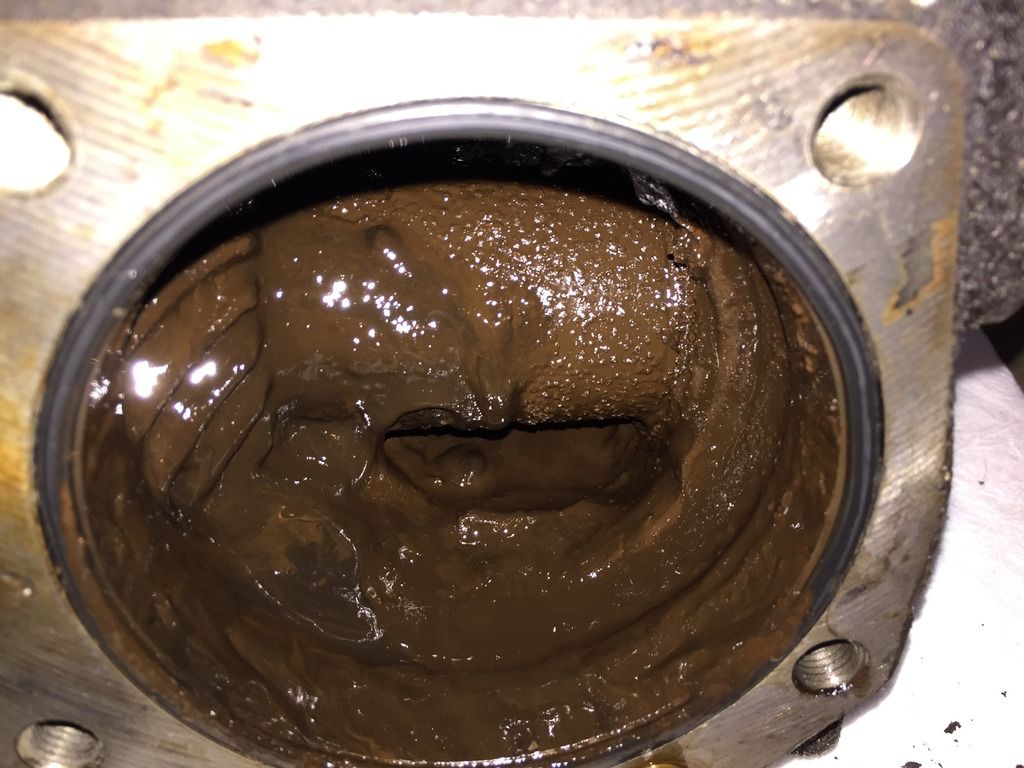

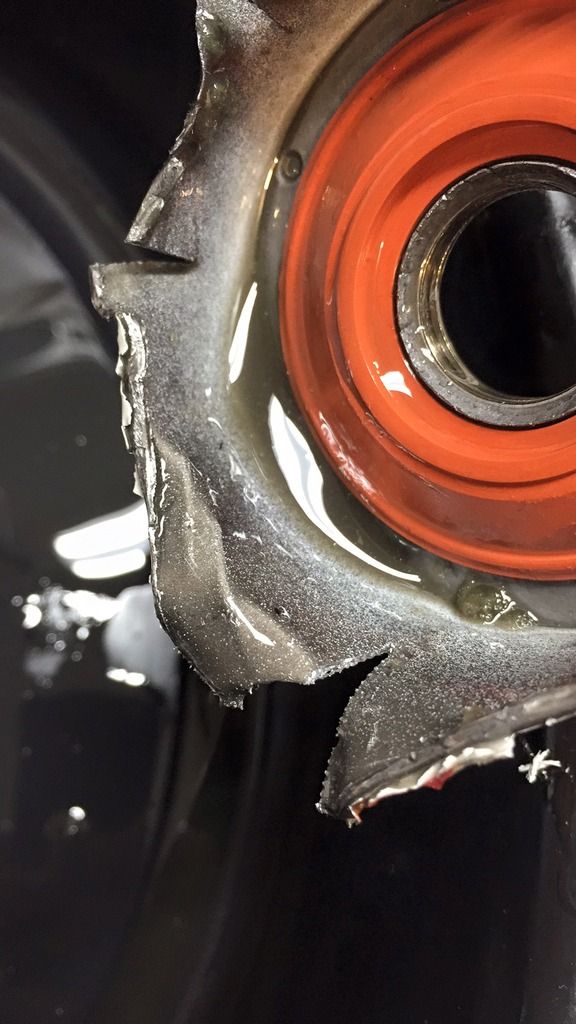

OMG... So this is what happens when you let your tcase run low on fluid.. I went to my parts car and grabbed the tcase out of it.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
This one appears to be in perfect condition so I cleaned it up and ran a new bead of sealant.
You must be logged in to view this image or video.

You must be logged in to view this image or video.


Smilinjay

Proven Member
290
92
Jul 9, 2013
Anchorage, Alaska

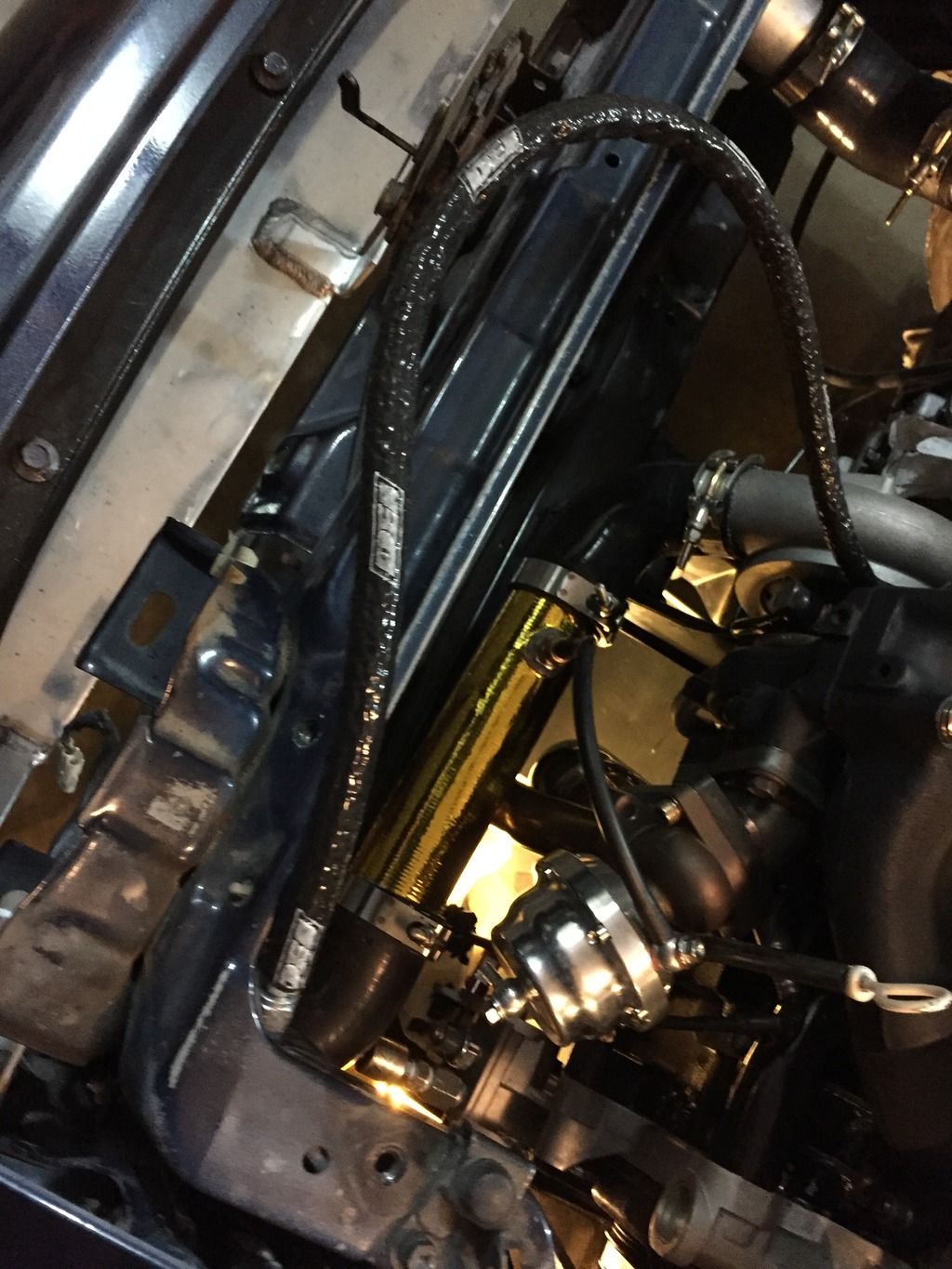

I like that some people are smart enough to use thermal reflective products. I used some of what looks like the same exact thing to cover the underside of my CF hood.
Yea i got that to cover my lower intercooler pipe. I dont like how close it runs to the dump tube and downpipe.


tridgway

Probationary Member
4
3
Sep 27, 2015
anchorage, Alaska
Providing Jay some moral support over the weekend, forgot to put the downpipe on before we lowered the car LOL
You must be logged in to view this image or video.


Smilinjay

Proven Member
290
92
Jul 9, 2013
Anchorage, Alaska

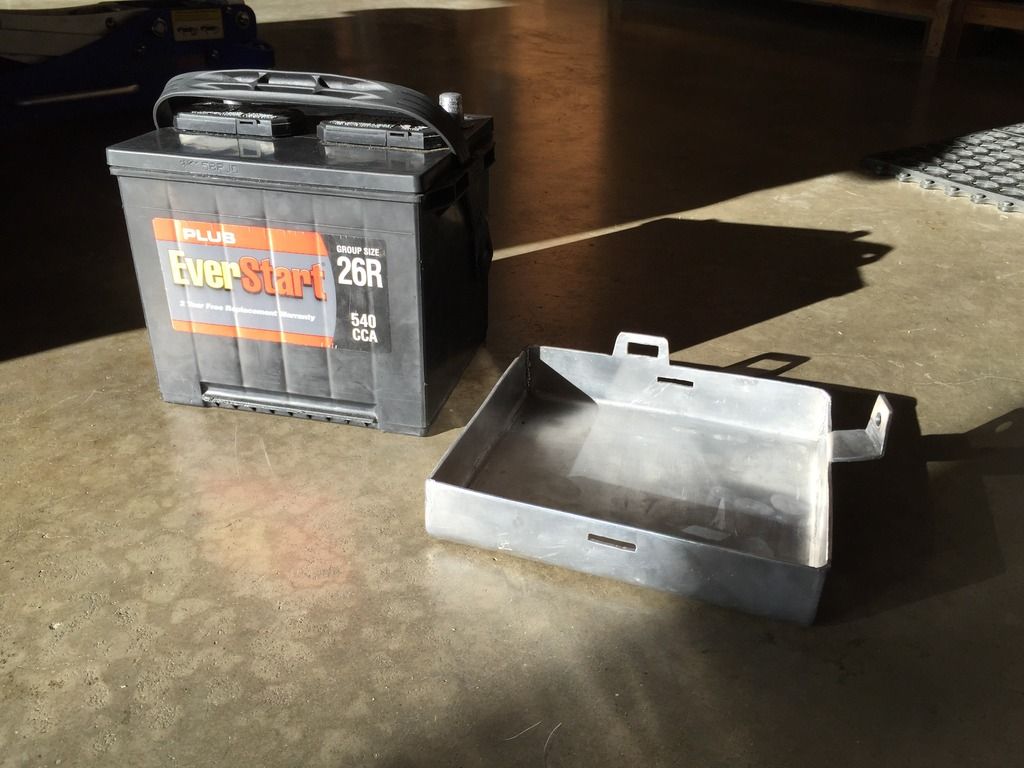

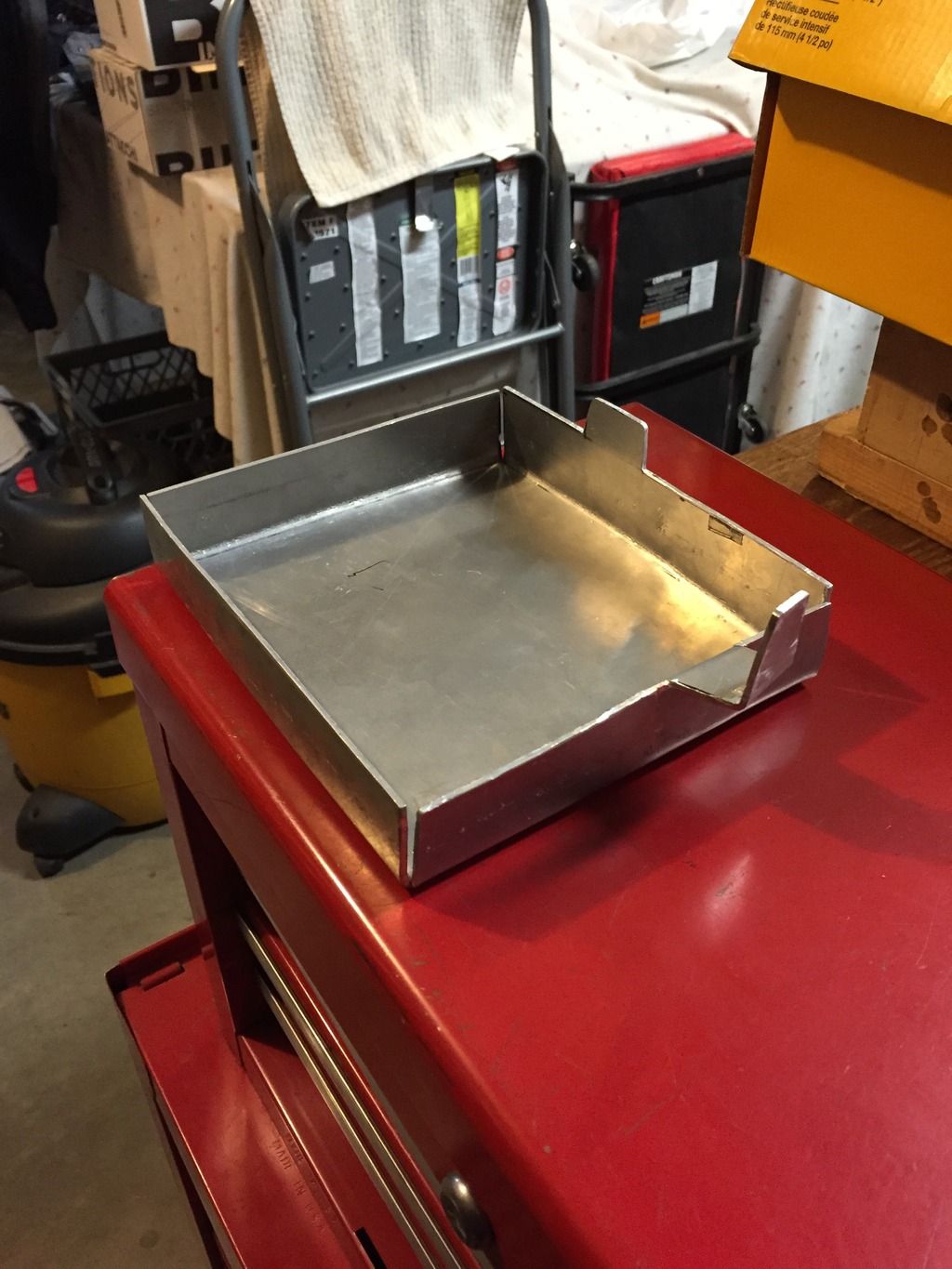

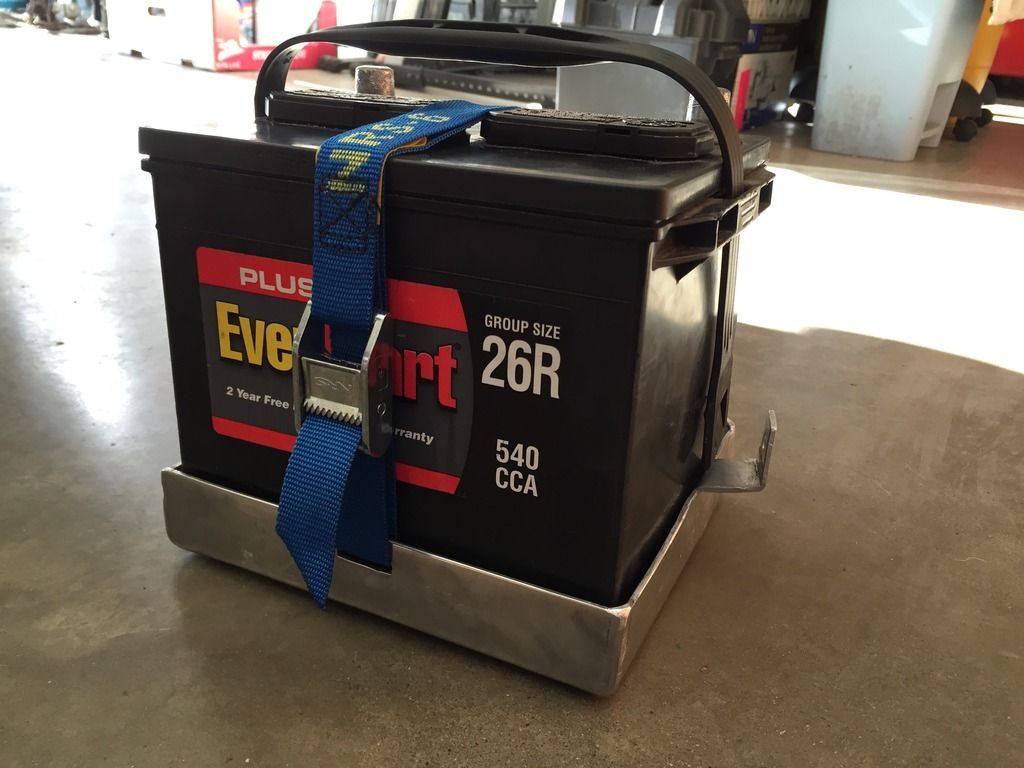

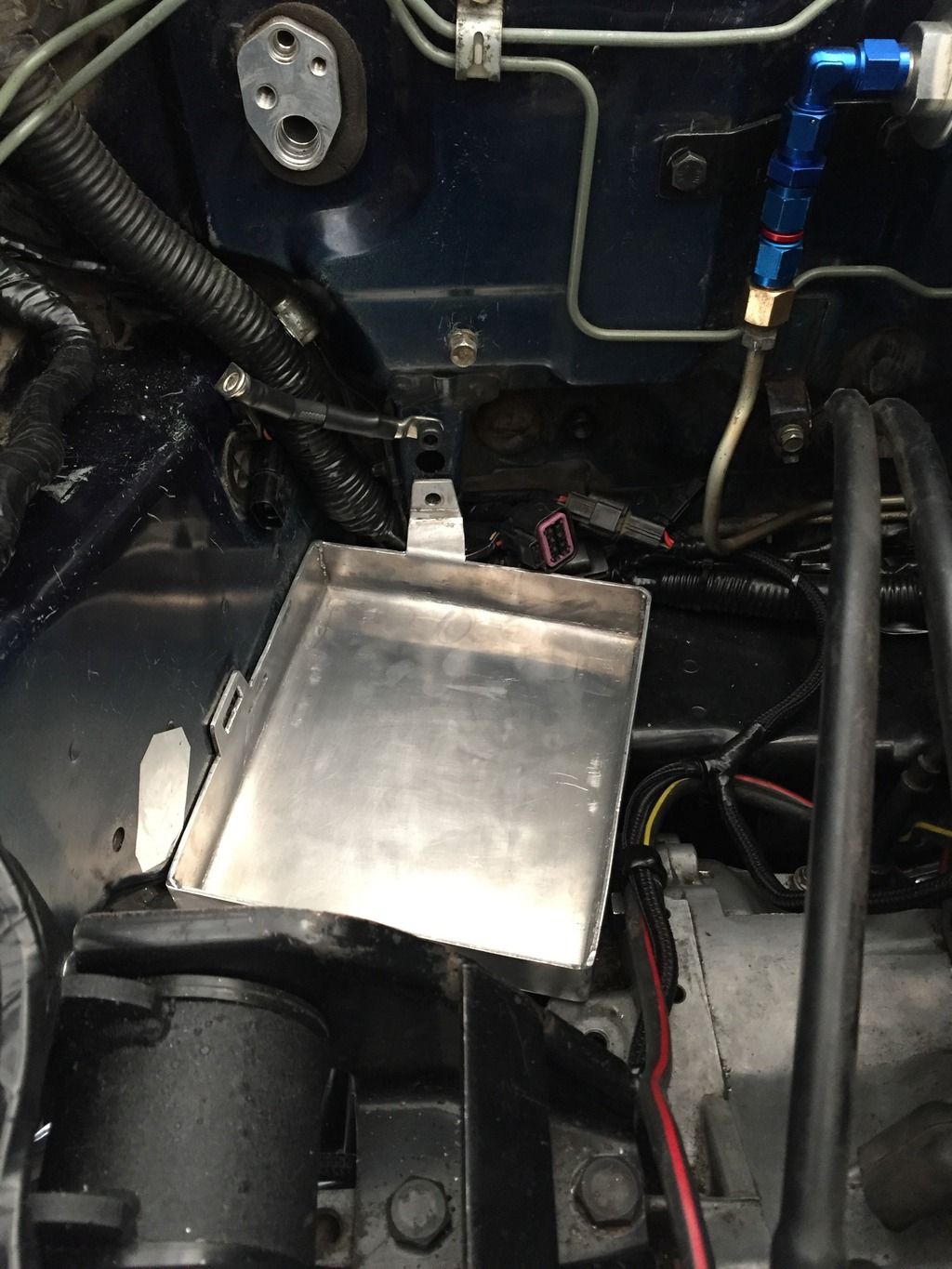

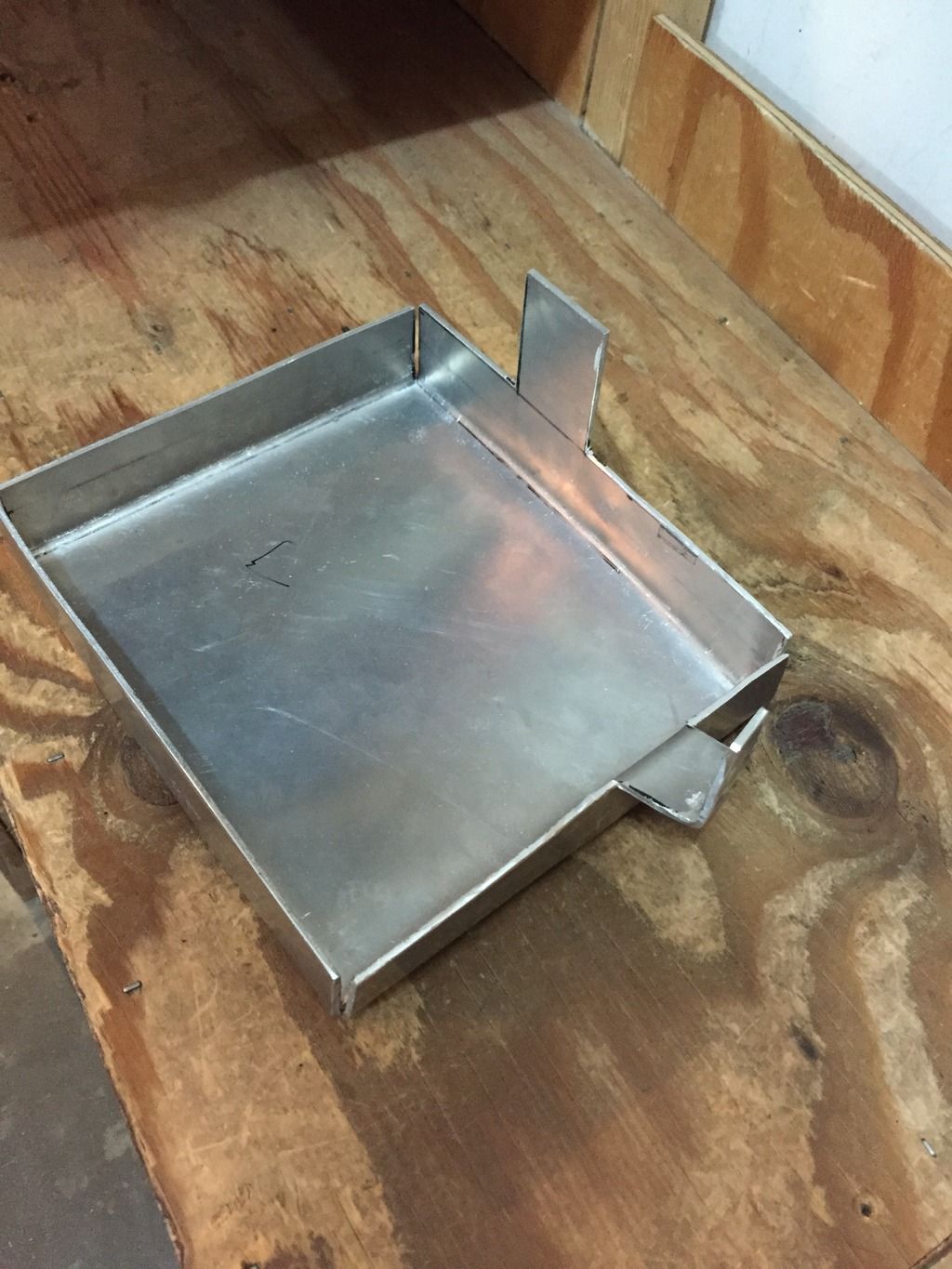

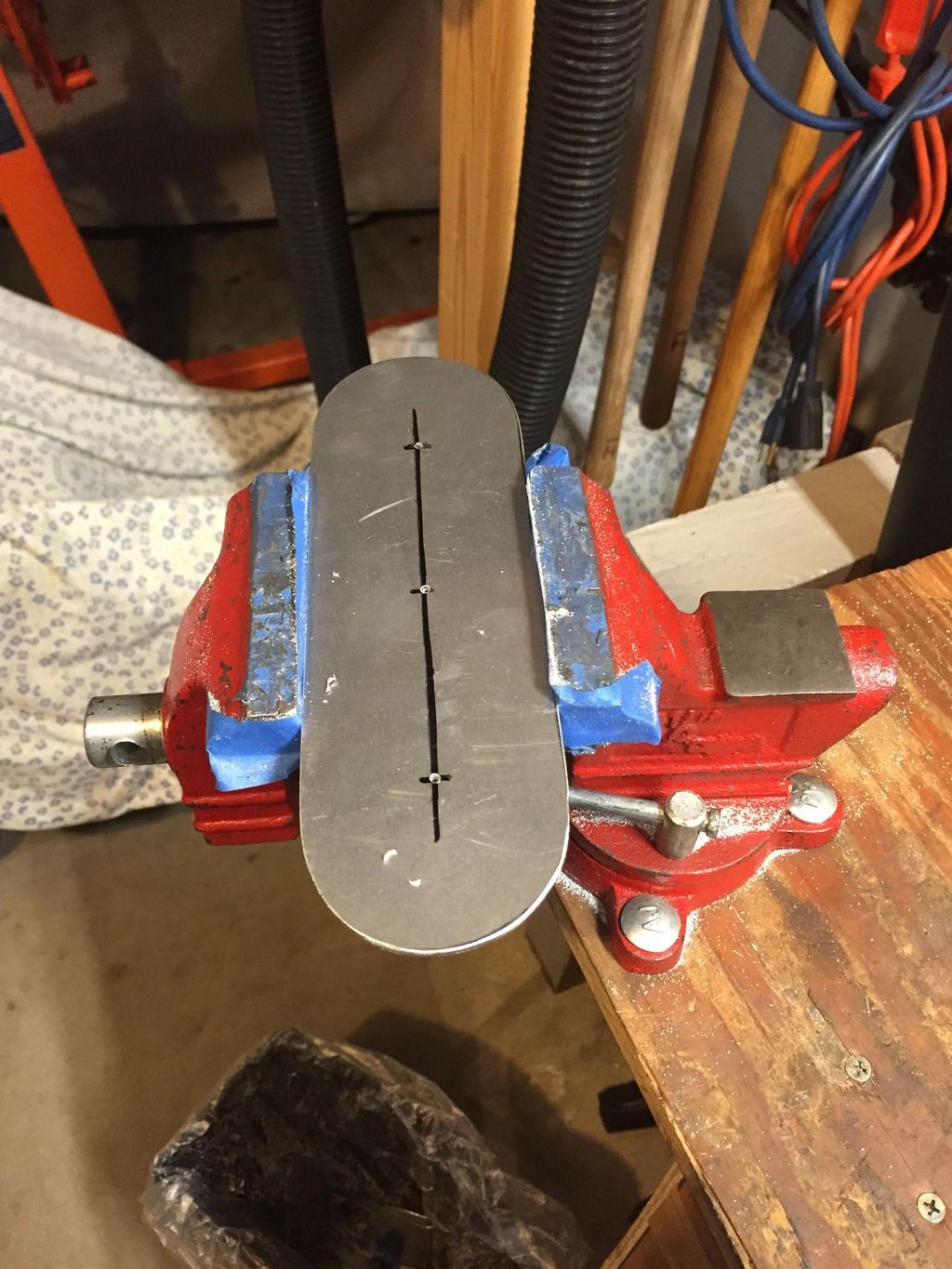

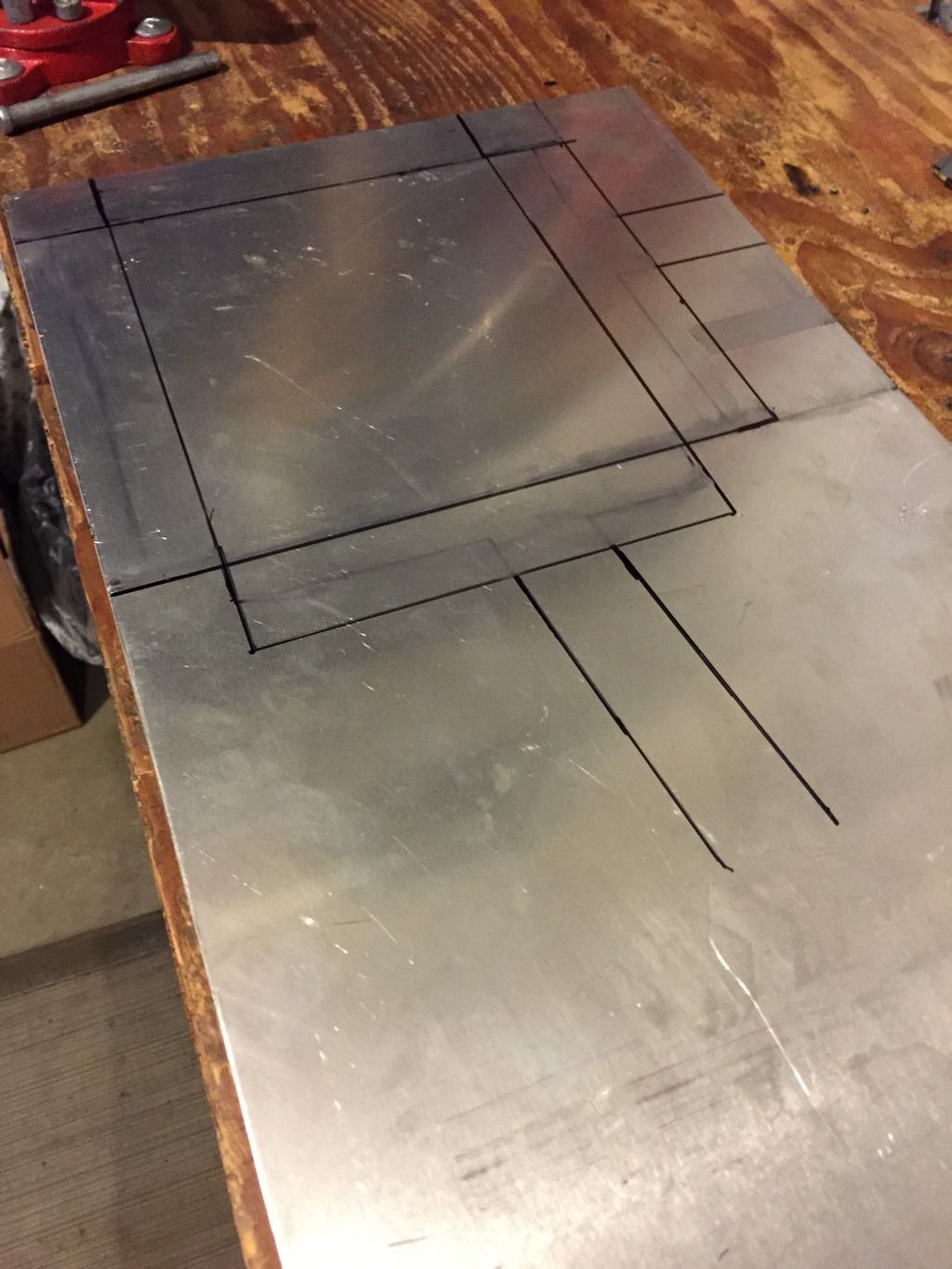

Whats up guys, just wanted to give a quick update on my most recent project. Ive always preferred to keep my battery in the engine bay, but this left me with very few options for a clean and out of the way mounting solution. I considered an odyssey pc680 but i was worried about cold starts since it is frequently below freezing here. So i decided to make a tray out of some 1/8" aluminum that would sit my full size battery right on top of the sub frame.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.
You must be logged in to view this image or video.


Smilinjay

Proven Member
290
92
Jul 9, 2013
Anchorage, Alaska

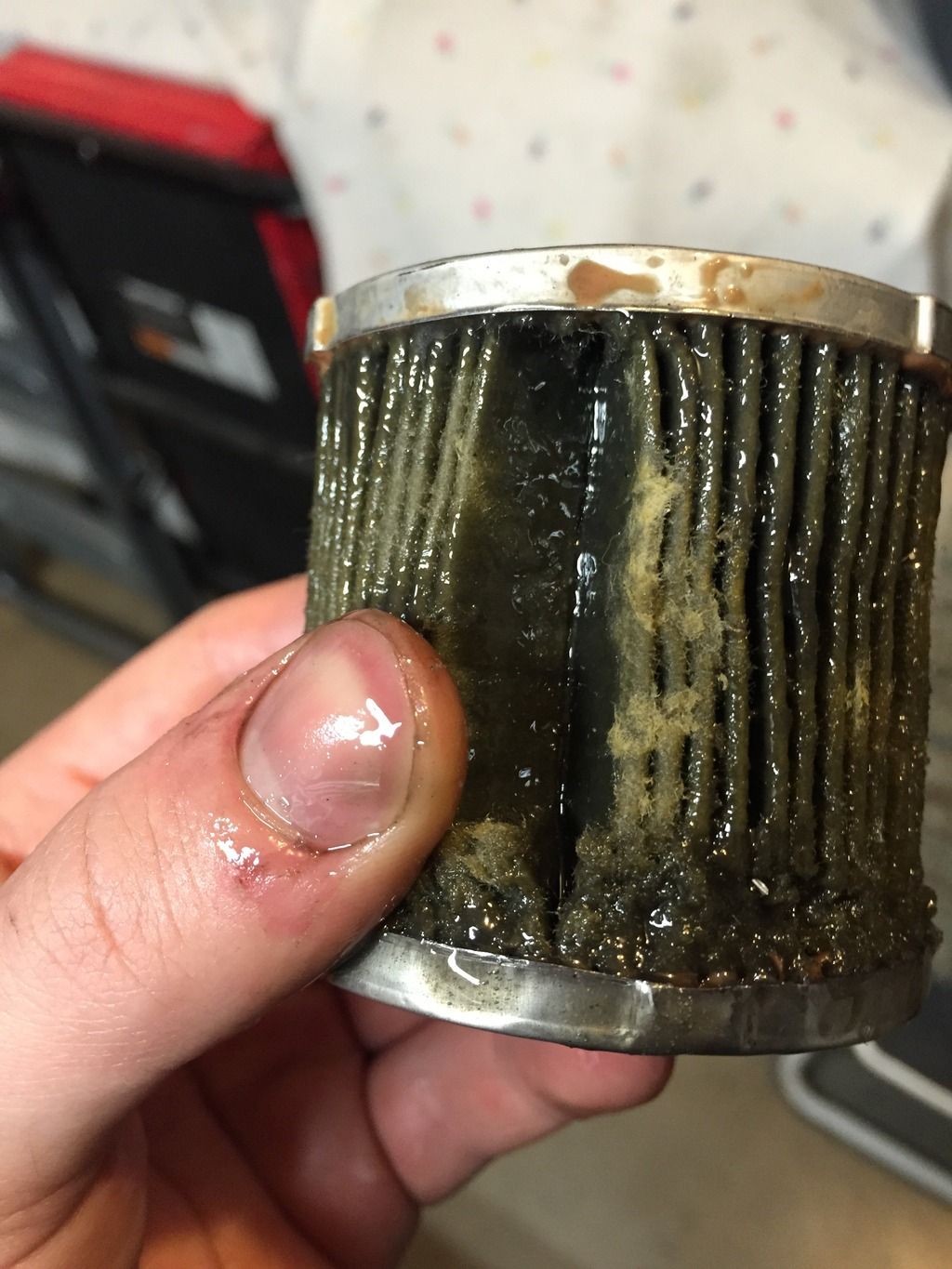

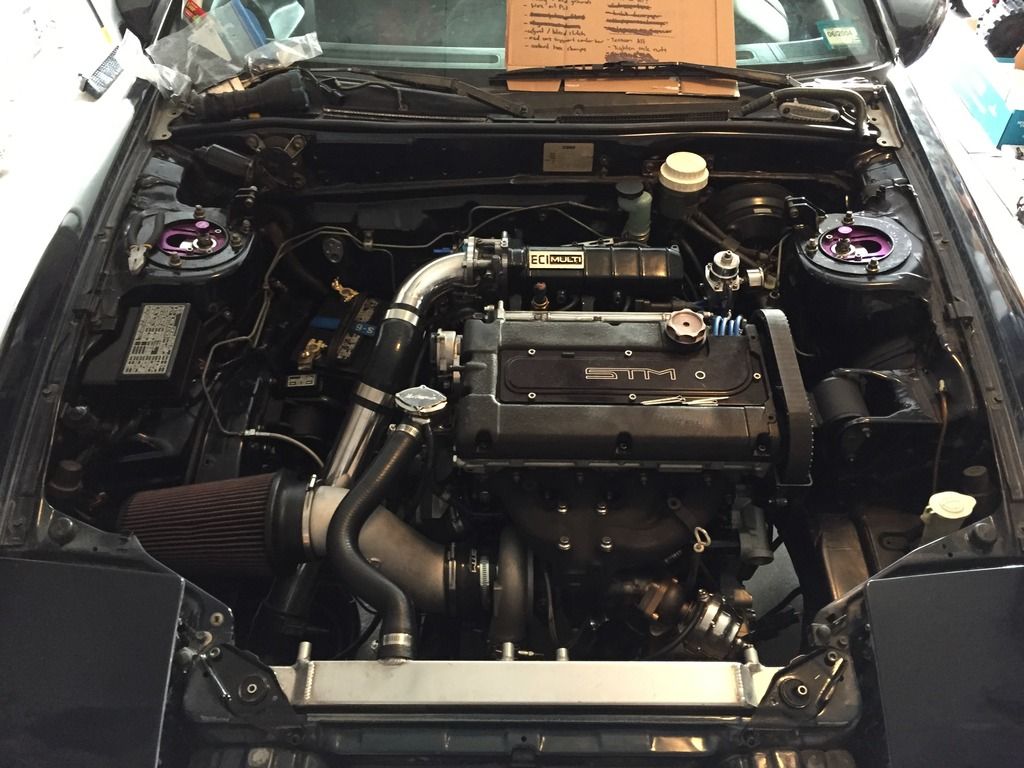

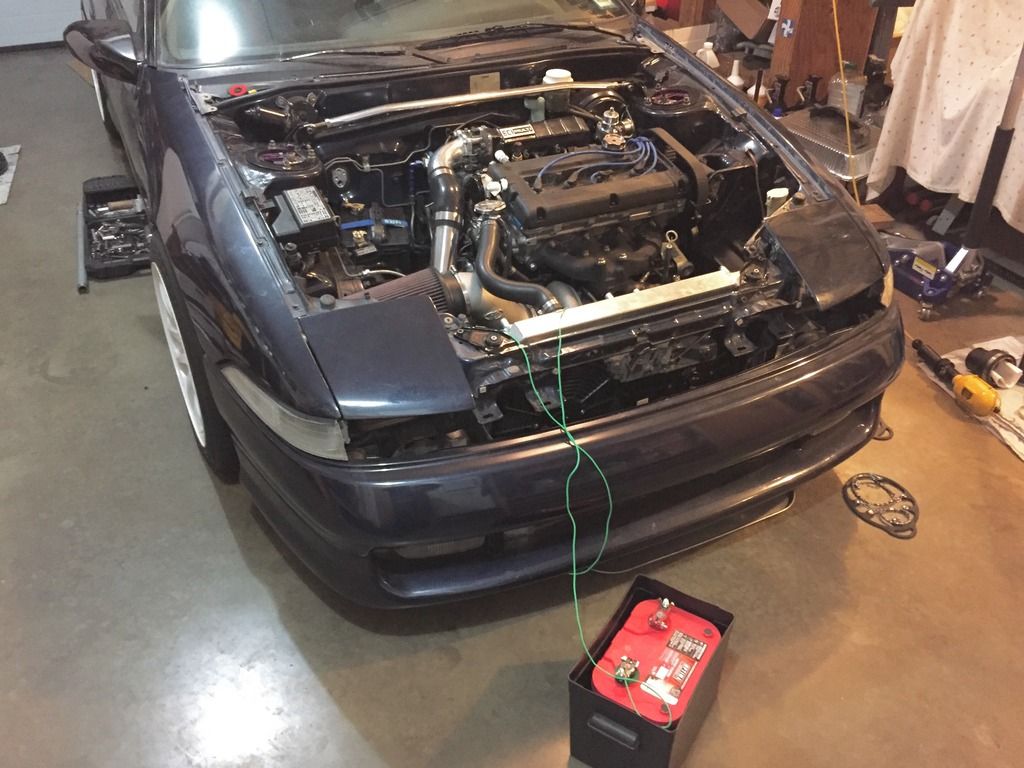

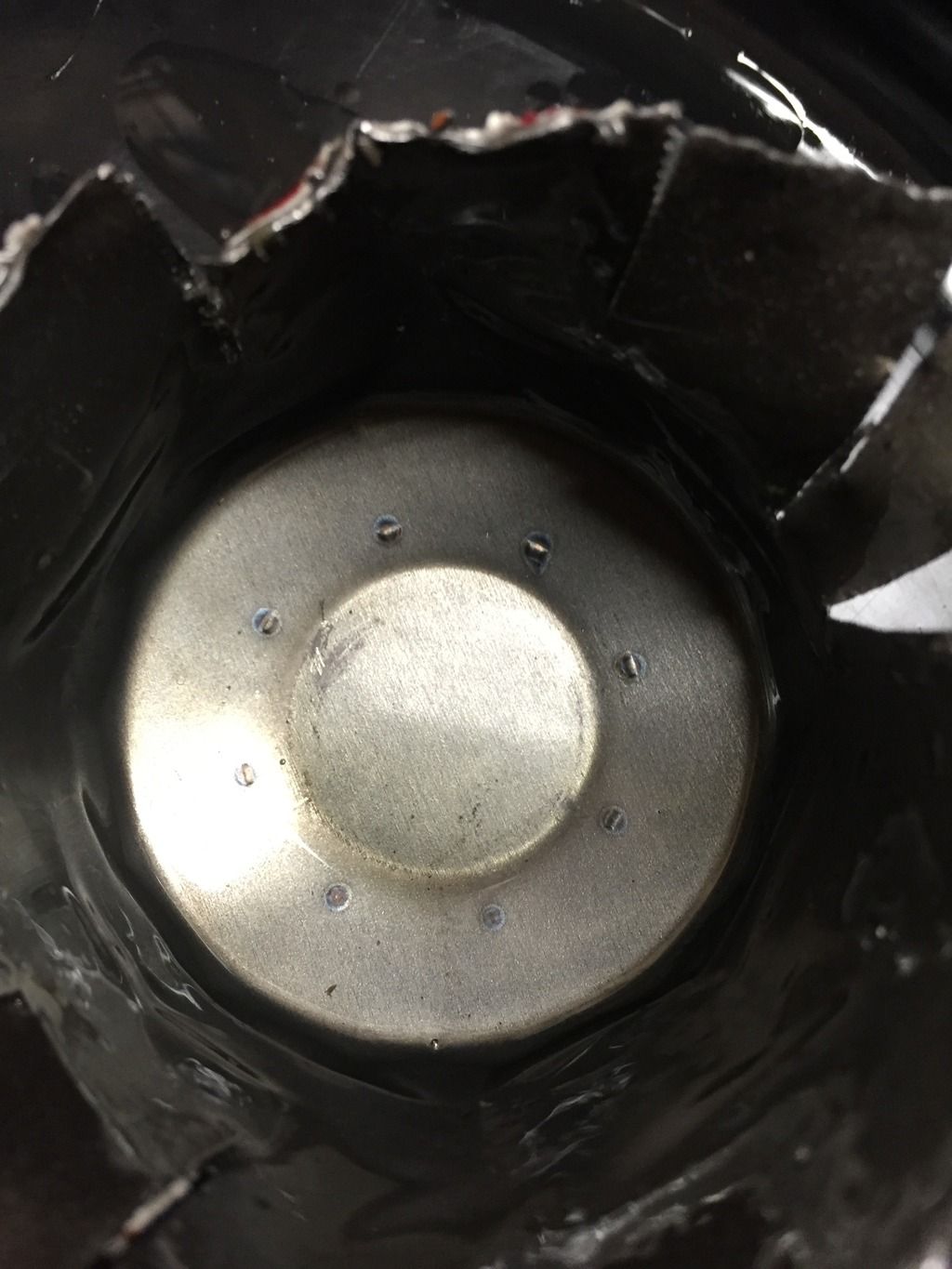

So i got the car running this week. So far i have 35-40 min of run time on it and it seems healthy! Oil pressure is very good and after adjusting the cas and biss it ran very smooth. I did find some very small particles of metal dust in the oil. So i cut open the filter and found practically nothing. I was a little concerned but after talking to a buddy it sounds like this is not uncommon. Either way i will be keeping a close eye on it.
You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.


Smilinjay

Proven Member
290
92
Jul 9, 2013
Anchorage, Alaska
I haven't been driving the car due to bad weather, but this gave me a chance to work through some minor issues and do some finishing touches.
You must be logged in to view this image or video.

Had some issues with my pusher fans, should be sorted now.

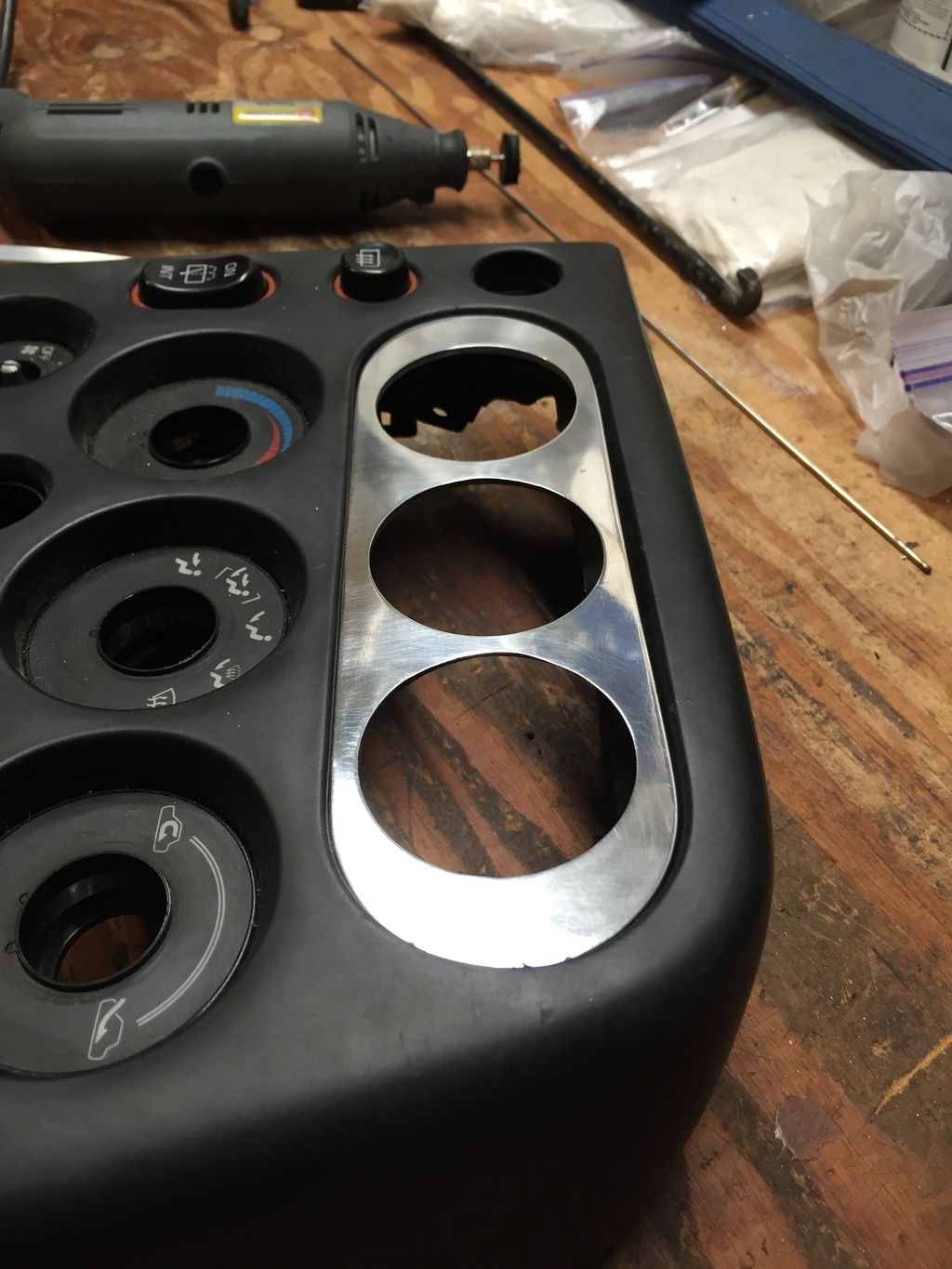

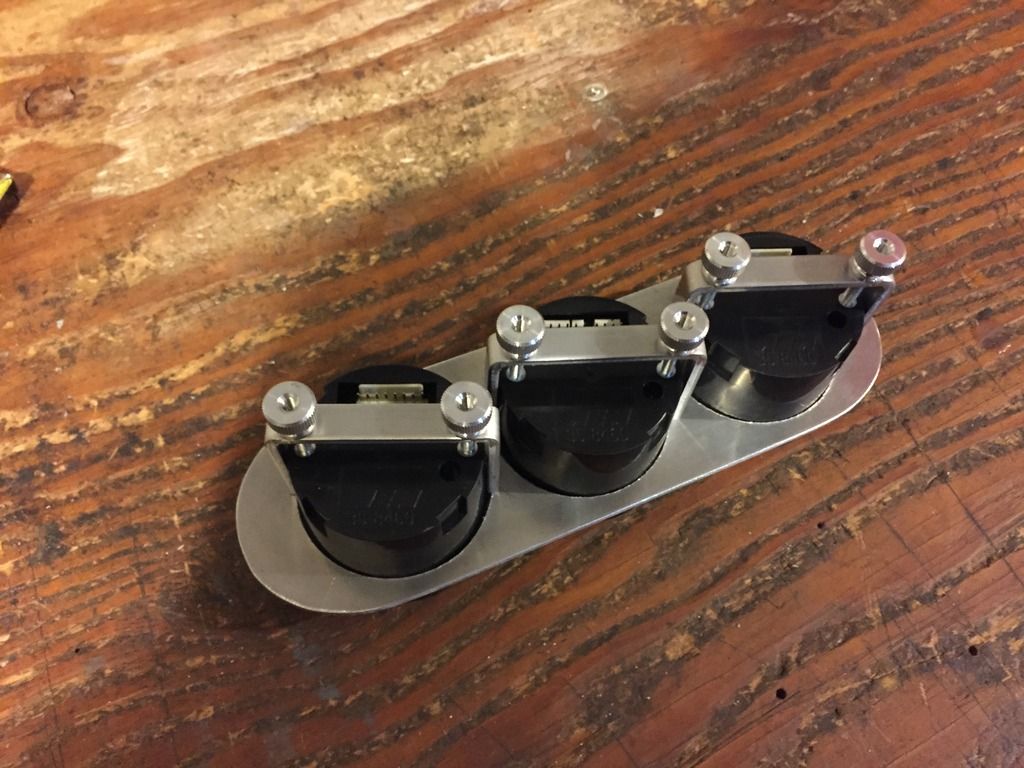

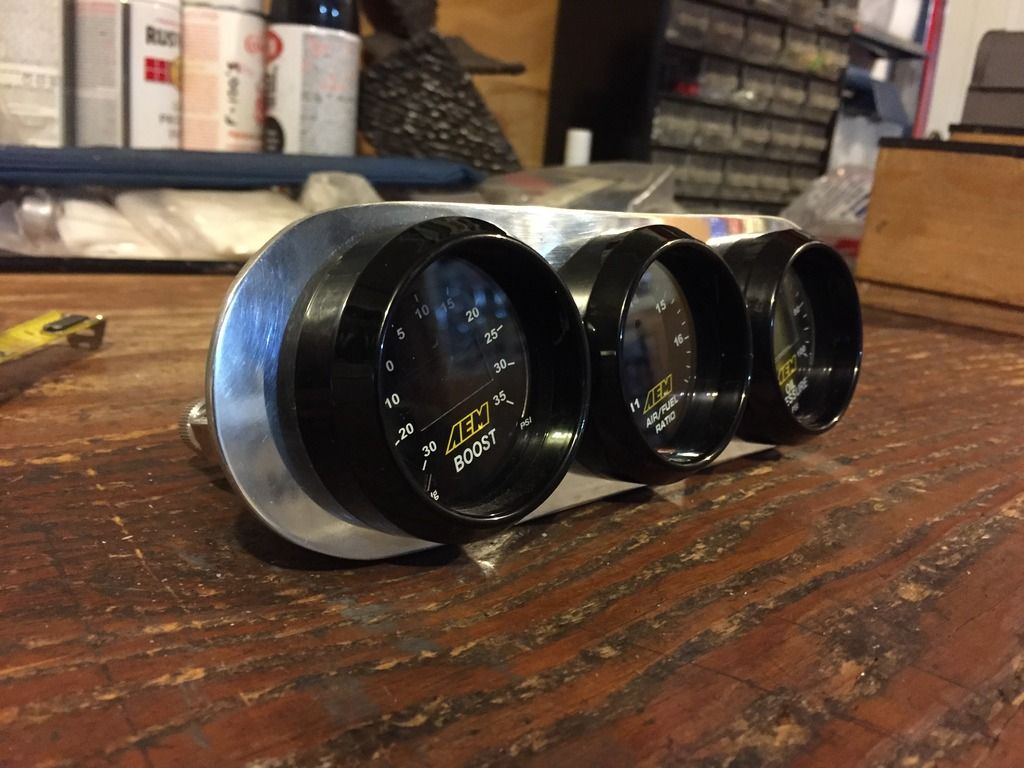

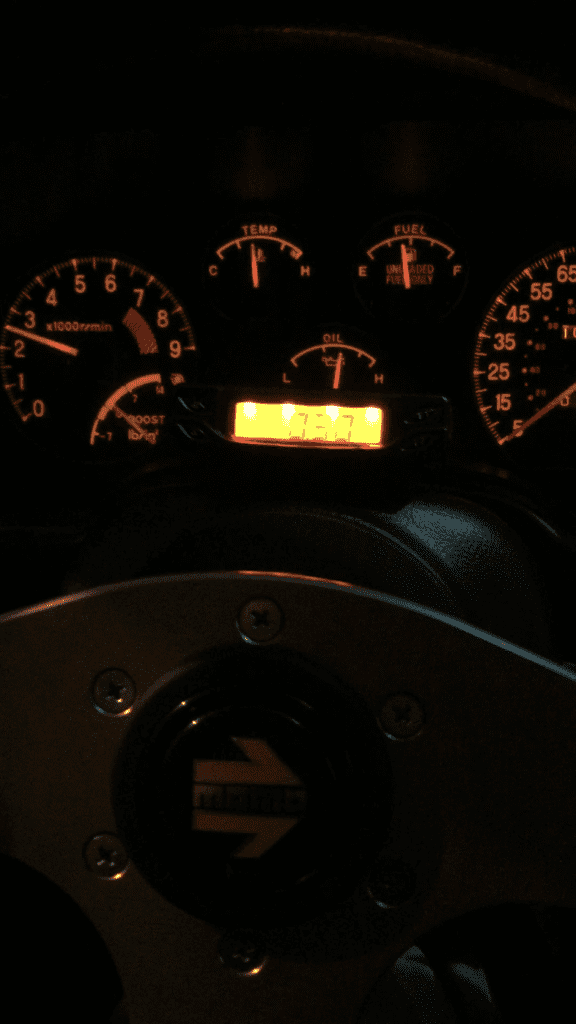

Also made a new gauge bezel to replace the crappy plastic one i made last year.
You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

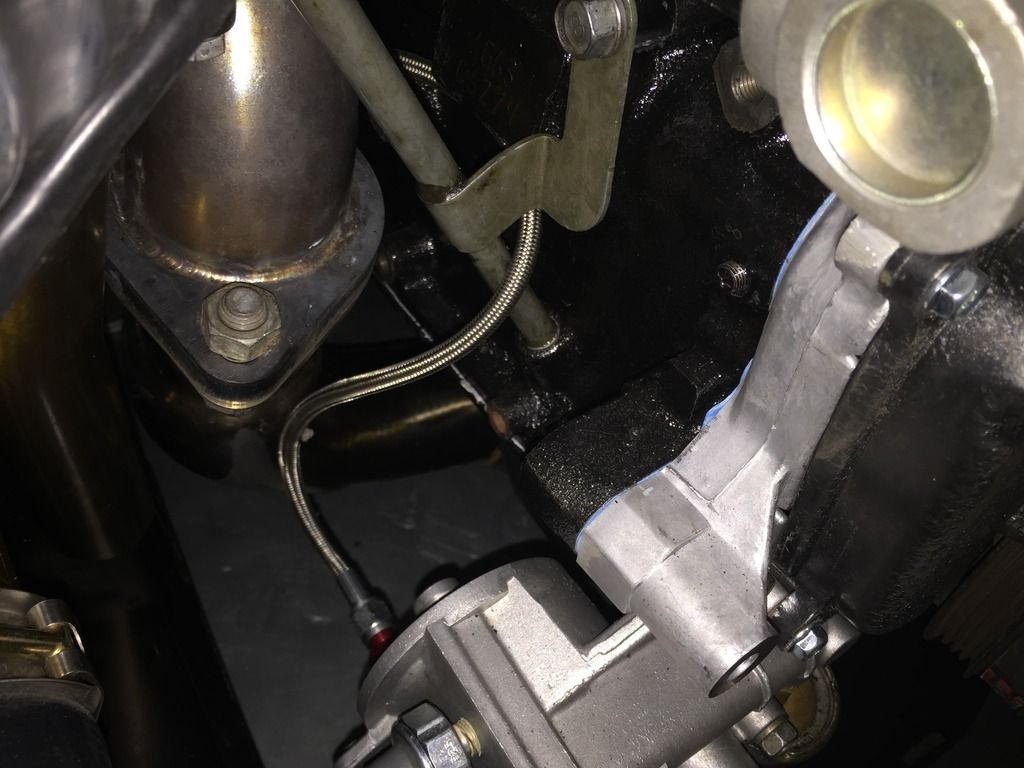

And lastly, i grabbed some dei "fire sleeve" to put over my oil feed. I've never liked how close it runs to the downpipe.
You must be logged in to view this image or video.

You must be logged in to view this image or video.


studs

Proven Member
32
1
Feb 6, 2003
Lancaster, New_York
New to the thread, that was a fun read man, very inspiring keep em coming! Car looks awesome...


Smilinjay

Proven Member
290
92
Jul 9, 2013
Anchorage, Alaska

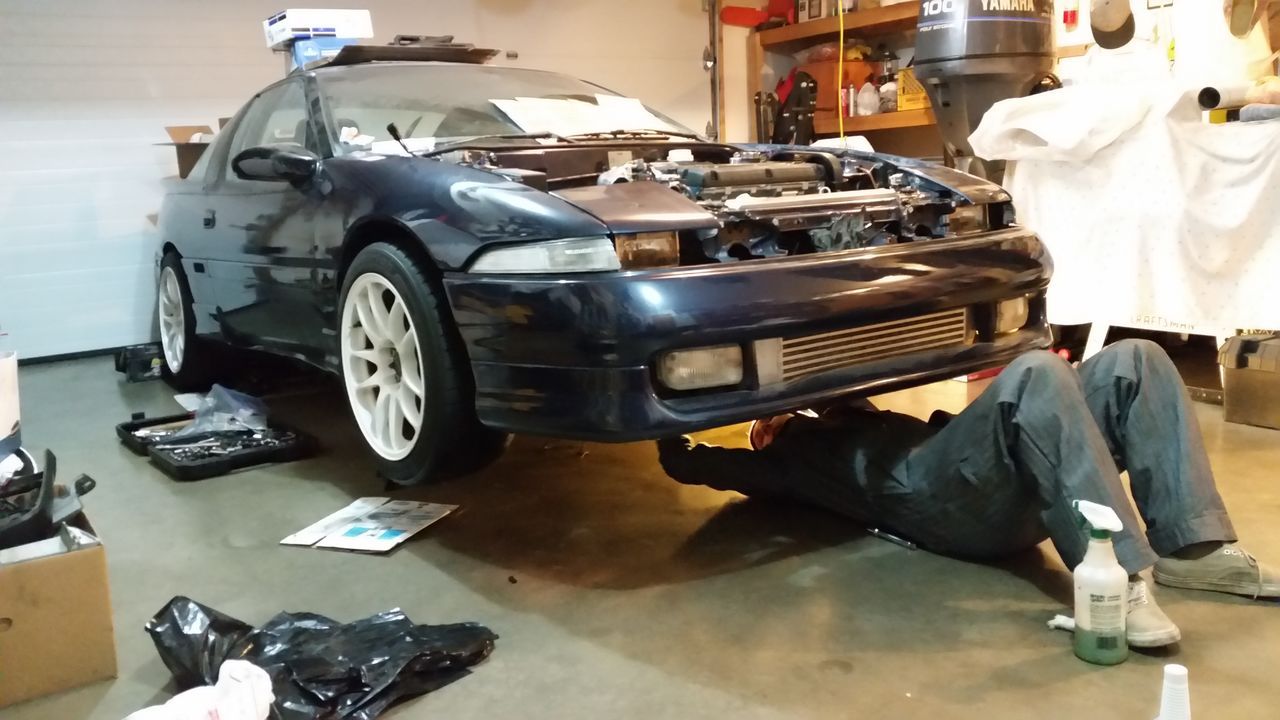

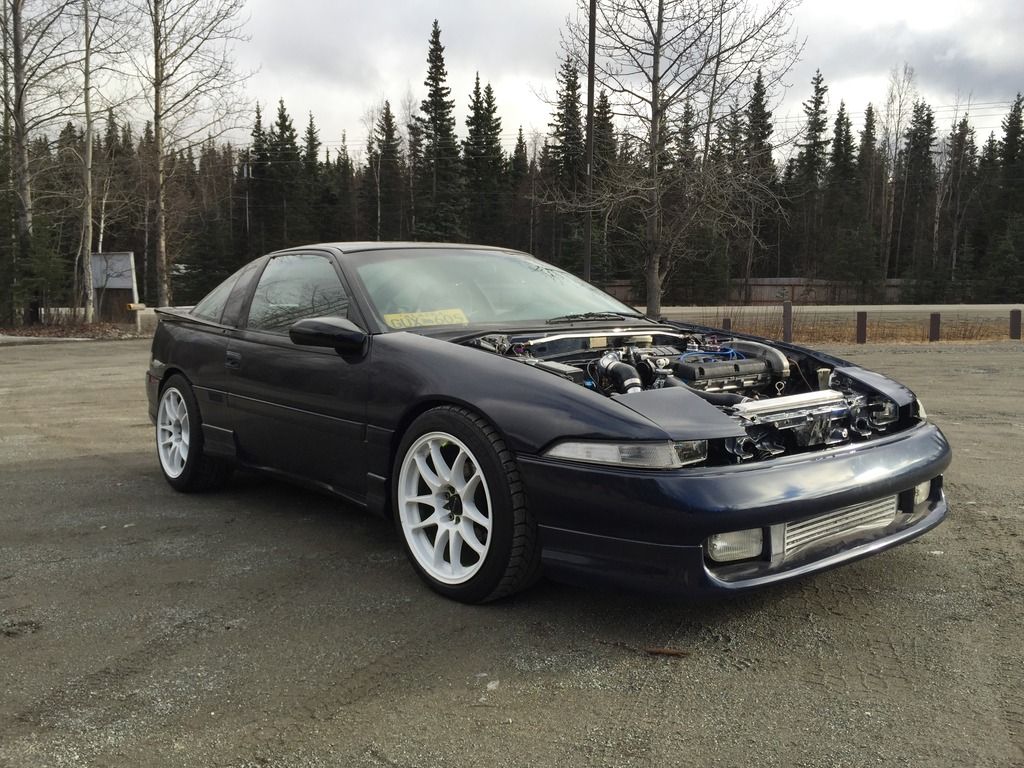

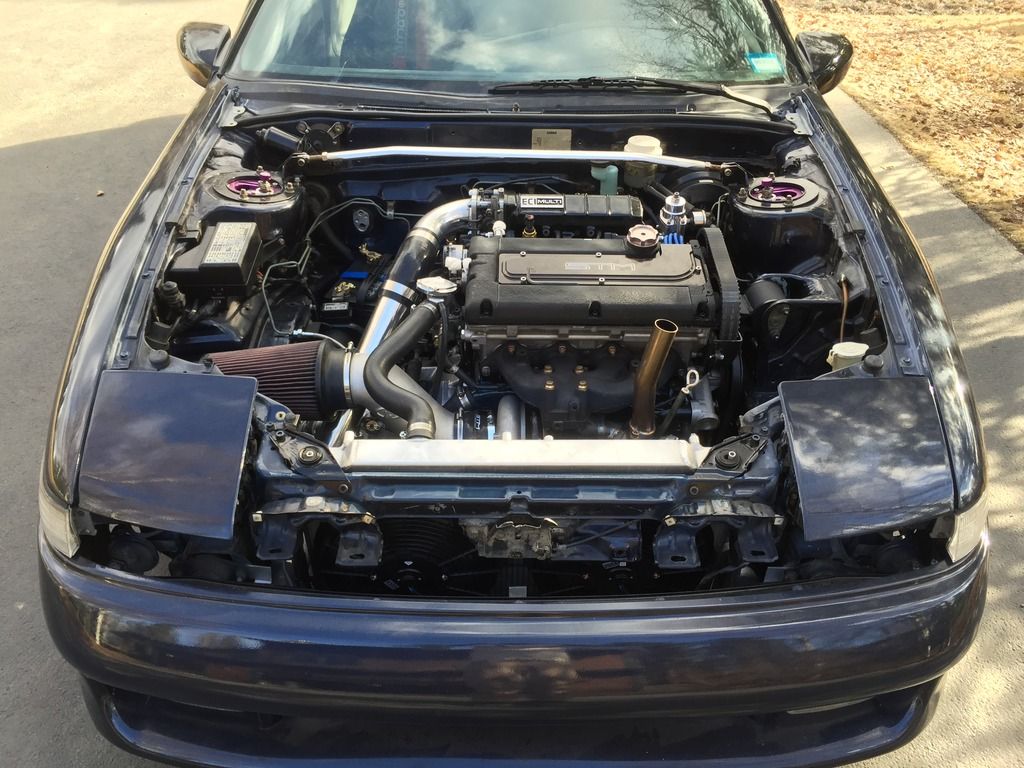

I want to see full picture of the car with the white wheels!!!
You must be logged in to view this image or video.

You must be logged in to view this image or video.
You must be logged in to view this image or video.

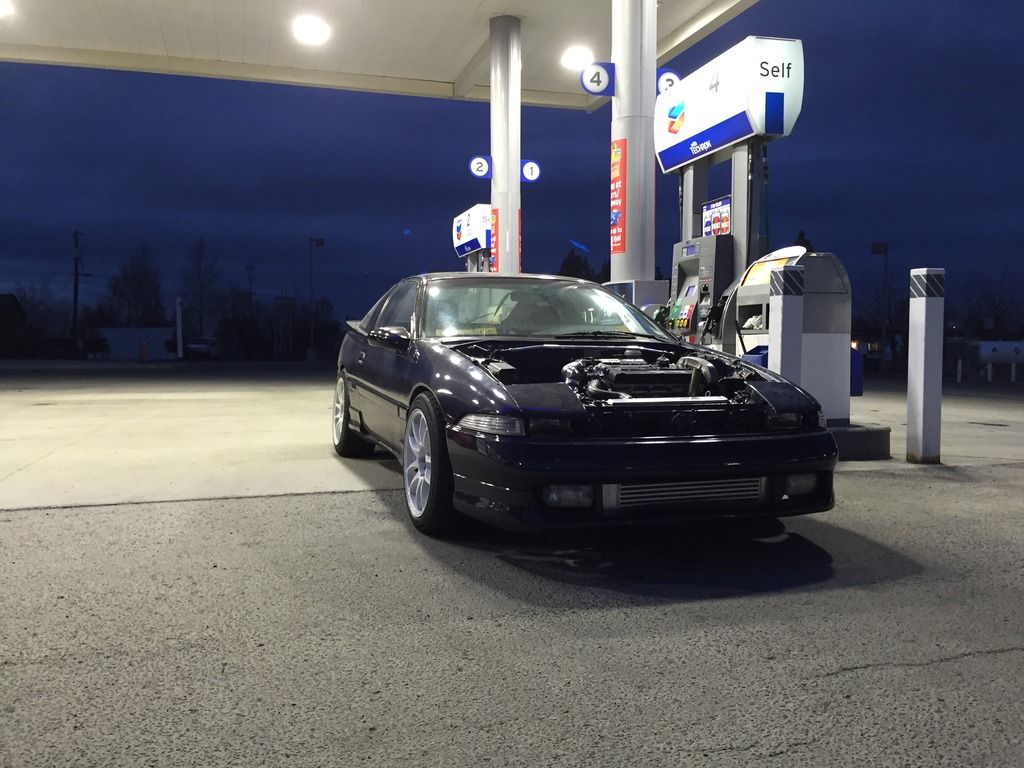

First drive today! Started out well, the car was running great and pulls nicely through the power band, and the galant transmission feels fantastic. Unfortunately after just 2 miles i ran into an issue that has plagued me for a long time. The car misfired mid pull, dropped 2 cylinders, and threw the cel code 0044. I immediately limped the car into this parking lot and started trouble shooting. After finding nothing obvious i pulled the ecu to check for bad connections or leaky caps. Didn't find anything. So i plugged it back in and the car fired up with no issues?! Needless to say i cut the break in session short and drove straight home. I have replaced my power transistor 3 times, so this one has me baffled. Oh well, still good to finally get it out of the garage.


Smilinjay

Proven Member
290
92
Jul 9, 2013
Anchorage, Alaska
Finally got a new coil pack. Made a world of difference. No more misfires or dropping 2 cylinders, even seems to run better at idle.
You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

So far the car is running amazing! It is still in the early stages of being remote tuned, but i am very pleased after the first real drive. One thing to note is that it is still hitting over 20 psi with no boost controller. This is with a 1 bar spring (that's what i ordered at least) and a ported wastegate hole. There is no knock what so ever, but the ecu seems to be pulling timing. My logs read between -1 and 3 degrees of peak timing.


1990TSIAWDTALON

Moderator
9,147
4,978
Nov 14, 2013
Independence, Kansas
We'll keep the tack interface and use '91 coils :shhh:

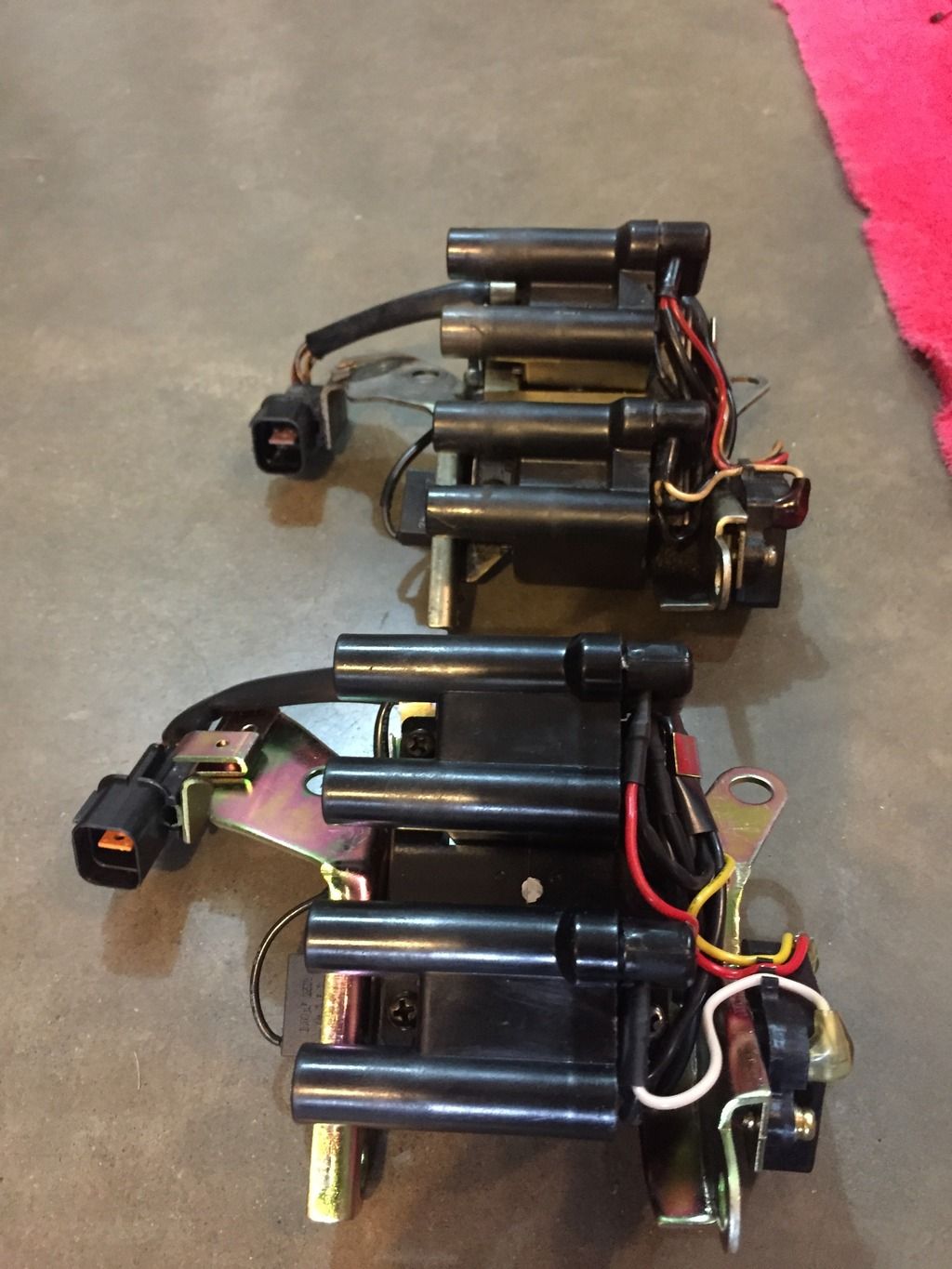

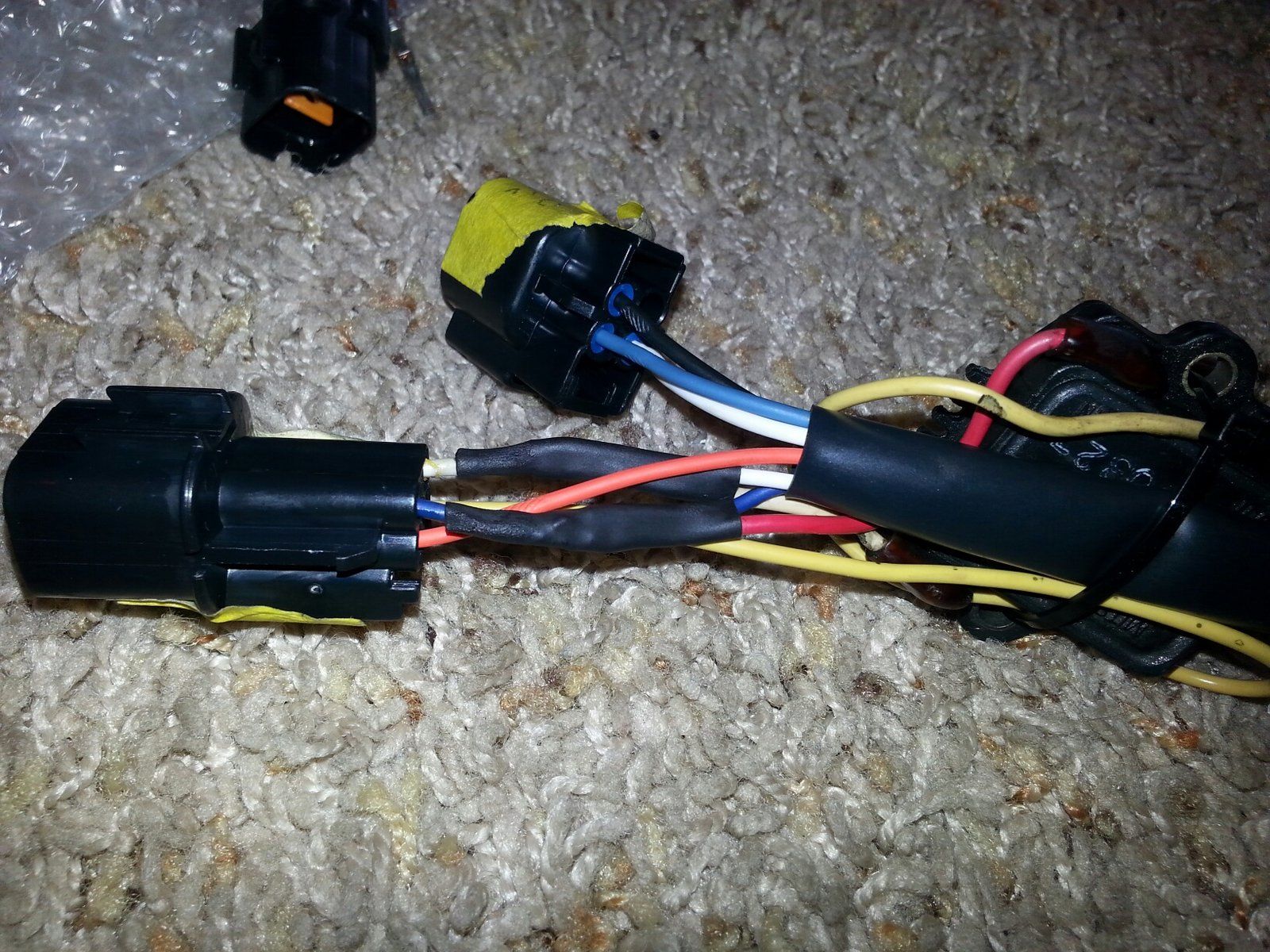

I wired this up so I could run my Arc2 box in my '90 and retain the tach, easy stuff. Tach interface red wire goes with the body harness blue wire and the white (or off white) wire goes with the white/black stripe wire. After this mod I can run any coil, just change the plug on the body side to a 3 wire plug. I did this so if my Arc2 box takes a dump I can unplug it and plug directly into my coil pack and make it home!

VERY pretty car Smilinjay!!!

You must be logged in to view this image or video.

Last edited:

Smilinjay

Proven Member
290
92
Jul 9, 2013
Anchorage, Alaska
We'll keep the tack interface and use '91 coils :shhh:
I wired this up so I could run my Arc2 box in my '90 and retain the tach, easy stuff. Tach interface red wire goes with the body harness blue wire and the white (or off white) wire goes with the white/black stripe wire. After this mod I can run any coil, just change the plug on the body side to a 3 wire plug. I did this so if my Arc2 box takes a dump I can unplug it and plug directly into my coil pack and make it home!

VERY pretty car Smilinjay!!!

You must be logged in to view this image or video.
Thank you sir!
Very nice and practical solution to the 90's incredibly stupid coil pack setup. In my case im fairly certain the tach interface itself was the issue. Otherwise i probably would have just wired in some newer coils.


1990TSIAWDTALON

Moderator
9,147
4,978
Nov 14, 2013
Independence, Kansas
Thank you sir!
Very nice and practical solution to the 90's incredibly stupid coil pack setup. In my case im fairly certain the tach interface itself was the issue. Otherwise i probably would have just wired in some newer coils.

Edit-----The White wire on the tach interface will go to your Yellow/Black Stripe going to your Power Transistor and the Red wire on the tach interface will go to your Yellow/Green Stripe going to your Power Transistor all before the coils.
That is how mine is wired right now (with a plug and play Arc2 box also) so I wanted to clairify this since someone may want to do that mod. I had to because the Arc2 will catch it on FIRE.....not a good thing.
