  1. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut
    @MorrisonFab can answer all those questions as i don't really know that answer. Sorry I can't help too much!


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  2. MorrisonFab

    MorrisonFab Supporting Vendor

    224
    592
    Joined May 28, 2017
    Johnson Creek, Wisconsin
    Thank you!

    If you are referring to the exhaust flange with the set screws, that is only used for mock up before the runners are shaped to the oval flange/exhaust port.


    Love seeing the progress, Will!!


    147  1

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM

    905  1

    1990 Eagle Talon TSi AWD
    manual · 1G DSM

    Street Build 2K  20

    1992 Eagle Talon TSi AWD
    awd · manual · 1G DSM

    Street Build 3K  18

    1993 Eagle Talon TSi AWD
    868 whp · 546 lb/ft · 1G DSM
    Loading...
    95FullSend99 likes this.
  3. The 4ce

    The 4ce Probationary Member

    24
    2
    Joined May 8, 2018
    San Diego, California
    Understood. I don't see the set screw holes in the finished product. How do you fill in the set screw holes when you're done with them? Is there a void where the set screws once were, or are they solid weld infilled, or did you run down the set screws then weld over them?


    Street Build 565  1

    1974 DODGE COLT COUPE
    rwd · manual · 4G63t Swapped
    Loading...
  4. The 4ce

    The 4ce Probationary Member

    24
    2
    Joined May 8, 2018
    San Diego, California
    Or is the entire flange with set screw holes a separate tool fixture that you mock up the runners with? Then it's transferred to a final production flange? Sorry, I'm just really interested in how things are made.


    Street Build 565  1

    1974 DODGE COLT COUPE
    rwd · manual · 4G63t Swapped
    Loading...
  5. MorrisonFab

    MorrisonFab Supporting Vendor

    224
    592
    Joined May 28, 2017
    Johnson Creek, Wisconsin
    Exactly :)

    We use an oval port exhaust flange which the runners are formed/shaped to the exhaust port rather than the much more common cnc transition flange that makes a fairly abrupt transition from oval to round but requires less tools and time. We did an article on the flange itself with some pretty cool cutaways: http://morrisonfabrications.com/tech/oval-port-flange-vs-transition-flange/

    During mock up, having a flange with round holes initially (with the same centerline as the final flange) makes it much easier than trying to oval the initial section first. The set screws are extemely handy as well to get spot on fit-up with a free hand to tack weld things into place.


    147  1

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM

    905  1

    1990 Eagle Talon TSi AWD
    manual · 1G DSM

    Street Build 2K  20

    1992 Eagle Talon TSi AWD
    awd · manual · 1G DSM

    Street Build 3K  18

    1993 Eagle Talon TSi AWD
    868 whp · 546 lb/ft · 1G DSM
    Loading...
    Eclipse5150x likes this.
  6. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut

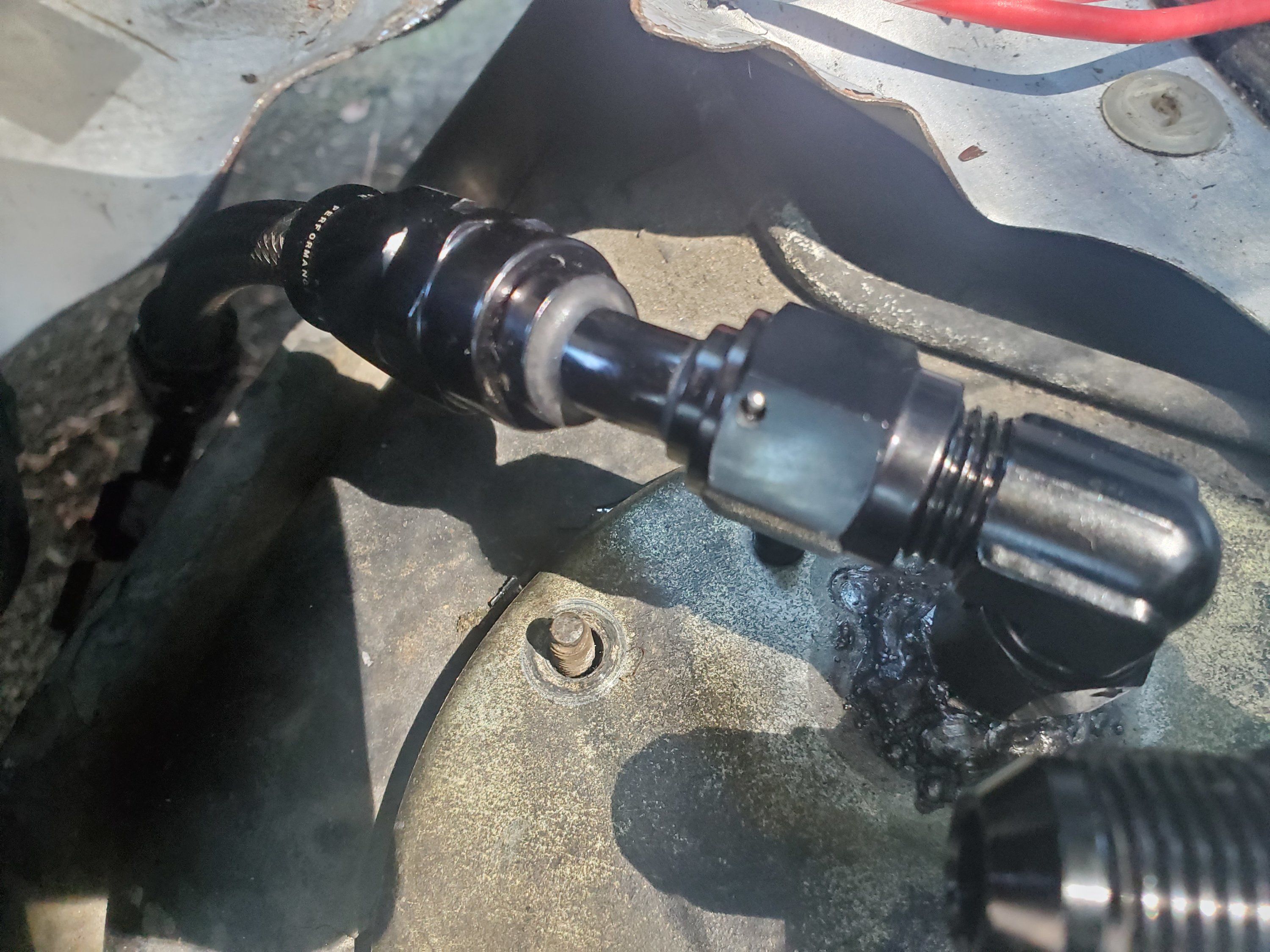

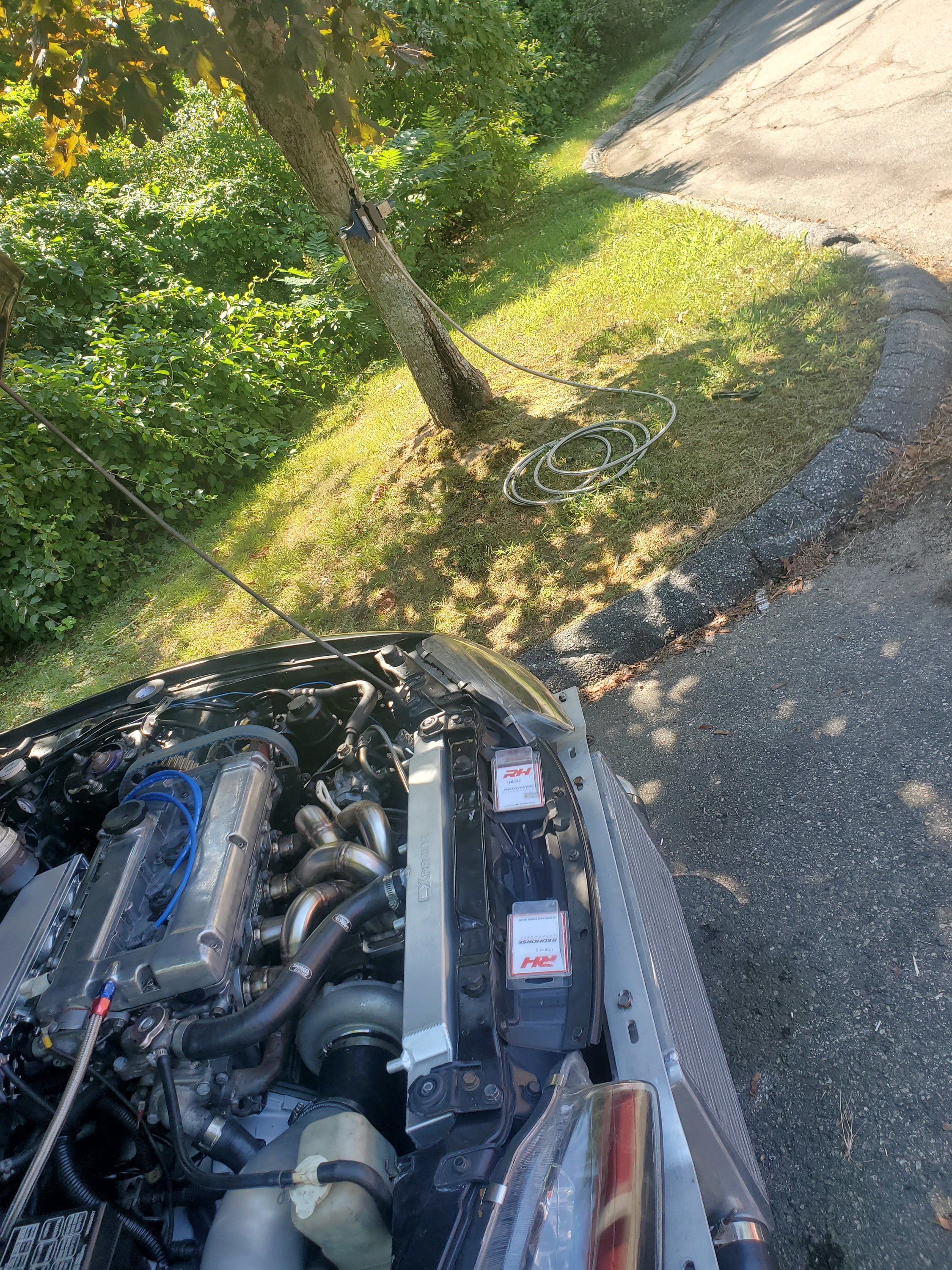

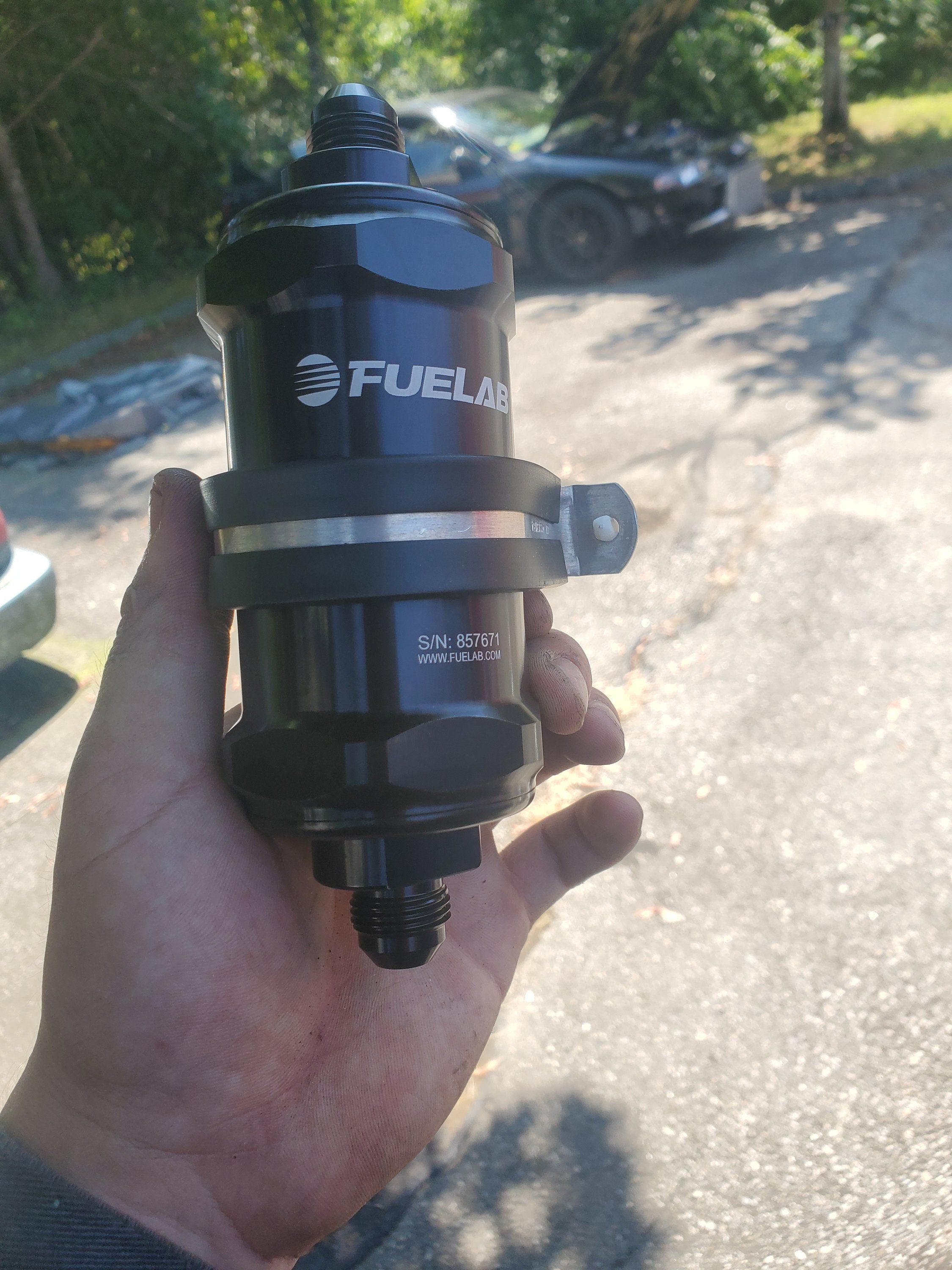

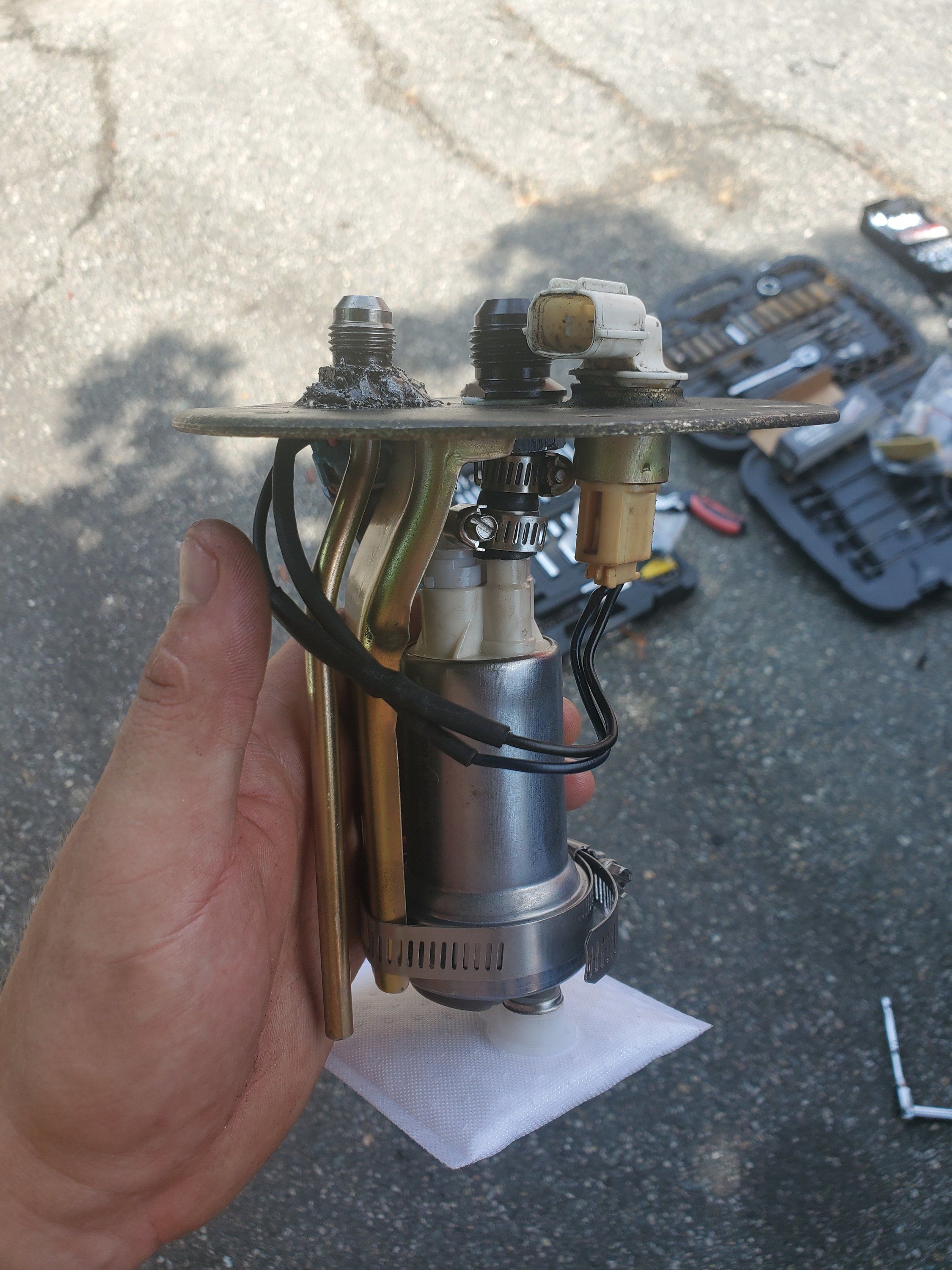

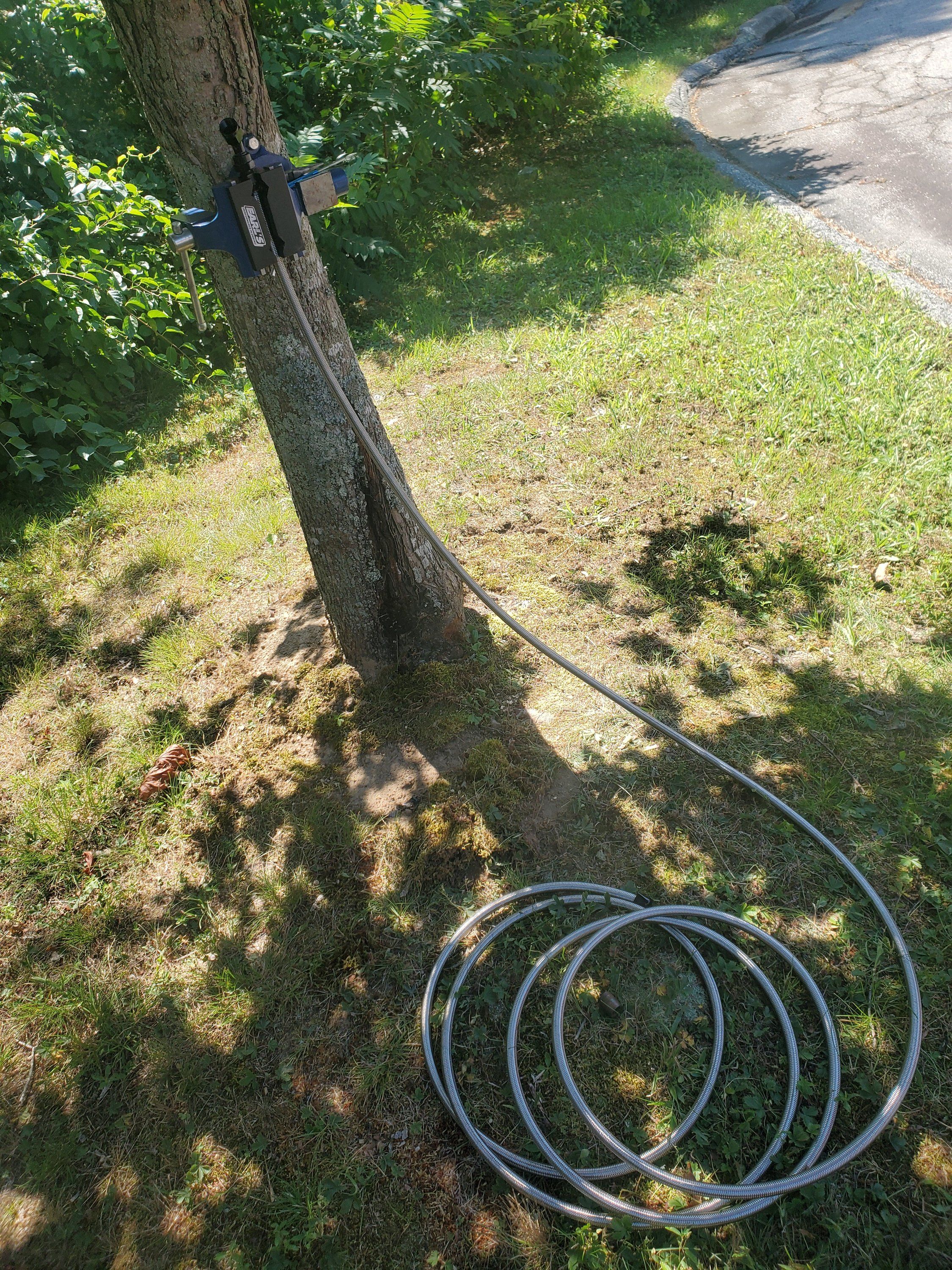

    Fuel lines. Waiting on a couple fittings. Needed different angles. Don't mind the bung i welded on. I am awful at welding but I am learning!
    20200722_131302.jpg 20200722_143217.jpg 20200722_143825.jpg 20200722_150439.jpg 20200722_150445.jpg


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    Eclipse5150x likes this.
  7. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut
    Morrison fab is coming in clutch once again. I was looking at a -10an return line to go on my beautiful new turbo and decided to wait and not rush and place an order on a nice 3/4 inch drain line from the Morrisons.


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  8. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut
    It was my origonal goal to have my car race ready by the end of the year. Its going to be close. I want to be completely done and making passes in preparation for IFO in Epping, NH October 4th. I need to really practice too. I have never drag raced. Ever. The people involved alone is what is motivating me to commit to a sport that I have never directly participated in.

    What I still need now:
    Motor stuff:
    -catback
    -oil return
    -finish fuel lines
    -valve cover
    -install catch cans
    -relocate external oil cooler
    -dyno tune

    Safety stuff:
    -cage
    -seat
    -harmonic balancer
    -scatter shield
    -engine diaper/catch pan
    -helmet
    -fire clothes/stuff


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  9. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut

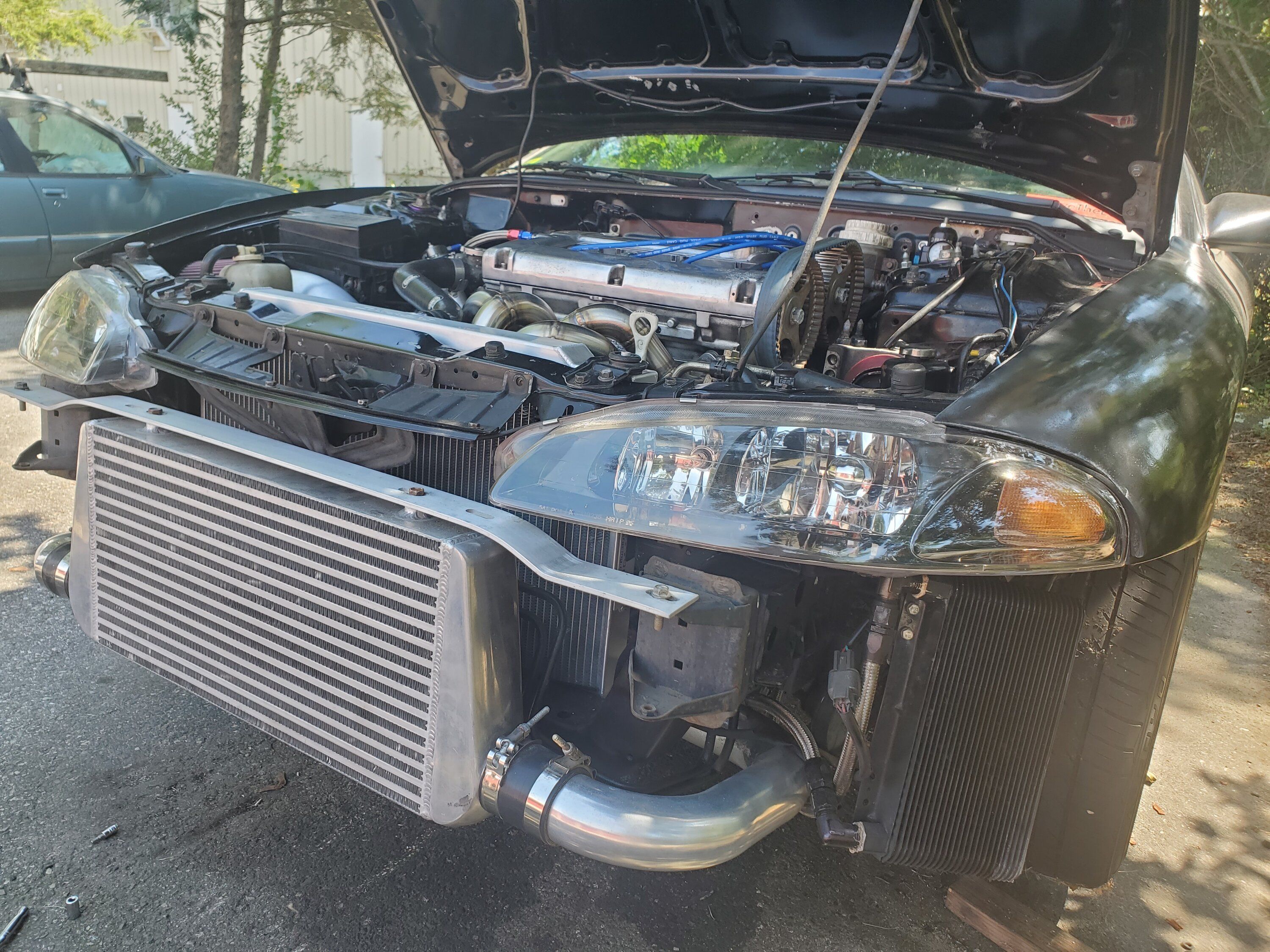

    Just little things today. Had to drop the pan to drill it out for a 3/4 return line. I absolutly hate dropping the pan without a lift. But is what it is. Here is a photo because f' it. 20200730_144446.jpg 20200730_152110.jpg


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    Eclipse5150x and TK's9d2TSi like this.
  10. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut

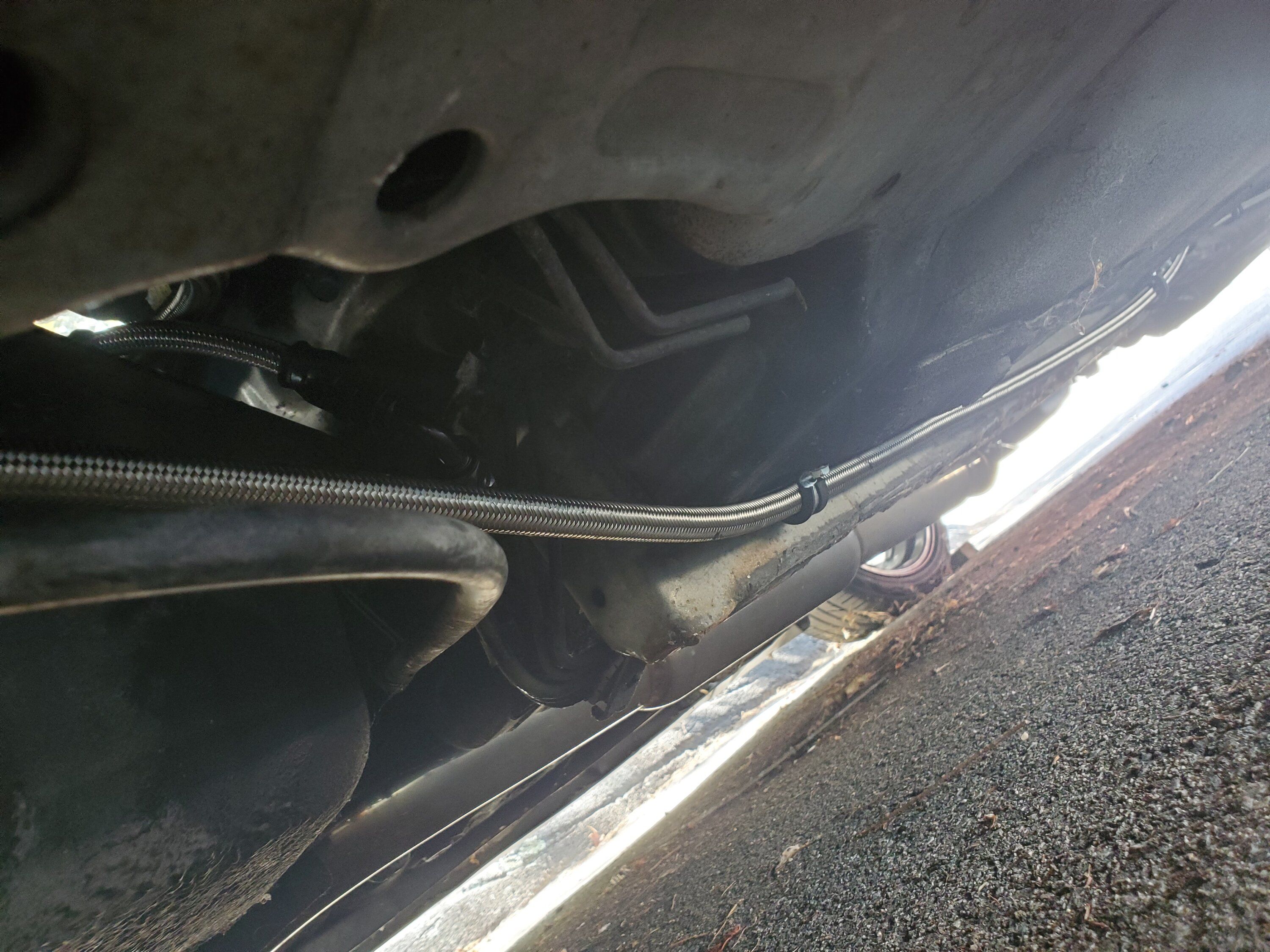

    Here is the return line. Imma trim it down a bit to get the right angle and im also going to clock the turbo just a weeeee bit but I wanted to seal up the system. Also have been working on fuel lines. Feed line is done and part of the return. 20200801_153305.jpg 20200801_152315.jpg 20200801_124117.jpg


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    Eclipse5150x likes this.
  11. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut

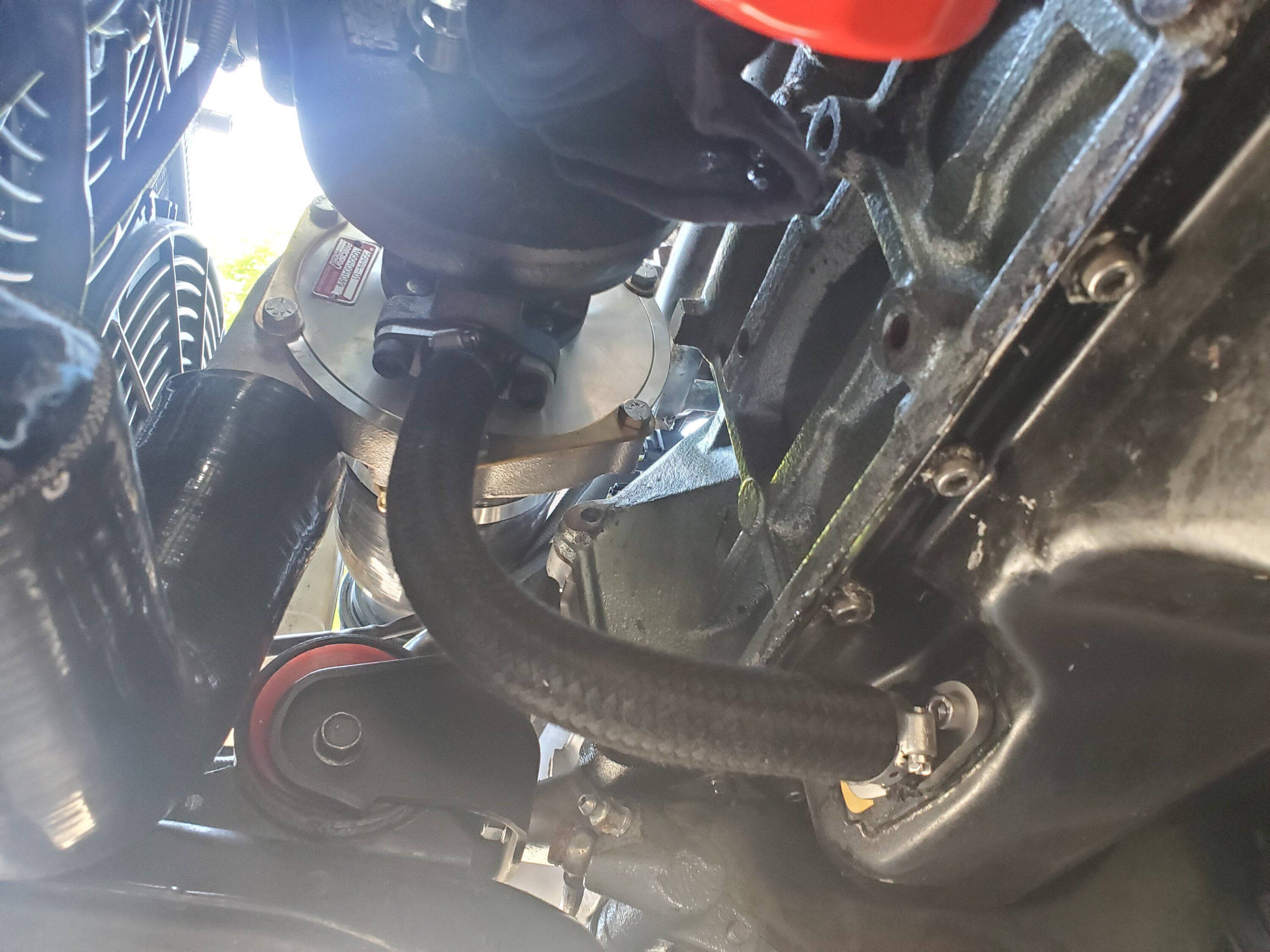

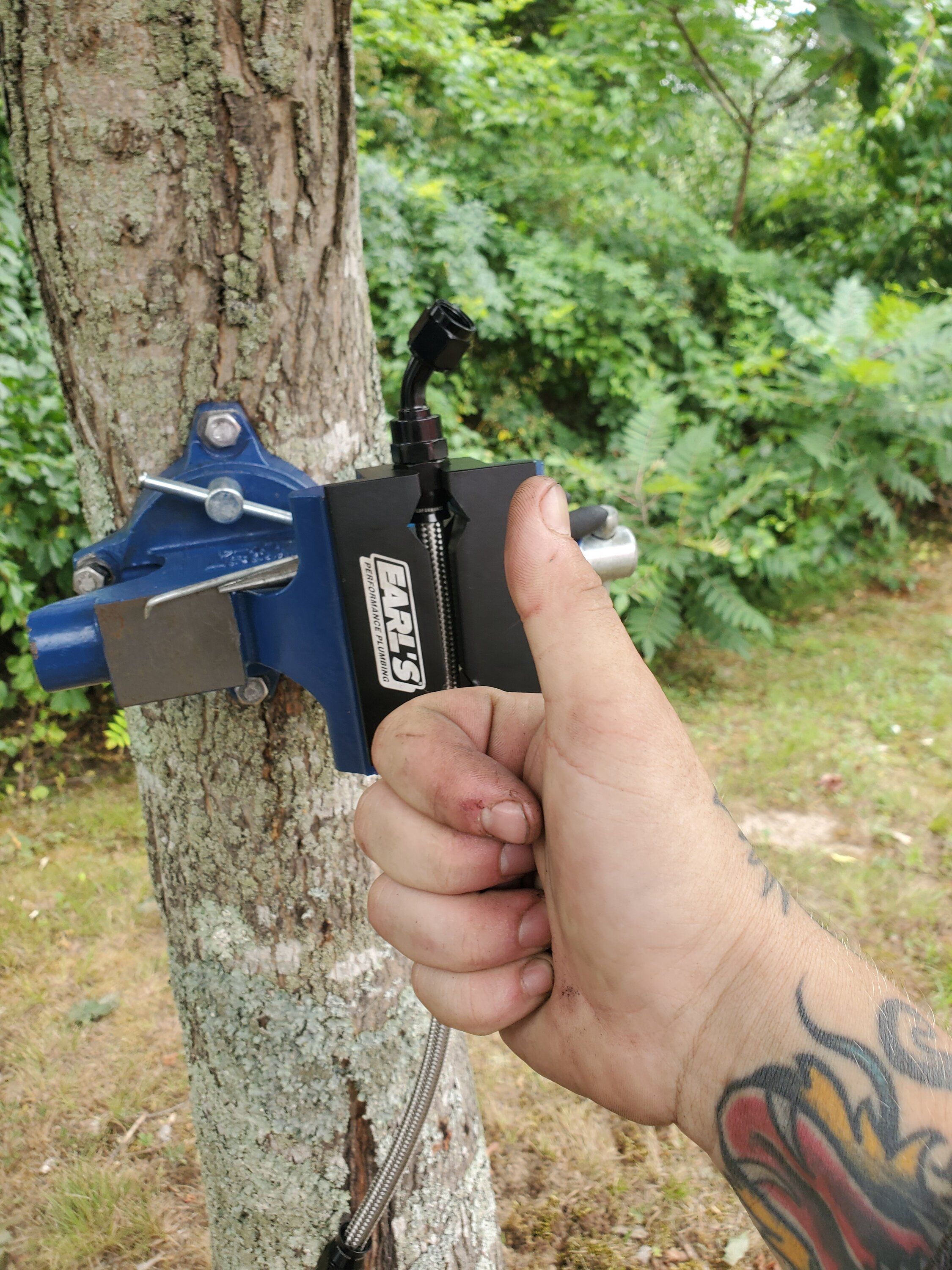

    Fuel lines are done. Now I need to pressure test them. 20200802_123449.jpg


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    Eclipse5150x and d1prospect like this.
  12. The 4ce

    The 4ce Probationary Member

    24
    2
    Joined May 8, 2018
    San Diego, California
    Lookin good man. What kind of boost are you planning on running. I see you have a 90 silicone elbow right off the compressor housing? I remember mine blowing up like a balloon (it sounded like a firecracker went off). The remedy was to weld on a rigid elbow. I think it was the combination of high boost with sharp flow angles and high temps from the turbine side. Anyhow, keep it coming! Its looking awesome.


    Street Build 565  1

    1974 DODGE COLT COUPE
    rwd · manual · 4G63t Swapped
    Loading...
    95FullSend99 likes this.
  13. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut
    I'll probably be in the ballpark of 30 or 35. I will hit up a buddy of mine about welding on an elbow. Good looking out!


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  14. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut

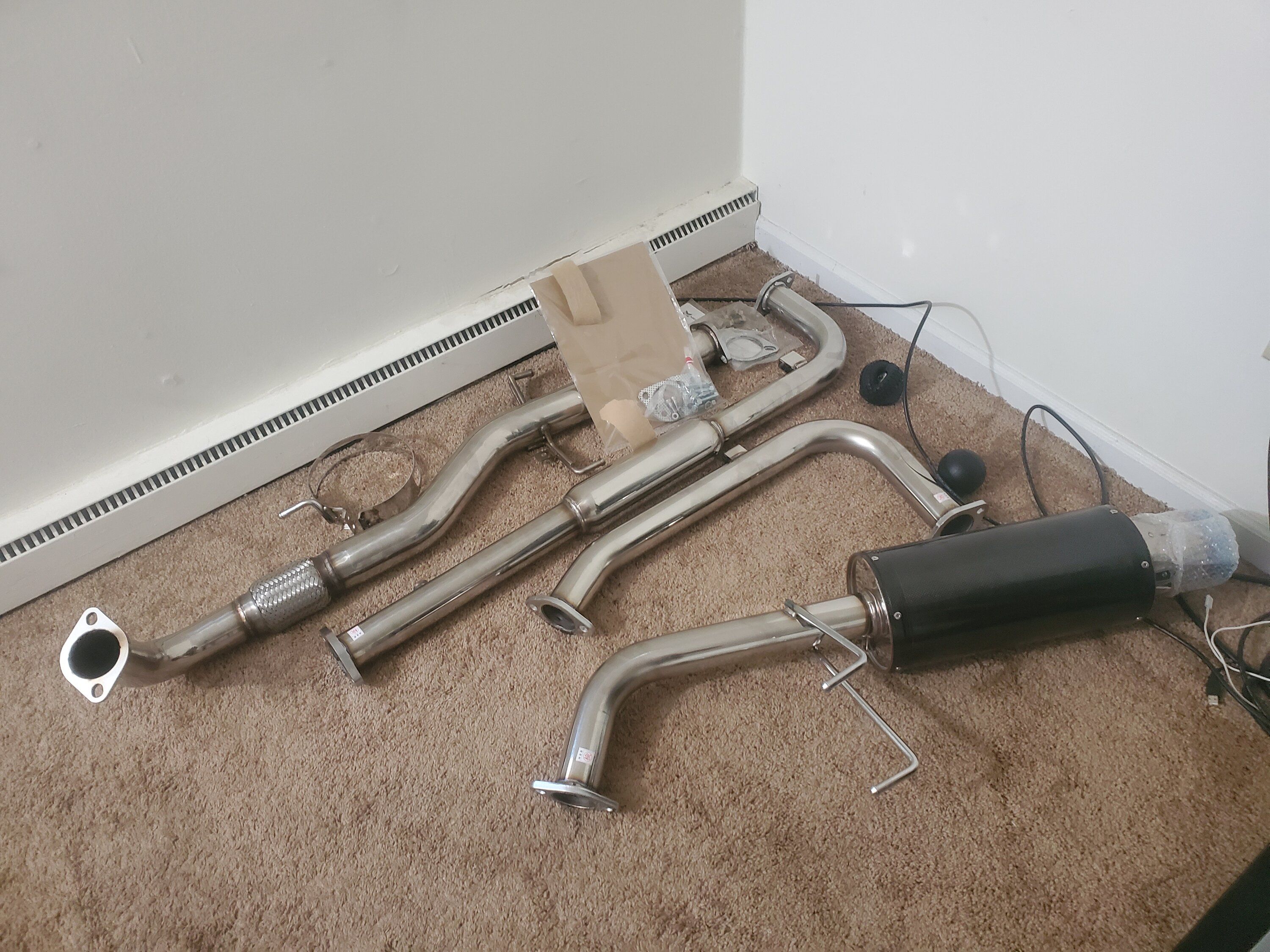

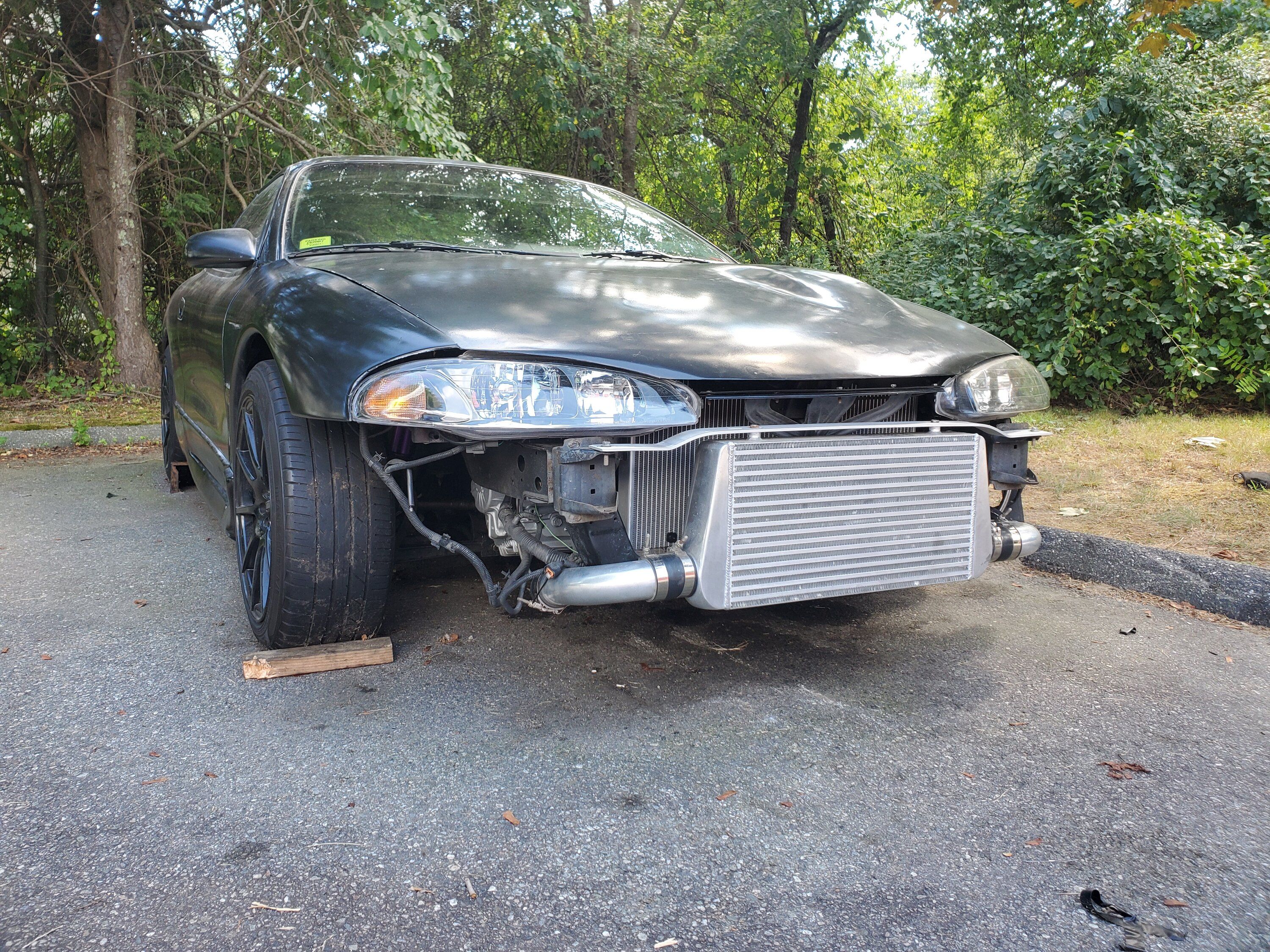

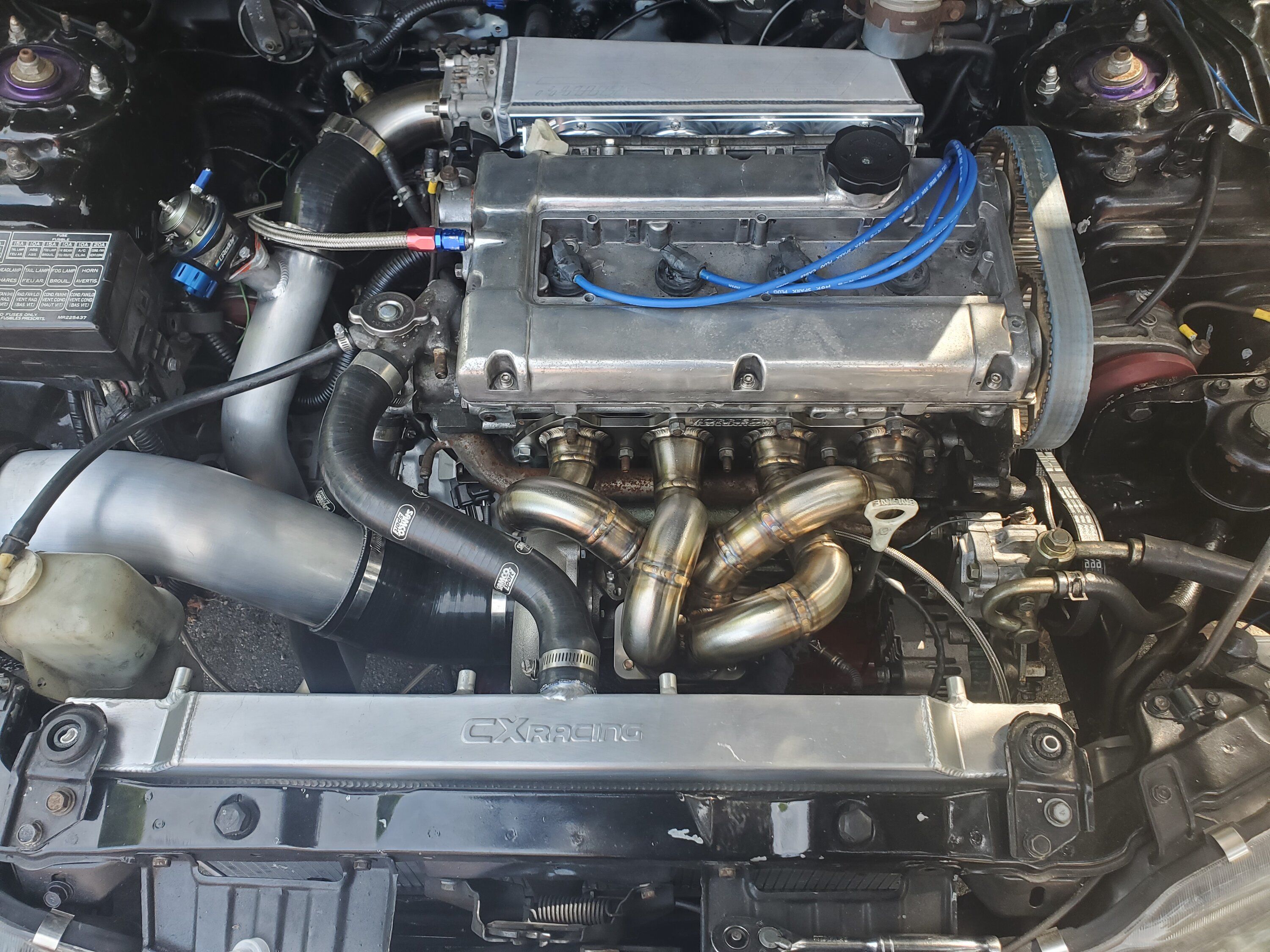

    Exhaust finally got here. Took forever. Valve cover is being made. Last things I have are:
    Valve cover
    Install exhaust
    Test fuel lines
    Fluids
    Vaccum lines
    Turn the key 20200811_171736.jpg


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  15. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut
    fuel line test fittings got here yesterday. I also placed an order for the vaccum lines I need a few random NTP fittings. Still have another 2 weeks before I expect to receive the valve cover.


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  16. Eclipse5150x

    Eclipse5150x Proven Member

    68
    26
    Joined Aug 3, 2020
    Perris, California
    How much did the exh. Manifold cost you? The thing is a beauty


    Street Build 214  8

    1995 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  17. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut
    The hot parts kit (manifold, o2 housing, dump tube) knocked me back about 1300. It was made by Morrison Fabrications. Quality is second to none and well worth the money.


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    Eclipse5150x likes this.
  18. Eclipse5150x

    Eclipse5150x Proven Member

    68
    26
    Joined Aug 3, 2020
    Perris, California
    Very nice high quality parts. Morrison Fabrications does a fantastic job. GG


    Street Build 214  8

    1995 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    95FullSend99 likes this.
  19. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut
    Of course the one free day I have to work on rhe csr it rains all day. Someone want to buy me a garage? Donations!!!!


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    JPenny likes this.
  20. Eclipse5150x

    Eclipse5150x Proven Member

    68
    26
    Joined Aug 3, 2020
    Perris, California
    You and me both!!


    Street Build 214  8

    1995 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    95FullSend99 likes this.
  21. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut
    Fuel lines all passed pressure tests at 90psi. I dont foresee myself going past that. For anyone that doesn't know, fuel rail pressure is a 1:1 ratio between boost and fuel pressure. For every pound of boost is a pound of fuel rail pressure. If you don't understand why then I will gladly go into further detail.


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    Eclipse5150x likes this.
  22. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut
    Exhaust is mostly in. I need to get ahold of m12x1.25x28 studs for the 02 housing. Surprising hard to find so I'm ordering oem bolts. 20 bucks for 2 studs and nuts. Easy day.


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  23. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut
    I have also ran into an issue with the "tailpipe" of my exhaust. It is an HKS catback and it goes under the rear subframe. If I had googled for 4 seconds I would have known that the ST rear swaybar i got a few years ago wouldn't work. So now I am in contact with Performance Partout for an OEM rear bar for the time being untill i can find a quality RM one.


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  24. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut
    Lastly im getting my valve cover made by Mike over at Buschur Racing. He does a little side thing on his own outside of Buschure and he does some really unique stuff with OEM valve covers. Obviously he welds in fittings, new baffles, and powdercoat just like everyone else but he also does a billet oil threaded cap. I have never seen it let alone for the price he does it for. Here is the video he linked to me to show what the cap looks like.


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    Eclipse5150x likes this.
  25. 95FullSend99

    95FullSend99 Proven Member

    251
    121
    Joined Dec 3, 2019
    ledyard, Connecticut


    Street Build 827  12

    1997 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    TK's9d2TSi and Craig1970 like this.
