Replacing IM Gasket = Worst Job Ever

[Blurred Talon]

Had to replace the gasket on my Intake Manifold this weekend. This is simply the worst repair I've ever had to do, it's such a pain to get at the lower bolts with the huge hands I've got but luckily with a ratchet wrench, it's doable.

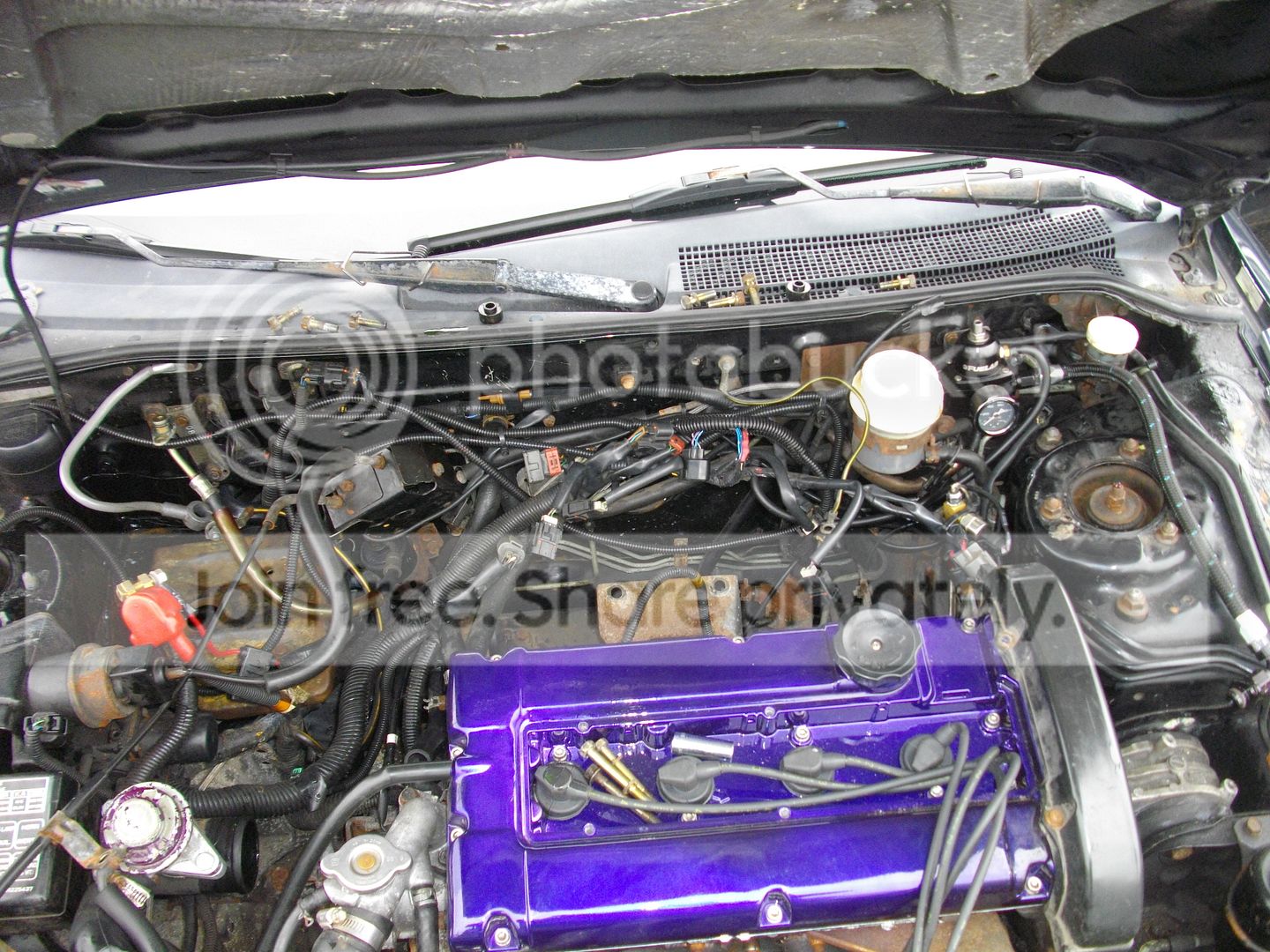

Starting the tear down, the night before. There's so much stuff to get out of the way first that I didn't finish it the first day.

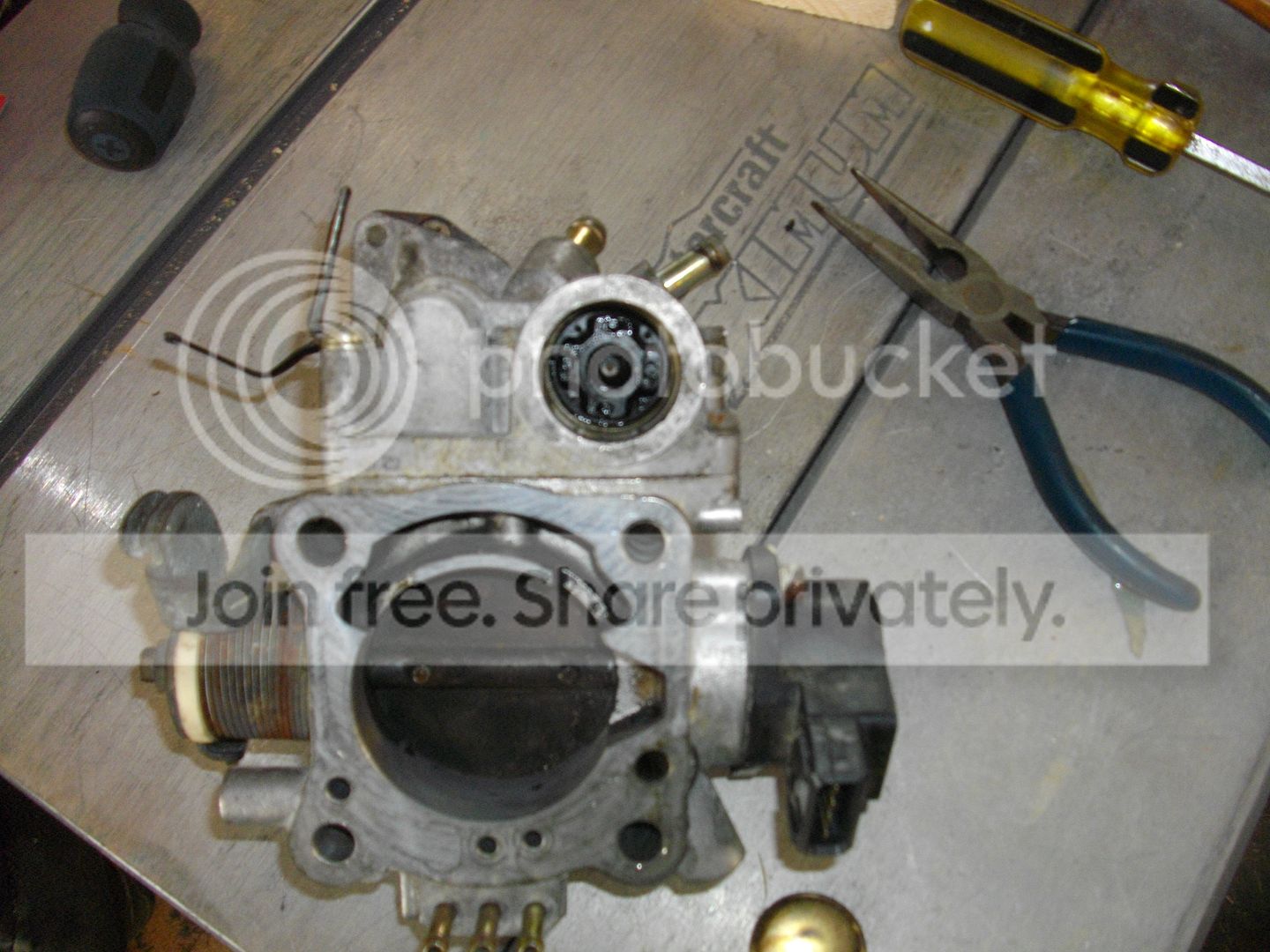

Once I got everything out (power transistor, coil pack, fuel injectors and rail, throttle cable, etc). It was getting dark so I decided to stop working on the intake manifold for the day. I turned my attention to my throttle body. I wanted to block off my FIAV plus I plan to replace the TB shaft seals too and give it a good cleaning.

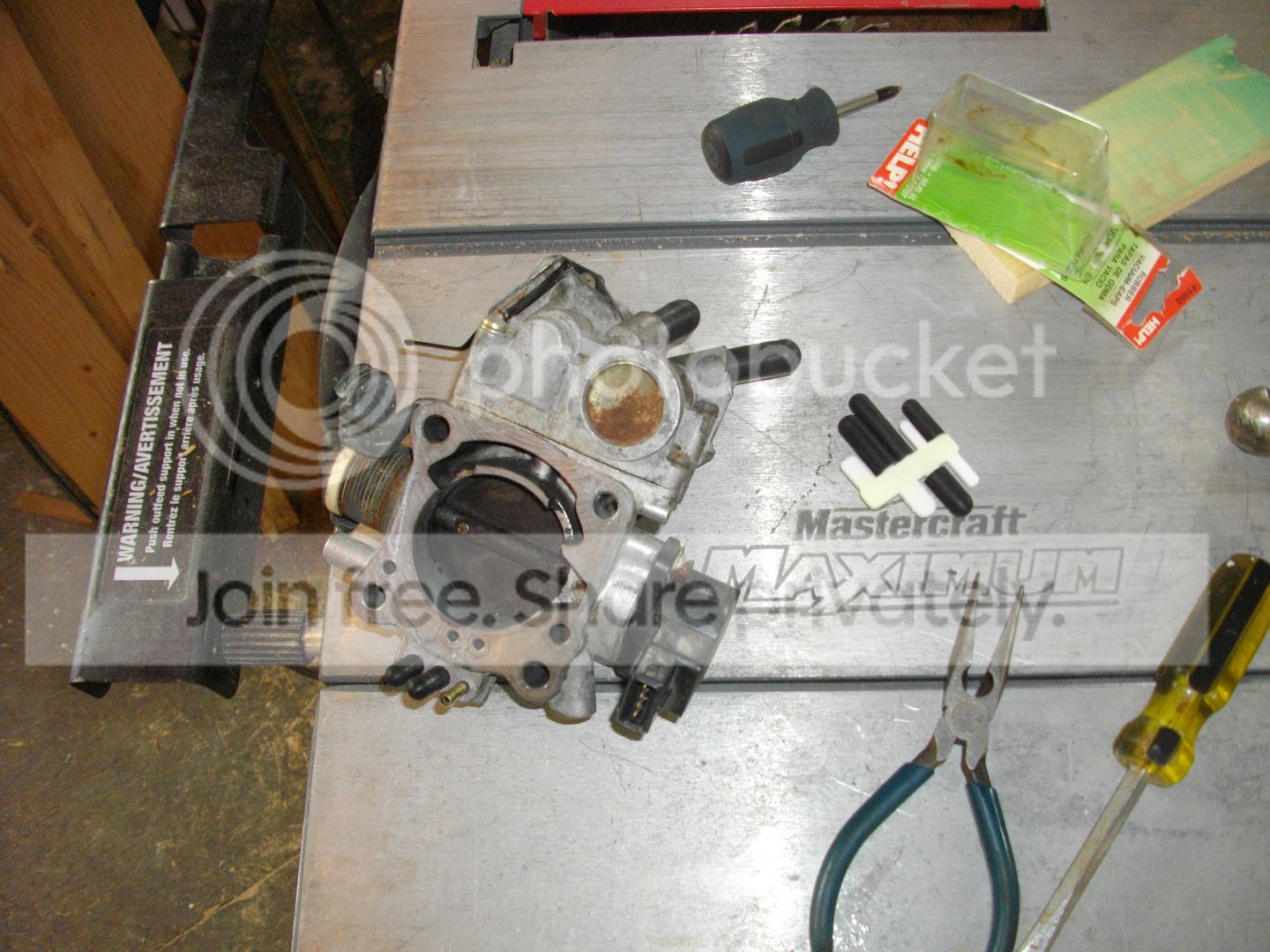

FIAV turned all the way in.

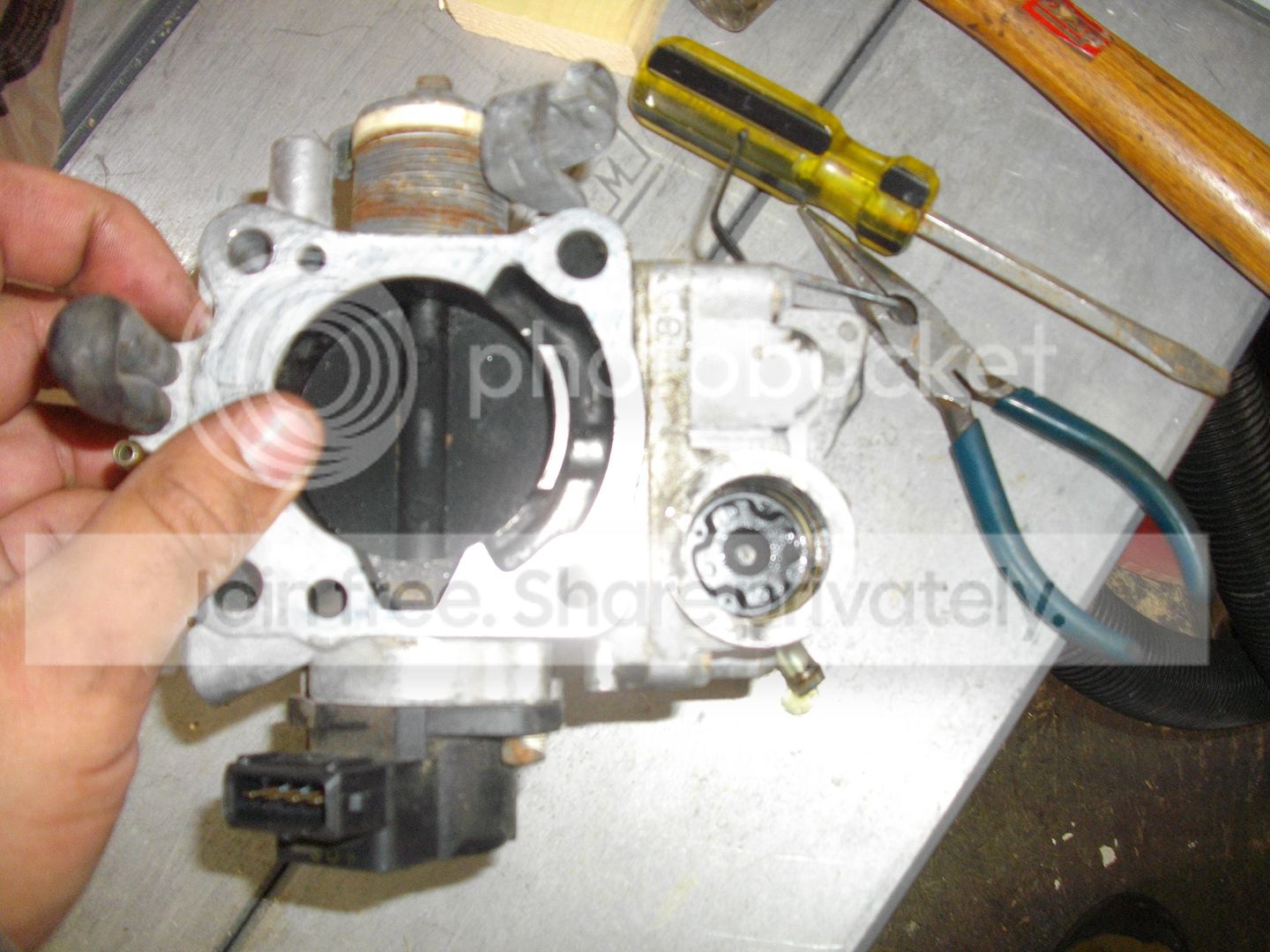

Freeze plug reinstalled and some vacuum caps on the unused ports.

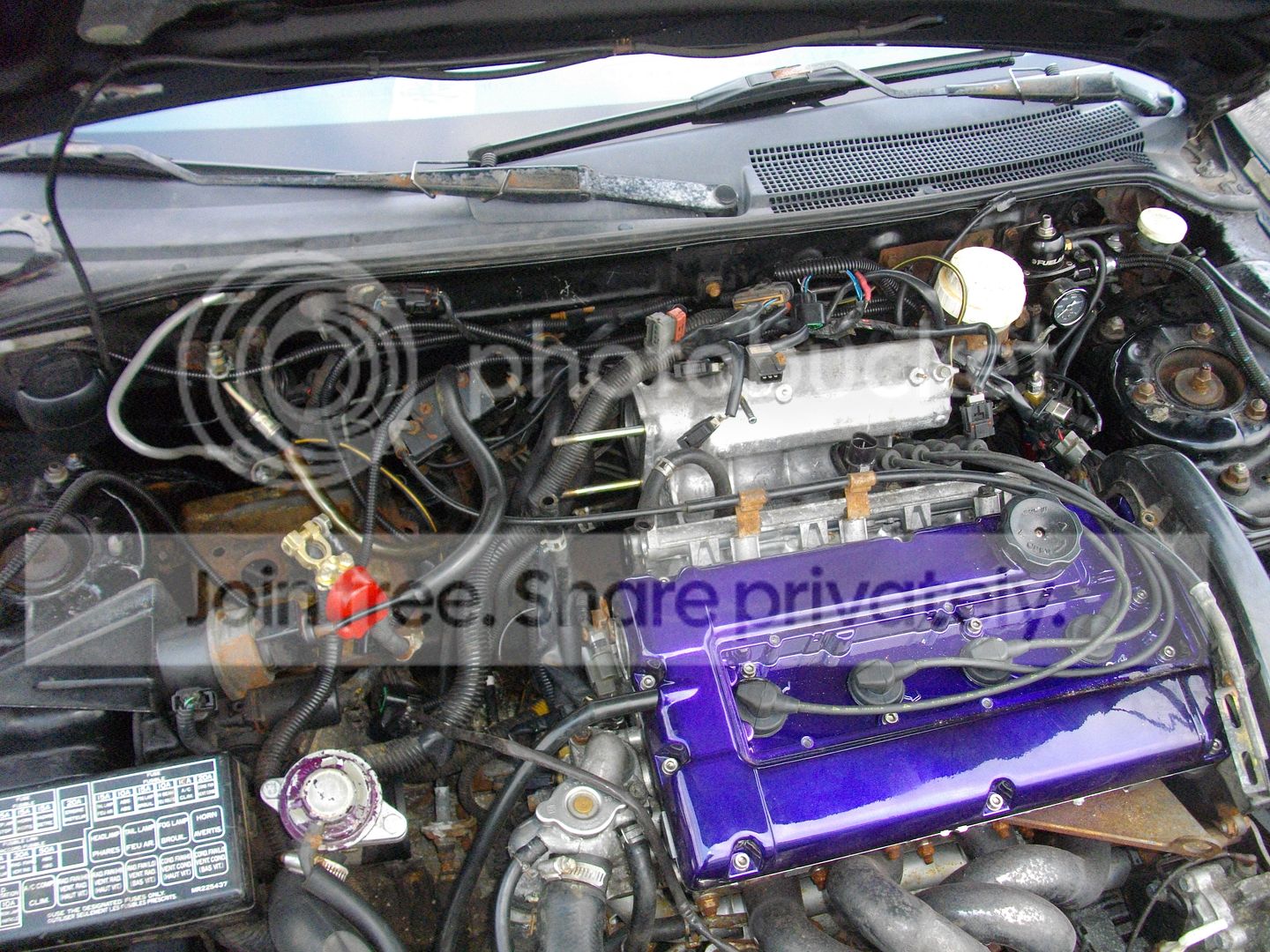

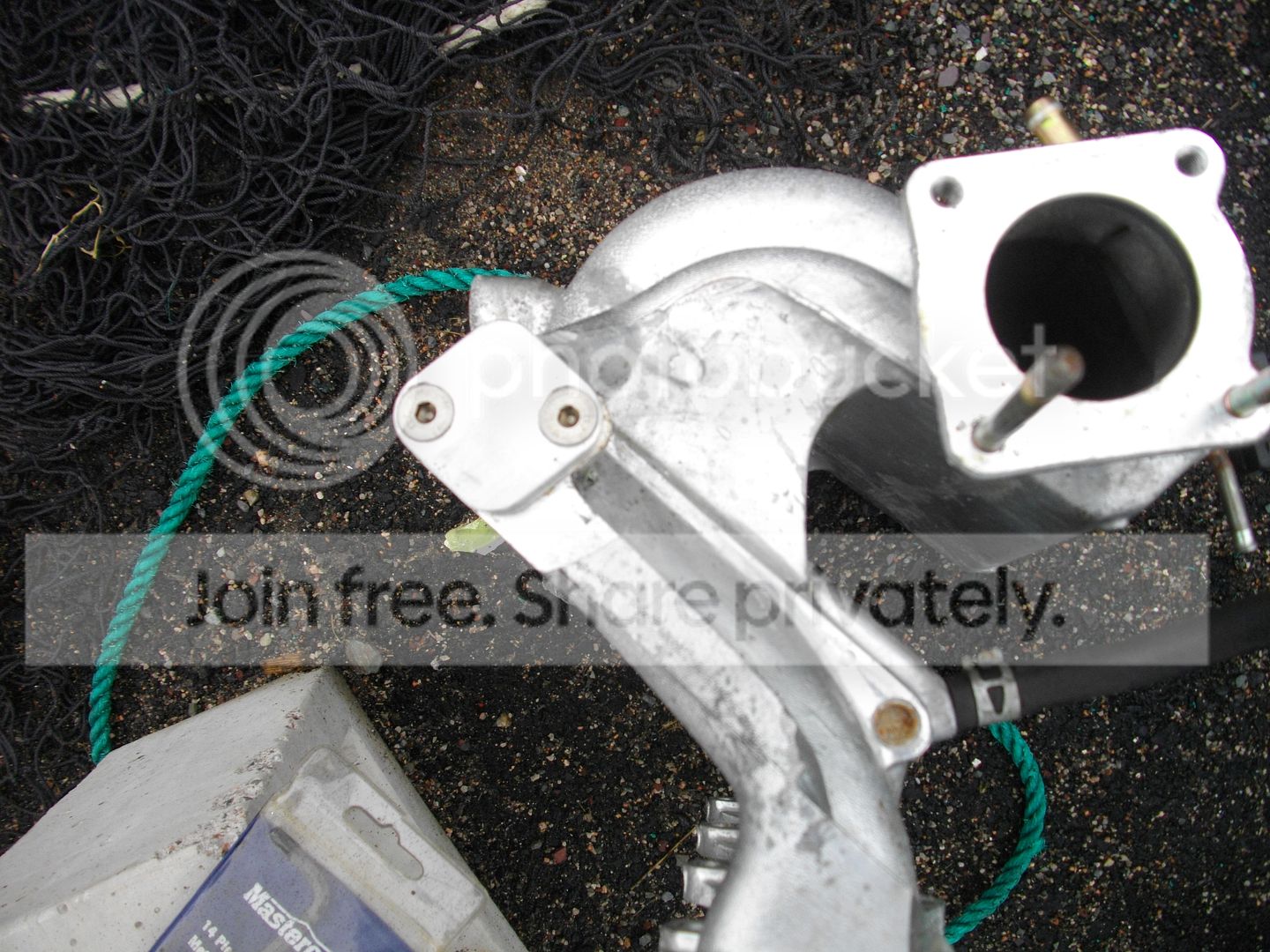

Woke up this morning and after lots of fighting, off came the intake manifold.

I installed an EGR delete plate from RTM Racing.

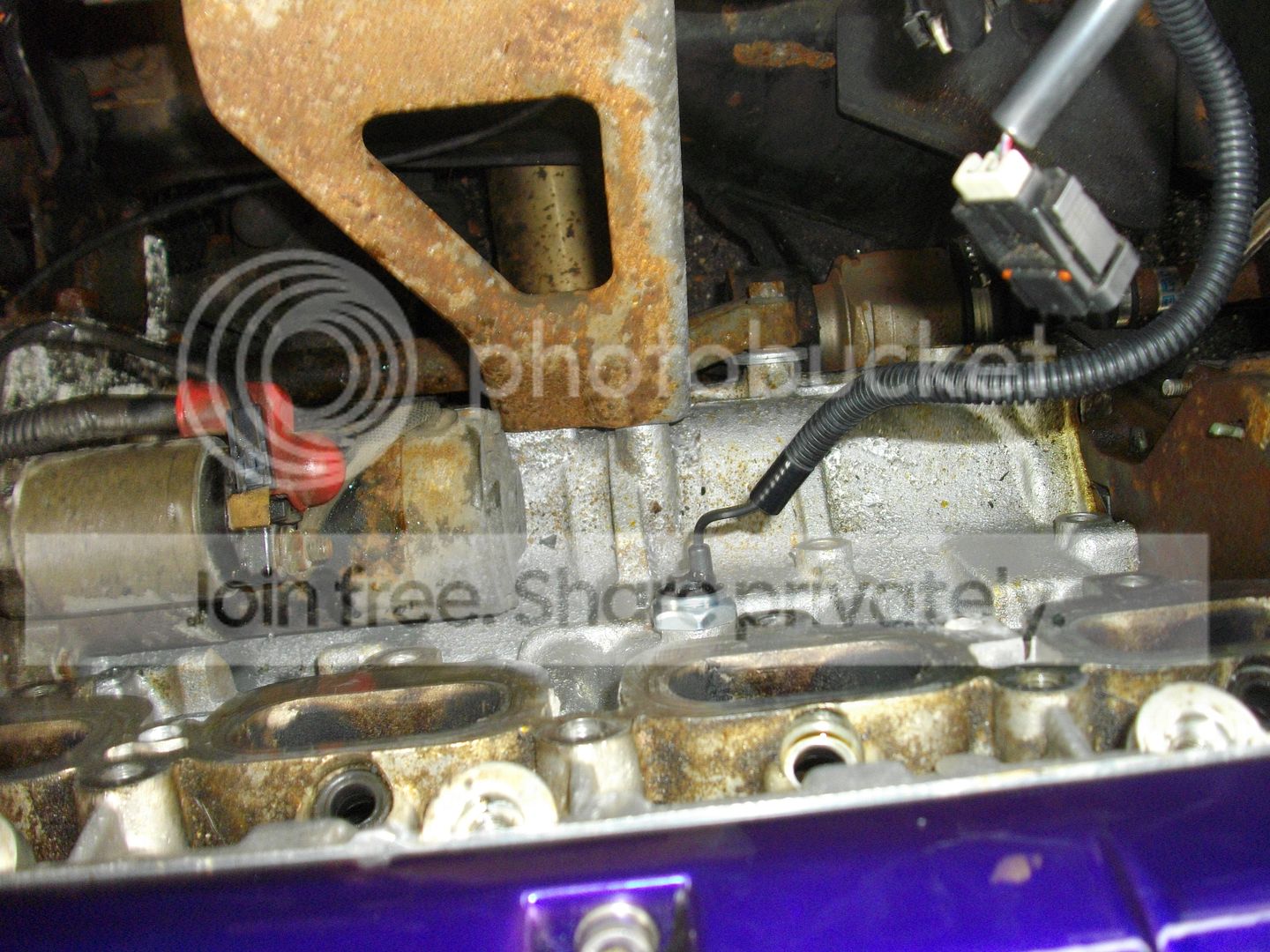

New knock sensor.

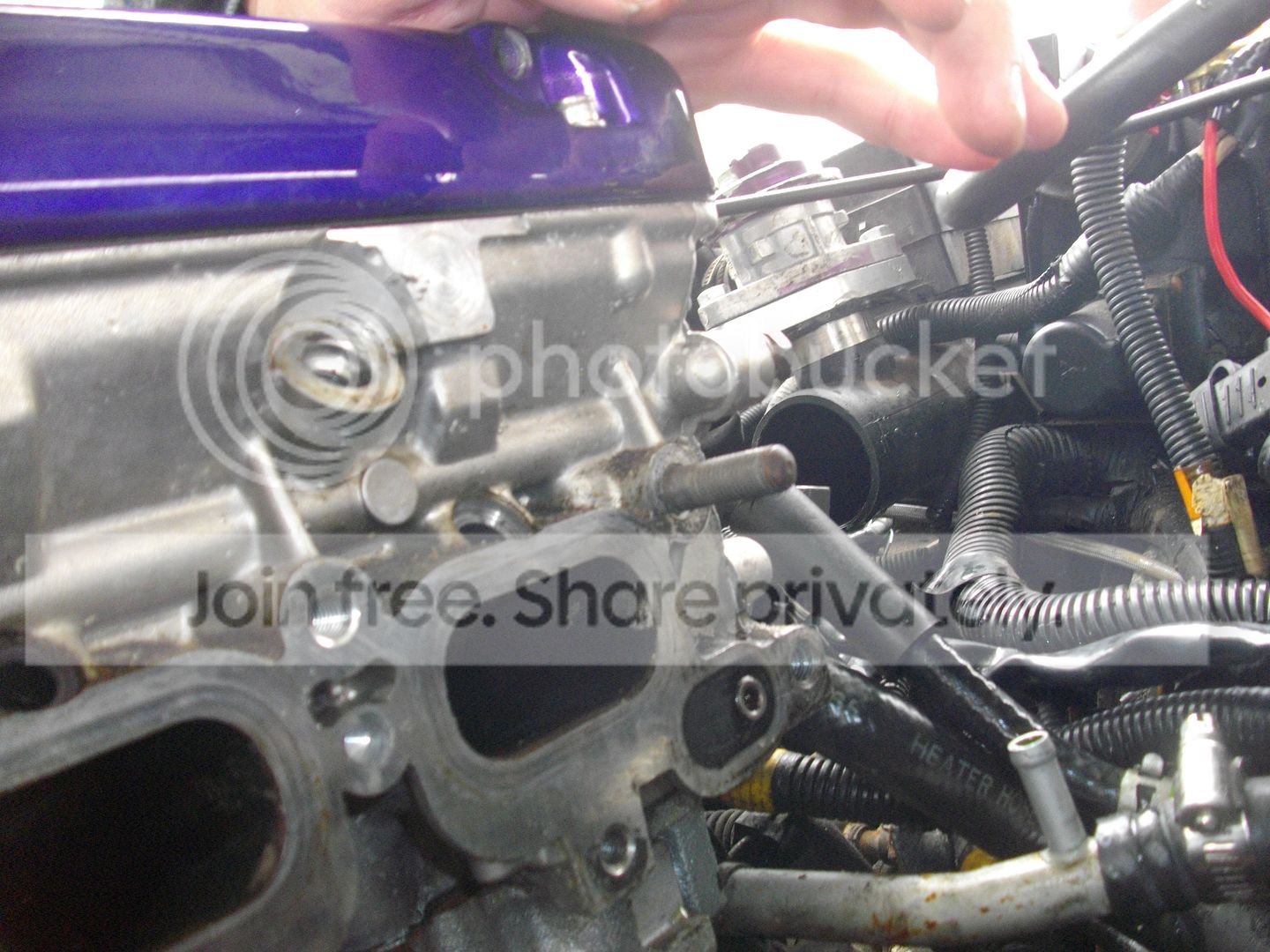

Tapped the EGR port in the head and put in a 1/8NPT plug with lots of Lock Tite on it.

Slipped the new IM gasket on.

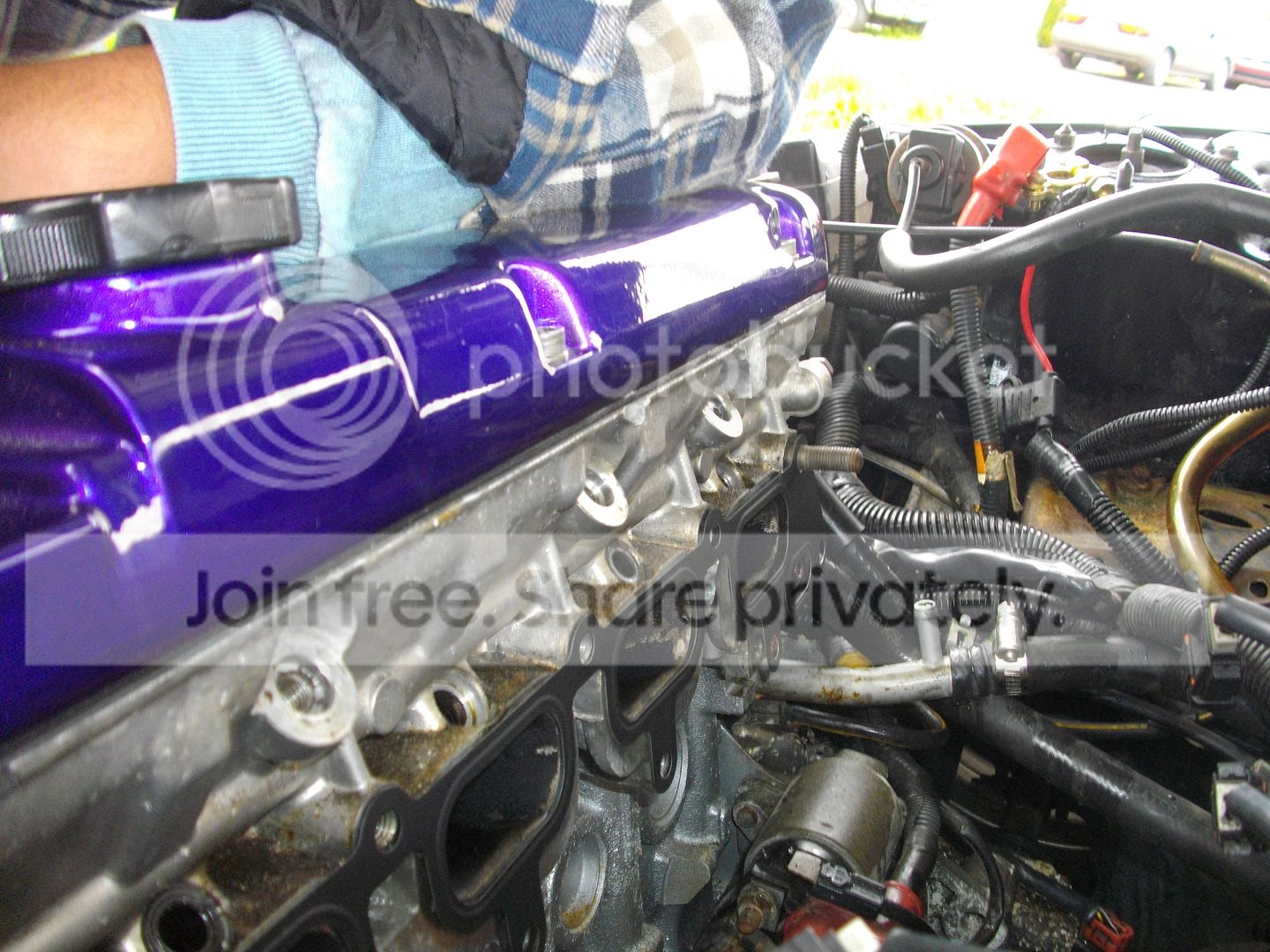

Then I started putting the manifold back on. My Dad came out and caught this picture of me working.

Finally done with the intake manifold and I hope I never have to touch the thing again.

Another weekend of wrenching and I'll be driving the car again.
