Road Race Build John Freund's Time Attack 99 Eclipse GSX

Year:
1999
Model/Trim:
Mitsubishi Eclipse GSX
Please Support ExtremePSI
Please Support VR-Speed Factory
  1. Atuca

    Atuca Supporting Member

    1,119
    217
    Joined Jan 6, 2007
    Central Valley, California
    Thanks again for sharing more of the story behind the photos we see on social media. The splitter mounting I think is the part hardest to get right. That is where your fabricators will really put their brains to work.

    I am kinda curious why Sergio hasn't molded the headlights and front bumper cover together to eliminate a PITA area to seal air out of. Specially with the way the blank mounts, I am sure you got some creative ideas for solving that though.

    I know Bobby recently did some rear lexan windows, but do you have a plan for your new prettyy hatch? Consider full carbon windows replacement like some WTAC cars, or you still like visibility vs saving .3 ounces? :p

    Do you have any photos of the hatch without the skeleton? I wanted that too and mine mistakenly was sent with, so I'll need a replacement. Curious what it looks like and how you planned to keep it closed. OEM top hinge and Aerocatch latches for the bottom?


    2K  3

    1999 Mitsubishi Eclipse GSX
    1044 whp · 975 lb/ft · 2G DSM

    2K  0

    1999 Mitsubishi Eclipse GSX
    manual · 2G DSM
    Loading...
  2. TSiAWD666

    TSiAWD666 Supporting Vendor

    2,574
    702
    Joined Aug 15, 2003
    Herndon, Virginia
    I can't speak for Sergio but I'd imagine because:
    1) No one's buying V1. I am not sure anyone has bought a copy from this mold besides the one copy Andrew purchased that you sold me. I'm really surprised Sergio kept it. So he probably doesn't see any business reason to spend time modifying or making a new mold.
    2) I think some people want headlights?

    Either way I'm probably going to bond these blanks to the bumper to simplify things, but that really depends on whether or not they'll slide into place while attached to the bumper. I think they will, but we haven't made sure yet.

    I really don't know why Bobby bothered, Optic Armor has been selling windows for the 2g for quite some time and they're good. I already have their polycarbonate on my OEM hatch, and have a new piece for the Carbonetics piece as I'm selling the old one with the hatch. I did consider a full carbon piece but I already had the Optic Armor in storage and the price to have some take that piece and make a carbon fiber mold is not worth it to me, probably the same cost as the roof was.

    I didn't take pictures of the underside, but I'm not sure what you want to see. It's basically a skin, probably like 1/4" thick since it's really fiberglass. No where near as light as it could have been but I'll have to take it for now.

    As for the latches, originally I was going to do flush mount Aerocatch latches, like I was already using on my hood except they mount from underneath so as to keep the surface flat. I had Aerocatch make a complete set of six latches all with the same key pattern, two surface mount and four flush. Surface mount would replace the hood latches, and the four flush mount on the hatch. This way I didn't have to worry about three keys (one for each pair of latches). However [email protected] had a novel idea of instead using push button latches from inside and so there would be no visible or accessible latches outside. He wanted me to climb into my trunk to hit the buttons for the rear and I told him he's nuts, but I had a slightly different idea of having a hinge on the rear end of the trunk that the hatch slid into, and then the hatch would lower down with two inside pins into the button catches. Something like these:

    Of course you'd have to bond the pins perpendicularly to the inside of the hatch and weld up the mounts for the button receivers, but I actually think it would work and be kind trick. We'll see.

    Edit - oh the reason you'd basically be switch the hatch's hinges to the rear is that with the wing now attached to the chassis the hatch can't open. In case that wasn't obvious for people.


    Road Race Build 15K  14  371

    1999 Mitsubishi Eclipse GSX
    377 whp · 416 lb/ft · 2G DSM
    Loading...
  3. ec17pse

    ec17pse Freelancer

    4,755
    1,865
    Joined Nov 1, 2008
    London, UK, Europe
    Bobby bothered because not only is it cheaper even shipped from the UK its much better quality polycarbonate and its not needing to be trimmed as its made to my specs and size so for the price paid to optic armour i or anyone should not need to be trimming it as thats just lazyness on their part.

    I offered 4 versions from tint to hardcoat which is something OA does not list or do.

    Plus why not have more options! If i can make something better i sure will do. You know me, since when ever do i settle for whats out there LOL


    Road Race Build 10K  10  57

    1997 Mitsubishi Eclipse GST
    175 whp · 180.1 lb/ft · 2G DSM
    Loading...
  4. TSiAWD666

    TSiAWD666 Supporting Vendor

    2,574
    702
    Joined Aug 15, 2003
    Herndon, Virginia
    So I needed something to keep me occupied in this extended down time and finally lit a fire under my ass on a couple projects. I formed a company, John Freund Racing LLC (yes, I'm not creative) and will be selling products through it.



    Don't mind the case quality here, these are prototypes and there are some printing issues I'm working on (see below).

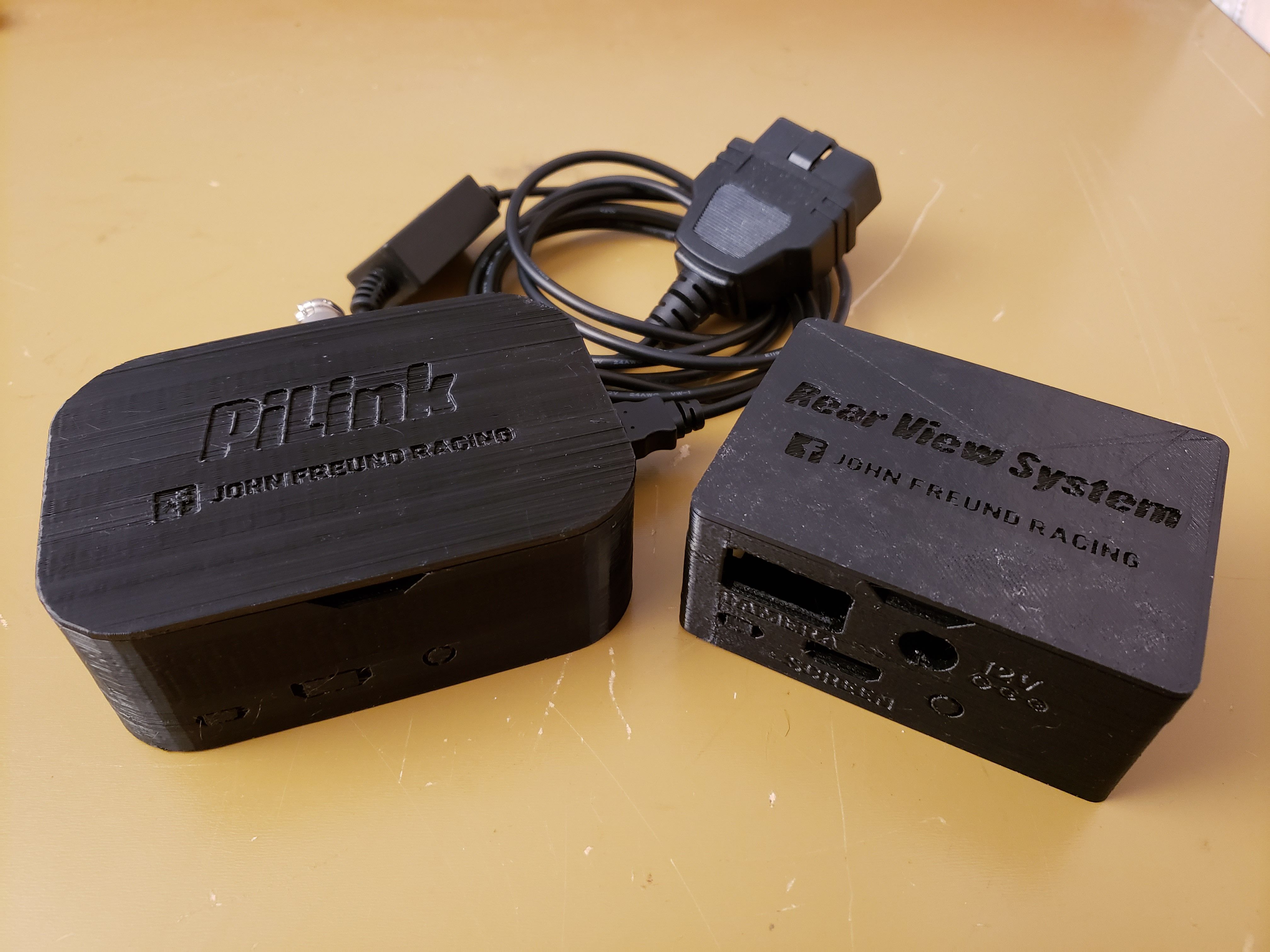

    PiLink: PiLink is a Raspberry Pi (read: mini computer) based system that runs ECMLink and automatically logs data from your ECMLink ECU whenever you're driving. If you've read this thread you know I built a system for this but many people have asked me to sell it. ECMLink is great for what it is but it has no built in datalogging. You have to hook up a laptop and precariously leave it in your car while driving, and the USB cable sometimes comes loose and you lose connectivity. You have to manually interact with the laptop to start and stop. PiLink is a simple little box that handles all this for you with a a lot of automated error handling and automation like automatic Cloud uploading. Aircraft grade 5-pin connect for input along with your USB ECMLink cable (which also is held in securely), along with an optional USB drive for storage. You can connect it to a screen to interact, or just leave it run headless. It can connect to your WiFi whenever it's near and synchronize your logs to Google Drive, and keeps proper timestamps for log files (and will let you know when the clock battery is low). It also can play startup music (which is one of my favorite things, mine plays the Knight Rider theme song hehehe).

    PiLink
    can be upgraded to also work as a rearview camera, providing the features listed below for the DMS. Also, I plan on playing with included Android Auto support as a bonus for those that want to be able to use that (though initial testing wasn't quite working, so no promises on when that gets online).

    I put a ton of work into this project with designing and testing, and most recently got the codebase, hardware design, and build procedures to a place I feel comfortable selling it. Big thanks to Snowborder714 and Turbosax2 here on tuners for being prototype testers. Expect an announcement soon where I will do a group buy for the initial orders.

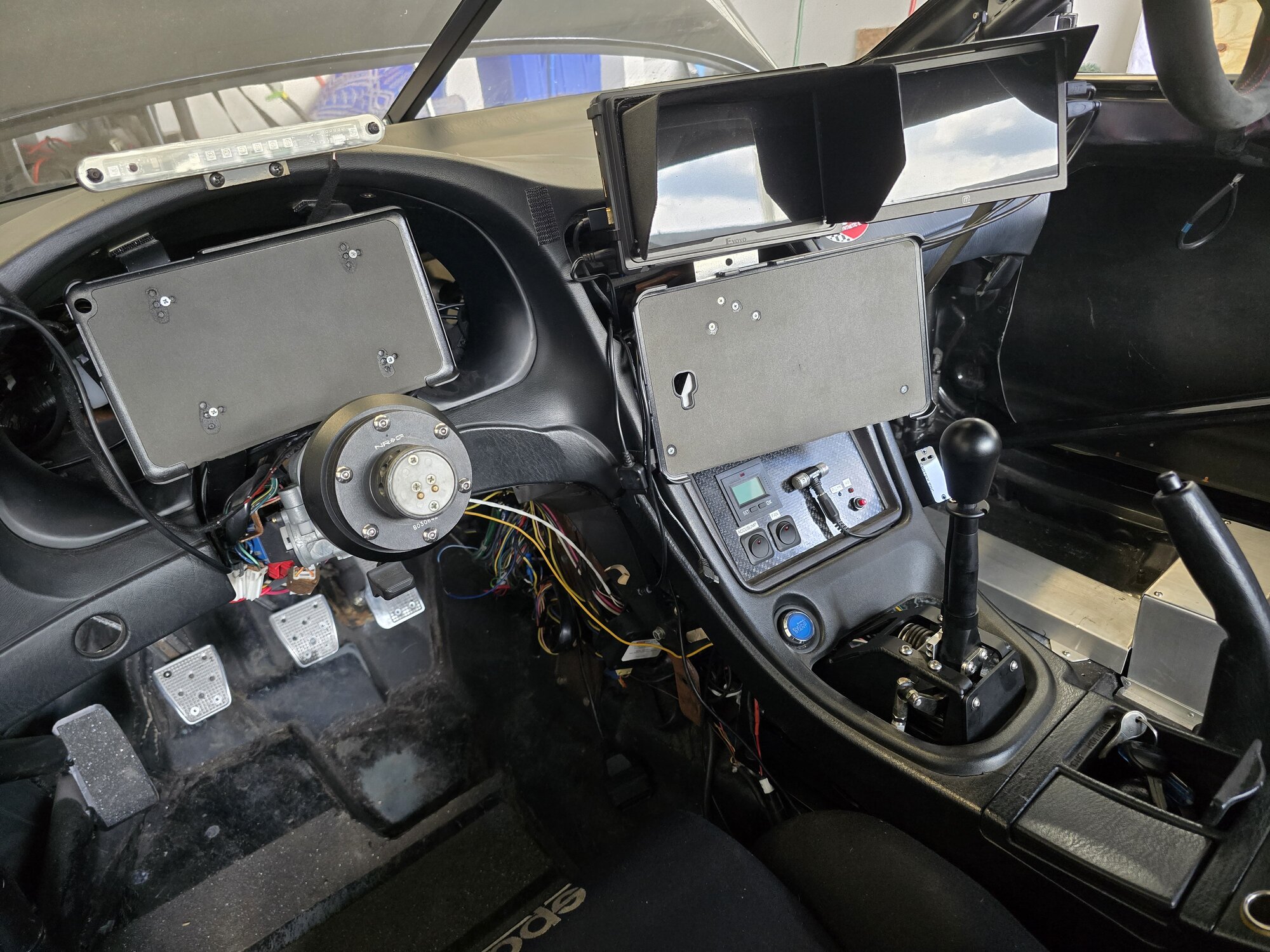

    DMS (Digital Mirror System): I changed the name since the above prototype print case above though the camera case pictured is probably the design I'll keep (while improving print quality). This system is digital mirror replacement geared towards racers, though applicable to street cars as well. You get higher res and better framerate cameras without fisheye (you really don't want a fisheye when trying to see cars) attached to higher resolution screens than you can get in off the shelf commercial offerings typically for cars. Basically true 1080p (not 480i RCA cameras that falsely advertise 1080p output) 30fps water resistant cameras (the one pictured doesn't have the seals or plexiglass lens protector in place just yet) that can be connected to any HDMI display of your choice (I use a 1920x1200 screen for my rear view, and I think 1024x600 for my side, all 7"). The idea here is Crash Avoidance in a racing environment, and believe me from years of racing I can tell you mirrors may get you by on the street but they don't even compare to a nice bright 7" screen showing you what's around your car. Side mirrors on many cars can account for up to 5% of the drag and so removing them helps overall performance (see the Aston Martin Valkyrie, this is exactly why Adrian Newey did not want sideview mirrors on that car and has a digital system basically like mine, though mine was running in my car before I'd even heard of the Valkyrie). The system also includes dashcam-like rolling recording keeping 5 minute video chunks rotating on USB storage (a 16GB USB drive will keep over 125 minutes of footage). You can buy the systems separately or all three.

    As a future upgrade I'm testing a radar based crash avoidance system similar to what Pratt & Miller developed with Bosch for the Corvette racing teams. They sell a basic version of this system with just basic right left warnings with speed indicators for over $4000 (and a super fancy one that puts arrows over cars with speed coloring for more). If I get mine to work it will be vastly under that price point. I may add side ultrasound detectors too if I get bored enough.


    Heads-Up Display for RaceCapture: I built a really cool heads up display for my car last year to show me my predictive lap timing at a glance. It connects to the RaceCapture Pro datalogging system on boot and loads the RaceCapture application, loading directly to whatever dashboard you select. You can however run whatever dashboard display you want. My HUD sits in the bottom left of my windshield but I plan to offer a base that lets you place it elsewhere (i.e. the reflective material that lets you see through it but also the image will be on angled plexiglass).

    I'll be officially posting about the PiLink and DMS products in the Classifieds soon. I don't imagine too many people on tuners have a RaceCapture so the HUD likely isn't of interest, but hey this is my thread and I can post about what I want :) I have other ideas too but they're all musings in my brain right now.

    So what kind of kicked this into gear was someone asked me to build them a DMS, both side and rear, for his BMW car he races in the northeast. My first sale! At the time that he asked to buy the system my camera design was rather basic. It didn't have retention for the HDMI cable (I zip tie mine in my car) and no water proofing as I don't personally drive in the rain. He did and I thought I really should water proof the design if I'm going to sell these (I still wasn't sure). I didn't know how to 3D model and my current camera case design was from someone else, and I didn't have a printer. However I thought I could learn, and started reading and watching a couple videos. In about from 2 hours I had redesigned my case use this crazy easy 3D modelling for kids tool called Tinkercad (tinkercad.com). Now that first design wasn't great but it was a start. I also learned about a great website treatstock.com that lets you upload 3D models and pick amongst thousands of 3D printing services at super cheap prices. I uploaded my first prototype, found a printer in I think Oklahoma?, and got 3 prints of the designs made within a few days for maybe $15? It was nuts! I hadn't yet worked on anything but the camera case designs though, so had to use off the shelf cases that I modified for the internal electronics.

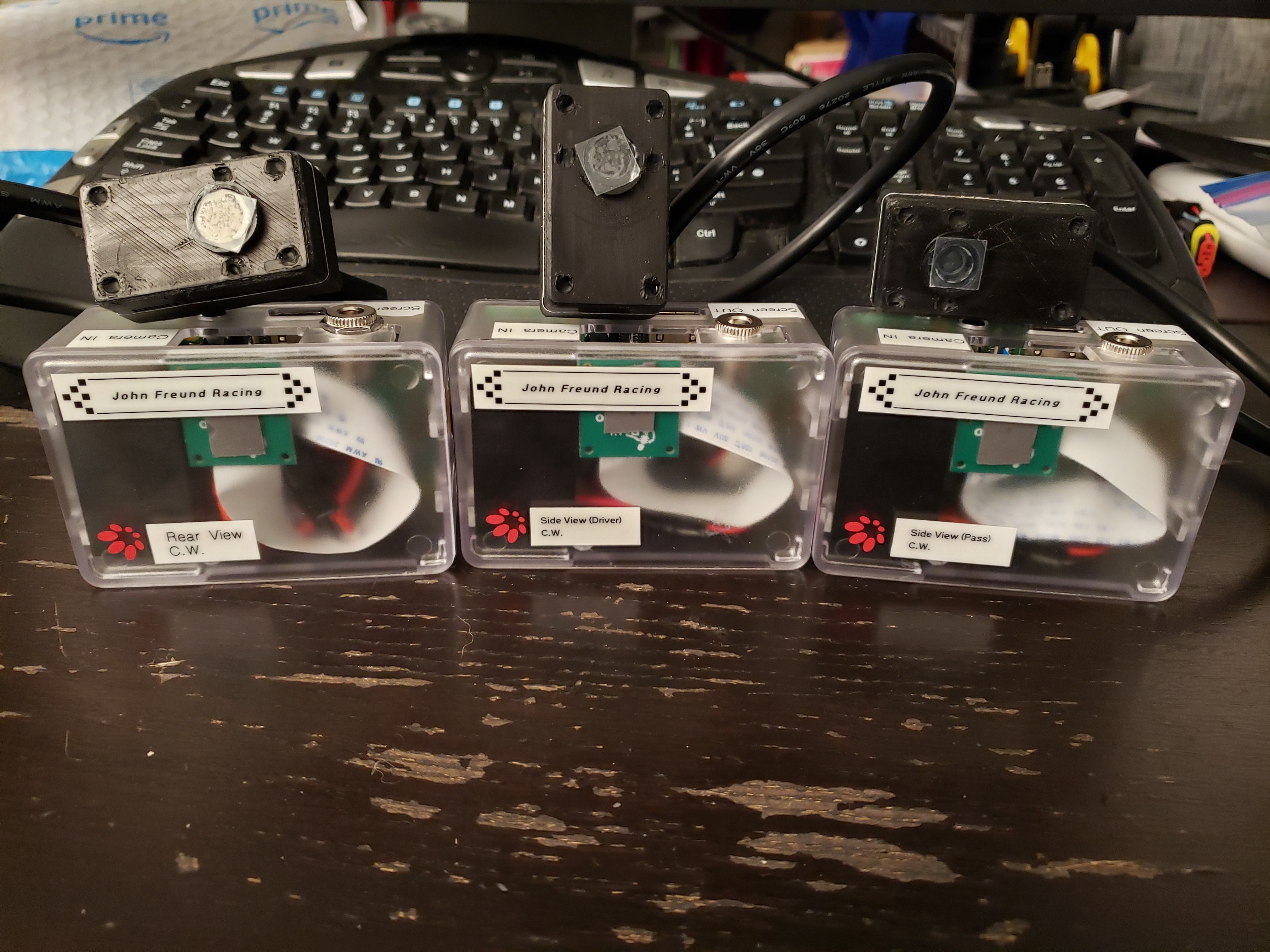

    20200218_223741 (1).jpg

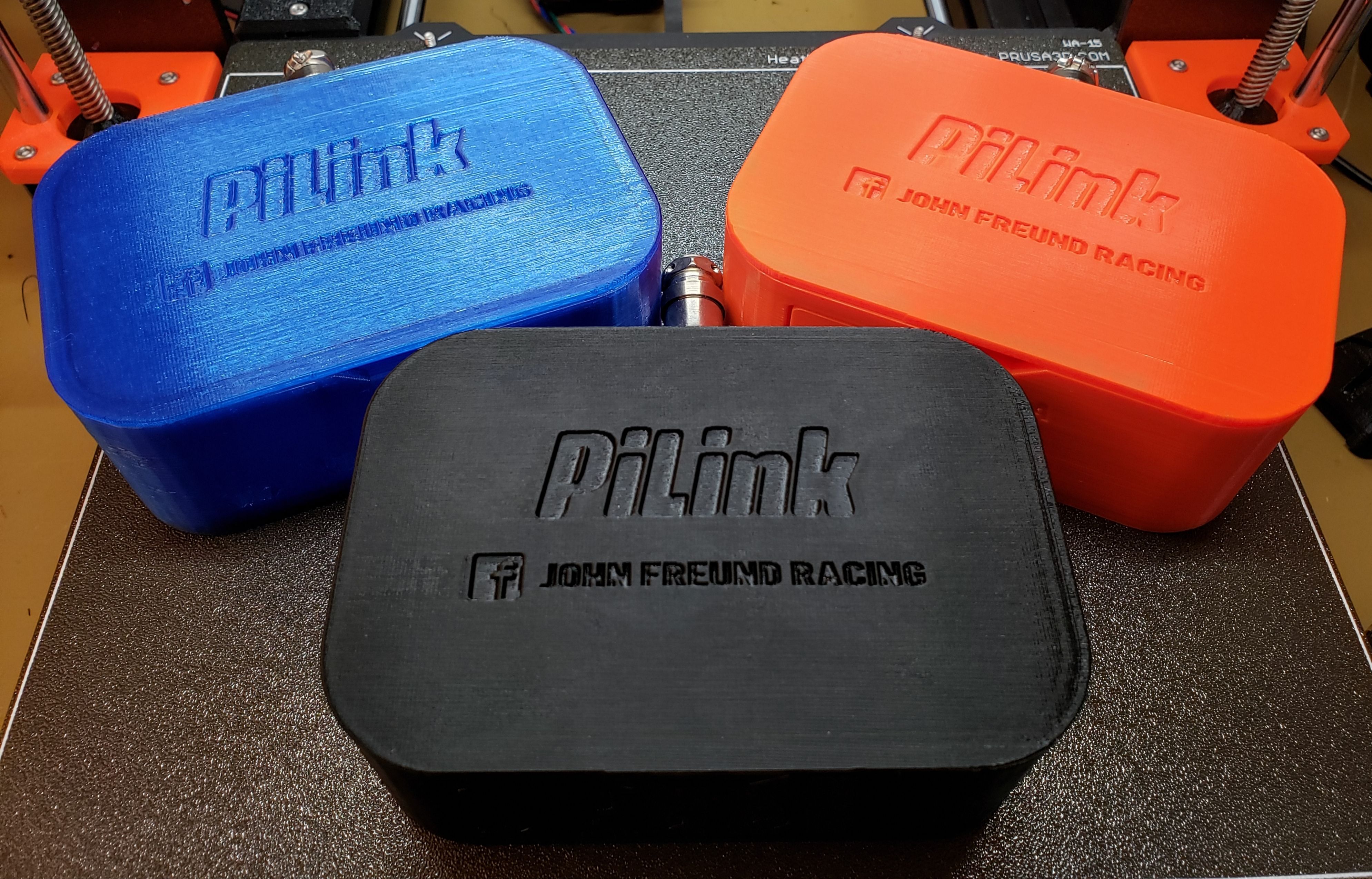

    Things snowballed from there though. I started working on a PiLink case, and more refinements to the camera case designs, and then added gopro mounting options to the cameras, then redesigned my PiLink case from scratch for the DMS as it didn't need as much volume, then tried adding snap-in lids, then.... and then... and... well my friend [email protected] (sponsor that gave me my ignition system's parts) said I could borrow his 3D printer. I borrowed his Ultimaker 2 and started going nuts, quickly burning through the filament he gave me with design after design after design. I even upgraded his printer a little bit as it had some outdated pieces (I think he got it in 2016).

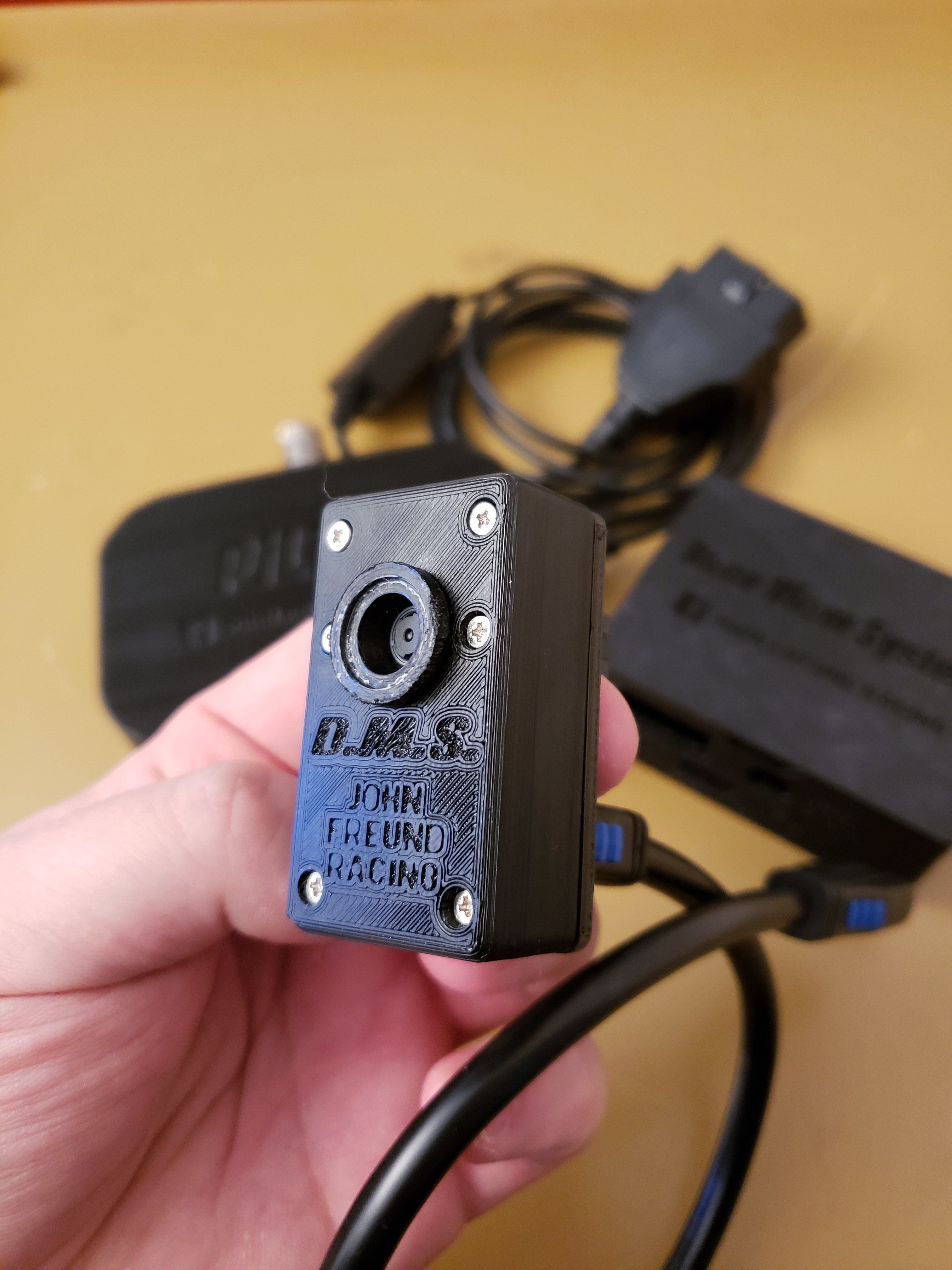

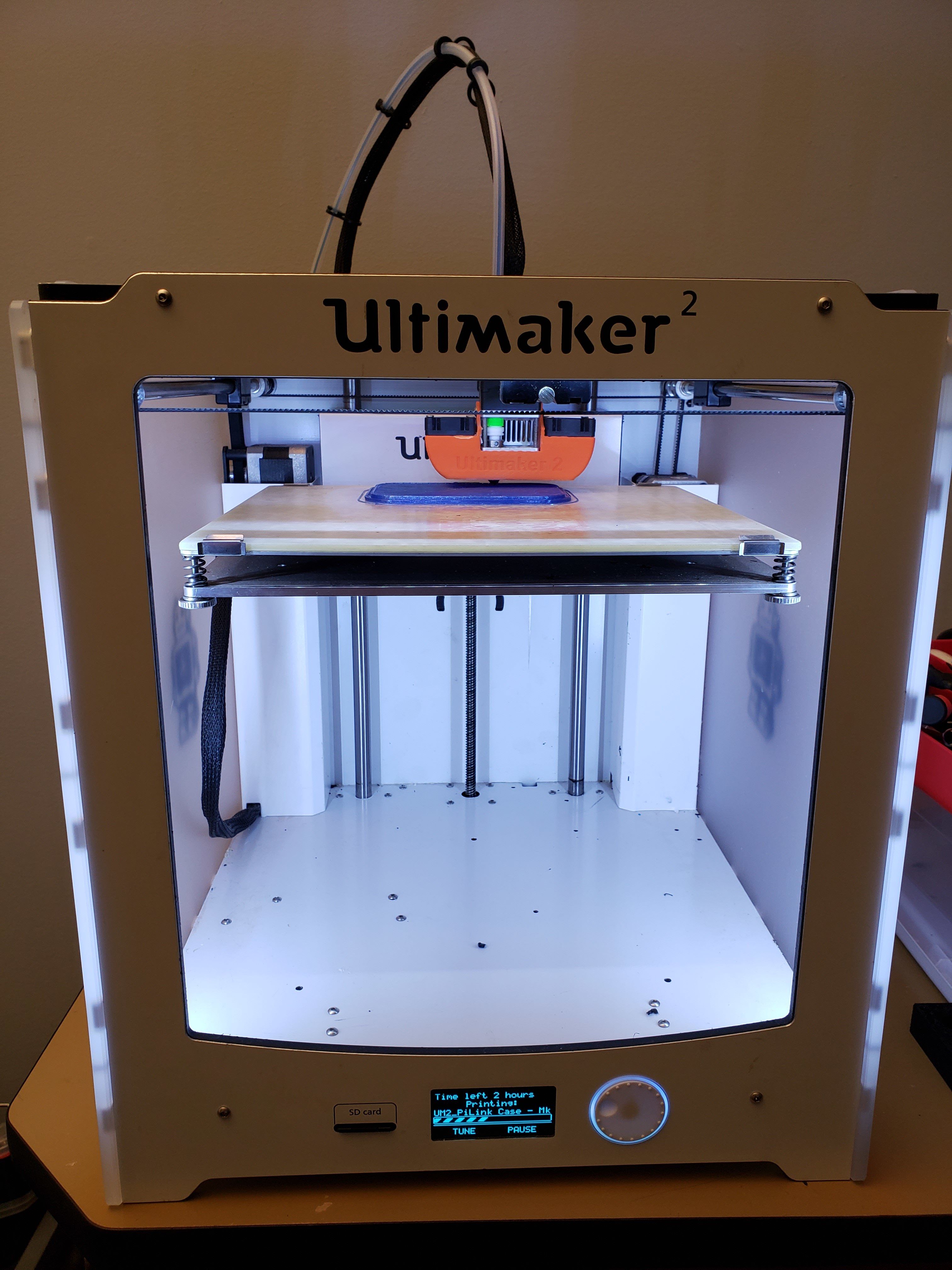

    20200229_174437 (1).jpg

    Tons and tons of long hours went into designs and printing, along with researching 3D printing, intermixed with code enhancements to my products. I think most days in the last number of weeks I've been up until 3-4am, then waking up for work or the weekdn, and working on things immediately (admittedly sometimes during work...), and weirdly I don't feel all that tired. I'm pretty excited to be able to offer something people can use.

    So the Ultimaker 2 I borrowed had lots of issues. Many were user error due to my lack of knowledge and experience, though some I think due to the age and antiquated design of the printer. I got so fed up with it I ended up ordering my own 3D printer, a Prusa i3 MK3S. Not terribly expensive but extremely well reviewed as a work horse that just "works". It's only like $750 assembled yourself. I am more than willing to invest in a super printer but thought if this is reviewed so well I'll try this out and go from there. It arrives on Monday (knock on wood). I've already got stacks of filament here waiting for it. It should improve my print consistency and quality dramatically.

    I am working on my second DMS now (just waiting on parts) for my friend Don that runs the track store at Virginia International Raceway and a partner with TMI Racing Products. He needs one for his Honda Civic race car he's building because he says he's so tall he can't see out the windshield as the rearview mirror blocks his forward view. He brought up selling the system in the store. That'd be pretty damned cool :) We'll see how things play out.

    So if you're interested in anything here, feel free to ask about them, or hold your questions for the for sale ads. They'll all be made to order, I don't plan on keeping inventory so there will be a lead time (some parts come from Japan so it can take a few weeks) once parts are in build time isn't so bad as I've been working through the build processes and refining things.


    Road Race Build 15K  14  371

    1999 Mitsubishi Eclipse GSX
    377 whp · 416 lb/ft · 2G DSM
    Loading...
    RWD4G63, GST with PSI and turbosax2 like this.
  5. TSiAWD666

    TSiAWD666 Supporting Vendor

    2,574
    702
    Joined Aug 15, 2003
    Herndon, Virginia
    Optic Armor offers anti-fog, anti-scratch, and tint coatings. I know because I have all of them as options. You claim yours is "better quality polycarbonate" but have you actually held their product in hand or somehow discovered actual technical details about the chemical compositions of their products or manufacturing processes? What are you basing these claims on? This is a rhetorical question, not one I want answered here in this thread. You might have the cost point but you don't have anywhere near the experience their company does with this sort of product, nor a product proven over thousands of cars in the US. Good for you on trying to build something better, but let's be honest about what it is you're offering.

    Either way let's keep your advertising out of my thread please. Optic Armor is a sponsor and I'm quite pleased with their product.

    Last edited: Mar 1, 2020

    Road Race Build 15K  14  371

    1999 Mitsubishi Eclipse GSX
    377 whp · 416 lb/ft · 2G DSM
    Loading...
    GST with PSI likes this.
  6. TSiAWD666

    TSiAWD666 Supporting Vendor

    2,574
    702
    Joined Aug 15, 2003
    Herndon, Virginia

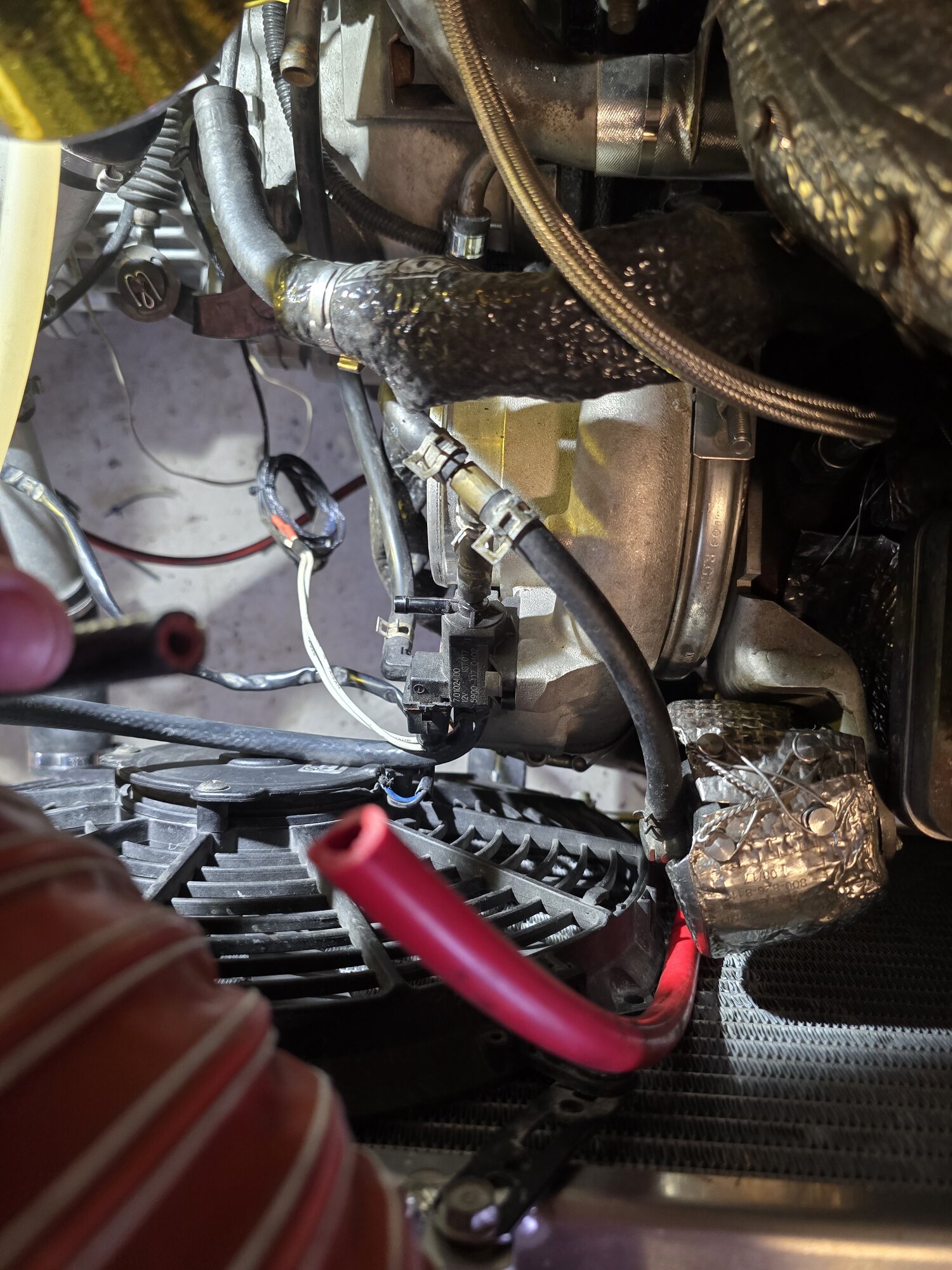

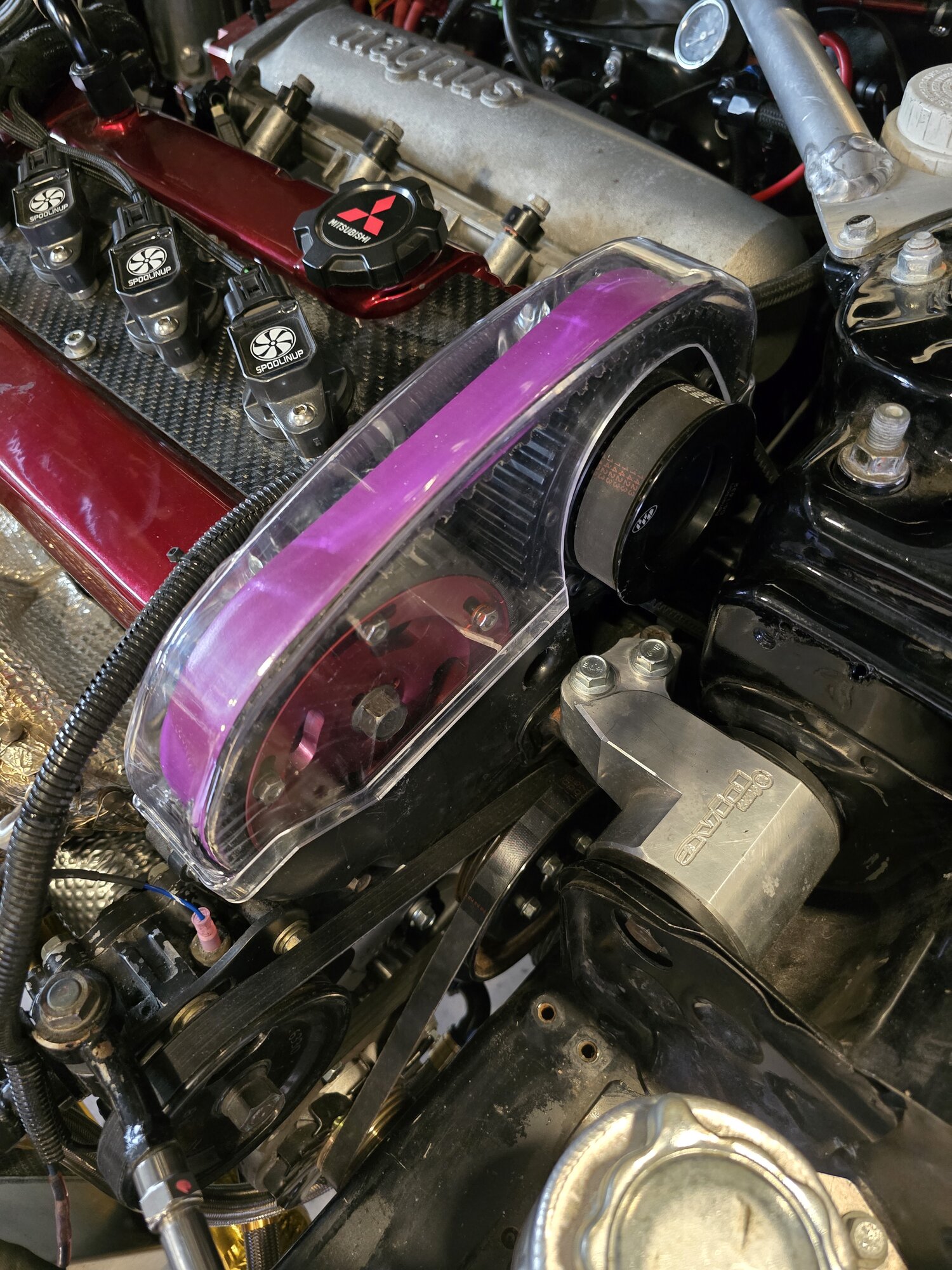

    Road Race Build 15K  14  371

    1999 Mitsubishi Eclipse GSX
    377 whp · 416 lb/ft · 2G DSM
    Loading...
  7. TSiAWD666

    TSiAWD666 Supporting Vendor

    2,574
    702
    Joined Aug 15, 2003
    Herndon, Virginia
    Wow I haven't posted in a while.

    Hmm. Car's not even close to being ready to race and due to the shop not putting full time into my car it won't be for the Ultimate Track Car Challenge. I'll post more on that later.

    I did a loooooot of work on PiLink for the launch and afterwards, and developed more products as well. A high quality 7" touch screen, an Action Camera (GoPro-like camera but is automated and runs on 12V power, no more sh**ty batteries and fiddling with buttons!), and Android Auto Upgrade for PiLink... and there's more to come. I just launched https://jfracing.net as my online store for John Freund Racing products. Please check it out and let me know what you think! Though in PM, probably best not to clutter this build thread with comments.

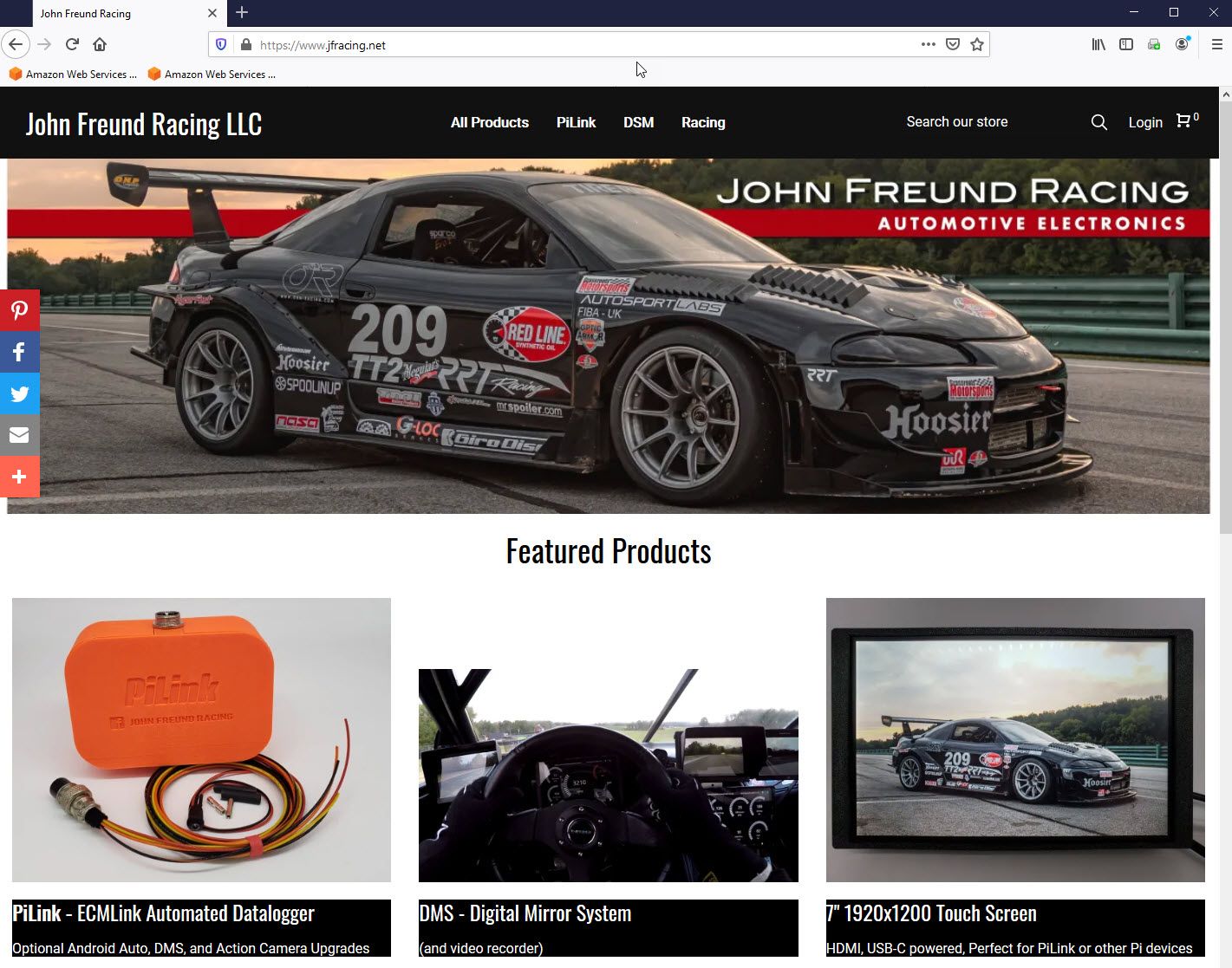

    jfracing.net goes live.jpg

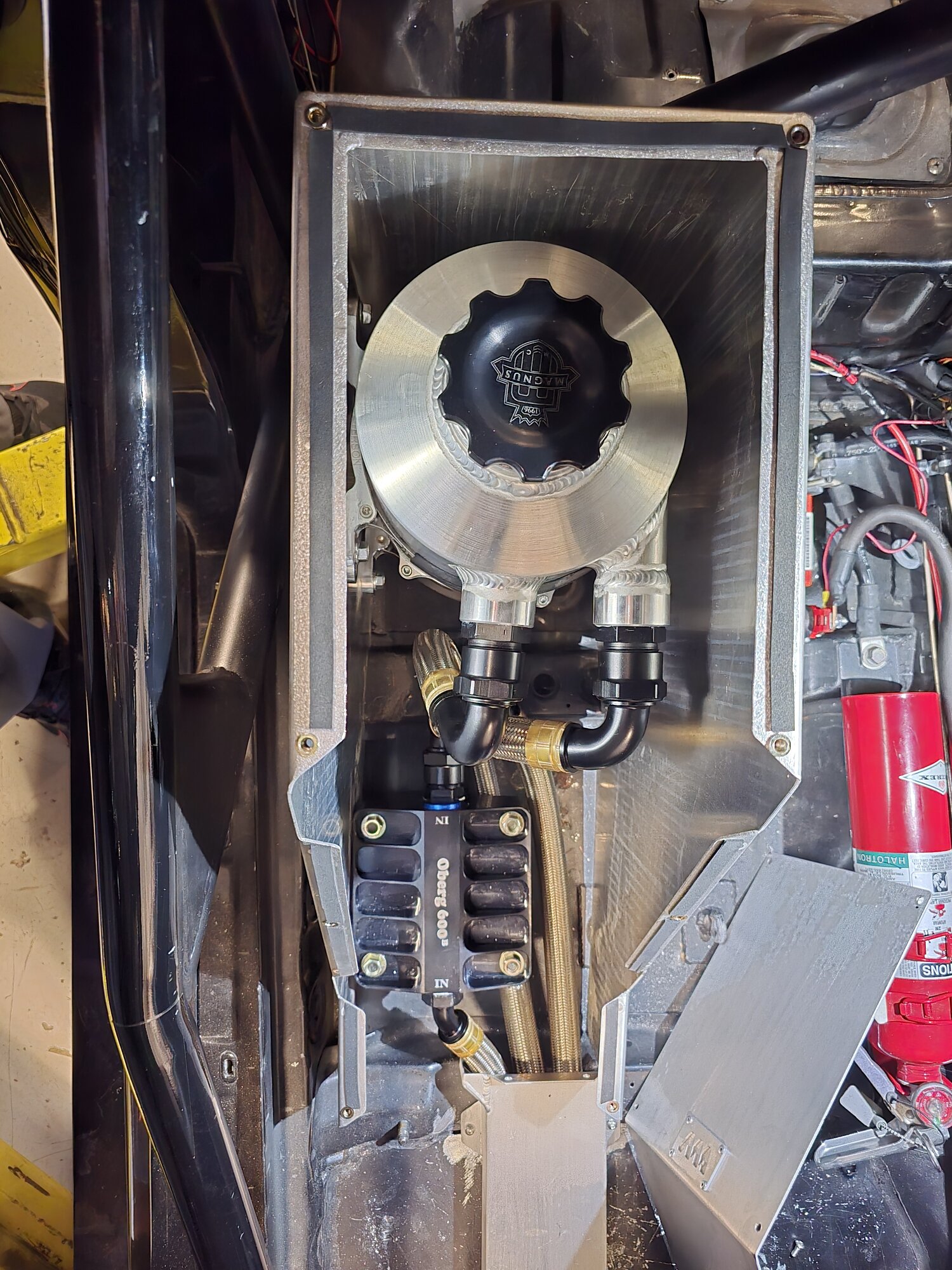

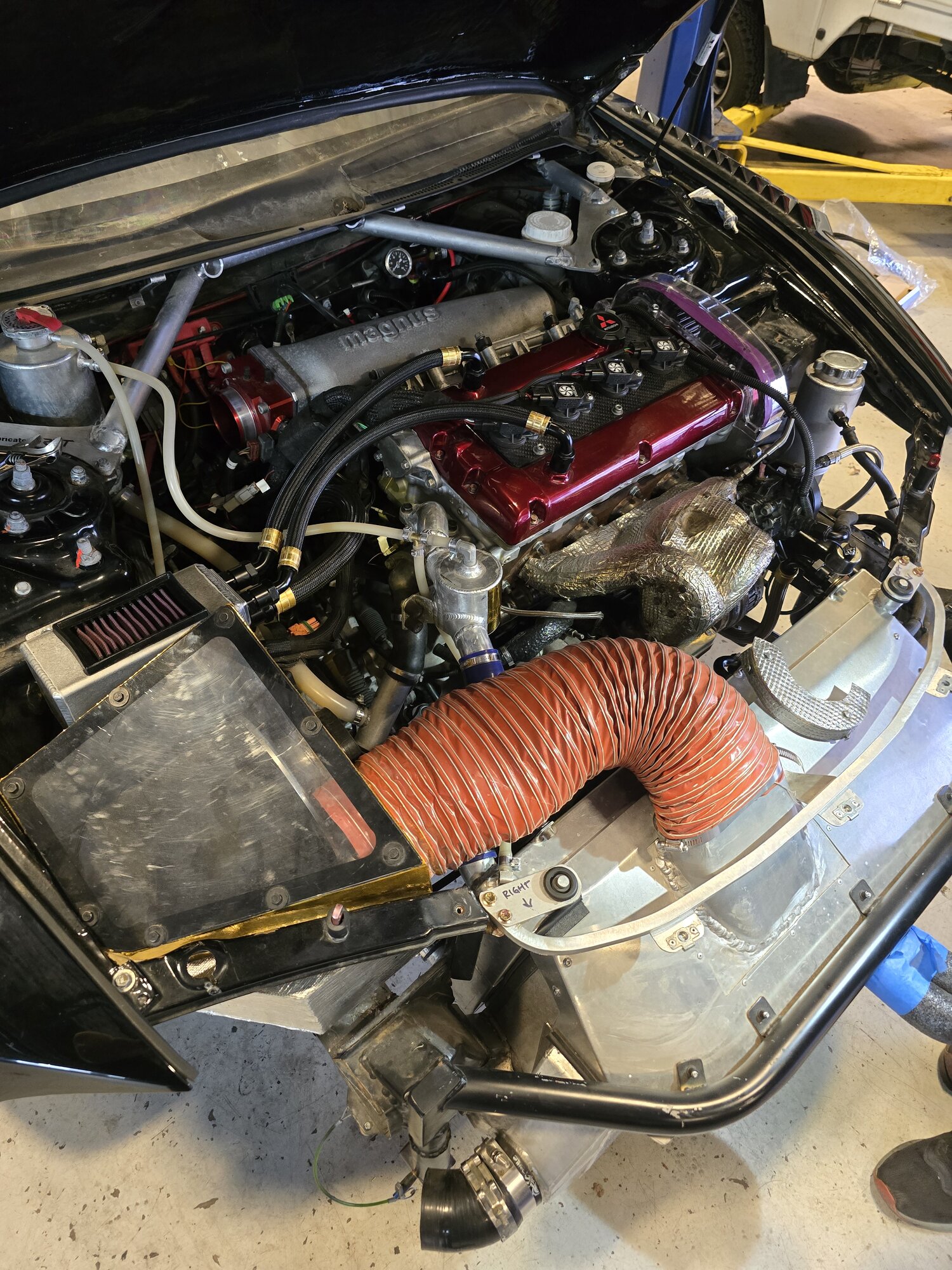

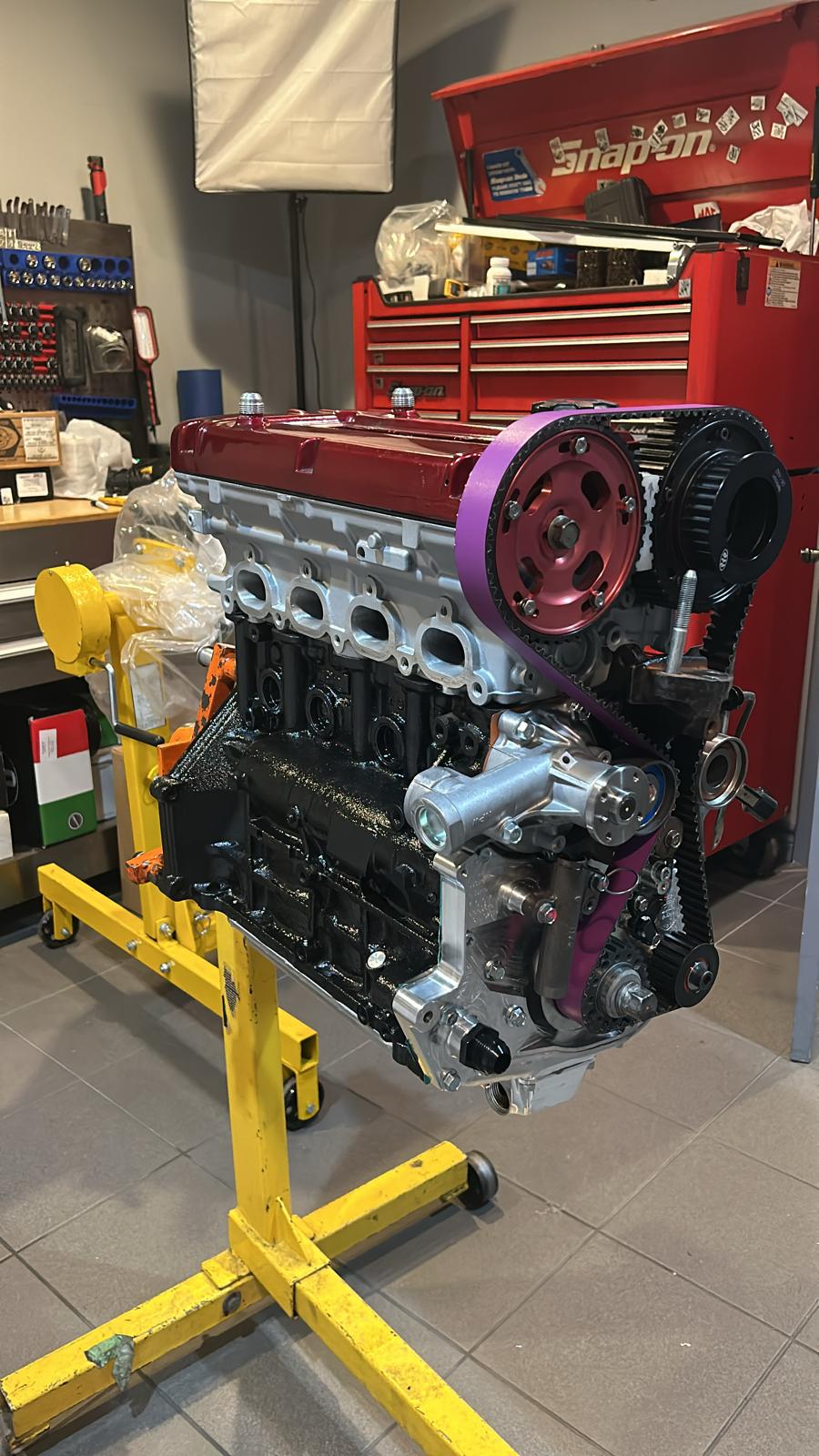

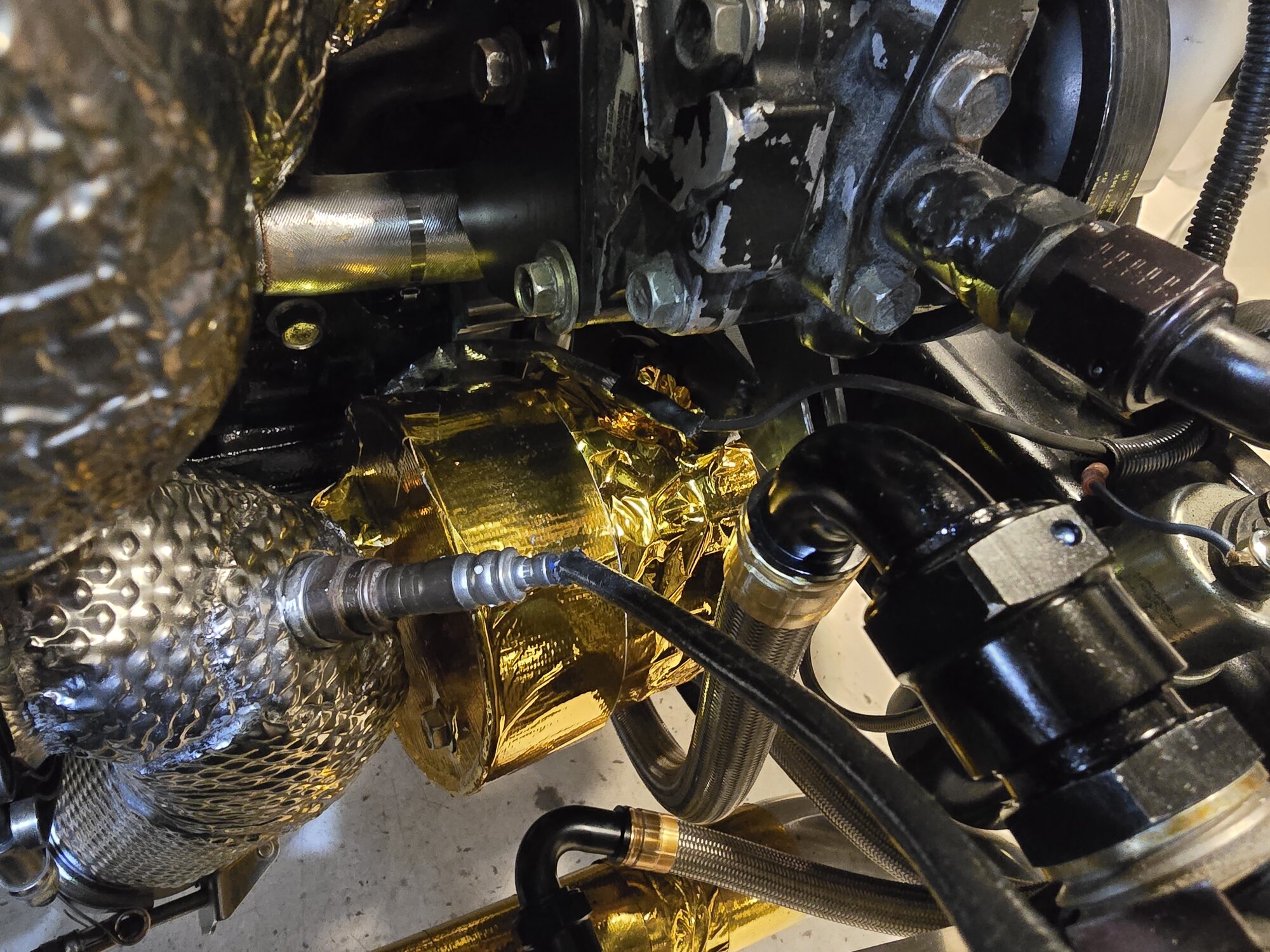

    Since this thread is more about the car though, here's a couple quick pics of progress:

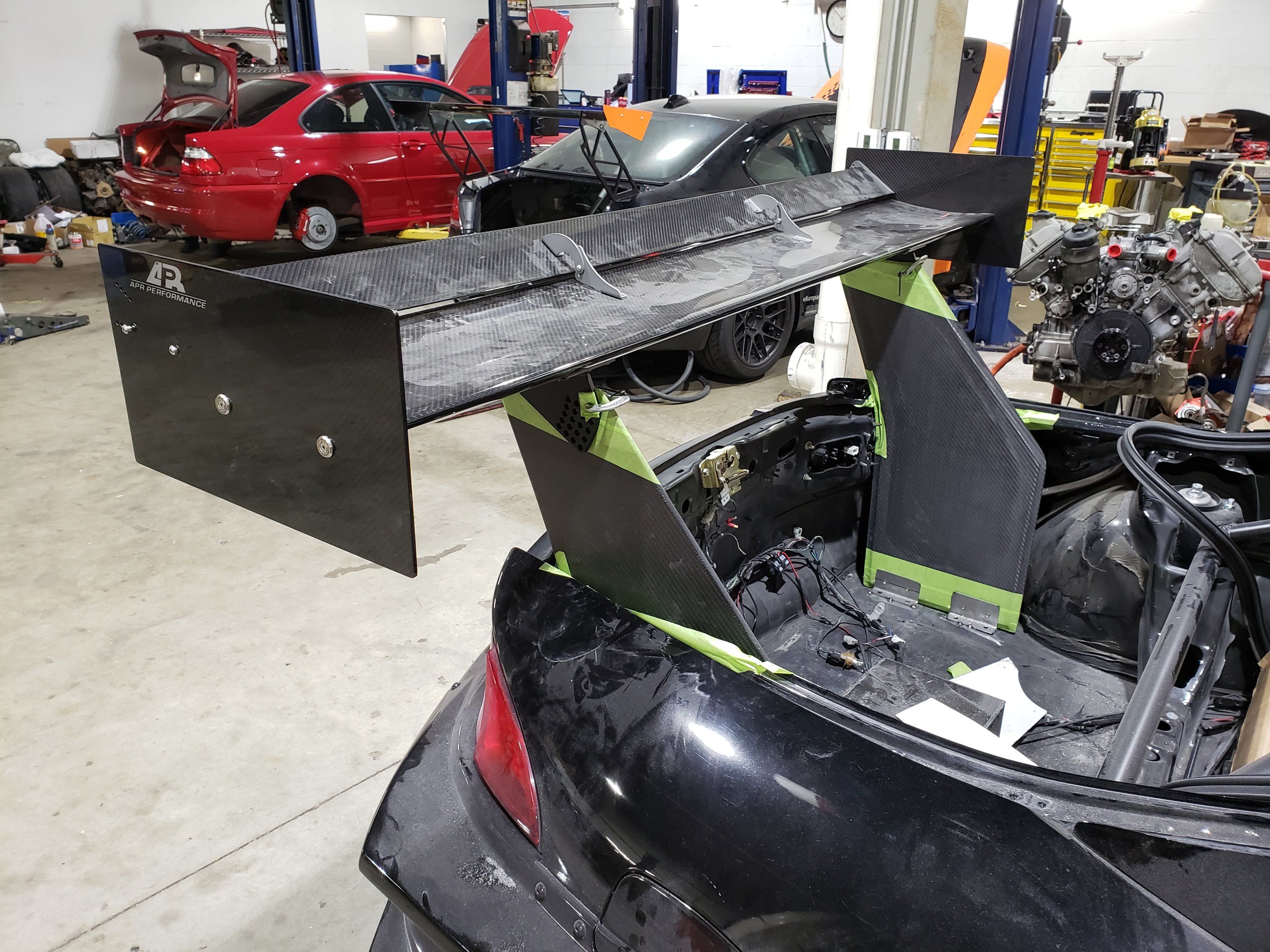

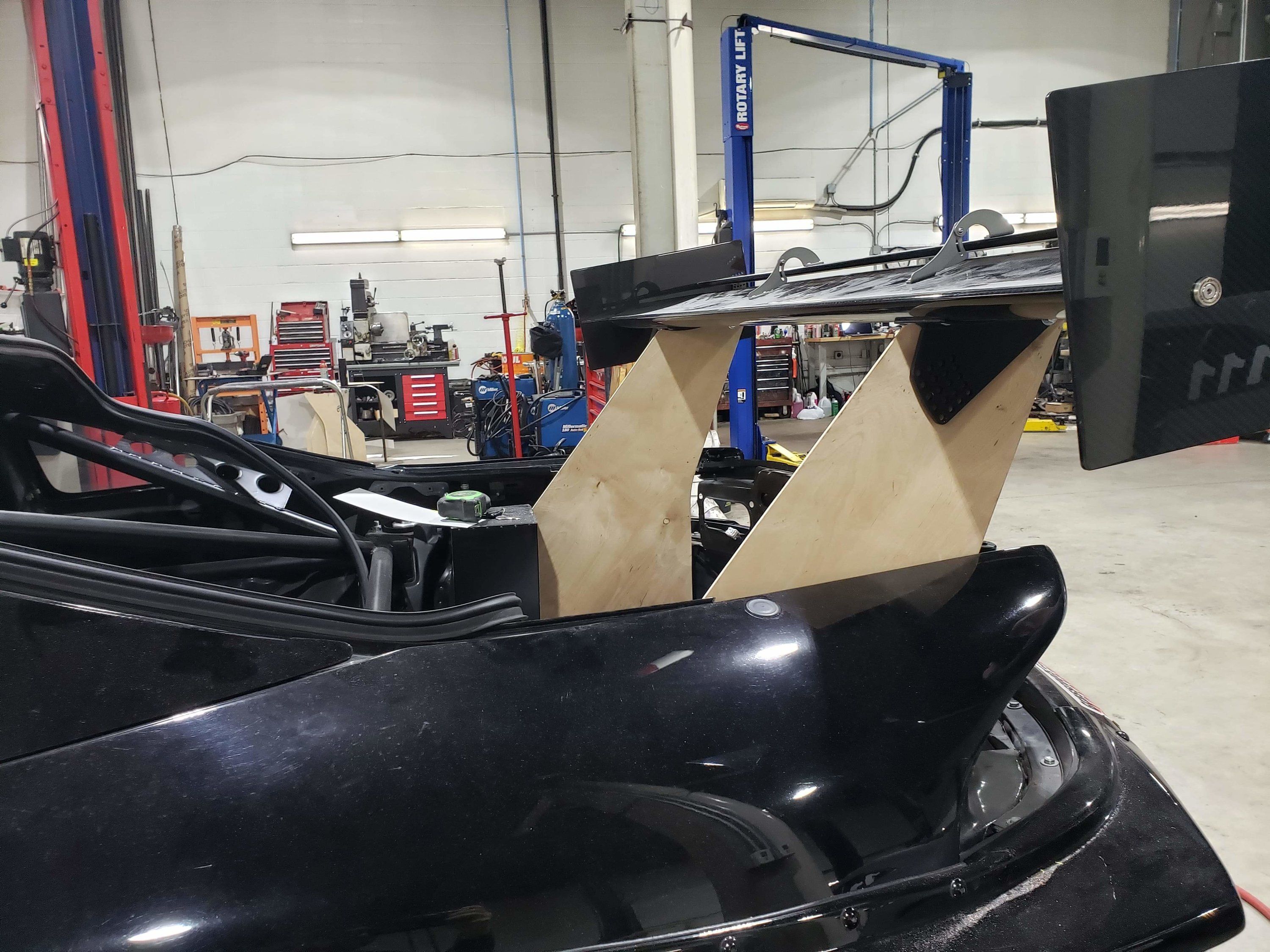

    Wing upright templates being made:

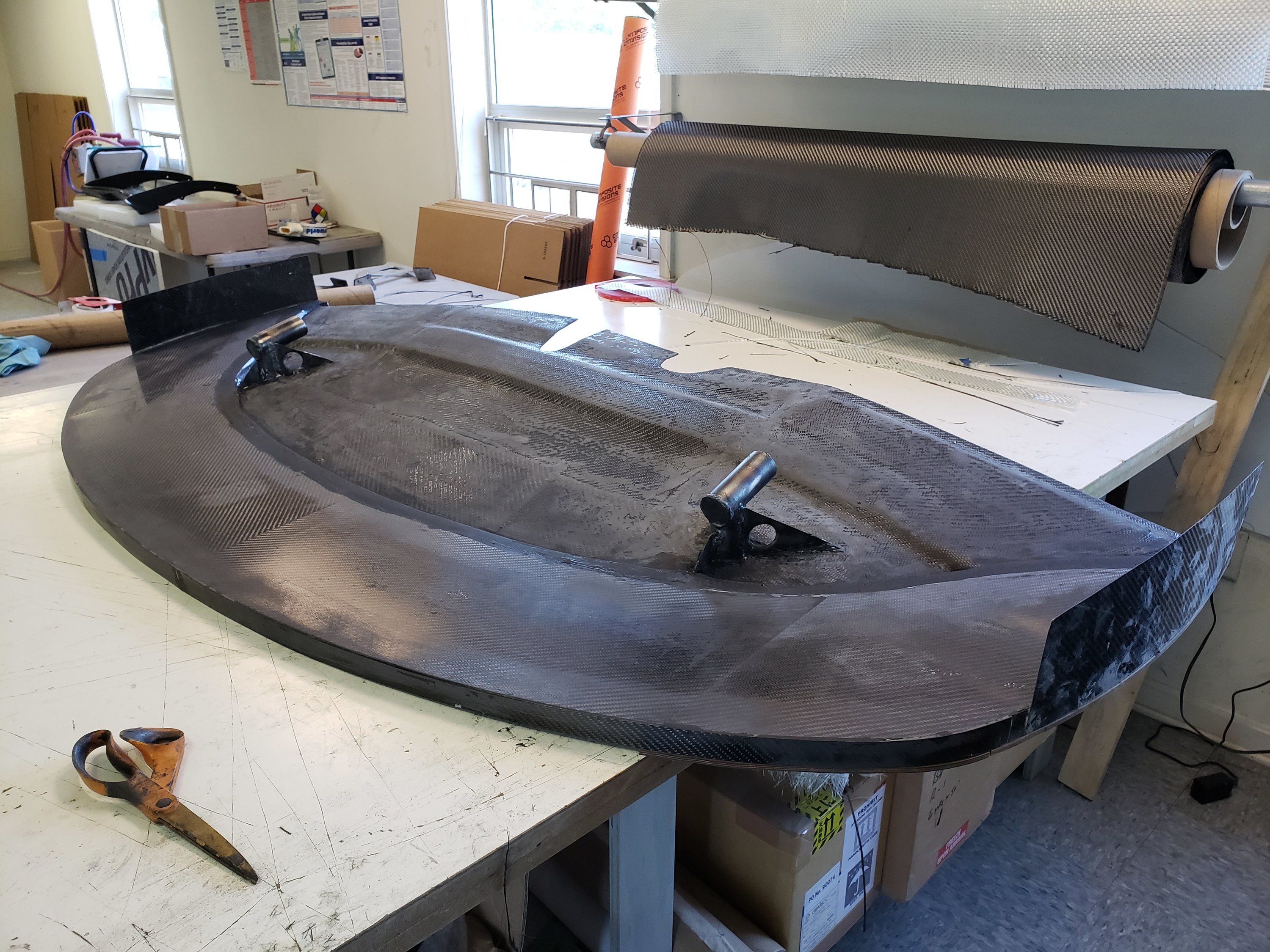

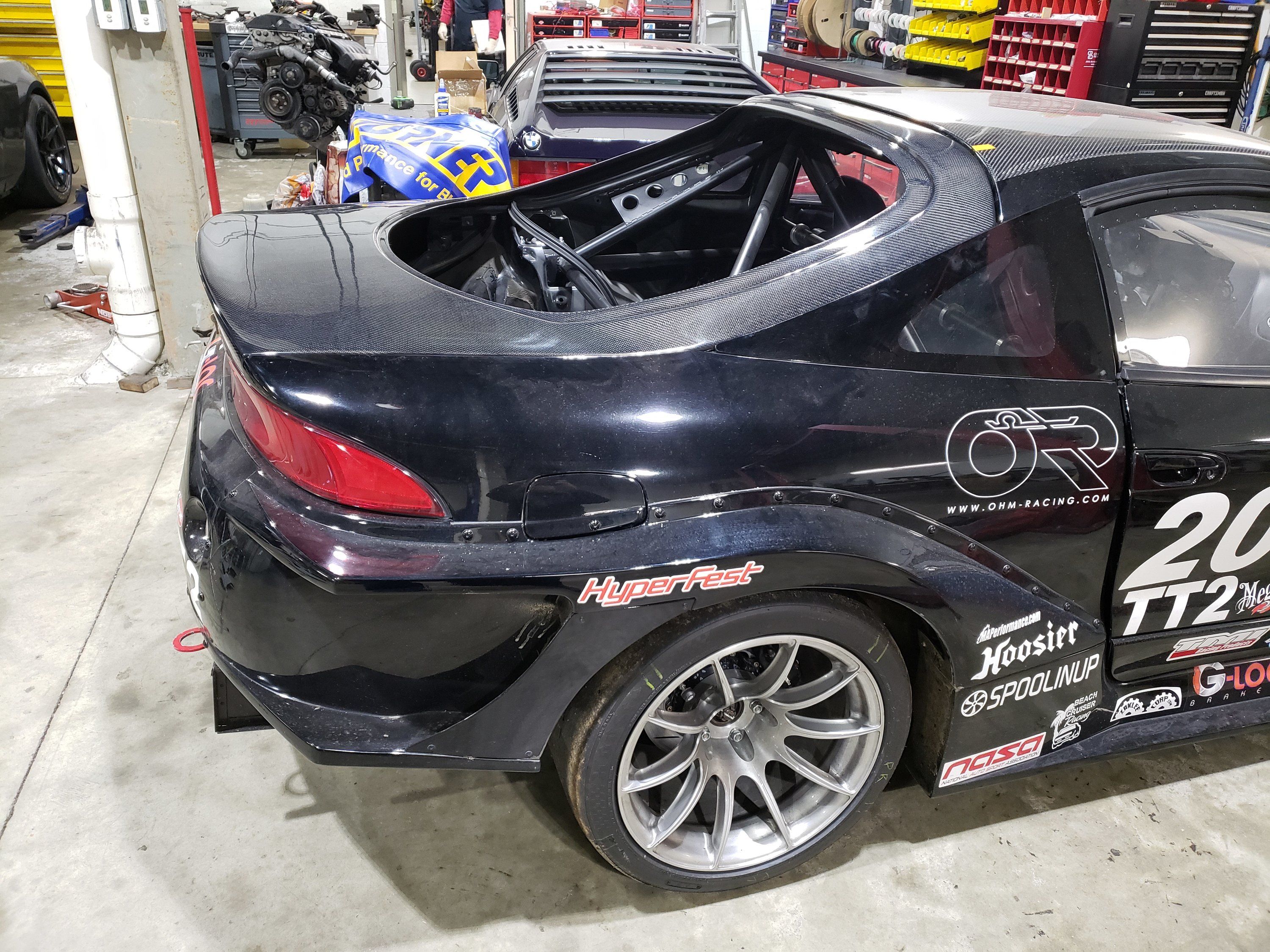

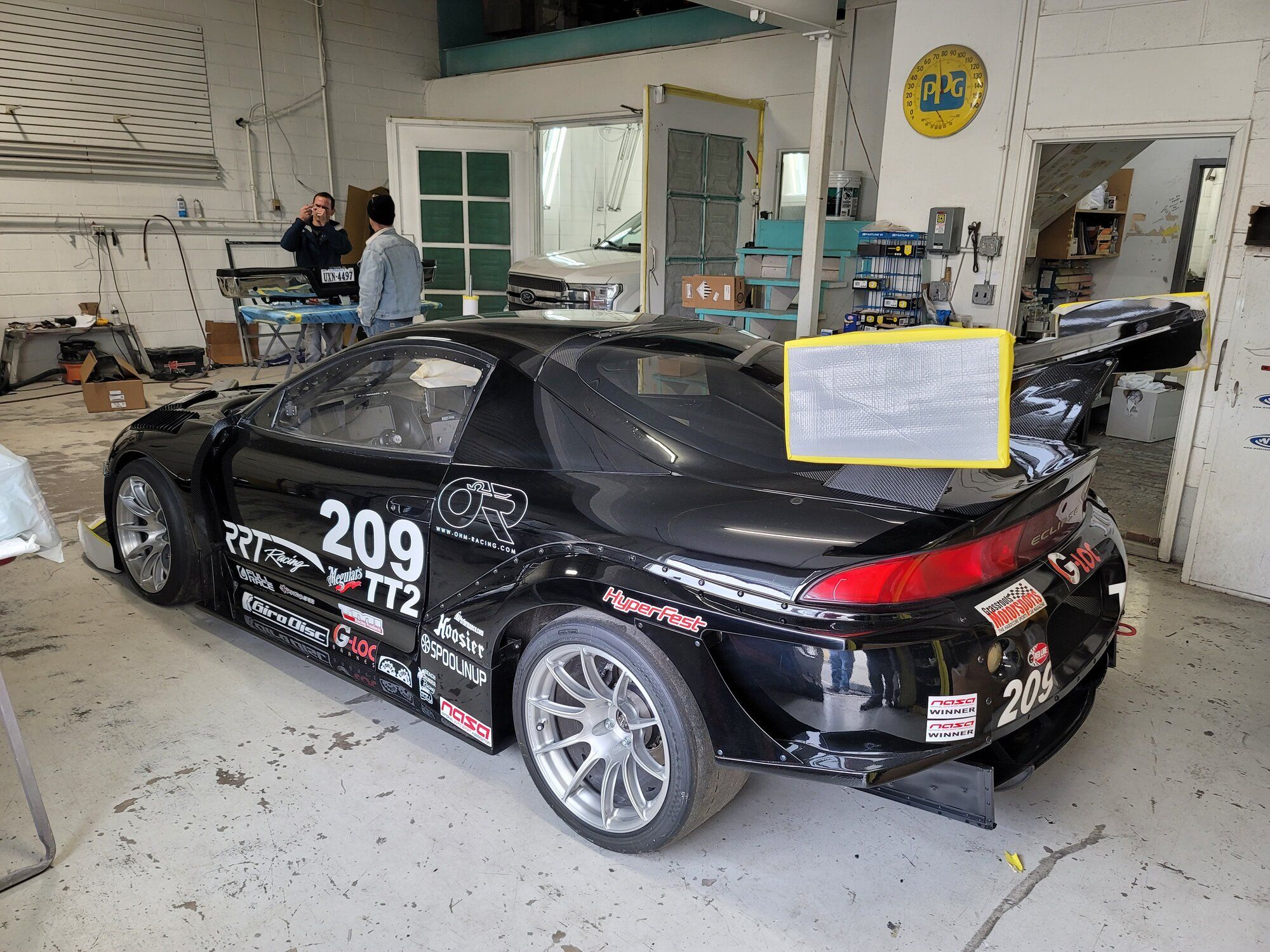

    Carbonetics duckbill hatch test fit:

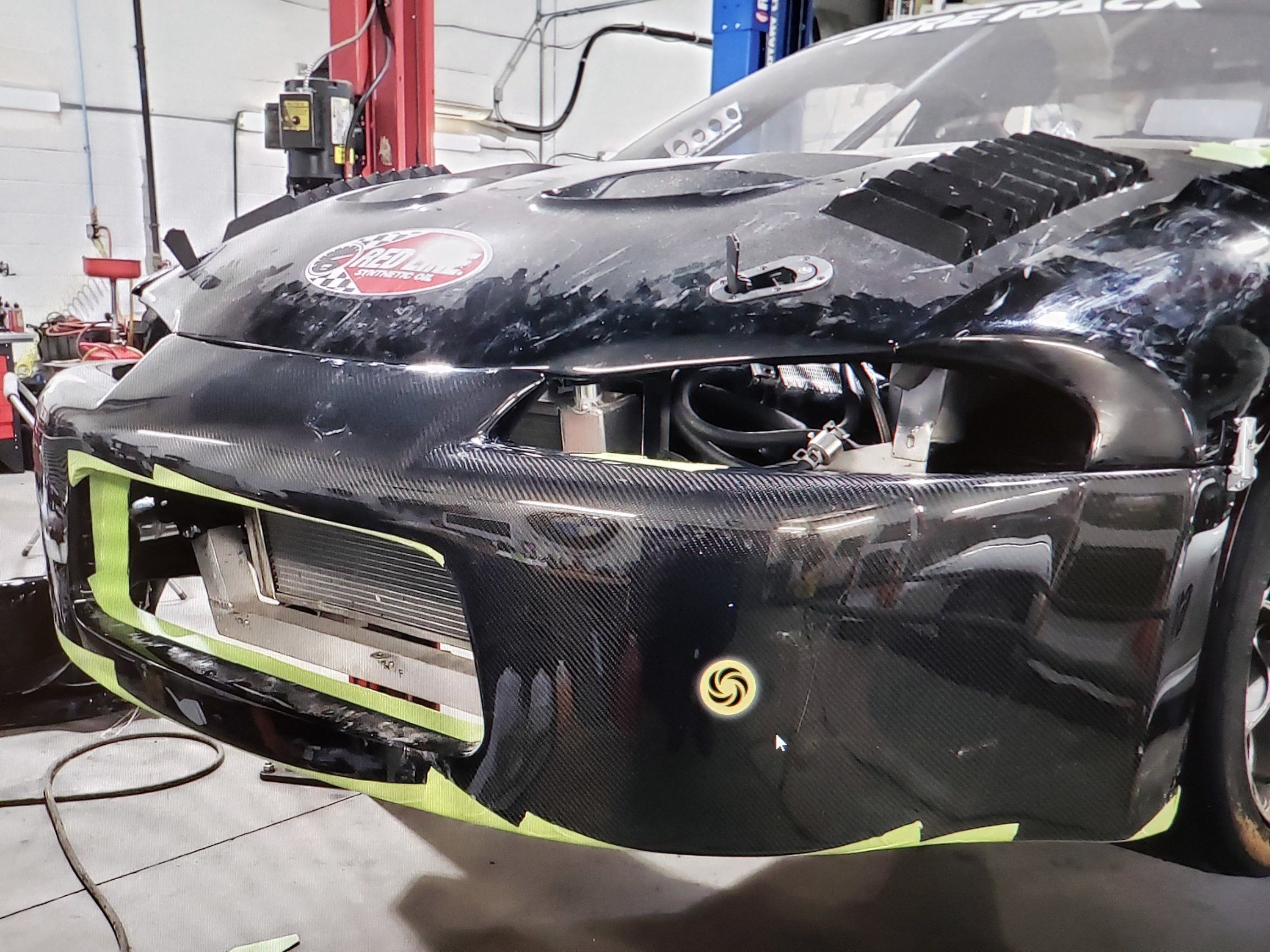

    Bumper cover test fit. This sucked, what a misshapen POS...

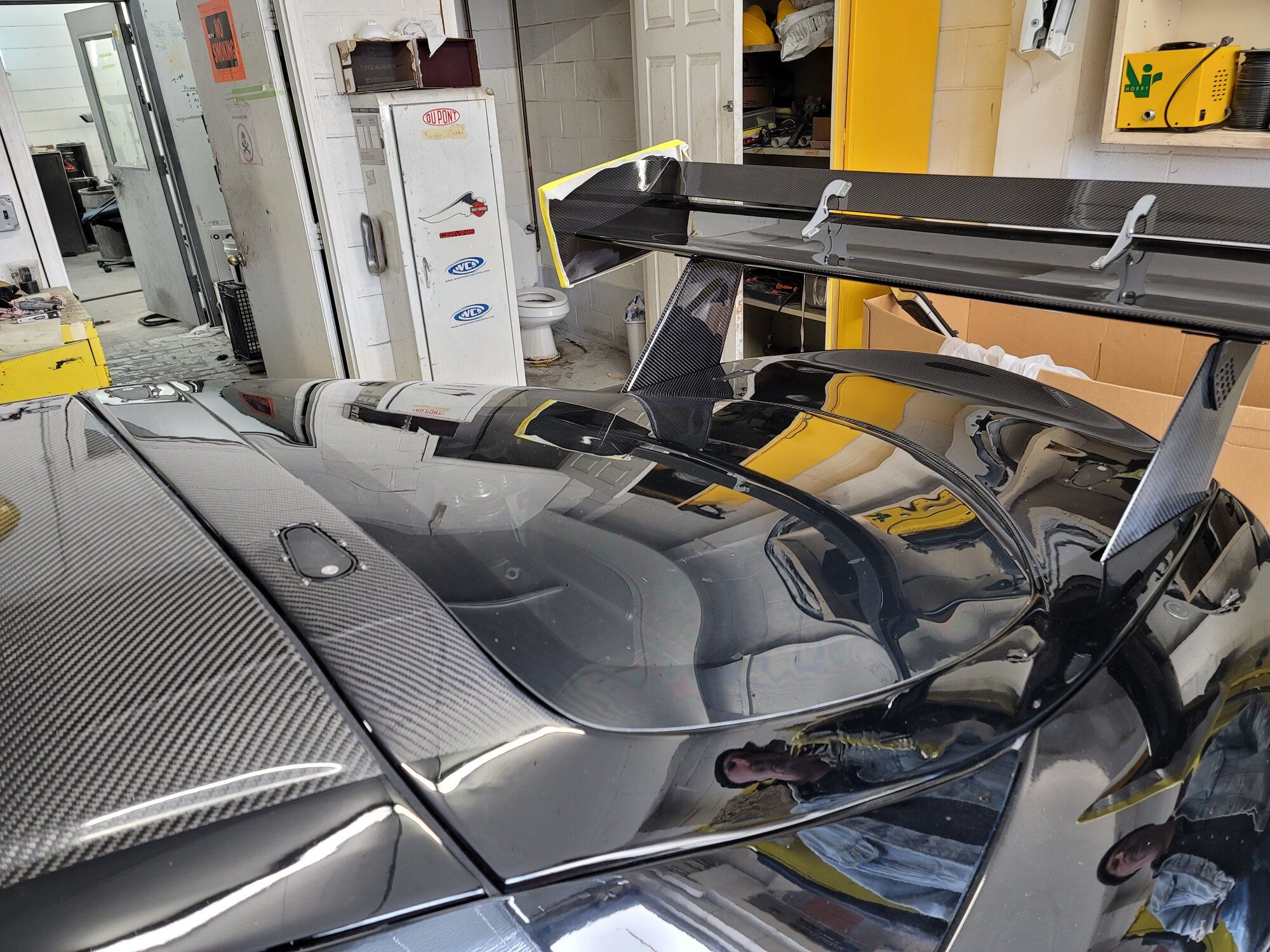

    Carbon Fiber uprights back from DHP Composites, test fitting here.

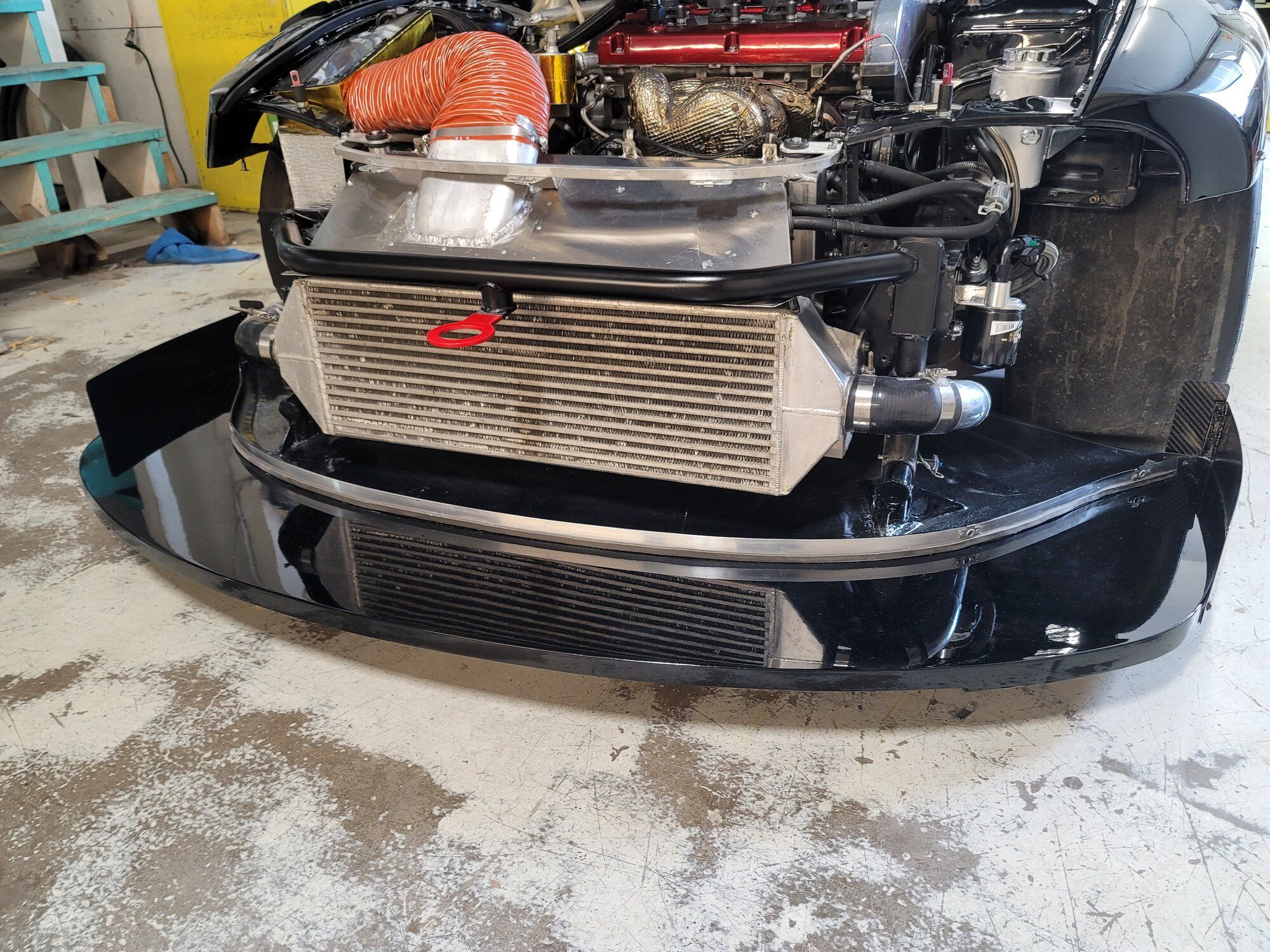

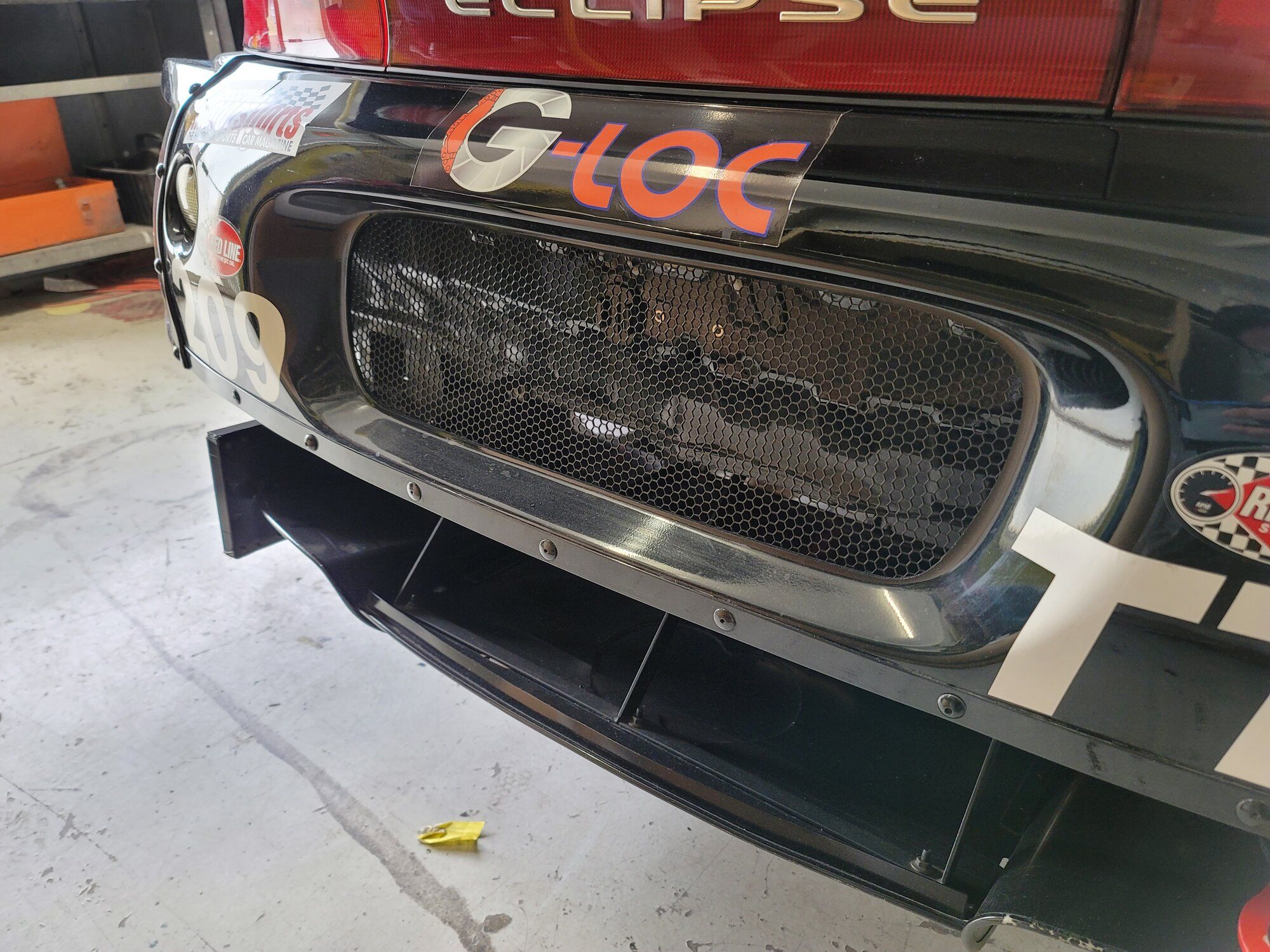

    Splitter/diffuser reinforced and mounts bonded.

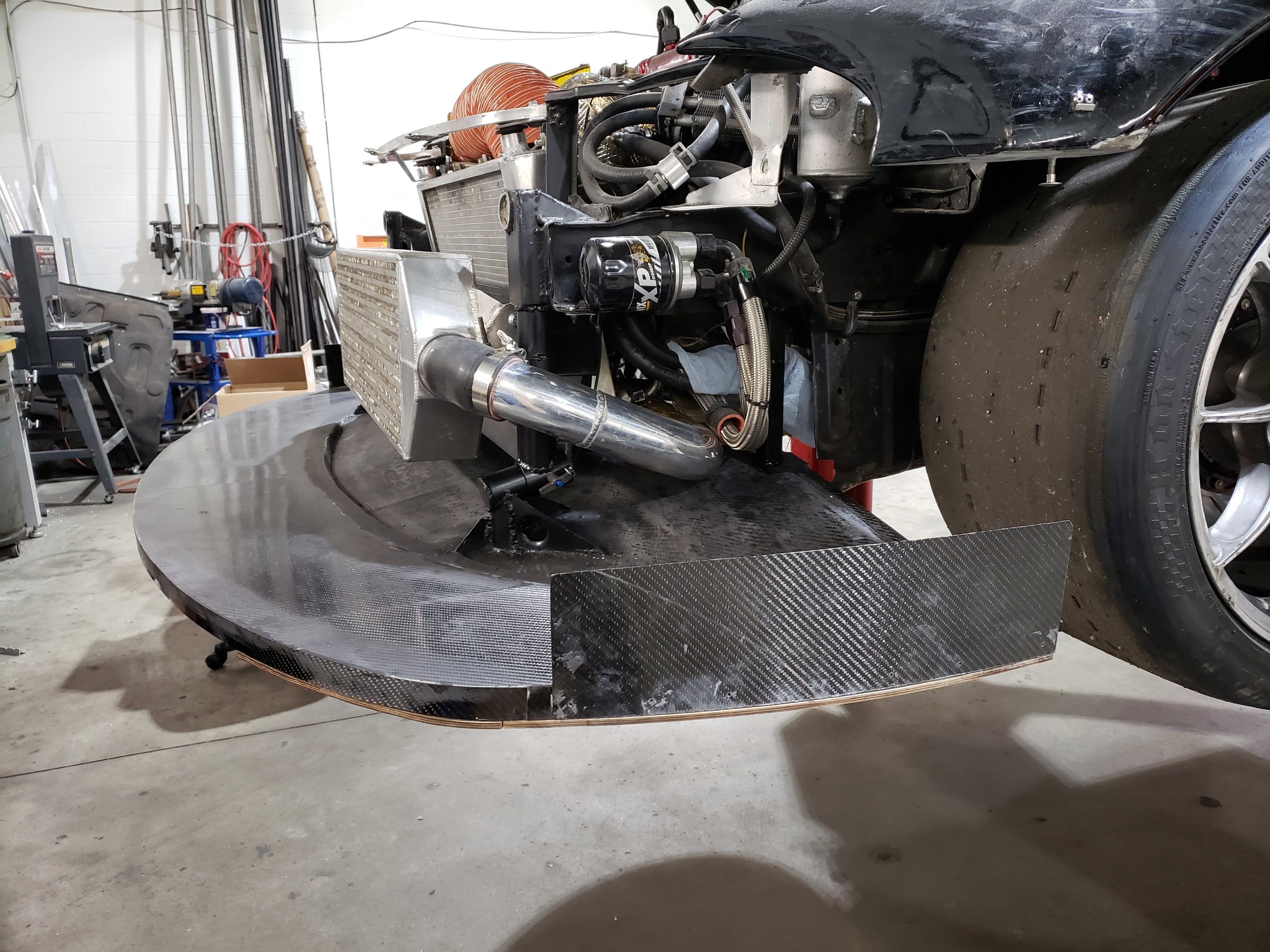

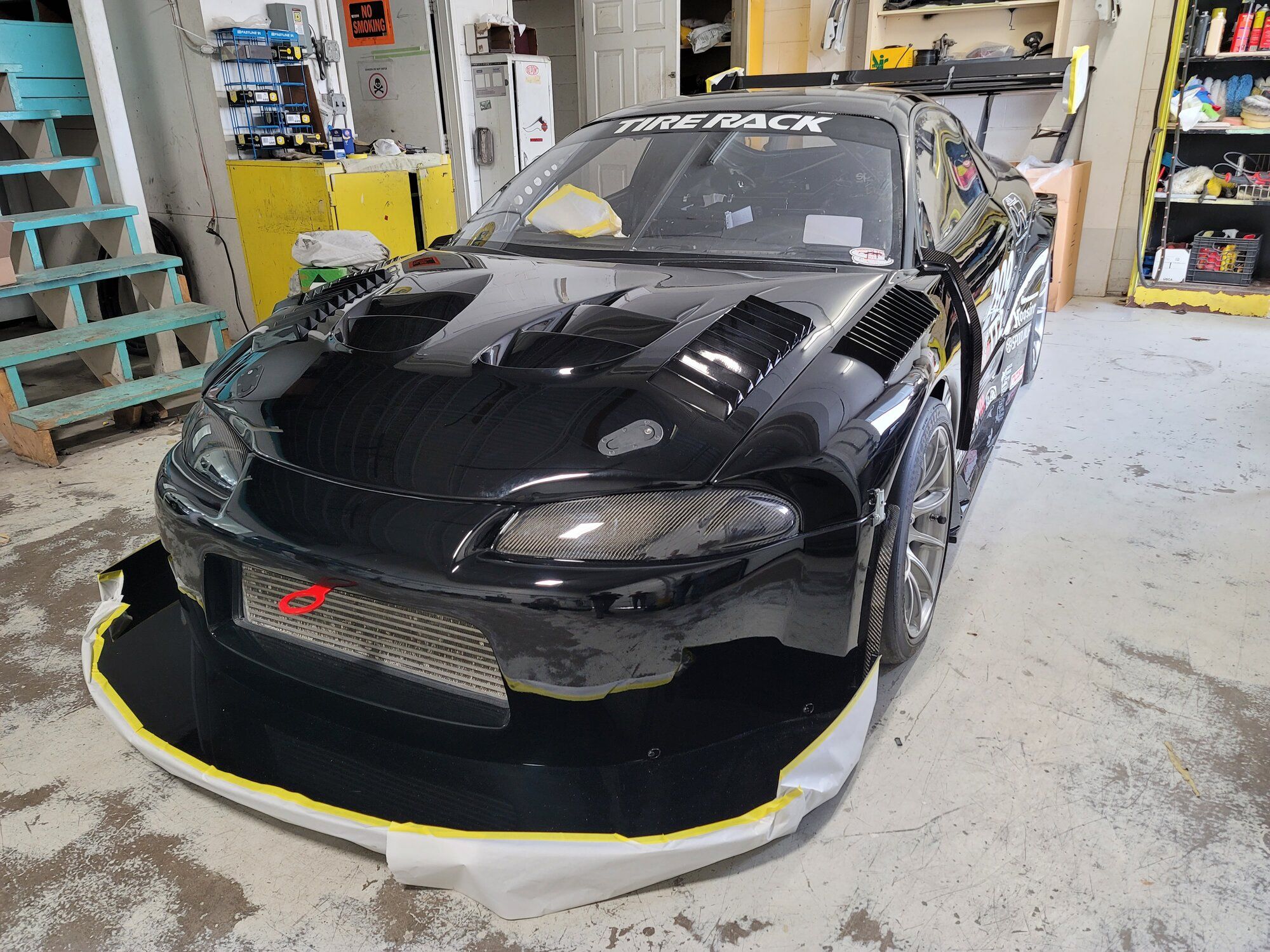

    Splitter Mounted. Unfortunately they screwed up and put it too low and there is like a .5 to .75 inch gap with tbe bumper. Face palm. To move it up though we have to some some changes to the radiator cross support and engine support, which we already did to get it to this position.


    Road Race Build 15K  14  371

    1999 Mitsubishi Eclipse GSX
    377 whp · 416 lb/ft · 2G DSM
    Loading...
    Slo2gen, turbosax2, ErikTande and 4 others like this.
  8. RWD4G63

    RWD4G63 Proven Member

    412
    88
    Joined Dec 7, 2011
    Paw Paw, Michigan
    Body stuff is always a struggle man! Ugh. Cool to see the progress though.


    Road Race Build 317  3

    1997 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
