ECMlink connectivity problem RESOLVED

Posted by gsxitement, Feb 13, 2020

Tags:
Please Support STM Tuned
Please Support Feal Suspension
  1. gsxitement

    gsxitement Proven Member

    667
    487
    Joined Dec 9, 2002
    staten island, New York
    I've been doing a wiring delete on my track only time trial car. Got the car fired up yesterday. Runs ok. My problem is link won't connect. At my DLC, I have 12v on pin 16, 5v on pin 1, pins 4 and 5 show good ground, and I've got good continuity through the pink data wire on pin 7 to the ECU. I get a "port refused to accept required bitrate" message. Also, my little pocket scanner won't connect either. I can't see the ECU being bad cause it just sat in my house while I did this work. I will add, that everything is custom. My own fusebox, my own relays. The MFI relay and fuel pump relay are controlled by switches on the dash panel. Any insight or recommendations would be appreciated. Thanks again. IMG_20200212_193353.jpg


    2K  9

    1998 Mitsubishi Eclipse GSX
    11.930 @ 119.000 · 2G DSM
    Loading...
  2. motomattx

    motomattx Proven Member

    2,158
    808
    Joined Dec 9, 2010
    wampum, Pennsylvania
    For some reason its not receiving the handshake back from the ecu to prove that a connection has been made, what ecu are you using?


    Drag Race Build 3K  24

    1995 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
  3. gsxitement

    gsxitement Proven Member

    667
    487
    Joined Dec 9, 2002
    staten island, New York
    The same ECU I've been using for 9 years. Worked fine at NJMP in August. Got the car home and started the wiring project in October. ECU just sat in the house until last month when we started routing wiring.


    2K  9

    1998 Mitsubishi Eclipse GSX
    11.930 @ 119.000 · 2G DSM
    Loading...
  4. motomattx

    motomattx Proven Member

    2,158
    808
    Joined Dec 9, 2010
    wampum, Pennsylvania
    For some reason its not receiving a handshake back from the ecu to prove that a connection has been made between them, what about pin 15? thats the low data line, also pin 16 is battery positive, not switched ignition if thats what you have running to it.


    Drag Race Build 3K  24

    1995 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    1990TSIAWDTALON and gsxitement like this.
  5. gsxitement

    gsxitement Proven Member

    667
    487
    Joined Dec 9, 2002
    staten island, New York

    Ahhh....pin 15 isn't hooked up. That's gotta be it. That's crazy cause in all my research no one mentioned Pin 15 at all. Even when I look at the wiring diagrams. I'll have to look into that when I get home from work. Pin 16 is hooked up to my fuse box. Being that it's track only, when I turn the master switch on, it's sending power to that fuse box and anything that's not on a switch or relay gets powered up.


    2K  9

    1998 Mitsubishi Eclipse GSX
    11.930 @ 119.000 · 2G DSM
    Loading...
  6. gsxitement

    gsxitement Proven Member

    667
    487
    Joined Dec 9, 2002
    staten island, New York

    Off the link website Screenshot_20200213-083812.png


    2K  9

    1998 Mitsubishi Eclipse GSX
    11.930 @ 119.000 · 2G DSM
    Loading...
  7. motomattx

    motomattx Proven Member

    2,158
    808
    Joined Dec 9, 2010
    wampum, Pennsylvania

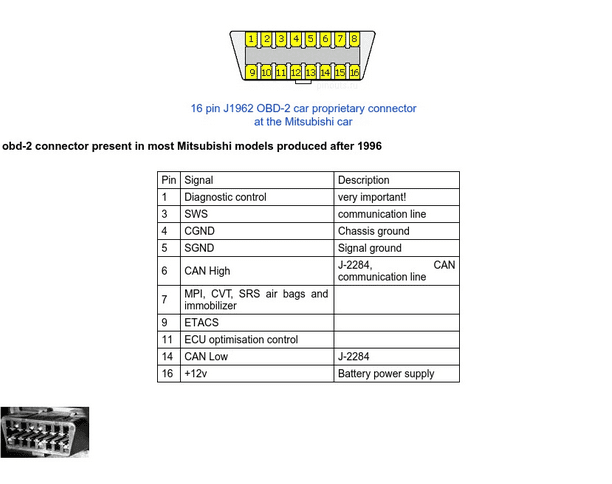

    My point is that you need data on two lines, high and low depending on which protocol your using will tell you which two pins on the obd connector to use, it looks like pin 56 on the ecu is the request line that your not using maybe? the picture below is just to reference that two lines are needed, not necessarily your own obd connector, if I seem to be babbling ignore me, I woke up early on just a few hours of sleep after having a root canal yesterday so I might be slightly out of my mind.

    [​IMG]

    Last edited: Feb 13, 2020

    Drag Race Build 3K  24

    1995 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    1990TSIAWDTALON and gsxitement like this.
  8. gsxitement

    gsxitement Proven Member

    667
    487
    Joined Dec 9, 2002
    staten island, New York
    Lol!! That's brutal. Root canal sucks. And I'll take any direction I can to save the ECU from being bad which I don't think it is. I'll definitely look more into that pin when I get home. I'm not gonna run the car again till I get this sorted. Really appreciate the info. Was kinda in the dark seeing as how the car runs, but won't communicate with anything. Hoping it's something dumb.


    2K  9

    1998 Mitsubishi Eclipse GSX
    11.930 @ 119.000 · 2G DSM
    Loading...
  9. gsxitement

    gsxitement Proven Member

    667
    487
    Joined Dec 9, 2002
    staten island, New York

    You know what? I think the pinouts you mentioned don't apply to me since I'm on a 95 ECU.


    2K  9

    1998 Mitsubishi Eclipse GSX
    11.930 @ 119.000 · 2G DSM
    Loading...
  10. motomattx

    motomattx Proven Member

    2,158
    808
    Joined Dec 9, 2010
    wampum, Pennsylvania
    http://www.dsmlink.com/images/forums/2GECUPinout.pdf

    As I was saying earlier, pin 56 is the request line, data is requested on 56, data is then output on your pink wire on 62.


    Drag Race Build 3K  24

    1995 Mitsubishi Eclipse GST
    fwd · manual · 2G DSM
    Loading...
    1990TSIAWDTALON likes this.
  11. EVLGSX

    EVLGSX Proven Member

    474
    197
    Joined Dec 7, 2017
    Wallingford, Connecticut
    Ive seen this message when the drivers need to be updated, but if your pocket scanner is doing the same thing then its unlikely. Only time Ive ever seen it though.


    Street Build 2K  15

    1997 Mitsubishi Eclipse GSX
    awd · manual · 2G DSM
    Loading...
  12. gsxitement

    gsxitement Proven Member

    667
    487
    Joined Dec 9, 2002
    staten island, New York
    Figured it out. Pin 82 which comes from the ignition switch when the key is in run wasn't getting 12v. Since I no longer run an ignition switch, I had to run a separate 12v line and splice it into the B/W wire at pin 82. I did that, turned on the MFI relay and it works.


    2K  9

    1998 Mitsubishi Eclipse GSX
    11.930 @ 119.000 · 2G DSM
    Loading...
    steve, Mello, tk106 and 3 others like this.
  13. 1990TSIAWDTALON

    1990TSIAWDTALON Moderator

    4,896
    2,225
    Joined Nov 14, 2013
    Independence, Kansas
    Thanks for following up with the solution. Now if anyone else has this issue, you guys are ones that figured it out. That is what is so great about this forum! :thumb:


    Street Build 4K  28

    1992 Eagle Talon TSi AWD
    awd · automatic · 1G DSM

    761  14

    1990 Mitsubishi Eclipse GSX
    awd · manual · 1G DSM

    552  18

    1967 Chevrolet Camaro RS
    rwd · automatic · Misc Vehicles

    Street Build 779  7

    1998 Eagle Talon TSi
    fwd · manual · 2G DSM

    Street Build 6K  11  25

    1990 Eagle Talon TSi AWD
    13.620 @ 108.460 · 1G DSM
    Loading...
    gsxitement likes this.
  14. gsxitement

    gsxitement Proven Member

    667
    487
    Joined Dec 9, 2002
    staten island, New York

    Absolutely. The combined experience of everyone on here is such a deep well of knowledge. Hope it helps someone in the future.
