  1. iugrad92turbo

    iugrad92turbo Proven Member

    10,396
    345
    Joined May 22, 2007
    Kalamazoo, Michigan
    Looks good Scott can't wait to see it again.


    5K  6

    1992 Eagle Talon TSi
    awd · manual · 1G DSM

    1K  0

    1992 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
    b00stedtalon2 likes this.

    Featured Products from our Supporting Vendors

  2. ThunderChild

    ThunderChild Supporting VIP

    1,870
    426
    Joined Jan 5, 2012
    Rathdrum, Idaho
    Sweet car, and the build is looking awesome. I really like that collector with the WG tubes cast in, that's dope!

    Maybe if I make it to the shootout this year I'll come say hi and check it out :thumb:


    Street Build 406  7

    1997 Mitsubishi Eclipse Spyder GST
    fwd · manual · 2G DSM

    Street Build 651  1

    1992 Eagle Talon TSi AWD
    manual · 1G DSM

    Street Build 2K  10

    1992 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
    b00stedtalon2 likes this.
  3. b00stedtalon2

    b00stedtalon2 Proven Member

    590
    452
    Joined Dec 19, 2005
    Detroit, Michigan
    Thank you. I specially wanted the collector to use the T fittings. Less welds and great flow.


    820  1

    1994 Mitsubishi Evo
    automatic · Lancer Evolution

    Street Build 3K  1

    1993 Eagle Talon TSi AWD
    9.585 @ 143.96 · 1G DSM
    Loading...
  4. b00stedtalon2

    b00stedtalon2 Proven Member

    590
    452
    Joined Dec 19, 2005
    Detroit, Michigan

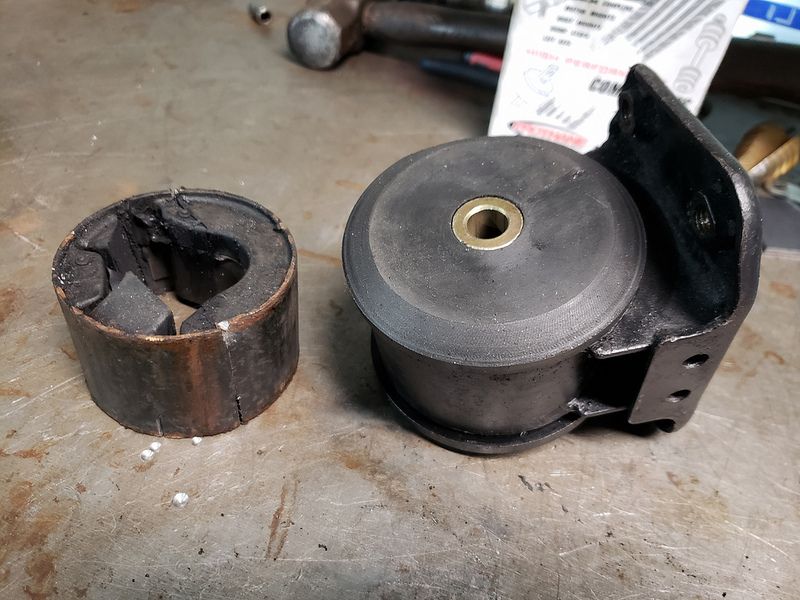

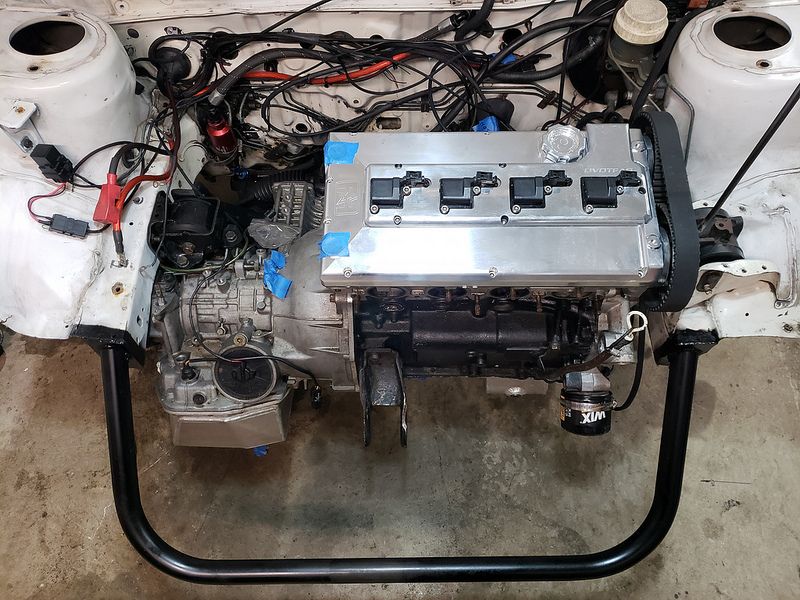

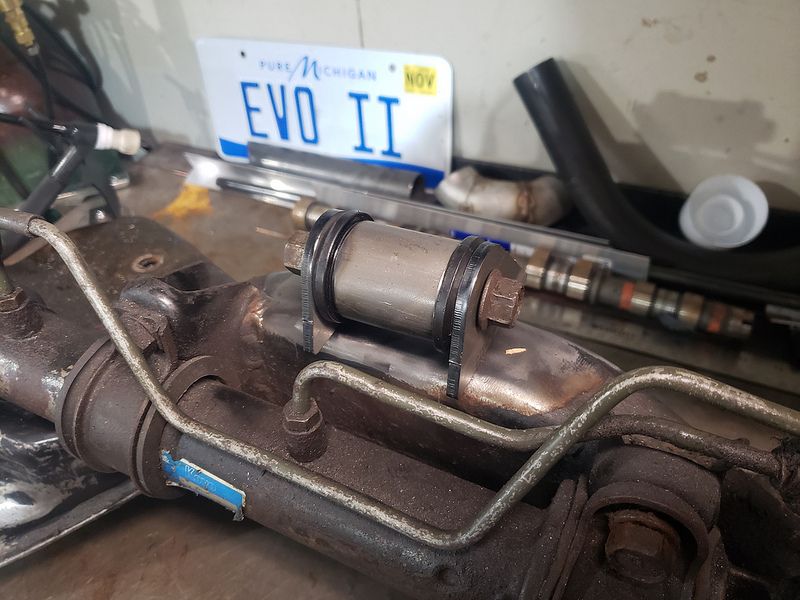

    The engine side had a poly mount but the trans mount was still stock. Luckily a 1G DSM insert was the same size.

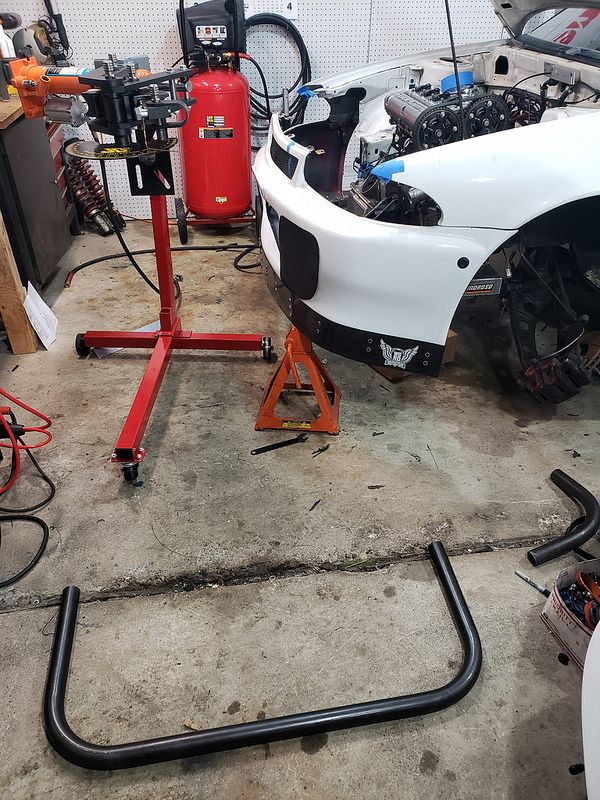

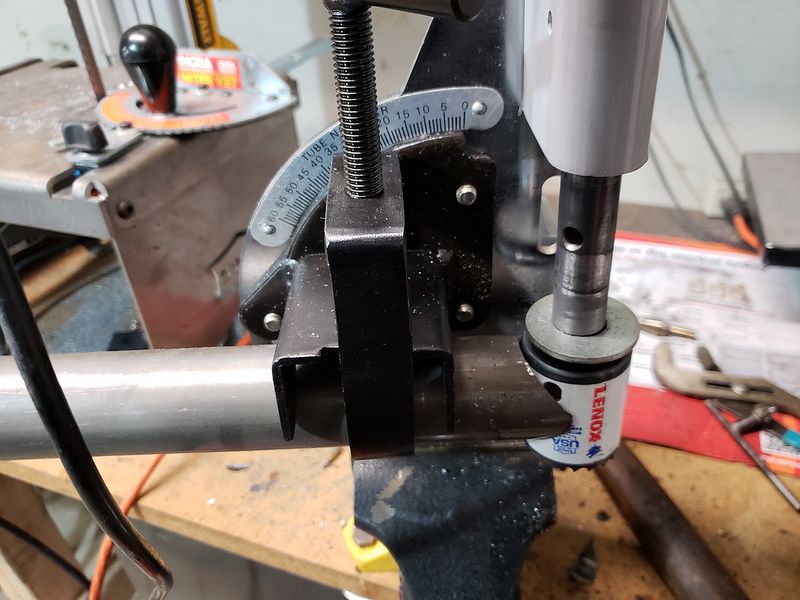

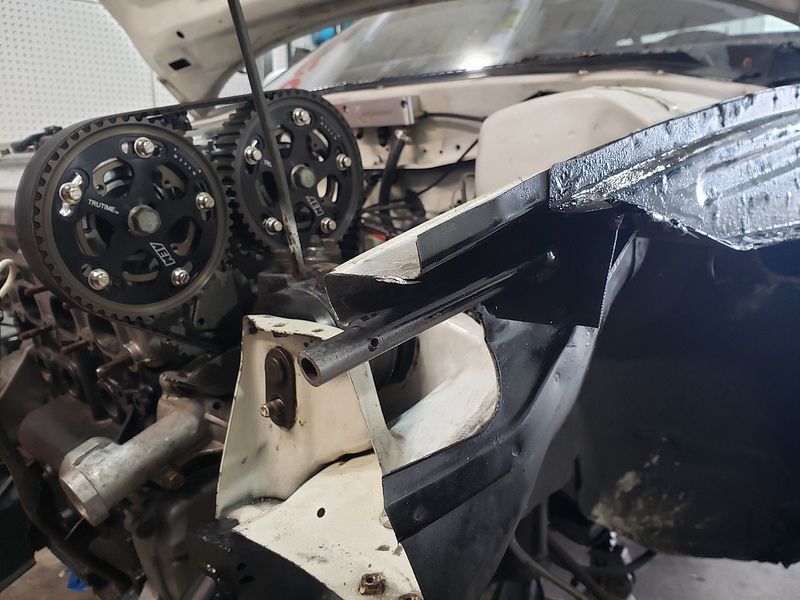

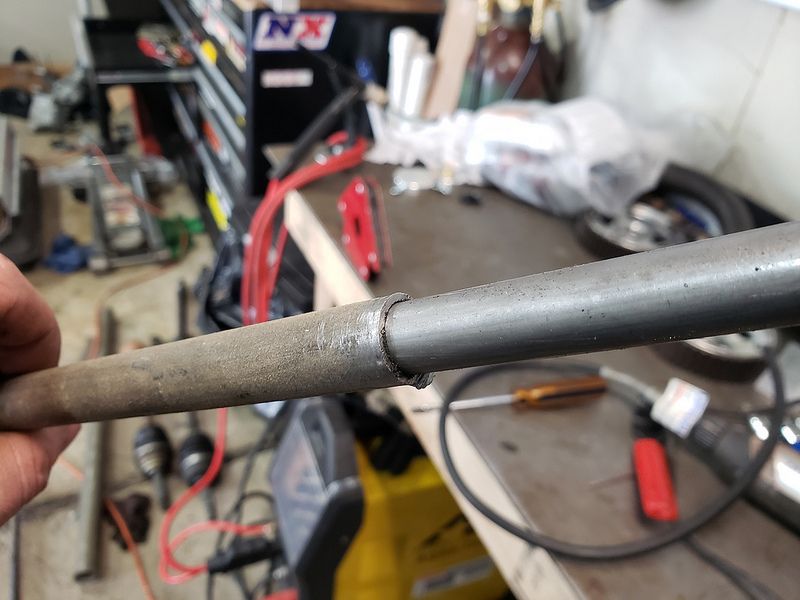

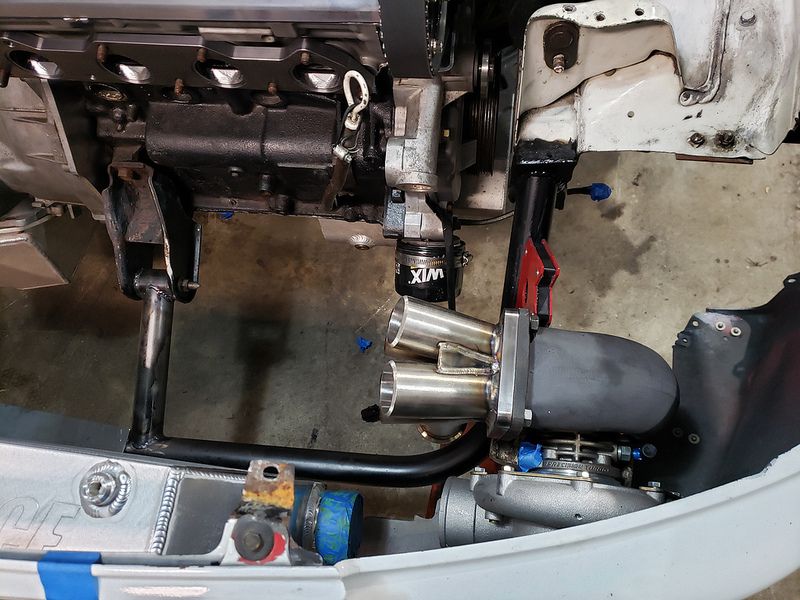

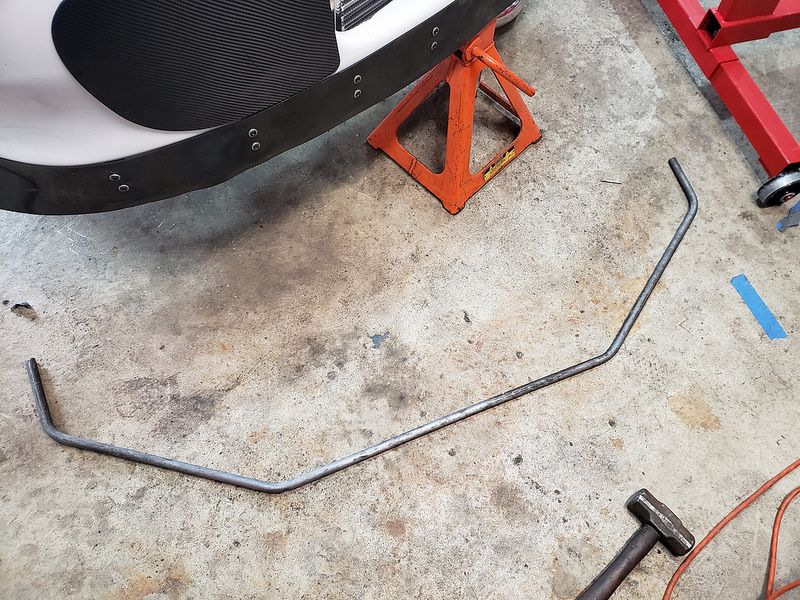

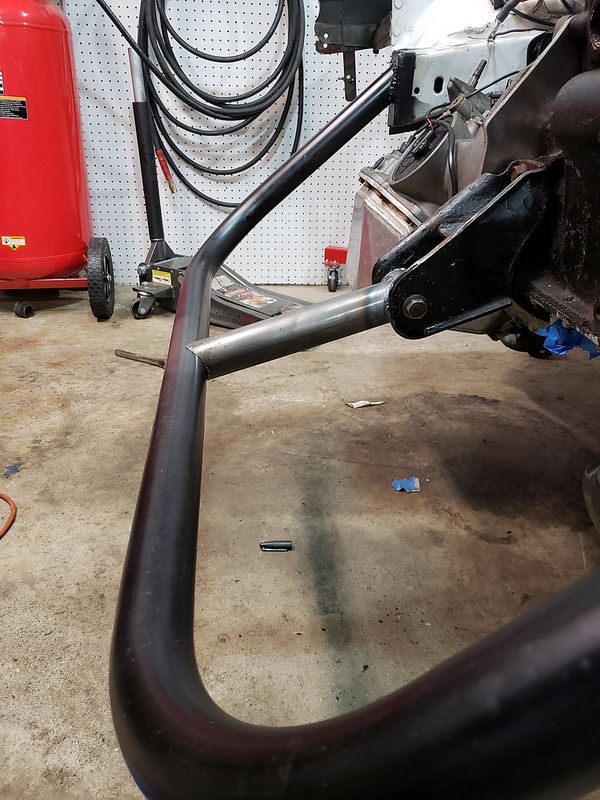

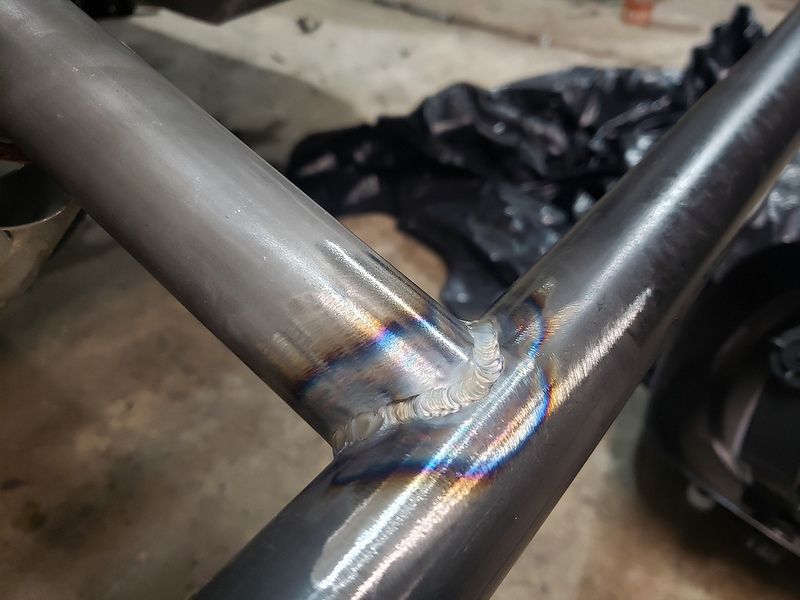

    Front end bent up. 1 5/8" 4130



    Frontline fab valve cover found its way on. What a nice piece.




    820  1

    1994 Mitsubishi Evo
    automatic · Lancer Evolution

    Street Build 3K  1

    1993 Eagle Talon TSi AWD
    9.585 @ 143.96 · 1G DSM
    Loading...
  5. b00stedtalon2

    b00stedtalon2 Proven Member

    590
    452
    Joined Dec 19, 2005
    Detroit, Michigan

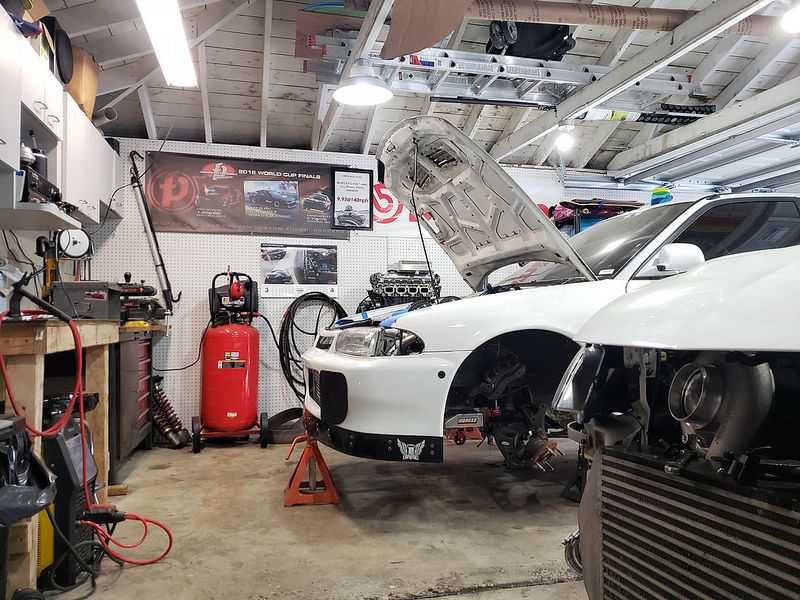

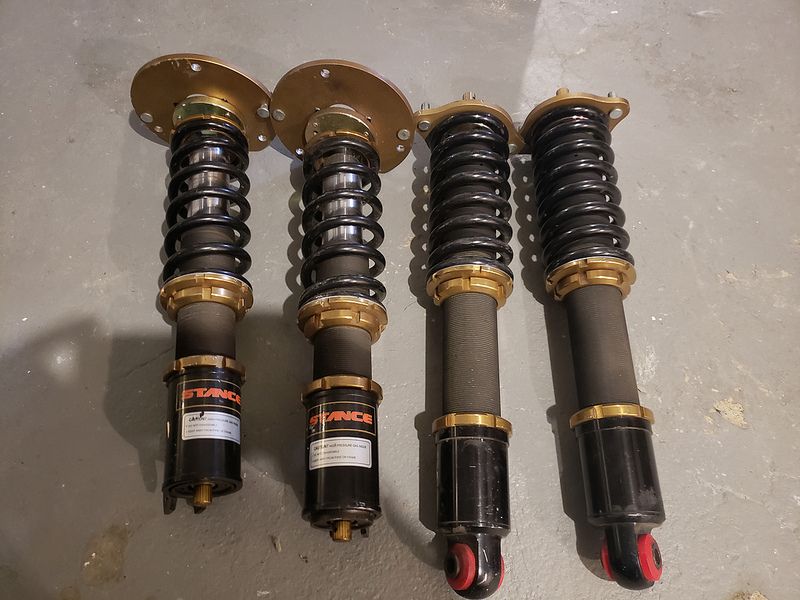

    A couple more parts rolled in. Just waiting on a some items from DSS and the drivetrain will be complete.

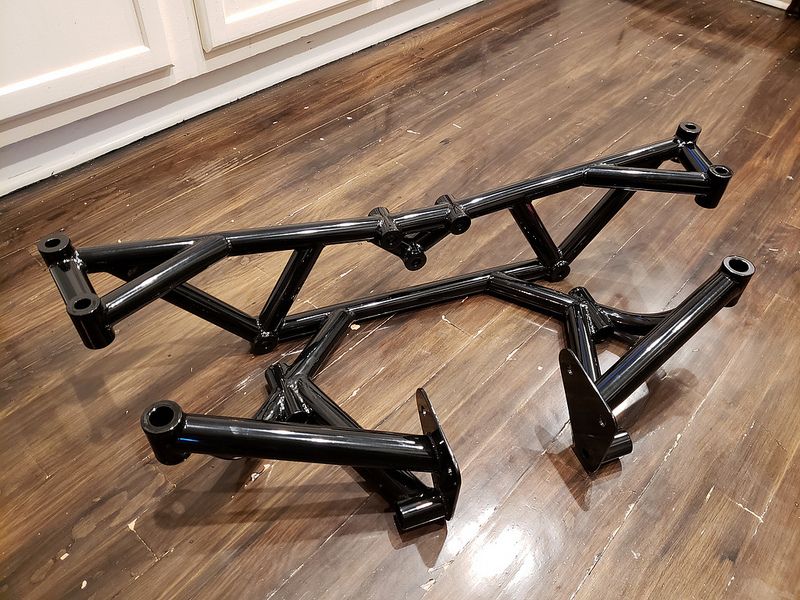

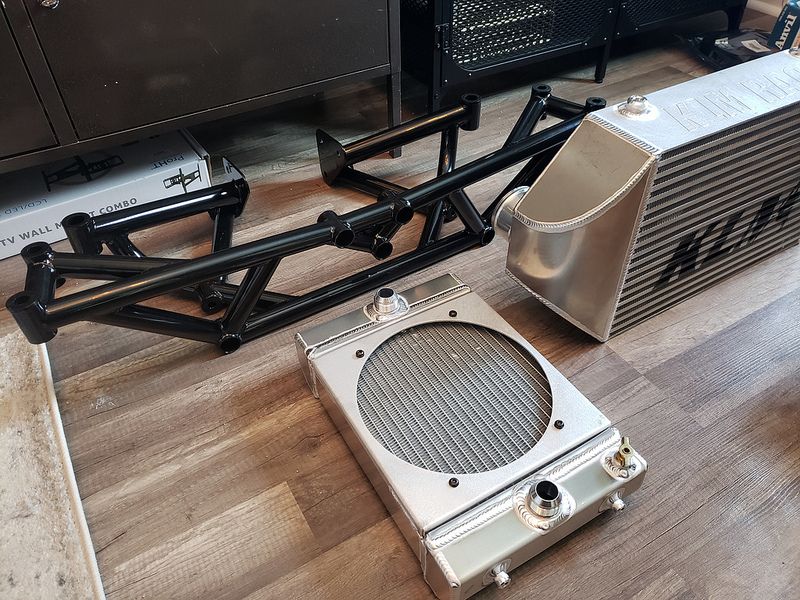

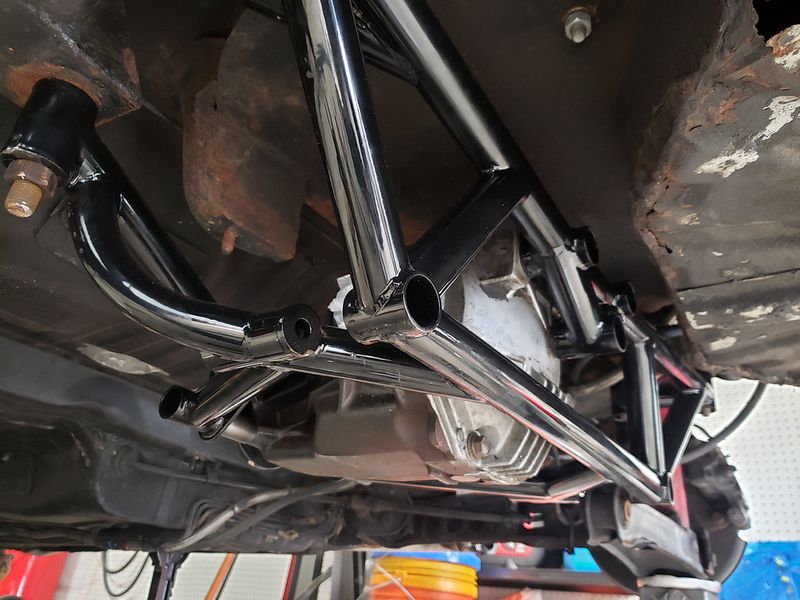

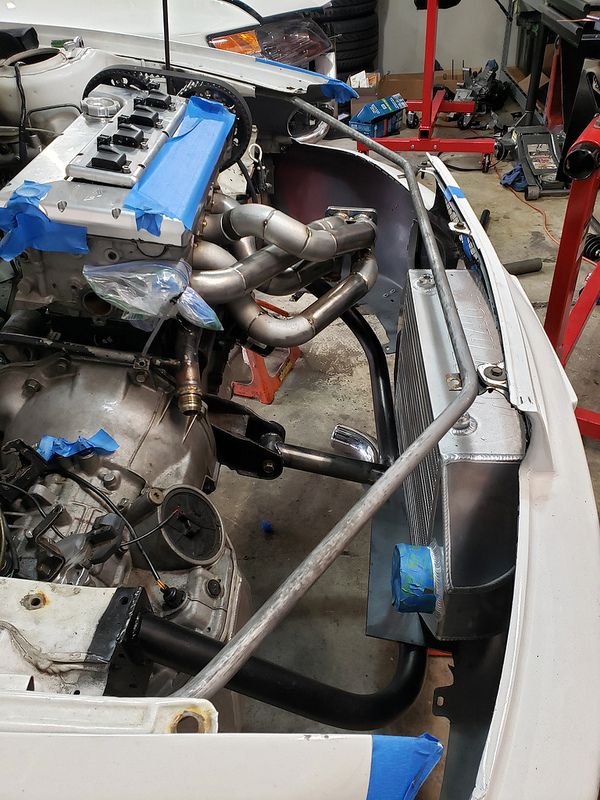

    Racefab tube rear subframe and KLM 1000HP SFWD style FMIC with shrouded radiator

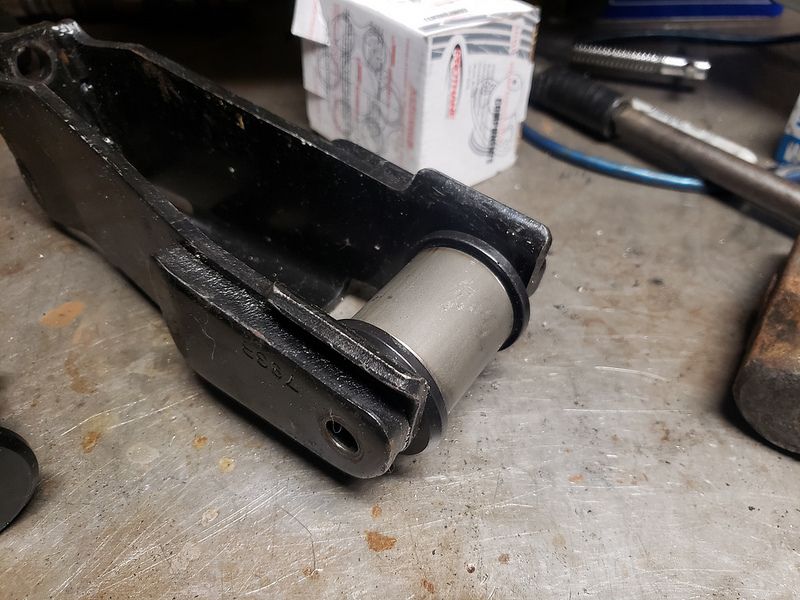

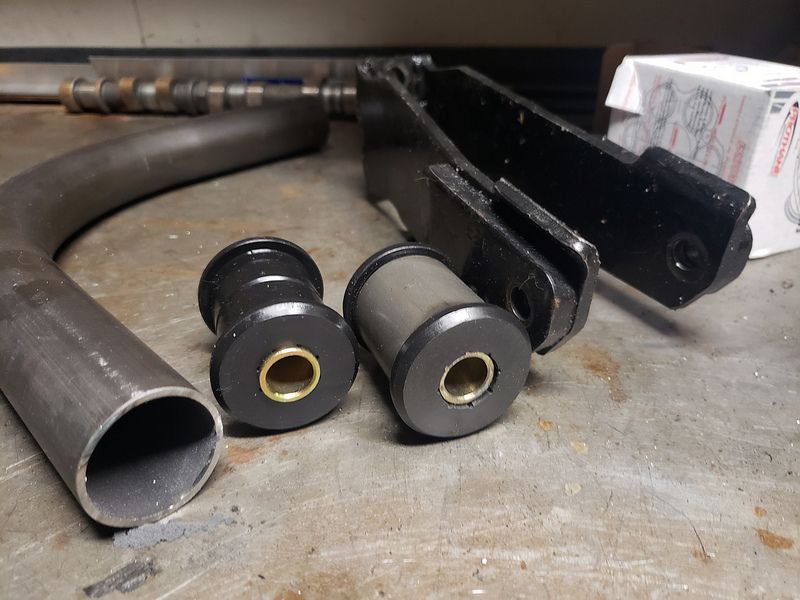

    Putting together some poly roll stops using some scrap 4130 for the rear engine mount.




    820  1

    1994 Mitsubishi Evo
    automatic · Lancer Evolution

    Street Build 3K  1

    1993 Eagle Talon TSi AWD
    9.585 @ 143.96 · 1G DSM
    Loading...
  6. b00stedtalon2

    b00stedtalon2 Proven Member

    590
    452
    Joined Dec 19, 2005
    Detroit, Michigan

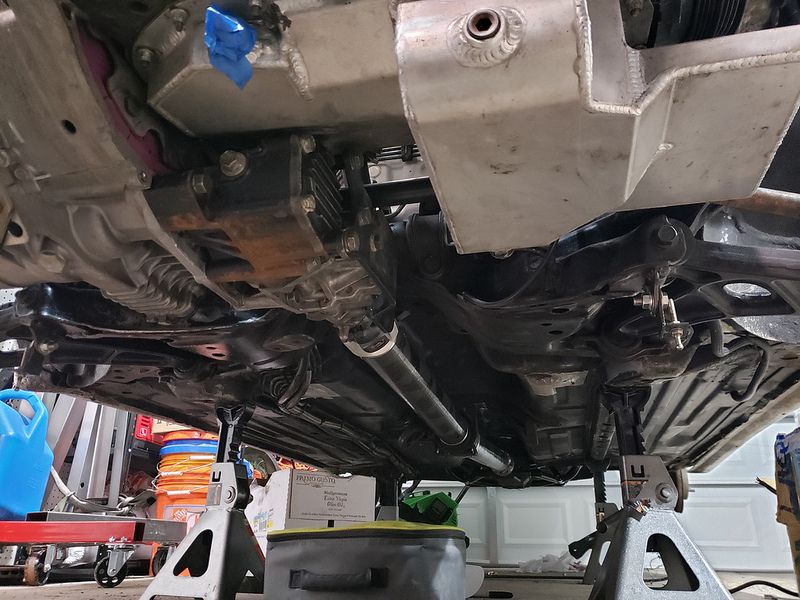

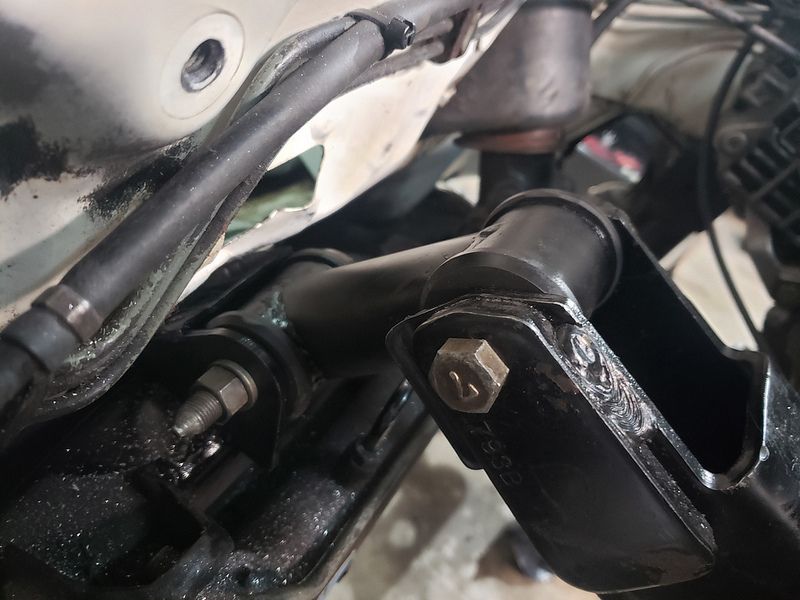

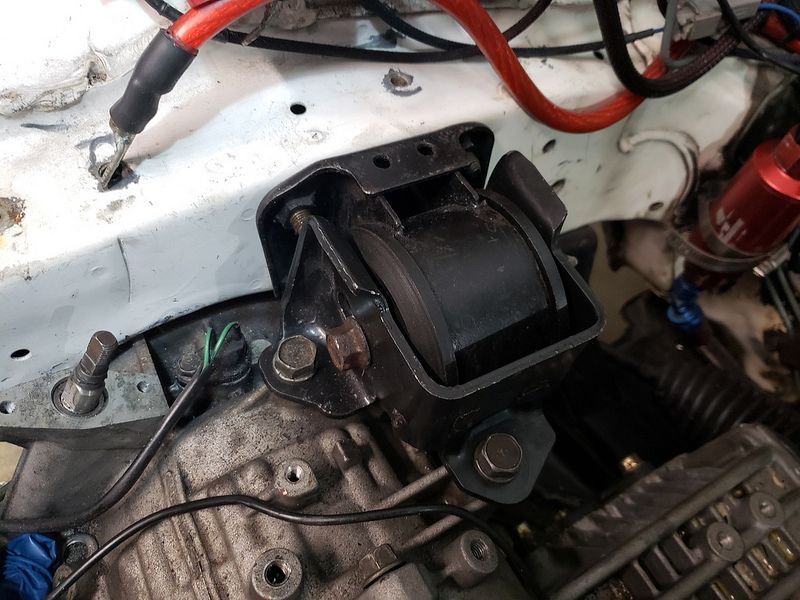

    Front and rear mounts are finished. I had to add my own mount to the subframe for the rear. The factory front and rear roll stops are under the car attached to a north south bar (3 mounts on transmission). I'm now running 3 on engine to make it easier for pulling the transmission.

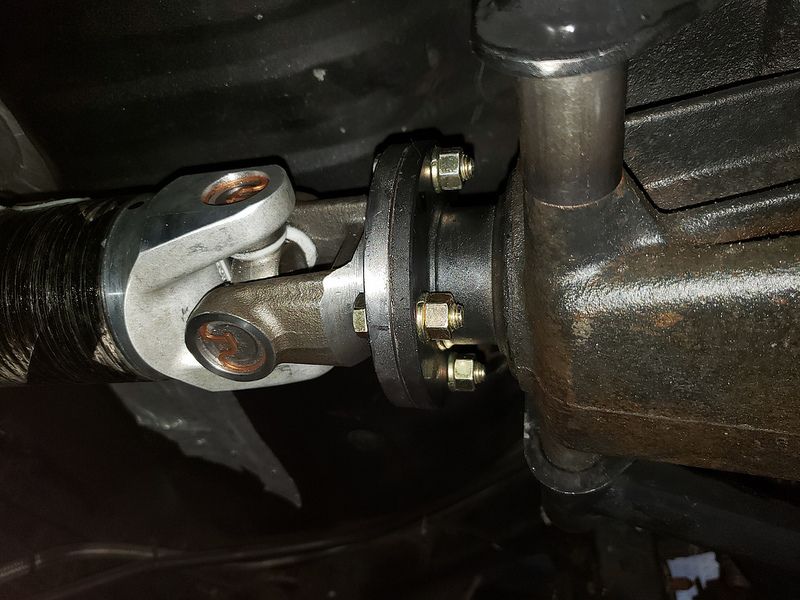

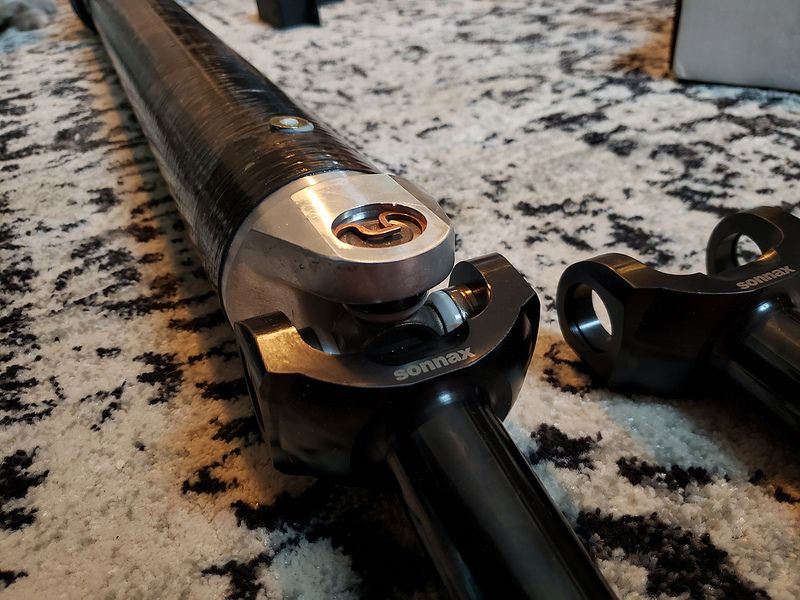

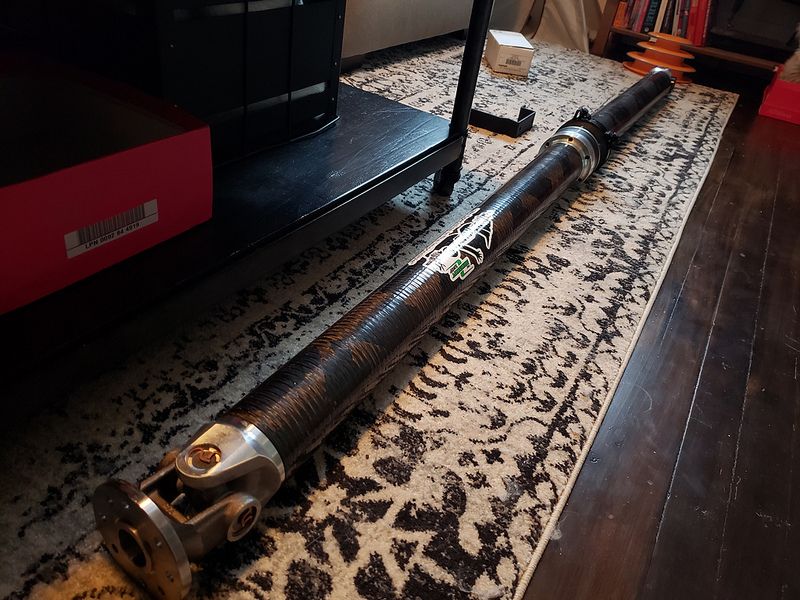

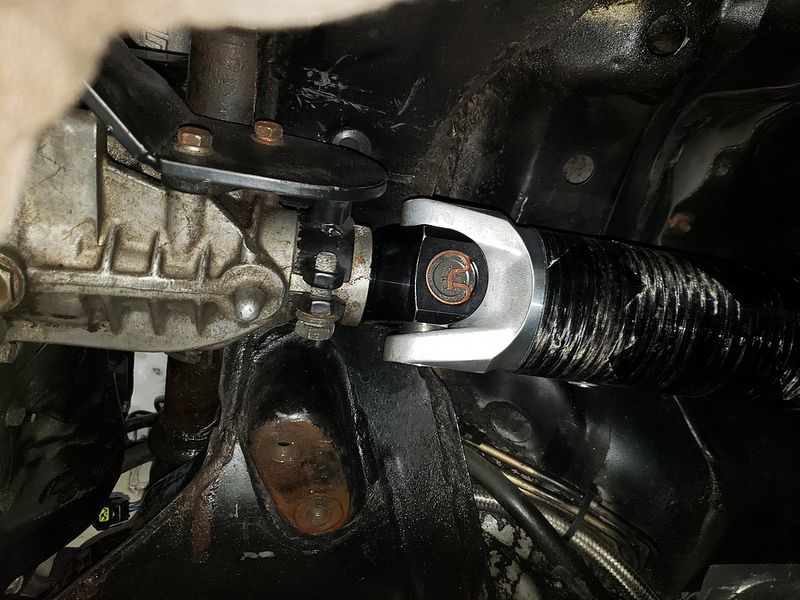

    Carbon DSS driveshaft with Sonax yoke.

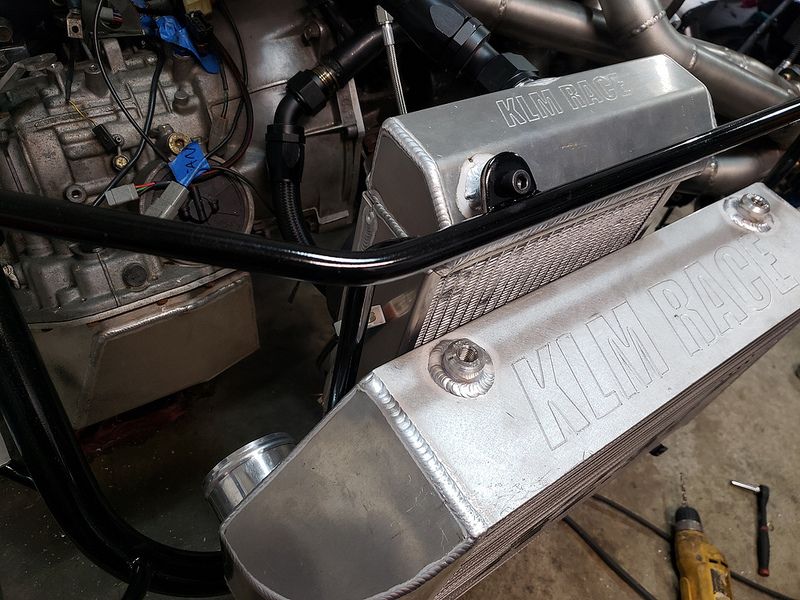

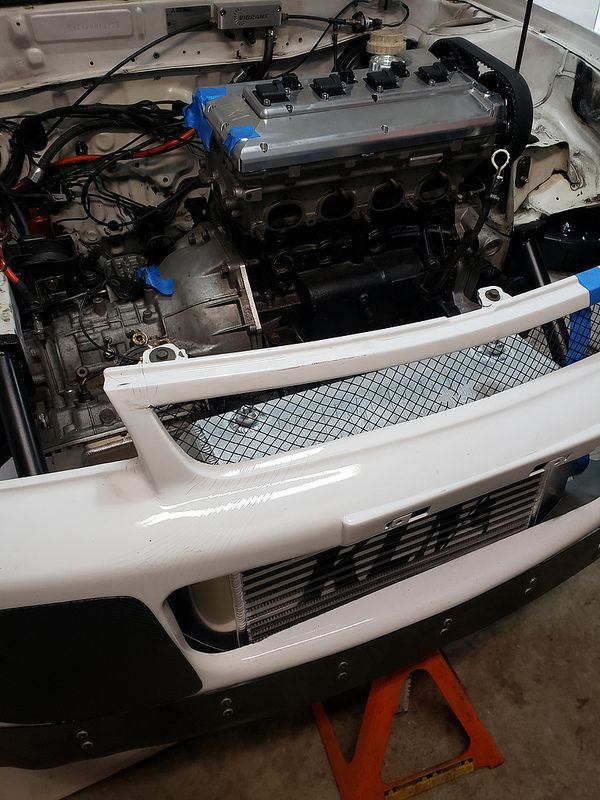

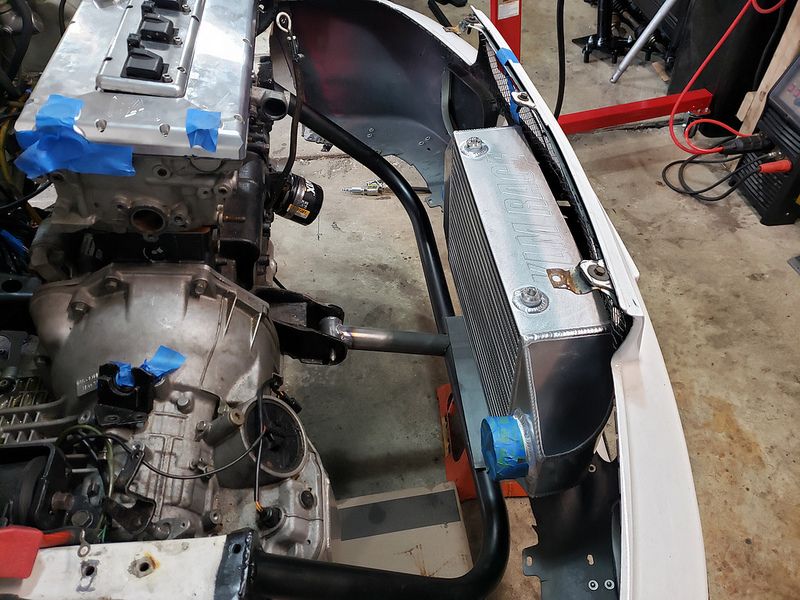

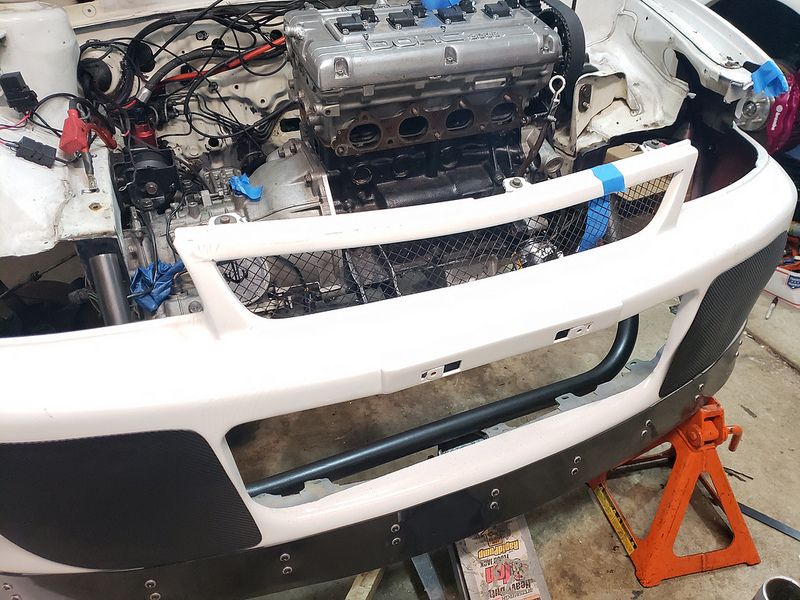

    Test fitted the FMIC




    820  1

    1994 Mitsubishi Evo
    automatic · Lancer Evolution

    Street Build 3K  1

    1993 Eagle Talon TSi AWD
    9.585 @ 143.96 · 1G DSM
    Loading...
  7. camfast

    camfast Proven Member

    354
    19
    Joined Jun 6, 2008
    Houston, Texas
    Awesome build man!!


    1K  4

    1991 Eagle Talon TSi AWD
    13 @ 100 · 2G DSM
    Loading...
    b00stedtalon2 likes this.
  8. b00stedtalon2

    b00stedtalon2 Proven Member

    590
    452
    Joined Dec 19, 2005
    Detroit, Michigan

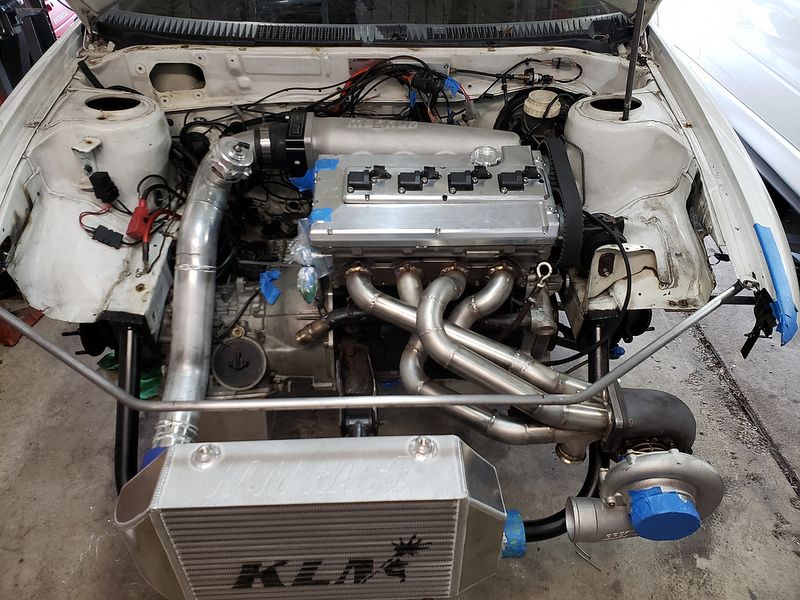

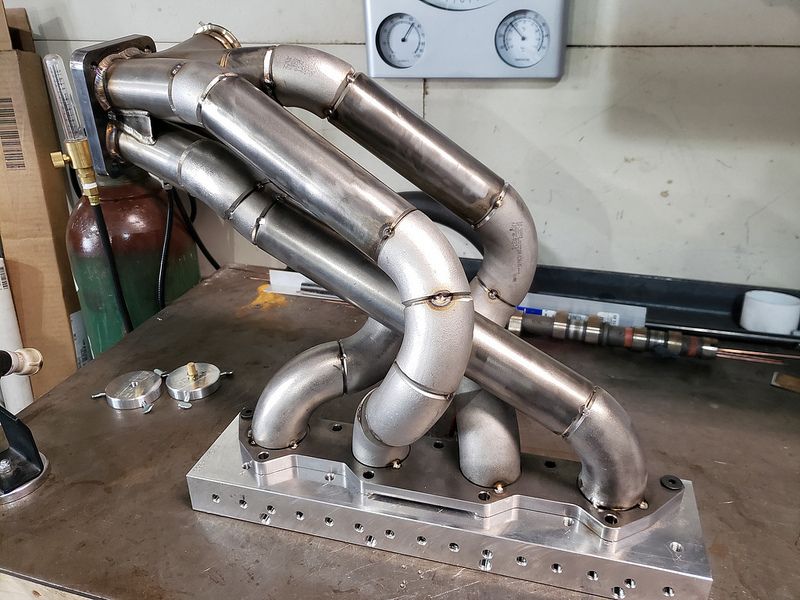

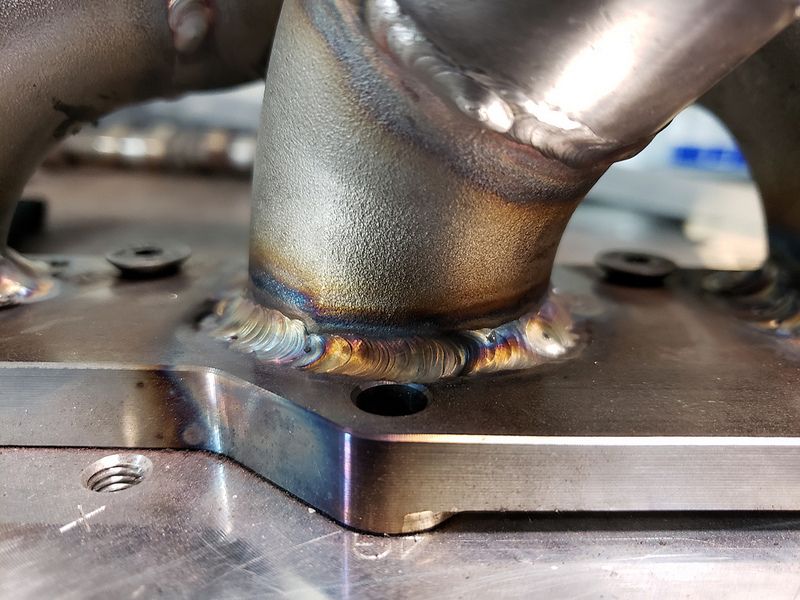

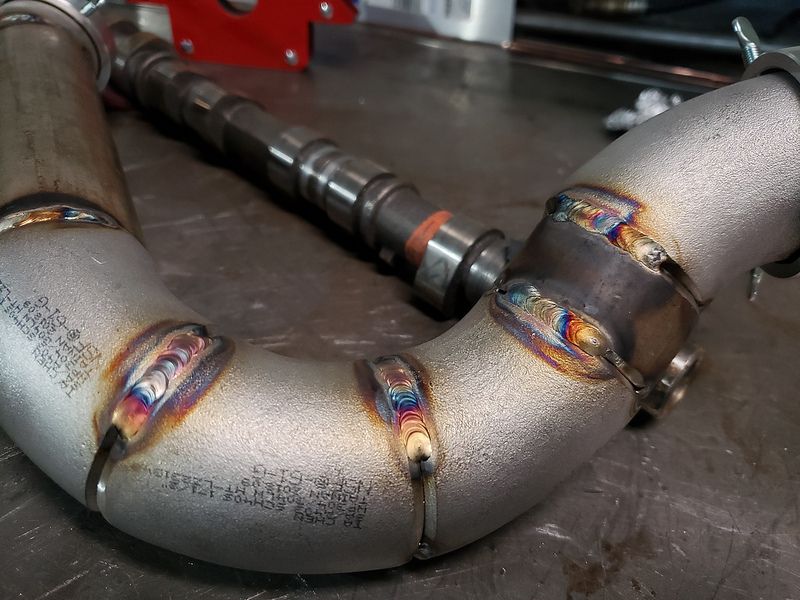

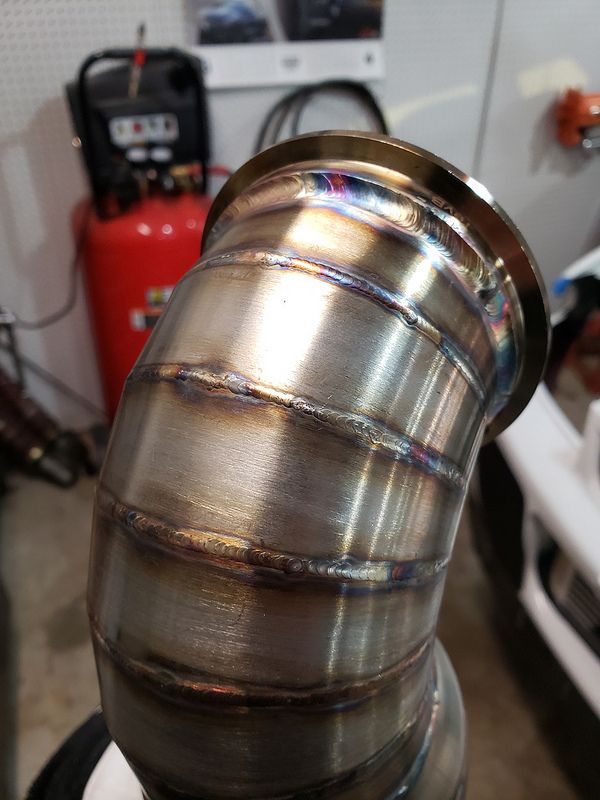

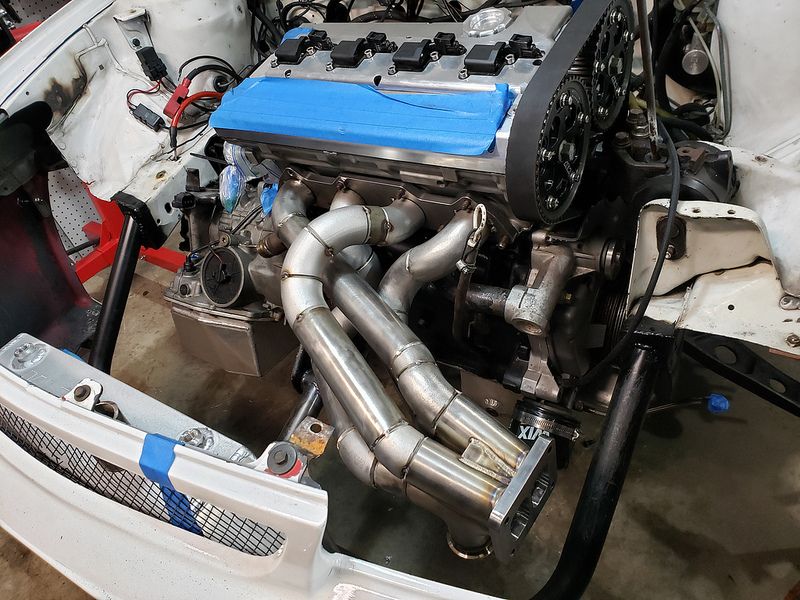

    Started on the manifold today and got the runners tacked up. Sch40 pipe with bsfab t4 divided collector. I don't own a vertical band saw yet to get crafty with my own collector.

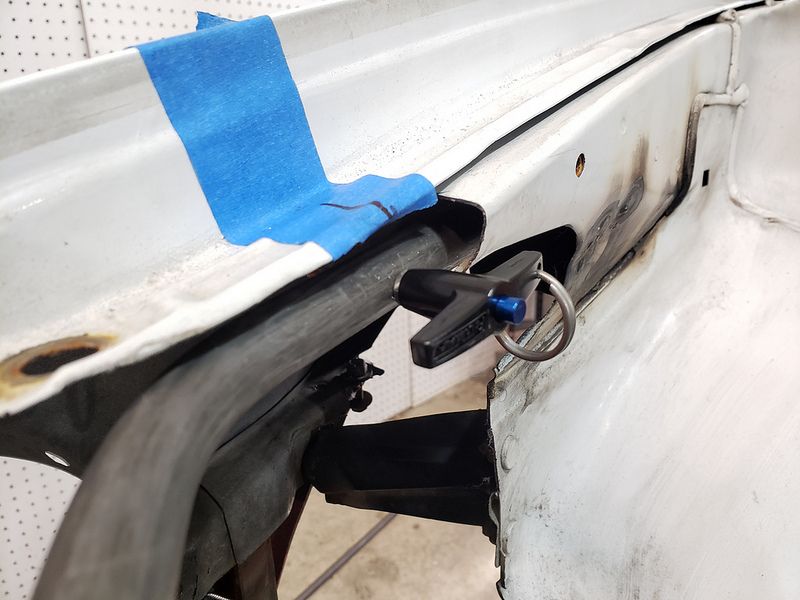

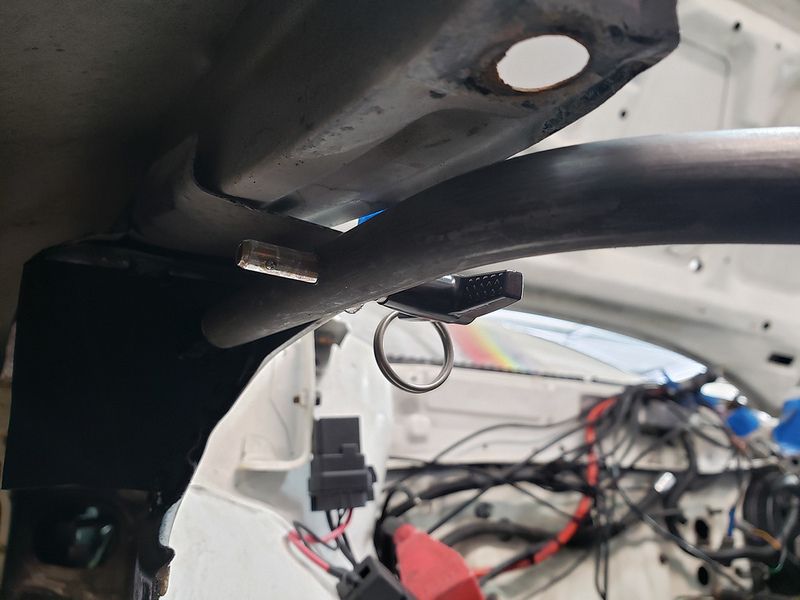

    Got some of the upper radiator support done today. It is removable with quick release pins that have a shear lead of 12000lbs.








    Rear end bolted up.




    820  1

    1994 Mitsubishi Evo
    automatic · Lancer Evolution

    Street Build 3K  1

    1993 Eagle Talon TSi AWD
    9.585 @ 143.96 · 1G DSM
    Loading...
  9. OH91awd

    OH91awd Proven Member

    462
    181
    Joined Sep 22, 2011
    chillicothe, Ohio
    cars coming along amazing scott. all of it looks gorgeous.


    Drag Race Build 2K  16

    1992 Eagle Talon TSi AWD
    10.89 @ 125.67 · 1G DSM
    Loading...
  10. b00stedtalon2

    b00stedtalon2 Proven Member

    590
    452
    Joined Dec 19, 2005
    Detroit, Michigan
    Thank you!


    820  1

    1994 Mitsubishi Evo
    automatic · Lancer Evolution

    Street Build 3K  1

    1993 Eagle Talon TSi AWD
    9.585 @ 143.96 · 1G DSM
    Loading...
  11. bling5tatus

    bling5tatus Proven Member

    1,282
    89
    Joined Sep 23, 2005
    DFW/Austin, Texas
    Awesome pictures and build. I'm excited to see what you end up with.


    1K  0

    1989 Dodge Colt GT
    manual · 4G63t Swapped

    2K  1

    1991 Eagle Talon TSi
    fwd · manual · 1G DSM
    Loading...
  12. b00stedtalon2

    b00stedtalon2 Proven Member

    590
    452
    Joined Dec 19, 2005
    Detroit, Michigan

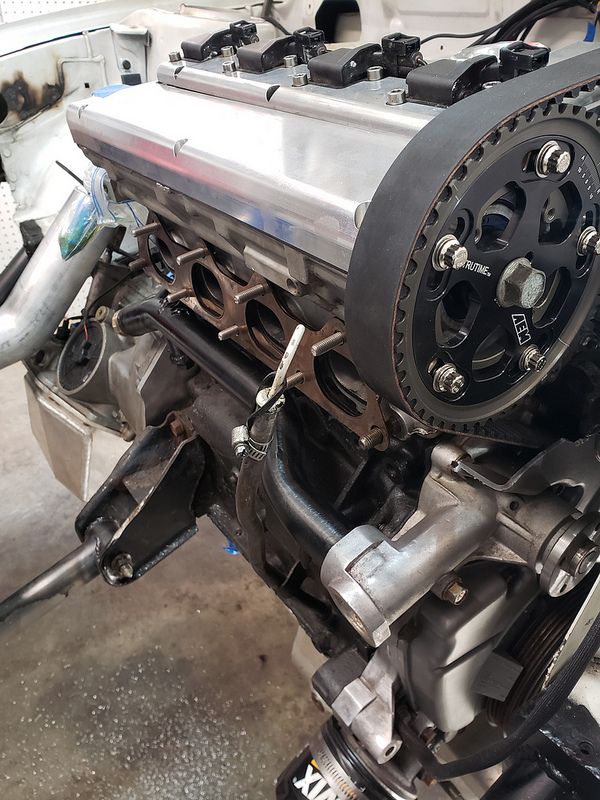

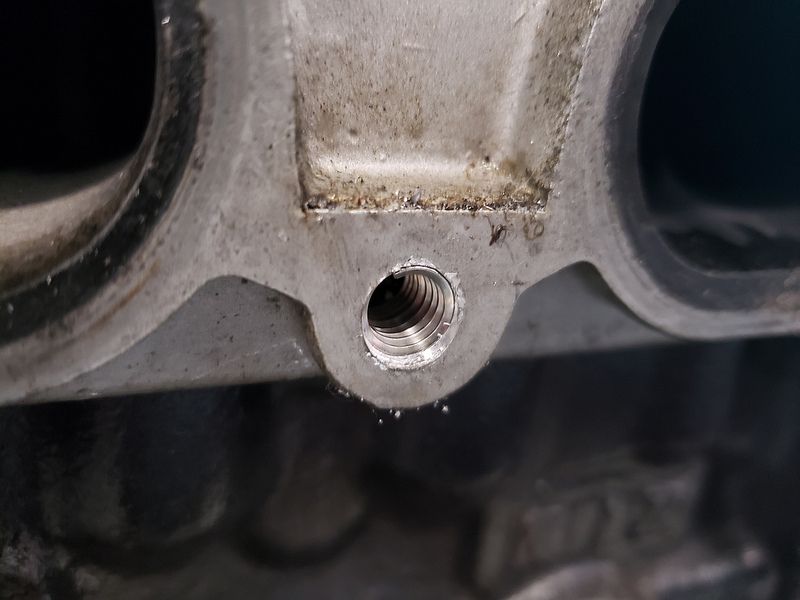

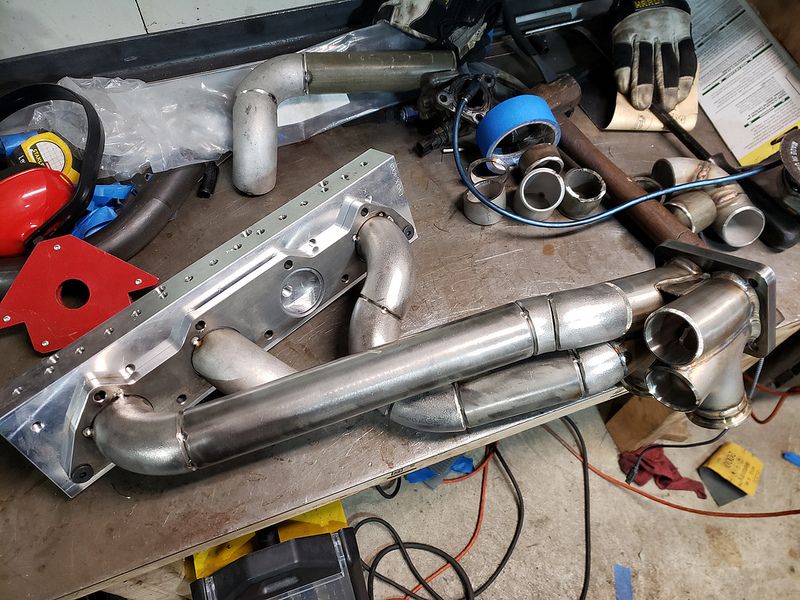

    Had to helicoil the head in a few spots. I installed SS studs from www.ssstuds.com

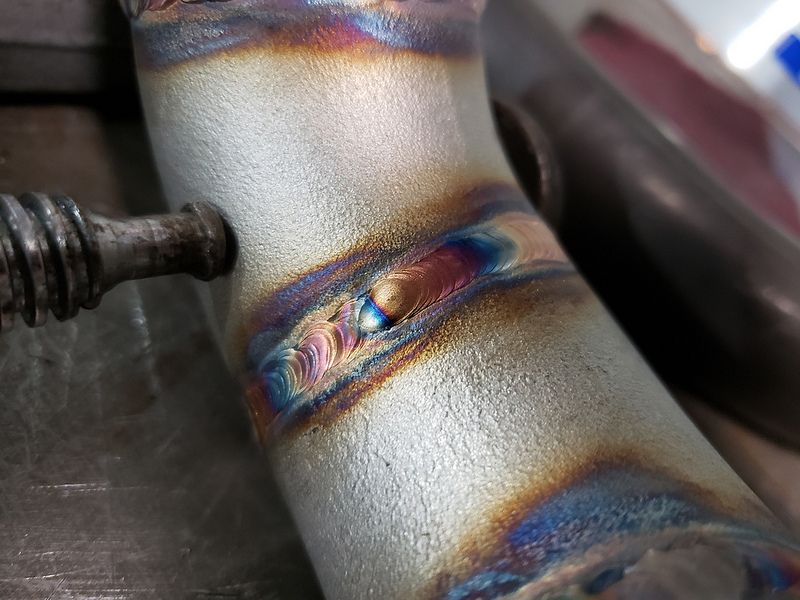

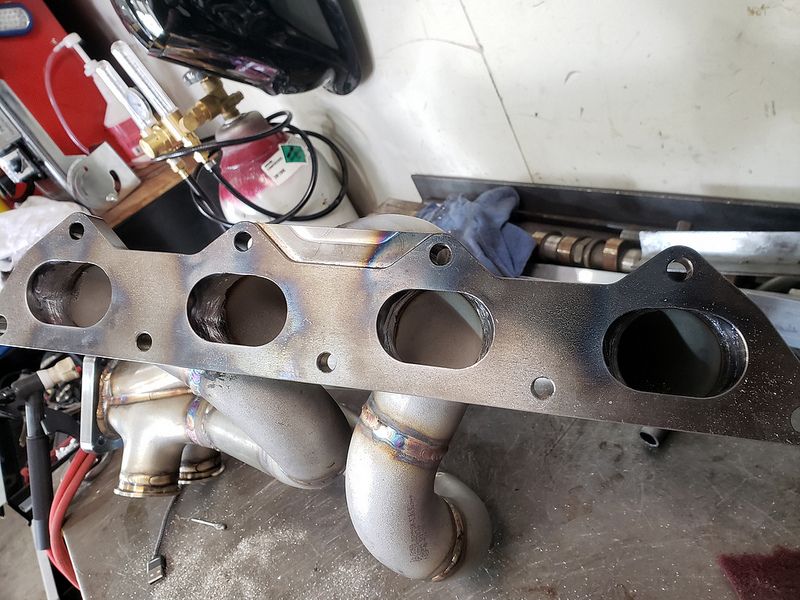

    Finished welding the manifold

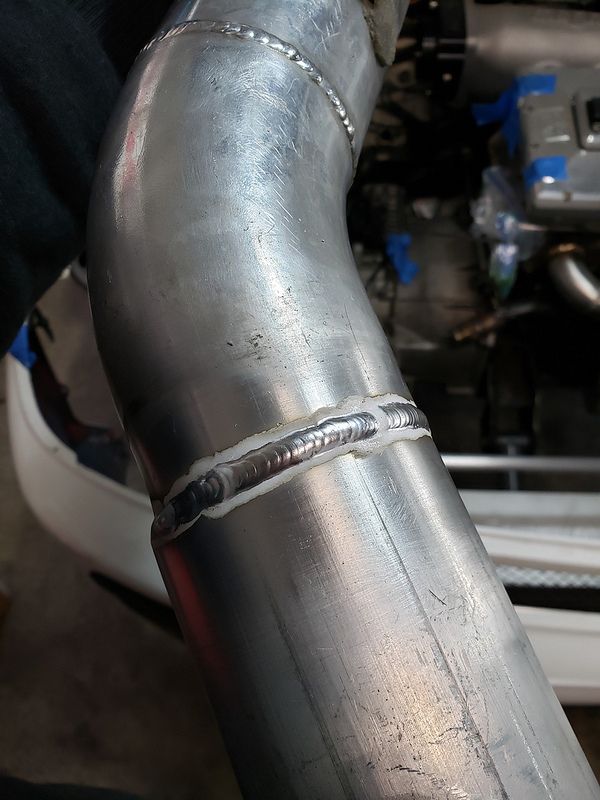

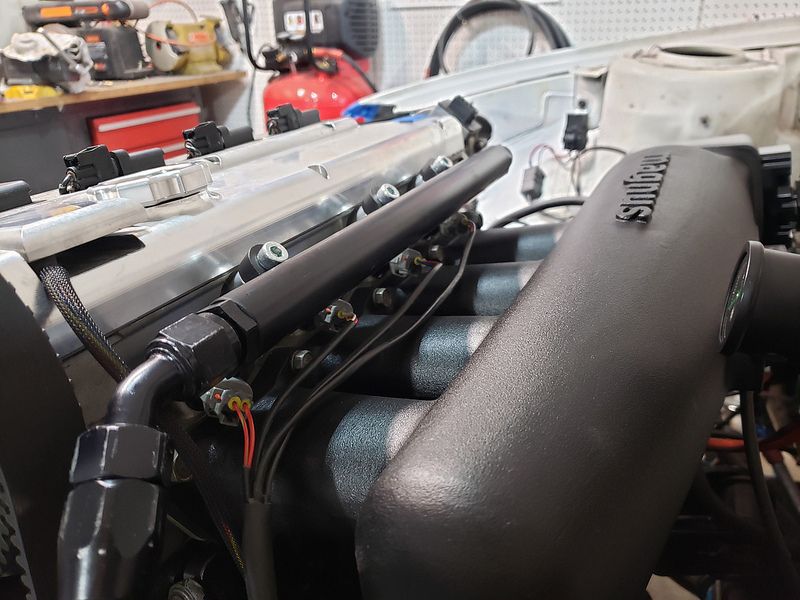

    Fabbed up the UICP. I haven't decided what i'm doing for the LICP yet. Pipes and intake manifold will be coated wrinkle black.





    Attached Files:

    Last edited: Mar 12, 2019

    820  1

    1994 Mitsubishi Evo
    automatic · Lancer Evolution

    Street Build 3K  1

    1993 Eagle Talon TSi AWD
    9.585 @ 143.96 · 1G DSM
    Loading...
  13. Devilsfutbol17

    Devilsfutbol17 Proven Member

    349
    16
    Joined Jul 27, 2007
    Bellingham, Washington
    Looks great, love everything so far. I have a question, is there anything supporting the turbo besides the exhaust manifold?


    521  3

    1991 Mitsubishi Galant VR-4
    manual · Galant VR-4
    Loading...
  14. DetroitDSM

    DetroitDSM Probationary Member

    21
    11
    Joined Jan 31, 2019
    Southfield, Michigan
    Me 2


    Drag Race Build 328  3

    1997 Eagle Talon TSi AWD
    awd · automatic · 2G DSM
    Loading...
    b00stedtalon2 likes this.
  15. spoolinpos

    spoolinpos Proven Member

    58
    30
    Joined Feb 13, 2008
    St. Clair Shores, Michigan
    OMG


    Street Build 1K  13

    1998 Mitsubishi Eclipse GSX
    awd · automatic · 2G DSM
    Loading...
    b00stedtalon2 likes this.
  16. b00stedtalon2

    b00stedtalon2 Proven Member

    590
    452
    Joined Dec 19, 2005
    Detroit, Michigan

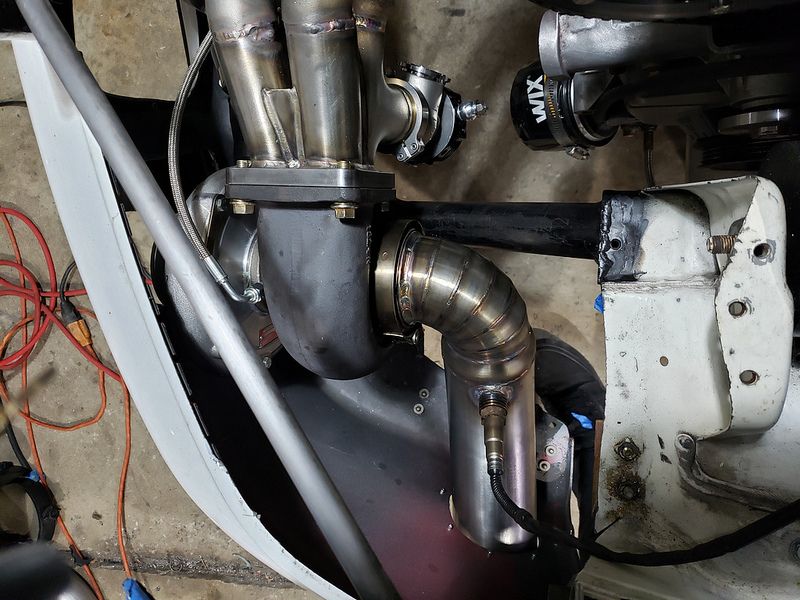

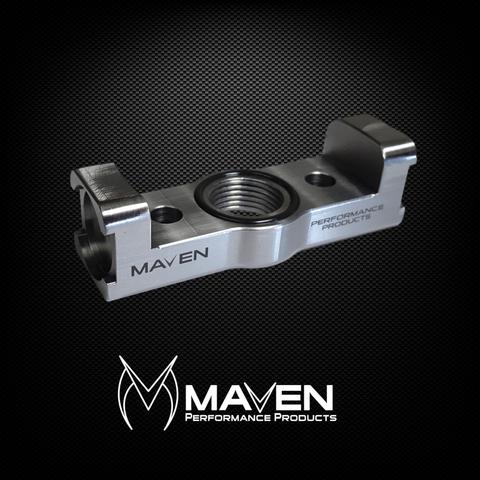

    Thank you! Nothing supports the turbo but the manifold. If it was built using thin wall stainless instead of sch pipe I would consider using a maven performance turbo mount.



    820  1

    1994 Mitsubishi Evo
    automatic · Lancer Evolution

    Street Build 3K  1

    1993 Eagle Talon TSi AWD
    9.585 @ 143.96 · 1G DSM
    Loading...
    bling5tatus likes this.
  17. Devilsfutbol17

    Devilsfutbol17 Proven Member

    349
    16
    Joined Jul 27, 2007
    Bellingham, Washington
    Awesome, thanks for the response!


    521  3

    1991 Mitsubishi Galant VR-4
    manual · Galant VR-4
    Loading...
    b00stedtalon2 likes this.
  18. b00stedtalon2

    b00stedtalon2 Proven Member

    590
    452
    Joined Dec 19, 2005
    Detroit, Michigan

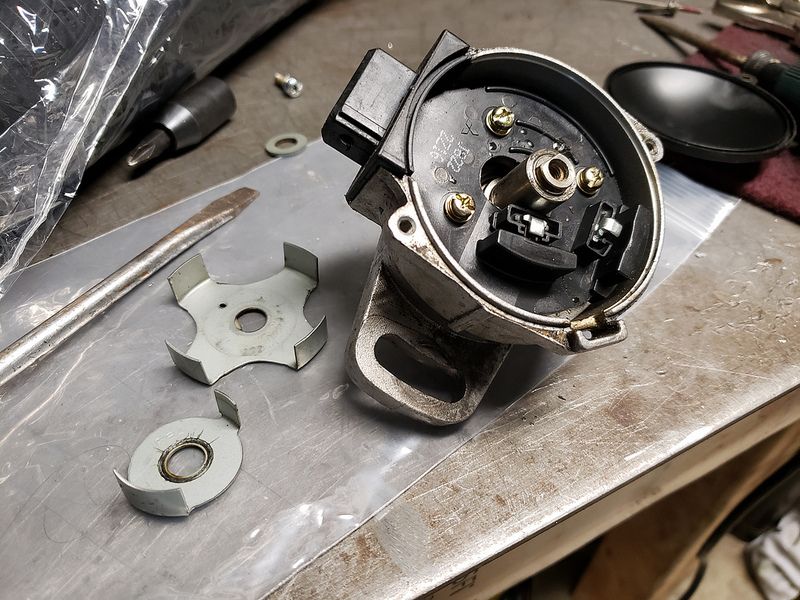

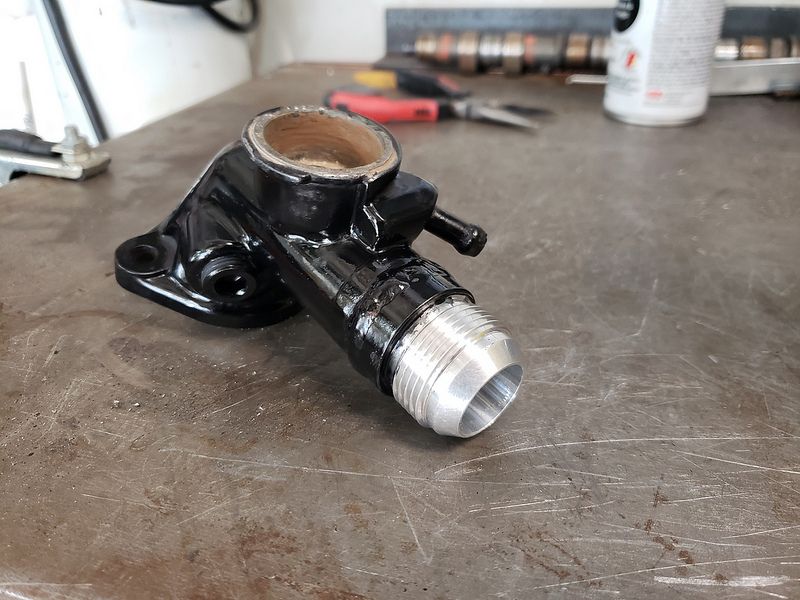

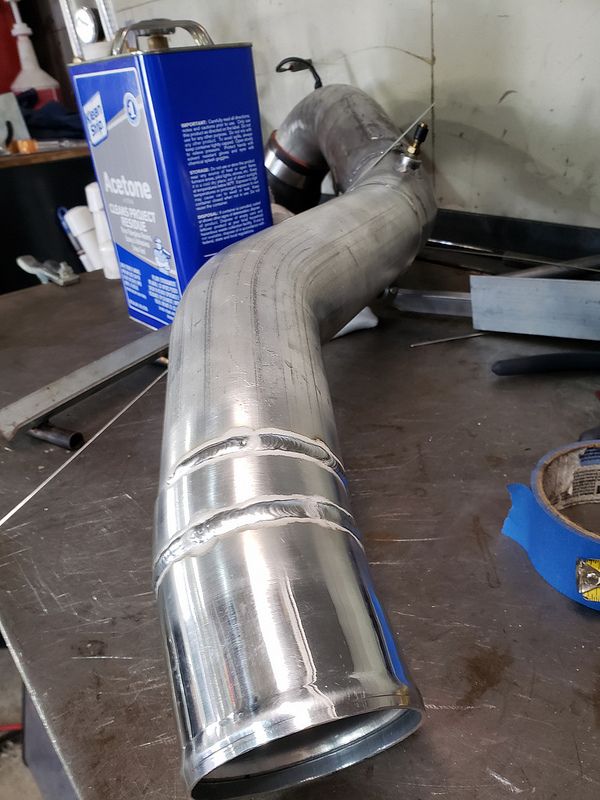

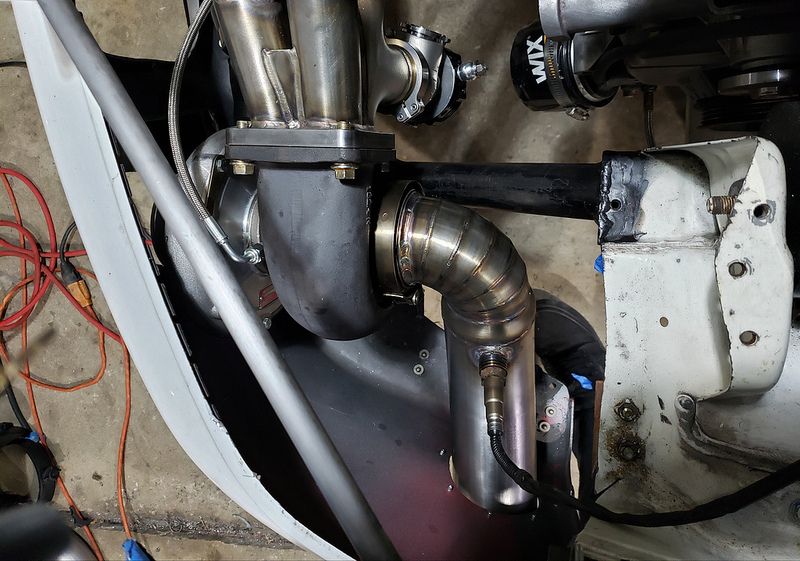

    Slowly knocking more tasks off the never ending list.









    Attached Files:

    Last edited: Mar 20, 2019

    820  1

    1994 Mitsubishi Evo
    automatic · Lancer Evolution

    Street Build 3K  1

    1993 Eagle Talon TSi AWD
    9.585 @ 143.96 · 1G DSM
    Loading...
    Charliethatguy, OH91awd and TeamFury like this.
  19. DetroitDSM

    DetroitDSM Probationary Member

    21
    11
    Joined Jan 31, 2019
    Southfield, Michigan
    Great work


    Drag Race Build 328  3

    1997 Eagle Talon TSi AWD
    awd · automatic · 2G DSM
    Loading...
    b00stedtalon2 likes this.
  20. Ben-Stian

    Ben-Stian Proven Member

    105
    19
    Joined Aug 23, 2006
    NORWAY, Europe
    Looks really good:)

    b00stedtalon2 likes this.
  21. bling5tatus

    bling5tatus Proven Member

    1,282
    89
    Joined Sep 23, 2005
    DFW/Austin, Texas
    I see that you had to step your FP oil filter so that it didn't hit the head. I had to do the same thing to mine.


    1K  0

    1989 Dodge Colt GT
    manual · 4G63t Swapped

    2K  1

    1991 Eagle Talon TSi
    fwd · manual · 1G DSM
    Loading...
  22. b00stedtalon2

    b00stedtalon2 Proven Member

    590
    452
    Joined Dec 19, 2005
    Detroit, Michigan
    Yeah. I think they were originally intended to be inline and not directly on the head.


    820  1

    1994 Mitsubishi Evo
    automatic · Lancer Evolution

    Street Build 3K  1

    1993 Eagle Talon TSi AWD
    9.585 @ 143.96 · 1G DSM
    Loading...
    bling5tatus likes this.
  23. b00stedtalon2

    b00stedtalon2 Proven Member

    590
    452
    Joined Dec 19, 2005
    Detroit, Michigan

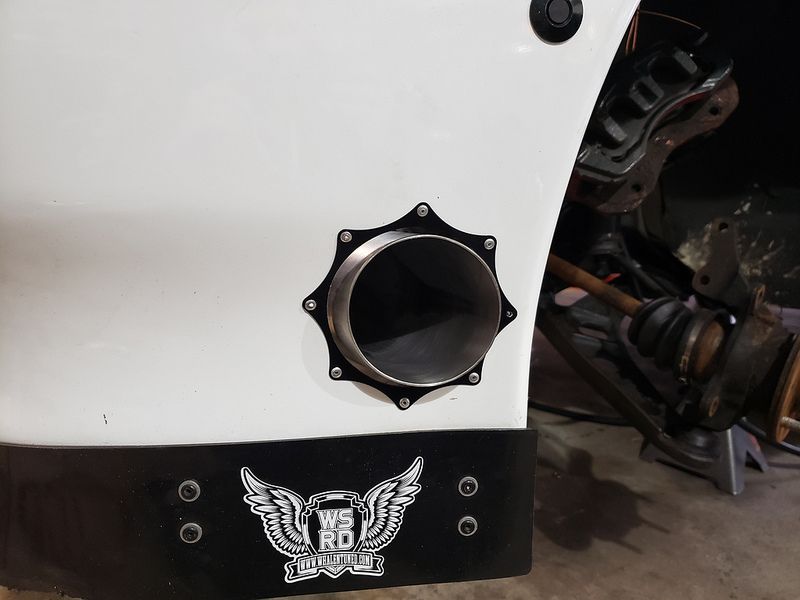

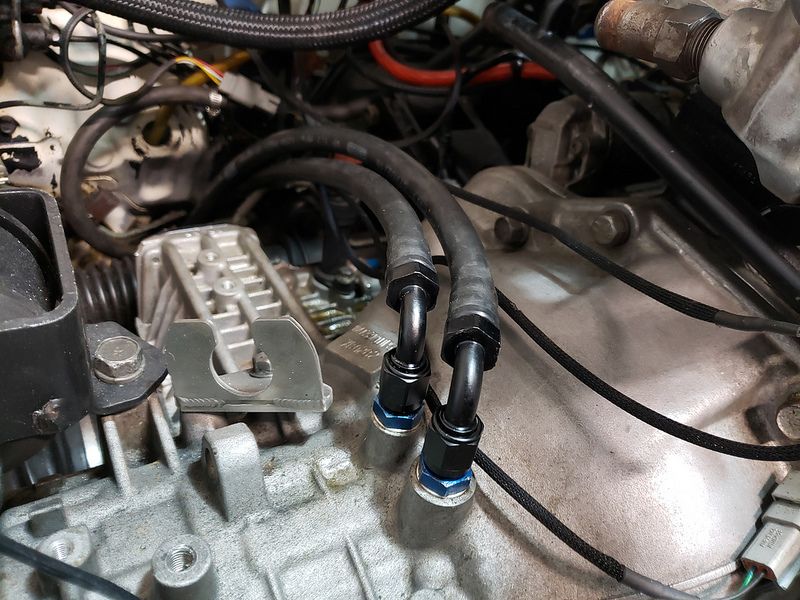

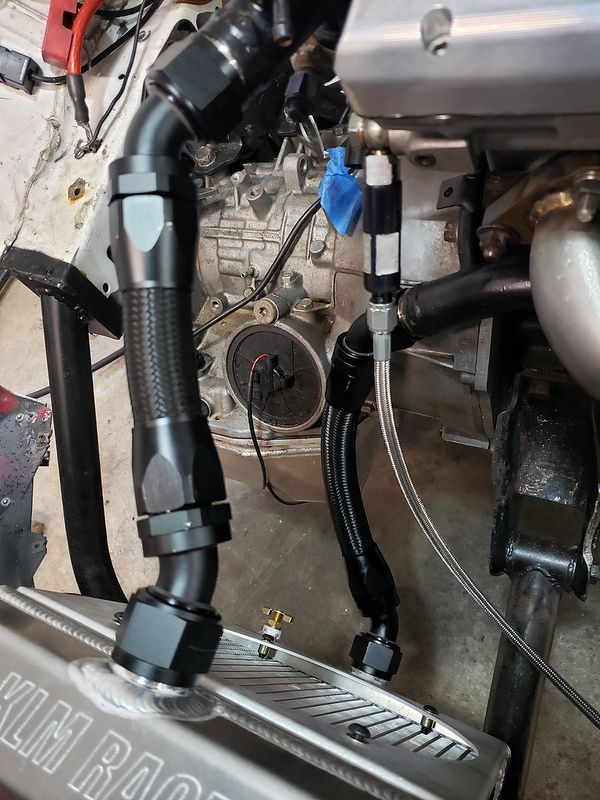

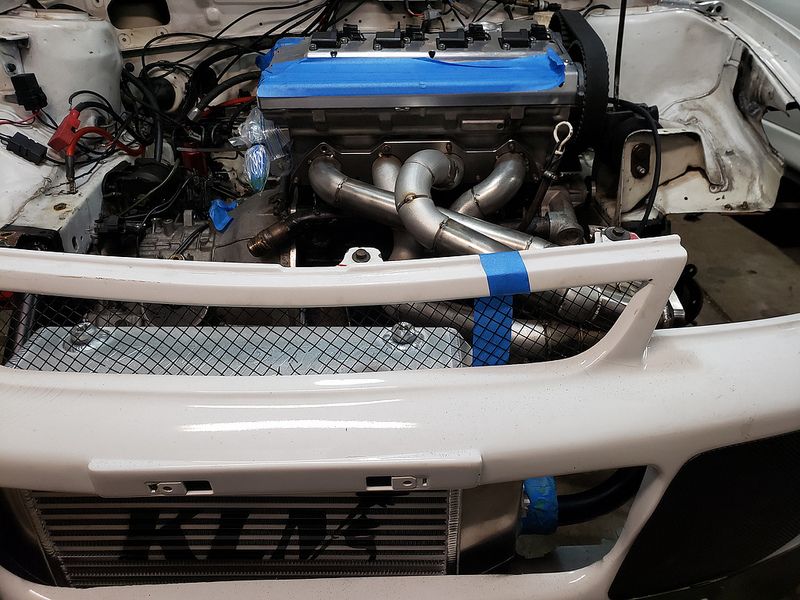

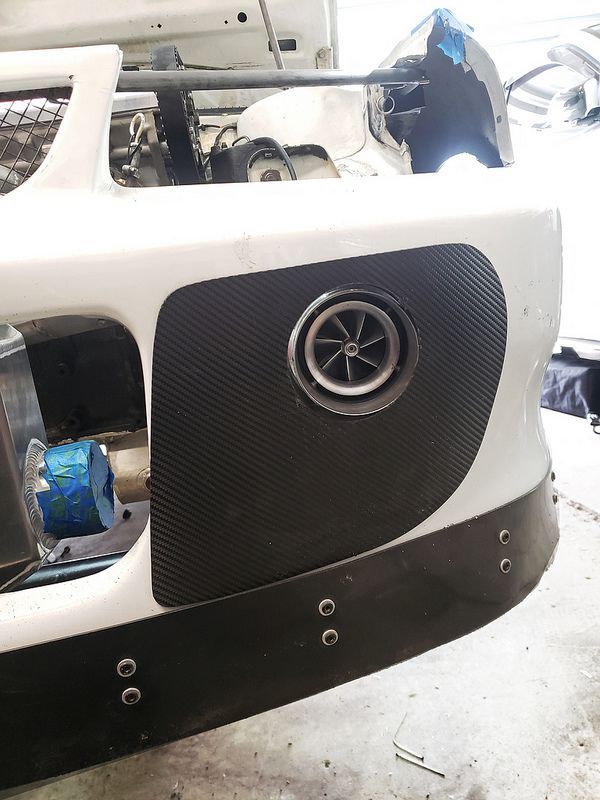

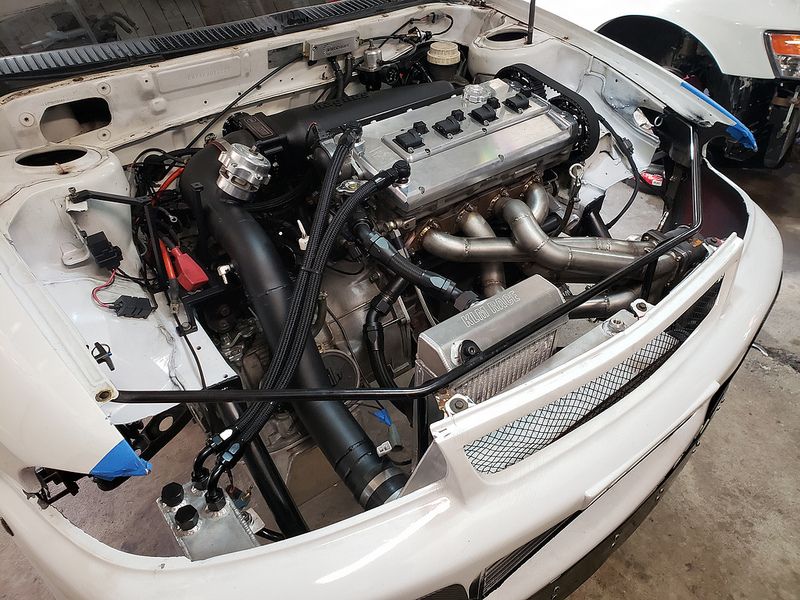

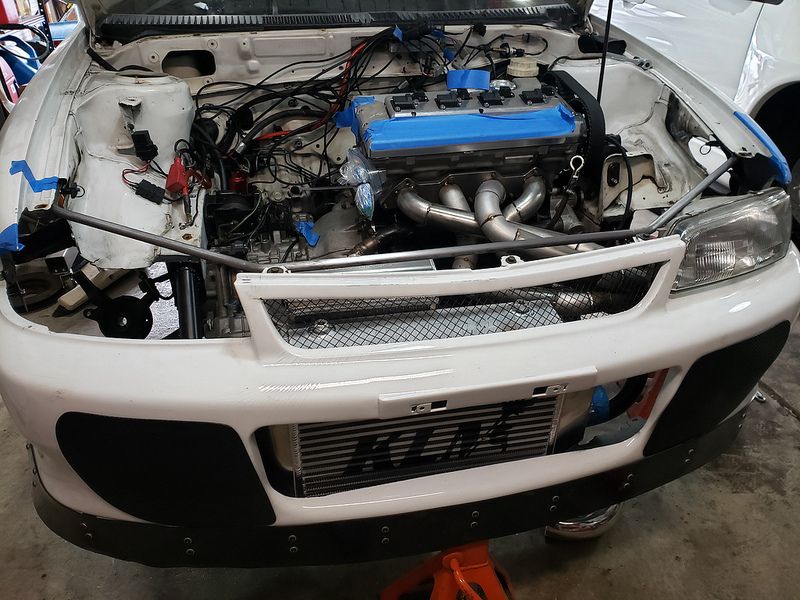

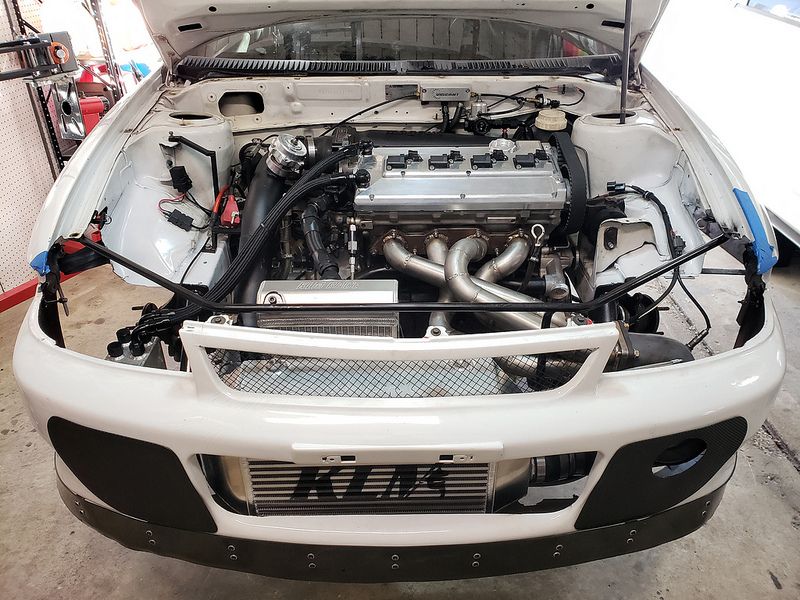

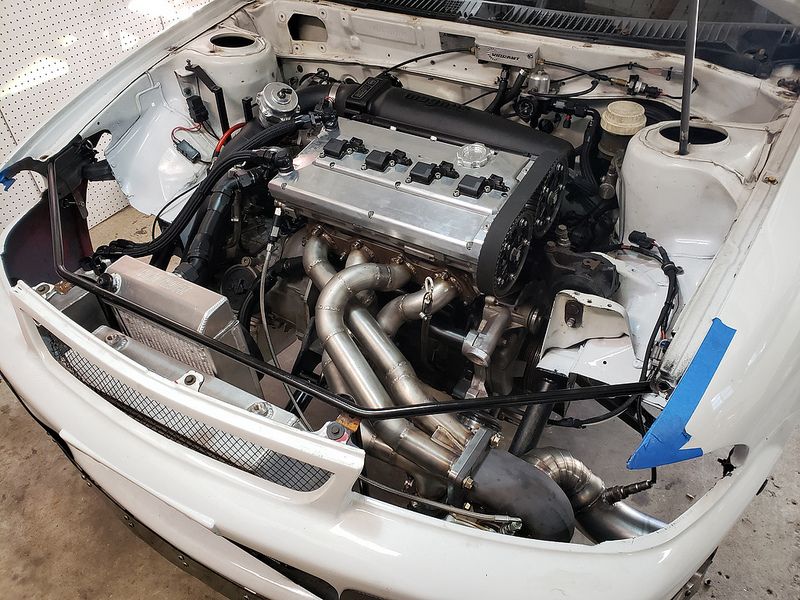

    Everything in the engine bay is mostly buttoned up. A couple small things to wire up and it should be ready to start.









    820  1

    1994 Mitsubishi Evo
    automatic · Lancer Evolution

    Street Build 3K  1

    1993 Eagle Talon TSi AWD
    9.585 @ 143.96 · 1G DSM
    Loading...
    OH91awd, Mitsubishiown and TeamFury like this.
  24. TeamFury

    TeamFury Proven Member

    471
    142
    Joined Mar 5, 2008
    Raeford, North Carolina

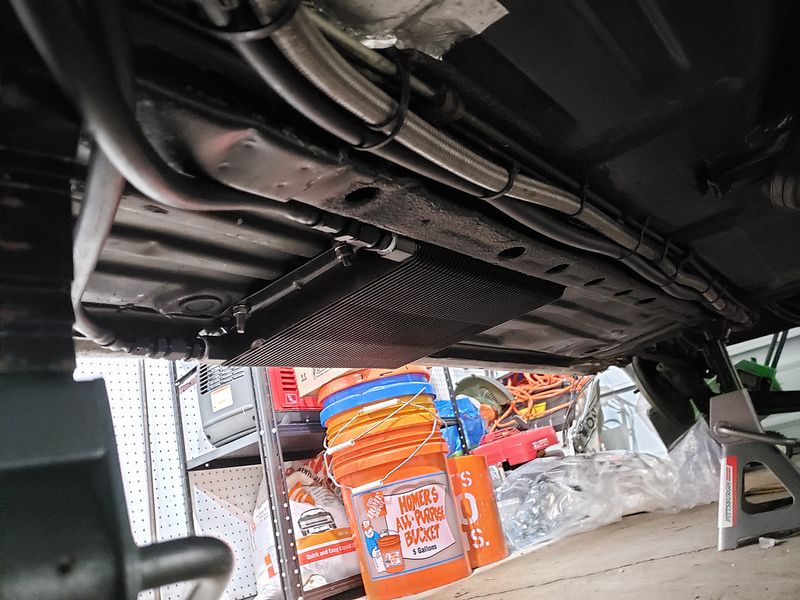

    Very clean Scott as always. Interesting way to mount the trans cooler. Are you going to use any kind of spacer say 1/2" between cooler and body?


    Drag Race Build 4K  1

    1991 Mitsubishi Eclipse GSX
    10.12 @ 136 · 1G DSM
    Loading...
    b00stedtalon2 likes this.
  25. import solutions

    import solutions Proven Member

    32
    15
    Joined Apr 27, 2013
    colimA, Texas
    So pretty

    b00stedtalon2 likes this.
