1G Rear Calipers bolts? And handbrake problem

[Lancer_lover]

Hi! I need good pictures on rear brake calipers bolts and wich side ( up or down) the guide pin sitting?
And can i buy new ones or anyone selling them?

You must be logged in to view this image or video.



[Lucky13]

I don't have any pictures of the orientation..... but have you looked at Rockauto to see if they have the bolts in stock?



[Lancer_lover]

I don't have any pictures of the orientation..... but have you looked at Rockauto to see if they have the bolts in stock?

Only thing is i dont think they ship to sweden but i will check them out



[Lancer_lover]

Holy shit! They had it!! And they where cheap er and even shopping tax was lower from us to sweden than from rest of EU, thanks for telling me about that site dude!



[Mech Addict]

I could try to crawl under my car and get a photo, but I have AWD and yours is FWD, and I don't think the rear calipers are quite the same. I was able to find parts listed for FWD rear caliper bolts on Parts Geek. They seem to come as a matched pair. There is a chance they come with instructions. They don't cost much, so worth a shot?



[steve]

The guide pin the the upper one on both sides, the lock pin is the lower.
The guide pin is the one with the thicker shank.

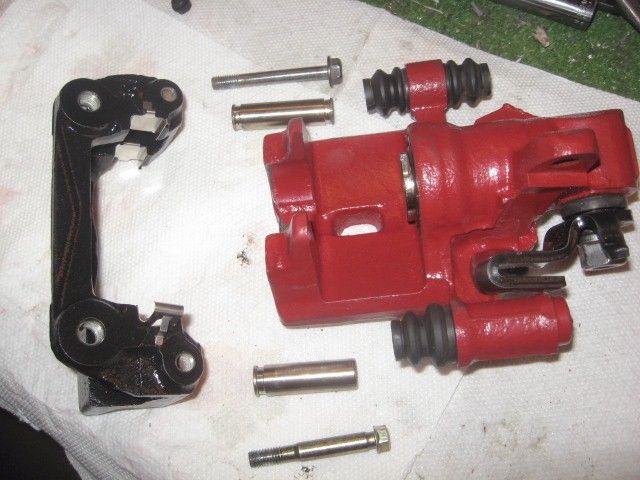

In this picture the lock pin it at the top of the picture and the guide at the bottom of the picture . On the car this is a left caliper and like I said the guide pin is on the top

Here's the carrier installed but the caliper isn't yet. You can see the guide pin on the top.

You must be logged in to view this image or video.
