Starter Relay Connector Harness 2G OHM

[cherryfromthe405]

Ive searched this forum for the last 4 hours trying to find an answer. Here is a run down on what Im working on
97 GSX
OHM fuse box relocation & harness
The car was torn down for paint and new interior (by the owner) and reassembled in his possession.
It got brought to us to install drivetrain, wire etc etc.
Im currently finishing up the OHM harness and cannot find the starter relay connector.
Does anyone know where the connector would be located or what harness this would come off of?
Trying to see if the OHM harness is missing it or if that is on the chassis/dash harness?
B57 is the connector # in the manual

I found this thread, and he said he found his in the back seat. If anyone has any info it would be greatly appreciated

https://www.dsmtuners.com/threads/picture-of-a-1997-gst-starter-relay-location.431297/#post-153911579



[chrysler kid]

you can find the factory service manual online for free at www.charm.li

Manual Transmission — 1997 Mitsubishi Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI Service Manual | Operation CHARM

Detailed repair manual for the 1997 Mitsubishi Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI.

charm.li

You must be logged in to view this image or video.



[cherryfromthe405]

you can find the factory service manual online for free at www.charm.li

Manual Transmission — 1997 Mitsubishi Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI Service Manual | Operation CHARM

Detailed repair manual for the 1997 Mitsubishi Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI.

charm.li

You must be logged in to view this image or video.

Thanks for the quick reply!
I have a copy of the FSM that I'm using.


I know the location of the starter relay. My issue is there is nothing plugged into it and I can NOT locate the plug/connector.


Do you happen to know which harness it comes off of?

Thanks again for the link to the FSM.



[luv2rallye]

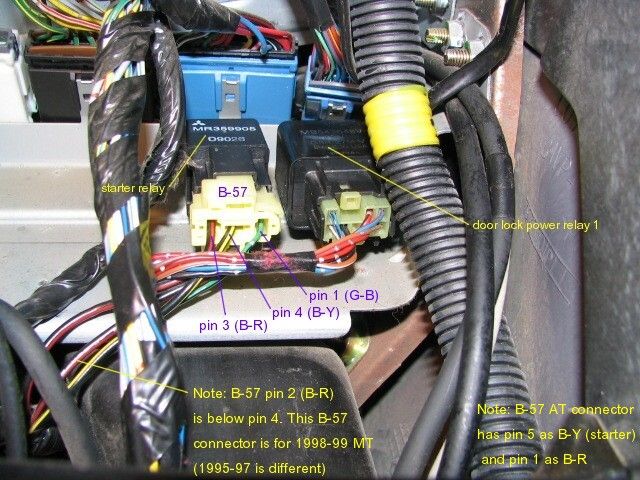

Connector is here: https://www.dsmtuners.com/attachments/starter-door-lock-power-1-relays-98-99-jpg.160706/
But notice the relay is the left one - not the right one which the Mitsu FSM manual shows wrong.



[cherryfromthe405]

Connector is here: https://www.dsmtuners.com/attachments/starter-door-lock-power-1-relays-98-99-jpg.160706/
But notice the relay is the left one - not the right one which the Mitsu FSM manual shows wrong.

I will post a photo of the car I have at the shop when I get there in a few hours. The relay is located like the photo you shared. But the harness/connector/plug is not there.



[MindBlowin03]

The starter relay is not used with the OHM harness. I had the same question for them when I purchased my harness.



[cherryfromthe405]

The starter relay is not used with the OHM harness. I had the same question for them when I purchased my harness.

Thank you! Im assuming they bypassed it when making the harness. I've had a difficult time getting in contact with them.
