2G Looking for 2G 1995-1996 DSM Factory Service Manual

1990TSIAWDTALON

Moderator
8,563
4,463
Nov 14, 2013
Independence, Kansas

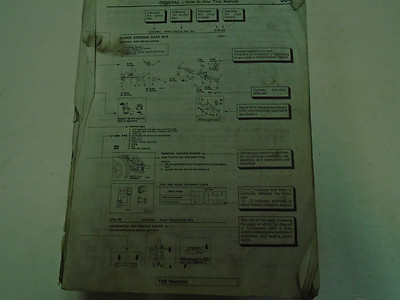

This one is tatered but the pairs of manuals that is complete is pretty pricey


waltah

Proven Member
100
34
Mar 2, 2011
fairfield, Virginia
Is there a manual for 95-96 US that includes 96 2.4L?
Because none of the other models used the 2.4L engine and there are some other differences Spyder has its own manual. Search eBay 'ebay motors' for 'mitsubishi spyder 96 shop manual.'

The paper version is $Pricey of course though the PDF downloads might be a good option.

If what you want is just the 2.4L naturally aspirated engine you could search for: 'Expo shop manual 94.' The Expo higher grade models came with that engine and those manuals are much cheaper. That engine didn't change (AFIK) '94-'96.

Cheaper still would be 'Colt vista shop manual 94' That's the same car with the same engine again but with a Chrysler label on it and those manuals are even cheaper than the Expo ones.

Manuals dated before '94 will have some engine differences -- emissions and OBD for starters.


dustyboner

DSM Wiseman
1,940
1,050
Mar 13, 2016
abq, New_Mexico
there was no spyder in 1995
96 was the first year.

the 97 manual should cover most things. there are some differences like the 96 had a different cam sensor but its wired the same and in 97 or 98 the trottlebody and TPS changed. i think the fuel pump relay changed from a normal one to a pulse with modulated one in 97.
you can download the pdf for free HERE

and if you need any other mitsubishi manuals, i might have them, check HERE


ec17pse

Freelancer
5,312
2,611
Nov 1, 2008
London, UK, Europe
there was no spyder in 1995
96 was the first year.

the 97 manual should cover most things. there are some differences like the 96 had a different cam sensor but its wired the same and in 97 or 98 the trottlebody and TPS changed. i think the fuel pump relay changed from a normal one to a pulse with modulated one in 97.
you can download the pdf for free HERE

and if you need any other mitsubishi manuals, i might have them, check HERE
Dusty, do you know if they have a diagram for the auto boxes? Last time i checked the ATdsm page was down,


dustyboner

DSM Wiseman
1,940
1,050
Mar 13, 2016
abq, New_Mexico
