1997 GST to GSX The AWD Swap Story

Posted by 98mitsubishigst, Aug 18, 2015

Please Support Morrison Fabrications
Please Support Feal Suspension
  1. 98mitsubishigst

    98mitsubishigst Proven Member

    919
    16
    Joined Nov 17, 2008
    Pittsburgh, Pennsylvania
    Hey everyone! i haven't done one of these build/journals since 2009, and i have to say.. I am pretty dang excited!

    My last build was on a Spyder very long ago when i was a frequent forum guy. Since then i finished the Spyder
    then i sold it to buy my beautiful DSM that i own now. I have had 20 other DSMS in this time, built, fixed, parted, cut up, and sold. This DSM i have kept over 5 years now (MAY 2010) and i finally plan on doing what i always dreamed.. Swapping to AWD!

    My goals for this build are to AWD swap and then clean up the engine bay. A wire tuck, the strut towers need sanded down and resprayed, and the engine and trans need a little love.

    Alright guys! enjoy!

    11896263_10153187111042833_977405607339214034_n_zpsdmde2qd6.jpg 10411211_10154170668064899_1271339947233568689_n_zpsrfqqu6kw.jpg 11863347_385840638277972_3782779046981192821_n_zpsrbqo6qa1.jpg

    Last edited: Aug 18, 2015

    984  0

    1997 Mitsubishi Eclipse GST
    manual · 2G DSM
    Loading...
  2. boost97gst

    boost97gst Proven Member

    2,802
    127
    Joined Apr 2, 2012
    st jacob, Illinois
    Beautiful paint. Good luck man. My awd swap is SO close to wrapping up. Can't wait.
    You going to keep it that low after the awd swap?

  3. 2geclipse565

    2geclipse565 Proven Member

    187
    6
    Joined Dec 23, 2006
    Menifee, California
    Awesome to see! It still looks amazing, great job caring for it while it was in storage. Im sort of going through something similar. Im on my third GSX right now but this one I bought 4 years ago with only 66k miles on it. Its been sitting forever but I got DSM fever again and Im finally blowing the dust off to start prepping for this new project.


    Drag Race Build 2K  0

    1997 Mitsubishi Eclipse GSX
    automatic · 2G DSM

    524  0

    1997 Mitsubishi Eclipse GSX
    automatic · 2G DSM
    Loading...
  4. 98mitsubishigst

    98mitsubishigst Proven Member

    919
    16
    Joined Nov 17, 2008
    Pittsburgh, Pennsylvania
    she will still be getting the same suspension, but i believe ill raise her up. I am going to go race mode on here and put slicks and do all that jazz.. She made 400hp on an HX40 set up, i ran out of pump on e85..

    I am shooting for 650-700 now.


    984  0

    1997 Mitsubishi Eclipse GST
    manual · 2G DSM
    Loading...
  5. mikEclipse99

    mikEclipse99 Proven Member

    233
    301
    Joined May 9, 2008
    Medina, Ohio
    Awesome! (this is sirwagner from instagram haha) good luck with everything! if you have any questions on the swap i just completed mine so its all fresh in my mind!


    3K  25

    1999 Mitsubishi Eclipse GSX
    10.065 @ 152.91 · 2G DSM
    Loading...
  6. 974g63t

    974g63t Proven Member

    41
    0
    Joined Mar 17, 2009
    Liberal, Kansas
    I'm about to do the swap as well. Good luck! Keep us updated!


    813  0

    1997 Mitsubishi Eclipse GST
    manual · 2G DSM

    287  0

    1998 Mitsubishi Eclipse GSX
    manual · 2G DSM
    Loading...
  7. mitsubishikid

    mitsubishikid Proven Member

    807
    170
    Joined Jun 8, 2009
    Turlock, California
    would be awesome to see how this goes, I'm definitely watching this thread man.


    920  0

    1990 Eagle Talon TSi AWD
    manual · 1G DSM
    Loading...
  8. 98mitsubishigst

    98mitsubishigst Proven Member

    919
    16
    Joined Nov 17, 2008
    Pittsburgh, Pennsylvania
    Sorry its been a while! The parts car is cut up and the last thing i need is a AWD trans, i work 9-9 every day so much of my time is taken..

    Im going to be start working on the car again soon =) ill be updating this weekend.


    984  0

    1997 Mitsubishi Eclipse GST
    manual · 2G DSM
    Loading...
  9. taylork057

    taylork057 Proven Member

    110
    12
    Joined Sep 13, 2006
    Wilmington, North Carolina
    nice color

    taylork057

    Street Build 1K  0

    1998 Mitsubishi Eclipse GSX
    automatic · 2G DSM

    533  0

    1997 Mitsubishi Eclipse GSX
    12.700 @ 108.000 · 2G DSM
    Loading...
  10. 98mitsubishigst

    98mitsubishigst Proven Member

    919
    16
    Joined Nov 17, 2008
    Pittsburgh, Pennsylvania
    Alright everyone, Sorry it took so long to update, I am a car salesman for a dodge dealership and i work almost 5-6 days a week 9am-9pm so my time is very limited especially on this build.. But i snapped a good 50 pictures so far in the process.

    We will start on the next post! Here we go!


    984  0

    1997 Mitsubishi Eclipse GST
    manual · 2G DSM
    Loading...
  11. 98mitsubishigst

    98mitsubishigst Proven Member

    919
    16
    Joined Nov 17, 2008
    Pittsburgh, Pennsylvania

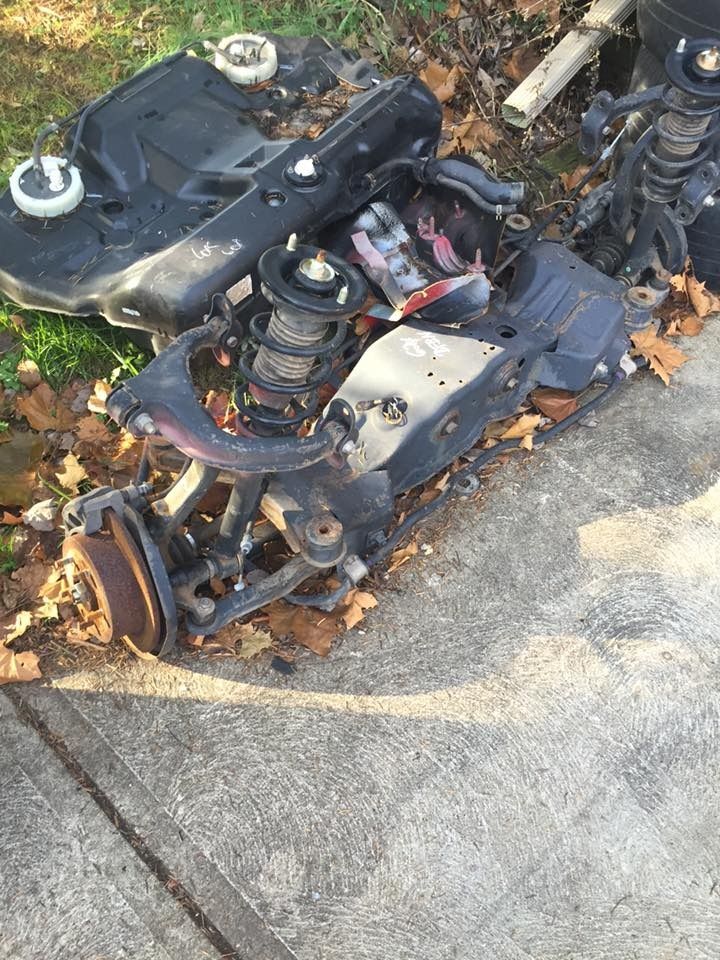

    It started about 5 years ago, when i bought this car, i only built one dsm motor since, and i picked up this car because i always loved this color. The Cayenne red pearl is hands down the best. But i also wanted a 5 speed, i didn't want the automatic that i use to have. FWD wasn't all that bad when I was younger because i didnt care about making powerOnce i got over 400 i realized that FWD is the absolute worst, and I needed to swap AWD.

    I Bought many AWD dsms before and always wanted to swap but with me being in college, and with be working so much, there wasn't a lot of time to do so. After my 6th shootout I decided it was time. And of course after dealing with listening to a few of my buddies making fun of me and telling me to just man up and do the swap, i got up and did it.

    If any of you went to the most recent shootout, There was a hideous pink riced out DSM on the side of the road with a "For Sale" Sign on it.. i drove past it the first couple days at the shootout and then the final day i decided to pull in and see what it was all about. Here is a picture of that ... terrible looking dsm.

    It came with a terrible front bumper, i threw it back in his yard as we pulled off.

    It was a GSX/TSI! Who knew that monstrosity would be the beginning of my AWD swap. The DSM only had a rear end, driveshaft, transfer case left, But that was plenty enough to start. The rear subframe was the most important part that i needed. Oh and the brake set up, front suspension, driveshaft carrier brackets.

    I planned to AAA the car back home to pittsburgh but i decided against it.

    A week went by and i couldn't figure out if i wanted to fully commit to buying this car and finally doing the swap i been so scared to attempt to do before. Well i manned up, and I had my buddies drive me out in there cummins after work one night to pick the car up.


    984  0

    1997 Mitsubishi Eclipse GST
    manual · 2G DSM
    Loading...
  12. 98mitsubishigst

    98mitsubishigst Proven Member

    919
    16
    Joined Nov 17, 2008
    Pittsburgh, Pennsylvania
    We are in October at this point, and the weather is still beautiful out. But i knew i had to hurry and get the parts i needed off this car, and cut the car up before the first snow fell. So i invited some friends over, grabbed a case of beer, and we started tearing this car apart. And just like the last dsms that we bought, we tore the car apart and cut it up within a day.


    The first thing we did was lowered the suspension down. This wasn't as easy as i thought because i had to buy enough dremel bits to figure out the location of the bolts.

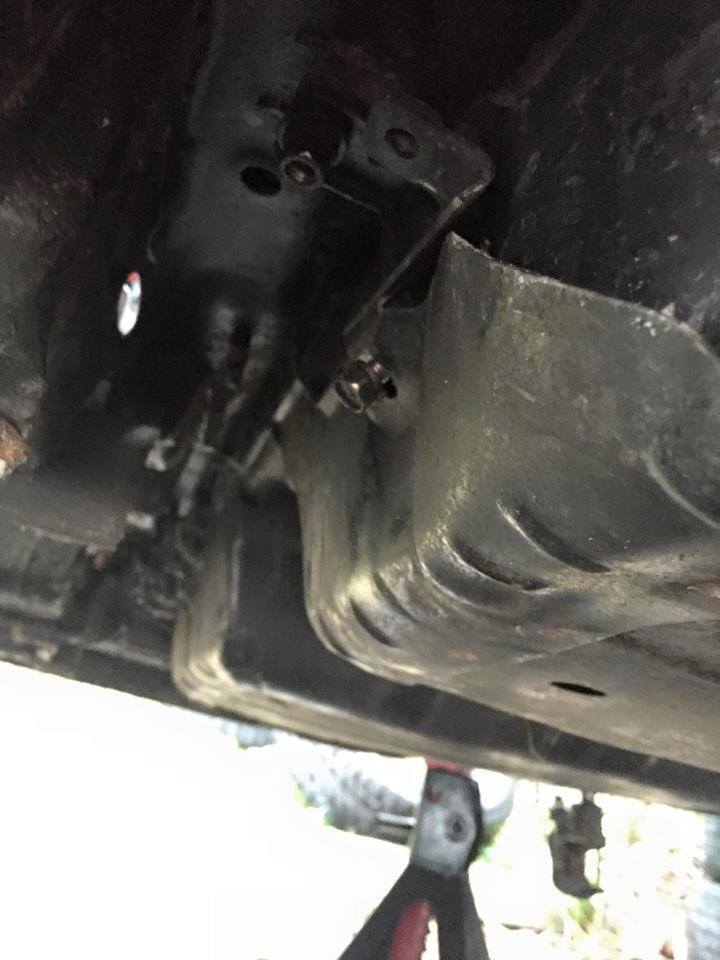

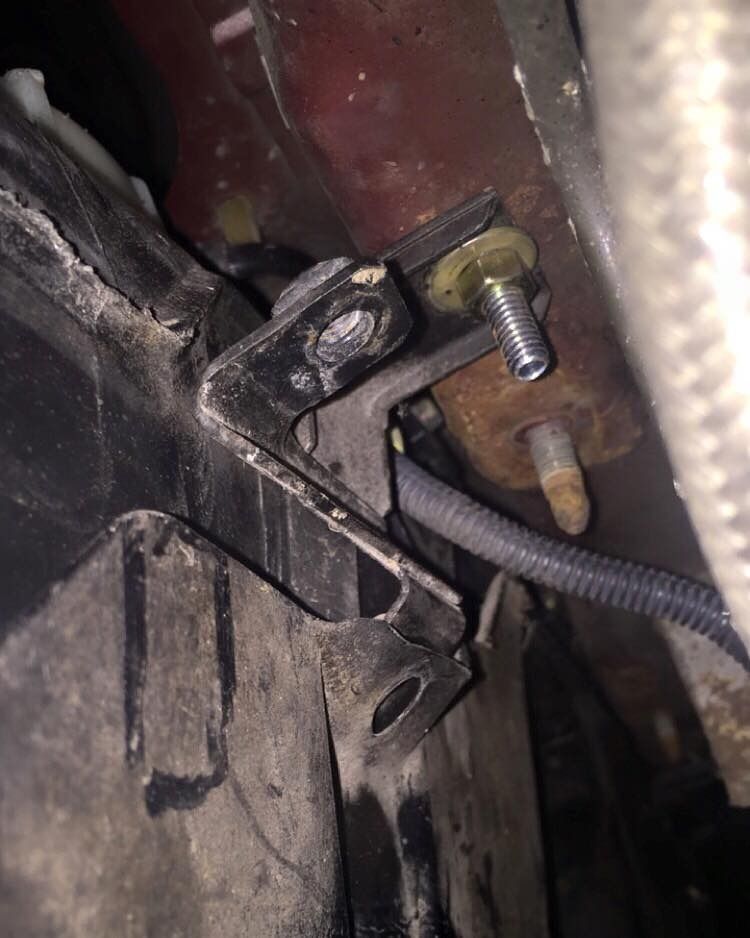

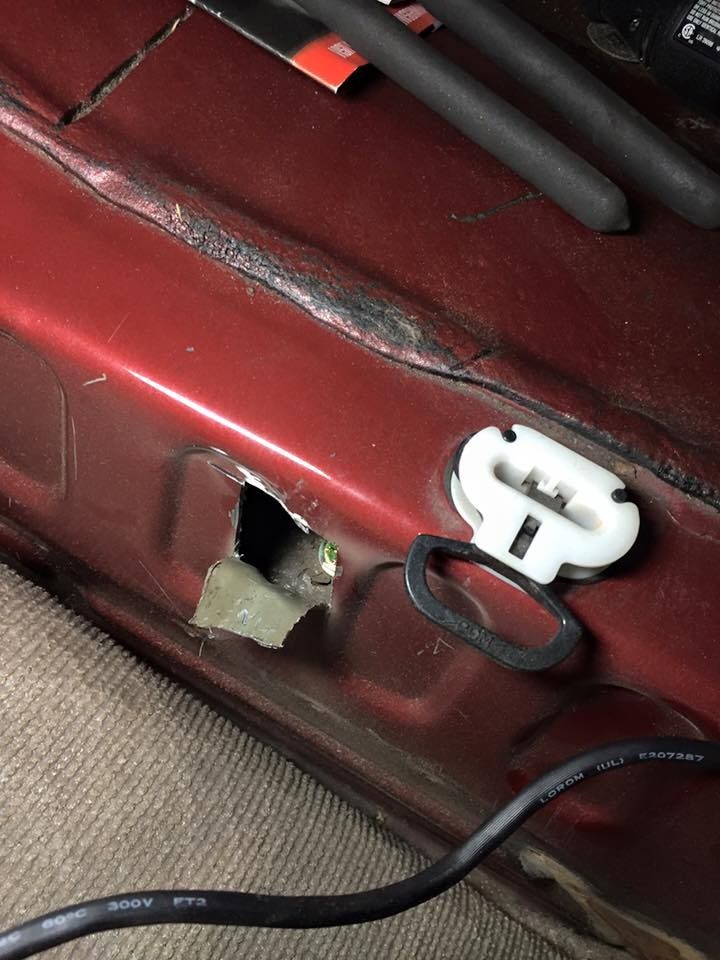

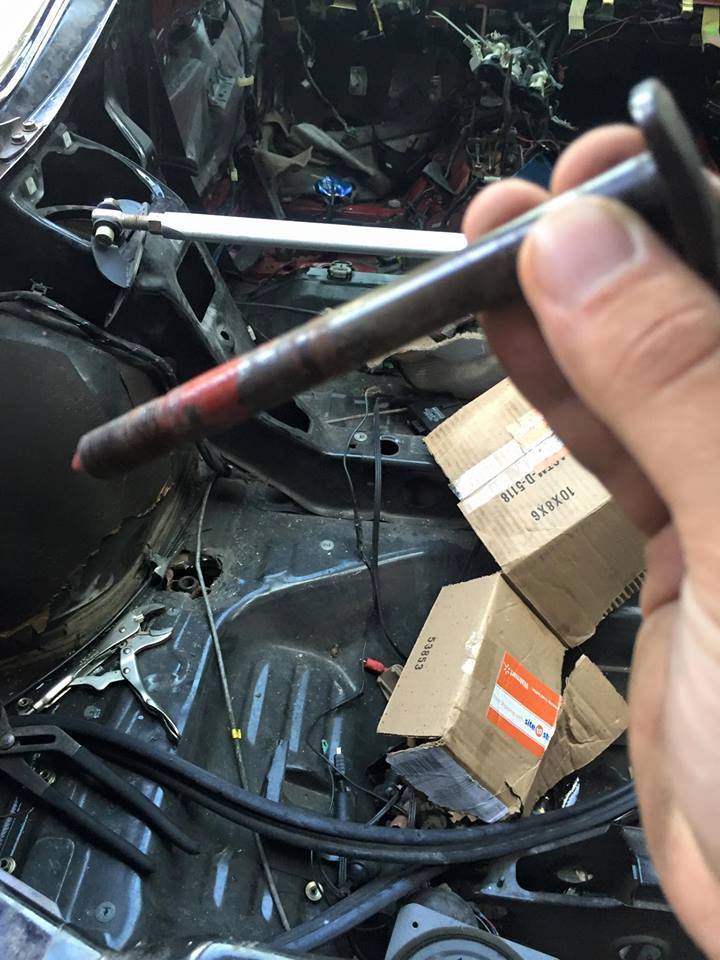

    Here is a picture of the AWD rear subframe bolts. These 4 bolts are a must for the AWD swap. The Fwd doesn't have bolts long enough to directly swap the rear end. You can buy the bolts if you didnt buy a donor car, but these are great to have.

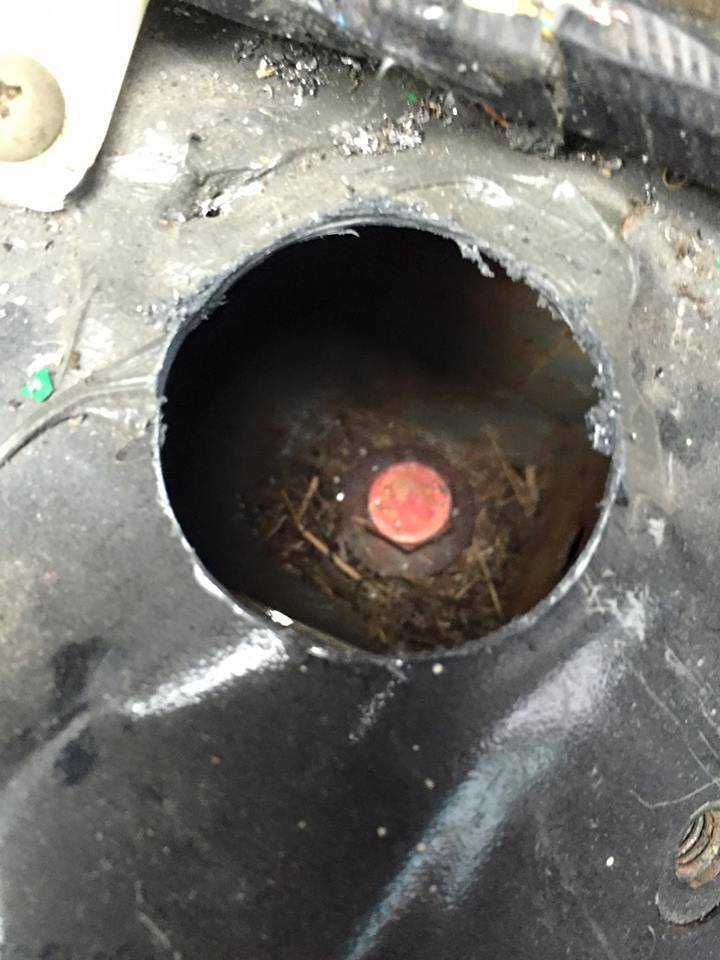

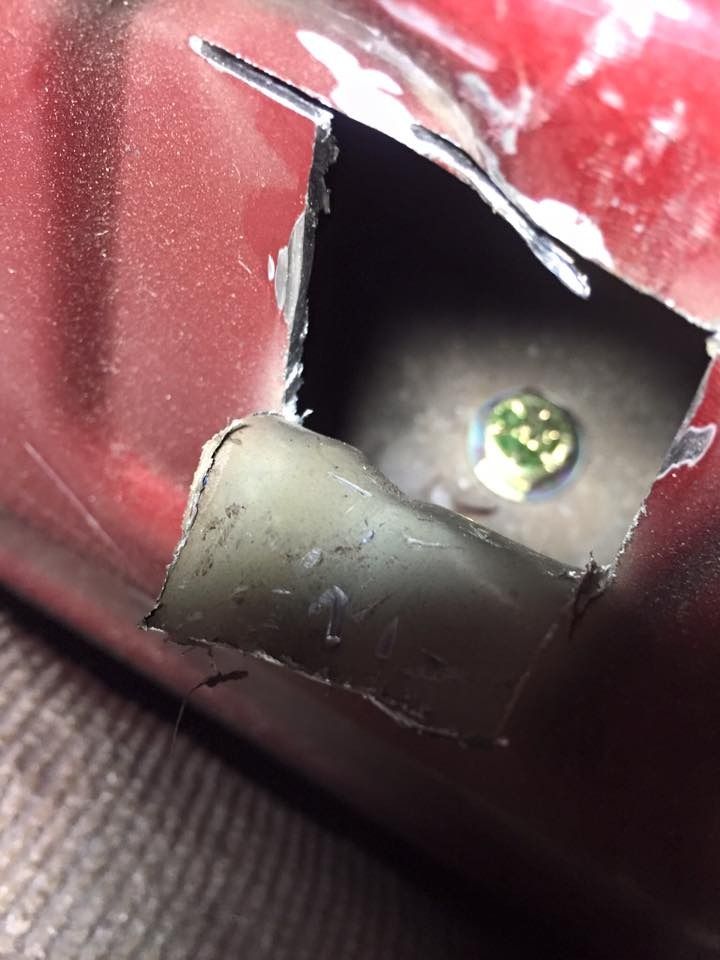

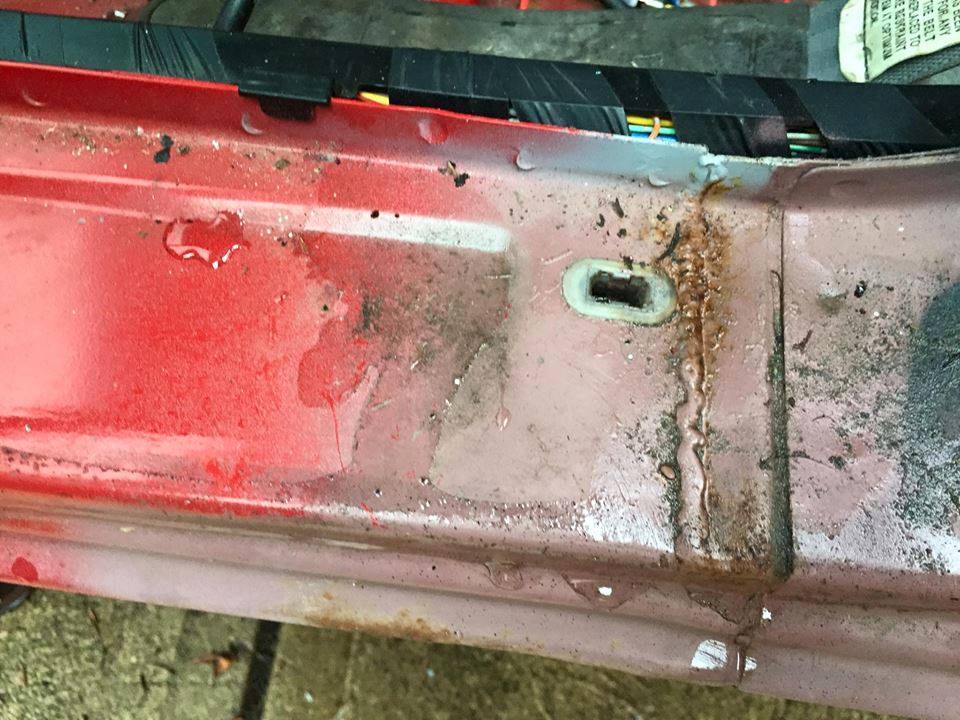

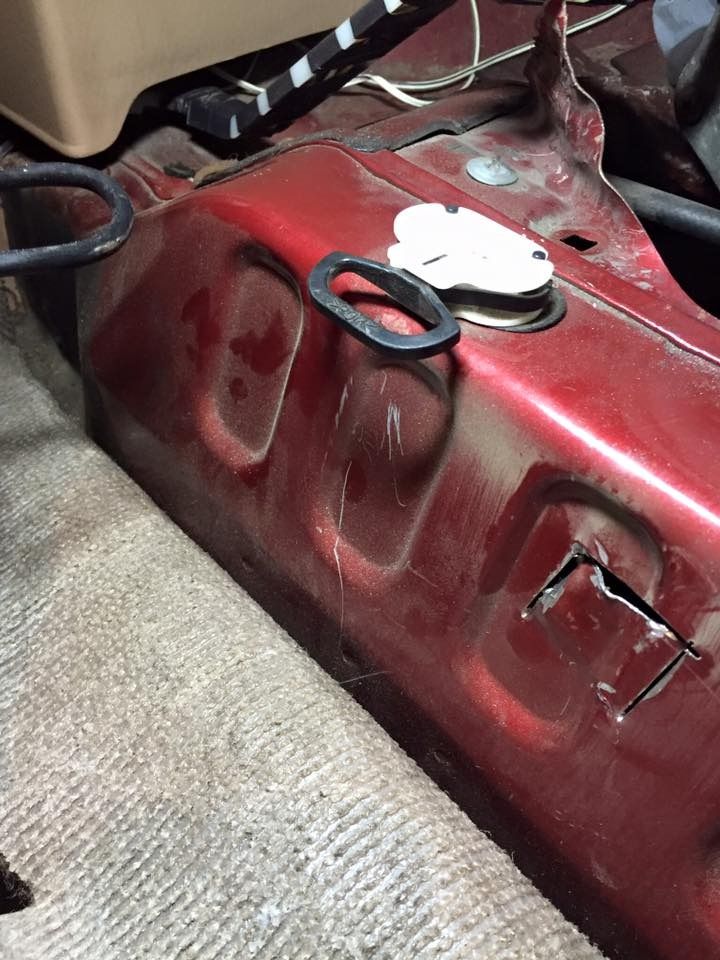

    Finding the holes was a devil, but the donor car i really didn't care about messing anything up. All 4 holes must be drilled out, then you can put a socket down below and loosen up the bolts to lower the subframe after all the suspension pieces are taken care of.

    11870658_10207070001925457_1478290522615091832_n_zps9dfzqhee.jpg 11903738_10207070003125487_6946890457618221128_n_zpswytlhras.jpg 11891100_10207070002805479_3676141148213003161_n_zps76fizvsu.jpg 11903712_10207070003085486_5774390767380180469_n_zpsnu0gdnkn.jpg


    984  0

    1997 Mitsubishi Eclipse GST
    manual · 2G DSM
    Loading...
    mitsubishikid likes this.
  13. 98mitsubishigst

    98mitsubishigst Proven Member

    919
    16
    Joined Nov 17, 2008
    Pittsburgh, Pennsylvania

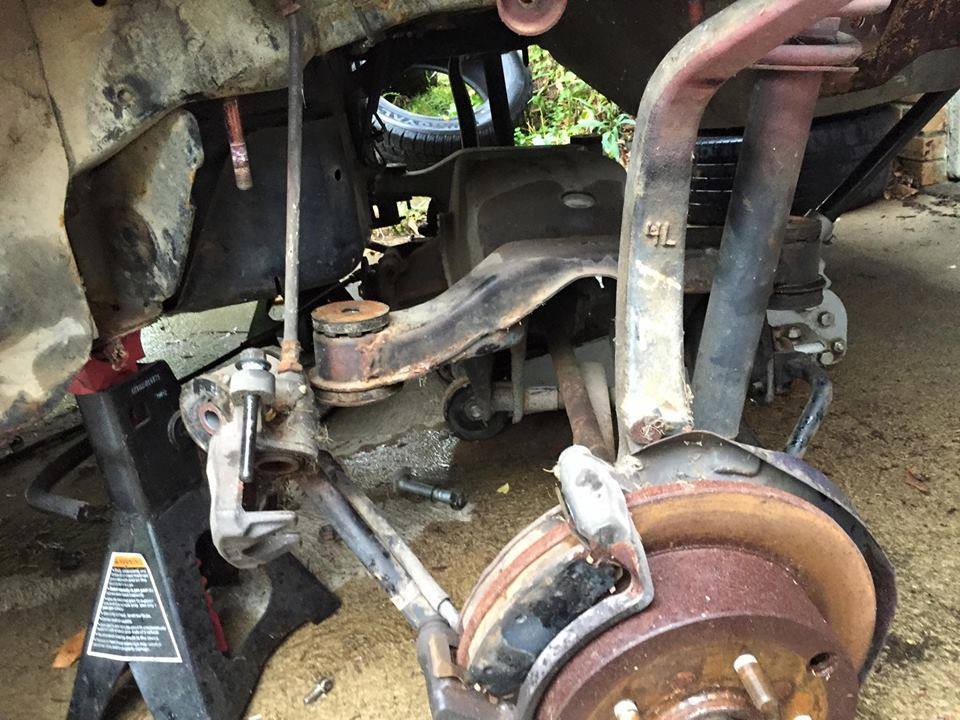

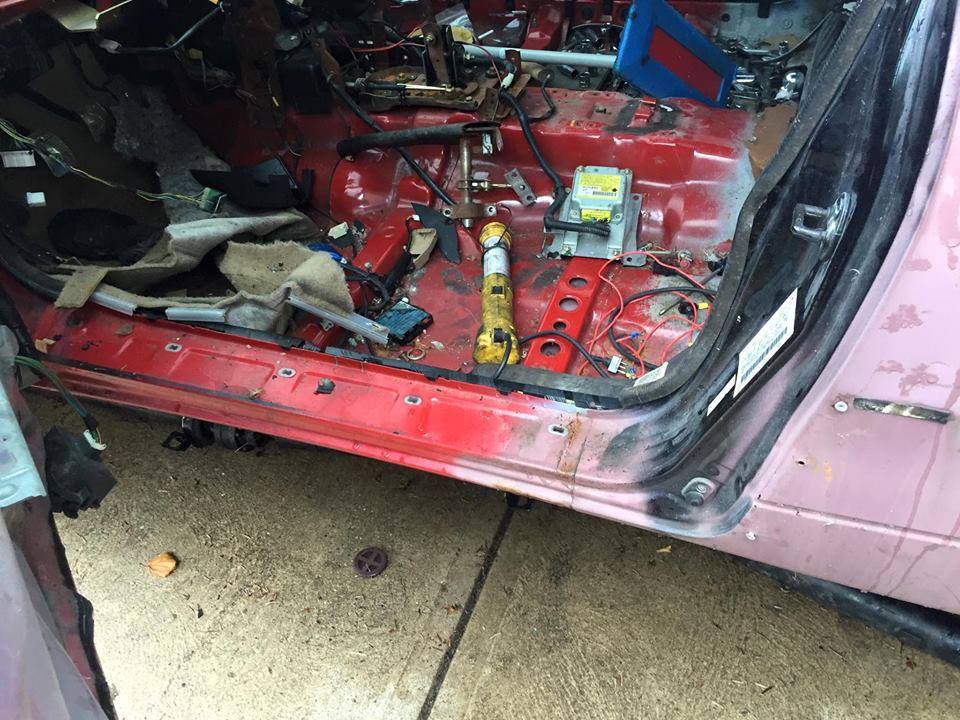

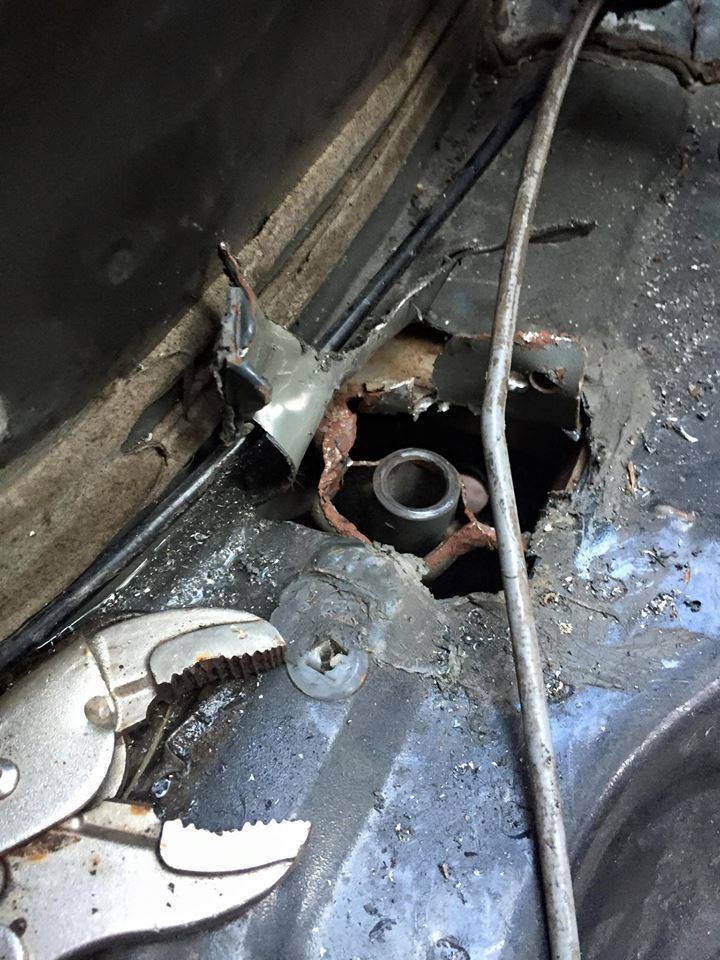

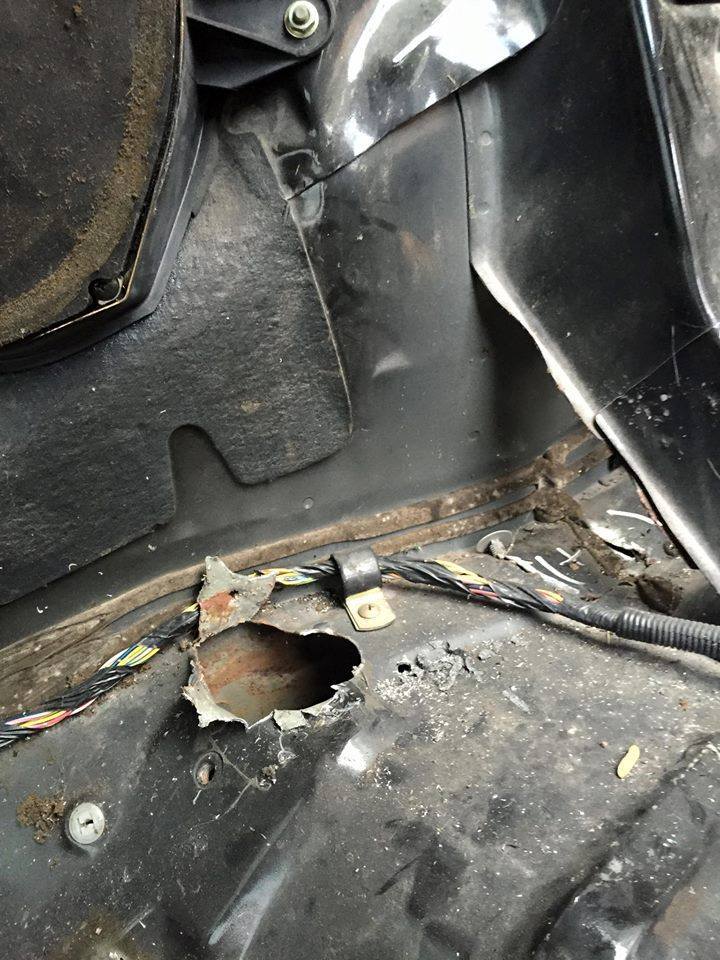

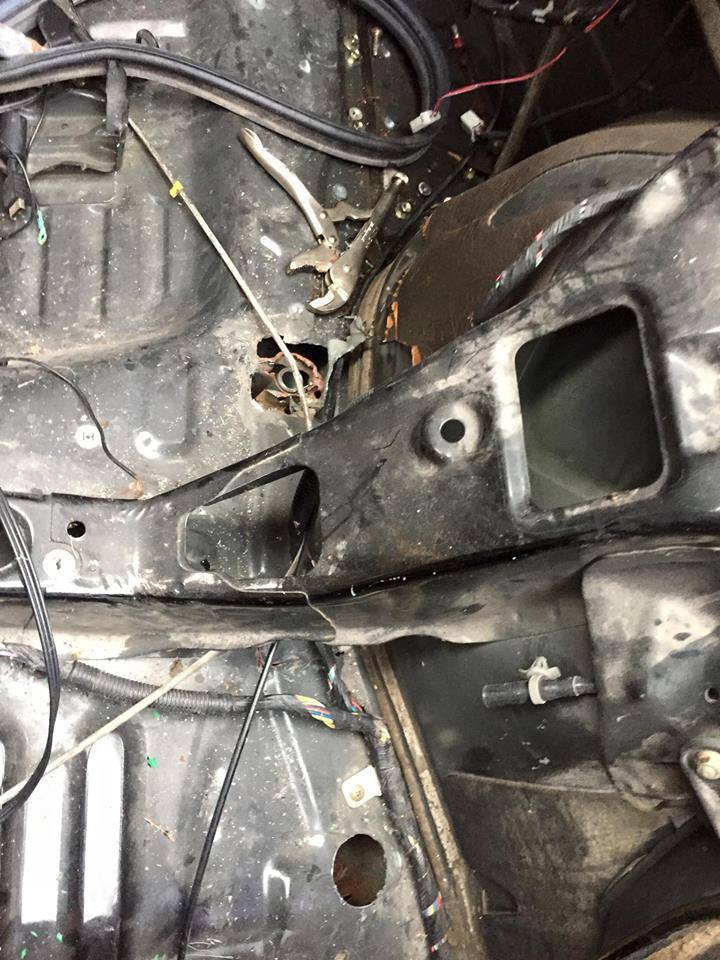

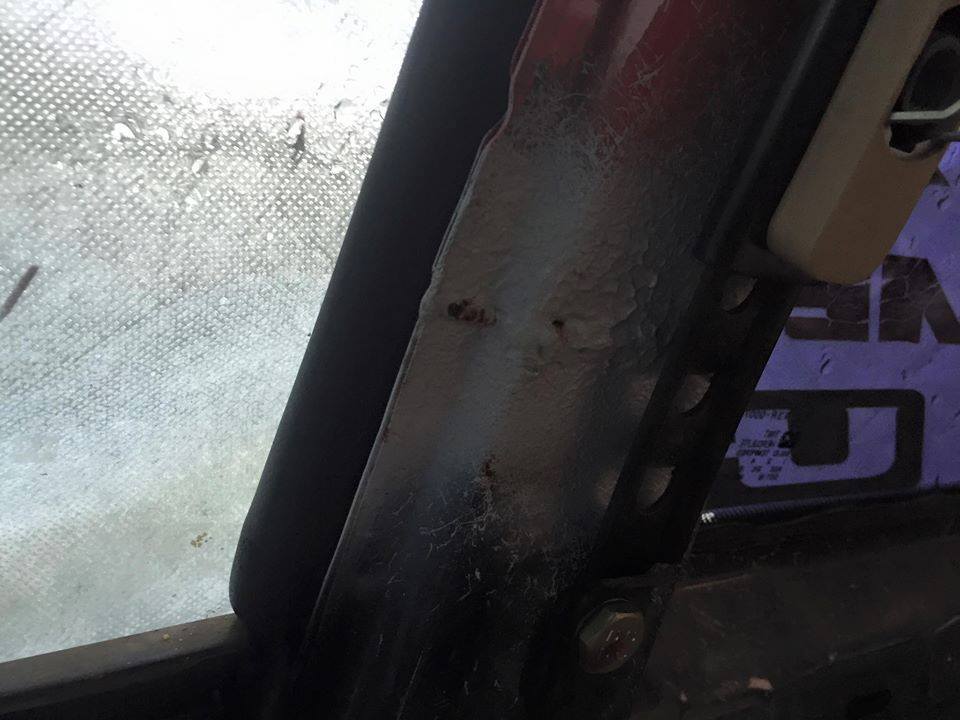

    After i finished with the rear end i started noticing something was going on with this car.. Whole car was pieced together as two separate cars! The front half was out of a FWD dsm, and the rear half of the car was AWD. I am not joking. The car was welded together. TWO SEPARATE CARS, WELDED TOGETHER. OHIO is nuts.

    11855866_10207070005045535_6934516167851703052_n_zpsipc4zbkt.jpg 11258904_10207070003925507_78324330437848525_n_zpsyohes73t.jpg 11895948_10207070004965533_6249521492025575483_n_zpsilf6nhuz.jpg 10712909_10207070004005509_8020438046638462761_n_zpseclszczq.jpg

    Incredible right? I don't have any idea how this was able to be done, but it was. And it was hideous. Haha.

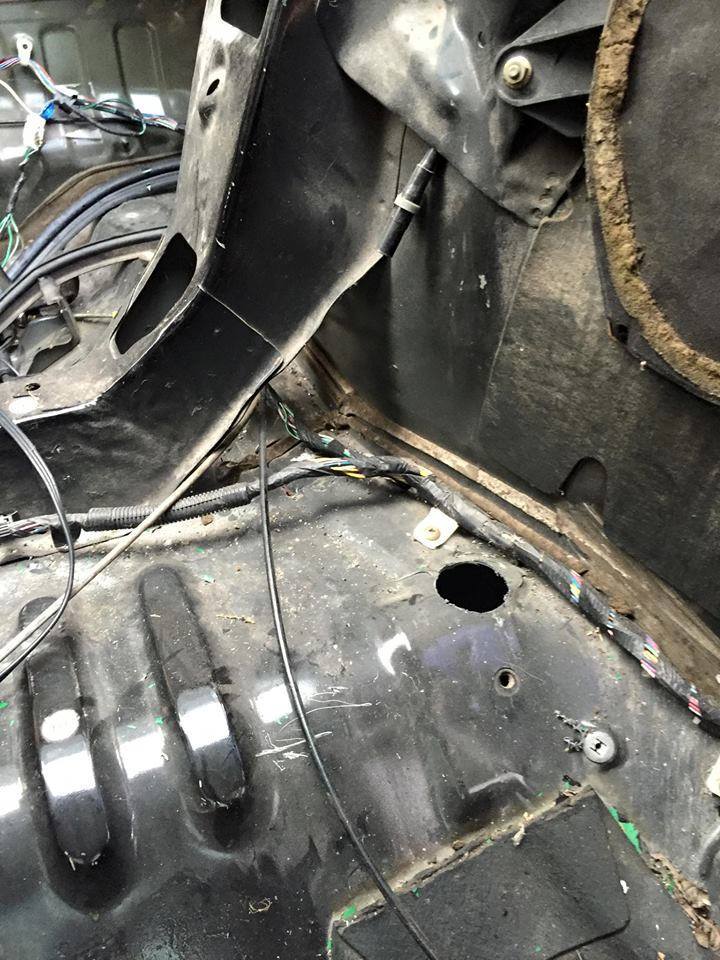

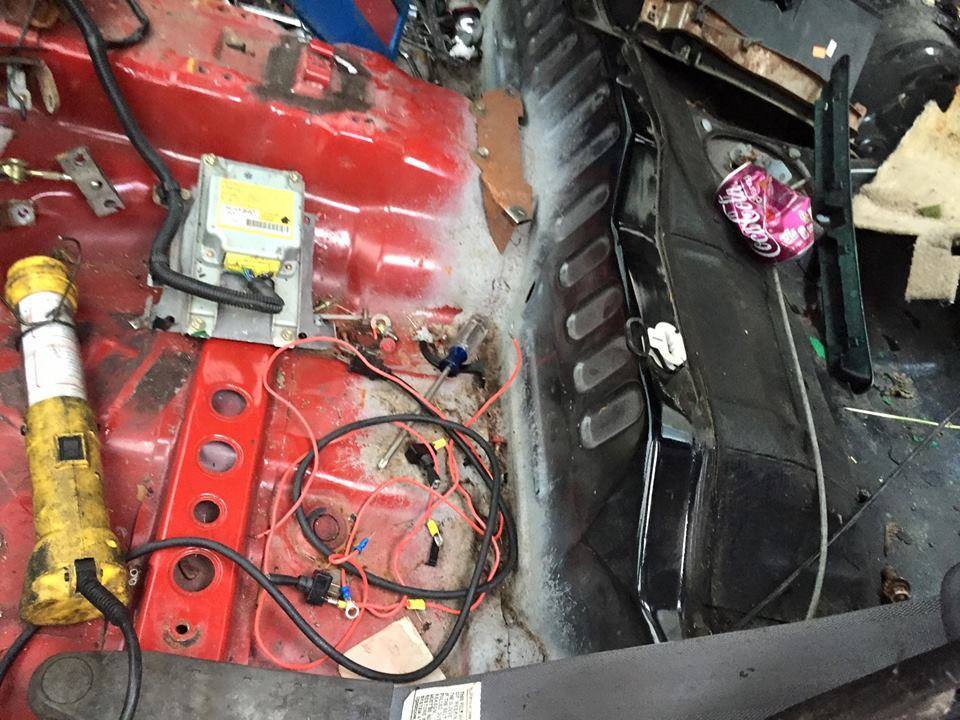

    But anyway, we finished taking everything out of the car, and cut the car up and scrapped it.

    Here is what was left.


    Make sure if anyone does take after me and wants to swap AWD, to take the straps for the gas tank off the car, you will need these as well to swap to your new set up. They look like this



    984  0

    1997 Mitsubishi Eclipse GST
    manual · 2G DSM
    Loading...
  14. 98mitsubishigst

    98mitsubishigst Proven Member

    919
    16
    Joined Nov 17, 2008
    Pittsburgh, Pennsylvania
    Now the fun begins.

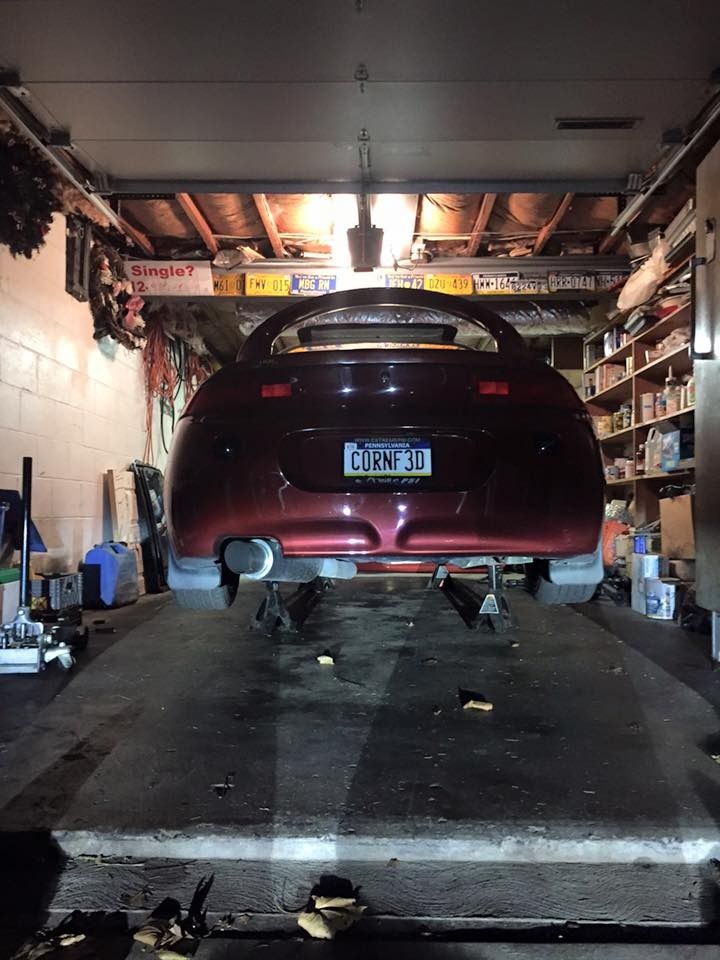

    Pulled my car in the garage and i jacked the car up and put it on jack stands. (You never quite realize how much rust you really do have until you start doing this swap haha.

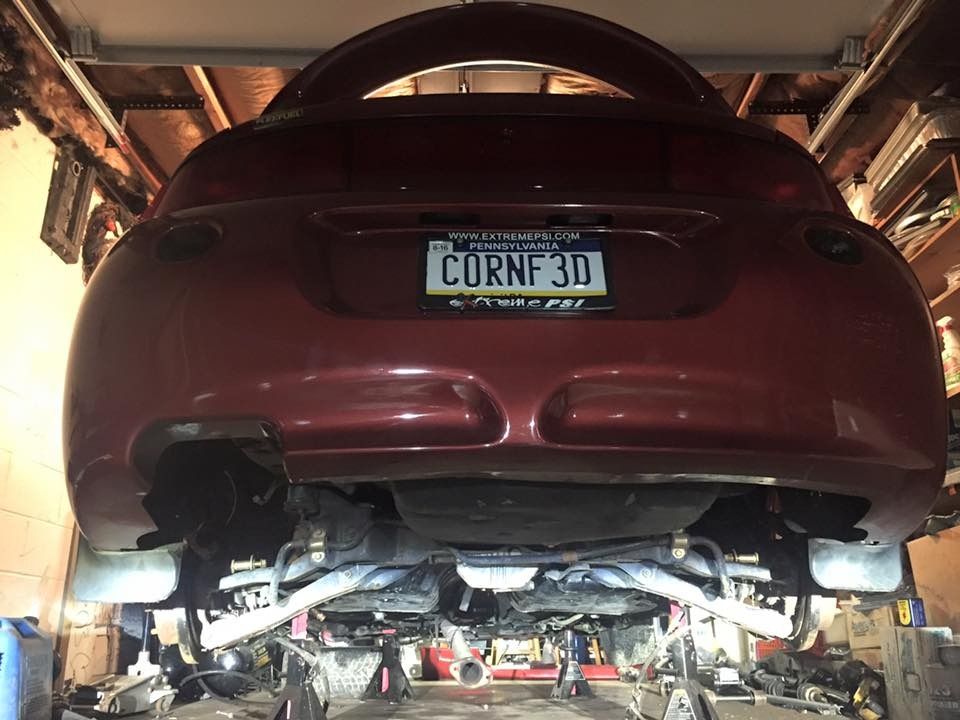

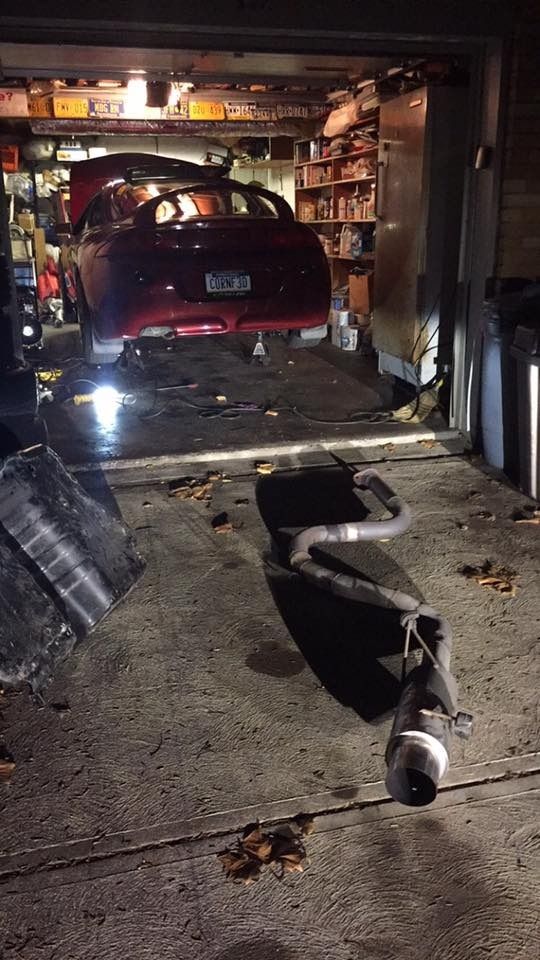

    Bye Bye FWD Exhaust! You will be missed, you sounded amazing.


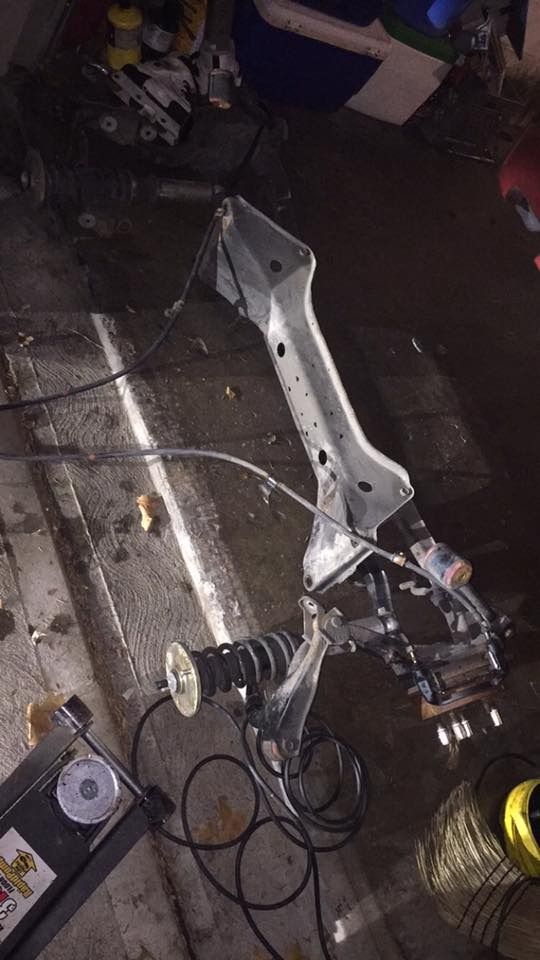

    After demeling holes everywhere in my body of my FWD shell, i came to the conclusion i suck at lining everything up haha. It took a whole day and atleast 20 dremel blades to cut enough holes to get the subframe out, but she is out none the less.





    And a little mock up just to see what it would look like. Lets just say i got pretty damn excited once i started seeing progress.

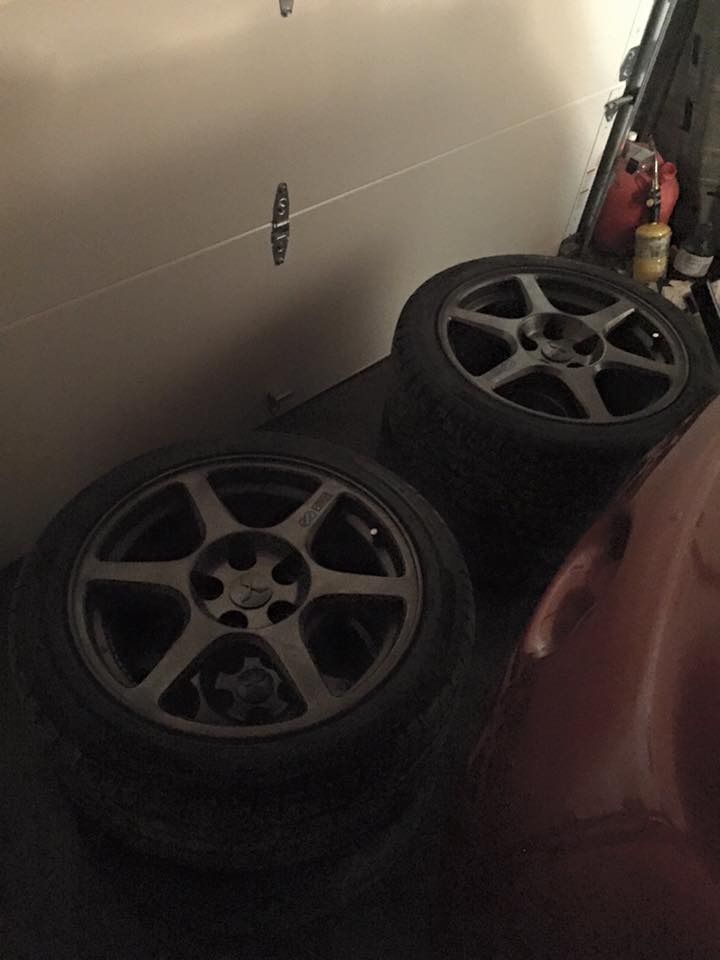

    Oh and i picked up these evo 8 wheels, i traded my xxrs. Going to see how i like the wheels after i get everything done. Maybe ill end up selling them for something more flashy.. Who knows we will see though!



    984  0

    1997 Mitsubishi Eclipse GST
    manual · 2G DSM
    Loading...
  15. 98mitsubishigst

    98mitsubishigst Proven Member

    919
    16
    Joined Nov 17, 2008
    Pittsburgh, Pennsylvania

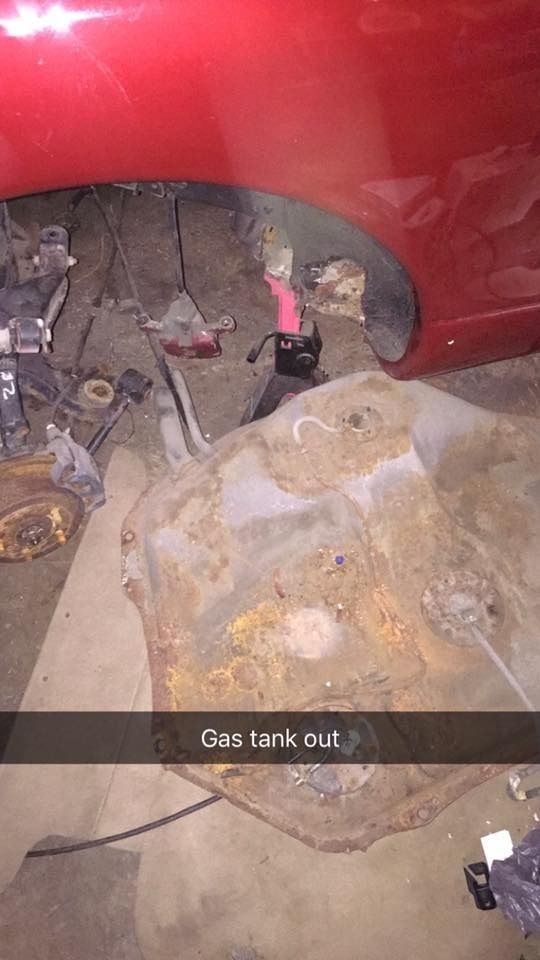

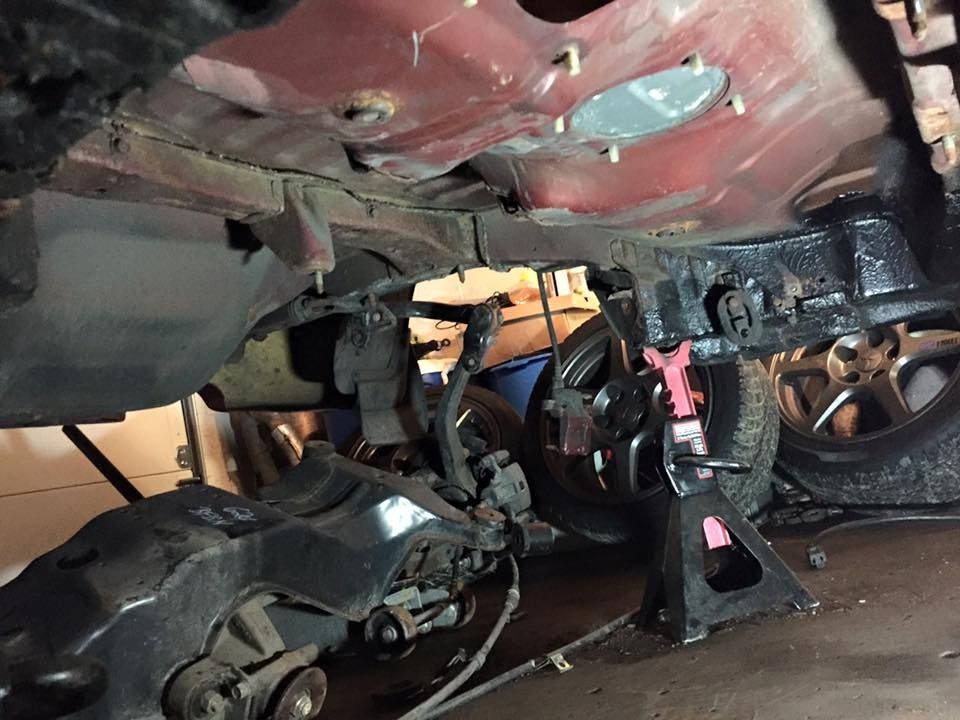

    Next was the FWD gas tank removal. This sucked due to me not getting rid of most of the e85 that was still left in the car, but i manned up and got it out anyway. Heres the picture of the gas tank area and the gas tank out of the car.

    12705432_10208220040035691_4097512849042060740_n_zps9huff5mc.jpg 12743756_10208220040275697_7528668989627057673_n_zps92doxccv.jpg

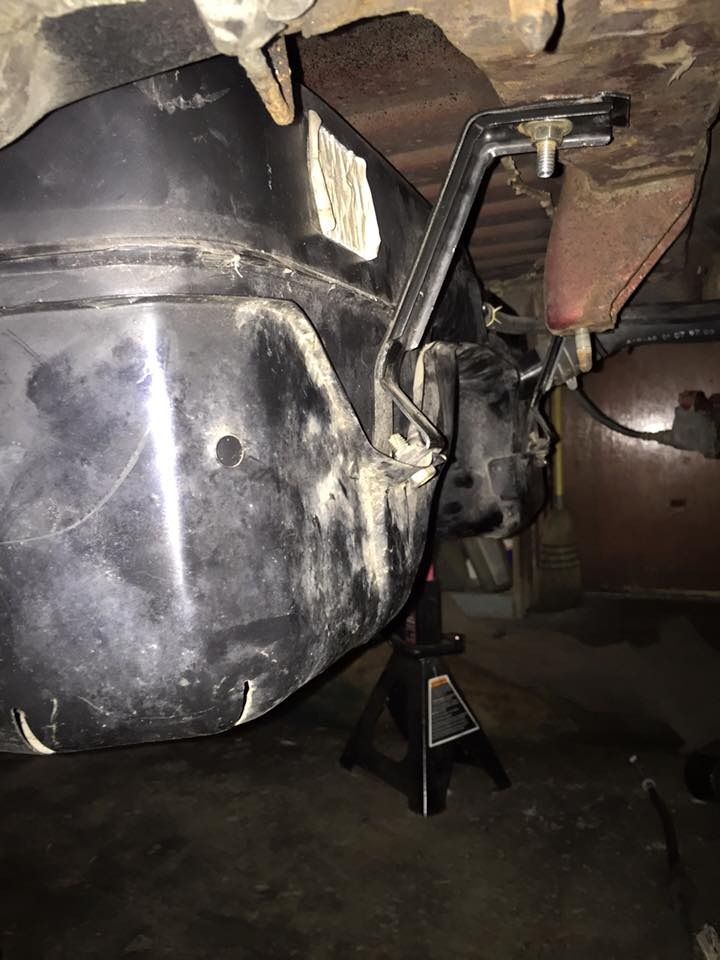

    And of course, the install of the AWD gas tank. This picture is of the bolts that had to be dropped into the body of the car so you could then thread the gas tank straps in. Remember, the gas tank straps weren't on the fwd body, the fwd has mounts to hold it in. YOU ALSO HAVE TO CUT THESE MOUNTS OUT. I used a cut off wheel and then installed the gas tank accordingly. There is a great write up on how to do most of this, i followed that!

    12688230_10208220041675732_2338343687978675728_n_zps5wu9sgmq.jpg 1929788_10208220041755734_6639900263156710643_n_zpsbc0bkgge.jpg

    Heres a candid picture of me working on the rear end ;)



    984  0

    1997 Mitsubishi Eclipse GST
    manual · 2G DSM
    Loading...
    mitsubishikid likes this.
  16. 98mitsubishigst

    98mitsubishigst Proven Member

    919
    16
    Joined Nov 17, 2008
    Pittsburgh, Pennsylvania

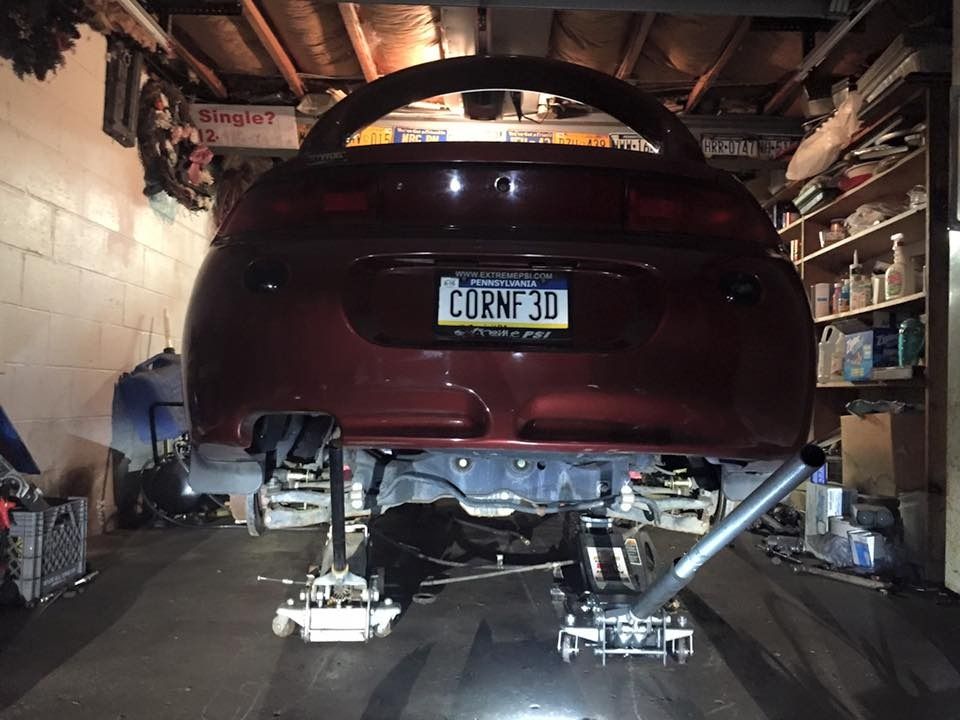

    And the most beautiful thing.. THE REAREND IS UP AND IN!


    I then decided to take the car out for a test drive to listen to see if anything in the rear end is making any funny noises. This felt great, no exhaust, and knowing I got a good bit done on the swap..


    Here is the picture after a few weeks.. I didnt work on the car much but i realized that there was a bad noise coming from the rear end.. Later on i found out the rear end was locking up.. And the rear end was blown out... This was disappointing. And yes that is my evo x, she is my daily =)



    984  0

    1997 Mitsubishi Eclipse GST
    manual · 2G DSM
    Loading...
    mitsubishikid likes this.
  17. ThunderChild

    ThunderChild Supporting VIP

    2,412
    638
    Joined Jan 5, 2012
    Rathdrum, Idaho
    nice man, thats quite the undertaking!

    im looking for another awd 1g shell right now to transplant, i dont have the nuts for a fwd-awd 1g conversion haha.

    good luck keep up the good work!


    Street Build 90  3

    1990 Plymouth Laser N/T
    fwd · manual · 1G DSM

    226  8

    1987 Toyota Pickup/Hilux
    awd · manual · Misc Vehicles

    Street Build 737  7

    1997 Mitsubishi Eclipse Spyder GST
    fwd · manual · 2G DSM

    Street Build 936  1

    1992 Eagle Talon TSi AWD
    manual · 1G DSM

    Street Build 2K  10

    1992 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  18. 98mitsubishigst

    98mitsubishigst Proven Member

    919
    16
    Joined Nov 17, 2008
    Pittsburgh, Pennsylvania
    I pulled the car back into the garage tonight after i ordered a new rear end. The rear end came in and i swapped the old out, with the new. I pulled the axles out instead of dropping the whole subframe.

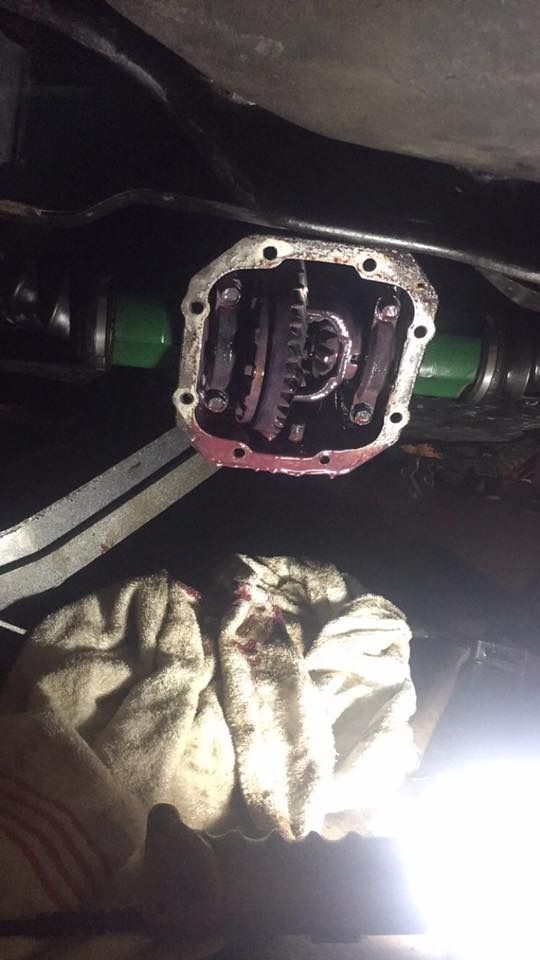

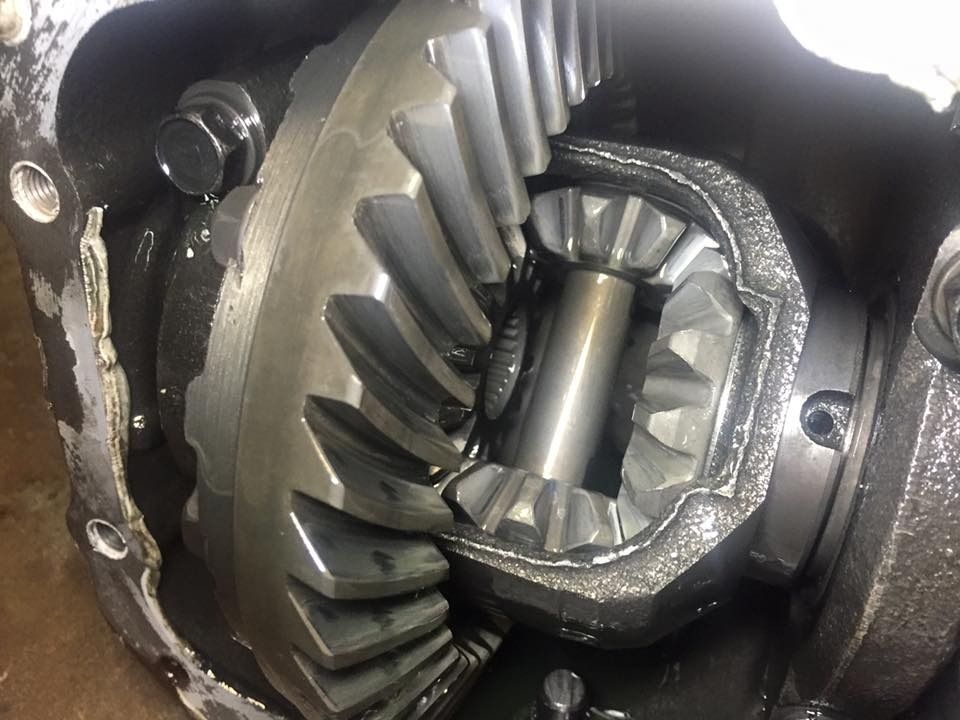

    This was a PITA. But it is done. The old rear end you could barely spin the yoke. I guess thats what i get for hurrying up. haha Being impatient definitely set me back here. Anyway. Heres the inside of the old one.. i believe someone who didnt know what they were doing tried rebuilding it and failed and thats why the car was abandoned.. Besides the fact the old dsm was just two different cars and that looked sketchy as it was..
