My Wire Tuck and Engine Bay Clean Up Part 2 (The Parts Are Arriving)

[efrainz28]

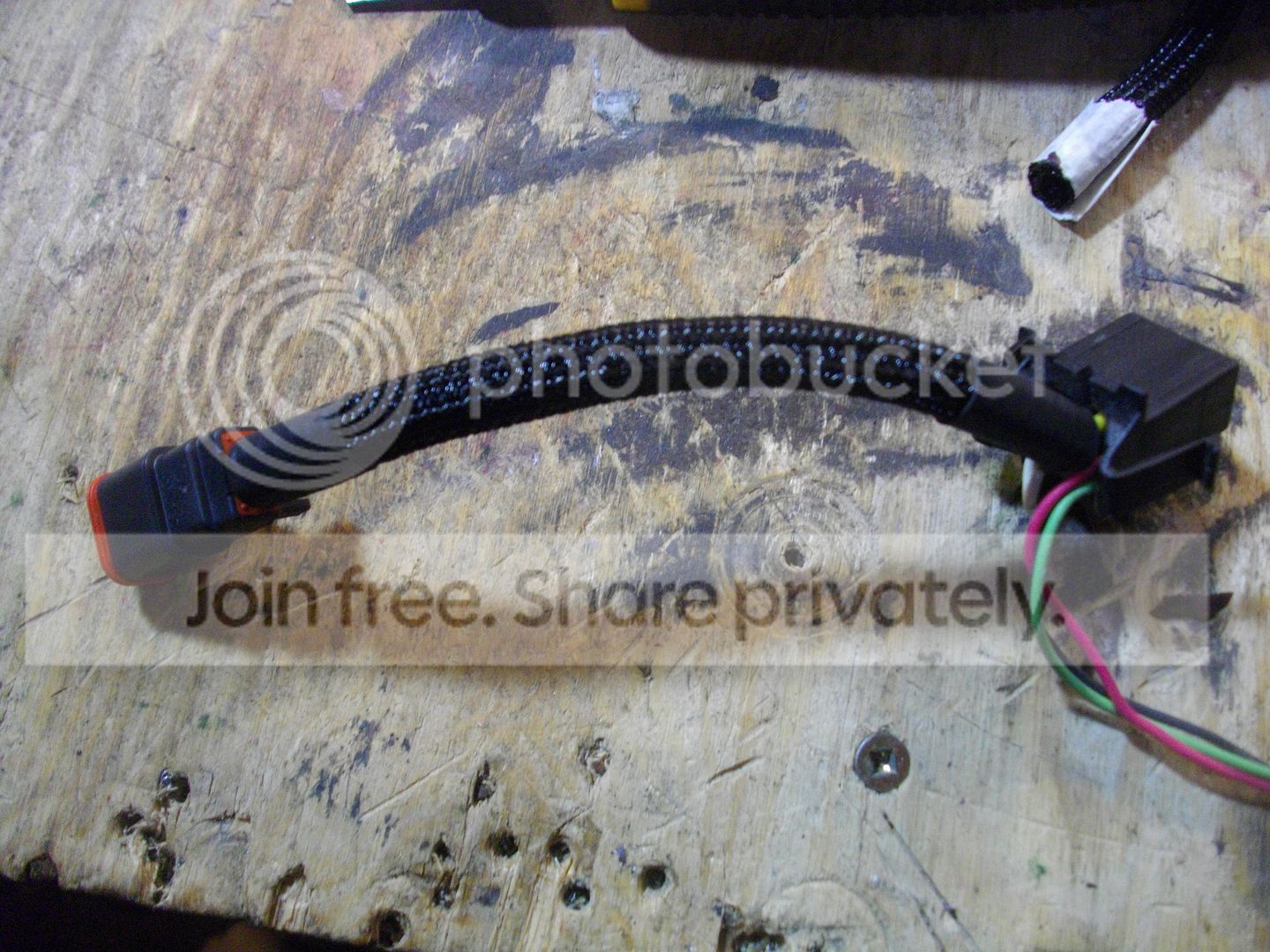

Cannon plug for the fuse box.

What the part number?



[Blurred Talon]

HDP24-2431PEHDP20 is the Receptacle and HDP26-24-31STHDP20 is the Plug.



[92AWDHX40]

Looks like your getting it together.



[Carlz0r]

Thanks for putting up pictures of the F6 sleeving, that definitely makes it a lot easier to sleeve an existing harness!



[Blurred Talon]

The F6 is really easy to work with, you still need to terminate it some how though, either with heat shrink or tape.

I'm going to start working on the fuse box plug on Monday.



[gixrman]

looking forward to that, as thats my next project on the list to remove it from the engine bay.



[Blurred Talon]

Keep watching for another new part this week.
The girl friend is out of town Monday to Wednesday so I'll have no one to distract me from working on it.



[Blurred Talon]

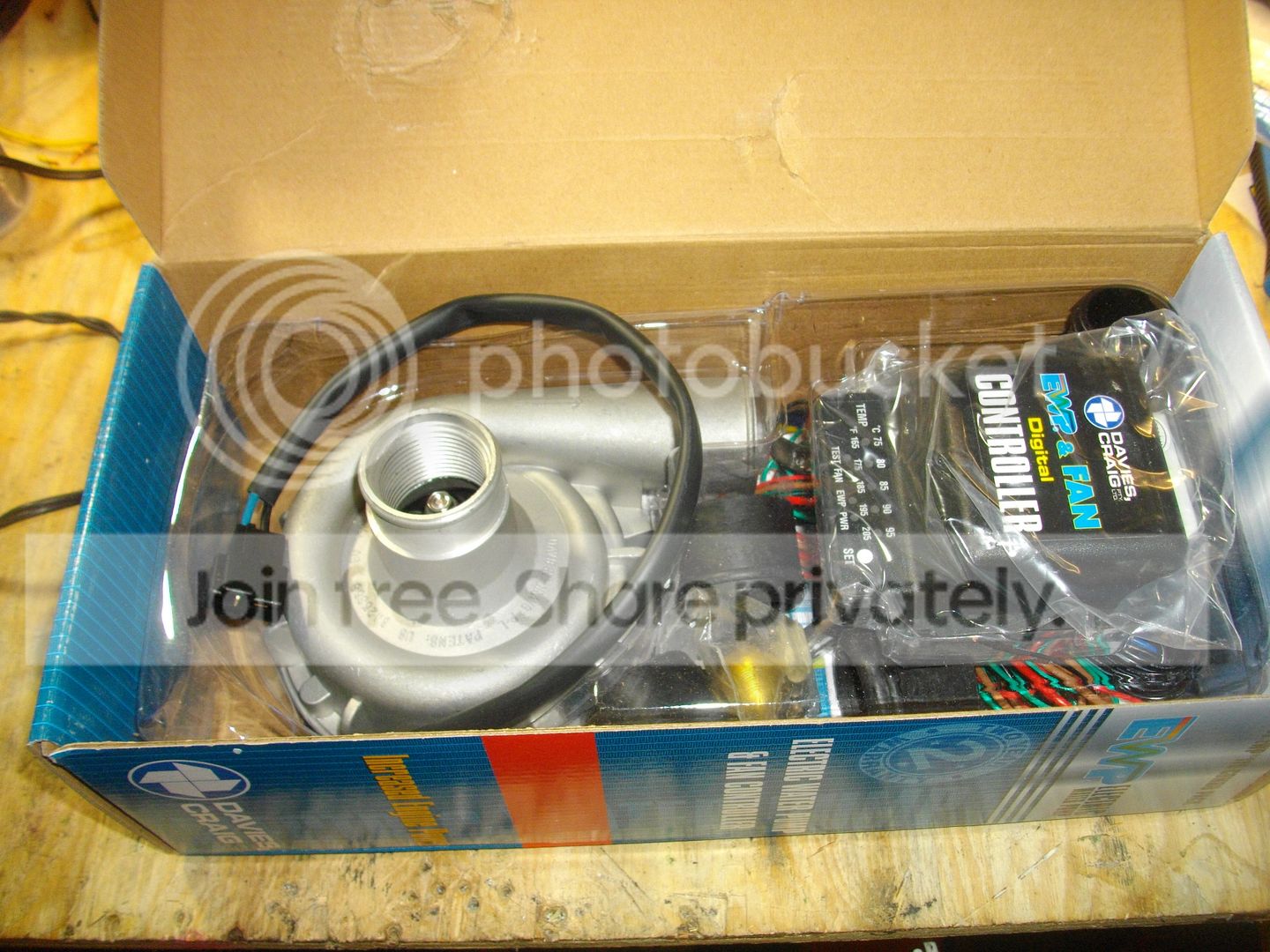

My Electric Water Pump is here.

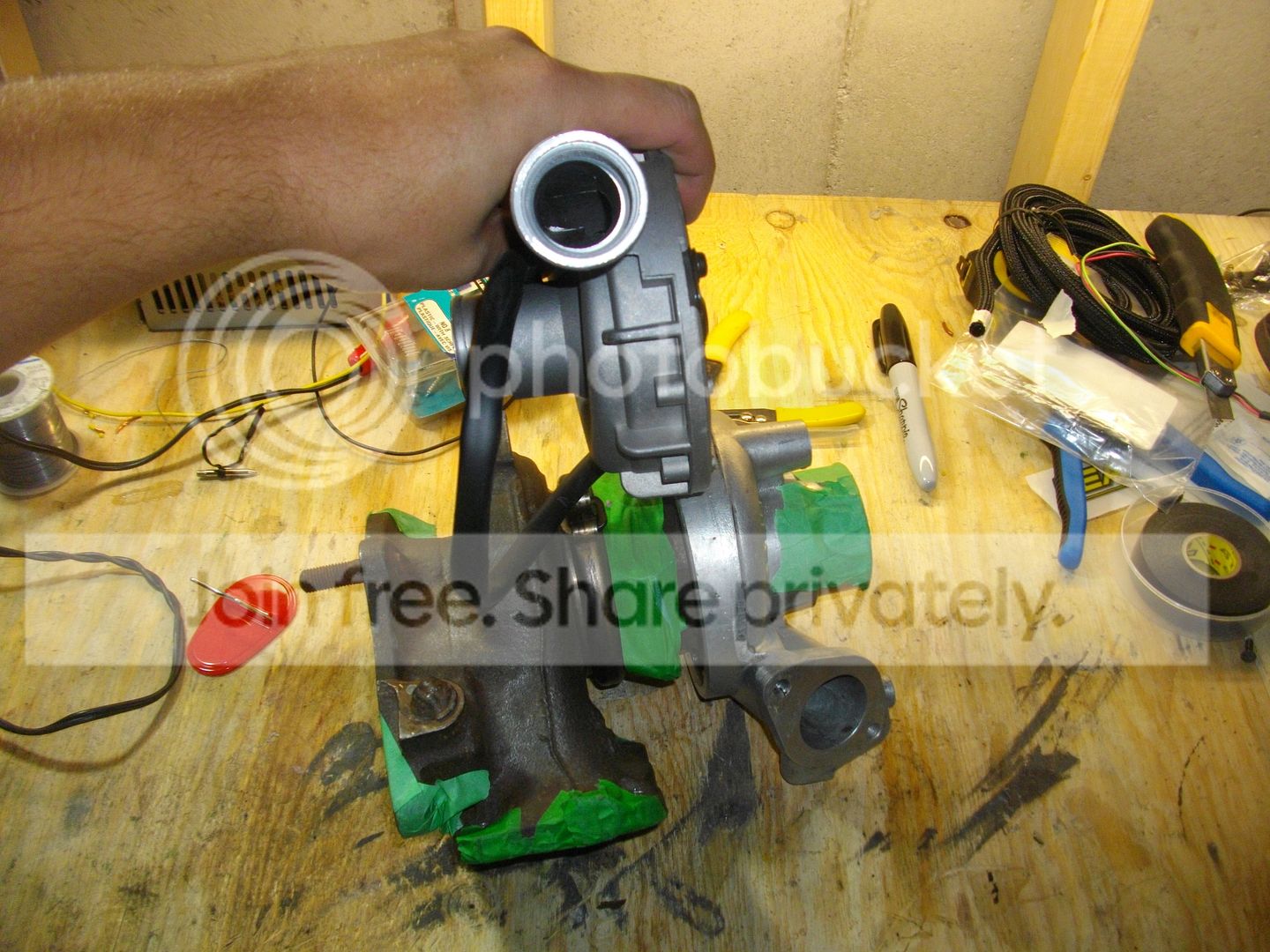

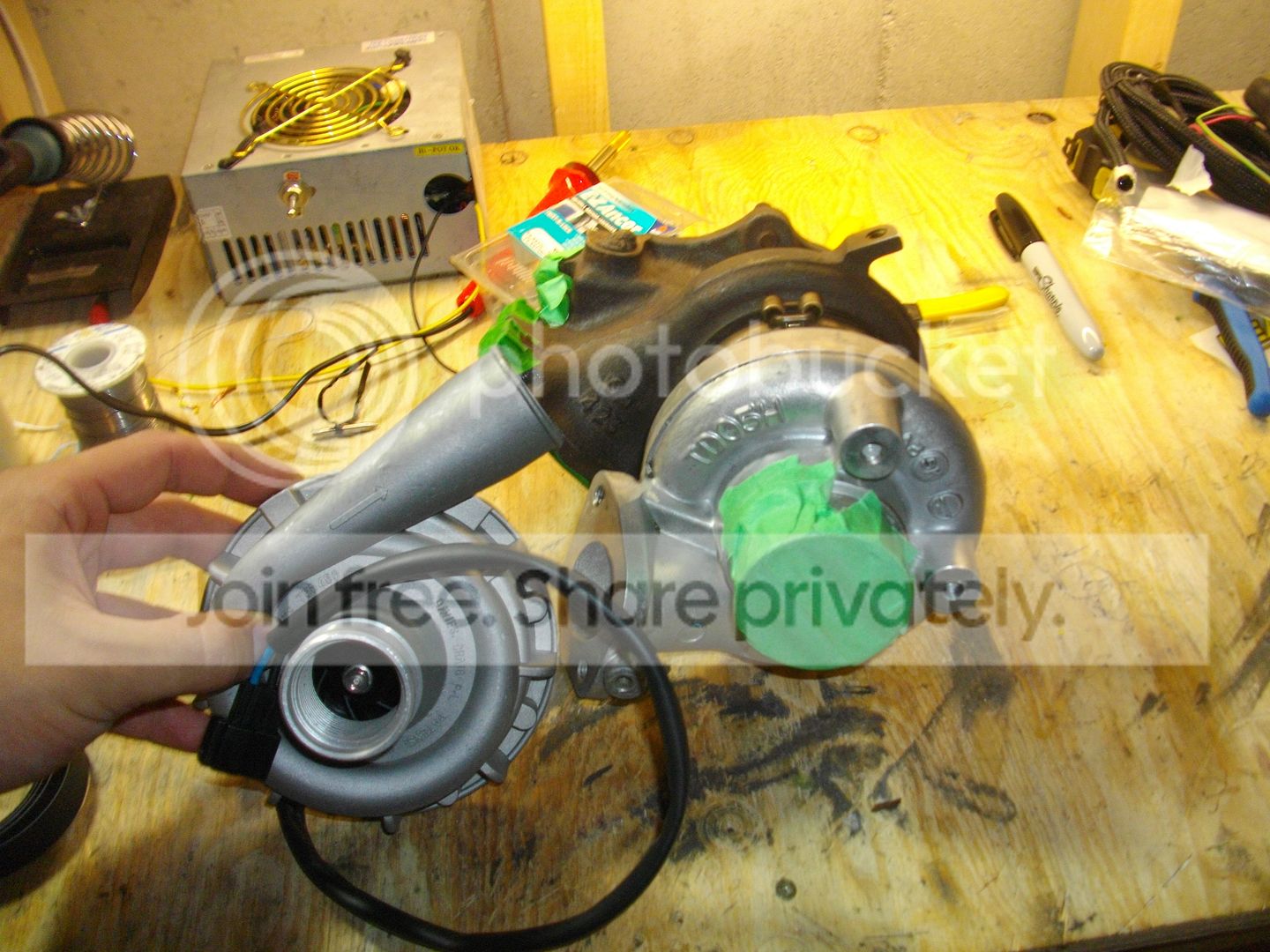

Beside my Evo 3 16G for a size comparison, it's pretty compact.

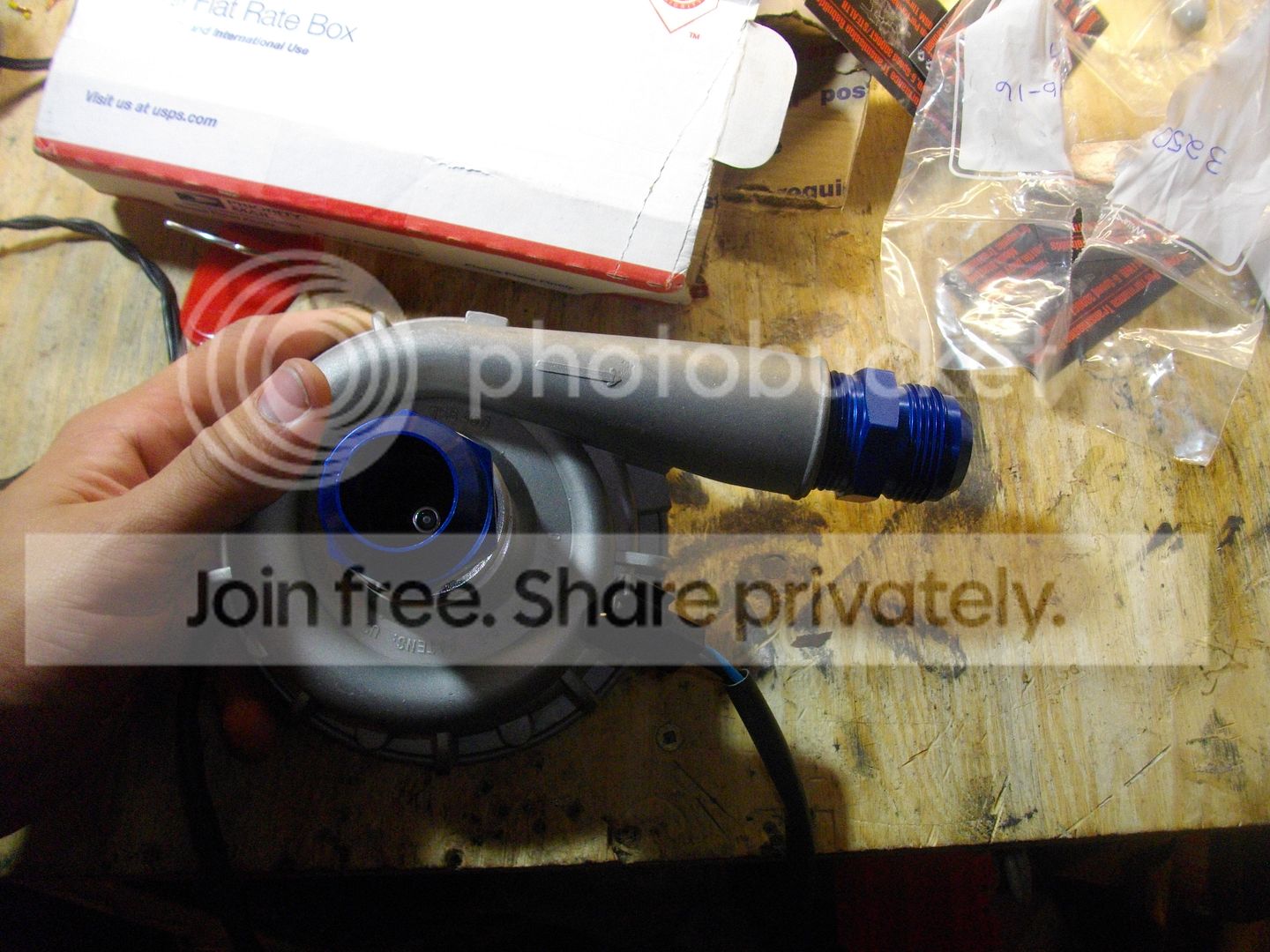

AN adapters to convert it from 1" NPT to -16AN.

Plan to mount it in the wheel well/fender on the driver side. It will draw power from the OEM fuse box (hence why it's pictured here).

I also played with the Deutsch crimper, F6 sleeve, and some heat shrink on my Bosch AL ballasts for my HID retro. This stuff is really easy to work with.



[92AWDHX40]

Nice where did you find the pump?



[bad2g6bolt]

Looks awesome keep the pictures coming.



[Blurred Talon]

The pump is from TMZ Performance (Time Zimmer's company).
More updates tomorrow.



[dral24]

awesome awesome thread man im subscribing!! great info if its not too much can u get us a list of part numbers to save us the hours online im sure u spent



[Blurred Talon]

Part numbers for what exactly?
All my Deutsch connectors have come from Wirecare.com so far. I'm not posting part numbers because they are fairly specific to how I'm wiring my car; I've got a lot of stuff removed that most other people would keep so you would need a different part (more wires).

The Deutsch connector part of Wirecare is all interactive and it's incredibly easy to get exactly what you want.



[dral24]

ok cool thats all i needed thanks nd good luck keep us up to speed



[Blurred Talon]

Indeed I shall.

I might work on it tonight but I've got an exam to study for.



[Blurred Talon]

More parts, I've got almost everything I need now expect my ARC2 box (still have to buy one) and my firewall cannon plug. The other stuff I can simply mock up without having them in my hands for the most part. Plus I need to buy wire to run for the aftermarket stuff that's being tied into the OEM fuse box. For wire I'll be using Motorsport/Aerospace ETFE Hook-Up Wire from Pro Wire USA: Mil Spec Wire-Prowire USA

My JMF Manifold is here along with my GM IAT and AEM 5 Bar Map.



[92AWDHX40]

Thanks for that site been looking for some of that heat shrink.



[Blurred Talon]

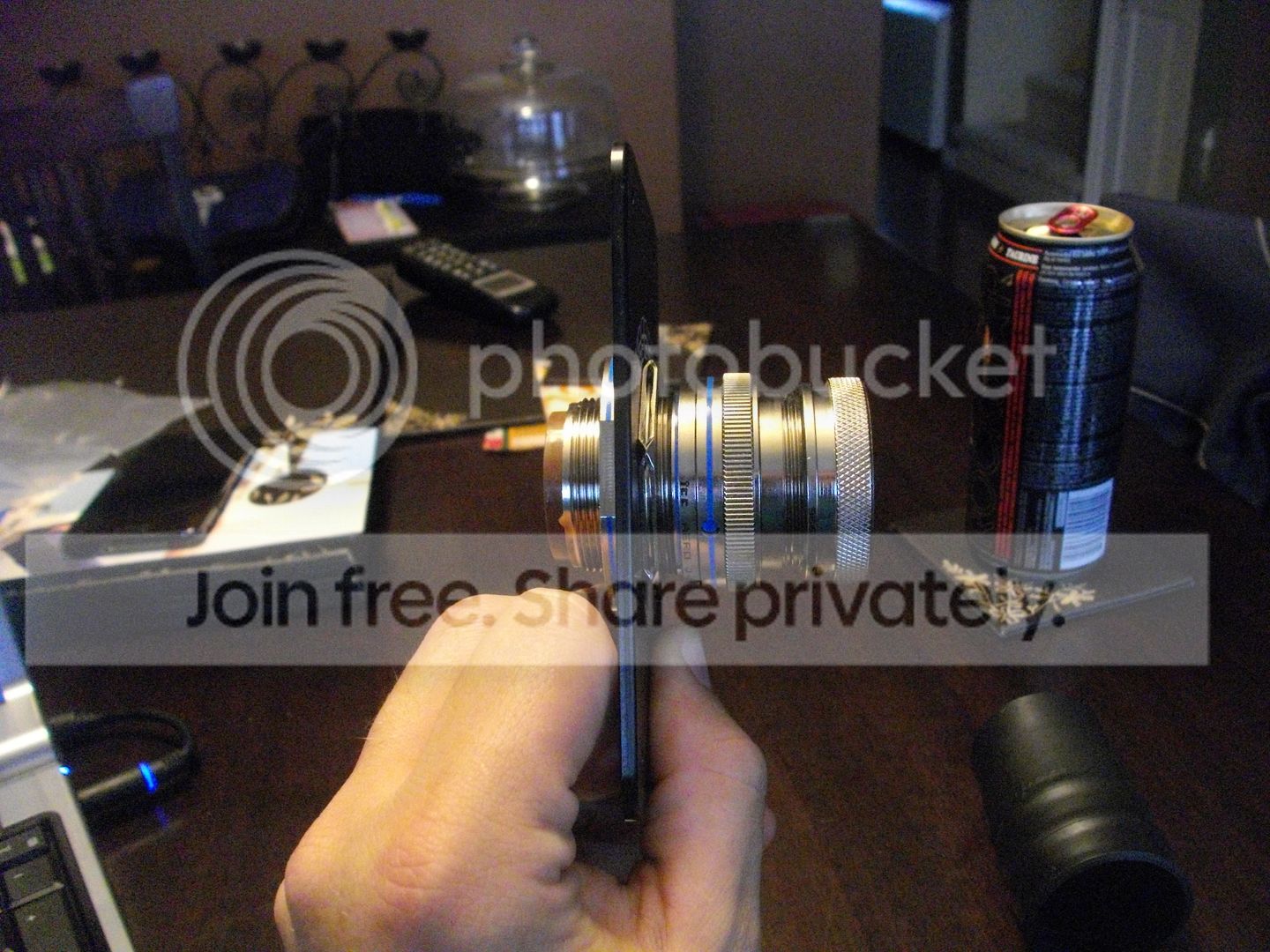

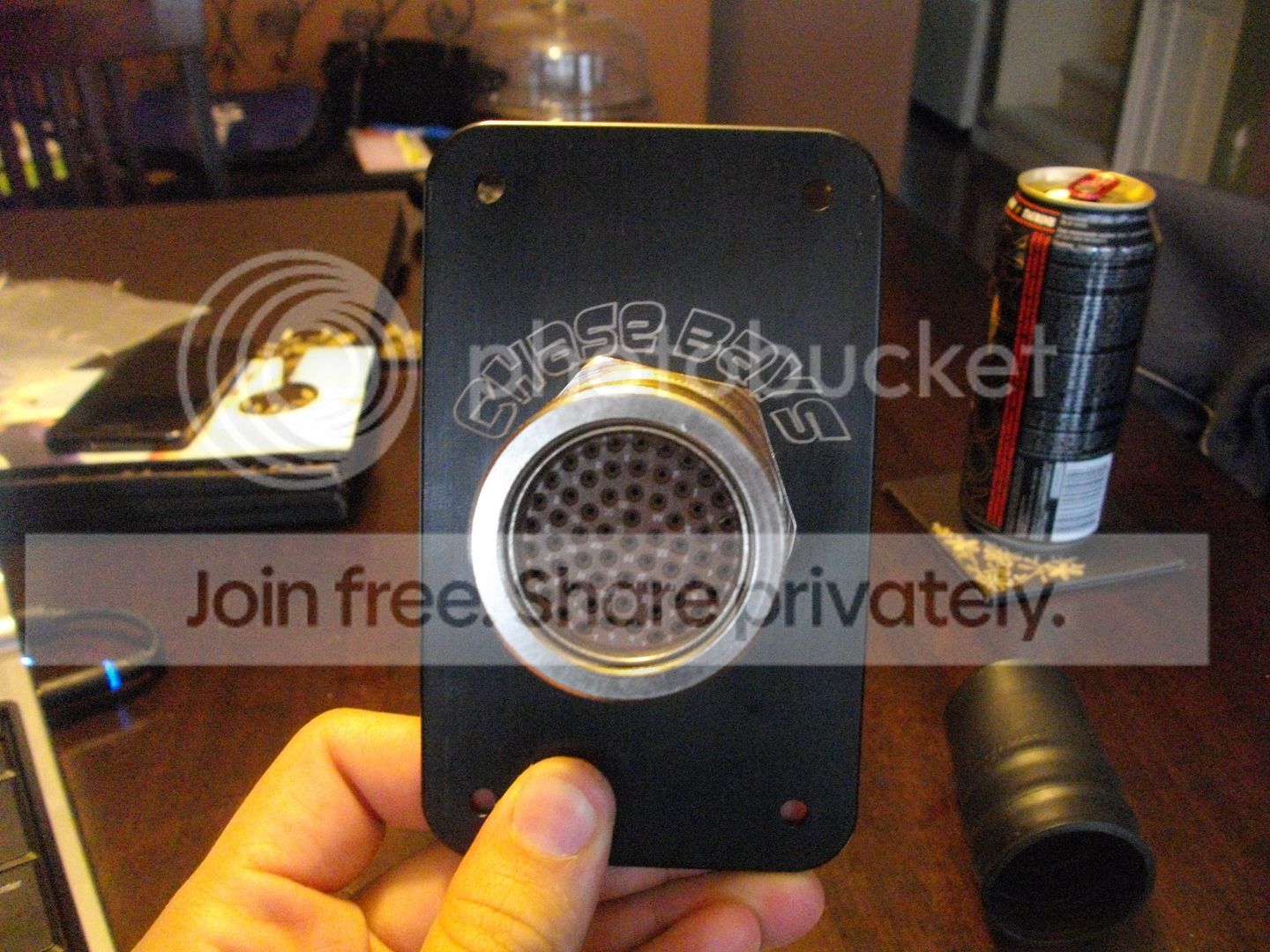

My Chasebays fire wall plug and plate showed up today. I can start shortening the engine harness next time I go to work on the car.



[92AWDHX40]

cool i love rywires build on his crx its a full clean up. doing some more wiring this winter i love the chasebays connector gonna look into that.



[jukematt]

I'm a little confused. What is the Chase Bays for? Does a wire fit through each of those holes?



[Blurred Talon]

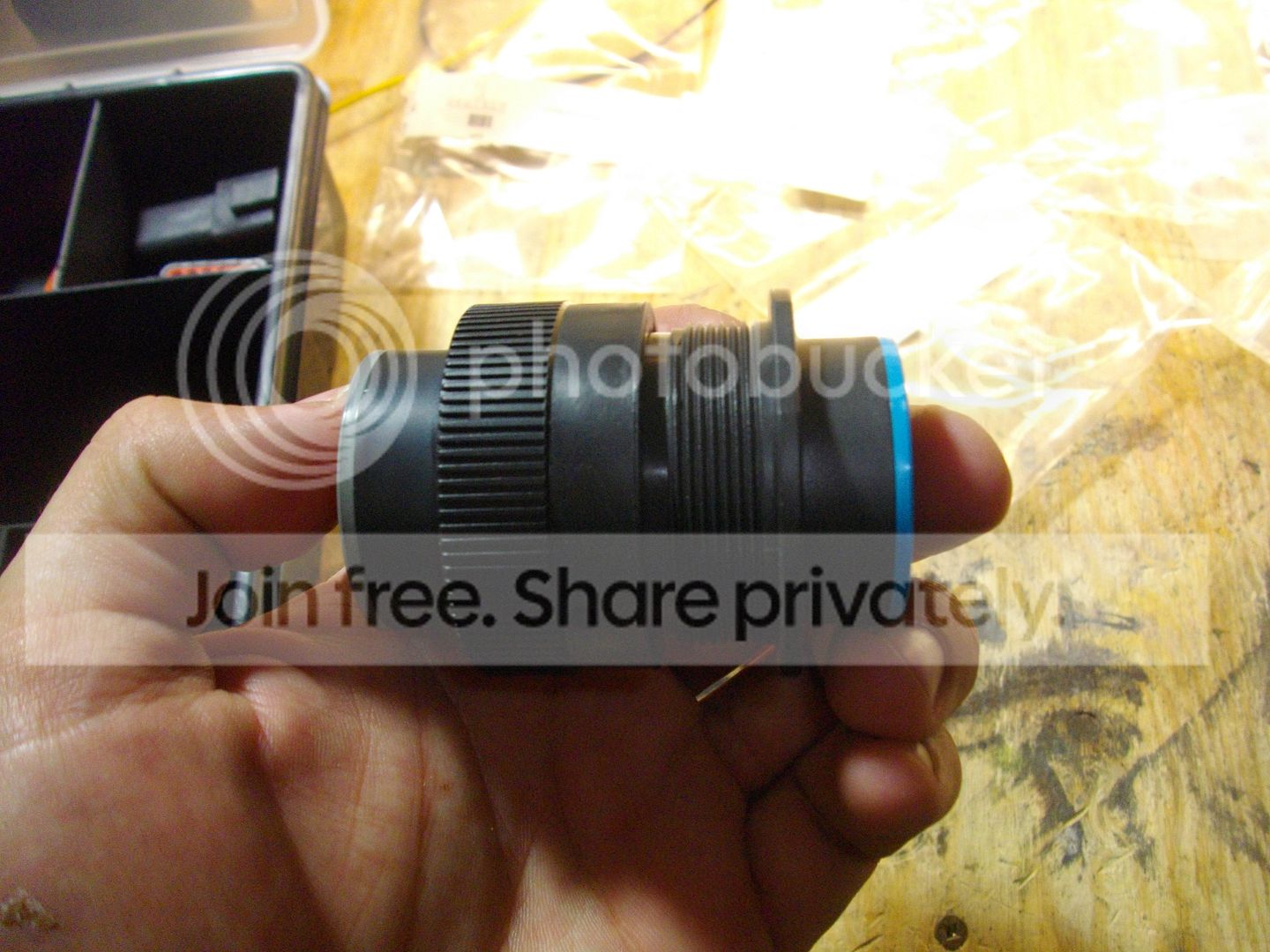

It's a mil spec cannon plug. Pins/wires go into the holes; a simple half turn and it's removed. 1 plug vs many when pulling the motor? I'll take one plug. Plus this allows me to really shorten up my wiring harness and hide everything nicely.
