Requesting DRL/Flasher Module Schematic Validation

Moonlight GSX

Supporting Member
528
29
Nov 16, 2010
Edmond, Oklahoma
For those who are electrical engineers or know something about PCB mounted electronics... please take a look at the below schematic and let me know where I need to make modifications to make it work properly. I have already run online simulations for the individual circuits but the platform I am using (Easy Circuit) does not allow for cramming this all in there to see if it will work (without it making any proper sense). Again, if you know anything, or everything, about PCB mounted electronics please take a look below and tell me if I have made some miscalculations in my schematic, thank you.

Schematic_Exterior Lighting Controller_2021-04-17 (1).png


Moonlight GSX

Supporting Member
528
29
Nov 16, 2010
Edmond, Oklahoma
Awesome deal, I will look into that software to see if it will be big enough to support the size of my schematic. Every Circuit, as mentioned above, is a bit too small for the size of the circuit and is missing various components found in systems like EasyEDA.

Just installed, not going to lie it looks a lot better and has way more features - this will make building my other circuits a lot easier as well; thanks again.

Last edited:

dustyboner

DSM Wiseman
1,362
618
Mar 13, 2016
abq, New_Mexico

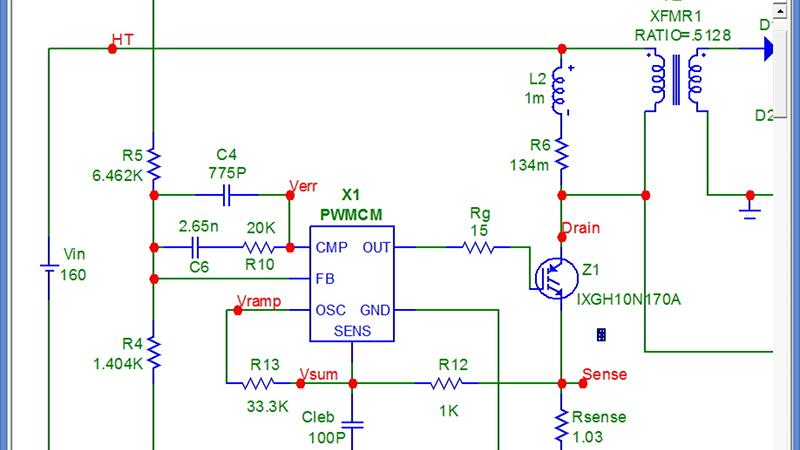

the software has been under development since 1982 and 2 years ago it was retailing for about $4,500.
Now its free. One hell of a deal, ain't it
:hellyeah:
