2G Gauge cluster back light illumination

[Gilmore1996]

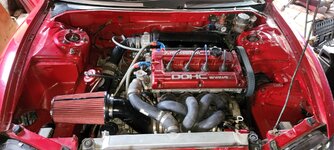

1998 mitsubishi eclipse GSX
Does anyone know what wire on the gauge cluster controls the back light illumination. Mines not working and I'm going to hardwire it to a toggle switch. If you could also post pictures of it that would help out alot. Thanks in advance for the help.



[steve]

I'm pretty sure it's in this manual under Circuit Diagrams/Meter and Gauges and Chassis Electrical/Combination Meters

2G 1997-1999 DSM Electrical Factory Service Manual

This is the 1997-1999 Mitsubishi Eclipse / Eclipse Spyder Factory Service Manual covering:Electrical - Volume 2540 pages - 24MB -- use the link below to access.Here is the direct link from my Google Drive - You must be registered to see element.

www.dsmtuners.com



[Gilmore1996]

I'm pretty sure it's in this manual under Circuit Diagrams/Meter and Gauges and Chassis Electrical/Combination Meters

2G 1997-1999 DSM Electrical Factory Service Manual

This is the 1997-1999 Mitsubishi Eclipse / Eclipse Spyder Factory Service Manual covering:Electrical - Volume 2540 pages - 24MB -- use the link below to access.Here is the direct link from my Google Drive - You must be registered to see element.

www.dsmtuners.com

I looked all throughout that manual and couldn't find it.



[steve]

Hmm, I think you missed it.
It looks like the backlight Illumination is on C-06 pins 6 and pin 4 to the cluster. Powered by Fuse #5 and controlled by rheostat connected to C-23.

You must be logged in to view this image or video.



[Gilmore1996]

I'm pretty sure it's in this manual under Circuit Diagrams/Meter and Gauges and Chassis Electrical/Combination Meters

2G 1997-1999 DSM Electrical Factory Service Manual

This is the 1997-1999 Mitsubishi Eclipse / Eclipse Spyder Factory Service Manual covering:Electrical - Volume 2540 pages - 24MB -- use the link below to access.Here is the direct link from my Google Drive - You must be registered to see element.

www.dsmtuners.com

I looked all throughout that manual and couldn't find it. Either what I'm looking for isnt in there or missed it

Hmm, I think you missed it.
It looks like the backlight Illumination is on C-06 pins 6 and pin 4 to the cluster. Powered by Fuse #5 and controlled by rheostat connected to C-23.

You must be logged in to view this image or video.

Oh ok, I did miss that, I see it now. Thank you for pointing that out to me. Im sure i can find it when i tear the dash apart but Is there any way to tell what color wire those are?



[steve]

Sure it says on the diagram Green/White stripe and Black/Yellow stripe. There is a Black wire from the rehostat to where ever A goes on the next page. The index for the wire colors is in the beginning of the manual.



[schafer240]

Its common for the dimmer knob to cause issues, start there and if you can replace it its a good idea.
