I just found out my shifter cables dont work with the AWD trans.The cable, that moves back and forth for going into gears, isnt doing its job somehow. Im gonna look into it tomorrow.



[okm12346]

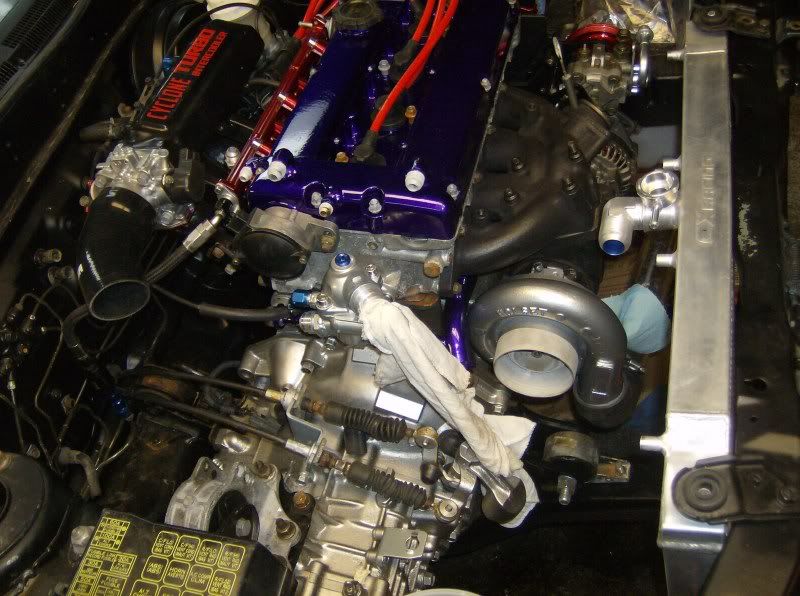

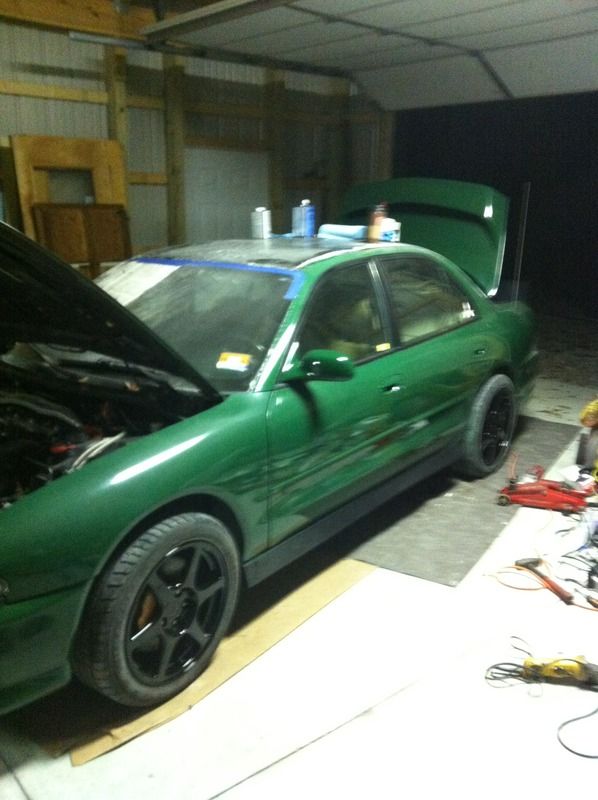

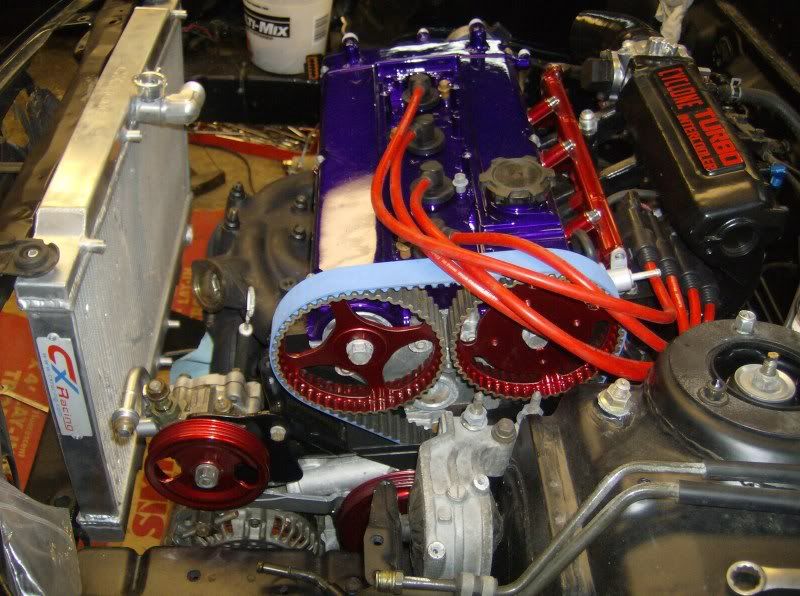

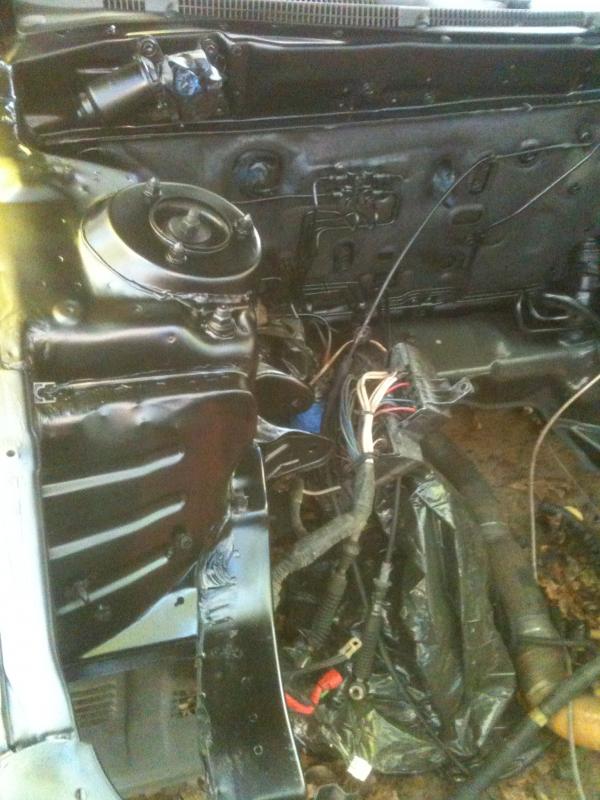

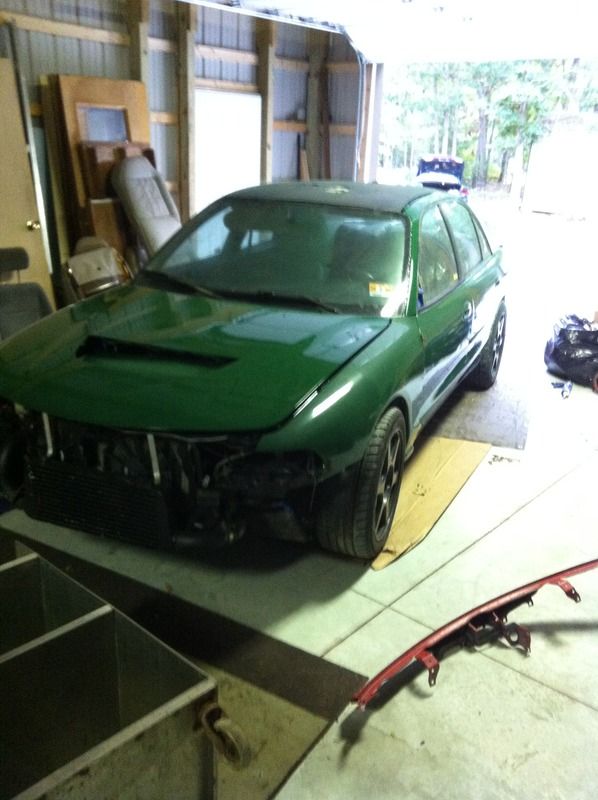

Can you tell I had the harness installed?! She is in and she is shorter and partially tuck.

I'll be installing the fuel pump and ecu tomorrow and hopefully she will start soon.



[GPTourer]

Nice work. Makes me miss my '97 LS. I love to this much into a Galant - so many options for such an underserved platform. I came across a couple of GSs back in the day, nice to see one get taken all the way.



[okm12346]

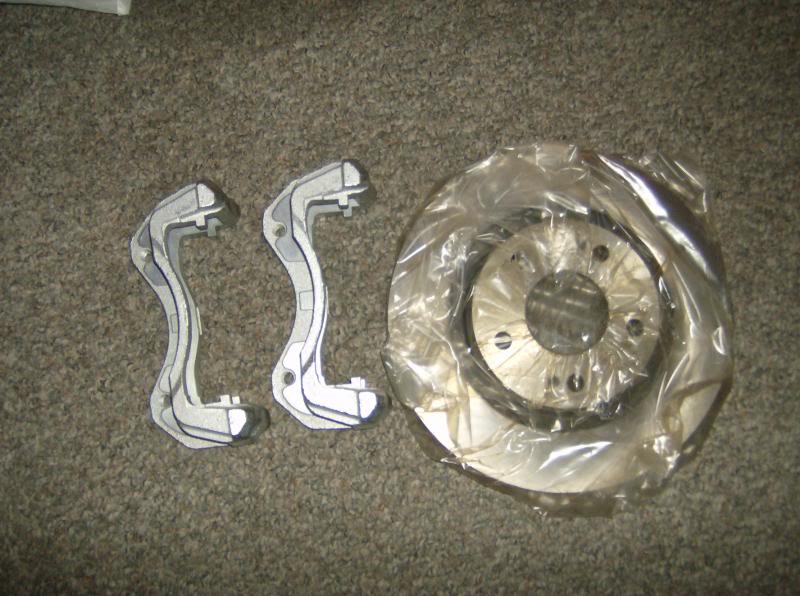

Finally got the Outlander caliper brackets in the mail after close to a month of waiting. Also in the picture 11.7'' Outlander rotors.

I have to get it all coated and it'll be ready to install.

Can't wait!



[okm12346]

[/URL]

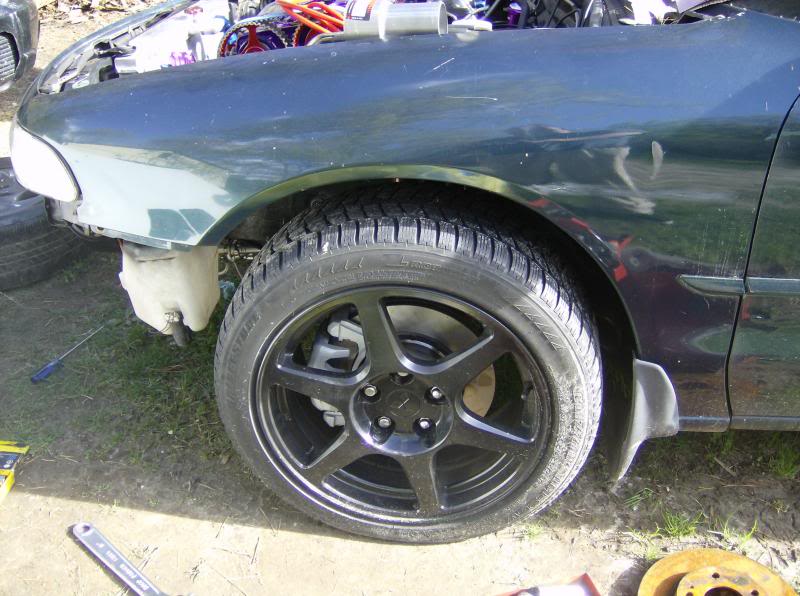

Outlander brakes got installed.

Getting ready for exhaust.



[okm12346]

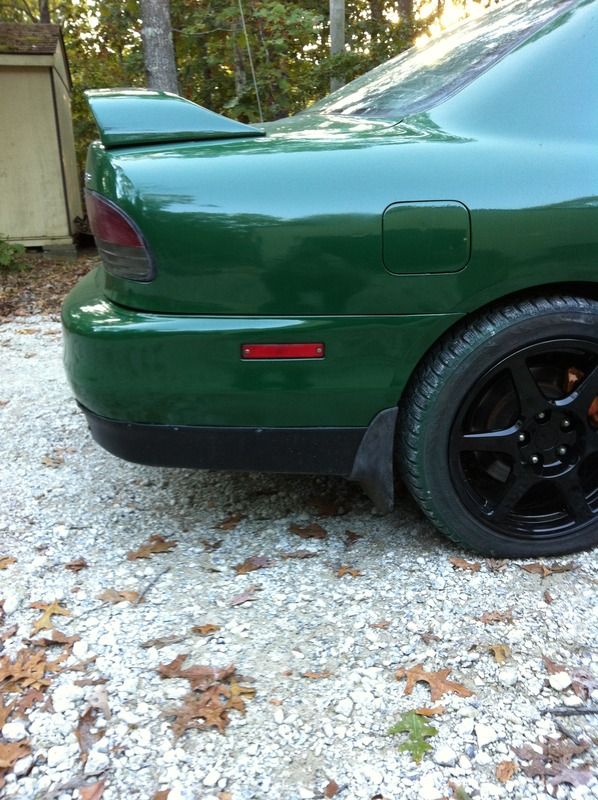

JDM 7g spoiler

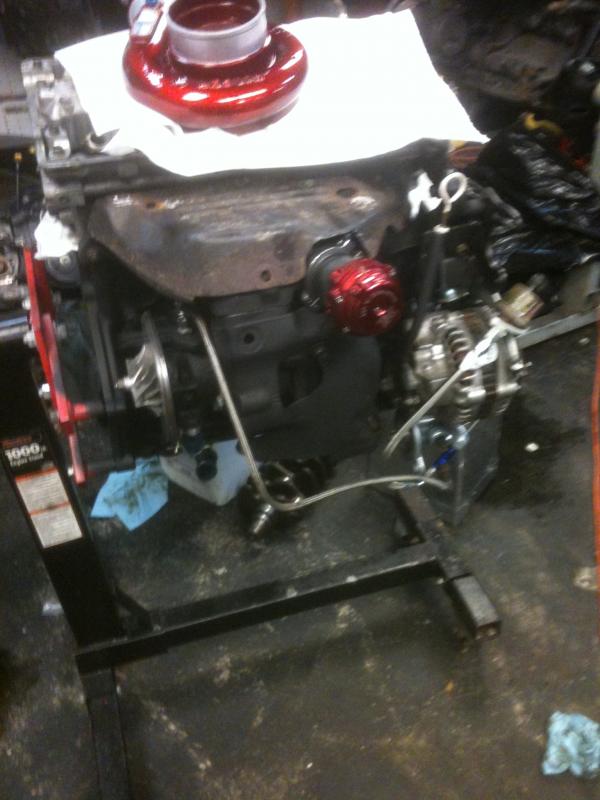

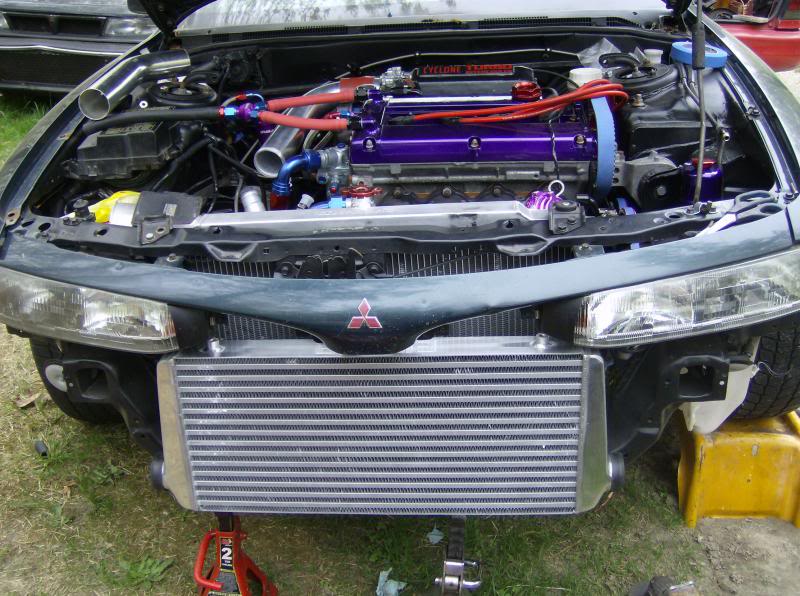

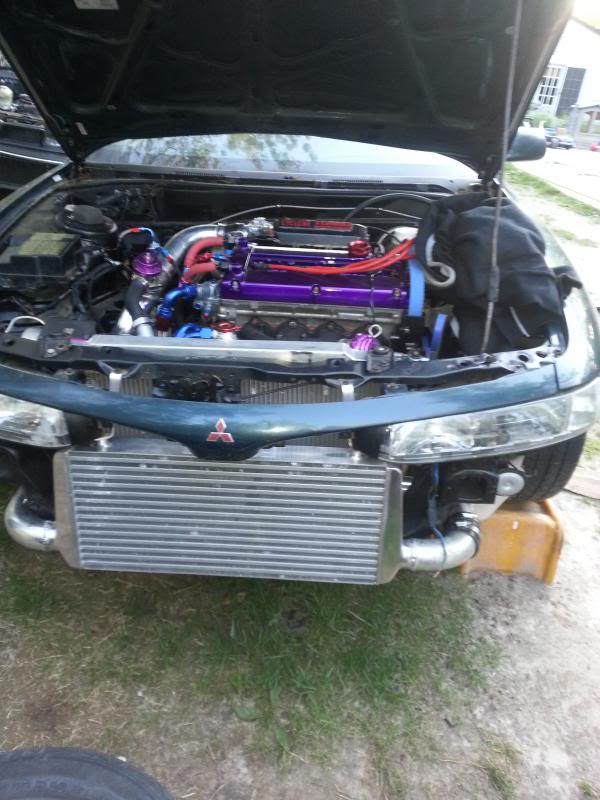

Test fitted the Intercooler and Then sent it off to my welder along with all IC pipes. The whole thing will have 3 couplers.

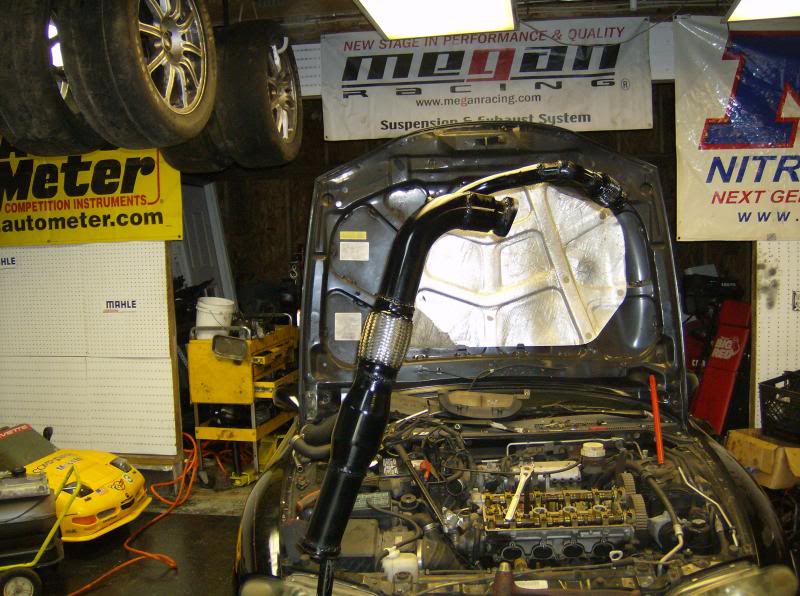

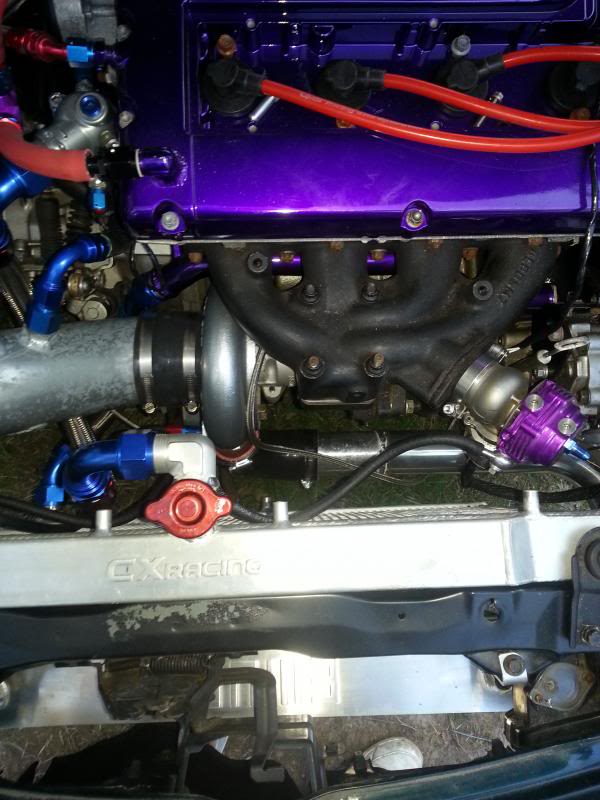

Big progress on the exhaust. I got the rear part and the downpipe finished, so now I have to meet them in the middle. I just ordered my second glasspack, so hopefully this will be finished sometimes next week.

I have to drop the pipe from the WG and weld it to the downpipe.



[okm12346]

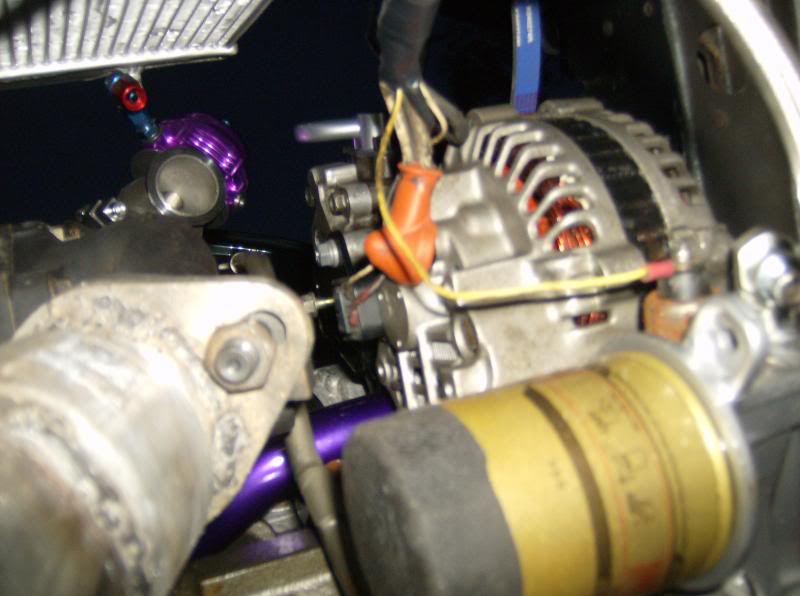

Pics of the progress.



[Nitrobasher]

Interesting build! Is your Tial wastegate vband or flanged to bolt on? I have a Tial band and am looking for a flange adapter!

thanks.



[okm12346]

Its a v-band bud. The adapter is welded to the manifold, because I was afraid of leaks or bolts backing out.

Here's the adapter:

Steel Tial 38mm 2 Bolt to Vband Wastegate Adapter Flange Expedited Shipping | eBay



[okm12346]

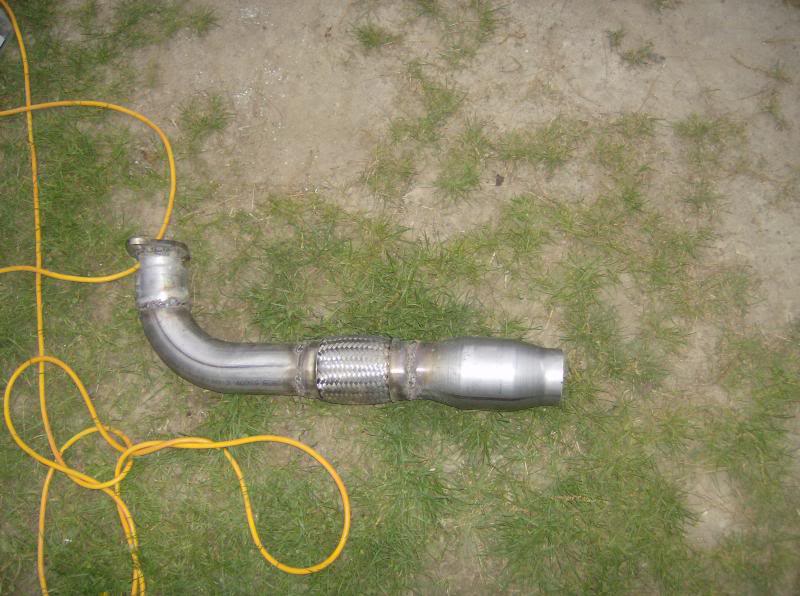

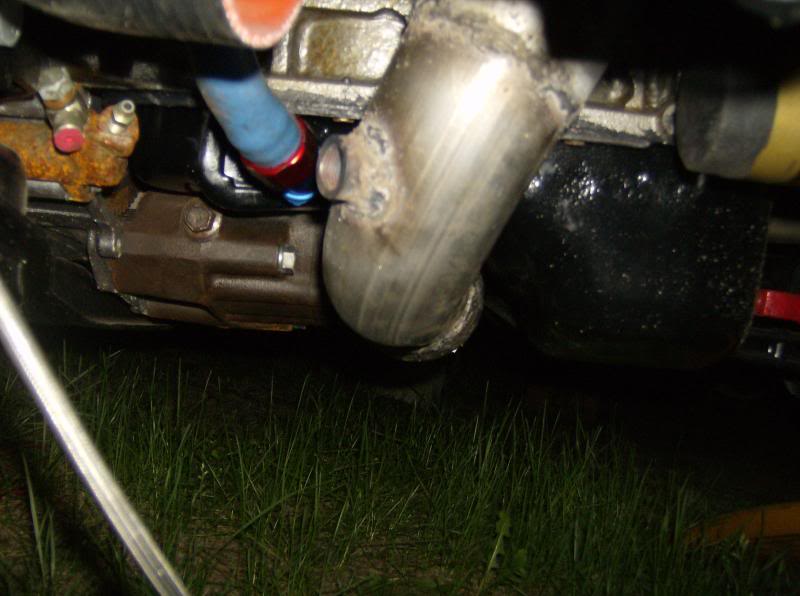

Welded the dump tube to the DP, got it painted and wrapped.

She is a pretty and she is a mine.

New bumper...........



[okm12346]



[2g boosted life]

nice build



[okm12346]

Hello DSM Tuners,

It is time to "show off" my 94 Galant for the first time in its full glory (its not a show case quality by any means). Those of you, who have had followed my build thread, know that I have been working on the car for the past two years and it has swallowed pretty much every dollar that I've made. It has been a pain and a joy to work on the car and do the modifications I wanted to do, but the result is here and Im very happy with it. Biggest thanks goes to me for not giving up and pouring more and more funds into it. Big thanks goes to Eclipsh for pioneering the AWD swap in Galants, Chaotic Coating (Alex) for doing all the powdercoating for me in some crazy cold late nights, my buddy Shawn who housed the Galant for two years and my girlfriend for putting up with me...........oh shit I dont have a girlfriend because I bought this car......oh well; and not to forget the DSM Tuners community where I found answers to most of my questions.

Current mods

Engine:

-bottom end

2.4L with 97k miles, honed walls, stock pistons/rods
ACL tri-metal race bearings
Balance shaft eliminated
Gates racing kevlar timing belt
Urethane Filled motor mounts

- top end

60mm TB (1g N/A)
6-bolt Big port head +minor porting and polishing
OEM brand new valves
Viton valve seals
Brian Crower valve springs
6g vr-4 stock cams
OEM 94 GS cam gears
3mm lifters
OEM head gasket

- forced induction

8 blade HX-35W @12psi with BEP .55 bolt on housing - 4an with .065'' restrictor for a the feed, 12an drain line
BEP cast manifold
38mm Tial MVS (recirculated)
Hallman Pro boost controller
FP 4'' intake pipe
Spektre Filter
Pumishment Racing BOV (recirculated)
Ebay FMIC 12 x 28 x 2.5 size
Vibrant IC couplers
Napa t-bolt clamps

- fuel

rewired stock fuel pump
fuel lab 8an fuel filter
8an feed and 6an return fuel rail adapters

Fuel management

Stock ECU with boost referenced SAFC.

Drivetrain:

Stock 96 Talon Trans and transfer case, LSD rear differential, extended stock 3 piece driveshaft
Fidanza 2300 pressure plate
Fidanza 8 lbs. flywheel
ACT 6-puck sprung clutch disc
Short throw shifter made by ME
Symborski shifter base bushings
Aluminum shifter cable bushings
brand new seals everywhere, brand new axles, brand new OEM shift fork, pivot and TOB

Exhaust

Evo3 o2 housing
3'' turbo back exhaust
Vibrant high flow cat
18'' + 36'' Cherrybomb glasspacks
I forget the muffler brand

Suspension

Kyb AGX 2g front shocks with stock 2g GSX springs
Kyb AGX 4g rear shocks with stock 2g GSX rear springs

Prothane suspension bushings

- Rear

3g upper and lower rear control arms
2g Diamante rear trailing arms
Custom rear toe arms
22mm Addco rear sway bar

- Front

Generic Strut tower tie bar
Camber kit
21mm GSP front sway bar
brand new front control arms, tie rods and bellows


Brakes

ABS eliminated
95 Eclipse non-ABS prop valve
SS braided lines all around
3g master cylinder and brake booster

- Front

05 Outlander calipers + brackets, OEM Outlander rotors, OEM pads

- rear

early 95 Eclipse calipers+brackets, early 95 Eclipse rear vented rotors, EBC green stuff pads

Interior:

2-toned interior
Full leather salon - 98 Sebring front seats, 96 Galant S rear seat
3g steering wheel
3g shift knob
Custom round shifter trim
8g Galant tan floor mats
Pioneer headunit
Dyed carpet

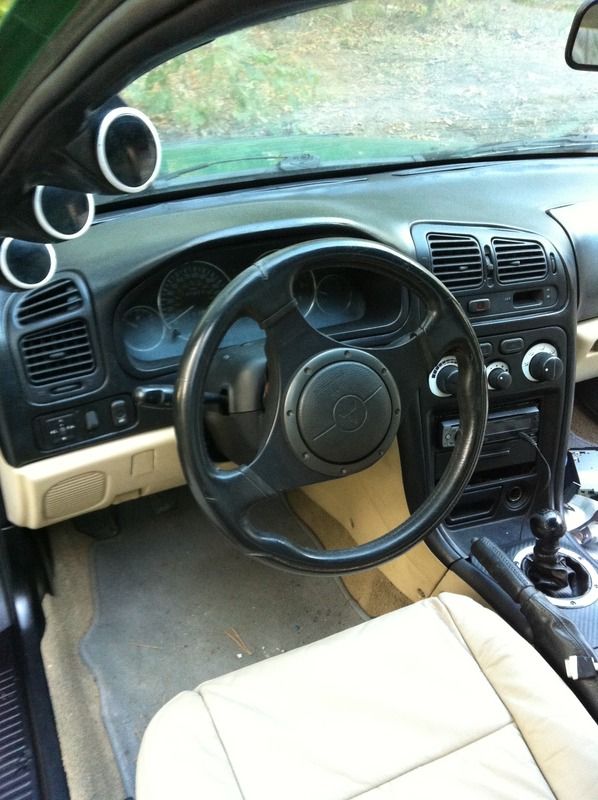

Gauges

AEM wideband

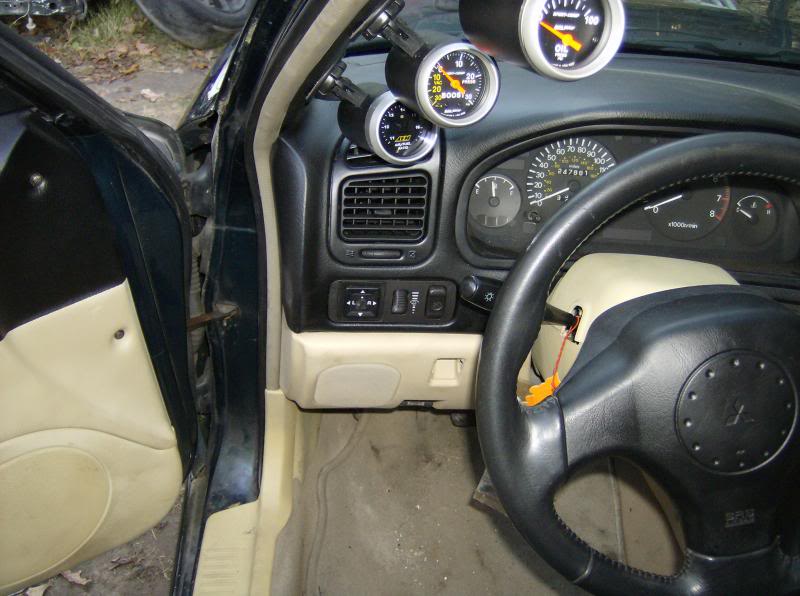

Autometer Sport Comp Boost gauge
Autometer Sport Comp Oil Pressure gauge
Fuel pressure gauge (in engine bay)


Exterior:

JDM head lights (big thanks to my sister for shipping them from the UK)
JDM Diamond Edition Tail lights
JDM Diamond Edition front bumper/grills
JDM Diamond Edition high rise spoiler (not installed)
02 Lancer OZ rally edition side skirts
brand new inner fenders
Evo 8 Enkei Rims
235-45-17 tires

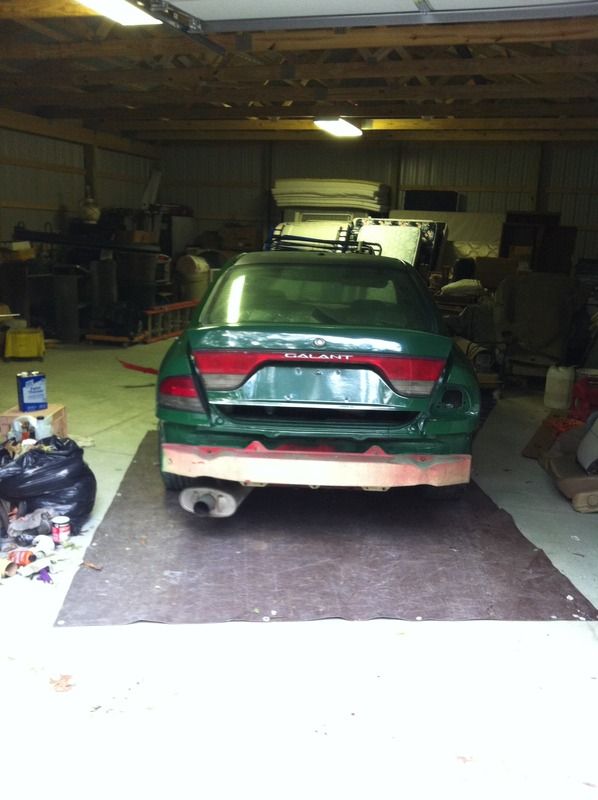

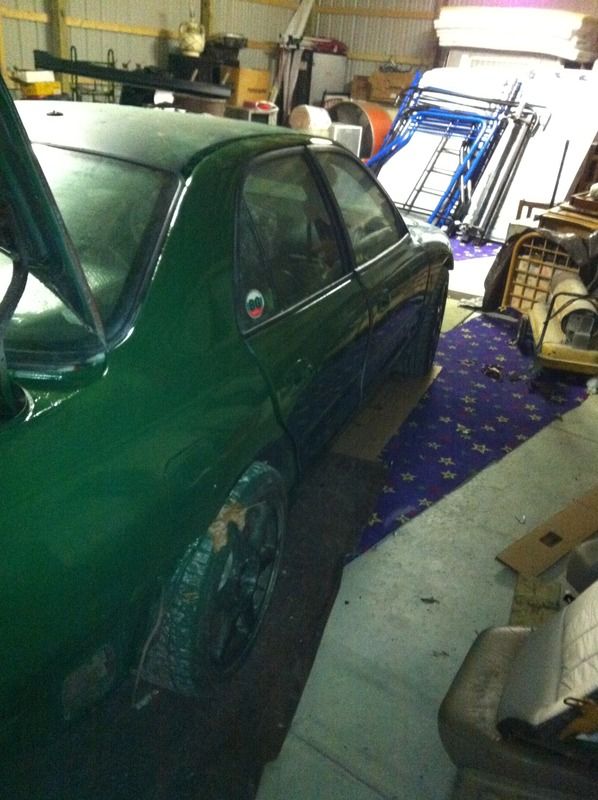

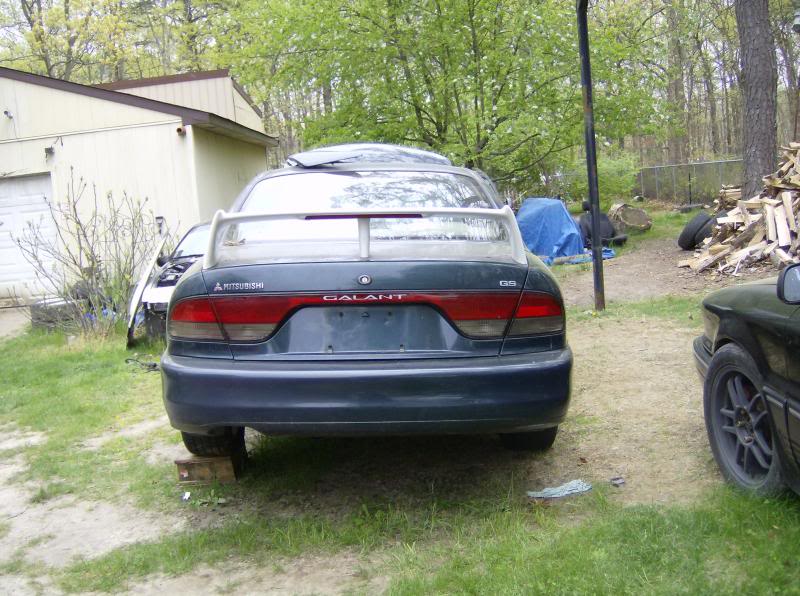

It all started with a lot of jealousy of Eclipsh' Galant and it ended up with me acquiring 96 Talon AWD parts for $1000. At first, I thought I was gonna swap my red Galant since it already had forged piston engine and big brakes and stuff, but then when i thought about it, it was my only car and I couldnt afford to not have a daily. Then I saw an ad, selling a green GS (very rare) and the plan came together. The car didnt come with an engine, transmission or pedals and shifter, which I knew about. It looked pretty beat up from sitting under a tree for around 6 months.

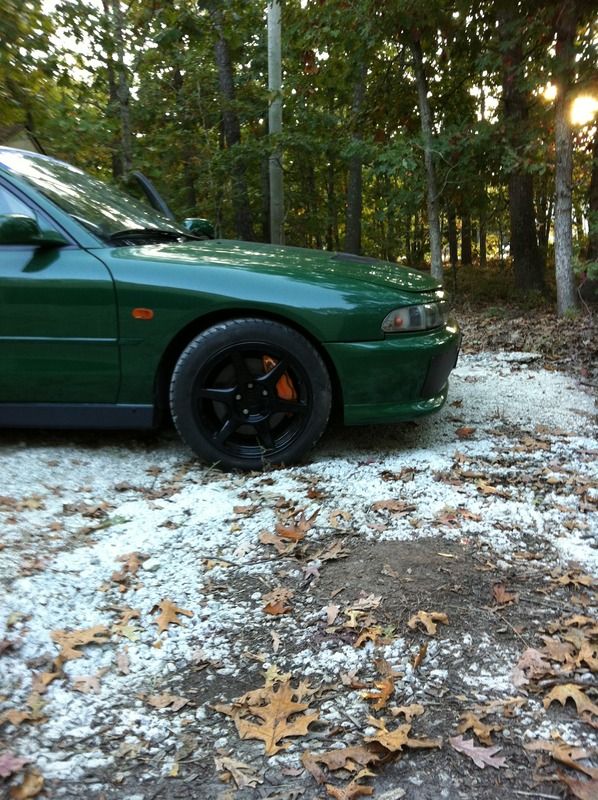

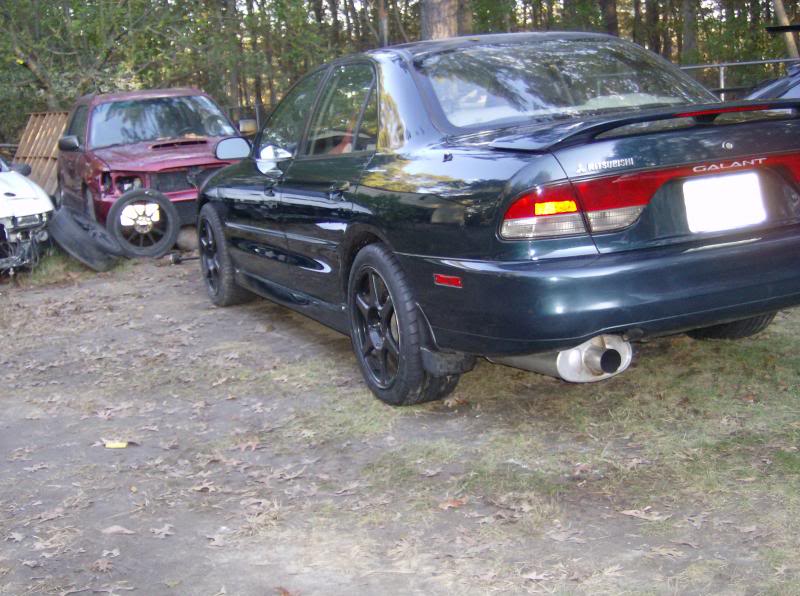

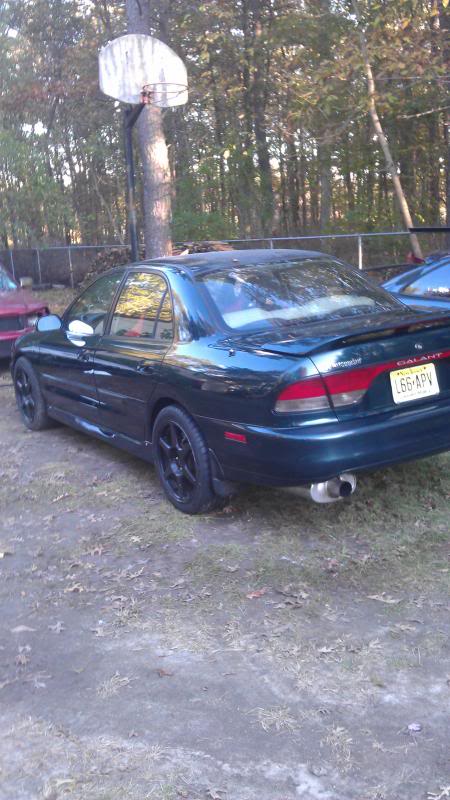

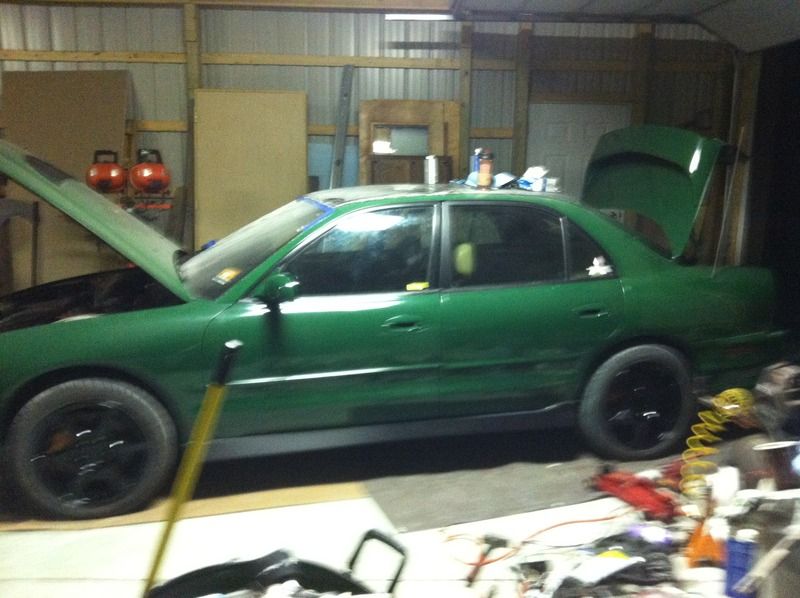

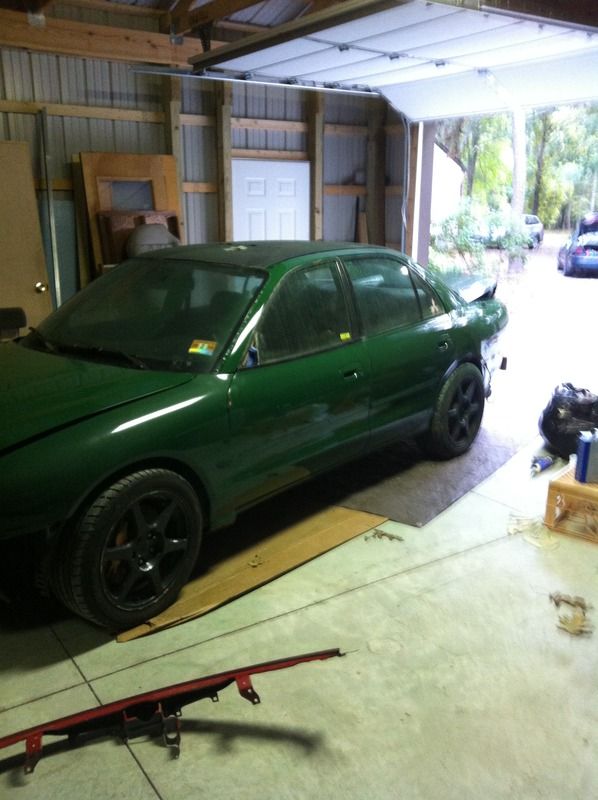

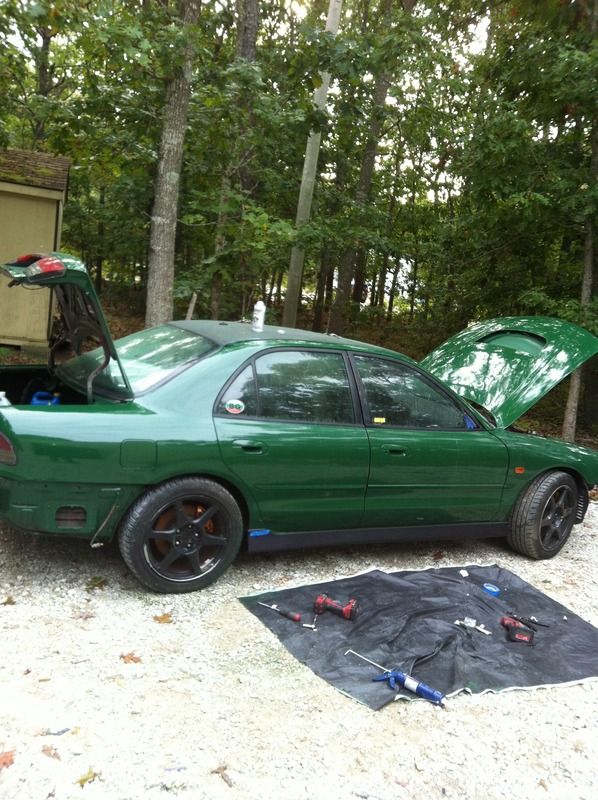

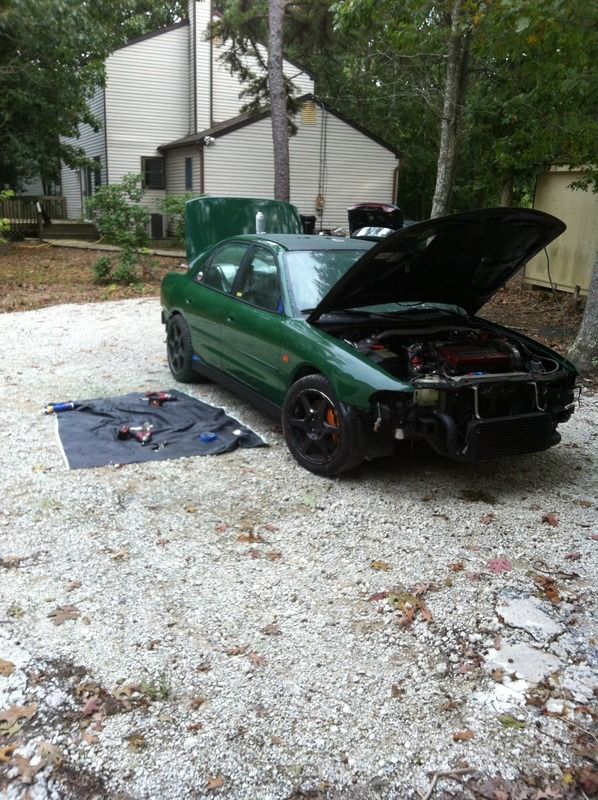

So here it is 1994 Galant GS-x AWD swapped being on the road for two weeks.

DSM stickers on it to make it legit

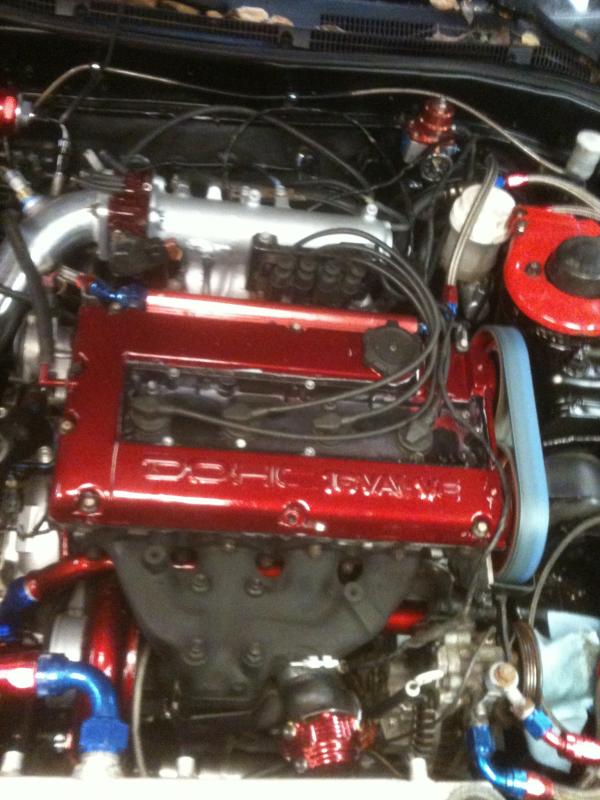

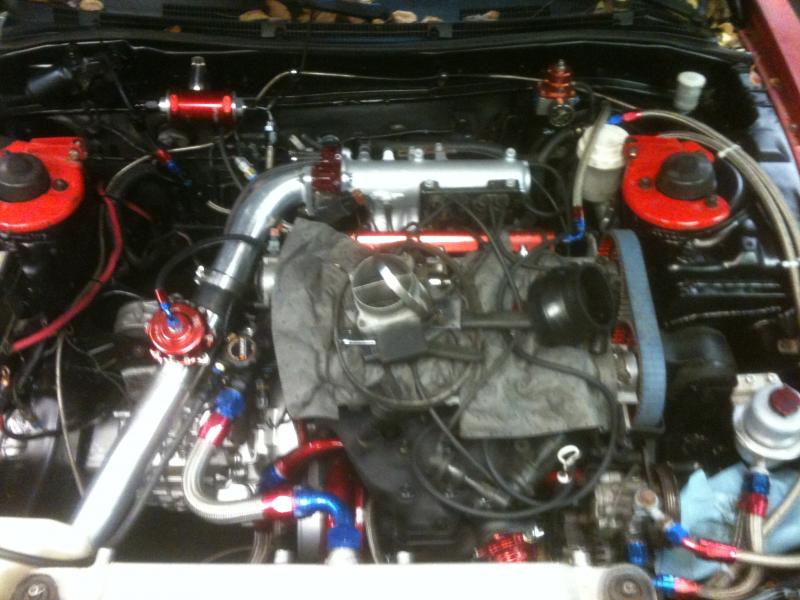

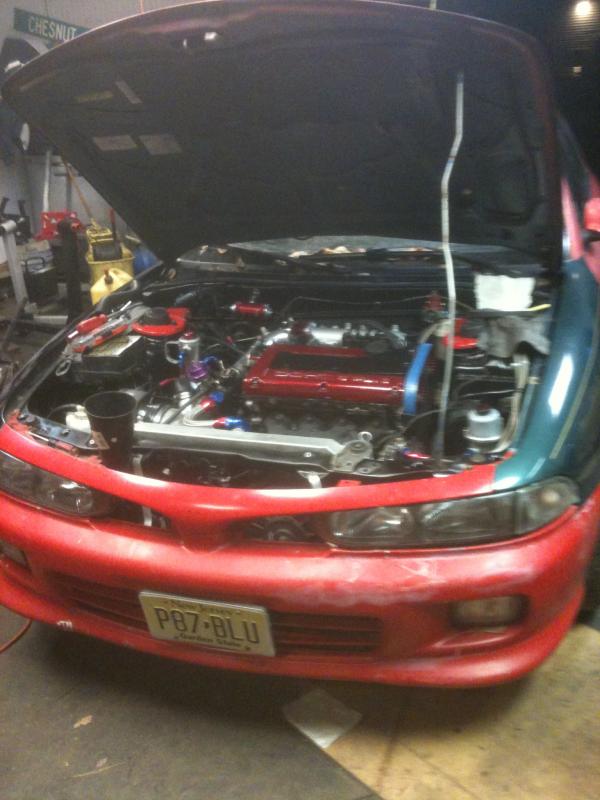

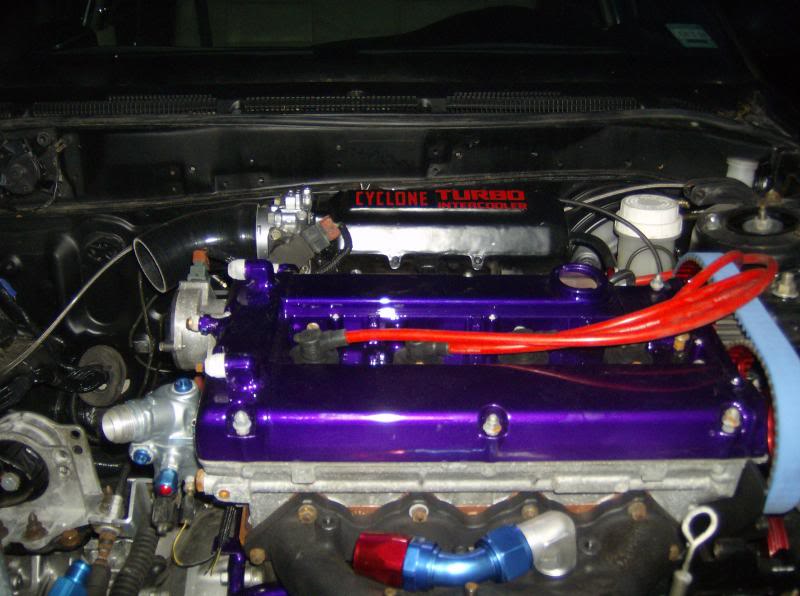

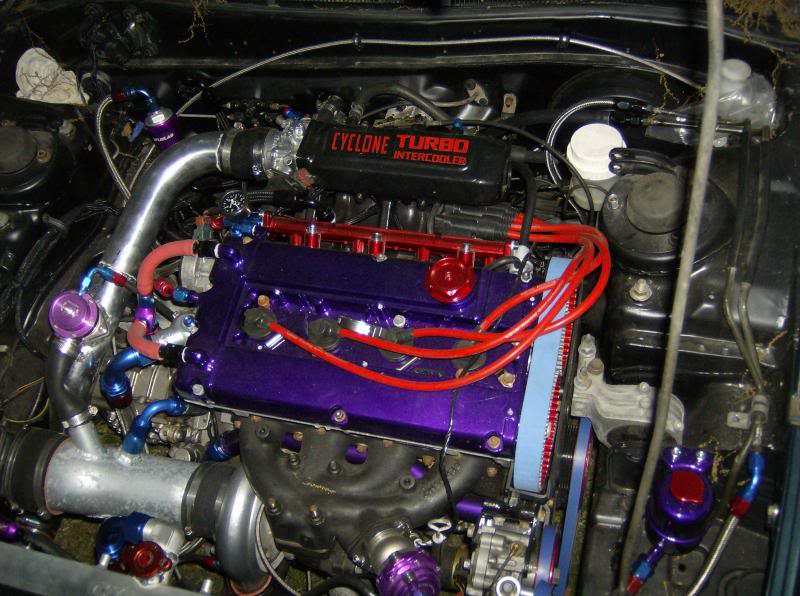

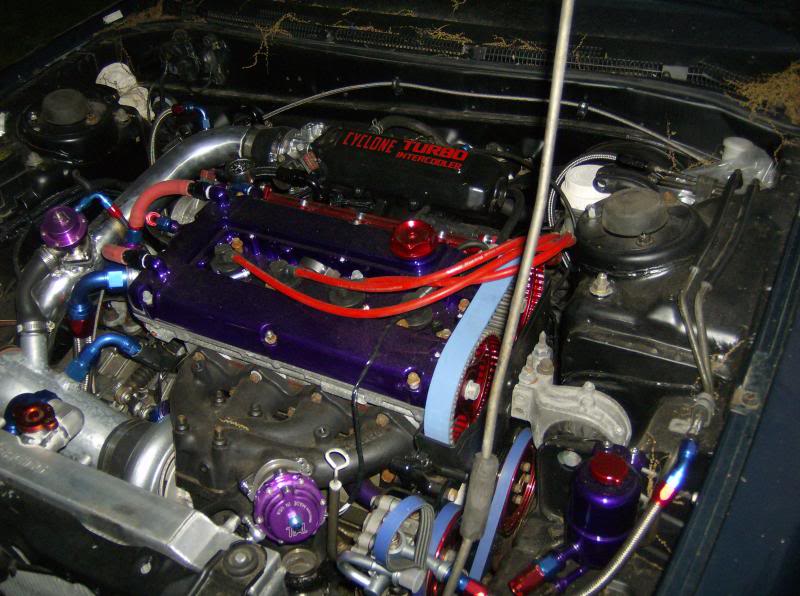

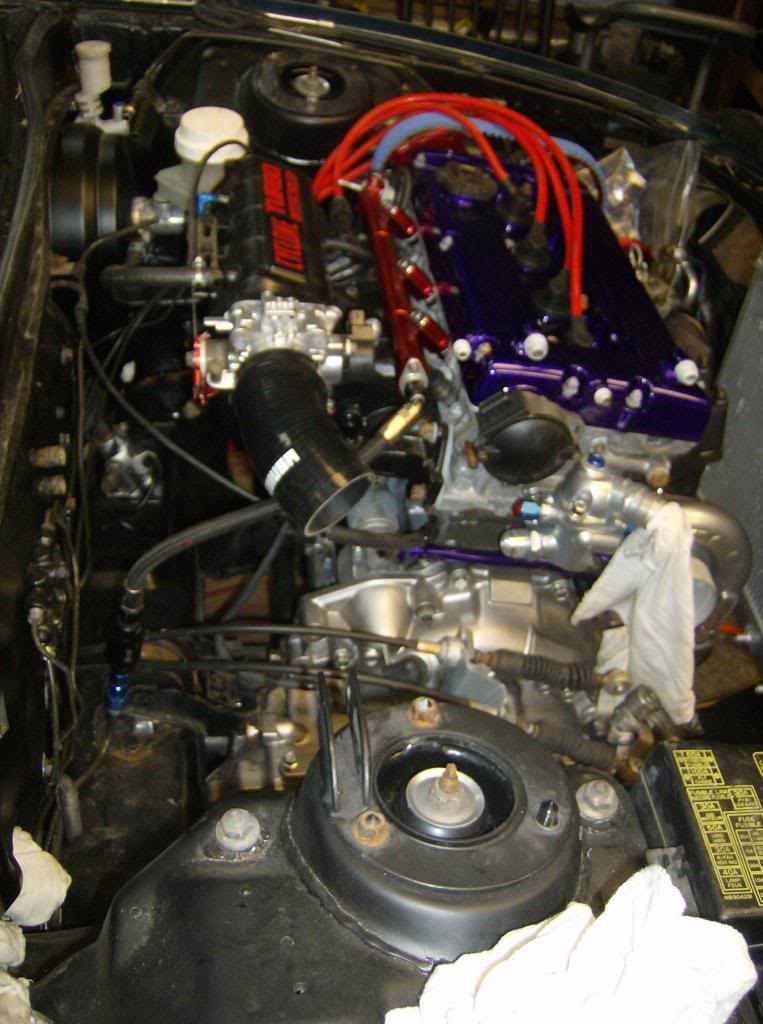

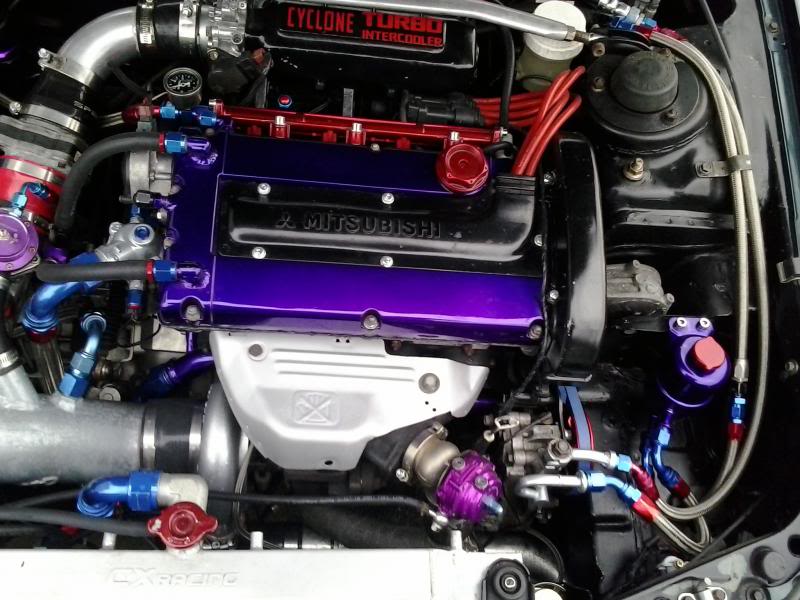

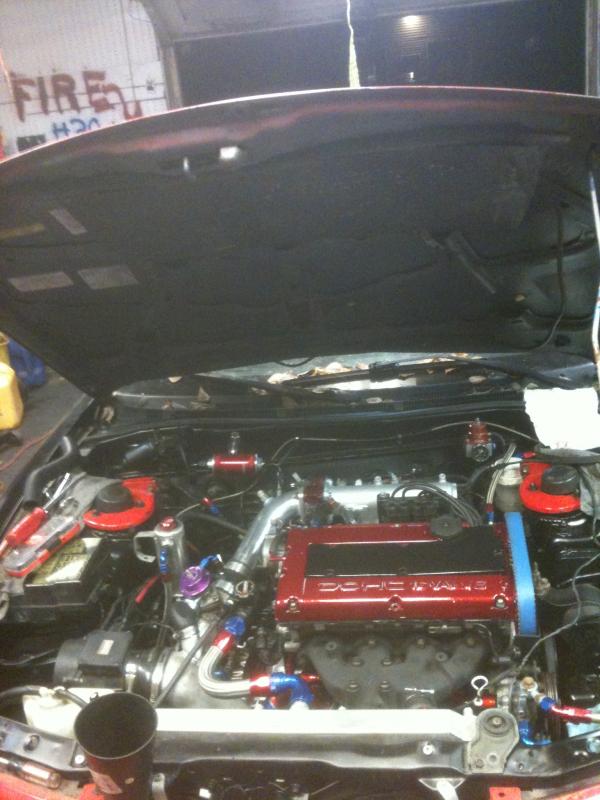

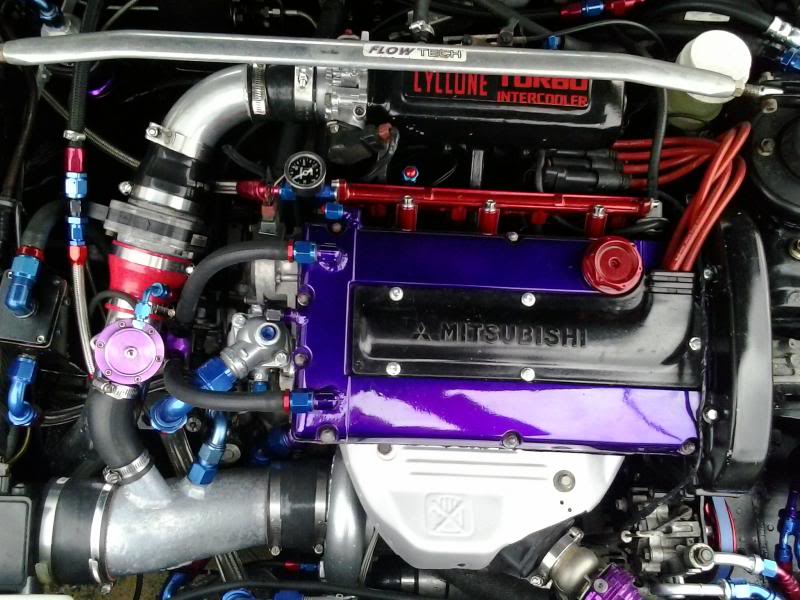

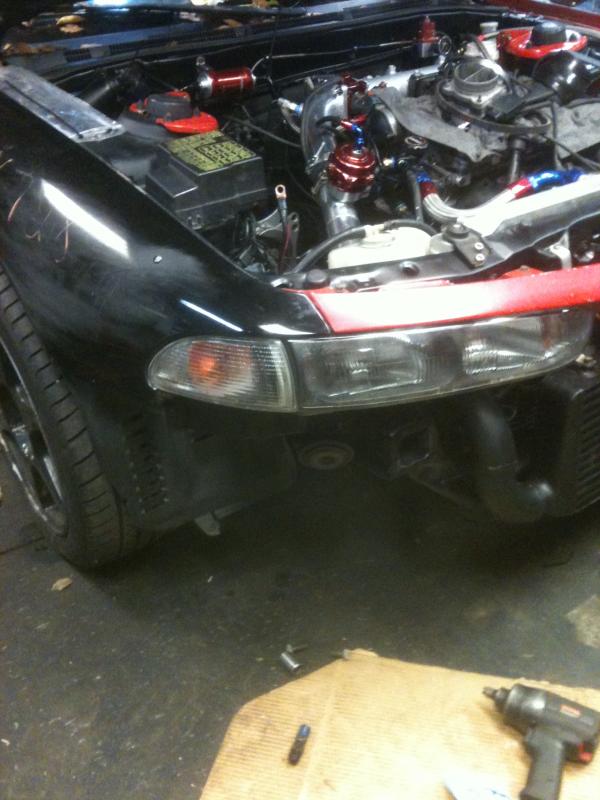

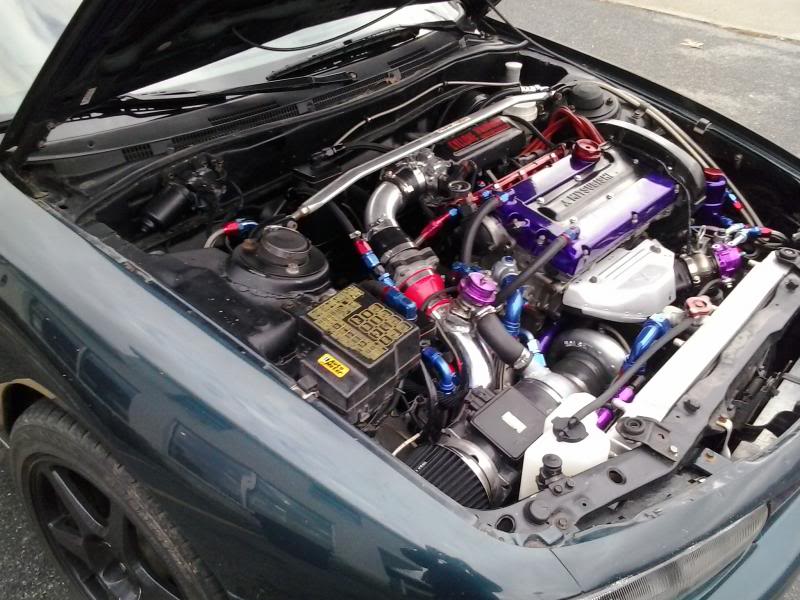

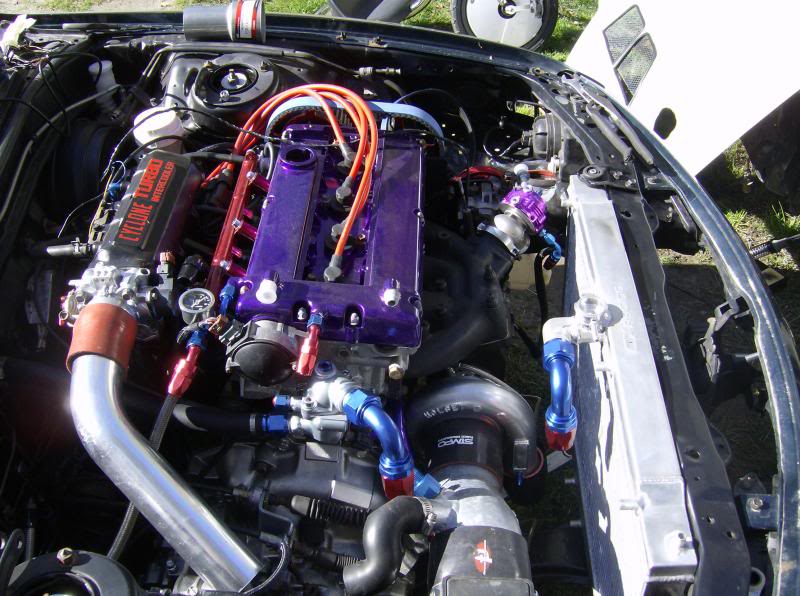

Engine bay

Dont notice the two MAF sensors, I need to weld a pipe instead of the GM sensor

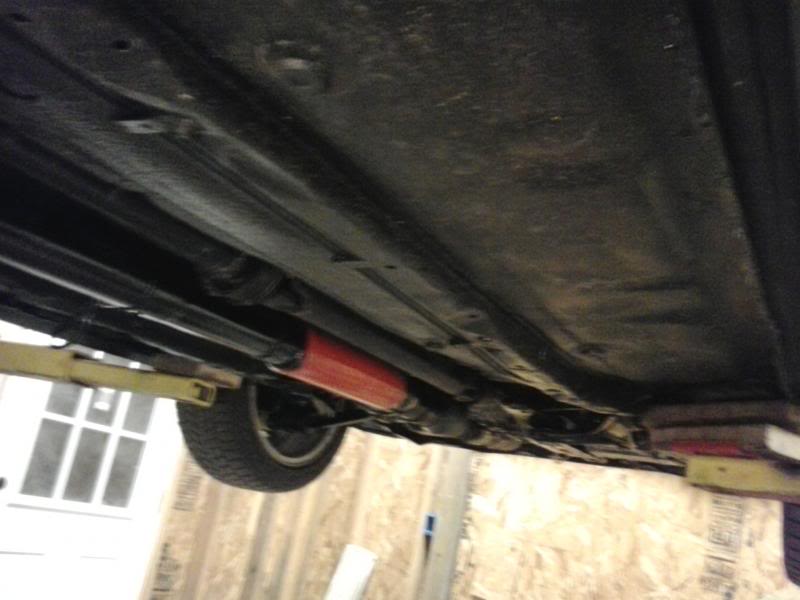

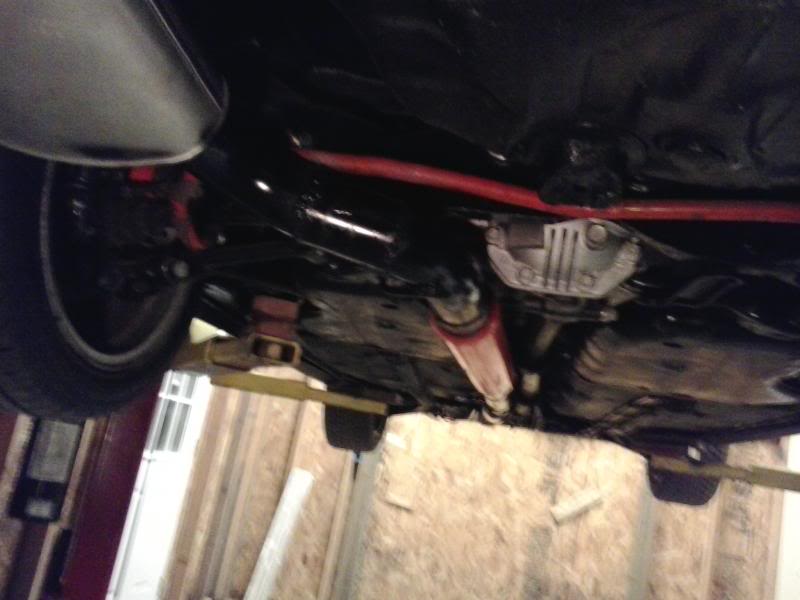

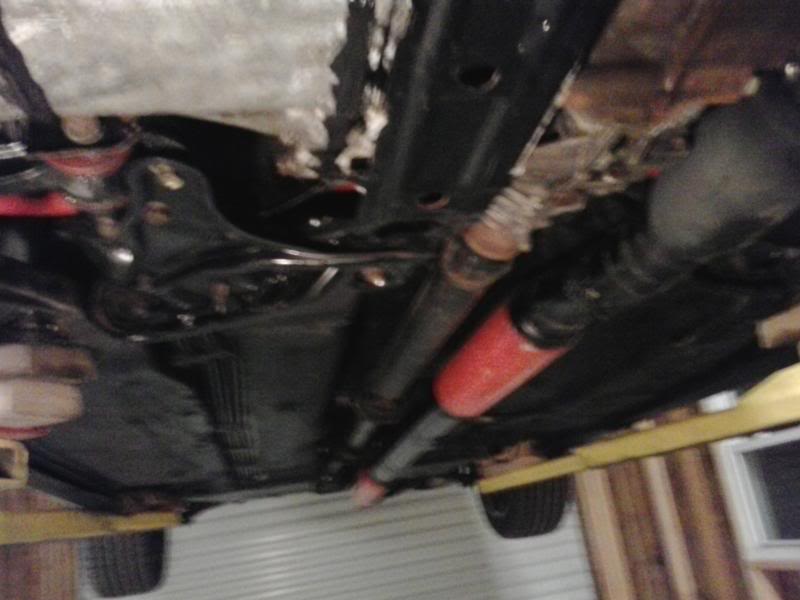

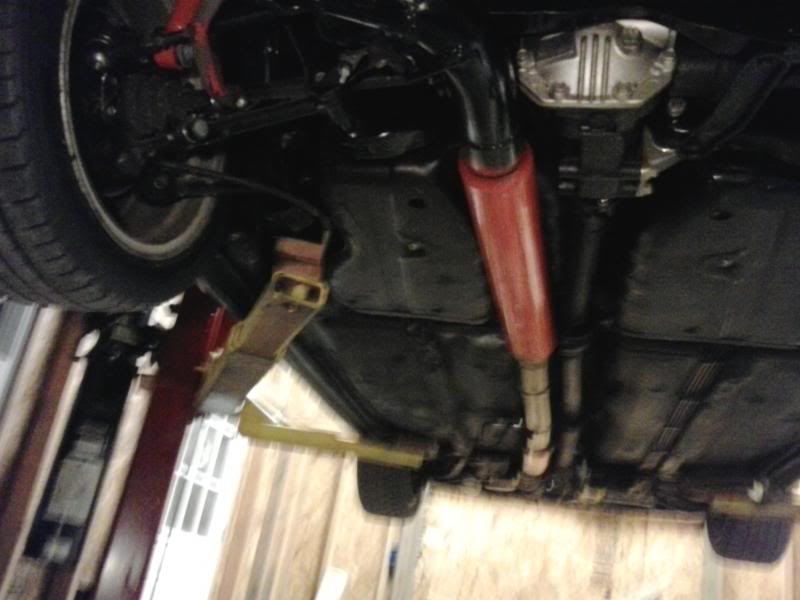

Under carriage

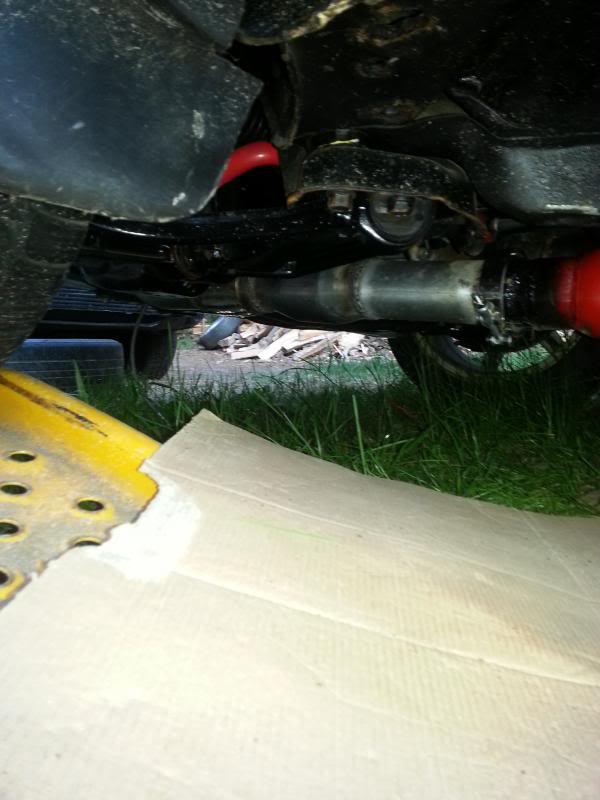

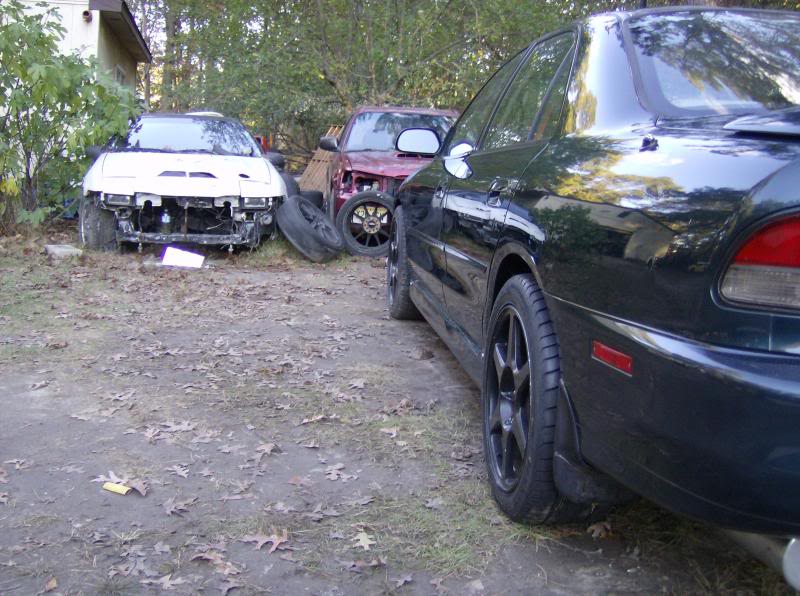

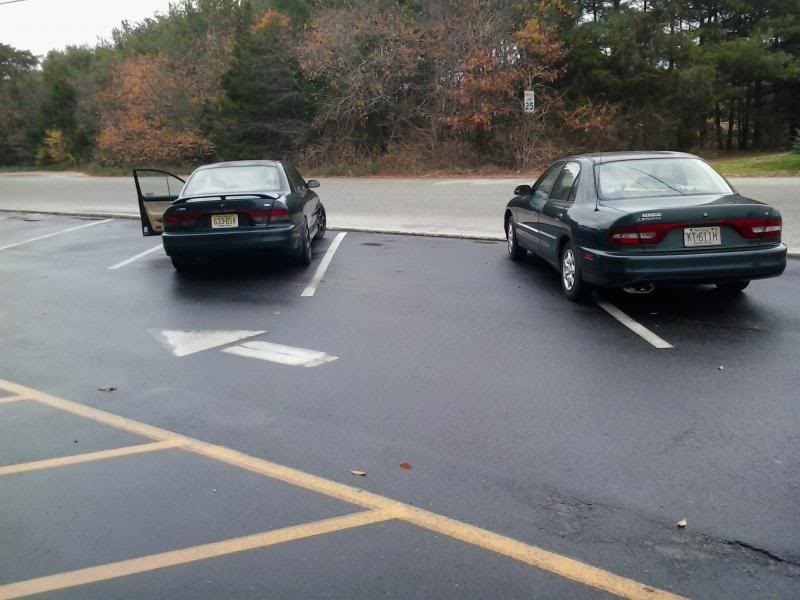

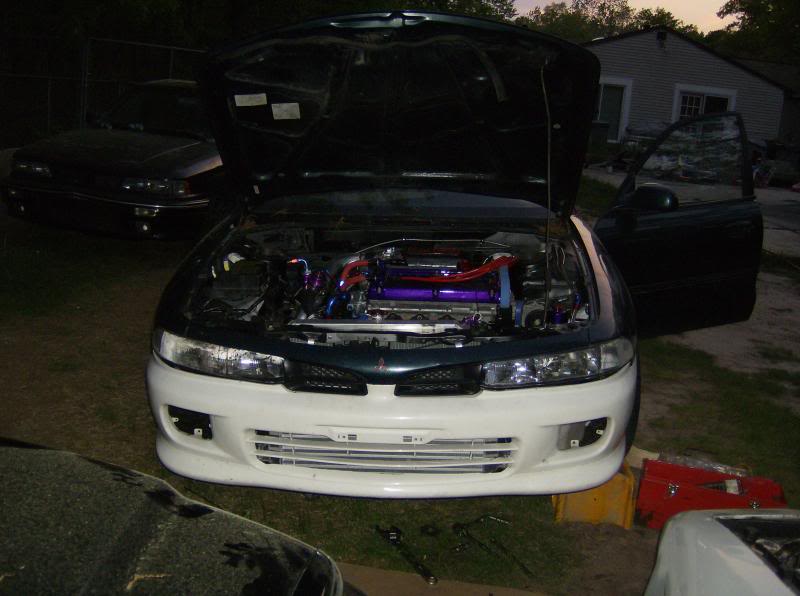

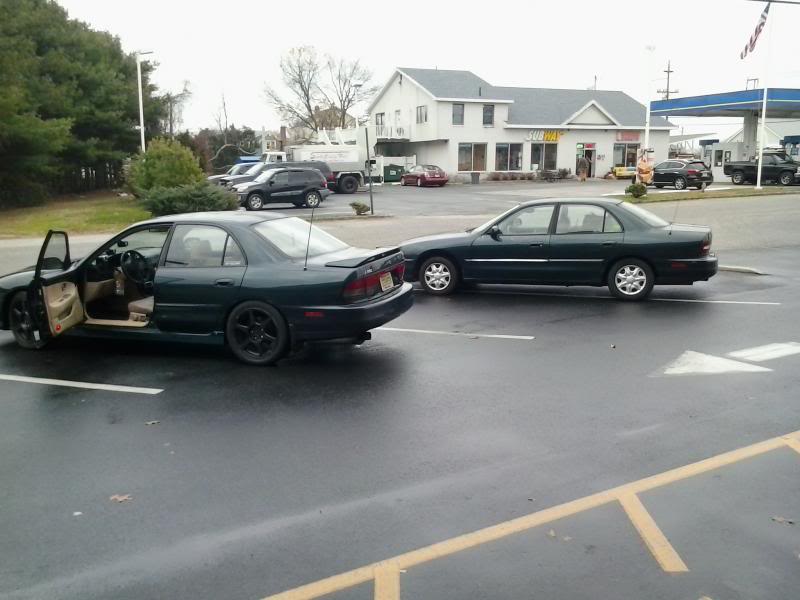

And my Galant with his less-evil twin

Seriously, I dont know who the car belongs to. This is the first time I see another G besides mine in a long time.AND the pictures show why 7g never made big in the USA.



[Fiascoxl]

Nice, really good work you did there! I Love me some 7g Galants, I had a 94 galant GS that I gave to my lil brother and swapped in a 6 bolt turbo for him. Love that car as does he, now i have 92 Galant VR4 and have owned a few Turbo CSM's. I guess you can say I love the rarity in these overlooked gems. Keep up the good work.



[okm12346]

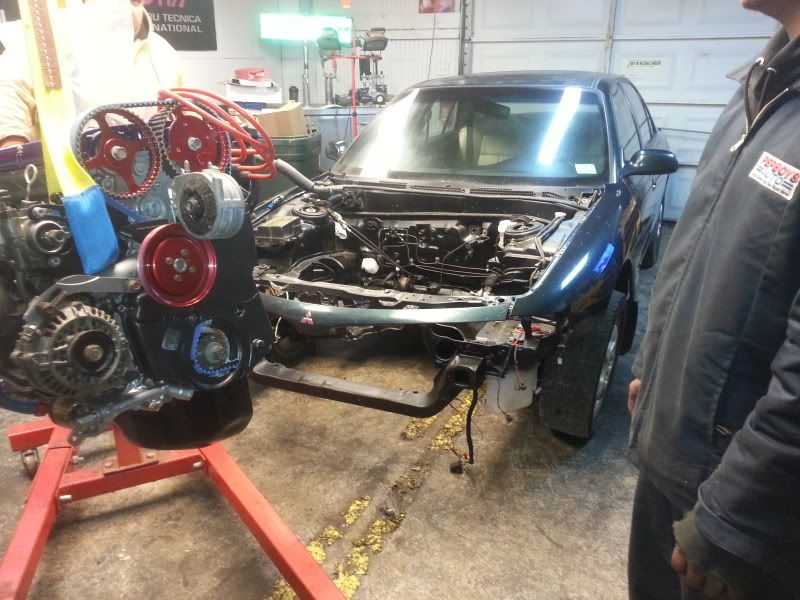

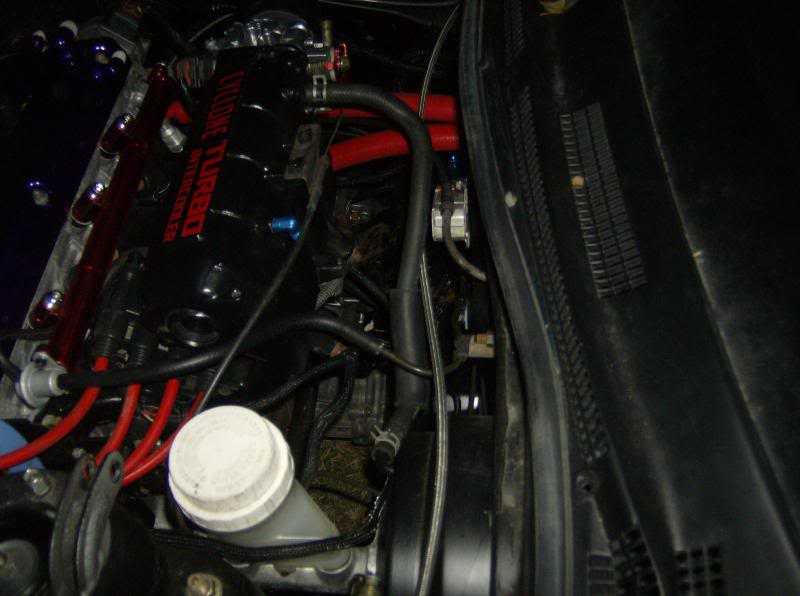

So after I finished my AWD swapped Galant, I got back to work on my first car - 94 Galant ES. The engine was already build, so all I have to do is to give give it a refresh.

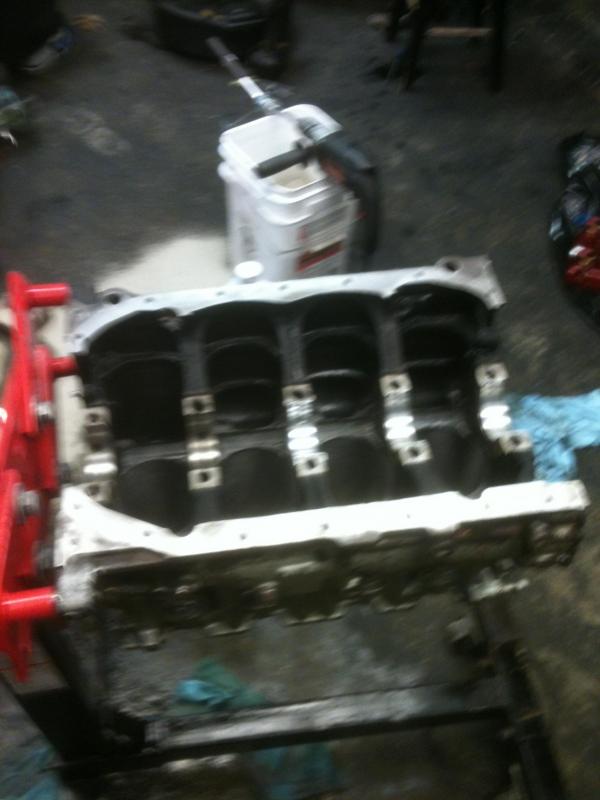

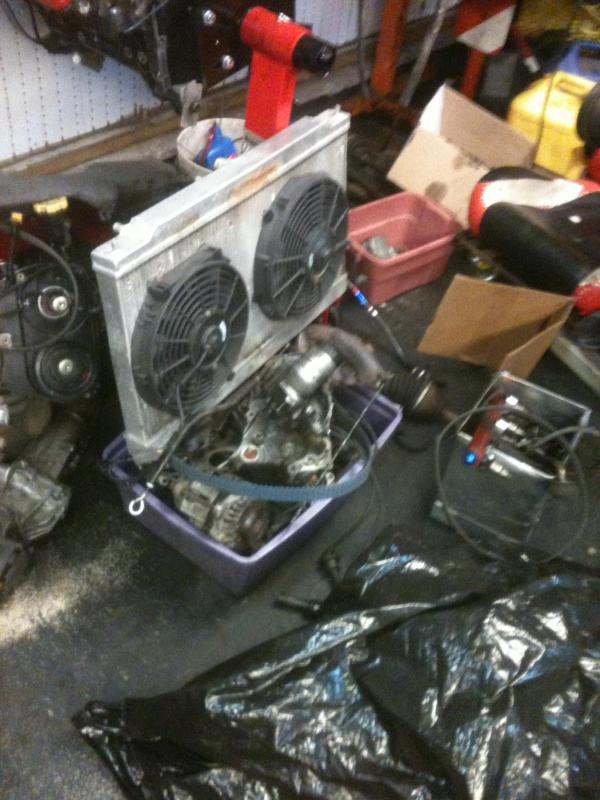

Started taking everything apart.

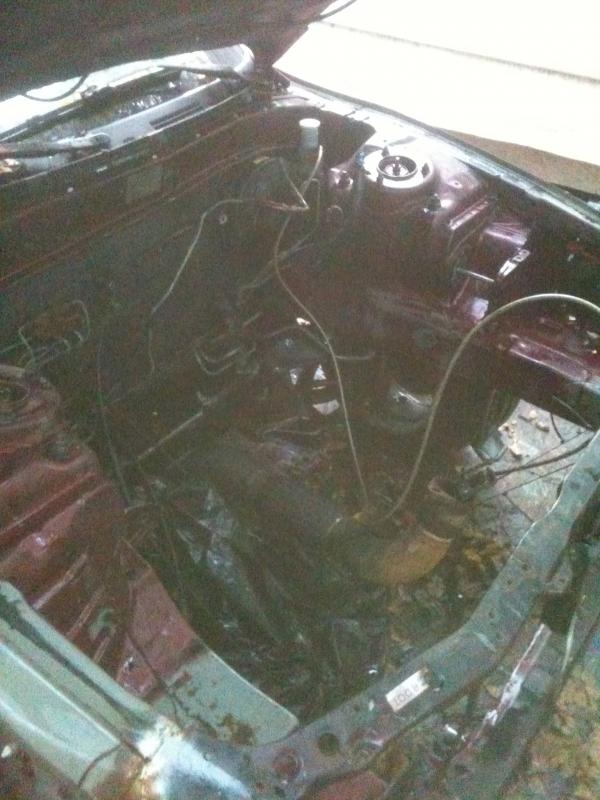

Out with the old

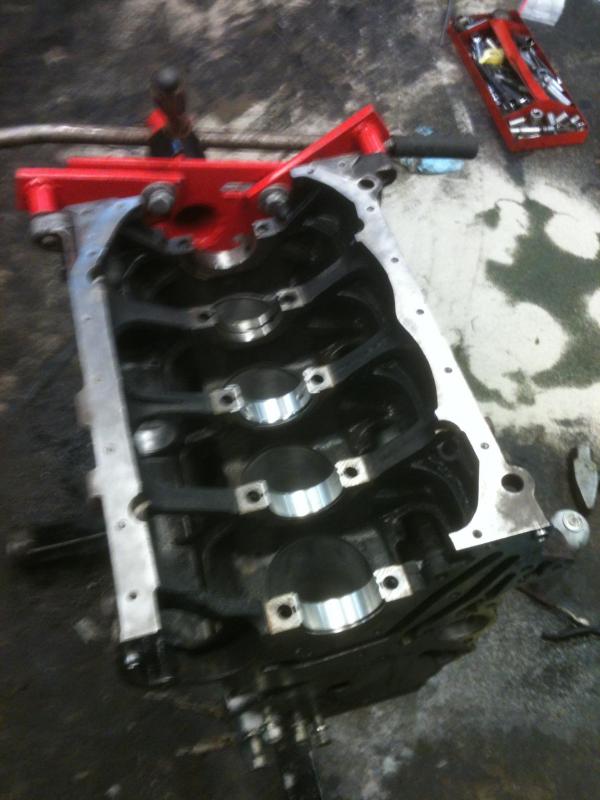

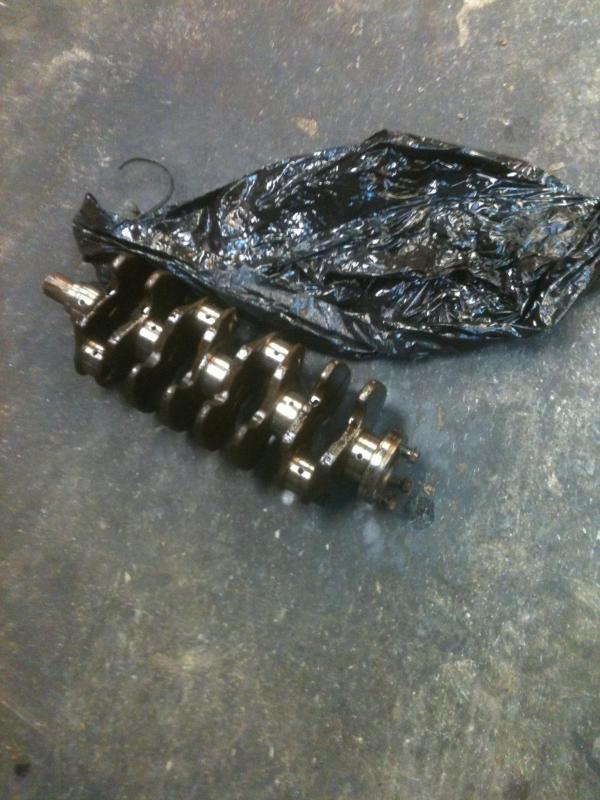

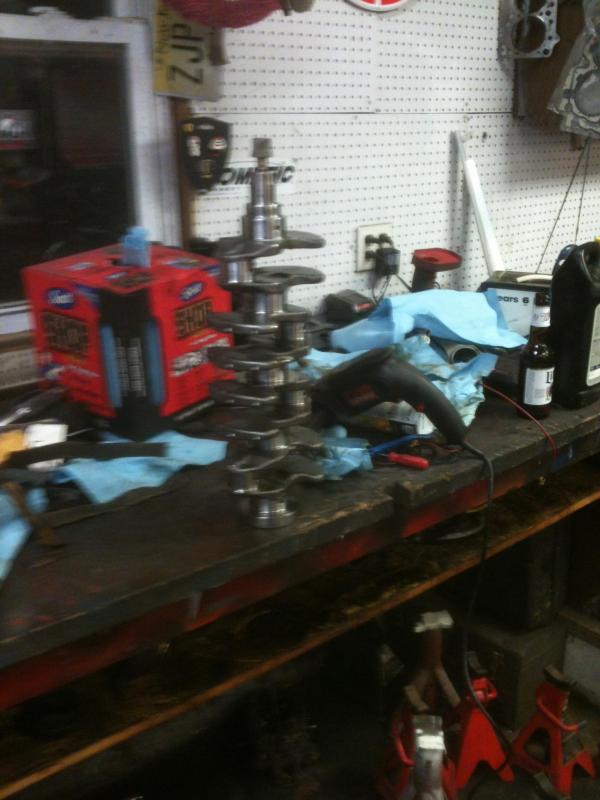

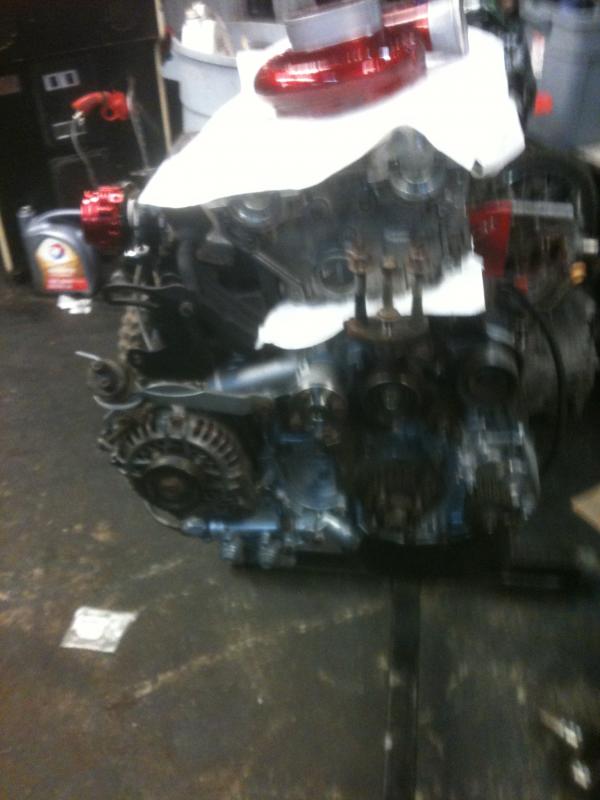

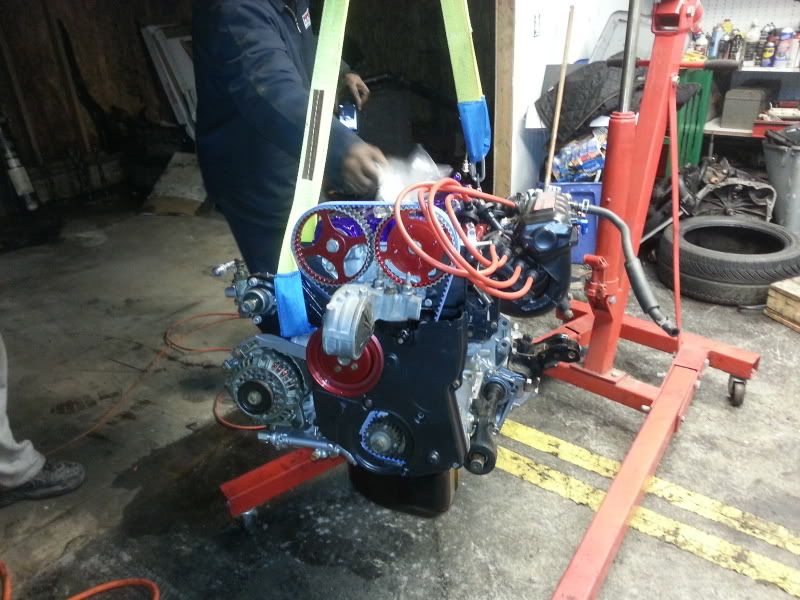

In with the new (3g crank BTW). Counter weights are much smaller.



Nice and clean again after 4 years






Started putting everything back together. besides the new crank, the bottom end received new GSC racing balance shaft and a brand new oil pump.



[okm12346]

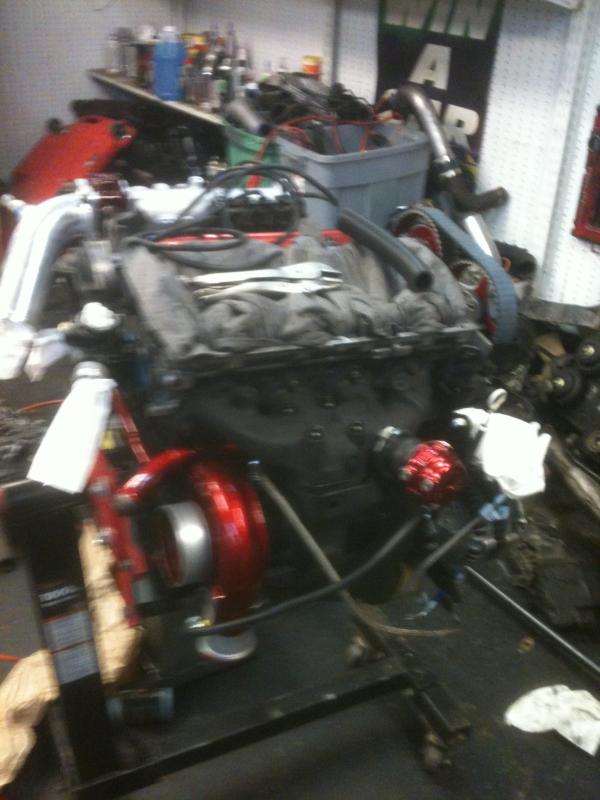

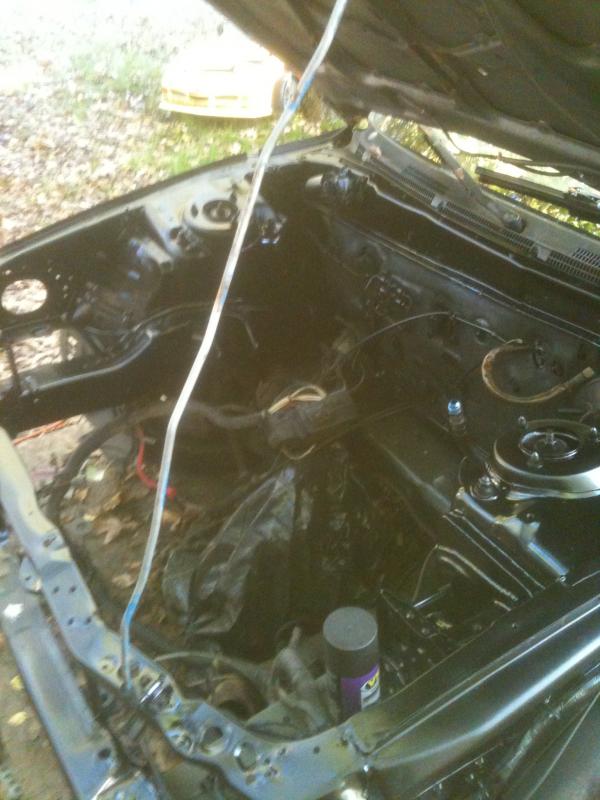

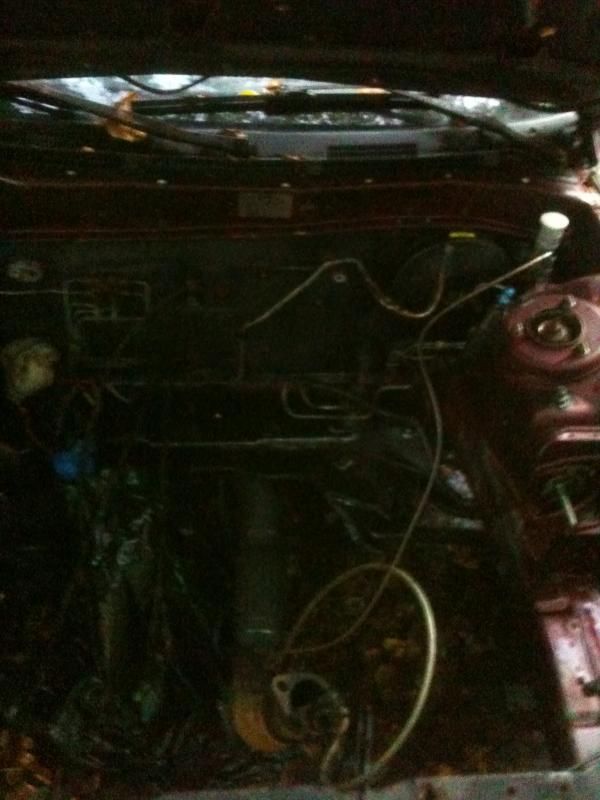

Getting ready to paint the engine bay. Cleaned up most of it and also did some sanding. Here she is earlier today.













I received the entire order from JNZ minus the head gasket. I was really hoping to finish the engine this weekend

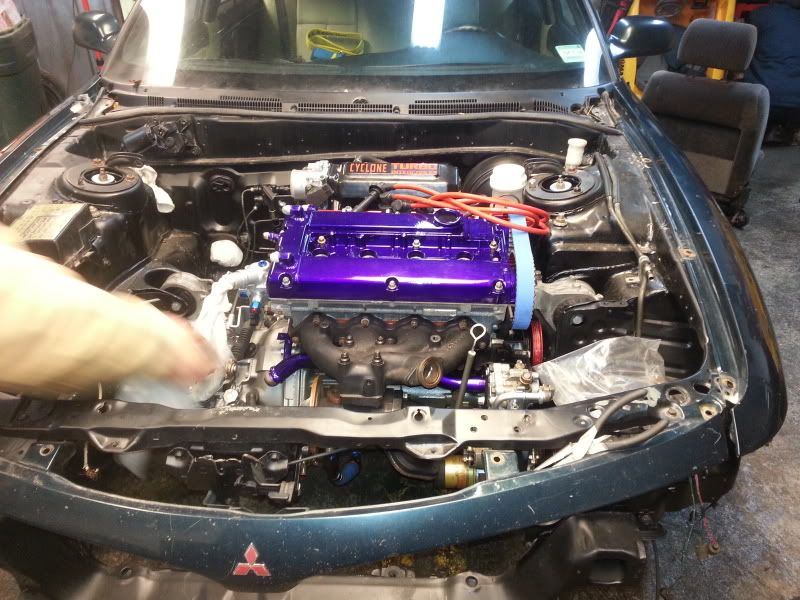

Engine bay is ready

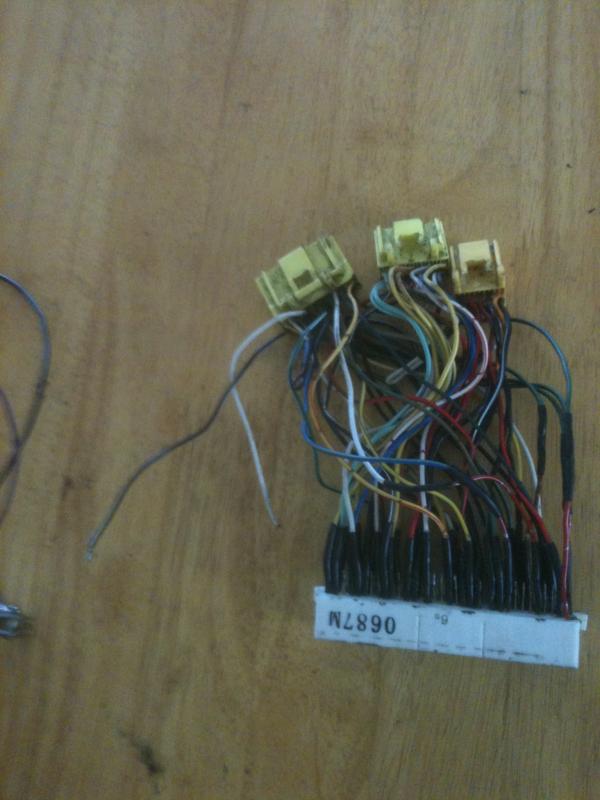

Harness conversion to 1g ECU is ready

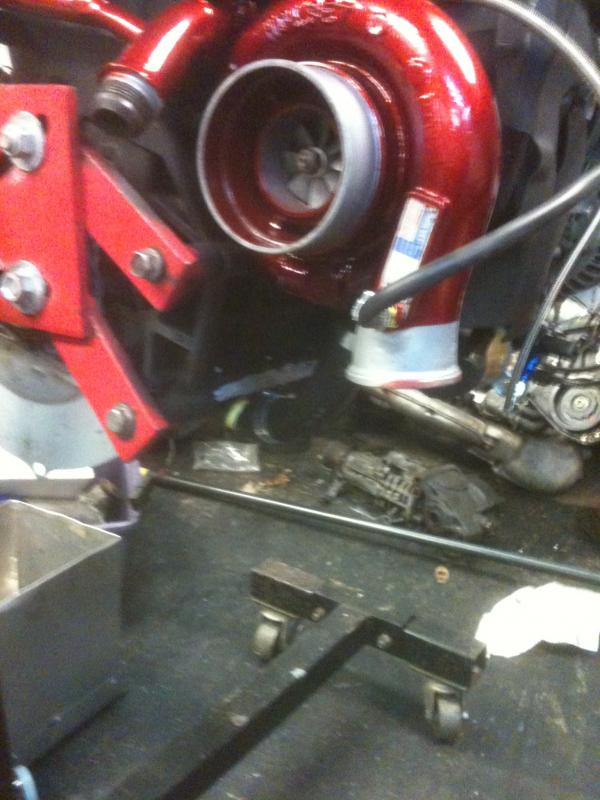

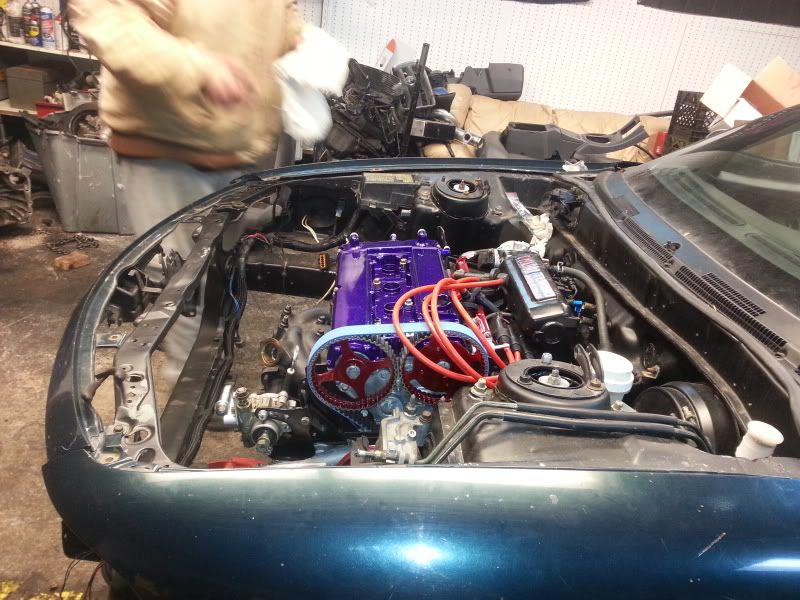

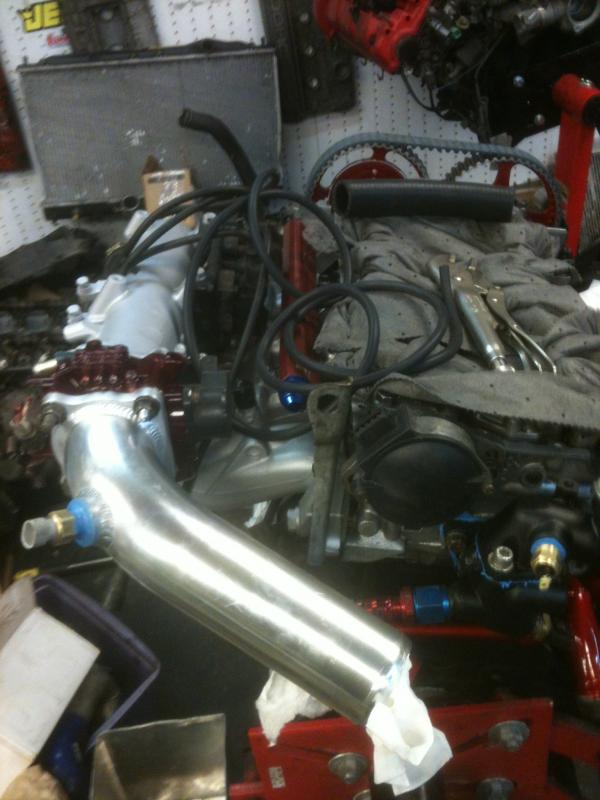

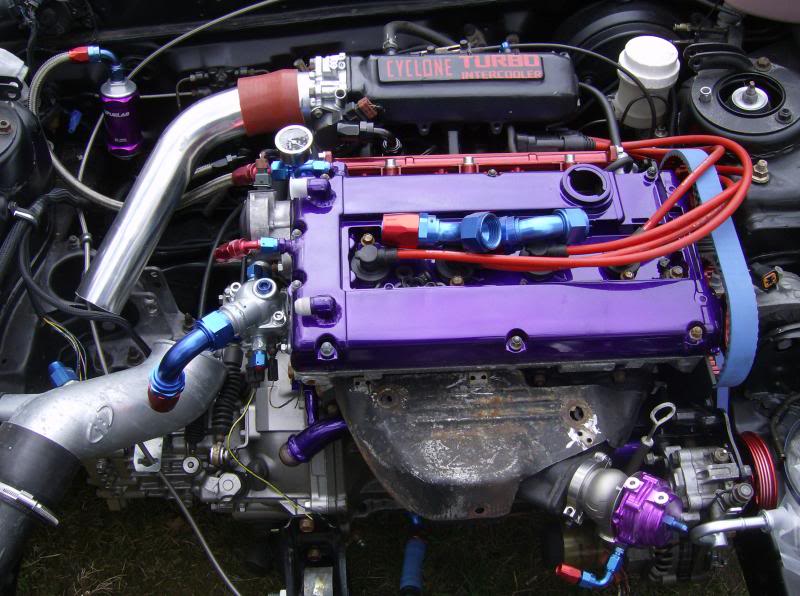

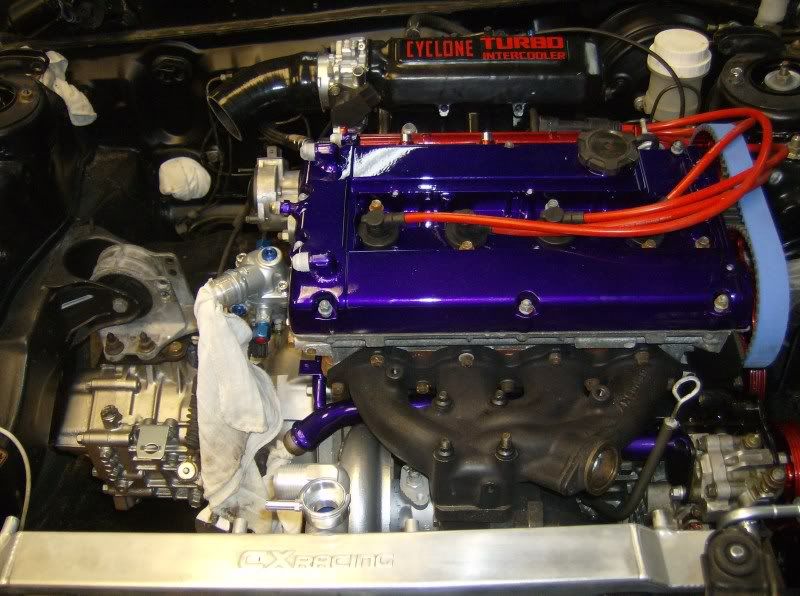

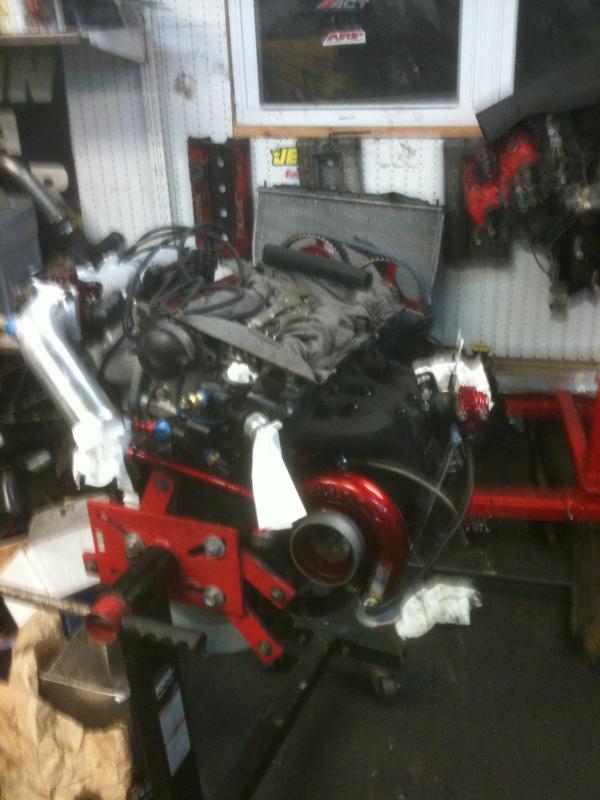

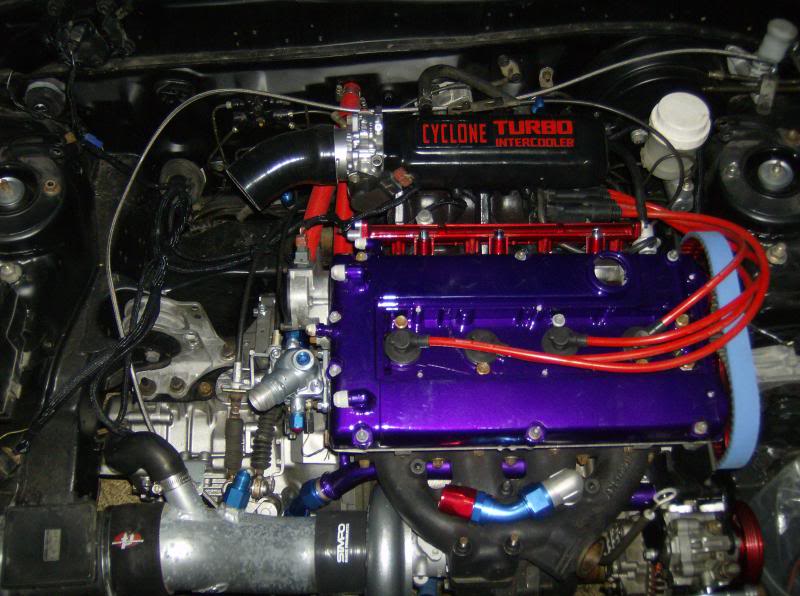

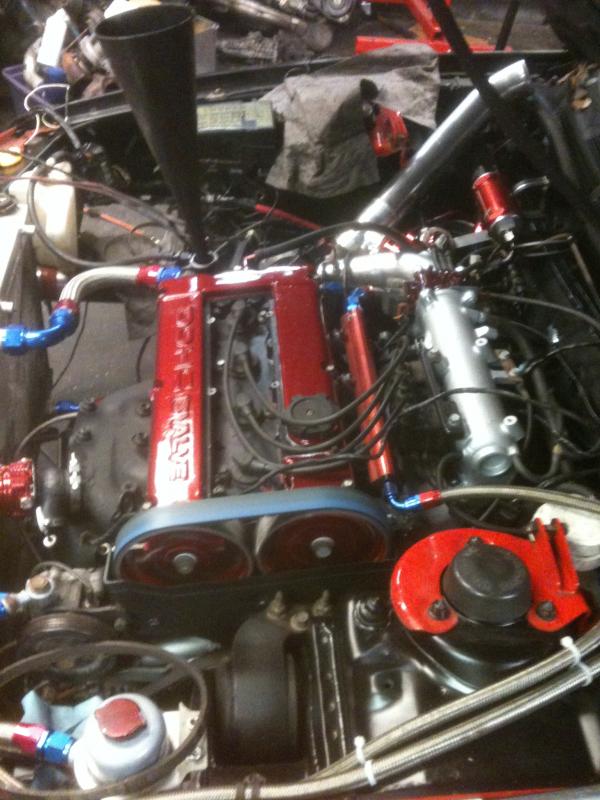

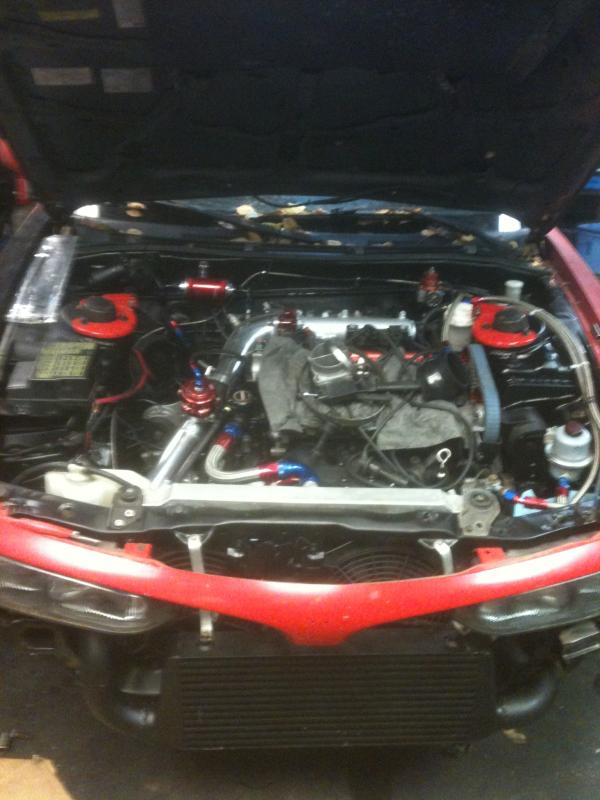

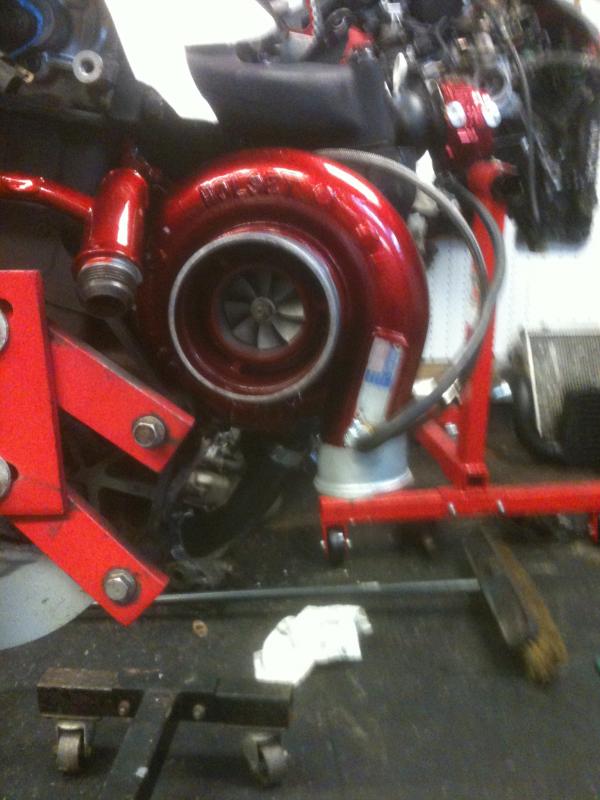

Engine is ready







Just waiting on the clutch to come in



[okm12346]

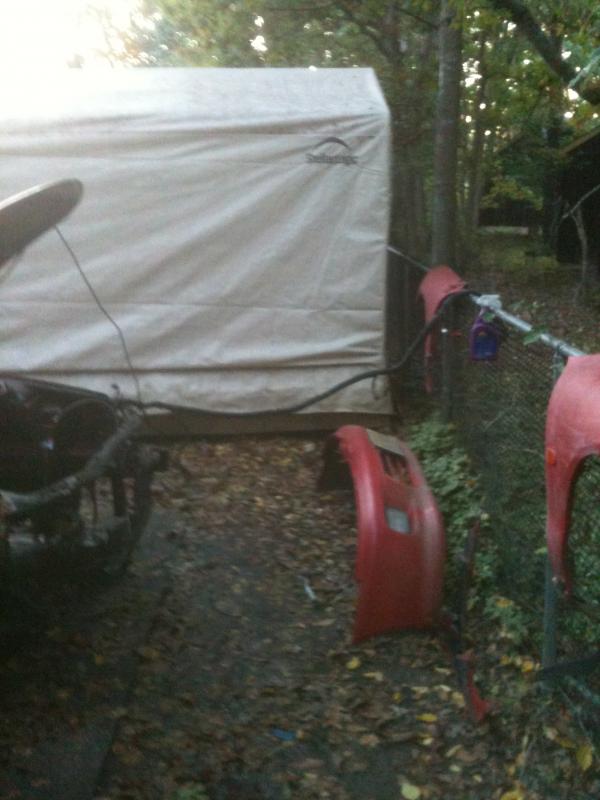

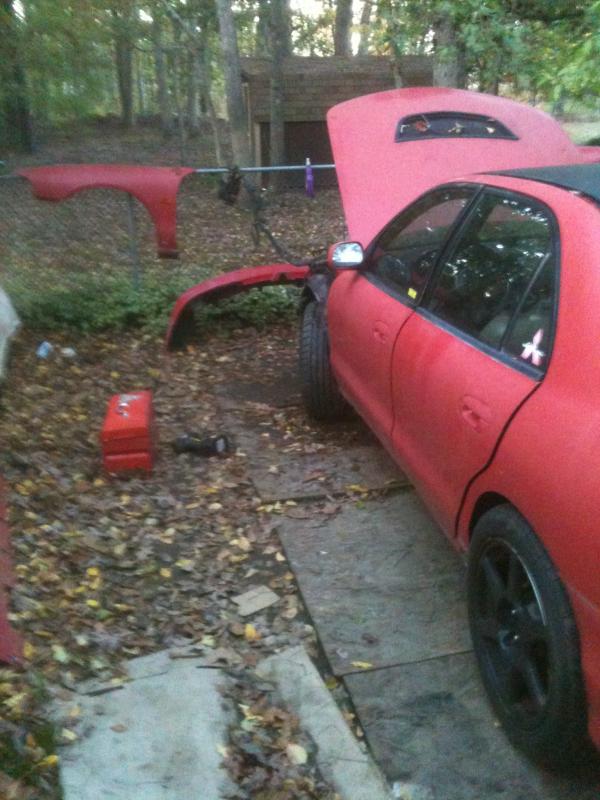

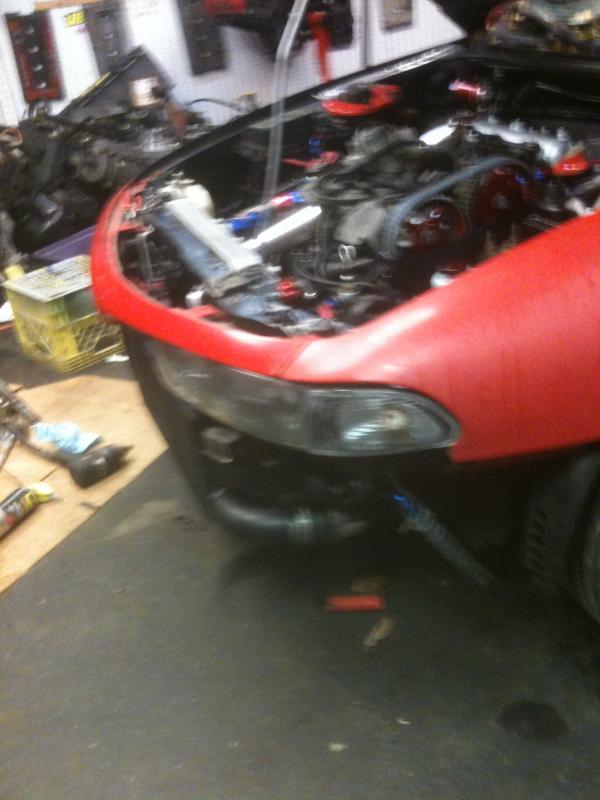

Need a drivers side fender real bad

Now, I have a problem with the 1g ECU not seeing the sensor ground, so I used the stock Galant ECU to start it.

And I thought that my soft brake lines popped a month ago, but it turned out the hard line near the gas tank ruptured. I need to find a way to repair and replace it

Got another fender today, now I gotta save up for paint.



[okm12346]

Alot has changed since my last post here. Went on doing many things to the car. Might as well share it



















Thanks fellas! Here's some more progress.

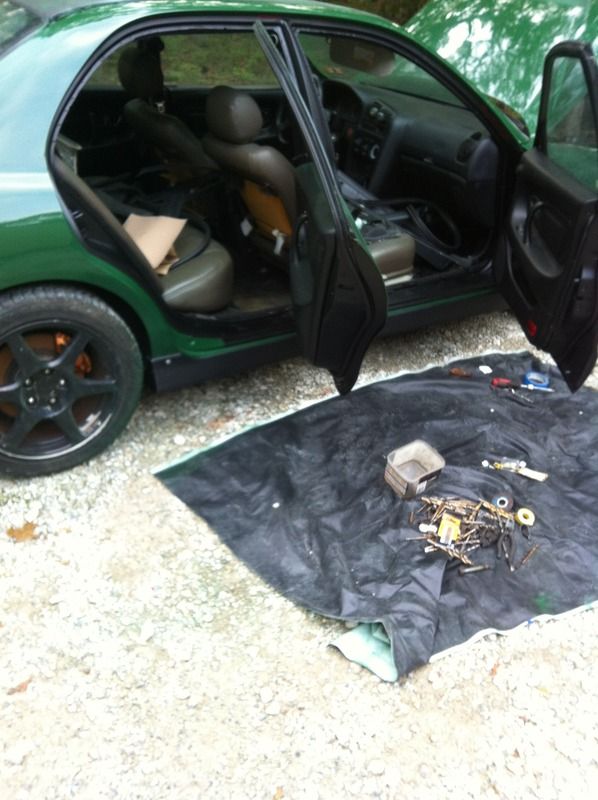

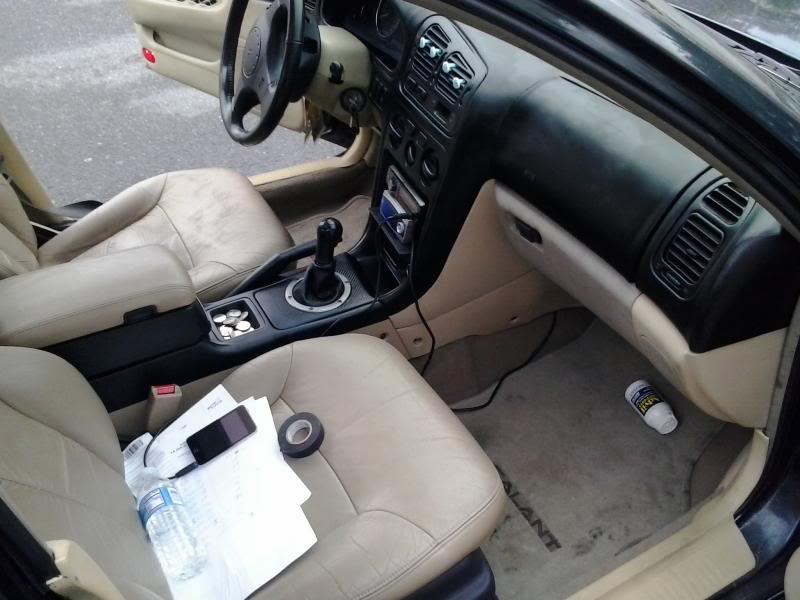

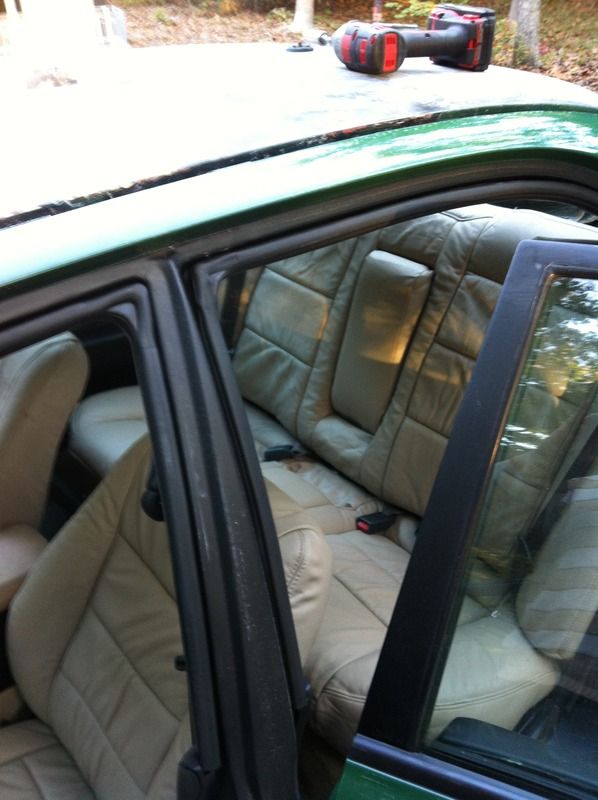

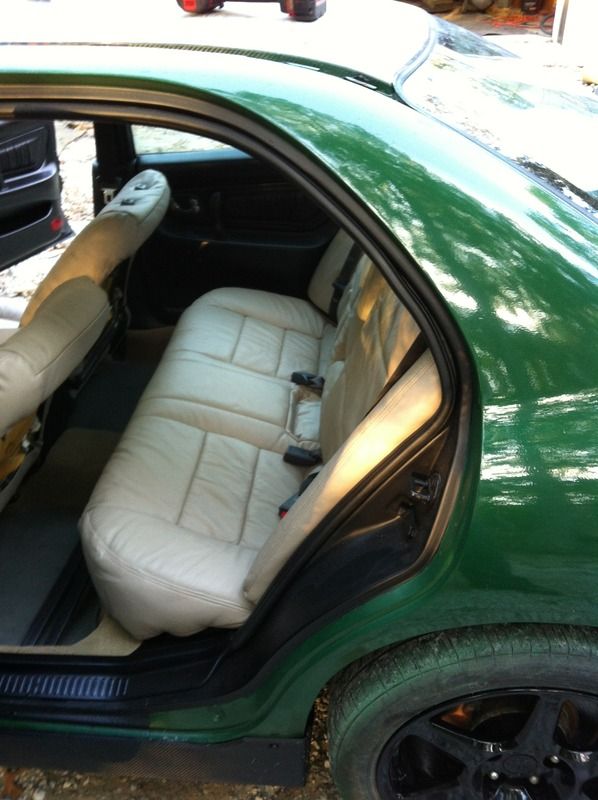

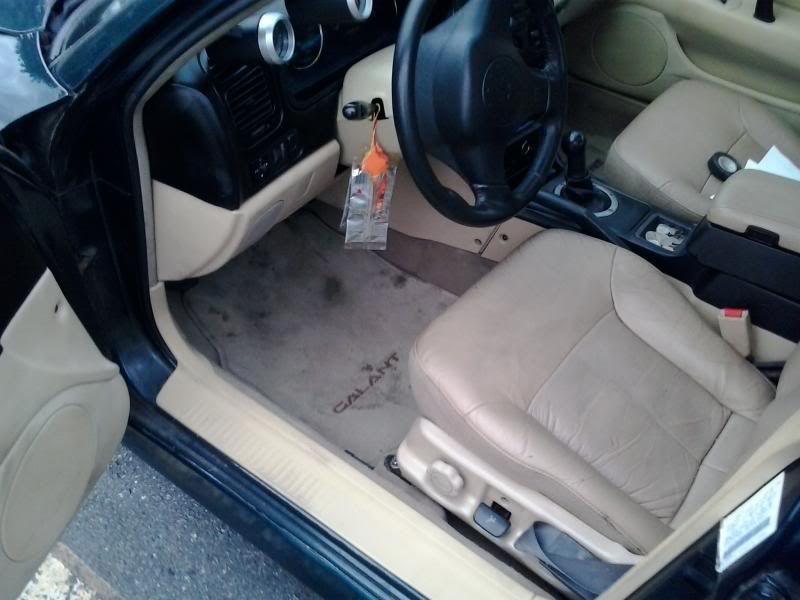

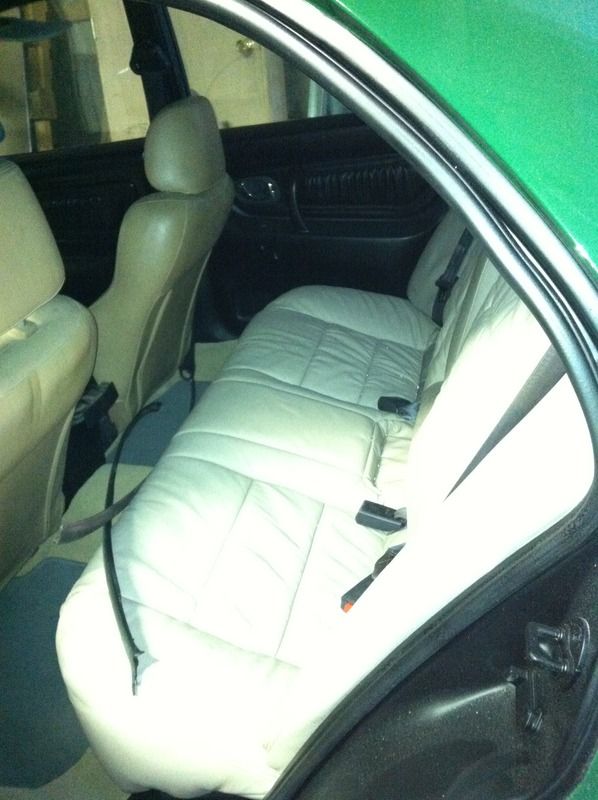

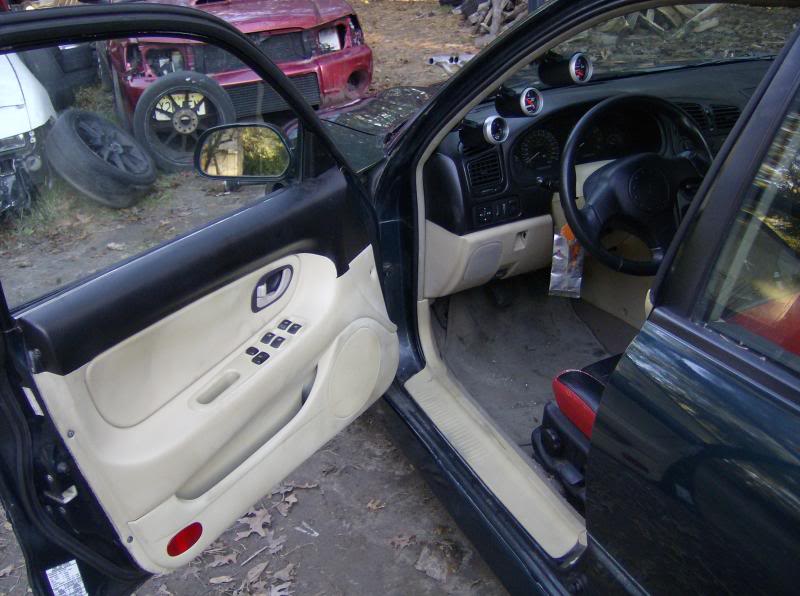

brand new leather interior
