ECMlink Need Help With Base Tune/Timing Tabl

Posted by Gumbob3, Jul 15, 2020

Please Support STM Tuned
Please Support Fuel Injector Clinic
  1. Gumbob3

    Gumbob3 Probationary Member

    18
    1
    Joined Jul 15, 2020
    Omaha, Nebraska
    Hello, all! I am very new to the DSM world. Bought this car from a guy that was moving out of state. Finished up a few things mechanically and now it is in desperate need of a tune. I've spent a lot of time searching on forums and reading wikis/guides. I know this tune is not optimal, whatsoever. However, the car is drivable. I'm getting lots of knock in lower RPM and I am not sure why. I lowered timing everywhere to try and eliminate knock before proceeding with anything else. There ended up being a few bad sensors, which I have since replaced and captured a new log. Any and all help is very much appreciated! Thank you :)

    Log link:

    Log of fairly normal driving and a small pull in 2nd and 3rd.

    1). Any boost, vac, or exhaust leaks?
    No
    Boost leak tested 5psi above your max boost with no leaks?
    Yes

    2). Verified mechanical timing?
    Yes

    3). Verified base timing?
    Yes

    4). Ignition system
    COP or Stock Coil: Unknown
    Wire brand and Age: Unknown
    Spark Plug brand, type and Gap: NGK-BPR8EIX

    5). Motor health (Compression Test)
    Cylinder 1: 160
    Cylinder 2: 154
    Cylinder 3: 156
    Cylinder 4: 159

    6). Performed basic throttle body adjustments?
    Idle Switch: Yes
    Throttle Cable: Yes
    TPS: Yes
    BISS: Yes

    7). Compression ratio
    Unsure

    8). Any known bad sensors or brittle wiring?
    No

    9). Any DTC/CEL codes?
    No

    10). Electrical system
    Car off (not running): Unknown
    Car running: Unknown

    11). Base fuel pressure and injector values
    Base Fuel Pressure: 46
    Injector Size (cc/min): 1000

    12). Properly calibrated and configured wideband sensor
    Sensor Brand: Bosch LSU 4.9 LC2 Wideband
    Calibration Date: July of 2020

    13). Type of fuel
    Type: 91 Octane
    Percent of Ethanol: 0%

    14). Watched ECMlink how-to videos?
    Yes


    Street Build 128  1

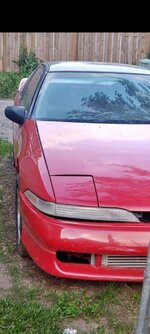

    1990 Mitsubishi Eclipse GSX
    fwd · manual · 1G DSM
    Loading...
  2. 1990TSIAWDTALON

    1990TSIAWDTALON Moderator

    6,470
    2,762
    Joined Nov 14, 2013
    Independence, Kansas
    Use the "Add Photos/Files" button to add your log to the thread. Then others can pull it up in Link and take a look at what is going on. Just trying to help you out since you are new, and by the way, WELCOME!!! :thumb:
    Marty

    I am down in SE Kansas or I'd just come by and get it half way straightened out for you!


    Street Build 5K  29

    1992 Eagle Talon TSi AWD
    14.74 @ 117.04 · 1G DSM

    1K  14

    1990 Mitsubishi Eclipse GSX
    awd · manual · 1G DSM

    793  18

    1967 Chevrolet Camaro RS
    rwd · automatic · Misc Vehicles

    Street Build 1K  7

    1998 Eagle Talon TSi
    fwd · manual · 2G DSM

    Street Build 6K  14  25

    1990 Eagle Talon TSi AWD
    13.620 @ 108.460 · 1G DSM
    Loading...
    Ludachris likes this.
  3. Gumbob3

    Gumbob3 Probationary Member

    18
    1
    Joined Jul 15, 2020
    Omaha, Nebraska
    Got it! Here it is. I'll gladly pay for your gas money if you want to make a trip up here and help me out, haha :)


    Attached Files:

    Street Build 128  1

    1990 Mitsubishi Eclipse GSX
    fwd · manual · 1G DSM
    Loading...
  4. frosh29

    frosh29 Proven Member

    294
    29
    Joined Jul 29, 2004
    Wallington, New Jersey
    There is such a thing as rich knock... keep that in mind.


    Street Build 268  1

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM

    Street Build 463  1

    1991 Mitsubishi Eclipse GSX
    awd · manual · 1G DSM
    Loading...
  5. 1990TSIAWDTALON

    1990TSIAWDTALON Moderator

    6,470
    2,762
    Joined Nov 14, 2013
    Independence, Kansas
    You know, if I didn't work (lucky me I still have a job) 6 days a week, I would take a day off for a 3 day weekend and come up and "play" with your car.
    1g or 2g car??? Stock or Speed Density? Auto or Stick?
    I sent you a PM.
    Marty


    Street Build 5K  29

    1992 Eagle Talon TSi AWD
    14.74 @ 117.04 · 1G DSM

    1K  14

    1990 Mitsubishi Eclipse GSX
    awd · manual · 1G DSM

    793  18

    1967 Chevrolet Camaro RS
    rwd · automatic · Misc Vehicles

    Street Build 1K  7

    1998 Eagle Talon TSi
    fwd · manual · 2G DSM

    Street Build 6K  14  25

    1990 Eagle Talon TSi AWD
    13.620 @ 108.460 · 1G DSM
    Loading...
  6. Gumbob3

    Gumbob3 Probationary Member

    18
    1
    Joined Jul 15, 2020
    Omaha, Nebraska
    How rich does it have to be? Its running 11-14 AFR


    Street Build 128  1

    1990 Mitsubishi Eclipse GSX
    fwd · manual · 1G DSM
    Loading...
  7. Gumbob3

    Gumbob3 Probationary Member

    18
    1
    Joined Jul 15, 2020
    Omaha, Nebraska
    1g, Speed density, stick.


    Street Build 128  1

    1990 Mitsubishi Eclipse GSX
    fwd · manual · 1G DSM
    Loading...
  8. frosh29

    frosh29 Proven Member

    294
    29
    Joined Jul 29, 2004
    Wallington, New Jersey
    I haven't tuned with Speed Density, so I can't really help there.

    Do you post on the ECMLink forums also? They are usually pretty good there about identifying problems with a tune.

    -Scott


    Street Build 268  1

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM

    Street Build 463  1

    1991 Mitsubishi Eclipse GSX
    awd · manual · 1G DSM
    Loading...
  9. 1990TSIAWDTALON

    1990TSIAWDTALON Moderator

    6,470
    2,762
    Joined Nov 14, 2013
    Independence, Kansas
    Well I can see that you need to manually adjust your TPS to get it closer in range (You shouldn't have the offset at 190 to get 100% throttle). Maybe you just made a typo when you were adjusting it. The knock is very prevalent at low rpms and under mild load, I think it is "noise" or check the sensor under the intake and see if it is loose or oozing goo, meaning it needs replaced. On gas, I am not surprised that timing maxes out around 5*. Do you have access to any E85? If so, put some in the tank and see if it suppresses the knock, mine did and I completely switched to E now.


    Street Build 5K  29

    1992 Eagle Talon TSi AWD
    14.74 @ 117.04 · 1G DSM

    1K  14

    1990 Mitsubishi Eclipse GSX
    awd · manual · 1G DSM

    793  18

    1967 Chevrolet Camaro RS
    rwd · automatic · Misc Vehicles

    Street Build 1K  7

    1998 Eagle Talon TSi
    fwd · manual · 2G DSM

    Street Build 6K  14  25

    1990 Eagle Talon TSi AWD
    13.620 @ 108.460 · 1G DSM
    Loading...
  10. 1990TSIAWDTALON

    1990TSIAWDTALON Moderator

    6,470
    2,762
    Joined Nov 14, 2013
    Independence, Kansas
    ECMLink's forum is THE place for the best advice, and some of us hang out over there also Scott, but the tuners on here are really pretty good and our members even take stabs at problems since we have all experienced some of the same issues.
    Marty


    Street Build 5K  29

    1992 Eagle Talon TSi AWD
    14.74 @ 117.04 · 1G DSM

    1K  14

    1990 Mitsubishi Eclipse GSX
    awd · manual · 1G DSM

    793  18

    1967 Chevrolet Camaro RS
    rwd · automatic · Misc Vehicles

    Street Build 1K  7

    1998 Eagle Talon TSi
    fwd · manual · 2G DSM

    Street Build 6K  14  25

    1990 Eagle Talon TSi AWD
    13.620 @ 108.460 · 1G DSM
    Loading...
  11. 1990TSIAWDTALON

    1990TSIAWDTALON Moderator

    6,470
    2,762
    Joined Nov 14, 2013
    Independence, Kansas
    1g, speed density here, on both my auto and my stick cars so I am familiar with it.


    Street Build 5K  29

    1992 Eagle Talon TSi AWD
    14.74 @ 117.04 · 1G DSM

    1K  14

    1990 Mitsubishi Eclipse GSX
    awd · manual · 1G DSM

    793  18

    1967 Chevrolet Camaro RS
    rwd · automatic · Misc Vehicles

    Street Build 1K  7

    1998 Eagle Talon TSi
    fwd · manual · 2G DSM

    Street Build 6K  14  25

    1990 Eagle Talon TSi AWD
    13.620 @ 108.460 · 1G DSM
    Loading...
  12. frosh29

    frosh29 Proven Member

    294
    29
    Joined Jul 29, 2004
    Wallington, New Jersey
    I spend a lot of time there searching when I have issues. There is a ton of good info there and also good people (like here) who can sort out trouble quickly.

    That’s why I asked if he was on those forums, not to take away from anyone here trying to help.


    Street Build 268  1

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM

    Street Build 463  1

    1991 Mitsubishi Eclipse GSX
    awd · manual · 1G DSM
    Loading...
    1990TSIAWDTALON and Ludachris like this.
  13. 1990TSIAWDTALON

    1990TSIAWDTALON Moderator

    6,470
    2,762
    Joined Nov 14, 2013
    Independence, Kansas
    You want idle to be around stoich, 14.7ish. WOT would dip to 10 - 10.5 maybe leaning out to 11 on gas.
    If you have any idle logs, post them up and let me take a look at what you have in those.


    Street Build 5K  29

    1992 Eagle Talon TSi AWD
    14.74 @ 117.04 · 1G DSM

    1K  14

    1990 Mitsubishi Eclipse GSX
    awd · manual · 1G DSM

    793  18

    1967 Chevrolet Camaro RS
    rwd · automatic · Misc Vehicles

    Street Build 1K  7

    1998 Eagle Talon TSi
    fwd · manual · 2G DSM

    Street Build 6K  14  25

    1990 Eagle Talon TSi AWD
    13.620 @ 108.460 · 1G DSM
    Loading...
  14. Vegas Smith

    Vegas Smith Previously Vegas smith

    3,883
    1,731
    Joined Dec 2, 2002
    Houston, Texas
    1) You need to setup your pi assigments under ecu inputs so you can log map and wideband
    2) Your narrowband switchpoint appears to be wrong for the LC2
    3) click the "disable airflow smoothing" button under misc tab.
    4) Fix tps


    Street Build 4K  3

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  15. Gumbob3

    Gumbob3 Probationary Member

    18
    1
    Joined Jul 15, 2020
    Omaha, Nebraska
    Rear O2 is missing from Pin Assignments in ECMLink... This is where my wideband is installed. I also have an O2 sensor installed in the Front O2 location. Does that mean that I can disable narrowband simulation?


    Street Build 128  1

    1990 Mitsubishi Eclipse GSX
    fwd · manual · 1G DSM
    Loading...
  16. Gumbob3

    Gumbob3 Probationary Member

    18
    1
    Joined Jul 15, 2020
    Omaha, Nebraska
    I changed some settings and tried to "fix" my TPS. Not sure if its right. 5.0V at full throttle and around .35v at idle. Anyway, here is a log of idling (not completely cold, but not warmed up) and some short revs. Thank you guys for the fast responses and being so helpful!


    Attached Files:

    Street Build 128  1

    1990 Mitsubishi Eclipse GSX
    fwd · manual · 1G DSM
    Loading...
  17. Vegas Smith

    Vegas Smith Previously Vegas smith

    3,883
    1,731
    Joined Dec 2, 2002
    Houston, Texas
    There is no such thing as a rear o2 on a 1g. Whatever ecu input you wired your wideband into is what you pin and ecu input should be changed to. Yes, if you are running a stock front o2 then you should not use narrowband simulation. Your TPS is not fixed then. Go to ecmlink and read how to fix your tps.


    Street Build 4K  3

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  18. Gumbob3

    Gumbob3 Probationary Member

    18
    1
    Joined Jul 15, 2020
    Omaha, Nebraska
    Thank you everyone for the help. My car is a lot less broken than at the beginning of the day, and I am learning a lot! I wired the wideband into the EGR temp pin and changed the settings accordingly in ECMLink. Also, I think my 4 bar MAP is wired into the Baro pressure pin (not 100% sure), so I changed it to that in ECMlink also. I also restored the timing maps to stock 1g timing. After that, I captured a quick idle log to upload. Any more advice that you guys may have for me is very very much appreciated. Thank you!


    Attached Files:

    Street Build 128  1

    1990 Mitsubishi Eclipse GSX
    fwd · manual · 1G DSM
    Loading...
  19. Vegas Smith

    Vegas Smith Previously Vegas smith

    3,883
    1,731
    Joined Dec 2, 2002
    Houston, Texas
    Your tps is still wrong. Loosen both tps bolts, and rotate it until ecmlink sees 0.63v. Always do any idle work when the car is warmed up. You probably have a vacuum and/or need to set the BISS screw properly. Do everything on this page exactly how it says to do it. Your idle is way too high for your target.

    https://www.sixsigmatuning.com/dsm-idle-control


    Street Build 4K  3

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
    Hickory-NC-2Ggsx likes this.
  20. Gumbob3

    Gumbob3 Probationary Member

    18
    1
    Joined Jul 15, 2020
    Omaha, Nebraska
    Thank you for the link. I didn't have enough time last night to get to my TPS. Hopefully I can get that done this afternoon. I have a surging issue under partial throttle when revving. It is impossible to hold the car at any RPM higher than idle for more than about .5 seconds. Maybe this is related to my TPS problem? I will adjust it this afternoon and see what happens. Thanks again! :)


    Street Build 128  1

    1990 Mitsubishi Eclipse GSX
    fwd · manual · 1G DSM
    Loading...
  21. Vegas Smith

    Vegas Smith Previously Vegas smith

    3,883
    1,731
    Joined Dec 2, 2002
    Houston, Texas
    It's certainly possible. Get a log of the car fully warmed up and showing that activity. Reduce the deadtime by 50 prior to this.


    Street Build 4K  3

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  22. Gumbob3

    Gumbob3 Probationary Member

    18
    1
    Joined Jul 15, 2020
    Omaha, Nebraska
    Are you sure I need to enable narrowband simulation? I still have a Front O2 sensor.


    Street Build 128  1

    1990 Mitsubishi Eclipse GSX
    fwd · manual · 1G DSM
    Loading...
  23. Vegas Smith

    Vegas Smith Previously Vegas smith

    3,883
    1,731
    Joined Dec 2, 2002
    Houston, Texas
    I deleted that post, sorry.


    Street Build 4K  3

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
  24. Gumbob3

    Gumbob3 Probationary Member

    18
    1
    Joined Jul 15, 2020
    Omaha, Nebraska
    No worries, just double-checking. I'll reduce global injector deadtime by 50, and adjust TPS this afternoon. Anything else that jumps out to you? Thanks!!


    Street Build 128  1

    1990 Mitsubishi Eclipse GSX
    fwd · manual · 1G DSM
    Loading...
  25. Vegas Smith

    Vegas Smith Previously Vegas smith

    3,883
    1,731
    Joined Dec 2, 2002
    Houston, Texas
    Not really. You need to get the idle sorted out perfectly by doing that everything on site then you'll be ready to move on.


    Street Build 4K  3

    1993 Eagle Talon TSi AWD
    awd · manual · 1G DSM
    Loading...
    TK's9d2TSi likes this.
