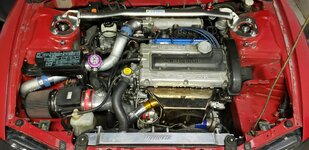

Road Race Build GSXbooster's Talon TSi AWD

Rating:
4.5/5,
Year:
1995
Model/Trim:
Eagle Talon TSi AWD
Please Support Rix Racing
Please Support Southbay Fuel Injectors
  1. GSXbooster

    GSXbooster Proven Member

    93
    57
    Joined Jun 3, 2003
    Centennial, Colorado

    Road Race Build 2K  9

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
    Santi714 likes this.
  2. GSXbooster

    GSXbooster Proven Member

    93
    57
    Joined Jun 3, 2003
    Centennial, Colorado
    I acquired my 1995 Eagle Talon TSi AWD on December 6th (a birthday present to myself) as a project car with at first focusing on restoring it to daily driver status.

    Maintenance was terribly lacking and of course it came with plenty of worn old parts that needed replacing.
    The mileage was a bit on the high end with 145,000 miles on the odometer.
    Horribly fading and peeling clear coat.

    Broken tail light lens, cracked windshield, completely destroyed interior (I think the previous owner must have had some kind of animals living in it). And a bunch of other mechanical gremlins I'd soon run into.

    However! What I could see right away was the potential. Zero accidents and a straight body/frame, NO rust anywhere (Southern California car).

    The basic selling points to me were...
    1. Hard top (no sunroof)
    2. No ABS
    3. Straight body

    Plus I talked the seller down to $2500! In retrospect maybe I could've talked him down a little bit more.

    All in all I never regretted the decision. It's currently at a state that has caused me to re-focus the purpose for me doing anything else to the car. Thanks to the influential and motivational efforts of our other DSM bretheren road racing and hot lapping, the new goal is obtaining my time trial license and compete in time trials with the NASA Rocky Mountain Region.

    This journal will document all I have done to the car with some notes for reference along the way. This will also serve for documenting my progress with HPDE and further refining and development of the car.

    Fixing the interior mess

    Cleanup and interior swap!

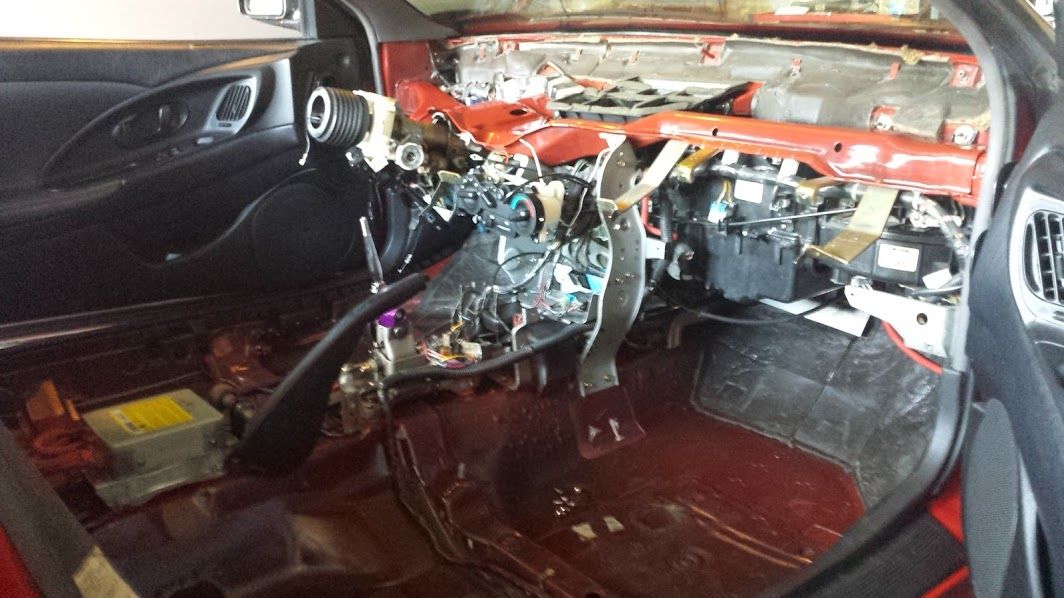

    The first things that needed addressing were the ruined carpet, front seats, rears seats and roof cloth/upholstery. They were trashed and it smelled absolutley awful in the car!
    So out came everything! I disinfected and cleaned up the interior chassis very well. I got to see that the interior of the car had no rust anywhere and was in excellent shape all around.

    9rbkIh6CF8PABWjPt3WowNVOvV5jwdI-gs6zCL5Dw93lkWMbrOgB7IuvE8925F0L7eZDLfd-ChDdvAVIRt=w1064-h598-no.jpg

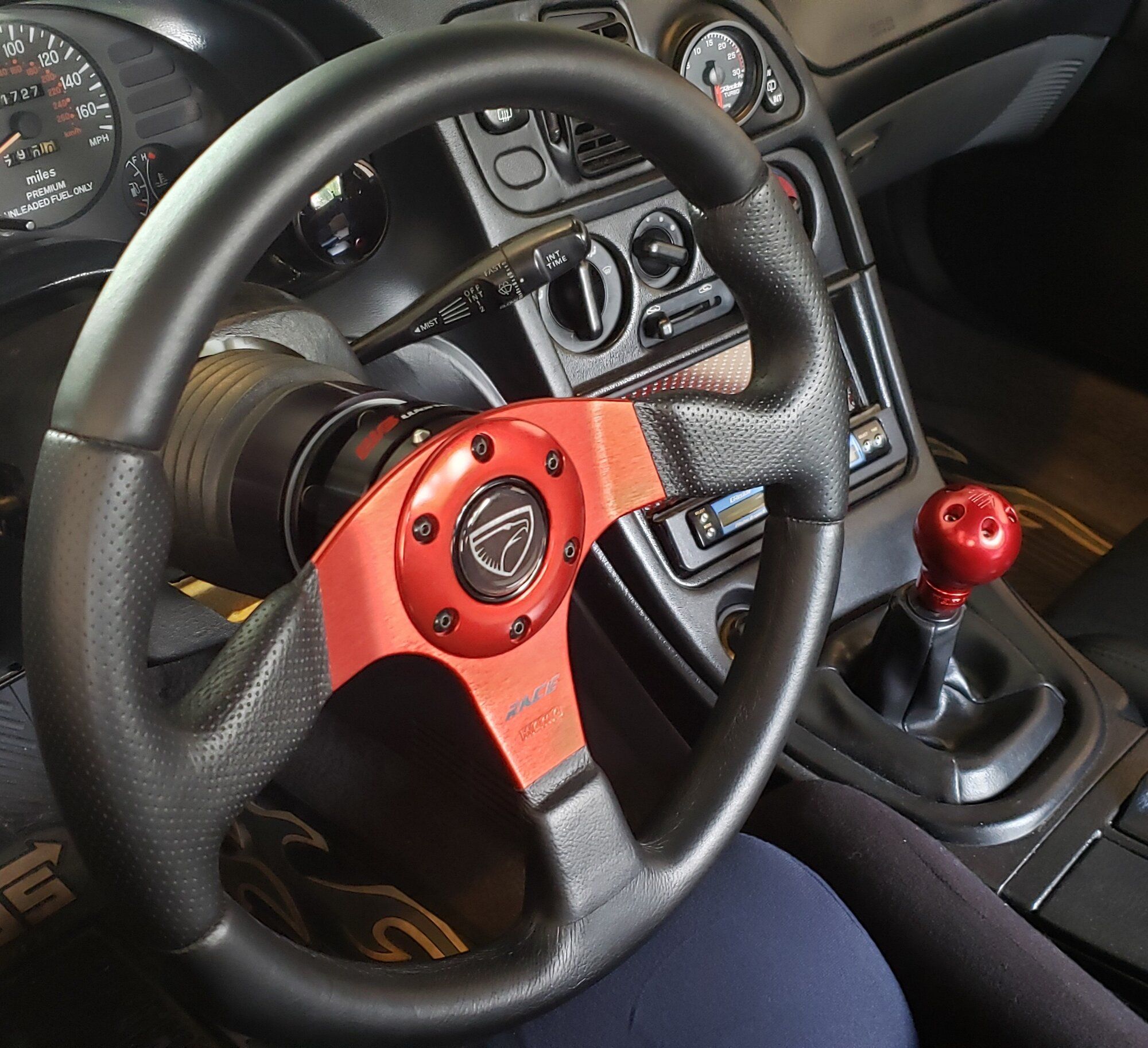

    I swapped over as many things as I could from my old GSX including the dashboard, Momo Race steering wheel, door panels, rear seats, seat belts, and interior plastic panels. I redid the roof upholstery with some cloth material I found that was as close to the OEM color as I could find. Also I replaced the carpet with a new one from a company that makes aftermarket replacements...

    StockInteriors.com
    1995-1998 Eagle Talon Carpet, Coupe Passenger Area
    Item# 8019 - Plush Cut Pile - Mist Grey

    I ended up cutting it up alot to make it fit but it came out decent.

    I have a passenger Corbeau A4 reclineable seat I also swapped over. Unfortunately the driver seat was broken at the metal base from the impact of the accident of my previous GSX.
    So I replaced the driver seat with a much better and comfortable fitting Momo Start seat!

    tu_HJyfuteSAqM4jMsczwJX4NbDpfMBP4R-kU6He0LxOJYHVcpaM81FZFEjx76FLXAboyxp37wrJExW6w4A=w507-h676-no.jpg

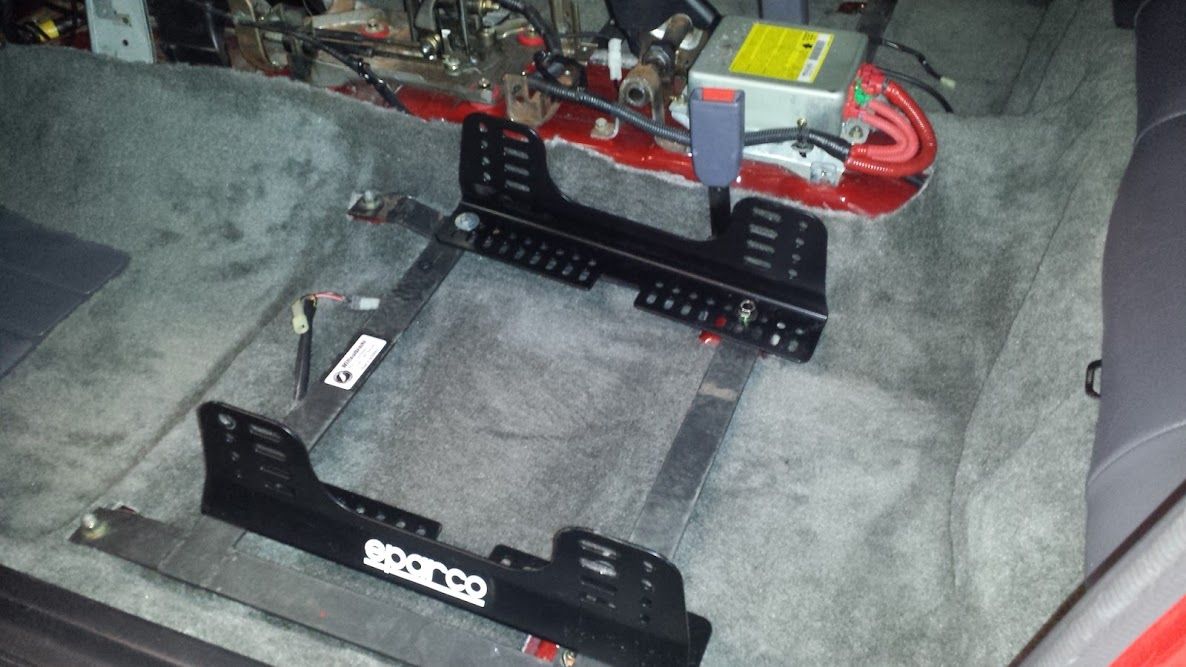

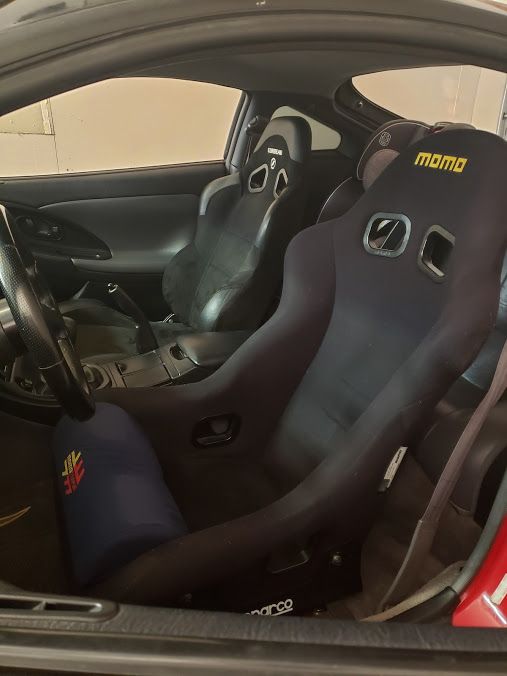

    The install of the Momo seat wasn't bad at all. I used the driver side Corbeau seat floor bracket along with some Sparco side mounts.

    0u_-gHEd3PRm3aky8pnJpGhKbMc6W7F-VWMTWqbNxoIu9BObc09RPJJ2mvxgWCqkcqdaZSS1TbMaoQdeEg=w1186-h667-no.jpg

    I ended up with a nice and low seat position and I centered it as best as I could to the steering wheel. I'll need to do some more fab work to the tunnel area in the future to get it perfect though. I fit really nicely in the seat with plenty of head room with my helmet on. I still have some forward and tilt adjustability of the seat left too.
    wkGWBtfwC4gz5wVTYpwvDQje3QmuojjB7wQ1ghEvCcE_n0Le1qnpPyhsA9rJMZGTJahA8D_m3IW1C0w803A=w507-h676-no.jpg
    (That's a "handy" way of measuring!)

    While I was working on the interior I decided to add a few small things to the shifter area including the following...

    Megan Racing short throw shifter
    Prothane shifter base bushings
    Solid shifter cable bushings
    Stainless steel clutch line. (All from ExtremePSI if I remember correctly.)

    Last edited: Nov 8, 2019

    Road Race Build 2K  9

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
    ec17pse likes this.
  3. GSXbooster

    GSXbooster Proven Member

    93
    57
    Joined Jun 3, 2003
    Centennial, Colorado
    Maintenance & upgrades pt.1

    The swap over of parts from my old 1998 Eclipse GSX continued! This time it was the brake system, front and rear knuckles (uprights), hub assemblies and of course wheels and tires.

    The brake system:
    JDM Galant front knuckles
    2gb GSX rear knuckles (the previous car was a 1998 model)
    3g brake master cylinder and 3g brake booster
    Goodridge stainless steel brake lines

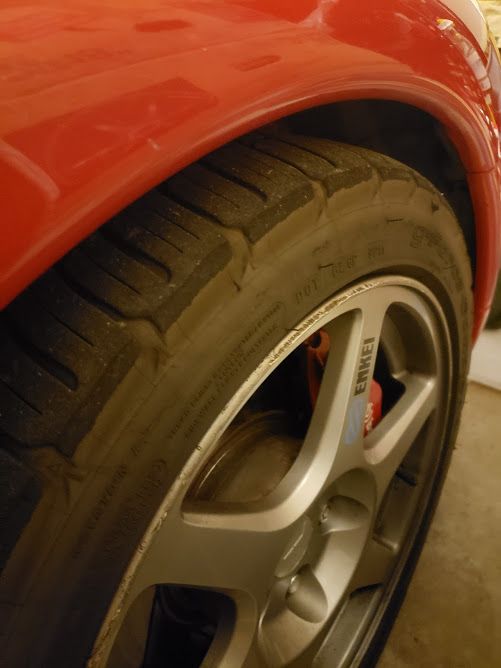

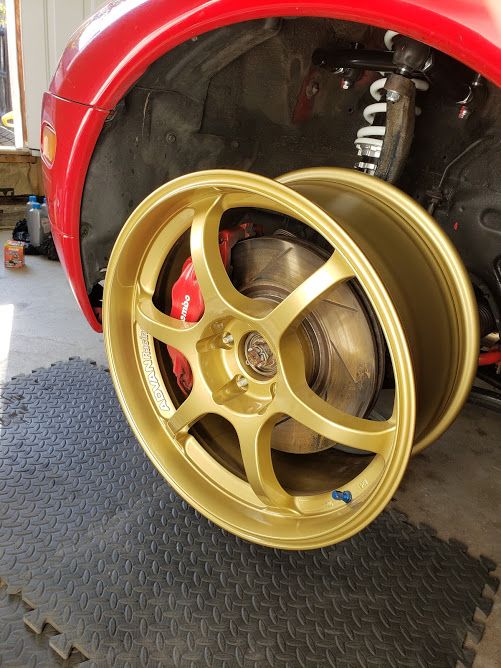

    Front and Rear Lancer Evolution Brembo brake calipers and rotors.

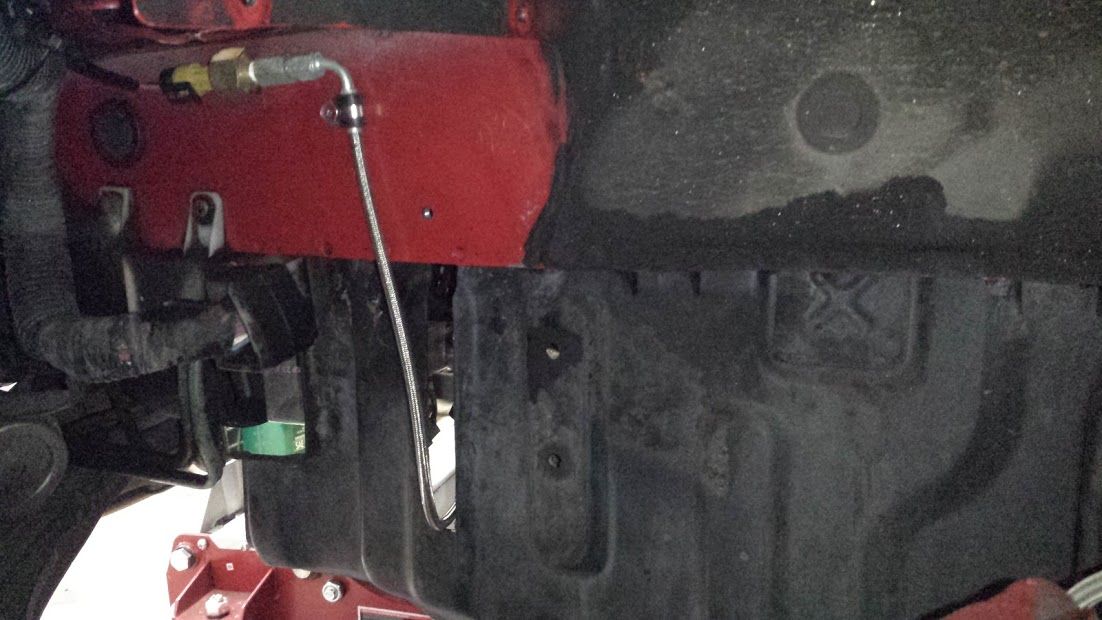

    To get the lines to fit into the master cylinder properly I needed to replace the fittings that go into the master cylinder with a different type. It's not very difficult as long as you pay attention to detail, take your time and use the right tools. I bought a small tube cutter and a tube flaring kit. I also had to source the fittings from an online shop (ebay maybe?) - as they were not readily available at any autoparts or hardware store.

    2g line fittings are M10x1.0 inverted flare
    3g line fittings are M10x1.0 bubble flare (must use these)

    (I'll look for a pic of the fittings - I think I had a couple of spare ones that came in a bag)

    This was something I hadn't done with the previous car and I figured I would do it right this time around. The OEM fittings will thread into the ports of the 3g master cylinder but they will not seat correctly all the way. I had just risked over tightening them until they didn't leak. Not the right way to do that!

    As I worked on swapping over the rear knuckles, I noticed the bushings were worn out and needed replacing.
    So I ordered and installed some Prothane bushings for the rear knuckles and also for the sway bar mounts. I replaced the bushings in the trailing arms and bought some new 3g upper control arms and replaced the rubber bushings on those with Prothanes as well. An SPC camber kit for the rear uppers also went on.

    I also did the OEM front driver side compression arm bearing flip (with a new OEM compression arm) while I was swapping the compression arms.
    OIZ2xKdw6a9ezDCw7qHWlnL2RXzFw6PvVSzbhWuG-6jGNqFpfcELEj4P-7JE65po2X9vynrmtCx7O5ZCSKg=w376-h667-no.jpg

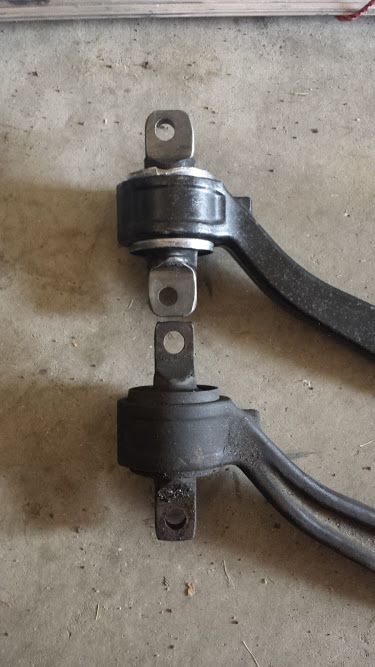

    (The top one is the new arm with flipped bearing, bottom is the 1995 arm)

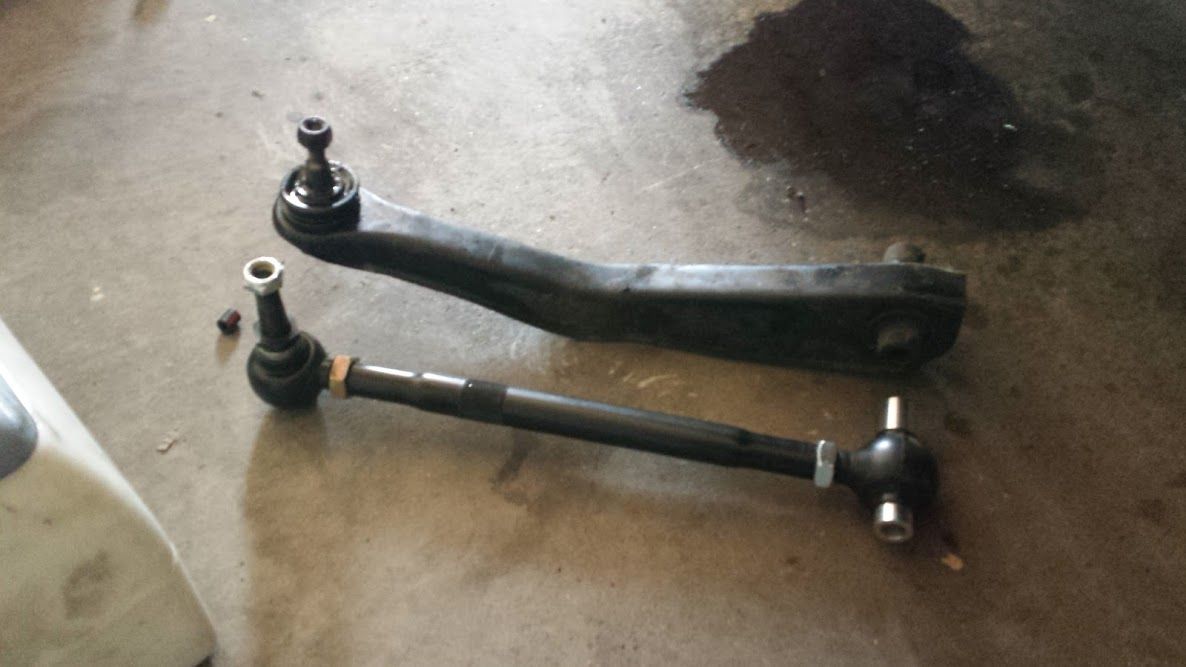

    I got some Volk Metal Craft rear toe arms to replace the stock toe arms.
    These offer a better range of adjustability on the alignment rack.
    yVeuGIJ1U42SLSO5NOrTbZCvavKWXsKZSO04Iq7-AF4K2PwX5OqEapXbKTi9pAyHCMyGkE4Z2iZN2PK7Iw=w1186-h667-no.jpg

    I decided I would keep the stock suspension the car came with for a while. At least until I figured out what coilovers I wanted to go with.

    Some neat info I found about the earlier 2g awd models was that they have a little bit stiffer spring rates...

    95-96 OEM Stock 2G AWD

    Front: 265
    Rear: 162 (+/- 8)
    97-99 OEM Stock 2G AWD
    Front: 246
    Rear: 151

    The previous car had some old Tein Super Street coilovers I had bought and installed a long time ago. I didn't bother swapping those over because frankly, I didn't like them and had no interest in rebuilding/getting them refurbished.

    After I finished swapping over these parts I started to look at adding some more performance little by little.

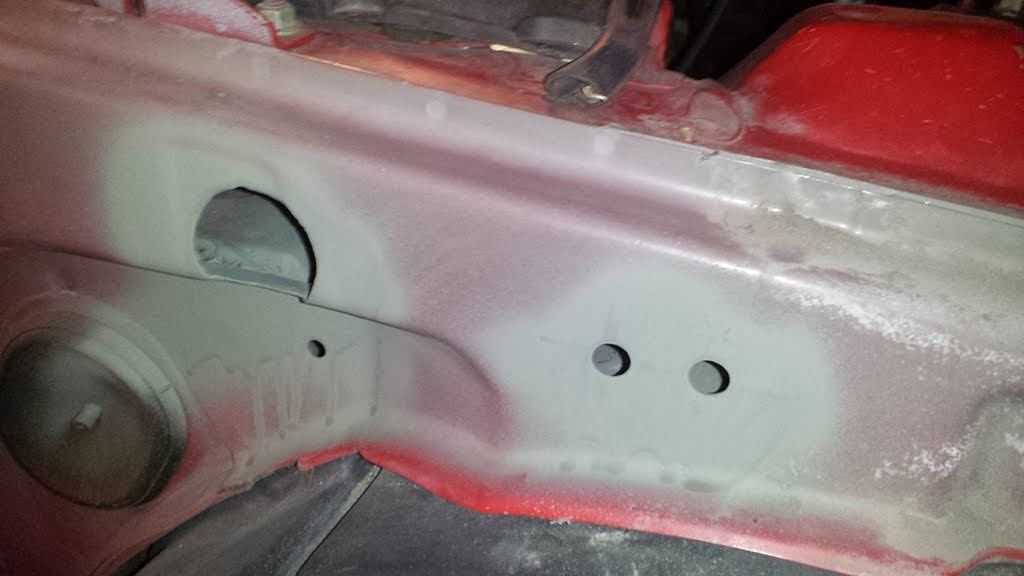

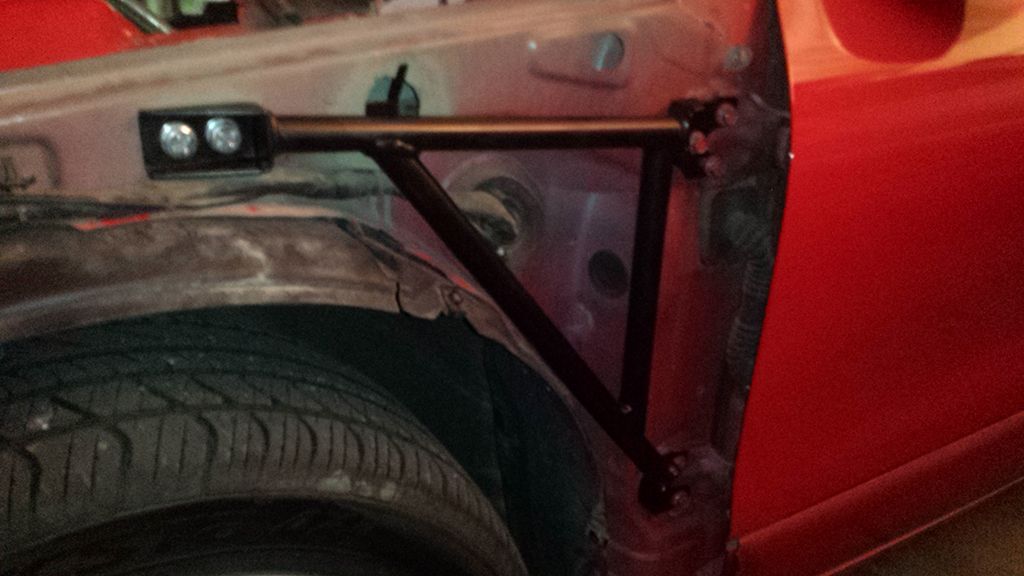

    I had bought these originally to install on the previous car, CompWorks fender braces.

    1NdJor0dXa7Qttr6bWfftOxBogF-x13RCKCDpSP2vbkQxq-goIXiLS1DketBKB-wwfpIrBoUu6PLPEOnGg=w1024-h576-no.jpg

    Even with just these I could feel a huge improvement in chassis stiffness. Definitely a must do for better handling. Combine these with a hard top (non sunroof) car and you get a really solid feeling chassis! Really nice.

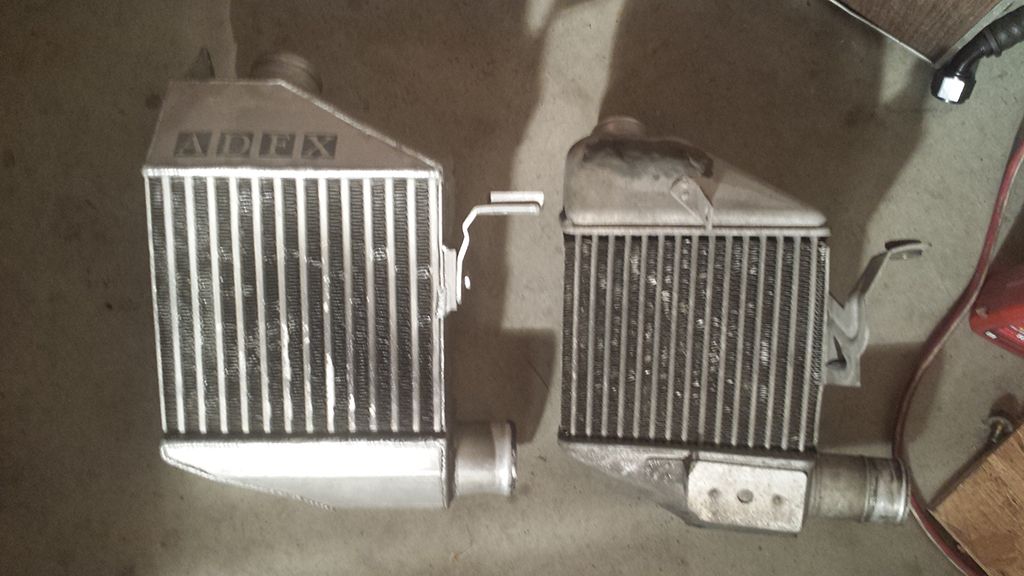

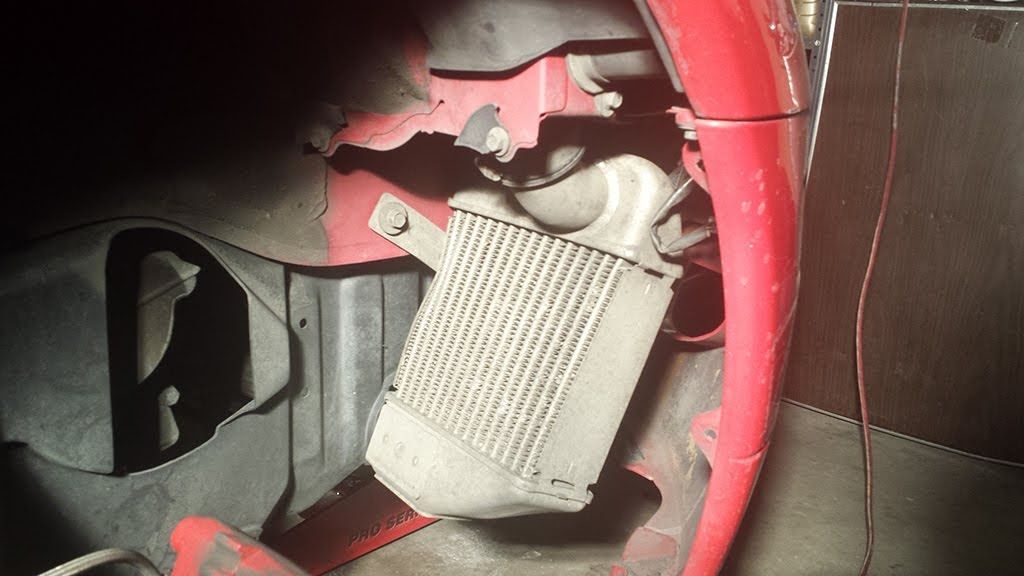

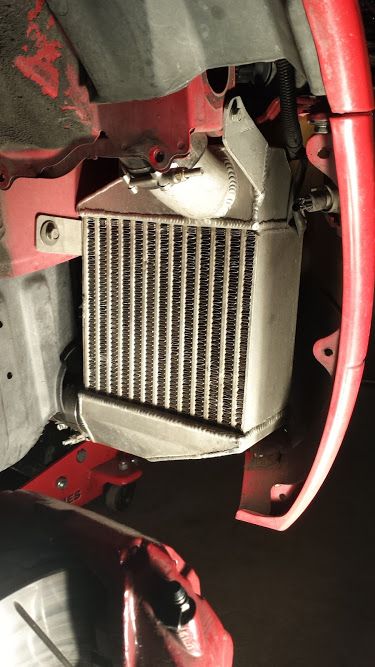

    I replaced the bent and dented OEM SMIC - Realizing just how beaten up the stock unit was, I was lucky enough to find a really nice, bigger ADFX unit for sale on ebay. It could've been the fact that the OE SMIC was damaged pretty bad but the ADFX unit seemed to have increased turbo response!

    (side by side comparison)

    AuijloTtgjyzG3lxBmL13SuHqAbQ84yJrEhWM82jJcu7lVKvcZ0sfwpxzDbteudpj7wE1E0UdDz1vPQ3pw=w1024-h576-no.jpg
    (old SMIC)

    qg9B3VRSt3d_QyDzkkPev6tNeiddjn5S_Dd5alj3yl9GupNBLJwDXn_G-Uh4Rzw5ryM7JM7Qvf8PT_hIvsg=w376-h667-no.jpg
    (new SMIC)

    Other things of note that I did was replaced a leaking tail shaft seal, changed the transmission fluid to Redline MT90, for the transfer case I used Redline Light Weight shock proof and for the rear diff some more MT90 since it was the non-LSD version.

    Last edited: Nov 8, 2019

    Road Race Build 2K  9

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
  4. GSXbooster

    GSXbooster Proven Member

    93
    57
    Joined Jun 3, 2003
    Centennial, Colorado
    Mechanical maintenance & upgrades pt.2

    I started to have problems with coolant leaking which I found was coming from the upper radiator inlet. It turned out the lip had broken off there and there was also some leaking from around the end tanks. So I replaced the leaking and broken stock radiator with a 1g Mishimoto aluminum radiator.

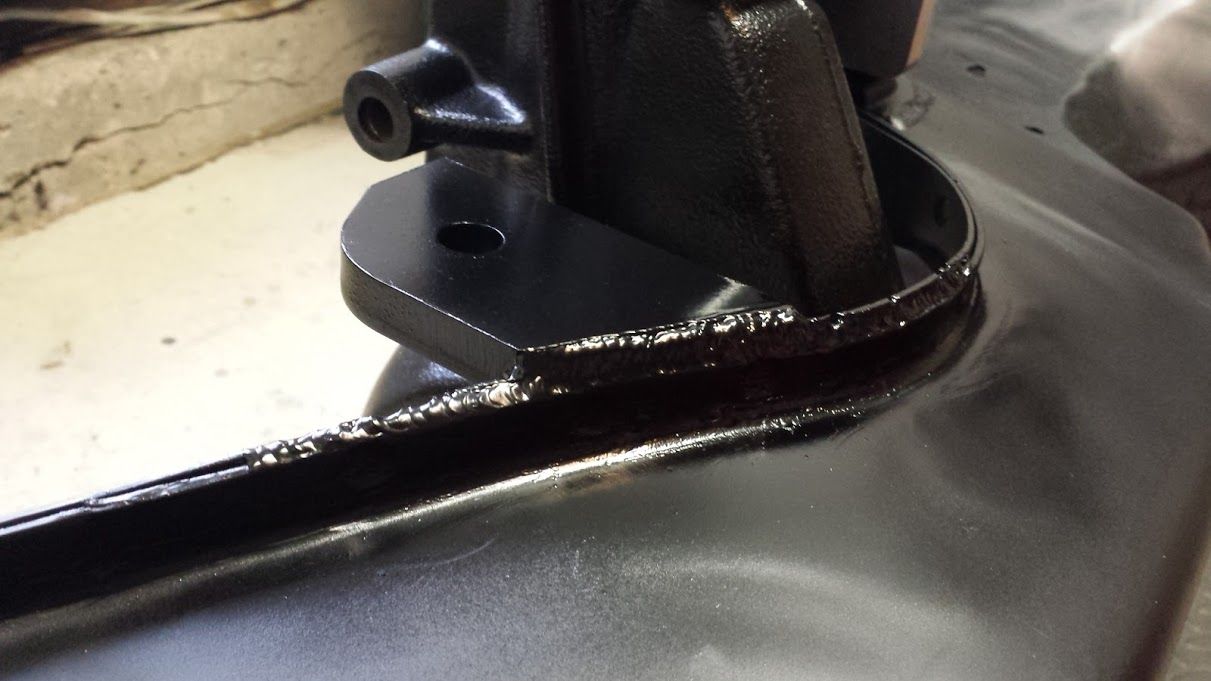

    In order to make it fit properly, I took it to a welder and had the lower mounting pegs moved about 1" off to the side on each side.
    The top pegs need to be moved ever slightly as well for a perfect fit. Less than the bottom pegs but I don't remember the exact measurement. I also installed Mishimoto's fan shroud with fans to compliment the radiator.

    On my way home from work one day all of a sudden the car shut off! I managed to coast into a neighborhood so I wasn't blocking traffic. I called a tow truck and had the car towed home.

    The problem turned out being a balance shaft belt mishap. The previous owner didn't do a thorough job replacing the timing belt. It had snapped and took out the crank position sensor (Always replace both belts!) I replaced the timing belt, balance shaft belt and timing components with all new quality parts from the auto parts store.

    While I was in there I also installed my Fluidampr pulley from my previous engine build.
    I swapped over my RVR intake manifold (with the inlet ported out to 60mm) and also my 1g turbo throttle body.

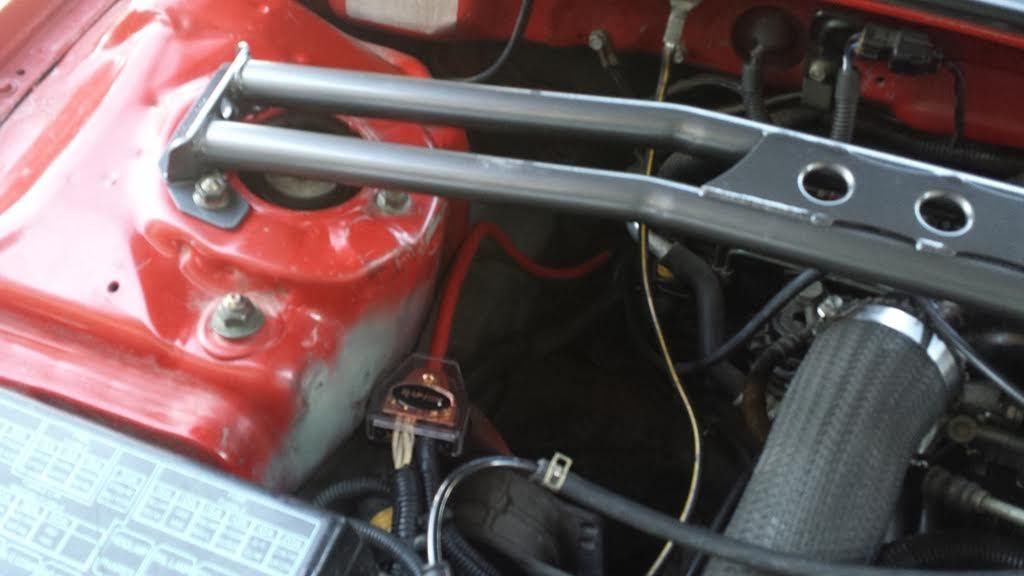

    I had always wanted to relocate the battery to the trunk to clear some space and have a little better weight distribution. Plus the corner where the battery sat in OE form had alot of battery acid stains. This was a good reason to remove it from that location so I could remove all the surface corrosion and seal it with primer. I'll eventually repaint the entire engine bay when I swap over my built motor.

    L19IFxYz2RP6JxrCfabSk-GCQCfbGPjULaGBMkzz0knkWTH_5KWgLwuFO22Jef31Nab0p9ceiEZLvojnog=w1024-h576-no.jpg

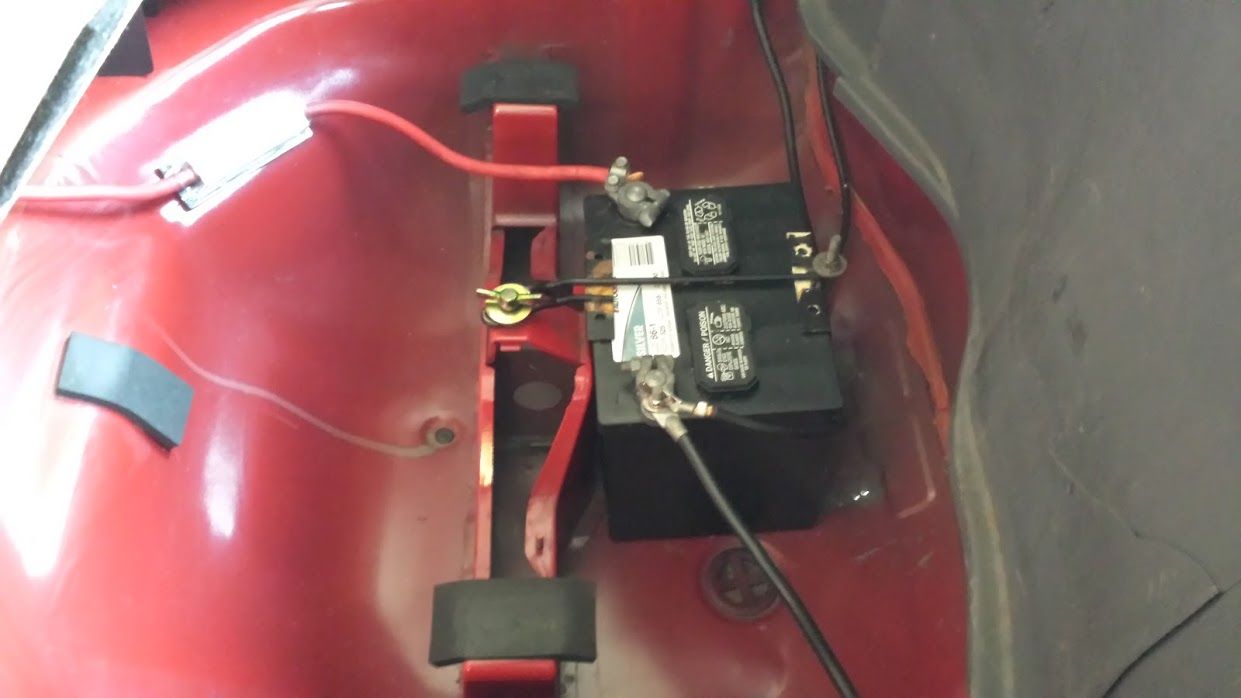

    Hidden in the trunk...

    88pthwc3PmXqZG1JTKTY9gepeUKgEW35xGzicHrlwUuqopDa9Vtw5gV5I83OGap2NhgXch4uq6JgRndaew=w1241-h698-no.jpg

    I installed a set of DC Sports front and rear upper strut bars. Since I didn't have the battery in the engine bay any more I went with the front bar designed for the non-turbo models.

    I then swapped out the stock motor mounts with Avid Racing Tuner Series 75A motor mount units. To finish up that little project I ordered a Bulfab front crossmember - then I had it powder coated black before installing it.

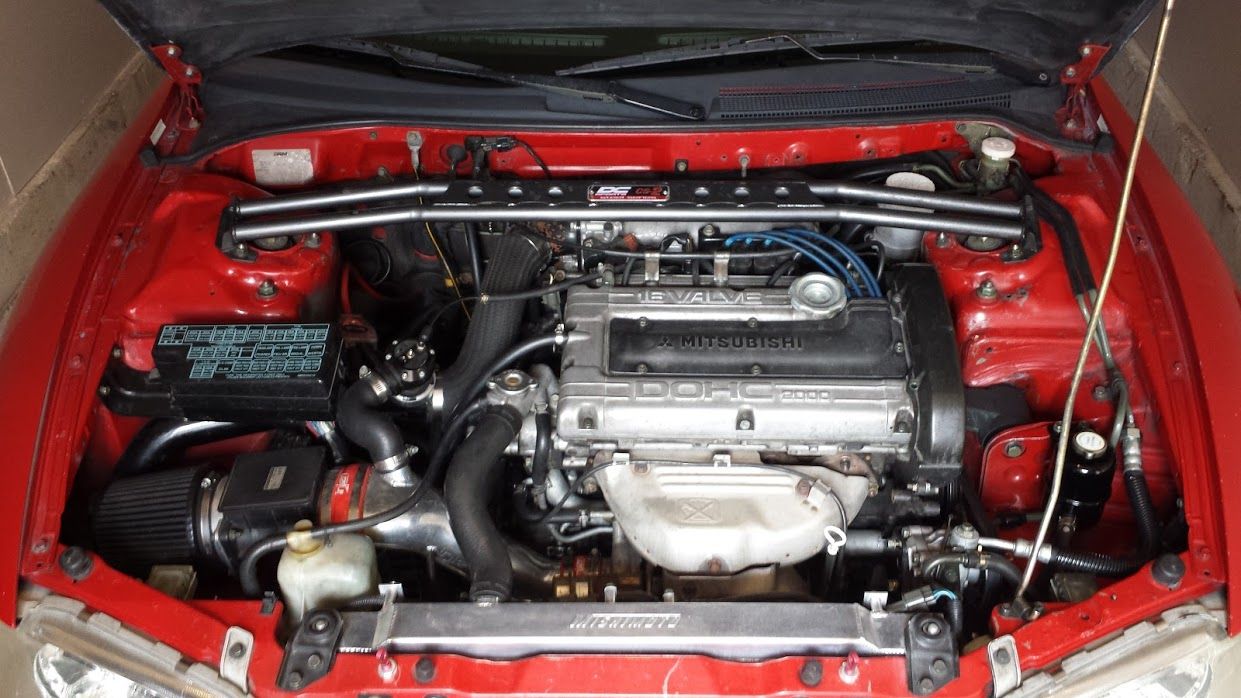

    BVrjXCJQouSN3kyxQUtFFe4QrLjKpq30IbnHp2UVtg2lceYRNCwajf089Nfm0kfMzK3f0Ex612YR6SHYOw=w1241-h698-no.jpg

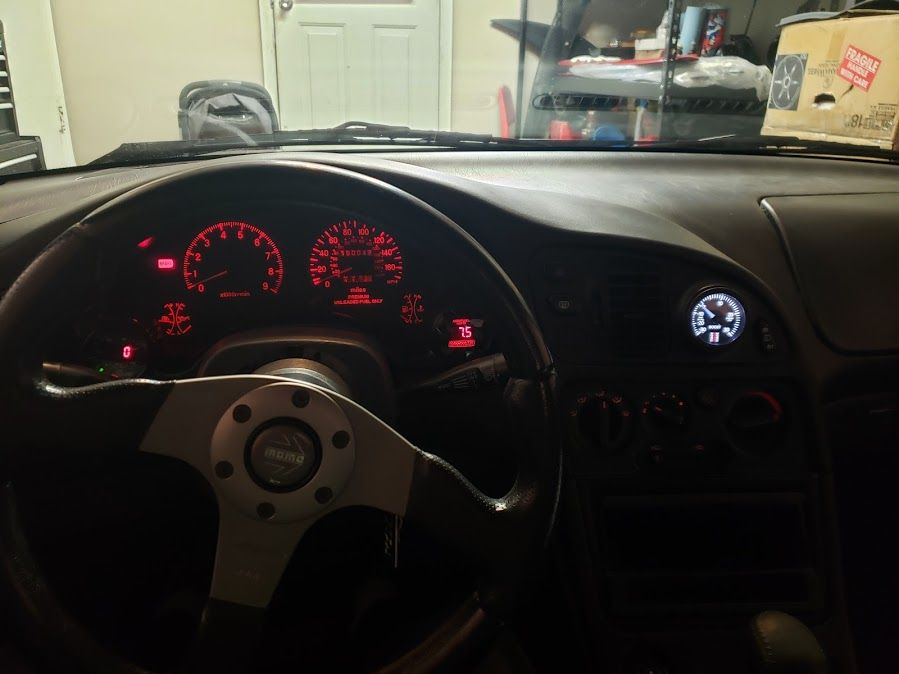

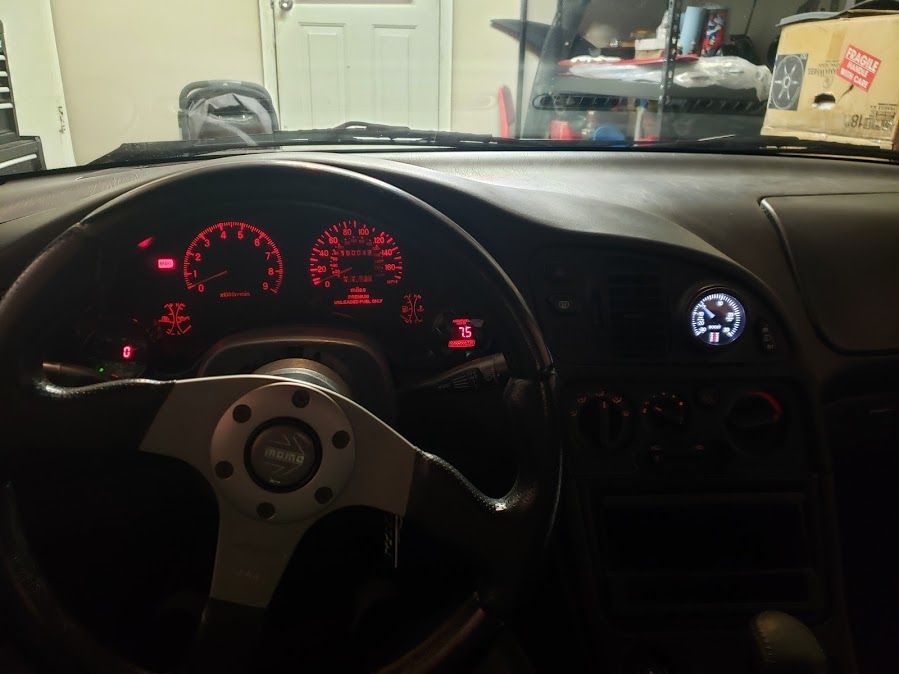

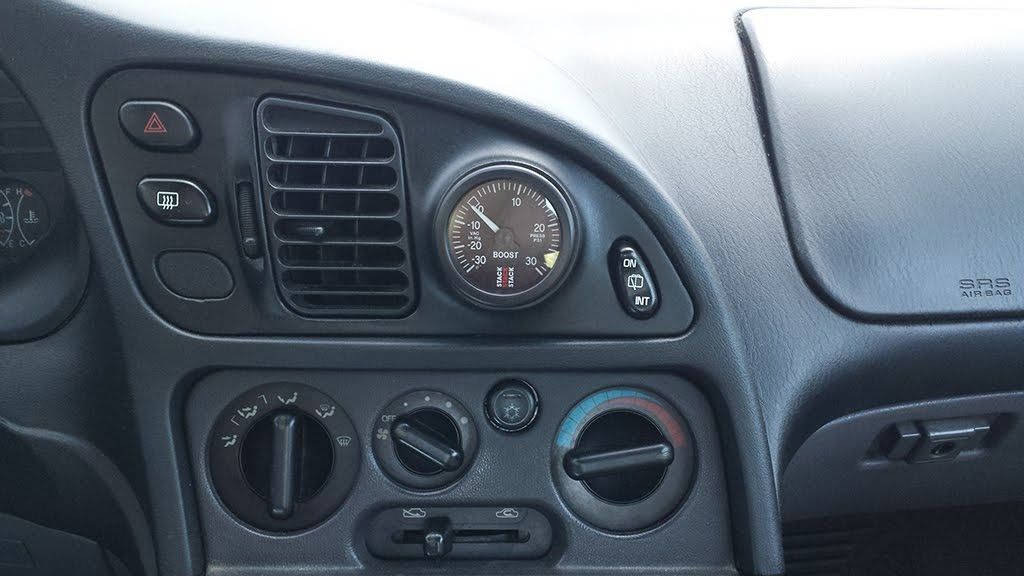

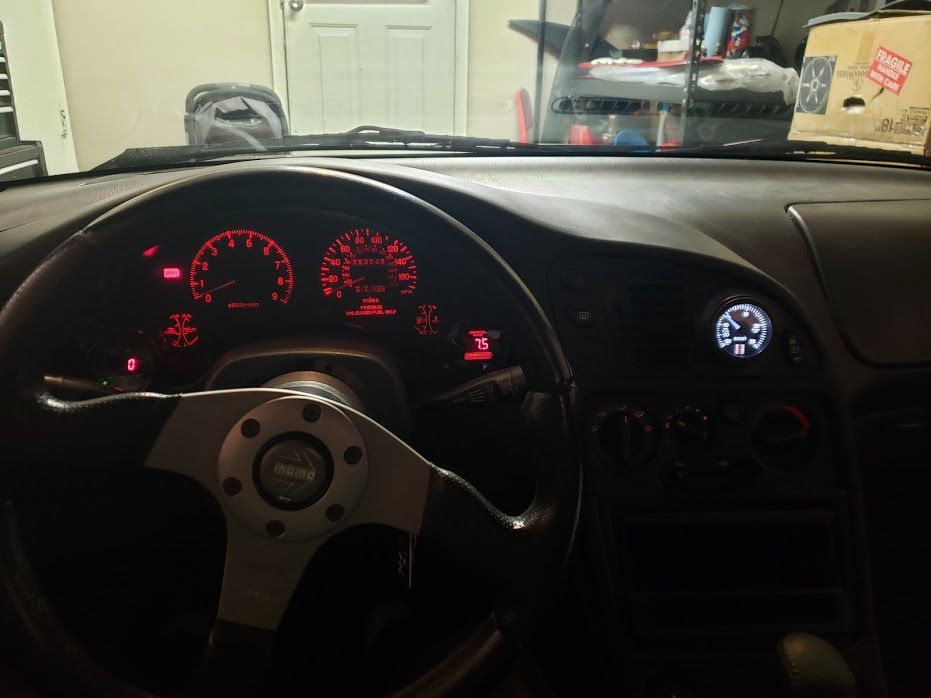

    I added a mechanical boost gauge from STACK and mounted it in an Ortiz center vent gauge pod. I replaced the instrument cluster lights with some dimmable LED bulbs from "superbrightleds.com", I chose red of course. :) The install of these was super easy and only required minor trimming in 2 small areas to get 2 of the bulbs to fit properly. Nothing to it with a handy dandy dremmel.

    txHf1J5FaK3At-j_ngycSsbJfbsvdXH_Vh81VxGeyvsyecPfh70XkCp16Ka-4dUgltXUJJautqyHfDJMxw=w1024-h576-no.jpg

    Before moving ahead with any more upgrades to the car, I decided to address any and all leaks I could find.
    I replaced the water lines on the T-25 turbo - the previous owner had installed some flexible stainless steel lines which were leaking a little. So I switched the lines back to the OEM hard lines with new OEM hoses and clamps. Nice and clean.

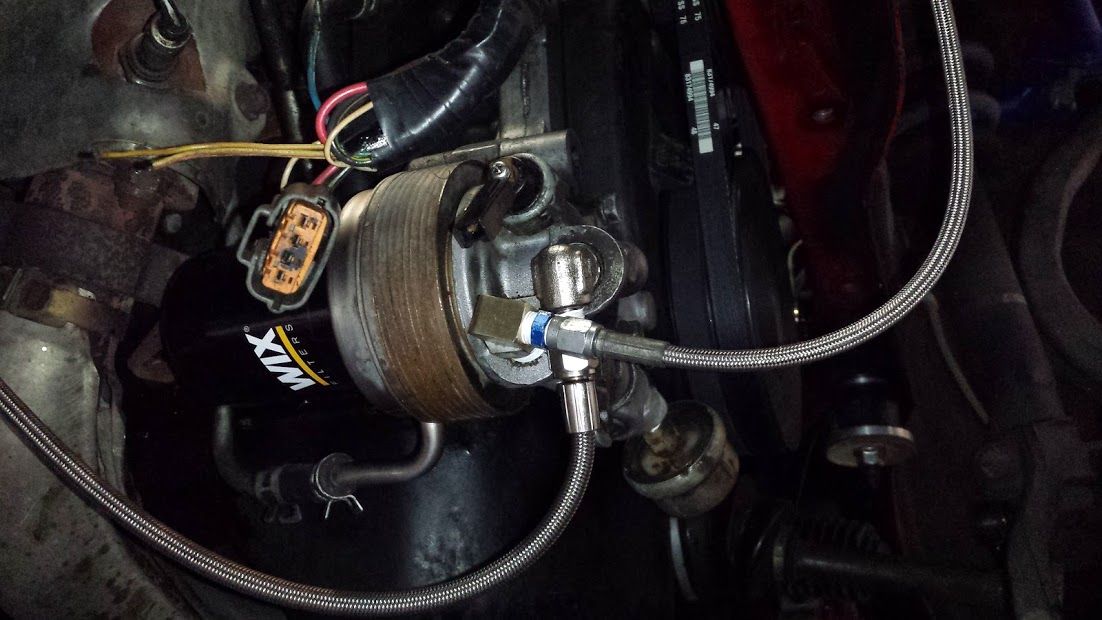

    The oil filter housing was leaking oil. From a previous experience I new it was the oil ring gasket that sits inside housing. I ordered a new ring gasket and easily fixed that mess. I also replaced the rubber hoses and clamps from the oil cooler with new OEM ones.

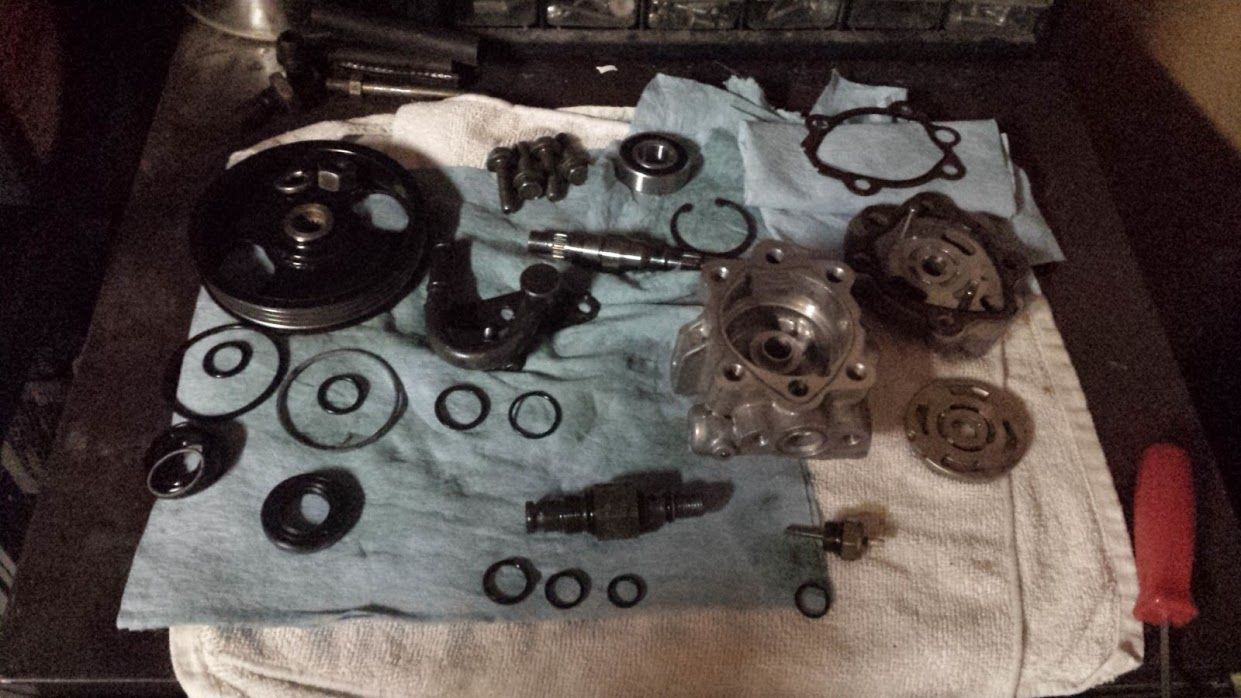

    I rebuilt my leaking power steering pump using an OEM rebuild kit. That was a little tedious but not a hard job really.

    qyVr0a3M6nSU5GxxhdsrmaTA1fNTfhmsNN5S8WiD4Ak1EYfBkd4qibOzQrxhG-i3dYxaSuuLj-uCm7kW11=w1241-h698-no.jpg

    Man, if it's not one thing it's another! I suppose that comes with the territory of an older neglected car..
    Shortly after the car developed a bit of smoking on start up and at idle. Ugh!

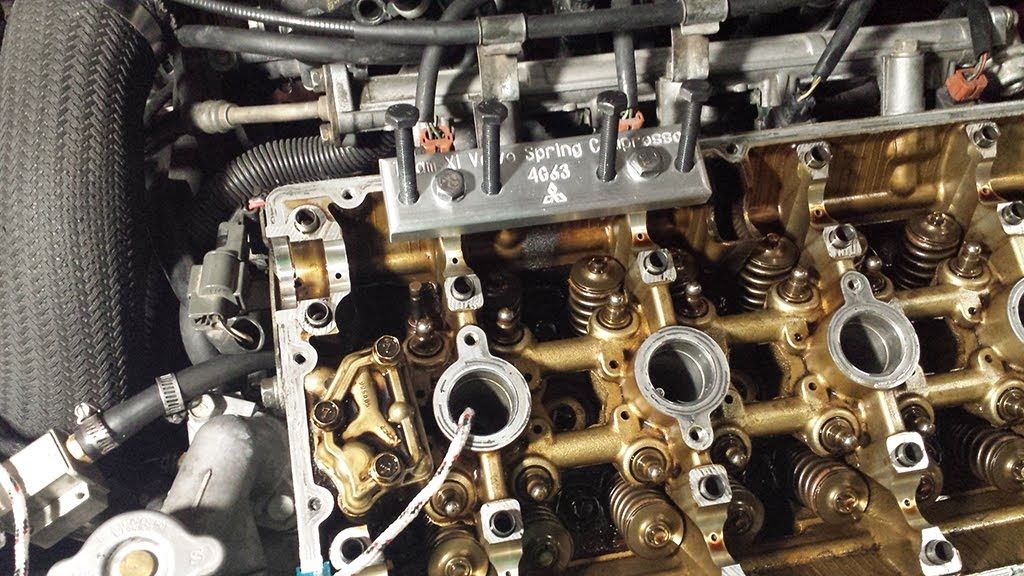

    So I bought a valve compressor tool and I replaced valve seals - No more smoking! Yay!

    8mJ8seT2vihQ6qW-KxSXRtW-0lGXuwUcO5Setzlaw7s3LPBvlhj-doOYgxvtWgRIPx0ff2HNpRUl5qc7NA=w1024-h576-no.jpg

    Last edited: Nov 20, 2019

    Road Race Build 2K  9

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
    1g502 and ec17pse like this.
  5. GSXbooster

    GSXbooster Proven Member

    93
    57
    Joined Jun 3, 2003
    Centennial, Colorado
    A little more handling upgrades & carbon fiber goodness

    At this point the car is now caught up with maintenance and some nice little upgrades. So I wanted to further play with some custom alignment settings and stiffen it up some more.

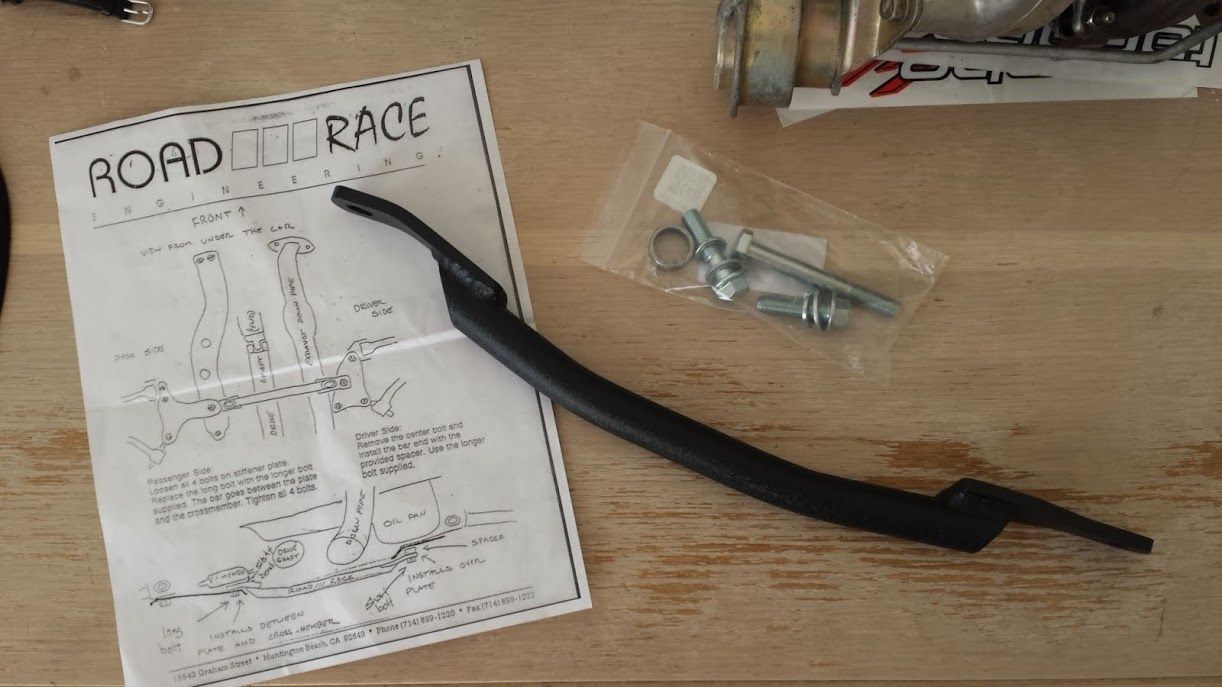

    To compliment the DC Sports upper strut tower bars, I added Road Race Engineering's front lower stress bar.

    1clX1pyflDuVxudlL0ugIxvCtKIoZs4eOODddZD3AQr6_1OQ5CoYQWlAI0_4jwZn4rxyPvjNAxwmgTs0iw=w1222-h687-no.jpg

    This piece required some extra spacers to fit correctly but nothing major in terms of install problems. This is on my 1995 front subframe and there is a slight difference between the 2ga and 2gb front subframes in the support plates for the lower control arms.

    IcUA-GrFRdVV9I67JAOqF7mzQnlYqxt2PejFT5fTRj5slYNwsUBmdcDKVrLMPLZlwwi3BS8tOSTuKhRMDQ=w1222-h687-no.jpg

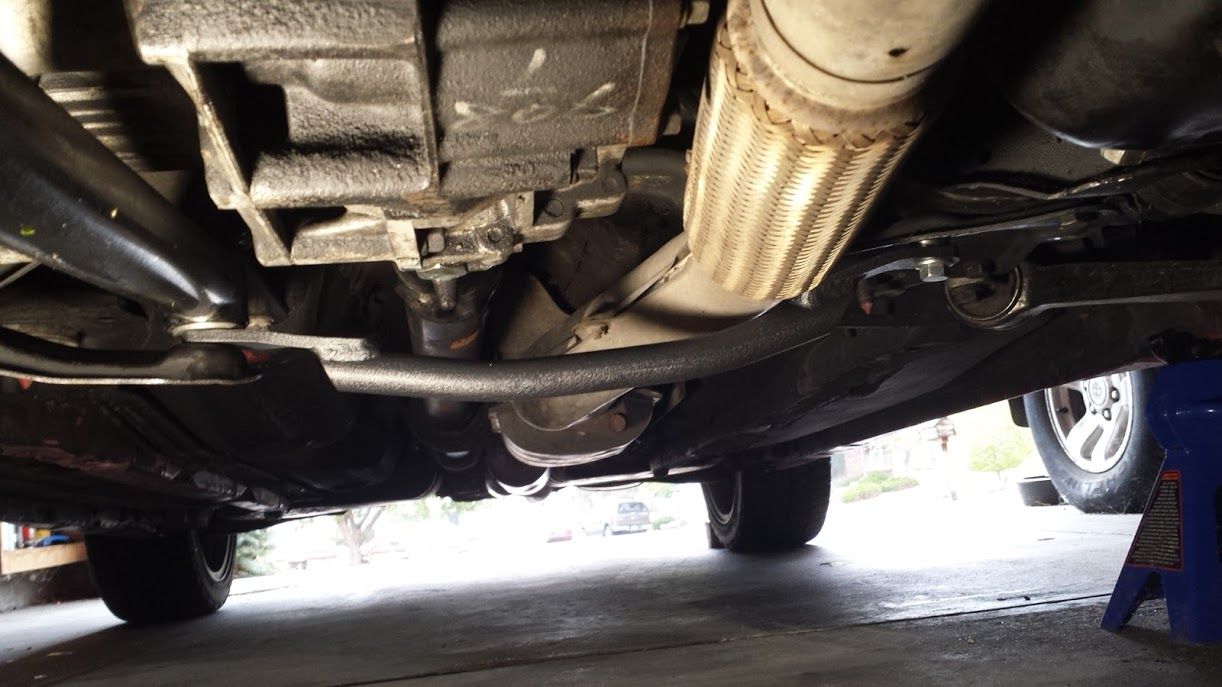

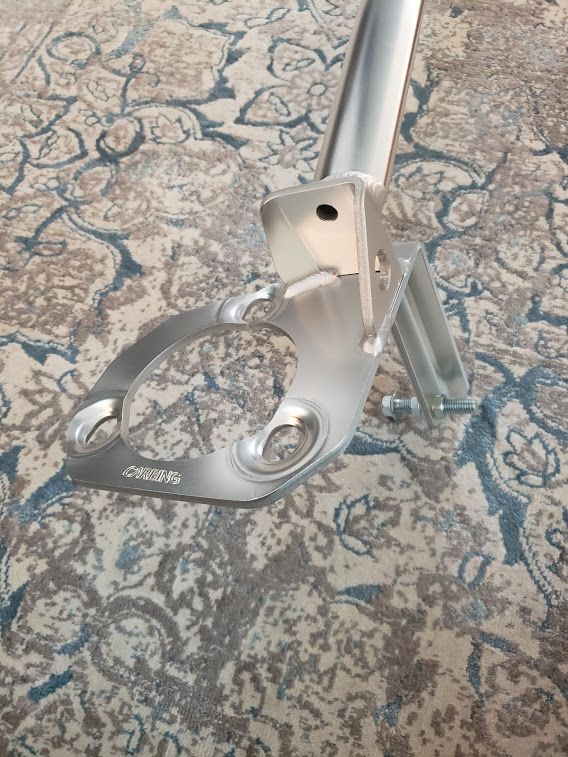

    A very noticeable brace that works beautifully with the upper strut bar. The car stiffened up even more with this bar. Not bad for still being on stock sway bars and springs/shocks.

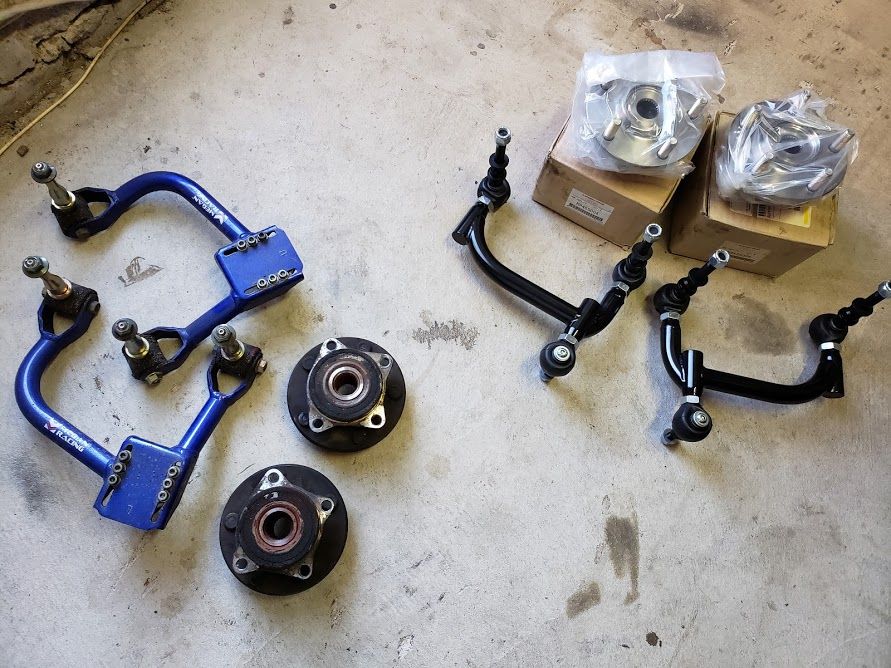

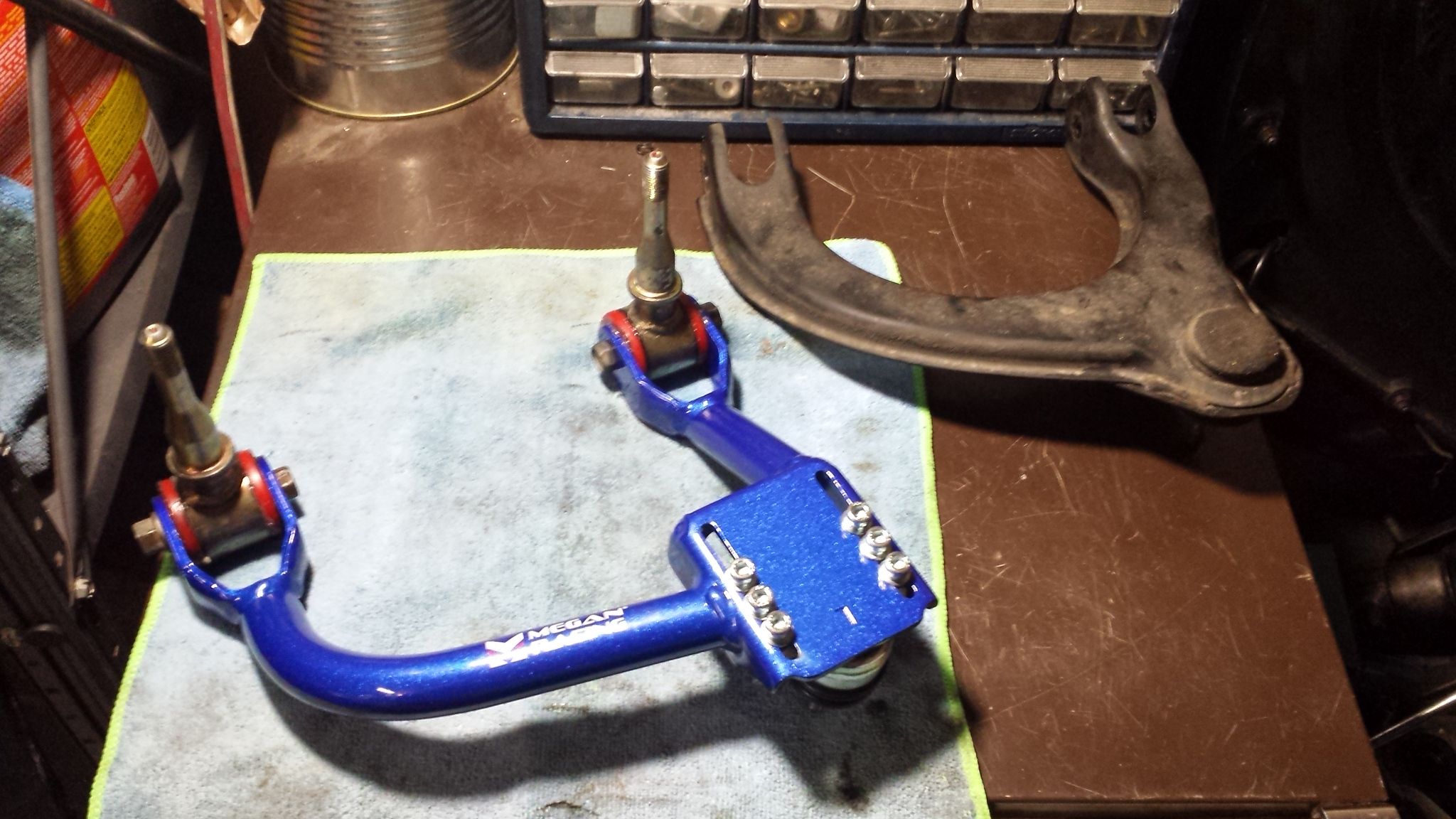

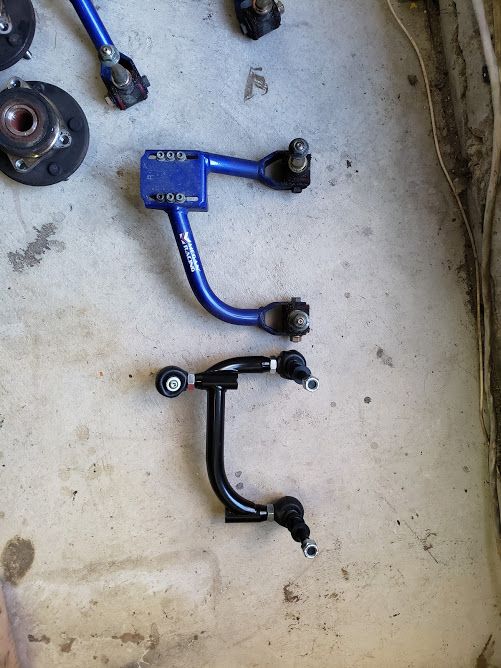

    For more front camber adjustment, I installed a set of Megan Racing camber arms with Prothane bushings in the anchor bolts.


    Then I decided to install some carbon fiber parts. Carbonetics v1 AB carbon fiber hood and CSL carbon fiber hatch.

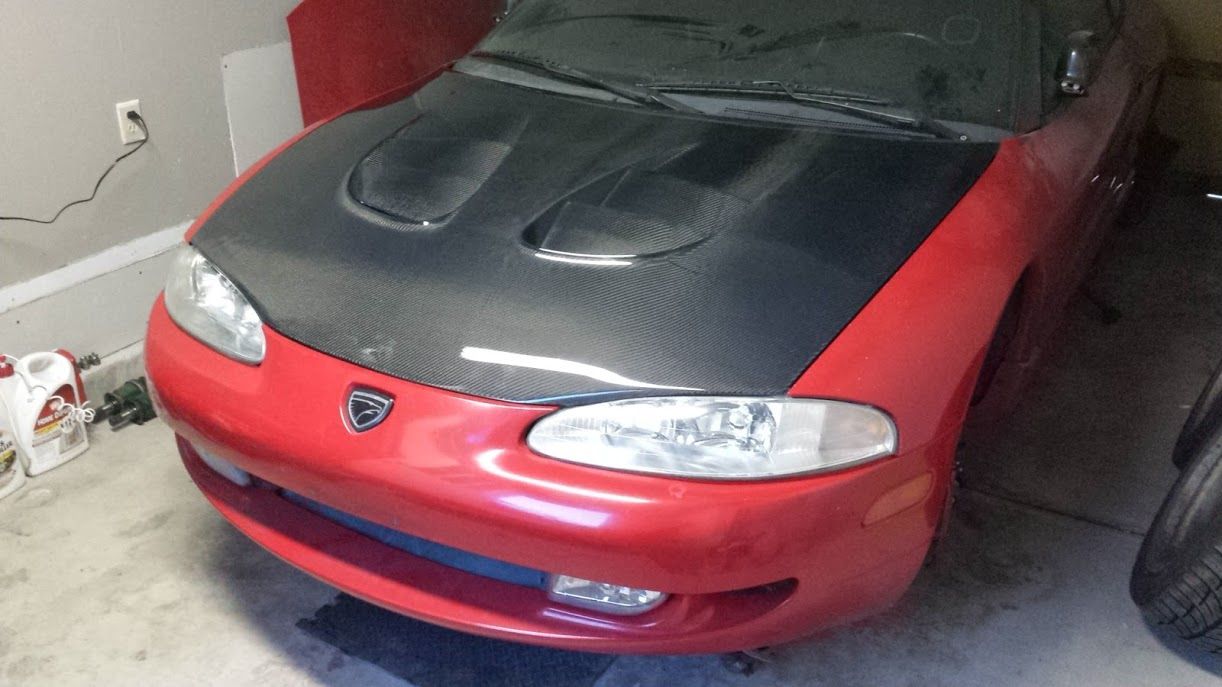

    I had ordered the hood a while back but never got the chance to install it on my old GSX, until recently on my Talon. The wait for one of Sergio's carbon fiber pieces is enough to test anyone's patience. But the wait is worth it! At least to me.

    miGHPmrxyOVWD6-L6mZPhj_1nMHSLpaVb7kMVq5Z7wLSVEDnmARys8izuFLqdvxUZG6_NSouzh1SwLvGuw=w1222-h687-no.jpg

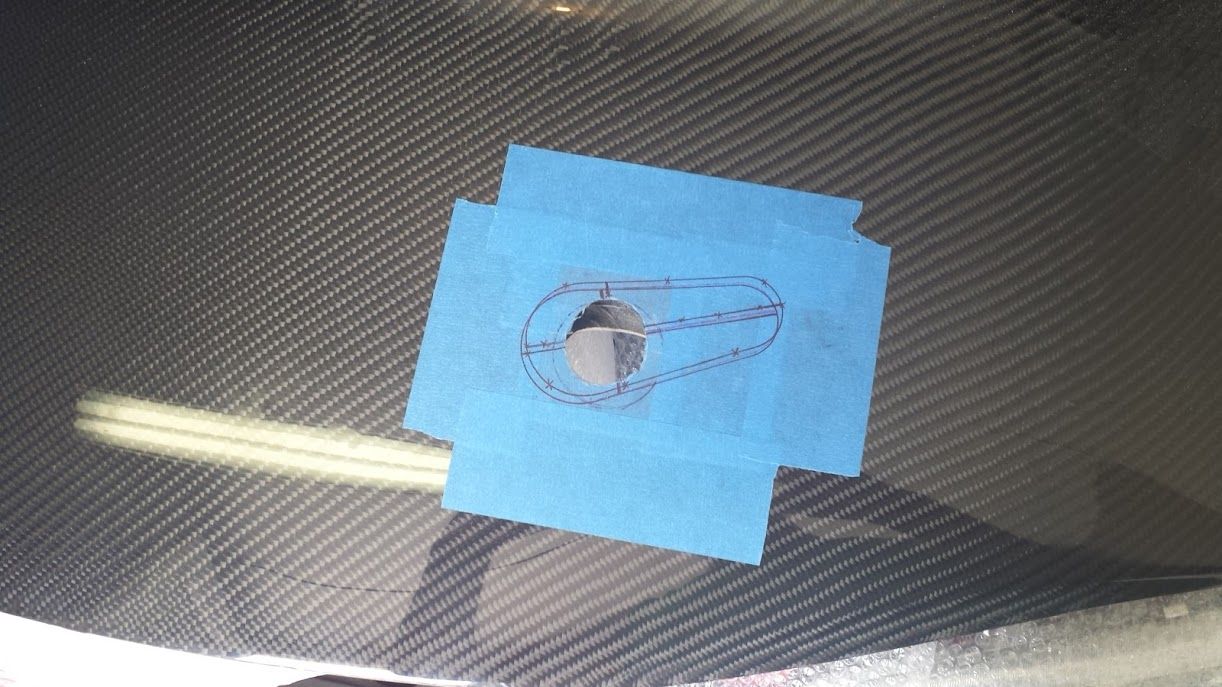

    Cutting into a brand new carbon fiber hood is incredibly nerve wrecking!

    EkWe9YuNZTnOMK-Pzp3o7zcdlxdVoFa1yifQ5dSpF4b7pSyut0_zzRCJYfXxRyCd0KKLYp-HgmJdMaa2fQ=w1222-h687-no.jpg

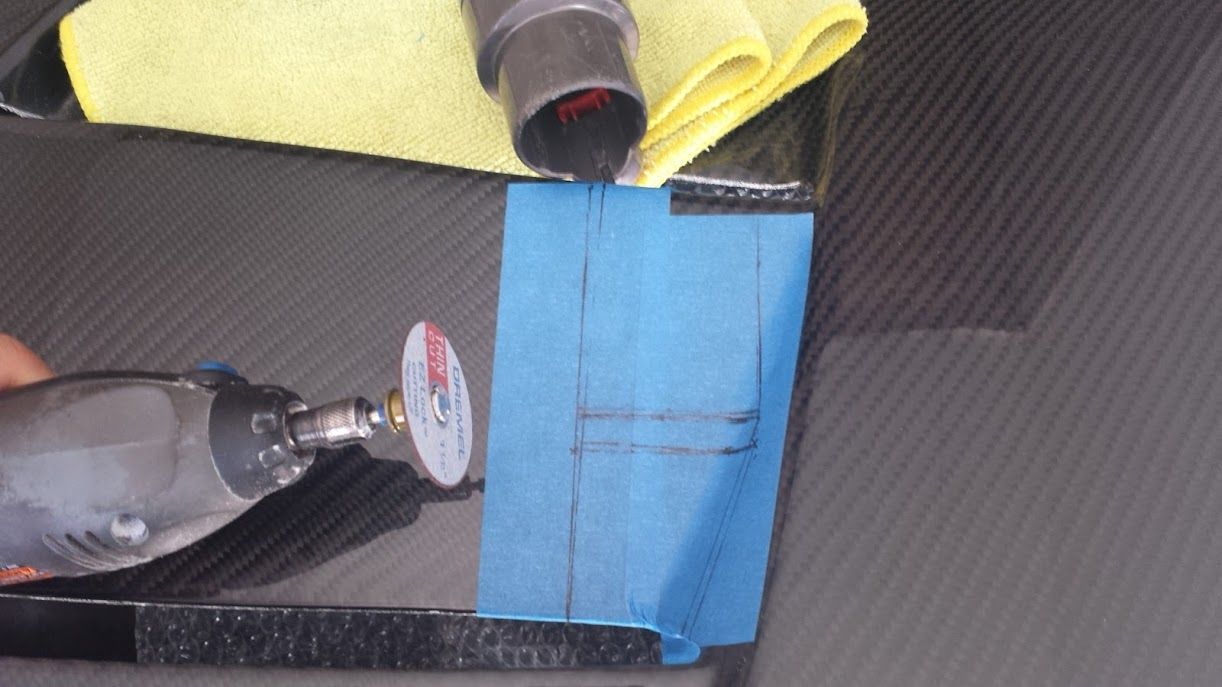

    Lot's and lot's of measuring before cutting. I think I spent 2 whole days installing the aerocatch latches. Not to mention it was my first time doing this kind of project.

    nLNzX6ywyXXJIbPNzRNh6tHh1SHBeYWLnJ0h4B-tyVdMyQUI9jGRaJ8188WNGKNHEyGzmEwPvpQ2bXqOcg=w1222-h687-no.jpg

    Done son!

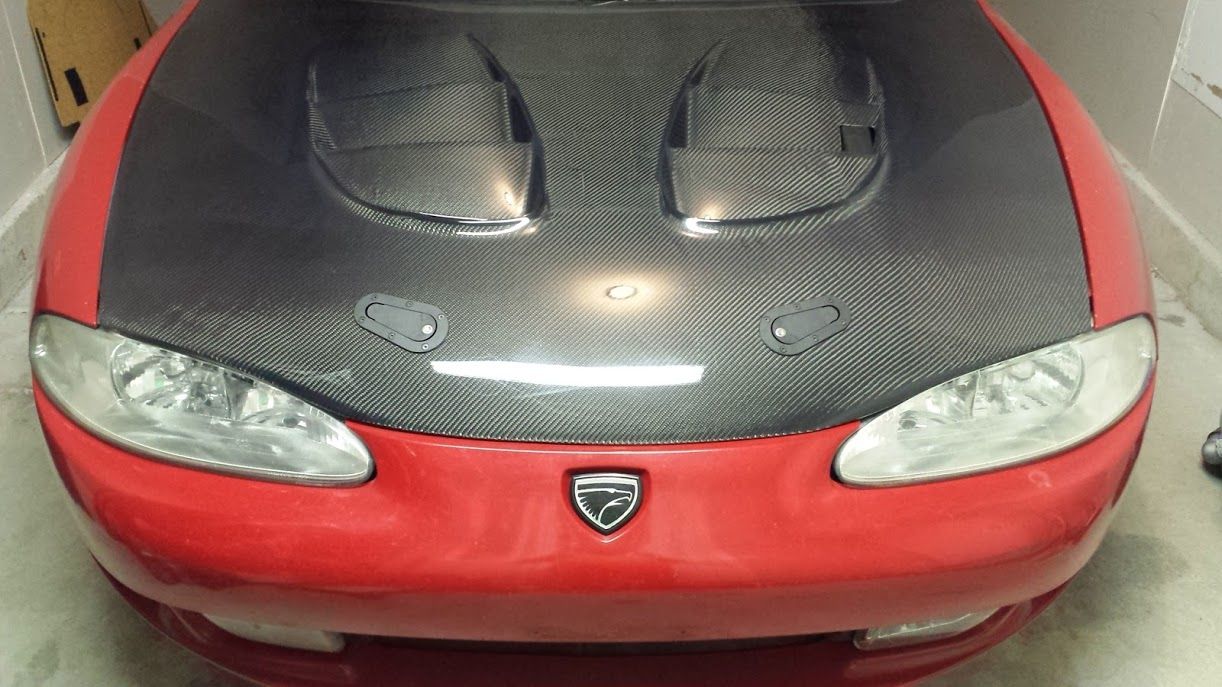

    nWxuCIFWXqFMmGgXPFicRwDWZRFpLH-EfZ7xNrCnAzSjpC5Q4i8tce057TvFrDyIaBCrinZ2zlxf_8JQRg=w1222-h687-no.jpg

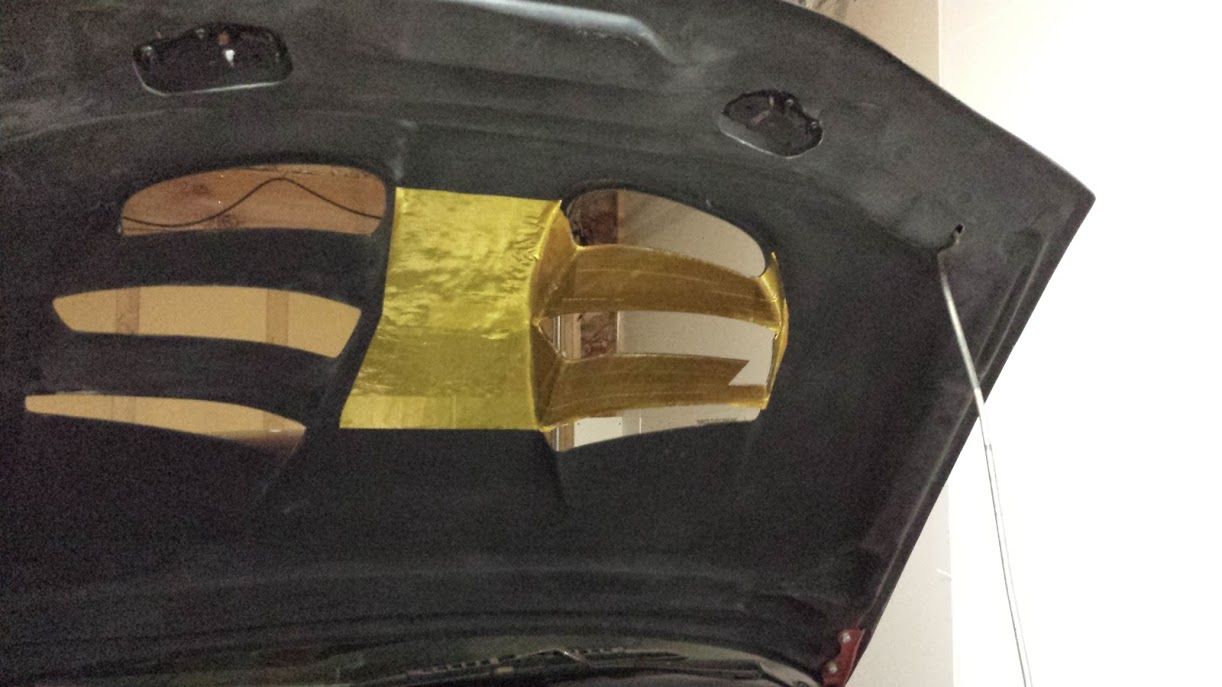

    I also looked into some heat reflective tape and found a company in Canada called Goldilocks Automotive. I decided to buy a roll of their GA Elite Gold Thermal Tape (DGA00055EG) and put some on the underside of the hood where the most heat was concentrated. Expensive stuff! But after some researching I was confident I had some excellent quality tape.

    f3I38bH62bat8EWLsOiEJjXzQwFni8ZcPk5oDBrRilKorennFppC5I-Y4cVjdF-rSPGkekq4sl1zb3SaVQ=w1222-h687-no.jpg

    A little back track, right before I decided to install my hood, I had found someone in my home state that was selling a new CSL carbon fiber hatch. So I hopped on that immediately! No wait time - score!!

    gh45IbYGrj3l66QyhulsUPPkd1ZdRzr-OnQjavCeKKu5iwzhiuq82_J77cLum-632DGWIdKuWDCAqzmxyA=w1024-h576-no.jpg

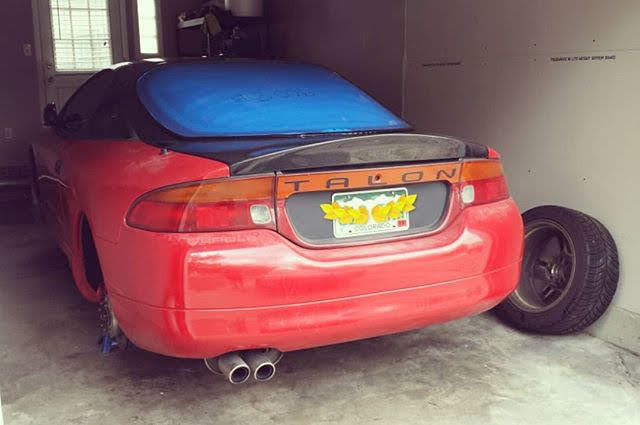

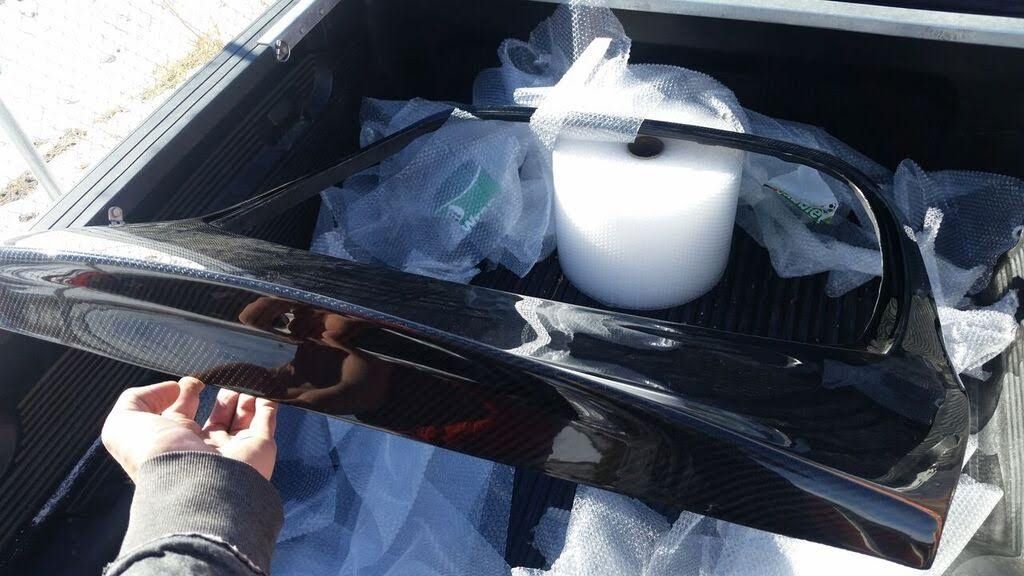

    I contacted Sergio and ordered one of the last FAL hatch glass pieces he had in stock. The wait for that was actually not long at all - since he didn't have to make it haha.

    I had to do some minor trimming/shaving of the edges of the glass when I installed it.

    Q5KP27UWcGPlbbO-vTnAmZXxvITfRHEebLUEAtvkAga_fSaA_P7KLn37Ob214mNYVUFRu_YjhucuPH2_eyg=w640-h425-no.jpg

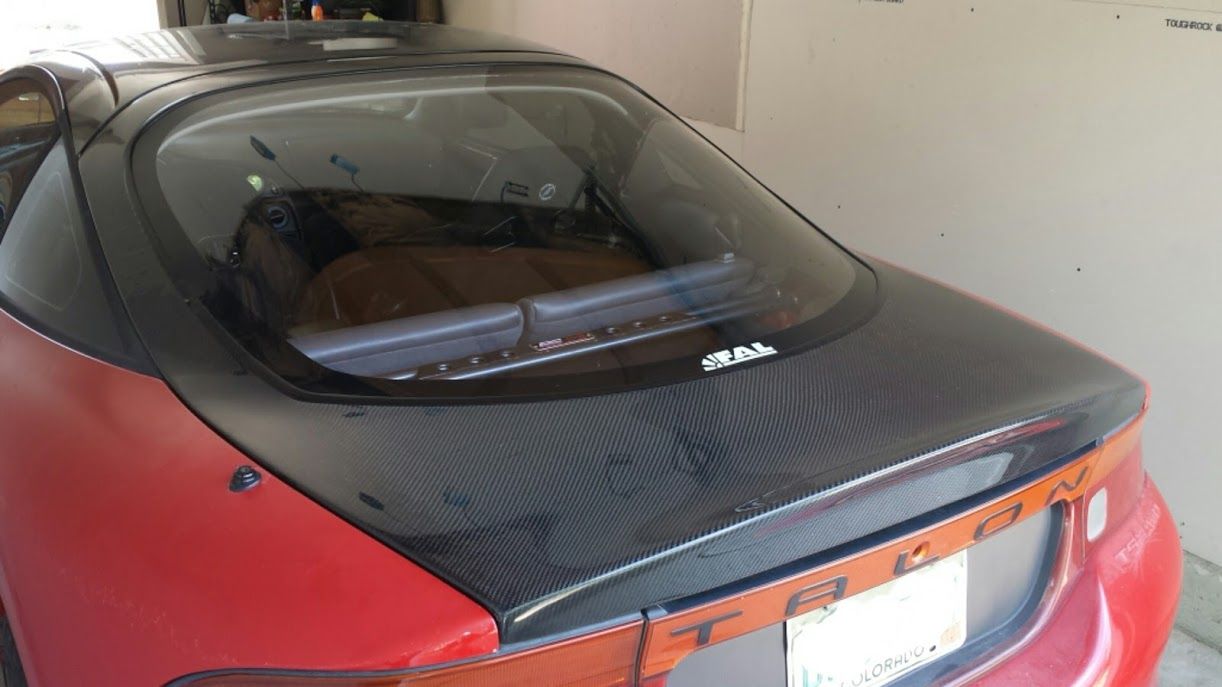

    I used Metro Moulded Ribbon Sealer MW38115 (for auto glass replacement) and a new OEM weatherstripping/trim around the glass.

    uULzT427HL_lZCosqt48LcowHrtECVhue7dRpYPtWbF6wKzpyAHVPqLIBI1qXfU0pXl_CW_5L3GEx4yaSA=w1222-h687-no.jpg

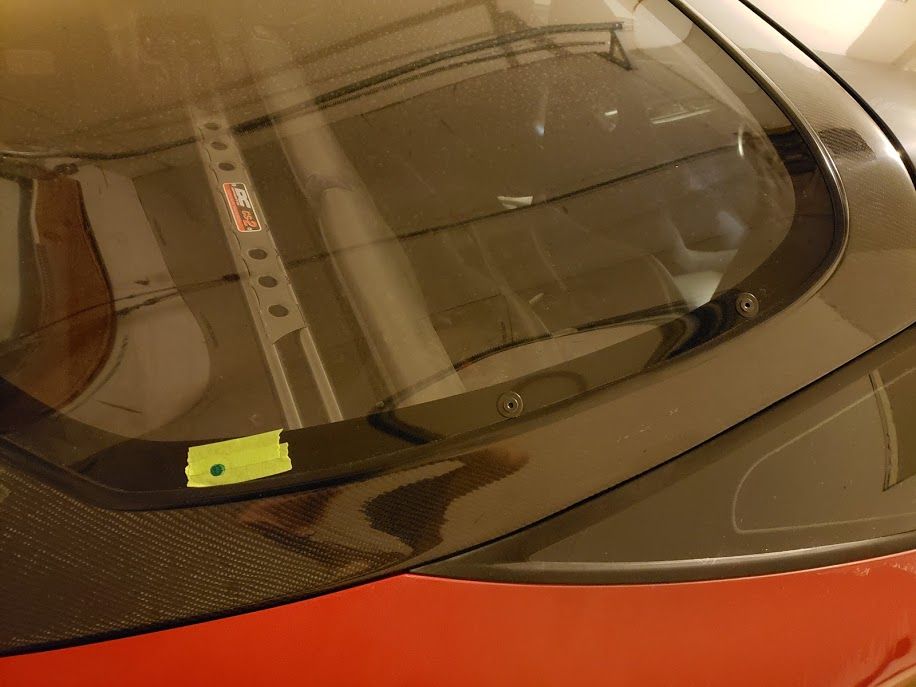

    After a little while I added some super low profile bolts on the sides to fully secure it in place.

    62fSRzEypK-eX7uvIlTEZ_z8-Sp2IQyj3xWK8iLEeAEHzM39kOYgxQvlBFZ26-AJUuB4yHEi60dob7k8jbg=w916-h687-no.jpg

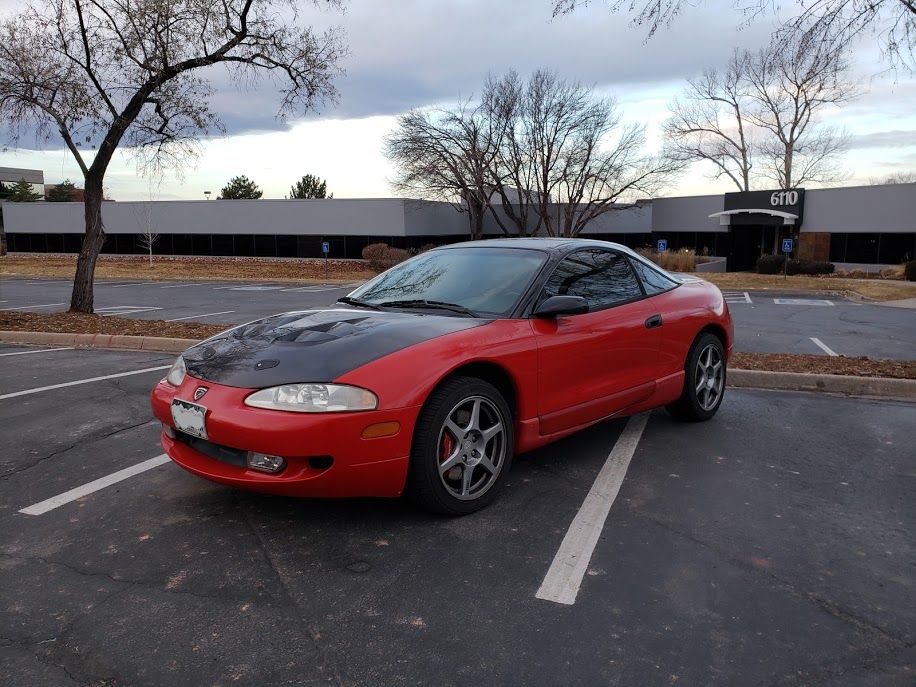

    Hood and hatch installed!

    6AkYcWFiJo4A169GW50l2BhpRmJg19yvI5elpY1qkk6V_0Rh_uqXOdBNqhbHimdNBD869irOOhvyz6neoOQ=w916-h687-no.jpg

    Mmm, I likes my carbon fiber, now I was ready to address some key areas to begin to turn it into a competition worthy car.

    Stay tuned for more!

    Last edited: Nov 8, 2019

    Road Race Build 2K  9

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
    ec17pse likes this.
  6. GSXbooster

    GSXbooster Proven Member

    93
    57
    Joined Jun 3, 2003
    Centennial, Colorado

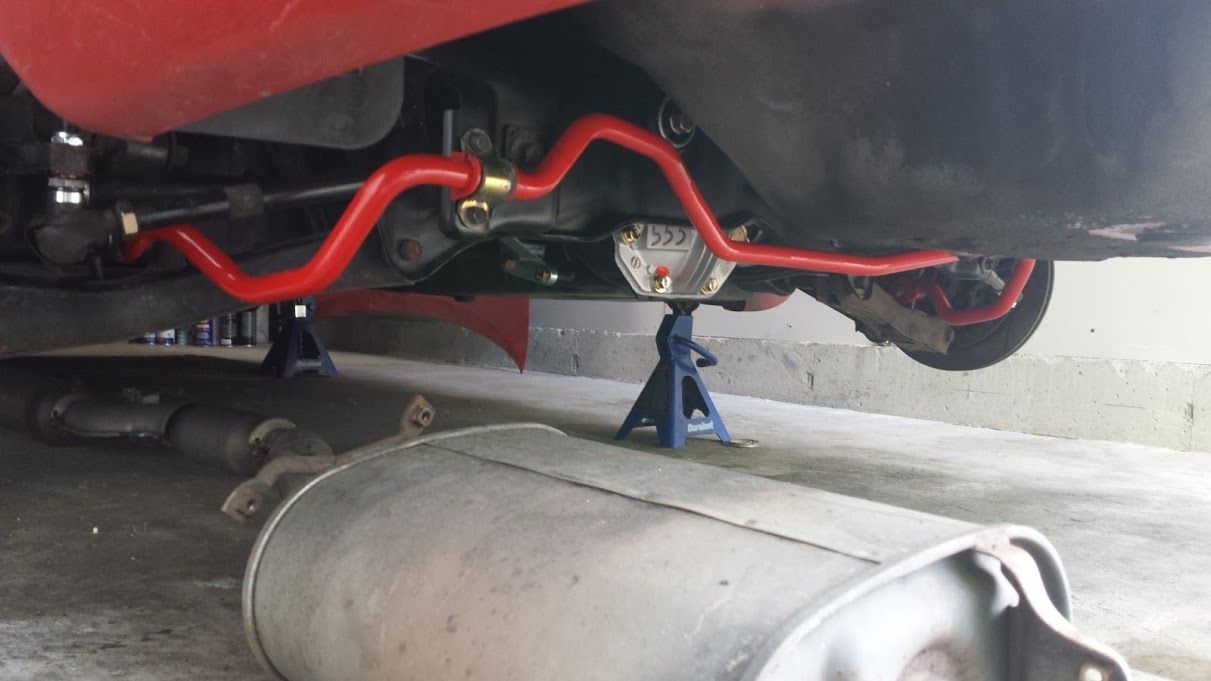

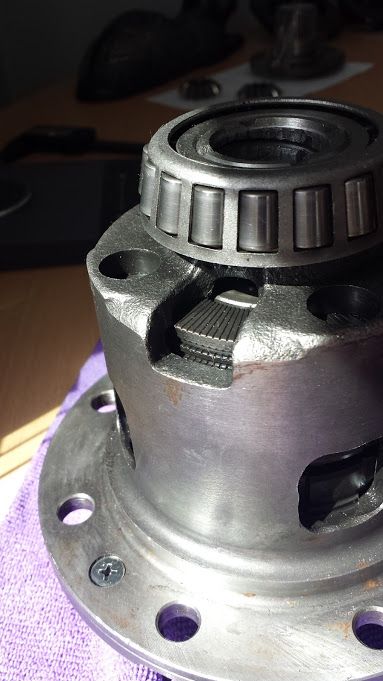

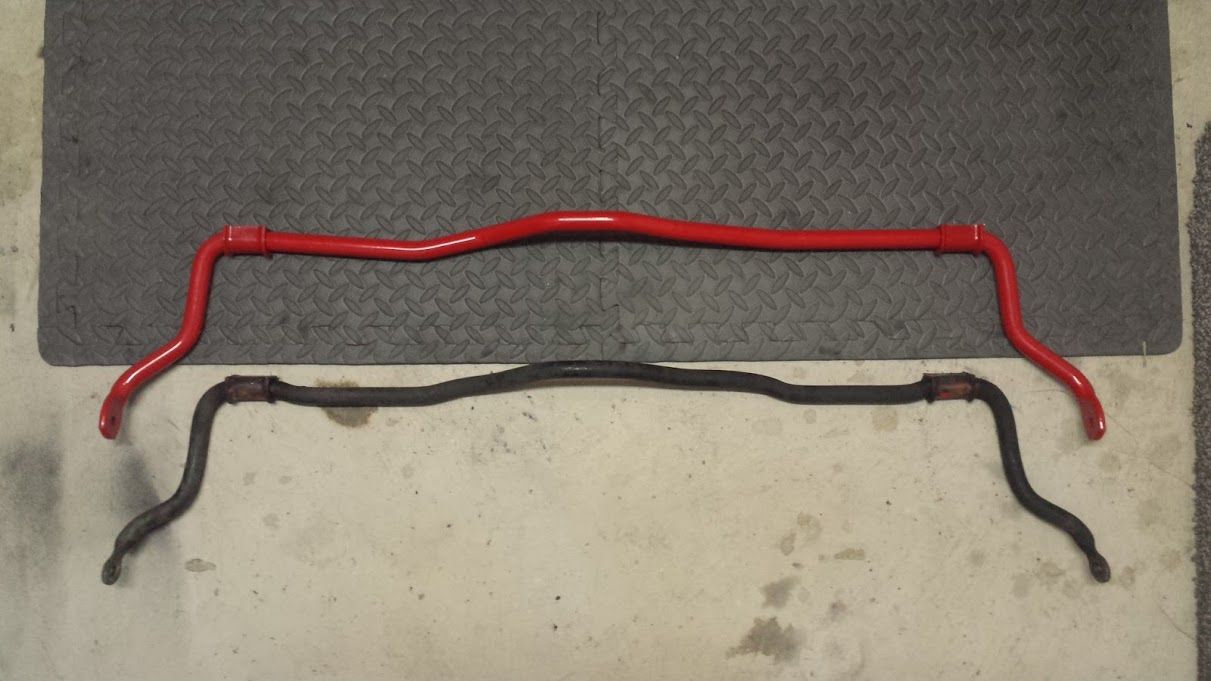

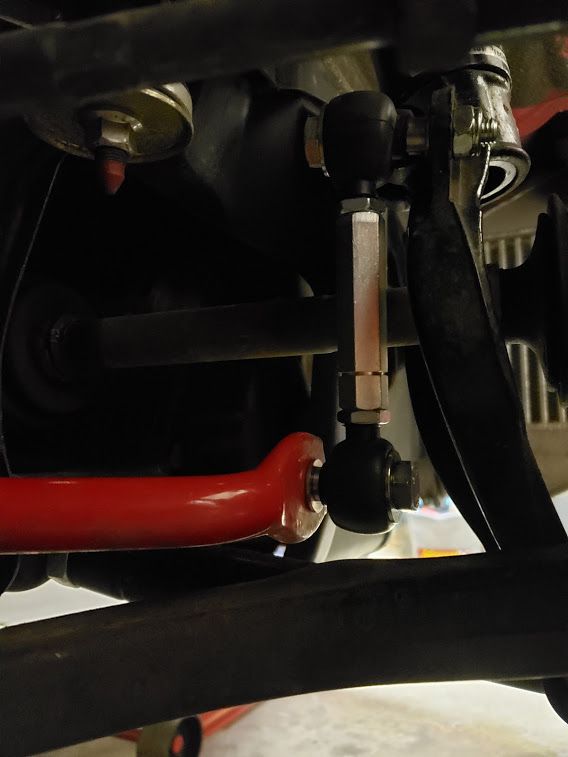

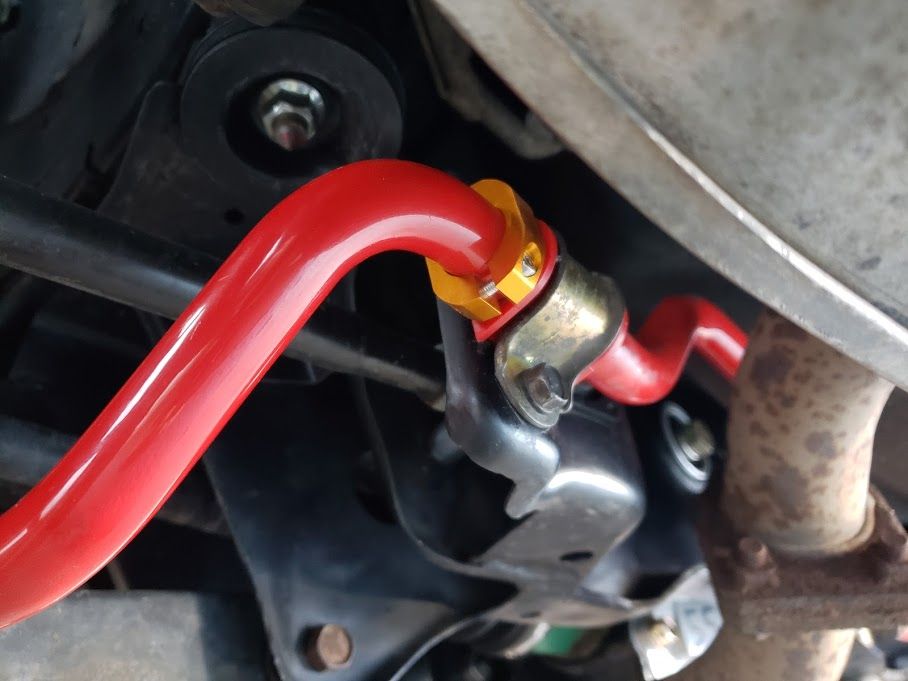

    Subframe bushings, Alternator relocation, RM Sway bars & Rear LSD upgrade

    On my quest to further improve on the chassis rigidity, I looked at bushing options for the subframes.
    The bushings on the front and rear subframes were in bad shape anyway and it was time to replace them with something better. So here we go!

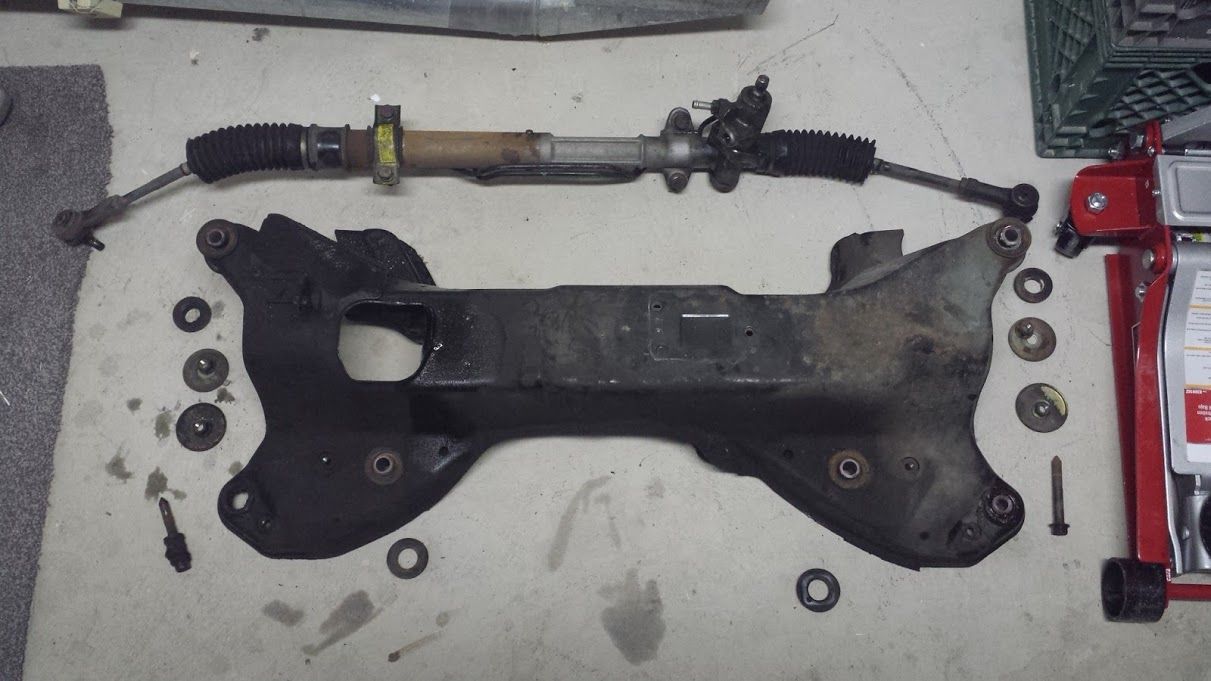

    I pulled out and worked on the front subframe first.

    0K2t7-VMox9S98waQVl8zWWfSdqDtLHCCGiQGvcg9FeCndb7WhtehE5Qtcqlop84N2QQY59kLFgM1m7AjQ=w1211-h681-no.jpg

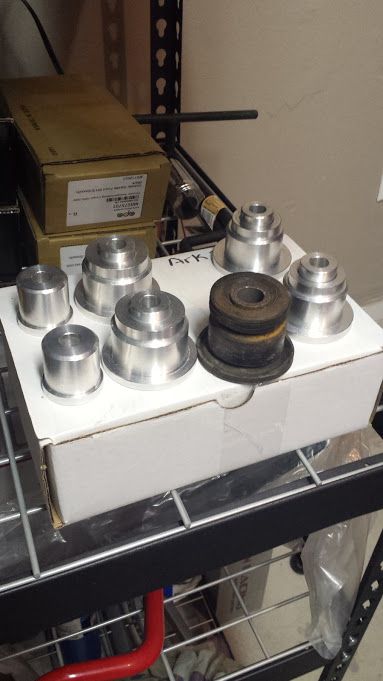

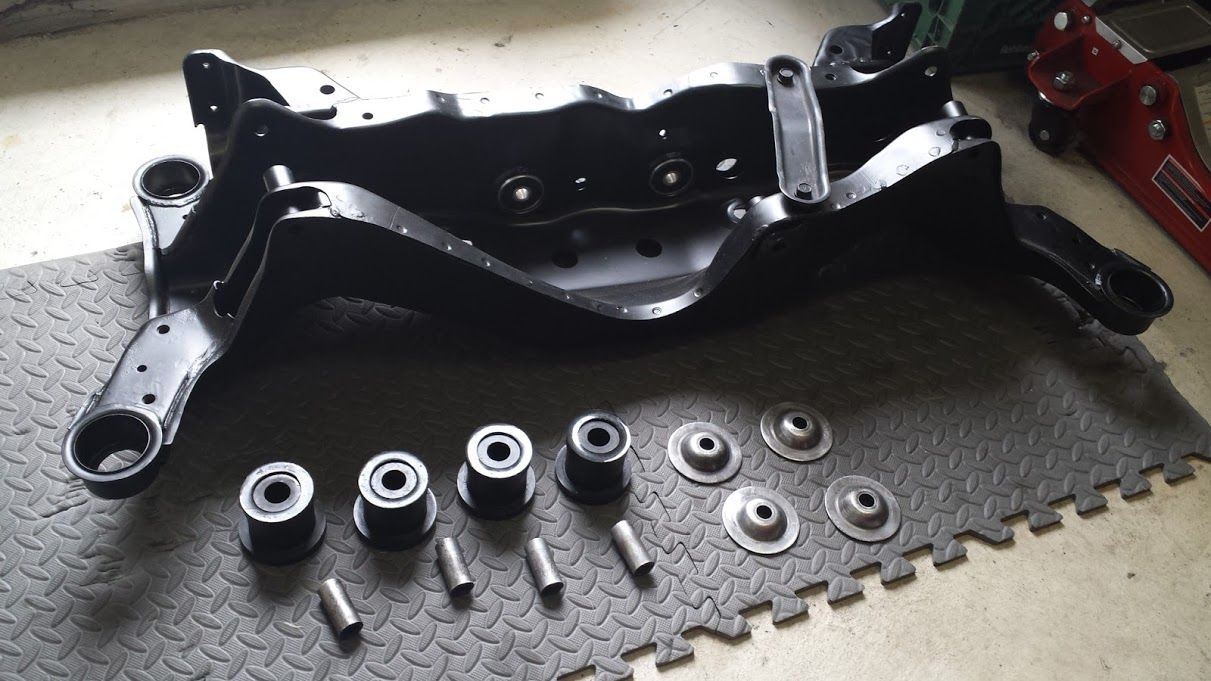

    The new bushings that were replacing the old ones. Split Motorsports aluminum front subframe bushings.

    Y92CqpsGRlNJJktyzW9g7XlOR3NNCOIxQrOrutgSZ7TnuGyhO5BQRQM7GrnadfhQuhdRJCcTacyW7RJyiIQ=w384-h681-no.jpg

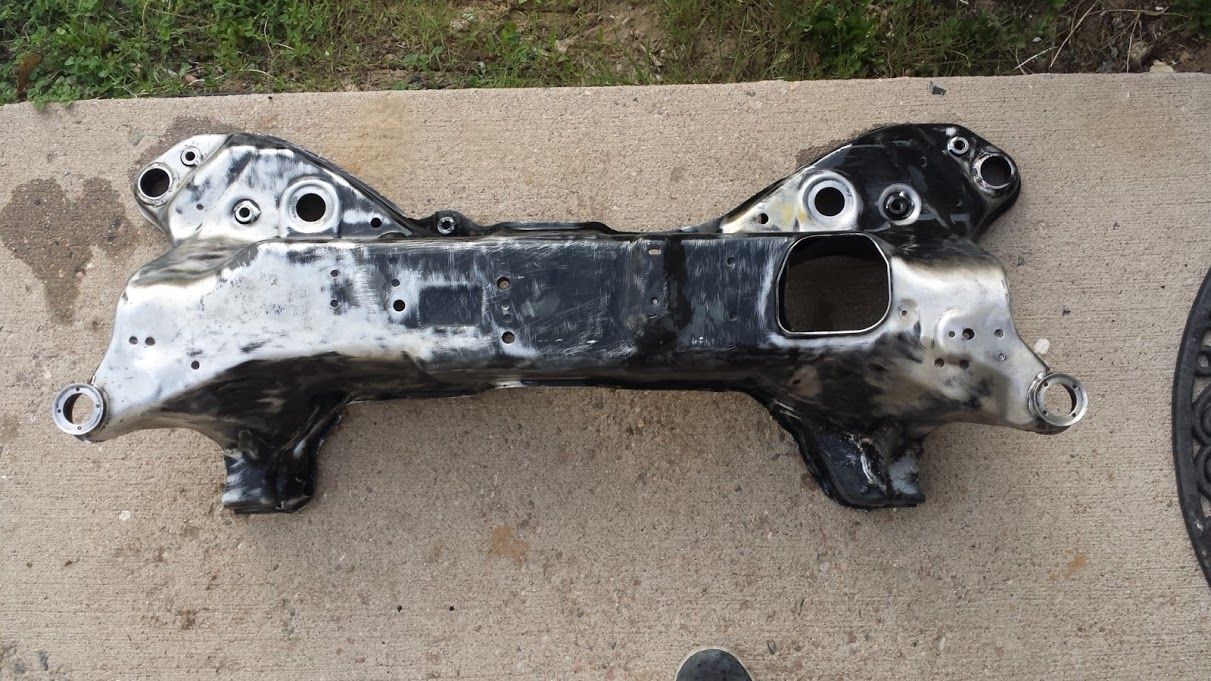

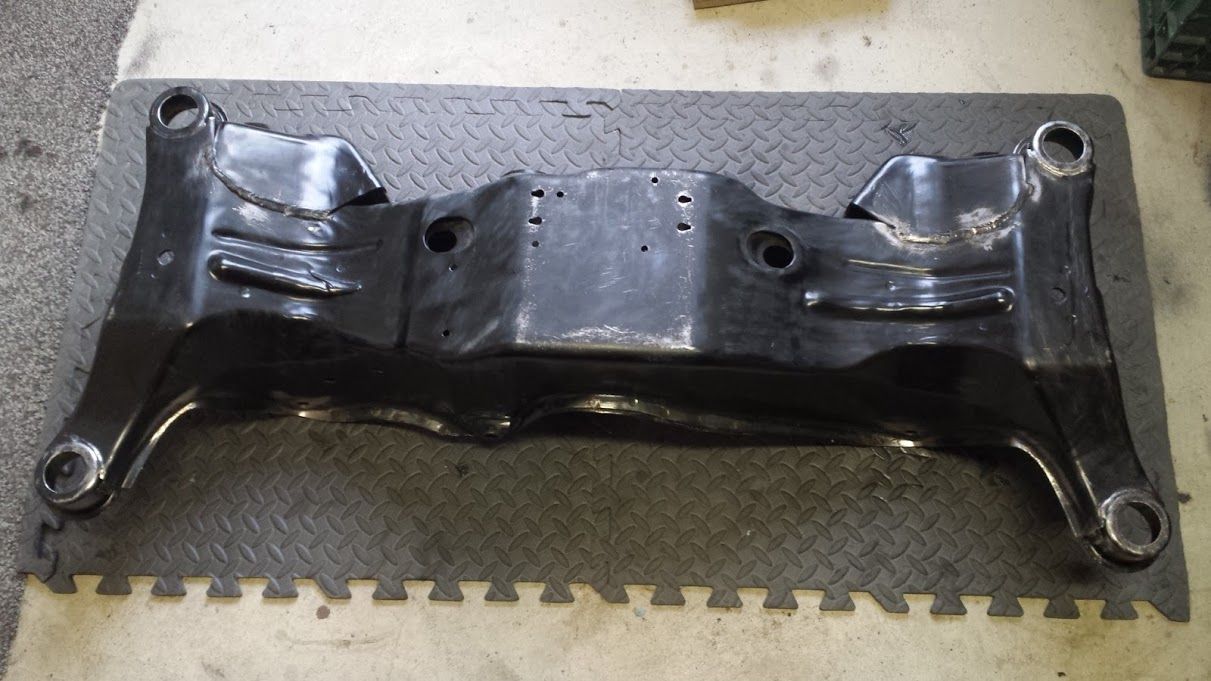

    I cleaned up the subframe and ground away all the surface rust it had accumulated due to a leaking battery in it's past. I used some wire wheels and a drill to get that job done.

    bSM6v_ipDTN6z4Nl34OJGG2oVrjZr7moejvVafYXPe-fr3RHQIxnfjOvpDI775PEcuzqDW3RT59bYDLa9Q=w1211-h681-no.jpg

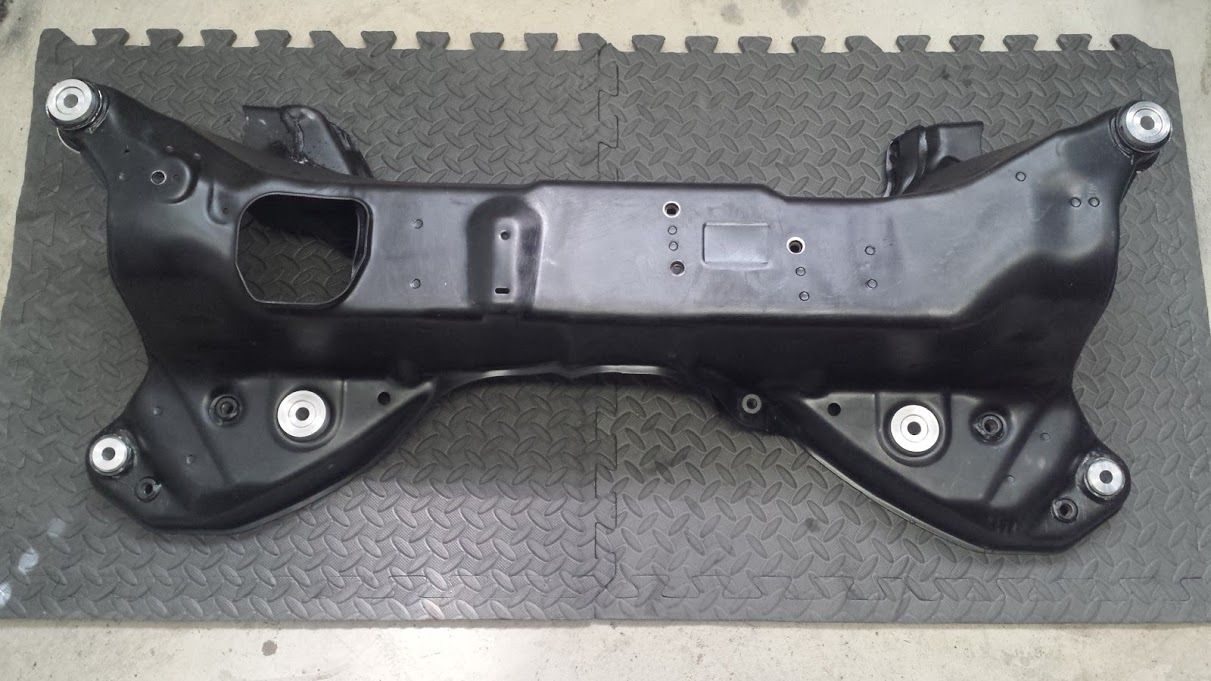

    Then before installing the new bushings, I gave it a nice few coats of paint using VHT High Temperature Roll Bar and Chassis - Satin Black color. It turned out pretty nice.

    3-Nk-dBG1drdnPvoNwKEenry3zvxmC78hY_ZswSdnpEAVRGAhc0ovZwIpG0T3jB84HnexVlVJk8hNDbv7w=w1211-h681-no.jpg

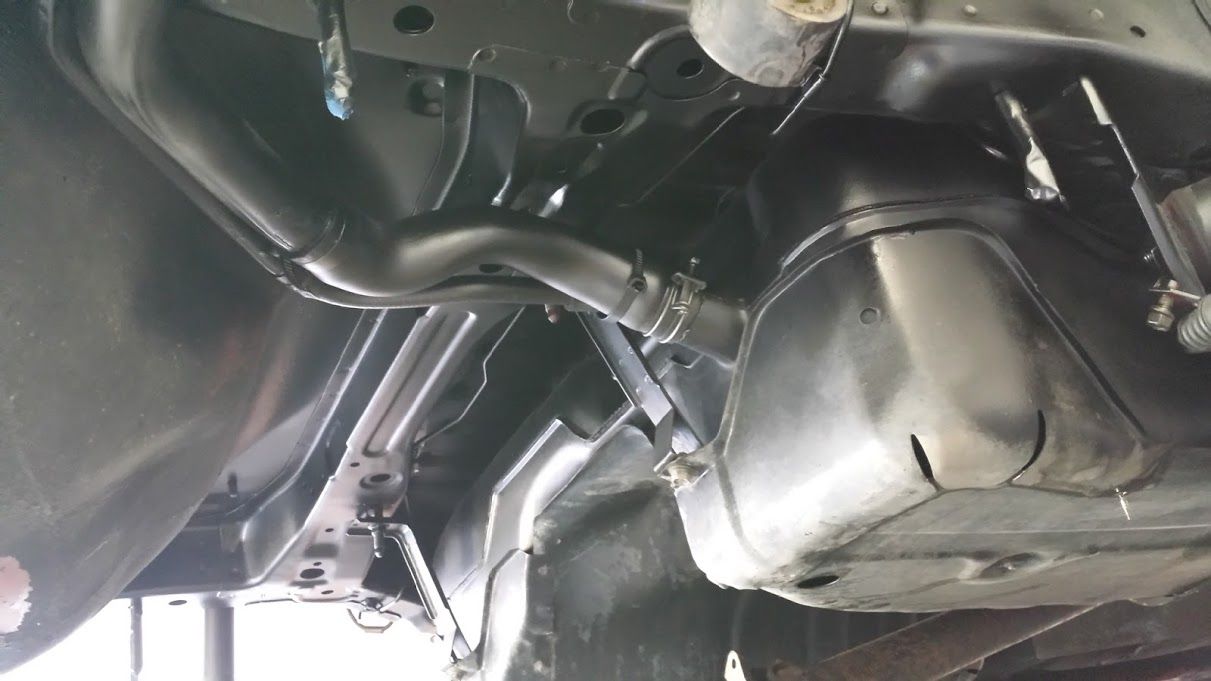

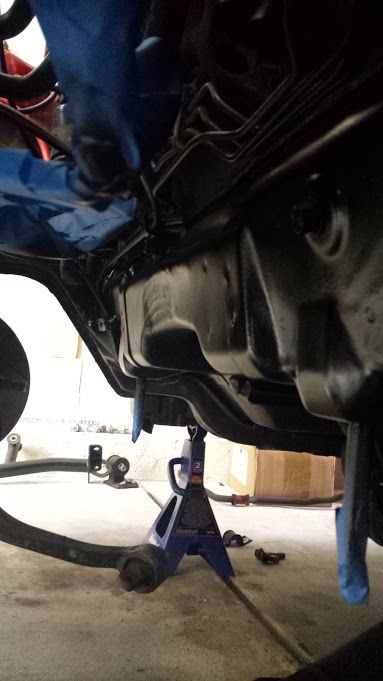

    Before I put it back in I gave the undercarriage area a good cleaning and coated it with Eastwood Rubberized Rust Encapsulator Undercoating to protect the body.

    qkiJnDQ3RHzfLRgU_y6gDDsrjhB8bPrl_VEgCnwDprKuSbON3fGsUDaxaPzrZmzv7RnwBmNV-y3-AVZtMgA=w384-h681-no.jpg

    I've always thought the alternator was in a funky and cramped spot in the engine bay. Too close to the exhaust heat and right underneath a potential fluid leak zone (power steering pump). Relocating it to the rear makes so much sense to me. As well I am able to upgrade to a much better unit and balance out the weight a little.

    With the front subframe out of the way, I had plenty of room to install my new alternator in its new location.

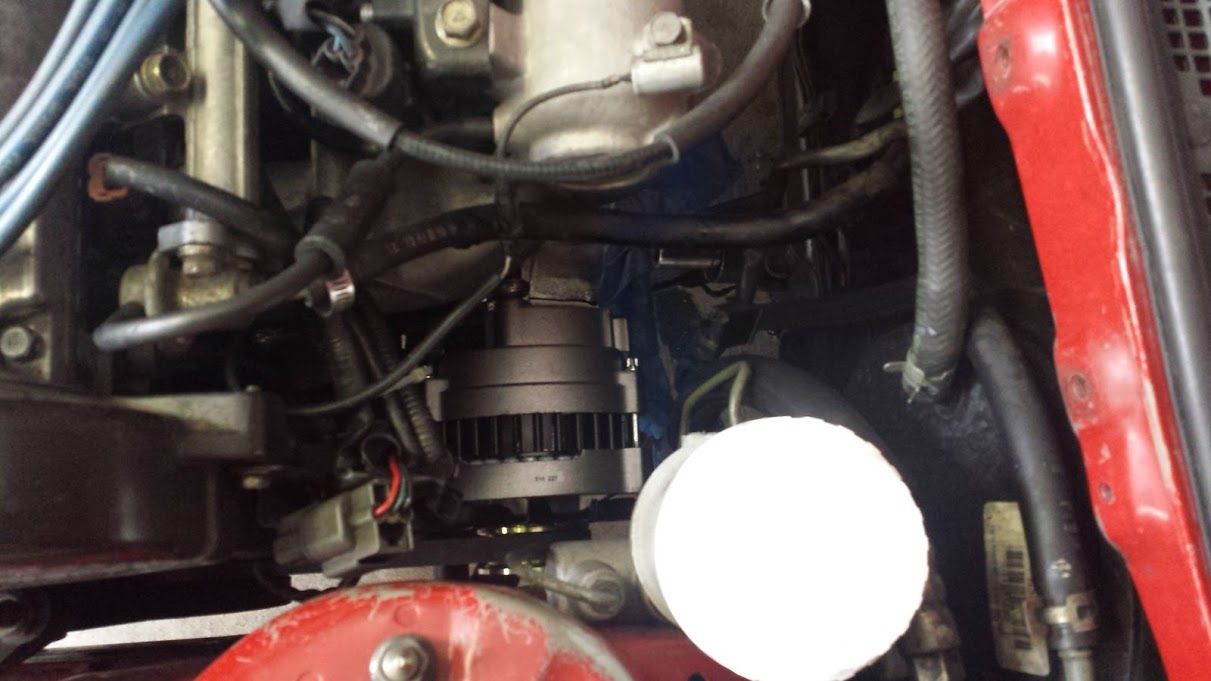

    Alternator Relocation:
    I Used Jay Racing's kit for the 2G with GM/Saturn alternator with the Alloy steel (Heavy Duty) main bracket.

    I ordered the alternator from Motor City Reman:
    Mitsubishi Eclipse 1 Wire Replacement Alternator
    Item# 8215-Eclipse1W - H.D. MAXX 105 Amp
    Delco Style CS-130 1 Wire alternator

    8-ajxY2ev-dpSleboyXNAdpR_QiEgGbHcvCnZCLIbSoYYGqM00BItL_oWVLB-bIRQ_NkTXRep7sWLXZrag=w1211-h681-no.jpg

    Now the front subframe was ready to go back in. I installed it using new OEM hardware.

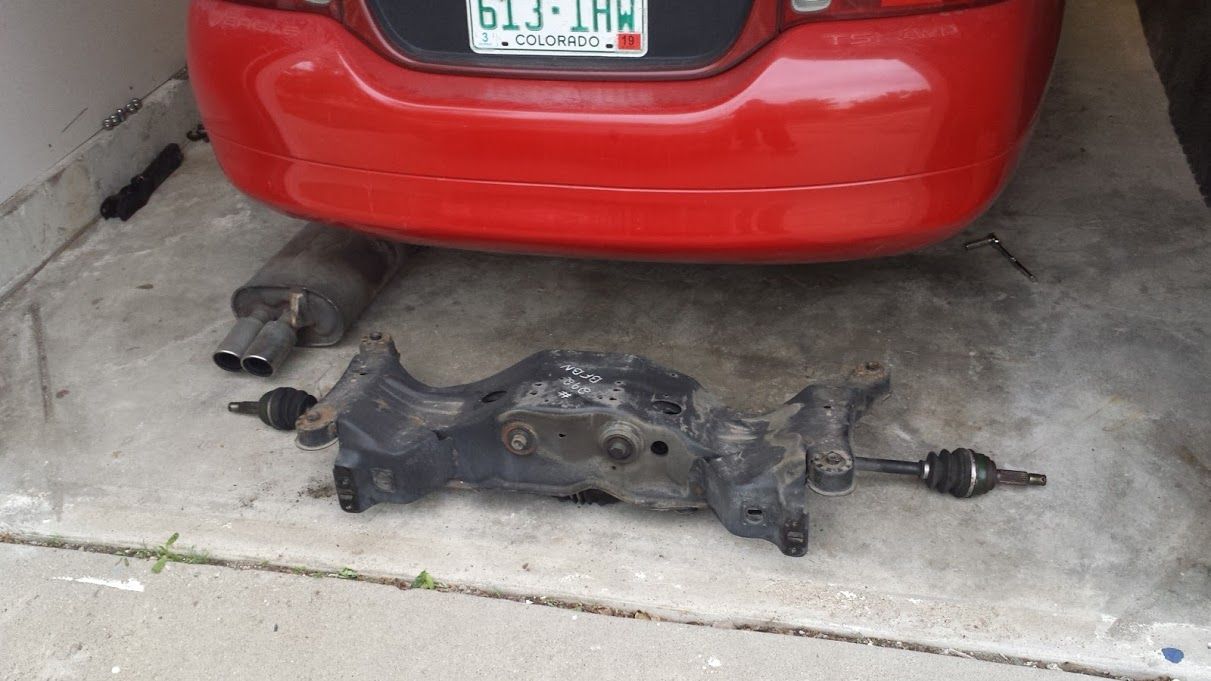

    For the rear subframe, I would have loved to have gone with one of Volk Metal Craft's tubular rear subframe's but perhaps in the future I will. Instead I went with the next best thing and replaced the bushings with stiffer polyurethane units and reinforced the rear differential mounting with one of Boston Hatcher's polyurethane mount kits.

    1NJNzmfkIsSF6NQpKR7MLFYe0Gn5iL3-Wq307D6RYjdPxNEl7JxgArWAHiFd-HQ3Lmtx5In3RkQ8HWKbjw=w1211-h681-no.jpg

    I sourced the bushings from Torque Solutions and Split Motorsports. After cleaning off the rear subframe I gave it a nice coat of the VHT High Temperature Roll Bar and Chassis - Satin Black too.

    Cleaned up with the old bushings removed...

    TETEYv9hxzw3KZ1OVu7ujr8bx5G1gHdpXsBjWq7LpcmzzAXYE7rVPbSaWsRkv1bqDs-FoLx5mQKsagoFUw=w1211-h681-no.jpg

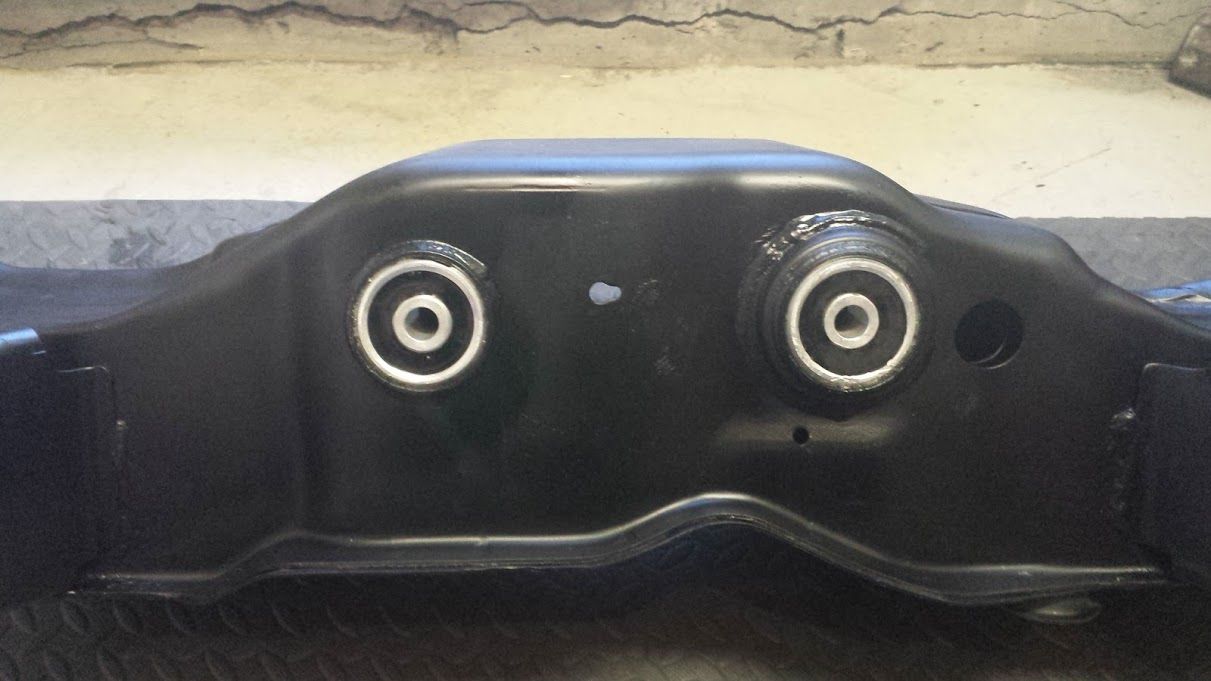

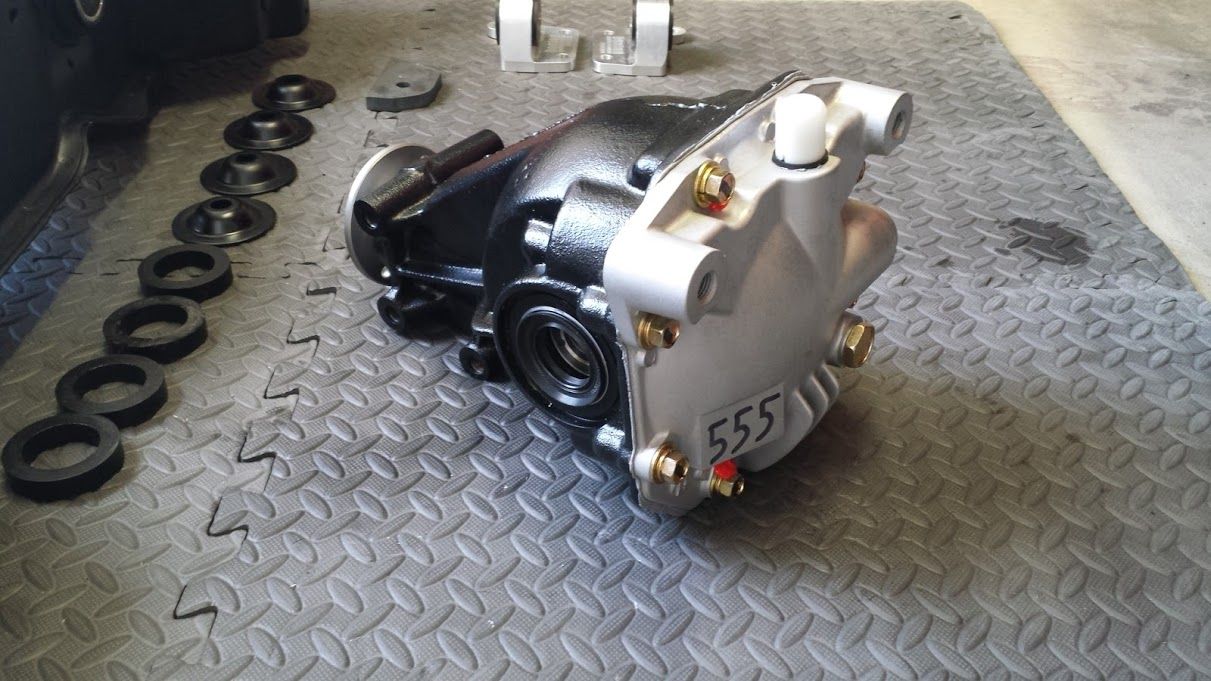

    Split Motorsports differential bushings installed...

    oggPiKy6nbJI2Q3Jf6aoK_B5AKelWqDETjWGvU_Rlv4ce2rjT0ek68sODeSS_G-gVb6WSzsFil5PAJkX_Q=w1211-h681-no.jpg

    Torque Solutions bushings ready to go on...

    PBXVH-NhoQ16kL5IP6nVgmpGL2BUEyCuhKLJBSzdtk3zGEUCC2NvB4ZAH1Gcpu_XBCsWKuOo0wyUhfdf8w=w1211-h681-no.jpg

    Boston Hatcher's mount welded on and painted...

    6NGi1zozXNB5cEhmoSilto9a8C2fwX-tIcnEJPXGkzpaxO7N42CiKqz7V_ZlrxhQG5qucf03xb4NRXXHjg=w1211-h681-no.jpg

    While I had the rear subframe out, I decided to send my NON-LSD rear differential over to Team Rip Engineering along with a JDM Evo mechanical type rear LSD.

    I had purchased one of these to originally attempt to install myself. After reading many reviews in both the DSM and Evo communities, I quickly decided to let TRE perform their magic instead.

    ksOUHPlFZ2ZiKzuncFbuPJ4Kzhwo5CAIC8eq35R_9zjvrdaqYAdjatny95e5RzARKVaFGALutlY-kFLc6TQ=w384-h681-no.jpg

    They did their full rebuild service along with their 12-plate MAX LOCK 1.5 way LSD upgrade, heavy duty side cover and shot peening of the internals.

    This is probably my favorite modification on the car. The reason for that is because of how much it changes the car's handling characteristics. Even just this LSD upgrade on a somewhat "stock" 2g is AMAZING. I'll elaborate a little bit more on this with some actual track day experience in a near future post.

    8c1GGewGojvozI0iywYdnL0vuM3Yu9v3rHy2uii3d-wfRhNSkp4L5hqnKuEbRadQwGrvy67rwsXx0m05zg=w1211-h681-no.jpg

    I also gave the rear end where the rear subframe bolts to, a nice cleaning and a good coating of the Eastwood Rubberized Rust Encapsulator Undercoating here as well.

    fUJzVZ4q1vhIoDQfJCzF7BF-D69D0j363Kq34W1RhXXisLafs0PxiZmc-_IQTdRc8VLueeSotPf7HfuiIw=w1211-h681-no.jpg

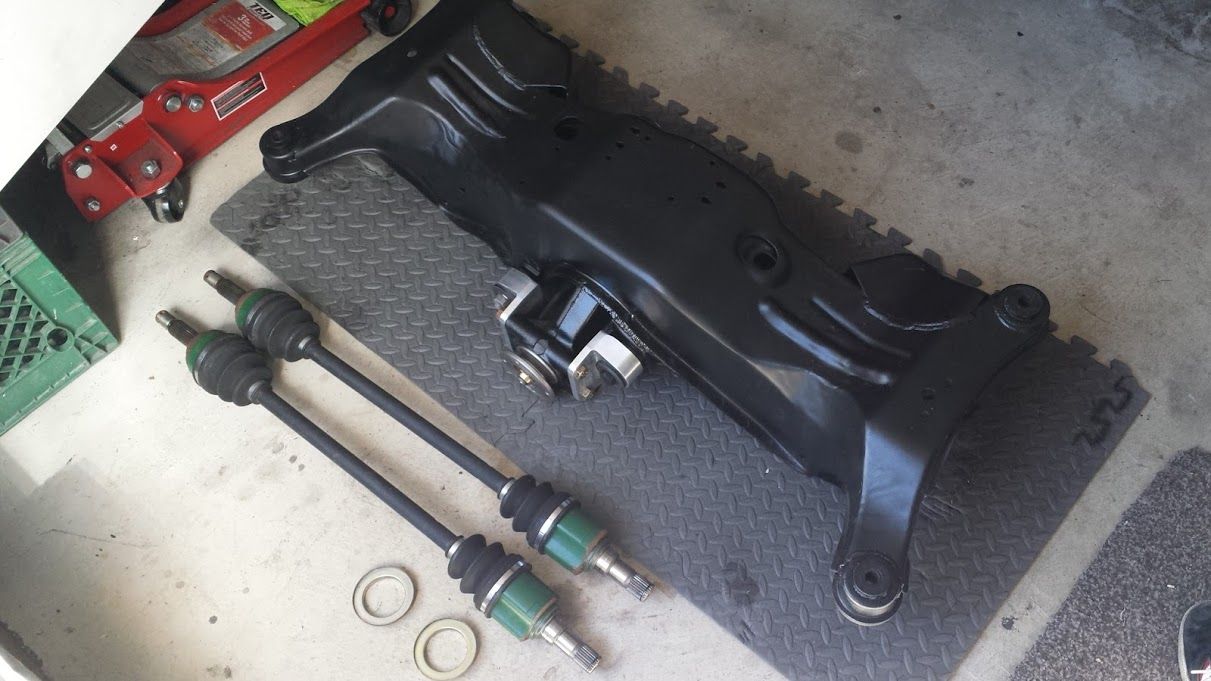

    The rear subframe was now ready to go back on. I installed it using new OEM hardware.

    _i71uniFyFOTevqkmzHbp5DVc0pUbrBB_gmGE9f_emIUUok8HRaxpV3Lfa0K0IJsK75if7E-Iu-YaBNCUw=w1211-h681-no.jpg

    The RM Racing sway bars. I had always wanted a set of these sway bars. For years I looked for them in the classifieds after Mach V stopped making them. With the efforts of other members we were able to petition them to be remade! This was a pretty awesome accomplishment that I was proud to be a part of. I like to think my prodding and begging emails to Dave helped to some degree. :) These bars made another big difference in the handling and feel of the car. Very solid and planted feeling.

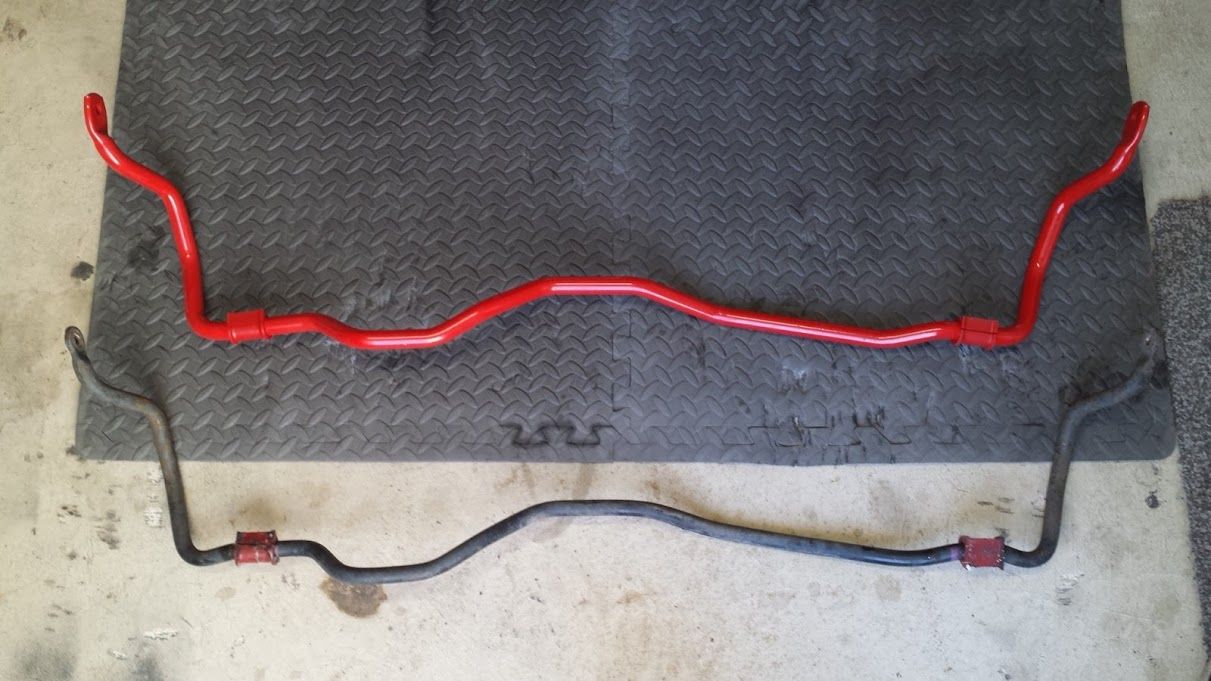

    Front sway bar comparison...

    UY707MD0SrwQxXB-TjQ7c5_OS52Q7KQx1RXi-YMIsLgJ3YULoBeATGJH51JvFWmONIhuUysy0hWyXp8E4w=w1211-h681-no.jpg

    Rear sway bar comparison...

    s0cyLMBRthe3M643qVzM6WrnBkaPtCMorQHVT-_XUPA26GnlcSbVMhuztKer-5jn6ZWrqGy3keuM4ZHIRA=w1211-h681-no.jpg

    Rear end back in place with the RM rear sway bar installed...

    9-NC3DpNLPPiRDhM3Y2AnL31-b11_yVf4mnsFKRE54pqhMGGQT0wYUb2Kqw_h1YlhmjavYIlfysM_iQ8pg=w1211-h681-no.jpg

    A little more on the alternator setup:
    Originally I tried the install per instructions but I had bad luck with the power steering belt being thrown off the pulley. No matter how tight I made it.

    It's kinda scary when all of a sudden you lose power steering during a mid turn.

    To make it work (in all situations including racing) I utilized the 2 belt system instead of the 3 belts that the kit is originally intended to be used with.

    Using only 2 belts means I didn't have to move the power steering over with the little bracket that is included in Jay Racing's kit. (I think this was the source of the issue.)

    I had to source the right size belt.
    I ALSO had to take into account my Fluidampr pulley which is slightly larger in diameter than the OE pulley.
    It took a few trips back and forth to the auto parts store but then I finally found the right one...

    Master Pro Serpentine Belt K040325 (4K325)
    9/16" x 33 1/4" OC
    (14mm x 844mm OC)

    The belt fits perfectly! No more slipping! It doesn't make any noise on cold startups or fully warmed up. And of course it doesn't get thrown off the pulley anymore.

    Great success!

    Finally:
    I added some Whiteline rear sway bar lateral locks. A nice little touch to help keep the rear sway bar from shifting laterally on hard corners.

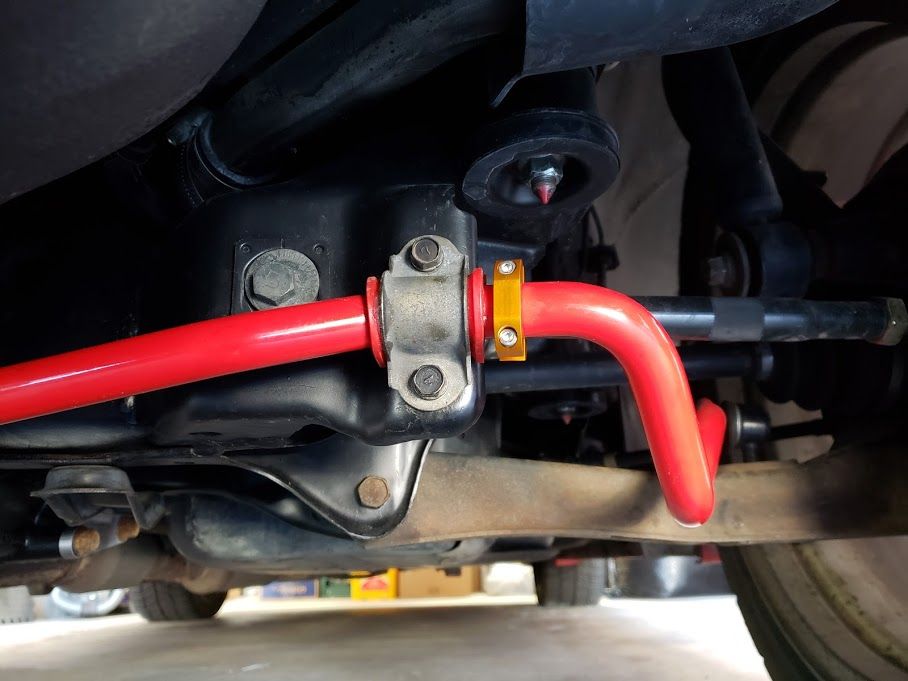

    Left side...

    RPQHF11gwHLSGPeHTX2TkP_eNv0fjbJtT7ffU52kODMsdMM5-h7EllI2WKq__MJeGfTj9xd9CWawyXAb0XA=w908-h681-no.jpg

    Right side...

    PyKiWaFMoe6kEVtjY7tuaXy6cLoNK8s4Oudb0d6q4hmBn2EmvfH9K34MRCnLKwZv4m-uGag5JaRroyIuB7Q=w908-h681-no.jpg

    More to come!


    Road Race Build 2K  9

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
    JohnnyT likes this.
  7. tk106

    tk106 Supporting Member

    1,755
    485
    Joined Sep 11, 2017
    Cincinnati, Ohio
    Wow man. Great resto! I'd like to attack my subframes one day too.


    167  3

    2000 Jeep Cherokee Sport - Classic
    awd · automatic · Misc Vehicles

    170  4

    93 Civic 4 Door -sold-
    fwd · manual · Misc Vehicles

    Street Build 2K  6

    1992 Eagle Talon TSi AWD
    12.625 @ 111.42 · 1G DSM
    Loading...
  8. GSXbooster

    GSXbooster Proven Member

    93
    57
    Joined Jun 3, 2003
    Centennial, Colorado
    Thank you!
    Upgrading the subframe bushings really makes a big difference! Especially as these cars are getting older.


    Road Race Build 2K  9

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
    ec17pse likes this.
  9. ec17pse

    ec17pse Freelancer

    3,472
    1,354
    Joined Nov 1, 2008
    London, Europe
    I have front bushes but never installed them, how did you get your old ones out? Just air hammer them?


    Road Race Build 8K  10  51

    1997 Mitsubishi Eclipse GST
    175 whp · 180.1 lb/ft · 2G DSM
    Loading...
  10. GSXbooster

    GSXbooster Proven Member

    93
    57
    Joined Jun 3, 2003
    Centennial, Colorado
    I used a hand drill to drill out circles on the inside and around the rubber parts of the bushings. After that I used a hand saw to cut the metal sleeves in half. Then a nice, big hammer and a punch/chisel to knock them out.

    Come to think of it I think I used a sledgehammer (BFH).


    Road Race Build 2K  9

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
    ec17pse likes this.
  11. ec17pse

    ec17pse Freelancer

    3,472
    1,354
    Joined Nov 1, 2008
    London, Europe
    Cool i might take a shot at it i might as well use them for now if i got them LOL


    Road Race Build 8K  10  51

    1997 Mitsubishi Eclipse GST
    175 whp · 180.1 lb/ft · 2G DSM
    Loading...
    GSXbooster likes this.
  12. GSXbooster

    GSXbooster Proven Member

    93
    57
    Joined Jun 3, 2003
    Centennial, Colorado
    Not bad at all for now!
    Though I'm still keeping an eye on your front subframe development too :thumb:


    Road Race Build 2K  9

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
    ec17pse likes this.
  13. GSXbooster

    GSXbooster Proven Member

    93
    57
    Joined Jun 3, 2003
    Centennial, Colorado

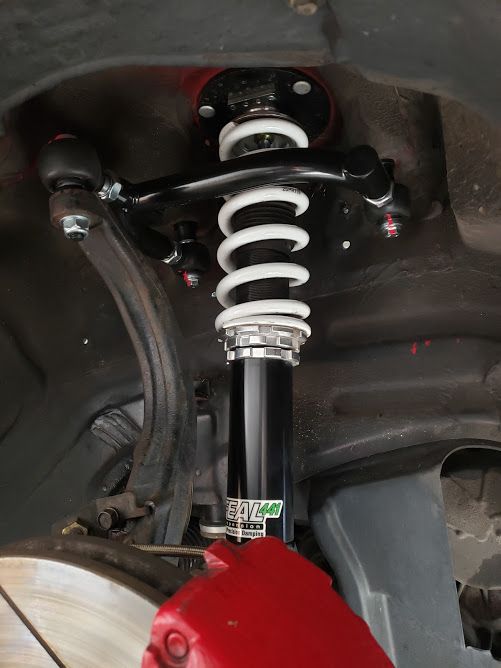

    Feal coilovers, adjustable front end links, tubular control arms & Carbing strut brace

    The car was now ready for some good coilovers.

    I waited for a while on getting some because I was unsure of what brand to go with. Originally I wanted something like JIC FLT-A2s. Then I looked at the DG spec Koni coilovers - a fine option. But after further researching and careful consideration, I ordered a brand new set of 441 coilovers from Feal.

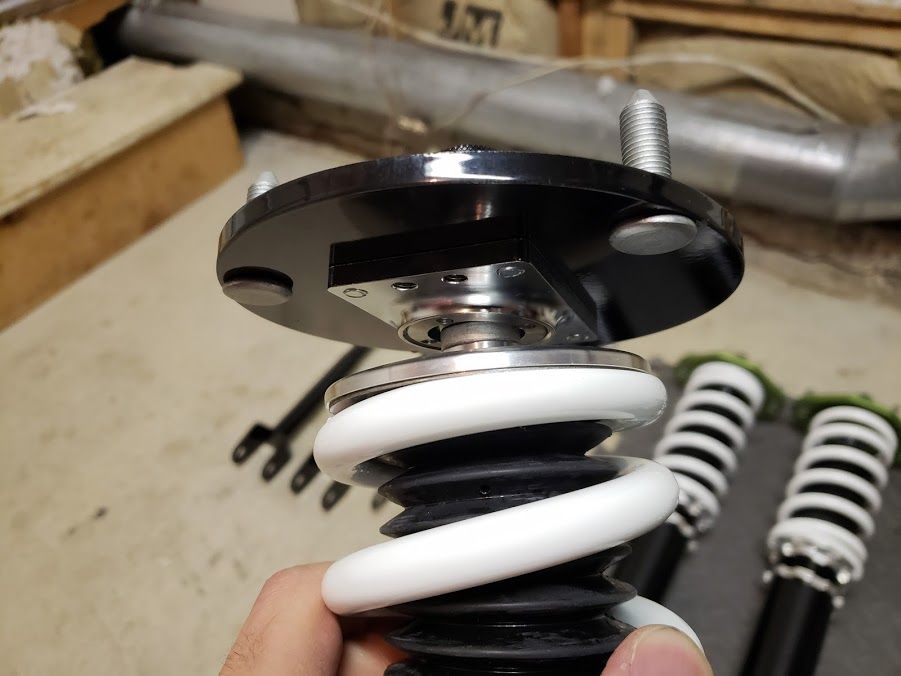

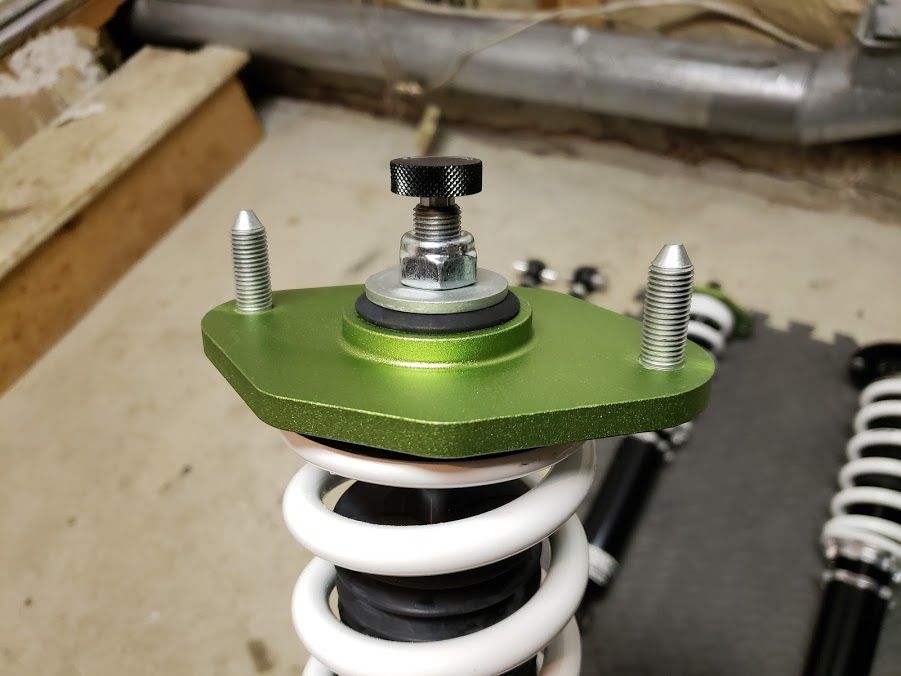

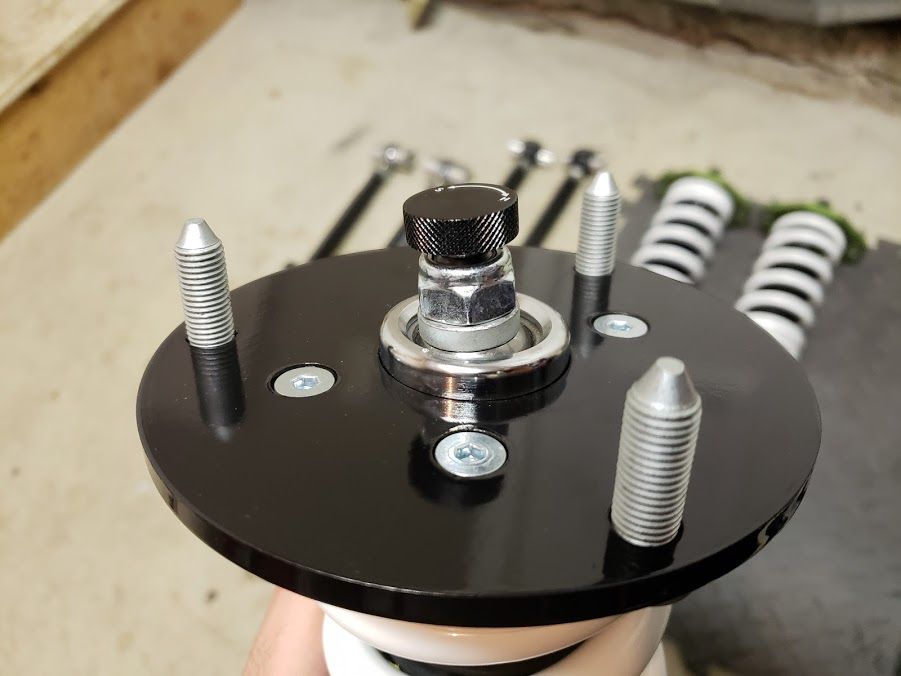

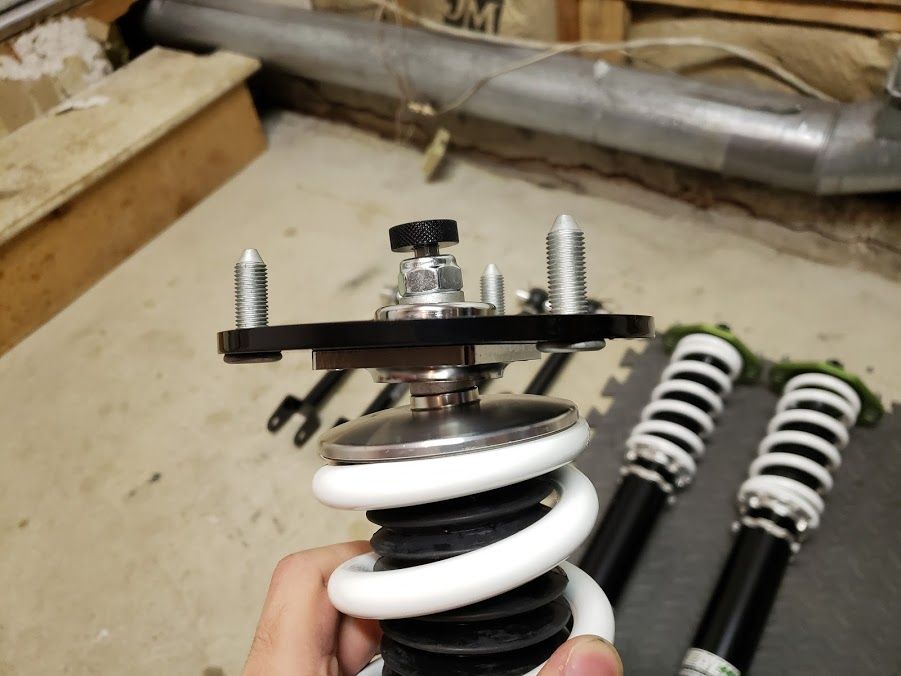

    Front top hats
    h2Qbu-7oySNQW8KOXg2Tofei2eC-NRPs3JgJy8e-1Af5UeaJjxiOb3729iK4ZRk1VF7CKwpcGkJe9HQ_Vbg=w902-h676-no.jpg
    smSvj9DD0xkd7e6xTy3HS9ax9Y8ZLfdQtn66cSV1oP_rgiHeF4gNN4a3YCDNaDoCGZMFtVaOR5-s1nOa-Cs=w902-h676-no.jpg
    _CakC3hWlUUBXhhYglcqrjAbKjPsLnofVofy2EVU-j8kXys2-xvwTHsFyRIj9AXQukMRdgKjuHHyZnYrBCI=w902-h676-no.jpg

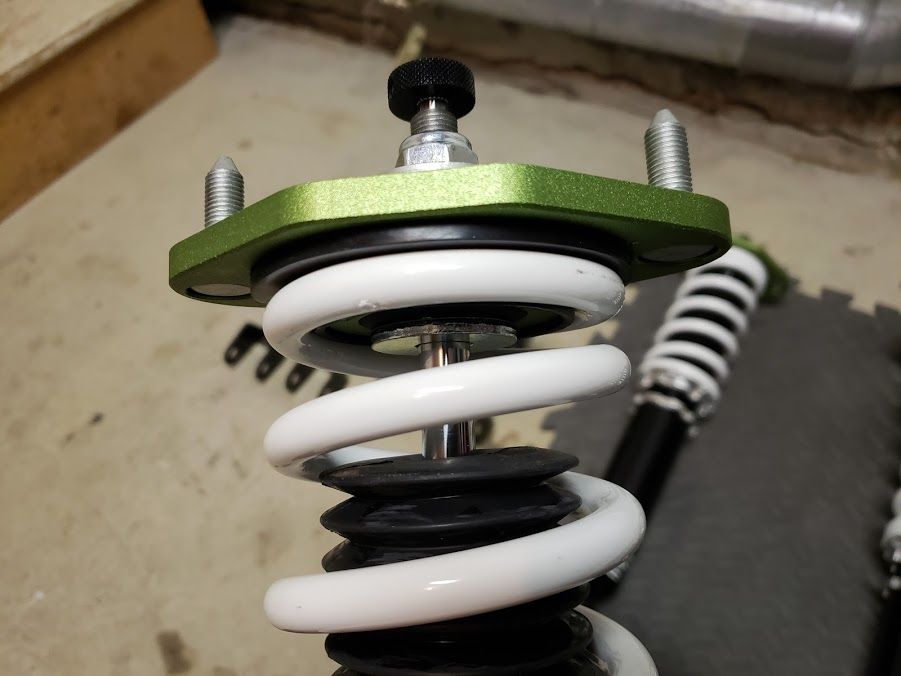

    Rear top hats
    cWTKZ0_kKCPgPRkkDP376BG_607lFrc6hUlMFWjxWsmH7nYWkwefMews0AgYtCAMBuXhM9rjzw5wCXhNrlA=w902-h676-no.jpg
    zsh6T4gvRE00N_zQQtg8ZGoYuH2ZLXW9lNvC09hVDOIETlALSQbuOxZdnzKv9j-tUSpXYn344BPP8h0XHgY=w902-h676-no.jpg
    The ride comfort is fantastic and the car turns in so easily and sharp with the proper front top hats this suspension system was designed to have. They are the 441 "basic" kit with their white springs. 10k springs in the front and 6K springs in the rear.
    I'll eventually upgrade to some stiffer Swift springs and get the shocks revalved as I develop the car more and move up to stickier tires. But they are a great starting point for me.

    I installed them along with some other suspension arm upgrades I had been gathering specifically for this momentous occasion.

    qAfofJ9SUpWTpj50g2BgoZaqcr4hlgHsS1lIccPtq4ExYVVGDV1ubv3_gxwuccK1M9O6FKMzeE66A6dZCY=w1010-h757-no.jpg

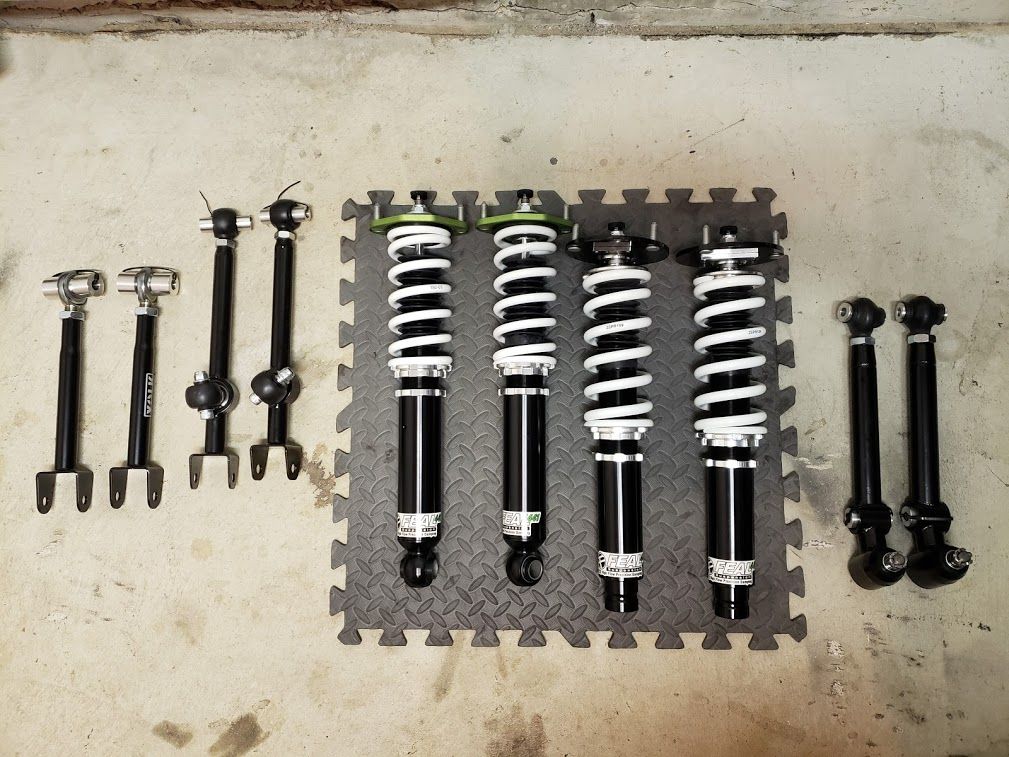

    Volk Metal Craft's front lower control arms
    Volk Metal Craft's rear trailing arms
    Bobby's rear lower control arms

    I adjusted the ride height to be as even on all four corners as I could get it using a basic measuring tape. The fronts are actually almost maxed out for as low they can go.
    However Paul's front lower control arms actually lower the front of the car an additional 1/2" without losing shock travel due to their design. Very nice!

    The rears are a different story and they can go SUPER low. Like tucked into the wheel wells low. I of course adjusted them to match the front ride height.

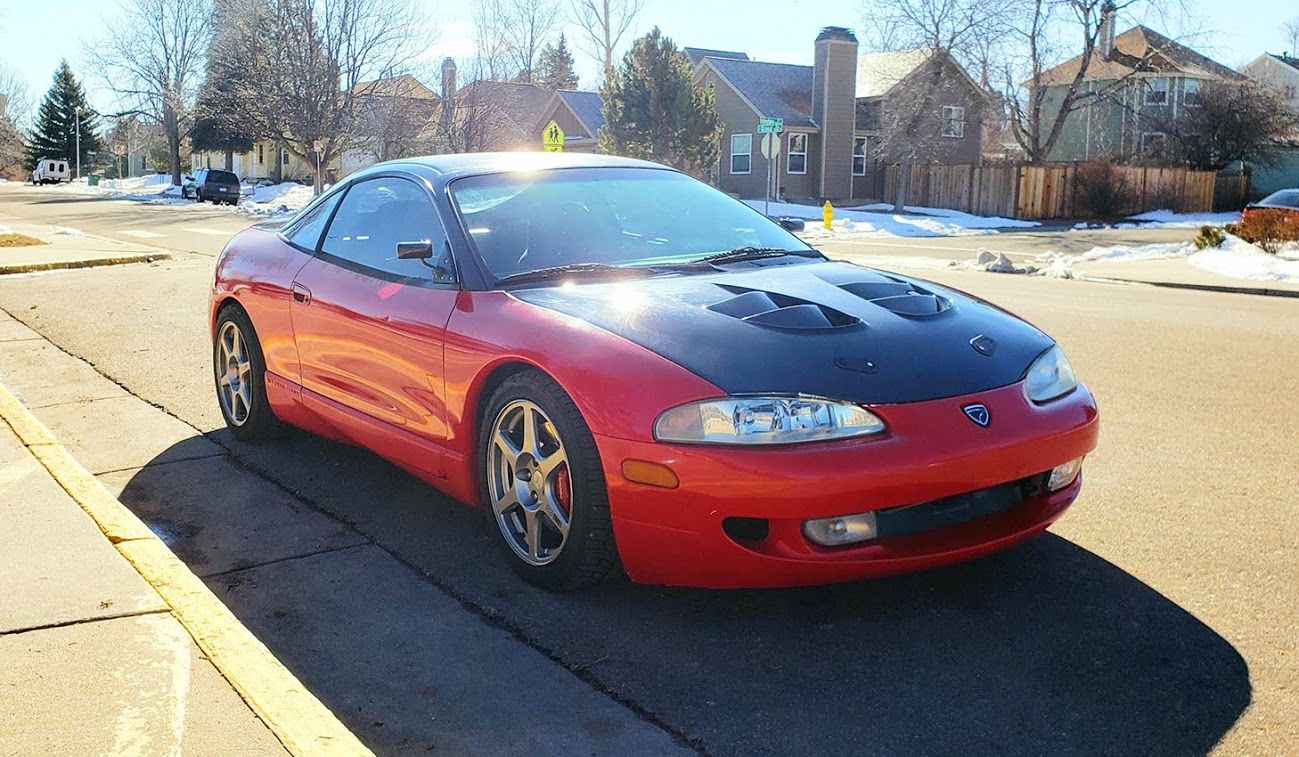

    -DQ6DnQvTXQ7PgClwAMSk4c7J2l89FMP1lymYFoPq8XaeLw_mva56QrQRJdy8RI5mhoh9SV4AG6ekVa_Hs=w1299-h757-no.jpg

    After the install I knew the rear tires would rub, so I made an appointment with one of my local race shops to get the rear fenders rolled.

    I went to a shop called Mofab and they did a fantastic job! They used the proper fender rolling tool (the one that attaches to the wheel hub with the wheel off) and applied heat to the lips as they carefully and slowly rolled them. You can't tell at all that the rears are rolled, unless you actually look up into the wheel wells. Super clean job!

    Since the car was sitting much lower they also did an alignment afterwards.

    0uYo5oQljH3UkwC2B3hGaEESPhjgYDDHpjF-bOhXr8rsOLFWcmhfBb_ZmwueKIgFYH39dC-x64XF1M-RHU=w1010-h757-no.jpg

    The only issue I ran into with my new coilovers was that the DC Sports front bar I had on there no longer fit! The adjustment knobs on the tops interfered with the bars and I couldn't even get the sides of the bar to seat, much less bolt them down.

    I looked for some designs that would work but I could only find the ones from eBay and Megan Racing. I wanted a solid one piece that would fit perfectly.

    I finally found a solid aluminum one piece bar.

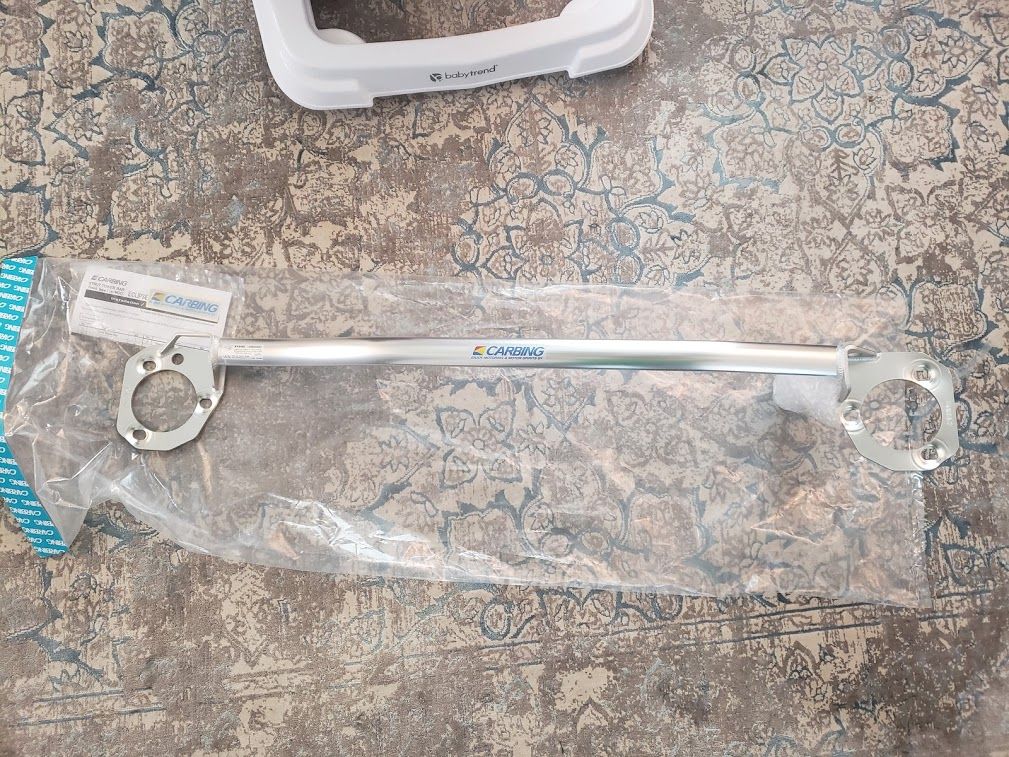

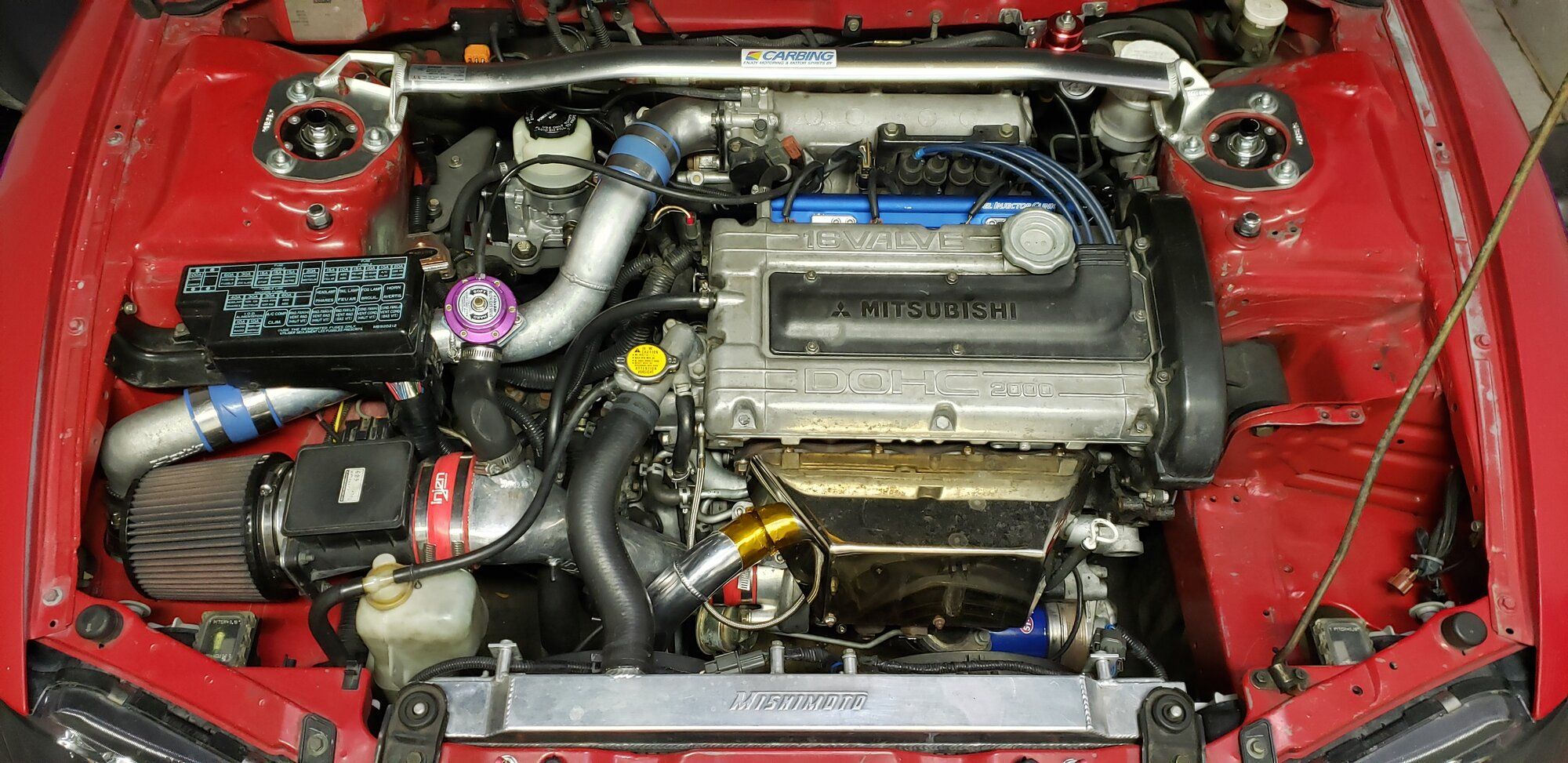

    Okuyama Carbing Type 1 front strut bar. I didn't even know they made one for the 2g chassis! Made to order, straight from Japan with a 3 month wait time! Totally worth it.

    GlKf4-YKe7kqcbKzNjA7VX05A5cpUL4ZmhNmBxjHldgQOhGdhHtL8y85IrfGFTB9CQ6igNwOV77D5rlMio=w1010-h757-no.jpg

    It's very pretty and very nicely constructed. It's a solid single piece and it fits perfectly around the shock towers without interfering with my coilover adjustment knobs.

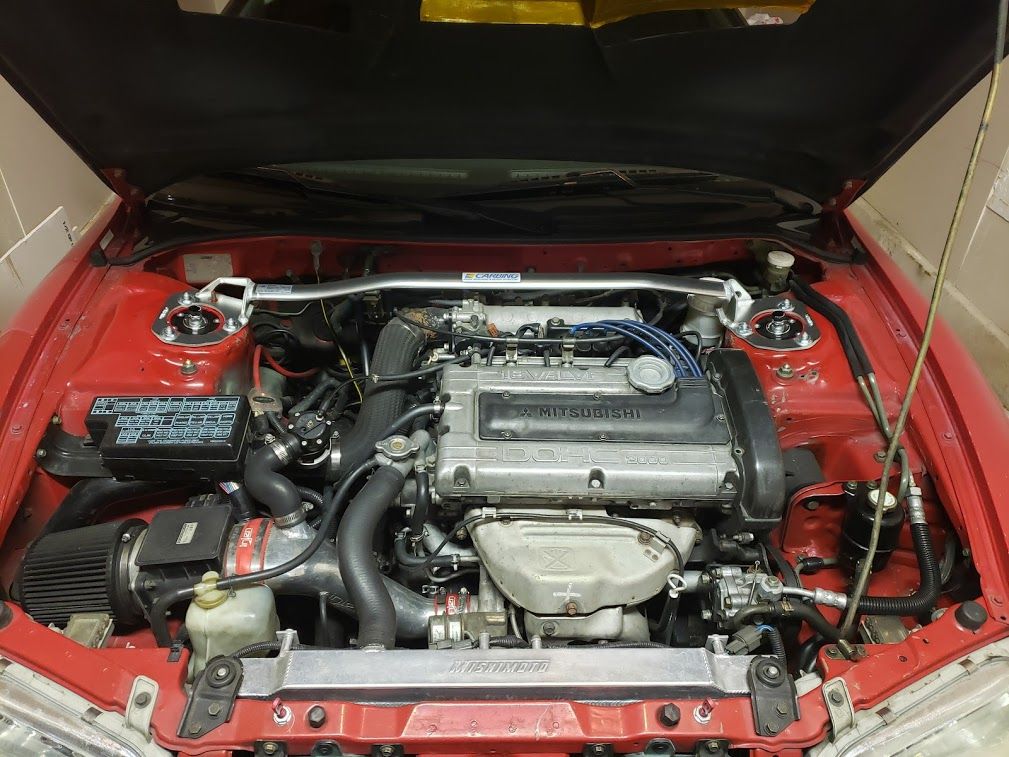

    On install I had to (very carefully) cut off the brake master cylinder stopper in order for the bar to fit. Besides the fact I'm using a 3g master cylinder, I figured maybe they have different ones in the Eclipse's in Japan?

    pJnPZdHOLegj34Btbv2hQ5_MVchVvNcpwMqFqlJ-H0wd87MUxtwqo0iNbbUC05tI1Jh-5kq0L1iIyLXkDrk=w568-h757-no.jpg

    I'll get it welded back on at a later time with the correct positioning. It's actually not too far off at all, but for now it's all good.

    v3PUX8w1F02BLY1fXSGcxyFxGaB9EOqPORS4N99LtjRleBtqky58JhKODAW8YVEDP0ujVLw1y81LGG6WKo=w1010-h757-no.jpg

    Since the car is now sitting low and pretty that means there was now preload on the sway bars. Bobby's rear lower control arm's have adjustable end links but I still had to find a solution for the fronts.

    So to remedy that I installed some front adjustable end links.
    I sourced the parts and put them together using a tutorial turbosax2 had written up:
    https://www.dsmtuners.com/threads/adjustable-front-sway-bar-end-links.244625/

    _CyTt8xZRqawNBjsHy2SlE_vwWXYotq-SBscGQUBCLat9ZsL9KG3yXq4gdNo9KGdQkwUqHgEZo1xJ9ReC4=w1346-h757-no.jpg

    These items are a must have to achieve proper corner weight balancing and remove the preload the sway bars get when lowering the car.

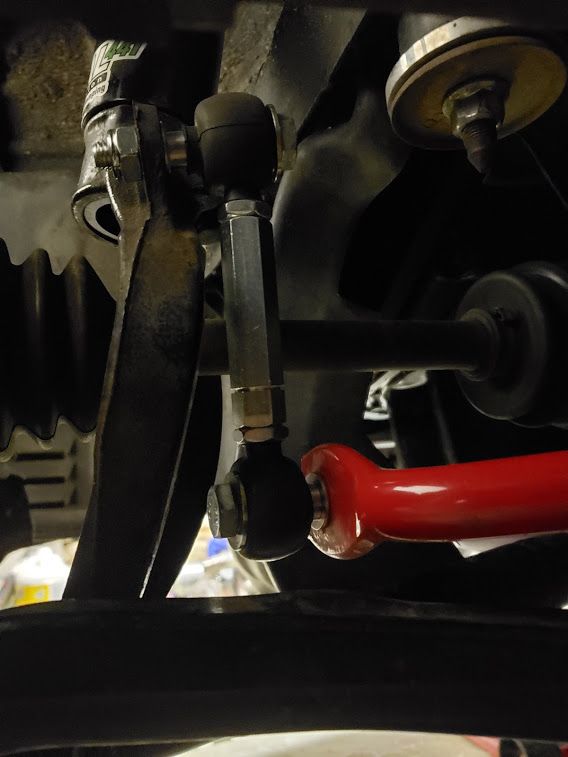

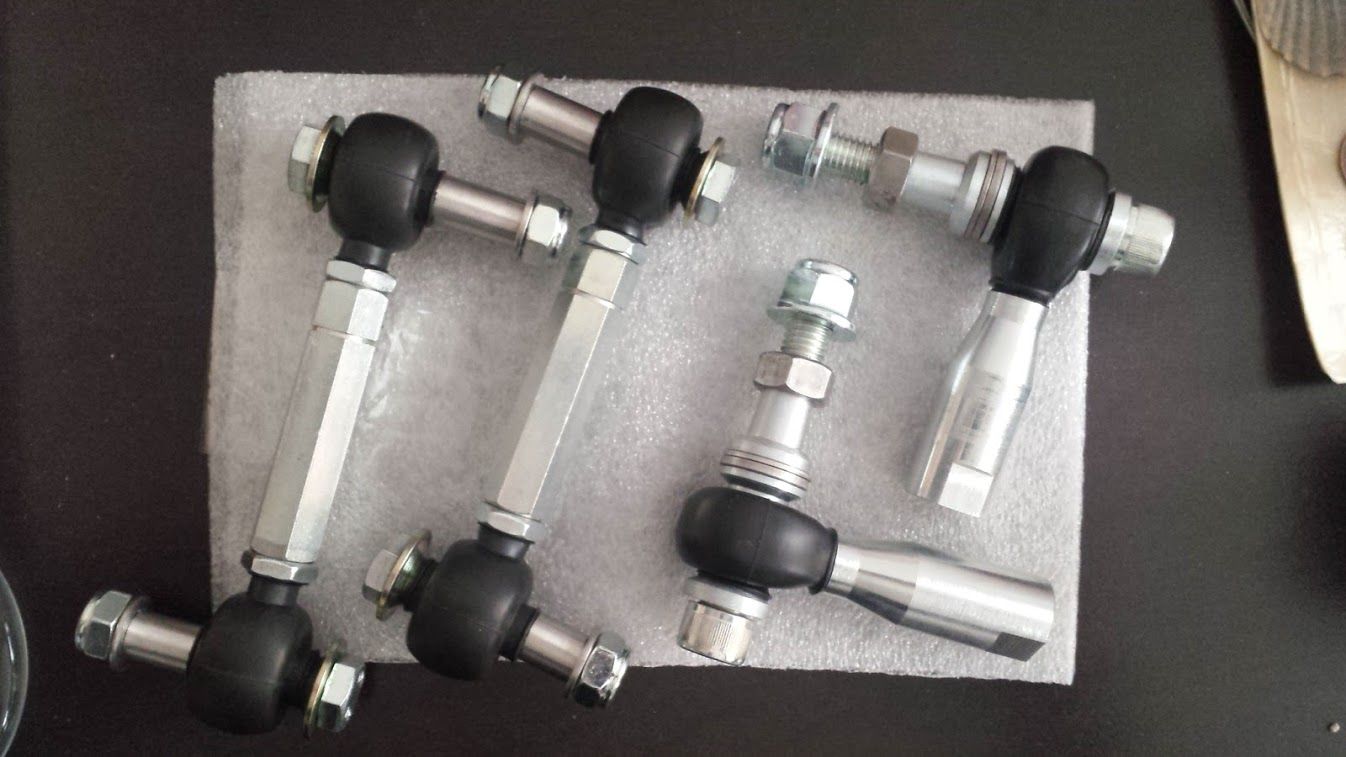

    Left side end link
    nL1gBGjxi3IQirsGNDKUflfrAZH_R-yJvTZStDWIEU6pUYhAMV1xBkLSi24rDs4Wl6YemBEbr6Ouk5m-5qU=w568-h757-no.jpg

    Right side end link
    q3tVLt75akwKarPcUqBtF6h1RRYvudOoqwolpplTDq8YLS79MwaNuD29BOZ5BzDdcgW_Sg27cwOPk_QNE-Q=w568-h757-no.jpg

    The car still needs a corner balance adjustment as I haven't gotten around to that yet. I also need to install Bobby's bumpsteer steer kit and get that adjusted as well.

    These things are on the top of my list of things to do.


    More to come!

    Last edited: Nov 16, 2019

    Road Race Build 2K  9

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
    chinola69, tk106 and ec17pse like this.
  14. ec17pse

    ec17pse Freelancer

    3,472
    1,354
    Joined Nov 1, 2008
    London, Europe
    They had the same DSM's in japan so i assume thats for the stock master but its cool it had that attached.

    Its all coming together nicely and interested to see how well the corner balancing comes out


    Road Race Build 8K  10  51

    1997 Mitsubishi Eclipse GST
    175 whp · 180.1 lb/ft · 2G DSM
    Loading...
    GSXbooster likes this.
  15. GSXbooster

    GSXbooster Proven Member

    93
    57
    Joined Jun 3, 2003
    Centennial, Colorado
    My goal is for a corner balance and bump steer adjust be done before my next open lapping day.

    But as it is currently, the suspension setup is not optimized without those adjustments.


    Road Race Build 2K  9

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
  16. GSXbooster

    GSXbooster Proven Member

    93
    57
    Joined Jun 3, 2003
    Centennial, Colorado
    Installing gauges and turbo-back exhaust

    I installed a couple of gauges that I deem the most important.
    An AEM oil pressure gauge (from my previous car) and a new Innovate LC-2 wideband sensor gauge.

    To install the oil pressure gauge I decided to do it as clean as possible of an install. I routed the wiring along the top of the wheel well, underneath the driver side fender. I zip tied it to the chassis wiring harness that also runs through there. If you look closely you can see it.

    m1Z2Y-UvCwOuWw4Vwf47omgKGlasEzbiAgbbRa-4xXprJqimEcEVCD9Cic5zPrYzWFhKH1m5KTm1tY12fg=w1102-h620-no.jpg

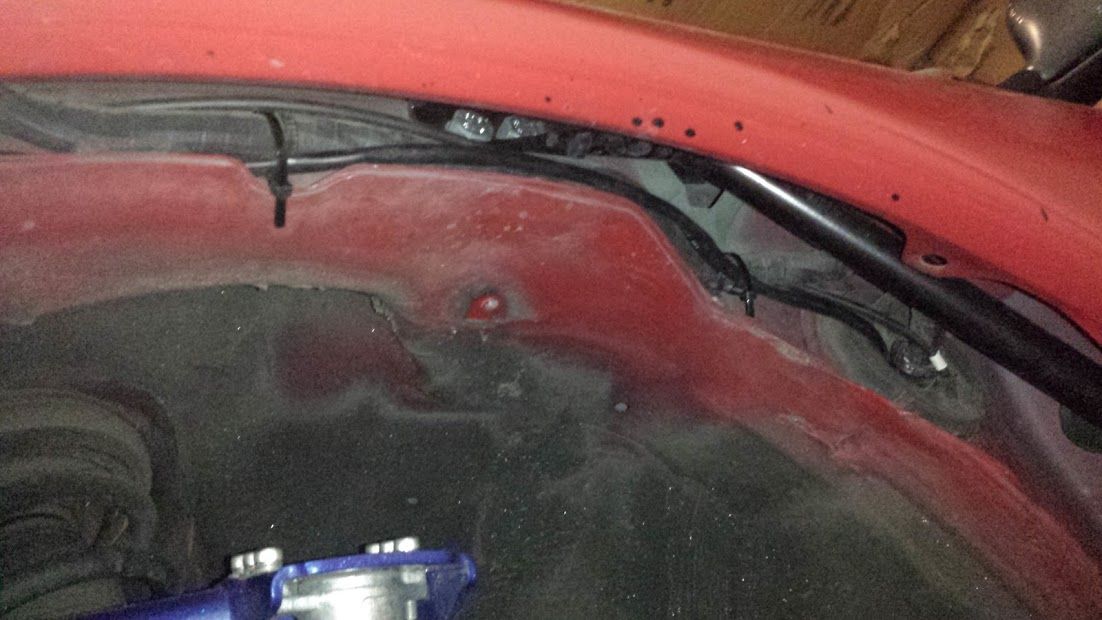

    I think it came out nice and stealthy, and kept the wiring away from any danger of damage.

    hRTYpL4tUMDC3ng9fgwvyuFDx1LdOw242PRyJoJt63IMf3tKvWdRmC7x5LEaTt7RBxruTm3NcOmGaEOXHQ=w1102-h620-no.jpg

    I used one of the ports on the stock oil filter housing for the pressure reading.

    S0qnCRr6iCJtad5PaWII4ODhaBWSgH8Jg2a1E0q56RXWMRMXt5UoWzI6tHR_FtA6HsMcaK0xiLWKzndNZA=w1102-h620-no.jpg

    For the wideband wiring I used the same spot through the fire wall as the boost gauge and also where I'm running the positive wire through to the battery in the back of the car.

    Gauges installed - from left to right: oil pressure, wideband and boost
    DVdfCOUATRxd8OnfVqoP_VjLqSZmYq0CBPrVFPToer3zZxT_mAuZT4eulBESGu6S3Kyyw6EOd3gnmBDodOA=w899-h674-no.jpg

    Since my wideband gauge was ready in place, it was time for me to upgrade the stock exhaust system to something bigger and higher flowing. A few reasons for this...

    W04EdpHBcPKp44w0I3SPijXctZR9CrKFUh91VOy3O1BaMi05SUdep7yrJ6P8igsGRZw36dz4NcRinVo_Zeg=w899-h674-no.jpg

    1. Dulls down the torque hit from the T-25 turbo - good for the transmission.
    2. Makes me more noticeable in traffic - both on the street and on the race track.
    3. I will eventually swap out the T-25 turbo with an Evo III 16g turbo that I have stored away.

    I've owned the Greddy Power Extreme catback at one point and I really liked the sound and look of it. Unfortunately I sold it a long time ago (it's rare now and no longer available). I also previously had the Megan Racing catback and I liked that one too though it was a bit louder (it had less resonators in the piping).

    So I looked for a bit and came up with a few of options... do I get an STM catback (a bit pricey), a Megan Racing exhaust? (I had one before and it was nice) or try out something new and a little different?

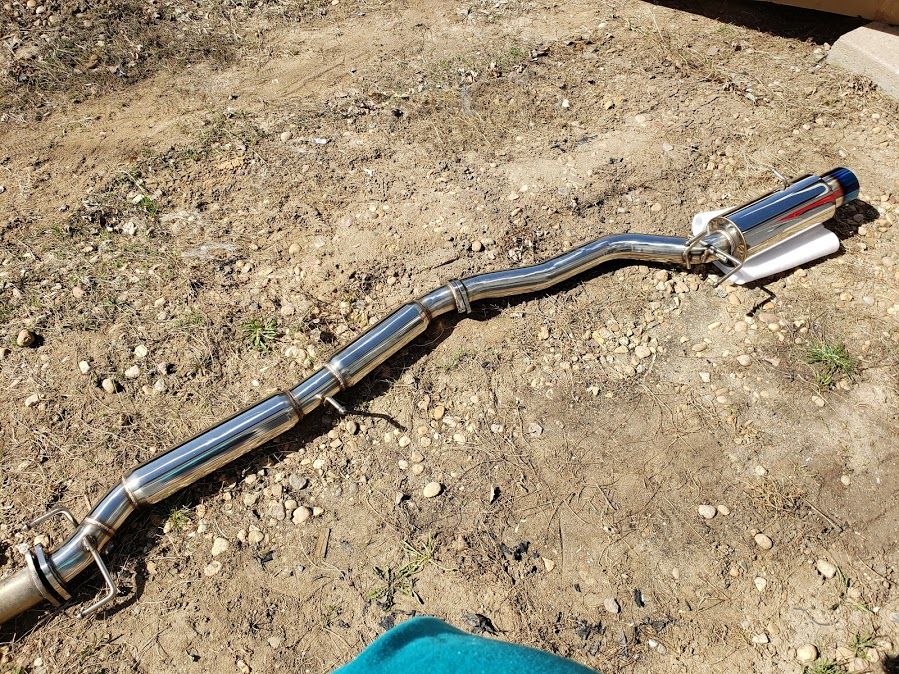

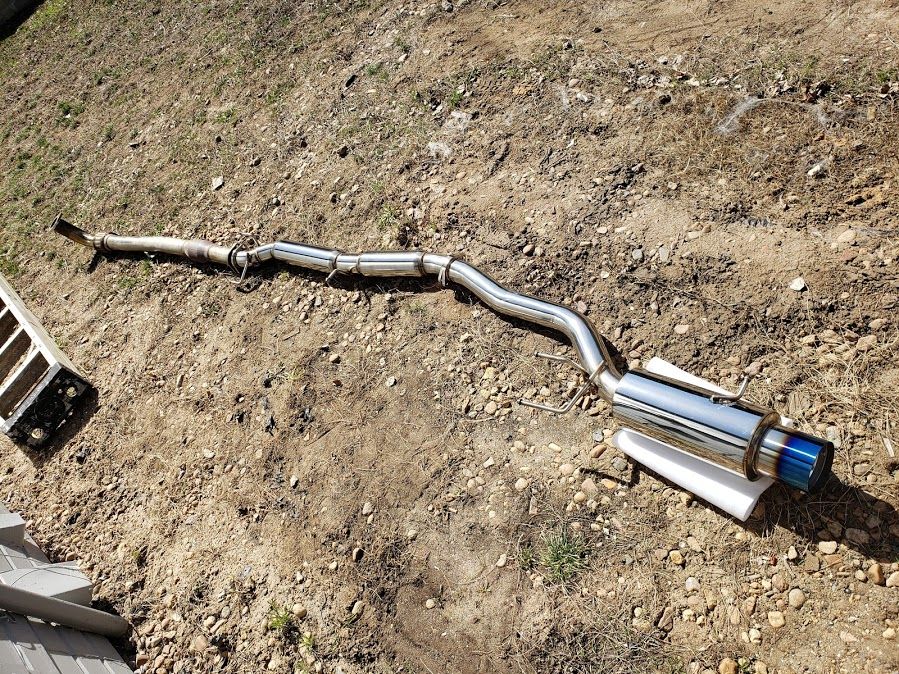

    I ordered an SRS cat-back exhaust and was pleasantly surprised and satisfied with the fit and quality of construction. 3 inches all the way through and full stainless steel. Really an awesome exhaust. Especially for the price!

    7Wpsc_uwR3phkvXiug-xFkhFoMUpA457IsnG8xb6HhWIFnw8c7uajug4w8qeqWrUu-lxnAVMt739xaoN0OQ=w899-h674-no.jpg

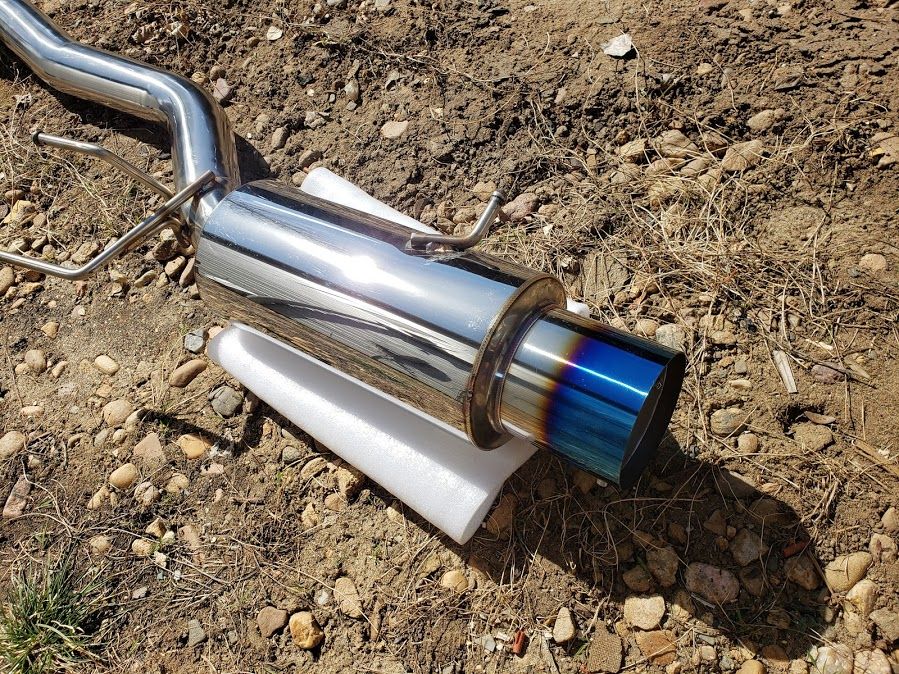

    I originally ordered the non burnt tip version but they sent me the burnt tip one anyway.
    Oh well no big deal.

    vE9X951v7afb_uoeE3LWJTyiv-Lorhu0J4WTKYHKz9iiEoEYhKiB76_rs9Fo7ID26E3iUSICo0y1s8jDPJg=w899-h674-no.jpg

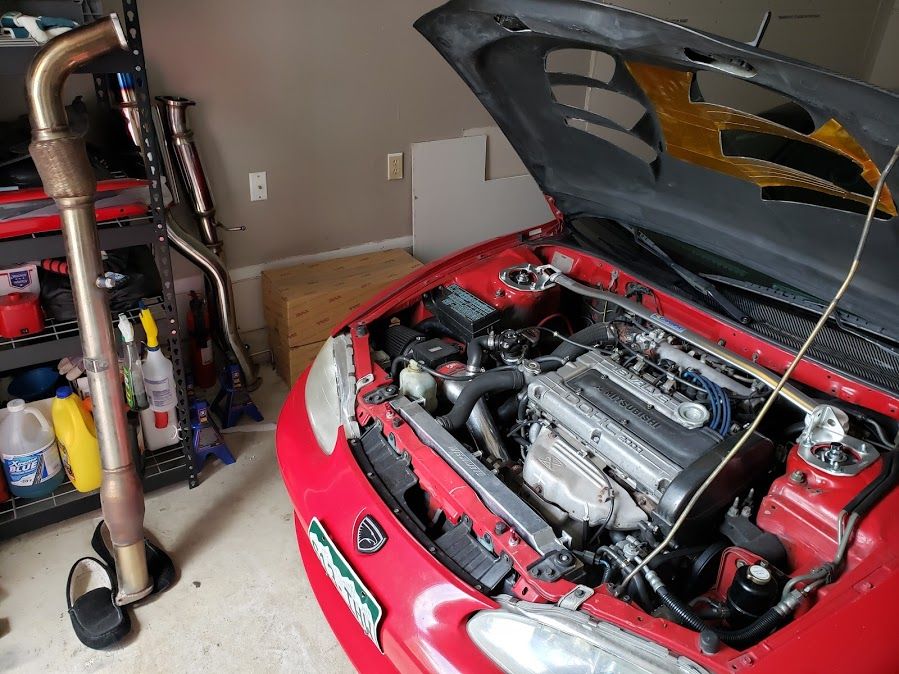

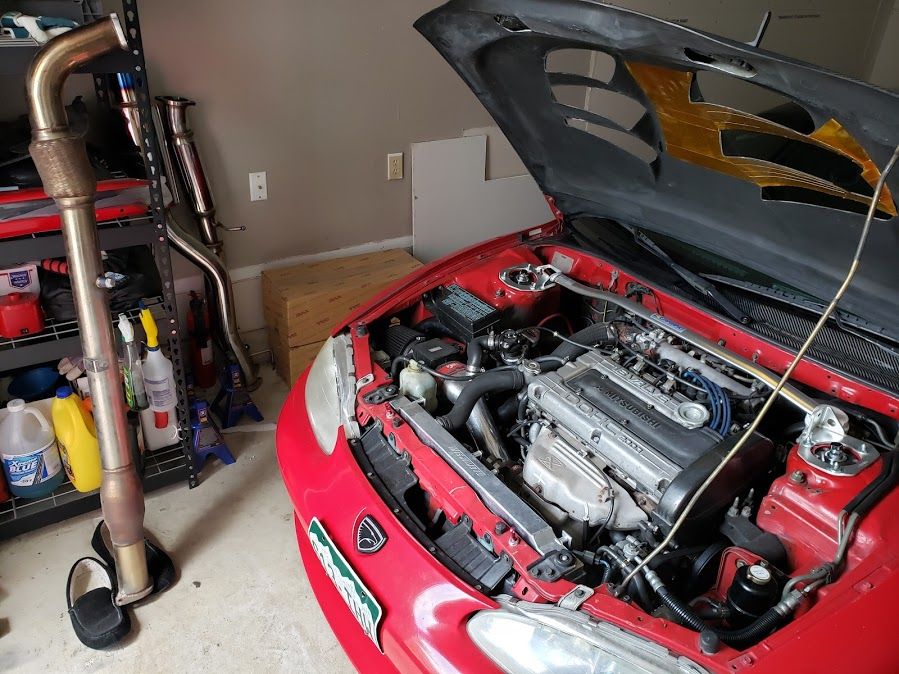

    I used my 3 inch downpipe from my previous car as it had a nice Vibrant high flow cat I had gotten welded in. I also added a tubular O2 housing to complete the system.

    51vp_OGEQYWFooZKVn2SkU8JWkoWxotvtB4elAx7WyUb1a4mpz6ONhQK48lIxBUMYYVykhlfcVzMYg0x1-A=w899-h674-no.jpg

    All in all everything bolted up pretty well. Except for a section where the downpipe/cat connects to the catback.

    XI0sjWcF9fN4fQjRDp0sKeAIV0F2AM6UENAfHYU71baMAvDV87yvniIezseVNRDzXnkyUn4zv_j0EeLE-VQ=w899-h674-no.jpg

    I took the car to Mofab and they fixed that for me in no time. The car sounded like a dump truck as I drove through the neighborhood at 6am.

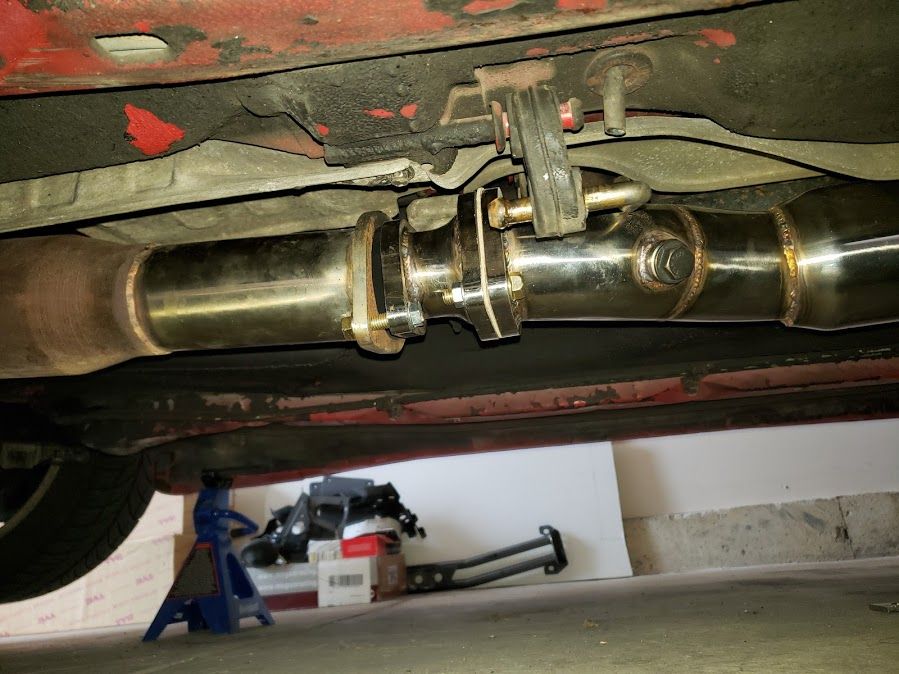

    They removed that neckdown portion and expanded the downpipe out a little bit. They welded in a straight section, keeping the flanges.

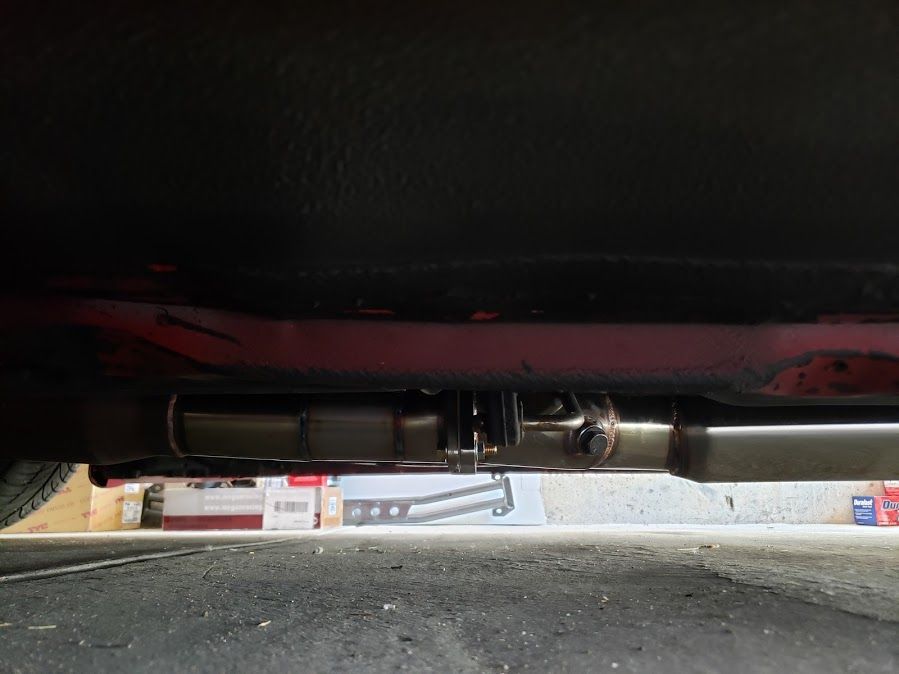

    ttj2lV5L-BAESRFhI13muti_esoVf2GrcE5hmBXvWZ-yighqBskzfdPh1wwQKFqA4F7wTvHtdANBIQ-enSw=w899-h674-no.jpg

    They also added the bung I needed to the downpipe for the wideband O2 sensor. (Note: Not the bung in the picture above, but one I had welded on up stream closer to the O2 housing, before the high flow cat.)

    Everything came out very well! I've got a nice rumbly sound at idle that's close to stock sounding. It's a little louder at cruise but without the drone. It sounds nice and bearable. At WOT is where I can hear the exhaust a bit more but not too loud or obnoxious.

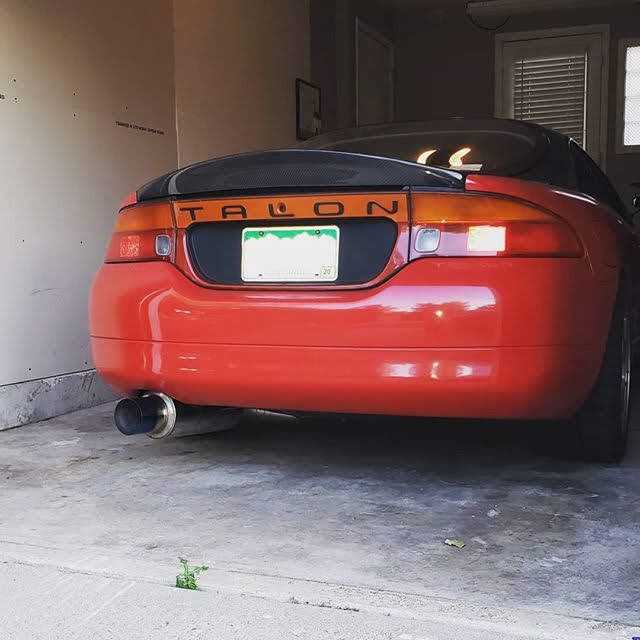

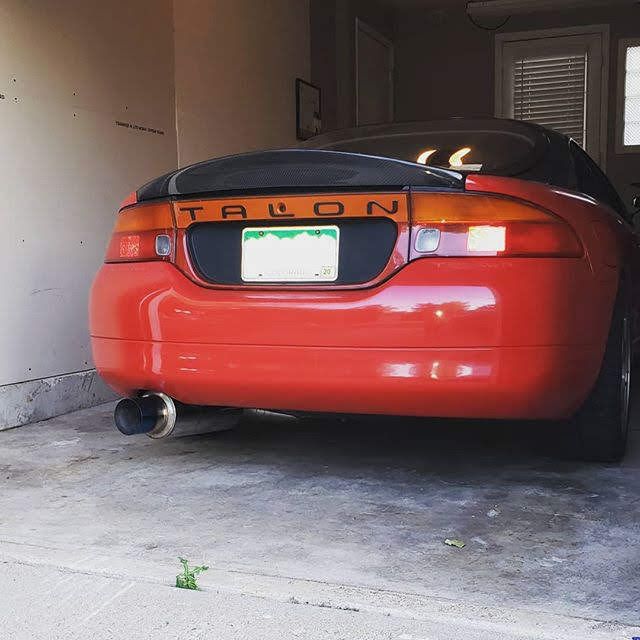

    tEgbdwldVYuIqtp88a9R6u9g8TzgxbhiDBWbpCeAWakL935o_6kjt5HbNBRJBZwmGHFoL5yyPtK57mAVm6XVVqBQ=s640-no.jpg

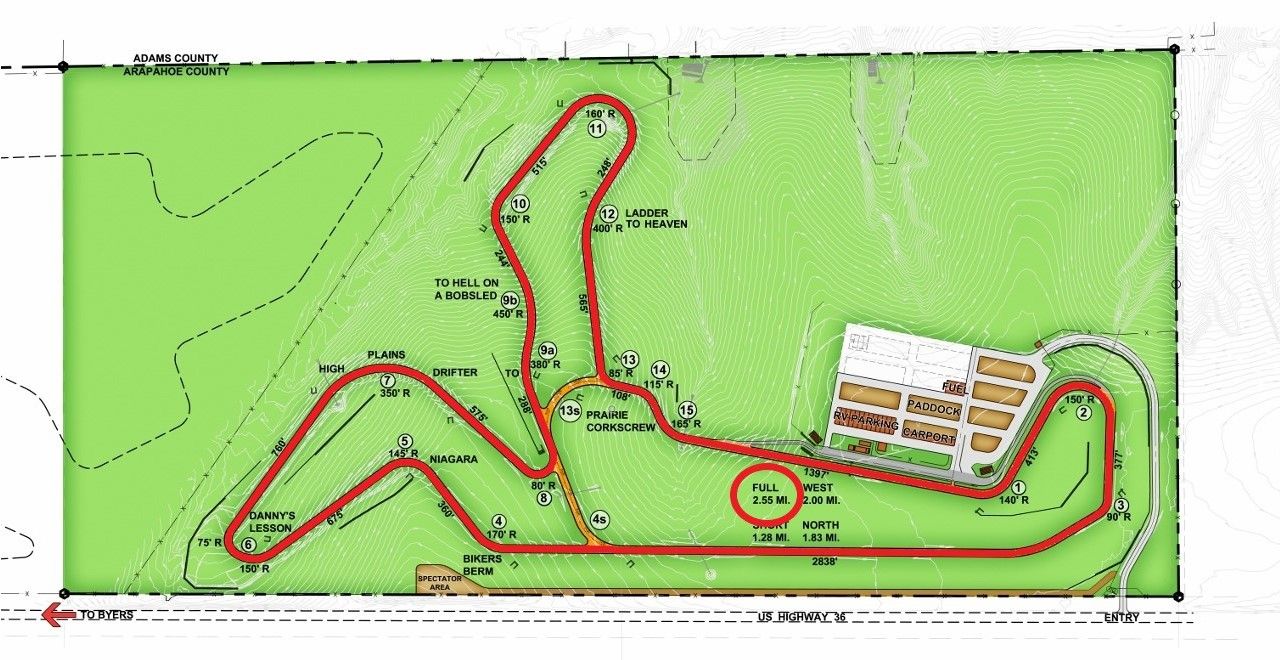

    Next up, an update from my first HPDE event!

    Last edited: Nov 20, 2019

    Road Race Build 2K  9

    1995 Eagle Talon TSi AWD
    awd · manual · 2G DSM
    Loading...
    tk106 likes this.

Share This Page

Support Vendors who Support the DSM Community
Archer Fabrication ECM Tuning ExtremePSI Feal Suspension Fuel Injector Clinic Jacks Transmissions JNZ Tuning Kiggly Racing Morrison Fabrications OHM Racing RixRacing RockAuto SouthBay Fuel Injectors STM Tuned Track Decals Track Sculptures VR Speed Factory WheelWell.com
