2G Chassis wiring harness PMU

[babyviper]

Has anyone done an install of a PMU like the ones listed below for their chassis harness? I would like to rewire my chassis harness to get rid of all I deleted separate it from the engine harness. Just wondering if anyone has already done so I could get some sense where to start.

ECUMaster PMU-16 DL

PMU16-DL Power Management Unit with Datalogging Decades ago, the critical electronic components in a race car were the ignition coil and points. Race cars now feature advanced engine management systems, antilock brake systems, paddle shifters, dataloggers, radios, electric pumps, fans, and...

ecumasterusa.com

Racepak 500-KT-SW30 Smartwire Power Control Module

The Racepak SmartWire is the easiest way to wire any vehicle while adding modern electronic features and functions. Based on Racepak's exclusive single cable V-Net technology, the Racepak Smartwire module is the electronic "starting point", with a direct main power connection from the vehicle...

www.holley.com

AiM PDM32/PDM08

AiM PDM32/PDM08, Much More than a Power Distribution Module

www.aim-sportline.com

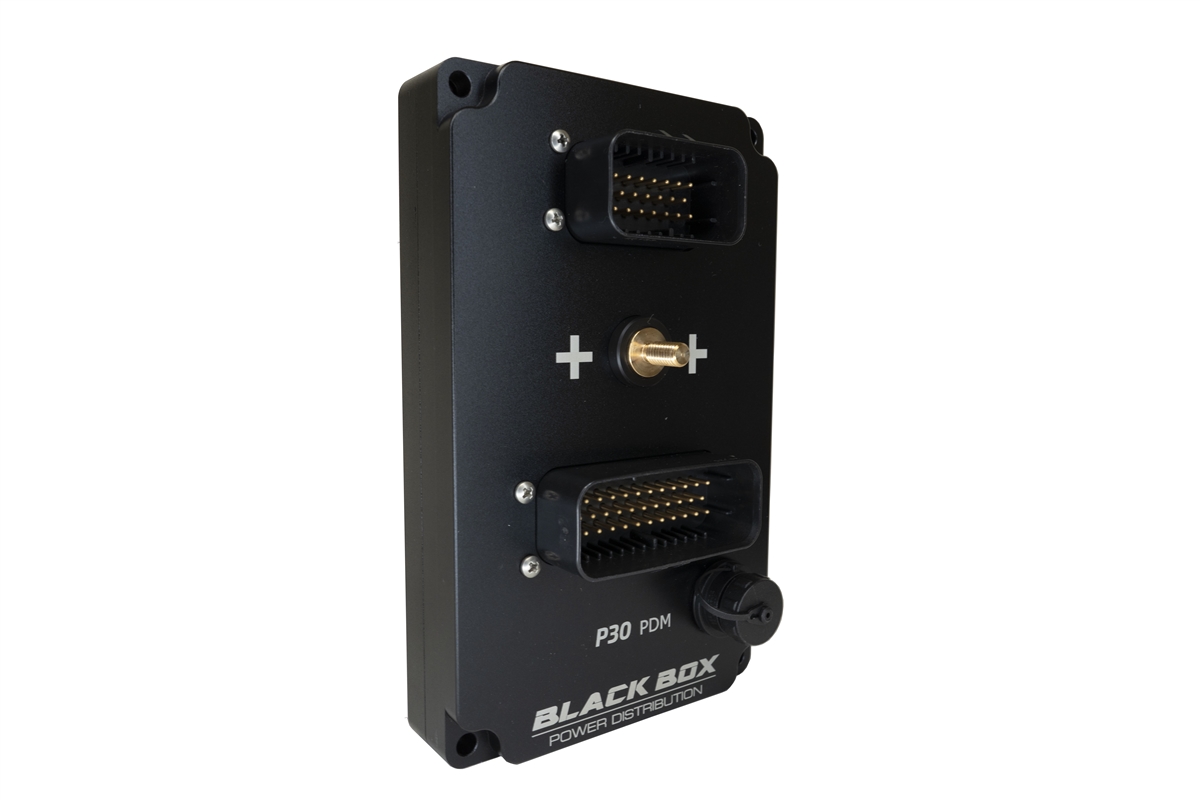

Moristech P30 PDM

www.rywire.com



[RWD4G63]

I've wired an Evo X with a MoTec PDM. You're really looking at building a new harness from scratch, as the PDM sends power directly to components, and that kind of circuit is usually considerably different than the factory wiring. Trying to adapt the factory wiring would be... weird. Far more work than just building a new harness. Let me know if you have any specific questions.



[babyviper]

I think I figured it out, most people don't run all the creature comforts in the chassis on the PMU. I think I'll just keep it in the engine bay. The confusion came in when I was calculating all of my outputs and it was around 30 and most PMU's are around 16. I was wondering how people ran the entire car with that low number of outputs, but I see they aren't it mostly just for the engine bay and stripped race cars.



[RWD4G63]

I think I figured it out, most people don't run all the creature comforts in the chassis on the PMU. I think I'll just keep it in the engine bay. The confusion came in when I was calculating all of my outputs and it was around 30 and most PMU's are around 16. I was wondering how people ran the entire car with that low number of outputs, but I see they aren't it mostly just for the engine bay and stripped race cars.

True. Most are either very bare-bones race cars, or they run two. There are a few PMU's out with more outputs, but they're relatively new to market and so don't have the history of reliability like the others. A lot of people build their non-essential chassis wiring out with cooper bussman fuse boxes, as they're sealed and they take cheap, plentiful mini-fuses and relays.

You must be logged in to view this image or video.



[babyviper]

those are nice, and cheap thanks for the info!
