89 RAM 50 4g swap "Validation Plan"

PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

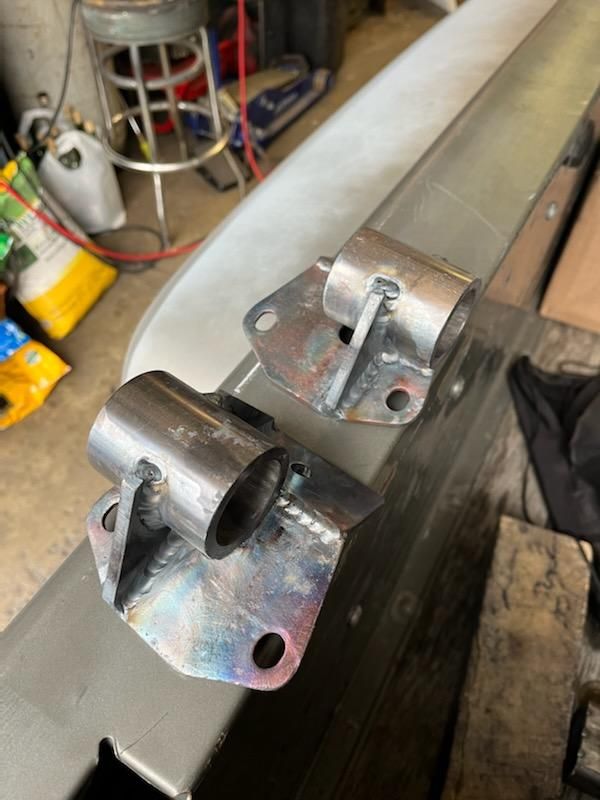

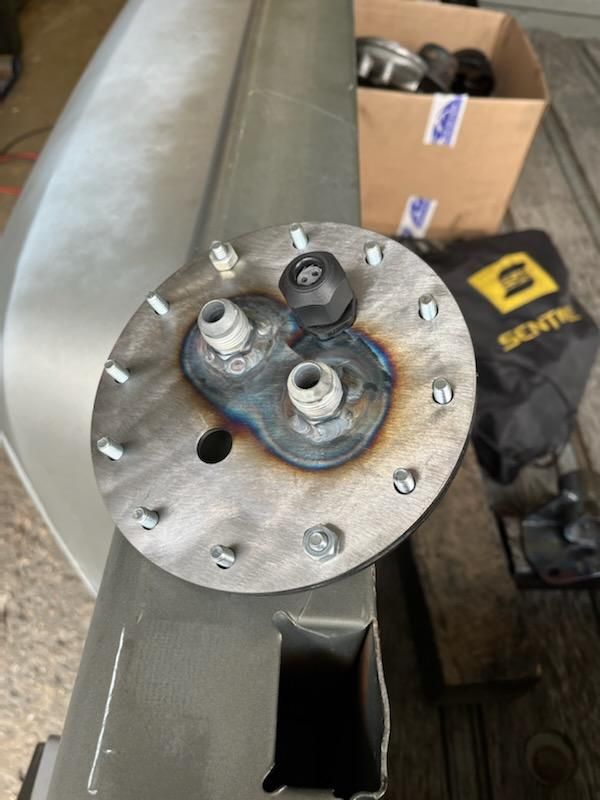

My buddy was having some fun with the ole tig machine. Got the gussets welded onto the motor mounts as well as got the fittings welded onto the fuel cell cell hanger plate.

You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

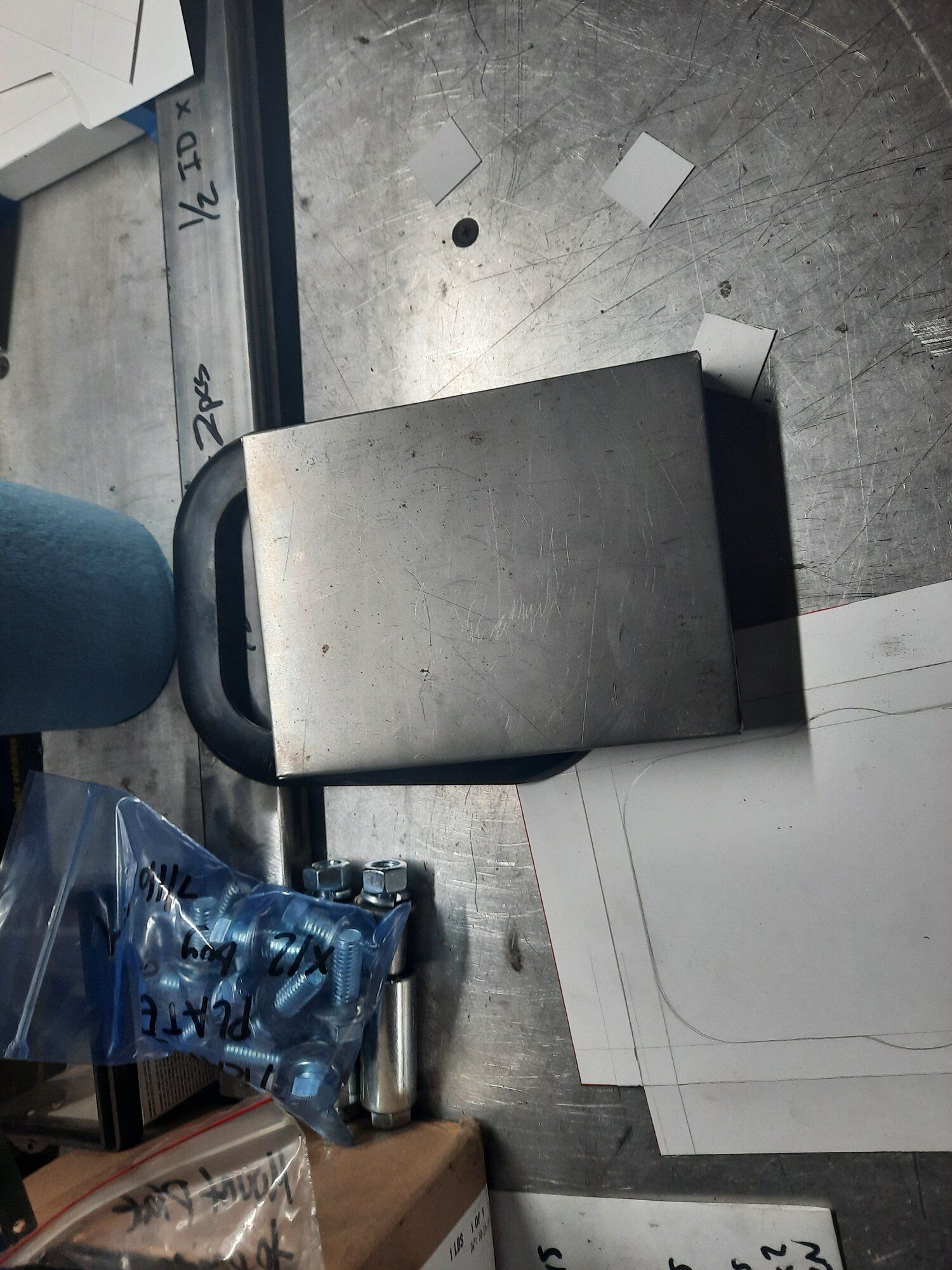

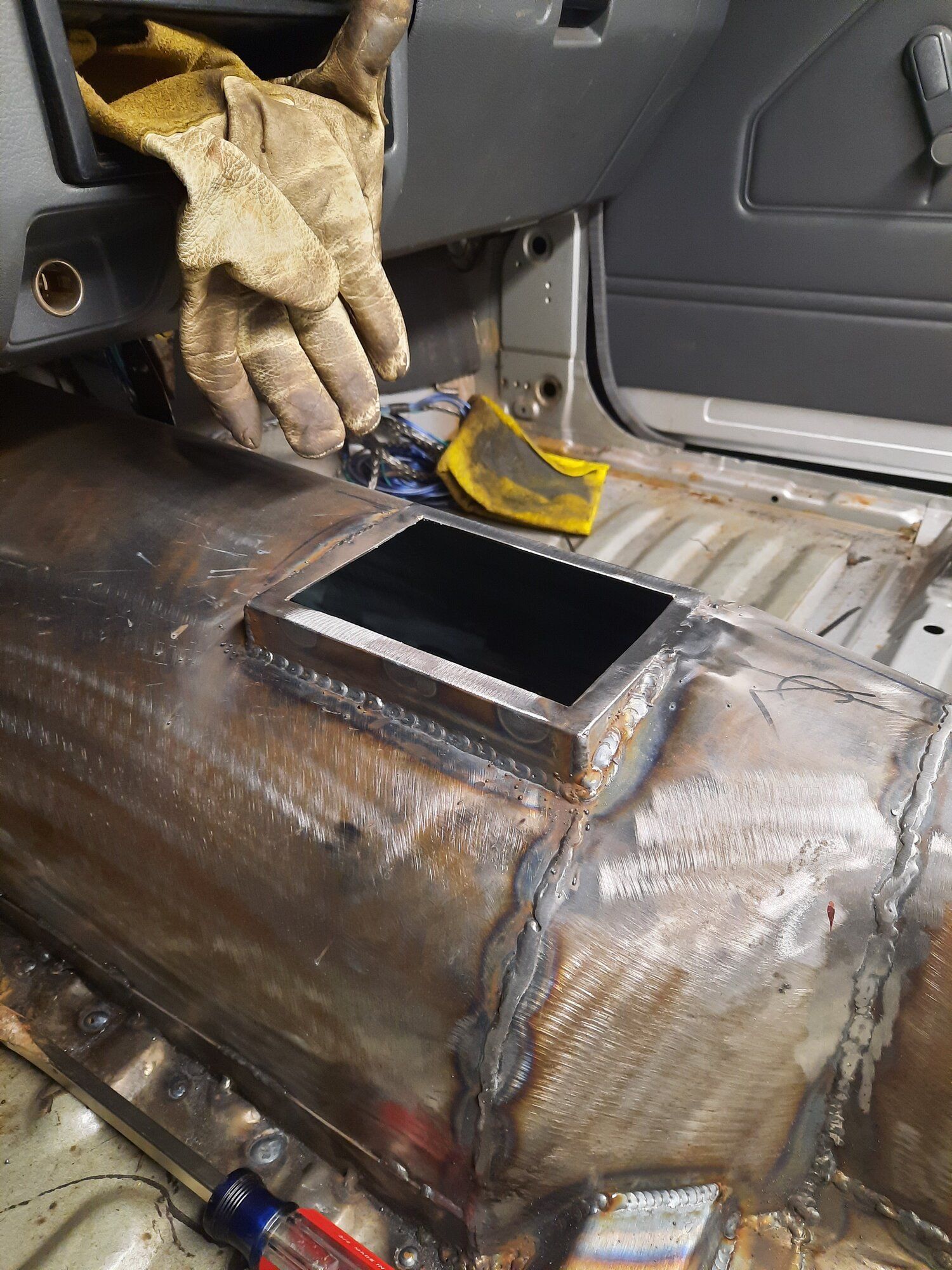

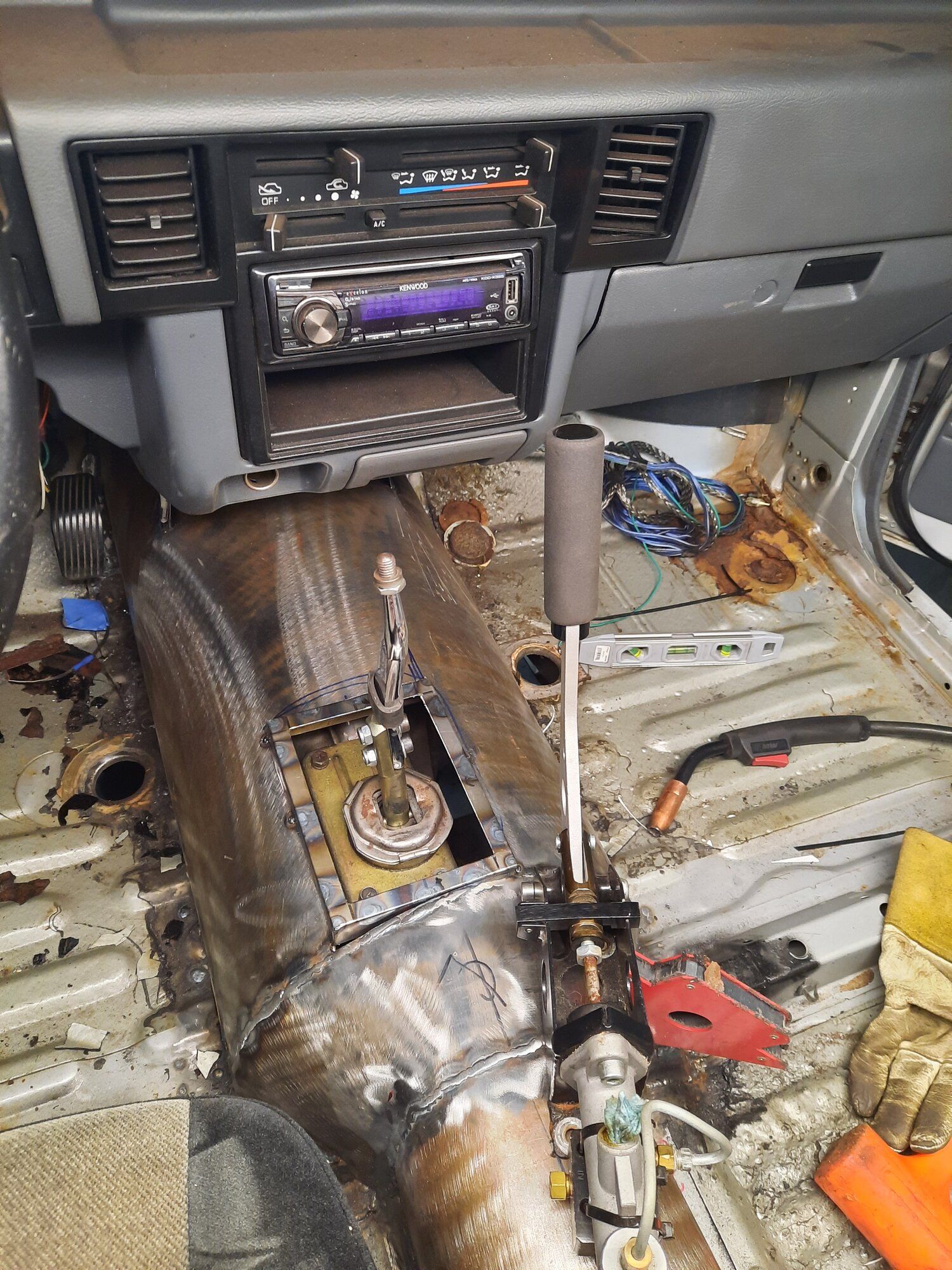

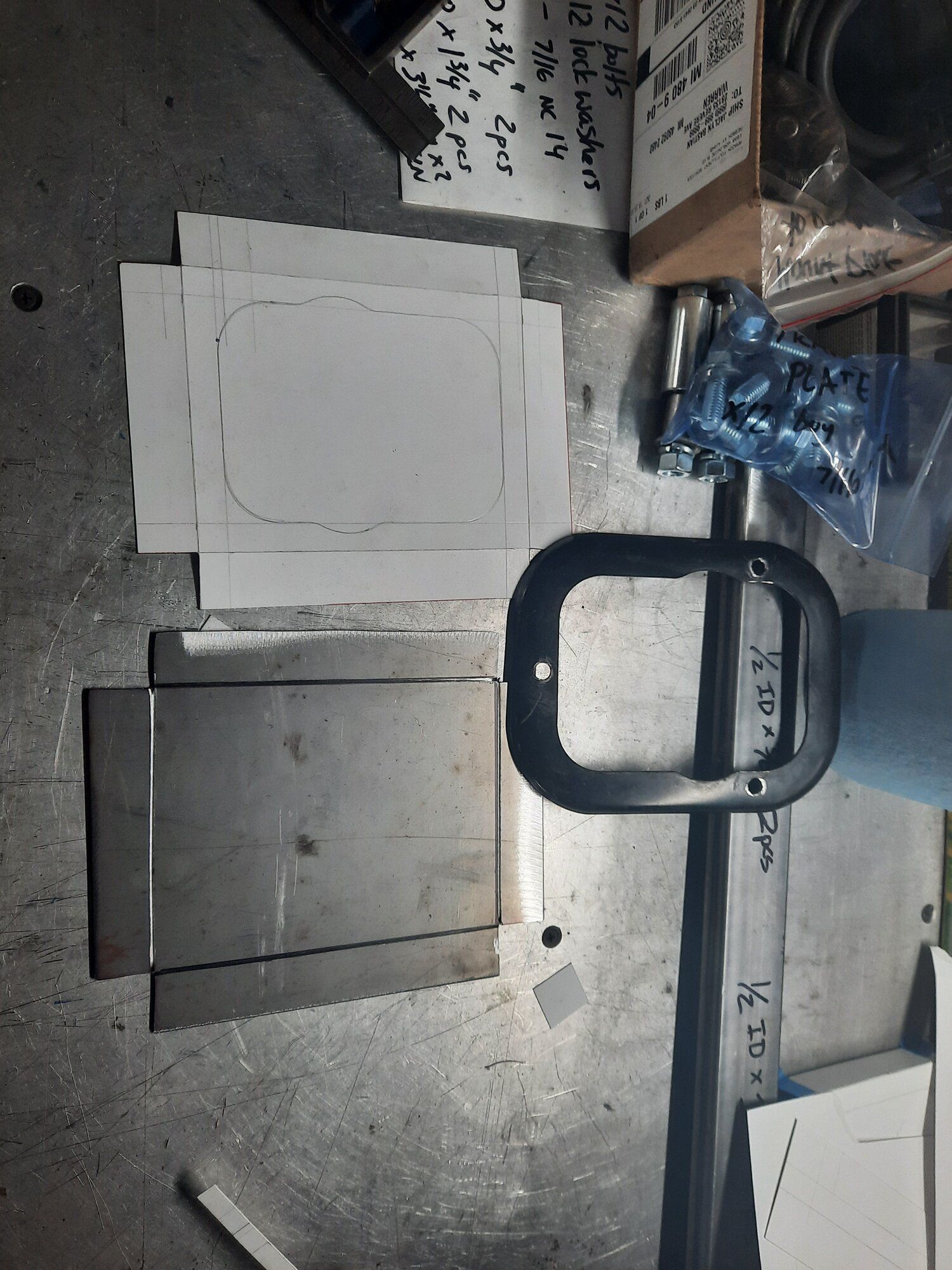

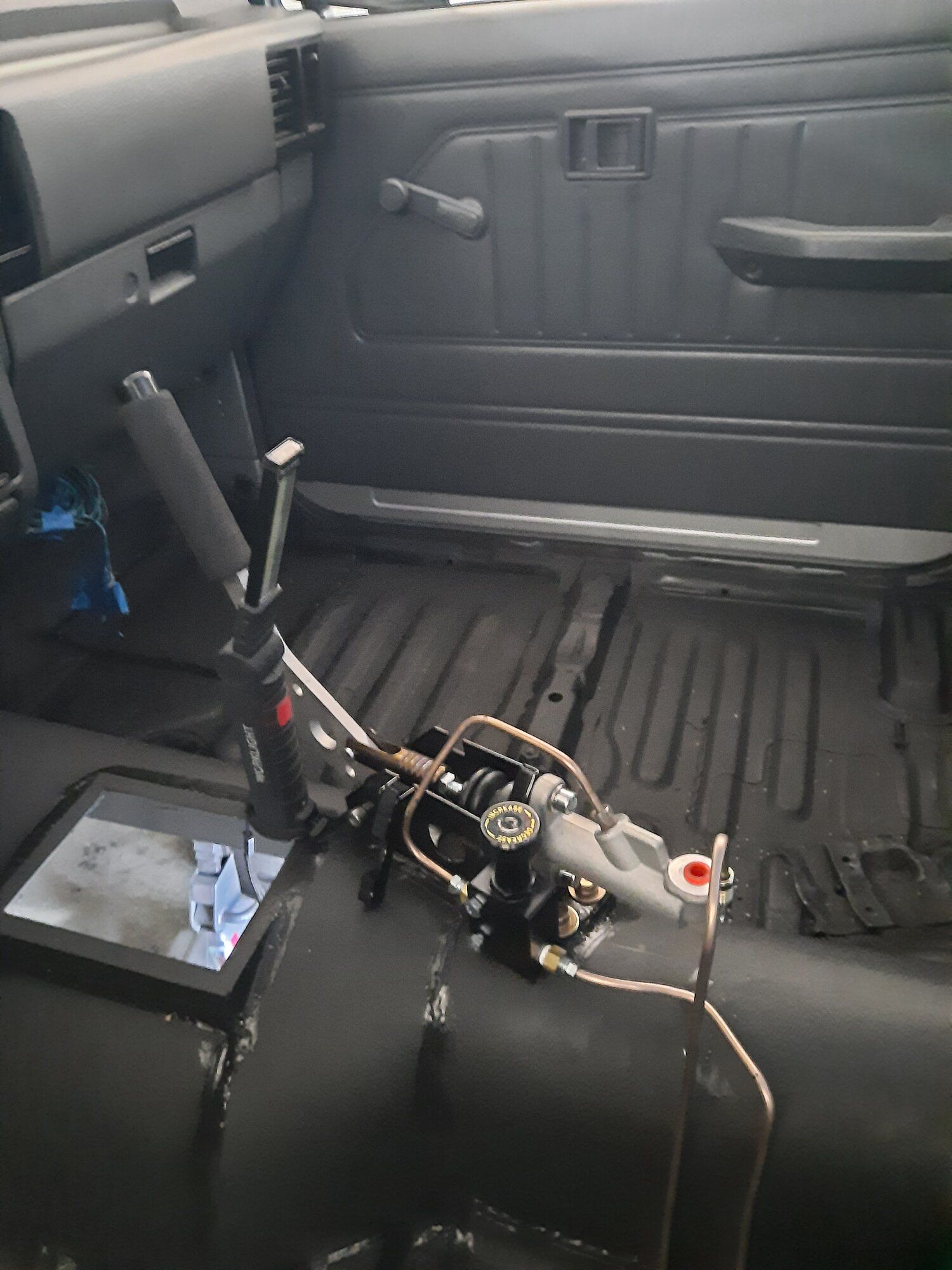

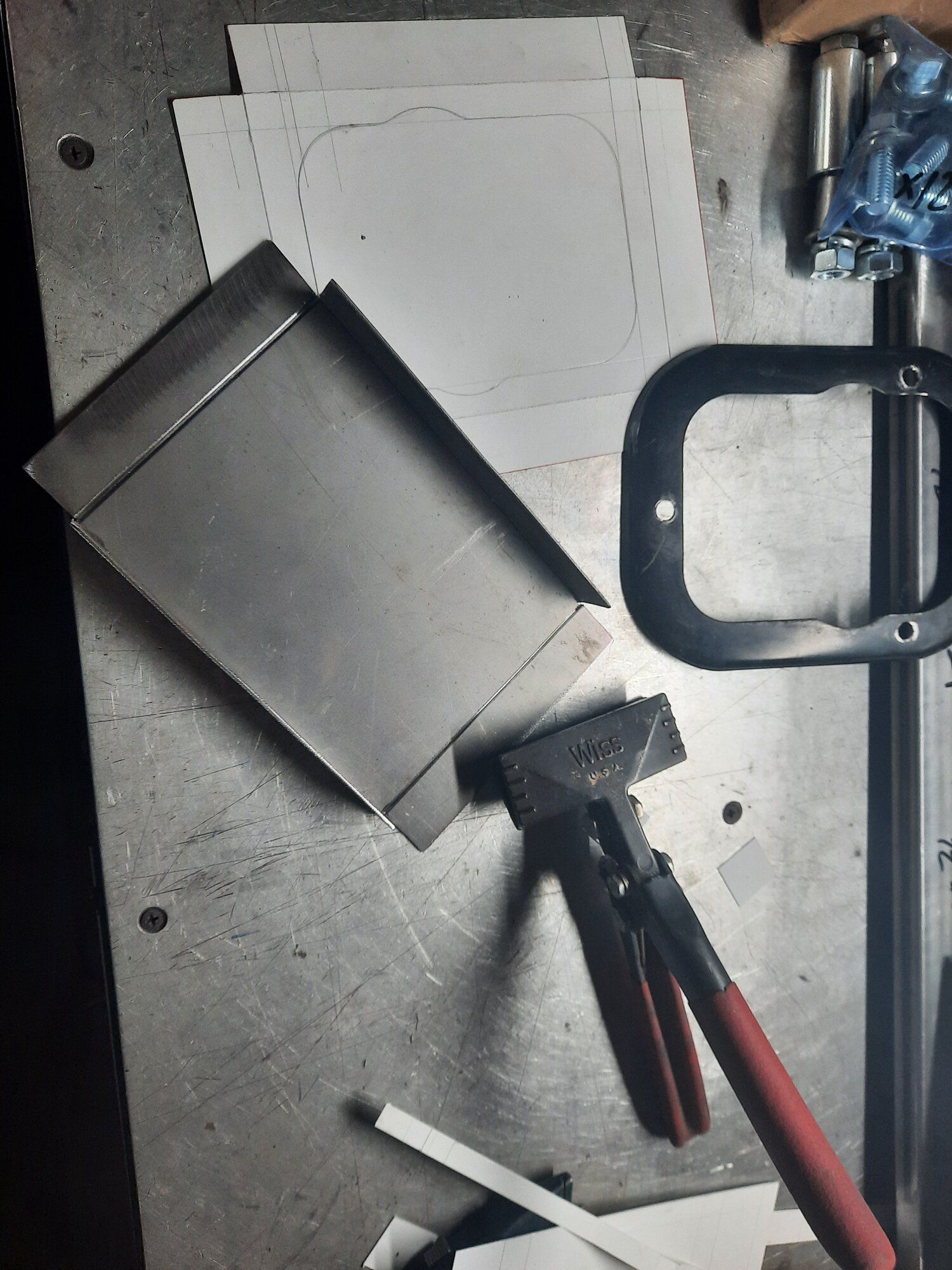

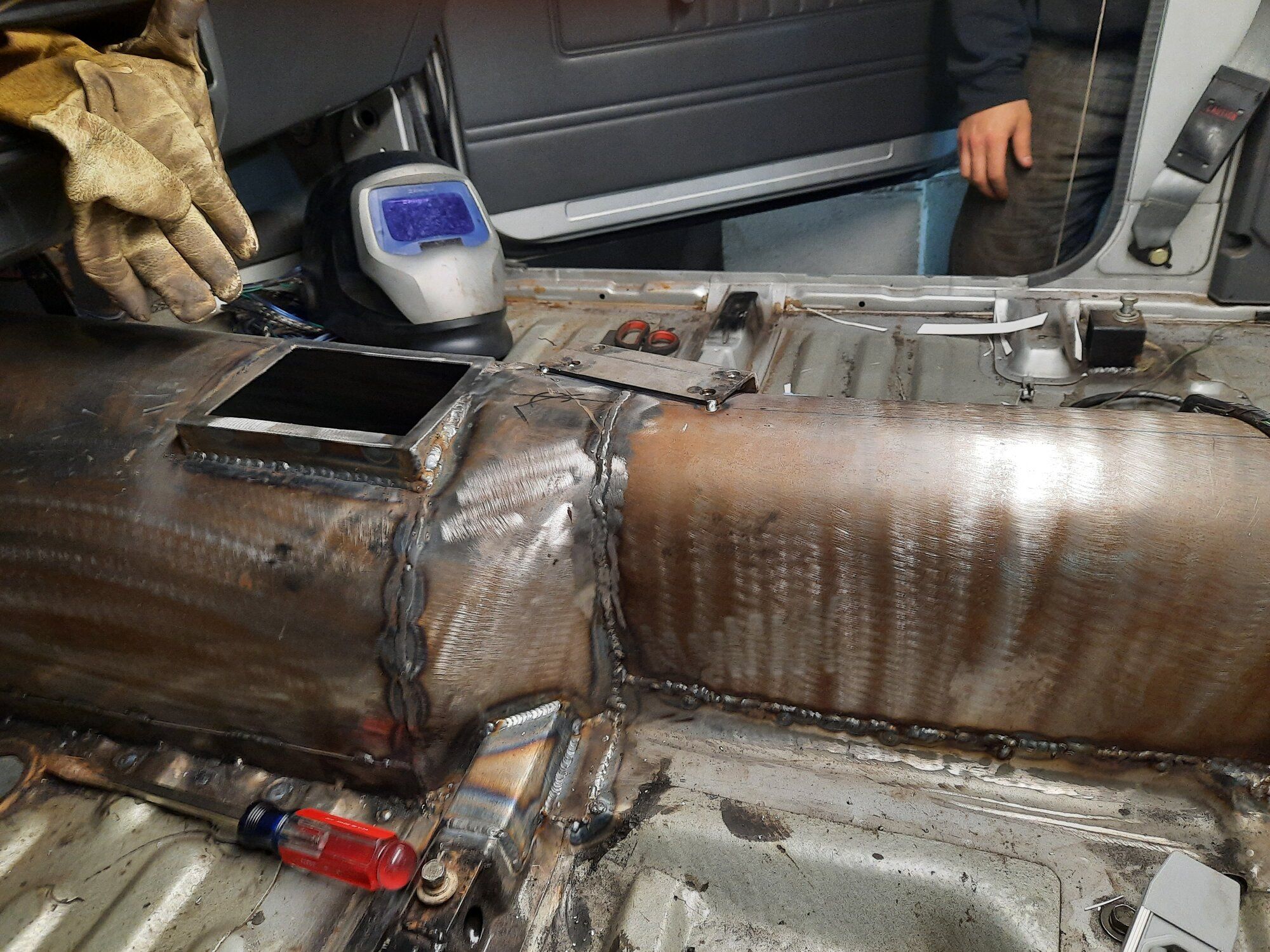

Made a template housing for the shifter, cut it out, welded fully in place, also had to throw the seat back in to see wherebi want the hydro. Fingers crossed this is the last time i put/pull the trans and or seats. Getting a little old and tedious. To finish off the shifter plate im going to reach out to my old man to laser one out of stainless so it goes over the carpet as a finishing touch.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

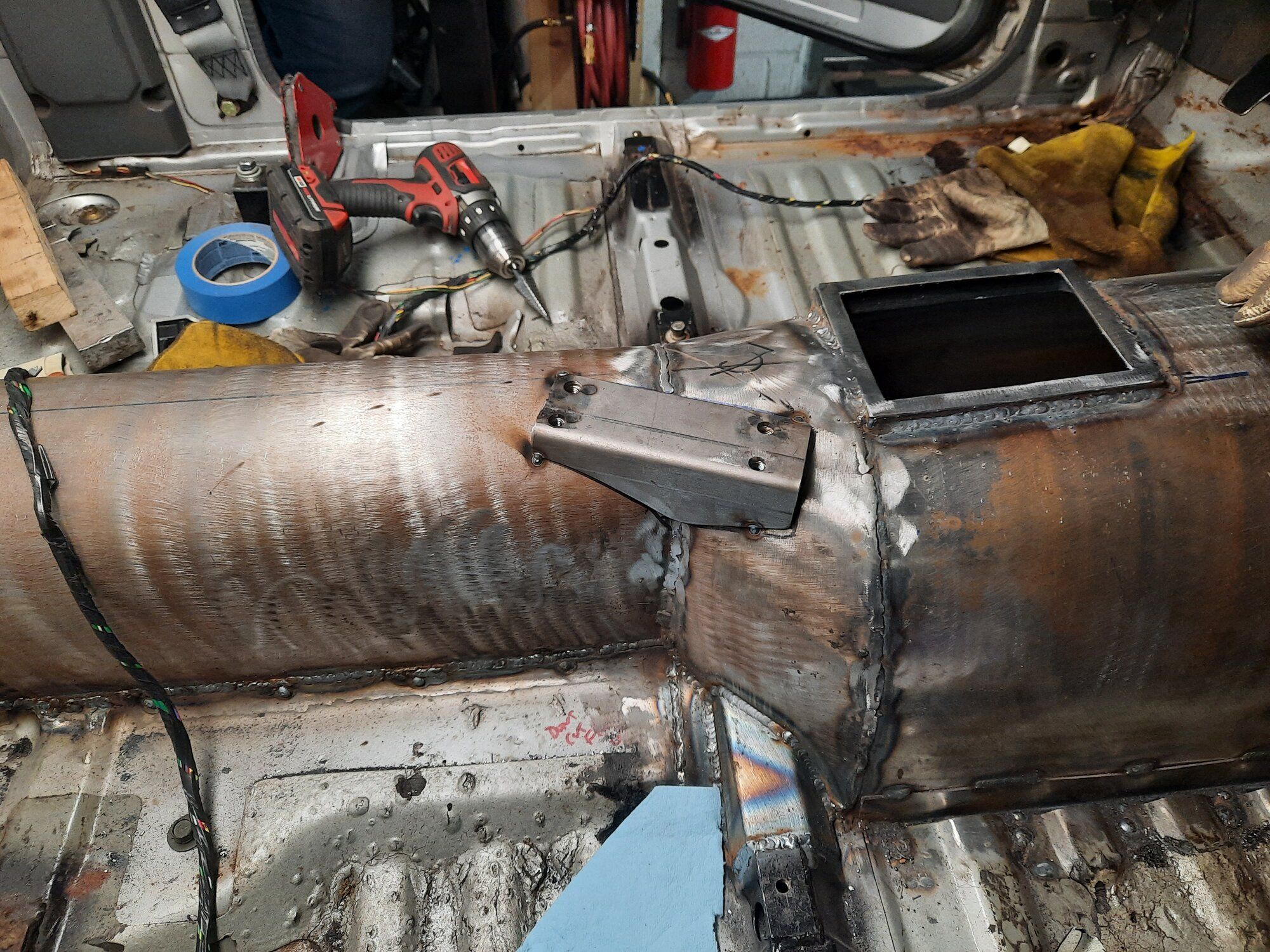

Hydro mount created and welded in place, floor brace/trans hoop all welded up, and drivers side floor patch most of the way finished.. next would be the passenger side floor and she is ready for primer, sealer, paint and the engine to drop in.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.


Mech Addict

Supporting Member
983
414
Jun 9, 2019
Jackson, Wyoming
You reinforced the d/s floor for the cab mount. I noticed the p/s has some rusty around it too and was going to ask, but thought I’d rather not take away from the impressive fab work to point out a potential repair. Now that you showed the d/s repair, I’m doubly curious.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan
You reinforced the d/s floor for the cab mount. I noticed the p/s has some rusty around it too and was going to ask, but thought I’d rather not take away from the impressive fab work to point out a potential repair. Now that you showed the d/s repair, I’m doubly curious.
Oh no worries.. im glad your pointing this out. Make me feel good when people have questions about the project and progress.. yes the passenger side front will also be cut out and a patch panel made to "fix" the crustyness. Just ran out of time last night and had to keep the noise down. In my opinion this design of the truck sucks. It should be like all the square body chevys where the front wheel wells/tubs are removable and the cab corner is set back farther specifically for this issue where water and what not accumulates and causes this rust.. the rear cab corner/mounts are spotless and bolts still have all the zinc plating on them.. wish that was the case for the fronts haha.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

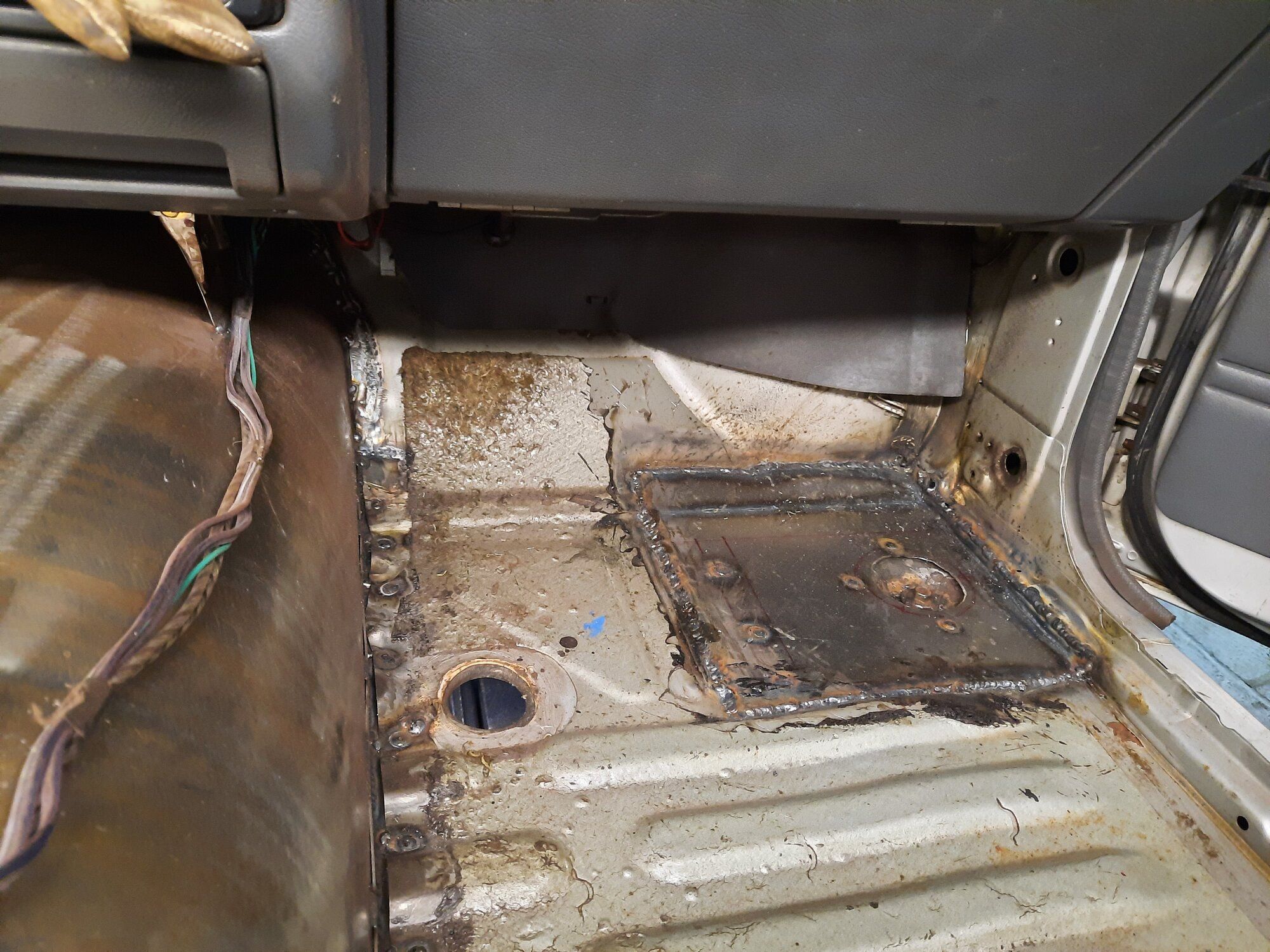

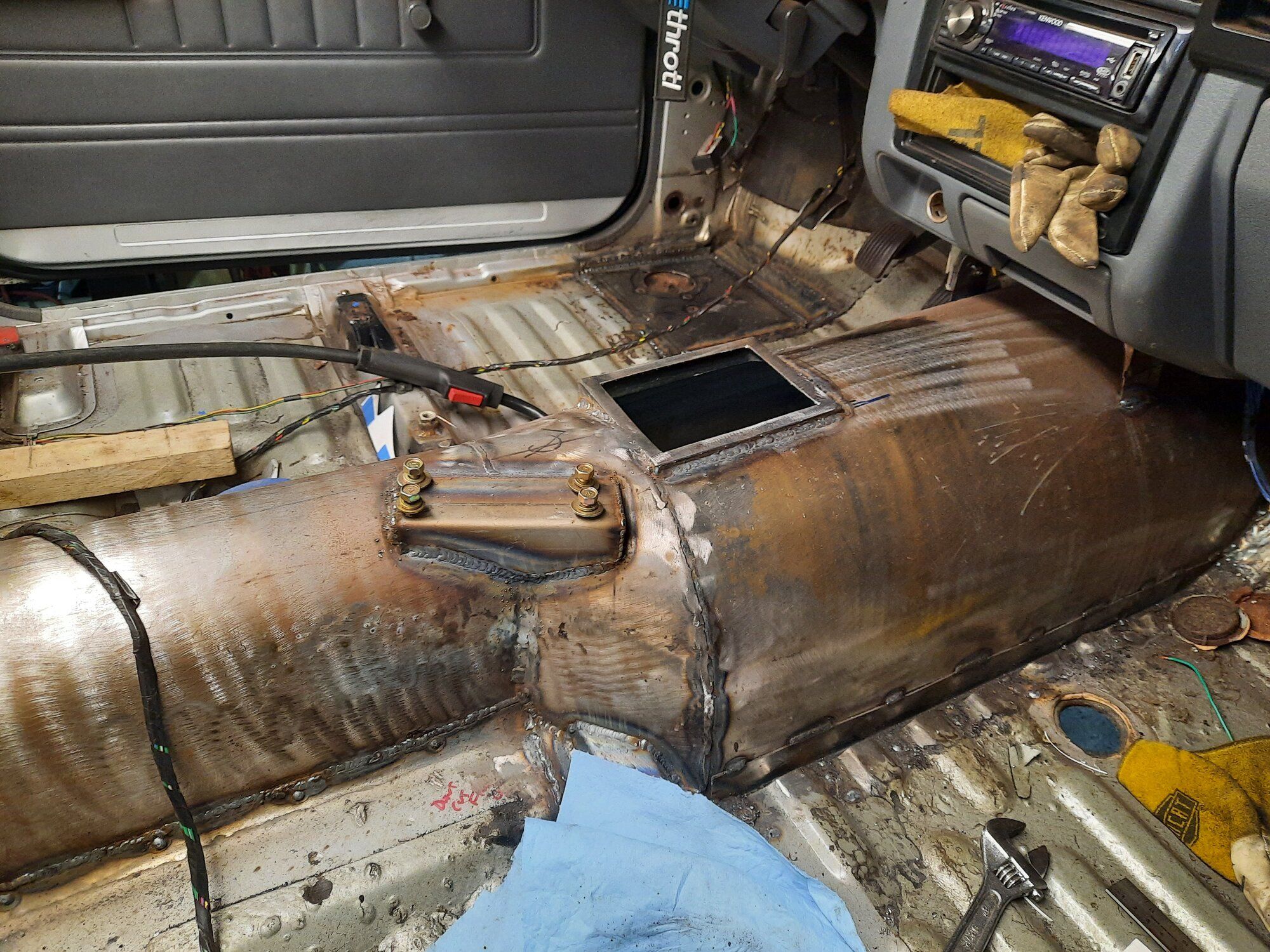

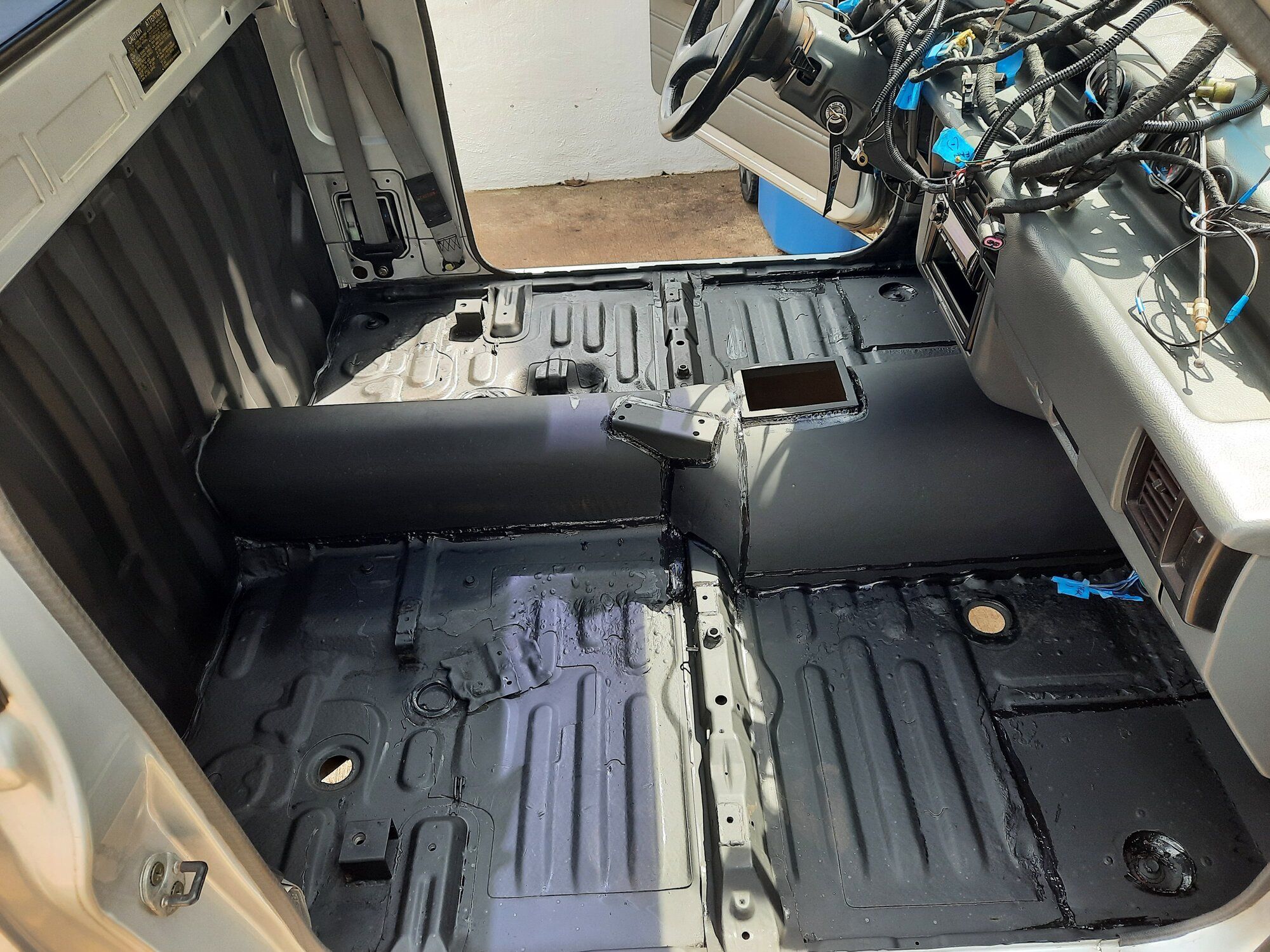

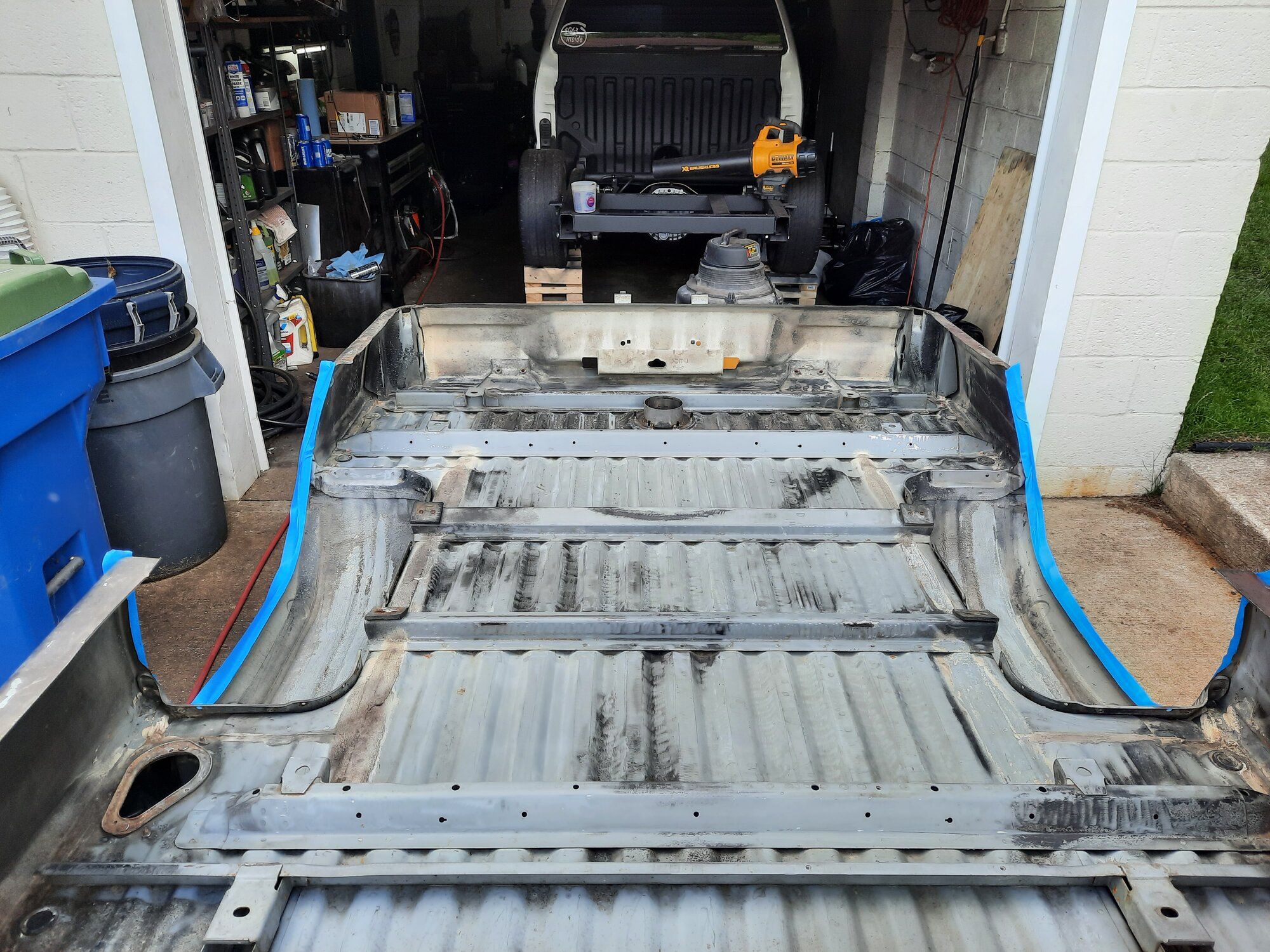

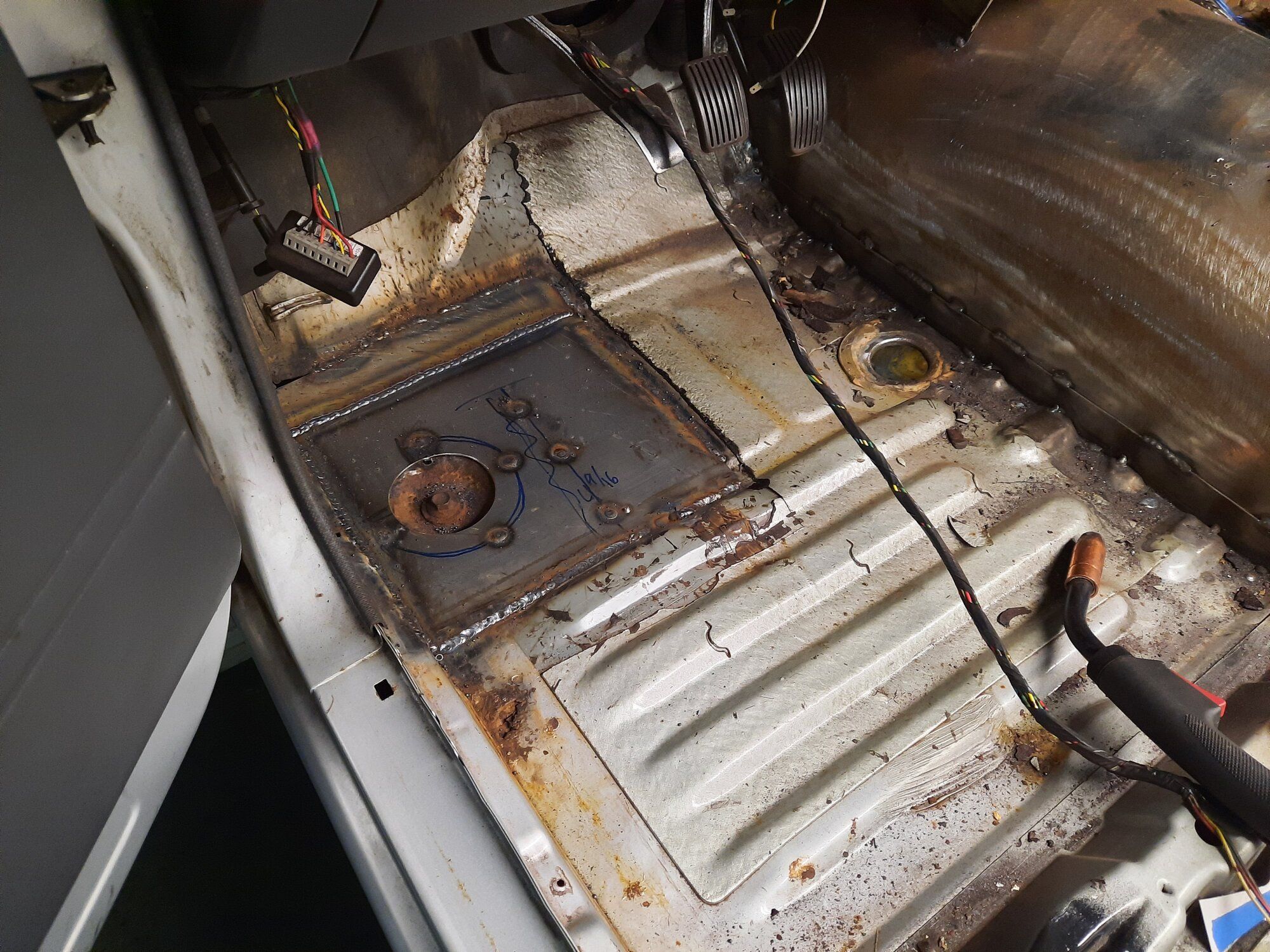

Passenger side floor complete. All that is left now is to prep for primer/sealer/paint. Need to prep the inside of the cab, engine bay, underside of the cab / frame and paint some misc parts (motor mounts, trans mount, cab cross over/driveshaft hoop)

You must be logged in to view this image or video.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

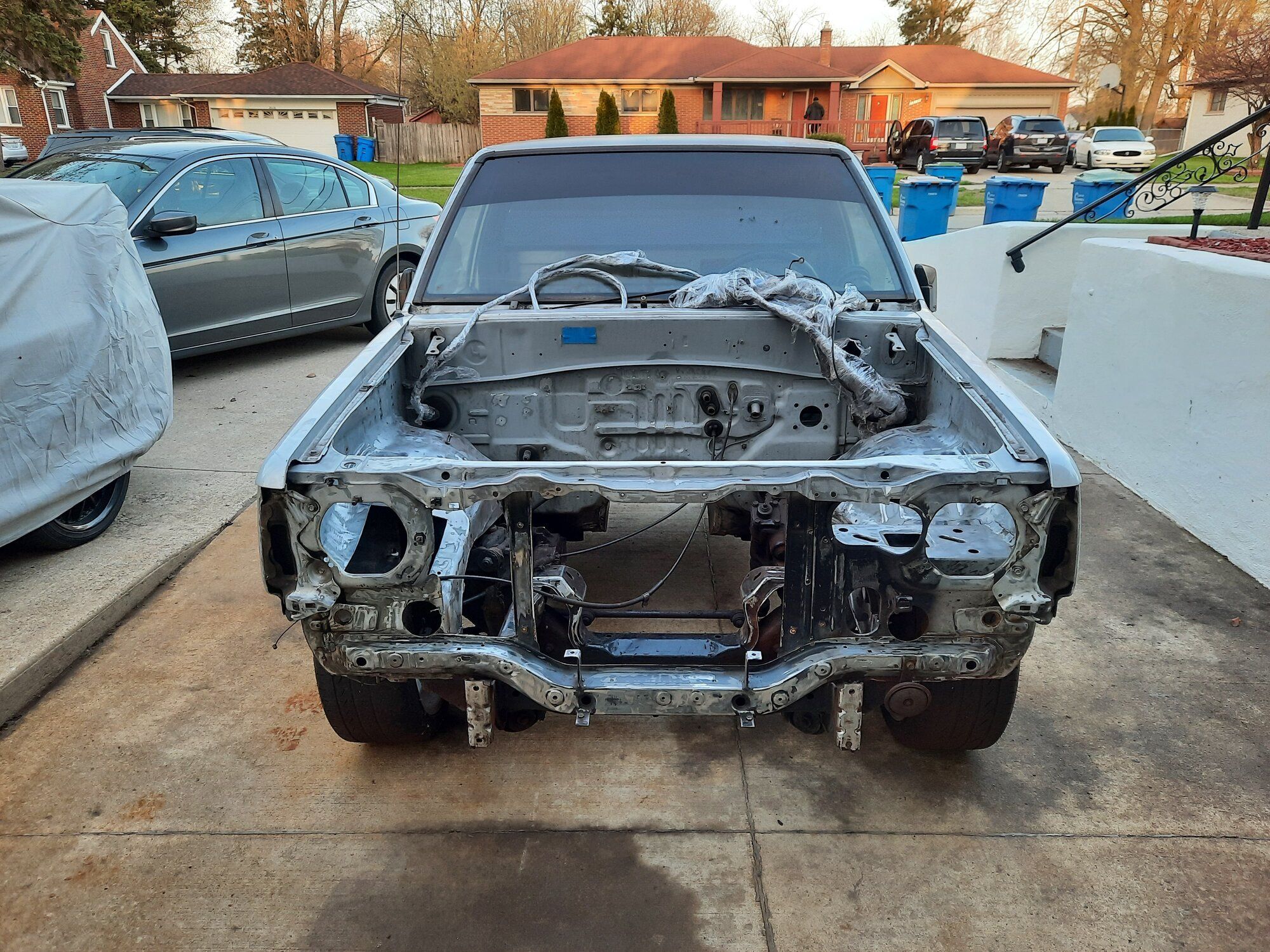

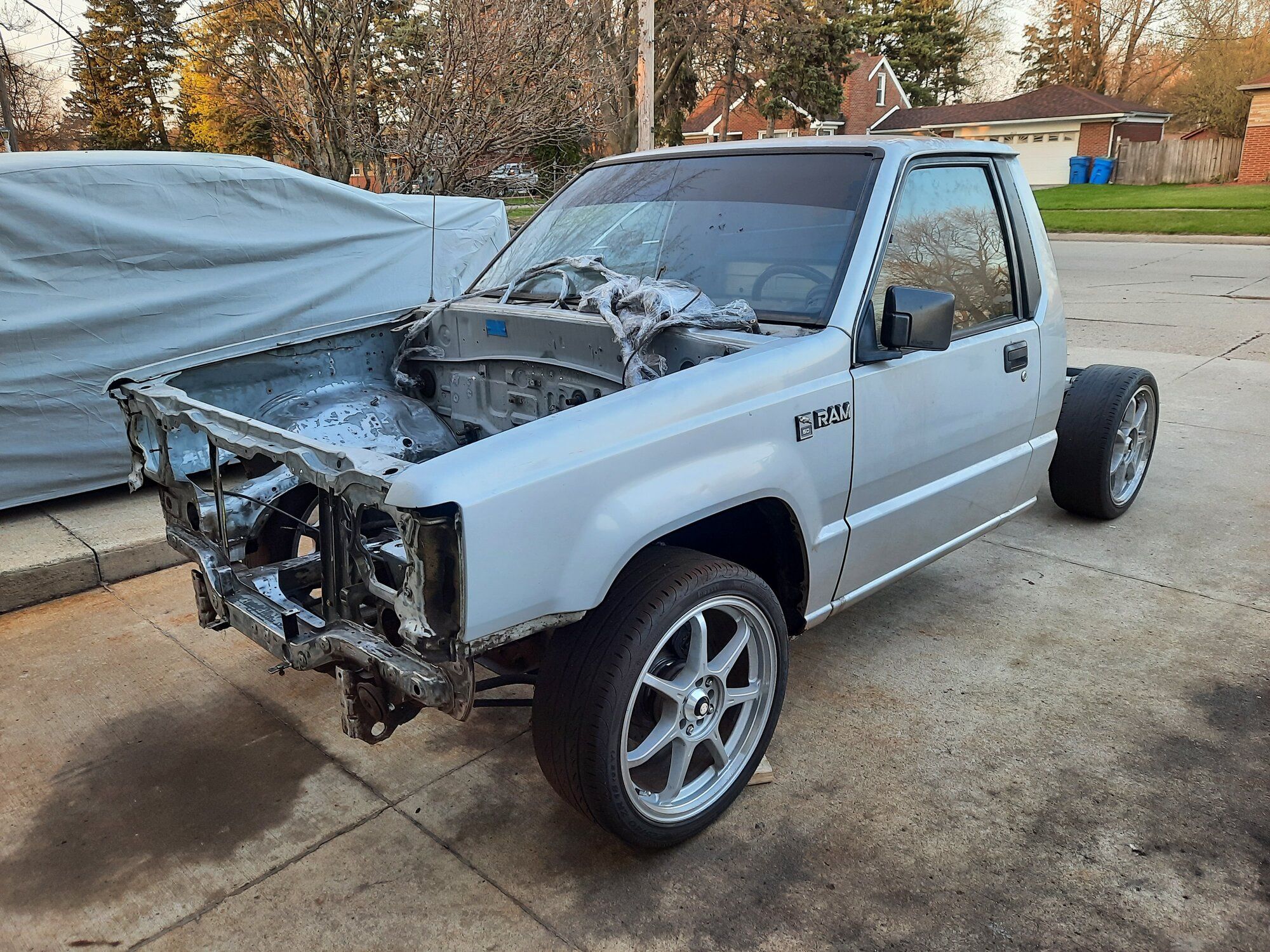

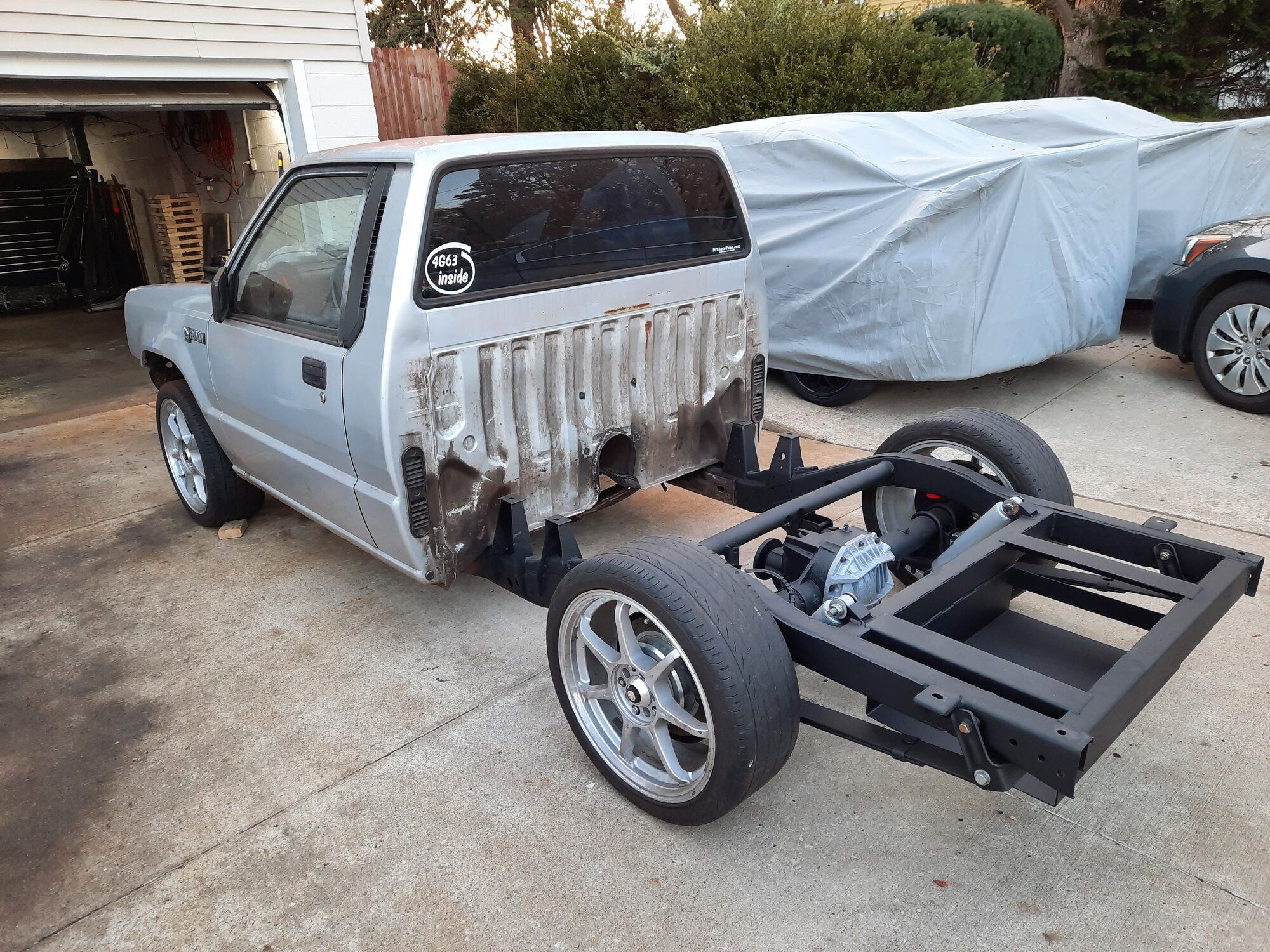

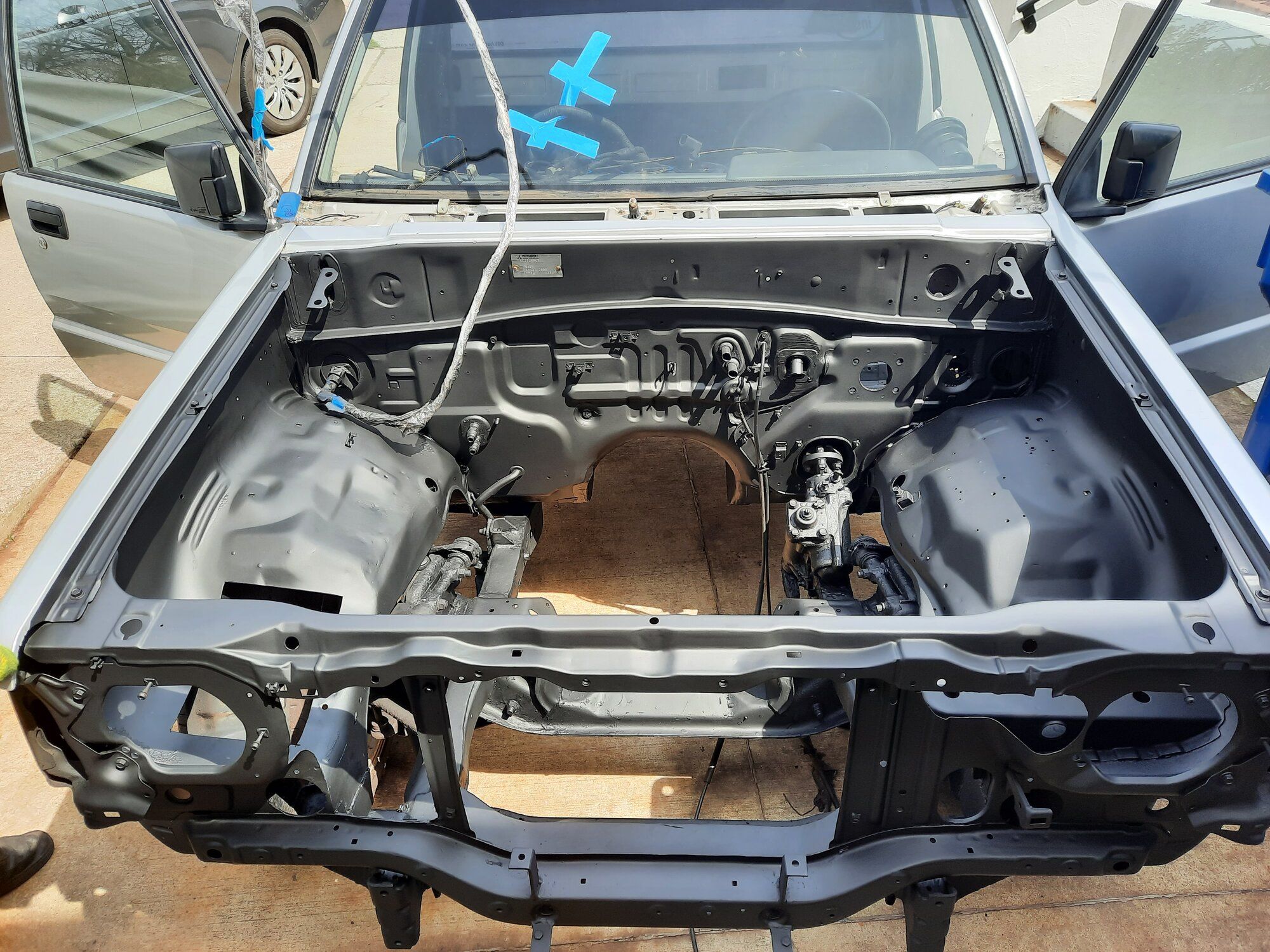

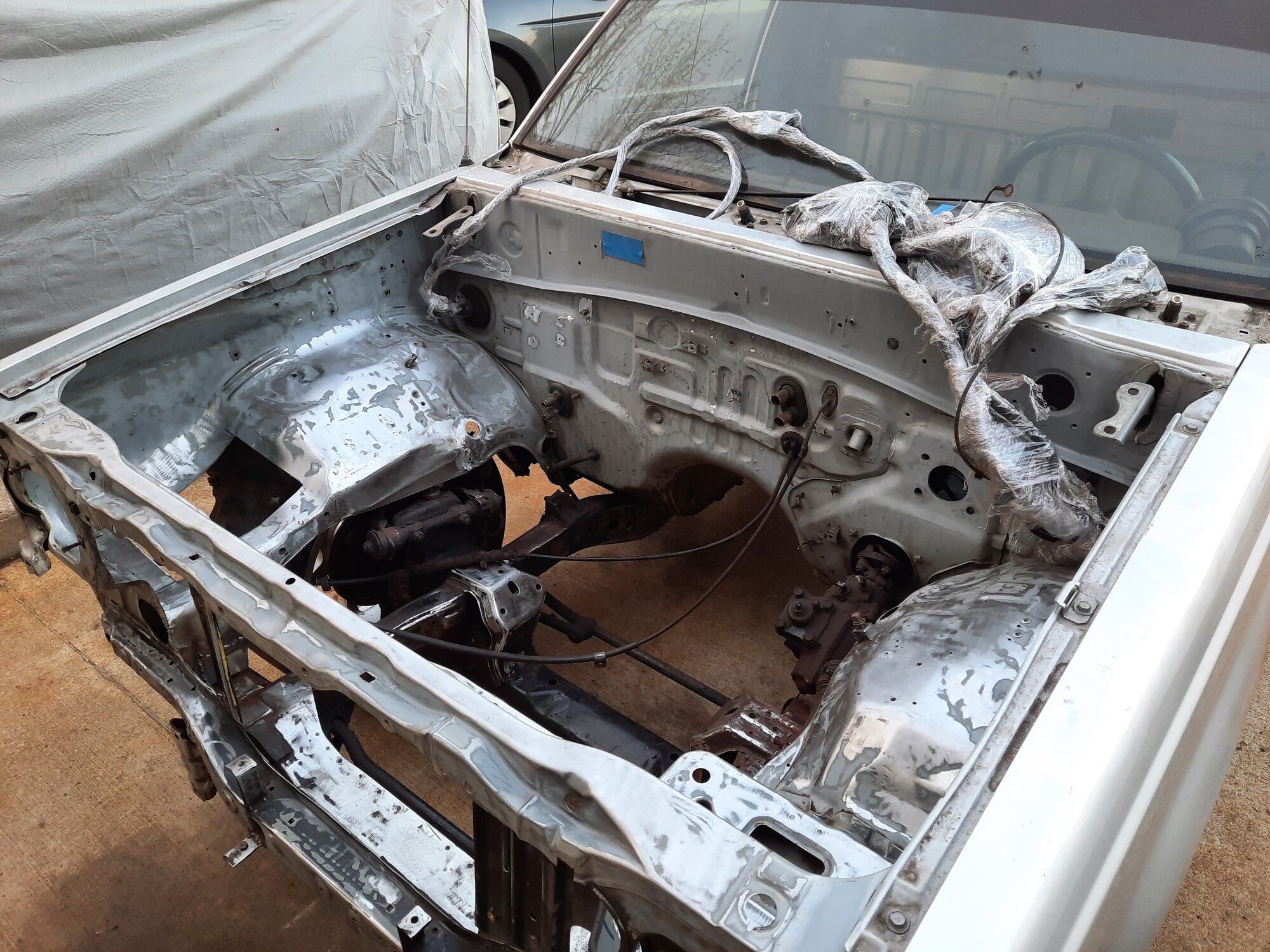

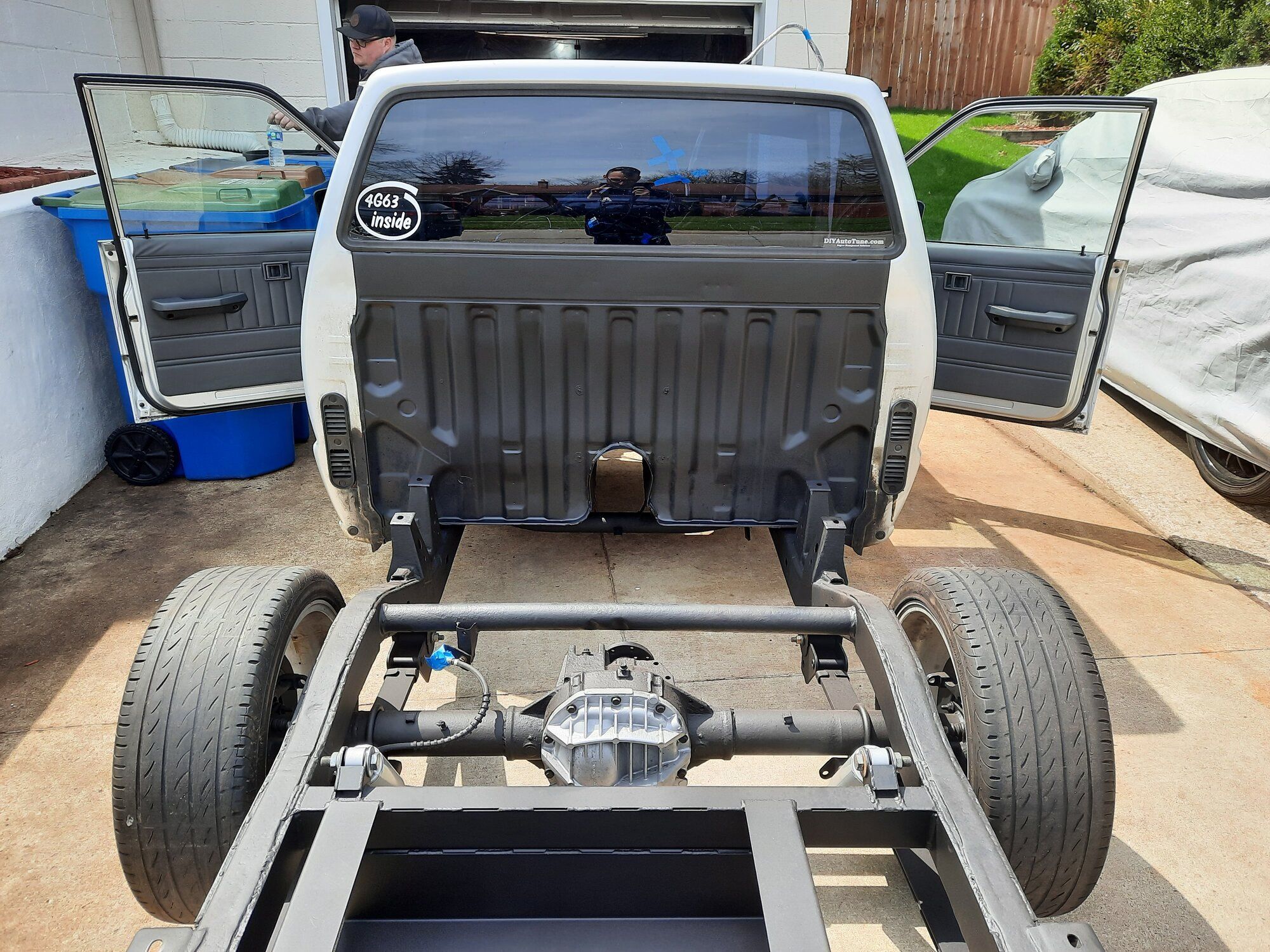

Finally out of the garage.. been a long time coming. Truck frame, interior cab, and engine bay are ready for primer, sealer and paint. Thing looks weird being out of the garage.

You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

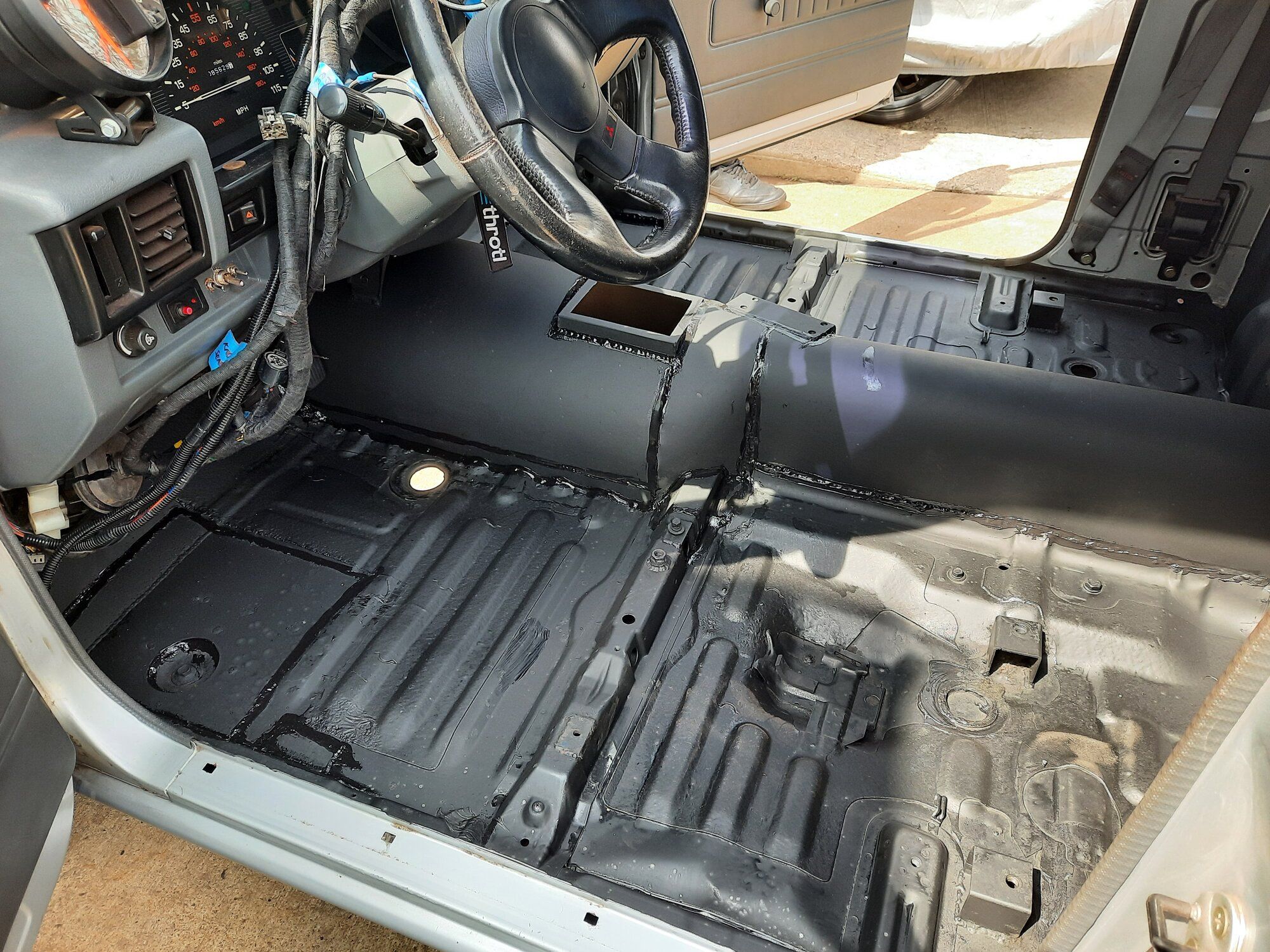

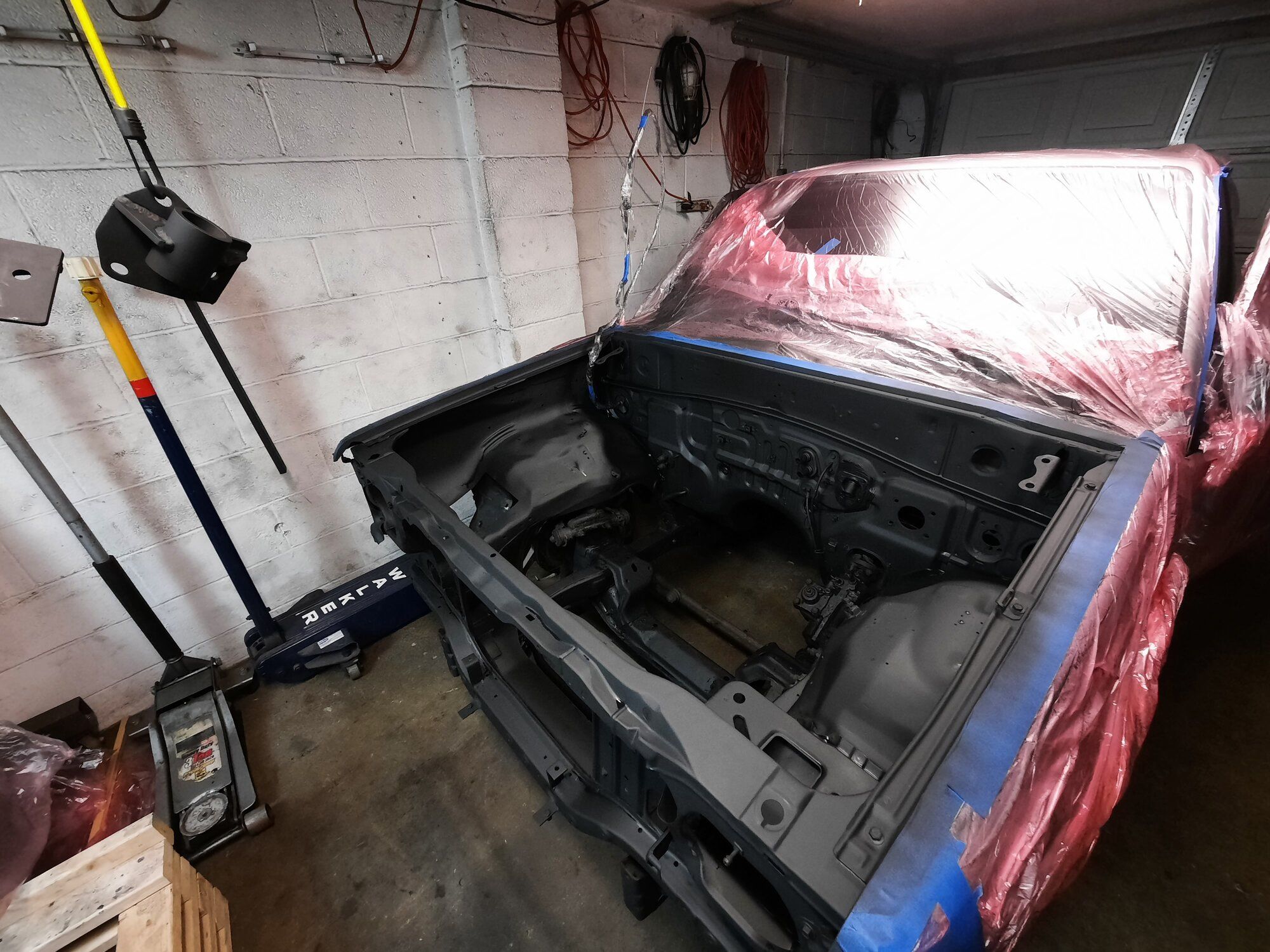

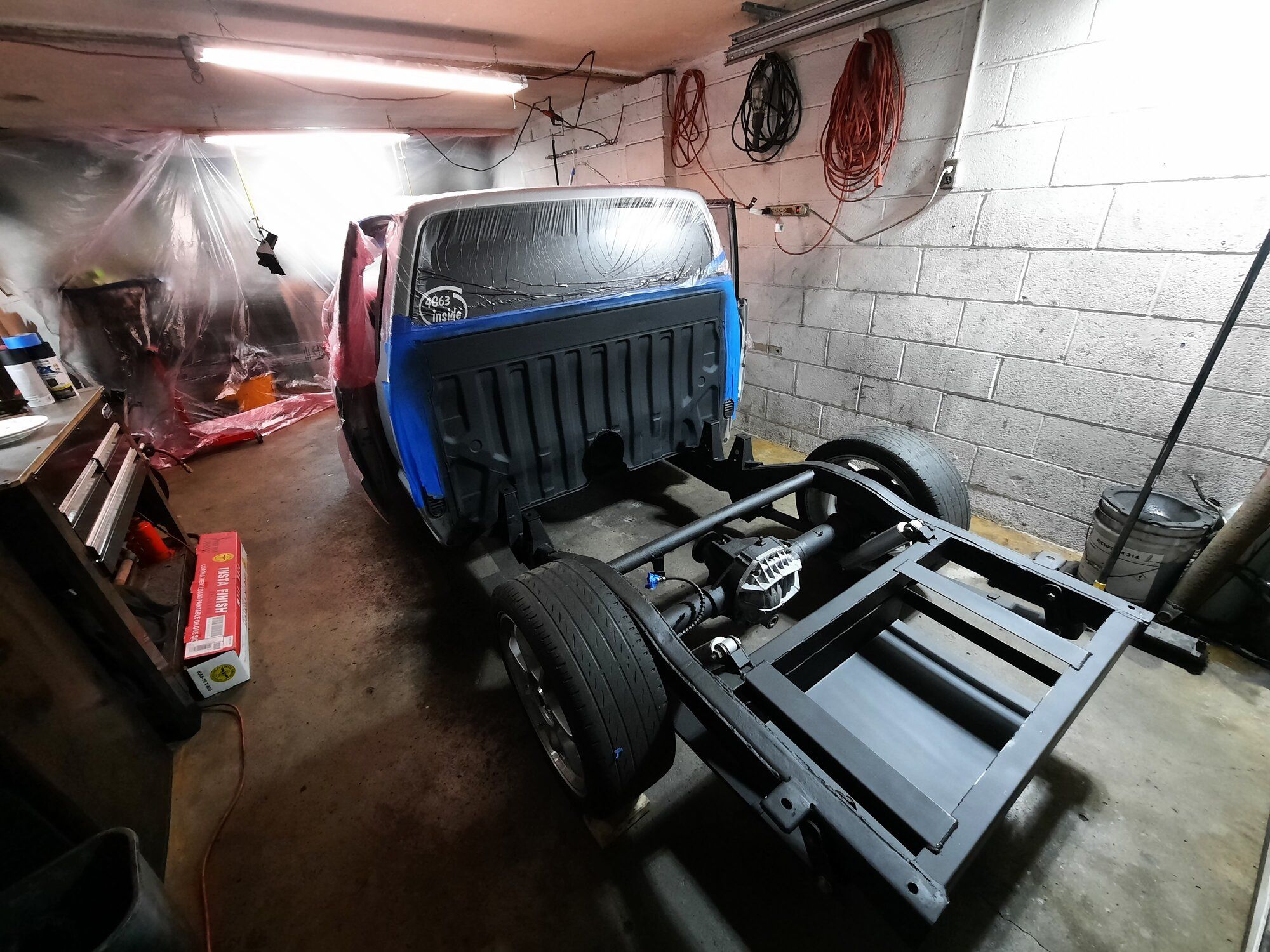

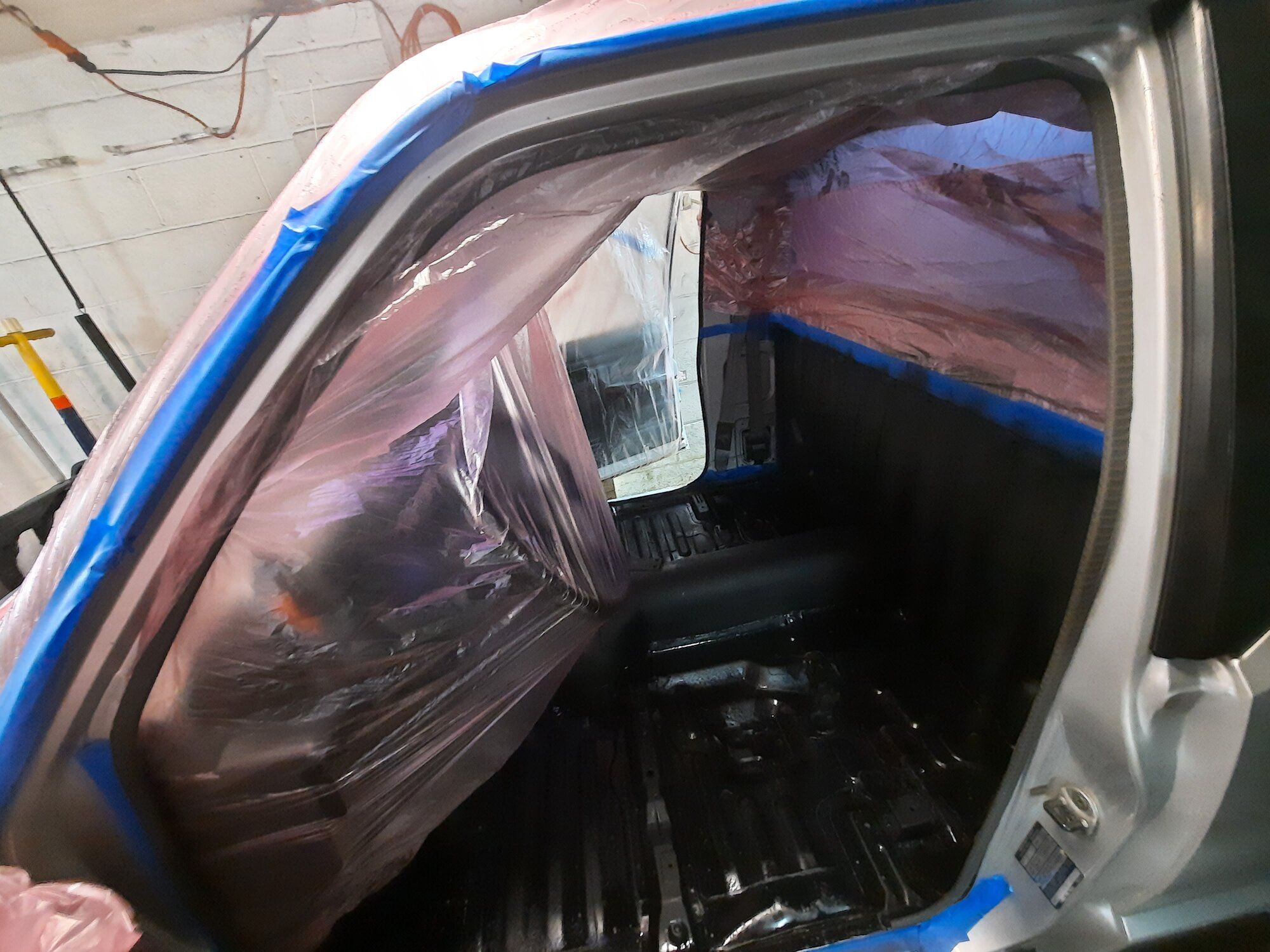

Truck bay, cab, underbody all primed and painted.. last step is to bed liner or carpet the interior.. still on the fence what route to go.

You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

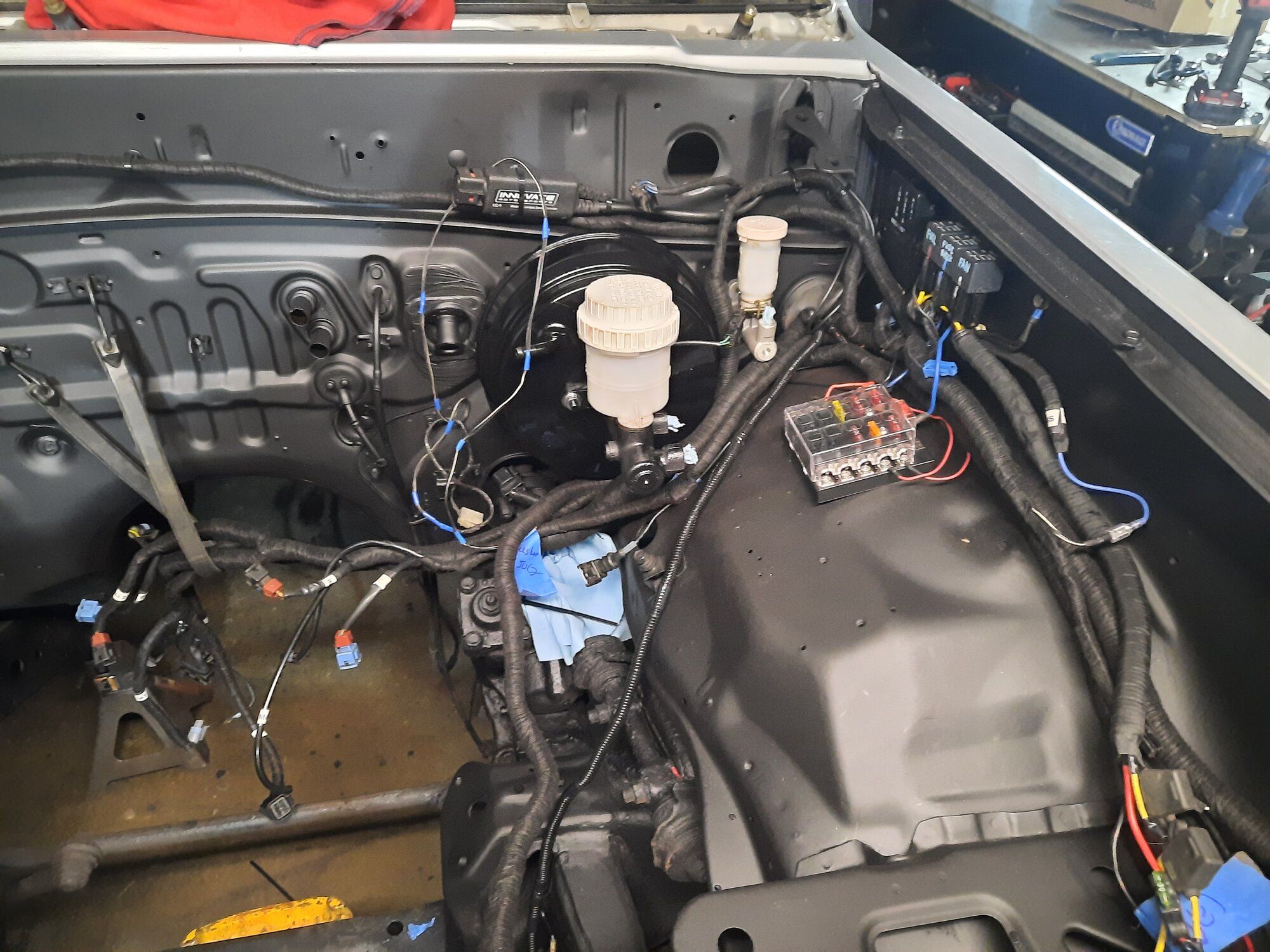

Starting to put the truck back together. Harness was a pain in the ass as usual but its in as well as the brake master, booster and clutch master. Parts in the making : shifter top trim piece, removable coolant/washer/ps bracket, finish panel to cover up ps pump, and bracket for fuseable link/circuit breaker.

You must be logged in to view this image or video.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

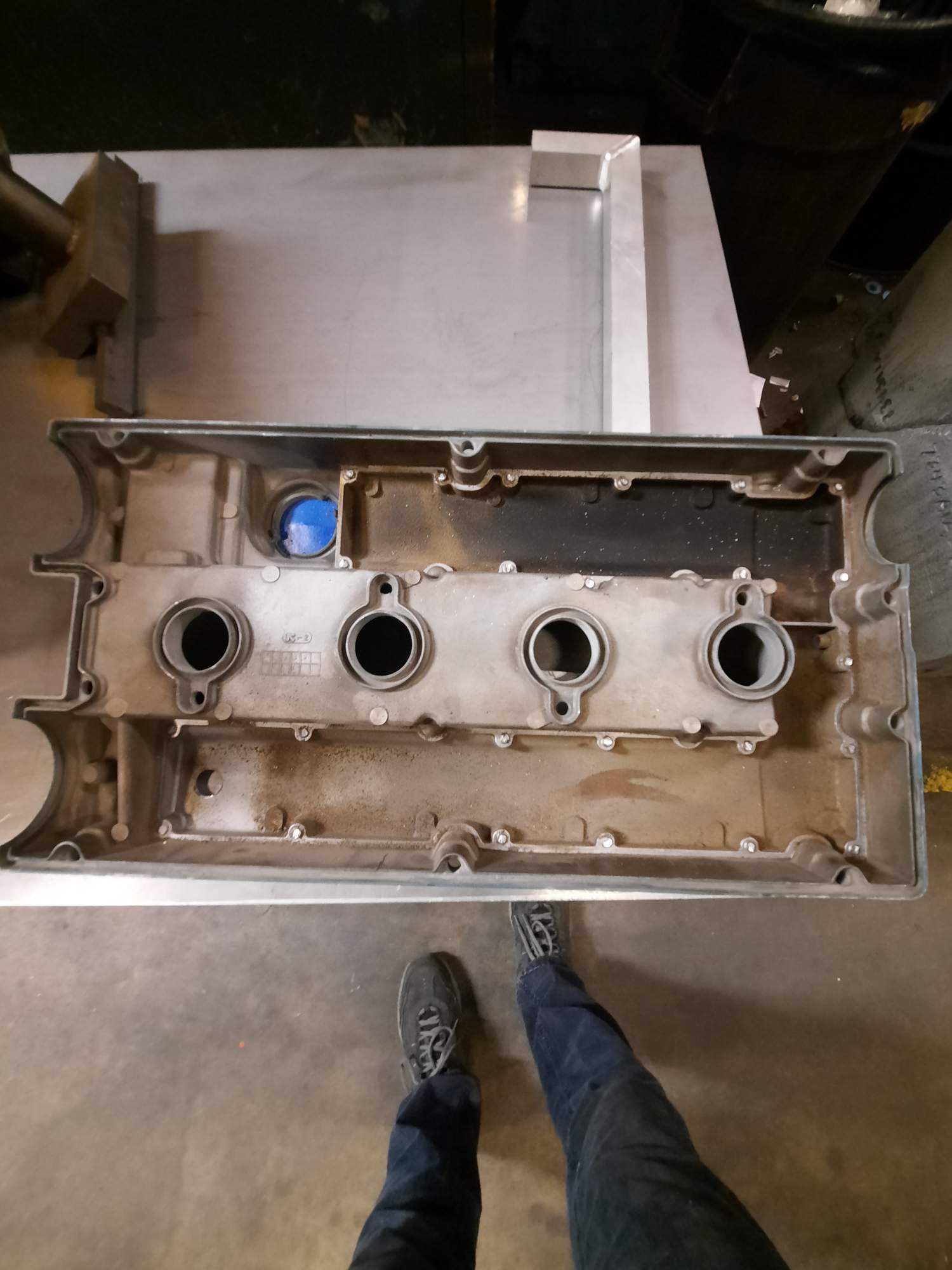

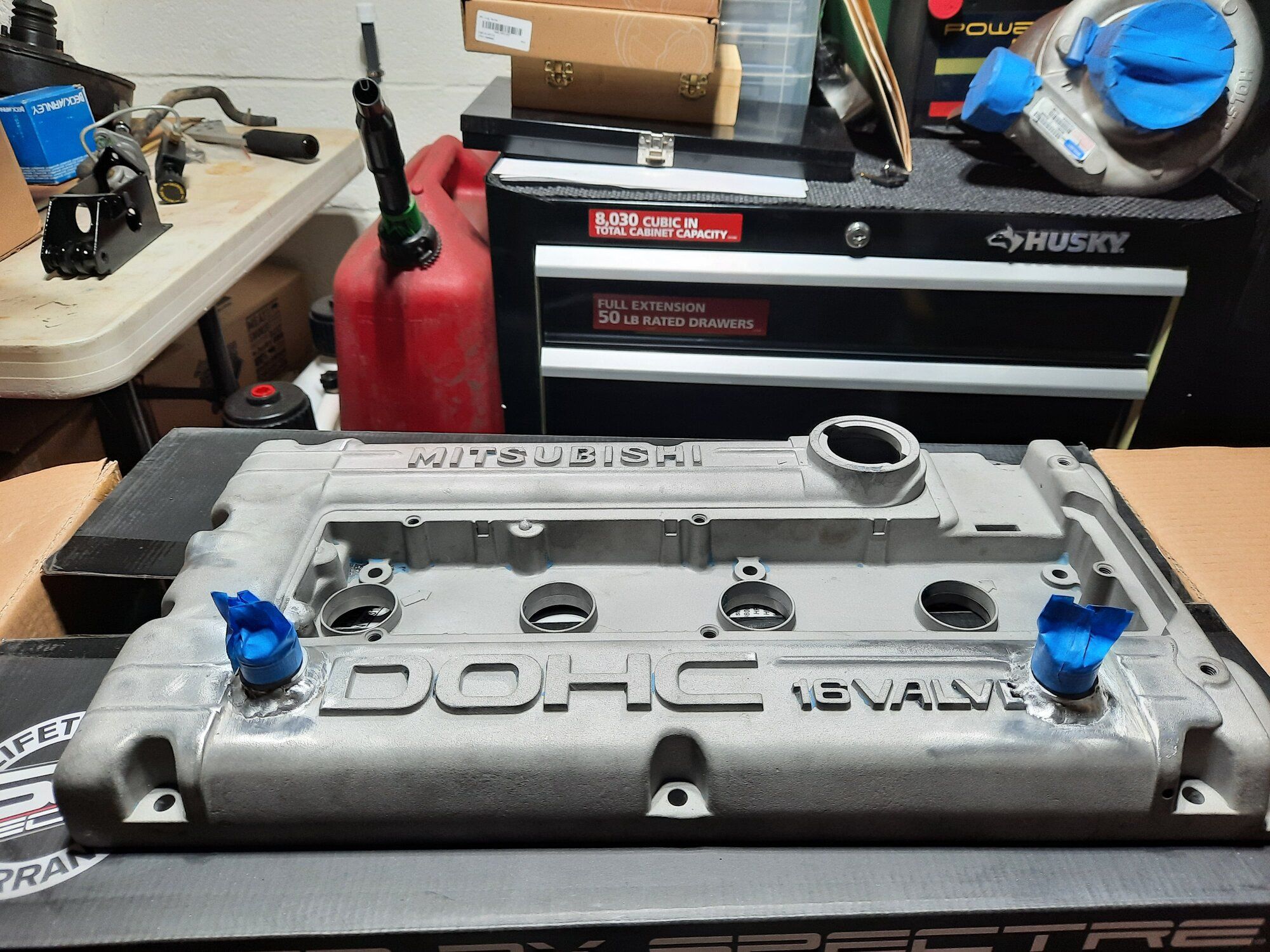

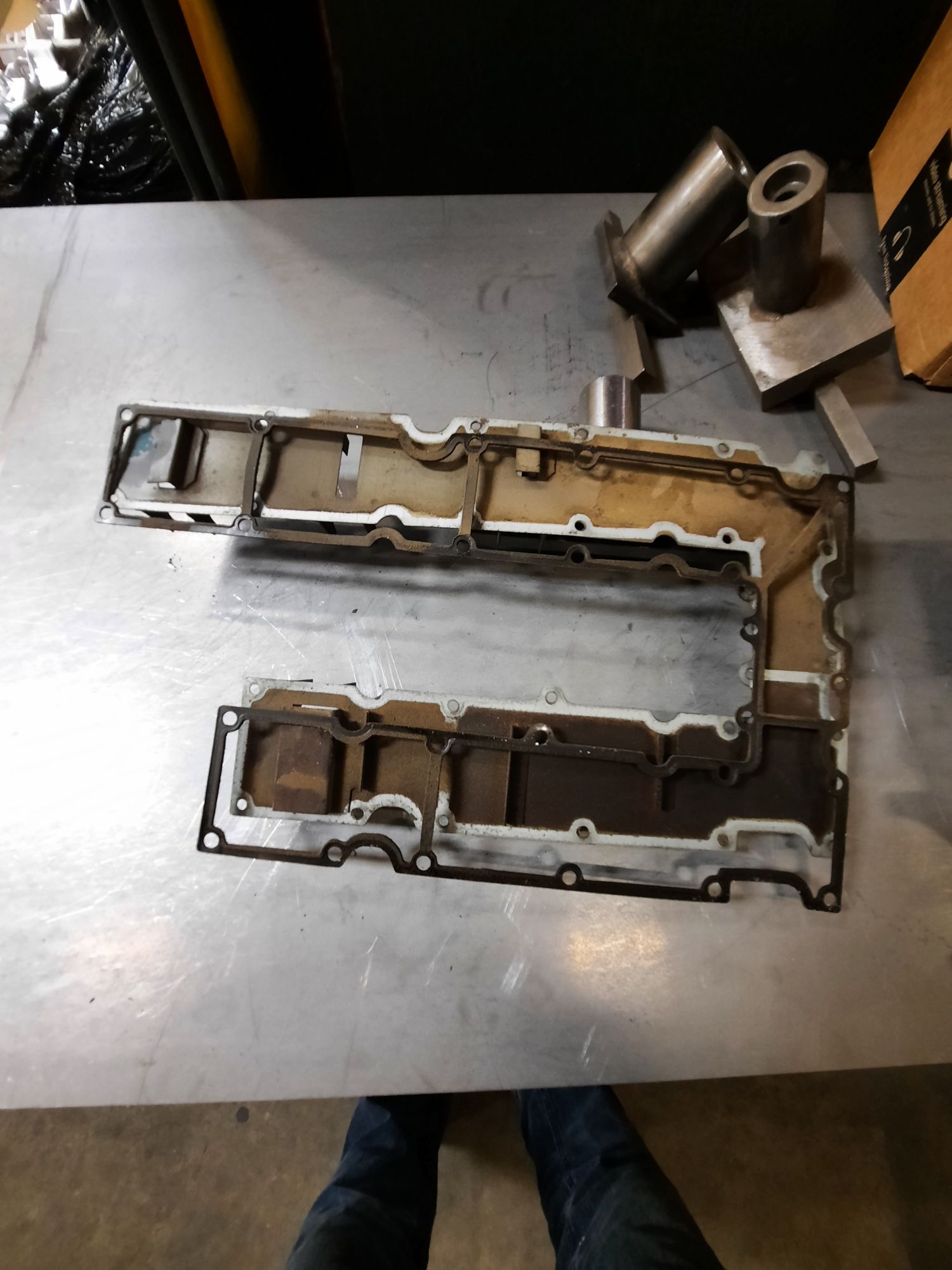

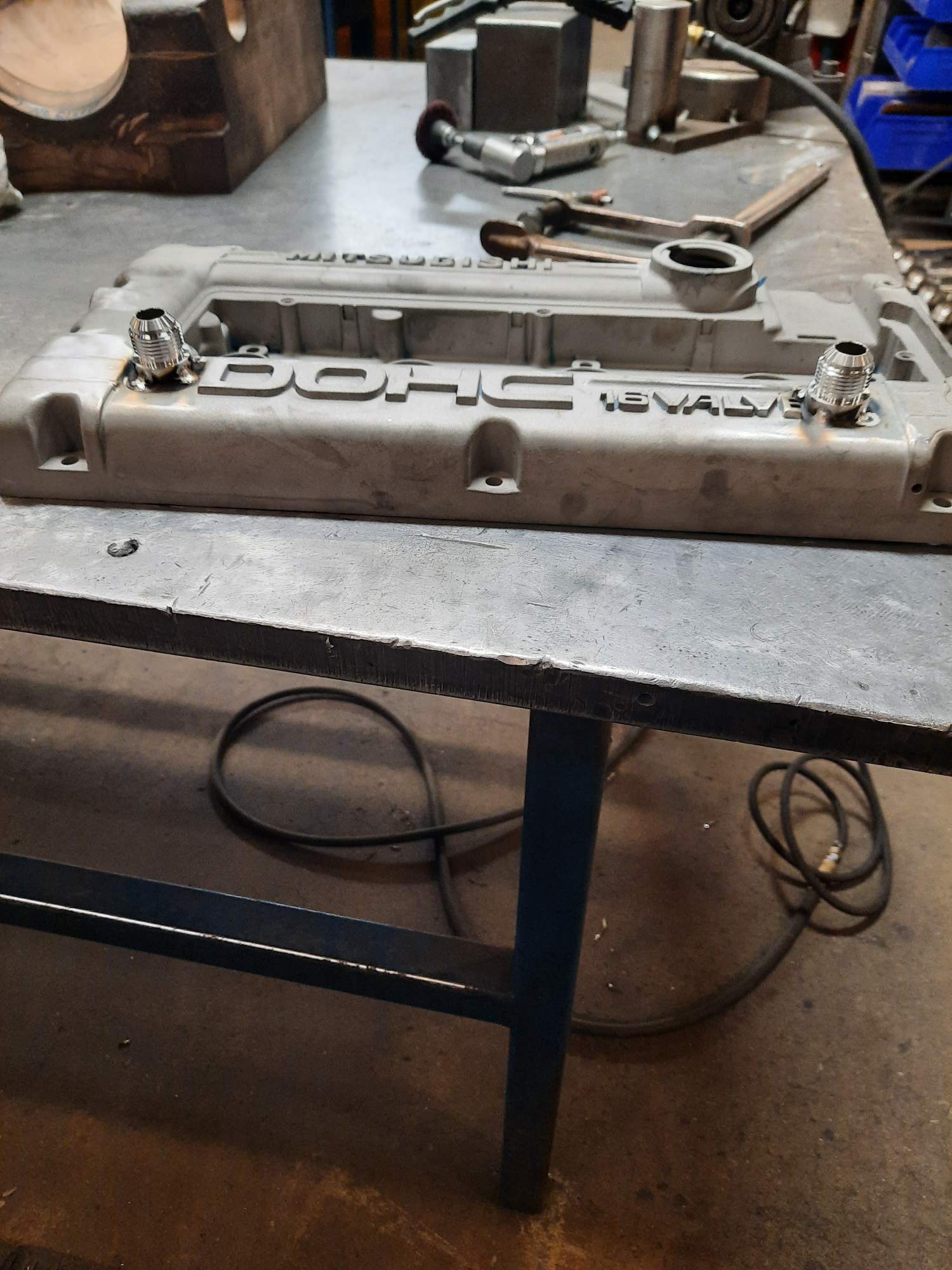

Valve cover work completed. All that is left to do is paint the cover and install.

You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.


You must be logged in to view this image or video.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

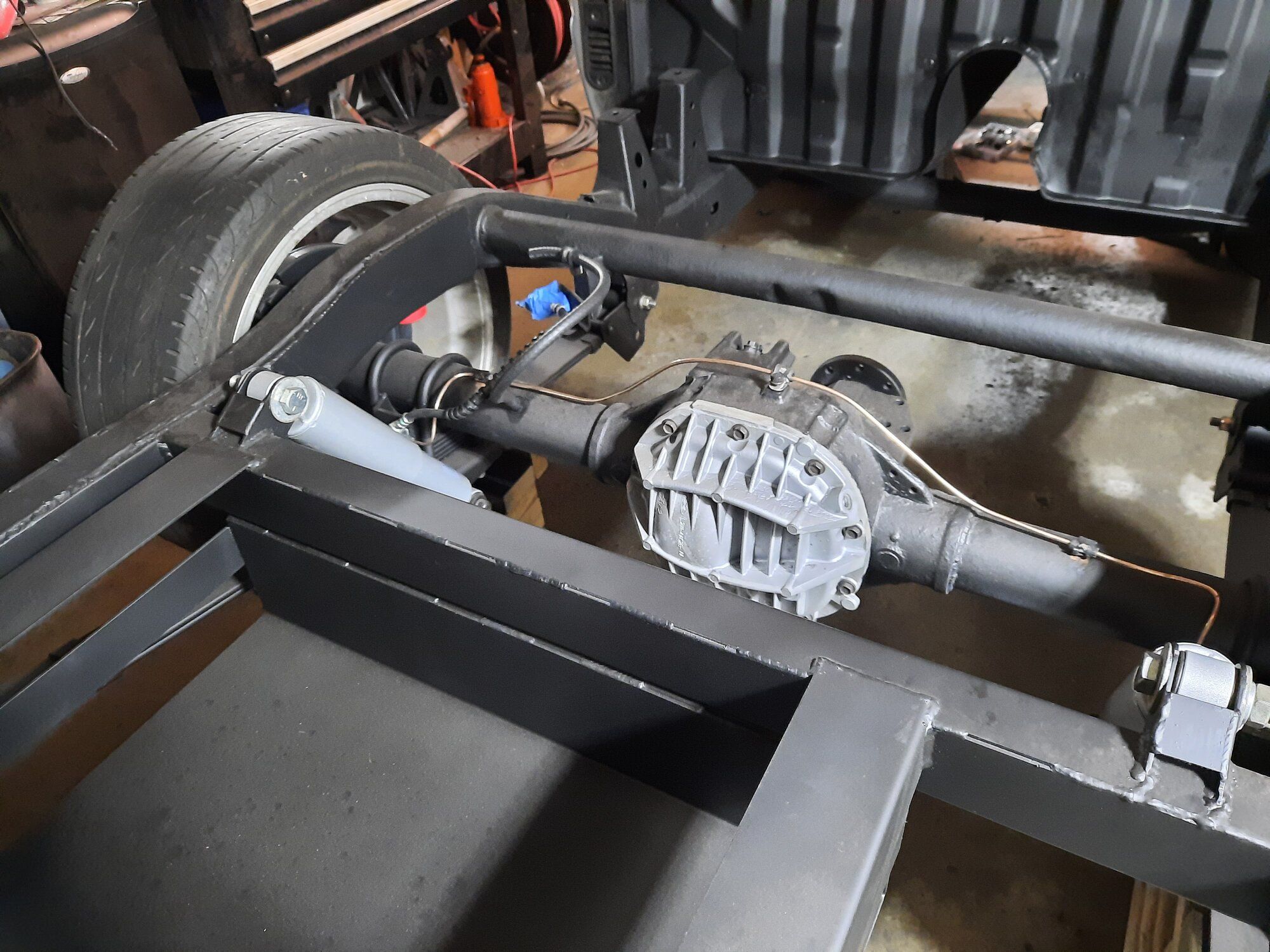

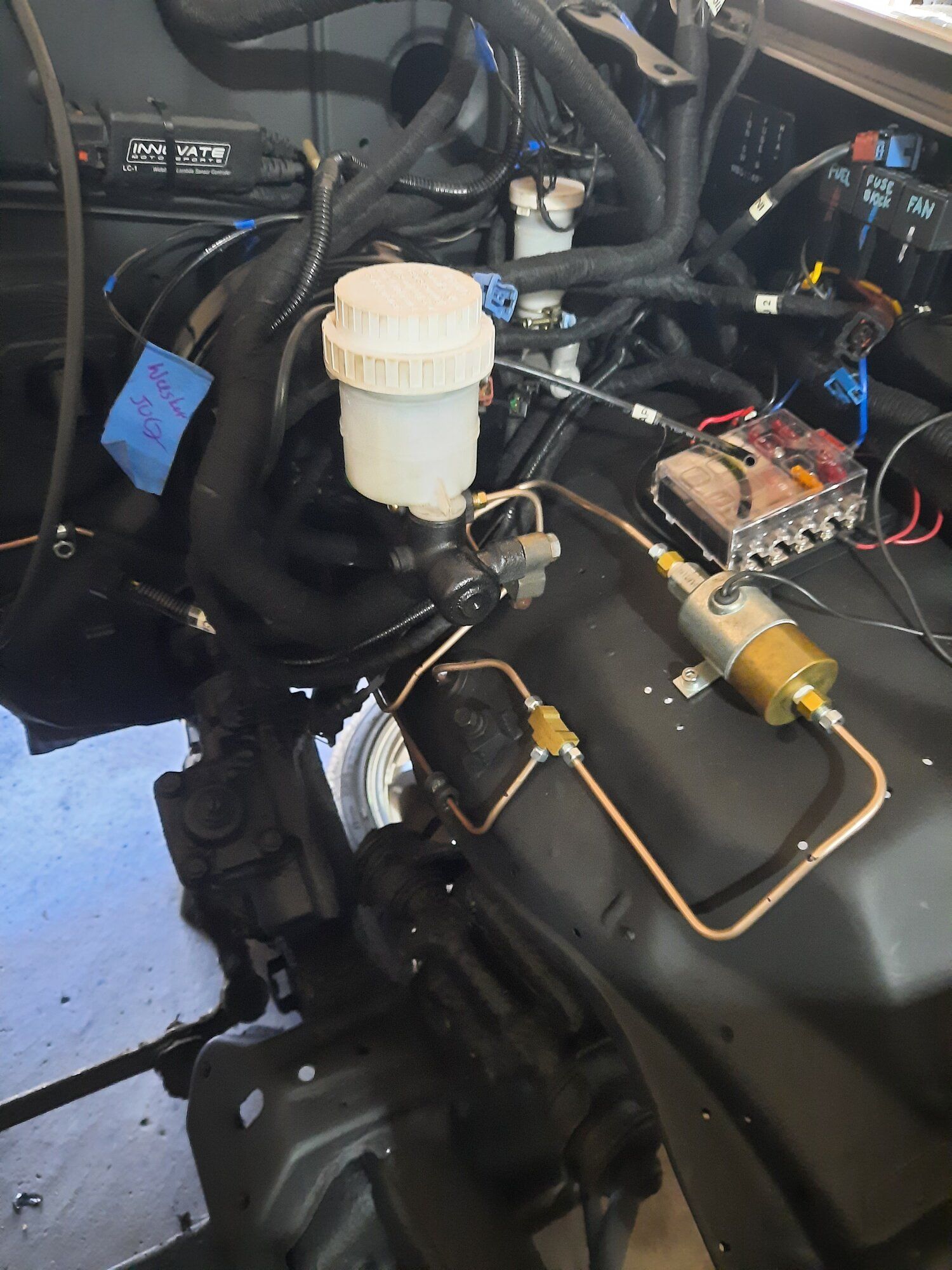

Brake lines for the most part done.... had to order a new master since the threads on the old one were pretty jacked, then my luck the back fitting is a different one so i have to redo the section of line..

You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

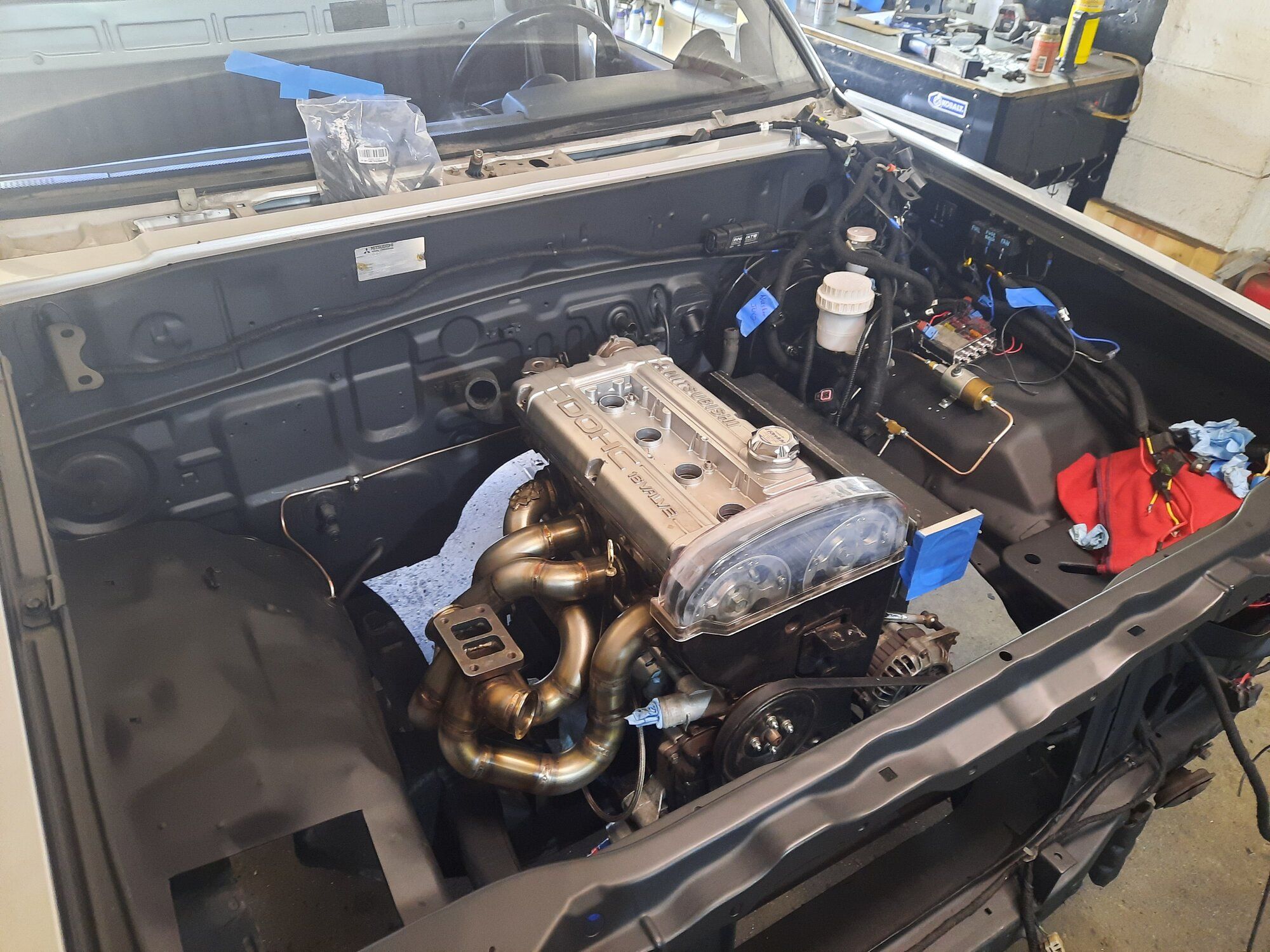

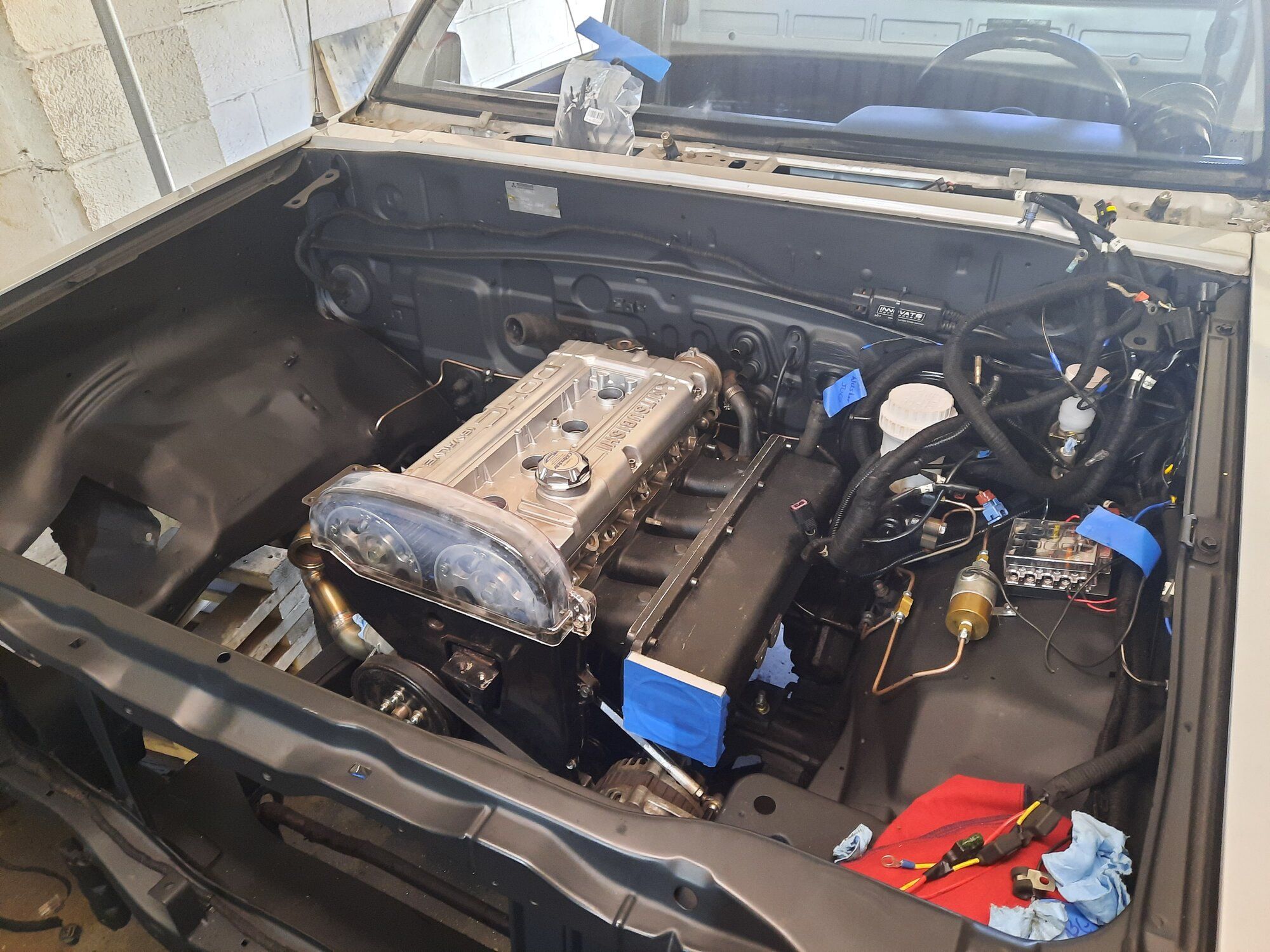

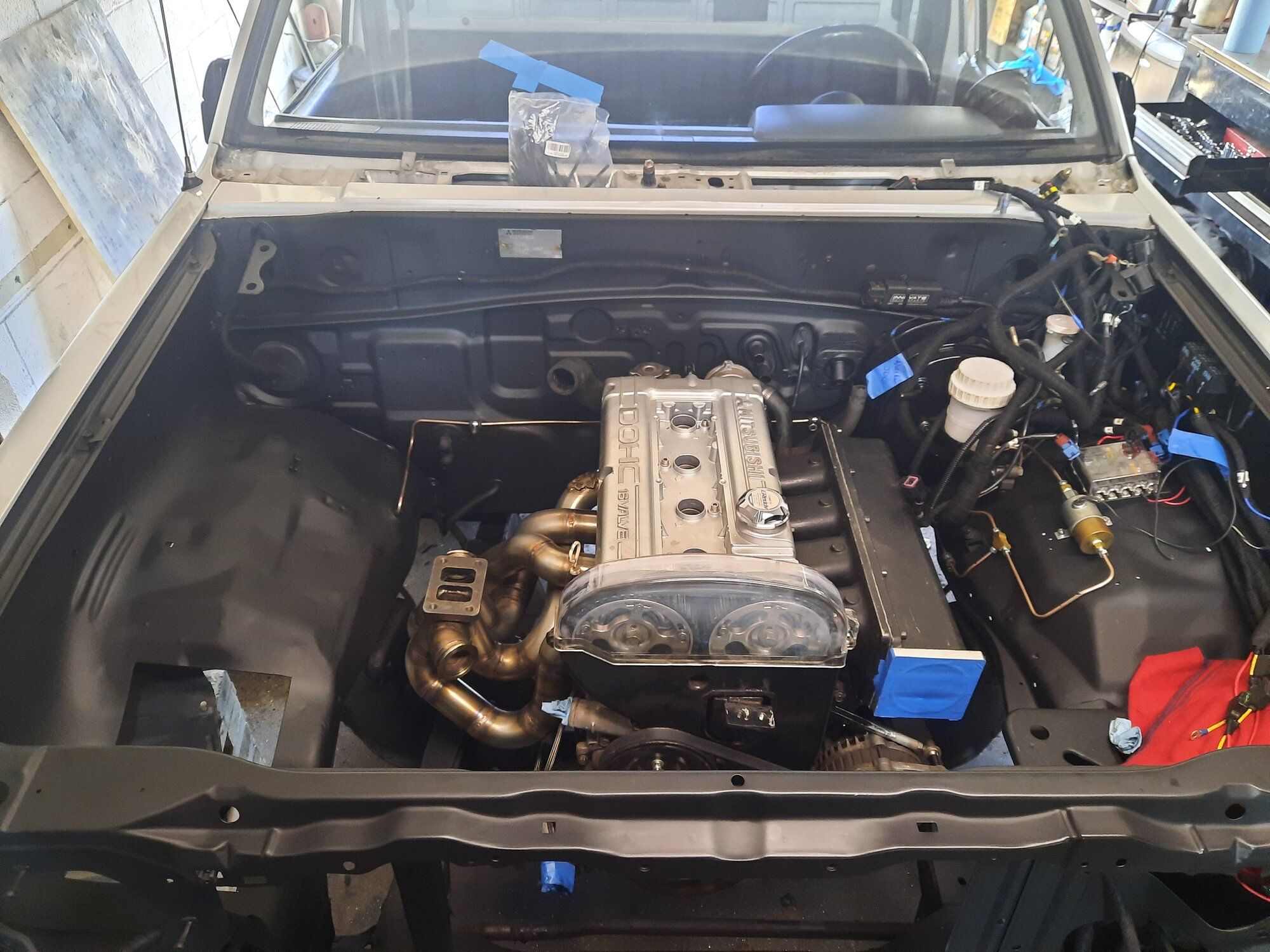

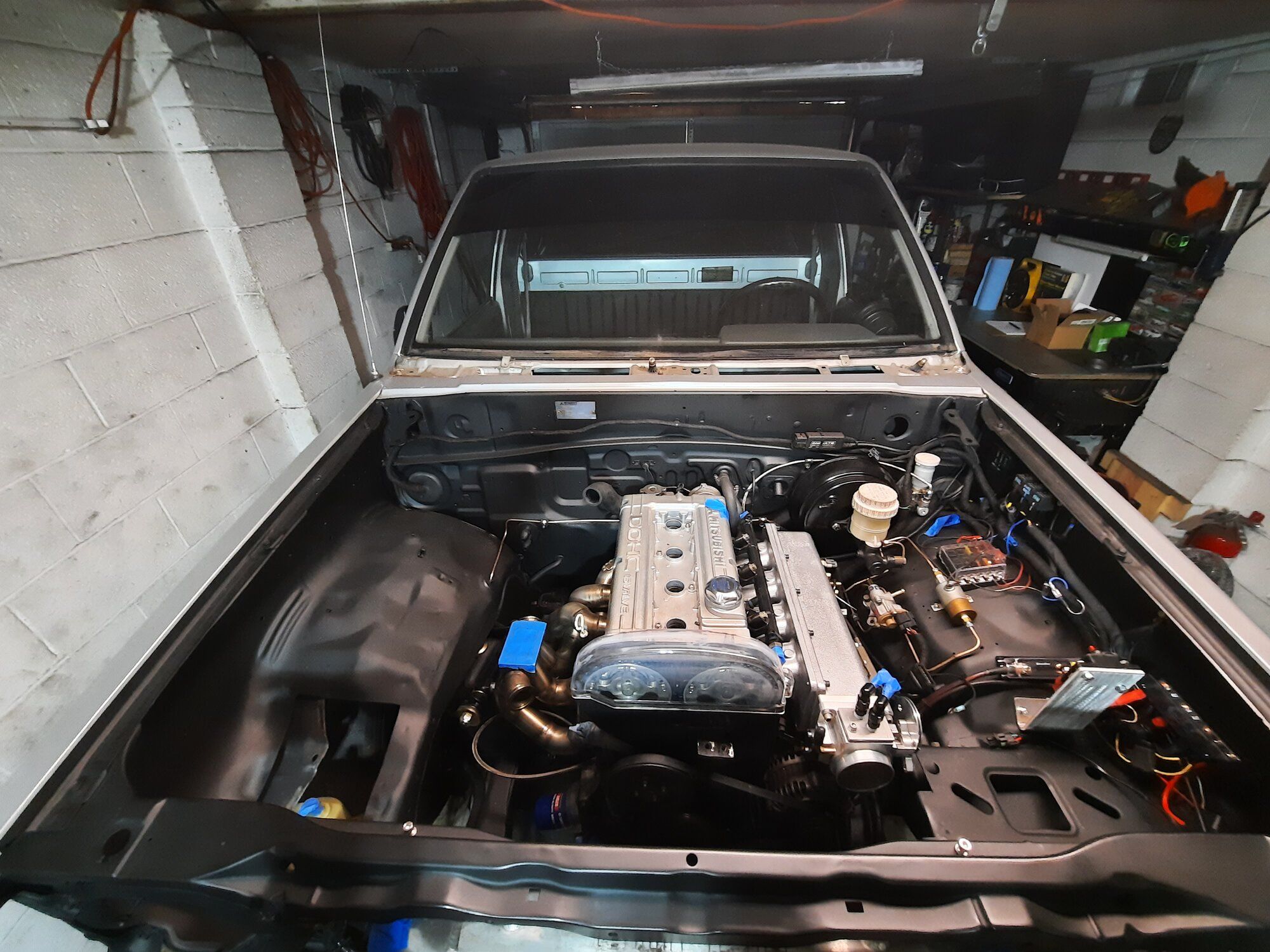

Finally some more progress. Took the motor apart to check bearings, redid all the gaskets and dropped here in. Pulled out the intake and exhaust for the final mockup to make sure nothing moved too much.

You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.


Also got the whole front end apart so its ready for more painted and new parts.


Mech Addict

Supporting Member
983
414
Jun 9, 2019
Jackson, Wyoming
“Finally more progress”?!?! And that consisted of tearing down the motor…ROFL
That would take me months. You’re a harsh critic of your own accomplishments, because the progress your making is staggering to me. Very entertaining, though, with updates actually very frequent.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan
“Finally more progress”?!?! And that consisted of tearing down the motor…ROFL
That would take me months. You’re a harsh critic of your own accomplishments, because the progress your making is staggering to me. Very entertaining, though, with updates actually very frequent.
Hahah, thanks man. Yea somedays it doesnt seem like anything gets done between work and the kids. Not a fan of looking at something taken all apart, plus the wife wants the basement clear of all the evo, ram50, and dsm parts so slowely getting them all together.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

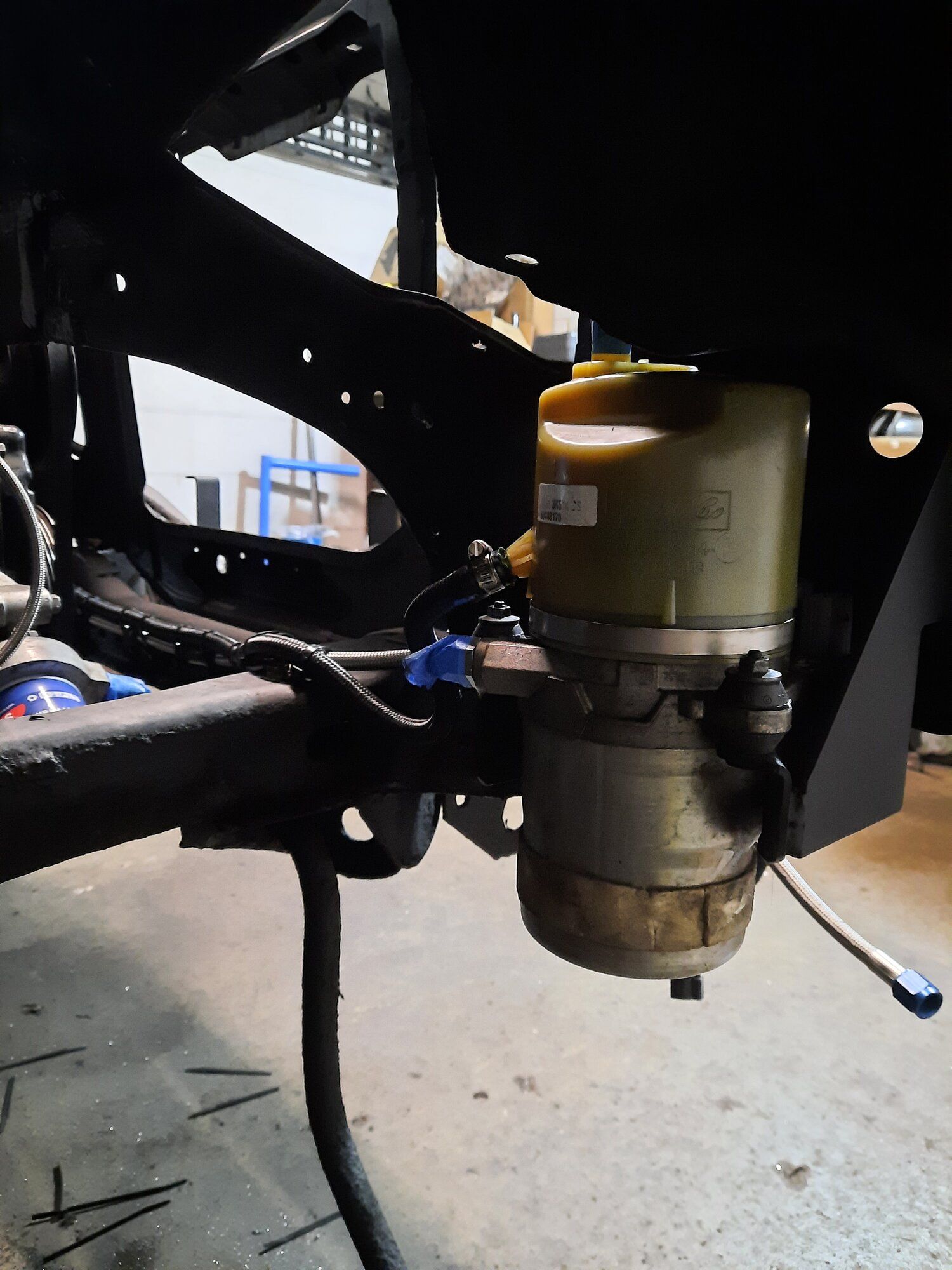

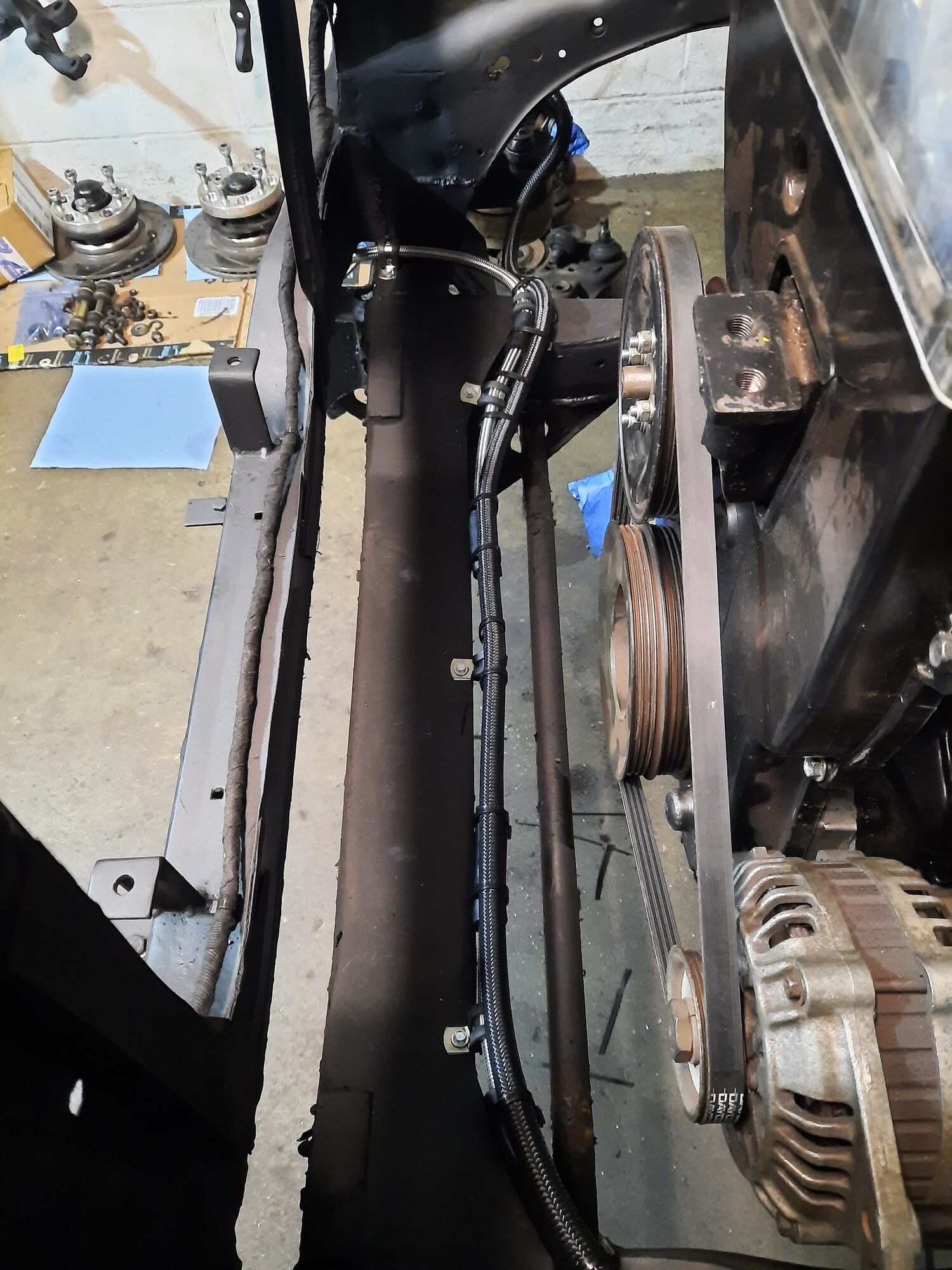

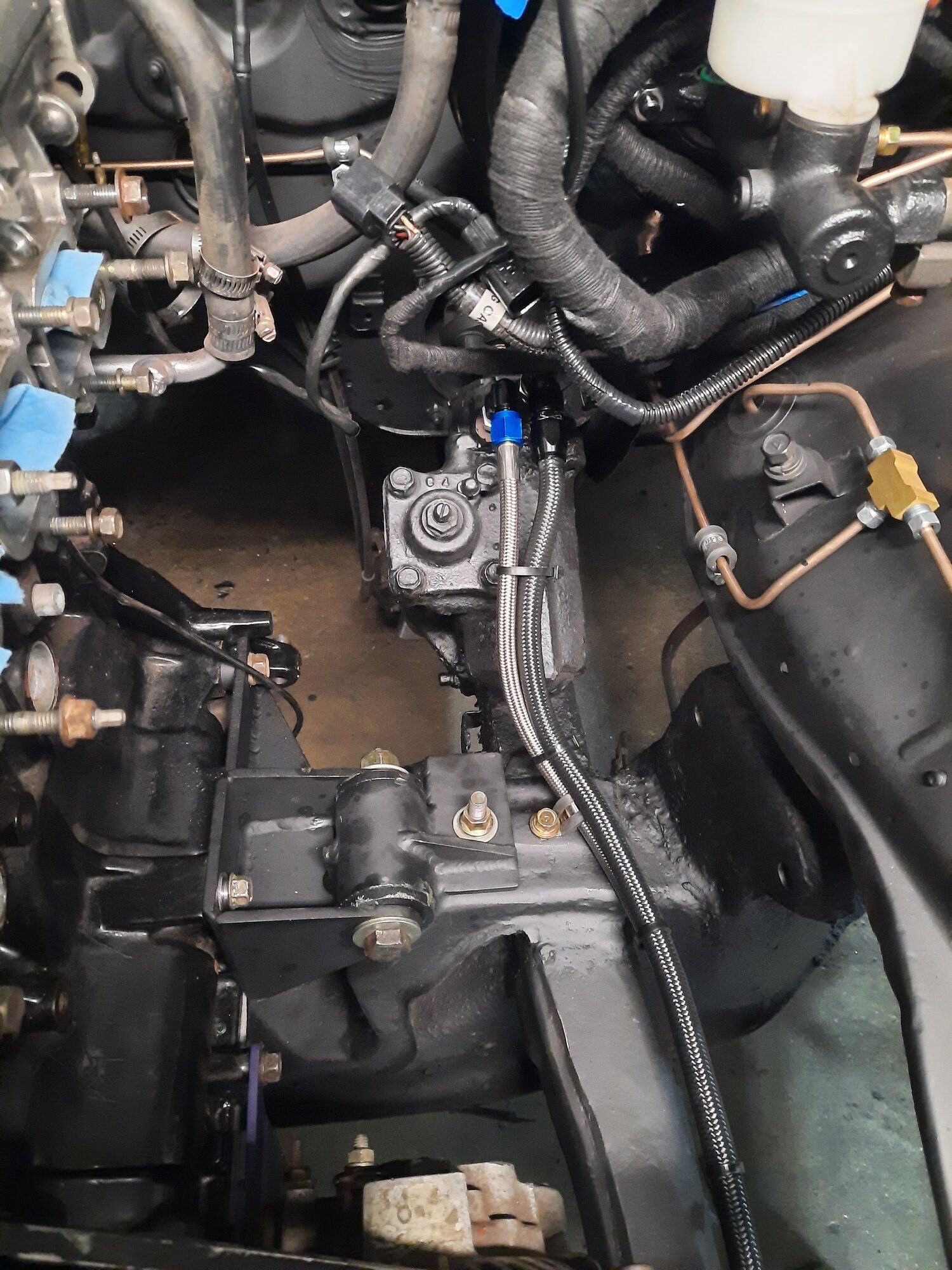

Power steering lines ran from the gear box to the volvo power steering pump. Waiting on one 90 degree male to female an fitting and have to run the wiring to it.

You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

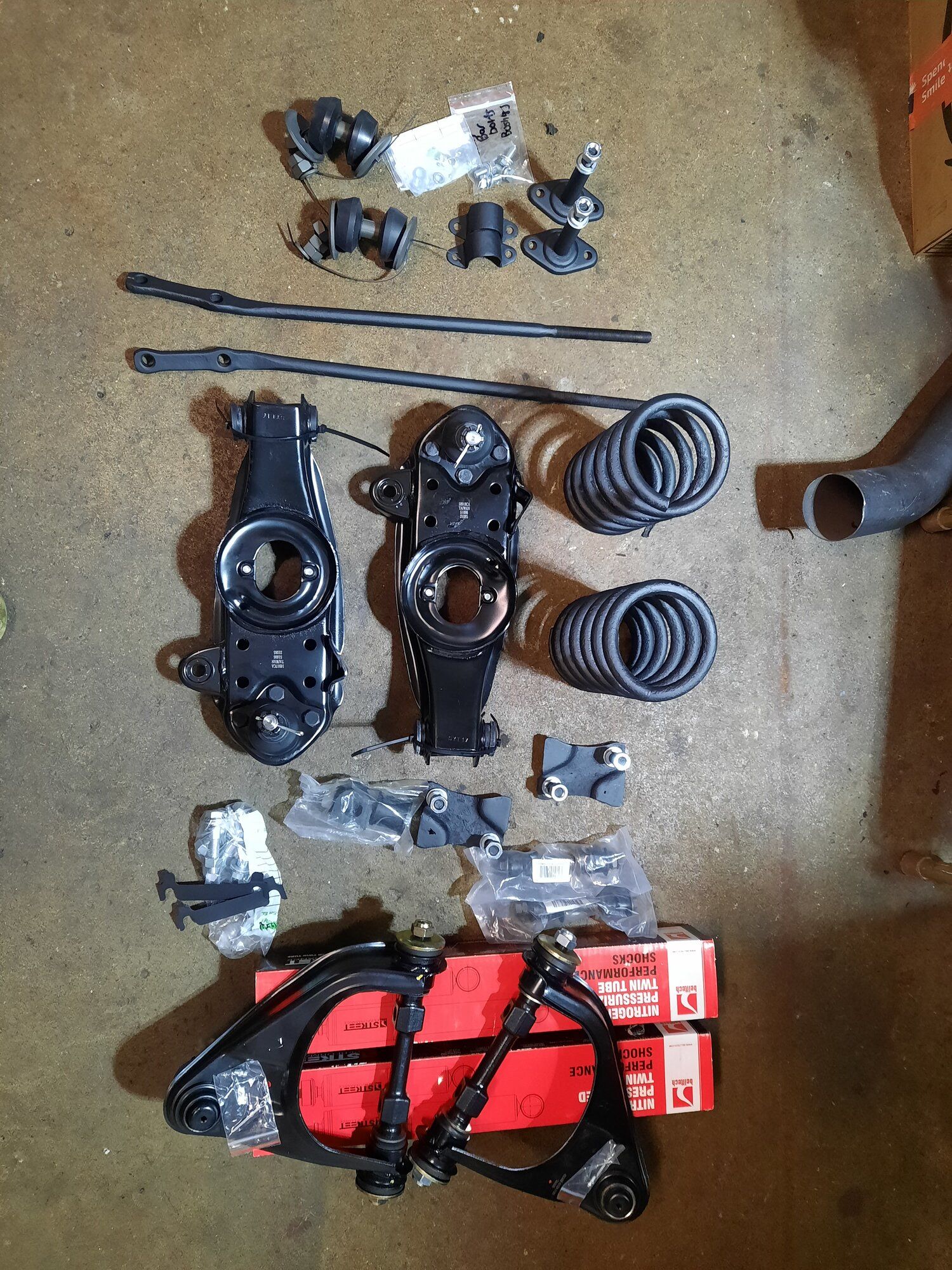

Always no point in half ass doing something.. all brand new suspension components came in. Some of the items like the springs, strut rod, lca thru bolt, sway bar mounts and strut rod mounting brackets i just quickly cleaned up and sprayed. Also have all new steering components that came in but thats for another day.
You must be logged in to view this image or video.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

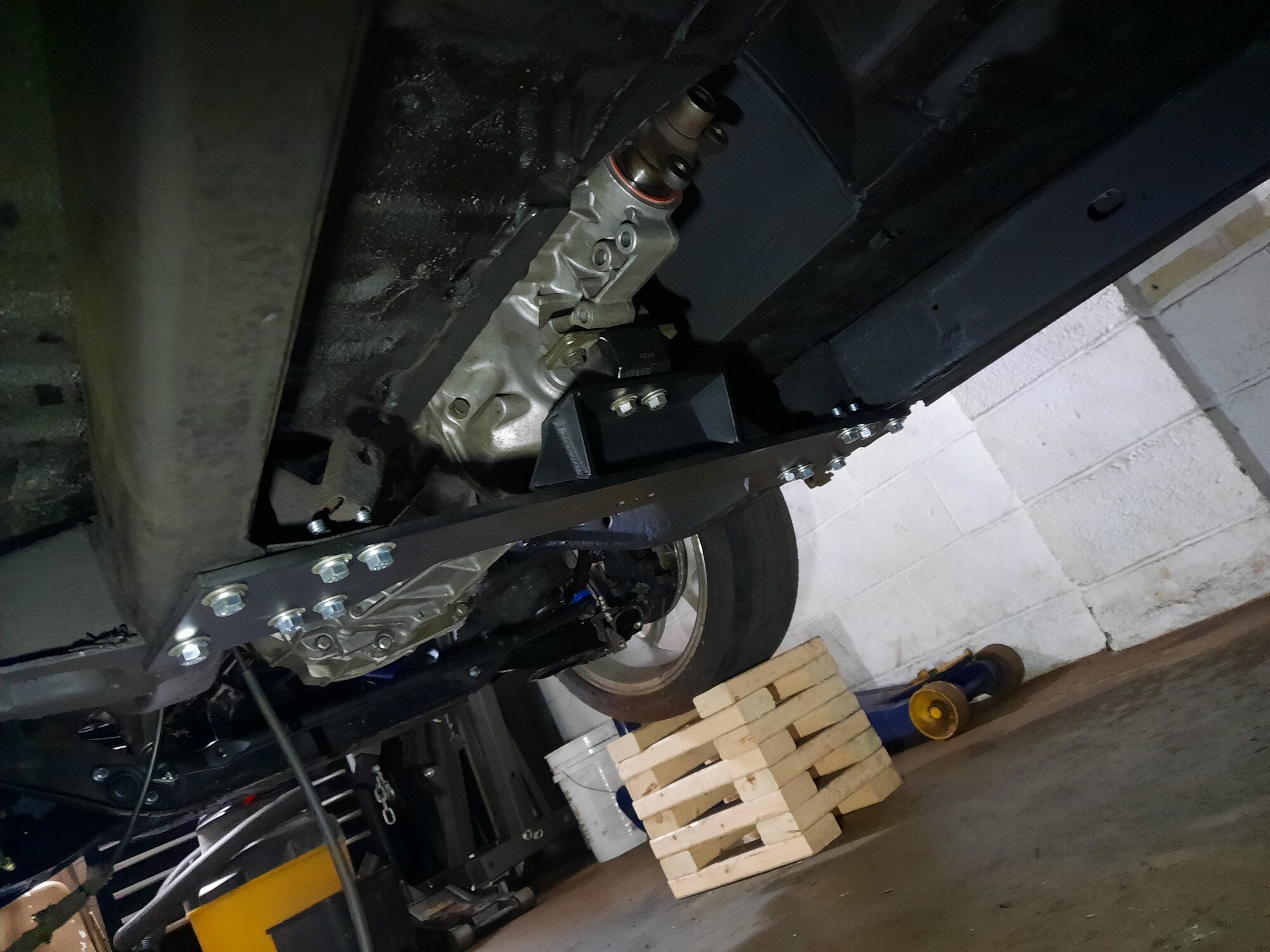

All suspension parts installed. Waiting for some jam nuts to finish up the steering. Front hubs rebuilt with new seal and bearings. Also got the flywheel, clutch, pressure plate, fork, tob collar, trans, tail shaft seal, starter and trans cross member all installed.

You must be logged in to view this image or video.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan
Looking clean and fresh. Nice lift!
Thanks man.. yea them wheel cribs are the way to go in my opinion. Gets the truck up in the air and no fighting with jack stands being in the way all the time.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

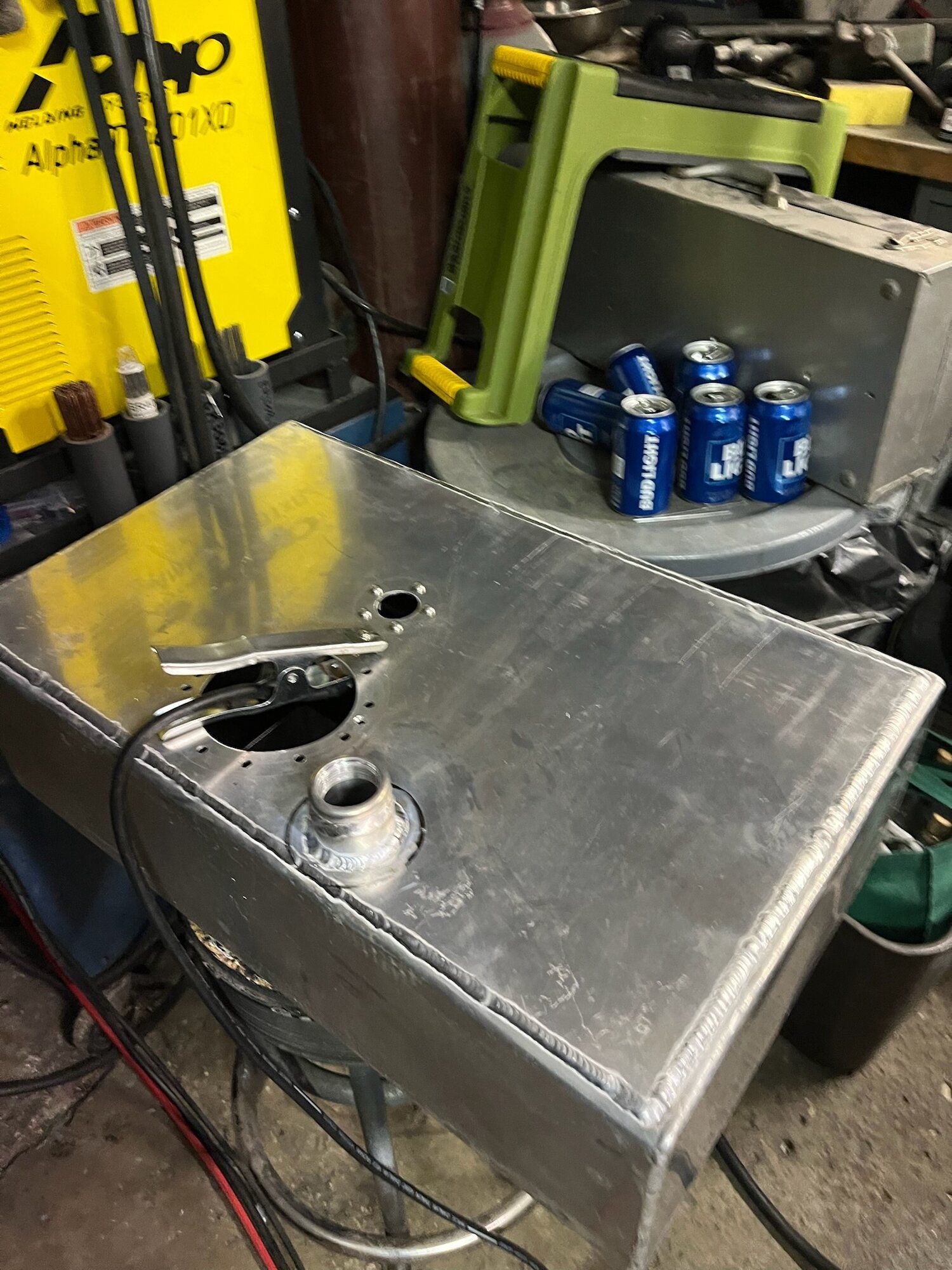

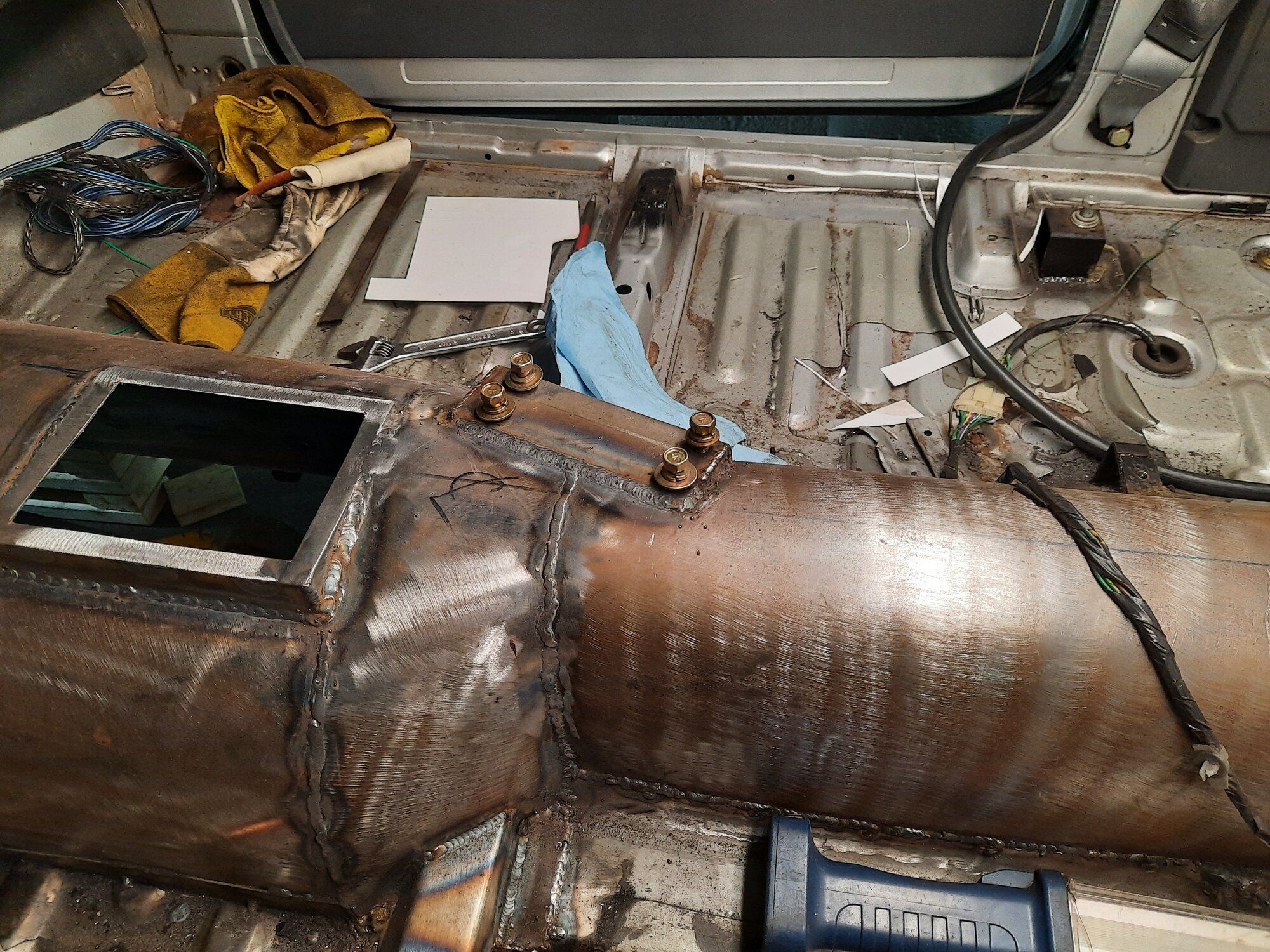

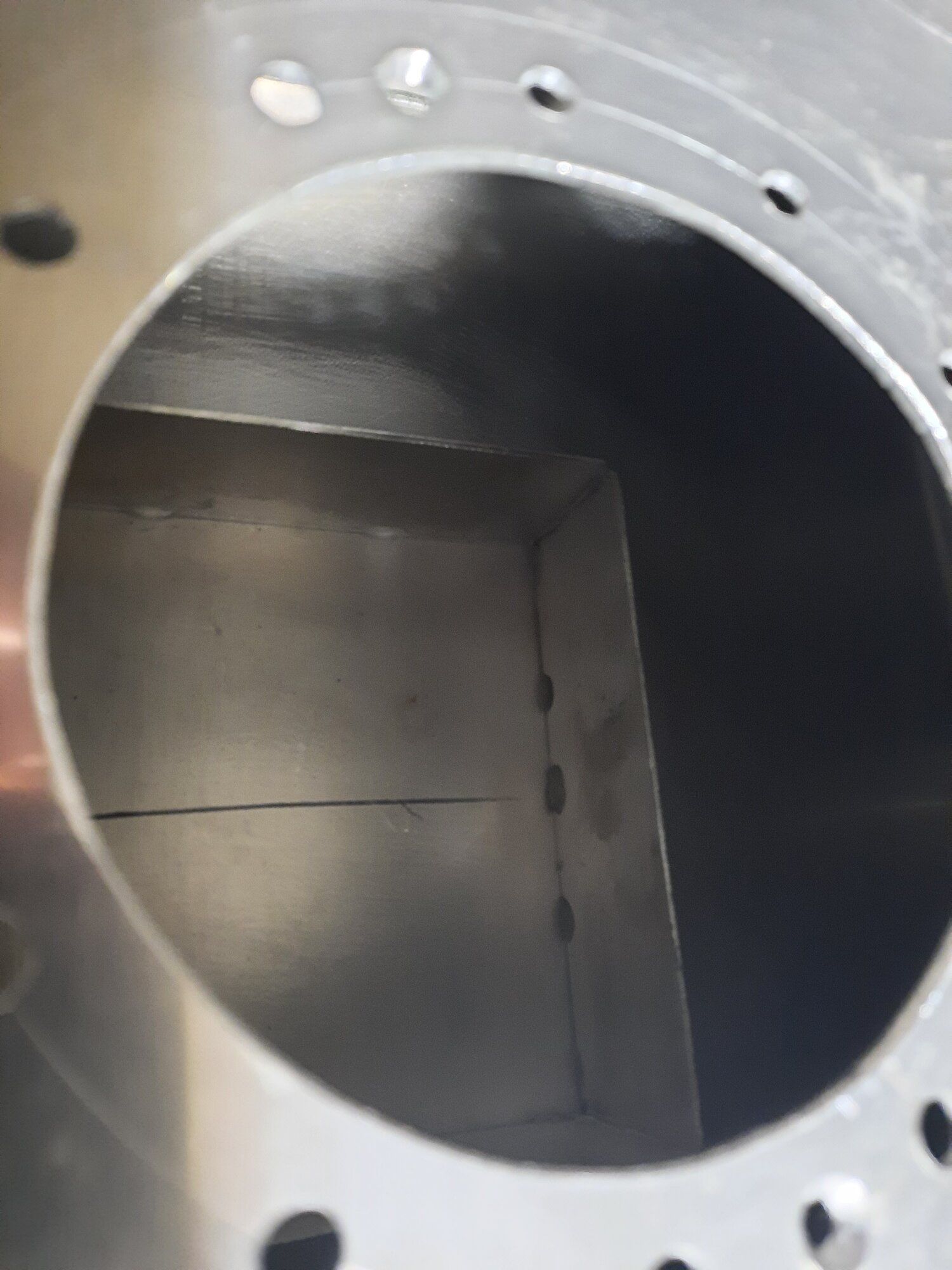

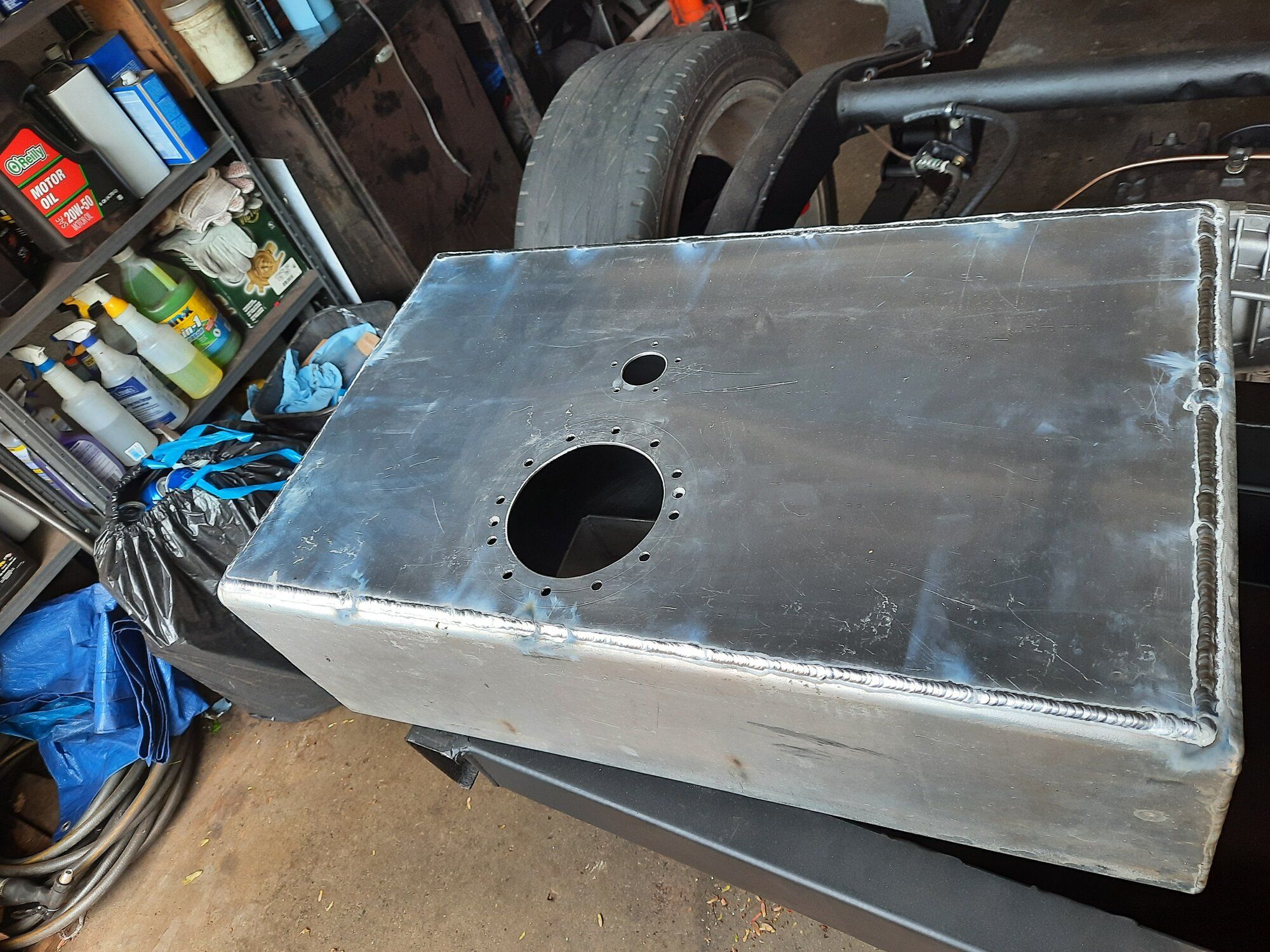

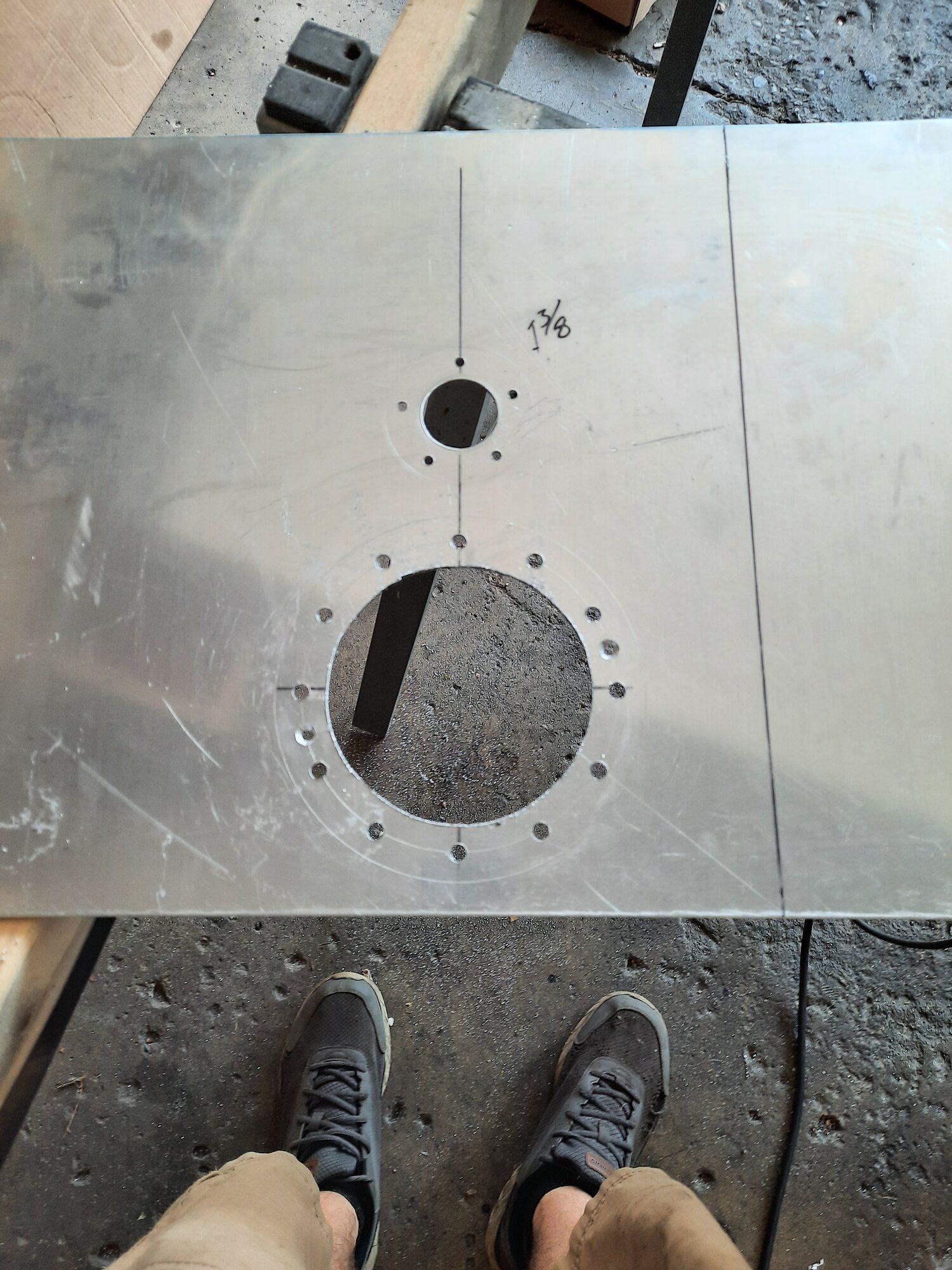

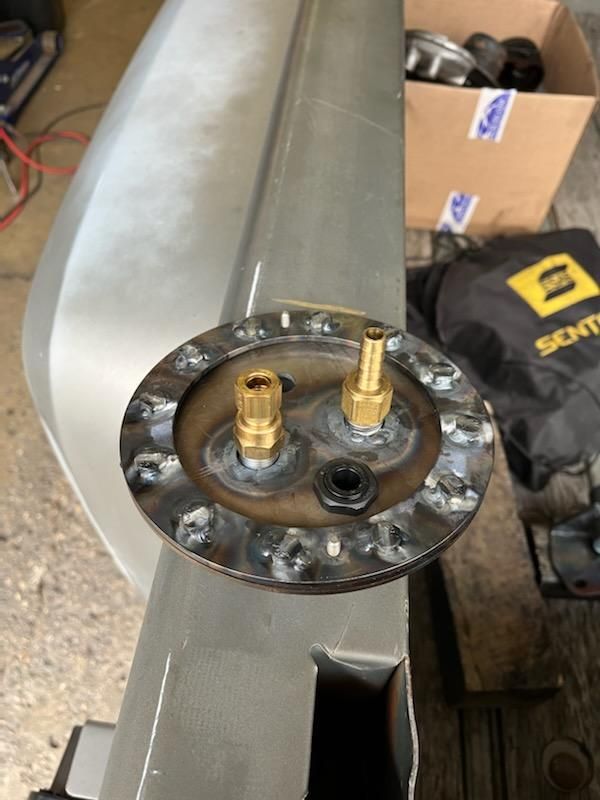

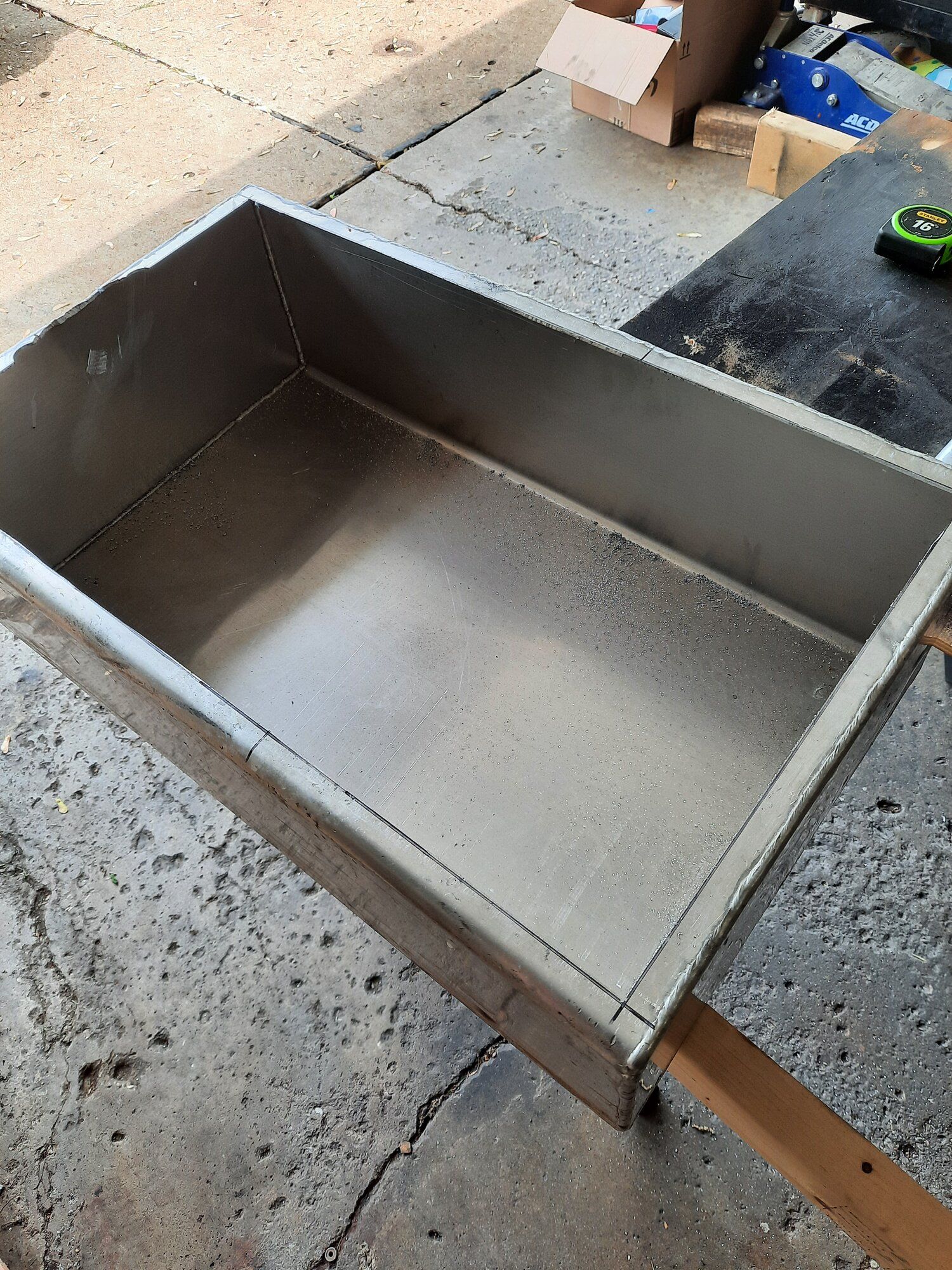

Fuel cell for the most part done. Need to get the truck bed back on to half ass see what how tall the neck needs to be. My buddy had some good ole fashion fun on the tig machine today. Internal baffle/basket made in the cell as well.

You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

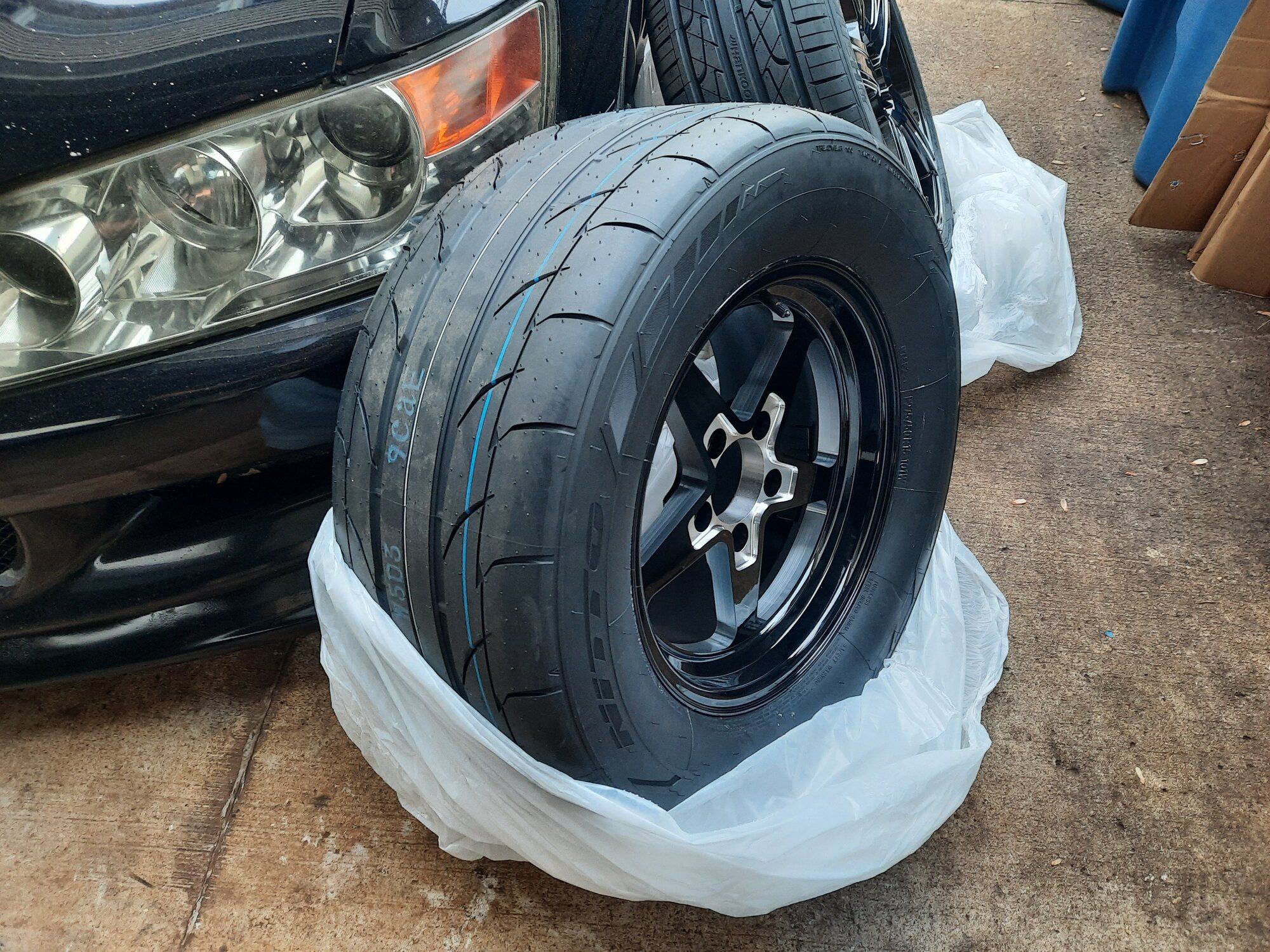

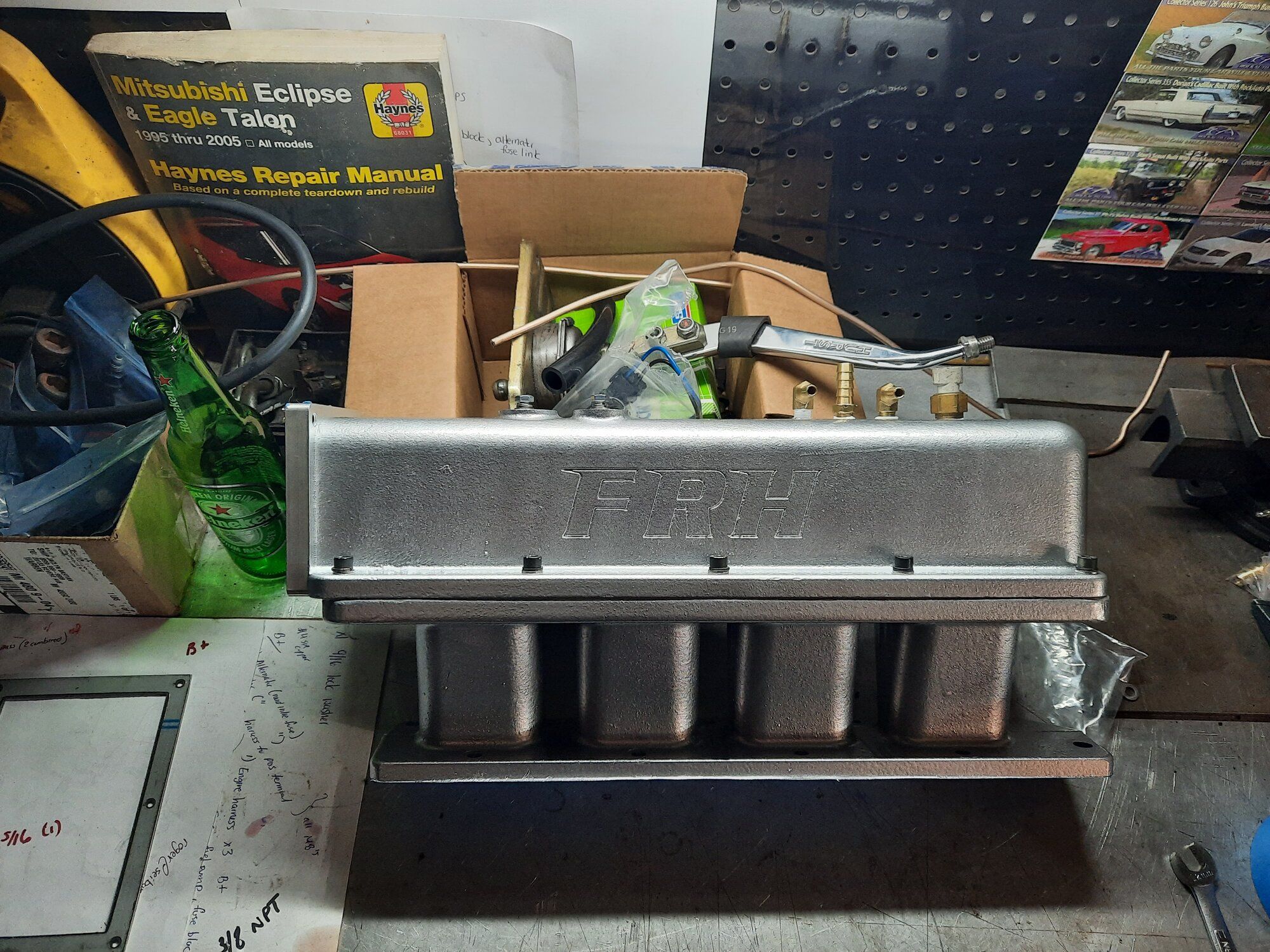

Got new meats in today as well as got the intake manifold setup ready to bolt up. All the power wires have been ran and are ready to go.

You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan
Been a little busy tracing electrical gremlins on the evo but i was able to get some solid work done in the truck. We got the following done.
-Brake and clutch are blead
-Intake manifold, throttle body, remote iac, fittings and throttle cable installed
-Exhaust manifold installed
-Intercooler and oil cooler installed
-Had the radiator in but too many clearance issues to the throttle body setup, order a half rad honda boy radiator
-Truck bed on

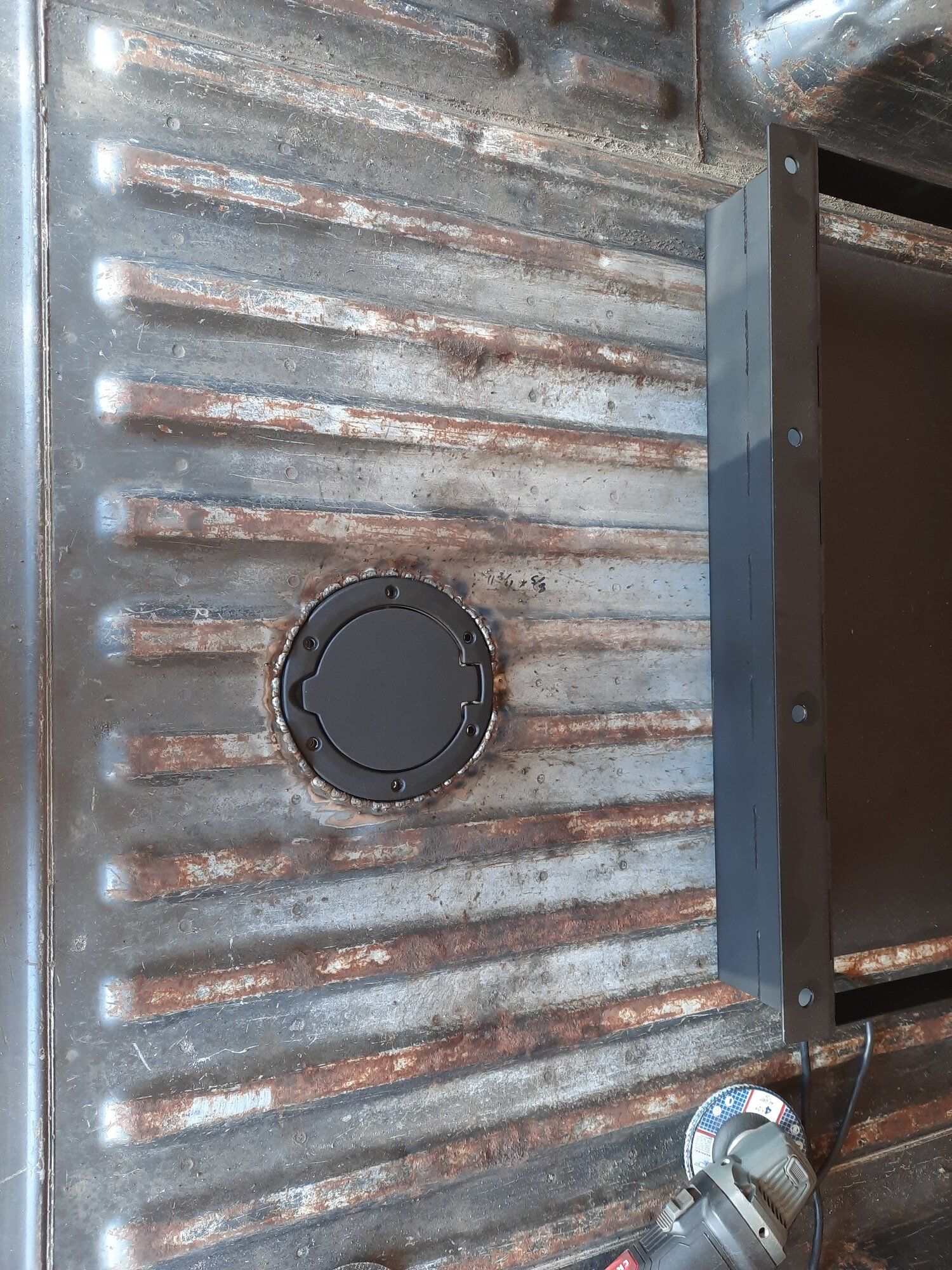

-Fuel filler placement established, bed cut, metal slip in form made for a flush and sleek look. (Still need to pull the bed off, wire wheel it, paint and bedliner it as well as weld the fill tube on the tank.)
-Also got all the driveshaft dimensions while the bed was on so i will be calling the local driveshaft shop to make the shaft.

More to come.

You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.


PLDSM

Proven Member
283
233
Dec 8, 2013
Warren, Michigan

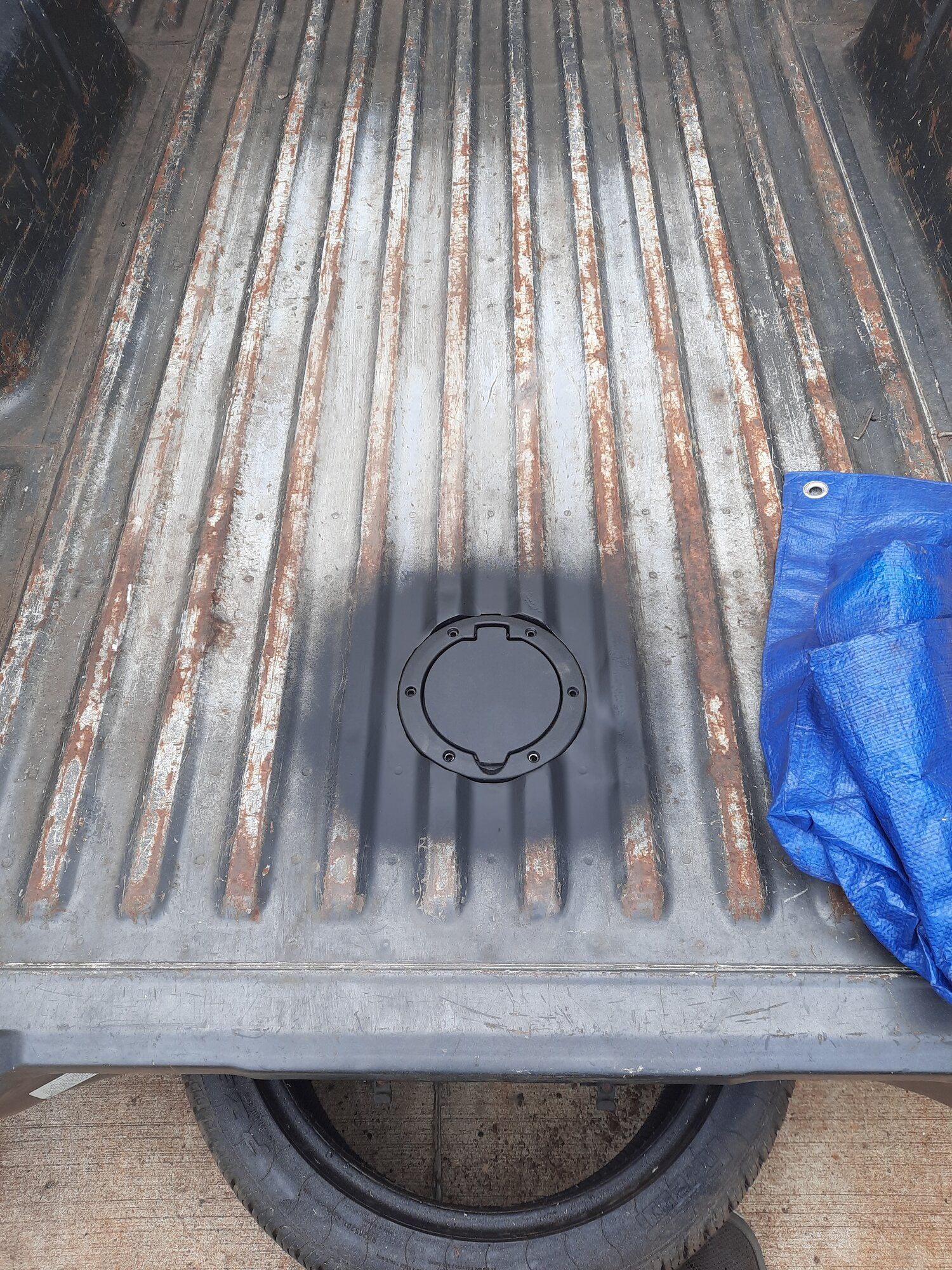

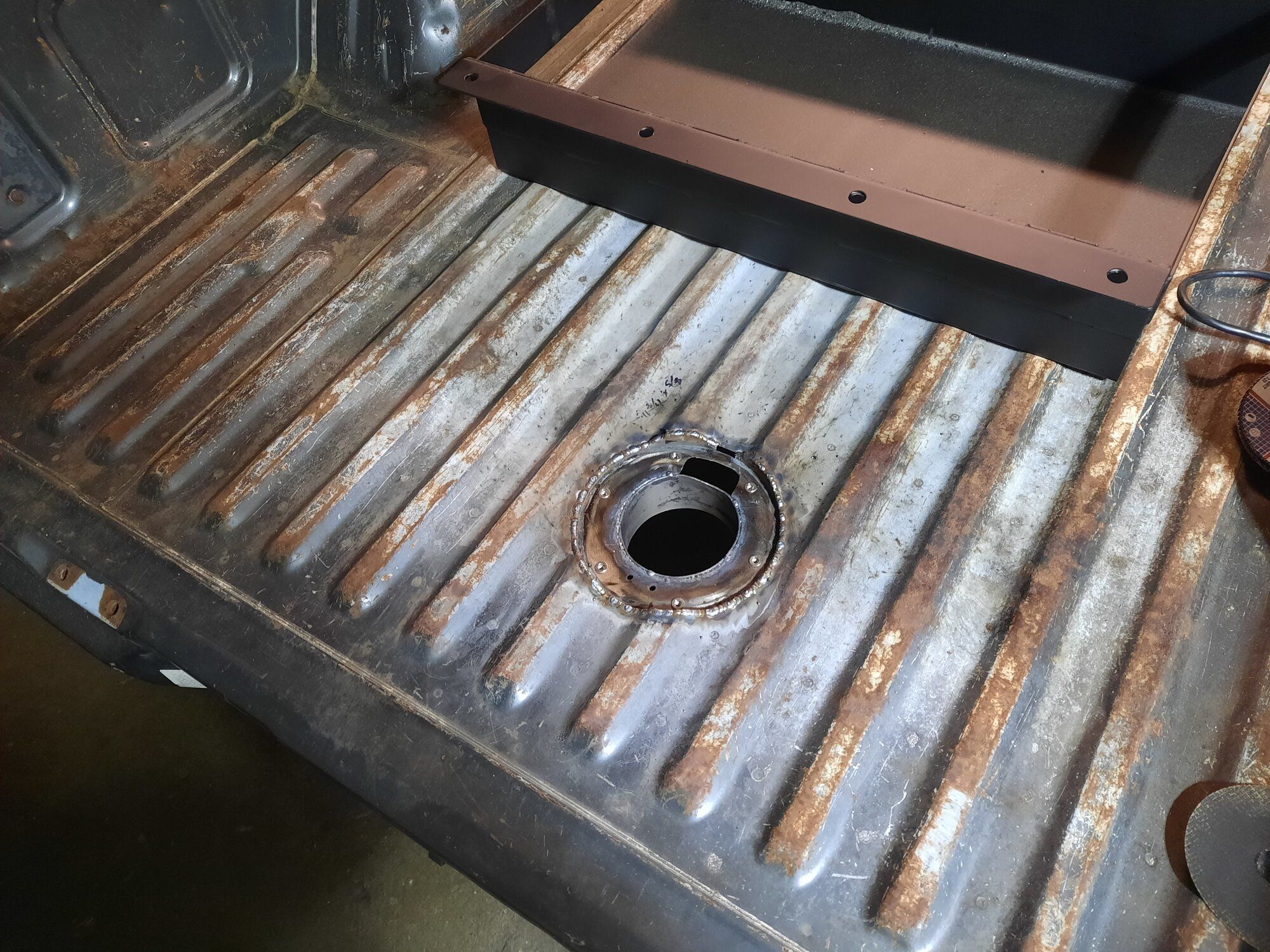

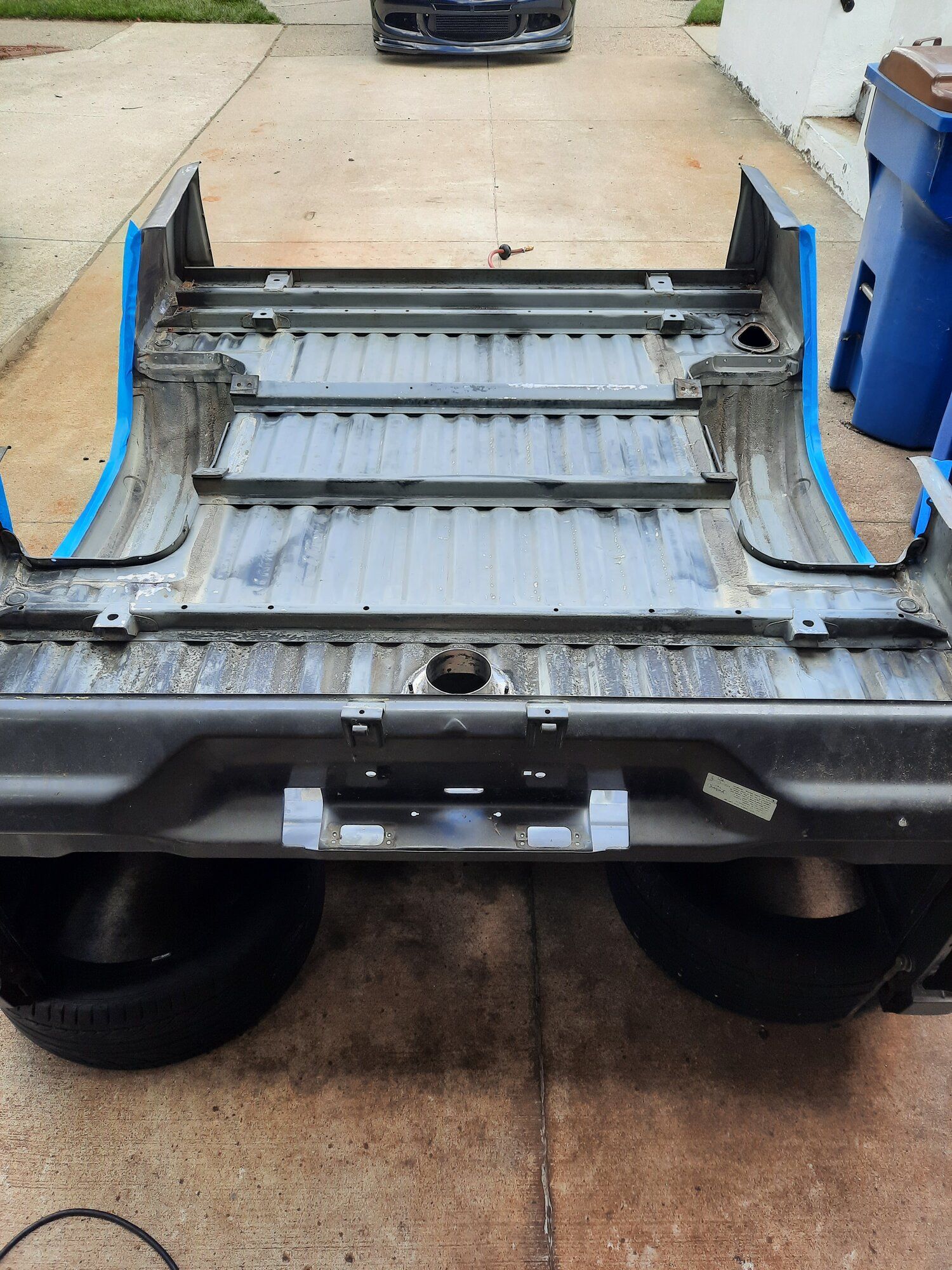

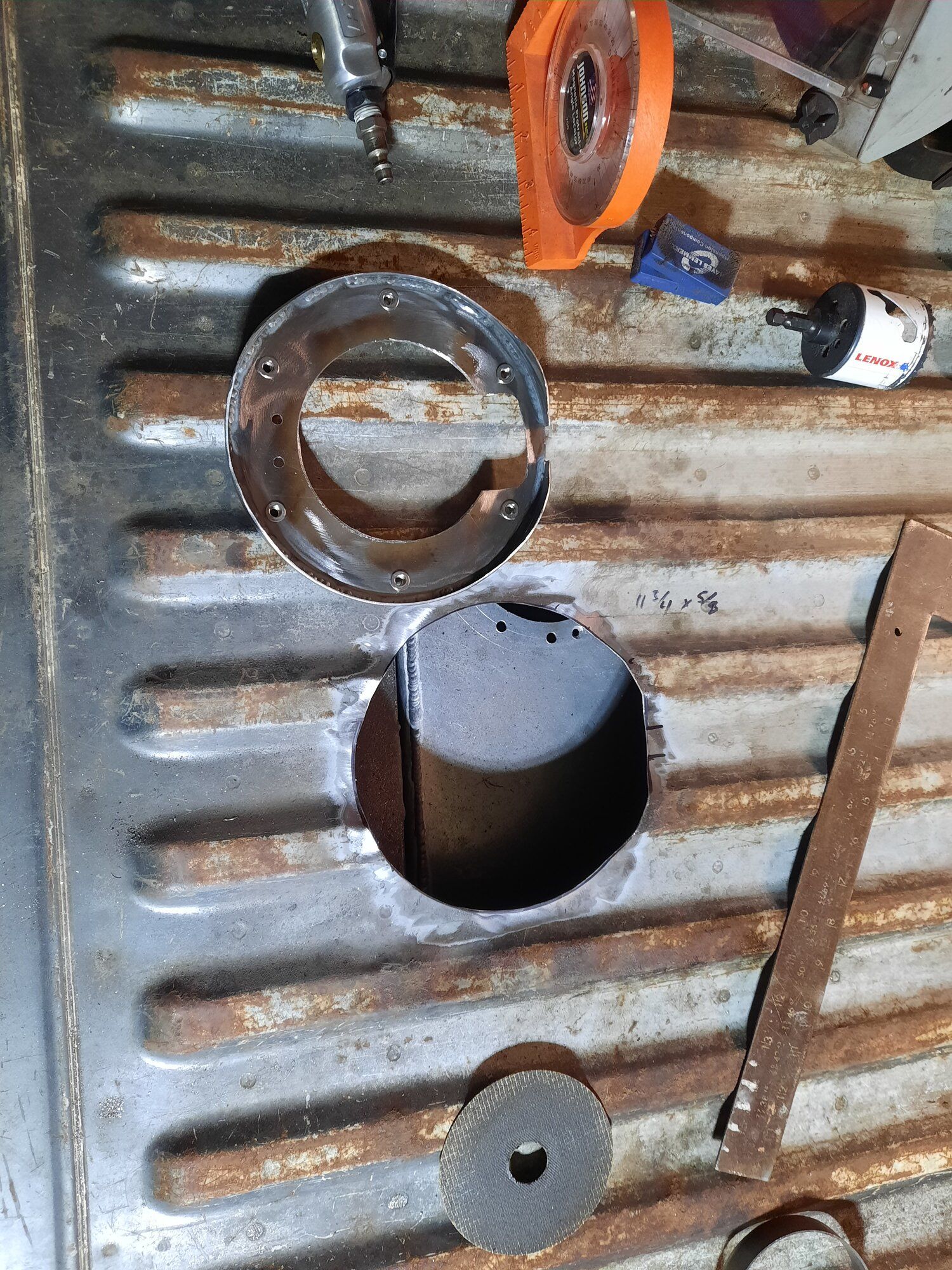

Tank fill tube welded, underside of truck bed stripped and undercoated and gas cap area cleaned up and primered.. still need to do alot of prep work on the top of the truck bed and bed liner it.

You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
