ALTERNATOR HELP

This site may earn a commission from merchant affiliate links, including eBay, Amazon, and others.

jcr

Probationary Member
7
0
Nov 4, 2024
yuma, Arizona
Hi, i have a 95 GSX with a 99 GSX ECU I just got it and I am trying to bring it back to life.

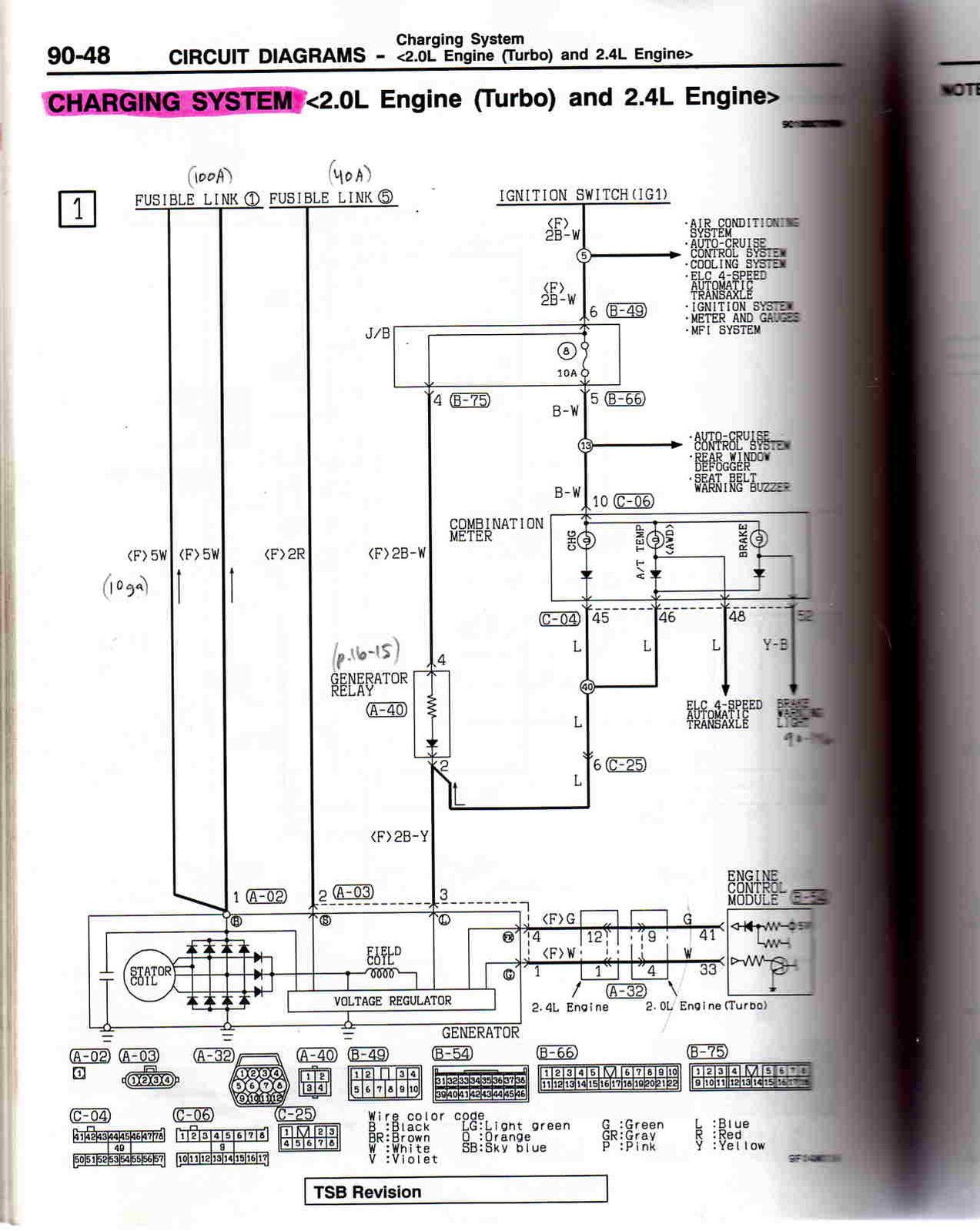

Can anyone provide me with the Alternator wiring diagram? Colors and what they do?
Previous owner ditched the OEM wiring and ran a bunch of wires of his own. And it even has a light bulb hanging from one of the wires.

Try not to get a headache from the picture LOL

You must be logged in to view this image or video.


Attachments

You must be registered for see attachments list
