Degreeing in a cam without adjustable gears?


Just wondering if anyone uses the offset bushings like below to degree in cams? Extremely standard practice in small block v8's.

Just looking strictly at the cost POV. I'd like to retard my exhaust cam a few degrees but have a hard time dishing out the 300 dollars for a set of adjustable cam gears.

Amazon.com: Competition Cams 4760 Cam Degree Bushing: Automotive


mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 08:23 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #2 (permalink)
DSM Wiseman


95blackGsTurbo's Avatar
Car: 1995 Grand Cherokee, 2002 Camaro
Registered: Aug 2003
Tech Posts: 3,975
Photos: 12
Classifieds Rating: 3
Reputation: You can trust this leader of the site

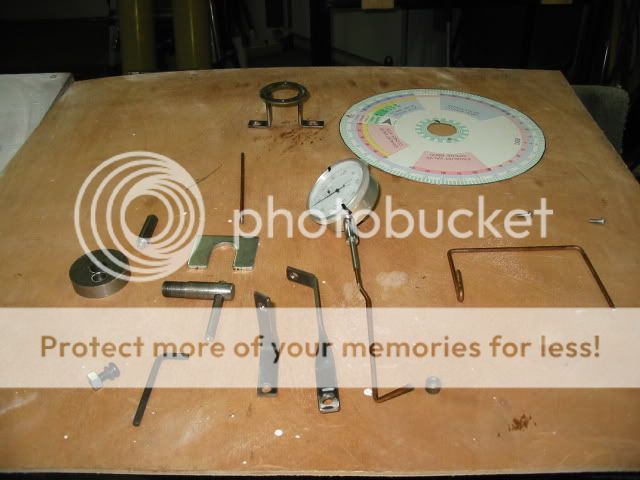

Here is the writeup on how to correctly degree 4g63 cams.
4G63 Camshaft Degreeing


____________________________
Adam Thilges
2.3L 98 TSi. Gone but not forgotten!
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 08:41 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #3 (permalink)
Proven Member


forcefed86's Avatar
Registered: May 2006
Tech Posts: 995
Classifieds Rating: 6
Reputation: forcefed86 is more helpful than not
Thanks, I'm aware of that method. But to say one method is "right" while all others are wrong is a pretty broad statement.

You can degree in the cam just the same with bushings. I've done it many many times, but not on a DSM product.

Looking more closely at the OEM cams this won't work, so never mind.

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 08:44 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #4 (permalink)
Moderator


snowborder714's Avatar
Registered: Oct 2006
Tech Posts: 11,581
Photos: 20
Classified Ads: 1
Classifieds Rating: 135
Reputation: You can trust this leader of the site
Send a message via AIM to snowborder714
I'm not sure how this would work since the cams and cam gears have a locating pin.


____________________________
Brian

Throttle body rebuild kits
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 08:46 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #5 (permalink)
Proven Member


IgotBoost91's Avatar
Registered: Jan 2010
Tech Posts: 131
Classifieds Rating: 0
Reputation: IgotBoost91 is an unknown
couldnt you just move the exhaust cam gear one way a couple teeth?

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 08:48 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #6 (permalink)
DSM Wiseman


95blackGsTurbo's Avatar
Car: 1995 Grand Cherokee, 2002 Camaro
Registered: Aug 2003
Tech Posts: 3,975
Photos: 12
Classifieds Rating: 3
Reputation: You can trust this leader of the site
Quote:
Originally Posted by snowborder714 View Post
I'm not sure how this would work since the cams and cam gears have a locating pin.
It is kind of like cam degreeing a V8. They have dowels as well, you have to drill out the hole on the gear itself so it can move on the car and install bushings like the one pictures but smaller. I have not seen these yet for DSM's. Like having an eccentric on the cam like we have in our rear suspension.

** If you move the gear a tooth it can cause valve to piston contact. These are interference motors. **


____________________________
Adam Thilges
2.3L 98 TSi. Gone but not forgotten!
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 08:52 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #7 (permalink)
Moderator


snowborder714's Avatar
Registered: Oct 2006
Tech Posts: 11,581
Photos: 20
Classified Ads: 1
Classifieds Rating: 135
Reputation: You can trust this leader of the site
Send a message via AIM to snowborder714
I'm not familiar with V8's, but that's interesting.


____________________________
Brian

Throttle body rebuild kits
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 08:58 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #8 (permalink)
DSM Wiseman


95blackGsTurbo's Avatar
Car: 1995 Grand Cherokee, 2002 Camaro
Registered: Aug 2003
Tech Posts: 3,975
Photos: 12
Classifieds Rating: 3
Reputation: You can trust this leader of the site

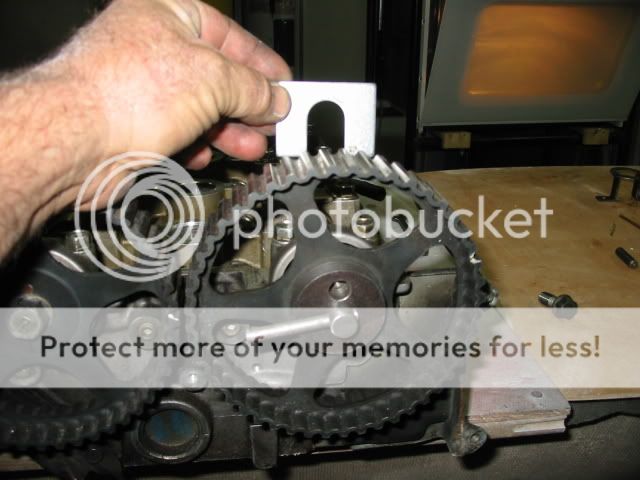

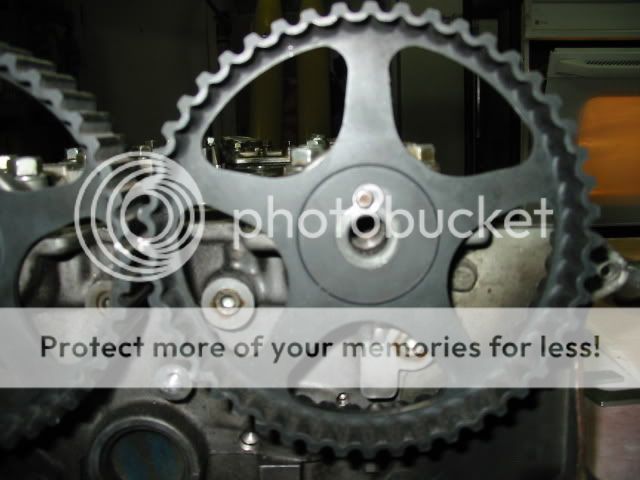

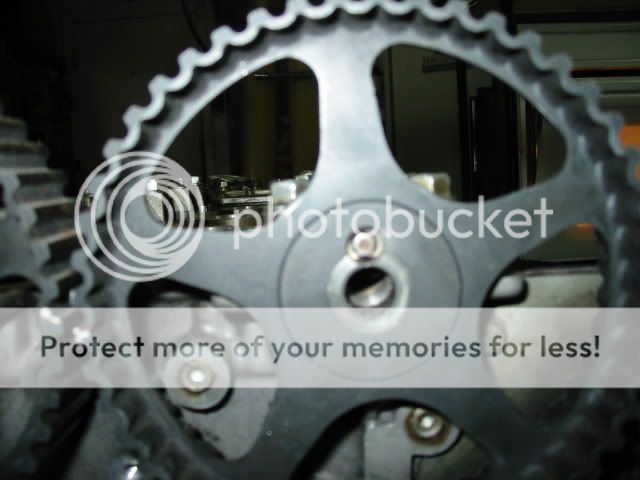

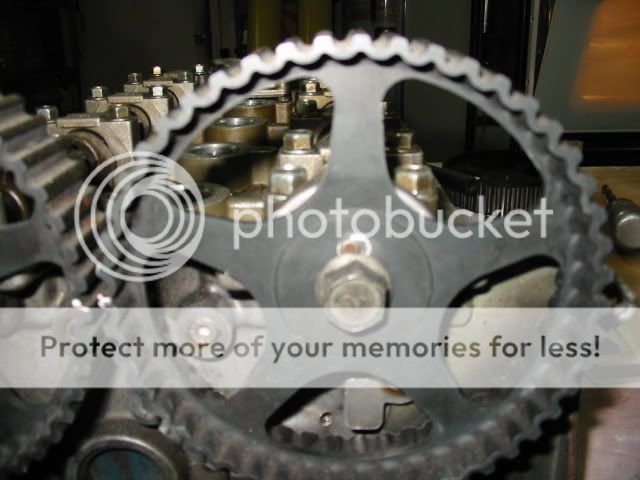

Basically you are making the hole bigger that goes over the dowel so the gear can move with the cam remaining stationary.


____________________________
Adam Thilges
2.3L 98 TSi. Gone but not forgotten!
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 09:26 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #9 (permalink)
Proven Member


tkelly27's Avatar
Registered: Mar 2007
Tech Posts: 1,568
Classifieds Rating: 1
Reputation: tkelly27 is extremely helpful and trustworthytkelly27 is extremely helpful and trustworthy
Send a message via AIM to tkelly27 Send a message via Yahoo to tkelly27
Quote:
Originally Posted by 95blackGsTurbo View Post
Basically you are making the hole bigger that goes over the dowel so the gear can move with the cam remaining stationary.
Then the offsets push the camshaft forward or backward.

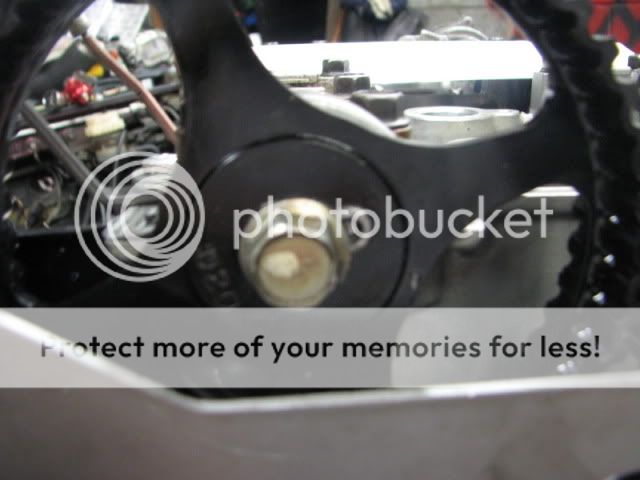

The only real problem I could see is that there are adjustable cam gears for less than $200 that don't require the removal of the cam gear to adjust the phasing. If nobody makes those, then they'll have to be custom done and by the time you're done machining the stock cam gear and getting those made, you may as well have adjustable ones that are easier to work with.


____________________________
Tom - '90 Talon

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 09:30 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #10 (permalink)
DSM Wiseman


95blackGsTurbo's Avatar
Car: 1995 Grand Cherokee, 2002 Camaro
Registered: Aug 2003
Tech Posts: 3,975
Photos: 12
Classifieds Rating: 3
Reputation: You can trust this leader of the site
Quote:
Originally Posted by tkelly27 View Post
Then the offsets push the camshaft forward or backward.

The only real problem I could see is that there are adjustable cam gears for less than $200 that don't require the removal of the cam gear to adjust the phasing. If nobody makes those, then they'll have to be custom done and by the time you're done machining the stock cam gear and getting those made, you may as well have adjustable ones that are easier to work with.

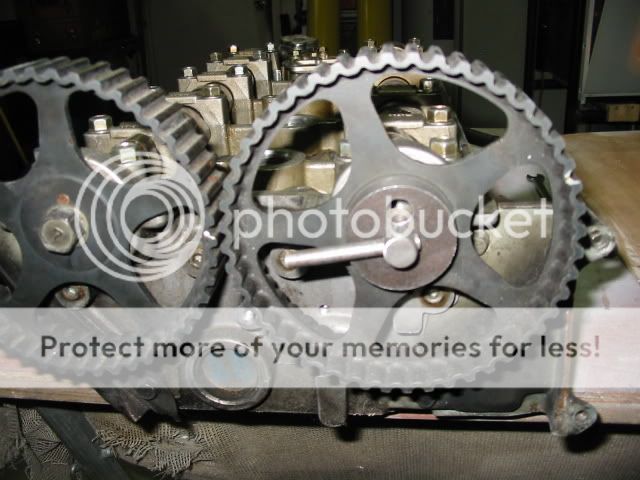

The bushing doesn't go on the cam it goes over the dowel. The gear is still centered on the cam with the bolt.


____________________________
Adam Thilges
2.3L 98 TSi. Gone but not forgotten!
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 09:55 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #11 (permalink)
Moderator


JusMX141's Avatar
Registered: Dec 2005
Tech Posts: 11,736
Photos: 13
Classified Ads: 3
Classifieds Rating: 216
Reputation: You can trust this leader of the site
You just have to be looking for deals, and be ready to buy when they become available.

I picked up the Hayame adjustable gears that are going on my AWD from a closeout deal on eBay. They were $85 shipped, brand new-in-box. They're a *10* on the bling chart, and they're a hell of a lot easier than fumbling around small degree bushings.


____________________________
~Justin~ Rebuilding your journal-bearing turbochargers since 2004.

Last edited by JusMX141; 01-05-2010 at 11:26 AM.
Visit JusMX141's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 11:03 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #12 (permalink)
Proven Member


forcefed86's Avatar
Registered: May 2006
Tech Posts: 995
Classifieds Rating: 6
Reputation: forcefed86 is more helpful than not
Yea your all right, it would probably be cheaper in the long run to just run the adjustable gears. Just an idea!


Quote:
Originally Posted by IgotBoost91 View Post
couldnt you just move the exhaust cam gear one way a couple teeth?
A "couple teeth" would be a massive change. I'm running the BC stage II cam (272). So they are pretty horrible to start with. Usually requiring around a 5* adjustment. U may get by with 1 tooth, but you'd have to be really careful.

Anyone know how many degrees of offset 1 tooth equals?

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 11:56 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #13 (permalink)
Proven Member


luvmygst's Avatar
Registered: Oct 2005
Tech Posts: 780
Photos: 1
Classifieds Rating: 1
Reputation: luvmygst is pretty helpful and trustworthyluvmygst is pretty helpful and trustworthy
Quote:
Originally Posted by forcefed86 View Post
Yea your all right, it would probably be cheaper in the long run to just run the adjustable gears. Just an idea!




A "couple teeth" would be a massive change. I'm running the BC stage II cam (272). So they are pretty horrible to start with. Usually requiring around a 5* adjustment. U may get by with 1 tooth, but you'd have to be really careful.

Anyone know how many degrees of offset 1 tooth equals?
I think that the cam gears have 48 teeth so one tooth would be 7.5 deg. Dont quote me on the number of teeth. Just take 360 and divide by the number of teeth and that will give you the answer.

Last edited by luvmygst; 01-05-2010 at 12:43 PM. Reason: Thankx jusmx141
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 12:18 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #14 (permalink)
Moderator


JusMX141's Avatar
Registered: Dec 2005
Tech Posts: 11,736
Photos: 13
Classified Ads: 3
Classifieds Rating: 216
Reputation: You can trust this leader of the site
Quote:
Originally Posted by luvmygst View Post
I think that the cam gears have 48 teeth so one tooth would be 7.5 deg.
Fixed.


____________________________
~Justin~ Rebuilding your journal-bearing turbochargers since 2004.
Visit JusMX141's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 12:22 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #15 (permalink)
Moderator


99gst_racer's Avatar
Registered: Apr 2003
Tech Posts: 8,630
Photos: 68
Classified Ads: 2
Classifieds Rating: 131
Reputation: You can trust this leader of the site
It's a neat idea but not worth the headache with what adjustable gears cost. I picked mine up for $150 out the door.

Quote:
Originally Posted by forcefed86 View Post
Anyone know how many degrees of offset 1 tooth equals?
360 / # of teeth on the gear


____________________________
Paul

The Original 1G Chromoly Crossmember
Visit 99gst_racer's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 12:29 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #16 (permalink)
DSM Wiseman


95blackGsTurbo's Avatar
Car: 1995 Grand Cherokee, 2002 Camaro
Registered: Aug 2003
Tech Posts: 3,975
Photos: 12
Classifieds Rating: 3
Reputation: You can trust this leader of the site
Quote:
Originally Posted by 99gst_racer View Post
It's a neat idea but not worth the headache with what adjustable gears cost.
Coming from the man who decided to do a compound turbo setup as opposed to just a big single. This should be a cakewalk lol.


____________________________
Adam Thilges
2.3L 98 TSi. Gone but not forgotten!
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 12:41 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #17 (permalink)
Moderator


99gst_racer's Avatar
Registered: Apr 2003
Tech Posts: 8,630
Photos: 68
Classified Ads: 2
Classifieds Rating: 131
Reputation: You can trust this leader of the site
Quote:
Originally Posted by 95blackGsTurbo View Post
Coming from the man who decided to do a compound turbo setup as opposed to just a big single. This should be a cakewalk lol.
But if I could have bought the compound turbo set-up for $400, I would have done just that.


____________________________
Paul

The Original 1G Chromoly Crossmember
Visit 99gst_racer's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 12:43 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #18 (permalink)
DSM Wiseman


LiquidX's Avatar
Registered: Sep 2008
Tech Posts: 6,590
Classifieds Rating: 29
Reputation: You can trust this leader of the site
Send a message via AIM to LiquidX
So when you degree a cam you are still infact rotating the cam to make it exatcly at TDC with the timing marks on everything else. I'm assuming it would only really be a partial tooth adjustment which is why you can't just rotate the cam a tooth on it's own. Am I correct on this statement?

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 01:08 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #19 (permalink)
Proven Member


Force Fed 4g63's Avatar
Registered: Feb 2009
Tech Posts: 105
Classifieds Rating: 0
Reputation: Force Fed 4g63 is an unknown
I had my FP2's degreed on the stock cam gears, it doesn't take very long either. I was really glad I did too because they were a decent bit out of time and I noticed the difference big time. There's a guy in Florida who is currently making kits for people to do it themselves. He's very active on another DSM forum I'm on but I don't believe he's on here. If anyone wants some more info they can pm me.

mark post as helpful recommend reputation points    Reply With Quote
Old 01-05-2010, 01:26 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #20 (permalink)
Moderator


99gst_racer's Avatar
Registered: Apr 2003
Tech Posts: 8,630
Photos: 68
Classified Ads: 2
Classifieds Rating: 131
Reputation: You can trust this leader of the site
Quote:
Originally Posted by LiQUiDx View Post
So when you degree a cam you are still infact rotating the cam to make it exatcly at TDC with the timing marks on everything else. I'm assuming it would only really be a partial tooth adjustment which is why you can't just rotate the cam a tooth on it's own. Am I correct on this statement?
Correct. Degreeing a camshaft is rotating the cam ever so slightly without moving the cam gear or any other part of the rotating assembly. It's usually a partial tooth adjustment (typically 1-5 degrees which is less than 1 tooth).

Quote:
Originally Posted by Force Fed 4g63 View Post
I had my FP2's degreed on the stock cam gears, it doesn't take very long either. I was really glad I did too because they were a decent bit out of time and I noticed the difference big time. There's a guy in Florida who is currently making kits for people to do it themselves. He's very active on another DSM forum I'm on but I don't believe he's on here. If anyone wants some more info they can pm me.
I'd like to know how you degreed your cams with stock gears.


____________________________
Paul

The Original 1G Chromoly Crossmember
Visit 99gst_racer's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Reply

Bookmarks

Thread Tools



» Recent DSM Photo
» Current Poll
How many times have you been to the Shootout?
1 - 39.86%
167 Votes
2-5 - 41.77%
175 Votes
6-10 - 10.50%
44 Votes
11-15 - 3.10%
13 Votes
16-20 - 4.77%
20 Votes
Total Votes: 419
You may not vote on this poll.
» Online Users: 374
109 members and 265 guests
Most users ever online was 1,704, 03-17-2008 at 09:11 PM.
DSMtuners Main Sections
DSM Forums
DSM Regional Forums
DSM Builds/Journals
DSM Articles
DSM Tech Guides
DSM Upgrade Paths
DSM Parts Reviews
DSM Vendor Reviews

DSM Classifieds
DSM Parts Guides
DSM Photos
DSM Videos
DSM Timeslips
DSM Dyno Sheets
Shirts & Apparel
DSMtuners Decals

Advertising Info
Our Sponsors
Site Rules
Terms of Service
Privacy Policy
Site FAQ
About Us
Contact Us

© 2014 DSMtuners.com - All Rights Reserved

DSMtuners is not affiliated with Diamond Star Motors. The Mitsubishi Eclipse, Eagle Talon, Plymouth Laser, Mitsubishi Galant VR-4, and associated logos are trademarks of Diamond Star Motors, Mitsubishi Motors, and Chrysler Corporation. No, we do not hand out car sponsorships.

All times are GMT -7. The time now is 03:01 AM.


Vendor Tools vBulletin Plugins by Drive Thru Online, Inc.

Search Engine Optimization by vBSEO 3.6.0
