Dyno Results of the new Beyond Redline Performance Sheet Metal Intake Manifold!

[T9S1i]

ha, i knew fftec came out with a manifold but i never heard about the test!
Yeah ffwd's test did kind of just vanish!


This manifold looks good! so its good for any sized turbo?

[twicks69]

That's what it is looking like. We were seeing performance gains on the three we tested what ranged from 16G-ish to a GT40R over the competitor's SMIM's tested.

Even on stock cams/cam gears and stock head.

[twicks69]

Originally Posted by JWoodley

They haven't even updated their site in a month.

Well, it is pretty much a 3-man operation at FFWD. Darren, and Darren, and Darren. Oh wait, that's 1 person doing all the work...

Last time I spoke with him about the SMIM test, it seemed like he couldn't get his hands on most of the new version manifolds on the market for testing, let alone ones with the same TB flanging, etc. I think that he said he had tested some, but was hoping/waiting for more parts.

You can always send him an e-mail and see what's up, I think that he would likely tell you what's up.

[DSMunknown]

Wonder how a honed Evo 3 IM would stack up.

[twicks69]

Originally Posted by DSMunknown

Wonder how a honed Evo 3 IM would stack up.

I do not know. Do you have flow bench data, comparison dyno data, etc to support it?


Extrude honed manifolds have done pretty well lately on Evo 8's because the R&D wasn't put into alot of the manifolds sold -- they were just copies of old DSM manifolds that were modified to fit the Evo 8 when it came out so people could make money. Lately, more companies are actually spending the R&D $$$ to make better manifolds for the Evo 8 setup. Wilson's V2 Extrude honed Evo 8 Intake Manifold is a nice piece. Unfortunately, it is not usable on our platforms, or engine layout.

The manifolds that the Beyond Redline Performance SMIM was tested against were current production SMIM's that are proven also -- they made good power in relation to the stock intake manifold on Car #1 and #2 in the past. The Beyond Redline SMIM put down very nice gains over the other SMIM's, and it made a serious improvement on my car. I think that my old SMIM just couldn't keep up on a 2.3L with the GT40R, and was choking itself. When we put on the Beyond Redline SMIM, I was completely shocked that we gained that MUCH HP!! I was hoping for 30-40AWHP over my old SMIM, and was not expecting 100+AWHP at the same boost levels and same ignition maps, while reducing fuel injector duty cycles, improving efficiency of my fuel maps -- heck, this manifold flowed ALOT MORE AIR than the old SMIM.

[twicks69]

Originally Posted by hypnoticpimp

Link removed.

Why are you posting this link in this thread???

The part in your link is only for an Evo 8.


DSMUnknown was referencing an Evo 3 cast intake manifold that would be extrude honed for comparison.

As well, I already referenced your information in the previous post regarding the Wilson V2 extrude honed intake manifold.

Totally different topic and platform here guys.

[MrBoxx]

We are NOT treading down the Buschur SMIM test road again. Especially since that was an Evo subject, not a DSM one.

Tim, congrats on the huge numbers. That's an amazing gain for changing a single part and adjusting your tune.

I only wish I had the spendable income to purchase one. Someday....

[CanadianTSi]

Originally Posted by twicks69

Wilson's V2 Extrude honed Evo 8 Intake Manifold is a nice piece.

The Wilson Manifold's go through alot more than just extrude honing...

[damnslowtsi]

Originally Posted by RipperXX

Sooo yea some other people buy this thing quick! So um he will make more! and the price might drop a tad? Who knows if there still some around when I start my engine build which is a ways off since I am in Iraq then who knows.

Yea, it can go either way. If mass production starts then the price will most likely drop. Or it can go the way of Forrester - no more made and those who have one are very happy.

I like this one since I like unconventional parts in general that you don't see on hundreds of other cars. I have a question for you guys, how much do you think is lost in performance by not using a bigger throttle body? I feel that it is kinda a waste of money to get a SMIM flanged for a standard size t-body even though some folks have made really nice power with them. Another question, what is the plenum volume on this manifold or how does it compare to other known brands like Magnus/JM race? Do you have any pics of the inside of the plenum?

[1gDSM4g63]

Originally Posted by damnslowtsi

I have a question for you guys, how much do you think is lost in performance by not using a bigger throttle body? I feel that it is kinda a waste of money to get a SMIM flanged for a standard size t-body even though some folks have made really nice power with them. Another question, what is the plenum volume on this manifold or how does it compare to other known brands like Magnus/JM race? Do you have any pics of the inside of the plenum?

It all depends what your goals are and how big of a turbo you have to determine the size of a the throttle body and the plenum size you need.

Larger plenum and bigger throttle body is best used on a big turbo and a drag built engine like twicks69's car which gain 100hp+. However if you have a 16g a SMIM is the last thing you should be thinking about. A bigger plenum and throttle body hurts the spool rate. It's please self-explanatory in the first post of the dyno results.

And about your question in comparison with JM Fab and Magnus I doubt anybody know that. As mention in the posts above we are wait for FFWD test results.

[twicks69]

Originally Posted by damnslowtsi

I like this one since I like unconventional parts in general that you don't see on hundreds of other cars. I have a question for you guys, how much do you think is lost in performance by not using a bigger throttle body? I feel that it is kinda a waste of money to get a SMIM flanged for a standard size t-body even though some folks have made really nice power with them. Another question, what is the plenum volume on this manifold or how does it compare to other known brands like Magnus/JM race? Do you have any pics of the inside of the plenum?

Well, in the circumstance of using the Mitsubishi TB flange on this SMIM, it was designed this way so I could be used on the most 4G63's out there with minimal modification to be used. There really are not that many people using aftermarket throttle bodies on their current setups, and there are also very few people using 3" or larger IC pipes on their setups. Most of the intercooler pipe setups out there for the DSM's use a 2.25" or 2.5" IC pipe setup. This flange is ideal for most of the cars out there, along with their horsepower levels. A 52mm 2G throttle body is 2.0472", a 60mm 1G throttle body is 2.3622". An aftermarket 70mm TB is 2.7559", 75mm is 2.9528", and a Q45 TB 90mm is 3.5433".

In my circumstance, I am running 2.5" IC pipes from the turbo outlet to the FMIC, and the FMIC to the TB -- there is absolutely no need to run a 70mm+ TB -- could there be a gain? Sure. Could the larger TB increase throttle response? Sure. Could it also decrease spoolup? Of course. I have no need to run a Q45 throttle body. If anything I might see a few HP gain -- I am not expecting to see more than 15-20HP over my 1G 60mm TB though -- and I AM making nearly 1000HP.

I cannot give you a number on the plenum volume. I didn't build it -- if you want that question answered, talk to Luke at Beyond Redline.

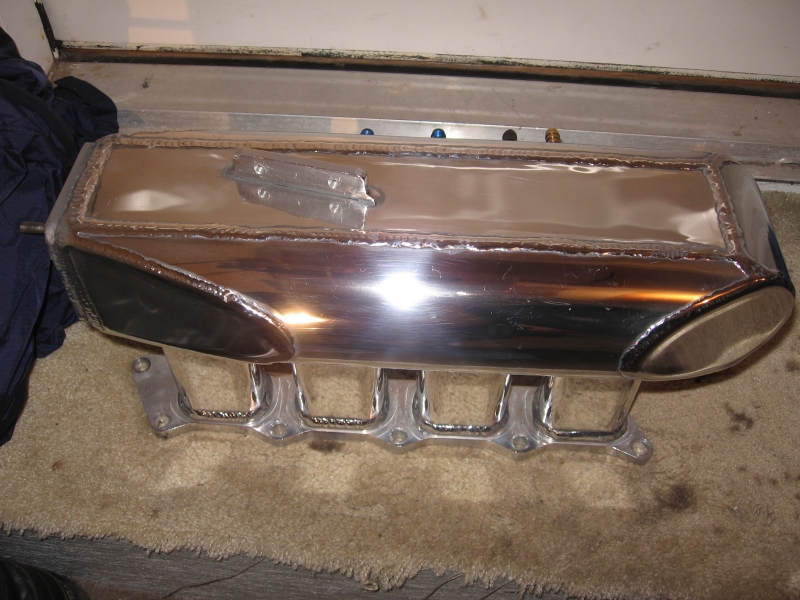

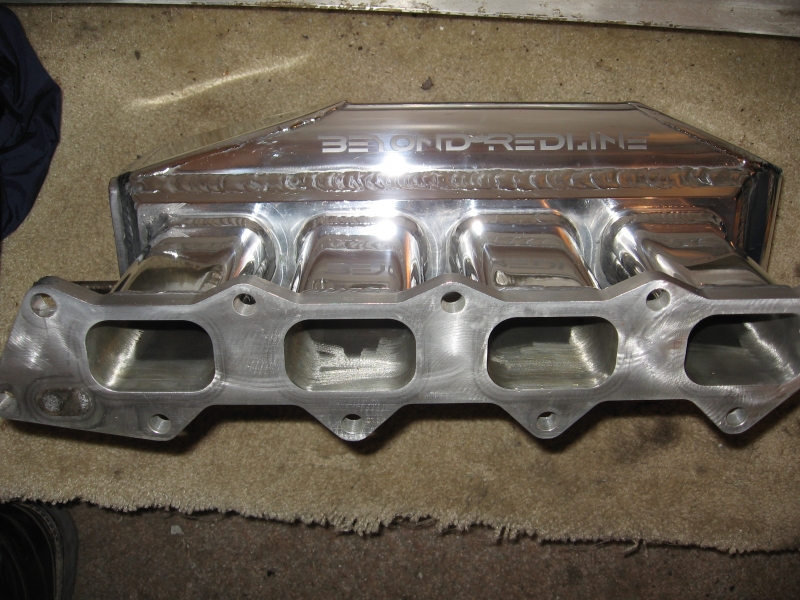

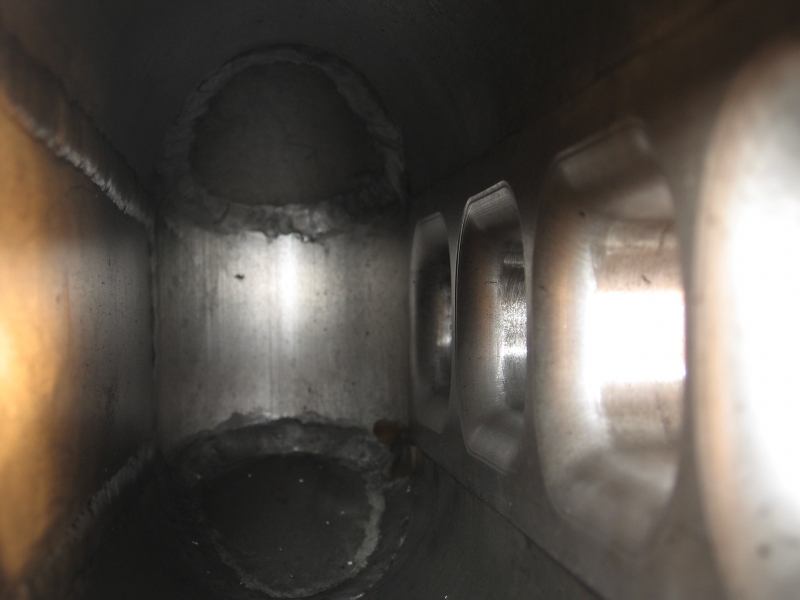

As for more pics, here you go! I took an additional 16 photos showing the dimensions again, along with inside the plenum shots. Please understand that my manifold is USED, and just sucked up a turbo compressor wheel, so please understand that the stuff in my plenum, would not be found in your clean plenum (compressor wheel debris).

I did a quick 5-minute hand-polish on it also using Mother's Ultimate Billet aluminum polish and cleaned with a microfiber towel.

Originally Posted by 1gDSM4g63

It all depends what your goals are and how big of a turbo you have to determine the size of a the throttle body and the plenum size you need.

Larger plenum and bigger throttle body is best used on a big turbo and a drag built engine like twicks69's car which gain 100hp+. However if you have a 16g a SMIM is the last thing you should be thinking about. A bigger plenum and throttle body hurts the spool rate. It's please self-explanatory in the first post of the dyno results.

And about your question in comparison with JM Fab and Magnus I doubt anybody know that. As mention in the posts above we are wait for FFWD test results.

As you can see from the dyno data taken on the first two test vehicles (Car #1 and Car #2), they were not losing spoolup whatsoever over the competitor's SMIM.

As for mine, we saw about a 200rpm loss, but we also had several other variables that we were dealing with -- such as the turbo. I also explained thoroughly the variables causing spoolup differences in the article == go back and read up if you missed it.

As for the large plenum design, we were able to prove that it was still beneficial on three different setups and displacements of 2.0 and 2.3L, with small to large turbos.

I would definitely say that the Beyond Redline SMIM made a strong difference over my old manifold due to the larger plenum and runner design. The 2.3L needs more air, and this manifold definitely produced it! Along with increasing my fuel injector efficiency.

Finally, you don't need an aftermarket fuel rail, ported head or an aftermarket throttle body to make 1000HP. The stock stuff works just fine. Can you make more power over the stock stuff? Sure, but at what cost? Some of the parts are extremely well designed on our motors, and only need a few tweeks to really put down some high HP numbers. Using a stock fuel rail with a -6AN feed and return and a set of 1000cc injectors along with a walboro 255HP in-tank and a walboro 255HP in-line fuel pump will support 1000HP all day long. The stock 1G head can flow it no problem also. I would say that gains are made though when changing over to oversize valves, and cams larger than 272/272's, but that gain was less than 30whp in the big picture.

The car made over 100AWHP more on just an intake manifold swap--that is a heck of alot better bang for the buck than purchasing an aftermarket throttle body along with 3"+ IC pipes, a ported head with oversize valves, and huge cams.

[RipperXX]

Shit, I want one and I only have a Evo III 16g right now. God I hope there still around a yr from now when I get my engine built.

[DSMunknown]

Originally Posted by twicks69

I do not know. Do you have flow bench data, comparison dyno data, etc to support it?

In the process now of getting it tested, as well as the old 2G IM.

[16g-2ndgen]

that is amazing! very, very nice piece!

[twicks69]

UPDATE: The production manifold is now public! Here is a photo of what the production manifold looks like (polished):



Contact Beyond Redline :: Performance Center for more information, or please read Post #1 of this thread for all the details.

[DSMunknown]

Originally Posted by twicks69

As of right now, it uses only a Mitsu bolt-on flange. All three vehicles tested were using 1G unported Throttle Bodies.

The next run of them will come with an option more than likely. Luke is also in the process of designing a straight bolt-on mitsu-style throttle body (if I remember correctly, it was 75mm), which uses all the stock sensors and is much beefier than any other comparable TB on the market for our cars.

Originally Posted by twicks69

Well, in the circumstance of using the Mitsubishi TB flange on this SMIM, it was designed this way so I could be used on the most 4G63's out there with minimal modification to be used. There really are not that many people using aftermarket throttle bodies on their current setups, and there are also very few people using 3" or larger IC pipes on their setups. Most of the intercooler pipe setups out there for the DSM's use a 2.25" or 2.5" IC pipe setup. This flange is ideal for most of the cars out there, along with their horsepower levels. A 52mm 2G throttle body is 2.0472", a 60mm 1G throttle body is 2.3622". An aftermarket 70mm TB is 2.7559", 75mm is 2.9528", and a Q45 TB 90mm is 3.5433".

In my circumstance, I am running 2.5" IC pipes from the turbo outlet to the FMIC, and the FMIC to the TB -- there is absolutely no need to run a 70mm+ TB -- could there be a gain? Sure. Could the larger TB increase throttle response? Sure. Could it also decrease spoolup? Of course. I have no need to run a Q45 throttle body. If anything I might see a few HP gain -- I am not expecting to see more than 15-20HP over my 1G 60mm TB though -- and I AM making nearly 1000HP.

...

Finally, you don't need an aftermarket fuel rail, ported head or an aftermarket throttle body to make 1000HP. The stock stuff works just fine. Can you make more power over the stock stuff? Sure, but at what cost? Some of the parts are extremely well designed on our motors, and only need a few tweeks to really put down some high HP numbers. Using a stock fuel rail with a -6AN feed and return and a set of 1000cc injectors along with a walboro 255HP in-tank and a walboro 255HP in-line fuel pump will support 1000HP all day long. The stock 1G head can flow it no problem also. I would say that gains are made though when changing over to oversize valves, and cams larger than 272/272's, but that gain was less than 30whp in the big picture.

The car made over 100AWHP more on just an intake manifold swap--that is a heck of alot better bang for the buck than purchasing an aftermarket throttle body along with 3"+ IC pipes, a ported head with oversize valves, and huge cams.

Since we're crunching the numbers, why not aim for a happy medium regarding the TB? Use that 2.5" piping to its fullest (as if you're not already doing so). 60mm translates to 2.3622 inches. 2.5" translates to 63.5mm. Why not get the extra little chunk to work for you? Just a thought to put out there. IMHO, I would always like the diameter of my TB to match all of my intercooler piping.

I just see it as .1378 inches (or 3.5mm) being left out in the cold.
