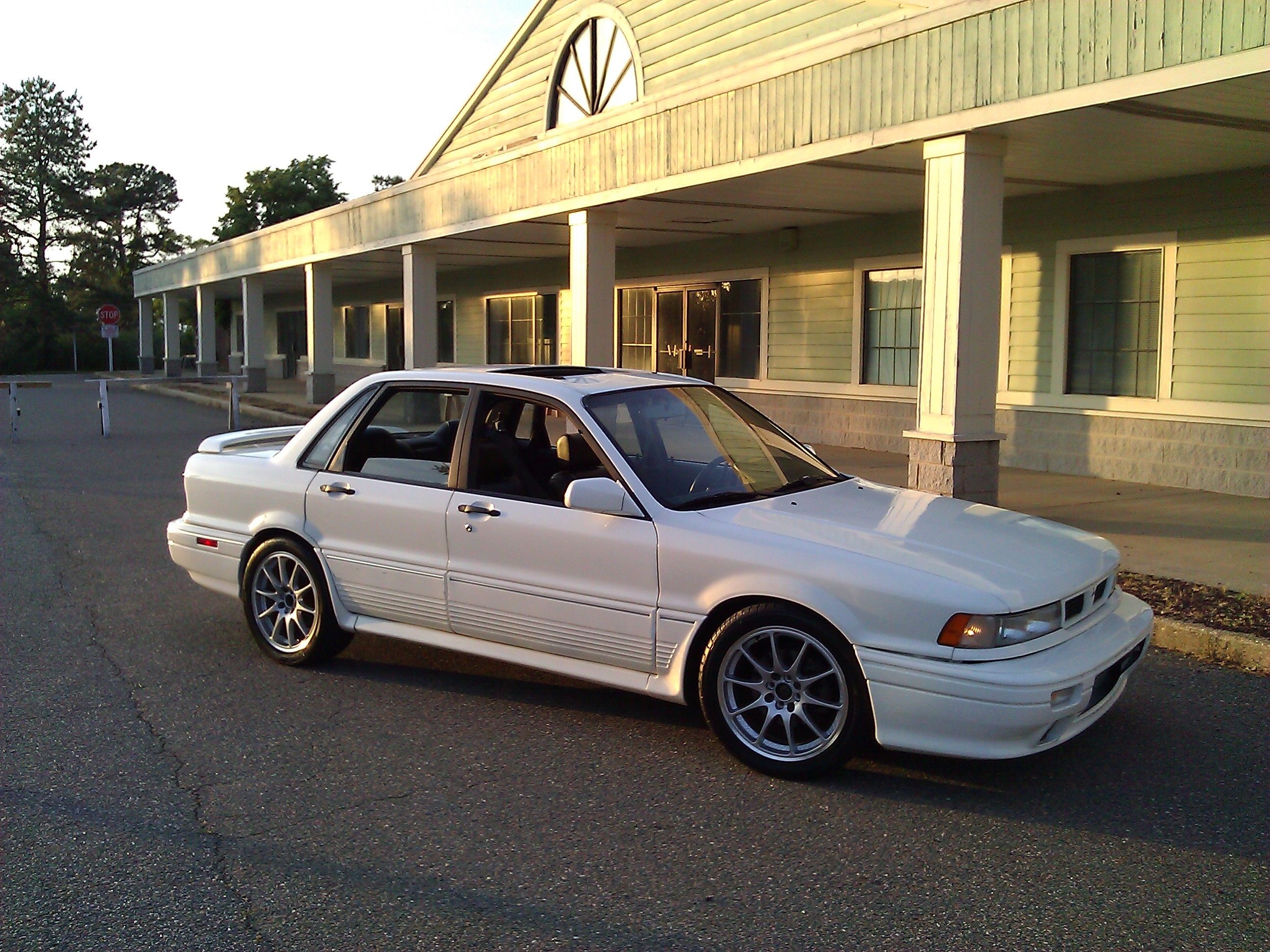

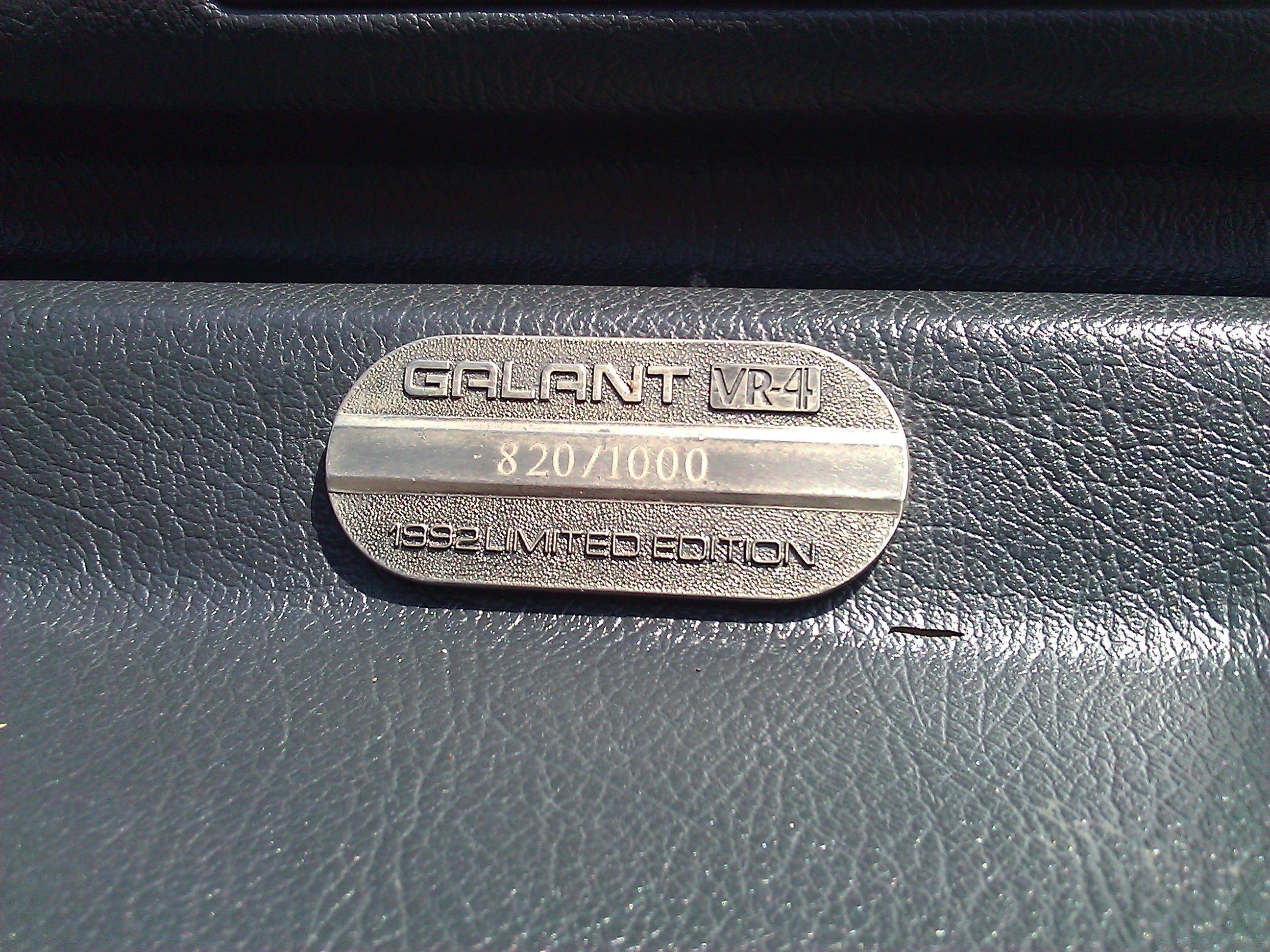

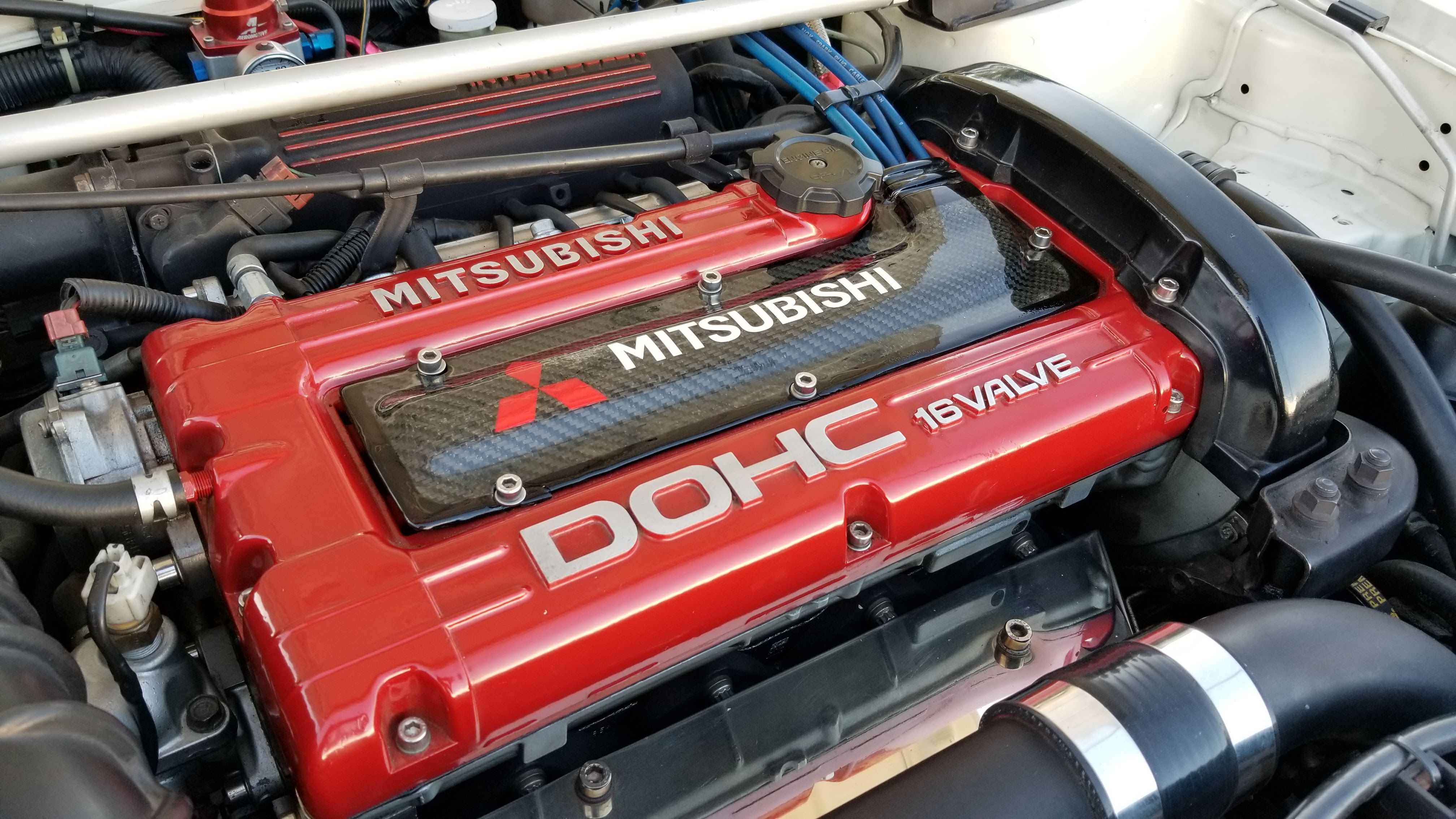

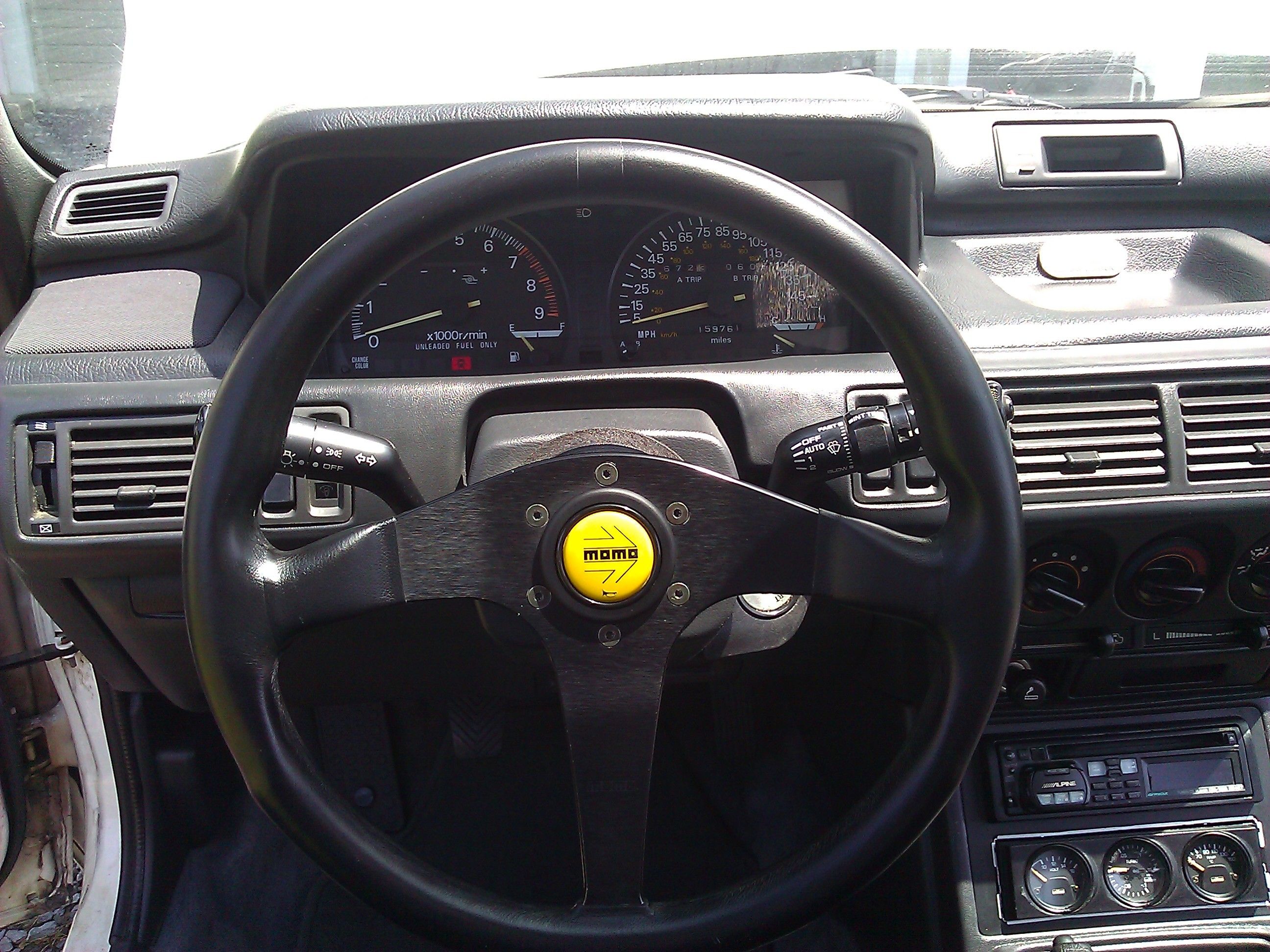

GSTwithPSI's Galant VR4 #820/1000

This site may earn a commission from merchant
affiliate links, including eBay, Amazon, and others.

This site may earn a commission from merchant affiliate links, including eBay, Amazon, and others.

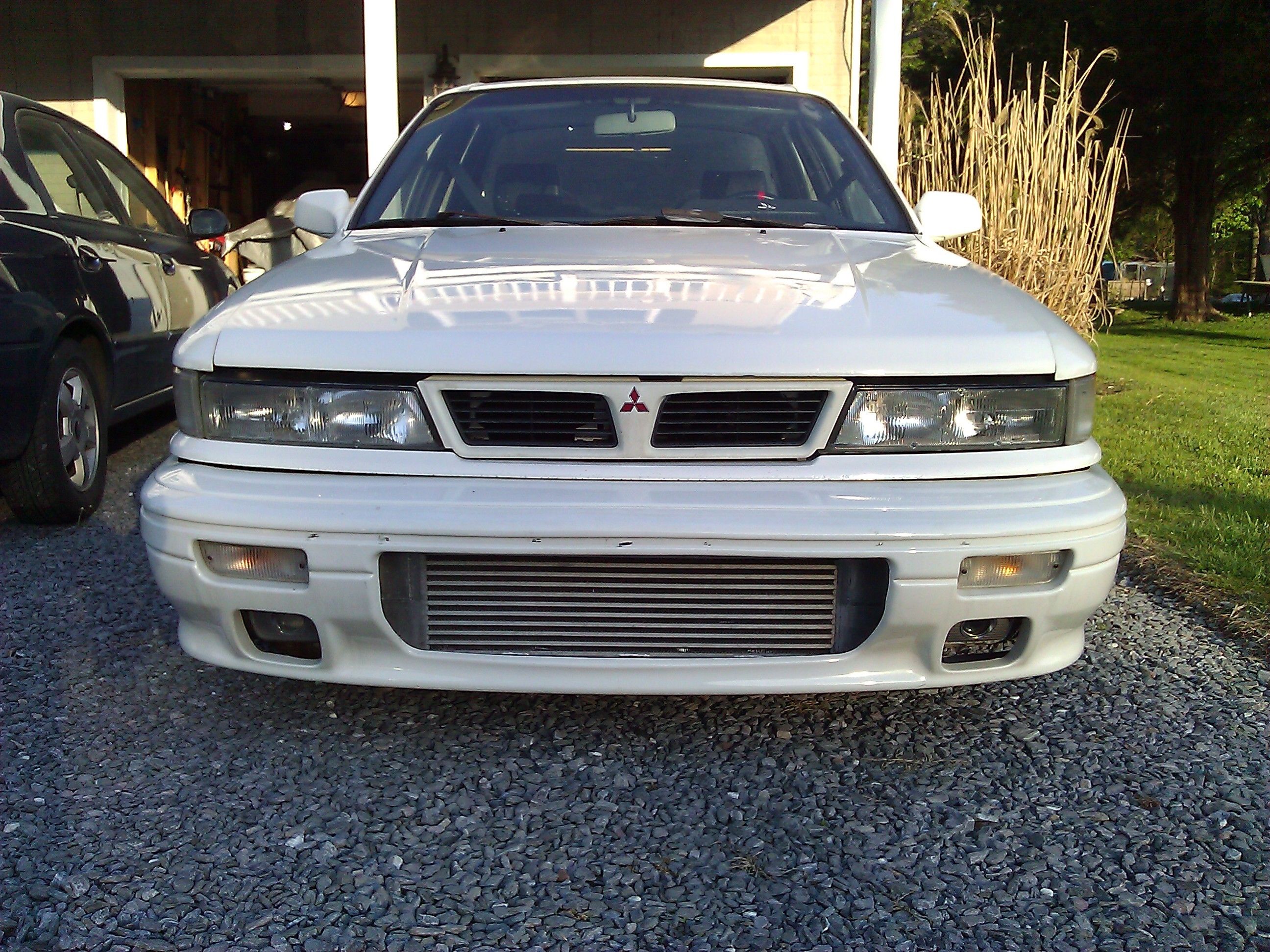

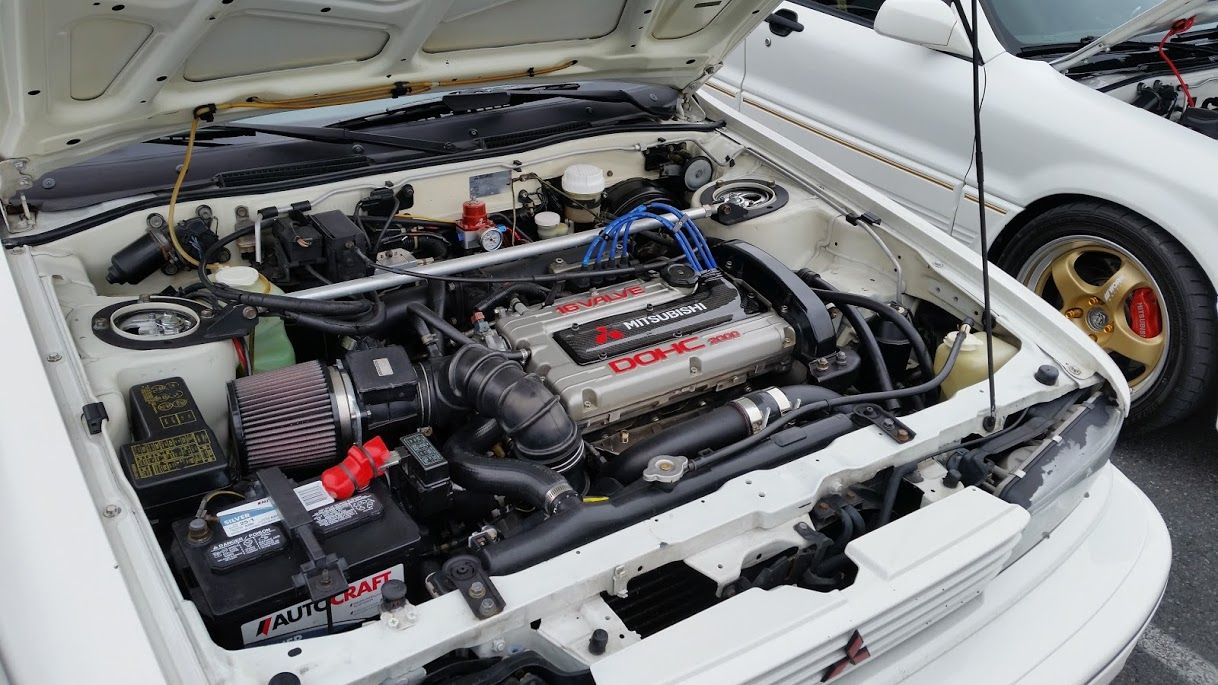

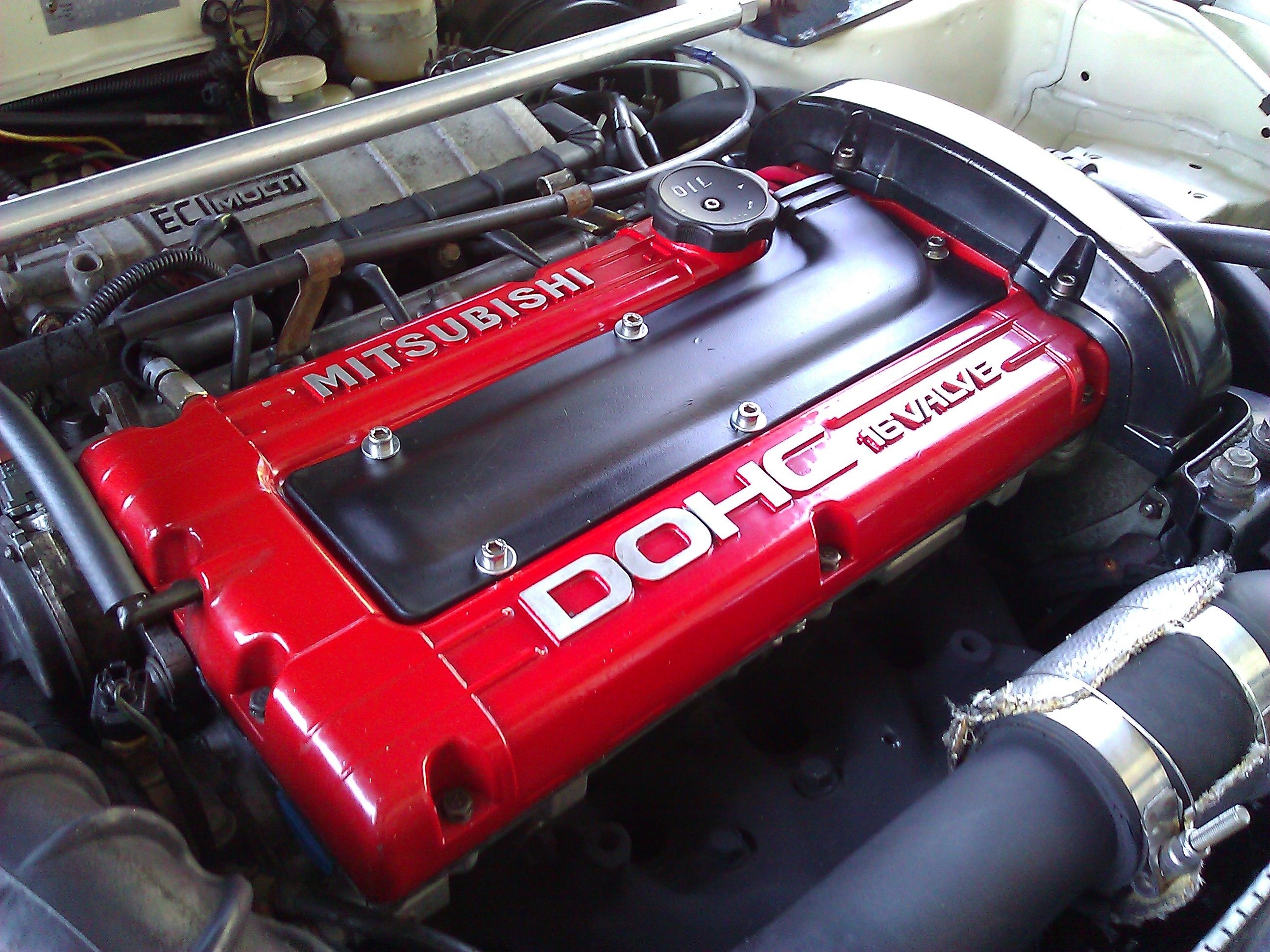

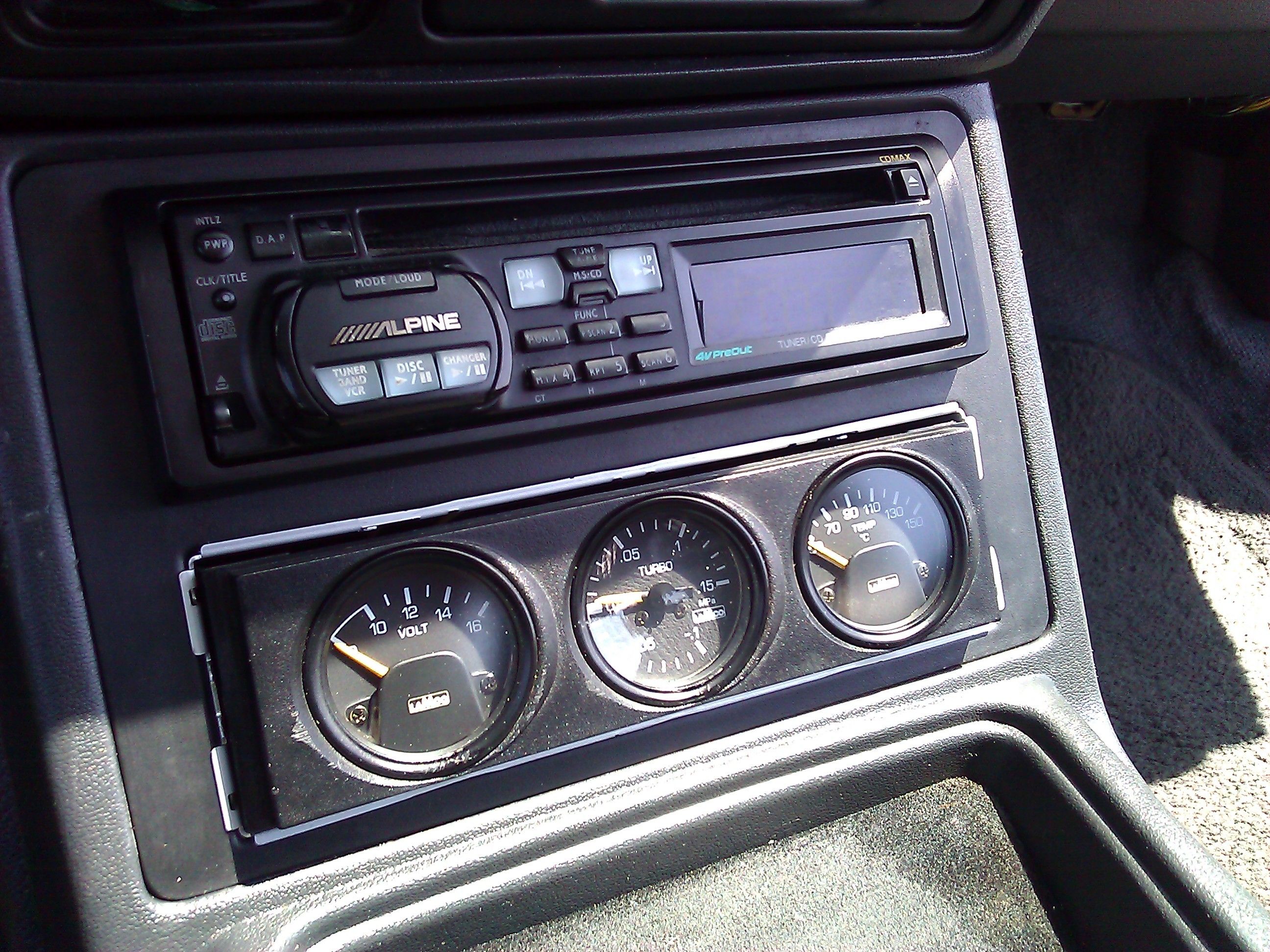

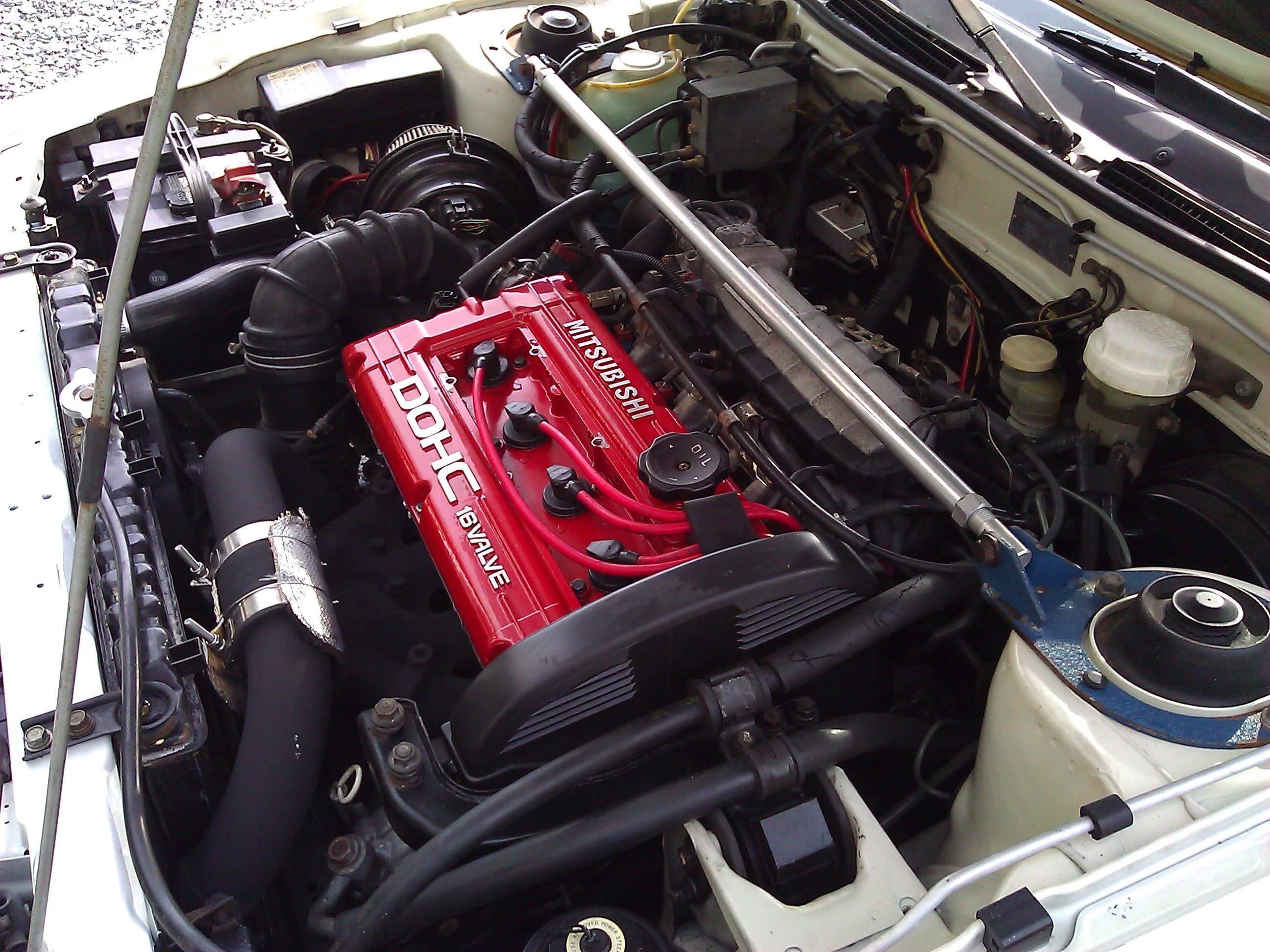

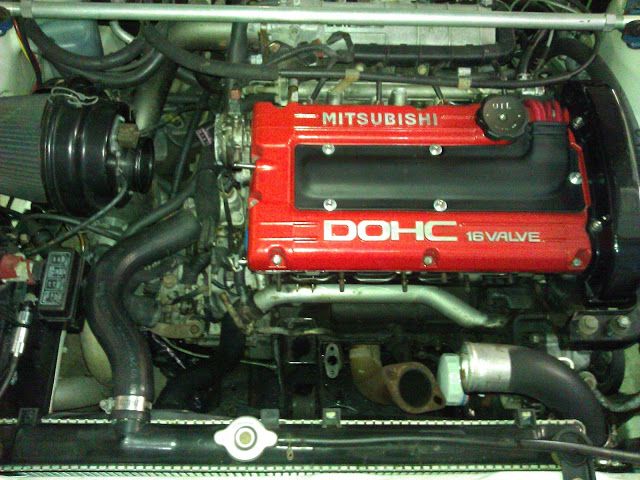

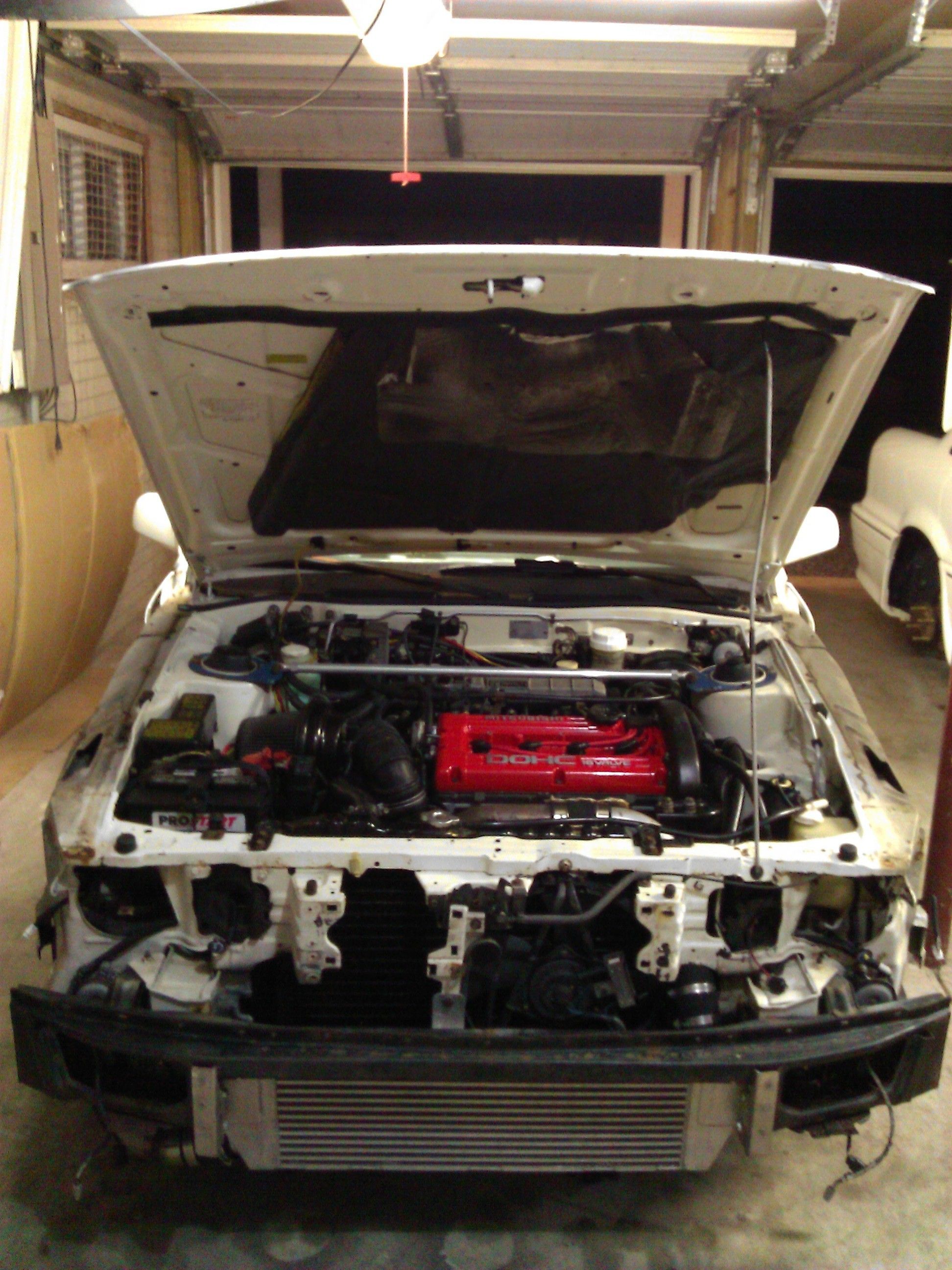

No, the intercooler setup came on the car when I bought it. Thanks for the positive feedback!

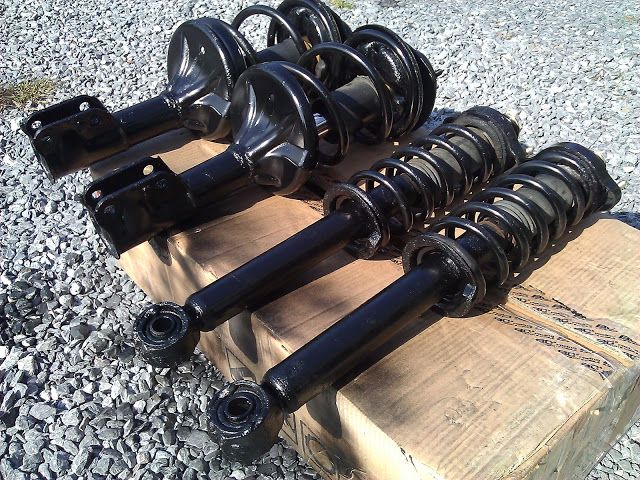

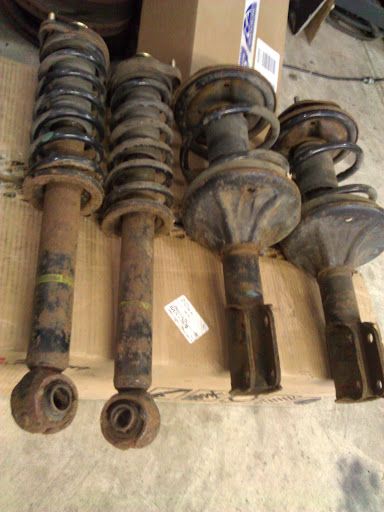

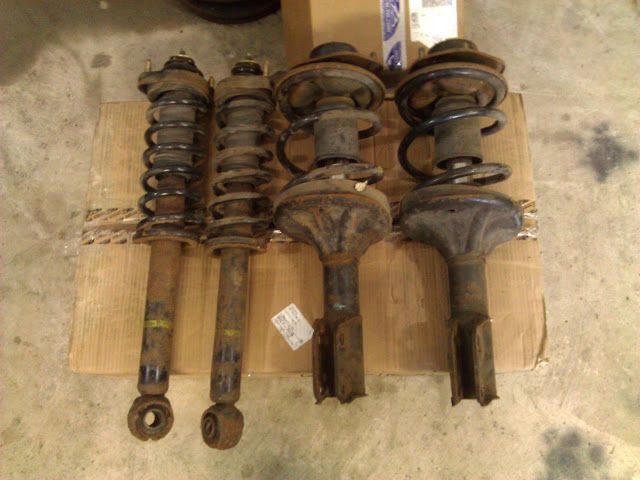

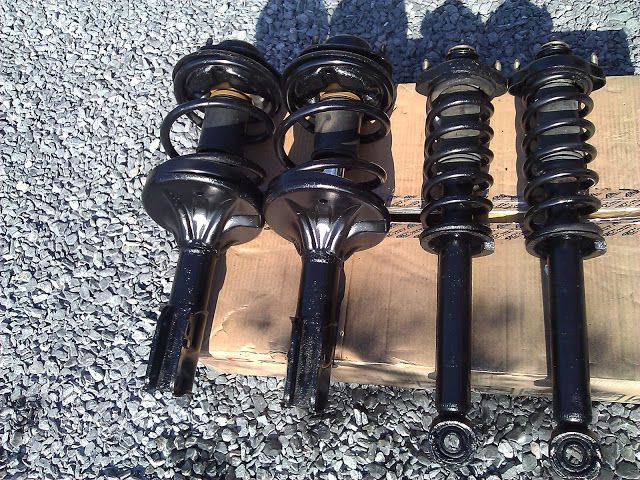

820 got some hand-me-down Evo 8 suspension today.

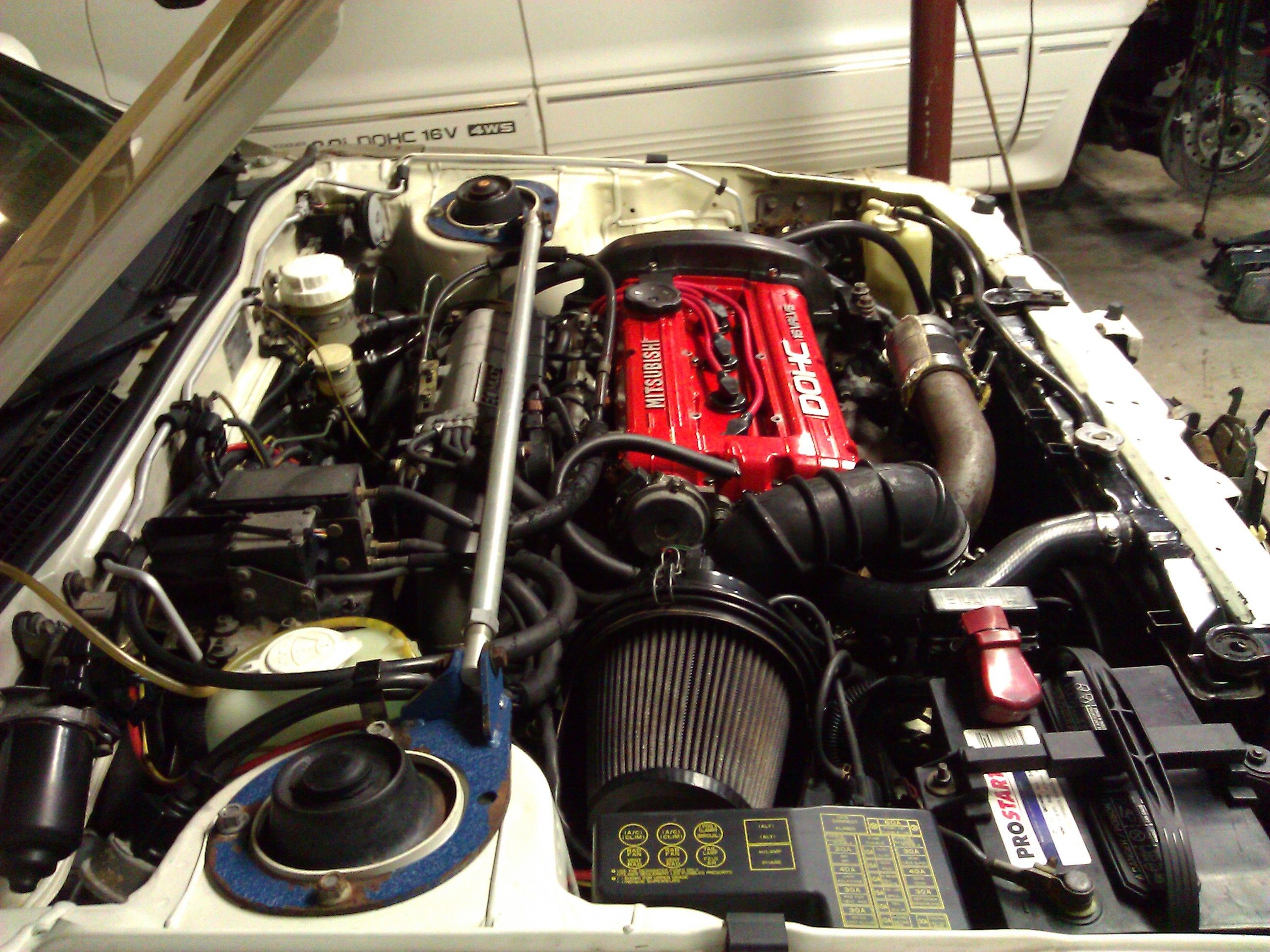

Before:





After:

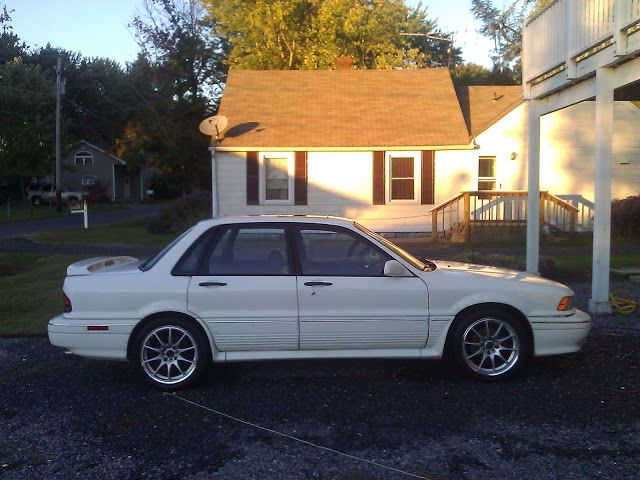

Now I'm ridin' high on the new Evo 8 suspension :|

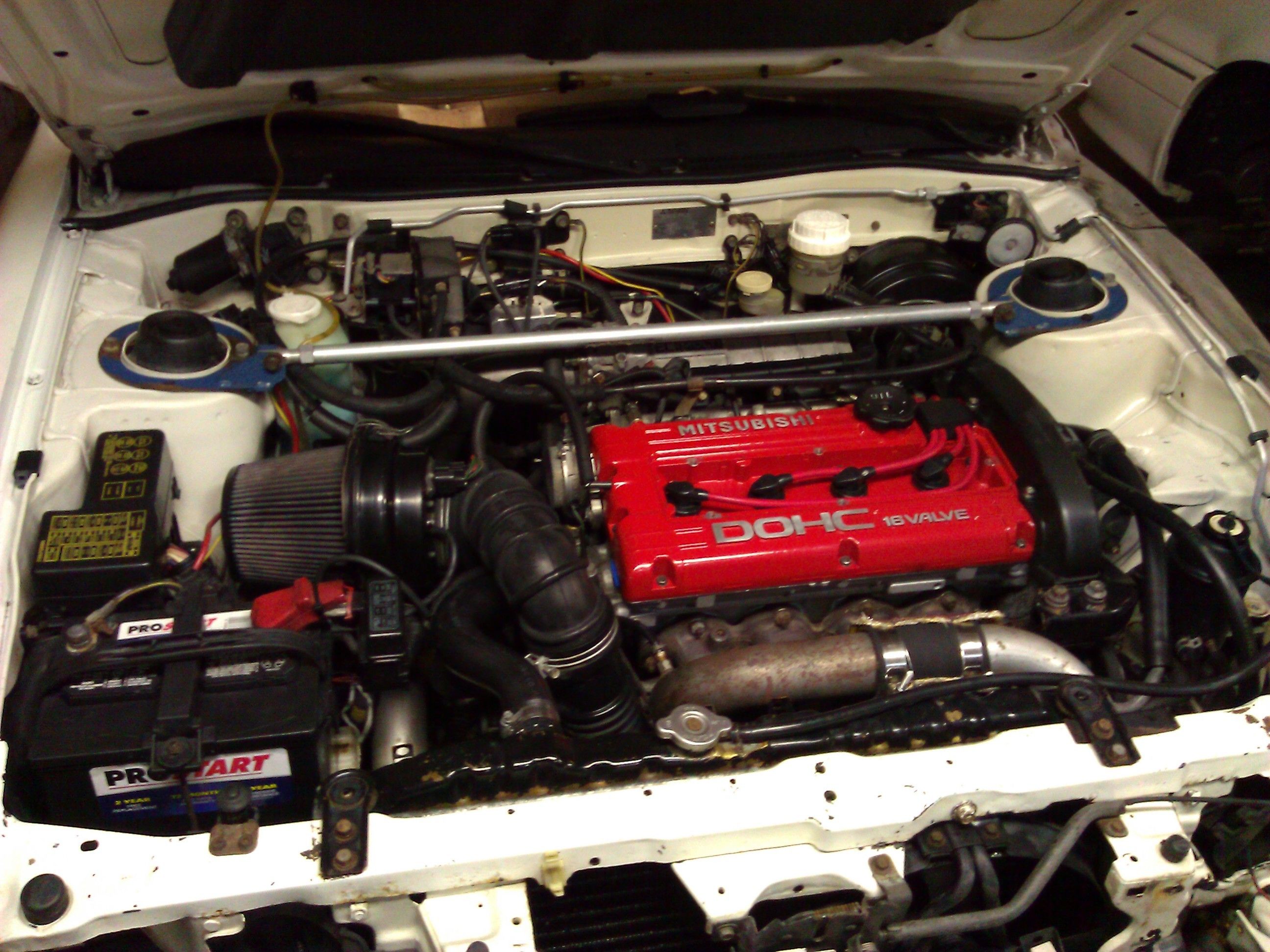

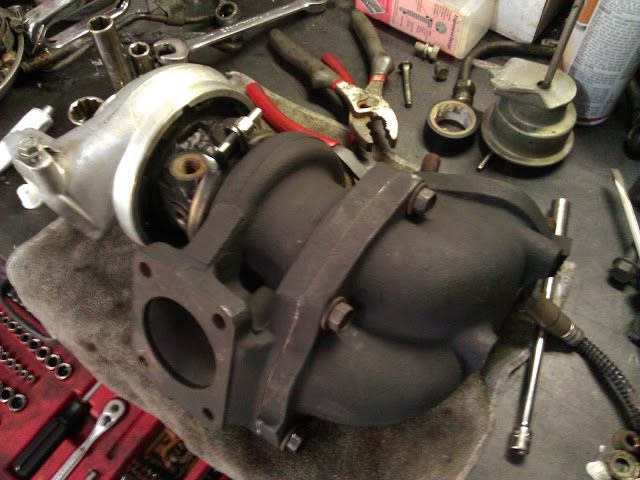

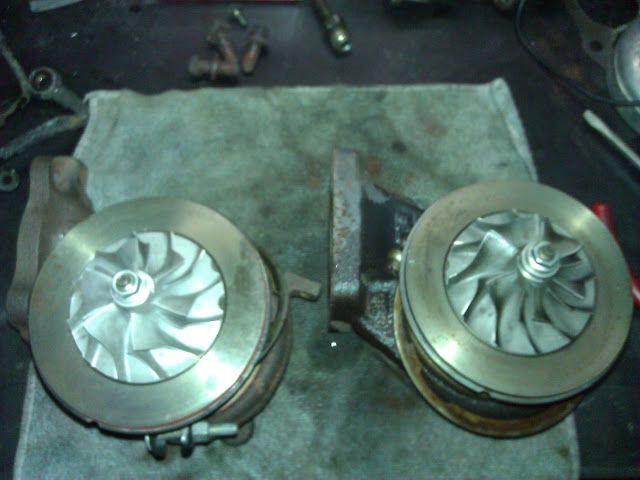

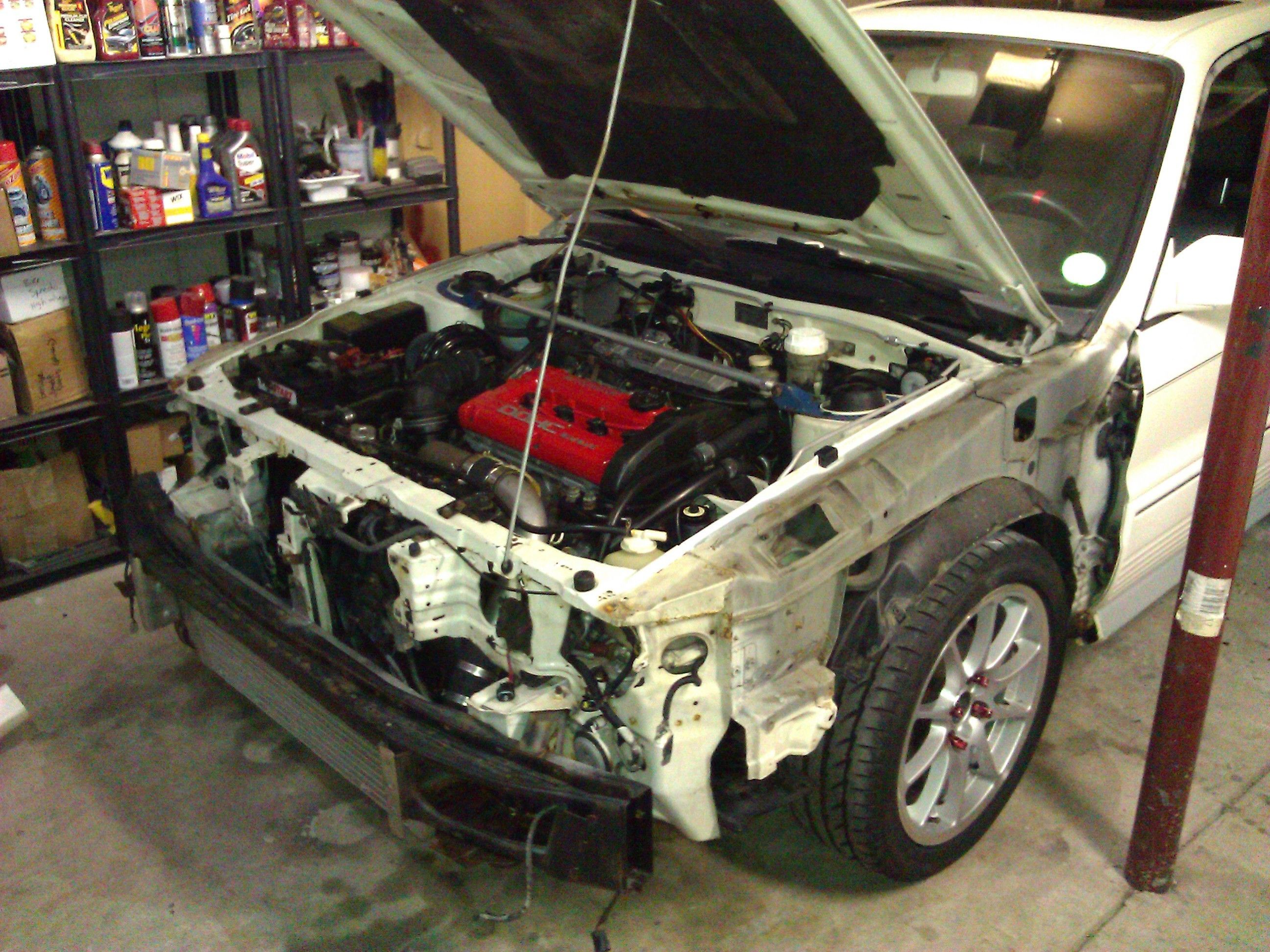

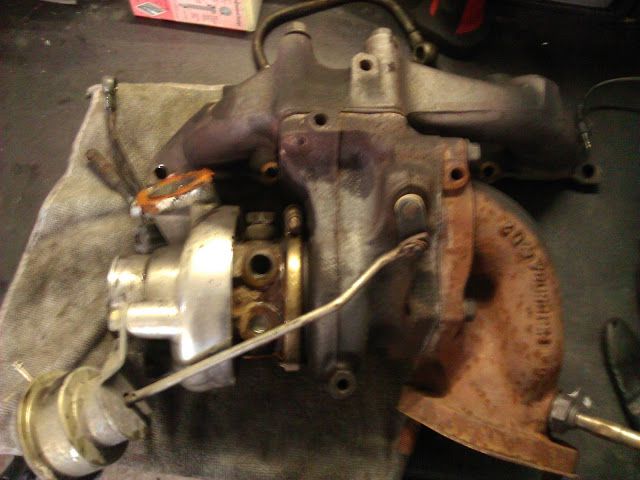

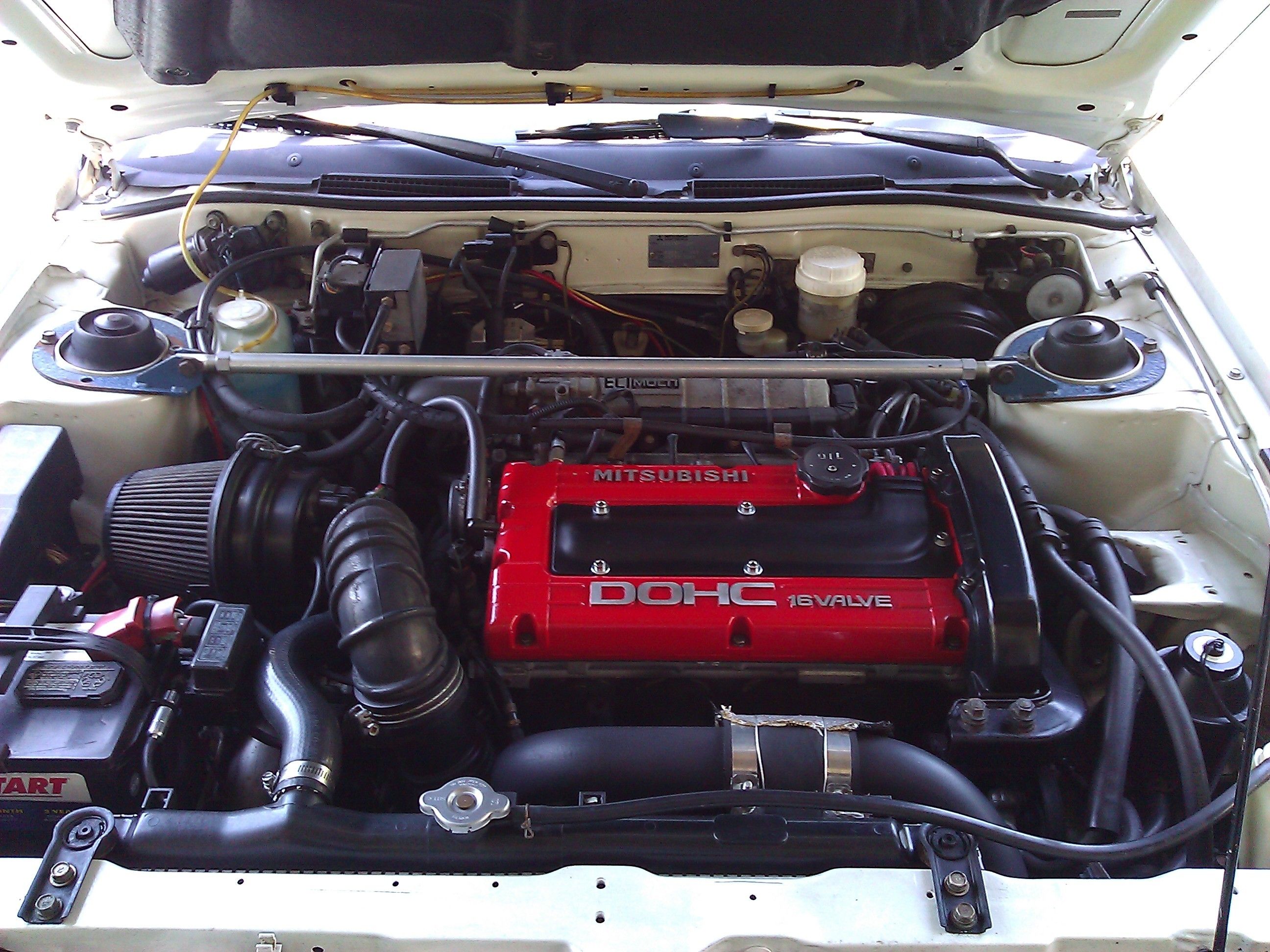

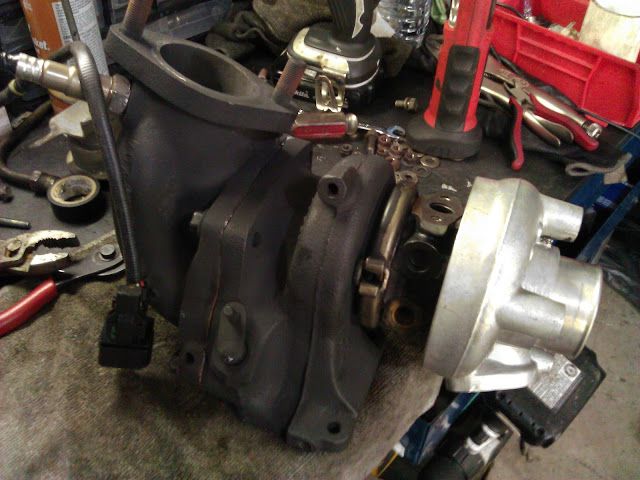

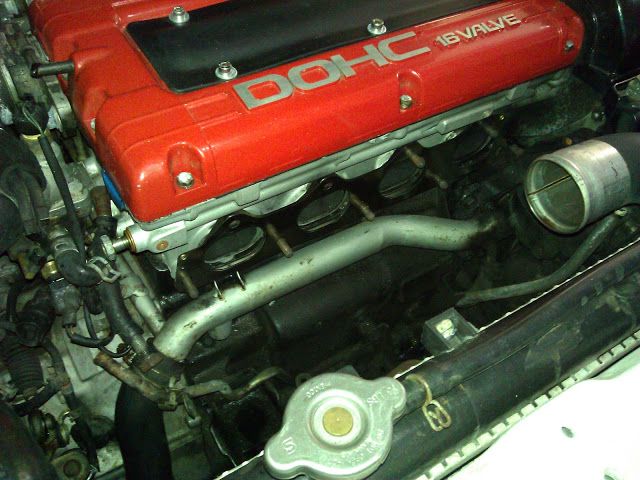

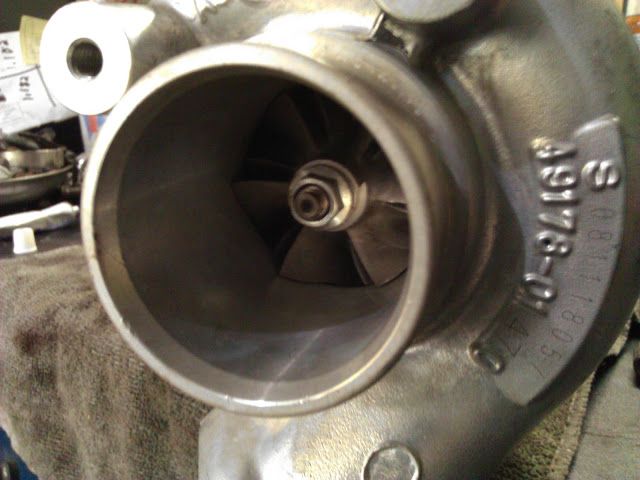

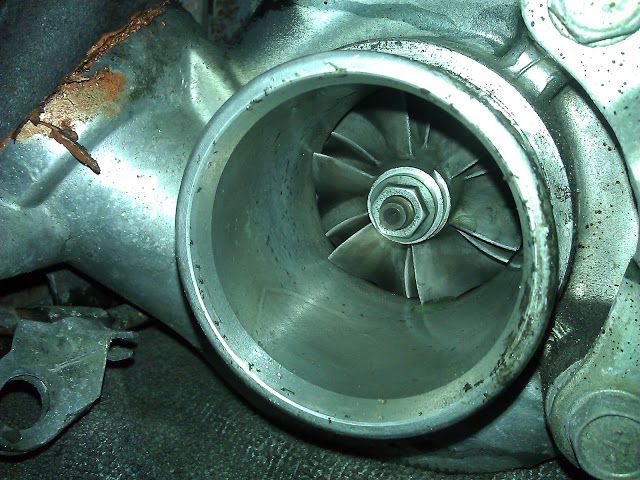

820 got a few upgrades last weekend. I pulled the turbo to install a rebuilt Evo 3 16G. Turns out, the car already had an Evo 3 16G on it. I still installed the rebuilt unit, but at least I have a spare on the shelf now.

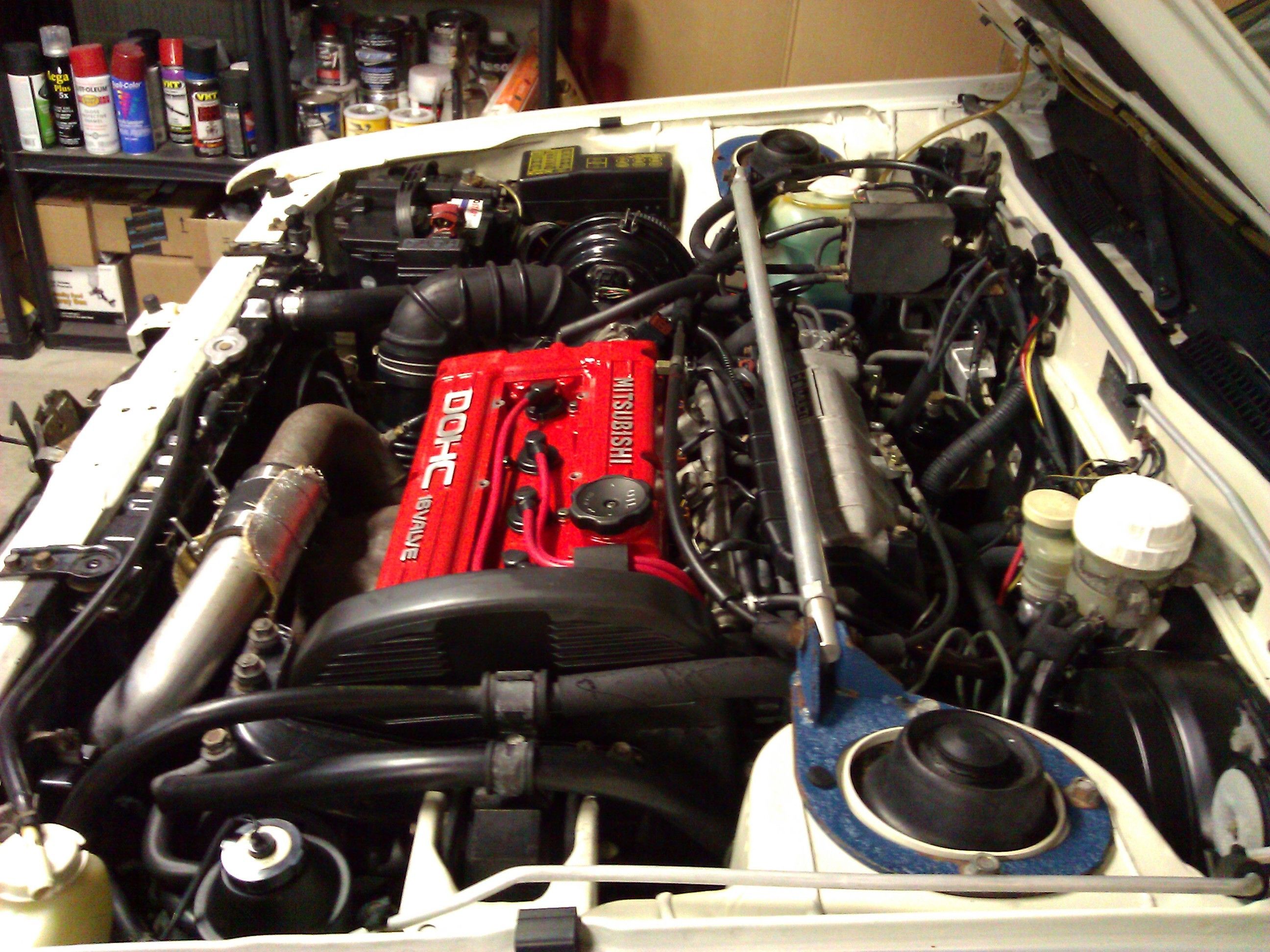

I figured I could clean up the area a bit too with the turbo and manifold out of the way.

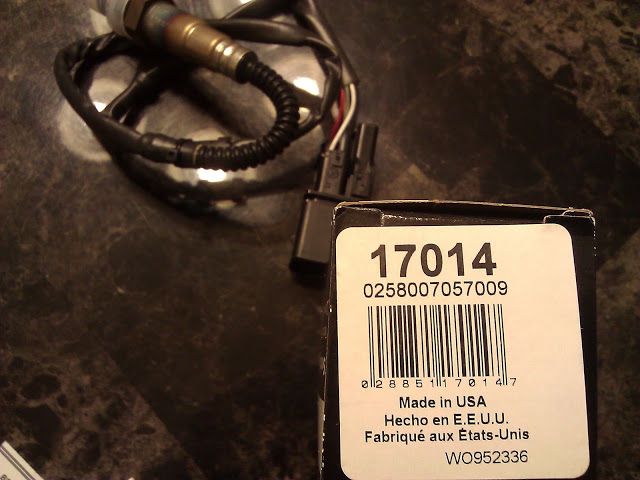

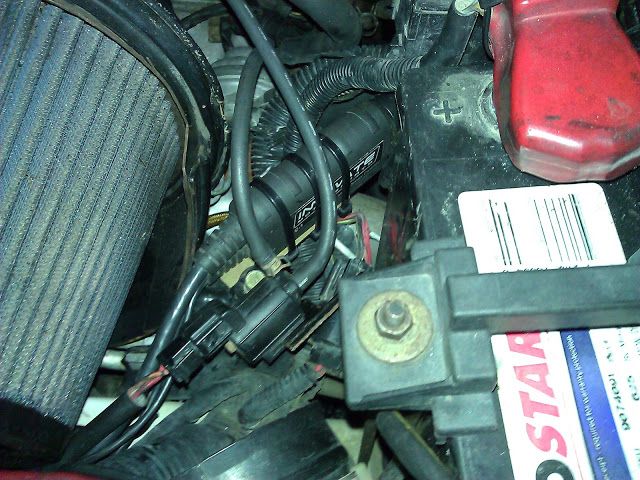

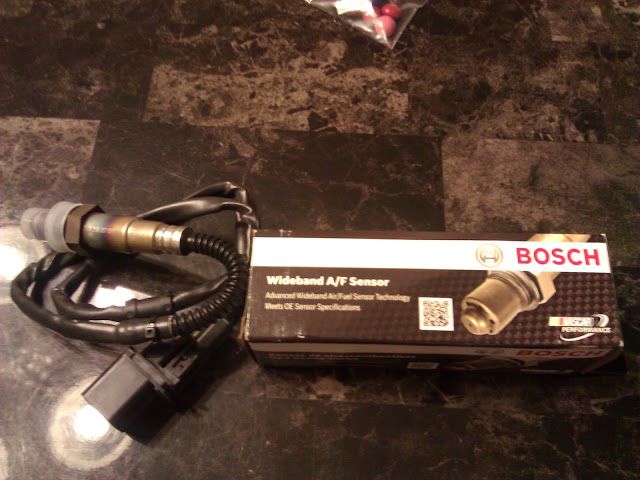

I also got the Innovate LC-1 installed as well. FYI, if you guys need to replace the sensors, just pick one up from AutoZone. You can pick one up brand new for $50 bucks. I was finding them listed for twice that in various places. The part number is 17014 click




Next, I threw in some Evo 560s and dialed in the MAF. Then, I set up ECMlink boost control with the stock BCS. It's one of the best features built into Link, IMO.

The car is running awesome, and It's a blast to drive. It's super tame compared to 1837, which is nice when you just want to jump in and drive. Next up is to throw in some colder plugs and turn up the boost a tad bit.

Well, a lot has happened with 820 since I last posted. Long story short, I had some issues with compression on cylinder #1, and one day the clutch just quit disengaging. So, pulled the motor and got to work giving 820 the business.
wEAdizYoXWRHdZPZDjkHnBiRAylsqgwzQ-xpfnaQLfXhqxiKgw06YrkPuQQTaAcaL7GPHcyJO4oAqfDD4g=w1218-h685-no.jpg

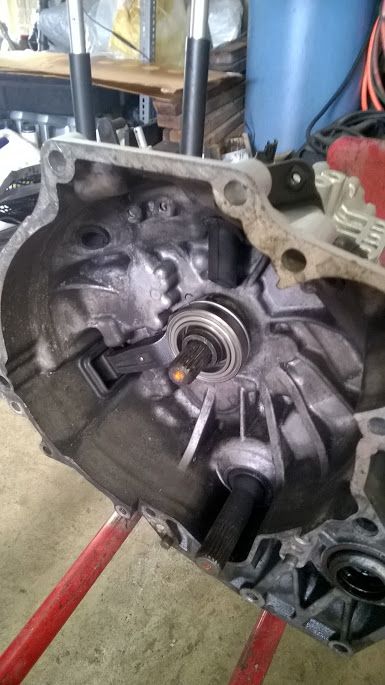

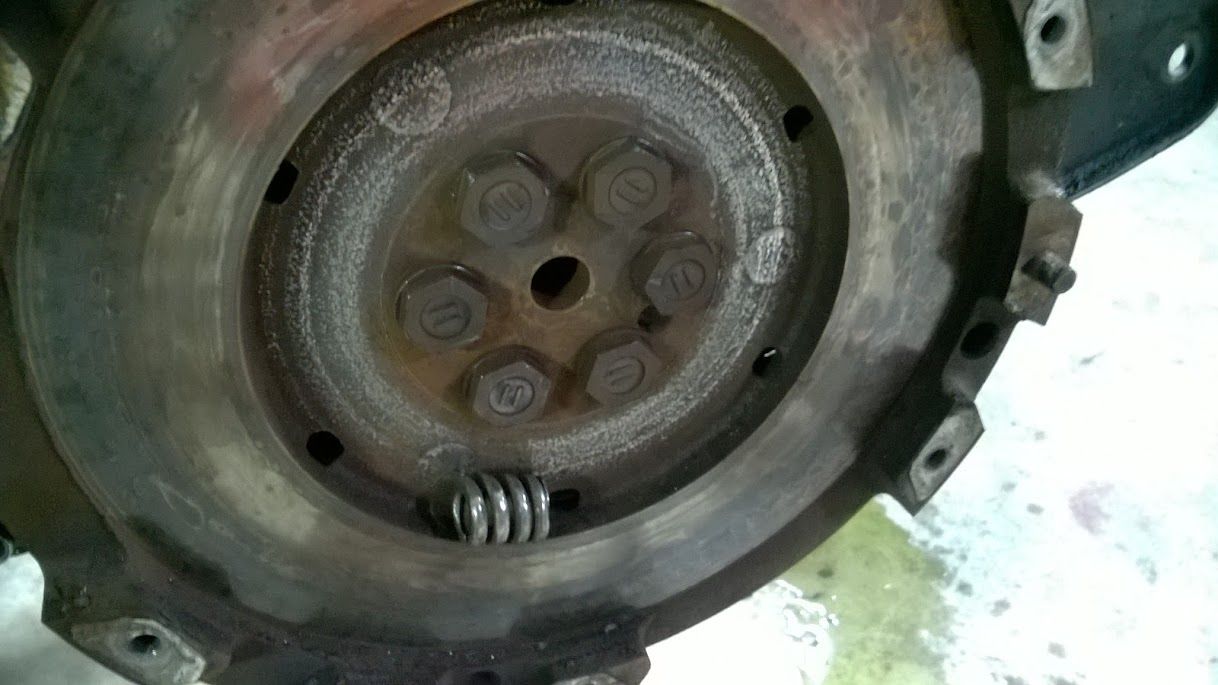

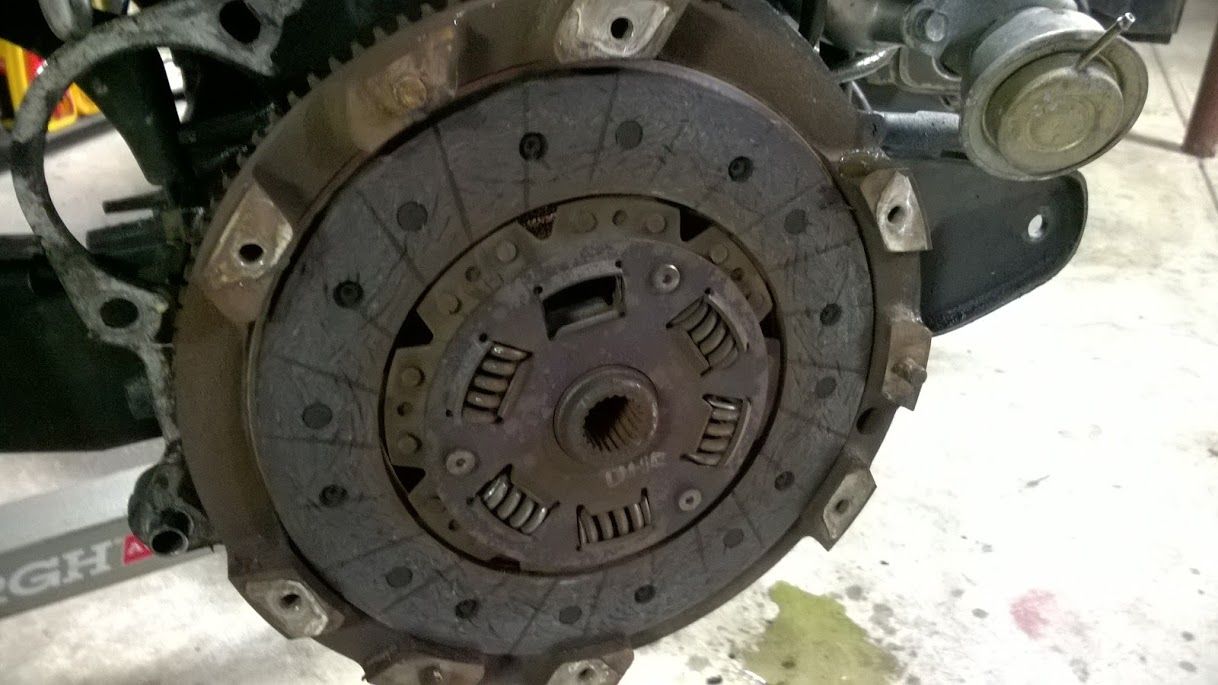

Separated the trans and confirmed my suspicion as to why the clutch would no longer release.
AFFKwxEsnGeNqm7Na3k2r0SU4JiXM-jXLKS_ir1s7er06cCbiTqqc4VwZlsST24J-K03k2rWsQHtZ02jFM=w1218-h685-no.jpg

gtVydlIT9RPVXr6EXRLf5mhfw7hVmBuTPAFePVS8sSP6wMTNe7J9UArlGsxeg7uVN0YVTWnTEFpqxR91jo=w1218-h685-no.jpg

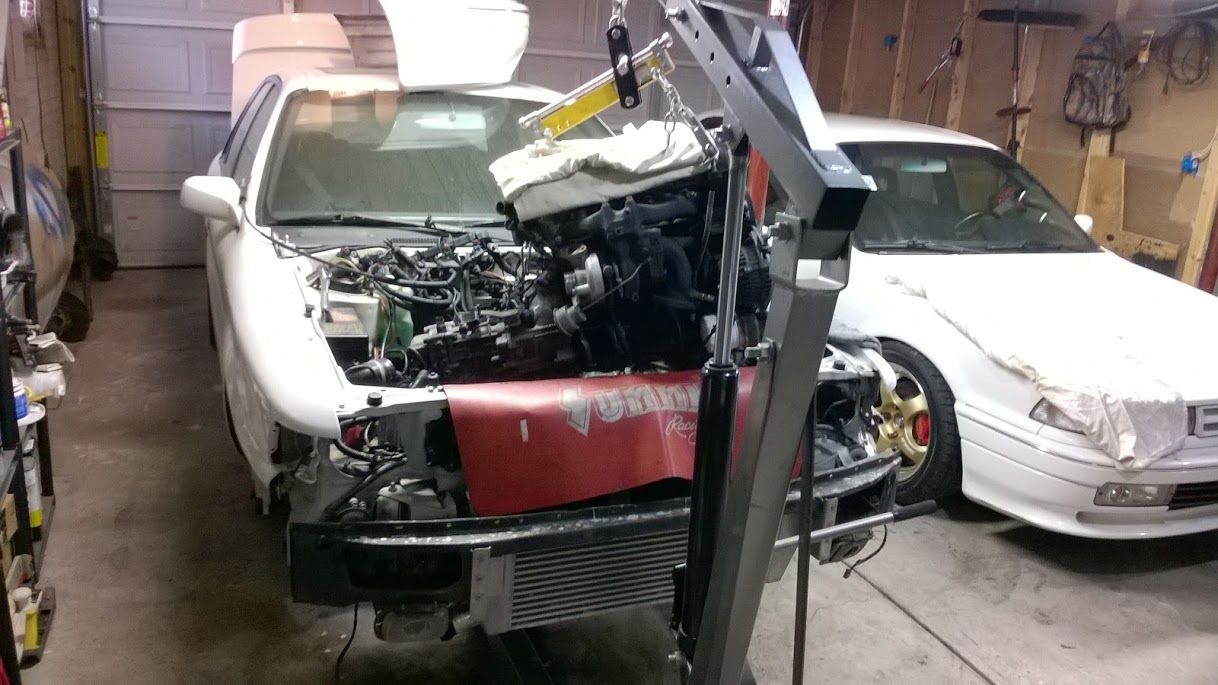

Got the motor out, which was covered in the typical 20 years worth of grease, grime, and dirt. Gross.
f7i8aXLl9NaikuECmDkv90LqfjXKrBi-5pQOBfLi7TcWkPtWFORyPmhdU4Xb66D46fjyI5_bhCO5ZONjL4=w1218-h685-no.jpg

XnTdcAcM6SXyjlW3a-aFXPaCMgxdMugCmwYD4nzY6-uTGVPz4pQuXqjLnH8fRBx483-ClwqYdTvxjQ7v7g=w1218-h685-no.jpg

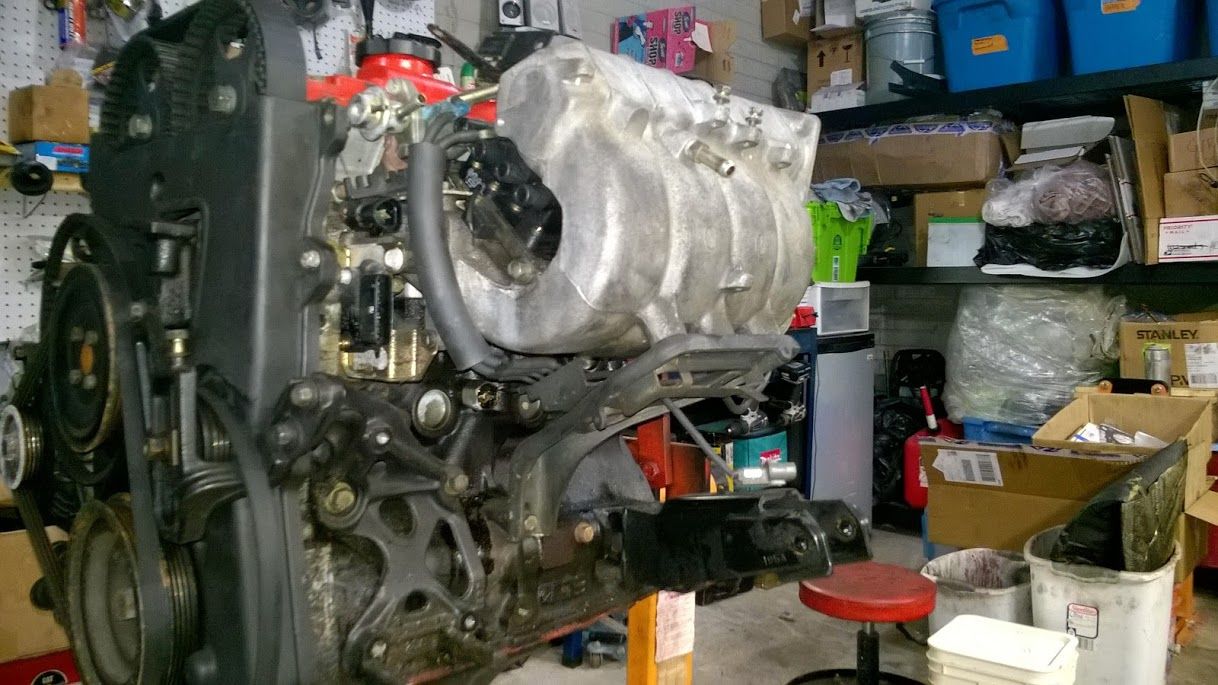

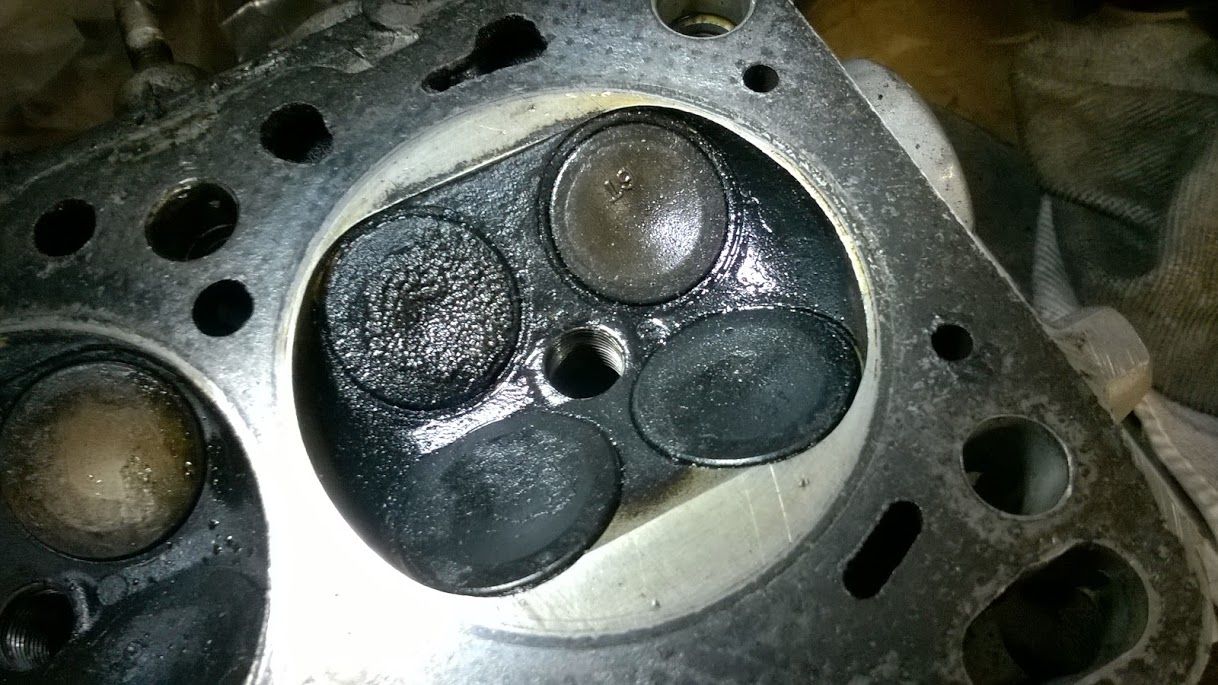

So, as I mentioned, I had low compression on cylinder #1. I wasn't sure what the issue was, but I suspected it may be a problem with the head or head gasket, as a wet compression test failed to bump the compression at all. Once I pulled the head, I found a ton of carbon buildup on one of the valves, which effectively kept it from completely closing. I was actually pretty stoked when I found this, since that meant my short block was good to reuse.
aIeHuvAs9IfEJ4Q7wUcVrRbmSpw0-yKXVrKUL_jWgllL5wZiizWo0VsIzMCQTKX7b0RxfXHK96En2fEzIA=w1218-h685-no.jpg

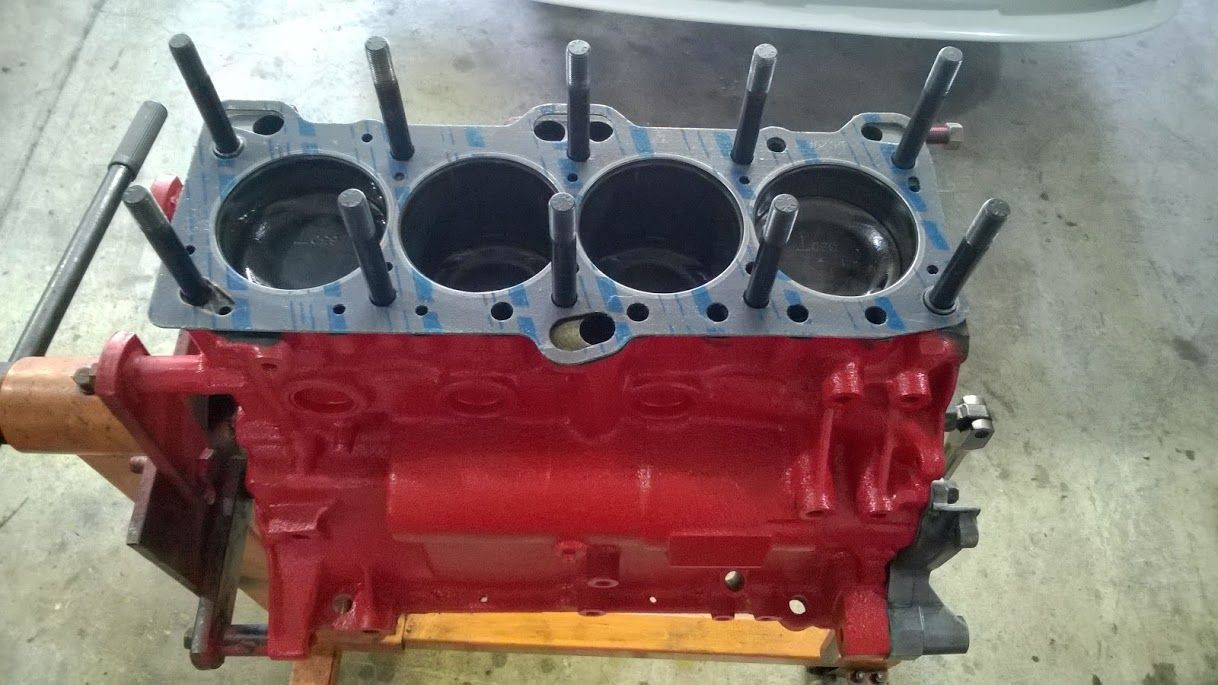

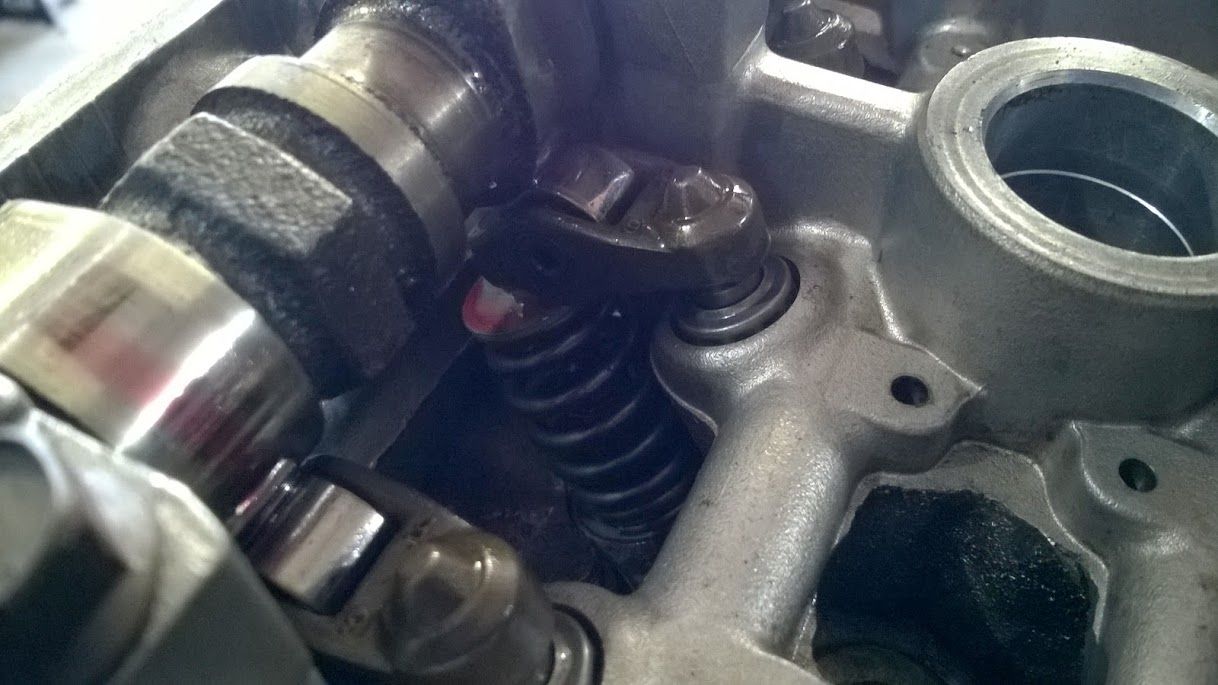

The short block looked great. The bores spec'd out good, and the crosshatching was looking nice as well. Aside from the dirt and knock sensor goo, it's mint.
rWNxu25qOHdrE4l7NOjOHNiNFN6KM66jjlz3zgfB_v-8jU0BL1E8NCYRq4w8glm_jwuTmhKJNfZDtUEZlA=w1218-h685-no.jpg

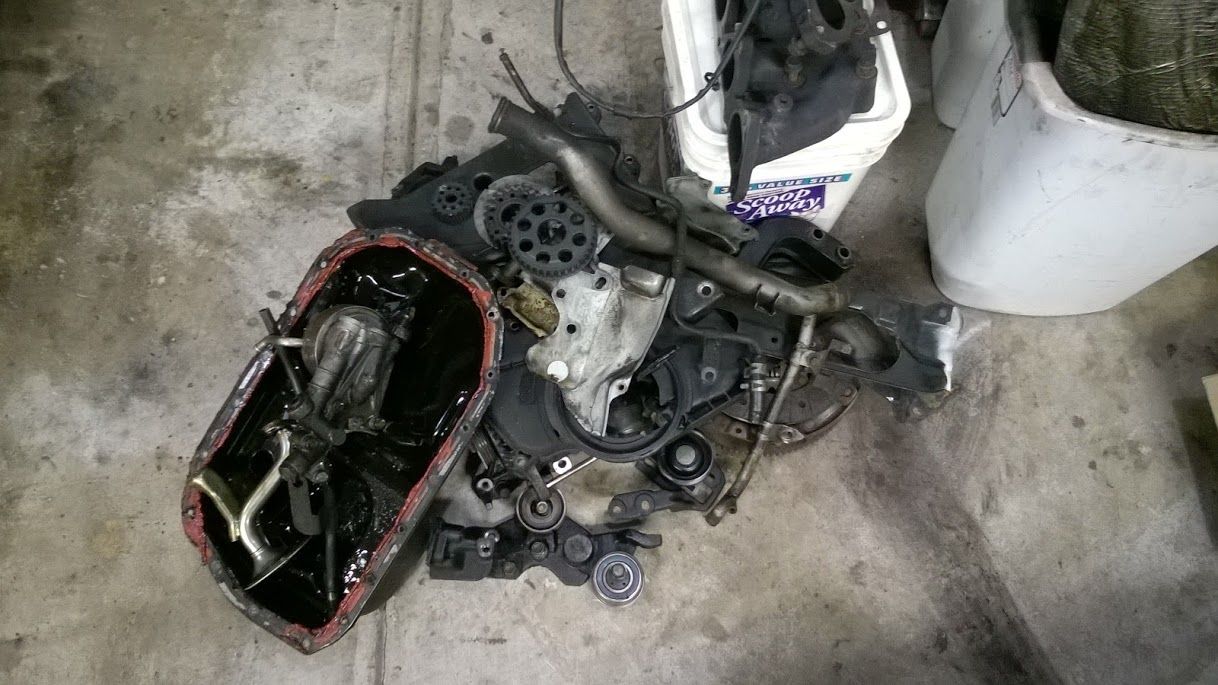

Anddddd and huge pile of dirty shit to clean.
ZjplzaZ4ojglbCZ7Jj9bQCwl2K3haUJe9rkpJWS8ECRl9PRnqzDlzZc05SPnJrb44wmsWRu9kI_oUdhd6Y=w1218-h685-no.jpg

dcEWXA2OOc8xYY8MpSkELW9UOw9_T2blilXQtqhBZEyodilzlkZUfQlR-b9wlBYPnF09a9SLSXEgmI6Rbg=w1218-h685-no.jpg

IYCiGksfleo3E5yR2QIuGeGX9DkH2_MJvaTGNheMbqtYfXAFdVpNYnj8nNtWlukCYpRBarWbVUr12TOSSBg=w386-h685-no.jpg

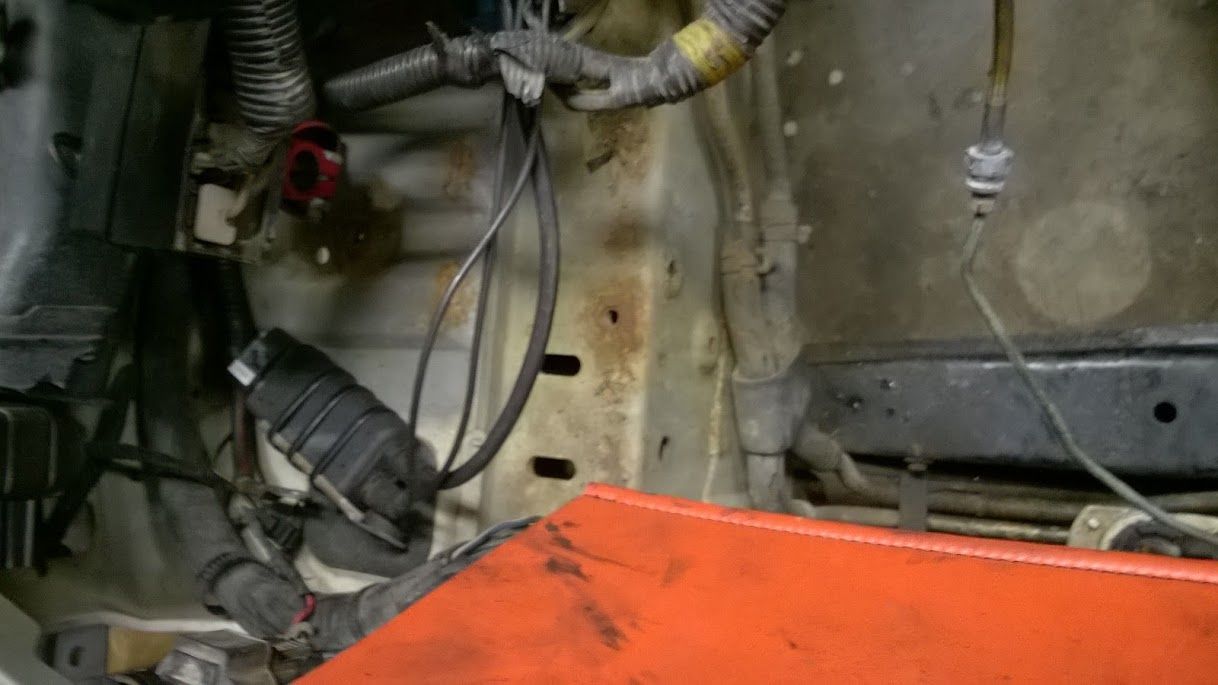

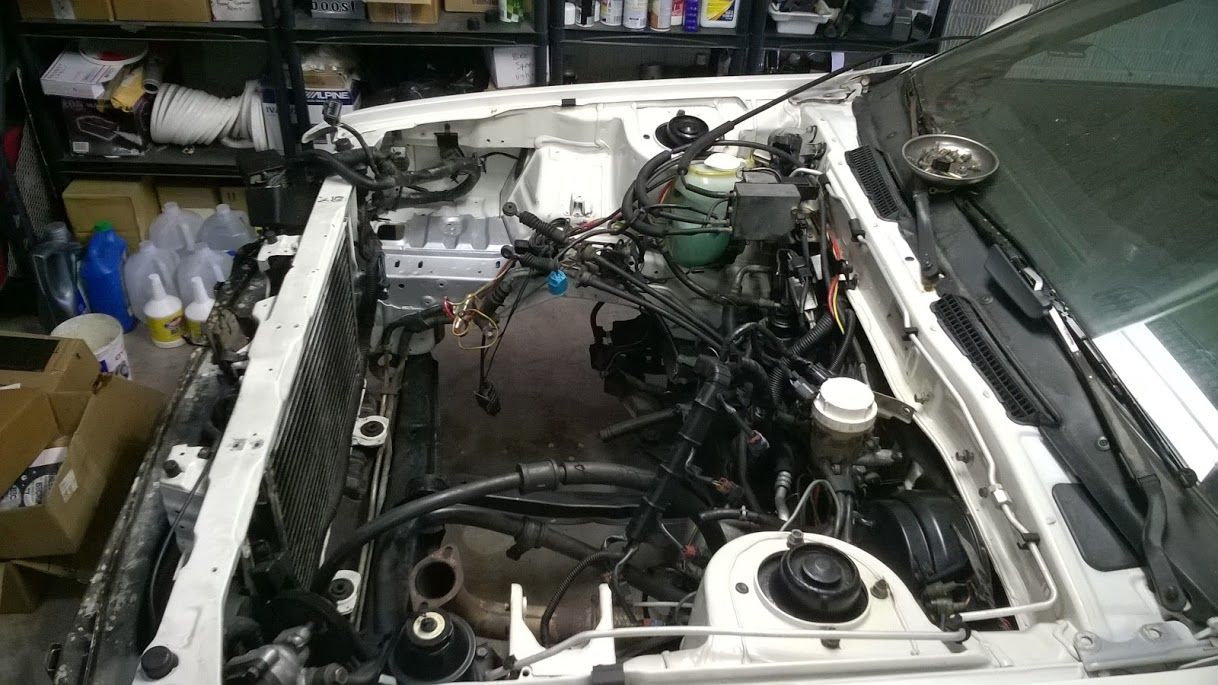

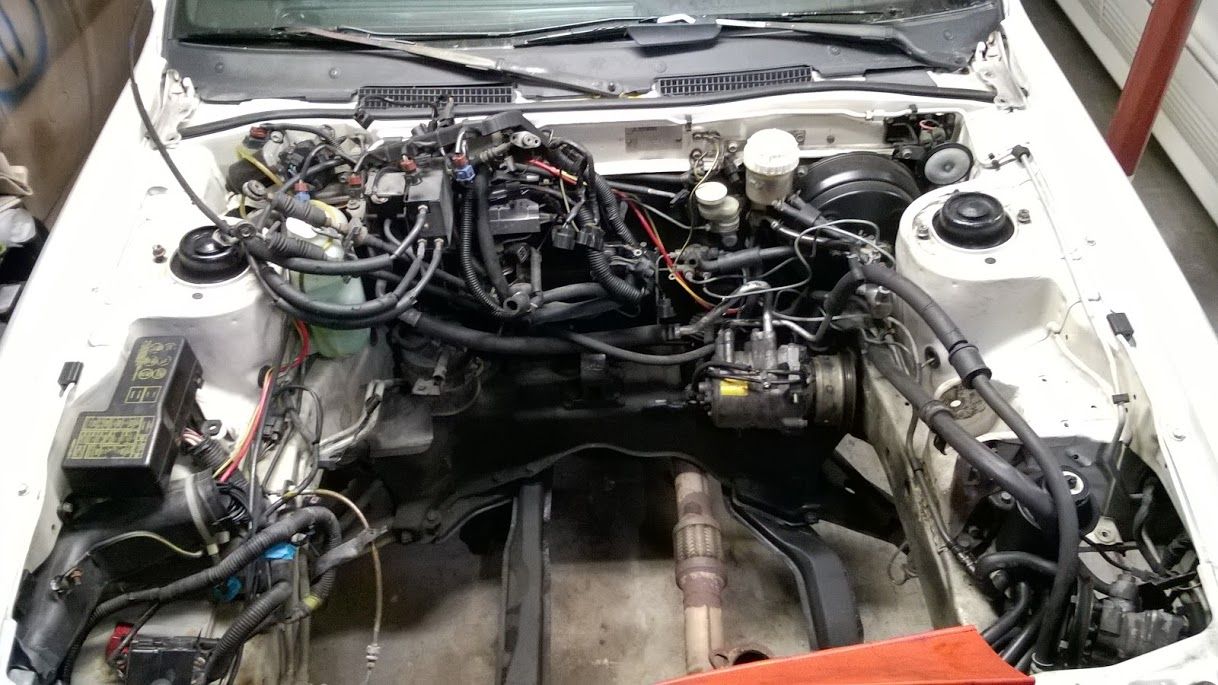

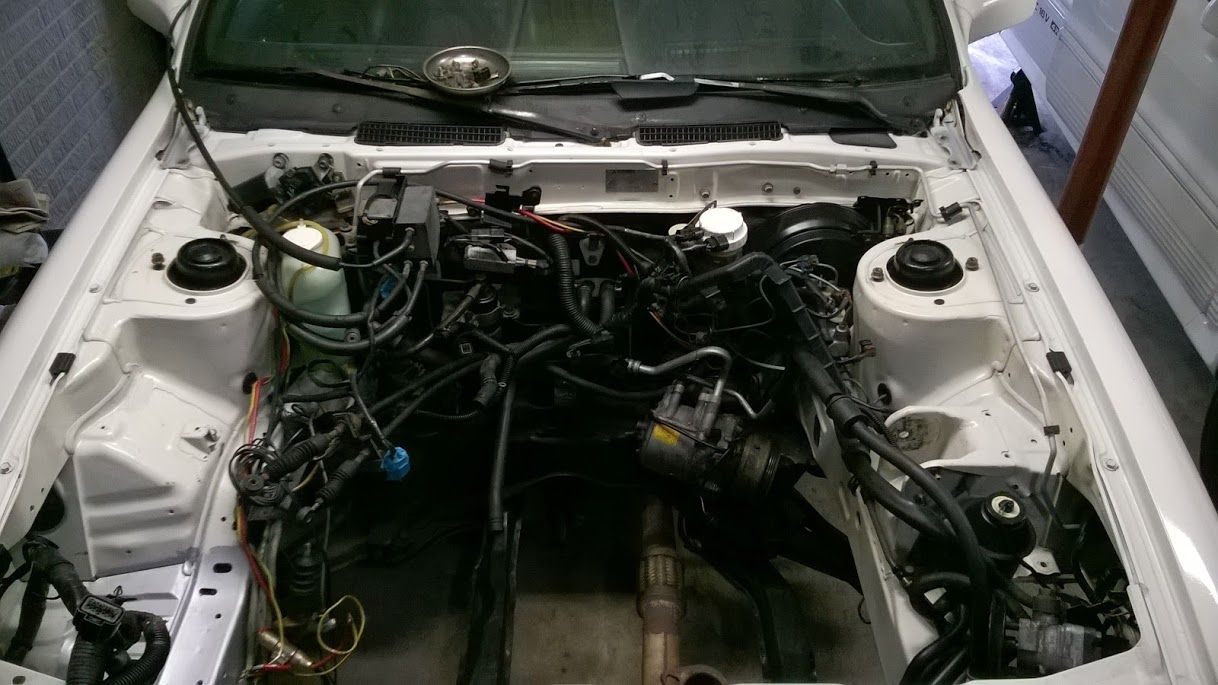

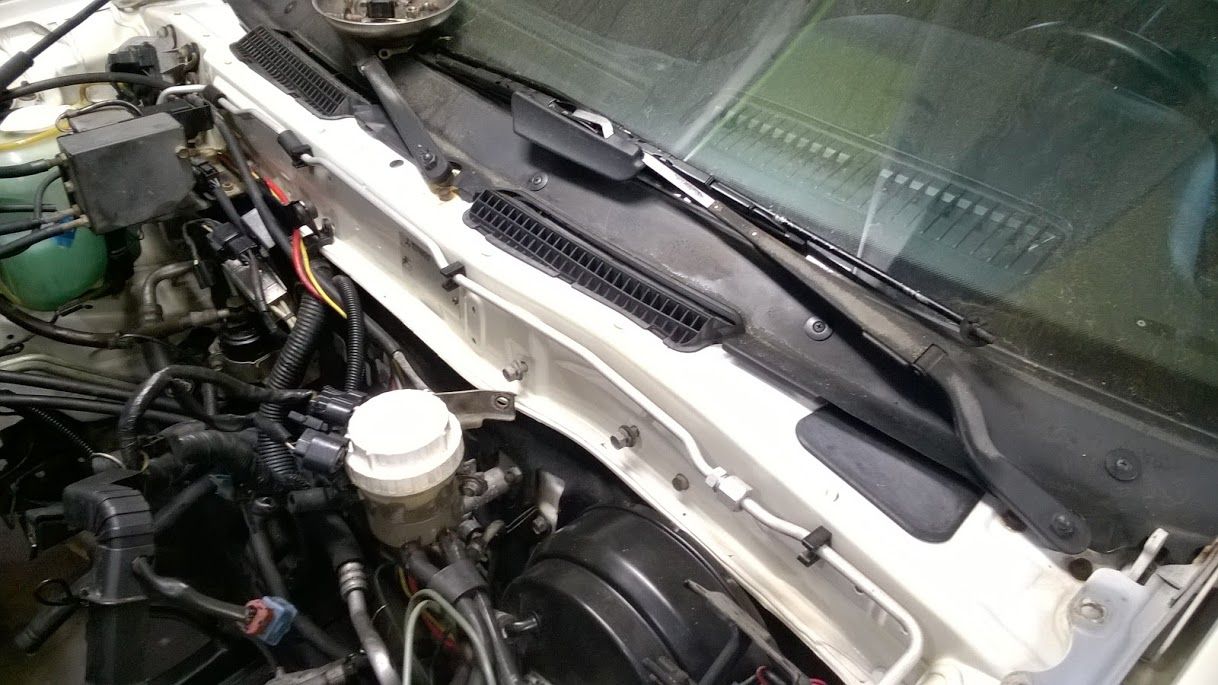

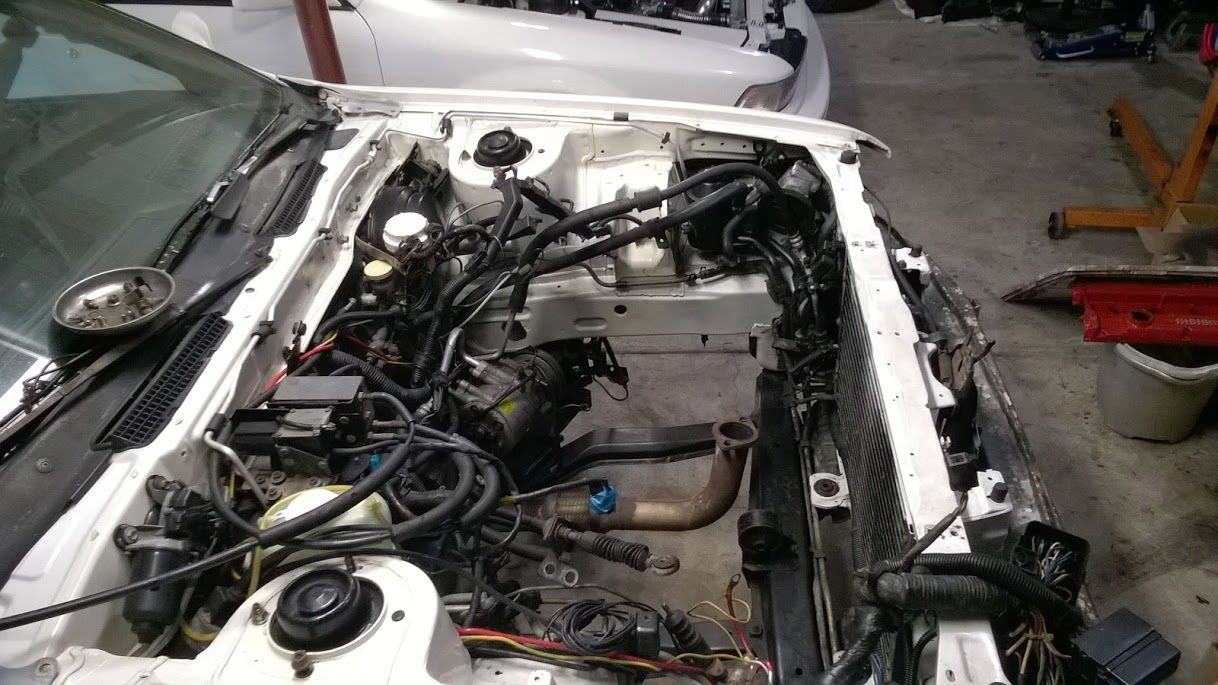

Crusty engine bay:
90NV-A1vViQc3Idn8Q3K83FLvwq1RQezkOPrTqPcdO5Gkz_s8NdSdZqmobBJitdx_LuNUHVjvTGqbwrYUE=w1218-h685-no.jpg

WT5Cnv-XURWtW4GPQ6LhvrWRKe_3XtypiKCtz0TakYuTh-pOnyYko3HMRNlPtf0zvvS0pQJRojrVmJ8VKo=w1218-h685-no.jpg

86ZLo6yXbd62GdNFOA3iC4qb8II_BlsP4O9edMksul1ZYx_XBPHujtpVgfVvGS3nC8ez5esN7i2_U7-G7U=w1218-h685-no.jpg

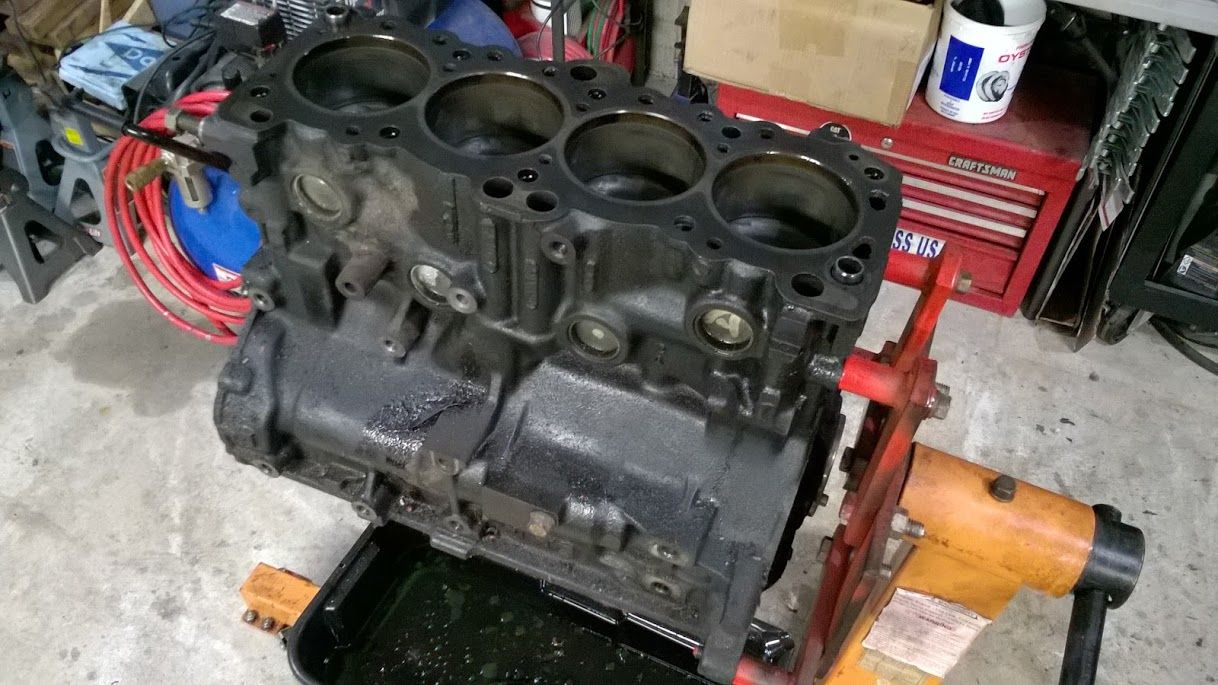

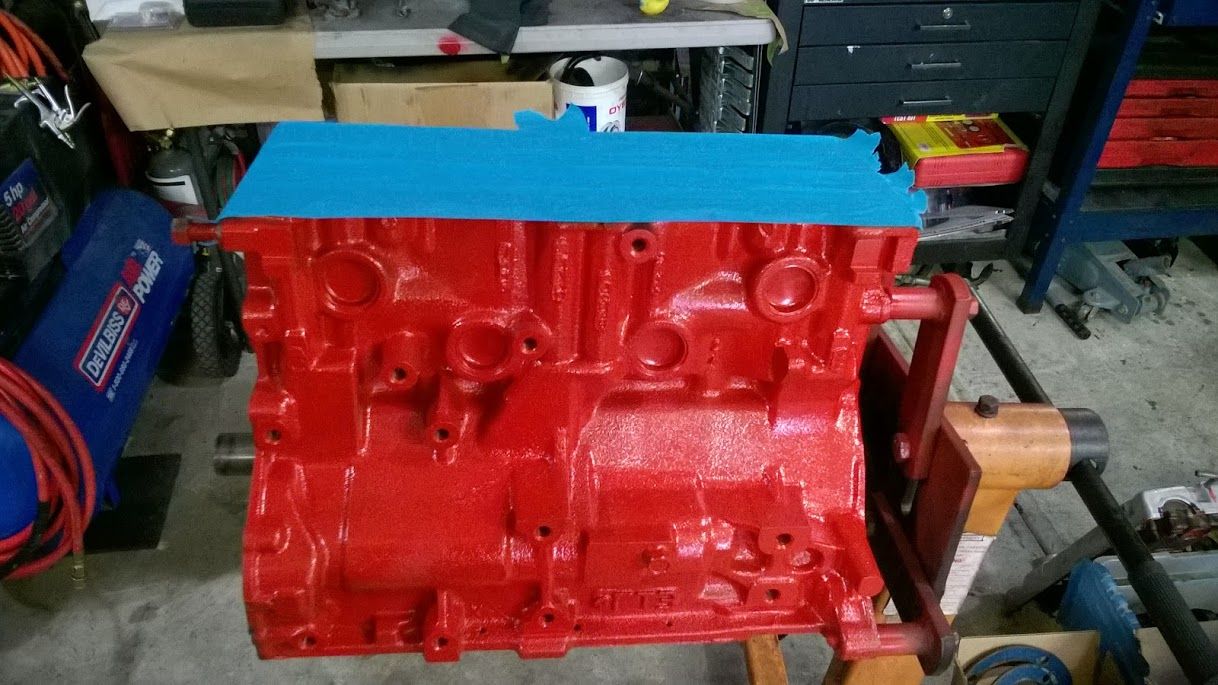

Block all cleaned up:
xUjOeK7JnEEPiGzi7PT8egyOtzUqbuL6XqdXg8iNw_6aQA_iG3FPgpHtarYDzQW0hcWQW1tEeOZCJZjfQM=w1218-h685-no.jpg

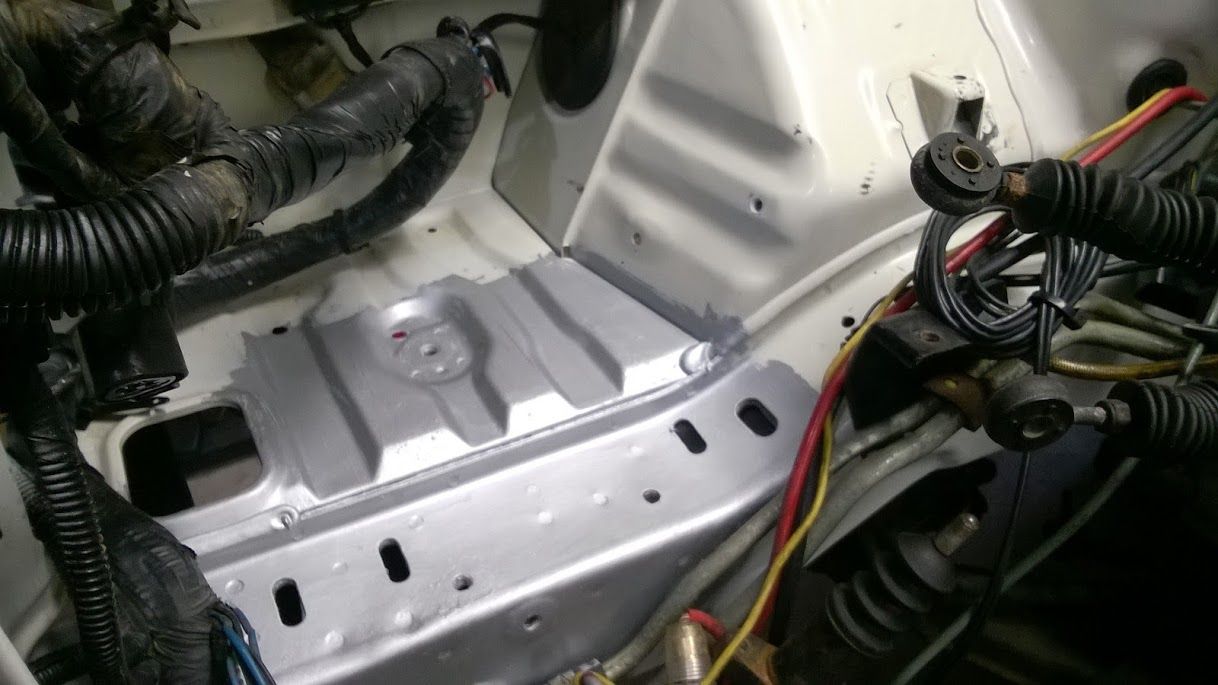

Treated the corrosion damage from the battery with Rust Bullet.
LFyZUPP6Nz_MB7bSaQIhC9qdHxvBE8GMFmwpqaR3T0M7HDHa3JOPG-CjKvrx25RHQqcohJerN-ga8rHkck=w1218-h685-no.jpg





BIG thanks to my wife, who spent hours scrubbing the engine bay. I tried to take a picture of her up to her elbows in grease, but she wasn't having it ROFL

Glamour shots aside, she did a great job!
MtkwnO_sLlrav5AkESkw7OIS60n2AsRII2i0CzRPstFSWjk2vL20J0qiBj-OY7-jXF3qJ7wI0okaQ8-5Uo=w1218-h685-no.jpg

fgAYr44uf4sk_yzyKHrcKO2NMh1dz7LPDKYd5q7uF5_uI5JfSJQm1jO_ezJUNCb_KG-JmS3NdzOLMQuhXs=w1218-h685-no.jpg

zVsL36KOzfbjba6au09GMVDRlGEqPQXARyZ_6VUKPmCA7oX2HndmZvziualSDWmSBG61M2KsNCoPMm2Abo=w1218-h685-no.jpg

3fR2bPXSaIeU2bmtt1hZRYO-9OsSWOXTkLKQdtmmaKNtPOKE5TV_B8-7kRW0dGZrasDnJvAQZTzRp4Rz2M=w1218-h685-no.jpg

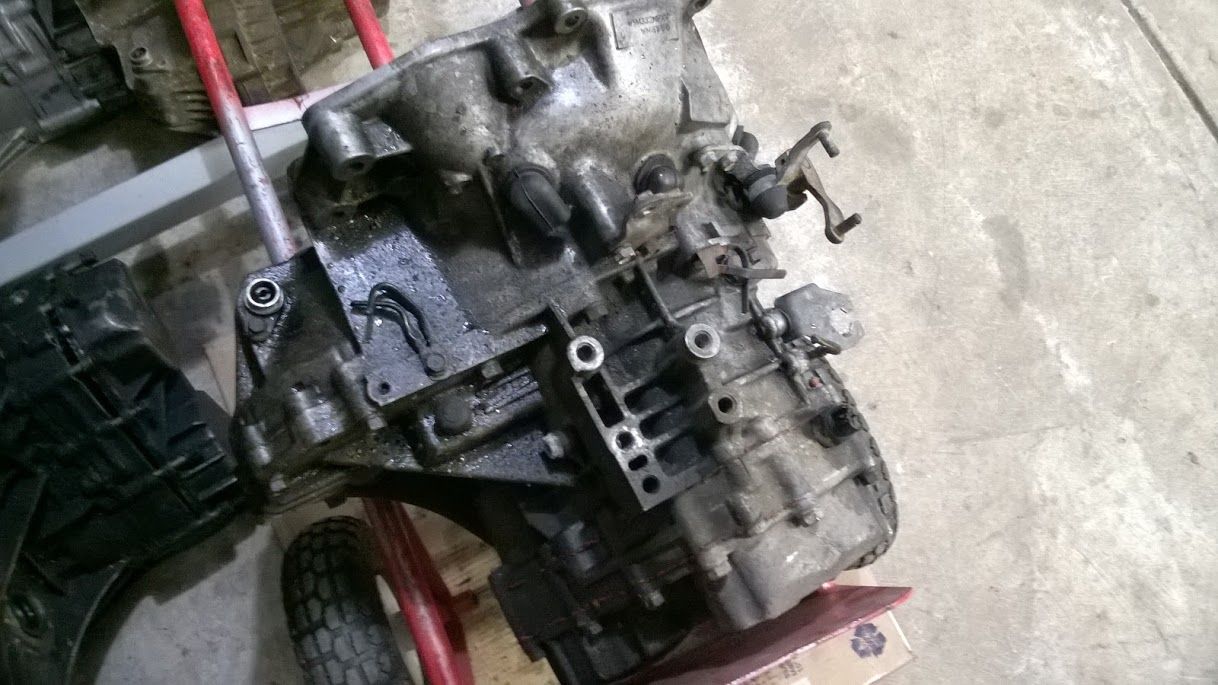

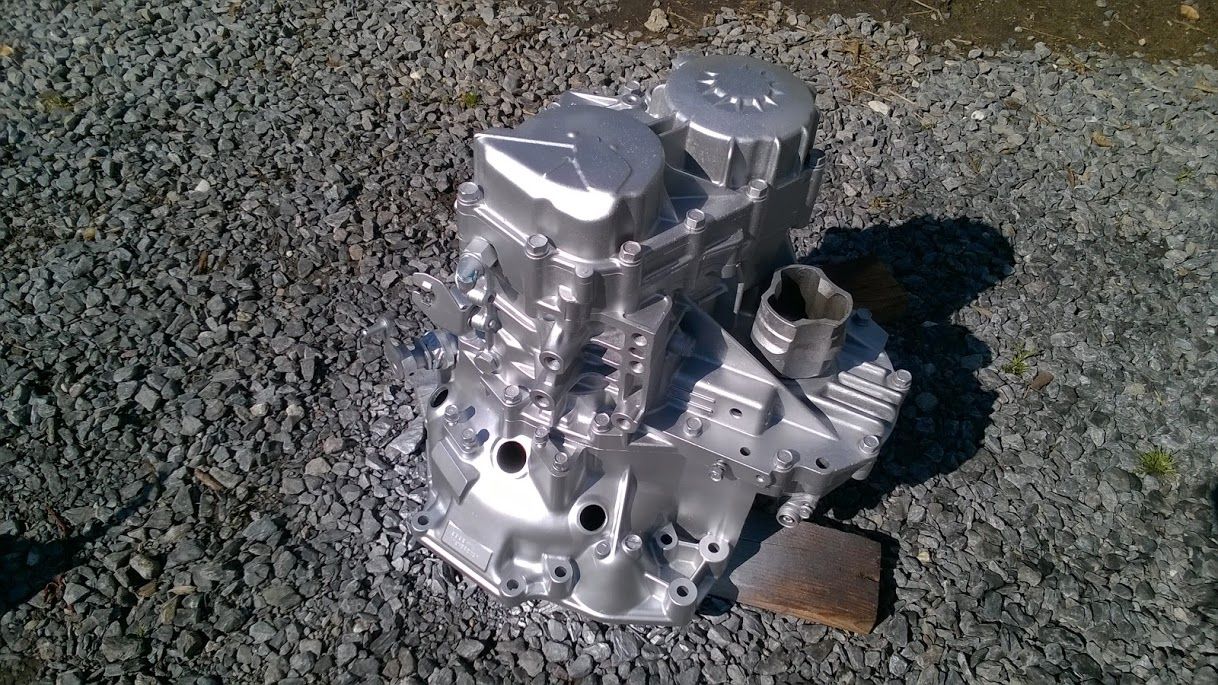

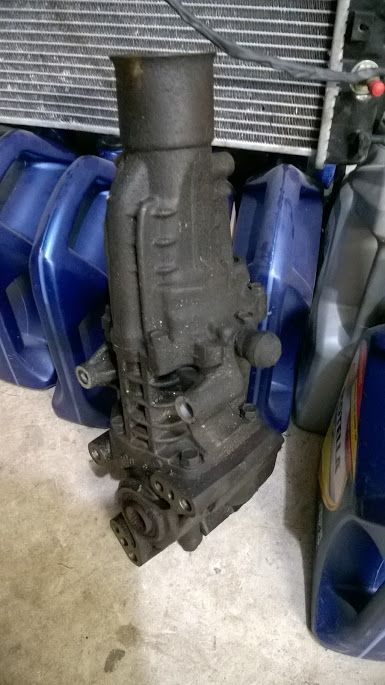

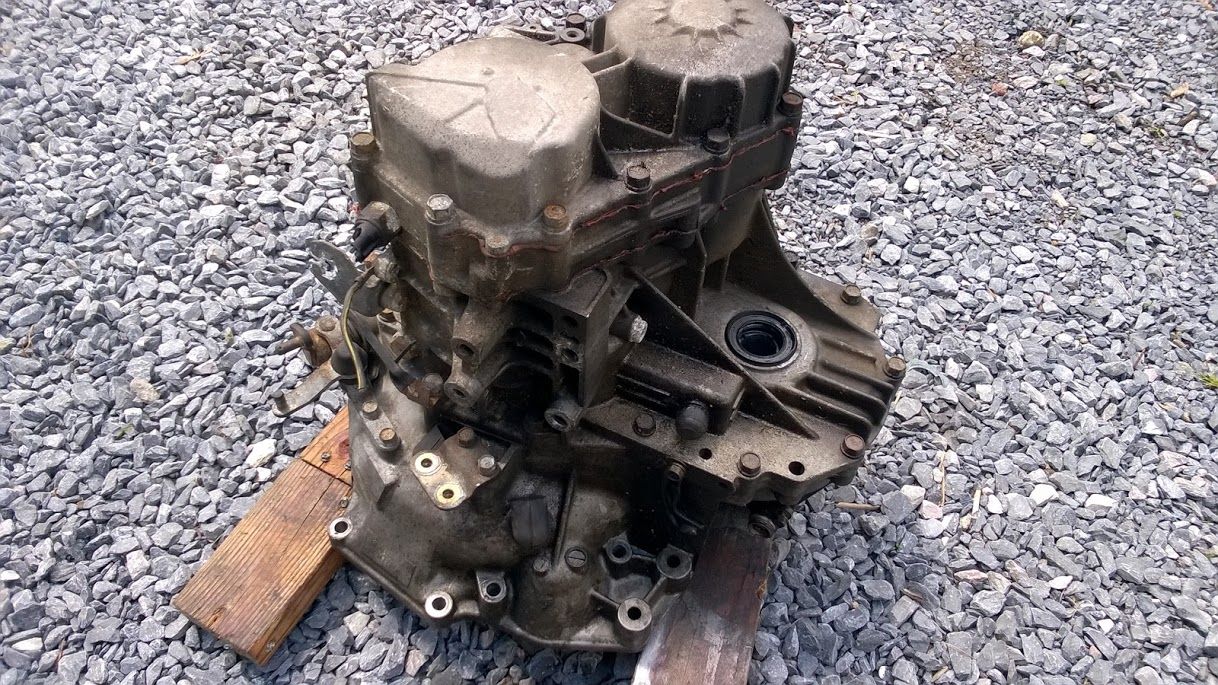

A little before and after of the trans:
_qAM5emcLlaCGwxTxstYN1ULgEB5NWNG6SclxmIYn0Ujv_mZQzNykhfum3115HHIzDvdZHu3pJx6n5UJ8Y=w1218-h685-no.jpg

jnbvBQNQE9HvKeQ122Qz-rvqr3TPa2iXQh6HM1J7y3K_XPnJU38qGAX4_nl63PTVY01reZYhOWjDTV6BoI=w1218-h685-no.jpg





Time for assembly:

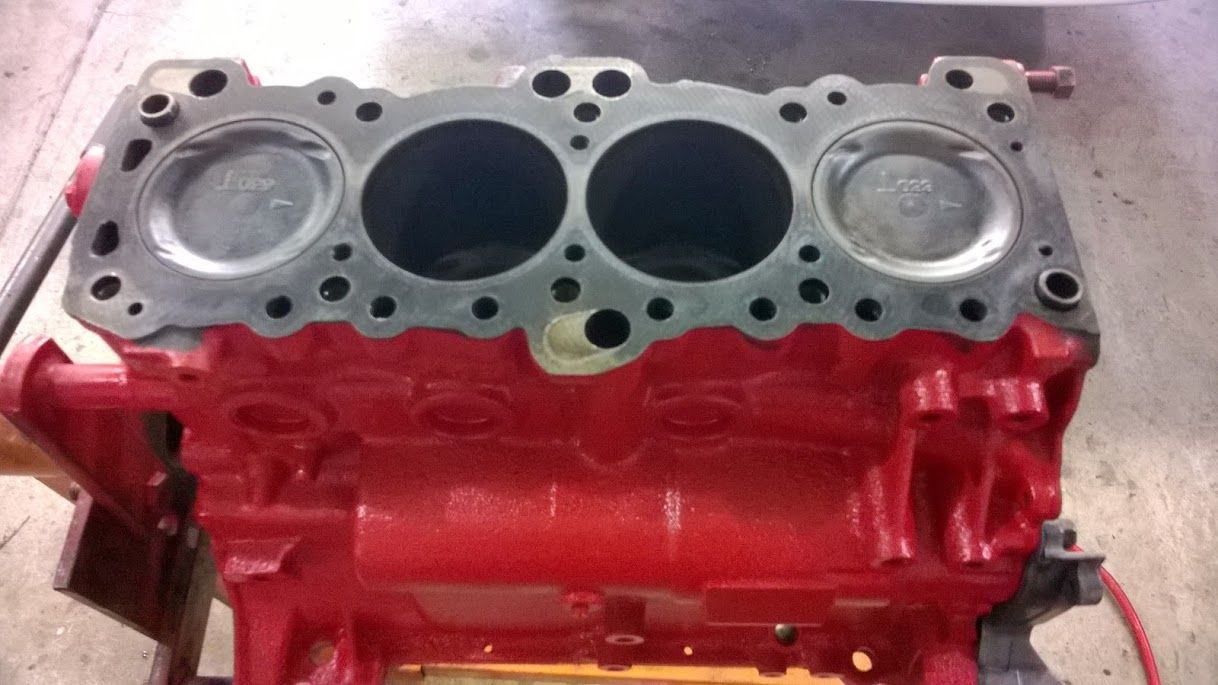

lC2J_aSzRaAwDhus9j2PwUxQqvKq9bzfs8pnpWIr0aP2m4WXytOB9dEuqahIQAka6fybFtJqoMSPPNLUbF=w1218-h685-no.jpg

nTP6OMlyEUewV0e1Pq3LW5kXMVOW_8eRMJJZaCPpSqYN2FebdDdXvzjLR7PlIP9al9SyfIeU8j8lynzXjH=w1218-h685-no.jpg

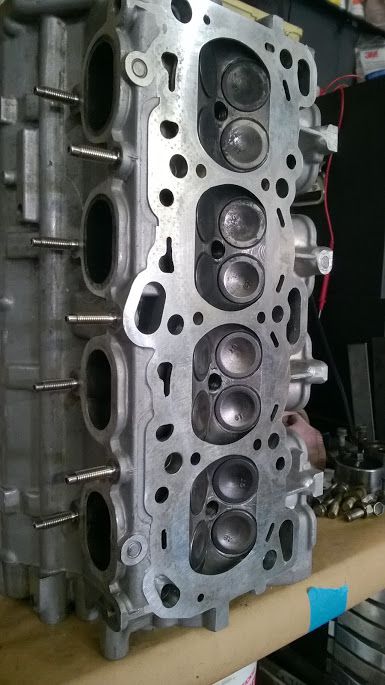

New 2G head:
coDQ3N1f6FvmPr45eoLPYzdjsEH_szJqWyo5Z2bDkM13p7RijCrLQSgl-DksN8VQSzLVvkYpCTTKVxpyMkg=w386-h685-no.jpg

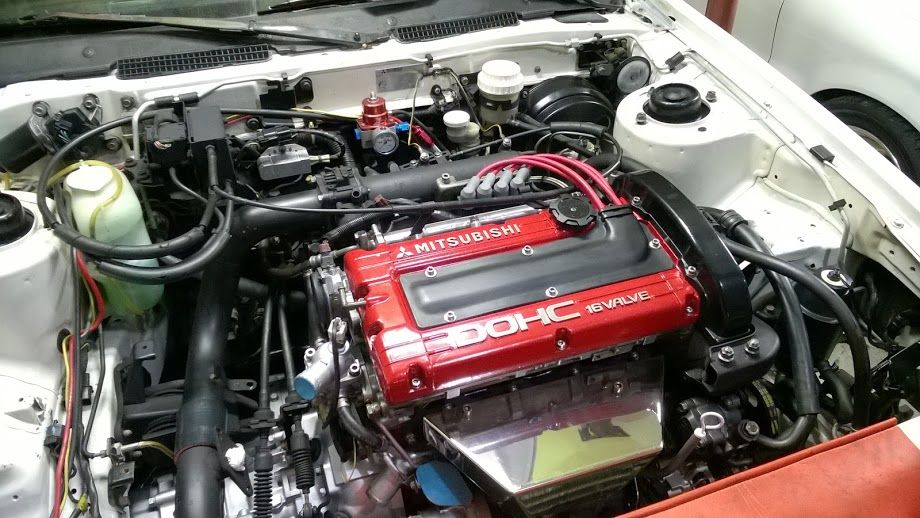

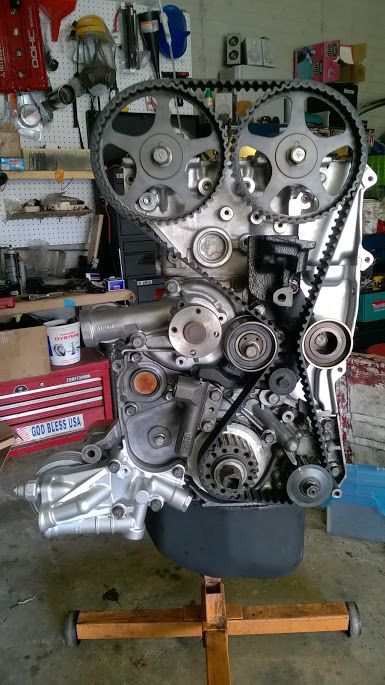

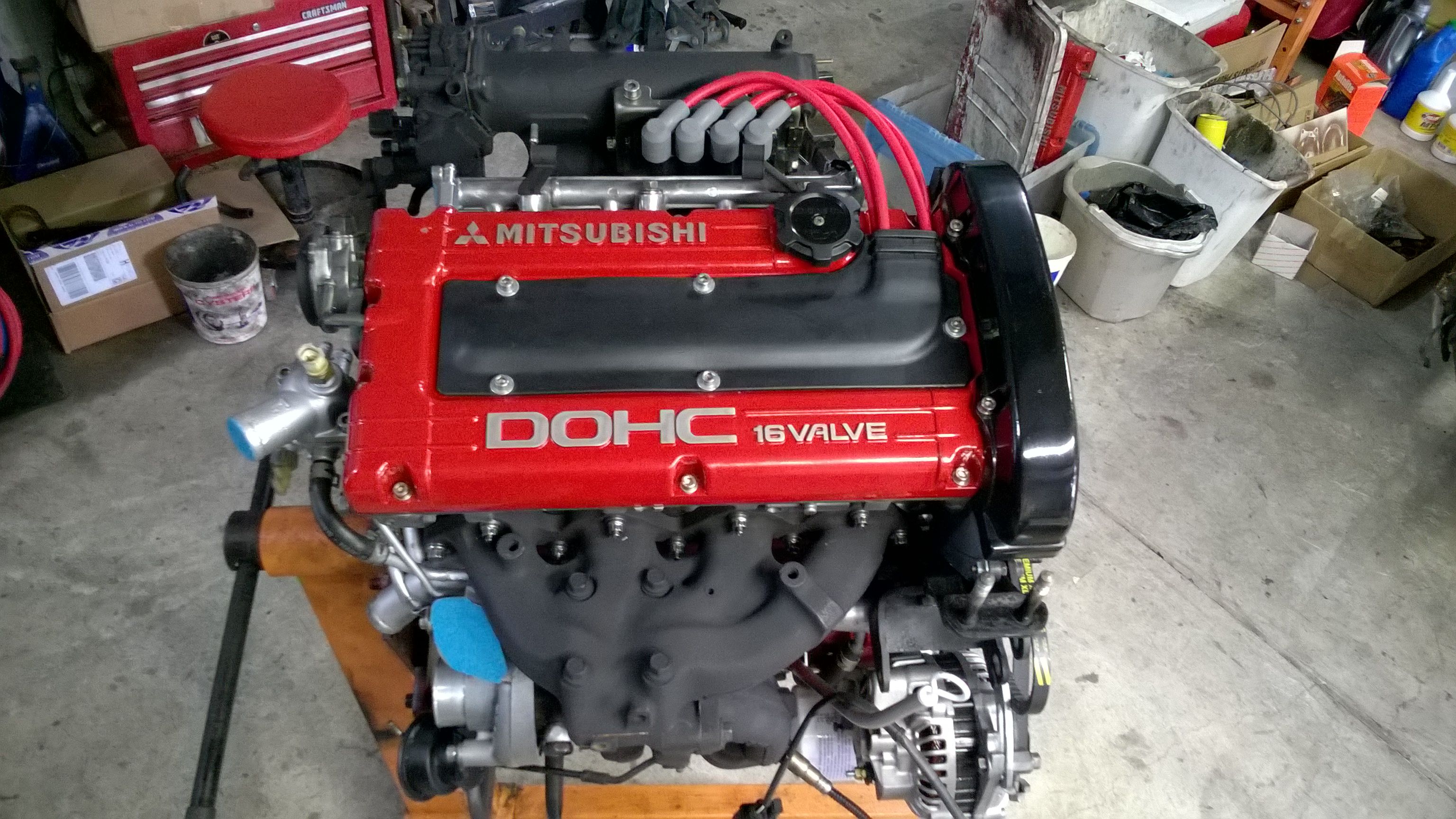

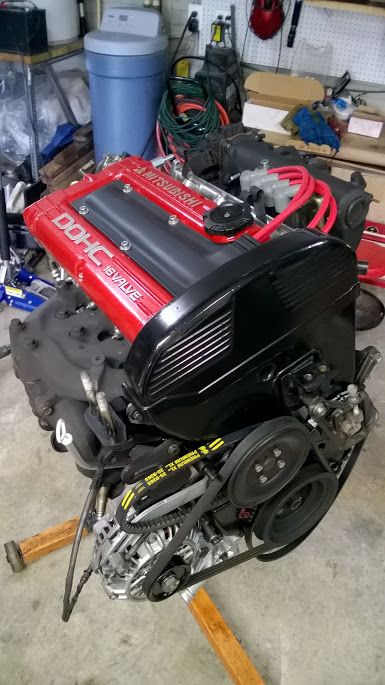

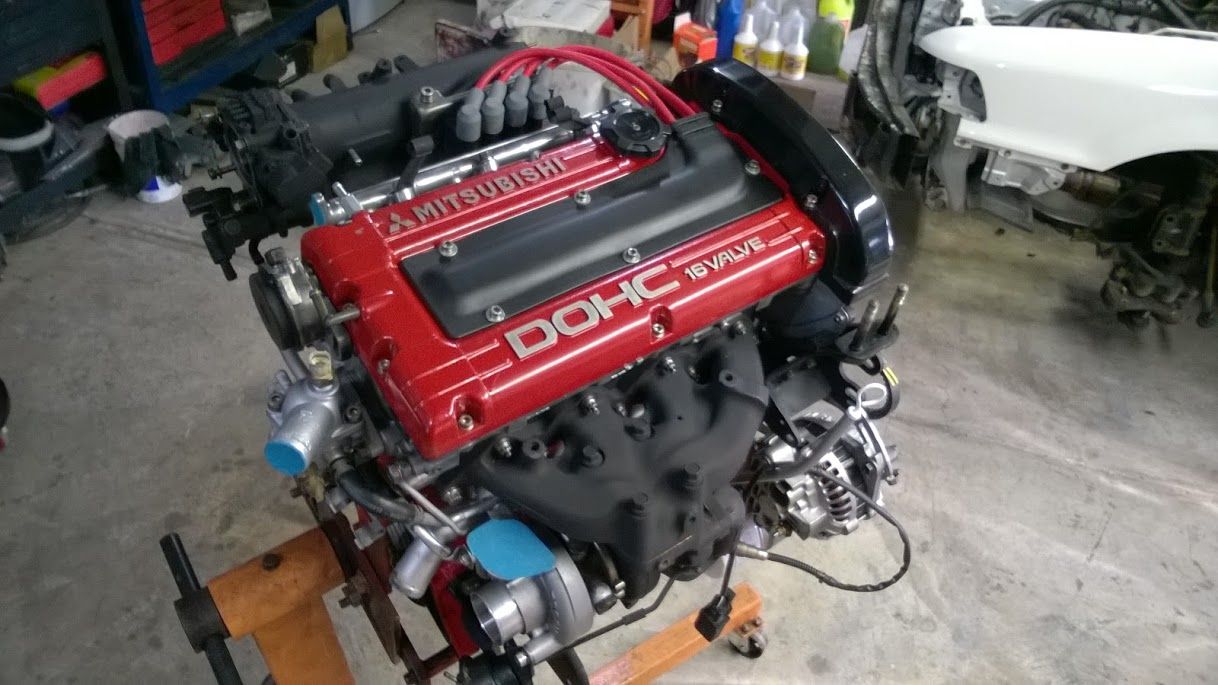

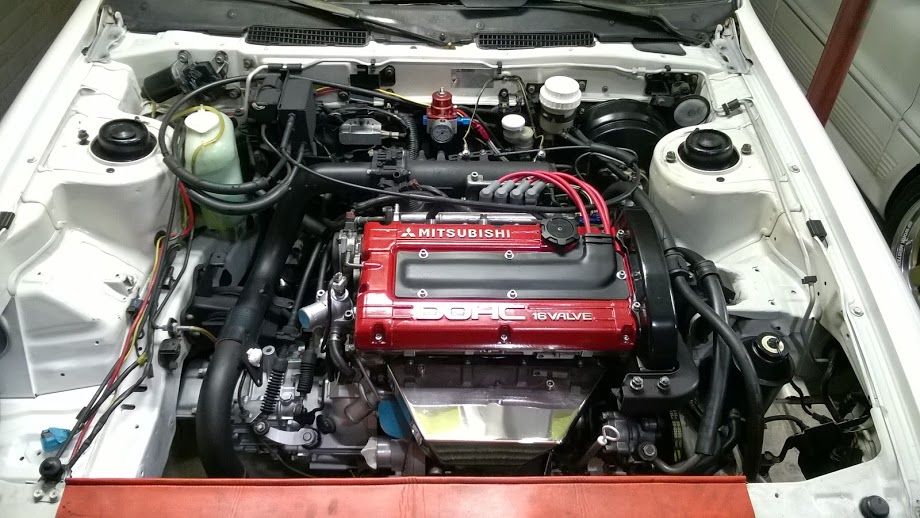

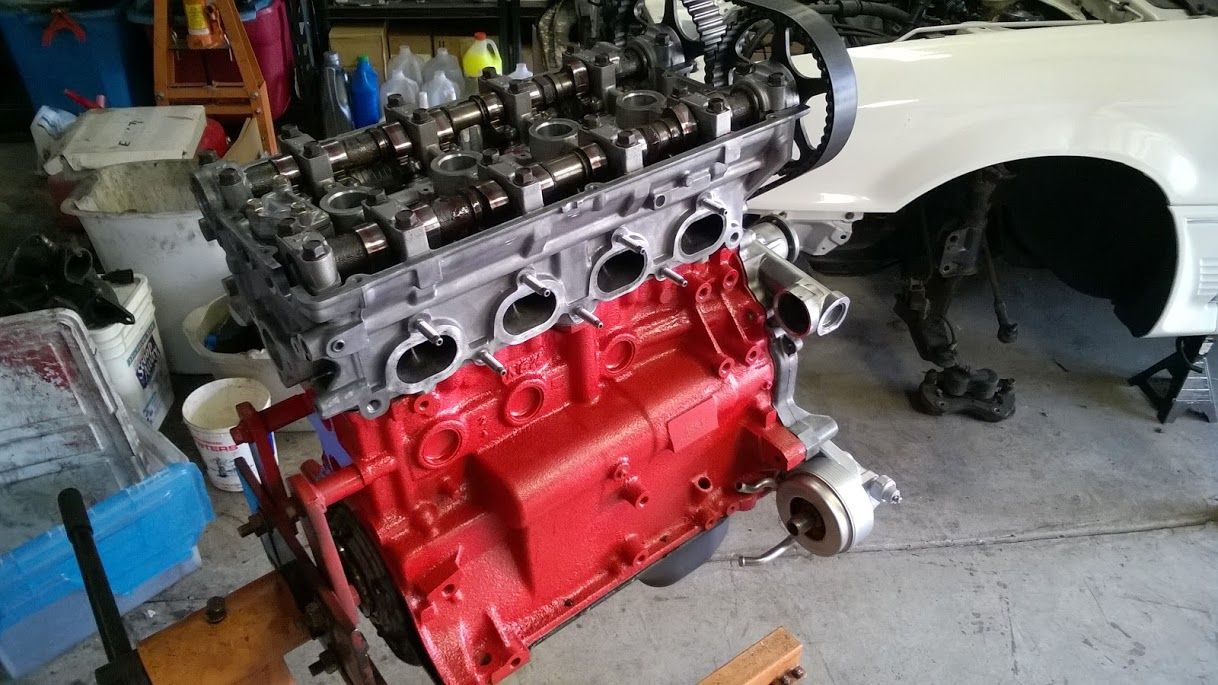

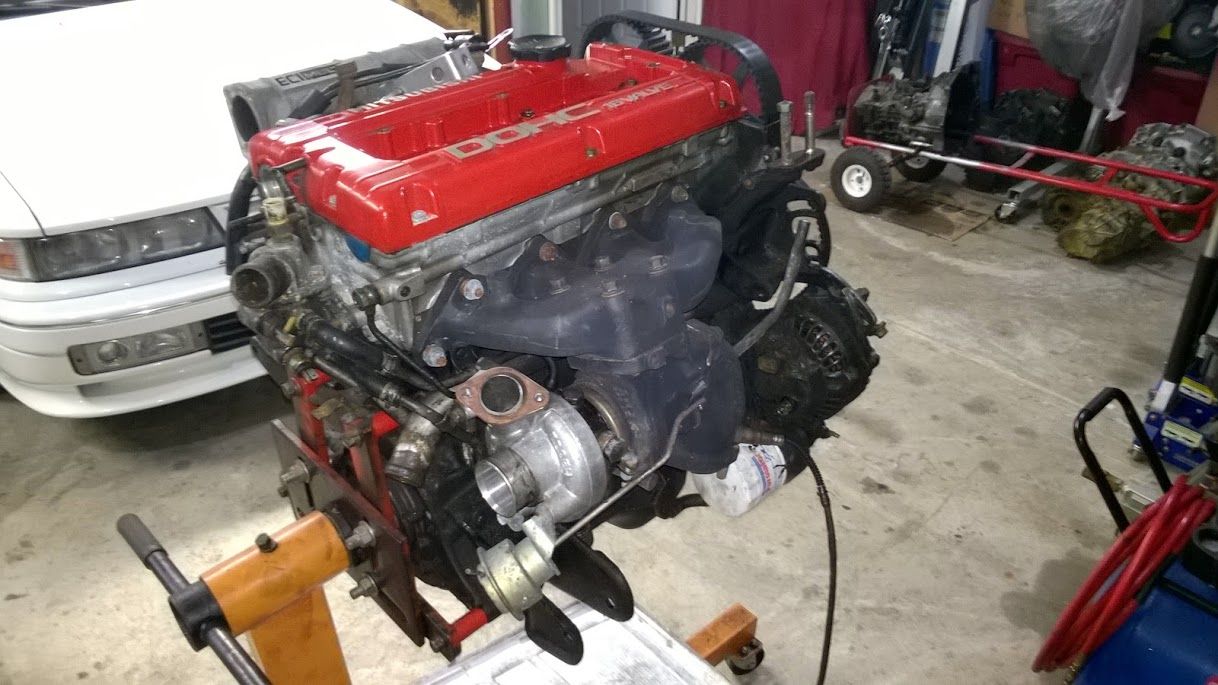

Motor assembled and timed:
tpLpaOj9AvAm7zoq-MLXg3bA2v0Cm-FZwHKcRAoEE2fKgI-iO_LIQbPI30CdKSDr6Vy6c4e2hoxz6s4KN35=w386-h685-no.jpg

BKaTpTeEltIIsW9-s2ujzz3oFtFTGIH6SLZfaGrrbDvkNOiHo0vHa2WMdj1F1qo4UX_abD_Womytf_8cmV=w1218-h685-no.jpg

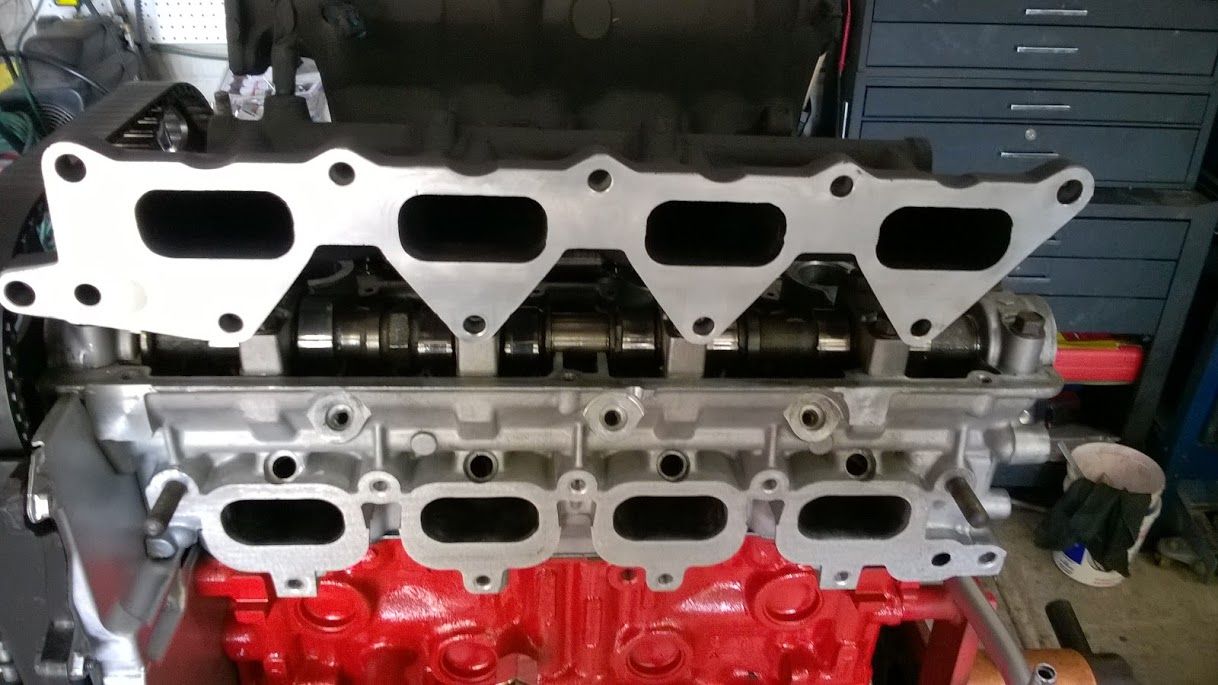

And, here's the reason for the 2G head: Evo 3 intake manifold. The goal for this build is going to be fast spool and tons of low end power. The head has Evo springs and retainers, and ARP manifold hardware.
EMEGizQoB2GURA6I9QVDne9ZMY0Hth1jkmjOUrx1ooQ_46GNMHWeGYrbDVUrq_-cl1l77GGydK-073exBc=w1218-h685-no.jpg

4lf4bBV76JYqjCTU2NWOVvCnqUJZVHU0uiG772gsp_biNc-3x0i67StSQZBEEGM9mAe9HUZdvFeYJq5N3O=w1218-h685-no.jpg

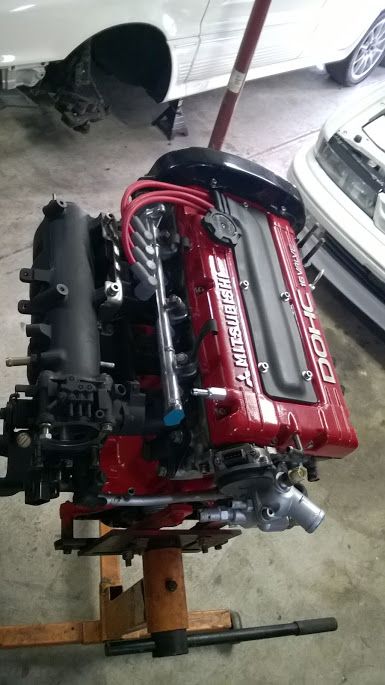

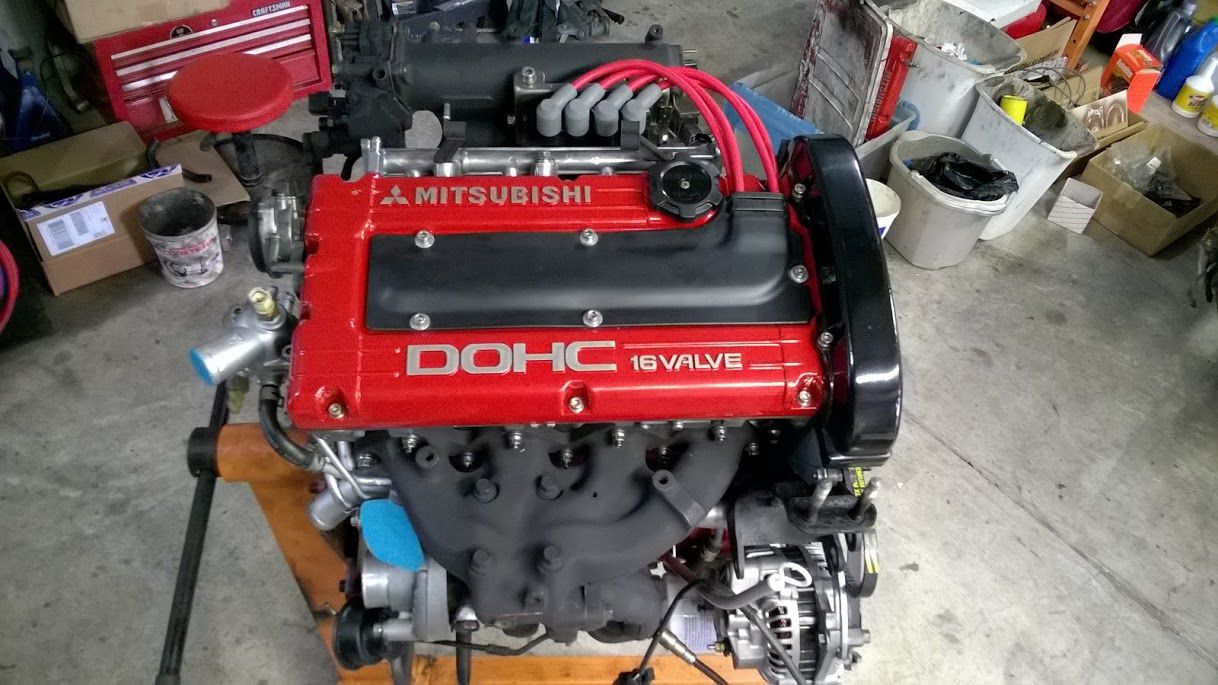

I'm about 95% done with the motor at this point.
apvEvE1MNWui_f1gKjNX-2X5BHnQSa83T2hqm7-JVVZYeo17bDuXxxpaKFBmSl4ZjnoYSHiz5lw1wOz0AP=w1218-h685-no.jpg

asjU1w4akD-EAItUG6FaV4xGuIRbBGeNiNDd_VzzBfhuEqrtjwVoMD7YYZU6HOG3V0kroqfrweZtyXsF_T=w1218-h685-no.jpg

vcdG9MD-IZzYIJ2AaeRDHZxMad9dQ7D2C95KsGQ5HzvTYLQaf60PNuNNuEQmQWsWPUNx1mWzU7XxP-IRhY_=w386-h685-no.jpg

TT-k8RrRtYcjd0gFgQFNl_qp4hN2JvJ6ZWCj9IQH6q5BxKxtvceZwPq8r9_uCEhyx7h-jwYmIk2d5DZ7dB3=w386-h685-no.jpg

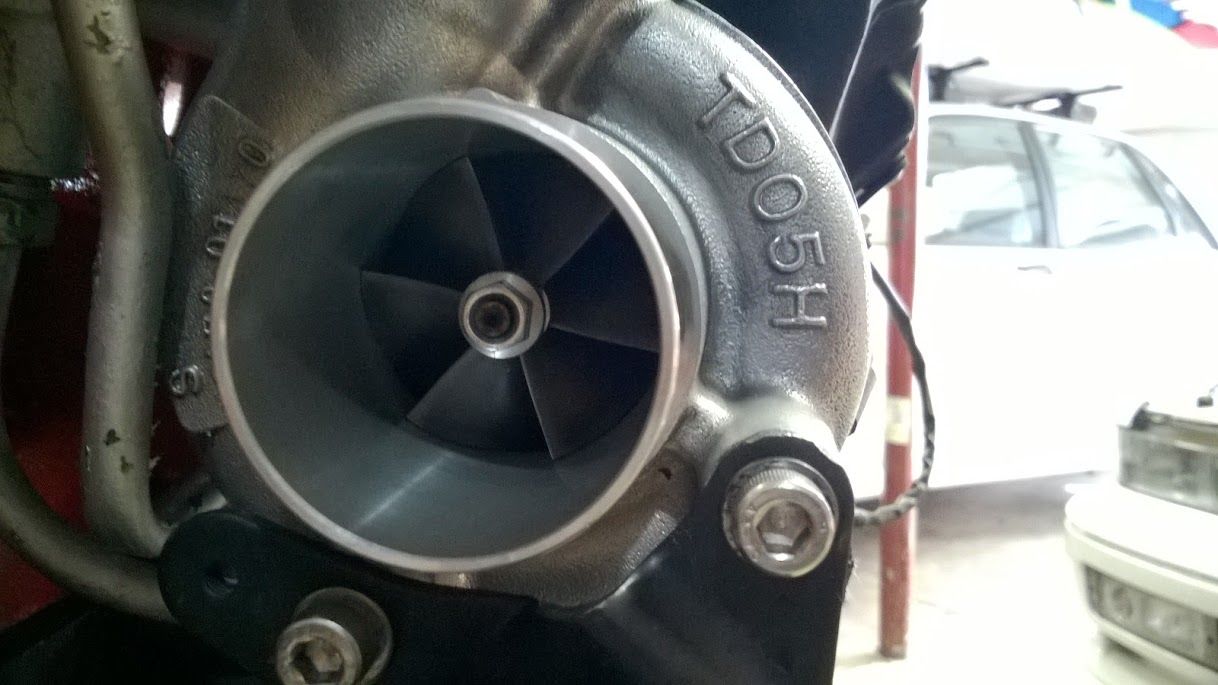

And last but not least, 820 gets a hand-me-down bastard 20G snail from 1837 :hellyeah:
tT1CoWhP9UVejUjNpEUWnoMLLMkOEEsbCT3NM2QKj4KQjshQ4DjwskRQpVm8mWbPlFUn2yHjtaK-U6UXX5=w1218-h685-no.jpg





I've got some more cool updates in store for 820, so stay tuned ;)

Looking good man. My only complaint would be exactly what I told you earlier. It feels like you're just making another 1837. I know you like your red, but I'd like to see you do something different, something to help set it apart from the other one beyond the JDM body parts and the wheels. Oh well, I'll hold my breath that the 3rd one will inspire you to do something crazy, and not just build a 3rd super clean VR4 that makes my 1G look like shit.

Looking good man. My only complaint would be exactly what I told you earlier. It feels like you're just making another 1837. I know you like your red, but I'd like to see you do something different, something to help set it apart from the other one beyond the JDM body parts and the wheels. Oh well, I'll hold my breath that the 3rd one will inspire you to do something crazy, and not just build a 3rd super clean VR4 that makes my 1G look like sh**.

Actually, I wanted 820 to look similar to 1837. Twins of sorts, if you will. I'll incorporate subtle differences, but overall I want the 2 cars looking alike at a glance.

The performance aspect is where these cars will be significantly different. 820 will be suited for tons of low end power and torque, with a fast spooling turbo and a very streetable power band. As 1837 keeps getting further and further from being a street car, I'd like to have 820 to fill that void.

I'm sticking by my plan for 1546. That car will be 100% restored back to stock. No upgrades, just restoration.




Very nice build. What paint did you use on your transmission?

I used silver VHT high temp primer and paint on the transmission.

I also got the Innovate LC-1 installed as well. FYI, if you guys need to replace the sensors, just pick one up from AutoZone. You can pick one up brand new for $50 bucks. I was finding them listed for twice that in various places. The part number is 17014

As usual I'm a bit behind the times but if you have an advanced auto near you, if you order online using the promo code TRT30 it's 30% off.

Very clean build.. it seems like your goals with 820 is about what my goals are with my GSX LOL. It's amazing to see what people are capable of with enough time and ambition

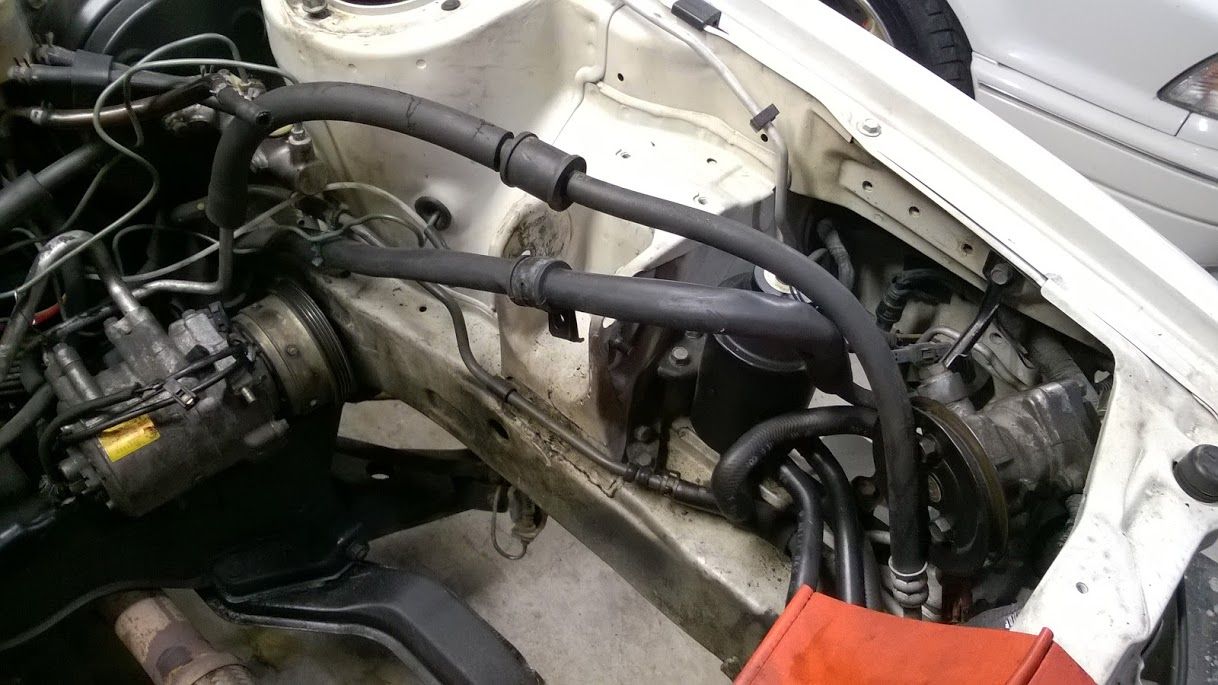

Next issue, the power steering rack started pissing fluid everywhere shortly before the clutch decided to shit out. When it rains it pours.

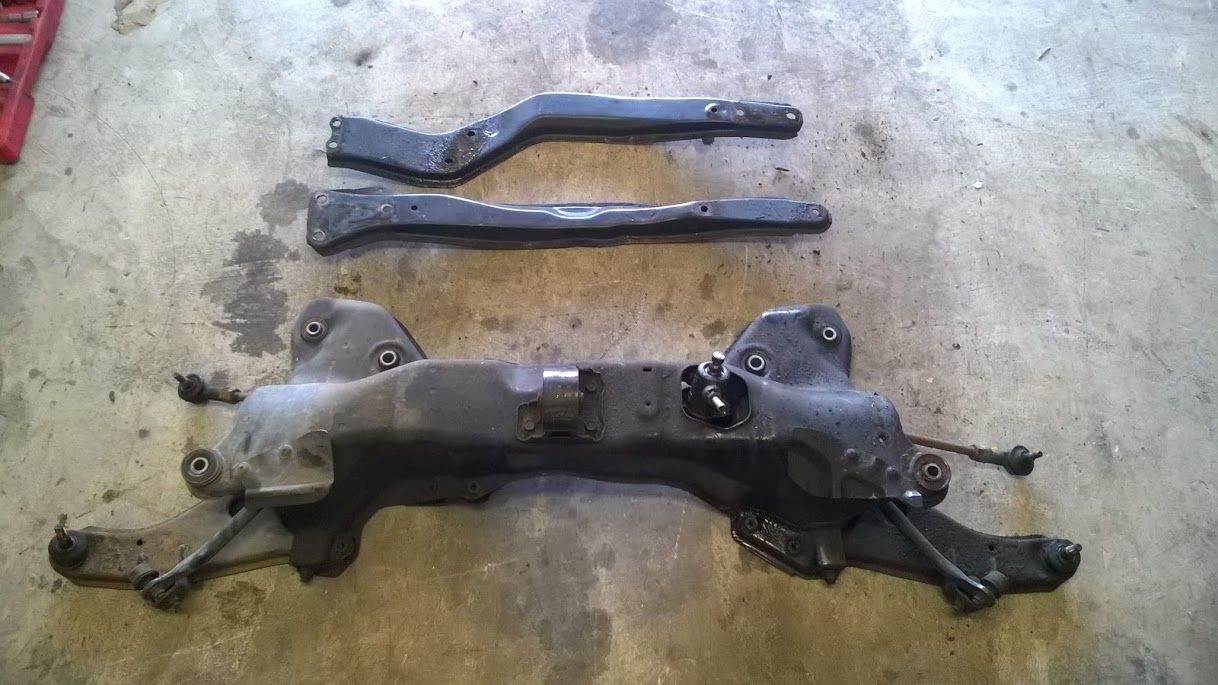

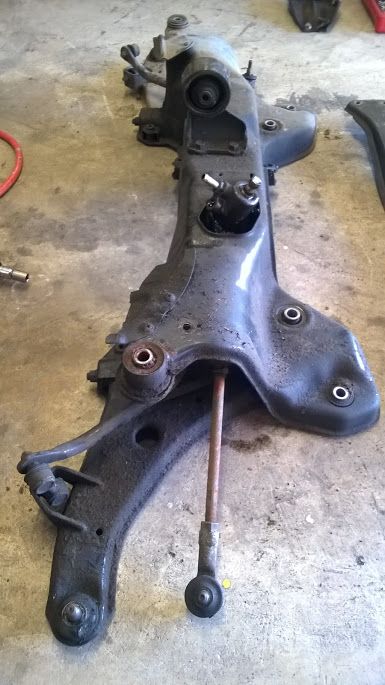

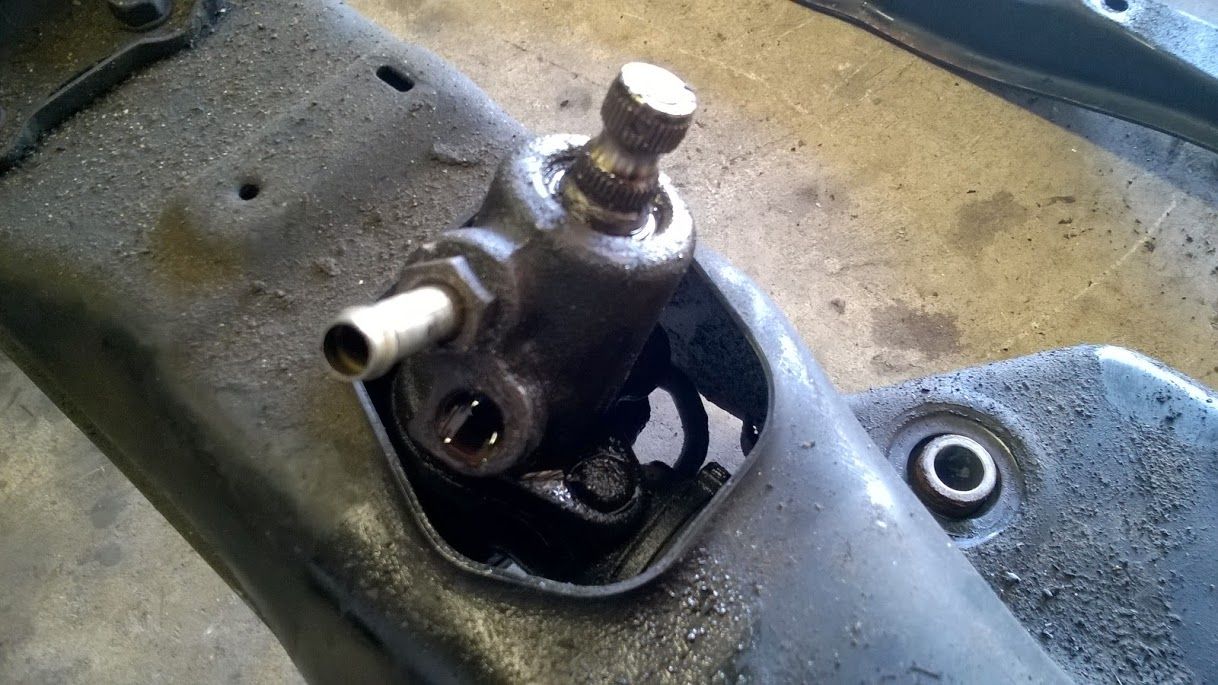

Anyways, I figured out it's easier to just drop the entire front subframe, then pull the sway bar and PS rack, so that's what happened.

O-ky80iMBgyMO5ACSiynQvKkHoi1yfxZJRFvOP5N8TFT-fHgI3Ujcrj3E3iXOfvntz2nw95t_fHKWTWq7LY=w386-h685-no.jpg

y0YfqcOjB4hlAjSThU4lMzWWf6SLNaHnRNesVMunb-AmobS92BG9T5ooXULJpqNQrG3l2UfI02dqukTvm5=w1218-h685-no.jpg

gfpI-EAmwTa8t5XVOPSOuj3PH7ClaUEfyDg6OcZ1Q7C8cBm6AlqB4AIjByIX6z07P6WZaksCTPZzcvMDmM=w1218-h685-no.jpg

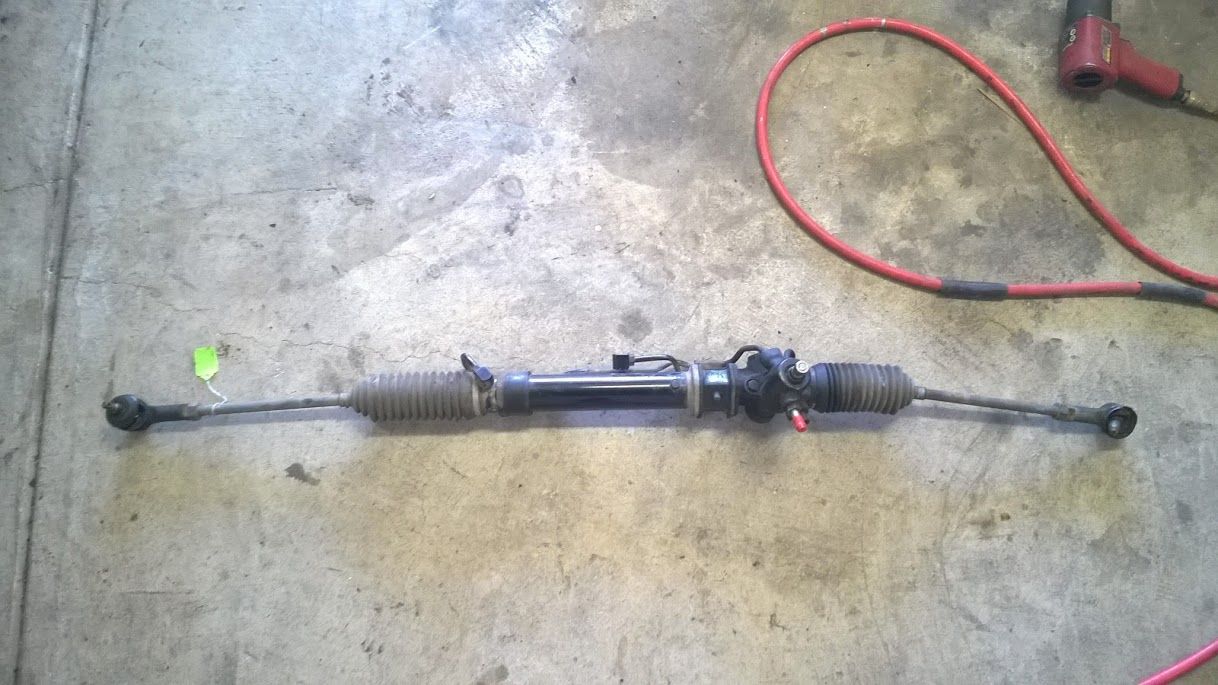

New rack:
G5rYDct3katpkbCBJU-sIZXPmFj4qlNFd9gM4txv7J1c-diG2XRXMKz8kyQcnwg02U_VGbobBn0l_-b1Uv=w1218-h685-no.jpg

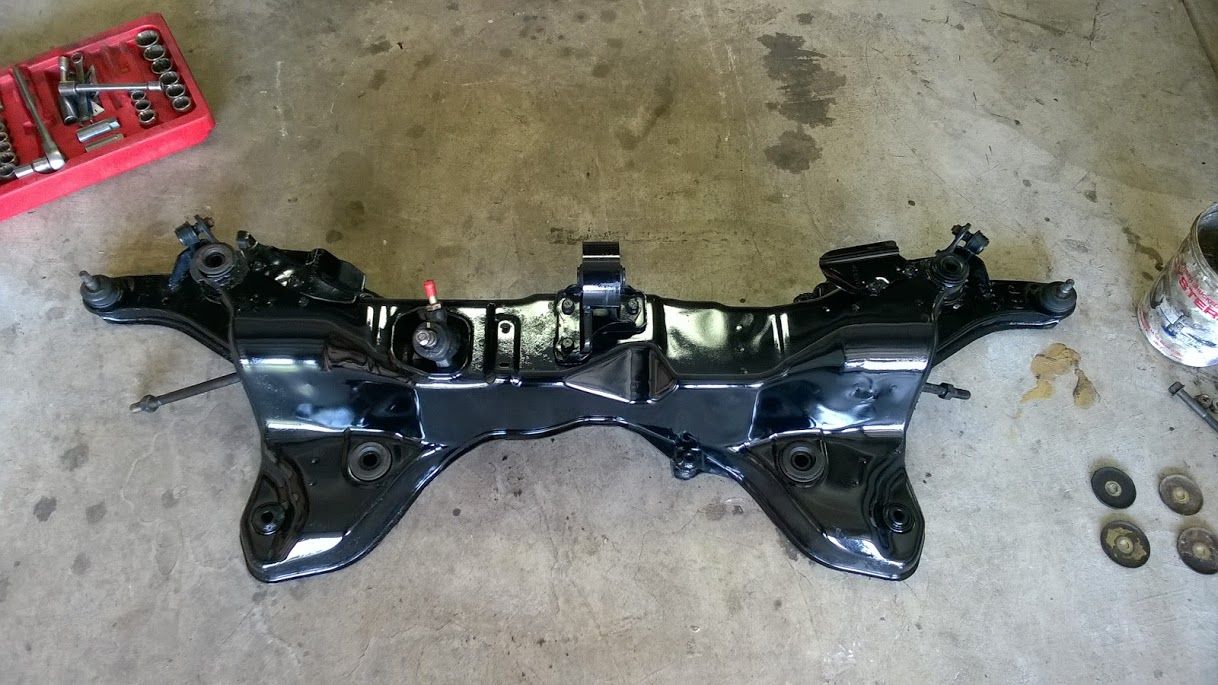

All clean, rust proofed, painted and assembled:
b-dKJ1GQkn9t1p9--ZTk0Z_Zi-yPW_eRoYGGxII9sEUsxl_0w-lGjwMafT07tVuYZZKe8PTz8W1lXyzEBW=w1218-h685-no.jpg

x_v7wnxpzwmXAu8TNn1Ma0vGtvzg79B37LeNn4orQHMbTIwxlickxuknvxN4ki0nkKrhETQJicc1z6gz9Q=w1218-h685-no.jpg

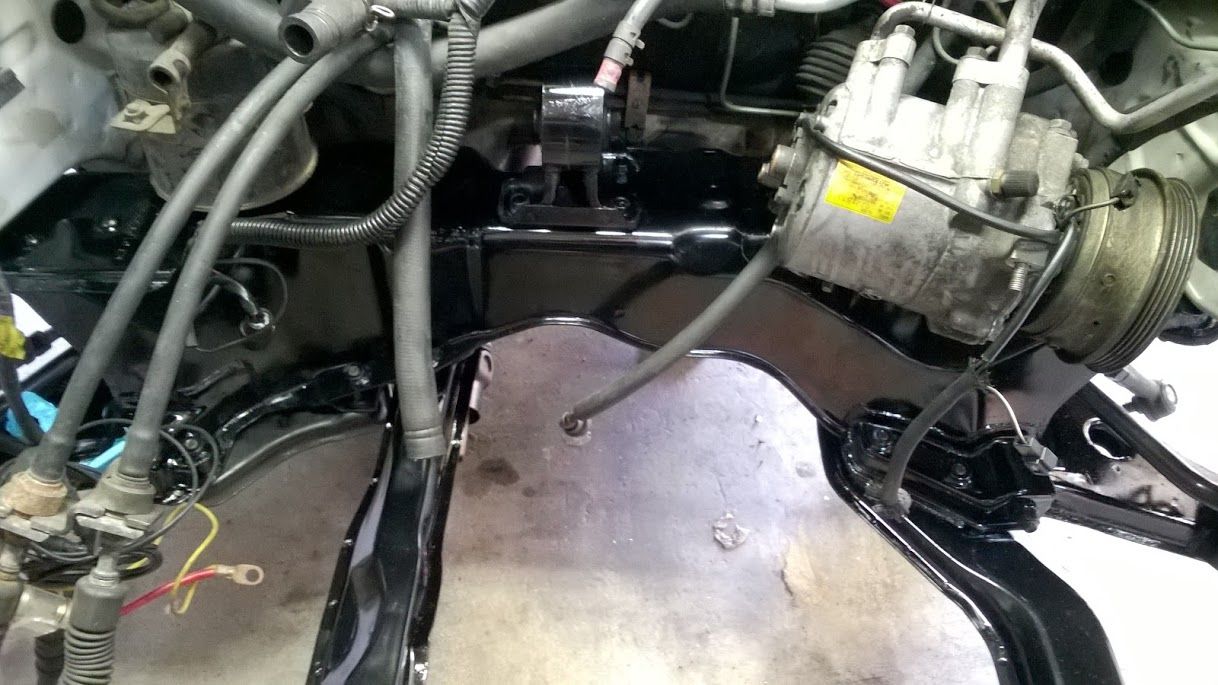

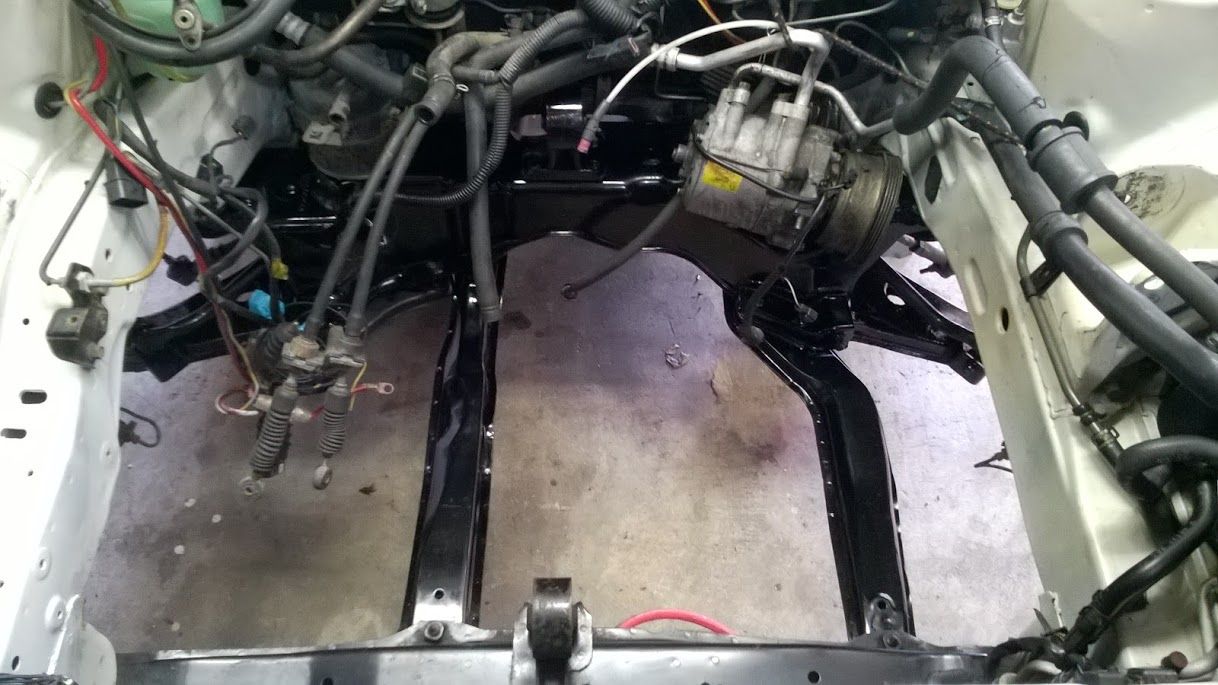

Installed:
sOaaCdNog1ljG2nk5vvpIvzg2JJYM2YC1ExGC4SmKBFYIGUDnEQPl505awMxDqMHEaR4KVtYIn4y2e4W5G=w1218-h685-no.jpg

eVwJ1yozJcHw7DAG66Q65ntowNk8zsXdMLT7eb26AjeGJaiVLbCnjWnPk7R3-t63At7F8T1nYqlROBmtED=w1218-h685-no.jpg





That was the last major task that needed to be done before installing the motor. If everything else goes smooth, I hope to have the car back together 4th of July weekend.

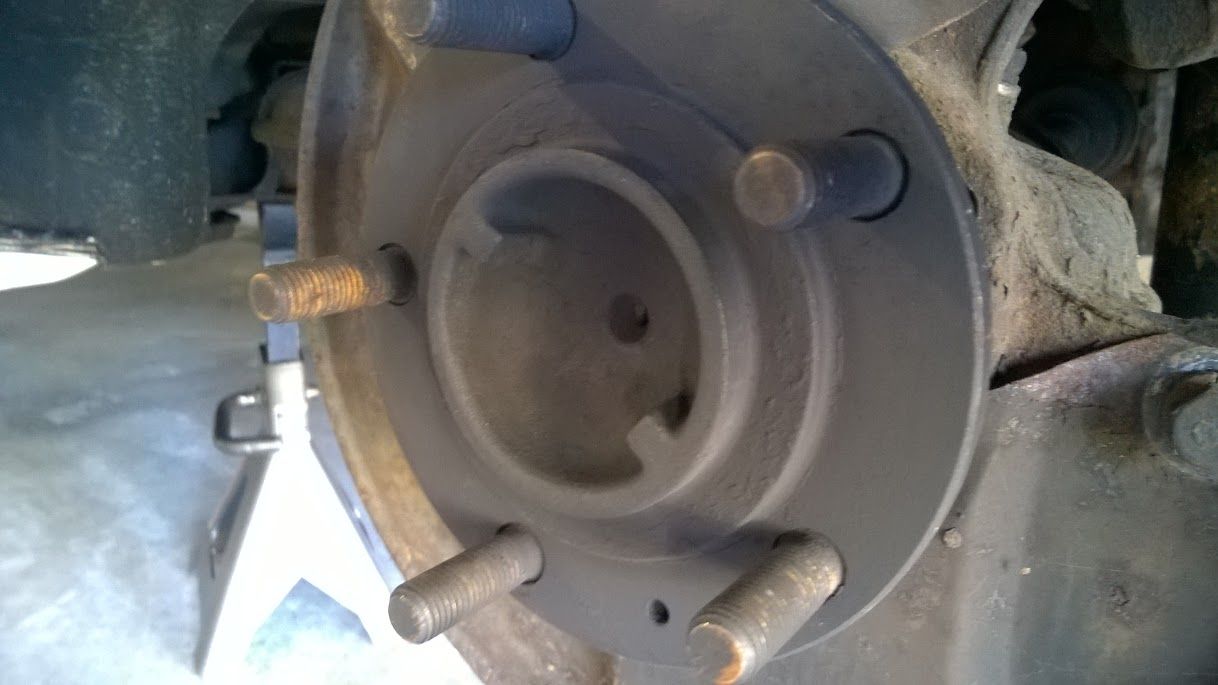

5 lug swap...
OxbR89shDjRsVPtGlh__xhDkDiKyhrUTlZzSrjBOXQaMQnpFynFBilxP4CWSEmFFVLpwOJdLjCdJUSLa8B=w1218-h685-no.jpg

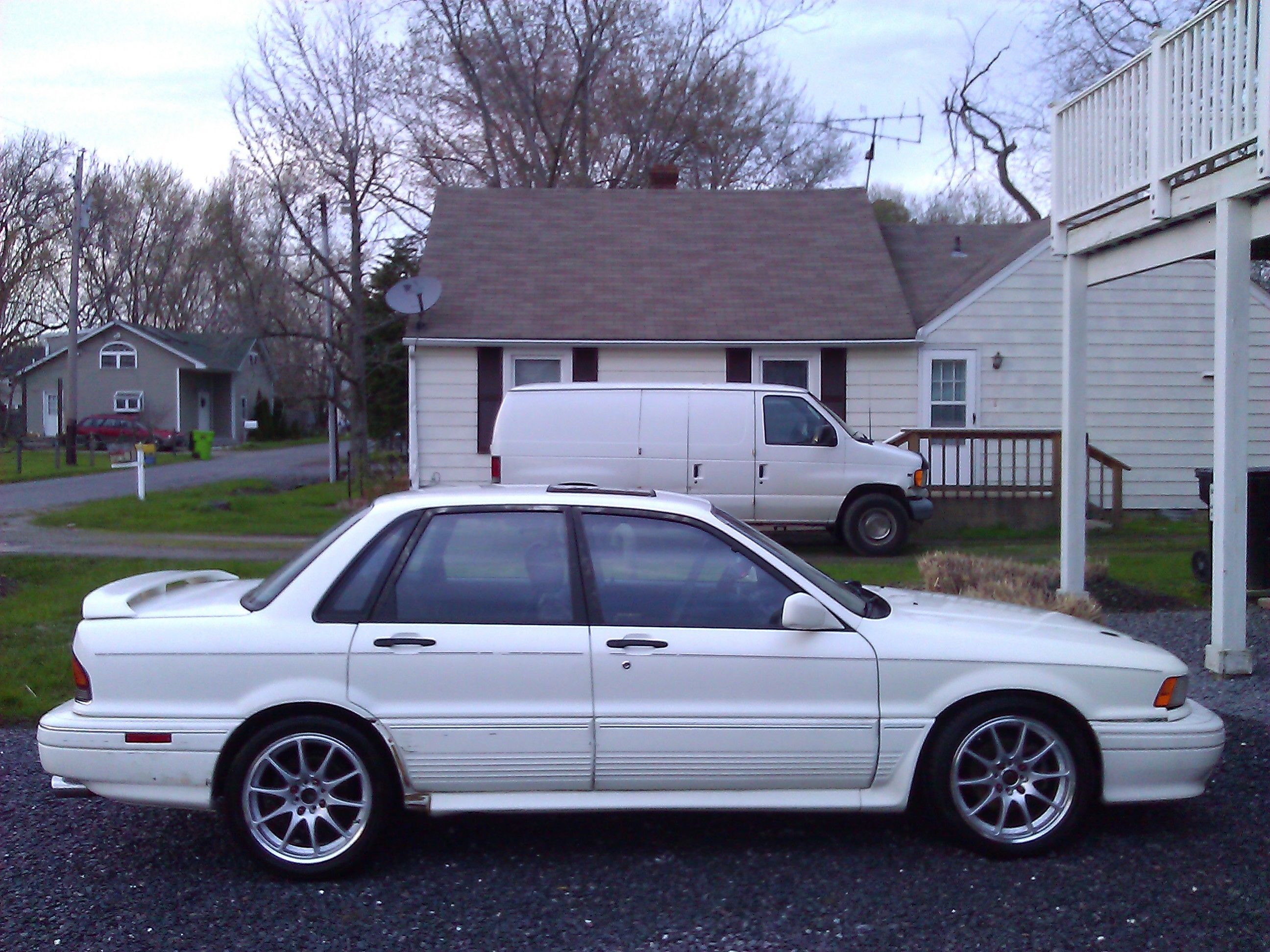

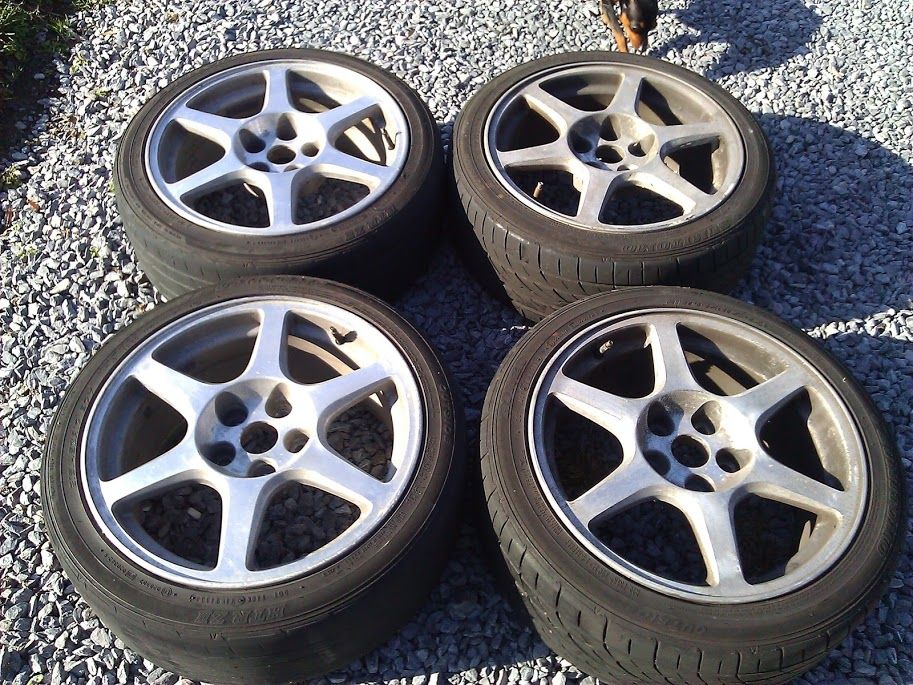

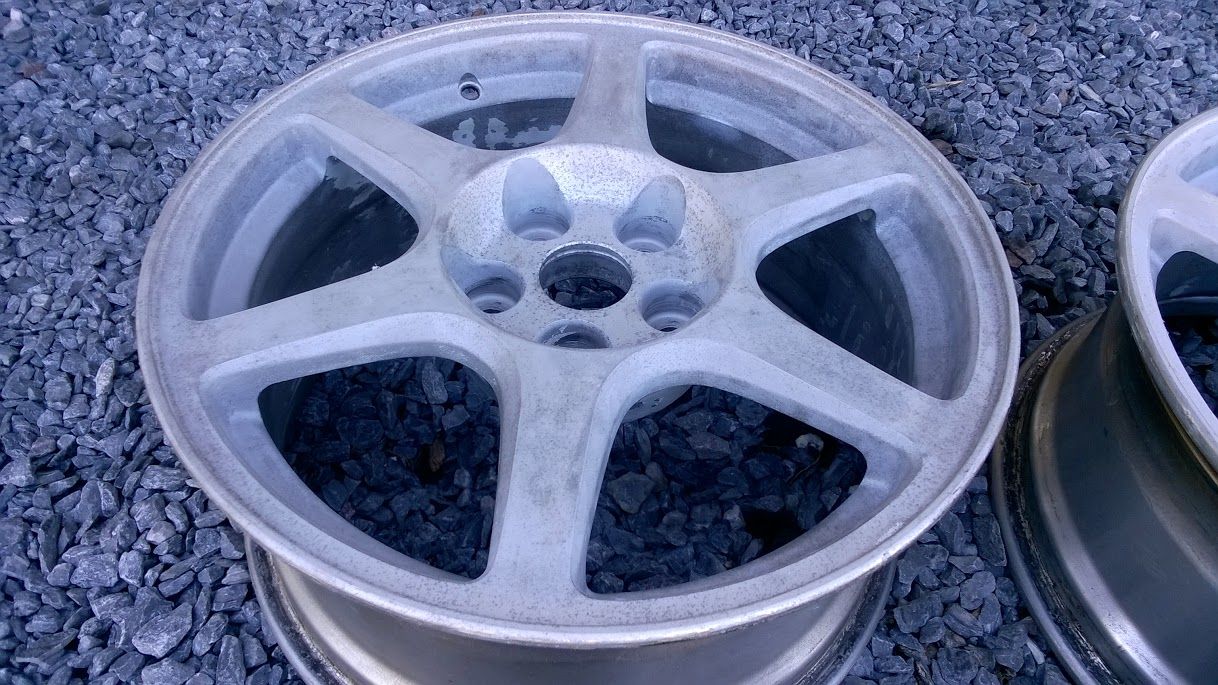

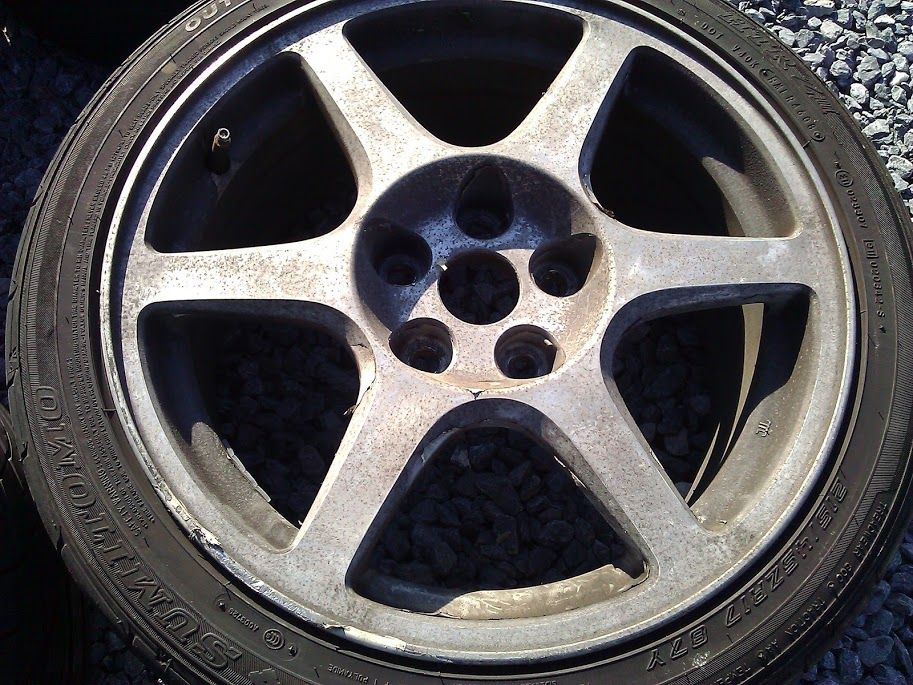

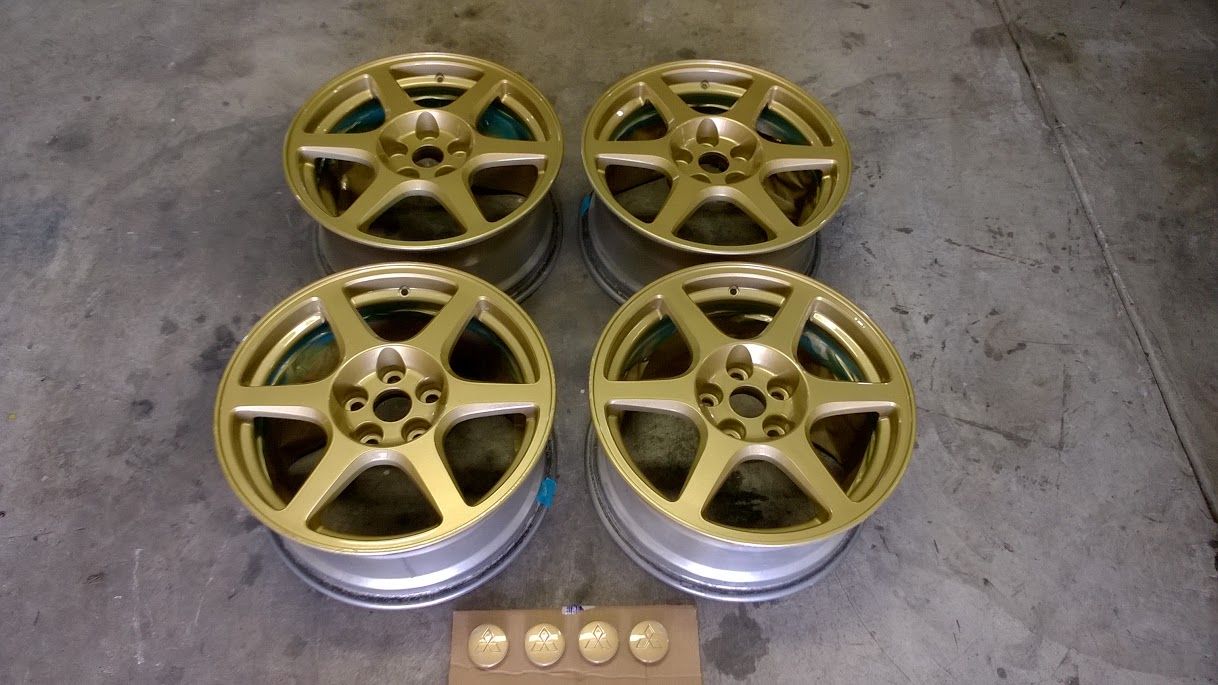

...Becuz 5 lug Evo 8 Enkeis. They look a bit rough, but that's ok ;)
K6Fez0WvD-PzuWZcdW2QhoHb5OQpzJmL9kqiGRDjonPya8sadsGg1nRv9QxJVpOT3eXmhCvARBm6_-Di6ag=w914-h685-no.jpg

2IVBMmX0i5NrPLo0-FbL99ryDmmOyfoBrVZIC61N6yO6HSb2EFGbJiQbWquga-x5mJG5dJpda8KrJZbRtqE=w914-h685-no.jpg

wtiaLOYn9yLAKEsLR0YU31ln0fLEpODdFolILoPU9WNN0A1270i4ia5Hc9vs-UazDVlooKKVY7u8kPg3aJ0=w914-h685-no.jpg

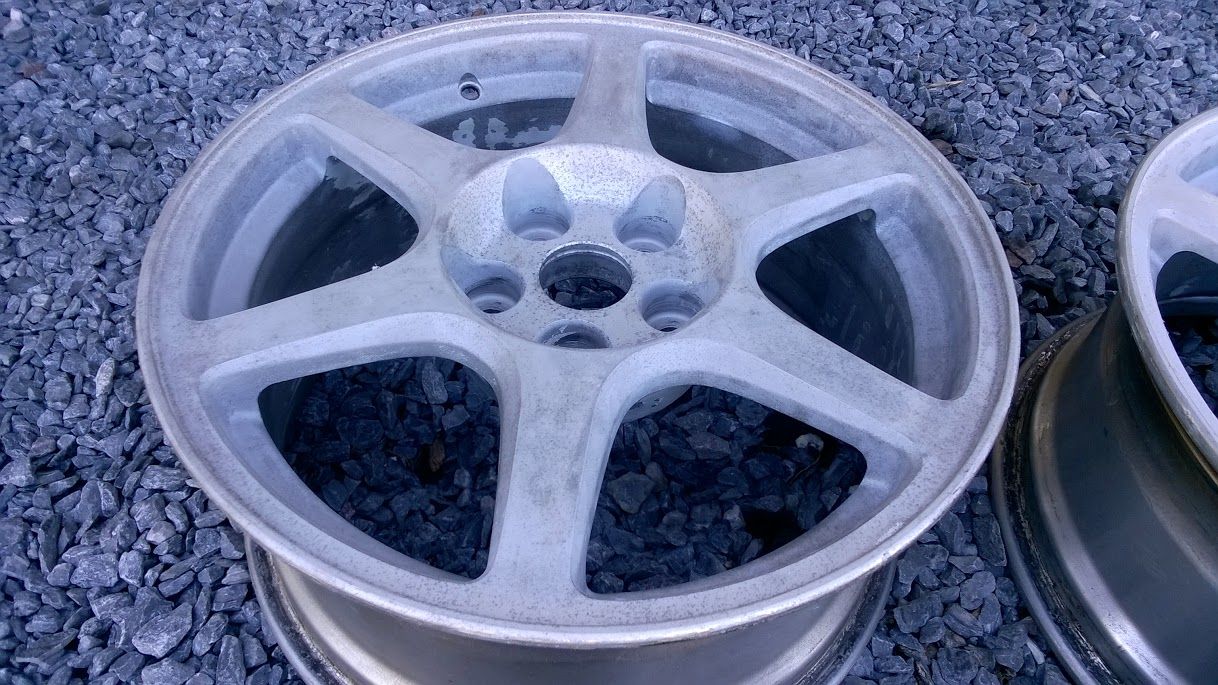

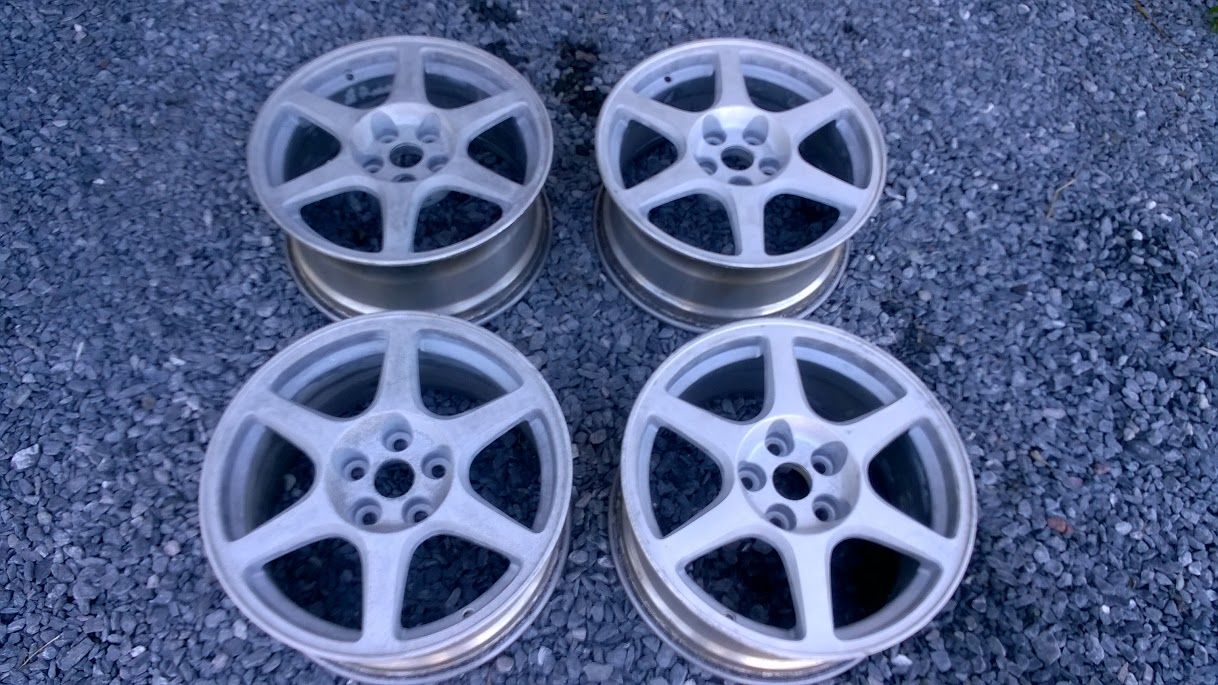

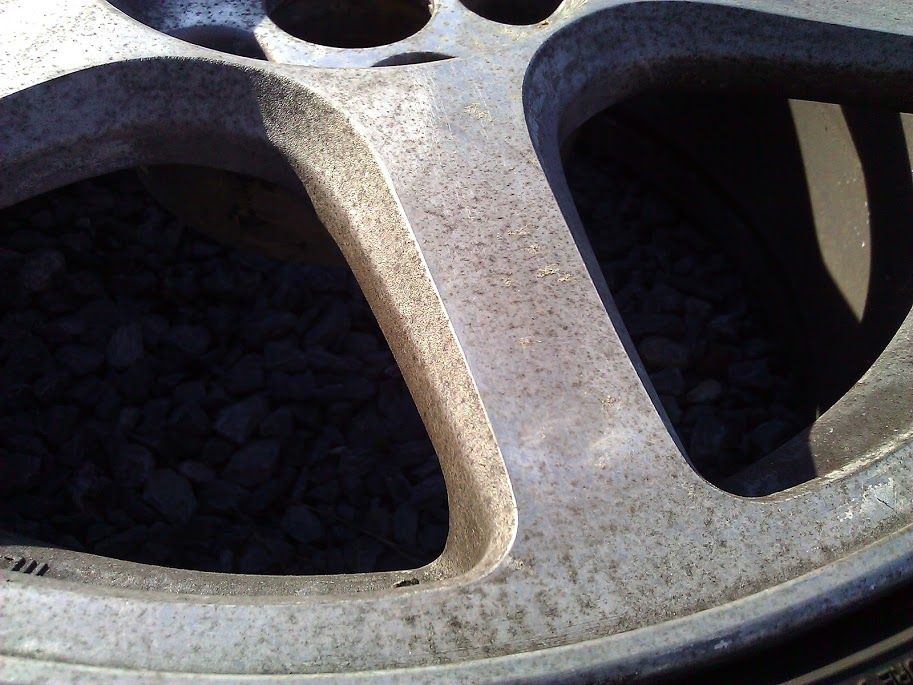

Media blasted, and cleaned:
g2tacBYjjaCW_UzCKjnIVbn5DaRbq_5qyIh_Q4uTPPvlZfwxo5Qytr31z75X0wdtgi5AgMMpWBE9qzfISM=w1218-h685-no.jpg

aiWGw-cIYKyUH_D-mJjHIz_eTM1oCOlL_ojGGTW7QFspW8yIdcfEcv2H0m9yJxQHtYHuTfLjJEdT58YCJV=w1218-h685-no.jpg

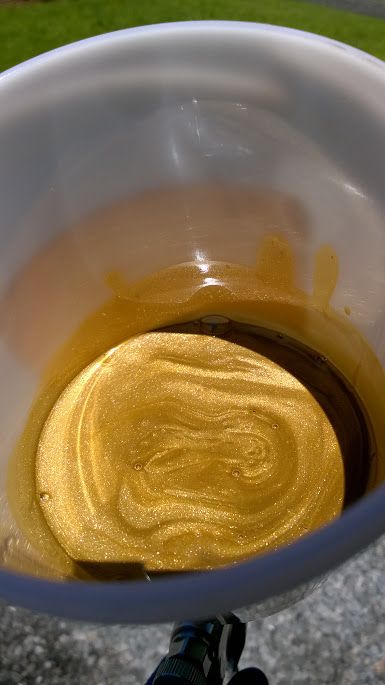

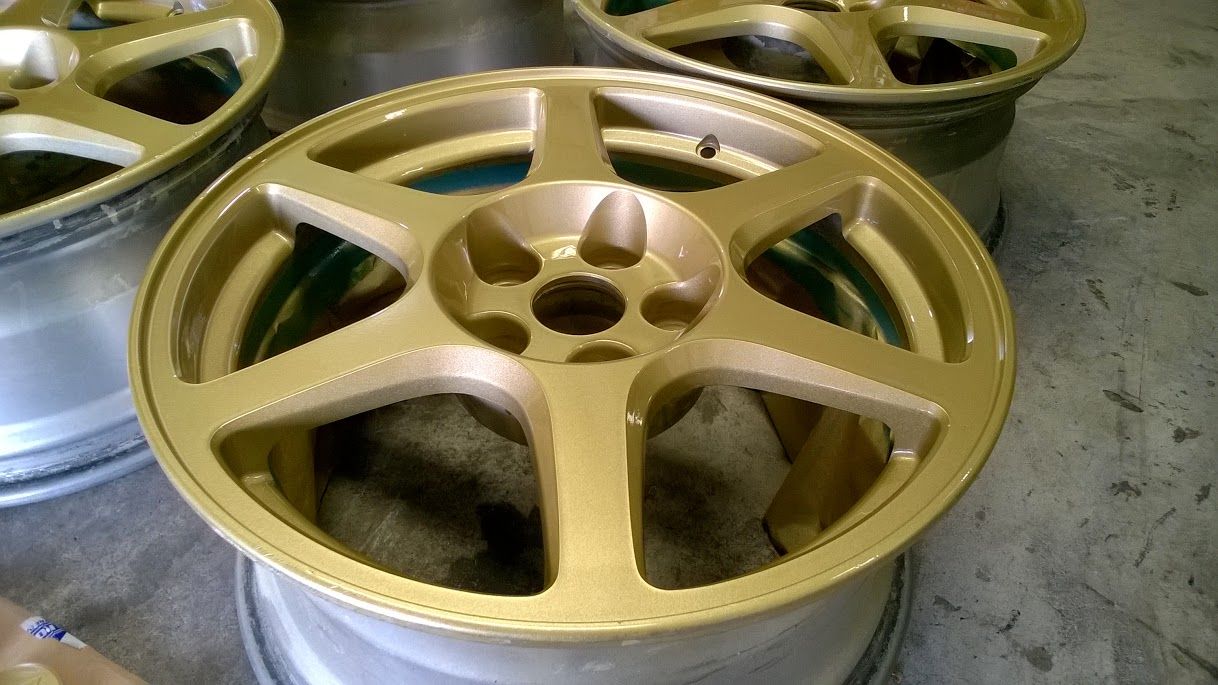

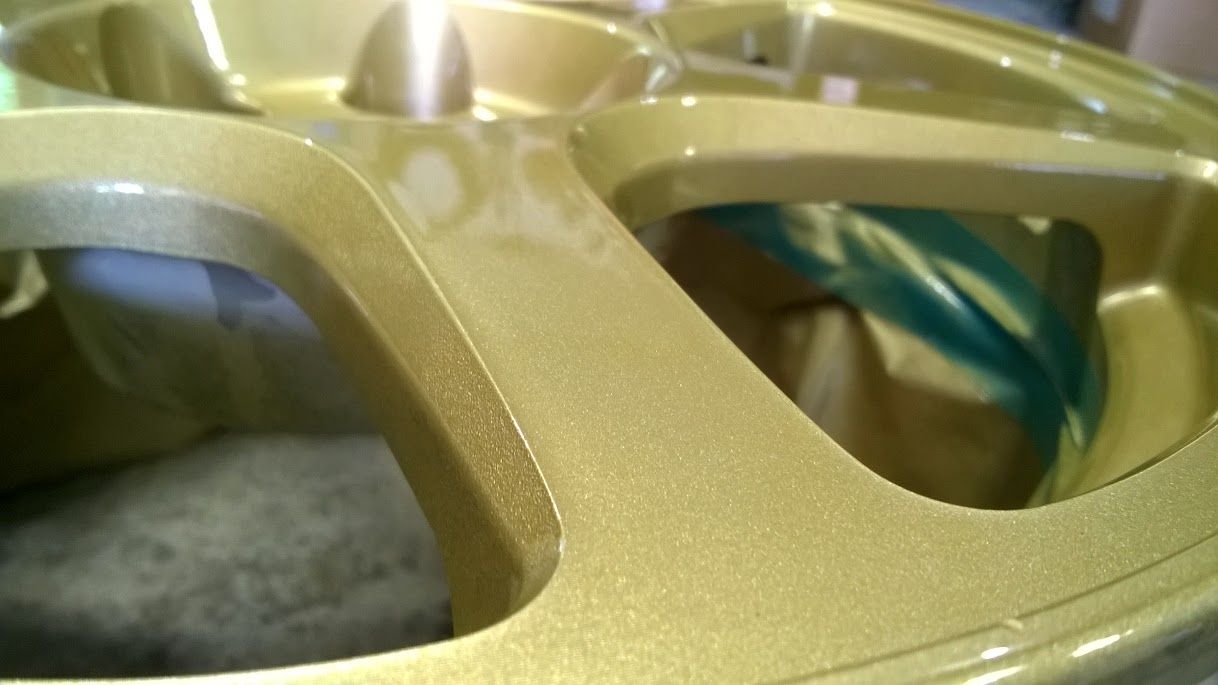

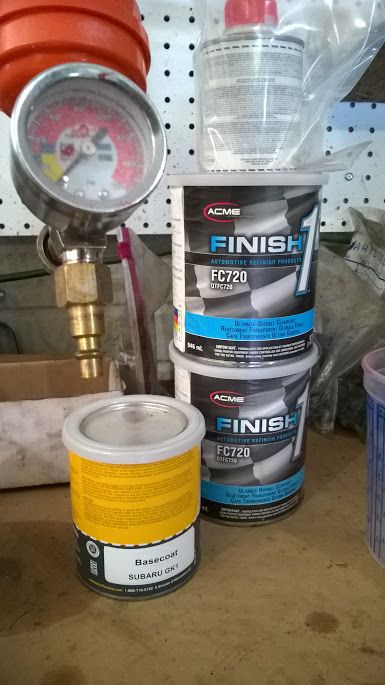

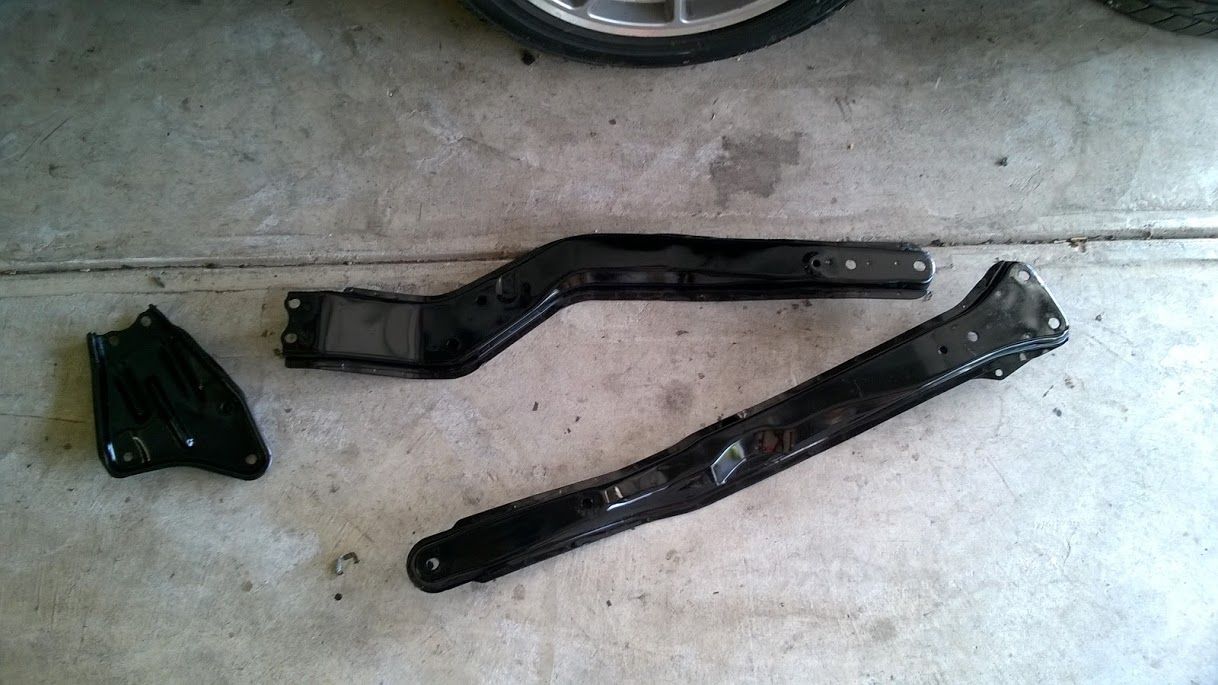

Subaru GK1 gold metallic + clear:
UK131dhY43IBD0RVdW822mHYl_W7iS_QH42xZPT6xdXe6AdX1ZT3oZEFIiKa3EN_gwIO6etoqVTnVew7Y5v=w386-h685-no.jpg

KNJSXFEjWY09060q_LyDdWMa7GlH1fFzOQUVI3V42D22EqIT8uv32Nti3oOToFfua9Y6cz9JYtH6r97ru_I=w386-h685-no.jpg

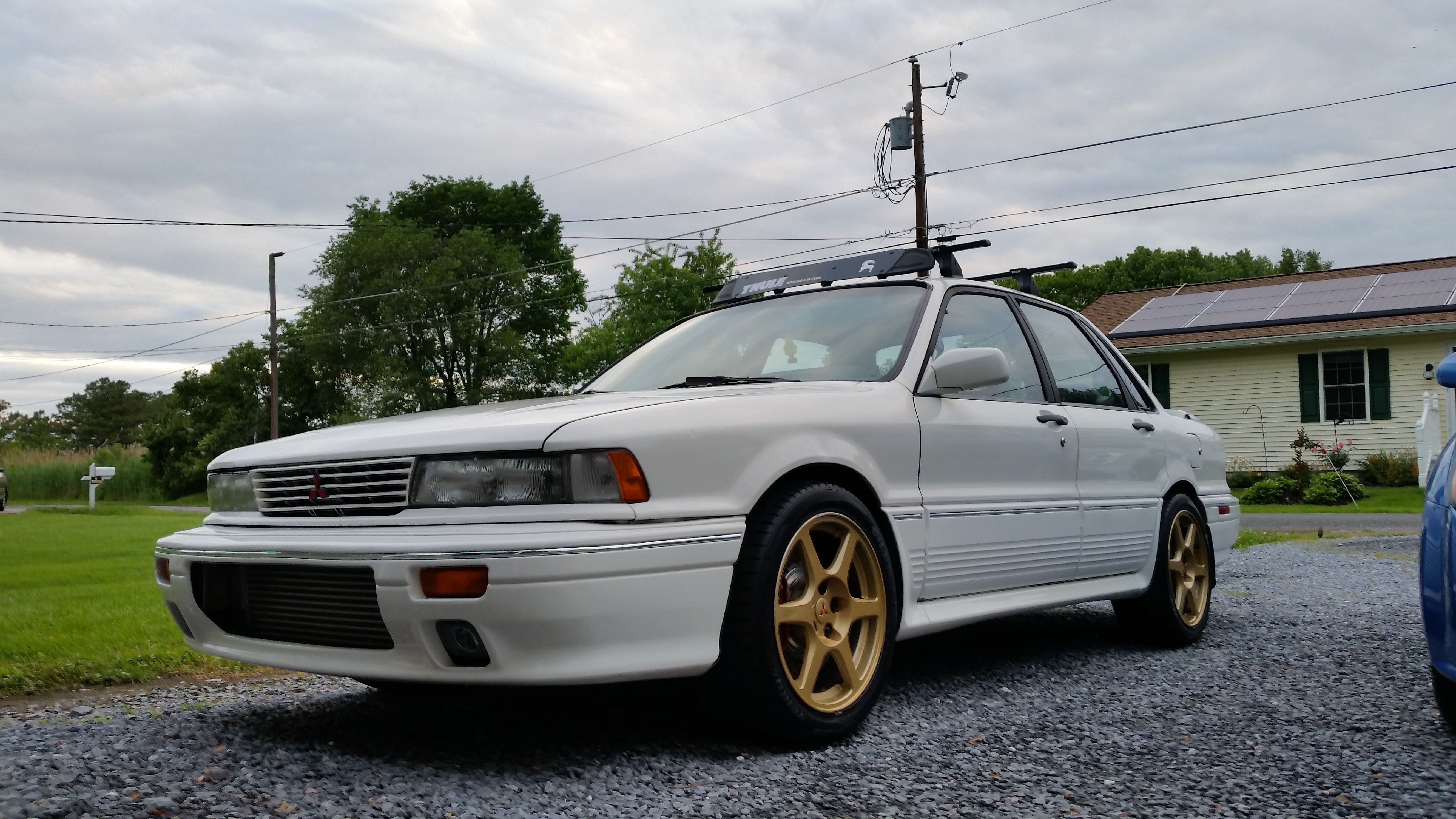

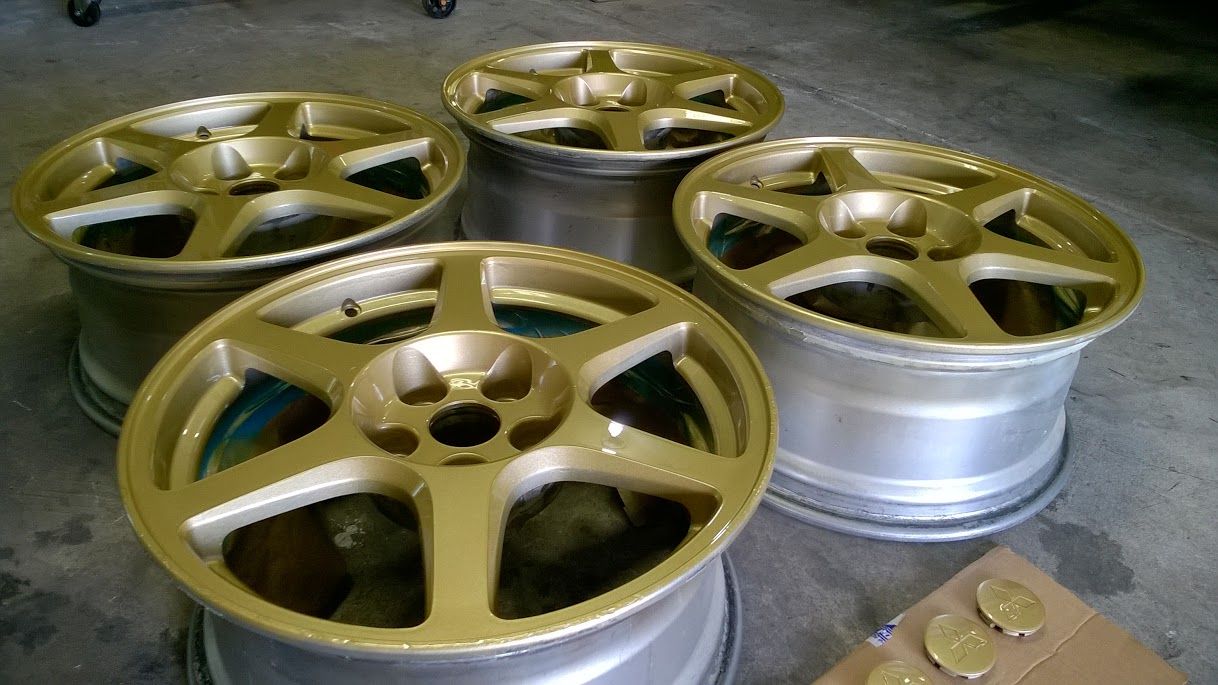

Final product:
RGLpJYMX5a0J0su0hwpucSf4v6r6UzDvWeE4VGYgDwBKIGsdnF7ubkagb_ldqS4hFI23xKZfnBNUIyJ2xs=w1218-h685-no.jpg

YChJ5lhKC6U7bPbJtbkBbF66uwj3kihbahnshhBqMV7y-RUih-1N6fmBbkyQBzKu0seHgjakfqTMFAfUxL=w1218-h685-no.jpg

68zgswp1XqSlvjw0x4A_2ilps94RmkMKghLABhLsVy1l1DsynYA883I8Q6XEOsFwbGzt5-M0VoIE77fXU2=w1218-h685-no.jpg

dljXY2W1NEQIkLnMiR_KIvWYDixFiu0GWym2eNgq8_aqUS87SPQYff8dm-y1YIv4SCr6rpveXz2ScJJN_A=w1218-h685-no.jpg





Hoping to have the motor dropped in tomorrow.

Are you going to run any center caps on those wheels, or are you going to clean up the axle nuts like you did with the other white beauty? Either way I know whatever you do, you will make it look clean :hellyeah:

Are you going to run any center caps on those wheels, or are you going to clean up the axle nuts like you did with the other white beauty? Either way I know whatever you do, you will make it look clean :hellyeah:

Thanks, man.

Yep, I'll be running center caps on these. They are pictured in the first photo of the painted wheels at the bottom.

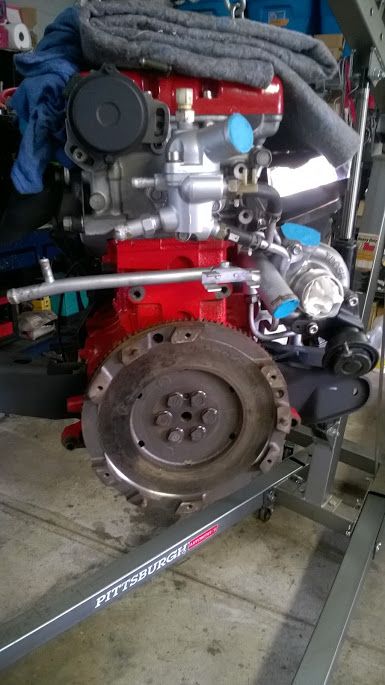

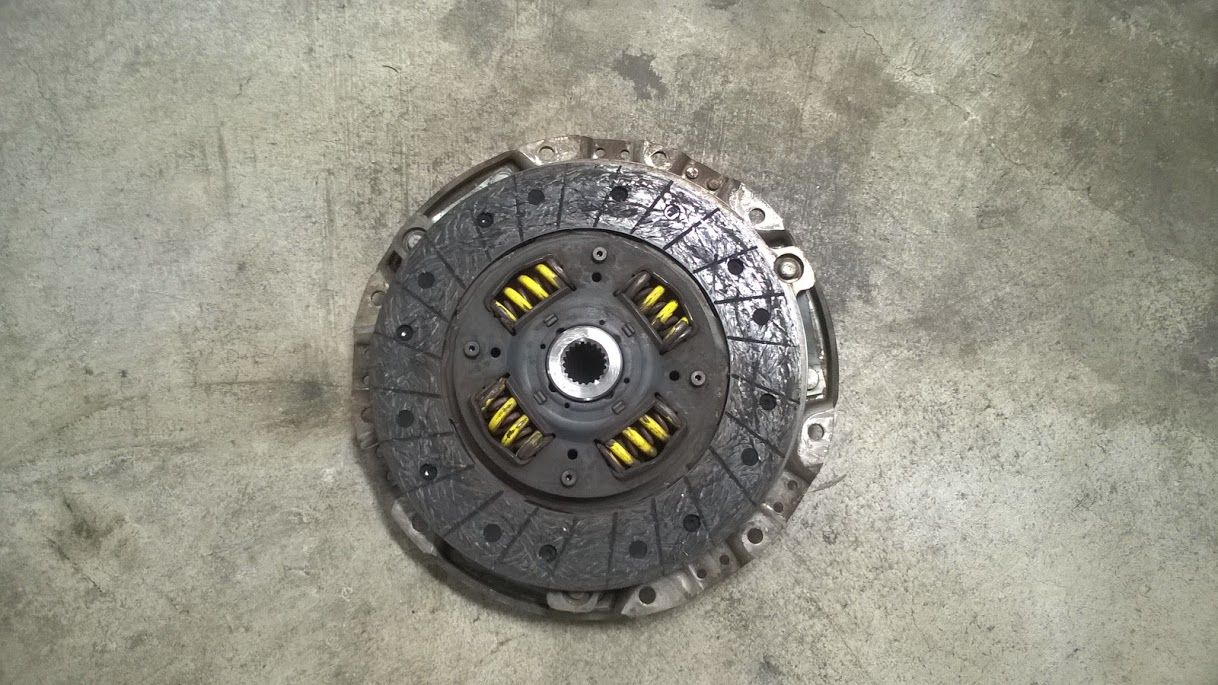

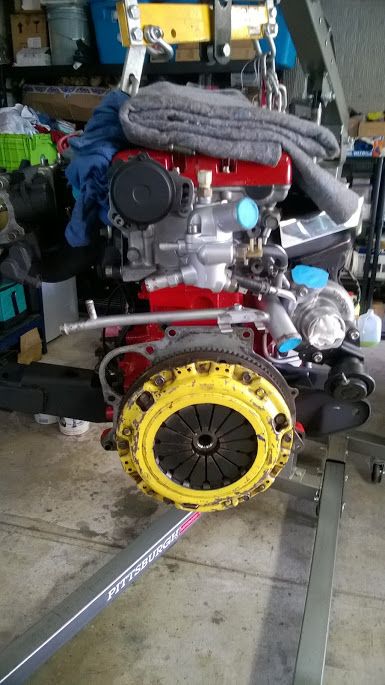

Made some good progress today. Bolted up the flywheel and clutch:
DH4RYj7UmGZ3Pz8nw9ZIPkqCmXrmHaTbX5qZabEpsLxKZblsQM8m2kNc_do6aOGVFVG5t5UKH9kcH-liiRH=w386-h685-no.jpg

bWmlj3aIh5n54nJjh2Nu7ezoPY1fccWvc-00hvTuVjXUlAr1TCtKAllbk3u2WY5vBDS7vuT8rIb3CjlAfd=w1218-h685-no.jpg

KxSolKbH4qcP6j-CgLiw-4IyMEKADE9my88TyE6ObcMDXiDrIBjwbd5R7_SgdUt9jJVNVTt2mycXQvi2w3c=w386-h685-no.jpg

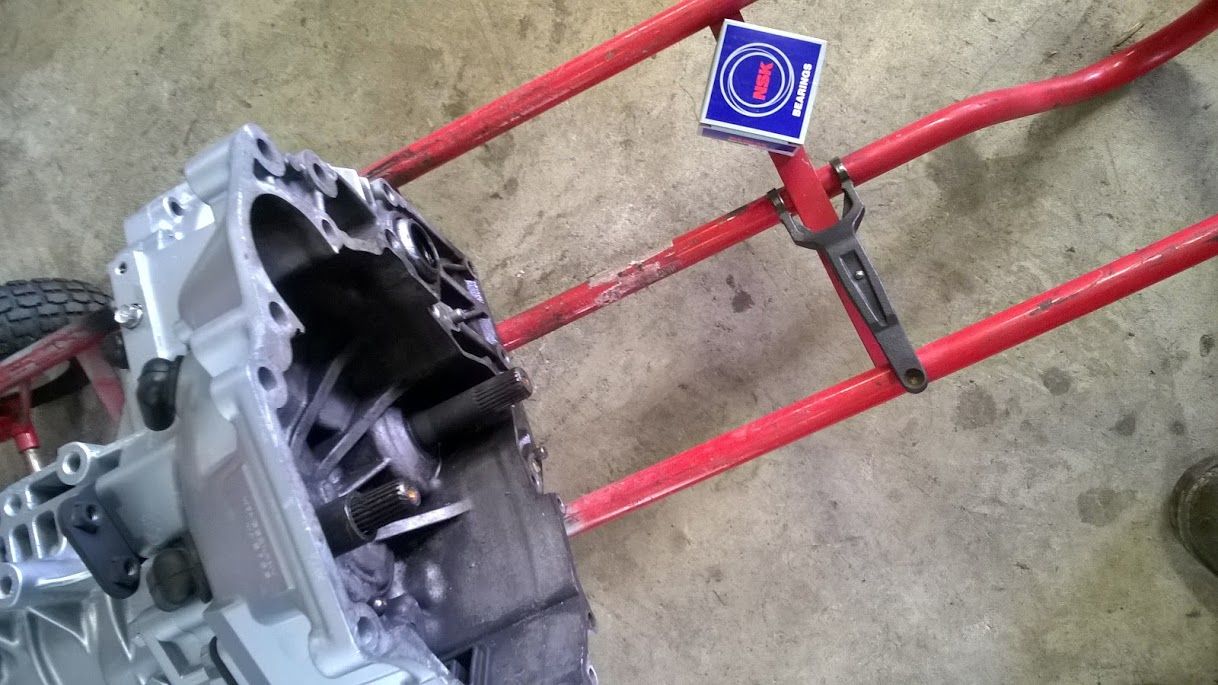

NSK TOB (with metal collar) and new clutch fork:
HOJLMXePKoXA8bERS5alIYSaCAubl1D-SQiDC0WO3mzi4mF-adcjzysMpE26Iq7Tua1iQCRJX054zyU5XB=w1218-h685-no.jpg

vJR3FQGMyV4kp82nLpkSZtcMid2KrHPIfi29BO_Z1A8-YWuBK1t_tdgVHlwVBBohCQVzEIsBWSC-Uvh-tvr=w386-h685-no.jpg

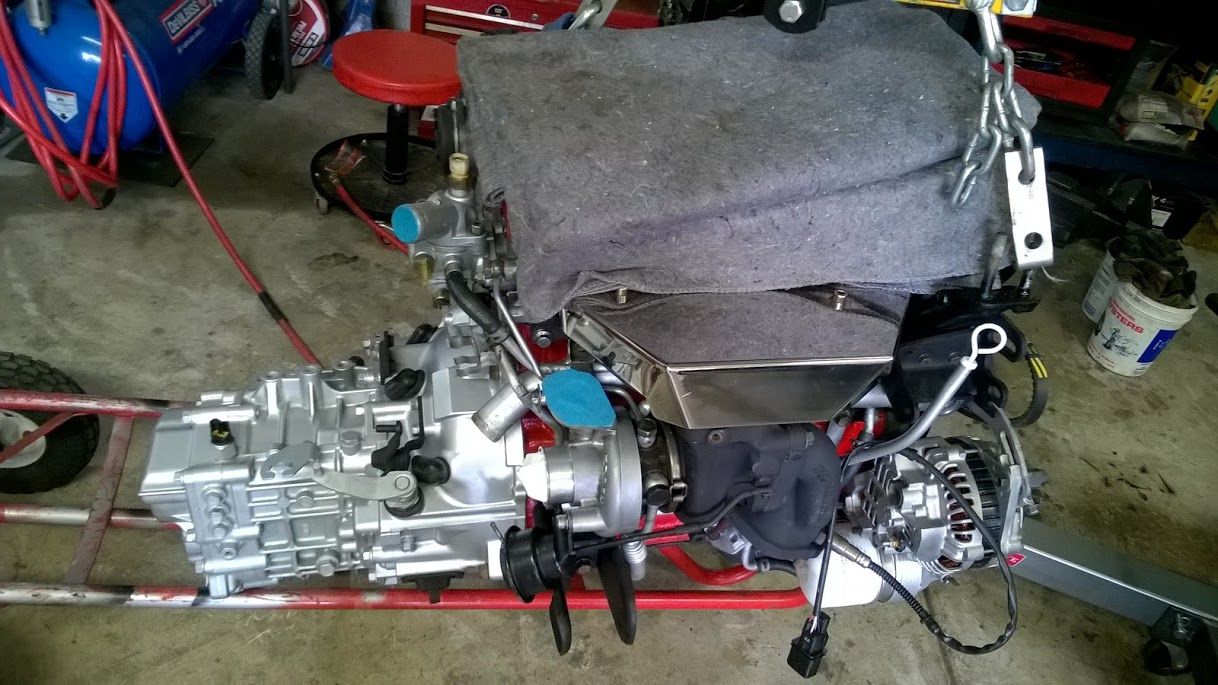

Ready to drop in:
wruPSiLVefurQtR3o11Lls8ZWKFG38YzLJlqfAiLXxwAZyeklGMuvfM6gjjF6cjnaQPPRvH_Gbs2CnbUf9=w1218-h685-no.jpg





And it's in. It's all down hill from here on out. Hopefully this thing is running again soon.
INUGWj1g3uyb620tIM04juF8g7xd4sulCfKIqsamsC7lik4r43CX9e1LgYIovUvf91wqL022BJQrYtlHNBy=w920-h518-no.jpg

MsdWB7MpnB_pRSHTQ449etZ8u0bPJbkfPaLLihNddJ_4QDG5EqC-6ymDsaAJ-8utp21TCyM6BMM5IMf93oA=w920-h518-no.jpg

Last edited:

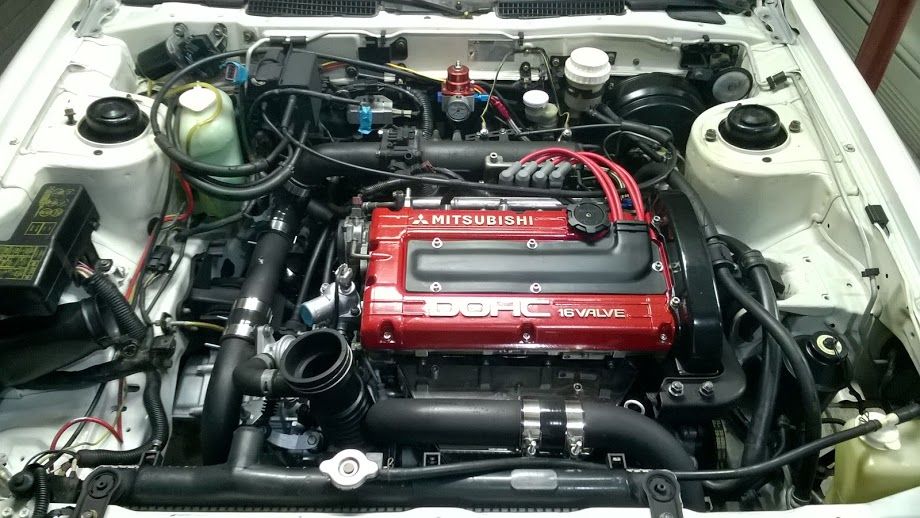

Making progress here and there slowly but surely. I fixed the clearance issue with the cold side IC pipe routing, and got the rest of the system installed. Luckily, all the hard stuff is pretty much done, so it's really just a matter of bolting stuff on and plugging stuff in.

Major stuff left to-do:
-Install the Walbro 255 and rewire
-Bolt in the 5 lug front hubs and reinstall the axles
-Replace fluids in the rear diff, T-case, and trans
-Prime the motor
-Bleed/adjust the clutch
-Bolt up the T-case and exhaust
Xf0SGyjnh25YcBwk22D-LszLVxrg9mHS2MnltqXI3FMCU8lKd8p4GEjUjRNaEKk-f4Bq5P4KRkRbxAQKkZ5=w920-h518-no.jpg

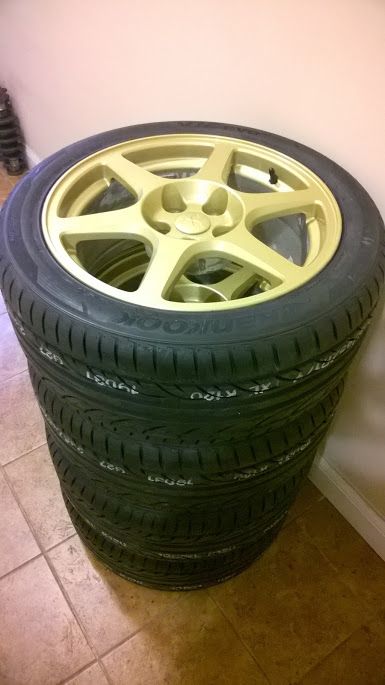

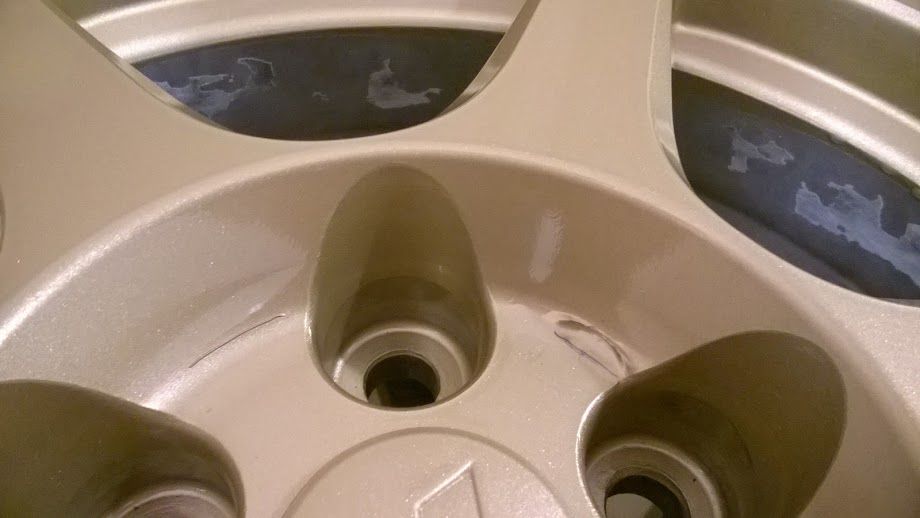

I did get the tires mounted on the new wheels. As my luck would have it, the tire shop slightly f***ed up the finish on one of the wheels by initially using the wrong cone on the balancer. It's a small blemish, but still pisses me off. So, I'm stuck refinishing the wheel again (now with a tire installed), or stuck dealing with it...Guess which one I'm gonna pick :f-u:
akTZ7TUUMCXLQnpaYo-6uoCnzDxWYGK8dk0j2VBzBUnIrN3q0NGYXfJZ0UJg6H8FMJaeViH1fWu8091aGId=w920-h518-no.jpg

Tnpb-8-JZaIYEKiYrrIBOQ5FcMoDugPN3fkB8MnPTCXIequNFKbrGVWMrfKYX17BJhRUQ2OE2jXSXue4HT5=w386-h685-no.jpg





Lastly, crappy low light picture of the new matching MOMO shift knob. My wife picked it out, so I was a bit apprehensive at first, but it actually looks and feels really good!
8xF1C_sYmFHM7-mdrdO6rkp78ORJ_WIDt4ZZbNpgRNAsP0GxUcpZxZx8VKNL-OuxVSKsXcdxJKs79BBqZEz=w920-h518-no.jpg

That sucks on the one wheel, I feel your pain there. Shop did the same to mine after SEVERAL instructions to everyone to not eff-up my fresh paint (even told them to reverse install the tires with bumper pads cuz idgaf bout the inner lip), and they still chipped every single one. Mgr ended up not charging me so that was a small repay.

That's a bummer, the finish was so nice on those wheels :(

5 lug swap...
View attachment 306596




...Becuz 5 lug Evo 8 Enkeis. They look a bit rough, but that's ok ;)
View attachment 306597
View attachment 306598
View attachment 306599




Media blasted, and cleaned:
View attachment 306600
View attachment 306601




Subaru GK1 gold metallic + clear:
View attachment 306602
View attachment 306603




Final product:
View attachment 306604
View attachment 306605
View attachment 306606
View attachment 306608




Hoping to have the motor dropped in tomorrow.

What did you paint the subframe with? It looks fantastic.

I love me some Subaru gold wheels! Looking good!
