91 AWD Black Cherry Talon Turbo Compound

Posted by rrussell, Feb 28, 2015

Please Support VR Speed Factory
  1. rrussell

    rrussell Proven Member

    302
    42
    Joined Jan 7, 2008
    coeur d' alene, Idaho

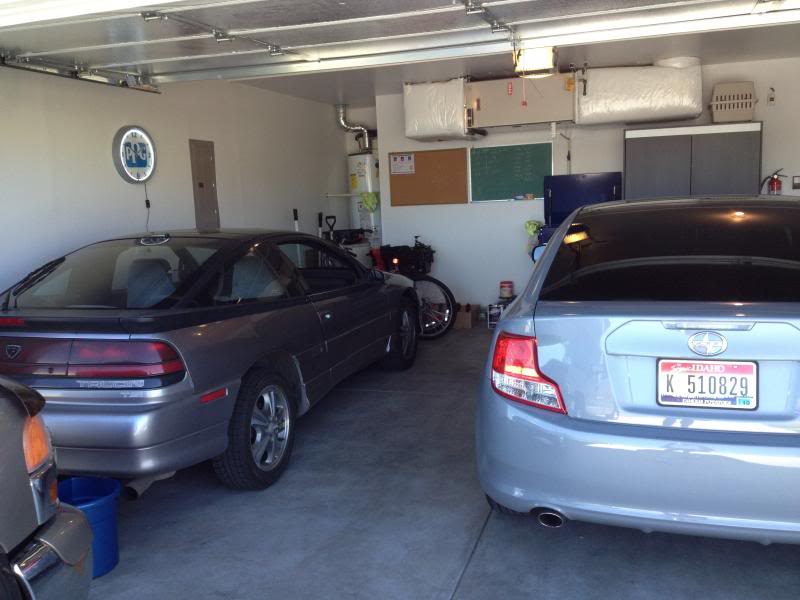

    I started this adventure about two years ago. I bought a 91 AWD Talon with a Auto from Trevor Holland.
    I drove it around with a tired engine running a 16g for the first year then I decided to build a engine and paint the car Black Cherry and make it a Shep look alike.

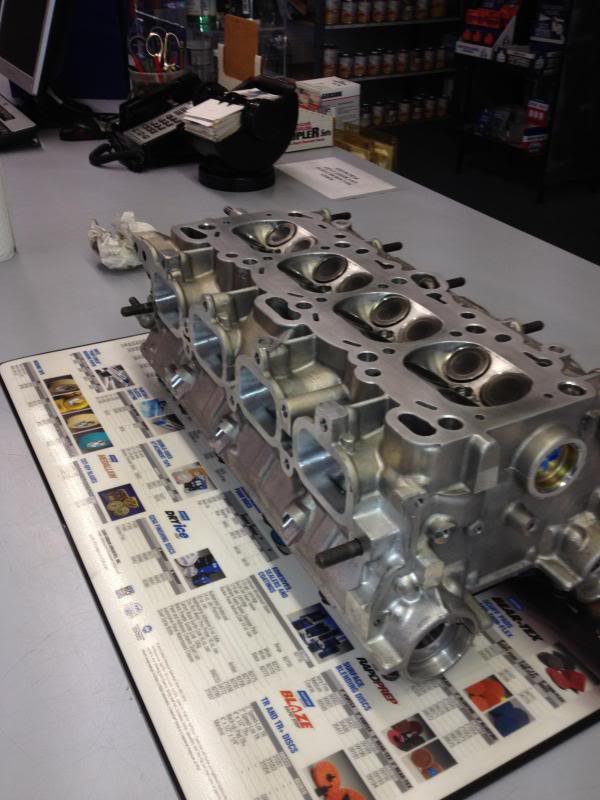

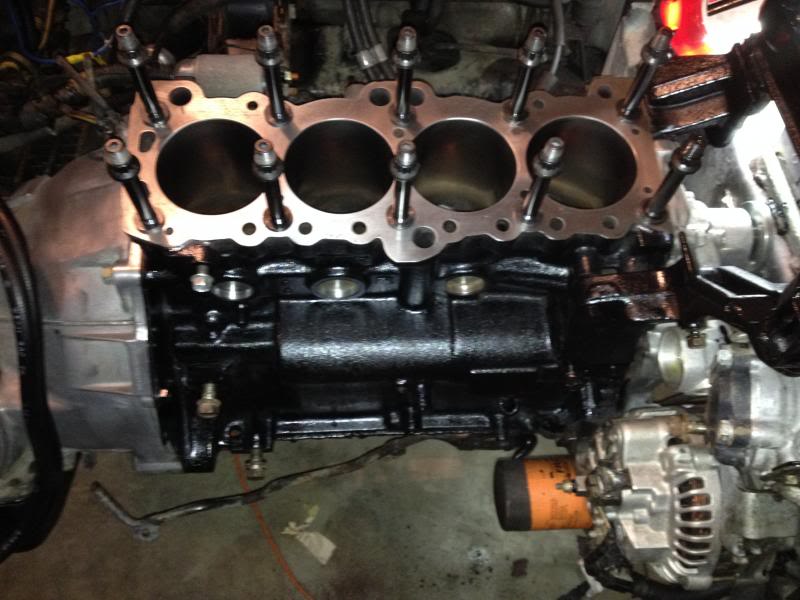

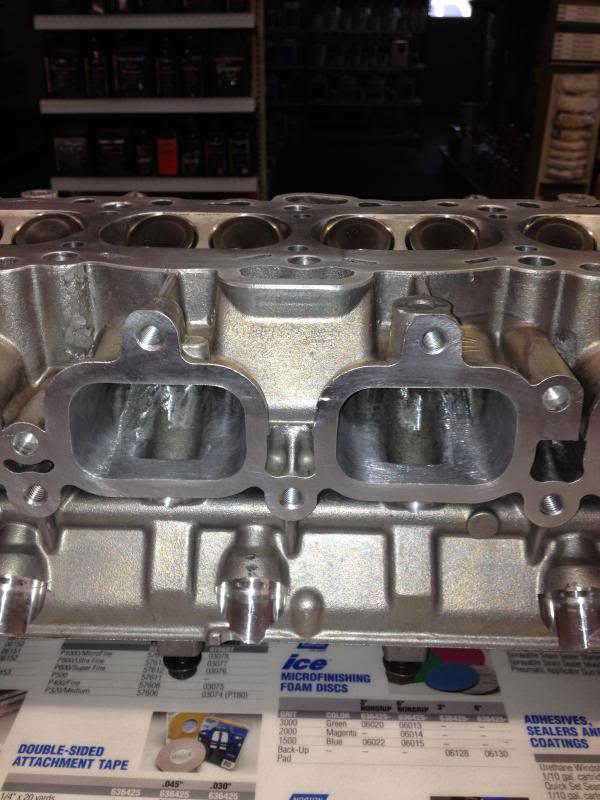

    Nothing special just a stock rod 1g piston with file fit rings and a fresh head with some mild porting.
    My home brew ring filer.LOL
    I always loved the way Sheps 91 Talon looked so I decided to make a clone.

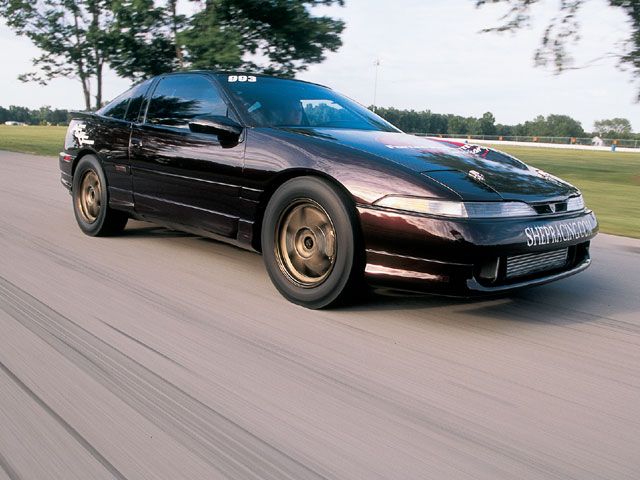

    Sheps Car.

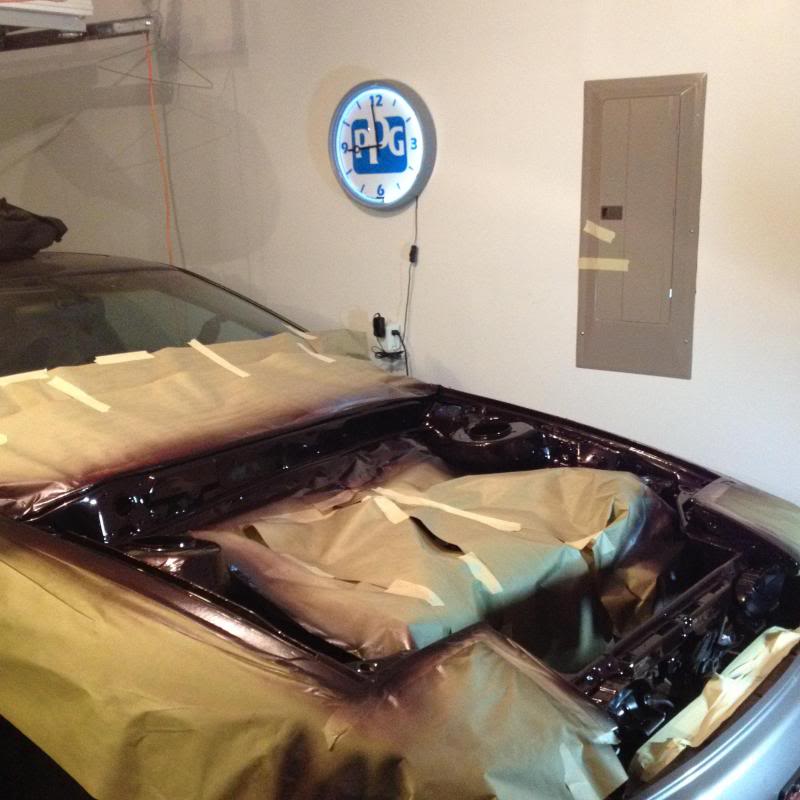

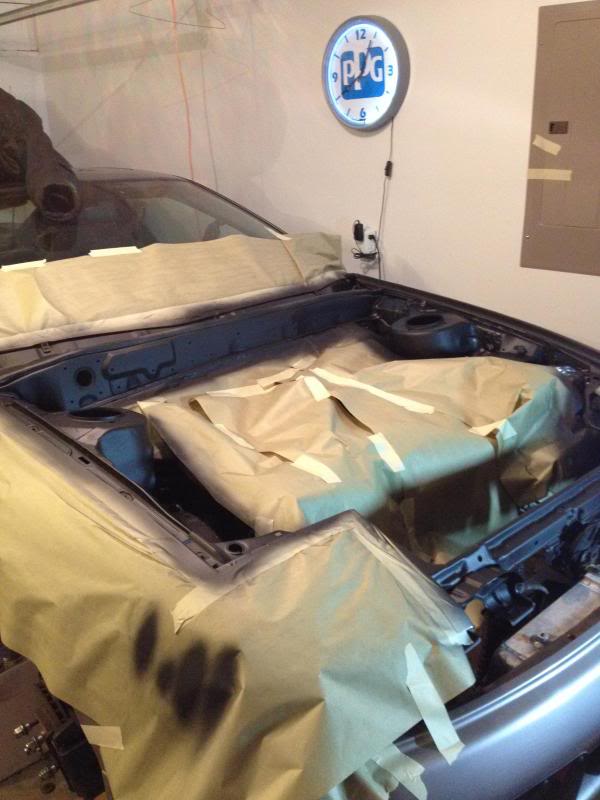

    So I started with painting the engine compartment.

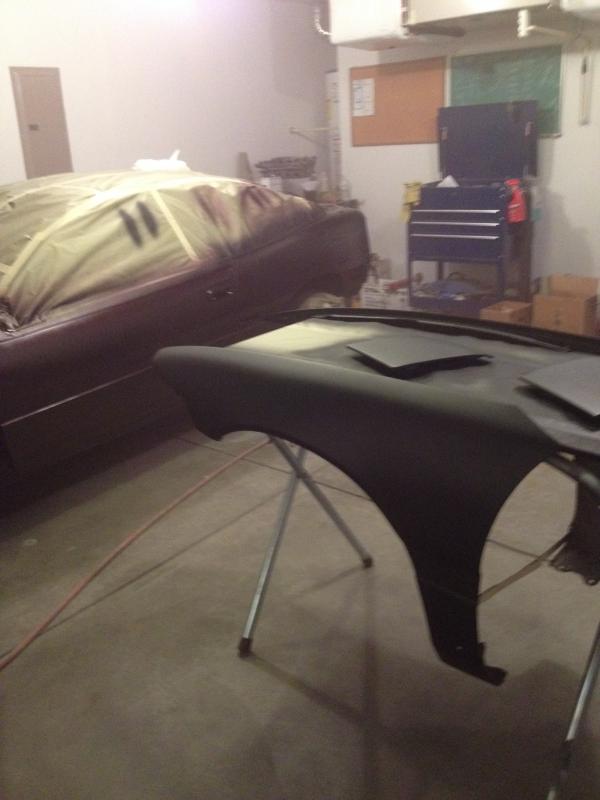

    DP 90LF Sealer
    Black Cherry with Clear coat.

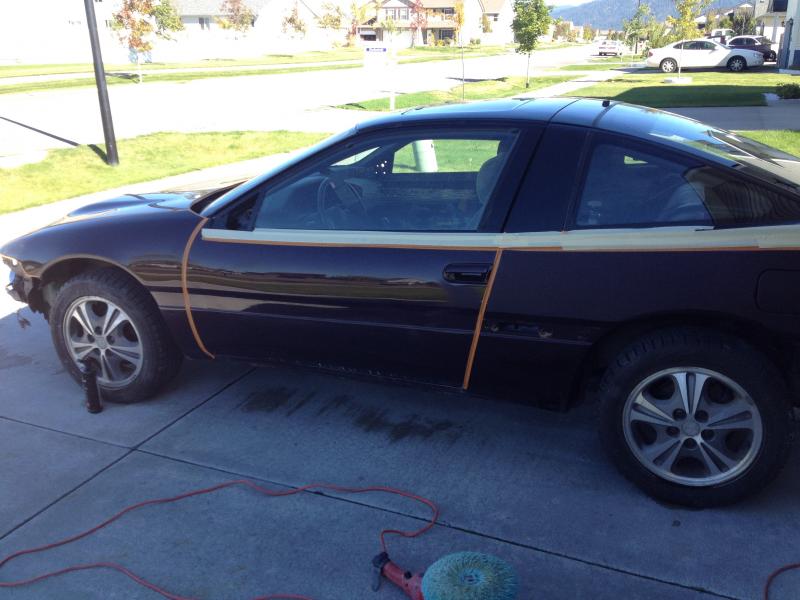

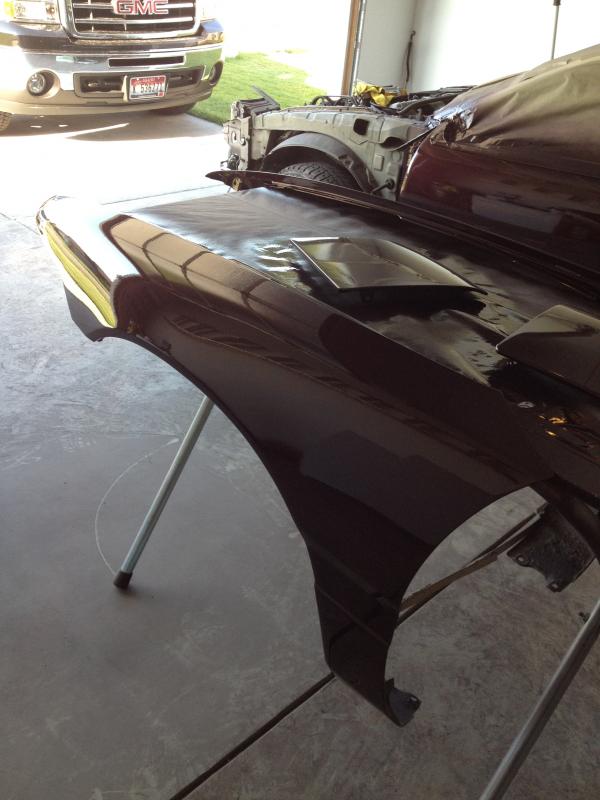

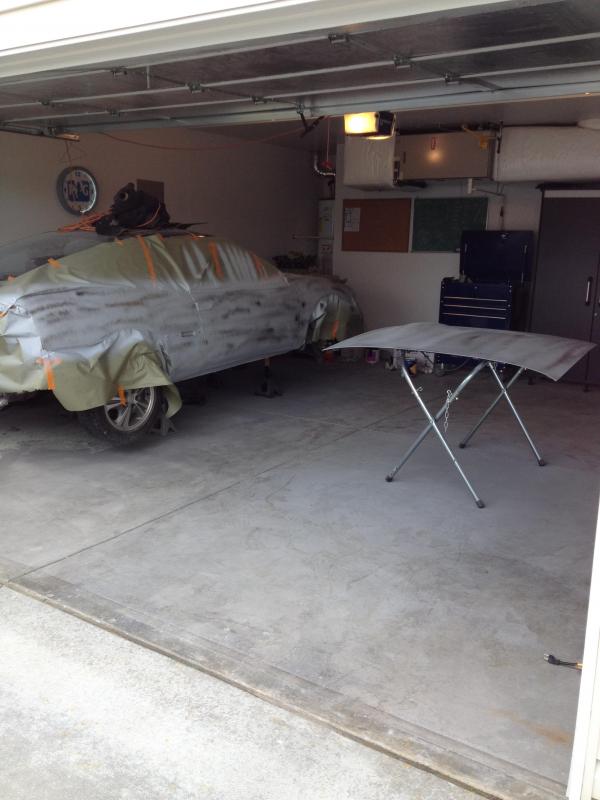

    Body and Paint pics.

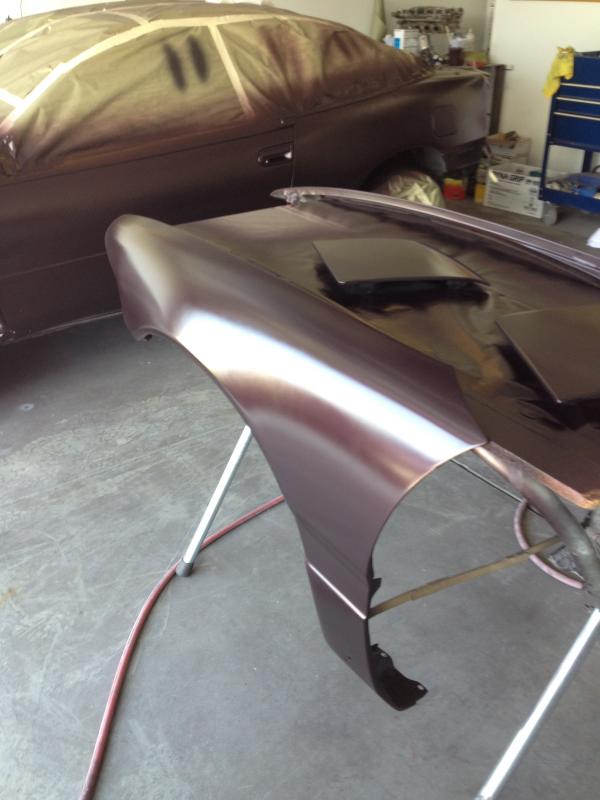

    Black Cherry Base Coat
    Clear Coat

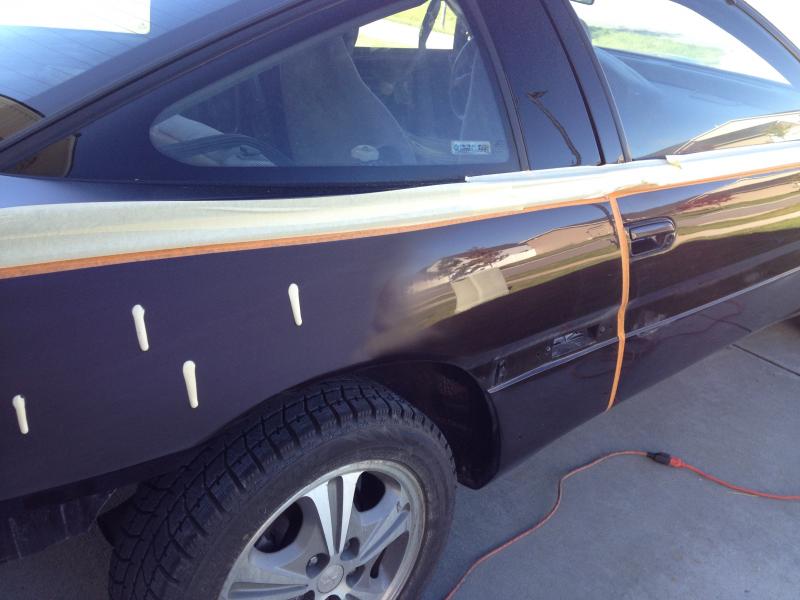

    Sanding and Buffing

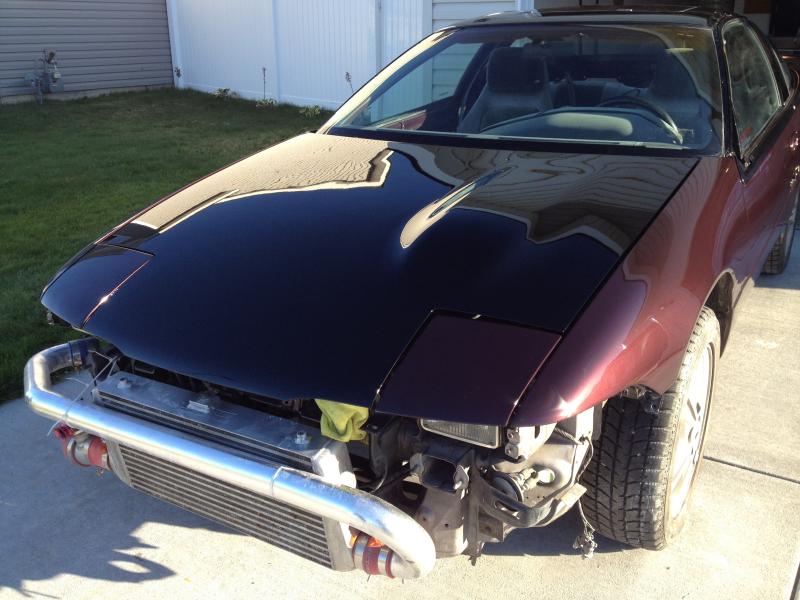

    All buffed out.


    Log in/Register to remove ads
    My DSM:
    1991 Eagle Talon TSi AWD

    Street Build

      automatic
    Loading...
  2. rrussell

    rrussell Proven Member

    302
    42
    Joined Jan 7, 2008
    coeur d' alene, Idaho
    OK now that the car is starting to look the part I decided to do something a little bit different. I have been following Paul's turbo compound thread for a while and love the idea of going with a compound system myself. Then after seeing what Kevin Jewer has done I had to go this route. So I started making my 13g/FP Red mid mount turbo compound system.

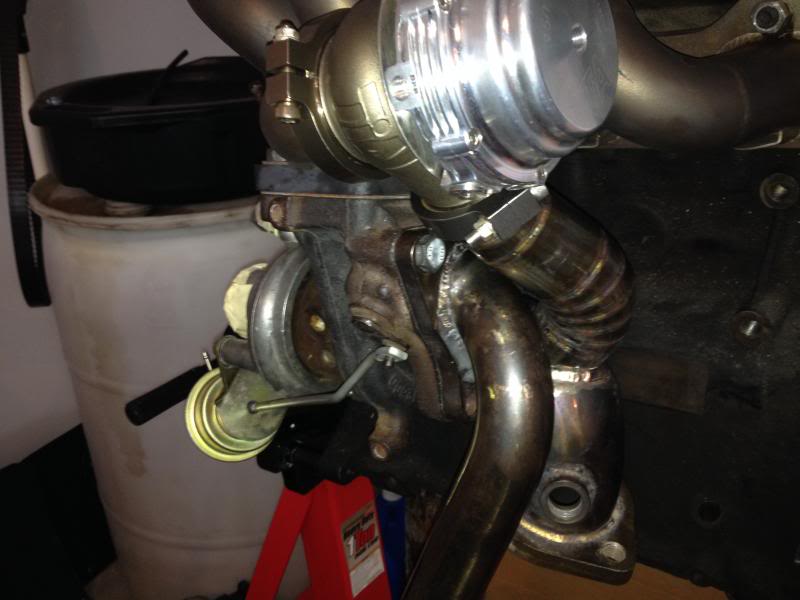

    DNP Manifold with a Tial 44mm waste gate by pass to the RED.


    Tilton pump for mid mount Red.


    Keep in mind these are just temporary charge pipes to get it car up and running the permanent ones will be one piece solid units.

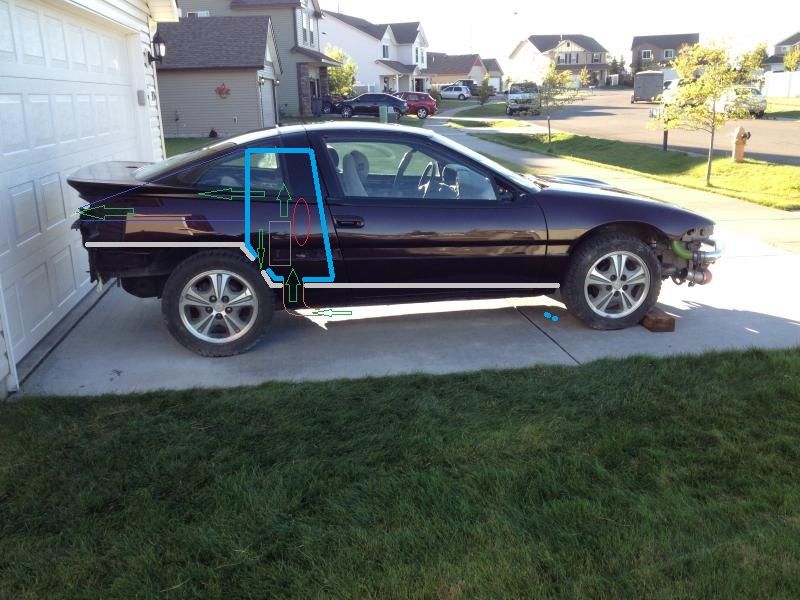

    In the pic above you can see the charge pipe from under the car that's feeding the 13g from the mid mount FP Red turbo outlet. Secondary flex pipe at the rear also.

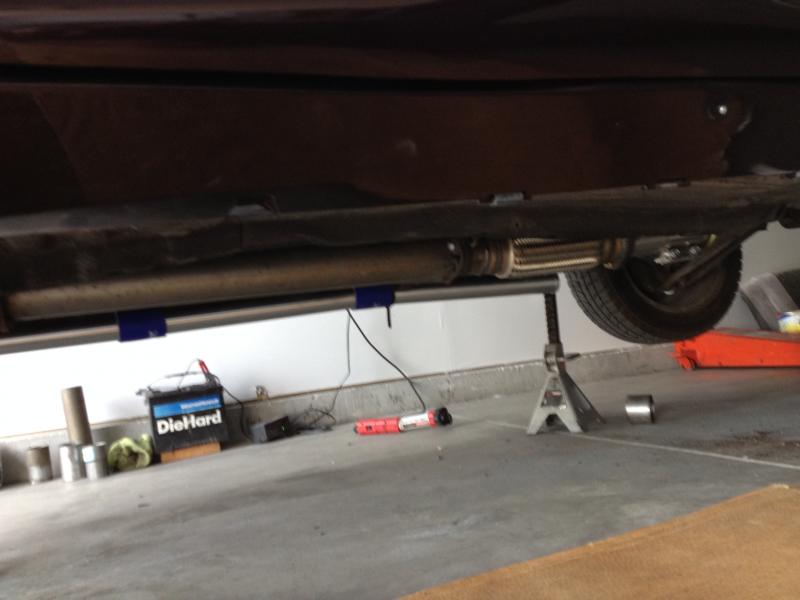

    Charge pipe under the car connecting the 13g to the Red.


    OK this is where it gets a little strange. LOL

    I'm having a good friend build me a aluminum turbo box that will house the FP Red turbo and low pressure inter-cooler. This will be vented from the floor and some air will go through the inter-cooler and exit, and some air will feed the FP Red turbo.

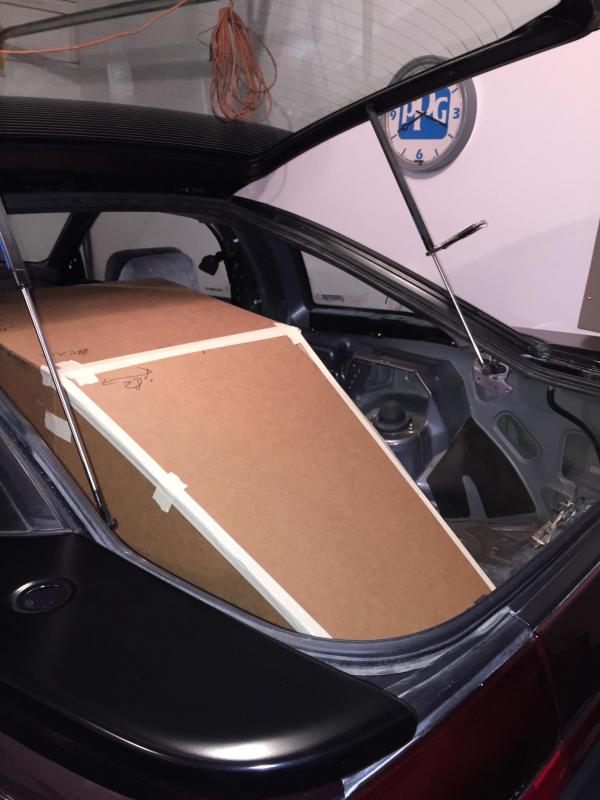

    Mock up of the box.

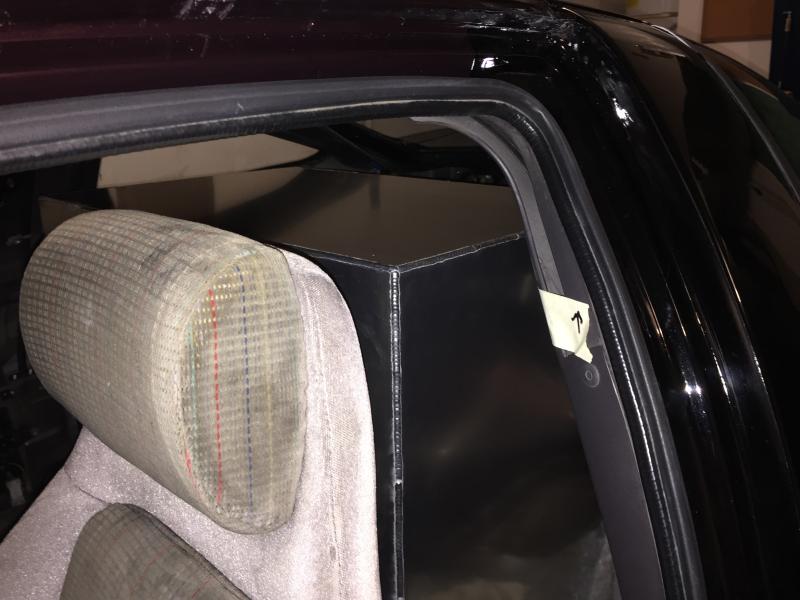

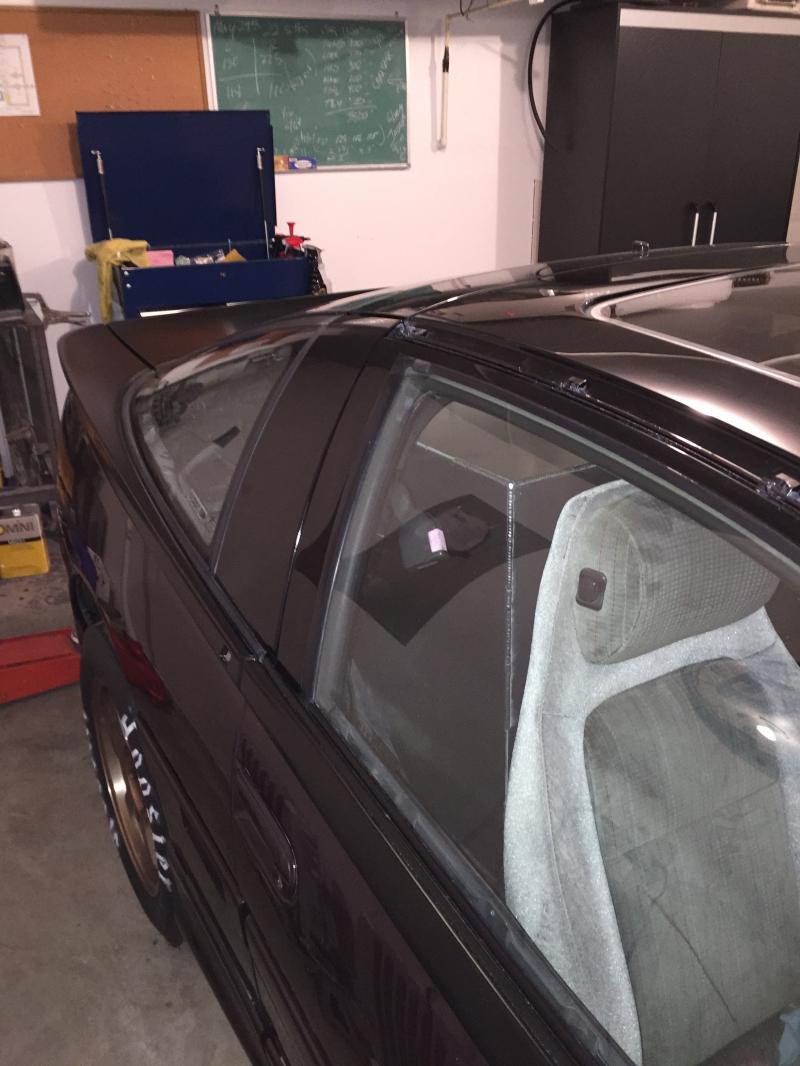

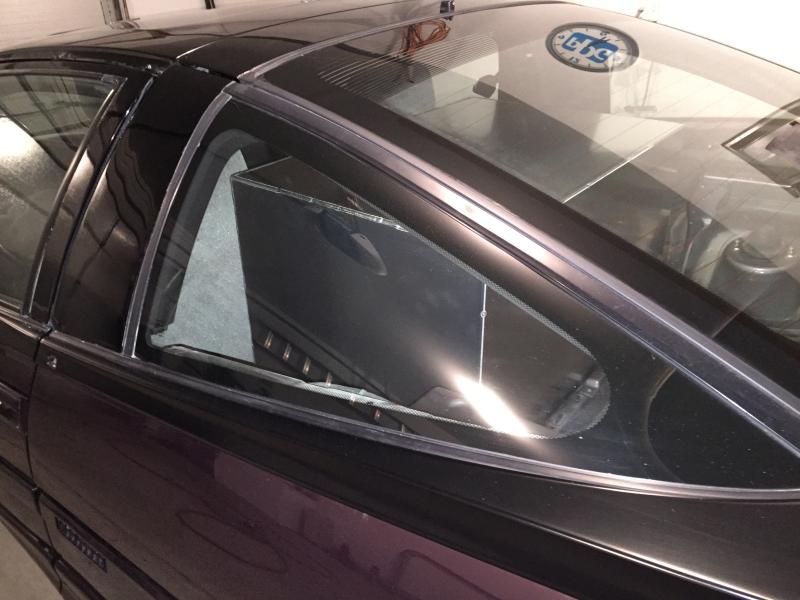

    I checked to see if there will be any blind spots and sitting in the car looking through the rear view mirror you don't even see the box.

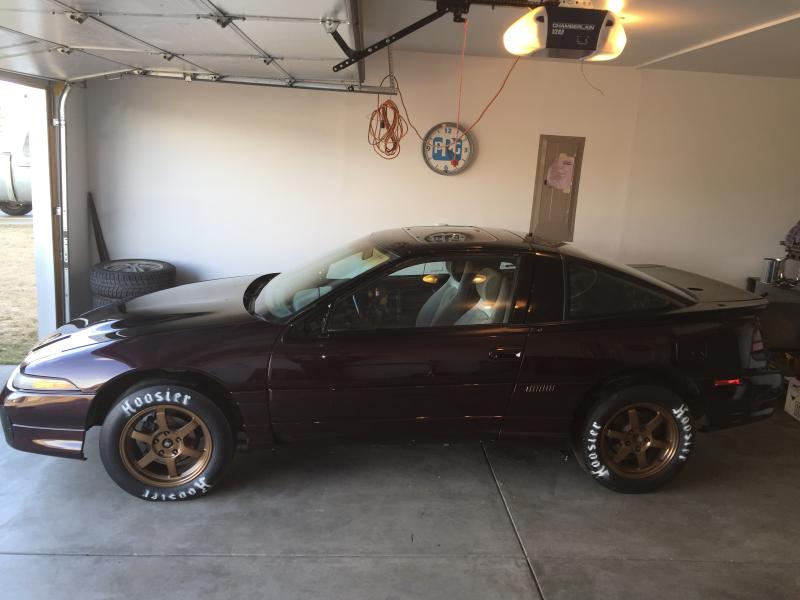

    Today I got my wheels and tires. Now I'm waiting on my coil overs so I can drop the car down about 2".



    My DSM:
    1991 Eagle Talon TSi AWD

    Street Build

      automatic
    Loading...
  3. jbeaton9292

    jbeaton9292 Proven Member

    773
    69
    Joined Aug 29, 2013
    auburn hills, Michigan
    Looks awesome i love sheps car too

    Loading...
  4. rrussell

    rrussell Proven Member

    302
    42
    Joined Jan 7, 2008
    coeur d' alene, Idaho
    Update:
    Final fit on the turbo box.


    [​IMG]
    [​IMG]
    [​IMG]

    Now I will drop it back by the welders tomorrow and have him finish welding it up.

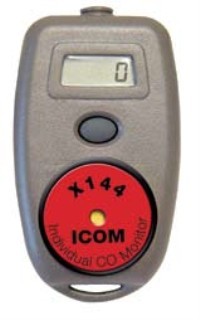

    Next I will purchase a CO monitor from Sata #SAT X144 just for extra precautions.
    [​IMG]

    My DSM:
    1991 Eagle Talon TSi AWD

    Street Build

      automatic
    Loading...
  5. o0GuitarKid0o

    o0GuitarKid0o Proven Member

    640
    81
    Joined Dec 12, 2013
    Winnipeg ,MB, MB, Canada
    Iookin fresh !

  6. rrussell

    rrussell Proven Member

    302
    42
    Joined Jan 7, 2008
    coeur d' alene, Idaho
    Installed the D2 coil overs this weekend

    My DSM:
    1991 Eagle Talon TSi AWD

    Street Build

      automatic
    Loading...
  7. DSM Chase

    DSM Chase Proven Member

    704
    48
    Joined Sep 19, 2011
    Brooks, Georgia
    Sweet idea, that 13G is so tiny.

    My DSM:
    1991 Eagle Talon TSi AWD

    Street Build

    16g   automatic
    1990 Mitsubishi Eclipse GSX

    Street Build

    10.504 @ 139.65 MPH
    1998 Mitsubishi Eclipse GSX (sold)

    Street Build

    GT30   automatic
    1995 Mitsubishi Eclipse GSX (sold)

    GT30   manual
    Loading...
  8. rrussell

    rrussell Proven Member

    302
    42
    Joined Jan 7, 2008
    coeur d' alene, Idaho
    Thanks!!!
    I did some testing early this year and this combination makes instant boost.LOL

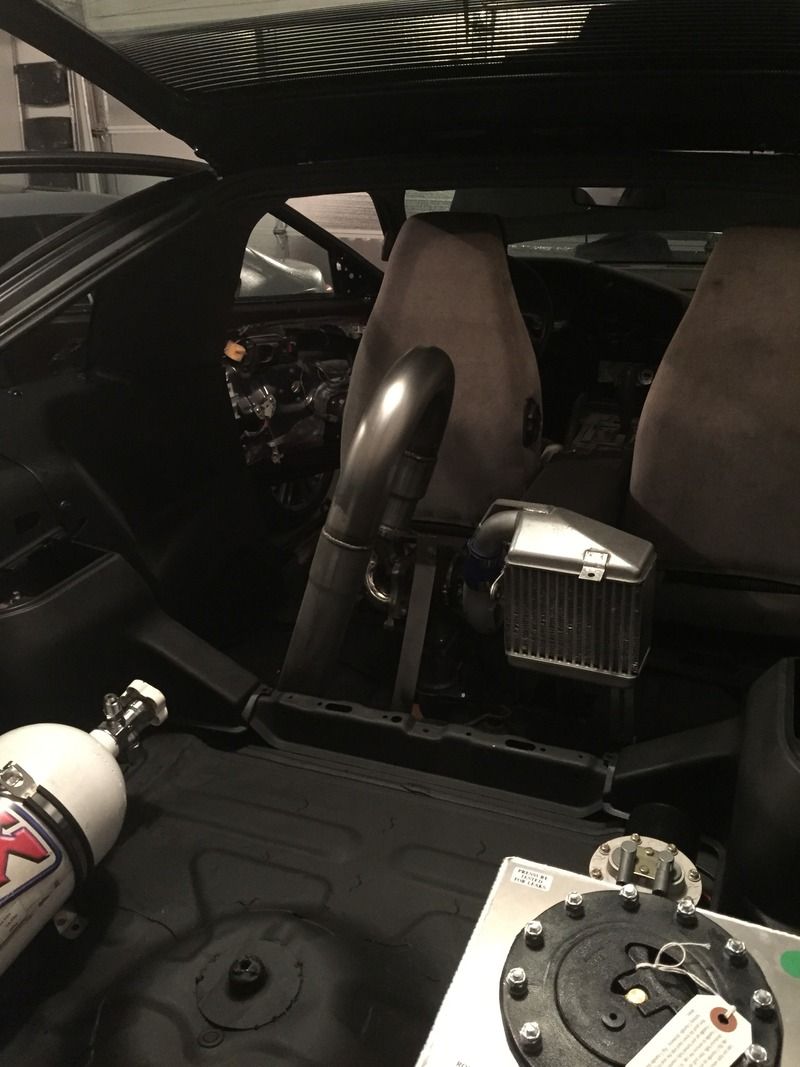

    Here's a pic with the cover not installed. There is a divider between the intercooler and hot side of the turbo that's not shown.

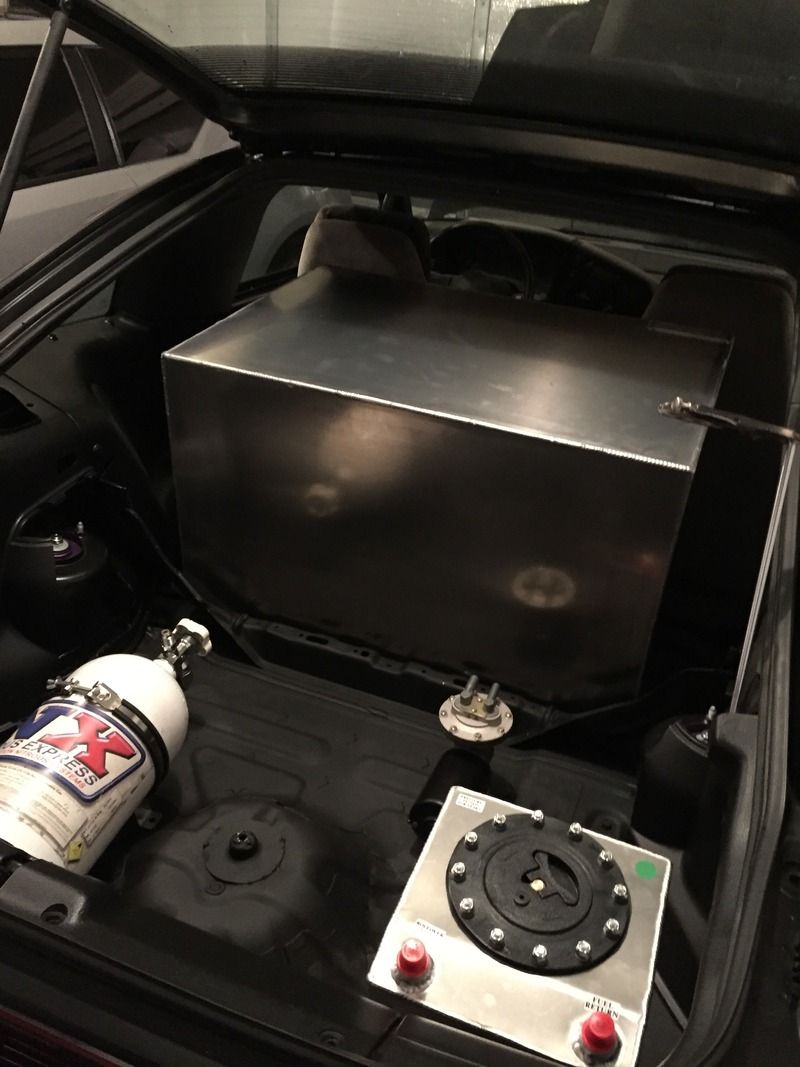

    Another pic of where the N2O bottle will go and vacuum pump. The 3 gallon tank is for road use only. I will write about it later.

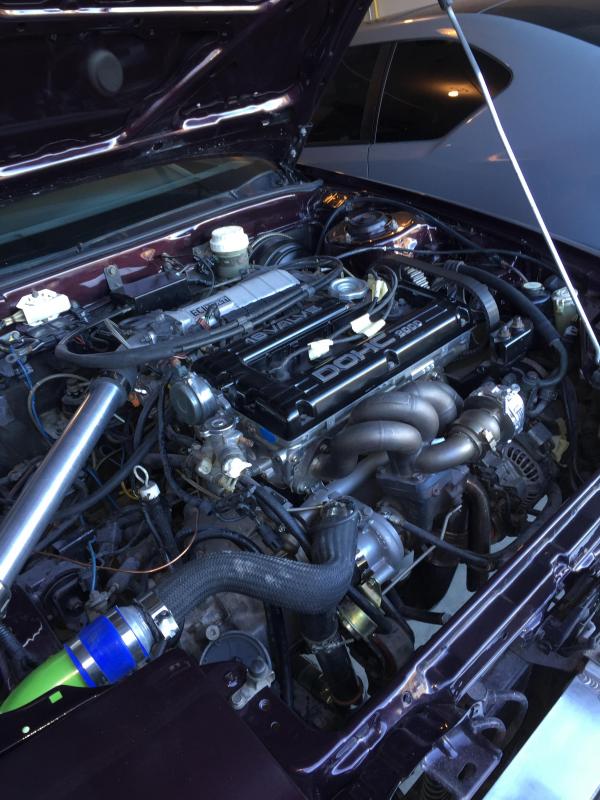

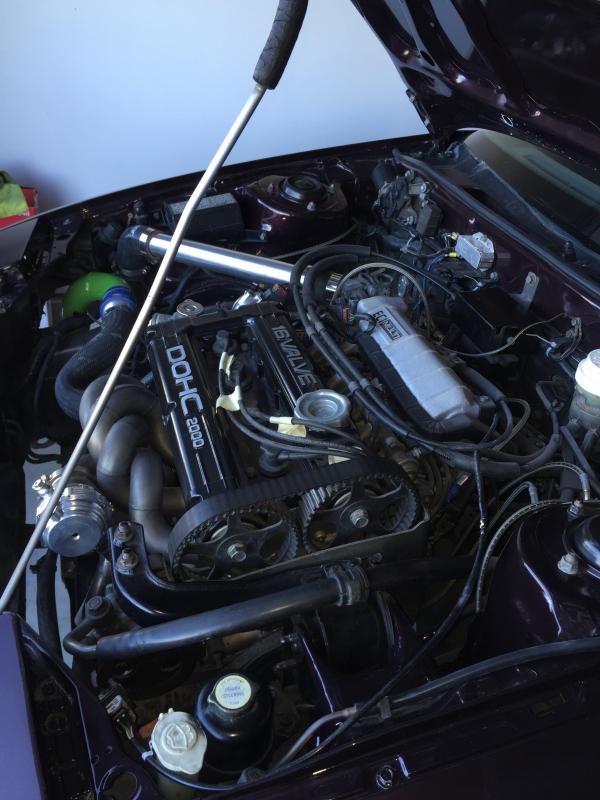

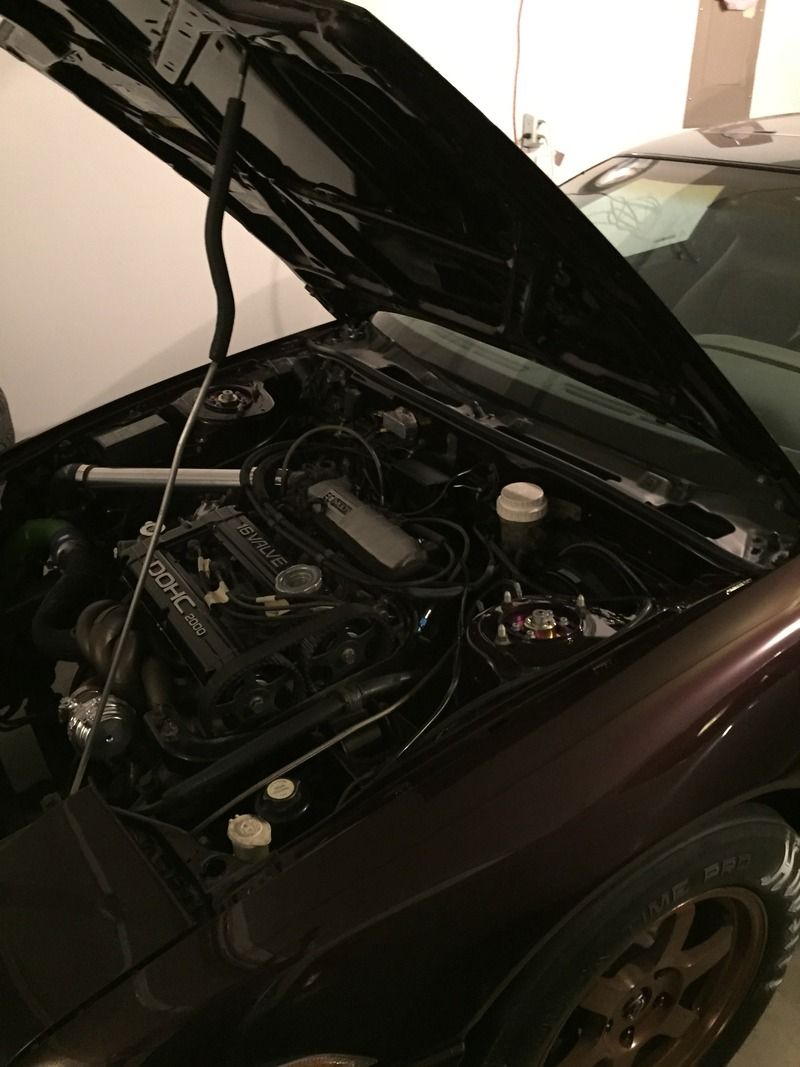

    Under hood pic with the new D2 installed. The 13g charge pipe is just a temp to get it running. I'm having a one piece aluminum made.

    My DSM:
    1991 Eagle Talon TSi AWD

    Street Build

      automatic
    Loading...
    Kapok6 likes this.
  9. dolney-53

    dolney-53 Proven Member

    67
    6
    Joined Dec 6, 2013
    St Francis, Minnesota
    Its different and i like it ha ha. Love the color. Car is going to be awsome when completly done. Props

    My DSM:
    dolney-53 1998 Mitsubishi Eclipse GSX

    Street Build

    14b   manual
    1995 Mitsubishi Eclipse GSX

    Drag Race Build

      manual
    Loading...
  10. rrussell

    rrussell Proven Member

    302
    42
    Joined Jan 7, 2008
    coeur d' alene, Idaho
    Update:
    Finished my Low Pressure Turbo to High Pressure Turbo Charge Pipe today. This is the 3rd one I built and I'm happy with this one for now.;)
    I decided to run my oil feed line and oil return line down the same path with the charge pipe. This keeps everything much cleaner and away from the exhaust pipe and drive-shaft.

    I did some pressure testing also, from 10 psi to 30 psi to make sure it didn't leak or blow. Had my ear protection on also just in case.OMG

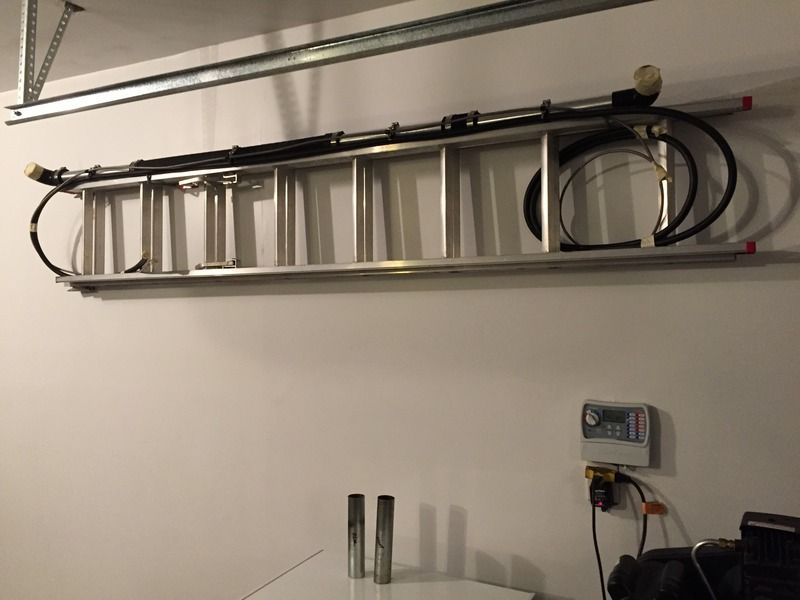

    Also the ladder is not part of the charge pipe. Its just a great place to put the charge pipe while I work on some other things.LOL

    My DSM:
    1991 Eagle Talon TSi AWD

    Street Build

      automatic
    Loading...
  11. kris_stewart10

    kris_stewart10 Proven Member

    332
    1
    Joined Jul 16, 2008
    Picayune, Mississippi
    Subscribed to this awesome build...

  12. miliman13

    miliman13 Proven Member

    1,495
    252
    Joined Jan 1, 2011
    tampa, Florida
    Subscribed!! Loving the build.

    My DSM:
    Loading...
  13. rrussell

    rrussell Proven Member

    302
    42
    Joined Jan 7, 2008
    coeur d' alene, Idaho
    Update:

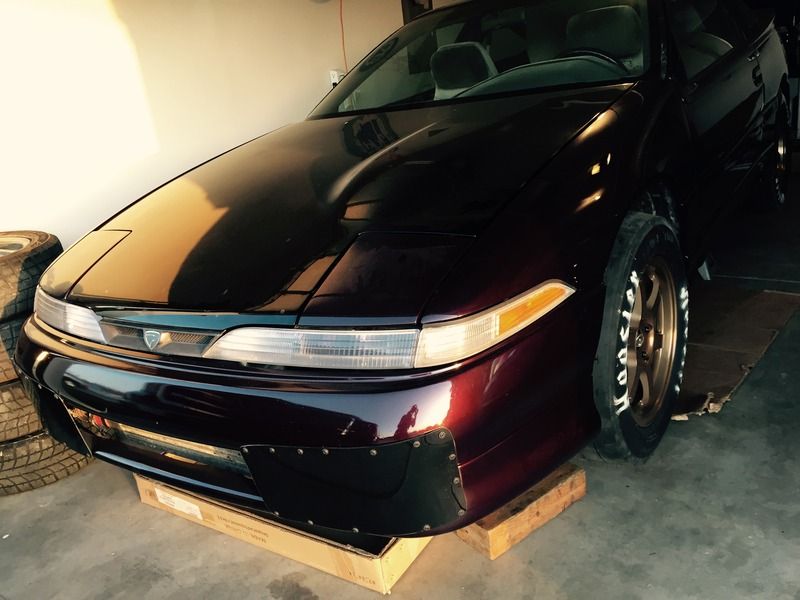

    After I painted the car I forgot to fix the gap on the driver side head light door. The gap is large enough to throw a small size animal through it.LOL

    So I worked on it today and got it pretty good for this beater.

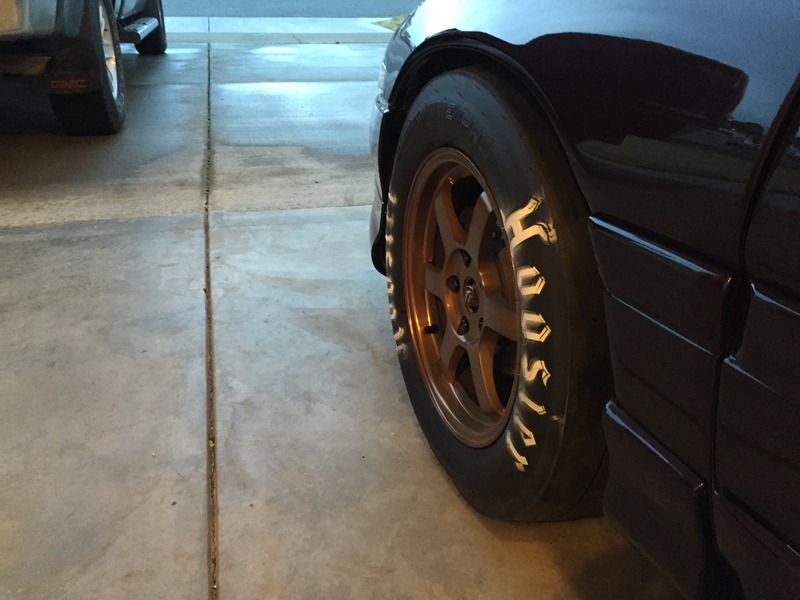

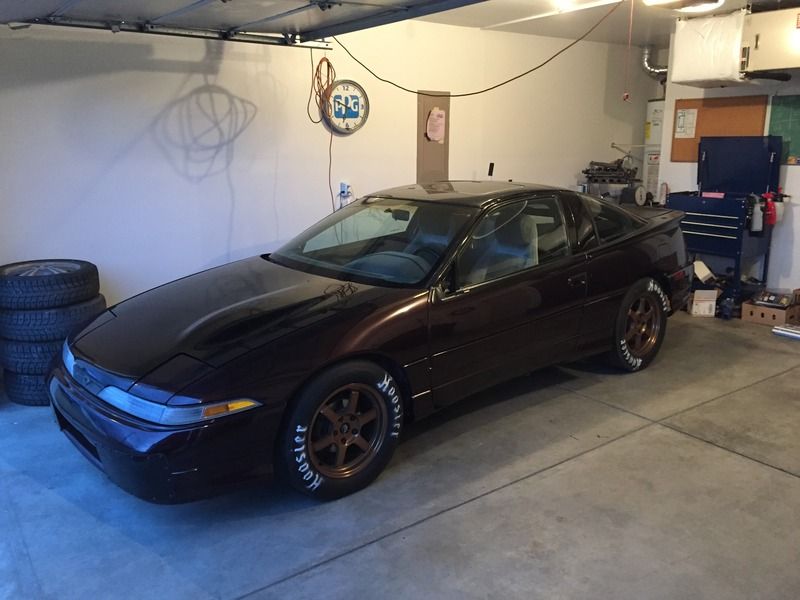

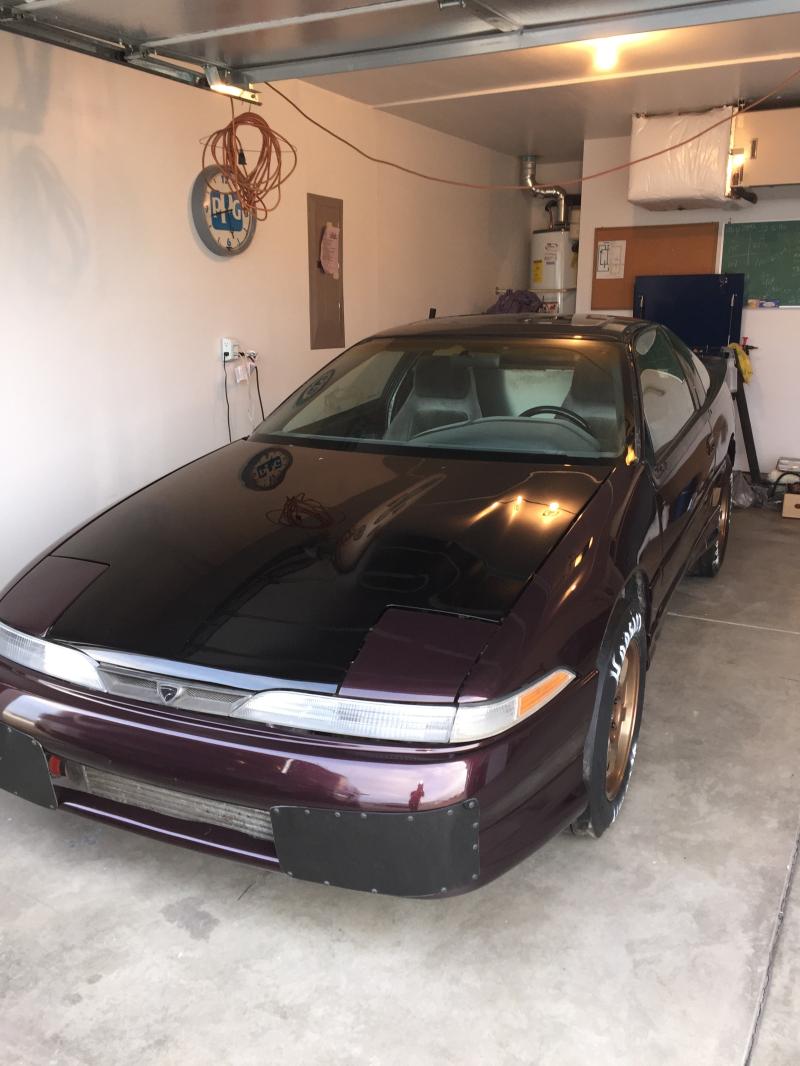

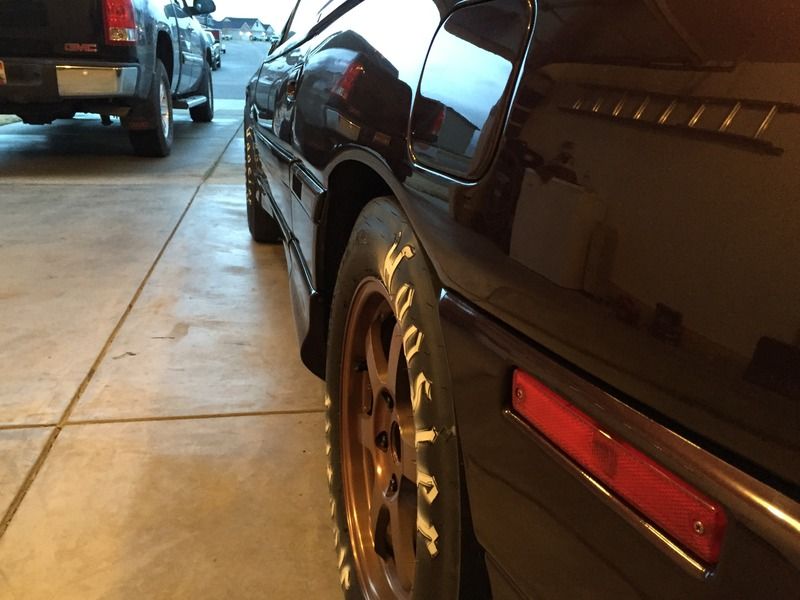

    The first pic is where my ride height is set at now 3 1/2". The tires are clearing and everything looks good so far? I'm going to have to be very careful though and always be thinking about the low clearance when driving on some of our roads here. The other concern is the Tilton electric pump is mounted up front so I will have to watch out for parking stops and curbs when pulling forward. But I guess this is the game we play.LOL

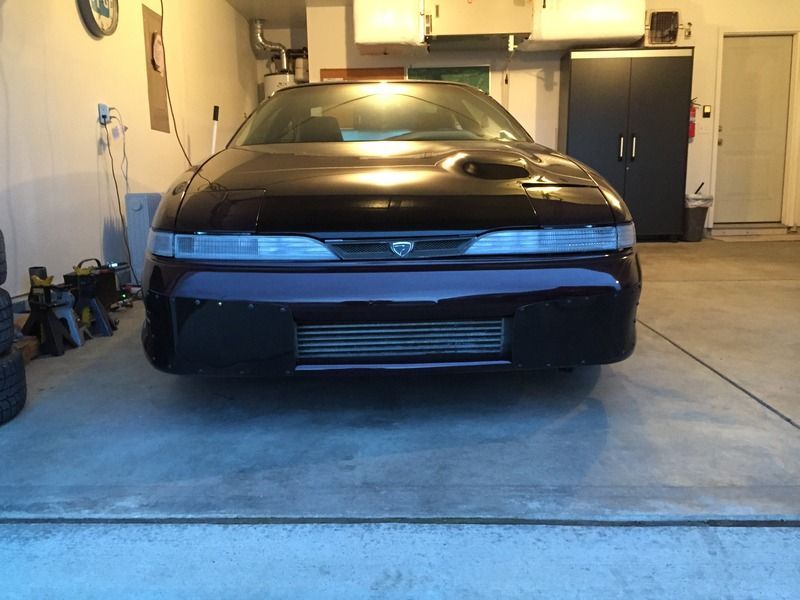

    I'm going to replace the front bumper later this winter with a new one. I didn't sand out all the rock chips as good as I should and it really bugs me.:(

    My new version high to low pressure charge pipe is all mounted and tuck up and now sits higher then the exhaust system so I'm very happy with the results.

    Now my biggest concern is the way this thing looks. It draws a ton of attention and we just had a bunch of young punks racing in our new local parking garage so now all the cops are profiling import cars again. Maybe the fact I'm a old guy driving this thing they will not pull me over?:rolleyes:

    My DSM:
    1991 Eagle Talon TSi AWD

    Street Build

      automatic
    Loading...
  14. rrussell

    rrussell Proven Member

    302
    42
    Joined Jan 7, 2008
    coeur d' alene, Idaho
    There are times I wonder WTF???

    Today my car decided to be a PITA!!!!!!:mad:

    My MAP sensor was acting totally messed up. It would read 42psi at idle and 36psi when the engine was off. I couldn't keep the car running, after about 2 seconds it would just load up and die. I kept thinking I must of change something in the ECU inputs accidentally???

    But after walking away and enjoying a nice dinner and a fire outside I decided to just look at what the map connection's looked like? Then I found this.

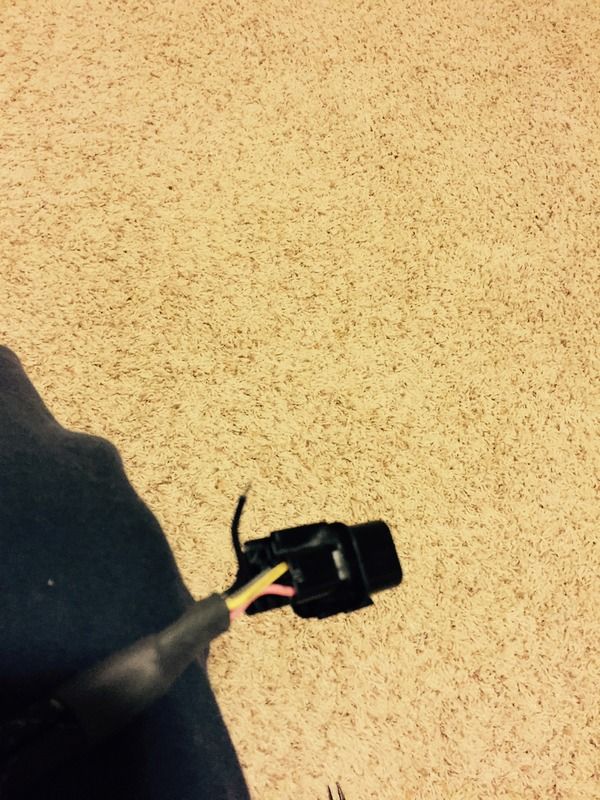

    The ground wire for the MAF to MAP Speed Density cable came out.:mad:

    So now I have my car tore all apart chasing ghost and crap that's not even there.

    My DSM:
    1991 Eagle Talon TSi AWD

    Street Build

      automatic
    Loading...
  15. rrussell

    rrussell Proven Member

    302
    42
    Joined Jan 7, 2008
    coeur d' alene, Idaho
    Update: 5-20-15

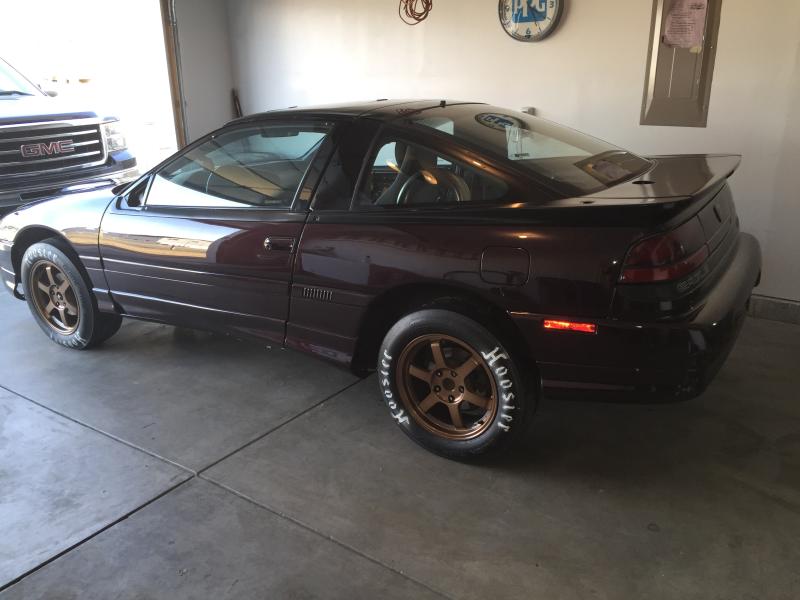

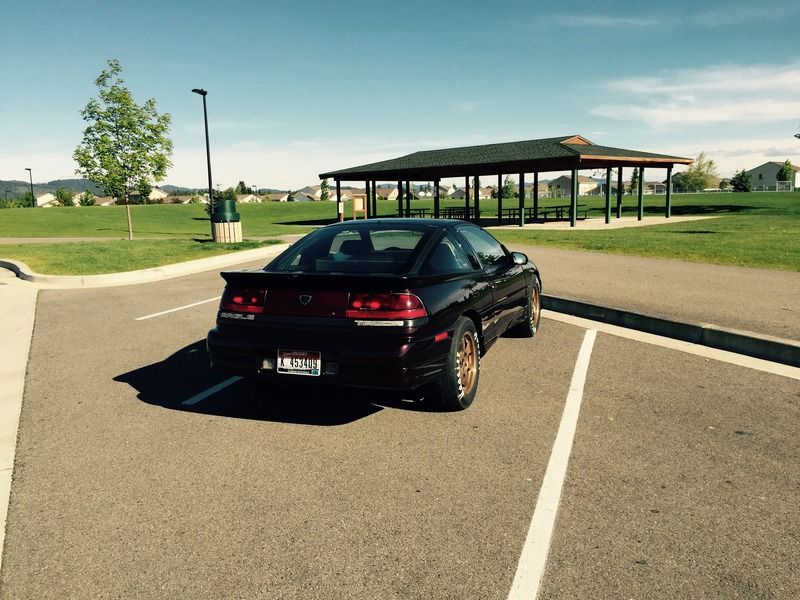

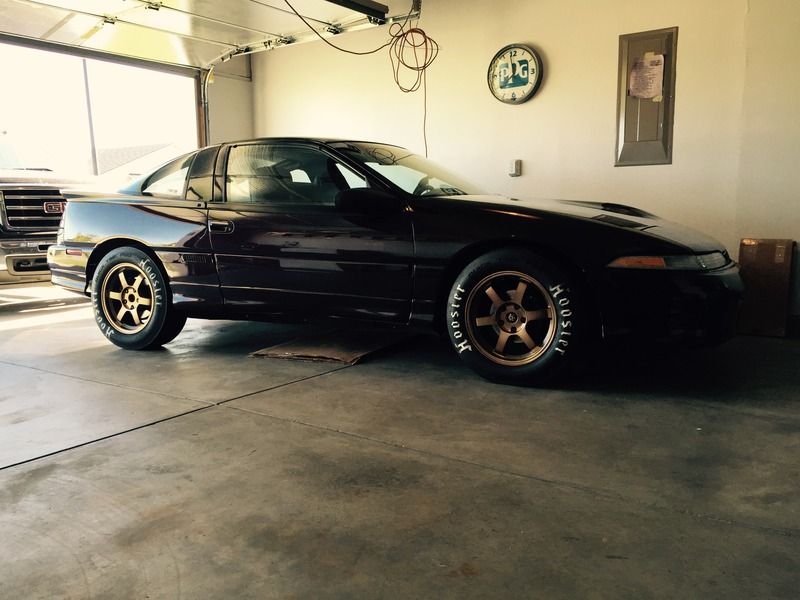

    Been driving the Talon around and rechecking bolts etc. I deiced on the final ride height.

    My DSM:
    1991 Eagle Talon TSi AWD

    Street Build

      automatic
    Loading...
  16. 1twistdtalon

    1twistdtalon Proven Member

    232
    1
    Joined Dec 17, 2009
    Gregory, South Dakota
    Subscribed! Love the shep look and the way you've put it together. Great work, I am excited to see some numbers and run data on the setup!

    My DSM:
    Loading...
  17. redfield102j

    redfield102j Proven Member

    178
    7
    Joined May 12, 2015
    Spring Creek, Pennsylvania
    Looks great.. really like this car.. would also love to here how she runs

    My DSM:
    1991 Eagle Talon TSi AWD

    Street Build

    50trim   manual
    Loading...
  18. Alpha D

    Alpha D Probationary Member

    14
    4
    Joined Sep 16, 2009
    Richfield, Minnesota
    This is So awesome buy a big sheet of white vinyl wrap and skeetch up some stencils for the decals! Did you make your front bumper fog covers yourself or order them? Also your paint is it custom mixed or paint code provided. I dont quite understand the compunt box and small turbo set up i have some reading to do...

  19. kiggly

    kiggly Supporting Vendor

    273
    159
    Joined Feb 17, 2003
    Ann Arbor, Michigan
    Good for you for trying something a little different. ;) That's one of the things that makes these cars so cool - you see some really creative projects! Let us know if we can help out at any point, even if just to answer questions. We've done a few custom projects on our race car too :) Call us any time.

    My DSM:
    1991 Plymouth Laser RS Turbo

    Drag Race Build

    7.942 @ 179.30 MPH
    Loading...
  20. rrussell

    rrussell Proven Member

    302
    42
    Joined Jan 7, 2008
    coeur d' alene, Idaho
    Thanks!!! I should have some numbers next month. I need to finish up the fuel and breather systems next month.
    I can't wait to see what she runs. The boost is instant and it has awesome low end torque. ;)
    I consider it;)
    Kiggly you just made my whole year!!!!!!!!! Thanks for the kind words and the support. I will probably be talking to you soon. I have a feeling I'm going to have to upgrade my transmission.;)

    My DSM:
    1991 Eagle Talon TSi AWD

    Street Build

      automatic
    Loading...
  21. rrussell

    rrussell Proven Member

    302
    42
    Joined Jan 7, 2008
    coeur d' alene, Idaho
    Forgot paint info. Its the factory Mitsubishi code R16 Black Cherry Pearl Coat from 1991. Its PPG DBC code 4043 Concept base coat with DCU2002 Clear with DFX11 Super Charger hardner. I like this clear because in the conditions I shot it in, "my attach two car garage" its not the cleanest environment. This clear drys extremely fast. It was out of dust in about 3 minutes.

    Also thanks to everyone on the complements. Very much appreciated!!!!

    Last edited: May 20, 2015
    My DSM:
    1991 Eagle Talon TSi AWD

    Street Build

      automatic
    Loading...
  22. Alpha D

    Alpha D Probationary Member

    14
    4
    Joined Sep 16, 2009
    Richfield, Minnesota
    That is incredible! Ill be giving it a try most likely around the less windy times of the summer seasons here in Minnesota LOL

  23. kchaazz

    kchaazz Proven Member

    1,121
    62
    Joined Oct 2, 2002
    PENSACOLA, Florida
    This is awesome. Kinda makes me want to try and mount my red under the car in the back, if i could find the space and then put the 18g back on. Wonder if theres enough room...

    My DSM:
    Loading...
  24. rrussell

    rrussell Proven Member

    302
    42
    Joined Jan 7, 2008
    coeur d' alene, Idaho
    I was originally looking into doing a rear mount install. It was really a tight fit with my FP Red though. I was going to have to cut the rear back panel up a little bit. I think my next step is going to replace the FP Red with a BW 366 turbo. I just want a little more power then the FP Red can provide. ;)

    My DSM:
    1991 Eagle Talon TSi AWD

    Street Build

      automatic
    Loading...
  25. kchaazz

    kchaazz Proven Member

    1,121
    62
    Joined Oct 2, 2002
    PENSACOLA, Florida
    Yeah, i was under there looking today and it looks a bit tight, especially after putting an oil tank and pump for the oil back there, i think the way you did it is the only way. Why not just put an FP Black back there instead of that borg? 100 more whp and the hot aide is the same as the red, so you could leave the turbine housing bolted on and just swap the center section of the black right in. Unless youre wanting even more than that hehe

    My DSM:
    Loading...
