How to remove/replace pins in harness connectors


Disclaimer: I am not responsible for anything done to your car/equipment. Use this information at your own risk. It is possible to damage components if you don't know what you are doing and don't use common sense. Keep in mind do these things at your own risk!
That being said, lets get onto the matter at hand:

This article explains how to remove connector pins from the ECU harness connectors (as well as other connectors.) You should note that a majority of the harness connectors employ replaceable pins.

The reason for this article is to help keep wire cutting/splicing to a minimum, not to mention a cleaner, more professional look. Typical uses for removing pins from connectors includes: clutch cut wire install, and knock light install, MAP sensor, MAFT, 90ECU in 91-94DSMs, among many others.

These particular pictures are taken of the smallest connector that goes into my 92 AWD's ECU.

Tools needed:
-very small/ jeweler's flat blade screwdriver
-needlenose pliers
-zip ties(optional)

Step 1

Identify which connector pin you want to remove. Then, using either the screwdriver or pliers, take out the black pin lock retainer that is directly above/below your pin.



Last edited by jesepes; 02-27-2005 at 07:54 AM. Reason: repair pic link

mark post as helpful recommend reputation points    Reply With Quote
Old 02-26-2005, 08:10 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #2 (permalink)
Proven Member


jesepes's Avatar
From: Cincinnati, Ohio
Registered: Oct 2004
Tech Posts: 104
Classifieds Rating: 0
Reputation: jesepes is more helpful than not
Send a message via Yahoo to jesepes

Step 2


Now that the lock retainer is removed, look inside and see the yellow lock engaging the pin; holding them in. This picture shows the 2nd and 5th lock retainers removed.

Last edited by jesepes; 02-27-2005 at 07:58 AM.

mark post as helpful recommend reputation points    Reply With Quote
Old 02-26-2005, 08:14 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #3 (permalink)
Proven Member


jesepes's Avatar
From: Cincinnati, Ohio
Registered: Oct 2004
Tech Posts: 104
Classifieds Rating: 0
Reputation: jesepes is more helpful than not
Send a message via Yahoo to jesepes

Step 3


Every pin has a lock. The black lock retainer forces the locks agains the pins. When it is removed the locks can be moved out of the way so the pin can be removed out the back(by pulling on the wire.) To remove the top pin slide the tip of the screwdriver against the bottom of the upper pin until it hits the lock.

Last edited by jesepes; 02-27-2005 at 08:01 AM.

mark post as helpful recommend reputation points    Reply With Quote
Old 02-26-2005, 08:19 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #4 (permalink)
Proven Member


jesepes's Avatar
From: Cincinnati, Ohio
Registered: Oct 2004
Tech Posts: 104
Classifieds Rating: 0
Reputation: jesepes is more helpful than not
Send a message via Yahoo to jesepes

Step 4


Pry the lock down, away from the pin, and pull on the wire to remove the pin. Do not pull the wire extremely hard, the pin should come out with minimal effort if the lock has been fully disengaged. Otherwise you'll just break the wire or connector. It may take a few tries to pry the lock down far enough to let go of the pin. Also, don't pull the wire before you pry the lock down, because pulling on the wire locks the lock into the pin. (I pushed the wire into the connector just a tad and then used the screwdriver to pry the lock down and then pulled on the wire.)

Last edited by jesepes; 02-27-2005 at 08:05 AM.

mark post as helpful recommend reputation points    Reply With Quote
Old 02-26-2005, 08:31 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #5 (permalink)
Proven Member


jesepes's Avatar
From: Cincinnati, Ohio
Registered: Oct 2004
Tech Posts: 104
Classifieds Rating: 0
Reputation: jesepes is more helpful than not
Send a message via Yahoo to jesepes

Step 5


It is extremely difficult to get the original wire out of the pin, so I recommend you not mangle the pin up by trying. Simply pry open the tangs that are clamped onto the insulation and then put your wire under it and clamp the tangs down with your wire in there.

Since I was doing the DSMLink clutch-cut wire install, I had to completely remove the original wire as per DSMLink instructions. I broke the original wire off at the pin and installed my own wire.

In this picture you will see that I doubled the wire over inside the pin. I did this to reduce the wire being inadvertently pulled out and it gave the tangs more to clamp onto. Bending the tangs more than necessary and bending them repeatedly will fatigue them and they will break off, so be careful.

If you decide to double over the wire like I did, make sure that you make the loop small because if it is too long it will interfere with the lock when you reassemble the pin into the connector.

Last edited by jesepes; 02-27-2005 at 08:11 AM.

mark post as helpful recommend reputation points    Reply With Quote
Old 02-26-2005, 08:46 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #6 (permalink)
Proven Member


jesepes's Avatar
From: Cincinnati, Ohio
Registered: Oct 2004
Tech Posts: 104
Classifieds Rating: 0
Reputation: jesepes is more helpful than not
Send a message via Yahoo to jesepes

Step 6


Finally observe the orientation of the other pins and insert your pin correctly into the connector.

The result is a nice, factory-looking, clean install; no splices, electrical tape, etc. You will see that I looped the original wire back into the harness cover and zip tied the whole assembly to reduce the likelyhood of any extra stress on the wires when I install the ECU and then work it back into the place it goes.

I also added a wire to the pin directly to the left of the orange wire I installed in this "How-to."(That one is for the knock light I installed months ago.) I bet you didn't even notice until I mentioned it because of the clean look.

I hope this helps at least SOME people, and remember most connectors have replaceable pins. The clutch switch has a rear-release lock(put screwdriver in next to wire and then pull wire to remove pin. That connector has standard blade/socket connectors. Just remove the insulation on any socket, crimp it on a wire, and install into connector in place of original(or whatever your procedure calls for.)

If this info helps you I'd be glad to hear about it. Please feel free to PM me and let me know you thought this was a good tech article or not.

Extra pics: 1 ,2 ,3 ,4 ,5 ,6

Good luck,
-Jesse

Last edited by jesepes; 02-27-2005 at 08:27 AM.

mark post as helpful recommend reputation points    Reply With Quote
Old 02-03-2008, 01:38 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #7 (permalink)
DSM Wiseman


steve's Avatar
From: St. Charles, Illinois
Registered: Feb 2002
Tech Posts: 11,494
Photos: 12
Classifieds Rating: 21
Reputation: You can trust this leader of the site

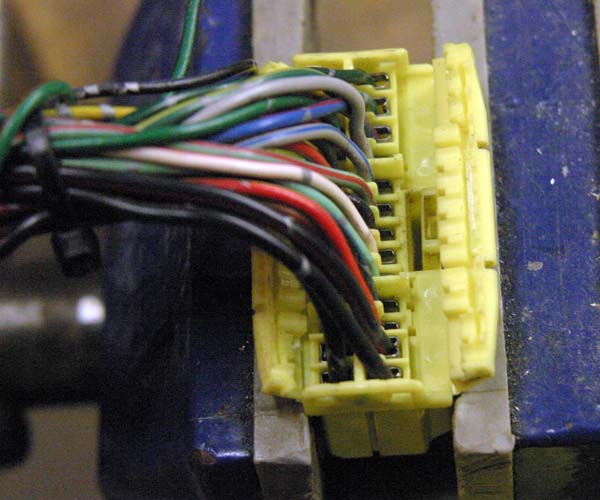

The 2G connector works slightly different.

Rather than the black locks for each set of pins like the 1G connector, the 2G connector has a top and bottom lock on the back of the connectors you have to open first.



Then you insert a flat blade jewelers screwdriver into the front of the connector, slide it along the top of the and lift up the retaining pin to release the wire and pull it out the back.


Last edited by steve; 02-04-2008 at 04:38 AM. Reason: spelling and clarity
Visit steve's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 02-04-2008, 01:30 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #8 (permalink)
DSM Wiseman


Defiant's Avatar
From: glorious Galt, California
Registered: Jan 2003
Tech Posts: 25,202
Photos: 8
Classifieds Rating: 2
Reputation: You can trust this leader of the site
Or, if you plan on doing this job more than once, GM makes the Computer Command Control Wire Terminal Removers kit (CCC Kit), and Snap-On has the TT600 kit. Both are expensive, of course. And sadly, there doesn't seem to be a supplier for the most necessary accessory for this job, which is arms like a spider monkey. Two sets.
Attached Images

Visit Defiant's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 02-04-2008, 08:32 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #9 (permalink)
DSM Wiseman


steve's Avatar
From: St. Charles, Illinois
Registered: Feb 2002
Tech Posts: 11,494
Photos: 12
Classifieds Rating: 21
Reputation: You can trust this leader of the site
Interesting set of tools but as much as I like buying tools this much cheaper solution is all that's required. It's only $6. Click on the picture.

Visit steve's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 11-10-2008, 07:45 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #10 (permalink)
Moderator


turbosax2's Avatar
From: Glenshaw, Pennsylvania
Registered: Nov 2006
Tech Posts: 3,161
Photos: 25
Classifieds Rating: 20
Reputation: You can trust this leader of the site
Send a message via AIM to turbosax2
I'm not sure what year they changed the connector styles, but my '99 has different connectors than the ones Steve posted in post 7. Instead of having top and bottom locks, they have an integrated lock. The lock is the white portion on the connector. Before you can remove pins, you first must raise the lock with a small screwdriver.

Click image for larger version

Name:	IMG_6914.jpg
Views:	5497
Size:	66.5 KB
ID:	89231

Click image for larger version

Name:	IMG_6917.jpg
Views:	5459
Size:	33.4 KB
ID:	89232

Click image for larger version

Name:	IMG_6918.jpg
Views:	5454
Size:	32.3 KB
ID:	89233

Click image for larger version

Name:	IMG_6919.jpg
Views:	5451
Size:	27.9 KB
ID:	89234


____________________________
-Eric
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 07-26-2011, 09:30 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #11 (permalink)
DSM Wiseman


steve's Avatar
From: St. Charles, Illinois
Registered: Feb 2002
Tech Posts: 11,494
Photos: 12
Classifieds Rating: 21
Reputation: You can trust this leader of the site
The images are missing from the start of the thread. You can refer to these when reading jesepes posts.

Since I'm removing the top pin, first remove the block pin retainer lock.
Then sliding the 1/16" flat head screwdriver in between the two pins I gently push the pin retainer down from the top pin and while holding it off the pin pull on the wire from the back.

In that last few pictures you can see the plastic pin retainer in the connector once the pin has been removed.
Attached Thumbnails
Click image for larger version

Name:	IMG_9786s.jpg
Views:	423
Size:	27.9 KB
ID:	125551

Click image for larger version

Name:	IMG_9797s.jpg
Views:	417
Size:	26.2 KB
ID:	125552

Click image for larger version

Name:	IMG_9787s.jpg
Views:	414
Size:	28.5 KB
ID:	125553

Click image for larger version

Name:	IMG_9788s.jpg
Views:	418
Size:	28.8 KB
ID:	125561

Click image for larger version

Name:	IMG_9790s.jpg
Views:	419
Size:	33.4 KB
ID:	125562

Click image for larger version

Name:	IMG_9789s.jpg
Views:	417
Size:	26.7 KB
ID:	125563

Click image for larger version

Name:	IMG_9792s.jpg
Views:	414
Size:	36.0 KB
ID:	125564

Click image for larger version

Name:	IMG_9794s.jpg
Views:	412
Size:	24.6 KB
ID:	125565


Last edited by steve; 01-28-2012 at 05:43 AM.
