1994 EVOLUTION II RWD from Sweden

[KHRacing]

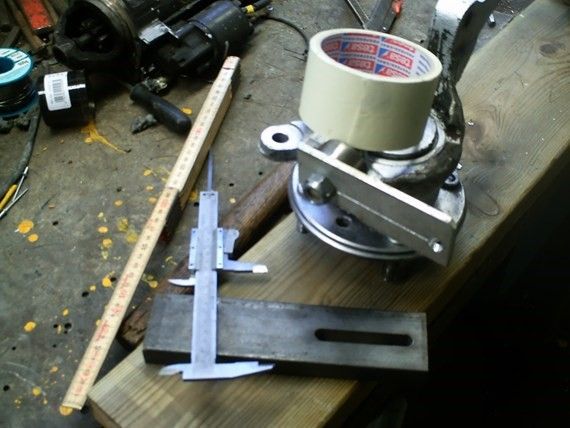

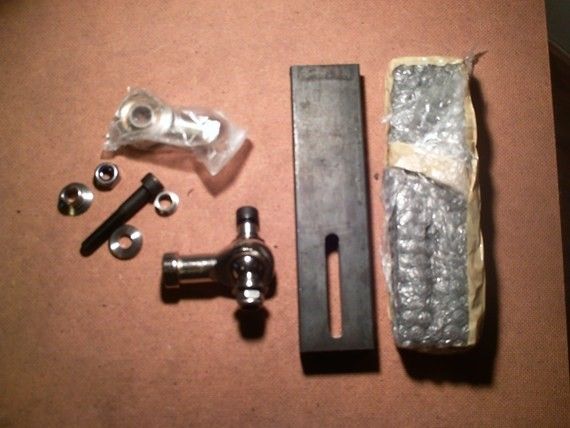

Finally got my specially ordered steeringkit, which will be welded onto the knuckles. O this will give me free/adjustable steeringangle between 30-62degrees.

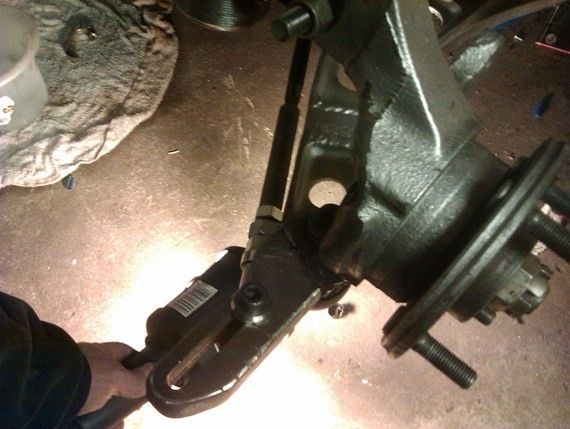

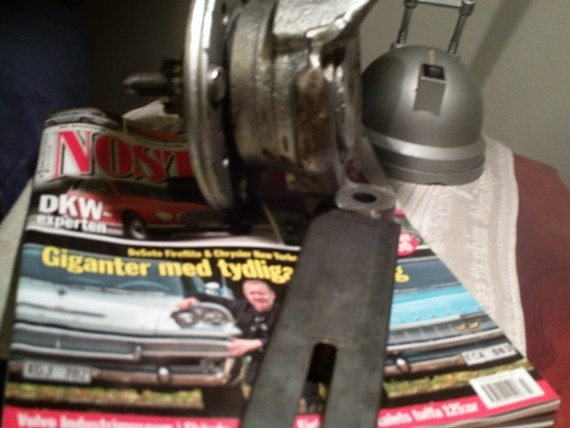

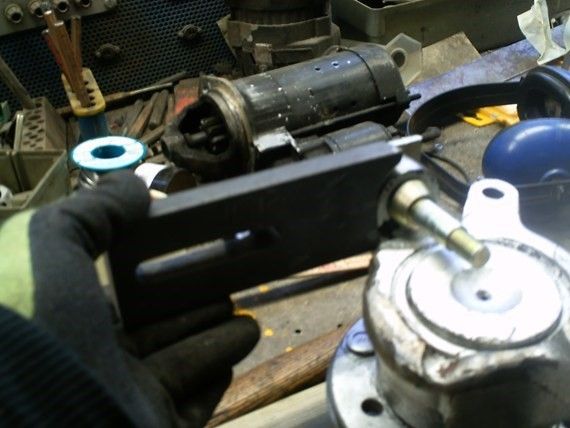

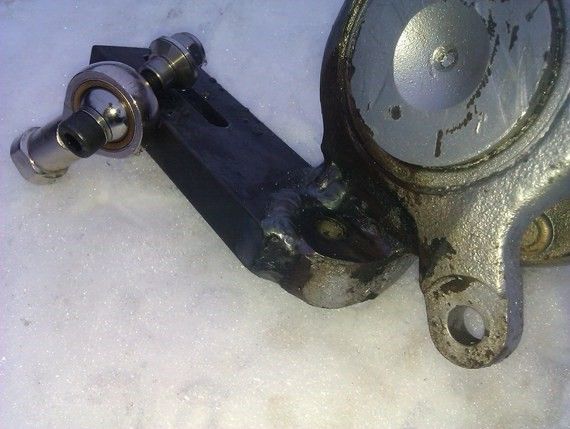

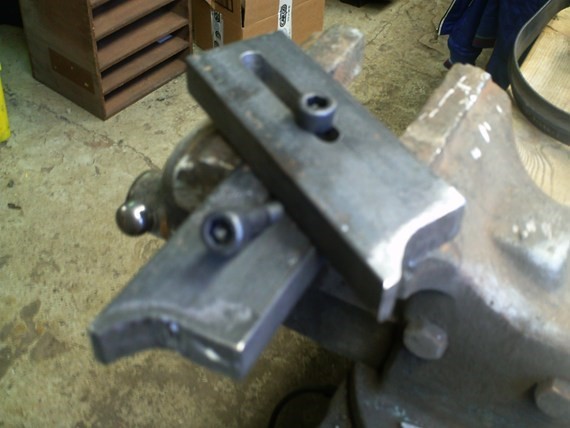

here is how it will be welded to the knuckle, will just adjust the lenght first.

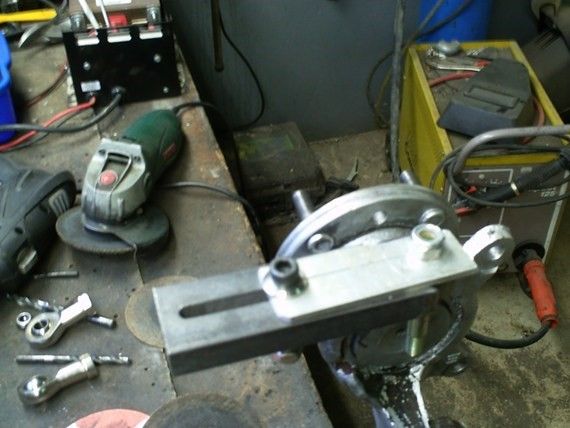

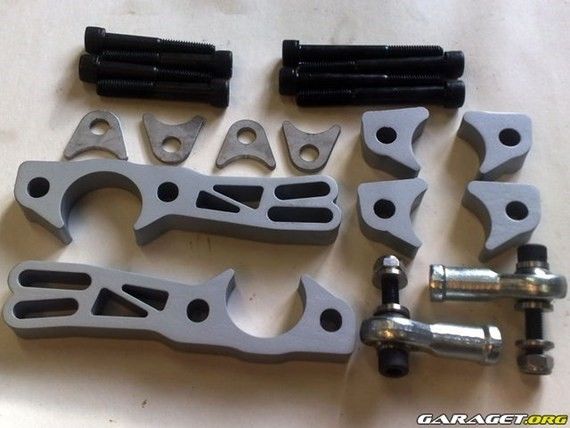

Heres a picture of a Volvo steering-kit he makes for the Volvo 700/900 series:



[KHRacing]

Stared the final modefication of the knuckles:

cut the "arms".

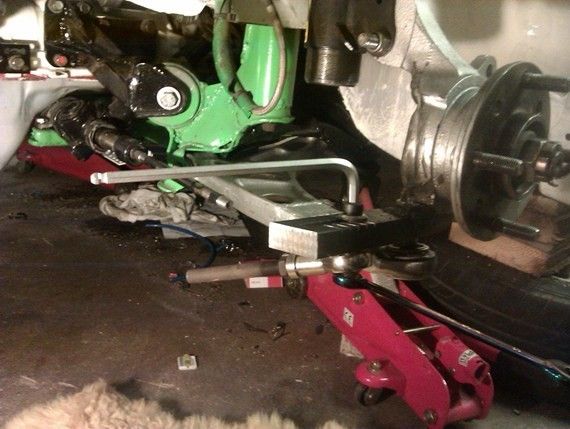

testfitting:

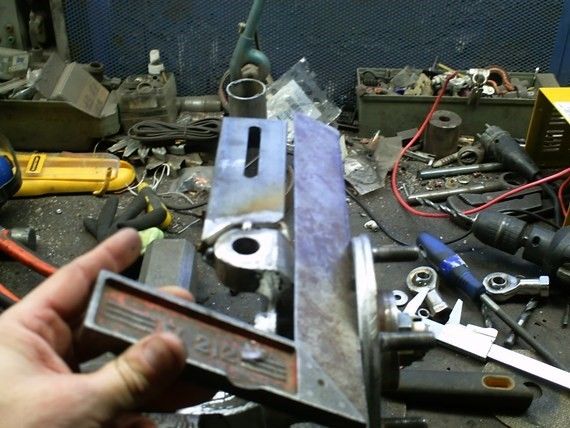

measuring to 100%.

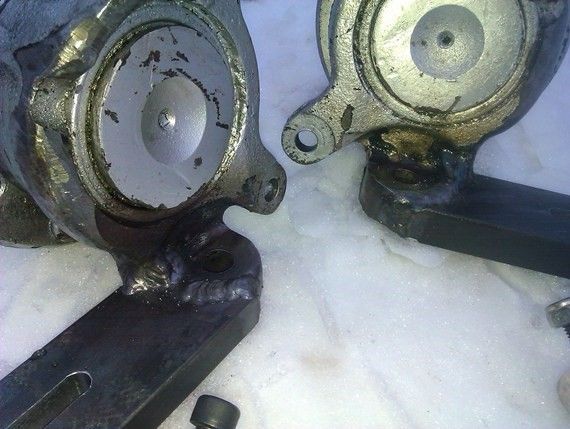

Spotwelded:



[KHRacing]

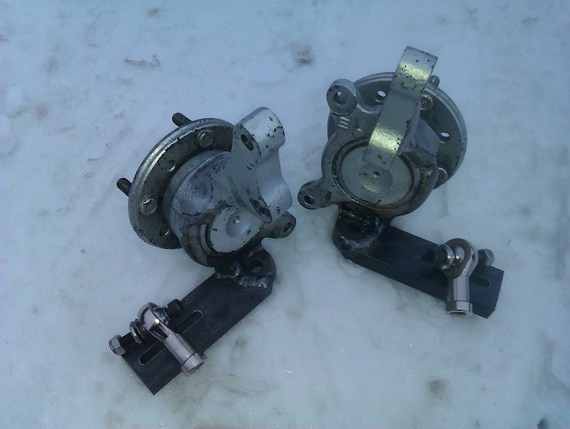

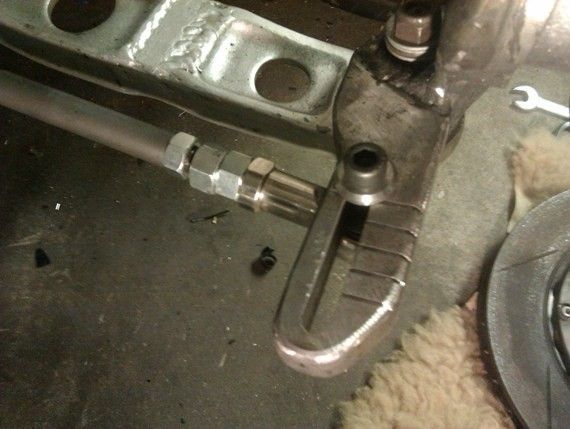

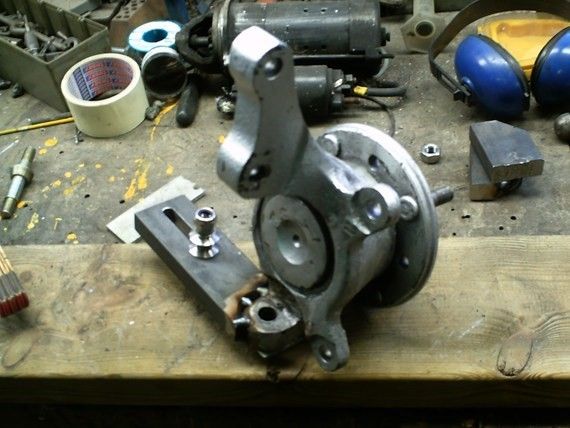

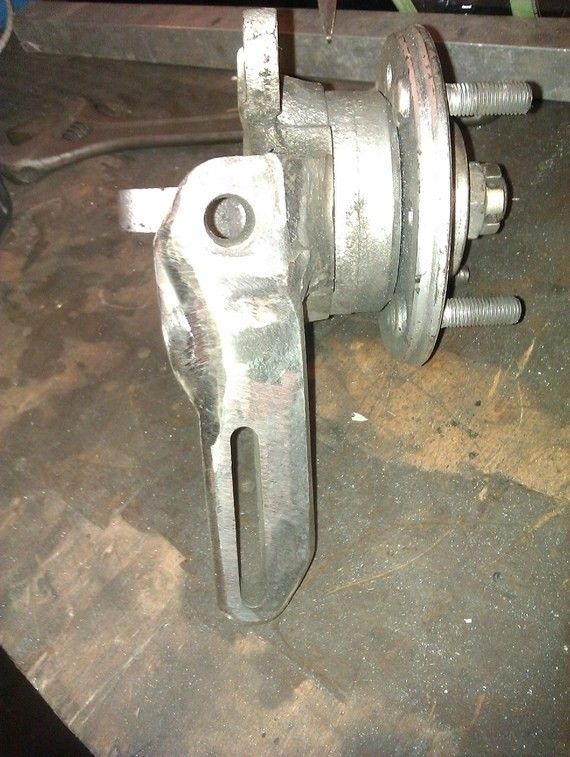

All done:



[KHRacing]

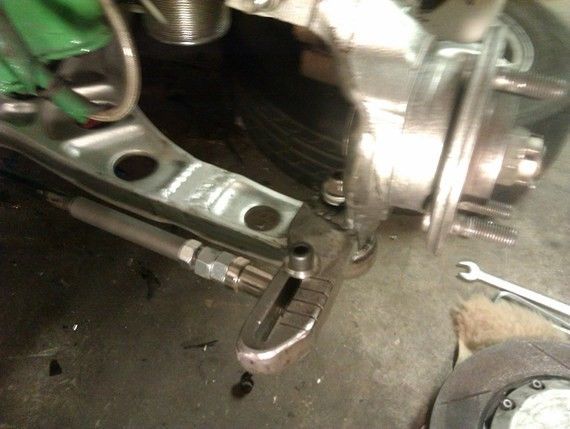

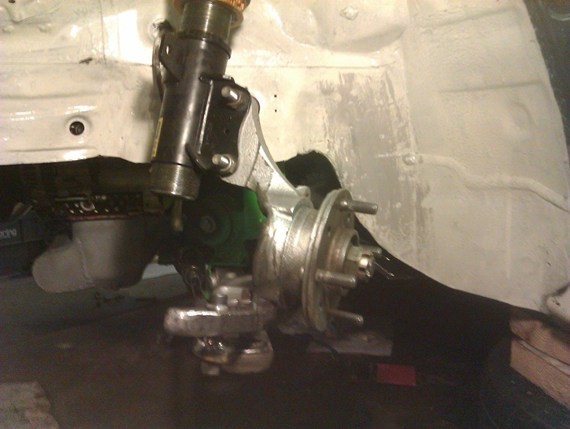

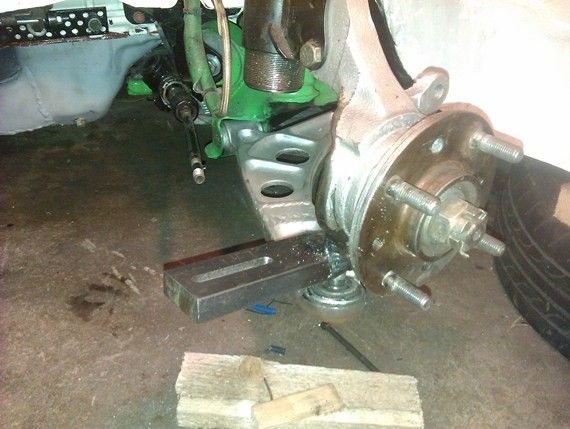

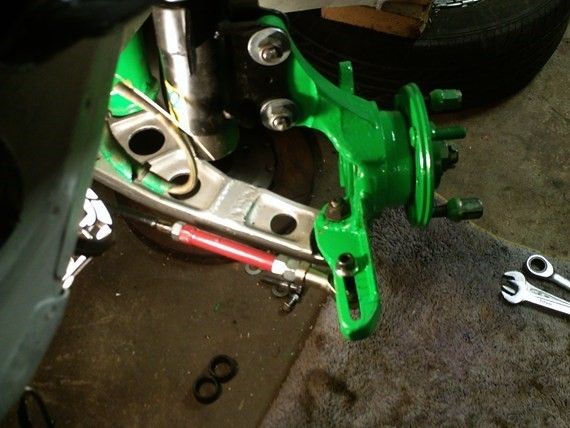

Testfitting the knuckles:

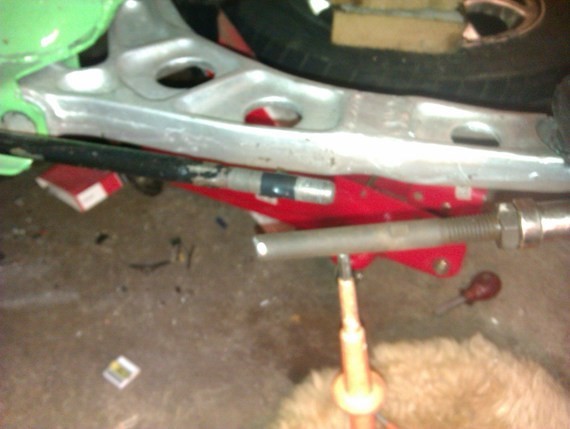

Stock EVO streeringaxle still inplace with outer part of an steeringaxle from an Volvo 740 (m14x5) in place

here you see how much i need to cut the outer part & then machine an "extenderbolt" that fits between these to steeringaxles.



[KHRacing]

Today i took a few hour after work to make everyting that has to do with the steering done.

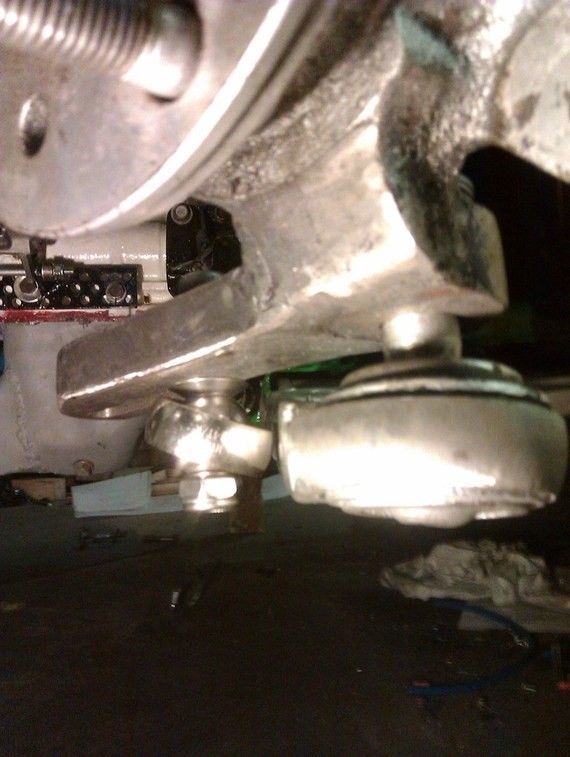

cut down the welded-on steeringaxle so that nothing rubs, it has a small tendency to rub the UNIBALL onto the welded arm.
This way i dont have to lowe the UNIBALL any moore.

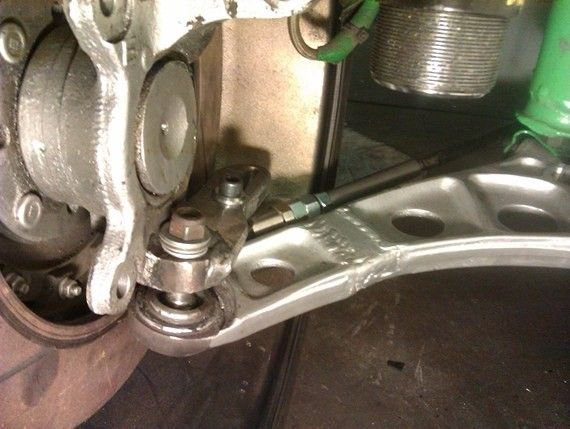

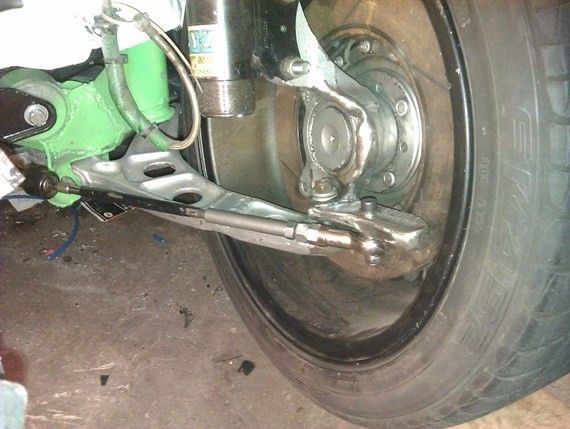

Here fitted with maximum steering possibilitys:

Max right turn:

Max left turn:

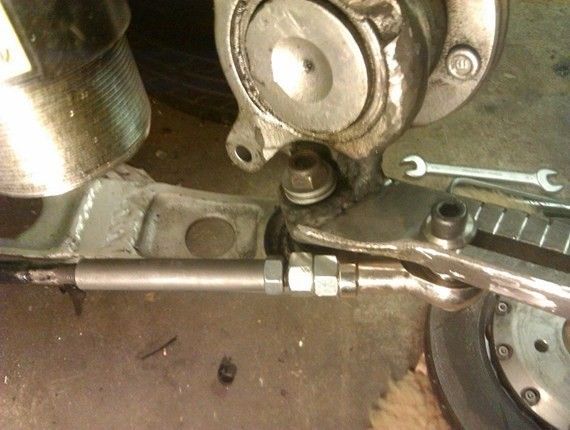

Seen from above, steeringarm does not rub controlarm.

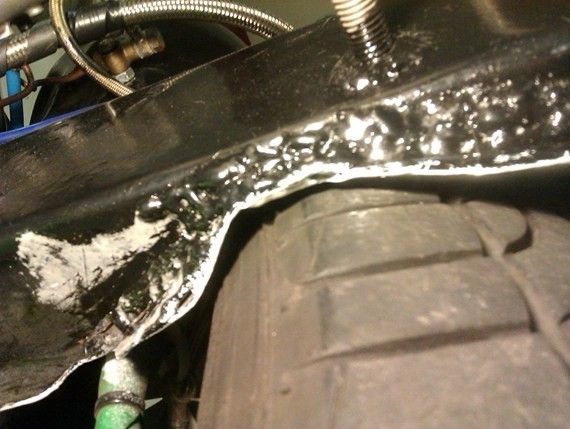

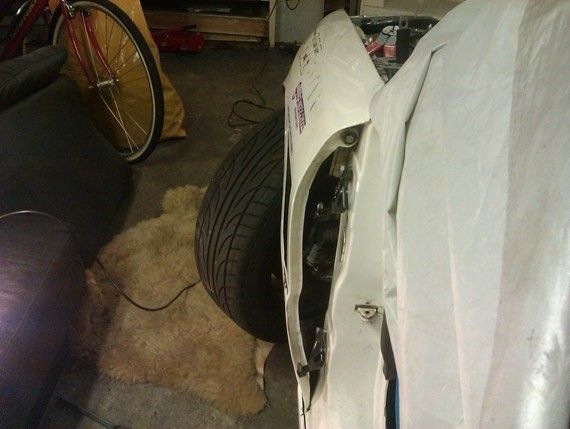

Max turn left, the inner wheelwell is "modifyed" for Right & Left turns o both sides. Seen from below:



[KHRacing]

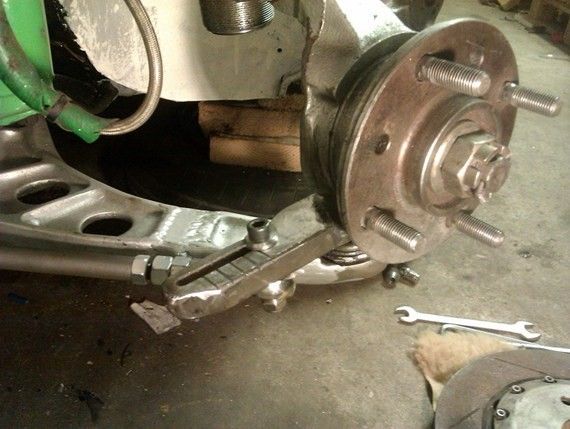

Steering all done:



[KHRacing]

Some more done to the car...

Been waiting 4-ever for the guy that built my electrical system, but hes promised to take care of whats left to to b4 startup soon...

Made the new wingfasteners today, not an easy task id say, the wing is 143cm wide, but the bootlid is only 124,5cm wide, so the fasteners had to be made with "special" angles to suit my own style

The style will be the same as the V8 Supercars from Australia, but a "bit" higher placed. Total heigh will be just over 46cm.

Also picked up a few new sponsors:

DipYourCar.se
www.dipmasters.se
EVO Formance
dinmontage.se

My EVO will be dipped with Plasti-Dip within a few days i hope & the color, well, lets just say. you wont have a problem telling its my car...

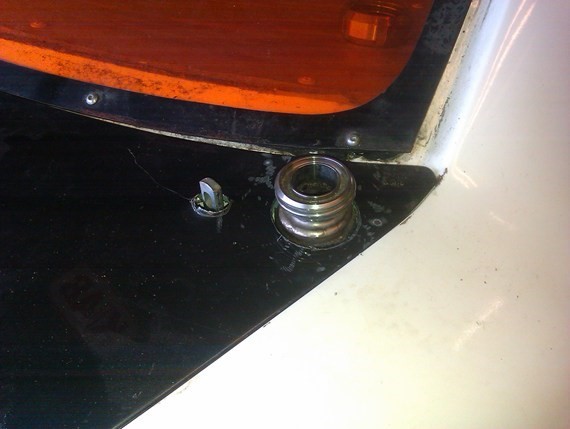

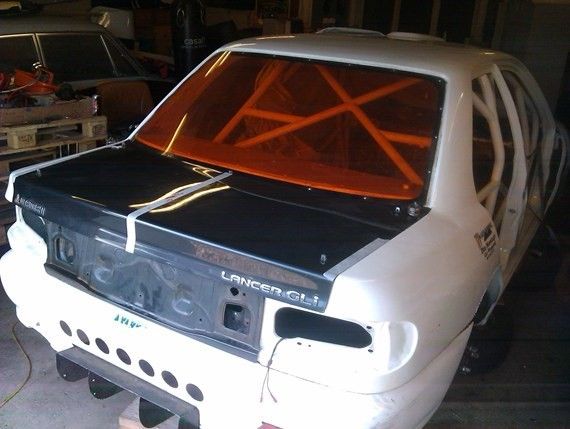

New bootlid from an Lancer GLXi, drilled all the holes for the
safetypins & the fuelcap:

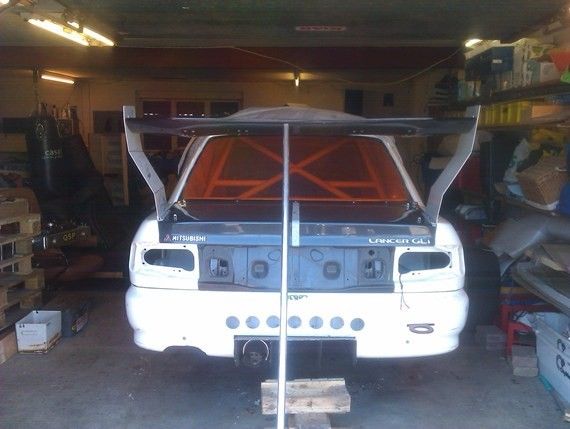

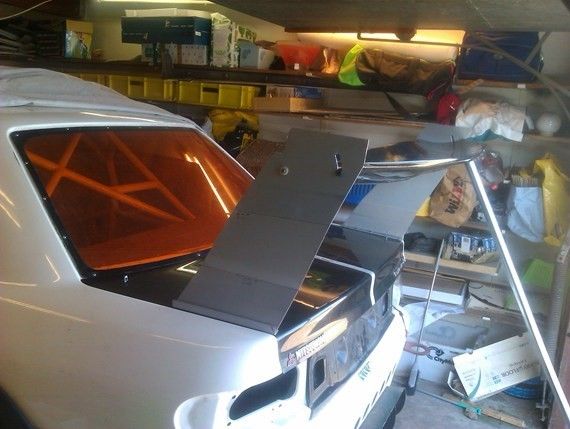

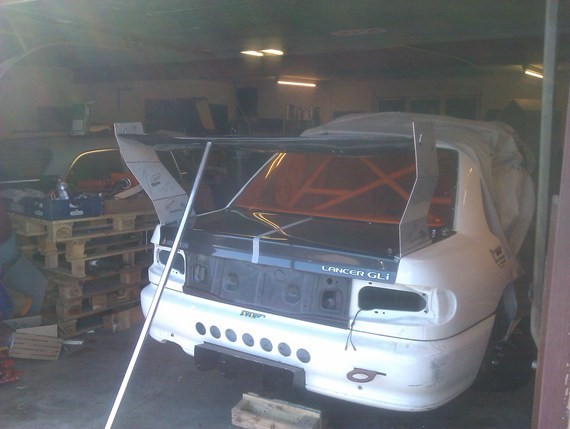

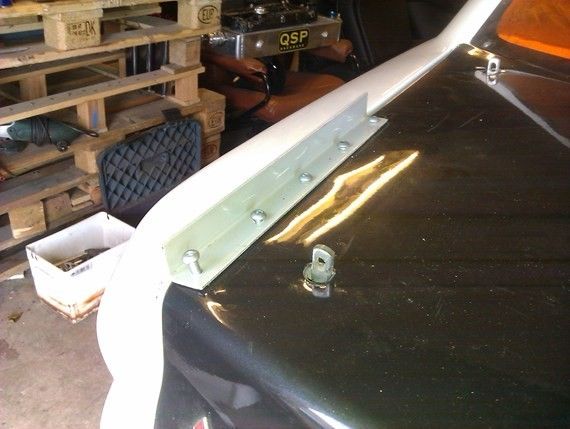

Fastenes for rear wing all measured up for cutting & beeing bent to
make them get the exact right angles:
:

Smal angled 3mm alu-plate will hold the fasteners in place
= easy to remove if nessecary:

Just some pixs

Hoping someone likes....

Also fitted 4strobe lights in the rear window:



[KHRacing]

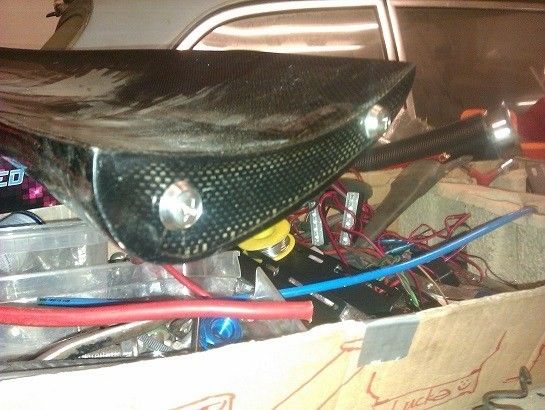

Found some really cool washers that i have been searching for, for a while.
fits perfectly for the rear wing & the 8mm bolts that hold the seats to the brackets.

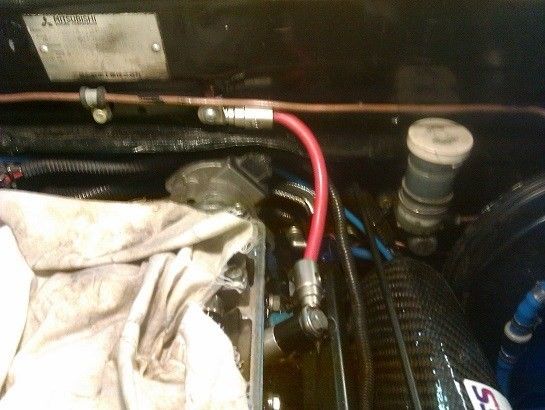

Also made 3 new groundcables for the engine/block/gearbox

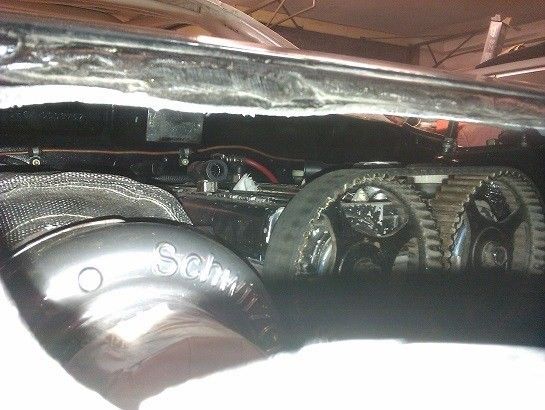

Clearance between hood & camgears is quite alright:

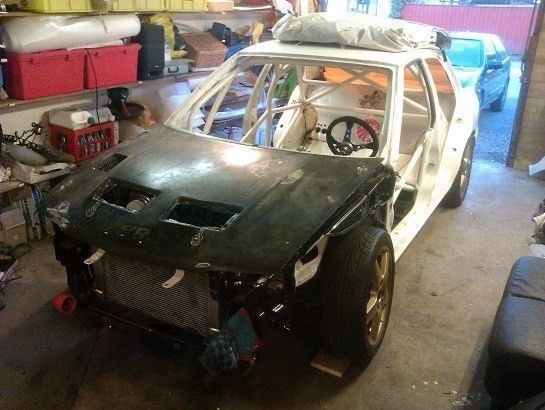

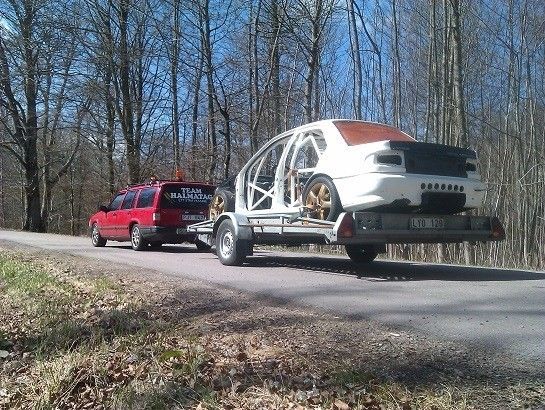

All fixed up for delivery to the painter:

On the way to get Plasti-Dipped @DIPMASTERS @ FACEBOOK



[9!'clipseDOHC]

WOW! There is a crazy amount of fab work in this build! Very impressive!



[KHRacing]

WOW! There is a crazy amount of fab work in this build! Very impressive!

Thanxs, you got yourself a nice car too.



[KHRacing]

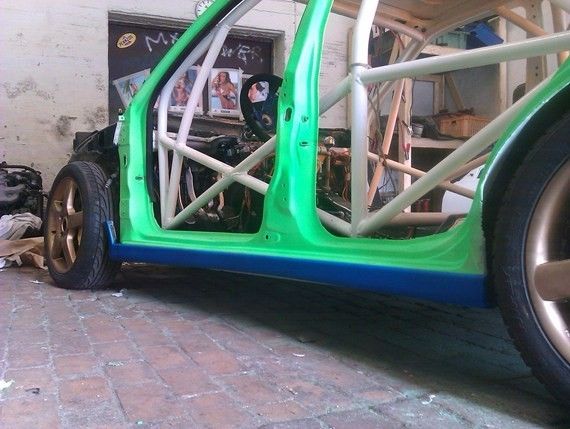

sideskirts:

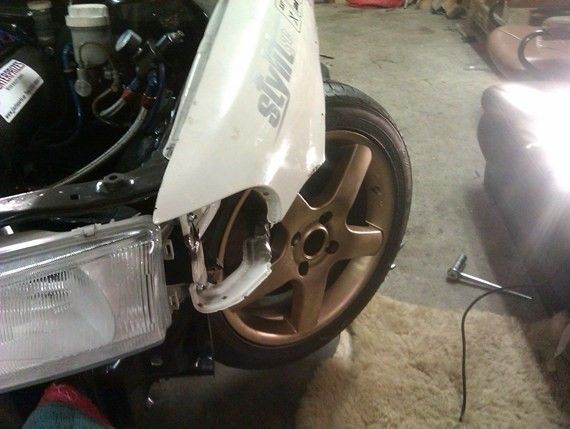

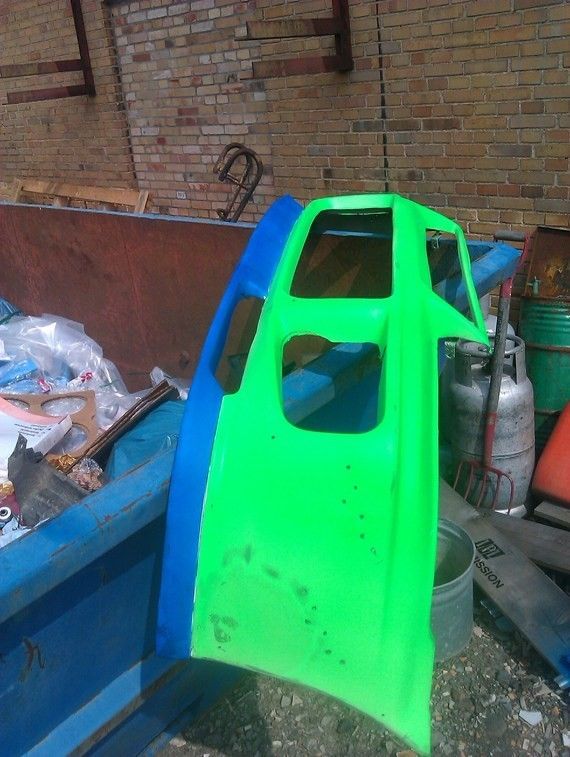

front spoiler with lip:

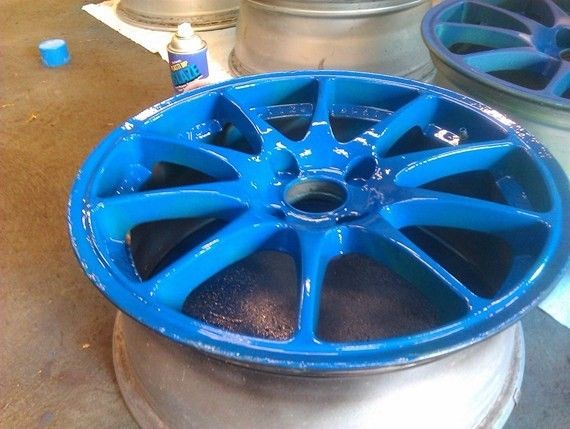

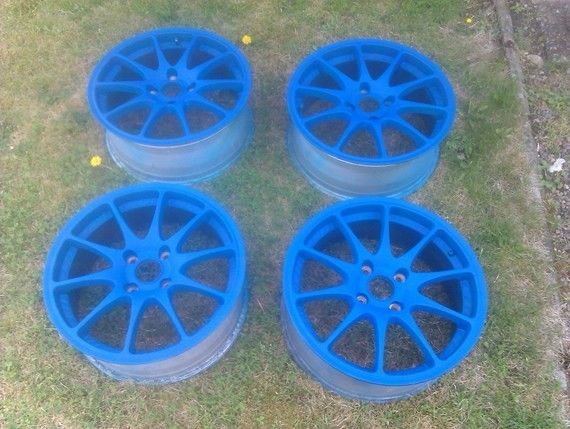

A little prewiev of the rims:

And the ready rims:



[KHRacing]

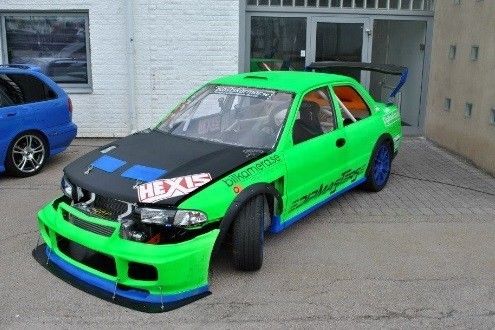

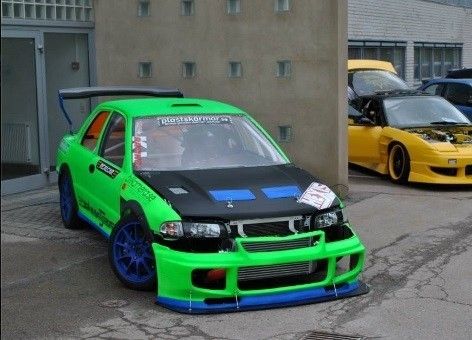

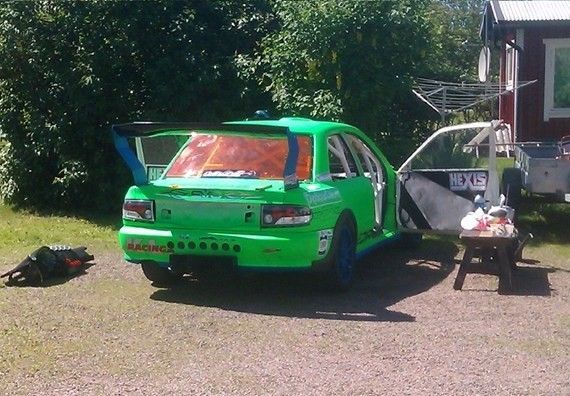

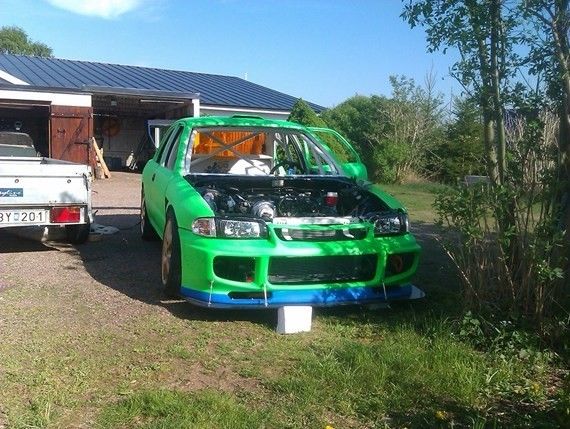

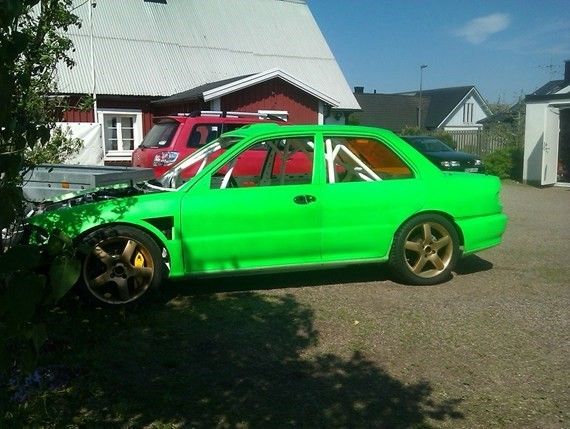

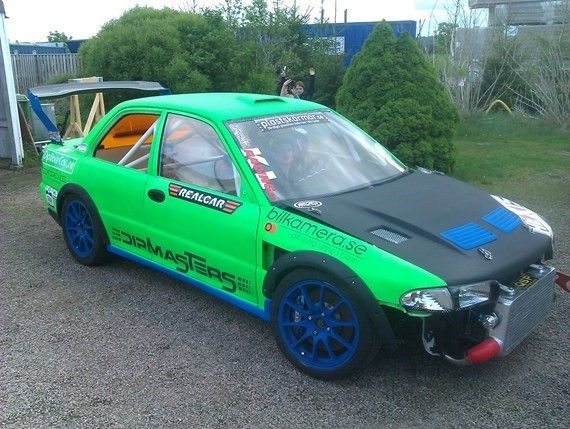

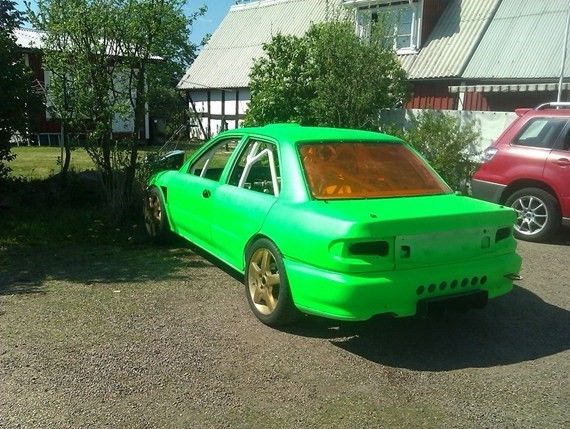

After 7 layers, also at home at last again:

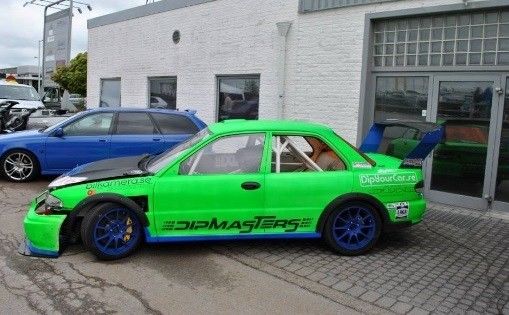

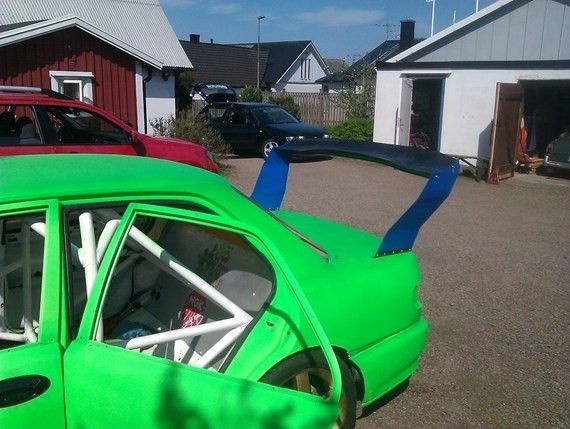

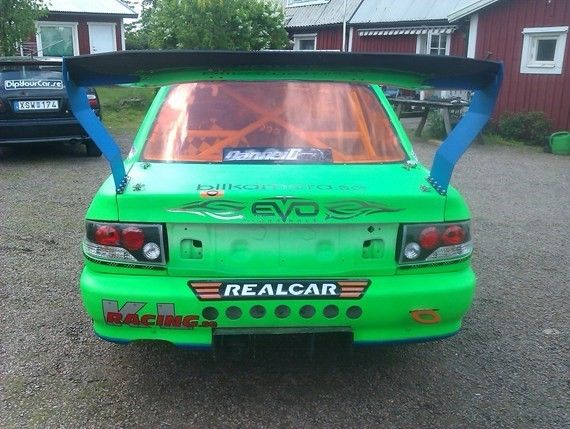

Rear wing on.

Frontspoiler, new headlights & indicators on.

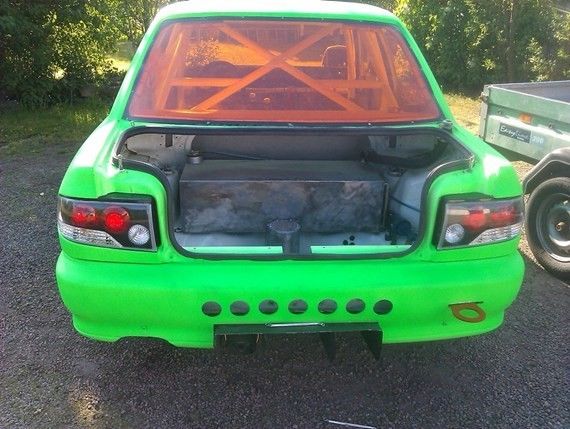

new rear light, strangly. the lights on the trunklid did not fit at all :-(

My personal mechanic.



[arrowhead]

Your car sure will be easy to spot, very colorful, even your personal
mechanic looks good.



[KHRacing]

Your car sure will be easy to spot, very colorful, even your personal
mechanic looks good.

Thanxs man !.



Visited a stop at the GUMBALL 3000 race 2013 yesterday, at the Coenigsegg factory, a lot of pretty cool cars, including an american Rally Fighter (yess, thats its name) & two Coenigseggs, 1 new McLaren ... etc The Batman "Tumbler" was nowhere in sight though.

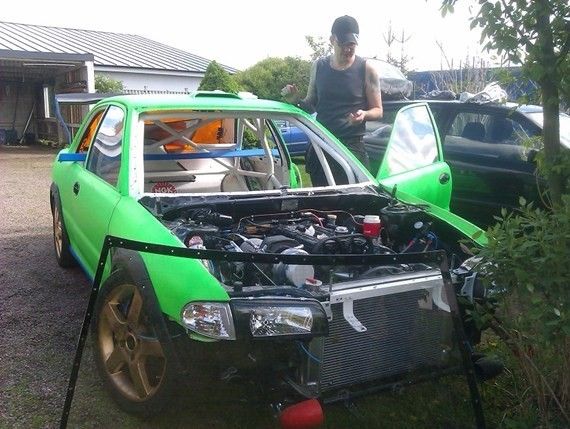

put togehter he EVO a bit more...

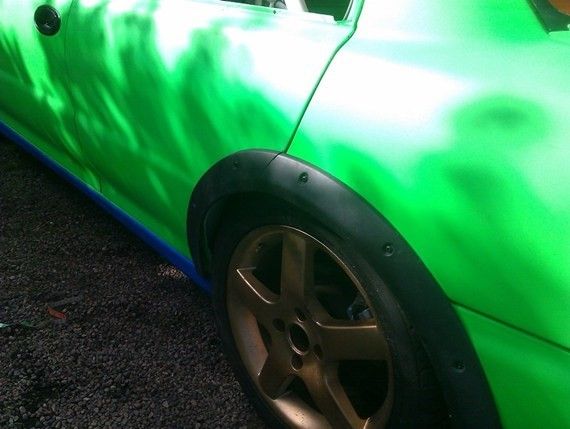

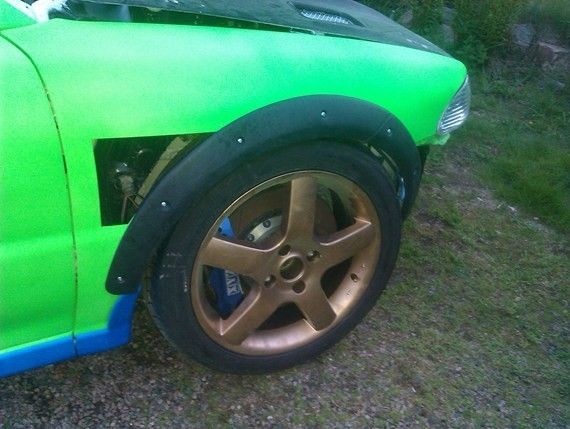

Sandra fits the rear arches:

finnished the days work at 23.00



[phizzalot]

Looks Real Good KHR!!! Keep it up, and make sure to invest in some go-pro video equipment for your runs! Would be cool to see it putting in work.



[KHRacing]

Thanxs my friend, not a big fan of the GoPro though.. but i actually have a
total of 11 different cameras i use

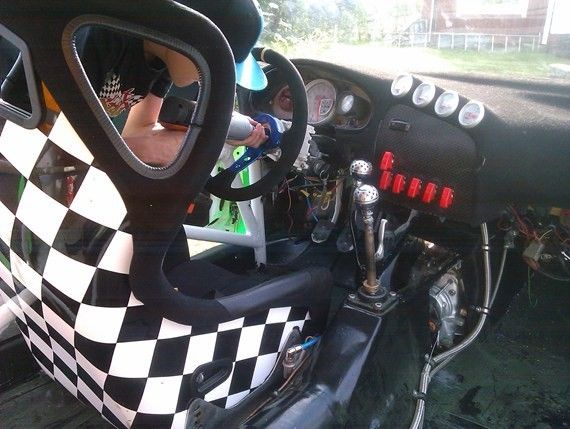

Today Fredrik helped me out with the dooradjusting, windscreenfitting & a lot more.

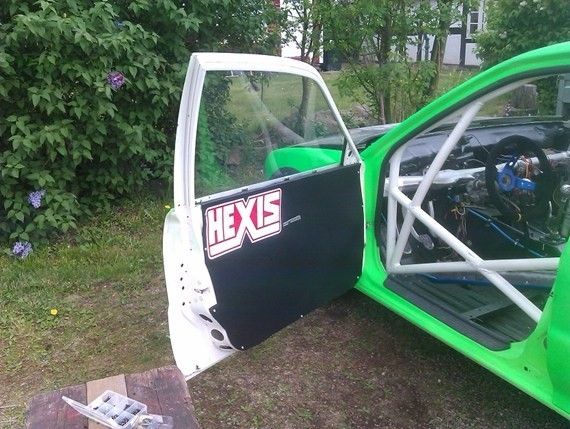

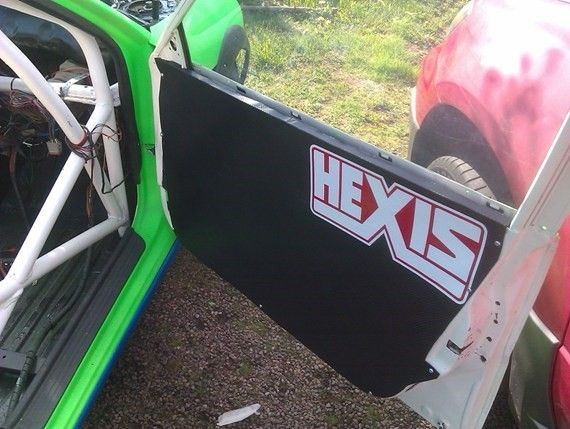

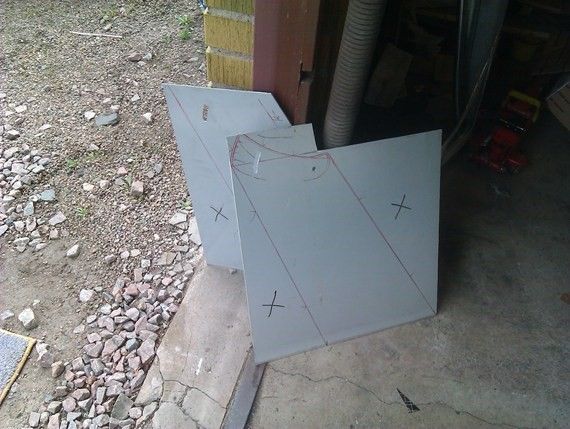

all the doorcards are made from flat 0,5mm alu-plates, they are now all
wrapped in 3D carbonvinyl.

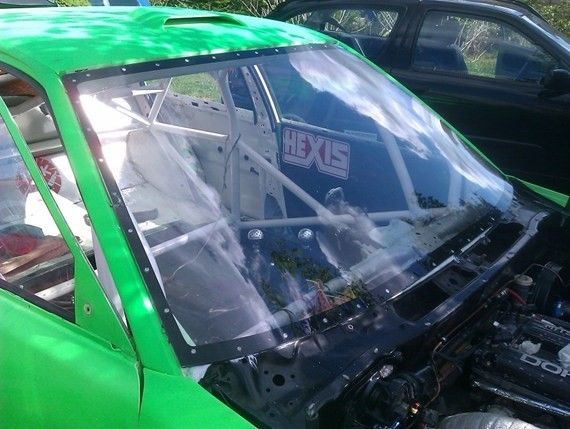

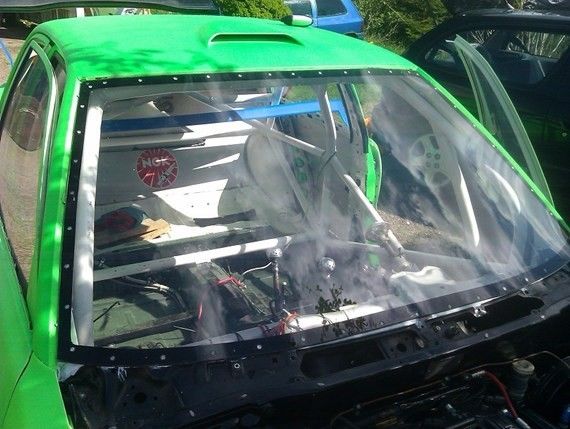

Fredrik about to install the 5mm Lexan scratchfree windscreen:

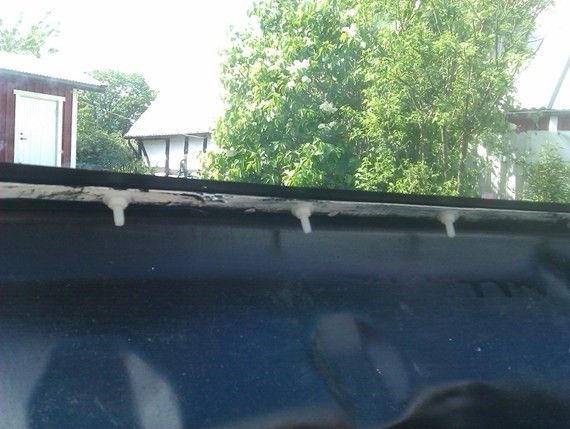

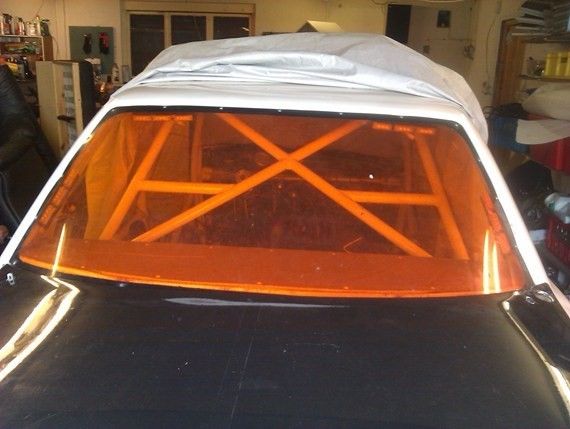

46pcs M4 x 18mm vinyl bolts/wachers/nuts holds the windscreen in place.

All the bolts are lowered into the plasic, so non stick out!

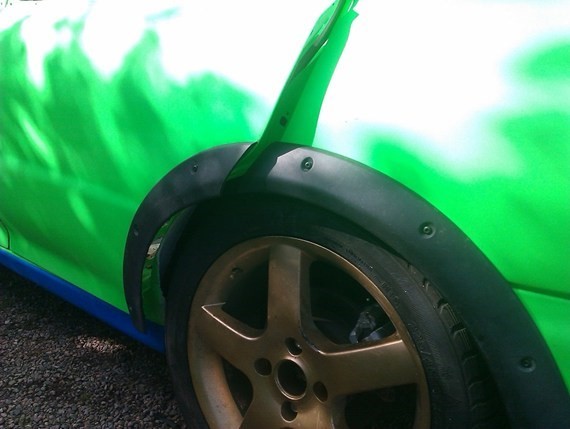

Rearmounted arches cut so the rear doors open.

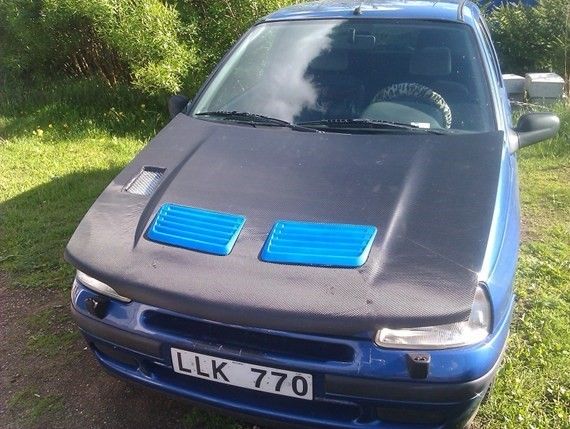

Marcus helped me out yesterday evening with wrapping the fiberglas hood:

The result:



[KHRacing]

VIDEO0020 - YouTube



[KHRacing]



[KHRacing]

spent som 5 hrs in the sun a few days ago fixing the electricals...

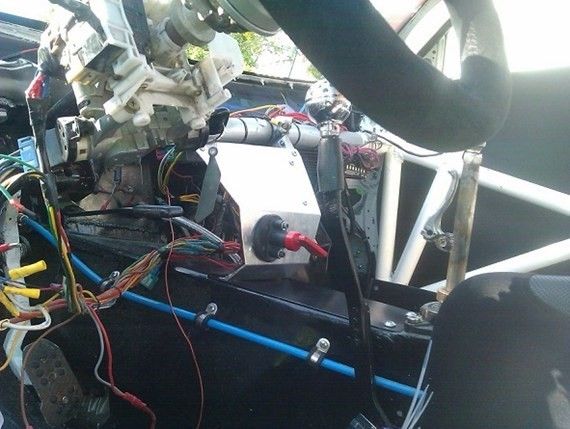

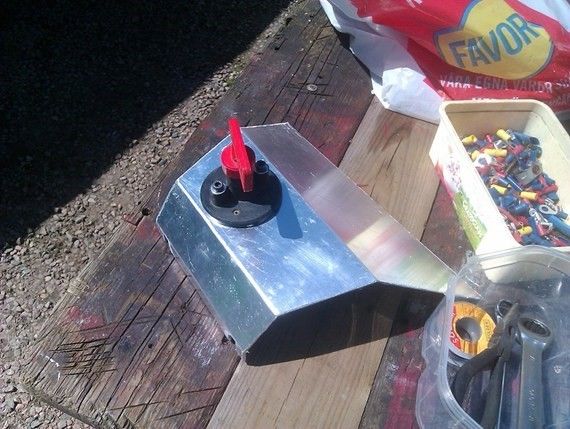

Made a plate for the main power switch:



[KHRacing]

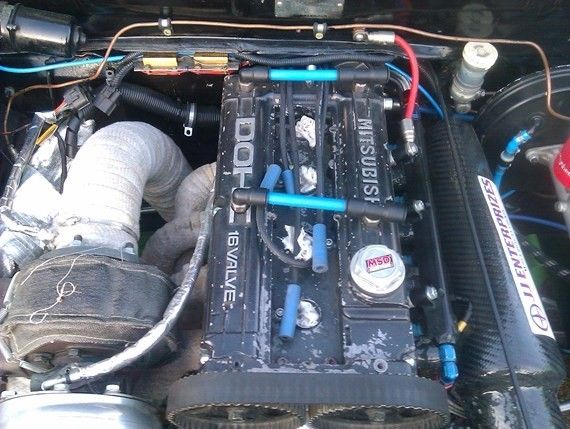

Enginework today...

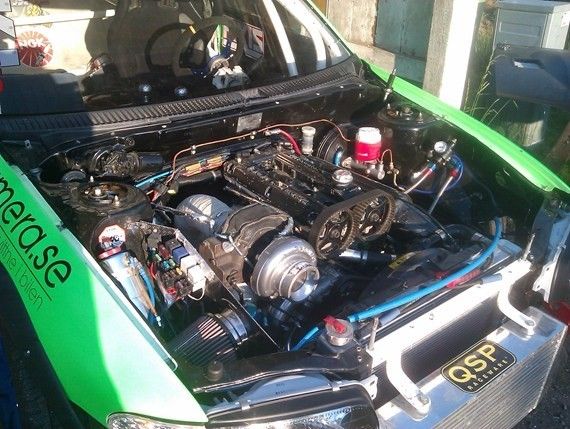

ignitioncables in Place, + the hoses for the valvecover ventilation !



[KHRacing]

ITS ALIVE

evo2013 - YouTube
