Holset Turbos, PART 7


Continue on...

For more discussion history:
Link to Part 1:
Holset Turbos - DSM Forums

Link to Part 2:
Holset Turbos, PART 2 - DSM Forums

Link to Part 3:
Holset Turbos, PART 3

Link to Part 4:
Holset Turbos, PART 4

Link to Part 5:
Holset Turbos, PART 5

Link to Part 6:
Holset Turbos, PART 6

For in vehicle results:
Link to Results Only:
Holset Turbos, RESULTS ONLY (COMPLETE INSTALLED SYSTEMS)

Link to HX-52 setup;
Holset Volvo HX-52 Dyno Sheets

For more specific component discussion:
Link to Holset Part #'s:
Holset Part # Thread Only!!!!

Link to Holset oil feed discussion:
Holset HX-35 Oiling
Garrett & Holset Turbo Users - Your Oil Drain May Be Too Small!

Link to Fake Holset Info:
Counterfeit Holset Turbos

Summary provided by wiseman, Dsm-onster:
HX35:

The 8blade hx35 has a 56mm compressor inducer. This is found on 1995-1998 cummins manual pickups. The compressor flows 52 lb/min according to the compressor map. The bolton BEP housing (0.55 a/r) is enough to push the limit of the compressor. There's several 500whp 8blade hx35 cars out there with the bolt on housing. It reaches 20+psi by 3500rpms in 3rd with 272 cams. Smaller cams would equal a faster spool speed in most cases.

The 7blade hx35 has a 56mm compressor inducer. This is found on the 1999-2002 cummins manual pickups. The compressor flows 60lb/min according to the compressor map and logged results from a member here. The bolton BEP housing with the hx35 turbine wheel do not SEAM to have enough flow to really reach the potential of 60lb/min. But many have logged over 50lb/min so far and seen 500whp. The stock hx35 12cm^2 twinscroll turbine housing is a t3 flange housing. This mated to a NON-divided runner manifold has produced a 132mph trap speed with a full weight 1g AWD. This is about 600whp. So the flow is there with the stock housing if you use a non-divided manifold. The spool speed of the 7blade hx35 is similar to the 8blade hx35 with 20+ psi by 3500rpms in the bolton housing and by 4000rpms with the stock housing with a non-divided manifold.

HY35:

The hy35 has a smaller turbine wheel than the hx35. And, it has a turbine housing connection that does not allow for a bolton housing to be used. It does not have a divided housing so any t3 manifold can be used effectively with this turbo. It has the same compressor as the 7blade hx35. We don't know if te hy35 turbine wheel and housing is enough to reache the 60lb/min potential of the 56mm 7blade compressor. Some one try it out already!!! It should at least be a faster spooling viable option to the full t3/t4 50-trim.

H1C/WH1C:

In 1994, there was the Wh1c which has pretty much the identical compressor as the hx35 but with a Vband compressor cover. The turbine wheel is the same. It will bolt into the BEP bolton hx35 turbine housing. It has 4 bolts at the housing instead of 6. So you will need to buy 2 more bolts and use 6 washers cut to make a flat side. Honestly, I just used bolts that were cut a little short and the bolt head was wide enough to pull the chra to the turbine housing. No sealing issues. Since the Wh1c is for all practical purposes an 8blade hx35 the spool and flow is the same too.

I have the big h1c. It comes on the INTERCOOLED 1991-1993 cummins pickups. It has the webbing for MWE but no groove cut like the hx35/wh1c has. This turbo I term the big h1c because it has a 54mm compressor inducer and same exducer than the 8blade hx35/Wh1c. The other h1c is the small h1c found on the NON-intercooled cummins pickups. This has a 50mm inducer but only 7blades and has no webbing for MWE. Less blades helps flow, but so does a larger inducer diameter. The most whp ever recorded on a gas 4cylinder with the small h1c was done on a KA24 nissan: 411whp. Since the big h1c has a 4mm larger inducer and the same turbine wheel as the hx35, it is safe to say that it flows enough for between 411whp and 500whp. The diesel sources state that it flows SLIGHTLY less than the early hx35. So 4lb/min less than the 8blade hx35 puts the flow of the big h1c at 48-49lb/min right where a 50-trim or 20g is. The small bep housing is all that's needed to get the most from the compressor and the spool speed is 20+psi by 3500rpms.

HX35-40 hybrid:

Keeping the long tradition of the marriage of sportcompact and hybrid turbos, there is the hx35 turbine and the hx40 compressor. It is strongly recommended to use the large bep turbine housing or the stock hx35 turbine housing with an non-divided t3 manifold for this turbo. The small bep housing around a t31 size hx35 turbine wheel is probably not enough to merit any of the hx40 compressor wheel upgrades. 20+ psi by 4000rpms can be seen in the hx35/40 with the hx35 12cm^2 turbine housing with a non-divided t3 manifold. With the large bep housing, spool times are to be determined. But likely similar.

HX40:

The 8blade hx40 has a 58mm inducer and flows about the same as a 60-1 (around 60lb/min) with ALOT better high boost efficiency and spool speed. It is the most common hx40 out there. The small bep housing with the hx40 turbine wheel is plenty to reach the full potential of the 60lb/min 8blade hx40 compressor. 20+ psi by 4100rpms with 272s.

The 7 and 6 blade hx40 is called the super40 and has the 60mm compressor inducer. This compressor flows around 69lb/min. You can get this wheel in billet style (think HTA). The non-billet wheel spools as fast as the 8blade hx40 in the bolton bep housing and has done 653whp at 40psi per the holset results only thread. Billet should spool even faster. The t3 .70 a/r BEP housing slows spool about 400rpms. But reports show a significant gain in flow per psi. So expect more power at lower boost with that turbine housing.

H1E/WH1E:

The Wh1e is like it's little brother the Wh1c. It mirrors the hx40 8blade in every way except that it has a v-band compressor cover and a 4bolt chra-turbinehousing pattern. It will consequently bolt into the hx40 bep bolton turbine housing and this is plenty of flow to max out its 60lb/min compressor.

The h1e is like it's little brother the h1c. There are different size compressors. . . BUT there are also different size turbine wheels too. Check measurements before buying this turbo if you plan on running a BEP turbine housing. There are lower flowing compressors than the 58mm 8blade that are out there. So this turbo may not flow any more than an hx35 if get the wrong one. You need at least a 58mm compressor inducer for this to be a worthwhile turbo vs the proven hx35 or 8blade hx40.

HX52:

This is a big sucker. It is commonly found on the Volvo Semis and usually has a billet compressor wheel. It flows 88lb/min. There is no bolt on housing for it. If you want a bolton housing for this turbo, then you don't want this turbo. In fact if you want a t3 flange turbine housing for this turbo, then you don't want this turbo. You DO want this turbo if you're looking at a gt4294r or gt4202r. The turbine inlet is slightly different than a t4 bolt pattern. You can still get the t4 manifold to work just fine by enlarging the bolt holes.

Misc.:
  • Holset's don't spool slow. They spool faster than their garrett or mitsubishi counterparts. Diesel exhaust is cold and slow moving.
  • The holset turbine wheel is a work of art. It has been shown to flow very well in a very small turbine housing. For example the hx40 turbine wheel in the small .55 ar bep bolton housing flows as much as a garrett gt35r turbine wheel in a larger .63 ar garrett t3 turbine housing. The hx40 with this configuration spools about 500rpms faster! You can upgrade to the .70 a/r BEP t3 turbine housing and have the same or slightly faster spool speed as the above gt35r with ALOT more flow per psi and consequently more horsepower per psi. This makes for VERY good pumpgas numbers.
  • Holset patented map width enhancement. They do not have extended tip technology, but there compressors show more efficiency than their garrett or mitsubishi counterpart.
  • They have superback technology witch leads to VERY, VERY durable compressors. The are designed to be overworked and underpaid.
  • There are discrepancies all over the web concerning the compressor maps. Take what you hear/read with a grain of salt and a shot of tequila, and the worm.
  • The holset is fine with stock 4g63 oil pressure from the oil filter housing. If you have no b shafts, you'll need a restrictor. The drain line is a garret bolt pattern. The feed line is different for different turbos.



Last edited by Morphius; 11-15-2009 at 07:07 PM. Reason: Auto-merged with previous post to prevent "bumping"

Reply With Quote
Old 11-04-2009, 08:51 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #2 (permalink)
DSM Wiseman


Morphius's Avatar
From: M-Town, Michigan
Registered: Jun 2003
Tech Posts: 1,244
Classifieds Rating: 0
Reputation: You can trust this leader of the site
Placeholder for info.

Last edited by Morphius; 11-04-2009 at 11:47 AM.

Reply With Quote
Old 11-04-2009, 08:57 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #3 (permalink)
DSM Wiseman


Morphius's Avatar
From: M-Town, Michigan
Registered: Jun 2003
Tech Posts: 1,244
Classifieds Rating: 0
Reputation: You can trust this leader of the site
Placeholder for info.

Last edited by Morphius; 11-04-2009 at 11:47 AM.

Reply With Quote
Old 11-04-2009, 09:03 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #4 (permalink)
DSM Wiseman


Morphius's Avatar
From: M-Town, Michigan
Registered: Jun 2003
Tech Posts: 1,244
Classifieds Rating: 0
Reputation: You can trust this leader of the site
Place holder for info.

Last edited by Morphius; 11-04-2009 at 11:47 AM.

Reply With Quote
Old 11-05-2009, 11:59 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #5 (permalink)
Proven Member

Gooberlog's Avatar
From: Jessup, Maryland
Registered: Dec 2002
Tech Posts: 1,451
Photos: 24
Classifieds Rating: 31
Reputation: Gooberlog is more helpful than not
Send a message via AIM to Gooberlog
I was wondering how long the part 6 section would get before moving on to a new one. It's really helpful to see these actual install pics on the cars.


____________________________
11.36@130 on HX35 BEPbolt on
12.42 @ 113 on 14b
View photos of this member's car

Reply With Quote
Old 11-05-2009, 12:40 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #6 (permalink)
DSM Wiseman


Morphius's Avatar
From: M-Town, Michigan
Registered: Jun 2003
Tech Posts: 1,244
Classifieds Rating: 0
Reputation: You can trust this leader of the site
From past history, I've tried to cut the thread off at around 1000 posts (30-34 pages).

There are some install pics here:Holset Turbos, RESULTS ONLY (COMPLETE INSTALLED SYSTEMS)


____________________________
-Nick

Owner of a DSM Preserve

Reply With Quote
Old 11-05-2009, 02:00 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #7 (permalink)
Proven Member

RadDsm's Avatar
From: Tigard, Oregon
Registered: Apr 2008
Tech Posts: 1,068
Classifieds Rating: 6
Reputation: RadDsm is pretty helpful and trustworthyRadDsm is pretty helpful and trustworthy
I've read every thread so far and have been following them for months and I was going to use a 7 blade hx-35 on my motor when its done. I was going with 1g rods and 2g pistons, but now I just ordered Eagle rods and I'll be ordering Wiseco pistons soon, so I'm thinking of stepping up to an hx40.

As far as oiling goes, I'm not sure if I want to use a -10an drain because it seems like it isn't quite large enough. Is there no way to fit a -12an line down there?


____________________________
-Chris
97 TSi AWD
93 GS

Reply With Quote
Old 11-05-2009, 02:37 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #8 (permalink)
Proven Member

red_devil's Avatar
From: Sharpsburg, Georgia
Registered: Jul 2005
Tech Posts: 656
Photos: 7
Classified Ads: 1
Classifieds Rating: 13
Reputation: red_devil is pretty helpful and trustworthy
Send a message via AIM to red_devil
Been running my Holset HX40 for 2k miles now just thought I would show it so far. Was going to post in results section but my AFC is not installed/logger not hotsinked correctly. Still waiting on ECM Lite to come out before I let the car really breathe.

I went with a -3an oil feed from ofh and stock cummins oil drain connected to 2G bottem pipe. No shaft play or blow by and spools great.

Anyone know what type of wg it is?
Attached Thumbnails
Click image for larger version

Name:	holset no intake 2.jpg
Views:	7173
Size:	95.7 KB
ID:	102562

Click image for larger version

Name:	holset no intake.jpg
Views:	7172
Size:	73.4 KB
ID:	102563


Last edited by red_devil; 11-06-2009 at 09:45 PM.
View photos of this member's car

Reply With Quote
Old 11-05-2009, 02:54 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #9 (permalink)
Proven Member

FenixTX717's Avatar
From: k-town, Wisconsin
Registered: Oct 2004
Tech Posts: 206
Photos: 7
Classifieds Rating: 2
Reputation: FenixTX717 is an unknown
Send a message via AIM to FenixTX717
Is there any other solution for the 2g guys to get away from "denting" the water pipe so the holset turbos will fit? I mean I know you could make a flange to go inbetween the manifold and turbo or use one for the head/manifold but is there any "easier" way to make it all just work?

That way without having to modify your exhaust as well?
View photos of this member's car

Reply With Quote
Old 11-05-2009, 05:06 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #10 (permalink)
Proven Member

kp116's Avatar
From: Janesville, Wisconsin
Registered: Mar 2009
Tech Posts: 475
Classifieds Rating: 0
Reputation: kp116 is an unknown
Send a message via AIM to kp116
Quote:
Originally Posted by FenixTX717 View Post
Is there any other solution for the 2g guys to get away from "denting" the water pipe so the holset turbos will fit? I mean I know you could make a flange to go inbetween the manifold and turbo or use one for the head/manifold but is there any "easier" way to make it all just work?

That way without having to modify your exhaust as well?
Cong I would just dent the water pipe. Erics car turned out real nice with his hx35 set up!

Reply With Quote
Old 11-06-2009, 05:42 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #11 (permalink)
Proven Member

joyfil2001's Avatar
From: Toms River, New Jersey
Registered: Dec 2007
Tech Posts: 585
Photos: 14
Classifieds Rating: 17
Reputation: joyfil2001 is an unknown
I just noticed something. I plan on using a 90* coupler at the turbo outlet to point towards the passenger side. Will it clear the engine/trans mount? The picture above doesn't really show for sure.
View photos of this member's car

Reply With Quote
Old 11-06-2009, 06:42 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #12 (permalink)
DSMtuners Supporting Vendor

StrictlyImportMotorsports

viperlp01's Avatar
From: Kalamazoo, Michigan
Registered: Oct 2006
Tech Posts: 1,745
DSM Journal Entries: 4
Photos: 8
Classifieds Rating: 6
Reputation: viperlp01 is pretty helpful and trustworthy
your going to run a side mount with this?? I honestly don't think you can make that turn towards the Pass side... I will defidently go to the drivers side without a problem. I used a straight 2.5 in coupler and had a 90* piece of intercooler pipe that I cut to mate up with the existing FMIC.. to make things easier i would go FMIC


____________________________
John-2.3L Stroker w/ HX40+E85=Teh Secs
Visit viperlp01's homepage!  View photos of this member's car  View this member's Build Journals

Reply With Quote
Old 11-06-2009, 06:47 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #13 (permalink)
Proven Member

joyfil2001's Avatar
From: Toms River, New Jersey
Registered: Dec 2007
Tech Posts: 585
Photos: 14
Classifieds Rating: 17
Reputation: joyfil2001 is an unknown
Quote:
Originally Posted by viperlp01 View Post
your going to run a side mount with this?? I honestly don't think you can make that turn towards the Pass side... I will defidently go to the drivers side without a problem. I used a straight 2.5 in coupler and had a 90* piece of intercooler pipe that I cut to mate up with the existing FMIC.. to make things easier i would go FMIC
I have an FMIC but it is the APEXI/Greddy style where both pipe go to the passenger side. I originally went this way because it's AUTO.

I would be using a 90* coupler for the turn. Here is the kit:

View photos of this member's car

Reply With Quote
Old 11-06-2009, 06:50 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #14 (permalink)
DSM Wiseman


dsm-onster's Avatar
From: Bloxom, Virginia
Registered: Jul 2004
Tech Posts: 8,206
DSM Journal Entries: 9
Photos: 58
Classifieds Rating: 9
Reputation: You can trust this leader of the site
Send a message via Yahoo to dsm-onster
Quote:
Originally Posted by Gooberlog View Post
I was wondering how long the part 6 section would get before moving on to a new one. It's really helpful to see these actual install pics on the cars.

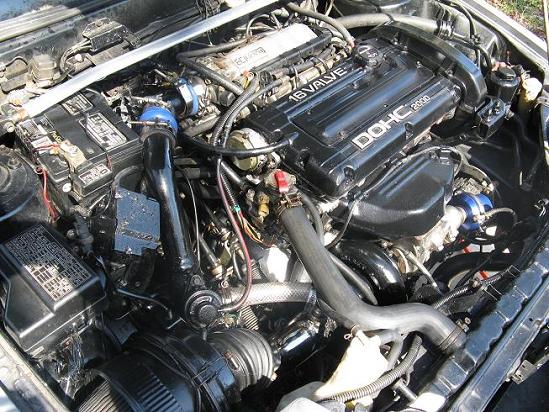

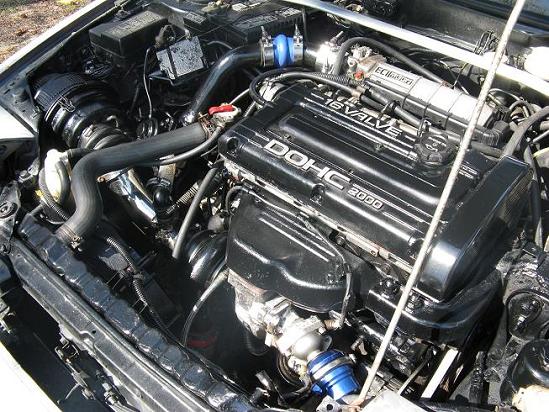

My attempt to look less conspicuous:






Nick! Congrats on the wise ass promotion. I need to pay more attention. . .


____________________________
Matt
dd '90 GST, Holset H1C
View photos of this member's car  View this member's Build Journals

Reply With Quote
Old 11-06-2009, 06:56 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #15 (permalink)
DSMtuners Supporting Vendor

StrictlyImportMotorsports

viperlp01's Avatar
From: Kalamazoo, Michigan
Registered: Oct 2006
Tech Posts: 1,745
DSM Journal Entries: 4
Photos: 8
Classifieds Rating: 6
Reputation: viperlp01 is pretty helpful and trustworthy
Its gonna be crazyyyy close.. But it might work if you angle it towards the front of the car more and make your next pipe on a small angle to get it straight again.. you might also beable to put the 90* higher up onto the outlet to give you more room.


____________________________
John-2.3L Stroker w/ HX40+E85=Teh Secs
Visit viperlp01's homepage!  View photos of this member's car  View this member's Build Journals

Reply With Quote
Old 11-06-2009, 07:02 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #16 (permalink)
Proven Member

joyfil2001's Avatar
From: Toms River, New Jersey
Registered: Dec 2007
Tech Posts: 585
Photos: 14
Classifieds Rating: 17
Reputation: joyfil2001 is an unknown
Quote:
Originally Posted by viperlp01 View Post
Its gonna be crazyyyy close.. But it might work if you angle it towards the front of the car more and make your next pipe on a small angle to get it straight again.. you might also beable to put the 90* higher up onto the outlet to give you more room.
I'm getting my turbo from Justin. Should I tell him clock the housing differently? What is involved in clocking the housing? Should I just do it myself?
View photos of this member's car

Reply With Quote
Old 11-06-2009, 07:42 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #17 (permalink)
Proven Member

95GreenGSX's Avatar
From: Chicago, Illinois
Registered: Sep 2006
Tech Posts: 318
Classifieds Rating: 2
Reputation: 95GreenGSX is an unknown
Quote:
Originally Posted by FenixTX717 View Post
Is there any other solution for the 2g guys to get away from "denting" the water pipe so the holset turbos will fit? I mean I know you could make a flange to go inbetween the manifold and turbo or use one for the head/manifold but is there any "easier" way to make it all just work?

That way without having to modify your exhaust as well?
Im not sure if you still have to dent the water pipe with the ERL manifold because it tends to stick the turbo out further, or looks like it. But then again, it is a T3 flange.

I guess Ill find out for sure when I put it on my car this winter

Reply With Quote
Old 11-06-2009, 08:16 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #18 (permalink)
DSMtuners Supporting Vendor

StrictlyImportMotorsports

viperlp01's Avatar
From: Kalamazoo, Michigan
Registered: Oct 2006
Tech Posts: 1,745
DSM Journal Entries: 4
Photos: 8
Classifieds Rating: 6
Reputation: viperlp01 is pretty helpful and trustworthy
If you have an HX series then the is a snap ring holding it in.. It might be hard for him to make the clock be perfect... It will just take time to get it to fit the way you want it to..


____________________________
John-2.3L Stroker w/ HX40+E85=Teh Secs
Visit viperlp01's homepage!  View photos of this member's car  View this member's Build Journals

Reply With Quote
Old 11-06-2009, 08:51 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #19 (permalink)
DSM Wiseman


Morphius's Avatar
From: M-Town, Michigan
Registered: Jun 2003
Tech Posts: 1,244
Classifieds Rating: 0
Reputation: You can trust this leader of the site
Quote:
Originally Posted by RadDsm View Post
As far as oiling goes, I'm not sure if I want to use a -10an drain because it seems like it isn't quite large enough. Is there no way to fit a -12an line down there?
Your answer should be here:
Garrett & Holset Turbo Users - Your Oil Drain May Be Too Small!

I'd suggest reading the entire thread as there are several solutions posted.


____________________________
-Nick

Owner of a DSM Preserve

Reply With Quote
Old 11-06-2009, 09:45 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #20 (permalink)
Proven Member

ApexVIII's Avatar
From: Modesto, California
Registered: Jan 2008
Tech Posts: 632
Classifieds Rating: 7
Reputation: ApexVIII is an unknown
Send a message via AIM to ApexVIII
it was really hard for me to get the compressor cover snap ring back on, i had to get some big plyers.

what did you guys use? i need to re adjust the clock angle on it soit points a little more straight down.

Quote:
Originally Posted by RadDsm View Post
I've read every thread so far and have been following them for months and I was going to use a 7 blade hx-35 on my motor when its done. I was going with 1g rods and 2g pistons, but now I just ordered Eagle rods and I'll be ordering Wiseco pistons soon, so I'm thinking of stepping up to an hx40.

As far as oiling goes, I'm not sure if I want to use a -10an drain because it seems like it isn't quite large enough. Is there no way to fit a -12an line down there?
the stock drain on the pan is a little bigger then a -10an, but a -12an is to large,

so you could have a -12an bung welded on if you feel like droppign the pan.

i just use a -10an flange(that i ported so its larger then a -10an flow wise) and a 3/8" hose and a stock 2g lower return.


____________________________
Magnus Stage 1 6bolt, Basically Stock - 95 GSX

Last edited by ApexVIII; 11-06-2009 at 09:48 AM. Reason: Auto-merged with previous post to prevent "bumping"
Visit ApexVIII's homepage!

Reply With Quote
Old 11-06-2009, 11:05 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #21 (permalink)
Proven Member

rampridersrider's Avatar
From: Creve Coeur, Missouri
Registered: Dec 2004
Tech Posts: 221
Classifieds Rating: 4
Reputation: rampridersrider is an unknown








7 blade HX35, stock 12cm twinscroll housing, FP2 cams, stock intake manifold, ebay DNP knockoff exhaust manifold, cheap ebay FMIC. Forged 2.0 with 8.5:1 compression.

No denting of the water pipe, in fact I have tons of room even without a spacer between the head and manifold. I also have tons of room between the compressor and radiator.

Usualy see 20 psi by 4200-4300 and 30 psi by 4500-4600. 53.5 lbs/min at 30 psi. I think with a better intercooler, exhaust manifold, and SMIM I would easily max this turbo out at this boost level, but right now the car is ####ing moving. I have a log, but the clutch is slipping in it so RPM and Speed deviate between 65-85 mph.
Attached Files
File Type: dat run11052009-2.dat (20.0 KB, 112 views)

Reply With Quote
Old 11-06-2009, 11:15 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #22 (permalink)
DSM Wiseman


dsm-onster's Avatar
From: Bloxom, Virginia
Registered: Jul 2004
Tech Posts: 8,206
DSM Journal Entries: 9
Photos: 58
Classifieds Rating: 9
Reputation: You can trust this leader of the site
Send a message via Yahoo to dsm-onster
Clean ass engine bay!!!!! nice! 1.5sec 70-90 with a stock intake manifold and a slipping clutch


____________________________
Matt
dd '90 GST, Holset H1C
View photos of this member's car  View this member's Build Journals

Reply With Quote
Old 11-06-2009, 01:04 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #23 (permalink)
Proven Member

slow4g6392tsi's Avatar
From: East Wenatchee, Washington
Registered: Apr 2007
Tech Posts: 122
Photos: 6
Classifieds Rating: 3
Reputation: slow4g6392tsi is an unknown
Hi. I hope it is alright to post this question here. Which variation of the hx40 do I have? It is 6 blade and on the tag it says hx40w. I thought I had read somewhere that all 6 and 7 blade HX40's were hx40pro but now I can't find where I might have read that and am starting to doubt it.

Here is a pic.
Attached Images



____________________________
-Brent
View photos of this member's car

Reply With Quote
Old 11-06-2009, 02:53 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #24 (permalink)
DSM Wiseman


dsm-onster's Avatar
From: Bloxom, Virginia
Registered: Jul 2004
Tech Posts: 8,206
DSM Journal Entries: 9
Photos: 58
Classifieds Rating: 9
Reputation: You can trust this leader of the site
Send a message via Yahoo to dsm-onster
Some 6blade compressor hx40s have 56mm compressor wheels. You will need to measure the compressor inducer (minor) diameter. Some times they are 60mm, sometimes they are 56mm, sometimes they are upgraded and the compressor housing is cut. Never buy a turbo without getting pics of the wheel measurements.


____________________________
Matt
dd '90 GST, Holset H1C
View photos of this member's car  View this member's Build Journals

Reply With Quote
Old 11-06-2009, 03:06 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #25 (permalink)
Proven Member

slow4g6392tsi's Avatar
From: East Wenatchee, Washington
Registered: Apr 2007
Tech Posts: 122
Photos: 6
Classifieds Rating: 3
Reputation: slow4g6392tsi is an unknown
Quote:
Originally Posted by dsm-onster View Post
Some 6blade compressor hx40s have 56mm compressor wheels. You will need to measure the compressor inducer (minor) diameter. Some times they are 60mm, sometimes they are 56mm, sometimes they are upgraded and the compressor housing is cut. Never buy a turbo without getting pics of the wheel measurements.
So that would mean I need to take the turbo apart right? How do you do that?


____________________________
-Brent
View photos of this member's car

Reply With Quote
Old 11-06-2009, 03:39 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #26 (permalink)
Moderator


JusMX141's Avatar
From: Greensburg, Pennsylvania
Registered: Dec 2005
Tech Posts: 8,873
Photos: 13
Classified Ads: 4
Classifieds Rating: 149
Reputation: You can trust this leader of the site
You can get a rough estimate just by holding a metric ruler or tape measure up to the inlet.

That looks like a 56mm 6-blade HX40 to me, but I could be wrong. The 60mm HX40's seem to have a thicker "ring" cast into the housing around the compressor inlet than the 56's.


____________________________
~Justin~ Rebuilding your journal-bearing turbochargers since 2004.
Visit JusMX141's homepage!  View photos of this member's car

Reply With Quote
Old 11-06-2009, 07:16 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #27 (permalink)
Proven Member

From: Middle Of Nowhere, Alabama
Registered: Oct 2002
Tech Posts: 716
Photos: 16
Classifieds Rating: 0
Reputation: JWoodley is more helpful than not
Send a message via AIM to JWoodley


60mm
Visit JWoodley's homepage!  View photos of this member's car

Reply With Quote
Old 11-07-2009, 07:50 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #28 (permalink)
Proven Member

red1993gsallmt's Avatar
From: long branch, New Jersey
Registered: Dec 2002
Tech Posts: 401
Photos: 11
Classifieds Rating: 1
Reputation: red1993gsallmt is more helpful than not
Quote:
Originally Posted by Gamble97
Can you guys list it like this:

What turbo (hx only):
Miles on turbo:
Size of return:
Size of oil line:
Fed from:
Restictor and color:

Hx40
3800mi( thanx justin)
3/4 copper tubing into -10an flanges i drilled out to 5/8
-4an feed
from filter housing
.082 restrictor

The drain seems to be important, BUT i also got my oil pressure right before i installed this turbo, i blew a bullseye 57trim, and a fptd06sl2 18g both at about 1500,2000mi before i fixed my oil pressure, it was at 140psi+ at redline.

was asked to move this post to part 7


____________________________
Holset Powered, Street Tire Pump Gas Killer!
View photos of this member's car

Reply With Quote
Old 11-08-2009, 08:27 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #29 (permalink)
Proven Member

From: glenvile, Pennsylvania
Registered: Nov 2007
Tech Posts: 183
Classified Ads: 1
Classifieds Rating: 0
Reputation: dsmtalontsi95 is an unknown
What turbo (hx only):
Miles on turbo:
Size of return:
Size of oil line:
Fed from:
Restictor and color:

HX-35
unknown
EXTREME PSI : Your #1 Source for In Stock Performance Parts - Oil Return Line Kit (Socketless Hose Fitting) : -10AN
EXTREME PSI : Your #1 Source for In Stock Performance Parts - Oil Feedline Kit (Oil Filter Location): Mitsubishi Eclipse 90-99
oil filter housing
.078

I tried to feed it from the head with no bs. DON'T DO IT there isn't enough pressure at idle. I killed on in no time at all.

Reply With Quote
Old 11-08-2009, 08:55 AM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #30 (permalink)
DSMtuners Supporting Vendor

StrictlyImportMotorsports

viperlp01's Avatar
From: Kalamazoo, Michigan
Registered: Oct 2006
Tech Posts: 1,745
DSM Journal Entries: 4
Photos: 8
Classifieds Rating: 6
Reputation: viperlp01 is pretty helpful and trustworthy
I seem to have a problem at idle. My autometer elec. oil pressure gauge reads reallly low at idle.. There is only 0-/-25-/-50-/-75-/-100 and it read below the first /... Do you think it is the electric sender just being inaccurate..


____________________________
John-2.3L Stroker w/ HX40+E85=Teh Secs
Visit viperlp01's homepage!  View photos of this member's car  View this member's Build Journals

Reply With Quote
Reply

Bookmarks

Thread Tools




» Recent DSM Photo
Post your banner here

» Current Poll
What mobile device do you use to browse the site?
iPhone - 30.89%
778 Votes
iPad - 3.29%
83 Votes
Blackberry - 9.13%
230 Votes
Droid - 53.79%
1,355 Vote
Windows Mobile - 2.90%
73 Votes
Total Votes: 2,519
You may not vote on this poll.
DSMtuners Main Sections
DSM Forums
DSM Regional Forums
DSM Builds/Journals
DSM Articles
DSM Tech Guides
DSM Upgrade Paths
DSM Parts Reviews
DSM Vendor Reviews

DSM Classifieds
DSM Parts Guides
DSM Photos
DSM Videos
DSM Timeslips
DSM Dyno Sheets
Shirts & Apparel
DSMtuners Decals

Advertising Info
Our Sponsors
Site Rules
Terms of Service
Privacy Policy
Site FAQ
About Us
Contact Us

© 2012 DSMtuners.com - All Rights Reserved

DSMtuners is not affiliated with Diamond Star Motors. The Mitsubishi Eclipse, Eagle Talon, Plymouth Laser, Mitsubishi Galant VR-4, and associated logos are trademarks of Diamond Star Motors, Mitsubishi Motors, and Chrysler Corporation.

All times are GMT -7. The time now is 10:29 PM.


Vendor Tools vBulletin Plugins by Drive Thru Online, Inc.

Search Engine Optimization by vBSEO 3.6.0
