vacuum delete


so, this is my first time trying a vacuum delete, and its for my 90 tsi talon that is sort of torn apart right meow(getting new top end), and i was bored so i decideds to do the vacuum line delete everyone else does. well, everytime diagram i find on it, shows the throttle body having four ports on the top of it. but MINE only has 2. so do i just cap them both off? or do i use one for something? i will show you guys the diagram i used, and my throttle body
Taboo speed shop vacuum diagram and removal for 1g and 2g - Mitsu-Media thats a link to the diagrams i used.

and heres my throttle body

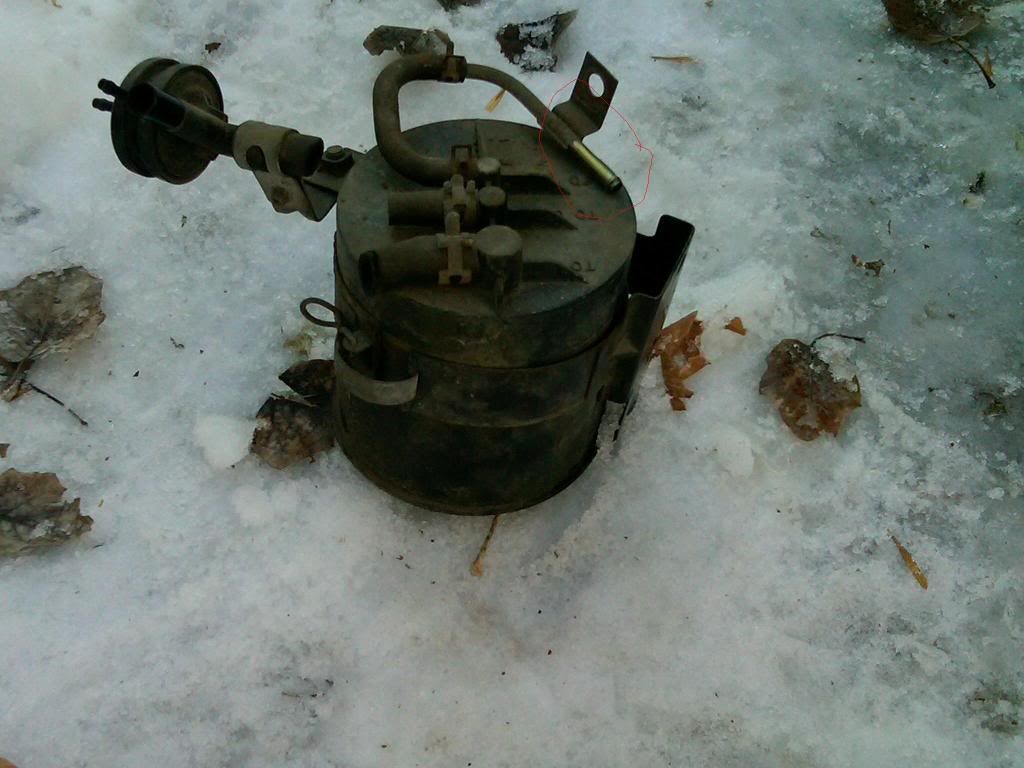

also, how do i "delete" the charcoal canister system? just rip the whole piece of shit out, and call it good? or is there certain things i need to do? i know it sounds kinda silly, but theres no emissions where i live except for the one about catalytic converters lol. go figure. thanks guys.

View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 01:58 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #2 (permalink)
Non-Supporting Vendor

Slowboy Racing

SBR Joe's Avatar
Registered: Feb 2007
Tech Posts: 1,081
Photos: 9
Classifieds Rating: 24
Reputation: SBR Joe is more helpful than not
Send a message via AIM to SBR Joe
Just use vacuum caps for all the ports on the TB. There is one labeled "P" i believe that you can run a boost gauge vac line from to not have to tee into the FPR line. Other than that rip em all out. Leave one from mani to FPR, and mani to BOV.

Charcoal canister shot put into the trash. There is one hard line that runs up to it with a rubber line to the canister, this is the gas tank vent. Just get a piece of vac line about a foot long and route it behind the crossmember just so you dont get the occasional whiff of gas from the vent line.
Visit SBR Joe's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 02:00 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #3 (permalink)
Proven Member


Rob10_99's Avatar
Registered: May 2005
Tech Posts: 1,658
Photos: 4
Classifieds Rating: 1
Reputation: Rob10_99 is an unknown
Yep, just cap those off at the top, also are you doing FIAV delete?
The canister just yank out and route the hose from the gas tank under the car or pointed down, you might smell some gas out of it.

^ yeah what he said
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 02:02 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #4 (permalink)
Non-Supporting Vendor

Slowboy Racing

SBR Joe's Avatar
Registered: Feb 2007
Tech Posts: 1,081
Photos: 9
Classifieds Rating: 24
Reputation: SBR Joe is more helpful than not
Send a message via AIM to SBR Joe
Quote:
Originally Posted by Rob10_99 View Post
Yep, just cap those off at the top, also are you doing FIAV delete?
Im not sure if he can on the 90 TB...that was one gripe i always had with my 90 cars lol
Visit SBR Joe's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 02:13 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #5 (permalink)
Moderator


snowborder714's Avatar
Registered: Oct 2006
Tech Posts: 11,573
Photos: 20
Classified Ads: 1
Classifieds Rating: 135
Reputation: You can trust this leader of the site
Send a message via AIM to snowborder714
I believe you can, but you have to grind/cut off the bottom portion. This is why most people swap to a '91-'94 throttle body.

I know Jim (Auto RS T) did this with his '91-'94 and I thought he had a picture floating around somewhere. I'll see if I can track it down or have him post it.


____________________________
Brian

Throttle body rebuild kits

Last edited by snowborder714; 12-16-2009 at 02:54 PM. Reason: Wrong person, wrong tb
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 02:16 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #6 (permalink)
Non-Supporting Vendor

Slowboy Racing

SBR Joe's Avatar
Registered: Feb 2007
Tech Posts: 1,081
Photos: 9
Classifieds Rating: 24
Reputation: SBR Joe is more helpful than not
Send a message via AIM to SBR Joe
Quote:
Originally Posted by snowborder714 View Post
I believe you can, but you have to grind/cut off the bottom portion. This is why most people swap to a '91-'94 throttle body.

I know Craig (calan) did this with his '90 and I thought he had a picture floating around somewhere. I'll see if I can track it down or have him post it.
Yeah i know you have to "rig" things, for lack of better terms.

I always just wired in the plug for a 91-94 TPS and ran one of them minus the FIAV/IAC parts.
Visit SBR Joe's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 02:39 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #7 (permalink)
Moderator


snowborder714's Avatar
Registered: Oct 2006
Tech Posts: 11,573
Photos: 20
Classified Ads: 1
Classifieds Rating: 135
Reputation: You can trust this leader of the site
Send a message via AIM to snowborder714
Here's what Jim did to one of his throttle bodies.

Name:  DSCN4027.JPG
Views: 740
Size:  38.0 KB


____________________________
Brian

Throttle body rebuild kits
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 02:44 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #8 (permalink)
Proven Member


90rslaser's Avatar
Registered: Apr 2008
Tech Posts: 198
Photos: 10
Classifieds Rating: 3
Reputation: 90rslaser is an unknown
sweet i really appreciate the replies guys. a lot more help then the d-bags on talk gave me. but, i gotta keep the two ports on the side of the tb correct? ### theyre for coolant lines or some shit?
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 02:46 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #9 (permalink)
Moderator


snowborder714's Avatar
Registered: Oct 2006
Tech Posts: 11,573
Photos: 20
Classified Ads: 1
Classifieds Rating: 135
Reputation: You can trust this leader of the site
Send a message via AIM to snowborder714
The two skinny ports off the side of the throttle plate are for vacuum. The two larger ports off the bottom section of the throttle body are for coolant.


____________________________
Brian

Throttle body rebuild kits
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 02:49 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #10 (permalink)
Non-Supporting Vendor

Slowboy Racing

SBR Joe's Avatar
Registered: Feb 2007
Tech Posts: 1,081
Photos: 9
Classifieds Rating: 24
Reputation: SBR Joe is more helpful than not
Send a message via AIM to SBR Joe
Quote:
Originally Posted by snowborder714 View Post
Here's what Jim did to one of his throttle bodies.
Yeah thats a 91-94 TB, he just retained his IAC. Pretty slick.
Visit SBR Joe's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 02:53 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #11 (permalink)
Moderator


snowborder714's Avatar
Registered: Oct 2006
Tech Posts: 11,573
Photos: 20
Classified Ads: 1
Classifieds Rating: 135
Reputation: You can trust this leader of the site
Send a message via AIM to snowborder714
Ya, I thought he had a '90 - my bad.


____________________________
Brian

Throttle body rebuild kits
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 02:55 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #12 (permalink)
Non-Supporting Vendor

Slowboy Racing

SBR Joe's Avatar
Registered: Feb 2007
Tech Posts: 1,081
Photos: 9
Classifieds Rating: 24
Reputation: SBR Joe is more helpful than not
Send a message via AIM to SBR Joe
Quote:
Originally Posted by snowborder714 View Post
Ya, I thought he had a '90 - my bad.
No biggie. Shows the true heart of a DSMer because he could have just bought this and made his life alot easier! haha DSM FIAV Bypass Plate
Visit SBR Joe's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 03:20 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #13 (permalink)
Moderator


9!'clipseDOHC's Avatar
Registered: Aug 2003
Tech Posts: 3,447
Photos: 41
Classifieds Rating: 5
Reputation: You can trust this leader of the site
Quote:
Originally Posted by 90rslaser View Post
sweet i really appreciate the replies guys. a lot more help then the d-bags on talk gave me. but, i gotta keep the two ports on the side of the tb correct? ### theyre for coolant lines or some shit?
The 2 large ones on the bottom are the coolant lines and they run into the FIAV that everyone is talking about.

About the FIAV, mine is bypassed and I just have the coolant lines looped in together. With the blockoff plate can I completely remove the FIAV and ISC or will they still be there just blocked off? In other words does the plate go in between the TB and the FIAV or replace the FIAV.
Visit 9!'clipseDOHC's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 03:31 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #14 (permalink)
Moderator


snowborder714's Avatar
Registered: Oct 2006
Tech Posts: 11,573
Photos: 20
Classified Ads: 1
Classifieds Rating: 135
Reputation: You can trust this leader of the site
Send a message via AIM to snowborder714
An FIAV bypass plate goes inbetween the FIAV portion and the throttle body portion. You can leave the coolant nipples on the FIAV open with this, as nothing will come out. This will allow you to retain the ISC.

An FIAV blockoff plate goes on the bottom of the throttle body portion. You can bolt up the FIAV portion, but it's not needed as the blockoff plate is solid and, well, blocks everything off.


____________________________
Brian

Throttle body rebuild kits
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 03:48 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #15 (permalink)
Moderator


9!'clipseDOHC's Avatar
Registered: Aug 2003
Tech Posts: 3,447
Photos: 41
Classifieds Rating: 5
Reputation: You can trust this leader of the site
Quote:
Originally Posted by snowborder714 View Post
An FIAV bypass plate goes inbetween the FIAV portion and the throttle body portion. You can leave the coolant nipples on the FIAV open with this, as nothing will come out. This will allow you to retain the ISC.

An FIAV blockoff plate goes on the bottom of the throttle body portion. You can bolt up the FIAV portion, but it's not needed as the blockoff plate is solid and, well, blocks everything off.
Yeah i get how it works. I have a FIAV bypass plate installed already. I would like to get rid of the whole assembly though to clean up the engine bay some more. I just didn't know if the blockoff plate installs the same way, between the FIAV or in place of. I think there would be an issue with the length of the bolts. Just wondering how other have done it.

Also what size caps do you get to block off the little vacuum lines on the top of the TB.
Visit 9!'clipseDOHC's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 03:49 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #16 (permalink)
Proven Member


iugrad92turbo's Avatar
Registered: May 2007
Tech Posts: 9,185
Photos: 17
Classified Ads: 1
Classifieds Rating: 15
Reputation: iugrad92turbo is pretty helpful and trustworthy
Send a message via Yahoo to iugrad92turbo
Thats a interesting tb, kinda neat.


____________________________
DSMer Since 94

Ecmlink

Sd on e 85 soon
Visit iugrad92turbo's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 03:51 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #17 (permalink)
Non-Supporting Vendor

Slowboy Racing

SBR Joe's Avatar
Registered: Feb 2007
Tech Posts: 1,081
Photos: 9
Classifieds Rating: 24
Reputation: SBR Joe is more helpful than not
Send a message via AIM to SBR Joe
Quote:
Originally Posted by 9!'clipseDOHC View Post
Yeah i get how it works. I have a FIAV bypass plate installed already. I would like to get rid of the whole assembly though to clean up the engine bay some more. I just didn't know if the blockoff plate installs the same way, between the FIAV or in place of. I think there would be an issue with the length of the bolts. Just wondering how other have done it.

Also what size caps do you get to block off the little vacuum lines on the top of the TB.
The blockoff plate can be installed in place of it. The JMF kits come with the shorter bolts you need.

And the caps are the smallest ones you can get off the shelf at the parts store. You could back woods it and just loop a vac line between them, but caps look cleaner
Visit SBR Joe's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 03:55 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #18 (permalink)
Moderator


snowborder714's Avatar
Registered: Oct 2006
Tech Posts: 11,573
Photos: 20
Classified Ads: 1
Classifieds Rating: 135
Reputation: You can trust this leader of the site
Send a message via AIM to snowborder714
Or you can remove the nipples and install set screws. Or have the holes welded shut


____________________________
Brian

Throttle body rebuild kits
View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 04:08 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #19 (permalink)
Moderator


9!'clipseDOHC's Avatar
Registered: Aug 2003
Tech Posts: 3,447
Photos: 41
Classifieds Rating: 5
Reputation: You can trust this leader of the site
Quote:
Originally Posted by SBR Joe View Post
The blockoff plate can be installed in place of it. The JMF kits come with the shorter bolts you need.
Ok cool, thats what I wanted to know.

Quote:
Originally Posted by SBR Joe View Post
You could back woods it and just loop a vac line between them
That is how mine are now but i am planning on capping them off for that cleaner look.
Visit 9!'clipseDOHC's homepage!  View photos of this member's car

mark post as helpful recommend reputation points    Reply With Quote
Old 12-16-2009, 04:44 PM Show Printable Version Show Printable Version   Email this Post to a Friend Email this Post      #20 (permalink)
Unverified Email Address

4g63eagle's Avatar
Registered: Nov 2009
Tech Posts: 150
Classifieds Rating: 1
Reputation: 4g63eagle is an unknown
wow this thread is great, I also have a question about this topic. i have a fiav bypass plate with the isc hole i just installed, and i need to know the coolant lines that run to the t/b i can just delete those now?
Visit 4g63eagle's homepage!

mark post as helpful recommend reputation points    Reply With Quote
Reply

Bookmarks

Thread Tools



» Recent DSM Photo
» Current Poll
How many times have you been to the Shootout?
1 - 39.86%
167 Votes
2-5 - 41.77%
175 Votes
6-10 - 10.50%
44 Votes
11-15 - 3.10%
13 Votes
16-20 - 4.77%
20 Votes
Total Votes: 419
You may not vote on this poll.
» Online Users: 620
163 members and 457 guests
Most users ever online was 1,704, 03-17-2008 at 09:11 PM.
DSMtuners Main Sections
DSM Forums
DSM Regional Forums
DSM Builds/Journals
DSM Articles
DSM Tech Guides
DSM Upgrade Paths
DSM Parts Reviews
DSM Vendor Reviews

DSM Classifieds
DSM Parts Guides
DSM Photos
DSM Videos
DSM Timeslips
DSM Dyno Sheets
Shirts & Apparel
DSMtuners Decals

Advertising Info
Our Sponsors
Site Rules
Terms of Service
Privacy Policy
Site FAQ
About Us
Contact Us

© 2014 DSMtuners.com - All Rights Reserved

DSMtuners is not affiliated with Diamond Star Motors. The Mitsubishi Eclipse, Eagle Talon, Plymouth Laser, Mitsubishi Galant VR-4, and associated logos are trademarks of Diamond Star Motors, Mitsubishi Motors, and Chrysler Corporation. No, we do not hand out car sponsorships.

All times are GMT -7. The time now is 06:25 AM.


Vendor Tools vBulletin Plugins by Drive Thru Online, Inc.

Search Engine Optimization by vBSEO 3.6.0
