Street Build ITFLYS - 1Gina2G

Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California
You must be logged in to view this image or video.

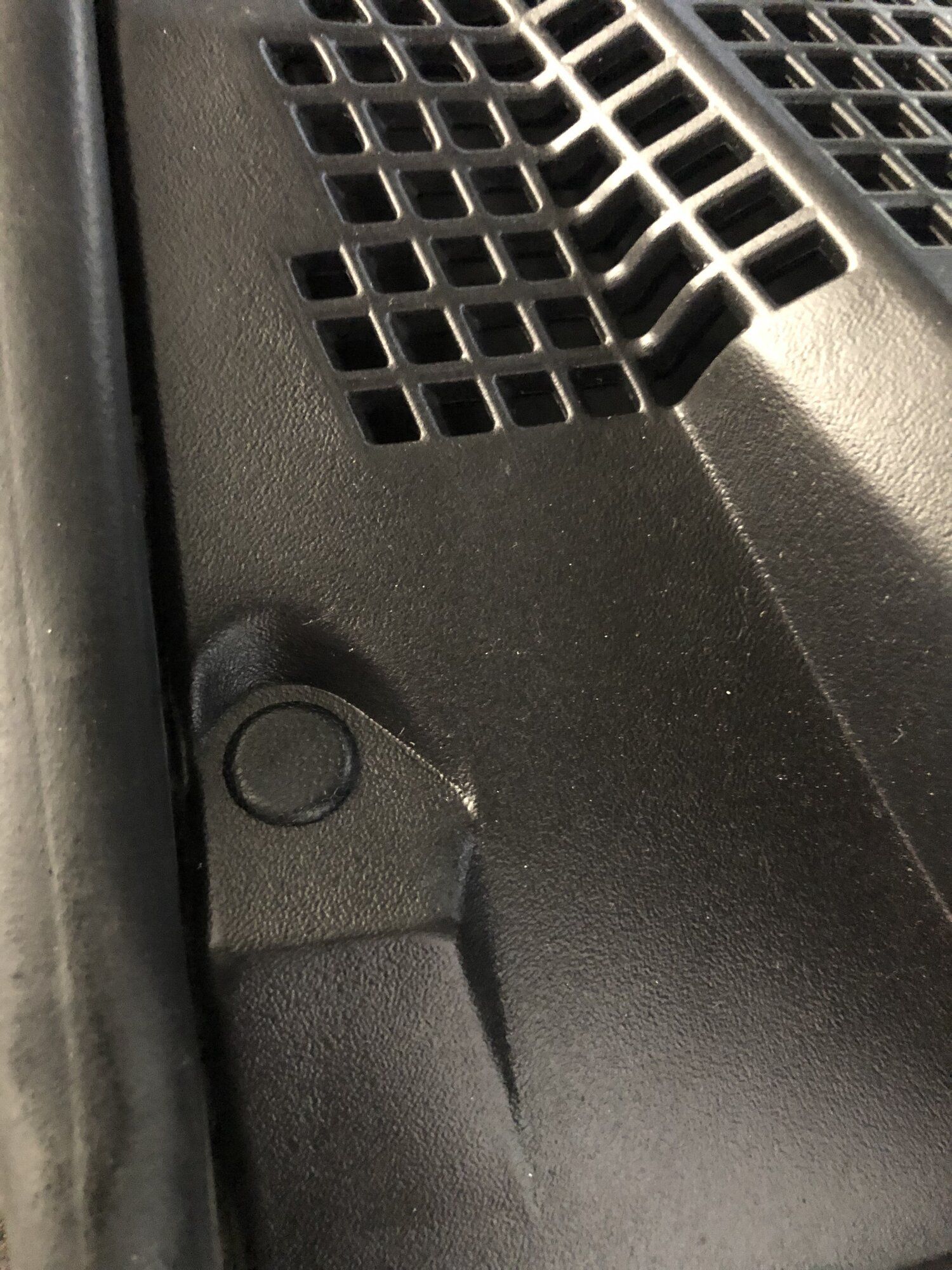

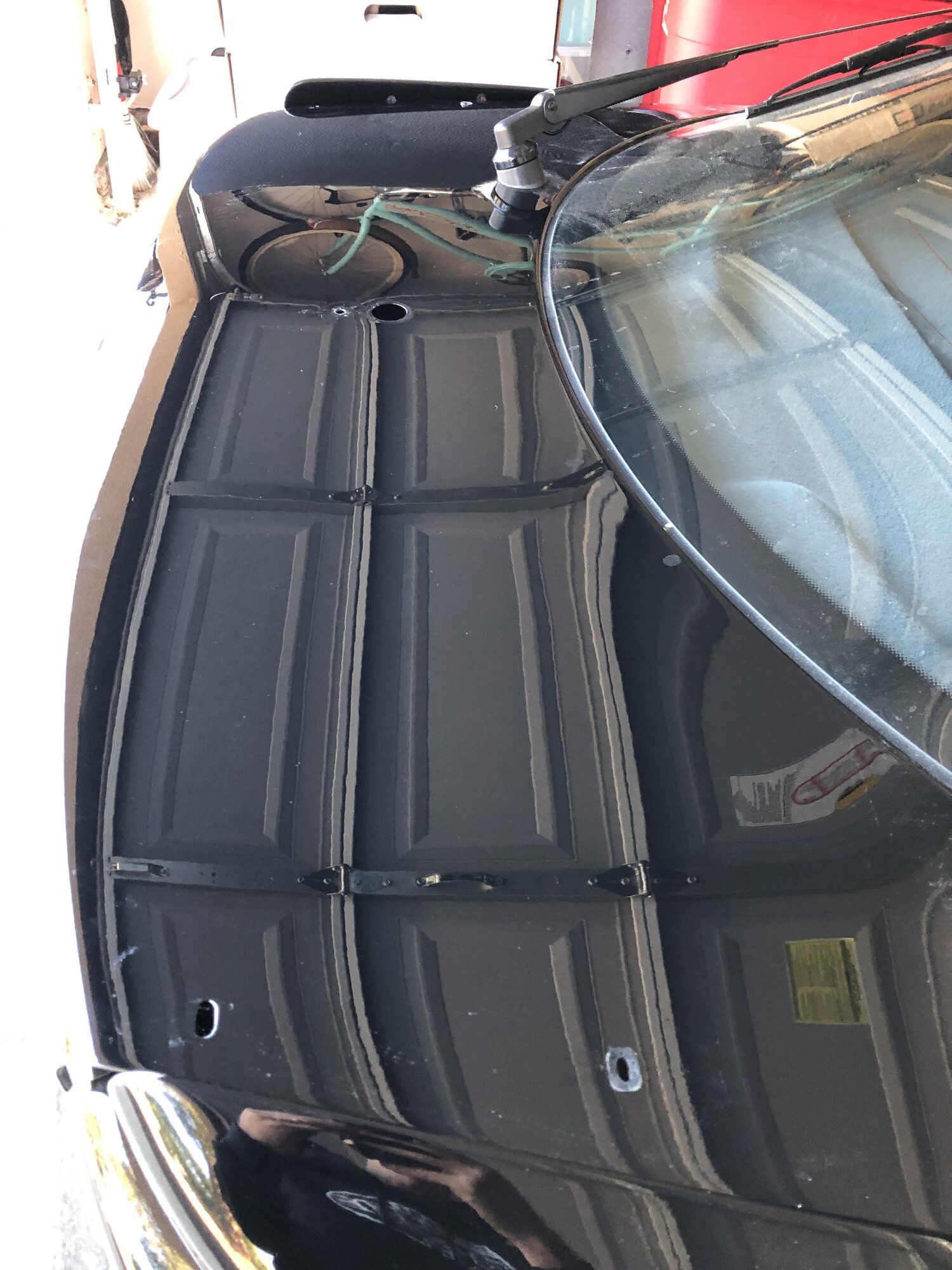

Cowl cover is finally complete:
You must be logged in to view this image or video.
You must be logged in to view this image or video.

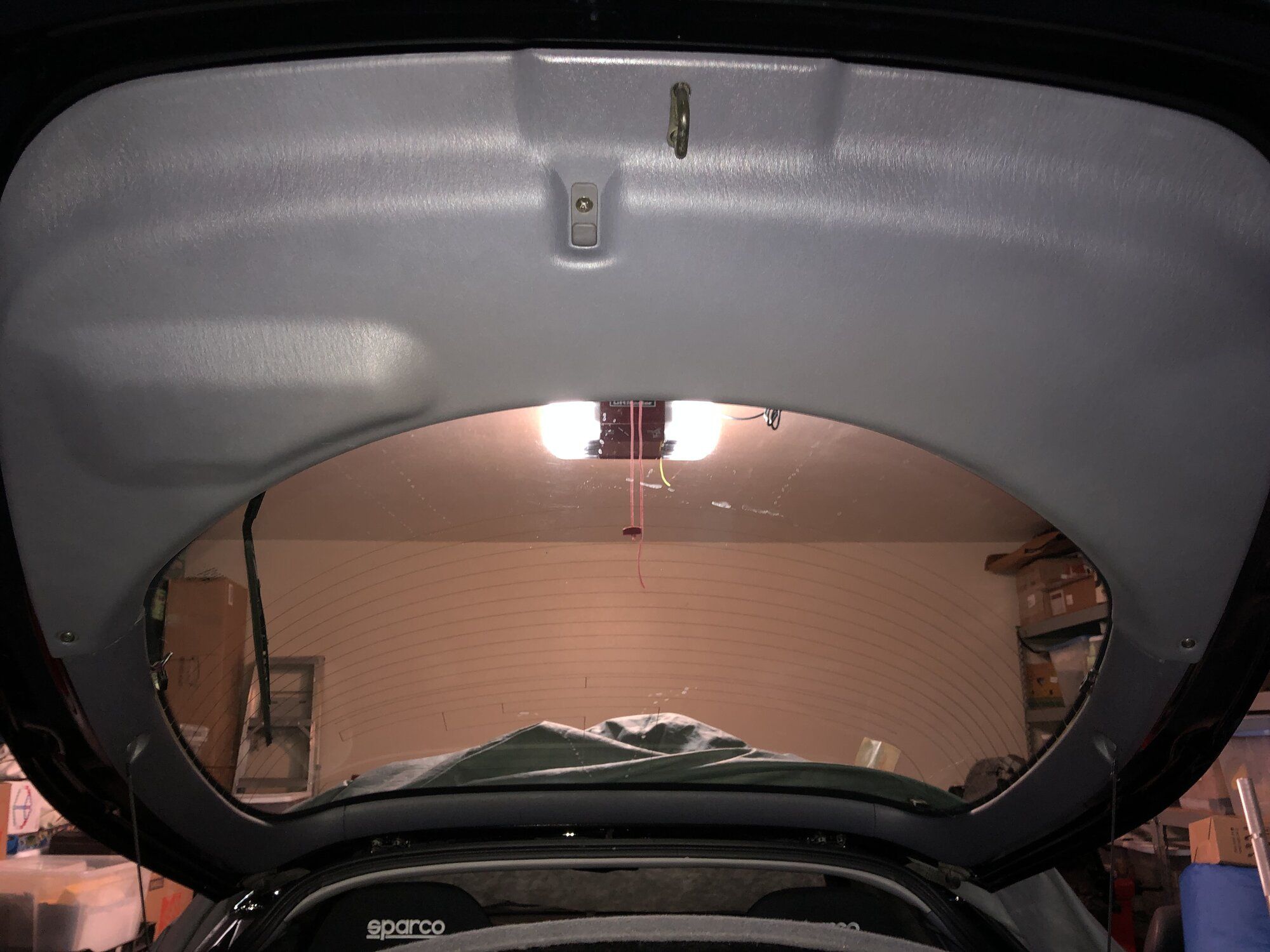

And all the panels have retainers! The rear was the last to get the new ones from mitsu, rust free.

You must be logged in to view this image or video.


Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California
Amazon link
You must be logged in to view this image or video.

Sofa King close:
You must be logged in to view this image or video.
You must be logged in to view this image or video.

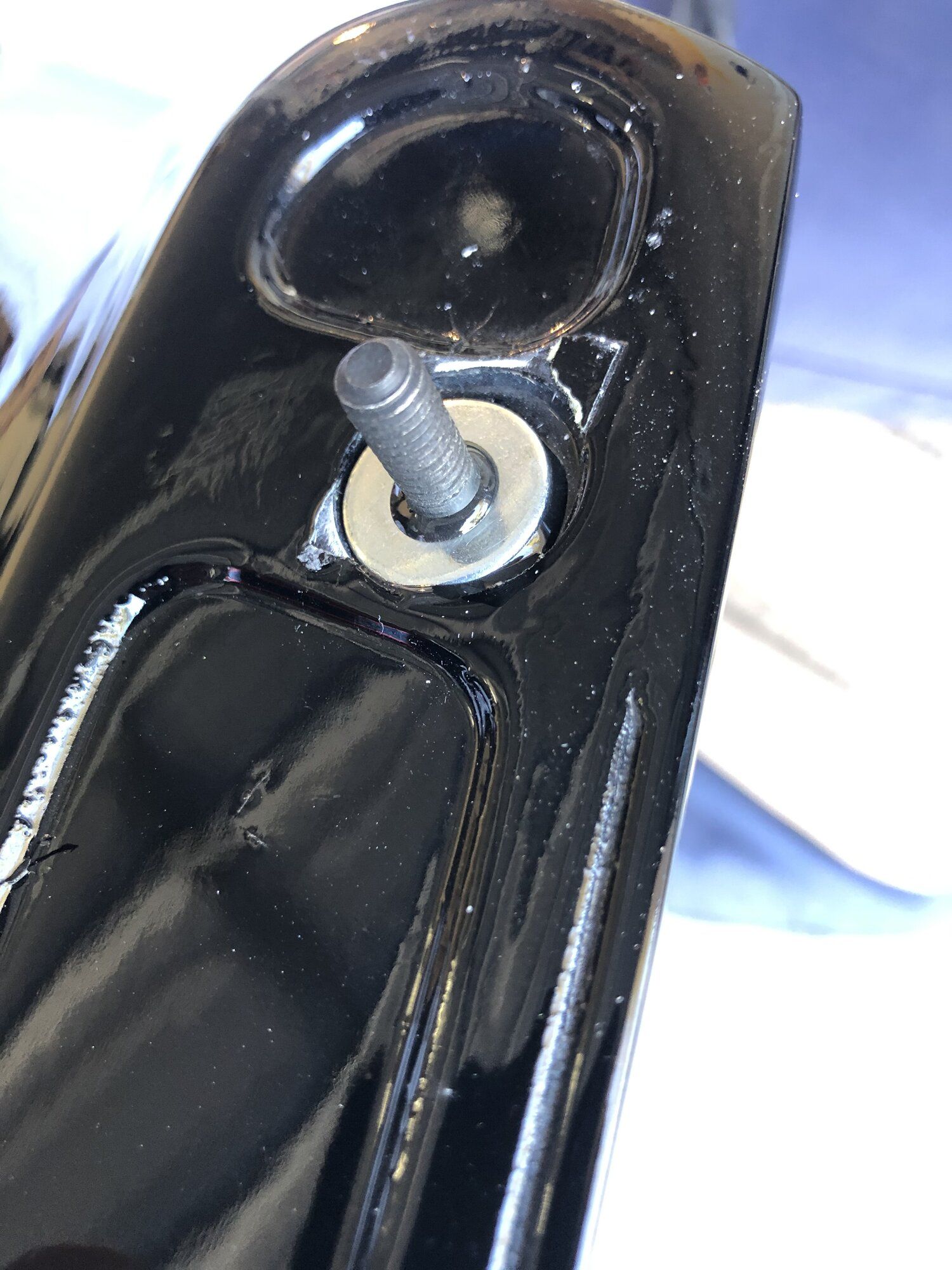

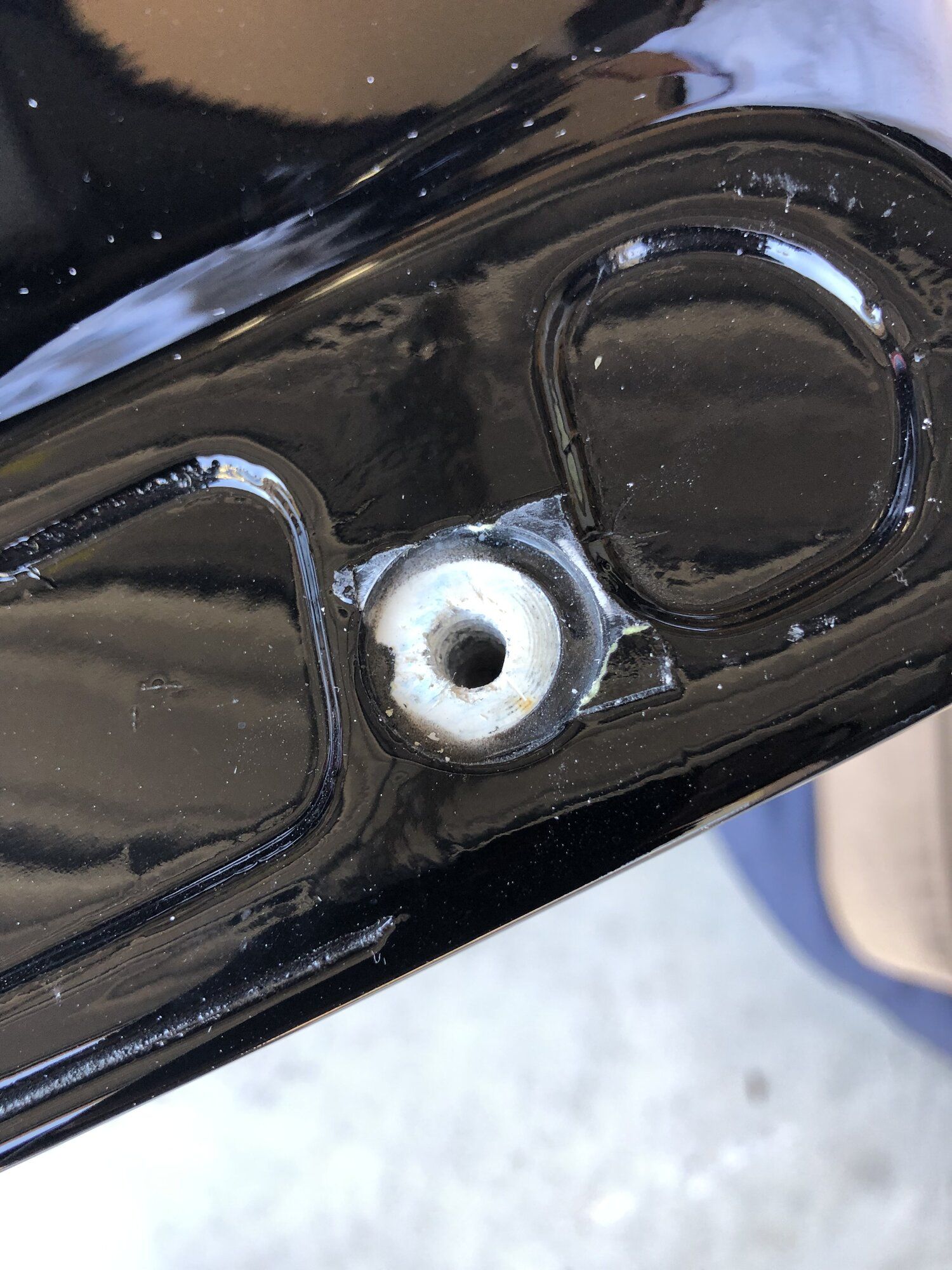

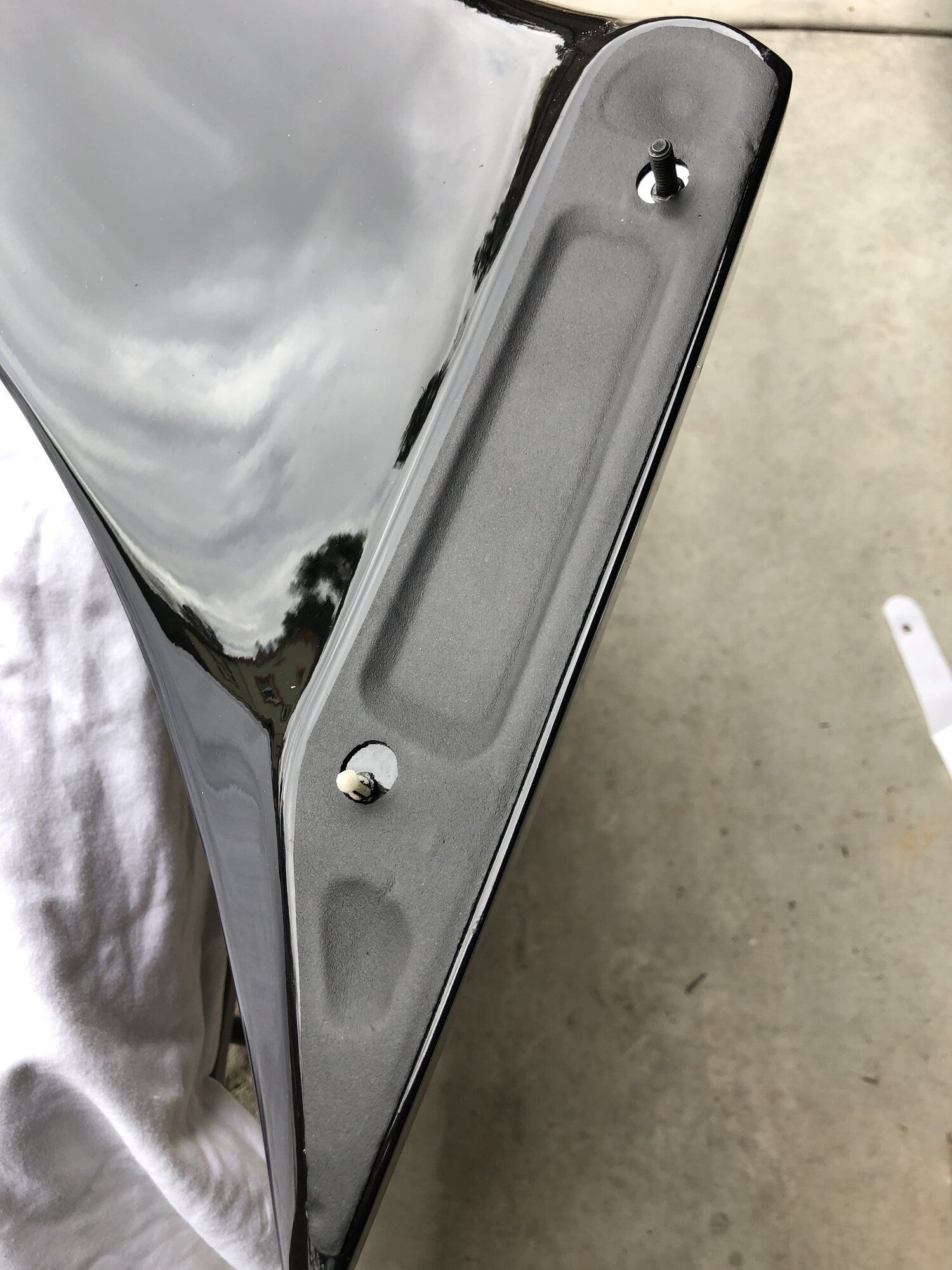

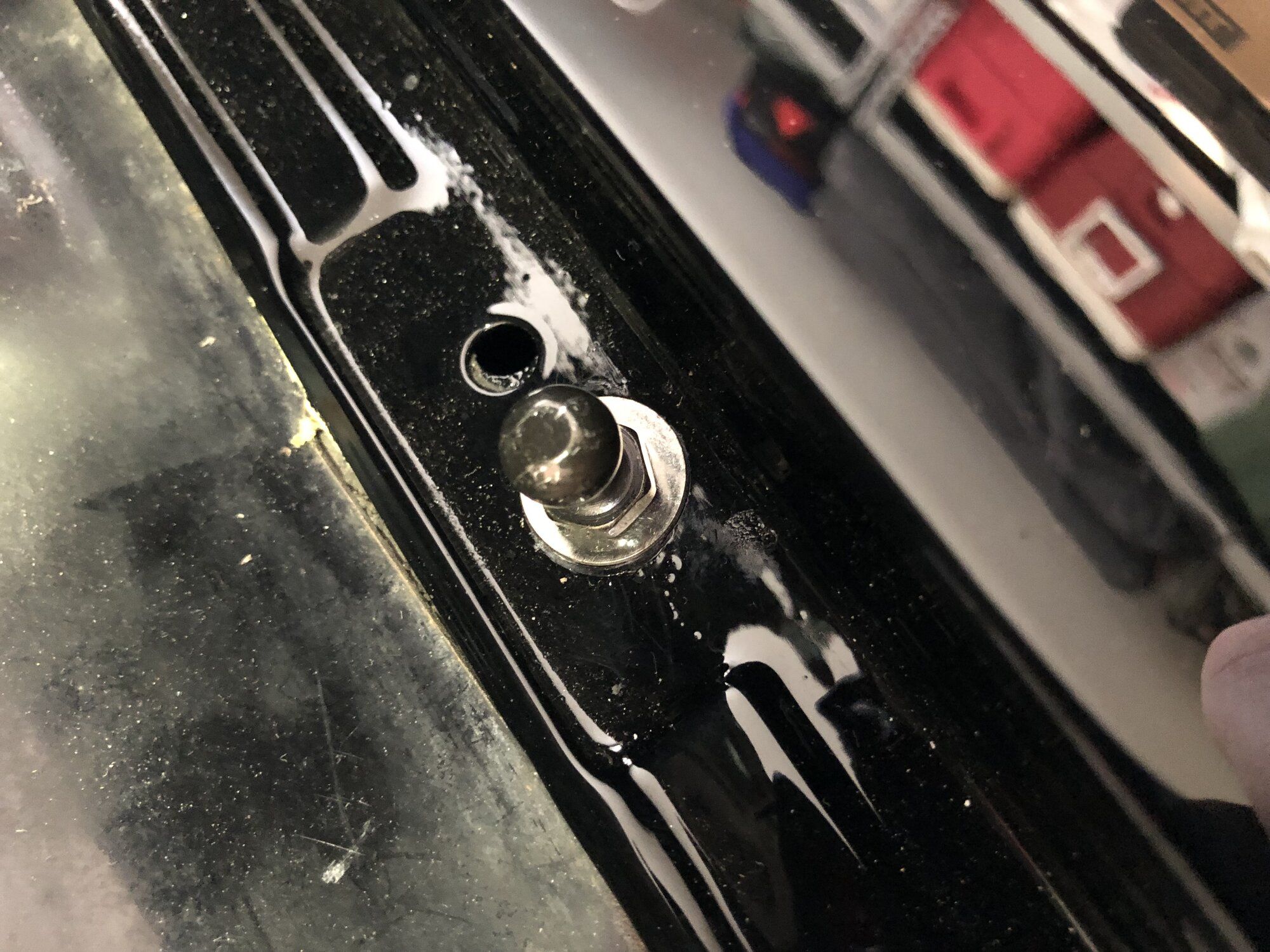

I removed the rear wing to epoxy studs back where they go:
You must be logged in to view this image or video.
You must be logged in to view this image or video.

You must be logged in to view this image or video.

Last edited:

Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California

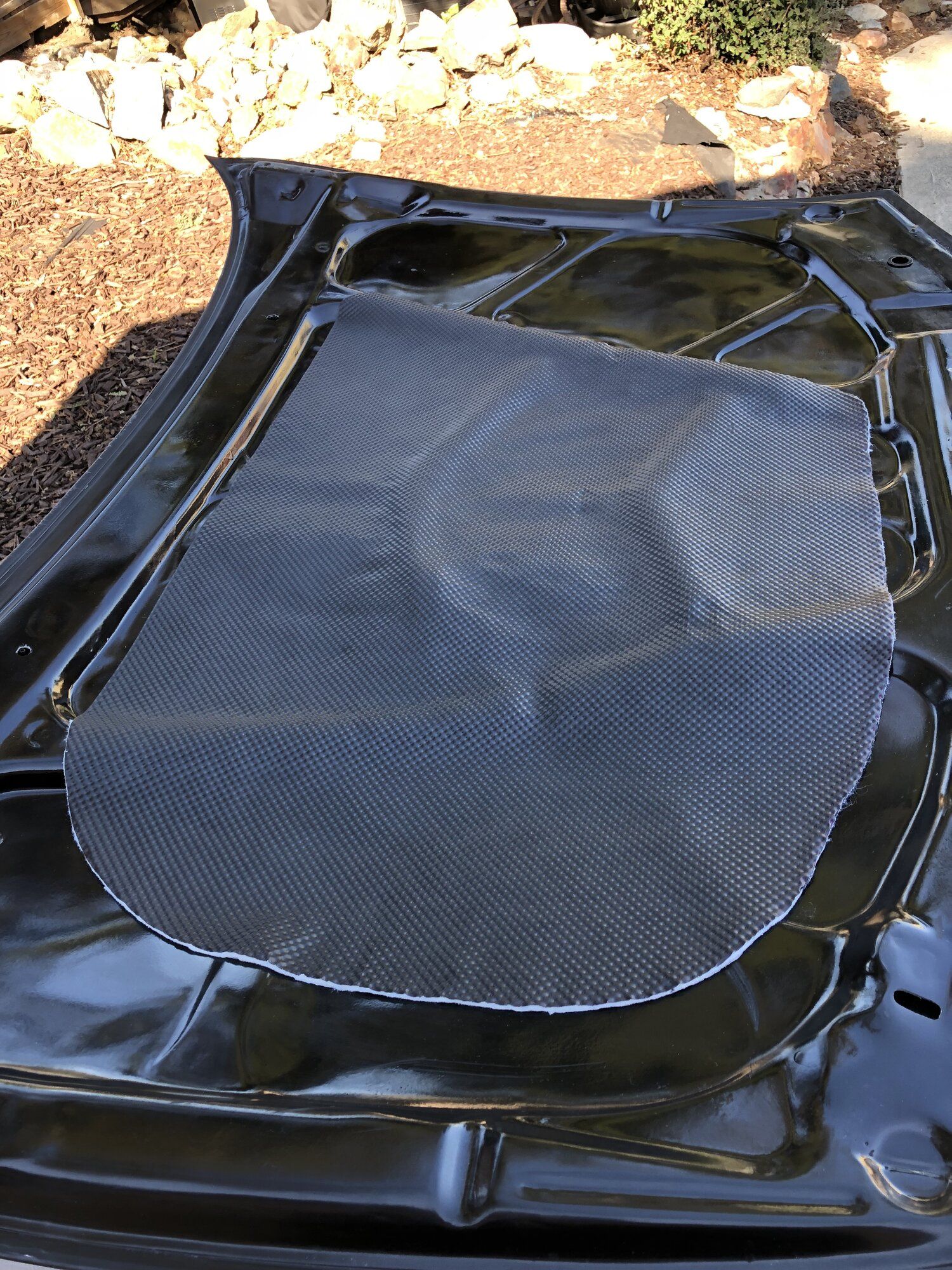

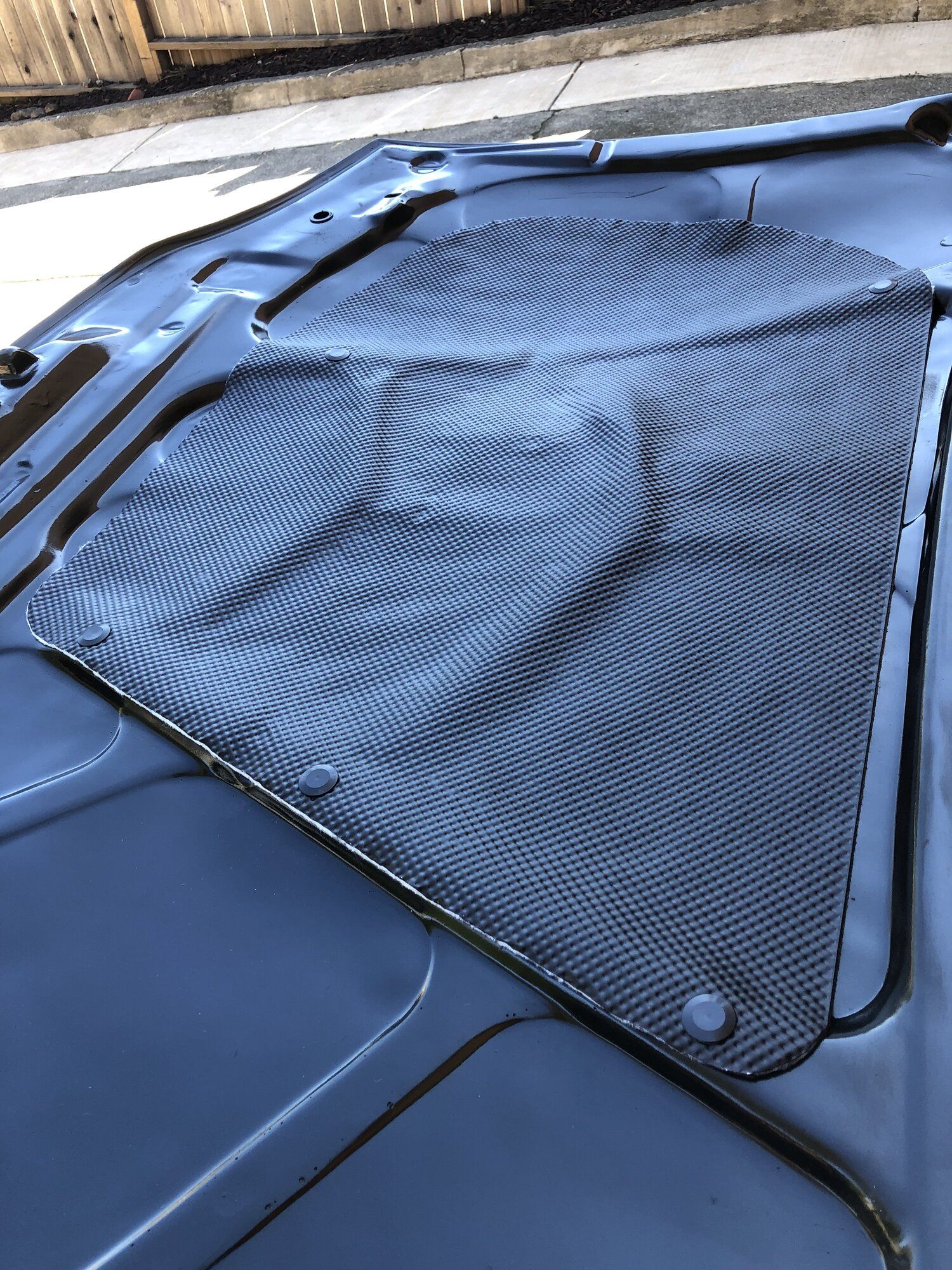

Heat blanket:
original
You must be logged in to view this image or video.

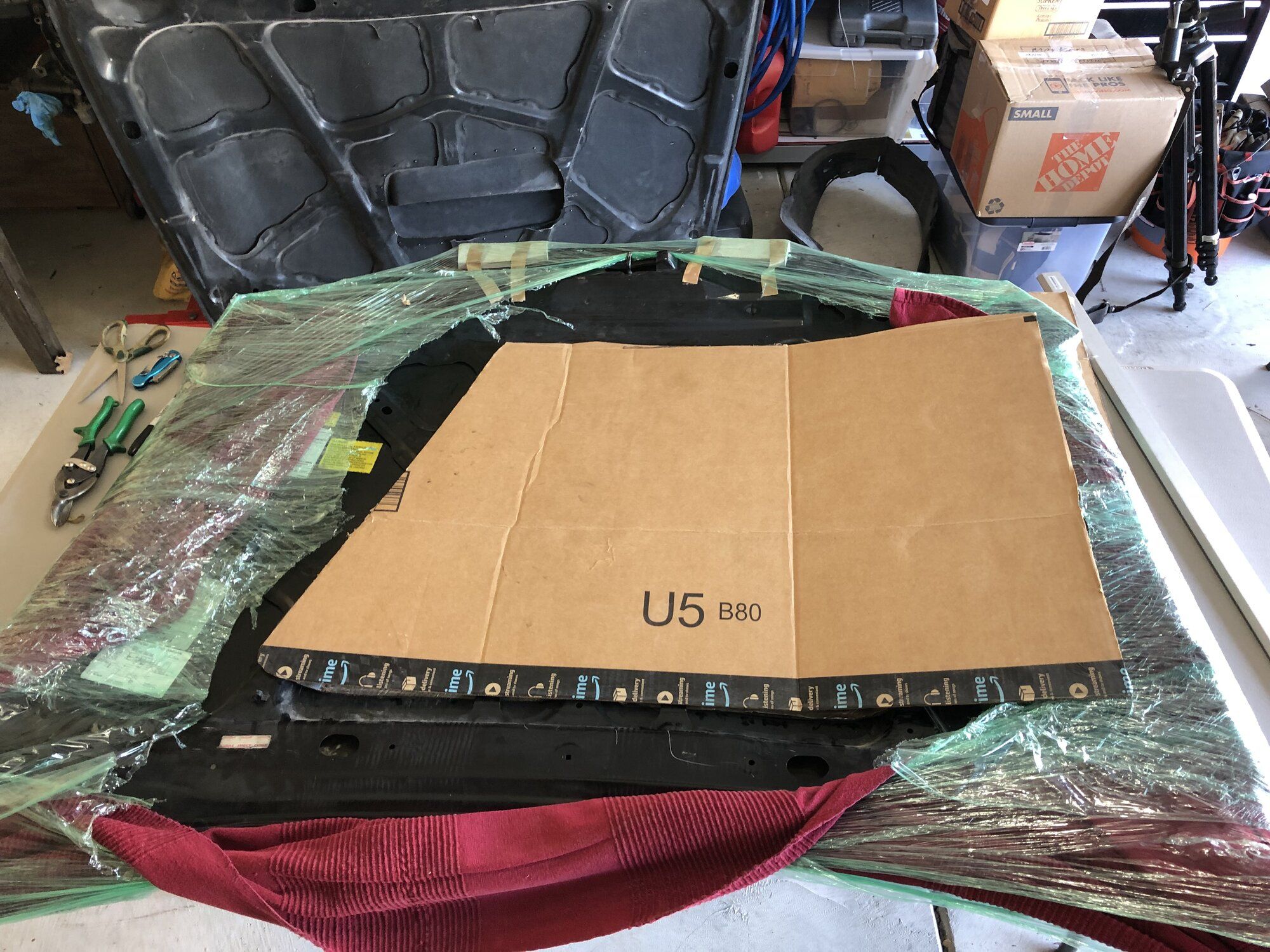

make a template
You must be logged in to view this image or video.

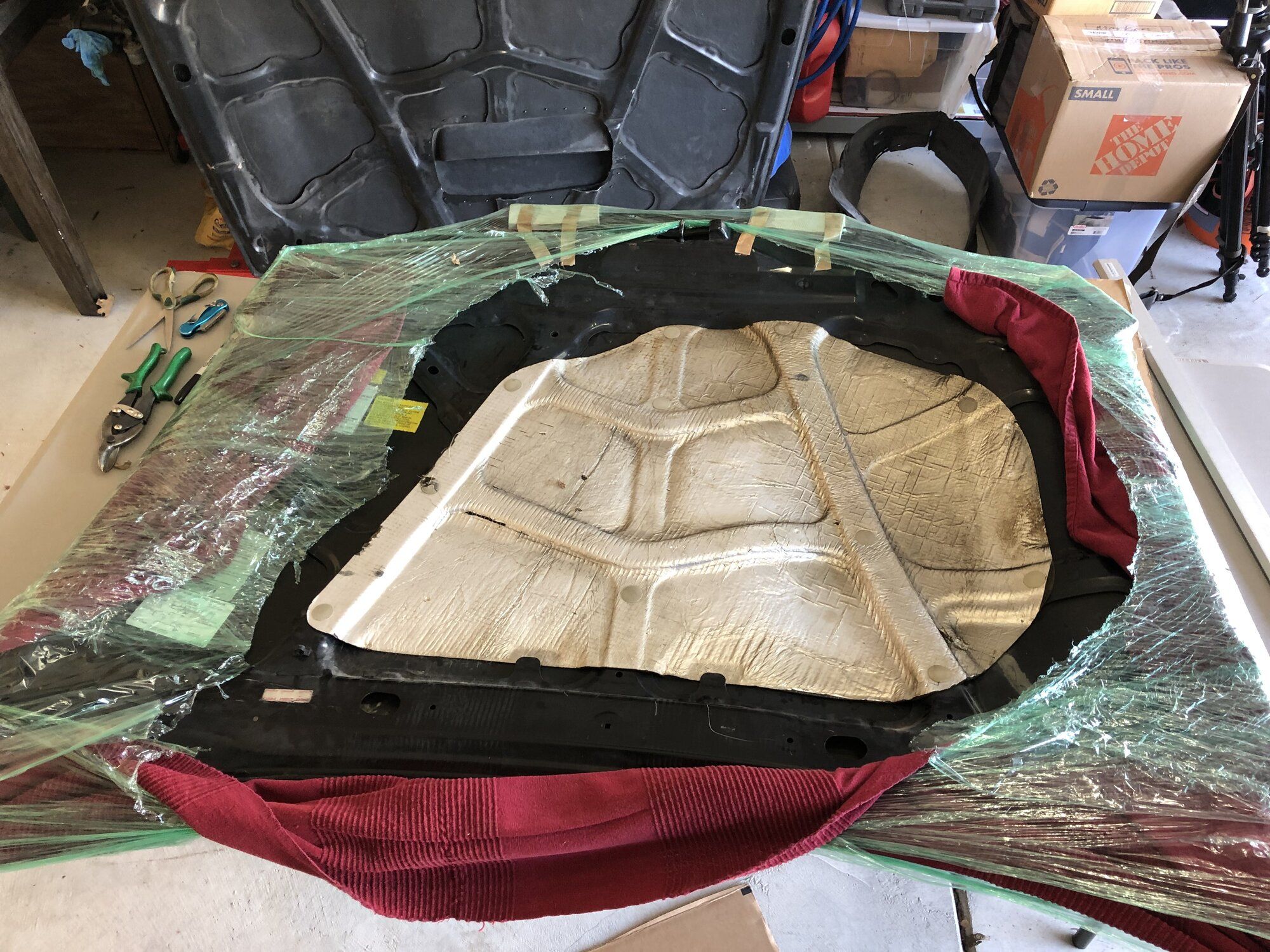

Place on top of a table with big pillows covered with a clean sheet to protect the paint.
You must be logged in to view this image or video.
You must be logged in to view this image or video.

Alcohol prep the hood, and contour the heat blanket(as best as possible - its thick!)

Peel and stick, then rub it down. Its either an improvement, or a big mess
You must be logged in to view this image or video.

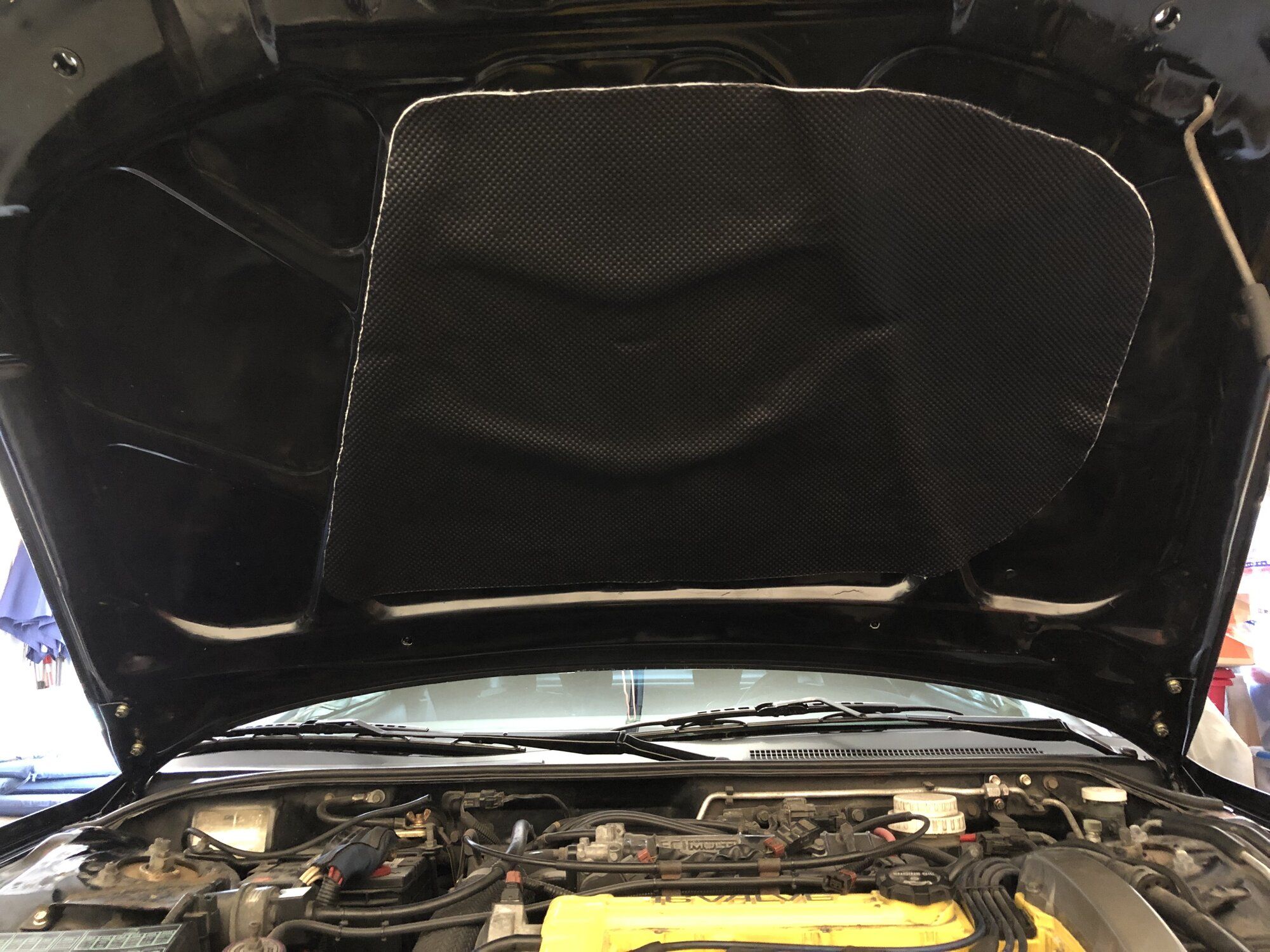

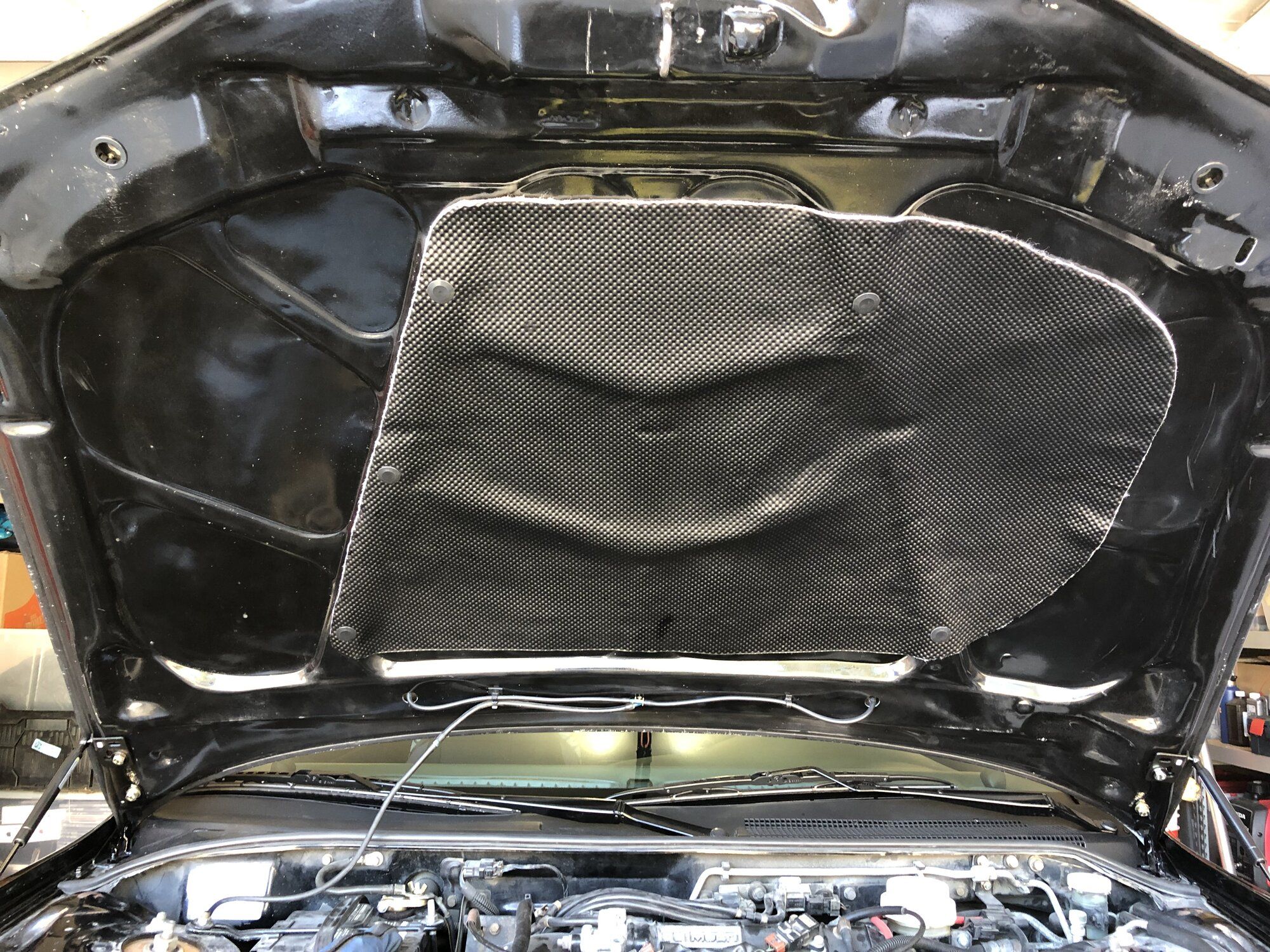

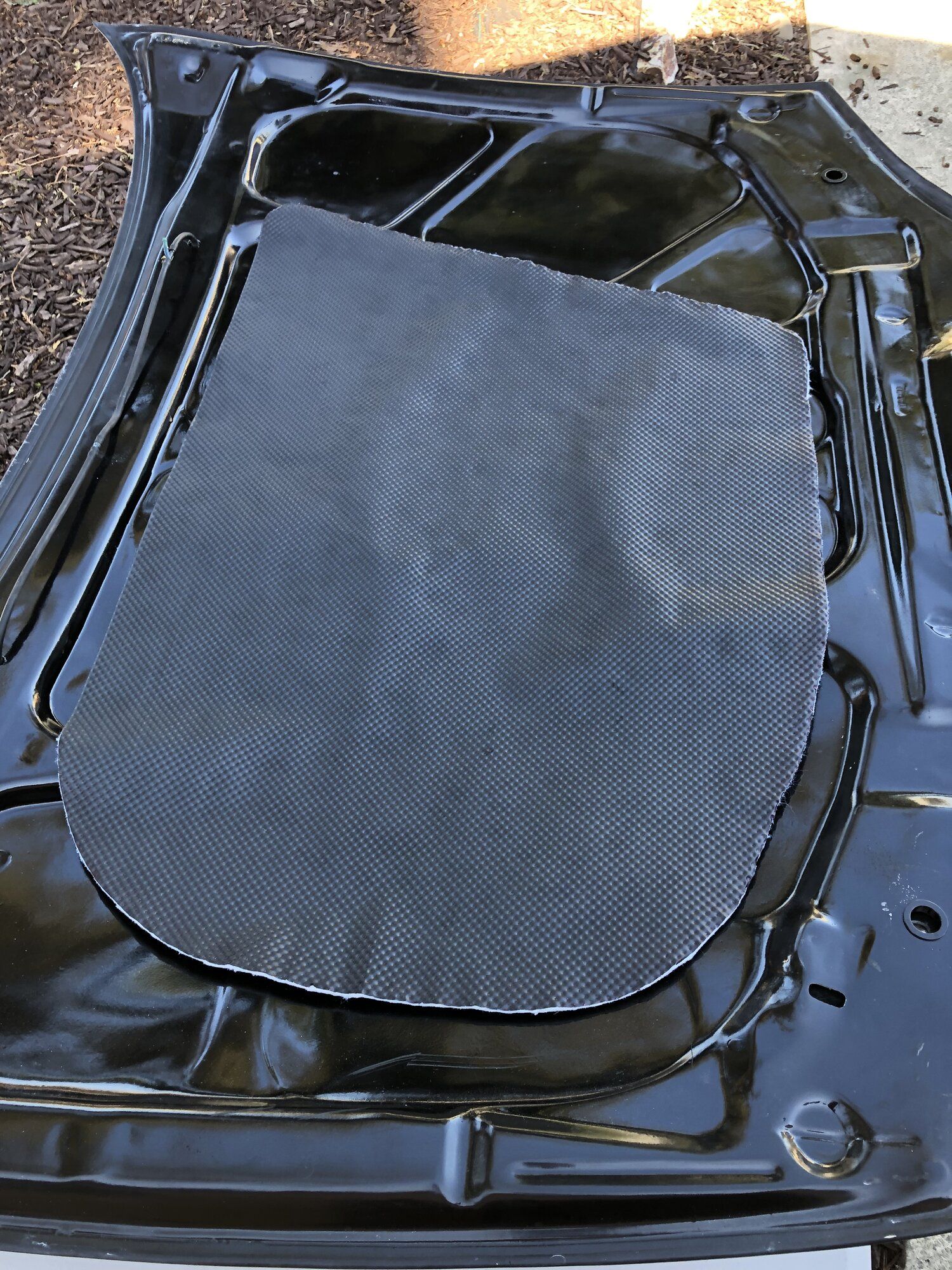

Installed
You must be logged in to view this image or video.

I’ll say one thing about a light hood. I can work with it solo. No way I could remove and install a stock hood with one person.

Last edited:

Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California

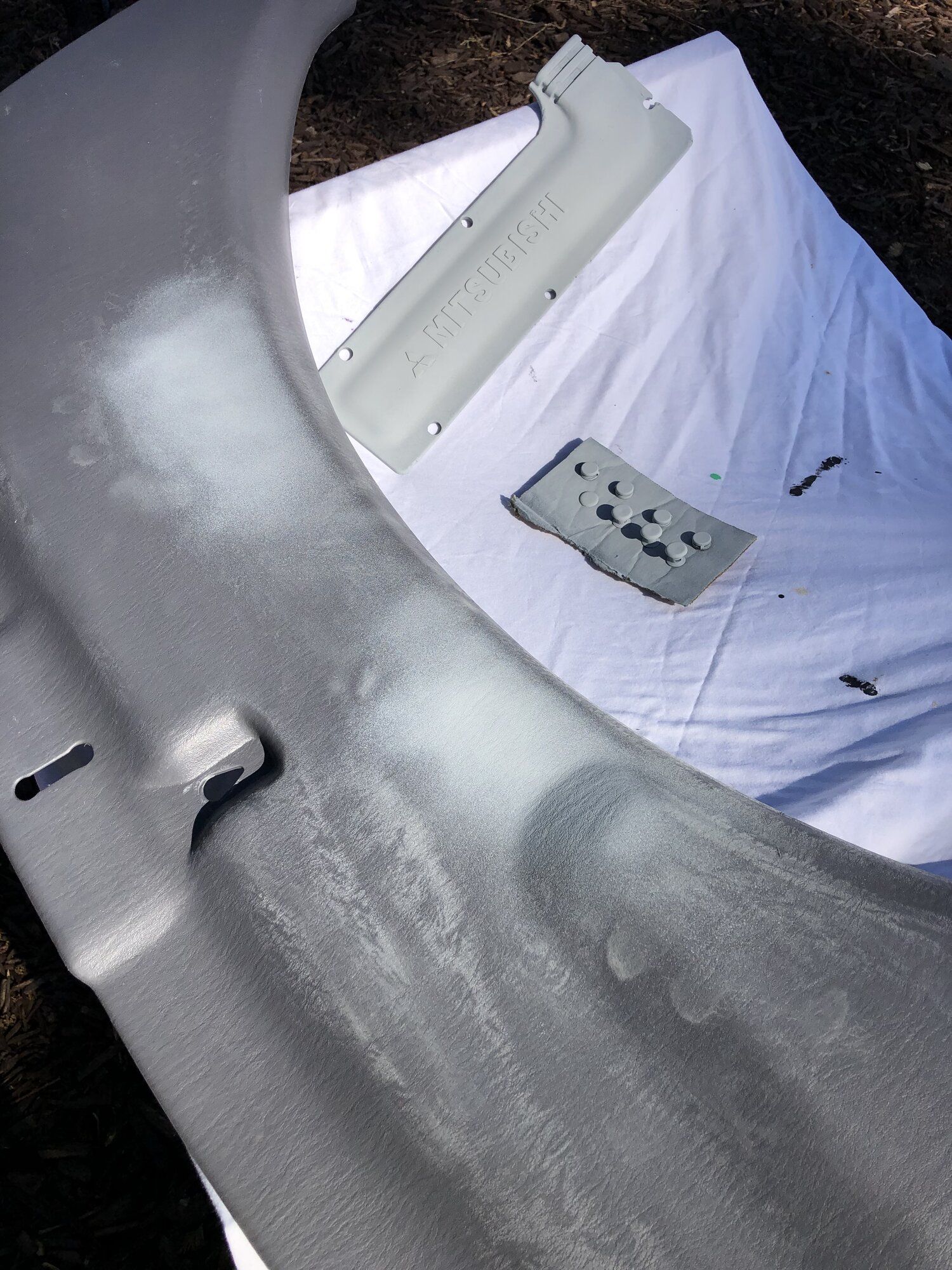

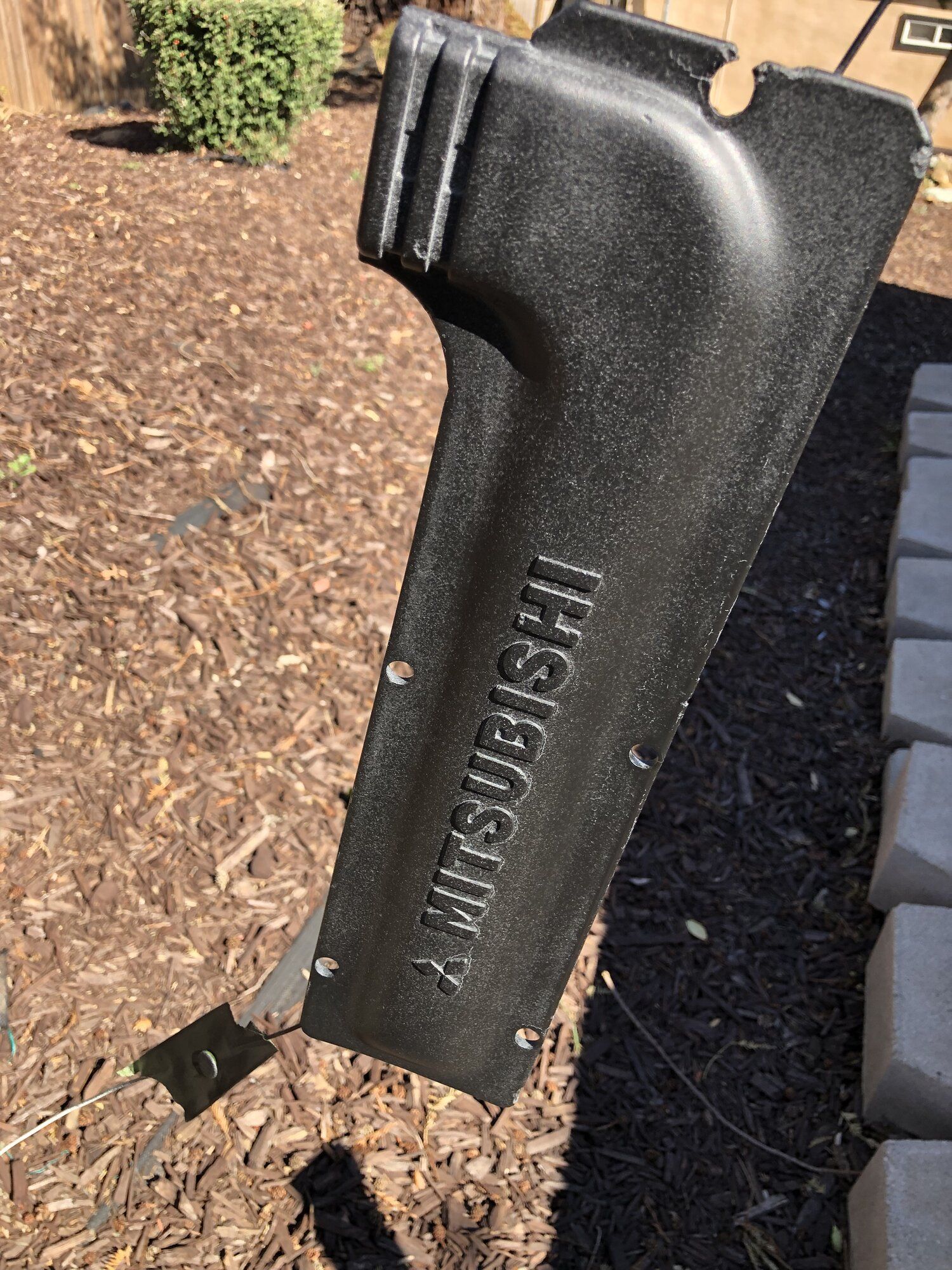

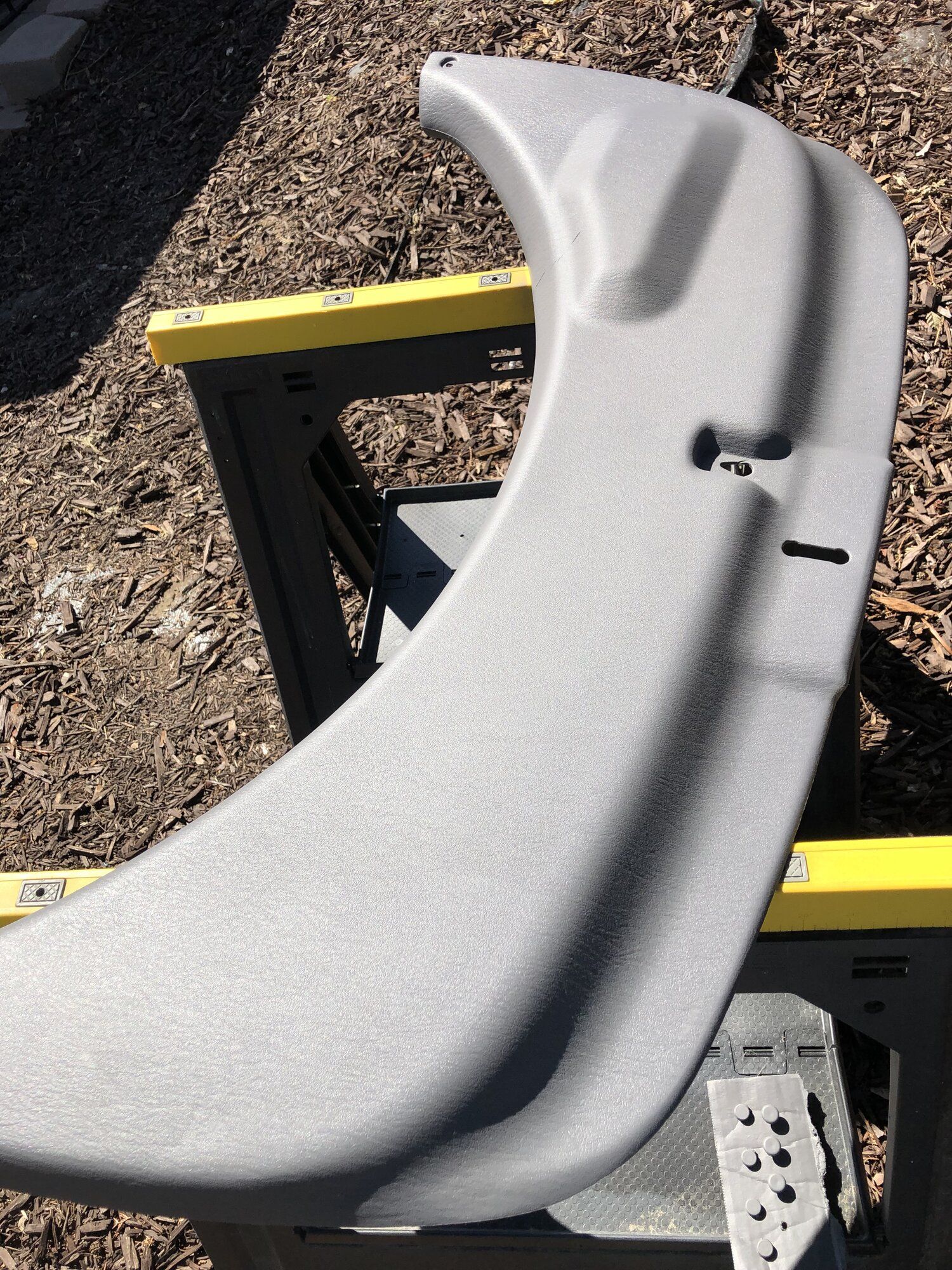

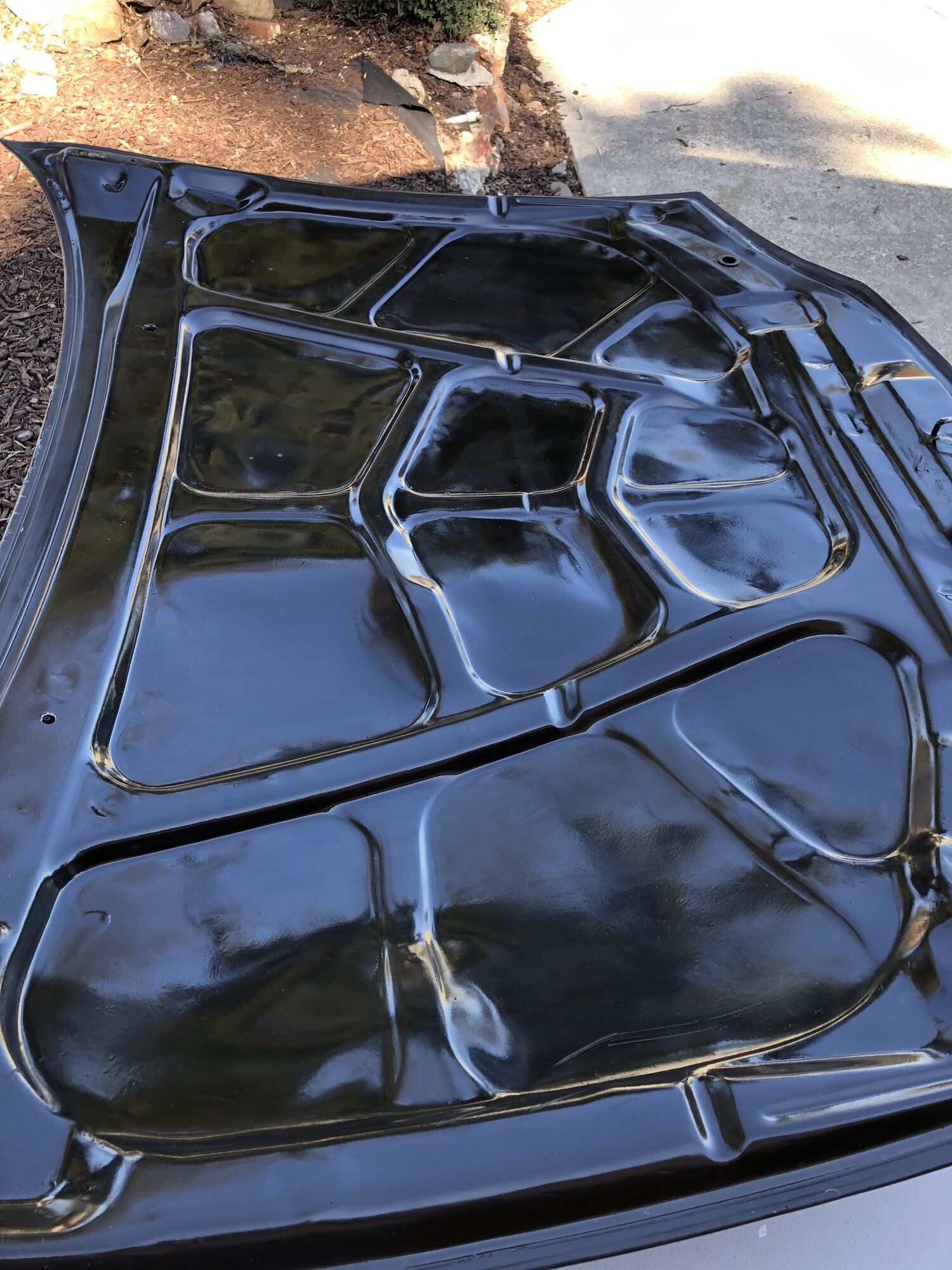

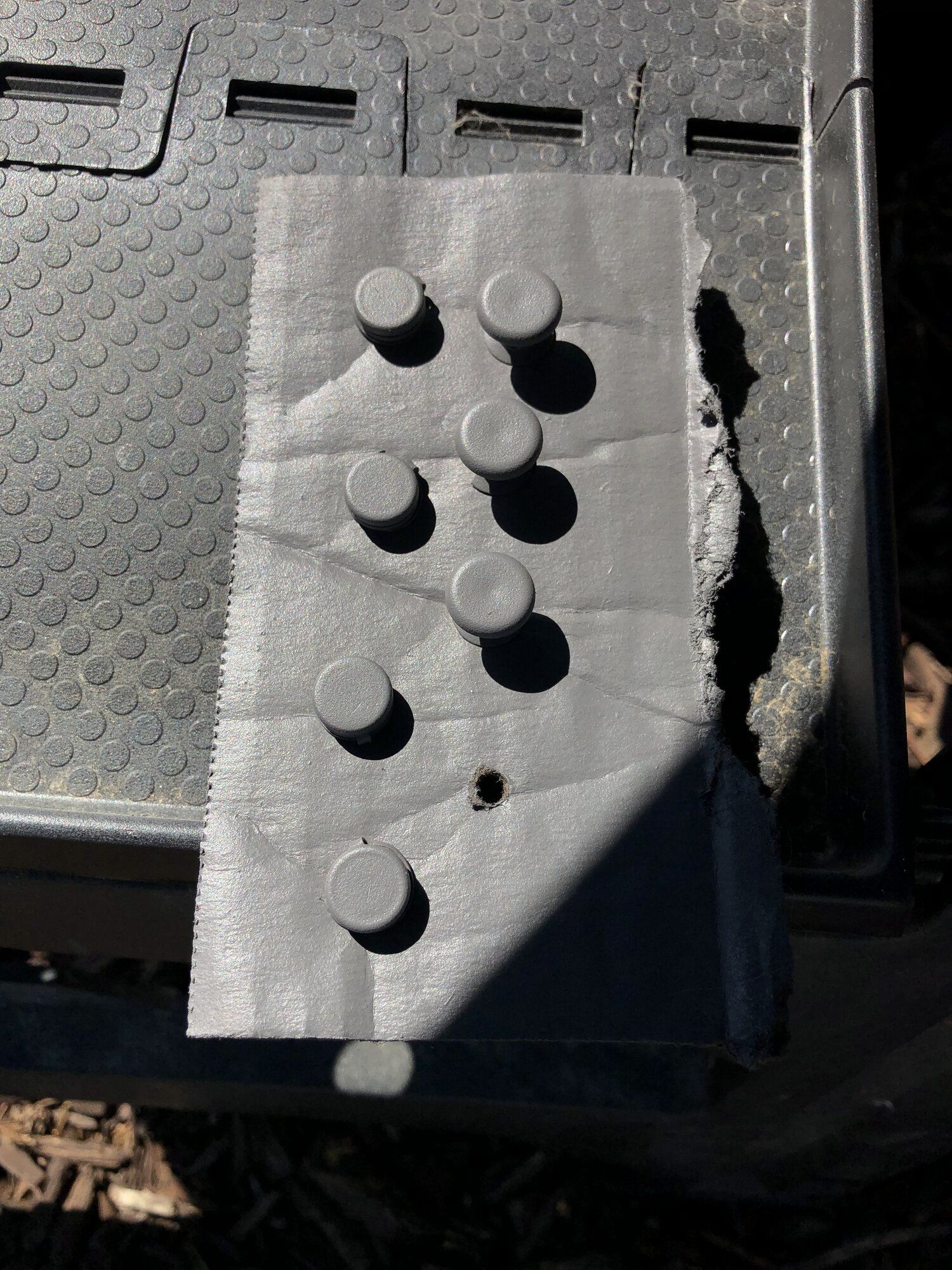

2 coats grey color
You must be logged in to view this image or video.
You must be logged in to view this image or video.

You must be logged in to view this image or video.

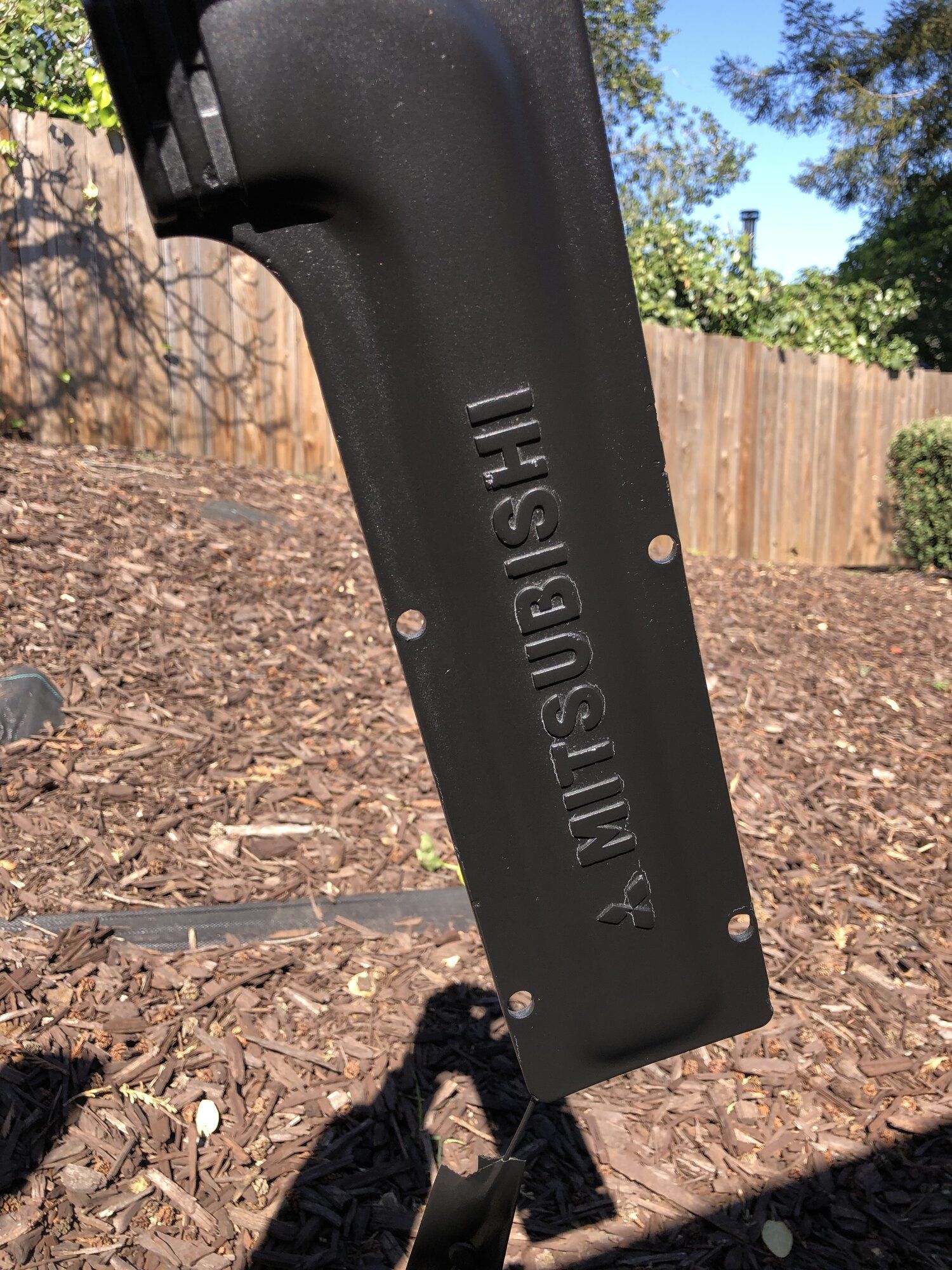

2 coats trim black
You must be logged in to view this image or video.
You must be logged in to view this image or video.


Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California
No more distressed plastic marks,
You must be logged in to view this image or video.

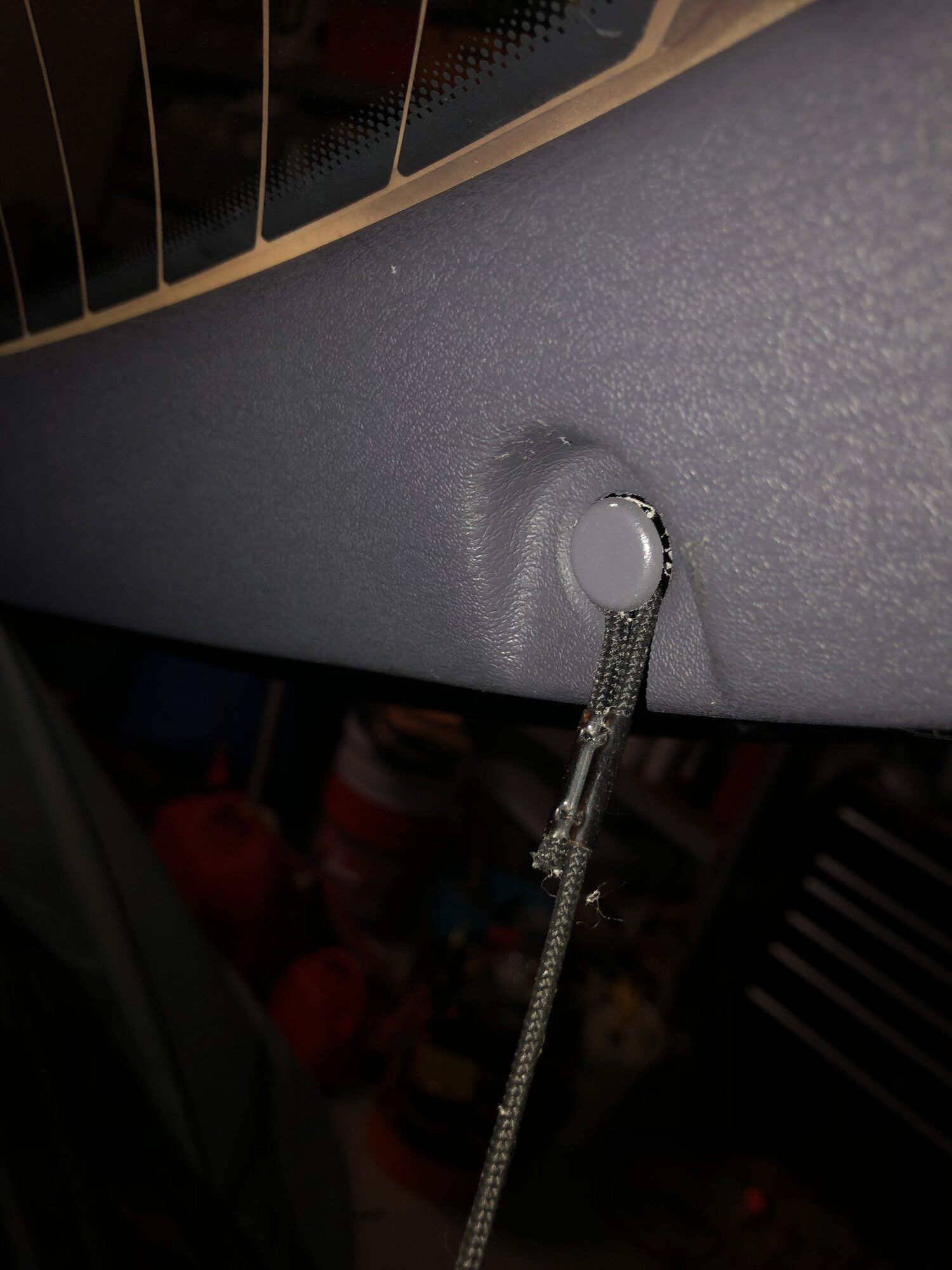

And the privacy cover lift pins have never been so snug:
You must be logged in to view this image or video.

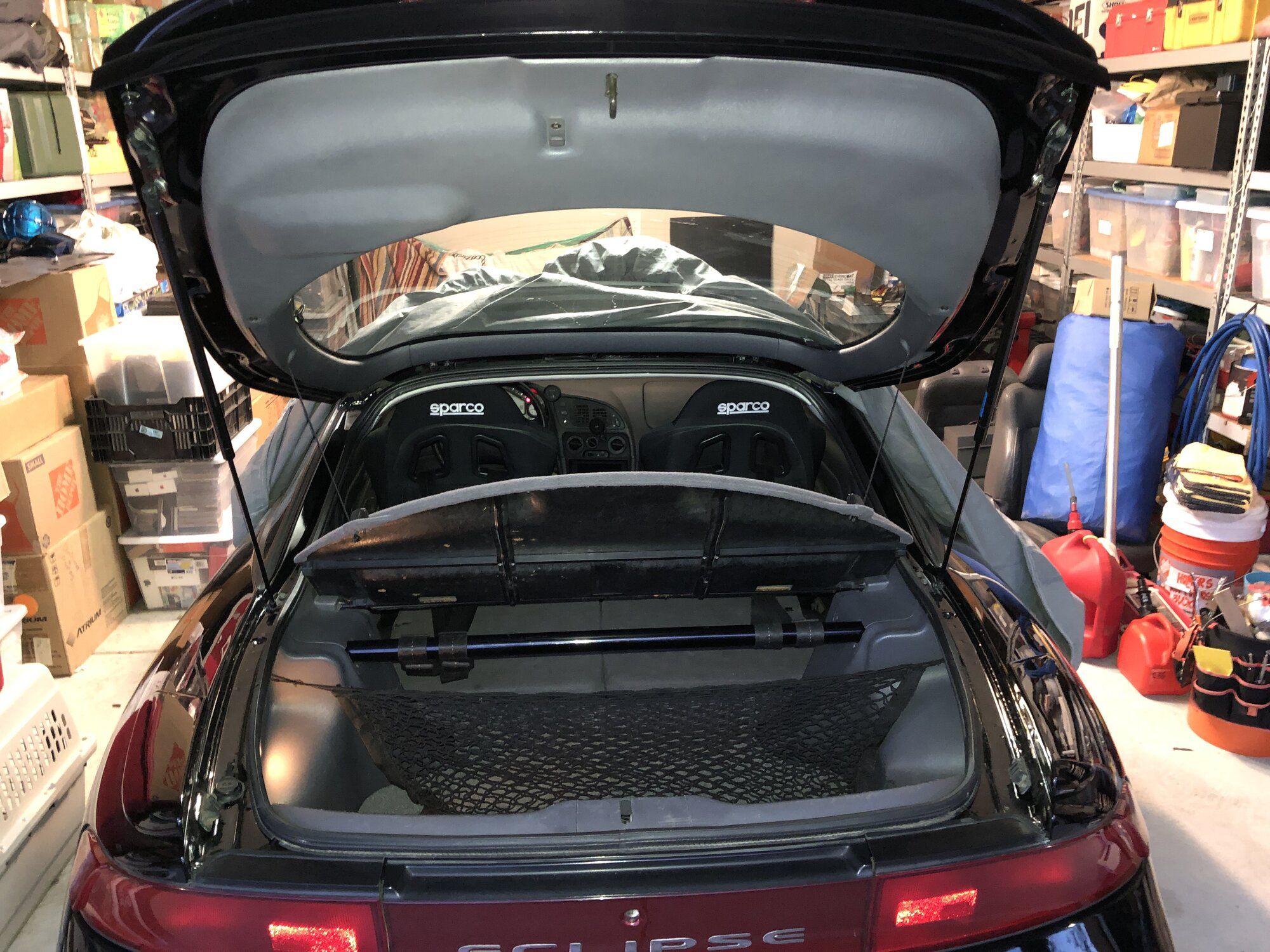

This part is looking spiffy - Open
You must be logged in to view this image or video.

Closed:
You must be logged in to view this image or video.


Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California
The list of stupid little things, is much shorter:

Stripped hood bolts - replaced

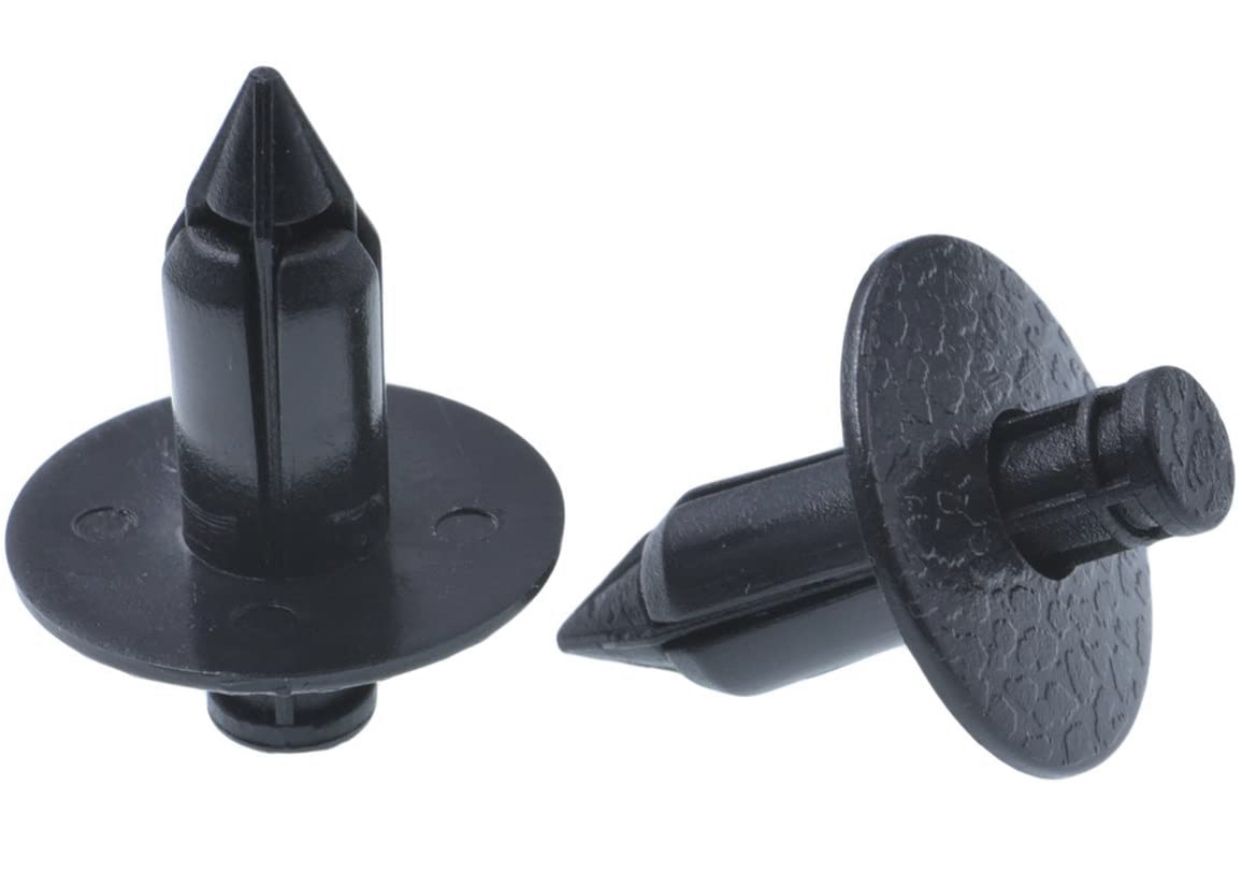

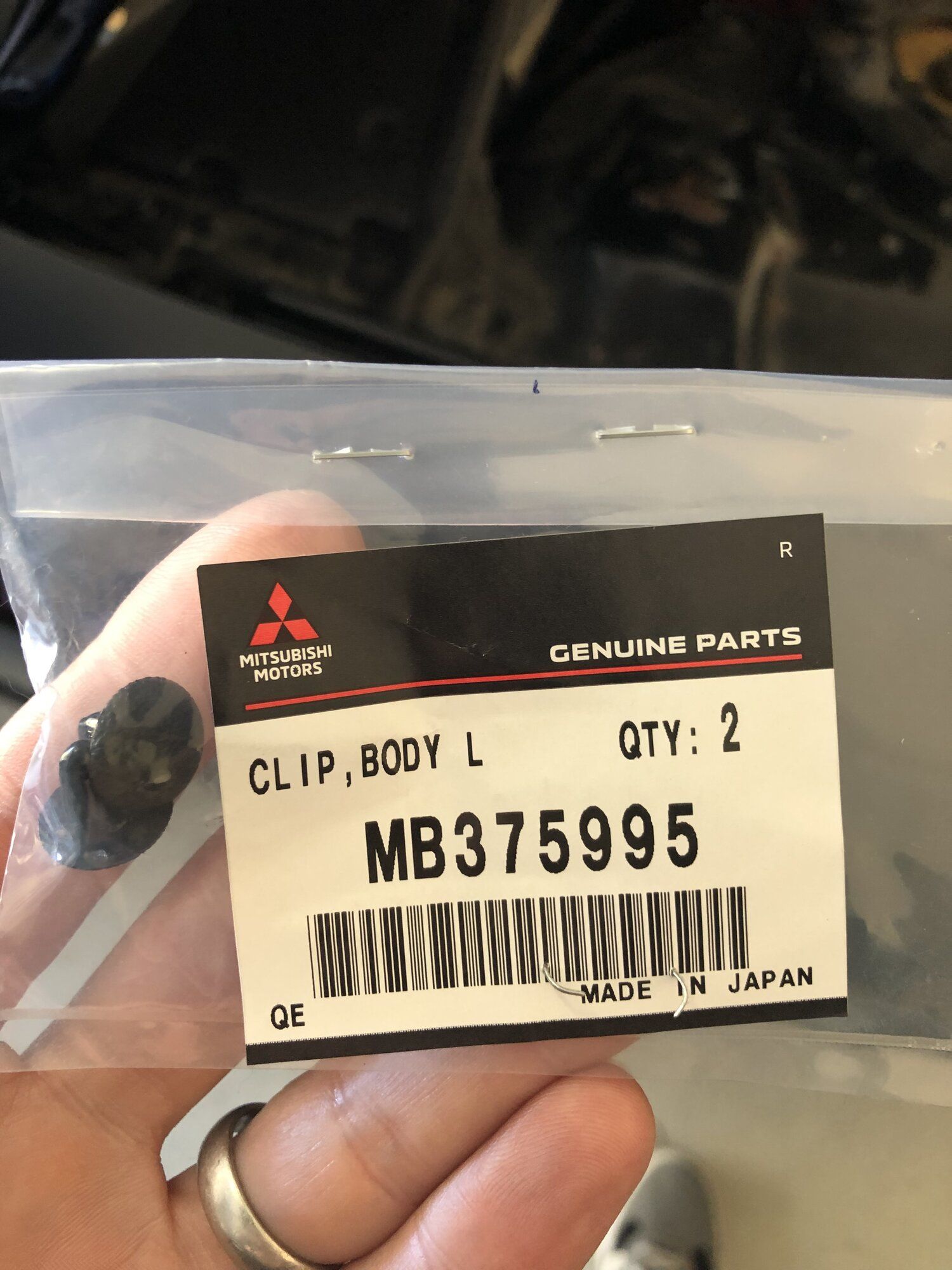

Cowl cover button fasteners - MB375995 - purchased and installed
Increase tolerance for the hood pin, and add a thru hull grommet - completed
Privacy cover lift pins - MR189485 - recieved and refreshed
Locate cargo net in storage - located and installed

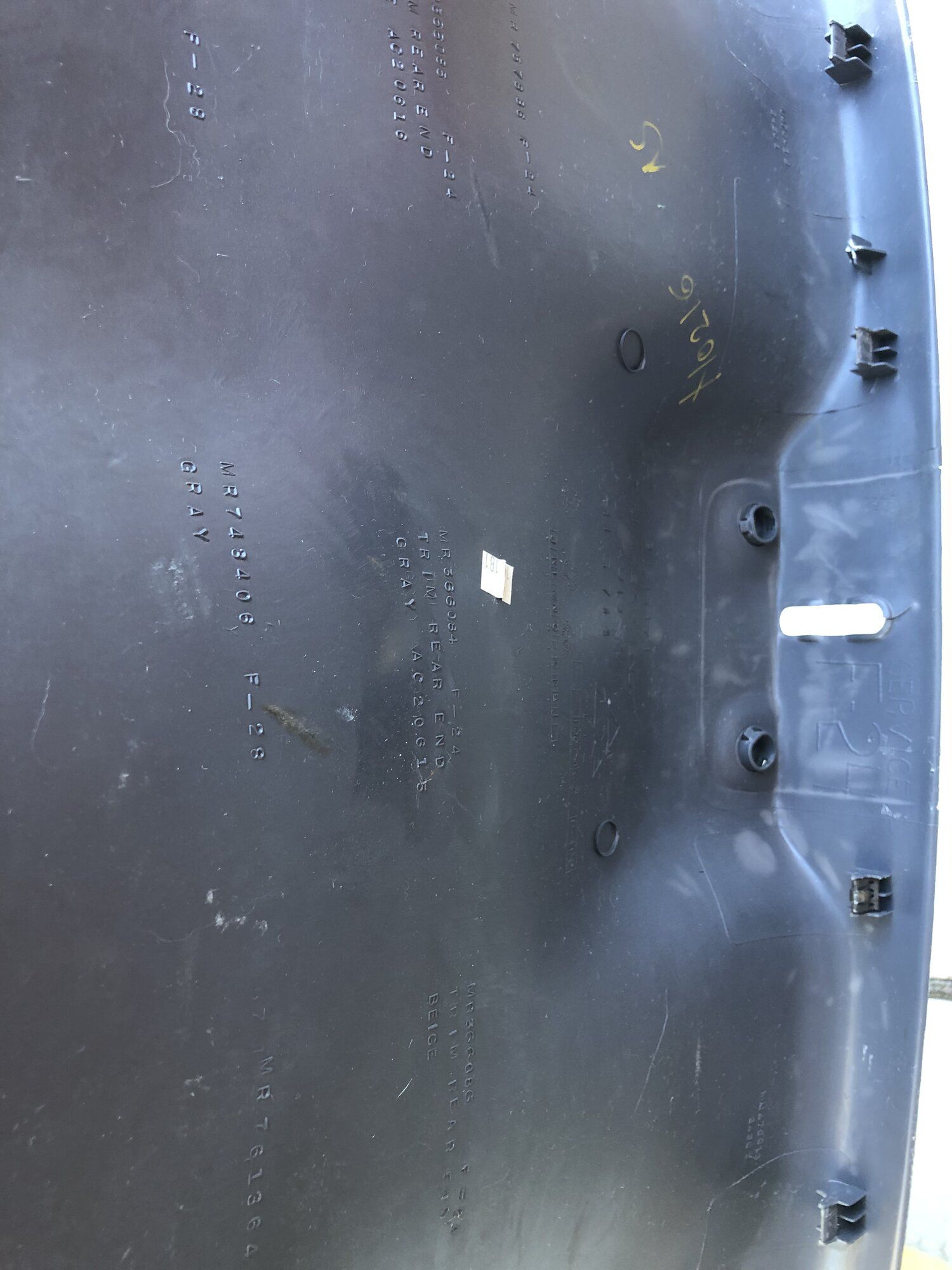

Rear interior cargo area trim panel clips - MU470013 - purchased and installed

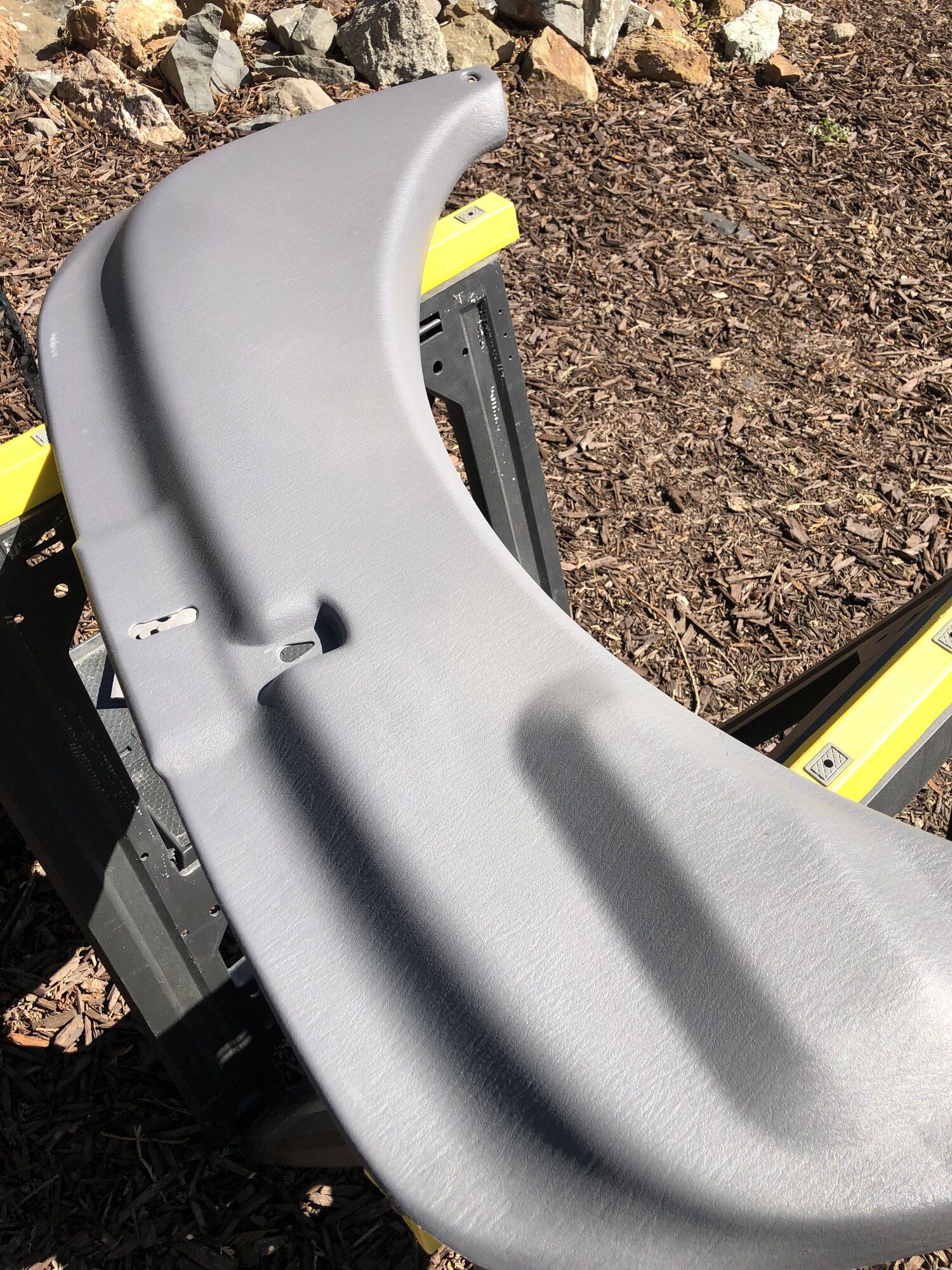

Color match paint under-side of hatch trim panel - completed

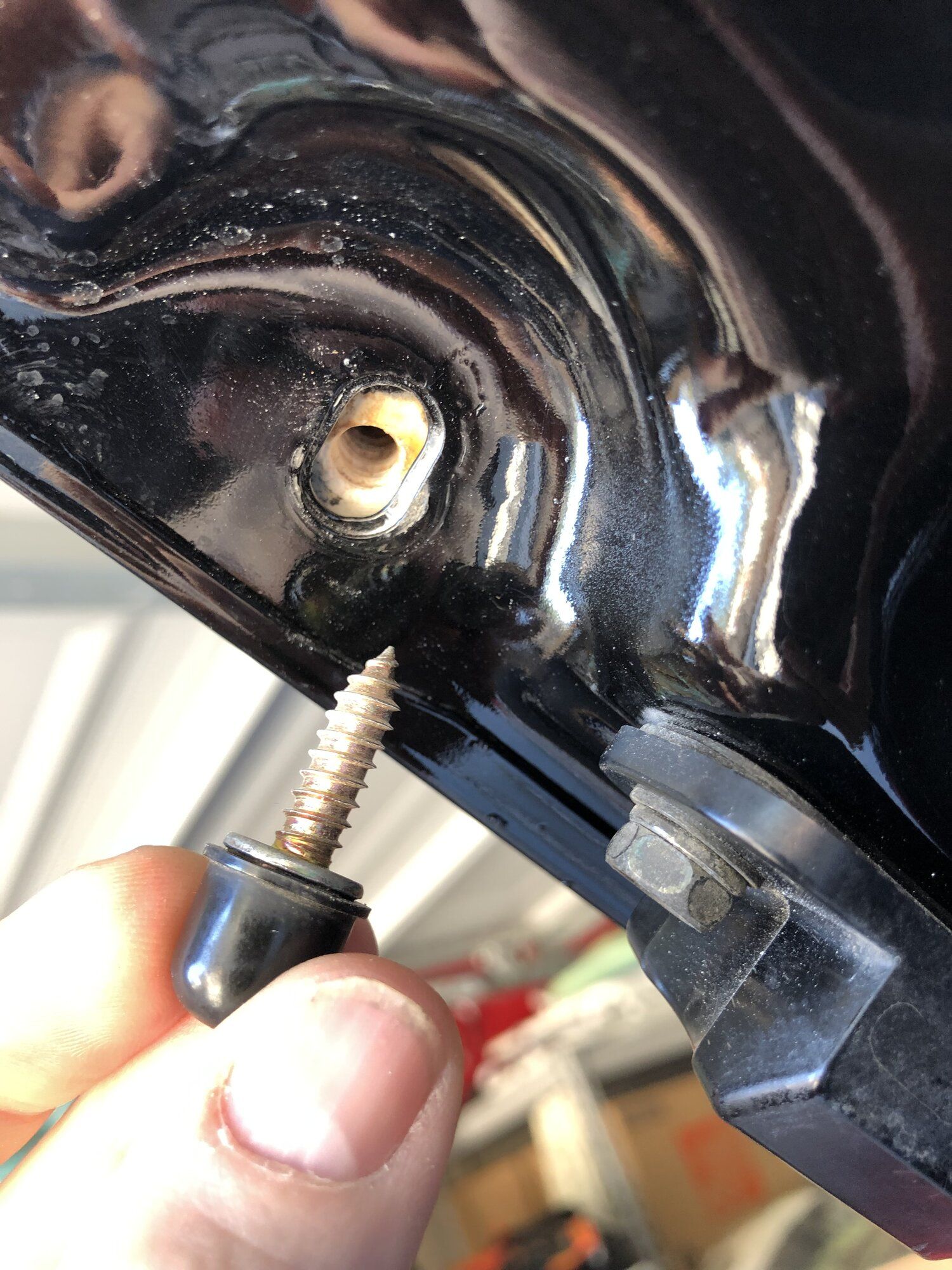

Rear trim panel screws with plastic head covers - received and refreshed

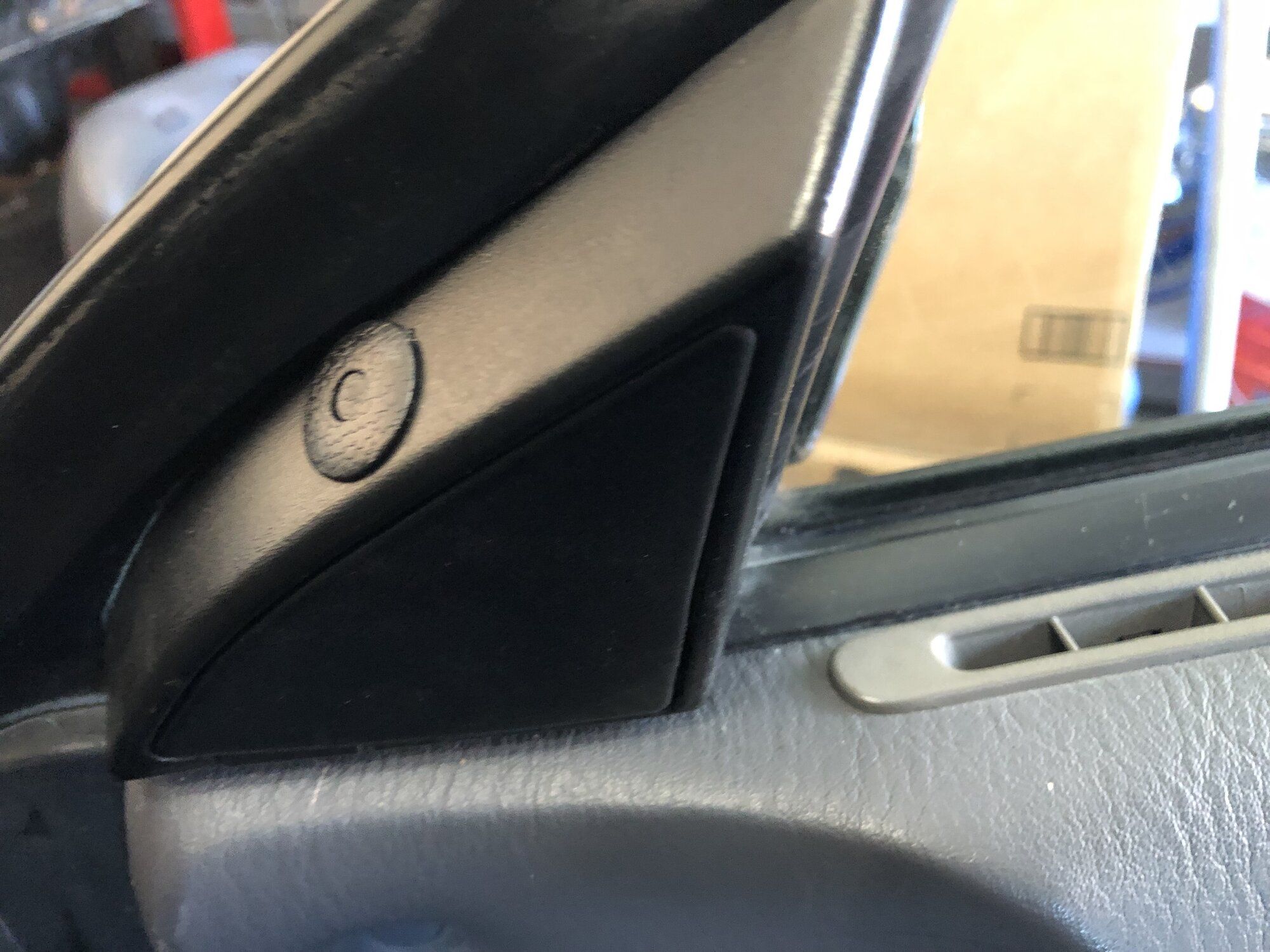

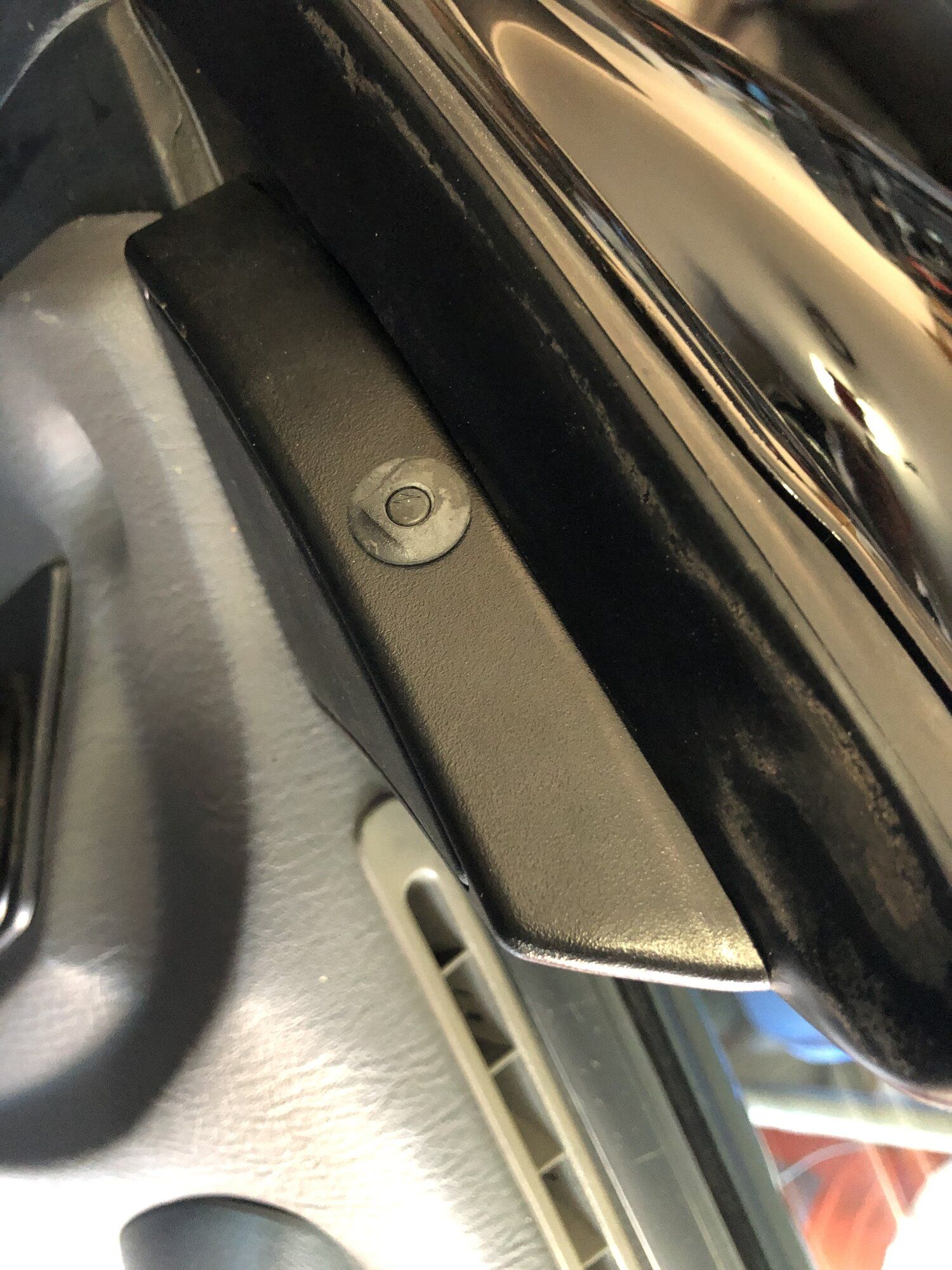

Side view mirror interior trim cover push rivets - installed
CF hood heat blanket - Installed
Re-stud the loose wing attachment - complete


In progress:
Body to wing neoprene gasket - sourced and ordered
Hood struts - measured and ordered
Both left and right side view mirror interior trim covers - located and purchased
MB881985 - left
MB881986 - right
Matching headliner fastener - MB417490 - located and purchased
Source washer wiper hose retainers - ??
Source not cracked grey door panels - ??
MR707955 - Left
MR707958 - Right
Figure out why the door seal isn’t holding its shape - ??
Locate a pair of the 2" thick side skirt door caps for this year body - ?! maybe !?
MR186136 - Right
MR186135 - Left
Locate fender liner(s) (for turbo cars with ground effects) - ??
MR162457 is LH
MR162458 is RH

Resolve #2 injector circuit CEL:
ECU to Injector wire - OK
Injector to resistor wire - TBT
Resistor - TBT

and then… Timing belt time - PS Pump refresh - Throttle Body refresh and Resolve ABS light

Last edited:

Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California

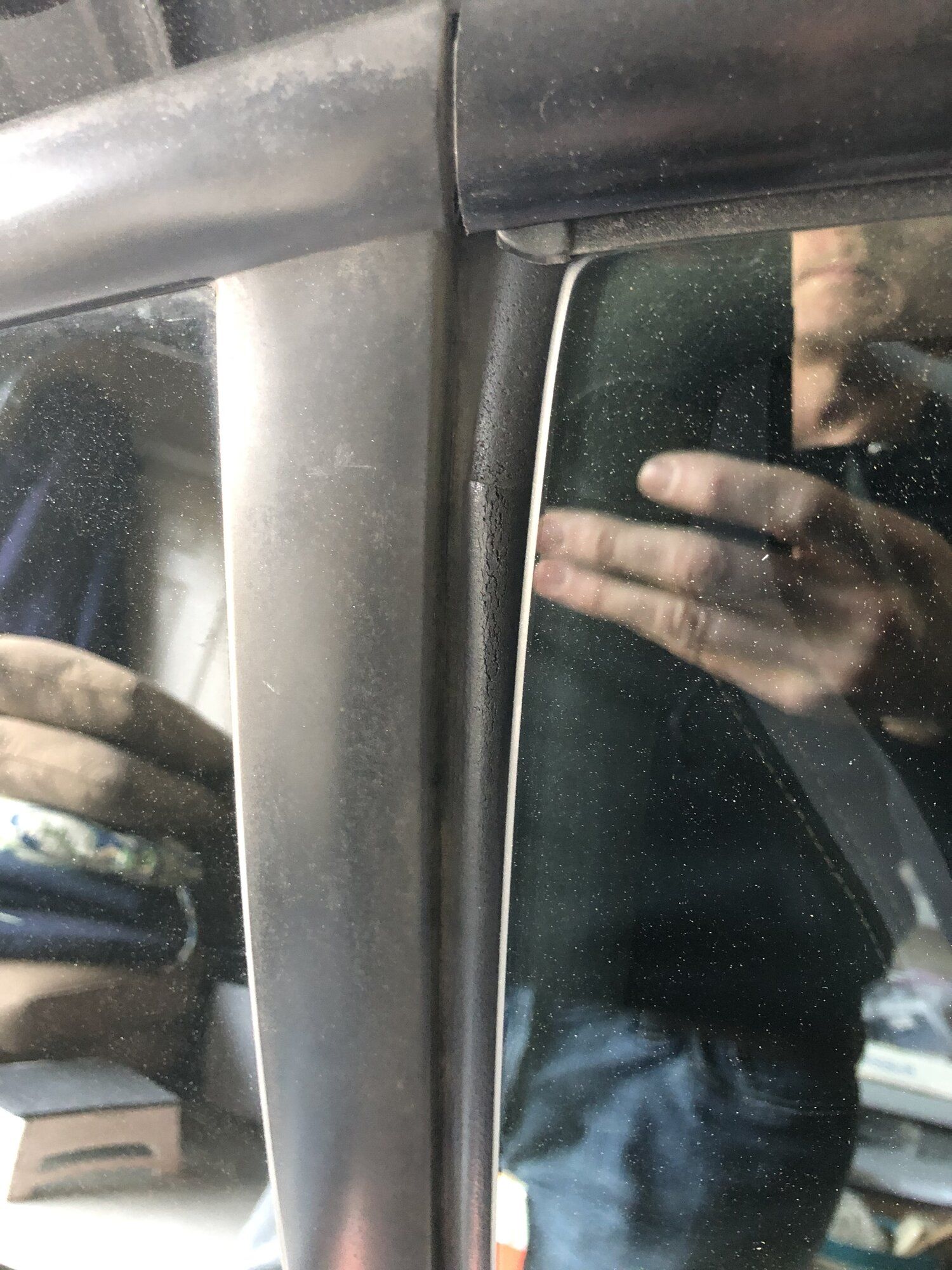

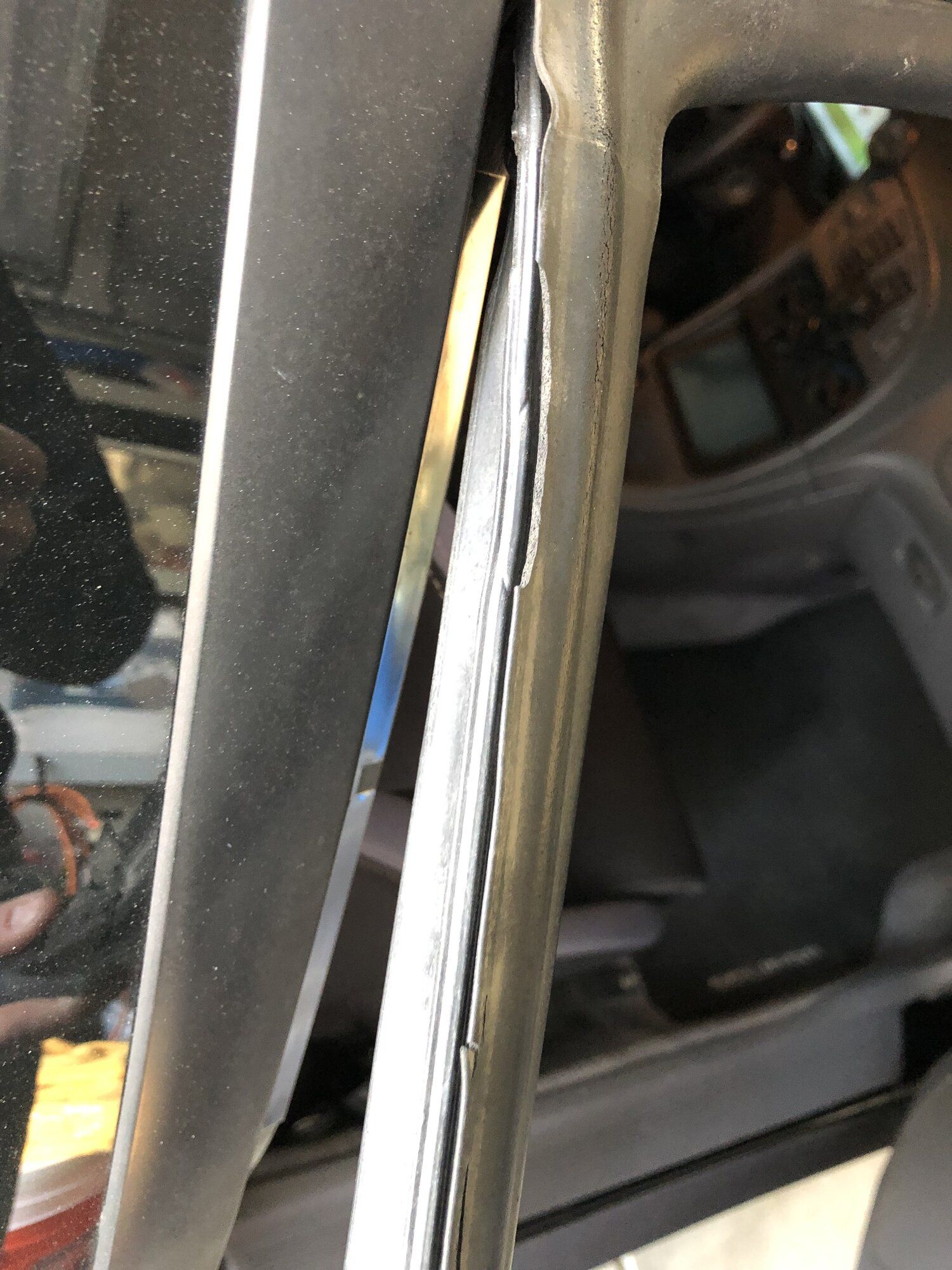

Got around to looking closer at the door seal,
You must be logged in to view this image or video.

Found the outside edge a little out of shape, and not in the groove behind the rail edge.
I found it hard to put the outside edge into the groove last, so i pulled it back out from the short end, tucked the outside edge into the groove first, then with a little pressure and the occasional prod with a large dull plastic blade, like you use for spackling paste on a wall, masaged the seal back into the groove.
You must be logged in to view this image or video.

One more list item completed.

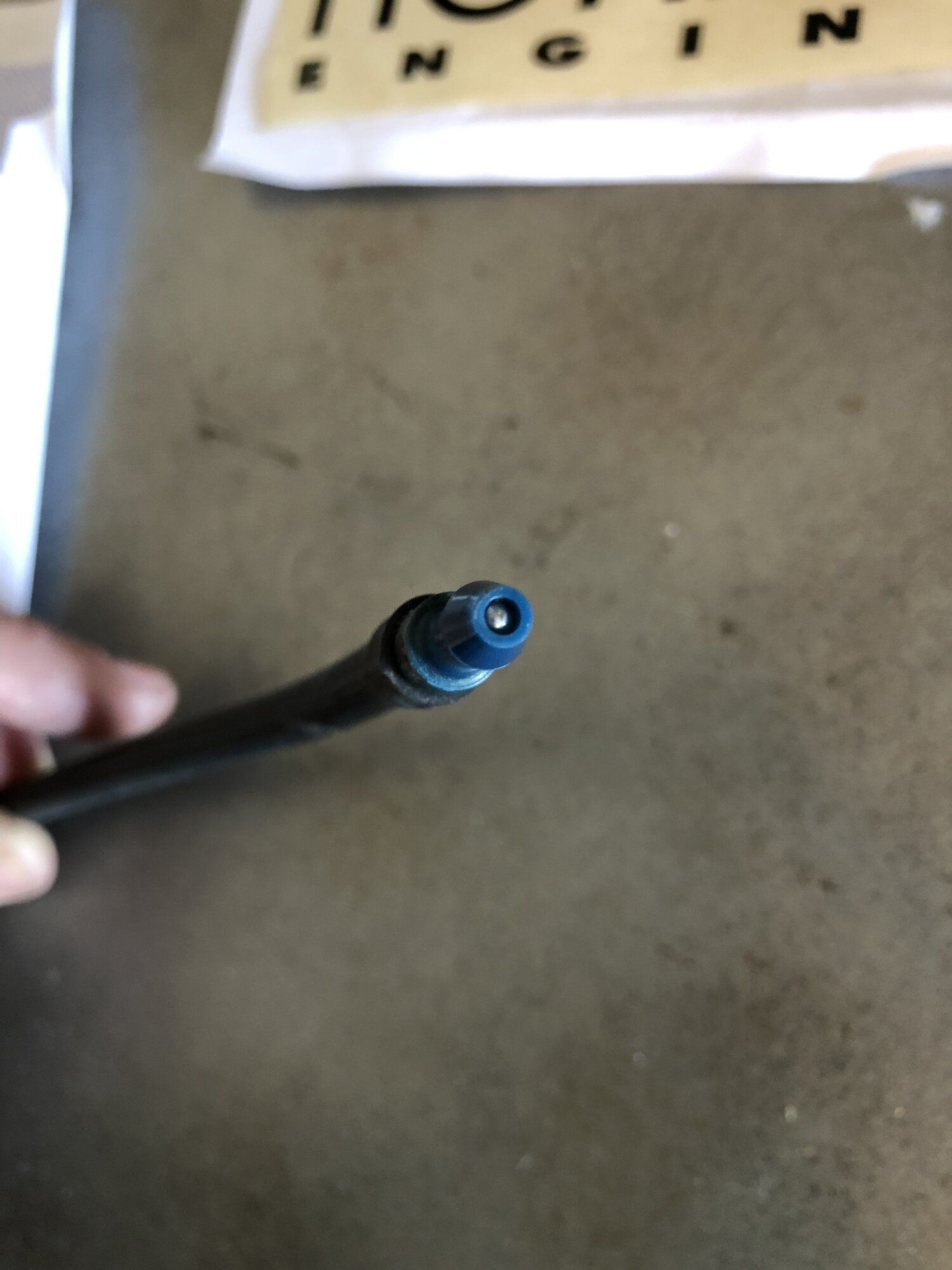

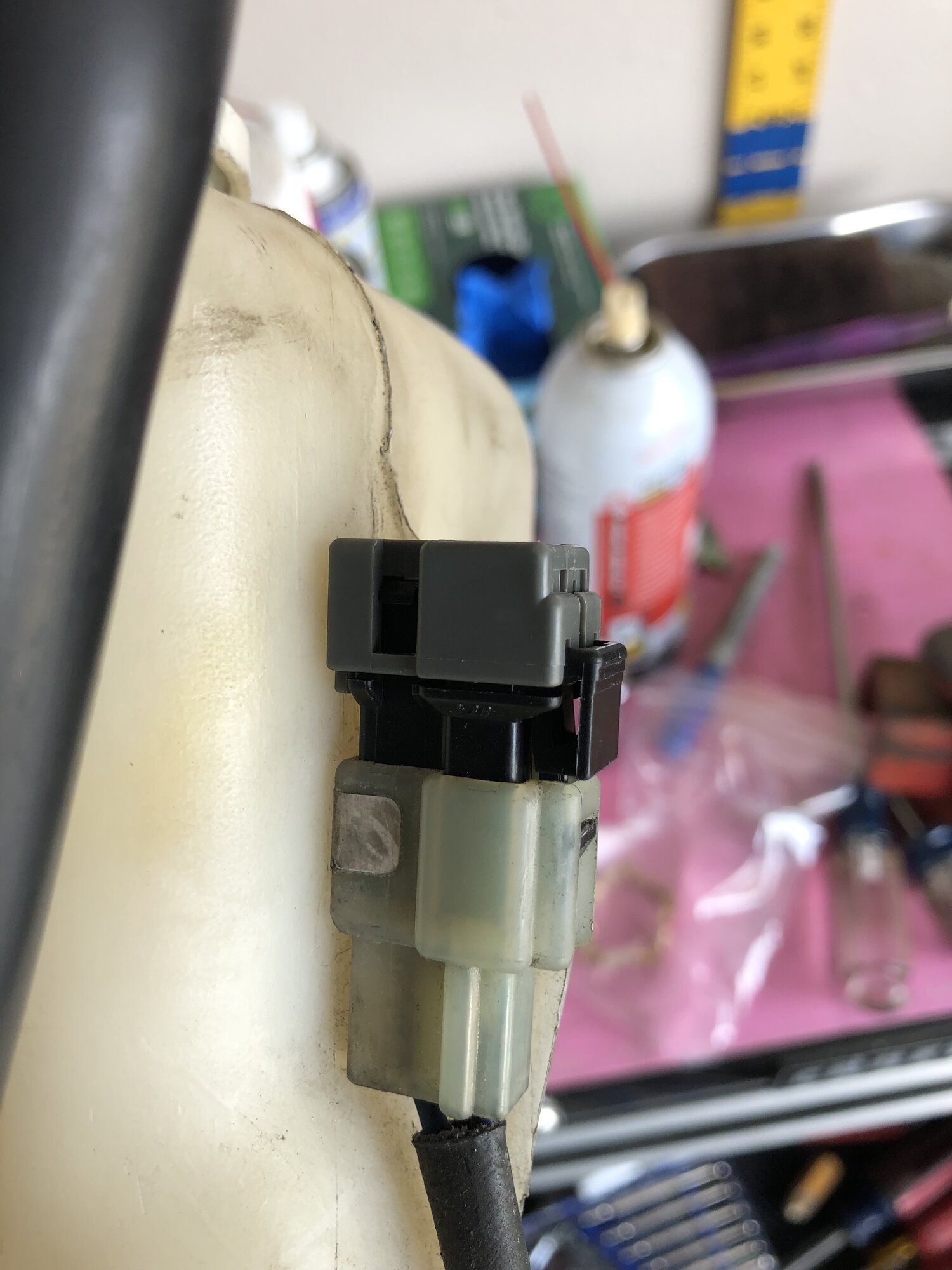

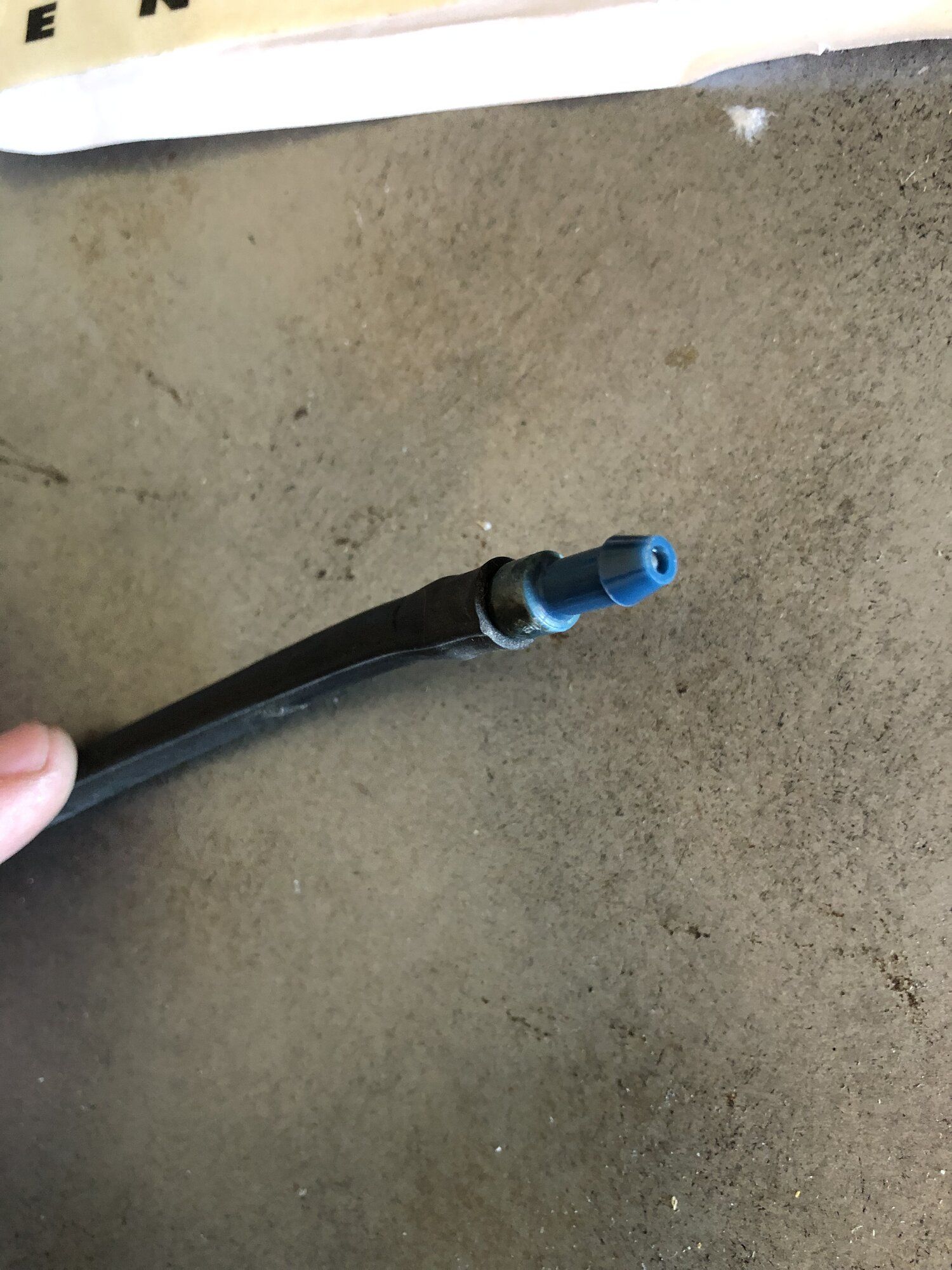

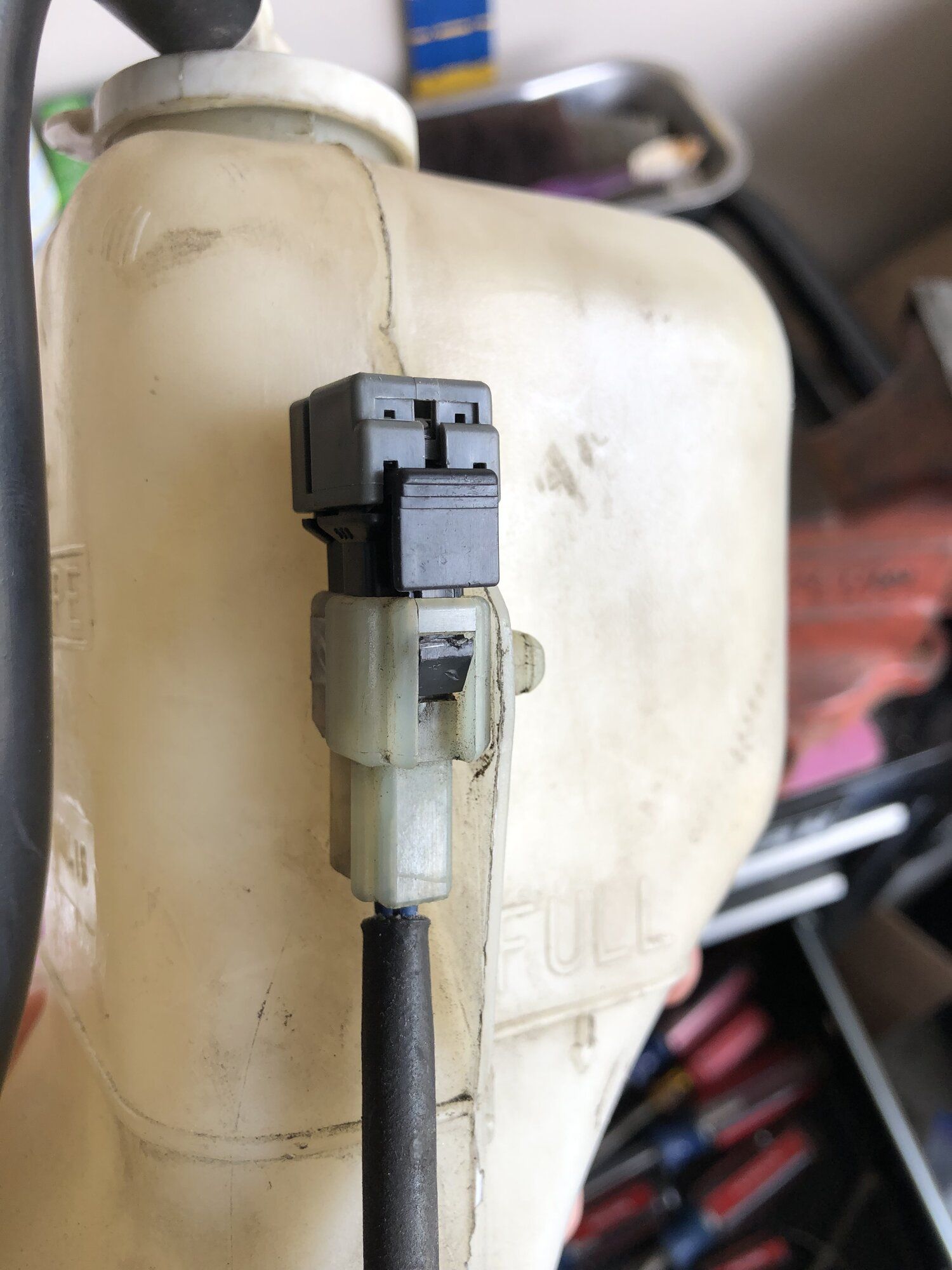

I just found this coupler for the washer nozzle tubing is also a check valve! Glad to still have this. I’ll put it befor the Y - thank you very much.
You must be logged in to view this image or video.

And now back to actual work towards driving - The injector resistor packs pass the 6.0 ohm check. There is continuity between the injector and the resistor pack plug. I gave the connector a nice shot of connector cleaner, dried it…
so nothing obvious with the connections. I’m still suspect of the injector, or the ecu, or any heat related failure.
You must be logged in to view this image or video.

Thinking I will start to eyeball all the parts that need to go to Rich for refinishing while I take it down for some reliability improvements.

You must be logged in to view this image or video.

Last edited:

Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California

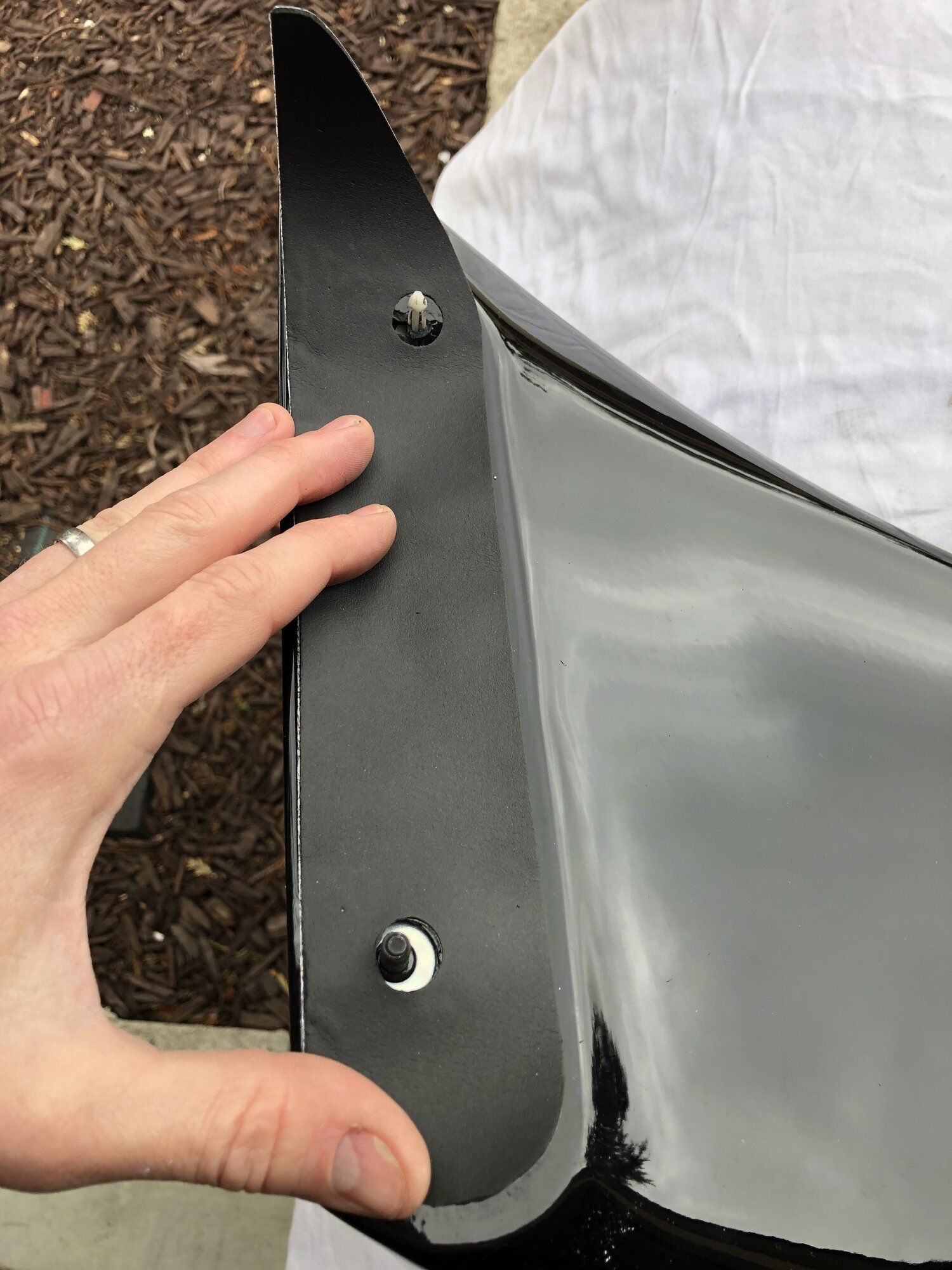

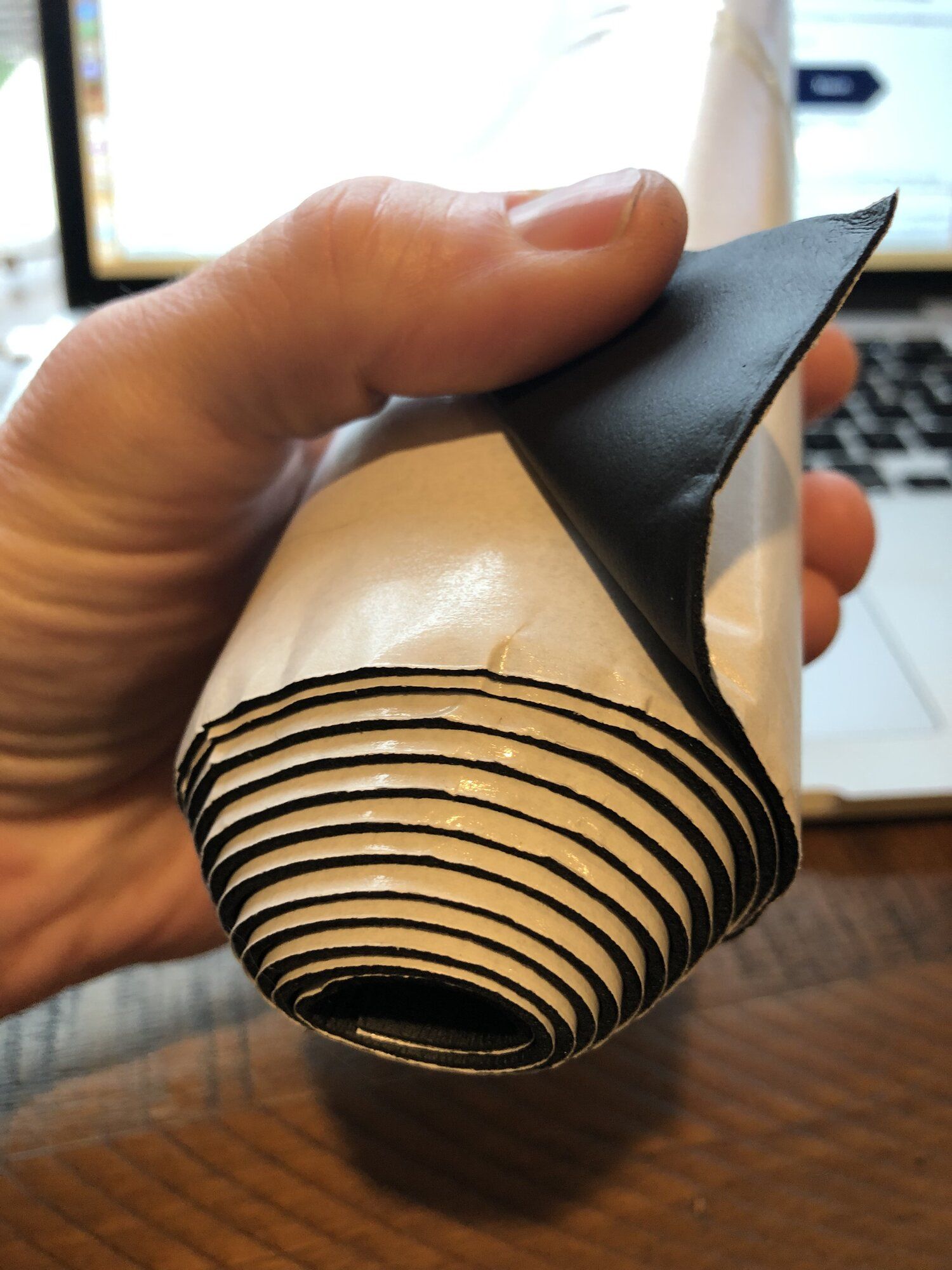

1/16” adhesive backed neoprene is perfect for the wing gasket:
You must be logged in to view this image or video.

Cut to shape, peel and stick:
You must be logged in to view this image or video.
You must be logged in to view this image or video.

You must be logged in to view this image or video.


Scratch one more task off the list.

You must be logged in to view this image or video.

Last edited:

Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California

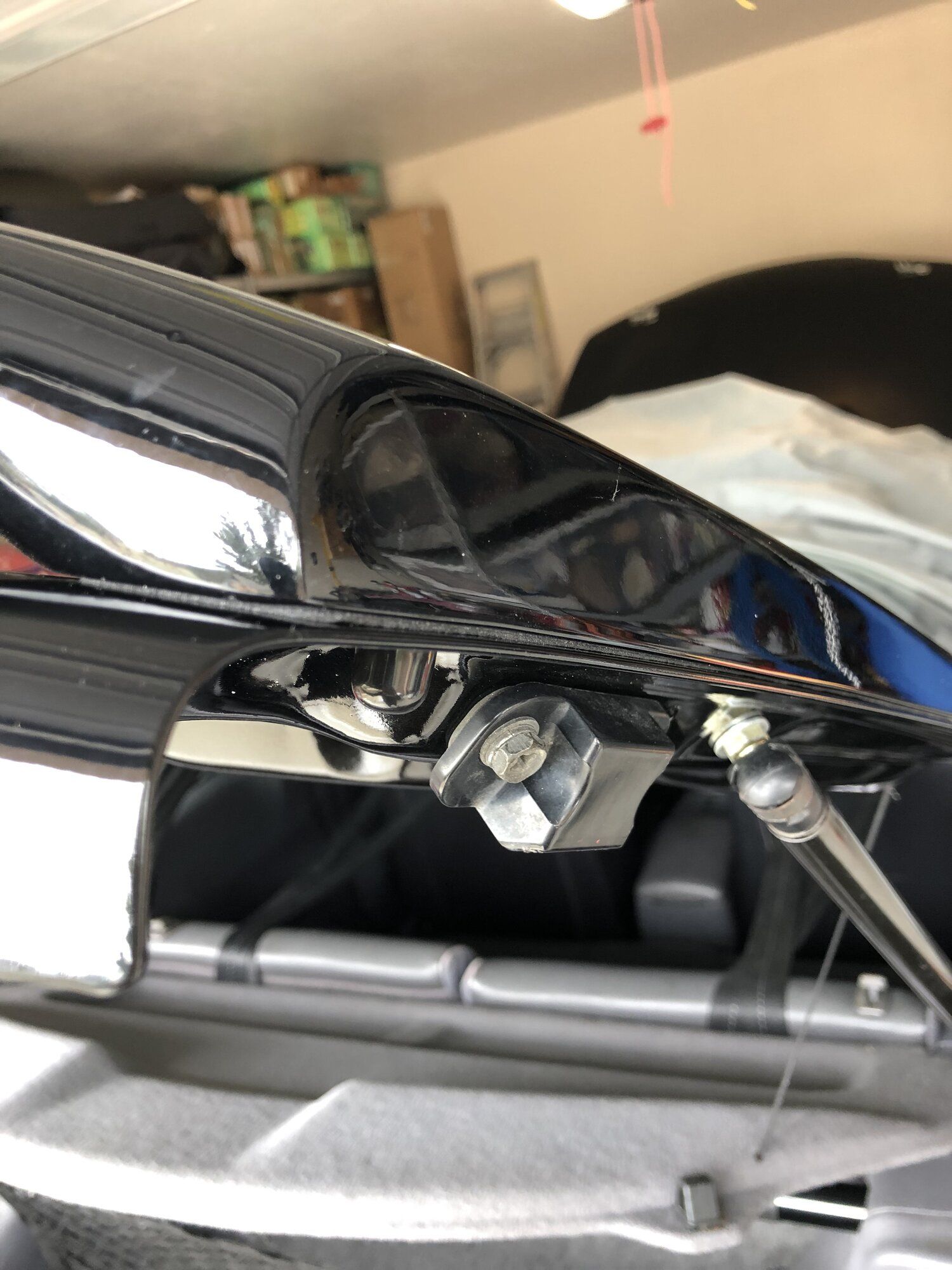

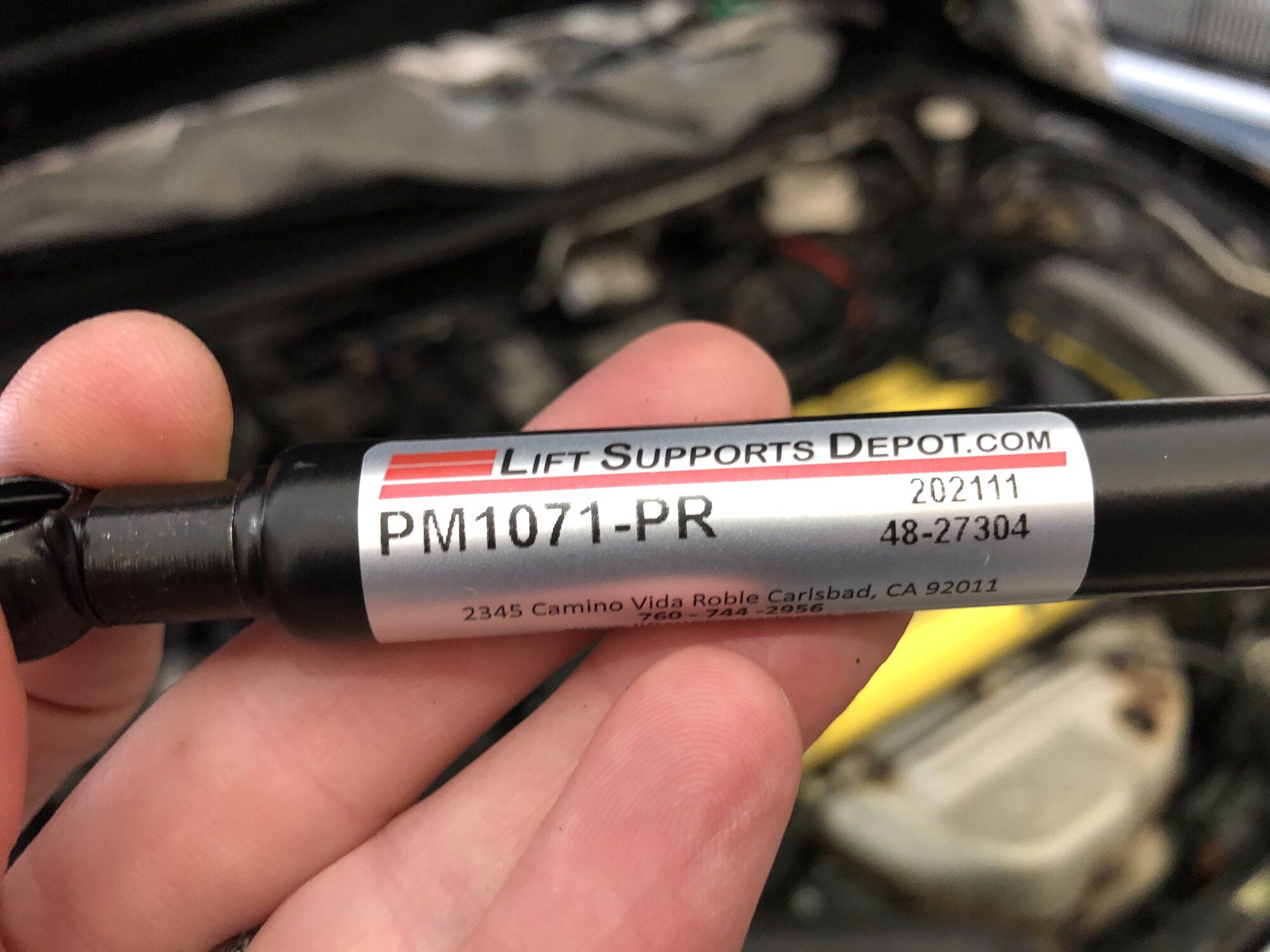

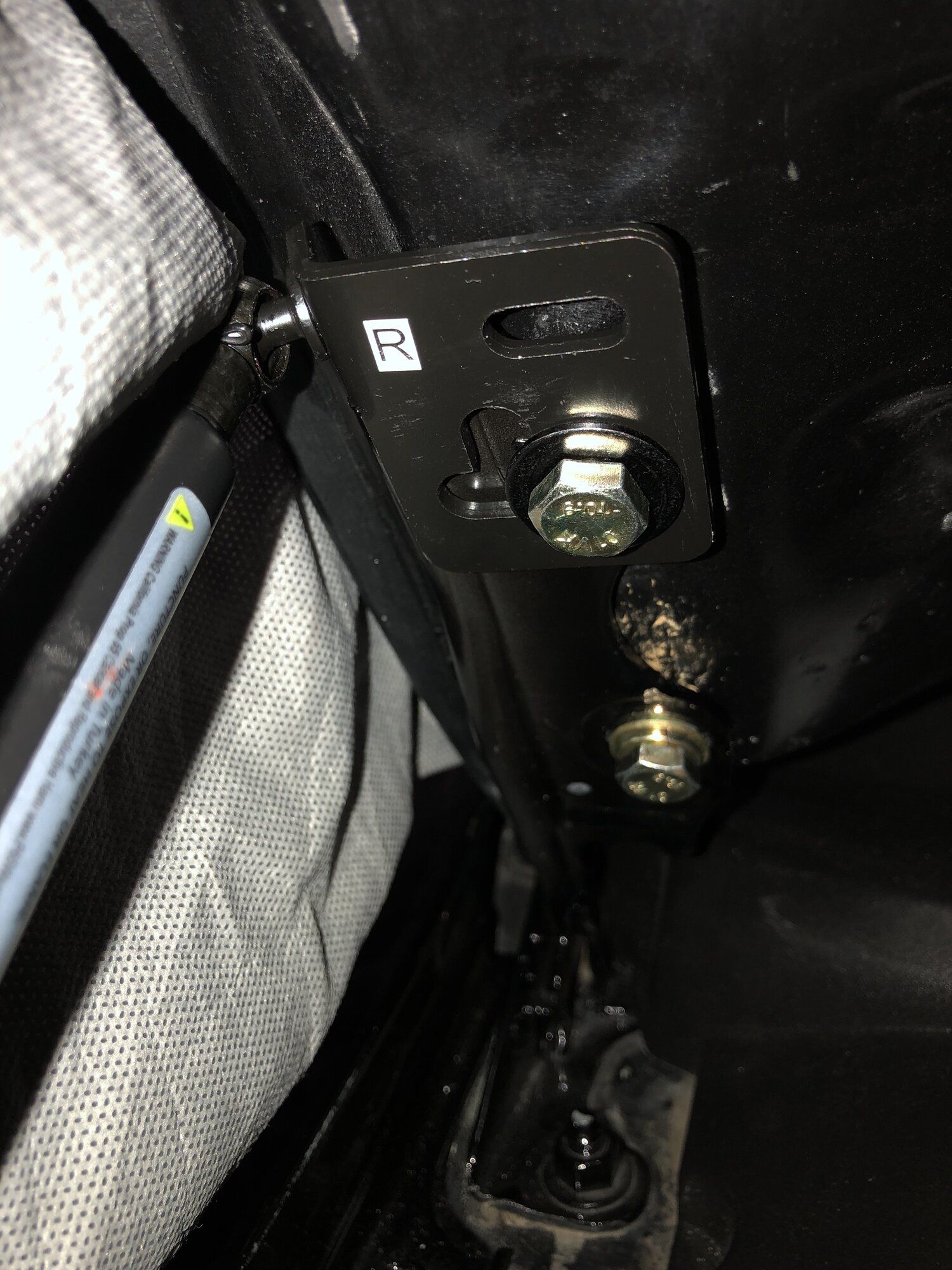

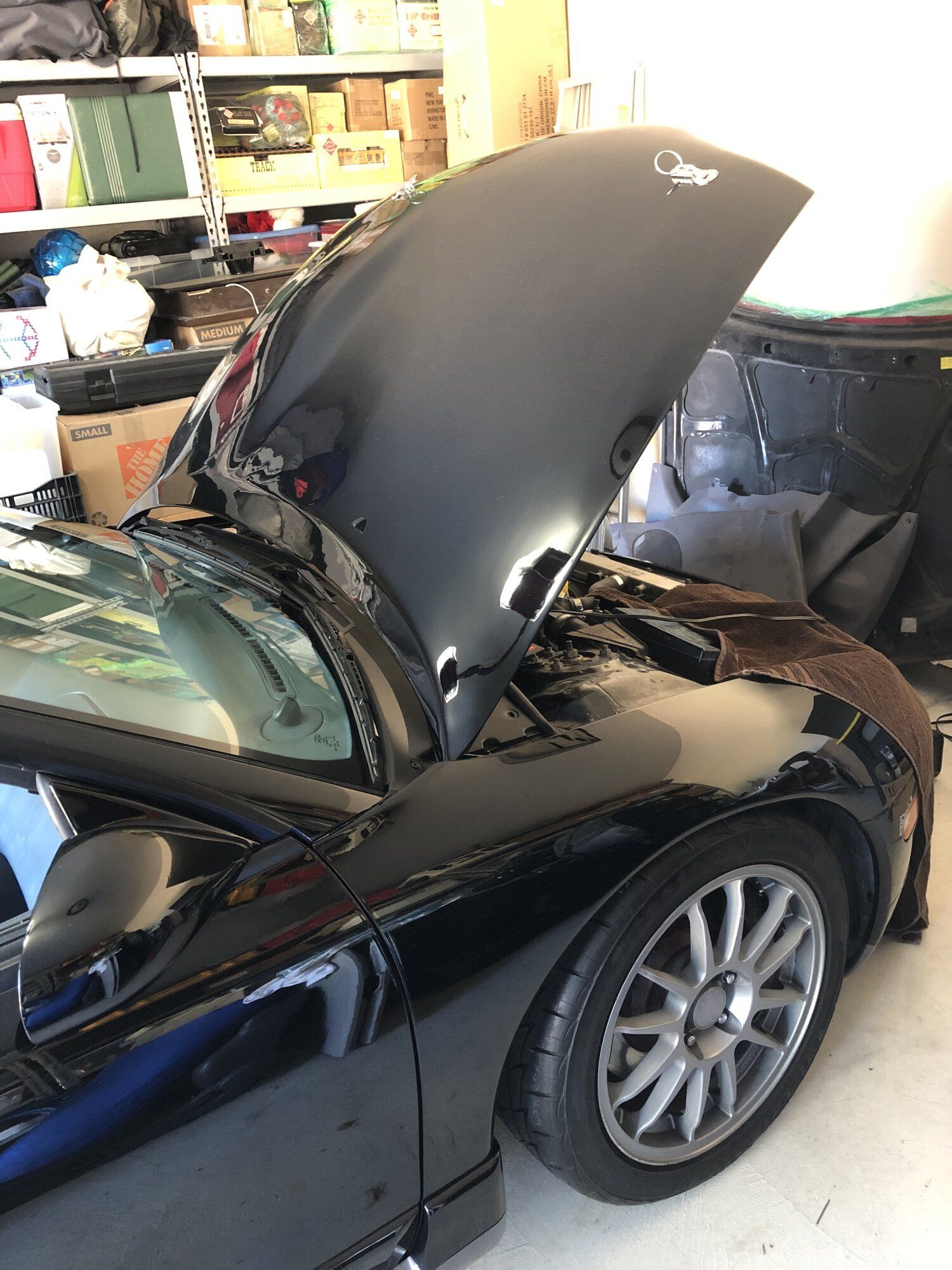

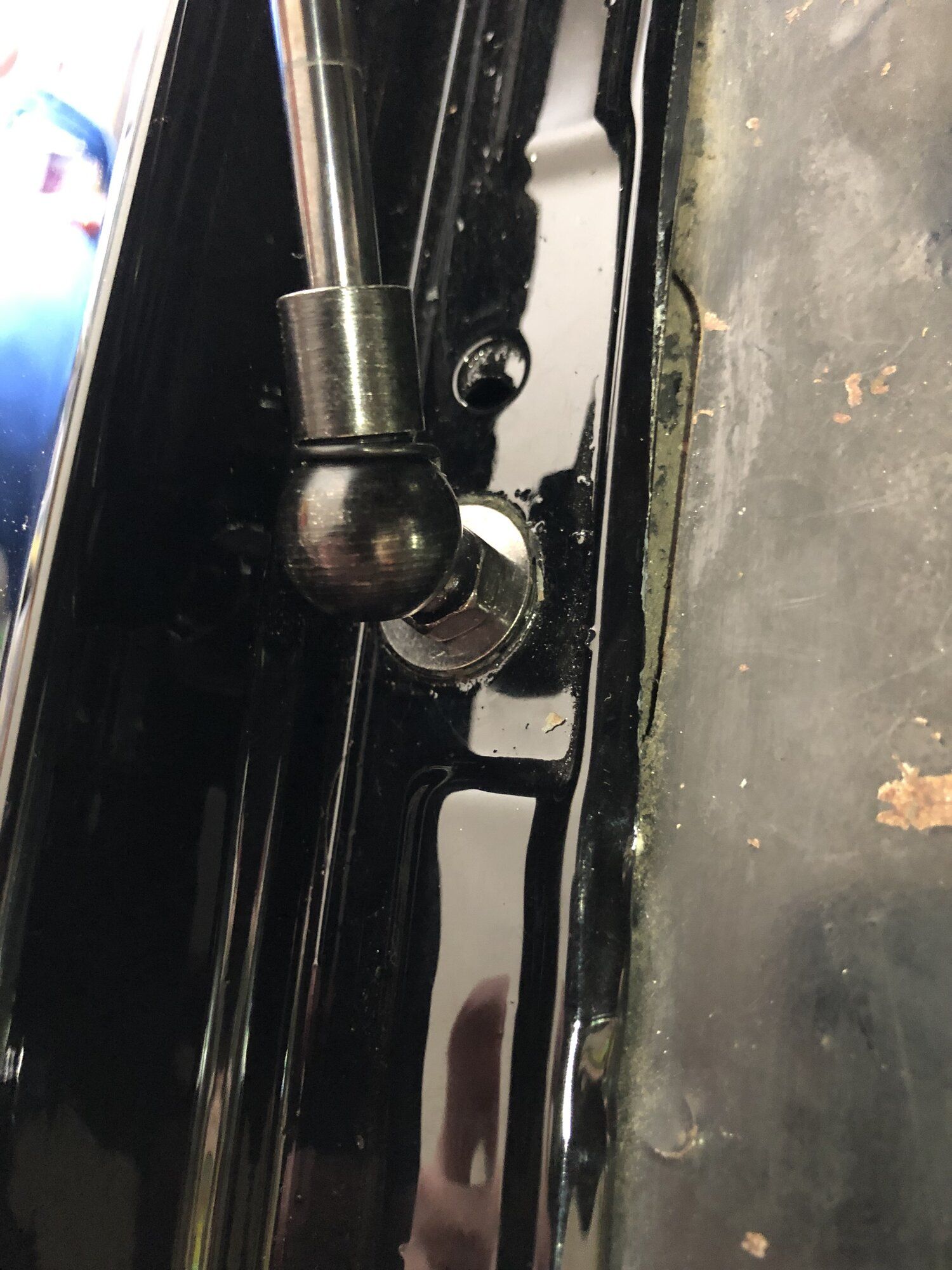

Finally got a combination of parts for hood struts that work for my hood.

Using brackets, studs, and washers from the e-bay kit, and a fender bolt location for the ball studs, I needed 12” struts to get the hood full open. The strut pictured here has 30lb of lift, which won’t raise the CF hood on its own, but will hold it open after a light lift.
You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

Another list item completed

Last edited:

Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California

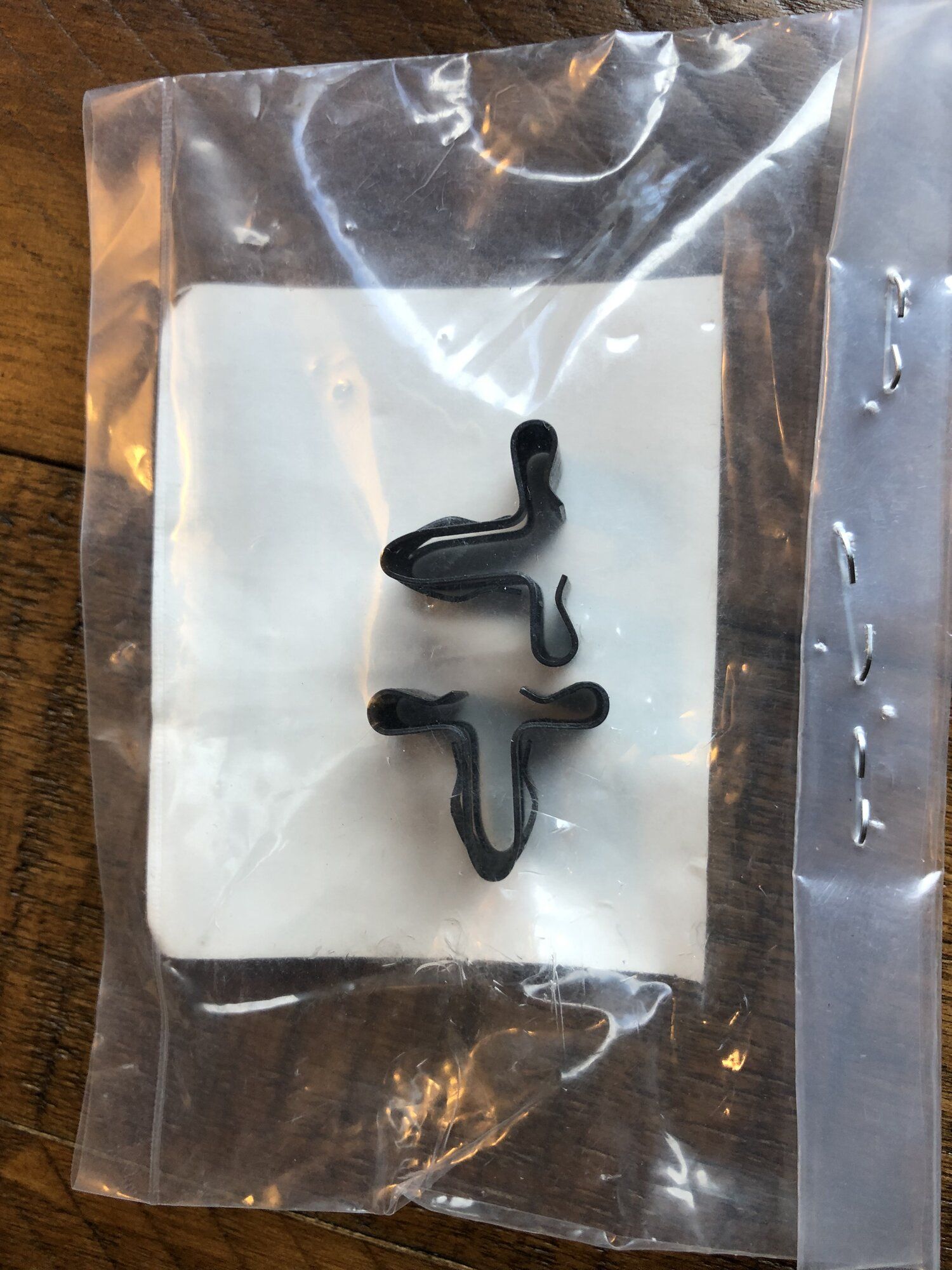

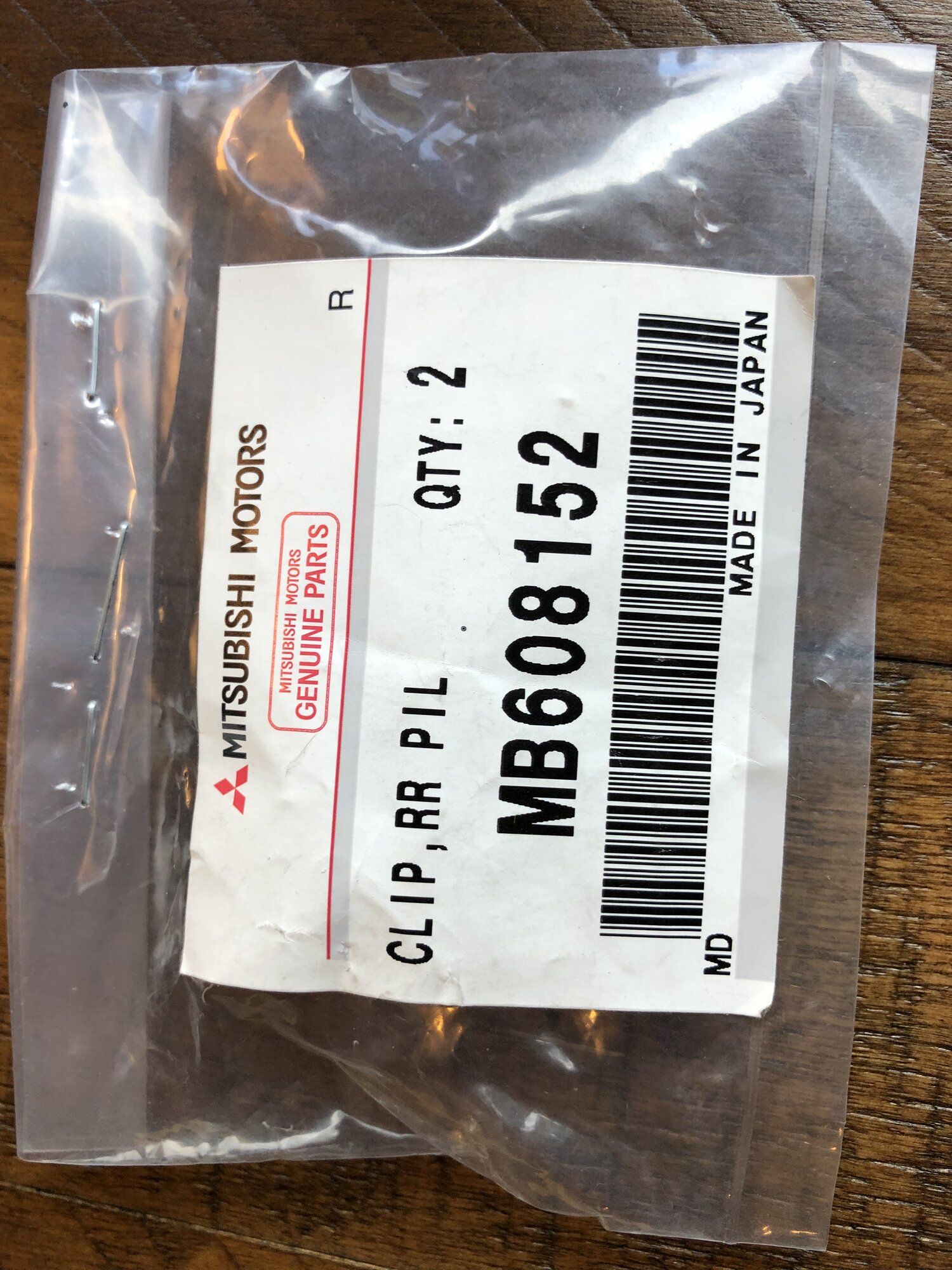

Solid gold parts from Japan!
You must be logged in to view this image or video.
You must be logged in to view this image or video.

The dealer can still get these given enough time.


Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California
CEL - I've tested the wiring, the resistor pack, and I have swapped injectors, and the injector #2 circuit malfunction DTC is still popping up with no change in behavior. I think this means my ECU needs to get checked out.

ABS - Grounding pin 1 at the OBDII port did nothing. Turning on the key, the ABS light comes on, flashes 3 times, and then goes back to ON - very quickly.

Seems like a 4 wheels off kind of ABS sensor inspection, and ABS pump connector inspection is needed.


Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California
No codes from the ABS computer, and no way to resolve the injector code that leaves me with any confidence. grrrrrr

Aaaaaaargh!!! ok fine.

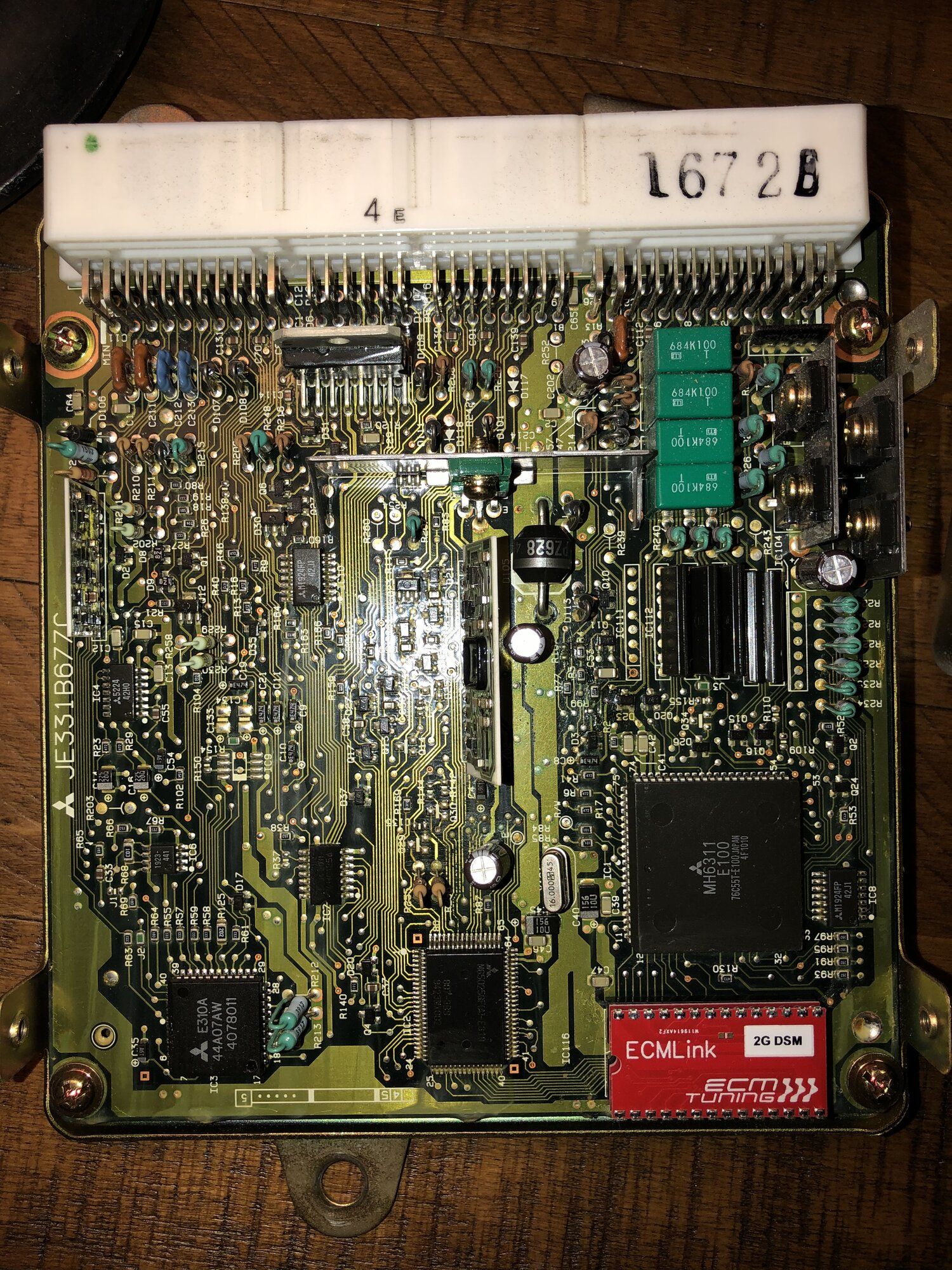

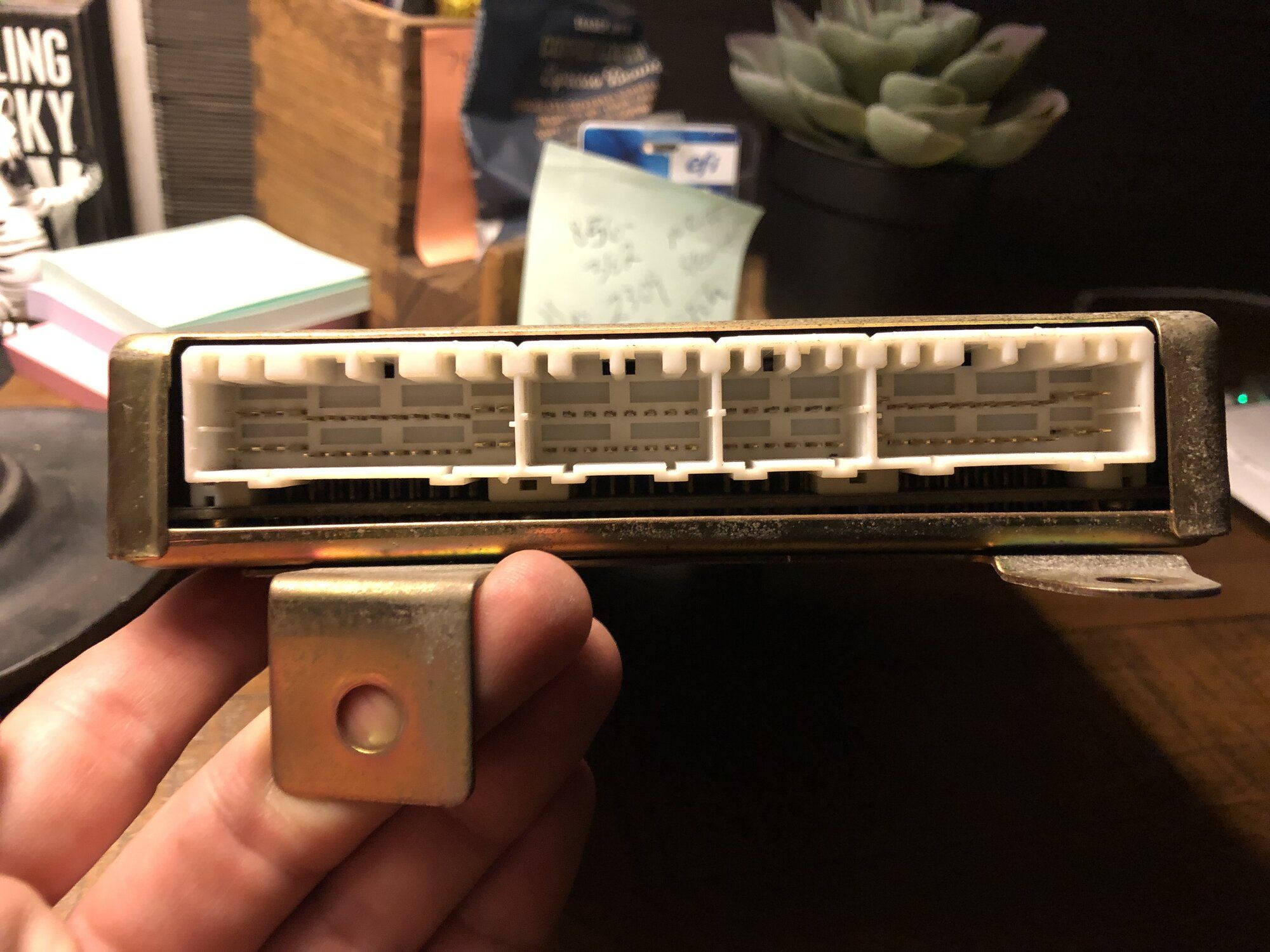

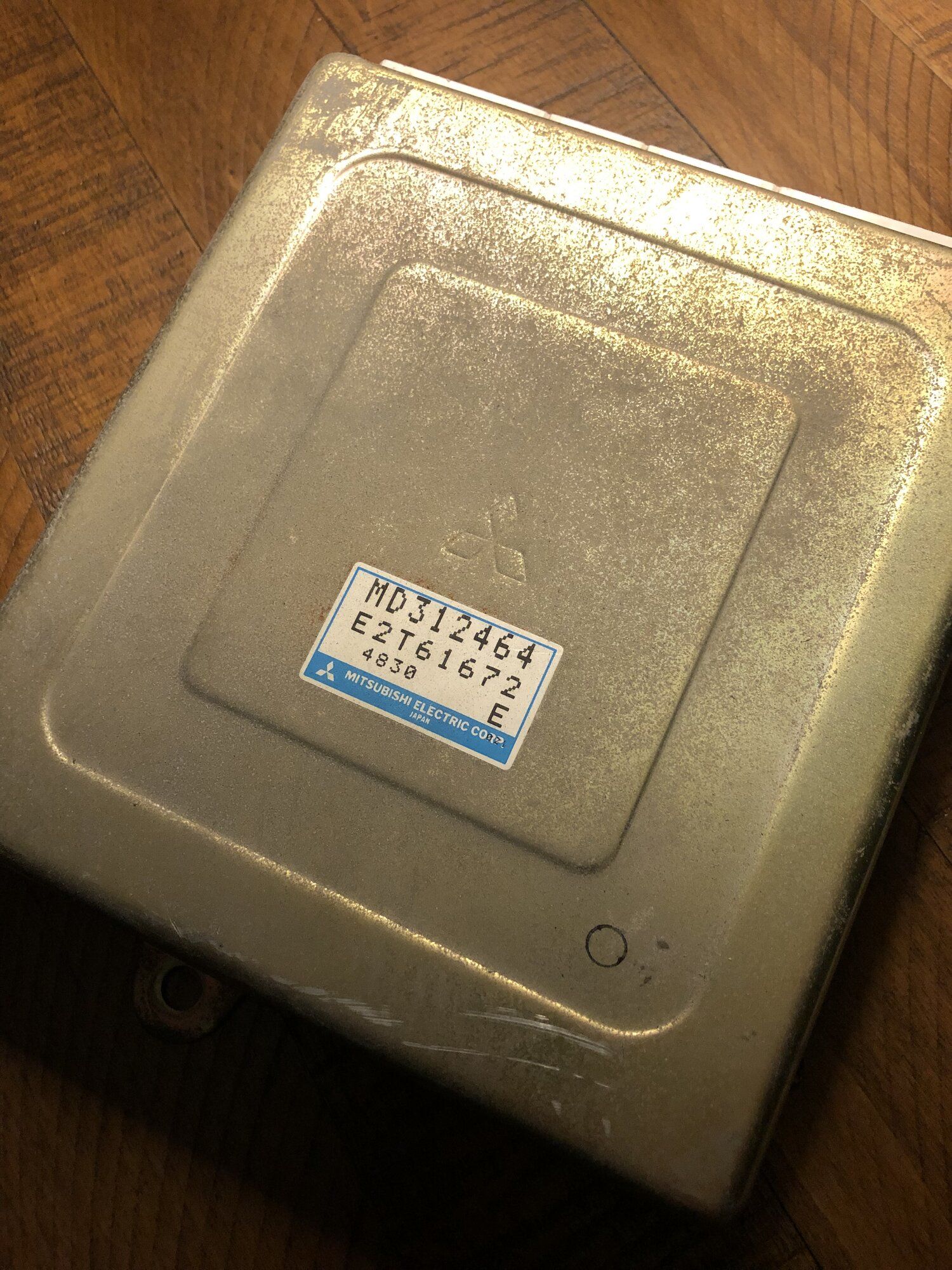

ECU is out and now I need to pack it up to go to ECMTuning for some better diagnostics.

You must be logged in to view this image or video.

You must be logged in to view this image or video.

And yeah, I looked inside.
You must be logged in to view this image or video.

If there is something wrong, I cant see it looking at it like this.

Last edited:

Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California

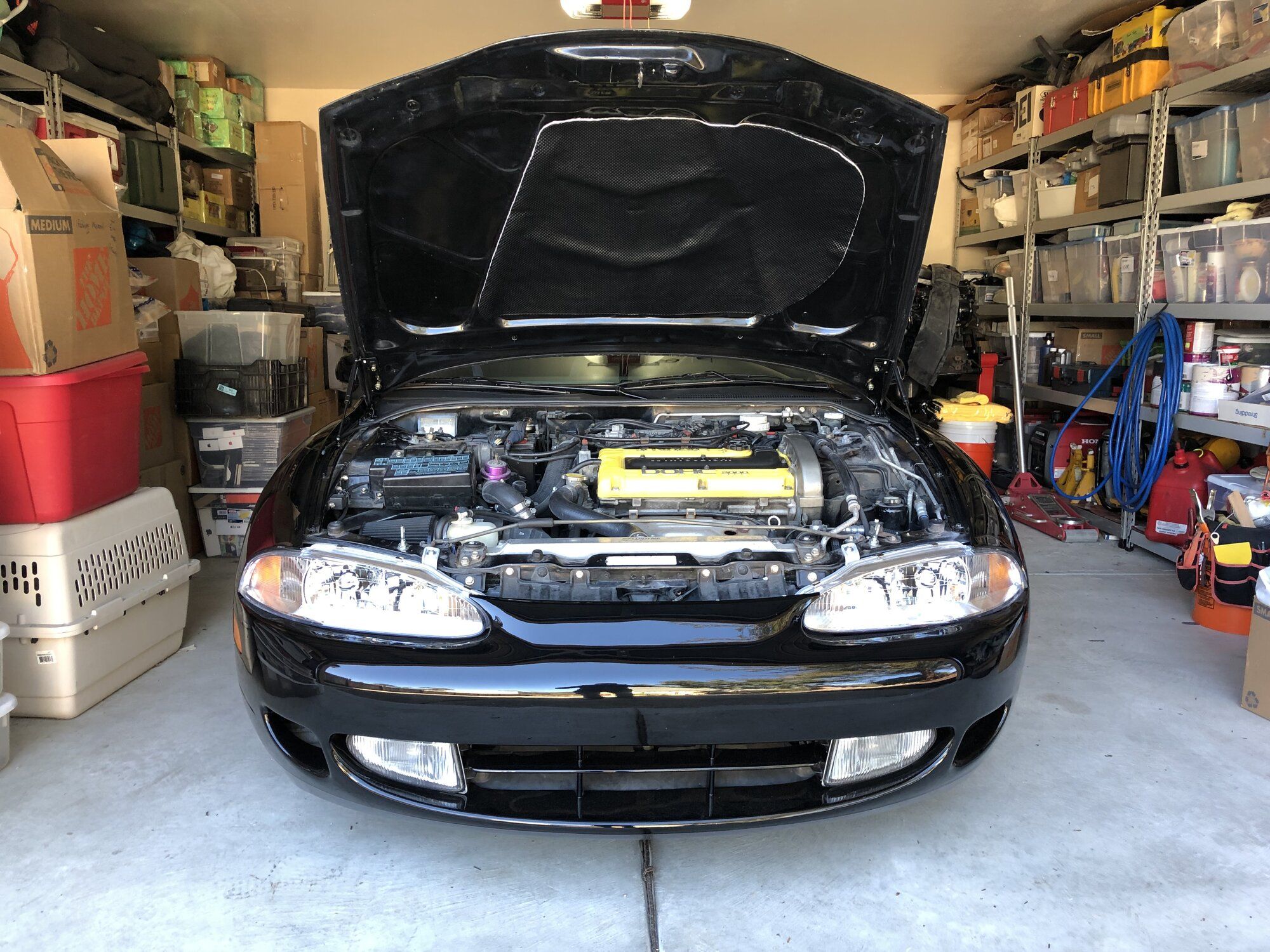

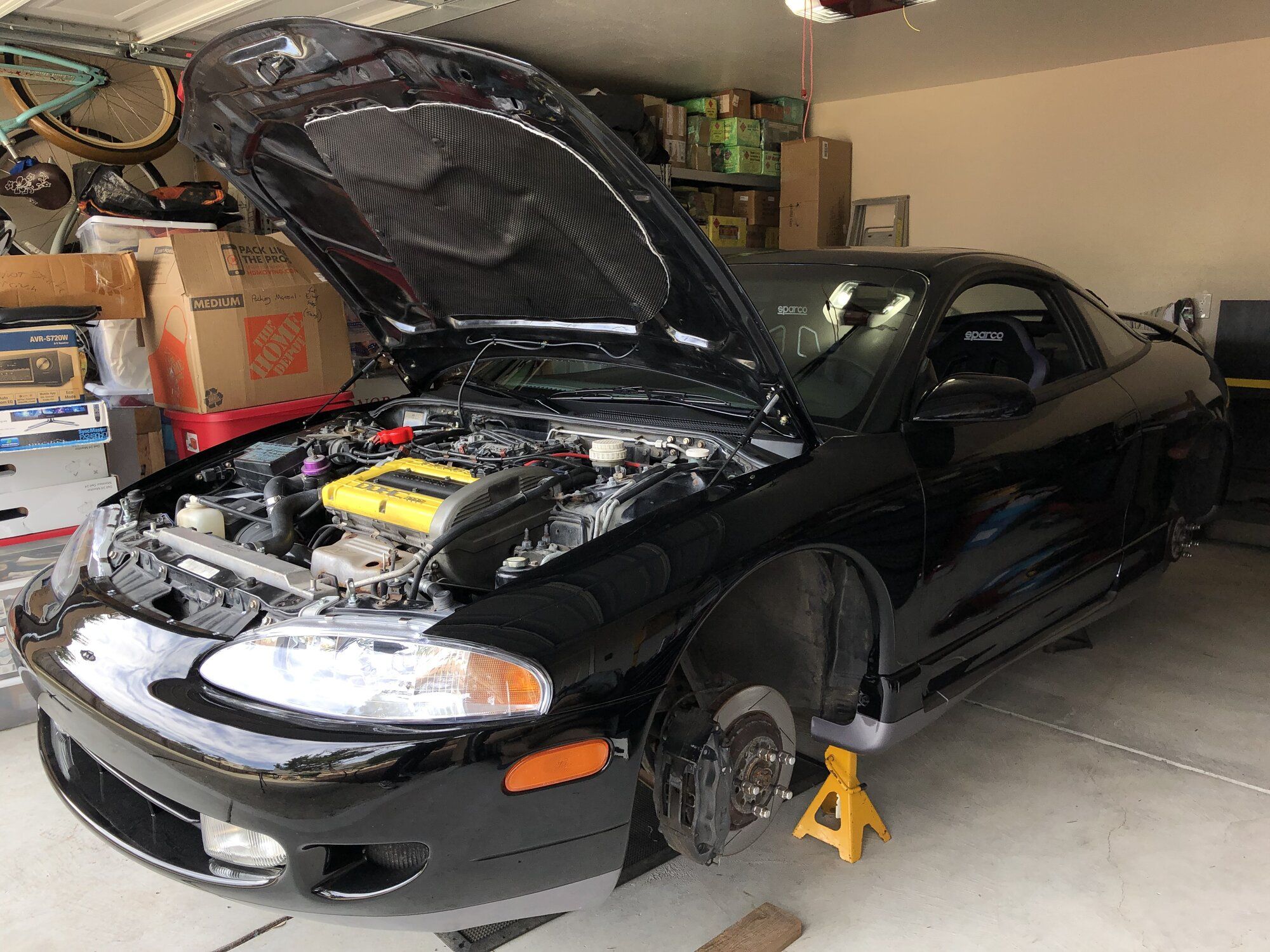

I moved it before I yanked out the ecu.

You must be logged in to view this image or video.

It’s probably gonna be sitting here a while now.
You must be logged in to view this image or video.

You must be logged in to view this image or video.


Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California
Details details…

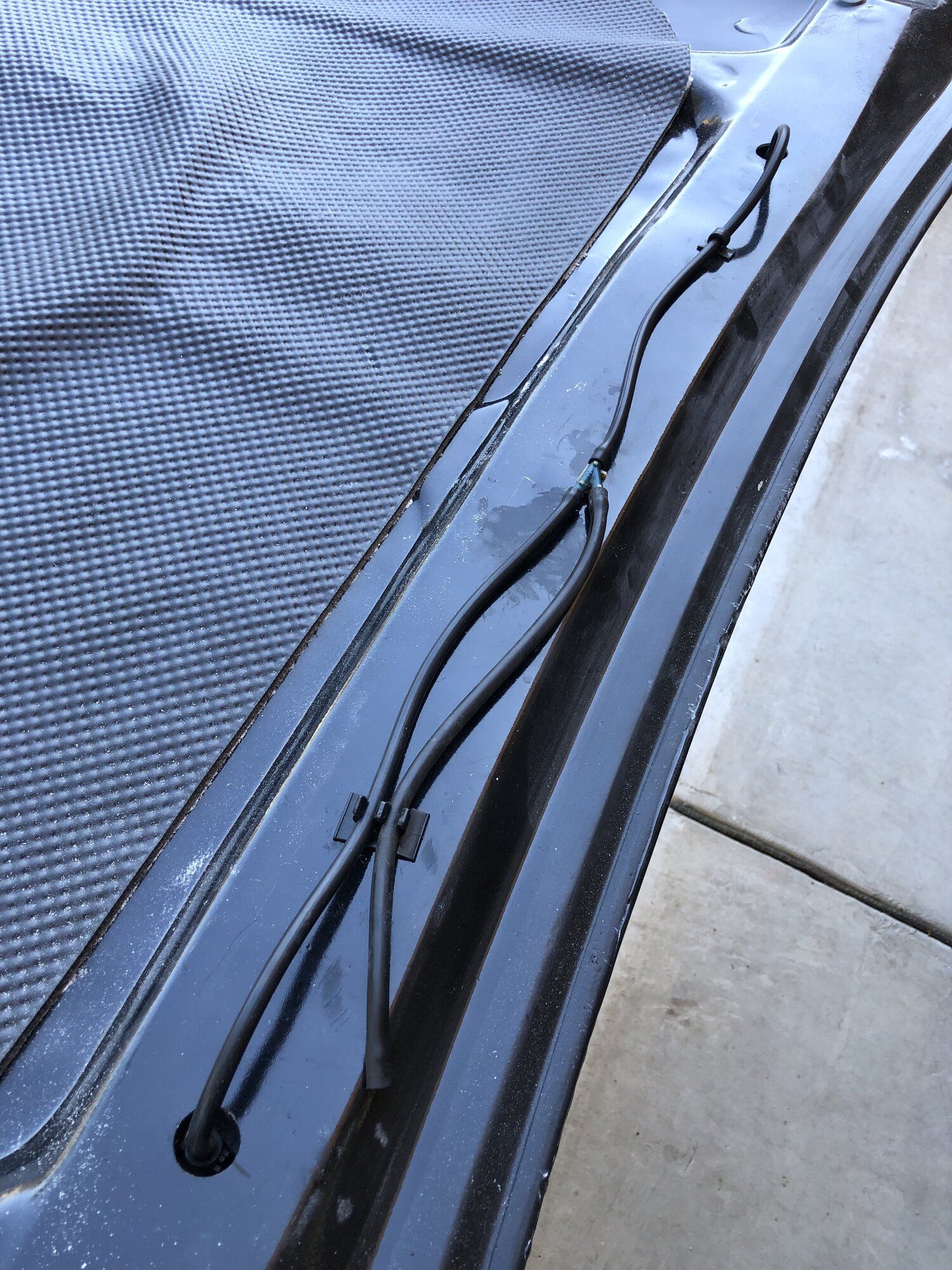

Washer sprayer hose retainers: Dremel with cross cut burr an and mini hand files make clean holes in fiberglass.
You must be logged in to view this image or video.

One corner of the heat blanket adhesive was not sticking well, so I added some retainer clips for peace of mind:
You must be logged in to view this image or video.

Baring some new issue, this hood should be done for a while
You must be logged in to view this image or video.

Last edited:

Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California
:In progress:
Body to wing neoprene gasket - sourced and ordered
Hood struts - measured and ordered
Both left and right side view mirror interior trim covers - located and purchased
MB881985 - left
MB881986 - right
Matching headliner fastener - MB417490 - located and purchased
Source washer wiper hose retainers - ??
Source not cracked grey door panels - ??
MR707955 - Left
MR707958 - Right
Figure out why the door seal isn’t holding its shape - ??
Locate a pair of the 2" thick side skirt door caps for this year body - ?! maybe !?
MR186136 - Right
MR186135 - Left
Locate fender liner(s) (for turbo cars with ground effects) - ??
MR162457 is LH
MR162458 is RH

Resolve #2 injector circuit CEL:
ECU to Injector wire - OK
Injector to resistor wire - TBT
Resistor - TBT

and then… Timing belt time - PS Pump refresh - Throttle Body refresh and Resolve ABS light
Lets see, where are we in the list:

Body to wing gasket - installed
Hood struts - installed
Washer hose retainers- installed
Door seal - re-installed


In progress:
Mirror Trim - in hand - needs reinforcement
Matching headliner clips - in hand
Resolve Injector CEL- ECU shipped to ECM Tuning
ABS light - investigating
Positive battery terminal cover - amazon ordered

Parts with Rich Howell:
Throttle Body - refinish and rebuild
Power Steering pump - refinish and rebuild
2Gb CAS - refinish rebuild - rewire
Hood Latch - re-spring and refinish

Things to locate:
Adjustable CAM gears
Fender liners
2” thick 2Ga door caps
Grey door switch trim
Washer nozzles
(that don’t suck)

Things to do:
Timing belt
Water pump
CAM install
Kiggly Crank sensor install and rewire

Last edited:

Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California

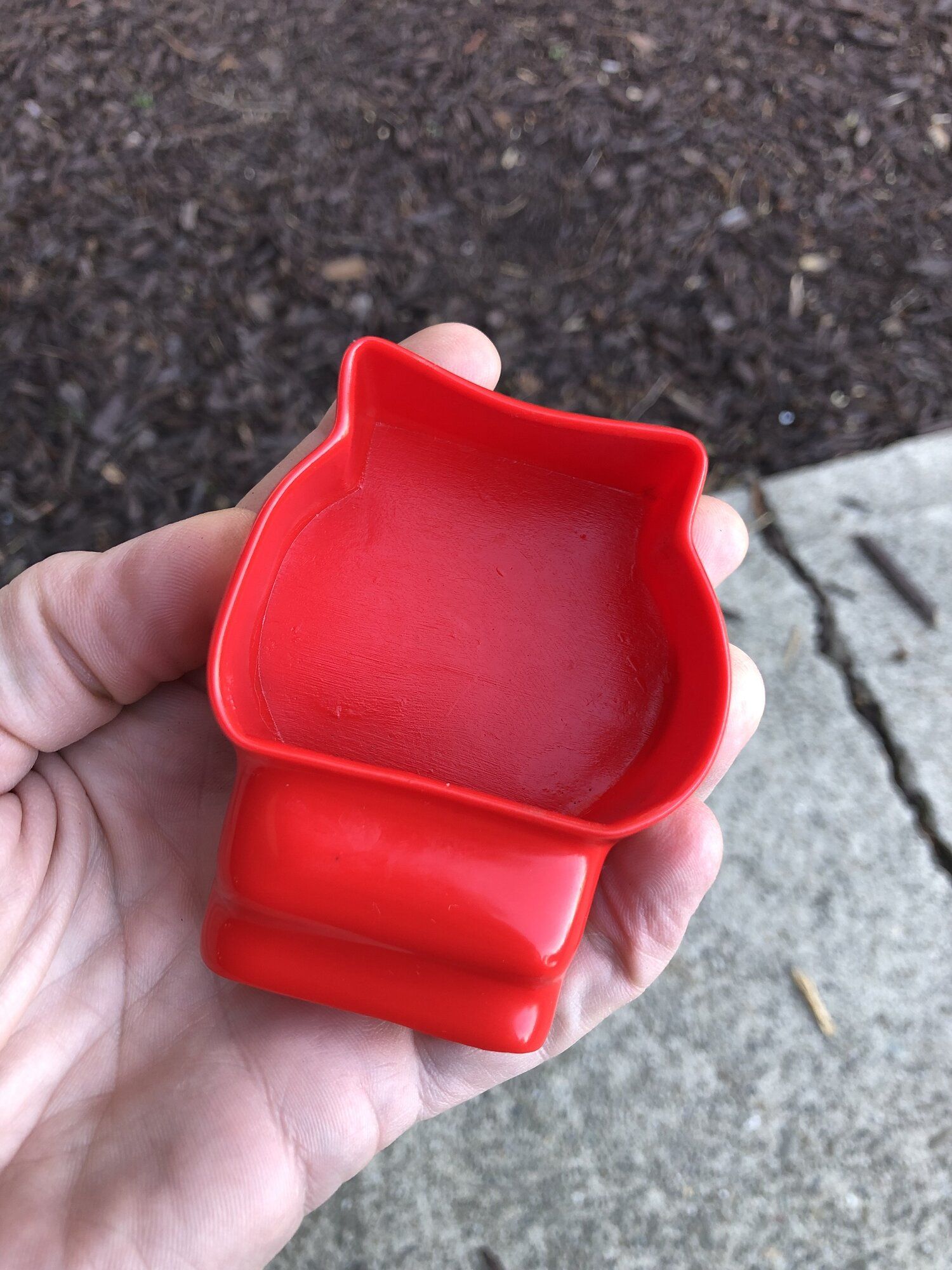

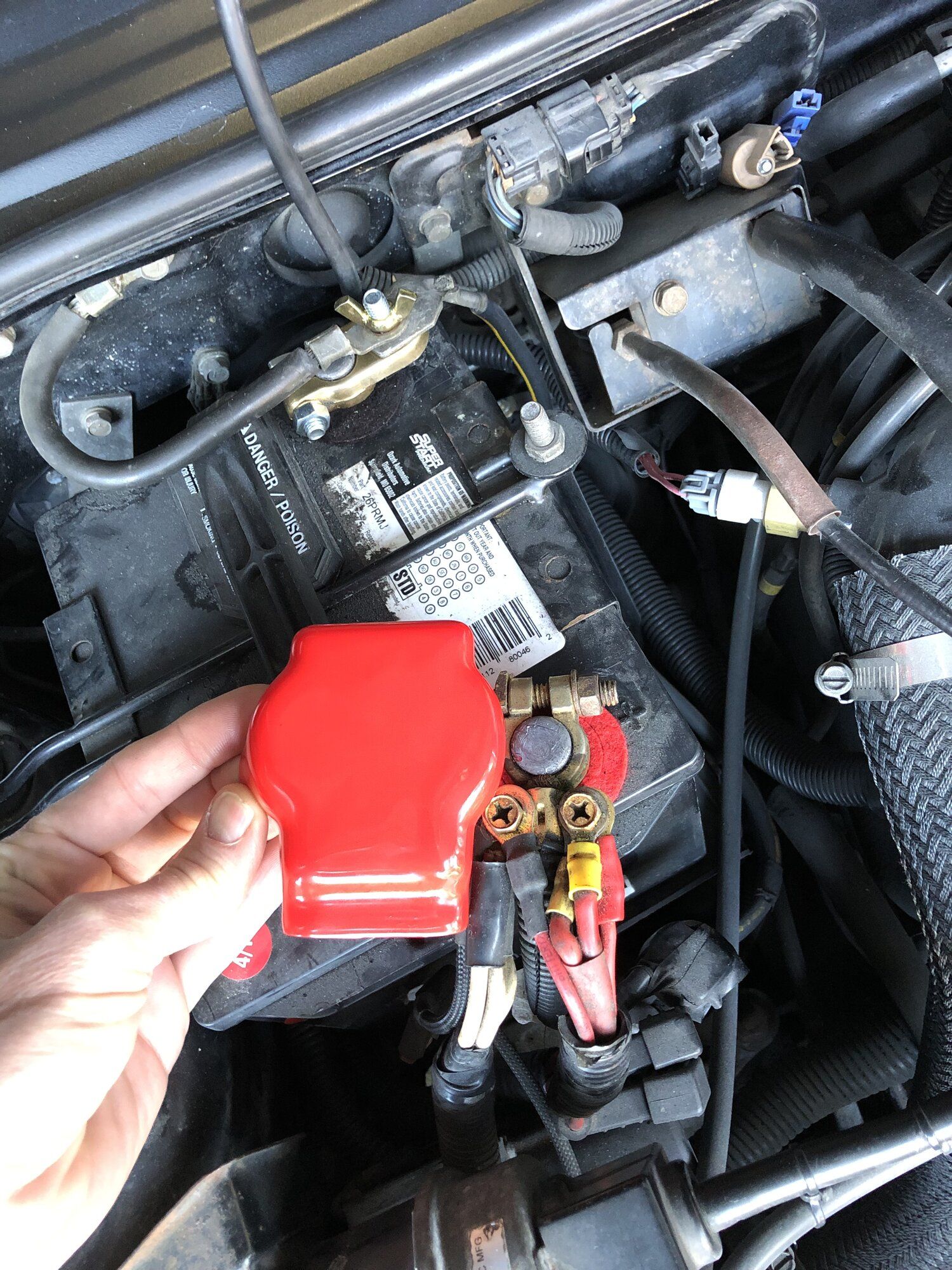

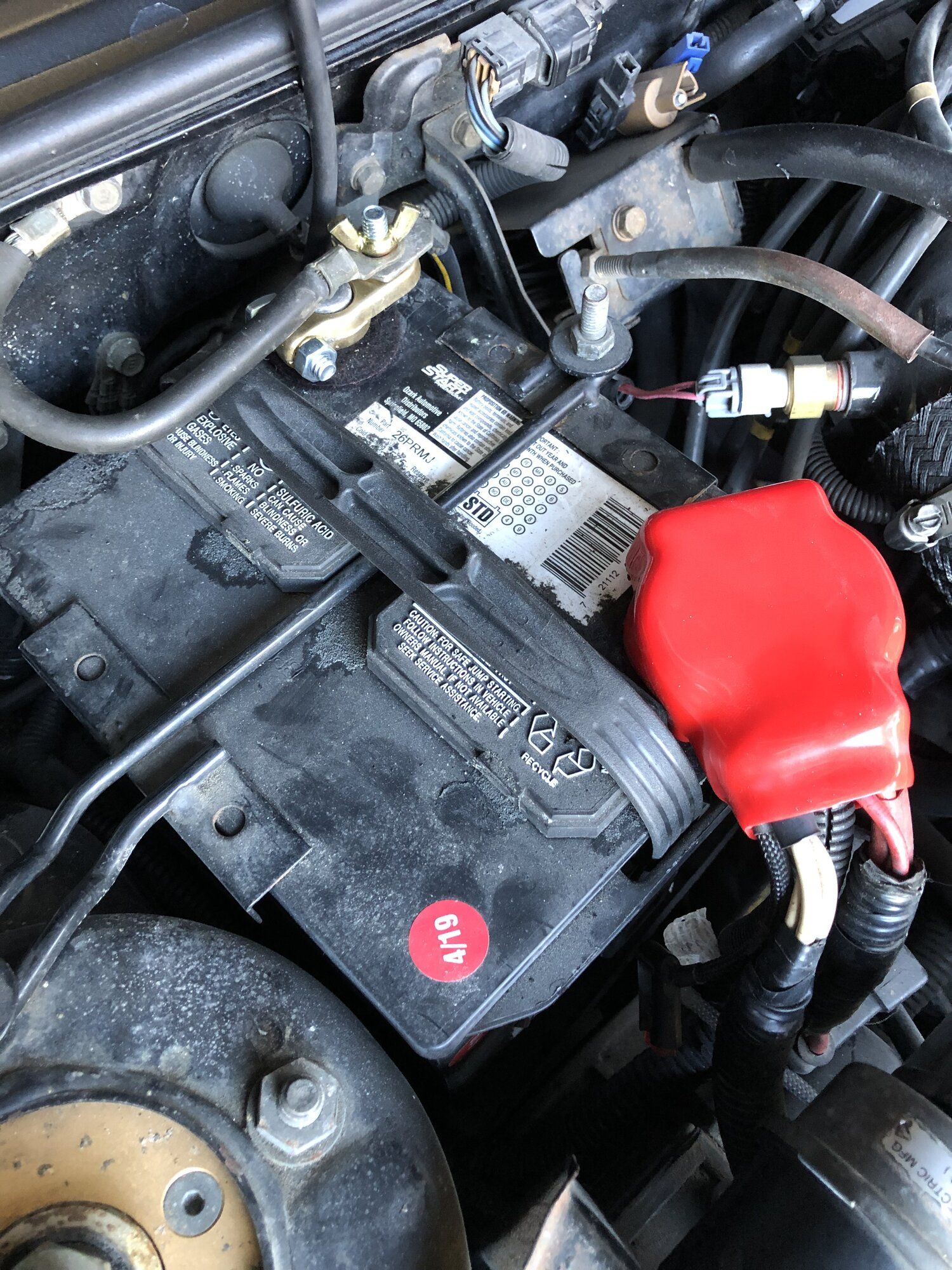

Lol, this - large mil spec battery terminal cover is comically large, or at least I thought it was, until I decided to try it.
Amazon listing
You must be logged in to view this image or video.

You must be logged in to view this image or video.

And it just fit over all the wires:
You must be logged in to view this image or video.

So yeah. That should pass tech inspection.


Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California

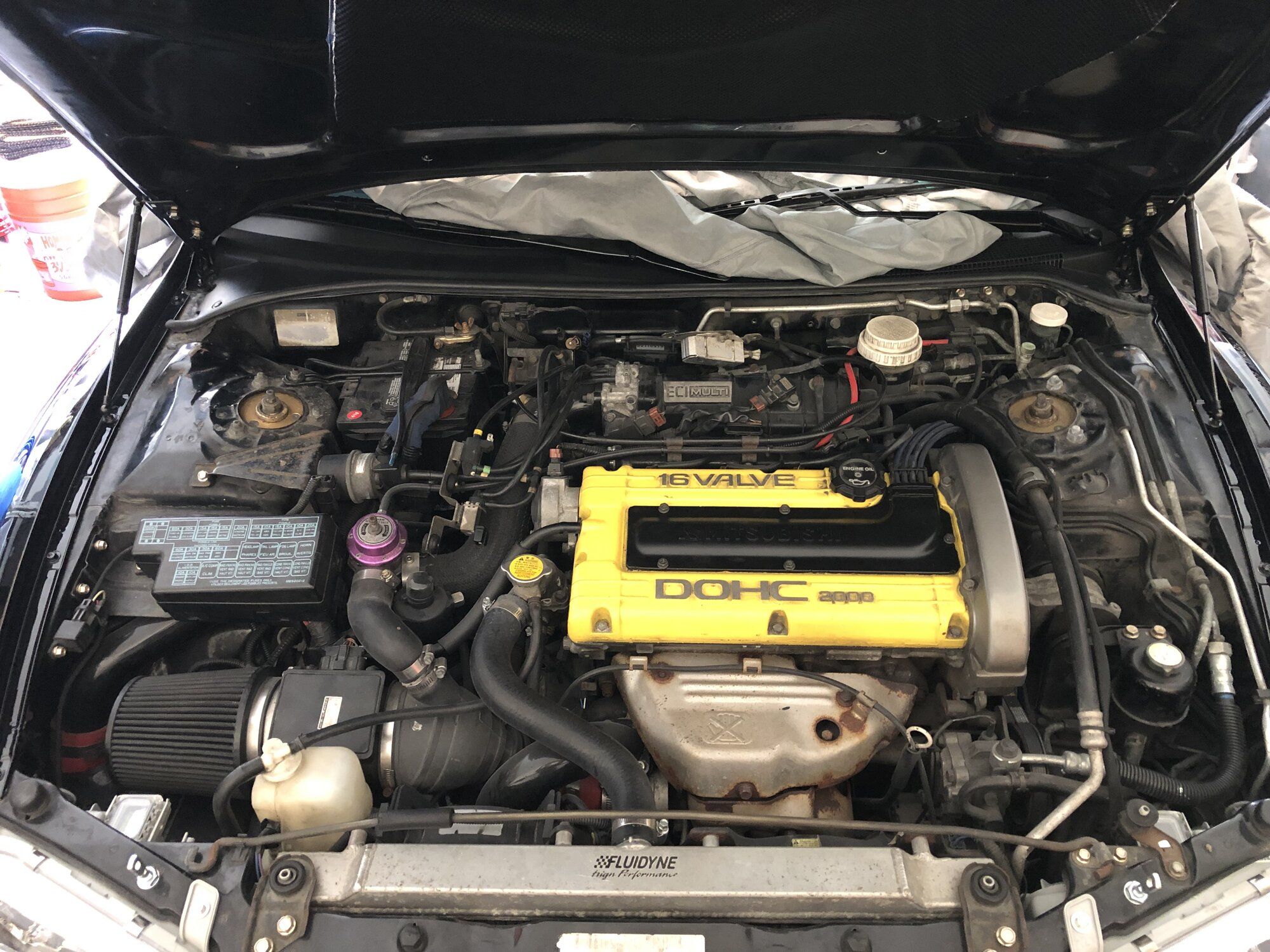

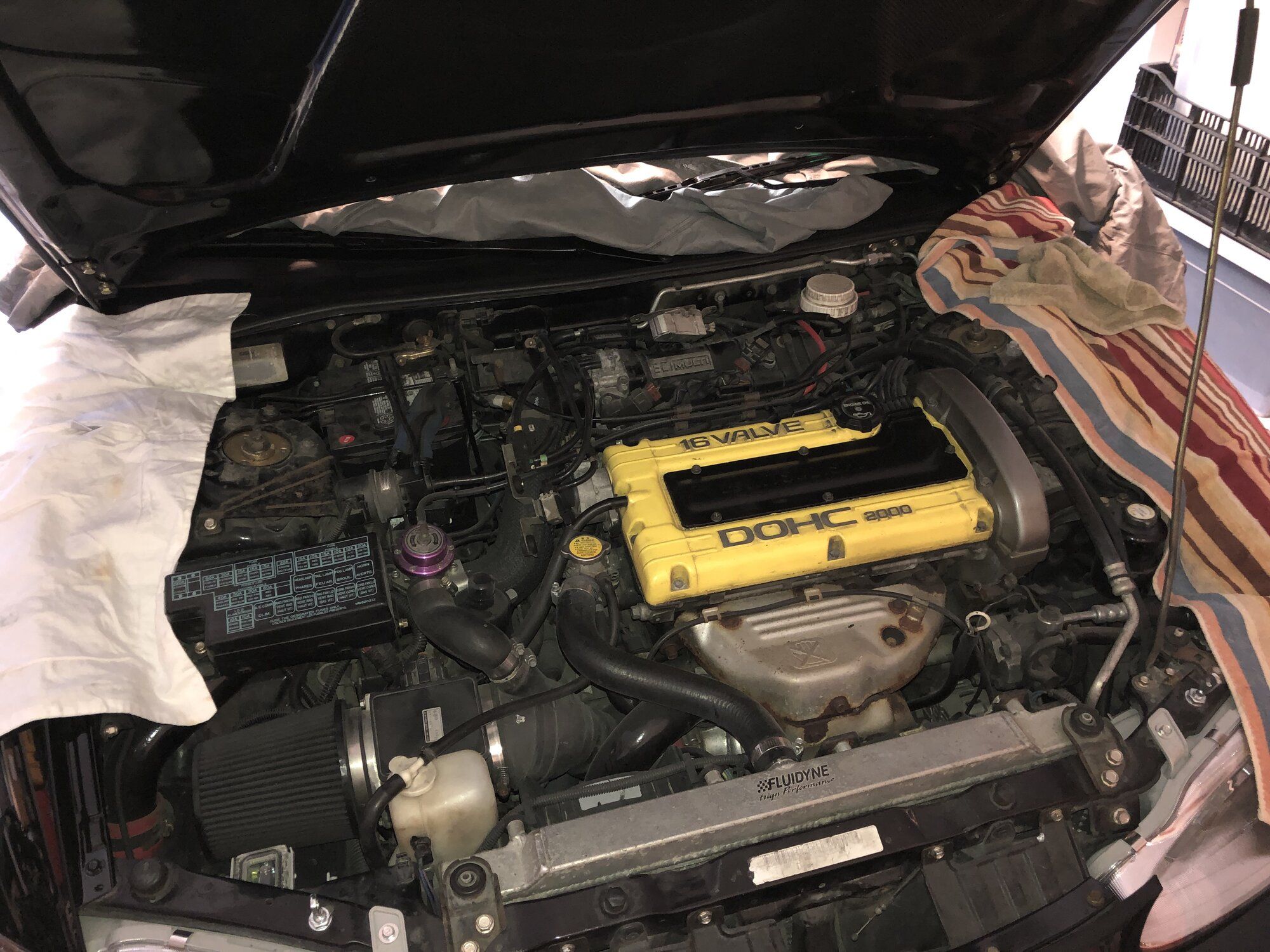

Sooo, ya know when you take off one part, and then another, and then…

ECU arrived at ECM Tuning, so now I wait. The waiting turned into me putting the car on jack stands with 4 wheels off, prepping for a timing belt, water pump, PS pump, throttle body, heat shields, and cam swap.
You must be logged in to view this image or video.

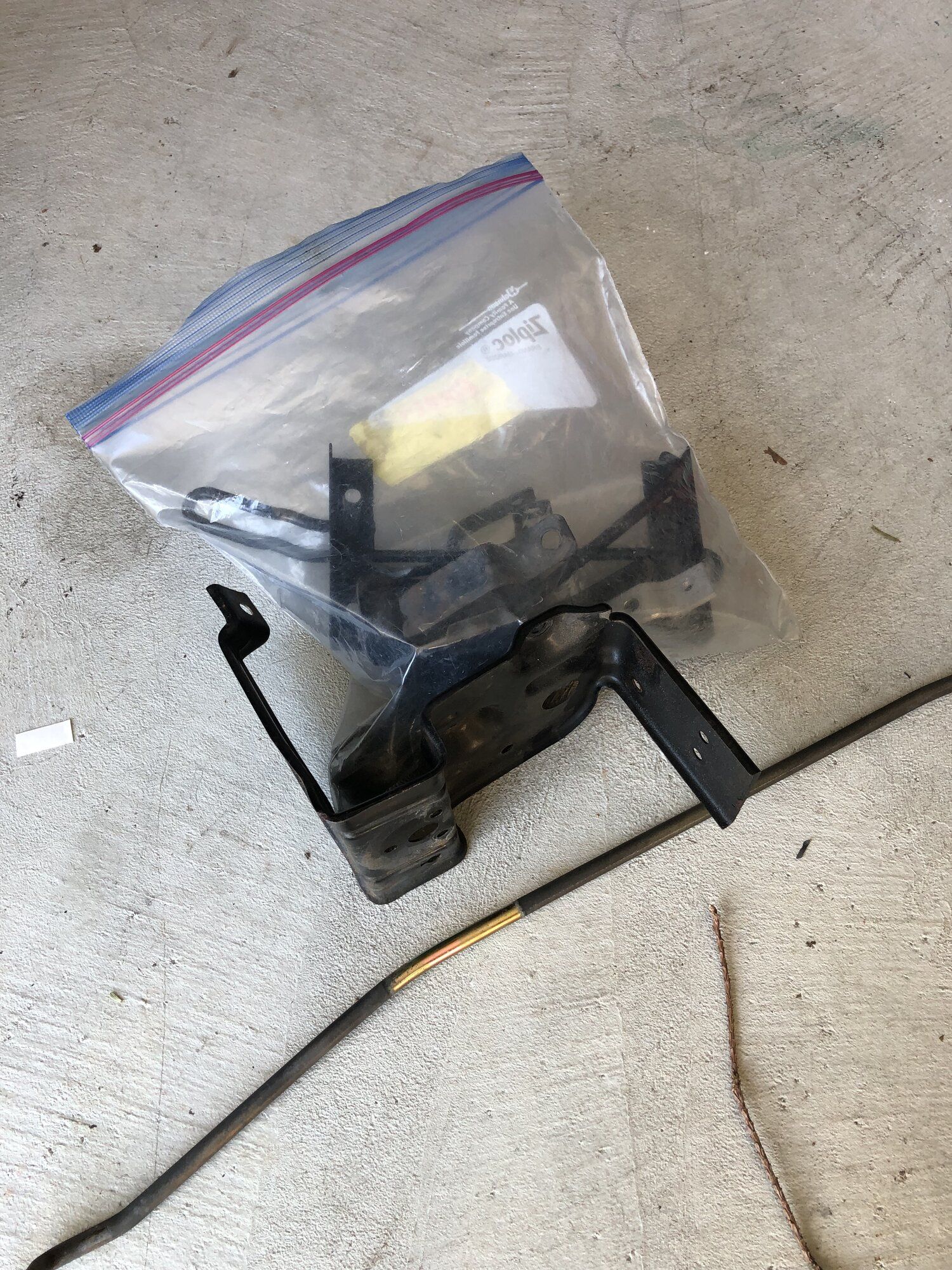

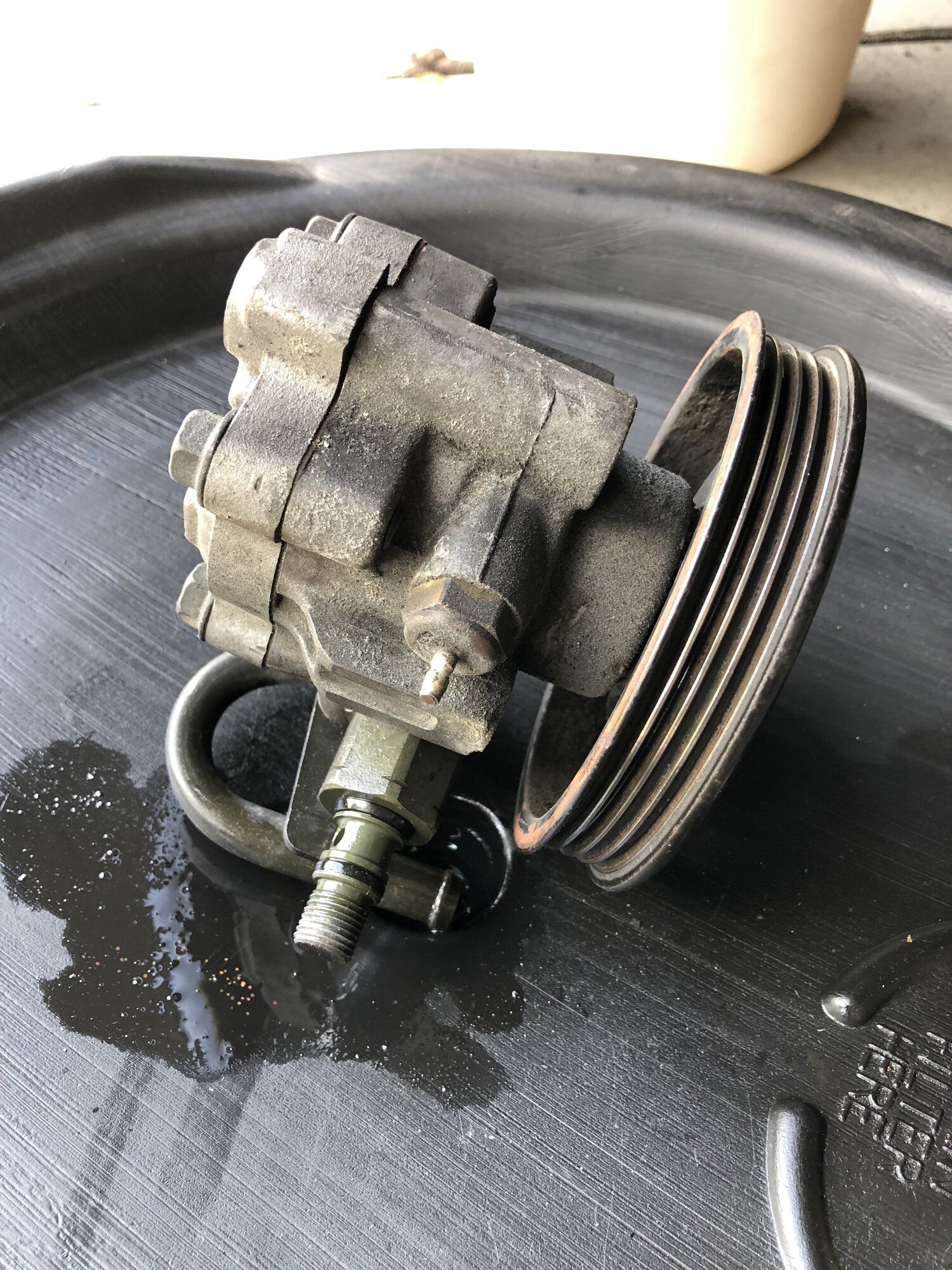

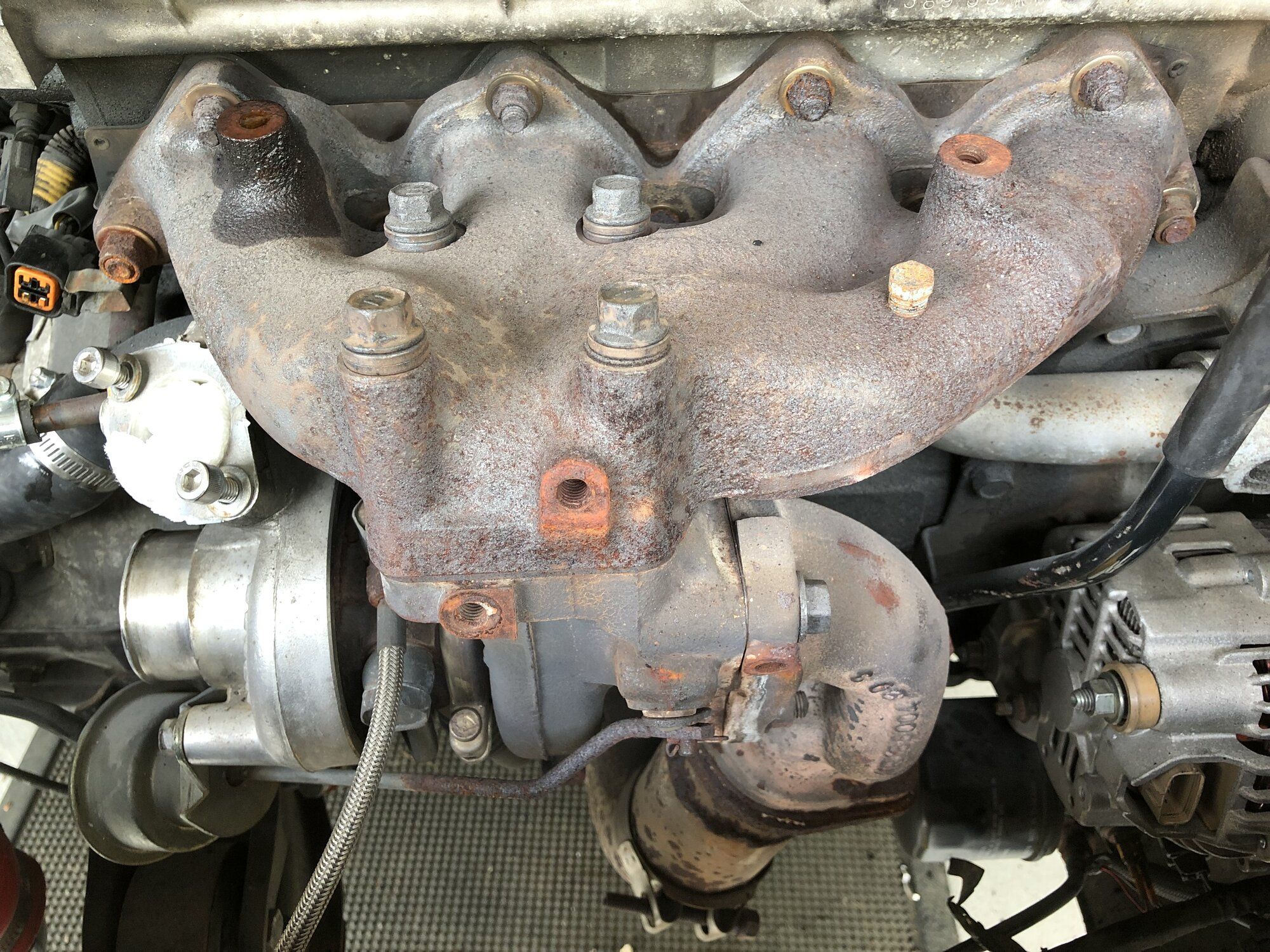

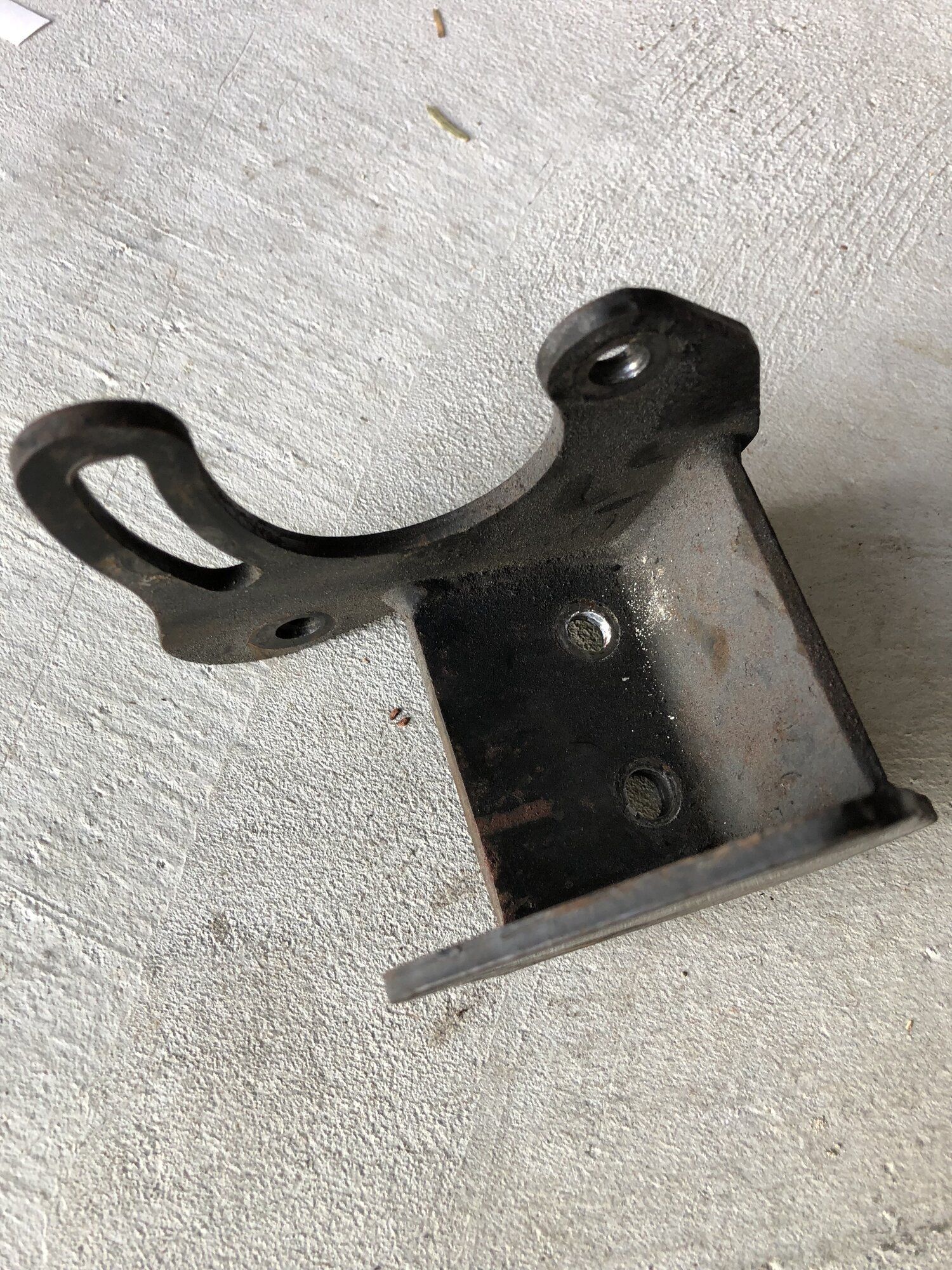

And then you look at all the parts you can grab now, to send off to be powder coated to slow the progress of corrosion.

You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.
You must be logged in to view this image or video.

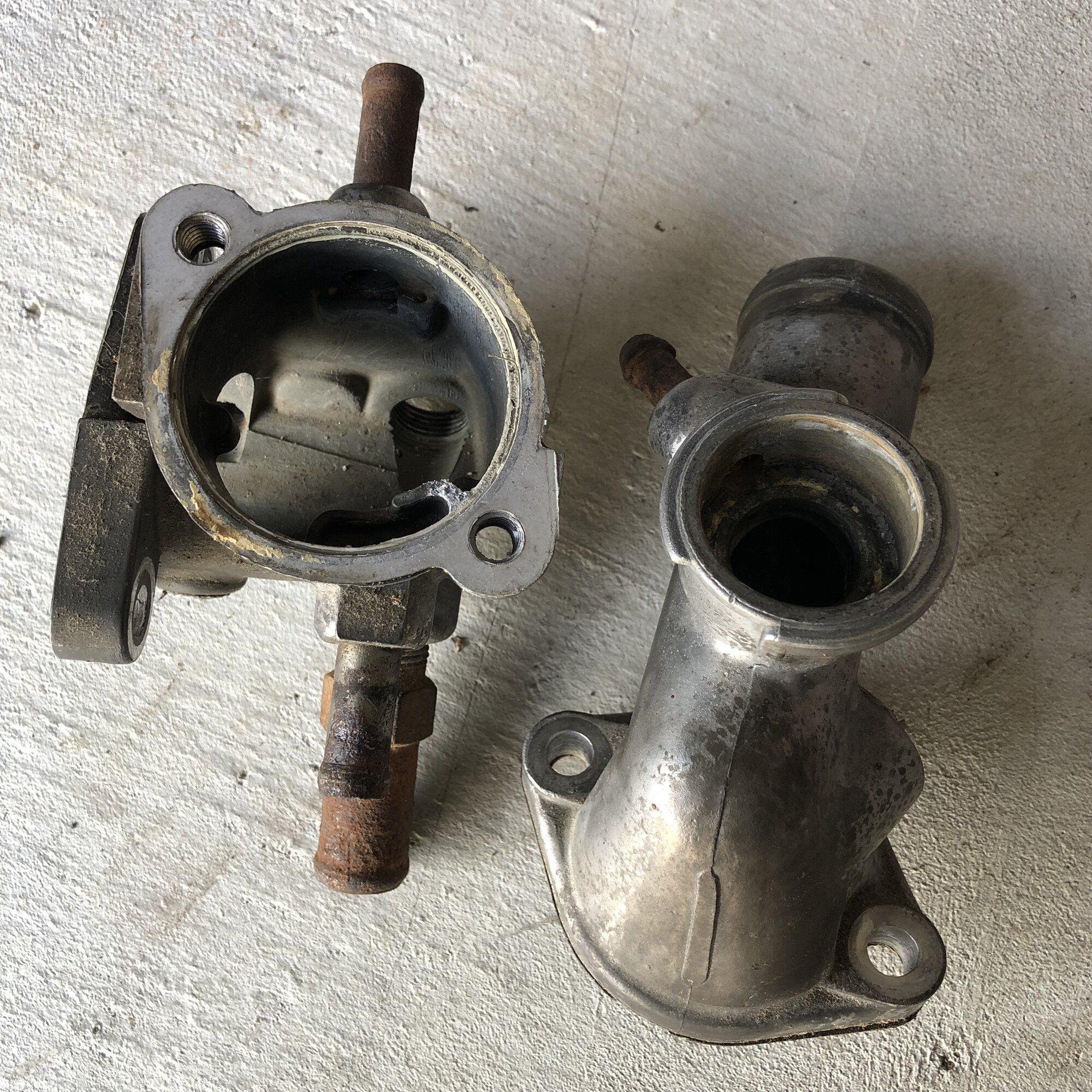

Hot Parts
You must be logged in to view this image or video.


Justin DuBois

Proven Member
728
536
Aug 15, 2019
Oakland, California

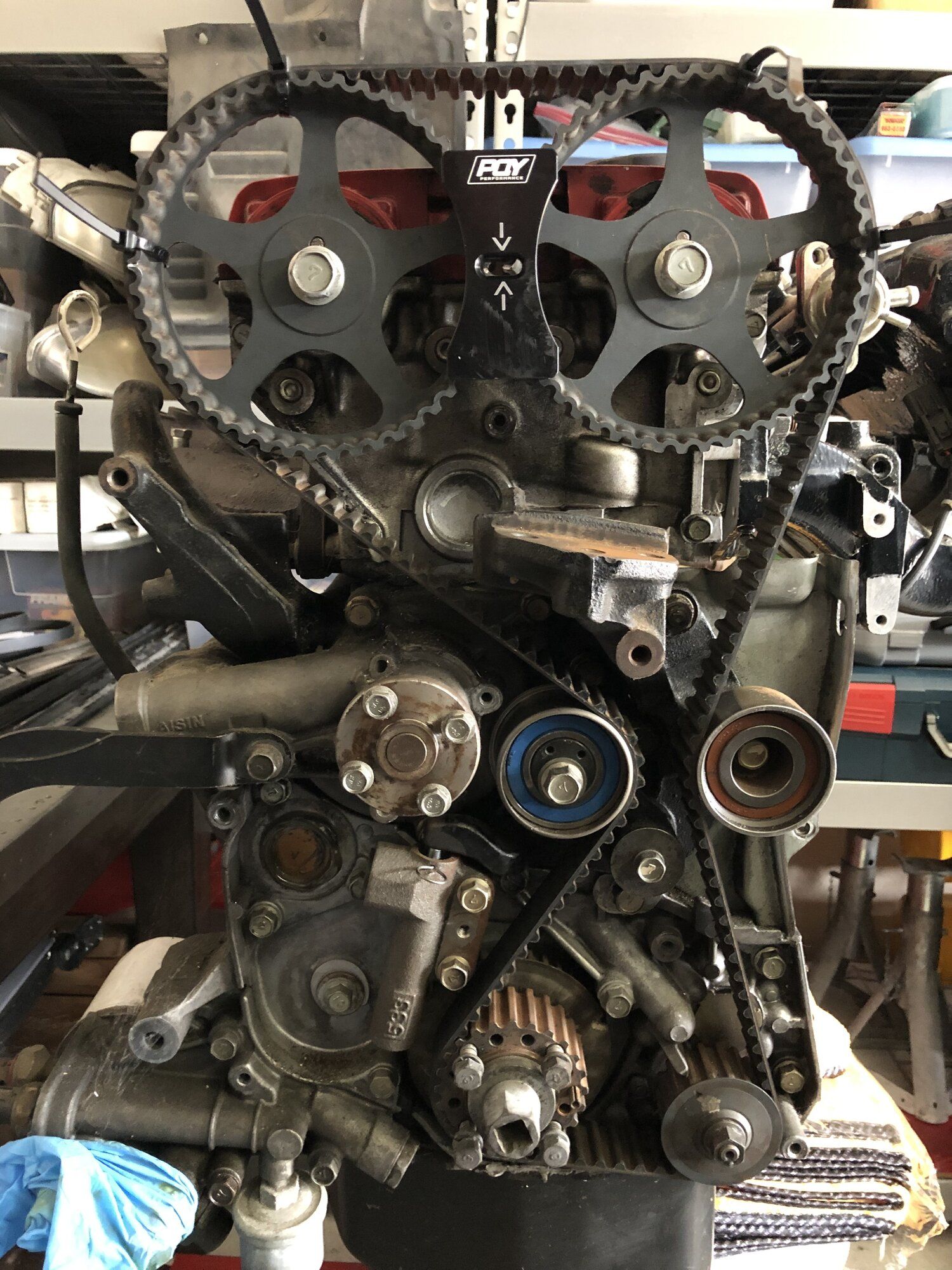

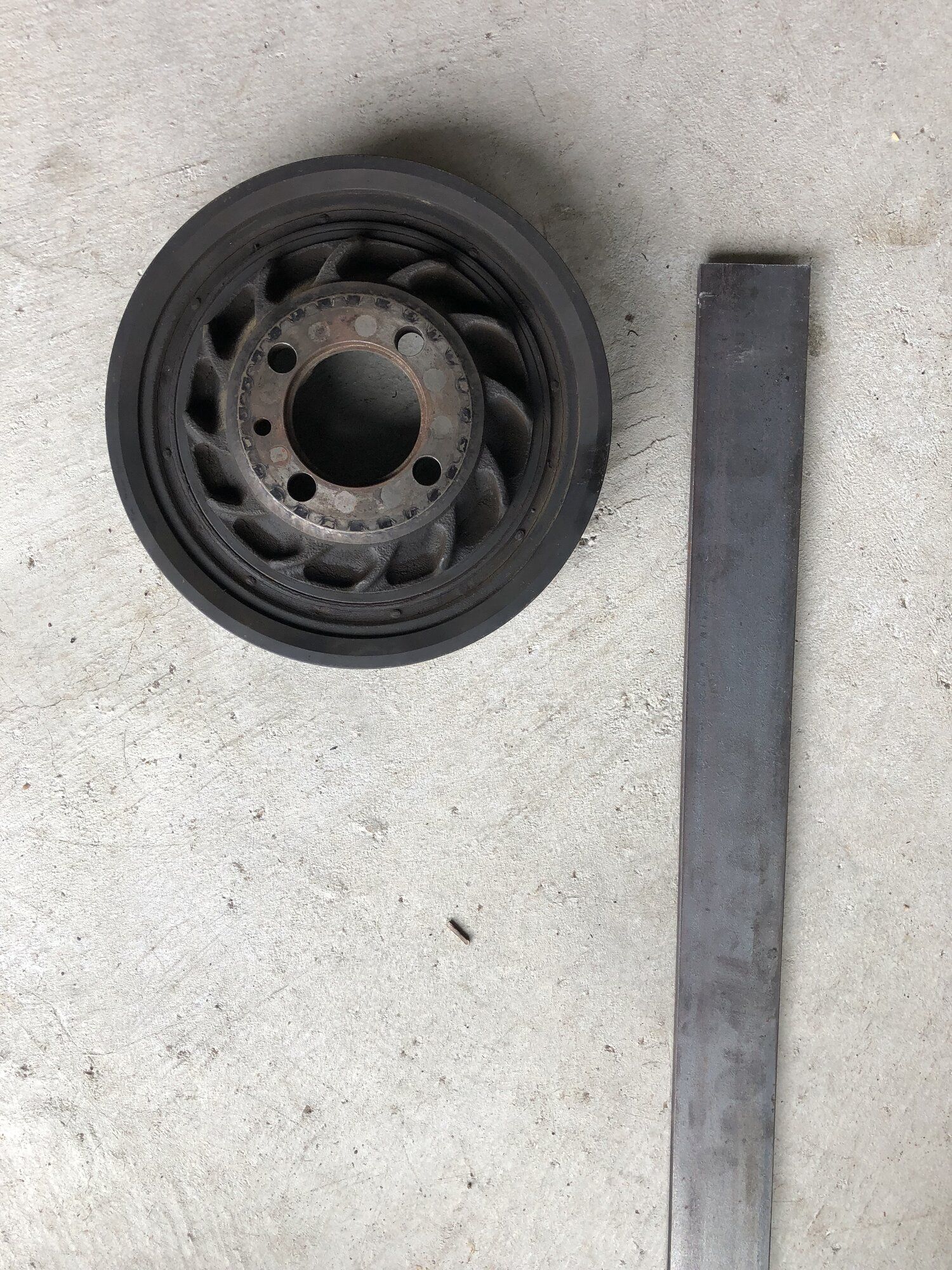

Before I touch the T-Belt in a perfectly functional motor in the car, I decided to use the motor on the stand to dress rehears the steps and tools needed to install the Kiggly trigger plate, and I’m glad I did.

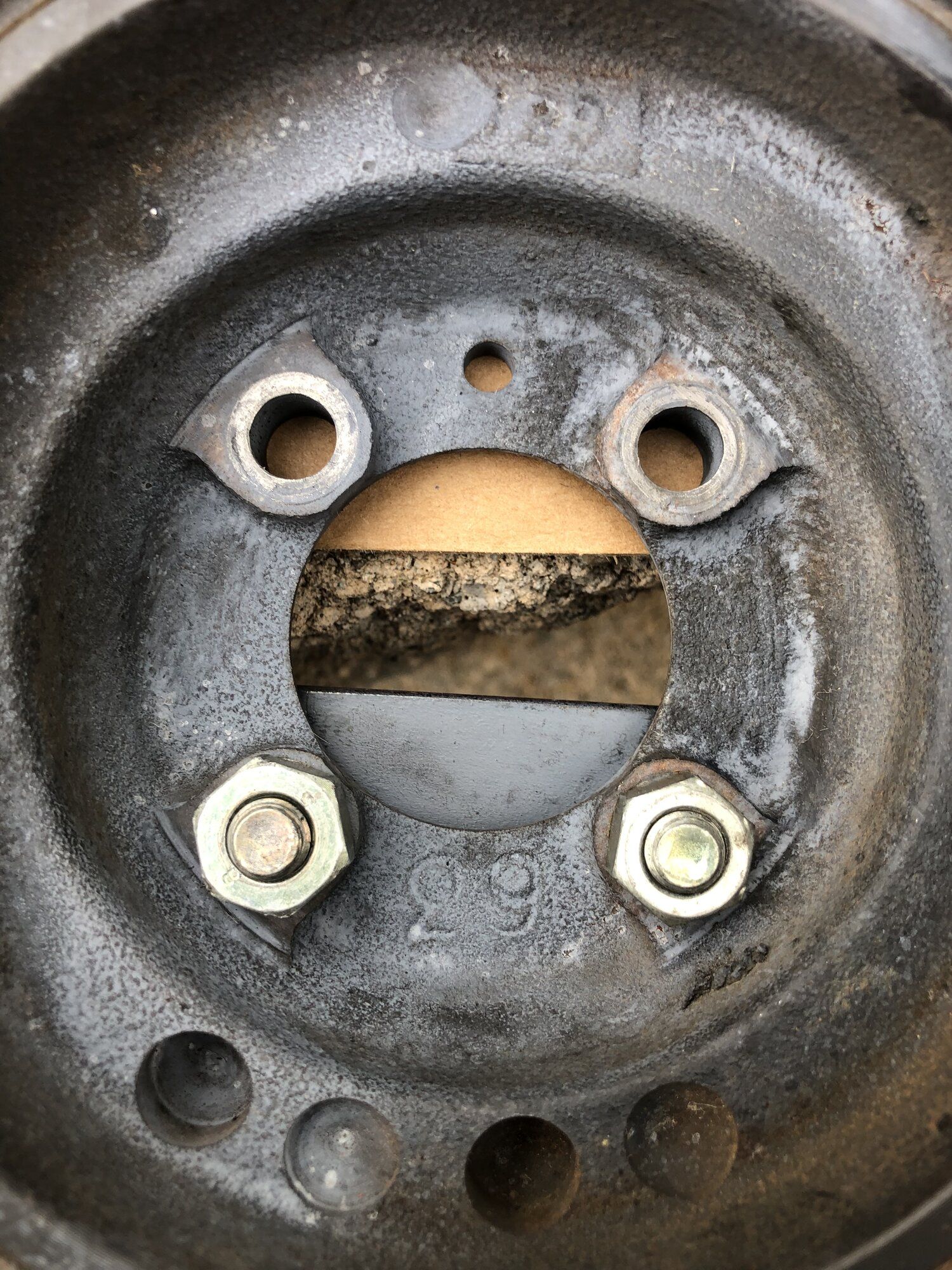

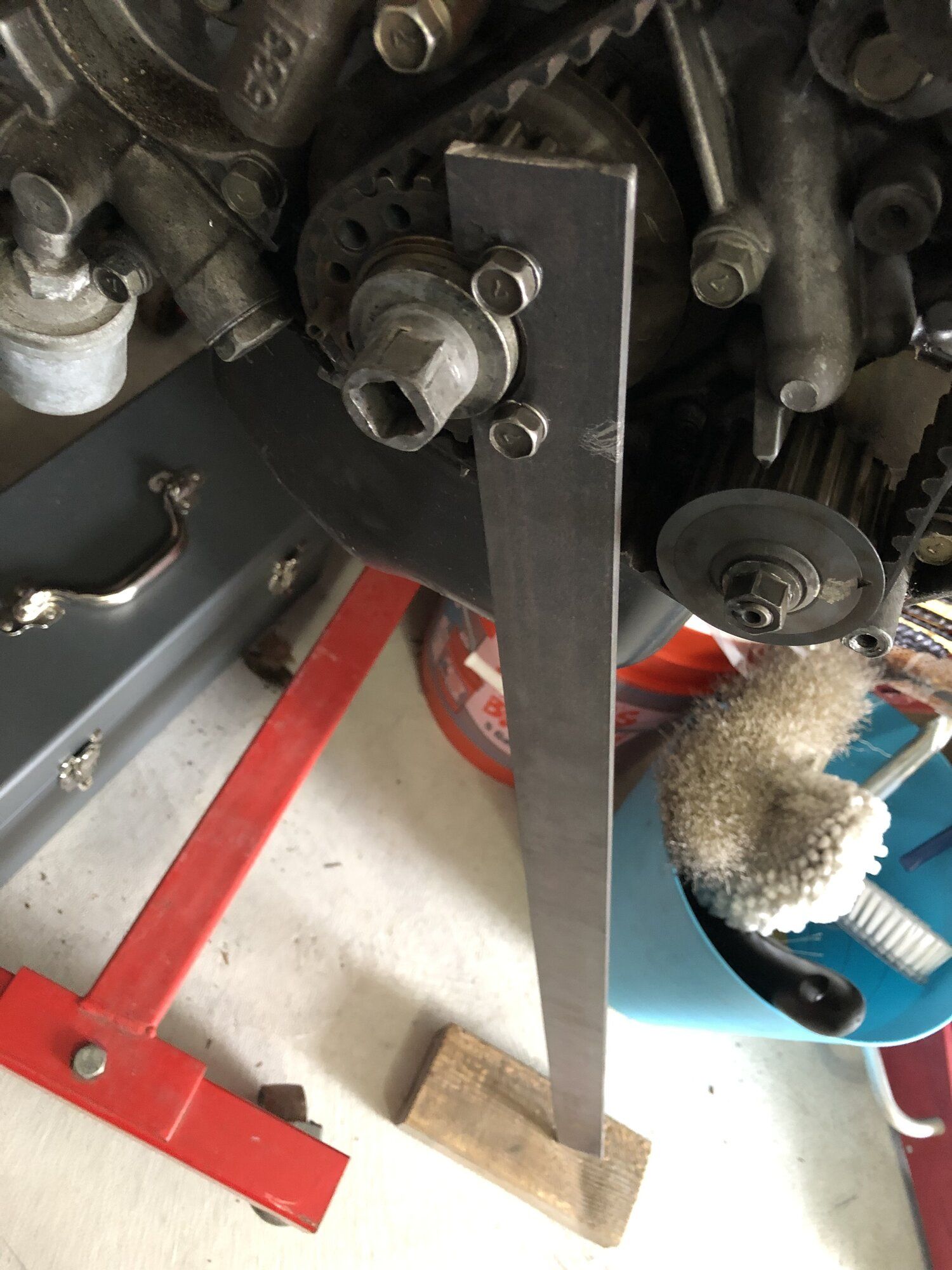

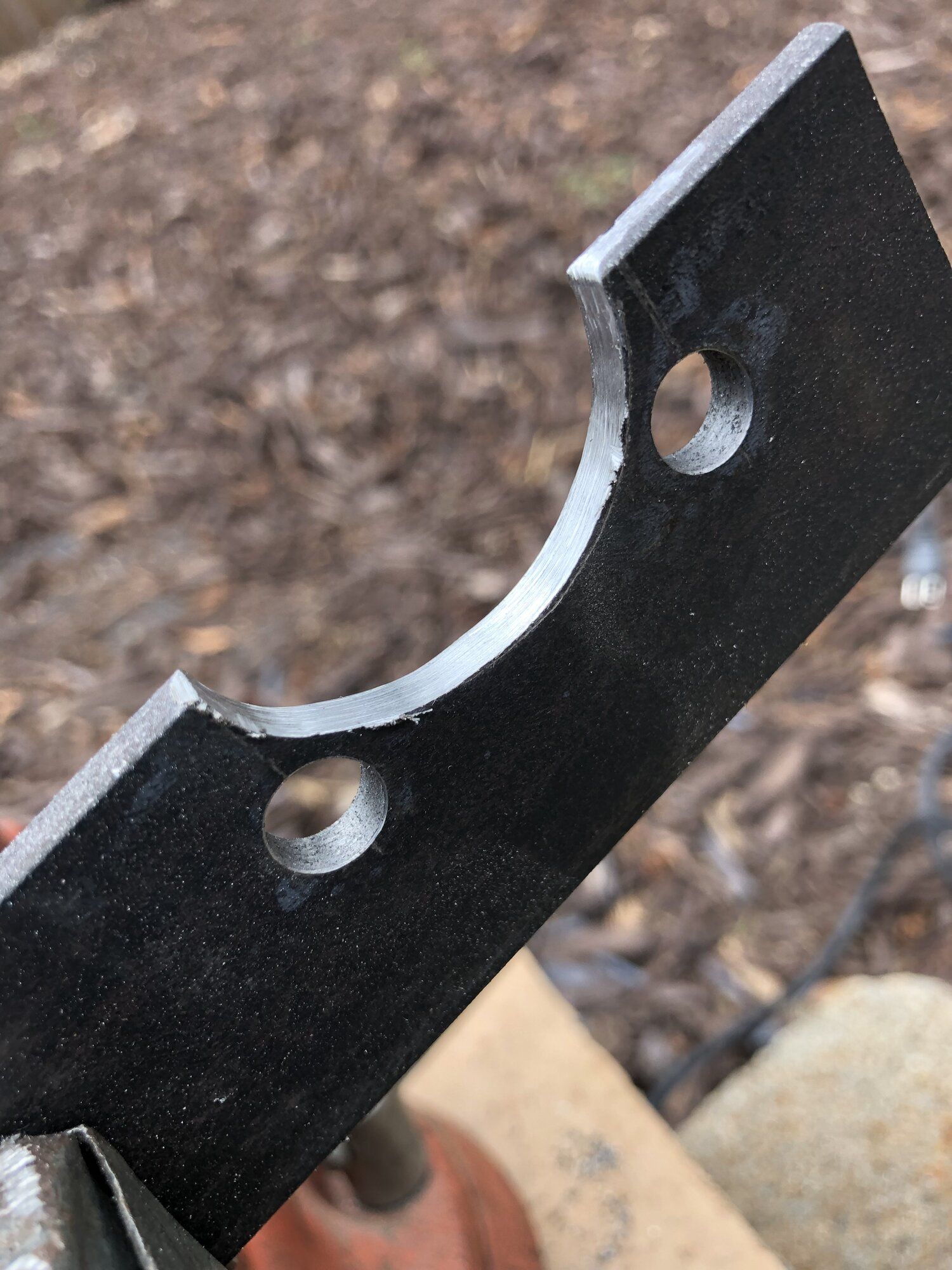

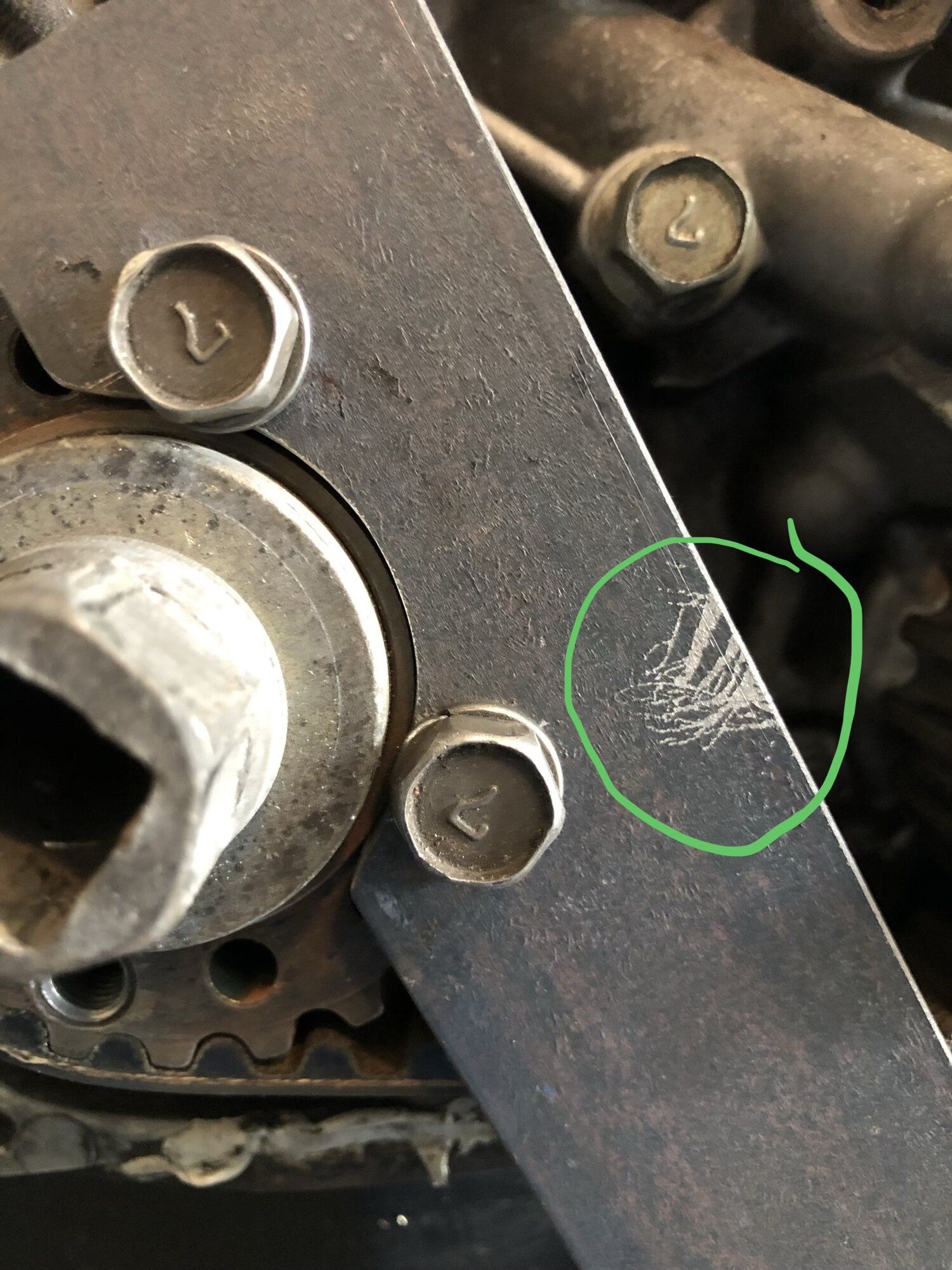

Getting the crank bolt out is proving to be a formidable effort. I always had proper shop tools previously, and I’ve never tried to do this on the floor, without a lift, with the motor hanging in the car.

Frankly, on the stand is sooo much better than doing it in the (mint fresh body and paint) car.
You must be logged in to view this image or video.

Never being afraid to go to 11 (out of 10) difficulty has been this car’s destiny

So here we are still learning, problem solving, but now, no real limits on how much time to take to get it done.

Enjoy -

I need a tool, I have other tools, and some spare steel.
You must be logged in to view this image or video.

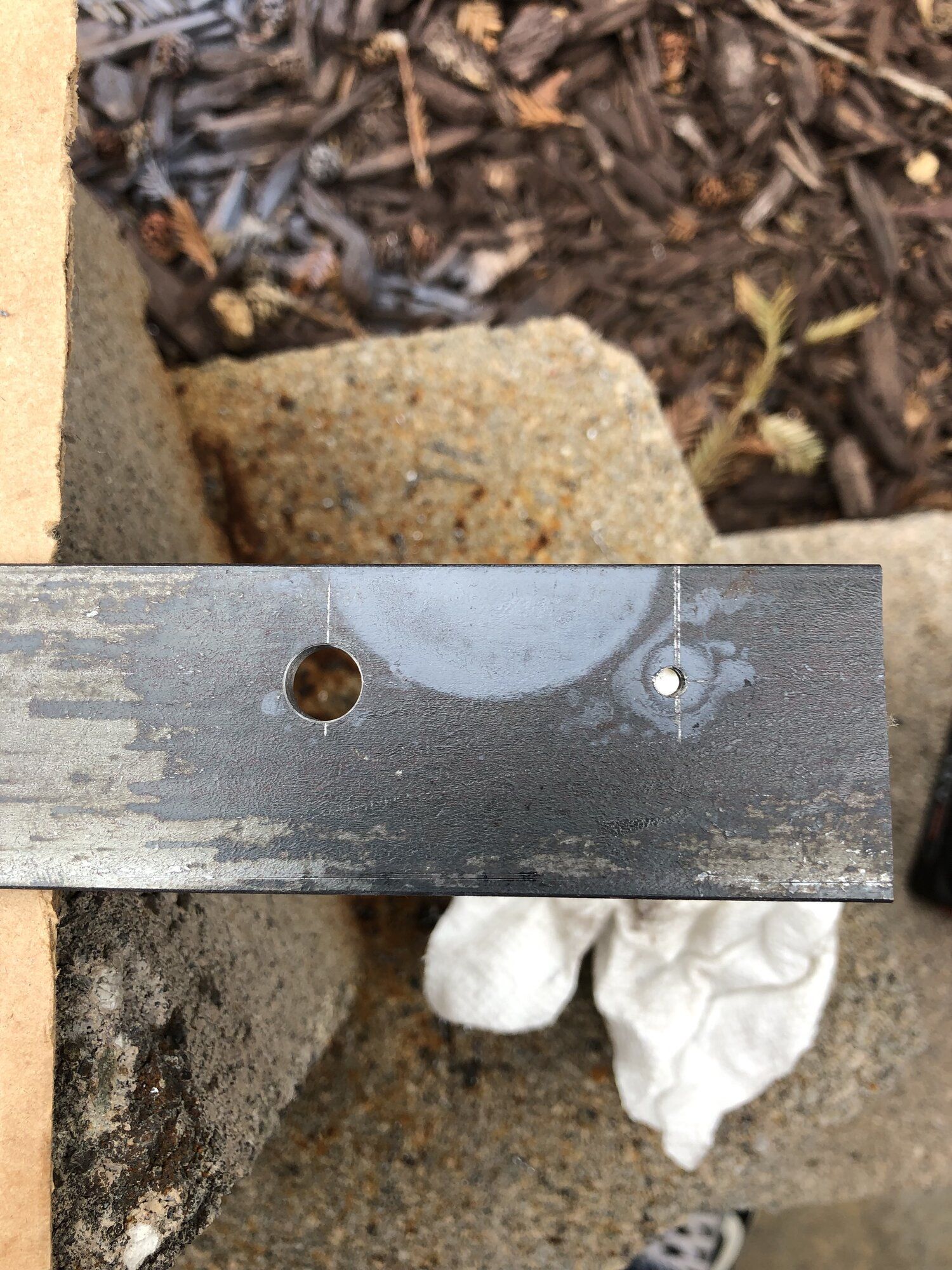

I decided to mark one end of the bar with primer, which was quick, but not 100% sharp edged, so I checked with digital calipers and used a T-square to align, scratch and punch center for a couple holes. Used tap oil and drilled out with a stepped bit to the same diameter as the crank pully holes.

You must be logged in to view this image or video.

I then bolted the tool to the crank pully.
You must be logged in to view this image or video.

and scratched a line to the same ark as the outside edge of the lip on the crank gear.

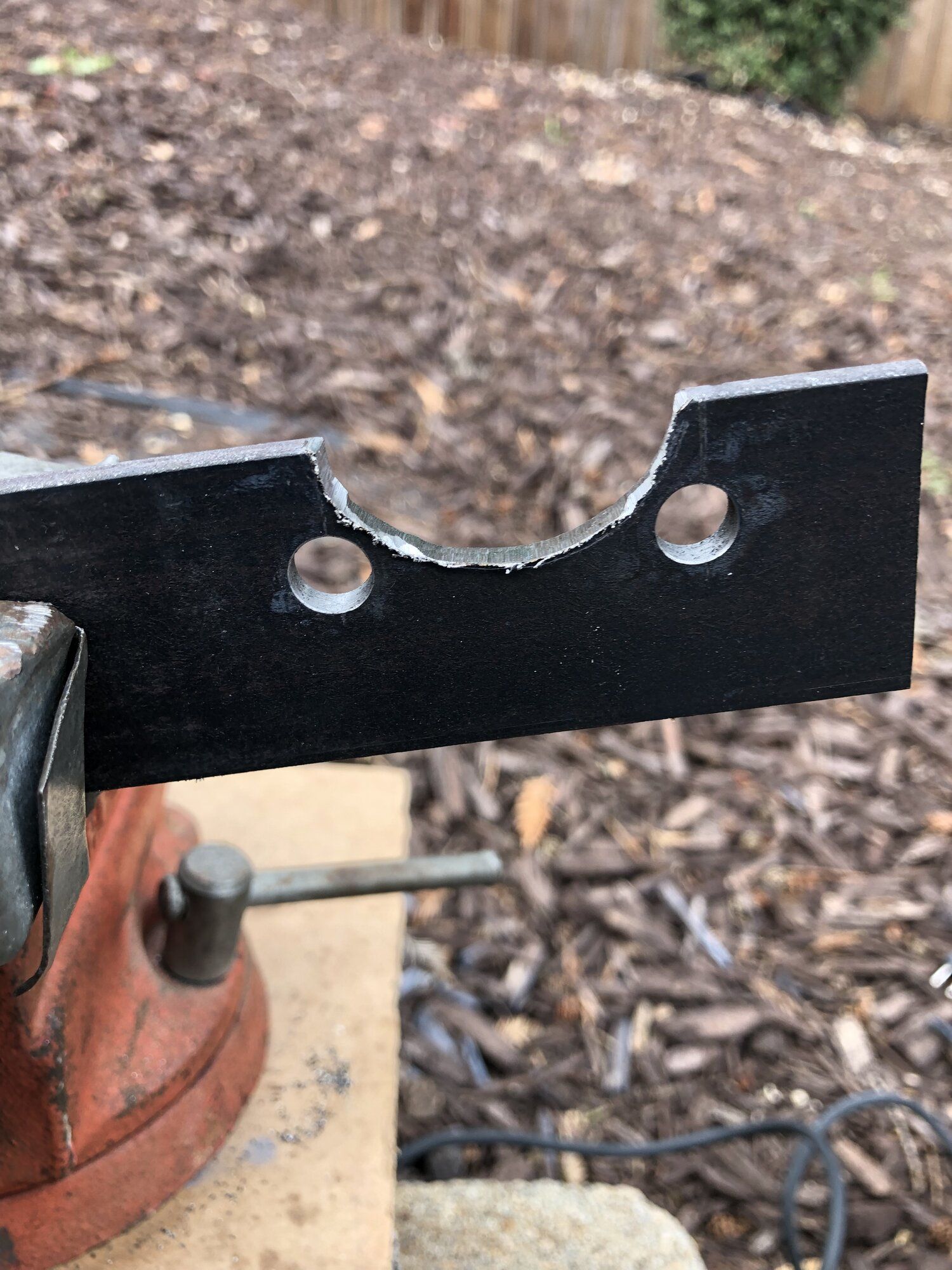

Using a jigsaw with a blade for metal, I made perpendicular cuts up to the arc edge every 1/8” or so, and then cut out the remaining metal with diagonal rough cuts until the blade came parallel to the desired edge.
In a vice, used an angle grinder to smooth out the rough cuts, and approach the line.
You must be logged in to view this image or video.

Using a dremmel with 80ish grit emery paper cylinder, I take the line removing any rough or sharp edges.
You must be logged in to view this image or video.

Next it is bolted onto the crank gear, checking tolerance at edges of the gear and bolt holes, and boom - 32 inches of leverage. and it wasn’t enough.

Also, it was starting to show stress fatigue.
You must be logged in to view this image or video.

You must be logged in to view this image or video.


I looked for advice, and came up with a new plan.

Last edited:

pauleyman

DSM Wiseman
8,006
2,606
Nov 19, 2011
oklahoma city, Oklahoma
Whatever that is on the bar it isn't stress fatigue. Looks like scratches from your vise. Bar looks good. I don't see a problem. Put a breaker bar on the crank. Use a socket not the square hole.

Support Vendors who Support the DSM Community
Boosted Fabrication ECM Tuning ExtremePSI Fuel Injector Clinic Jacks Transmissions JNZ Tuning Kiggly Racing Morrison Fabrications MyMitsubishiStore.com RixRacing RockAuto RTM Racing STM Tuned VR Speed Factory

Latest posts

Build Thread Updates

Vendor Updates

Latest Classifieds

Top
