Eclipse GSX '91, only one in Croatia (lots of pictures)

This site may earn a commission from merchant
affiliate links, including eBay, Amazon, and others.

This site may earn a commission from merchant affiliate links, including eBay, Amazon, and others.

FlashBack-Cro

10+ Year Contributor
196
25
Mar 29, 2011
Zagreb, Europe
Let me introduce my Eclipse.

Short story how i got her :)
About 6 years ago the time has come to buy myself a car. In one occasion my friend gave me the opportunity to try a GS-T, the first generation of Eclipse. Then I said I need to have this car. About 6 months later my friend calls me and says that there is one GSX and asked if I wanted to buy it because it is the only one in Croatia. The owner was an older guy who was giving the car all of the care that she needs. Then I said this car has to be mine. Since that time, I am still driving the Eclipse and I will never sell it.
When I bought it it had 107 000 miles. Full stock.
I must mention that this is the only copy of GSX in my country. There are 1G, but they are all N / A.

Here's mods i done so far:

Engine:
Magnecor 8.5mm Sparkplug wires
Palm Pocket Logger
Turbo timer
A/C delete
3'' Custom downpipe exhaust
Cat delete
Perrin MBC
Dejon Intake pipe
K&N Air Filter
FMIC with custom 2.5'' piping
Synapse Synchronic BOV
2G TB Elbow


Interior:
Racetech Mechanical Boost Gauge
Swapped black interior.

Exterior:
H4 Bi-Xenon
H3 Xenon foglights

Suspension/Brakes/Drivetrain:
D2 Racing Coilovers

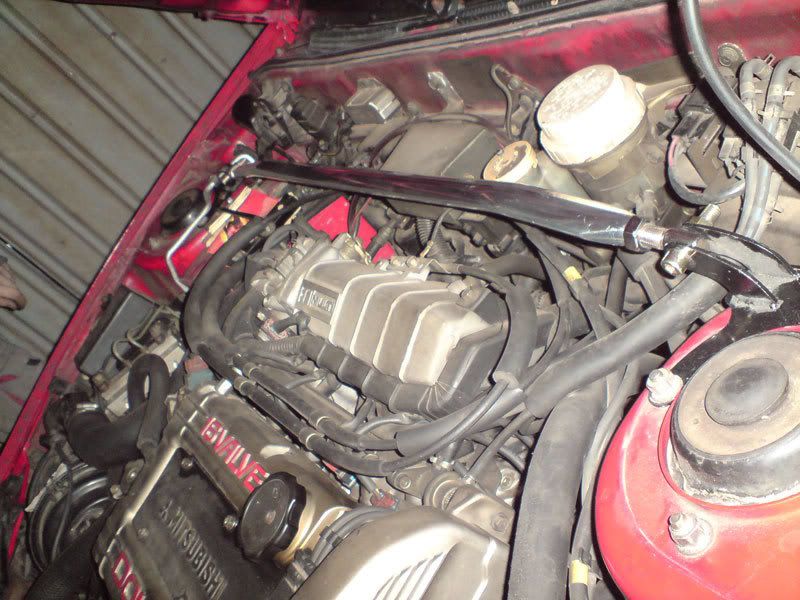

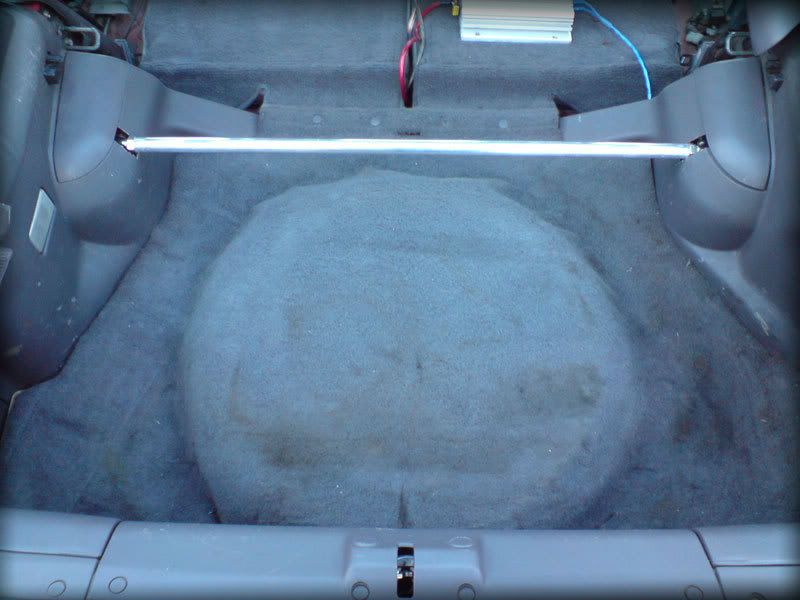

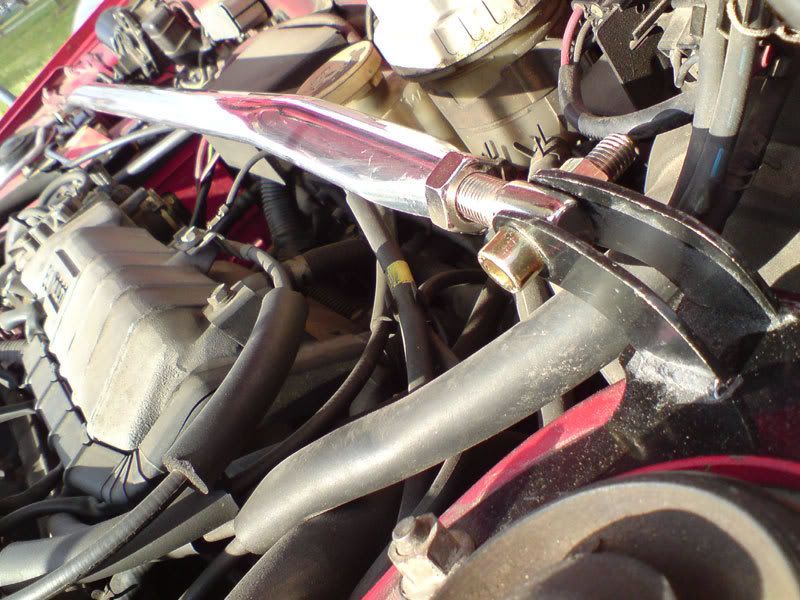

Front and Rear Strut Tower Bars
EVO Front 2 piston brake calipers
XTD Stage 3 Clutch Kit


Wheels:
Sparco Drift 17'' 8J ET 48
Good Year Eagle F1 Asymetric 215/45 R17

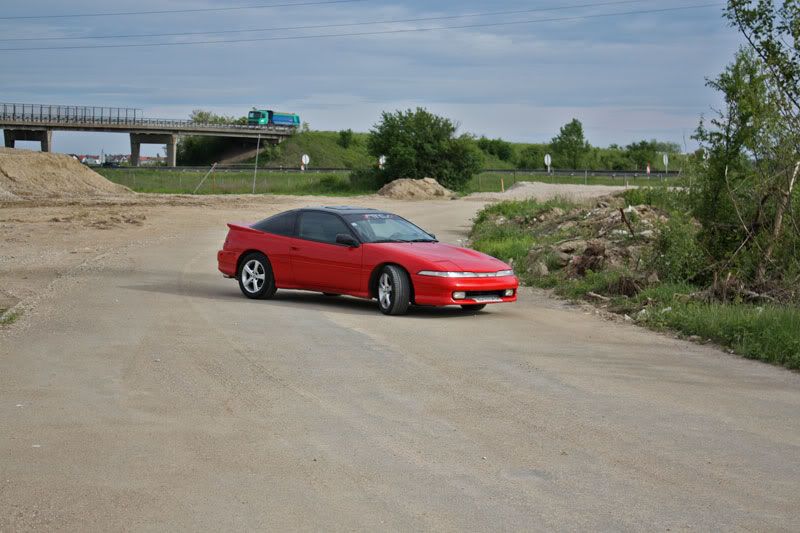

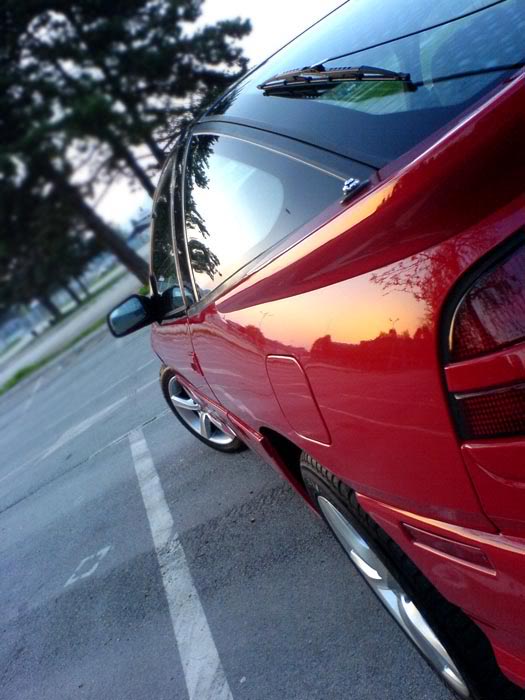

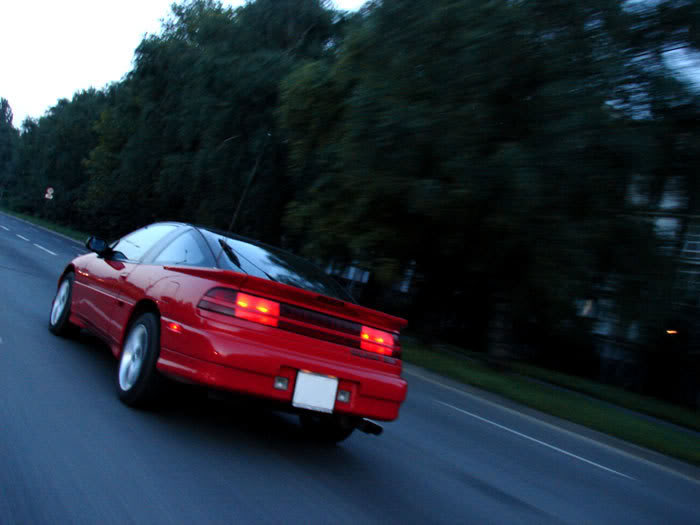

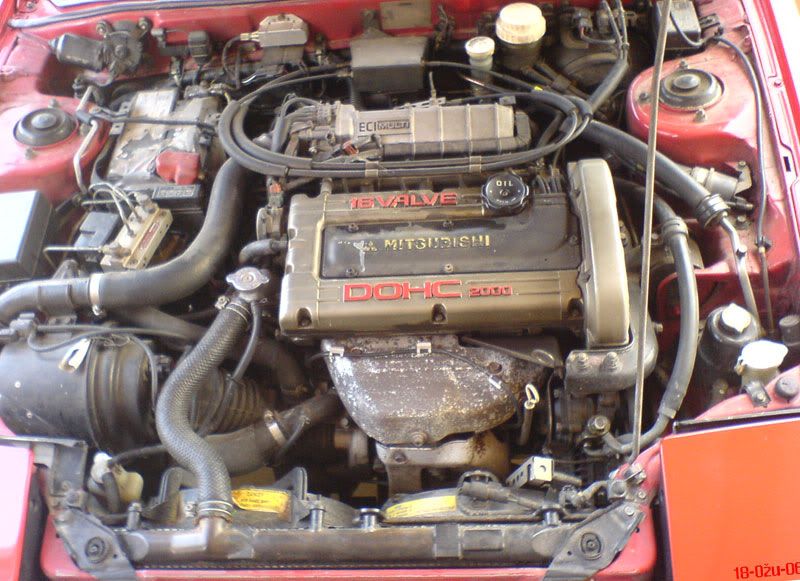

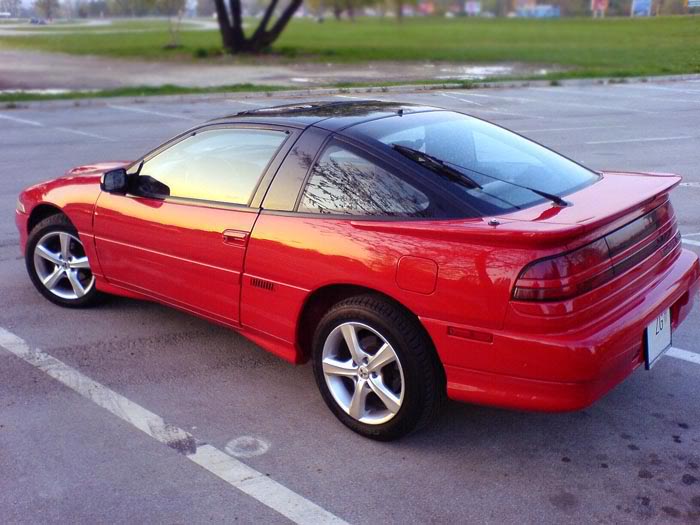

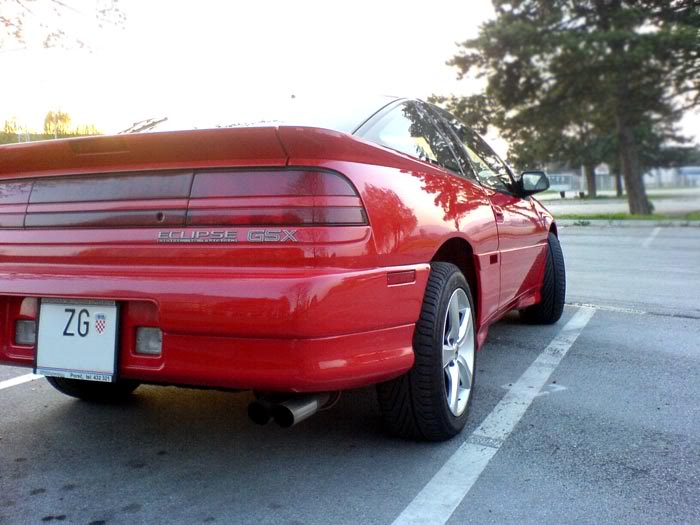

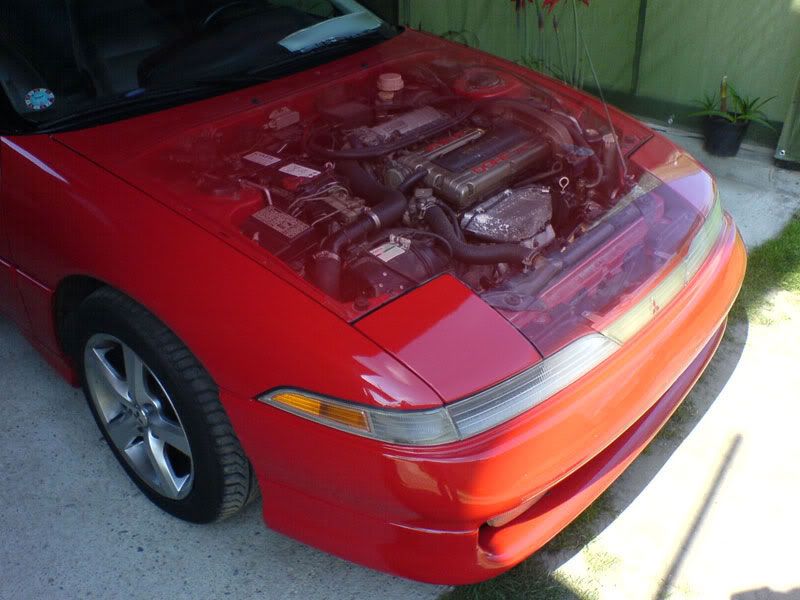

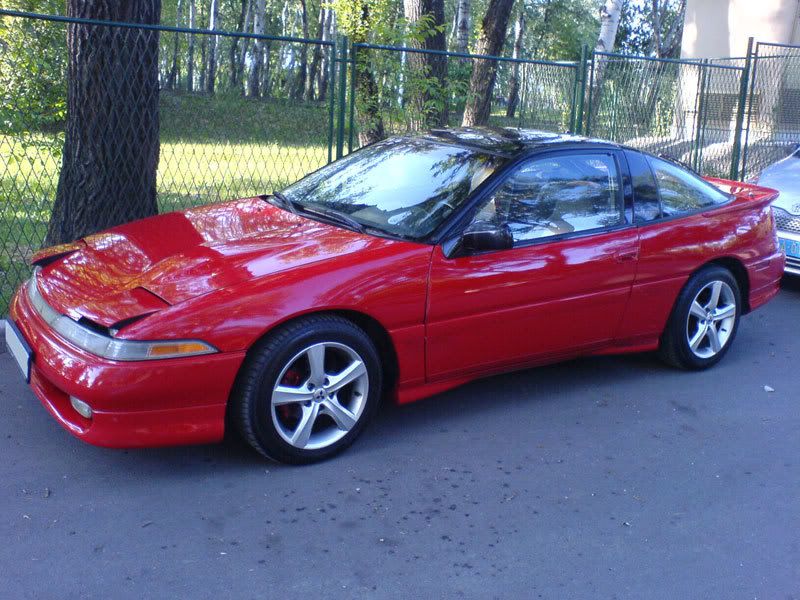

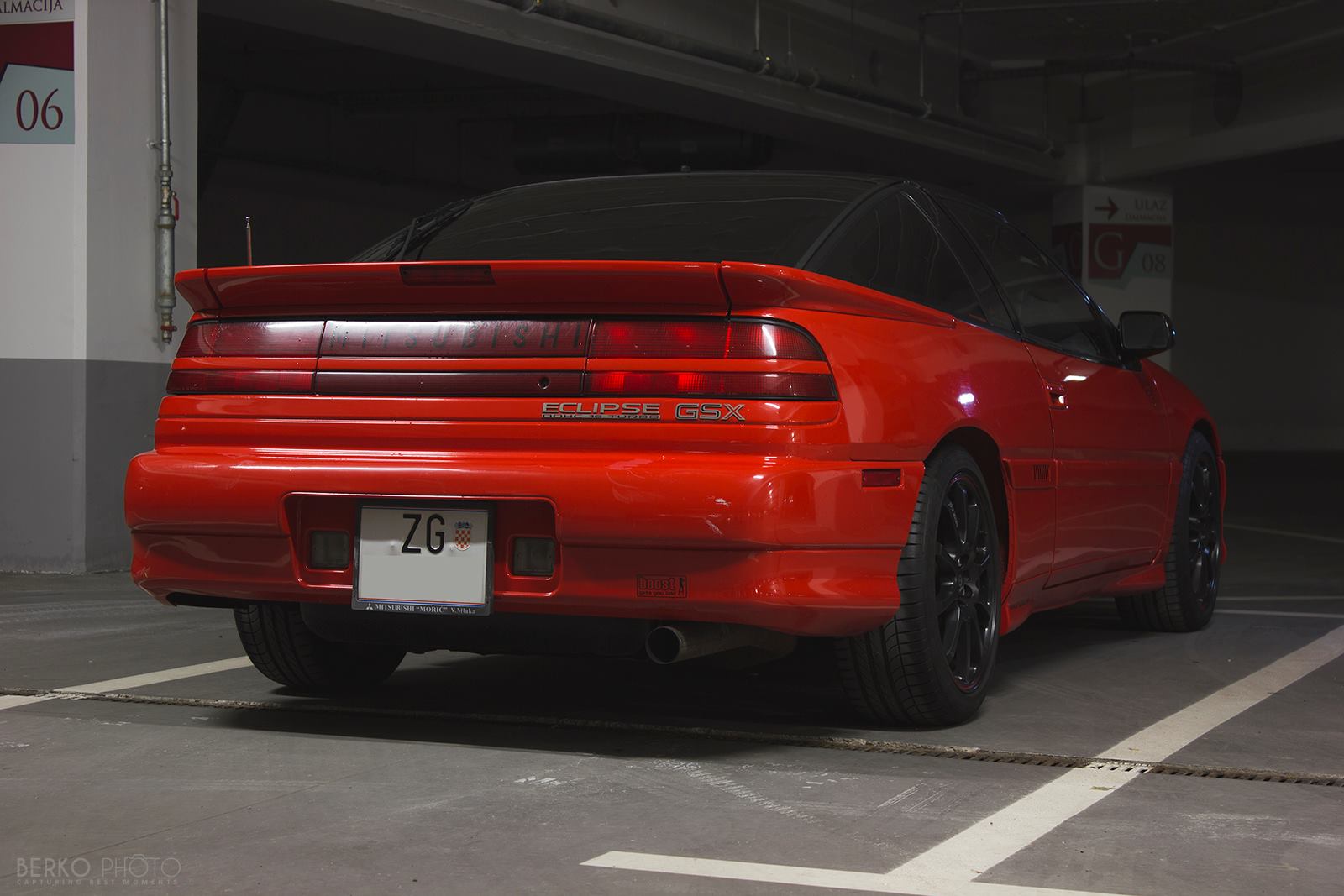

So here's pics few days after i bought her :)













More pics in few moments...





This is old pictures

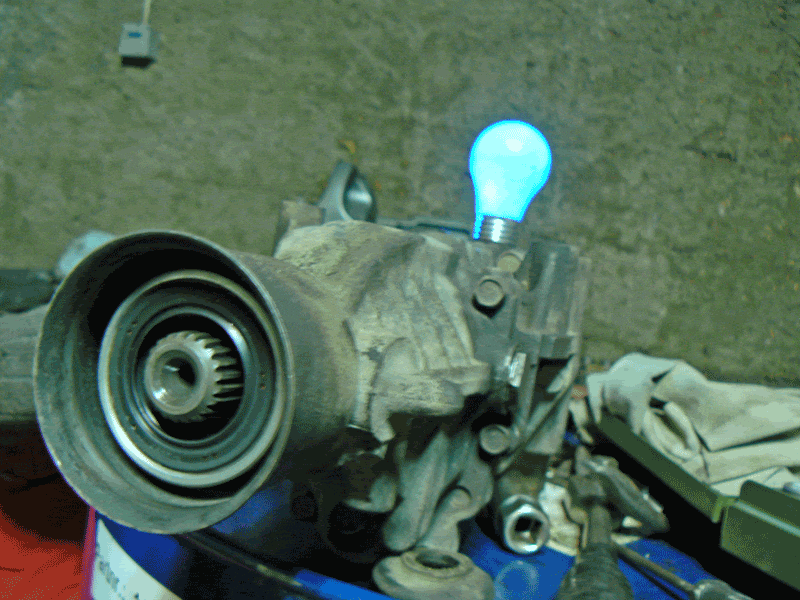

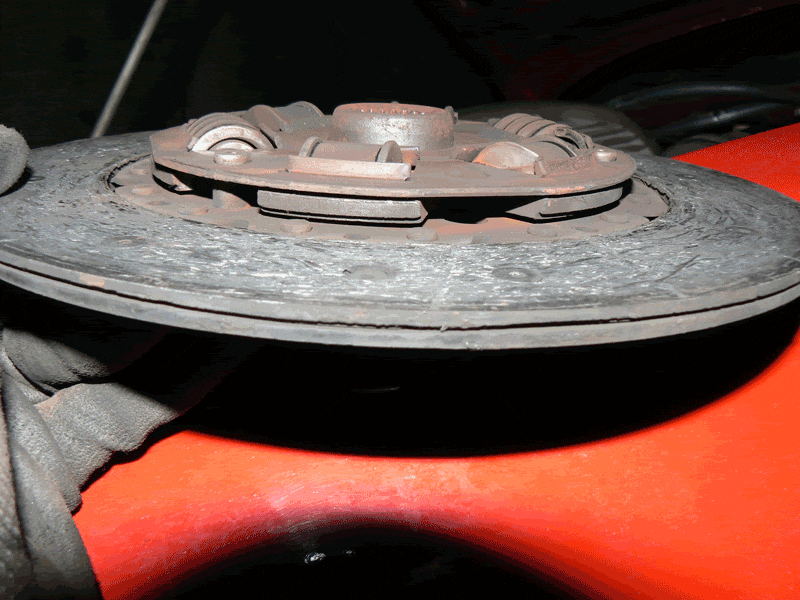

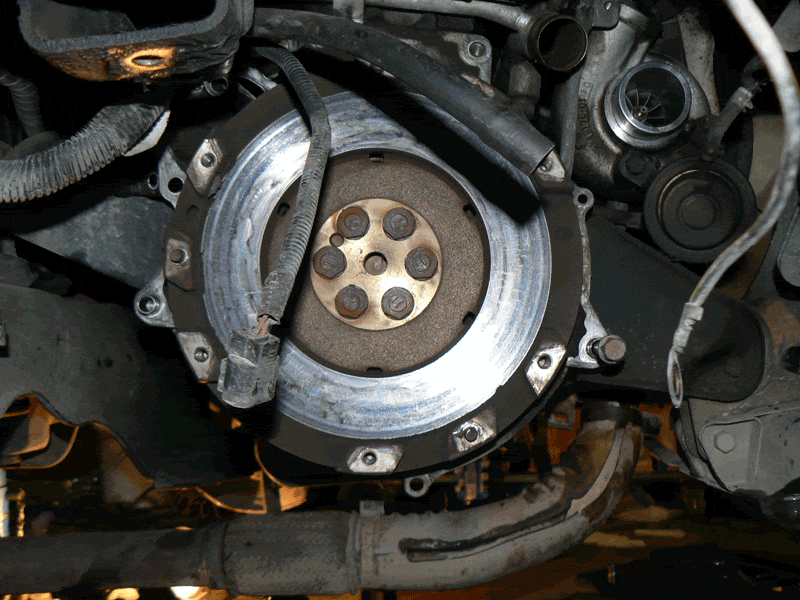

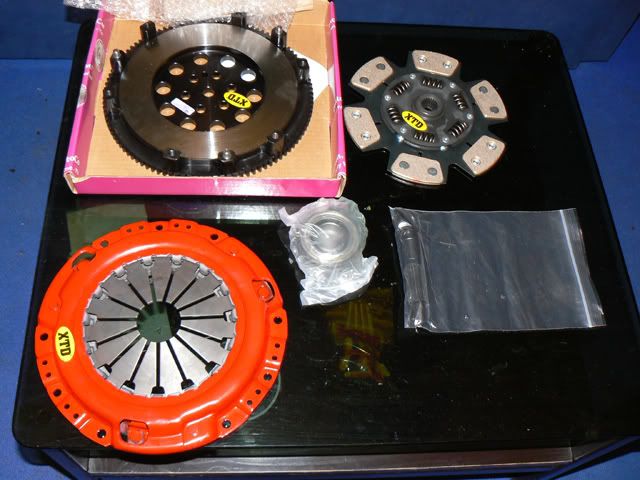

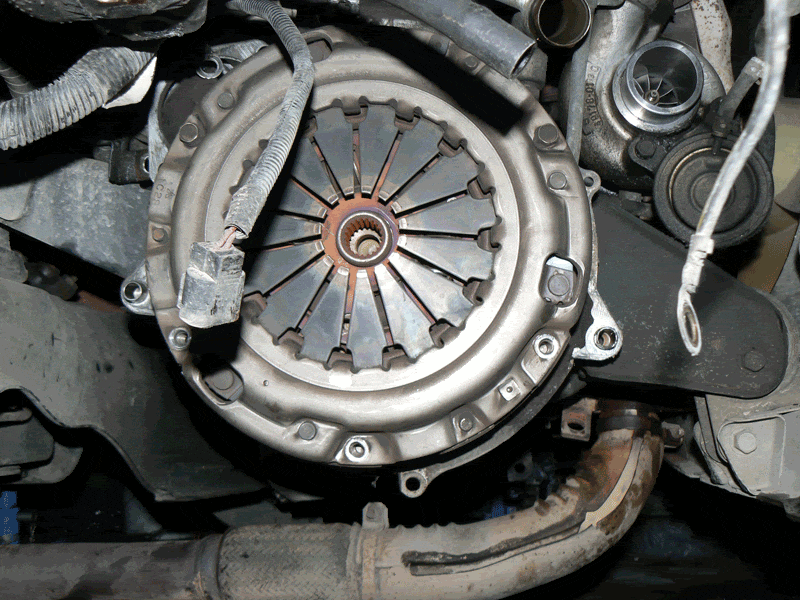

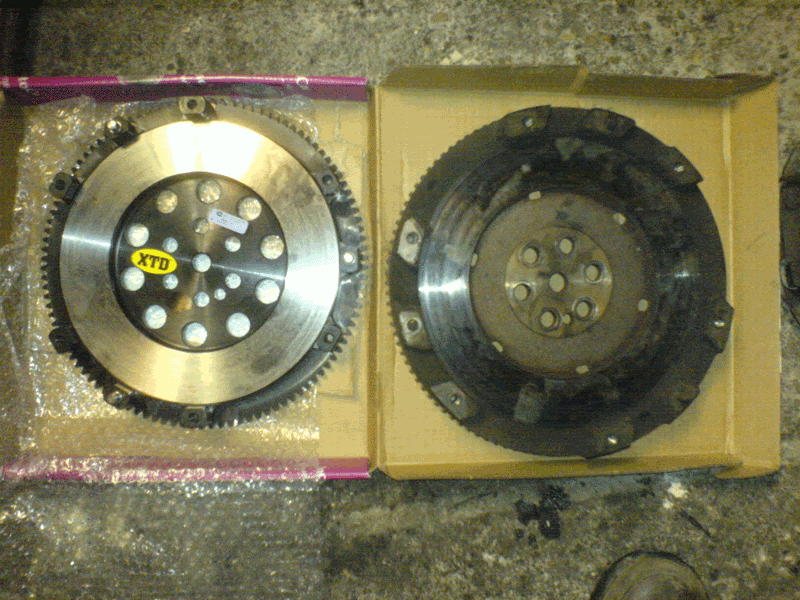

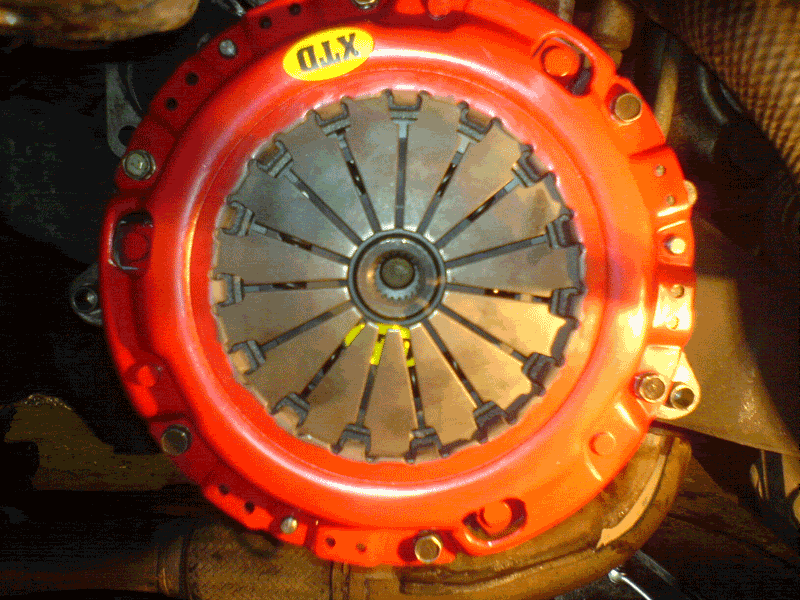

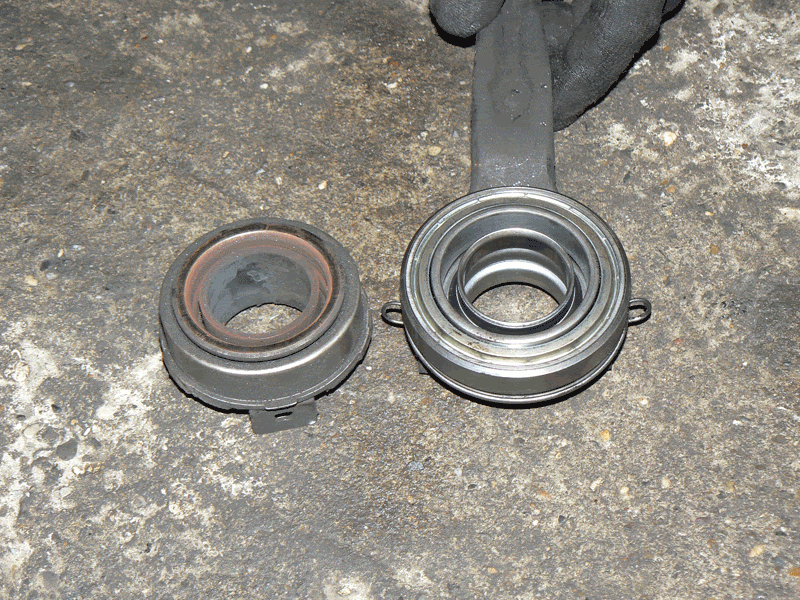

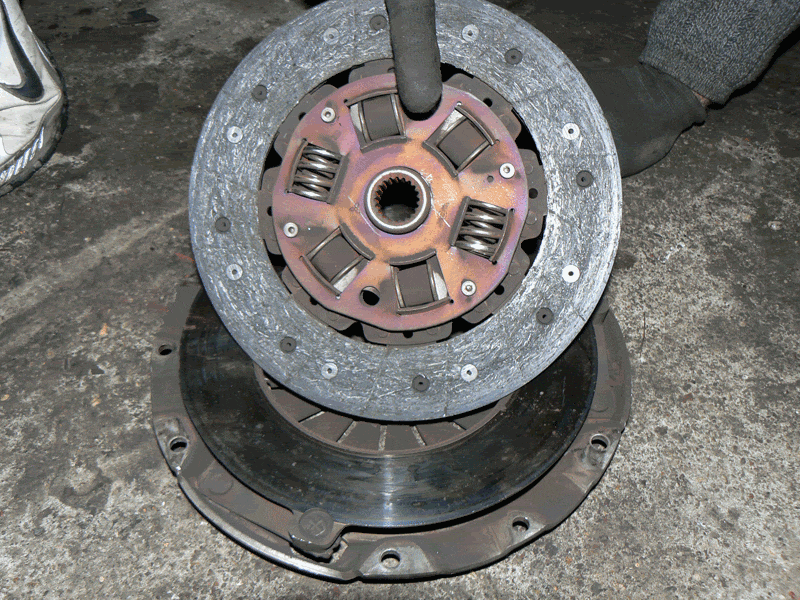

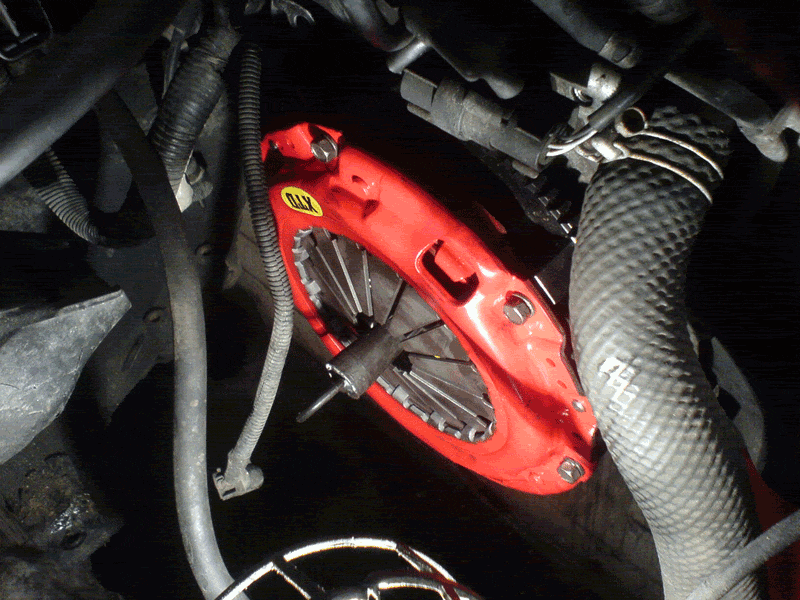

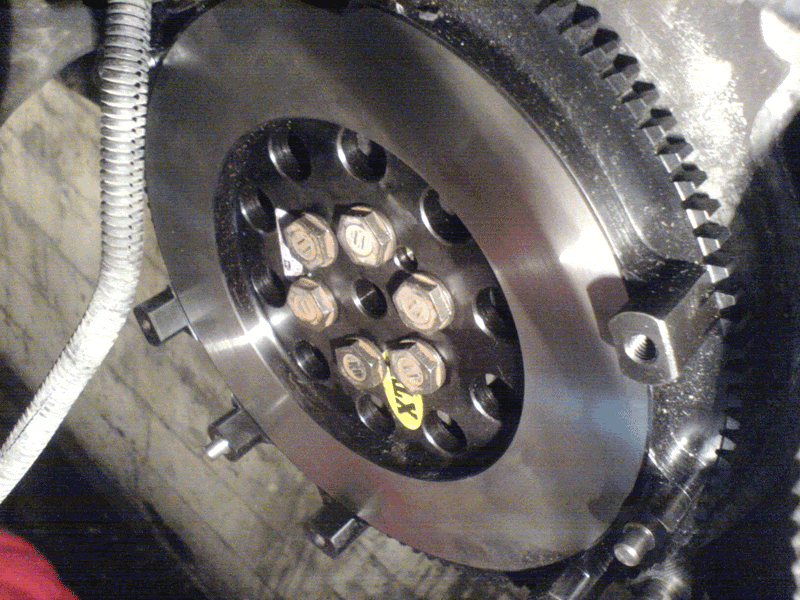

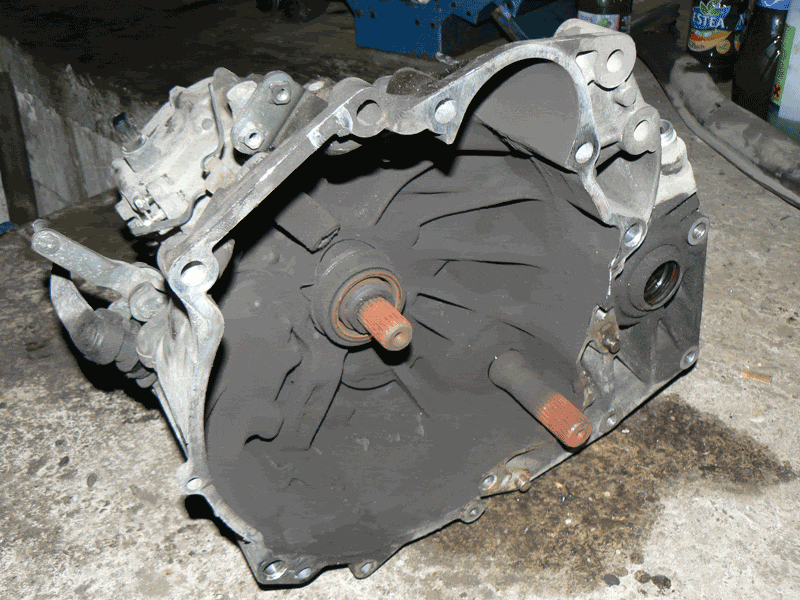

Embedded with XTD Stage 3 Clutch and flywheel. I have it on car about 5 years and so far no problem.
Soon i will have to replace clutch.







Last edited:

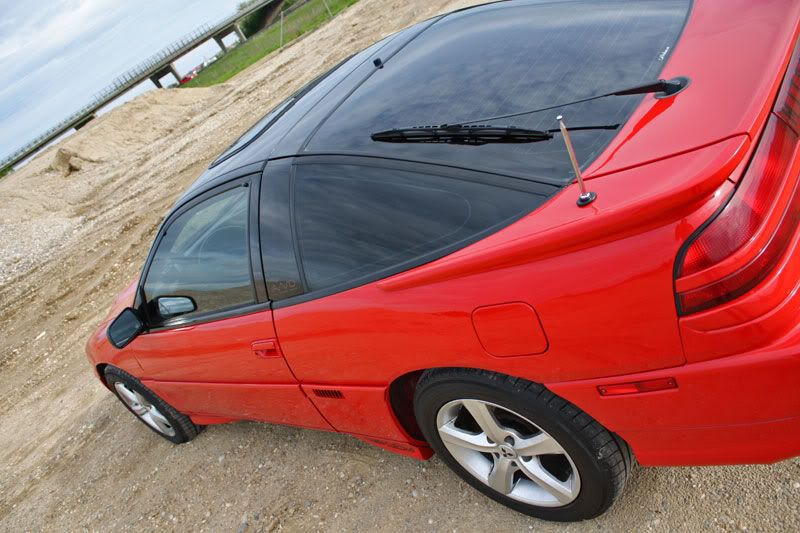

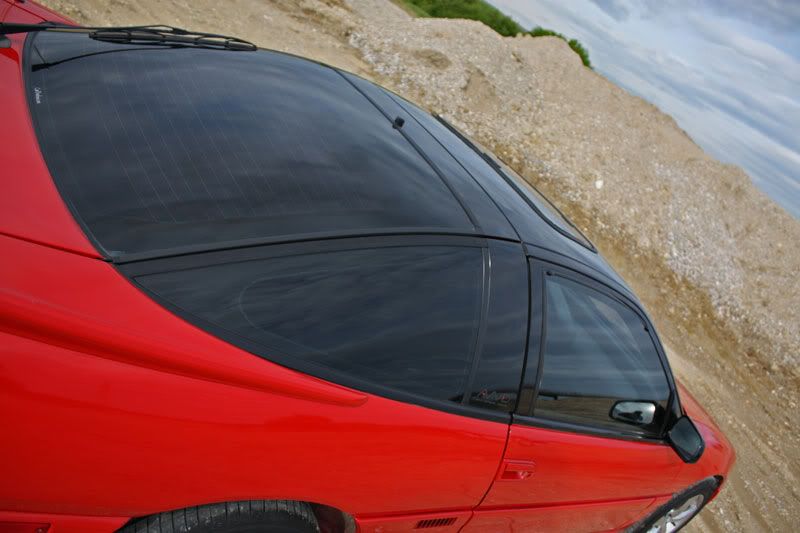

Tinted winows

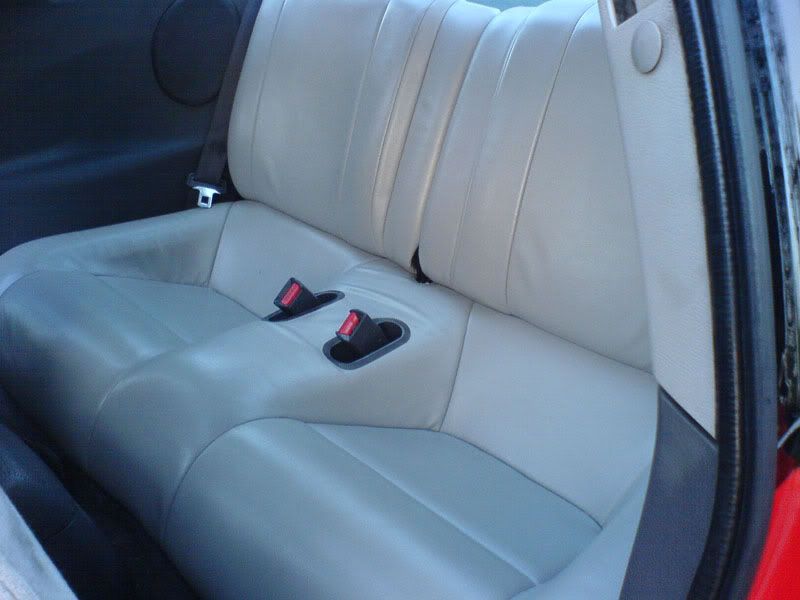

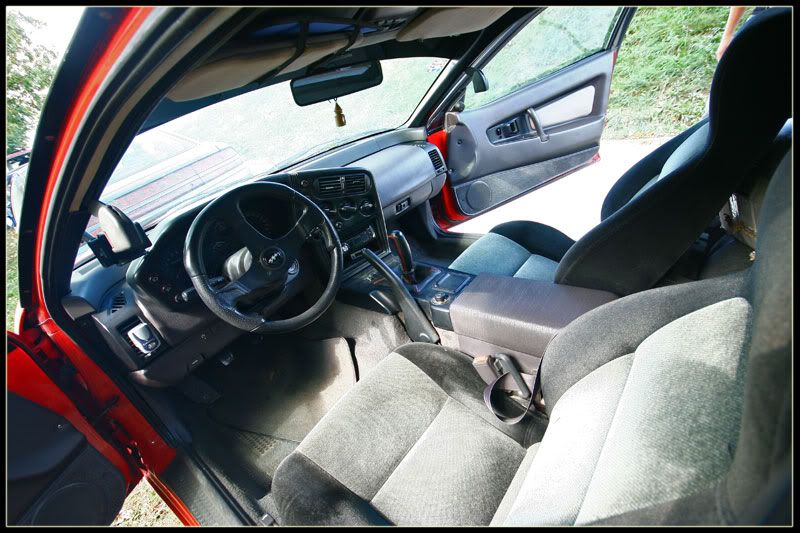

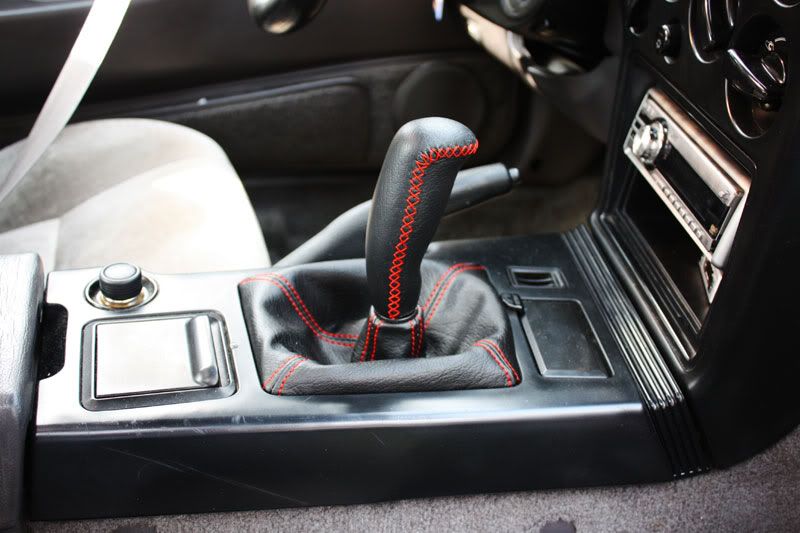

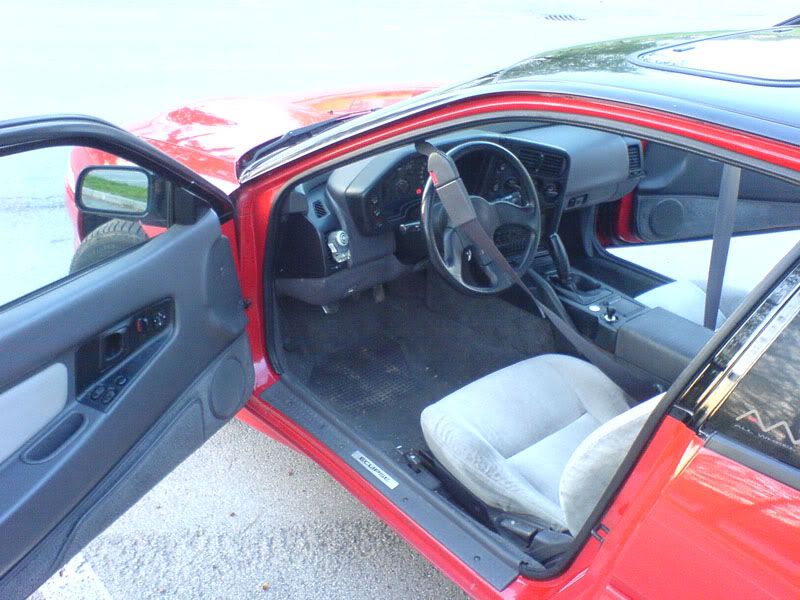

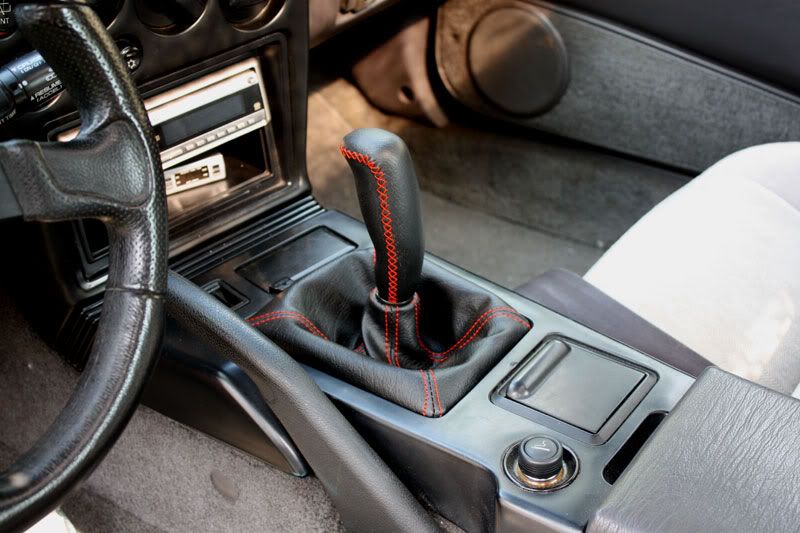

Here's new interior color. Swaped from another Eclipse.

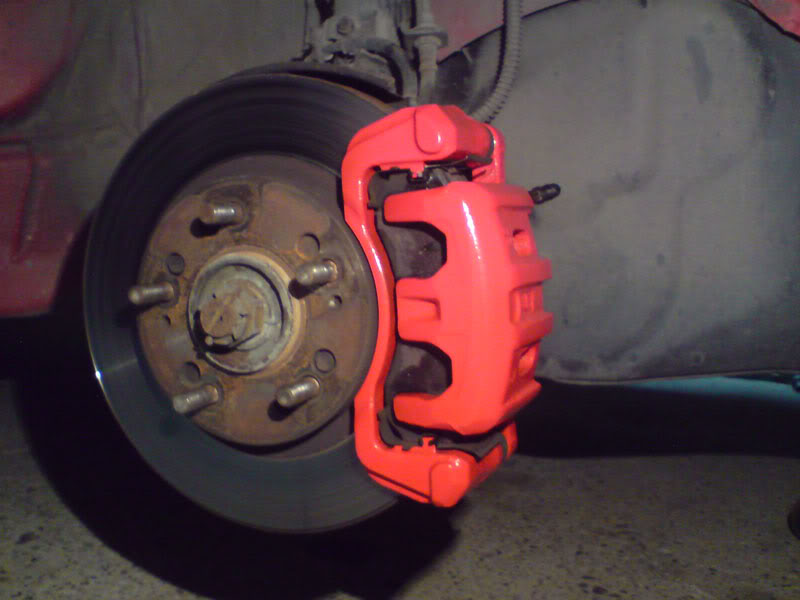

Big Brake Upgrade.
Evo 3, 2 pistons calipers

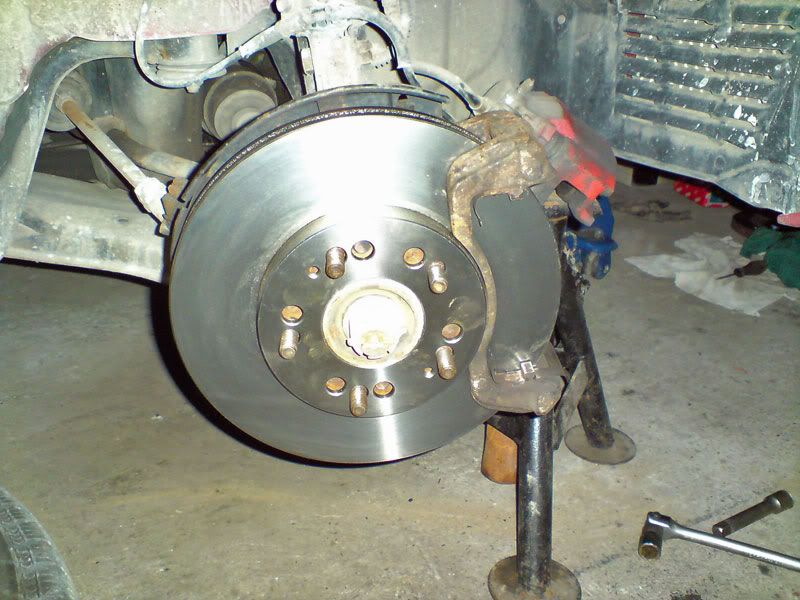

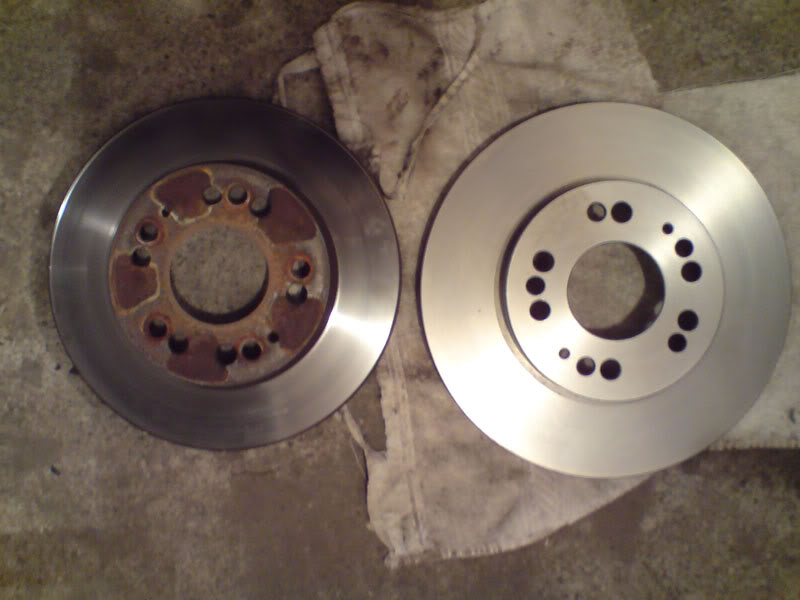

New disc

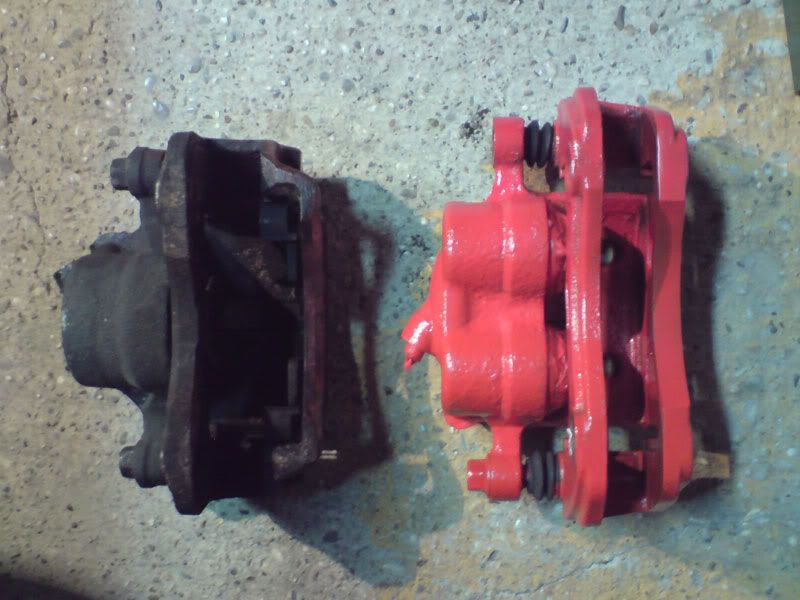

Before

After

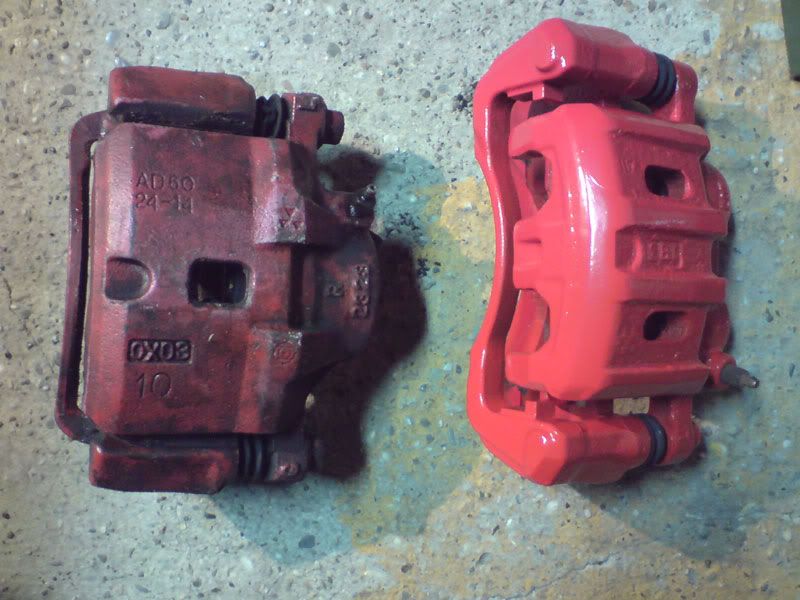

Evo 3, 2 pistons caliper vs. stock one piston.

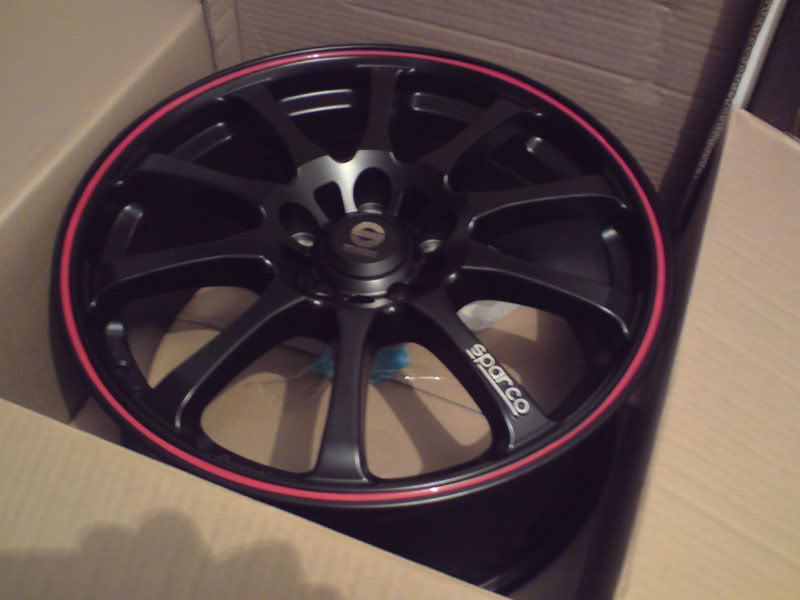

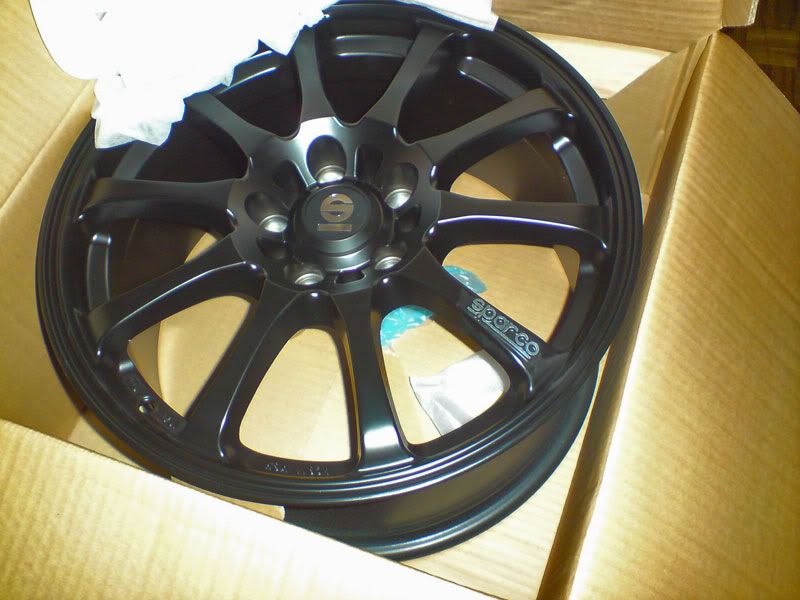

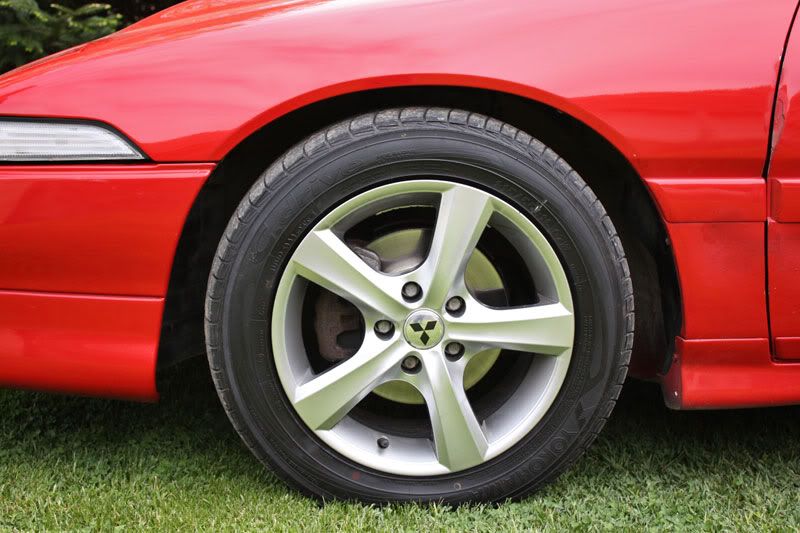

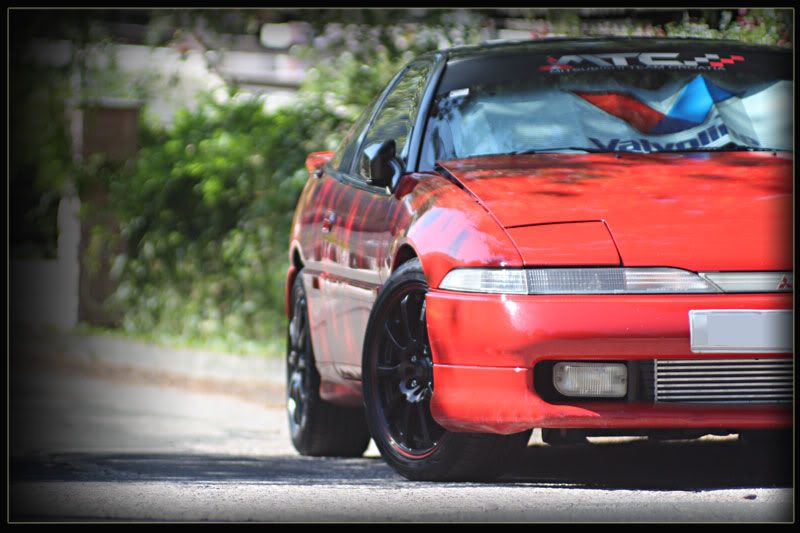

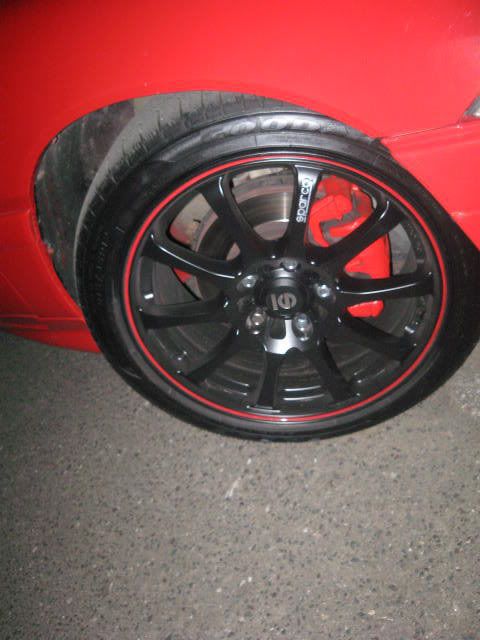

New wheels finaly.

Sparco drift 17'' 5x114,3. ET 48.

and tire GY Eagle F1 Asymetric 215/45 R17


Put the red tape...

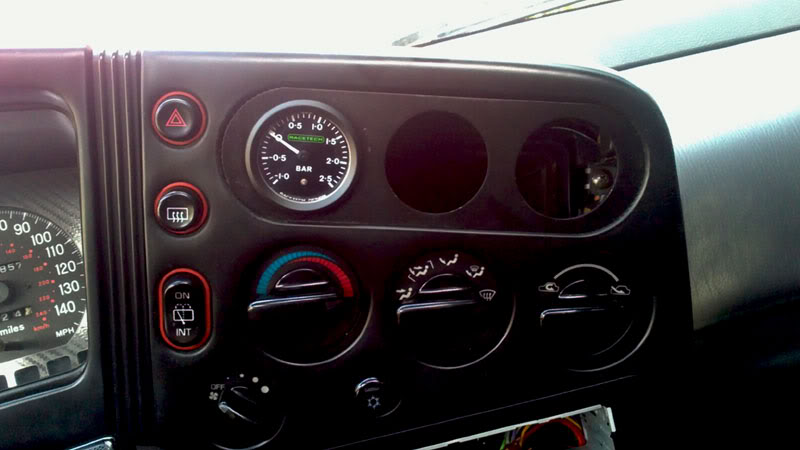

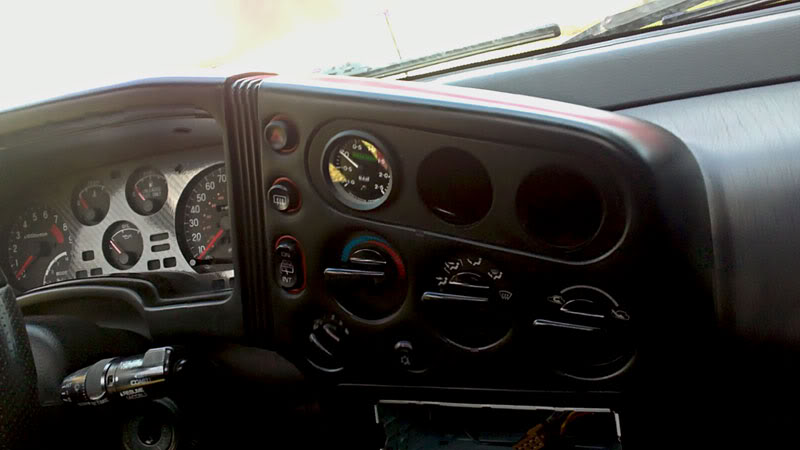

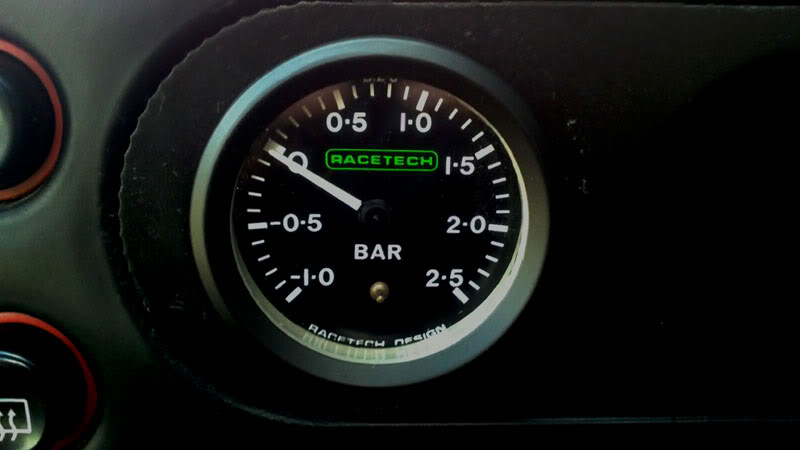

Installed new mechanical boost gauge. I like oldschool style. Still 2 more to come :)







Last edited:

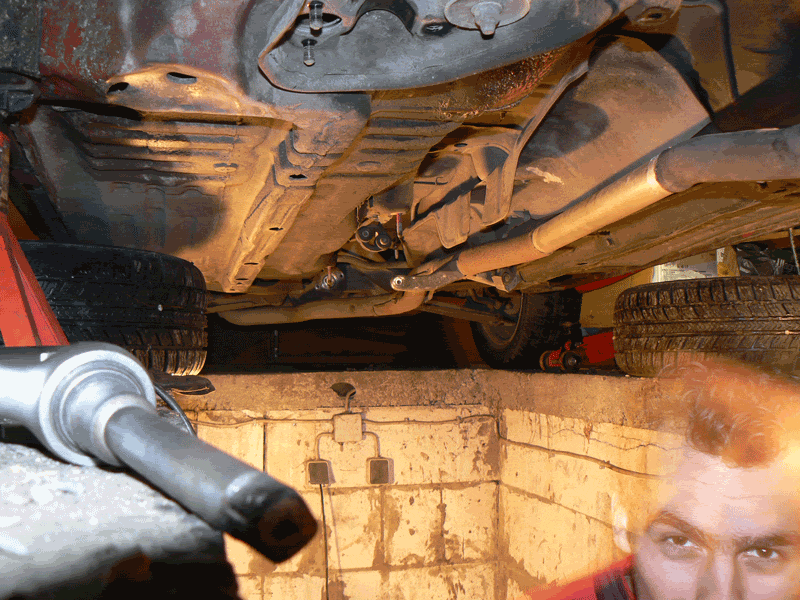

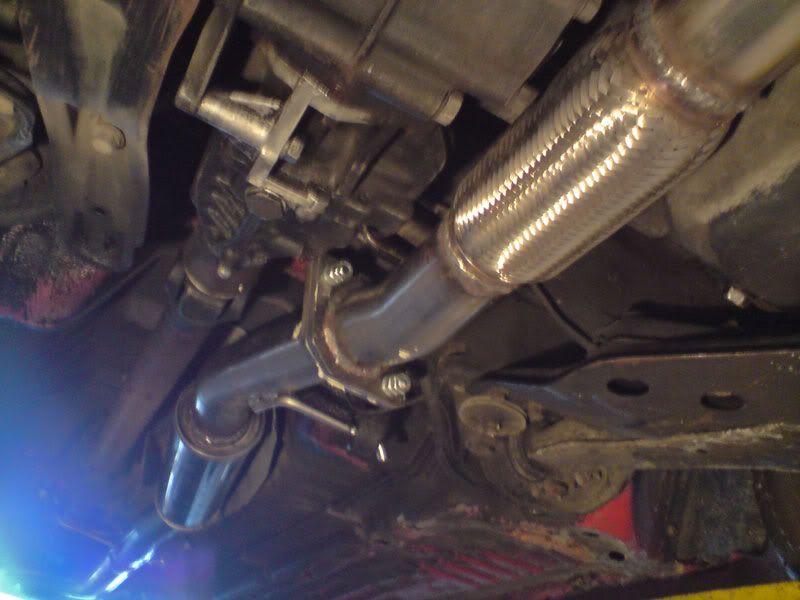

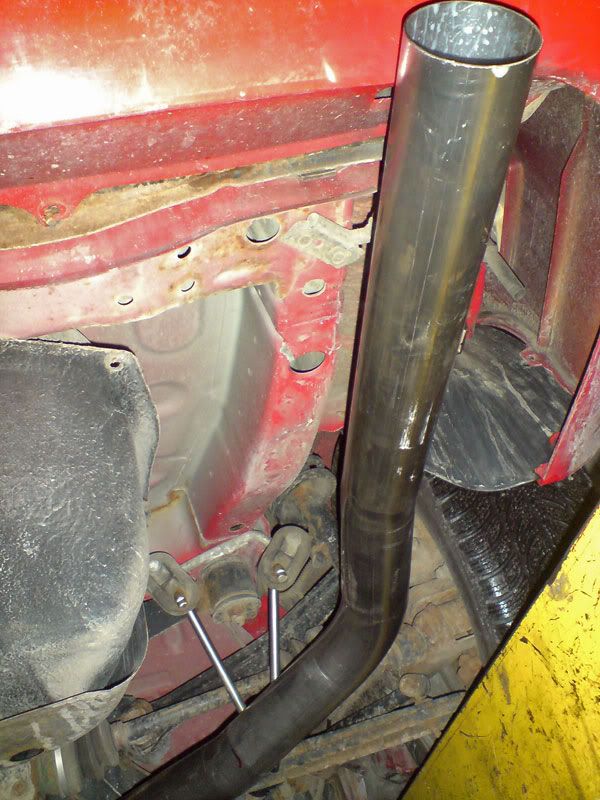

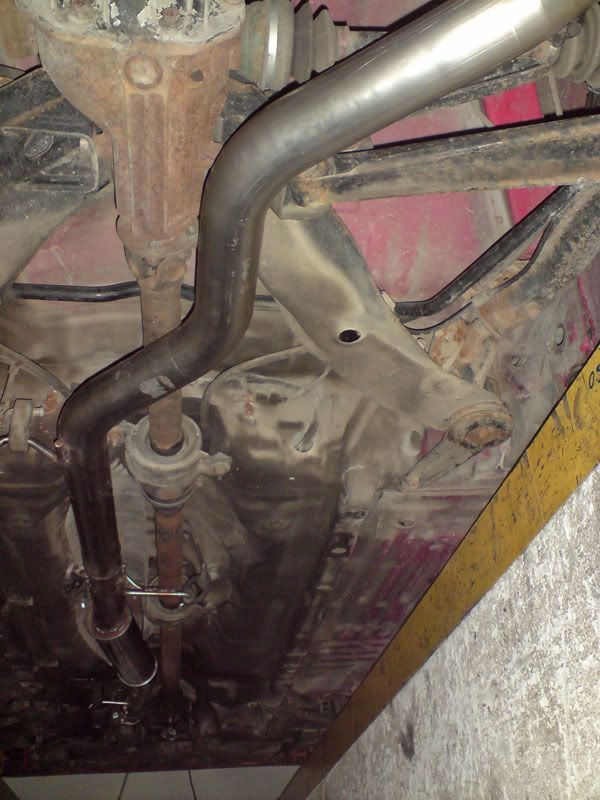

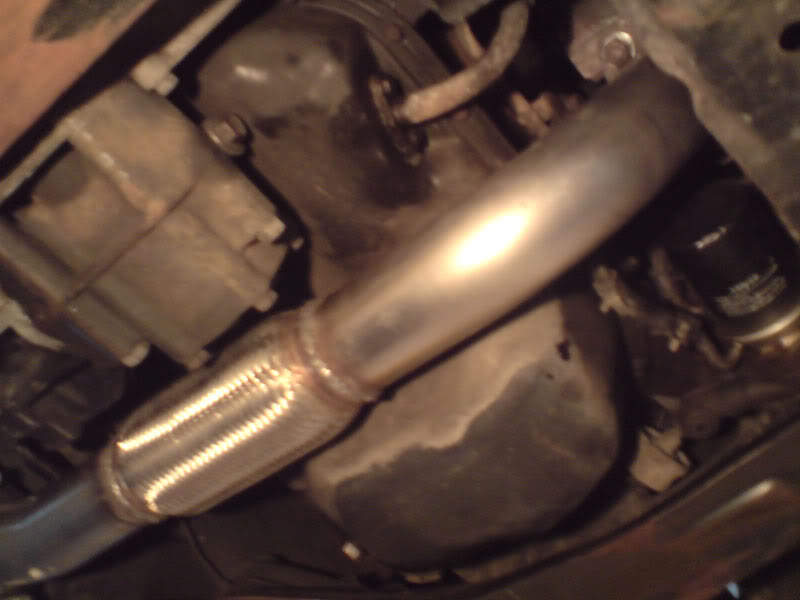

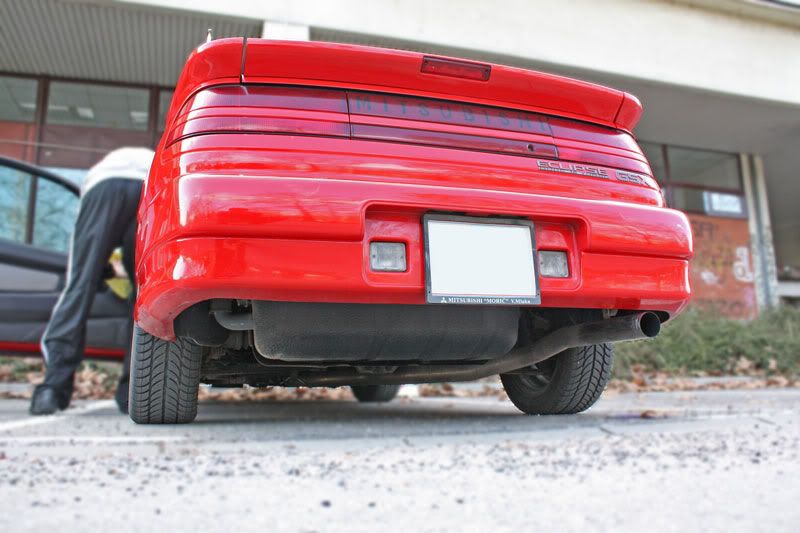

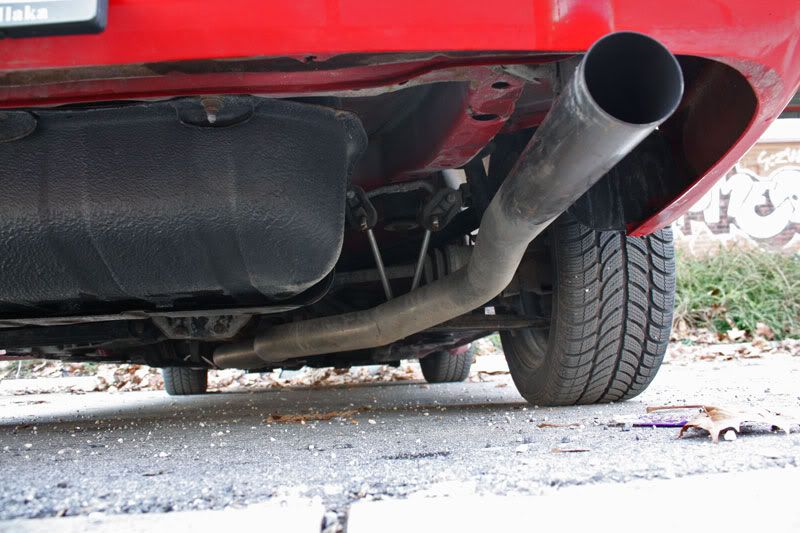

Put new 3'' Custom made exhaust from turbo to the end.
Cat delete.















The sound is amazing, and car go much better now.

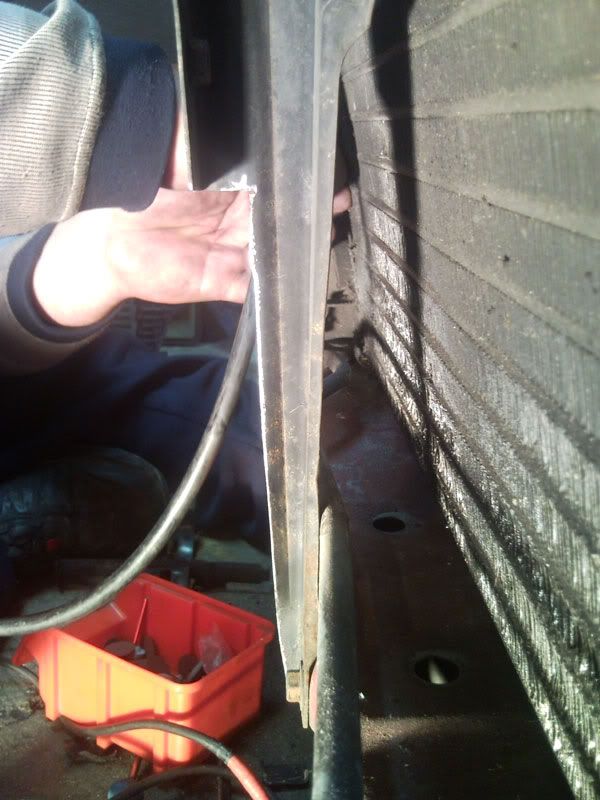

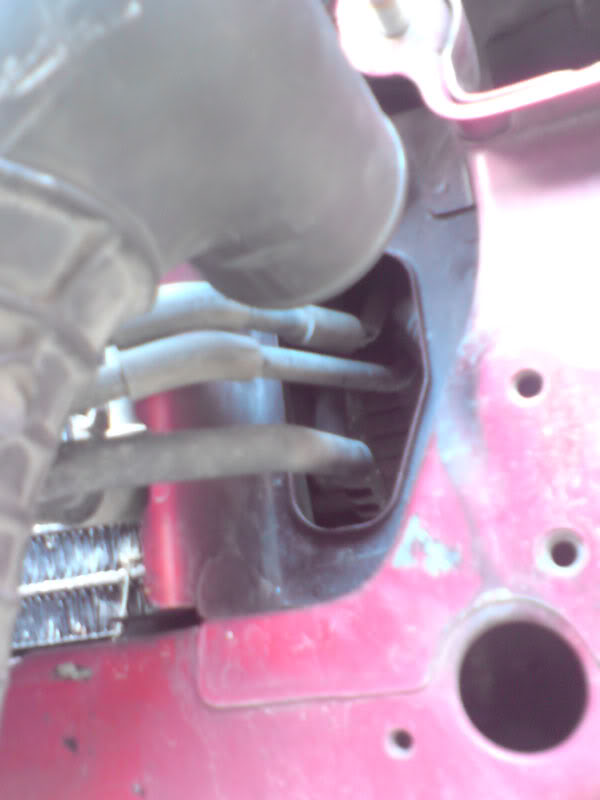

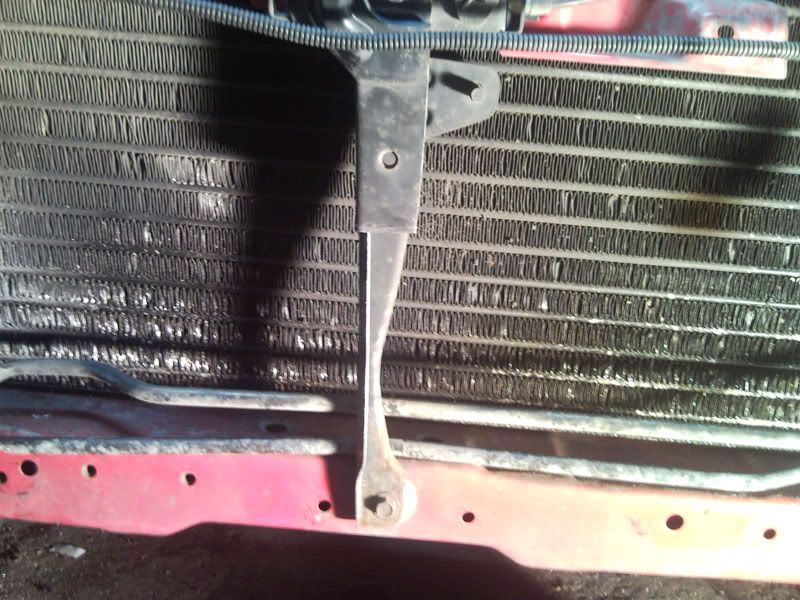

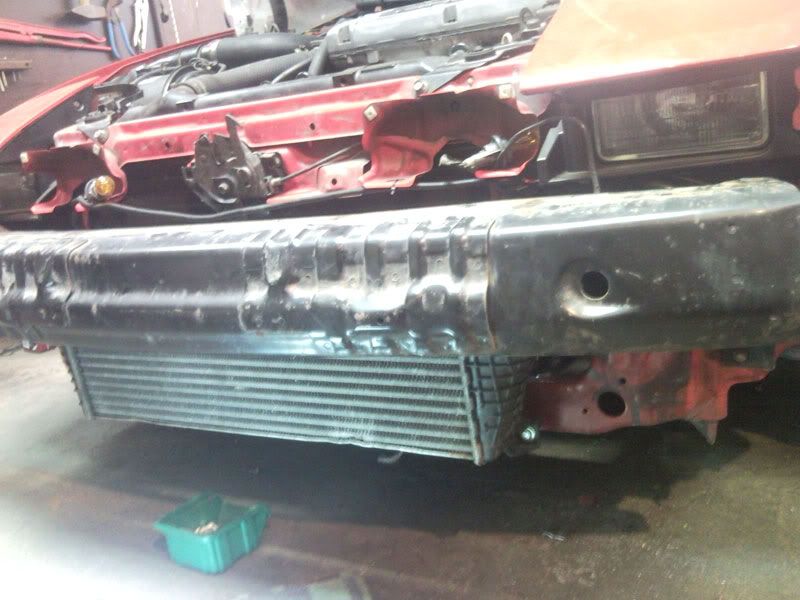

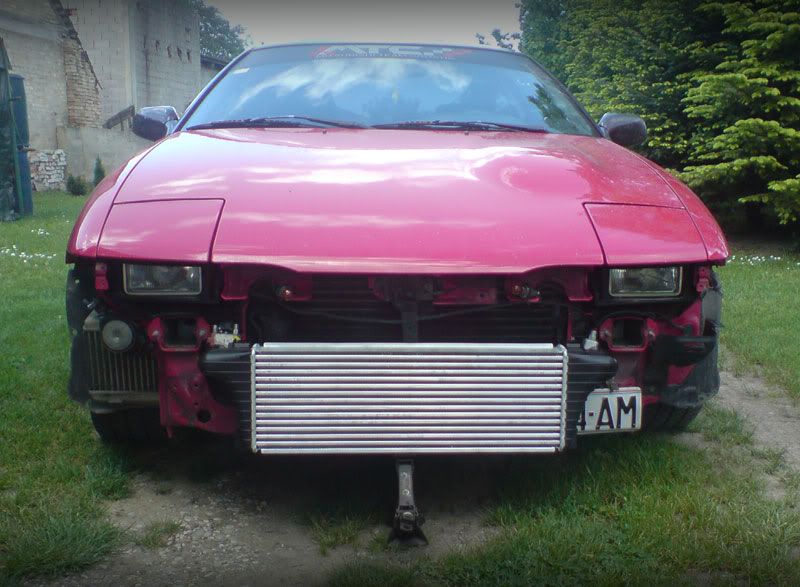

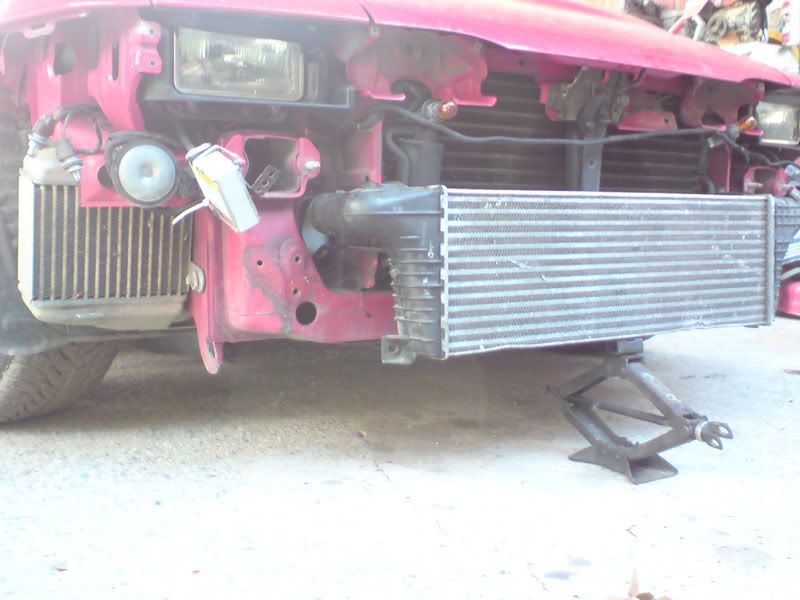

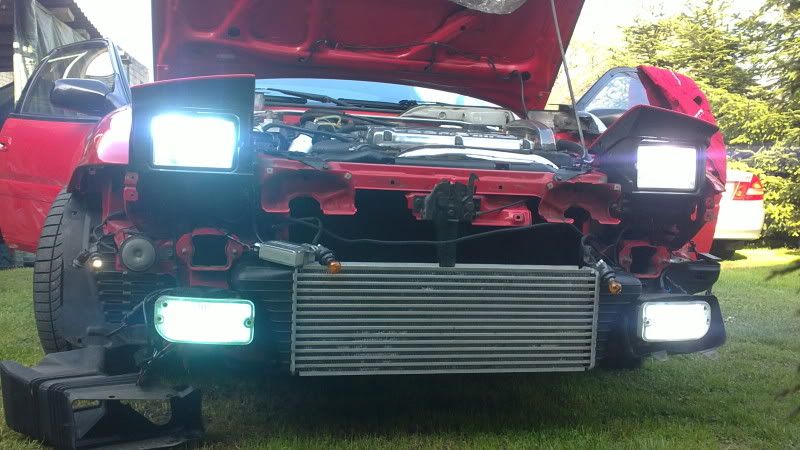

FMIC install on Eclipse.
FMIC came from Van Iveco Turbo Daily II

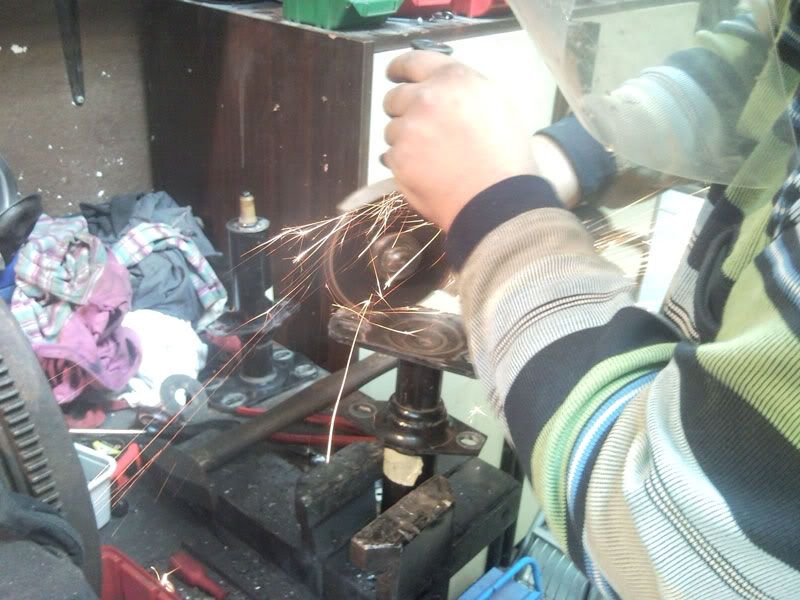

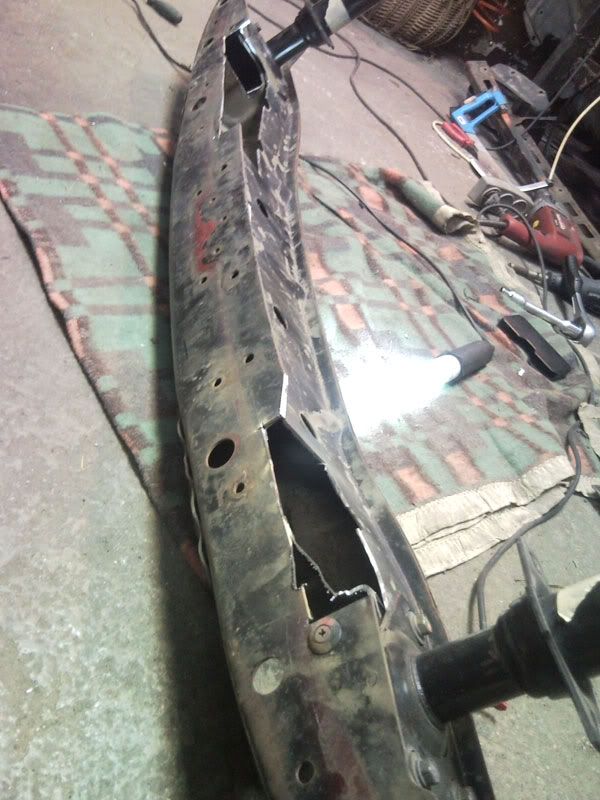

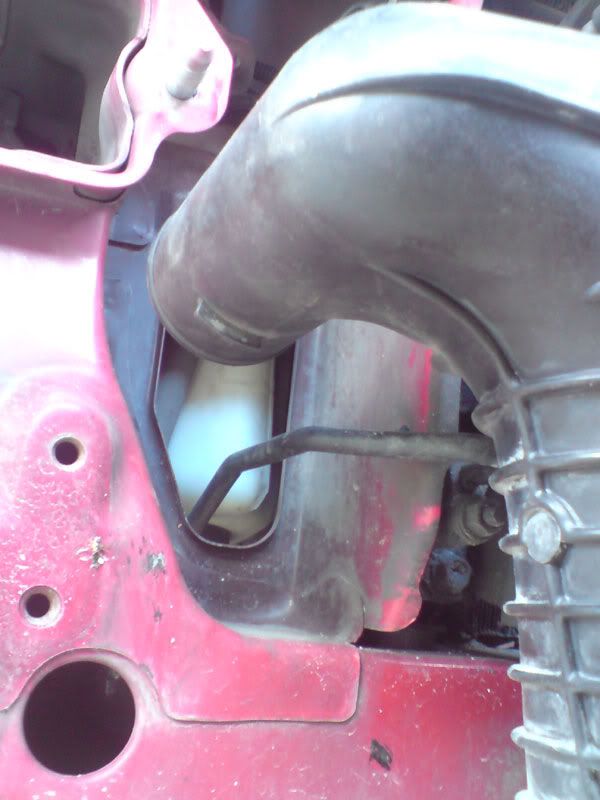

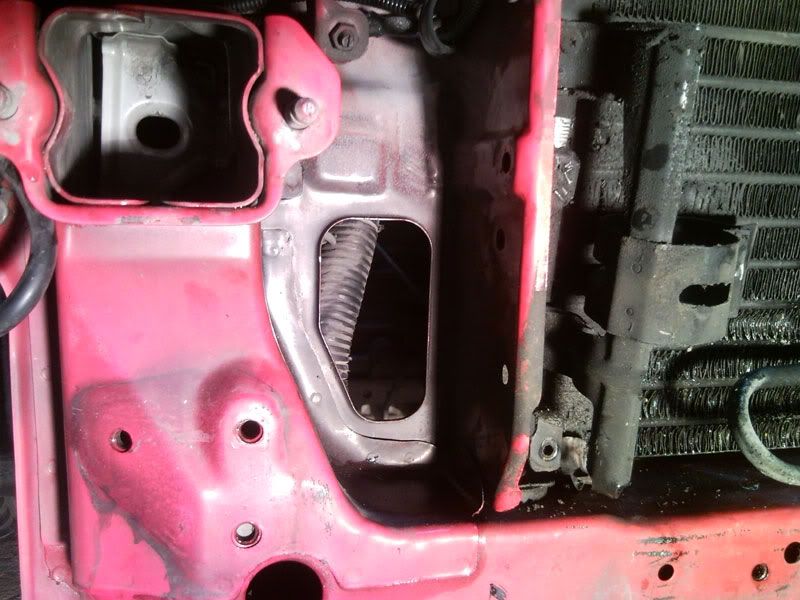

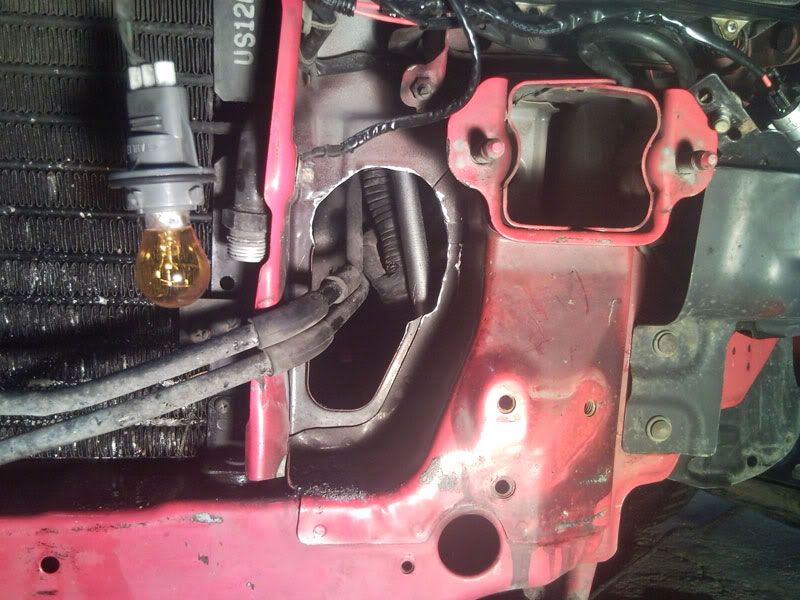

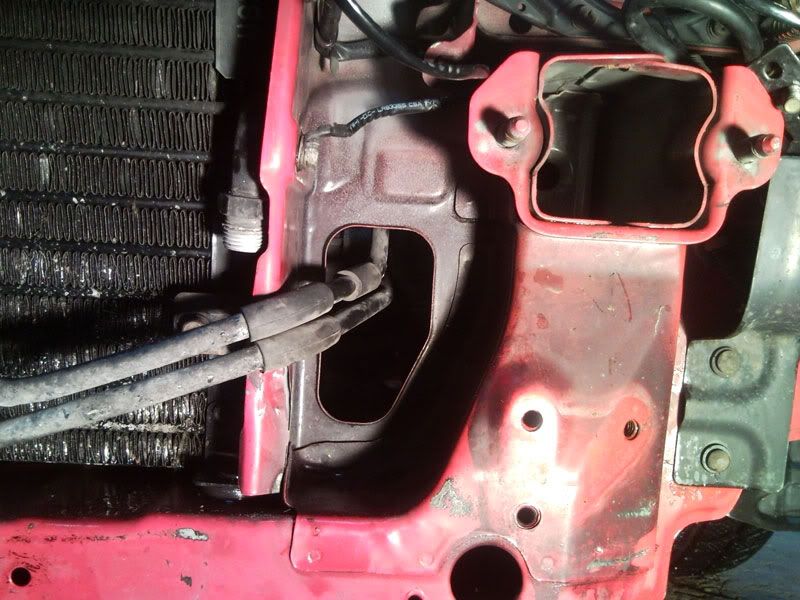

It was necessary to make small modifications...

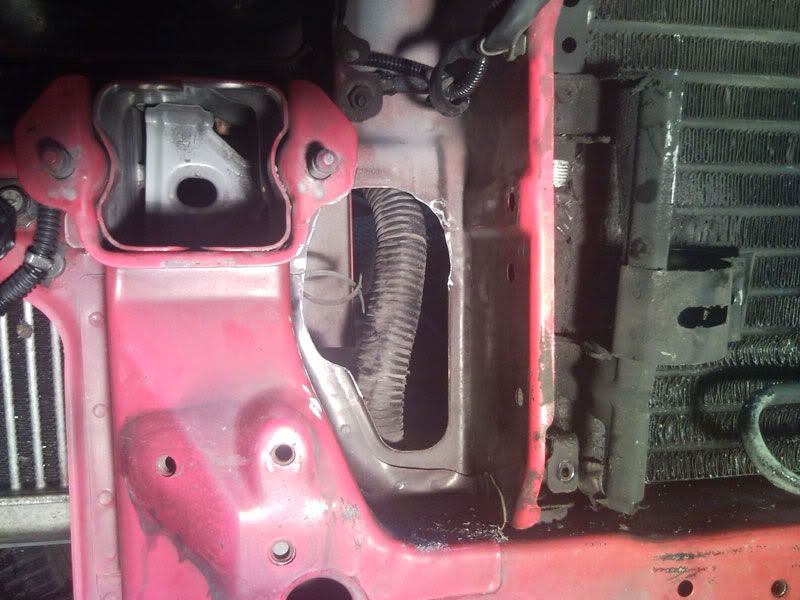

Bad look :)

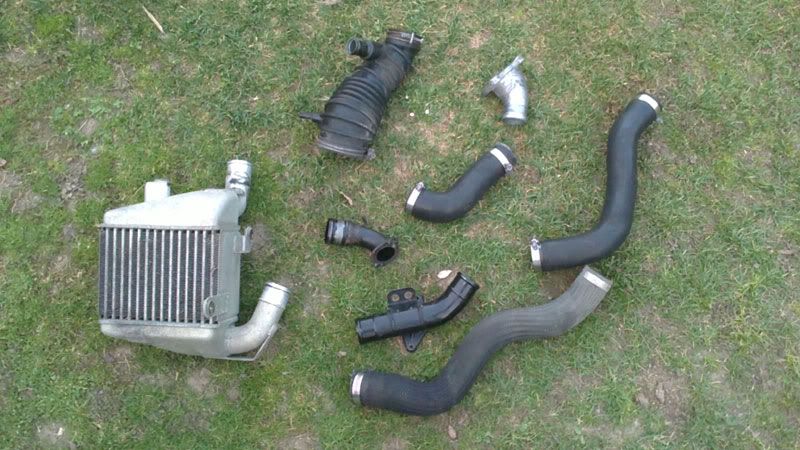

Extra parts :)

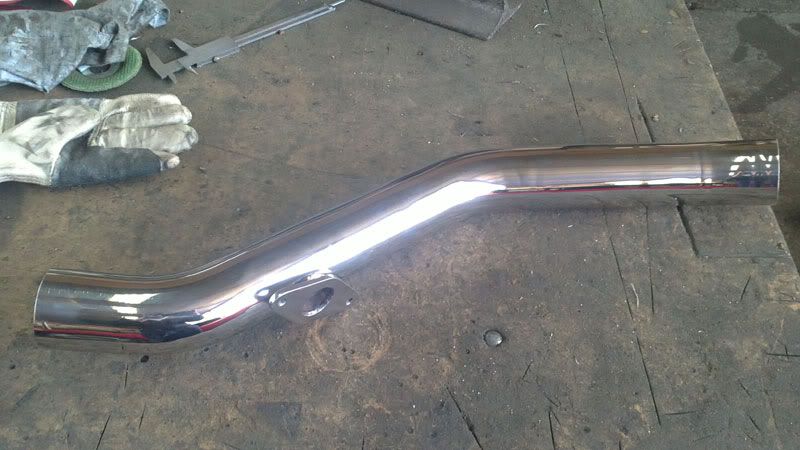

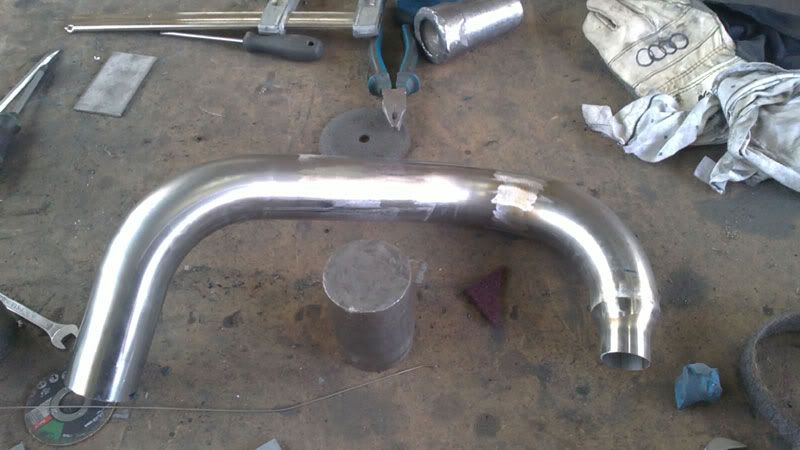

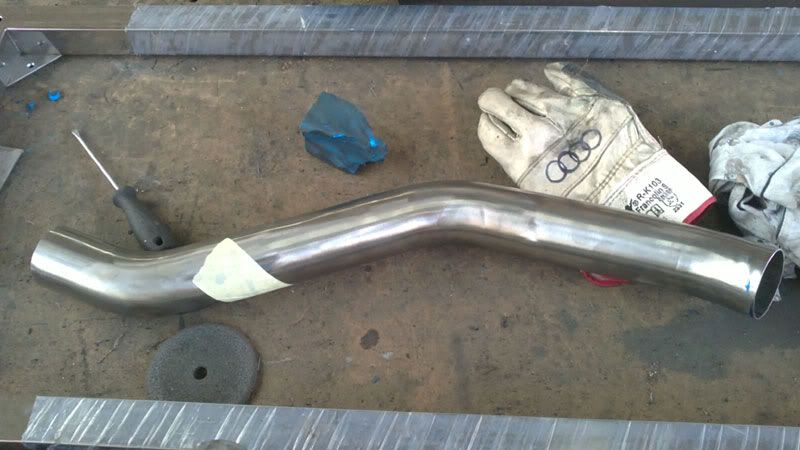

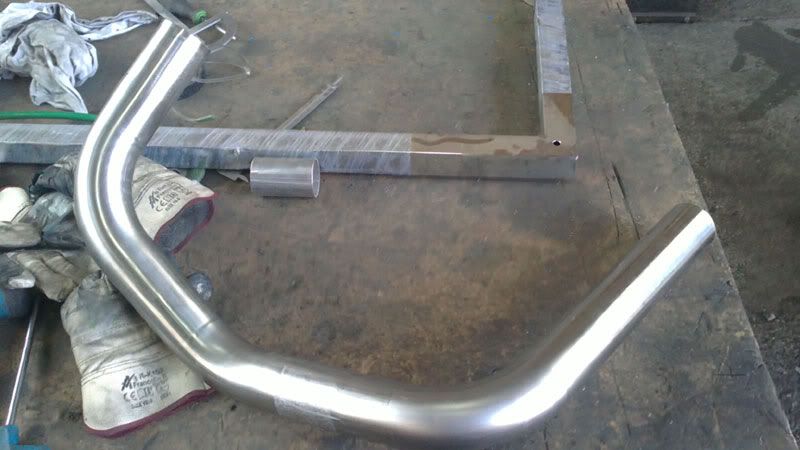

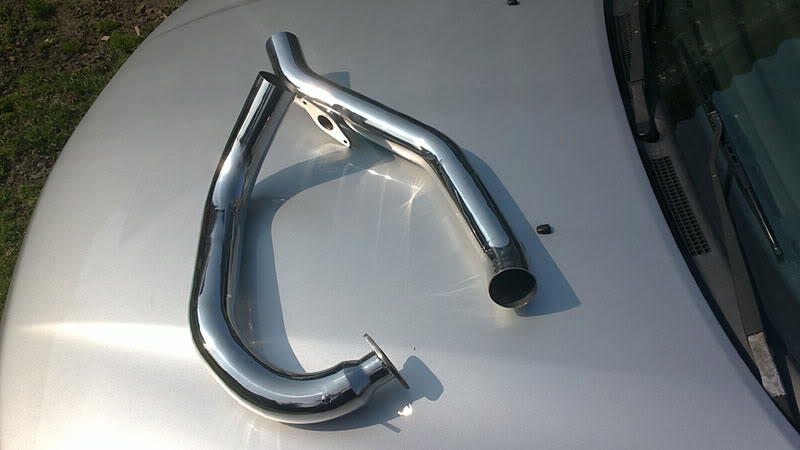

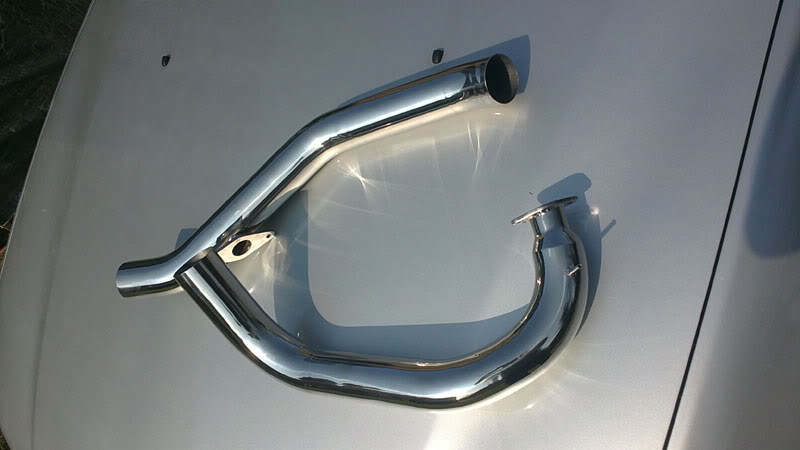

Final Product, custom made pipes




The pipes are bent to fit


Adjusment




Drilling holes for the bov

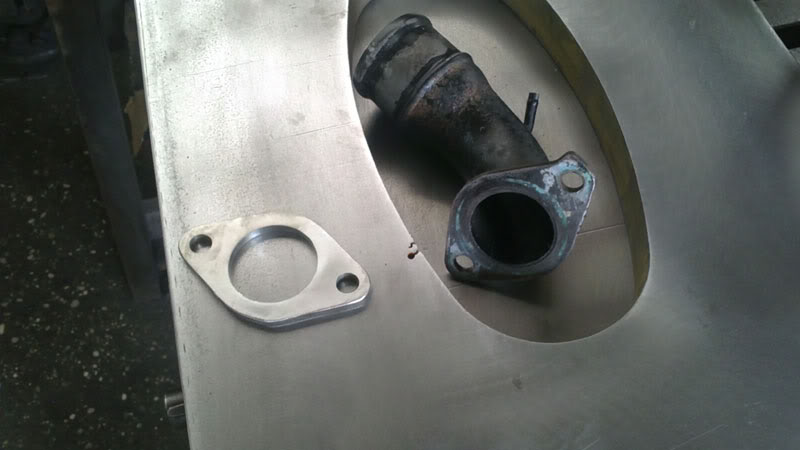

Made 2 flanges, one for the BOV and other to housing Turbo

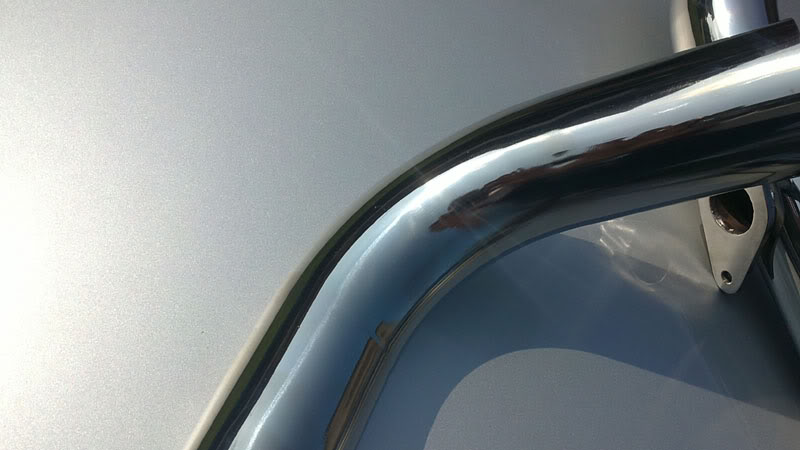

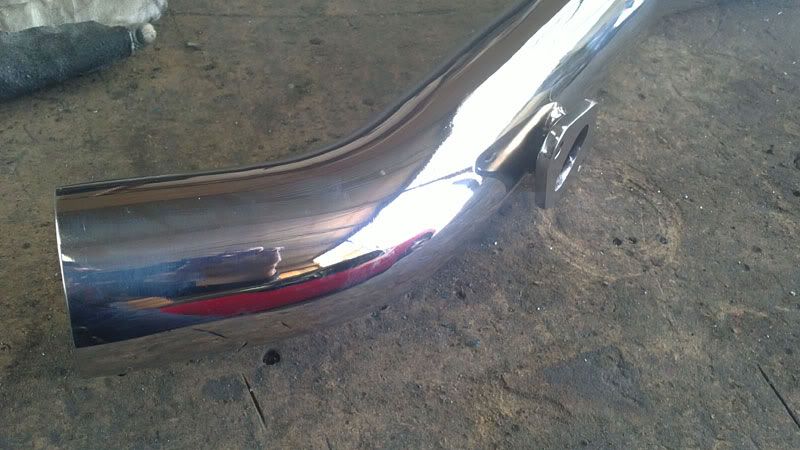

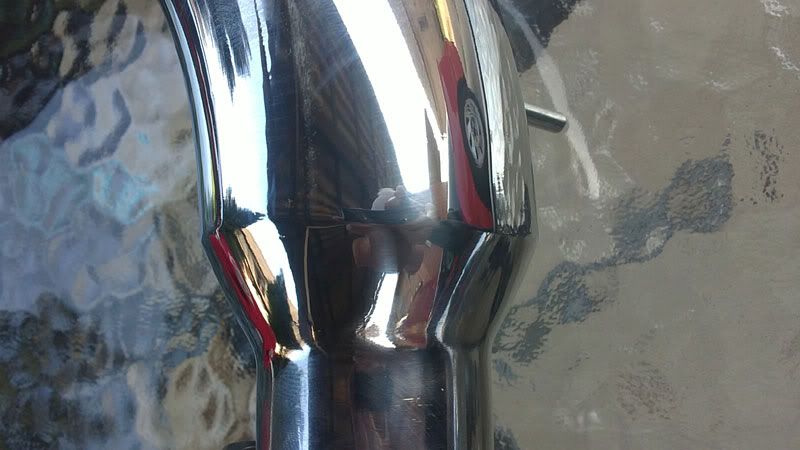

Polished pipe

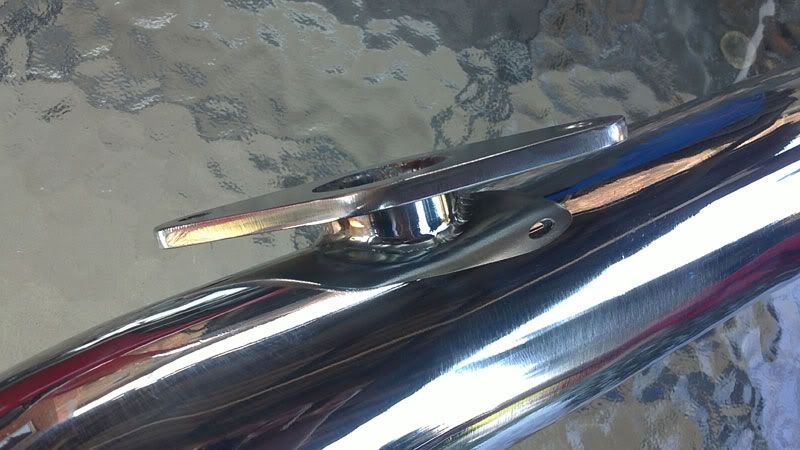

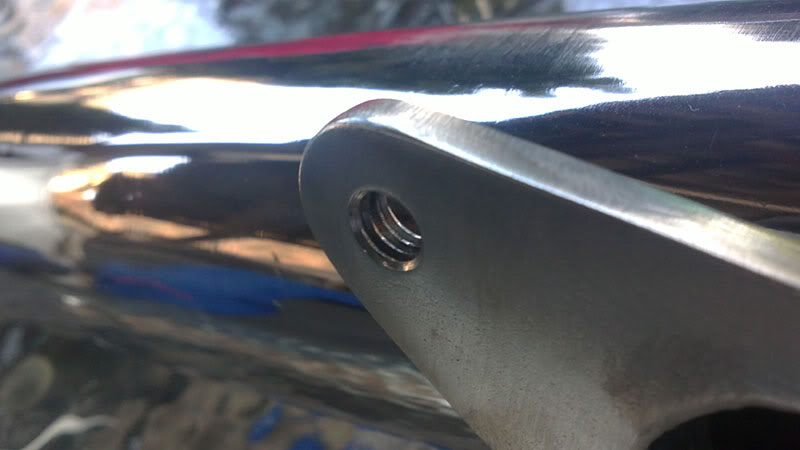

Threaded flange for the BOV that does not need to use nut.


In meantime...

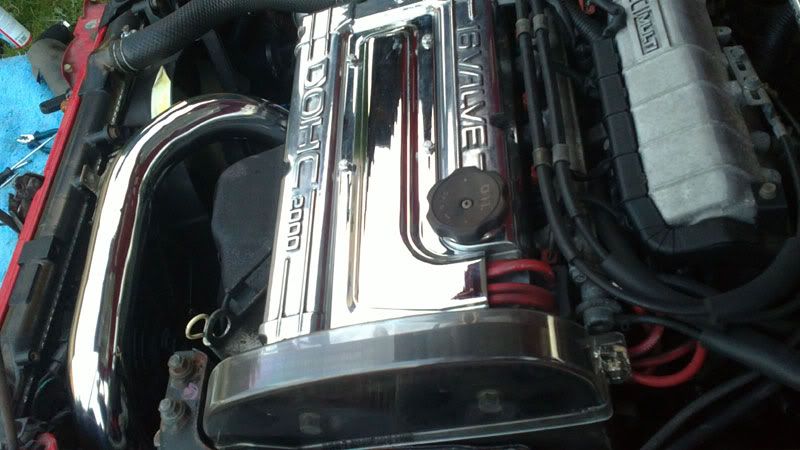

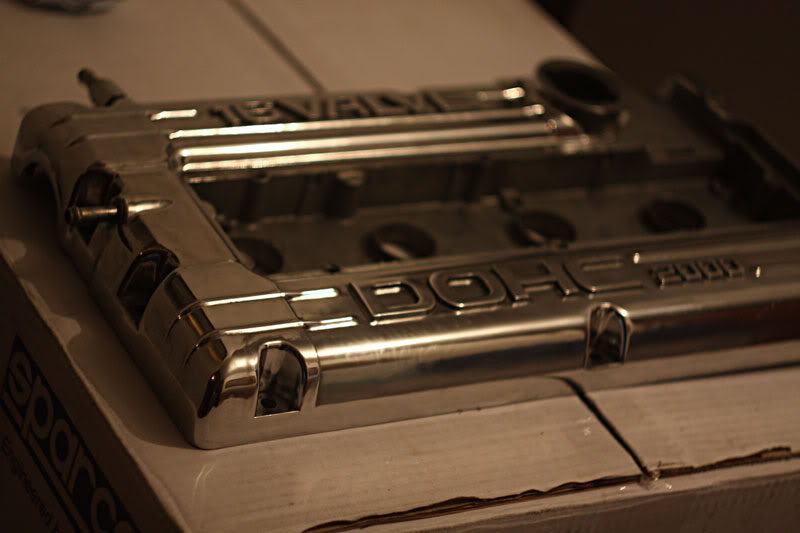

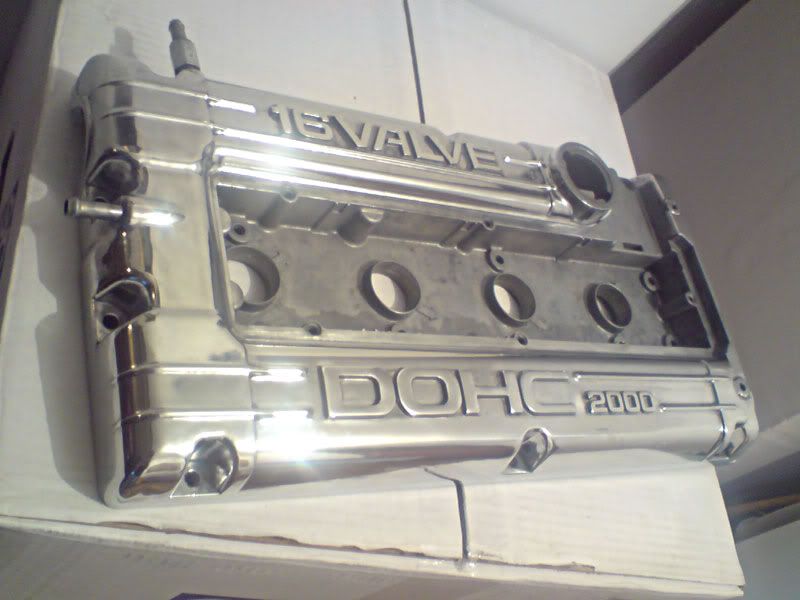

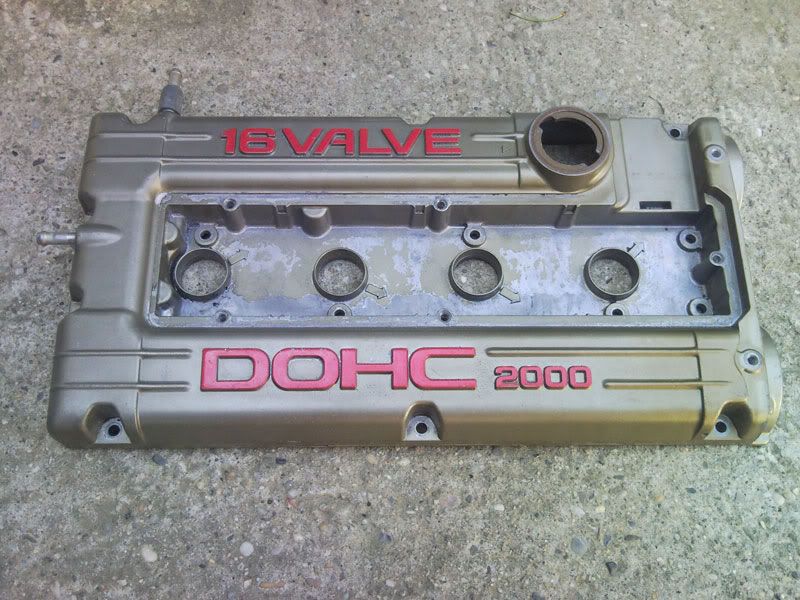

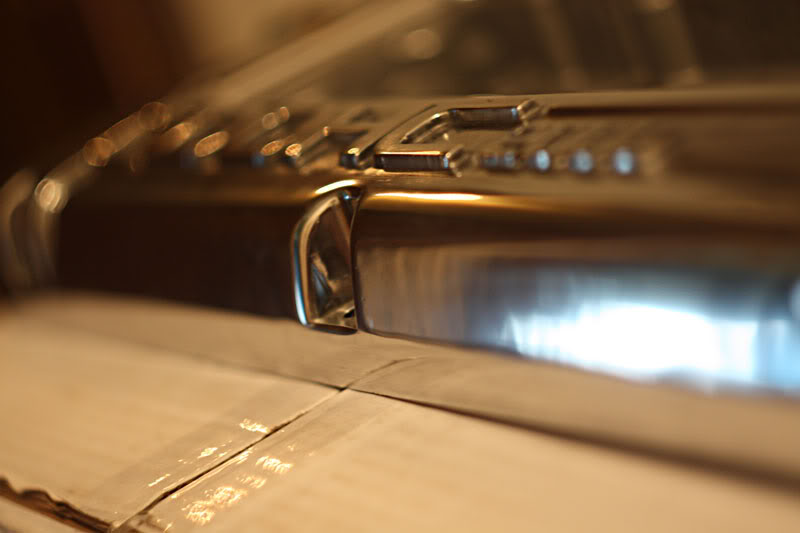

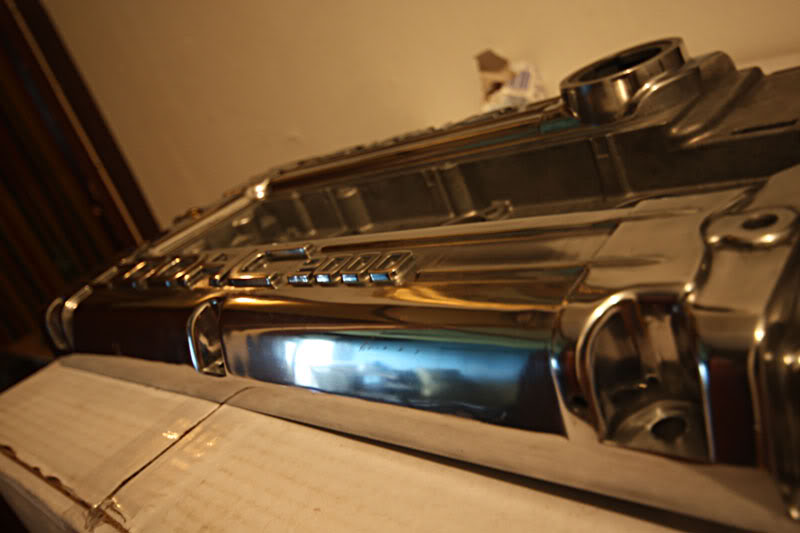

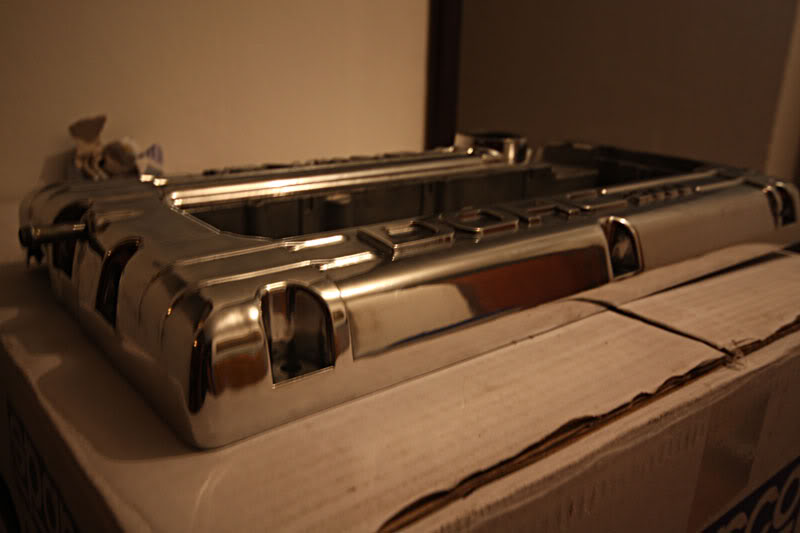

Valve cover polishing

Before...



After...

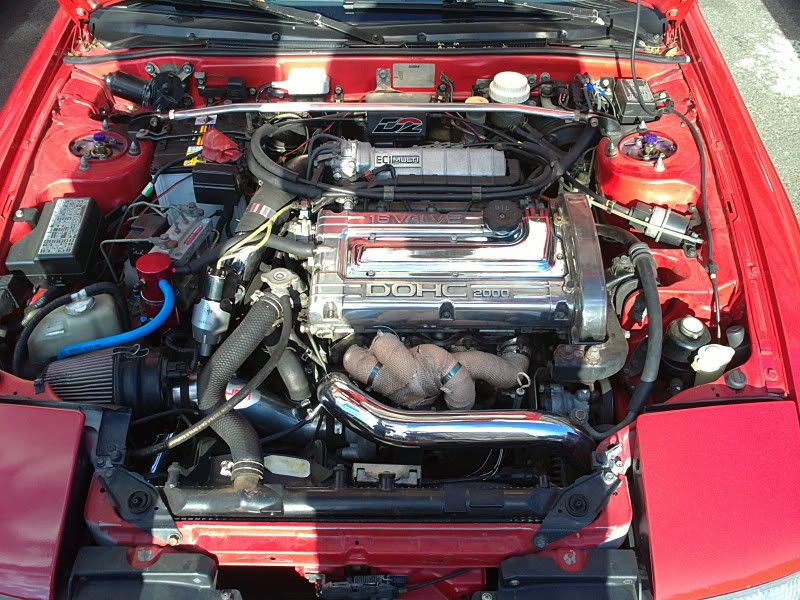

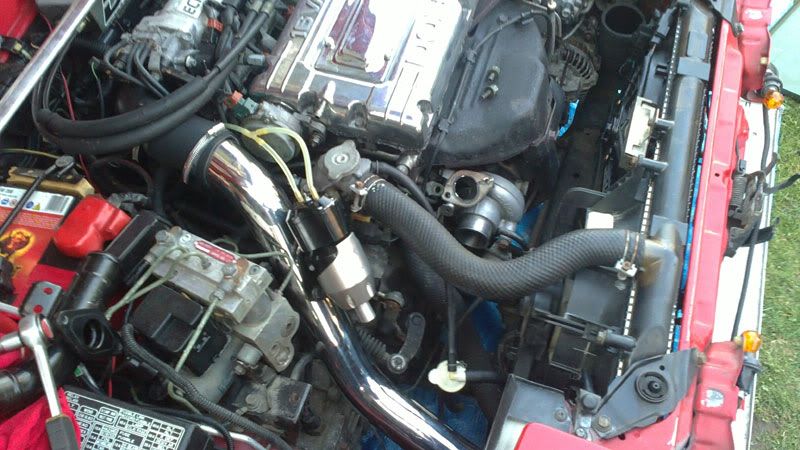

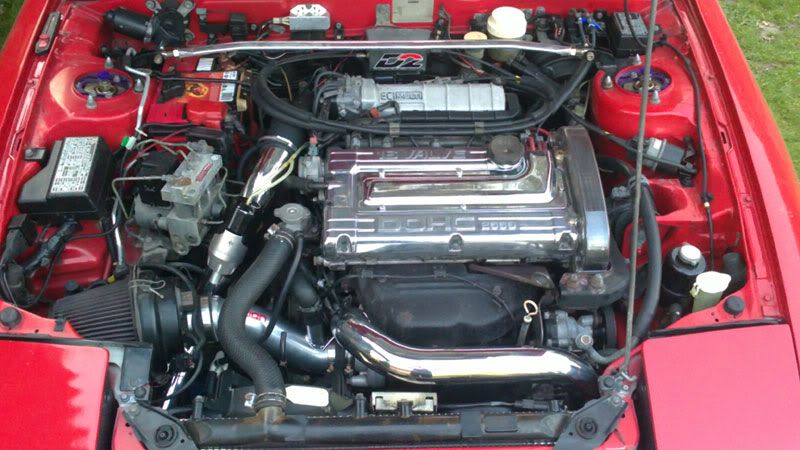

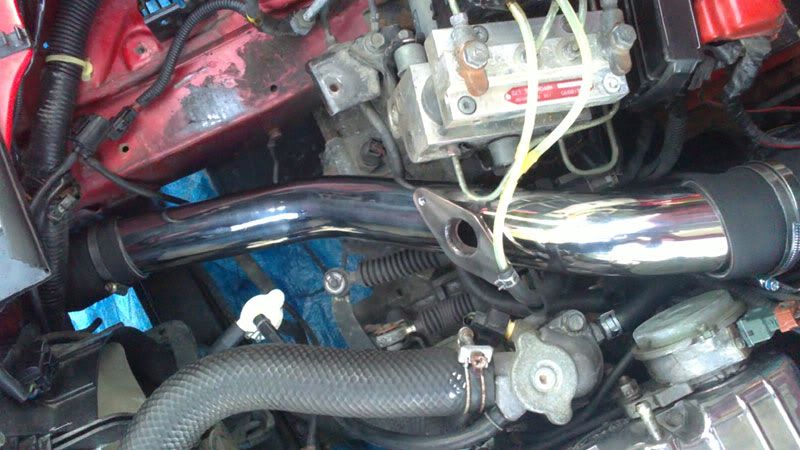

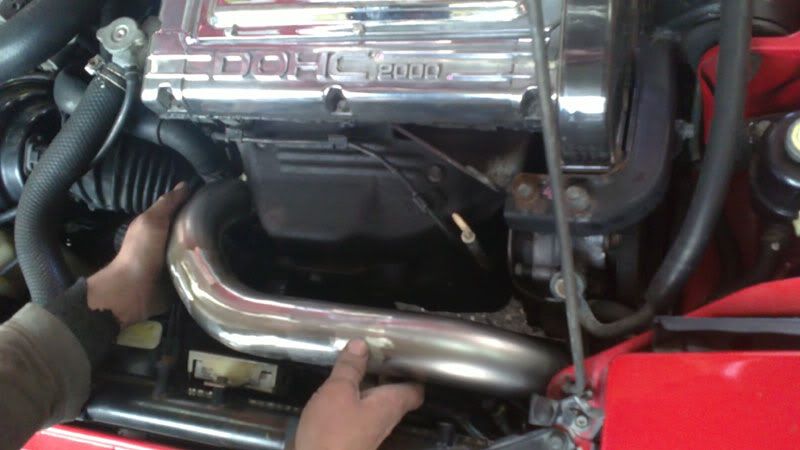

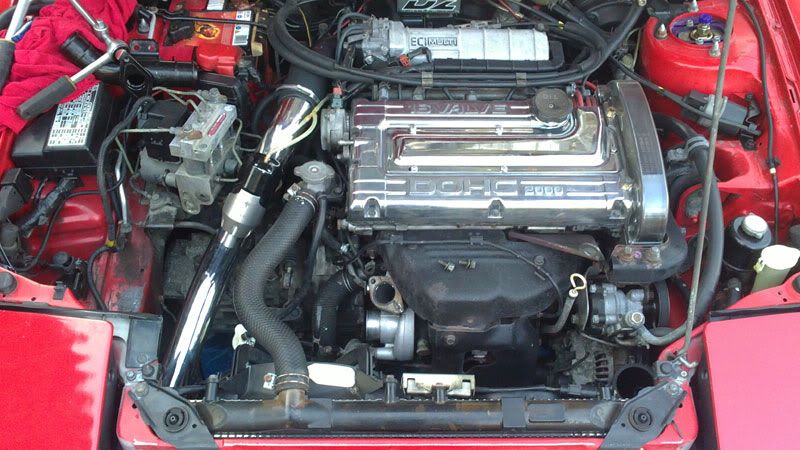

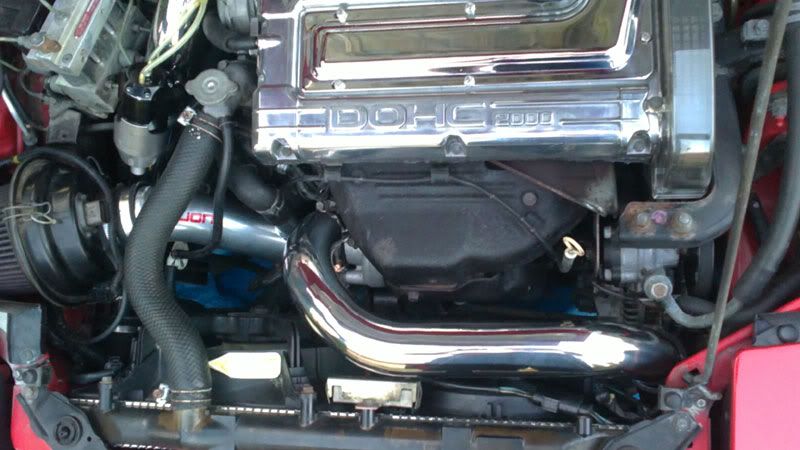

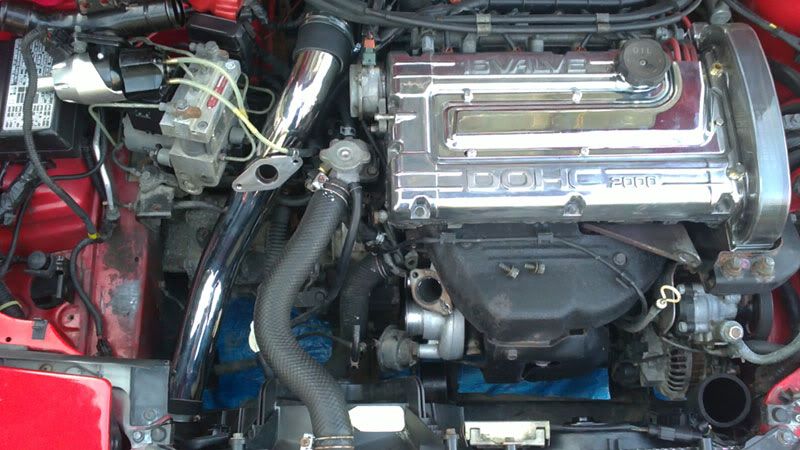

Mounting FMIC pipes on car

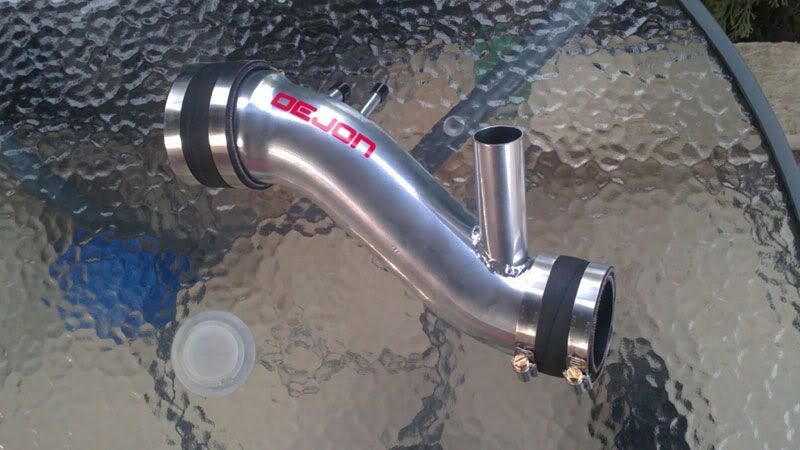

Dejon intake pipe

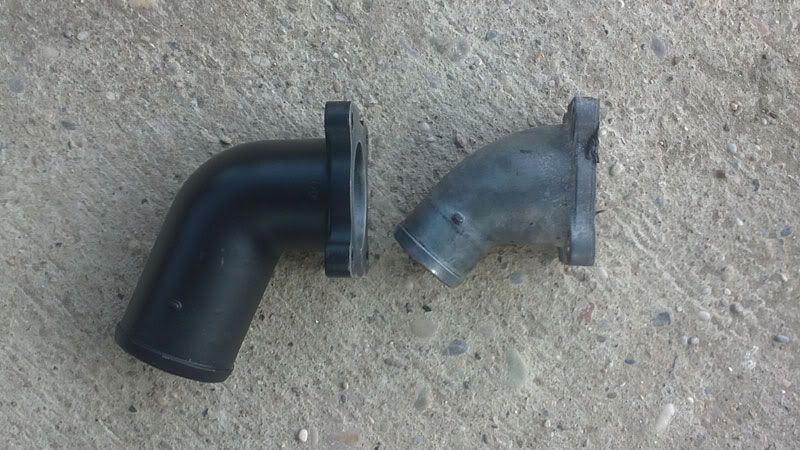

Placed elbow of 2G clips. Here you see the difference 2g vs. 1g

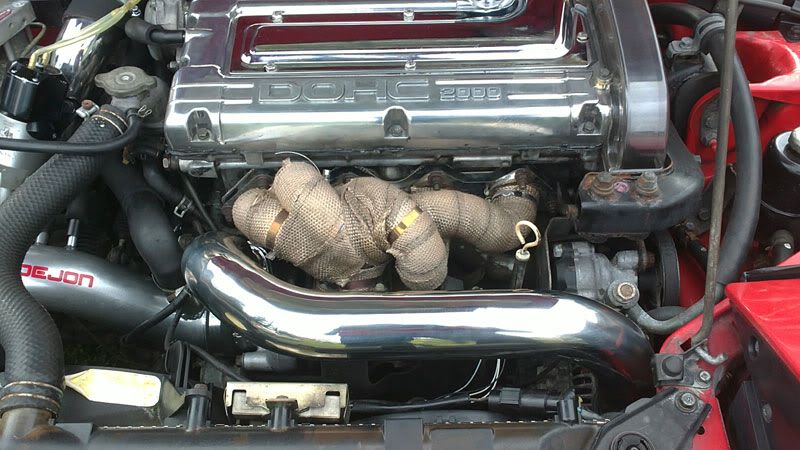

Little exhaust manifold upgrade.

Stock Exhaust manifold was full of cracks.

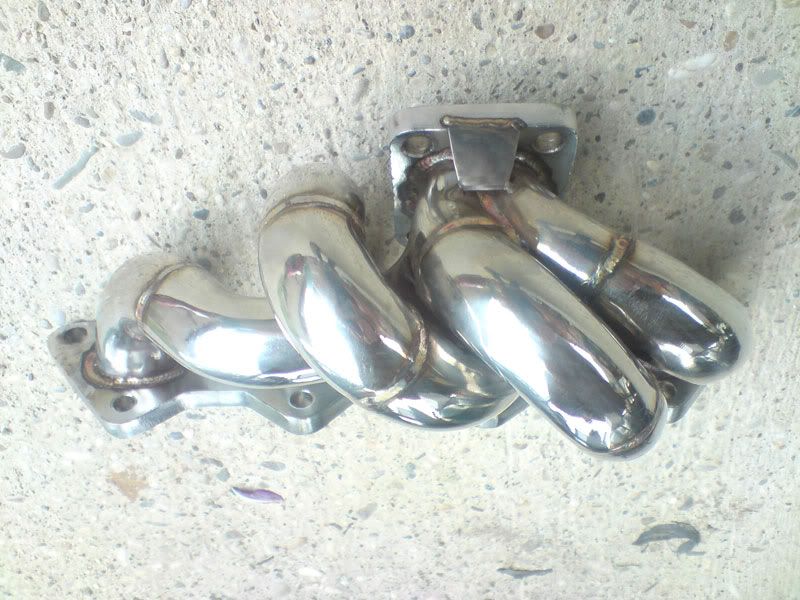

New exhaust manifold.

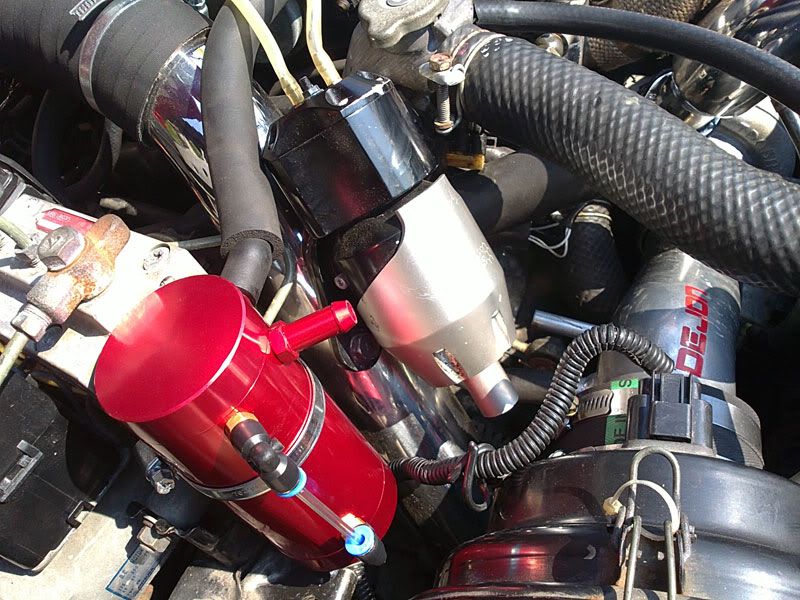

Synapse synchronic bov and oil catch can.

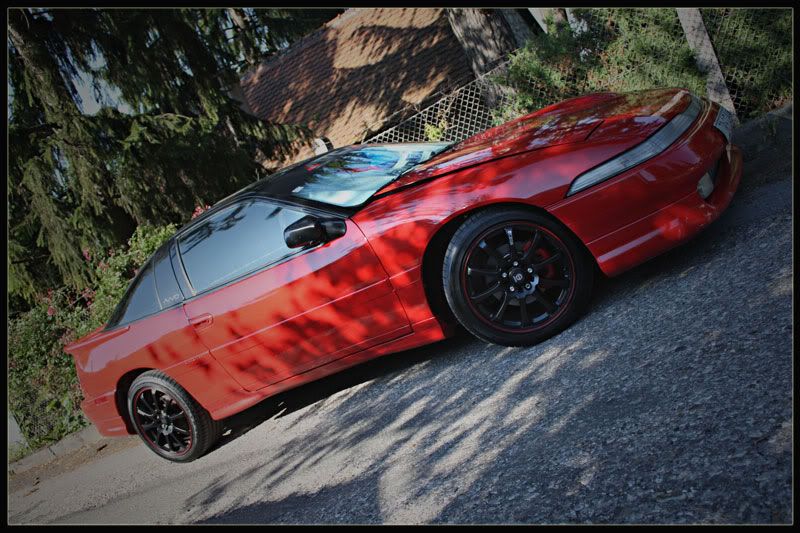

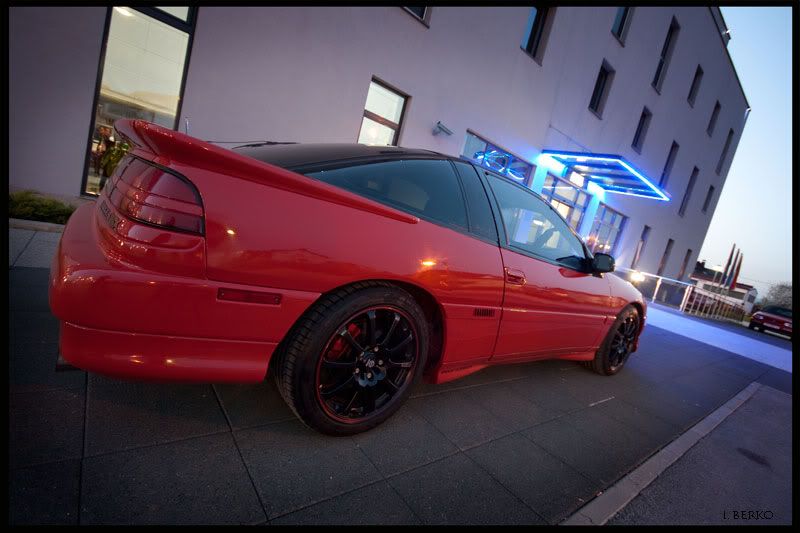

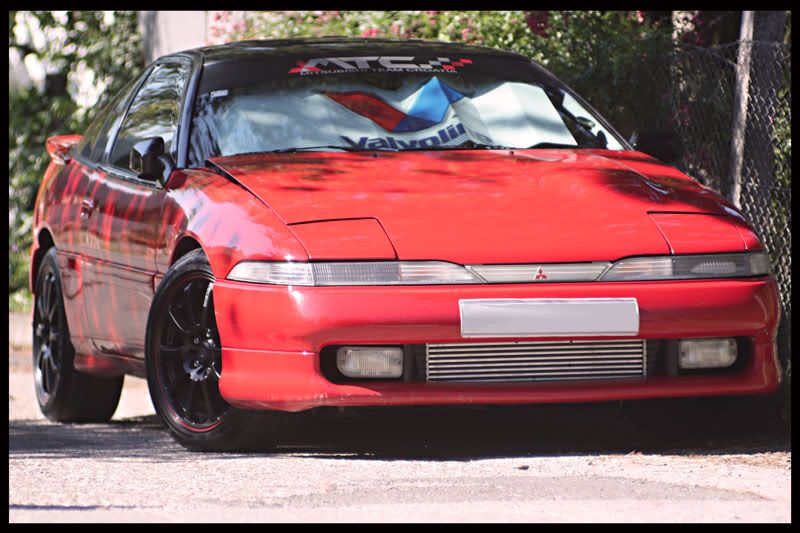

New rims on car

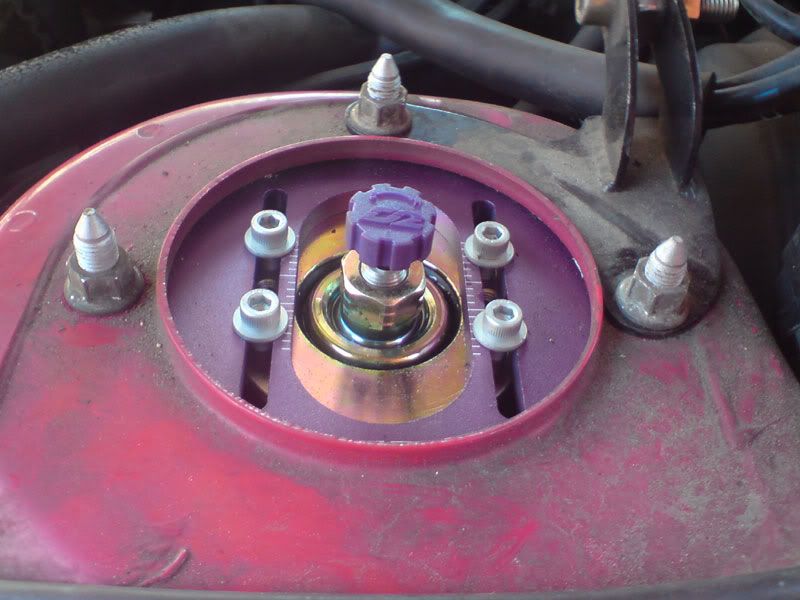

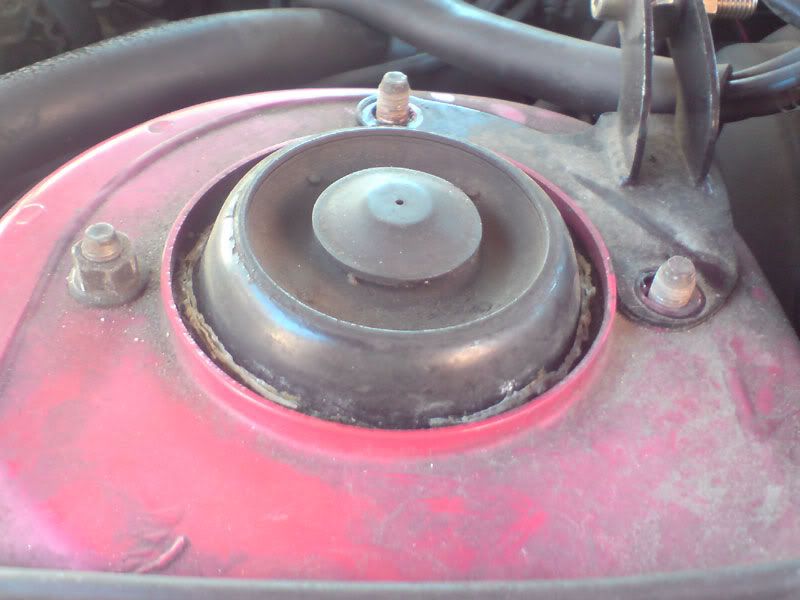

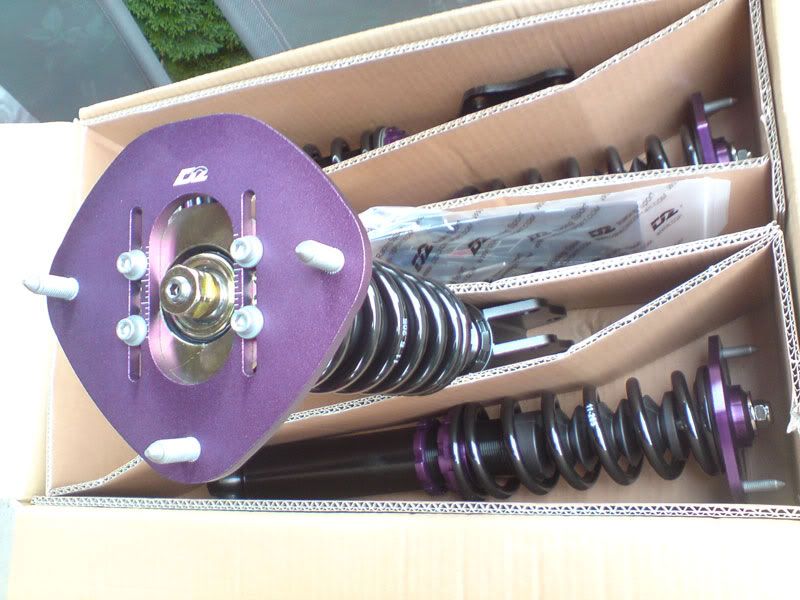

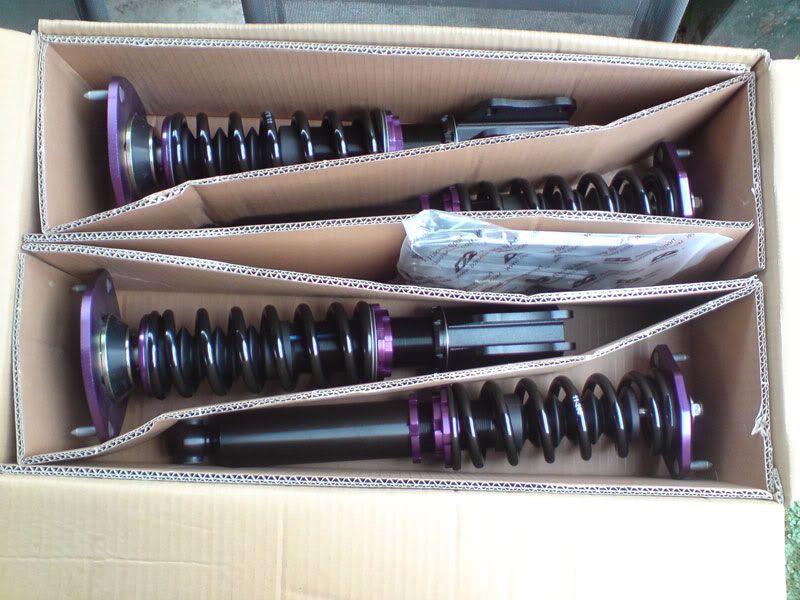

D2 Racing Coilovers...

The difference in driving is amazing. Now car holds lika train in rail :)

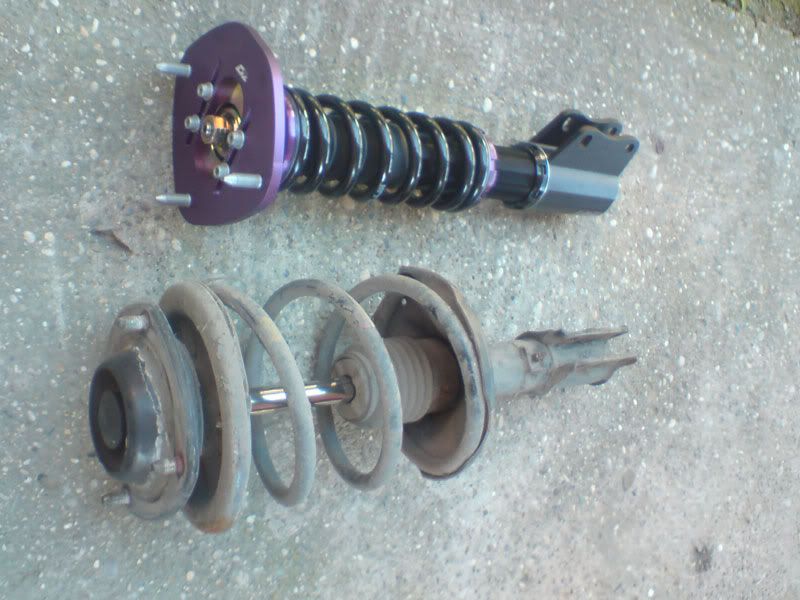

Stock Vs. D2



Before


After

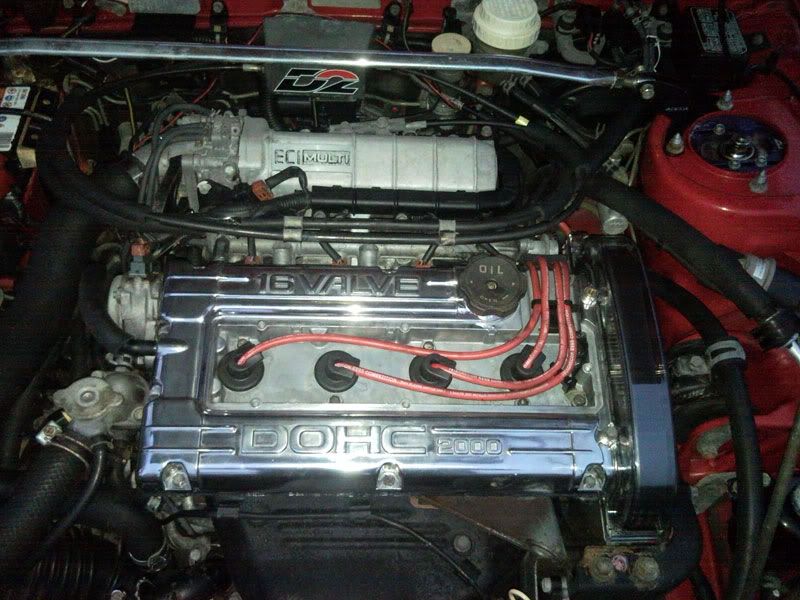

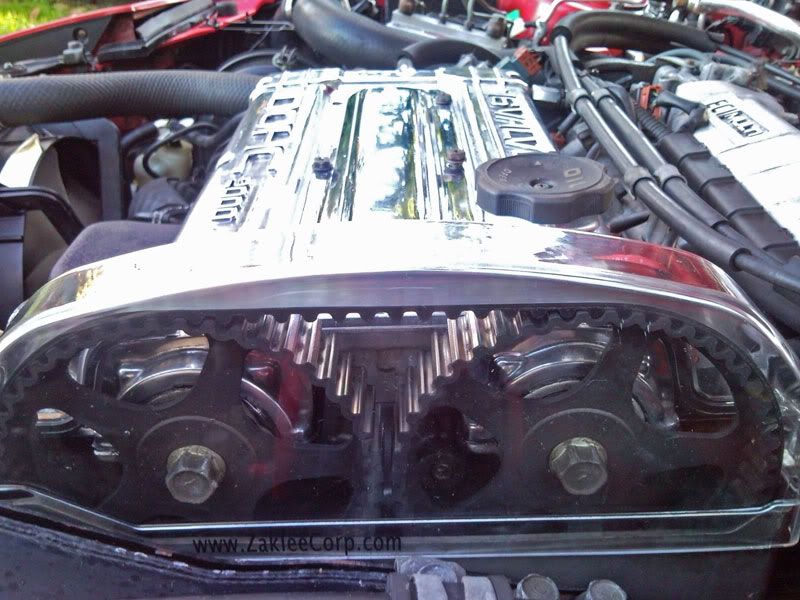

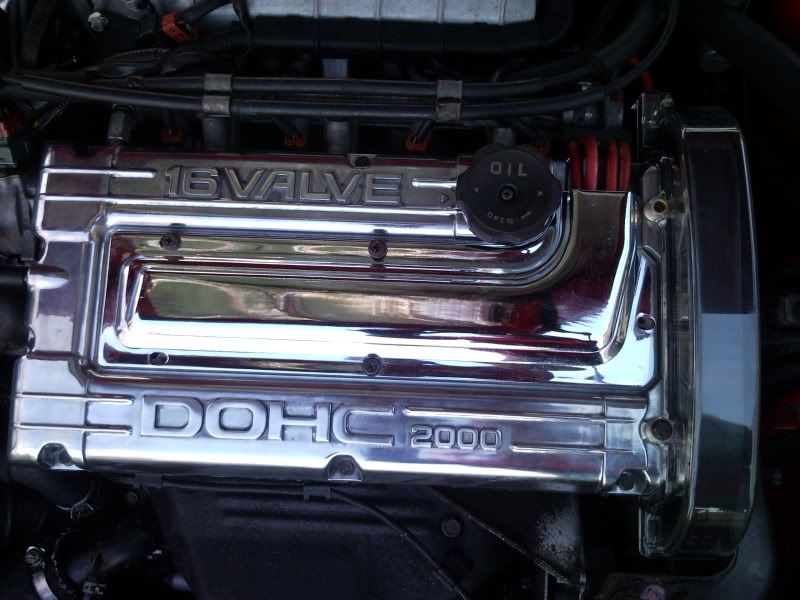

Magnecor spark cables and transparent Cam cover installed.





Polished spark plug cover.

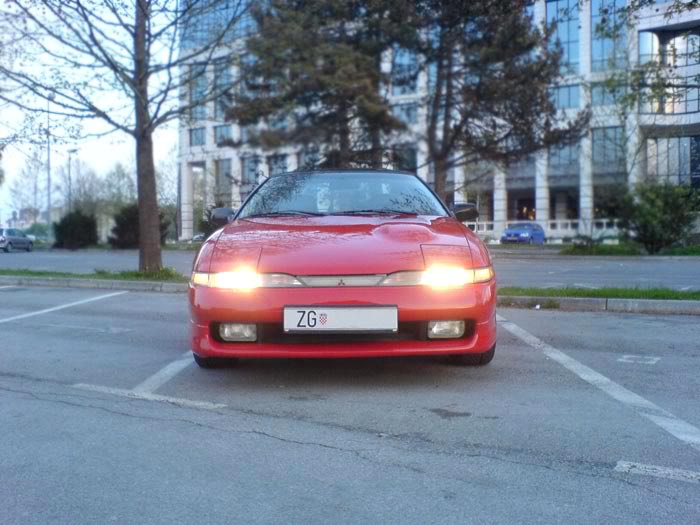

Headlights H4 Bi-Xenon 6000k(Hi-Low beam)
Xenon H3 6000K in foglights.

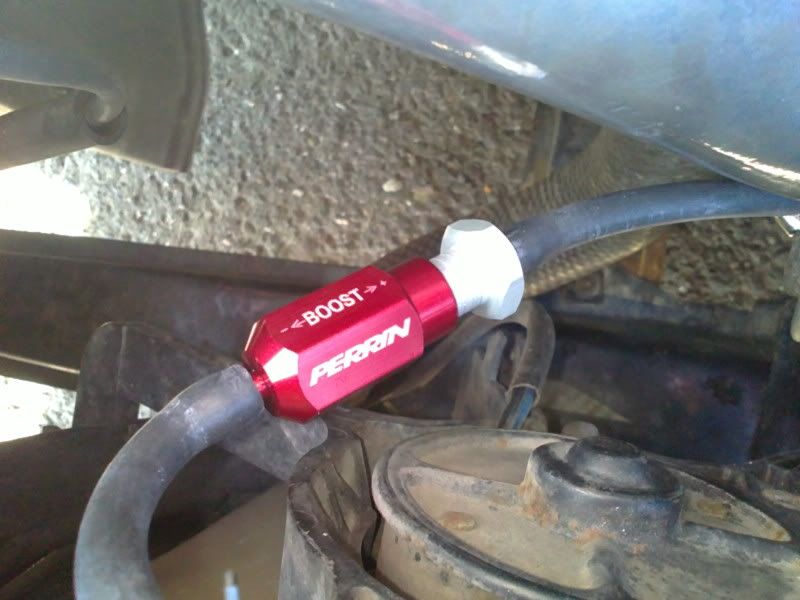

Perrin MBC

Last edited:
Looks great. Love the exhaust and intercooler piping! Very clean.

Nothing special but to rise up the power a little bit more.

My plan is Bigger turbo, EVO III 16G, bigger injectors, Walbro fuel pump, and balance shaft elimination, dsm link or megasquirt.

Last edited:
Wow, thats a pretty awesome story that came with the car. Glad to see you representing the DSM community over seas!

What an amazing transformation! It looks great! :thumb: What were the steps you took to polish the valve cover? It turned out great and really sets off the engine bay now.:D

reticulation is needed on the 4g63 because the stock MAF/ECU is looking for the little bit of extra air that is put back into the intake after you're BOV goes off. When it's not recirculated, that little bit of air goes into the atmosphere instead of back into the engine. This causes a brief spurt of running rich, and other problems that can all be fixed by a short piece of rubber piping.

What were the steps you took to polish the valve cover? It turned out great and really sets off the engine bay now.:D

First I removed the OEM color from the valve cover using the acid which is here called'''' desolate.
Then I started with 360 grit sandpaper, and later to 2000.
In the end I used paste for polishing aluminum. I hope that u understand this. My english is not so good. :|

reticulation is needed on the 4g63 because the stock MAF/ECU is looking for the little bit of extra air that is put back into the intake after you're BOV goes off. When it's not recirculated, that little bit of air goes into the atmosphere instead of back into the engine. This causes a brief spurt of running rich, and other problems that can all be fixed by a short piece of rubber piping.

I see. Thanks for the info. I can smell a litle of fuel between shifting gears.

First I removed the OEM color from the valve cover using the acid which is here called'''' desolate.
Then I started with 360 grit sandpaper, and later to 2000.
In the end I used paste for polishing aluminum. I hope that u understand this. My english is not so good. :|

I understand completely. Thank you for your reply my friend.:)
