Awdmonster drag car

awdmonster1904

Proven Member
680
225
Aug 23, 2007
Chino, California

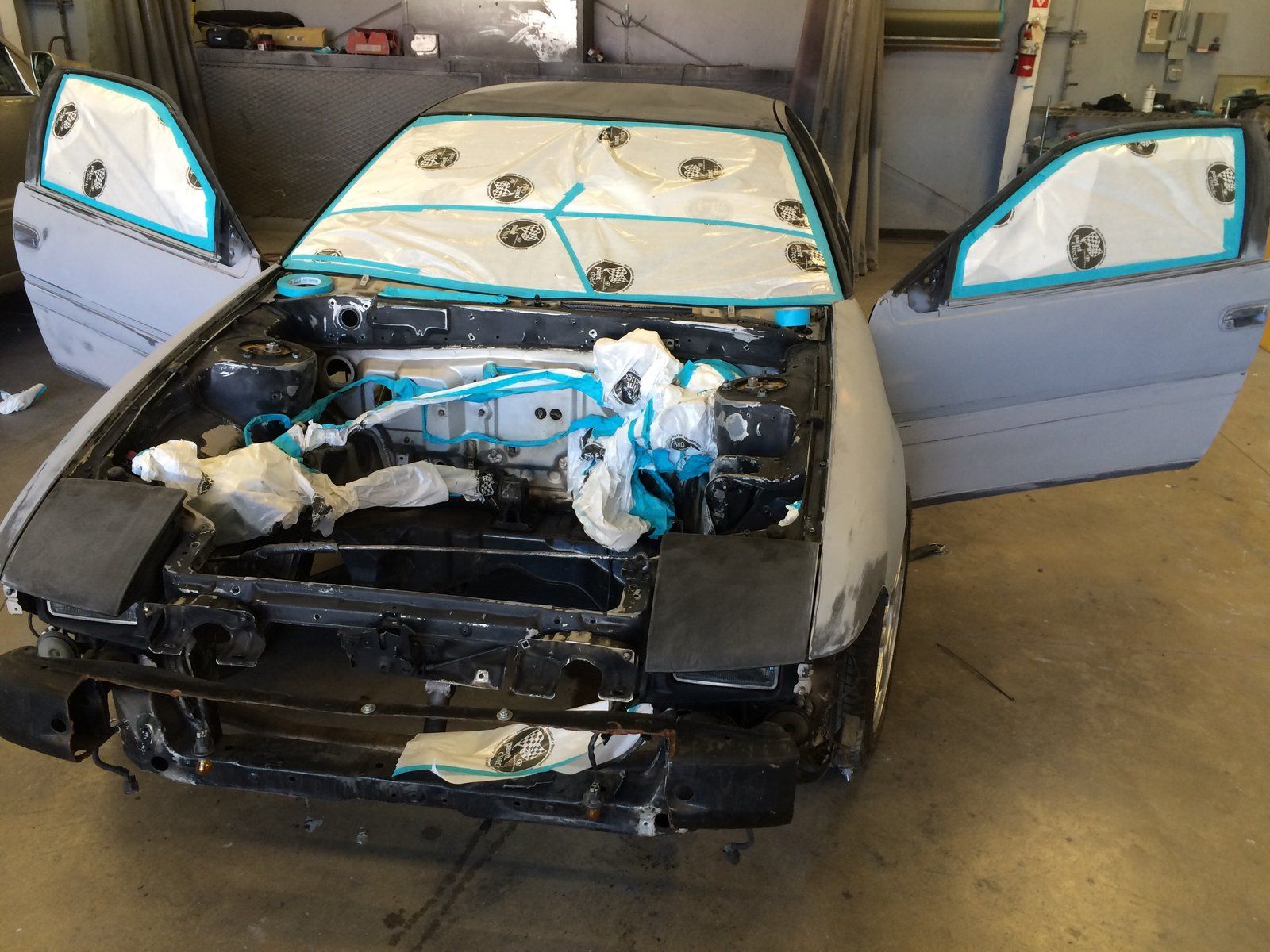

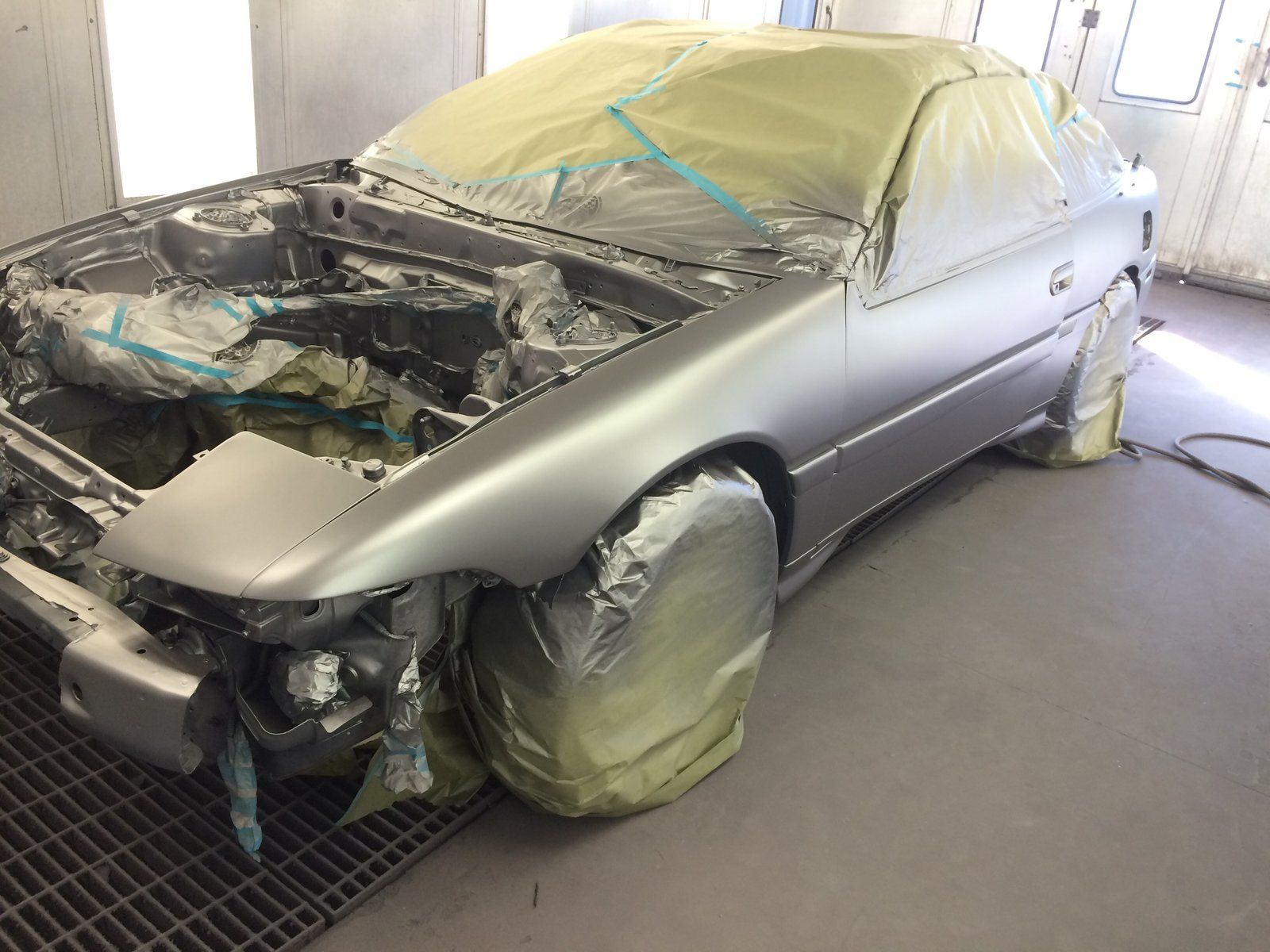

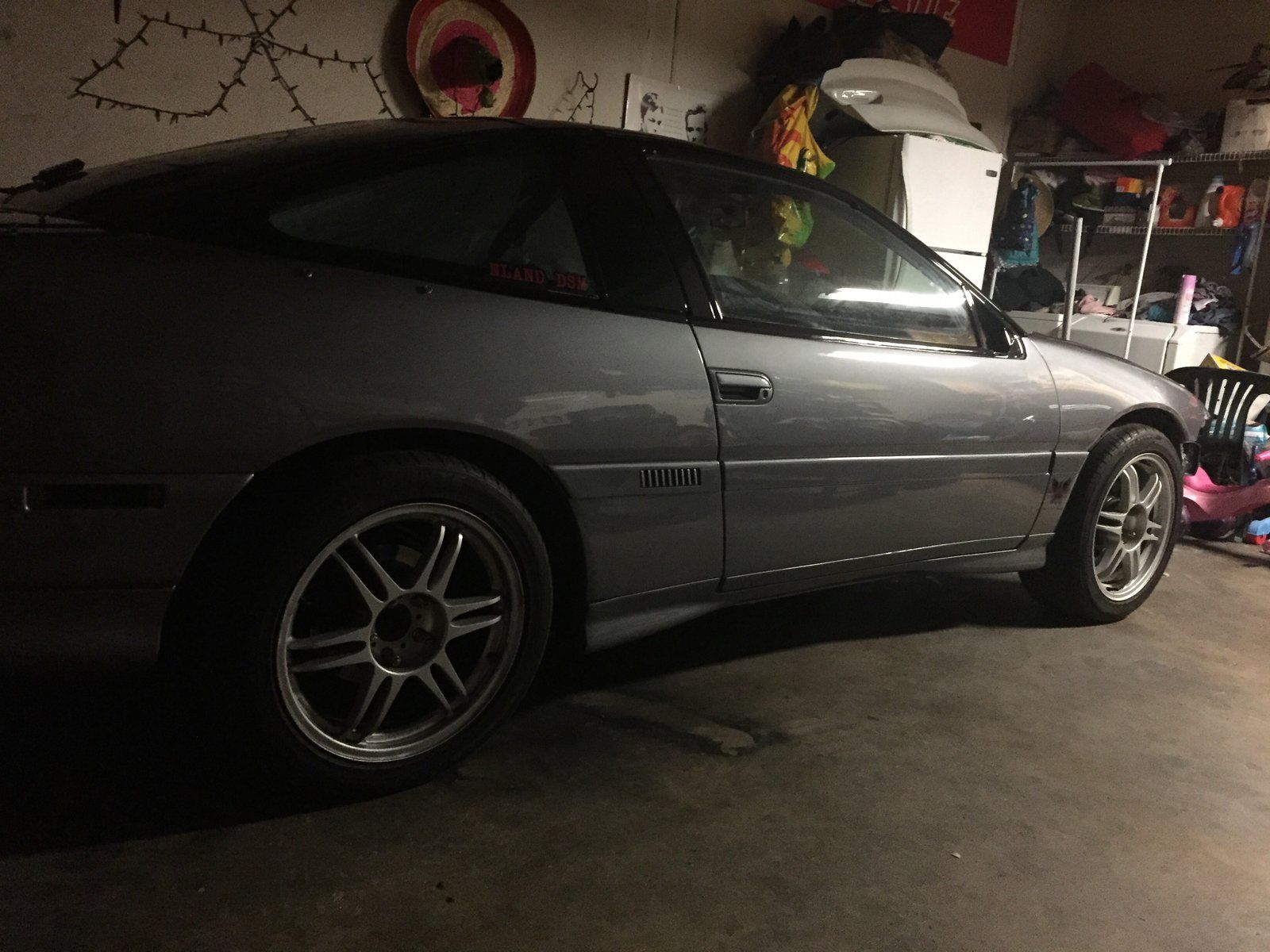

Last weekend I got the opportunity to finish the paint job lots of work but finally got it done

The next order of business is getting the motor back from the machine shop


Attachments

  • image.jpg
    309.2 KB · Views: 306
  • image.jpg
    239.3 KB · Views: 284
  • image.jpg
    234.1 KB · Views: 304

awdmonster1904

Proven Member
680
225
Aug 23, 2007
Chino, California

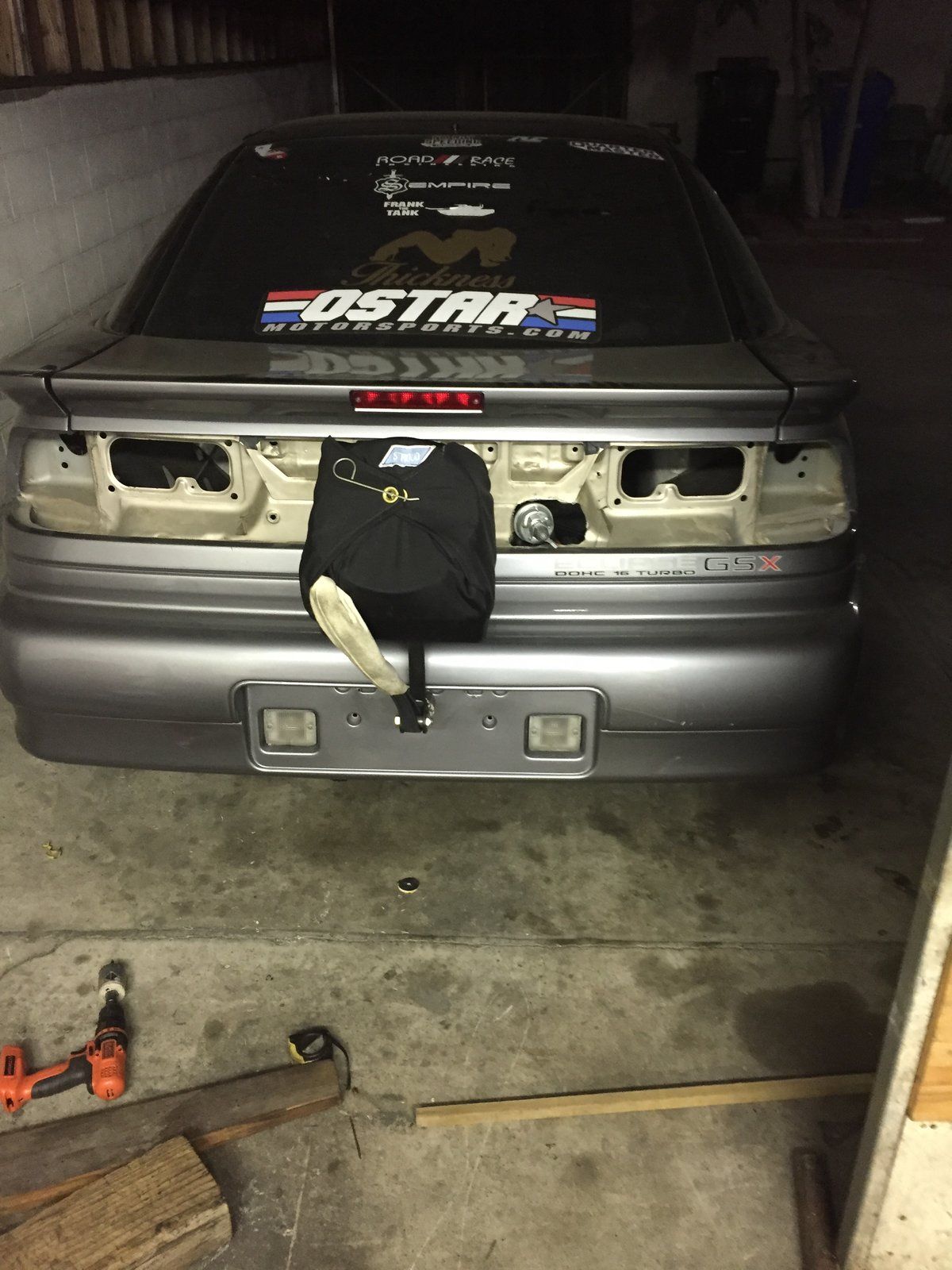

Having a friend help me finish up the wire tuck will update the build thread
After so many months getting this car set up

More to come .....


Attachments

  • image.jpeg
    298.8 KB · Views: 249

awdmonster1904

Proven Member
680
225
Aug 23, 2007
Chino, California

awdmonster1904

Proven Member
680
225
Aug 23, 2007
Chino, California

awdmonster1904

Proven Member
680
225
Aug 23, 2007
Chino, California

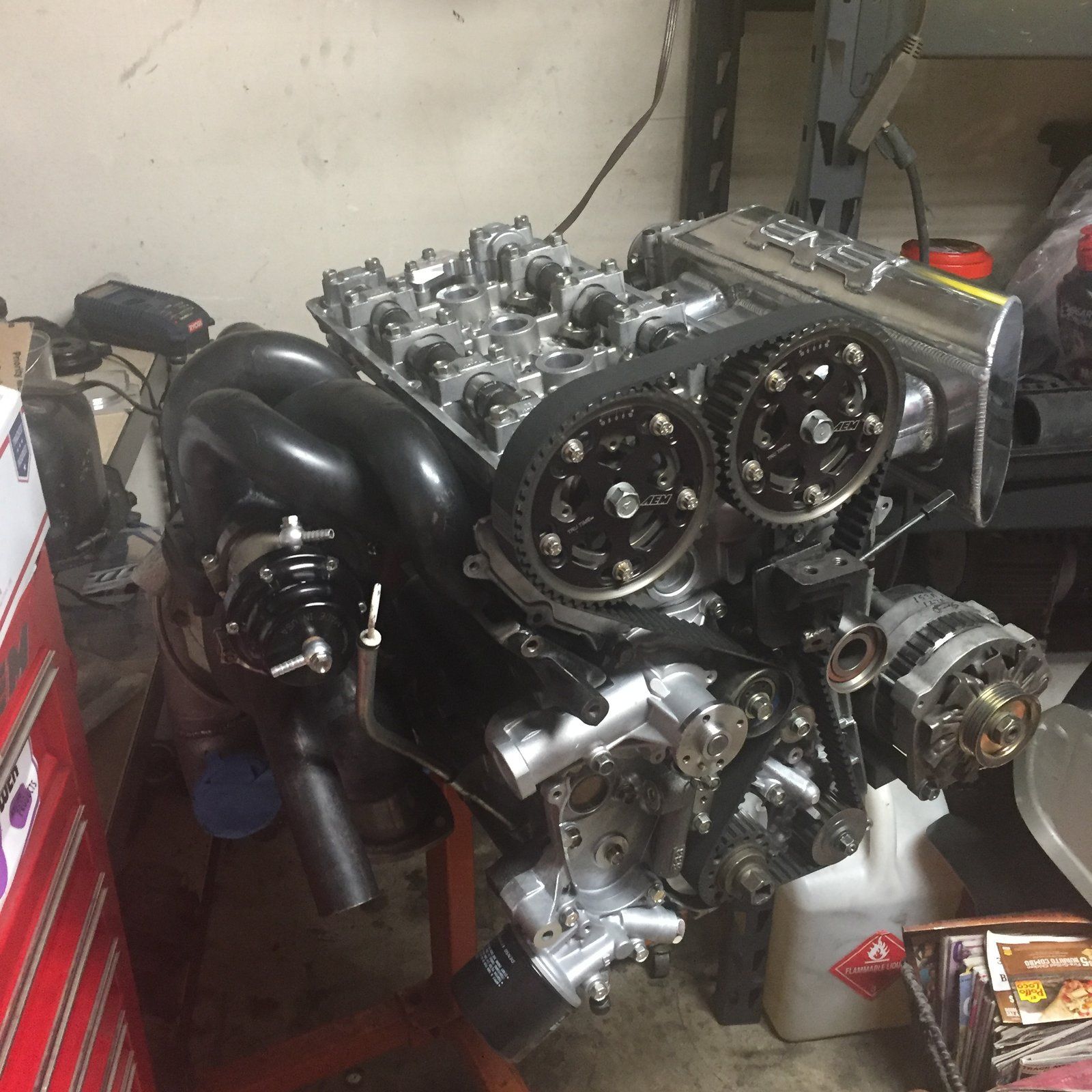

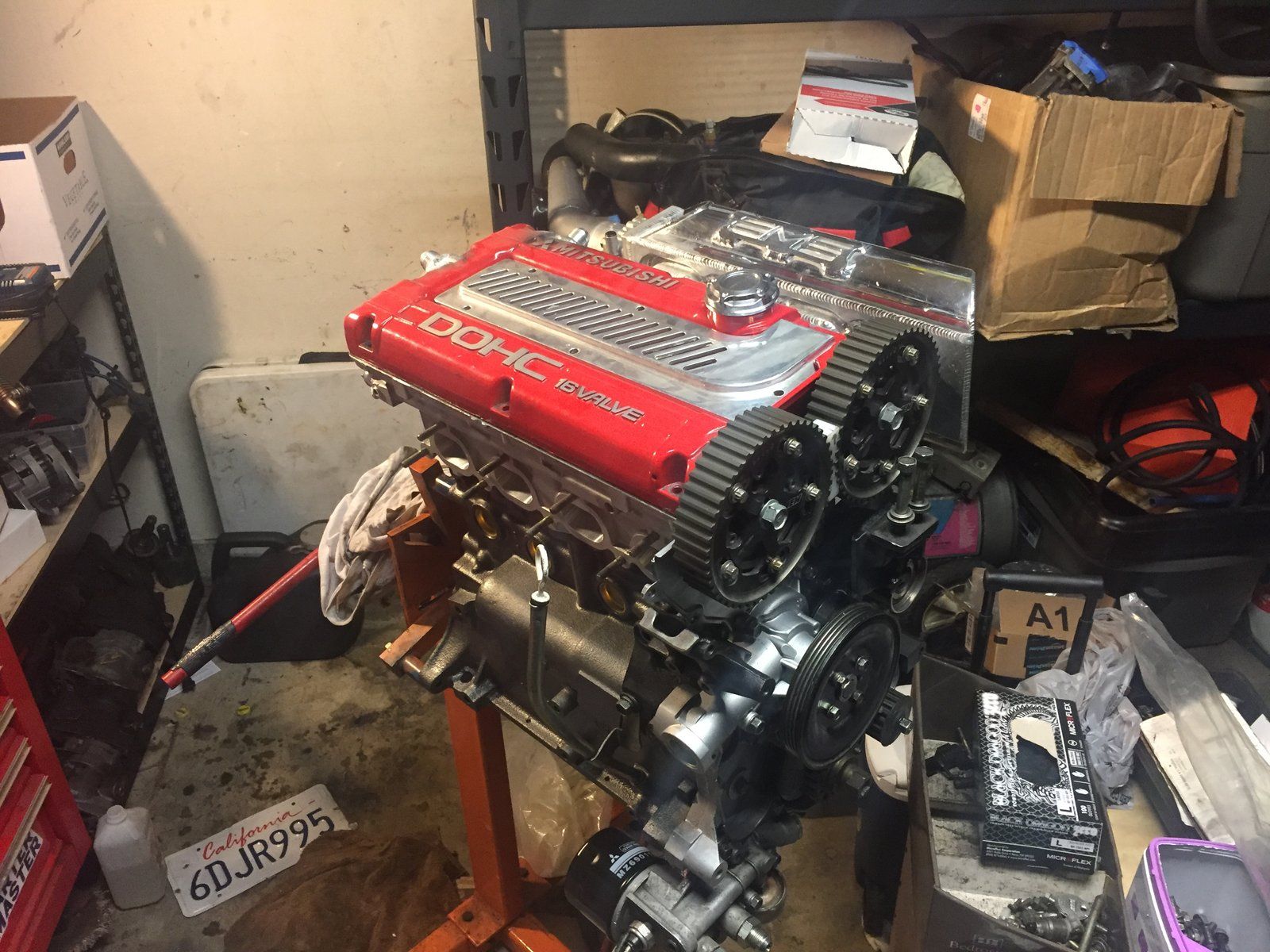

I had a few set backs. It's getting closer to getting done I made last minute changes had to order different cams

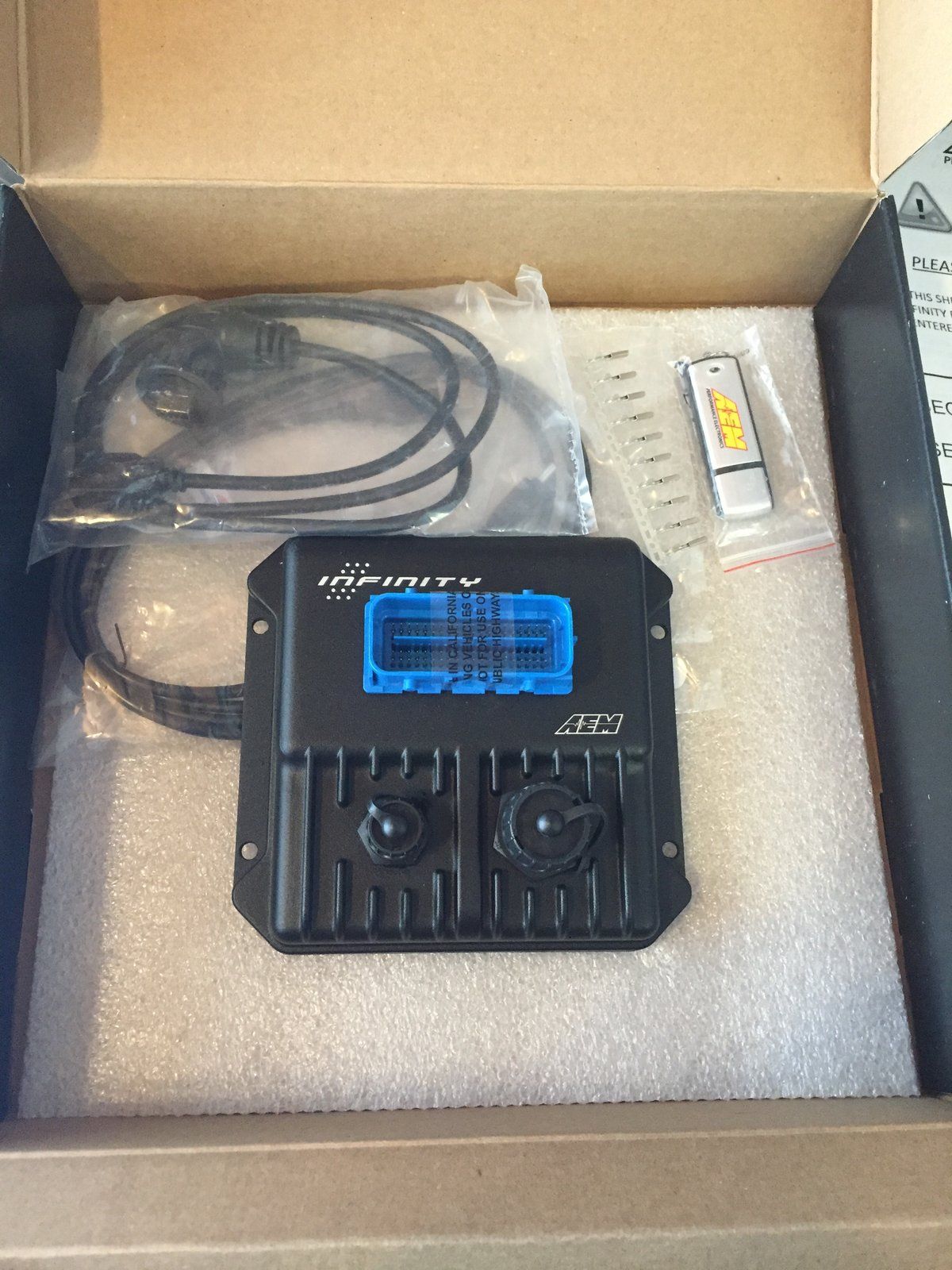

And a different EMS


Attachments

  • image.jpeg
    351.7 KB · Views: 216

awdmonster1904

Proven Member
680
225
Aug 23, 2007
Chino, California

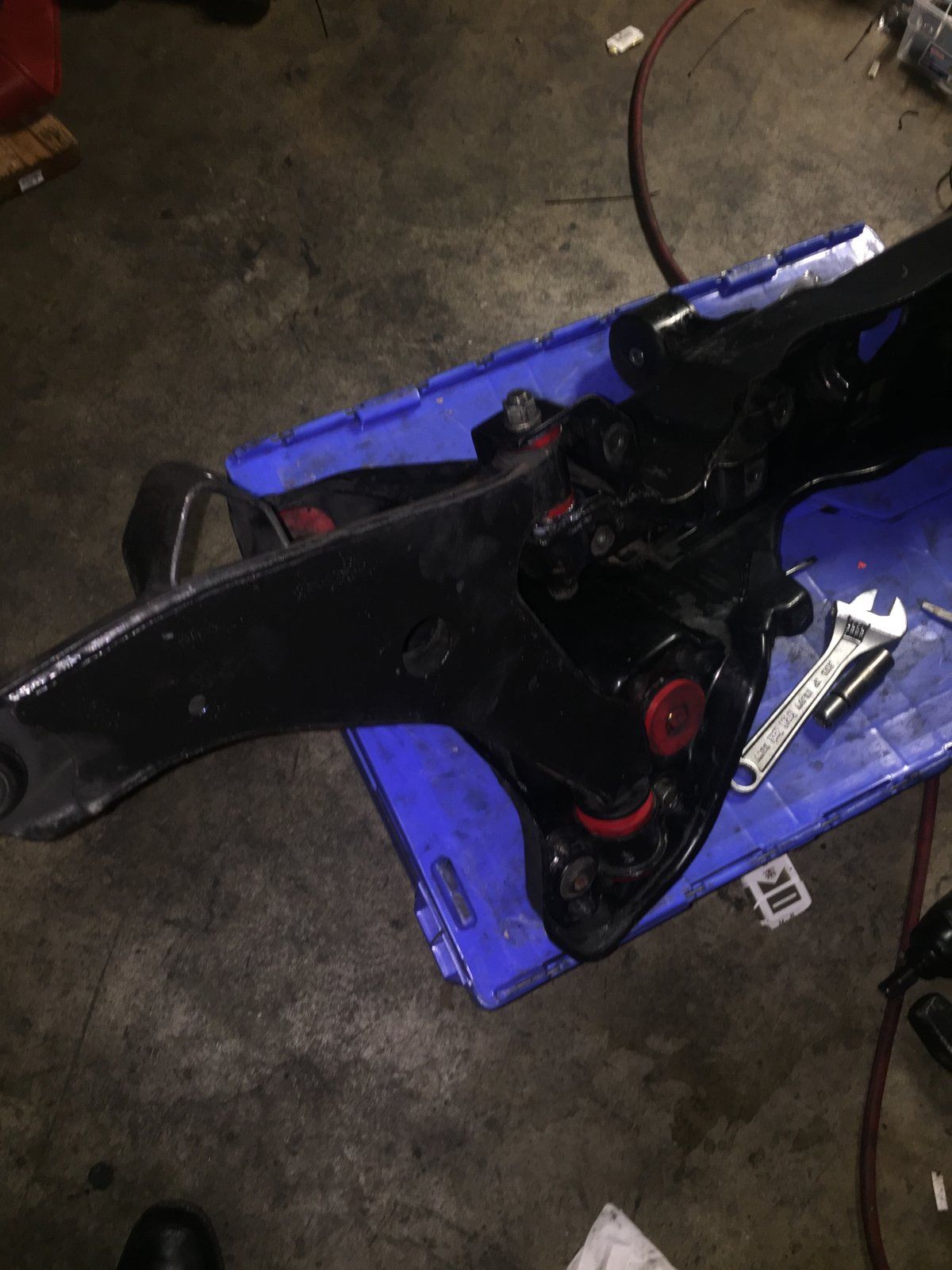

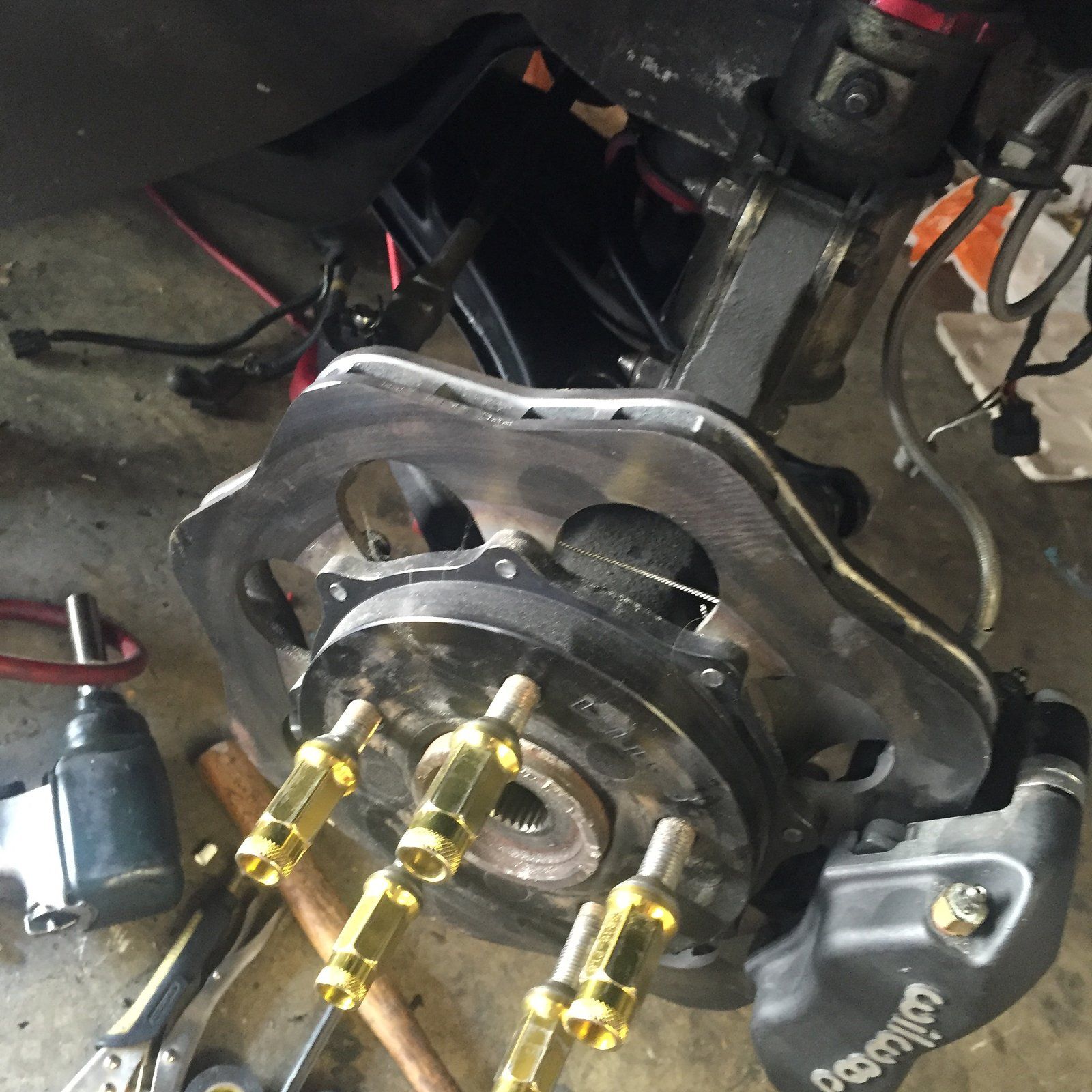

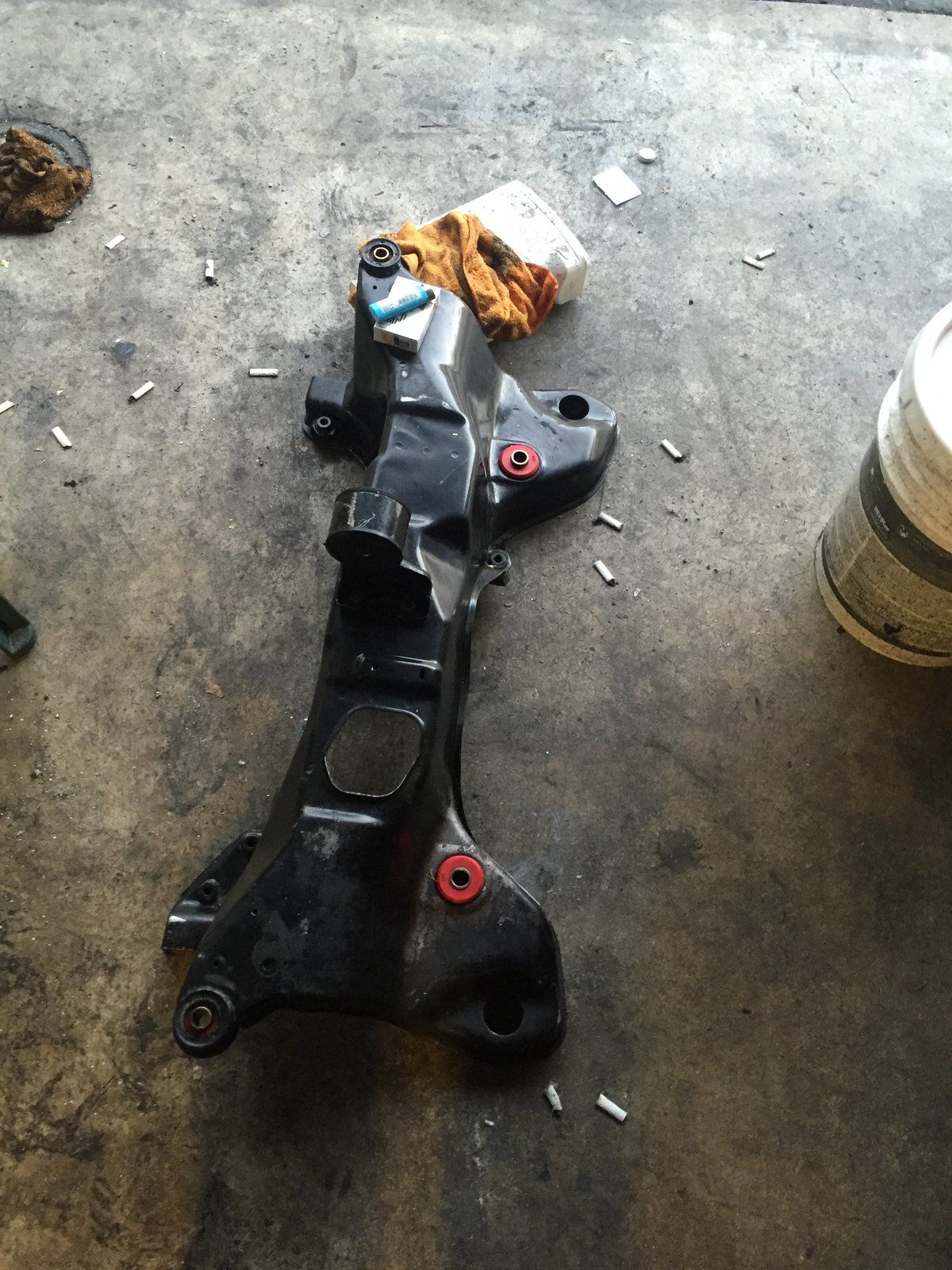

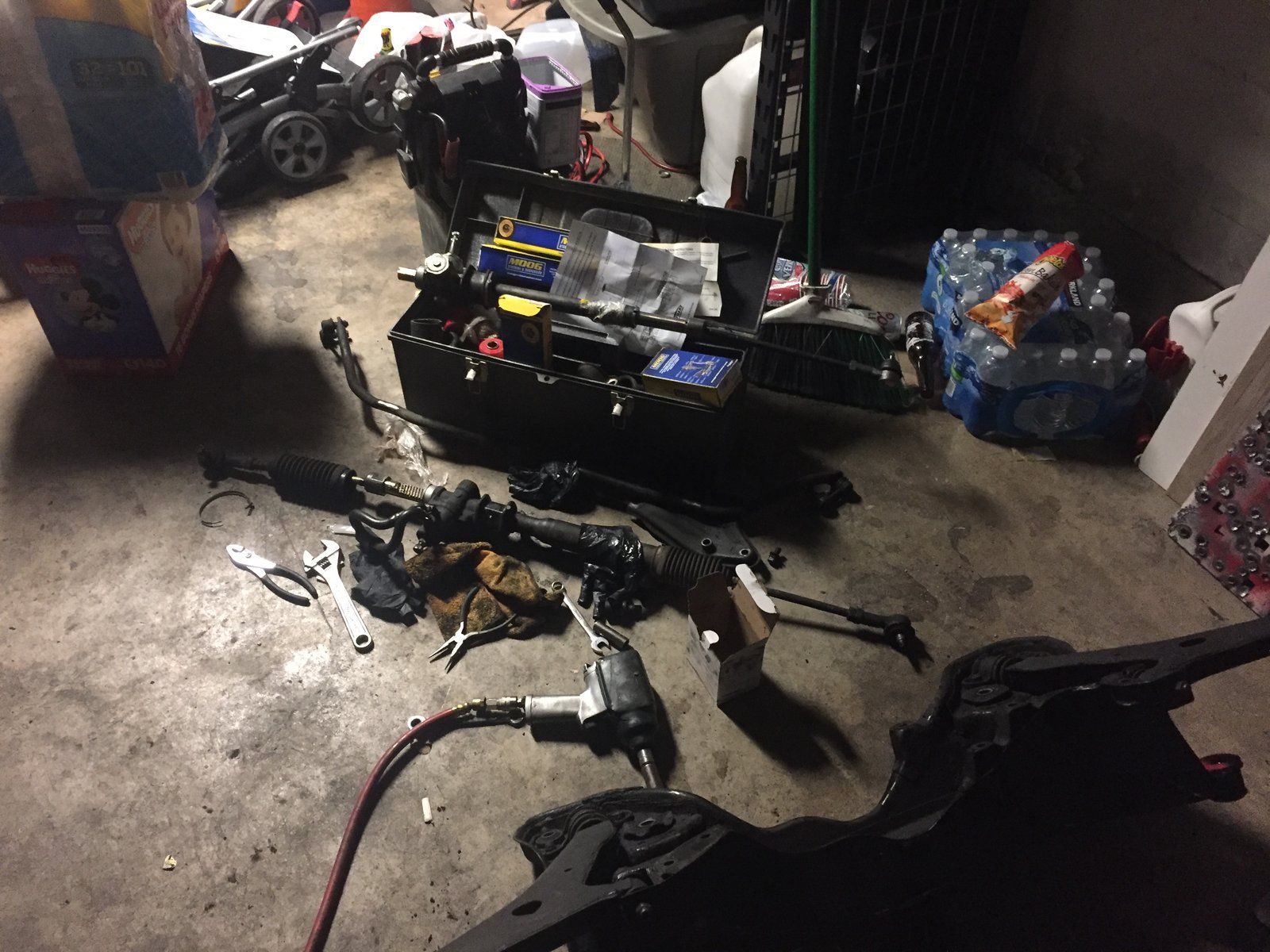

Update: since the engine was out decided to remplace all the old bushings and tie rods and give the subframe a deep cleaning

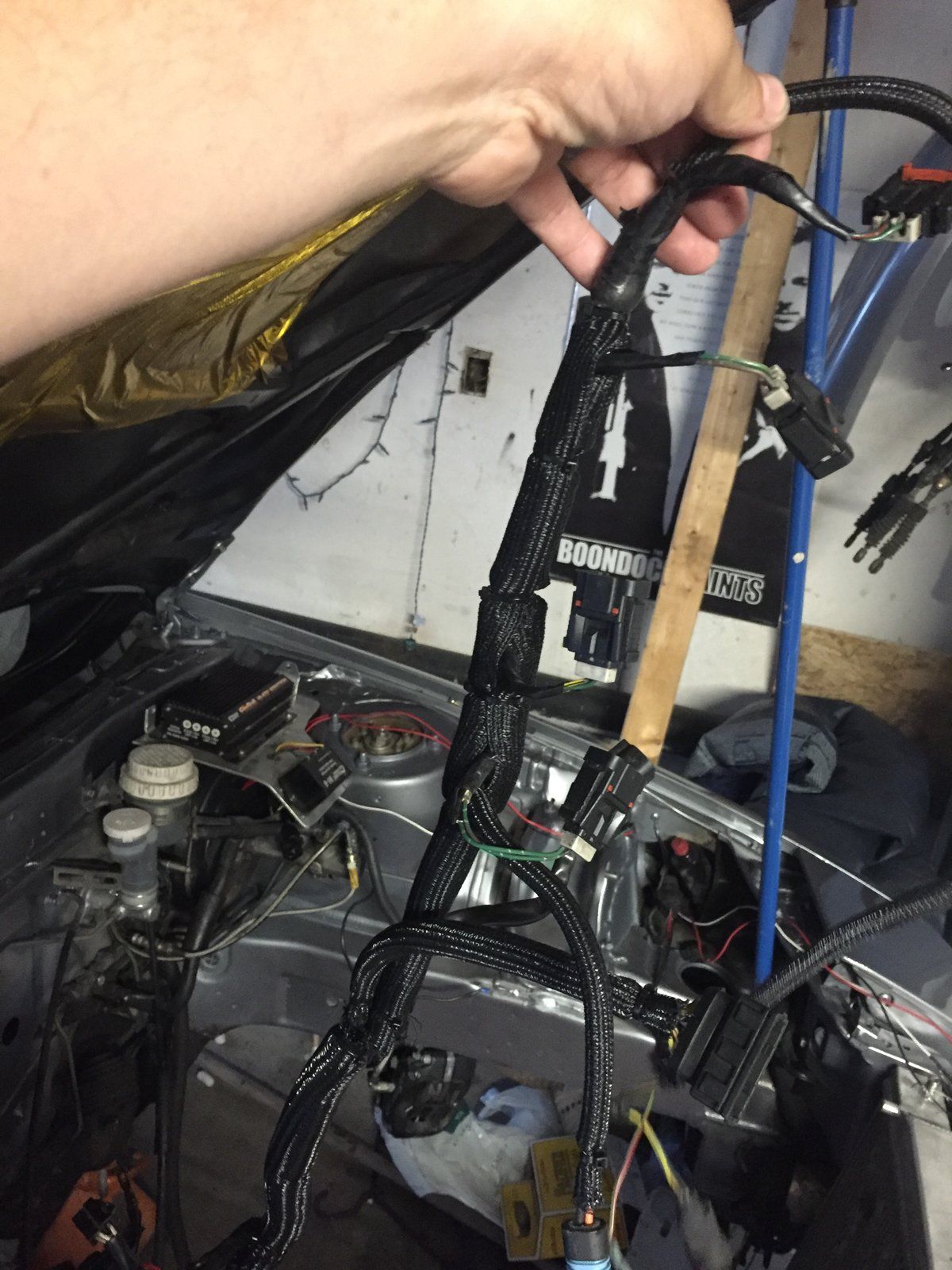

The hardness is pretty much done still need to test it

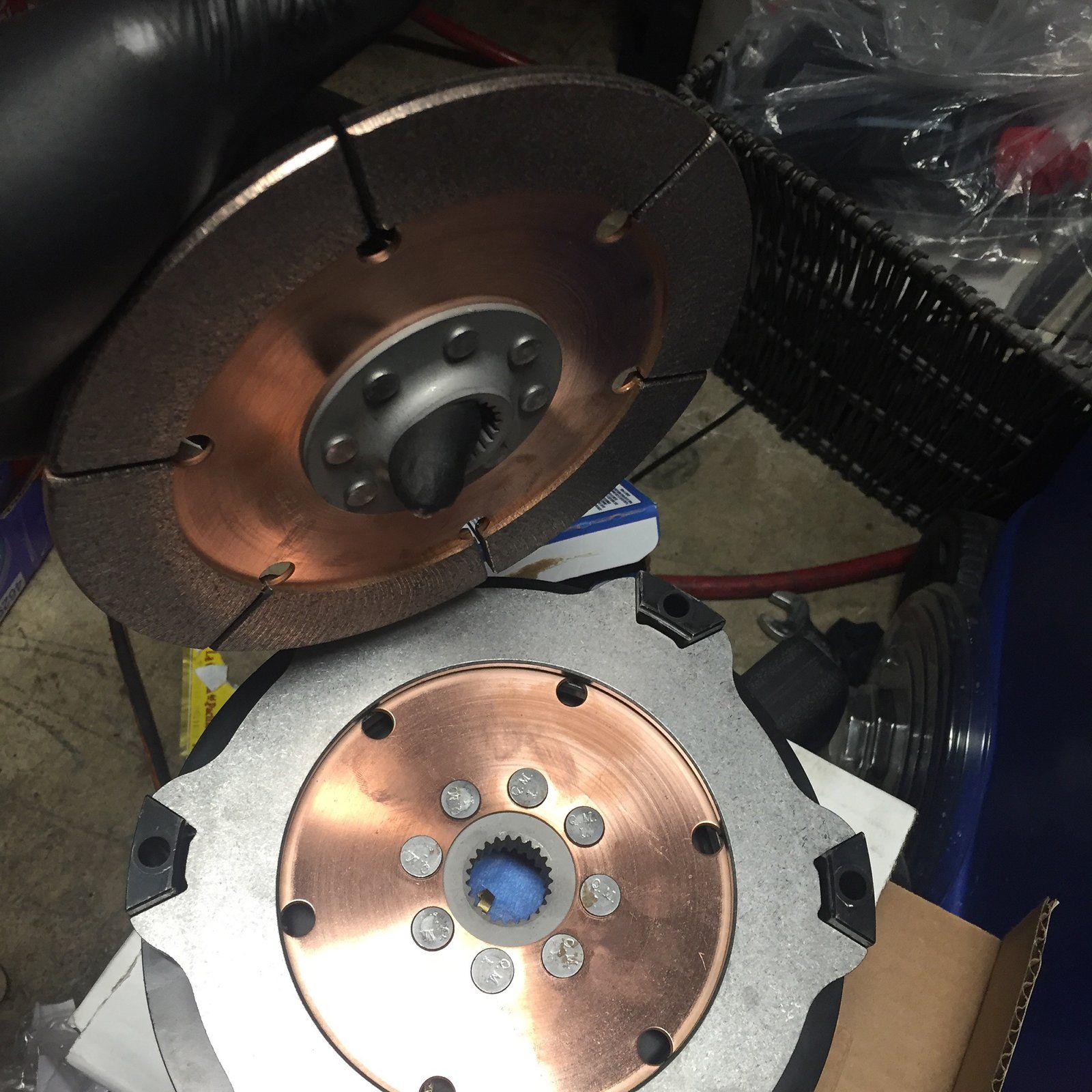

Next in line is getting my flywheel resurfaced install a 12 tooth kiggly trigger plate setup put the motor and Trans in the car ...


Almost there ...


Attachments

  • image.jpeg
    212.8 KB · Views: 235
  • image.jpeg
    370.6 KB · Views: 248
  • image.jpeg
    280.7 KB · Views: 229
  • image.jpeg
    279.9 KB · Views: 225
  • image.jpeg
    308.8 KB · Views: 235
  • image.jpeg
    370.9 KB · Views: 224

awdmonster1904

Proven Member
680
225
Aug 23, 2007
Chino, California

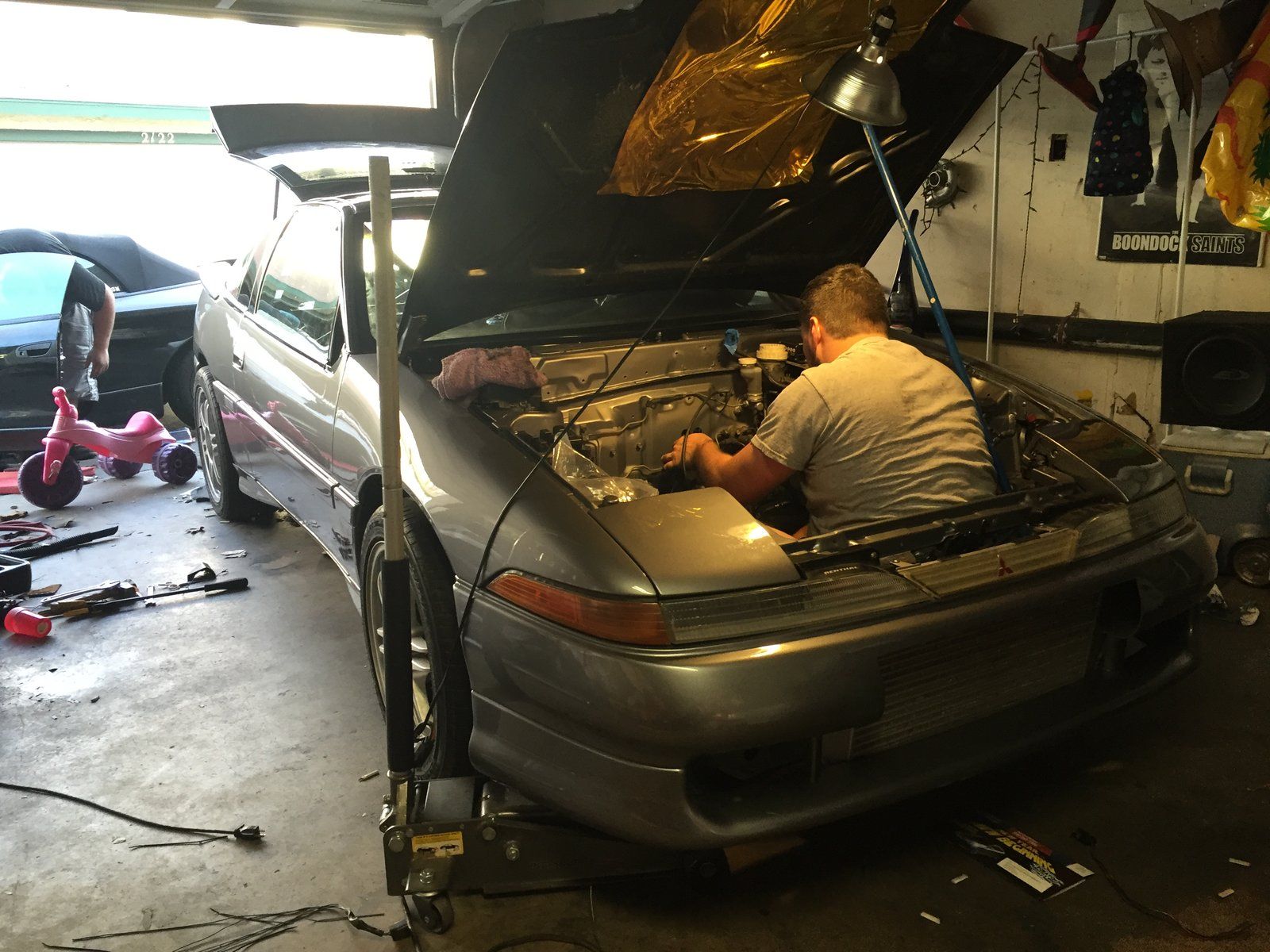

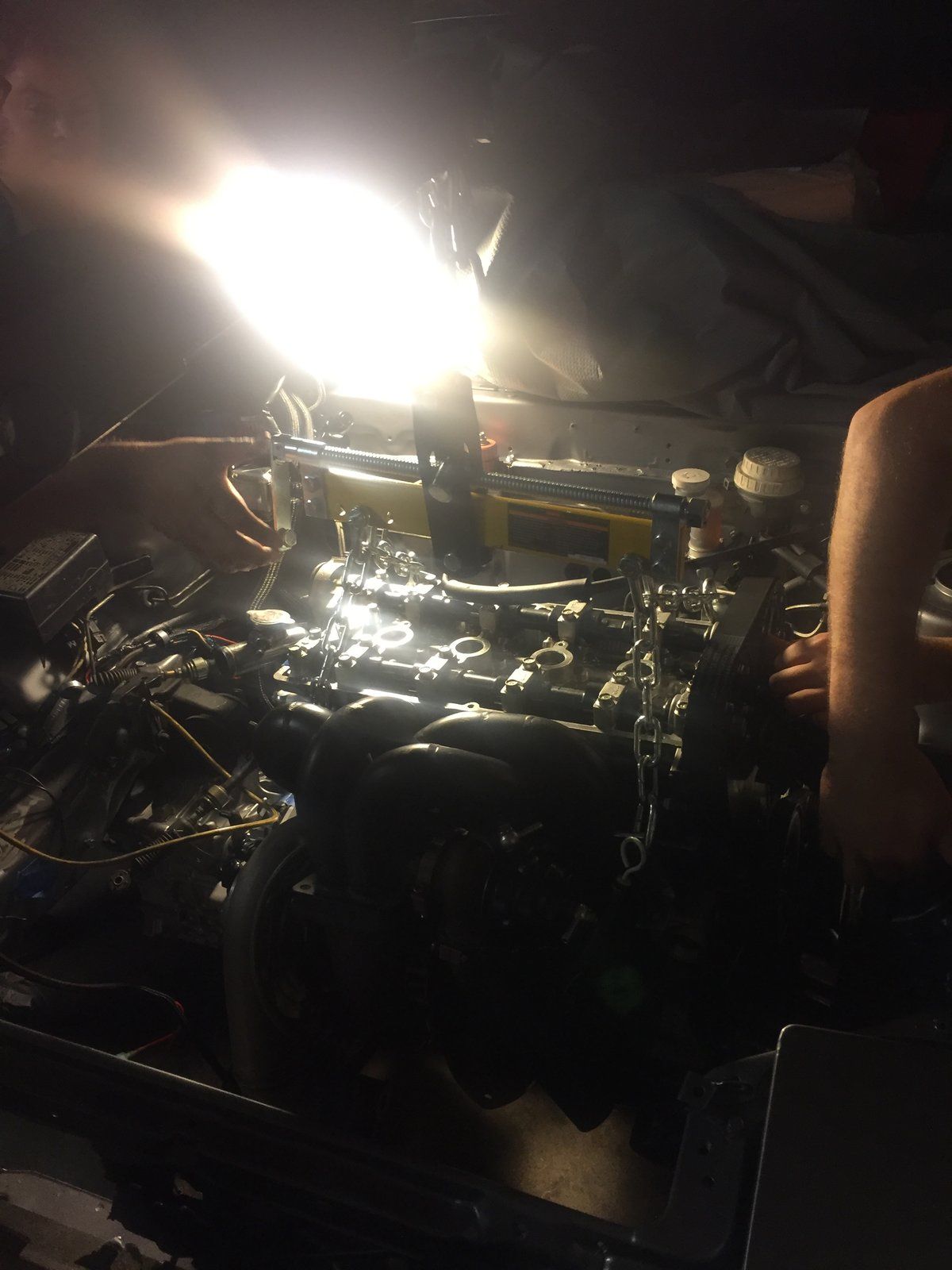

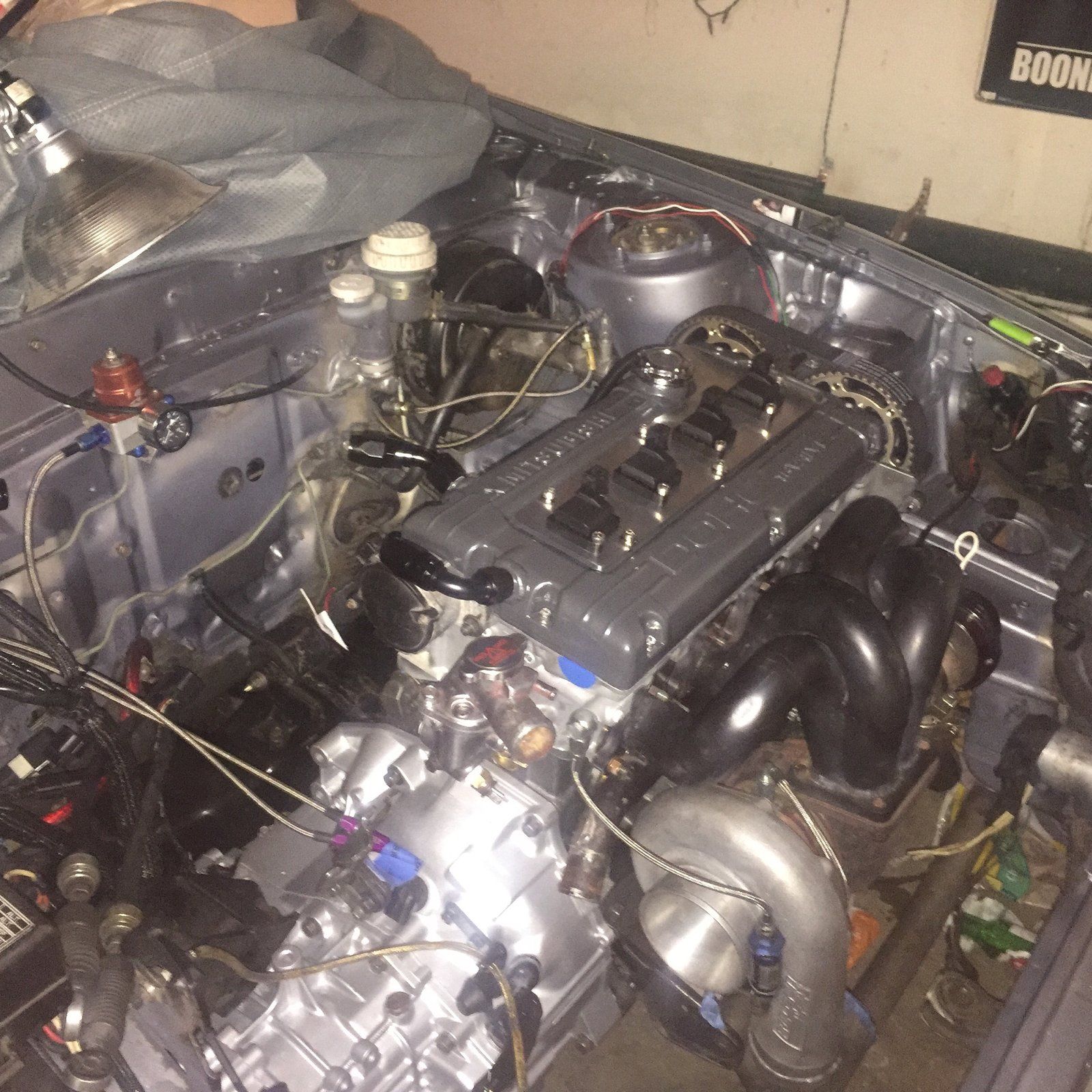

I maneged to get some help from my friends after a few things I needed to install got the kiggly 12 tooth in

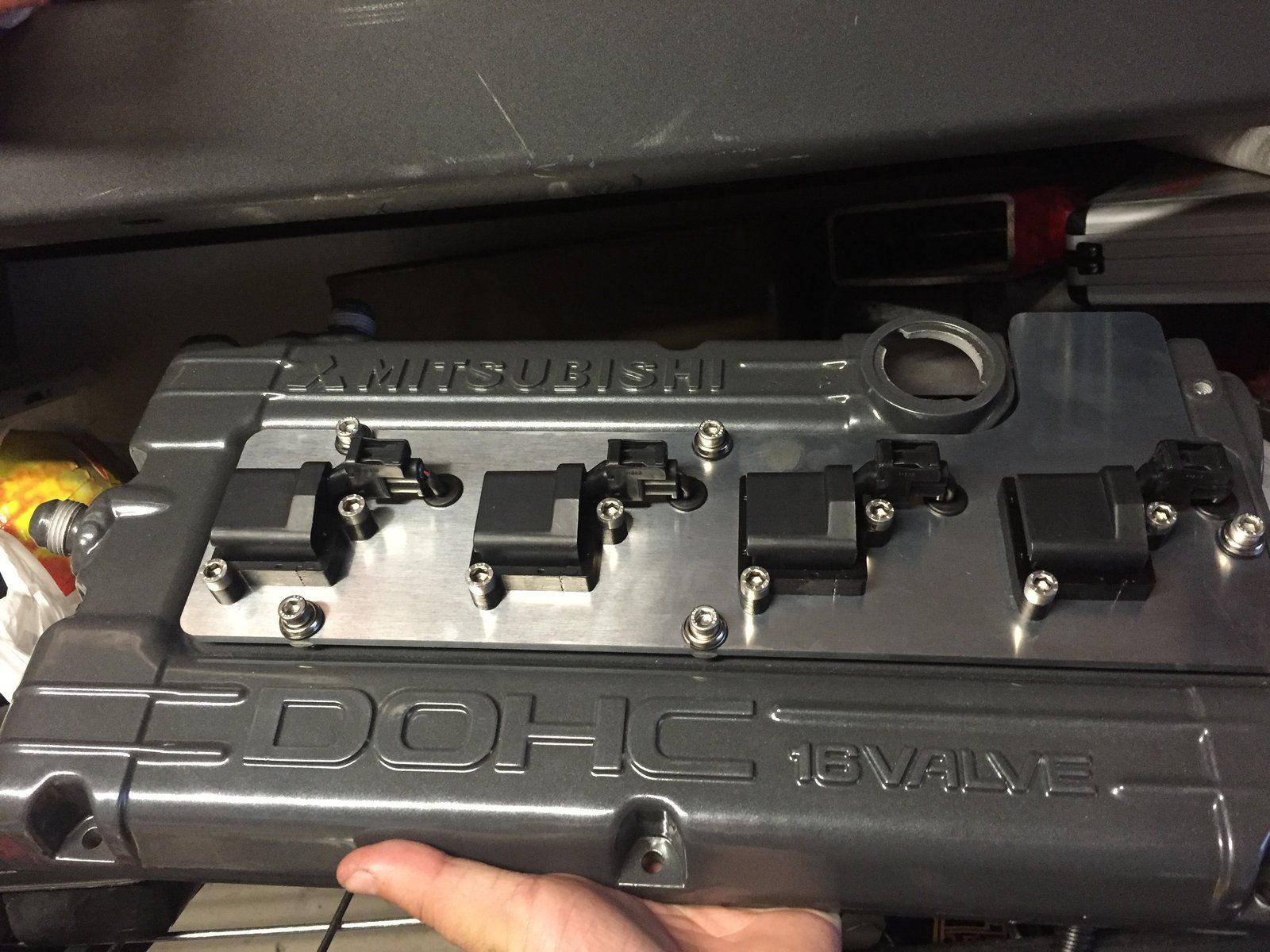

Oem timing belt new COP

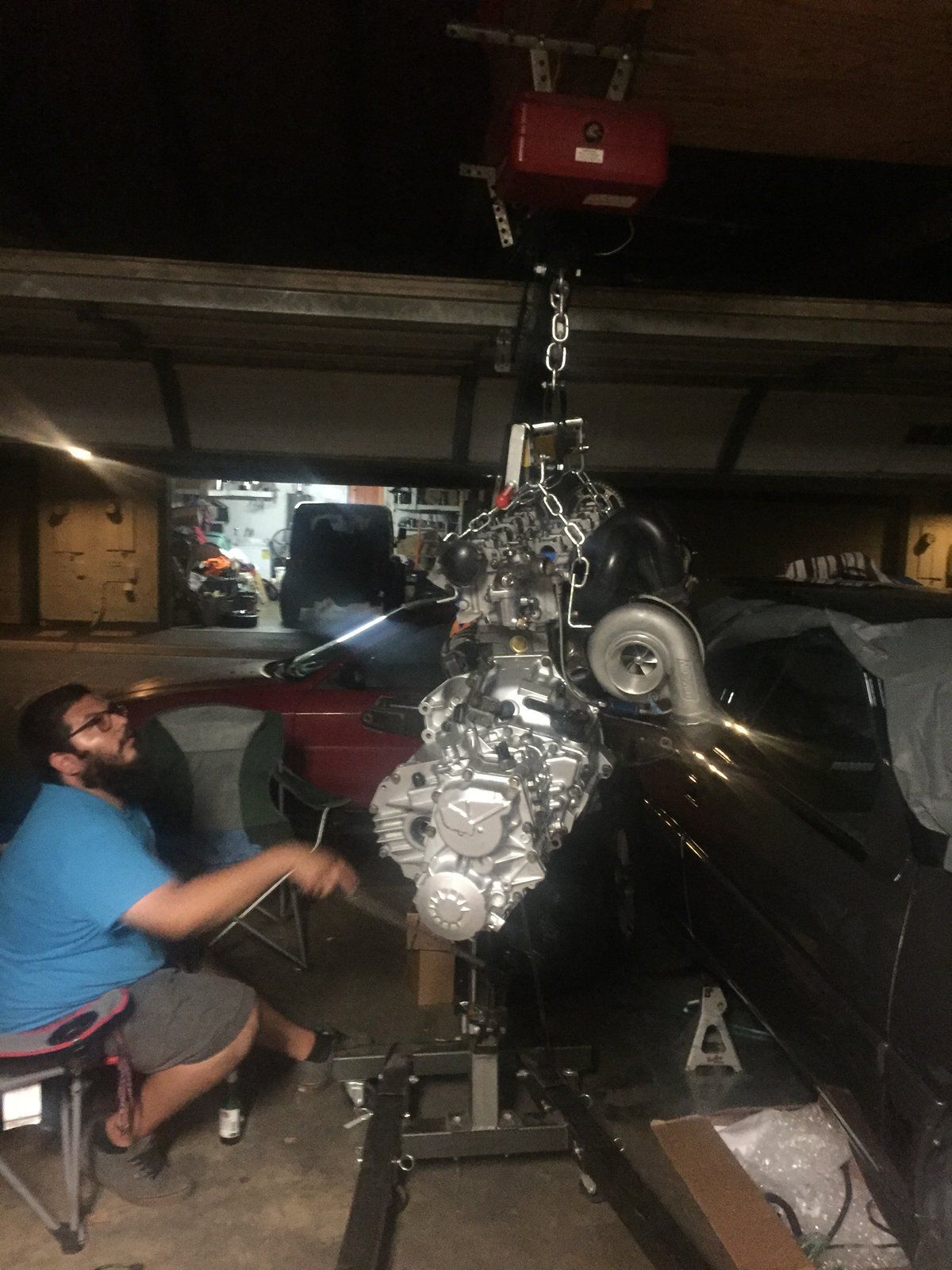

And dropped the engine in to the car

Found out I need to get a sub hardness for my fail safes for infinity getting pretty close to a runing car


Attachments

  • image.jpeg
    259 KB · Views: 255
  • image.jpeg
    162.6 KB · Views: 249
  • image.jpeg
    467.9 KB · Views: 244
  • image.jpeg
    345.4 KB · Views: 229

awdmonster1904

Proven Member
680
225
Aug 23, 2007
Chino, California
update: I removed the dash but I can't make up my mind if I should keep the dash or remove it. I would like to see more 1g race car ideas if anyone has any they will be apressiated.

Also got me a 2g speed sencor forgot to work for aem. Fixed my radiator brakets
Made a dandy mount for the aem


awdmonster1904

Proven Member
680
225
Aug 23, 2007
Chino, California
its been a while since ive posted I finally got a 10 pt cage on the car working on getting it certified by the nhra.
i will post pictures very soon tomorrow ill be working on the car posting more updates


awdmonster1904

Proven Member
680
225
Aug 23, 2007
Chino, California

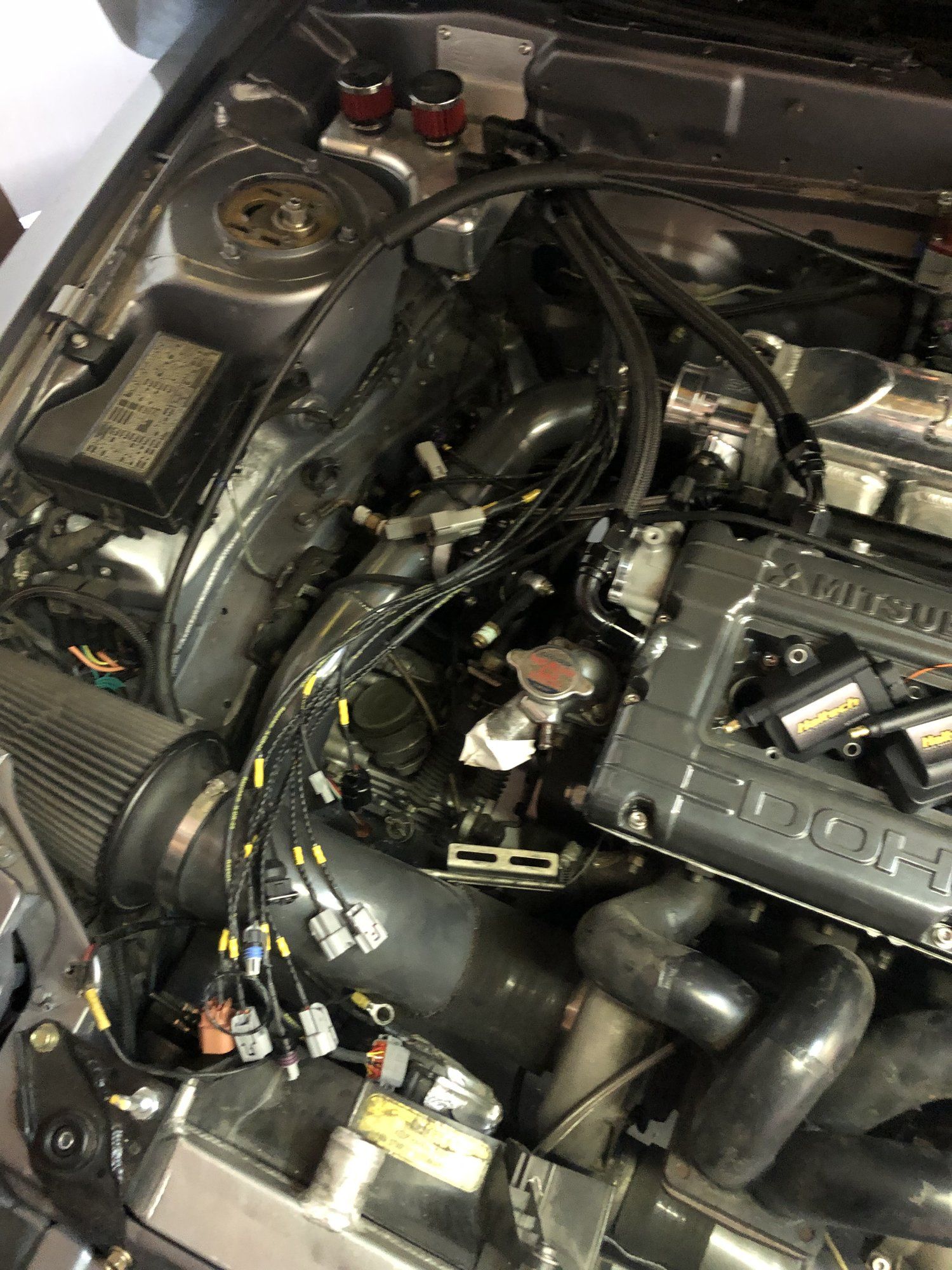

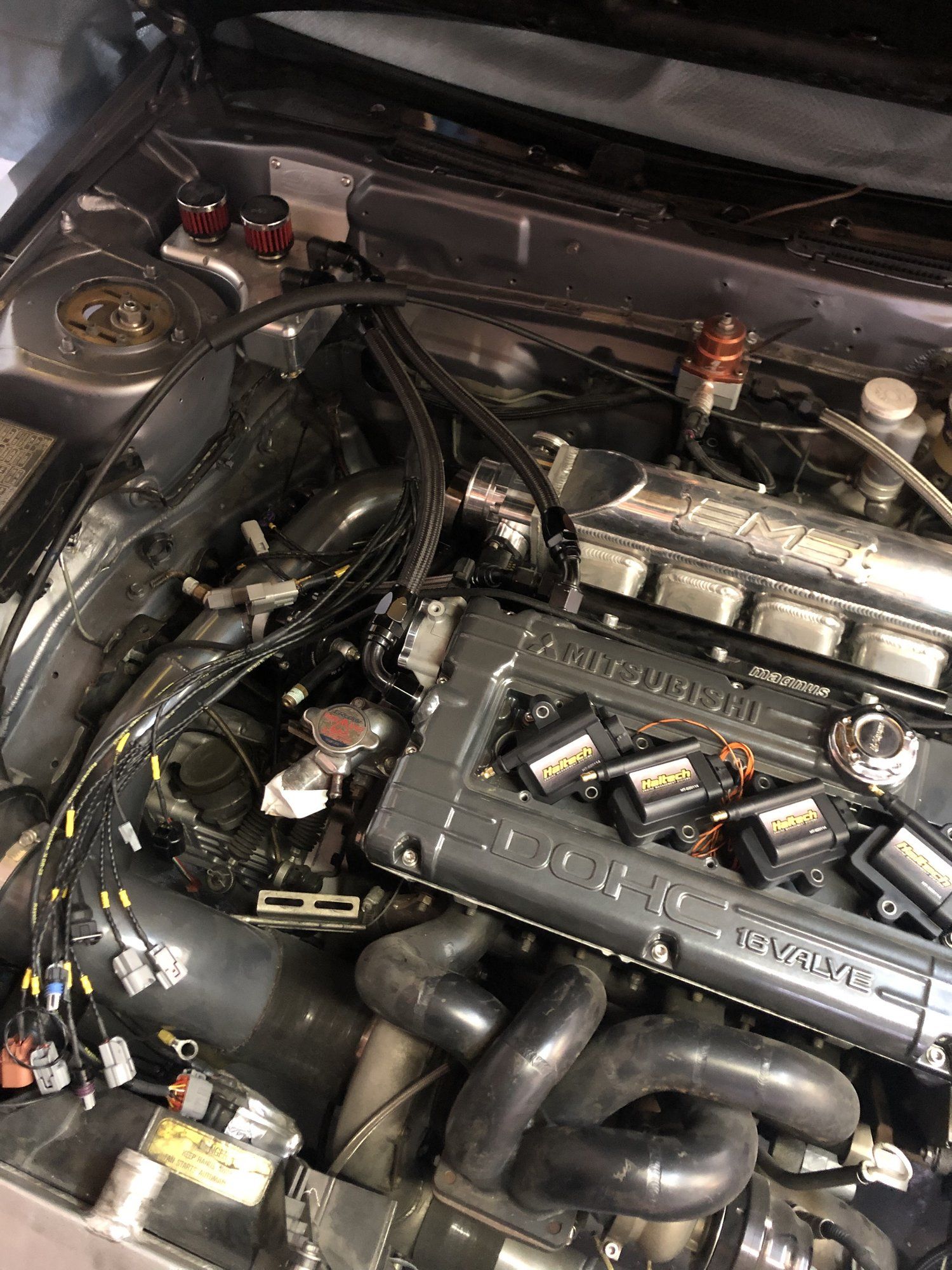

Finally got the wiring harness for the infinity 508 took me long enough since we had to make changes and attention to detail is a must. I have a friend helping me he though this since my wiring skill are not all the way there. We are also making a aluminum dash
Soon I’ll post more pictures


Attachments

  • 1A78A514-20A1-40B8-9D0A-4E6CB843D532.jpeg
    535.2 KB · Views: 176
  • 1EE7103B-7BF0-4AA0-8DDC-8E48FFE20068.jpeg
    521.4 KB · Views: 181
