99 GSX Rebirth/Clean-Up/Build

bettfootball

Proven Member
504
445
Mar 7, 2010
Denver, Colorado
Oh yeah. I'm so excited to assemble everything and then put this thing in storage and never drive it LOL. But yes, I'll be honest I wish they were way more gold/shiny but extremely happy considering this is what all the bolts looked like previously. Couldn't imagine spending all this time and money powdercoating everything and using old rusty bolts.

You must be logged in to view this image or video.
Screenshot 2021-04-05 125220 by Brady Dingeldein, on Flickr

Maybe the lack of shine/color is due to them not being perfect bolts to begin with, obviously the media blasting roughens up the surface a bit so it isn't mirror smooth etc. But still, love how they turned out. I'll plate everything I can find now haha.


Tyeler18

Proven Member
2,345
109
Dec 16, 2008
Casa Grande, Arizona
One of the few build threads I come back here to follow. Looking good so far!

As far as the shine to the coating, you need to wire well each bolt to a shine after media blasting to get that shine like factory. I follow a guy on the E30 forum that does concourse resto's on old BMW's and that was his tip for getting the gold to shine like stock. It's a bunch of work to do all the hardware, but it'll look OE coated


bettfootball

Proven Member
504
445
Mar 7, 2010
Denver, Colorado
One of the few build threads I come back here to follow. Looking good so far!

As far as the shine to the coating, you need to wire well each bolt to a shine after media blasting to get that shine like factory. I follow a guy on the E30 forum that does concourse resto's on old BMW's and that was his tip for getting the gold to shine like stock. It's a bunch of work to do all the hardware, but it'll look OE coated
Thanks man!

And yeah that's what I figured! I may do this on the next batch... TBD! haha.


bettfootball

Proven Member
504
445
Mar 7, 2010
Denver, Colorado

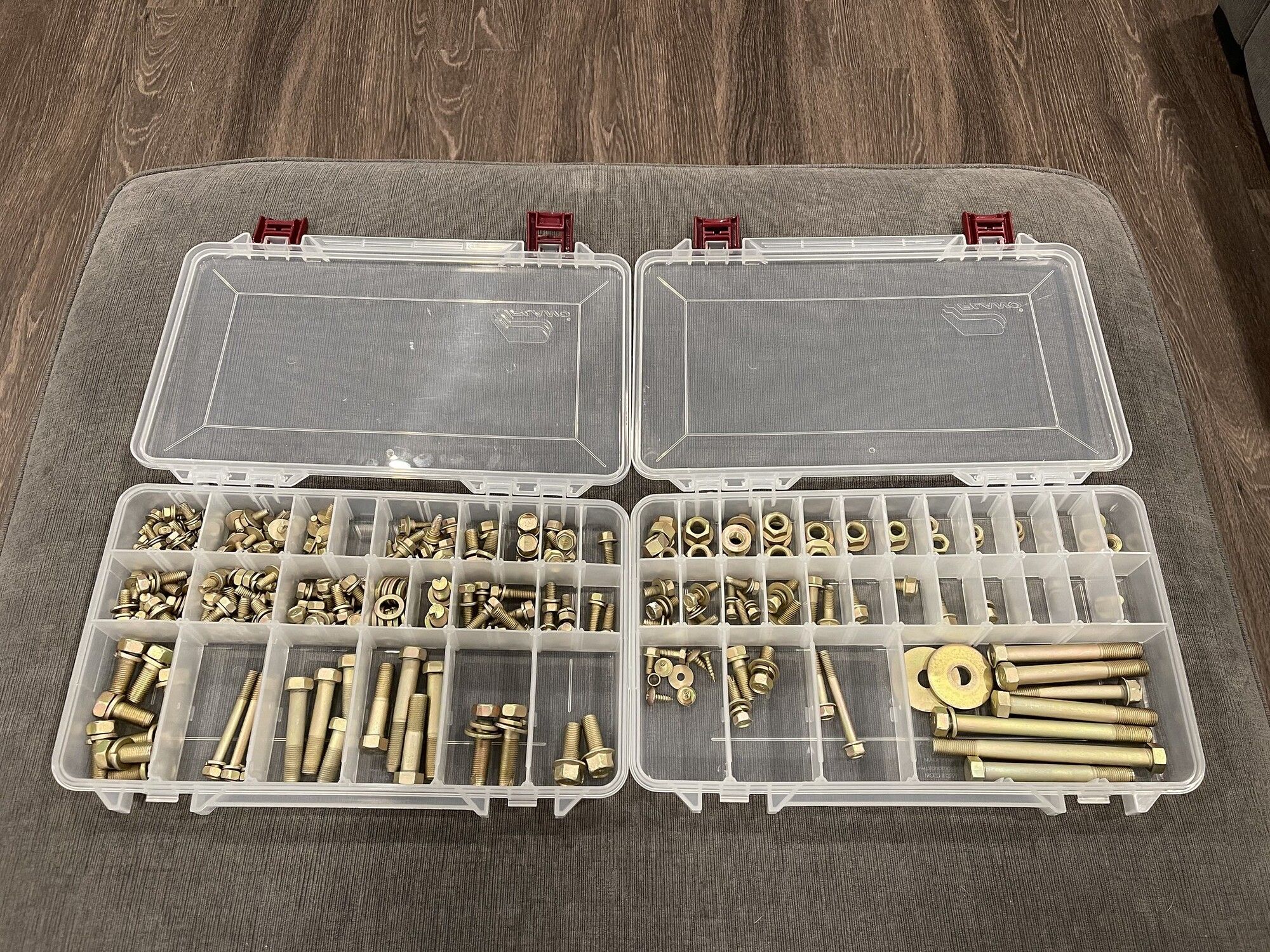

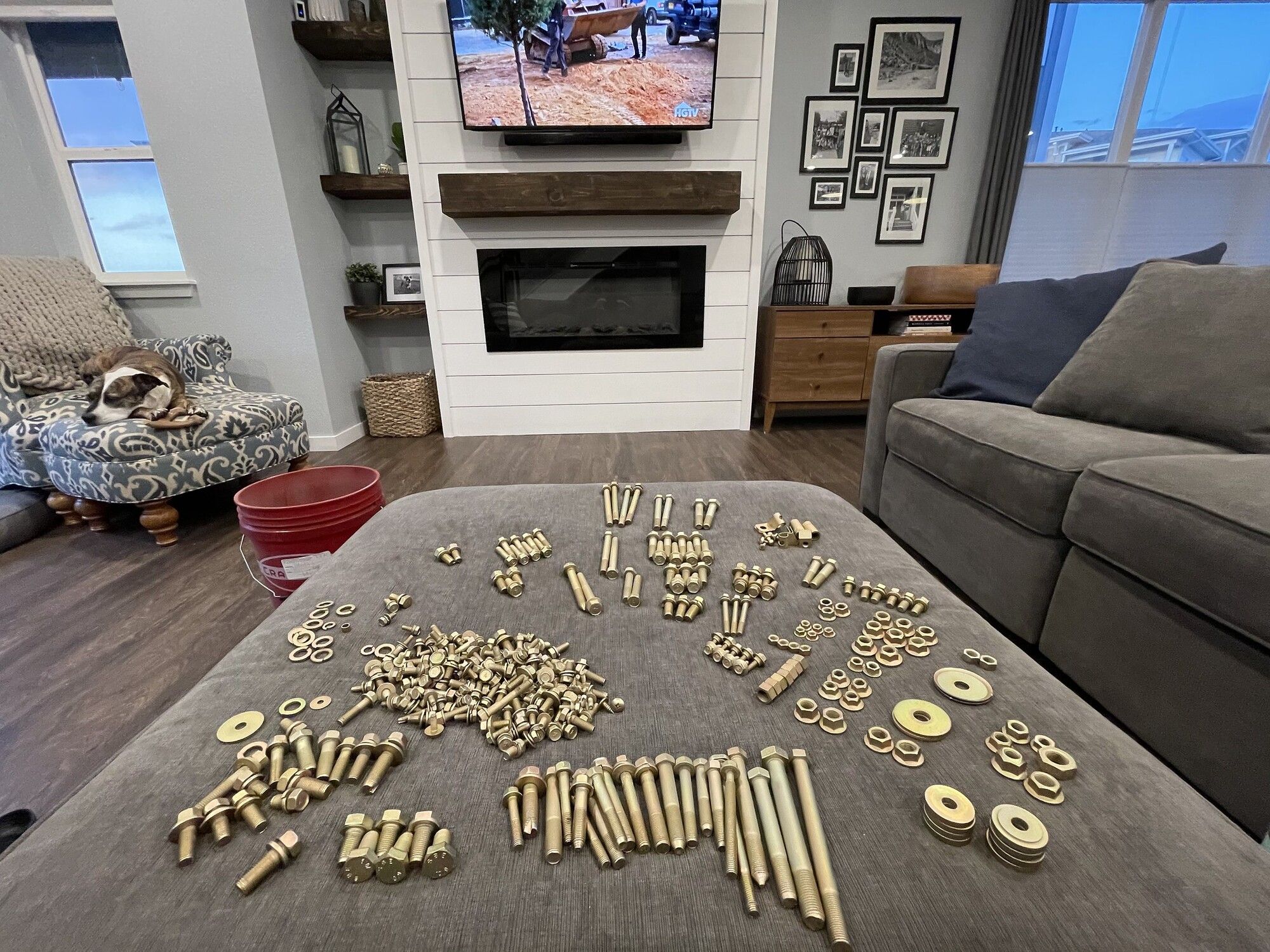

So I started organizing on my couch lastnight.

You must be logged in to view this image or video.
Untitled by Brady Dingeldein, on Flickr

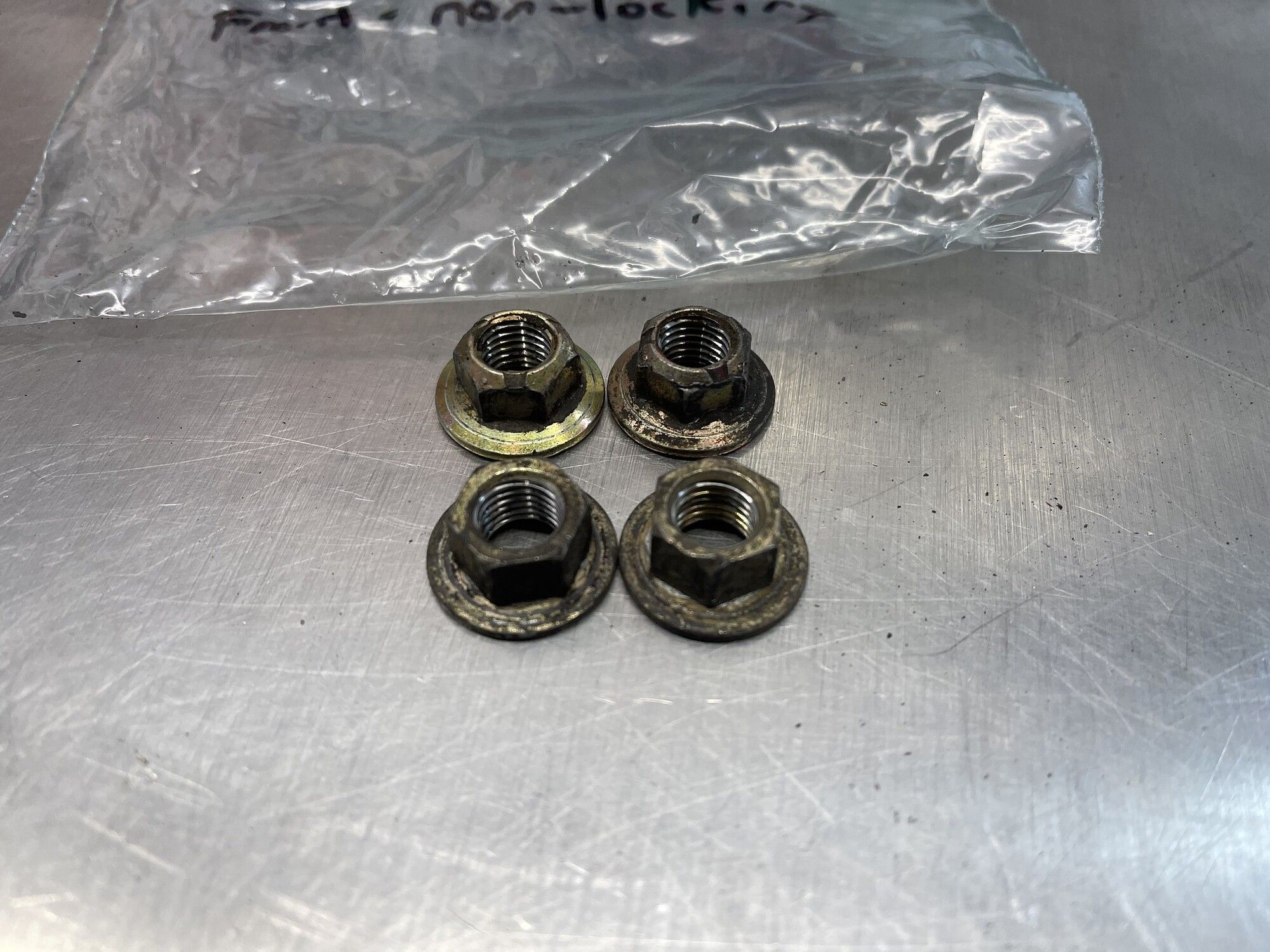

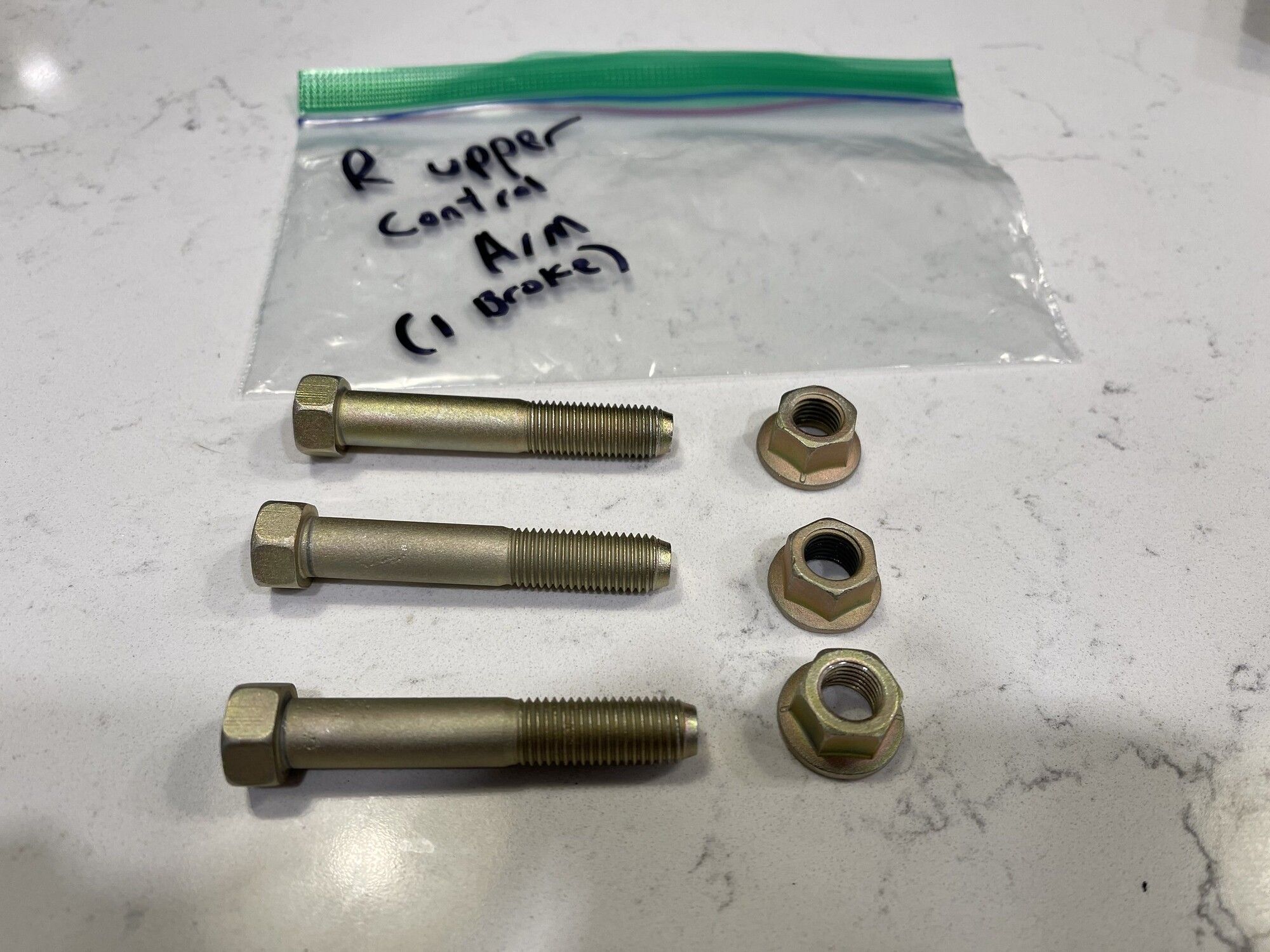

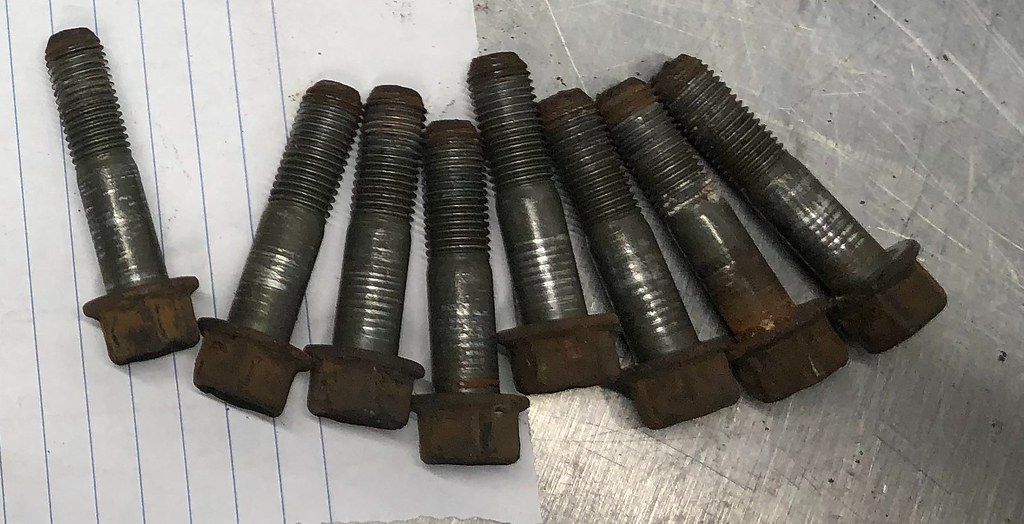

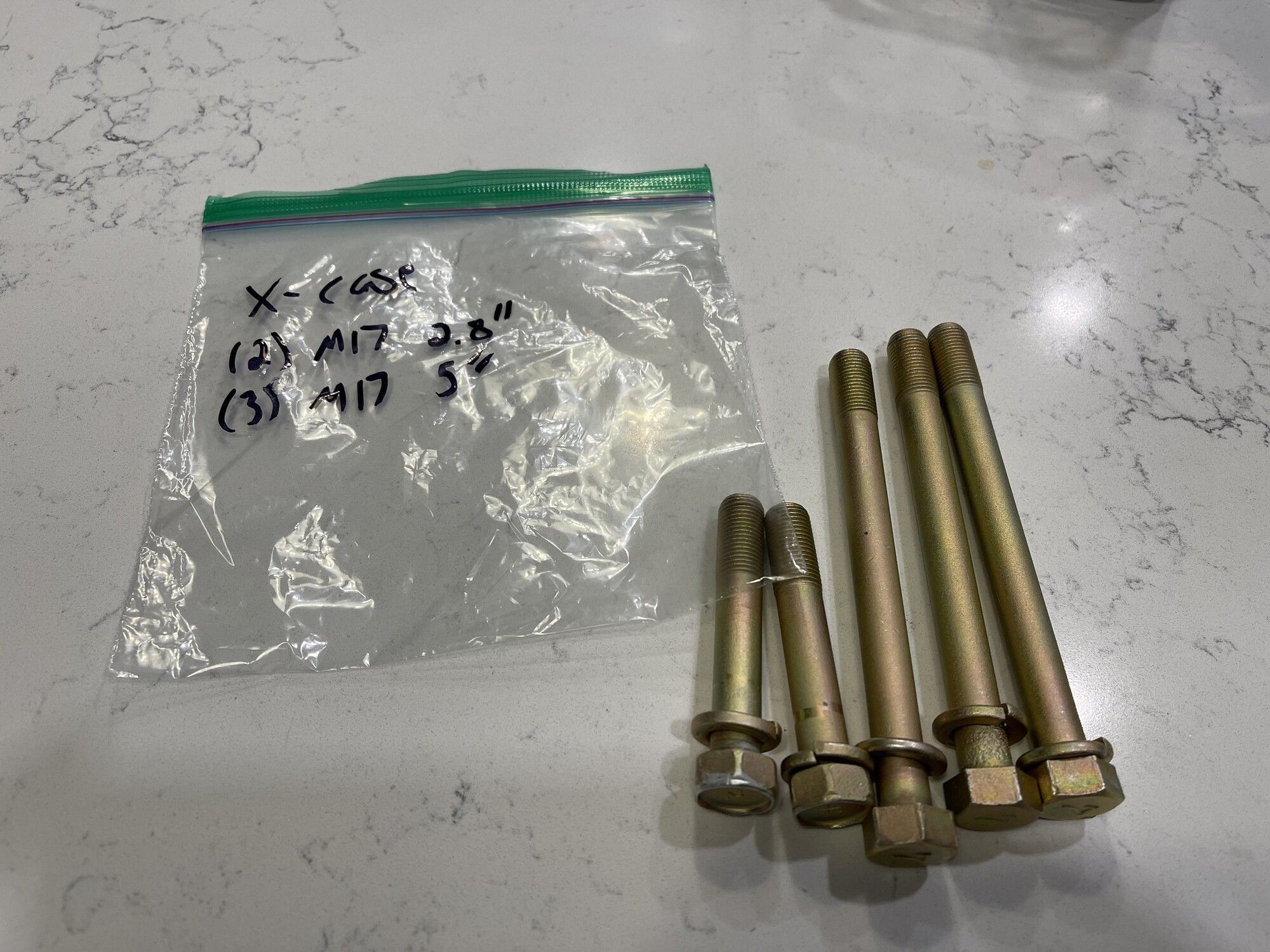

I took pics of a ton of the bolt sets for various parts, but I also just started throwing every bolt I could find in the bucket, so there are a lot that are not really "to" anything. I'm just going to organize them all into size/length/type etc when I'm done picking out the "sets" of bolts.

For example:

You must be logged in to view this image or video.
Untitled by Brady Dingeldein, on Flickr

You must be logged in to view this image or video.
Untitled by Brady Dingeldein, on Flickr

Peace!

-Brady


bettfootball

Proven Member
504
445
Mar 7, 2010
Denver, Colorado
I wrapped up all the organizing. I'm a little frustrated with how many different bolts are on this thing.

I had to combine a Lot of similar bolts just for the sake of not having 7 of these trays. Out of all of those bolts I have (1) grade 10 bolt for example. Crazy.

I have another batch going to be blasted once I schedule their sizes and lengths etc.

A big thing I realized I failed to do was specify head type and grade of bolt.. I should have taken a picture of the head, but I chalk it up to me not even seeing the head because of all the rust and grease/dirt etc that was on them.

You must be logged in to view this image or video.
Untitled by Brady Dingeldein, on Flickr


bettfootball

Proven Member
504
445
Mar 7, 2010
Denver, Colorado
Yo!

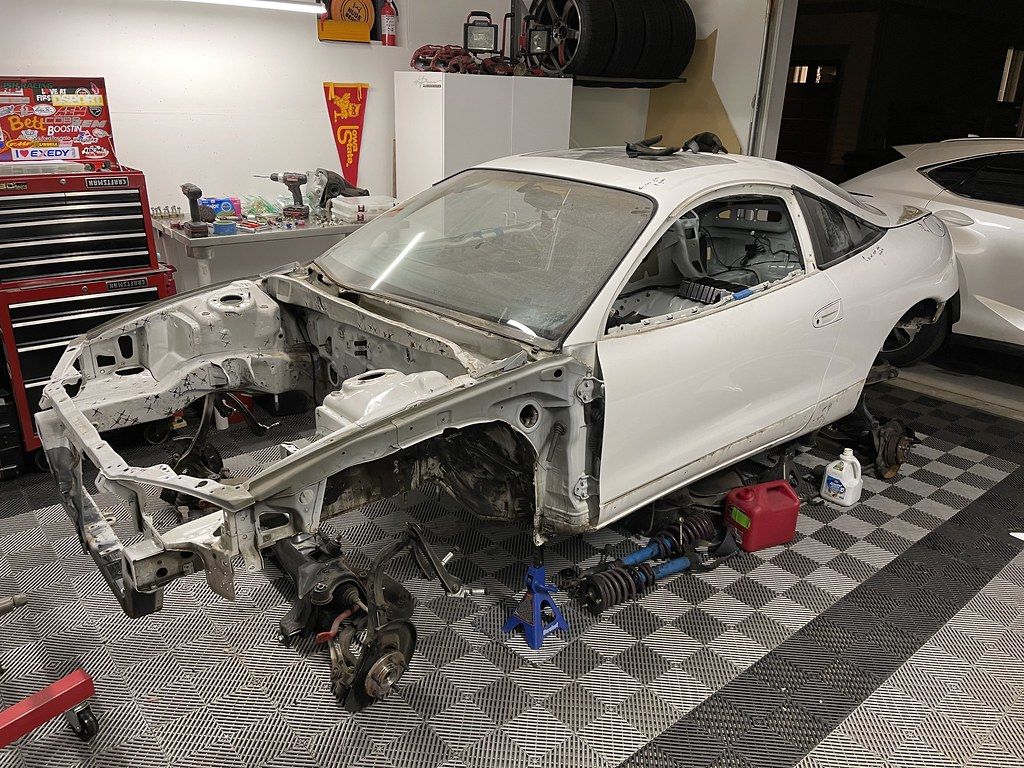

Its crunch time over here getting this thing ready for paint!

You must be logged in to view this image or video.
IMG_2066 by bradydings, on Flickr

Everything I can remove has been removed. The shop will pull the glass and everything else.

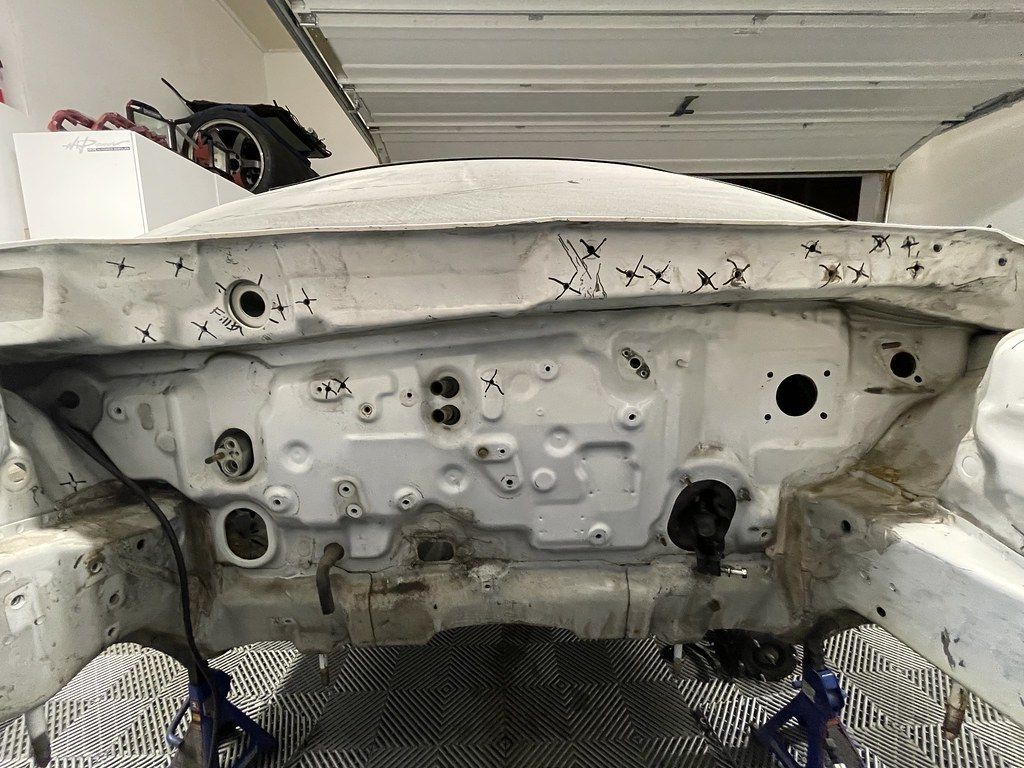

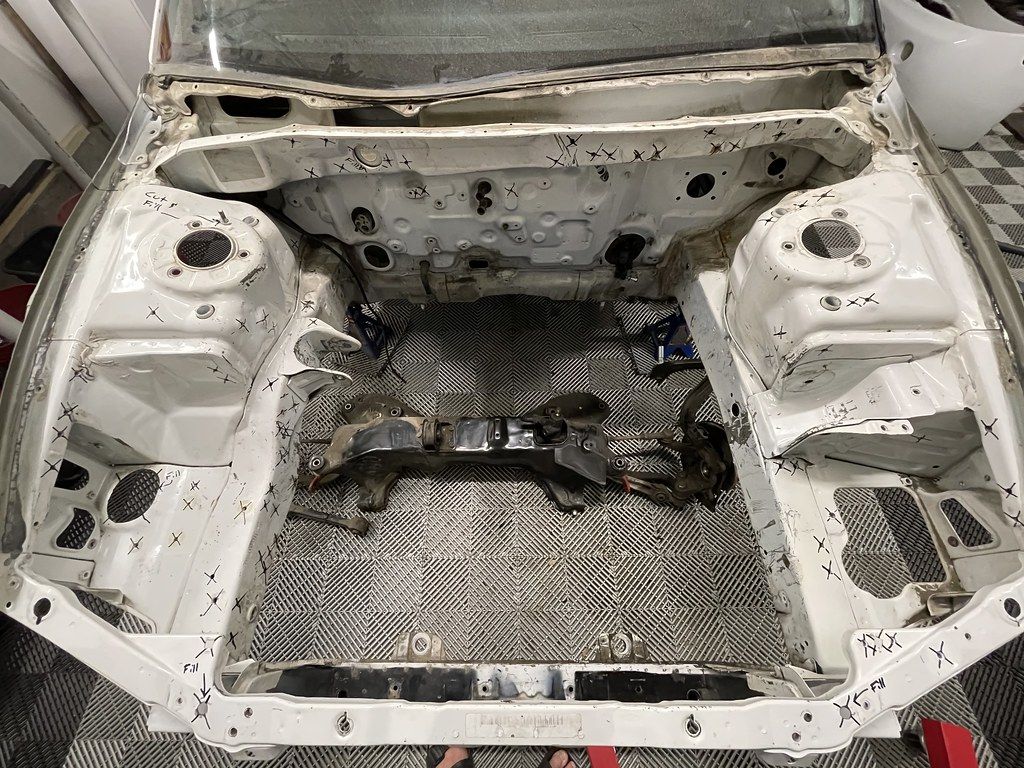

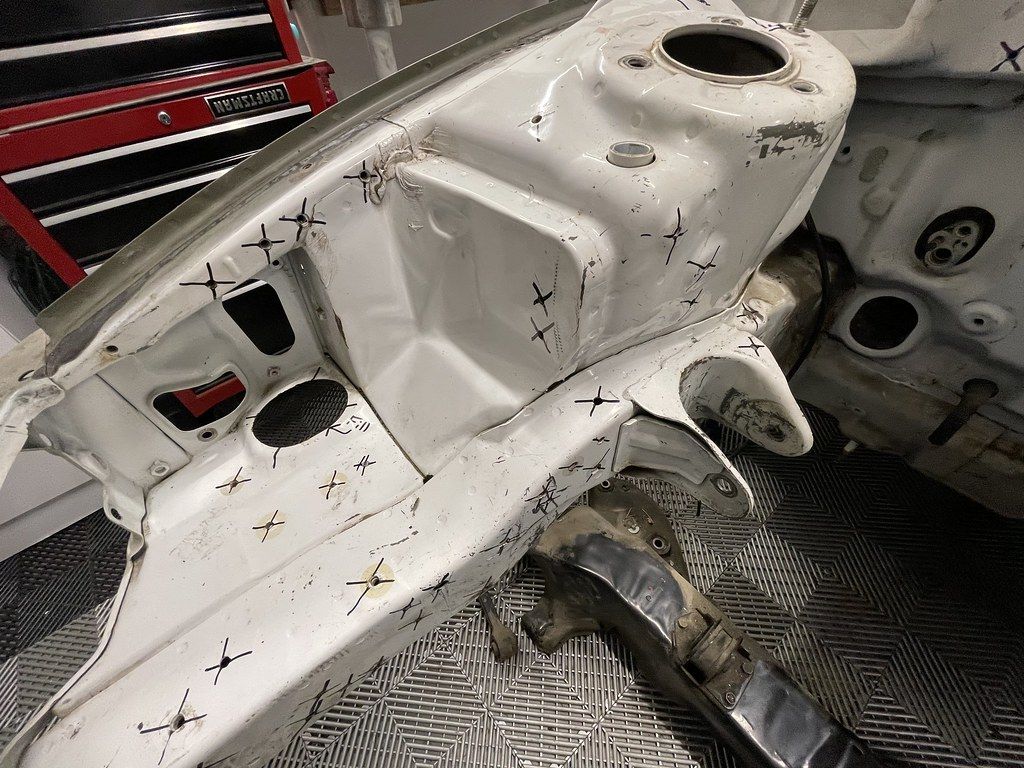

I worked on marking up the holes that I will have filled. Sooo many. I forgot I had this many filled.

You must be logged in to view this image or video.
IMG_2059 by bradydings, on Flickr

You must be logged in to view this image or video.
IMG_2060 by bradydings, on Flickr

You must be logged in to view this image or video.
IMG_2061 by bradydings, on Flickr

You must be logged in to view this image or video.
IMG_2062 by bradydings, on Flickr

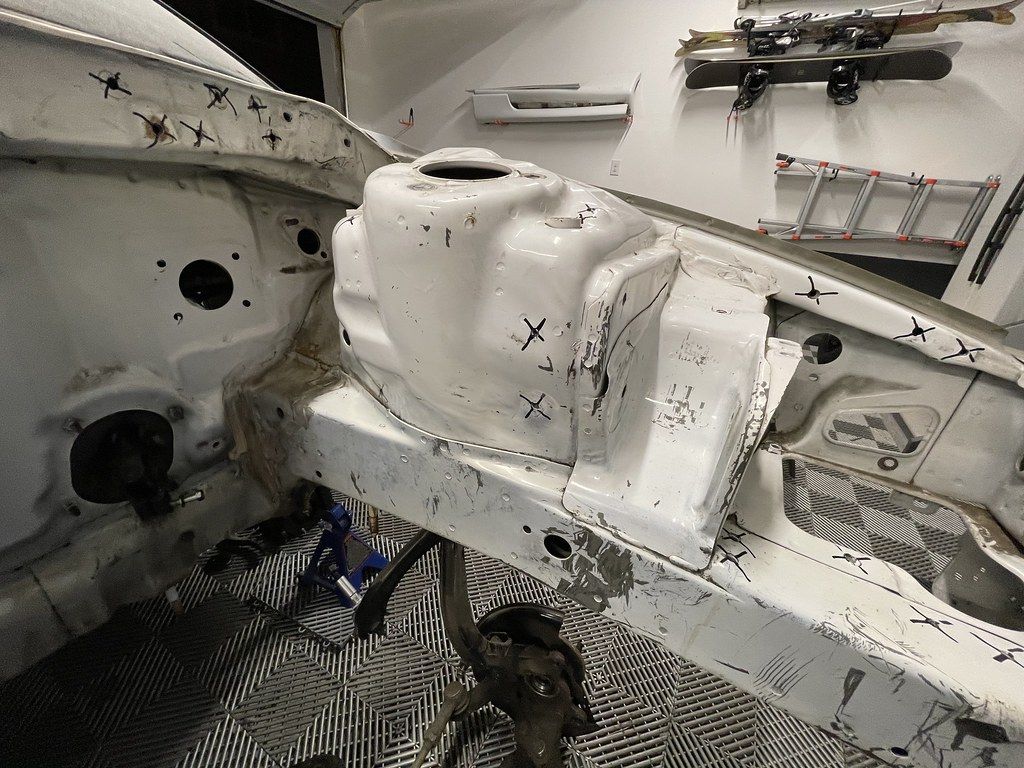

Debating on what to do about the ABS hole. If it were a flat piece It would be different, but it has a ton of weird shapes to it. Undecided.

I'm also pretty positive I'm shaving the AC and heater core holes. The wiper nozzles are being filled front and rear, as well as the wiper hole on the trunk.

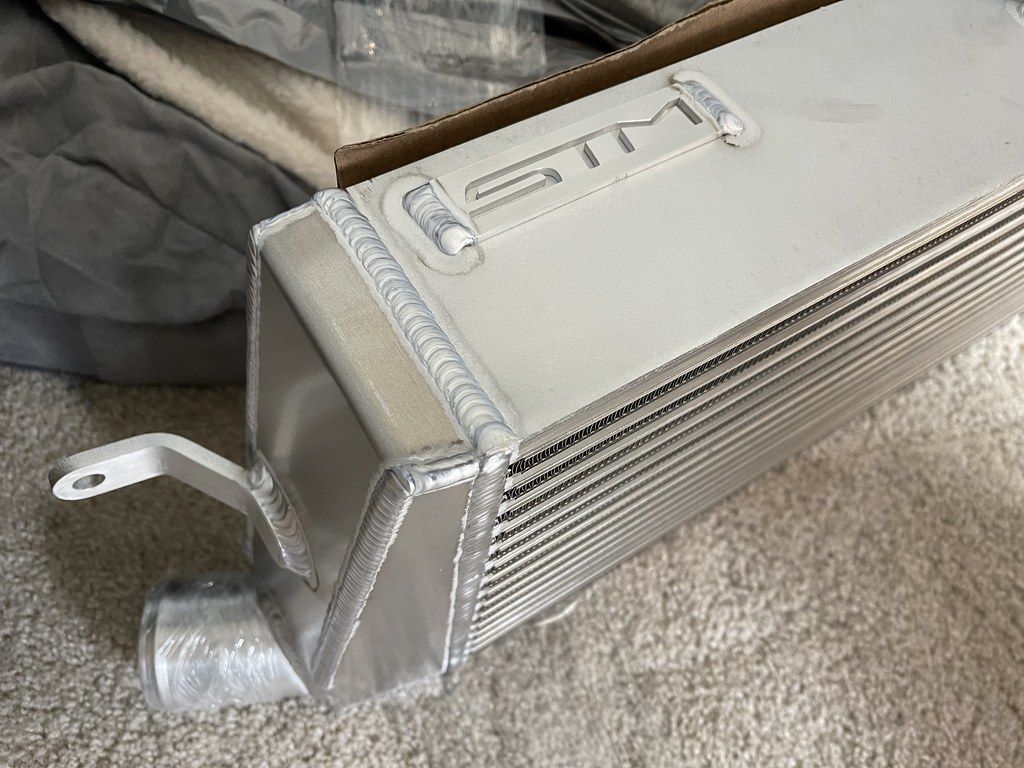

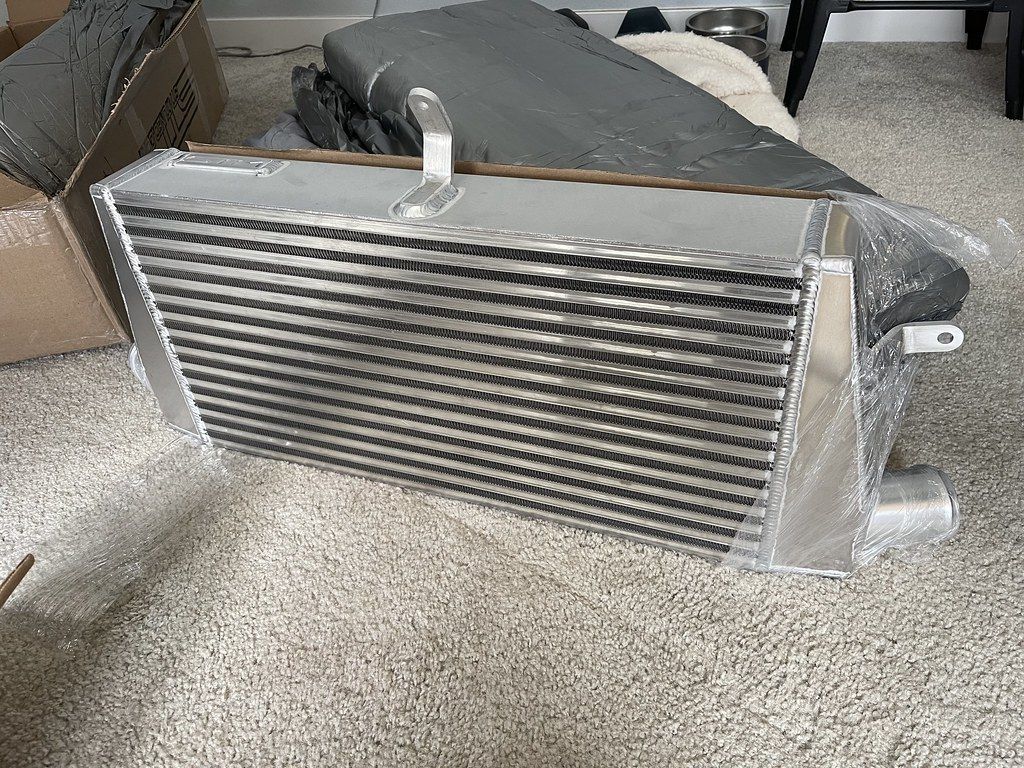

I also got another batch of small things from STM. I picked up their badass bolt on intercooler core that allows stock 2GB fogs still.

You must be logged in to view this image or video.
IMG_2036 by bradydings, on Flickr

You must be logged in to view this image or video.
IMG_2038 by bradydings, on Flickr

I'm going to keep cleaning this shell and then I'll throw the subframes under it and off to paint this week. It will be gone a month, which I thought was an amazing turnaround for the amount of working I'm asking to be done. I plan on getting as much done in the meantime while the shell is out of the garage. Cleaning parts, cleaning interior parts etc so I can start to install everything the minute its back!!

Peace!

-Brady


GregoryRyan

Supporting Member
152
88
Jul 22, 2013
Imperial, Missouri
Have you considered doing the welding and patching yourself? Labor costs for this sorts of work can get so pricey so I have been struggling with "do some of it myself" vs. "let a shop handle it all".

And man o man I didn't realize that there were THAT many holes in the bay LOL I've torn a few (many) of these down and I guess it just doesn't register that there are that many holes and such for brackets, lines and sensors. It will look so good once all of those are filled over and shaved.

On that note what is your direction for the car now? Just a fun, clean street car? Drag? Track? Resto? I will say seeing your updates keeps me motivated on my build so keep it up :pray: (selfish ask there LOL)


bettfootball

Proven Member
504
445
Mar 7, 2010
Denver, Colorado
Have you considered doing the welding and patching yourself? Labor costs for this sorts of work can get so pricey so I have been struggling with "do some of it myself" vs. "let a shop handle it all".

And man o man I didn't realize that there were THAT many holes in the bay LOL I've torn a few (many) of these down and I guess it just doesn't register that there are that many holes and such for brackets, lines and sensors. It will look so good once all of those are filled over and shaved.

On that note what is your direction for the car now? Just a fun, clean street car? Drag? Track? Resto? I will say seeing your updates keeps me motivated on my build so keep it up :pray: (selfish ask there LOL)

I'd rather pay someone to do the entire car. I've messed with it myself enough! And yeah, so many holes haha.


KCDsmDude

Proven Member
313
178
Oct 11, 2020
Kansas City, Missouri
Level of detail is amazing. Love it.

And the patience it takes to slowly build something over time. I elected to take my car down and upgrade a few things two weeks ago, and I'm already itching for boost again.


bettfootball

Proven Member
504
445
Mar 7, 2010
Denver, Colorado

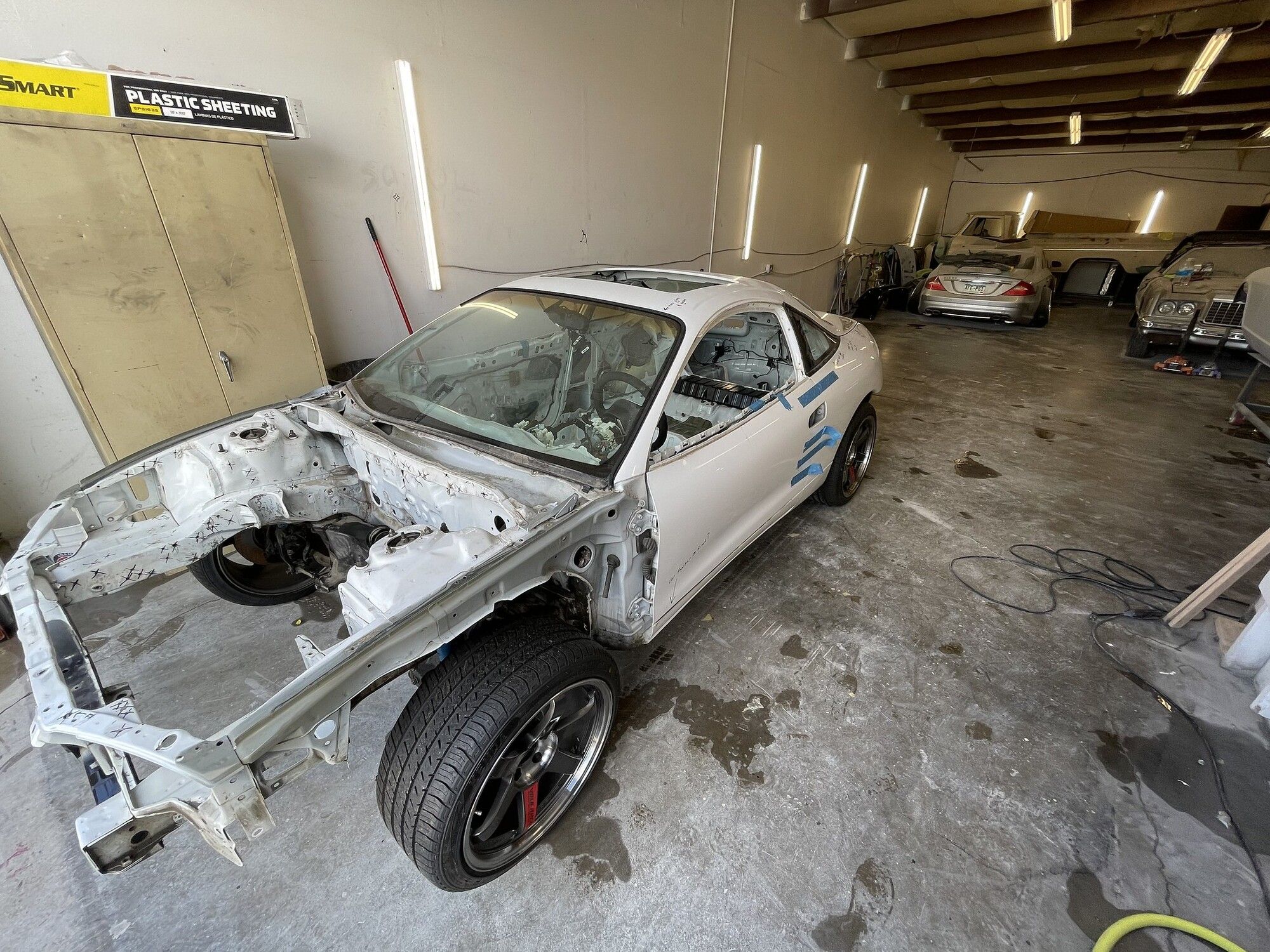

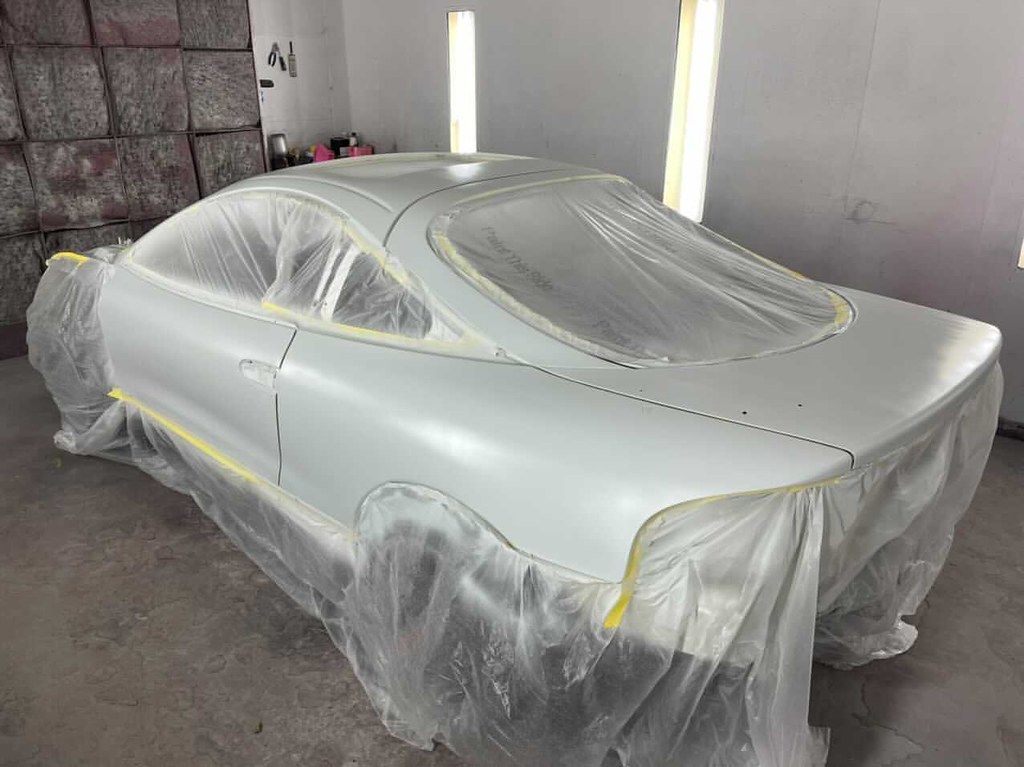

Car is off to paint! So excited. Feel like this has been 15 years in the making haha.

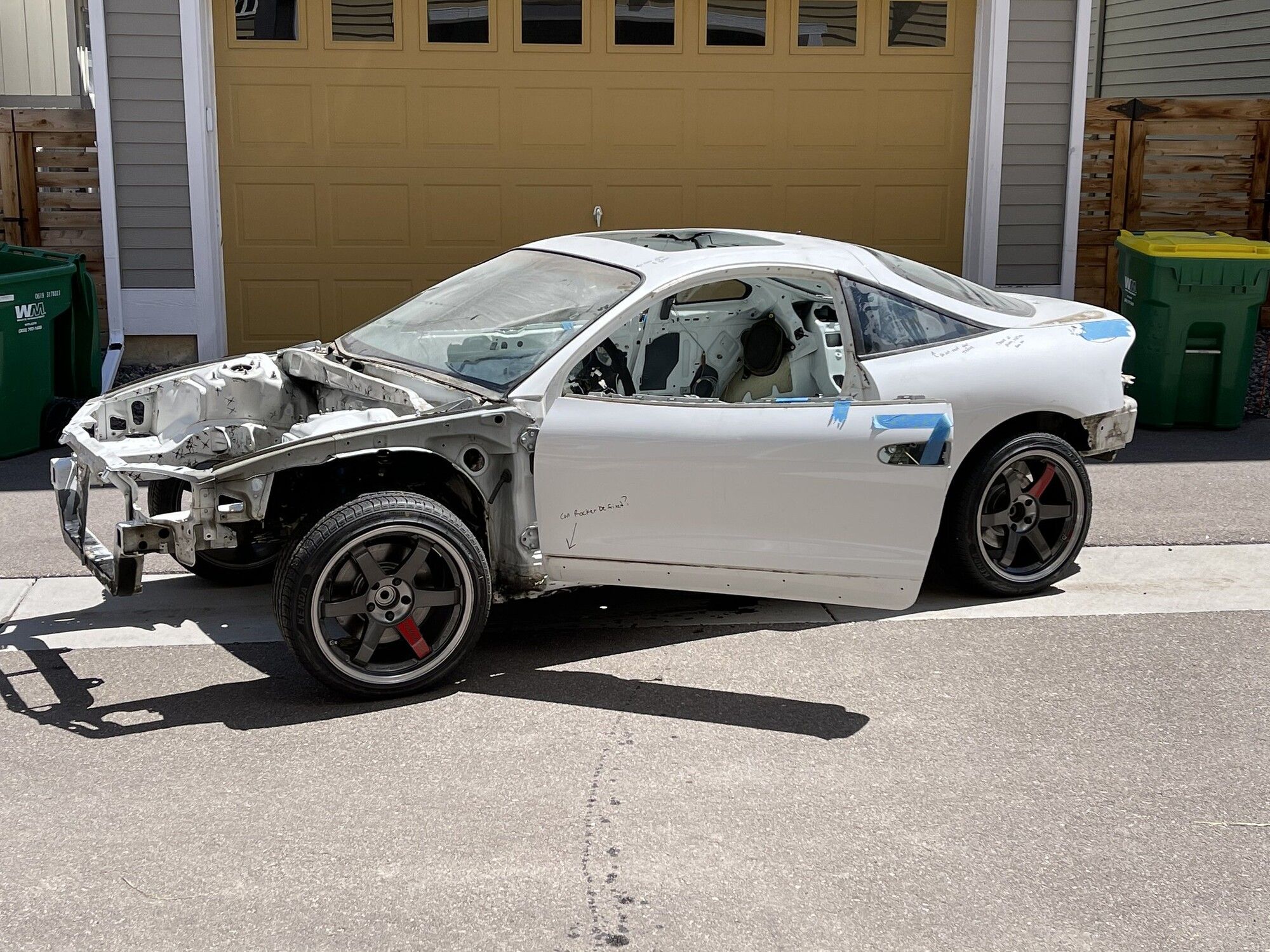

You must be logged in to view this image or video.
Untitled by bradydings, on Flickr

You must be logged in to view this image or video.
Untitled by bradydings, on Flickr

He is starting on cleaning/degreasing the underbody and wheel wells. Subframes are on finger tight, so he will drop those etc. Andrew (Painter) is also going to help fix some damage on the rocker panels, nothing big, just figured if hes down there might as well straighten them up at the pinchwelds.

Once he is about complete with the underbody I will bring all the other parts for him to spray. He gave me a month timeline to get it all wrapped up, but I told him I wouldn't be upset if it took 3 months haha. I'm in no rush. Will honestly enjoy parking in the garage for a bit!

Peace!

-Brady


bettfootball

Proven Member
504
445
Mar 7, 2010
Denver, Colorado
Hey!

So while the car is away I am attempting to get as much done as possible.

First task is organizing all the bolts I still have in my bucket. I documented them all before dumping them in the bucket to be blasted and zinc plated.

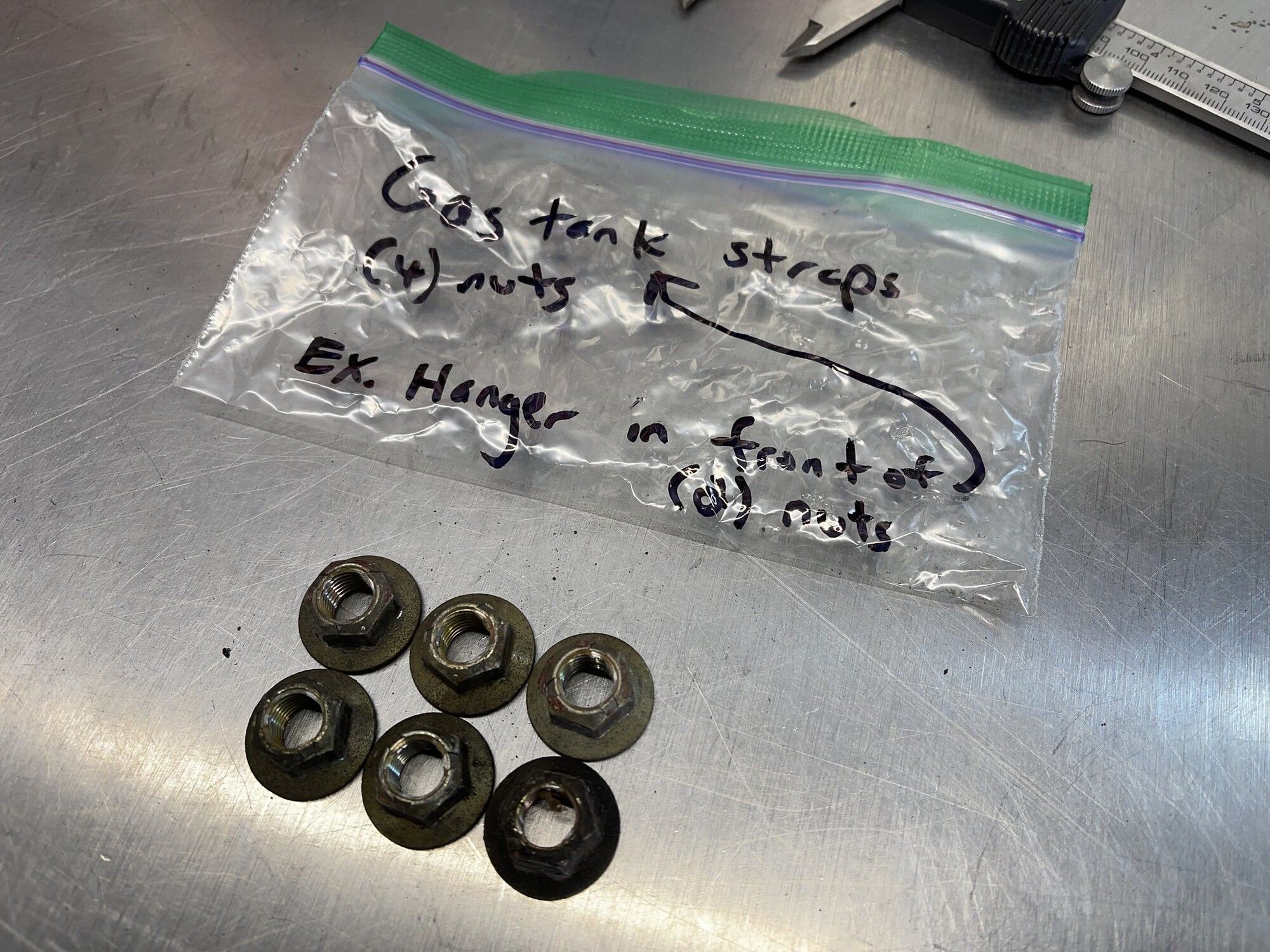

You must be logged in to view this image or video.
Untitled by bradydings, on Flickr

You must be logged in to view this image or video.
Untitled by bradydings, on Flickr

I made sure to take pictures of the head of the bolt to make sure the grade is the same etc. I'm sure I will still need some help once assembly begins to make sure I've got the correct bolts!

I've also been pumped to finally park in my own garage while the DSM is gone. I'm going to try and not get used to it....

You must be logged in to view this image or video.
Untitled by bradydings, on Flickr

Peace!


bettfootball

Proven Member
504
445
Mar 7, 2010
Denver, Colorado
I had another batch of items go to the blaster. All of my remaining bolts etc and some brackets/arms.

I'm debating on what I want zinc plated and what I want powdercoated... I almost wish I wouldn't have spent the money powdercoating some things, and plated them instead. For instance, I don't really need the rear bumper brackets top/bottom powdercoated. You will never see them. etc.

You must be logged in to view this image or video.
Untitled by bradydings, on Flickr

Car is still at the body shop, so no updates on that!

Peace.


bettfootball

Proven Member
504
445
Mar 7, 2010
Denver, Colorado
Yo!

Got my next batch of stuff from the platers.

You must be logged in to view this image or video.
Untitled by bradydings, on Flickr

More and more small things throughout the exterior/engine bay and interior.

I also got some bigger brackets done.

All the exhaust hangars, bumper brackets, sway bar brackets, subframe plates and gas hose clamps.

Super pumped to start assembly, but the car is still at paint!

You must be logged in to view this image or video.
by bradydings, on Flickr


Peace.


tylersevo

Proven Member
534
174
Jul 12, 2011
Lexington, Kentucky
Whew...3 days in the making but I finally made it to the most recent post. Great job documenting your journey over the last 8 years. You've inspired me to go a little further than I originally planned with this Northstar White AWD swapped Spyder I just picked up. Keep up the great work!


bettfootball

Proven Member
504
445
Mar 7, 2010
Denver, Colorado

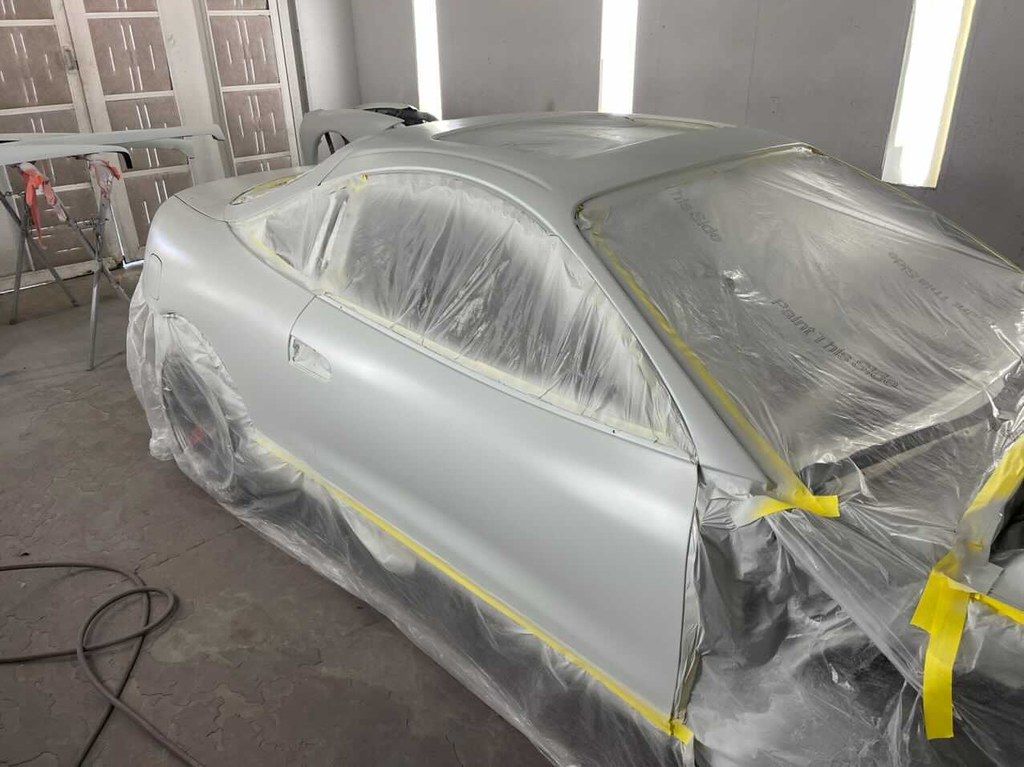

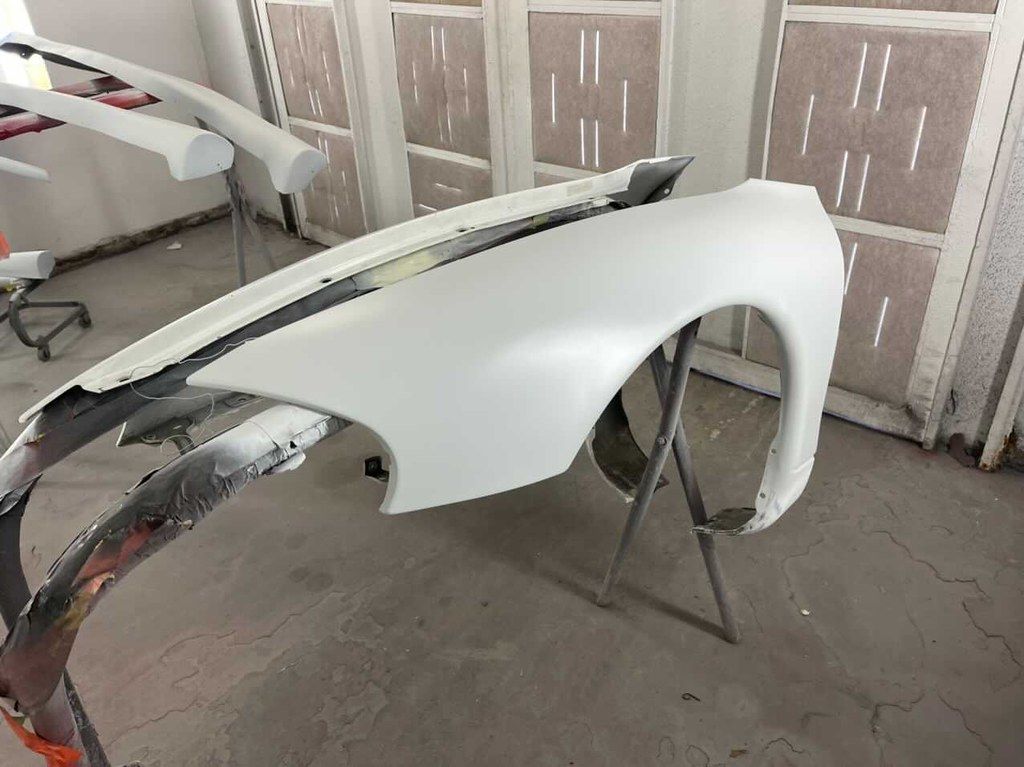

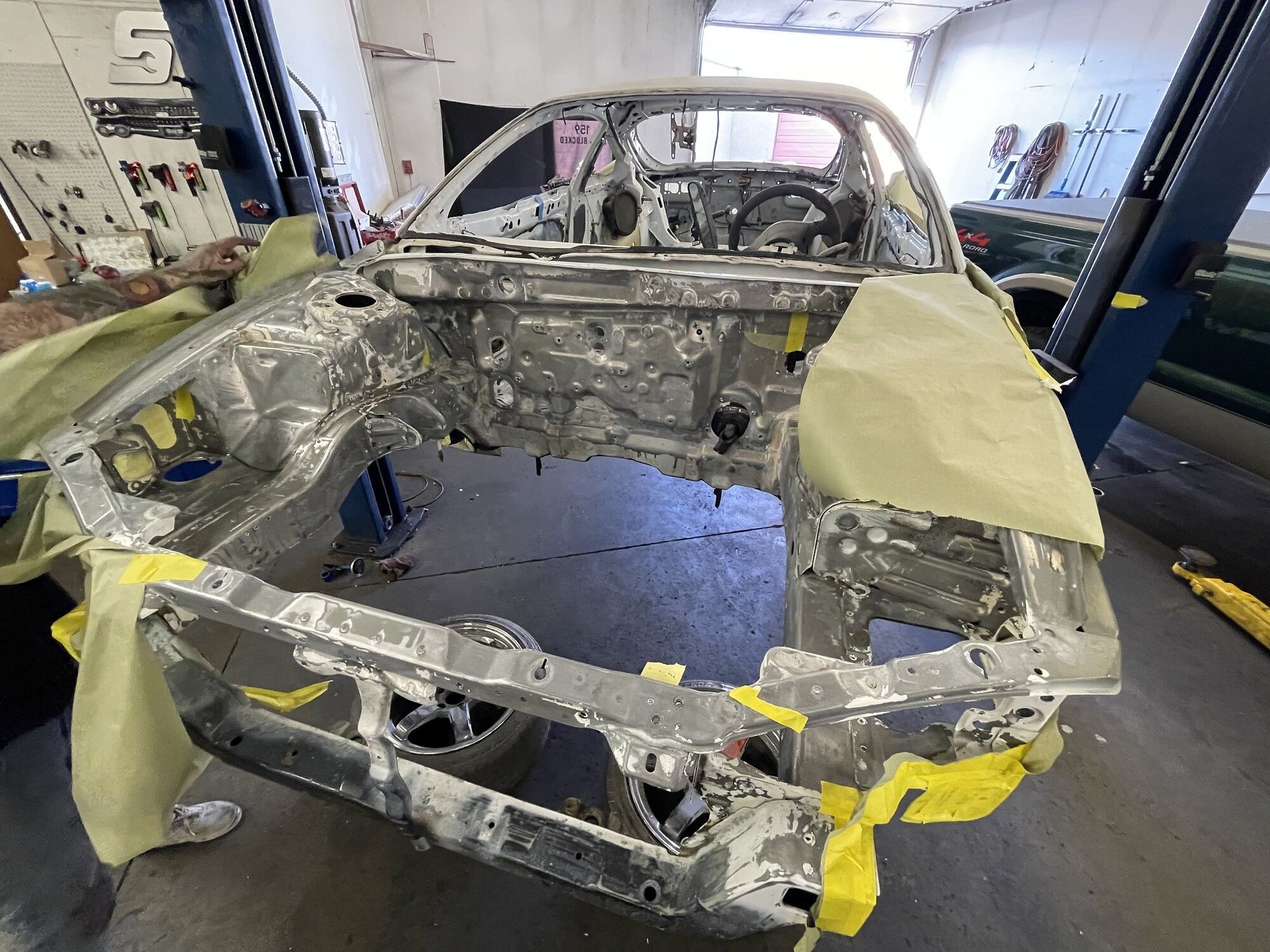

So my painter told me he has to move shops at the end of the month and was attempting to get the whole car done in that time, which I thought was crazy. So anyway I went to drop off the bumpers/skirts etc and took some pics!

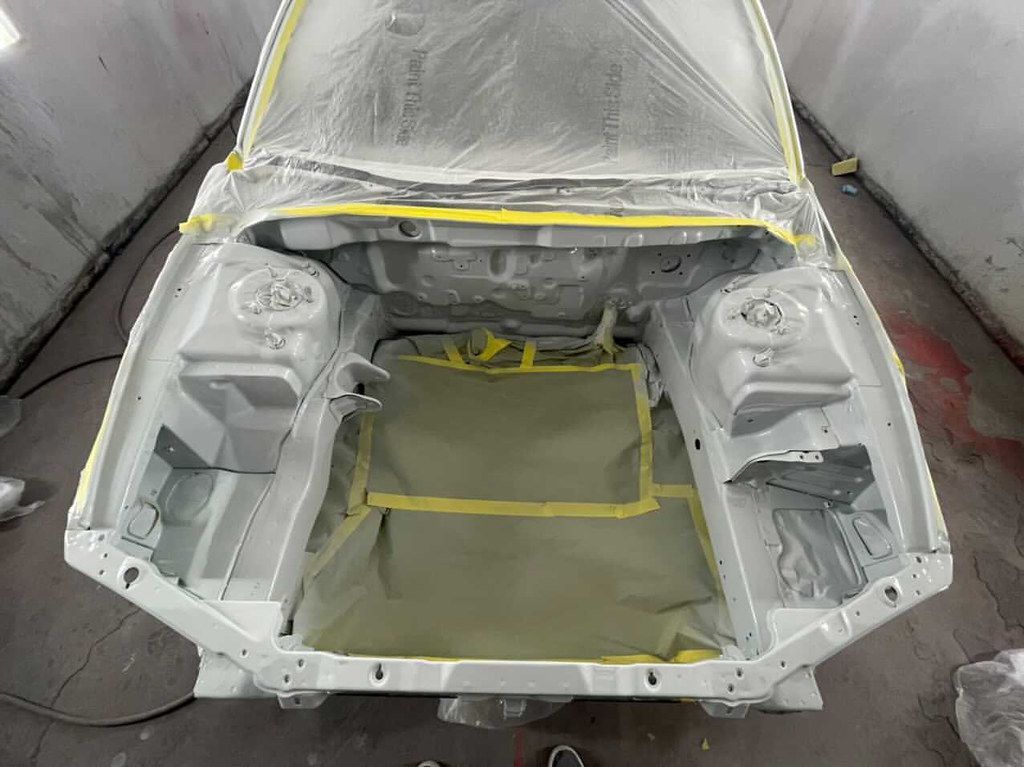

You must be logged in to view this image or video.
Untitled by bradydings, on Flickr

The whole bay is pretty much shaved, minus the AC hole, and the two Heater core holes in the firewall.

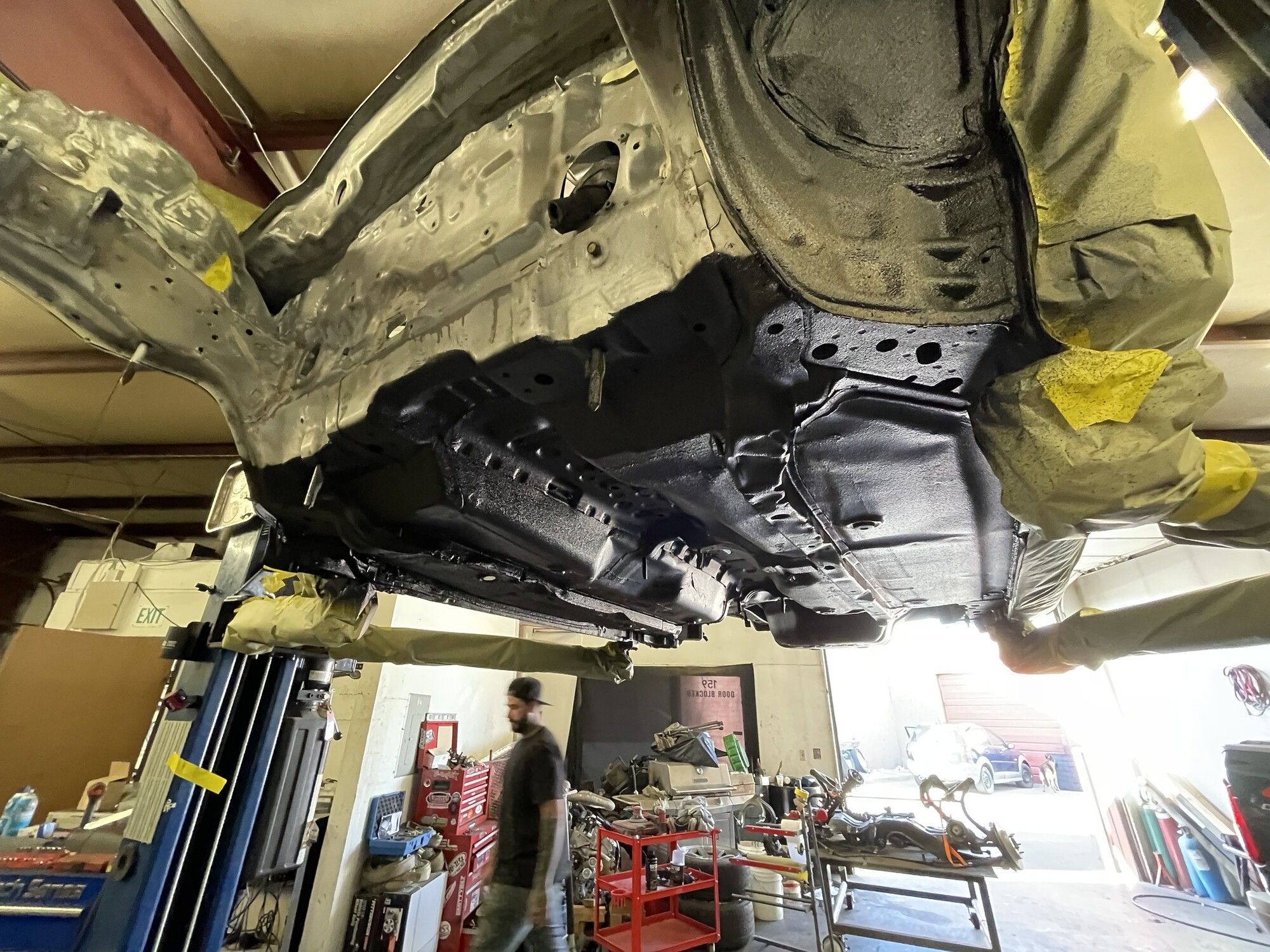

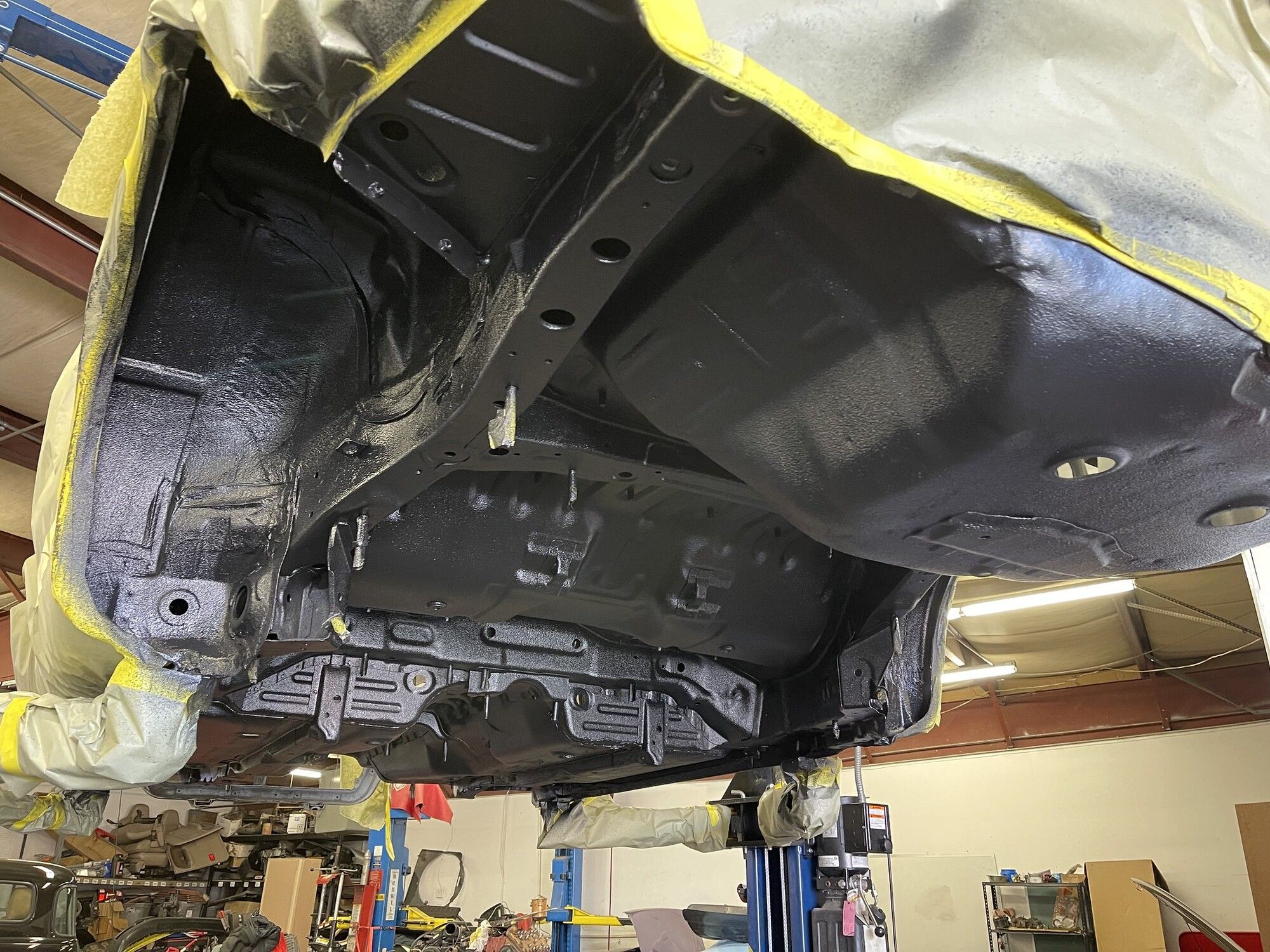

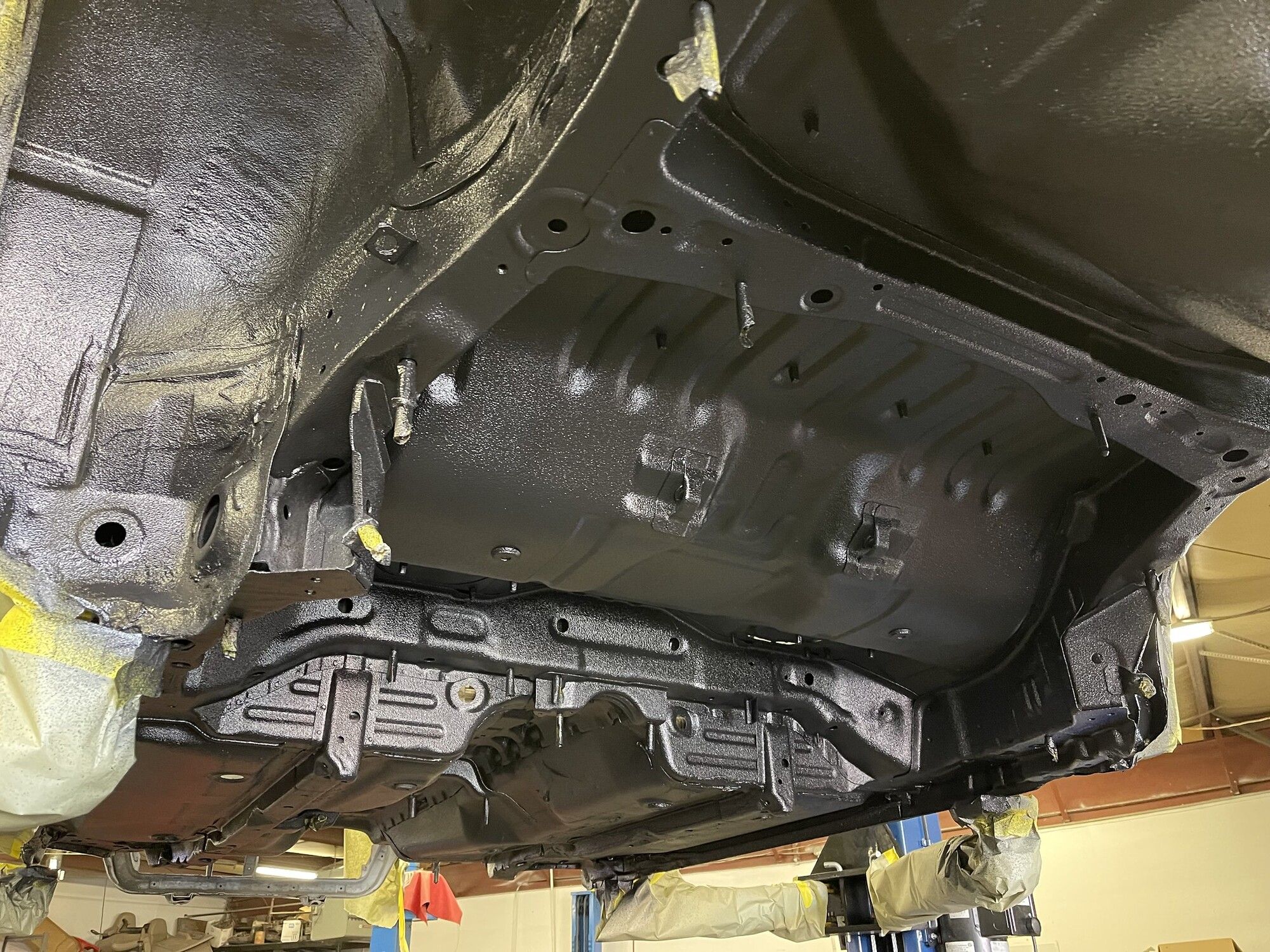

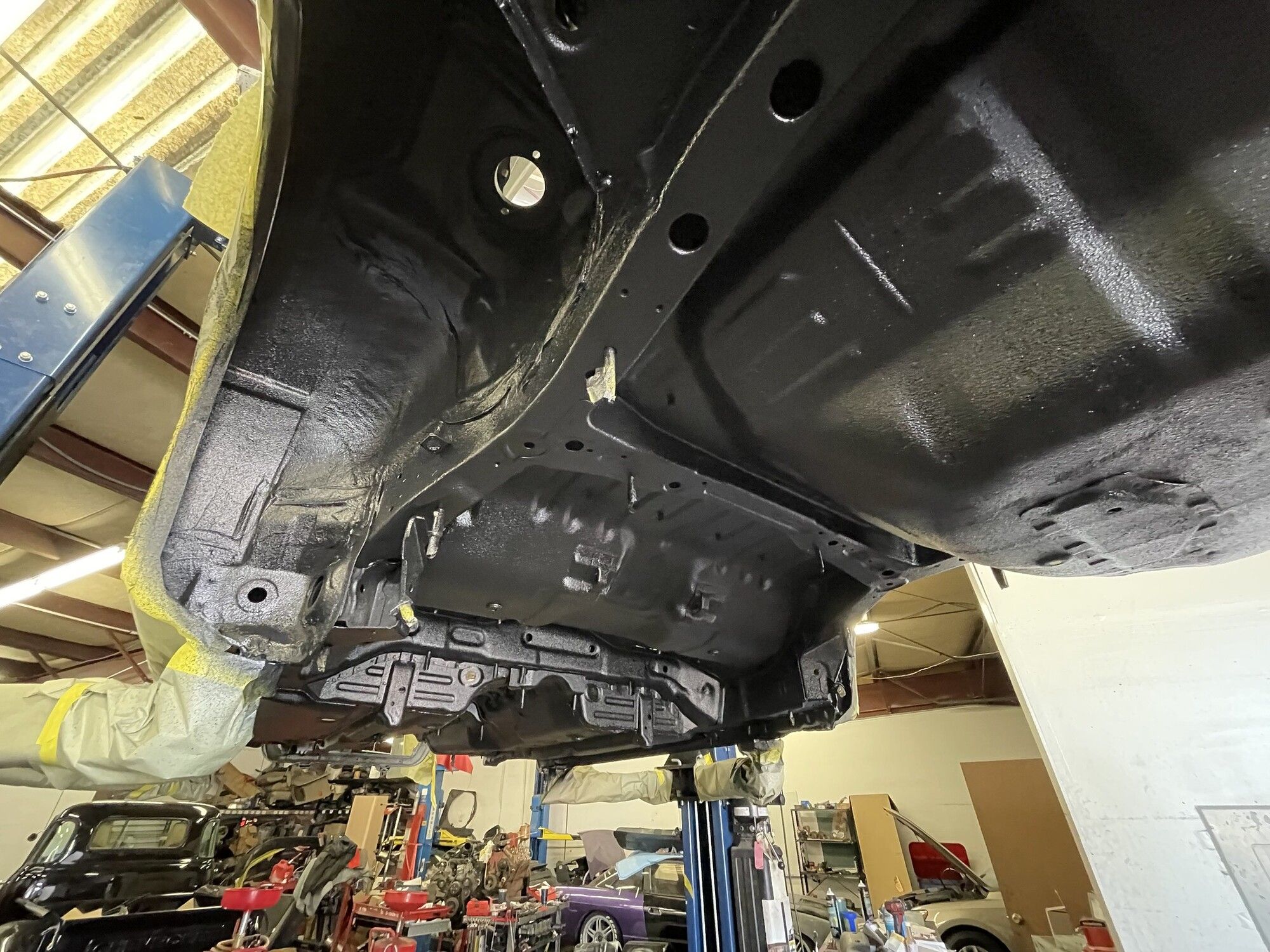

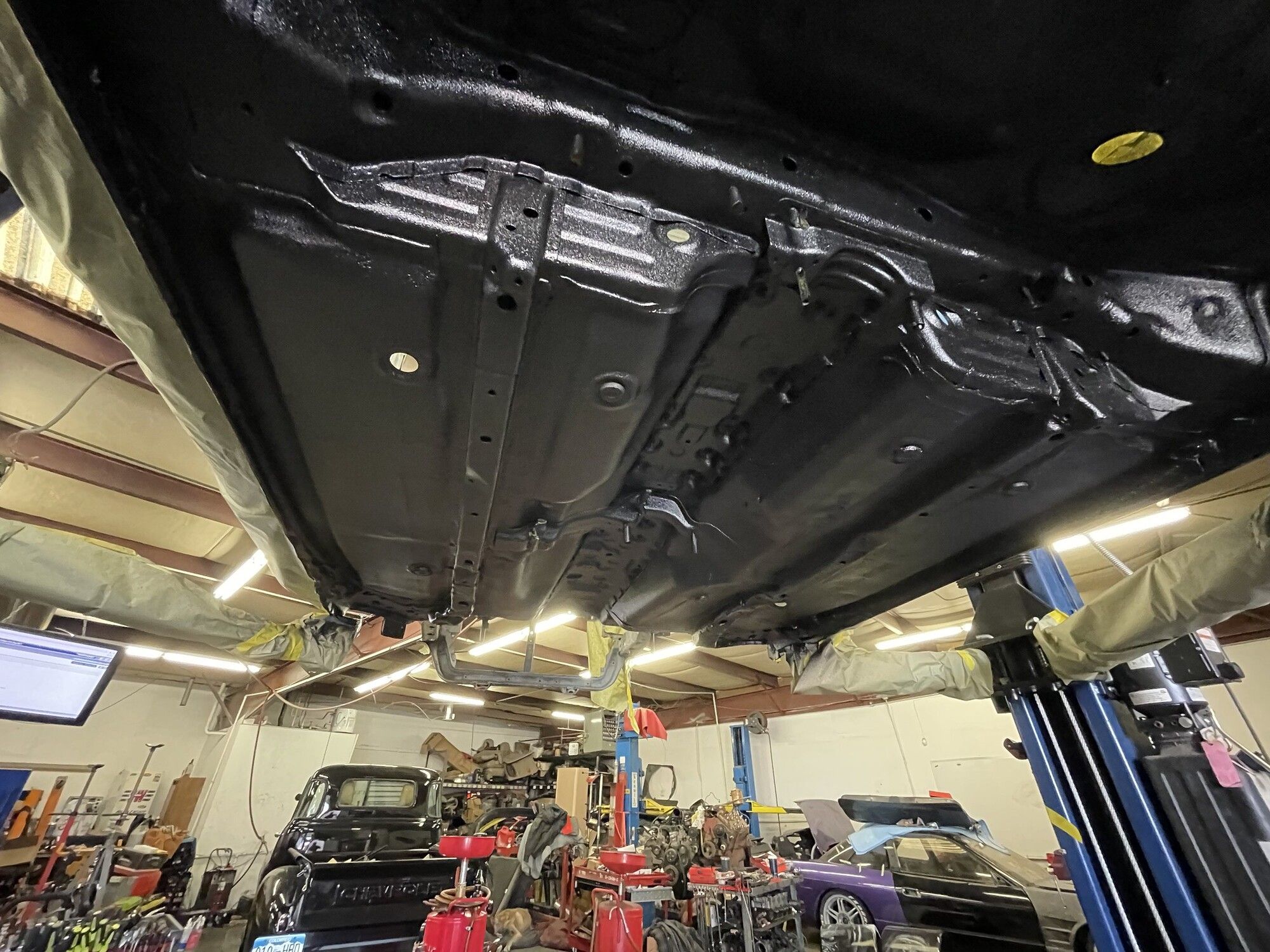

He also just raptor lined the whole underside/wheel wells! I'm super impressed with how thorough he is. Every hole/stud is taped etc. He also dropped the subframes to get under them.

You must be logged in to view this image or video.
Untitled by bradydings, on Flickr

You must be logged in to view this image or video.
Untitled by bradydings, on Flickr

You must be logged in to view this image or video.
Untitled by bradydings, on Flickr

You must be logged in to view this image or video.
Untitled by bradydings, on Flickr

You must be logged in to view this image or video.
Untitled by bradydings, on Flickr

Going to look so minty with everything underneath powdercoated or zinc plated. Some people have expressed concern about raptor lining the underneath due to rusting, and "hiding" the rust until its far too gone. I don't know. It is extremely dry in Denver, exposed bare metal won't even rust sitting in my garage for months. I don't drive it in the rain/snow, and it was thoroughly cleaned and prepped before the raptor liner. I'm not too concerned about it!

I told the painter he didn't need to rush, and I would pay to have it trailered over to his new shop if he wanted. I didn't want him to feel rushed etc. He can take his time, I've already had the thing for so damn long anyway.

Peace!

-Brady
