1990 Eagle Talon TSI AWD OEM+ Build

Kaane

Proven Member
92
101
Jun 25, 2002
Dallas, Texas
Cobra 13 inch Rotors with Cobra Calipers with RTM Adapters.

Amazon, 5 Gallons for $80

You must be logged in to view this image or video.


Kaane

Proven Member
92
101
Jun 25, 2002
Dallas, Texas
Got new front case, reused my straight cut oil pump gears. Got oil filter housing installed.

You must be logged in to view this image or video.


You must be logged in to view this image or video.


Also got a new flange and rear main seal installed.

You must be logged in to view this image or video.


Picked up a 800 mile Evo3 16G Turbo. Got my DSMLink as well.

You must be logged in to view this image or video.


Working on the subframes now. Going to replace the bushings and rebuild the driveshaft.

You must be logged in to view this image or video.


Kaane

Proven Member
92
101
Jun 25, 2002
Dallas, Texas
Got the driveshaft all taken apart. Replacing all ujoints and bearings.

You must be logged in to view this image or video.

Cv joint looks good no real wear.

You must be logged in to view this image or video.


Kaane

Proven Member
92
101
Jun 25, 2002
Dallas, Texas
Replaced the cam seals, they were so hard it felt like they were made from plastic.

You must be logged in to view this image or video.


Got the timing belt on as well. I will have to take it apart later, since I still want to replace the lifters and springs and valve stem seals.

You must be logged in to view this image or video.


Got new hardware and new oil pan as well, old was all dented.

You must be logged in to view this image or video.


Kaane

Proven Member
92
101
Jun 25, 2002
Dallas, Texas
Small setback. I did a leakdown test on the motor and it was poor with leaks through the exhaust valves. I pulled the head and valves looked pretty crusty, but the worst part was when I removed them. Found a fricking hole in the casting right behind the exhaust valve. So now I need to source a new head.

You must be logged in to view this image or video.


You must be logged in to view this image or video.


I did also rebuild the rear axles, with new boots and grease.

You must be logged in to view this image or video.


On the suspension side, I picked up the Rear Toe Eliminator and got it welded up.

You must be logged in to view this image or video.


You must be logged in to view this image or video.


Kaane

Proven Member
92
101
Jun 25, 2002
Dallas, Texas
Worked on cleaning the chassis a bit. Cleaner the front subframe and undercoated around it.

You must be logged in to view this image or video.


You must be logged in to view this image or video.


You must be logged in to view this image or video.


Got the wheel wells done as well.

You must be logged in to view this image or video.


You must be logged in to view this image or video.


Kaane

Proven Member
92
101
Jun 25, 2002
Dallas, Texas
Reman steering rack installed with new bushings.

You must be logged in to view this image or video.


Rear subframe done. All new bushings and ball joints and toe eliminator.

You must be logged in to view this image or video.


Kaane

Proven Member
92
101
Jun 25, 2002
Dallas, Texas

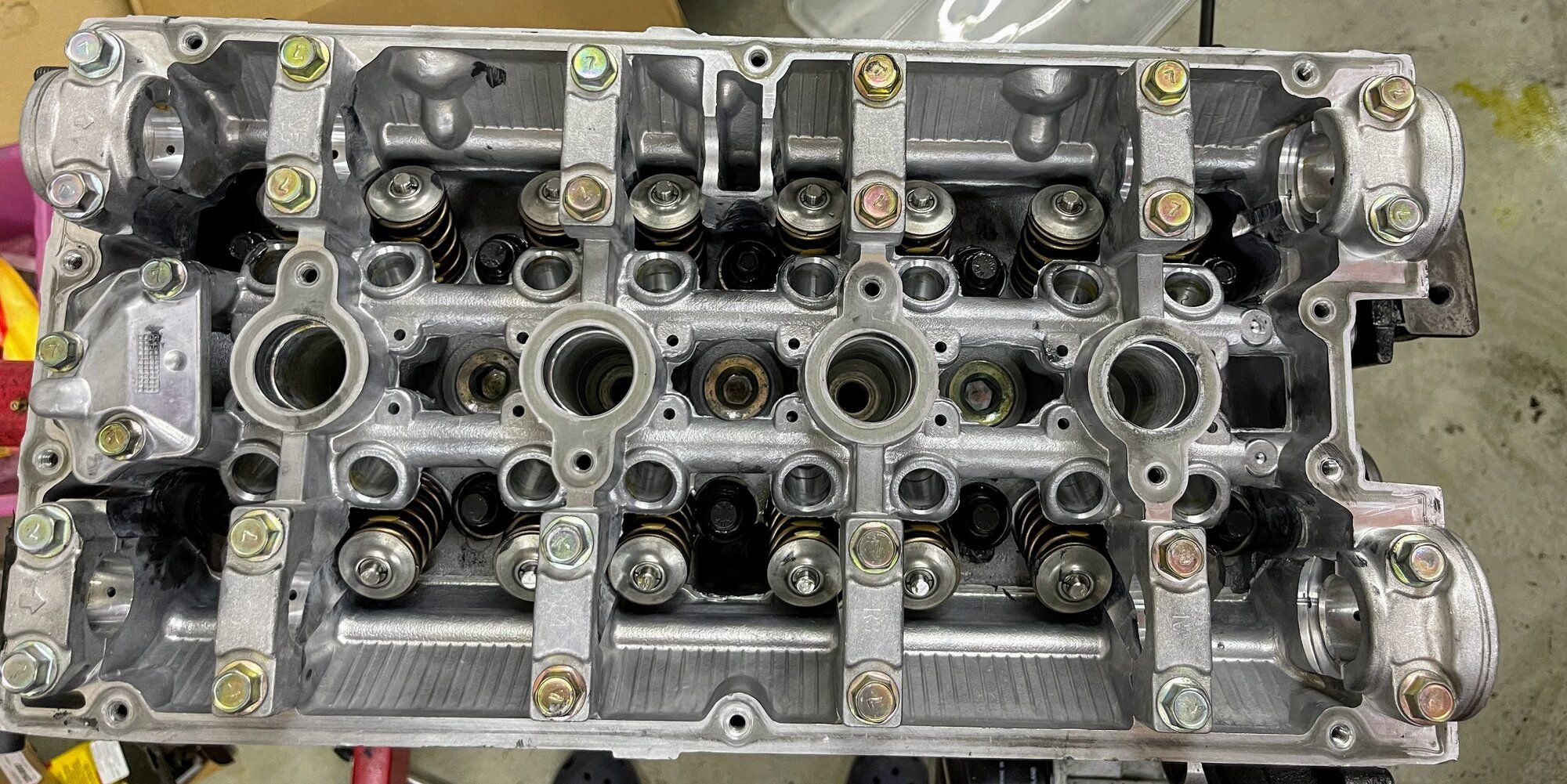

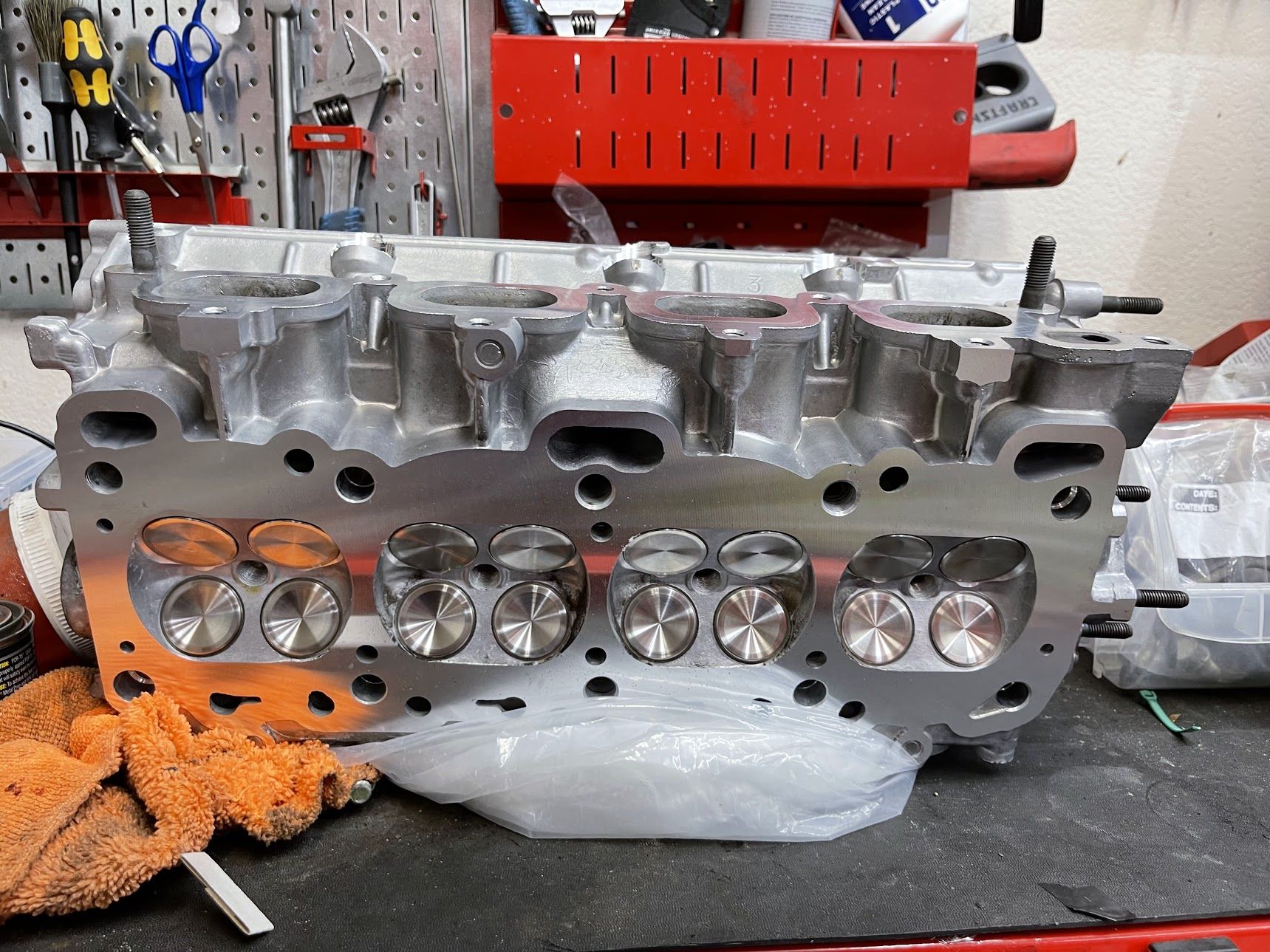

Head is finished, being shipped to me. Basic stuff, valve job, manley single springs, GSC Stainless valves, new seals, light pocket port.

You must be logged in to view this image or video.

You must be logged in to view this image or video.


You must be logged in to view this image or video.


BoostJunkie17

Probationary Member
25
5
Dec 19, 2021
Dallas, Texas

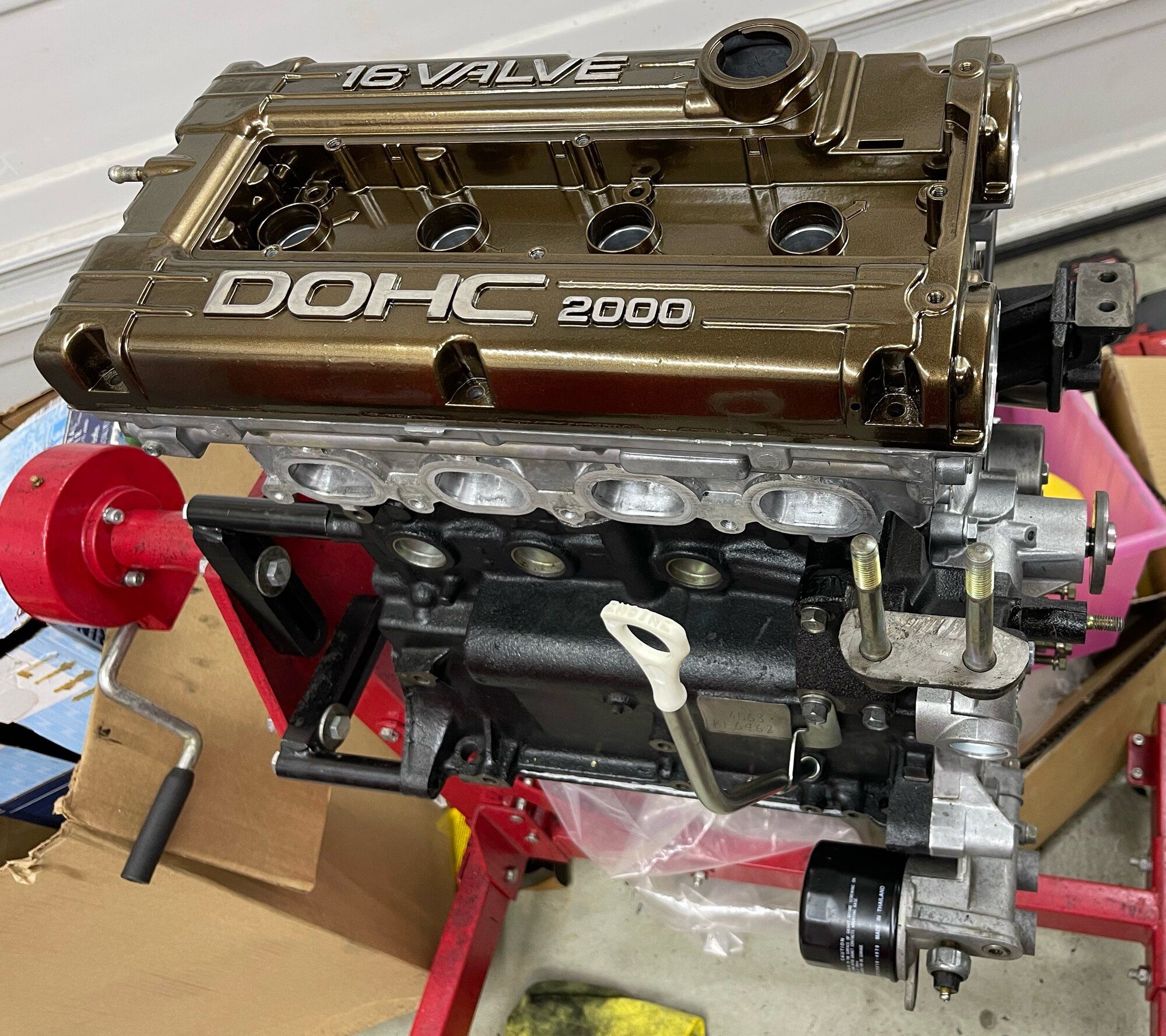

Got the head and installed it with ARP studs.


You must be logged in to view this image or video.


You must be logged in to view this image or video.

Amazing stuff man. I can see you're also in Dallas which is neat cuz I'd love to see this thing pop out to a couple meets or something when it's finished! Becuase there is nothing like a well built 1G, and if I ever came across one, I'd sell my 420A in a HEARTBEAT especially as clean as yours is becoming on the inside and already is on the outside!! Proud to see it man.


Jonnyeclipse

Proven Member
51
58
May 29, 2021
Edmonton, AB_Canada

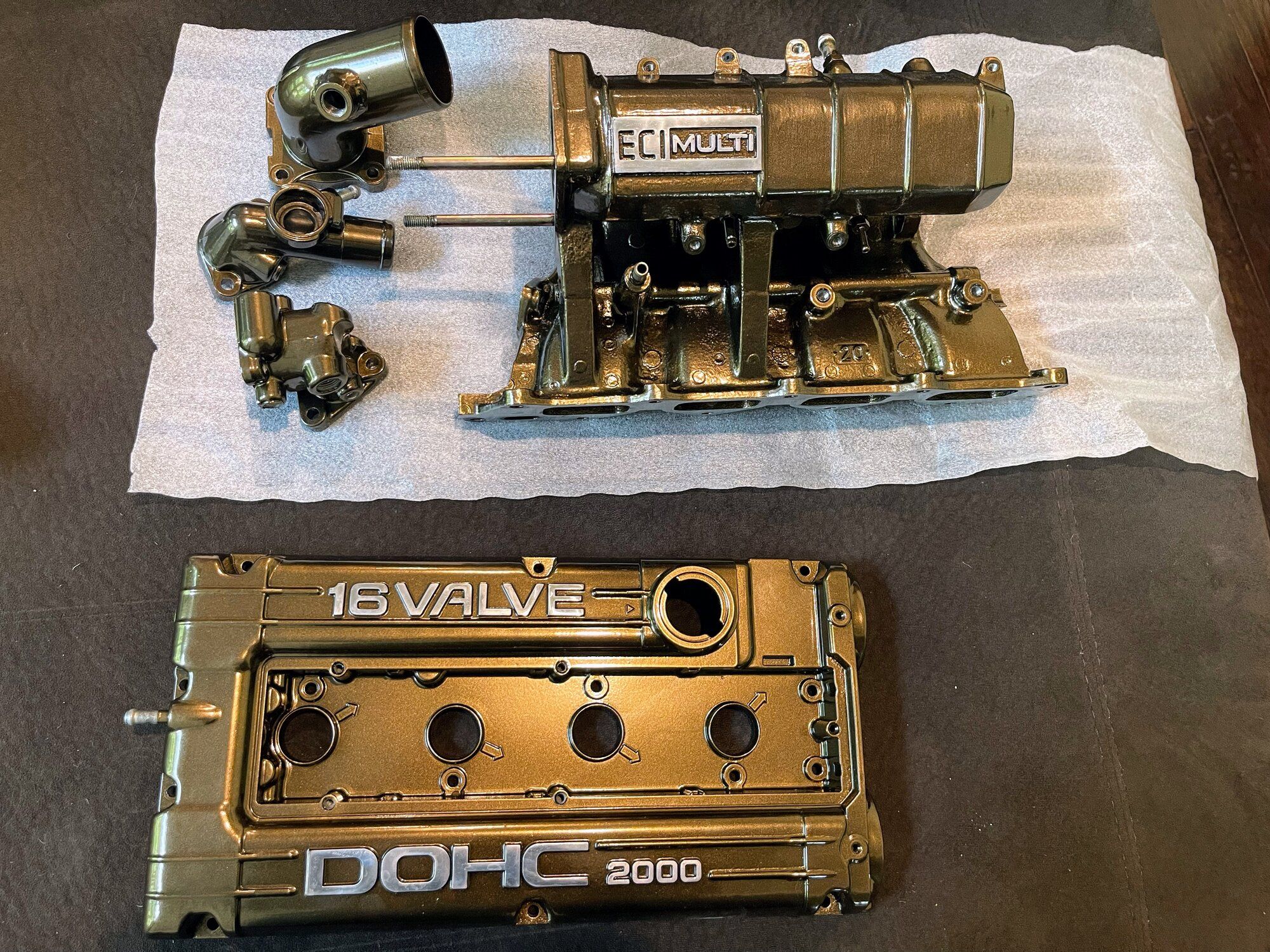

Got some powder coating done. Chrome Bronze.

You must be logged in to view this image or video.


You must be logged in to view this image or video.
Hey great build. Did you have the VC blasted before powder coat. I had one done years ago and they didn’t remove and clean behind the baffles. Ruined a new build for me.
