ACTIVE!! ACTIVE!!
These are now active!!!!!
My aim or current plan is start in aug/sept and have this first lot of 10 out by feb 2023! I will make them in pairs and then coated in pairs so they can ship soon after while i work onnthe remainder! This will keep them flowing as smooth as possible to you all.
Im ONLY doing 10 to start off with for now! After this i need to work out a workshop of my own but i might be able to go to the deposit system soon after the first 10 and roll them out 1 a month from then for now.
The correct pricing is BELOW in the main details list.
!!!!!!!!!! Also this form would need to be filled out ONLY once payment has been received!!! please PM me for my paypal details if you already dont have is stored, its still the same as before !!!!!!!!!!
----------------------------------------------------------------------------------------------------------------------------------
Hi everyone and welcome to this post about my tubular front subframe for the 2G chassis.
ANY questions and such please post in this thread! Full thread here https://www.dsmtuners.com/threads/f...rame-interest-and-details-only-thread.531218/
This thread is now going to be its own specific thread relating to this frame i have designed (many times i might add) and its where i can more openly talk about it and although i dont have any costs as of yet its where i will be able to discuss this.
-------------------------------------------------------------------------------------------------------------------------------------
I have started off with the 4G63/4 subframe and later on i will be looking into the 420a frames if people from that engine platform are interested!
I will be making 2 of these and im going to be working with someone so we can both get testing done but this wont be till i have done the initial testing to make sure im happy! only then will I make the second frame and have it tested by another.
SO.... modular you say huh! whats that about?
Well when i first started this project i wanted it to be unique and an advanced frame like no other for any car really and thats where alot of time was spent of thinking how to but not doing etc. was a tricky puzzle to solve
* my original plan was to have 2 steering rack options but it turned out i was not able to make the other rack work due to the length and design of it which really sucked. it would of thrown off the steering and caused some errors i could not even for see no doubt.

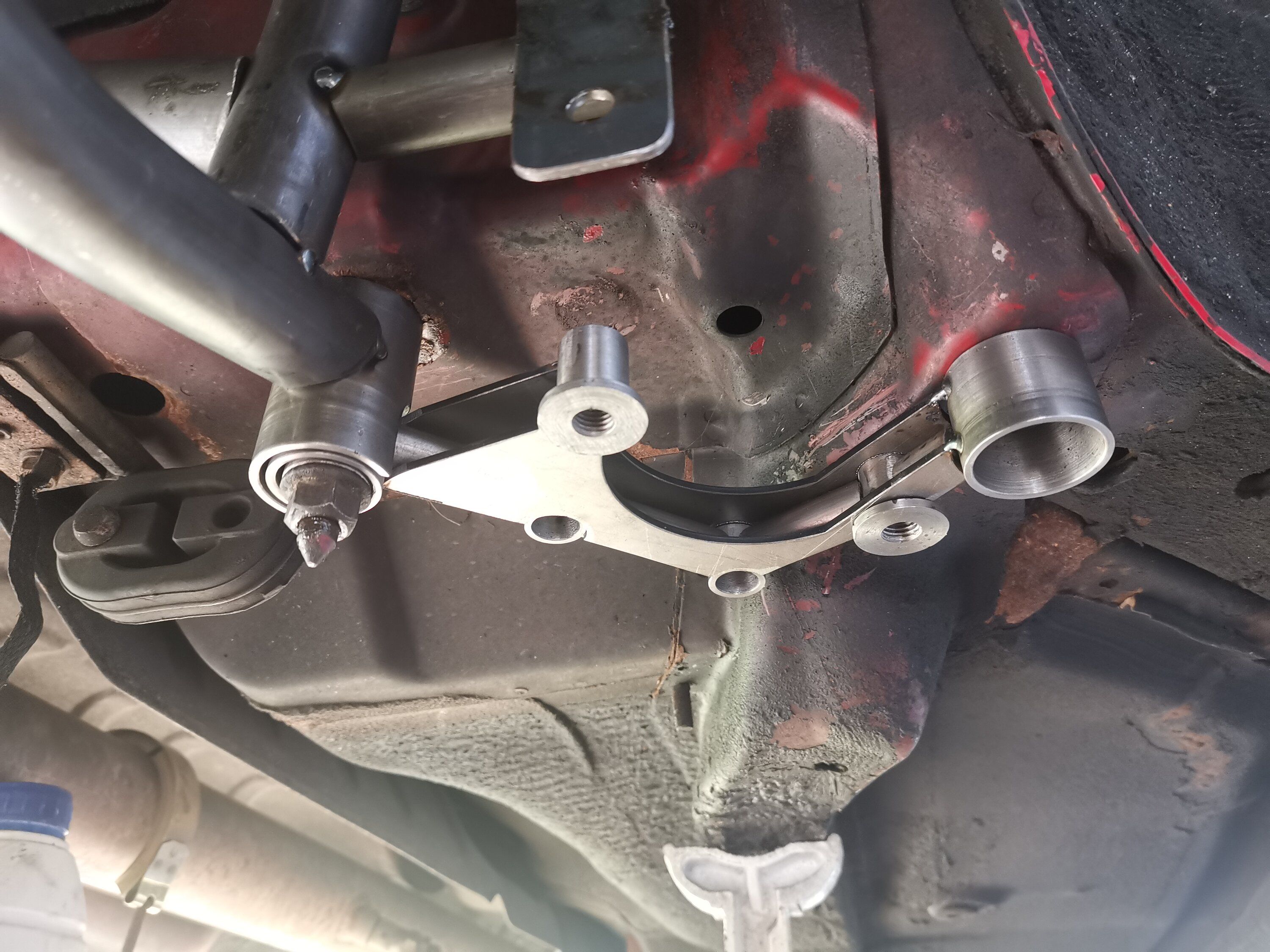

* The other part i have still kept and thats replaceable outer mountings for the compression arm. this means you can use the oem compression arm with no adjustment heights. then the replacement outer part will have a similer design to the lower arm bracket meaning you can adjust your whole front end to match the lower arm and thus minimizing any effects from lowering or caster loss just to name a few effects you can do with this! along with this mount will also come a compression arm which is also modular meaning 1 arm will work with both the oem frame and my frames and also adaptable from oem mounting to my mounting so no major cost loss to the end user which is a small upgrade piece. after all I am here to help save you all money!!!
I will have a few options on these and i will confirm all this later on.
those options are as follows...

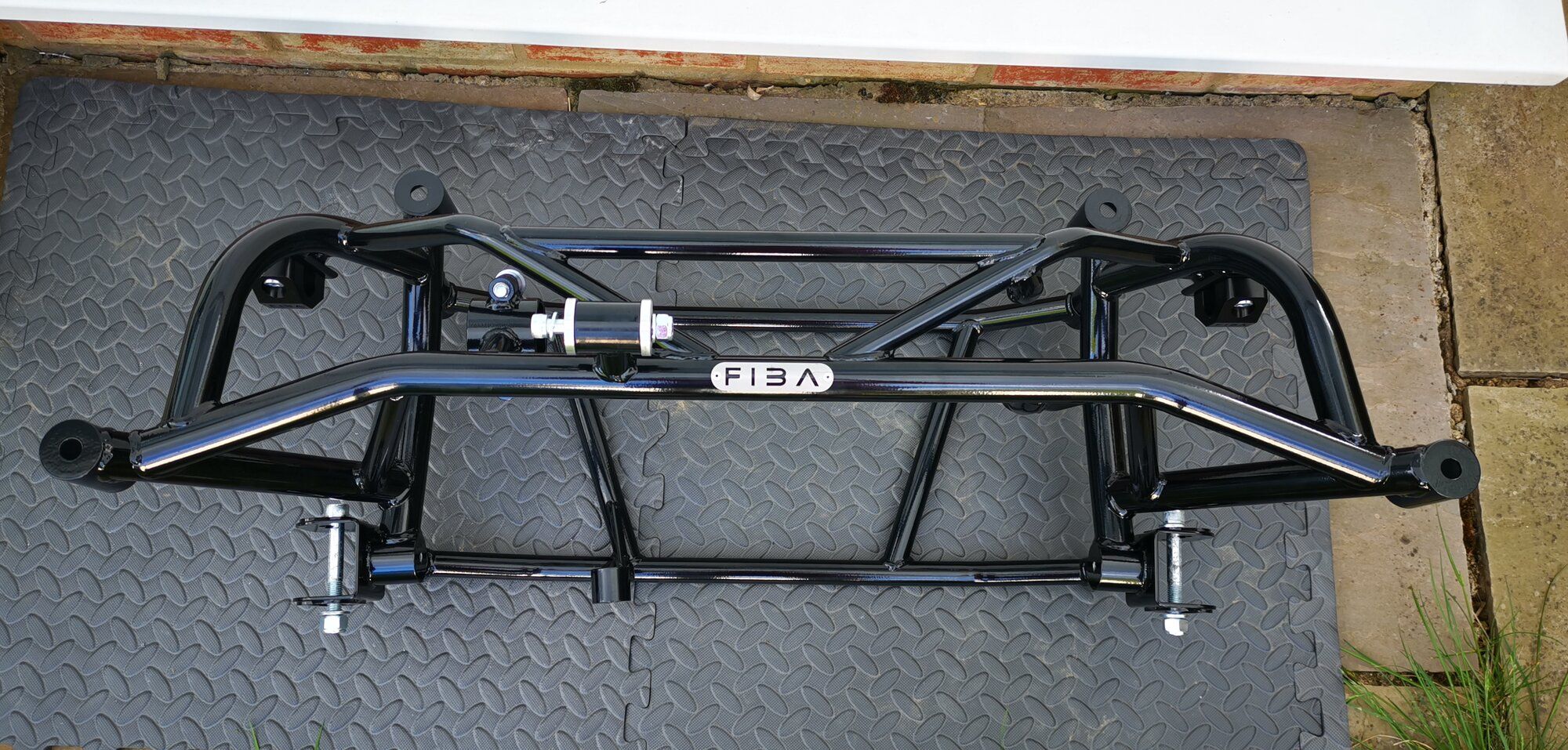

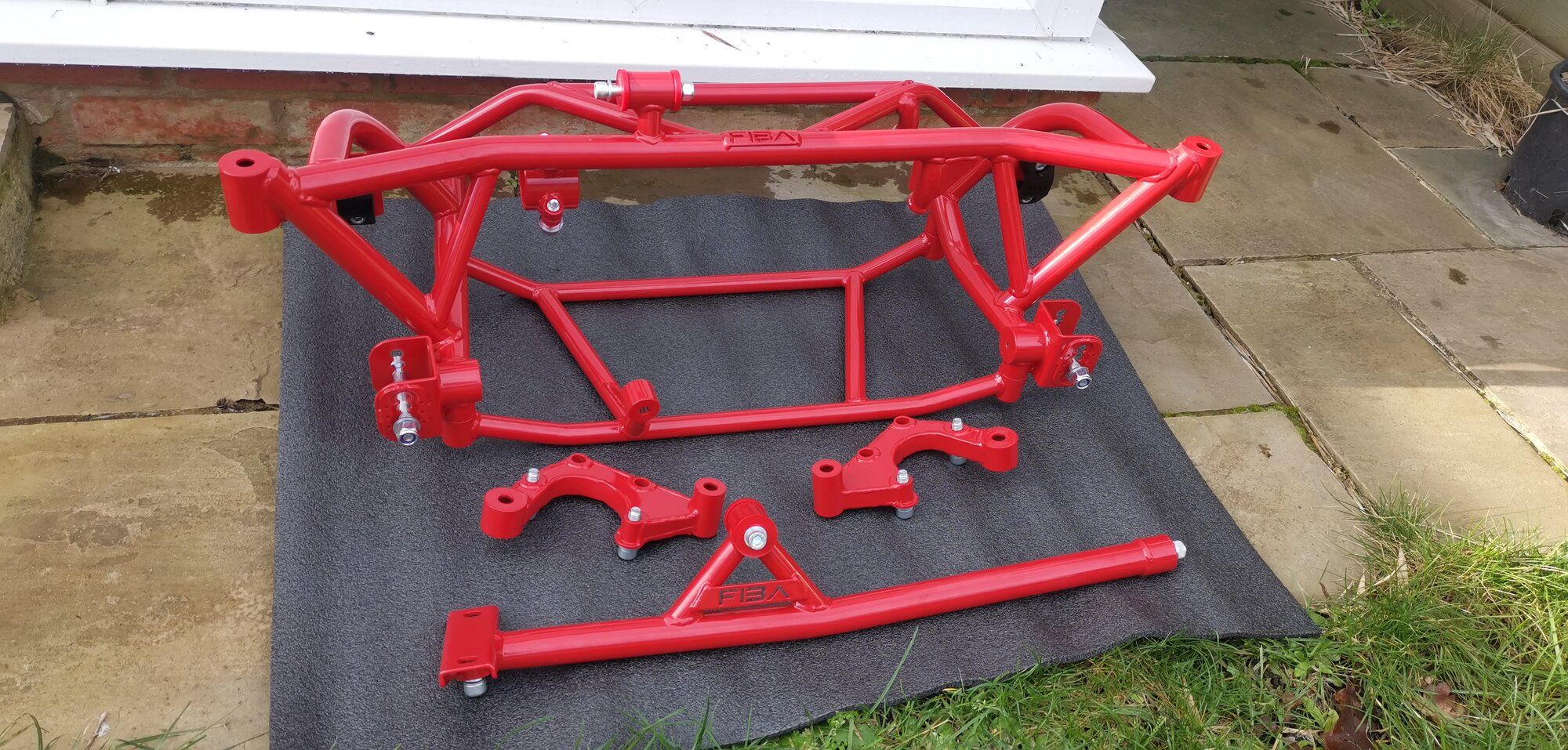

normal subframe. (included modular outer, and 2 point under brace to use with oem or aftermarket crossmember) mounts on the back location hole only! so aftermarkets will need to be reinforced on the 3mm plate. as pictured here https://www.dsmtuners.com/attachments/img_20201018_111413-jpg.613691/
https://www.dsmtuners.com/attachments/img_20201101_140942-jpg.614844/

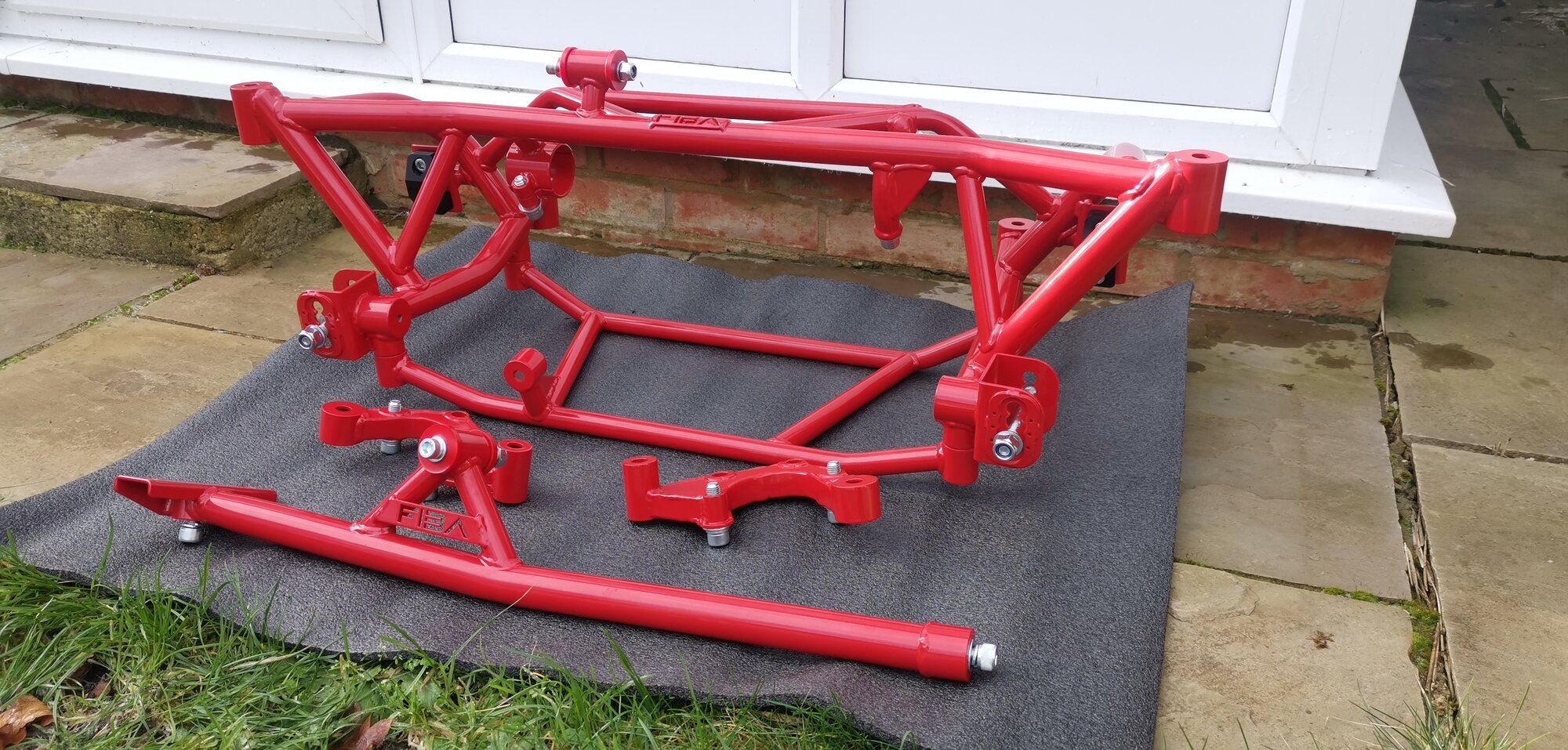

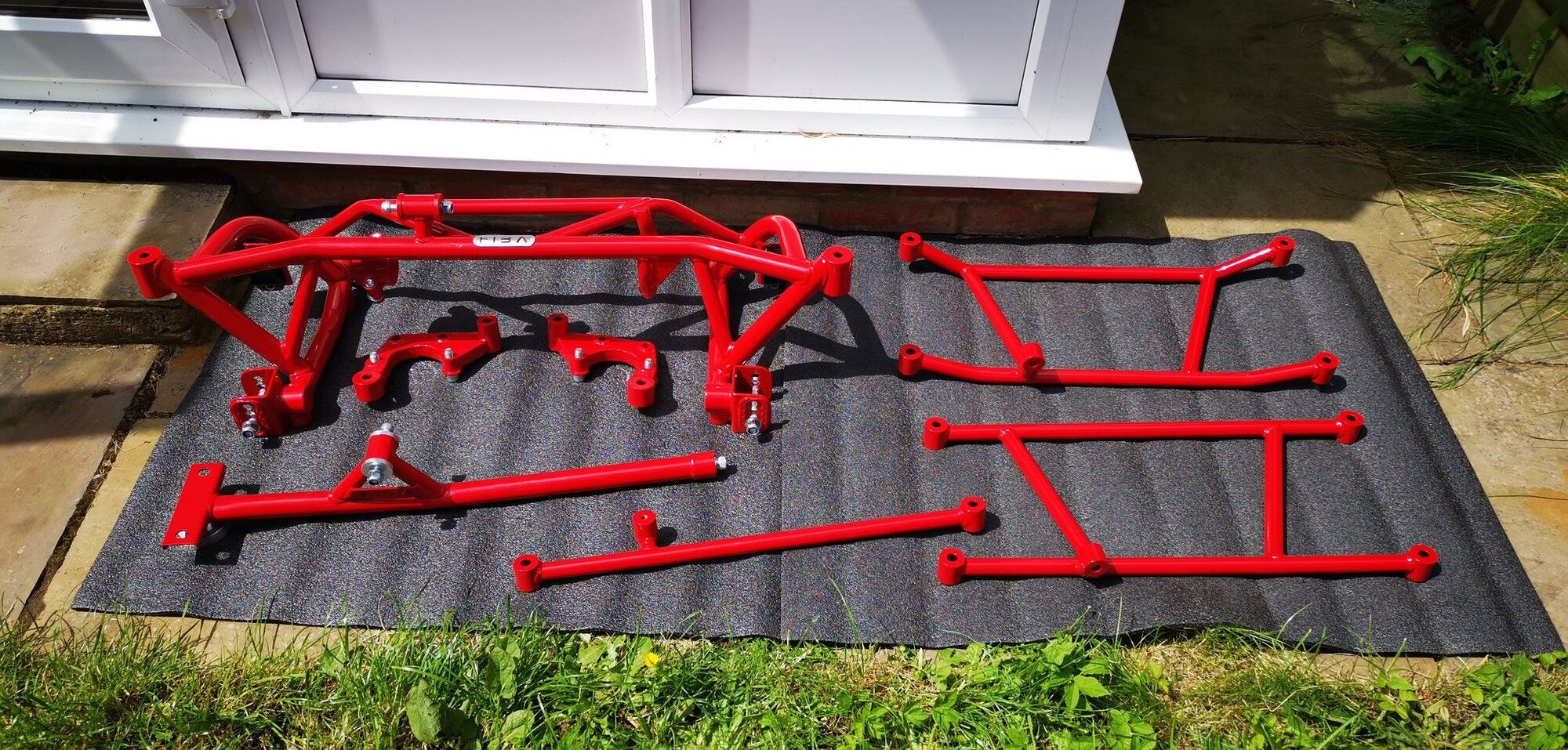

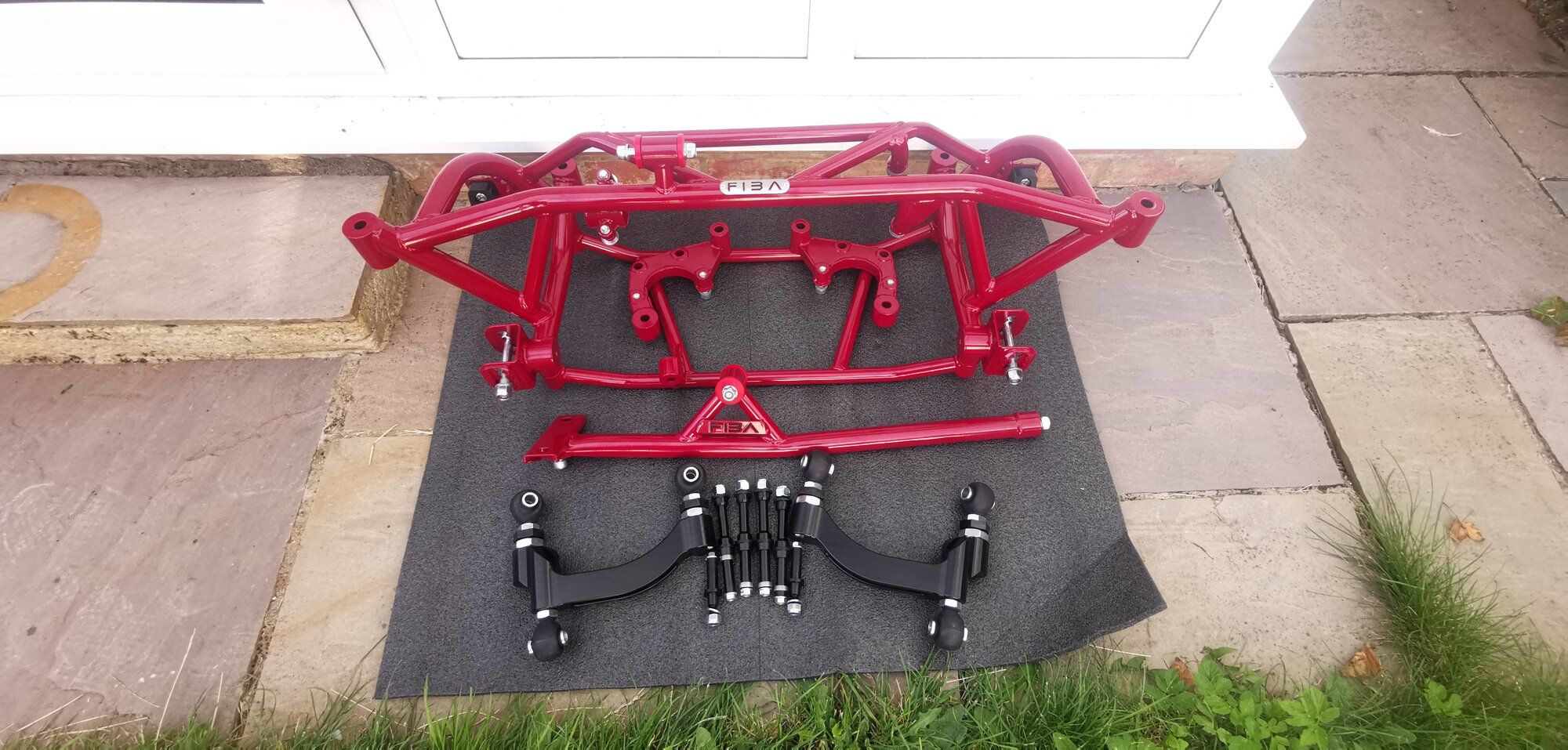

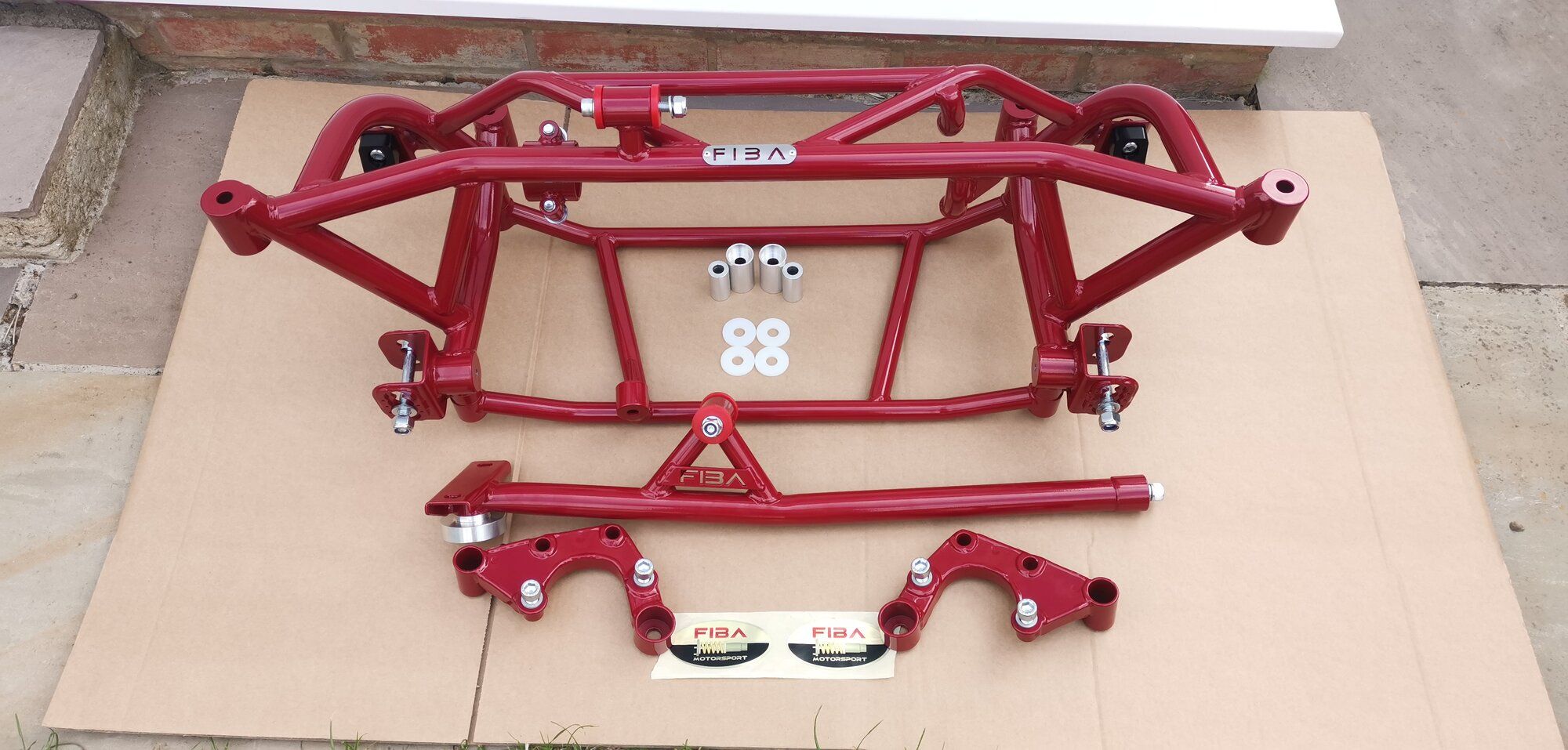

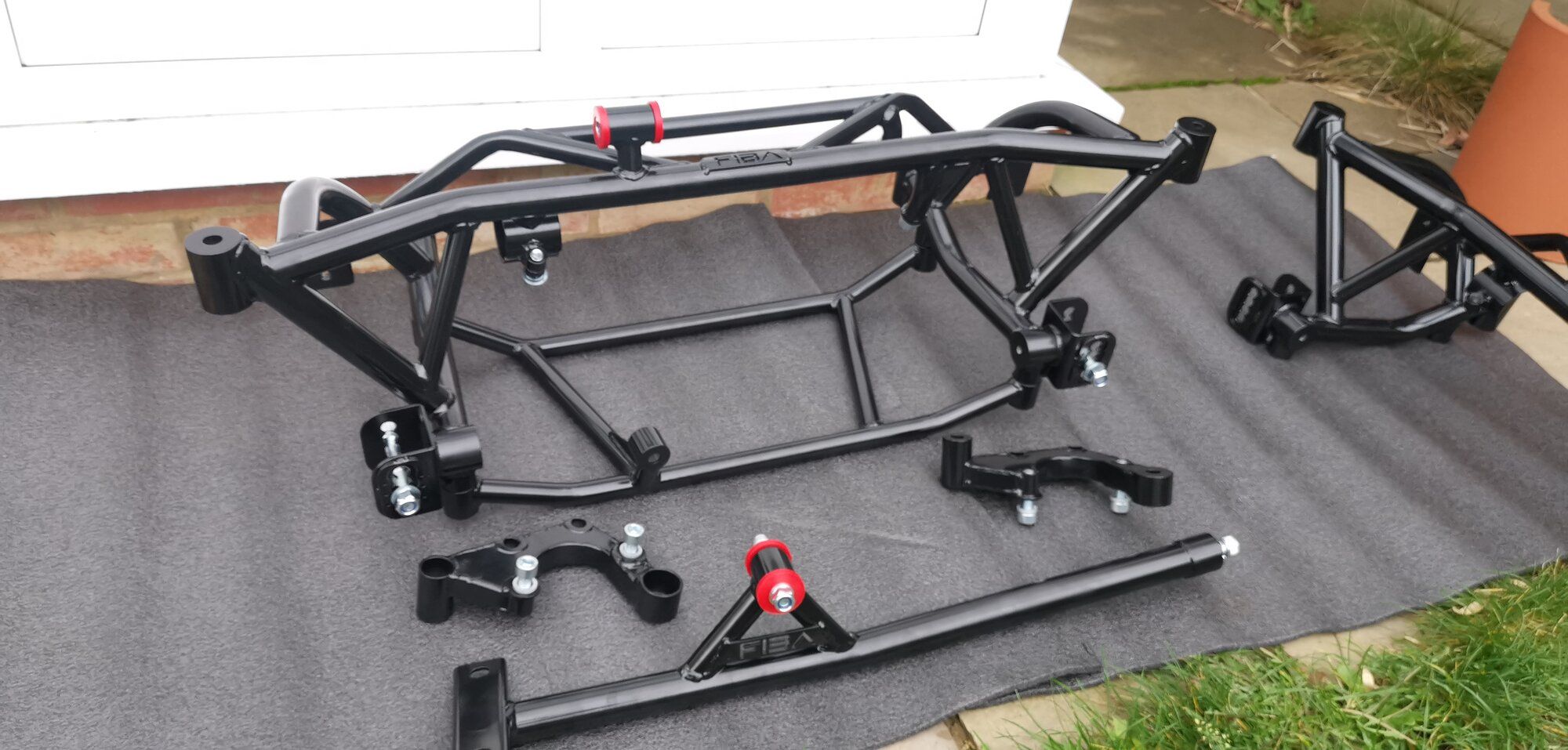

full race Subframe which will include a custom 4 point brace for added strength and support for below the frame for those corners, this will also come with a custom cross member designed for the 4 point brace only! as shown here https://www.dsmtuners.com/threads/f...r-front-subframe.531218/page-4#post-153788980
The 4 point brace can be added at a later date with the cross member if desired as an upgrade, same with the outer mountings for the custom arms. (outer are yet to be finished as compression arms will be made at the same time)
the frames will come with either one of 3 options for frame mounting pads and these are.
NOTE (outer mount will be direct mount to frame still.
* Rubber for better NVH (better for street and more daily use)
* Nylon for improved stiffness and some noise reduction (for those looking for added stiffness and those who do not mind a bit more noise/vibrations)
* Alloy for full stiffness and no flex/movement on the chassis (full on race spec zero damping of noise!
Roll stops.
Alloy or polybush
steering rack is now fully hard mounted so no rubbers required for this from your old rack! this means no slipping, no wearing of rubber.
This frame also comes with the billet ARB brackets for this design and will work with normal bushings as before.
********************************************************************************************************************************************************************************************************************************
price will always be UK Pounds so always base the cost in dollars around that price please
price for the normal subframe (2 point under brace - normal outers is
UK POUNDS
£1830 UK Pounds which includes shipping and insurance
*** If you wish to add the 4 point brace and crossmember at the time of subframe order which will adjust yoir subframe to a RACE SPEC version that will be + £380 plus + £30 for extra shipping charges and insurance. TOTAL £2240 shipped!
Shipping is to Lower 48 USA only! Canada will be a bit more and anywhere else pleaze request a shipping quote along with your address so i can get this for you.
*** If you wish to add the 4 point system later it will be more because of powder coating and shipping costs (price to be confirmed on this later)
*** If you wish to have it NOT powder coated then deduct £75 from the costs
note that some customs Fee's might be needed due to the import value of the item. it depends on the country you are vs how much

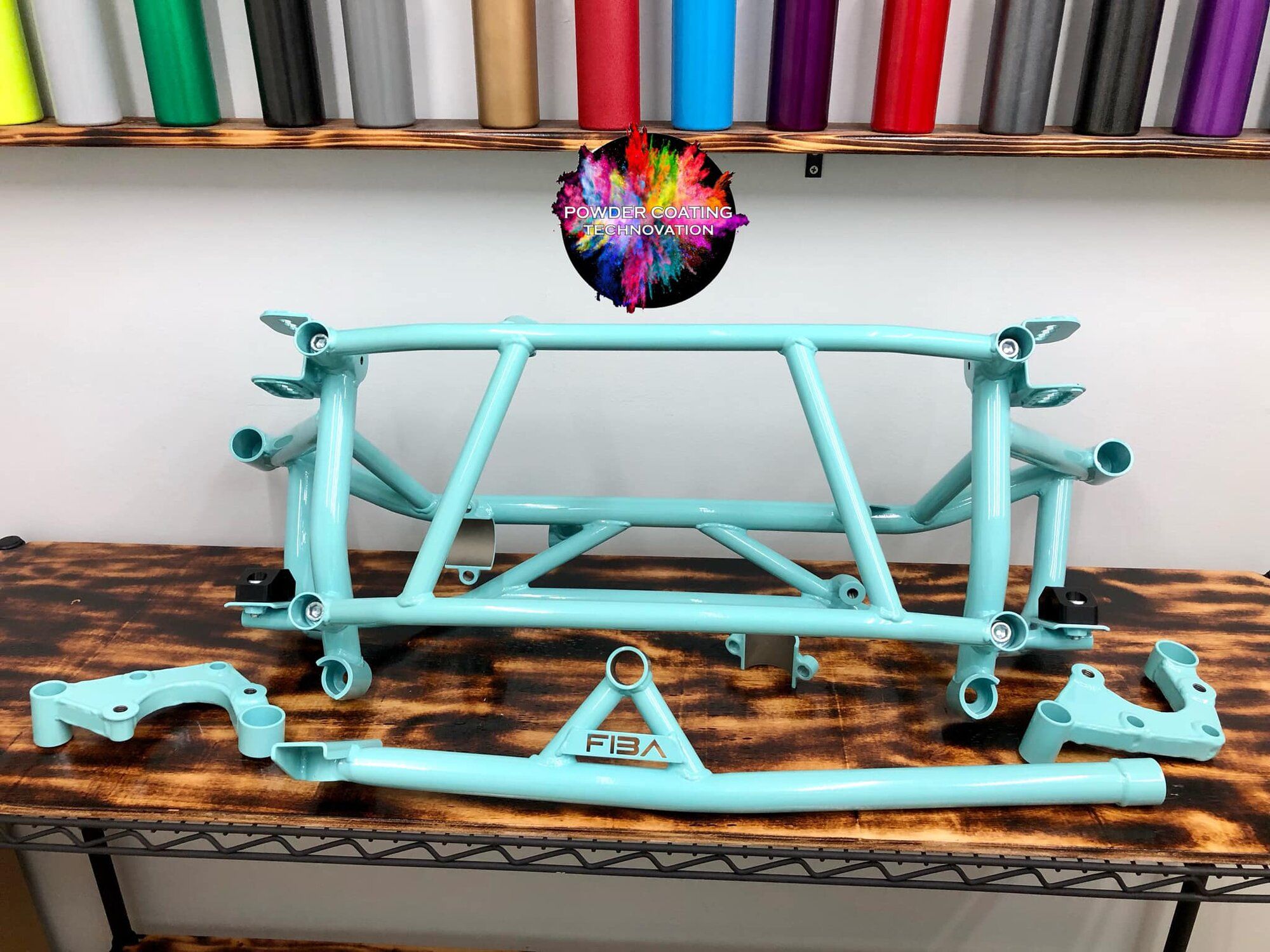

I will be able to offer a wide range of colors they have in stock at the given time and some metallic colors which would cost a fraction more due to the increase in cost of the powder. at the given time of ordering i can supply you with a color list they have in RAL chart or other they have and go from that list
I think I have covered the most of it in bulk! sorry for the long read but I feel its a must for you all to know the process and all about the frame etc
please feel free to ask any questions or just to show your interest.
Thanks all

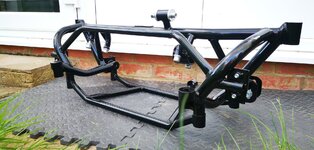

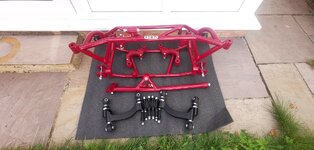

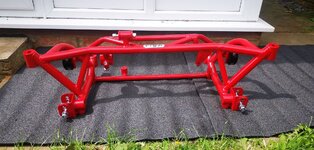

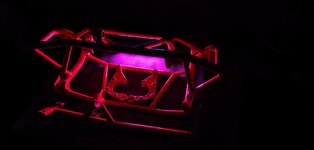

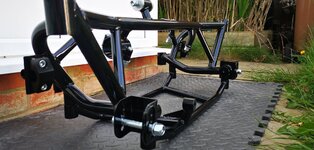

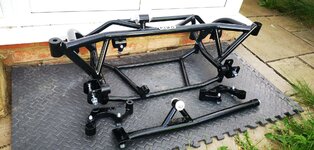

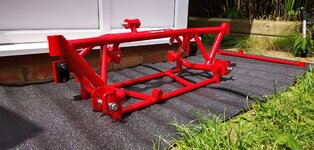

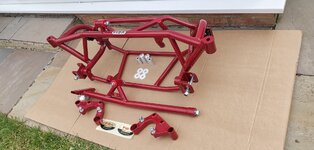

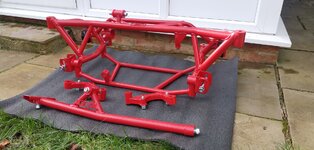

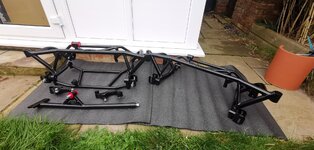

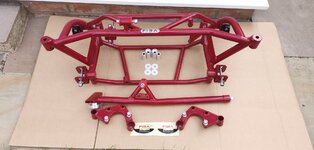

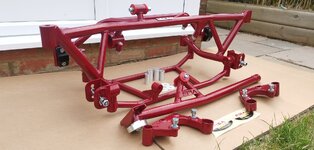

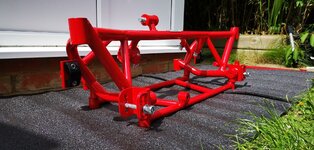

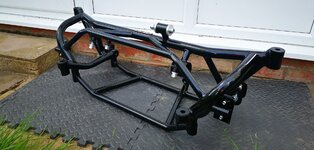

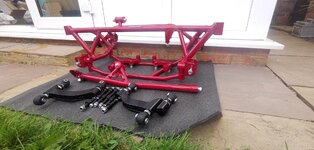

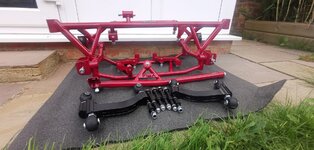

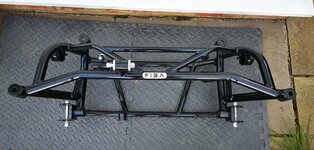

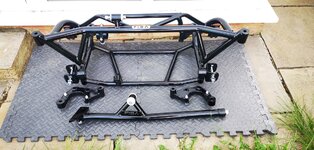

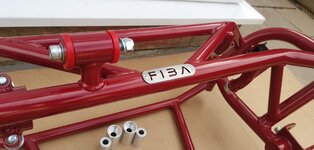

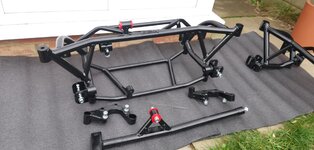

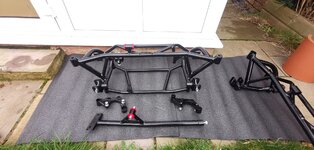

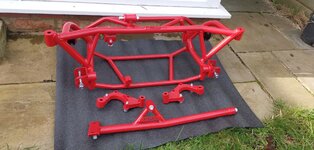

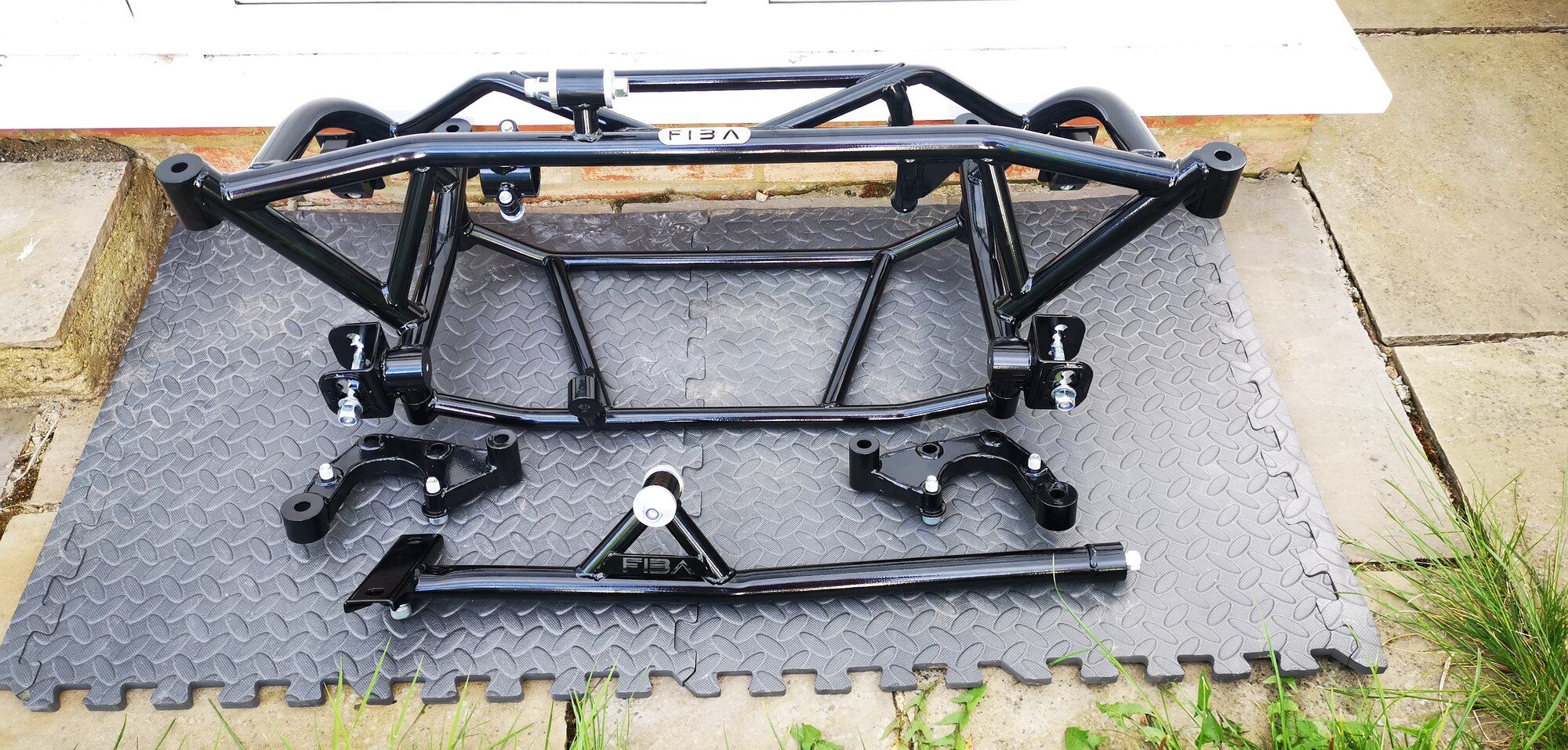

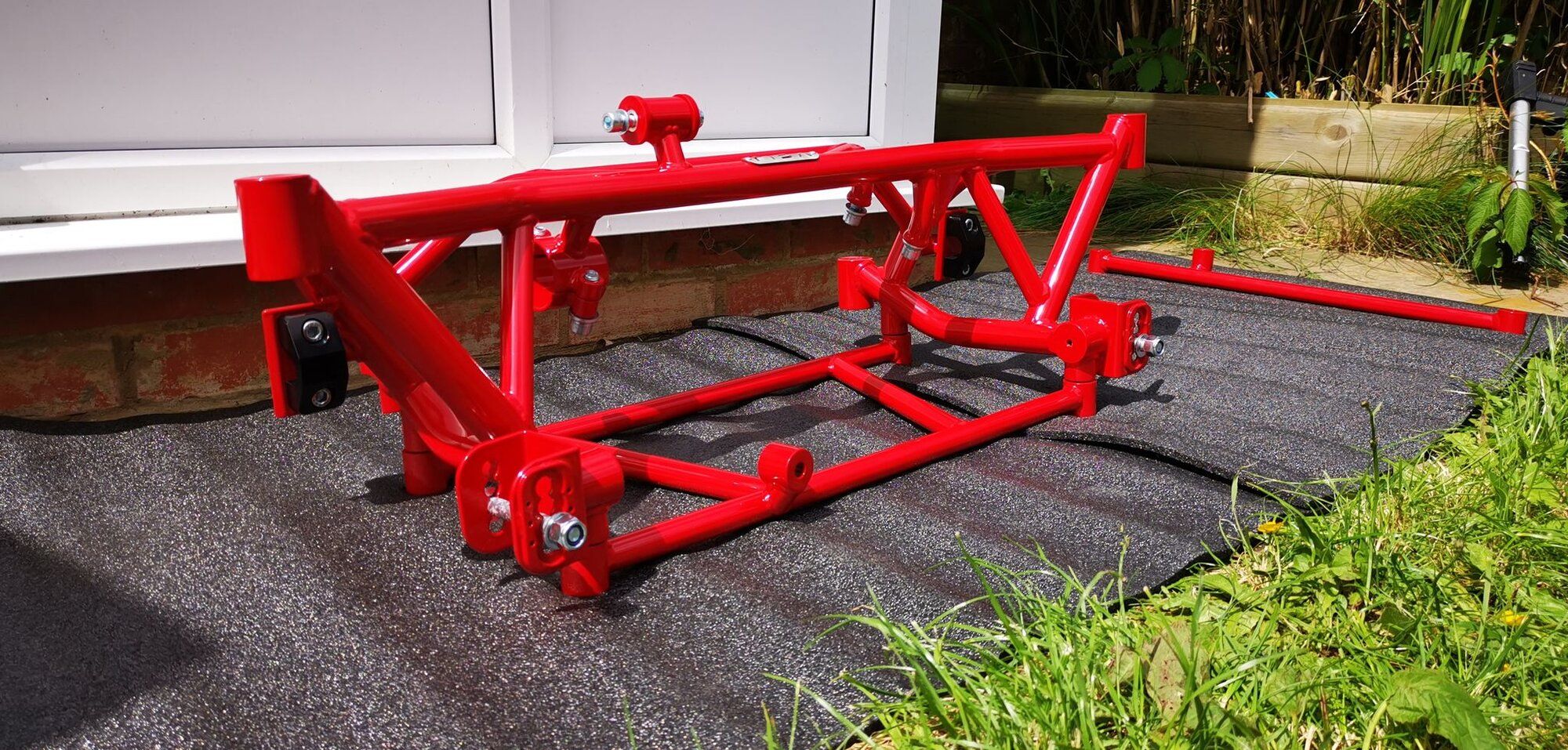

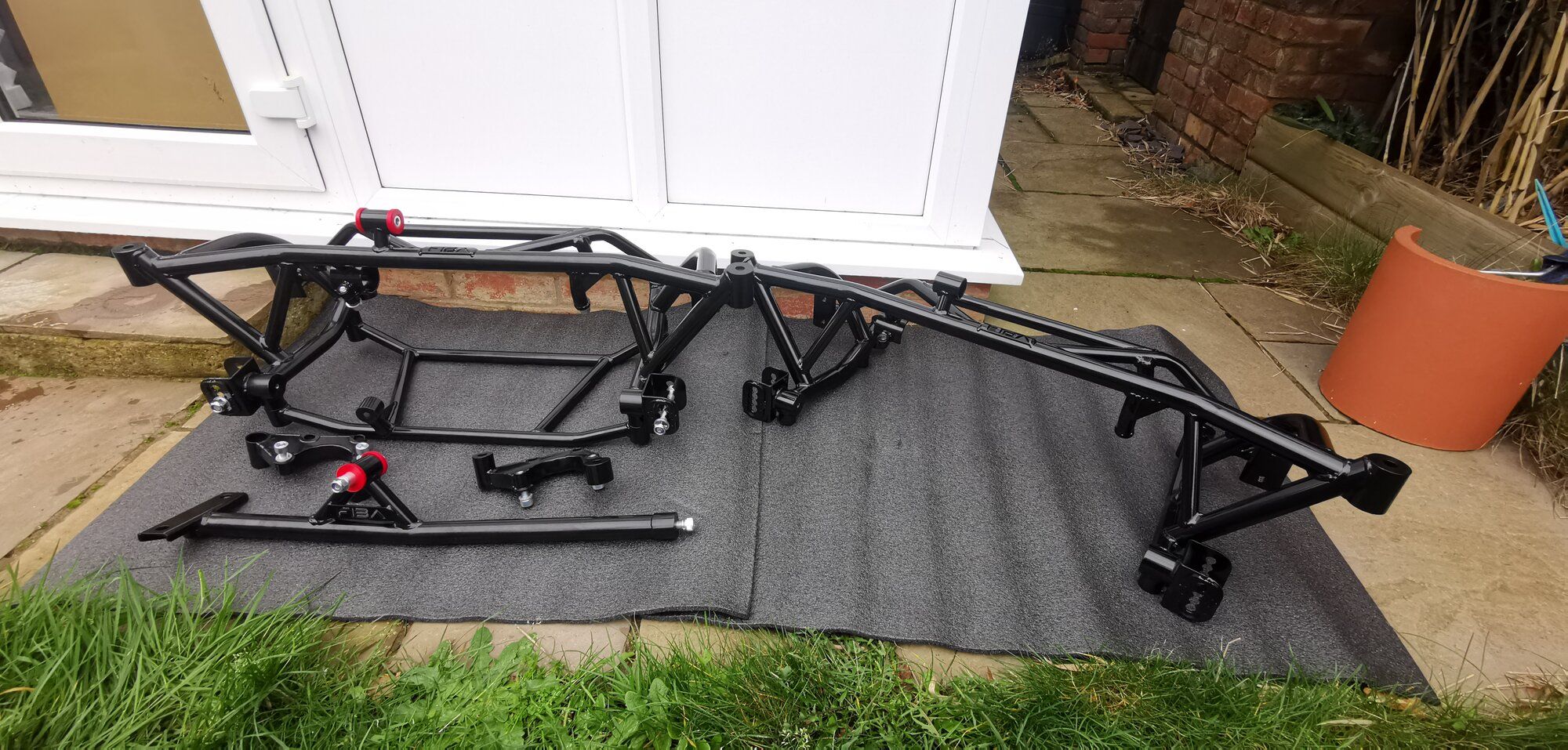

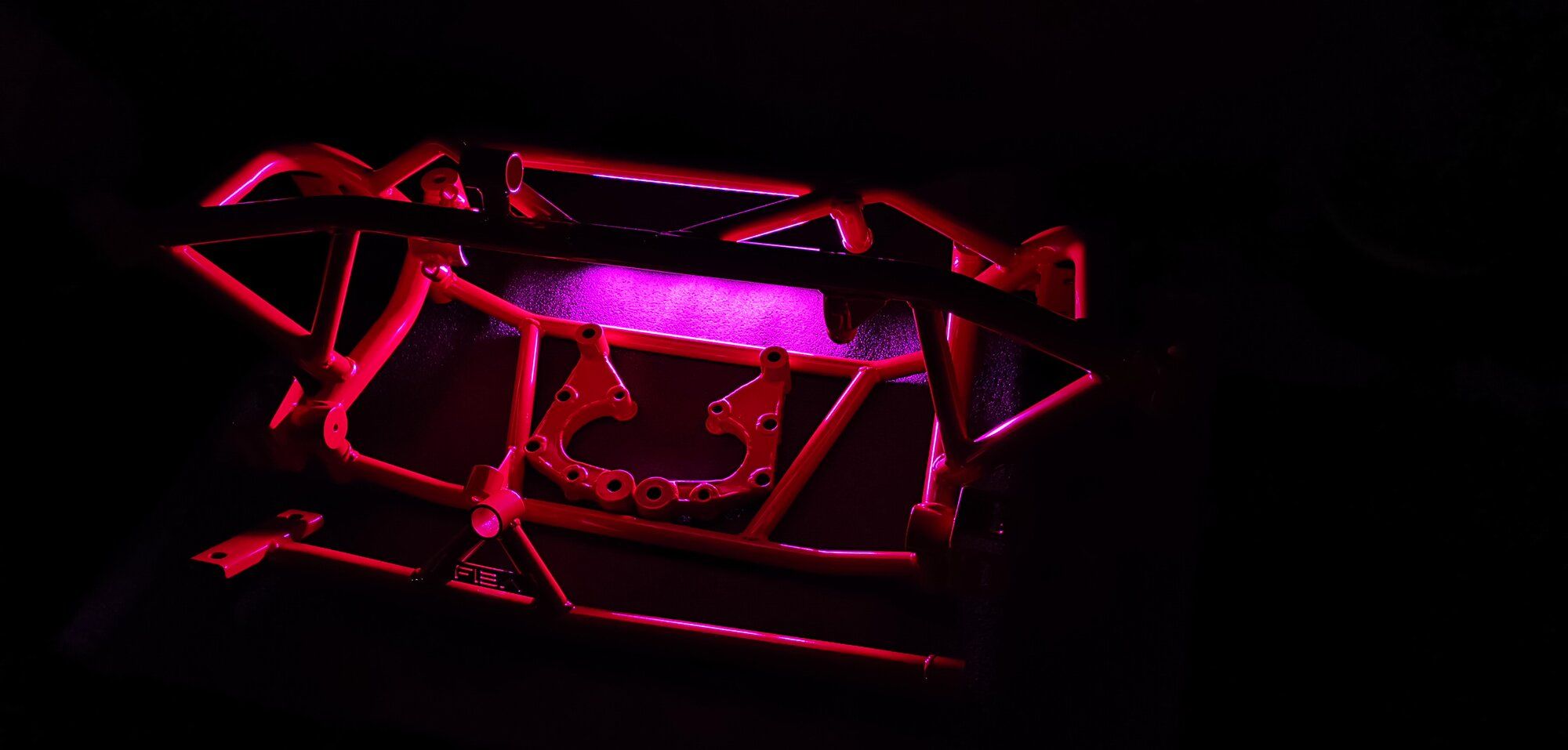

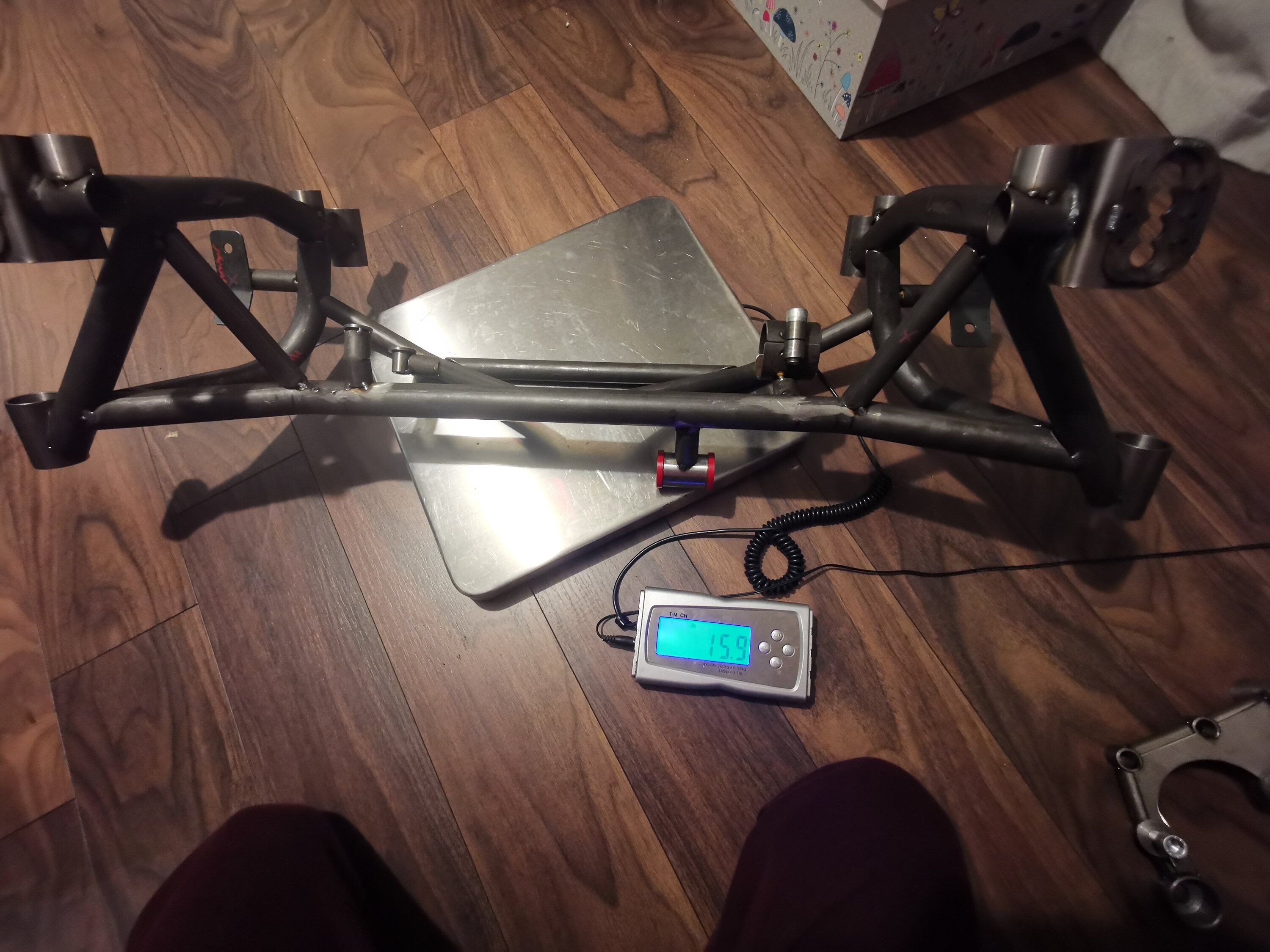

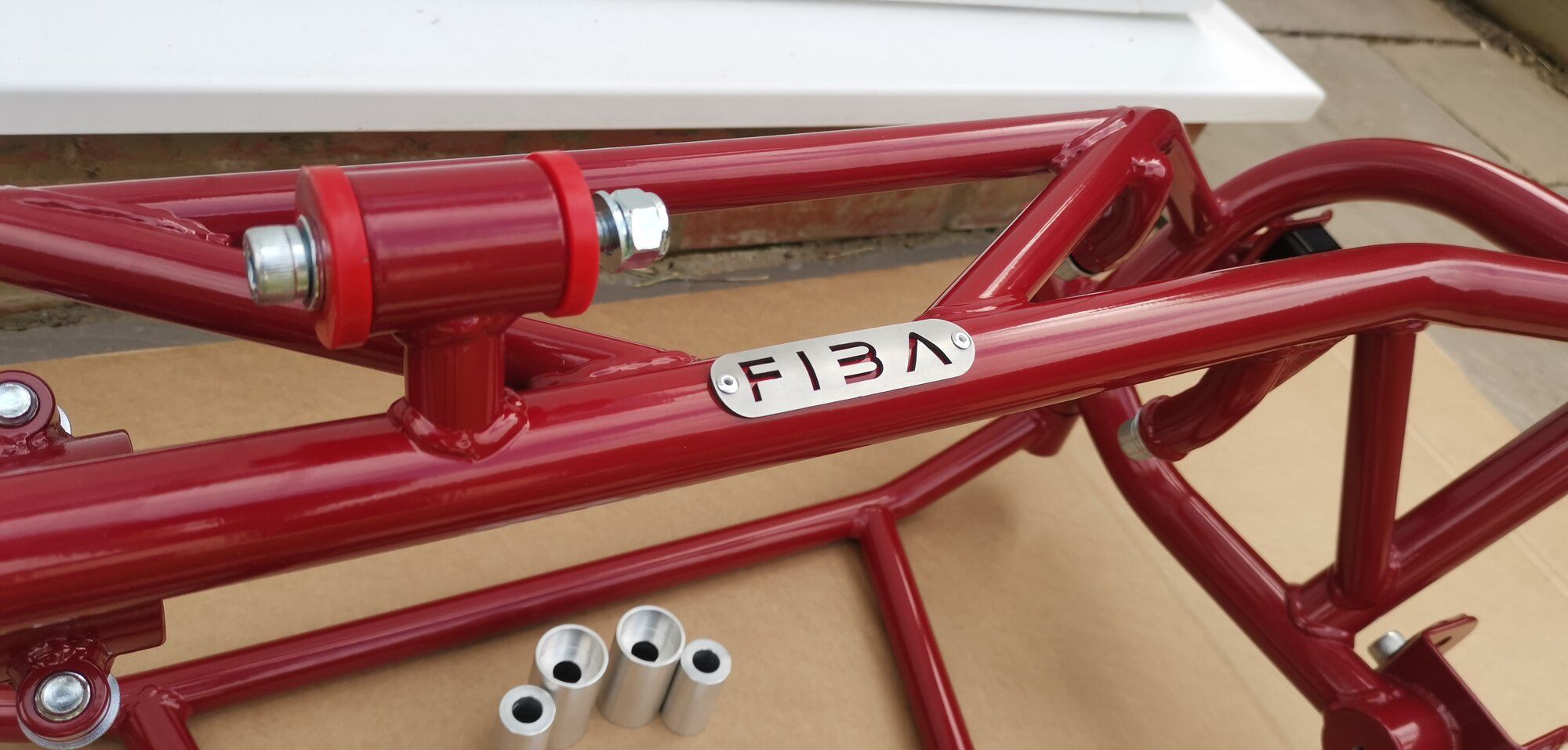

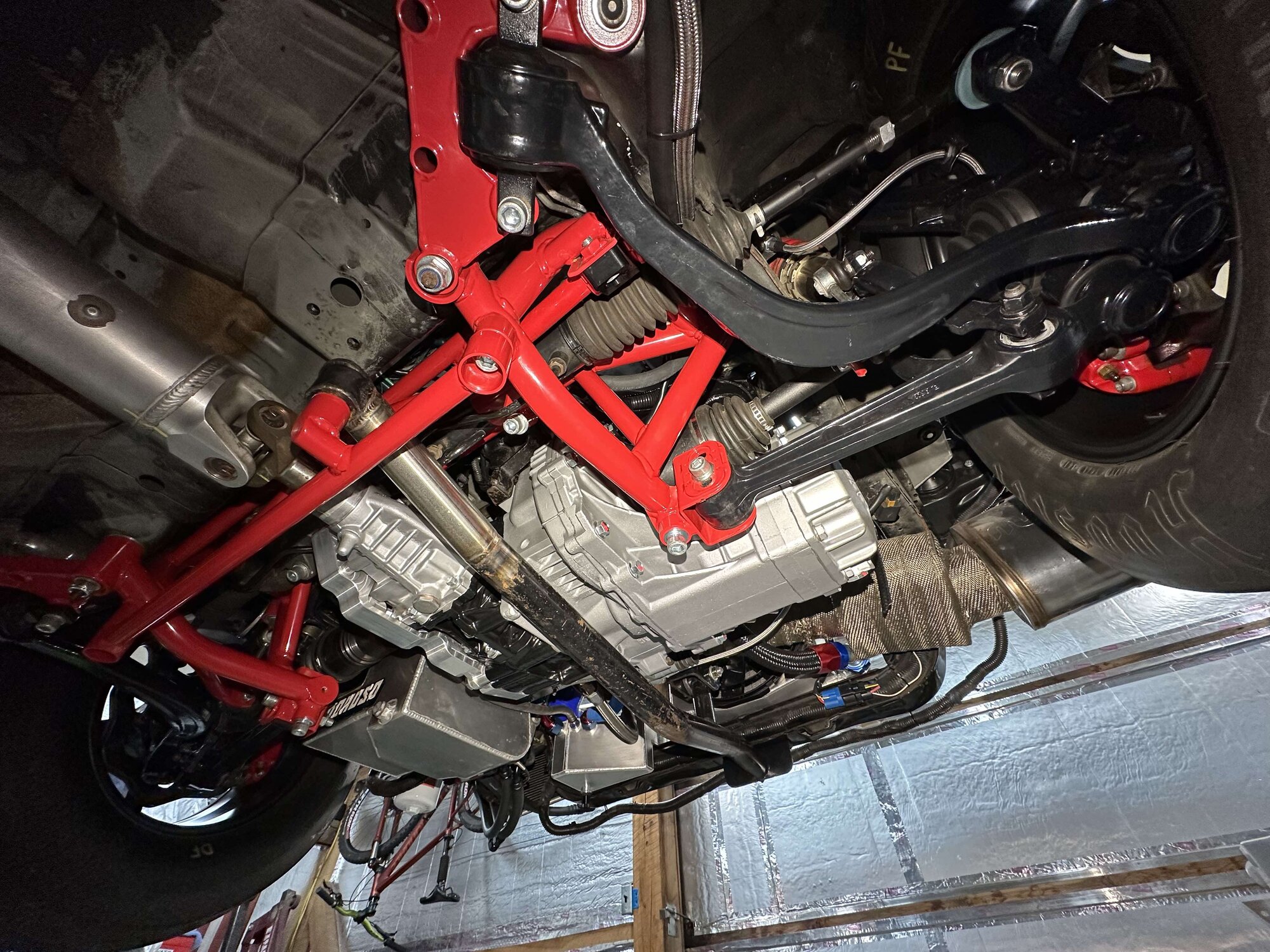

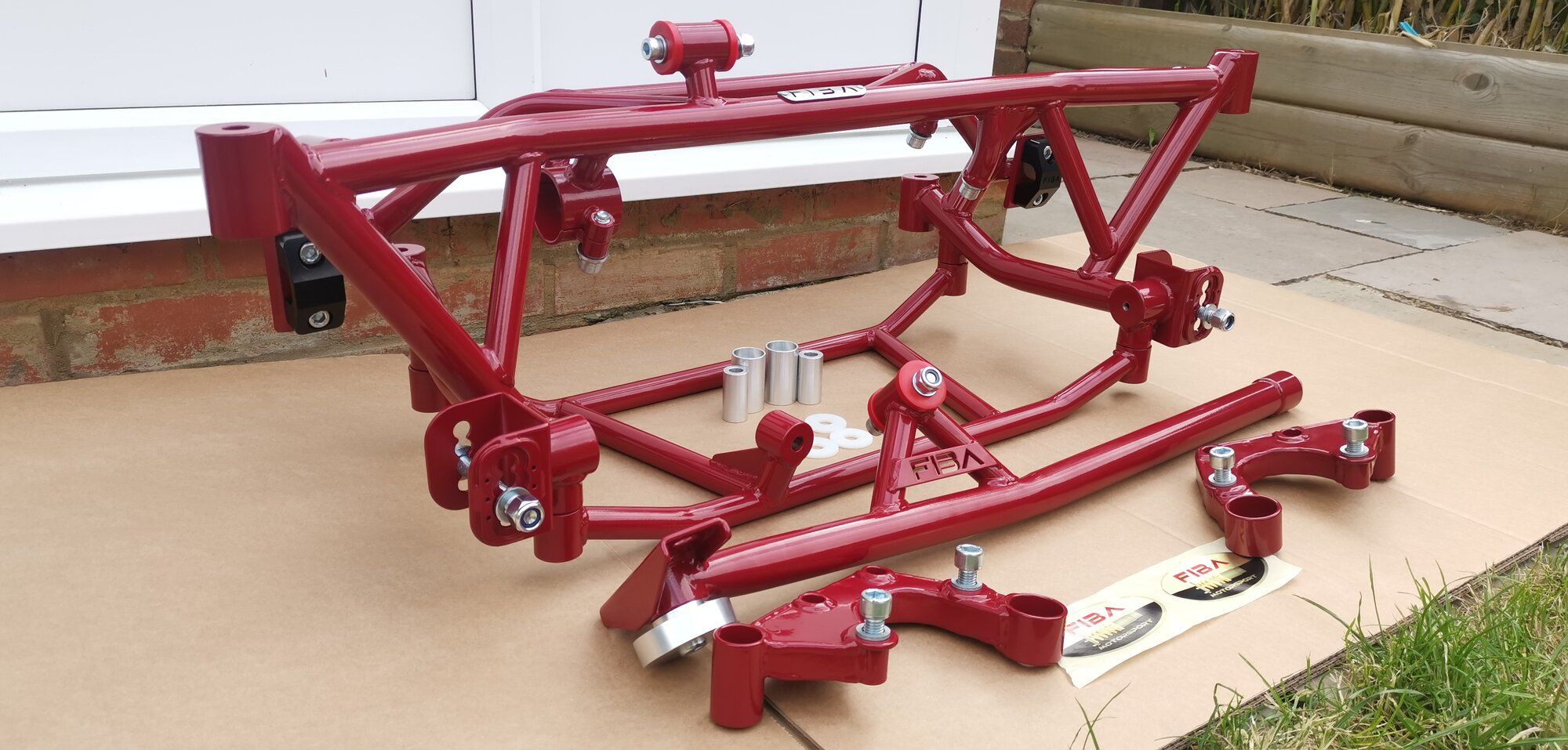

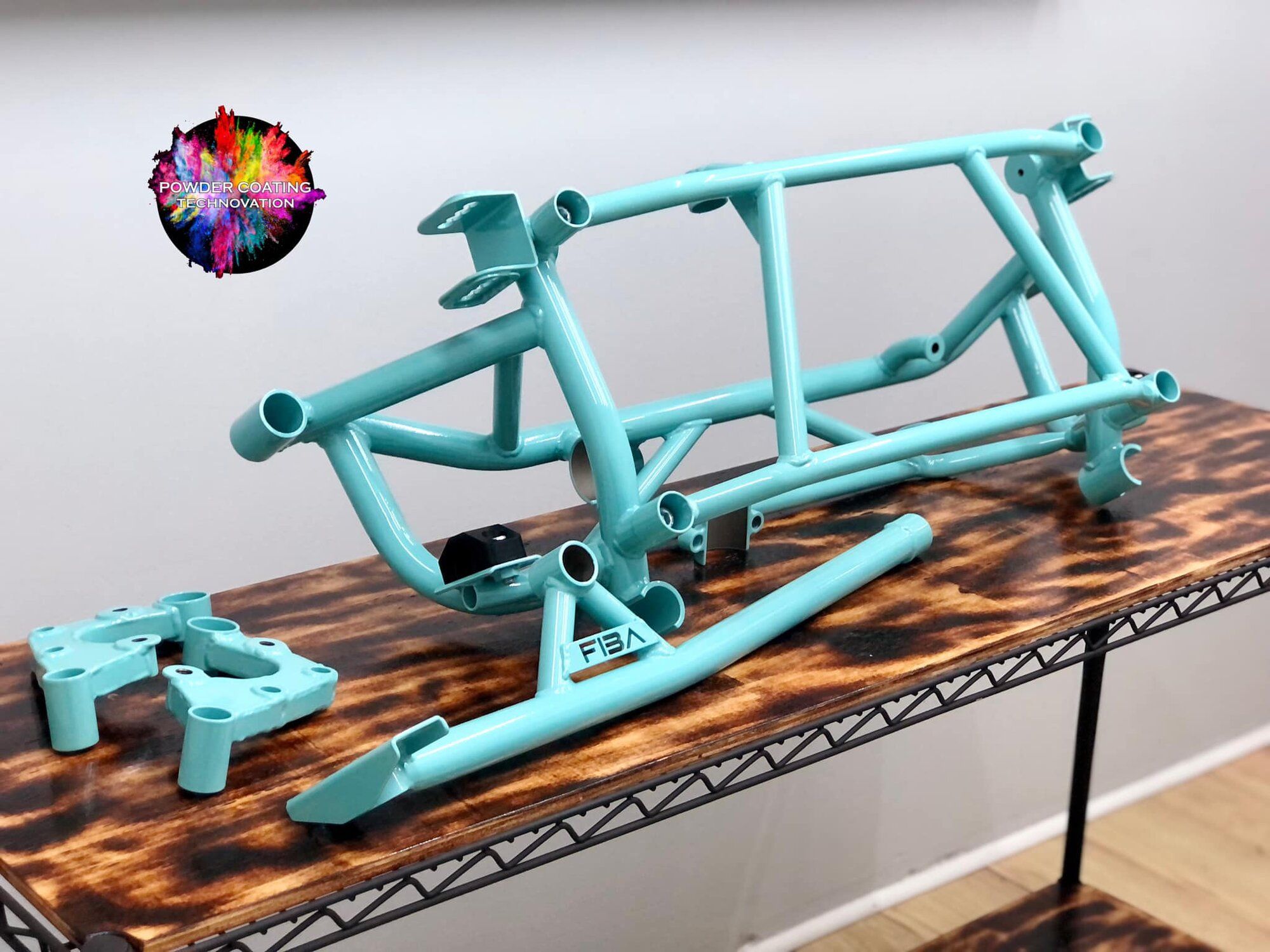

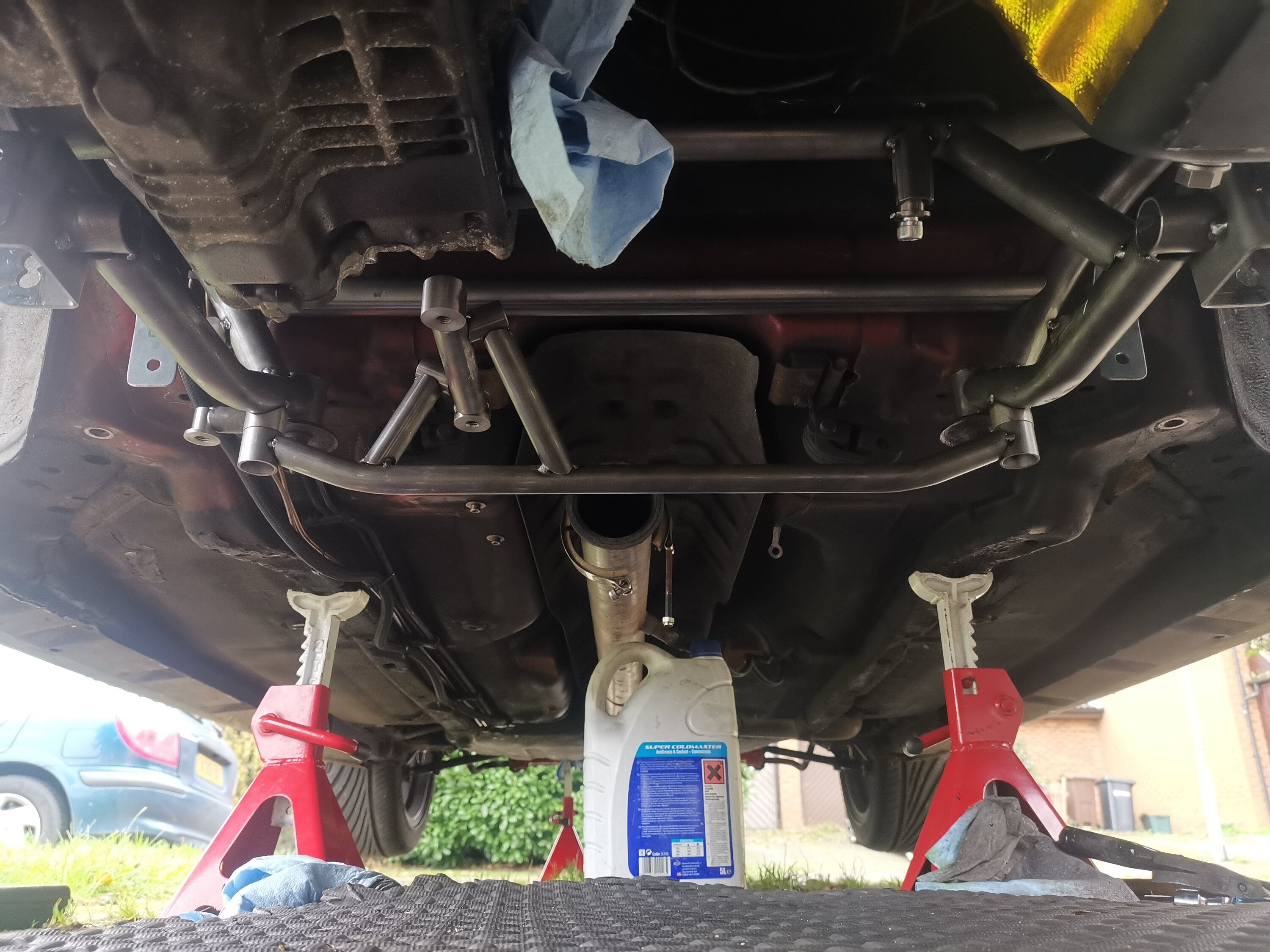

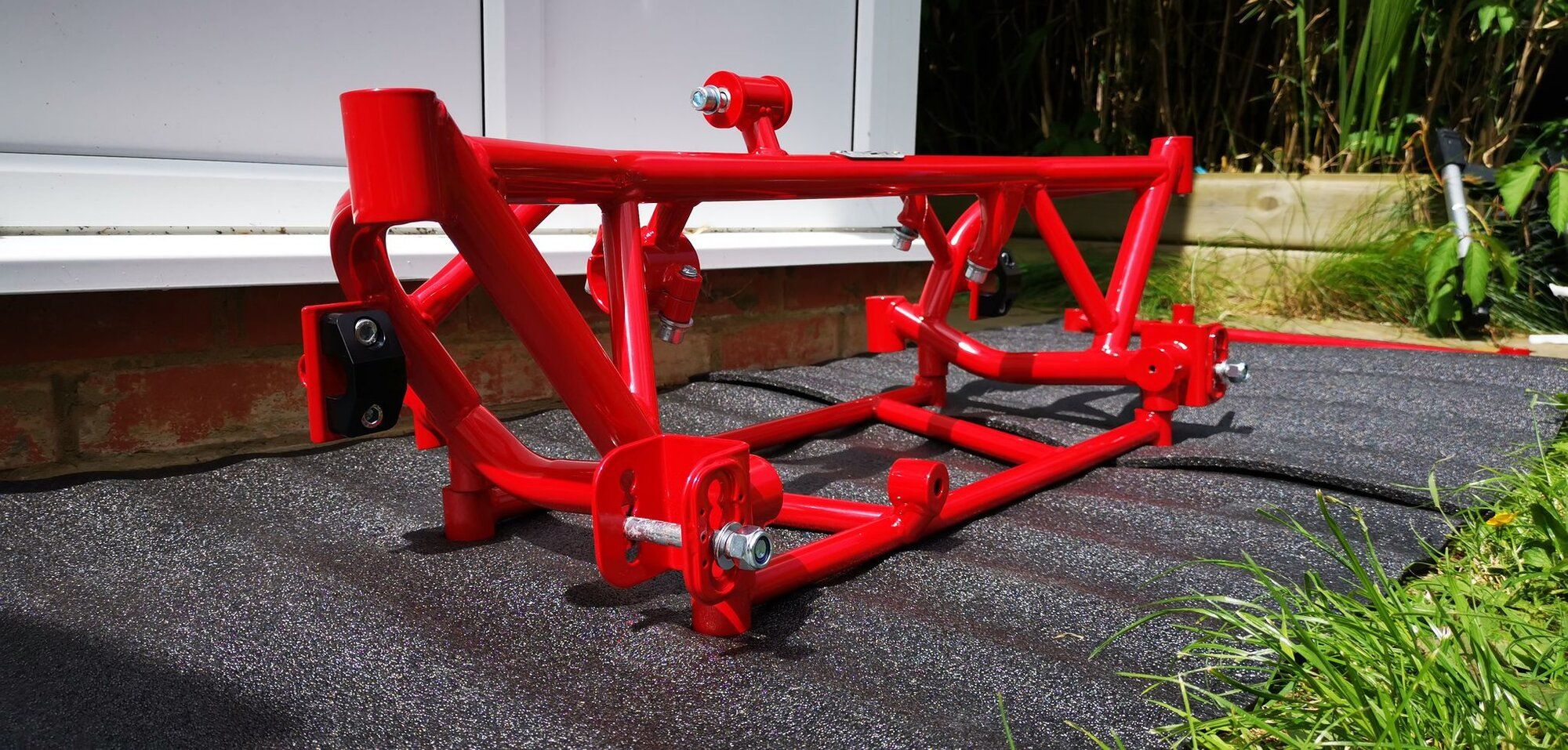

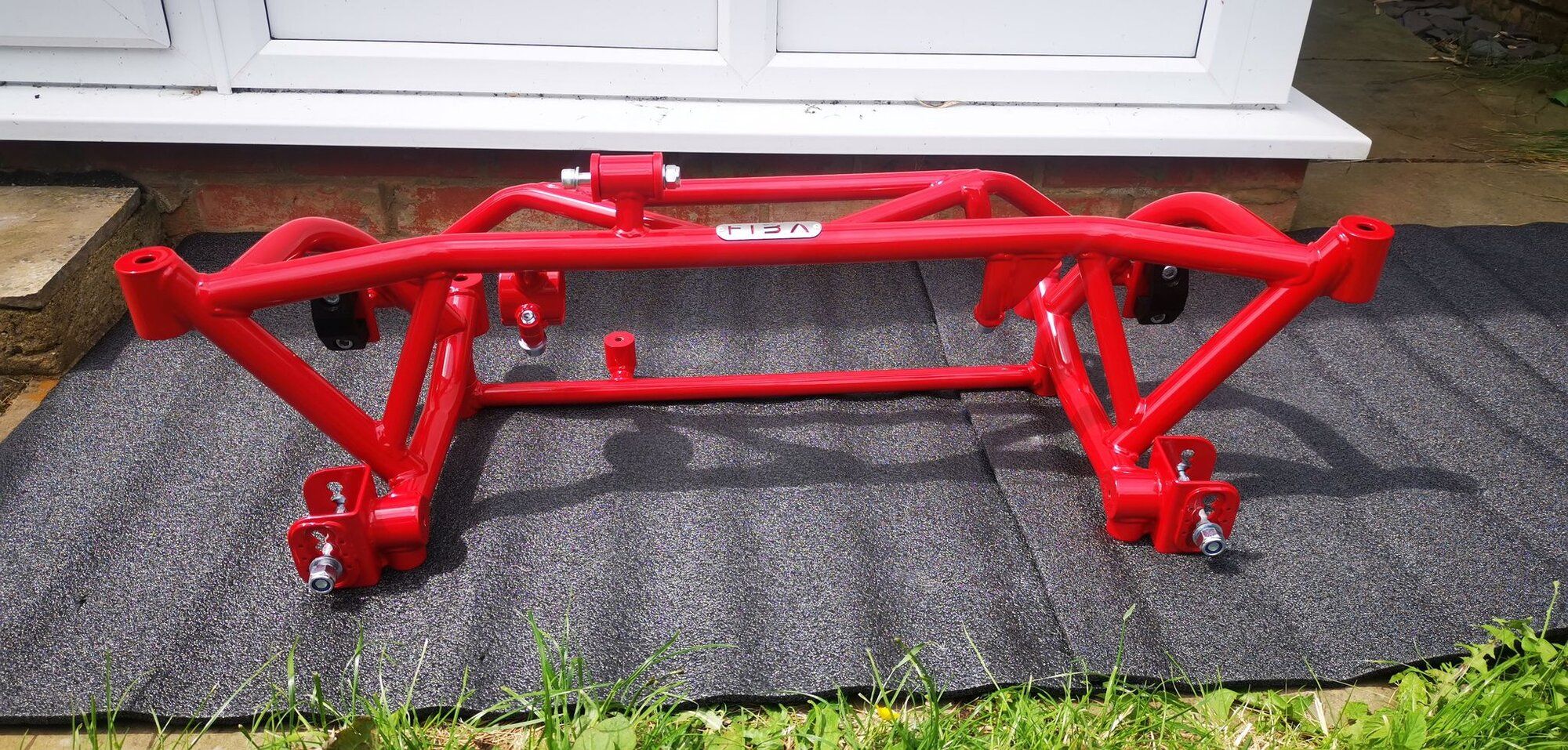

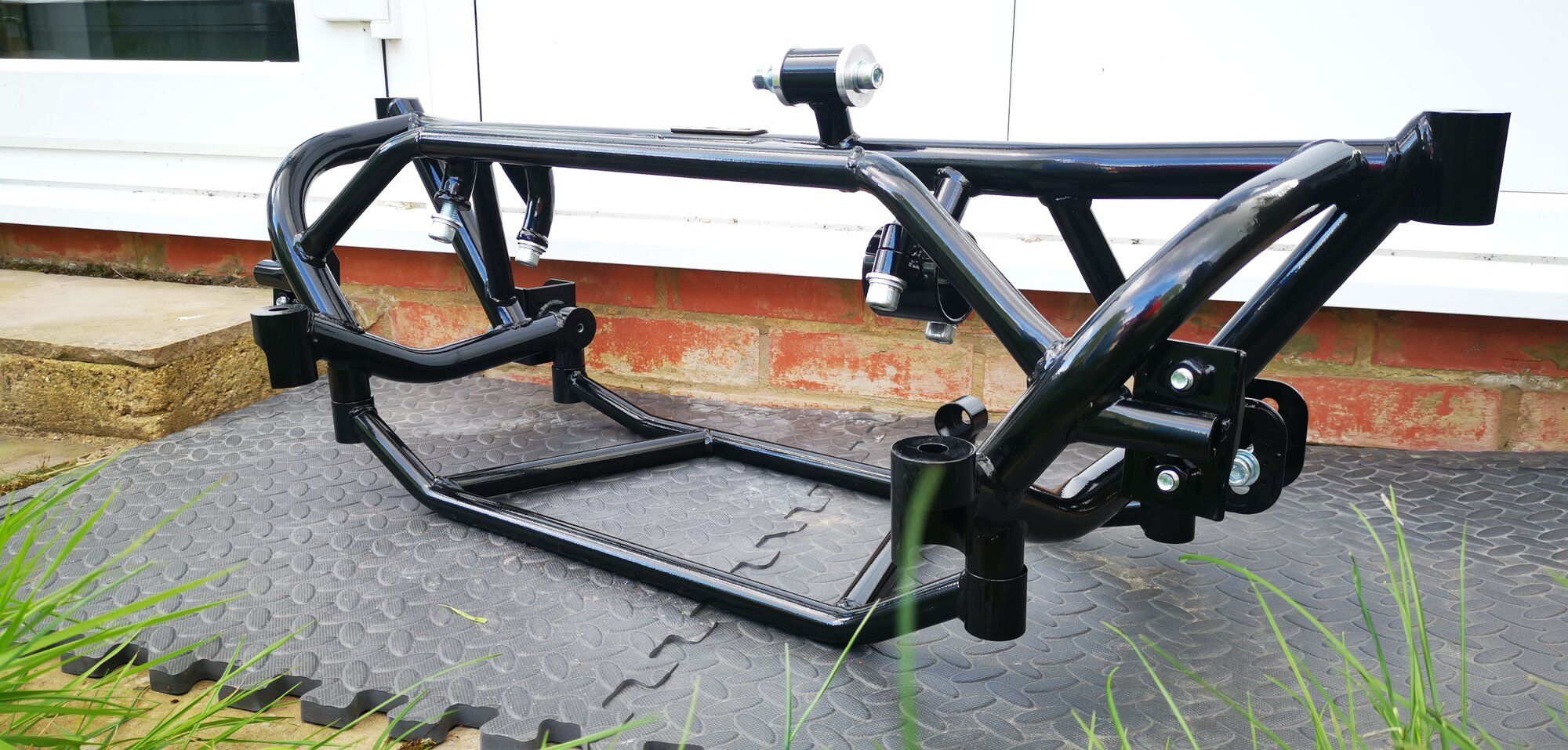

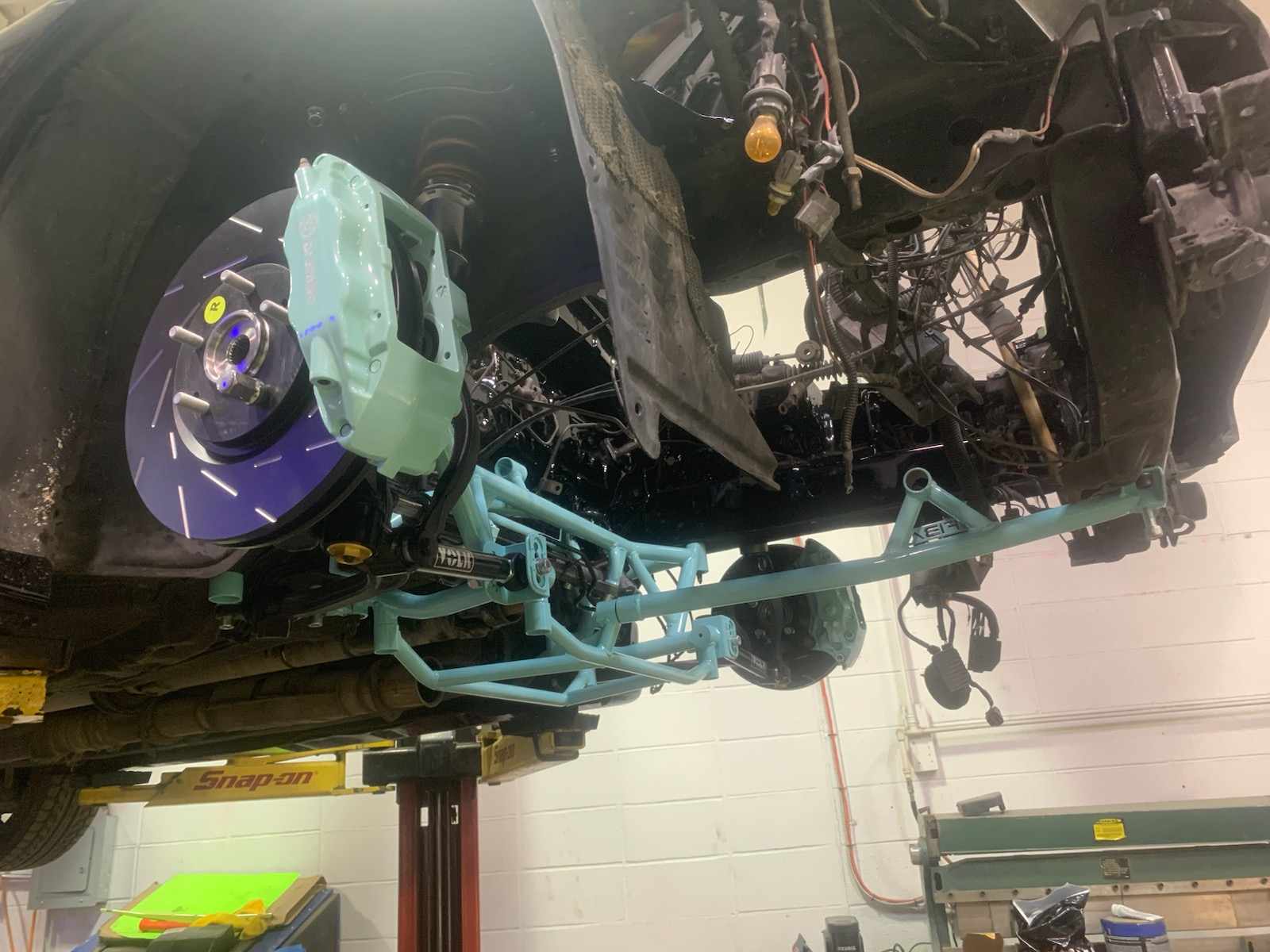

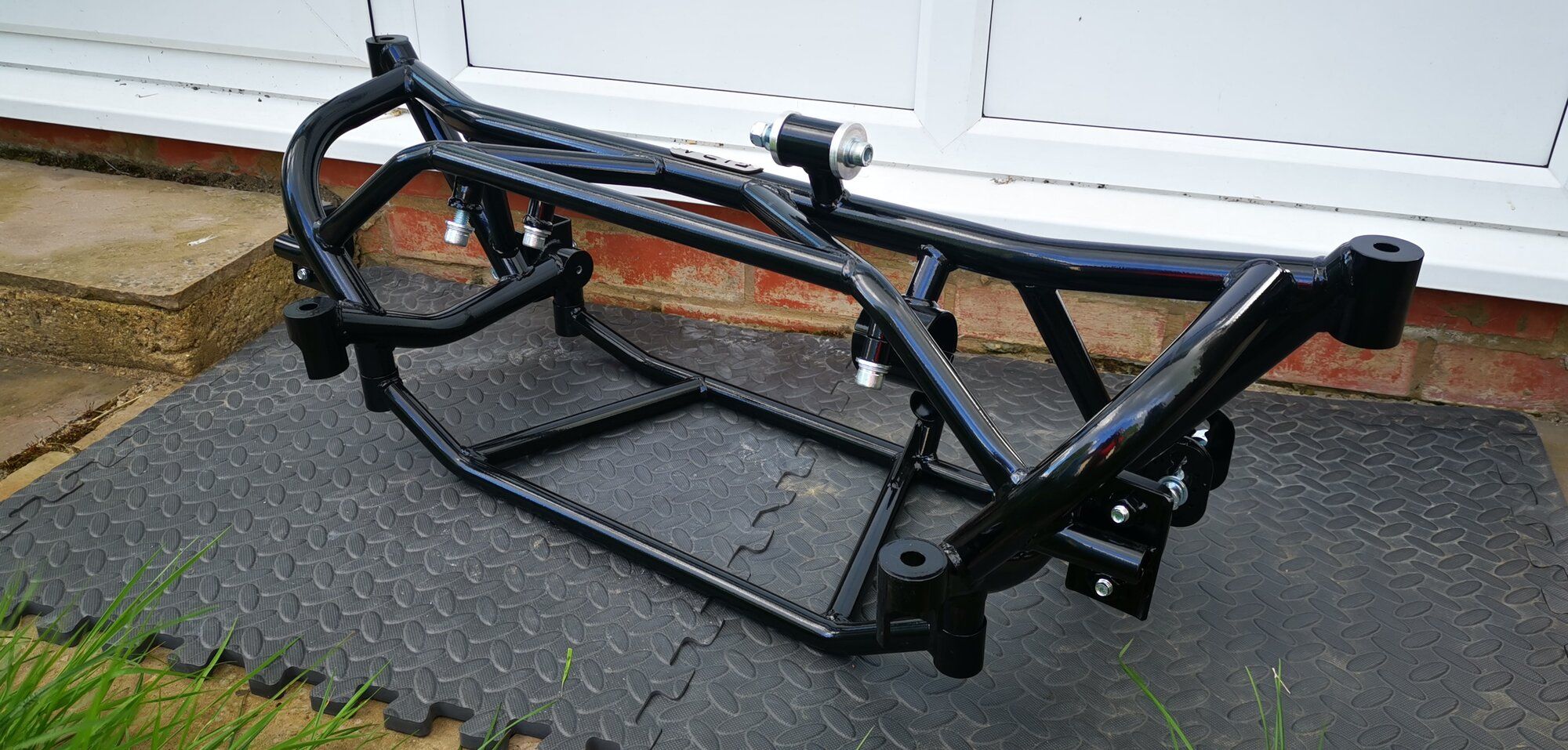

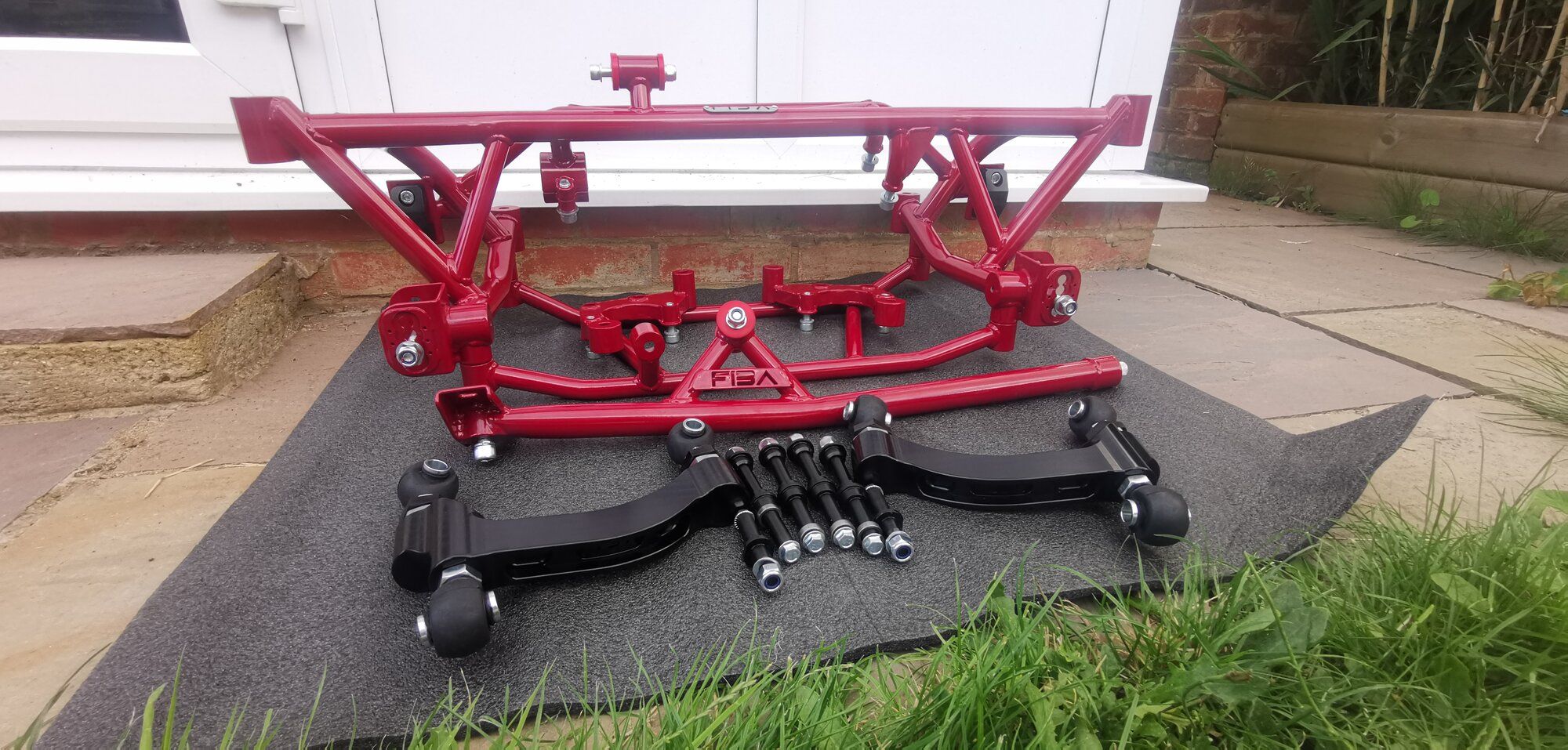

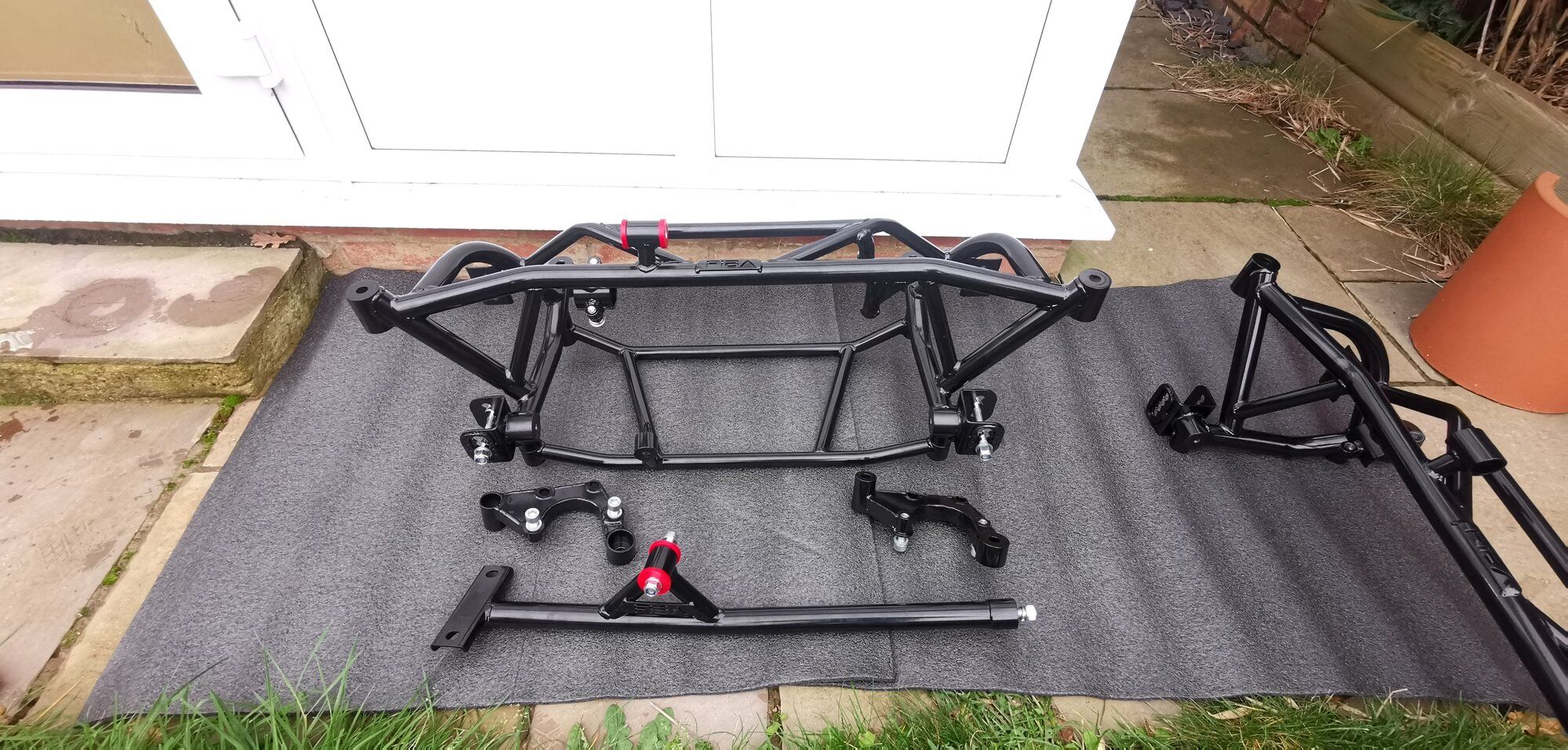

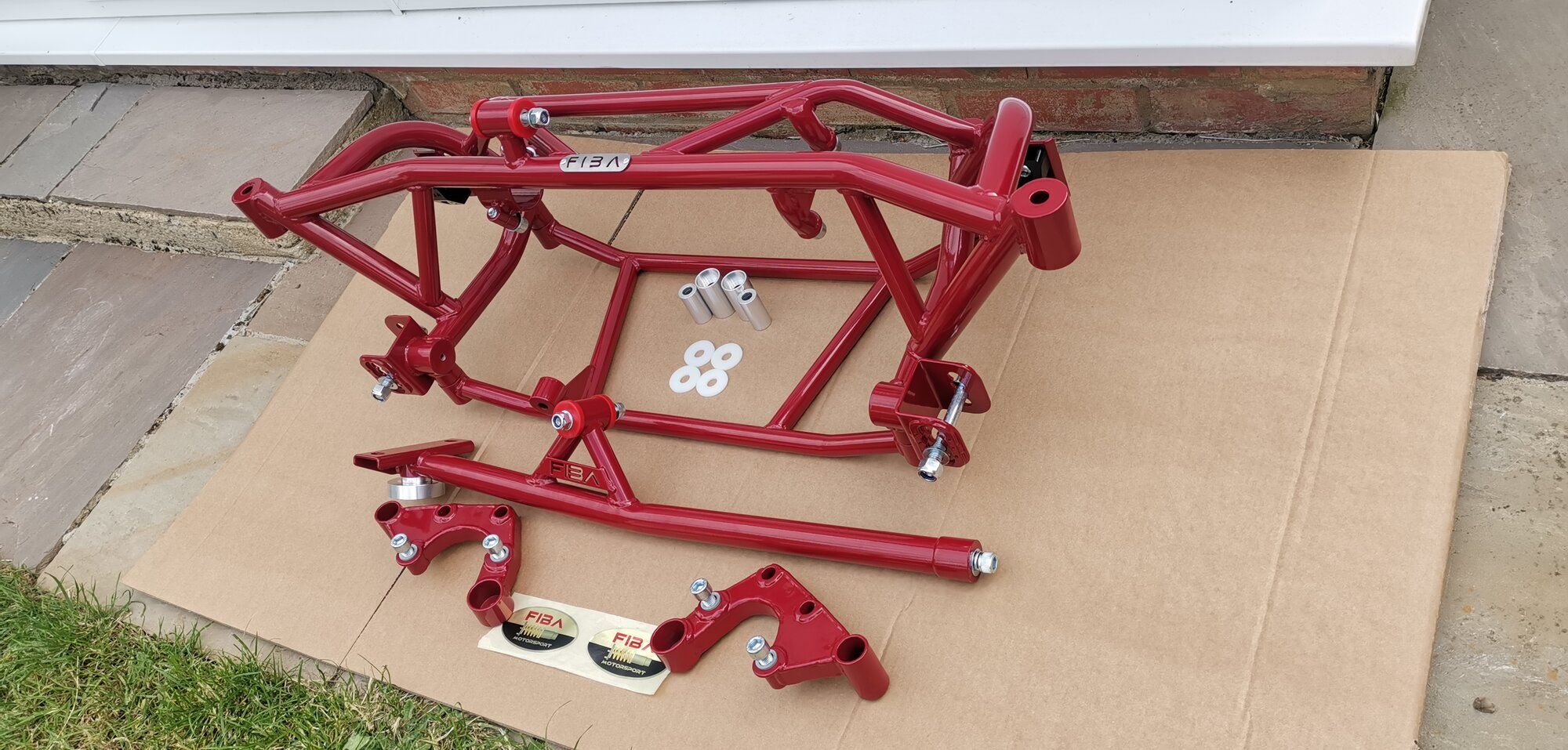

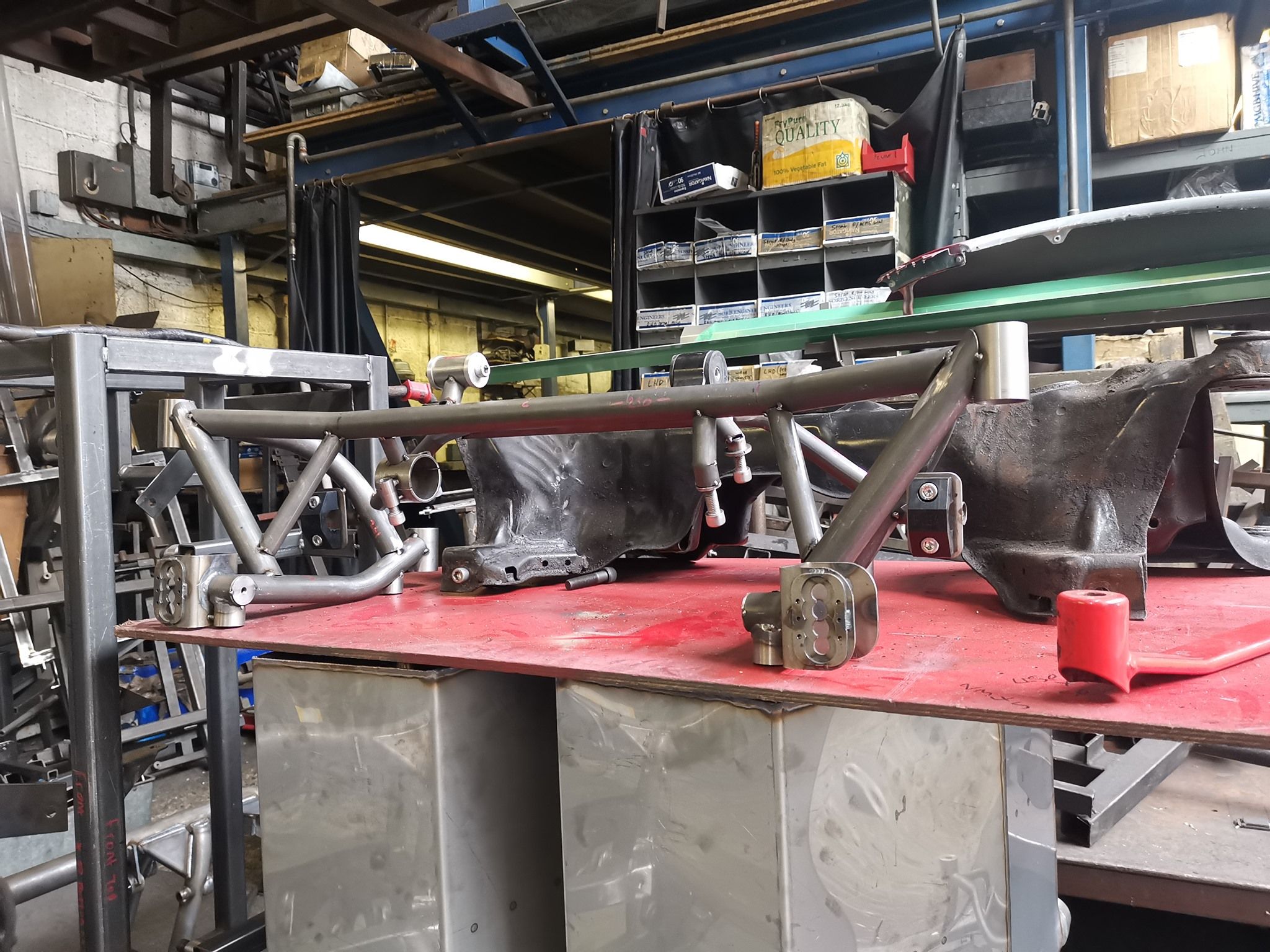

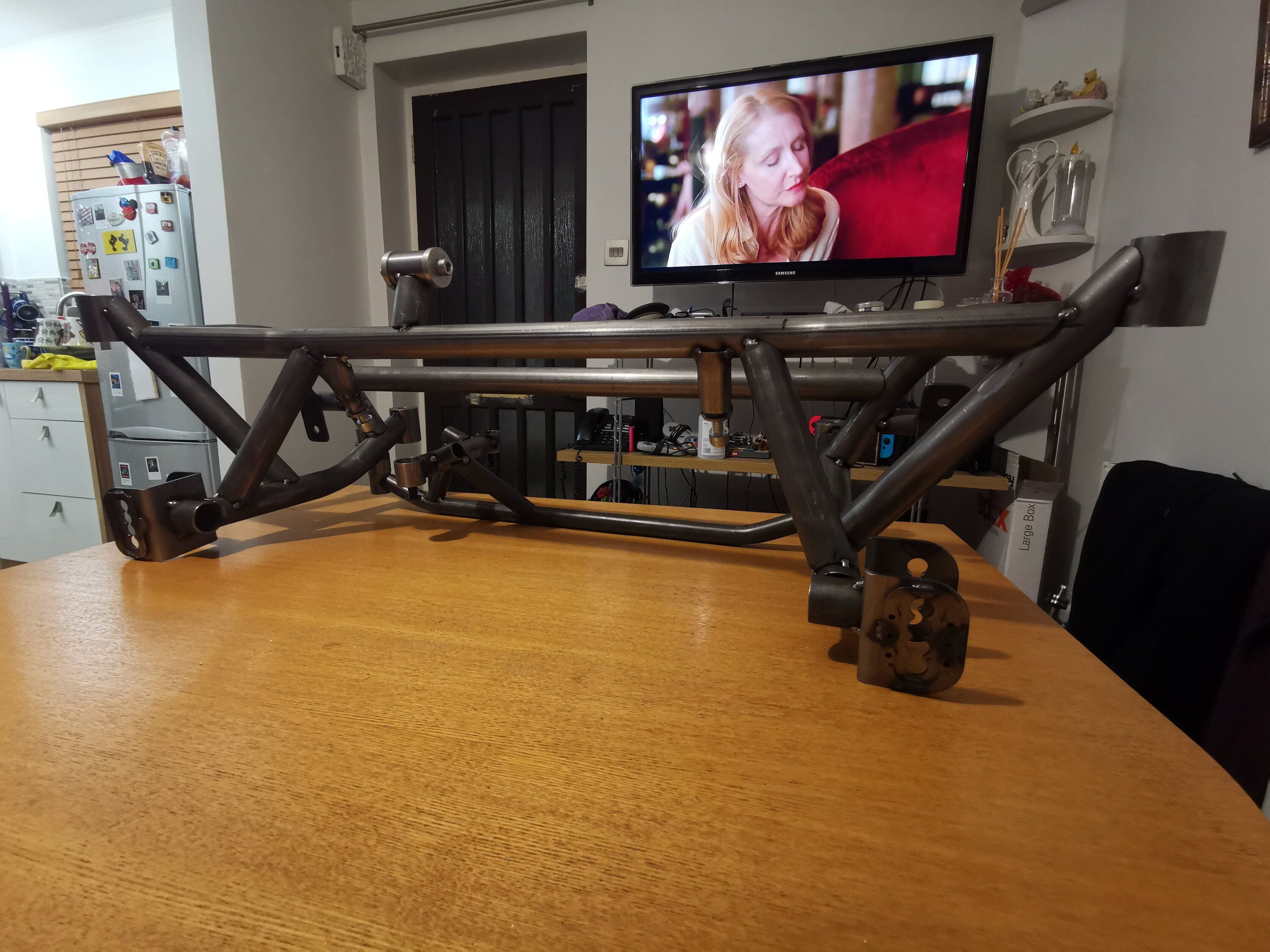

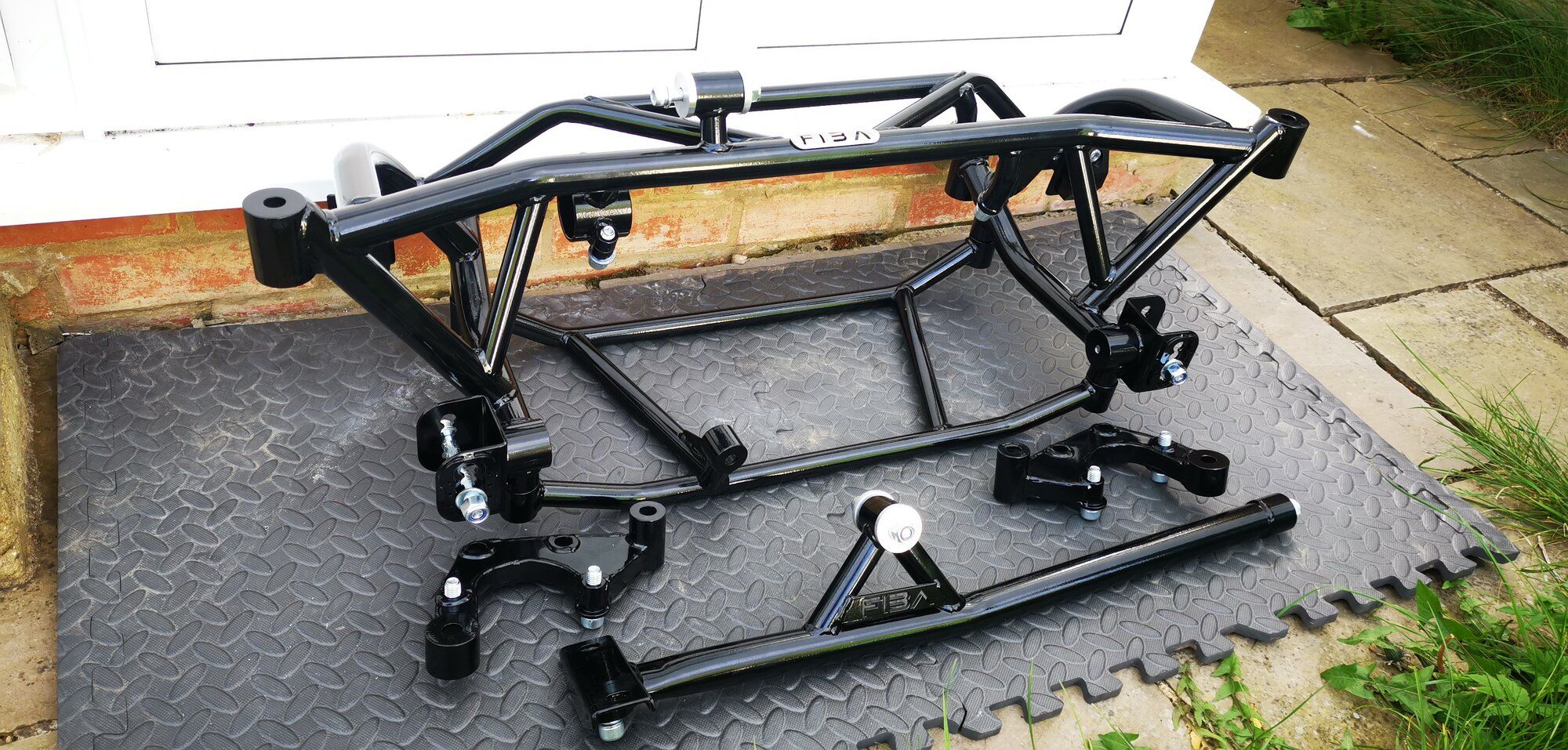

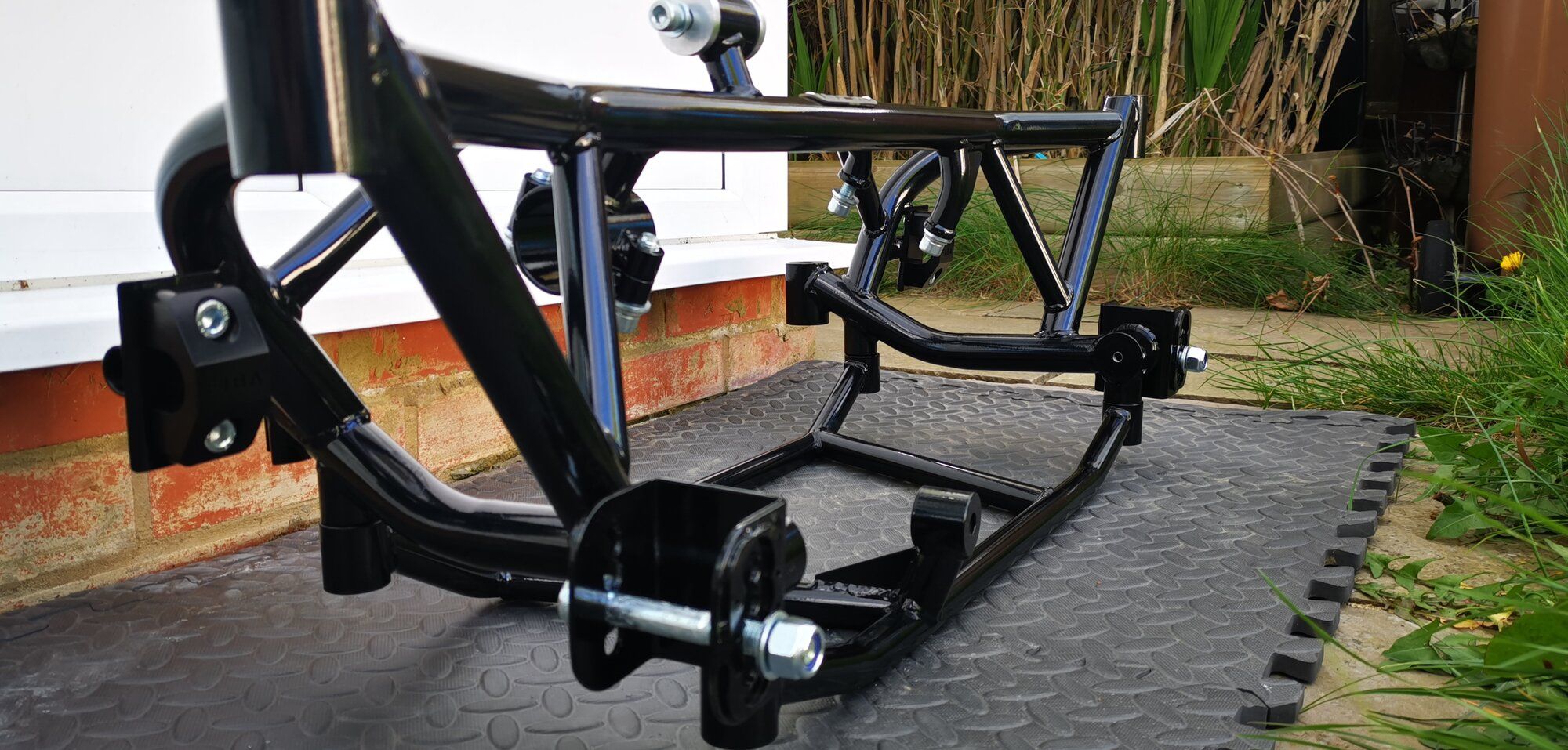

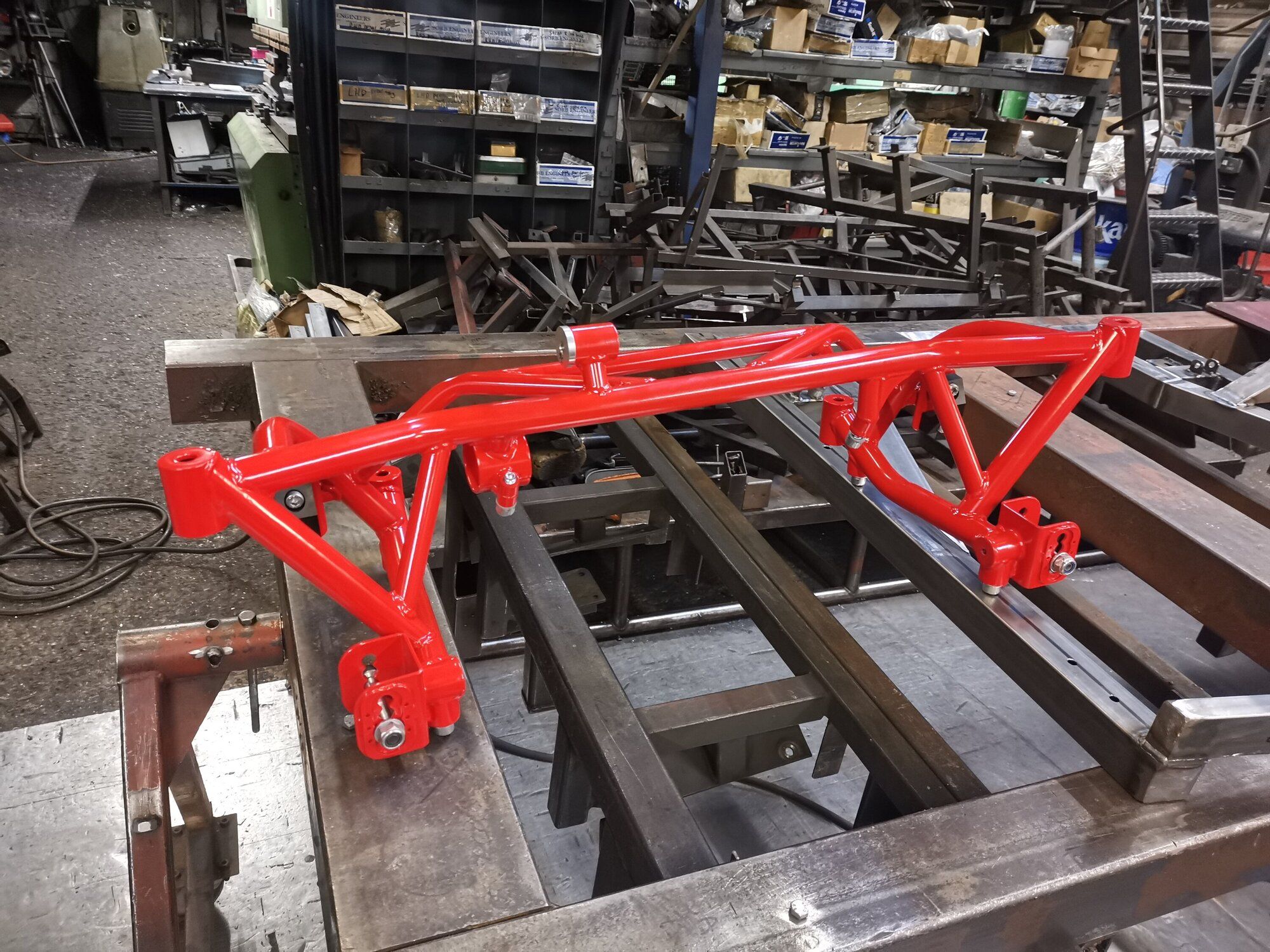

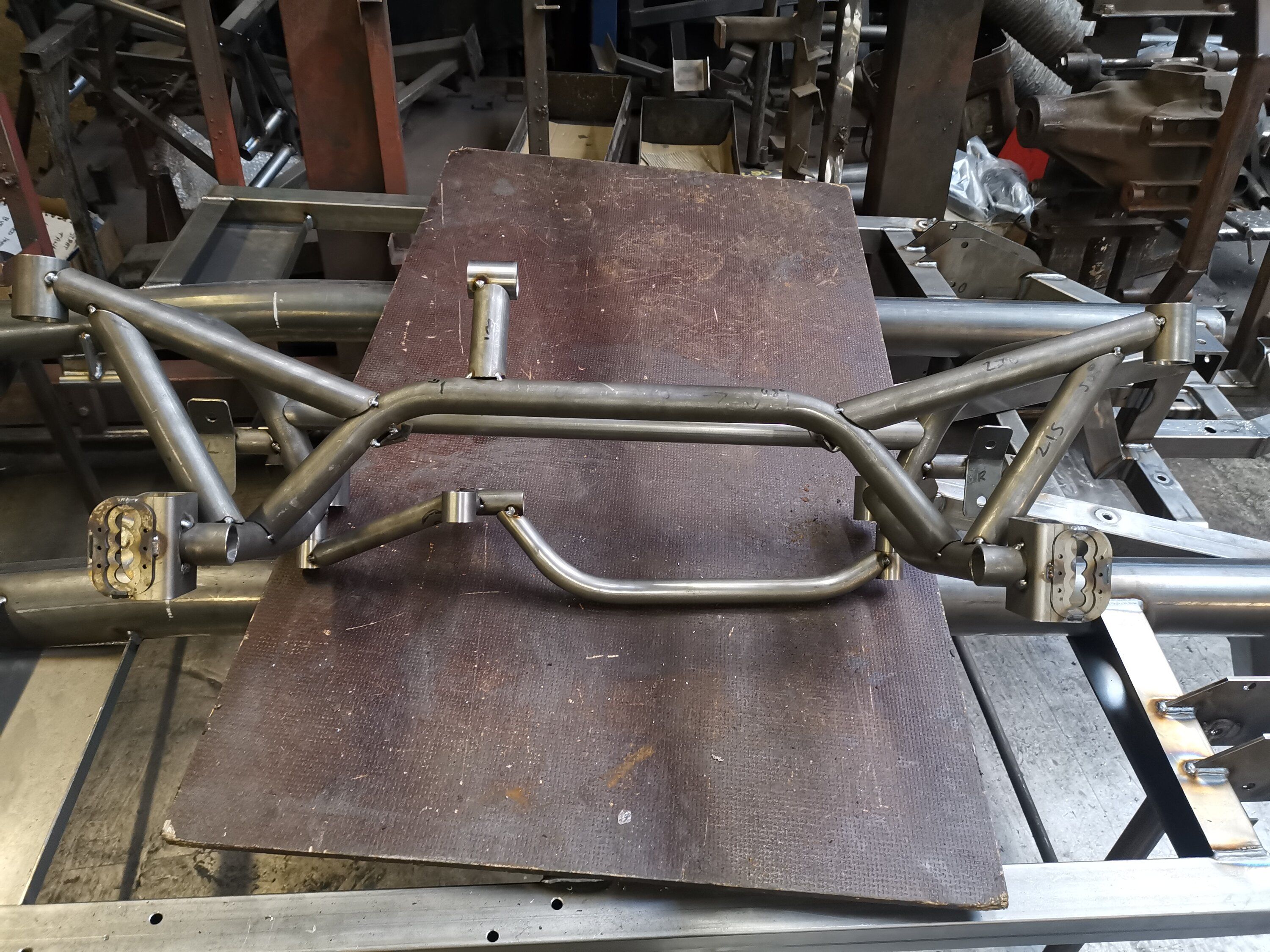

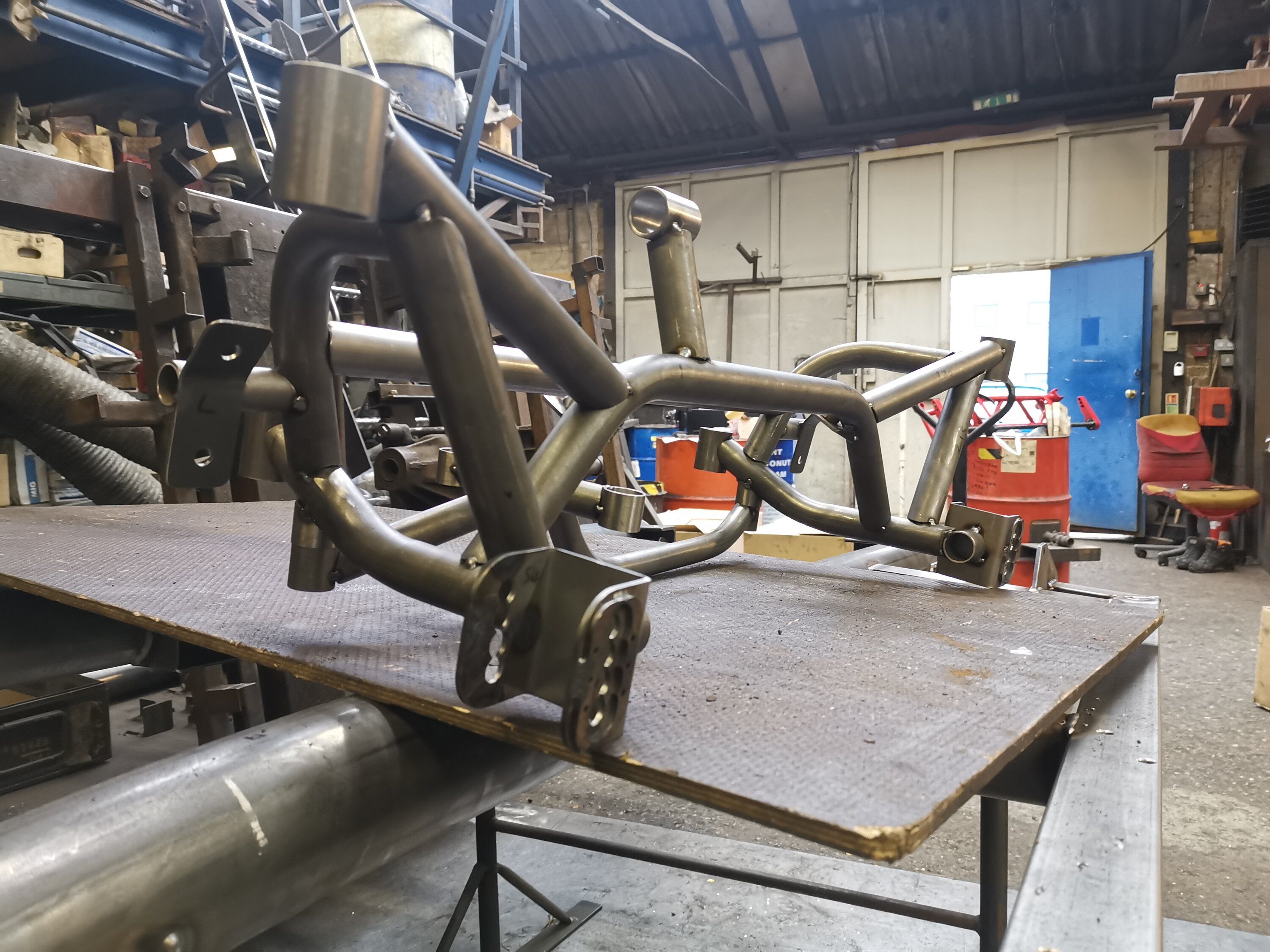

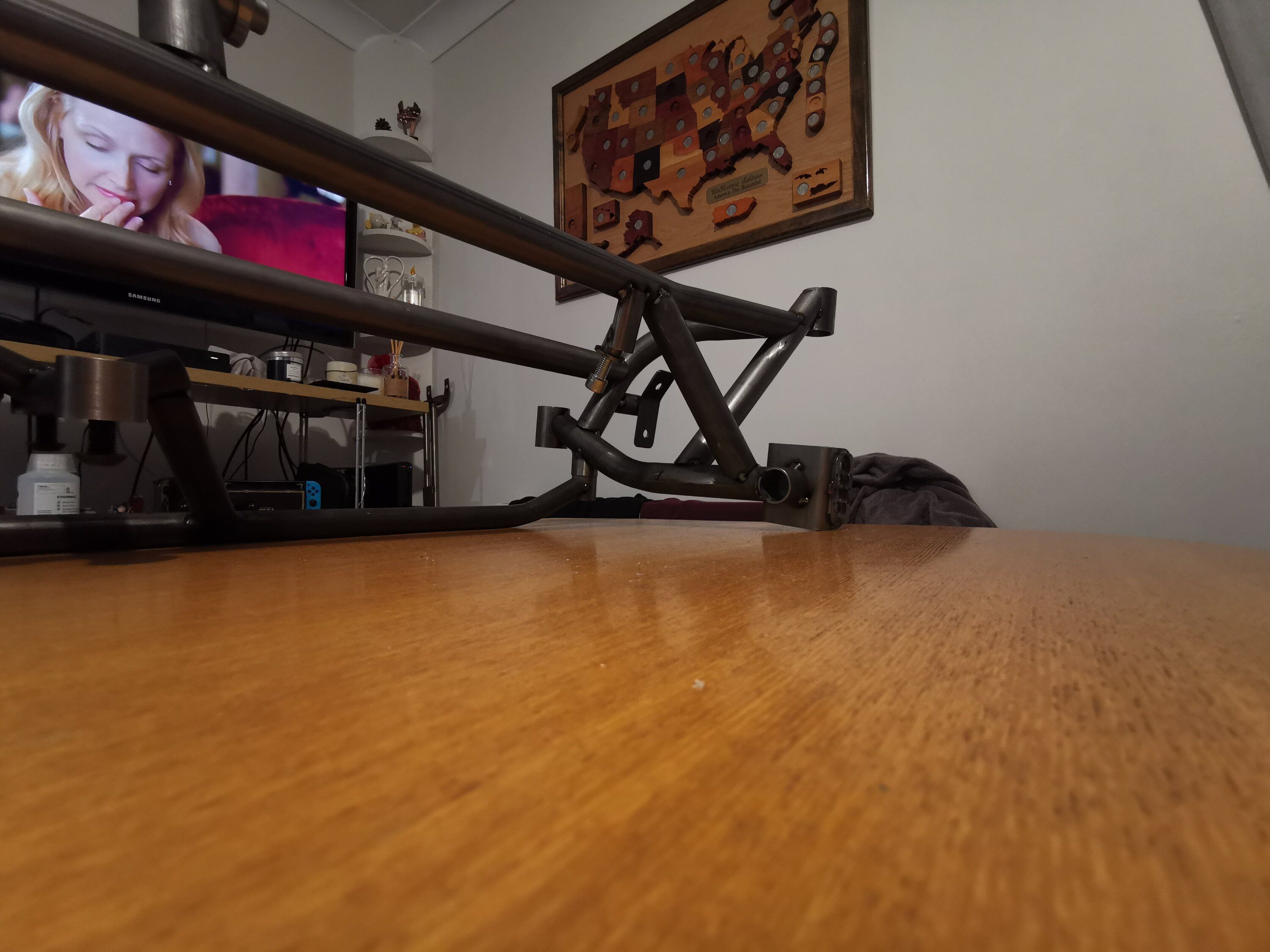

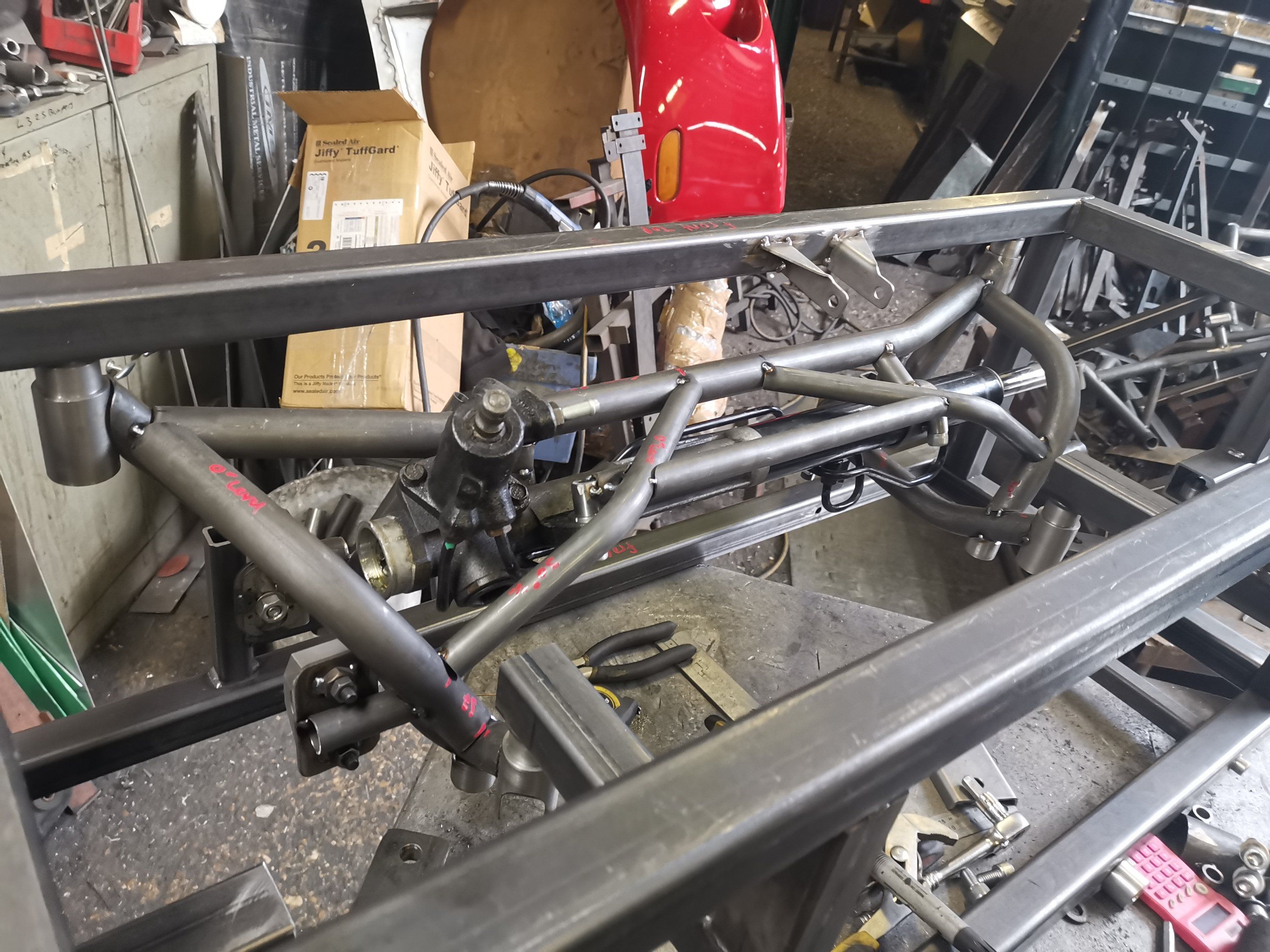

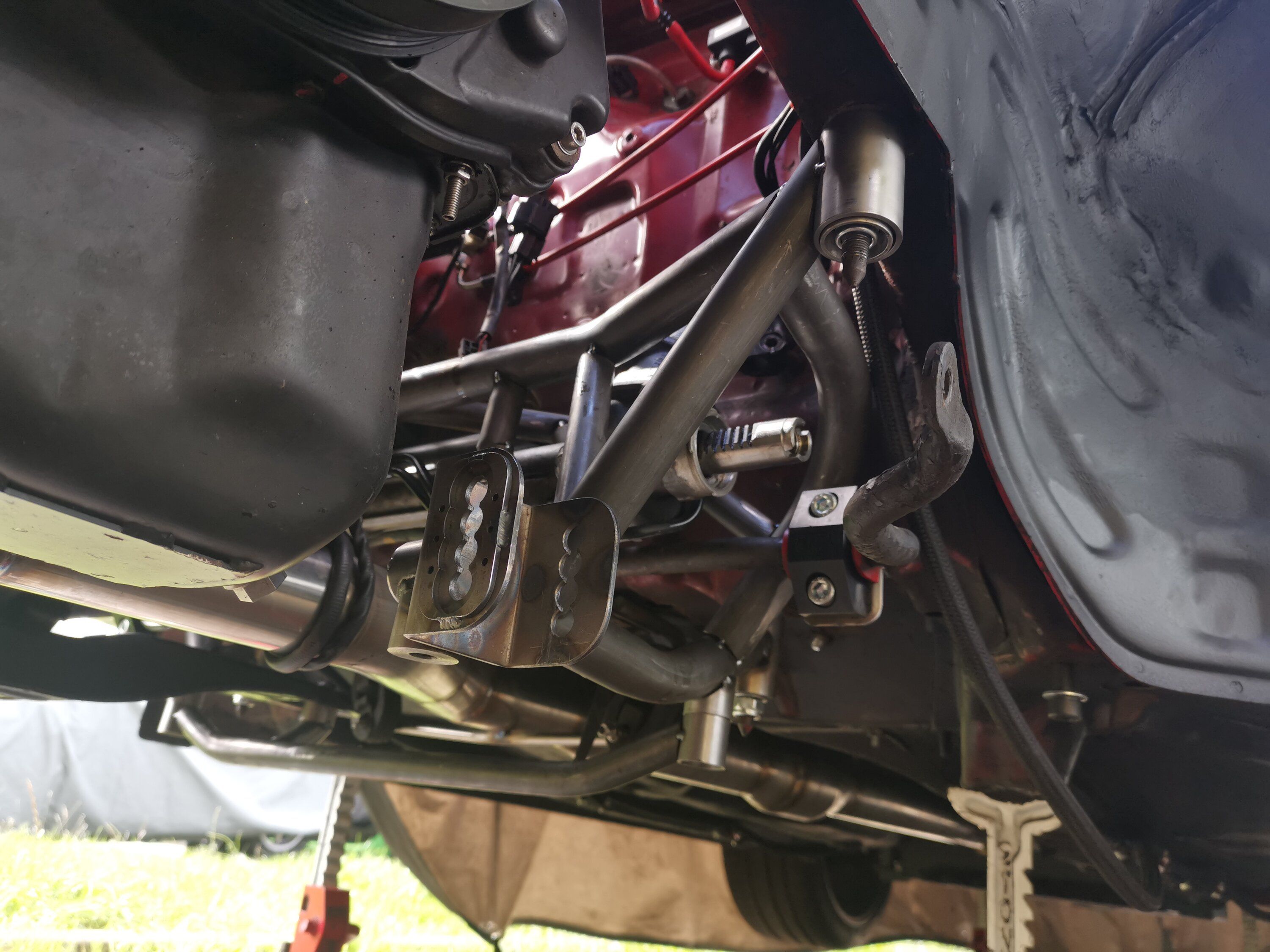

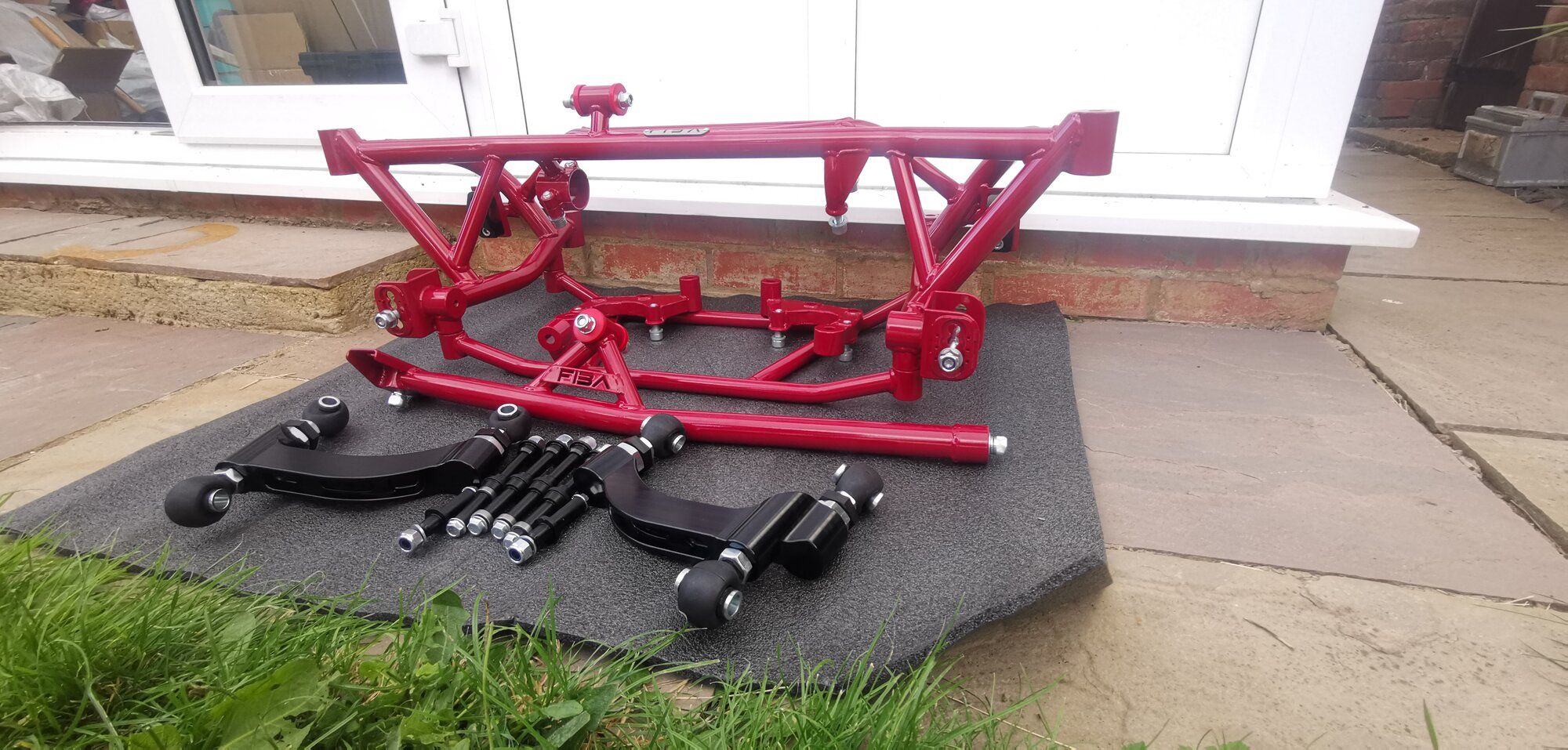

pictures show from design 1 to what I have to date and what is finally ready to weld up once i got my data points
View attachment 611376 View attachment 611377 View attachment 611378 View attachment 611379 View attachment 611380 View attachment 611381 View attachment 611383 View attachment 611384 View attachment 611385 View attachment 611386 View attachment 611387

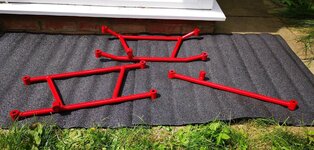

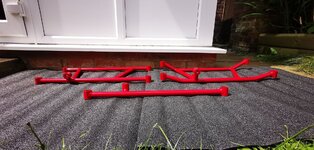

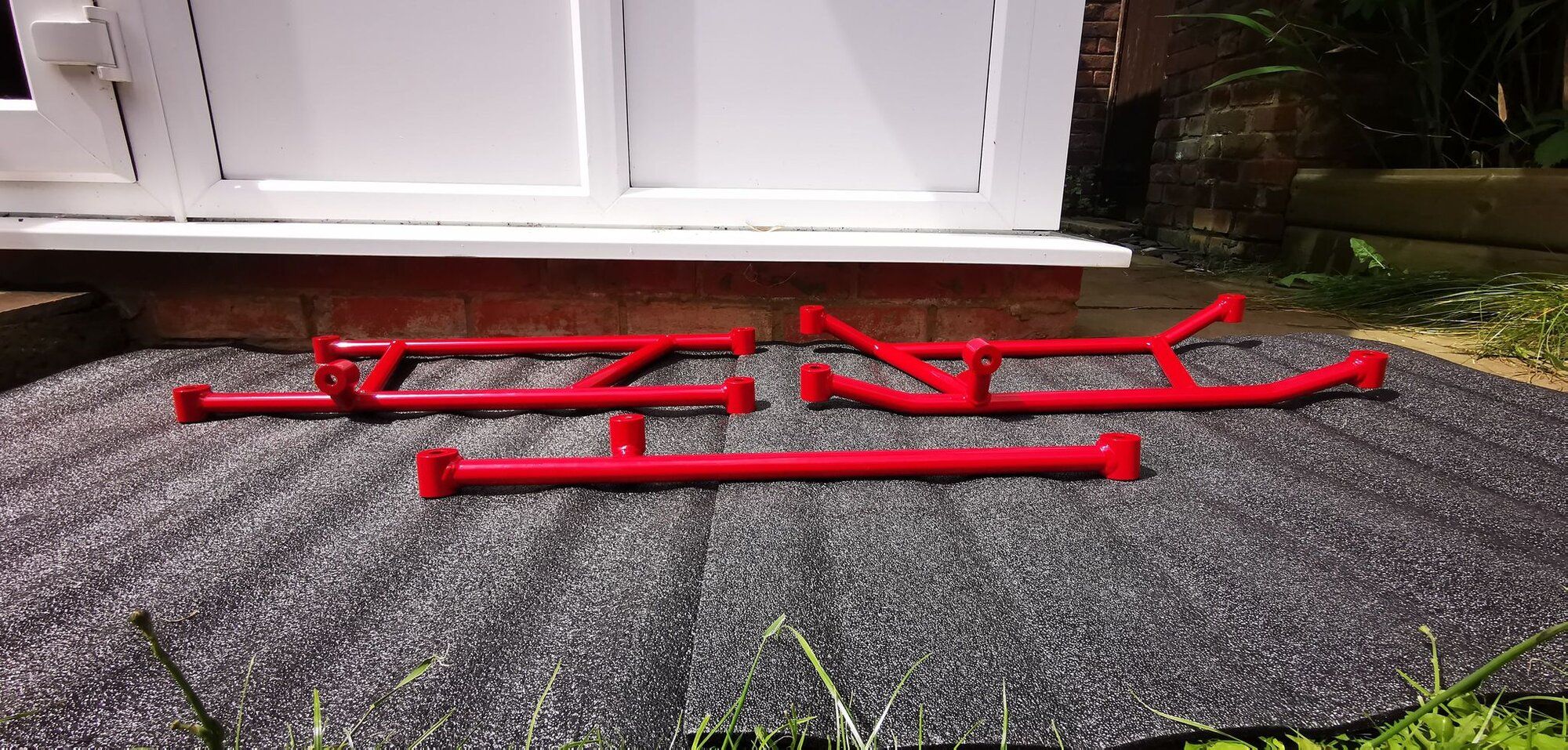

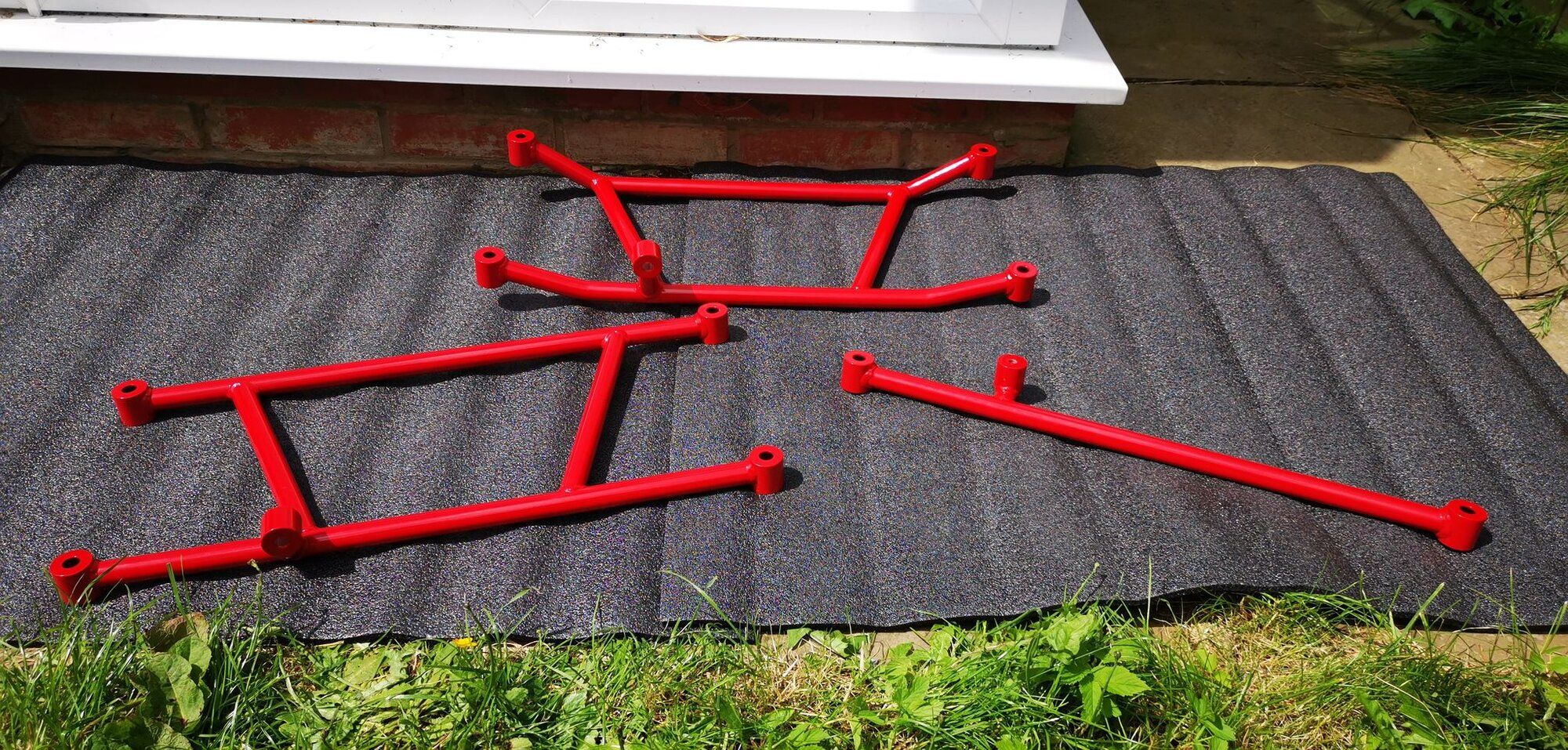

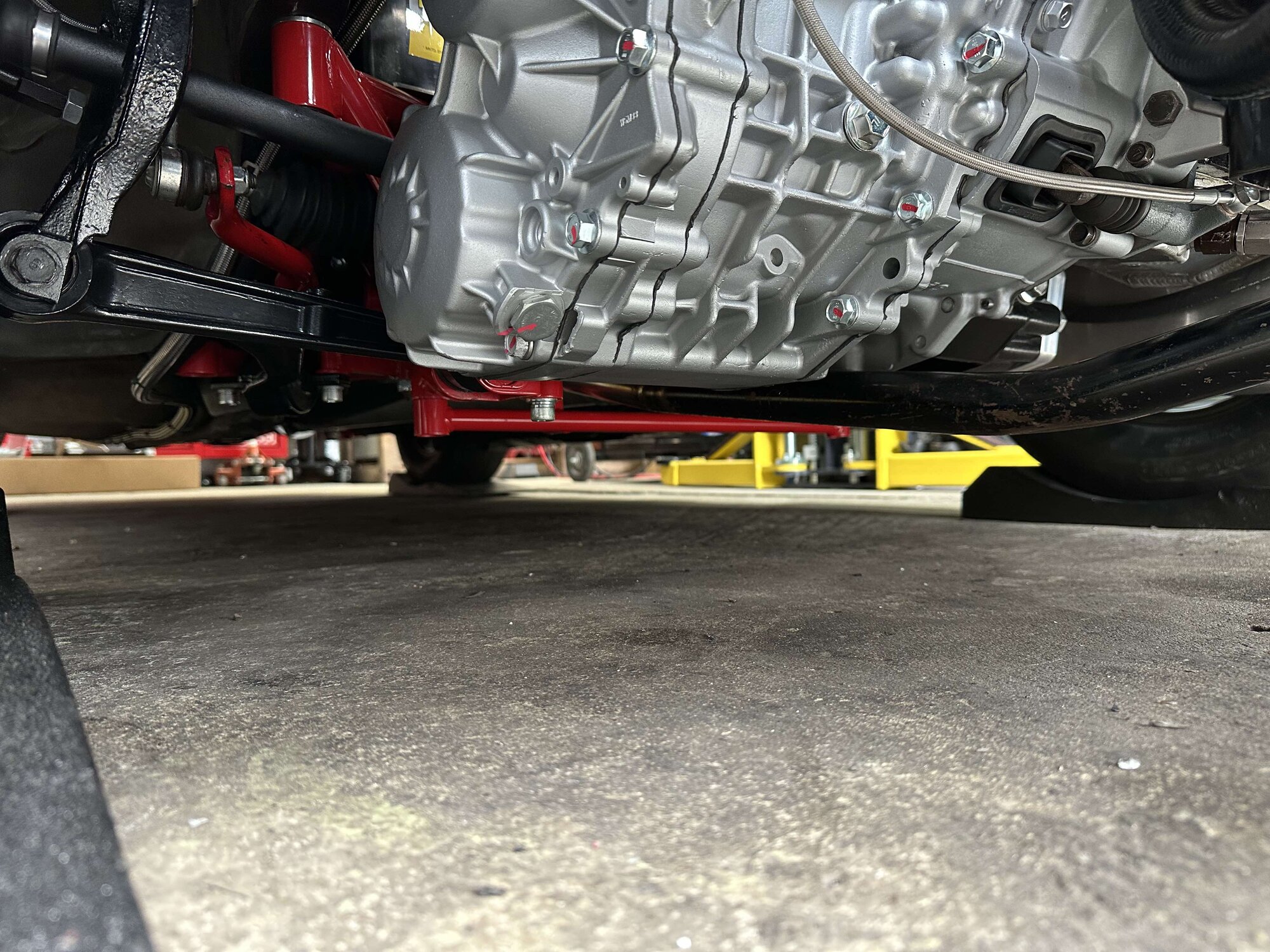

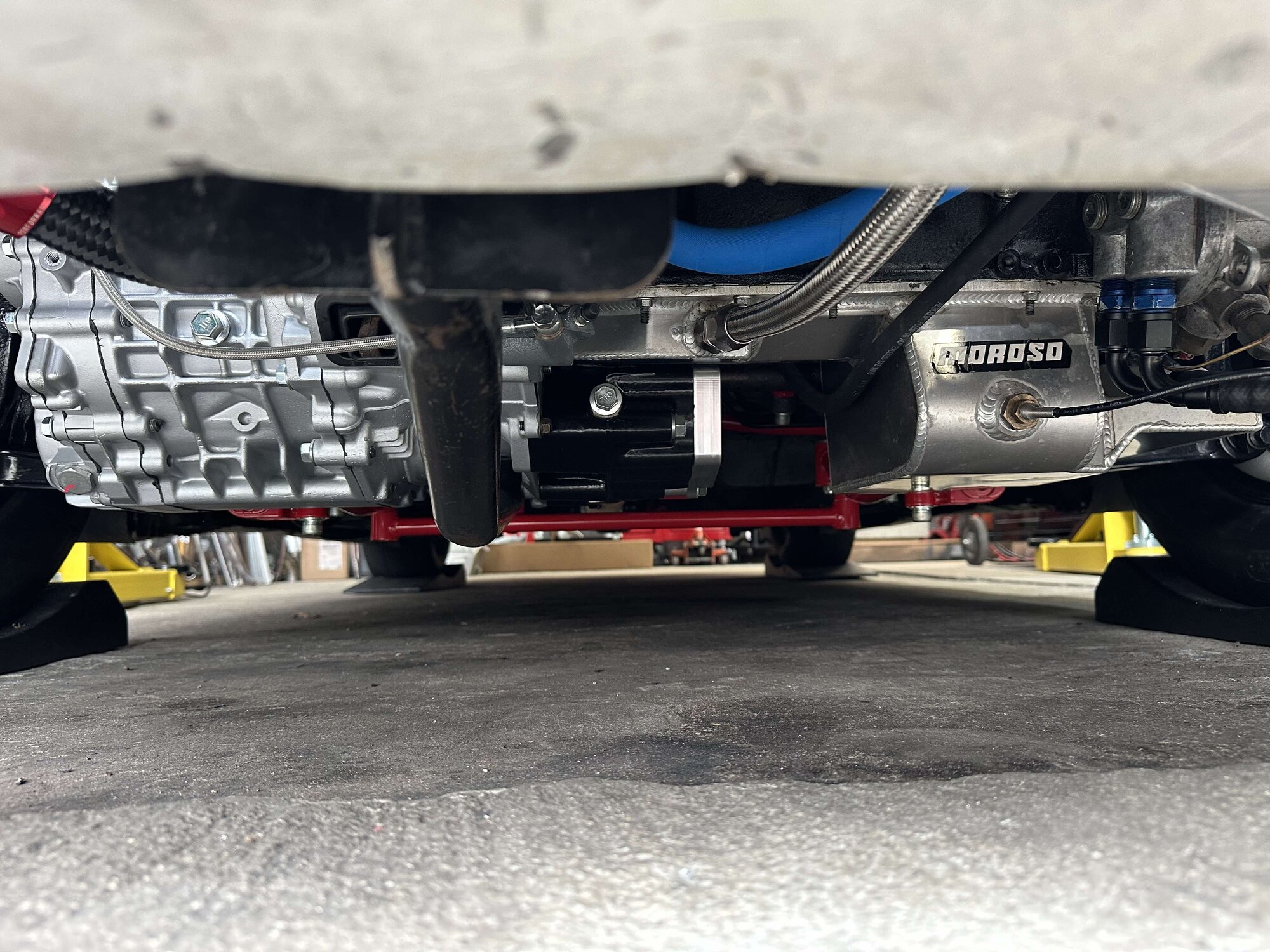

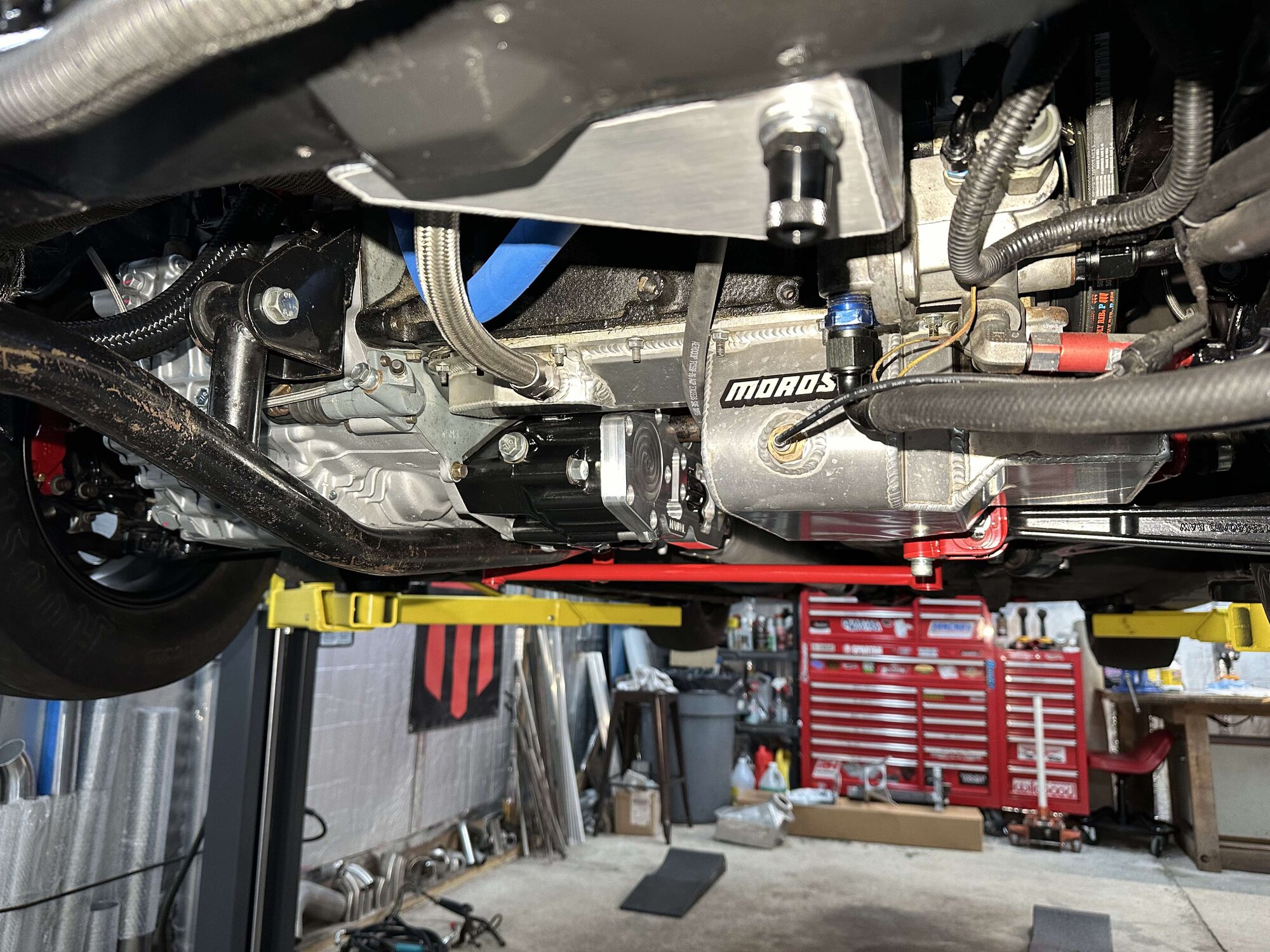

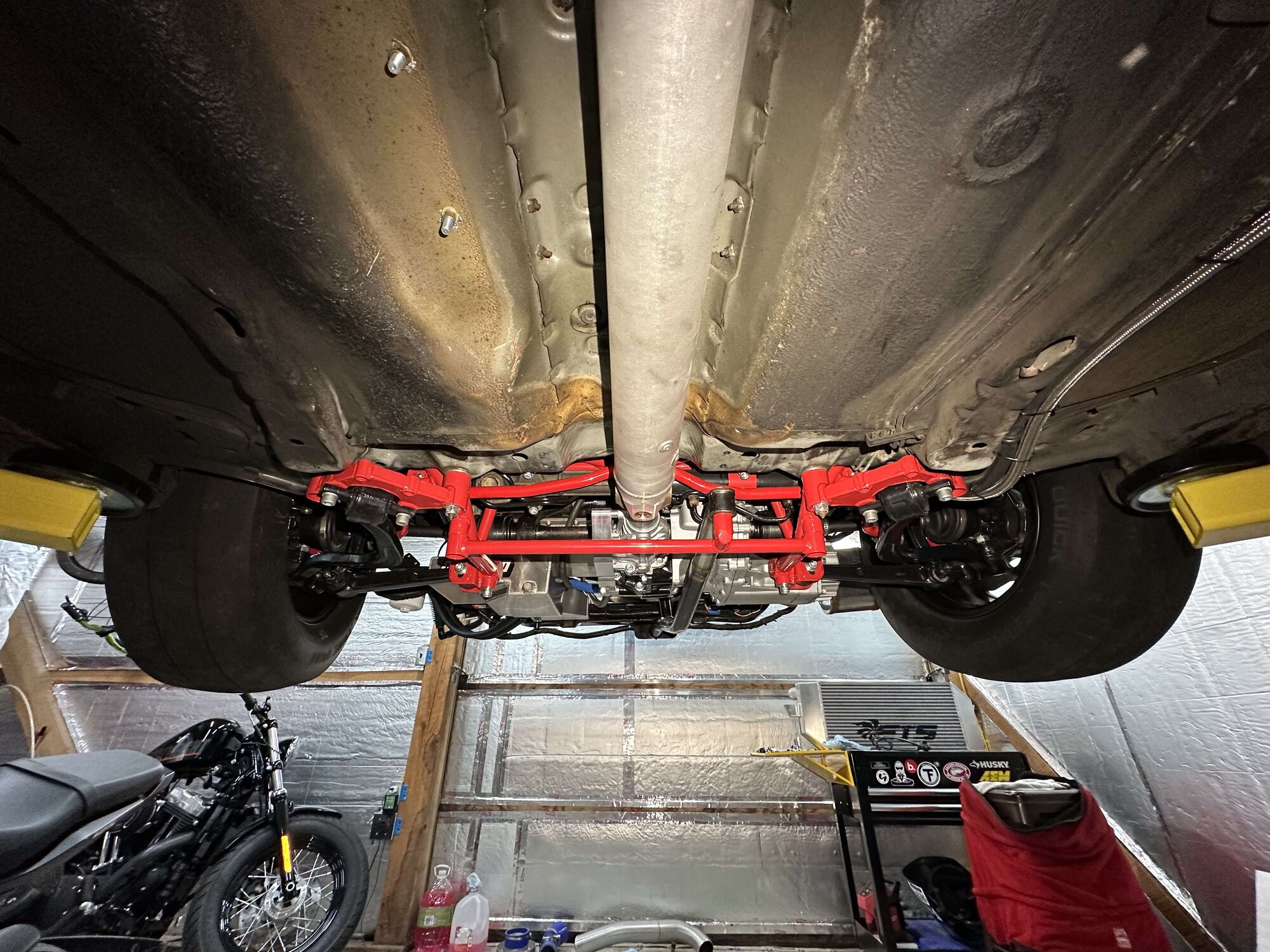

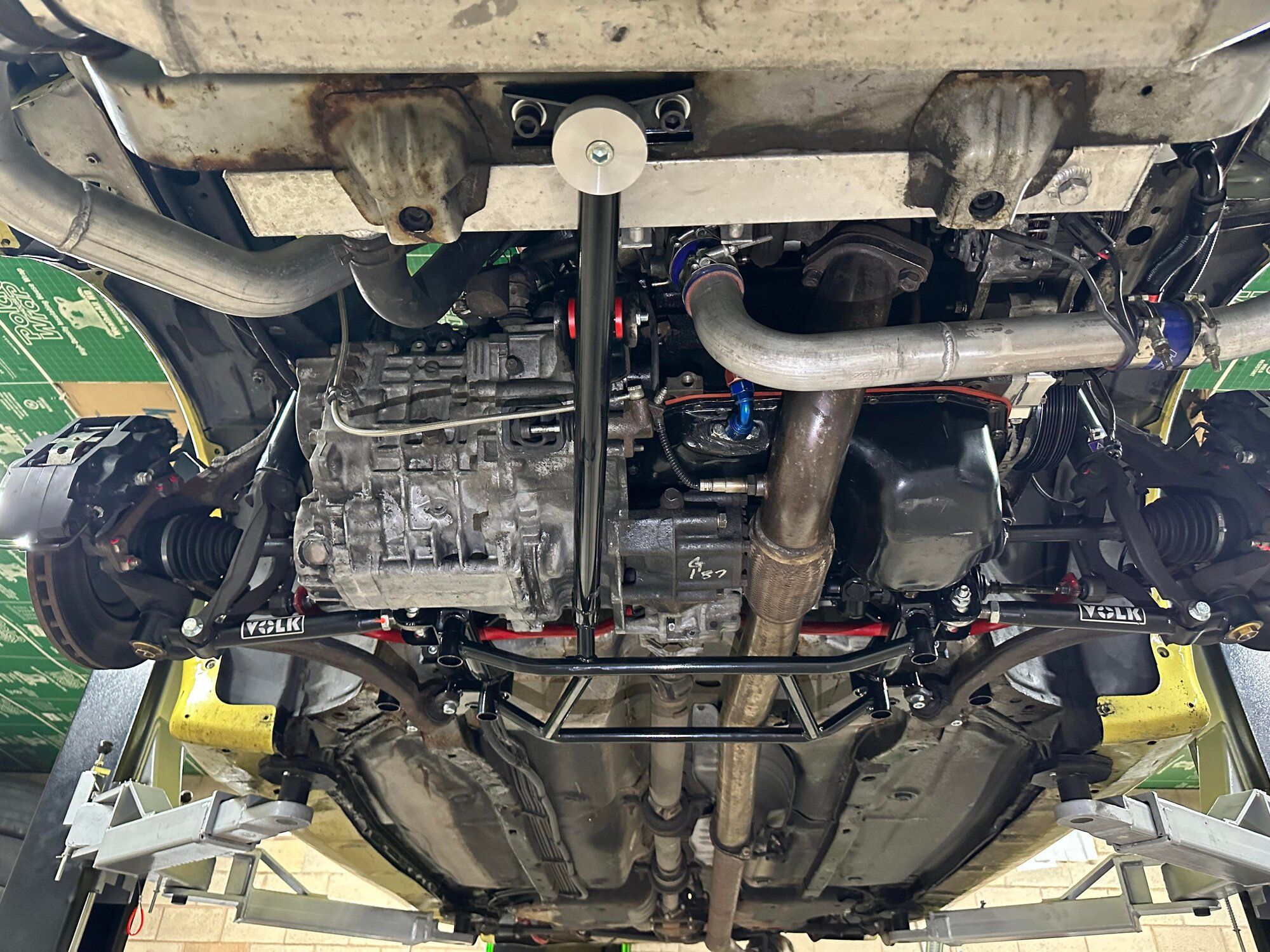

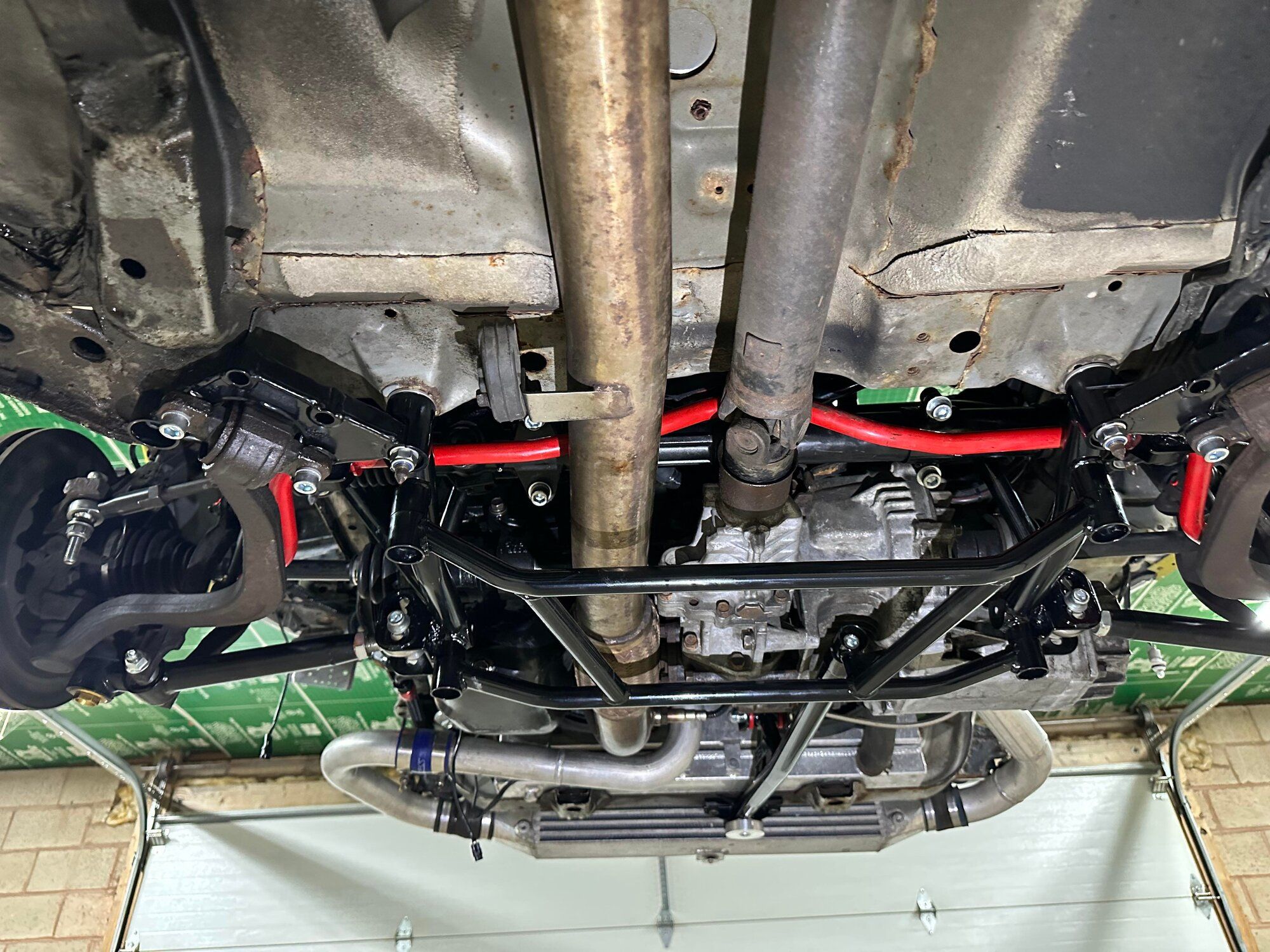

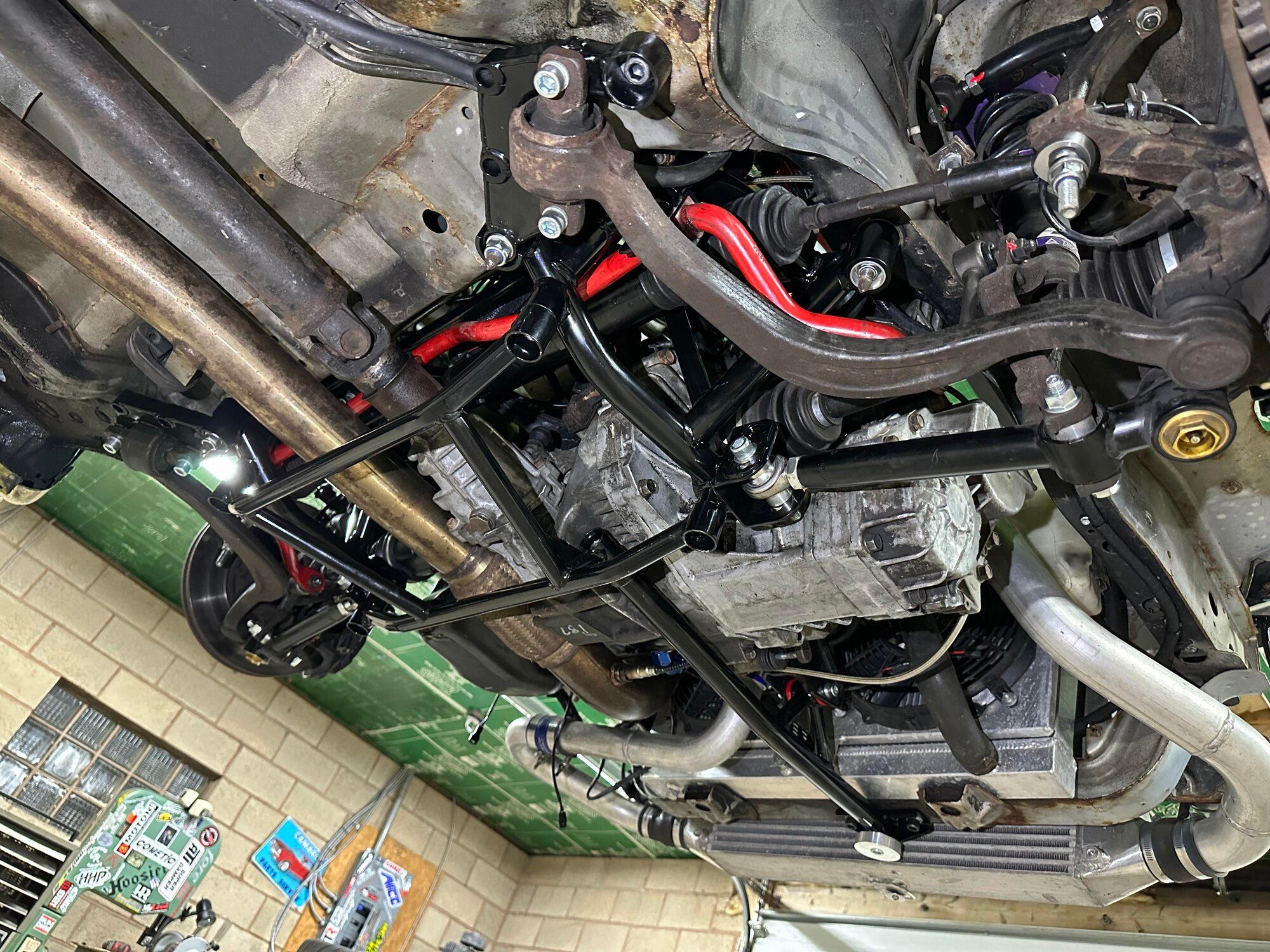

BELOW are the NEW FLAT braces for the frames. This is a revision I have done based upon my personal brace and via requests or questions of them. You can swap braces and everything else will work the same as before.
