Drag Race Build Chale

Chale

Specs & Mods

Ownership Status
Currently Own
Year
1991
Model/Trim
Eagle Talon TSi AWD
Drivetrain
AWD
Transmission Type
Manual
Build Type
  1. Drag Race
Mods-Bolt-on

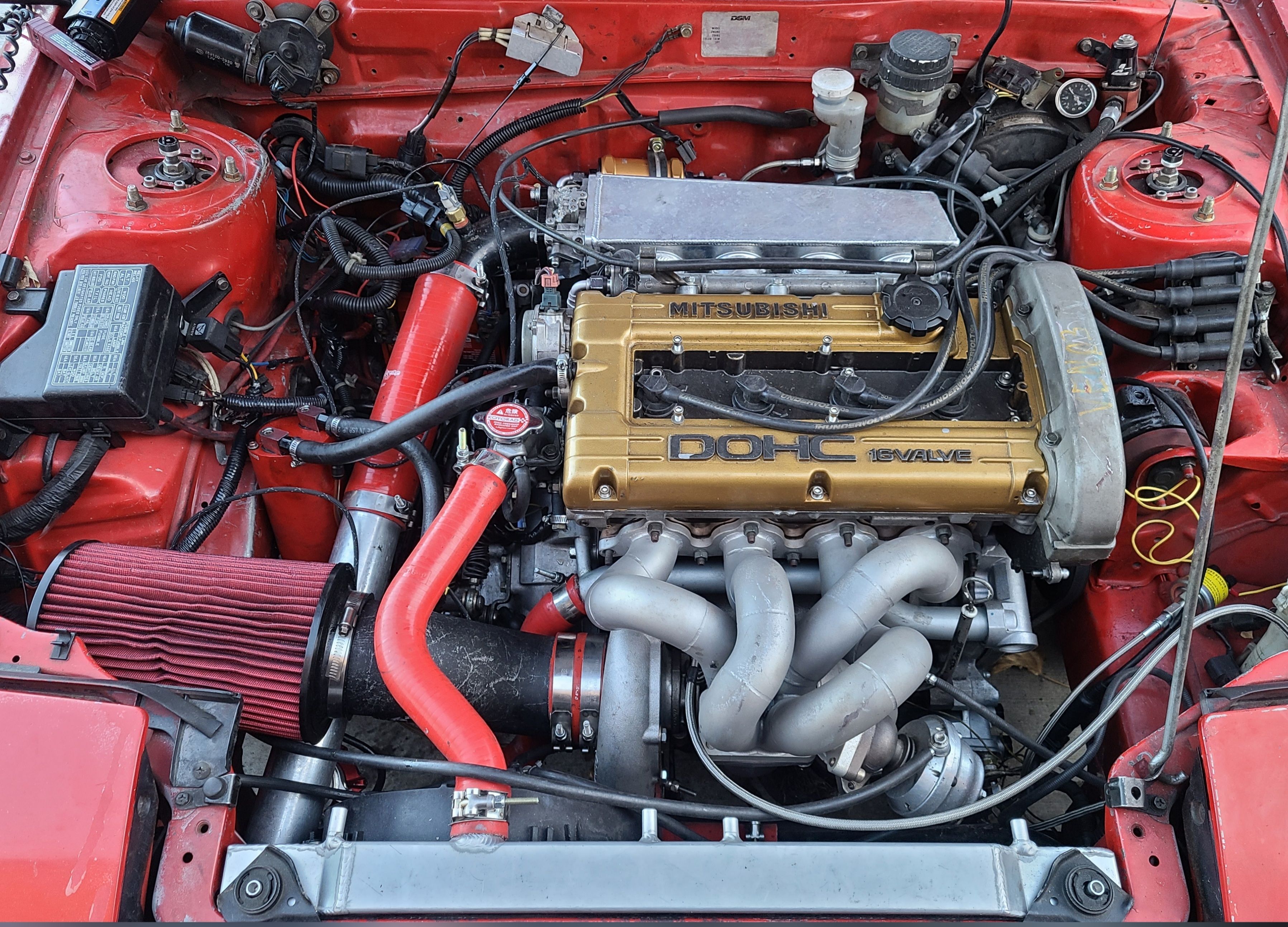

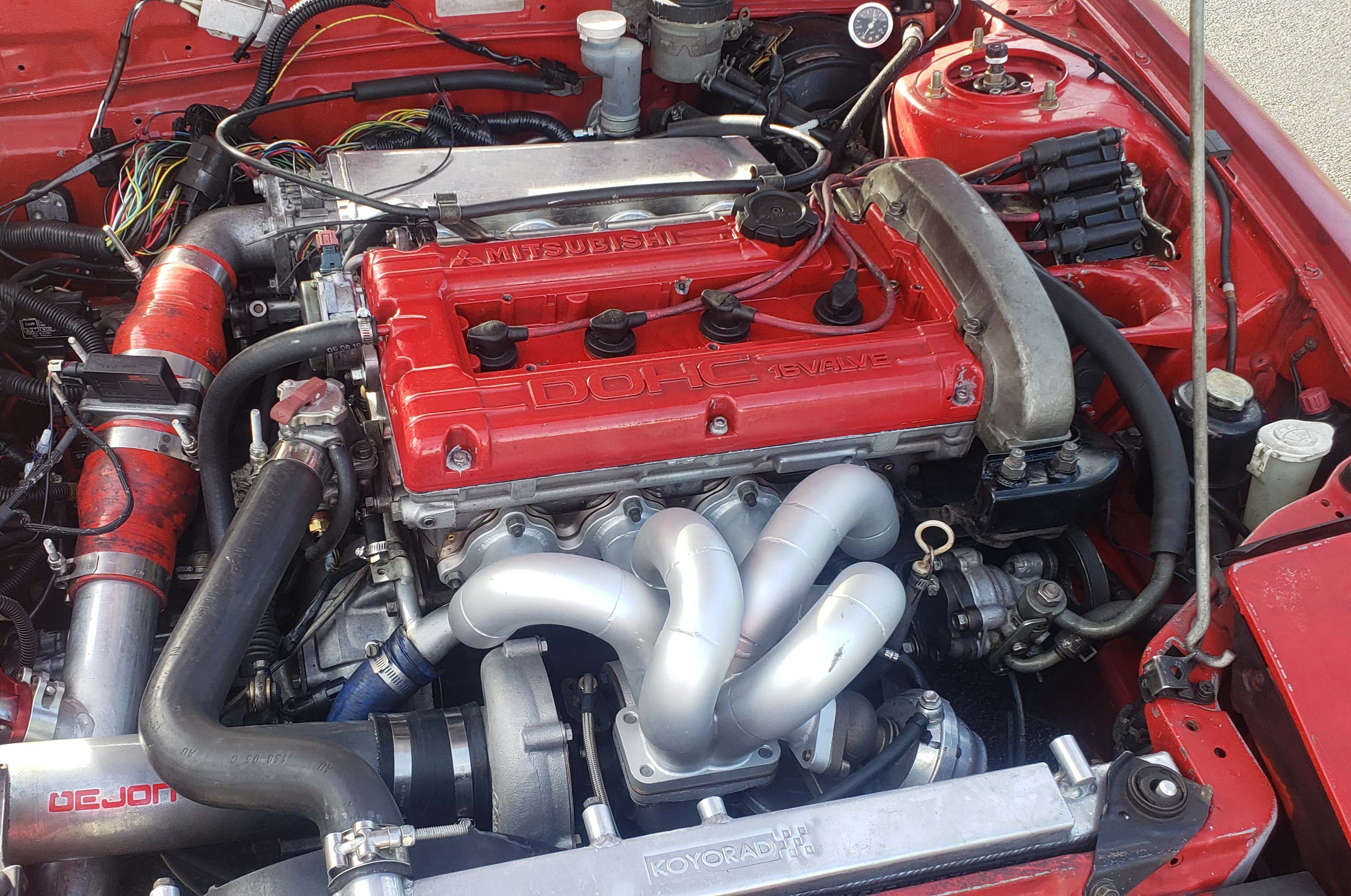

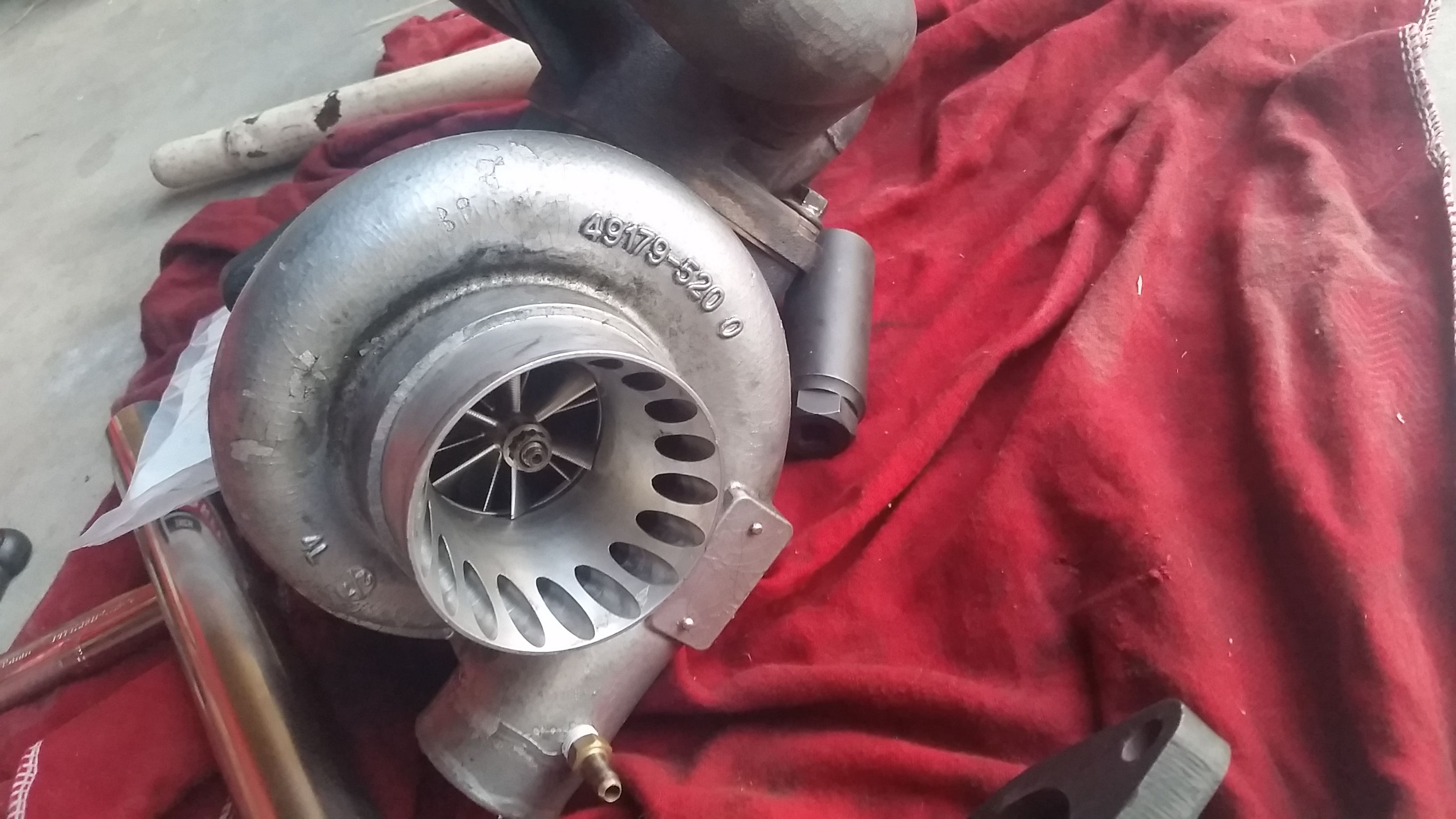

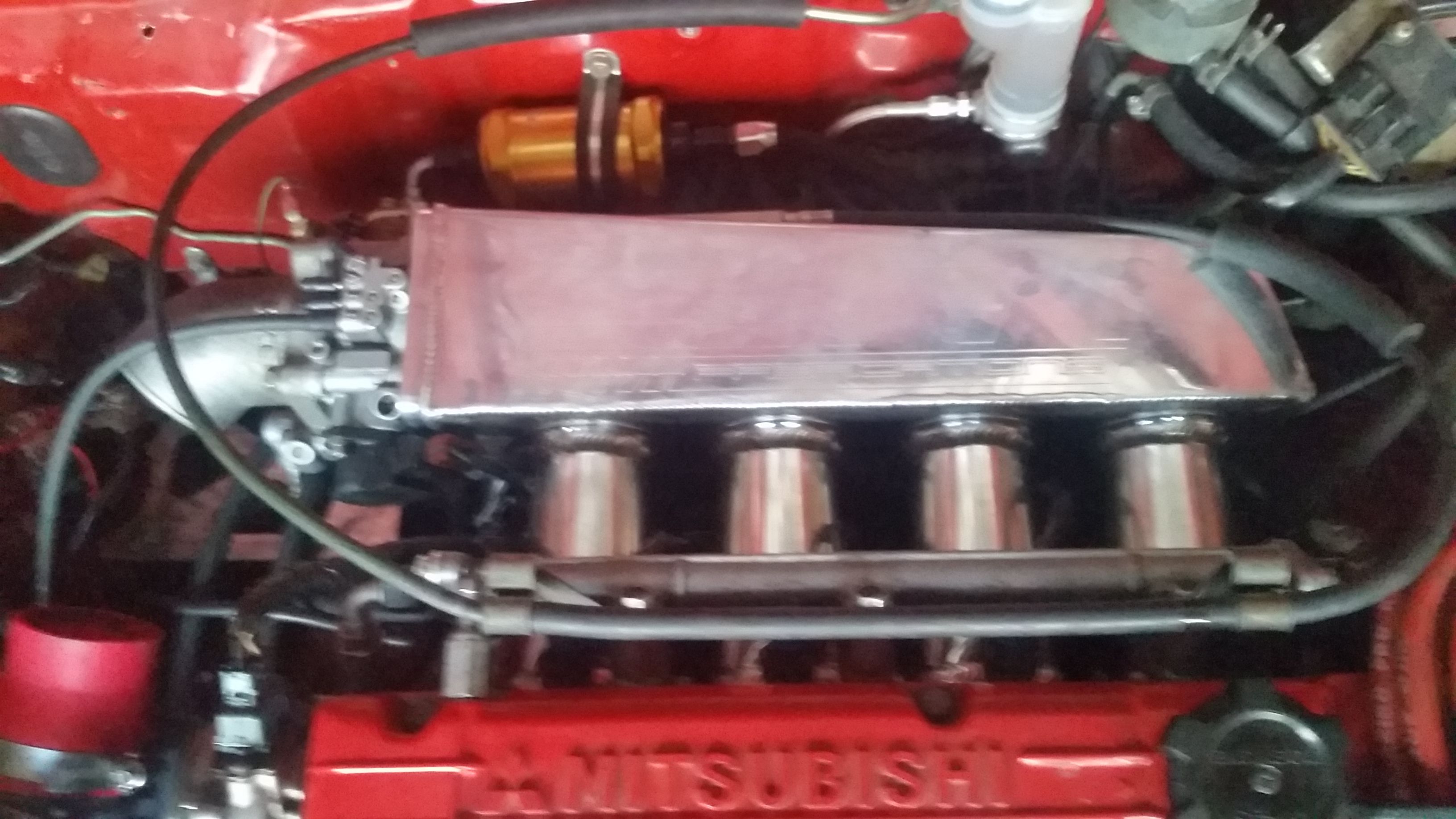

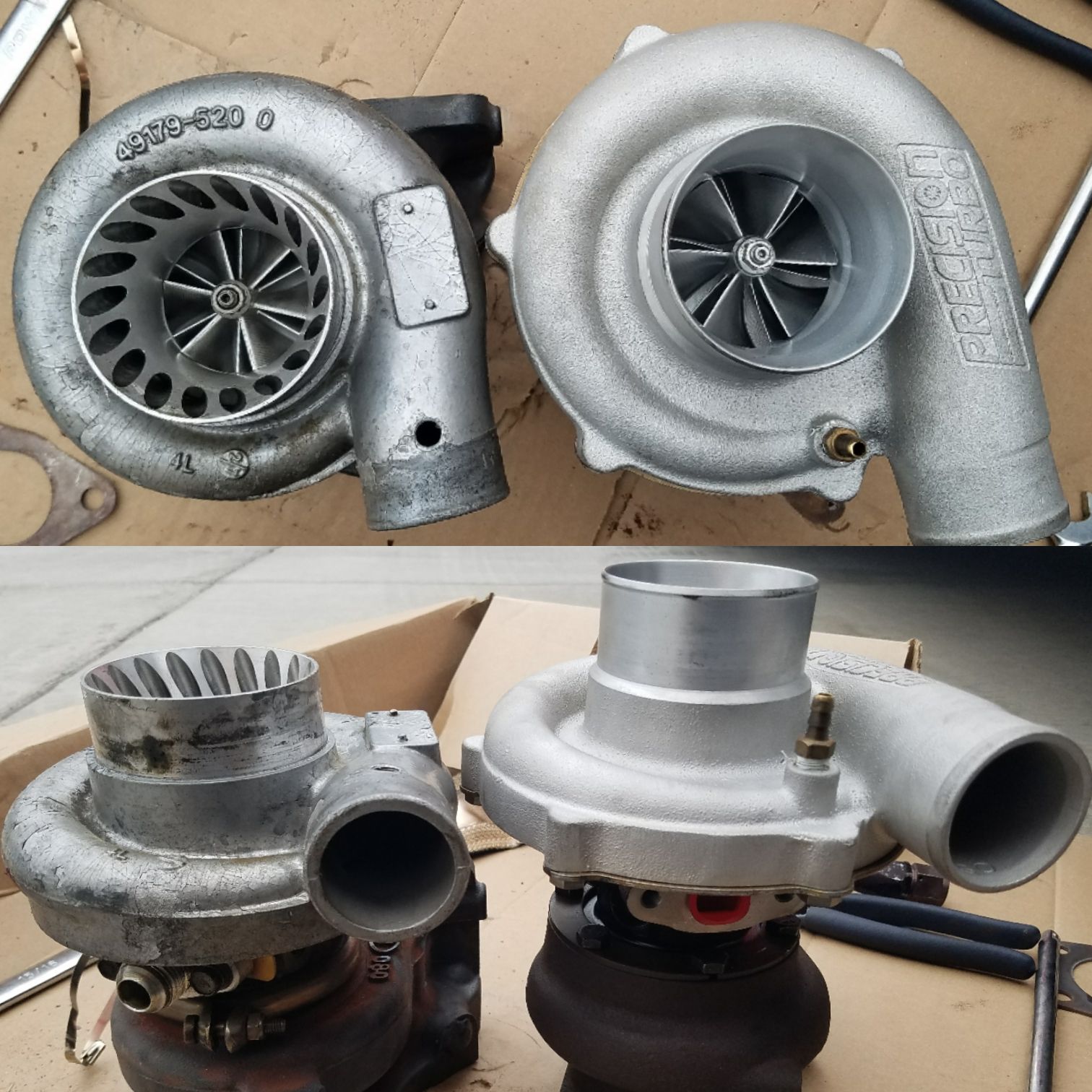

Gen 2 6266 Dbb, Punishment t3 manifold, o2 and 3" downpipe, tial 44 MVR, Jmfab race intake manifold, Fuel lab -6 tank to Rail fuel lines and filter, Aeromotive Adjustable FPR, 3" punishment downpipe and Thermal r&d catback exhaust, FP intake and Dejon front mount.
Mods-Engine
Kelford 272 cams, AEM tru time gears, kiggly HLA and HP valve springs, stainless valves, Wiseco 9.0, eagle rods, OEM crank, Fluidampr pulley. ARP main and l19 head studs, ARC-2, OEM coil pack, Taylor 10mm spark is wires, BR8ES, Rewired Walboro 450. Alpha injection 2200cc. Evospec performance underdrive water pump pulley. Jay's racing alt relocation with GM alternator.
Mods-EMS & Logging
Ecmlink v3, lc2 wideband. Ingersoll-rand 3-port, odyssey pc925
Mods-Drivetrain
Jacks trans stage 1 rebuild, 4 spider diff, double synchro 1-2, Southbend b-series, ssx-2700, Stainless braided clutch hoses, OEM flywheel, white shed speed shifter cable trans bracket insert, Symborski shifter kit, short throw shifter, rebuilt pedal assembly with bronze bushings.
Mods-Handling
Evo 8 Ohlins coil overs, SCE adapters. New front control arms, stabilizer end links. Rear subframe Energy suspension. Volk toe elminator, rear upper and lower control arms. Manual steering rack. Evo x BBS. Continental ContiSport Contact tires.
Background
Was the car I was getting the parts for the laser from. but just couldn't let it be taken to the junkyard so I bought it and got her running. I'm going to continue moving forward with a drag set up in mind. Car's best time was 11.9 and around 450 whp with previous owner.

Performance

Dyno HP
605.8 whp
Dyno TQ
527.4 lb/ft
Dyno Type
DynoJet
Dyno Video Link
Watch Video
Dyno Shop Name
Finishline industries
Dyno Session Details
Baseline pull. 10.8 afr, 38 psi.

Videos

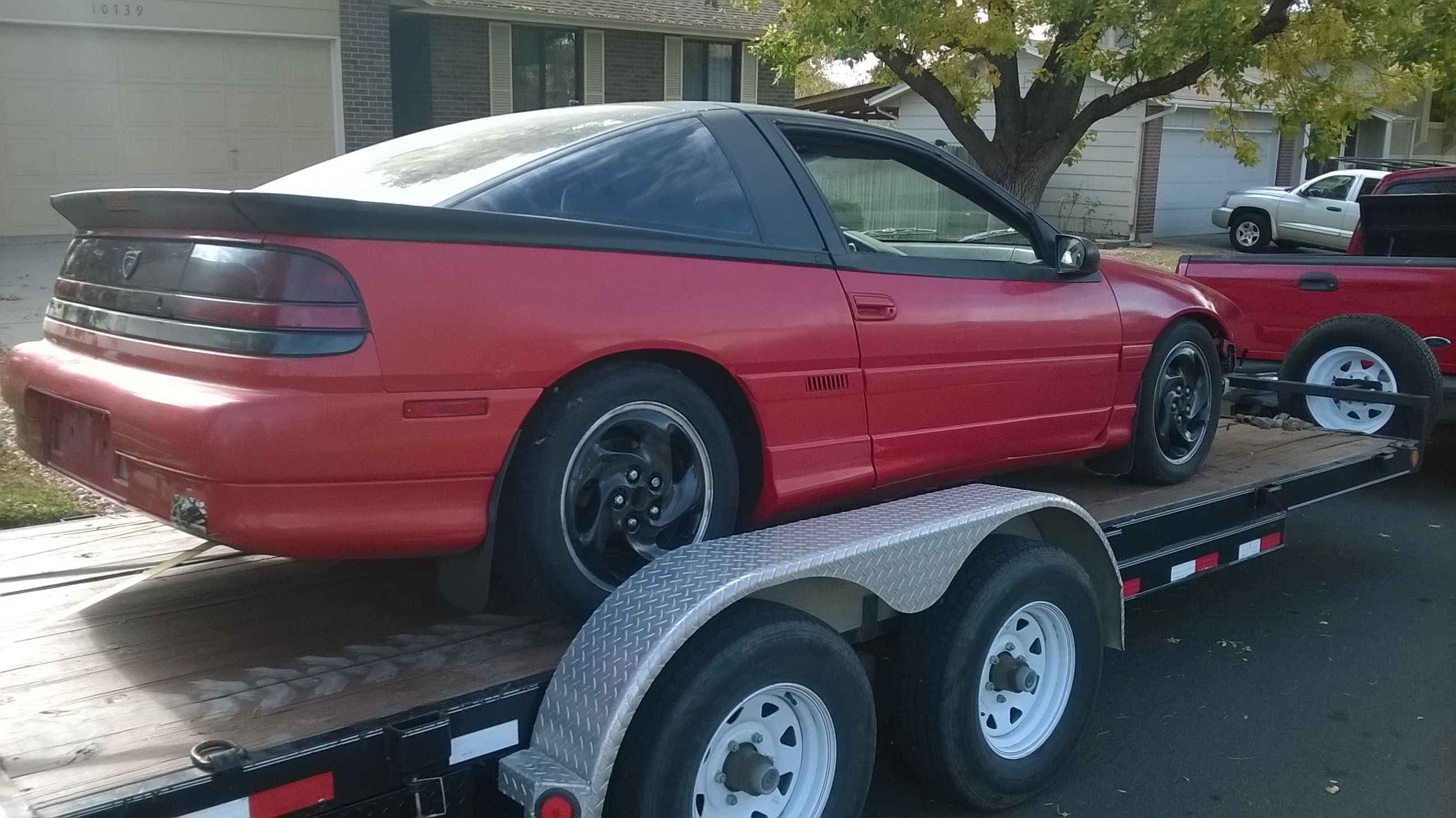

  • Talon Rear side.jpg
    Talon Rear side.jpg
    1.3 MB · Views: 452

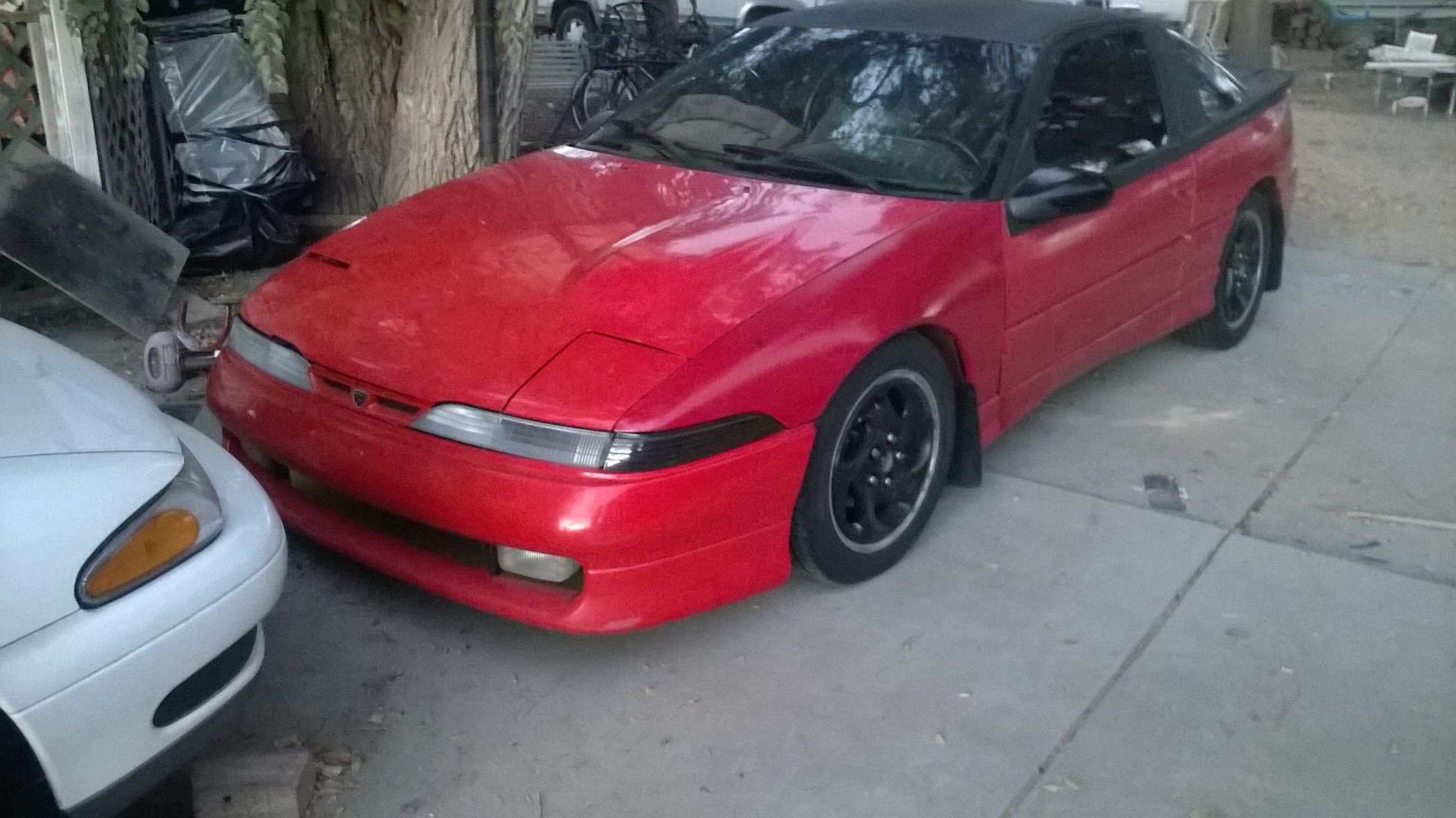

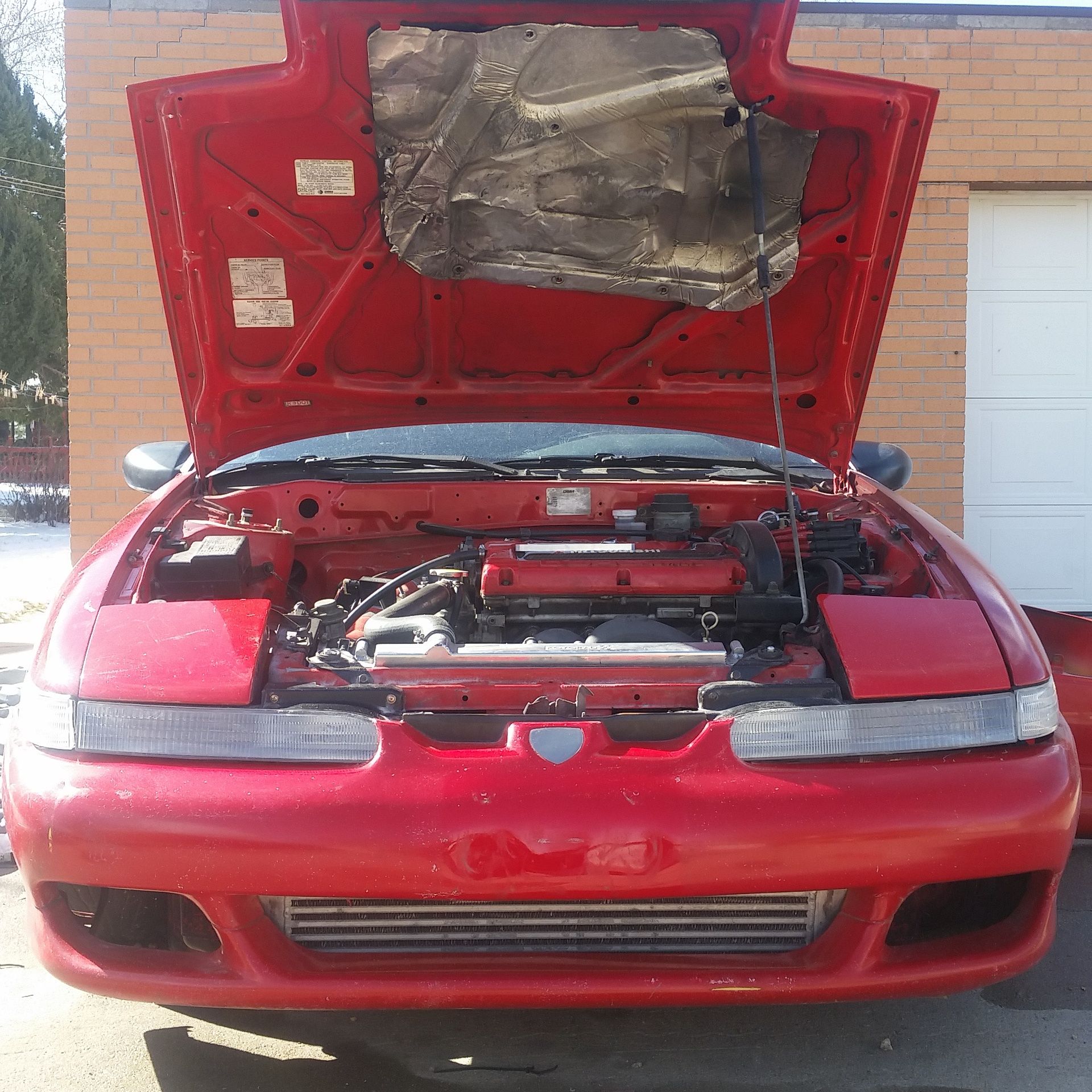

  • Talon front.jpg
    Talon front.jpg
    1.5 MB · Views: 461

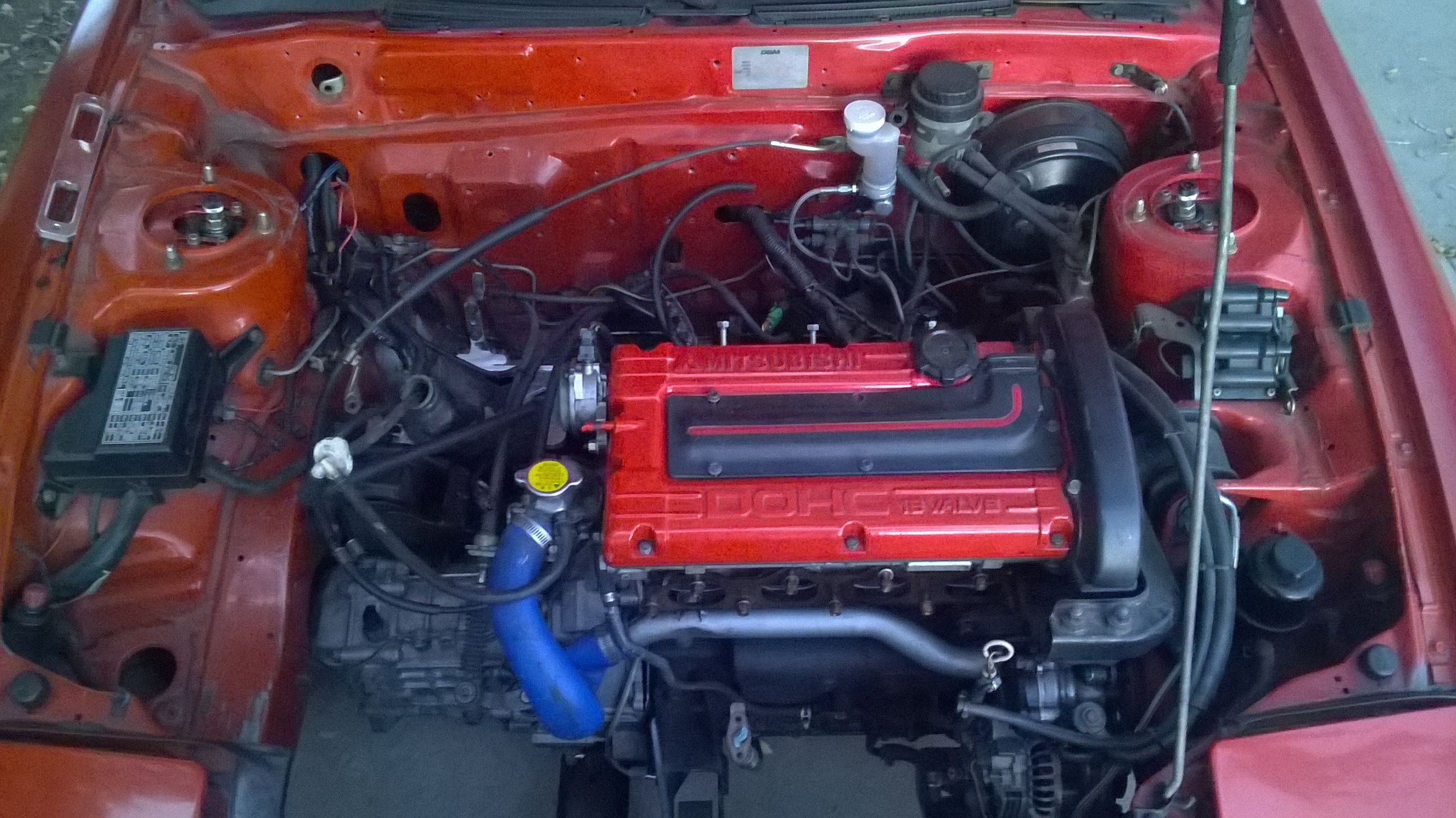

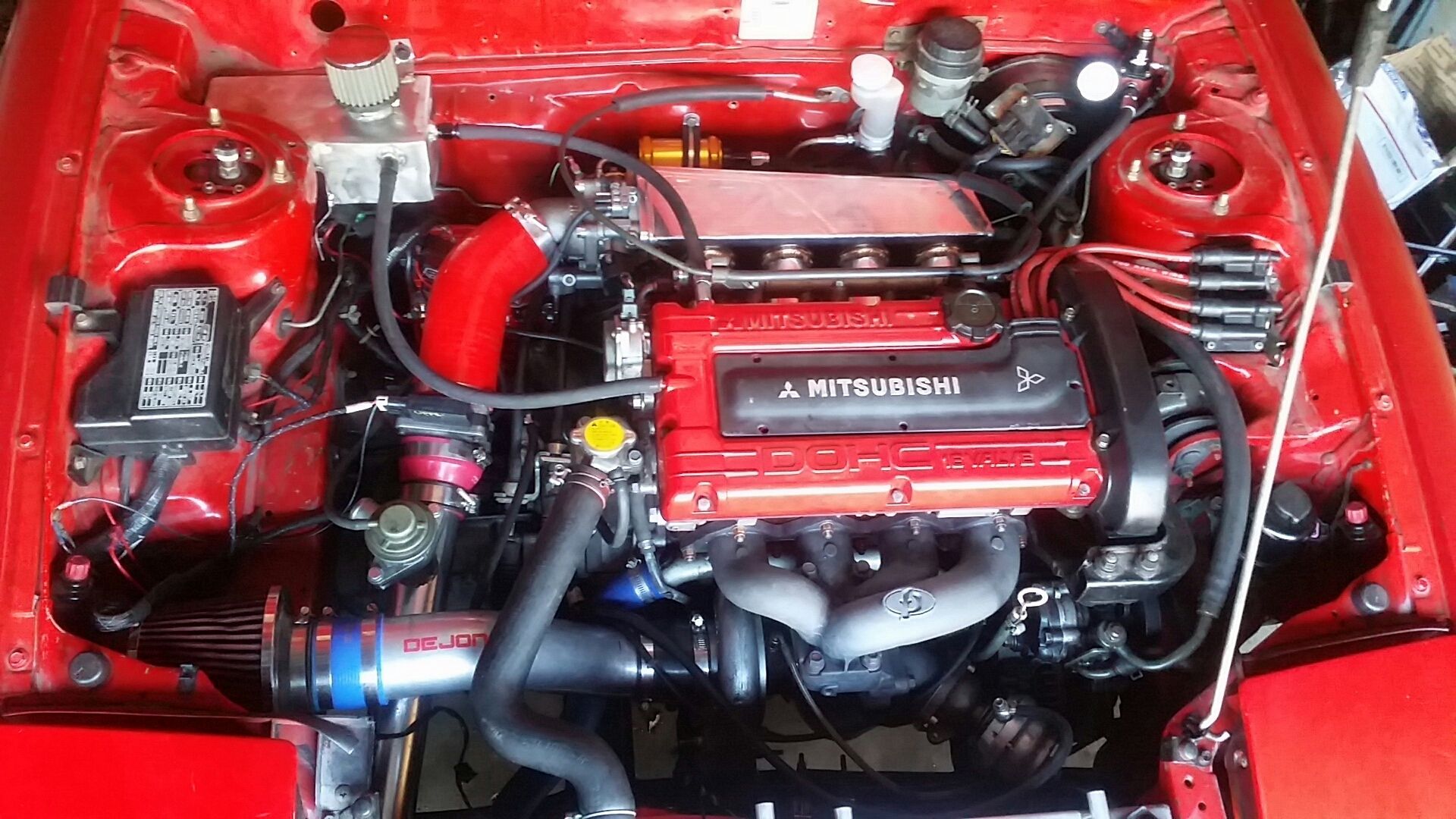

  • Talon bare bay.jpg
    Talon bare bay.jpg
    1.6 MB · Views: 452
  • 2016-02-07 14.20.07.png
    2016-02-07 14.20.07.png
    1.9 MB · Views: 364
  • 2016-02-10 17.45.03.jpg
    2016-02-10 17.45.03.jpg
    1 MB · Views: 349
  • 20160310_170500.jpg
    532.3 KB · Views: 347
  • 20160310_174600.jpg
    1.4 MB · Views: 339
  • 20160310_174605.jpg
    1.5 MB · Views: 326
  • 2016-03-22 17.53.40.jpg
    2016-03-22 17.53.40.jpg
    1.3 MB · Views: 289

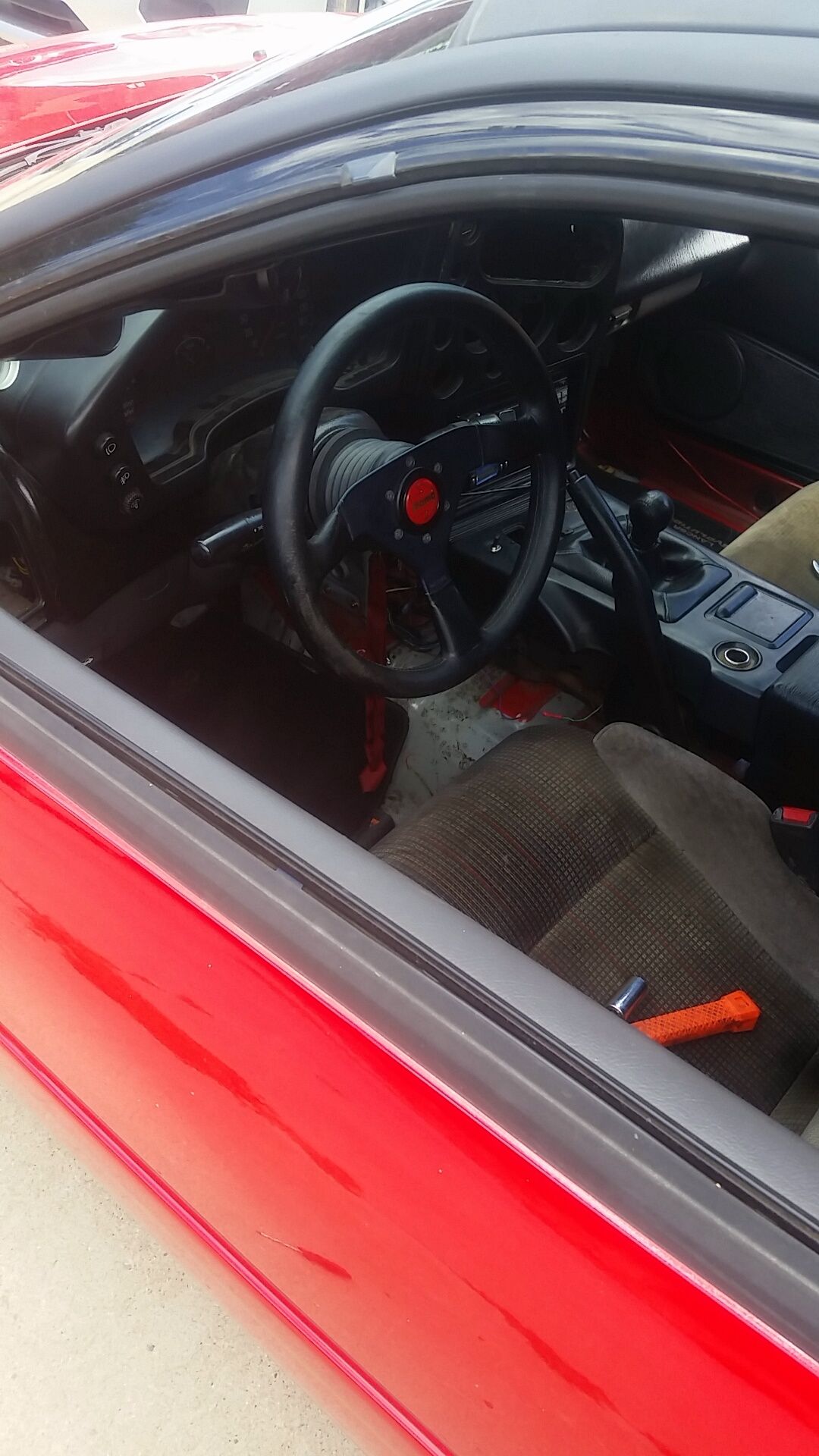

  • New momo.jpg
    New momo.jpg
    547.6 KB · Views: 199

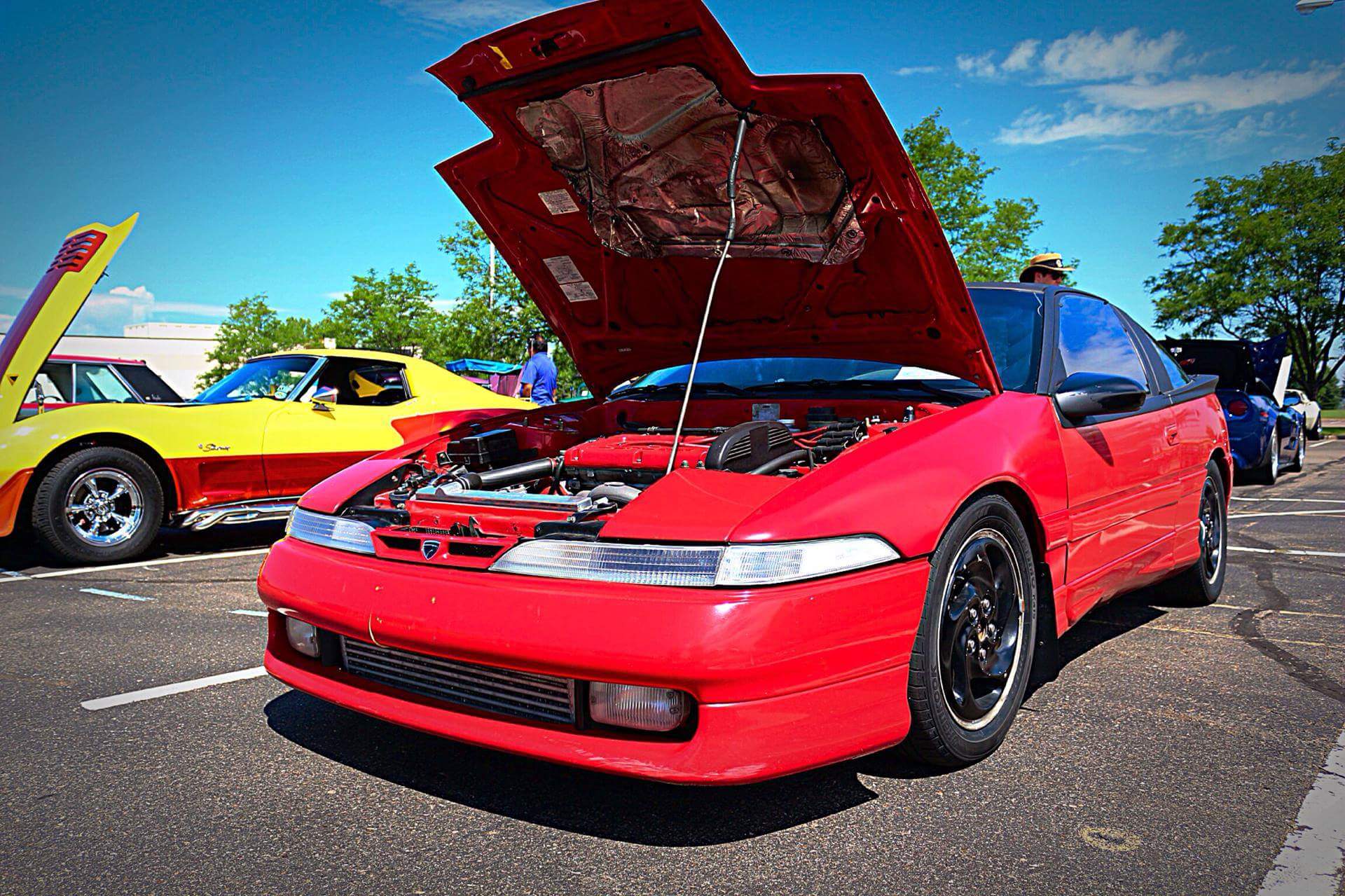

  • Carshow 2.jpeg
    Carshow 2.jpeg
    450 KB · Views: 224
  • Carshow 1.jpeg
    Carshow 1.jpeg
    381.1 KB · Views: 223
  • 1gb front.jpg
    1gb front.jpg
    1.3 MB · Views: 159
  • Instasize_0923124812.jpg
    1.2 MB · Views: 124
  • Instasize_0923230626.jpg
    1.1 MB · Views: 128
  • PSX_20200104_224509.jpg
    584.1 KB · Views: 61
  • received_1728513787228067.jpeg
    748.6 KB · Views: 60
  • received_1728516593894453.jpeg
    264.1 KB · Views: 56
  • IMG_20200511_190350_983.jpg
    479.9 KB · Views: 18
  • 20201220_220250.jpg
    2.6 MB · Views: 15
